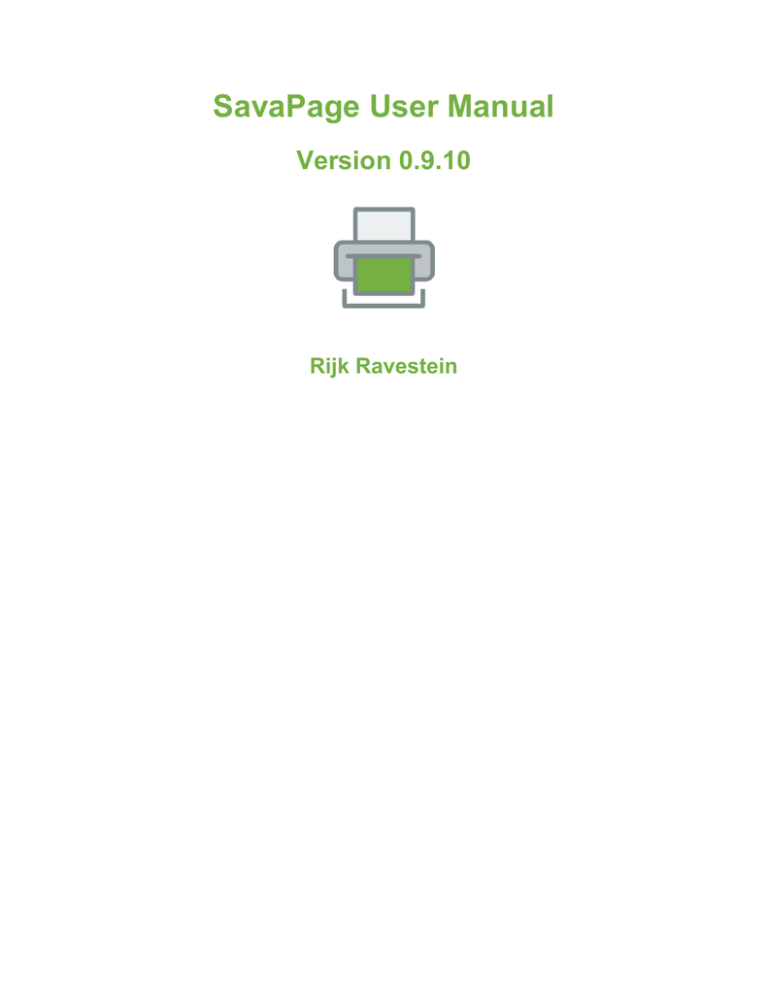

SavaPage User Manual

Version 0.9.10

Rijk Ravestein

SavaPage User Manual : Version 0.9.10

SavaPage User Manual by Rijk Ravestein is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License

1

. SavaPage Software by Datraverse is licensed under GNU Affero General Public License (AGPL)

2 version 3, in compliance with Third Party Software Licenses

3

.

1

http://creativecommons.org/licenses/by-sa/4.0/

2

https://www.gnu.org/licenses/agpl.html

3

http://savapage.org/docs/licenses/

Table of Contents

Preface ............................................................................................................................................. xv

1. About this Manual ................................................................................................................. xv

2. Expectations and Prerequisites ................................................................................................. xv

3. Conventions used in this Document .......................................................................................... xv

3.1. Typographical Conventions ........................................................................................... xv

3.2. Notes ........................................................................................................................ xvi

4. Notice ................................................................................................................................ xvii

5. Your Feedback .................................................................................................................... xvii

6. Acknowledgements ............................................................................................................... xvii

7. About the Author ................................................................................................................ xviii

1. Introduction .................................................................................................................................... 1

1.1. What is SavaPage? ................................................................................................................ 1

1.1.1. Libre Software ........................................................................................................... 1

1.1.2. Benefits .................................................................................................................... 1

1.1.3. Key Features ............................................................................................................. 2

1.2. System Requirements ............................................................................................................. 2

1.2.1. Server ....................................................................................................................... 2

1.2.2. Clients ...................................................................................................................... 4

1.3. How does SavaPage work? ..................................................................................................... 5

1.3.1. Key Concepts ............................................................................................................ 5

1.3.2. The SavaPage Work Flow ............................................................................................ 6

1.3.3. Architecture Overview ................................................................................................. 7

2. Server Installation ............................................................................................................................ 9

2.1. Step 1 - System Requirements ................................................................................................. 9

2.2. Step 2 - Create System Account .............................................................................................. 9

2.3. Step 3 - Configure CUPS and Samba ..................................................................................... 10

2.3.1. CUPS Job History ..................................................................................................... 11

2.3.2. CUPS Web Interface ................................................................................................. 11

2.3.3. Restart CUPS ........................................................................................................... 12

2.4. Step 4 - Check firewall settings ............................................................................................. 12

2.5. Step 5 - Download and Install ............................................................................................... 12

2.6. Step 6 - Save Encryption Keys .............................................................................................. 13

2.7. Step 7 - Configure ............................................................................................................... 13

2.7.1. Step 1 - Login .......................................................................................................... 13

2.7.2. Step 2 - Change Admin Password ................................................................................ 13

2.7.3. Step 3 - Set Locale ................................................................................................... 14

2.7.4. Step 4 - Set Currency Code ........................................................................................ 14

2.7.5. Step 5 - Set User Source ............................................................................................ 14

2.7.6. Step 6 - User Synchronization ..................................................................................... 14

2.7.7. Step 7 - Set Mail Options .......................................................................................... 15

2.7.8. Step 8 - Driverless Printing ........................................................................................ 15

2.8. Step 8 - Share SavaPage Client Files ...................................................................................... 15

2.9. Step 9 - Testing .................................................................................................................. 15

2.10. What's next? ..................................................................................................................... 16

3. User Web App .............................................................................................................................. 18

3.1. Login ................................................................................................................................ 18

3.1.1. Select Language ....................................................................................................... 19

3.1.2. Single Web App Session ............................................................................................ 19

3.1.3. Login Alternatives .................................................................................................... 20

3.1.4. Card Self Association Dialog ...................................................................................... 21

3.2. SafePages ........................................................................................................................... 21

iii

SavaPage User Manual

3.2.1. Footer ..................................................................................................................... 23

3.2.2. Rotation .................................................................................................................. 25

3.2.3. Browser ................................................................................................................... 27

3.3. PDF .................................................................................................................................. 28

3.3.1. PDF Filters .............................................................................................................. 30

3.3.2. Scope ...................................................................................................................... 30

3.3.3. Description .............................................................................................................. 30

3.3.4. Security ................................................................................................................... 31

3.3.5. Passwords ................................................................................................................ 32

3.3.6. Letterhead ................................................................................................................ 33

3.3.7. Download ................................................................................................................ 33

3.3.8. Send ....................................................................................................................... 33

3.4. Print .................................................................................................................................. 33

3.4.1. Printer Selection ....................................................................................................... 34

3.4.2. Printer Settings ......................................................................................................... 35

3.4.3. Print Job Settings ...................................................................................................... 37

3.4.4. Direct Print Release .................................................................................................. 38

3.4.5. Full Print Scope and Jobs ........................................................................................... 38

3.5. Letterheads ......................................................................................................................... 38

3.6. Delete ................................................................................................................................ 40

3.7. Log ................................................................................................................................... 41

3.7.1. Documents ............................................................................................................... 41

3.7.2. Transactions ............................................................................................................. 41

3.8. Sort ................................................................................................................................... 44

3.9. User Details ....................................................................................................................... 46

3.9.1. Internet Printer ......................................................................................................... 46

3.9.2. Pagometers .............................................................................................................. 46

3.9.3. Financial ................................................................................................................. 47

3.9.4. Redeem Voucher ...................................................................................................... 47

3.9.5. Transfer Credit ......................................................................................................... 48

3.9.6. Transfer Money ........................................................................................................ 48

3.9.7. Send Bitcoins ........................................................................................................... 49

3.10. Upload ............................................................................................................................. 49

4. Admin Web App ........................................................................................................................... 51

4.1. Login ................................................................................................................................ 51

4.2. Menu ................................................................................................................................. 51

4.3. Dashboard .......................................................................................................................... 53

4.3.1. Status ...................................................................................................................... 54

4.3.2. Services ................................................................................................................... 55

4.3.3. Pagometers .............................................................................................................. 55

4.3.4. Environmental Impact ................................................................................................ 56

4.3.5. Financial Summary ................................................................................................... 56

4.3.6. Activity ................................................................................................................... 57

4.4. Users ................................................................................................................................. 57

4.4.1. User List ................................................................................................................. 57

4.4.2. Edit User ................................................................................................................. 59

4.4.3. Create Internal User .................................................................................................. 63

4.4.4. Deleted Users ........................................................................................................... 63

4.4.5. Administrator Role .................................................................................................... 63

4.5. Queues .............................................................................................................................. 64

4.5.1. Queues List ............................................................................................................. 64

4.5.2. Edit Queue .............................................................................................................. 66

4.6. Proxy Printers ..................................................................................................................... 66

4.6.1. Proxy Printer List ..................................................................................................... 66

iv

SavaPage User Manual

4.6.2. Edit Proxy Printer ..................................................................................................... 69

4.6.3. Printer Groups .......................................................................................................... 72

4.6.4. Rename Proxy Printer ................................................................................................ 73

4.7. Devices .............................................................................................................................. 73

4.7.1. Network Card Reader ................................................................................................ 75

4.7.2. Proxy Print Authentication ......................................................................................... 76

4.7.3. Terminal .................................................................................................................. 79

4.8. Options .............................................................................................................................. 81

4.8.1. User Source ............................................................................................................. 82

4.8.2. User Creation ........................................................................................................... 85

4.8.3. User Authentication ................................................................................................... 87

4.8.4. Mail ....................................................................................................................... 91

4.8.5. Google Cloud Printer ................................................................................................. 92

4.8.6. Mail Print ................................................................................................................ 96

4.8.7. Web Print ................................................................................................................ 98

4.8.8. Internet Print ............................................................................................................ 99

4.8.9. Proxy Print ............................................................................................................. 100

4.8.10. Eco Print .............................................................................................................. 101

4.8.11. Financial .............................................................................................................. 102

4.8.12. Backups ............................................................................................................... 105

4.8.13. Advanced ............................................................................................................. 106

4.9. Log ................................................................................................................................. 114

4.10. Documents ...................................................................................................................... 115

4.11. About ............................................................................................................................. 121

4.11.1. Version ................................................................................................................ 122

4.11.2. License ................................................................................................................ 123

4.11.3. Community ........................................................................................................... 123

4.11.4. Support ................................................................................................................ 124

4.11.5. Java ..................................................................................................................... 125

4.11.6. Host System ......................................................................................................... 125

4.11.7. Host Packages ....................................................................................................... 125

4.12. Vouchers ........................................................................................................................ 126

4.12.1. Voucher Actions .................................................................................................... 128

4.12.2. Create Vouchers .................................................................................................... 129

4.12.3. Voucher Usage ...................................................................................................... 129

5. Point-of-Sale Web App ................................................................................................................. 131

5.1. Deposit ............................................................................................................................ 131

5.2. Receipts ........................................................................................................................... 132

6. User Client ................................................................................................................................. 134

6.1. User Client Options ........................................................................................................... 134

6.2. User Client Deployment ...................................................................................................... 135

6.2.1. Deployment on Windows ......................................................................................... 135

6.2.2. Deployment on Mac OS X ....................................................................................... 135

6.2.3. Deployment on GNU/Linux ...................................................................................... 135

7. SavaPage Financial ....................................................................................................................... 136

8. SavaPage on GNU/Linux ............................................................................................................... 137

8.1. The Installation Process ...................................................................................................... 137

8.1.1. Manual extraction .................................................................................................... 137

8.1.2. The install process ................................................................................................... 137

8.2. Advanced Configuration and Logs ........................................................................................ 139

8.3. Removing SavaPage from a GNU/Linux server ....................................................................... 139

9. SavaPage as Printer ...................................................................................................................... 141

9.1. Printing with a Driver ........................................................................................................ 141

9.1.1. SavaPage Printer Driver ........................................................................................... 141

v

SavaPage User Manual

9.1.2. SavaPage Printer Installation ..................................................................................... 141

9.2. Printing with AirPrint ......................................................................................................... 145

9.2.1. Step 1: Enable IPv4 in Avahi .................................................................................... 145

9.2.2. Step 2: Create AirPrint Queue ................................................................................... 145

9.2.3. Step 3: Create Avahi Service File .............................................................................. 146

9.3. Printing from iOS .............................................................................................................. 146

9.3.1. Step 1: Install iOS Web Clip ..................................................................................... 146

9.3.2. Step 2: Test ............................................................................................................ 147

9.4. Printing from Android and Chrome OS ................................................................................. 148

9.4.1. SavaPage Google Cloud Ready Printer ........................................................................ 148

9.4.2. PrinterShare™ Mobile Print ...................................................................................... 148

9.5. Driverless Printing ............................................................................................................. 149

9.6. IP Restricted Printing ......................................................................................................... 149

9.6.1. CIDR Notation ....................................................................................................... 149

9.6.2. CIDR Set ............................................................................................................... 150

9.7. Printing Encrypted PDF ...................................................................................................... 150

10. Authenticated Printing ................................................................................................................. 151

10.1. Key Concepts .................................................................................................................. 151

10.1.1. User .................................................................................................................... 151

10.1.2. Person ................................................................................................................. 151

10.1.3. Abstract User ........................................................................................................ 151

10.1.4. Domain User ........................................................................................................ 151

10.1.5. Synchronized User ................................................................................................. 151

10.1.6. Synchronized Person .............................................................................................. 151

10.1.7. Internal Person ...................................................................................................... 151

10.1.8. Authenticated User ................................................................................................ 151

10.1.9. Authenticated Abstract User .................................................................................... 152

10.1.10. Authenticated Person ............................................................................................ 152

10.1.11. Trusted SavaPage Queue ....................................................................................... 152

10.1.12. Public SavaPage Queue ........................................................................................ 152

10.1.13. IP Based Authentication ........................................................................................ 152

10.1.14. Mail Print Authentication ...................................................................................... 153

10.1.15. Local User .......................................................................................................... 153

10.1.16. Local Abstract User ............................................................................................. 153

10.1.17. Local Person ....................................................................................................... 153

10.1.18. User Alias .......................................................................................................... 153

10.2. Single Sign-On Domains ................................................................................................... 153

10.2.1. Authentication Loopholes ........................................................................................ 154

10.2.2. Unauthenticated Users ............................................................................................ 155

10.3. Peer to Peer Networks ...................................................................................................... 156

10.4. User Name Aliases ........................................................................................................... 157

11. Printing Impact .......................................................................................................................... 159

11.1. Financial Impact .............................................................................................................. 159

11.2. Environmental Impact ....................................................................................................... 159

11.2.1. Printed Sheet Units ................................................................................................ 159

11.2.2. Trees ................................................................................................................... 160

11.2.3. Energy ................................................................................................................. 160

11.2.4. Carbon ................................................................................................................. 160

12. Security .................................................................................................................................... 161

12.1. User Authentication .......................................................................................................... 161

12.1.1. Login Passwords ................................................................................................... 161

12.1.2. PIN Codes ............................................................................................................ 161

12.1.3. Authentication Tokens ............................................................................................ 161

12.1.4. User Dialog .......................................................................................................... 162

vi

SavaPage User Manual

12.2. Access over Internet ......................................................................................................... 162

12.3. Web Session Timeout ....................................................................................................... 162

12.4. SSL Passwords ................................................................................................................ 163

12.5. Secured JMX Connection .................................................................................................. 163

12.6. Encrypted Secrets ............................................................................................................. 163

12.7. Document Signature ......................................................................................................... 164

12.8. User Client ..................................................................................................................... 164

12.9. Server Commands ............................................................................................................ 164

12.10. Network Card Reader ...................................................................................................... 165

12.11. External Services ............................................................................................................ 165

12.11.1. Google Cloud Print Service ................................................................................... 165

12.12. Vouchers ....................................................................................................................... 166

13. Internationalization ..................................................................................................................... 167

13.1. Localization .................................................................................................................... 167

13.2. Internal Fonts .................................................................................................................. 167

13.2.1. Default Font ......................................................................................................... 168

13.2.2. CJK Font ............................................................................................................. 168

13.2.3. Unifont ................................................................................................................ 168

14. Customization ............................................................................................................................ 169

14.1. Web App ........................................................................................................................ 169

14.1.1. Look-and-feel ....................................................................................................... 169

15. Using an External Database .......................................................................................................... 171

15.1. Supported Databases ......................................................................................................... 171

15.2. Migrating to an External Database ...................................................................................... 171

15.2.1. Step 1 - Stop SavaPage .......................................................................................... 171

15.2.2. Step 2 - Create a Backup ........................................................................................ 171

15.2.3. Step 3 - Create new Database in External DBMS ........................................................ 172

15.2.4. Step 4 - Change SavaPage Connection Parameters ....................................................... 172

15.2.5. Step 5 - Initialize new Database ............................................................................... 172

15.2.6. Step 6 - Restore Backup into new Database ............................................................... 172

15.2.7. Step 7 - Restart SavaPage ....................................................................................... 173

16. Performance Tuning .................................................................................................................... 174

16.1. Linux Kernel Parameters ................................................................................................... 174

16.1.1. IP Ports ............................................................................................................... 174

16.1.2. TCP Buffer Sizes .................................................................................................. 175

16.1.3. Queue Sizes .......................................................................................................... 175

16.1.4. Congestion Control ................................................................................................ 175

16.1.5. Setting Linux kernel parameters with sysctl ................................................................ 176

16.2. Linux User Limits ............................................................................................................ 176

16.3. JVM Tuning .................................................................................................................... 177

16.3.1. JVM Memory Allocation ........................................................................................ 177

16.3.2. JVM Garbage Collection ........................................................................................ 178

17. SavaPage Community ................................................................................................................. 179

17.1. Visitor Period .................................................................................................................. 179

17.2. Registered Fellow ............................................................................................................ 179

17.3. Importing the Member Card ............................................................................................... 180

A. NFC Authentication ..................................................................................................................... 181

A.1. Card Number Format ......................................................................................................... 181

A.2. Local Card Reader ............................................................................................................ 181

A.3. Network Card Reader Service ............................................................................................. 182

B. Tools ......................................................................................................................................... 183

B.1. Server Commands ............................................................................................................. 183

B.1.1. Common Options .................................................................................................... 184

B.1.2. addInternalUser ...................................................................................................... 186

vii

SavaPage User Manual

B.1.3. addUserGroup ........................................................................................................ 187

B.1.4. changeBaseCurrency ............................................................................................... 187

B.1.5. deleteUser ............................................................................................................. 187

B.1.6. deleteUserGroup ..................................................................................................... 188

B.1.7. listUsers ................................................................................................................ 188

B.1.8. listUserGroups ....................................................................................................... 188

B.1.9. listUserGroupMembers ............................................................................................ 189

B.1.10. listUserGroupMemberships ..................................................................................... 189

B.1.11. listUserSourceGroups ............................................................................................. 189

B.1.12. listUserSourceGroupMembers ................................................................................. 190

B.1.13. listUserSourceGroupNesting .................................................................................... 190

B.1.14. printerAccessControl ............................................................................................. 190

B.1.15. printerSnmp ......................................................................................................... 191

B.1.16. setUserProperties .................................................................................................. 191

B.1.17. setUserGroupProperties .......................................................................................... 192

B.1.18. syncUserGroup ..................................................................................................... 193

B.2. Database Commands .......................................................................................................... 193

B.2.1. db-delete-logs ......................................................................................................... 194

B.2.2. db-export and db-export-to ....................................................................................... 194

B.2.3. db-import .............................................................................................................. 195

B.2.4. db-init ................................................................................................................... 195

B.3. Stopping and Starting the Server .......................................................................................... 195

B.4. SSL Key Generation .......................................................................................................... 196

B.4.1. Re-Create the Self-Signed Certificate ......................................................................... 196

B.4.2. Importing an Existing SSL Certificate ........................................................................ 196

B.4.3. Installing the Keystore ............................................................................................. 198

C. Capacity Planning ........................................................................................................................ 199

C.1. Database Sizing and Growth ............................................................................................... 199

C.2. SafePages Sizing and Growth .............................................................................................. 200

C.3. Network Bandwidth Planning .............................................................................................. 200

D. URL Cheat Sheet ........................................................................................................................ 201

E. Printable File Types ..................................................................................................................... 203

E.1. Standard File Types ........................................................................................................... 203

E.1.1. XPS to PDF Installation Instructions .......................................................................... 204

E.2. Advanced File Types ......................................................................................................... 204

F. Upgrading from a Previous Version ................................................................................................ 206

F.1. Upgrading the Server ......................................................................................................... 206

F.2. Upgrading Client Printer Drivers .......................................................................................... 206

F.3. Testing the Upgrade ........................................................................................................... 206

G. Migrating to a New Server ............................................................................................................ 207

G.1. Upgrade Old Server .......................................................................................................... 207

G.2. Install New Server ............................................................................................................ 207

G.3. Migrate Data to New Server ............................................................................................... 207

G.4. Rename Printers ............................................................................................................... 208

G.5. Update SavaPage Printers ................................................................................................... 208

H. Advanced LDAP Configuration ..................................................................................................... 209

H.1. LDAP Server Default Configuration ..................................................................................... 209

H.1.1. OpenLDAP ........................................................................................................... 210

H.1.2. Apple Open Directory ............................................................................................. 210

H.1.3. Novell eDirectory Defaults ....................................................................................... 211

H.1.4. Microsoft Active Directory Defaults .......................................................................... 211

I. SavaPage Plug-ins ........................................................................................................................ 213

I.1. Web API Callback Plug-in ................................................................................................... 213

I.1.1. Payment Gateway Plug-in ......................................................................................... 213

viii

SavaPage User Manual

J. Smartschool Print Module .............................................................................................................. 216

J.1. Smartschool Afdrukcentrum ................................................................................................. 216

J.2. Smartschool Print Options ................................................................................................... 216

J.3. Smartschool Print Processing ............................................................................................... 219

J.4. Smartschool PaperCut Integration ......................................................................................... 220

J.4.1. PaperCut Configuration ............................................................................................ 220

J.4.2. PaperCut Smartschool Accounting .............................................................................. 221

J.4.3. PaperCut Queries and Reports ................................................................................... 222

J.4.4. Integration Pitfalls ................................................................................................... 223

K. GNU Affero General Public License (AGPL) ................................................................................... 224

ix

List of Figures

1.1. SavaPage High-Level Architecture ................................................................................................... 8

3.1. Web App: Login Dialog ............................................................................................................... 18

3.2. Web App: Select Language Dialog ................................................................................................. 19

3.3. Web App session detected ............................................................................................................ 19

3.4. Web App: Login Dialog - ID Number ............................................................................................ 20

3.5. Web App: Login Dialog - Local NFC Card ..................................................................................... 20

3.6. Web App: Login Dialog - Network NFC Card ................................................................................. 20

3.7. Web App: Login Dialog - Card Self Association .............................................................................. 21

3.8. User Web App: Main View .......................................................................................................... 21

3.9. User Web App: 3 SafePages ......................................................................................................... 22

3.10. User Web App: 8 SafePages ........................................................................................................ 23

3.11. User Web App: Footer Base ........................................................................................................ 23

3.12. User Web App: Hold Print Jobs Dialog ......................................................................................... 25

3.13. User Web App: Landscape Job .................................................................................................... 26

3.14. User Web App: Rotate Pages ....................................................................................................... 26

3.15. User Web App: Rotated Pages ..................................................................................................... 27

3.16. User Web App: SafePage Browser (8 pages) .................................................................................. 27

3.17. User Web App: SafePage Browser - Detailed View (4 of 8) .............................................................. 28

3.18. User Web App: PDF - Overview .................................................................................................. 29

3.19. User Web App: PDF - Scope ...................................................................................................... 30

3.20. User Web App: PDF - Description ............................................................................................... 30

3.21. User Web App: PDF - Security .................................................................................................... 31

3.22. User Web App: PDF - Passwords ................................................................................................. 32

3.23. User Web App: PDF - Letterhead ................................................................................................ 33

3.24. User Web App: PDF - Send ........................................................................................................ 33

3.25. User Web App: Print - Select Printer ............................................................................................ 34

3.26. User Web App: Printer - Settings ................................................................................................. 35

3.27. User Web App: Print - Page Scaling (Crop) ................................................................................... 35

3.28. User Web App: Print - Page Scaling (Shrink) ................................................................................. 36

3.29. User Web App: Print - Page Scaling (Expand) ................................................................................ 36

3.30. User Web App: Print - Selected Printer ......................................................................................... 36

3.31. User Web App: Print - Job Settings .............................................................................................. 37

3.32. User Web App: Printer - Direct Print Release ................................................................................. 38

3.33. User Web App: Letterheads ......................................................................................................... 38

3.34. User Web App: Letterhead - New ................................................................................................ 39

3.35. User Web App: Letterhead - Detail .............................................................................................. 40

3.36. User Web App: Delete SafePages ................................................................................................. 40

3.37. User Web App: Log - Documents ................................................................................................ 41

3.38. User Web App: Log - Transactions .............................................................................................. 42

3.39. User Web App: Log - Transactions .............................................................................................. 44

3.40. User Web App: Sort .................................................................................................................. 45

3.41. User Web App: User Details - Internet Printer Device URI ............................................................... 46

3.42. User Web App: User Details - pagometer ...................................................................................... 46

3.43. User Web App: User Details - Environmental Impact ...................................................................... 47

3.44. User Web App: User Details - Financial ........................................................................................ 47

3.45. User Web App: Redeem Voucher ................................................................................................. 47

3.46. User Web App: Transfer Credit ................................................................................................... 48

3.47. User Web App: Transfer Money from Credit Card .......................................................................... 48

3.48. User Web App: Send Bitcoins ..................................................................................................... 49

3.49. Web Print: Upload File ............................................................................................................... 50

4.1. Admin Web App: Login ............................................................................................................... 51

x

SavaPage User Manual

4.2. Admin Web App: Menu ............................................................................................................... 52

4.3. Admin Web App: Action Pop-up Menu .......................................................................................... 53

4.4. Admin Web App: Dashboard - Status ............................................................................................. 54

4.5. Admin Web App: Dashboard - Services .......................................................................................... 55

4.6. Admin Web App: Dashboard - Pagometer ....................................................................................... 55

4.7. Admin Web App: Dashboard - Pagometer Trend .............................................................................. 56

4.8. Admin Web App: Dashboard - Environmental Impact ....................................................................... 56

4.9. Admin Web App: Dashboard - Financial Summary ........................................................................... 56

4.10. Admin Web App: Dashboard - Activity ......................................................................................... 57

4.11. Admin Web App: User - List ...................................................................................................... 58

4.12. Admin Web App: User - Select and Sort ....................................................................................... 59

4.13. Admin Web App: Edit External User - Identity ............................................................................... 60

4.14. Admin Web App: Edit User - Email ............................................................................................. 60

4.15. Admin Web App: Edit User - Card .............................................................................................. 61

4.16. Admin Web App: Edit User - UUID ............................................................................................. 61

4.17. Admin Web App: Edit User - Financial ......................................................................................... 62

4.18. Admin Web App: Internal User - Password Reset ........................................................................... 62

4.19. Admin Web App: Edit User - Delete ............................................................................................ 63

4.20. Admin Web App: Queue - List .................................................................................................... 64

4.21. Admin Web App: Queue - Select and Sort ..................................................................................... 65

4.22. Admin Web App: Queue - Edit .................................................................................................... 66

4.23. Admin Web App: Proxy Printer - List ........................................................................................... 67

4.24. Admin Web App: Proxy Printer - Select and Sort ............................................................................ 69

4.25. Admin Web App: Proxy Printer - Edit - Identity ............................................................................. 69

4.26. Admin Web App: Proxy Printer - Edit - Media Source ..................................................................... 70

4.27. Admin Web App: Proxy Printer - Edit - Manual Media Source .......................................................... 71

4.28. Admin Web App: Proxy Printer - Edit - Manual Media Size (Simple) ................................................. 71

4.29. Admin Web App: Proxy Printer - Edit - Manual Media Size (Advanced) ............................................. 72

4.30. Admin Web App: Proxy Printer - Rename ..................................................................................... 73

4.31. Admin Web App: Device - List ................................................................................................... 74

4.32. Admin Web App: Device - Select and Sort .................................................................................... 75

4.33. Admin Web App: Devices - Network Card Reader - Custom User Login ............................................. 76

4.34. Admin Web App: Devices - Network Card Reader - Proxy Print Authentication .................................... 78

4.35. Admin Web App: Devices - Terminal - Custom Proxy Print .............................................................. 80

4.36. Admin Web App: Devices - Terminal - Custom User Login .............................................................. 81

4.37. Admin Web App: Options - User Source ....................................................................................... 82

4.38. Admin Web App: Options - User Source - LDAP ........................................................................... 83

4.39. Admin Web App: Options - User Source - LDAP ........................................................................... 84

4.40. Admin Web App: Options - Internal Users ..................................................................................... 85

4.41. Admin Web App: Options - User Creation - Import ......................................................................... 85

4.42. Admin Web App: Options - User Creation - From Group ................................................................. 86

4.43. Admin Web App: Options - User Creation - Synchronize ................................................................. 86

4.44. Admin Web App: Options - User Creation - On Demand .................................................................. 87

4.45. Admin Web App: Options - User Authentication ............................................................................. 88

4.46. Admin Web App: Options - User Authentication - Username Login .................................................... 89

4.47. Admin Web App: Options - User Authentication - ID Number Login .................................................. 90

4.48. Admin Web App: Options - User Authentication - Local NFC Card Login ........................................... 90

4.49. Admin Web App: Options - User Authentication - Default Login ....................................................... 90

4.50. Admin Web App: Options - Mail - SMTP ..................................................................................... 91

4.51. Admin Web App: Options - Mail - Messages ................................................................................. 91

4.52. Admin Web App: Options - Mail - Test ........................................................................................ 92

4.53. Admin Web App: Options - Google Cloud Print - Status .................................................................. 93

4.54. Admin Web App: Options - Google Cloud Print - OAuth ................................................................. 94

4.55. Admin Web App: Options - Google Cloud Print - Notifications ......................................................... 96

xi

SavaPage User Manual

4.56. Admin Web App: Options - Mail Print (IMAP) .............................................................................. 97

4.57. Admin Web App: Options - Mail Print (Attachments) ...................................................................... 98

4.58. Admin Web App: Options - Web Print .......................................................................................... 99

4.59. Admin Web App: Options - Internet Print ...................................................................................... 99

4.60. Admin Web App: Options - Proxy Print ...................................................................................... 100

4.61. Admin Web App: Options - Eco Print ......................................................................................... 102

4.62. Admin Web App: Options - Financial - Currency .......................................................................... 103

4.63. Admin Web App: Options - Financial - General ............................................................................ 103

4.64. Admin Web App: Options - Financial - POS ................................................................................ 104

4.65. Admin Web App: Options - Financial - Vouchers .......................................................................... 104

4.66. Admin Web App: Options - Financial - Transfer funds ................................................................... 105

4.67. Admin Web App: Options - Backups .......................................................................................... 105

4.68. Admin Web App: Options - Automatic Backups ........................................................................... 106

4.69. Admin Web App: Options - Advanced - User Client ...................................................................... 107

4.70. Admin Web App: Options - Advanced - Reset Admin Password ...................................................... 107

4.71. Admin Web App: Options - Advanced - JMX Agent ...................................................................... 108

4.72. Add JMX Connection with Java VisualVM .................................................................................. 109

4.73. Connecting to Remote Process with JConsole ............................................................................... 109

4.74. Admin Web App: Options - Advanced - Locale ............................................................................ 110

4.75. Admin Web App: Options - Default Paper Size ............................................................................. 110

4.76. Admin Web App: Options - Default Paper Size ............................................................................. 110

4.77. Admin Web App: Options - Converters ....................................................................................... 111

4.78. Admin Web App: Options - Advanced - Proxy Printing .................................................................. 111

4.79. Admin Web App: Options - Advanced - Pagometers ...................................................................... 112

4.80. Admin Web App: Configuration Editor - List ............................................................................... 113

4.81. Admin Web App: Configuration Editor - Edit ............................................................................... 113

4.82. Admin Web App: Log - List ...................................................................................................... 114

4.83. Admin Web App: Log - Select and Sort ...................................................................................... 115

4.84. Admin Web App: Log - Select Date ........................................................................................... 115

4.85. Admin Web App: Documents - List ............................................................................................ 116

4.86. Admin Web App: Documents - Select and Sort - All ...................................................................... 118

4.87. Admin Web App: Documents - Select and Sort - In ....................................................................... 119

4.88. Admin Web App: Documents - Select and Sort - Out ..................................................................... 120

4.89. Admin Web App: Documents - Select and Sort - PDF .................................................................... 120

4.90. Admin Web App: Documents - Select and Sort - Print ................................................................... 121

4.91. Admin Web App: About ........................................................................................................... 122

4.92. Admin Web App: About - Version ............................................................................................. 122

4.93. Admin Web App: About - License .............................................................................................. 123

4.94. Admin Web App: About - Community ........................................................................................ 123

4.95. Admin Web App: About - Import Member Card ........................................................................... 124

4.96. Admin Web App: About - Support ............................................................................................. 124

4.97. Admin Web App: About - Host Packages .................................................................................... 125

4.98. Admin Web App: Voucher List .................................................................................................. 126

4.99. Admin Web App: Vouchers - Select and Sort ............................................................................... 127

4.100. Admin Web App: Voucher Actions ........................................................................................... 128

4.101. Admin Web App: Create Vouchers ........................................................................................... 129

5.1. Point-of-Sale: Deposit Start ......................................................................................................... 131

5.2. Point-of-Sale: Deposit Completed ................................................................................................. 132

5.3. Point-of-Sale: Receipts ............................................................................................................... 133

9.1. SavaPage Printer on Ubuntu: Choose Driver .................................................................................. 142

9.2. SavaPage Printer on Ubuntu: Printer Properties ............................................................................... 142

9.3. SavaPage Printer on Mac OS X: Add Printer .................................................................................. 143

9.4. SavaPage Printer on Mac OS X: Select PPD .................................................................................. 143

9.5. SavaPage Printer on Mac OS X: Print & Fax ................................................................................. 143

xii

SavaPage User Manual

9.6. SavaPage Local Printer on Windows ............................................................................................. 144

9.7. SavaPage Shared Local Printer on Windows .................................................................................. 144

9.8. SavaPage Network Printer on Windows ......................................................................................... 145

9.9. iPad App Sharing Options ........................................................................................................... 147

9.10. SavaPage Printer Options on iPad ............................................................................................... 147

9.11. Select SavaPage Printer on iPad ................................................................................................. 148

10.1. SavaPage in a Single Sign-On Domain ........................................................................................ 154

10.2. IP Based Authentication for Abstract User ................................................................................... 155

10.3. IP Based Authentication for Unauthenticated User ......................................................................... 156

10.4. IP Based Authentication in Peer-to-Peer Network .......................................................................... 157

14.1. User Web App: Custom CSS - Sample #1 .................................................................................... 170

14.2. User Web App: Custom CSS - Sample #2 .................................................................................... 170

J.1. Admin Web App: Options - Smartschool Print - Accounts ................................................................ 217

J.2. Admin Web App: Options - Smartschool Print - Actions ................................................................... 217

J.3. Admin Web App: Options - Smartschool Print - PaperCut Integration ................................................. 218

J.4. Admin Web App: Options - Smartschool Print - PaperCut Server ....................................................... 218

J.5. Admin Web App: Options - Smartschool Print - PaperCut Database .................................................... 219

J.6. Admin Web App: Options - Smartschool Print - PaperCut Export ....................................................... 219

xiii

List of Tables

1. Typographical conventions .............................................................................................................. xv

8.1. Secured Application Areas .......................................................................................................... 138

8.2. Advanced Configuration ............................................................................................................. 139

12.1. Default Web Session Timeout Values .......................................................................................... 162

12.2. Web Session Timeout Configuration Items ................................................................................... 162

C.1. Database size increase metrics per document flow. .......................................................................... 199

D.1. SavaPage URL Cheat Sheet ........................................................................................................ 201

E.1. Standard Printable File Types ...................................................................................................... 203

E.2. Advanced Printable File Types .................................................................................................... 204

H.1. LDAP Configuration items ......................................................................................................... 209

H.2. OpenLDAP Default Settings ....................................................................................................... 210

H.3. Apple Open Directory Default Settings ......................................................................................... 210

H.4. Novell eDirectory Default Settings ............................................................................................... 211

H.5. Microsoft Active Directory Default Settings .................................................................................. 211

H.6. Microsoft Active Directory Custom Settings .................................................................................. 212

I.1. Web API Callback Configuration Item ........................................................................................... 213

I.2. Payment Gateway Configuration Item ............................................................................................ 213

xiv

Preface

1. About this Manual

The SavaPage User Manual covers the setup, management and configuration of SavaPage Print Server. Please take a few moments prior to installing the application to read the key sections of this manual. The latest version of this manual in HTML, PDF and EPUB format are available from the SavaPage website

1

.

2. Expectations and Prerequisites

SavaPage is a network based application. Experience with basic network concepts, such as server administration and network connectivity is expected. Prior to installing or evaluating SavaPage you should be familiar with the concepts of:

• Client/Server computing.

• Internet Printing Protocol (IPP).

• IP Printing (JetDirect/RAW)

2

.

• Common Unix Printing System (CUPS).

• Lightweight Directory Access Protocol (LDAP).

3. Conventions used in this Document

3.1. Typographical Conventions

This is a list with examples of the typographical conventions used in this manual.

Convention

Executable program with options.

A character or string indicating the start of an input field.

User input.

A button.

A text prompt.

Content that may or must be replaced by the user.

Filename.

Directory.

Example

Enter ls --reverse to get a directory listing in reverse order.

Enter you name after the

Username:

prompt.

John entered

john

as his login name.

Press the Cancel button.

Enter your full name after the Name prompt.

Please enter

filename

to save the content to.

Please open the file

/opt/savapage server.properties

in your favorite editor.

1

http://savapage.org/

2

JetDirect is the most common Socket API, and a de facto standard, introduced by Hewlett-Packard. It allows a TCP/IP connection via port 9100 to a printer attached to a Local Area Network similar to a connection to its serial or parallel port. Windows supports this protocol as Standard TCP/

IP port monitor for print server attached print devices.

xv

Preface

Convention

A question-and-answer set.

Key on a keyboard

A combination of input actions.

A selection or series of selections from a menu.

An inline code fragment.

Example

Q:

To be, or not to be?

A:

That is the question.

Press F1 for help.

Press CTRL+C to abort the program.

Select Print

Settings to open the dialog.

Text in this format

is used to show code examples, the contents of files, and console output, as well as the names of variables, commands, and other code excerpts in the text.

Code (listing).

Line A Inline annotation on A

Line B Inline annotation on B

Line C

Link (external).

Link (internal).

Name of a variable.

Inline text that is some literal value.

Comment for Line B.

Comment for Line C.

A link to an URI is formatted like this: http://savapage.org

and mailto:[email protected]

Or as an alternative: Visit our website

3

or write an email

4

See

Chapter 2, Server Installation [9]

of this manual.

In Perl,

@ARGV

contains the command line parameters used when the script was run.

When debug

is activated more detailed logging is produced.

Table 1. Typographical conventions

3.2. Notes

You should pay special attention to notes set apart from the text with the following icons:

Important

Important notes are marked like this.

Note

Notes provide extra background information.

Tip

Tips provide useful advice to make your life easier.

Caution

Indicate situations where you have to be careful what you are doing.

3

http://savapage.org

4

mailto:[email protected]

xvi

Preface

Warning

Where extreme care has to be taken.

4. Notice

While every effort has been taken to ensure the accuracy and usefulness of this manual, we cannot be held responsible for occasional inaccuracy or typographical errors. If you find an inaccuracy or error, please let us know.

Information in this document is subject to change without notice. The names of companies, products, people, characters, and data mentioned in the examples are fictitious and are in no way intended to represent any real individual, company, product, or event, unless otherwise noted.

5. Your Feedback

This manual isn't “done”. In fact, this manual will probably never be completely “done”. The subject it covers is expected to change and expand over time, and we consider this work a reflection of our ongoing conversation with the SavaPage Community

5

. Publication of this manual highlights the openness of the product, and that you, as a user, can play a pivotal role in helping to maintain and improve the product. If you see anything in this manual that can be improved: spelling, examples, explanations, then you should tell us, and send us an email

6

. Also, if you have ideas about improving the product in general, please let us know. All feedback will be rewarded with a gracious response.

6. Acknowledgements

In the year 2000 I worked as contractor for a Dutch airline company. Being a software engineer I regularly prepared code review sessions where my colleagues and I discussed the source code we produced. Since the code needed to be printed, it annoyed me that I did not have a program that could get the code neatly on paper. With Notepad you could indeed make a printout, but it produced sheets where our precious code floated disjointed in a big sea of white. In addition to the cluttered layout, which obscured our intentions, I was immediately struck by the large amount of wasted paper. I soon became to realize that I was not the only one abusing paper this way. Almost all employees had the same habit, as I could tell by the numerous sheets scattered around the printers begging to be picked up by their originator.

The code review solution came from a program called TextPrint written by Örjan Råberg. TextPrint is a small Windows application designed for just one purpose: printing text files. It has many settings to control the layout with. For example, you can print multiple pages on one sheet of paper and add line numbers. This was indeed the program I needed. Örjan was not actively maintaining the program anymore and allowed me to take the project further. At this moment TextPrint is still freeware and can be downloaded here

7

. I want to thank Örjan for setting me on track of what eventually became my professional mission: supporting organisations in their commitment to sustainability and cost saving when producing and printing electronic documents.

One thing led to the other. In the same year 2000 my search for other paper saving software led me to FinePrint

Software

8

. FinePrint, their first product, is a Windows printer driver that offers advanced features like print preview, editing and formatting. I instantly became a fan, and am reselling and supporting FinePrint Software ever since. A year later they released pdfFactory, the much acclaimed PDF creator. I want to thank FinePrint founders Jonathan Weiner and Mark O’Brien for being an inspiration as innovators and designers of products that, to put it in their own words, are

“as simple as we can make them while providing sophisticated and unique features that make them a pleasure to use”.

Last but not least, in 2008 my longtime search for a top quality print management solution came to an end when I found PaperCut

9

, and I am proud to say I became a value-added reseller of this superb product.

5

http://savapage.org/

6

mailto:[email protected]

7

http://www.datraverse.com/textprint/

8

http://www.fineprint.com/

9

http://www.papercut.com/ xvii

Preface

Being involved with printing software for more than 10 years now it would be strange not to have developed some ideas of my own. Enter SavaPage, the product this manual is about.

It is no coincidence that the technical setup of SavaPage is highly inspired by PaperCut, since it has a proven architecture and an excellent track record. PaperCut users will notice similarities in concepts and interfaces. However, Sava-

Page solves things differently within a somewhat smaller scope. Please read on to find out what SavaPage is about.

The server editions of FinePrint and pdfFactory are hard to beat in a pure Windows environment. However, since it is Windows-only software, organisations cannot use it for Mac OS and GNU/Linux clients. For these organisations

SavaPage is an alternative worth looking at.

Looking back on my career so far, what stands out is my strong bias towards small innovative engineering companies.

By nature these companies are passionate about what they create and very open to their customers. It is real fun to communicate with them.

Representing a small software engineering company myself, it is my sincere ambition that SavaPage will mature in the same way as the products that inspired me.

Going public with software has important legal, ethical and social implications. This confronted me with my own values and beliefs to take a stand. The Free Software movement has been a great inspiration in my quest for a fair and sustainable business model. Therefore SavaPage is licensed under the GNU Affero General Public License (AGPL)

10 and the SavaPage Community is founded for users and partners to further develop the solution.

-- Rijk Ravestein, SavaPage Community Manager, owner of Datraverse.

7. About the Author

Rijk Ravestein graduated cum laude from Utrecht University in 1980 as M.Sc. in Cognitive Psychology. After some years of practice as behavioral scientist, Rijk started working as software developer in 1985.

Till 1987 he worked on a project automating the core administration of a health insurance company. From 1987 till

1990 Rijk acted as coordinator producing several multi-user applications on LAN and midrange-systems as fixed priced projects. His responsibilities included planning, analysis and design, quality assurance, and deployment.

In 1990 his career took a definite technical direction when working as a consultant for Vleermuis Software Research in joint operation with IBM Netherlands. Here he evaluated several development tools concerning Client-Server technology and Object Oriented Programming by building proof-of-concept prototypes.

Since 1991 Rijk is engaged as architect and developer of distributed applications using Object Technology. Besides some large projects counting several man-months, Rijk participated in many smaller projects using Agile Software

Development.

Rijk worked for some of the major IT companies in The Netherlands including IBM, Capgemini and Logica. In 1998 he started his own company Datraverse.

Rijk's professional passion is developing and distributing high quality business solutions using state-of-the-art Information- and Communication Technology. As distributor he sells and supports third-party software to business users.

As developer he worked as contractor for large and middle-sized organisations. Since 2015 he is full-time committed to the SavaPage Community.

Rijk lives in the city of Almere (The Netherlands) with his wife and two sons. In his private time he enjoys his family, sports, theater and music.

10

https://www.gnu.org/licenses/agpl.html

xviii

Chapter 1. Introduction

1.1. What is SavaPage?

SavaPage is a Libre Print Management Solution that uses Open Standards and Commodity Hardware for Secure Pull-

Printing, Pay-Per-Print, Tracking and Tracing and PDF Creation.

SavaPage is a

Print Server deployed on a central GNU/Linux system. Any workstation or device that supports the

Internet Printing Protocol (IPP) or IP Printing (JetDirect), like Windows, Mac and GNU/Linux workstations, can use

SavaPage printers. Mac OS X and iOS devices can use AirPrint®

1

. Android and Chrome OS devices can use Google

Cloud Print to print to SavaPage. As a backdoor any device can use Web Print and Mail Print to print.

When a user prints to SavaPage the printed pages are immediately shown in the SavaPage Web Application

that runs in any modern web browser. SavaPage accumulates print jobs per user in a single personal preview where it can be manipulated and pruned before storing or routing it as PDF document.

And yes, you can even route to a “real” printer. The SavaPage Web App offers a Common Printing Dialog for printing to printers installed at the server side (proxy printing). This makes SavaPage the only printer you need on your desktop.

The SavaPage Web App is optimized for desktop clients as well as mobile devices. This opens up useful scenario's.

Like, a user walking up to the printer of his choice and releasing a print job by pushing a button on his smartphone.

Administrators on the go can easily monitor the system on their tablet.

SavaPage turns printing into a user experience where soft copies are likely to be more attractive than hard copies, and where precious paper, trees and money is saved along the way. And, if printing is needed after all, SavaPage is the logical stopover where, on second thought, n-up, gray-scale and duplex proxy-printing can be applied to reduce the costs of printing to a minimum.

So, why print when you can SavaPage?

1.1.1. Libre Software

SavaPage is Libre Software

2

licensed under the GNU Affero General Public License (AGPL)

3

version 3 as published by the Free Software Foundation

4

.

1.1.2. Benefits

The key benefits of SavaPage are:

Less administration. SavaPage is the one printer you need to print to any printer in your organization.

Zero install. A generic PostScript driver and web browser is all you need to print from Windows, Mac and GNU/

Linux and preview the result.

Multi-platform. Corporate printers are sandboxed in the Web App Preview and thus available on all mobile and desktop platforms for pass-through (proxy) printing.

Easy follow-me printing. Users can use their own mobile device as print release terminal.

1

AirPrint is a registered trademark of Apple Inc.

2

http://en.wikipedia.org/wiki/Free_software

3

https://www.gnu.org/licenses/agpl.html

4

http://www.fsf.org/

1

Introduction

Mobile printing. Google Cloud Print, iOS AirPrint®, Web Print and Mail Print is supported out of the box.

Think before you print. SavaPage Web App shows a print preview that makes you think twice. Do you really need to print all these pages?

Create environmental awareness. Draw end user attention to the cost of printing, and save precious paper, trees and money along the way.

Reduce overall printing costs. Remove unnecessary pages and graphics. Save as PDF, or route to a "real" printer with n-up, gray-scale and duplex to reduce printing costs.

Eliminate cost of pre-printed paper. Create virtual letterheads and apply them to any print job.

Libre Software above Proprietary Software.

Commodity Hardware above expensive Proprietary Devices.

• A

SavaPage Community

based on Peer-To-Peer Cooperation above Centralized Corporation.

1.1.3. Key Features

The key features of SavaPage are:

• Print to SavaPage with a Generic PostScript Driver

from Windows, Mac OS X and GNU/Linux.

Internet Print for driver printing over Internet.

• SavaPage can be the only printer on your desktop.

• Use Google Cloud Print to print from Android, Chrome OS or any Google Cloud Print enabled Web App.

• Use AirPrint® to print from Mac OS X and iOS (iPad, iPod, iPhone).

• Use Web Print

and Mail Print to print from any device.

User Web App and

Admin Web App

for desktops and mobile devices.

• Pass-through server-side

Proxy Printing from the

User Web App

. No local drivers needed.

• Use existing LDAP

(Active Directory) user accounts for authentication.

Username/Password

,

ID/PIN and NFC Card

authentication.

SavaPage Financial with pay-per-print,

vouchers and

point-of-sale .

Command-Line Interface

to server methods.

• Printed pages are shown real-time in the User Web App

.

Browse ,

sort and

delete to optimize the result.

• Download or send accumulated print jobs as PDF document .

• Optionally

remove graphics

from PDF and print output.

• Innovative

Eco Print

to reduce ink and toner cost.

Follow-me Printing with

Terminals and

Network Card Readers .

Raspberry Pi as Network Card Reader.

• Multi-page letterheads

.

Third party Database support

.

Command-Line Interface

.

Customizable Web Interface .

Online Payments (credit cards, bank accounts, Bitcoin).

• Enterprise level security and encryption based on

SSL

.

Multi-language

support.

• Comprehensive User Manual in PDF, EPUB and HTML format.

1.2. System Requirements

1.2.1. Server

SavaPage Print Server can be installed on any modern GNU/Linux system that supports systemd service manager like distributions based on Debian and Red Hat Enterprise Linux (RHEL), and openSUSE. Debian based distributions that use SysV init scripts are also supported.

2

Introduction

Note

Throughout this manual GNU/Linux command and file examples are given for Debian based systems. Commands and files might differ for other distributions, but not in function. For example, the Debian apt-get command has a RHEL yum and openSUSE yast equivalent. It is trusted that system administrators can translate the examples to their own environment. If applicable, functional differences between distributions will be explained.

1.2.1.1. Java

SavaPage is a Java program and needs JDK 7 (or higher) to be installed. Check the installation by executing both the

java and javac commands: they should echo usage information.

On Debian based systems you can install the package with this command: sudo apt-get install openjdk-7-jdk

1.2.1.2. CUPS

SavaPage uses local CUPS printer queues for Proxy Printing

. CUPS 1.4 or higher must be installed

5

.

Important

SavaPage will automatically add any local CUPS printer as proxy printer. So, for proxy printing to work, first add each proxy printer as CUPS printer.

Tip

Modern GNU/Linux distributions have everything prepared for using most printers. For USB printers it is often enough to simply plug them in. For network printers you simply start the distribution's printer setup tool out of the system administration menu or out of a system administration application, click on a button for adding a new printer and then follow the screen instructions. If this does not work, usually there is no suitable driver installed on your system. Verify in the OpenPrinting database

6

whether your printer is supposed to work and whether there is a driver or PPD file available. See the OpenPrinting CUPS Quick Start

7

for more details.

1.2.1.3. Poppler

SavaPage needs the PDF utilities based on Poppler to function properly.

Poppler

8

is a PDF rendering library based on Xpdf PDF viewer. The command line utilities are used to get information of PDF documents, convert them to other formats, or manipulate them. SavaPage uses pdftoppm to convert PDF pages to images.

Check if the package is installed by entering the following command: pdftoppm -v

On Debian based systems you can install the package with this command:

5

CUPS 1.4 or higher provides the Job Template attribute “fit-to-page” that is used by SavaPage proxy printing to scale documents to fit the size of selected media. See http://www.cups.org/documentation.php/spec-ipp.html

6

7

http://www.openprinting.org/printers

8

http://www.linuxfoundation.org/collaborate/workgroups/openprinting/database/cupsdocumentation

http://poppler.freedesktop.org/

3

Introduction sudo apt-get install poppler-utils

1.2.1.4. ImageMagick

SavaPage needs the convert command of the ImageMagick software suite to manipulate images.

ImageMagick is a software suite to create, edit, compose and convert bitmap images in a variety of formats (over 100) .

Check by entering the following command: convert --version

On Debian based systems you can install the package with this command: sudo apt-get install imagemagick

1.2.1.5. Avahi

Avahi is needed if you want to print to SavaPage from iOS devices (iPad, iPod, iPhone). See

Section 9.3, “Printing from iOS” [146]

.

Avahi

9

is a system which facilitates service discovery on a local network via the mDNS/DNS-SD

10

protocol suite.

Any modern GNU/Linux system has Avahi installed, but to be sure you can check by entering the following command: avahi-browse --version

On Debian based systems you can install the package with this command: apt-get install avahi-daemon avahi-discover libnss-mdns

1.2.1.6. Hardware

The SavaPage server process requires a minimum of 2 CPU cores, 2GB of RAM and 1 GB of free disk space.

Note

Depending on the expected print quota you should reserve extra disk-space for each SavaPage user. See

Appendix C, Capacity Planning [199] .

1.2.2. Clients

On desktop and mobile clients you need:

• An HTML5 compatible browser.

For printing to SavaPage on GNU/Linux and Mac clients you need:

• IPP printer support.

For printing to SavaPage from Windows you can choose between:

• A Local Printer on a Standard TCP/IP Port, when you want to share a SavaPage printer (e.g. on a Windows Print

Server).

9

http://avahi.org/

10

mDNS/DNS-SD enables you to plug your laptop or computer into a network and instantly be able to view other people who you can chat with, find printers to print to or find files being shared. Compatible technology is found in Apple MacOS X (branded Bonjour [http://www.apple.com/ support/bonjour/] and sometimes Zeroconf).

4

Introduction

• A Network Printer using Internet Printing Protocol (IPP).

To AirPrint to SavaPage on devices like iPad, iPhone and iPod Touch you need:

• iOS 4.2 or higher.

To AirPrint to SavaPage from Mac OS you need:

• Mac OS X 10.7 Lion or higher.

Note

The SavaPage WebApps use jQuery Mobile

11

which offers broad support for the vast majority of all modern desktop, smartphone, tablet, and e-reader platforms.

1.3. How does SavaPage work?

To explain how SavaPage works we first introduce the key concepts for the usage scenarios. After that we will describe a typical work flow, and end with a high-level overview of the application's architecture.

1.3.1. Key Concepts

Each concept is described in an abstract definition and its SavaPage implementation.

1.3.1.1. Print Server

A print server is a system responsible for hosting print queues and sharing printer resources to client workstations.

Client users submit print jobs to a print server rather then directly to the printer itself. A print server may be a dedicated server. However, on many networks this server may also perform other tasks such as file serving.

SavaPage is a regular Print Server in the technical sense, but is special in the sense that it shares multiple print queues of the one SavaPage virtual printer. The GNU/Linux host where SavaPage is deployed on may offer file services on its own account.

1.3.1.2. Print Queue

A print queue is first-in-first-out queue holding all jobs pending on a given printer.

SavaPage virtual queues redirect print jobs to the originating user's personal queue called “SafePages”. The Sava-

Page Web App is the viewport on these SafePages.

1.3.1.3. User ID/Username

In a multi-user environment, users login to a network or computer using a username and password. Often these are managed by services like Active Directory or LDAP. The username is known as the user's identity.

SavaPage uses this identity for authentication and tracking purposes.

Note

User authentication is a topic of its own. Please see

Chapter 10, Authenticated Printing [151] for more

elaboration on the User concept.

11

http://jquerymobile.com/

5

Introduction

1.3.1.4. Client/Server Model

Client software is a small application that runs on each workstation and communicates with a central server. The printing process on most networks works according to a client/server model with clients (workstations) submitting jobs to a server.

SavaPage utilizes the client/server model with standard components on the workstation, i.e. an IPP or JetDirect printing client and a Web browser.

1.3.1.5. Application Server

An application server is a server program responsible for centrally processing “business logic” and providing services to end-users.

SavaPage is an application server since it provides “business logic” for showing, editing and routing printed documents.

1.3.1.6. Information Provider

A provider is a software component or program responsible for providing information to an Application Server.

SavaPage uses an integrated IPP and JetDirect Server to capture Driver Print jobs from client workstations and devices. It communicates with IMAP to capture Mail Print jobs and uses HTTP upload to capture Web Print jobs. The generic information provider for capturing print jobs is called the “Print Provider”. Other important providers are

“User Directory Provider”, “Authentication Provider” and “CUPS Information Provider”.

1.3.1.7. Web Application Interface

A Web Application, or Web App for short, is a software program that interacts with end-users via a web browser. A

Web App gives flexibility because it allows access from any location on the network and avoid the need for installation of separate software.

SavaPage provides a web-based interface for end-users and system administrators. Since it is optimized for desktops and mobile devices an even greater flexibility is achieved.

1.3.1.8. SafePages

SafePages is the SavaPage term for the personal user space with accumulated jobs from SavaPage printer queues. See

Section 1.3.1.2, “Print Queue” [5]

.

1.3.1.9. Proxy Printer

Proxy Printer, or ProxyPrinter, is the SavaPage term for a printer that is available in the SavaPage Web App for printing selected SafePages.

Important

It is important to understand that using a Proxy Printer does not require its printer driver on the client workstation. Proxy Printer queues are CUPS queues located on the GNU/Linux SavaPage host and are not shared on the local network, hence not visible for client workstations. Proxy Printer queues can only be selected and used in the SavaPage Web App sandbox for pass-through printing.

1.3.2. The SavaPage Work Flow

To illustrate what SavaPage is about and how it works we'll start with a simple use case.

6

Introduction

1.3.2.1. End-user perspective

1. John opens a web browser, clicks on the SavaPage bookmark and logs into SavaPage with his regular Active

Directory credentials.

2. John prints a document from his favourite editor to his SavaPage Network Printer.

3. John sees the printed pages appear as thumbnails in his web browser.

4. John browses through the thumbnails and zooms in on page 15 and 16 to see more detail.

5. Things look good, apart from two void pages at the end. So, John deletes these pages using the Delete dialog.

6. After selecting the company letterhead as standard background, John selects the Brand-X Multi-functional Proxy

Printer located down the hall, checks the settings (duplex and grayscale), and presses the Print button.

7. Since John also wants to save a PDF document of the result, he sets the PDF properties (title, author, subject, keywords, encryption) and presses the Download button.

Note

John could also have opened a web browser on his smartphone and do exactly the same things.

1.3.2.2. Technical perspective

This is what happens behind the scenes.

1. When John prints to SavaPage from his editor, his workstation transfers the print job to the SavaPage Print Server

.

2. The SavaPage Print Provider handles the print job, analyzes the information and retrieves:

a. The identity of the user who printed the document.

b. The identity of the queue the job was printed to.

3. The Print Provider submits the information about the job to the Application Server to process the business logic.

4. The Application Server approves the print request, transfers the job to the user's

SafePages

, and signals John's browser session that a new job has arrived.

5. The Web Application

in John's browser picks up the signal, handles the information and displays the newly printed pages.

6. The Web Application transfers each of John's editing actions (delete, letterhead) to the Application Server where the state of the SafePages is saved.

7. When Johns selects the Brand-X Multi-functional

Proxy Printer

, the Web App asks the Application Server for the printer options, so it can display the Printer Settings dialog for this specific printer.

8. When Johns presses the Print button, the print action plus the selected printer options are passed to the Application

Server. The server composes the print job (applying editing actions and selected letterhead) and sends the result to the Proxy Printer, using the printer options John selected.

9. John's download request is fulfilled by the Application Server with a PDF document holding the edited SafePages, including the letterhead, and the chosen PDF settings.

1.3.3. Architecture Overview

Figure 1.1, “SavaPage High-Level Architecture” [8]

shows a high level view of the components and communication involved.

7

Introduction

Figure 1.1. SavaPage High-Level Architecture

• The SavaPage Print Server

synchronizes users from the LDAP/NIS source to its own SQL Database.

• The Client

Web Application on desktops, laptops and mobile devices communicates with the Application Server

using HTTP.

• Desktop and laptops users can be forced by their OS to login and be authenticated at the LDAP/NIS source.

• SavaPage Web App users on desktops, laptops and mobile devices are authenticated by the SavaPage Print Server at the LDAP/NIS source.

• Desktop and laptop users print to SavaPage with the SavaPage printer driver using IPP or JetDirect protocol.

• Mac OS X and iOS users can print to SavaPage with AirPrint®.

• Every user can use SMTP to

Mail Print

to SavaPage.

• SavaPage uses IMAP to monitor the Web Print Inbox.

• Every user can use HTTP to Web Print to SavaPage.

• Every user can print to the Google Cloud Ready

SavaPage Printer.

• The Content Repository holds letterhead documents.

• A print command in the Web App to a Proxy Printer

is executed by SavaPage with an IPP operation to local

CUPS

.

8

Chapter 2. Server Installation

This chapter covers the initial installation and configuration of SavaPage in your network environment.

• If you are installing a new version over an existing installation please consult Appendix F, Upgrading from a Pre-

vious Version [206]

.

• If this installation is part of a migration from an old server please consult

Appendix G, Migrating to a New Serv-

er [207] before going on.

Initial installation takes only a few minutes on a prepared server. This guide will walk you through installation and configuration step-by-step. The process is summarized below:

1.

System requirements check.

2.

Downloading and installing SavaPage.

3.

Completing the configuration.

4.

Testing the software.

Tip

If you would like to know the technical details behind the SavaPage installer, take a look at

Section 8.1, “The

Installation Process” [137] .

Important

By installing the program, you are accepting and agreeing to the terms of the GNU Affero General Public

License (AGPL). Please review

Appendix K, GNU Affero General Public License (AGPL) [224] before

continuing.

2.1. Step 1 - System Requirements

Before proceeding with the installation you should take a few moments to verify system requirements. Is the operating system version supported and are patches up-to-date? Take a few minutes to verify the system is current and supported

(see

Section 1.2, “System Requirements” [2] ).

The SavaPage installation program needs the commands which, strings, gunzip and perl. So, make sure the binutils,

debianutils (for Debian based systems), perl and gzip packages are installed.

2.2. Step 2 - Create System Account

SavaPage runs and installs under a system user account called savapage

. This account is fixed, you cannot choose another name. Your free though to pick a location for the application. However, GNU/Linux Filesystem Hierarchy

Standard (FHS) dictates that the application is installed in the

/opt/savapage

directory.

Create the system user account at the command prompt by entering: sudo useradd -r savapage

9

Server Installation

The syntax for useradd

may differ slightly on different versions of GNU/Linux. It may also be called adduser

.

Next, create the install directory and set the ownership to the savapage

account: sudo mkdir /opt/savapage

... and set the ownership to the savapage account. For Debian and RHEL based systems: sudo chown savapage:savapage /opt/savapage

... and for openSUSE: sudo chown savapage:users /opt/savapage

Some GNU/Linux distributions impose strict resource usage limits on user accounts ( ulimit

). The savapage account is a dedicated account used for hosting the SavaPage application and hence should be granted sufficient resource limits such as the ability to open many files. Please consult

Section 16.2, “Linux User Limits” [176] on

how to change these limits.

2.3. Step 3 - Configure CUPS and Samba

Make sure to not publish shared printers in CUPS and Samba. Publishing shared printers creates a loophole by which users can access a printer directly from their workstation and print outside the control of SavaPage.

For Samba, just edit the

/etc/samba/smb.conf

file and disable the

[printers]

share definition.

In CUPS, do not enable the “Publish shared printers connected to this system” option as offered in the Print Server

Settings dialog. When no such dialog is available you can make the adaption in the CUPS Administrator Web interface

(“Share printers connected to this system”), or manually in the cupsd.conf

1 file by changing this content snippet, that publishes local printers and allows access from all machine on the local network...

# Allow remote access

Port 631

# Share local printers on the local network.

Browsing On

<Location />

# Allow access to the server...

Order allow,deny

Allow @LOCAL

</Location>

... to this snippet that restricts CUPS access from localhost only ...

# Only listen for connections from the local machine.

Listen localhost:631

# Disable printer sharing.

Browsing Off

<Location />

Order allow,deny

</Location>

... and leave all other content as it is.

1

On Debian, RHEL and openSUSE systems cupsd.conf

is located in the

/etc/cups/

directory.

10

Server Installation

Important

Each individual proxy candidate CUPS printer must be shared locally so the savapage

system account can access it. Enabling the shared option can be done in a printer GUI dialog, in the CUPS Administrator Web interface, or directly in the printers.conf

2

file by setting the

Shared Yes

option for a printer.

2.3.1. CUPS Job History

An active SavaPage server captures print job statuses real-time, but when the server is restarted it needs CUPS job history to catch up with the latest statuses. To avoid lost job statuses, CUPS must be told to “Preserve job history”.

You can set the Job History option in the Print Server Settings dialog (“Preserve job history but not files”, or optionally

“Preserve job history (allow reprinting)”), in the CUPS Administrator Web Interface (Advanced settings, “Retain

Metadata : Yes”, and optionally “Retain Documents : Yes”) , or manually by changing the cupsd.conf

file as follows:

MaxJobs 0

PreserveJobHistory Yes

PreserveJobFiles No

MaxJobs

specifies the maximum number of simultaneous jobs that are allowed. Set to

0

to allow an unlimited number of jobs.

PreserveJobHistory

specifies whether metadata is preserved after a job is printed. A value of

Yes

will preserve history, a value of

No

will not. If a numeric value is specified, history is preserved for the indicated number of seconds after printing. Set to

Yes

.

PreserveJobFiles

specifies whether job files (documents) are preserved after printing. A value of

Yes

will preserve files, a value of

No

will not. If a numeric value is specified, files are preserved for the indicated number of seconds after printing. Set this option as you wish, but remember that (spool) files can get big. If you run

SavaPage on a host system with limited storage (for instance on a virtual machine) you better set this value to

No

.

2.3.2. CUPS Web Interface

If you want to use the CUPS Web Interface for administration from all machines on the local network you should adapt cupsd.conf

as follows:

# Allow remote access

Port 631

# Disable printer sharing.

Browsing Off

WebInterface Yes

<Location />

# Allow shared printing...

Order allow,deny

Allow @LOCAL

</Location>

<Location /admin>

Order allow,deny

Allow @LOCAL

</Location>

<Location /admin/conf>

AuthType Default

2

On Debian, RHEL and openSUSE systems printers.conf

is located in the

/etc/cups/

directory.

11

Server Installation

Require user @SYSTEM

Order allow,deny

Allow @LOCAL

</Location>

2.3.3. Restart CUPS

Restart CUPS to activate the changes:

$ sudo service cups restart

Finally, test that the CUPS print queues to be used as

Proxy Printer work as expected.

2.4. Step 4 - Check firewall settings

SavaPage uses TCP/IP port

8631

(for HTTP), port

8632

(for HTTPS/SSL) and port

9100

(for JetDirect/RAW printing) by default.

Note

You can change the TCP/IP port defaults in the

/opt/savapage/server/server.properties

file after installation.

For

Proxy Printer

access the standard IPP port

631

of local CUPS is used.

For

iOS printing

(AirPrint) UDP port

5353

is used.

Depending on the Mail settings common SMTP ports are

25

,

465

and

587

.

Common IMAP ports used for Mail Print

are

143

and

993

.

The Secure JMX Connection uses port

8639

.

SavaPage Google Cloud Printer

uses XMPP port

5222

.

Many GNU/Linux distributions have strict default firewall policies, so take some time now to ensure that these ports are open. Consult your distribution documentation for details on how to open firewall TCP and UDP ports.

2.5. Step 5 - Download and Install

Please make sure you download the version that match the architecture of your distribution. i686

is for 32-bit operating systems. x64

is for 64-bit systems (also known as x86_64

or amd64

).

SavaPage is supplied as a self-extracting and self-installing archive. The installation must be performed as the newly created savapage

user in the

/opt/savapage

directory. Some parts of the installation need to be executed as root

. When you choose to do so during the main install, please have the root

password or sudo

password handy.

You can also choose to execute the root

tasks after the main install. In that case you can simply sudo

execute a post-install script. For more detail about the install process please see

Chapter 8, SavaPage on GNU/Linux [137] .

Change to the newly created savapage

user, download and execute the installer in

/opt/savapage

, and follow the instructions.

sudo su savapage cd /opt/savapage wget URL sh ./savapage-setup-*-linux-*.bin

12

Server Installation

Use the

URL

from the SavaPage Community website.

For example savapage-setup-0.9.10-linux-x64.bin

The installation process will take between one and two minutes depending on the speed of the system. A system restart is not required. When installing on a live production system, administrators are advised to choose a period of low activity - for example, not during backup operations or other administration activities.

2.6. Step 6 - Save Encryption Keys

SavaPage creates the

/opt/savapage/server/data/encryption.properties

file at first installation.

The encryption keys held in this file are used to store Encrypted Secrets and

Document Signatures

in the database.

Make a backup of this file now, and store it at a secure place, so you can restore it when you need to

migrate to a new server

.

Warning

The encryption.properties

file is crucial for decrypting secret data in the database and verifying the authenticity of document signatures. When you lose this file you won't be able to use any database copy which was based on its encryption keys ever.

2.7. Step 7 - Configure

After installation, you will be prompted to open a web browser at http://savapage:8631/admin

to complete the configuration. The configuration steps are explained below.

2.7.1. Step 1 - Login

Login with username

admin

. This is the built-in administration account. Enter admin

as password. This is the standard password as set by the installer.

After login the

Dashboard

is shown where you will notice the system status “Setup is needed”. The next steps guide you in configuring the system so that the status will change to “Ready to use”.

Note

As long as system setup is needed login attempts at the User Web App are blocked with a message saying

“Application setup is required”.

2.7.2. Step 2 - Change Admin Password

As a first security measure change the master password for the built-in admin

account. This account is independent and not related to the operating system or domain. The password needs to meet minimum strength requirements, and

must contain at least six characters. Select Options

Advanced

Reset internal admin password , enter and confirm

the new password and press the Apply button.

Caution

Make sure that this password is kept at a secure place since it is the key to your system.

More information about the admin password can be found in Section 12.1.1.3, “Internal Admin Password” [161]

.

13

Server Installation

2.7.3. Step 3 - Set Locale

Set the system's locale; ensure that these are correct before proceeding. Select

Options

Advanced

Locale

, and enter the locale string. Some examples are: en

, en-GB

, en-US

, nl

, nl-NL

, nl-BE

. You can leave the locale empty to accept the system default. The locale is applied to all system messages which are logged in the system log or send by email. See

Section 13.1, “Localization” [167]

.

2.7.4. Step 4 - Set Currency Code

Set the system's currency code; ensure that these are correct before proceeding. Select Options

Financial , and enter

the ISO 4217 Currency code. Some examples are: USD , EUR , GBP . The currency symbol is determined in the context

of the user or system locale. See Section 13.1, “Localization” [167] .

2.7.5. Step 5 - Set User Source

SavaPage optionally imports user information from a Unix (PAM, NIS, etc.) or LDAP source.

Select Options

User Source .

Select Unix if the user accounts are setup and defined on the local system as standard Unix accounts or mapped into the system from a central directory service such as LDAP via nsswitch.conf

and PAM. Most large established networks will use this option.

Note

For administrators wishing to customize the PAM authentication method at the application level, SavaPage reports itself as “savapage”.

The LDAP option is appropriate for large networks with existing LDAP domains. This includes networks running

OpenLDAP, Apple Open Directory, Novell eDirectory and Microsoft Active Directory.

More information on LDAP is available in

Section 4.8.1.2, “LDAP” [82]

.

After selecting the source, enter the necessary parameters (LDAP only) and press the Apply button.

2.7.6. Step 6 - User Synchronization

Skip this step if you did not set an external User Source in the previous step. Otherwise, select Options

User Creation

Synchronization

Synchronize now to import users.

Important

An option exists to import a subset of users from the source by selecting a group. This option is relevant if only

a subset of users will ever use SavaPage. Select Options

User Creation

Change Group

to select the group.

Tip

Test the import first by pushing the Test button. A simulated import will start, with each step echoed below the button, so you can verify the effect of your action.

14

Server Installation

2.7.7. Step 7 - Set Mail Options

Select

Options

Mail , enter the SMTP and Message options and press the Apply button. Data from the Messages

section is used for system generated mail messages.

You can send a test mail message to a recipient of your choice by pressing the Test button after you applied the changes.

2.7.8. Step 8 - Driverless Printing

Mail Print and Web Print are disabled by default. You can enable and configure these options at Options

Mail Print

and Options

Web Print

.

If you enabled one of the driverless printing options, decide which PDF converters you want to enable at

Options

Advanced

Converters . Beware that you might need to install the converter software on the SavaPage host.

2.8. Step 8 - Share SavaPage Client Files

SavaPage client files are located in directory

/opt/savapage/client

. This includes the SavaPage Printer Driver

and

JMX related files . It is useful to share this directory over the network so users can use, copy or install the files

they need on their workstation. Common sharing methods include:

Samba - used to share files to Windows based workstations. GUI tools are available on GNU/Linux to help you with sharing the client directory via Samba. However, some system administrators may be more comfortable creating the share by hand-editing the

/etc/samba/smb.conf

file. The following configuration will share the directory in read-only form:

[savapage-client] path = /opt/savapage/client comment = SavaPage Client public = yes only guest = yes read only = yes

NFS - a popular sharing method used for GNU/Linux and Unix based workstations.

Note

The

/opt/savapage/client

directory is standard shared via the client/

URL. See Appendix D, URL

Cheat Sheet [201]

.

2.9. Step 9 - Testing

Now the installation is complete, it is time to do a basic test to check if the system is ready-to-use.

• Pick a workstation and login as a user that is part of the user source as configured in

Section 2.7.5, “Step 5 - Set

User Source” [14]

.

• Install the SavaPage Printer Driver. See the instructions at Section 9.1, “Printing with a Driver” [141]

.

• Open a Web Browser and go to the User Web App at http://savapage:8631/

• Login to the Web App with the same credentials as used in the workstation login.

• Print a test document such as a web page or basic document to the SavaPage printer.

• Thumbnail images of the printed pages should appear in the Web App.

15

Server Installation

2.10. What's next?

Congratulations! At this point you have a ready-to-use SavaPage system. This concludes the Install Guide.

If you like, take some time to further explore the features of SavaPage in a more extensive free-format test drive.

Or continue reading about the user interface details at

Chapter 3, User Web App [18]

,

Chapter 4, Admin Web

App [51] and

Chapter 5, Point-of-Sale Web App [131] .

At this point you can also proceed with the configuration of Google Cloud Print ,

AirPrint,

Mail Print and

Web Print

.

Chapter 6, User Client [134] explains how to use a system tray notifier of SavaPage print events for desktops and

notebooks.

Chapter 7, SavaPage Financial [136]

introduces the main pay-per-print concepts with references to more detailed parts of the manual.

Chapter 8, SavaPage on GNU/Linux [137]

offers an in-depth explanation of the GNU/Linux installation process, the directory layout and tools involved.

Chapter 9, SavaPage as Printer [141] explains how for print from different platforms.

Chapter 10, Authenticated Printing [151]

describes how SavaPage determines the digital identity of users in different settings like Single Sign-On (SSO) Domains and Peer to Peer Networks.

Chapter 11, Printing Impact [159] explains the metrics used when giving users feedback about the costs and envi-

ronmental impact of their printing habits.

Chapter 12, Security [161]

discussed security issues and precautions.

Chapter 13, Internationalization [167] explains how SavaPage is adapted to various languages and regions.

Chapter 14, Customization [169] explains how SavaPage can be customized to fit your corporate identity.

Chapter 15, Using an External Database [171]

explains how to use an alternative external relational database.

Chapter 16, Performance Tuning [174] discusses measures to optimize performance.

Chapter 17, SavaPage Community [179] describes the SavaPage Community and explains how to use the Member

Card.

Appendix A, NFC Authentication [181] explains how SavaPage supports RFID as authentication method.

Appendix B, Tools [183] explains the command-line interface for calling server methods, manipulate the database,

stop and start the server, and for applying SSL certificates for secure HHTP connections.

Appendix C, Capacity Planning [199] discusses how SavaPage uses disk space and network resources.

Appendix D, URL Cheat Sheet [201] offers a Quick Reference Card of the available Web Interface URLs.

Appendix E, Printable File Types [203]

gives a summary of the file formats supported by

Driverless Printing

.

Appendix F, Upgrading from a Previous Version [206] describes the procedure to install a new version.

Appendix G, Migrating to a New Server [207]

describes the procedure to move your current SavaPage installation to a new server.

Appendix H, Advanced LDAP Configuration [209]

gives an in depth explanation of the LDAP configuration options.

16

Server Installation

Appendix I, SavaPage Plug-ins [213] explains how to deploy software components that add specific features to

SavaPage.

Appendix J, Smartschool Print Module [216] describes the optional Smartschool module.

Appendix H, Advanced LDAP Configuration [209] contains the full text of the AGPL.

17

Chapter 3. User Web App

The User Web App can be reached at http://savapage:8631/ . For all URL options see

Appendix D, URL

Cheat Sheet [201]

.

Important

When using the User Web App concurrently with the

User Client and

Proxy Print Authentication

you are strongly advised to use an external database like PostgreSQL. See

Chapter 15, Using an External Data-

base [171] .

3.1. Login

Figure 3.1. Web App: Login Dialog

Note

When a user opens the Web App the login dialog is skipped when an authentication token is present in local

storage of the browser. The login dialog is also skipped when the Web App is opened from a trusted and authenticated

User Client

. See

Section 12.1.3, “Authentication Tokens” [161] and

Section 4.8.3, “User

Authentication” [87] .

• The language of the dialog defaults to the language setting of the browser.

• You can overrule the default language and country or preselect a user by using the URL parameters. See Appendix D,

URL Cheat Sheet [201]

• You can choose an alternative language by pressing the Language button. See

Section 3.1.1, “Select Language” [19]

.

• Version and copyright information is shown when you press the About button.

Some invariants:

18

User Web App

• Only Persons can login.

Disabled users are not allowed to log in.

• The internal "admin" user is not allowed to log in as user.

• As long as system setup is needed user login attempts are blocked with a message saying “Application setup is required”.

Tip

You can use an alias as User Name. See Section 10.4, “User Name Aliases” [157] .

3.1.1. Select Language

Figure 3.2. Web App: Select Language Dialog

• At the moment English and Dutch

are fully supported. Press the language of your choice. This will reload the login dialog in the newly selected language.

• Press Cancel to return to the login dialog.

3.1.2. Single Web App Session

A warning message is shown when a desktop

1

user tries to open a second Web App session in a browser instance.

Figure 3.3. Web App session detected

Either close the browser tab and continue with the active Web App session or press Login to login again. This will invalidate any other SavaPage session in the same browser instance.

1

The Single Web App Session check is solely done for certain desktop browser sessions. Sessions on Mac OS X and mobile devices are not checked.

19

User Web App

3.1.3. Login Alternatives

The appearance of the Login dialog on a device depends on the following settings:

• The globally activated Login Methods. See

Section 4.8.3, “User Authentication” [87]

.

• The Terminal settings for the device. See

Section 4.7.3.2, “Custom User Login” [80] .

• The login

URL parameter with the preferred login method. See Appendix D, URL Cheat Sheet [201] .

Terminal settings overrule global settings, and the URL parameter overrules the defined default.

When available, alternative login methods can be selected by tapping the method button at the bottom of the dialog.

Figure 3.4. Web App: Login Dialog - ID Number

Figure 3.5. Web App: Login Dialog - Local NFC Card

Figure 3.6. Web App: Login Dialog - Network NFC Card

20

User Web App

3.1.4. Card Self Association Dialog

When an unknown card is swiped, and Card Self Association is enabled, the user is presented this dialog to associate the new card.

Figure 3.7. Web App: Login Dialog - Card Self Association

There is a time limit to enter the Username and Password. The remaining seconds are shown and when counted down to zero the dialog is automatically closed. The time limit (seconds) is contained in configuration key webapp.cardassoc.dialog-max-secs

. See

Section 4.8.13.10, “Config Editor” [112] on how to change this value.

3.2. SafePages

Figure 3.8. User Web App: Main View

This is the main view with the acquired SafePages since the last login. When no SafePages are present the Sava-

Page logo is shown, and irrelevant buttons are disabled (these buttons are described at

Figure 3.9, “User Web App:

3 SafePages” [22]

).

The Letterhead button brings you to a dialog where you can create, browse and select letterheads See

Section 3.5,

“Letterheads” [38]

.

21

User Web App

Press the Log button to get a list of the See Section 3.7, “Log” [41]

.

The Logout button brings you back to the login screen.

Press the Refresh button when, due to whatever reason, the automatic detection of SavaPage changes fails. This will update the view with the latest state.

Note

Each print to SavaPage is logged as Document

. SafePages that do not match a logged Document are removed.

This can happen when a database is restored, or when old documents are deleted after a

Database Backup

,

or Database Command

.

Figure 3.9. User Web App: 3 SafePages

This screen shows the result of a user who printed 3 pages to the SavaPage printer. The following actions on thumbnails are defined:

• You can scroll through the thumbnails by dragging them horizontally.

• A tap on the transparent area "<" or ">" in the top corner of the thumbnail view port scrolls the view a single page to the left or right. A taphold brings the start or the end of the page range in view.

• A tap (click) opens up a detailed view of the page in the Page Browser:

Figure 3.16, “User Web App: SafePage

Browser (8 pages)” [27]

.

• A tap on the page number underneath the thumbnail or a taphold on the thumbnail itself, opens the Job Rotation

dialog: Section 3.2.2, “Rotation” [25]

.

The following sections describe the actions for the newly enabled buttons:

Section 3.3, “PDF” [28] .

22

Section 3.4, “Print” [33]

.

Section 3.6, “Delete” [40]

.

Section 3.8, “Sort” [44]

.

User Web App

Figure 3.10. User Web App: 8 SafePages

This screen shows the result of a user printing 8 pages to the SavaPage printer, and illustrates thumbnail aggregation.

• Note that only 6 thumbnails are displayed, and that the first thumbnail tells by its numbering that it is the first of a (3) page aggregation.

• A tap on the first thumbnail will bring the (3) aggregated thumbnails in view. As a side-effect an aggregate will appear at another location in the thumbnail sequence.

• Thumbnail aggregation is a protection against information (and resource) overload. Imagine what would happen if you printed a 500 page document to the SavaPage printer and ended up with 500 thumbnails. Aggregation gives you the high-level means to easily zoom in and out.

• As always, a tap on a single thumbnail will bring you to the Page Browser, where you can navigate to any page,

sequentially or directly. See Figure 3.16, “User Web App: SafePage Browser (8 pages)” [27]

.

3.2.1. Footer

The footer is positioned at the bottom of the main user panel. The base items are depicted in the figure below.

From left to right:

Figure 3.11. User Web App: Footer Base

• When you press the About button version and copyright information is shown. The dialog also offers download

links for the SAVAPAGE.ppd

file and the zipped Windows Printer Driver

.

• Left of the About button a check-mark icon is shown, which is an indication that the Web App is connected to the

SavaPage server. Other icons are shown when the connection is being (re) established or lost. When the server is

23

User Web App not down this usually is a temporary condition due to a network hiccup. Don't worry, SavaPage will automatically restore the connection when the network permits.

• The next button shows an inline pagometer Pie-Chart followed by the account balance and the id of the logged in user. The blue color in the chart represents the number of pages the user printed to SavaPage. The green color represents the number of pages exported to PDF. The red color depicts the pages printed to Proxy Printers. When you press the button a dialog with more detailed

Pagometers is shown.

• A tap on the arrow-up button shows the

Upload File dialog.

• The last button shows the Community Member name . Also see

Section 4.11.3, “Community” [123] .

Depending on the selected options additional icons are shown:

User opted to

Eco Print .

User opted to remove graphics.

User opted for PDF security.

User opted for PDF passwords.

User opted for color printing.

User opted for black and white printing.

User opted for duplex printing.

User opted to print two or more pages on one sheet.

3.2.1.1. Paper Size Indicator

When SafePages are present the unique paper sizes of the jobs are depicted in the footer. The text color indicates if a paper size is supported by the selected printer or not. The examples below illustrate how this works.

A4 and A3 jobs are present: a printer is selected that supports both paper sizes.

A4 and A3 jobs are present: a printer is selected that supports solely the A4 paper size. The A3 page is cropped to A4.

24

User Web App

A4 and A3 jobs are present: a printer is selected that supports solely the A4 paper size. The A3 page is shrinked to A4.

A4 and A3 jobs are present: a printer is selected that supports none of the paper sizes (or no printer is selected yet).

3.2.1.2. Hold Print Jobs

A summary of Hold Print jobs is shown in the footer. The example below explains the layout.

From left to right:

• The shortest remaining time to release the jobs before one or more are removed.

• The total of hold jobs.

• The total number of sheets to be printed.

• The total cost charged for printing.

A tap on the summary show a dialog where each hold job in shown in detail with a options to remove a job or to extend the expiry time.

Figure 3.12. User Web App: Hold Print Jobs Dialog

More information about Hold Print can be found at:

Section 3.4.3, “Print Job Settings” [37]

.

Section 4.7.2.2, “Hold Print Mode” [79]

.

3.2.2. Rotation

When a user prints to a printer and selects landscape orientation, the print manager of the originating application will translate and rotate the printed content to fit the dimensions of the hard copy target page.

25

User Web App

When doing so, it makes assumptions about the (0,0) origin of the logical space on this page. The SavaPage printer driver provides a hint to the print manager about the origin, so it can rotate and translate the pages in a way that is compatible with the SavaPage printer.

Contrary to real printers, where hard copies can easily be rotated by hand, pages produced by the virtual SavaPage printer need special attention, since landscape oriented prints will display rotated in portrait oriented images and PDF pages. Probably this is not what you want, so you can ad-hoc rotate job pages in SavaPage to landscape display orientation.

Figure 3.13. User Web App: Landscape Job

• This what you might see when you print a job in landscape orientation.

Tap the page numbering below the image to get the Rotation dialog. See:

Figure 3.14, “User Web App: Rotate

Pages” [26]

.

Figure 3.14. User Web App: Rotate Pages

• Select the Rotate option and press the Apply button to rotate the page and all sibling pages belonging to the same job.

• The result after rotation is shown in

Figure 3.15, “User Web App: Rotated Pages” [27] .

Note

Although the Rotate dialog is triggered from a single SafePage, the rotation affects all SafePages within the same print job.

26

User Web App

Tip

As you noticed, you can also use the Delete button in this dialog to delete all SafePages of a print job.

Figure 3.15. User Web App: Rotated Pages

• The SafePages after rotation.

Warning

When two WebApps are opened for the same user, the result of a page rotation performed in one Web App will not automatically be shown in the other. The user should do a manual refresh to update the SafePages preview.

3.2.3. Browser

A tap on a non-aggregated SafePage thumbnail image will show the page detail in the Browser.

Figure 3.16. User Web App: SafePage Browser (8 pages)

• A tap on the page image zooms in, extending the image width to the available screen width. See Figure 3.17, “User

Web App: SafePage Browser - Detailed View (4 of 8)” [28] .

27

User Web App

• There are several ways to browse the pages:

Swipe the page image to the left or right to view the next or previous page. A swipe-left on the last page brings you back to the first page. Vice versa, a swipe-right on the first page brings the last page into view.

• The arrow-right and arrow-left buttons in the navigation bar below are an alternative for swiping to a next or previous page.

• Use the slider control to directly jump to the page of your choice.

• The delete button shows the delete dialog: Section 3.6, “Delete” [40]

.

• The leftmost return button brings you back to the main SafePages screen:

Section 3.2, “SafePages” [21]

.

Figure 3.17. User Web App: SafePage Browser - Detailed View (4 of 8)

• This screen shows a zoomed-in detailed page view. The image width is extended to the available screen width. Use the standard page scrolling of your browser to scroll the image up and down.

• A tap on the page image zooms out again, adjusting the image height to the available screen height. See Figure 3.16,

“User Web App: SafePage Browser (8 pages)” [27]

.

Tip

The detailed view automatically adjusts itself when the available screen width changes, either by tilting your mobile device from portrait to landscape orientation (vice versa) or by resizing your desktop browser window.

3.3. PDF

A tap on the PDF button in the main SafePages view shows a dialog with PDF properties and export actions. See

Section 3.2, “SafePages” [21] .

Note

PDF properties are preserved when the dialog is closed or a PDF is generated, and are re-used when needed in current or future sessions.

28

User Web App

Figure 3.18. User Web App: PDF - Overview

• This screen shows the full PDF dialog.

• The Author defaults to the name of the authenticated user at login, and can be edited.

• Details are discussed at:

Section 3.3.1, “PDF Filters” [30]

Section 3.3.2, “Scope” [30] .

Section 3.3.3, “Description” [30]

.

Section 3.3.4, “Security” [31]

.

Section 3.3.5, “Passwords” [32] .

Section 3.3.6, “Letterhead” [33]

.

Section 3.3.7, “Download” [33] .

Section 3.3.8, “Send” [33]

.

• A selection of SafePages to incorporate into the PDF output can be entered as a range of Pages. For example:

1-4,6,8-10 . The value can be a single page, a range of pages, or a collection of page numbers and ranges separated by commas. The pages will always be exported in ascending order, regardless of the order of the pages in the page-ranges option. The page range is automatically emptied after printing. Be aware that the page ordinals

are related to the Scope .

• Check one of the

PDF Filters

Eco Print or Remove graphics .

• You can activate a Description , Security and Passwords setting by toggling the corresponding button in the socalled Apply section. A toggle button is disabled when no setting is specified.

29

User Web App

Note

SavaPage tries to translate URL formatted text like “www.example.com” and “[email protected]” to PDF links. Implicit URLs in the source document, such as those contained in text like “click here”, are not sent to the SavaPage printer, and therefore not preserved in the PDF document.

3.3.1. PDF Filters

Activate either the Eco Print or Remove graphics filter option. The last option removes all graphic images from the

PDF. When choosing

Eco Print the selected SafePages will be ad-hoc converted in the background. While conversion

is busy a message box will tell you to wait a while and retry later. Take about 3 seconds per page waiting time into con-

sideration. Automatic filtering may help to diminish waiting times: see Section 4.8.10.2, “Eco Print Settings” [102] .

Note

At the moment a single filter can be selected. If needed filter chains will be supported in a future SavaPage version.

3.3.2. Scope

Figure 3.19. User Web App: PDF - Scope

• When pressing the Scope button you get a selection pop-up with titles of acquired SavaPage print jobs. Tap a job title to restrict the scope of the PDF output to that job. Select the top item dash to activate full scope.

• When full scope is selected the Pages ordinals are related to the SafePages total. When a job is selected as scope, the page ordinals are related to the page total of the job.

• Selecting a scope initializes the Title text with the job name, or clears it when you choose full scope. You can edit the Title if you wish.

Note

When a user

rearranged or deleted

any SafePages the scope is confined to full scope.

3.3.3. Description

Figure 3.20. User Web App: PDF - Description

30

User Web App

• Press the Description button to expand the section.

• Enter the Subject and (space separated) Keywords of the PDF document.

Note

When a Subject or Keywords are entered, the Description toggle in the Apply section will be enabled. Use this toggle to apply (or deny) the Description to the generated PDF.

3.3.4. Security

Figure 3.21. User Web App: PDF - Security

• Press the Security button to expand the section.

• Select the Encryption option to select the allowed actions on the generated PDF.

• Use the Allow all or Allow none buttons to select the actions in one go. Or select each allowed action separately.

• This is a list with the allowed actions, each with a short description:

Printing: Printing the document.

Degraded Printing: same as Printing, but with a lower quality.

Page Extraction: Modifying the contents. For example, changing the contents of a page, or inserting or removing a page.

Commenting: Adding or modifying text annotations.

Document Assembly: Inserting, removing, rotating and bookmarking pages. The content can't be changed, unless

Page Extraction is also selected.

Content Copying: Copying or otherwise extracting text and graphics from the document, This also applies for screen readers or other accessibility devices.

Content Copying for Accessibility: Extracting text and graphics for use by accessibility devices.

Note

SavaPage uses 128-bit PDF encryption.

31

User Web App

Note

When Encryption is selected, the Security toggle in the Apply section will be enabled. Use this toggle to apply (or deny) the security settings to the generated PDF.

3.3.5. Passwords

Figure 3.22. User Web App: PDF - Passwords

• The User password (also known as the open password) locks the PDF file for anyone who doesn't know the password.

• The Owner password (also known as the permissions password) is needed to read the PDF file in order to change the permissions.

• The maximum password length is 32 characters.

• If you don't enter a user password, all users will be able to open the PDF document without being prompted for a password. However, the security settings will remain in place.

• When both PDF user and owner password are entered they must be different.

Important

When a User password is set or Security settings are active, and the Owner password is not set, SavaPage will replace it by a random string.

Warning

Security settings without a User password aren't really secure, since the encryption key is derived from the

User password. When the User password is omitted, the content is encrypted as described in the public PDF reference, so decryption is also known in this case (although illegal to practice).

Note

When a User or Owner password is entered, the Passwords toggle in the Apply section will be enabled. Use this toggle to apply (or deny) the passwords to the generated PDF.

32

User Web App

3.3.6. Letterhead

Figure 3.23. User Web App: PDF - Letterhead

• Press the button in the Letterhead section to get a selection pop-up with available Letterheads.

Tap on a letterhead title to select it, or select the top item dash to deselect a letterhead.

Note

Letterheads are not subjected to

PDF Filters

but are applied to the filtered result.

3.3.7. Download

• Press the Download button to download the SafePages as PDF file, with the properties set in this dialog.

• Your browser will present a Save dialog so you can save the PDF file in the location of your choice.

• The default PDF file name will be identical to the Title you entered as PDF property.

3.3.8. Send

A tap on the Send button in the PDF dialog, shows this Send dialog. See

Section 3.3, “PDF” [28]

.

Figure 3.24. User Web App: PDF - Send

• Enter the Email address of the recipient.

• The last used Email address is shown. Press the Default button to reset the address to the one that belongs to the logged in user.

• Press the Send button to generate the PDF document and send it as attachment to the recipient.

3.4. Print

A tap on the Print button in the main SafePages view shows the Print dialog. See

Section 3.2, “SafePages” [21]

.

33

User Web App

Note

The Print dialog enables users to set custom printer and job options. When a single copy with default printer

options is required, users can apply Fast Print Mode

(when this mode is configured for a printer).

3.4.1. Printer Selection

When a printer was not yet selected a Select Printer dialog is displayed.

Figure 3.25. User Web App: Print - Select Printer

• A maximum of 5 printers is shown in a list.

• Printers marked with an icon are secured with Hold Print Release. An icon means the printer is secured with

Direct Print Release. Printers marked with a Fast label are (additionally) enabled for Fast Print Release.

• Printers can be selected by entering part of the printer name or location. In the figure above the text “floor” was entered, resulting in 3 hits.

• You select a printer from the list by tapping (clicking) it. This brings the settings dialog of the selected printer into

view. See: Figure 3.26, “User Web App: Printer - Settings” [35] .

• The Fast Print Closing Time button shows the expiration time of Fast Print Release. The time is reset when the

Print Dialog opens or the button is pushed. This button is shown when the user is granted access to at least one proxy printer with Fast Print Release enabled.

34

3.4.2. Printer Settings

User Web App

Figure 3.26. User Web App: Printer - Settings

• Set one or more printing options by pushing the pick-list buttons. The options are initialized with the CUPS printer defaults at the start of a user session. Changes made in this dialog are held during the user session.

• Options are printer specific, and are automatically identified by SavaPage.

• When all paper sizes of SafePages jobs are supported by the printer, each paper size is indicated in green at the top of the dialog, and the Media Source defaults to Automatic . In this example A4 and A3 are supported.

• When you choose a specific Media Source (holding a specific paper size) that does not match all paper sizes of

SafePages jobs, a Page Scaling option will appear with an extra page size indicator (with light orange background) at the top of the dialog.

Figure 3.27. User Web App: Print - Page Scaling (Crop)

35

User Web App

• As the orange A3 indicator shows, the selection of the A4 media source does not fit available A3 page sizes. The

Crop option (indicated as solid white square) will preserve page dimensions of the deviant pages: no page scaling is performed.

Figure 3.28. User Web App: Print - Page Scaling (Shrink)

• As the orange A3 indicator shows, the selection of the A4 media source does not fit available A3 page sizes. The

Shrink option (indicated as dotted square) will print whole A3 pages by reducing them to fit the selected A4 printer paper.

Figure 3.29. User Web App: Print - Page Scaling (Expand)

• As the orange A4 indicator shows, the selection of the A3 media source does not fit available A4 page sizes. The

Expand option (indicated as solid square) will print whole A4 pages by enlarging it to fit the printable area of the selected A3 printer paper.

The selected Printer is shown at the top section of the dialog.

Figure 3.30. User Web App: Print - Selected Printer

• The selected printer is shown as button at the bottom of the Printer section. Settings of the selected printer can be changed by pushing the button.

• The top of the section shows the page size indicators, and symbols for the main printer options.

36

User Web App

• Another printer can be selected by reentering the search text (you can clear the quick search first my pushing the

“cross” button at the right).

3.4.3. Print Job Settings

Print job settings can be entered in the Job section.

Figure 3.31. User Web App: Print - Job Settings

• Selecting a Scope and Title for your print job is identical as in

Section 3.3.2, “Scope” [30] .

• The number of Copies can be entered via the slider control, and is currently maximized to 10 copies. The number is automatically reset to one (1) after printing.

• A selection of SafePages to print can be entered as a range of Pages. For example:

1-4,6,8-10

. The value can be a single page, a range of pages, or a collection of page numbers and ranges separated by commas. The pages will always be printed in ascending order, regardless of the order of the pages in the page-ranges option. The page range is automatically emptied after printing. Be aware that the page ordinals are related to the Scope.

• Selecting a Letterhead for your print job is identical as in Figure 3.23, “User Web App: PDF - Letterhead” [33]

.

• Check one of the PDF Filters

Eco Print or Remove graphics . Note the Eco Print discount percentage as described

in Section 4.8.10.2, “Eco Print Settings” [102]

.

• The Collate option is shown when you print multiple copies and describes how printed material will be organized.

For example, if you have a five page document and are printing multiple copies with collate enabled, SavaPage prints pages 1,2,3,4 and 5 in that order and then repeats. However, if collate is disabled and you print three copies of those same five pages, SavaPage prints pages in this order: 111, 222, 333, 444, and then 555. The icons in the checkbox are a mnemonic of the output when the collate option is enabled or disabled.

• When the option Delete all pages after printing is checked, all SavaPage jobs are removed after the printing command is issued. The option is automatically reset after printing.

Press the Print & Close button to print and close the dialog. The job is printed right away, unless NFC Authentication

is configured for the printer. In that case the user must authenticate with an NFC card swipe to release the print job.

In the Hold Release

scenario the job is held so it can be released by the user at a later time without using the User Web

App. Hold Print Jobs can be inspected and removed when needed: see

Section 3.2.1.2, “Hold Print Jobs” [25] . In

the Direct Print Release scenario described below the user is prompted to authenticate immediately.

37

User Web App

3.4.4. Direct Print Release

When a print job is issued for a printer secured with

Direct Print Release

, a dialog is shown prompting the user to swipe his card to release the print job.

Figure 3.32. User Web App: Printer - Direct Print Release

• The cost of the print job is shown in orange.

• A countdown of the remaining seconds for the card swipe is shown in the top right corner of the pop-up. The time limit (seconds) is contained in configuration key proxy-print.direct-expiry-secs

. See Section 4.8.13.10,

“Config Editor” [112]

on how to change this value.

Note

Since the card reader will be mounted near the printer this implements a secure pull-print scenario.

3.4.5. Full Print Scope and Jobs

When a user did not rearrange or delete

any SafePages and full scope is selected without a range of Pages, each input job is printed as a separate job when duplex printing is selected. As a result the first page of new input job will always start on a new sheet. When the Title is left empty the titles of the print jobs will correspond to the titles of the input jobs. When a Title is specified it will be used for all print jobs.

When a user did

rearrange or delete any SafePages the scope is confined to full scope and SafePages will always be

printed as a single job. When the Title is left empty the print job title will be generated according to the timestamp format

SavaPage-CCYY-MM-DDTHH:MM:SS

.

3.5. Letterheads

A tap on the Letterhead button in the main SafePages view shows the Letterhead dialog. See

Section 3.2,

“SafePages” [21] .

Figure 3.33. User Web App: Letterheads

38

User Web App

• Press the top button to get a pop-up list of letterheads. When a letterhead is selected from the list it can be previewed and edited. The selected letterhead acts as default in the Print and PDF dialog: see

Figure 3.23, “User Web App:

PDF - Letterhead” [33] and

Figure 3.25, “User Web App: Print - Select Printer” [34]

.

• Press the Refresh button to rebuild the list if you suspect public letterheads were added or removed.

• Press the New button to create a new letterhead from the current SafePages. All the SafePages are used for the letterhead.

Figure 3.34, “User Web App: Letterhead - New” [39]

is an example of a fresh created letterhead.

Note

If the SafePages contain DRM-restricted content the New button is not visible.

Figure 3.34. User Web App: Letterhead - New

• If the letterhead document consists of one page, this page is applied to every page of the document. The letterhead page is scaled and rotated as needed to fit the input page.

• If the letterhead document has more than one page, each page of the letterhead is applied to the corresponding page of the output document. If the output document has more pages than the letterhead, then the final letterhead page is repeated across these remaining pages of the output document.

• Letterheads can be applied as foreground or background.

• Users who are administrator can mark letterheads as public by ticking the "Public" checkbox. Public letterheads are available for all users, but can be edited and deleted by administrators only.

• The title of a private letterhead can be edited. The title of a public letterhead can be edited by an administrator only.

• Tap on a letterhead thumbnail to get a detailed pop-up image. See

Figure 3.35, “User Web App: Letterhead - Detail” [40] .

• Press the Apply button to commit changes or push the Delete button to remove the letterhead.

39

User Web App

Note

For a background letterhead to be effective, SafePages should be transparent. HTML pages printed from browsers like Internet Explorer and Firefox might pose a problem here. The white background on HTML pages might act as a solid background.

Figure 3.35. User Web App: Letterhead - Detail

• Press the x button in the upper right corner, or tap outside the pop-up, to close the pop-up image.

3.6. Delete

A tap on the Delete button in the main SafePages view shows the Delete dialog. See Section 3.2, “SafePages” [21]

.

Figure 3.36. User Web App: Delete SafePages

• Select a range of SafePages to delete. Press the All button to select all pages. Or, push the Custom button to enter a custom range of SafePages: the value can be a single page, a range of pages, or a collection of page numbers and ranges separated by commas.

40

User Web App

• Tap the Delete button to perform the delete action.

Tip

You can delete all SafePages of a SavaPage print job in the Job Dialog, as described in

Figure 3.14, “User

Web App: Rotate Pages” [26]

.

3.7. Log

A tap on the Log button in the main SafePages view shows the Document Log. See Section 3.2, “SafePages” [21]

.

3.7.1. Documents

The Document Log shows all documents the user printed to SavaPage, and which were subsequently exported or

Proxy-Printed. For a detailed description of this screen see

Section 4.10, “Documents” [115]

in the Admin Web

App chapter.

Figure 3.37. User Web App: Log - Documents

Push the Transactions button in the footer bar to view the

Transaction List .

3.7.2. Transactions

The Transaction Log shows the financial transactions on the user's account.

41

User Web App

Figure 3.38. User Web App: Log - Transactions

Each entry in the list has the following lines.

• A header with the transaction type.

• The resulting account balance with the transaction amount.

• Extra information is added depending on the transaction type.

• A Manual Transaction denotes the Receipt Number in the header and has a Receipt button to download the receipt as PDF.

Some samples of other entries...

42

User Web App

Bitcoin Payment entries show a hyperlink with a shortened transaction hash. The hyperlink opens the transaction details in a new browser tab. The hyperlink URL is held in configuration item financial.bitcoin.user-page.urlpattern.trx

and can be changed with the

Configuration Editor . The value must contain the

{0}

placeholder for the transaction hash. Sample values are https://blockchain.info/tx-index/{0}

and https:// blockexplorer.com/tx/{0}

.

Push the Documents button in the footer bar to view the

Document List

.

43

User Web App

Figure 3.39. User Web App: Log - Transactions

Transactions can be filtered and sorted as follows:

Comment containing text: selects transactions with comments containing a text snippet.

Type: selects (all) or a single one of the transaction types...

Initial: Balance allocated when account was created.

Adjustment: Manual adjustment by an administrator. See Section 4.4.2.5, “Financial” [62] .

Deposit: Adjustment of balance at a

Point-of-Sale .

External: Increment of balance by transferring funds from an external account. See

Section 3.9.6, “Transfer

Money” [48] .

Transfer: Increment or decrement of balance by transferring credit to another user. See Section 3.9.5, “Transfer

Credit” [48] .

Voucher: Increment of balance by redeeming a voucher .

Printer: Decrement of balance for proxy printing. See Section 4.6.2.2, “Printer Costs” [70] .

• Select a creation Period by entering a From and To date. Tap the x button after a date to clear it. See this example

Data Selection Dialog

.

• Transactions can be sorted Ascending or Descending by creation Date or Type .

• The list is refreshed, and the selection applied, after you push the Apply button.

• The Default button resets the selection items to their default values.

• The Report button downloads a Transaction Report in PDF using the selection item values.

3.8. Sort

A tap on the Sort button in the main SafePages view switches to Sort mode. See

Section 3.2, “SafePages” [21]

.

In sort mode pages can be rearranged and deleted.

44

User Web App

Figure 3.40. User Web App: Sort

• This screen shows the result after some editing.

• One cut page is shown with a red border.

• Notice the mini scissor icon at the bottom of the screen, showing the page number of the cut page.

• One selected page is shown with an orange border.

• The footer bar shows a scissor icon with page number of the cut page.

These are the actions that can be performed on page images:

• A tap on a single page will (un)select it.

• A tap on an aggregated page will expand it. Aggregated pages are described at

Figure 3.10, “User Web App: 8

SafePages” [23]

.

Here is a summary of the buttons and their function:

Select all : selects all single (non-aggregated) pages. Selected pages are shown with an orange border.

Unselect all : unselects all selected pages.

Cut : cuts the selected pages into the clipboard. Cut pages remain in view and are marked with a red border. The mini scissor icon at the bottom of the screen, shows the page ranges in the clipboard.

Undo : reverts all cut actions and empties the clipboard.

Left Paste : pastes the cut pages before the first selected page.

Right Paste : pastes the cut pages after the first selected page.

45

User Web App

Delete : deletes the selected pages.

Inbox : returns to the Main view.

3.9. User Details

This dialog shows the

Pagometers

and

Financial

status of the user, and is shown after a tap on the User button in

the footer of the main panel.

• For an Internal User

a Password ... button is shown. A tap on the button will show the Password Reset Dialog

.

• When users are allowed to change their PIN a PIN button is shown. A tap on the button will show a PIN Reset

Dialog. See

Section 4.8.3, “User Authentication” [87]

.

• When an

Internet Print

protocol://authority

is present the Internet Printer button is shown. A tap on the button will show the

Internet Printer Device URI .

3.9.1. Internet Printer

Users can copy/paste their private Internet Print Device URI from this dialog.

Figure 3.41. User Web App: User Details - Internet Printer Device URI

3.9.2. Pagometers

This section shows the personal

Pagometers

of the user, and are analogous to the ones in the Admin Dashboard as shown in

Figure 4.6, “Admin Web App: Dashboard - Pagometer” [55] and

Figure 4.8, “Admin Web App:

Dashboard - Environmental Impact” [56]

.

Figure 3.42. User Web App: User Details - pagometer

46

User Web App

Figure 3.43. User Web App: User Details - Environmental Impact

3.9.3. Financial

This section shows the financial status of the user account and ways to increment the account balance from an external account.

Balance: the user's account balance.

Credit limit: see Section 4.4.2.5, “Financial” [62] .

• A push on the Voucher button opens the

Redeem Voucher

dialog. The visibility of this button is dependent on an

application setting

.

• A push on the Transfer button opens the

Transfer Credit

dialog. The visibility of this button is dependent on an

application setting

.

When a Generic

and/or Bitcoin

Payment Gateway Plug-in is enabled, an icon is shown for each active payment method.

Pushing (clicking) the payment method icon will pop-up the dialog to Transfer Money

or to

Transfer Bitcoins

.

Figure 3.44. User Web App: User Details - Financial

3.9.4. Redeem Voucher

Figure 3.45. User Web App: Redeem Voucher

• Enter the voucher Number in the dialog box and press Redeem . Make sure to enter the number exactly as listed on the voucher including any dashes (-).

47

User Web App

• If you entered the number correctly, the value as shown on the voucher will be transferred to your account and a

new entry will list in your transaction log .

3.9.5. Transfer Credit

This dialog is used to transfer funds to another user.

Figure 3.46. User Web App: Transfer Credit

• Enter the Amount in currency units and cents. The available amount is shown in green at the top.

• Enter the To user id and an optional Comment.

• When you press the Transfer button the amount will be transferred from your account to the account of the target

user. New entries will list in your transaction log and the log of the target user.

To configure this dialog see Section 4.8.11.5, “Transfer Funds” [105]

.

3.9.6. Transfer Money

This dialog is used to transfer money from an external account. The figure below shows a dialog in preparation for a

credit card transaction. Other payment methods are available as defined by the active Generic Payment Gateway Plugin . See for example Section I.1.1.1.1, “Mollie Payment Plug-in” [214]

.

Figure 3.47. User Web App: Transfer Money from Credit Card

48

User Web App

• Enter the Amount in currency units and cents.

• Press the Start button to start the payment transaction.

3.9.7. Send Bitcoins

This dialog is used as a start to send Bitcoins to the account balance.

Note: the Bitcoin address in the screenshot is intentionally made invalid.

Figure 3.48. User Web App: Send Bitcoins

Start sending Bitcoins by performing one of the following actions:

• Press the Start button to automatically open a send transaction in the default Bitcoin wallet on your system.

• Open a send transaction manually in a Bitcoin wallet application on your computer or device (Android, iOS, ...) and either scan the QR code or copy/paste the Bitcoin address (below the QR code).

... and enter the amount to send from your Bitcoin wallet.

Note

The BTC amount is converted to the system currency according to the exchange rate of the Bitcoin service

back-end of the Bitcoin Payment Plug-in

.

3.10. Upload

This dialog implement the SavaPage

Web Print

function, and is shown after a tap on the Upload button in the footer

of the main panel.

49

User Web App

Figure 3.49. Web Print: Upload File

Font for plain text: change the font when you upload a plain text file (TXT) that contains characters not supported by the

Default font, like CJK

. Use

Unifont

when the source text has a real broad Unicode coverage.

• Choose the file to be uploaded. Beware that the actual file selection button differs from browser to browser.

• Press the Upload button to start the upload.

• The status of the upload will be displayed above the selected file name.

• The Back button brings you back to the previous panel.

• The Clear button clears the status messages and selected file.

Note

For uploaded file types that do not have a page size defined (HTML, TXT) the

default paper size is used.

Note

For image files the graphic involved is a best fit on the

default paper size

.

50

Chapter 4. Admin Web App

The Admin Web App can be reached at http://savapage:8631/admin

. See

Appendix D, URL Cheat

Sheet [201] .

4.1. Login

Figure 4.1. Admin Web App: Login

This login screen is a variant of the User Login screen described at

Section 3.1, “Login” [18] , with the following

exception:

• The internal admin

user and Persons with admin rights are allowed to log in. See Section 4.4.2, “Edit User” [59]

how to assign admin rights to users.

• After a successful login

Figure 4.2, “Admin Web App: Menu” [52]

is shown.

Note

Initially, just after installation, only the internal admin

user can login. See

Section 4.4.5, “Administrator

Role” [63] .

4.2. Menu

After a successful login this main Admin screen is shown. If this is a first time login, a message will show, telling you that SavaPage needs to be set up and is not ready to use yet. The message will prompt you to go to the Options section and to check the settings. A long as setup is not completed this message will keep appearing after login. When setup is completed, a similar message will appear when the password of the internal admin

account still has the default value.

51

Admin Web App

Figure 4.2. Admin Web App: Menu

A tap on a the Logout button brings you back to the Login screen. A tap on any other menu option brings a detailed screen into view. Please see the sections below for a description of each menu option:

Section 4.3, “Dashboard” [53]

.

Section 4.4, “Users” [57]

.

Section 4.5, “Queues” [64]

.

Section 4.6, “Proxy Printers” [66]

.

Section 4.7, “Devices” [73]

.

Section 4.8, “Options” [81] .

Section 4.9, “Log” [114] .

Section 4.10, “Documents” [115]

.

Section 4.11, “About” [121] .

These are the buttons in the footer and their function:

Navigate to the top of the page.

52

Admin Web App

Navigate to the top of the menu.

Navigate to the top of the detail panel.

Navigate to the bottom of the page.

Show pop-up menu with additional actions as shown in the figure below.

Figure 4.3. Admin Web App: Action Pop-up Menu

Please see the sections below for a description of each menu option:

Section 4.12, “Vouchers” [126] .

Chapter 5, Point-of-Sale Web App [131] .

Section 4.8.13.10, “Config Editor” [112] .

The User Manual and savapage.org menu items open in a new browser tab.

4.3. Dashboard

After a tap on the Dashboard button in the main menu this panel is shown. See Section 4.2, “Menu” [51]

.

Note

The Dashboard section is automatically refreshed every 60 seconds.

53

4.3.1. Status

Admin Web App

Figure 4.4. Admin Web App: Dashboard - Status

The head section displays indicators about Community Membership status and application runtime:

Community member: The name of the community member organization (empty when no Member Card was imported).

Membership :

Fellow : a community Fellow.

Visitor : a visitor of the community.

Exceeded : the number of users in the database exceeds the number of Member Card participants.

Expired : the Member Card reached end-date.

Visitor Expired : the visitor period expired.

Visitor Edition : a permanent visitor with 5 users or less in the database.

Invalid version : the Member Card is incompatible with this SavaPage version.

Invalid : the Member Card is incompatible with this community.

Participants : the number of community participants.

System Status

Ready to use : SavaPage can be used without impediments.

Setup is needed : there are one or more options that need to be set up. Access to the User Web App is denied till setup is finished.

Restricted access : access to administration functions is restricted, because Community Membership is needed after the visitor period, or because an existing Member Card became void. See

Chapter 17, SavaPage Commu-

nity [179] for details.

System uptime : the time the system is up and running.

Users : the number of users in the database. Deleted users are not part of the total: see

Section 4.4.4, “Deleted

Users” [63] .

Client sessions : the number of active

User Client

sessions.

Web sessions : the number of active User Web App sessions. Multiple sessions on one IP address are counted as one.

Recent errors : the number of errors that occurred in the Application Log

during the last hour.

Recent warnings : the number of warnings that occurred in the

Application Log

during the last hour.

54

Admin Web App

Note

Technical information about the server process can be added to or removed from the Dashboard by setting the value of configuration key webapp.admin.dashboard.show-tech-info

to

Y

or

N

. See

Section 4.8.13.10, “Config Editor” [112]

on how to change this value.

4.3.2. Services

Figure 4.5. Admin Web App: Dashboard - Services

This section lists the status of services.

• Core services like Google Cloud Print ,

Mail Print

or Smartschool Print

must be enabled to be on the list.

Web Print

and Internet Print services are standard part of the list.

Plug-in

services like

Mollie

and

Blockchain.info

Payment Gateways are part of the list if they are enabled in their property file.

You can turn a service On or Off by flipping the status switch.

When the SavaPage server restarts enabled core services are turned On by default. The initial state of enabled plug-

in services is governed by the online

setting in their property file. The on/off state of Internet Print

translates to the enabled/disabled state of the reserved

/internet

Queue .

4.3.3. Pagometers

The Pagometers

1

counting the pages printed-out with Proxy Printers, printed-in from SavaPage Queues, and exported

as PDF are displayed in a Pie-Chart. Pagometers are explained at Section 4.8.13.9, “Pagometers” [111] .

Figure 4.6. Admin Web App: Dashboard - Pagometer

1

In analogy with the term Odometer, the term Pagometer is introduced as an instrument to count the number of processed pages.

55

Admin Web App

A Line-Graph shows the day pagometers for the three sources over the last 30 days.

Figure 4.7. Admin Web App: Dashboard - Pagometer Trend

4.3.4. Environmental Impact

The Environmental Impact for the Proxy Printer pagometer are displayed in a separate section. The metrics and units

used are discussed at Section 11.2, “Environmental Impact” [159] .

Figure 4.8. Admin Web App: Dashboard - Environmental Impact

4.3.5. Financial Summary

A Financial Summary of User Accounts and Bitcoin Wallet is displayed in a separate section.

Figure 4.9. Admin Web App: Dashboard - Financial Summary

56

Admin Web App

The User Accounts total and statistics like Min, Max and Avg are shown as Debit or Credit amount over Count number of accounts.

When a Bitcoin Payment Gateway

is enabled the Bitcoin Wallet balance (Debit) is shown in the system currency and

BTC. The Total number of Bitcoin Addresses in the wallet are split into addresses that received Payments, and Open addresses waiting for payments. Note that other addresses, not created by our

Bitcoin Payment Plug-in

, may be part of the wallet (in our example there is one such address).

The Bitcoin Wallet hyperlink opens the Web Wallet in a new browser tab.

The Accounts summary is updated as the dashboard is (auto) refreshed. However, the Bitcoin Wallet summary is cached by SavaPage and lazy refreshed after a configurable time period (defaulting to 3600 seconds).

2

The date/time of the last refresh is shown in the Date column. Press the Refresh button to force a refresh of the cache.

4.3.6. Activity

Figure 4.10. Admin Web App: Dashboard - Activity

Relevant system events are real-time displayed in this section. A maximum of 20 event messages remain in view, with the most recent one at the top.

System events are persisted in the rotating log file:

/opt/savapage/server/logs/adminpublisher.log

This file has a tab separated value (TSV) format for easy import and manipulation into spreadsheet programs.

4.4. Users

4.4.1. User List

After a tap on the Users button in the main menu this panel is shown. See Section 4.2, “Menu” [51]

.

2

Edit the webapp.admin.bitcoin.wallet.cache-expiry-secs

configuration item with the

Configuration Editor

to set the number of seconds after which the cached Bitcoin Wallet summary is refreshed.

57

Admin Web App

Figure 4.11. Admin Web App: User - List

• All non-deleted users are listed alphabetically by default. A different selection and sorting can be entered: see

Figure 4.12, “Admin Web App: User - Select and Sort” [59] .

• Press the New button to create and edit a new

Internal User

.

• The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

• An entry is displayed for each user, with identifying data and some usage statistics. From top to bottom:

• The user's role or status (at the top right corner).

• An inline pagometer Pie-Chart followed by the user id. The blue color in the chart represents the number of pages printed to SavaPage. The green color represents the number of pages exported to PDF. The red color depicts the pages printed to Proxy Printers.

• The user id of an Internal User

is shown with an orange color.

• The full name and email address.

• The period in which user activity was accumulated on the pagometer.

• The account balance and the pagometer including the number of jobs and bytes printed to any SavaPage printer.

• The size of the user's SafePages home.

• Tap the Edit button to change or delete the user. See Section 4.4.2, “Edit User” [59] .

Note

Deleted Users cannot be edited.

• The Documents button brings you to the list of documents the user processed. See

Figure 4.85, “Admin Web App:

Documents - List” [116]

• The Transactions button brings you to the list of financial transactions on the user's account. For a detailed description of this list see

Section 3.7.2, “Transactions” [41] in the User Web App chapter.

Tip

The pagometers of all users can be reset at

Options

Advanced

Reset Pagometers

58

Admin Web App

Figure 4.12. Admin Web App: User - Select and Sort

• Users can be selected by entering a part (fragment) of their ID or Email. So entering "son" as ID will select both

"jason" and "sonja".

• Select the User Source, Type, Role and (Deleted) Status. The - button will select both.

• The list can be sorted Ascending or Descending on ID or Email.

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort fields to their default values.

• The Report button downloads a User List in PDF using the selection item values.

4.4.2. Edit User

This chapter describes the editable sections of the User entity.

Caution

Some data you edit, like the Name, Primary email, Card Number and ID Number might be overwritten by values from the user source during synchronization. See

Section 4.8.1.2, “LDAP” [82] and

Section 4.8.2,

“User Creation” [85] .

59

Admin Web App

Note

Users can also be edited and deleted with the Server Command Tool. See

Section B.1.16, “setUserProperties” [191] and

Section B.1.5, “deleteUser” [187]

.

4.4.2.1. Identity

Figure 4.13. Admin Web App: Edit External User - Identity

• The user's full Name can be edited. Remember this name can be overwritten for an external User as a result of user synchronisation. See

Section 4.8.2, “User Creation” [85] .

• Assign the

Administrator role by ticking the checkbox.

• Users are regarded as

Person by default. Un-tick the Person checkbox if this user represents a generic

functional account [154] . This will make the user

Abstract .

• Tick the Disabled checkbox to deny the user access to the SavaPage application.

Warning

When a User becomes Abstract

its SafePages are removed.

4.4.2.2. Email

Figure 4.14. Admin Web App: Edit User - Email

• The Primary email and Other emails addresses are editable and must each be unique: they can be associated to just one User. Multiple emails must be separated by any of the characters space, comma, semicolon, or by carriage return or line feed.

60

4.4.2.3. Card and ID

Admin Web App

Figure 4.15. Admin Web App: Edit User - Card

• The Card Number and ID Number are editable and must each be unique: they can be associated to just one User.

• The ID Number is used as authentication token for

Internet Print

.

• The Card Number must be entered in HEX/LSB format. See

Section A.1, “Card Number Format” [181] .

• The PIN must be digits only.

• The minimum length of ID Number is contained in configuration key user.id-number-length-min

. The minimum and maximum length of a PIN are contained in the configuration keys user.pin-length-min and user.pin-length-max

. A maximum value

0

(zero) indicates the maximum is unspecified. See

Section 4.8.13.10, “Config Editor” [112]

on how to change these values.

• Press the OK button to commit the changes and return to the User List.

• The Cancel button brings you back to the User List without changing anything.

4.4.2.4. UUID

Figure 4.16. Admin Web App: Edit User - UUID

The UUID

3

is used as authentication token for

Internet Print . It is automatically created when a user successfully logs

in for the first time. A new UUID can be created by pushing the Generate button.

3

A universally unique identifier (UUID) is an identifier standard used in software construction. See https://en.wikipedia.org/wiki/Universally_unique_identifier

61

4.4.2.5. Financial

Admin Web App

Figure 4.17. Admin Web App: Edit User - Financial

• A new value for the user's account Balance results in a financial transaction that corrects the previous account balance. See

Section 3.7.2, “Transactions” [41] .

• Set the Credit limit with one of these buttons:

• None : user has no credit limit, and is not restricted.

• Default : user has default credit limit. See

Section 4.8.11.2, “General Financial Options” [103] .

• Individual : when selected a custom credit limit can be entered.

4.4.2.6. Password Reset

The edit dialog for an Internal User

has an extra Password ... button. A tap on this button shows the Password Reset

Dialog .

Figure 4.18. Admin Web App: Internal User - Password Reset

62

4.4.2.7. User Delete

Admin Web App

Figure 4.19. Admin Web App: Edit User - Delete

• Press the Delete button to delete the user and return to the User List. The

next section describes the effect of this

action.

• The Cancel button bring you back to the User List without changing anything.

4.4.3. Create Internal User

A tap on the New ... button at the top of the

User List

gives this dialog to create a new

Internal User

. Apart from the regular User data, the attributes ID and Password can be entered.

• The prefix of ID is contained in the configuration key internal-users.username-prefix

.

• The minimum length of the Password is contained in the configuration key internal-users.passwordlength-min

.

• See Section 4.8.13.10, “Config Editor” [112]

on how to change these configuration values.

Tip

Internal Users can also be added with the Server Command Tool. See

Section B.1.2, “addInternalUser” [186] .

4.4.4. Deleted Users

Deleting a User makes sense if he is not part of the user source anymore and was not deleted as part of a bulk delete during a manual synchronization. As long as job history for a User is present SavaPage applies a logical delete. Any logical deleted User will be physically deleted from the database when no related job history is present anymore. This situation will automatically occur when you enabled automatic backup in combination with the delete of old document logs.

Important

If SavaPage synchronizes a new User from the user source, a new user instance will be created in the database, despite the fact that a logical deleted User exists with the same identifying name, i.e. the logical delete status of the "identical" user will remain as it is.

4.4.5. Administrator Role

SavaPage sets up a dedicated account called admin

. This is the master administrator account, with access to all features, whose password is assigned during configuration. In large organizations it is likely that the administrator role

63

Admin Web App needs to be granted to more than one person. One solution is to give all those persons the master password; however a better approach is to assign the administrator role to the network user accounts of these individual's. The advantages of this approach are:

• Administrators can access the Admin Web App with their own username and password.

• Since most administrative activity is logged in an audit trace, changes can easily be tracked back to an individual.

Tip

Administrative users should login via http://savapage:8631/admin

rather than http://sava-

page:8631/

or http://savapage:8631/user

so that they are directed to the correct interface.

4.5. Queues

4.5.1. Queues List

After a tap on the Queues button in the main menu this panel is shown. See Section 4.2, “Menu” [51]

.

Figure 4.20. Admin Web App: Queue - List

Important

Dedicated queues are reserved and pre-installed for the default IPP "/" queue, the Raw IP Printer Port (which

defaults to 9100), Google Cloud Print ,

AirPrint

,

Mail Print

and Web Print .

64

Admin Web App

• All non-deleted queues are listed alphabetically by default. A different selection and sorting can be entered: see

Figure 4.21, “Admin Web App: Queue - Select and Sort” [65]

.

• Press the New button to create and edit a new queue.

• The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

• An entry is displayed for each queue, with identifying data and some usage statistics. From top to bottom:

• The queue's trust or status (at the top right corner).

• The URL Path of the queue. The path is relative to the

/printers

URL base.

• An inline Line-Graph showing the day pagometers of the printed pages over the last 30 days.

• The full IPPS URL variant of the queue.

• Optionally, the allowed client IPv4 addresses as a CIDR Set .

• The period in which activity was accumulated on the pagometer.

• The pagometer of the queue including the number of jobs and bytes printed.

• Tap the Edit button to change or delete the queue. See Section 4.5.2, “Edit Queue” [66]

• The Log button brings you to the list of documents printed to the queue. See

Figure 4.85, “Admin Web App:

Documents - List” [116]

Tip

The pagometers of all queues can be reset at

Options

Advanced

Reset Pagometers

Figure 4.21. Admin Web App: Queue - Select and Sort

• Queues can be selected by entering the containing text (fragment) of their URL Path. So, entering "guest" will select both "guest-teacher" and "student-guest".

• Select the queue's Trust and (Deleted) Status. The - button will select both.

• The list can be sorted Ascending or Descending on URL Path.

65

Admin Web App

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort fields to their default values.

4.5.2. Edit Queue

Figure 4.22. Admin Web App: Queue - Edit

• The URL Path is editable. Renaming the URL path name will permanently overwrite the old name in all related job history records with the new name.

• Enter IPv4 address ranges as a CIDR Set at IP addresses allowed to restrict access to the queue based on requesting

IP address. If the field is empty all requesting IP addresses are allowed to print to the queue.

• Tick the Trusted checkbox to make this a

Trusted Queue

. When this option is not selected the queue will be a

Public Queue

.

• Tick the Disabled checkbox to disable access to the queue for all users.

• Press the OK button to commit the changes and return to the Queue List.

• Tick the Delete button to delete the queue and return to the Queue List. Deleting a Queue will be a logical delete, as long as related job history is present. Any logical deleted Queue will be physically deleted from the database when no related job history is present anymore. This situation will automatically occur when you enabled automatic backup in combination with the delete of old document logs. Deleting a Queue makes sense if you want to preserve its job history with the original name.

• The Cancel button brings you back to the Queue List without changing anything.

Important

Some reserved queues like

Google Cloud Print , Web Print and Mail Print can not be edited. Other reserved

queues like

AirPrint and

Internet Print are untrusted by nature, hence the field Trusted cannot be edited.

4.6. Proxy Printers

4.6.1. Proxy Printer List

After a tap on the Proxy Printers button in the main menu this panel is shown. See Section 4.2, “Menu” [51] .

66

Admin Web App

SavaPage automatically detects CUPS printer queues, and uses their unique name to replicate corresponding Proxy

Printers in its database. When a printer queue is deleted in CUPS it is real-time detected by SavaPage, and as a result the corresponding Proxy Printer is marked as not present. Proxy Printers which are not present are hidden in the User Web

App, so they cannot be used for printing. When a printer queue is renamed in CUPS, two events occur in SavaPage.

First, the new name is detected as a new Proxy Printer, and second, the Proxy Printer with the old name is detected as

a deleted CUPS queue. Proxy Printers which are not present anymore can either be deleted or

renamed

.

SavaPage selects local CUPS printer queues by default. This is a sensible policy since local CUPS queues are able to connect to locally attached printers (USB, LPT) or network enabled printers. However, in some odd cases you might want to proxy print to a remote CUPS queue, i.e. a queue shared by another machine. In that case you can set the value of the cups.ipp.remote-enabled

config item to

Y

. See

Section 4.8.13.10, “Config Editor” [112] on

how to change this value.

Figure 4.23. Admin Web App: Proxy Printer - List

• All non-deleted Proxy Printers are listed alphabetically by default. A different selection and sorting can be entered: see

Figure 4.24, “Admin Web App: Proxy Printer - Select and Sort” [69] .

• Click the CUPS button to open the CUPS Administration web page

in a new browser tab.

• Click the Synchronize button to synchronize all CUPS printer options to SavaPage. Since SavaPage does not automatically detect changed printer defaults (yet), you need to perform this action after you change CUPS printer properties, so users will see the right defaults in the Common Printer Dialog of their Web App.

• The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

67

Admin Web App

• An entry is displayed for each Proxy Printer, with identifying data and some usage statistics. From top to bottom:

• The Proxy Printer status (at the top right corner).

• The display name (alias) of the printer as shown to the user.

• An inline pagometer Pie-Chart followed by the CUPS Name of the printer. The red color in the chart represents the number of pages printed. The orange color represents the number of printed sheets.

• An inline Line-Graph showing the day pagometers of the printed pages over the last 30 days.

• The make and model of the printer.

• The period in which activity was accumulated on the pagometer.

• The pagometer of the Proxy Printer including the number of jobs, sheets and bytes printed.

• The Printer Groups this Proxy Printer is member of.

Tap the Edit button to edit the entry. Proxy Printers which are present in CUPS can be edited: see

Figure 4.25,

“Admin Web App: Proxy Printer - Edit - Identity” [69]

. Proxy Printers which are not present in CUPS can also be deleted or renamed: see

Figure 4.30, “Admin Web App: Proxy Printer - Rename” [73]

The Log button brings you to the list of documents printed to the Proxy Printer. See

Figure 4.85, “Admin Web

App: Documents - List” [116]

Click the Home button to open the CUPS Administration web page

for the printer in a new browser tab.

Important

The CUPS Administration web page must be accessible as explained in Section 2.3, “Step 3 - Configure CUPS and Samba” [10]

. When CUPS authentication is required you can log in with user name root

or with a user name that belongs to the admin group.

Tip

The pagometers of all Proxy Printers can be reset at Options

Advanced

Reset Pagometers

Each Proxy Printer in the list is marked with an icon:

A non-secure Proxy Printer which can be used by any device.

• See Section 4.8.9, “Proxy Print” [100] .

A non-secure Proxy Printer which can not be used by any device.

• See Section 4.8.9, “Proxy Print” [100] .

A secured Proxy Printer whose jobs needs to be authorized with a NFC Card swipe on a Network Card Reader.

• See Section 4.7.2, “Proxy Print Authentication” [76]

.

• A referral to the Reader and the enabled release functions are shown in the list item.

A Proxy Printer which can only be used from certain Terminals.

• See Section 4.7.3.1, “Custom Proxy Print” [80]

.

A Proxy Printer which can only be used from certain Terminals and whose jobs needs to be authorized with a NFC

Card swipe on a Network Card Reader on other Terminals.

68

Admin Web App

Figure 4.24. Admin Web App: Proxy Printer - Select and Sort

• Proxy Printers can be selected by entering the containing text (fragment) of their display name. So, entering "HL-" will select both "HL-1430-SERIES" and "HL-2030-SERIES".

• Select the (Deleted) Status. The - button will select both.

• The list can be sorted Ascending or Descending on display name.

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort fields to their default values.

4.6.2. Edit Proxy Printer

4.6.2.1. Identity

Figure 4.25. Admin Web App: Proxy Printer - Edit - Identity

69

Admin Web App

• The Display name and Location are editable.

• Multiple Proxy Printer Groups can be entered separated by comma.

• Tick the Disabled checkbox to disable access to the Proxy Printer for all users.

• Press the Apply button to commit the changes and return to the Proxy Printer List.

• The Cancel button brings you back to the Proxy Printer List without changing anything.

4.6.2.2. Printer Costs

Printer costs are specified per media side and can be set for One-sided and Two-sided prints and differentiated for B/

W (Black and White) and Color printing.

When SavaPage calculates the cost of a Proxy Print job, the two-sided (duplex) page cost is only applied to pages that are part of a sheet that is printed on both sides. So, for a document with an odd number of pages, the two-sided cost is not applied to the last page. For example, when a 7 page document is printed as two-sided, the two-sided cost is applied to the first 6 pages, and the one-sided cost to the last.

Costs are displayed, and can be entered, with a precision (number of decimals) as defined in Section 4.8.11.2, “General

Financial Options” [103] .

4.6.2.3. Media Sources

In this section you can assign Media Size and Costs to Media Sources.

Figure 4.26. Admin Web App: Proxy Printer - Edit - Media Source

• CUPS printer defaults are indicated in the header with an asterisk (

*

). In some odd cases the CUPS printer color mode default “grayscale” is not correctly transferred as IPP attribute. You can correct this behavior by setting the

Use B/W as default option at the top of the Media Source section.

70

Admin Web App

• Each entry in the list has a checkbox with the IPP attribute keyword of the Media Source.

• Tick the checkbox to enable the media source, and enter a user-friendly name as will show up in the Media Source

picklist of the Printer Settings

dialog.

• Select the Media Size that is present in the Media Source.

• Specify the costs. Notice that only those cost cells are enabled that are applicable for the printer.

Warning

Depending on the PPD file used for the CUPS printer, some media sources might not be applicable. You are advised to do some tests to make sure that media sizes are indeed applicable to the media sources as you intended.

Figure 4.27. Admin Web App: Proxy Printer - Edit - Manual Media Source

• Costs for the manual media source can not be entered here, but must be specified as described in the

next section .

4.6.2.4. Manual Media Sizes

In this section you can specify the Proxy Printer media costs for the manual media source. You can either use a Simple or Advanced definition.

Figure 4.28. Admin Web App: Proxy Printer - Edit - Manual Media Size (Simple)

The Simple definition allows for a single cost per media side. This is appropriate for a non-duplex monochrome Proxy

Printer that can handle a single media size (Letter or A4) only.

71

Admin Web App

Figure 4.29. Admin Web App: Proxy Printer - Edit - Manual Media Size (Advanced)

Advanced mode is best suited for a duplex color Proxy Printer that can handle multiple media sizes.

• The list of supported media sizes is dependent on the Proxy Printer type.

• Use the check-box at a media size to enable its custom cost specification.

• Costs for unspecified (disabled) media sizes fall back to the Default specification.

4.6.3. Printer Groups

Printer Groups allow administrators to combine Proxy Printer instances so they can be addressed as group by a single

tag. A Proxy Printer can have one or more groups tags. See

Section 4.6.2, “Edit Proxy Printer” [69]

.

Printer Groups are used to customize access to Proxy Printers. See:

Section 4.7.2, “Proxy Print Authentication” [76]

Section 4.7.3.1, “Custom Proxy Print” [80]

Section 4.8.9, “Proxy Print” [100]

Note

Printer Group tags are added to the database on first use. Tags without Proxy Printer members are removed from the database at the start of the application and thereafter at a daily schedule.

72

Admin Web App

4.6.4. Rename Proxy Printer

When a Proxy Printer is removed from the host system it is marked in the list as not present. When editing new options appear, as is shown in the screenshot below.

Figure 4.30. Admin Web App: Proxy Printer - Rename

• See Figure 4.25, “Admin Web App: Proxy Printer - Edit - Identity” [69]

for a description of the basic edit options.

• Tick the Delete when job history is cleaned button to logically delete the Proxy Printer. It will be physically deleted from the database when no related job history is present anymore. This situation will automatically occur when you enabled automatic backup in combination with the delete of old document logs. Deleting makes sense if the queue is

permanently removed from CUPS, and you don't want the Proxy Printer list in the Admin Web App to be cluttered with out-of-date "not present" Proxy Printers.

• Press the OK button to commit the changes and return to the Proxy Printer List.

• You can change the associated CUPS printer by entering a New name. Renaming makes sense as a mirroring action

of renaming a CUPS queue. After renaming a printer in CUPS, the Proxy Printer associated with the old CUPS name will be identified by SavaPage as "not present", and a new Proxy Printer for the new CUPS queue will be created.

At this point you can re-associate (rename) the old CUPS name of the Proxy Printer to the new one. This will work as long as no job history is already accumulated on the Proxy Printer associated with this new CUPS name. To overrule this constraint you can tick the Replace (delete) existing printer with identical name checkbox, so an existing Proxy Printer associated with the same (new) CUPS name will be deleted and replaced.

• Press the Rename button to commit the renaming action and return to the Proxy Printer List.

• Both Cancel buttons bring you back to the Proxy Printer List without changing anything.

Caution

If SavaPage detects a CUPS queue whose name is identical to a logical deleted Proxy Printer, the logical delete mark will be removed and the Proxy Printer will be re-activated.

4.7. Devices

A Device is a hardware component with a dedicated function.

SavaPage defines devices of type

Terminal

and

Network Card Reader

. They are identified by IP address and, in case

of the reader, a port number. The combination of IP-address and Type must be unique.

Note

Although most of the time an IP address will harbor one device type, this constraint does allow that Terminal and Network Card Reader are combined on a single physical device.

73

Admin Web App

• A Network Card Reader acts as User Authenticator, either at Login or Proxy Print time.

• A Terminal device runs customized SavaPage Web App Sessions overriding global User Authentication

and Proxy

Print

defaults.

After a tap on the Devices button in the main menu this panel is shown. See

Section 4.2, “Menu” [51] .

Figure 4.31. Admin Web App: Device - List

All Devices are listed alphabetically by default. A different selection and sorting can be entered: see

Figure 4.32,

“Admin Web App: Device - Select and Sort” [75]

. Press the New Terminal... or New Card Reader... button to create a new Device.

Devices are marked with an icon and hold the following items:

A Network Card Reader used for NFC Card Login at a Terminal.

• The name of the Reader.

• A referral to the Terminal.

• The IP address, port, and location of the Reader.

74

Admin Web App

• A time-stamp of the last connection attempt with the status connected (green) or disconnected (orange).

A Network Card Reader used for NFC Card Proxy Print Authentication.

• The name, IP address, port, and location of the Reader.

• A time-stamp of the last connection attempt with the status connected (green) or disconnected (orange).

• The Proxy Printer

or Proxy Printer Group for which this reader acts as authenticator.

• The Print Mode of the proxy printer(s): Fast, Hold, Direct.

A Terminal with custom settings.

• The name, IP address and location of the Terminal.

• The Proxy Print or

Proxy Printer Group

for which this Terminal is entitled to print to.

A Terminal with custom settings and a Network Card Reader used for NFC Card Login.

• The name of the Terminal.

• A referral to the Reader.

• The IP address and location of the Terminal.

• The Proxy Printer

or Proxy Printer Group for which this Terminal is entitled to print to.

Figure 4.32. Admin Web App: Device - Select and Sort

• Devices can be selected by entering the containing text (fragment) of their display name. So, entering "CARD-" will select both "CARD-READER-PAMPUS" and "CARD-READER-RPI".

• Select the Status. The - button will select both Enabled and Disabled devices.

• Select the Type. The - button will select both Reader and Terminal devices.

• The list can be sorted Ascending or Descending on device name.

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort fields to their default values.

4.7.1. Network Card Reader

A Network Card Reader device runs the SavaPage

Network Card Reader Service .

75

4.7.1.1. Custom User Login

Admin Web App

Figure 4.33. Admin Web App: Devices - Network Card Reader - Custom User Login

• A reader is associated to a Terminal in the Terminal dialog. See

Section 4.7.3.2, “Custom User Login” [80]

.

The associated Terminal is shown here with icon and name.

• Tick Disabled to disable the Device definition.

• The format of the NFC Card Number must be specified. See

Section A.1, “Card Number Format” [181] .

Note

A Network Card Reader can be used as NFC Card Login authenticator by just one Terminal.

4.7.2. Proxy Print Authentication

A Network Card Reader can act as print job authenticator for a single Proxy Printer or a

Proxy Printer Group .

When the reader device is placed next to the printer device this setup implements

Pull Printing

4

.

4

http://en.wikipedia.org/wiki/Follow_Me_(printing)

76

Admin Web App

77

Admin Web App

Figure 4.34. Admin Web App: Devices - Network Card Reader - Proxy Print Authentication

Checking the Proxy Print Authentication option shows all the detail options. The Print Mode determines the authentication scenario. Basically there are three modi:

Fast ,

Hold

and

Direct

. Fast Mode can be combined with Hold and Direct Mode.

• When selecting Single Printer, enter the name of a Proxy Printer .

• When selecting Printer Group, enter the name of a

Proxy Printer Group

.

• The format of the NFC Card Number must be specified. See

Section A.1, “Card Number Format” [181] .

Important

When using Proxy Print Authentication concurrently with the User Web App

and User Client you are strongly

advised to use an external database like PostgreSQL. See

Chapter 15, Using an External Database [171] .

4.7.2.1. Fast Print Mode

Fast Print Mode applies to a Single Printer and supports the following scenario:

1. User prints one or more jobs to SavaPage. See

Chapter 9, SavaPage as Printer [141]

.

2. User walks to the printer.

3. User swipes his NFC token along the reader.

78

Admin Web App

4. As a result he gets one (1) printed copy of all SafePages jobs according to the default printer settings.

Expired SafePages jobs are skipped and cleared. The expiry period is set in

Section 4.8.9, “Proxy Print” [100]

. A

user can extend his fast job expiry in the User Web App. See Section 3.4.1, “Printer Selection” [34] .

• A Fast Print clears all SafePages after printing.

• This scenario does not need any action in the User Web App. Therefore, it is the shortest way to proxy print with

SavaPage.

Important

When Fast Mode is combined with Hold or Direct Mode, and a Printer Group is specified, one of the printers

from the group must be specified as Single Printer.

4.7.2.2. Hold Print Mode

Hold Print Mode applies to a Single Printer or Printer Group and supports the following scenario:

1. User prints one or more jobs to SavaPage. See

Chapter 9, SavaPage as Printer [141]

.

2. User opens the User Web App en

proxy prints

to either the Single Printer or one of the printers from the Printer

Group.

3. As a result the proxy print job is held.

4. User walks to the chosen printer.

5. User swipes his NFC token along the reader.

6. As a result all hold jobs for the printer are printed.

Expired hold jobs are skipped and cleared. The expiry period is set in

Section 4.8.9, “Proxy Print” [100] . A user

can delete hold jobs or extend expiry in the User Web App. See

Section 3.2.1.2, “Hold Print Jobs” [25] .

4.7.2.3. Direct Print Mode

Direct Print Mode applies to a Single Printer or Printer Group and supports the following scenario:

1. User prints one or more jobs to SavaPage. See

Chapter 9, SavaPage as Printer [141]

.

2. User opens the User Web App in his mobile device.

3. User selects either the Single Printer or one of the printers from the Printer Group. See

Section 3.4.1, “Printer

Selection” [34]

.

4. User selects printer and job settings.

5. User walks to the chosen printer.

6. User presses the Print button in the Web App.

7. As a result a dialog pops up prompting the user to swipe his NFC Card for authentication. See Section 3.4.4, “Direct

Print Release” [38]

. User has a 10 second time limit to swipe his card. The time limit is set in Section 4.8.9, “Proxy

Print” [100]

.

8. User swipes his NFC token along the reader.

9. As a result the job is printed.

4.7.3. Terminal

A Terminal runs customized SavaPage Web App Sessions on a specific device.

79

Admin Web App

4.7.3.1. Custom Proxy Print

A Terminal can allow printing to a single

Proxy Printer

or Proxy Printer Group

. This is usually done for printers that

need to be secured according to global Proxy Print

defaults.

When the Terminal device is placed next to the printer this setup implements Pull Printing

5

.

Figure 4.35. Admin Web App: Devices - Terminal - Custom Proxy Print

• The Idle Seconds before auto logout is targeted at public Terminals and is meant to protect users who forget to logout when done. Enter a number of seconds: the Web App will automatically logout after this period of inactivity.

Enter 0 (zero) when no auto logout is desirable.

• Check the Custom Proxy Print option.

• When selecting Single Printer, enter the name of a Proxy Printer .

• When selecting Printer Group, enter the name of a

Proxy Printer Group

.

4.7.3.2. Custom User Login

Check the Custom User Login option to override global User Authentication

defaults just for this Terminal.

5

http://en.wikipedia.org/wiki/Follow_Me_(printing)

80

Admin Web App

Figure 4.36. Admin Web App: Devices - Terminal - Custom User Login

• The options in this section are identical to the ones in

Section 4.8.3, “User Authentication” [87]

with the addition of the Network NFC Card option.

• Enter the name of the Network Card Reader below the Network NFC Card Reader label.

4.8. Options

A tap on the Options button in the

main menu

shows a panel options organized in sections. A tap on one of the sections expands (or collapsed) the underlying detais. Please see the sections below for a detailed description:

Section 4.8.1, “User Source” [82]

.

Section 4.8.2, “User Creation” [85]

.

Section 4.8.4, “Mail” [91] .

Section 4.8.5, “Google Cloud Printer” [92]

.

Section 4.8.6, “Mail Print” [96] .

Section 4.8.7, “Web Print” [98] .

Section 4.8.8, “Internet Print” [99] .

81

Admin Web App

Section 4.8.9, “Proxy Print” [100] .

Section 4.8.10, “Eco Print” [101] .

Section 4.8.11, “Financial” [102]

.

Section 4.8.12, “Backups” [105] .

Section 4.8.13, “Advanced” [106]

.

4.8.1. User Source

This section is about the configuration of external and internal user sources.

Figure 4.37. Admin Web App: Options - User Source

Tap the - button if you do not want to import users from an external source. Remember to enable the Internal Users

feature if you want to acquire any user into the system.

Tap the Unix button if you want to import Unix user accounts

defined on the SavaPage host.

Tap the LDAP button to import users from an existing LDAP domain. This includes OpenLDAP, Apple Open

Directory, Novell eDirectory and Microsoft Active Directory. When this option is selected the

LDAP connection data are shown.

• Press the Apply button to commit the changes.

4.8.1.1. Unix

This option imports user accounts that are setup and defined on the local system as standard Unix accounts or mapped into the system from a central directory service such as LDAP via nsswitch.conf

and PAM. Most large established

Unix networks will support this option.

4.8.1.2. LDAP

LDAP (Lightweight Directory Access Protocol) directories usually store information about user and groups in an

organization. One of the most common uses of LDAP is to provide single sign-on

on a network that comprises multiple platforms and applications. When a network consists of Windows computers only, then an Active Directory domain can be used. But when there is a mix of Windows, Apple and GNU/Linux machines then LDAP can provided the single source of user, group and authentication information. (It is worth noting that both Active Directory and Novell eDirectory implement the LDAP protocol).

SavaPage can use an LDAP directory for user authentication and as a source of user and group information. LDAP can either be enabled at installation time, or by changing the user source at this point. When enabling LDAP, a number of configuration settings must be specified to allow the application to connect to the LDAP server. Please ask your

LDAP administrator what values to use for the various options.

82

Admin Web App

Figure 4.38. Admin Web App: Options - User Source - LDAP

• The Server Type determines which LDAP fields are used to get user and group information. Select one of the following server types that SavaPage supports out-of-the-box:

• OpenLDAP : OpenLDAP .

• Apple : Apple Open Directory

.

• Novell :

Novell eDirectory

.

• Windows : Microsoft Active Directory

.

However, it is easy to support other server types by adjusting the fields SavaPage uses for LDAP searches. This is discussed in

Appendix H, Advanced LDAP Configuration [209]

• Enter the hostname or IP address of the LDAP server at the Host prompt.

• Enter the IP port of the LDAP server at the Port prompt. The value defaults to

389

.

• Tick the Use SSL checkbox to use encrypted SSL connection to connect to the LDAP server. The LDAP server requires SSL support to be enabled and should accept connections on the standard LDAPS port

636

.

• Enter the Base DN of the LDAP server at the Base DN prompt. This is the equivalent of the “suffix” config setting of the OpenLDAP server. For example, if the domain hosted by the LDAP server is “domain.com” then the Base

DN might be:

DC=domain,DC=com

The format of the Base DN can differ significantly depending on the configuration. Some older Novell eDirectory installations may require a blank Base DN to operate. Some examples:

DC=myorganization,DC=com

DC=mycompany,DC=co,DC=uk

OU=OrgUnit,DC=domain,DC=com

DC=local

• The Admin DN is the DN of the user who has permission to connect to and query the LDAP server. This is typically an administrative user, although it can be a user that only has read-only access to the LDAP server. An example of the DN of the Administrator user on a Windows AD domain "domain.com", would be

CN=Administrator,CN=Users,DC=domain,DC=com

. The exact format of the DN depends on the LDAP server. Some examples:

Microsoft Active Directory (in organizational unit)

83

Admin Web App

CN=administrator,OU=OrgUnit,DC=domain,DC=com

Apple Open Directory uid=diradmin,CN=users,DC=domain,DC=com

OpenLDAP uid=root,DC=domain,DC=com uid=ldapadmin,DC=domain,DC=com

Microsoft Active Directory

CN=Administrator,CN=Users,DC=domain,DC=com

Novell eDirectory

CN=root,DC=domain,DC=com

CN=ldapadmin,OU=users,DC=domain,DC=com

• The Admin password is the password for the administrator specified in the Admin DN above.

Tip

Some LDAP servers are configured to allow “anonymous” LDAP query access. In these situations, the Admin

DN and Admin password may be left blank.

Figure 4.39. Admin Web App: Options - User Source - LDAP

At the LDAP fields for alternative authentication section LDAP field names can be entered for the two alternative user authentication methods ID Number and Card Number, as described in

Section 4.8.3, “User Authentication” [87] . Field names are optional and can be left empty. The Card Format is relevant when the Card Number

is specified. See

Section A.1, “Card Number Format” [181] .

Important

The ID and Card Number must each uniquely identify a user, so make sure that no two users have the same number. This means that the numbers defined in LDAP should be unique. If SavaPage encounters a nonunique ID or Card Number that user will not be updated.

4.8.1.3. Internal Users

With the internal users feature you can directly manage users inside SavaPage. Enabling this feature removes the obligation to define an external User Source to create and manage Users. Of course you can enable this feature as an addition to an external source.

84

Admin Web App

Figure 4.40. Admin Web App: Options - Internal Users

When Internal Users is selected an extra option appears where you can allow internal users to change their password.

See Section 3.9, “User Details” [46]

.

Tip

Use the Server Command

Tool to batch import internal users. See

Section B.1.2, “addInternalUser” [186]

4.8.2. User Creation

This section is about the creation and synchronization of external users. Internal Users are created in the User Web

App or with the Server Command Tool. See

Section 4.4.3, “Create Internal User” [63] and

Section B.1.2, “addInternalUser” [186]

.

Figure 4.41. Admin Web App: Options - User Creation - Import

The Import users from group section holds an option to import a subset of users from the source by selecting a group.

This option is relevant if you want to restrict access to SavaPage for a subset of external users.

• A tap on the Change group button shows a list of available groups as seen in

Figure 4.42, “Admin Web App:

Options - User Creation - From Group” [86]

.

• Select a group from the list and press the Apply button to commit the change, or press the Cancel button to roll it back.

• Use the [All Users] button to cancel the group restriction.

85

Admin Web App

Figure 4.42. Admin Web App: Options - User Creation - From Group

Caution

In Active Directory, user group membership comes in two flavors. It can either explicitly be assigned, or be implied by the user's Primary Group ID, i.e. the RID of the primary group the user is member of. Because primary group membership is implicit, the Active Directory API will return an empty member

attribute for this group. When users are explicitly assigned as member to groups the API will return group members as expected.

For example, because Active Directory sets the Primary Group ID of all users to the built-in “Domain Users” group, the Active Directory API will not report any members for the “Domain Users” group.

This issue is discussed in the following Microsoft Knowledge Base article: http://support.microsoft.com/ kb/275523

Note

Active Directory supports an advanced feature called “Nested Groups”. This allows a group to have other groups as member. Since a sub-group can again have sub-group members, nesting can be several levels deep.

When importing users from a group, SavaPage traverses the nested group tree to collect all containing users.

Figure 4.43. Admin Web App: Options - User Creation - Synchronize

The Synchronization section holds options for the external user synchronization process.

• Tick the Update user details checkbox if you want to overwrite user details in the database with details from the source.

Caution

An external User will overwrite an internal User with the same user id: as a result the User will become

external.

86

Admin Web App

• Select Import new users overnight to automatically synchronize daily at 10 minutes past midnight

6

.

• Press the Apply button to commit the changes.

Press the Synchronize now button to manually start a synchronization.

• Tick the Delete users that do not exist in the selected source checkbox to (logically) delete users in the database that were removed from the source. Note that this checkbox is deselected again after each synchronization.

• Feedback messages from the synchronization process are real-time displayed in the Messages section. Press the

Clear button to remove them.

• Use the Test button to check the effect of the synchronization without updating the database. Messages are shown with a "test" prefix.

Note

Disabled Active Directory users will not be imported by default. If you want to change this behavior you can set the value of configuration key ldap.disabled-users.allow

to

Y

. See Section 4.8.13.10, “Config

Editor” [112]

on how to change this value.

Tip

To delete all external users, select - as User Source and use Synchronize now with the Delete users option.

Caution

The SafePages of external users not present in the source are deleted.

Figure 4.44. Admin Web App: Options - User Creation - On Demand

On demand user creation specifies which events, apart from regular user synchronization, will ad-hoc create new

external users in the database.

• If the user associated with these events is not in the database, SavaPage will check if the user is part of the

User

Source

and thereby a sure Synchronized User candidate. If so, it will ad-hoc synchronize the user into the database.

• Select At first login to ad-hoc create a user when he successfully passed the SavaPage Login

for the first time.

• Select At first print to ad-hoc create a user when he prints to a SavaPage queue for the first time.

• Press the Apply button to commit the selection.

4.8.3. User Authentication

This sections describes the global defaults for User Authentication.

6

Overnight user synchronization takes place according to the default CRON expression

"0 10 0 * * ?"

contained in configuration key schedule.daily

. See Section 4.8.13.10, “Config Editor” [112]

on how to change this value.

87

Admin Web App

Figure 4.45. Admin Web App: Options - User Authentication

The Persistence section holds a options to persist authentication in Browser Local Storage . When enabled, a successful login to the SavaPage Web App will store an authentication token in the “Local Storage”

7

of the browser.

When the user closes the browser after a successful login and opens it again, login will be automatic, without the need to authenticate again. Separate authentication tokens are held for the User and Admin Web App context. See

Section 12.1.3, “Authentication Tokens” [161]

.

Note

The presence of an authentication token is essential for the iOS Web Clip

to function, and is pure convenience in other environments.

When Browser Local Storage is disabled, authentication persistence is implemented with Web Sessions .

The PIN section holds the defaults for PIN usage.

7

Local Storage is a W3C standard and stores data in the browser with no expiration date. The data will not be deleted when the browser is closed, and will be available the next day, week, or year.

88

Admin Web App

• When User can change their PIN is enabled users are granted the option to change their PIN. See

Section 3.9,

“User Details” [46] .

When Trust User Client is enabled User Web App authentication is automatic when:

• An authenticated

User Client session is present at the same IP address.

• The

User Web App is opened with an URL parameter identifying the user from the User Client session. See

Appendix D, URL Cheat Sheet [201]

.

The NFC Card section holds the defaults for card swipe logins using a Local Card Reader

or Network Card Reader

.

• With Require PIN enabled the user must also provide their associated PIN. This provides additional security for swipe card logins.

• When the Self Association option is selected, users are allowed to swipe cards previously not used or registered.

When swiping such an unregistered card, SavaPage will ask the user if he wants to associate the new card to his account. When the user agrees SavaPage will switch to User Name authentication. After successful authentication the new card will be registered, thereby replacing any previously associated card. This feature is available for User

Web App Login only. See

Section 3.1.4, “Card Self Association Dialog” [21]

.

In the last section different Login Methods can be activated. When a method is activated a detailed section is shown.

Detailed sections are explained in:

Section 4.8.3.1, “Username Login” [89]

Section 4.8.3.2, “ID Number Login” [89]

Section 4.8.3.3, “Local NFC Card Login” [90]

Section 4.8.3.4, “Default Login” [90]

Note

The globally active Login Methods can be overridden for a specific Terminal

by defining Custom User Login settings.

Note

ID Numbers and NFC Card Numbers can be synchronized with an external source like

LDAP , or imported

from file.

4.8.3.1. Username Login

The Username login method allows a Person to use his regular username and password to login.

Figure 4.46. Admin Web App: Options - User Authentication - Username Login

• If the Show in Dialog option is selected, the Username login method is part of the Login dialog. When this option is disabled this login can only be achieved by use of the login URL parameter. See

Appendix D, URL Cheat

Sheet [201] .

4.8.3.2. ID Number Login

The ID Number login method allows a Person to use his identity number. Identity numbers are convenient when usernames are too long or cumbersome to enter. For example, rather than entering a username like “steven.brown-002”, it is more convenient to enter the employee or student ID Number “3624”.

89

Admin Web App

Figure 4.47. Admin Web App: Options - User Authentication - ID Number Login

• If the Show in Dialog option is selected, the ID Number login method is part of the Login dialog. When this option is disabled this login can only be achieved by use of the login

URL parameter. See

Appendix D, URL Cheat

Sheet [201] .

• When Mask input is set the ID Number will be masked when entered (like a password).

• With Require PIN set the user must also provide their associated PIN. This provides additional security for ID

Number logins.

4.8.3.3. Local NFC Card Login

The Local NFC Card login method allows a Person to login by swiping an NFC Card across a

Local Card Reader

.

Figure 4.48. Admin Web App: Options - User Authentication - Local NFC Card Login

• If the Show in Dialog option is selected, the Local NFC Card login method is part of the Login dialog. When this option is disabled this login can only be achieved by use of the login URL parameter. See

Appendix D, URL

Cheat Sheet [201]

.

• The Format of the card number must be specified. See

Section A.1, “Card Number Format” [181] .

Warning

This setting applies to any Local Card Reader hooked up to any device. If a card reader is used that produces

a different format a

Terminal

definition with a Custom User Login needs to be created for the device the reader is hooked up to.

4.8.3.4. Default Login

Figure 4.49. Admin Web App: Options - User Authentication - Default Login

90

Admin Web App

• Select the Login method that is displayed as default in the Login dialog.

4.8.4. Mail

This section holds the settings for outgoing mail.

Figure 4.50. Admin Web App: Options - Mail - SMTP

Enter the SMTP connection parameters:

• The host name or IP address of the Host.

• The IP port at Port. The standard SMTP ports are:

25

(insecure),

465

(SSL/TLS) and

587

(STARTTLS). The value defaults to

465

(SSL/TLS).

• Select the connection security: - for an insecure connection, and STARTTLS

8

or SSL/TLS

9

for a secure connection.

• Enter the User Name and Password if authentication is required.

Figure 4.51. Admin Web App: Options - Mail - Messages

8

STARTTLS is a way to take an existing insecure connection, and upgrade it to a secure connection using SSL/TLS.

9

SSL and TLS both provide a way to encrypt the communication between a client and a server computer. TLS is the successor to SSL and the terms SSL and TLS are used interchangeably.

91

Admin Web App

The Messages section holds the sender and reply parameters used for email messages send by the system:

Sender address : enter a valid email address representing the sender of the message.

Sender name : the name default to SavaPage.

Reply address : enter a valid email address the recipient can reply to.

Reply to name : the name to reply to.

Press the Apply button to commit the changes.

Figure 4.52. Admin Web App: Options - Mail - Test

Check if all mail parameters are valid by sending a test email.

• Enter a valid email address to send a message To and press Test . Check the mailbox of the recipient to see if the message arrived.

4.8.5. Google Cloud Printer

Google Cloud Print

10

™ (GCP) is a Google service by which any Cloud Print aware application (web, desktop, mobile), on any device connected to the cloud, can print to any remote printer connected to that cloud.

The service is agnostic about the abundant combinations of client devices and target printers, and clients do not need to install device drivers to get things going. However, documents need to be fully transmitted to the Google cloud first, before they can be printed.

GCP is part of

Android and Chrome OS

and is, apart from that, available on all mobile devices and desktops via

Google Cloud Print enabled Web Apps

11

.

Several hardware vendors have already integrated their solution with Google Cloud Print services so their printers can receive jobs from the Google cloud.

SavaPage closes the ranks with its own GCP integration so it truly qualifies as Google Cloud Ready Printer.

Note

Google Cloud Print maps to the reserved

Queue

/gcp

.

4.8.5.1. Google Cloud Printer Registration

This section describes how to register the Google Gloud Printer just after you installed SavaPage.

Tip

During registration additional browser tabs and windows are opened. Therefore, it is more convenient to use a desktop browser during registration.

10

http://www.google.com/cloudprint/learn/

11

A list of Web Apps that work with Google Cloud Print can be found at http://www.google.com/cloudprint/learn/apps.html

.

92

Admin Web App

Figure 4.53. Admin Web App: Options - Google Cloud Print - Status

The top panel in this section shows the printer status with the following items:

Enable. A check-box indicating whether the Cloud Printer is enabled or not.

Printer. The name of the Cloud Printer.

Owner. The Google User acting as owner of the printer.

State. The state of the printer.

Initially the Printer name defaults to SavaPage, the Owner is unspecified and the State is Disabled.

Tap the name “SavaPage” to set the authenticated Google account.

A new browser tab opens with the Google Cloud Print home page for the authenticated Google User of the current browser session.

Make sure you are authenticated with the Google account meant for the Owner of the SavaPage Cloud Printer.

When not authenticated Google invites you to Sign in to continue to Google Cloud Print. When already authenticated, logout from an existing Google account different from the intended owner, and tap the SavaPage name again.

Note

Although any Google account can be used as owner, we recommend to create a dedicated account to administer the Google Cloud Printer. A personal account is not convenient since it may be deleted or become out-of-date.

Go back to the SavaPage Admin Web App and press the Enable check-box to enable Google Cloud Printing.

A panel is shown for entering the Google OAuth credentials and Printer name. The credentials are needed by SavaPage to create and monitor the printer belonging to the owner. Although credentials from any Google account other than the one from the printer owner could be used, it is advised to use one and the same account. This track will assume this is the case.

Note

Cloud Ready Printer manufacturers normally use their own OAuth credentials for all printer registrations. For reasons of security and independence SavaPage let you use your own credentials.

Press the Apply button to save the Enable setting.

Tap the link called “Web Application Credentials” to get the OAuth credentials.

93

Admin Web App

This opens a new browser tab with the Google Developers Console of the Google account acting as printer owner (as authenticated in the previous step).

If this is a brand new account, follow Google's instructions to get started. When no API project is present, which will be the case for a new account, follow Google's suggestion to create a project. At the newly created project:

• Select the APIs & auth →

Credentials option from the (left hand side) menu.

• Select Create new Client ID in the OAuth section.

• Select Web application as Application type (the other entry fields are irrelevant).

• Press the Configure consent screen button.

Figure 4.54. Admin Web App: Options - Google Cloud Print - OAuth

Now that the Client ID for web application is created, copy the Client ID and Client secret from the Google console

to the corresponding fields in the SavaPage panel.

Press the Register button.

A Google Cloud Printer confirmation window will pop-up.

Press the Finish printer registration button in the pop-up.

Registration is now complete, and you can close the pop-up window.

Press the Refresh button in the SavaPage status panel.

Notice that the Printer name and Owner have changed according to your registration, and that a new Online button has appeared. Press this button to make the printer available for printing (pressing the Offline button makes the printer unavailable again).

This finishes the registration of the Google Cloud Ready Printer.

Important

The

Google Cloud Print Service parameters are stored in the file

/opt/savapage/server/gcp.properties

. Make a backup of this file now, and store it at a secure place, so you can restore

it in case of a server crash or when you need to migrate to a new server .

94

Admin Web App

4.8.5.2. Edit Google Cloud Printer

The Cloud Printer can be edited and consulted in the Google Cloud Print page, which can simply be accessed by

tapping the Printer name in the Status panel . Several actions can be performed here like sharing, renaming or deleting

the printer.

After a Rename of the Cloud Printer, you need to press the Offline and Online button if you want to see the new name in the Status panel.

A Delete of the printer will result in State “Not found” in the

Status panel (press Refresh to update the panel if it

does not show). At this point you need to

Register again if you want to use Google Cloud Print.

You can Share the printer by inviting other Google users to use it.

4.8.5.3. Google Cloud Print User Registration

For a

Person to use Google Cloud Print he must have a Google account. This account may be acquired privately, or

provided via the Google Apps environment already present in your organization.

The Owner of the Cloud Printer must share the printer by inviting Google users. See

Section 4.8.5.2, “Edit Google

Cloud Printer” [95] .

Tip

You may share the Cloud Printer with individual users by entering a list of Google email addresses. But you may also share printers with a Google Group. For example, you could set up a dedicated Google Group and share the printer to this group. A Google Group can be set up for users to self-register, but you may chose need to moderate these registrations. Google provides mechanisms for users to request membership to a Google

Group and for a moderator to accept or reject those requests.

A SavaPage Administrator must associate the Google account with the right SavaPage User. This is done in the

User

Edit

dialog by making sure that the Google account is present as primary or secondary address. For example, John

Brown may be known by his primary email address “[email protected]” while one of other email addresses matches his Google account “[email protected]”.

Note that the primary email address of external users is synchronized from the

User Source , and can be overwritten.

So, take care of using the primary email for a Google account, unless you know for sure that the Google account is part of the user source.

Tip

User email addresses can also be edited with the Server Command Tool. See

Section B.1.16, “setUserProperties” [191]

.

4.8.5.4. User Notifications

In case the associated Google account (email address) of a Google Print Job cannot be matched with a SavaPage user the job is canceled. You can opt to send an email to the user explaining the situation with instructions how to proceed.

95

Admin Web App

Figure 4.55. Admin Web App: Options - Google Cloud Print - Notifications

4.8.6. Mail Print

Mail Print is an implementation of

Driverless Printing

which allows users to print documents by mailing them to

SavaPage. The email address from the sender is used to find the corresponding

Person

. See

Section 10.1.14, “Mail

Print Authentication” [153] .

Note

Mail Print maps to the reserved Queue

/mailprint

.

96

Admin Web App

Figure 4.56. Admin Web App: Options - Mail Print (IMAP)

Check the Allow user to mail documents to enable the Mail Print function. Then enter the IMAP connection parameters:

• The host name or IP address of the Host.

• The IP port at Port. The standard IMAP ports are:

143

(insecure),

993

(SSL/TLS) and

143

(STARTTLS). The value defaults to

993

(SSL/TLS).

• Select the connection security: - for an insecure connection, and STARTTLS or SSL/TLS for a secure connection.

• Enter the User Name and Password for the required authentication.

Important

The IMAP host must support the IDLE Command, which is a widely implemented standard extension to the core IMAP protocol. See RFC2177

12

.

Print jobs are read from the Inbox and moved to the Trash folder after processing. Enter the name of both folders:

Inbox : the name of the Inbox folder.

Trash : the name of the Trash folder.

12

http://tools.ietf.org/html/rfc2177

97

Admin Web App

Figure 4.57. Admin Web App: Options - Mail Print (Attachments)

Limit the print job size per email message by setting the Maximum attachment size (MB) and Maximum attach-

ments. Use integers as value. Leave empty to allow unlimited size.

• Press the Apply button to commit the changes.

• Press the Test button to test the connection. A feedback message will be displayed with the result.

• Use the flip-switch to turn the Mail Print service On and Off . Note that after disabling the service it is automatically turned Off .

Note

Because Mail Print is an open channel SavaPage does not reply to unknown users. This is unlike

Google

Cloud Print notifications, since incoming GCP jobs are from authorized users whose Gmail address is not

yet known in SavaPage.

For uploaded file types that do not have a page size defined (HTML, TXT) the

default paper size is used.

The Report Font

is used for plain text files (TXT).

4.8.7. Web Print

Web Print is an implementation of

Driverless Printing which allows users to print documents to SavaPage by simply

uploading them from their User Web App. See

Section 3.10, “Upload” [49]

.

Note

Web Print maps to the default Queue

/webprint .

98

Admin Web App

Figure 4.58. Admin Web App: Options - Web Print

Check the Allow user to upload documents to enable the Web Print function. Then enter the restriction parameters:

• Limit the print job size by setting the Maximum document size (MB). Use an integer as value. Leave empty to allow unlimited size.

• Enter IPv4 address ranges as a

CIDR Set at IP addresses allowed to restrict upload based on the requesting IP

address. If the field is empty all requesting IP addresses are allowed to upload.

4.8.8. Internet Print

Secure Driver Printing

to SavaPage over public Internet is activated when port

443

of a public IP address is forwarded to port

8632

of the private intranet IP address of the SavaPage server. To authenticate the requesting user a special

Printer URI format is used: ipps://[host]/printers/internet/user/[number]/uuid/[uuid]

… where

[host]

is the public DNS name or IP address, and

[number]

and

[uuid]

are the ID Number and UUID of the user. See

Section 4.4.2.3, “Card and ID” [61]

,

Section 4.4.2.4, “UUID” [61]

and

Appendix D, URL

Cheat Sheet [201]

.

Figure 4.59. Admin Web App: Options - Internet Print

Enter the protocol://authority

of the Internet Printer Device URI as shown to users and press the Apply button to commit. When the value is left blank users won't be able to see their private Internet Printer Device URI.

See Section 3.9.1, “Internet Printer” [46] .

99

Admin Web App

Important

Internet Print maps to the default

Queue

/internet

. All print requests over public Internet will have the same remote IP address. To exclusively accept prints from Internet you should set the “IP addresses allowed”

to this remote address. See Section 4.5.2, “Edit Queue” [66]

.

Caution

Beware that by enabling Internet Print the SavaPage Web Apps are also accessible over public Internet, so take extra care to protect access to these Apps. See

Section 12.2, “Access over Internet” [162]

.

4.8.9. Proxy Print

Figure 4.60. Admin Web App: Options - Proxy Print

With Maximum number of copies per job you can restrict the number of copies for proxy print jobs. Leave empty to aloow unrestricted printing.

To enforce that all SafePages are cleared after a proxy print enable Always remove SafePages after printing.

100

Admin Web App

Check the Allow Non-Secure Proxy Print option if you want to allow users to print to any enabled

Proxy Printer

from any device. You can optionally restrict non-secure printer access by entering a

Proxy Printer Group

.

Non-Secure means that users are able to initiate print jobs from locations (desktop, mobile device) remote from the actual printer. This implies that jobs will sit uncollected at the printer, at least for a while. In the mean time, prints containing sensitive information may be read by unauthorized eyes. Or jobs may be forgotten at all, adding up to paper and toner waste.

Any printer that falls beside the non-secure printer pool must be secured by

Terminal or

Network Card Reader

Devices that have a fixed position at the target printer . See

Section 4.7.2, “Proxy Print Authentication” [76]

and

Section 4.7.3.1, “Custom Proxy Print” [80] .

The expiration period for each Print Mode can be entered. See:

Section 4.7.2.1, “Fast Print Mode” [78]

,

Section 4.7.2.2, “Hold Print Mode” [79]

Section 4.7.2.3, “Direct Print Mode” [79]

4.8.10. Eco Print

Eco Print is a filter that converts PDF pages to images for eco-friendly proxy printing. The result, including ink and toner savings, is comparable to Ecofont

13

. There is a difference though. While Ecofont uses True Type Font technology at the start of the print chain (document editing), SavaPage Eco Print uses bitmap technology at the end of the chain.

Eco Print intelligently punches holes in all non-white areas of the PDF version of a document, just before

proxy printing ,

downloading

or emailing it.

Since Eco Print processes bitmap patterns it is font agnostic and therefore can handle all font types. And, as an extra, it punches graphics along the way. Contrary to Ecofont, which is a non-free Windows only solution, Eco Print works is a Libre solution that works for all client platforms since filtering is performed server side.

Warning

The downside of ad-hoc filtering is performance. Eco Print takes about 3 seconds per page (i5 processor, 300

DPI), but is done unobtrusive in the background and need only be done once per PDF document, since the result is cached. Anyhow, Eco Print is not suitable for very large documents.

4.8.10.1. Eco Print Examples

A few Eco Print examples are depicted below.

Plain Print:

Eco Print:

Eco Print magnified:

13

http://www.ecofont.com/

101

Eco Print Graphics:

4.8.10.2. Eco Print Settings

Admin Web App

Figure 4.61. Admin Web App: Options - Eco Print

Check the Allow users to Eco Print to enable the Eco Print function. Then specify:

• A Proxy Printing Discount Percentage (integer) to be applied to proxy printing costs as specified for any Proxy

Printer. See

Section 4.6.2, “Edit Proxy Printer” [69]

.

• The Maximum document size (pages) for automatic filtering. In this example the value of “1” means that any document printed to SavaPage with 1 page is automatically filtered in the background. A value of “3” will automatically filter incoming documents of 3 pages or less. A value of “0” disables this automatism.

• The Resolution DPI of the Eco Print page image.

4.8.11. Financial

This section holds the options for SavaPage Financial

.

102

4.8.11.1. Currency Code

Admin Web App

Figure 4.62. Admin Web App: Options - Financial - Currency

The ISO 4217

14

currency code of the financial subsystem can be entered here during installation. When the application

status is “ready-to-use” the code can only be changed by using a Server Command . See

Section B.1.4, “changeBase-

Currency” [187] .

4.8.11.2. General Financial Options

Figure 4.63. Admin Web App: Options - Financial - General

General options are:

Default credit limit: this is the default value referenced in

Section 4.4.2.5, “Financial” [62]

. The value must be zero or greater.

Printer cost decimals: the number of decimals (max 6) used to specify and display printer costs. See Section 4.6.2.3,

“Media Sources” [70] and

Section 4.6.2.4, “Manual Media Sizes” [71] .

Decimals used elsewhere: the number of decimals (max 6) used to specify financial amounts other than printer costs (e.g. for displaying user account balance).

Note

SavaPage stores financial amounts with a precision of 6 decimals.

14

http://www.iso.org/iso/home/standards/currency_codes.htm

103

4.8.11.3. Point-of-Sale

Admin Web App

Figure 4.64. Admin Web App: Options - Financial - POS

These are the options for the

Point-of-Sale :

• Payment methods: see

Section 5.1, “Deposit” [131]

.

Receipt header text: this typically contains a legal text placed in the Receipt header.

4.8.11.4. Vouchers

Figure 4.65. Admin Web App: Options - Financial - Vouchers

These are the options for the

Voucher System :

Header: the header text of the voucher card.

Footer: the footer text of the voucher card.

Font: the font used for the PDF Document with vouchers. See Section 13.2, “Internal Fonts” [167]

.

• You need to explicitly Allow users to redeem vouchers.

104

4.8.11.5. Transfer Funds

Admin Web App

Figure 4.66. Admin Web App: Options - Financial - Transfer funds

These settings apply to

Transfer Credit dialog in the User Web App. Check the options to Allow users to transfer

funds to other users and to Allow users to add comments to manual transfers.

The minimum and maximum amount to transfer are held in the configuration items financial.user.transfers.amount-min

and financial.user.transfers.amount-max

. They can be changed with the

Configuration Editor

.

4.8.12. Backups

The Backups section shows the backup location and time of the last backup.

Figure 4.67. Admin Web App: Options - Backups

• Press the Backup now button to launch the backup process in the background. The progress and result of the process is not echoed real-time in this section, but can be monitored in the

Real-time Activity

section of the Dashboard

.

105

Admin Web App

Figure 4.68. Admin Web App: Options - Automatic Backups

The Automatic Backups section holds options for creating weekly snapshots of the database.

• Tick the Enable automatic weekly backups checkbox to enable the process

15

.

• The number of days a backup should be kept, must be entered at Keep backups for.

• A purge of old log data, executed after the backup, can be activated by selecting the Delete older than check-boxed for

Application Logs

,

Document Logs

and

Transaction Logs . Please enter the number of days the logs should be

held.

• Press the Apply button to commit the changes.

4.8.13. Advanced

4.8.13.1. User Client Authentication

The User Client

uses the system account name of the user to identify itself to the SavaPage server. In a strict Single Sign-

On (SSO)

environment, where a user is already logged in and authenticated as domain user, the system account name can be trusted by default. In environments where non-domain systems are allowed, local accounts are not authenticated by domain services, and therefore can not be trusted.

15

Default weekly backups take place at 20 minutes past midnight on Sunday morning, as in the CRON expression

"0 20 0 ? * 1"

contained in configuration key schedule.weekly

. See

Section 4.8.13.10, “Config Editor” [112] on how to change this value.

106

Admin Web App

Figure 4.69. Admin Web App: Options - Advanced - User Client

User Client uses the system account name as user identification (unless overridden by a command line option).

• When Trust system user is enabled the User Client will trust the system account name.

• When Trust system user is disabled the User Client will pop-up a login dialog to authenticate the user, unless the following trust sources are available:

• When Trust User Web App is enabled and the user is already authenticated in a

User Web App

on the same IP address, User Client will trust the Web App user as user identification.

• When an administrator uses the secret Admin passkey in the start-up script it will enforce trust of the offered user identification. See

Chapter 6, User Client [134] .

• Press the Apply button to commit the change.

4.8.13.2. Admin Password

The Reset internal admin password section is the place to change the master password for the built-in admin account

.

Figure 4.70. Admin Web App: Options - Advanced - Reset Admin Password

• Enter the new password twice at New password and Confirm password.

• The password must contain the same minimum number of characters as defined for Internal Users. See Section 4.4.3,

“Create Internal User” [63] .

• Press the Apply button to commit the change.

Caution

Keep the new password at a secure place, since it is the master key to your system.

107

Admin Web App

4.8.13.3. JMX Agent

SavaPage runs in a Java Virtual Machine, which has built-in instrumentation that enables client applications to monitor and manage it with the help of Java Management Extensions (JMX). SavaPage configures the built-in JMX agent for

remote monitoring, so it can be securely accessed by remote client management applications, such as Java VisualVM or JConsole.

This section shows the JMX remote process connection string, and enables you to reset the admin

connection password.

Figure 4.71. Admin Web App: Options - Advanced - JMX Agent

Java VisualVM is the standard Java JMX client that was first bundled with the Java Development Kit (JDK) version

6, update 7. It can be found in

JDK_HOME/bin

, where

JDK_HOME

is the directory where the JDK is installed.

If

JDK_HOME/bin

is in your system path, you can start Java VisualVM by simply typing jvisualvm in a command

(shell) prompt. Otherwise, you have to type the full path to the executable file.

Since SavaPage enforces SSL for remote JMX communication, jvisualvm needs to be started with two special parameters referring to the Java truststore, holding the trusted SSL certificate, and the truststore password.

The

shared client directory

/opt/savapage/client/jmx

contains the JMX server certificate jmxremote.crt

, a ready to use jmxremote.ts

truststore, and a sample GNU/Linux and Mac shell script jmxremote.sh

and Windows command file jmxremote.cmd

to start jvisualvm with the right parameters.

Note

The password of the provided jmxremote.ts

truststore is: savapage

. Of course you are free to import jmxremote.crt

into your own truststore and use it with your own password.

108

Admin Web App

Figure 4.72. Add JMX Connection with Java VisualVM

Add a new JMX Connection and enter the IP address and port number of the Connection and as shown in the JMX

Agent section, in our case this would be

192.168.1.35:8639

.

Enter the Username admin

and the Password as set in the JMX Agent section above. Press the OK button to save the connection and start it from the Java VisualVM Applications pane.

Older JDK versions have JConsole as standard JMX client. If you want to use JConsole copy and edit the scripts in

/ opt/savapage/client/jmx

so jconsole is used instead of the default jvisualvm.

Figure 4.73. Connecting to Remote Process with JConsole

When starting JConsole it prompts you to enter the parameters for the New Connection. Select the Remote Process option and enter the IP address and port number as shown in the JMX Agent section, in our case this would be

192.168.1.35:8639

.

Enter the Username admin

and the Password as set in the JMX Agent section above. Press the Connect button to open the connection.

More information about the JMX configuration can be found in

Section 12.5, “Secured JMX Connection” [163] .

4.8.13.4. Locale

Enter the System Locale string at the Locale section.

109

Admin Web App

Figure 4.74. Admin Web App: Options - Advanced - Locale

• The format of the locale conforms to

IETF BCP 47

16

.

• Some examples are: en , en-GB , en-US , nl , nl-NL , nl-BE .

• You can leave the locale empty to accept the system default.

• The locale is applied to all system messages which are logged in the system log or send by email.

• Press the Apply button to commit the change.

Note

This system locale is not used for the language and country default used in the Web App. The Web App default is picked up from the locale settings of the Web browser, optionally overruled by the language

and country

URL parameters. See Appendix D, URL Cheat Sheet [201] .

4.8.13.5. Default Paper Size

The Default Paper Size is used as the paper size for the printed document of a

Printable File Type which itself does

not have a document structure with a clearly defined page size. These types typically include HTML, TXT and images

offered via Web Print

and

Mail Print . Choose Letter or A4 , or accept the system default .

Figure 4.75. Admin Web App: Options - Default Paper Size

4.8.13.6. Report Font

The Report Font is used as default font for all PDF reports.

Figure 4.76. Admin Web App: Options - Default Paper Size

16

http://tools.ietf.org/html/bcp47

110

Admin Web App

See Section 13.2, “Internal Fonts” [167]

.

4.8.13.7. Converters

Converters are used to convert files offered for printing via Web Print

or Mail Print to PDF. This is the place to enable

the converters. For installation see:

Section E.1.1, “XPS to PDF Installation Instructions” [204]

Section E.2, “Advanced File Types” [204]

Figure 4.77. Admin Web App: Options - Converters

4.8.13.8. Proxy Printing

The Proxy Printing section holds the policy to Allow Encrypted PDF for Proxy Printing as described in Section 9.7,

“Printing Encrypted PDF” [150] .

• The option is enabled by default. Disable it if you do not endorse the policy: this will ignore every print SavaPage job request holding an encrypted PDF document.

• Press the Apply button to commit the change.

Figure 4.78. Admin Web App: Options - Advanced - Proxy Printing

4.8.13.9. Pagometers

In analogy with the term Odometer, the term Pagometer is coined as an instrument to count the number of processed pages of SavaPage input and output documents. Pagometers are used to display usage statistics and

Printing Impact

111

Admin Web App from a global viewpoint as in the

Dashboard , or in specialized views for

User

and

Users ,

Queues and

Proxy Printers

.

The counters can be reset in the Reset Pagometers section.

Figure 4.79. Admin Web App: Options - Advanced - Pagometers

• Tick the checkboxes of the pagometers to reset.

• Press the Apply button to execute the action.

4.8.13.10. Config Editor

Most of the SavaPage configuration settings can be edited in dedicated sections of the Admin Web App. However, extra settings are present without an editing interface. Luckily a generic Configuration Editor is present for editing individual configuration items, so the defaults of "hided" settings can be changed when needed.

Warning

If you use the Config Editor incorrectly, you may cause serious problems which can only be fixed by reinstallation of the application. Use the Config Editor at your own risk.

Tap the Configuration Editor (advanced) button to start the editor. See

Figure 4.80, “Admin Web App: Configuration Editor - List” [113]

for a detailed description.

112

Admin Web App

Figure 4.80. Admin Web App: Configuration Editor - List

• All configuration items are listed alphabetically by default with their name and value.

• Push the Select and Sort button to expand (collapse) the section.

• The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

• Select items by entering the containing text (fragment) of their name. So, entering "ldap" will select "auth.ldap.port" and "ldap.schema.group-member-field".

• The list can be sorted Ascending or Descending on name.

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort field to their default values.

Tap the Edit button to edit the item. See Figure 4.81, “Admin Web App: Configuration Editor - Edit” [113] .

Figure 4.81. Admin Web App: Configuration Editor - Edit

• The value of the item is shown in the entry field and can be edited.

• Press the OK button to commit the change and return to the list.

• The Cancel button brings you back to List without changing anything.

113

Admin Web App

4.9. Log

After a tap on the Log button in the main menu this panel is shown. See Section 4.2, “Menu” [51]

.

The Log shows Info, Warning or Error messages for application events.

Tip

The size of the Log can be limited by purging old log data after an automatic database backup. See Figure 4.68,

“Admin Web App: Options - Automatic Backups” [106] .

Figure 4.82. Admin Web App: Log - List

• All events are listed by default, ordered by descending date.

• The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

• A different selection and sorting can be entered: see Figure 4.83, “Admin Web App: Log - Select and Sort” [115] .

114

Admin Web App

Figure 4.83. Admin Web App: Log - Select and Sort

• Events can be selected by entering the Containing text (fragment) of the message.

• Select the event Level . The - button will select all levels.

• Select the time Period by pushing the From and To button. See date picker dialog is shown at Figure 4.84, “Admin

Web App: Log - Select Date” [115]

. Tap the x button after the date to clear it.

• The list can be sorted Ascending or Descending on Date or Level .

Tap the Apply button to (re)display the list.

• A tap on the Default button resets the selection and sort fields to their default values.

Figure 4.84. Admin Web App: Log - Select Date

• User the + and - buttons to select the Month, Day and Year.

• Push the Accept button to apply the date.

• Push the Cancel button to ignore the date and return to the original setting.

4.10. Documents

This panel is shown after ...

115

Admin Web App

• A tap on the Documents button in the

Main Menu

: all processed documents are shown.

• A tap on the Log button in the

User List : all documents processed by the selected user are shown. The user's name

is shown in the header and the Select and Sort

is within the scope of this user.

• A tap on the Log button in the Queues List

: the Select and Sort

is initialized with, and applied for the selected Queue.

• A tap on the Log button in the Proxy Printers List

: the Select and Sort is initialized with, and applied for the selected

Proxy Printer.

Figure 4.85. Admin Web App: Documents - List

The list can be traversed by tapping one of the buttons at the pager at the top or bottom of the page.

116

Admin Web App

Each document is displayed with data depending on its input source (SavaPage Print

Queue

) or output target ( PDF

export,

Proxy Printer

print). From top to bottom:

• The creation date at the top right corner.

• Source or destination, shown in a color depending on its type.

• A SavaPage Queue, like "/printers/", is displayed in blue (when RAW printed to the default Queue the word

“Printer” is displayed, driverless printing shows “WebPrinter” or “MailPrinter”).

• A PDF is shown in green.

• A Proxy Printer, like “Ricoh Aficio MP C7500”, is displayed in red prefixed with an inline pagometer Pie-Chart.

The red color in the chart represents the number of pages in the job. The orange color represents the number of printed sheets.

• User: the user id as creator of the document.

• The document name, with optionally (PDF export) the PDF author name, subject and keywords.

• The number of pages and size (bytes). With optionally...

• The CUPS Job number (Proxy Printer only).

• The CUPS printing status: Pending, Held, Processing, Stopped, Canceled, Aborted, Completed (Proxy Printer only).

• The paper size, like "ISO-A4" (Queue and Proxy Printer only).

• "LH" indicator in case a letterhead was applied (Proxy Printer and PDF only).

• "Duplex" indicator (Proxy Printer only).

• "DRM" indicator when exported PDF was encrypted (PDF only), or printed document was an encrypted PDF.

(Queue only).

• "Denied" indicator when printed document was an encrypted PDF and such printing is not permitted (Queue only). See

Section 9.7, “Printing Encrypted PDF” [150]

.

• Owner ("O") and User ("U") password indicators (PDF only).

• Destination (PDF only). The client IP address ( PDF Download ) or the recipient email address ( Send PDF

)

Tap the Select and Sort button to expand the section, and select a document Type :

• Option - selects all document types: more...

• Option In selects documents printed to a SavaPage Queue: more...

• Option Out selects documents printed to a Proxy Printer or exported to PDF:

more...

• Option PDF selects documents exported to PDF: more...

• Option Print selects documents printed to a Proxy Printer: more...

Depending on the selected Type, selection and sort options are shown or hided. However, there are common selections

for all document types as discussed at the screenshot below

.

117

Admin Web App

Figure 4.86. Admin Web App: Documents - Select and Sort - All

• Select a Document Name by entering a name part (fragment).

• Select a creation Period by entering a From and To date. Tap the x button after a date to clear it. See this example

Data Selection Dialog

.

• Documents can sorted Ascending or Descending by creation Date or Name .

118

Admin Web App

Figure 4.87. Admin Web App: Documents - Select and Sort - In

As an extra to the

common options , the In Type offers:

• A selection on Queue.

• A Sort on Queue .

119

Admin Web App

Figure 4.88. Admin Web App: Documents - Select and Sort - Out

As an extra to the

common options , the Out Type offers:

• A selection on Destination.

• A selection on Letterhead.

Figure 4.89. Admin Web App: Documents - Select and Sort - PDF

120

Admin Web App

As an extra to the

Out options , the PDF Type offers:

• A selection on Author.

• A selection on Subject.

• A selection on Keywords.

• A selection on Encryption.

• A selection on User password.

• A selection on Owner password.

Figure 4.90. Admin Web App: Documents - Select and Sort - Print

As an extra to the

Out options , the Print Type offers:

• A selection on Printer.

• A selection on Job State.

• A selection on Layout.

• A Sort on Printer .

4.11. About

After a tap on the About button in the main menu this panel is shown. See

Section 4.2, “Menu” [51] .

121

Admin Web App

Figure 4.91. Admin Web App: About

A tap on one of the options expands (or collapsed) the underlying section. The sections are described in the paragraphs below.

4.11.1. Version

The Version Info identifies the application and database version. Please include this information when you contact support.

Figure 4.92. Admin Web App: About - Version

122

Admin Web App

4.11.2. License

This section displays the license information with related links in green.

Figure 4.93. Admin Web App: About - License

4.11.3. Community

The Community section gives all the information about your Community Membership. See

Figure 4.4, “Admin Web

App: Dashboard - Status” [54]

for a summary of Membership Status values. See

Chapter 17, SavaPage Commu-

nity [179] for an explanation about SavaPage Membership in general.

Figure 4.94. Admin Web App: About - Community

Press the Import Member Card button to start the

Import Dialog

.

123

Admin Web App

Figure 4.95. Admin Web App: About - Import Member Card

• Select the Member Card file to be uploaded. The actual file selection trigger differs from browser to browser. The screenshot above is from the Chromium browser.

• Press the Import button to start the import.

• The progress of the import is displayed at the top of the dialog box.

• The Back button brings you back to the Community section.

• Just in case, the Clear button clears the messages and selected file.

Warning

The Member Card Import dialog is tested with Chromium, Firefox and Internet Explorer. There are some known issues with other browsers:

• The Opera 12.11 browser does not display the status of the import process. The import is performed correctly though.

Please contact us when you encounter any problems with your browser.

4.11.4. Support

The Support section shows the addresses for online information and the Help Desk and offers download links for the

SAVAPAGE.ppd

file and the zipped

Windows Printer Driver .

Figure 4.96. Admin Web App: About - Support

124

Admin Web App

4.11.5. Java

This section displays the Java Runtime version, number of processors and max memory available.

4.11.6. Host System

This section displays name, version and architecture of the host operating system and the GNU/Linux parameters described in

Chapter 16, Performance Tuning [174]

.

4.11.7. Host Packages

The Host Packages gives version information about the required and optional third-party software installed on the

SavaPage host.

Figure 4.97. Admin Web App: About - Host Packages

Note

Before xptopdf and LibreOffice can be used they must be enabled. See

Figure 4.77, “Admin Web App:

Options - Converters” [111] .

125

Admin Web App

4.12. Vouchers

Vouchers provide a straightforward and cost effective solution for users to upgrade their account balance. Vouchers are common value tokens in many applications, like for instance pre-paid mobile phones. Unlike solutions that use smart cards, micro-payments or vending machines, voucher systems require no hardware investment. While manual processing is needed to generate, print, distribute and sell the voucher cards, redemption is fully end-user driven and can be processed automatically.

A voucher system is fully integrated in SavaPage, and includes:

• A Web App dialog for administrators to

Create Vouchers

.

• A Web App dialog for end-users to Redeem Vouchers .

• A

Voucher Security safety net for voucher tracking and fraud prevention.

Figure 4.98. Admin Web App: Voucher List

The list shows the vouchers of a selected Batch-ID and the extra selections

shown in the next figure.

• The list is refreshed, and the selection applied, after you push the Apply button.

• The Default button resets the selection items to their default values.

126

Admin Web App

Figure 4.99. Admin Web App: Vouchers - Select and Sort

Select vouchers by entering:

• Part of their Number.

• Their Valid or Expired status.

• Their Remaining or Used status.

• Part of the User ID that redeemed any voucher.

• The From and To date of their usage period.

127

4.12.1. Voucher Actions

Admin Web App

Figure 4.100. Admin Web App: Voucher Actions

• New : pops up the dialog to

Create Vouchers

.

• Delete expired : deletes vouchers whose expiry date is before the current date (today).

When a Batch-ID is selected extra buttons appear:

• Expire : Expires all remaining vouchers of the selected Batch-ID by setting the expiry date to today 00:00.

• Delete : Deletes all remaining vouchers of the selected Batch-ID.

• Vouchers : downloads a printable PDF document with remaining (non-redeemed) vouchers of the selected Batch-

ID according to the selected Layout.

128

4.12.2. Create Vouchers

Admin Web App

Figure 4.101. Admin Web App: Create Vouchers

Enter the data for the batch as follows:

Batch-ID: a user defined ID that will be assigned to all vouchers in a batch. The ID is prefixed to each voucher number to easily identify its source. A unique ID should be assigned to each batch.

Number: the number of vouchers in the batch.

Value: the monetary value of each voucher.

Expiry Date: the date after which a voucher can no longer be used. This enforces that vouchers are valid for a limited period of time.

Layout: the page format of the PDF output with the number of voucher columns and rows. Some fixed variants are offered.

Press the Vouchers button to create the batch. As a result:

• Each voucher in the batch is assigned a formatted random unique number, for example

B-1404-0021-0661-4775-7916

, and is stored in the database.

• A printable PDF document is downloaded with all vouchers from the batch according to the selected Layout.

4.12.3. Voucher Usage

This is what end-users should know about vouchers.

• Purchase a voucher from an authorized person at an assigned location. Vouchers are unique for your organization and cannot be used elsewhere.

129

Admin Web App

• Use a web browser to open the SavaPage User Web App. After logging in, your current account balance is shown at the

footer bar

.

• Push the account balance button to pop-up the

User Details dialog, and push the

Redeem Voucher

button in the pop-up.

• Enter the voucher Number in the next dialog box and press Redeem . Make sure to enter the number exactly as listed on the voucher including any dashes (-).

• If you entered the number correctly, the value as shown on the voucher will be transferred to your account and a

new entry will list in your transaction log .

130

Chapter 5. Point-of-Sale Web App

The Point-of-Sale (POS) is a simple Web App used to deposit funds to a user's printing account, usually after receiving a cash or electronic payment.

The POS Web App can be reached at http://savapage:8631/pos

. See Appendix D, URL Cheat Sheet [201] .

5.1. Deposit

The Deposit tab is the place to handle a user's deposit. The figure below shows the initial content when first used or after the Clear button was pushed.

Figure 5.1. Point-of-Sale: Deposit Start

User ID: a quick search entry field to select the User. See the figure below for a description.

Amount: enter the integer and cents of the amount separately. The currency sign is taken from the Financial settings.

Payment method: select one of the payment methods as specified in the

Financial settings. When no methods are

specified this field will not show.

Comment: a short comment to denote the deposit.

Receipt: select the email address if you want to send de receipt as PDF.

131

Point-of-Sale Web App

User ID is a quick search entry field. By entering part of the user id, a pick-list of matching users is displayed below.

The list is refreshed real-time as characters are entered (or deleted).

• By selecting the user from the list the entry field is replaced by the selection. Also, the current account balance of the user and his email is shown.

When all required field are entered the Deposit button will show.

Figure 5.2. Point-of-Sale: Deposit Completed

Push the Deposit to make the deposit. As a result:

• When user's email address was selected, the receipt will be emailed to the User.

• The form will be cleared, with the focus on the User ID quick search field.

5.2. Receipts

The Receipts tab is the place to query deposit history. The figure below shows a content sample.

132

Point-of-Sale Web App

Figure 5.3. Point-of-Sale: Receipts

• By entering a date/time offset in the prescribed yyyymmddhhmm format, a pick-list of matching receipts is displayed, sorted in descending date/time order. The list is refreshed real-time as characters are entered (or deleted).

Note: the date/time defaults to the current yyyymmdd date (today).

• Each entry in the list has buttons to download the Receipt PDF or email it to the User (again).

133

Chapter 6. User Client

The User Client is a Java application for desktops and notebooks that resides in the system tray.

According to the Oracle Java Documentation

1

:

"The system tray is a specialized area of the desktop where users can access currently running programs. This area may be referred to differently on various operating systems. On Microsoft Windows, the system tray is referred to as the Taskbar Status Area, while on the GNU Network Object Model Environment (GNOME) Desktop it is referred to as the Notification Area. On K Desktop Environment (KDE) this area is referred to as the System Tray. However, on each system the tray area is shared by all applications running on the desktop."

The SavaPage User Client is provided as a notifier of personal user events like:

• A successful print to SavaPage. See

Chapter 9, SavaPage as Printer [141]

.

• A Proxy Printer started printing one of your jobs. See

Section 4.6, “Proxy Printers” [66]

A notification message is typically displayed near the SavaPage tray icon in the form of a balloon (Windows) or message box (GNU/Linux, Mac OS X).

The

User Web App opens for the authenticated user at a double-click on the tray icon, a click in the notification

message or selecting the Open Web App... item from the tray icon context menu. When the User Client is trusted as authentication source no extra login is needed.

User Client authentication is explained in Section 4.8.13.1, “User Client Authentication” [106] .

Important

When using the User Client concurrently with the

User Web App and

Proxy Print Authentication

you are strongly advised to use an external database like PostgreSQL. See

Chapter 15, Using an External Data-

base [171] .

6.1. User Client Options

usage: savapage-client <options>

-d,--debug Write debug messages to the log file.

-h,--help Display help text in GUI.

--help-tui Display help text in TUI.

--log-dir <dir> Log file directory. Default: /home/rijk

--passkey <key> The admin passkey (optional).

--properties <file> File with default command-line options (optional).

Default: /opt/savapage/client/app/config/client.properties

--server-host <arg> IP address or name of SavaPage server

--server-port <number> SSL port of SavaPage server (optional). Default: 8632.

--user <name> A different username than current user "rijk"

(optional).

-x,--hide-exit Hide the "Exit" menuitem (optional). Default: false.

1

http://docs.oracle.com/javase/tutorial/uiswing/misc/systemtray.html

134

User Client

Note

The passkey option can also be applied as environment variable

SAVAPAGE_CLIAPP_ADMIN_PASSKEY

. This is the preferred way to use in generic login scripts, since the command-line option might be visible in system process viewers.

6.2. User Client Deployment

Since the software is written in Java it can be deployed on any platform where Java SE 7 or higher is installed, like

Microsoft Windows, Mac OS X and GNU/Linux. The User Client software is installed on the server in the

/opt/ savapage/client/app

directory.

6.2.1. Deployment on Windows

The savapage-client.bat

batch file that starts the application is available in the /opt/savapage/client/ app directory on the server.

Note

Make sure to enable Balloon Notification in Windows Group Policy to allow users to see notification messages.

6.2.2. Deployment on Mac OS X

The savapage-client shell script that starts the application is available in the /opt/savapage/client/ app directory on the server.

6.2.3. Deployment on GNU/Linux

The savapage-client

shell script that starts the application is available in the

/opt/savapage/client/ app

directory on the server.

135

Chapter 7. SavaPage Financial

SavaPage Financial captures many aspects of user activity. Obviously, proxy printing is the main trigger for financial tracking and monitoring, since it consumes tangible resources like paper, ink and toner. This chapter introduces the main financial concepts with references to more detailed parts of the manual.

• Printing costs are configured per Proxy Printer. Pay-per-Print is active for each Proxy Printer that has costs greater than zero.

Section 4.6.2.3, “Media Sources” [70]

Section 4.6.2.4, “Manual Media Sizes” [71]

• Users have a personal account with a balance and (optional) credit-limit. Proxy printing is restricted for users who have a credit-limit.

Section 4.4.2.5, “Financial” [62]

• Users get feedback about the cost of printing and their account balance.

Section 3.4.4, “Direct Print Release” [38]

Section 3.2.1, “Footer” [23]

Section 3.9.3, “Financial” [47]

• Restricted users can upgrade their account balance with vouchers (pre-paid printing cards), by making a deposit at a point-of-sale, or by transferring money from an external account.

Section 4.12, “Vouchers” [126]

Section 3.9.4, “Redeem Voucher” [47]

Chapter 5, Point-of-Sale Web App [131]

Section I.1.1, “Payment Gateway Plug-in” [213]

• All financial transactions can be inspected by administrators. Users can inspect their own transactions.

Section 4.4.1, “User List” [57]

Section 3.7.2, “Transactions” [41]

• Global financial options can be set by administrators.

Section 4.8.11, “Financial” [102]

136

Chapter 8. SavaPage on GNU/Linux

This section is a supplement to the Install Guide (see

Chapter 2, Server Installation [9] ). It provides an in-depth

explanation of the GNU/Linux installation process, the directory layout and tools involved.

Information in this chapter is technical in nature. It is expected that readers have prior experience with:

• The Unix command line environment

• Unix file permissions

8.1. The Installation Process

SavaPage is supplied as a pre-compiled self-installing application. The installation process is designed to work with all major GNU/Linux distributions. To be sure if your GNU/Linux distro is supported out of the box, please check

Section 1.2, “System Requirements” [2]

. Due to the varied nature of some installations and administrator preferences, often some manual configuration is required. This section describes the installation process in detail as well as some additional options available to system administrators.

8.1.1. Manual extraction

SavaPage is supplied in a self-extracting, self-installing archive. The archive is simply a tar

archive compressed with gzip

, and headed with a shell script to facilitate self-extracting. After extraction is complete, the installation script named install

is executed to begin the install process in the directory where the archive resides (usually

/opt/ savapage

). Some system administrators may like to inspect the contents of the archive, and possibly the installation process itself prior to the actual install. The self-extracting installer takes a number of command line arguments.

The

-e

option will extract the archive into the current working directory ready for inspection. Further options and documentation is available via the

-h

switch.

_____________________________________________________________________________

SavaPage Install (c) 2010-2015, Datraverse B.V.

License: GNU AGPL version 3 or later <http://www.gnu.org/licenses/agpl.html>.

This is free software: you are free to change and redistribute it.

There is NO WARRANTY, to the extent permitted by law.

Usage: savapage-setup-0.9.8-linux-x64.bin [-h|-i|-e|-l] [-v] [FILE]...

-h This help text.

-i Install after extracting the files (default).

-e Extract all files or a FILE list and exit without installing.

-l List the contents of the archive and exit without extracting.

-v Verbose. Print the names of the files as they are extracted.

8.1.2. The install process

Even though the majority of the installation process is completed under the identity of the system user account called savapage

, most administrators would like to know what the install process does. The main steps are outlined in the next paragraphs.

8.1.2.1. Extraction

The first stage in the install process extracts the archive to

/tmp

or a location as defined by an environment variable

TMPDIR

. The command-line programs tar and gunzip are used during this phase.

137

SavaPage on GNU/Linux

8.1.2.2. Installation

After extraction is complete the installation script install is called with the current directory path as parameter. The install script will present the AGPL license text and request acceptance. The script then uses the first command-line parameter as install location. Files are then copied to the install location. Care is taken not to overwrite any existing data or configuration files if this is an install-over-the-top upgrade.

8.1.2.3. Permissions

To ensure the default installation is secure by default, permissions are applied to key files. The following area of the application are restricted to the savapage

user only:

Area

/opt/savapage/server/server.properties

/opt/savapage/server/admin.properties

/opt/savapage/server/gcp.properties

/opt/savapage/server/jmxremote.password

/opt/savapage/server/jmxremote.ks

/opt/savapage/server/data/

/opt/savapage/server/bin/linux-[x64|i686]/

Description

Contains server configuration properties.

Contains the hashed password of the reserved internal admin

user.

Contains Google Cloud Print configuration properties. See

Section 4.8.5, “Google Cloud Printer” [92]

.

Contains the plain text password of the reserved JMX admin

user.

See Section 4.8.13.3, “JMX Agent” [108]

.

The private keystore used by the JMX Agent

.

This directory contains application data including database files.

Some of this data may contain sensitive information.

This directory contains the savapage-pam setuid-root binary. Even though the binary is no use to an end-user or hacker, good security practice stipulates that we should only allow the savapage user access to this directory.

Table 8.1. Secured Application Areas

Permissions can be checked and re-applied any time after the installation by running the script:

/opt/savapage/server/bin/linux-*/setperms

8.1.2.4. Firewall

The SavaPage Application Server runs in a Java Virtual Machine (JVM) process and listens on ports 8631 and 8632

(SSL). These ports are used for Web App access, printing and other services. Ensure that any firewall or local IP filtering software such as iptables

is set to allow local network traffic access to this ports.

8.1.2.5. Root Level Tasks

A small part of the install process needs to run as the root

account. The tasks conducted as root include:

• Setting the

/opt/savapage/server/bin/linux-*/savapage-pam

binary as setuid-root. This binary is used for password verification.

• Installing the

/opt/savapage/providers/cups/linux-*/savapage-notifier

binary as CUPS event notifier. This binary is used to send CUPS printer and print job status events to the central SavaPage server.

• Setting up a systemd unit for GNU/Linux systems that use the systemd service manager. This is done by creating a savapage.service

file in the systemd unit library. Depending on the distribution the unit will either be created in the /lib/systemd/system or /usr/lib/systemd/system directory. The unit is started and enabled.

• Setting up SysV style start scripts for Debian based systems that use the SysV service manager. This is done by placing symlinks in the:

138

SavaPage on GNU/Linux

/etc/init.d/

/etc/rc3.d/

/etc/rc5.d/ and so on...

If the administrator decides not to run the root-level tasks during the install process, the tasks can be run again postinstall by executing the shell scripts:

/opt/savapage/server/bin/linux-*/roottasks and ...

/opt/savapage/providers/cups/linux-*/roottasks

Alternatively the administrator can view the script and make the required changes by hand.

8.2. Advanced Configuration and Logs

The majority of SavaPage configuration is conducted in the Administrator Web App . Some additional configuration

options are available in the following configuration file:

Configuration File

/opt/savapage/server/server.properties

Description

Contains server configuration including the server's TCP ports and

SSL properties.

Table 8.2. Advanced Configuration

Most important application logging is available via the Application Log

section of the Administrator Web App. Some additional advanced level logging is maintained in standard text files located at:

/opt/savapage/server/logs/*

Administrators may wish to consult these logs when attempting to diagnose or troubleshoot problems.

8.3. Removing SavaPage from a GNU/Linux server

SavaPage can be completely removed from a system with the following procedure:

• Remove all files from the /opt/savapage install directory.

• Remove the savapage system account.

• Remove the savapage

binary from the CUPS notifier

directory.

• For systemd installations remove the savapage.service

file in the systemd

unit library. Depending on the distribution the unit will either be found in the

/lib/systemd/system

or

/usr/lib/systemd/system directory.

• For SysV style installations remove any matching start script:

/etc/init.d/savapage

/etc/rc*.d/*savapage

Note

Removing SavaPage can also be done by executing the uninstall

program like this: cd /opt/savapage

139

SavaPage on GNU/Linux sudo uninstall

The installation will be reverted including the CUPS notifier

installation and the server's systemd

or

SysV

service scripts.

As a final action the savapage

system account and the

/opt/savapage

install directory should be removed manually.

140

Chapter 9. SavaPage as Printer

9.1. Printing with a Driver

Any desktop system can print to SavaPage with a PostScript printer driver. The driver can either be generic, or a mainstream one from a vendor like Apple or IBM (as shipped with the OS), or a dedicated one provided by SavaPage.

When printing from public Internet a private Device URI must be used. See Section 3.9.1, “Internet Printer” [46] .

Caution

Although the SavaPage driver is not required, beware that vendor-specific drivers might offer options that are irrelevant, or not supported by the SavaPage Print Server.

9.1.1. SavaPage Printer Driver

The SavaPage Printer Driver comes as a PostScript Printer Description (PPD), as captured in the SAVAPAGE.ppd

file located in the shared client directory

/opt/savapage/client . The driver is optimized for SavaPage printing.

Irrelevant options, like Duplex Printing are stripped, other options like Paper Size and Resolution, are narrowed down to the most common choices. If you feel options are missing please let us know. The driver file can be downloaded from the About section of the

User Web App and

Admin Web App

.

9.1.2. SavaPage Printer Installation

The installation scripts below use the SavaPage printer driver. When you want to use a PostScript driver already present in the OS, please use the proper selection dialogs.

Caution

The SavaPage JetDirect Server accepts PostScript print jobs only. So do not use the JetDirect protocol unless you are absolutely sure that the print client uses PostScript as Print Job Format. Windows clients can safely use JetDirect. However, Mac OS X and modern GNU/Linux systems use PDF as Standard Print Job Format

1

, so JetDirect should be avoided here in favour of IPP.

1

On the OSDL Printing Summit in 2006 it was decided to switch the GNU/Linux standard print job transfer format from PostScript to PDF. See https://wiki.linuxfoundation.org/en/OpenPrinting/PDF_as_Standard_Print_Job_Format

141

9.1.2.1. GNU/Linux

SavaPage as Printer

Figure 9.1. SavaPage Printer on Ubuntu: Choose Driver

• When choosing a driver for the newly added printer in Ubuntu, make sure to opt for Provide PPD file, and to select the

SAVAPAGE.ppd

file.

• Enter ipps://savapage:8632/printers at Device URI for the default queue, or ipps://savapage:8632/printers/[queue]

for any other specific queue. See Appendix D, URL Cheat Sheet [201] .

Figure 9.2. SavaPage Printer on Ubuntu: Printer Properties

• This is what the Printing Properties look like for a ready-to-print SavaPage printer in Ubuntu.

142

9.1.2.2. Mac OS X

SavaPage as Printer

Figure 9.3. SavaPage Printer on Mac OS X: Add Printer

Add a new printer and enter data in the Add Printer dialog as follows:

• Click the IP printer button and select IPP for Protocol.

• At Address, enter the IP address or host name of the SavaPage Print Server including the port number.

• Enter printers

at Queue for the default queue, or printers/[queue]

for any other specific queue. See

Appendix D, URL Cheat Sheet [201] .

• Enter the Name of the queue. SavaPage is the obvious choice here.

• Choose Other... in the Print Using selection box. This will immediately pop up a dialog where you can select the

SAVAPAGE.ppd

as shown in Figure 9.4, “SavaPage Printer on Mac OS X: Select PPD” [143]

.

Figure 9.4. SavaPage Printer on Mac OS X: Select PPD

• This dialog selects the

SAVAPAGE.ppd

file from the local

Documents

directory.

Figure 9.5. SavaPage Printer on Mac OS X: Print & Fax

• This is what a ready-to-print SavaPage printer in Mac OS X looks like.

143

SavaPage as Printer

Note

When clicking the Default printer button in the

Add Printer dialog, any Bonjour enabled SavaPage printer

will show up, as configured in Section 9.3, “Printing from iOS” [146]

.

9.1.2.3. Windows

This section covers the installation for Windows (including x64).

The

shared client directory

/opt/savapage/client/win contains the

SAVAPAGE.ppd

, savapage_oemui.inf

and other files needed for the installation. A zipped version of this directory can be downloaded from the About section of the

User Web App and

Admin Web App

.

Note

Make sure copies of the files are present in the same (temporary) directory.

Figure 9.6. SavaPage Local Printer on Windows

To add SavaPage as Local Printer, start the "Add Printer" dialog and choose add a new Local Printer.

1. Create a new printer port of type Standard TCP/IP Port, and click the Next button.

2. Choose device type TCP/IP Device and enter the hostname or IP address of the SavaPage server.

3. When asked for a printer driver, choose "Disk..." and browse to the savapage_oemui.inf

file and choose

"install anyway" when prompted.

4. You should now have a printer as shown in

Figure 9.6, “SavaPage Local Printer on Windows” [144]

.

5. Print a test page to see if everything works as expected.

Figure 9.7. SavaPage Shared Local Printer on Windows

Tip

Install SavaPage as shared printer on a Windows Print Server. This makes the printer a member of Active

Directory. See Figure 9.7, “SavaPage Shared Local Printer on Windows” [144]

.

Queues created on Windows Print Server can easily be deployed on workstations using Windows Domain

Group Policy or using Logon Script. Please consult the Microsoft Windows server documentation for more information.

144

SavaPage as Printer

Figure 9.8. SavaPage Network Printer on Windows

To add SavaPage as Network Printer, start the "Add Printer" dialog and choose add a new Network Printer.

1. Select "Connect to a printer on the Internet..."

2. Enter the URL for the SavaPage printer queue.

3. Choose "Disk..." and browse to the savapage_oemui.inf

file and choose "install anyway" when prompted.

4. You should now have a printer as shown in

Figure 9.8, “SavaPage Network Printer on Windows” [145] .

5. Print a test page to see if everything works as expected.

9.2. Printing with AirPrint

Devices running Mac OS X 10.7 and higher or iOS 4.2 and higher (like iPad, iPhone and iPod Touch) can use AirPrint® to print to SavaPage.

Note

AirPrint maps to the reserved Queue

/airprint

.

Important

Avahi needs to be installed on your GNU/Linux host. See Section 1.2.1.5, “Avahi” [4]

.

To setup SavaPage AirPrint printing follow the steps described in the sections below.

9.2.1. Step 1: Enable IPv4 in Avahi

Since SavaPage uses IPv4 for IP Based Authentication IPv4 should be enabled in the avahi-daemon. This is normally

the case, but you can check by editing the Avahi configuration file: sudo vi /etc/avahi/avahi-daemon.conf

Make sure the use-ipv4

settings is as follows: use-ipv4=yes

When you made changes to the configuration file, restart the daemon as follows: sudo service avahi-daemon restart

9.2.2. Step 2: Create AirPrint Queue

Create a SavaPage Queue (see Section 4.5, “Queues” [64]

) with a comprehensible URL path mnemonic like “airprint”.

It is important not to check the Trusted option, since the queue should be untrusted to enforce IP Based Authentication

.

145

SavaPage as Printer

This is needed because iOS printing is unauthenticated, i.e. all print jobs have “guest” as originating user.

IP Based

Authentication

finds the “real” user by matching the IP address of the print request with the authenticated user in the

SavaPage Web App Session on the same IP address.

9.2.3. Step 3: Create Avahi Service File

Copy the

/opt/savapage/server/examples/linux/avahi/savapage.service

file to your personal home directory.

savapage.service

is an Avahi service file with annotations explaining how to adapt it to your own situation.

Follow the

$Customize$

annotation to insert your settings. Probably, you can just accept the defaults.

Copy your tailored service file to Avahi, with this command (assuming the source file resides in your home directory): sudo cp ~/savapage.service /etc/avahi/services

Check if Avahi has published the SavaPage printer as intended by typing this command: avahi-browse -a -t

Assuming your GNU/Linux host is called savapage and you named your Avahi print service SavaPage , you should find entries in the output like this :

+ eth1 IPv4 SavaPage @ savapage Internet Printer local

The mDNS published SavaPage internet printer on host savapage

for the IPv4 interface.

9.3. Printing from iOS

Make sure AirPrint is configured as described in

Section 9.2, “Printing with AirPrint” [145] . Follow the steps below

to use AirPrint on iOS.

9.3.1. Step 1: Install iOS Web Clip

For your convenience http://savapage:8631/ios/install

is available to add a SavaPage icon to the iOS

Home Screen automatically. See

Appendix D, URL Cheat Sheet [201]

. A click on the icon opens the SavaPage

User Web App full-screen and will therefore be part of the multitasking bar.

This convenience comes with a penalty though, since Apple treats full-screen WebApps in a “special” way, i.e. when they are selected from the multitasking bar and regain focus the Web App is reloaded.

Luckily, since SavaPage utilizes an

authentication token , an automatic login is performed. However, the page needs

to be retrieved from the server again, giving some performance penalty.

Note

Only one SavaPage Web Clip can be present on an iOS device. A new install overwrites the previous one.

Warning

When using the

Payment Gateway Plug-in , the redirect URL as forwarded to and applied by the payment

provider does not show in the same User WebApp as where the payment started, but is shown on a new tab in the default browser.

146

SavaPage as Printer

If you don't care about the full-screen User Web App, and want optimal performance, you can just add any SavaPage

Web App to the Home Screen manually by surfing to the URL, then click the Share button and choose Add to Home

Screen . Clicking the home screen icon will not open the Web App full-screen, but as a tabbed instance in the browser.

Also, it will not be reloaded by definition as the browser regains focus.

9.3.2. Step 2: Test

As a start, first login to SavaPage on your iOS device. This is because

IP Based Authentication is needed by the

SavaPage printer.

Warning

When printing while not logged in a dialog will pop up saying “You do not have permission to use this printer”, with Cancel and Retry buttons.

In many iOS apps, tapping the action button displays options for sharing, as well as other actions such as printing or copying. The options vary depending on the app you’re using.

Figure 9.9, “iPad App Sharing Options” [147]

shows the sharing options from the Notes App.

Figure 9.9. iPad App Sharing Options

Tapping the Print icon will bring forward the Printer Options, as shown in

Figure 9.10, “SavaPage Printer Options on iPad” [147]

.

Figure 9.10. SavaPage Printer Options on iPad

147

SavaPage as Printer

If you are printing for the first time, or the previously selected printer is not available, or if you just want to change printer, you will need to select the printer first by tapping the Printer button. In this example

Figure 9.11, “Select

SavaPage Printer on iPad” [148] shows a list with just a single printer (who needs more :-)

Figure 9.11. Select SavaPage Printer on iPad

Now, after you selected SavaPage as printer and are sure you logged into SavaPage at the same device, tap the Print button. As a result the printed output should appear in the SavaPage App.

Note

You can check the Print Queue by double-tapping the Home button to show the recently used apps. Then tap the Print Center. Note that the Print Center is only available while printing is in progress.

9.4. Printing from Android and Chrome OS

9.4.1. SavaPage Google Cloud Ready Printer

The Google Cloud Print

2

(GCP) service provides seamless integration with the Google Android and Chrome OS ecosystems. Print jobs can be triggered by a share action, and take a detour via the cloud to the remote printer. GCP

offers the same user experience as Printing from iOS

.

SavaPage can be configured as Google Cloud Printer. See Section 4.8.5, “Google Cloud Printer” [92] .

9.4.2. PrinterShare™ Mobile Print

PrinterShare™ Mobile Print

3

is a native Android printing solution from Mobile Dynamix.

PrinterShare uses a local printer driver to convert the candidate pages to graphical images. Unfortunately, when using the generic PostScript driver, this results in a seriously degraded performance at the client side, and non-searchable

PDF in SavaPage.

Note

To actually print beyond a simple test page you need to purchase PrinterShare™ Premium Key

4

, which is a separate small application that needs to be present on the device.

2

https://developers.google.com/cloud-print/

3

https://play.google.com/store/apps/details?id=com.dynamixsoftware.printershare

4

https://play.google.com/store/apps/details?id=com.dynamixsoftware.printershare.premium

148

SavaPage as Printer

Just as in iOS, you need to print to an untrusted SavaPage queue, because PrinterShare printing is unauthenticated, i.e. print jobs do not hold information about the originating user. It is best to create an AirPrint enabled queue for that purpose, as described in

Section 9.3, “Printing from iOS” [146] .

Perform these steps to create the SavaPage printer:

1. Login to the SavaPage User Web App on your Android device. This is because of the

IP Based Authentication

needed by the SavaPage printer selected in the next step.

2. Select a Nearby-WiFi printer. PrinterShare will recognize the AirPrint enabled SavaPage printer.

3. When selecting the printer driver do not Use Generic

5

, but Select Manually instead.

4. Open the folder named “Generic” and select the “Generic PostScript Level 2” driver.

Warning

When not logged in while printing PrinterShare will pop up an error message saying “Can't print. IPP error

1025”, meaning SavaPage understood the request, but is refusing to fulfill it.

9.5. Driverless Printing

Driverless Printing is one of the gateways to authenticated printing from devices belonging to unauthenticated anonymous users, where either native printing support is lacking or where user trust cannot be enforced. This situation is typical for a BYOD

6

context.

Mail Print

and Web Print offer casual printing without a hassle, since users are familiar with either file uploading or

email and no printer driver needs to be installed.

Since rendering of the document content is not handled by a know-it-all printer driver, not all document types are

supported. See Appendix E, Printable File Types [203]

for a list of supported types.

Note

Mail Print uses

127.0.0.1

(localhost) as the IP address of the requesting user.

9.6. IP Restricted Printing

Beware that printer access may be restricted based on the requesting IP address. See:

Figure 4.22, “Admin Web App: Queue - Edit” [66]

Figure 4.58, “Admin Web App: Options - Web Print” [99]

CIDR Notation

is used to specify the allowed IP address ranges.

9.6.1. CIDR Notation

Classless Inter-Domain Routing

7

(CIDR) is developed in the 1990s as a standard scheme for routing network traffic across the Internet.

CIDR notation is a syntax for specifying IP addresses and their associated prefix size, the latter being equivalent to the number of leading 1 bits in the routing prefix mask. The notation starts with an IP address expressed according

5

The generic driver uses UNIRAST as job format, which is not supported by SavaPage. PrinterShare will pop up an HTTP error 500.

6

Bring Your Own Device (BYOD) is the policy of permitting employees to bring personally owned mobile devices (laptops, tablets, and smart phones) to their workplace, and use those devices to access privileged company information and applications. The term is also used to describe the same practice applied to students using personally owned devices in an educational setting.

7

http://tools.ietf.org/html/rfc4632

149

SavaPage as Printer to the standards of IPv4 or IPv6. It is followed by a separator character, the slash (/) character, and the prefix size expressed as a decimal number.

Some examples:

172.16.0.0/24

represents the given IPv4 address and its associated routing prefix

172.16.0.0

, or equivalently, its subnet mask

255.255.255.0

. This represents the host address range

172.16.0.0

-

172.16.0.255

.

• CIDR

192.168.1.40/32

represents the single IP address

192.168.1.40

.

Tip

A CIDR calculator can be found here

8

.

9.6.2. CIDR Set

For SavaPage use only we define a CIDR Set as a concatenation of single CIDR notations separated by any of the characters space, comma, colon or semicolon.

9.7. Printing Encrypted PDF

When you print an encrypted PDF document from Adobe Reader to a PostScript printer like SavaPage, it creates a

PostScript file that contains a notice telling the recipient that it is not permitted to convert (re-distill) it to PDF again. The

ps2pdf

9

program from the Ghostscript suite respects this notice, and throws an error saying “This PostScript file was created from an encrypted PDF file. Re-distilling encrypted PDF is not permitted”. If, for example, an encrypted PDF allows printing only, it should not be re-distilled to a plain PDF equivalent, where all intended protection is removed.

SavaPage respects this policy. Moreover, on behalf of its users SavaPage would like its own encrypted PDF documents to be respected in the same way.

When an encrypted document is allowed to be printed, SavaPage would like to be able to receive it as printer, so it can be previewed and Proxy Printed. However, for that to happen we need to convert it to SafePages, i.e. to PDF format.

That's where we are facing the ps2pdf barrier.

To solve this issue SavaPage offers an optional workaround. The workaround ignores the PostScript notice at the point where we need the ps2pdf program to create the PDF, so SafePages can be displayed and Proxy Printed as intended.

However, the workaround will protect the encryption of the original document, i.e. its pages are not allowed to be exported (downloaded or send) as PDF, directly, or as part of a composite document. And, since every PDF document that SavaPage sends to a Proxy Printer is encrypted with (degraded) printing as only permission, this will also not violate any copyright.

The re-distilled PDF files are transient, internal use only and not accessible to end-users.

The workaround is enabled by default. If you do not endorse it, please disable it in the Admin Web App at

Options

Advanced

Proxy Printing

. If the workaround is disabled, every print job request holding an encrypted PDF document is ignored.

8

http://www.subnet-calculator.com/

9

ps2pdf is a work-alike for nearly all the functionality (but not the user interface) of Adobe's Acrobat™ Distiller™ product: it converts

PostScript files to Portable Document Format (PDF) files, and is implemented as a command script that invokes Ghostscript. See: http:// www.ghostscript.com/doc/current/Ps2pdf.htm

150

Chapter 10. Authenticated Printing

Authentication in a printing environment is the act of confirming the digital identity of the person who issued a print job. Knowledge of this identity is crucial for SavaPage to securely offer its services to the right user. The next sections discuss authenticated printing in:

Single Sign-On (SSO) Domains

Peer to Peer Networks

But first, let us introduce the key authentication concepts where our discussion is based upon.

10.1. Key Concepts

This section lists the main authentication concepts headed with a short term. Each term is defined with a concise description, optionally followed with more details and a list of invariants.

10.1.1. User

An actor with a unique identity.

10.1.2. Person

A User who represents a real human being, as opposed to an abstract human role, software service or hardware device.

• Only Persons can login to SavaPage.

• Any User can print to a SavaPage Printer. However, SavaPage assigns a print job to a Person.

10.1.3. Abstract User

A

User

who is not a

Person

.

10.1.4. Domain User

A

User

defined in a SSO domain .

10.1.5. Synchronized User

A SavaPage

User synchronized from a

User Source

.

• SavaPage assumes each Synchronized User is a

Person , but Administrators can mark a user as Abstract .

10.1.6. Synchronized Person

A Synchronized User that is a Person .

10.1.7. Internal Person

A

Person

who is

internally defined in SavaPage (opposed to a

Synchronized Person

).

10.1.8. Authenticated User

A

User

authenticated on a SSO domain by a workstation login.

151

Authenticated Printing

10.1.9. Authenticated Abstract User

An Abstract User

authenticated on a SSO domain by a workstation login.

• Before Authenticated Abstract Users can print to a SavaPage Printer they need to login to the SavaPage Web App on the same device from which they use the printer.

10.1.10. Authenticated Person

A

Synchronized Person authenticated on a

SSO domain by a workstation login.

• Authenticated Persons can print to SavaPage without being logged in to the Web App.

10.1.11. Trusted SavaPage Queue

A SavaPage Print Queue

whose print jobs are trusted to originate from Authenticated Users.

• Each SavaPage Print Queue is trusted by default. However, administrators can mark SavaPage Print Queues as

untrusted.

• Every job of a Trusted SavaPage Queue is checked for the originating User. When this user is an

Abstract User

,

SavaPage uses

IP Based Authentication

to deduce the associated

Person

. When the Person cannot be deduced the job is ignored.

• Note that the “trust” qualification is SavaPage internal use only, and not related to network domain trust in any way.

• SavaPage Print Queues are IPP based and, from a network point of view, are publicly accessible by nature.

• In the Microsoft Active Directory world IPP Printers cannot be encapsulated as native domain resource and subjected to native domain access control like JetDirect compatible devices. This is why SavaPage does not bet on native domain trust alone, and accepts public network access as a given fact. But even in this case, SavaPage Print Queues can still be internally trusted if access is limited to authorized users on a network level. Stated the other way round: administrators need to prevent that users who connect to the network unauthenticated, e.g. with their personal laptop, use Trusted SavaPage Queues. SavaPage adds a helping hand here with an option to restrict print queue usage to a specific range of IP addresses. This makes it possible for instance to deny trusted queue access for wireless users who get their IP addresses from a distinct DHCP server issuing leases from a distinct IP range.

Caution

When non-domain users are allowed to print to Trusted SavaPage Printers an accidental match with a

Synchronized Person

may lead to undesirable results.

10.1.12. Public SavaPage Queue

A SavaPage Print Queue where print jobs are not trusted to originate from

Authenticated Users .

• Since each SavaPage Printer is trusted by default, this queue must be explicitly marked as untrusted in the SavaPage

Admin Web App

.

• SavaPage handles every job from a Public SavaPage Printer as originating from an Abstract User

.

10.1.13. IP Based Authentication

Deduction of the printing

Person

by matching the IPv4 address of the originating host of the print job with the authenticated SavaPage Web App Session on the same host.

• This type of authentication is applied for jobs coming from a

Public SavaPage Printer , or from a Trusted SavaPage

Queue

where the originating User is

Abstract .

• When no authenticated Web App session is found the job is ignored.

152

Authenticated Printing

10.1.14. Mail Print Authentication

Deduction of the printing

Person

using the email address of the sender.

• This type of authentication is applied for print jobs coming in from

Mail Print

.

• When no unique matching

Person is found, or when the Person is disabled, authentication fails. Consult

Section 4.4.2, “Edit User” [59] on how to mark a User as (enabled) Person.

10.1.15. Local User

A

User

defined on a local device.

10.1.16. Local Abstract User

An Abstract User

defined on a local device.

10.1.17. Local Person

A

Person

defined on a local device.

10.1.18. User Alias

An alternative name for a

User

.

• A single User can have several aliases.

• An alias is applied at the following levels:

• User login to the User and Admin Web App.

• Print jobs arriving in the SavaPage queues under the alias name.

For more information see

Section 10.4, “User Name Aliases” [157] .

10.2. Single Sign-On Domains

In a Single Sign-On (SSO) network user authentication is achieved in a login dialog where the

User

supplies his credentials, usually by entering his user name and password

1

. SSO networks establish a web-of-trust between users and domain services. System administrators like SSO domains, because they provide a single interface to control

access of Domain Users to servers and services.

Making SavaPage part of an SSO domain is the most sophisticated setup possible. In this way access to the SavaPage queues can be controlled on a domain defined user and group level, and by doing so we can create authenticated queues.

Authenticated SavaPage IPP Print Queues

can exclusively be achieved in a Mac OS or GNU/Linux SSO domain using

LDAP or NIS (Network Information Service) as authentication services

2

.

In Windows Domains authenticated SavaPage

Print Queues

can solely be enforced by installing local printers connected to SavaPage by the

JetDirect/RAW

protocol. These RAW IP printers are typically installed on a Windows

Print Server. To exclusively grant access to the SavaPage printer by the print server, enter the server IPv4 address

(as

CIDR

) as the allowed client IP address in the Default / Queue definition. See

Figure 4.22, “Admin Web App:

Queue - Edit” [66]

.

1

Of course methods like a smartcard and biometric (fingerprint) authentication should be mentioned as alternative.

2

NIS (Network Information Service) protocol, also known as Sun Yellow Pages (YP) allows the information contained in the files

/etc/passwd

,

/etc/group and /etc/shadow to be hosted on a central server. Administrators can enter, edit and delete the information on the NIS server so that it is automatically available on all Unix nodes. Authentication services are usually delegated to a Kerberos server, which thanks to tickets and authenticators eliminates the need to move passwords over an open and insecure network. NIS operates on "flat" domains and is therefore unsuitable for large organizations which due to their nature may be organized hierarchically. In such cases, the use of the LDAP (Lightweight

Directory Access Protocol) is the way to go.

153

Authenticated Printing

Figure 10.1. SavaPage in a Single Sign-On Domain

Trust is indeed essential to match the print job with the user's SafePages as previewed in his authenticated browser session. But, as we shall see in the next section, even in trust relations there are some loopholes to consider, and in networks where access is not fully guarded by SSO, unauthenticated users also need our special attention.

10.2.1. Authentication Loopholes

Although fully closed SSO domains provide unambiguous trust, there are common authentication loopholes that needs to be addressed. These loopholes are generic in nature and not related to SavaPage.

1. A loophole is introduced when multiple users use the same account (user name) to authenticate to the network.

Because the login is based on the person's role we can not retrieve the unique user identity. If for example, both

John and Mary logged in with the generic student

account, there is no way to find out if a SavaPage print job from this session was issued by John or Mary. By default the print jobs of John or Mary will end up in the SafePages of the one and only unknown student

. In situations where printing content is private this might pose a problem.

In SavaPage this loophole can be solved by marking the generic user account as abstract. See Section 10.1.13, “IP

Based Authentication” [152]

.

2. A similar loophole is introduced when different users (sequentially) use the same machine, which was started in auto-login mode. Because the login is based on the machine identity we can not retrieve the unique user identity.

In SavaPage this loophole is solved by the marking the auto-login user account as abstract . See

Section 10.1.13,

“IP Based Authentication” [152]

.

154

Authenticated Printing

Figure 10.2. IP Based Authentication for Abstract User

10.2.2. Unauthenticated Users

In networks where access is not fully guarded by SSO, SavaPage queues introduce a security issue when they are used by unauthenticated non-domain users. For example, consider a guest user who connects his personal laptop to the network, and installs and prints to a SavaPage printer. In SavaPage this loophole can be solved by marking the queue as untrusted, i.e. by creating a

Public SavaPage Queue

. See

Section 10.1.13, “IP Based Authentication” [152]

. In addition the

Internal Users feature can be used to offer out of domain Web App authentication for guest users.

155

Authenticated Printing

Figure 10.3. IP Based Authentication for Unauthenticated User

10.3. Peer to Peer Networks

A peer-to-peer or workgroup environment differs fundamentally from the network domain model. In the domain model, users authenticate with a unique (password protected) user name, as defined in a central server, while in a workgroup user identity is validated against a

Local User rather than a central authority. The workstations are either set up to

automatically login as a general "user", or user accounts are created locally as required.

Trust can be enforced by creating a

Public SavaPage Queue . See Section 10.1.13, “IP Based Authentication” [152]

, and using the

Internal Users

feature for Web App authentication.

156

Authenticated Printing

Figure 10.4. IP Based Authentication in Peer-to-Peer Network

10.4. User Name Aliases

A User Alias is a way of mapping a user name in one format to a name in another. It is useful in the following situations:

• Providing extra convenience for users to log into the system with a user name formatted in a different way. So Georg

Friedrich Händel can have a

User Alias of “georg_handel”, “gf_handel”, and “gfhandel”.

• Used as a temporary tool to manage domain or user name format changes. For example, you may have changed names from j.brown to john.brown. An alias can help forgetful users to log in with their old name.

Name aliases are applied at the following levels:

• User Login to the User and Admin Web App.

• Print jobs arriving under the alias name.

The aliases information is kept in the file,

/opt/savapage/server/data/conf/username-aliases.txt

and can be created based on the provided template file,

/opt/savapage/server/data/conf/username-aliases.txt.tmpl

You can create your own custom alias file as follows:

• Go to the directory

/opt/savapage/server/data/conf/

• Open your favorite text editor with the file username-aliases.txt.tmpl

• For example, add the following lines to the end: j.brown : john.brown

jbrown : john.brown

157

Authenticated Printing

• Save file as username-aliases.txt

The format of the alias file is: aliasname1: username1 aliasnameA: username2 aliasnameB: username2 where aliasname is mapped to username in the system database. A user may have multiple aliases. In this example, username2 is known both as aliasnameA and aliasnameB . The separator between aliasname and username can be “:”, “=“ or tab.

Warning

If an offered user name does not match an alias in the alias file, it is assumed it represents the user's real name.

If this user is new to the system he might be created automatically in SavaPage, according to the user creation policy defined in the

Options

User Creation

On demand user creation section of the Admin Web App.

So please take care that your alias list is valid and up-to-date.

158

Chapter 11. Printing Impact

One of the goals of SavaPage is to reduce hard-copy printing by facilitating the use of soft PDF copies instead. Above that, if printing is needed after all, SavaPage offers easy n-up, gray-scale and duplex proxy-printing to reduce printing even more. Giving feedback to users about the costs and environmental impact of their printing habits is used to arouse awareness and achieve behavioral change.

11.1. Financial Impact

In any organization the costs of unrestricted access to office printers can be substantial. With

SavaPage Financial

feedback about the costs from different perspectives (User, ProxyPrinter, Period) is within reach. Future releases will indeed process log data, and present financial statistics from all possible angles.

11.2. Environmental Impact

Environmental issues like global warming, waste management, paper production and consumption are an area of debate and interest to many. Highlighting the environmental impact of printing is one of the ways to influence user behavior.

SavaPage uses the number of printed Sheet Units to calculate three impact metrics: trees and energy consumption, and carbon production.

Important

The default values SavaPage uses for environmental metrics can be the subject of debate. Of course you are free to set the metric to any value that works for you. Please inform us about facts and findings you feel confident about.

11.2.1. Printed Sheet Units

A Sheet Unit (SU) is the size equivalent of an A4 sheet. So,

A4 == 1.00 SU

A3 == 2.00 SU

A2 == 4.00 SU

A1 == 8.00 SU and ...

A5 == 0.50 SU

A6 == 0.25 SU

A7 == 0.12 SU

A8 == 0.06 SU

Note that SU precision is 2 decimals. As environmental impact is concerned, A4 and US Letter sheets are handled as equivalent, so ...

US Letter == 1.00 SU

159

Printing Impact

SavaPage uses the media size chosen by the user to calculate the printed Sheet Units of a Proxy Printer print job.

Some print examples:

• 6 pages double-sided on A4 :

3 SU

• 6 pages double-sided on A3 :

6 SU

• 6 pages 2-up on A4 :

3 SU

• 6 pages 2-up double-sided on A4 :

2 SU

Warning

SavaPage is not able to anticipate printer intelligence, for instance, when a printer uses different trays (with different media sizes) for different page sizes within the job document.

11.2.2. Trees

This metric is the percentage of a tree used to produce the paper of the printed Sheet Units. The metric is adopted from

Conservatree.org

1

and is as follows:

• A prototypical tree is 40 feet tall and 6-8 inches in diameter.

• One tree makes 16.67 reams of copy paper or 8,333.3 SU.

The metric

83333

is set as default for the configuration key: environment.sheets-per-tree

11.2.3. Energy

This metric is the energy used to produce the paper of the printed Sheet Units. The metric is adopted from

Paperonline.org

2

and is as follows:

• Around 500 kWh of energy are required in Europe to make 200 kg of paper.

• So one A4 or Letter sheet of office paper costs 12.5Wh to manufacture

3

.

The metric 12.5

is set as default for the configuration key: environment.watt-hours-per-sheet

11.2.4. Carbon

This metric is the amount of CO

2

released for producing the paper of the printed Sheet Units. The metric is adopted from the

Swiss Federal Institute of Technology Zurich

4

and is as follows:

• One A4 or Letter sheet costs 5.1g of CO

2

to production.

The metric

5.1

is set as default for the configuration key: environment.co2-grams-per-sheet

Note

This metric takes into account the CO

2

produced as a byproduct of paper production only. It does not take into account the CO

2

related to the production and operation of the printer and the ink or toner cartridges.

Defining broader system boundaries and tracking down all parameters involved requires a major effort, and is beyond the scope of this manual. Of course you are free to set the parameter value for this metric to any value that works for you.

1

http://conservatree.org/learn/EnviroIssues/TreeStats.shtml

2

http://www.paperonline.org/uploads/AskGuenter/MR_produce%20energy.pdf

3

A sheet of 5g requires (5/200.000) * 500 = 0.0125 kWh = 12.5 Wh.

4

http://www.umwelt.ethz.ch/dokument/factsheets/sustainable_conference_compensation_en.pdf

160

Chapter 12. Security

This chapter discusses how SavaPage secures sensitive user and application data, and how it communicates with external Information Providers.

12.1. User Authentication

This section discusses how user credentials are protected.

12.1.1. Login Passwords

This section is about the passwords and PIN codes entered in the Web App Login Dialog.

Tip

Users can use the HTTPS protocol for connecting to the Web App, so data is encrypted to and from the server.

12.1.1.1. User Domain Passwords

SavaPage does not store or cache user domain login passwords. These passwords are always checked real-time at the source.

12.1.1.2. Internal User Passwords

Passwords of Internal Users are stored as SHA1 hash in the database.

12.1.1.3. Internal Admin Password

The SHA1 hashed password of the internal administrator admin is stored in a text file located at /opt/savapage/server/admin.properties

. Access to this file is restricted to the savapage user.

SavaPage installs with admin

as initial password for user admin

.

Tip

If you forgot the internal admin password, you can reset it by editing the admin.password

property in the

/opt/savapage/server/admin.properties

text file. Ignore the existing HASH value. SavaPage will hash your password upon first use.

12.1.2. PIN Codes

User PIN codes

are stored in the database as

encrypted secret

.

12.1.3. Authentication Tokens

When Authentication Persistence is enabled for Browser Local Storage, authentication tokens are stored in the “Local

Storage” of the browser. See

Section 4.8.3, “User Authentication” [87]

.

161

Security

Separate authentication tokens are held for the User and Admin Web App context and the same token is used for different sessions (on different devices) of a single user. A explicit logout in the Web App destroys the token. Authentication tokens are managed in memory on the SavaPage server. So, when the server restarts all local tokens are implicitly invalidated.

12.1.4. User Dialog

When authentication fails a neutral "Authentication failed" message is communicated to the user to prevent “Account

Enumeration” and “Guessable User Account”.

12.2. Access over Internet

Take extra care when SavaPage is accessible over public Internet as a result of enabled

Internet Print

. Make sure that access to the

Admin Web App is solidly secured.

Tip

Create a

Terminal Device for the public IP address and configure

Custom User Login . Two factor authenti-

cation with Local NFC Card and PIN (with “Self Association” disabled) is a secure option when users have an associated NFC Card and

Local Card Reader .

12.3. Web Session Timeout

When

Authentication Tokens are not used, Web Sessions guard persistent authorized access to SavaPage.

For security reasons all sessions expire (timeout) after a certain period of inactivity. Each interaction with the Web

App that results in a call to the SavaPage Web Server resets the inactivity timer. Closing the browser window will end the session. The default timeout periods for different login types are described in the table below:

Login type

Admin Web App

User Web App

Default value

1440 minutes (24 hours)

60 minutes (1 hour)

Table 12.1. Default Web Session Timeout Values

The timeout value (in minutes) can be changed using the configuration items below. A value of 0 indicates that the session will never time out.

Configuration Item

web-login.admin.session-timeout-mins web-login.user.session-timeout-mins

Description

Inactivity timeout for the Admin Web App

Inactivity timeout for the User Web App

Table 12.2. Web Session Timeout Configuration Items

See Section 4.8.13.10, “Config Editor” [112]

for information about changing configuration items.

Changed inactivity timeout values take effect for new sessions. Note that some pages periodically refresh the page

(or data on the page), such as the Dashboard

. A session will not time out if a browser is left on these pages, as it will be considered active.

162

Security

12.4. SSL Passwords

During the install process, SavaPage generates a self-signed key and certificate

issued for the host's machine name. This key is used by default when the system is accessed via HTTPS on port 8632. The password of the default-sslkeystore

is generated in

/opt/savapage/server/data/default-ssl-keystore.pw

. Access to this file is restricted to the savapage

user.

The passwords for the

installed keystore

created from an imported

Existing SSL Certificate are set in the

/opt/ savapage/server/server.properties

file. Access to this file is restricted to the savapage

user.

12.5. Secured JMX Connection

During the install process, SavaPage generates a dedicated self-signed key and certificate for securing JMX connections with SSL. The generated Java keystore is:

/opt/savapage/server/jmxremote.ks

with password savapage

. Access to this file is restricted to the savapage

user.

The JMX password for the admin

user is held in

/opt/savapage/server/jmxremote.password

. Java needs the password to be provided in plain text, so access to this file is restricted to the savapage

user.

The initial password is a random string generated by the installation process. It needs to be changed in the Admin Web

App as described in Section 4.8.13.3, “JMX Agent” [108]

.

Note

The default SavaPage JMX port is 8639. This can be changed by editing the file:

/opt/savapage/server/jmxremote.properties

You need to restart SavaPage for this change to take effect.

12.6. Encrypted Secrets

Data in the database will not contain any explicit secret data. All secret data is stored encrypted with encryption keys held in file

/opt/savapage/server/data/encryption.properties

. This file is generated by SavaPage at initial installation and contains randomized encryption keys unique for this particular installation instance. Access to this file is restricted to the savapage

user.

Important

Make a backup of encryption.properties

immediately after installation and store it at a secure place,

so you can restore it in case of a server crash or when you need to migrate to a new server

.

Caution

The encryption.properties

file is crucial for decrypting secret data in the database and verifying the authenticity of

document signatures

. So, when you restore a database backup on a different server, be sure to also restore this file.

The following secret data is stored encrypted in the database:

LDAP Admin Password .

SMTP Password

.

163

Security

IMAP Password .

PDF Passwords .

User PIN codes

.

12.7. Document Signature

SavaPage generates a digital signature for every document printed-out or downloaded. Digital signatures are generated using a cryptographic technique called Hash-based Message Authentication Code (HMAC)

1

. The algorithm takes various output job attributes such as job time, user name, document name and UUID, and combines them with a secret key. The result is then passed through the MD5 digest algorithm. The resulting signature is unique to the document instance

2

. The applied secret key ensures the authenticity of the signature.

The algorithm used is:

Digest = Hash(date time || user name || document name || document UUID)

Signature = Hash(Digest || Key) where

Key

is a random string generated by SavaPage at initial installation. It is stored as hmac.key

property in the

/ opt/savapage/server/data/encryption.properties

file, which is also used for Encrypted Secrets

.

Hash

is the MD5 function.

• date time

is formatted in

ISO 8601

basic format from year to second ( yyyyMMddTHHmmss

). The time is local time (not UTC). E.g.

20120906T151231

.

Note

The signature is stored in the database for future use.

12.8. User Client

The User Client is a notifier of personal user events: see Chapter 6, User Client [134]

. The following security measures apply:

• An SSL connection is used to communicate with the server.

• The server only accepts SSL connections.

• An API key is used as client identification.

12.9. Server Commands

The

Server Command

tool provides a command-line interface to SavaPage Server methods. The following security measures apply:

• Only users with read access to the

/opt/savapage/server/server.properties

file have the right to execute the command.

• An SSL connection is used to communicate with the server.

• An API key is used as client identification.

• The server only accepts SSL connections from local host.

1 http://en.wikipedia.org/wiki/HMAC .

2

The SHA1 digest algorithm is a stronger alternative, but MD5 is secure enough for our application and generates shorter signatures, which are easier to enter as argument to find the matching document.

164

Security

12.10. Network Card Reader

A setup where a public and unattended IP device communicates with a central server is inherently prone to security

breaches. Our Network Card Reader device is no exception to this rule.

Although SavaPage validates the reader's IP address, the reader could be replaced and mimicked. Also, since communication is non-SSL, the Card Number (UID) of swiped NFC Cards could be hijacked. However, since the only content transmitted is the Card Number, misuse will be limited to a Card Number being offered from an unexpected origin at an unexpected time. Since offered Card Numbers are always processed in well defined transient contexts with short time limits, the risk of unnoticed abuse can be considered minimal.

A security breach of a fundamentally different nature is the rare scenario where it is possible to manipulate the UID of an NFC Card. A hacker could then use the hijacked card number to make a duplicate authentication token.

Tip

As an extra security measure two-step authentication can be implemented by requiring an additional PIN (over

an SSL connection) after the initial NFC Card authentication. See Section 4.8.3, “User Authentication” [87]

and Section 4.7.3.2, “Custom User Login” [80]

12.11. External Services

Communication with external services can optionally be secured with SSL/TLS. See

Section 4.8.1.2, “LDAP” [82]

,

Section 4.8.4, “Mail” [91] and

Section 4.8.6, “Mail Print” [96]

12.11.1. Google Cloud Print Service

The

Google Cloud Print connectivity parameters are stored in the file

/opt/savapage/server/gcp.properties

, so it can easily be moved to another SavaPage implementation. Access to the file is restricted to the savapage user.

Important

Make a backup of gcp.properties

immediately and store it at a secure place, so you can restore it in case of a server crash or when you need to

migrate to a new server

.

An example gcp.properties

file (with fictitious data) is shown below.

#----------------------------------------------------------

# SavaPage Google Cloud Ready Printer

# Keep the content of this file at a secure place.

#----------------------------------------------------------

#Tue Jan 07 11:34:58 CET 2014 oauth.client.id=9999999999999.apps.googleusercontent.com

[email protected]

gcp.proxy=99999999-9999-9999-9999-999999999999 gcp.refresh-token=9/1111111111111111_99999999999999999999999-AA gcp.printer.uuid=99999999-1111-1111-1111-999999999999 oauth.client.secret=999999999999999999999999

• Values for the gcp.proxy

and gcp.printer.uuid

properties are generated by SavaPage upon first use.

• The oauth.client.id

and oauth.client.secret

properties are entered by the user in the OAuth panel

.

• The gcp.refresh-token

is retrieved by SavaPage after printer registration, and is needed to access to the

Google Cloud Printer.

165

Security

• The gcp.owner.id

is updated by SavaPage after first access of the printer.

12.12. Vouchers

The Voucher System

is designed for optimal security. Vouchers are assigned a random 16-digit number which makes a guess statistically near impossible. Above that, all unsuccessful (potentially fraudulent) voucher redemption attempts are detected and logged.

Like all security systems, the human factor is the most critical. Remember that vouchers represent cash, so take special care to protect the vouchers from unauthorized use.

• Delete the generated PDF voucher document after the vouchers are printed. You can always regenerate the PDF document when needed.

• Keep printed vouchers in a secure location.

• Put vouchers in envelopes to prevent exposure of voucher numbers.

• Check the Application Log regularly for unsuccessful (potentially fraudulent) voucher redemption attempts.

• Use the Voucher List to monitor successful voucher redemption.

• Delete or Expire a voucher batch immediately when vouchers are reported lost or stolen. See Section 4.12.1, “Voucher Actions” [128] .

Caution

Voucher numbers are not encrypted in the database, so be careful to store

database backup files at a save

location.

166

Chapter 13. Internationalization

Internationalization is the process of designing a software application so that it can potentially be adapted to various languages and regions without engineering changes.

Localization is the process of adapting internationalized software for a specific region or language by adding locale-specific components and translating text.

SavaPage is internationalized software and can easily be localized to different languages, countries or regions.

13.1. Localization

The following localization rules apply:

• The Web App user interface localizes according to either the locale saved in the browser's local storage during a previous visit

1

, or to the country/region code of the browser, or finally to the language chosen at

Login .

• Reports generated from the Web App localize according to the language of the Web App, except for Vouchers and

Receipts at the Point-of-Sale

and User Web App

, which use the

System Locale .

• The

System Locale is applied to all system messages as broadcasted to the Admin Web App

Dashboard

, written to the Application Log, or send by email.

• Text in log and audit files is fixed to the English language. So, when in need for support, these files can easily be understood by SavaPage Support.

• Dates and numbers are formatted according to the localization context.

• The currency symbol of the localization context is used.

• When localized text is not found the fall-back language will be English. So, in case SavaPage is partially translated for a selected locale, the user experience will be fragmented, as part of the text will fall back to English.

Currently SavaPage is fully localized to English and Dutch.

Tip

If you are interested in localizing the software to your region, please let us know.

SavaPage handles all localized text and user entered data as Unicode. The Web Browser, and therefore the Web App, natively displays Unicode correctly. However, the correct display of Unicode in PDF reports, needs special attention.

Therefore,

Internal Fonts

are available to customize PDF generation.

13.2. Internal Fonts

The Unicode range of the displayed text in PDF documents must be covered by the embedded font.

Unfortunately, at present there is no native outline font that can display all Unicode characters. The one exception is

GNU Unifont , which does support the full 65,536 Unicode code point range. However, the glyphs originate from a

bitmap of 16 pixels high and either 8 or 16 pixels wide, which gives the font a coarser look.

1

After login, the locale of the WebApp is saved in the browser's local storage, together with the

Authentication Tokens .

167

Internationalization

SavaPage contains internal fonts covering specific

Unicode Scripts

2

. These fonts can be selected to customize

PDF output to the content locale.

13.2.1. Default Font

The default font for PDF output is DejaVu Sans

3

, which supports a broad set of Unicode scripts:

• Latin (including European and African alphabets, IPA, ...)

• Greek (including polytonic)

• Cyrillic

• Armenian

• Georgian

• Hebrew

• Arabic

• N'ko

• Lao

• Canadian Aboriginal Syllabics

• Ogham

• Tifinagh

• Lisu

Next to that, DejaVu also contains a lot of mathematical and other symbols, arrows, braille patterns, etc.

Tip

Coverage of the default font can be seen in

DejaVuSans.pdf

4

.

13.2.2. CJK Font

Support for Chinese, Japanese and Korean (CJK) is provided by the

Droid Sans "fallback" font

5

. This font contains over 43,000 glyphs and includes support for Simplified Chinese (GB2312), Traditional Chinese (Big 5),

Japanese (JIS 0208) and Korean (KSC 5601). The font uses the Simplified Chinese ideographs for shared Unicode code points.

Tip

Coverage of the CJK font can be seen in

DroidSansFallbackFull.pdf

6

.

13.2.3. Unifont

GNU Unifont

7

is a Unicode font with a glyph for every visible Unicode Basic Multilingual Plane code point. The

Unicode Basic Multilingual Plane covers the first 65,536 (or 2^16) Unicode code points. GNU Unifont originates from a bitmap font with glyphs of 16 pixels high and either 8 or 16 pixels wide. Therefore it has a coarser look than native outline fonts.

2

http://www.unicode.org/charts/

3

http://dejavu-fonts.org

4

http://savapage.org/docs/fonts/DejaVuSans.pdf

5

http://www.droidfonts.com/droidfonts

6

http://savapage.org/docs/fonts/DroidSansFallbackFull.pdf

7

https://savannah.gnu.org/projects/unifont

168

Chapter 14. Customization

SavaPage can be customized to fit your corporate identity. By customization end-users will perceive SavaPage as an integral part of your organization rather than an external tool.

14.1. Web App

Web App customization is controlled in the

/opt/savapage/server/custom/web.properties

file. An annotated web.properties.template

file is installed for your convenience.

14.1.1. Look-and-feel

The look-and-feel of Web Apps can be customized by theming and CSS tailoring.

14.1.1.1. Theming

SavaPage uses jQuery Mobile

1

as user interface system to create responsive Web Apps that are accessible on all smartphone, tablet and desktop devices. jQuery Mobile supports theming. Themes can be built online with the ThemeRoller for Mobile

2

tools and deployed in SavaPage by downloading the zipped theme file and extracting the content of the / themes/ folder into the /opt/savapage/server/custom/web/themes directory.

The web.properties

file contains entries to specify a separate CSS theme for each Web App, as shown in the example below: webapp.theme.admin=admin.min.css webapp.theme.pos=admin.min.css webapp.theme.user=user.min.css

CSS theme file name for the Admin Web App

.

CSS theme file name for the POS Web App

.

CSS theme file name for the User Web App

.

SavaPage uses swatch

3

“a” for all pages and dialogs. Swatch “b” is used for page and dialog headers, and in some cases for list dividers.

14.1.1.2. Custom CSS

Advanced tailoring can be done with custom CSS files. They are rendered as last, so they have the final say about styling.

The web.properties

file contains entries to specify a custom CSS file for each Web App, as illustrated in the example below:

1

http://jquerymobile.com

2

http://themeroller.jquerymobile.com

3

A swatch is one of several colour schemes that can be provided by a jQuery Mobile theme. Single-letter designations are used for swatches. The default theme provides two swatches. The "a" swatch is a neutral, gray swatch, and the "b" swatch has a darker color scheme designed to contrast with the "a" swatch. Swatch "b" is used to draw special attention to certain elements in a user interface styled with "a".

169

Customization webapp.custom.admin=admin.css webapp.custom.pos=pos.css webapp.custom.user=user.css

Custom CSS file for the

Admin Web App

.

Custom CSS file for the

POS Web App

.

Custom CSS file for the

User Web App .

Any content placed in

/opt/savapage/server/custom/web/

, such as images, can be accessed in CSS via a URL beginning with

/custom/web/

. For example if a file named logo.png

is placed in

/opt/savapage/server/custom/web/images

it can be accessed via the URL

/custom/web/images/logo.png

.

Figure 14.1. User Web App: Custom CSS - Sample #1

Figure 14.2. User Web App: Custom CSS - Sample #2

170

Chapter 15. Using an External Database

By default SavaPage uses Apache Derby

1

as internal database. However, it is possible to use an alternative external relational database. This chapter describes how to connect and migrate to an external database, and motivates why an organization would choose to do so.

Apache Derby is a stable and scalable database with an excellent performance. However, when using the

User Web

App concurrently with the

User Client and

Proxy Print Authentication

you are strongly advised to use an external database like PostgreSQL that handles row locking flawlessly.

Other special situations can also be reason to choose an external database, like:

• Organizational policy dictates that all applications must be consolidated on a single database infrastructure.

• You want to take advantage of existing maintenance and backup procedures that are present on your current database infrastructure.

• You want to use third party reporting tools to view and analyze the SavaPage database.

• You want optimal (tailored) performance, since SavaPage is intensively used by a very large user population. So, for example, you want to deploy a dedicated database server as a scalable solution.

15.1. Supported Databases

SavaPage is able to support any database that has a JDBC driver available. At this moment PostgreSQL

2

is supported out-of-the-box. Please let us know if you require support for other databases.

15.2. Migrating to an External Database

The migration is a simple process and takes about 15-30 minutes. The sections below describe in more detail the following high-level migration scenario steps:

1. Stop the server.

2. Create a backup of the current internal database.

3. Create and initialize a new external database.

4. Restore the backup into the new external database.

5. Restart the server.

15.2.1. Step 1 - Stop SavaPage

The application server must be stopped in order to make a backup of the current internal database. The command to stop the server is described in

Section B.3, “Stopping and Starting the Server” [195] .

15.2.2. Step 2 - Create a Backup

Run the command to backup the current (internal) as described in Section B.2.2, “db-export and db-export-to” [194]

.

The command echoes the name of the created backup file to stdout

. Take a note of this because you will need this in a future step.

1

http://db.apache.org/derby/

2

http://www.postgresql.org/

171

Using an External Database

15.2.3. Step 3 - Create new Database in External DBMS

Creating a new database is specific to the external Database Management System and is off-topic for this manual.

It is assumed that the database administrator knows how to create a new database. However, the following generic requirements must be honored:

• Create a dedicated database user with a strong password to be used by SavaPage to connect to the database.

• Create the new empty database with a Unicode or UTF8 character encoding to make sure that all possible characters can be stored.

• Assign the dedicated user full access to the new database, i.e. grant permission to create and drop tables, and to execute select, insert, update and delete statements in all tables.

15.2.4. Step 4 - Change SavaPage Connection Parameters

Open a terminal session on the SavaPage server as user savapage

and edit the

/opt/savapage/server/server.properties

file.

• Comment out the line database.type=Internal

by adding a hash (#) character at the start of the line.

• Uncomment the database.

connection parameter lines for the external database (in our case PostgreSQL).

• Set the database.url

, which describes the location and connection details of the external database.

The PostgreSQL URL format is: jdbc:postgresql://[server]/[database]

The

[server]

parameter is the name of the server running the PostgreSQL database, and must be resolvable from the SavaPage server. If the PostgreSQL instance is running on the same machine then localhost

can be used.

The

[database]

parameter is the name of the PostgreSQL database you created in the previous step.

• Set the database.user

and database.password

used to connect to the database.

A connection example is shown below:

#------------------------------------------------------------

# Database Settings

#------------------------------------------------------------

# Using the internal database (default)

#database.type=Internal

# PostgreSQL connection database.type=PostgreSQL database.driver=org.postgresql.Driver

database.url=jdbc:postgresql://localhost/savapage database.user=your-db-user database.password=your-db-user-password

15.2.5. Step 5 - Initialize new Database

This step initializes the new database, it creates the required database tables and initial data.

To initialize the database, open a terminal session on the SavaPage server as user savapage and run the command as described in

Section B.2.4, “db-init” [195]

.

15.2.6. Step 6 - Restore Backup into new Database

This step restores the backup file exported in the previous step, into the newly initialized database. Open a terminal session on the SavaPage server as user savapage

and run the command as described in

Section B.2.3, “dbimport” [195] .

172

Using an External Database

15.2.7. Step 7 - Restart SavaPage

At this point the data have been migrated to the new database and the server can be restarted. See Section B.3, “Stopping and Starting the Server” [195] .

Wait a couple of seconds before logging in to the Admin Web App

to verify that the migration worked successfully.

173

Chapter 16. Performance Tuning

16.1. Linux Kernel Parameters

GNU/Linux distributions are generally not configured to run more demanding server processes out-of-the-box. So, running SavaPage with high load on a vanilla GNU/Linux OS can easily result in a degraded performance.

Performance bottlenecks are usually due to OS, TCP stack and network settings meant for desktop user sessions, and not for server processes that are intensively used by many network clients. Fortunately, it is easy to unleash the full potential of your GNU/Linux host with a few simple tweaks. The message is that SavaPage scales perfectly if you apply the right kernel settings.

Relevant kernel parameters and settings are discussed in the next sections. The last section summarizes the suggested

settings and describes how to apply them. See Section 16.1.5, “Setting Linux kernel parameters with sysctl” [176] .

Note

Kernel parameters with ipv4

in their names also apply to TCP over IPv6.

16.1.1. IP Ports

As many outgoing connections are concurrently established from SavaPage, we must make sure Linux does not run low on ephemeral local ports

1

and reuse sockets with state

TIME_WAIT

.

net.ipv4.ip_local_port_range = 1024 65535 net.ipv4.tcp_tw_recycle = 0 net.ipv4.tcp_tw_reuse = 1

Broaden the ephemeral local port range.

Disable recycling of sockets with state TIME_WAIT .

Enable the reuse of sockets with state

TIME_WAIT

. This is particularly useful in environments where numerous short connections are open and left in TIME_WAIT state, such as in SavaPage.

Note

According to Vincent Bernat in Coping with the TCP TIME-WAIT state on busy Linux servers

2

:

“On the server side, do not enable net.ipv4.tcp_tw_recycle

unless you are pretty sure you will never have

NAT

devices in the mix. Enabling net.ipv4.tcp_tw_reuse

is useless for incoming connections.”

“On the client side, enabling net.ipv4.tcp_tw_reuse

is another almost-safe solution. Enabling net.ipv4.tcp_tw_recycle

in addition to net.ipv4.tcp_tw_reuse

is mostly useless.”

1

An established TCP/IP connection can be regarded as a 4-tuple (server IP, server port, client IP, client port). Three of the four are evident, i.e.

the client uses its own IP address to connect to the server's IP address and service port. However, the connection also needs a port number at the client side. Unless the client program explicitly requests a port number, this port number is called an ephemeral port number. Ephemeral ports are temporary issued by the IP stack of the client OS from a dedicated port range.

2

http://vincent.bernat.im/en/blog/2014-tcp-time-wait-state-linux.html

174

Performance Tuning

16.1.2. TCP Buffer Sizes

Linux does a good job of auto-tuning the TCP buffers, but the default maximum sizes are still very small. Here are sample settings for 1Gb and 10Gb network.

# Settings for 1Gb network (16Mb buffer) net.core.rmem_max = 16777216 net.core.wmem_max = 16777216 net.ipv4.tcp_rmem = 4096 87380 16777216 net.ipv4.tcp_wmem = 4096 16384 16777216

# Settings for 10Gb network (32Mb buffer) net.core.rmem_max = 33554432 net.core.wmem_max = 33554432 net.ipv4.tcp_rmem = 4096 87380 33554432 net.ipv4.tcp_wmem = 4096 16384 33554432

# Settings for 10Gb network (54Mb buffer) net.core.rmem_max = 56623104 net.core.wmem_max = 56623104 net.ipv4.tcp_rmem = 4096 87380 56623104 net.ipv4.tcp_wmem = 4096 16384 56623104

Max size (bytes) of the TCP receive buffer as settable with setsockopt.

Max size (bytes) of the TCP send buffer as settable with setsockopt.

Auto-tuning limits (bytes) for TCP receive buffer: min, default, and max number of bytes.

Auto-tuning limits (bytes) for TCP send buffer: min, default, and max number of bytes.

16.1.3. Queue Sizes

While a socket is listening and busy, new connection requests will pile up. The kernel keeps pending connection requests in a buffer. When the buffer is full new requests will fail. You can increase several buffer sizes.

net.core.somaxconn = 4096 net.core.netdev_max_backlog = 16384 net.ipv4.tcp_max_syn_backlog = 8192 net.ipv4.tcp_syncookies = 1

Max number of queued connections on a socket. The default of

128

is too low: we raise this value substantially to support bursts of request.

Max number of packets, queued on the input side, when the interface receives packets faster than the kernel can process them.

Max number half open SYN requests to keep in memory.

Enable SYN cookies

3

to harden the TCP/IP stack against SYN floods.

16.1.4. Congestion Control

Congestion refers to a network state where a node or link carries so much data that it may deteriorate network service quality, resulting in queuing delay, frame or data packet loss and the blocking of new connections.

In a congested network, response time slows with reduced network throughput. Congestion occurs when bandwidth is insufficient and network data traffic exceeds capacity.

Linux supports pluggable congestion control (avoidance) algorithms. To get a list of congestion control algorithms that are available in your kernel run the command:

3

http://en.wikipedia.org/wiki/SYN_cookies

175

Performance Tuning sysctl net.ipv4.tcp_available_congestion_control

If cubic and/or htcp are not listed then you will need to research the control algorithms for your kernel. If available set the control to cubic: net.ipv4.tcp_congestion_control = cubic

16.1.5. Setting Linux kernel parameters with sysctl

Edit the file

/etc/sysctl.conf

like this: sudo vi /etc/sysctl.conf

and add the following lines, that summarize the previously discussed kernel parameters, at the end of the file:

#------------------------------------------------------

# SavaPage Settings for 1Gb network

#-----------------------------------------------------net.core.rmem_max = 16777216 net.core.wmem_max = 16777216 net.ipv4.tcp_rmem = 4096 87380 16777216 net.ipv4.tcp_wmem = 4096 16384 16777216 net.core.somaxconn = 4096 net.core.netdev_max_backlog = 16384 net.ipv4.tcp_max_syn_backlog = 8192 net.ipv4.tcp_syncookies = 1 net.ipv4.ip_local_port_range = 1024 65535 net.ipv4.tcp_tw_recycle = 0 net.ipv4.tcp_tw_reuse = 1

# Only if cubic is available net.ipv4.tcp_congestion_control = cubic

You can apply the settings without rebooting the server with this command: sudo sysctl -p

16.2. Linux User Limits

SavaPage server may run out of file descriptors as the system defaults are normally very low. A file descriptor (FD) is a handle created by a process when a file is opened. Each process can use a limited number of FDs as specified per user in an OS level user limit.

Beware that apart from “regular” files that are accessed by SavaPage from disk, each incoming request that uses a TCP socket also consumes one file descriptor from the total available for the process.

On Debian based systems the number of process FDs for the savapage

user can be increased as follows.

Edit the file Edit

/etc/security/limits.conf

like this: sudo vi /etc/security/limits.conf

and add the following lines at the end of the file: savapage hard nofile 65535 savapage soft nofile 65535

Next, open

/etc/pam.d/su

like this: sudo vi /etc/pam.d/su

176

Performance Tuning and uncomment the following line: session required pam_limits.so

You also need to edit the

/etc/pam.d/common-session

and

/etc/pam.d/common-session-noninteractive

files. Open the files like this: sudo vi /etc/pam.d/common-session sudo vi /etc/pam.d/common-session-noninteractive and for each file add the following line to the end: session required pam_limits.so

Finally, check whether the settings are applied with this command: sudo su - savapage -c "ulimit -n"

This should output the value

65535

.

16.3. JVM Tuning

SavaPage runs in the Java Virtual Machine (JVM) using the class libraries and other supporting files provided in the

JRE.

The SavaPage JVM settings work fine, and generally there is no customization needed. However, if needed the JVM can be tuned by adding extra JVM arguments in the file:

/opt/savapage/server/custom/app-server.conf

Edit this file as savapage

user and enter the extra JVM arguments as value of the

CUSTOM_JVM_ARGS

key. The example below shows the JVM arguments as explained in the next sections.

# Note: enclose the value with quotes

CUSTOM_JVM_ARGS="-XX:DefaultMaxRAMFraction=2 -XX:+UseConcMarkSweepGC -XX:+CMSIncrementalMode"

Important

Before doing any JVM customizing please consult SavaPage Support to discuss your requirements and which customization fits best.

16.3.1. JVM Memory Allocation

The JVM allocates a quarter of host system RAM to the SavaPage Server process by default. This ensures that SavaPage does not consume too many resources and does not get in the way of other applications running on the same system.

However, if the host system is dedicated to running SavaPage, you can safely allocate more memory to SavaPage.

With more allocated memory SavaPage will have a better performance, particularly with many users and large printing throughput.

Add one of the following JVM parameters to allocate relative or absolute memory:

-XX:DefaultMaxRAMFraction=3

-XX:DefaultMaxRAMFraction=2

-Xmx864m

177

Performance Tuning

Allocate one third of host system RAM.

Allocate one half of host system RAM.

Allocate 864MB of host system RAM.

16.3.2. JVM Garbage Collection

Customizing Java Garbage Collection (GC) depends on the characteristics of the application involved. The JVM provide proper defaults for SavaPage most of the time.

However, if you consider response time more important than overall throughput and garbage collection pauses must be kept shorter than approximately one second, then select the concurrent collector with the -XX:+UseConc-

MarkSweepGC option. Also, if only one or two processors are available, consider combining this collector with the

-XX:+CMSIncrementalMode option.

Please consult the Java SE 6 HotSpot Oracle documentation

4

for an introduction to these tuning options.

4

http://www.oracle.com/technetwork/java/javase/gc-tuning-6-140523.html#cms

178

Chapter 17. SavaPage Community

By joining the Fellowship your organization becomes a donating and sustaining member of the SavaPage Community.

Donations are needed to financially compensate Community Development and Deployment Partners for their efforts and expenses when supporting Fellow users. The suggested donation amount is dependent on the size (number of

Participants) of the Fellow organization. When you join as a Fellow you get a Member Card, which actually is a digitally signed file emailed to you. This file is your token as resident of the SavaPage Community and can be used to confirm your status in the SavaPage Software. Fellows have the right to request new features and are entitled to high-priority Technical Support.

An organization that uses the software and is not a Fellow is called a Visitor. Visitors are allowed to explore the application to decide if they want to become a donating community Fellow or not.

The community status is shown on the Admin Web App

Dashboard and

About

sections.

17.1. Visitor Period

Without a Community Member Card any user of the software is considered a visitor. After 40 days visitors are invited to contact SavaPage Support for a Member Card. Without a card SavaPage will continue to run as normal and will be fully functional, but the missing card will be signaled as system status.

Note

Implementations with 5 active users (or less) in the SavaPage database are welcomed as permanent visitors, and the missing card is not signalled as system status.

17.2. Registered Fellow

The Member Card supplied to you is the digital proof of your Community Fellow or Visitor status and holds information about:

• The Name of the Member organization.

• The Number of Participants in the Member organization.

• The Application version the Member Card is valid for.

• The Expiration date (end date) of the Membership. A regular Member Card will not have an end date. Only in special cases an end date is present, e.g. when visitors were granted an extended visitor period.

After you imported your Member Card file into SavaPage, your membership will be validated against your use of the application. A new Member Card is suggested when one of the following conditions are met:

The number of users in the SavaPage database exceed the number of participants . This happens when extra external users were synchronized into the user database or extra internal users were added. You can make a extra donation for a new Member Card with an increased number of participants, or reduce the number of users in the database, by deleting internal users or deleting external users which are not present in the synchronization source, or by importing from a just a single synchronization source group.

The expiration date of the Member Card is reached. The resolving action is to renew your Member Card.

179

SavaPage Community

The major version of the application does not match the Member Card version. This usually occurs when the application is upgraded to a higher major version and you stopped your yearly donation in the past. A common action is to obtain a new Member Card by renewing your membership.

Important

Whatever your community status is you'll always be able to use the software without restrictions. However, when deemed necessary, we will make an appeal to you to donate for the Member Card that covers your runtime situation.

17.3. Importing the Member Card

The SavaPage Community Member Card is issued as a digitally signed file. Installing the file into the application confirms your community status. To install the file supplied by your Community Partner:

1.

Save the Member Card file to your hard disk. Your desktop is a handy location. Files are typically named

Sava-

Page-[orgname].membercard

. The file can be loaded into the system as supplied.

2.

Log into the SavaPage Admin Web App and navigate to the About page.

3.

Scroll down to the Community Membership section and click the Import Member Card button.

4.

Please see

Figure 4.95, “Admin Web App: About - Import Member Card” [124] how to proceed in the import

dialog.

5.

Verify that your Membership is correctly listed in the About page.

If you have a question about your Member Card or need assistance please email SavaPage Technical Support and they will be more than happy to assist you.

Note

The file supplied is simply a digitally signed and zipped text file containing your Membership information.

It's converted to ZIP format to minimize size. If you're interested in viewing the contents of the file, rename the file to

.zip

and simply open it in any ZIP extraction utility.

180

Appendix A. NFC Authentication

SavaPage supports Radio Frequency Identification (RFID) as authentication method.

RFID is the technology for uniquely identifying items using radio waves. A basic RFID system comprises a passive

tag

1

, a reader, and an antenna, where the reader sends an interrogating signal to the tag via the antenna, and the tag responds with its Unique Identification (UID).

In this way RFID tags are commonly used as authentication token: the RFID reader connected to the authenticator just passes the UID (Card Number) of the tag. Applications are abundant, ranging from tags embedded into retail products to help stores keep tabs on inventory, to tags embedded into animals to keep track of life stock. RFID is also applied in passports and credit cards, as well as identification badges that let employees access secure areas.

Near Field Communication (NFC) is a more recent, finely honed version of RFID with a much broader application.

While RFID is a one-way communication system only, with data flowing from tag to reader, NFC can also be set up for two-way communication. However, NFC operates at a maximum range of about 4 inches (10 centimeters) and uses

High Frequency ( HF) RFID readers at 13.56 MHz.

Since SavaPage is targeted at the same HF RFID readers and tags, albeit in one-way communication, this manual uses the more common terms NFC Card and NFC Reader for the tag and reader role. In some contexts the terms Card and

Card Reader will be used as shorthand.

SavaPage supports two Card Reader types.

• A Local Card Reader: a keyboard emulating device that “types” the UID (Card Number) each time a Card is swiped.

• A Network Card Reader: a software component, implemented on a dedicated device (like a Raspberry Pi®), that interacts with an NFC Reader after a card swipe and sends the UID to the central SavaPage server.

A.1. Card Number Format

SavaPage stores the Card Number (UID) in lower case HEX format, with Least Significant Byte (LSB) first. So, at the interfaces where the UID is captured, the output format and byte order must be specified as HEX or DECIMAL and LSB or MSB (Least or Most Significant Byte) first. This information is used by SavaPage to convert the captured

Card Number to its internal HEX/LSB standard.

A.2. Local Card Reader

A Local Card Reader is an NFC Reader that functions as USB Keyboard Emulator. At each card swipe the reader must react by “typing” the card's UID (Card Number) appended by a Carriage Return (CR). SavaPage makes use of this function by capturing

2

the keystrokes at Login time in the Web App.

1

RFID tags are either Active or Passive. Active tags have their own power supply by which they can broadcast with a read range of up to 100 meters. Passive tags do not have their own power source. Instead, they are powered by the electromagnetic energy transmitted from the RFID reader.

Because the radio waves must be strong enough to power the tags, passive RFID tags have a read range from near contact to a few meters.

2

SavaPage uses a short time limit to capture the keystrokes from a Local Card Reader. The time limit (milliseconds) is contained in the configuration key webapp.card-local.keystrokes-max-msecs

. Do not change this value, except when requested by the SavaPage support desk.

181

NFC Authentication

Note

The way a reader formats the UID can deviate from the SavaPage HEX/LSB standard. Therefore you need to specify the format at the interfaces where the reader's UID is used. Most keyboard emulating readers can be configured to a specific output format and byte order.

Tip

At the time of this writing StrongLink

3

sells a reliable Plug and Play USB Keyboard Emulating Card Reader

(SL040A) for a competitive price. The reader supports UID reads for Mifare Mini, Mifare 1k, Mifare 4k,

Mifare Plus, Ultralight, DesFire and Mifare_ProX cards.

A.3. Network Card Reader Service

SavaPage ships with a Network Card Reader Service to be deployed on a Raspberry Pi®. The service is tested to work with the popular

ACS ACR122U

4

reader. The installation instructions can be found in:

/opt/savapage/providers/nfc/linux-armv6/README

Note

Other ACS USB readers mentioned in the README should work as well.

Any deployed service must be entered as SavaPage Device. See

Section 4.7.1, “Network Card Reader” [75]

. At each card swipe the UID of the card is read and send to the central SavaPage server, where it is handled in context of the device definition.

You can link sounds and scrips to various events. Sample files are provided for your own customization, for example to communicate with PiGlow

5

, Pibrella

6

or PiFace Control & Display

7

add-on boards.

3

http://www.stronglink-rfid.com

4

http://www.acs.com.hk/en/products/3/acr122u-usb-nfc-reader/

5

http://www.pimoroni.com/

6

http://pibrella.com/

7

http://www.piface.org.uk/

182

Appendix B. Tools

B.1. Server Commands

The savapage-cmd tool provides a command-line interface to SavaPage Server methods. It can directly be executed on the command-line or be part of more elaborate shell scripts.

For security reasons only users with read access to the

/opt/savapage/server/server.properties

file have the right to execute the command. So, the sure way to go is ...

sudo su - savapage cd server/bin/linux-x64

... and to execute savapage-cmd

from here, and ...

./savapage-cmd --help

... will echo all methods available:

________________________________

SavaPage Command Line Interface

Note: use METHOD --help for method details.

usage: [METHOD] [OPTION]...

--add-internal-user Creates a new or Updates an existing Internal

User.

--add-user-group Adds a user group from the external user

source: synchronized external users belonging

to this group are added as member.

--change-base-currency Changes the base currency of the application.

--delete-user Logically deletes a User.

--delete-user-group Deletes a user group.

--list-users Lists the names of all the Users in the

system, sorted by user name, one per line.

--list-user-groups Lists the names of all the User Groups in the

system, sorted by name, one per line.

--list-user-group-members Lists the names of the user group members in

the system, sorted by user name, one per line.

--list-user-group-memberships Lists the names of the groups a user belongs

to, sorted by name, one per line.

--list-user-source-groups Lists the names of all the groups in the user

source, sorted by name, one per line.

--list-user-source-group-members Lists the names of the (nested) user group

members in the user source, sorted by user

name, one per line.

--list-user-source-group-nesting Lists a space indented hierarchy of nested

groups within a group. Nested groups are only

supported by Active Directory, all other user

sources return an empty list.

--printer-access-control Controls user groups to either allow or deny

access to a proxy printer.

--printer-snmp Reads SNMP info from a printer.

--set-user-properties Sets properties for an existing Internal or

External User.

183

Tools

--set-user-group-properties Sets properties of an Internal or External

User Group.

--sync-user-group Synchronizes a user group with the external

user source, updating group membership.

-help,--help Displays this help text.

--help-all Displays help text of all methods.

Note

The number of available methods will grow according to customer needs. Please contact support if you need a method that is missing.

B.1.1. Common Options

B.1.1.1. Keep Switches

--keep-*

option switches are used to not overwrite existing values.

For example, the

--keep-card

,

--keep-pin

and

--keep-password

switches make their corresponding

-card

,

--pin

and

--password

options act as defaults in those cases where values have not yet been set.

Some examples:

# Overwrite any PIN set by user.

--add-internal-user --username "guest-john" --pin "1234"

# Preserve any PIN set by user.

--add-internal-user --username "guest-john" --pin "1234" --keep-pin

B.1.1.2. Remove Switches

--remove-*

option switches are used to clear values. Since the absence of a command-line option (or an empty

value in batch mode

CSV/TSV files) can not be interpreted as no value ( null

), the

--remove

switch comes to help to explicitly nullify values.

This implies that blank values on the command-line and in

batch mode

input files are ignored. So, this command has no effect ...

--add-internal-user --username "guest-john" --pin ""

... use this command instead ...

--set-user-properties --username "guest-john" --remove-pin

When an option does not have a

--remove-*

switch, there is no way to clear the corresponding field. For example, since

--remove-full-name

is not available, there is no way to clear the User field “full-name” from the com-

mand-line (see Section B.1.16, “setUserProperties” [191]

).

B.1.1.3. Locale Option

Some methods pass numeric values that are formatted according to the locale. In these cases the locale can be specified with a separate option like this:

-locale <arg> The IETF BCP 47 Locale used for numeric values.

Example values are: en, en-GB, en-US, nl,

nl-NL, nl-BE. [defaults to system default

184

Tools

en-US].

Note

The actual system default locale depends on your terminal session settings.

B.1.1.4. Batch Mode Options

Some methods have options for passing values in batch mode. Below are the standard batch mode parameters:

-batch Enables batch mode: executing from CSV or TSV

input.

-continue Continues batch processing after a batch line

execution error.

-input <arg> Batch input file: optional with stdin as

default.

-charset <arg> IANA Charset Name of batch input character

encoding [default: utf-8].

So instead of using these three commands ...

./savapage-cmd --add-internal-user --username john --password rTf4g

./savapage-cmd --add-internal-user --username dave --password 9j6Tw

./savapage-cmd --add-internal-user --username mick --password f75L2

... you can use this single batch command ...

./savapage-cmd --add-internal-user -batch -input /home/rijk/add-internal-user.csv

.. where the file add-internal-user.csv

looks like this:

"username","password"

"john","rTf4g"

"dave","9j6Tw"

"mick","f75L2"

Input files must have the extension

.csv

or

.tsv

as indication for a comma or tab separated file format.

The first line in the file must be the comma or tab separated list of parameters. The convention is that the parameter names are identical to their command line counterpart, except for the

--

prefix. The next lines simply contain the comma or tab separated parameter values.

Option switches like applied in the command below ...

--set-user-properties --username "john" --pin 1234 --remove-card --full-name "John Brown"

--set-user-properties --username "carol" --pin 4713 --keep-pin --full-name "Carol Johnson"

... can be applied in a CSV file like this:

"username,"pin","keep-pin","remove-card","full-name"

"john",1234,,"true","John Brown"

"carol",4713,"true",,"Carol Johnson"

Important

By default, batch processing is interrupted after a batch line execution error. With the

-continue

switch set, it will instead continue processing. After the batch finishes it will return error code

5

to distinguish continuation from an immediate termination, which is reported with error return code

1

.

185

Tools

Note

In a CSV/TSV file any blank switch value is interpreted as not present ( false

), any non-blank value as present ( true

).

B.1.2. addInternalUser

./savapage-cmd --add-internal-user --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : addInternalUser

Version : 0.30

Creates a new or updates an existing Internal User.

usage: --add-internal-user [OPTION]...

--username <text(50)> [required] Unique user name.

--password <text(64)> [optional] Password.

--full-name <text(255)> [optional] Full user name.

--email <text(255)> [optional] Primary Email address.

--email-other <list> [optional] List of space separated other

(secondary) Email addresses.

--card <text(16)> [optional] NFC Card Number.

--card-format <HEX|DEC> [optional] NFC Card Number Format [default:

HEX].

--card-first-byte <LSB|MSB> [optional] NFC Card Number First Byte [default:

LSB].

--id <text(16)> [optional] ID Number.

--pin <text(16)> [optional] PIN for ID and Card.

--uuid <text(36)> [optional] The user's secret UUID.

--balance <decimal> [optional] The user's initial account balance.

This value is ignored when a balance is already

assigned.

--balance-comment <text(255)> [optional] A comment to be associated with the

--balance transaction.

--credit-limit [optional] Assign default credit limit amount.

--credit-limit-amount <decimal> [optional] Assign custom credit limit amount.

--credit-limit-none [optional] no credit limit restriction (opposed

to --credit-limit and --credit-limit-amount).

--keep-card [optional] Keep existing Card Number, or use

--card value when not present.

--keep-email-other [optional] Keep existing other (secondary)

Email addresses, or use --email-other value

when not present.

--keep-password [optional] Keep existing Password, or use

--password value when not present.

--keep-pin [optional] Keep existing PIN, or use --pin

value when not present.

--keep-uuid [optional] Keep existing UUID, or use --uuid

value when not present.

-h,--help Displays this help text.

-batch Enables batch mode: executing from CSV or TSV

input.

-continue Continues batch processing after a batch line

execution error.

-input <arg> Batch input file: optional with stdin as

default.

-charset <arg> IANA Charset Name of batch input character

encoding [default: utf-8].

186

Tools

-locale <arg> The IETF BCP 47 Locale used for numeric values.

Example values are: en, en-GB, en-US, nl,

nl-NL, nl-BE. [defaults to system default

en-US].

B.1.3. addUserGroup

./savapage-cmd --add-user-group --help

... gives the options:

SavaPage Command Line Interface

Method : addUserGroup

Version : 0.10

Adds a user group from the external user source: synchronized external users belonging to this group are added as member.

usage: --add-user-group [OPTION]...

--groupname <text(255)> [required] Unique group name.

-h,--help Displays this help text.

B.1.4. changeBaseCurrency

./savapage-cmd --change-base-currency --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : changeBaseCurrency

Version : 0.10

Changes the base currency of the application.

This action creates financial transactions to align each account to the new currency: the current account balance is nullified by a debit transaction and replaced with the new currency according to the exchange rate via a credit transaction.

Individual credit limits are converted as well, default credit limits are not.

WARNING: Create a database back-up before executing this command!

usage: --change-base-currency [OPTION]...

--from <text(3)> [required] The current currency code (ISO 4217).

--to <text(3)> [required] The new currency code (ISO 4217).

--exchange-rate <decimal> [required] The exchange rate.

--test [optional] Dry run, changes are not committed.

-h,--help Displays this help text.

B.1.5. deleteUser

./savapage-cmd --delete-user --help

... gives the options:

________________________________

SavaPage Command Line Interface

187

Tools

Method : deleteUser

Version : 0.10

Logically deletes a User.

usage: --delete-user [OPTION]...

--username <text(50)> [required] Unique user name.

-h,--help Displays this help text.

-batch Enables batch mode: executing from CSV or TSV input.

-continue Continues batch processing after a batch line

execution error.

-input <arg> Batch input file: optional with stdin as default.

-charset <arg> IANA Charset Name of batch input character encoding

[default: utf-8].

B.1.6. deleteUserGroup

./savapage-cmd --delete-user-group --help

... gives the options:

SavaPage Command Line Interface

Method : deleteUserGroup

Version : 0.10

Deletes a user group.

usage: --delete-user-group [OPTION]...

--groupname <text(255)> [required] Unique group name.

-h,--help Displays this help text.

B.1.7. listUsers

./savapage-cmd --list-users --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : listUsers

Version : 0.10

Lists the names of all the Users in the system, sorted by user name, one per line.

usage: --list-users [OPTION]...

-h,--help Displays this help text.

B.1.8. listUserGroups

./savapage-cmd --list-user-groups --help

... gives the options:

________________________________

SavaPage Command Line Interface

188

Tools

Method : listUserGroups

Version : 0.10

Lists the names of all the User Groups in the system, sorted by name, one per line.

usage: --list-user-groups [OPTION]...

-h,--help Displays this help text.

B.1.9. listUserGroupMembers

./savapage-cmd --list-user-group-members --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : listUserGroupMembers

Version : 0.10

Lists the names of the user group members in the system, sorted by user name, one per line.

usage: --list-user-group-members [OPTION]...

--groupname <text(255)> [required] Unique group name.

-h,--help Displays this help text.

B.1.10. listUserGroupMemberships

./savapage-cmd --list-user-group-memberships --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : listUserGroupMemberships

Version : 0.10

Lists the names of the groups a user belongs to, sorted by name, one per line.

usage: --list-user-group-memberships [OPTION]...

--username <text(50)> [required] Unique user name.

-h,--help Displays this help text.

B.1.11. listUserSourceGroups

./savapage-cmd --list-user-source-groups --help

... gives the options:

SavaPage Command Line Interface

Method : listUserSourceGroups

Version : 0.10

Lists the names of all the groups in the user source, sorted by name, one per line.

189

Tools usage: --list-user-source-groups [OPTION]...

-h,--help Displays this help text.

B.1.12. listUserSourceGroupMembers

./savapage-cmd --list-user-source-group-members --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : listUserSourceGroupMembers

Version : 0.10

Lists the names of the (nested) user group members in the user source, sorted by user name, one per line.

usage: --list-user-source-group-members [OPTION]...

--groupname <text(255)> [required] Unique group name.

--nested [optional] Accumulate members from nested groups

(Active Directory only).

-h,--help Displays this help text.

B.1.13. listUserSourceGroupNesting

./savapage-cmd --list-user-source-group-nesting --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : listUserSourceGroupNesting

Version : 0.10

Lists a space indented hierarchy of nested groups within a group. Nested groups are only supported by Active Directory, all other user sources return an empty list.

usage: --list-user-source-group-nesting [OPTION]...

--groupname <text(255)> [required] Unique group name.

-h,--help Displays this help text.

B.1.14. printerAccessControl

./savapage-cmd --printer-access-control --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : printerAccessControl

Version : 0.10

Controls user groups to either allow or deny access to a proxy printer.

usage: --printer-access-control [OPTION]...

190

Tools

--printername <text(255)> [required] CUPS name of the proxy printer.

--allow [optional] Allow access to --groupname (existing

denied user groups are removed).

--deny [optional] Deny access to --groupname (existing

allowed user groups are removed).

--remove [optional] Remove --groupname from the access list.

--groupname <text(255)> [optional] Name of the user group to --allow, --deny

or --remove access

--remove-all [optional] Remove all user groups from the access

list.

--list [optional] Echoes the access list to stdout in CSV

format.

-h,--help Displays this help text.

B.1.15. printerSnmp

./savapage-cmd --printer-snmp --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : printerSnmp

Version : 0.20

Reads SNMP info from a printer.

usage: --printer-snmp [OPTION]...

--printername <text(255)> [optional] CUPS printer name used to resolve host

name (required when --host is not set).

--host <text> [optional] Host name or IP address of the printer

(required when --printername is not set).

--port <number> [optional] SNMP port number (default 161).

--community <text> [optional] SNMP community (default "public").

--version <1|2c> [optional] SNMP version (default "1").

-h,--help Displays this help text.

B.1.16. setUserProperties

./savapage-cmd --set-user-properties --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : setUserProperties

Version : 0.30

Sets properties for an existing Internal or External User.

usage: --set-user-properties [OPTION]...

--username <text(50)> [required] Unique user name.

--password <text(64)> [optional] Password (Internal User only).

--full-name <text(255)> [optional] Full user name.

--email <text(255)> [optional] Primary Email address.

--email-other <list> [optional] List of space separated other

(secondary) Email addresses.

--card <text(16)> [optional] NFC Card Number.

--card-format <HEX|DEC> [optional] NFC Card Number Format [default:

HEX].

--card-first-byte <LSB|MSB> [optional] NFC Card Number First Byte [default:

191

Tools

LSB].

--id <text(16)> [optional] ID Number.

--pin <text(16)> [optional] PIN for ID and Card.

--uuid <text(36)> [optional] The user's secret UUID.

--balance <decimal> [optional] The user's current account balance.

--balance-comment <text(255)> [optional] A comment to be associated with the

--balance transaction.

--credit-limit [optional] Assign default credit limit amount.

--credit-limit-amount <decimal> [optional] Assign custom credit limit amount.

--credit-limit-none [optional] No credit limit restriction (opposed

to --credit-limit and --credit-limit-amount).

--keep-card [optional] Keep existing Card Number, or use

--card value when not present.

--keep-email-other [optional] Keep existing other (secondary)

Email addresses, or use --email-other value

when not present.

--keep-password [optional] Keep existing Password, or use

--password value when not present (Internal

User only).

--keep-pin [optional] Keep existing PIN, or use --pin

value when not present.

--keep-uuid [optional] Keep existing UUID, or use --uuid

value when not present.

--remove-email [optional] Remove Primary Email address

(opposed to --email).

--remove-email-other [optional] Remove other (secondary) Email

addresses (opposed to --email-other).

--remove-card [optional] Remove NFC Card Number (opposed to

--card).

--remove-id [optional] Remove ID Number (opposed to --id).

--remove-password [optional] Remove Password (Internal User

only).

--remove-pin [optional] Remove PIN (opposed to --pin).

--remove-uuid [optional] Remove UUID (opposed to --uuid).

-h,--help Displays this help text.

-batch Enables batch mode: executing from CSV or TSV

input.

-continue Continues batch processing after a batch line

execution error.

-input <arg> Batch input file: optional with stdin as

default.

-charset <arg> IANA Charset Name of batch input character

encoding [default: utf-8].

-locale <arg> The IETF BCP 47 Locale used for numeric values.

Example values are: en, en-GB, en-US, nl,

nl-NL, nl-BE. [defaults to system default

en-US].

B.1.17. setUserGroupProperties

./savapage-cmd --set-user-group-properties --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : setUserGroupProperties

Version : 0.10

Sets properties of an Internal or External User Group.

usage: --set-user-group-properties [OPTION]...

--groupname <text(255)> [required] Unique group name.

192

Tools

--balance <decimal> [optional] The user's initial account balance.

--credit-limit [optional] Assign default credit limit amount

to new users.

--credit-limit-amount <decimal> [optional] Assign custom credit limit amount to

new users.

--credit-limit-none [optional] Assign no credit limit restriction

to new users (opposed to --credit-limit and

--credit-limit-amount).

-h,--help Displays this help text.

-batch Enables batch mode: executing from CSV or TSV

input.

-continue Continues batch processing after a batch line

execution error.

-input <arg> Batch input file: optional with stdin as

default.

-charset <arg> IANA Charset Name of batch input character

encoding [default: utf-8].

-locale <arg> The IETF BCP 47 Locale used for numeric values.

Example values are: en, en-GB, en-US, nl,

nl-NL, nl-BE. [defaults to system default

en-US].

B.1.18. syncUserGroup

./savapage-cmd --sync-user-group --help

... gives the options:

________________________________

SavaPage Command Line Interface

Method : syncUserGroup

Version : 0.10

Synchronizes a user group with the external user source, updating group membership.

usage: --sync-user-group [OPTION]...

--groupname <text(255)> [required] The name of the group to synchronize.

-h,--help Displays this help text.

B.2. Database Commands

The savapage-db command-line tool provides functions for manipulating the database. The tool is located in

/opt/ savapage/server/bin/[platform]/

and needs to be executed from a command prompt. The syntax of the command is: usage: [OPTION]

--db-delete-logs <DAYS> Deletes application and document log data

older than DAYS. A DAYS value of zero (0)

will remove all log data from the system.

--db-export Exports the database to the default backup

location.

--db-export-to <FILE|DIR> Exports the database to the specified file

or directory.

--db-import <FILE> Imports the database from the specified

file. Deletes any existing data before

loading the data.

--db-init Re-initializes the database even if it

already exists.

--db-run-script <FILE> Runs SQL statements from the specified

script file. NOTE: Only if requested by

support.

193

Tools

--db-run-sql <STATEMENT> Runs an SQL statement. NOTE: Only if

requested by support.

-h,--help Displays this help text.

The command must be run as the savapage

user. An example: sudo su - savapage cd server/bin/linux-x64

./savapage-db --db-import /home/john/savapage-backup.zip

savapage-db needs exclusive access to the database. It is important that any SavaPage services and processes are stopped before executing a command. Failure to do so will result in a "database in use" error message. The savapage-db command is a powerful low-level utility and its use on a production system should be carefully considered. Details of the available commands are discussed below.

B.2.1. db-delete-logs

This option delete old log data from the system. This command will permanently delete the following data.

• Document logs - Record all document history and statistics

• Transaction logs - Record all financial history and statistics

• Application logs - Record application status and error messages

The DAYS option determines what data will be deleted. If DAYS is 90, then all log data more than 90 days old will be deleted. A value of zero (0) will remove all historical log data from the system. This is an example: savapage-db --db-delete-logs 90

B.2.2. db-export and db-export-to

This option exports the data from the database. The application server must be stopped before performing the export.

See Section B.3, “Stopping and Starting the Server” [195]

.

Tip

If you want to perform an online backup without stopping the application server you can use the backup function in the Admin Web App.

savapage-db --db-export savapage-db --db-export-to /home/john savapage-db --db-export-to /home/john/savapage-backup.zip

The database export file is created in the

/opt/savapage/server/data/backups

directory and the file is named savapage-export-[date-time].zip

.

This option is used to override the default backup directory. The filename will still be named savapage-export-[date-time].zip

.

The full path and filename where the backup is saved is specified.

Note

When executing the command the last line echoed to stdout is the canonical path of the database export file.

Caution

If the directory or filename parameters contain spaces, then the argument needs to be quoted.

194

Tools

B.2.3. db-import

This option imports the data (from a previous export) into the database. The application server must be stopped to perform the import. This is an example: savapage-db --db-import /home/john/savapage-backup.zip

Note

Progress and statistics of the import process are written to stdout .

Warning

Be carefull, existing data in the database are erased.

B.2.4. db-init

This option initializes a database, creating the required tables and initial data. The application server must be stopped before you initialize the database. This is an example: savapage-db --db-init

Warning

Be careful, existing data in the database are erased.

B.3. Stopping and Starting the Server

Normally there is no need to stop or start the server. This is only required when:

• Performing an

off-line backup

.

• Migrating the an

external database

.

Upgrading

the application.

The SavaPage application server may be stopped or started by executing these GNU/Linux commands: sudo service savapage start sudo service savapage stop sudo service savapage restart sudo service savapage status

Starts the application server.

Stops the application server.

Stops and starts the application server in one go.

Echoes the run status of the application server.

Important

When you start the application server, wait approximately 10 seconds for the service to initialize before accessing the Web App interface.

195

Tools

B.4. SSL Key Generation

During the install process, SavaPage generates a self-signed key and certificate issued for the host's machine name.

This key is used by default when the system is accessed via HTTPS on port 8632.

The default SSL certificate provides good security, however there are two downsides to using a self-signed certificate, since users accessing the HTTPS site will encounter warnings from the browser.

1. When users access the HTTPS site using a fully-qualified domain name, the browser will issue a “Domain mismatch warning”. To avoid this warning, re-create the self-signed certificate with the machine's fully qualified domain name, see

Section B.4.1, “Re-Create the Self-Signed Certificate” [196] .

2. The browser will also warn the user that the certificate is not signed by a trusted authority. To overcome this you must obtain a certificate signed by a trusted authority, see

Section B.4.2, “Importing an Existing SSL Certificate” [196]

.

B.4.1. Re-Create the Self-Signed Certificate

The tool create-ssl-keystore can be used to re-create the key/certificate (stored in a keystore file) for a different hostname eliminating the browser domain mismatch warning. An example of the command's use: cd /opt/savapage/server/bin

./create-ssl-keystore -f --default --system-name "savapage.mycompany.com"

More information is available via the

--help

command line option.

usage: [OPTION]...

--create <FILE> Creates a specific keystore file.

-d,--default Creates the default keystore file

/opt/savapage/server/data/default-ssl-keystore.

-f,--force Force. Overwrite any existing keystore file.

-h,--help Displays this help text.

--system-name <NAME> The name of the computer/server used for the

SSL Certificate. If not set the current

computer name is used.

B.4.2. Importing an Existing SSL Certificate

If you have an existing SSL certificate you can import it into a Java keystore to be used by SavaPage. Reasons for having an existing signed key include:

• You have obtained a dedicated SSL certificate for use with your SavaPage Application Server.

• Your organization's intranet as served by Internet Information Server (Windows), Apache (GNU/Linux) or another web server uses a certificate that can be re-used for SavaPage.

Note

Unless your intranet server and SavaPage run on the same server (i.e. on different ports), the server name of your intranet server will be different from your SavaPage Application Server. E.g. the intranet address might be internal.mycompany.com

while the SavaPage Application Server can be reached at savapage.mycompany.com

. In this case the certificate can only be re-used if it is a so-called wildcard certificate that allows arbitrary subdomains under the mycompany.com

domain name that it was issued for.

If the SSL certificate is held in a Windows environment you will have a certificate with an attached private key in a so-called PCKS #12 file with *.p12

or .pfx

extension

1

.

1

PKCS #12 is one of the family of standards called Public-Key Cryptography Standards (PKCS), published by RSA Laboratories. It defines a (binary) file format commonly used to store X.509 private keys with accompanying public key certificates, protected with a password-based symmetric key, and is the successor to PFX from Microsoft.

196

Tools

Note

If the certificate with key exist in the certificates store of Windows or IIS Server, you need to export it as a .PFX file first.

On GNU/Linux you will typically have separate PEM encoded

2

key and certificate files. Use this command to combine the private key and the certificate into a single

.p12

file: openssl pkcs12 -export -in <PEM encoded certificate> \

-inkey <PEM encoded private key file> \

-out <.p12 file>

Enter pass phrase for <PEM encoded private key file>:

Enter Export Password:

Verifying - Enter Export Password:

The keytool command used in this section is part of the Open JDK package as installed on the host.

Now, use this command to create a new Java keystore and import the

.p12

or

.pfx

file at hand: keytool -importkeystore -deststorepass <keystore password> \

-destkeystore <keystore file> \

-srckeystore [.p12|.pfx file] -srcstoretype PKCS12 \

-alias 1

Important

The

-alias 1

option in the command is required to choose the certificate in the source PKCS12 file, keytool isn't clever enough to figure out which certificate you want in a store containing just one certificate.

However, we are not quite done yet since we should add the certificate of the Certificate Authority (CA) root and any intermediate CA to the keystore as well. These certificates should be supplied by your CA or are available for download on the CA's web site as a file ending on

.pem

or

.crt

. Use this command to add them to the keystore: keytool -keystore <keystore file> -importcert \

-alias <unique alias> \

-file <CA certificate file>

Enter keystore password:

Re-enter new password:

Certificate was added to keystore

Here is an example with a slightly different dialog. As you can see the CA certificate already exists in the system-wide

CA keystore, so there is no need to add it to our own keystore.

keytool -keystore my-ssl-keystore \

-importcert -alias usertrust \

-file USERTrustLegacySecureServerCA.crt

Enter keystore password:

Certificate already exists in system-wide CA keystore under alias <entrustsslca>

Do you still want to add it to your own keystore? [no]: no

Certificate was not added to keystore

At this point your keystore file is ready to use, so follow the instructions in

Section B.4.3, “Installing the Keystore” [198]

to install it and start serving up your new SSL certificate.

2

PEM or Privacy Enhanced Mail is a Base64 encoded DER certificate. PEM certificates are frequently used for web servers as they can easily be translated into readable data using a simple text editor. Generally when a PEM encoded file is opened in a text editor, it contains very distinct headers and footers.

197

Tools

B.4.3. Installing the Keystore

The previous section described how to create a keystore file from an existing SSL certificate. This section describes how to install your keystore so that SavaPage can start serving up your new certificate.

To configure the SavaPage Application Server to use the new key/certificate:

1. Copy your signed keystore onto the server running the SavaPage Application Server. The suggested location is

/ opt/savapage/server/custom/my-ssl-keystore

2. Open the file

/opt/savapage/server/server.properties

with a text editor.

3. Locate the section titled

SSL/HTTP Configuration

.

4. Remove the

#

(hash) comment marker from all lines starting with " server.ssl

".

5. Define the location of your keystore, keystore password and key password as chosen previously. The file should look something like this: server.ssl.keystore=custom/my-ssl-keystore server.ssl.keystore-password=password server.ssl.key-password=password

6. Restart the SavaPage Application Server and verify all is working. If the server fails to start, error messages will be recorded in logs located in the server's logs directory.

198

Appendix C. Capacity Planning

This section discusses capacity planning considerations so administrators can plan future infrastructure requirements and make decisions about how to deploy the application. SavaPage is designed to be self-maintaining, however it is important that the administrator understands the disk-space requirements and how this changes overtime.

C.1. Database Sizing and Growth

Special attention is needed to make sure there is enough disk space to hold a growing database. Database growth is very dependent on the usage patterns and therefore can differ significantly from site to site.

Although, there is some overhead for data like Users, Proxy Printers and Queues, this data is static and does not grow over-time. The majority of database growth is caused by logging the document flow.

So, the best prediction of database growth is based on the estimated number of documents printed to SavaPage and

Proxy Printers, and exported to PDF.

The table below provides an indication of growth per 10,000 jobs for SavaPage and Proxy Printing and PDF export.

Combining these numbers with your estimate of user activity result in a growth estimate.

Job type

SavaPage printing

Proxy Printer printing

SavaPage Financial

PDF export

Increase per 10,000 jobs

15 MB

20 MB

5 MB

20 MB

Table C.1. Database size increase metrics per document flow.

To demonstrate how to estimate database growth we make a number of assumptions. Please adjust these assumptions to suit your organization. The assumptions are:

• 1 job for each job type per user per day

• 20 working days in a month

• Therefore, 20 jobs for each job type per user per month

Here is a sample database growth calculation based on a 500 user site:

1. Calculate the total number of jobs expected for the month (i.e. the total number of users multiplied by the number of jobs). So in this example, SavaPage is handling 10,000 jobs for each job type a month.

2. Calculate the monthly growth rate by dividing the jobs per month by 10,000 and then multiplying by the database growth rate:

• SavaPage printing : 10,000/10,000*15=15MB per Month

• Proxy Printer printing:

10,000/10,000*20=20MB

per Month

• SavaPage Financial:

10,000/10,000*5=5MB

per Month

• PDF export:

10,000/10,000*20=20MB

per Month

199

Capacity Planning

Therefore in this situation the database will grow by approximately

15+20+5+20=60MB

per month.

3. To estimate the growth per year, multiply the above by 12. Therefore in this situation, the database will grow by

60*12=720MB

per year.

Tip

You can limit database growth by purging old log data after an automatic database backup. In our example, when you set the number of days document logs are held to 365, database increase will maximize to 720MB.

See Figure 4.68, “Admin Web App: Options - Automatic Backups” [106]

C.2. SafePages Sizing and Growth

SafePages are transient. They serve as scratchpad to accumulate and edit SavaPage print jobs. After ProxyPrinting and

PDF exporting is done the user will normally clear the scratchpad for a new session. Of course this does not hold for personal Letterheads. Take in consideration that SafePages (including Letterheads) from logically deleted users are removed. This all makes the calculation of required disk space a simple linear function of the number of active users times the average size of a user's SafePages home. Since an average 10-page print job takes about 1 MB to hold in store, making a reservation of 10 MB per user seems fair enough.

C.3. Network Bandwidth Planning

With modern switched Ethernet networks, bandwidth is rarely a factor when planning SavaPage deployments. The bandwidth consumed by SavaPage is usually dwarfed by the print document data - e.g. the PostScript and PDF spool data sent across the network. Bandwidth does however become a consideration when planning deployments crossing physical site boundaries such as networks linked via a WAN.

SavaPage uses JSON based HTTP Requests for communication between browser-to-server (Ajax)

1

and server-tobrowser (Comet)

2

. This protocol is very bandwidth efficient and designed to work well on low bandwidth and high latency networks.

1

Ajax (an acronym for Asynchronous JavaScript and XML) is a group of techniques to create asynchronous web applications. With Ajax, web applications send data to, and retrieve data from, a server asynchronously using an XMLHttpRequest object. Despite the name, the use of XML is not needed, and JSON is often used instead. Also, requests do not need to be asynchronous.

2

Comet (or “Reverse Ajax”) is a web application model in which a long-held HTTP request allows a web server to push data to a browser, without the browser explicitly requesting it.

200

Appendix D. URL Cheat Sheet

Path

/ user/ admin/ pos/ printers/[queue] printers/ printers/internet/user/

[number]/uuid/[uuid]

Description / Parameters / Examples

User Web App

http://savapage:8631/ https://savapage:8632/

User Web App

user=[user] language=[en|fr|de|nl|..] country=[US|FR|DE|NL|..] login=[name|id|nfc-local] http://savapage:8631/user?user=john&language=en&country=US http://savapage:8631/user?user=john http://savapage:8631/user?language=en&country=US

Login with Username, ID Number or Local NFC Card: http://savapage:8631/user?login=name http://savapage:8631/user?login=id http://savapage:8631/user?login=nfc-local

Admin Web App

Point-of-Sale Web App

user=[user] language=[en|fr|de|nl|..] country=[US|FR|DE|NL|..] login=[name|id|nfc-local] https://savapage:8632/admin?user=admin&language=nl&country=NL https://savapage:8632/pos?user=admin&language=nl&country=NL

Printer Queue

Default Printer Queue

ipp://savapage:8631/printers/ ipps://savapage:8632/printers/ http://savapage:8631/printers/ https://savapage:8632/printers/

IPP 1.1 scheme: supported by all major operating systems except Windows.

The SavaPage SSL certificate needs to be trusted by the client workstation a

. See

Section B.4.3, “Installing the Keystore” [198] .

IPP 1.0 scheme: supported by all major operating systems.

The SavaPage SSL certificate needs to be trusted by the client workstation. See

Section B.4.3, “Installing the Keystore” [198]

The Printer Device URI path for

Internet Print . Parameters are not query parameters but are

part of the path.

201

URL Cheat Sheet

Path

ios/install/

Description / Parameters / Examples

[number]

: the User ID Number .

[uuid]

: the User

UUID .

ipps://example.com/printers/internet/user/12345 \

/uuid/b0a2f092-8c5b-11e5-a6fb-406186940c49

iOS Web Clip Install

http://savapage:8631/ios/install docs/manual/ docs/licenses/

User Manual

License Information callback/

Web API Callback

callback/payment/

Web API Callback for Payment Gateway

client/

Download of shared Client Files . A link to a directory downloads the zipped content.

a

When the SSL certificate is not trusted a "client-error-not-possible" situation will occur when adding the printer.

Table D.1. SavaPage URL Cheat Sheet

202

Appendix E. Printable File Types

E.1. Standard File Types

SavaPage printer supports a number of common file types out of the box as summarized in

Table E.1, “Standard

Printable File Types” [203] .

Extension

pdf ps xps html txt bmp gif jpg , jpeg , jpe png svg tiff , tif

Type

Portable Document Format

The PDF must not be encrypted and not password protected.

PostScript

DRM protected PostScript is rendered for ProxyPrinting only. See Section 9.7, “Printing

Encrypted PDF” [150]

.

XML Paper Specification

See

Section E.1.1, “XPS to PDF Installation Instructions” [204] .

Hypertext Markup Language

CSS 2.1 is fully supported.

Text File

Bitmap

Graphic Interchange Format

For Animated GIF each image is rendered separately.

JPEG/JIFF Image

Portable (Public) Network Graphic

Scalable Vector Graphics

Tagged Image Format File

Multi-page tiff is supported.

Table E.1. Standard Printable File Types

Note

The Default Paper Size, as shown in Figure 4.75, “Admin Web App: Options - Default Paper Size” [110]

, is used as the paper size for the printed document of a Printable File Type which itself does not have a document structure with a clearly defined page size. These types typically include HTML, TXT and images.

203

Printable File Types

E.1.1. XPS to PDF Installation Instructions

XML Paper Specification (XPS) is an XML based electronic paper format originally developed by Microsoft to serve as a PDF alternative. XPS files are usually created using "Microsoft XPS Document Writer" in a Windows environment.

SavaPage uses the xpstopdf command from the libgxps

1

package to convert XPS documents to PDF format. Check if this package is installed by entering the command: xpstopdf --help

On Debian based systems you can install the package with the command: sudo apt-get install libgxps-utils

Note

Before XPS to PDF can be used it must be enabled. See Figure 4.77, “Admin Web App: Options - Converters” [111]

.

E.2. Advanced File Types

SavaPage printer supports additional file types using the PDF converter of LibreOffice as summarized in Table E.2,

“Advanced Printable File Types” [204] . Check if LibreOffice is installed by entering the command:

libreoffice --version

LibreOffice can easily be installed with the standard installer of the GNU/Linux host.

pptx odt ods odp sxw sxc sxi

Extension

rtf doc xls ppt docx xlsx

Type

Rich Text Format

Microsoft Word 97/2000/XP/2003

Microsoft Excel 97/2000/XP/2003

Microsoft PowerPoint 97/2000/XP/2003

Microsoft Word 2007/2010 XML

Microsoft Excel 2007/2010 XML

Microsoft PowerPoint 2007/2010 XML

ODF Text Document

ODF Spreadsheet

ODF Presentation

OpenOffice.org 1.0 Text Document

OpenOffice.org 1.0 Spreadsheet

OpenOffice.org 1.0 Presentation

Table E.2. Advanced Printable File Types

1 libgxps [https://wiki.gnome.org/libgxps] is a library for handling and rendering XPS documents.

204

Printable File Types

Note

Before LibreOffice can be used it must be enabled. See

Figure 4.77, “Admin Web App: Options - Converters” [111]

.

205

Appendix F. Upgrading from a Previous Version

This appendix describes the SavaPage standard upgrade procedure.

F.1. Upgrading the Server

SavaPage supports upgrades using a simple install-over-the-top procedure. We recommend reviewing all steps prior to commencing the upgrade procedure.

1. Download the SavaPage installer for your platform. In accordance with best practice we recommend that you archive your install programs just in case you need to reinstall in the future or roll back to a previous version.

2. Take some time to read the release notes for this version as they may highlight considerations during upgrades.

3. Schedule approximately 10 minutes downtime. It is suggested to choose a time of day with minimal network activity. If there is a large volume of data in the system (for example if the system has been running for more than a year, or there are several thousands of users) the upgrade may take longer. With very large installations it may be appropriate to schedule an hour or more of downtime.

4. Take a point-in-time backup of the data by pressing the Backup Now located under

Options

Backups . This will

ensure you have a copy of the important data.

5. As a precaution on very large systems, we recommend backing up the whole SavaPage install directory. Existing overnight backups may have taken care of this task, however take a few moments to grab an up-to-date backup now. For example, create a zip archive of the directory

/opt/savapage

6. Run the installer downloaded in step 1 and install into the same location as the existing install, like /opt/savapage.

7. After the install has completed allow a few minutes before accessing the system. The system may need to perform a database upgrade and this will be performed in the background. If you try to access the application while a database upgrade is in progress a message displaying the upgrade status will be displayed.

Important

Do not shutdown the application while an upgrade is in progress. Wait for the upgrade to complete.

Note

Sometimes a new SavaPage version performs changes on the database schema. In that case a database backup is performed automatically before the upgrade. The backup file is located at

/opt/savapage/server/data/backups/

. The file name is formatted as schema-[nn]-upgrade-backup-[timestamp].zip

, where

[nn]

is the database schema version before the upgrade.

F.2. Upgrading Client Printer Drivers

Although upgrading locally installed SavaPage Printer Drivers is not strictly required, we strongly recommend doing so. We strive to maintain backwards compatibility between versions, so in most cases these drivers will continue to function, but to take advantage of new features they must be upgraded.

F.3. Testing the Upgrade

After the install is complete, log into the system and perform some tests to ensure all is working as expected.

206

Appendix G. Migrating to a New Server

Migrating to a new server is a major task. Administrators should block out at a minimum two hours, and should select a time where downtime will be of minimum disruption to end-users.

This section describes how to migrate SavaPage to a new system so that all data is moved to the new system. To ensure a smooth migration it is strongly recommended that the versions of SavaPage on both the old and new servers are the same. The easiest way to achieve this is to upgrade the old server to the latest version, and then install the latest version on the new server.

Please read the sections below in full before conducting your migration.

G.1. Upgrade Old Server

Upgrade the old server to the latest version:

1.

Download the latest available version available from the

SavaPage Website

1

2.

Install the upgrade by following the steps in Appendix F, Upgrading from a Previous Version [206]

.

3.

After the upgrade is complete, check that everything is working as expected.

G.2. Install New Server

Install the latest version of SavaPage on the new server.

1.

Make your CUPS printers on the new server identical as the ones on the old server, and test the CUPS queues before installing SavaPage. Use exactly the same names for the CUPS queues. If you deviate you might need to

rename Proxy Printers after installation, as explained in Section G.4, “Rename Printers” [208]

.

2.

Follow the instructions at Chapter 2, Server Installation [9]

. Complete the configuration steps, including the user import. Although importing the users is not strictly required, as this data will be overridden after data migration, it does confirm that your new server has the correct network connectivity. Of course you are free to synchronize with a smaller user group to proof the connectivity.

3.

Compare the content of the /opt/savapage/server/server.properties

file from the old server with the one on the new server, and change the file on the new server where needed.

4.

Import your Member Card file into the new server. See

Section 4.11.3, “Community” [123] .

G.3. Migrate Data to New Server

The simplest way to migrate the data to the new server is to use the backup and restore process.

1.

Backup the data from the old system using the

Admin Web App , or see the instructions at

Section B.2.2, “dbexport and db-export-to” [194]

for the command-line variant.

2.

Copy the backup zip file created in the backup step onto the new server.

3.

Stop the SavaPage Server by running the stop script. See

Section B.3, “Stopping and Starting the Server” [195]

.

4.

Restore the data from the old system into SavaPage on the new server by following the Database Import instruc-

tions. The import commands need to be run as the savapage

user.

1

http://savapage.org

207

Migrating to a New Server

5.

If present, migrate the Google Cloud Print Service

parameters by copying the gcp.properties

file at location

/opt/savapage/server/

from the old server to the same location on the new server. Make sure this file is owned by savapage

, and restrict access by executing: sudo chown savapage:savapage gcp.properties

sudo chmod 600 gcp.properties

6.

Migrate the database

Encryption Keys by copying the

encryption.properties

file at location

/opt/ savapage/server/data/

from the old server to the same location on the new server. Overwrite the existing file on the new server. Make sure this file is owned by savapage

, and restrict access by executing: sudo chown savapage:savapage encryption.properties

sudo chmod 600 encryption.properties

7.

If present, migrate the User Name Aliases by copying the

username-aliases.txt

file at location

/opt/ savapage/server/data/conf/

from the old server to the same location on the new server. If the alias file

depends on users from a User Source on the local Unix system

, be sure that these users also exist on the new server.

8.

If present, migrate any messages in the email outbox by copying the files at location

/opt/savapage/server/data/email-outbox/

from the old server to the same location on the new server.

9.

Migrate all customization files to the new server. See Chapter 14, Customization [169] .

10. Start the SavaPage Server by running the start script. See

Section B.3, “Stopping and Starting the Server” [195]

.

11. Check that all data has been migrated correctly and the system works as expected by comparing

Users

and Documents

data in the old and new Admin Web App .

G.4. Rename Printers

If you changed the CUPS printer names on the new server, you may want to rename the existing Proxy Printer

entries

in SavaPage so that the printing history and settings are maintained. See Figure 4.30, “Admin Web App: Proxy Printer

- Rename” [73]

for details about the rename action.

G.5. Update SavaPage Printers

If the server’s name and/or IP address has changed then it is necessary to update the connection details for SavaPage

Printers on user workstations. See Section 9.1.2, “SavaPage Printer Installation” [141]

for details.

208

Appendix H. Advanced LDAP Configuration

SavaPage supports the following LDAP server types out-of-the-box:

• OpenLDAP

• Apple Open Directory

• Novell eDirectory

• Microsoft Active Directory

The basic configuration options for these types are discussed at

Section 4.8.1.2, “LDAP” [82]

. However, other server/schema types can be supported by defining the fields to query and the LDAP searches to perform. These options are configured by adjusting entries in the

Config Editor

of the Admin Web App. The following configuration items are available:

Configuration item

ldap.schema.user-name-field ldap.schema.user-full-name-field ldap.schema.user-email-field ldap.schema.user-department-field ldap.schema.user-office-field ldap.schema.user-name-search ldap.schema.group-name-field ldap.schema.group-member-field ldap.schema.group-search ldap.schema.posix-groups

Description

The LDAP field that contains the user's username.

The LDAP field that contains the user's full name.

The LDAP field that contains the user's email address.

The LDAP field that contains the user's department.

The LDAP field that contains the user's office location.

The LDAP search to retrieve the user. The

{0}

in the search is replaces with * when listing all users, and [username] when searching for a specific user.

If no search is defined the default is ([userNameField]={0}) .

IMPORTANT: The search must include the

{0}

value.

The LDAP field that contains the group's name.

The LDAP field that contains the group members.

The LDAP search to retrieve the group. The {0} in the search is replaced with

*

for all group searches.

If no search is defined, the default is

([groupMember-

Field]={0})

, which means get all entries with at least one member.

IMPORTANT: The search must include the {0} value.

If Y , then the group member field contains the user's username. If N , then the group member field contains the user's DN.

Table H.1. LDAP Configuration items

H.1. LDAP Server Default Configuration

When a particular LDAP server type is selected (e.g. Novell eDirectory), SavaPage uses the following defaults to query the LDAP server. These defaults can be used as a starting point for customizing the LDAP searches or for supporting other server types.

209

H.1.1. OpenLDAP

If the LDAP server is configured to support OpenLDAP based authentication then this schema type can be used. The following defaults are used.

Configuration item

ldap.schema.user-name-field ldap.schema.user-full-name-field ldap.schema.user-email-field ldap.schema.user-department-field ldap.schema.user-office-field

This item is not set.

ldap.schema.user-name-search ldap.schema.group-name-field ldap.schema.group-member-field ldap.schema.group-search ldap.schema.posix-groups

Table H.2. OpenLDAP Default Settings

Default value

uid cn mail departmentNumber

(uid={0}) cn member

(&(cn={0})(objectClass=groupOfNames))

N

H.1.2. Apple Open Directory

If the LDAP server is configured to support Apple Open Directory based authentication then this schema type can be used. The following defaults are used.

Configuration item

ldap.schema.user-name-field ldap.schema.user-full-name-field ldap.schema.user-email-field ldap.schema.user-department-field ldap.schema.user-office-field

This item is not set.

ldap.schema.user-name-search ldap.schema.group-name-field ldap.schema.group-member-field ldap.schema.group-search ldap.schema.posix-groups

Table H.3. Apple Open Directory Default Settings

Advanced LDAP Configuration

Default value

uid cn mail departmentNumber

(uid={0}) cn memberUid

(memberUid={0})

Y

210

Advanced LDAP Configuration

H.1.3. Novell eDirectory Defaults

If the LDAP server is a Novell eDirectory then the following defaults are used

1

.

Configuration item

ldap.schema.user-name-field ldap.schema.user-full-name-field ldap.schema.user-email-field ldap.schema.user-department-field ldap.schema.user-office-field ldap.schema.user-name-search ldap.schema.group-name-field ldap.schema.group-member-field ldap.schema.group-search ldap.schema.posix-groups

Default value

cn fullName mail

OU l

(&(cn={0})(objectClass=person)) cn member

(&(member={0})(objectClass=groupOfNames))

N

Table H.4. Novell eDirectory Default Settings

H.1.4. Microsoft Active Directory Defaults

If the LDAP server is a Microsoft Active Directory then the following defaults are used

2

.

Configuration item

ldap.schema.user-name-field ldap.schema.user-full-name-field ldap.schema.user-email-field ldap.schema.user-department-field ldap.schema.user-office-field ldap.schema.user-name-search

Default value

sAMAccountName displayName mail department physicalDeliveryOfficeName

(&(sAMAccountName={0})(objectCategory=person)

(objectClass=user)

(sAMAccountType=805306368){1}) ldap.schema.group-name-field ldap.schema.group-member-field ldap.schema.group-search ldap.schema.posix-groups

The extra

{1}

in the search is replaced with an optional filter to fetch enabled users only (see ldap.allow-disabled-users).

sAMAccountName member

(&(sAMAccountName={0})(objectCategory=group))

N

Table H.5. Microsoft Active Directory Default Settings

1

The list of standard Novell eDirectory user fields can be found on

NDK: Novell eDirectory Schema Reference [http:// www.novell.com/documentation/developer/ndslib/schm_enu/data/h4q1mn1i.html#h4q1mn1i] .

2

The list of standard Active Directory user fields can be found on the Microsoft web site http://msdn2.microsoft.com/en-us/library/ms683980.aspx

.

211

Advanced LDAP Configuration

Configuration item

ldap.allow-disabled-users ldap.schema.dn-field ldap.schema.user-name-group-search ldap.schema.nested-group-search

Default value / Description

N

If Y , then disabled users are accepted in user name searches. If N , they are ignored.

distinguishedName

The LDAP field that contains the Distinguished Name (DN).

(&(memberOf={0})(objectCategory=person)

(objectClass=user)

(sAMAccountType=805306368){1})

This is the LDAP search to retrieve the users from a group.

The

{0}

in the search is replaced with the DN of the user.

The

{1}

in the search is replaced with an optional filter to fetch enabled users only (see ldap.allow-disabled-users).

IMPORTANT: The search must include the

{0}

and

{1}

value.

(&(memberOf={0})(objectCategory=group))

This is the LDAP search to retrieve the nested groups from a group.

The

{0}

in the search is replaced with the DN of the group.

IMPORTANT: The search must include the

{0}

value.

Table H.6. Microsoft Active Directory Custom Settings

Important

Active Directory field names must be in the

Ldap-Display-Name

format. For example, if you want to use the Employee-Number field, then the field name entered should be employeeNumber as shown on the Employee-Number attribute page http://msdn2.microsoft.com/en-us/library/ms675662.aspx

.

212

Appendix I. SavaPage Plug-ins

A plug-in (aka “extension”) is a software component that adds a specific feature to SavaPage. Plug-ins have a welldefined interface so partner developers can easily create isolated components that extend the application with new features. Extension interfaces are defined in the savapage-ext

1

project.

A plug-in is installed by copying its property file in

/opt/savapage/server/ext

and its jar files in the

/opt/ savapage/server/ext/lib

directory. For example, the Mollie Payment Plug-in is installed with these two files:

/opt/savapage/server/ext/savapage-ext-mollie.properties

/opt/savapage/server/ext/lib/savapage-ext-mollie-<version>.jar

Important

Since property files contain sensitive data make sure they are protected by executing commands like: sudo chown savapage:savapage savapage-ext-mollie.properties

sudo chmod 600 savapage-ext-mollie.properties

I.1. Web API Callback Plug-in

The Web API Callback method is used by many third-party providers who offer their services via HTTP. SavaPage supports this method with the /callback URL path. However, URL protocol and authority for the callback needs to

be configured. Configuration is done by using the Config Editor of the Admin Web App. The following configuration

item is available:

Configuration item

ext.webapi.callback.url-base

Description

The publicly accessible base URL, i.e. protocol://authority

without the path, of the

Web API callback interface (no trailing slash).

Since SavaPage is typically implemented as an intranet application to be accessed with a local

URL, take care to configure proper port forwarding of the public base URL to the local Sava-

Page server host name or IP address in your router or firewall .

Table I.1. Web API Callback Configuration Item

I.1.1. Payment Gateway Plug-in

The Payment Gateway Plug-in is based on the Web API Callback Plug-in and uses the

/callback/payment

URL

path. The following configuration item can be set by using the Config Editor

of the Admin Web App.

Configuration item

ext.webapi.redirect.url-webapp-user

1

https://gitlab.com/savapage/savapage-ext

Description

The User Web App URL used by the Web API to redirect to after a remote Web App dialog is finished.

213

SavaPage Plug-ins

Configuration item Description

Configuration is optional. SavaPage uses the local URL from which the remote excursion started as default.

Table I.2. Payment Gateway Configuration Item

Payment Gateway events are persisted in the rotating log file:

/opt/savapage/server/logs/paymentgateway.log

This file has a tab separated value (TSV) format for easy import and manipulation into spreadsheet programs.

I.1.1.1. Generic Payment Plug-in

A Generic Payment Plug-in implements several payment methods behind a single Web API. Only one generic plugin can be active. See

Section 3.9.3, “Financial” [47] and

Section 3.9.6, “Transfer Money” [48]

.

I.1.1.1.1. Mollie Payment Plug-in

Mollie

2

is a Dutch payment provider that offers a single Web API for the following payment methods:

• Creditcard

• PayPal

• Bitcoin

• paysafecard

• SOFORT Banking (Europe)

• SEPA bank transfers (Europe)

• Bancontact/Mister Cash (Belgium)

• Belfius Direct Net (Belgium)

• IDEAL (Netherlands).

Mollie supports EUR payments only.

See the

README.md

of the savapage-ext-mollie

3

project for more information.

Note

The Mollie Payment Plug-in

is shipped with the SavaPage install binary.

I.1.1.1.2. Generic Payment Pitfalls

Callback messages for generic payments return the identity of the user that started the payment in the Transfer Money

dialog. So, when a payment is acknowledged, we can easily add the amount paid to the user's balance. In some very unlikely cases a user might not be found. For example, when a database export is restored or a user was deleted, all in the short lifecycle of a payment transaction.

In the rare case a user is not found, a warning message containing the user and transaction identification are written to the

Application Log . With this information the user balance can be updated manually, after the user has been added

again, either in the Admin WebApp or with a

Server Command

.

2

https://www.mollie.com/en/

3

https://gitlab.com/savapage/savapage-ext-mollie

214

SavaPage Plug-ins

I.1.1.2. Bitcoin Payment Plug-in

The Bitcoin Payment Plug-in supports native Bitcoin payments with the advantage of a low native Bitcoin transaction

fee. Only one Bitcoin plug-in can be active. See Section 3.9.3, “Financial” [47]

and Section 3.9.7, “Send Bitcoins” [49]

.

As a privacy and security measure a new Bitcoin address is generated for each payment

4

. Generated addresses are held in a Bitcoin wallet. The location and access credentials of the wallet are to be specified in the plug-in property file.

Note

When a Bitcoin payment method is active in an enabled Generic Payment Plug-in , it is deactivated in favour

of an enabled Bitcoin Payment Plug-in.

I.1.1.2.1. Blockchain.info Payment Plug-in

With the Blockchain.info plug-in users can send Bitcoin payments to a Blockchain.info web-based wallet. See the

README.md

of the savapage-ext-blockchain-info

5

project for more information.

Note

The Blockchain.info Payment Plug-in

is shipped with the SavaPage install binary.

I.1.1.2.2. Bitcoin Payment Pitfalls

Because of the anonymous nature of Bitcoin payments, a callback message with a payment confirmation only contains the Bitcoin address and transaction hash as identification.

Fortunately, we can trace the identity of the user who made the payment, either by the one-time Bitcoin address, that

we generated and reserved for the user at the start of the Send Bitcoins

dialog, or by the Bitcoin transaction hash, that we linked to a user payment transaction at the callback of the first confirmed payment.

When a user can not be traced, the payment confirmation is ignored. This can happen when a database export is restored and either the user, the reserved Bitcoin address or transaction hash is missing from the database. This case becomes more unlikely as the number of confirmations after which the payment is trusted is set lower, causing a shorter latency of a trusted payment confirmation.

When a payment confirmation arrives for a Bitcoin address for which a user payment transaction link is present with a different transaction hash, it is ignored. This can happen when:

• A user, against advice, reused the generated Bitcoin address, as offered in the

Send Bitcoins dialog, to make an

extra payment.

• A payment from the Bitcoin Wallet was executed which lead to a transaction with a positive satoshi remainder.

When a payment confirmation is ignored, a warning message with the Bitcoin address and transaction hash is written to the

Application Log

. This information can be used to query the transaction history in the Bitcoin Wallet. Since the

Bitcoin address is tagged in the Wallet with the user id, any transaction with a received amount can be used to trace the user. In case an extra user payment is identified, the user balance can be updated manually, either in the

Admin

WebApp

or with a

Server Command

.

4

As Satoshi Nakamoto [https://en.wikipedia.org/wiki/Satoshi_Nakamoto], the elusive creator of Bitcoin, states in his Bitcoin whitepaper [https:// en.bitcoin.it/wiki/Bitcoin_whitepaper] : “... a new key pair should be used for each transaction to keep them from being linked to a common owner”.

Also see this article [https://en.bitcoin.it/wiki/Address_reuse] on address reuse.

5

https://gitlab.com/savapage/savapage-ext-blockchain-info

215

Appendix J. Smartschool Print Module

SavaPage is able to process print jobs from Smartschool

1

. Smartschool is a digital school platform for secondary and primary schools and is mainly used in Flanders (Belgium). Started in 2003 as electronic learning environment, Smartschool evolved into a broad platform including tools for administration, reporting and communication.

Smartschool is "Software as a Service" and can be used with a browser and with dedicated Apps for iPhone, iPad and Android devices. The electronic learning component is similar to services like Blackboard

2

, Dokeos

3

, Moodle

4 and Sakai

5

.

This Smartschool Print Module is disabled by default, and can be enabled by editing the

/opt/savapage/server/server.properties

file like this:

#------------------------------------------------------------

# Is Smartschool Print module active: true | false (default)

#-----------------------------------------------------------smartschool.print=true

A restart of SavaPage is required to activate the change. See

Section B.3, “Stopping and Starting the Server” [195]

J.1. Smartschool Afdrukcentrum

Smartschool “Afdrukcentrum” (Printing Center) offers a PDF printing service for users to request printed copies of

PDF documents for one or more persons. Although it is possible to give students access to the Afdrukcentrum, most of the time this will not be the case, and printing access will be reserved for teaching staff only to print documents for their classes.

A print job is created by uploading the PDF files from local file system, Dropbox or the Smartschool "My Documents" folder. Print options like media-size (A4, A3), duplex and grayscale can be selected by the requester. Target persons can be selected either as individuals or by group ("personen" or "klassen").

Smartschool offers a SOAP Web Service to third party Print Management Systems so they can perform the actual printing, and calculate and charge the costs according to their own accounting rules. The Web Service API can be used to retrieve pending jobs, to download the PDF documents, and to update the print status.

J.2. Smartschool Print Options

When Smartschool Print Module is enabled a Smartschool Print section will be visible in the SavaPage

Options

section.

1

http://www.smartschool.be/

2

http://www.blackboard.com/

3

http://www.dokeos.com/

4

http://moodle.org/

5

http://www.sakaiproject.org/

216

Smartschool Print Module

Figure J.1. Admin Web App: Options - Smartschool Print - Accounts

• There is room for two Smartschool accounts that can each be enabled separately.

• For an enabled account the SOAP endpoint and Password need to be entered.

• The Proxy Printer for all jobs is the printer to which all Smartschool print jobs are automatically printed to. When empty, the jobs are held as SafePages in SavaPage and the requesting user can release them in a SavaPage way.

• Dedicated proxy printers can be set for duplex, grayscale and grayscale-duplex jobs can be set. These options are needed when integrating with PaperCut virtual print queues. Namely, in the process of releasing print jobs and transferring held spool files to physical queues, original job options are lost and replaced by print queue defaults.

• When Charge costs to students is enabled, printing costs are charged to individual students. When disabled, costs

are charged to shared accounts only. See Section J.4.2, “PaperCut Smartschool Accounting” [221] .

• When the generic On demand user creation At first print is enabled, see Section 4.8.2, “User Creation” [85]

, this

On demand user creation will create Smartschool users ad-hoc in SavaPage when they do not exist.

Figure J.2. Admin Web App: Options - Smartschool Print - Actions

217

Smartschool Print Module

• Press the Apply button to commit the changes.

• Press the Test button to test the Smartschool connection(s). A feedback message will be displayed with the result.

• Use the flip-switch to turn the Smartschool Print service On and Off. Note that after disabling the service it is automatically turned Off.

• Start (simulate) starts the service in simulation mode. A valid connection is still needed, but a simple print job is generated at the start of the service. The ID's of the users involved are stored in the following configuration keys.

See Section 4.8.13.10, “Config Editor” [112]

on how to query and change the key values.

• smartschool.simulation.user

: the requesting user.

• smartschool.simulation.student-1

: a student in klas “simulatie.1A1”.

• smartschool.simulation.student-2

: a student in klas “simulatie.1A2”.

Make sure the requesting user exists in SavaPage (and PaperCut) before starting the simulation. The student users need to be present if Charge costs to students is enabled.

The status of the Smartschool Print connection is displayed on the system Dashboard

Services

.

When PaperCut Integration is enabled, parameters for using the PaperCut Server (XML-RPC API) and Database

(JDBC) must be entered. Press the Apply button to commit the changes. Press the Test button to test the PaperCut connectivity: a message confirming the connection status is displayed.

Important

For PaperCut integration to work the Proxy Printer must be managed by PaperCut.

Figure J.3. Admin Web App: Options - Smartschool Print - PaperCut Integration

Figure J.4. Admin Web App: Options - Smartschool Print - PaperCut Server

218

Smartschool Print Module

Figure J.5. Admin Web App: Options - Smartschool Print - PaperCut Database

In the Exports section data from the PaperCut database can be downloaded.

Figure J.6. Admin Web App: Options - Smartschool Print - PaperCut Export

Student Invoicing offers an export of printing costs totals for students from selected classes (klassen) within a time period export. The result is a CSV file with a line for each student. Lines are ordered by user id and specify the cost total within the period and extra data like class (klas) and number of transactions per job type, like duplex/simplex,color/ grayscale, page format A4, A3, etc.

J.3. Smartschool Print Processing

Every 2 minutes SavaPage checks Smartschool for pending print jobs. This frequency is enforced by the Smartschool print service. Errors will be encountered if more than one check is executed within the 2 minute time window.

Note

The frequency of a Smartschool print job check is determined by the configuration keys smartschool.soap.print.poll.heartbeat-secs

(heartbeat in seconds within a polling session)

219

Smartschool Print Module and smartschool.soap.print.poll.heartbeats

(number of heartbeats after which the check is

executed). See Section 4.8.13.10, “Config Editor” [112]

on how to change this value.

For each job, the PDF document and print request information is downloaded, and the number of copies is calculated by summing the number of requested copies for each of the individual target persons.

The following constraints are guarded:

• The print job requester must exist as user in SavaPage: when the requester does not exist the job is cancelled.

• If PaperCut integration is enabled, the print job requester must also exist in PaperCut: when the requester does not exist the job is cancelled.

• A person with role “student” must be assigned to a “class”: when this assignment is missing the student is skipped and his copies are not added to the copy total.

• All target persons must exist in SavaPage (and PaperCut): when a person does not exist his copies are not added to the copy total. When the

Charge costs to students option is disabled, this check is not performed for persons

with role “student”.

SavaPage assigns the downloaded document to the reserved

/smartschool

queue, and logs the event for the

Smartschool requester.

J.4. Smartschool PaperCut Integration

When PaperCut integration is enabled, SavaPage reports the job status “in progress” to Smartschool, and automatically redirects the downloaded document to the PaperCut managed proxy printer with the requesting user as print job owner.

At each Smartschool monitoring cycle, SavaPage checks the print status of the PaperCut redirected jobs. When a job is expired or cancelled, SavaPage reports the job status “cancelled” to Smartschool.

After the job is printed successfully SavaPage reports the job status “completed” to Smartschool. In addition it charges the costs, as reported by PaperCut, to the proper accounts, as is explained in the section below.

J.4.1. PaperCut Configuration

J.4.1.1. Step 1 - Create shared account

Create a shared parent account called

Smartschool

. This top-level account must be present, since several subaccounts will be lazy created by SavaPage. Besides, the PaperCut printer assigned to Smartschool will be configured to charge to this account.

J.4.1.2. Step 2 - Enable Multiple Personal Accounts

Enable the PaperCut “Multiple Personal Accounts” option and add the personal account

Smartschool

. This account

must be present for it is used by SavaPage to charge printing costs to individual persons.

J.4.1.3. Step 3 - Configure Printers

Take a moment to consider how you want the PaperCut printers that are assigned to Smartschool to act. A likely scenario is that you want the printers to be virtual hold/release queues so users can enjoy follow-me printing, and release

Smartschool print jobs at a series of physical printers. Consult the PaperCut User Manual on how to make that happen.

There is one crucial printer configuration item though that must be addressed. Make sure that Override user-level

settings is set and activate Do not show account popups and allocate jobs to: a single shared account . Use the

Shared Account

Smartschool

(as created in Step 1) and select the Charge shared account option.

220

Smartschool Print Module

J.4.2. PaperCut Smartschool Accounting

When a job is successfully printed by PaperCut, the cost is automatically charged to the shared

Smartschool

account. This behavior must be configured in PaperCut at the Printer Details of the SavaPage redirect printer.

SavaPage uses the PaperCut cost total of the printed Smartschool job to adds extra PaperCut account transactions. The comment of each account transaction holds pipe-separated (

|

) job parameter fields, with the following meaning:

requester : the user who printed the job on behalf of the target user.

class : the “klas” of the target user. A value of “

-

” (minus) means the user has no class, i.e. is not a student.

copies : the number of document copies printed.

pages : number of pages within the document.

size : the page size of the document (A4, A3).

duplex : D for duplex, S for simplex.

color : C for color, G for grayscale.

id : the Smartschool document ID.

document : the document name.

comment : the Smartschool comment entered by the requester.

As a rule SavaPage charges students and non-students individually for print copies. Solely for reporting purposes, dedicated shared accounts are used to accumulate cost and job information globally (the Smartschool\Jobs account) and per student class.

Important

No transaction appears in any PaperCut shared account when the cost of a print job is zero. For transactions to appear you need to specify page cost at the PaperCut printer configuration.

Note

The Smartschool SOAP API does not reveal any information about the groups the requesting user selected for the print job, it just resolves the selected user groups to their individual members. So, SavaPage can not distinguish between students who were selected as individuals or were implicitly selected by selecting a class.

J.4.2.1. PaperCut Smartschool Class Accounting

SavaPage proportionally splits the cost total of the printed Smartschool job over “classes” (students). Class cost is proportional to the sum of the print copies for students belonging to the class. This cost is charged to a shared child account of the Smartschool parent account, with format:

[contract].Klas.[class]

The [contract] placeholder stands for the account name in the Smartschool software service contract, and

[class] for the name of the student class. Shared child account are ad-hoc created by SavaPage on first usage.

The comment format of the transaction is: requester | copies | pages | size | duplex | color | id | document | comment

J.4.2.2. PaperCut Smartschool User Accounting

Printing costs for individual users are charged to their personal

Smartschool

account. This is a dedicated account that must be activated in PaperCut by enabling the “Multiple Personal Accounts” option and adding the personal account

Smartschool

.

221

Smartschool Print Module

Costs are always charged for non-students (teachers). When the

Charge costs to students

option is enabled, costs are also charged for individuals with role “student”. The comment format of the transaction is: class | requester | copies | pages | size | duplex | color | id | document

| comment

J.4.2.3. PaperCut Smartschool Job Accounting

As an extra, for each Smartschool job, SavaPage adds a transaction to the shared child account “Jobs” of the

Smartschool parent account. The comment format of the transaction is: requester | copies | pages | size | duplex | color | id | [email protected] | copies-1 | ... | [email protected] | copies-n | document | comment

The [email protected] | copies

field group shows the printed copies per class and is repeated for each class that was printed for. Copies for non-students are accumulated in dummy class “

-

” (minus).

J.4.3. PaperCut Queries and Reports

Use the on-line queries and run the reports in the PaperCut Admin Web App to answer questions about Smartschool prints and transactions from the following perspectives.

J.4.3.1. User Prints

Smartschool documents printed for a user.

Users

User List

User Details

Transactions gives a quick on-line view of personal account transactions. Sort and filter to find the Smartschool transactions.

Use Reports

Transaction Reports

Transaction logs to generate a Smartschool transaction report for a user or user group over a period of time. The report shows the individual transaction details and the total amount charged.

PaperCut does not have a Transaction Report to accumulate transaction totals per user over a period of time. Please use the

Student Invoicing export function in SavaPage for that purpose.

J.4.3.2. Class Prints

Smartschool documents printed for a class.

Select Accounts

Shared Account List

Account Details

Transaction for a Smartschool class account to get a quick on-line view of account transactions. Sort and filter to find transactions.

The Reports

Shared Account Reports section contains many reports that summarize printing activity charged to shared accounts. Select the Smartschool class account to get a transaction summary report for a period of time.

J.4.3.3. Requester Prints

Smartschool documents requested and printed by a user.

Users

User List

User Details

Job Log gives a quick on-line view of the documents printed by a user. Sort and filter to find the print jobs charged to the shared Smartschool account.

J.4.3.4. Requester Class Prints

Smartschool documents requested and printed by a user for a class.

222

Smartschool Print Module

Select Accounts

Shared Account List

Account Details

Transaction for the Smartschool Jobs account to get a quick on-line view of account transactions. Since the comment contains formatted information about student classes, you can select transactions with the “Comment containing” filter.

Likewise you can use Reports

Transaction Reports

Transaction logs to generate a Smartschool\Jobs transaction report for over a period of time. The report shows the individual transaction details and the total amount charged.

J.4.4. Integration Pitfalls

The state of the three systems involved in the Smartschool print chain (Smartschool, SavaPage, PaperCut) is tightly coupled. Restoring an earlier backup of either SavaPage or PaperCut can break the work-flow for pending jobs and lead to unwanted results. For instance:

When a backup of SavaPage is restored, it will not handle jobs that were submitted to PaperCut after the backup point. In these cases Smartschool will show a print job status that does not reflect the real situation. On the other side, jobs that were already fully processed, might be re-processed by SavaPage, leading to extra charges on the shared PaperCut accounts.

When a backup of PaperCut is restored, SavaPage will not find PaperCut print status information for pending jobs that were submitted to PaperCut after the backup point. In these cases Smartschool will show a pending print job status, when in real the job is completed or cancelled.

To avoid integration problems, review your backup and restore strategy carefully.

Make sure you create backups of both SavaPage and PaperCut at the same point in time. Also, be sure that at the time of backup all pending Smartschool print jobs are fully processed. When you need to restore, use backups of the same snapshot time, first restore PaperCut and than SavaPage.

223

Appendix K. GNU Affero General Public License

(AGPL)

GNU AFFERO GENERAL PUBLIC LICENSE

Version 3, 19 November 2007

Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/>

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

Preamble

The GNU Affero General Public License is a free, copyleft license for software and other kinds of works, specifically designed to ensure cooperation with the community in the case of network server software.

The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, our General Public Licenses are intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.

Developers that use our General Public Licenses protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License which gives you legal permission to copy, distribute and/or modify the software.

A secondary benefit of defending all users' freedom is that improvements made in alternate versions of the program, if they receive widespread use, become available for other developers to incorporate. Many developers of free software are heartened and encouraged by the resulting cooperation. However, in the case of software used on network servers, this result may fail to come about.

The GNU General Public License permits making a modified version and letting the public access it on a server without ever releasing its source code to the public.

The GNU Affero General Public License is designed specifically to ensure that, in such cases, the modified source code becomes available to the community. It requires the operator of a network server to provide the source code of the modified version running there to the users of that server. Therefore, public use of a modified version, on a publicly accessible server, gives the public access to the source code of the modified version.

An older license, called the Affero General Public License and published by Affero, was designed to accomplish similar goals. This is a different license, not a version of the Affero GPL, but Affero has released a new version of the Affero GPL which permits relicensing under this license.

224

GNU Affero General

Public License (AGPL)

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS

0. Definitions.

"This License" refers to version 3 of the GNU Affero General Public License.

"Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

"The Program" refers to any copyrightable work licensed under this

License. Each licensee is addressed as "you". "Licensees" and

"recipients" may be individuals or organizations.

To "modify" a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a "modified version" of the earlier work or a work "based on" the earlier work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "propagate" a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.

To "convey" a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays "Appropriate Legal Notices" to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to it. "Object code" means any non-source form of a work.

A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.

The "System Libraries" of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major

Component, and (b) serves only to enable use of the work with that

Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A

"Major Component", in this context, means a major essential component

(kernel, window system, and so on) of the specific operating system

(if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.

The "Corresponding Source" for a work in object code form means all

225

GNU Affero General

Public License (AGPL) the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work's

System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding

Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article

11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code;

226

GNU Affero General

Public License (AGPL) keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified

it, and giving a relevant date.

b) The work must carry prominent notices stating that it is

released under this License and any conditions added under section

7. This requirement modifies the requirement in section 4 to

"keep intact all notices".

c) You must license the entire work, as a whole, under this

License to anyone who comes into possession of a copy. This

License will therefore apply, along with any applicable section 7

additional terms, to the whole of the work, and all its parts,

regardless of how they are packaged. This License gives no

permission to license the work in any other way, but it does not

invalidate such permission if you have separately received it.

d) If the work has interactive user interfaces, each must display

Appropriate Legal Notices; however, if the Program has interactive

interfaces that do not display Appropriate Legal Notices, your

work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an

"aggregate" if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embodied in, a physical product

(including a physical distribution medium), accompanied by the

Corresponding Source fixed on a durable physical medium

customarily used for software interchange.

b) Convey the object code in, or embodied in, a physical product

(including a physical distribution medium), accompanied by a

written offer, valid for at least three years and valid for as

long as you offer spare parts or customer support for that product

model, to give anyone who possesses the object code either (1) a

copy of the Corresponding Source for all the software in the

product that is covered by this License, on a durable physical

medium customarily used for software interchange, for a price no

more than your reasonable cost of physically performing this

conveying of source, or (2) access to copy the

Corresponding Source from a network server at no charge.

227

GNU Affero General

Public License (AGPL)

c) Convey individual copies of the object code with a copy of the

written offer to provide the Corresponding Source. This

alternative is allowed only occasionally and noncommercially, and

only if you received the object code with such an offer, in accord

with subsection 6b.

d) Convey the object code by offering access from a designated

place (gratis or for a charge), and offer equivalent access to the

Corresponding Source in the same way through the same place at no

further charge. You need not require recipients to copy the

Corresponding Source along with the object code. If the place to

copy the object code is a network server, the Corresponding Source

may be on a different server (operated by you or a third party)

that supports equivalent copying facilities, provided you maintain

clear directions next to the object code saying where to find the

Corresponding Source. Regardless of what server hosts the

Corresponding Source, you remain obligated to ensure that it is

available for as long as needed to satisfy these requirements.

e) Convey the object code using peer-to-peer transmission, provided

you inform other peers where the object code and Corresponding

Source of the work are being offered to the general public at no

charge under subsection 6d.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.

A "User Product" is either (1) a "consumer product", which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, "normally used" refers to a typical or common use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.

"Installation Information" for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the

User Product is transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the

Corresponding Source conveyed under this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM).

The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.

228

GNU Affero General

Public License (AGPL)

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

"Additional permissions" are terms that supplement the terms of this

License by making exceptions from one or more of its conditions.

Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire Program remains governed by this License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:

a) Disclaiming warranty or limiting liability differently from the

terms of sections 15 and 16 of this License; or

b) Requiring preservation of specified reasonable legal notices or

author attributions in that material or in the Appropriate Legal

Notices displayed by works containing it; or

c) Prohibiting misrepresentation of the origin of that material, or

requiring that modified versions of such material be marked in

reasonable ways as different from the original version; or

d) Limiting the use for publicity purposes of names of licensors or

authors of the material; or

e) Declining to grant rights under trademark law for use of some

trade names, trademarks, or service marks; or

f) Requiring indemnification of licensors and authors of that

material by anyone who conveys the material (or modified versions of

it) with contractual assumptions of liability to the recipient, for

any liability that these contractual assumptions directly impose on

those licensors and authors.

All other non-permissive additional terms are considered "further restrictions" within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this

License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

229

GNU Affero General

Public License (AGPL)

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.

An "entity transaction" is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in interest had or could give under the previous paragraph, plus a right to possession of the

Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not initiate litigation

(including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.

230

GNU Affero General

Public License (AGPL)

11. Patents.

A "contributor" is a copyright holder who authorizes use under this

License of the Program or a work on which the Program is based. The work thus licensed is called the contributor's "contributor version".

A contributor's "essential patent claims" are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, "control" includes the right to grant patent sublicenses in a manner consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a "patent license" is any express agreement or commitment, however denominated, not to enforce a patent

(such as an express permission to practice a patent or covenant not to sue for patent infringement). To "grant" such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. "Knowingly relying" means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is "discriminatory" if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a) in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting

231

GNU Affero General

Public License (AGPL) any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this

License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this

License would be to refrain entirely from conveying the Program.

13. Remote Network Interaction; Use with the GNU General Public License.

Notwithstanding any other provision of this License, if you modify the

Program, your modified version must prominently offer all users interacting with it remotely through a computer network (if your version supports such interaction) an opportunity to receive the Corresponding

Source of your version by providing access to the Corresponding Source from a network server at no charge, through some standard or customary means of facilitating copying of software. This Corresponding Source shall include the Corresponding Source for any work covered by version 3 of the GNU General Public License that is incorporated pursuant to the following paragraph.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU General Public License into a single combined work, and to convey the resulting work. The terms of this

License will continue to apply to the part which is the covered work, but the work with which it is combined will remain governed by version

3 of the GNU General Public License.

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU Affero General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the

Program specifies that a certain numbered version of the GNU Affero General

Public License "or any later version" applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software

Foundation. If the Program does not specify a version number of the

GNU Affero General Public License, you may choose any version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the GNU Affero General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY

APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY

232

GNU Affero General

Public License (AGPL)

OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM

IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF

ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING

WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS

THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY

GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE

USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF

DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD

PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the

Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

END OF TERMS AND CONDITIONS
