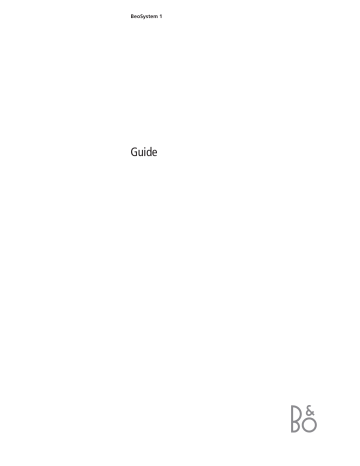

BeoSystem 1

Guide

BeoSound 3000

Guide

BeoSound 3000

Reference book

An explanation of symbols in the Guide and Reference book

Buttons on the Beo4 remote control

TV

LIST m p

Display on the Beo4 remote control

STORE

Display on the screen T V 12

The Guide and the Reference book

This Guide contains all the information you need to get the full benefit of your product. The Reference book contains information about connecting and operating external equipment, as well as an overview of on-screen menus.

We expect your Bang & Olufsen retailer to deliver, install and set up your product.

However, the information required to install and set up the product is included in the

Guide and the Reference book. This is useful if you move your product or expand your system at a later date.

The Guide and the Reference book both contain an index which can help you find the specific subject you want to know more about.

Contents

Introducing your BeoSystem 1, 4

Find out how to use the Beo4 remote control and bring up the menus on the screen.

Daily use, 7

Find out all there is to know about the daily use of BeoSystem 1, including how to turn it into a Home Theatre for watching movies and how to use teletext functions.

Advanced operation, 15

All you need to know about using BeoSystem 1 beyond daily use, such as advanced teletext, set-top box operation, and the pincode system.

Tuning and preference settings, 25

Find out how to tune in channels. This chapter also contains information about settings for time, date, picture and sound.

Placement, connections and maintenance, 39

Find out how to handle and place your BeoSystem 1, connect additional video equipment, and where the sockets are placed.

Index, 51

3

4

Introducing BeoSystem 1 and Beo4

The Beo4 remote control gives you access to all functions. When a function is in use, you are informed via displays on Beo4 or on the screen.

Switch on BeoSystem 1

Switch on a set-top box. Only available if a set-top box is connected and registered as STB (SAT)

Select channels or teletext pages or enter data in on-screen menus

Switch on teletext

Step between channels and move through menu options

Move the cursor from setting to setting in a fill-in menu

Accept and store instructions or settings

Reveal additional functions in the Beo4 display, such as FORMAT

TV

SAT

0 – 9

TEXT m p l n

TV

SAT

LIGHT RADIO

DVD CD

V MEM RECORD A MEM

1

TEXT

7

4

2

0

8

5

9

6

3

MENU

GO

GO

LIST

LIST

STOP

EXIT

T V

FORMAT

MENU

STOP

EXIT r u

•

The Beo4 display shows the source you have selected, or extra functions available when you press the LIST button

Bring up the main menu for access to a TV list, timed playback and timed standby, and setup options

Press to go from one menu back to a previous menu

Exit all on-screen menus

Adjust sound volume; press in the middle to mute the sound

Switch BeoSystem 1 to standby

For information on how to add extra functions to those shown in the Beo4 display, refer to the chapter ‘ Customise Beo4’ on page 18 in the

Reference book.

Displayed information and menus

Information about the selected source is shown at the top of the screen. On-screen menus allow you to adjust settings.

Option menu

Menu

1 Timer play

2 TV list

3 Setup

TV 12

VOL 30

The selected source is shown briefly when you switch it on. Volume level is shown while you adjust it, and disappears after a few seconds.

Menu

1 Timer play

2 TV list

3 Setup

Source Pr Start Stop Date

TV 1 13:30 - 14:30 27 Oct OK

Press MENU for Timer index

On-screen menus give you either a vertical list of options to choose from or a horizontal list of settings to fill in.


TV 1 13:30 - 14:30 27 Oct OK

Press MENU for Timer index

You can choose whether or not you want the navigation cues in the menus to be shown. The function is activated from the factory, but you can choose to deactivate it. Bring up ‘Menu’ from the ‘Setup’ menu and choose ‘On’ to activate navigation cues or ‘Off’ to deactivate them.


TV 1 13:30 - 14:30 27 Oct OK

Press MENU for Timer index

Fill-in menu

How to use option menus…

Press to switch on BeoSystem 1 TV

Press to bring up the main menu MENU

Press to move through the option menu and press GO to enter your choice, or… m p

GO

1 – 9 …use the number buttons on

Beo4 to select a numbered option in a list

Press to go back to a previous menu

STOP

Press to exit all menus

Press the number buttons on

Beo4 to enter settings

EXIT

How to use fill-in menus…

Press to view options for a single setting in a fill-in menu m p

Press to move from setting to setting l n

0 – 9

Press to store a setting you have made

GO

Press to go back to a previous menu

STOP

Press to leave all menus EXIT

5

6

Daily use

This chapter contains information about the basic functions of your

BeoSystem 1.

For information about more advanced operation, timed playback and standby, and the use of the pincode system refer to the chapter

‘Advanced operation’ on page 15.

Watch TV, 8

• Select a TV channel

• Bring up a TV list

• Adjust or mute the volume

• Change sound type or language

Home Theatre, 10

• Select speakers for movie sound

• Make the picture fill out the screen

Teletext, 12

• Basic teletext functions

• Store favourite pages

• Day-to-day use of memory pages

• Activate subtitles from teletext

See two sources at the same time, 14

7

8

Watch TV

Choose a TV channel by its number and switch to another channel or source. Bring up a list of TV channels on the screen, adjust the sound volume or change the sound type or language.

Select a TV channel

When you switch BeoSystem 1 on, the last channel viewed appears on the screen.

Bring up a TV list

All your TV channels appear on a list, which you can bring up on the screen. The list contains channel numbers and names, and can contain up to 99 TV channels.


T V 2

Press a channel number to go directly to that channel

0

Press to change channels one by one m p

– 9

Press to swap between the current and the previous TV channel

0

Press to switch BeoSystem 1 to standby

•

You can change source at any time without switching

BeoSystem 1 off first. Press for example DVD, if available in your system.


T V 2

Press and hold to bring up a TV list on the screen

GO

Press to view the previous or following page of the TV list l n

To select a channel, enter the channel number, or…

0

…press until the desired channel is highlighted m p

– 9

GO Press to switch on the chosen channel

Press to leave the menu EXIT

You can also bring up the TV list by pressing MENU to bring up the main menu, and then 2 to select the TV list.

Adjust or mute the volume

You can adjust or mute the sound at any time.

Change sound type or language

The names of the various types of sound available are shown in the display as you proceed.

1 BBC 1

2 BBC 2

3 ITV

4 Super Ch

5 SKÝ

6 ZDF

7 Children

8 CNN

9 . . . . . . . .

10 . . . . . . . .

11 . . . . . . . .

12 Eurosprt

13 . . . . . . . .

14 . . . . . . . .

15 MTV

16

17

18

19

Press either end of the button to adjust the volume up or down

Press in the middle of the button to mute the sound

Press either end of the button to bring the sound back

The TV channel list. Dotted lines indicate that a channel has been stored, but not named. An empty slot in the list indicates that no channel has been stored.

Prolonged listening at high volume can cause hearing damage! r u r u

Press repeatedly to display

SOUND on Beo4

Press to bring up the current sound type in the display

LIST

SOUND

GO

STEREO

Press repeatedly to switch to another sound type or language in a multi-language programme

GO

GO

Press to exit the SOUND function EXIT

In order to display SOUND on

Beo4, you must first add it to the

Beo4 list of functions. Refer to the chapter ‘Customise Beo4’ on page 18 in the Reference book.

You can store your favourite sound type when tuning in your

TV channels. For further information, refer to the chapter

‘Edit tuned TV channels’ on page

28.

9

10

Home Theatre

You can extend your system into a fully equipped Home Theatre by connecting four Bang & Olufsen loudspeakers and a BeoLab 2 subwoofer*.

When you switch on one of the sources in BeoSystem 1, speakers in a surround sound system can be cut in or out, depending on what kind of sound suits the source you are using.

BeoSystem 1 may switch on a speaker combination automatically.

This happens if a broadcasted programme contains information about the number of speakers to be switched on. However, you are still free to choose the speaker combination you prefer.

With Beo4, you can choose the picture format you prefer for movie viewing, and switch between two connected screens.

Select speakers for movie sound

You can select the speaker combination that suits the source you are using, provided that the various sound modes are available in your system.


SPEAKER on Beo4

LIST

SPEAKER

Press the number of the speaker combination you want. The selected speakers cut in automatically

1 – 5

Press to adjust the balance between the front and rear speakers m p l n

Press to adjust the balance between the left and right speakers

Press to remove SPEAKER from the Beo4 display and to return to the source you were using

EXIT

Speaker combinations

SPEAKER 1

Sound in the centre speakers only.

SPEAKER 2

Stereo sound in the two front speakers. The

BeoLab 2 subwoofer is active.

SPEAKER 3

The centre speakers, front speakers and the

BeoLab 2 subwoofer are active.

SPEAKER 4

Enhanced stereo sound in the front and rear speakers. The BeoLab 2 subwoofer is active.

SPEAKER 5

Surround sound from all speakers including the

BeoLab 2 subwoofer. For programmes encoded in Surround Sound.

If you have connected only two front speakers to

BeoSystem 1, you will only be able to choose

SPEAKER 1–3.

*NOTE! For further information on how to connect speakers to BeoSystem 1, refer to the chapter ‘ Loudspeaker connections – surround sound’ on page 4 in the Reference book.

Make the picture fill out the screen

BeoSystem 1 always ensures you the best possible picture. It automatically adapts the picture so that it fills out as much of the screen as possible. However, you can still choose the format you prefer. When you select a format yourself, the automatic format selection is deactivated.

Switch between two screens

If you have connected two screens to

BeoSystem 1 at the same time, such as a plasma screen and a projector screen for

Home Theatre use, you can switch between these at any time by selecting FORMAT 0 on

Beo4.


FORMAT on Beo4

LIST

FORMAT

Press if you want to optimise the picture, or…

GO

…press the number of the desired picture format

0 – 3

If you have chosen Format 1…

Press l or n to select variations of this format l n

If you have chosen Format 2…

Press m or p to move the picture up and down m p

Press to leave the FORMAT function

EXIT

Picture formats to choose from

FORMAT 0… For setups with two screens. Moves the picture from, for example, a plasma screen onto a larger projector screen, or vice versa.

BeoSystem 1 switches the picture and the display information concerning the current source to the selected screen.

FORMAT 1… For standard TV pictures. Two variations are available: 15:9 and Panoramic view (for the largest picture).

FORMAT 2… For letter-box pictures. When you select FORMAT 2, the picture is automatically adjusted vertically. This ensures that channel names or subtitles – if these appear in the broadcasted picture – can be seen.

FORMAT 3… For genuine 16:9 wide-screen pictures. FORMAT 3 is usually selected automatically. If this is not the case, you can select it yourself.

If you have a home automation system connected, the screen, lights and curtains can be equally adjusted when you choose FORMAT 0 and switch to the Home Theatre setup. For information about how to connect BeoSystem 1 to a home automation system, refer to the chapter ‘Connect a screen to

BeoSystem 1’ on page 42.

11

12

Teletext

If you select a channel and the broadcaster offers a teletext service,

BeoSystem 1 gives you access to teletext pages and any subpages linked to the pages.

To make your favourite teletext pages appear first when you bring up teletext, store them as memory pages.

When you store the teletext subtitles page as memory page number four, you can activate subtitles for that particular channel automatically.

Basic teletext functions Store favourite teletext pages

You can find information on teletext pages in three steps: switch on the teletext service, read the index page to find the desired page number, and call up the desired page.

Four memory pages are available for each channel’s teletext service.

Press to bring up the teletext index page

TEXT

Press the number of a teletext page you want to see

0

Press to move to the previous or following page m p

– 9

If the current page contains subpages, you can press STOP to pause subpage turning

STOP

To view a particular subpage, enter the four-digit number of the desired page, or press m

or p to step to the page

0 – 9 m p

Press again to resume subpage turning

STOP

Press to leave teletext and return to the channel you were watching

EXIT

Press to bring up teletext TEXT

Press the number buttons, or m or p to go to a page you refer to often

0 – 9 m p


STORE on Beo4

LIST

STORE

Press to select the current page for storing

GO

Enter the number of the memory page you want to use

1 – 4

Press to store the page as a memory page, or…

…press to exit the STORE function and return to teletext without storing

Note that set-top box teletext pages can be viewed, but not stored as memory pages!

GO

EXIT

NOTE! If BeoSystem 1 is linked via a Master Link cable to another television, stored memory pages are not shared among these televisions. Memory pages must be stored on each television.

Day-to-day use of memory pages

You may wish to refer to your teletext memory pages quickly, for example, if you are leaving for work and wish to check traffic information on a teletext service.

Activate subtitles from teletext

You can activate subtitles for a channel, if that channel offers teletext subtitles. The teletext subtitles page number can often be found in an index on teletext page 100.

Press to switch on a TV channel which offers a teletext service

TV

Press to switch on teletext. The page stored as memory page 1 appears automatically

TEXT

Press to view the other memory pages l n

To view stored memory pages from another channel’s teletext service…

Press to return to channel viewing

EXIT

Press the channel number, m or p to change channels

0 – 9 m p



Press the number buttons or m p to locate the teletext subtitles page. Subtitles appear on the screen

0 – 9 m p

EXIT Press to cancel subtitles

To store subtitles permanently from the teletext subtitles page…


STORE on Beo4

LIST

STORE

Press to select the page GO

Press to store the subtitles page as memory page number 4

4

Press to return to TV viewing

To cancel stored subtitles, simply store another teletext page as memory page number

4.

TV

A typical teletext page. The current page number, channel name, date and time appear at the top of the screen, as well as a three-digit number showing the progress of the page search function.

13

14

See two sources at the same time

Your Beo4 remote control gives you access to a dual-screen function for viewing two video sources at the same time. For example, you can view a videotape playback and a TV programme at the same time, provided that the selected sources are available in your system.

While watching a programme or recording, you can divide the screen between the current programme or recording (picture A in the second illustration) and a new programme or recording (picture B). You can also swap the two pictures at any time.

The sound always follows picture A.

Volume adjustment with Beo4 always affects picture A, while other Beo4 operations, such as selecting channels, affect picture B. Choosing a new source cancels dual-screen viewing.

While watching, for example,

TV…


P-IN-P* on Beo4

LIST

P-IN-P

Press, for example, V TAPE to select a source to view on the right side of the screen (B)

V TAPE

Press 0 to swap the left picture and right picture

0

To leave the dual-screen function…

Press to leave the function and return to normal TV viewing

TV

Pressing TEXT on Beo4 cancels dual-screen viewing and

attempts to access teletext for the source shown in picture A. If there is no teletext service available for this source, the screen turns blank.

A B

A B

To view a source registered in the ‘Connections’ menu as V.AUX, such as a set-top box, press LIST repeatedly until P-V.AUX* is shown in the Beo4 display instead.

*In order to display P-IN-P or P-V.AUX on Beo4, you must add them to the Beo4 list of functions.

For further information, refer to the chapter

‘Customise Beo4’ on page 18 in the Reference book.

Advanced operation

Find out how to operate BeoSystem 1 beyond daily use.

This is also the chapter that informs you of how to operate a connected set-top box.

Advanced teletext functions, 16

• Extra teletext functions

• See updated teletext pages

• Go directly to a page via Fastext

Make BeoSystem 1 start and stop automatically, 18

• Timed play and timed standby

• Timed play via teletext

• To activate the timed play function

• View, edit or delete a Timer

Set-top box operation, 20

• Universal Beo4 operation

• Use the set-top box’s own menu

• Set-top Box Controller menu

• Use a set-top box in a link room

The pincode system, 22

• Activate the pincode system

• Change or delete your pincode

• Use your pincode

• Did you forget your pincode?

15

16

Advanced teletext functions

BeoSystem 1 supports three extra teletext functions: text enlargement for easy reading, placement of a teletext page over a TV picture, and display of hidden text, such as the answer to a quiz or joke.

BeoSystem 1 can also notify you when a desired page has been found or updated. This is useful, for example, if you want to see the latest news headlines while watching TV.

If your teletext broadcaster offers a

Fastext service, you can use the coloured buttons on Beo4 to step to one of four linked teletext pages.

Basic teletext functions are described on page 12.

Extra teletext functions

While using teletext, you can enlarge the text, place the teletext page over the TV picture or reveal hidden text.

See updated teletext pages

BeoSystem 1 supports the page update function, provided by some teletext broadcasters to announce that a teletext page has been updated.

To enlarge the screen text size…


LARGE on Beo4

LIST

Press to activate – the upper half of the page is shown

GO

L ARGE

Press to view the lower half GO

Press to restore the normal text size

GO

To keep the TV picture in teletext…

Press repeatedly to display MIX on Beo4

LIST

MIX

Press to superimpose the teletext page on the TV picture

GO

Press to remove the TV picture

To reveal hidden text…


REVEAL on Beo4

GO

LIST

REVEAL

Press to activate – if there is concealed text on that page, it becomes visible

GO

Press to remove the revealed text GO

Bring up the relevant teletext page…


UPDATE on Beo4

LIST

UPDATE

Press to activate GO

When the page is found, FOUND appears on the screen

When the page has been updated, UPDATE appears on the screen

FOUND

UPDATE

Press to bring up the located or updated page

GO

Press to leave teletext

The function is cancelled when you change channels.

EXIT

Go directly to a page via Fastext

Some teletext broadcasters offer a Fastext service that enables you to step directly to one of four linked teletext pages.

While the TV is switched on…


Press to find a Fastext page, or…

…enter the page number using the number buttons m p

0 – 9

Press one of the coloured buttons on Beo4 to gain access to the Fastext function. The titles of the four linked pages appear at the top of the screen

Press the coloured button which corresponds to the linked page you wish to see

Press to leave Fastext and return to normal teletext viewing, or…

TEXT

…press to leave teletext EXIT

A teletext page with the colour bar at the top right indicating that it is a Fastext page.

The titles of the four linked pages appear at the top of the activated Fastext page, each with their own colour.

17

NOTE! For information about presetting recordings from teletext pages, refer to your video tape recorder’s own Guide.

18

Make your BeoSystem 1 start and stop automatically

You can use the timed play function if there is a programme you do not want to miss, or if you want a morning wake-up call. Use timed standby, for example, to make

BeoSystem 1 switch off automatically when you leave for work in the morning.

Enter as many as eight Timer settings, and view all the Timer settings you have entered. From this list, you can edit or delete your Timer settings.

If your BeoSystem 1 is integrated with a Bang & Olufsen audio or video system with a Master Link cable, these systems can perform the timed play or timed standby functions.

If you wish to enter Timer settings, make sure that the built-in clock is set to the correct time. For further information, refer to the chapter ‘ Set the time and date’ on page 37.

Timed play and timed standby

You can preset Beosystem 1 to start and stop automatically on a specific date and time, or at the same time and day every week.

Menu

1 Timer play

2 TV list

3 Setup

Timer play

1 Set timer

2 Activate timer


TV 1 - 14:30 27 Oct OK

Press MENU for Teletext programming

The system writes:

Jan… January Jul… July

Feb… February Aug… August

Mar… March

Apr… April

Sep…

Oct…

September

October

May… May

Jun… June

Nov… November

Dec… December

Mon… Monday

Tue… Tuesday

Wed … Wednesday

Thu… Thursday

Fri… Friday

Sat… Saturday

Sun… Sunday

To enter settings for timed play or timed standby…

> Press MENU to bring up the main menu.

> Press GO to bring up the Timer play menu.

> Press GO to bring up the Set Timer menu.

> Press l or n to move through menu items.

> Press m or p to choose options for a menu item. For example, set Source (source) to

Standby if you want to switch BeoSystem 1 to standby, or TV if you want to view a TV channel at a specific time.

> Press the number buttons to fill in e.g. a channel number or start and stop times.

> If you want to set Timers for certain days of the week, press n to highlight Date and then press

MENU to change Date to Days . Select the specific weekday(s) on which you want your

Timer executed. All the weekdays are displayed

– starting with M for Monday. Press n to move through the days and press p to remove any day you do not want. When the weekday(s) you want are displayed, press GO . OK is then highlighted.

> When you have filled in the required information, press GO to store your Timer settings, or…

> …press EXIT to leave all menus without storing.

NOTE! If BeoSystem 1 is set up in a link room,

Timer programming must be carried out via your main room system.

Timed play via teletext

It is also possible to program timed play settings via teletext.

To activate the timed play function

You must activate the timed play function in order for your Timers to be executed.

View, edit or delete a Timer

Bring up an on-screen list of the Timer settings you have entered. From this list, you can edit or delete your Timer settings.

To enter timed play settings via teletext…

> Press MENU while Start (start) is highlighted to bring up teletext.

> Enter the number of the teletext page you want.

> When the page is found, press MENU to make a timed play programming. A cursor highlights the first start time on the list.

> Press m

or p

to move the cursor to the programme you wish to make a timed play for.

> Press GO to accept the start time.

> Press m or p to move to the stop time you want, and press GO to accept it.

> A line appears on top of the teletext page listing the start and stop time, followed by ‘ OK?

’.

> Press GO to store your timed play settings.

To activate the timed play function…


> Press GO to bring up the Timer play menu.

> Press 2 to bring up the Activate Timer menu.

> Press m or p to reveal Yes . To switch off the

Timer play function, select No instead.

> Press GO to store your timed play settings, or…


If you connect a Bang & Olufsen audio or video product to BeoSystem 1 with a Master Link cable, you can exclude or include it in timed functions via the Timer play menu. For example, set

BeoSystem 1 Timer to Yes and the audio system

Timer to OFF if you wish timed functions to apply only to BeoSystem 1.

To view, edit or delete your Timer settings…

> Press MENU while Source (source) or Pr

(program) is highlighted in the Set Timer menu to bring up a current Timer index of previously entered Timer settings.

> Press p or m to move through the list to a setting you wish to edit or delete.

> To edit a setting, press GO and follow the procedure described earlier.

> To be able to delete a setting, press MENU . The date is replaced by Clear?

> Press GO to delete the setting, or EXIT to keep it.

For further information about how to switch the

Play Timer on or off for a connected Bang &

Olufsen audio or video product, refer to the Guide enclosed with the product.

19

20

Set-top box operation

The built-in Set-top Box Controller acts as an interpreter between the set-top box of your choice and the

Beo4 remote control. When a set-top box is connected, you can use the

Beo4 remote control to gain access to the programmes and functions offered by the set-top box.

For further information about how to connect and register a set-top box, refer to the chapter ‘Connect additional equipment’ on page 44 and the chapter ‘Register and use additional video equipment’ on page

32.

Universal Beo4 operation

If you know which Beo4 button activates the function you want, you can bring up the function without activating the Set-top Box

Controller menu first.

Use the set-top box’s own menu

Once you have activated your set-top box, you can operate the set-top box’s own menus, such as the Program Guide, via Beo4.

While your set-top box is activated…

Press GO and then the number button that activates the function you want

GO

0 – 9

Press GO and then m

or p

to step up or down through programs directly

GO m p

Press and hold GO to bring up the Program guide or the ‘Now/

Next’ banner on the screen depending on your set-top box

GO

While the set-top box’s own menu is shown…

Moves the cursor up or down

Moves the cursor m p l n

Selects and activates a function GO

GO

Press GO and then l or n to step between menu pages or step in program lists

GO l n

STOP Exits menus, or returns to a previous menu

Exits menus, enters or exits different modes, such as radio

Use the coloured buttons as indicated in the menus of your set-top box

EXIT

When set-top box is selected as source, press MENU twice to bring up the BeoSystem 1 main menu.

Set-top Box Controller menu Use a set-top box in a link room

Some of the buttons on your set-top box remote control are not immediately available on Beo4. To find out which Beo4 buttons activate specific services or functions in your set-top box, bring up the Set-top Box

Controller menu on the screen.

When your set-top box is connected to the television in the main room, you can operate the set-top box from the link room television.

However, the Set-top Box Controller menu cannot be displayed on the television screen in the link room.

If your set-top box is registered as STB (SAT)…

Press to switch on the set-top box

If your set-top box is registered as STB (V.AUX)…


V.AUX on Beo4

Press to switch on the set-top box

SAT

LIST

GO

V. AUX

Then,

Press to bring up the Set-top Box

Controller menu

MENU

Press the number button that activates the function you want, or…

1 – 9

…press one of the coloured buttons to activate a function

If your set-top box is registered as STB (SAT)…

Press to switch on the set-top box in the main room

If your set-top box is registered as STB (V.AUX)…


V.AUX on Beo4

Press to switch on the set-top box in the main room

SAT

LIST

V. AUX

GO

Press to select a function, and…

…press the number button that activates the function you want

GO

1 – 9

Press one of the coloured buttons to activate a function

3

4

1

2

5

•

GUIDE

MENU

TEXT

INFO

WIDE

1

2

3

4

5

•

GUIDE

MENU

TEXT

INFO

WIDE

Example of a Set-top Box Controller menu – The

Beo4 buttons are shown to the left on the menu and the set-top box buttons are shown to the right.

21

22

The pincode system

You choose whether or not to activate the pincode system. The pincode system is deactivated when you delete your pincode.

The pincode system is intended to make normal use of BeoSystem 1 impossible for someone who does not know the pincode.

When BeoSystem 1 has been disconnected from the mains for

15–30 minutes, the pincode system goes into effect.

When reconnected and switched on,

BeoSystem 1 automatically switches itself off after four minutes. Entering the pincode returns BeoSystem 1 to normal.

Should you lose or forget your code, contact your Bang & Olufsen retailer to receive a mastercode which disables your pincode.

Activate the pincode system

Menu

1 Timer play

3 TV list

4 Setup

----

- - - -



Press l twice, followed by STOP.

The Pincode menu appears on the screen l l

STOP

Use the number buttons on

Beo4 to enter the four digits of your code

0 – 9

Press to move the cursor to

Confirm pincode when you have entered your code once n

Re-enter the code. If the two codes are not identical, the input fields are cleared and you must enter the code again

0 – 9

Press to store the code GO

To cancel a code entry…

Press to cancel a code entry, and the input fields are cleared

STOP

Change or delete your pincode

Pincode

1 Delete code

2 New code

New pincode Confirm pincode

----

- - - -



Press l twice, followed by STOP.

BeoSystem 1 prompts you for your pincode l l

STOP

PIN _ _ _ _

Enter your pincode 0 – 9

PIN ** _ _

If the code is incorrect, the input fields are cleared and you must enter the code again

PIN _ _ _ _

When you have entered your code, the Pincode menu prompts you to delete your code or enter a new code

Press 1 to delete your code, or 2 to enter a new code

1

2

Enter the new code 0 – 9

Press to move the cursor to

Confirm pincode, when you have entered your new code once n

Re-enter the new code

Press to store the new code GO

To cancel a pincode entry…


STOP

NOTE! You can change your pincode up to five times within a three-hour period.

Use your pincode Did you forget your pincode?

If BeoSystem 1 has been disconnected from the mains for 15–30 minutes, BeoSystem 1 prompts you for the pincode when you switch it on. If you do not enter the pincode,

BeoSystem 1 switches to standby after approximately 4 minutes.

Contact a Bang & Olufsen retailer to receive a five-digit mastercode.

When BeoSystem 1 is switched on…

BeoSystem 1 prompts you for your pincode

PIN _ _ _ _

Enter your pincode

BeoSystem 1 restarts when the last digit is entered

0 – 9

PIN * * _ _

PIN * * * *

When you have received a mastercode…

When BeoSystem 1 prompts you for your pincode, press and hold l to bring up the mastercode display l

PIN _ _ _ _

PIN _ _ _ _ _

Entering this five-digit code deactivates your pincode and reactivates BeoSystem 1.

DELETED is displayed

0 – 9

DELETED

If an incorrect code is entered,

ERROR is shown. Re-enter the code

ERROR

PIN _ _ _ _ To use the pincode system again…

Follow the procedure for activating the pincode system To cancel a code entry…


STOP

Five incorrect entries cause

BeoSystem 1 to shut down for three hours, during which time operation is not possible.

Approximately 20 seconds before the system automatically switches to standby, it cannot be operated by remote control.

Therefore, it is not possible to enter a pincode during this time.

23

24

Tuning and preference settings

This chapter informs you how to tune in and add new TV channels and make adjustments to TV channels and how to make your own settings for picture and sound.

For information about setting up your television and connecting additional video equipment, refer to the chapter ‘ Placement, connections and maintenance’ on page 39.

Tune in TV channels, 26

• Find available channels

• Add new channels

Edit tuned TV channels, 28

• Adjust tuned TV channels

• Move tuned channels

• Name tuned channels

• Delete tuned channels

Register and use additional video equipment, 32

• What is connected?

• Choose a set-top box

• Get access to additional video equipment

Adjust picture and sound settings, 34

• Adjust colour, brilliance or contrast

• Adjust volume, bass, treble or loudness

See the name of the active sound system, 36

Set the time and date, 37

25

26

Tune in TV channels

You can make BeoSystem 1 find your

TV channels for you.

Preset up to 99 different TV channels on channel numbers of their own and give each channel a distinct name.

You can tune in new channels or retune previously deleted channels.

When tuning in channels via the Add program menu, your previously tuned channels are left unchanged. This allows you to keep channel names, their order in the TV list, and any special settings you may have stored for those channels, such as decoder or broadcast system settings.

Find available channels

When you set up BeoSystem 1 for the first time, you can tune in the TV channels that are available in your area via the TV tuning menu. BeoSystem 1 finds available channels and stores them by number and name.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

Freq Pr

210 12


> Press 3 to bring up the Setup menu.

> Press GO to bring up the Tuning menu.

> Press GO again to bring up the TV tuning menu.

> Press 3 to bring up the Auto tuning menu. The

Freq (frequency) and Pr (program) fields are shown.

> Press m

to start automatic tuning. The content of the frequency and program fields show your progress.

When tuning is completed, you can rearrange, delete or rename channels from a TV list. This list also appears if you press STOP during auto tuning.

For information about editing the TV list, refer to the chapter ‘Edit tuned TV channels’ on page 28.

Add new channels

You can add new or previously deleted TV channels to your TV list at any time using the

‘ Add program’ menu.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

Freq Pr

210 12





> Press 2 to bring up the Add program menu.

> Press m to start adding new channels. The Freq

(frequency) and Pr (program) fields show tuning progress.

> Press STOP to stop adding channels. You can then move, rename or delete channels from a list, as described in the chapter ‘ Edit tuned TV channels’ on page 28.

> Press EXIT when your channels have been tuned in, named and placed in the order you choose.

27

28

Edit tuned TV channels

You can make adjustments to your tuned TV channels at any time, or tune in channels not stored during auto tuning.

You can also enter settings before you tune in channels. These may include choosing a broadcast system for certain types of channels, or setting up a connected decoder to be switched on automatically whenever a coded channel is switched on.

In addition, you can edit your list of channels by renaming channels, moving them around in the list, or deleting all your unwanted channels from the TV list, thereby reducing the time you spend changing channels.

Adjust tuned TV channels

You can store TV channels on program numbers of their own. Fine tune the channel reception, indicate the presence of coded channels and choose appropriate sound types for the individual channels.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

Freq Pr

210 1

Name

. . . . . . . . More

Fine Decoder Sound

0 Off Stereo-2

If the item ‘System’ appears on the menu, then make sure that the correct broadcast system is displayed before you start tuning:

B/G… for PAL/SECAM B/G

M… for NTSC M

D/K… for PAL/SECAM D/K

All options may not be available, as this depends on the television type.





> Press 4 to bring up the Manual tuning menu.

> Press l or n to move between items on the menu and m

or p

to view your choices for each item. Pressing m

when the cursor is placed on

Freq (frequency) starts automatic search for a channel. Numeric values can be entered using the number buttons on Beo4. When entering names, press m or p to reveal the character you want. Then press n to move to the next character position.

> To view more options, press n

to move the cursor to More and press GO . If you set the item

Decoder to On , Dec1 or Dec2 , you can return to the previous menu to start tuning in coded channels by pressing GO .

> When a channel is tuned in, you can also select the sound system you want; press m

or p

to switch between the sound modes currently transmitted or fine tune the channel.

> Press GO when you have entered your settings, or…


If channel broadcasts are in two languages and you want both languages, you can store the channel twice, once with each language.

Move tuned channels

You can rearrange the order in which your channels appear when you switch channels, as well as in the on-screen TV list.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

1 BBC 1

2 BBC 2

3 ITV

4 SUPER CH

5 Sky

6 ZDF

7 CHILDREN

8 CNN

9 . . . . . . . .

10 . . . . . . . .

11 . . . . . . . .

12 EUROSPRT

13 . . . . . . . .

14 . . . . . . . .

15 MTV

16

17

18

19

Press move

>>

to





> Press GO to bring up the Edit TV list menu.

> Press p or m to move through your list of channels.

> When you find a channel you wish to move, press n to move it out of the list.

> Press p or m to move the channel to its new location, or press the number of the new location.

> Press l to move the channel back into the list. If it changes places with another channel, this channel is moved out of the list and can be placed elsewhere.

> When you have moved your channels, press

EXIT to leave all menus.

29

30 >> Edit tuned TV channels

Name tuned channels

BeoSystem 1 automatically names your tuned channels during auto tuning, if possible, but you can rename your channels at any time.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

1 BBC 1

2 BBC 2

3 ITV

4 SUPER CH

5 SKY

6 ZDF

7 CHILDREN

8 CNN

9 . . . . . . . .

10 . . . . . . . .

11 . . . . . . . .

12 EUROSPRT

13 . . . . . . . .

14 . . . . . . . .

15 MTV

16

17

18

19

Press move

>>

to

Freq Pr Name

48 1 B BC 1 More







> When you have found a channel you wish to name, press GO . The cursor is located on the first character in the channel name.

> Press l or n to move between characters, and m or p to choose characters.

> Press GO to store a name and return to the list, or…

> …press STOP to return to the list without storing the name.

> Press EXIT to leave all menus.

Delete tuned channels

You can remove all your unwanted tuned channels from the TV list.

TV tuning

1 Edit TV list

2 Add program

3 Auto tuning

4 Manual tuning

1 BBC 1

2 BBC 2

3 ITV

4 SUPER CH

5 SKY

6 ZDF

7 CHILDREN

8 CNN

9 . . . . . . . .

10 . . . . . . . .

11 . . . . . . . .

12 EUROSPRT

13 . . . . . . . .

14 . . . . . . . .

15 MTV

16

17

18

19

Press GO to delete

Del?






> When you have found a channel you wish to delete, press MENU . Del?

appears next to the channel name.

> Press GO to delete the channel, or…

> …press STOP to return to the list without deleting the channel.

> Press EXIT to leave all menus.

31

32

Register and use additional video equipment

If you connect additional video sources or equipment to BeoSystem 1, you must register the equipment in the Connections menu.

The settings you select in the

Connections menu tell BeoSystem 1 what is connected.

For information about where and how to connect extra equipment, refer to the chapters ‘Connect additional equipment’ on page 44 as well as ‘Socket panels’ on page 45.

When your additional video equipment has been connected and registered in the Connections menu, as described, you can operate it with the Beo4 remote control.

What is connected?

Registering the equipment connected to

BeoSystem 1 enables you to activate it with the Beo4 remote control.

Setup

1 Tuning

2 Sound

3 Picture

4 Connections

5 Menu

6 Clock

V. Tape

V. Tape

AV

DVD

Decoder

Decoder



> Press 4 to bring up the Connections menu.

> Press n

to select a socket.

> Press m or p to step through the list of available equipment types until you find what you have connected. Select None if nothing is connected.

> When you have selected your equipment types, press GO to store your settings, or…


Equipment you can connect to each socket

V.Tape

V.Tape

… for a Bang & Olufsen video tape recorder

DVD … for a DVD player

STB (SAT ), STB (V.AUX

)… for a set-top box*

None … if nothing is connected

AV

DVD … for a DVD player

STB (SAT), STB (V.AUX) … for a set-top box*

V.AUX

… for other equipment

Non B&O V.Tape2

… for a non-Bang & Olufsen video tape recorder

V.Tape2

… for a Bang & Olufsen video tape recorder

S-VHS V.TP2… for a Super-VHS video tape recorder

Decoder(2) … for a second decoder – Connect your primary decoder to the DECODER socket


Decoder

Decoder(1 )… for a primary decoder or expander box

STB (SAT), STB (V.AUX) … for a set-top box*

V.AUX

… for other non-Bang & Olufsen equipment

Non B&O V.Tape2

… for a non-Bang & Olufsen video tape recorder


*NOTE: Choose STB (SAT) for a primary set-top box and STB (V.AUX) for a secondary set-top box.

Choose a set-top box

A list of set-top boxes to choose from appears when you register a set-top box in the

Connections menu.

STB (V.AUX)

1 SELECTOR

2 NOKIA 9800S/02S

3 NOKIA 9602S

4 NOKIA 9820T

5 NOKIA 9200

6 NOKIA D-BOX II

7 NOKIA D-BOX

8 NOKIA 9850T

9 PACE DTR730-IM

10 PHILIPS DTX637x

11 PACE DSR600

12 SKY DIGITAL

13 CANALdig DK/S/N

14 CANAL+ SAT r2

15 CANALdigital I

16 CANALdigital E

17 CANALdigital NL

18 CANALdigital B+

19 MACAB DCB-101

If all sockets are in use, you can connect a second set-top box to the Camcorder socket. Refer to the chapter ‘Connect a set-top box or decoder’ on page 8 in the Reference book for further information.

When the set-top box list appears…

> Press p to move down the list.

> Press GO to select your STB type.

Get access to additional video equipment

Some of the connected equipment is accessible via the Beo4 remote control.

Press to switch on a video tape recorder

V TAPE


V.TAPE2 on Beo4

Press to switch on a second video tape recorder

LIST

V.TAPE2

GO


V.AUX on Beo4

Press to switch on a source registered as V.AUX, such as a set-top box

In order to display V.AUX or

V.TAPE2 on Beo4, you must add them to the Beo4 list of functions. Refer to the chapter

‘Customise Beo4’ on page 18 in the Reference book for further information.

LIST

V. AUX

GO

33

34

Adjust picture and sound settings

Picture and sound settings are preset from the factory to neutral values which suit most viewing and listening situations. However, if you wish, you can adjust these settings to your liking.

Adjust picture brilliance, colour or contrast. Sound settings include volume, bass, treble and loudness.

You can also adjust subwoofer level, if BeoLab 2 is part of your setup.

Store your picture and sound settings temporarily – until BeoSystem 1 is switched off – or store them permanently.

For information about how to change the picture format, refer to the chapter ‘ Home Theatre’ on page 10.

Change brilliance, colour or contrast

Adjust the picture settings via the Picture menu. Temporary settings are cancelled when you switch off BeoSystem 1.

Setup

1 Tuning

2 Sound

3 Picture

4 Connections

5 Menu

6 Clock

Brilliance Colour Contrast

32 32 20

To change brilliance, colour or contrast…



> Press 3 to bring up the Picture menu.

> Press l

or n

to move between the items on the menu.

> Press m or p to adjust the settings for each item.

> Press EXIT to store your settings until you switch off BeoSystem 1, or…

> …press GO to store your settings permanently.

For video sources using the NTSC signal a fourth option – TINT (colour shade or nuance) – will be available for adjustment.

Change volume, bass, treble or loudness

You can adjust sound volume, select a speaker combination or adjust the speaker balance directly on Beo4 at any time without bringing up a menu, but you must bring up the Sound menu in order to be able to adjust bass, treble or loudness.

Setup

1 Tuning

2 Sound

3 Picture

4 Connections

5 Menu

6 Clock

Sound

1 Adjustment

2 Speaker type

3 Speaker distance

4 Speaker level

5 Sound system

Time used 240 SP On On

To change volume, bass, treble or loudness…



> Press 2 to bring up the Sound * menu.

> Press GO to bring up the Adjustment menu.

> Press l

or n

to move between menu items.

> Press m or p to adjust the settings for each item.

> Press EXIT to store your settings until you switch off BeoSystem 1, or…

> …press GO to store your settings permanently.

The content of the ‘Sound’ menu depends on how many speakers are connected to BeoSystem 1.

35

*NOTE! The Sound menu lets you calibrate your surround sound speaker setup permanently. For further information, refer to the chapter

‘ Loudspeaker connections – surround sound’ on page 4 in the Reference book.

36

See the name of the active sound system

The surround sound module in your television allows you to see which active sound system is currently playing on the source or programme you are watching.

The sound system is an integrated part of a programme or, for example, a DVD disc. Therefore, as the sound system is distributed to you from the broadcaster, you can not preset a sound system in this menu.

A given sound system signal may automatically switch on the speaker combination considered optimal for the specific sound system. You can always choose to disregard such automatic change in speaker combination. For further information, refer to the chapter ‘Home Theatre’ on page 10.

Sound systems that can appear in the menu are:

Dolby Digital, Dolby Surround Pro Logic, Dolby

3 Stereo, Dolby Digital + Dolby Surround Pro

Logic, Mono/Stereo and DTS Digital Surround.

Sound

1 Adjustment

2 Speaker type

3 Speaker distance

4 Speaker level

5 Sound system



> Press 2 to bring up the Sound menu.

> Press 5 to bring up the Sound system menu. The current sound system is shown. Mono/Stereo appears if Dolby sound is not active.

> Press EXIT to exit all menus.

Set the time and date

BeoSystem 1 has a built-in 24-hour clock.

When you preset BeoSystem 1 to switch itself on or off at a particular time, or when you preset a timed recording of a programme on a connected BeoCord V 8000 video tape recorder, the clock ensures that these features are switched on and off at the right times.

The simplest way to set the clock is to synchronise it with a tuned TV channel’s teletext service via the

Clock menu. If you choose to synchronise the clock, this is done with the teletext service offered by the TV channel you are currently watching. If a teletext service is not available, you can set the clock manually.

Before synchronising the clock with a tuned channel, make sure that the channel you are watching offers a teletext service.

Setup

1 Tuning

2 Sound

3 Picture

4 Connections

5 Menu

6 Clock

14:25 Fri 2 Nov 2001 No

Abbreviations for month and day of the week

Jan … January Jul … July

Feb … February … August

Mar … March Sep … September

Apr … April Oct … October

May … May Nov … November

Jun … June Dec … December

Mon … Monday

Tue … Tuesday

Wed … Wednesday

Thu … Thursday

Fri … Friday

Sat … Saturday

Sun … Sunday

To set the time and date…



> Press 6 to bring up the Clock menu. Time is already highlighted. It is only necessary to enter the time manually if Synch is set to No .

> Enter the time by pressing the number buttons on your Beo4 remote control.

> Press l or n to move through menu items.

> Press m

or p

to see your options for a menu item. Select the current channel by pressing m or p until the channel name is shown.

> Press GO to store your clock and calendar settings, or…

>…press EXIT to leave all menus without storing.

If the clock is not updated in the transition between summer and winter time, simply select the channel with which you originally synchronised the clock, and the clock is updated.

37

38

Placement, connections and maintenance

In this chapter, you can find out how to place, connect and maintain

BeoSystem 1. It also gives you an overview of the socket panels.

We recommend that you follow the procedure described below when you set up BeoSystem 1:

– Unpack and place BeoSystem 1 as described on the following pages

– Consider the appropriate surroundings for BeoSystem 1

Guidelines are included on the next page

– Mount the IR receiver

– Mount the screen

– Connect the cables, additional equipment, and speakers as described on the following pages.

Set up BeoSystem 1, 40

• Place BeoSystem 1 in your home

• Overview of socket and connection panels

• Connect the IR receiver

• Connect a screen to BeoSystem 1

• Aerial and mains connection

Connect additional equipment, 44

• Decoder

• Video tape recorder

• Game console, Camcorder, etc.

Socket panels, 45

• AV and aerial socket panel

• Speaker and digital input socket panel

Close-up socket panel, 48

• The close-up socket panel

• Watch Camcorder via BeoSystem 1

• Copy from a Camcorder

Maintenance of BeoSystem 1, 49

• Cleaning the Beo4

• Changing the batteries…

39

40

Set up BeoSystem 1

We recommend that you follow the procedure described below when you set up BeoSystem 1:

– Unpack and place BeoSystem 1 as described on the following pages

– Consider the appropriate surroundings for BeoSystem 1

Guidelines are included on this page

– Mount the IR receiver

– Mount the screen

– Connect the cables, additional equipment, and speakers as described on the following pages.

Do not connect BeoSystem 1 to the mains until you have connected your screen, loudspeakers and other equipment to BeoSystem 1!

For further information about the close-up socket panel, refer to the chapter ‘ Close-up socket panel’ on page 48.

Place BeoSystem 1 in your home

– Make sure that BeoSystem 1 is set up, placed and connected in accordance with this Guide.

– BeoSystem 1 is developed for indoor use in dry, domestic environments only, and for use within a temperature range of 10–40ºC

(50–105ºF).

– Do not place any items on top of

BeoSystem 1.

– To ensure proper ventilation, allow for at least 5 centimetres (2”) of space at the sides of BeoSystem 1 and 10 centimetres

(4”) above it.

– Always place BeoSystem 1 on a firm and stable surface.

– Do not attempt to open BeoSystem 1.

Leave such operations to qualified service personnel.

Overview of sockets

1 Mains switch

2 IR receiver socket

3 Close-up socket panel

4 Mains connection

5 Projector and plasma screen socket area

6 Speaker and digital input socket panel

7 AV and aerial socket panel

8 Fan socket

9 0/12 V control socket

1

2

3

4

8 9

Refer to the chapter ‘Socket panels’ on page 45 for further information about the sockets.

5

6

7

Connect the IR receiver

To facilitate remote control operation of

BeoSystem 1 and all connected equipment, you must connect the IR receiver to

BeoSystem 1.

The IR receiver is a kind of ‘eye’ which is capable of receiving signals from your Beo4 remote control and sending them to

BeoSystem 1. BeoSystem 1 then sends the appropriate control signals to your screen, projector or other connected equipment.

To connect the IR receiver…

> Detach the IR receiver’s rear cover (unscrew the two (C) screws and loosen the two (D) screws, then lift off the cover).

> Cut the included cable to the required length and strip the cable.

> Insert the cable end through the cable clamp (E) and connect the leads to the terminals inside the receiver in the order indicated. Tighten the clamp.

> Attach the rear cover and fasten the IR receiver to the wall as described below.

> Connect the cable to the IR RECEIVER socket on

BeoSystem 1.

To fasten the IR receiver to the wall…

> Using the wall bracket as a template, mark and drill two holes in the wall.

> Using the two screws and wall plugs supplied

(A), fasten the wall bracket to the wall.

> When you have mounted the receiver cable as described above, hang the receiver on the wall bracket and secure it with screw (B).

> Fasten the cable to the wall and run it to

BeoSystem 1.

A

C

C

A

E

Green

Yellow

Brown

B

D

D

41

42 >> Set up BeoSystem 1

Connect a screen to BeoSystem 1

BeoSystem 1 is intended for use with a plasma screen. However, it also supports the use of a front projector, rear projector, or

LCD screen. You can also connect a home automation system to BeoSystem 1, and thereby control room lights and curtains when BeoSystem 1 is switched off.

IMPORTANT! The screen you connect to

BeoSystem 1 must be compatible with 50 Hz input!

The diagrams show examples of BeoSystem 1 in setups with, respectively, a plasma screen/LCD screen, a projector and a home automation system.

More than one screen type can be connected at one time.

BeoSystem 1 connected to a plasma screen or LCD screen.

The diagrams are provided as examples, and therefore may not apply to your particular screen. Your installer should set up your screen and connect it to BeoSystem 1.

RGB

RS232

BeoSystem 1 connected to a projector.

0/12V

CONTROL

0/12V CONTROL

BeoSystem 1 connected to a home automation system. It is only possible to connect a home automation system in a setup with a front or rear projector.

Aerial and mains connection

When you set BeoSystem 1 up on its own, simply connect the aerial to the socket marked

VHF/UHF on BeoSystem 1 and connect

BeoSystem 1 to the mains.

If you have not yet connected speakers, or you wish to connect any other equipment to BeoSystem 1, do not connect to the mains yet!

When connections are complete…

Connect BeoSystem 1 to the mains and switch on the mains switch on the back of BeoSystem 1. The system is in standby mode and ready to be used. If

BeoSystem 1 is set up on its own, you can now begin tuning in channels, as explained in ‘Tune in

TV channels’ on page 26.

BeoSystem 1 was designed to be left in standby mode when not in use. Therefore, to facilitate remote control operation, it is essential that you leave the mains switch on.

BeoSystem 1

43

44

Connect additional equipment

You can connect different types of audio and video equipment to

BeoSystem 1, such as a video tape recorder, set-top box or Camcorder.

Audio equipment is connected through the Master Link socket.

When connecting video equipment to BeoSystem 1, remember to use the

AV socket on BeoSystem 1 first, if it is vacant. Should you require further information about connections, refer to the Reference book.

Refer to the guides included with your additional equipment to make sure it is connected properly.

Remember to register all connected equipment. For further information refer to the chapter ‘ Register and use additional video equipment’ on page

32.

Audio Master Video tape recorder

Using a BeoLink cable, connect the one multipin plug to the socket marked MASTER LINK on BeoSystem 1, and the other multi-pin plug to the socket marked MASTER LINK on the audio system.

Use a 21-pin cable to connect a BeoCord

V 8000 video tape recorder to the V.TAPE socket on BeoSystem 1. Connect the cable from the aerial to the input socket on the video tape recorder. Forward the aerial cable to the aerial socket on BeoSystem 1.

AV 2 Expander

DVD player

The optional AV 2 Expander accessory is a

SCART expander for connection of non-

Bang & Olufsen equipment, such as decoders, game consoles, and cameras to the DECODER socket on BeoSystem 1. Use a 21-pin cable to connect one plug to the socket marked TV on the Expander box, and connect the other plug to the socket marked DECODER on

BeoSystem 1. Remote control operation of equipment connected via the AV 2 Expander is not possible.

Use a 21-pin cable to connect a DVD player, such as a Bang & Olufsen DVD 1, to

BeoSystem 1. Connect one end to the socket marked AV on your DVD player and the other to the socket marked AV on BeoSystem 1.

Connect the socket marked DIGITAL OUTPUT on DVD 1 to the SPDIF 1 socket on BeoSystem

1. If the required cable is not enclosed, it is available from your Bang & Olufsen retailer.

Game console, Camcorder, etc.

Set-top box

Use the 21-pin AV cable to connect the set-top box to BeoSystem 1. To enable remote control of your set-top box with the Beo4 remote control, you must also connect a low-power

IR transmitter.

We recommend that you use the close-up socket panel for equipment you connect on a temporary basis, such as a game console or

Camcorder. The use of these sockets is explained in the chapter ‘ Close-up socket panel’ on page 48.

Decoder

To connect an AV decoder (a baseband decoder, such as Canal+), connect the cable from the aerial to BeoSystem 1. Connect the

AV decoder to the 21-pin socket marked

DECODER on BeoSystem 1.

To connect an RF decoder, connect the external aerial cable to the decoder input socket and then forward the cable to

BeoSystem 1 aerial socket (marked VHF/UHF).

Connect the RF decoder to the 21-pin socket marked DECODER on BeoSystem 1.

Socket panels

The socket panel on BeoSystem 1 allows you to connect signal input cables as well as a variety of extra equipment, such as a DVD player or a linked Bang & Olufsen audio system.

The V.TAPE, AV and DECODER sockets are available for connection of extra equipment.

Any equipment you connect to these sockets must be registered in the

Connections menu. For further information, refer to the chapter

‘ Register and use additional video equipment’ on page 32.

AV and aerial socket panel

V.TAPE

21-pin socket for the connection of a BeoCord

V 8000 video tape recorder.

AV

21-pin socket for the AV connection of other equipment, such as a DVD player, set-top box or a second decoder (do not connect baseband decoders here).

V.TAPE

DECODER

21-pin socket for the connection of a secondary set-top box or a primary decoder.

The socket provides the opportunity to connect either an AV decoder or an RF decoder.

The socket may be used for an AV 2 Expander instead, which gives the opportunity to connect a decoder or other non-Bang &

Olufsen auxiliary video equipment at the same time.

MASTER LINK

MASTER LINK

Socket for connection of a compatible Bang &

Olufsen audio system.

The socket is also used for BeoLink distribution of sound throughout the house.

LINK

Aerial output socket for distribution of video signals to other rooms.

VHF/UHF

Aerial input socket from your external aerial or cable TV network.

ATTN. ON/OFF

Aerial signal attenuator. Options are:

AV

LINK

DECODER

IR-OUT

VHF/UHF 75

Ω

ATTN.

OFF ON

IR OUTPUT

For connection of a set-top box.

45

46 >> Socket panels

Speaker and digital input socket panel

FRONT

The two sockets are used for connecting the front speakers in a surround sound setup.

CENTRE

Socket for connecting centre speakers in a surround sound setup.

REAR

The two sockets are used for connecting the rear speakers in a surround sound setup.

SUBWOOFER

Socket used for connecting a BeoLab 2 subwoofer in a surround sound setup.

SPDIF 1

Digital input socket for connection of, for example, a DVD player. SPDIF 1 is for digital input from equipment connected to the AV socket on BeoSystem 1.

SPDIF 2

Digital input socket for connection of, for example, a DVD player. SPDIF 2 is for digital input from equipment connected to the

V.TAPE socket on BeoSystem 1.

If the V.TAPE socket is set up for V.tape

or

None , the SPDIF 2 socket is dedicated to the equipment connected to the DECODER socket instead.

FRONT CENTRE

REAR SUBWOOFER

FRONT SPDIF

1

REAR SPDIF

2

Additional sockets

ON/OFF

Mains switch

IR IN

For connection of a BeoLink IR receiver enabling remote control operation of

BeoSystem 1

MAINS

Connection to the mains

RGB

For connection of a plasma screen, LCD screen or a large-screen projector.

RS232

For connection of a plasma screen supported by Bang & Olufsen or a large-screen projector.

0/12V CONTROL

For connection of a home automation system with a projector.

FAN

For connection of an external ventilator.

S-VHS / VIDEO / R / L / PHONES

The Camcorder and headphones sockets. For more information, refer to the chapter ‘ Closeup socket panel’ on page 48.

IR-IN

MAINS

S-VHS

VIDEO

R

L

PHONES

ON/OFF

RGB

RS232

0/12 V CONTROL

FAN

47

48

Close-up socket panel

You can connect headphones and listen to a TV programme, or you can connect a Camcorder and watch your home movies on BeoSystem 1. If you have connected for example a

BeoCord V 8000 video tape recorder, you can copy Camcorder recordings onto a videotape.

The close-up socket panel

S-VHS

For the connection of S-VHS or Hi-8 Camcorders only.

S-VHS VIDEO R L PHONES

Copy from a Camcorder

VIDEO – R – L

These sockets are for connection of a video camera:

L – R: For audio connection (right and left sound channel respectively).

VIDEO: For the Video signal.

Watch Camcorder on BeoSystem 1

If you have connected a video tape recorder, such as a BeoCord V 8000, to BeoSystem 1, and you connect your Camcorder to the

Camcorder and headphones sockets, you can copy Camcorder recordings onto a videotape.

While the tape is being copied, you can watch a TV programme or switch BeoSystem 1 to standby.

PHONES

You can connect stereo headphones to the socket marked PHONES. The speakers connected to BeoSystem 1 can then be cut out by pressing the middle of the Beo4 volume button.

To watch your Camcorder recordings, connect the Camcorder and switch BeoSystem 1 on.

When you start playback on your Camcorder,

BeoSystem 1 automatically registers the signal and you can see the pictures from the

Camcorder on the screen.

To copy a recording from a Camcorder…

> Connect your Camcorder and start playback on the Camcorder.

> Press RECORD to prepare BeoCord V 8000 for recording.

> Press RECORD again to start recording.

> Press V TAPE and then STOP to pause a recording.

> Press RECORD to resume a paused recording, or…

> …press STOP again to stop a recording entirely.

If the signal from the Camcorder is switched off…

> Press LIST repeatedly to display CAMCORD on

Beo4 and press GO .

In order to display CAMCORD on Beo4, you must first add it to the Beo4 list of functions. For further information, refer to the chapter

‘Customise Beo4’ on page 18 in the Reference book.

Maintenance of BeoSystem 1

Regular maintenance, such as cleaning BeoSystem 1, is the responsibility of the user. To achieve the best result, follow the instructions to the right. Contact your

Bang & Olufsen retailer to determine recommendations for regular maintenance.

Any defective parts are covered by the guarantee during the warranty period.

Cleaning surfaces…

Wipe dust off the surfaces using a dry, soft cloth. Remove grease stains or persistent dirt with a soft, lint-free, firmly wrung cloth, dipped in a solution of water containing only a few drops of mild detergent, such as washing-up liquid.

Never use alcohol or other solvents to clean any part of BeoSystem 1!

Cleaning the Beo4

Wipe the Beo4 remote control with a soft, lint-free, firmly wrung cloth.

Changing the batteries…

When ‘BATTERY’ appears in the Beo4 display, it is time to change the batteries in the remote control.

The Beo4 requires three batteries. We recommend that you use Alkaline batteries only (1.5 volt – size AAA). Replace the batteries as shown on this page. Keep a finger on top of the batteries until the lid is replaced.

When you have replaced the batteries, you must wait for about 10 seconds until ‘TV’ appears in the display. The Beo4 remote control is then ready for use again.

2

1

3

2

1

49

50

Index

Beo4 remote control Connections

Add a ‘button’ to the Beo4 list, Reference book p. 18

Changing the Beo4 batteries, 49

Get access to extra equipment via Beo4, 33

Introducing BeoSystem 1 and Beo4, 4

Move extra ‘buttons’, Reference book p. 19

Remove a ‘button’ from the Beo4 list,

Reference book p. 19

Set up Beo4, Reference book p. 18

Using Beo4, 4

BeoLink

Distribute sound and picture, p. 14

Link connections,

Link frequency, p. 14

System modulator,

BeoSystem 1 in a link room – operation,


45 , Reference book


BeoSystem 1 in a link room – connection,


Reference book



Link socket – Master Link,

Additional video equipment, 44

– Audio Master, AV 2 Expander, Set-top box,

Decoder, Video tape recorder, DVD player,

Game console, Camcorder, etc.

Aerial and mains connection, 43

Audio system – connect to BeoSystem 1, 44,



Connect BeoSystem 1, 40

Connect speakers, Reference book p. 5

Decoder – AV or RF decoder, 44 , Reference book p. 10

Decoder – Two decoders, Reference book p. 10

Headphones, 48

Link connections, Reference book p. 14

Register and use additional video equipment, 32

Set-top box – Alternative set-top box connection, Reference book p. 9

Set-top box – AV connection, Reference book p. 8

Set-top box – IR transmitter, Reference book p. 8

Socket panels, 45–48

What’s on the Connections menu, Reference book p. 25

Contact

Contact Bang & Olufsen, 54 Camcorder

Connect a Camcorder, 48

Copy from a Camcorder to a videotape, 48

Watch Camcorder on BeoSystem 1, 48

Clock

Enter settings for the built-in clock, 37

What’s on the Clock menu, Reference book p.

25

Decoder

Connect AV or RF decoder, 44, Reference book p. 10

Connect two decoders, Reference book p. 10

Socket panels, 45

Displays and menus

Displayed information and menus, 5

On-screen display, 5

On-screen menus, Reference book pp. 20–26

Format

How to choose a picture format, 11

Headphones


51

52 >> Index

Home automation system

Additional sockets – home automation system, 47

Connect a home automation system, 42

Home Theatre

Make the picture fill out the screen, 11

Select speakers for movie sound, 10

IR receiver

Enable Beo4 operation – connect the IR receiver, 41

Master Link

Connect and operate an audio system,


Distribute sound and picture with BeoLink,


BeoSystem 1 in a link room, Reference book p.

16


Adjust brilliance, colour or contrast, 34

Make the picture fill out the screen, 11

Picture within a picture, 14

What’s on the Picture menu, Reference book p.

26

Language

Change sound type or language, 9

Pincode

Activate the pincode system, 22

Change or delete your pincode, 22

Did you forget your pincode?, 23

Use your pincode, 23 LCD screen

Additional sockets – LCD screen, 47

Connect an LCD screen, 42

Loudspeakers

Calibrate the sound level, Reference book p. 7

Connect speakers, Reference book p. 5

Place external speakers, Reference book p. 4


Set speaker distance, Reference book p. 6

What’s on the Speaker distance menu,


What’s on the Speaker level menu, Reference book p. 24

What’s on the Speaker type menu, Reference book p. 24

Placement

Place BeoSystem 1, 40

Placing external speakers, Reference book p. 4

Plasma screen

Additional sockets – plasma screen, 47

Connect a plasma screen, 42

Projector

Additional sockets – projector, 47

Connect a projector, 42

Maintenance

Changing the Beo4 batteries, 49

Maintenance of BeoSystem 1, 49

Set-top box

Alternative set-top box connection, Reference book p. 9

Set-top Box Controller menu, 20

Set-top box – AV connection, Reference book p. 8

Set-top box – IR-transmitter, Reference book p. 8

Set-top box operation, 20

Socket panels

Additional sockets, 47

AV and aerial socket panel, 45


Connect additional equipment, 44

Speaker and digital input socket panel, 46

Socket panels, 45

Timer

Activate the timed play function, 19

Enter settings for the built-in clock, 37

Make BeoSystem 1 start and stop automatically, 18

Timed play via teletext, 19

To view, edit or delete a Timer, 19

What’s on the Activate Timer menu, Reference book p. 21

Sound

Adjust or mute the sound, 9

Adjust volume, bass, treble or loudness, 35

Calibrate the sound level, Reference book p. 7

Change sound type or language, 9

Choose a speaker combination, 10

See the name of the active sound system, 36


What’s on the Adjustment menu, Reference book p. 23

Subtitles

Activate subtitles from teletext, 13

Tune

Add new channels, 27

Adjust tuned channels, 28

Delete tuned channels, 31

Find available channels, 26

Move tuned channels, 29

Name tuned channels, 30

What’s on the Add program menu, Reference book p. 22

What’s on the Auto tuning menu, Reference book p. 22

What’s on the first TV manual tuning menu,


What’s on the second TV manual tuning menu, Reference book p. 23

Surround sound

Loudspeaker setup – surround sound,

Reference book pp. 4–7


Speaker and digital input socket panel, 46

Teletext

Activate subtitles from teletext, 13

Basic teletext functions, 12

Go directly to a page via Fastext, 17

Store favourite teletext pages – memory pages, 12

Teletext – large, mix and reveal, 16

Updated teletext pages, 16

TV channels

Add new channels, 27

Adjust tuned channels, 28

Delete tuned channels, 31

Find available channels, 26

Move tuned channels, 29

Name tuned channels, 30

See the channel list, 8

Select a TV channel, 8

What’s on the Edit TV list menu, Reference book p. 22

53

54

For your information…

This product fulfils the conditions stated in the EEU directives 89/336 and 73/23.

Til det norske marked:

Mekaniske og elektroniske komponenter i

produktene slites ved bruk. Det må derfor påregnes reparasjoner og utskiftning af komponenter innenfor kjøpslovens reklamasjonstid, som må regnes som vedlikehold av produktene. Slik vedligehold gir ikke grunnlag for å rette mangelskrav mot forhandler eller leverandør, og må bekostes af kjøper.

Your needs as a user are given careful consideration during the design and development process of a Bang & Olufsen product and we strive to make our products easy and comfortable to operate.

Therefore, we hope that you will take the time to tell us about your experiences with your Bang & Olufsen product. Anything which you consider important – positive or negative – may help us in our efforts to refine our products.

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works.

Copyright 1992–1997. All rights reserved.

DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.

Thank you!

Write to: Bang & Olufsen a/s

Customer Service

Peter Bangsvej 15 or fax: Bang & Olufsen

+45 97 85 39 11 (fax) or e-mail: [email protected]

Visit our Web-site on…

www.bang-olufsen.com

Technical specifications, features and the use thereof are subject to change without notice.

3508890 0404 Printed in Denmark by Bogtrykkergården a-s, Struer

www.bang-olufsen.com

Bang & Olufsen BeoSystem 1 Manual

Guide

Contents

Introducing BeoSystem 1 and Beo4

Daily use

Watch TV

Home Theatre

Teletext

See two sources at the same time

Advanced operation

Advanced teletext functions

Make your BeoSystem 1 start and stop automatically

Set-top box operation

•

The pincode system

Tuning and preference settings

Tune in TV channels

Edit tuned TV channels

Register and use additional video equipment

Adjust picture and sound settings

See the name of the active sound system

Set the time and date

Placement, connections and maintenance

Set up BeoSystem 1

Connect additional equipment

Socket panels

Close-up socket panel

Maintenance of BeoSystem 1

Index

Related manuals

Macab

DCB-101

Bang & Olufsen

BeoVision 4

Bang & Olufsen

BeoVision 4

Bang & Olufsen

BeoSystem 3

Bang Olufsen

BeoSystem 4

Bang & Olufsen

Beosystem 1

Bang Olufsen

Beosystem 1

Bang Olufsen

Beosystem 2500

Bang Olufsen

Beosystem 1

Bang Olufsen

Beosystem 1

Bang Olufsen

Beovision 4 42
