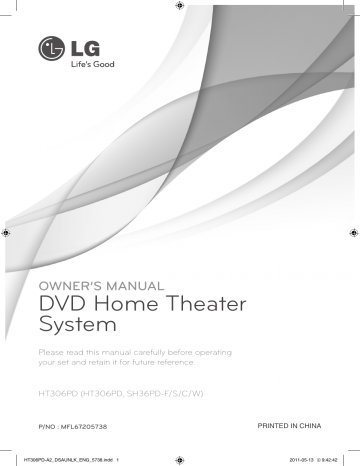

OWNER’S MANUAL
DVD Home Theater
System
Please read this manual carefully before operating your set and retain it for future reference.
HT306PD (HT306PD, SH36PD-F/S/C/W)
P/NO : MFL67205738
PRINTED IN CHINA
HT306PD-A2_DSAUNLK_ENG_5738.indd 1 2011-05-13 �� 9:42:42
1 Getting Started
1
2 Getting Started
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
HT306PD-A2_DSAUNLK_ENG_5738.indd 2 2011-05-13 �� 9:42:43
Getting Started 3
This device is equipped with a portable battery or accumulator.
Safe way to remove the battery or the battery from the equipment:
Remove the old battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimburse ment system batteries and accumulators.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Copyrights
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
IMPORTANT SAFETY NOTICE
The cord grip for the plug fitted to this product is built into the existing power cord as supplied. If, for any reason you need to shorten the cord,
DO NOT RE-USE THE PLUG.
A new plug must be used to ensure your continued safety by securing the plug to the power cord in accordance with Plug & Socket
Regulations 1994.
1
HT306PD-A2_DSAUNLK_ENG_5738.indd 3 2011-05-13 �� 9:42:43
4 Table of Contents
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 – USB Direct Recording
6 – Full HD up-scaling
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the & Symbol Display
7 – Symbol Used in this Manual
7 – Regional Codes
8 – Playable file Requirement
10 Front panel
11 Rear panel
12 Remote control
2 Connecting
13 Connecting the speakers
13 – Attaching the speakers to the unit
13 – Positioning the System
14 Connections to Your TV
14 – HDMI OUT Connection
15 – Component Video Connection
16 – Video Connection
16 Optional Equipment Connection
16 – AUX IN Connection
17 – PORT. (Portable) IN Connection
17 – USB Connection
17 – Antenna Connection
3 System Setting
18 Adjust the Setup settings
18 – OSD Initial language settings -
Optional
18 – To display and exit the Setup Menu
19 – LANGUAGE
19 – DISPLAY
20 – AUDIO
21 – LOCK (Parental Control)
22 – OTHERS
4 Operating
23 Basic Operations
24 Other Operations
24 – Displaying Disc Information on-screen
24 – To display the DVD Menu
24 – To display the DVD Title
24 – Selecting a subtitle language
24 – 1.5 times speed playback
25 – Starting play from selected time
25 – Last Scene Memory
25 – Changing the character set to display
DivX® subtitle correctly
25 – Programmed Playback
26 – Viewing a PHOTO file
26 – Viewing photo files as a slide show
26 – Listening to music during slide show
26 – Sleep Timer Setting
26 – Dimmer
27 – Turn off the sound temporarily
27 – Screen Saver
27 – System Select - Optional
27 – VOCAL FADER
27 – Displaying file information
(ID3 TAG )
27 Radio Operations
27 – Listening to the Radio
28 – Presetting the Radio Stations
28 – Deleting all the saved stations
28 – Improving poor FM reception
29 Sound adjustment
29 – Setting the surround mode
30 Advanced Operations
30 – Listening to music from your portable player or external device.
30 – Recording to USB
5 Troubleshooting
31 Troubleshooting
6 Appendix
32 Maintenance
32 – Handling the Unit
32 – Notes on Discs
33 Area Code List
HT306PD-A2_DSAUNLK_ENG_5738.indd 4 2011-05-13 �� 9:42:43
34 Language Code List
35 Trademarks and Licenses
36 Specifications
Table of Contents 5
3
4
5
6
1
2
HT306PD-A2_DSAUNLK_ENG_5738.indd 5 2011-05-13 �� 9:42:43
1
6 Getting Started
Unique Features
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Accessories
Please check and identify the supplied accessories.
FM Antenna (1) Remote Control (1)/
Battery (1)
HDMI Cable (1) AM antenna (1)
Speaker cables (2)
HT306PD-A2_DSAUNLK_ENG_5738.indd 6 2011-05-13 �� 9:42:43
Getting Started 7
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA and/or
JPEG files. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
DVD-VIDEO (8 cm / 12 cm disc)
Discs such as movies that can be purchased or rented.
DVD±R (8 cm / 12 cm disc)
Video mode and finalized only.
DVD-RW (8 cm / 12 cm disc)
Video mode and finalized only.
DVD VR format that have been finalized can not be played in this unit.
DVD+R: Video mode only.
Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc)
Video mode and finalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be purchased.
About the
&
Symbol Display
“ & ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that disc.
Symbol Used in this Manual
r DVD-Video, DVD±R/RW in Video mode or VR mode and finalized t Audio CDs y Video files contained in the
USB/Disc u Audio files contained in the
USB/Disc i Photo files
, Note
Indicates special notes and operating features.
> Caution
Indicates cautions for preventing possible damages from abuse.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or “ALL”.
y Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code; or the disc cannot play. y If you try to play a DVD with a different regional code from your unit, the message “Check
Regional Code” appears on the TV screen.
1
HT306PD-A2_DSAUNLK_ENG_5738.indd 7 2011-05-13 �� 9:42:43
1
8 Getting Started
Playable file Requirement
MP3/ WMA music file requirement
MP3/ WMA file compatibility with this unit is limited as follows : y Sampling frequency : within 32 kHz to
48 kHz (MP3), within 32 kHz to 48 kHz (WMA) y Bit rate : within 32 kbps to 320 kbps (MP3), 40 kbps to 192 kbps (WMA) y Support Version : v2, v7, v8, v9 y Maximum files : Under 999 y File extensions : “.mp3”/ “.wma” y CD-ROM file format : ISO9660/ JOLIET y We recommend that you use Easy-CD Creator, which creates an ISO9660 file system.
Photo file requirement
JPEG disc compatibility with this unit is limited as follows : y Max pixel in width : 2 760 x 2 048 pixel y Maximum files : Under 999 y Some discs may not operate due to a different recording format or the condition of disc.
y File extensions: “.jpg” y CD-ROM file format : ISO9660/ JOLIET
Compatible USB Devices
y MP3 Player : Flash type MP3 player.
y USB Flash Drive : Devices that support USB2.0 or
USB1.1. y The USB function of this unit does not support some USB devices.
USB device requirement
y Devices which require additional program installation connected to a computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take longer than a few minute to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS file system is not supported. (Only
FAT(16/32) file system is supported.) y This unit is not supported when the total number of files is 1 000 or more.
y External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
y USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
HT306PD-A2_DSAUNLK_ENG_5738.indd 8 2011-05-13 �� 9:42:44
DivX file requirement
DivX file compatibility with this unit is limited as follows : y Available resolution: within 720 x 576 (W x H) pixels.
y The file name of the DivX subtitle should be entered within 45 characters. y If there is impossible code to express in the
DivX file, it may be displayed as “ _ “ mark on the display. y Frame rate : less than 30 fps. y If the video and audio structure of recorded files is not interleaved, either video or audio is outputted. y Playable DivX file : “.avi”, “.mpg”, “.mpeg”, “.divx” y Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub) y Playable Codec format : “DIVX3.xx”, “DIVX4.xx”,
“DIVX5.xx”, “MP4V3”, “3IVX”.
y Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
y Sampling frequency : within 32 kHz to
48 kHz (MP3), within 32 kHz to 48 kHz (WMA) y Bit rate : within 32 kbps to 320 kbps (MP3), 40 kbps to 192 kbps (WMA) y For Discs formatted in Live file system, you can not it on this unit.
y If the name of movie file is different from that of the subtitle file, during playback of a DivX file, subtitle may not be display.
y If you play a DivX file different from the DivXspec, it may not operate normally.
Getting Started 9
1
HT306PD-A2_DSAUNLK_ENG_5738.indd 9 2011-05-13 �� 9:42:44
1
10 Getting Started
Front panel
1 2 3 4 5 6
12 a DVD/CD Disc Drawer b Display window c Open/Close ( B ) d Function (F)
Selects the function or input source.
e Play/Pause ( d / M ) f Stop ( Z ) g TUNING (-/+) ( c/v ), SKIP/SCAN (-/+)
You can search chapter/ track/ file by pressing and holding c/v .
11 10 9 8 7 h MIC 1/ 2 i USB port
You can play video, image and sound files by connecting the USB device.
j PORT. (Portable) IN port
You can enjoy music from portable device on your unit.
k Volume (VOL.) l Power ( 1 / !
)
HT306PD-A2_DSAUNLK_ENG_5738.indd 10 2011-05-13 �� 9:42:44
Rear panel
1 2 3 4 5
Getting Started 11
1 a Power cord.
b Speaker terminal c ANTENNA connector (FM/ AM) d MONITOR (VIDEO OUT) connector
Connect to a TV with video inputs
7 6 e AUX (L/ R) INPUT connector f HDMI OUT connector g COMPONENT VIDEO (PROGRESSIVE SCAN)
OUTPUT (Y P
B
P
R
)
Connect to a TV with Y P
B
P
R
inputs.
HT306PD-A2_DSAUNLK_ENG_5738.indd 11 2011-05-13 �� 9:42:44
1
12 Getting Started
Remote control
1
2
3
4
5
Battery Installation
Remove the battery cover on the rear of the Remote Control, and insert one (size AAA) battery with
4 and 5 matched correctly.
• • • • • • a • • • • •
FUNCTION : Selects the function and input source.
SLEEP : Sets the system to turn off automatically at a specified time.
(Dimmer : The display window will be darken by half.)
POWER :
OFF.
TITLE :
Switches the unit ON or
OPEN/CLOSE : the disc Drawer.
Opens and closes
If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.
• • • • • • b • • • • •
DISPLAY : Accesses On-Screen
Display.
MENU : Accesses the menu on a
DVD disc.
SETUP : Accesses or removes setup menu.
PRESET ( WS ) : Selects programme of Radio.
TUN. (-/+) : Tunes in the desired radio station.
W/S/A/D (up/ down/ left/ right): Used to navigate on-screen displays.
ENTER ( b ) : Acknowledges menu selection.
RETURN ( x ) : Moves backwards in the menu or exits the setup menu.
REC ( X ) : USB Direct Recording.
• • • • • • c • • • • •
STOP ( Z ) : Stops playback or recording.
PLAY ( d ), MO./ST. : Starts playback. Selects Mono/ Stereo.
PAUSE/STEP ( M ) : Pauses playback.
SKIP ( C/V ) : Goes to next or previous chapter/ track/ file.
SCAN ( c/v ) : Searches backward or forward.
VOL (Volume) (+/-) : Adjusts speaker volume.
LG EQ ( 9 ) : Selects a Natural or
Local Specialization equalizer effect by using LG EQ.
EQ $ (EQUALIZER effect) :
Chooses sound impressions.
CLEAR : Removes a track number on the Program List.
SUBTITLE : During playback, press
SUBTITLE repeatedly to select a desired subtitle language .
0 to 9 numerical buttons :
Selects numbered options in a menu.
• • • • • • e • • • • •
TV Control buttons : Controls the
TV. (LG TV only)
You can control the sound level, input source, and power switching of LG TVs as well.
Hold POWER (TV) and press
PR/CH (+/–) button repeatedly until the TV turns on or off.
PROG./MEMO. : Accesses or removes Program menu.
RESOLUTION : Sets the output resolution for HDMI and
COMPONENT VIDEO OUT jacks.
MIC VOL(+/-) : Adjusts microphone volume.
ECHO VOL(+/-) : Adjusts echo volume.
VOCAL FADER : When you listen to music, it reduce the vocal of file.
• • • • • • d • • • • •
REPEAT/RANDOM : Selects a play mode.(Random, repeat)
MUTE : Mutes the sound.
HT306PD-A2_DSAUNLK_ENG_5738.indd 12 2011-05-13 �� 9:42:44
2 Connecting
Connecting 13
Connecting the speakers
Attaching the speakers to the unit
To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad.
Connect the black stripe of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).
Speaker connection
> Caution y Be careful to make sure children not to put their hands or any objects into the *speaker duct.
*Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).
y The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or
PC monitor.
Positioning the System
The following illustration shows an example of positioning the system.
Note that the illustrations in these instructions differ from the actual unit for explanation purposes.
For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position ( ).
Speaker Positioning
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible.
Center speaker: Place the center speaker above or below the monitor or screen.
Surround left speaker (L)/ Surround right speaker (R):
Place these speakers behind your listening position, facing slightly inwards.
Subwoofer: The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections.
Unit
A
F
A
B
C
G
A
A
A
E
D
A
2
HT306PD-A2_DSAUNLK_ENG_5738.indd 13 2011-05-13 �� 9:42:45
2
14 Connecting
Connections to Your
TV
Make one of the following connections, depending on the capabilities of your existing equipment.
, Note y Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player.
Use only one of the connections described in this manual.
y Please refer to the manuals of your TV,
Stereo System or other devices as necessary to make the best connections.
HDMI OUT Connection
If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, High
Speed HDMI™ Cable). Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.
> Caution y Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel y Do not connect your player via your VCR.
The image could be distorted by the copy protection system.
Set the TV’s source to HDMI (refer to TV’s Owner’s manual).
HT306PD-A2_DSAUNLK_ENG_5738.indd 14 2011-05-13 �� 9:42:45
Connecting 15
Resolution Setting
You can change the resolution for component video and HDMI output.
Press RESOLUTION repeatedly to select the desired resolution - 480i (or 576i), 480p (or 576p), 720p,
1080i, 1080p
The resolution may not be selected depending on the connection or TV.
Depending on your TV, some of the resolution settings may result in the picture disappearing or an abnormal picture appearing. In this case, press
RESOLUTION repeatedly until the picture reappears.
You can set 1080p video resolution to enjoy Full
HD picture quality. (Full HD up-scaling)
, Note y Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
y When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
y If there is noise or lines on the screen, please check the HDMI cable (High Speed
HDMI™ Cable).
y When you use HDMI connection, you can change the resolution for the HDMI output.
Press RESOLUTION repeatedly to select the desired resolution - 480i (or 576i), 480p
(or 576p), 720p, 1080i, 1080p.
Component Video Connection
Connect the COMPONENT VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on the unit to the corresponding input jacks on the TV using Y Pb Pr cables.
You can hear the sound through the system’s speakers.
2
HT306PD-A2_DSAUNLK_ENG_5738.indd 15 2011-05-13 �� 9:42:46
2
16 Connecting
Video Connection
Connect the VIDEO OUT (MONITOR) jack on the unit to the video in jack on the TV using a video cable.
You can hear the sound through the system’s speakers.
Optional Equipment
Connection
AUX IN Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
If your TV has only one output for audio (mono), connect it to the left (white) audio jack on the unit.
HT306PD-A2_DSAUNLK_ENG_5738.indd 16 2011-05-13 �� 9:42:46
PORT. (Portable) IN
Connection
Connect an OUTPUT of portable device (MP3 or
PMP etc) to the PORT. IN connector.
Connecting 17
Antenna Connection
Connect the supplied FM/ AM antenna for listening to the radio.
Connect the AM Loop antenna to the AM antenna connector.
Connect the FM Wire antenna to the FM antenna connector.
2
MP3 player, etc...
USB Connection
Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.
, Note y To prevent noise pickup, keep the AM Loop antenna away from the unit and other components.
y Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it as horizontal as possible.
Removing the USB Device from the unit
1. Choose a different function mode or press STOP ( Z ) twice in a row.
2. Remove the USB device from the unit.
HT306PD-A2_DSAUNLK_ENG_5738.indd 17 2011-05-13 �� 9:42:46
3 System Setting
3
18 System Setting
Adjust the Setup settings
By using the Setup menu, you can make various adjustments to items such as picture and sound.
You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 18 to 22
OSD Initial language settings
- Optional
During the first use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language.
1. Press POWER to turn the unit on. The language setup menu will appear on the screen.
To display and exit the Setup
Menu
1. Select the DVD/CD or USB function by pressing
FUNCTION .
2. Press SETUP.
Displays the [Setup] Menu.
3. Press SETUP or RETURN to exit in the [Setup]
Menu.
About help menu for Setup
Buttons Menu w/s
Move a
Prev.
d
Select x b
WS
A
D
RETURN
ENTER
Operation
Moving to another menu.
Moving to previous level.
Moving to next level or selecting menu.
To exit the [Setup] menu or [ 5.1 Speaker
Setup].
To confirm menu.
2. Use WSAD to select a language then press
ENTER .
The confirm menu will appear.
3. Use AD to select the [Enter] then press ENTER to finish the language setup.
HT306PD-A2_DSAUNLK_ENG_5738.indd 18 2011-05-13 �� 9:42:47
LANGUAGE
Menu Language
Select a language for the Setup menu and then on screen display.
Disc Audio / Disc Subtitle / Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the disc was recorded.
[Other]
To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 34. If you enter the wrong language code, press CLEAR .
[Off (for Disc Subtitle)]
Turn off Subtitle.
System Setting 19
DISPLAY
TV Aspect
Select which screen aspect to use based on the shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. (If the disc/file is not compatible with
Pan Scan, the picture is displayed at Letterbox ratio.)
3
HT306PD-A2_DSAUNLK_ENG_5738.indd 19 2011-05-13 �� 9:42:47
3
20 System Setting
AUDIO
5.1 Speaker Setup
Make the following settings for the built-in 5.1 channel surrounds decoder.
1. Press SETUP .
2. Use WS to select AUDIO menu and then press
D .
3. Use WS to select [5.1 Speaker setup] menu and then press D .
4. Press ENTER
The [5.1 Speaker setup] appears.
5. Use AD to select the desired speaker.
6. Adjust options using WSAD buttons.
7. Press RETURN to confirm your selection. Return to the previous menu.
[Speaker]
Select a speaker that you want to adjust.
, Note y Certain speaker settings are prohibited by the Dolby Digital licensing agreement.
[Size]
Since the speaker settings are fixed, you cannot change the settings.
[Volume]
Press AD to adjust the output level of the selected speaker.
[Distance]
After you connected speakers to your unit, set the Distance between the speakers and your listening point if the distance of Center or Rear speakers is bigger than the distance of Front speakers. This allows the sound from each speaker to reach the listener at the same time. Press AD to adjust the Distance of the selected speaker. This distance is equivalent to a difference of the distance between Center or
Rear speaker and Front speakers.
[Test]
Press AD to test the signals of each speaker.
Adjust the volume to match the volume of test signals memorized in the system.
HT306PD-A2_DSAUNLK_ENG_5738.indd 20 2011-05-13 �� 9:42:47
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect.
Vocal
Select [On] to mix karaoke channels into normal stereo.
This function is effective for multi-channel karaoke
DVDs only.
HD AV Sync
Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use WS (on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec.
Semi Karaoke
When a chapter/ title/ track is fully finished, this function shows the score in the screen with a fanfare sound.
[On]
When you finished singing a score will appear on the screen.
[Off]
Fanfare and score do not appears on the screen.
, Note y DVD, DVD Karaoke discs with more than
2 tracks are available discs for the this function.
y When you watch movies, “off ” the Semi
Karaoke at the SETUP menu or enjoy it without connecting the MIC if the fanfare or score appears during changing a chapter.
System Setting 21
LOCK (Parental Control)
Initial Setting of the Area Code:
When you use this unit for the first time, you have to set the Area Code.
1. Select the [Lock] menu and then press D .
2. Press D .
To access the [Lock] options, you must input the password you have created. Input a password and press ENTER . Enter it again and press
ENTER to verify. If you make a mistake before pressing ENTER , press CLEAR .
3. Select the first character using WS buttons.
4. Press ENTER and select the second character using WS buttons.
5. Press ENTER to confirm your Area code selection.
Rating
Blocks playback of rated DVDs based on their contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press
D .
2. Input a password and press ENTER .
3. Select a rating from 1 to 8 using the WS buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not active and the disc plays in full.
4. Press ENTER to confirm your rating selection.
3
HT306PD-A2_DSAUNLK_ENG_5738.indd 21 2011-05-13 �� 9:42:47
3
22 System Setting
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then press D .
2. Input a password and press ENTER .
To change the password, press ENTER when the [Change] option is highlighted. Input a password and press ENTER . Enter it again and press ENTER to verify.
3. Press SETUP to exit the menu.
, Note
If you forget your password, you can clear it using the following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and press ENTER . The password is cleared.
Area Code
Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 33.
1. Select [Area Code] on the [Lock] menu then press D .
2. Input a password and press ENTER .
3. Select the first character using WS buttons.
4. Press ENTER and select the second character using WS buttons.
5. Press ENTER to confirm your Area code selection.
OTHERS
DivX(R) VOD
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX
Certified® device that plays DivX video. Visit www.
divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete your registration.
[Register]
Displays the registration code of your unit.
[Deregister]
Deactivate your unit and display the deactivation code.
, Note
All the downloaded videos from DivX VOD can only be played back on this unit.
4 Operating
HT306PD-A2_DSAUNLK_ENG_5738.indd 22 2011-05-13 �� 9:42:47
4 Operating
Operating 23
Basic Operations
1. Insert the disc by pressing OPEN/CLOSE or connect the USB device to the USB port.
2. Select the DVD/ CD or USB function by pressing
FUNCTION .
3. Select a file (or track/ title) you want to play by pressing WSAD .
, Note
When playing a disc or USB Flash Drive containing with DivX, MP3/ WMA and JPEG files together, you can select menu of files which you would like to play by pressing
MENU . If “This file has non-supported type on the unit” pops up, select an appropriate file by pressing MENU .
To
Stop
Playback
Press Z
Press d
Do this
Pause Press M
Frame-by-Frame playback
Press M repeatedly to play title Frameby-Frame.
Skipping to the next/ previous chapter/ track/ file
Locating a point quickly by playing a file in fast forward or fast reverse
Playing repeatedly or randomly
Slowing down the playing speed
During playback, press C or V to go to the next chapter/ track or to return to the beginning of the current chapter/ track.
Press C twice briefly to step back to the previous chapter/ track.
During playback, press c or v repeatedly to select the required scan speed.
To return to normal speed, press PLAY .
Press REPEAT/RANDOM repeatedly, and the current title, chapter or track will be played back repeatedly or randomly.
- Random play mode : only music files.
In the pause mode, press
SCAN ( c or v ) to select the required speed.
(The reverse playback is not supported on Divx files.)
4
HT306PD-A2_DSAUNLK_ENG_5738.indd 23 2011-05-13 �� 9:42:47
4
24 Operating
Other Operations
Displaying Disc Information on-screen
You can display various information about the disc loaded on-screen.
1. Press DISPLAY to show various playback information.
The displayed items differ depending on the disc type or playing status.
2. You can select an item by pressing WS and change or select the setting by pressing AD .
Title – Current title number/ total number of titles.
Chapter – Current chapter number/total number of chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/total number of angles.
Sound – Selected sound mode.
, Note
If any button is not pressed for a few seconds, the onscreen display disappears.
To display the DVD Menu
r
When you play a DVD which contains several menus, you can select the menu you want using the menu.
1. Press MENU .
The disc’s menu appears.
2. Select the menu by using WSAD .
3. Press PLAY to confirm.
To display the DVD Title
r
When you play a DVD which contains several titles, you can select the title you want using the menu.
1. Press TITLE .
The disc’s title appears.
2. Select the menu by pressing
WSAD .
3. Press PLAY to confirm.
Selecting a subtitle language
ry
During playback, press SUBTITLE ( ] ) repeatedly to select a desired subtitle language.
1.5 times speed playback
r
The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.
1. During playback, press PLAY ( d ) to play at 1.5 times speed. “ d X1.5” appears on the screen.
2. Press PLAY ( d ) again to exit.
HT306PD-A2_DSAUNLK_ENG_5738.indd 24 2011-05-13 �� 9:42:47
Operating 25
Starting play from selected time
ry
To start playing at any chosen time on the file or title.
1. Press DISPLAY during playback.
2. Press WS to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.
For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter “11020” by using numerical buttons.
4. Press ENTER to confirm. Playback starts from the selected time.
Last Scene Memory
r
This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off (Stand-by mode) the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
Changing the character set to display DivX® subtitle correctly
y
If the subtitle does not display properly during playback press and hold SUBTITLE for about 3 seconds then press AD or SUBTITLE to select another language code until the subtitle is displayed properly and then press ENTER .
Programmed Playback
tu
The program function enables you to store your favourite files from any disc or USB device.
A program can contain 30 tracks/ files.
1. Select the DVD/CD or USB function by pressing
FUNCTION .
2. To add a music(s) on the program list, press
PROG./MEMO.
to enter the program edit mode
( { mark appears on the menu).
3. Select a desired music on the [List] by using the
WS then press ENTER to add the music to the program list.
4. Select music from the program list then press
ENTER to start programmed playback.
5. Press PROG./MEMO.
to exit the program edit mode ( { mark disappears on the menu).
Erasing a file from Program List
1. press PROG./MEMO.
to enter the program edit mode ( { mark appears on the menu)
2. Use WS to select the track that you wish to erase from the Program list.
3. Press CLEAR .
Erasing the Complete Program List
Use WSAD to select [Clear All] then press ENTER .
, Note
The programs are also cleared when the disc or USB device is removed, the unit is switched to power off or the function is switched to others.
4
HT306PD-A2_DSAUNLK_ENG_5738.indd 25 2011-05-13 �� 9:42:47
4
26 Operating
Viewing a PHOTO file
i
This unit can play discs with photo files.
1. Select the DVD/CD or USB function by pressing
FUNCTION .
2. Press WS to select a folder, and then press
ENTER .
A list of files in the folder appears.
If you are in a file list and want to return to the previous folder list, use the WS buttons on the remote to highlight and press ENTER .
3. If you want to view a particular file, press WS to highlight a file and press ENTER or PLAY .
While viewing a file, you can press STOP to move to the previous menu (JPEG menu).
Viewing photo files as a slide show
i
1. Use WSAD to highlight ( ) icon then press ENTER to start slide Show.
2. You can change slide show speed using
AD when ( ) icon is highlighted.
About help menu for slide show
Buttons Menu w/s
/ a / d
Prev./ Next x
Close b
Hide
W/S
A/D
RETURN
ENTER
Operation
Rotating the picture
Moving to another file
Closing the slide show
Hiding the help menu
Listening to music during slide show
i
You can listen to music during slide show, if the disc contain music and photo files together. Use
WSAD to highlight ( ~ ) icon then press
ENTER to start slide show.
, Note
This function is available only in disc.
Sleep Timer Setting
Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn off.
To check the remaining time, press SLEEP .
To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
, Note
You can check the remaining time before the unit turns off.
Dimmer
Press SLEEP once. The display window will be darken by half. To cancel it, press SLEEP repeatedly until dimmer gets off.
HT306PD-A2_DSAUNLK_ENG_5738.indd 26 2011-05-13 �� 9:42:47
Operating 27
Turn off the sound temporarily
Press MUTE to mute your unit.
You can mute your unit, for example, to answer the telephone, the “MUTE” displayed in the display window.
Screen Saver
The screen saver appears when you leave the unit in stop mode for about five minutes.
System Select - Optional
You must select the appropriate system mode for your TV system. If “NO DISC” appears in the display window, press and hold PAUSE/STEP ( M ) for more than five seconds to select a system.
VOCAL FADER
You can enjoy the function as karaoke, by reducing singer vocal of music in the various source. (MP3/
WMA/ CD/ etc.) Press the VOCAL FADER , and
“FADE ON” will appear in display window.
To cancel it, press VOCAL FADER again.
The quality of the VOCAL FADER may be different depending on the recording conditions of music files.
Displaying file information
(ID3 TAG )
While playing an MP3 file containing file information, you can display the information by pressing DISPLAY .
Radio Operations
Be sure that both FM/AM aerials are connected.
(Refer to the page 17)
Listening to the Radio
1. Press FUNCTION until FM/AM appears in the display window.
The last received station is tuned in.
2. Press and hold TUN.(-/+) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.
or
Press TUN .
(-/+) repeatedly.
3. Adjust the volume by rotating VOL . on the front panel or by pressing VOL + or on the remote control repeatedly.
4
HT306PD-A2_DSAUNLK_ENG_5738.indd 27 2011-05-13 �� 9:42:48
4
28 Operating
Presetting the Radio Stations
You can preset 50 stations for FM/AM.
Before tuning, make sure that you have turned down the volume.
1. Press FUNCTION until FM/AM appears in the display window.
2. Select the desired frequency by using TUN.
(-/+).
3. Press PROG./MEMO . a preset number will flash in the display window.
4. Press PRESET ( WS ) to select the preset number you want.
5. Press PROG./MEMO.
.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold PROG./MEMO.
for two seconds.
“ERASE ALL” will flash up on the unit display.
2. Press PROG./MEMO.
to erase all of the saved radio stations.
Improving poor FM reception
Press PLAY ( d ) (MO./ST.) on the remote control.
This will change the tuner from stereo to mono and usually improve the reception.
HT306PD-A2_DSAUNLK_ENG_5738.indd 28 2011-05-13 �� 9:42:48
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround sound fields. You can select a desired sound mode by using EQ/ LG EQ.
You can change the EQ/ LG
EQ using AD arrow key while the EQ/ LG EQ information is displayed on.
The displayed items for the Equalizer may be different depending on sound sources and effects.
On Display Description
NAT PLUS
NATURAL
Local
Specialization equalizer
AUTO EQ
POP
CLASSIC
JAZZ
ROCK
MP3 OPT
BASS
You can enjoy the natural sound effect same as a
5.1-channel.
You can enjoy comfortable and natural sound.
Regionally optimized sound effect. (DANGDUT/
ARABIC/ PERSIAN/ INDIA/
REGUETON/ MERENGUE/
SALSA/ SAMBA/ CUMBIA/
AFRO)
Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song files.
This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock pop, jazz or classic concert.
This function is optimized for compressible MP3 file. It improves the treble sound.
During playback, Reinforces the treble, bass and surround sound effect.
VIRTUAL
NORMAL
You can enjoy more virtual surround sound.
You can enjoy the sound without equalizer effect.
Operating 29
, Note y In some of surround modes, on some speakers, there’s no sound or low sound. it, depends on the mode of surround and the source of audio, it is not defective.
y You may need to reset the surround mode, after switching the input, sometimes even after the sound track changed.
4
HT306PD-A2_DSAUNLK_ENG_5738.indd 29 2011-05-13 �� 9:42:48
4
30 Operating
Advanced Operations
Listening to music from your portable player or external device.
The unit can be used to play the music from many types of portable player or external devices.
1. Connect the portable player to the
PORT. IN(PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX (L/ R)
INPUT connector of the unit.
2. Turn the power on by pressing POWER.
3. Select the PORTABLE or AUX function by pressing FUNCTION.
4. Turn the portable player or external device and start it playing.
Recording to USB
1. Connect the USB device to the unit.
2. Select a DVD/ CD function by pressing
FUNCTION.
One track recording - You can record to USB after playing the file you want.
All tracks recording - You can record to USB after stop.
Program list recording - After showing the programmed list, you can record it to USB.
3. Start the recording by pressing X REC .
4. To stop recording, press Z STOP .
, Note y You can check the recording percentage rate for the USB record on the display window during the recording. (AUDIO,
MP3/ WMA CD Only) y During recording MP3/ WMA, there is no sound.
y When you stop recording during playback, the file that has been recorded at that time will be stored. (AUDIO CD Only) y Do not remove the USB device or turn off the unit during USB recording. If not, an incomplete file may be made and not deleted on PC.
y If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL” or “NO REC” is displayed on the display window.
y Multi card reader device or External HDD can not be used for USB recording.
y A file is recorded by 128Mbyte when you record for a long term.
y When you stop recording during playback, the file will not be stored.
y You may not store more than 999 files.
y The numbering of the recording file is entered from the lowest number.
So if you delete some of the recording files, the next recording file could be the lowest number among them.
y It’ll be stored as follows.
AUDIO CD MP3/ WMA
The other source
The making of unauthorized copies of copyprotected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes.
Be responsible
Respect copyrights
HT306PD-A2_DSAUNLK_ENG_5738.indd 30 2011-05-13 �� 9:42:48
5 Troubleshooting
5 Troubleshooting
Troubleshooting 31
Troubleshooting
PROBLEM
No power
No picture
There is little or no sound
CORRECTION
Plug the power cord into the wall outlet securely.
Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.
Connect the video cables securely to both the TV and unit.
Select the correct input mode of the unit so you can hear the sound from the unit.
Connect the audio cables into the connection terminals correctly.
Replace with a new audio cable.
The DVD picture quality is poor
Radio stations can’t be tuned in properly
Clean the disc using a soft cloth with outward strokes.
Insert a disc.
Insert a playable disc (check the disc type, colour system and regional code).
A DVD/CD will not play
Humming noise heard while a DVD or CD is playing
Place the disc with the label or printed side facing upwards.
Enter your password or change the rating level.
Clean the disc using a soft cloth with outward strokes.
Move unit and audio components further away from your TV.
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
Tune to the station manually.
The remote control doesn’t work well / at all
Preset some radio stations, see page 28 for details.
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the unit.
There is an obstacle in the path between the remote control and the unit.
Remove the obstacle.
The battery in the remote control are flat.
Replace the battery with new ones.
5
HT306PD-A2_DSAUNLK_ENG_5738.indd 31 2011-05-13 �� 9:42:48
6 Appendix
6
32 Appendix
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit. y Wiping with strong pressure may damage the surface.
y Do not leave rubber or plastic products in contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.
For details, please contact your nearest authorized service center.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.
HT306PD-A2_DSAUNLK_ENG_5738.indd 32 2011-05-13 �� 9:42:48
Appendix 33
Area Code List
Choose an area code from this list.
Area
Afghanistan
Argentina
Australia
Austria
Belgium
Bhutan
Bolivia
Brazil
Cambodia
Canada
Chile
China
Colombia
Congo
Costa Rica
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
Ethiopia
CR
HR
CZ
CN
CO
CG
DK
EC
EG
SV
ET
KH
CA
CL
BT
BO
BR
Code Area
AF Fiji
AR Finland
AU
AT
BE
France
Germany
Great Britain
Greece
Greenland
Hong Kong
Hungary
India
Indonesia
Israel
Italy
Jamaica
Japan
Kenya
Kuwait
Libya
Luxembourg
Malaysia
Maldives
Mexico
JP
KE
KW
IL
IT
JM
LY
LU
MY
MV
MX
HU
IN
ID
GR
GL
HK
Code Area
FJ Monaco
FI Mongolia
FR
DE
GB
Morocco
Nepal
Netherlands
Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Paraguay
Philippines
Poland
Portugal
Romania
Russian
Federation
Saudi Arabia
Senegal
PL
PT
RO
PA
PY
PH
AN
NZ
NG
NO
OM
PK
Code Area
MC Singapore
MN Slovak Republic
MA
NP
NL
Slovenia
South Africa
South Korea
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
RU
SA
SN
Turkey
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
CH
TW
TH
ES
LK
SE
Code
SG
SK
SI
ZA
KR
TR
UG
UA
US
UY
UZ
VN
ZW
6
HT306PD-A2_DSAUNLK_ENG_5738.indd 33 2011-05-13 �� 9:42:48
6
34 Appendix
Language Code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Bhutani
Bihari
Breton
Bulgarian
Burmese
Byelorussian
Chinese
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
Language
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
6583
6588
6590
Bashkir
Basque
6665
6985
Bengali; Bangla 6678
Code Language
6565
6570
8381
French
Frisian
Galician
6577
6582
7289
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
6890
6672
6682
6671
7789
6669
9072
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
Hungarian
Icelandic
Indonesian
Interlingua
Irish
Italian
Japanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin 7665
Latvian, Lettish 7686
Lingala 7678
7285
7383
7378
7365
7165
7384
7465
7578
7583
7575
7589
7579
7585
7679
7576
7178
7185
7265
7387
7273
Code Language
7082
7089
7176
Lithuanian
Macedonian
Malagasy
7565
6869
6976
Malay
Malayalam
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Oriya
Panjabi
7982
8065
Pashto, Pushto 8083
Persian
Polish
Portuguese
7065
8076
8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian 8372
Shona 8378
8285
8377
8365
7168
8382
7782
7779
7778
7865
7869
7879
Code Language
7684
7775
7771
Sindhi
Singhalese
Slovak
7783
7776
7773
Slovenian
Spanish
Sudanese
Swahili
Swedish
Tagalog
Tajik
Tamil
Telugu
Thai
Tonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
8472
8479
8482
8475
8487
8575
8387
8386
8476
8471
8465
8469
Code
8368
8373
8375
8376
6983
8385
HT306PD-A2_DSAUNLK_ENG_5738.indd 34 2011-05-13 �� 9:42:48
Trademarks and
Licenses
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
DivX®, DivX Certified® and associaated logos are trademark of DivX, Inc., and are used under license.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Appendix 35
6
HT306PD-A2_DSAUNLK_ENG_5738.indd 35 2011-05-13 �� 9:42:49
6
36 Appendix
Specifications
General
Power requirements
Power consumption
Dimensions (W x H x D)
Net Weight (Approx.)
Operating temperature
Operating humidity
Outputs
VIDEO OUT
COMPONENT VIDEO OUT
HDMI OUT (video/audio)
ANALOG AUDIO IN
PORT. IN
Refer to main label
Refer to main label
Approx. 360 x 62.5 x 313 mm without foot
2.9 kg
5 °C to 35 °C (41 °F to 95 °F)
5 % to 90 %
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
19 pin (Type A, HDMI™ Connector)
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
0.5Vrms (3.5 mm stereo jack)
System
Laser
Signal system
Frequency response
Signal-to-noise ratio
Harmonic distortion
Dynamic range
Bus Power Supply (USB)
Amplifier
Stereo mode
Surround mode
Semiconductor laser, wavelength: 650 nm
Standard NTSC/ PAL color TV system
20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)
More than 80 dB
0.05 % at 1 W
More than 85 dB
DC 5 V 0 500 mA
45 W + 45 W (3 Ω at 1 kHz)
Front
Center
Surround
Subwoofer
45 W + 45 W (3 Ω at 1 kHz)
45 W (3 Ω at 1 kHz)
45 W + 45 W (3 Ω at 1 kHz)
105 W (4 Ω at 60 Hz)
Tuner
FM Tuning Range
AM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
522 to 1 620 kHz, 520 to 1 710 kHz or 522 to 1 710 kHz
HT306PD-A2_DSAUNLK_ENG_5738.indd 36 2011-05-13 �� 9:42:49
Front Speaker
Type
Impedance Rated
Input Power
Max. Input Power
Net Dimensions (W x H x D)
Net Weight
Rear Speaker
Type
Impedance Rated
Input Power
Max. Input Power
Net Dimensions (W x H x D)
Net Weight
Centre Speaker
Type
Impedance Rated
Input Power
Max. Input Power
Net Dimensions (W x H x D)
Net Weight
Subwoofer
Type
Impedance Rated
Input Power
Max. Input Power
Net Dimensions (W x H x D)
Net Weight
1 Way 1 Speaker
3 Ω
45 W
90 W
260 x 1 020 x 68 mm
2.64 kg
1 Way 1 Speaker
3 Ω
45 W
90 W
103 x 111 x 94 mm
0.33 kg
1 Way 1 Speaker
3 Ω
45 W
90 W
200 x 103 x 88 mm
0.43 kg
1 Way 1 Speaker
4 Ω
105 W
210 W
156 x 325 x 320 mm
3.34 kg
Design and specifications are subject to change without notice.
Appendix 37
6
HT306PD-A2_DSAUNLK_ENG_5738.indd 37 2011-05-13 �� 9:42:49
Please read these precautions before you operate this unit.
•
HT306PD-A2_DSAUNLK_ENG_5738.indd 38 2011-05-13 �� 9:42:49
HT306PD-A2_DSAUNLK_ENG_5738.indd 39 2011-05-13 �� 9:42:49
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- DVD player Black
- 330 W 5.1 channels
- Full HD
- Equalizer
- FM radio
