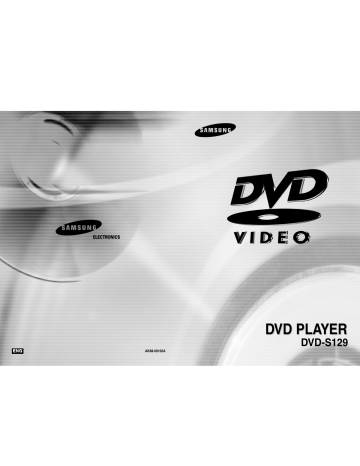

AK68-00102A

D VD PLA YER

DVD-S129

Precautions

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE

COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CAUTION: DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN

CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.

CAUTIONS

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

FCC NOTE (for U.S.A):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This class B digital apparatus meets all requirements of the Canadian Interference --

Causing Equipment Regulations .

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

2

Precautions

WARNING

To reduce the risk of fire or shock hazard, do not expose this DVD player to rain or moisture.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT

OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO

QUALIFIED PERSONNEL.

Note:

• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

• This DVD player is designed and manufactured to respond to the Region Management Information.

If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.

• This device is protected by U.S. patent numbers 4,631,603, 4,577,216, 4,819,098 and 4,907,093 and other intellectual property rights. The use of Macrovision’s copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless otherwise authorized in writing by Macrovision.

Reverse engineering or disassembly is prohibited.

Handling Cautions

• Before connecting other components to this player, be sure to turn them all off.

• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the player.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the

AC power cord to the AC power outlet. The player will operate normally.

• Be sure to remove the disc and turn off the player after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

3

Safety Instructions

1. Read Instructions-All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and using instructions should be followed.

5. Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this product near water-for example near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories-Do not place this product on an unstable cart, stand, tripod, bracket, or table.

The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer.

9. Cart Usage-A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered.

The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization-This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning-For added protection for this product during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

This will prevent damage to the product due to lightning and power-line surges.

4

Safety Instructions

15. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18. Servicing-Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service-Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a When the power-supply cord or plug is damaged.

b If liquid has been spilled or objects have fallen into the product.

c If the product has been exposed to rain or water.

d If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e If the product has been dropped or damaged in any way.

f When the product exhibits a distinct change in performance-this indicates a need for service.

20. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

21. Safety check-Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22. Heat-The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

5

Before You Start

Accessories

Remote Control

Batteries for

Remote Control (AA Size)

6

User’s Manual Video/Audio Cable

Install Batteries in the

Remote

1 Open the battery cover on the back of the remote.

Insert two AA batteries. Make sure that the polarities (+ and -) are aligned correctly.

Replace the battery cover.

If remote doesn’t operate properly:

• Check the polarity + - of the batteries

(Dry-Cell)

• Check if the batteries are drained.

• Check if remote sensor is blocked by obstacles.

• Check if there is any fluorescent lighting nearby.

TABLE OF CONTENTS

General Features ..............................................................................................8

Disc Type and Characteristics .......................................................................... 9

Description-Front Panel ..................................................................................10

Tour of the Remote Control ............................................................................12

Choosing a Connection ..................................................................................14

Playing a Disc................................................................................................16

Using the Search & Skip Functions ............................................................18

Using the Display Function..............................................................................19

Repeat Play ..................................................................................................20

Program Play & Random Play ........................................................................21

S.FIT Play ......................................................................................................22

Digest Play ....................................................................................................23

Using the Disc View Function ..........................................................................24

Slow Repeat play ..........................................................................................25

Selecting the Audio Language ........................................................................26

Selecting the Subtitle Language ......................................................................27

Changing the Camera Angle ..........................................................................28

Using the Instant Replay Function ....................................................................29

Using the Bookmark Function..........................................................................30

Using the Zoom & 3D Sound Functions ..........................................................................31

MP3 Play ......................................................................................................32

Using the Setup Menu ....................................................................................34

Setting Up the Language Features ..................................................................35

Setting Up the Parental Control ......................................................................37

Setting Up the Audio Options ........................................................................38

Setting Up the Display Options ......................................................................39

Troubleshooting..............................................................................................40

Specifications ................................................................................................41

7

General Features

Excellent Sound

Dolby Digital, a technology developed by Dolby Laboratories provides crystal clear sound reproduction.

Screen

Both regular and widescreen(16:9) pictures can be viewed.

Slow Motion

An important scene can be viewed in slow motion.

Programmed Play

You can program tracks to play in desired order.

Parental Control

The parental control allows users to set the level necessary to prohibit children from viewing harmful movies such as those with violence, adult subject matter, etc.

Various On-Screen Menu Functions

You can select various languages(Audio/Subtitle) and screen angles while enjoying movies.

Repeat

You can repeat a song or movie simply by pressing the REPEAT button.

MP3

This unit can play discs created from MP3 files.

Instant Replay

This function is used to replay the previous

10 seconds of the movie from the current position.

NOTE

* Discs which cannot be played with this player:

• DVD-ROM

• CD-ROM

• DVD-RAM

• CDV

• CDI

• HD layer of super Audio CD

• CDGs play audio only, not graphics.

* Ability to play back may depend on recording conditions:

• DVD-R

• DVD+RW, -RW

• CD-RW

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

8

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:

Disc Types

(Logos)

DVD

Recording

Types

Audio

+

Video

Disc Size

5"

3

1/2

"

Max.

Playing Time

Single-sided

240 min.

Double-sided

480 min.

Single-sided

80 min.

Double-sided

160 min.

Characteristics

• DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.

• Various screen and audio functions can be easily selected through the on-screen menu.

VIDEO-CD

5" 74 min.

Audio

+

Video

3

1/2

" 20 min.

• Video with CD sound, VHS quality & MPEG-1 compression technology.

AUDIO-CD

Audio

5"

3

1/2

"

74 min.

20 min.

• CD is recorded as a

Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.

Disc Markings

~

• Play

Region

Number

NTSC

• NTSC broadcast system in U.S.A,

Canada, Korea,

Japan, etc.

• Dolby

Digital disc

STEREO

• Stereo disc

DIGITAL

SOUND

• Digital

Audio disc

• DTS disc • MP3 disc

Play Region Number

Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is described on the rear panel of the player.

9

Description-Front Panel

OPEN/CLOSE

PLAY/PAUSE STOP

SKIP

1 2

Front Panel Controls

1. STANDBY / ON

• When the unit is first plugged in, the indicator lights.

When STANDBY/ON is pressed on again, the light goes out and the player is turned on.

2. DISC TRAY

• Load the disc here.

3. DISPLAY

• Operation indicators are displayed here.

3

2 4 5

4 5 6 7

4. OPEN/CLOSE

• Press to open and close the disc tray.

5. PLAY/PAUSE

• Begin or pause disc play.

6. STOP

• Stops disc play.

7. SKIP

• Use to skip a scene or music.

6 7

10

1

3

Front Panel Display

1. Angle indicator. You can select multiple angles of a scene recorded by different cameras.

2. Disc type indicators

3. Play / Pause / Forward play

4. DVD : Title, Chapter number.

5. Video/Audio CD : Track number

8

6. Repeat play mode

7. MP3 indicators

8. Displays various messages concerning operations such as

PLAY, STOP, LOAD ...

no DISC : No disc loaded.

OPEN : The disc tray is open.

LOAD : Player is loading disc information.

Description-Rear Panel

1 2 3 4 5 6

Rear Panel

1. DIGITAL AUDIO OUT JACKS

• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.

Use to connect to an A/V Amplifier that contains a Dolby Digital or DTS decoder.

2. ANALOG AUDIO OUT JACKS

• Connect to the Audio input jacks of your television, audio/video receiver, or VCR.

3. VIDEO OUT JACK

• Use a video cable to connect to the Video input jack on your television.

4. S-VIDEO OUT JACK

• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality picture. The S-Video must be selected in the VIDEO OUT SELECT.

5. COMPONENT VIDEO OUT JACKS

• Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y video. Along with S-Video, Component Video provides the best picture quality. The Y, Pb, Pr must be selected in the VIDEO OUT SELECT.

6. VIDEO OUT SELECT SWITCH

• Use the switch to set video out.

• If Y, Pb or Pr is selected, S-Video will not work.

• If S-Video is selected, Y, Pb or Pr will not work.

NOTE

* Select the VIDEO OUT SELECT switch in the Stop or Power Off mode.

11

Tour of the Remote Control

1

2

8

9

3

6

7

4

5

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

12

Tour of the Remote Control

DVD Function Buttons

1. DVD POWER Button

2. NUMBER Buttons

3. STEP Button

• Advances play one frame at a time.

4. ZOOM Button

5. S.FIT Button

6. SEARCH Buttons

• Allows you to search forward/backward through a disc.

7. STOP Button

8. MENU Button

• Brings up the Disc menu.

9. TOP MENU Button

10. CLEAR Button

• Use to remove menus or status displays from the screen.

11. BOOKMARK Button

12. SETUP Button

• Brings up the DVD player’s Setup menu.

13. OPEN/CLOSE Button

14. 3D Button

15. DIGEST Button

16. PLAY/PAUSE Button

• Begin/Pause disc play.

17. SKIP Buttons

• Use to skip the title, chapter, or track.

18. RETURN Button

• Returns to a previous menu.

19. DISPLAY Button

• Displays the current disc mode.

20. ENTER/DIRECTION Button

(UP/DOWN or LEFT/RIGHT Buttons)

• This button functions as a toggle switch.

21. ANGLE Button

• Use to access various camera angles on a DVD.

22. MODE Button

• Allows you to program a specific order.

23. SUBTITLE Button

24. AUDIO Button

• Use this button to access various audio functions on a disc.

25. REPEAT A-B Button

• Use to mark a segment to repeat between A and B.

26. REPEAT Button

• Allows you to repeat play a title, chapter, track, or disc.

27. I.REPLAY Button

• This function is used to replay the previous 10 seconds of the movie from the current position.

13

Choosing a Connection

The following show examples of connections commonly used to connect the DVD player with a

TV and other components.

Before Connecting the DVD Player

• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.

• Refer to the owner’s manual of the additional components you are connecting for more information on those particular components.

Connection to an Audio System

Method 1 Method 2

AUDIO

2ch Amplifier

Audio Input Jacks

Dolby Digital Decoder

Digital Audio Input Jack

OR

DVD

Analog Audio Out Digital Audio Out

14

Choosing a Connection

Connection to a TV (For Video)

TV (Normal, Widescreen, Projection, etc..)

Basic Audio

Method 1

Good picture

Method 2

Better picture

TV

AV Cable

S-Video

Cable

OR

Video Cables

OR

Method 3

Best picture

DVD

Audio Output Jacks Video Output Jack S-Video Jack Component Video

Jacks

• Method 1 DVD Player + TV with Video Input Jack

• Method 2 DVD Player + TV with S-Video Input Jack

(If S-Video is selected in the VIDEO OUT SELECT.)

• Method 3 DVD Player + TV with Component Video Jacks

(If Y, P b or Pr is selected in the VIDEO OUT SELECT.)

NOTE

• If Y, P b or P r is selected, S-Video will not work.

• If S-Video is selected, Y, P b or P r will not work.

15

Playing a Disc

Before Play

• Turn on your TV and press the TV/VIDEO button to select the video mode.

• Turn on your Audio System and select AUX, CD or DVD.

After plugging in the player, the first time you press the DVD POWER button, this screen comes up :

If you want to select the language, press a NUMBER button.

(This screen will only appear the very first time you plug in the player.)

Play

Press the OPEN/CLOSE button.

The STANDBY indicator light goes out and the tray opens.

Place a disc gently into the tray with the disc’s label facing up.

Press the PLAY/PAUSE button or OPEN/CLOSE button to close the disc tray.

Stopping Play

Press the STOP button during play.

Removing Disc

Press the OPEN/CLOSE button.

Pausing Play

Press the PLAY/PAUSE or STEP button on the remote during play.

- Screen stops, no sound.

- To resume again, press PLAY/PAUSE button once again.

16

Playing a Disc

Step Motion Play (Except CD)

Press the STEP button on the remote during play.

- Each time the button is pressed, a new frame will appear.

- No sound is heard during STEP mode.

- Press PLAY/PAUSE to resume normal play.

(You can only perform step motion play in the forward direction.)

Slow Motion Play (Except CD)

Press the FWD SEARCH or REV SEARCH button on the remote during PAUSE or STEP mode.

- By pressing the FWD SEARCH or REV SEARCH button, you can select slow motion play for

1/8, 1/4 or 1/2 of normal speed.

- No sound is heard during slow mode.

- Press PLAY/PAUSE to resume normal play.

- When playing a VCD, the reverse slow motion play will not work.

RESUME function

When you stop disc play, the player remembers where you stopped, so when you press PLAY again, it will pick up where you left off. (unless the disc is removed, the STOP button is pressed twice or the player is unplugged.)

NOTE

• If the player is left for 5 minutes in pause mode, it will stop.

• If the player is left in the stop mode for more than 30 minutes, the power will automatically shut off.

(Automatic Power-Off Function)

• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver will be activated, and the TV screen will fade in and out repeatedly. Press the PLAY button to resume normal play.

• This icon indicates an invalid button press.

17

Using the Search & Skip Functions

During play, you can search quickly through a chapter or track or use the skip function to jump to the next selection.

Searching through a Chapter or Track

During play, press the FWD SEARCH ( ¤¤ ) or

REV SEARCH ( ˆˆ ) button on the remote.

• Press the REVERSE or FORWARD SEARCH button on the remote and press again to search at a faster speed on the DVD, VCD, CD.

DVD

VCD

CD

2X, 4X, 8X, 16X, 32X, 128X

4X, 8X

2X, 4X, 8X

• Depending on the disc, audio may not be heard when a disc is in 2X play mode.

18

Skipping Tracks

1

During play, press the NEXT SKIP (

BACK SKIP (I ) button.

¤¤ I) or

• When playing a DVD, if you press the NEXT SKIP button, it moves to the next chapter. If you press the BACK SKIP button, it moves to the beginning of the chapter.

One more press makes it move to the beginning of the previous chapter.

• When playing a VCD 2.0 in MENU OFF mode, a VCD 1.1 or a CD, if you press the NEXT SKIP button, it moves to the next track.

If you press the BACK SKIP button, it moves to the beginning of the track.

One more press makes it move to the beginning of the previous track.

• If a track exceeds 15 minutes when playing a VCD and you press the NEXT

SKIP button, it moves forward 5 minutes.

If you press the BACK SKIP button, it moves backward 5 minutes.

• When playing a VCD 2.0 in the MENU OFF or Track View function, if you press the NEXT SKIP button, it moves to the next MENU or the next

Track View display.

If you press the BACK SKIP button, it moves to the previous

MENU or the previous Track View display. (See page 24.)

Using the Display Function

When Playing a DVD

1 During play, press the DISPLAY button on the remote.

- Current title, chapter number, elapsed time, audio, subtitle and volume control will be displayed.

• Use the NUMBER buttons to enter a different title, then press the ENTER button.

• Use the LEFT/RIGHT or NUMBER buttons to enter a chapter number, then press the ENTER button.

• To enter the time from which you want to start, use the UP/DOWN buttons to select, then use the NUMBER buttons to enter the time. Then press the ENTER button.

• Use the LEFT/RIGHT buttons to change the values of the current audio, subtitle and volume.

• To make the screen disappear, press the DISPLAY

DVD

T : 01

C : 02

0 : 01 : 09

ENG 5.1CH

A

ENG

64

When Playing a CD/VCD

During play, press the DISPLAY button on the remote.

- Current track number, elapsed time and volume control will be displayed.

• Use the UP/DOWN buttons to select a track.

Use the LEFT/RIGHT buttons or NUMBER buttons to enter a different track number, then press the ENTER button.

• To enter the time from which you want to start, use the UP/DOWN buttons to select, then use the NUMBER buttons to enter the time.

Press the ENTER button.

• To change the value of the volume, use the

LEFT/RIGHT buttons.

- To make the screen disappear, press the DISPLAY button again.

* In VCD 2.0 mode (MENU ON mode), only the volume control will appear on screen.

VCD

CD

VCD

T : 01

0 : 01 : 09

64

CD

T : 01

0 : 01 : 09

64

NOTE

What is a Chapter ?

Each Title on a DVD is usually divided into chapters (similar to tracks on an audio CD).

What is a Title ?

A DVD may contain several different titles.

For example, if a disc contains four different movies, each might be considered a title.

19

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.

When playing a DVD

Press the REPEAT button on the remote. Repeat screen appears.

Select Chapter, Title or A-B using the

LEFT/RIGHT buttons.

- Repeat A-B

• Press the REPEAT button. Select A-B on screen with the

LEFT/RIGHT buttons or press the A-B button on the remote.

• Press ENTER at the point where you want the repeat play to start (A). The B is automatically highlighted.

• Press ENTER at the point where you want the repeat play to stop (B).

3 Press ENTER.

To return to normal play, press REPEAT again, then press the LEFT/RIGHT buttons to select Off and press ENTER.

DVD

VCD/CD

NOTE

• DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.

• Depending on the disc, the Repeat function may not work.

• If the title or track is completed before marking the end (B), the end of title or track becomes B automatically.

• When in VCD 2.0 mode (MENU ON mode), this function does not work.

20

Program Play & Random Play

Program Play (DVD/VCD/CD/MP3)

1 Press the MODE button.

2 Use the LEFT/RIGHT buttons to select PROGRAM.

Press the ENTER button.

Use the LEFT/RIGHT buttons to select the first chapter (or track) to add to the program.

Press the ENTER button. The selection numbers appear in the Program Order box.

Press the PLAY/PAUSE button. The disc will be played in programmed order.

Random Play (DVD/VCD/CD/MP3)

Press the MODE button.

2 Use the LEFT/RIGHT buttons to select RANDOM.

Press the ENTER button.

The disc will be played in random order.

NOTE

• Depending on the disc, the Program and Random Play function may not work. (See page 32)

• When in VCD 2.0 mode (MENU ON mode), these functions do not work.

• To resume normal play, press the CLEAR button.

21

S.FIT Play

Screen Fit Play

1 During play, press S.FIT button on remote control.

- Allows you to eliminate the black bars in the top and bottom of the screen when a movie is playing in the Widescreen format(16:9).

- Screen Fit will not work when the Zoom mode is active.

(you can not remove the black bars on the screen)

However, Zoom mode will work when Screen Fit is active.

Digest Play

Digest Play

1 During play, press the DIGEST button.

- You'll see the 9 individual windows representing each of the chapters on the TV screen.

- When each window is displayed, the first 3 seconds of the chapter will be played.

Press Up/Down/Left/Right buttons or NUMBER buttons to select the window you'd like to see, and press the ENTER button.

• Up to 9 windows(chapters) can be displayed on the screen at a time.

Press the 'Skip' button for the next 9 chapters if the movie has more than 9.

SKIP button

NOTE

• Various aspect ratios are available only in multiple screen format discs.

• This function does not work when a DVD has been recorded in a multi-camera angle format.

• On some DVDs, the black bars cannot be eliminated due to their aspect ratio.

22

NOTE

• You can play the DVD player starting with the desired chapter after directly moving to the scene you want.

• 'DIGEST' may not operate depending on the disc in use.

23

Using the Disc View Function

Track View (VCD)

Displays the beginning view of each track and the track number.

During play, press the TOP MENU button.

Press the UP/DOWN buttons to select TRACK

VIEW. Press the ENTER button.

Select the desired view by pressing the

UP/DOWN or LEFT/RIGHT buttons.

Press the SKIP button for the next 9 tracks if the movie has more than 9.

Press the ENTER button.

Index View (VCD)

Displays the equally divided 9 views of the current playing track.

During play, press the TOP MENU button.

24

Press UP/DOWN buttons to select INDEX

VIEW. Press the ENTER button.

Select the desired view by pressing

UP/DOWN or LEFT/RIGHT buttons.

4 Press the ENTER button.

NOTE

• When pressing the TOP MENU button with a DVD; the disc’s TITLE MENU function comes up. A disc must have at least two titles for the TITLE MENU function to work.

• When pressing the TOP MENU button with a CD; the unit enters the INTRO mode. INTRO lets you listen to the beginning of each track for about 10 seconds.

• You can also operate it using the DIGEST button.

Slow Repeat play

This feature allows you slowly repeat scenes containing sports, dancing, musical instruments being played etc. so you can study them more closely.

When playing a DVD

1 During play, press the PLAY/PAUSE button.

2 Press the F/SEARCH button to choose the play speed between 1/8X, 1/4X, and

1/2X of normal.

3 Press the REPEAT (A-B) button to select the point where the function starts. (A)

4 Press the REPEAT (A-B) button to select the point where the function ends. (B)

NOTE

• The disc will play from A to B repeatedly at the speed you chose.

• To terminate the function, press the 'CLEAR' button or the 'REPEAT (A-B)' button again.

Then press play to resume normal playback.

• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.

25

Selecting the Audio Language

You can select a desired language quickly and easily with the AUDIO button.

Using the AUDIO button

Press the AUDIO button.

DVD

Use the UP/DOWN buttons to select the desired language on a DVD.

- The audio languages are represented by abbreviations.

Use the UP/DOWN buttons to select

Stereo, Right or Left. (On VCD/CD)

VCD/CD

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the SUBTITLE button.

Using the SUBTITLE button

1 Press the SUBTITLE button.

2 Use the UP/DOWN buttons to select the desired subtitle language.

Use the LEFT/RIGHT buttons to determine whether or not the subtitle will be displayed.

- Initially, the subtitling will not appear on screen.

- The subtitle languages are represented by abbreviations.

A

A

NOTE

• This function depends on what languages are encoded on the disc and may not work with all DVDs.

• A DVD disc can contain up to 8 audio languages.

• How to have the same audio language come up whenever you play a DVD;

Refer to “Setting Up the Language Features” on page 36.

26

NOTE

• This function depends on what languages are encoded on the disc and may not work with all DVDs.

• A DVD disc can contain up to 32 subtitle languages.

• How to have the same subtitle language come up whenever you play a DVD;

Refer to “Setting Up the Language Features” on page 36.

27

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can select the Angle function.

Using the ANGLE button

Press the ANGLE button to see if an ANGLE ( mark is present at the upper right hand corner of the screen.

)

1 When an ANGLE mark is shown, press the

ANGLE button, then an ANGLE select icon will appear at the upper left hand corner of the screen.

Use the UP/DOWN buttons to select the desired screen angle.

To turn off the display, press the ANGLE button again.

Using the Instant Replay Function

Using the Instant Replay function (DVD)

If you miss part of a scene, you can see it again using this function.

If you press the I.REPLAY button, the current scene moves backward about 10 seconds, and plays back.

* Depending on the disc, the Instant Replay function may not work.

28 29

Using the Bookmark Function

The Bookmark function lets you select parts of a DVD or VCD (MENU OFF mode) so that you can quickly find the section at a later time.

Using the Bookmark Function (DVD/VCD)

1 During play, press the BOOKMARK button on the remote. The Bookmark icons will be displayed.

Use the LEFT/RIGHT buttons to move to the desired bookmark icon.

3 When you reach the scene you want to mark, press the ENTER button. The icon will change to a number (1, 2, or 3).

4 Press the BOOKMARK button to turn off the display.

Recalling a Marked Scene

During play, press the BOOKMARK button on the remote.

Use the LEFT/RIGHT buttons to select a marked scene.

Press the PLAY/PAUSE buttons to skip to the marked scene.

30

Clearing a Bookmark

During play, press the BOOKMARK button on the remote.

Use the LEFT/RIGHT buttons to select the bookmark number you want to delete.

Press the CLEAR button to delete a bookmark number. Press the BOOKMARK button to turn off display.

NOTE

• Up to three scenes may be marked at a time.

• When in VCD 2.0 mode (MENU

ON mode), this function does not work.

• Depending on the disc, the

Bookmark function may not work.

Using the Zoom & 3D Sound Functions

Using the Zoom Function (DVD/VCD)

During play or pause mode, press the

ZOOM button on the remote.

A square will be displayed on screen.

Use the UP/DOWN or LEFT/RIGHT buttons to select the part of the screen you want to zoom in on.

3 Press the ENTER button.

- During DVD play, press ENTER to zoom in

2X/4X/2X/Normal in order.

- During VCD play, press ENTER to zoom in

2X/normal in order.

Using the 3D Sound Function

The simulated surround effect depends on the disc contents. If you connect the unit to your stereo system, you can enhance sound quality and produce a greater surround effect.

This feature is useful when you are using the DVD player with a two channel stereo through the analog outputs.

(Discs which are recorded with LPCM or DTS will not work. When the DIGITAL OUTPUT is set to BIT

STREAM in the SETUP MENU, the 3D Sound function will not work.)

During play, press the 3D button.

The 3D SOUND mark will be displayed on screen. (Be sure the DIGITAL OUTPUT is set to

PCM.)

2 Press the UP/DOWN buttons to turn the 3D

Sound feature on or off.

NOTE

• 3D Sound is possible only on discs recorded using DOLBY SURROUND or

DOLBY DIGITAL. However, some of these discs do not contain rear channel sound signals.

• Depending on the disc, the Zoom and

3D Sound function may not work.

31

MP3 Play

When an MP3 Disc is inserted into the DVD PLAYER, the first song file of the first folder plays.

MP3 Play Function

1 Press STOP to stop playback of the first song file, then press RETURN to display the music folder menu on the right side of the screen. Up to 8 music folders can be displayed at a time. If you have more than 8 folders on a disc, press the LEFT/RIGHT buttons to bring them up on the screen.

2 Use the UP/DOWN buttons to select the desired music folder, the press ENTER. Use the UP/DOWN buttons again to select a song file. Press ENTER to begin playback of the song file.

Program/Random playback

Press the MODE button to switch between the RANDOM and PROGRAM modes. See page 21 for more information on these modes.

NOTE

• Press the REPEAT button to hear a song file repeatedly.

Press Repeat again to release the Repeat mode.

32

MP3 Play

CD-R MP3 disc requirements

In the case of CD-R MP3 discs, please follow the recommendations below:

• Your MP3 files should be ISO 9660 or JOLIET format.

ISO 9660 format and Joliet MP3 files are compatible with Microsoft's DOS and Windows, and with

Apple's Mac. These two formats are the most widely used.

• When naming your MP3 files do not exceed 8 characters, and place ".mp3" as the file extension.

General name format of: Title.mp3. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).

• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.

Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.

Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely give better sound quality.

Conversely, files with sampling rates below 128 Kbps will not be played properly.

• Do not try recording copyright protected MP3 files.

Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are of the following types: Windows Media TM (registered trade mark of Microsoft Inc) and SDMI TM (registered trade mark of The SDMI Foundation). You cannot copy such files.

• Your DVD player only accepts one level of file directory.

Consequently you must choose:

-either to save all your MP3 recording files at the root of the disc;

-and/or create folders in the directory for each artist or music type (e.g.classical, rock, jazz, etc)

• Important: The above recommendations cannot be taken as a guarantee that the DVD player will play

MP3 recordings, or as an assurance of sound quality.

You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).

33

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, even adjust the player to the type of television screen you have.

With the unit in Stop mode, press the SETUP button on the remote.

Player Menu : Setup of the Display Language

Use the Player preference menu to select the language for the player’s on-screen displays.

Disc Menu : Setup of the Menu Language

Use the Menu preference menu to select the language you want a

DVD’s disc menu to be displayed in.

Audio : Setup of the Audio Language

Use the Audio preference menu to select the soundtrack language.

Subtitle : Setup of the Subtitle Language

Use the Subtitle preference menu to select the language the disc’s subtitles are to be displayed in.

Parental : Setup of the Parental Level

Allows users to set the level necessary to prevent children from viewing unsuitable movies such as those with violence, adult subject matter, etc.

Audio Options : Setup of the Audio Options

Display Options : Setup of the Display Options

Use to select which type of screen you want to watch and several display options.

2 Use the UP/DOWN buttons on the remote to access the different features.

3 Press the ENTER button to access the sub features.

To make the setup screen disappear after setting up, press the

SETUP button again.

NOTE

Depending on the disc, some

Setup Menu selections may not work.

34

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

Using the Player Menu Language e.g

Setting up in English.

1

2

3

4

5

With the unit in Stop mode, press the

SETUP button.

Use the UP/DOWN buttons to select the

PLAYER MENU.

Press the ENTER button.

Use the UP/DOWN buttons to select

‘English’.

Press the ENTER button.

- English is selected and the screen returns to SETUP

MENU.

- To make the SETUP MENU disappear, press the

RETURN button.

Using the Disc Menu Language

This function changes the text language only on the disc menu screens.

With the unit in Stop mode, press the

SETUP button.

2

3

4

Use the UP/DOWN buttons to select

DISC MENU.

Press the ENTER button.

Use the UP/DOWN buttons to select

‘English’.

- Select “Others” if the language you want is not listed.

5 Press the ENTER button.

- English is selected and the screen returns to SETUP

MENU.

e.g

Setting up in English.

35

Setting Up the Language Features

Using the Audio Language

With the unit in Stop mode, press the SETUP button.

Press the UP/DOWN buttons to move to AUDIO.

Press the ENTER button.

.

Press the UP/DOWN buttons to select ‘ENGLISH’

- Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in.

- Select “Others” if the language you want is not listed.

Press the ENTER button.

- English is selected and the screen returns to SETUP MENU.

Using the Subtitle Language

With the unit in Stop mode, press the SETUP button.

36

2 Use the UP/DOWN buttons to select SUBTITLE.

3 Press the ENTER button.

4 Use the UP/DOWN buttons to select ‘English’.

- Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio preference.

- Select “Others” if the language you want is not listed. Some discs may not contain the language you select as your initial language; in that case the disc will use its original language setting.

5 Press the ENTER button.

- English is selected and the screen returns to SETUP MENU.

NOTE

• If the selected language is not recorded on the disc, the original pre-recorded language is selected.

• How to make the SETUP MENU disappear or return to menu screen during set up; Press RETURN button.

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches.

There are up to 8 rating levels on a disc.

With the unit in Stop mode, press SETUP button.

The Setup Menu screen appears.

Use UP/DOWN to select Parental. Press ENTER.

The Parental Control screen appears.

Use LEFT/RIGHT to select Yes if you want to use a password. Press ENTER. The Enter Password screen appears.

Enter your password. The Re-enter Password screen appears to confirm the password. Enter your password again. The Parental Control screen appears.

5 About the Rating Level ;

The Rating Level will work only when Use

Password is set to Yes. To unlock the player, use LEFT/RIGHT to select No. Use UP/DOWN to select Rating level. Press ENTER.

- Use UP/DOWN to select the level(e.g. Level 6) and press

ENTER. Discs that contain Level 7 will now not play.

- To cancel the rating level, use LEFT/RIGHT to select No in Use Password.

6 About the Change Password ;

- Use UP/DOWN to select Change Password. The Change

Password screen appears.

- Enter your new password. Re-enter the new password again.

e.g

Setting up in LEVEL6.

NOTE

• How to make the SETUP MENU disappear or return to menu screen during set up;

Press RETURN button.

• If you have forgotten your password, see Forget Password in the Troubleshooting Guide.

37

Setting Up the Audio Options

With the unit in Stop mode, press the SETUP button.

Use the UP/DOWN buttons to select AUDIO

OPTIONS. Then press the ENTER button.

Use the UP/DOWN buttons to select the desired item. Then press the LEFT/RIGHT buttons.

Digital Output

1. PCM : Converts to PCM(2CH) 48kHz audio.

Select PCM when using the Analog

Audio Outputs.

2. Bitstream : Converts to Dolby Digital Bitstream (5.1CH).

Select Bitstream when using the Digital

N O T T E : Be sure to select the correct Digital Output or no audio will be heard.

N

DTS

1 . Off : Doesn’t output digital signal.

2 . On : Outputs DTS Bitstream via digital output only.

Select DTS when connecting to a DTS Decoder.

Dynamic Compression

1 . On : To select dynamic compression.

2 . Off : To select the standard range.

2X Scan Audio

1 . Off : Turns 2X audio off.

Though 2X Scan Audio is ON in the SETUP MENU, no sound will be heard on discs which are recorded with

LPCM, DTS or MPEG-2 Audio.

2 . On : Turns 2X audio on.

NOTE

• How to make the SETUP MENU disappear or return to menu screen during set up; Press RETURN button.

• Manufactured under license from Dolby Laboratories.

”Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

38

Setting Up the Display Options

1 With the unit in Stop mode, press the SETUP button.

2 Use the UP/DOWN buttons to select DISPLAY

OPTIONS. Then press the ENTER button.

Use the UP/DOWN buttons to select the desired item. Then press the LEFT/RIGHT buttons.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting (aspect ratio).

1 . 4:3 Letter Box :

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen.

Black bars will appear at the top and bottom of the screen.

2 . 4:3 Pan-Scan :

Select this for conventional size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)

3 . 16:9 Wide :

You can view the full 16:9 picture on your widescreen TV.

Still Mode

These options will help prevent picture shake in still mode and display small text clearer.

1 . Field : Select this feature when the screen shakes in the Auto mode.

2 . Frame : Select this feature when you want to see small letters more clearly in the Auto mode.

3 . Auto : When selecting Auto, Field/Frame mode will be automatically converted.

Screen Messages

Use to turn on-screen messages On or Off.

Front Display

Adjust the brightness of the unit’s front panel display.

1 . Bright : Makes the Front Panel Display bright.

2 . Dim : Makes the Front Panel Display dim.

3 . Auto Dim : Makes the Front Panel Display dim automatically when playing a DVD.

Black Level

Adjusts the brightness of the screen.(On/Off)

NOTE

• How to make the SETUP MENU disappear or return to menu screen during set up;

Press the RETURN button.

39

Troubleshooting

Before requesting service (troubleshooting), please check the following.

Problem

No operations can be performed with remote.

Disc does not play.

5.1 channel sound is not being reproduced.

The icon appears on screen.

Disc Menu doesn’t appear.

Play mode differs from the

Setup Menu selection.

The screen ratio cannot be changed.

No audio.

Forgot password

If you experience other problems.

Action

• Check the batteries in the remote. May need replacing.

• Operate the remote control at a distance of no more than 20 feet.

• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote to reset it.

Reinstall batteries and try remote again.

• Ensure that the disc is installed with the label side facing up.

• Check the region number of the DVD.

• 5.1 channel sound is reproduced only when the following conditions are met. :

1) The DVD player is connected with the proper amplifier

2) The disc is recorded with 5.1 channel sound.

• Check whether the disc being played has the “Dolby 5.1 ch” mark on the outside.

• Check if your audio system is connected and working properly.

• In a SETUP Menu, is the Audio Output set to Bitstream?

• The features or action cannot be completed at this time because:

1. The DVD’s software restricts it.

2. The DVD’s software doesn’t support the feature (e.g., angles).

3. The feature is not available at the moment.

4. You’ve requested a title or chapter number or search time that is out of range.

• Check if the disc has a Menu.

• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.

• The Screen Ratio is fixed on your DVDs.

• Make sure you have selected the correct Digital Output in the Audio

Options Menu.

• Press power on from a cold start with no disc in the unit. Press the STOP and PLAY buttons simultaneously on the front panel for three seconds. The

Select Menu Language display will appear. Select the desired language button. Press the SETUP button on the remote control to select the Parental

Mode. The Parental Mode is now unlocked as indicated on the display.

Press the DOWN button to select Parental. Press ENTER and the Create

Password display will appear. You can now set your rating level and change your password to a new number.

• Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.

• If the problem still cannot be solved, please contact your nearest authorized service center.

Page

P6

P9

P14

P17

P34~35

P34~39

P39

P38

P37

40

Specifications

General

Disc

Video

Output

Audio

Output

Power Requirements

Power Consumption

Weight

Dimensions

Operating Temperature Range

Operating Humidity Range

DVD

(DIGITAL VERSATILE DISC)

CD : 5"

(COMPACT DISC)

CD : 3

1/2

"

(COMPACT DISC)

VCD : 5"

Composite Video

Component Video

S-VIDEO

2 Channel

*Frequency Response

*S/N Ratio

*Dynamic Range

*Total Harmonic Distortion

AC 110~240 V, 50/60 Hz

13 W

6.2 lbs

W 16.9 in x D 9.4 in x H 3.1 in

+41°F to +95°F

10 % to 75 %

Reading Speed : 11.45 ft/sec .

Approx. Play Time

(Single Sided, Single Layer Disc) : 135 min.

Reading Speed : 3.9 to 4.6 ft/sec.

Maximum Play Time : 74 min.

Reading Speed : 3.9 to 4.6 ft/sec.

Maximum Play Time : 20 min.

Reading Speed : 3.9 to 4.6 ft/sec.

Maximum Play Time : 74 min. (Video + Audio)

1 channel : 1.0 Vp-p (75 Ω load)

Y : 1.0 Vp-p (75 Ω load)

Pr : 0.70 Vp-p (75 Ω load)

Pb : 0.70 Vp-p (75 Ω load)

Luminance Signal : 1.0 Vp-p (75 Ω load)

Chrominance Signal : 0.286 Vp-p (75 Ω load)

L(1/L), R(2/R)

48 kHz Sampling : 4 Hz to 22 kHz

96 kHz Sampling : 4 Hz to 44 kHz

110 dB

100 dB

0.004 %

*: Nominal specification

• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

• Weight and dimensions are approximate.

41
