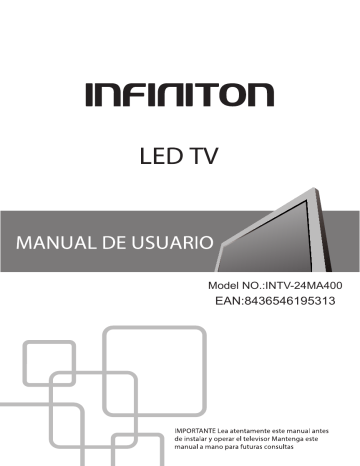

Model NO.:INTV-24MA400
EAN:8436546195313
Botones del TV
Mostrar / ocultar los controles la pantalla
Si quieres mostrar los controles en la pantalla, pulse el botón On/Off de la botonera del TV y los controles aparecerán en la pantalla.
Estos controles desaparecerán automáticamente de la pantalla después de 5 segundos de inactividad.
Selección del control: pulse levemente el botón, mueva el círculo hacía la derecha, seleccione el icono o control deseado.
Selección de la función del control: Pulse por unos segundos seguidos el icono hasta llegar a la función deseada.
Descripción de los controles o Iconos:
Apagado
:Corresponde al botón Power Off del mando a distancia.
Menu
:Corresponde al botón MENU del mando a distancia.
Source
:Corresponde al botón SOURCE /FUENTE del mando a distancia.
CH+
:Corresponde al botón Ch + (Canal +) del mando a distancia.
CH-
: Corresponde al botón Ch - (Canal -) del mando a distancia.
Volume +
:Corresponde al botón Vol+ del mando a distancia.
Volume -
:Corresponde al botón Vol - del mando a distancia.
3.Conecte el televisor a la fuente de alimentación, este entrará en el modo de espera (mostrando una luz roja), pulse el botón de encendido del televisor o el botón de encendido del mando a distancia para encender el televisor.
FTI
Conecte un cable de RF desde la entrada del televisor llamada "Entrada de RF" y a la toma de antena de su TV.
Presione el botón ENTER para seleccionar Iniciar la configuración
Welcome to use lnternet Smart Cloud TV
For your enjoyment of viewing content, we need to do sorne simple settings
Start the setup
6
Pulse [ "' ] / [ T] el botón para seleccionar el país.
Presione el botón OK para asegurarse, y presione [ ►] el botón para seleccionar la zona horaria
Presione [ -" ] / [ T] el botón para seleccionar la zona horaria
Presione [ ► l el botón para conectar el WIFI / red
7
Use su smartphone para escanear el código QR y así conectarse al Asistente de TV
HOME
Pulse [ ◄ l / [ ► l botón para seleccionar HOME en el menú principal
Pulse ["'] / [ T] botón para seleccionar
9
APP destacada
Pulse [ .i. ] / [ T] botón para seleccionar la aplicación de App S tore q ue le g uste
Pulse [ .i. ] / [ T]
/ [ ◄] / [ ►] para seleccioar las aplicaciones a instalar
Fu e n te
Pr es ion e la te cla MENU
Pulse [ .i. ] / [ T] / [ ◄] / [ ►] botón para acceder a " F uente"
10
Media
Pres ione 【 ▼ 】 / 【 ▲ 】 para seleccionar Mutimedia.
11
Video
Pulse [ ◄ l / [ ► l para seleccionar vídeo m
Presiona para reproducir la película anterior
Presiona para jugar rápido hacia atrás
Presione para detener/ reproducir la película
Presiona para jugar hacia adelante
Pulsa para reproducir la siguiente pelicula
■
Presione para ver la información de la película. (Resolución /Tamaño/ Derivación/
Bitrate)
Presione para configurar la pista de audio/ seleccionar subtítulo/ idioma de región
/ modo de reproducción/ radio de aspecto
Presione para seleccionar la película para reproducir
12
Música
Pulsa[◄]/[►] para seleccionar la música
Presiona para pasar rápido hacia atrás.
Presione para detener/ reproducir la música.
■
■
Presiona para pasar al avance rápido.
Presiona para seleccionar la música a reproducir
Presione para ver la información de la música. (Tipo/Tamaño /Velocidad de bits)
Presione para configurar el modo de reproducción (Repetir todo/ Repetir uno/
Aleatorio/ Ninguno).
Presione para seleccionar la música para reproducir.
13
P hoto
Pulse[◄]/[►] para seleccionar la foto a
■
Presione para girar en sentido antihorario la imagen.
Presione para detener/ reproducir la imagen.
Pulse para girar en sentido horario la imagen.
Presione para ver la información de la imagen (Tamaño/ Resolución)
Presione para establecer el modo de reproducción (relación de aspecto/ duración de reproducción).
Pulse para seleccionar la foto a reproducir.
14
A rc h i vos d e i mag e n
Pulse [ ◄ l / [ ► l bottón para seleccionar imagen
Presione ENTER para entrar en ajustes orne
El
Source Picture Sound Channel System Lock Ti
1. Pulse [ j. ] / [ T] para seleccionar: Modo de imagen/ Contraste/ Brillo/ Color/ Nitidez/ Retroiluminación /
Reducción de ruido/ Relación de aspecto /Temperatura de color/ Más configuracionesr
2. Pulse[
◄]/[►] para ajustar o seleccionar
�
�
Color
Sharpness
Backlight
Noise Reduct1on
Backlight
Noise Reduction
Aspect Ratio
Color Temp
<
Middle
�
<
Middle
<
16: 9
<
Normal
17
Modo de imagen
Pulse [ .6. ] / [ T] botón para seleccionar Modo de Imagen, y luego presione [ ◄] / [ ►] botón para seleccionar
(Opción: Estándar, Película, Vívido, Ahorro de energía, Usuario)
Estándar: El modo predeterminado, para que los usuarios experimenten imágenes de alta calidad con luz normal.
Película: Este modo es más adecuado para ver películas.
Colores vívidos de la imagen más bella, imagen más vívida.
Usuario: Configuraciones de imagen definidas por el usuario.
Contraste/ Brillo/ Color/ Nitidez/ Retroiluminación
Pulsa [ .6. ] / [ T ] para seleccionar, y pulsa [ ◄] / [ ►] para ajustar
Contraste
Brillo
Color
Brillo
Ajusta el contraste de la imagen.
Ajusta el brillo de la imagen.
Ajustar la densidad de color de la imagen.
Ajusta el brillo de la luz de fondo de la pantalla.
Reducción de ruido
Configuración de la opción para eliminar la intensidad de ruido de la imagen.
Pulsar [ .6. ] / [ T] para seleccionar Reducción de ruido, y presione [ ◄] / [ ►] para seleccionar
(Opción: Desactivado, Bajo, Medio, Alto, Automático)
Relación de aspecto
Ajustar el tamaño de visualización de la pantalla
Pulse [ .6. ] / [ T] para seleccionar Relación de Aspecto [
(Option: Auto/16:9/4:3/zoom1/zoom2/)
◄] / [ ►] y presione para seleccionar.
Temperatura de color
Ajusta el color general de la imagen
Pulse [ Á ] / [ T] presione para seleccionar Temperatura de color [
(Opciones: Frío,Normal, Cálido)
◄] / [ ►] presione para seleccionar
Frío
Normal
Cálido
Produce una imagen suave en tonos azules.
Produce una imagen viva
Produce una imagen en tonos rojos.
Más ajustes
Pulse [ j.
] / [T ] para seleccionar Más Ajustes
DLC
Pulse [ j. ] / [ T ] para seleccionar DLC, y pulse [ ◄] / [ ►] para seleccionar Oscuro/Normal/Brillante/Off
18
Sonido
Presione el botón MENÚ para ver el menú principal. Pulse en el menú principal.
[ ◄] / [ ►] el botón para seleccionar Sonido
Pulse [ j.
] / [ T ] para seleccionar: Modo de sonido / Graves / Agudos / Balance / AVC / Descripción de audio /
Problemas de audición / Más ajustes.
Pulse ENTER / [ ◄] / [ ►] para seleccionar o ajustar
Select Back Adjust
Modo de sonido
Pulse [-" ] / [T ] botón para seleccionar Modo de sonido, luego pulse [ ◄] / [► ]botón para seleccionar
(Opción: Estándar, Música, Teatro, Noticias, Usuario)
Estándar
Musica
Theate r
Noticias
User
Produce un sonido equilibrado en todos los ambientes.
La música conserva el sonido original.
Bueno para programas musicales de teatro. Mejora los agudos y graves para una experiencia de sonido enriquecida
Voz mejorada
Selección de usuario para personalizar la configuración de la imagen
Bajo
Agudos
Balance
A justar el bajo
Ajustar los agudos
Ajusta el balance de salida del canal izquierdo y derecho
Pulse [-" ] / [T ] botón para seleccionar Balance, luego pulse [ ◄ l / [ ► l botón para ajustar
Lorem ipsum
19
Escaneo manual analógico
Pulse [ ,a. ] / [ T] botón para seleccionar Escaneo manual analógico, y presione ENTER para empezar a escanear
Start Sean
Color System
Analog Manual Sean
Sound System
◄
Oown
►
◄
Auto
►
◄
SG
Frequency(MHz)
4200 t>
Escaneo manual digital
Pulse [ .& ] / [ T ] botón para seleccionar Escaneo manual digital, y presione ENTER para empezar a escanear
Digital Manual Sean
Freqency Name
Start Sean
■
Frequency
DTV
Radio
Data
Lista de canales
Pulse [ ,a. ] / [ T] botón para seleccionar Lista de Canales para ver los canales, y presione MENU para editar el canal
(Omitir/ Eliminar/ Fav)
23
Escaneo manual digital
Pulse [ T ] / [ ¿] botón para seleccionar Escaneo Manual Digital, presione ENTER para empezar a escanear
Lista de canales
Pulse [ T l / [ .As l botón para seleccionar Lista de Canales a la lista, y presione el botón MENÚ para editar el canal
(Saltar/ Borrar, Fav)
EPG
Pulse [ T l / [ .As l botón para seleccionar EPG
26
Tipo de antena satélite (Necesidad de soportar la función DVB-52)
Seleccione el aire/ cable/ satélite para sintonizar
Country
-�
Antenna Type
<
Satellite
Sean
Channel
Channel List
País
Pulse [ ►] para configurar el país para sintonizar.
Sean
Pulse [ .6. ] / [ T] botón para seleccionar Sean.
>
>
>
27
Auto Sean
Pulse [ .6. ] / [ T ] botón para seleccionar Auto Sean para buscar el programa automáticamente
Escaneo manual digital
Pulse [ .6. ] / [ T] botón para seleccionar Escaneo Manual Digital para buscar el programa configurado
Lista de canales
Pulse [ .a. ] / [ T] botón para seleccionar Lista de canales para listar, presione el botón MENÚ editar el canal
(Saltar/ Borrar/ Fav)
28
Bloqueo del sistema
Presione el botón MENÚ para ver el menú principal. Pulse [ ◄ l / [ ► l botón para seleccionar Bloqueo del Sistema
én
0 o
System Lock Time Setting Comm Picture Sound Channel
Pulse [ .á. ] / [ T ] botón para seleccionar Cambiar de Contraseña/Bloqueo del sistema. Presione ENTER / [ ◄] / [ ►] para entrar
Change PassWord
>
System Lock
�
System Lock
Cambiar la contraseña
Pulse [
.a.
] / [ T] botón para seleccionar Cambiar la Contraseña
Change Password
Old Password
New Password
Conflrm Password
Cancel OK
Bloqueo del Sistema
Pulse [
.a.
] / [ T] botón para seleccionar Bloqueo del Sistema
Control parental
Es posible que algunos programas no sean adecuados para niños, a través de la configuración del Control parental, los padres pueden proteger el programa inadecuado de forma automática
Pulse [ .á. ] / [ T ] botón para seleccionar Control Parental
Pulse [
.a.
] / [ T ] botón para seleccionar Off/4/5/6/7 / .. 18.(Edad del niño)
Bloqueo de teclado
Pulse [ .á. ] / [ T ] botón para bloquear el teclado
Nota: esta función está disponible cuando el bloqueo del sistema está activado
30
Común
Pulse el botón MENU para visualizar el menú principal. Pulse [ ◄] / [ ►] botón para seleccionar
Común en el menú principal
Pulse ENTER / [ ◄] / [ ►] para acceder
®
Common
®
Subtitle Language 2nd
Common
PVR Setting
Blue Screen
Audio Language 1 st
Audio Language 2nd
Subtitle Language 1 st
HDMI CEC
Menu Reset ail
>
>
>
>
>
>
>
Ajuste de PVR
Pulse [-" ] / [ T] botón para seleccionar Ajuste de PVR
Pulse [ ◄] / [ ►] para seleccionar Disco/ Formato/ Lista de grabación/ Lista de programación
Nota: esta opción solo está disponible cuando hay señal para TV
< ABC
PVR Setting
Select Disk
Format
Record List
Schedule list
>
>
>
32
Lista de grabaciones
Presione 【 ▼ 】/【 ▲ 】 para seleccionar la lista de grabaciones
Presionar para borrar de la lista
Lista de programados
Presione 【
▼
】/【
▲
】 para seleccionar la lista de programados
Presionar para borrar de la lista
Pantalla azul
Pulse [-" ] / [ T] botón para seleccionar Pantalla azul
Pulse [ ◄] / [ ►] para seleccionar ON/OFF
Modo Tienda
Presione
Presione
【
▼
】/【
▲
】
【 ◄ 】/【 ► 】 para seleccionar para encender / apagarr
HDMI CEC
Presione 【
▼
】/【
▲
】
Presione 【 ◄ 】/【 ► 】
Resetear menu
Presione 【 ▼ 】/【 ▲ 】
Presione 【 ◄ 】/【 ► 】 para seleccionar para encender / apagarr para seleccionar para resetear
33
INTV -24 MA400
EAN :8436546195313
Content
Safety Information ......................................................
1
Important Safety Precautions ..............................................
2
TV Buttons And Terminal Interface .........................................
3
External device connection diagram ........................................
4
Install And Connect TV ...................................................
5
Setup Wizard ..........................................................
6
Home Pag ..............................................................
8
Main Menu .............................................................
13
Help ...................................................................
28
Specifications .........................................................
29
Remote Controller .....................................................
30
Safety Information
High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover of the cabinet, refer servicing to qualified service personal
If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operting in the literature accompanying the appliance.
Warning
The lightning flash with arrowhead symbol within an equilateral triangle,is inten ded to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
1
Important Safety Precautions
2
TV Buttons And Terminal Interface
TV Buttons
Terminal Interface
Note: The following are the various terminal interface, the actual position and
arrangement, the number of different models may be different.
COAXIAL
EARPHONE output
When earphones are plugged in, speakers are disabled
USB input
Connect a USB device here to play its media files or to recordprograms via the PVR function.
COAXIAL
Connect the SPDIF receiver.
RJ45
RJ45
Connect the Internet.
3
External device connection diagram
4
Install And Connect TV
Set your TV
To put your TV in a firm place which can bear the weight of the TV.
To avoid danger, please don’t expose the
TV near water or heating place (such as light, candle, heating machine),do not block the ventilation at the back of TV.
3 Connect antenna and power
1.Connect the antenna cable to the antenna
socket on the back of the TV.
2.To plug the power cord of TV (AC 100-
240V~ 50/60Hz).
3.Connect the power supply,
enter the standby mode (red light),
press the power button of the TV or
the power button on the remote control
to turn on the TV.
1.
FM ANT TV ANT
TV signal output
1
Note:
Picture for reference purposes only.
2
TV Stand Installation Instructions
7
5
Setup Wizard
Connect an RF cable from the Tv’s input called “RF-In” and to your TV Aerial socket
Press
E NTE R
button to select the Start the setup.
Press
【 】/【 】 button to select
Press
E NTE R
button to
the language.
sure,and press
【 】 button to setup country.
Press
【 】/【 】 button to select
Press E NTE R button to
the c ountry
.
sure,and press
► button to select the time zone.
6
Press ▼
P ress 【 】
▲ button to select the time zone.
button to connect the WIFI/network.
Press E NTE R button to
P
► connect the WIFI/network.
ress 【 】 button to select the input source.
P ress ▼ ▲ button to select the input source.
7
Home P age
Home
Press
ME NU
button to to enter main menu.
Press ▼ ▲ button to select .
F eatured AP P
Press ▼ ▲ button to to select APP Store to add app you like.
Press ▼ ▲ /
◄ ►
to select App to install.
8
Source
Press
MENU
button to
Press
◄ ► to enter main menu.
button to select Source menu.
Press ▼ ▲ ◄ ► button to select .
Media
Press 【 ▼ 】 / 【 ▲ 】 to select
Mutimedia.
9
Video
Press ◄ / ► to select video.
Press to play previous movie.
Press to play fast backward.
Press to stop/play the movie.
Press to play fast forward.
Press to play next movie.
Press to view the information of the movie.(Resolution/Size/Deration/Bittrate)
Press to set the Audio Track/Select Subtitle/Region Language/Play Mode/Aspect Ratio.
Press to select the movie to play.
10
Music
Press ◄ / ► to select music.
Press to play fast backward.
Press to stop/play the music.
Press to play fast forward.
Press to view the information of the music.(Mine Type/Size/Bittrate)
Press to set the Play Mode(Repeat All/Repeat One/Random/None).
Press to select the music to play.
11
Press ◄ / ► to select photo.
Press to rotate anticlockwise the picture .
Press to stop/play the picture.
Press to rotate clockwise the picture.
Press to view the information of the picture.(Size/Resolution)
Press to set the Play Mode(Aspect Ratio/Playback duration).
Press to select the photo to play.
12
Main Menu
Press MENU button to to enter main menu.
Press ◄ ► button to select Picture menu.
Press 【 ▼ 】/【 ▲ 】 button to select .
1. P ress 【 ▼ 】 / ▲ to select : Picture Mode/ Contrast /Brightness/Color /Sharpness/Backlight/
Noise Reduction/Color Temp/More Settings
2. P ress 【 ◄ 】 / 【 ► 】 to adjust or select.
13
Picture Mode
Press 【 】/【 】 button to select Picture Mode, then press 【 ◄ 】/【 ► 】 button to select.
(O :
, Vivid , Energy Saving,User ).
Standard
Movie
Vivid
The default mode, to make users experience high-quality images under normal light.
This mode is more suitable for watching movies.
Image colors more beautiful, more vivid picture.
Energy Saving Reduce screen brightness, improved contrast for energy saving.
User User-defined picture settings.
Contrast / Brightness/Colour/Sharpness/Backlight
P ress 【 ▼ 】 / ▲ t o select ,a nd press 【 ◄ 】 / 【 ► 】 to adjust.
Contrast Adjust image contrast.
Brightness Adjust image brightness.
Color Adjust image color density.
Sharpness Adjust the image edge sharpness.
Backlight Adjust the screen backlight brightness.
Noise Reduction
Setting the option to eliminate image noise intensity.
P ress 【 ▼ 】/【 ▲ 】 to select Noise Reduction , and press ► to select.
(O ptional Off , Low , Middle , High , Auto ).
Color Temp
Adjust the overall color of the image.
Press 【 ▼ 】/【 ▲ 】 to select Colour Temperature . press ◄
( O ptional :Cool, Normal, Warm ).
Cool
Normal
Warm
Produces a gentle blue-hued image.
Produces a vivid image.
Produces a red-hued image.
► to select.
More Settings
Press 【 ▼ 】/【 ▲ 】 to select More Settings
DLC
Press 【 ▼ 】/【 ▲ 】 to select DLC , press ◄ ► to select Dark/Normal/Bright/Off.
14
Sound
Press MENU button to to enter main menu.
Press ◄ ► button to select Sound menu.
Press 【 ▼ 】/【 ▲ 】 button to select .
Press 【 ▼ 】/【 ▲ 】 to select : Sound Mode/Bass/Treble/Balance /AVC/More settings.
Press ENTER / ► to select or adjust.
Select Back Adjust
Sound Mode
Press 【 ▼ 】/【 ▲ 】 button to select Sound Mode , then press ◄ ► button to select.
(O , , ).
St an da rd
Mus ic
Th ea ter
News
Use r
Pr od uc es a ba lan ced sou nd in al l en viron men ts.
Pr es er ves the or igi na l sou nd .Good for mus ical pr og rams.
Enh an ces treb le an d ba ss for a rich sou nd ex pe rien ce.
Enh an ced voi ce.
Sel ec t to cus tomi ze pi ctur e set ting s.
Bass Adjust the bass.
Treble Adjust the treble.
Balance Adjust the left and right channel output balance.
Press 【 ▼ 】/【 ▲ 】 button to select Balance , then press ◄ ► button to adjust.
AVC
Press 【 ▼ 】/【 ▲ 】 button to select AVC , then press ◄ ► button to choose ON/OFF.
After opening the AVC,Once the volume is set, regardless of any difference TV Version printed on each channel, it can make the speaker volume remained stable.
15
More Settings
SPDIF
Press 【 ▼ 】/【 ▲ 】 button to select SPDIF , then press ► button to choose OFF/RAW/PCM.
SPDIF Delay
Press 【 ▼ 】/【 ▲ 】 button to select SPDIF Delay , then press ► button to adjust.
Surround
Achieve better surround sound effect .
Press 【 ▼ 】/【 ▲ 】 button to select Surround, then press ► button to choose ON/OFF.
Audio Only
After the opening screen is not displayed only plays sound
Press 【 ▼ 】/【 ▲ 】 button to select Audio Only, then press ► button to choose ON/OFF.
16
Channel
Press MENU button to display the main menu.
Press ◄ ► button to select Channel in the main menu.
Press 【 ▼ 】/【 ▲ 】 button to select.Press ENTER / ◄ ► to enter
Antenna Type-Air
Select the Air/Cable/Satellite to tune.
Auto Scan
Press 【 ▼ 】/【 ▲ 】 button to select Auto Scan , p ress ENTER to start Auto Scan.
Analog Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Analog Manual Scan , p ress ENTER to start Scan.
17
Digital Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Digital Manual Scan , p ress ENTER to start Scan.
Channel List
Press【 ▼ 】 /【 ▲ 】 button to select Channel List to list,press MENU button edit the channel
(Move/Skip /Delete /Fav).
18
EPG
Press 【 ▼ ▲ button to select EPG.
Record Set the time and channel to record automatically.
Schedule View the schedule ,which have been set to record.
Remind Set the time to remind you when It will record the program.
Press the button on your Remote control to record the program immediately.
Press the button on your Remote control to stop record the program immediately.
CI Information ( Need to support the CI function )
Press ▼/ ▲ button to select CI Information , then press the Enter button to display detail if you has inserted the CI card
Attention : Only with CI card in TV , will the item CI Information be shown in Menu.
19
Antenna Type-Cable
Select the Air/Cable/Satellite to tune.
Auto Scan
Press 【 ▼ 】/【 ▲ 】 button to select Auto Scan , p ress ENTER to start Auto Scan.
Analog Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Analog Manual Scan , p ress ENTER to start Scan.
Digital Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Digital Manual Scan , p ress ENTER to start Scan.
Channel List
Press 【 ▼ 】/【 ▲ 】 button to select Channel List to list,press MENU button edit the channel
(Move/Skip /Delete /Fav).
EPG
Press 【 ▼ 】/【 ▲ 】 button to select EPG.
20
Digital Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Digital Manual Scan , p ress ENTER to start Scan.
Channel List
Press 【 ▼ 】/【 ▲ 】 button to select Channel List to list,press MENU button edit the channel
(Move/Skip /Delete /Fav).
EPG
Press 【 ▼ 】/【 ▲ 】 button to select EPG.
21
Antenna Type-Satellite(Need to support the DVB-S2 function)
Select the Air/Cable/Satellite to tune.
Scan
Press 【 ▼ 】/【 ▲ 】 button to select Scan.
22
Auto Scan
Press 【 ▼ 】/【 ▲ 】 button to select Auto Scan to search the program automatically.
Manual Scan
Press 【 ▼ 】/【 ▲ 】 button to select Manual Scan to search the program you set.
Channel List
Press 【 ▼ 】/【 ▲ 】 button to select Channel List to list,press MENU button edit the channel
(M ove / Skip /Delete /Fav).
23
Sy
stem Lock
Press MENU button to to enter main menu.
Press ► button to select System Lock menu.
Press 【 ▼ 】/【 ▲ 】 button to select .
Press 【 ▼ 】/【 ▲ 】 button to select Change Password/System Lock .Press ENTER / ◄ ► to enter.
Change Password
Press 【 ▼ 】/【 ▲ 】 button to select Change Password.
System Lock
Press 【 ▼ 】/【 ▲ 】 button to select System Lock.
Keypad Lock
Press 【 ▼ 】/【 ▲ 】 button to lock the keypad.
(NOTE:This fuction is avalable when the System Lock is on.)
24
Time Setting
Press MENU button to display the main menu.
Press ◄ ► button to select Time Setting in the main menu,
Press 【 ▼ 】/【 ▲ 】 button to select : OSD Timer/Sleep Timer/Autostandby Timer.
Press ENTER / ◄ ► to enter.
OSD Timer
Press 【 ▼ 】/【 ▲ 】 button to select OSD Timer, Press ► to select.
(O ptional off, , , ).
Sleep Timer
Press 【 ▼ 】/【 ▲ 】 button to select Sleep Timer, Press ► to select.
(O ptional off, , , , ).
Autostandby Timer
Press 【 ▼ 】/【 ▲ 】 button to select Autostandby Timer,
(O ptional off, , , )
25
Common
Press MENU button to display the main menu.
Press ◄ ► button to select Common in the main menu,
Press 【 ▼ 】/【 ▲ 】 button to select : Blue Screen/Audio Language 1st/Audio Language 2nd/
Subtitle Language 1st/Subtitle Language 2nd/HDMI CEC/Menu Reset
Press ENTER /【 ◄ 】/【 ► 】 to enter.
PVR Setting
Press 【 ▼ 】/【 ▲ 】 button to select PVR Setting.
Press 【 ◄ 】/【 ► 】 to select Disk/Format/Record List/Schedule List.
26
Record List
Press
▼ ▲ button to select record list to view the record list.
Press to delete the record list.
Schedule List
Press
▼ ▲ button to select record list to view the schedule list.
Press to delete the record list.
Blue Screen
Press ▼
Press
▲
【 】/【 】 button to select Blue Screen,
► to select ON/OFF.
Store Mode
Press
【 】/【 】
Press
◄
▲ button to select
【 】/【 】
SMode,
► to select ON/OFF.
HDMI CEC
Press
【 】/【 】
Press
◄
▲ button to select HDMI CEC.
【 】/【 】 to select ON/OFF.
Menu Reset
Press ▼
Press
▲
【 】/【 】 button to select Menu Reset.
► to select Cancel/ok to reset the previous setting.
27
28
29
30
31
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot
• A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
with a lid or a fire blanket.
Model NO.:INTV-24MA400
EAN:8436546195313
Ce manuel d'utilisation pour référence seulement.
Opération des boutons du téléviseur
Note : Merci de vous reporter aux explications ci-dessous
Afficher / Masquer la barre d’icônes : Si la barre d’icônes n’apparait pas à l’écran, appuyez sur le bouton, la barre d’icônes apparaitra alors, telle que présentée ci-dessus. La barre d’icône disparaitra automatiquement après 5 secondes sans opération.Naviguer dans les icônes : Une pression rapide du bouton permet de naviguer vers la droite sur chaque icône.Sélectionner l’icône : Une pression longue du bouton permet d’accéder à la fonction de l’icône sélectionnée.
Description des icônes :
:de mise en veille du téléviseur : correspond au bouton « POWER » de la
télécommande
:du menu : correspond au bouton « MENU » de la télécommande
:de source : correspond au bouton « SOURCE » de la télécommande
:CH+ : correspond au bouton « CH+ » de la télécommande
:CH- : correspond au bouton « CH- » de la télécommande
:Volume+ : correspond au bouton « VOL+ » de la télécommande
:Volume- : correspond au bouton « VOL- » de la télécommande
3. Branchez le câble d’alimenta la TV passe en mode veille (le voyant rouge s’allume).
Appuyez sur la touche POWER de la TV ou de la télécommande pour allumer la TV.
FTI
Connectez un cable RF de l'entrée du téléviseur appelée «Entrée RF» et a la prise d'an tenne de votre téléviseur.
Appuyez sur le bouton ENTER pour sélectionner Démarrer la configuration.
Welcome to use lnternet Smart Cloud TV
For your enjoyment of viewing content, we need to do sorne simple settings
Start the setup
Presse [ .a. l / [ Tl le bouton pour sélectionner la lanque.
Appuyez sur le bouton OK pour vous assurer que [ ► l et appuyez sur le bouton pour définir le pays
Select the language
.
.
.
6
Presse [ ¿] / [ T] le bouton pour sélectionner le pays.
Appuyez sur le bouton OK pour vous en assurer, puis appuyez sur [ ► l le bouton pour sélectionner le fuseau horaire
Appuyez sur[¿ ] / [ T] le bouton pour sélectionner le fuseau horaire
Presse [ ► l le bouton pour connecter le wifi / réseau
7
Vous pouvez scanner avec votre téléphone portable le QR Code ci-dessous a fi n de vous connecter
à l’assistanat TV (pour plus de détails voir le document eshare).
HOME
Remarque: E-share est une application payante qui peut etre utilisée apres l'installation précédente de l'application.
Presse [ ◄ l / [ ► l bouton pour sélectionner HOME dans le menu principal
Presse ["'] / [ T] bouton pour sélectionner
HOT AP P
Remarque: E-share est une application payante qui peut etre utilisée apres l'installation précédente de l'application.
Presse ["'] / [ T] [ ◄ l / [ ► l bouton pour sélectionner AppStore sous HOTAPP pour ajouter APP
Presse [ "' ] / [ T] / [ ◄ l / [ ► l pour sélectionner des applications et appuyez sur ENTER pour ajouter
9
Model NO.:INTV-24MA400
EAN:8436546195313
este manual do usuário apenas para referência.
Botões da Tv e Interface do Terminal
3
FTI
Conecte um cabo de RF da entrada da TV chamado "RF-ln" e a sua tomada Aerial de TV
Pressione o botao ENTER para selecionar Iniciar a configurac;:ao.
Welcome to use lnternet Smart Cloud TV
For your enjoyment of viewing content, we need to do sorne simple settings
Start the setup
Pressione o botao [ T] / [ .i.] para selecionar o idioma.
Pressione o botao OK para confirmar, e pressione o botao [ ►] para configurar o país.
6
Pressione o boláo [ T] / [.6'] para selecionar o país.
Pressione o botáo OK para confirmar, e pressione o boláo [ ►] para selecionar o fusa horário.
Pressione o botáo [ T] / [ .6.] para selecionar o fusa horário.
Pressione o botáo [ ►] para conectar o WIFI / rede.
7
Use seu smartphone para digitalizar o código QR e conectar-se ao Assistente de TV
HOME
NOTA: E-share é um aplicativo pago que pode ser usado após a pré-instala9ao do aplicativo.
Pressione o botao [ ◄ l / [ ► l para seleccionar HOME no menu principal.
Pressione o botao [ T] / [.6.] para selecionar
HOTAPP
NOTA: E-share é um aplicativo pago que pode ser usado após a pré-instala9ao do aplicativo.
Pressione os botoes [ T ] / [""'] [ ◄ l / [ ► l para selecionar a laja de aplicativos embaixo de "HOT APP" para adicionar um aplicativo.
"App Store"
9
Aplicativos favoritos
Pressione o botáo [T] / [.i.] para selecionar FAV APP para adicionar seus aplicativos favoritos.
Pressione [ T] / [ .i.] / [ ◄] / [ ►] para selecionar os aplicativos desejados e pressione ENTER para adicionar.
NOTA: E-share é um aplicativo pago que pode ser usado após a pré-instala9áo do aplicativo.
Configura�oes
Pressione os botéies [T] / [.i.] / [ ◄] / [► l para entrar em Settings e configurar.
10
Remote Controller
1. POWER: Ligue a TV ou entra no modo de espera.
2. MUTE: Desliga o som e o liga quando pressionar novamente.
3. 0-9: As figuras "0-9" são usadas para inserir diretamente o número do canal.
4. LIST: Pressione para abrir a lista de canais.
5.
Pressione este botão para alternar entre o programa atual e o anterior que você estava visualizando
6. S.MODE: Selecione o modo de som diferente diretamente.
7. SLEEP: Defina o tempo de sono.
8. MTS: Pressione para selecionar o modo MTS (por exemplo, Nicam, BTSC,
MONO, STEREO)
9. P.MODE: Selecione o modo de imagem diferente diretamente.
10. MENU: inicia o menu do sistema e retorna ao menu superior.
12.
Pressione o botão para selecionar itens.
Pressione o botão para ajustá-los.
13. ENTER: Para confirmar a escolha do item destacado do menu.
14. SAIR: Pressione para sair do menu OSD.
15. DISPLAY: Pressione para exibir a exibição da fonte e do canal.
Instalação da bateria:
Remova a tampa do compartimento da bateria na parte traseira do controle remoto, deslizando a tampa para baixo e em seguida tire a tampa. Coloque duas pilhas AAA dentro do compartimento da bateria com as extremidades + e - alinhadas conforme indicado. Não misture pilhas usadas com pilhas novas ou diferentes tipos de pilhas.
Refixe a tampa do compartimento das pilhas.
Deslize a tampa até ouvir um clique.
Usando o controle remoto:
A menos que seja afirmado o contrário, o controle remoto pode operar todos os recursos da TV.
Sempre aponte o controle remoto diretamente para o sensor remoto na frente da TV.
CUIDADO:
As baterias instaladas na unidade não devem ser expostas a calor excessivo, como luz solar, fogo e similares.
Controle remoto Descrições do controle remoto da televisão
16. VOL +: Aumenta o volume.
17. REFRESH: Atualizar página.
HOLD: Segure On ou Off para exibição da página atual.
18. VOL-: Diminui o volume.
19. CAP: Uma chave para a imagem atual é salva no disco.
20. PLAY / PAUSE: Pressione para reproduzir / pausar a reprodução no modo USB.
CANCEL: Quando uma página é selecionada no modo de texto, pode levar algum tempo até que
CANCEL irá retornar ela se torne disponível, pressionando a tecla ao modo TV. Quando a página solicitada for encontrada, o número da página aparecerá no topo da imagem da TV, pressione a tecla CANCEL para retornar ao modo de texto para você navegar nesta página.
21. TV / RADIO: Permite alternar entre os modos TV e Rádio.
22. STOP: Pressione para parar no modo USB.
MIX: imagens TV e TEXT são misturadas (fundo transparente)
23. Botões VERDE / VERMELHO / AMARELO / CIANO
24. CH +: Muda o canal para cima.
25. HOME: Volta para a página inicial do Android.
26. CH-: Muda o canal para baixo.
27. ASPECT: Função de aspecto.
28. MOUSE: interruptor do mouse.
TAMANHO: Altere o tamanho da exibição no modo Tele texto.
29. SUBTITLE: Para exibir legendas no modo USB.
30. REC: Começa a gravação no modo PVR.
31. GUIDE: Lança o EPG (Guia Eletrônico de Programação)
32. FAV: Pressione para adicionar ou remover seus canais favoritos no menu da TV.
33. FF: Pressione para avançar rapidamente no modo USB.
TXT: liga e desliga o tele texto.
34. PREV: Pressione para voltar no modo USB
SUB. PG: Pressione para acessar a subpágina.
35. FR: Pressione para retroceder rapidamente no modo USB.
INDEX: Solicite a página Índice no modo Tele texto.
36. NEXT: Pressione para avançar no modo USB.
REVEAL: Revele ou esconda as palavras escondidas.
CERTIFICACION CE
Se ha determinado que este producto cumple con la Directiva de Baja Tension (2014/35/EU), la Directiva de Compatibilidad Electromagnetica (2014/30/EU) y la Directiva RoHS (2011/65/EU).
Para más información relacionada con las declaraciones y certificados de conformidad, póngase con nosotros a través del correo: [email protected]
INFORMACIÓN SOBRE EL PRODUCTO
Si tiene alguna pregunta o duda r elacionada con su dispositivo, póngase en contacto con nosotros:
SERVICIO TÉCNICO
También puede ponerse en contacto con nuestro servicio técnico oficial: tel.:(+34) 958 087 169 e-mail reparaciones: info @ infiniton.es
www.infiniton.es
Recuerda que en nuestra web tenemos un apartado de preguntas frecuentes y un formulario de dudas para resolver cualquier consulta relacionada con tu producto Infiniton.
INFINITON WORLD ELECTRONIC S.L.
INFINITON WORLD ELECTRONIC S.L.
Para mas información sobre nuestra política de RMA y Reparaciones, visite: www.infiniton.es/rma/politica-rma-infiniton.pdf
INFINITON WORLD ELECTRONIC S.L.
WORLD ELECTRONIC
advertisement
Related manuals
advertisement
