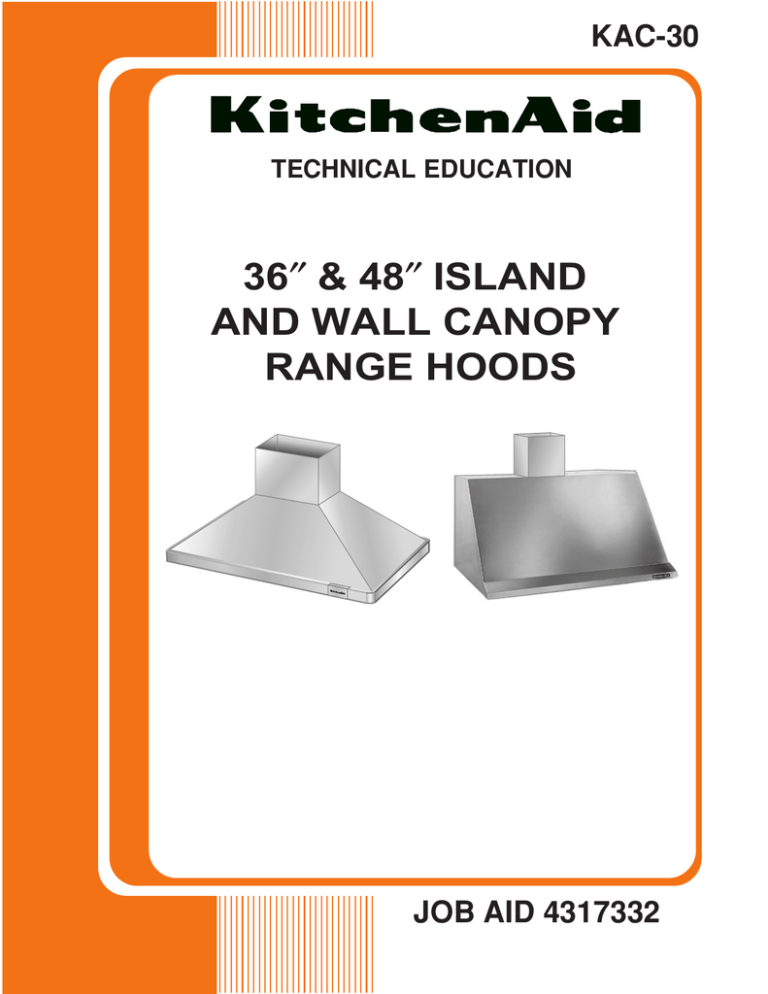

KAC-30
TECHNICAL EDUCATION
36
″ & 48″ ISLAND
AND WALL CANOPY
RANGE HOODS
JOB AID 4317332
FORWARD
This Job Aid, KitchenAid “36
″ and 48″ Island And Wall Canopy Range Hoods,” (Part No. 4317332), provides the technician with information on servicing the Island And Wall Canopy Range Hoods.
It is to be used as a training Job Aid and Service Manual. For specific information on the model being serviced, refer to the “Use and Care Guide” provided with the hood.
The Wiring Diagrams used in this Job Aid are typical and should be used for training purposes only.
Always use the Wiring Diagram supplied with the product when servicing the unit.
GOALS AND OBJECTIVES
The goal of this Job Aid is to provide detailed information that will enable the service technician to properly diagnose malfunctions and repair the KitchenAid Island And Wall Canopy Range Hoods.
The objectives of this Job Aid are to:
• Understand and follow proper safety precautions.
• Successfully troubleshoot and diagnose malfunctions.
• Successfully perform necessary repairs.
• Successfully return the range hood to its proper operational status.
WHIRLPOOL CORPORATION assumes no responsibility for any repairs made on our products by anyone other than Authorized Service Technicians.
Copyright © 2001, Whirlpool Corporation, Benton Harbor, MI 49022
- ii -
TABLE OF CONTENTS
Page
GENERAL ............................................................................................................................... 1-1
Important Safety Information ............................................................................................. 1-1
KitchenAid Model & Serial Number Designations .............................................................. 1-2
Model & Serial Number Label Location ............................................................................. 1-3
Specifications ..................................................................................................................... 1-4
KitchenAid Range Hood Warranty ..................................................................................... 1-7
COMPONENT ACCESS ......................................................................................................... 2-1
Wall Hood Component Locations ...................................................................................... 2-1
Removing A Slide Switch, The Indicator Lamp, & The Blower Motor ................................ 2-2
Removing A Halogen Lamp Socket ................................................................................... 2-5
Island Hood Component Locations .................................................................................... 2-6
Removing The Ballast Transformer ................................................................................... 2-7
Removing The Control Board ............................................................................................ 2-8
Removing The Blower Motor ........................................................................................... 2-10
COMPONENT TESTING ........................................................................................................ 3-1
Blower Motor ...................................................................................................................... 3-1
Ballast Transformer ........................................................................................................... 3-1
2- & 3-Position Slide Switches ........................................................................................... 3-2
Speed (Variable) Control ................................................................................................... 3-2
WIRING DIAGRAMS .............................................................................................................. 4-1
Island Hood ........................................................................................................................ 4-1
Wall Hood .......................................................................................................................... 4-2
- iii -
— NOTES —
- iv -
GENERAL
IMPORTANT SAFETY INFORMATION
Your safety and the safety of others is very important.
Important safety messages have been provided in this Job Aid. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “WARNING.”
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
1-1
KITCHENAID MODEL & SERIAL NUMBER DESIGNATIONS
MODEL NUMBER
MODEL NUMBER
INTERNATIONAL SALES IND.
OR MARKETING CHANNEL
IF PRESENT
PRODUCT GROUP
K = KITCHENAID BRAND
PRODUCT IDENTIFICATION
IC = ISLAND HOOD
IV = ISLAND VENT
IR = ISLAND RETRACTABLE
WV = WALL VENT
PI = POWER INTERIOR
PE = POWER EXTERIOR
SV = SIDE VENT
WC = WALL CANOPY
MERCHANDISING SCHEME
D = DOWNDRAFT
U = UPDRAFT
CAPACITY / SIZE / SERIES / CONFIGURATION
1ST POSITION 2ND POSITION
0 = SIDE DOWNDRAFT 0 = 30
″ WIDE
1 = STANDARD UPDRAFT 5 = 500
CFM
2 = SLIDE-OUT UPDRAFT 6 = 36
″ WIDE
3 = CANOPY 8 = 48
″ WIDE
8 = DOWNDRAFT 9 = 900
CFM
K WC U 38 0 J S S 0
FEATURES
0 = STANDARD
1 = INTERIOR POWER
2 = EXTERNAL POWER
5 = ELECTRONIC CONTROLS
YEAR OF INTRODUCTION
H = 1999
J = 2000
K = 2001
COLOR CODE
WT = WHITE
BT = BISCUIT
SS = BRUSHED STAINLESS STEEL
ENGINEERING CHANGE (0, 1, 2, ETC.)
SERIAL NUMBER
SERIAL NUMBER
MANUFACTURING SITE
YEAR OF PRODUCTION
J = 1999, K = 2000, L = 2001, M = 2002
WEEK OF PRODUCTION
46TH WEEK
PRODUCT SEQUENCE NUMBER
F J J 4 6 0 2 4 5 3
1-2
MODEL & SERIAL NUMBER LABEL LOCATION
The Model/Serial Number label locations are shown below.
Model & Serial Number Location
(Island Range Hood)
Model & Serial Number Location
(Wall Range Hood)
1-3
Model Number
Dimensions/Specifications
Overall Width (in)
Overall Depth (in)
Canopy Height (in)
Chimney Height (in)
Weight
Net Weight (lbs)
Shipping Weight (lbs)
Ratings
120v AC
Circuit Amps
Exterior
Hood Exterior
Type/Configuration
Size (Inches)
Color
Grease Filters
CFM
Sones
Light
Brand Logo Location
Controls
On/Off
Variable Speed
Auto Off
Interior
Ducting
Dimension
Accessories
Backsplash
Backsplash Kit Part/Description
Ductless Operation Kit Part/Description
Chimney Extension Kit
Wire Rack Kit Part/Description
Wire Rack Hanger Kit Part/Description
Utensil Bar-15 Inch Sides Kit
Utensil Bar-Back
Miscellaneous
Product Literature
Installation Instructions Part/Comment
Job Aid Part/Comment
Use & Care Guide Part/Comment
Wiring Diagram Part/Comment
Other
Agency Approvals
Warranty
Full (Months)
Power System Motor
SPECIFICATIONS
Island Hoods
KICU265H SS, WT, BT
35 3/8"
23 5/8"
10 1/4"
24 5/8" to 34 3/4"
77
82
Yes
15 AMP
Canopy-Updraft
36 Inches
Stainless
3 Heavy Duty (DW Safe)
600
6.5
2 Fluorescent Bulbs
KitchenAid
Yes
Yes
No
Convertible with kit
3 1/4" x 10"
4378625/Stainless
4378619
4360369
4317332
4360369/English; 4360370/French
In Use and Care Guide
UL,CUL
12
48 Mo
KICU285H SS, WT, BT
47 1/4"
23 5/8"
10 1/4"
24 5/8" to 34 3/4"
8 4
90
Yes
15 AMP
Canopy-Updraft
48 Inches
Stainless
3 Heavy Duty (DW Safe)
600
6.5
2 Fluorescent Bulbs
KitchenAid
Yes
Yes
No
Convertible with kit
3 1/4" x 10"
4378625/Stainless
4378619
4360369
4317332
4360369/English; 4360370/French
In Use and Care Guide
UL,CUL
12
48 Mo
1-4
Model Number
Dimensions/Specifications
Overall Width (in)
Overall Depth (in)
Canopy Height (in)
Chimney Height (in)
Weight
Net Weight (lbs)
Shipping Weight (lbs)
Ratings
120v AC
Circuit Amps
Exterior
Hood Exterior
Type/Configuration
Size (Inches)
Color
Grease Filters
CFM
Sones
Light
Brand Logo Location
Controls
On/Off
Variable Speed
Auto Off
Interior
Ducting
Dimension
Accessories
Backsplash
Backsplash Kit Part/Description
Ductless Operation Kit Part/Description
Chimney Extension Kit
Wire Rack Kit Part/Description
Wire Rack Hanger Kit Part/Description
Utensil Bar-15 Inch Sides Kit
Utensil Bar-Back
Miscellaneous
Product Literature
Installation Instructions Part/Comment
Job Aid Part/Comment
Use & Care Guide Part/Comment
Wiring Diagram Part/Comment
Other
Agency Approvals
Warranty
Full (Months)
Power System Motor
Wall Hoods
KWCU205H SS, WT, BT KWCU265H SS, WT, BT KWCU285H SS, WT, BT
29 7/8"
19 1/4"
9 1/2"
23" to 42"
4 5
4 9
Yes
15 AMP
Wall-Updraft
30 Inches
Wall-Updraft
36 Inches
Stainless Stainless
2 Heavy Duty (DW Safe) 3 Heavy Duty (DW Safe)
600
6.5
1 Fluorescent Bulb
KitchenAid
600
6.5
1 Fluorescent Bulb
KitchenAid
Yes
Yes
No
Convertible with kit
3 1/4" x 10"
8171295/Stainless
4378621/Stainless
N / A
8171297
4378617
4378619
8171299
4317332
4360367/English;
4360368/French
In Use & Care Guide
UL,CUL
12
48 Mo
35 3/8"
19 1/4"
9 1/2"
23" to 42"
52
57
Yes
15 AMP
Yes
Yes
No
Convertible with kit
3 1/4" x 10"
4378615/Stainless
4378621/Stainless
N / A
4378616
4378617
4378619
4378618
4317332
4360367/English;
4360368/French
In Use & Care Guide
UL,CUL
12
48 Mo
47 1/4"
19 1/4"
9 1/2"
23" to 42"
59
65
Yes
15 AMP
Wall-Updraft
48 Inches
Stainless
3 Heavy Duty (DW Safe)
600
6.5
1 Fluorescent Bulb
KitchenAid
Yes
Yes
No
Convertible with kit
3 1/4" x 10"
8171296/Stainless
4378621/Stainless
N / A
8171298
4378617
4378619
4317332
4360367/English;
4360368/French
In Use & Care Guide
UL,CUL
12
48 Mo
1-5
Model Number
Size-Configuration
Feature Level/Series
Dimensions/Specifications
Exterior Dimensions
Overall Width (in)
Overall Depth (in)
Canopy Height (in)
Chimney Height (in)
Other Dimensions
Net Weight (lbs)
Shipping Weight (lbs)
Ratings
Electric Voltage/Phase/Frequency (Hz)
120v AC
Circuit Amps
Exterior
Hood Exterior
Type/Configuration
Size (Inches)
Color
Grease Filters
Power System
CFM
Sones
Light
Warming Lamp
Control Area
Controls
Light On/Off
Blower On/Off
Variable Speed
Number of Speeds
Auto Off
Interior
Ducting
Dimension
Accessories
Backsplash
Backsplash Kit Part/Description
Chimney Extension Kit
Chimney Extension Kit Part/Description
Comment
KWCU380JSS
48" - Wall Canopy
Professional Series
4 8 "
2 5 "
18"
Accessory
79
116
60 HZ
Yes
15
Wall-Updraft
48 Inches
Stainless
Baffle
No Heat Lamps
Under Canopy
3 Slide Switches
Yes
Yes
No
3
No
Top or Rear Vented
Rectangular 3 1/4" x 10"
KWCU360JSS
36" - Wall Canopy
Professional Series
3 6 "
2 5 "
18"
Accessory
5 4
8 4
60 HZ
Yes
15
Wall-Updraft
36 Inches
Stainless
Baffle
Internal
1200
Internal
600
Maximum 6.5
Maximum 6.5
4 Halogen Lights (12V 20 watt, Included) 3 Halogen Lights (12 V 20 watt, Included)
No Heat Lamps
Under Canopy
3 Slide Switches
Yes
Yes
No
3
No
Top or Rear Vented
Rectangular 3 1/4" x 10"
Optional
8284755/Stainless; telescopic, height extends up to 39" high
Optional - 2 Choices
8284752: 48"(W) x 12"(H) or 8284754:
24"(W) x 12" to 24"(H) (Height expands to 8' - 9' ceilings)
Discharge Transition = 8284757:
Transitions from two 3 1/4" x 10" to One
10" Rnd (not for use w/chimney kit
8284754)
Optional
8284756/Stainless; telescopic, height extends up to 39"
Optional - 2 choices
8284753: 36"(W) x 12"(H) or 8284754:
24"(W) x 12" to 24" (H) (Height expands to 8' - 9' Ceilings)
Miscellaneous
Product Literature
Installation Instructions Part/Comment
Use & Care Guide Part/Comment
Job Aid
Other
Agency Approvals
Warranty
Full (Months)
Power System Motor
8284601 w/installation instructions, 8284601
4317332
UL,CUL
12
48 Mo
1-6
8284601 w/installation instructions, 8284601
4317332
UL,CUL
12
48 Mo
LENGTH OF
WARRANTY:
LIMITED ONE-
YEAR WAR-
RANTY
From Date of
Purchase.
KITCHENAID RANGE HOOD WARRANTY
KITCHENAID
WILL PAY FOR:
KITCHENAID
WILL NOT PAY FOR:
Labor and any parts of your range hood (except light bulbs and filters) which are defective in materials or workmanship.
A. Consumable parts such as light bulbs and filters.
B. Service calls to:
1. Correct the installation of the range hood.
2. Instruct you how to use the range hood.
3. Replace house fuses or correct house wiring.
C. Repairs when range hood is used in other than normal single-family household use.
D. Pickup and delivery. This product is designed to be repaired in the home.
E. Damage to the range hood resulting from accident, misuse, fire, flood, acts of God, or use of products not approved by KitchenAid.
KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized KitchenAid dealer.
1-7
— NOTES —
1-8
COMPONENT ACCESS
This section instructs you on how to service each component inside the island and wall canopy range hoods. The wall hood components and their locations are shown below. The island hood component access begins on page 2-6.
WALL HOOD COMPONENT LOCATIONS
Slide Switches
& Indicator Lamp
Halogen Lamps
Blower Motor
2-1
REMOVING A SLIDE SWITCH,
THE INDICATOR LAMP & THE BLOWER MOTOR
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
4.
Remove the three mounting screws from the control assembly cover and remove the cover.
NOTE: Sharp edges may be present.
1.
Disconnect the electrical power to the hood.
2.
Remove the three filters from the hood.
3.
Remove the two screws from the control assembly and pull the assembly around through the filter section to the front.
Control
Assembly Cover
Screw (1 of 3)
Control
Assembly
Screws
5.
To remove a slide switch: a) Disconnect the wire connectors from the switch terminals.
b) Use a small screwdriver and pry the tab on the control housing away from the switch, and push the switch out of the holder. NOTE: The control assembly wiring is shown on the next page.
3 Slide Switches
REASSEMBLY NOTE: Before you reassemble the control assembly, make sure that:
• You route the wiring carefully so that it does not become pinched between the housing sections.
• All of the switch lug wire connectors are securely over the lugs. Also check to see that the metal contacts remain inside the plastic holders and have not been pushed out.
• The slide switches operate properly before securing the housing sections.
2-2
Control Housing Tab
Push Switch Out
Of Housing
6.
To remove the indicator lamp, pull it out of the control housing and disconnect the wires from the two slide switch terminals.
7.
To remove the blower motor: a) Remove the three screws from the motor mounting brackets on both sides of the blower motor (6 total).
b) Disconnect the wire connectors from the slide switch terminals.
Indicator Lamp
Screw
Screw
Screw
MOTOR
Blower Motor
Continued on the next page.
Control Assembly Wiring
Indicator
Violet
Black
Bro wn
Gr ay
Violet Blue
Or ange
Black
White
White
Black
Violet
Red
Orange
Indicator
Indicator
2-3
White
c) Lift the cable clamp, remove the motor cable, and remove the blower motor from the hood.
f) Remove the four motor bracket mounting screws from the center of the motor housing, and pull the motor and bracket out of the housing.
g) Remove the mounting nut from each of the blower wheels and remove the wheels from the blower motor.
Blower Wheel Nut
Cable Clamp d) Position the blower motor on a work surface on one of its sides.
e) Remove the five screws from the blower motor housing side cover that is facing up and remove the cover. NOTE: Do not remove the plastic grille from the cover.
Housing Side Cover
Motor Bracket
Screw (1 of 4)
Side Cover Screw
(1 of 5)
2-4
REMOVING A HALOGEN LAMP SOCKET
WARNING 4.
Pull the halogen lamp out of the socket clip and remove the lamp pins from the socket.
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
Socket
Clip
NOTE: Sharp edges may be present.
1.
Disconnect the electrical power to the hood.
2.
Remove the two screws from the halogen lamp holder and pull the holder away from the hood so the wire connectors are exposed.
Halogen Lamp
Lamp Pins
5.
Remove the clip from the socket by releasing the tabs from the slots.
Screw
Screw
3.
Remove the twist-on wire nuts from the two wires and untwist the wires.
Wire Nut
Wire Nut
Clip Tab & Slot
6.
Remove the two screws from the socket and remove the socket from the holder.
Socket
Screws
2-5
ISLAND HOOD COMPONENT LOCATIONS
Ballast Transformer Control Board Assembly
Ballast Transformer
Blower Motor
2-6
REMOVING THE BALLAST TRANSFORMER
WARNING 6.
Remove the two screws from the fluorescent lamp holder and remove the holder.
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
Lamp Holder Screws
NOTE: Sharp edges may be present..
1.
Disconnect the electrical power to the hood.
2.
Remove the three filters from the hood.
3.
Remove the screw from each of the fluorescent lamp lens retainers and remove the retainers.
Lens Retainers
7.
Remove the wire nut from one of the ballast transformer wires and untwist the wire ends.
8.
Remove the plastic tubing from the transformer wires and cut the second transformer wire near the case.
9.
Remove the two screws from the transformer and remove the transformer.
4.
Slide the fluorescent lamp lens to either end of the holder and remove it from the holder tabs.
Lens Holder Tabs
Slide Lens & Lift
End To Remove
Ballast Transformer Screws
Wire Nut
Cut 2nd Wire Here
5.
Remove the fluorescent lamp from the sockets.
Fluorescent Lamp
REASSEMBLY NOTE: You will have to splice the cut ballast transformer wire, (going to the fluorescent lamp socket), to either of the two wires coming from the new transformer, and secure the ends with a wire nut. Cut the wires to the appropriate length, as necessary.
2-7
REMOVING THE CONTROL BOARD
WARNING
6.
Slide the control housing out of the plastic frame and remove the plastic pin, spring, and housing from the frame.
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
Spring & Pin
NOTE: Sharp edges may be present.
1.
Disconnect the electrical power to the hood.
2.
Remove the three filters from the hood.
3.
Remove the two screws from the control assembly and pull the assembly around through the filter section to the front.
Screw Screw
Frame Housing
7.
Remove the housing screw from the control assembly.
Control Assembly
Housing Screw
4.
Pull the two pivot pins out of the ends of the control assembly.
5.
Remove the two screws from the cable clamp and remove the clamp.
Cable Clamp & 2 Screws
8.
Separate the two sections by rotating the slide switch section away from the housing and unsnapping the two tabs from their slots.
Pivot Pins
2-8
Tab Tab
Slide Switch Section
9.
Remove the wires from the screw terminals on the two terminal blocks, and remove the control board from the housing.
NOTE: Make sure to connect the wires to the same terminal locations on the new board (see the wiring illustration).
Terminal Block 1
Control Board
Terminal Block 2
Blac k
White 2 White
2 Blac k k
Blue Or ange
Blac k
2 Blac White
REASSEMBLY NOTES:
• Before you reassemble the control assembly, make sure that the slide switches operate properly, and that the indicator light is in line with the red lens, before securing the housing sections.
• Install the spring in the control assembly as shown below. Keep the short end of the spring on top of the boss (molded on the side of the switch panel). Also keep the long end of the spring against the inside of the frame, and the pin in the grooved track.
Keep Long End Of
Spring Against
Inside Of Frame
Position Pin
In Track Here
Control Board
Place Short End
Of Spring On Top
Of Boss Here
2-9
REMOVING THE BLOWER MOTOR
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
5.
Position the blower motor on a work surface on one of its sides.
6.
Remove the five screws from the blower motor housing side cover that is facing up and remove the cover. NOTE: Do not remove the plastic grille from the cover.
Housing Side Cover
NOTE: Sharp edges may be present.
1.
Disconnect the electrical power to the hood.
2.
Remove the three filters from the hood.
3.
Remove the control assembly and disconnect the wires from the control board terminal block screws (see pages 2-8 & 2-9 for the procedure).
4.
Remove the two screws from each side of the blower motor mounting bracket, and remove the blower motor from the hood.
Side Cover Screw
(1 of 5)
7.
Remove the four motor bracket mounting screws from the center of the motor housing, and pull the motor and bracket out of the housing.
Blower Wheel Nut
Blower Motor
Motor Bracket
Screw (1 of 4)
Blower Motor Screws (2 On Each Side)
2-10
8.
Remove the mounting nut from each of the blower wheels and remove the wheels from the blower motor.
COMPONENT TESTING
Before testing any of the components, perform the following checks:
• The most common cause for control failure is corrosion on connectors. Therefore, disconnecting and reconnecting wires will be necessary throughout test procedures.
• All tests/checks should be made with a VOM or DVM having a sensitivity of 20,000 ohmsper-volt DC, or greater.
• Check all connections before replacing components, looking for broken or loose wires, failed terminals, or wires not pressed into connectors far enough.
• Voltage checks must be made with all connectors attached to the boards.
• Resistance checks must be made with power cord unplugged from outlet, and with wiring harness or connectors disconnected.
BLOWER MOTOR
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
BALLAST TRANSFORMER
(ISLAND HOODS ONLY)
Refer to page 2-2 (wall hoods), or 2-10 (island hoods), for the procedure for accessing the blower motor.
1.
Disconnect the electrical power to the hood.
2.
Disconnect the wires from the blower motor terminals.
3.
Set the ohmmeter to the R x 1 scale.
4.
Touch the ohmmeter leads to the blue and white motor wires. The meter should indicate between 15 and 35 Ω.
3-1
Refer to page 2-7 (island hoods), for the procedure for accessing the ballast transformer.
1.
Disconnect the electrical power to the hood.
2.
Set the ohmmeter to the R x 1 scale.
3.
Touch the ohmmeter leads to the ballast transformer wire ends at the wire nut and the fluorescent lamp socket. The meter should indicate between 18 and 28
Ω.
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or electrical shock.
2- & 3-POSITION SLIDE SWITCHES
2-Position
1 2 1
3-Position
2 3
SPEED (VARIABLE) CONTROL
(ISLAND HOODS ONLY)
Touch Leads To These Two Screws
(With Blue & Orange Wires)
Contacts (Pos 1) Contacts (Pos 1)
Refer to page 2-2 (wall hoods), or 2-8 (island hoods), for the procedure for accessing the slide switches.
NOTE: The island hood slide switches are soldered to the control board and have to be tested on the board. The wall hood slide switches have wire connectors that can be removed for testing.
1.
Disconnect the electrical power to the hood.
2.
Disconnect the wires from the switch terminals (wall hoods).
3.
Set the ohmmeter to the R x 1 scale.
4.
Refer to the illustration above, and touch the ohmmeter test leads to the switch pins that have the slider in the “contact” position (1). The meter should indicate a closed
(0 Ω) circuit.
5.
With the meter leads at the same pin locations and the slider in another position, the meter should indicate an open
(infinite) circuit.
NOTE: If the readings do not indicate as specified, replace the switch (wall hoods) or the control board (island hoods).
Slider
Refer to page 2-8 (island hoods), for the procedure for accessing the control board.
NOTE: The island hood speed control is soldered to the control board and can be tested on the board.
1.
Disconnect the electrical power to the hood.
2.
Set the ohmmeter to the R x 10K scale.
3.
Position the speed control slider all the way to the left (see above).
4.
Touch the ohmmeter test leads to the two indicated terminal screws (with the orange and blue wires). The meter should indicate approximately 260K
Ω.
5.
Leave the leads touching the two terminal screws, and slowly push the slider all the way to the right. The meter resistance should gradually change from 260 K
Ω to
0 Ω.
NOTE: If the readings do not indicate within
20% of those specified, replace the control board.
3-2
WIRING DIAGRAMS
ISLAND HOOD
Slide Switches
1 0 1
Speed Control (260 K
Ω)
0
Indicator
11 µF
BU
BU
M
Blower Motor
BK
BK
BK
S
BK
Fluorescent Lamp
BK
S
BK
Fluorescent Lamp
OR
BU
Line In
120 VAC
60 Hz
4-1
Transformer
WALL HOOD
Slide Switches
1 2 3
BK
Directional Lamps
GN
M
Blower Motor
11 µF
120 VAC
Line Input
4-2
PRODUCT SPECIFICATIONS
AND
WARRANTY INFORMATION SOURCES
IN THE UNITED STATES:
FOR PRODUCT SPECIFICATIONS AND WARRANTY INFORMATION CALL:
FOR WHIRLPOOL PRODUCTS: 1-800-253-1301
FOR KITCHENAID PRODUCTS: 1-800-422-1230
FOR ROPER PRODUCTS: 1-800-447-6737
FOR TECHNICAL ASSISTANCE WHILE AT THE CUSTOMER’S HOME CALL:
THE TECHNICAL ASSISTANCE LINE: 1-800-253-2870
HAVE YOUR STORE NUMBER READY TO IDENTIFY YOU AS AN
AUTHORIZED SERVICER
FOR LITERATURE ORDERS:
PHONE: 1-800-851-4605
IN CANADA:
FOR PRODUCT SPECIFICATIONS AND WARRANTY INFORMATION CALL:
1-800-461-5681
FOR TECHNICAL ASSISTANCE WHILE AT THE CUSTOMER’S HOME CALL:
THE TECHNICAL ASSISTANCE LINE: 1-800-488-4791
HAVE YOUR STORE NUMBER READY TO IDENTIFY YOU AS AN
AUTHORIZED SERVICER
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 22 GENERAL
- 22 Important Safety Information
- 22 KitchenAid Model & Serial Number Designations
- 22 Model & Serial Number Label Location
- 22 Specifications
- 22 KitchenAid Range Hood Warranty
- 23 COMPONENT ACCESS
- 23 Wall Hood Component Locations
- 23 Removing A Slide Switch, The Indicator Lamp, & The Blower Motor
- 23 Removing A Halogen Lamp Socket
- 23 Island Hood Component Locations
- 23 Removing The Ballast Transformer
- 23 Removing The Control Board
- 23 Removing The Blower Motor
- 24 COMPONENT TESTING
- 24 Blower Motor
- 24 Ballast Transformer
- 24 2- & 3-Position Slide Switches
- 24 Speed (Variable) Control
- 25 WIRING DIAGRAMS
- 25 Island Hood
- 25 Wall Hood
