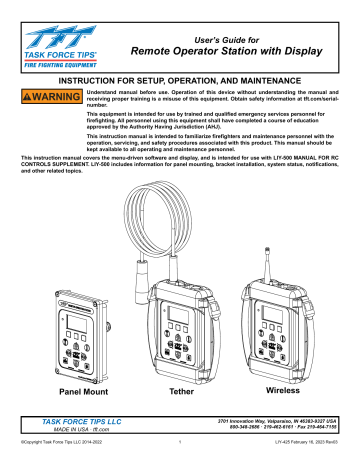

TFT Remote Monitor Operator Station Instructions

G-Force
User’s Guide for
Remote Operator Station with Display
INSTRUCTION FOR SETUP, OPERATION, AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
WARNING receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serialnumber.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
This instruction manual covers the menu-driven software and display, and is intended for use with LIY-500 MANUAL FOR RC
CONTROLS SUPPLEMENT. LIY-500 includes information for panel mounting, bracket installation, system status, notifications,
and other related topics.
Panel Mount
Tether
TASK FORCE TIPS LLC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2014-2022
Wireless
1
LIY-425 February 16, 2023 Rev03
DANGER
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency
response equipment and services want responders to know and
understand the following:
1.
Firefighting and Emergency Response are inherently
dangerous activities requiring proper training in their hazards
and the use of extreme caution at all times.
2. IT IS YOUR RESPONSIBILITY to read and understand
any user’s instructions, including purpose and limitations,
provided with any piece of equipment you may be called on
to use.
3. IT IS YOUR RESPONSIBILITY to know that you have been
properly trained in Firefighting and/or Emergency Response
and in the use, precautions, and care of any equipment you
may be called upon to use.
4. IT IS YOUR RESPONSIBILITY to be in proper physical
condition and to maintain the personal skill level required to
operate any equipment you may be called upon to use.
5. IT IS YOUR RESPONSIBILITY to know that your equipment is
in operable condition and has been maintained in accordance
with the manufacturer’s instructions.
6. Failure to follow these guidelines may result in death, burns or
other severe injury.
Fire and Emergency Manufacturers and Service Association, Inc.
PO Box 147, Lynnfield, MA 01940 • www.FEMSA.org
© 2020 FEMSA. All Rights Reserved.
©Copyright Task Force Tips LLC 2014-2022
2
LIY-425 February 16, 2023 Rev03
TABLE OF CONTENTS
1.0 MEANING OF SAFETY SIGNAL WORDS
2.0 SAFETY
3.0 OPERATION
3.1 OPERATOR STATION CONTROLS
4.0 DISPLAY
4.1 DISPLAY AREAS
4.1.1 SYSTEM STATUS AREA
4.1.2 SYSTEM PARAMETER DISPLAY AREA
4.1.3 DISPLAY BUTTON IDENTIFICATION AREA
4.2 DISPLAY BUTTONS
4.3 SYSTEM PARAMETER DISPLAY
4.4 SYSTEM STATUS AND NOTIFICATIONS
4.4.1 SYSTEM STATUS
4.4.2 NOTIFICATIONS
5.0 DEVICE CONFIGURATION
5.1 CONFIGURATION MODE
5.2 SYSTEM STATUS AREA CONFIGURATION
5.3 WIRELESS OPERATOR STATION AND MONITOR PAIRING
5.4 MULTIPLE MONITOR CONTROL CONFIGURATION
5.5 MENU TIMEOUT CONFIGURATION
5.6 DEMO MODE
5.7 RESETTING FACTORY DEFAULTS
6.0 MULTIPLE MONITOR CONTROL
6.1 MULTIPLE MONITOR GROUP SELECTION CHANGE
6.2 MULTIPLE MONITOR POSITION DISPLAY
6.3 LAST MONITOR CONTROLLED ON POWER-UP
7.0 WARRANTY
8.0 INSPECTION AND MAINTENANCE
SUPPORTING MATERIALS
The following documents contain supporting safety and operating information
pertaining to the equipment described in this manual.
MANUAL: Remote Control (RC)
Monitor Electrical Controls
Supplemental Instructions for use with RC Monitor Manual
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft.
com/serial-number
SECTION 3.0
SECTION 4.9
SECTION 4.0
Toggle Switch Monitor
Operator Station
(Y4E-TS)
Electrical Controls Installation and Operation
SECTION 4.10
SECTION 4.1
Monitor Communication
Interface Control
(Y4E-COMM)
Monitor Mounted
Operator Station
SECTION 4.2
SECTION 4.11
Panel Mount
Operator Station
(Y4E-RP)
Monitor Position Display
(Y4E-DISP)
SECTION 4.12
SECTION 4.3
Remote Auxiliary Function
Interface Control
(YE-REMAUX)
Panel Mount With Display
Operator Station
(Y4E-RP-D)
SECTION 4.4
SECTION 4.13
Tethered
Operator Station
(Y4E-CT-##)
Electric RC Monitor Aerial
Truck Installation
SECTION 4.14
SECTION 4.5
Multiplex Interface Control (YE-CAN#)
Tethered Operator Station
With Display
(Y4E-CT-##-D)
SECTION 4.15
Ethernet Interface Control
SECTION 4.6
Wireless
Operator Station
(YE-RF-##)
SECTION 4.16
Electric Nozzle Actuator
SECTION 4.7
Wireless Operator Station
With Display
(YE-RF-##-D)
SECTION 4.17
Valve Kits
(YE-VK-PH)
SECTION 4.8
Joystick
Operator Station
(Y4E-JS)
SECTION 5.0
Troubleshooting
TASK FORCE TIPS LLC
3701 Innovation Way, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
MADE IN USA • tft.com
©Copyright Task Force Tips LLC 2008-2019
LIY-500 April 8, 2019 Rev14
LIY-500 Remote Control (RC)
Monitor Electrical Controls Manual
©Copyright Task Force Tips LLC 2014-2022
3
LIY-425 February 16, 2023 Rev03
1.0
MEANING OF SAFETY SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI Z535.6, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
WARNING injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor
CAUTION or moderate injury.
NOTICE
2.0
NOTICE is used to address practices not related to physical injury.
SAFETY
This equipment is intended for use by trained personnel for firefighting. Use of this equipment for
WARNING other purposes may involve hazards not addressed by this manual. Seek appropriate guidance and
training to reduce risk of injury.
This device is not rated as ignition proof, explosion proof, or intrinsically safe. Use only in locations
WARNING with adequate ventilation and no hazard of flammable vapor buildup.
The stream exiting a nozzle is very powerful and capable of causing injury and property damage.
WARNING Make sure the nozzle is securely attached and pointing in a safe direction before water is turned on.
Do not direct water stream to cause injury or damage to persons or property.
The electric drives are current limited but may still produce enough force to cause injury. To avoid
CAUTION injury from moving equipment:
• Be aware that equipment may be remotely operated
• Keep hands and fingers away from pinch points
• Never operate the manual override while electric controls are in operation
NOTICE
Always disconnect power before installing or servicing electrical components. Failure to do so
could cause damage to the circuit boards.
©Copyright Task Force Tips LLC 2014-2022
4
LIY-425 February 16, 2023 Rev03
3.0
3.1
OPERATION
OPERATOR STATION CONTROLS
The Operator Station control pad on Remote Monitor Operator Stations with Display allows for immediate access to all basic movement
functionality. Monitor movement in the horizontal and vertical direction, nozzle shaper position, and basic system Auxiliary commands for
RC Extend-A-Gun and Valve Under Monitor all have an individual button for easy actuation.
The figure below shows the control pad used on all Remote Monitor Operator Stations with Display and the functionality assigned to
each button.
MENU / ENTER
RIGHT DISPLAY BUTTON
LEFT DISPLAY BUTTON
UP ROTATE
STREAM CONTROL
FOG PATTERN
STRAIGHT STREAM
LEFT ROTATE
STREAM CONTROL
®
RIGHT ROTATE
STREAM CONTROL
UP
MONITOR
DOWN
MONITOR UP/DOWN button
typically used to control RC
Extend-A-Gun. Also known as
the AUX1 button. Could also
be used with YE-REMAUX
relay interface box to control
other devices.
DOWN ROTATE STREAM CONTROL
FLOW ON/OFF button typically
used to control RC Valve Kit or
VUM. Also known as the AUX2
button. Could also be used with
YE-REMAUX relay interface
box to control other devices.
Figure 3.1
4.0
4.1
DISPLAY
DISPLAY AREAS
The overall graphic display is divided into 3 separate areas. Information in each area is constantly updated based on user input and
feedback from a TFT monitor system. The three areas are defined as the System Status Area, System Parameter Display Area, and the
Display Button Identification Area. The figure below illustrates how the display is divided.
System Status Area
System Parameter
Display Area
Display Button
Identification Area
Figure 4.1
©Copyright Task Force Tips LLC 2014-2022
5
LIY-425 February 16, 2023 Rev03
4.1.1
SYSTEM STATUS AREA
The System Status is for the display of 2 brief system operation parameters. By default, these parameters are configured to display the
monitor movement speed setting and the communication link status between the unit and the monitor system. Additionally, this area is
also used to display important messages to the user about the operating state of the system as well as important device information.
Refer to section 4.4 for more detailed information about the System Status Area.
4.1.2
SYSTEM PARAMETER DISPLAY AREA
The System Parameter Display Area displays specific detailed system information based on user selections. By default, this area is
allocated to display the position of the monitor’s horizontal and vertical axis. Refer to section 4.3 for more detailed information about the
System Parameter Display Area.
4.1.3
DISPLAY BUTTON IDENTIFICATION AREA
The Display Button Identification Area defines the functionality of the 3 unlabeled buttons that are located just underneath the graphic
display on the Control Pad. This area expands the functionality of the Operator Station by redefining the button functionality and
indicating to the user the new functionality of each button based on MENU selections. Refer to section 4.2 for more information on the
Display Button Identification Area as well as how to use the DISPLAY BUTTONS in conjunction with this display area.
4.2
DISPLAY BUTTONS
Operator Stations with Display have 3 buttons on the operator station control pad that are unlabeled. These 3 buttons have their
functionality defined by the lower section of the display screen. The text on the display screen immediately above each button indicates
the current button functionality. The figure below shows a basic screen along with the DISPLAY BUTTONS.
Display Button
Function
Display Buttons
Figure 4.2A
The most common function definition for the middle, DISPLAY BUTTON, “MENU”, cycles through the different DISPLAY BUTTON
menus continuously. If the user does not press any of the display buttons for a period of 10 seconds, the command menu and Button
Function display area will automatically return to the default button configuration.
BUTTON NAME
MENU
DEPLOY
PARK
OSC
MON SPEED
MON DISP
RAISE XGUN
VALVE DISP
MON SELECT
WATER DISP
VOLT DISP
©Copyright Task Force Tips LLC 2014-2022
FUNCTION
Cycle through display button menu options
Initiate RC monitor DEPLOY routine
RC monitor PARK routine/program command
RC monitor OSCILLATE routine/program
Alter RC monitor travel speed command
Change System Parameter Area to display position of the currently controlled RC
monitor
Initiate Extend RC XGUN routine
Change System Parameter Area to display position of the currently controlled VUM
Change System Parameter Area to display of the name the currently controlled RC
monitor group
If enabled, display of pressure and flow information from Fire Research Insight CAN
based flow meter.
The unit must be communicating through a J1939 CAN communication bus for this
functionality to work.
Display of unit supply voltage and ambient light sensor (used by TFT service personnel
to assist in troubleshooting)
Table 4.2
6
LIY-425 February 16, 2023 Rev03
Pressing either the LEFT DISPLAY or RIGHT DISPLAY BUTTON will initiate the command shown directly above that button. If, for
example, the Button Function area has "DEPLOY" displayed directly above the LEFT DISPLAY BUTTON, pressing the LEFT DISPLAY
BUTTON will initiate the Monitor Deploy feature. Figure 4.2b illustrates how to command the monitor to begin the PARK program.
The Operator Station will automatically recall the last functions displayed in the System Parameter Area when powering up. For
example, if the unit is changed to display the VUM position and then powered down, the next time the unit powers up it will show the
VUM position.
Press the display
button immediately
below the PARK
text to initiate the
PARK program
Figure 4.2A
4.3
SYSTEM PARAMETER DISPLAY
The System Parameter Display area displays detailed specific system information selected from options that are built into the menu
system.
To change the System Parameter Display:
1. Press and release the DISPLAY MENU SELECT/ENTER button to cycle through the options until the desired parameter is shown
above either the LEFT or RIGHT DISPLAY BUTTON.
2. Press the DISPLAY BUTTON under the desired option.
System Parameter Display options include:
• MON DISP
• VALVE DISP
• MON SELECT
• WATER DISP
• VOLT DISP
See Table 4.2 for related functionality.
As an example, to change the System Parameter Area Display from the default setting of showing monitor position (MON DISP) to
showing valve position (VALVE DISP) starting from the default reconfigurable button menu, use the following steps:
1. Repeatedly Press the
MENU BUTTON
until the VALVE DISP
option is shown above
one of the DISPLAY
buttons.
Figure 4.3A
©Copyright Task Force Tips LLC 2014-2022
7
LIY-425 February 16, 2023 Rev03
2. Press the DISPLAY
BUTTON that is
located just below the
VALVE DISP text on the
display screen.
Figure 4.3B
3. The System Parameter
Display Area is now
configured to show
VUM valve position.
Figure 4.3C
4.4 SYSTEM STATUS AND NOTIFICATIONS
4.4.1 SYSTEM STATUS
Under normal operating conditions, the top text line of the display shows 2 system operating status parameters. As an example, the
default settings show the speed selection for monitor movement and the communication link status between the Remote Operator
Station and the monitor system.
Using Figure 4.1 as an example, the text “SPD: FAST” in the left section of the System Status Area indicates that the monitor is
configured to move in the fast, ramp-up speed. The text in the right section of the System Status Area, “LINKED”, indicates that there is
an active link with a TFT monitor system.
The System Status Display options include:
• Multiple Monitor Control group numerical selection value
• RC monitor communication link status
• RC Extend-A-Gun position status
• RC VUM position
• RC monitor movement speed selection
Refer to section 5.2 for information on configuring the System Status Area display parameters.
©Copyright Task Force Tips LLC 2014-2022
8
LIY-425 February 16, 2023 Rev03
4.4.2
NOTIFICATIONS
At times, there may be important system status information that will need to be displayed. In these instances, the System Status
information will cycle between displaying the current status of the two system parameters, and important messages to the user.
Below is a list of notifications that could appear in the System Status Area.
MESSAGE
MONITOR OSCILLATING
OSC PROGRAM
OSC POSITION STORED
MONITOR PARKING
MONITOR PARKED
PARK PROGRAM
PARK POSITION STORED
LOW BATTERY
COMMUNICATION ERROR
NO RADIO INSTALLED
INCOMPATIBLE RADIO
EEPROM FAILURE
MEANING
Indicates that the TFT RC monitor is in the process of performing its Oscillate program.
Indicates that the TFT RC monitor is currently in an Oscillate Program Mode.
Indicates that the TFT RC monitor that is in Oscillate Program Mode has successfully stored a new
position.
Indicates that the TFT RC monitor is in the process of performing its Park Pattern.
Indicates that the TFT RC monitor is currently in its Park position.
Indicates that the TFT RC monitor is currently in Park Program Mode.
Indicates that the RC monitor that is in Park Program Mode has successfully stored a new Park
position.
Indicates that the unit’s supply voltage is below a low voltage threshold. In the case of a wireless
version, it is time to replace the batteries.
Indicates that a command sent to a TFT monitor failed to be received correctly. This could be due to a
wireless unit being used out of range, or a communication wiring issue.
On wireless versions, a radio is required to communicate with a TFT RC monitor system. If no radio is
detected in the unit, this message will alert the user of a radio problem and TFT’s service/tech support
department should be contacted.
Wireless versions require specific wireless radios to communicate with TFT RC monitor systems. In
the event the unit does not recognize the radio that is installed it will report this message to the user.
All versions of the Operator Station store configuration information and current display settings in
memory. In the event that the unit is unable to save or restore the configuration information, this
message will be displayed to the user. Contact TFT’s service/tech support department if this message
is ever displayed.
Table 4.4.2
Figure 4.4.2 shows an example as to how important notifications are displayed in the System Status Area. In this example, the Operator
Station is indicating to the user that the monitor is experiencing a COMMUNICATION ERROR.
Figure 4.4.2
©Copyright Task Force Tips LLC 2014-2022
9
LIY-425 February 16, 2023 Rev03
5.0
DEVICE CONFIGURATION
There is a separate menu for Configuration Mode that is used to alter the configuration of the operator station. Configuration Mode
controls the information that is displayed in the System Status Area, multiple monitor control settings, as well as LEARNING the ID Code
from a particular monitor to wireless versions of the Operator Station.
5.1
CONFIGURATION MODE
To enter the Configuration Menu, press and hold the MENU BUTTON for 5 seconds. The System Parameter Display Area will change to
indicate that the operator station is now in Configuration Mode as shown in Figure 5.1.
Figure 5.1
By default, the device will exit Configuration Mode after 10 seconds of inactivity. It is possible to exit Configuration Mode by cycling
through the available menu options until the EXIT option is displayed and pressing the corresponding DISPLAY BUTTON.
Device Configuration Mode options include:
MODE
STATUS LEFT
STATUS RIGHT
RFID LEARN
RFID VALUE
WATER DISP
VALVE TYPE
VUM MODE
VALVE DISP
MULTI CONFIG
MENU TO
SOFT VER
EXIT
MEANING
Changes the system parameter that is displayed in the left section of the System Status Area. New
selection is permanently stored and will be maintained on system power-down and power-up.
Changes the system parameter that is displayed in the right section of the System Status Area. New
selection is permanently stored and will be maintained on system power-down and power-up.
Wireless versions of the Operator Station have to LEARN an ID code from a wireless TFT RC monitor,
this will begin the execution of the RFID LEARN routine.
Displays the current RFID value.
This controls whether the water pressure & flow screen is displayed.
Select valve type between RC VUM and TFT Gateable Ball Valve TFT gateable ball valve control only
available on wired version of Operator Stations (Tether or Panel Mount).
When TFT gateable ball valve is selected, pressing Flow ON/OFF button will change display to show
VALVE GATE POS. Valve position can be changed using INC / DEC display buttons.
Change RC VUM motor direction, Auto/Man operating mode, or AUTO close on PARK feature Only
available on wired version of Operator Stations (Tether or Panel Mount).
Pressing Display Button that is located below VUM option text will toggle between the two options.
This controls whether the valve position screen is displayed.
The Remote Monitor Operator Station with Display is capable of controlling up to ten (10) different
TFT RC monitors individually. This will allow the unit to be configured for the number of monitors in
the system and to apply easily identifiable names to each monitor control group.
This controls the number of seconds for the menu timeout.
Displays the current software version for the unit.
Exits the Configuration Menu.
Table 5.1
©Copyright Task Force Tips LLC 2014-2022
10
LIY-425 February 16, 2023 Rev03
5.2
SYSTEM STATUS AREA CONFIGURATION
Parameters can be set on either the left or right side of the System Status Area by selecting either the STATUS LEFT or STATUS RIGHT
options from the Configuration Menu. After selecting either option it is then possible to cycle through the list of parameters to show by
using the PREV and NEXT display buttons.
Use the following steps as an example to change the left system status parameter to display the position status of a TFT RC Extend- AGun.
1. Press and hold the
MENU button for 5
seconds to enter the
configuration menu.
Release the button
once the Configuration
Menu is displayed.
Figure 5.2A
2. Press and release the
DISPLAY BUTTON
that has the text
“STATUS LEFT”
located immediately
above it to select a
new parameter.
Figure 5.2B
3. Continually press the
NEXT DISPLAY BUTTON
above it until
the text “XGUN STATUS”
is displayed in the
System Parameter
Display Area.
Figure 5.2C
©Copyright Task Force Tips LLC 2014-2022
11
LIY-425 February 16, 2023 Rev03
4. Press and release
the ENTER BUTTON,
which now has the text
“ENTER” located just
above it to change the
parameter display option.
Figure 5.2D
5. Press and release
the DISPLAY MENU button
until the command option
“EXIT” is displayed
above one of the
DISPLAY BUTTONS
and press that button.
Figure 5.2E
6. The left portion of the
System Status Area
now displays the
position status of a TFT
RC Extend-A-Gun.
Figure 5.2F
Available parameters for display in the System Status Area include:
MODE
MONITOR SELECTED
COMM LINK
XGUN STATUS
VALVE STATUS
MONITOR SPEED
MEANING
Displays the numerical value of the TFT RC monitor group that is currently being controlled. Refer to
section 6.0 for more information about Multiple Monitor Control.
Displays the communication link status between the unit and the TFT RC monitor system.
Displays the current position status of a TFT RC Extend-A-Gun. Displayed values are “XG UP”, “XG
DOWN”, “XG MOVING”, or “NO XGUN” to indicate that there is no TFT RC Extend-A-Gun installed or
sensed in the system.
Displays the current position status of a TFT RC VUM. Display values are “VLV OPEN”, “VLV CLOSED”,
“VLV MOVING”, or “VLV STOP” to indicate that the valve is stopped at an intermediate position between
fully open and fully closed.
Displays the current setting of TFT RC monitor movement speed. Displayed values are “SPD: FAST”, “SPD:
SLOW”, or “SPD: CHNG” to indicate a movement speed change request has been sent to the monitor.
Table 5.2
©Copyright Task Force Tips LLC 2014-2022
12
LIY-425 February 16, 2023 Rev03
5.3
WIRELESS OPERATOR STATION AND MONITOR PAIRING
Wireless versions of the Operator Station need to have the RFID code from the monitor taught to it. Below is a step-by-step guide on
how to put the unit in a mode to LEARN the RFID code from the monitor.
Refer to LIY-500, Section 4.6.3, for information on how to put the monitor into TEACH mode.
1. Press and hold the
MENU BUTTON
for 5 seconds to
enter the configuration
menu. Release the
button once the
Configuration Menu
is displayed.
Figure 5.3A
2. Repeatedly press
and release the MENU
until “RFID LEARN”
is one of the available
options and press
and release the
corresponding DISPLAY
button below the option.
Figure 5.3B
3. After setting the default
ID code, it will then wait
to receive the new code
from the monitor.
Figure 5.3C
©Copyright Task Force Tips LLC 2014-2022
13
LIY-425 February 16, 2023 Rev03
4. After receiving the new
code from the monitor
the unit will then
configure the radio and
store the new ID code
in memory.
The unit will then show
that the new ID code
has been learned and
indicate that the update
was successful.
Figure 5.3D
5. Press and release the
MENU button
until the option
“EXIT” is displayed
above one of the
DISPLAY BUTTONS
and press and release
that button.
Figure 5.3E
NOTICE
If the unit fails to properly acquire the ID code from the monitor, repeat the process of TEACHING/
LEARNING the ID code.
©Copyright Task Force Tips LLC 2014-2022
14
LIY-425 February 16, 2023 Rev03
5.4
MULTIPLE MONITOR CONTROL CONFIGURATION
TFT RC monitors and the RC accessories directly associated with the monitor are defined as a Monitor Group. As an example, a single
TFT RC monitor group could consist of a TFT RC Monitor, a TFT RC Extend-A Gun, and a TFT RC Valve Kit. These items collectively
would make up a RC Monitor Group. The control of multiple groupings of TFT RC monitors and their directly related RC accessories is
what is called Multiple Monitor Control.
NOTICE
Only 1 monitor is capable of being assigned to a Monitor Group for independent control.
The Operator Station can be configured to control up to 10 monitor groups from a single controller. Also, the device can be configured to
control just a single monitor, but have the monitor communication group changed to work in conjunction with a multiple monitor control
system.
Additionally, the device allows a name to be given to each monitor communication group, making it easier to identify which monitor the
controller is configured to control as opposed to memorizing a numerical group number for each monitor. Names are selected from a
pre-defined list of choices that are programmed into the unit.
Refer to LIY-500, Section 4.7.6, for information on how to configure TFT RC monitors for multiple monitor control.
Following is a step-by-step example of configuring the Operator Station to communicate with 2 monitors:
1. Press and hold the
MENU button for
5 seconds to
enter the configuration
menu. Release the button
once the Configuration
Menu is displayed.
Figure 5.4A
2. Repeatedly press and
release MENU until
“MULTI CONFIG”
is one of the available
options and press and
release the corresponding
DISPLAY BUTTON.
Figure 5.4B
©Copyright Task Force Tips LLC 2014-2022
15
LIY-425 February 16, 2023 Rev03
3. Press and release the
RIGHT DISPLAY button
to increase (INC) the
number of monitors to
control until the number
2 is displayed in the
System Parameter
Display Area. Press
and release the
ENTER button.
Figure 5.4C
4. Cycle through the list of
name options for the
first group using the
PREV & NEXT
BUTTONS.
Press and release
the ENTER button
to select the name.
Figure 5.4D
5. Repeat the same
process of cycling
through the list of
available name options.
Press and release the
ENTER BUTTON
to select the name
displayed in the
System Parameter
Display Area.
Figure 5.4E
©Copyright Task Force Tips LLC 2014-2022
16
LIY-425 February 16, 2023 Rev03
6. Press and release
the MENU BUTTON
until the command option
“EXIT” is displayed above
one of the DISPLAY
BUTTONS. Press and
release that button.
Figure 5.4F
7. The unit is now
configured to control
multiple monitors.
The default menu
now changes to the
Monitor Group
Selection menu.
Monitor Group
Selection Menu.
Figure 5.4G
5.5
MENU TIMEOUT CONFIGURATION
The unit allows users to vary the amount of time for the standard menus to timeout and return to the default DISPLAY COMMAND and
MENU/ENTER button configuration. The default setting is 10 seconds. Users can configure the menu to timeout from a minimum of 5
seconds, up to a maximum of 20 seconds.
NOTICE
5.6
DEMO MODE
The menu timeout does not control the amount of time that the unit will wait before automatically
exiting the configuration menu. That time is limited to 10 seconds to prevent accidental
reconfiguration of the unit.
The unit has a “Demonstration Mode” that helps give a visualization of all the features that are available. DEMO MODE can be enabled/
disabled from inside the SOFT VER menu. Changing the mode results in resetting the unit. On Wireless versions this will require turning
the unit back on with the POWER BUTTON to resume operation. Once DEMO MODE is turned on, it stays active until this menu is
entered again and turned off.
NOTICE
5.7
Monitor controls are completely disabled in DEMO MODE. DEMO MODE is not recommended for in
service units.
RESETTING FACTORY DEFAULTS
To restore factory default settings:
1. Ensure the unit is powered down.
2. Press and hold the Fog Pattern button and Flow On/Off button while switching the power on.
3. Release the two buttons when the factory default message appears.
©Copyright Task Force Tips LLC 2014-2022
17
LIY-425 February 16, 2023 Rev03
6.0
MULTIPLE MONITOR CONTROL
Remote Monitor Operator Stations with Displays configured for multiple monitor control have a different top-level default menu than
standard systems. It is essential that users are able to quickly switch control from one monitor to the next without having to cycle through
menus. Therefore, the Monitor Control Group Selection commands are the first, and default button configuration on units configured for
multiple monitor control. The standard controller top-level default menus can be found by pressing the MENU BUTTON.
MULTIPLE MONITOR DEFAULT SCREEN
Figure 6.0
6.1
MULTIPLE MONITOR GROUP SELECTION CHANGE
Changing the selection of Monitor Groups is performed by pressing and releasing the MON PREV and MON NEXT buttons. Pressing
either of the buttons will continuously cycle through the different monitor control groups configured to be controlled with the operator
station.
The System Parameter Display area displays the name of the monitor group that is currently being controlled. If another system
parameter is being displayed, such as the currently controlled group’s monitor position, selecting a new control group will automatically
display the Monitor Group parameter temporarily to alert the user of the group the operator station is now controlling.
6.2
MULTIPLE MONITOR POSITION DISPLAY
Units configured for multiple monitor control are capable of displaying position display data for all RC monitor control groups that it is
configured to control. The display shows the position data for only the current monitor selected.
6.3
LAST MONITOR CONTROLLED ON POWER-UP
On power-up, the unit automatically resumes control of the TFT RC monitor control group that was last controlled. There is no need to
save the configuration for future use, this is automatically done by the unit.
©Copyright Task Force Tips LLC 2014-2022
18
LIY-425 February 16, 2023 Rev03
7.0
WARRANTY
Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its
products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and
workmanship during the two (2) year period from the date of purchase. TFT’s obligation under this warranty is specifically limited to
replacing or repairing the equipment (or its parts) which are shown by TFT’s examination to be in a defective condition attributable to
TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana
46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is
a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT
will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an
intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages
for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT.
It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.
THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
©Copyright Task Force Tips LLC 2014-2022
19
LIY-425 February 16, 2023 Rev03
8.0
INSPECTION AND MAINTENANCE
1. Inspect controllers at least quarterly to verify that functions are operational and controls are free from damage or corrosion.
2. Check battery level of wireless controller and replace as necessary.
3. Service Test monitors at least annually insuring functions of all controllers are operational. Maintain records of the controller as
part of the monitor records.
Any alterations to the product or its markings could diminish safety and constitutes a misuse of
CAUTION this product.
Equipment failing any part of the checklist is unsafe for use and must have the problem corrected
WARNING before use or being placed back into service. Operating equipment that has failed the checklist is a
misuse of this equipment.
TASK FORCE TIPS LLC
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2014-2022
20
LIY-425 February 16, 2023 Rev03
