ROHS HS07 User manual

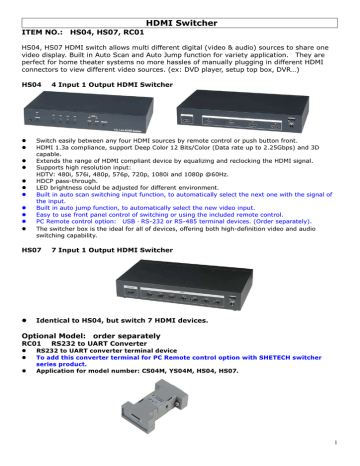

HDMI Switcher
ITEM NO.: HS04, HS07, RC01
HS04, HS07 HDMI switch allows multi different digital (video & audio) sources to share one
video display. Built in Auto Scan and Auto Jump function for variety application. They are
perfect for home theater systems no more hassles of manually plugging in different HDMI
connectors to view different video sources. (ex: DVD player, setup top box, DVR…)
HS04
Switch easily between any four HDMI sources by remote control or push button front.
HDMI 1.3a compliance, support Deep Color 12 Bits/Color (Data rate up to 2.25Gbps) and 3D
capable.
Extends the range of HDMI compliant device by equalizing and reclocking the HDMI signal.
Supports high resolution input:
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p @60Hz.
HDCP pass-through.
LED brightness could be adjusted for different environment.
Built in auto scan switching input function, to automatically select the next one with the signal of
the input.
Built in auto jump function, to automatically select the new video input.
Easy to use front panel control of switching or using the included remote control.
PC Remote control option: USB、RS-232 or RS-485 terminal devices. (Order separately).
The switcher box is the ideal for all of devices, offering both high-definition video and audio
switching capability.
HS07
4 Input 1 Output HDMI Switcher
7 Input 1 Output HDMI Switcher
Identical to HS04, but switch 7 HDMI devices.
Optional Model: order separately
RC01
RS232 to UART Converter
RS232 to UART converter terminal device
To add this converter terminal for PC Remote control option with SHETECH switcher
series product.
Application for model number: CS04M, YS04M, HS04, HS07.
1
Panel View:
HS04
HS07
IR Remote Control Setting：
：
This device could use IR remote control for function setting and control, The ID number must be setup
before using IR remote control or change new batteries.
Setup IR remote ID number:
Press and hold “Power Symbol” button and press number 0.
Installation View:
HS04
2
HS07
RC01
RS-232
PC
RC01
Console cable
YS04M
CS04M
HS04, HS07
,
Specification:
ITEM
HS04
Connector
Input / Output
Color depth
Resolutions
Function Button
Power Supply
Power Consumption
Temperature
Dimensions
Weight
mm
g
HDMI (Input) x 4、
HDMI (Input) x 7、
HDMI (Output) x 1
HDMI (Output) x 1
12 Bits/Color (Data rate up to 2.25Gbps)
1080p (Max)
Button x 8
Button x 11
DC 5V 1AMP Regulated ( External )
300mA ( Max )
600 mA (Max)
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
253 x 138.5 x 40
770
775
mm
g
DB9 Connector (Female)
4 PIN Female Header
15M (max)
115200 bps (max)
From Terminal +5V
50 mA (max)
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
57.5 × 33.5 × 16.8
22
ITEM
PC (RS-232)
Console
Distance
Baud Rate
Power Source (DC)
Power Consumption
Temperature
Dimension
Weight
HS07
HDMI Type A
RC01
3
LED Indication:
Power
AUTO SCAN
AUTO JUMP
1, 2, 3, 4
ON/OFF
FLASH
ON/OFF
ON/OFF
ON
FLASH
System activate/ standby.
Panel button or IR remote control disabled by remote PC.
Auto scan function activated/disabled.
Auto jump function activated/disabled.
Currently selected input signal channel.
No signal input.
Panel Button Function:
Power: System activate/ standby.
AUTO SCAN: Auto scan function activated/disabled.
AUTO JUMP: Auto jump function activated/disabled.
DIMMER: LED brightness adjustment.
1, 2, 3, 4: Currently select input signal channel and disable auto scan function.
Remote Control Operating A,B Mode Switching:
There are two remote control operating modes: When this device power on, you could
switch A,B mode by pressing the panel “power” button and remote control “ *” button
together.
Mode A operating mode: It come with auto scan & auto jump functions.
Mode B operating mode: When auto scan & auto jump functions no need to use, which only
need single button for quick operation on AV switch.
Factory default is set to (Mode A).
IR remote control Mode A Operating:
Power symbol
▲
▼
◀
▶
1、
、2、
、3、
、4 (5，
，6，
，7)
0
#
MENU、
、ENTER、＊、
、＊、(5，
，7)、
、8、
、9
、＊、 ，6，
System activate/standby.
Select next available input and activates auto scan function.
Select previous available input and activates auto scan function.
Select previous input and disable auto scan function.
Select next input and disable auto scan function.
Currently select input and disable auto scan function.
Auto jump function activated/disabled.
LED brightness adjustment.
Reserved (no function) .
IR remote control Mode B Operating:
Power symbol
System activate/standby.
▲
Select next input and system activate.
▼
Select previous input and system activate.
◀
Select previous input and system activate.
▶
Select next input and system activate.
1、
、2、
、3、
、4 (5，
，6，
，7)
Currently select input and system activate.
#
LED brightness adjustment.
MENU、
、ENTER、＊、
、＊、(5，
，7)、
、8、
、9、
、0 Reserved (no function).
、＊、 ，6，
Auto Scan Function:
Under auto scan operation, if the selected input video signal disappears over 0.5 second, it
would automatically select the previous or next input with video signal.
Auto Jump Function:
Under auto jump operation, if there is a new video signal input, it will automatically switch
to a new video signal input.
LED brightness setting:
LED brightness could be set up as the following 4 levels:
1 Minimum Brightness
2 Normal Brightness
3 Maximum Brightness
4 Brightness auto change
4
Factory default is set to level 3.
Under Brightness auto change mode, press any button or IR remote control, or video signal
changed (video signal disappears or show up), LED status will show the maximum
brightness up to 5 seconds then back to the minimum brightness.
Computer Remote Control Function:
This console could use optional USB、
、RS-232 and RS-485 terminal cable to connect with
computer, To use terminal program for remote control operation, the communication format
is 9600,8,N,1 (9600 Bps, 1 start bits, 8 data bits, 1 stop bit).
Under remote control operation, If it shows 「COMMAND」
」, then it is “under command mode”.
It could easily be operated and set by entering the following commands in the chart.
Press「Enter」
」: if it shows「OK!」
」 then the previous command is completed; showing「ERROR!」
」
indicates the previous command is incorrect.
Command Mode Instruction:
[COMMAND]
[DESCRIPTION]
------------------------- ------------------------------------------n
Currently select input and disable auto scan.
PRE
Select previous available input and activates auto scan.
NEXT
Select next available input and activates auto scan.
SCAN y
Auto scan function activated/disabled.
JUMP y
Auto jump function activated/disabled.
ACTIVATE
System activate.
STANDBY
System standby.
MODE x
Select operation mode A/B.
IR y
IR remote button lock/unlock.
KEY y
Panel button lock/unlock.
LED n
LED brightness adjustment.
SAVE
Save setting.
LOAD
Load setting.
KEYPAD
Keypad mode operation.
SIGNAL
Display input signal status.
STATUS
Display setting.
VERSION
Display firmware version.
?
Show all commands.
[SYMBOL]
[PARAMETER]
------------------------- ------------------------------------------n
1|2|3|4
x
A|B
y
ON | OFF
Space characters between the command and parameters can be ignored.
Virtual Remote Control Mode:
Showing 「KEYPAD :」 when it is under virtual remote control mode, which you could enter
the following commands at the terminal to simulate the IR remote control operation.
After press command if it shows 「OK!」 then the previous command is executed; showing
「ERROR!」 indicates the previous command is incorrect.
System Activate Virtual Remote Control Mode A/B Operate description:
MODE A：
：
[COMMAND]
[DESCRIPTION]
------------------------- ------------------------------------------1234
Currently select input and disable auto scan.
Select previous available input and activates auto scan.
+
Select next available input and activates auto scan.
L
Select previous input and disable auto scan.
R
Select next input and disable auto scan.
5
0
/
.
Q
S
?
Auto jump function activated/disabled.
System activate/standby.
LED brightness adjustment.
Command mode operation.
Display setting and input signal status.
Show all commands.
MODE B：
：
[COMMAND]
[DESCRIPTION]
------------------------- ------------------------------------------1234
Currently select input.
Select previous input.
+
Select next input.
L
Select previous input.
R
Select next input.
/
System activate/standby.
.
LED brightness adjustment.
Q
Command mode operation.
S
Display setting and input signal status.
?
Show all commands.
System Standby Virtual Remote Control Mode A/B Operate description:
MODE A：
：
[COMMAND]
[DESCRIPTION]
------------------------- ------------------------------------------/
System activate/standby.
Q
Command mode operation.
S
Display setting and input signal status.
?
Show all commands.
MODE B：
：
[COMMAND]
[DESCRIPTION]
------------------------- ------------------------------------------1234
Currently select input and system activate.
Select previous input and system activate.
+
Select next input and system activate.
L
Select previous input and system activate.
R
Select next input and system activate.
/
System activate/standby.
Q
Command mode operation.
S
Display setting and input signal status.
?
Show all commands.
Remark:
There are some DVD equipments still have +5V signal output under power off status, it will cause
auto jump and auto scan function abnormal, please disable auto jump and auto scan function to
avoid any abnormal operation.
