Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

ArMENIA

AUSTrIA

AzErbAIjAN bELArUS bELGIUM

CzECH

DENMArK

ESTONIA

FINLAND

FrANCE

GErMANY

GEOrGIA

HUNGArY

IrELAND

ITALIA

KAzAKHSTAN

KYrGYzSTAN

LATVIA

LITHUANIA

LUXEMbUrG

MOldOvA

NETHErLANDS

NOrWAY

POlANd

POrTUGAl rUSSIA

SlOvAKIA

SPAIN

SWEdEN

SWITZErlANd

TADjIKISTAN

U.K

UKrAINE

UzbEKISTAN

Customer Care Centre

0-800-05-555

0810 - SAMSUNG (7267864, € 0.07/min)

088-55-55-555

810-800-500-55-500

-

02-201-24-18

www.samsung.com/be (Dutch) www.samsung.com/be_fr (French)

800 - SAMSUNG (800-726786) www.samsung.com

Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

70 70 19 70 www.samsung.com/dk

800-7267

030 - 6227 5 15

01 48 63 00 00

01805 - SAMSUNG(726-7864 € 0,14/Min)

8-800-555-555

06-80-SAMSUNG(726-7864)

0818 717100

800-SAMSUNG(726-7864)

8-10-800-500-55-500

00-800-500-55-500

8000-7267

8-800-77777

261 03 710

00-800-500-55-500

0900-SAMSUNG (0900-7267864) (€ 0,10/Min)

815-56 480

0 801 1SAMSUNG(172678)

022-607-93-33

80820-SAMSUNG(726-7864)

8-800-555-55-55

0800-SAMSUNG(726-7864)

902 - 1 - SAMSUNG (902 172 678)

0771 726 7864 (SAMSUNG)

0848 - SAMSUNG(7267864, CHF 0.08/min)

8-10-800-500-55-500

0845 SAMSUNG (7267864)

0-800-502-000

8-10-800-500-55-500

-

-

-

Web Site

www.samsung.com/at www.samsung.com

www.samsung.com/fi www.samsung.com/fr www.samsung.com/de

www.samsung.com/hu www.samsung.com/ie www.samsung.com/it www.samsung.com

www.samsung.com

www.samsung.com

www.samsung.com/lu www.samsung.com/nl www.samsung.com/no www.samsung.com/pl www.samsung.com/pt www.samsung.com

www.samsung.com/sk www.samsung.com/es www.samsung.com/se www.samsung.com/ch www.samsung.com/ch_fr/(French) www.samsung.com

www.samsung.com/uk www.samsung.ua

www.samsung.com/ua_ru www.samsung.com

© 2010 Samsung Electronics Co., Ltd. All rights reserved.

BN68-02588A_Eng.indb 1 bN68-02588A-00

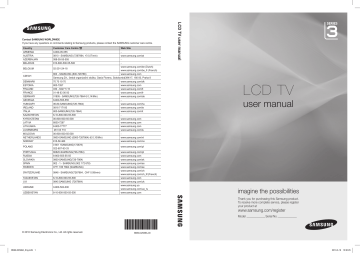

LCD TV

user manual imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com/register

Model _____________ Serial No. _____________

2010-3-19 15:30:25

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

✎

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

•

•

•

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LCD screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

Always try do display any image on full screen, use TV set picture format menu for best possible match.

Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

x

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

Installation with a stand.

Installation with a wall-mount.

10 cm

10 cm

10 cm 10 cm

10 cm 10 cm

10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

2

English

BN68-02588A_Eng.indb 2 2010-3-19 15:30:26

POWER

P

Contents

Getting Started

4

Connections

7

Basic Features

10

4 Accessories

4 Viewing the Control Panel

5 Viewing the Remote Control

6 Connecting to an Antenna

6 Plug & Play (Initial Setup)

7 Connecting to an AV Device

8 Connecting to an Audio Device

8 Connecting to a PC

10 Changing the Input Source

10 How to Navigate Menus

11 Using the INFO button (Now & Next guide)

11 Planning Your Viewing

12 Channel Menu

14 Picture Menu

17 Sound Menu

19 Setup Menu

21 Support Menu

Advanced Features

22

Other Information

26

22 Media Play

26 Analogue Channel Teletext Feature

27 Installing the Wall Mount

28 Anti-Theft Kensington Lock

28 Securing the TV to the Wall

29 Troubleshooting

32 Specifications

33 Index

BN68-02588A_Eng.indb 3

Check the Symbol!

t

This function can be used by pressing the

TOOLS

button on the remote control.

Note One-Touch Button

English

3

2010-3-19 15:30:27

Getting Started

Accessories

✎

✎

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

The items’ colours and shapes may vary depending on the models.

y y

Remote Control & Batteries (AAA x 2)

Owner’s Instructions y

✎

Warranty Card / Safety Guide (Not available in some locations)

See separate guide for installing the stand.

y y

Cleaning Cloth

Power Cord y

Stand (1EA)

1 EA

(M4 X L16) y

Stand Screws (2EA)

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor Power Indicator

Y

Speakers

P

(Power)

Power Indicator

SOURCE

MENU

Y

E z

Turns the TV on or off.

Blinks and turns off when the power is on and lights up in standby mode.

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER

E

button on the remote control.

Displays an on-screen menu, the OSD (on screen display), of your TV’s features.

Adjusts the volume. In the OSD, use the

Y

buttons as you would use the

◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the z

buttons as you would use the

▼

and

▲

buttons on the remote control.

Aim the remote control towards this spot on the TV.

Remote control sensor

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power code.

4

English

BN68-02588A_Eng.indb 4 2010-3-19 15:30:28

Display the main on-screen menu.

(P. 10)

Turn the TV on and off. (P. 6)

Viewing the Remote Control

Display and select the available video sources. (P. 10)

Change the channel.

Alternately select Teletext,

Double or MiX.

Adjust the volume.

Display the main on-screen menu.

(P. 10)

View the Media play.

Quickly select frequently used functions.

Select on-screen menu items and change menu values.

Return to the previous menu. (P. 10)

Buttons in the

Channel Manager,

Media Play menu, etc.

MEDIA.P

A B C D

Return to the previous channel.

Cut off the sound temporarily.

Change channels.

Display Channel Lists on the screen. (P. 14)

Display the EPG (Electronic Programme

Guide). (P. 11)

Display information on the

TV screen.

Exit the menu. (P. 10)

AD

: Audio Description selection. (Not available in some locations) (P. 18)

P.SIZE

: Choose the picture size. (P. 16)

SUBT.

: Digital subtitle display (P. 20)

Installing batteries (Battery size: AAA)

BN68-02588A_Eng.indb 5

✎

NOTE x x

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon signs.

x

The colour and shape may vary depending on the model.

English

5

2010-3-19 15:30:29

Getting Started

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

VHF/UHF Antenna or

Cable

ANT OUT

R-AUDIO-L P

R

P

B

Y

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in confi guring basic settings. Press the

POWER

P

button. Plug & Play is available only when the Input source is set to TV.

1

Selecting a language Press the ▲ or ▼ button, then press the ENTER

E

button.

Select the desired OSD (On Screen Display) language.

2

Selecting Store Demo or Home Use

Press the ◄ or ► button, then press the

ENTER

E

button.

y

Select the Home Use environments.

mode. Store Demo Mode is for retail

POWER

P y

Return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec.

3

Selecting a country Press the ▲ or ▼ button, then press the ENTER

E

button.

Select the appropriate country. If the desired country does not exist on the menu, select

Others .

✎

After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.

✎

When you input the PIN number, 0-0-0-0 is not available.

4

Selecting an antenna

Press the

▲

or

▼

button, then press the

Select Air or Cable .

ENTER

E

button.

5

6

Selecting a channel

Setting the

Mode

Clock

Press the

▲

or

▼

button, then press the ENTER

E

button.

Select the channel source to memorise. When setting the antenna source to Cable , a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel

→

Auto Store . (P. 13)

✎

Press the ENTER

E

FAV.CH

Set the Clock Mode automatically or manually.

✎

If you select the Auto , select the time zone where you live.

7

Viewing the HD

Connection Guide.

The connection method for the best HD screen quality is displayed.

8

Enjoy your TV. Press the

ENTER

E

button.

If You Want to Reset This Feature...

DUAL

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

P.MODE

MTS

MEDIA.P

6

English

BN68-02588A_Eng.indb 6 2010-3-19 15:30:30

Connections

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB)

DVD

W R B G

Red White

HDMI OUT

AUDIO OUT

R-AUDIO-L

DVI OUT

R-AUDIO-L

P

R

P

B

Y

P

R

P

B

Y

R-AUDIO-L P

R

P

B

Y

Y

✎

HDMI (DVI) IN / PC/DVI AUDIO IN



When using an HDMI/DVI cable connection, you must use the

HDMI (DVI) IN

jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI

AUDIO IN jacks for audio.



If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).



If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.



It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.

Using a Component (up to 1080p) or Audio/Video (480i only) Cable and Using a Scart Cable

Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

R W R W R B G

B G W R B

R W

G

Y W R W R B G

Yellow Red White

VCR

AUDIO OUT VIDEO OUT

Blu-ray player

R-AUDIO-L

AUDIO OUT

P

R

COMPONENT OUT

P

B

P

R P

R

P

B P

B

Y

Y

R-AUDIO-L P

R

P

B

Y

✎

✎

In Ext.

mode, DTV Out supports MPEG SD Video and Audio only.

W R

Y

Red Blue Green

DVD

EXT

English

7

BN68-02588A_Eng(1-25).indd 7 2010-3-26 14:56:17

Connections

Connecting to an Audio Device

Using an Optical or Audio Cable Connection

Available devices: digital audio system, amplifi er, DVD home theatre

OPTICAL

Digital Audio

System

P

R

P

B

Y

R-AUDIO-L

✎

DIGITAL AUDIO OUT (OPTICAL) x

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system. x x

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

Connecting to a PC

Using an HDMI/DVI Cable / a D-sub Cable

DVI OUT AUDIO OUT AUDIO OUT PC OUT

R-AUDIO-L

P

R

P

B

Y

R-AUDIO-L

P

R

P

B

P

R

P

B

Y

R-AUDIO-L P

R

P

B

Y

8

English

BN68-02588A_Eng.indb 8 2010-3-19 15:30:37

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360 X 768 @ 60 Hz.1920X1080@60Hz.

Mode

IBM

MAC

VESA DMT

VESA GTF

Resolution

640 x 350

720 x 400

640 x 480

832 x 624

640 x 480

800 x 600

1024 x 768

1280 x 720

1360 x 768

720 x 576

1280 x 720

Horizontal Frequency

(KHz)

31.469

31.469

35.000

49.726

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

45.000

47.712

35.910

56.456

Vertical Frequency (Hz)

72.188

75.000

60.004

70.069

75.029

60.000

60.015

59.950

74.777

70.086

70.087

66.667

74.551

59.940

72.809

75.000

60.317

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

25.175

31.500

31.500

40.000

50.000

49.500

65.000

75.000

78.750

74.250

85.500

32.750

97.750

VESA GTF 1280 x 720 52.500 70.000

89.040

✎

NOTE x x x x

For HDMI/DVI cable connection, you must use the

HDMI (DVI) IN

jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

CONNECTIONS COMMON INTERFACE Slot

To watch paid channels, the “CI or CI+ CARD” must be inserted.

y y

If you don’t insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”.

The pairing information containing a telephone number, the “CI or

CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

y

When the configuration of channel information has finished, the

✎

NOTE x x message “Updating Completed” is displayed, indicating the channel list is updated.

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

x x x x

Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

-/-

-/-

+/+

+/+

-/-

+/+

+/+

+/+

Sync Polarity

(H / V)

+/-

-/+

-/-

-/-

-/-

-/-

+/+

-/+

-/-

+/+

BN68-02588A_Eng.indb 9

English

9

2010-3-19 15:30:39

POWER

P

Changing the Input Source

FAV.CH

Source List

Use to select TV or other external input sources such as DVD / Blu-ray players / to the TV.

MTS

■

TV / Ext. / AV / Component / PC /

HDMI/DVI / USB

✎

In the Source List , connected inputs will be highlighted.

✎

Ext.

always stay activated.

DUAL

MEDIA.P

Edit Name

■

VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI

Devices / TV / IPTV / Blu-ray / HD DVD / DMA : Name the device connected to the input jacks to make your input source selection easier.

✎

When connecting an HDMI/DVI cable to the HDMI

(DVI) IN port, you should set the port to

HDMI/DVI mode under Edit Name .

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

MEDIA.P

1

2

3

4

A B C D

1

MENU button: Displays the main on-screen menu.

2

ENTER

E

/ Direction button: Move the cursor and select an item. Confi rm the setting.

3

RETURN button: Returns to the previous menu.

4

EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1

5

MENU

◄

/ m

2

▲

/

▼

3

ENTER

E

►

The main menu options appears on the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support .

Select an icon with the ▲ or ▼ button.

Press ENTER

E sub-menu.

to access the

4

▲ / ▼

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of an item with the

◄

or

►

button. The adjustment in the OSD may differ depending on the selected menu.

6

ENTER

E

Press ENTER confi guration.

E

to complete the

7

EXIT e

Press

EXIT

.

10

English

BN68-02588A_Eng(1-25).indd 10 2010-3-22 19:27:41

POWER

P and the status of certain audio-video settings.

programme information for each channel according to the broadcasting time.

y y

Scroll

◄

,

►

to view information for a desired programme while watching the

Scroll

abc1

▲ , ▼

FAV.CH

MTS

want to move to the currently selected channel, press the ENTER

E

button.

P.MODE

DTV Air

15

life On venus Avenue

Unclassified

No Detaild Information

18:00 ~ 6:00

E

Watch

'

Information

Guide

FAV.CH

information is provided by broadcasters.

Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time. Programme

MTS

Using Channel View

Guide

2:10 Tue 1 jun

800 five

Channel View - TV

Today

27

28

800

24

16

6

Discovery

DiscoveryH&L five price-drop.tv

QVC

R4DTT

DTV Air 800 five

Home and Away

18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

18:00 - 19:00

American Chopper

Programmes resume at 06:00

) Family Affairs Home and...

No Information

QVC Selection

No Information

19:00 - 20:00

Tine Team

Fiv...

) Dark Angel

View Mode +24 Hours Ch. Mode Information k

Page

E

Watch

1 2 3 4 5 6

Using Scheduled View

Guide

2:10 Tue 1 jun

DTV Air 800 five

Family Affairs

18:00 - 18:30

Drama

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

800 five

Scheduled View

18:30

19:15

Today

Today

) Family Affairs

) Dark Angel

800

800 five five

View Mode Information

E

Cancel

1 4 6

1

Red ( View Mode ): View the list of programmes that are playing now or coming up.

2

MEDIA.P

): Viewing the list of programmes to be broadcasted after 24 hours.

3

Blue ( Ch.Mode

): Select the type of channels you want to display on the Channel View window.

– The Ch. Mode differs according to the antenna source.

4

Information : Displays details of the selected programme.

5

(Page): Moves to the previous / next page.

6

ENTER

E

button

–

When selecting the current programme, you can watch the selected programme.

– reserve to watch the selected programme. To cancel the schedule, press the ENTER

E

button again and select Cancel Schedules .

English

11

2010-3-19 15:30:41 BN68-02588A_Eng.indb 11

Basic Features

Channel Manager

Delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the

Channels, My Channels or Scheduled screen.

All c 1 c 2

1futech

* 24ore.tv

TV

Radio

Data/Other

Analogue

15 abc1

3 BBC World

23 bid-up.tv

33 Boonerang

32 Cartoon Nwk

5

4

Class News

\ Coming Soon

27 Discovery r

Air Antena

B

zoom Select k

Page

T

Tools

■

■

Channels : Shows the channel list according to channel type.

*

My Channels : Shows the group of the channel.

■

Scheduled : Shows all the currently reserved programmes.

✎

Using the colour buttons with the Channel Manager x

Red ( Antenna ): Toggle among Air or Cable .

x

B

Green ( number.

Zoom ): Enlarges or shrinks a channel x

Yellow ( Select ): Select desired channels and press the Yellow button to set all the selected channels at the same time. The c

mark appears to the left of the selected channels. x

( Page ): Move to next or previous page.

x

T

( Tools ): Displays the the situation.)

Channel Manager option menu. (The Options menus may differ depending on

Channel Status Display Icons

Icons Operations

A

An Analogue channel.

c

*

A channel selected.

A channel set as a Favourite.

(

A programme currently being broadcast.

\

)

A locked channel.

A reserved programme.

¦

Using Favourite Channels

*

My Channels

(in Channel Manager )

Shows all favourite channels.

■

Edit My Channels t

: You can set the selected channels to desired my channels group.

✎

The “

*

” symbol will be displayed and the channel will be set as a my channel.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.

x

One or more groups can be selected.

3. After you have changed the settings, the channel list for each group can be viewed in

My Channels

.

All c 1 c 2

1futech

* 24ore.tv

TV

Radio

Data/Other

Analogue

3

23

33

32

5

4

27

15 abc1

lock

BBC World

bid-up.tv

Boonerang

Cartoon Nwk

Class News

\ Coming Soon

Discovery r

Air Antena

B

zoom Select k

Page

T

Tools

Channel Menu

¦

Retuning channels

Antenna (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

■

Digital Channel channels.

: Change the country for digital

■

Analogue Channel : Change the country for analogue channels.

12

English

BN68-02588A_Eng.indb 12 2010-3-19 15:30:43

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the

PIN input window appears.

■

Antenna Source (Air / Cable) : Select the antenna source to memorise.

■

Channel Source (Digital & Analogue / Digital /

Analogue) : Select the channel source to memorise.

When selecting Cable

→

Digital & Analogue or Digital :

Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick) : Scans for all channels with active broadcast stations and stores them in the TV.

✎

If you set Quick , you can set up Network,

Network ID, Frequency, Modulation, Symbol

Rate manually by press the button on the remote control.

Network (Auto / Manual) : Selects the Network ID setting mode among Auto or Manual .

Network ID : When Network is Manual , you can set up

Network ID using the numeric buttons.

Frequency : Displays the frequency for the channel.

(differs in each country)

Modulation : Displays available modulation values.

Symbol Rate : Displays available symbol rates.

Manual Store

Scans for a channel manually and stores in the TV.

✎

If a channel is locked using the the PIN input window appears.

Child Lock function,

■

Digital Channel (Channel, Frequency, Bandwidth) :

When scanning has finished, channels are updated in the channel list.

✎

When selecting Antenna → Air: Channel, Frequency,

Bandwidth

✎

When selecting

Antenna

→

Cable: Frequency,

Modulation, Symbol Rate

■

Analogue Channel (Programme, Colour System,

Sound System, Channel, Search, Store) : If there is abnormal sound or no sound, reselect the sound standard required.

✎

Channel mode x

P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

x

C (aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

¦

Editing channels

Channel Manager Option Menu

(in Channel Manager )

1.

Select a channel and press the

TOOLS

button.

2. Edit the channel name or number using the Edit

Channel Name

or

Edit Channel Number

menu.

■

■

Edit Channel Name (analogue channels only): Assign your own channel name.

Edit Channel Number

(digital channels only): Edit the number by pressing the number buttons desired.

¦

Other Features

Cable Search Option

(depending on the country)

Sets additional search options such as the frequency and symbol rate for a cable network search.

■

Freq.Start / Freq.Stop

: Set the start or stop frequency

(differs in each country)

■

■

Modulation : Displays available modulation values.

Symbol Rate : Displays available symbol rates.

English

13

BN68-02588A_Eng.indb 13 2010-3-19 15:30:43

FAV.CH

DUAL

Basic Features

Channel Manager Option Menu

(in Channel Manager )

Set each channel using the Channel Manager menu options

( Lock / Unlock, Timer Viewing, Sort, Delete, Select All /

Deselect All ). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■

Lock / Unlock : Lock a channel so that the channel cannot be selected and viewed.

✎

NOTE x

This function is available only when the Child Lock is set to On .

x

The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

■

Timer Viewing : You can set a desired channel to be displayed automatically at the intended time. Set the current time first to use this function.

✎

When a digital channel is selected, press the ► button to view the digital Programme.

■

■

Sort

(analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

Delete: You can delete a channel to display the channels you want.

■

Select All / Deselect All : Select all the channels or deselect all the selected channels in the channel manager.

Channel List Transfer

Imports or exports the channel map. You should connect a

USB storage to use this function.

✎

The PIN number input screen appears. Enter your 4 digit PIN number.

✎

The default PIN number of a new TV set is ‘0-0-0-0’.

■

Import from USB : Import channel list from USB.

■

Export to USB : Export channel list to USB.

Fine Tune

(analogue channels only)

If the signal is weak or distorted, fine tune the channel manually.

✎

✎

Fine tuned channels are marked with an asterisk “*”.

To reset the fine-tuning, select Reset.

Picture Menu

¦

Changing the Preset Picture Mode

Mode

t

Select your preferred picture type.

■

Dynamic : Suitable for a bright room.

■

■

Standard : Suitable for a normal environment.

Movie : Suitable for watching movies in a dark room.

¦

Adjusting picture settings

Scheduled

(in Channel Manager )

You can view, modify or delete a a show you have reserved to watch.

■

Change Info : Change a a show you have reserved to watch.

■

■

Cancel Schedules : Cancel a show you have reserved to watch.

Information

: Display a show you have reserved to watch. (You can also change the reservation information.)

■

Select All / Deselect All : Select or deselect all reserved programmes.

POWER

P

Channel List

You can see all the channels searched.

Backlight / Contrast / Brightness /

Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE x

In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.

x

In PC mode, you can only make changes to

Backlight, Contrast and Brightness .

x

Settings can be adjusted and stored for each external device connected to the TV.

x

Lowering picture brightness reduces power consumption.

14

English

BN68-02588A_Eng.indb 14

P.MODE

2010-3-19 15:30:43

MTS

MEDIA.P

¦

Economical Solutions

ECO Solution

■

■

Energy Saving (Off / Low / Medium / High / Picture

Off / Auto) t

: Adjust the brightness of the TV in order to reduce power consumption. If you select

Picture Off , the screen is turned off, but the sound remains on. Press any button to turn on the screen again.

No Signal Power Off (Off / 15 min / 30 min / 60 min)

:

Activates the Stand-by mode, in the case of “No Signal” or “Check Signal Cable” status for a certain period of time defined by the user.

✎

Disabled when the PC is in power saving mode.

¦

Changing the Picture Options

■

■

■

White Balance : Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset : Adjust each colour’s

(red, green, blue) darkness.

R-Gain/G-Gain/B-Gain : Adjust each colour’s

(red, green, blue) brightness.

Reset : Resets the White Balance to it’s default settings.

Flesh Tone : Emphasize pink “ Flesh Tone .”

Edge Enhancement (Off / On) : Emphasize object boundaries.

Picture Options

✎

In PC mode, you can only make changes to the Colour

Tone, Size and Auto Protection Time.

Advanced Settings

(available in Standard / Movie mode)

You can adjust the detailed setting for the screen including colour and contrast.

✎

In PC mode, you can only make changes to Dynamic

Contrast, Gamma and White Balance .

Advanced Settings

Black Tone

Dynamic Contrast

Shadow Detail

Gamma rGB Only Mode

Colour Space

White Balance

: Off

: Medium

: 0

: 0

: Off

: Native

▼

►

U

Move

E

Enter

R

return

■

■

■

■

■

■

Black Tone (Off / Dark / Darker / Darkest) : Select the black level to adjust the screen depth.

Dynamic Contrast (Off / Low / Medium / High) : Adjust the screen contrast.

Shadow Detail (-2~+2)

: Increase the brightness of dark images.

✎

Disabled under PC mode.

Gamma : Adjust the primary colour intensity.

RGB Only Mode (Off / Red / Green / Blue) : You can adjust

Colour

or

Tint

of

Red, Green

or

Blue

for the picture from an external device (DVD player, home theatre, etc.).

Colour Space (Auto / Native) : Adjust the range of colours available to create the image.

■

Picture Options

Colour Tone

Size

Screen Mode

Digital Noise Filter

MPEG Nosie Filter

HdMI Black level

Film Mode

: Normal

: 16:9

: 16:9

: Auto

: Auto

: Normal

: Off

►

▼

U

Move

E

Enter

R

return

Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or

Warm2

will be deactivated when the picture mode is Dynamic .

✎

Settings can be adjusted and stored for each external device connected to an input on the TV.

English

15

BN68-02588A_Eng.indb 15 2010-3-19 15:30:44

POWER

P

FAV.CH

DUAL

Basic Features

■

Size : Your cable box/satellite receiver

P.MODE

recommend you use 16:9 mode most of the time.

Auto Wide : Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom

✎

MTS

▲ , ▼ buttons.

Zoom : Magnifies the 16:9 wide pictures vertically to fit the screen size.

✎

Adjusts the Position or Size by using ▲ , ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces

MEDIA.P

of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit : Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component

(1080i / 1080p) signals are inputted.

✎

NOTE x

After selecting Screen Fit in HDMI (1080i/1080p) or

Component (1080i/1080p) mode, you may need to centre the picture:

1. Press the

◄

or

►

button to select Position .

2. Press the ENTER

E

button.

3. Press the ▲, ▼, ◄ or ► button to move the picture.

x

Depending on the input source, the picture size options may vary.

x

The available items may differ depending on the selected mode.

x

In PC mode, only 16:9 and 4:3 modes can be adjusted.

x

Settings can be adjusted and stored for each external device connected to an input of the TV.

x

If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■

■

■

■

■

■

Screen Mode (16:9 / Wide Zoom / Zoom / 4:3) :

Available only when picture size is set to Auto Wide .

You can determine the desired picture size at the 4:3

WSS (Wide Screen Service) size or the original size.

Each European country requires different picture size.

✎

Not available in PC, Component or HDMI mode.

Digital Noise Filter (Off / Low / Medium / High / Auto

/ Auto Visualisation)

: When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation : When changing analogue channels, displays signal strength.

✎

Only available for analogue channels.

✎

When bar is green, you are receiving the best possible signal.

MPEG Noise Filter (Off / Low / Medium / High /

Auto) : Reduces MPEG noise to provide an improved picture quality.

✎

Disabled under PC mode.

HDMI Black Level (Normal / Low) : Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

Film Mode (Off / Auto1 / Auto2) : Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

Auto Protection Time (2 hours / 4 hours / 8 hours

/ 10 hours / Off) : If the same image remains on the screen, Auto Screen Burn Protector will work.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

16

English

BN68-02588A_Eng.indb 16 2010-3-19 15:30:44

¦

Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment

t

Adjust frequency values/positions and fine tune the settings automatically.

✎

Not available when connecting through HDMI/DVI cable.

Screen

■

■

■

Coarse / Fine

: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible ( Coarse ) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

Position : Adjust the PC screen position with direction button ( ▲ / ▼ / ◄ / ► ).

Image Reset : Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied.

(If not, contact your computer manufacturer or Samsung

Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y y

The correct size setting (resolution) [Optimum: 1360 X

768 pixels]

If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”.

Otherwise, just click “OK” and exit the dialog box.

Sound Menu

¦

Changing the Preset Sound Mode

¦

Adjusting sound settings

Equalizer

Adjusts the sound mode.

■

Balance L/R left speaker.

: Adjusts the balance between the right and

■

■

100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth

Adjustment): Adjusts the level of specific bandwidth frequencies.

Reset : Resets the equalizer to its default settings.

¦

Sound Systems, Etc.

Virtual Surround (Off / On)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using

HRTF (Head Related Transfer Function) technology.

✎

If Speaker Select is set to

Surround is disabled.

External Speaker , Virtual

Dialog Clarity (Off / On)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly when viewing a show.

Audio Language

(digital channels only)

Change the default value for audio languages.

✎

The available language may differ depending on the broadcast.

Audio Format (MPEG / Dolby Digital 5.1)

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

✎

Audio Format

option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

Mode

t

■

■

■

■

■

Standard : Selects the normal sound mode.

Music : Emphasizes music over voices.

Movie : Provides the best sound for movies.

Clear Voice : Emphasizes voices over other sounds.

Amplify

: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

English

17

BN68-02588A_Eng.indb 17 2010-3-19 15:30:44

POWER

P

P.MODE

FAV.CH

MTS

DUAL

Basic Features

MEDIA.P

Audio Description

(not available in all locations)

(digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

■

Audio Description (Off / On)

: Turn the audio description function on or off.

■

Volume : Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal .

■

Night

: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

■

■

SPDIF Output : SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a

DVD player.

Audio Format : During the reception of a digital TV broadcast, you can select the Digital Audio output

(SPDIF) format from the options PCM, Dolby Digital or

DTS .

✎

By connecting to 5.1ch speakers in a Dolby

Digital setup, maximize your interactive 3D sound experience.

Audio Delay : Correct audio-video mismatch, when watching TV or video, and listening to digital audio output using an external device such as an AV receiver.

Dolby Digital Comp (Line / RF) : This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line : Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB.

RF : Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Speaker Select

(External speaker / TV speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker .

✎

When Speaker Select is set to External Speaker , the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to should use these settings.

External Speaker , you

✎ x

TV Speaker: Off , External Speaker: On

When Speaker Select is set to should use these settings.

TV Speaker , you

✎ x

TV Speaker: On , External Speaker: On

If there is no video signal, both speakers will be mute.

Additional Setting

(digital channels only)

■

DTV Audio Level (MPEG / HE-AAC) : This function allows you to reduce the disparity of a voice signal

(which is one of the signals received during a digital TV broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG

/ HE-AAC can be adjusted between -10dB and

✎

0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

18

English

BN68-02588A_Eng.indb 18 2010-3-19 15:30:44

Setup Menu

¦

Setting the Time

Time

■

Clock : Setting the clock is for using various timer features of the TV.

The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

✎

The antenna must be connected in order to set the time automatically.

Clock Set : Set the Day, Month, Year, Hour and Minute manually.

✎

Available only when Clock Mode is set to

Manual .

¦

Using the Sleep Timer

■

Sleep Timer t

: Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and

180 minutes).

✎

To cancel Sleep Timer , select Off .

¦

Setting the On/Off Timer

■

Timer 1 / Timer 2 / Timer 3 : Three different on / off timer settings can be made. You must set the clock first.

Timer 1

On Time

▲

Inactivate

▼

00 00

Off Time

▲

Inactivate

▼

Volume Source

00

Antenna

00

Channel

10 TV ATV 2 repeat

Once

Sun Mon Tue Wed Thu Fri Sat

L

Move

U

Adjust

E

Enter

R

return

On Time / Off Time : Set the hour, minute, and activate

/ inactivate. (To activate timer with the setting you’ve chosen, set to Activate .)

Volume : Set the desired volume level.

Source : Select TV or USB content to be played when the TV is turned on automatically. ( USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV ): Select ATV or

DTV .

Channel (when the Source is set to TV ): Select the desired channel.

Contents (when the Source is set to USB ): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically.

✎

If there is no music file on the USB device or the folder containing a music file is not selected, the

Timer function does not operate correctly.

✎

When there is only one photo file in the USB device, the Slide Show will not play.

✎

If a folder name is too long, the folder cannot be selected.

✎

Each USB you use is assigned its own folder.

When using more than one of the same type of

USB, make sure the folders assigned to each USB have different names.

Repeat : Select Once , Everyday , Mon~Fri , Mon~Sat ,

Sat~Sun or Manual to set at you convenience. If you select Manual , you can set up the day you want to activate the timer.

✎

✎

The c

mark indicates the day is selected.

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

¦

Locking Programs

Security

✎

✎

The PIN input screen appears before the setup screen.

Enter your 4-digit PIN, the default of which is “0-0-0-0”.

Change the PIN using the Change PIN option.

■

Child Lock (Off / On)

: Lock channels in

Channel

Manager , to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV .

■

Parental Lock (Parental Rating) : Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code.

Allow All : Unlock all TV ratings.

✎

The items of Parental Lock differs depending on the country.

English

19

BN68-02588A_Eng.indb 19 2010-3-19 15:30:45

POWER

P

Basic Features

■

Change PIN : Change your personal ID number required to set up the TV.

✎

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off)

→

MUTE → 8 → 2 → 4 → POWER (on).

¦

Other Features

Language

■

■

Menu Language : Set the menu language.

FAV.CH

Teletext Language

✎

: Set a desired language for teletext.

English is the default in cases where the selected language is unavailable in the broadcast.

■

Preference (Primary Audio Language / Secondary

Audio Language / Primary Subtitle Language /

Language / Secondary Teletext Language)

DUAL

a language, which will be the default language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

✎

The subtitle feature doesn’t work in

Component or HDMI modes.

■

Subtitle (Off / On)

: Switches subtitles on or off.

■

■

Mode (Normal / Hearing Impaired)

Sets the subtitle mode.

:

Subtitle Language : Sets the subtitle language.

✎

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing

Impaired mode is selected.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

Digital Text (Disable / Enable) (UK only)

If the programme broadcasts with digital text, this feature is enabled.

General

■

P.MODE

: When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE x

Precautions and limitations for game mode

–

–

To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

MTS

screen shakes slightly.

Game Mode

, the x x

Game Mode is not available in TV , and PC mode.

After connecting the game console, set Game Mode to On to prevent poor picture quality.

x

If Game Mode is On : Picture mode is set to

Standard and Sound mode is set to Movie .

■

Menu Transparency (Bright / Dark)

Transparency of the menu.

MEDIA.P

■

Melody (Off / Low / Medium / High)

: Set so that a melody plays when the TV is turned on or off.

Common Interface

■

CI Menu : This enables the user to select from the CAMprovided menu. Select the CI Menu based on the menu

PC Card.

■

Application Info.

: View information on the CAM inserted into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.

1. Purchase a CI CAM module at your nearest dealer or by phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal channel.

20

English

BN68-02588A_Eng(1-25).indd 20 2010-3-23 12:25:53

Support Menu

Self Diagnosis

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■

Picture Test (Yes / No) the colour pattern.

: Use to check for picture problems and if the problem continues to occur check

■

Sound Test (Yes / No) : Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV speaker in the

Sound menu.

✎

The melody will be heard during the test even if

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■

■

Signal Information : (digital channels only) HDTV channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

Troubleshooting : If the TV seems to have a problem, refer to this description.

✎

If none of these trouble shooting tips apply, contact the Samsung customer service centre.

Software Upgrade

Software Upgrade

can be performed via a broadcasting signal or by downloading the latest firmware from samsung.

com to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Current Version

Software Upgrade

2010/01/18_000001

Installing the Latsted Version

■

By USB : Insert a USB drive containing the firmware upgrade file, downloaded from www.samsung.com, into the TV. Please be careful not to disconnect the power or remove the USB drive

TV Rear Panel

USB Drive until upgrades are complete.

The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■

By Channel : Upgrade the software using the broadcasting signal.

✎

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

✎

The time required to download the software is determined by the signal status.

■

■

Standby Mode Upgrade : A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

Alternative Software (backup): If there is an issue with the new firmware and it is affecting operation, you can change the software to the previous version.

✎

If the software was changed, existing software is displayed.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

By USB by Channel

Standby Mode Upgrade 2 Hours Later

Alternative Software

►

U

Move

E

Enter

R

return

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

BN68-02588A_Eng.indb 21

English

21

2010-3-19 15:30:46

POWER

P

FAV.CH

DUAL

P.MODE

MTS

Advanced Features

Media Play

MEDIA.P

Enjoy photos and/or music fi les saved on a USB

Mass Storage Class (MSC) device.

Media Play

Devicename

A

Change Device

D

Device Mode

¦

Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo and/or music fi les to the USB jack on the rear of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select

Media Play .

E

Enter

R

return

TV Rear Panel

USB Drive

✎

✎

It might not work properly with unlicensed multimedia files.

Need-to-Know List before using Media Play x x x x

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

x

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss.

x x x x x x

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

x x

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported.

x

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction.

x x x x

If the TV has been no input during time set in Auto Protection Time , the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.

x

If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

22

English

BN68-02588A_Eng.indb 22 2010-3-19 15:30:47

¦

Screen Display

Move to the file you desired using the up/down/right/left buttons and then press the ENTER

E

button. The file is played.

✎

Supports the

Device Mode

and

Contents Mode

in

Media Play

homepage.

Information :

You can ascertain the selected file name and the number of files and page.

Music c c c

Music 01 no singer

Music 03 no singer

Music 05 no singer

Music 07 no singer

Music 01.mp3

2010 other

2010 other

2010 other

2010 other

Music 02 no singer

Music 04 no singer

Music 06 no singer

Music 08 no singer

1/2

2010 other

2010 other

2010 other

2010 other

File List Section :

You can confirm the files and groups that are sorted by each category.

Sort List Section :

Displays the sorting standard.

✎

The sorting standard is different depending on the contents.

Devicename

A

Change Device

C

Select

D

Sorting

T

Tools

Operation Button

A

Red (Change Device): Selects a connected device.

B

Green (Preference): Sets the file preference. (not supported in Basic view)

C

Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol.

D

Blue (Sorting): Selects the sort list.

T

Tools: Displays the option menu.

Music

Playing a Music

1. Press the

◄

or

►

button to select Music , then press the ENTER

E button in the Media Play menu.

2. Press the

◄/►/▲/▼

button to select the desired Music in the file list.

3. Press the ENTER

E

button.

✎

–

During music playback, you can search using ◄ and ► button.

Only displays files with the MP3 file extension. Other file extensions

✎ are not displayed, even if they are saved on the same USB device.

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

Devicename

Only you

Jason

1st Album

Pop

2010

4.2MB

01:10 / 04:02

Jason

Music 1

No Singer

Music 2

No Singer

Playlist

3/15

E

Pause

L

Jump

T

Tools

R

Return

BN68-02588A_Eng(26-).indd 23

English

23

2010-3-23 15:15:51

Advanced Features

Photos

Viewing a Photo (or Slide Show)

1. Press the

◄

or

►

button to select Photos , then press the

ENTER

E

button in the Media Play menu.

2. Press the

◄/►/▲/▼

button to select the desired photo in the file list.

3.

Press the

ENTER

E

button.

– While a photo list is displayed, press the ENTER remote control to start slide show.

E

button on the

– All files in the file list section will be displayed in the slide show.

✎

– During the slide show, files are displayed in order.

Music files can be automatically played during the Slide Show if the

Background Music is set to On .

✎

The BGM Mode loading.

cannot be changed until the BGM has finished

¦

Playing the multiple files

Playing the selected music/photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

✎

NOTE x

The c

mark appears to the left of the selected files.

x x

To cancel a selection, press the yellow button again.

To deselect all selected files, press the TOOLS button and select Deselect All .

3. Press the TOOLS button and select Play Selected Contents .

Normal Image1024.jpg 1024x768 2010/2/1

3/15

Devicename

E

Pause

L

Previous/Next

T

Tools

R

Return

Music c c c

Music 01 no singer

Music 03 no singer

Music 05 no singer

Music 07 no singer

Music 01.mp3

2010 other

2010 other

2010 other

2010 other

Music 02 no singer

Music 04 no singer

Music 06 no singer

Music 08 no singer

1/2

2010 other

2010 other

2010 other

2010 other

Devicename

A

Change Device

Playing the music/photo file group

1. While a file list is displayed, move to the any file in desired group.

2. Press the TOOLS button and select Play Current Group .

¦

Media Play Additional Function

Sorting the file list

Press the blue button in the file list to sort the files.

Category Operations

Basic View

Title

Preference

Displays the whole folder. You can view the photo by selecting the folder.

Sorts and displays the file title in Symbol/Number/Alphabet/Special order.

Sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.

Latest Date Sorts and shows files by the latest date.

Earliest Date Sorts and shows files by the earliest date.

Artist

Album

Genre

Mood

Sorts the music file by artist in alphabetical order.

Sorts the music file by album in alphabetical order.

Sorts music files by the genre.

Sorts music files by the mood. You can change the music mood information.

Monthly Sorts and shows photo files by month.

C

Select

D

Sorting

T

Tools

✓

✓

✓

✓

Music

✓

✓

✓

Photos

✓

✓

✓

✓

✓

✓

24

English

BN68-02588A_Eng(26-).indd 24 2010-3-23 14:46:53

Music/Photos Play Option menu

Option menu

Repeat Mode

Picture Setting

Sound Setting

Stop Slide Show / Start

Slide Show

Slide Show Speed

Background Music

Zoom

Rotate

Information

Operations

You can play movie and music files repeatedly.

You can adjust the picture setting. (P. 14, 15, 16)

You can adjust the sound setting. (P. 17, 18)

You can start or stop a Slide Show.

You can select the slide show speed during the slide show.

You can set and select background music when watching a Slide

Show.

You can zoom into images in full screen mode.

You can rotate images in full screen mode.

You can see detailed information about the played file.

Settings

Using the Setup Menu

■

Information : Select to view information about the connected device.

Music

✓

✓

✓

Photos

✓

✓

✓

✓

✓

✓

✓

✓

BN68-02588A_Eng.indb 25

English

25

2010-3-19 15:30:51

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.

1

/

(Teletext on/mix):

Activate the Teletext mode after selecting the channel providing the

Teletext service. Press it twice to overlap the Teletext mode with the current broadcasting screen.

2

8

(store): Store the Teletext pages.

3

4

(size): Display the doublesize letters on the upper half of the screen. For the lower half of the screen, press it again. To display the normal screen, press it once again.

4

9

(hold): Hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again

5

0

(mode): Select the Teletext mode (LIST/ FLOF).

If you press this button in the LIST mode, the mode is switched into the List save mode. In the List save mode, you can save a Teletext page into list using the

8

(store) button.

6

1

(sub-page): Display the available sub-page.

1

2

3

4

MEDIA.P

C C

5

6

7

8

9

0

!

@

2

(page up): Display the next

Teletext page.

7

3

(page down): Display the previous Teletext page.

8

6

(index): Display the index

(contents) page at any time while you are viewing Teletext.

9

5

(reveal): Display the hidden text (answers to quiz games, for example). To display the normal screen, press it again.

0

7

(cancel): Display the current broadcast when searching for a page.

!

Colour buttons (red/green/ yellow/blue) : If the FASTEXT system is used by a broadcasting company, the different topics covered on a Teletext page are colour-coded and can be selected by pressing the coloured buttons.

Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

@

The Teletext pages are organized according to six categories:

Part

A

B

C

Contents

Selected page number.

Broadcasting channel identity.

Current page number or search indications.

Part

D

E

F

Contents

Date and time.

Text.

Status information. FASTEXT information.

26

English

BN68-02588A_Eng.indb 26 2010-3-19 15:30:51

Installing the Wall Mount

¦

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the

TV on your own.

¦

Wall Mount Kit Specifications (VESA)

✎

Wall mount kit is not supplied but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE x x x x

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.

x x

Do not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

x

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

x

Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

x

Do not exceed 15 degrees tilt when mounting this TV.

Product

Family

LCD-TV inches VESA Spec. (A * B) Standard Screw Quantity

19~22

23~29

30~40

46~55

57~65

70~80

80~

75 X 75

100 X 100

200 X 100

200 X 200

400 X 400

600 X 400

800 X 400

1400 X 800

M4

M6

M8

4

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

BN68-02588A_Eng.indb 27

English

27

2010-3-19 15:30:52

Other Information

Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the

1

Kensington Lock for proper use.

1

✎

Please find a “

3

2

” icon on the rear of the TV. A kensington slot is beside the

“ ” icon.

3

1. Insert the locking device into the Kensington slot on the LCD TV

1

and turn it in the locking direction

2

.

2. Connect the Kensington Lock cable

3

.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

✎

✎

The locking device has to be purchased separately.

The location of the Kensington Lock may be different depending on its model.

TV Rear

3

<Optional>

1

2

Securing the TV to the Wall

Caution : Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.

To avoid the TV from falling

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Drive the screws into the clamps and firmly fasten them onto the wall. Make sure the screws are firmly fixed into the wall.

✎

Screw Specifications x x

For a 17 ~ 29 Inch LCD TV: M4

For a 32 ~ 40 Inch LCD TV: M6

2. Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.

Wall

✎

Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have

✎

✎

✎ any doubt about the security of your connections, contact a professional installer.

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

Untie the string before moving the TV.

28

English

BN68-02588A_Eng.indb 28 2010-3-19 15:30:53

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.

samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues

Picture Quality

The TV image does not look as good as it did in the store.

The picture is distorted: macroblock error, small block, dots, pixelization

Colour is wrong or missing.

There is poor colour or brightness.

There is a dotted line on the edge of the screen.

The picture is black and white.

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound.

Solutions and Explanations

First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.

(go to MENU -

Support - Self Diagnosis - Picture Test

) (P. 21)

If the test image is properly displayed, the poor picture may caused by the source or signal.

•

•

•

•

•

If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.

Cable/Satellite subscribers: Try HD stations from the channel line up.

Antenna connection: Try HD stations after performing Auto programme.

✎

Many HD channels are upscaled from SD(Standard Definition) contents.

Adjust the Cable/Set top box video output resolution to 1080i or 720p.

Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.

•

•

•

•

•

Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.

Low signal level or bad quality can cause picture distortion. This is not a TV issue.

If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.

Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness )

Adjust Energy Saving option in the TV menu. (go to MENU - Picture - ECO solution - Energy

Saving

)

Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset ) •

•

•

•

If the picture size is set to Screen Fit , change it to 16:9 . (P. 16)

Change cable/set top box resolution.

If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.

•

•

If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.

Set the output resolution of the cable box to 1080i or 720p.

First of all, please perform the Sound Test to confirm that your TV audio is properly operating.

(go to MENU - Support - Self Diagnosis - Sound Test ) (P. 21)

If the audio is OK, the sound problem may caused by the source or signal.

• Please check the volume the of external device connected to your TV.

The speakers are making an inappropriate noise.

•

•

•

•

•

•

•

Set the Speaker Select option to TV speaker in the sound menu. (P. 18)

If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).

If you are using a DVI to HDMI cable, a separate audio cable is required.

If your TV has a headphone jack, make sure there is nothing plugged into it.

Check the cable connections. Make sure a video cable is not connected to an audio input.

For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.

BN68-02588A_Eng.indb 29

English

29

2010-3-19 15:30:54

Other Information

Issues

No Picture, No Video

The TV won’t turn on.

Solutions and Explanations

The TV turns off automatically.

There is picture/Video.

•

•

•

•

•

•

•

•

•

•

•

Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

Make sure the wall outlet is working.

Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below.

Ensure the Sleep Timer is set to Off in the Setup menu. (P. 19)

If your PC is connected to the TV, check your PC power settings.

Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

Check cable connections (remove and reconnect all cables connected to the TV and external devices).

Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connect to an HDMI input on the TV.

Make sure your connected devices are powered on.

Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

RF(Cable/Antenna) Connection

The TV is not receiving all channels.

The picture is distorted: macroblock error small block, dots, pixelization

•

•

•

•

•

Make sure the Antenna cable is connected securely.

Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU -

Setup - Plug & Play (Initial setup) and wait for all available channels to be stored.

Verify the Antenna is positioned correctly.

Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.

A low signal can cause picture distortion. This is not a TV issue.

PC Connection

A “Not Supported Mode” message appears.

“PC” is always shown on the source list, even if a PC is not connected.

The video is OK but there is no audio.

•

•

Set your PC’s output resolution and frequency so they match the resolutions supported by the TV. (P.

9)

This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

• If you are using a HDMI connection, check the audio output setting on your PC.

Others

The picture won’t display in full screen.

The remote control does not work.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

A “Not Supported Mode” message appears.

There is a plastic smell from the TV.

The TV Signal Information is unavailable in the Self Diagnostic Test menu.

The TV is tilted to the side.

There are difficulties assembling the stand base.

The channel menu is greyed out.

(unavailable)

•

•

•

•

•

•

•

•

•

•

HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) contents.

Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.

Adjust the picture size options on your external device or TV to full screen.

Replace the remote control batteries with the poles (+/–) in the right direction.

Clean the sensor’s transmission window on the remote.

Try pointing the remote directly at the TV from 5~6 feet away.

Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page

This smell is normal and will dissipate over time.

9 of this manual.

This function is only available with digital channels from an Antenna / RF/Coax connection. (P. 21)

•

•

•

Remove the base stand from the TV and reassemble it.

Make sure the TV is placed on a flat surface. If you can not remove the screws from the TV, unnecessary use a magnetized screw driver.

The Channel menu is only available when the TV source is selected.

30

English

BN68-02588A_Eng.indb 30 2010-3-19 15:30:54

Issues

Your settings are lost after 30 minutes or every time the TV is turned off.

You have intermittent loss of audio or video.

Solutions and Explanations

•

•

•

If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure.

Press the SOURCE button to select TV mode, and go to MENU

→

Setup

→

Plug & Play (Initial setup) → ENTER

E

.

Check the cable connections and reconnect them.

Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

• This is part of the product’s design and is not a defect.

You see small particles when you look closely at the edge of the frame of the TV.

The message “Scramble signal” or “Weak

Signal/No Signal” appears.

You turned the TV off 45 minutes ago, and it turned on again.

There are recurrent picture/sound issues.

A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.

•

•

•

•

•

If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.

If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.

It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV.

Check and change the signal/source.

To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

✎

This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

¦

Licence

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Open source license notice

In the case of using open source software, Open Source Licenses are available on the product menu.

BN68-02588A_Eng(26-).indd 31

English

31

2010-3-25 11:29:31

Other Information

Specifications

Panel native

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

TV System

Colour/video system

Sound System

HDMI IN

1360 x 768 @ 60 Hz

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Analogue : Depending on your country selection

Digital : DVB-T/DVB-C

Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, [email protected], [email protected]

BG. OK NICAM. MPEGl

Video : 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

Audio : Two Channel Linear PCM 32/44.1/48 kHz, 16/20/24bits

Analogue audio input (HDMI IN only)

PC Input

Stand Swivel

(Left / Right)

Model Name

0˚

LE19C350

Screen Size

(Diagonal)

Sound

Output

Dimensions (WxDxH)

Body

With stand

Weight

With Stand

19 inch

3W X 2

461.2 x 59.5 x 322.2 mm

461.2 x 161 x 364 mm

3.9 kg

4.2 kg

✎

✎

Design and specifications are subject to change without prior notice.

For the power supply and power consumption, refer to the label attached to the product.

LE22C350

22 inch

3W X 2

535.3 x 82.2 x 365.8 mm

535.5 x 171.8 x 420.9 mm

3.9 kg

4.1 kg

32

English

BN68-02588A_Eng(26-).indd 32 2010-3-19 17:14:40

A

Amplify

Antenna

Auto Adjustment

Auto Volume

B

Background Music

Balance L/R

Basic View

Batteries

Black Tone

Brightness

C

Change PIN

Channel Manager

Clock

Colour Tone

Component

Connecting to a PC

Connecting to an Audio Device 8

7

8

20

12

19

15

D

Digital Audio out

D-sub

Dynamic

Dynamic Contrast

5

15

14

25

17

24

8

8

14

15

E

Edit Name

Editing channels

Energy Saving

EPG

Equalizer

External Speaker

17

12

17

18

10

13

15

11

17

18

Index

F

Favourites Channel

Film Mode

Fine Tune

Flesh Tone

Frequency

H

HDMI

I

Installation Space

L

Language

Licence

Lock

M

Media Play

Melody

Menu Transparency

Music

N

Navigate

Now & Next guide

O

ON/OFF button

Optimal resolution

P

Photos

Picture Size

Plug & Play

Power Indicator

12

15

14

15

12

7

2

20

31

14

22

20

20

23

10

11

24

16

6

4

5

9

R

Remote Control

Repeat Mode

RGB Only Mode

Rotate

S

Select All

Self Diagnosis

Sharpness

Signal Information

Sleep Timer

Slide Show

Software Upgrade

Source List

Speaker Select

Specifications

Standby mode

Subtitle

T

Timer

Title

Tools

Troubleshooting

TV Speaker

U

USB

Using Channel View

Using Scheduled View

Using the Favourite Channels

21, 22

11

11

12

19

34

3

29

18

21

19

24

21

14

21

14

10

18

32

4

20

V

VCR

Volume

W

Wall Mount

White Balance

5

25

15

25

10

4, 5

27

15

BN68-02588A_Eng.indb 33

English

33

2010-3-19 15:30:55

BN68-02588A_Eng.indb 34

This page is intentionally left blank.

2010-3-19 15:30:55
