Yaskawa Motoman MOTOMAN DX100
Manuals and User Guides for Yaskawa Motoman MOTOMAN DX100. We found 15 manuals for free downloads Owner's manual
YASKAWA MOTOMAN DX100 is a high-performance industrial robot offering advanced capabilities. It features a user-friendly programming pendant for precise control and a multistep pressure function for complex operations. The DX100 is designed for a wide range of industrial applications, including assembly, welding, and material handling. Its versatility and precision make it an ideal choice for businesses seeking to enhance productivity and efficiency.
Key Features
Multistep pressure function for complex operations
User-friendly programming pendant for ease of use
Versatile and capable for diverse industrial applications

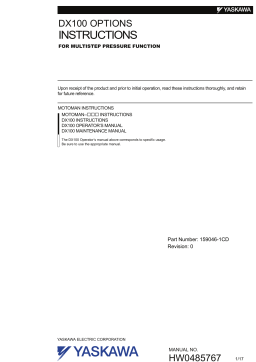

Pages: 17 Yaskawa Motoman MOTOMAN DX100 Owner's manual
Brand: Yaskawa Motoman Category: Industrial & lab equipment Size: 890 KB
Languages: English
Table of contents
Open manualOther manuals and documents
Frequently Answers and Questions
What is the purpose of the multistep pressure function?
The multistep pressure function allows for complex operations by controlling pressure in multiple steps.
What is the main benefit of the DX100?
The main benefit of the DX100 is its versatility and precision, making it suitable for a wide range of industrial applications.
Who should use the DX100?
The DX100 is ideally suited for businesses looking to enhance productivity and efficiency in their industrial operations.
Questions & Answers
B B C
How are input and output signals connected for arc welding operations, and what are their specifications?
Connection for arc welding signals is achieved via the I/O Unit (JZNC-YIU02-E), utilizing connectors CN308, CN309, CN306, and CN307. Key input signals include EXTERNAL START (20010) and ALARM/ERROR RESET (20013). Key output signals include RUNNING (30010) and ALARM/ERROR OCCURRED (30013), as well as specific monitoring signals like GAS SHORTAGE (30024) and WIRE STICKING (30026). Each input signal is rated for 24VDC, 8mA maximum, and each output signal is rated for 24VDC, 50mA maximum (with CN307 outputs rated up to 500mA maximum). To use an external power source, the jumpers between CN303-1 and -3, and CN303-2 and -4 must be removed.
K K B
Where can connection schemes for I/O signals of the JZNC-YIU02-E interface block (DX100 controller) be found?
The documentation contains detailed instructions and assignment tables for standard I/O signals (PNP specification) for the JZNC-YIU02-E interface block, applicable to the DX100 controller, covering Arc Welding and Spot Welding, specifically utilizing connectors CN308, CN309, CN306, and CN307.
