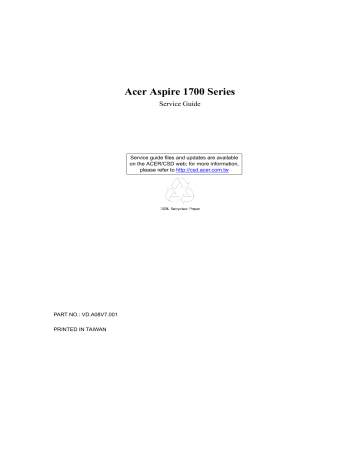

Acer Aspire 1700 Series
Service Guide
Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw
PART NO.: VD.A08V7.001
PRINTED IN TAIWAN
Revision History
Please refer to the table below for the updates made on TravelMate 800 service guide.
Date Chapter Updates
2
Copyright
Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
3
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES
NOTE
WARNING
CAUTION
IMPORTANT
Denotes actual messages that appear on screen.
Gives bits and pieces of additional information related to the current topic.
Alerts you to any damage that might result from doing or not doing specific actions.
Gives precautionary measures to avoid possible hardware or software problems.
Reminds you to do specific actions relevant to the accomplishment of procedures.
4
Preface
Before using this information and the product it supports, please read the following general information.
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.
5
6
Table of Contents
Chapter 1 System Specifications 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Main Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Management Function (ACPI support function) . . . . . . . . . . . . . . . . . . . . . 18
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 2 System Utilities 19
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
System Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Machine Disassembly and Replacement 31 Chapter 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Disassembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remove the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remove the HDD module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remove the combo drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Remove the thermal module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Remove CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Remove the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Remove VGA card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Detach the wireless card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remove moden card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remove the inverter cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Detach the upper system cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Remove the LCD module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Remove the LCD panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Remove the inverter board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Remove the mylars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Remove the wireless module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Remove the side bracket 42
Remove the LED cable attached on the LCD outer shield. . . . . . . . . . . . . . . . 43
Remove the subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Release the MDC cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disconnect the cable to the modem header. . . . . . . . . . . . . . . . . . . . . . . . . . 44
Remove the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Remove the LED board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Detach the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Remove the Audio DJ board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Remove the touch pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Remove the touch pad board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Remove the lid switch cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Remove the floppy drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Remove the speaker set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Remove the mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
VII
Table of Contents
Remove the system fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Combo Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Re-assembly 55
Place the system fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Re-assembling the mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Place the speaker set back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Place the floppy module back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Place the touch pad back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Reconnect the Audio DJ board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Place the system cover back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Reconnect the LED cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Place the keyboard back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Place the MDC cable back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Reconnect the sub-woofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Place the LED cable back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Place the side mount back to position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Place the wireless antenna back to position . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Reattach the LCD cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Place the inverter board back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Re-assembling the LCD module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Place the system cover and hinge back to position . . . . . . . . . . . . . . . . . . . . 64
Place the inverter cover back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Reconnect the cable to the MDC card and wireless card . . . . . . . . . . . . . . . . 64
Place the VGA card back to position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Insert the memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Place the CPU back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Place the thermal module back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Place the floppy back to position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Reconnect the HDD power and coaxial cable. . . . . . . . . . . . . . . . . . . . . . . . . 66
Place the battery or dummy battery back to position. . . . . . . . . . . . . . . . . . . . 67
Place the bottom shield back to position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
FDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Combo Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Chapter 4 Troubleshooting 71
System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Touchpad check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Aspire 1700 Jumpers and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
VIII
Table of Contents
Chapter 5 Jumper and Connector Locations 85
Top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Connector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Chapter 6 FRU List 89
Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
The System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
LCD 17” ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
FDD ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
HDD ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
ODD ASSY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Appendix A Model Definition and Configuration 100
Aspire 1700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Appendix B Test Compatible Components 103
Microsoft® Windows® XP Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Appendix C Online Support Information 109
IX
X
Table of Contents
Chapter 1
System Specifications
Overview
Aspire 1700 is designed to be a mobile desktop. It can support Intel Pentium 4 Northwood as well as Intel
Celeron with front side bus 400MHz or 533MHz. The LCD panel ranges from 15” to 17” and the capacity is built to be below 6 litters.
Chapter 1 1
Features
Performance
T
T
T
T
T
T
Intel Pentium 4 Northwood 1.8~3.06 GHz/Celeron processor
L2 cache 512k (Northwood), 128K (Celeron)
SiS M650 with SiS 962, support 400/533MHz Bus, HTT support.
20GB or higher capacity Desktop 5400rpm, 7200rpm HDD
Microsoft XP OS
Optional 6-in-1 Multimedia memory card module.
Multimedia
T
T
T
T
T
T
T
T
CD-ROM
DVD-ROM
DVD/CD-RW combo
Audio input and output jacks
Optional 6-in-1 Multimedia memory card module
Hardware 3D graphic engine
Two stereo speakers + One sub-woofer
15” Desktop XGA and 17” Desktop SXGA.
Connectivity
T
T
T
T
T
T
Modem: Software Modem V9.0/V9.2 56Kbps (MDC)
10/100 LAN
Optional Mini-PCI 802.11b/802.11a+b/bluetooth
One switch for on/off of wireless
Keyboard and touchpad with 4 way scroll buttons
4 universal serial bus (USB) ports.
Human-centric design and ergonomics
T
T
Rugged and space saving
Full size desktop keyboard
2 Chapter 1
Outlook
Opened Front View
7
8
5
6
9
3
4
1
2
Label Description
Display
Power button
Keyboard
Touchpad
Click button & scroll key
Audio DJ controls and indicator
Palm rest
Launch keys
Status indicators
Chapter 1 3
Closed Front view
#
1
2
3
Item
Speakers
Wireless communication indicator
Power indicator
Description
Left and right speakers deliver stereo audio output
Lights when the Wireless LAN capability is enabled.
Lights when the computer is on.
4 Chapter 1
Chapter 1
Lef t view
#
1
2
3
4
5
6
7
8
Item
Optical drive
Optical disc read indicator
Optical drive eject button
Optical drive emergency eject hole
Left Latch
Floppy drive
PC card eject button
PC card slot
Description
Depending on your model, the optical drive is one of the following:
CD-ROM drive for reading CDs.
DVD-ROM drive for reading CDs and
DVDs.
DVD/CD-RW combo drive for reading
CDs and DVDs, and writing to CD-Rs and CD-RW s..
Light emitting diode (LED) that indicates when an optical disc is being read.
Press the eject button to remove a disc from the optical drive.
Used to eject an optical disc when the computer is turned off.
Locks and releases the lid.(One on the right and one on the left)
Accepts 3.5 inch floppy disk.
Press the eject button to remove a PC card from the PC card slot.
The slot supports a standard Type II PC card
(PC MCIA).
5
6
Right view
#
1
2
3
4
5
6
7
Item
Right Latch
Speaker/Headphone-out jack
Line-in/Mic-in jack
Description
Locks and releases the lid.(One on the right and one on the left)
Connects to audio line-out devices
(e.g.,speakers, headphones).
Accepts audio line-in devices (e.g., audio CD player, stereo walkman). Selection is through the OS Windows mixer.
IEEE 1394 port
IEEE 1394 port
USB ports
DC-in jack
Connects to an IEEE 1394 device.
Connects to an IEEE 1394 device.
2 ports for connecting USB 2.0 devices.
Connects the AC adapter.
Chapter 1
Chapter 1
Rear view
#
1
Item
USB ports
Description
2 ports for connecting USB 2.0 devices.
2 Modem ack j Connects the built-in fax/data modem to a phone line .
4
5
6
3 S-video
External display port
COM port
Network jack
Connects to a television or dispaly device with Svideo input.
Connects an external (VGA) display devices monitor.
Connects to other serial interface devices.
Connects to an Ethernet 10/100-based network.
7 Parallel port Connects a parallel device, such as a printer.
8 PS2 port Connects to a PS2 mouse/ keyboard
9 Kensington lock slot For attaching a security connector.
7
8
Bottom view
#
1
2
3
Item
Battery cover
Sub-woofer
Ventilation slots
Description
Protects the battery bay.
Enhance the audio quality.
Enables the computer to stay cool, even after prolonged use.
Chapter 1
Main Board Layout
Chapter 1 9
Hardware Specifications and Configurations
Processor
Item
Type
Socket
Speed
Minimum operating speed
Voltage
Specification
Pentium 4/Celeron
478
1.8G~3.06G
0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to
Enabled .)
Processor voltage can be detected by the system without setting any jumper.
BIOS
Item
BIOS code programmer
BIOS version
BIOS ROM type
BIOS ROM size
BIOS ROM package
Support protocol
PhoenixBIOS
Specification
Flash ROM
4MB
32-pin PLCC package
PCI 2.2, DMI 2.00.1, E-IDE, ACPI 1.0, ESCD 1.03, ANSI ATA 3.0,
PnP 1a, Bootable CD-ROM 1.0, ATAPI
NOTE: The BIOS can be overwritten/upgraded using the AFLASH utility.
BIOS Hotkey List
Hotkey m
Function
Enter BIOS Setup Utility
Description
Press while the system is booting to enter
BIOS Setup Utility.
10 Chapter 1
This section has two table lists, system memory specification and the possible combinations of memory module.
System Memory
Item
Memory socket number
Support memory size per socket
Support maximum memory size
Support memory type
Support memory speed
Support memory voltage
Support memory module package
Support to parity check feature
Support to Error Correction Code (ECC) feature
Memory module combinations
Specification
2 sockets (4 banks)
128MB / 256MB/ 512MB / 1GB
1G x2
DDR SDRAM
133MHz (PC133) (for Local Bus speed 133MHz)
2.5 V
184-pin Desktop Long-DIMM
Yes
Yes
You can install memory modules in any combination as long as they match the above specifications.
Memory Combinations
Slot 1
Slot 2
Slot Memory Module
128, 256, 512MB, 1G
128, 256, 512MB, 1G
Maximum System Memory Supported
Cache Memory
Item
First-Level Cache Configurations
Cache function control
Second-Level Cache Configurations
L2 Cache RAM type
L2 Cache RAM size
L2 Cache RAM speed
L2 Cache RAM voltage
L2 Cache function control
L2 Cache scheme
128MB~1G
128MB~1G
128MB~2G
Total Memory
Specification
Enable/Disable by BIOS Setup
PBSRAM
256/512KB
One-half the processor core clock frequency
Enable/Disable by BIOS Setup
Fixed in write-back
Video Memory
Item
Memory size
Fixed on-board or upgradeable
Specification
64 MB
Fixed on-board (nVIDIA) or UMA Memory (SiS M650)
This section has two table lists, the video interface specification and its supported display modes.
Video Interface
Item
Video controller SiS M650 or nVIDIA NV18M
Specification
Chapter 1 11
Video Interface
Item
Video controller resident bus
Video interface support
Specification
AGP bus
Video YUV texture in all texture formats
H/W DVD accelerator
12
Display Screen Resolution
640x480
640x480
640x480
640x480
640x480
800x600
800x600
800x600
800x600
800x600
800x600
800x600
800x600
1024x768
1024x768
1024x768
1280x1024
1280x1024
1280x1024
1600x1200
1600x1200
160
70
75
100
75
85
100
120
43
60
85
60
85
120
56
60
72
60
72
75
85
Refresh Rate (Hz)
Audio Interface
Item
Audio controller
Audio controller resident bus
Audio function control
Mono or stereo
Compatibility
79.0
50.0
64.0
91.2
76.2
106.2
48.0
46.9
53.7
62.5
76.1
101.9
56.5
60.0
Hor. Scan (KHz)
31.5
37.4
37.5
43.3
63.7
35.2
37.8
110.0
80.0
110.0
157.5
156.0
229.5
50.0
49.5
56.2
67.5
81.0
110.0
75.0
78.8
25.2
Pixel Clock (MHz)
32.0
31.5
36.0
55.0
36.0
39.9
SiS962
AC’97
Enable/disable by OS Setup
Stereo
Specification
Sound Blaster Pro/16 compatible
Mixed digital and analog high performance chip
Enhanced stereo full duplex operation
High performance audio accelerator and AC’97 support
Full native DOS games compatibility
Virtual FM enhances audio experience through real-time FM-to-Wavetable conversion
MPU-401(UART mode) interface for wavetable synthesizers and MIDI devices
Integrated dual game port
Meets AC’97and WHQL specifications
Chapter 1
Audio Interface
Item
Music synthesizer
Sampling rate
MPU-401 UART support
Microphone jack
Headphone jack
IDE Interface
Item
IDE controller
IDE controller resident bus
Number of IDE channel
Support IDE interface
Support bootable CD-ROM
Yes, internal FM synthesizer
48 KHz (max.)
Yes
Supported
Supported
Specification
Specification
SiS962
PCI bus
2
E-IDE (up to PIO mode-4 and Ultra DMA 33/66), ANSIS ATA rev.3.0 ATAPI
Yes
Floppy disk drive Interface
Item
Floppy disk drive controller
Floppy disk drive controller resident bus
Support FDD format
Specification
SMSC LPC47M192
LPC interface
360KB, 720KB, 1.2MB, 1.44MB, 2.88MB
Parallel Port
Item
Parallel port controller
Parallel port controller resident bus
Number of parallel ports
Support ECP/EPP
Connector type
Parallel port function control
Optional ECP DMA channel
(in BIOS Setup)
Optional parallel port I/O address
(via BIOS Setup)
Optional parallel port IRQ
(via BIOS Setup)
Serial Port
Item
Serial port controller
Serial port controller resident bus
Number of serial port
16550 UART support
Connector type
Optional serial port I/O address
(via BIOS Setup)
Specification
SMSC LPC47M192
LPC interface
1
SPP / Bi-directional / ECP / EPP
25-pin D-type female connector
Enable/disable by BIOS Setup
DMA channel 1
DMA channel 3
378h
278h
IRQ5
IRQ7
SMSC LPC47M192
LPC interface
1
Yes
9-pin D-type female connector
COM1: 2F8h, 3E8h, 2E8h
Specification
Chapter 1 13
14
Serial Port
Item
Optional serial port IRQ
(via BIOS Setup)
Modem
Item
Software Modem
Modem connector type
Full duplex
USB Port
Item
OHCI
USB Class
Memory Address Map
Address
000000 - 07FFFF
080000 - 09FFFF
0A0000 - 0BFFFF
0C0000 - 0CFFFF
D0000
0E0000 - 0EFFFF
COM1: IRQ 3, and 4
V.9.0/9.2
RJ11
Yes
Specification
USB 1.1/2.0
Support legacy keyboard for legacy mode
512KBytes
128KBytes
128KBytes
64KBytes
96Kbytes
64Kbytes
Size
0F0000 - 0FFFFF
100000 - UPPER LIMIT
UPPER LIMIT - 4GBytes
64Kbytes
INTA
INTB
INTC
INTD
INTE
INTF
INTG
INTH
PCI INTx# Assignment Map
PCI INTx PCI Devices
AGP
1394, Carbus
AGP, Audio, Mini, Modem
LAN, Mini
USB 0 (1,1)
USB 1 (1.1)
USB 2 (1,1)
USB 3 (2,0)
Specification
Specification
Function
Host Memory
Host/PCI Memory
PCI/ISA Video Buffer Memory
Video BIOS Memory
ISA Card BIOS & Buffer Memory
BIOS Extension Memory
Setup and Post Memory
PCI Development BIOS
System BIOS Memory
Main Memory
PCI Memory
Chapter 1
I/O Address Map
Hex Range
000-00F
020-021
040-043
060-060
061-061
070-071
080-08F
0A0-0A1
0C0-0DF
0F0-0FF
170-177
1F0-1F7
278-27F
2F8-2FF
378-37F
3F0-3F5
3F6-3F6
3F7-3F7
3F8-3FF
0CF8
0CFC
778-77A
IRQ Assignment Map
IRQ7
IRQ8
IRQ9
IRQ10
IRQ11
IRQ12
IRQ13
IRQ14
IRQ15
IRQx
IRQ0 Timer
IRQ1
IRQ2
Keyboard
System Devices
Cascade Interrupt Control
IRQ3
IRQ4
IRQ5
IRQ6
Serial Alternate
Serial Primary
MPU-401(Alternate)
Floppy Disk
Parallel Port
Real Time Clock
N
N
N
PS/2 Mouse
Math Coprocessor Exception
Primary IDE
Secondary IDE
NOTE: N - Not be used
Devices
DMA Controller-1
Interrupt Controller-1
System Timer
Keyboard Controller 8742
System Speaker
CMOS RAM Address and Real Time Clock
DMA Page Register
Interrupt Controller-2
DMA Controller-2
Math Co-Processor
Secondary IDE
Primary IDE
Parallel Printer Port 2
Serial Asynchronous Port 2
Parallel Printer Port 1
Floppy Disk Controller
Secondary IDE
Primary IDE
Serial Asynchronous Port 1
Configuration Address Register
Configuration Data Register
Parallel Printer Port 1
N
N
N
Reserved
Reserved
Reserved
Reserved
Reserved
N
Reserved
Reserved
Reserved
Reserved
N
Reserved
Reserved
Add-On-Card Devices
Chapter 1 15
16
APIC mode
PCI x
PCI 16
PCI 17
PCI 18
PCI 19
PCI 20
PCI 21
PCI 22
PCI 23
System Devices
VGA
1394, Carbus
Modem, WLAN (Mini PCI), Audio
LAN
USB 0 (1,1)
USB 1 (1,1)
USB 2 (1,1)
USB 3 (2,0)
Environmental Requirements
Item
Temperature
Operating
Non-operating
Humidity
Operating
Non-operating
Vibration
Operating (unpacked)
Add-On-Card Devices
DRQ Assignment Map
DRQx
DRQ0
DRQ1
DRQ2
DRQ3
DRQ4
DRQ5
DRQ6
DRQ7
NOTE: N - Not be used
Main Board Major Chips
System core logic
Video controller
Super I/O controller
Audio controller
Item
LAN controller
HDD controller
Keyboard controller
RTC
System Devices Add-On-Card Devices
N Reserved
LPT (ECP mode) Reserved
FDD N
N
N
N
Cascade
N
Reserved
N
Reserved
Reserved
Reserved
SiS650 / SiS962
SiS650
SiS962
SiS650
SiS650
Built in SiS650
Built in SiS650
Built in SiS650
Controller
Specifications
+10 ~ +35 ° C
-20 ~ +60 ° C (Storage package)
20% to 80% RH
20% to 80% RH
5 ~ 16 Hz: 0.015 mm
16 ~ 250 Hz: 0.21 G
Chapter 1
Environmental Requirements
Item
Non-operating (packed) 5 ~ 27.1 Hz: 0.6 G
27.1 ~ 50 Hz: 0.016 mm
50 ~ 500 Hz: 2 G
Specifications
Mechanical Specifications
Item
Weight
One 3 ½ FDD and one 3.5 HDD
(without packing)
Dimensions
(main footprint)
Varied by local configuration
Specification
N/A
Chapter 1 17
Power Management Function (ACPI support function)
Device Standby Mode
T
T
T
T
T
Independent power management timer for hard disk drive devices
(0-15 minutes, time step=1 minute).
Hard disk drive goes into Standby mode (for ATA standard interface).
Disable V-sync to control the VESA DPMS monitor.
Resume method: device activated (Keyboard for DOS, keyboard & mouse for Windows).
Resume recovery time: 3-5 sec.
Global Standby Mode
T
T
T
T
T
Global power management timer (2-120 minutes, time step=10 minute).
Hard disk drive goes into Standby mode (for ATA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Resume method: Return to original state by pushing external switch button, modem ring in, keyboard and mouse for APM mode.
Resume recovery time: 7-10 sec.
Suspend Mode
T
T
T
T
T
T
T
T
T
Independent power management timer (2-120 minutes, time step=10 minutes) or pushing external switch button.
CPU goes into SMM.
CPU asserts STPCLK# and goes into the Stop Grant State.
LED on the panel turns amber colour.
Hard disk drive goes into SLEEP mode (for ATA standard interface).
Disable H-sync and V-sync signals to control the VESA DPMS monitor.
Ultra I/O and VGA chip go into power saving mode.
Resume method: Return to original state by pushing external switch button, modem ring in, keyboard and mouse for APM mode.
Return to original state by pushing external switch button, modem ring in and USB keyboard for
ACPI mode.
ACPI
T
T
T
T
ACPI specification 1.0.
S0, S1, S3 and S5 sleep state support.
On board device power management support.
On board device configuration support.
18 Chapter 1
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press m
during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).
Press m to enter setup; press <C> to boot from CD-ROM; press <F12> to change boot device.
Info. Main
PhoenixBIOS Setup Utility
System Devices Security
CPU Type: Intel Pentium(R) 4 CPU 2.66GHz
CPU Speed: 2660MHz
HDD1 Model Name:
HDD1 Serial Number:
ATAPI Device:
System BIOS Ver: A3Axx
VGA BIOS Ver:
KBC Ver: x.x
Serial Num: xxxxxxxxxxxxxxxxxxxxxx
Asset Tag Number:
Product Name: Aspire 1700
Manufacture Name: acer
UUID: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Boot Exit
F1
Help ↑↓ Select Item
F5/F6
Change Values
F9
Setup Defaults
Esc
Exit ←→ Select Menu
Enter
Select
4
Sub-Menu
F10
Save and Exit
Chapter 2 19
Navigating the BIOS Utility
There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.
Follow these instructions:
T
T
To choose a menu, use the cursor left/right keys ( zx ).
To choose a parameter, use the cursor up/down keys ( wy ).
T
T
T
T
To change the value of a parameter, press p or q .
A plus sign (+) indicates the item has sub-items. Press e to expand this item.
Press ^ while you are in any of the menu options to go to the Exit menu.
In any menu, you can load default settings by pressing t . You can also press u to save any changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values.
This menu provides you the information of the system.
20 Chapter 2
Info.
Info.
PhoenixBIOS Setup Utility
Main System Devices Security
CPU Type: Intel Pentium(R) 4 CPU 2.66GHz
CPU Speed: 2660MHz
HDD1 Model Name:
HDD1 Serial Number:
ATAPI Device:
System BIOS Ver: A3Axx
VGA BIOS Ver:
KBC Ver: x.x
Serial Num: xxxxxxxxxxxxxxxxxxxxxx
Asset Tag Number:
Product Name: Aspire 1700
Manufacture Name: acer
UUID: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Boot Exit
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select 4 Sub-Menu F10 Save and Exit
Parameter
Floppy Disk Drive
Serial Number
UUID Number
Description
Shows floppy drive type informaiton.
This field displays the serial number of this unit.
UUID=32bytes
Chapter 2 21
Main
The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.
Info.
PhoenixBIOS Setup Utility
Main
System Devices Security
System Time: [HH:MM:SS]
System Date: [MM/DD/YYYY]
System Memory: 640 KB
Extended memory: [64 MB]
Fast Boot: [Enabled]
Power On Display: [Auto]
LCD Auto Dimm: [Enabled]
USB BIOS legacy Support: [Enabled]
Wake On LAN From Power Off: [Disabled]
Boot Exit
Item Specific Help
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select 4 Sub-Menu F10 Save and Exit
NOTE: The screen above is for reference only. Actual values may differ.
22 Chapter 2
The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.
Parameter
System Time
System Date
System Memory
Extended Memory
Video Memory
Fast Boot
Internal Hard Disk
Power on display
LCD Auto Dim
Description
Sets the system time.
Sets the system date.
Format/Option
Format: HH:MM:SS
(hour:minute:second) System Time
Format MM/DD/YYYY (month/day/ year)
System Date
This field reports the memory size of the system.
Memory size is fixed to 640MB
This field reports the memory size of the extended memory in the system.
Extended Memory size=Total memory size-1MB
Shows the VGA memory size. The default value is set to 32MB
Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.
Enabled: Customer Logo is displayed, and
Summary Screen is disabled.
Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.
Shows the hard disk types and capacity. If there is no hard disk present or unknown type, “None” should be shown on this field, otherwise the capacity must be shown.
Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT
(or projector) only mode. Otherwise it will be in
LCD only mode.
Both: Simultaneously enable both the integrated
LCD screen and the system’s external video port
(for an external CRT or projector).
Determines if the system will automatically dim the LCD brightness in order to save power when
AC is not present.
Option:1/4/8/ 16 /32MB
Option: Enabled or Disabled
Option: Auto or Both
Option: Enabled or Disabled
NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.
Chapter 2 23
System Devices
The System Devices screen contains parameters involving your hardware devices. It also provides advanced settings of the system.
Info.
PhoenixBIOS Setup Utility
Main
System Devices
Security
Serial Port: [Auto]
Parallel Port: [Auto]
Mode: [ECP]
Television Type: [NTSC]
Boot Exit
Item Specific Help
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
E E it S l t M E t S l t 4 S b M F10 S d E it
The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.
Parameter
Serial Port
Parallel Port
Mode
Television Type
Internal Touchpad
Infrared Port (FIR)
Description
Enables, disables or auto detects the serial port.
Enables, disables or auto detects the parallel port.
Sets the operation mode of the parallel port.
Options
Enabled /Disabled/Auto
Enabled /Disabled/Auto
ECP , EPP, Normal or Bi-directional
Determines whether or not to disable the internal pointing device as the PS/2 mouse is connected.
Enables, disables or auto detects the infrared port.
Both or Auto
Enabled /Disabled/Auto
24 Chapter 2
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.
Info.
PhoenixBIOS Setup Utility
Main System Devices
Security
User Password Is: Clear
Supervisor Password Is: Clear
Hard Disk Security: Clear
HDD Master ID:
Set User Password: [Enter]
Set Supervisor Password: [Enter]
Set HDD Password [Enter]
Password on Boot: [Disabled]
Boot Exit
Item Specific Help
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select 4 Sub-Menu F10 Save and Exit
The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.
Parameter
User Password is
Supervisor Password is
Description
Shows the setting of the uer password.
Shows the setting of the administrator password
Option
Clear or Set
Clear or Set
HDD Password Is
HDD Master ID
Set User Password
Set Supervisor Password
Press Enter to set the user password. When set, this password protects the BIOS Setup
Utility from unauthorized access.
Press Enter to set the administrator password.
When set, this password protects the BIOS
Setup Utility from unauthorized access.
Set HDD Password
Password on boot Allows the user to specify whether or not a password is required to boot.
Disabled or Enabled
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.
Chapter 2 25
Setting a Password
Follow these steps as you set the user or the supervisor password:
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Supervisor Password box appears:
2.
Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.
IMPORTANT: Be very careful when typing your password because the characters do not appear on the screen.
3.
Press e .
After setting the password, the computer sets the User Password parameter to “Set”.
4.
If desired, you can opt to enable the Password on boot parameter.
5.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
Removing a Password
Follow these steps:
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Password box appears:
2.
Type the current password in the Enter Current Password field and press e .
3.
Press e twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to “Clear”.
4.
When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.
Changing a Password
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Password box appears:
26 Chapter 2
2.
Type the current password in the Enter Current Password field and press e .
3.
Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.
4.
Press e . After setting the password, the computer sets the User Password parameter to “Set”.
5.
If desired, you can enable the Password on boot parameter.
6.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
The password setting is complete after the user presses u .
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
If the new password and confirm new password strings do not match, the screen will display the following message.
Chapter 2 27
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.
Info.
CD-ROM/DVD-ROM
Hard Drive
Removable Device
Boot to LAN
PhoenixBIOS Setup Utility
Main System Devices Security
Boot
Exit
Item Specific Help
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select 4 Sub-Menu F10 Save and Exit
28 Chapter 2
Exit
The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.
Info.
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
PhoenixBIOS Setup Utility
Main System Devices Security Boot
Exit
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select 4 Sub-Menu F10 Save and Exit
The table below describes the parameters in this screen.
Parameter
Exit Saving Changes
Exit Discarding Changes
Load Setup Default
Discard Changes
Save Changes
Description
Exit System Setup and save your changes to CMOS.
Exit utility without saving setup data to CMOS.
Load default values for all SETUP item.
Load previous values from CMOS for all SETUP items.
Save Setup Data to CMOS.
Chapter 2 29
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting. To disassemble the computer, you need the following tools:
1.An ESD mat
2.A Philips screw driver
3.A tweezers
4.And a hex screw driver
NOTE: Use an ESD wristband to avoid the risk of electronic discharge
Chapter 3
Chapter 3 45
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following:
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
3.
Jewelry such as watches, rings and bracelets should be removed before service disassembly.
46 Chapter 3
Disassembly Procedure Flowchart
The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
Start x7 (fix on base cover)
Base Cover
Dx4
Cx1
Battery
Dommy Cover
Battery
Cx2
MDC Modem
Card
Memory
Cx1
Optical Drive
Module
(Please see next page)
Disconnect subwoofer cable x2
Subwoofer
Cx2
Cx4
HDD Module
Disconnect HDD power cable and
IDE coaxial cable
Rx4
Thermal
Module (FAN
Sink) w/ screws *4pcs
CPU x4
Cx4
VGA Card
(AGP Card)
Wireless Card
Upper System
Cover (Middle
Cover)
Inverter Board
Brackets
HDD Bracket
LED Cable
Remove inverter board mylar x2
Inverter Board
HDD
LCD Outer
Shield (LCD panel)
LCD
Dx8
Bx2
Cx3
Inverter Cover
Jx4
Hinge Cover x6
Keyboard x4 on rear
Disconnect LED cable
LCD Module x4
Ox4
LED Board
(Launch
Board)
Dx6
Silicon Line Pad
(LCD Decoration
Bar)
Disconnect touchpad FFC
Px1
Qx2
Kx5
Mx2
Tx6
Jx4
Dx8
LED Cable
LCD Skirting
Board (LCD
Bezel)
See Next
Page
LCD Cable
Side Brackets
(LCD
Brackets)
Ux8
Wireless
Antenna
Bx4
Chapter 3 47
48
Con't
Cx3
FDD Module
Base Assy
Base
Front Panel
(Upper Case
Assy)
Audio DJ
Board Cable x2
Speaker
Cx8
Ix6
I/O Shield
Main Board
Module
Cx2
PCI Board
Touchpad
Ox2
Touchpad
Bracket
Ox4
Touchpad
Switch Board
Ox1
Audio DJ
Board x1
Lid Switch
Cable
Main Board w/
Fan
Cx2
Main Board
FDD Module
FDD FFC
Main Board
Bracket
Fan
Bx3
FDD Bracket FDD
Optical Drive
Module
Ex3
Optical
Bracket
ODD
Chapter 3
Screw List
N
O
L
M
J
K
H
I
F
G
D
E
Item
A
B
C
R
S
P
Q
T
U
Description
SCREW MM30060IL67
SCREW MM25025ICI0
SCREW MM25040IL60
SCREW MM25060IL69
SCREW MM20030ICI3
SCREW MM20080ICI6
SCREW MM20100ICI3
SCREW MS17025B202
SCREW MBEA1001012
SCREW MF30060PBJ5
SCREW MM25070ICI5
SCREW MS25060ILR1
SCREW MS25060P527
SCREW MM25040ICI1
SCREW MS25025IBX8
SCREW MS25180I100
SCREW MS25100B371
SCREW MS0601BILQ1
HDD SCREW
SCREW MS25060IM01
SCREW MM30050ICI4
Chapter 3 49
Disassembling
Remove the battery
1.
Release the seven screws as shown here.
2.
Remove the bottom shield plate.
3.
Remove the 5 screws as shown here.
4.
Remove the battery or dummy battery module.
Remove the HDD module
1.
Remove the 4 screws that secure the HDD module.
2.
Lift the HDD module and detach the IDE connector and power connector at the same time.
Remove the combo drive
1.
Remove the one screw as shown here.
2.
Detach the Combo drive.
50 Chapter 3
Remove the thermal module
1.
Disconnect the fan power connector.
1.
Remove the three screws as shown here
2.
Remove the thermal module.
Remove CPU
1.
Open the CPU lever, remove the CPU and close the lever.
Remove the memory
1.
Remove the memory
Remove VGA card
1.
Disconnect the VGA connector.
2.
Release the four screws that secure the VGA card.
3.
Remove the VGA card.
Chapter 3 51
Detach the wireless card
1.
Detach the wireless card.
2.
Disconnect the two wireless cables.
Remove moden card
1.
Remove the screws on the MDC (modem card)
2.
Detach the card from the modem cable.
3.
Release the cable
Remove the inverter cover
1.
Remove the screws as shown here.
2.
Remove the inverter cover.
52 Chapter 3
Detach the upper system cover
1.
Remove the two screws on the one side, and the two screws on the other. .
2.
Remove the hinge covers on each side
3.
Detach the upper system cover (middle cover).
Remove the LCD module
1.
Detach the LED cable from the LED board.
2.
Remove the screws that secure the hinge. And the other side.
3.
Detach the LCD panel from the main unit and place the panel by turning 180 degrees.
4.
Release the cables by following the instructions here carefully.
Chapter 3 53
Remove the LCD panel
1.
Detach the silicon line pad by following the instruction here. And the other side.
2.
Unscrew the three screws on the edge of the LCD panel on both sides.
3.
Detach the LCD skirting board (LCD bezel) by following the instruction here.
4.
Remove the TEN screws on the side mount.
5.
Remove the LCD panel.
Remove the inverter board
1.
Remove the tape and disconnect the inverter cable.
54 Chapter 3
2.
Follow the same procedure on the other inverter cable.
3.
Disconnect the inverter power cable from the inverter board.
4.
Remove the mylar that covering the inverter board.
5.
Remove the two screws that secure the inverter board bracket.
Chapter 3 55
Remove the mylars
Remove the wireless module
1.
Remove the two screws that secure the wireless antenna.
2.
Remove the antenna.
3.
Repeat the same procedure on the other side.
4.
Remove the wireless module
Remove the side bracket
1.
Remove the two screws as shown here. Then remove the side bracket.
56 Chapter 3
2.
Repeat the same procedure on the other side bracket.
Remove the LED cable attached on the LCD outer shield.
Remove the subwoofer
1.
Disconnect the subwoofer cable.
2.
Remove the two screws that secure the subwoofer.
3.
Remove the subwoofer.
Chapter 3 57
Release the MDC cable.
Disconnect the cable to the modem header.
Remove the keyboard
1.
Remove the six screws the secure the keyboard.
2.
Remove the keyboard and disconnect the attached cable.
Remove the LED board
1.
Detach the LED ribbon cable.
2.
Remove the four screws that secure the LED board.
3.
Lift the LED board and disconnect the LED cable at the same time.
58 Chapter 3
4.
Disconnect the LED ribbon cable from the LED board.
Detach the front panel
1.
Disconnect the touch pad ribbon cable.
2.
Remove the three screws as shown here.
3.
Turn the unit upside down, and then remove the group of FOUR, the group of EIGHT and the group of SIX screws.
4.
And finally the 4 screws on the rear side.
5.
Detach the front panel.
Remove the Audio DJ board
1.
Disconnect the Audio DJ ribbon cable.
Chapter 3 59
2.
Disconnect the other side of the ribbon cable to the Audio DJ board.
3.
Remove the screw that secures the Audio DJ board.
4.
Remove the DJ board.
Remove the touch pad
1.
Remove the mylar here.
2.
Disconnect the two ribbon cables to the touch pad.
3.
Remove the mylar.
4.
Remove the two screws that secure the touch pad.
60 Chapter 3
5.
Remove the touch pad bracket.
6.
Remove the touch pad.
Remove the touch pad board
1.
Remove the four screws that secure the touch pad board.
2.
Remove the touch pad board.
Remove the lid switch cable
1.
Disconnect the lid switch cable by releasing the screw.
2.
Remove the lid switch cable.
Remove the floppy drive
1.
Disconnect the floppy cable
2.
Remove the three screws
3.
Remove the floppy drive.
Chapter 3 61
Remove the speaker set
1.
Remove the tape
2.
Remove the aluminum tape (the tape can be damaged while servicing, please make sure you have a spare one).
3.
Remove the tape here.
4.
Disconnect the speaker cable.
5.
Remove the screw as shown here.
6.
And the one on the other side.
7.
Remove the speaker set.
Remove the mainboard
1.
Remove the nine screws as shown
2.
Detach the mainboard module from the base unit
3.
Remove the screw as shown
62 Chapter 3
4.
Remove the PCI board.
5.
Remove the six screws that secure the I/O shield.
6.
Remove the I/O shield.
7.
Disconnect the system fan power connector.
8.
Remove the two screws, one on each side, that secure the mainboard.
9.
Remove the mainboard from the mainboard bracket.
Remove the system fan
1.
Remove the two screws that secure the system fan.
2.
Remove the system fan.
3.
This completes the disassembly procedures of Aspire 1700.
Chapter 3 63
FDD Module
1.
Disconnect the ribbon cable.
2.
Remove the screws as shown here.
3.
Remove the FDD bracket away from the floppy drive.
HDD Module
1.
Disconnect the HDD power cable and then the IDE coaxial cable.
2.
Remove the screws that secure the HDD, and the other side.
3.
Remove the bracket from the HDD.
64 Chapter 3
Combo Module
1.
Remove the three screws as shown here.
2.
Remove the bracket.
Chapter 3 65
66 Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting. To disassemble the computer, you need the following tools:
1.An ESD mat
2.A Philips screw driver
3.A tweezers
4.And a hex screw driver
NOTE: Use an ESD wristband to avoid the risk of electronic discharge
Chapter 3
Chapter 3 45
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following:
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
3.
Jewelry such as watches, rings and bracelets should be removed before service disassembly.
46 Chapter 3
Re-assembly
Place the system fan
1.
Put the mainboard bracket on the table.
2.
Place the system fan back to position.
3.
Fasten the two screws for the system fan.
Re-assembling the mainboard
1.
Place the mainboard back to the bracket.
2.
Secure the two screws on each side.
3.
Reconnect the system fan power connector.
4.
Place the I/O shield back to position.
5.
Secure the SIX screws as shown here.
6.
Place the PCI card back to position.
7.
Secure the screw for the PCI card.
Chapter 3 47
8.
Place the motherboard module back to position.
9.
Secure the nine screws as shown here.
Place the speaker set back to position
1.
Place the speaker set back to position
2.
Secure the screw on each side.
3.
Reconnect the speaker connector.
4.
Fix the wire by a tape.
5.
Use an aluminum tape to avoid electro-emission.
6.
Secure the wire here with a tape.
48 Chapter 3
Place the floppy module back to position
1.
Place the floppy module back to position.
2.
Secure the three screws for the floppy.
3.
Reconnect the floppy ribbon cable.
Place the touch pad back to position
1.
Place the lid switch cable back to position.
2.
Secure the screw.
3.
Place the touch pad board back to position.
4.
Secure the four screws.
5.
Place the touch pad back to position.
6.
Place the touch pad bracket back to position.
7.
Secure the two screws here.
8.
Attach a tape.
Chapter 3 49
Reconnect the Audio DJ board
1.
Reconnect the ribbon cable and the other.
2.
Use another tape to secure.
3.
Place the Audio DJ board back to position.
4.
Secure the screw.
5.
Reconnect the Audio DJ cable and the reconnect the other side.
Place the system cover back to position
1.
Place the system cover back to position.
2.
Secure the four screws on the rear panel.
3.
Secure the group of six, the group of eight and the group of four screws as shown here.
50 Chapter 3
4.
Secure the three screws here.
5.
Reconnect the touch pad ribbon cable.
Reconnect the LED cable
1.
Attach the LED cable to the board.
2.
And the LED power cable to the board.
3.
Secure the four screws on the LED board.
4.
Reconnect the LED cable.
Place the keyboard back to position
1.
Reconnect the keyboard ribbon cable.
2.
Place the keyboard back to position.
3.
Secure the six screws for the keyboard.
Chapter 3 51
Place the MDC cable back to position
1.
Place the MDC cable back to position.
2.
Reconnect the MDC header.
3.
Fix the wire by the slot.
Reconnect the sub-woofer
1.
Place the subwoofer back to position.
2.
Secure the two screws for the sub-woofer.
3.
Reconnect the sub-woofer connector.
Place the LED cable back to position
1.
Place the LED cable back to position.
2.
Fix the wire by a tape. And the other.
52 Chapter 3
Place the side mount back to position.
1.
Place the side mount back to position.
2.
Secure the side mount.
3.
Repeat the same procedure on the other side.
4.
Secure the wire with a tape.
Place the wireless antenna back to position
1.
Place the wireless antenna back to position.
2.
Secure the antenna on the one side and the other.
3.
Secure the wireless module with a tape and the other side.
Chapter 3 53
Reattach the LCD cable
1.
Reattach the LCD cable.
2.
Secure the connector with a tape and the other side.
Place the inverter board back to position
1.
Place the inverter bracket back to position and the other.
2.
Secure the two brackets.
3.
Place the inverter board back to a mylar.
4.
Reconnect the inverter power.
5.
Reconnect the inverter cables.
6.
Fix the wires and repeat the same procedure on the other side.
54 Chapter 3
Re-assembling the LCD module
1.
Place the LCD panel back to position.
2.
Secure the ten screws as shown here.
3.
Fix the LCD skirting board (LCD bezel).
4.
Secure the three screws on the one side, and the other.
5.
Attach a new silicon pad and the other.
6.
Insert the cables into the hole carefully.
7.
Place the LCD panel back to position.
8.
Secure the hinge and the other side.
9.
Reconnect another LED cable.
Chapter 3 55
Place the system cover and hinge back to position
1.
Place the system cover (middle cover) back to position.
2.
Place the hinge cover back to position and secure the hinge cover.
3.
Repeat the same procedure on the other side.
Place the inverter cover back to position
1.
Place the inverter cover back to position.
2.
Secure the inverter cover.
Reconnect the cable to the MDC card and wireless card
1.
Fix the MDC cable.
56 Chapter 3
2.
Reconnect the cable to the MDC card.
3.
Secure the card.
4.
Reconnect the wireless cable.
5.
Place the wireless card back to position.
Place the VGA card back to position.
1.
Place the VGA card back to position.
2.
Secure the VGA card.
3.
Reconnect the VGA connector.
Insert the memory
1.
Insert the memory.
Chapter 3 57
Place the CPU back
1.
Place the CPU back.
Place the thermal module back to position
1.
Place the thermal module back to position.
2.
Secure the thermal module.
3.
Reconnect the thermal fan connector.
Place the floppy back to position
1.
Place the floppy back to position.
2.
Secure the floppy.
Reconnect the HDD power and coaxial cable.
1.
Reconnect the HDD power and coaxial cable.
2.
And place the HDD back to position.
3.
Secure the HDD module.
58 Chapter 3
Place the battery or dummy battery back to position.
1.
Place the battery or dummy battery back to position.
2.
Secure the battery module.
Place the bottom shield back to position.
1.
Place the bottom shield back to position.
2.
Secure the bottom shield.
3.
This completes the re-assembly procedures of Aspire 1700.
Chapter 3 59
FDD Module
1.
Reattach the FDD bracket.
2.
Secure the screw.
3.
Reconnect the ribbon cable.
HDD Module
1.
Reattach the HDD bracket.
2.
Secure the HDD with screws.
3.
Reconnect the power cable and the coaxial cable.
60 Chapter 3
Combo Module
1.
Reattach the bracket.
2.
Secure the combo with three screws.
Chapter 3 61
62 Chapter 3
Chapter 4
Troubleshooting
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.
1.
Duplicate symptom and obtain the failing symptoms in as much detail as possible.
2.
Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.
3.
Disassemble and assemble the unit without any power sources.
4.
If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You can check the following: power cords are properly connected and secured; there are no obvious shorts or opens; there are no obviously burned or heated components; all components appear normal.
5.
Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified)
Power failure. (The power indicator does not go on or stay on.)
POST does not complete. No beep or error codes are indicated.
POST detects an error and displayed messages on screen.
The diagnostic test detected an error and displayed a FRU code.
Other symptoms (i.e. LCD display problems or others).
Symptoms cannot be re-created (intermittent problems).
Go To
“Power System Check” on page 9.
“Power-On Self-Test (POST) Error Message” on page 11
“Undetermined Problems” on page 19
“Error Message List” on page 12
“System Diagnostic Diskette” on page 43
“Power-On Self-Test (POST) Error Message” on page 11
Use the customer-reported symptoms and go to
“Power-On Self-Test (POST) Error Message” on page 11
“Intermittent Problems” on page 18
“Undetermined Problems” on page 19
Chapter 4 7
System Check Procedures
External Diskette Drive Check
Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.
NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.
Do the following to select the test device. See “System Diagnostic Diskette” on page 43 for details.
1.
Boot from the diagnostics diskette and start the diagnostics program (see “System Diagnostic Diskette” on page 43).
2.
See if FDD Test is passed as the program runs to FDD Test.
3.
Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.
If the error still remains:
1.
Reconnect the external diskette drive/DVD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
External CD-ROM Drive Check
Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1.
Boot from the diagnostics diskette and start the diagnostics program (refer to “System Diagnostic
Diskette” on page 43.
2.
See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3.
Follow the instructions in the message window.
If an error occurs, reconnect the connector on the System board. If the error still remains:
1.
Reconnect the external diskette drive/CD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.
If the keyboard cable connection is correct, run the Keyboard Test. See “System Diagnostic Diskette” on page
43 for details.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:
1.
Reconnect the keyboard cables.
2.
Replace the keyboard.
3.
Replace the main board.
The following auxiliary input devices are supported by this computer:
T
Numeric keypad
8 Chapter 4
T
External keyboard
If any of these devices do not work, reconnect the cable connector and repeat the failing operation.
Memory check
Memory errors might stop system operations, show error messages on the screen, or hang the system.
1.
Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.
2.
Go to the diagnostic memory in the test items.
3.
Press F2 in the test items.
4.
Follow the instructions in the message window.
NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.
Power System Check
To verify the symptom of the problem, power on the computer using each of the following power sources:
1.
Remove the battery pack.
2.
Connect the power adapter and check that power is supplied.
3.
Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.
If you suspect a power problem, see the appropriate power supply check in the following list:
T
“Check the Battery Pack” on page 10
Chapter 4 9
Check the Battery Pack
To check the battery pack, do the following:
From Software:
1.
Check out the Power Management in control Panel
2.
In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total
Battery Power Remaining are correct.
3.
Repeat the steps 1 and 2, for both battery and adapter.
4.
This helps you identify first the problem is on recharging or discharging.
From Hardware:
1.
Power off the computer.
2.
Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure
3.
If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.
If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.
If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.
Touchpad check
If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:
1.
After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.
2.
Run utility with the PS/2 mouse function and check if the mouse is working.
3.
If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.
4.
If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB connects properly.
5.
If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then replace switch board. If no, then go to next step.
6.
Replace touch pad PCB.
7.
If the touch pad still does not work, then replace FPC on Track Pad PCB.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.
10 Chapter 4
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes. The most likely cause is listed first.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.
This index can also help you determine the next possible FRU to be replaced when servicing a computer.
If the symptom is not listed, see “Undetermined Problems” on page 19.
The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
Chapter 4 11
Index of Error Messages
Error Message List
Struck Key
Error Messages
System CMOS checksum bad - Default configuration used
Real time clock error
Previous boot incomplete - Default configuration used
Invalid System Configuration Data
Operating system not found
FRU/Action in Sequence
See ““Keyboard or Auxiliary Input Device Check” on page 8
RTC battery
Run BIOS Setup Utility to reconfigure system, then reboot system.
RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot system.
Main board
“Load Default Settings” in BIOS Setup Utility.
RTC batter
Main baord.
“Load Default Settings” in BIOS Setup Utility.
Main board.
Enter Setup and see if fixed disk and drive A are properly identified.
Dikette drive
Hard disk drive
Main board.
12 Chapter 4
Error Message List
No beep Error Messages
Power-on indicator turns off and LCD is blank.
Power-on indicator turns on and LCD is blank.
Power-on indicator turns on and LCD is blank.
But you can see POST on an external CRT.
Power-on indicator turns on and a blinking cursor shown on LCD during POST.
FRU/Action in Sequence
Power source (battery pack and power adapter.) See “Power
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM.
Main board.
Power source (battery pack and power adapter.) See “Power
Reconnect the LCD connector
Hard disk drive
LCD cable
LCD inverter
LCD
Main board
Reconnect the LCD connectors.
LCD cable
LCD inverter
LCD
Main board
Ensure every connector is connected tightly and correctly.
Main board
Chapter 4 13
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom / Error
LCD backlight doesn't work
LCD is too dark
LCD brightness cannot be adjusted
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
LCD has extra horizontal or vertical lines displayed.
Action in Sequence
First, plug a monitor to CRT port. Next, enter BIOS utility to running
“Load Default Settings” then reboot the system.
Reconnect the LCD connectors.
Keyboard (if the brightness function key doesn't work).
LCD cable
LCD inverter
LCD
Main board
Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.
Reconnect the LCD connectors.
Keyboard (if the brightness function key doesn't work).
LCD cable
LCD inverter
LCD
Main board
Reconnect the LCD cable
LCD cable
LCD
Main board
Indicator-Related Symptoms
Symptom / Error
Indicator incorrectly remains off or on, but system runs correctly
HDD/CD-ROM active indicators cannot work
Main board
HDD/CD-ROM drive
Device driver
Main board
Action in Sequence
Power-Related Symptoms
Symptom / Error
Power shuts down during operation
The system cannot power-on.
The system cannot power-off.
Action in Sequence
Power source (battery pack and power adapter). See “Power
Battery pack
AC adapter
See if the thermal module is overheat (Heat sink or fan).
Main board
Power source (battery pack and power adapter). See “Power
Battery pack
Power adapter
CPU
Main board
In Windows XP operating system, hold and press the power switch for more than 4 seconds. If the system can power off, then the main board is OK. Verify OS in the HDD.
Main board
14 Chapter 4
Power-Related Symptoms
Symptom / Error
Battery can’t be charged or discharged
System hang during POST
Action in Sequence
See “Check the Battery Pack” on page 10.
Battery pack
Main board
ODD/HDD/FDD/RAM module
Main board
PCMCIA-Related Symptoms
Symptom / Error
System cannot detect the PC Card (PCMCIA)
PCMCIA slot pin is damaged.
PC Card cannot be inserted or ejected
Action in Sequence
PCMCIA slot assembly
Main board
PCMCIA slot assembly
Check if the PCMCIA slot is blocked
Main board
Memory-Related Symptoms
Symptom / Error
Memory count (size) appears different from actual size.
System can power on, but you hear two long beeps: “B--, B--” and the LCD is blank.
Action in Sequence
Enter BIOS Setup Utility to execute “Load Default Settings” then reboot system.
RAM module
Main board
Check BIOS revision
Reinsert DIMM
DIMM
Main board
Speaker-Related Symptoms
Symptom / Error
In Windows, multimedia programs, no sound comes from the computer.
OS volume control
Audio driver
Speaker
Main board
Action in Sequence
Internal speakers make noise or emit no sound.
Speaker
Main board
Microphone cannot work Audio driver
Volume control in Windows XP
Main board
Power Management-Related Symptoms
Symptom / Error
The system will not enter hibernation mode
The system doesn’t enter standby mode after closing the lid of the portable computer.
Action in Sequence
Power option in Windows XP
Hard disk drive
Main board
Driver of Power Option Properties
Lid close switch in upper case
Main board
Chapter 4 15
16
Power Management-Related Symptoms
The system doesn't resume from hibernation/ standby mode.
Symptom / Error
The system doesn't resume from standby mode after opening the lid of the portable computer.
Battery fuel gauge in Windows doesn’t go higher than 90%.
System hangs intermittently.
Action in Sequence
Connect AC adapter then check if the system resumes from
Standby/Hibernation mode.
Check if the battery is low.
Hard disk drive
Main board
LCD cover switch
Main board
Refresh battery (continue use battery until power off, then charge battery).
Battery pack
Main board
Reconnect hard disk/CD-ROM drives.
Main board
Peripheral-Related Symptoms
Symptom / Error
System configuration does not match the installed devices.
External display does not work correctly.
USB does not work correctly
Print problems.
Parallel port device problems
Action in Sequence
Enter BIOS Setup Utility to execute “Load Setup defaults”, then reboot system.
Reconnect hard disk/CD-ROM drives/FDD or other peripherals.
Main board
Press Fn+F5, LCD/CRT/Both display switching
Keyboard
Main board
See “System Diagnostic Diskette” on page 43
Main board
Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.
Run printer self-test.
Printer driver
Printer cable
Printer
Main board
Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.
Device driver
Device cable
Device
Main board
Keyboard/Touchpad-Related Symptoms
Symptom / Error
Keyboard (one or more keys) does not work.
Touchpad does not work.
Action in Sequence
Reconnect the keyboard cable.
Keyboard
Main board
Reconnect touchpad cable.
Touchpad board
Main board
Chapter 4
Modem/LAN-Related Symptoms
Symptom / Error
Internal modem does not work correctly.
Internal LAN does not work correctly
Action in Sequence
See “System Diagnostic Diskette” on page 43.
Phone cable
Driver
Reconnect the Internal modem cable to the main board tightly.
Main board
Lan cable
Driver
Main board
NOTE:
If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined
Chapter 4 17
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1.
Run the diagnostic test for the system board in loop mode at least 10 times.
2.
If no error is detected, do not replace any FRU.
3.
If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
18 Chapter 4
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE:
1.
Power-off the computer.
2.
Visually check them for damage. If any problems are found, replace the FRU.
3.
Remove or disconnect all of the following devices:
T
Non-Acer devices
T
T
T
T
Printer, mouse, and other external devices
Battery pack
Hard disk drive
DIMM
T
PC Cards
4.
Power-on the computer.
5.
Determine if the problem has changed.
6.
If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7.
If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
T
System board
T
LCD assembly
Chapter 4 19
20 Chapter 4
Jumper and Connector Locations
Aspire 1700 Jumpers and Connectors
Top view
Chapter 5
Chapter 5 21
Connector Description
21
22
23
24
17
18
19
20
25
26
27
28
Connector No.
13
14
15
16
9
10
11
12
7
8
5
6
3
4
1
2
Description
PS2 port
Parallel port
LAN connector
CPU fan connector
COM1 port
VGA port
S-video port
Modem connector
MDC connector
System fan connector
USB port
DC in connector
CPU socket
USB port
1394 connector
Mini 1394 connector
MIC connector
Line out connector
Woofer connector
VGA board connector
Battery connector
RTC battery connector
PCI board connector
HDD connector
CD/DVD-ROM module connector
HDD power connector
DDR RAM socket-1
DDR RAM socket-2
22 Chapter 5
Bottom View
Chapter 5 23
Connector Description
3
4
1
2
5
6
Connector No.
Description
Audio DJ FFC connector
Keyboard connector
Speaker connector
LED board FFC connector
FDD FFC connector
Touchpad FFC connector
24 Chapter 5
FRU List
Exploded Diagram
The System
Chapter 6
Chapter 6 22
LCD 17
” ASSY
FDD ASSY
23 Chapter 5
HDD ASSY
ODD ASSY
Chapter 5 24
25 Chapter 5
FRU List
CPU/Processor
Memory
LCD
No.
Partname And Description Part Number
INTEL PENTIUM 4 NORTHWOOD 2.53GHZ/512K/533FSB
INTEL PENTIUM 4 NORTHWOOD 3.06GHZ/512K/533FSB
INTEL CELERON 1.8GHZ/128K/400FSB, SL68D
INTEL CELERON 2.0GHZ/128K/400FSB
KC.DPM01.253
01.NORTH.306
01.ICLON.1GK
KC.DCM01.20A
SDRAM 256MB DDR266 INFINEON HYS64D32000GU-7-B
SDRAM 512MB DDR266 INFINEON HYS64D64020GU-7-B
SDRAM 256MB DDR266 NANYA NT256D64S88AAG-7K (
SDRAM 512MB DDR266 NANYA NT512D64S8HAAG-7K
KN.25602.002
KN.51202.001
KN.25603.002
KN.51203.001
LCD MODULE 17" TFT SXGA QDI QD17EL07 6M.A08V7.003
LCD 17" TFT SXGA QDI QD17EL07 LK.17009.001
INVERTER BOARD
WIRE LED CABLE 17"
LCD CABLE SET
55.A08V7.006
50.A08V7.008
50.A08V7.009
COVER SWITCH CABLE (LID SWITCH CABLE)
LCD HINGE R+L 17"
50.A08V7.010
6K.A08V7.001
LCD PANEL W/ WIRELESS LAN LED CABLE, LATCH,
BUTTOM, SPRING, LOGO 17"
60.A08V7.004
LCD BUTTOM 42.A08V7.005
Chapter 5 26
FDD/Floppy Disk Drive
No.
Partname And Description
LCD BEZEL W/ ACER LOGO 17"
Part Number
60.A08V7.006
LCD LATCH 17" 47.A08V7.001
LCD SPRING 17" 47.A08V7.002
LCD ACER LOGO
LCD DECORATION BAR 17"
47.A08V7.003
47.A08V7.004
FDD MODULE 1.44MB SLIM PANASONIC JU226A273FC
FDD 1.44MB SLIM PANASONIC/JU226A273FC
6M.A08V7.002
KF.22602.001
FDD FFC CABLE
FDD BRACKET
50.A08V7.005
33.A08V7.005
HDD/ Hard Disk Drive
Optical Drive/Combo Drive
27
HDD 3.5" 80G U7 5400RPM SEAGATE ST380022A
HDD 3.5" 80G U9 5400RPM SEAGATE ST380012A
HDD 3.5" 120G(L) 7200RPM MAXTOR CALYPSO 6Y120L0
HDD 3.5" 120G 7200RPM SEAGATE CUDA V
KH.38001.003
KH.08001.002
KH.12003.002
KH.31201.001
HDD CABLE, 40PIN 50.A08V7.006
HDD POWER CABLE, 4PIN, IDE
HDD CASE
50.A08V7.007
33.A08V7.006
HDD SCREW 86.A08V7.019
Chapter 5
Cables
Picture No.
Partname And Description
DVD-RW COMBO MODULE 24X QSI SBW242
DVD/CD-RW COMBO 24X QSI SBW242
Part Number
6M.A08V7.001
KO.24X07.001
NS
ODD BRACKET
DVD-RW COMBO DRIVE BEZEL
33.A08V7.004
42.A08V7.004
POWER CORD US
POWER CORD CONTINENTAL
POWER CORD UK
POWER CORD ITALIAN
POWER CORD DANISH
POWER CORD SWISS
LAUNCH BOARD FFC CABLE (LAUNCH BOARD TO MB)
50.A08V7.011
50.A08V7.012
50.A08V7.013
50.A08V7.014
50.A08V7.015
50.A08V7.016
50.A08V7.001
FFC CABLE (TOUCHPAD TO TOUCH SWITCH) 50.A08V7.002
FFC CABLE (TOUCH SWITH TO M/B) 50.A08V7.003
AUDIO DJ FFC CABLE (AUDIO BOARD TO M/B) 50.A08V7.004
Boards
Chapter 5 28
Picture No.
Partname And Description
PCI WIRELESS LAN CARD AMBIT 802.11B
Part Number
55.A08V7.007
MDC MD BOARD AMBIT AGERE MODEM
NVIDIA NV-18M 64MB AGP CARD
LAUNCH BOARD
55.A08V7.008
VG.44808.001
55.A08V7.001
AUDIO DJ BOARD
TOUCH SWITCH BOARD
TOUCHPAD BOARD
55.A08V7.002
55.A08V7.003
55.A08V7.004
PCMCIA DAUGHTER BOARD W/ CARDBUS SLOT 55.A08V7.005
THE
SYSTEM
M/B W/ BATTERY MB.A0806.001
PCMCIA SLOT/PC CARD SLOT
PCMCIA SLOT (CARDBUS SLOT)
Battery
NS M/B Battery
Adapter
Keyboard
NS ADAPTER 150W PFC 3PINS DELTA ADP-150W
22.A08V7.001
23.A08V7.001
PY.15009.001
29 Chapter 5
Case/Cover/Bracket Assembly
No.
Partname And Description
KEYBOARD SUNREX GERMAN
KEYBOARD SUNREX UK
KEYBOARD SUNREX ITALIAN
KEYBOARD SUNREX FRENCH
KEYBOARD SUNREX SWISS/G
KEYBOARD SUNREX US INTERNATIONAL
KEYBOARD SUNREX BELGIUM
KEYBOARD SUNREX SPANISH
KEYBOARD SUNREX PORTUGUESE
KEYBOARD SUNREX CZECH
KEYBOARD SUNREX HUNGAIAN
KEYBOARD SUNREX SWEDEN
KEYBOARD SUNREX NORWAY
KEYBOARD SUNREX DANISH
KEYBOARD SUNREX ARABIC
KEYBOARD SUNREX TURKISH
BASE COVER
BASE
NS BETTERY DOMMY COVER W/ FOOT
INVERTER COVER
UPPER CASE
HINGE COVER
I/O BRACKET
TOUCH PAD BRACKET
Part Number
KB.A0809.003
KB.A0809.002
KB.A0809.004
KB.A0809.005
KB.A0809.006
KB.A0809.001
KB.A0809.010
KB.A0809.007
KB.A0809.008
KB.A0809.012
KB.A0809.013
KB.A0809.011
KB.A0809.014
KB.A0809.015
KB.A0809.009
KB.A0809.016
60.A08V7.001
60.A08V7.002
42.A08V7.001
42.A08V7.002
60.A08V7.003
42.A08V7.003
33.A08V7.001
33.A08V7.002
Chapter 5 30
Others
Picture No.
Partname And Description
M/B PLATE
SPEAKER R+L VECO 28KC04-1
SPEAKER FOIL
SUB-WOOFER 2PIN VECO 25KP04
M/B SYSTEM FAN
Part Number
33.A08V7.003
23.A08V7.001
47.A08V7.005
23.A08V7.002
23.A08V7.002
Screws
FAN SINK W/ SCREWS*4PCS
SCREW MM30060IL67
SCREW MM25025ICI0
SCREW MM25040IL60
SCREW MM25060IL69
SCREW MM20030ICI3
SCREW MM20080ICI6
SCREW MM20100ICI3
SCREW MS17025B202
SCREW MBEA1001012
SCREW MF30060PBJ5
SCREW MM25070ICI5
SCREW MS25060ILR1
SCREW MS25060P527
SCREW MM25040ICI1
SCREW MS25025IBX8
SCREW MS25180I100
SCREW MS25100B371
SCREW MS0601BILQ1
23.A08V7.003
86.A08V7.001
86.A08V7.002
86.A08V7.003
86.A08V7.004
86.A08V7.005
86.A08V7.006
86.A08V7.007
86.A08V7.008
86.A08V7.009
86.A08V7.010
86.A08V7.011
86.A08V7.012
86.A08V7.013
86.A08V7.014
86.A08V7.015
86.A08V7.016
86.A08V7.017
86.A08V7.018
31 Chapter 5
Appendix A
Model Definition and Configuration
Aspire 1700 Series
Model
Number
1702SC
1702SCi
1703SC
1703SCi
1705SCi
CPU
Pentium 4
2.53GHz
Pentium 4
2.53GHz
Pentium 4
2.66GHz
Pentium 4
2.66GHz
Pentium 4
3.06GHz
LCD
17.0"
SXGA
17.0"
SXGA
17.0"
SXGA
17.0"
SXGA
17.0"
SXGA
Memory
512M
512M
512M
512M
512M
HDD
(GB)
80G
80G
80G
80G
120G
ODD
24x
CDRW+DVD
24x
CDRW+DVD
24x
CDRW+DVD
24x
CDRW+DVD
24x
CDRW+DVD
Card
Reader
N/A
N/A
N/A
N/A
N/A
Wirele ss LAN
N/A
11b
N/A
11b
11b
Appendix A 25
Main Features
T
T
T
T
T
T
T
T
T
Mobile Intel
®
Pentium
®
4 Northwood 1.8~3.06 GHz/Celeron processor L2 cache 512k
(Northwood), 128K (Celeron)
SiS M650 with SiS 962, support 400/533MHz Bus, HTT support.
15” Desktop XGA and 17” Desktop SXGA.
Optional 6-in-1 Multimedia memory card module
Optical drive bay for optional CD-ROM, DVD-ROM, DVD/CD-RW combo
Two stereo speakers + One sub-woofer
Modem: Software Modem V9.0/V9.2 56Kbps
10/100 LAN; Optional Mini-PCI 802.11b/802.11a+b/bluetooth; One switch for on/off of wireless
Keyboard and touchpad with 4 way scroll buttons; 4 universal serial bus (USB) ports.
26 Appendix A
Appendix A 27
Appendix B
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows
®
XP Home, Windows
®
XP Pro and Windows
®
2000 environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the TravelMate 650 series
Compatibility Test Report released by the Acer Mobile System Testing Department.
Appendix B 28
Microsoft
®
Windows
®
XP Environment Test
Item
Display
Parallel Port
1394 Port
Projector
USB 2.0
GB LAN HUB
PS/2 Port
COM Port
Specifications
Philips 109P 10
Dell Trinitron 21°
ViewSonic GS773
ViewSonic GS790
ViewSonic PF775
Printer:
HP Laser Jet 5M
HP Desk Jet 930C
HP Desk Jet 840C
IOMega ZIP (LPT Port)
Cable:
LL5 cable
1394 30GB HDD
1394 CCD(Stealth Fire)
1394(stealthFire tm)
1394 HUB: Aten 1394 HUB
1394 DV (Sony DCR-PC100)
Acer 7755c
USB (HUB FH-600)aten firewire HUB 5port
USB HDD: Easy BOX
USB (yamaha)CRW-70
USB DVD/CD-RW(pioneer)DVR-104
Adaptec USB 2.0 PCMCIA card
3 COM GB LAN Hub
Keyboard:
Microsoft Natural K/B
K/B(MODE:5121)
KeyPad:
PC concepts keypad KB-5640
Mouse:
Microsoft IntelliMouse Explorer
Microsoft PS/2 Mouse
COMPAQ Mouse
Microsoft Serial Mouse 2.1
29 Appendix B
PC Card
Item Specifications
Modem Card:
Xircom CreditCard Modem 56 (CM-56)
Xircom CreditCard Modem 56 (CM-56G)
LAN Card:
D-Link Fast Ethernet DFE-650
D-Link CardBus DFE-660
3COM 10/100 16Bit LAN Card (3CCFE574BT)
3COM 10/100 CardBus LAN Card (3CCFE575BT)
3COM 10M CardBus LAN Card (3CCFE589eT)
Xircom CreditCard Ethernet 10/100 (CE3B-100BTX)
Xircom CardBus Ethernet II 10/100 (CBE2-100BTX)
SCSI:
Adaptec SlimSCSI APA-1460D Card
Adaptec SlimSCSI 1480A CardBus UltraSCSI Card
LAN + Modem Card:
3COM 10/100 LAN+56k Modem Card (3CCFEM556B)
Xircom CreditCard Ethernet + Modem 56k (CEM56-100)
ATA Card:
KingMax 40MB
Compact Flash 96MB
1394 CardBus Card:
Compaq 1394 CardBus Card
Wireless LAN Card:
Gemtek Wireless LAN Card
BlueTooth Card:
3Com BlueTooth Card
MMC Card:
Apacer 32MB
MS Card:
Apacer 128MB
SD Card:
Apacer 128MB
CF Card:
Apacer 128MB
Appendix B 30
31
USB Port
Item
Audio Jack
Microphone
Specifications
USB Mouse:
Microsoft Optical USB Mouse
Logitech Wheel Mouse
Acer USB Mouse M012B0
USB Keyboard:
Microsoft Internet Keyboard Pro
Gateway Keyboard SK-9910U
Gateway Keyboard SK-9926
USB Camera:
Microtek EyeStar U2S PC Camera USC-1
Dlink DSC 350 USB CCD
USB HDD:
Argosy HDD
USB Printer:
HP DeskJet 930C
HP DeskJet 840C
USB FDD:
MIC USB FDD YD-8U10
Teac USB FDD
Y-E Data USB FDD
Sharp USB FDD
USB LAN:
BUFFALO USB-10/100M ethernet
LINKSYS USB LAN
USB Zip:
IOMEGA USB ZIP
USB Scanner:
HP ScanJet 5300c
USB Speaker:
Philips USB Speaker dss330
USB HUB:
PCI USB Hub
XeXtreme USB HUB
USB Gamepad:
Microsoft Sidewinder Gamepad
Logitech WingMan FORMULA FORCE
USB CCD:
Intel USB CCD
Veo USB CCD
USB Modem:
V.90 56Kbps Voice/Fax/Data Modem
USB Card Reader: 6in1
USB To PS/2 Transfer Connecter
USB To Serial Transfer Connecter
JS-100 Jazz 3D Speaker
AIWA HP-X121 Earphone
SONY Earphone MDR-CD60
Microsoft Microphone
Condenser MIC.
Dynamic MIC.
Appendix B
Game
Access Point
Software
Item
Harry Potter
Star Wars Rogue Squadron starcraft
Quake III
Intel Access Point
Microsoft Office 2K
Microsoft Office XP
Microsoft Project 2000
Lotus Notes 5.1
WinFax10.0
WinFax10.0
Adobe Acrobat 5.0
VC ++ 6.0
Microsoft FrontPage2002
Specifications
Appendix B 32
33 Appendix B
Appendix C
Online Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
T
T
T
T
Service guides for all models
User's manuals
Training materials
Bios updates
T
T
Software utilities
Spare parts lists
T
TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.
Also contained on this website are:
T
Detailed information on Acer's International Traveler's Warranty (ITW)
T
T
Returned material authorization procedures
An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.
Appendix C 34
35 Appendix C
Index
A
B
ACPI 18
Assignment Map 14
Audio
controller 12
Audio Interface 12
BIOS Setup Utility 19
BIOS Utility 19
Basic System Settings 24
Navigating 20
Onboard Device Configuration 26
Startup Configuration 25
System Information 20
System Security 29
C
Cache Memory 11
scheme 11
size 11
speed 11
type 11
voltage 11
Chipsets 16
Connectors 85 controllers 16
audio 12
serial port 13
video 11
D
Device Standby Mode 18
Dimensions 17
Disassembly
CD-ROM/DVD-ROM Module 36
Procedure Flowchart 33
DRQ Assignment Map 16
E
ECP 13
Environmental Requirements 16
Index
I
EPP 13
Error Symptom-to-Spare Part Index 75
External CD-ROM Drive Check 72
External Diskette Drive Check 72
F
G
FDC 37C677 13
Features 2, 101
connectivity 2
design 2
ergonomics 2
Multimedia 2
Performance 2 front panel 3
Global Standby Mode 18
H
Humidity 16
I/O Address Map 15
IDE Interface 13
Interface
audio 12
Floppy disk drive 13
IDE 13
Video 11
Intermittent Problems 82
IRQ Assignment Map 15
J
Jumper and Connector Locations 85, 89
Top View 85, 89
Jumpers 85, 89
K
keyboard 9
cursor keys 9
Keyboard or Auxiliary Input Device Check 72
101
M
Main board Layout 9
Mechanical Specifications 17
Memory
size 11
system 11
Memory Address Map 14
Memory Check 73
Model Definition 100
Modem 14
voice 14
MPU-401 13
N
O
NS16C550 13
Online Support Information 109
Overview 1
P
Parallel Port 13
PCI INTx# 14 ports
left panel 4
Power Management 18
Power System Check 73
Battery Pack 74
R
Rear Panel 3
S
Serial Port 13
SiS 630 16 socket
memory 11
Suspend Mode 18
System Specifications 1
design 2
Features 2, 101
System Utilities 19
T
Temperature 16
102
Test Compatible Components 103
Touchpad Check 74
Troubleshooting 71
U
UART 13
Undetermined Problems 83
Universal HCI 14
USB Port 14
utility
BIOS 19
V
W
Vibration 16 video
controller 11
Video controller 11
Video Memory 11
size 11
Weight 17
Windows 2000 Environment Test 104
Index
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Black 65 W
- Intel® Core™ i5 i5-1235U 3.3 GHz
- 68.6 cm (27") Full HD 1920 x 1080 IPS
- 16 GB DDR4-SDRAM 3200 MHz 2 x 8 GB
- 1.02 TB SSD
- Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
- Windows 11 Home 64-bit
Related manuals
advertisement
Table of contents
- 11 Overview
- 12 Features
- 13 Outlook
- 19 Main Board Layout
- 20 Hardware Specifications and Configurations
- 28 Power Management Function (ACPI support function)
- 29 BIOS Setup Utility
- 30 Navigating the BIOS Utility
- 31 Info.
- 32 Main
- 34 System Devices
- 35 Security
- 38 Boot
- 39 Exit
- 41 General Information
- 42 Disassembly Procedure Flowchart
- 45 Disassembling
- 45 Remove the battery
- 45 Remove the HDD module
- 45 Remove the combo drive
- 46 Remove the thermal module
- 46 Remove CPU
- 46 Remove the memory
- 46 Remove VGA card
- 47 Detach the wireless card
- 47 Remove moden card
- 47 Remove the inverter cover
- 48 Detach the upper system cover
- 48 Remove the LCD module
- 49 Remove the LCD panel
- 49 Remove the inverter board
- 51 Remove the mylars
- 51 Remove the wireless module
- 51 Remove the side bracket
- 52 Remove the LED cable attached on the LCD outer shield.
- 52 Remove the subwoofer
- 53 Release the MDC cable.
- 53 Disconnect the cable to the modem header.
- 53 Remove the keyboard
- 53 Remove the LED board
- 54 Detach the front panel
- 54 Remove the Audio DJ board
- 55 Remove the touch pad
- 56 Remove the touch pad board
- 56 Remove the lid switch cable
- 56 Remove the floppy drive
- 57 Remove the speaker set
- 57 Remove the mainboard
- 58 Remove the system fan
- 59 FDD Module
- 59 HDD Module
- 60 Combo Module
- 64 Re-assembly
- 64 Place the system fan
- 64 Re-assembling the mainboard
- 65 Place the speaker set back to position
- 66 Place the floppy module back to position
- 66 Place the touch pad back to position
- 67 Reconnect the Audio DJ board
- 67 Place the system cover back to position
- 68 Reconnect the LED cable
- 68 Place the keyboard back to position
- 69 Place the MDC cable back to position
- 69 Reconnect the sub-woofer
- 69 Place the LED cable back to position
- 70 Place the side mount back to position.
- 70 Place the wireless antenna back to position
- 71 Reattach the LCD cable
- 71 Place the inverter board back to position
- 72 Re-assembling the LCD module
- 73 Place the system cover and hinge back to position
- 73 Place the inverter cover back to position
- 73 Reconnect the cable to the MDC card and wireless card
- 74 Place the VGA card back to position.
- 74 Insert the memory
- 75 Place the CPU back
- 75 Place the thermal module back to position
- 75 Place the floppy back to position
- 75 Reconnect the HDD power and coaxial cable.
- 76 Place the battery or dummy battery back to position.
- 76 Place the bottom shield back to position.
- 77 FDD Module
- 77 HDD Module
- 78 Combo Module
- 81 System Check Procedures
- 81 External Diskette Drive Check
- 81 External CD-ROM Drive Check
- 81 Keyboard or Auxiliary Input Device Check
- 82 Memory check
- 82 Power System Check
- 83 Touchpad check
- 84 Power-On Self-Test (POST) Error Message
- 85 Index of Error Messages
- 87 Index of Symptom-to-FRU Error Message
- 91 Intermittent Problems
- 92 Undetermined Problems
- 94 Aspire 1700 Jumpers and Connectors
- 94 Top view
- 95 Connector Description
- 96 Bottom View
- 97 Connector Description
- 98 Exploded Diagram
- 98 The System
- 99 LCD 17” ASSY
- 99 FDD ASSY
- 100 HDD ASSY
- 100 ODD ASSY
- 102 FRU List
- 108 Aspire 1700 Series
- 109 Main Features
- 112 Microsoft Windows XP Environment Test
