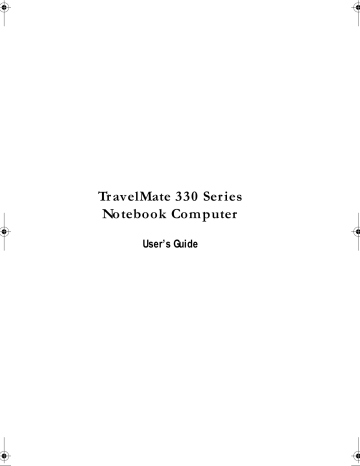

TravelMate 330 Series

Notebook Computer

User’s Guide


Copyright 1999 Acer Incorporated

All Rights Reserved. Printed in Taiwa

TravelMate 330 Series Notebook Computer User’s Guide

Part No.: 49.40C01.151

Original Release: March 1999

Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondense concerning your unit should include the serial number, model number, and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated.

TravelMate 330 Series Notebook Computer

Model Number : _________________________________

Serial Number: __________________________________

Purchase Date: __________________________________

Place of Purchase: ________________________________

Acer, the Acer logo and TravelMate are registered trademarks of Acer Incorporated. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Other trademarks, registered trademarks and/or service marks are the properties of their respective owners.

330.book Page iii Friday, March 5, 1999 11:08 AM

Table of Contents

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Connecting the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv

Getting Help Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Support Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Chapter 1 Getting Familiar with your Computer . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Special Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Lock Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Embedded Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Windows Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Keyboard Ergonomics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Customizing the Center Button . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Hard Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

EasyLink™ Combo Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting and Disconnecting the EasyLink™ Combo Drive. . . . 18

Ejecting Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Playing DVD Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Left Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Rear Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fax/Data Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Fast Infrared . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Universal Serial Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Right Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Enabling the 3D Effect Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 iii

330.book Page iv Friday, March 5, 1999 11:08 AM iv

Securing your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Security Notch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Chapter 2 Operating on Battery Power . . . . . . . . . . . . . . . . . . . . 33

Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Battery Pack Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Using a Battery Pack for the First Time . . . . . . . . . . . . . . . . . . . . . . . 35

Replacing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Charging Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Checking the Battery Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Windows Battery Meter . . . . . . . . . . . . . . . . . . . . . . . . 38

Optimizing Battery Life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Battery-low Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Power Management Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Display Standby Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Hard Disk Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Hibernation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sleep Mode (ACPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Advanced Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Advanced Configuration and Power Interface . . . . . . . . . . . . . . . . . . 46

Chapter 3 Peripherals and Options . . . . . . . . . . . . . . . . . . . . . . 47

External Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Setting Up Dual Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

External Pointing Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

External PS/2 Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

External Serial Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

External USB Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

External Keyboard and Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Audio Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

USB Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Miscellaneous Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Additional Power Packs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

330.book Page v Friday, March 5, 1999 11:08 AM

Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

External Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

PS/2 Y-Bridge Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

File Transfer Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Key Component Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Memory Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Installing Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Hard Disk Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Installing a Replacement Hard Disk . . . . . . . . . . . . . . . . . . . . . . . 62

Chapter 4 Moving with your Computer . . . . . . . . . . . . . . . . . . . . 63

Disconnecting from the Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Moving Around. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Preparing the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

What To Bring to Short Meetings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

What To Bring to Long Meetings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Taking the Computer Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67


What To Bring with You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Special Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Setting Up a Home Office. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Traveling with the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69




Traveling Internationally with the Computer . . . . . . . . . . . . . . . . . . . . . . . 70




Chapter 5 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Sleep Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Accessing the Sleep Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Sleep Manager Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Create . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Minimize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 v

330.book Page vi Friday, March 5, 1999 11:08 AM vi

Notebook Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Information Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Boot Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Setting the Power-On Password . . . . . . . . . . . . . . . . . . . . . . . . . 86

Setting the Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Setting Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Display Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

BIOS Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Using the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Basic System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Startup Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Setting the Boot Drive Sequence . . . . . . . . . . . . . . . . . . . . . . . . . 95

Onboard Devices Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

System Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Removing a Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Changing a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Load Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Chapter 6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Frequently-Asked Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Using PC-Doctor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Online Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Before you call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Appendix A Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

330.book Page vii Friday, March 5, 1999 11:08 AM

Notices

FCC Notice

This device has been tested and found to comply with the limits for a Class

B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❑

Reorient or relocate the receiving antenna

❑

Increase the separation between the device and receiver

❑

Connect the device into an outlet on a circuit different from that to which the receiver is connected

❑

Consult the dealer or an experienced radio/television technician for help

Notice: Shielded Cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral Devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment.

Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal

Communications Commission, to operate this computer.

vii

330.book Page viii Friday, March 5, 1999 11:08 AM viii Notices

Use Conditions

This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian Users

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numérique de la classe B respected toutes les exigences du

Règlement sur le matériel brouilleur du Canada.

Modem Notices

FCC

This equipment complies with Part 68 of the FCC rules. Located on the bottom side of the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence

Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem.

If the problem is with the equipment, discontinue use and contact your dealer or vendor.

330.book Page ix Friday, March 5, 1999 11:08 AM

CTR 21

This equipment has been approved [Council Decision 98/482/EC - “CTR

21”] for pan-European single terminal connection to the Public Switched

Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every

PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Important Safety Instructions

Read these instructions carefully. Save these instructions for future reference.

1.

Follow all warnings and instructions marked on the product.

2.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3.

Do not use this product near water.

4.

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

5.

Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6.

This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

7.

Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

8.

If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

ix

330.book Page x Friday, March 5, 1999 11:08 AM x Notices

9.

Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

10.

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

11.

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a.

When the power cord or plug is damaged or frayed b.

If liquid has been spilled into the product c.

If the product has been exposed to rain or water d.

If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

e.

If the product has been dropped or the cabinet has been damaged f.

If the product exhibits a distinct change in performance, indicating a need for service.

12.

Replace the battery with the same type as the product's battery we recommend. Use of another battery may present a risk of fire or explosion. Refer battery replacement to a qualified serviceman.

13.

Warning! Batteries may explode if not handled properly. Do not disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly.

14.

Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type:

UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Year 2000 Compliance Statement

The TravelMate 330 series notebook computer is Year 2000-compliant and carries the “NSTL Hardware Tested Year 2000 Compliant” logo. This model has been tested both by Acer’s internal test labs and NSTL using

330.book Page xi Friday, March 5, 1999 11:08 AM

NSTL’s YMARK2000 certification test. These tests certify that this model will successfully make the year 2000 transition.

xi

For more details, check the Acer Year 2000 Resource Center at http://www.acer.com.tw/service/y2k/

Laser Compliance Statement

The CD-ROM drive in this computer is a laser product. The CD-

ROM drive’s classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID

EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT

LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN

CAS D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1

VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG

GEÖFFNET NICHT DEM STRAHLL AUSSETZEN

PRODUCTO LÁSER DE LA CLASE I

ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO.

EVITE EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.

VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.

VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ

TUIJOTA SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ

IN I STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I

STRÅLEN

330.book Page xii Friday, March 5, 1999 11:08 AM xii Notices

Lithium Battery Statement

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt fabrikantens instruktion.

VAROITUS

Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

VORSICHT!

Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen

Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

Macrovision Copyright Protection Notice

The copyright protection technology included in this product is protected by specific U.S. patents method claims as well as various other intellectual property rights of Macrovision Corporation and other rights owners. This copyright protection technology may not be used without the expressed written permission of Macrovision Corporation and, unless otherwise authorized by Macrovision Corporation, is intended only for home and other limited viewing uses. Any reverse engineering or disassembly is strictly forbidden.

330.book Page xiii Friday, March 5, 1999 11:08 AM

Preface

This manual describes features of the TravelMate 330 series notebook computers. This series of ultra-slim computers incorporate such features as CardBus, 16-bit PCI stereo 3D audio,

Fast Infrared, internal 56K modem, internal pointing device with scroll function, Universal Serial Bus, and Accelerated Graphics

Port.

This manual should answer most of the questions you have about the day-to-day operation of your TravelMate notebook computer.

Use the Just for Starters… instructions that came with your computer to get your computer running for the first time.

You should also take advantage of the online help files that ar available with almost all of the programs shipped with your computer.

We hope you enjoy your TravelMate computer. With proper care, your computer will provide you with years of productive service.

xiii

330.book Page xiv Friday, March 5, 1999 11:08 AM xiv Preface

Connecting the Computer

Connecting the computer is as easy as 1-2-3.

1.

Gently insert the battery into the battery bay by following the guide symbols on both the battery and the bottom of the computer; then slide the battery in until it clicks into place. The battery release latch locks.

Note: When using a battery pack for the first time, fully recharge the battery, then disconnect the adapter to use up the battery before recharging again. You only need to do this once with a new battery

2.

Connect one end of the AC adapter to the DC-in jack on the rear of the computer and the other end to a power outlet.

3.

Slide the display cover latch to the left to open the display.

Slide the power switch towards the rear of the computer

330.book Page xv Friday, March 5, 1999 11:08 AM then release it to turn on the power. The POST (Power On

Self-Test) routine executes and Windows begins loading.

xv

Note: To turn off the power, press the power switch for more than four seconds. If you are using Windows, we recommend that you use the Shut

Down command to turn off the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

330.book Page xvi Friday, March 5, 1999 11:08 AM xvi Preface

Getting Help Online

This user’s guide provides clear and concise information about the computer, so read it thoroughly. To provide you with help when traveling, the computer also has a comprehensive online help.

Accessing Online Help

To access the online documentation, locate and double-click on the TravelMate Online icon on the Windows desktop, or follow these steps:

1.

Press the Windows logo button or click on the Start button.

2.

Select Programs .

3.

Click on TravelMate Online .

The online help is easy to navigate with hypertext and hypergraphics. Clear illustrations help describe notebook operation as well.

Getting Online

If you are connected to the Internet and have World Wide Web access, visit our home page at: http://www.acer.com/ and get the latest information about our products.

330.book Page xvii Friday, March 5, 1999 11:08 AM

Support Information

Your computer is backed by an International Traveler’s Warranty

(ITW) that gives you security and peace of mind when traveling.

Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers are in this handy booklet.

Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel to receive the benefits from our support centers. Place your proof-of-purchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acerauthorized ITW service site, you can still get in contact with our offices worldwide.

For technical assistance and support in the United States and

Canada, you can call 1-800-816-2237. You can also contact a local dealer or distributor in the country you are traveling in for assistance.

Note: For more information, see “Online Services” on page 112.

If you are connected to the Internet and have World Wide Web access, visit our home page (http://www.acer.com/) and get an updated list of our worldwide offices, as well as information about our products.

xvii

330.book Page xviii Friday, March 5, 1999 11:08 AM xviii Preface

Care and Maintenance

Taking Care of Your Computer

Your computer will serve you well if you take care of it.

❑

Do not expose the computer to direct sunlight. Do not place near sources of heat, such as a radiator.

❑

Do not expose the computer to temperatures below 0ºC

(32ºF) or above 50ºC (122ºF).

❑

Do not subject the computer to magnetic fields.

❑

Do not expose the computer to rain or moisture.

❑ Do not spill water or any liquid on the computer.

❑ Do not subject the computer to heavy shock and vibration.

❑

Do not expose the computer to dust and dirt.

❑

Never place objects on top of the computer to avoid damaging the computer

❑

Never place the computer on uneven surfaces.

These care and maintenance tips also apply to the EasyLink™

Combo Drive.

Taking Care of your AC Adapter

Here are some ways to take care of your AC adapter:

❑

Do not connect the adapter to any other device.

❑

Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord and any cables away from personal traffic.

❑

When unplugging the power cord, do not pull on the cord itself but pull on the plug.

❑ The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are

330.book Page xix Friday, March 5, 1999 11:08 AM using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Taking Care of your Battery Pack

Here are some ways to take care of your battery pack:

❑

Use only batteries of the same kind as replacements

(Model# CGP-E/618AE). Turn the power off before removing or replacing batteries.

❑

Do not tamper with batteries. Keep them away from children.

❑ Dispose of used batteries according to local regulations.

Recycle if at all possible.

Cleaning and Servicing

When cleaning the computer, follow these steps:

1.

Power off the computer and remove the battery pack.

2.

Disconnect the AC adapter.

3.

Use a soft cloth moistened with water. Do not use liquid or aerosol cleaners.

Contact your dealer or see your service technician if any of the following occurs:

❑ The computer has been dropped or the body has been damaged.

❑

Liquid has been spilled into the product.

❑

The computer does not operate normally.

xix

330.book Page xx Friday, March 5, 1999 11:08 AM xx Preface


Getting Familiar with your Computer

Chapter 1


This computer combines high-performance, versatility, power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner.

This chapter gives an in-depth "tour" of the computer’s many features.


Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

❑

Intel Pentium® II processor

❑

64-bit main memory and L2 cache memory

❑

Large and vibrant Thin-Film-Transistor (TFT) SVGA Liquid

Crystal Display (LCD)

❑

64-bit PCI/AGP graphics acceleration with 2.5MB graphics memory

❑ High-capacity, Enhanced-IDE removable hard disk

❑

External EasyLink™ Combo Drive (floppy drive + CD-ROM or DVD-ROM drive)

❑

Lithium-Ion battery pack

❑

Power management system with APM (Advanced Power

Management) or ACPI (Advanced Configuration and Power

Interface) support

Multimedia

❑ 16-bit high-fidelity PCI stereo audio with 3D sound and wavetable synthesizer

❑

Built-in speaker

❑

EasyLink™ Combo Drive (CD-ROM or DVD-ROM)

❑

Dual display capability

❑

DVD playback capability (with DVD-equipped EasyLink™

DVD Combo Drive)

Connectivity

❑ High-speed fax/data PCI modem

❑ Fast infrared (FIR) wireless communication

3


4 Chapter 1

Getting Familiar with your Computer

❑

Universal Serial Bus (USB) port

Human-centric Design and Ergonomics

❑ Ultra-slim, sleek, smooth and stylish design

❑ Full-sized keyboard

❑

Wide and curved palm rest

❑

Ergonomically-centered touchpad pointing device with scroll function

Expansion

❑

CardBus PC Card (formerly PCMCIA) slot (one type II/I) with Zoomed Video (ZV) support

❑ Upgradeable memory and hard disk


Display

The large graphics display offers excellent viewing, display quality and desktop performance graphics. The computer supports a Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-bit true-color at 800x600 Super Video Graphics

Array (SVGA) resolution.

Video Performance

PCI local bus video with 64-bit graphics acceleration and 2.5MB high-speed Synchonous Graphics Random Access Memory

(SGRAM) boost video performance. The video also includes 3D capabilities such as Goraud shading, and Z-buffering, as well as

DVD playback support.

Simultaneous Display

The computer’s large display and multimedia capabilities are great for giving presentations. If you prefer, you can also connect an external monitor when giving presentations. This computer supports simultaneous LCD and CRT display.

Simultaneous display allows you to control the presentation from your computer and at the same time face your audience. You can also connect other output display devices such as LCD projection panels for large-audience presentations.

Power Management

The power management system incorporates an "automatic LCD dim" feature that automatically decides the best settings for your display and at the same time conserves power. See “Power

Management” on page 42 for more information on power management features.

Dual Display

The computer’s video chip takes advantage of Windows 98’s multi-display capability, allowing you to extend your desktop to an external display device, such as an external monitor or projector. With this feature enabled, you can move program windows to and from the computer LCD and external display

5


6 Chapter 1

Getting Familiar with your Computer device. For more information, see “Setting Up Dual Display” on page 49.

Opening and Closing the Display

To open the display, slide the display cover latch to the left and lift up the cover. Then tilt it to a comfortable viewing position.

The computer employs a microswitch that turns off the display

(and enters Standby mode) to conserve power when you close the display cover, and turns it back on when you open the display cover

Note: If an external monitor is connected, the computer turns off the display

(but does not enter standby mode) when you close the display cover.

To close the display cover, fold it down gently until the display cover latch clicks into place.

Caution: To avoid damaging the display, do not slam it when you close it.

Also, do not place any object on top of the computer when the display is closed.


Indicators

The computer has six easy-to-read status icons on the right of the display screen.

7

3

4

5

6

The Power and Standby status icons are visible even when you close the display cover so you can see the status of the computer while the cover is closed.

Ico n

1

Fu n

Power

De sc

Lights when the computer is on.

2 Standby Lights when the computer enters

Standby mode.

Media Activity

Battery Charge

Caps Lock

Lights when the floppy drive, hard disk or EasyLink™ Combo Drive is active.

Lights when the battery is being charged.

Lights when Caps Lock is activated.

Num Lock Lights when Num Lock is activated.


8 Chapter 1


Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Special Keys

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Ke

Caps Lock

Num Lock

(Fn-F11)

Scroll Lock

(Fn-F12)

De sc io n

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.


Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

9

De ss red Ac ce ss

Number keys on embedded keypad

N u m Lock On

Type numbers in a normal manner.

Nu m Lock O ff

Cursor-control keys on embedded keypad

Main keyboard keys

Hold Shift while using cursor-control keys.

Hold Fn while typing letters on embedded keypad.

Hold Fn while using cursor-control keys.

Type the letters in a normal manner.

Note: If an external keyboard or keypad is connected to the computer, the

Num Lock feature automatically shifts from the internal keyboard to the external keyboard or keypad.


10 Chapter 1


Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Ke y

Windows logo key

Application key

De sc

Start button. Combinations with this key perform shortcut functions. Below are a few examples:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

+ M (Minimizes All)

Shift + + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Opens a context menu (same as a right-click).

Hot Keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen brightness, volume output and the BIOS Utility.


To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

11

Ho t K e

Fn-F1

Fn-F2

Fn-F3

Fn-F4

Fun c De sc

Hot Key Help Displays help on hot keys.

Setup Accesses the computer’s configuration utility.

Standby

Hibernation or Sleep

Puts the computer in Standby mode. Press any key to resume.

See “Standby Mode” on page 43.

Puts the computer in Hibernation

Mode (if Sleep Manager is installed, valid and enabled).

Press the power switch to resume. Otherwise, the computer enters Standby mode.

See “Hibernation Mode” on page

44.

Note: If ACPI support is enabled, pressing this key puts the computer in Sleep mode. See

“Sleep Mode (ACPI)” on page 45 for more about ACPI Sleep mode.


12 Chapter 1


Ho t Ke y

Fn-F5

Fn-F6

Fn-F7

Fn-F8

Display

Toggle

De sc

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor

Screen Blank Turns the display screen backlight off to save power.

Press any key to return.

Touchpad

Toggle

Turns the internal touchpad on and off.

Speaker

Toggle

Turns the speakers on and off.

Brightness

Down

Decreases the screen brightness.

Brightness

Up

Increases the screen brightness.

Fn-left arrow

Fn-right arrow

Fn-up arrow

Fn-down arrow

Alt Gr

Euro

Volume Up

Volume

Down

Euro

Increases the volume.

Decreases the volume.

Types the euro symbol.

The Euro Symbol

If your keyboard layout is set to United States-International or

United Kingdom, you can type the Euro symbol on your keyboard.


Important! (for US keyboard users): The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type:

1.

Click on Start , Settings , Control Panel .

2.

Double-click on Keyboard .

3.

Click on the Language tab.

4.

Verify that the keyboard layout used for "En English (United

States)" is set to United States-International.

If not, select and click on Properties ; then select United

States-International and click on OK .

5.

Click on OK .

To type the Euro symbol:

1.

Locate the Euro symbol on your keyboard.

2.

Open a text editor or word processor.

3.

Hold Alt Gr and press the Euro symbol.

Some fonts and software do not support the Euro symbol. Please refer to http://www.microsoft.com/typography/faq/faq12.htm for more information.

13


14 Chapter 1


Keyboard Ergonomics

Located below the keyboard, the wide and curved palm rest is ergonomically designed to provide you with a very comfortable place to rest your hands while you type.


Touchpad

The built-in touchpad is a PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palm rest provides optimum comfort and support.

Note: When using an external mouse, you can press Fn-F7 to disable the internal touchpad. If you want to use an external PS/2 mouse, first enable the touchpad, connect the external PS/2 mouse, then disable the touchpad if necessary.

15

The touchpad also has scroll functions with the center buttons.

Touchpad Basics

The following items teach you how to use the touchpad:

❑

Move your finger across the touchpad to move the cursor.

❑ Press the left (1) and right (3) buttons located on the edge of the touchpad to do selection and execution functions.


16 Chapter 1


These two buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad produces similar results.

❑ Use the center (2) buttons (top and bottom) to scroll up or down a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Execute

Select

Drag

Le ft

Bu tt

Click twice quickly

Click once

Click and hold, then use finger to drag the cursor on the touchpad

R igh

B u o n

Cen te r

Bu tt ons

T ap

Tap twice (at the same speed as double-clicking a mouse button)

Tap once

Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap and drag the cursor

Access context menu

Scroll

Click once

Click (and hold) the up/down buttons

Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements.

Hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad’s responsiveness.


Customizing the Center Button

You can customize the function of the center button as follows:

1.


2.

Double-click on Mouse .

3.

Click on the Button Actions tab.

4.

Customize the settings for Rocker Switch.

5.

Click on OK .

17


18 Chapter 1


Storage

This computer supplies you with all-in-one media storage:

❑ High-capacity Enhanced-IDE hard disk

❑ External EasyLink™ Combo Drive

■

Standard 3.5-inch floppy drive.

■

High-speed CD-ROM drive or DVD-ROM drive

(EasyLink™ DVD Combo Drive)

Hard Disk

The removable hard disk module can be upgraded when you need more storage space. See “Hard Disk Upgrade” on page 61.

EasyLink™ Combo Drive

The EasyLink™ Combo Drive is a two-in-one floppy/CD-ROM or floppy /DVD-ROM “combo” drive that connects externally to the computer.

The floppy drive reads and writes standard 3.5-inch diskettes.

The CD-ROM or DVD-ROM drive provides the latest in multimedia in a mobile world.

Connecting and Disconnecting the EasyLink™ Combo Drive

To connect the EasyLink™ Combo Drive:

1.

Pull out the EasyLink™ Combo Drive cable connector from its storage slot.

2.

Open the EasyLink™ Combo Drive connector door on the computer.


3.

Firmly connect the EasyLink™ Combo Drive (connector to connector) to the computer.

19

To disconnect the EasyLink™ Combo Drive:

1.

Click on the HotIDE icon on the Windows taskbar.

2.

Select the stop operation.

3.

Click on OK .

4.

Disconnect the EasyLink™ Combo Drive.

5.

Tuck in the EasyLink™ Combo Drive cable connector into its storage slot.

Ejecting Media

Ejecting a Floppy Disk

Press the floppy disk eject button to eject a floppy disk from the floppy drive.


20 Chapter 1


Ejecting the CD-ROM or DVD-ROM Tray

To eject the CD-ROM or DVD-ROM tray when the computer is turned on, press the CD-ROM eject button. When the power is off, you can eject the CD-ROM drive tray using the emergency eject hole. See page 106.

Playing DVD Movies

Some models come standard with a DVD-equipped EasyLink™

DVD Combo Drive. To play DVD movies on your computer, follow these steps:

Important! When you launch the DVD player for the first time, the program asks you to input the region code. DVD discs are divided into 6 regions. Once your computer is set to a region code, it will play DVD discs of that region

only. It is important that the first DVD disc that you insert into the drive be of the region you want to set. Take note that region code selection is final

and can only be done once. Refer to the table later in this section for DVD movie region code information.

1.

Insert a DVD movie of the desired region into the DVD-

ROM drive.

2.

Click on Start , Programs , Mediamatics DVDExpress .

3.

Click on Mediamatics DVD Player .

5

6

3

4

Reg io n Code

1

2 y o r Reg ion

U.S.A., Canada

Europe, Middle East, South Africa,Japan

Southeast Asia, Taiwan, Korea (South)

Latin America, Australia, New Zealand

Former U.S.S.R., parts of Africa, India

People's Republic of China


Ports

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC. For instructions on how to connect different external devices to the computer, see

“Peripherals and Options” on page 47.

Left Port

21

1

Po rt s to

EasyLink™ Combo

Drive connector

EasyLink™ Combo Drive.

See “EasyLink™ Combo Drive” on page 18 for details.


22 Chapter 1


Rear Ports

4

5

6

7

1

2

3

Po rt

Modem jack

Power jack

PS/2 port

Infrared port

USB jack

Parallel port s to

Phone line

AC adapter and power outlet

PS/2-compatible device (e.g., PS/2 keyboard/mouse/keypad)

Infrared device (e.g., infrared printer, IR-aware computers)

Universal Serial Bus device (e.g.,

USB mouse, USB camera)

Parallel device (e.g., parallel printer)

Serial port Serial device (e.g., serial mouse)


8

Ico n Po rt Conn ec s to

External display port

Display device (e.g., external monitor, LCD projector) up to

1280x1024 resolution at 64K-colors

Fax/Data Modem

Some models have a built-in V.90 56Kbps PCI fax/data modem.

Warning! This modem port is not compatible with digital phone lines.

Plugging this modem into a digital phone line will damage the modem.

To use the fax/data modem port, connect a phone cable from the modem port to a telephone jack.

23

Start your communications software program. See your communications manual for instructions.

Fast Infrared

The computer’s fast infrared (FIR) port allows you to do wireless data transfer with other IR-aware computers and peripherals such as infrared printers. The infrared port can transfer data at speeds


24 Chapter 1

Getting Familiar with your Computer of up to four megabits per second (Mbps) at a distance of up to one meter.

To use FIR, position two IR-aware devices such that their IR ports are no more than one meter apart and offset no more than 15 degrees.

When the two computers are in position, simply begin the data transfer as you normally would. See your file transfer software for details.

Universal Serial Bus

The Universal Serial Bus (USB) port is a high-speed serial bus which allows you to connect and daisy-chain USB peripherals without taking up precious system resources.


Right Ports

1

2

3

4

Ico n Po rt

PC Card slot s to

One 16-bit PC Card or 32-bit CardBus

PC Card (Zoomed Video supported)

Microphone-in jack

Line-in jack

Mono condenser microphone

Audio line-in device (e.g., audio CD player, stereo walkman)

Line-out jack Audio line-out device (e.g., speakers, headphones)

PC Card Slot

There is a type II/I CardBus PC Card slot found on the right panel of the computer. This slot accepts a credit-card-sized card that enhances the usability and expandability of the computer.

25


26 Chapter 1


PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. Popular type II cards include flash memory, SRAM, fax/data modem, LAN and SCSI cards. CardBus improves on the

16-bit PC card technology by expanding the bandwidth to 32 bits.

ZV (Zoomed Video) support allows your computer to support hardware MPEG in the form of a ZV PC card.

Note: Refer to your card’s manual for details on how to install and use the card and its functions.

Inserting a Card

Insert the card into the desired slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

Ejecting a Card

Before ejecting a PC Card:

1.

Exit the application using the card.

2.

Left-click on the PC Card icon on the taskbar and stop the card operation.


3.

Press the slot eject button (1) to pop out the eject button

(2); then press it again to eject the card (3).

27


28 Chapter 1


Audio

The computer comes with 16-bit high-fidelity PCI stereo audio with further enhancements that include 3D sound for true audio immersion.

There are audio ports on the right panel of the computer. See

“Audio Devices” on page 55 for more information on connecting external audio devices.

Adjusting the Volume

To adjust the volume, double-click on the volume (speaker) icon on the Windows taskbar, then drag the slider to the desired volume level. You can also hold Fn and press the up/down arrow keys.

Enabling the 3D Effect Feature

You can enable or disable the 3D effect feature by doing the following:

1.

Double-click on the volume (speaker) icon on the Windows taskbar.


If the speaker icon is not displayed on the taskbar, enable this feature (show volume control on the taskbar) via the

Multimedia icon in the Control Panel .

2.

Click on the Options menu and select Advanced

Controls .

3.

Click on the Advanced button that now appears in the

Master Volume Balance column.

4.

Click 3D Effect to enable the 3D effect feature.

5.

Click on OK .

29


30 Chapter 1


Securing your Computer

Security features include hardware and software locks — a security notch and passwords.

Security Notch

A security notch located on the rear panel of the computer lets you connect a Kensington-compatible key-based computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. Insert the lock into the notch and turn the key to secure the lock.

Passwords

Three password types protect your computer from unauthorized access. Setting these passwords creates several different levels of protection for your computer and data:

❑

Setup Password prevents unauthorized entry to the BIOS

Utility. Once set, you must key-in this password to gain access to the BIOS Utility. See “BIOS Utility” on page 90 for details.

❑ Power-On Password secures your computer against unauthorized use. Combine the use of this password with

330.book Page 31 Friday, March 5, 1999 11:08 AM password checkpoints on boot-up and resume from hibernation for maximum security.

❑ Hard Disk Password protects your data by preventing unauthorized access to your hard disk. Even if the hard disk is removed from the computer and moved to another computer, it cannot be accessed without the Hard Disk

Password.

Important! Do not forget your Setup and Hard Disk Password! If you forget your password, you may need to reformat your hard disk or update your computer’s BIOS.

Setting a Password

You can set passwords using:

❑ Notebook Manager - go to page 85.

❑

BIOS Utility - go to page 97.

31


32 Chapter 1



Operating on Battery

Power

Chapter 2


The computer operates on AC or battery power. This chapter contains the information you need to know to operate the computer on battery power. It also includes information on how your computer manages and saves power.


Battery Pack

The computer uses a battery pack that gives you long use between charges.

Battery Pack Characteristics

The battery pack has the following characteristics:

❑

Employs Current Battery Technology Standards

The computer uses a Lithium-Ion battery pack which does not have the memory effect problem of Nickel Cadmium

(NiCd) batteries. Li-Ion batteries consistently provide the longest battery life, best-suited for road warriors.

❑ Battery-low Warning

When the battery charge level becomes low, the computer gives off warning beeps and the status indicator flashes at regular intervals. This tells the user that the battery power is critically low. You can correct this situation by recharging the battery pack.

Note: Whenever possible, use the AC adapter. The battery will come in handy when you travel or during a power failure. It is advisable to have an extra fullycharged battery pack available as backup.

Using a Battery Pack for the First Time

When using a battery pack for the first time, follow these steps:

1.

Disable the Sleep Upon Battery-low parameter in the BIOS

Utility or uncheck the Enable sleep upon battery-low in the

Power Management screen of Notebook Manager. See page 100 and page 87 respectively.

2.

Connect the AC adapter to a power source and to the computer and fully recharge the battery.

3.

Disconnect the adapter to use up the battery before recharging again.

35


36 Chapter 2

Operating on Battery Power

You only need to do this once with a new battery or with a battery that's been stored without being used for a long time. If the computer is to be stored for more than two weeks, we suggest you remove the battery pack. Battery power from a fully charged battery pack depletes in roughly a day with the computer in Standby mode, or a month in Hibernation mode or when the power is off.

Warning! Do not expose battery packs to temperatures below 0ºC (32ºF) or above 60ºC (140ºF). This may adversely affect the battery pack.

Replacing the Battery Pack

Note: Before removing the battery pack, make sure that you have an AC adapter connected to the computer; otherwise, turn off the computer.

To replace the battery pack, follow these steps:

1.

Slide and hold the battery bay release latch and slide the battery out slightly.


2.

Lift up the battery pack to remove it from the battery bay.

37

3.

Insert a replacement battery pack into the battery bay by following the figures below.

Charging the Battery

To charge the battery, place the battery pack inside the battery bay and plug the AC adapter into the computer and an electrical outlet.

Charging Modes

The adapter has three charging modes:

Rapid mode

The computer uses rapid charging when power is turned off and a powered AC adapter is connected to it. In rapid mode, a fully depleted battery gets fully charged in two to three hours.


38 Chapter 2


Charge-in-use mode

When the computer is in use with the AC adapter plugged in, the computer also charges the battery pack if installed. This mode will take longer to fully charge a battery than rapid mode. In charge-in-use mode, a fully depleted battery gets fully charged in approximately six to seven hours.

Trickle mode

When the battery is fully charged, the adapter changes to trickle mode to maintain the battery charge level. This prevents the battery from draining while the computer is in use.

Tip! We suggest that you charge the battery pack before retiring for the day, letting it charge overnight before traveling. This ensures a fully charged battery for use the next day.

Checking the Battery Level

The computer features battery-low warning signals that are both audible and visible. When the battery pack is low, the computer emits warning beeps and the battery indicator flashes at regular intervals. Also, you can check the battery charge level using the

Windows battery meter.

Using the Windows Battery Meter

The Windows battery meter indicates the present battery level.

Simply rest your cursor on the battery meter (or AC plug) icon on the taskbar to see the present charge level of your battery.

Optimizing Battery Life

This section helps you get the most out of battery operation.

Optimizing battery life prolongs the charge/recharge cycle and improves recharge efficiency. Follow these suggestions to optimize and maximize battery power:

❑ Purchase an extra battery pack.


❑

Use Sleep Manager to reserve hard disk space for the

Hibernation function. Keep it running in the background to automatically adjust the Hibernation file size. See “Sleep

Manager” on page 76.

❑ Use the AC adapter whenever possible so that the battery is reserved for on-the-go computing.

❑

Keep the battery pack in the computer powered by the AC adapter. The constant trickle charge maintains the battery level to eliminate the battery self-discharge effect. The charge-in-use function also charges the battery pack.

❑

Disable the parallel and serial ports if no devices are connected to these ports. You can do this through the

BIOS Utility. See “Onboard Devices Configuration” on page

96.

❑ Eject the PC card from the card slot when not in use, since the PC card draws extra power.

❑

Store the battery pack in a cool, dry place. The recommended storage temperature for battery packs ranges from 10 to 30 degrees C. The higher the storage temperature, the faster the battery pack self-discharges.

❑

The batteries can be recharged about 300 times when used as directed. Excessive recharging decreases battery life.

❑ Take care of your battery pack and AC adapter. See “Care and Maintenance” on page xviii of the preface.

Battery-low Warning

You never have to worry about battery power as long as you are using the AC adapter. However, when you operate the computer on battery power, pay extra attention to the warning beeps and the power indicator on the display panel.

The following signals indicate a battery-low condition:

❑

The buzzer generates four short beeps every minute, if you enabled the Battery-low Warning Beep parameter in the

BIOS Utility.

39


40 Chapter 2


❑

The power indicator flashes at regular intervals until battery power is depleted.

When you receive a battery-low warning, you have around two minutes to save your work. If you do not connect the AC adapter within this period, the computer enters Hibernation mode if the Sleep Upon Battery-low parameter in BIOS Utility is enabled and the following conditions exist:

❑

The Hibernation file created by Sleep Manager is present and valid. See “Sleep Manager” on page 76.

❑

There is enough battery power left to save system information onto the hard disk.

Otherwise, the computer enters Standby mode.

Warning! Connect the AC adapter to the computer as soon as possible. Data is lost when computer power is cut off during Standby mode.

The following table shows the recommended course of action to take when you encounter a battery-low condition.

AC adapter and power outlet available

Reco m men ded Ac

1. Connect the AC adapter to the computer.

2. Save all necessary files.

3. Resume work.

Power off the computer if you wish to recharge the battery rapidly.


An extra fullycharged battery pack available

Reco mm ended A c tion


2. Exit the application.

3. Power off the computer.

4. Replace the battery pack.

5. Power on the computer and resume work.

or


2. Enter Hibernation mode.

3. Replace the battery pack.

4. Resume from Hibernation mode.

AC adapter or power outlet not available


2. Exit the application.

3. Power off the computer.

or


2. Enter Hibernation mode.

41


42 Chapter 2



This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. If no activity is detected for a period of time (called an inactivity time-out), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports APM (Advanced Power Management) or ACPI

(Advanced Configuration and Power Interface) which allows for maximum power conservation and maximum performance at the same time.

If your computer is set for APM, you can set timeout values for your computer’s devices before power-saving methods are applied to these devices. If your computer is set for ACPI,

Windows handles all power-saving chores for your computer.

Note: Power management (APM or ACPI) greately prolongs your battery life.

See “Advanced Power Management” on page 46 and “Advanced Configuration and Power Interface” on page 46 for more information.

Power Management Modes

Display Standby Mode

Screen activity is determined by the keyboard, the built-in touchpad, and an external PS/2 pointing device. If these devices are idle for the period specified by the Turn Off Display value, the display shuts off until you press a key or move the touchpad or external mouse.


"Automatic Dim" Feature

The computer has a unique "automatic dim" power-saving feature. When the computer is using AC power and you disconnect the AC adapter from the computer, it automatically dims the LCD backlight to save power. If you reconnect AC power to the computer, it automatically adjusts the LCD backlight to a brighter level.

Hard Disk Standby Mode

The hard disk enters standby mode when there are no disk read/ write operations within the period of time specified by the Turn

Off Hard Disk value. In this state, the power supplied to the hard disk is reduced to a minimum. The hard disk returns to normal once the computer accesses it.

Standby Mode

The computer consumes very low power in Standby mode. Data remains intact in the system memory until the battery is drained.

There are six ways to enter Standby mode:

❑

Pressing the Standby hot key Fn-F3

❑

If the waiting time specified by the System Standby value or the operating system elapses without any system activity

❑ Closing the display cover

❑ When the computer is about to enter Hibernation mode

(e.g., during a battery-low condition), but the Hibernation file is invalid or not present

❑

When the advanced power button function(s) in the

Notebook Manager program is/are set to Standby mode

❑

Invoked by the operating system power-saving modes

Note: If the computer beeps but does not enter Standby mode after pressing the Standby hot key, it means the operating system will not allow the computer to enter the power-saving mode.

43


44 Chapter 2


The following signals indicate that the computer is in Standby mode:

❑ The buzzer beeps

❑ The Standby indicator lights

Warning! Unstored data is lost when you turn off the computer power in

Standby mode or when the battery is drained.

To leave Standby mode and return to normal mode:

❑ Press any key

❑

Move the active pointing device (internal or external PS/2)

❑

Have the resume timer set and let it be matched

❑

Open the display cover

❑

Experience an incoming PC card modem event

Hibernation Mode

In Hibernation mode, all power shuts off (the computer does not consume any power). The computer saves all system information onto the hard disk before it enters Hibernation mode. Once you turn on the power, the computer restores this information and resumes where you left off upon leaving

Hibernation mode.

There is one necessary conditions for the computer to enter

Hibernation mode:

❑

The Hibernation file created by Sleep Manager must be present and valid. See “Sleep Manager” on page 76.

In this situation, there are five ways to enter Hibernation mode:

❑ Pressing the Hibernation hot key Fn-F4

❑

If the waiting time specified by the System Hibernation value elapses without any system activity

❑

If a battery low condition occurs and the Sleep Upon


Battery-low parameter in the BIOS Utility is enabled

❑ When the advanced power button function(s) in the

Notebook Manager program is/are set to Hibernation mode

❑ Invoked by the operating system power-saving modes

Note: If the computer beeps but does not enter Hibernation mode after pressing the Hibernation hot key, it means the operating system will not allow the computer to enter the power-saving mode.

To exit Hibernation mode, press the power switch. The computer also resumes from Hibernation mode if the resume timer is set and matched.

Warning! Do not change any devices (such as add memory or swap hard disks) when the computer is in Hibernation mode.

Sleep Mode (ACPI)

If ACPI is installed, all power management functions are handled by the Windows operating system. In this set-up, you do not need to set timeout values for devices before they enter a power saving mode. For more information on ACPI, see “Advanced

Configuration and Power Interface” on page 46.

Sleep mode may be one of three computer power saving modes: standby, hibernation or power off. Windows automatically determines which of these modes to enter in.

To enter Sleep mode under ACPI:

❑ Press the Sleep hot key Fn-F4 .

❑ Idle times for devices and the computer determined by

Windows 98 elapses

Exiting sleep mode depends on which power saving mode the computer is currently in.

45


46 Chapter 2


Advanced Power Management

This computer supports the APM standard designed to further reduce power consumption. APM is a power-management approach defined jointly by Microsoft and Intel. An increasing number of software packages support APM to take advantage of its power-saving features and allow greater system availability without degrading performance.

For more information about APM under Windows, refer to your

Windows user’s manual.

Advanced Configuration and Power Interface

Advanced Configuration and Power Interface (ACPI) is a power management specification jointly developed by Intel, Microsoft, and Toshiba. ACPI enables Windows 98 to control the amount of power given to each device attached to the computer. With

ACPI, Windows 98 can turn off peripheral devices when they are not in use, thereby saving power.


Peripherals and

Options

Chapter 3


Your computer offers excellent expansion capabilities with its builtin ports and connectors. This chapter describes how to connect peripherals and hardware options that help you use your computer with ease. When connecting peripherals, read the manual included with the peripheral for operating instructions. You can purchase most of these and other options directly from Acer.

This chapter also includes sections on how to upgrade key components. Key component upgradeability helps keep your computer in step with the latest technology.


External Monitor

To show graphical effects on a larger display, connect an external monitor to the external display port. Read the monitor manual for additional instructions.

Note: If an external monitor is not connected, closing the display cover puts the computer into standby mode.

49

Setting Up Dual Display

Dual display allows you to expand your desktop to an external display device, giving you more desktop space to work on.

To use dual display:

1.

Connect an external display device to the external display port of the computer.

2.

Enable and set dual display options: a.


b.

Double-click on Display .

c.

Click on the Settings tab.

d.

Click on 2 (the second monitor icon).

e.

Click on Yes .


50 Chapter 3

Peripherals and Options f.

Set the colors and screen area parameters for the second display device.

g.

Click on Advanced...

and click on the Monitor tab.

h.

Click on Change...

and follow the instructions on the screen.

i.

Click on OK .


Printer

This computer supports both serial and parallel printers. For a serial printer, plug the printer cable into a serial port. For a parallel printer, plug the printer cable into the parallel port. See your printer manual for operating instructions.

Note: If the printer does not function, enter the BIOS Utility and verify that the parallel port is enabled. See “Onboard Devices Configuration” on page 96 for assistance.

51


52 Chapter 3

Peripherals and Options

External Pointing Device

This computer accepts a PS/2-compatible, serial or USB mouse or similar pointing device.

Note: When using an external mouse, you may choose to disable the internal touchpad by pressing Fn-F7.

External PS/2 Mouse

The built-in touchpad works alternately with an external PS/2 mouse which is hot-pluggable. To use a PS/2-compatible mouse, simply plug it into the PS/2 port.

External Serial Mouse

If you use a serial mouse, plug it into the serial port. Then use the Add New Hardware tool in the Windows Control Panel to enable the serial mouse.


External USB Mouse

Plug the USB mouse into the USB port. See “USB Devices” on page 57 for more information.

53


54 Chapter 3


External Keyboard and Keypad

This computer has a keyboard with full-sized keys and an embedded keypad. If you feel more comfortable using a desktop keyboard, you can install a PS/2-compatible external keyboard.

To connect an external keyboard, plug the external keyboard into the PS/2 connector.

You can also use a 17-key numeric keypad for number-sensitive data-entry applications. To connect the keypad, plug the keypad connector into the PS/2 port.


Audio Devices

Audio devices are easy to connect with the audio ports accessible from the right side of the computer. You can plug in an external microphone to the microphone-in jack, an audio line-in device to the line-in jack, and amplified speakers or headphones to the line-out jack.

55


56 Chapter 3


PC Cards

The computer has one CardBus PC card slot that accommodates one type I/II PC card. Please consult your dealer for PC card options available that you can purchase for your computer.

Note: For more information on how to use a PC Card with the computer, see

“PC Card Slot” on page 25.


USB Devices

The computer has a USB (Universal Serial Bus) port that allows you to connect peripherals without occupying too many resources. Common USB devices include the mouse and keyboard.

Most USB devices also include a built-in USB port connector which allows you to daisy-chain other USB devices.

Note: The USB feature must be enabled in BIOS Setup for your USB device to work. See “Startup Configuration” on page 94.

57


58 Chapter 3


Miscellaneous Options

Additional Power Packs

You can order spare batteries and an AC adapter.

Battery Pack

It is good practice to have a spare battery around, especially when you travel. The Lithium-Ion battery, coupled with power management features, supplies you with more power on-the-go.

AC Adapter

The compact AC adapter charges your battery pack and supplies power to your computer. You can order a spare AC adapter so you do not need to carry it from the office to your home or destination.

External Battery Charger

The external battery charger charges your battery pack when it is not installed in your computer - practical for charging spare battery packs.

Cables

PS/2 Y-Bridge Cable

The PS/2 Y-bridge cable allows you to connect two PS/2 devices, a mouse and a keyboard, to your computer simultaneously.

Note: The keyboard must be connected to the connector marked keyboard and the mouse must be connected to the connector marked mouse.


Connect the single connector end of the Y-bridge cable to the computer’s PS/2 port and the double connector ends to the two

PS/2 devices.

File Transfer Cable

Besides using the infrared port, you can also transfer files between computers using a file transfer cable. Connect the file transfer cable between the parallel ports of the two computers and use your file transfer utility to perform the transfer.

59


60 Chapter 3


Key Component Upgrades

Your computer delivers superior power and performance.

However, some users and the applications they use may demand more. This computer allows you to upgrade key components when you need increased performance.

Note: Contact your authorized dealer if you decide to perform a key component upgrade.

Memory Upgrade

Memory is expandable to 256 MB, employing 32-/64-/128-MB 64bit industry standard soDIMMs (Small Outline Dual Inline

Memory Modules). The computer supports SDRAM

(Synchronous Dynamic Random Access Memory).

There are two memory slots on your computer, one of which is user-upgradeable.

Note: If you need to upgrade the main memory slot, please contact your dealer.

Installing Memory

Follow these steps to install memory:

1.

Turn off the computer, unplug the AC adapter (if connected) and remove the battery pack. Then turn the computer over to access its base.


2.

Remove the screws from the memory door; then lift up and remove the memory door

61

3.

Insert the memory module diagonally into the slot, then gently press it down until it clicks into place.

4.

Replace the memory door and secure it with the screw.

The computer automatically detects and reconfigures the total memory size.

Hard Disk Upgrade

You can upgrade your hard disk with a higher capacity drive when you need more storage space. The computer uses a

9.5mm, 2.5-inch Enhanced-IDE hard disk.


62 Chapter 3


Installing a Replacement Hard Disk

Follow these steps to install a hard disk:

1.

Turn off the computer, unplug the AC adapter (if connected) and remove the battery pack. Turn the computer over to access its base.

2.

Locate the hard disk bay. Remove the hard disk bay screw.

3.

Pull out the hard disk.

4.

Insert a new hard disk module into the hard disk bay and tighten the hard disk bay screw.


Moving with your

Computer

Chapter 4


This chapter gives you tips and hints on things to consider when moving around or traveling with your computer.


Disconnecting from the Desktop

Follow these steps to disconnect your computer from external accessories:

1.

Save your work in progress.

2.

Remove any media, diskette and compact disc, from the

EasyLink™ Combo Drive.

3.

Shut down the operating system.

4.

Turn off the computer.

5.

Disconnect the EasyLink™ Combo Drive from the computer, if necessary.

6.

Disconnect the cord from the AC adapter.

7.

Disconnect the keyboard, pointing device, printer, external monitor, and other external devices.

8.

Disconnect the Kensington lock if you are using one to secure the computer.

65


66 Chapter 4

Moving with your Computer

Moving Around

when you are just moving within short distances, for example, from your office desk to a meeting room

Preparing the Computer

Before moving the computer, close and latch the display cover to place it in Standby mode. You can now safely take the computer anywhere you go within the building.

To bring the computer out of standby mode, open the display.

What To Bring to Short Meetings

A fully charged battery runs the computer for about three and a half hours under most circumstances. If your meeting is shorter than that, you probably do not need to bring anything with you other than the computer.

What To Bring to Long Meetings

If your meeting will last longer three and a half hours or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Standby mode.

Press Fn-F3 or close the display cover whenever you are not actively using the computer. Then tap any key or open the display to resume.


Taking the Computer Home

when you are moving from your office to your home or vice versa


After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

❑

Check if you have removed all media, diskette and compact disc, from the EasyLink™ Combo Drive. Failure to remove the media can damage the drive head.

❑ Pack the computer in a protective case that can prevent the computer from sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen

What To Bring with You

Unless you already have some items at home, bring the following items with you:

❑ AC adapter and power cord

❑ The printed user’s manual

❑ EasyLink™ Combo Drive

Special Considerations

Follow these guidelines to protect your computer while traveling to and from work:

❑

Minimize the effect of temperature changes by keeping the computer with you.

❑ If you need to stop for an extended period of time and cannot bring the computer with you, leave the computer in

67


68 Chapter 4

Moving with your Computer the trunk of the car to avoid exposing the computer to excessive heat.

❑ Changes in temperature and humidity can cause condensation. Allow the computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 18°F (10°C), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

Setting Up a Home Office

If you frequently work on your computer at home, it may be worthwhile purchasing a second AC adapter for use at home.

With a second AC adapter, you can avoid transporting the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor, or mouse.


Traveling with the Computer

when you are moving within a larger distance, for instance, from your office building to a client’s office building or traveling locally


Prepare the computer as if you were taking it home. Be sure the battery in the computer is charged. Airport security may require you to turn on your computer when bringing it into the gate area.


Bring the following items with you:

❑ AC adapter

❑

Spare, fully-charged battery packs

❑

EasyLink™ Combo Drive

❑

Additional printer driver files if you plan to use another printer


In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

❑ Always take the computer as carry-on luggage.

❑

If possible, have the computer inspected by hand. Airport security X-ray machines are safe, but do not put the computer through a metal detector.

❑

Avoid exposing floppy disks to hand-held metal detectors.

69


70 Chapter 4


Traveling Internationally with the

Computer

when you are moving from country to country


Prepare the computer as you would normally prepare it for traveling.


Bring the following items with you:

❑ AC adapter

❑ Power cords that are appropriate to the country to which you are traveling

❑

EasyLink™ Combo Drive

❑

Spare, fully-charged battery packs

❑

Additional printer driver files if you plan to use another printer

❑

Proof of purchase, in case you need to show it to customs officials

❑ International Traveler’s Warranty passport


Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

❑

When traveling in another country, check that the local AC voltage and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.


❑

If you are using the modem, check if the modem and connector is compatible with the telecommunications system of the country you are traveling in.

71


72 Chapter 4



Software

Chapter 5


This chapter discusses the important system utilities bundled with your computer.


The computer comes preloaded with the following software:

❑ Windows 98 or Windows NT operating system

❑ BIOS Utility

❑ System utilities, drivers and application software

Note: To access Windows software applications, click on the Start button and select the application folder. Then click on the application icon to run the selected application. To learn about the software and utility, make use of the online help provided by the software.

Your computer is also compliant with or supports the following:

❑ ADM (Advanced Desktop Manager)

❑ DMI (Desktop Management Interface) 2.1

❑ APM (Advanced Power Management) or ACPI (Advanced

Configuration and Power Interface)

75


76 Chapter 5

Software

Sleep Manager

Most notebook computers feature built-in power-saving functions. This computer has two power management modes,

Standby and Hibernation.

While Standby puts your computer into a light sleep state,

Hibernation shuts off all power after saving the current state of your computer. The next time you slide the power switch, the computer resumes from where you left off.

Sleep Manager allows your computer to perform these functions.

Note: See “Power Management” on page 42 to understand how your computer saves and manages power.

Sleep Manager is a utility that works with your computer’s BIOS and Windows APM (Advanced Power Management) or ACPI

(Advanced Configuration and Power Interface) to manage the

Hibernation operation. This includes:

❑ creating the Hibernation file which contains the current state of the computer

❑ checking if the Hibernation file is valid

❑ saving and loading the contents of the Hibernation file when entering to and resuming from Hibernation mode

The Hibernation file resides in a contiguous area on your hard disk.

Sleep Manager can automatically create, recover, and reallocate space for the Hibernation file. If the system memory size was changed or the Hibernation file on the hard disk was corrupted,

Sleep Manager reallocates the hard disk space for you automatically.

Accessing the Sleep Manager

There are two ways to bring up the Sleep Manager.


❑

On the Taskbar

The computer automatically loads Sleep Manager every time you start Windows. Sleep Manager resides in the background and appears as an icon on the taskbar.

Double-click on the Sleep Manager status icon if enabled to bring up the main Sleep Manager program. The icon also shows the current status of the Hibernation feature, and changes to tell you if the feature is valid or not. Resting your cursor on the icon also shows the status.

The Sleep Manager icon may or may not appear on the taskbar. A checkbox in the Sleep Manager main screen determines whether to enable or disable the icon on the taskbar.

❑ Start menu a.

Click on Start , Programs , Sleep Manage .

b.

Select the Sleep Manager program.

The Sleep Manager displays below:

77


78 Chapter 5

Software te m

Buttons

Current Setting

On Board

Information

De scrrrriiiip

Click to access the Sleep Manager functions.

Displays the drive and size of the current reserved space created by Sleep Manager.

Displays the different areas of system memory and their respective sizes. These system resources need to be stored before the computer can enter Hibernation mode, so that the computer can resume successfully.

These resources are the contents of: Onboard memory

(DRAM or dynamic memory), Video RAM (VRAM or video memory), SMRAM (static memory), and Others.

The total size of these resources shows as the recommended size in the dialog box.

Recommended

Size

Displays the minimum size of the contiguous space you need for the Hibernation feature. The actual size may be a little bit more due to file system alignment.

Enable Indicator on the Taskbar

When this checkbox is checked, the Sleep Manager status appears on the taskbar. Double-click on the Sleep

Manager status icon on the taskbar to bring up the main program, or simply rest your cursor on the icon to display the current status.

Sleep Manager Functions

Create

Sleep Manager automatically finds a contiguous area on your hard disk and creates the Hibernation file in this space. You can also perform this function by clicking on the Create button.

When you click on the Create button, a dialog box pops up:


Select OK to automatically create the Hibernation file. Sleep

Manager displays the recommend size based on onboard syste information. You can also choose Advanced>> to manually set the space settings and size. The advanced screen shows below.

79

Sleep Manager automatically checks the system configuration and displays the recommended size. The drive where the space will be created is defined by the system and will be the first available logical drive which has the requested contiguous free disk space on it. The recommended size is the minimum size needed to save the current system status.

If the program cannot find the required space on the hard disk during the space creation process, it shows a message box to inform the user.


80 Chapter 5

Software

Remove

If you want to use or take back the reserved space, click on the

Remove button. This will disable the Hibernation feature.

Instead, the computer will only be able to enter Standby mode.

Minimize

Minimize Sleep Manager by selecting the Minimize button. If the Enable indicator on taskbar box is checked, Sleep Manager will switch to the background by locating itself on the taskbar.

You can pop-up Sleep Manager again by double-clicking on this icon.

Exit

Exit Sleep Manager by selecting the Exit button. Sleep Manager will quit and disable the capability of auto-adjusting the reserved space size. Exiting Sleep Manager is NOT recommended.

Caution: Do not deactivate (remove or exit) or uninstall Sleep Manager. Do not remove or delete the Hibernation file. Hibernation will not work without Sleep

Manager and the Hibernation file.


Notebook Manager

The computer has a built-in system setup program called

Notebook Manager. The Windows-based Notebook Manager allows you to set passwords, the startup sequence of the drives and power management settings. It also shows current hardware configurations.

Note: Certain hot key functions are disabled when you access the Notebook

Manager, because these functions are also found in the Notebook Manager.

To start the Notebook Manager, press Fn-F2 or follow these steps:

1.

Click on Start , Programs , Notebook Manage .

2.

Select the Notebook Manager application to run the program.

Note: Changes made to most settings in the Notebook Manager take effect the next time the computer restarts. Changes made in the Power Management and Display Device screens take effect immediately.

Notebook Manager consists of six sections:

❑ Information Viewer

❑ POST

❑ Boot Sequence

❑

Password

❑

Power Management

❑

Display Device

To select a section, click on the tab of the section you want to view.

81


82 Chapter 5

Software

Information Viewer

Information Viewer summarizes and lists information about the specifications and settings of the different components of your computer.

Note: Items in this table may differ from the ones onscreen.

te m

CPU

Total Memory

Video RAM

Hard Disk

Serial Port 1

Serial Port 2

De scrrrriiiip

Brand, type and clock speed of the CPU (Central

Processing Unit)

Total amount of main memory (in megabytes)

Total amount of video memory (in megabytes)

Size of hard disk (in megabytes)

Resource settings of serial port 1

Resource settings of serial port 2

330.book Page 83 Friday, March 5, 1999 11:08 AM e m

Parallel Port

External Cache

Touchpad

Pointing Device

De sc

Resource settings of the parallel port

Total amount of external cache memory (in kilobytes)

Setting of the internal pointing device

Type(s) of the pointing device(s) detected, internal and external

The current version of the computer’s BIOS shows before the

Device-Configuration table.

POST

POST (Power On Self-Test) defines how your computer behaves when starting up.

83


84 Chapter 5

Software

There are items in this screen include: te m

Enable ACPI OS

Fast POST

De scrrrrip

When your operating system is set to ACPI, this feature allows your computer to boot up and resume from Hibernation mode faster. The operating system and the BIOS communicates information about Plugand-Play resources and previous boot-ups.

Enable Quiet Boot Select to hide POST messages and display the

TravelMate logo startup screen

Enable hotkey beep Select to allow the computer to give off beeps when a hotkey is pressed

Boot Sequence

Boot Sequence defines the boot sequence to follow when your computer boots up.

The Boot Sequence screen displays the bootable devices in your computer and the order in which the booting sequence will occur. The devices include the following:


❑

Floppy Drive

❑ IDE Hard Drive

❑ CD-ROM/DVD-ROM Drive

Simply drag and drop the devices to change the booting order.

Click on Apply to accept.

Password

Password is used to set, modify or delete the password(s) for your computer.

85

There are two passwords you can set using the Notebook

Manager:

❑

Setup Password prevents unauthorized access to the

Notebook Manager and BIOS Utility.

❑

Power-On Password prevents unauthorized access to your computer at system startup and at resume from Standby/

Hibernation or Sleep mode.

The Hard Disk Password is set using the BIOS Utility. See “System Security” on page 97.


86 Chapter 5

Software

Setting the Power-On Password

To set the Power-On Password, follow these steps:

1.

Click on the Change Power-On Password button.

2.

Click on the Enable Power-On Password checkbox.

3.

Click in the New Password textbox and type in up to seven alphanumeric characters (A-Z, a-z, 0-9) which you want to be your Power-On Password.

4.

Click in the Confirm Password textbox and retype the password.

5.

Click on OK .

Setting the Setup Password

To set the Setup Password, follow these steps:

1.

Click on the Change Setup Password button . The following dialog box displays:

2.

Click on the Enable Setup Password checkbox.


3.

Click in the New Password textbox and type in up to seven alphanumeric characters (A-Z, a-z, 0-9) which you want to be your Setup Password.

4.

Click in the Confirm Password textbox and retype the password.

5.

Click on OK .

Note: To change a password, follow the same steps used to set a password.

To remove a password, follow the same steps used to set a password but leave both fields blank.


Power Management is used to set various settings related to power management.

87

This includes the following power-saving-related features: e m

Enable battery low warning beep

D e

Select to allow the computer to give off warning beeps when the computer runs low on battery.


88 Chapter 5

Software te m

Enable sleep upon battery low

Advanced

De scrrrrip

Select to allow the computer to enter Standby or

Hibernation mode when the computer runs low on battery.

Click on set advanced features

Setting Advanced Features

To set advanced features, do the following:

1.

Click on the Advanced button.

2.

Set the advanced features.

The settings in this screen determine how the computer behaves when you (a) close the display, (b) press the power switch, and (c) press the Sleep button Fn-F4 .

Options include the following:

■ Standby - the computer enters Standby mode

■

Hibernate - the computer enters Hibernation mode

■

Shutdown - the computer closes all programs and shuts down

3.

Click on OK .


Display Device

Display Device is used to control various settings related to display device(s), such as the display brightness level.

89

The items in this screen include: e m

Boot Display Device

De sc

Sets the default display device on boot-up.

Switching Display Device Sets the current display device.

Make sure an external monitor is connected before External monitor is selected.

Brightness for LCD Panel Click and drag to set the LCD screen brightness levels.

Click on the radio button of the desired item, then click on

Apply . To modify the brightness level, click and hold the slider control and move to the right to increase, or move to the left to decrease the setting. You can also click on the item, and use the cursor keys to set the desired level.


90 Chapter 5

Software

BIOS Utility

The BIOS Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/Ouput System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run this program. Please also refer to “Troubleshooting” on page 103 when a problem arises.

Using the BIOS Utility

To start the BIOS Utility, follow these steps:

1.

Save your work and restart the computer.

A BIOS Utility entry reminder appears near the bottom of the screen.

2.

Press F2 to enter the BIOS Utility. The BIOS Utility main screen appears.

There are seven menu options. Use the cursor up/down keys to select a menu item, then press Enter . After you enter a submenu, you can:


❑ use the cursor up/down keys to move between the parameters

❑ use the cursor left/right keys to change the value of a parameter

You can change the value of a parameter if it is enclosed in square brackets.

❑ press Esc to exit the current sub-menu

At the main menu, press Esc to exit the BIOS Utility. If you make any changes, the following dialog box displays:

91

If you would like to keep the changes you made, use the cursor left/right keys to select Yes ; then press Enter . Choose No if you want to discard the changes you made.

System Information

The System Information sub-menu displays basic and important information about your computer.


92 Chapter 5

Software

The following table describes the information in this sub-menu.

Note: “x” may refer to a series of numbers and/or characters or a combination of both.

Parameter Description

CPU Type & Speed Shows the type and speed in

Megahertz of the Central

Processing Unit (CPU).

Floppy Disk Drive

Hard Disk Drive

Shows the floppy disk drive type.

Shows the size or capacity of the hard disk.

Asset Tag Number

Product Name

Manufacturer

Name

Format

HDD Serial Number Shows the serial number of the hard disk.

System with Shows the EasyLink™ Combo

Drive type, CD-ROM or DVD-

ROM.

System BIOS

Version

VGA BIOS Version

Shows the version number of the BIOS.

Shows the version number of the VGA display BIOS.

Vx Rx (version and release numbers)

Vx Rx (version and release numbers)

Serial Number Shows the serial number of the computer.

Shows the asset number of the computer.

Shows the product name of the computer.

Shows the manufacturer of the computer.


Parameter

UUID

Description

Shows the universally unique indentifier of your computer.

Format

The items in this sub-menu are important and vital information about your computer. If you experience computer problems and need to contact technical support, this data helps our service personnel know more about your computer.

Basic System Settings

The Basic System Settings sub-menu allows you to set the system date and time.

93

The following table describes the parameters in this sub-menu.

Pa ra me terrrr De

Date Sets the system date.

DDD MMM DD, YYYY

(day-of-the-week month day, year)

Time Sets the system time.

HH:MM:SS (hour:minute:second)


94 Chapter 5

Software

Startup Configuration

The Startup Configuration sub-menu contains parameter values that define how your computer behaves on system startup.


Settings in boldface are the default and suggested parameter settings.

Pa ra me terrrr

Boot Display

De sc io n

Sets the display on boot-up.

When set to Auto, the computer automatically determines the display device when the computer starts up. If an external display device (e.g., monitor) is connected, it becomes the boot display; otherwise, the computer LCD is the boot display. When set to Both, the computer outputs to both the computer LCD and an external display device if one is connected.

ion s

Auto or Both


Pa ra me terrrr De sc

USB Function

Support

Enables or disables the Universal

Serial Bus (USB) port.

Hotkey Beep

ACPI OS Fast

Post

Enables or disables a system beep when a hotkey or key combination is pressed.

Enabled or

Disabled

ACPI OS Fast Post allows your computer to boot up and resume from Standby/Hibernation/Sleep mode faster. When enabled, allows the operating system (with ACPI) and BIOS to communicate information about Plug-and-Play resources and previous boot-ups.

Disabled or

Enabled

Quiet Boot io n

Disabled or

Enabled

PnP OS

Boot Drive

Sequence

Hides the POST messages and displays the TravelMate logo startup screen.

Enabled or

Disabled

With Simple Boot FLAG disabled, enables or disables Plug-and-Play operating system settings.

Specifies the order in which the computer starts up from. See the section below.

Enabled or

Disabled

1st: Floppy Disk,

2nd: Hard Disk,

3rd: CD-ROM

Setting the Boot Drive Sequence

The Boot Drive Sequence section lists boot priorities (1st, 2nd and 3rd) for bootable drives in your computer

For example, the default value (1st:Floppy Disk, 2nd:Hard Disk, and 3rd:CD-ROM) tells the computer to first search for a bootable floppy disk in the floppy drive. If it finds one present, it boots up from that floppy disk. If not, the computer continues by booting up from the hard disk. If it cannot boot up from the hard disk, it continues to search for a bootable CD-ROM in the

CD-ROM drive.

95


96 Chapter 5

Software

To set the boot drive sequence, use the cursor up/down keys to select a priority level (1st, 2nd, or 3rd); then use the cursor left/ right keys to select the device for that priority level.

Onboard Devices Configuration

The parameters in this screen are for advanced users only. You do not need to change the values in this screen because these values are already optimized.

The Onboard Devices Configuration sub-menu assigns resources to basic computer communication hardware.



Pa ra me terrrr De ion s

Serial Port Enables or disabled the serial port.

When enabled, you can set the base I/O address and interrupt request (IRQ) of the serial port.

Enabled or

Disable

3F8h, 3E8h, 2F8h or 2E8h

4 or 11


Pa ra me te De sc

IrDA Port Enables or disables the infrared port.

When enabled, you can set the base I/O address, interrupt request (IRQ) and direct memory access (DMA) channel of the infrared port.

io n

Enabled or

Disabled

2F8h, 3E8h, 3F8h, or 2E8h

3 or 10

Parallel

Port

Enables or disables the parallel port.

When enabled, you can set the base I/O address, interrupt request (IRQ) and operation mode of the parallel port.

If operation mode is set to ECP, the direct memory access (DMA) channel of the parallel port is set to 1.

Enabled or

Disabled

378h, 278h, or

3BCh

7 or 5

ECP, Standard, or

Bi-directional

System Security

The System Security sub-menu allows you to safeguard your computer and data with passwords and other security measures.

97


98 Chapter 5

Software

The following table describes the parameters in this screen.


Parameter

Setu

Password

Power-on

Password

Hard Disk

Password

Disk Drive

Control

Description Options

When set, this password protects the computer and this BIOS Utility from unauthorized entry. See the following section for instructions on how to set a password.

When set, this password protects the computer from unauthorized entry. See the following section for instructions on how to set a password.

When Password Check on Boot and/or

Password Check During Resume is enabled, you need to enter this password to continue operation.

Disabled or

Enabled

Disabled or

Enabled

When set, this password protects the hard disk from unauthorized access. See the following section for instructions on how to set a password.

Disabled or

Enabled

When Floppy Drive Lockout is enabled, the floppy drive connection is stopped and disabled.

Disabled or

Enabled

Setting a Password

Follow these steps:

1.

Use the cursor up/down keys to highlight a Password parameter (Setup, Power-on or Hard Disk) and press the

Enter key. The password box appears:

2.

Type a password. The password may consist of up to seven characters (A-Z, a-z, 0-9).


Important! Be very careful when typing your password because the characters do not appear on the screen.

3.

Press Enter . Retype the password to verify your first entry and press Enter .

After setting the password, the computer automatically sets the chosen password parameter to Present.

Removing a Password

Should you decide to remove a password, do the following:

1.

Use the cursor up/down keys to highlight a Password parameter (Setup, Power-on or Hard Disk).

2.

Use the cursor left or cursor right key to remove the password.

Changing a Password

To change a password, follow these steps:

1.

Remove the current password. See “Removing a Password” on page 99.

2.

Set a new password. See “Setting a Password” on page 98.

99


100 Chapter 5

Software


The Power Management screen contains parameters that are related to power-saving and power management.

The following table describes the parameters in this screen.


Note: If your system has ACPI, all power management functions are taken care of by Windows.

Pa ra me terrrr De sc

Advanced Power

Management

Mode

Enables or disables Advanced

Power Management (APM) mode.

Turn Off Display Sets the timeout value before the display enters powersaving mode.

ion s o r Fo

Disabled or Enabled

Disabled or time values


Pa ra me terrrr

Turn Off Hard

Disk

De sc

Sets the timeout value before the hard disk enters power saving mode.

System Standby Sets the timeout value before the computer enters Standby mode.

System

Hibernate After

Standby

Sets the timeout value before the computer enters

Hibernation mode.

ion s o r F




System Resume

Timer Mode

When enabled and the system resume date and time are valid, the computer resumes

(wakes up) at the set time and date.

Disabled or Enabled

MMM DD,YYYY

(day/month/year)

HH:MM:SS

(hour:minute:second)

Battery-low

Warning Beep

Enabled or Disabled

Sleep Upon

Battery-low

Enables or disables warning beeps during a battery-low condition.

Enables or disables the

Hibernation function during a battery-low condition

When the computer is very low on battery power, the computer will enter

Hibernation mode if Sleep

Manager is installed, active and the Hibernation file is valid. See “Sleep Manager” on page 76.

Enabled or Disabled

101


102 Chapter 5

Software

Load Default Settings

If you want to restore all parameter settings to their default values, select this menu item and press Enter . The following dialog box displays:

If you would like to load default settings for all parameters, use the cursor left/right keys to select Yes ; then press Enter .

Otherwise, choose No .


Troubleshooting

Chapter 6


This chapter instructs you on how to deal with common system problems. Read it before calling a technician if a problem occurs.

Solutions to more serious problems require opening up the computer.

Do not attempt to open the computer by yourself. Contact your dealer or an authorized service center for assistance.


Frequently-Asked Questions

The following is a list of possible situations that may arise during the use of your computer. Easy answers and solutions are provided for each one.

I pressed the power switch and opened the display, but the computer does not start or boot-up.

Look at the Power indicator:

❑

If it is not lit, no power is being applied to the computer.

Check the following:

■

If you are running on battery power, it may be low and unable to power the computer. Connect the AC adapter to recharge the battery pack.

■

Make sure the AC adapter is plugged in properly to the computer and to the power outlet.

❑

If it is lit, check the following:

■

If the Standby indicator is lit, the computer is in

Standby mode. Press any key or tap on the touchpad to resume.

■

Is a non-bootable (non-system) diskette in the floppy drive? Remove or replace it with a system diskette and press Ctrl-Alt-Del to restart the system.

■ The operating system files may be damaged or missing.

Insert the startup disk you created during Windows setup into the floppy drive and press Ctrl-Alt-Del to restart the system. This will diagnose your system and make necessary fixes.

Nothing appears on the screen.

The computer’s power management system automatically blanks the screen to save power. Press any key to turn the display back on.

105


106 Chapter 6

Troubleshooting

If pressing a key does not turn the display back on, two things might be the cause:

❑ The brightness level might be too low. Press Fn-<cursor right> and Fn-<cursor left> to adjust the brightness level.

❑ The display device might be set to an external monitor.

Press the display toggle hot key Fn-F5 to toggle the display back to the computer

Image is not full-screen.

Make sure the resolution is set to 800x600. Right-click on your

Windows desktop and select Properties to bring up the Display

Properties dialog box. Then click on the Settings tab to make sure the resolution is set to the appropriate resolution.

Resolutions lower than the specified resolution are not full-screen on the computer or on an external monitor.

No audio is heard from the computer.


❑

The volume may be muted. In Windows, look at the volume control icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option.

❑

The speakers may be turned off. Press Fn-F8 to turn the speakers on (this hot key also turns the speakers off).

❑ The volume level may be too low. In Windows, look at the volume control icon on the taskbar. Click on the icon and adjust the level, or press the Fn-<cursor up> key.

❑

If headphones, earphones or external speakers are connected to the line-out port on the computer’s right panel, the internal speakers automatically turn off.

I want to eject the CD-ROM or DVD-ROM tray without turning on the power. I cannot eject the CD-ROM or DVD-ROM tray.

There is a mechanical eject button on the CD-ROM or DVD-ROM drive. Simply insert the tip of a pen or paperclip and push to eject the tray.


The keyboard does not respond.

Try attaching an external keyboard to the PS/2 connector on the computer’s rear. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The serial mouse does not work.


❑

Make sure that the serial cable is plugged securely into the serial port.

❑

During POST, press F2 to access the BIOS Utility and verify that the serial port is enabled. See “Onboard Devices

Configuration” on page 96 for details.

I prefer using an external keyboard and mouse, but both have PS/2 connectors and there is only one PS/2 port on the computer

To connect two PS/2-type devices to the computer, you need to use a PS/2 Y-bridge connector. See “PS/2 Y-Bridge Cable” on page 58 for details.

The printer does not work.


❑ Make sure that the printer is connected to a power outlet and it is turned on.

❑ Make sure the printer cable is connected securely to the computer’s parallel port and the corresponding port on the printer.

❑

During POST, press F2 to access the BIOS Utility and verify that the parallel port is enabled. See “Onboard Devices


The infrared port does not work.


❑ Make sure that the infrared ports of the two devices are facing each other (+/- 15 degrees) a maximum of 1 meter

107


108 Chapter 6

Troubleshooting apart.

❑

Make sure there is a clear path between the two infrared ports. Nothing should be blocking the ports.

❑ Make sure you have the appropriate software running on both devices (for file transfers) or you have the appropriate drivers (for printing to an infrared printer).

❑

During POST, press F2 to access the BIOS Utility and verify that the infrared port is enabled. See “Onboard Devices


❑

Make sure both devices are IrDA-compliant.

I want to set up my location to use the internal modem.

To properly use your communications software (e.g.,

HyperTerminal), you need to set up your location:

1.


1.

Double-click on Modems .

2.

Click on Dialing Properties and begin setting up your location.

Refer to the Windows manual.

I get a “Not Enough Space for Allocation” error message from the

Sleep Manager program.

This is an error message that may appear when Sleep Manager is creating the Hibernation file. There are several different reasons that may cause this error:

❑

The size of the free disk space on your hard disk is less than the required size.

For example, if the onboard memory is 32MB and the video memory is 2MB, the total free disk space required will be around 34MB. If the total free disk space is less than this, you have to free up space on the hard disk.

❑

The hard disk has enough free space, but this free space exists as small fragments.


The free disk space that Sleep Manager requires needs to be contiguous. To solve this problem, use tools such as Disk

Defragmenter (Windows) to compact these free disk spaces. Then run Sleep Manager again to create the file.

❑

Disk compression utilities are used.

Sleep Manager can work with most compression software.

However, Sleep Manager can only create the space on a host drive. A host drive stores original file information and cannot be compressed. The free space on the host drive is usually very small, so the compression software needs to be run again to enlarge the size of the host (uncompressed) drive for Sleep Manager.

For more information, see “Sleep Manager” on page 76.

109


110 Chapter 6

Troubleshooting

Troubleshooting Tips

This notebook computer incorporates an advanced design that delivers onscreen error message reports to help you solve problems. In addition, this series of notebook computers ship with PC-Doctor, a powerful diagnostic tool, that helps you determine hardware configuration and clarify hardware or software problems.

❑

If the system reports an error message or an error symptom occurs, see “Error Messages” on page 114.

❑

If you suspect the system has a problem, run PC-Doctor to diagnose it. See the following section.

Using PC-Doctor

Before running the program, take note of the following actions you may need to take:

1.

Disconnect any external devices (i.e., PC Cards, external mouse).

2.

Open System Properties to check and make sure the components you diagnose are enabled.

To open the System Properties window: a.


b.

Double-click on System .

c.

Click on the Device Manager tab.

3.

Close all application programs (i.e., fax or communication programs) if you plan to diagnose the modem.

To run PC-Doctor, simply double-click on the PC-Doctor icon located on the Windows desktop. You can also access PC-Doctor by following these steps:

1.

Click on Start , Programs , PC-Doctor .

2.

Click on the PC-Doctor program.


If PC-Doctor does not report a system error, reinstall the software driver from the Recovery CD for the component you suspect has a problem. If you still have problems, you can access our online and Internet technical support services. Please see the following section for details.

111


112 Chapter 6

Troubleshooting

Online Services

There are three ways to access Acer for technical support and information:

❑ Internet service worldwide, visit http://www.acer.com/

❑

Online service in the United States and Canada, call 1-800-

816-2237

❑

Technical support numbers in various countries

You can view a list of technical support numbers by following these steps:

1.


2.

Double-click on System .

3.

Click on the Support Information button.

Before you call

Please have the following information available when you call

Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently.

If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

If you are able to run the PC-Doctor diagnostic tests, locate the log file by selecting Windows, Test Log in the PC-Doctor menu bar.

If you haven’t registered your notebook computer, you will be required to register during your first call to Acer.

You are required to provide the following information:

Name:_________________________________________

Address:_______________________________________

_______________________________________________


Telephone number:_____________________________

Machine and model type:_______________________

Serial number:_________________________________

Date of purchase:______________________________

113


114 Chapter 6

Troubleshooting

Error Messages

If you receive an error message, note the message and take the corrective action. The following table lists the error messages in alphabetical order together with the recommended course of action.

Error Messages

CMOS Battery Bad

CMOS Checksum Error

Disk Boot Failure

Corrective Action

Contact your dealer or an authorized service center.


Insert a system (bootable) diskette in the floppy drive (A:), then press Enter to reboot.

Diskette Drive Controller Error or No Controller Present

Diskette Drive Error



Diskette Drive Type Mismatch

Equipment Configuration Error Press F2 (during POST) to enter the BIOS

Utility; then press Esc to exit and reconfigure the computer.

Hard Disk 0 Error

Press F2 (during POST) to enter the BIOS


Hard Disk 0 Extended Type

Error

I/O Parity Error





Error Messages

Insert system diskette and press <Enter> key to reboot

Keyboard Error or No

Keyboard Connected

Keyboard Interface Error





Memory Size Mismatch

Missing operating system





Non-system disk or disk error.

Replace and strike any key when ready.


Pointing Device Error Contact your dealer or an authorized service center.

Pointing Device Interface Error Contact your dealer or an authorized service center.

Protected Mode Test Fail Contact your dealer or an authorized service center.

RAM BIOS Bad

RAM Parity Error



Real-Time Clock Error Press F2 (during POST) to enter the BIOS


115


116 Chapter 6

Troubleshooting

Error Messages

Video RAM BIOS Bad



If you still encounter problems after going through the corrective measures, please contact your dealer or an authorized service center for assistance. Some problems may be solved using the

BIOS Utility. See “BIOS Utility” on page 90.


Specifications

Appendix A



This appendix lists the general specifications of your computer.

Microprocessor

Intel Pentium® II processor with 256KB L2 cache memory

Memory

❑

Main memory expandable to 256MB Synchronous Dynamic

Random Access Memory (SDRAM)

❑

Two 144-pin industry-standard soDIMM sockets

❑

64-bit dual memory banks

❑

512KB Flash ROM BIOS

Data Storage

❑ One 2.5-inch, 9.5mm removable hard disk

❑

One external EasyLink™ Combo Drive (floppy drive + CD-

ROM or DVD-ROM drive)

Display and Video

❑

12.1-inch Thin Film Transistor LCD displaying 32-bit truecolor at 800x600 SVGA resolution

❑

64-bit PCI/AGP graphics accelerator with 2.5MB

Synchronous Graphics Random Access Memory (SGRAM)

❑ 3D features such as Goraud shading and Z-buffering

❑ Simultaneous LCD and CRT display

❑

Dual display capability

❑

DVD playback capability (with DVD-equipped EasyLink™

DVD Combo Drive)

Audio

❑

16-bit PCI stereo audio with 3D sound and built-in wavetable synthesizer

❑ Internal speaker

119


120 Appendix A

Specifications

❑

Sound Blaster Pro- (DOS Emulation) and Windows Sound

System-compatible

❑ Separate audio ports for line-out, line-in and microphone-in devices

Keyboard and Pointing Device

❑

85-/89-key Windows keyboard

❑

Ergonomically-centered touchpad pointing device with scroll function

I/O Ports

❑

One type II/I CardBus socket

❑ One RJ-11 modem jack (V.90-compliant 56Kbps)

❑ One power jack (DC-in)

❑

One FIR wireless communications port (IrDA-compliant)

❑

One 9-pin RS-232 serial port (UART16550-compatible)

❑

One 25-pin parallel port (ECP-compliant)

❑

One 15-pin external monitor port (DDC 2.0-compliant)

❑

One 6-pin keyboard/mouse port (PS/2-compatible)

❑

One 3.5mm line-out minijack

❑ One 3.5mm line-in minijack

❑ One 3.5mm microphone-in minijack

❑

One USB jack

Weight and Dimensions

❑

1.8 kg (3.98 lbs)

❑

289 x 219 x 23.5 mm (11.38 x 8.62 x 0.92 in)

Temperature

❑ Operating: 10°C ~ 35°C


❑

Non-operating: -20°C ~ 60°C

Humidity (non-condensing)

❑ Operating: 20% ~ 80% RH

❑

Non-operating: 20% ~ 80% RH

System

❑

Windows 98 or Windows NT (option) operating system with APM or ACPI

❑

DMI 2.1-compliant

❑

ADM support

Battery Pack

❑ 30WattHour Lithium-Ion

❑

Smart battery management technology

❑

2~3-hour rapid charge/6~7-hour charge-in-use

AC Adapter

❑

45-Watt

❑

Auto sensing 100~240Vac, 50~60Hz

Options

❑ 32-/64-/128-MB memory upgrade module

❑

Higher-capacity hard disk drive

❑

EasyLink™ DVD Combo Drive (floppy drive + DVD-ROM drive)

❑

PS/2 Y-cable

❑

Additional AC adapter and battery pack

❑

External battery charger

121


122 Appendix A

Specifications


Index

Numerics

3D enhanced function enabling 28

A

AC adapter caring for xviii connecting xiv

AcerMedia Drive 18

ACPI. See Advanced Configuration and

Power Interface

Advanced Configuration and Power Interface 46

Advanced Power Management 46

APM. See Advanced Power Management audio 28 connecting externally 55 troubleshooting 106

B battery installing xiv battery pack battery-low warning 39 caring for xix characteristics 35 charging 37 charging indicator 7 charging modes 37 checking charge level 38 installing 36 low conditions 40 optimizing 38 removing 36 replacing 36 using the first time 35

BIOS Utility 90–102

Basic System Settings sub-menu 93

Load Default Settings sub-menu

102

Onboard Devices Configuration sub-menu 96

Power Management sub-menu 100 starting 90

Startup Configuration sub-menu 94

System Information sub-menu 91

System Security sub-menu 97 boot display device setting in BIOS Utility 94 boot drive sequence setting in BIOS Utility 95 boot order setting in Notebook Manager 84 brightness hot keys 12 setting in Notebook Manager 89

C caps lock 8 on indicator 7 care

AC adapter xviii battery pack xix computer xviii

CD-ROM ejecting 20 ejecting manually 106 troubleshooting 106 charging checking level 38 modes 37 cleaning computer xix computer bringing to meetings 66 caring for xviii cleaning xix connecting xiv disconnecting 65 display 5 features 3 indicators 7 information 82 keyboards 8 moving around 66 on indicator 7 performance 3 power management 42 security 30

123


124 setting up a home office 68 taking home 67 traveling internationally 70 traveling on local trips 69 troubleshooting 104 turning on xiv connections

AC adapter xiv audio 55 computer xiv file transfer cable 59 keyboard, external 54 keypad, external 54 monitor 49 mouse 52 mouse, PS/2 52 mouse, serial 52 printer 51

PS/2 y-bridge cable 58

USB 57 contrast setting in Notebook Manager 89

D date setting in Setup Utility 93 diagnostics 110 diskette ejecting 19 diskette drive 18 display 5 auto-dim feature 43 computer 5 hot keys 12 opening and closing 6 performance 5 power management 5, 42 setting boot device in Notebook

Manager 89 setting in Notebook Manager 89 simultaneous 5 switching device in Notebook Manager 89 troubleshooting 105, 106

E error messages 114

Euro 12

F

FAQ. See frequently-asked questions

Fast Infrared. See infrared file transfer cable connecting 59

FIR. See infrared floppy disk ejecting 19 floppy drive 18 frequently-asked questions 105

H hard disk 18 installing 62 power management 43 upgrading 61 help

Internet home page xvi online manual xvi online services 112 technical support xvii web page xvi

Hibernation mode 44–45 conditions 44 entering 44 hot key 11

I resuming from 45 utility 76 hot keys 10 indicator lights 7 infrared 23 setting in BIOS Utility 97 troubleshooting 107

ITW. See warranty

K keyboard 8 connecting externally 54 embedded numeric keypad 9 hot keys 10 lock keys 8 troubleshooting 107


Windows keys 10 keyboard ergonomics 14 keypad connecting externally 54

L

LEDs 7
