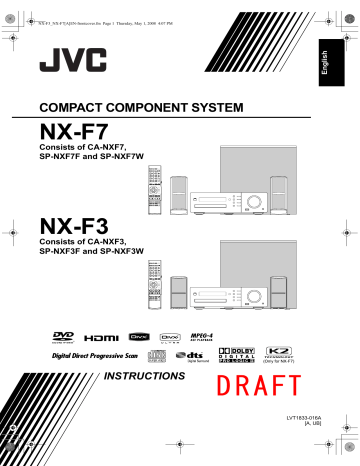

NX-F3_NX-F7[A]EN-frontcover.fm Page 1 Thursday, May 1, 2008 4:07 PM
COMPACT COMPONENT SYSTEM
NX-F7
Consists of CA-NXF7,
SP-NXF7F and SP-NXF7W
NX-F3
Consists of CA-NXF3,
SP-NXF3F and SP-NXF3W
INSTRUCTIONS
DRAFT
LVT1833-016A
[A, UB]
NX-F3_NX-F7[A]EN.book Page 1 Tuesday, April 22, 2008 1:55 PM
Warnings, cautions and others
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION —
F
button!
Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible.
The F button in any position does not disconnect the mains line.
• When the system is on standby, the STANDBY lamp lights red.
• When the system is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
• Excessive sound pressure from earphones or headphones can cause hearing loss.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2.
CAUTION: Do not open the top cover or cabinet. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3.
CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.
G-1
NX-F3_NX-F7[A]EN.book Page 2 Tuesday, April 22, 2008 1:55 PM
CAUTION — Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage, locate the apparatus as follows:
Top/Front/Back/Sides: No obstructions should be placed in the areas shown by the dimensions below.
Bottom: Place on the level surface. Maintain adequate air path for ventilation by placing on a stand with a height of 10 cm more.
In addition, maintain the best possible air circulation.
Front view of the main unit and speakers (CA-NXF7 and SP-NXF7F)
Front view of the main unit and speakers (CA-NXF3 and SP-NXF3F)
Side view of the main unit (CA-NXF7/CA-NXF3)
CAUTION
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
[European Union only]
G-2
NX-F3_NX-F7[A]EN.book Page 1 Tuesday, April 22, 2008 1:55 PM
Table of contents
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.
Introduction
Playing back sources from external devices
Part description .............................3
Using the remote control ..............4
Inserting the batteries into the remote control........................................................... 4
Operating the system from the remote control........................................................... 4
Playing back sources from external devices...........................18
Playing back sources from external devices........................................................18
Selecting the signal gain ...............................18
Preparation
Preparation.....................................5
Connecting the antennas ................................ 5
Connecting the speakers and subwoofer........ 6
Connecting a TV ............................................. 8
Connecting external digital audio devices....... 9
Connecting external analog audio devices ..... 9
Connecting the power cable ........................... 9
Selecting the video signal type ..................... 10
Basic operations
Basic operations..........................12
Using the number buttons............................. 12
Turning on/off the main unit .......................... 12
Adjusting the volume..................................... 12
Turning off the sound temporarily ................. 12
Adjusting the treble/bass............................... 12
Enhancing the playback sound (K2)
(Only for NX-F7) ......................................... 13
Adjusting the volume level for surround/ subwoofer sound ........................................ 13
Selecting the surround mode ........................ 13
Selecting the headphone surround mode ..... 14
Sharpening the voice sound ......................... 14
Selecting the surround volume level ............. 14
Using the sleep timer .................................... 15
Changing the brightness of the display window........................................................ 15
Locking disc ejection..................................... 15
Basic operations of disc/file playback
Basic operations of disc/file playback .......................................19
Playing back a disc .......................................19
Playing back a file .........................................20
Display window on the main unit for disc/file types ..............................................21
Stopping playback.........................................26
Resuming playback.......................................26
Pausing playback..........................................26
Advancing the picture frame by frame ..........26
Fast reverse/fast forward search ..................26
Playing back from a position 10 seconds before..........................................................27
Slow motion playback ...................................27
Skipping to the beginning of a chapter/track/file .........................................27
Selecting a chapter/track using the number buttons ........................................................27
Skipping at approximately 5 minute intervals ......................................................27
Selecting a chapter/track from the menu screen .........................................................28
Listening to radio broadcasts
Listening to radio broadcasts ....16
Setting the AM tuner spacing........................ 16
Selecting a radio station................................ 16
Tuning in to a preset radio station................. 17
1
NX-F3_NX-F7[A]EN.book Page 2 Tuesday, April 22, 2008 1:55 PM
Convenient functions of disc/file playback
Convenient functions of disc/file playback .......................................29
Playing back a disc/file in the desired order
(Program playback) .................................... 29
Playing back a disc/file in a random order
(Random playback) .................................... 31
Playing back a disc/file repeatedly
(Repeat playback) ...................................... 31
Selecting the audio language and subtitle language..................................................... 32
Magnifying the picture................................... 32
Adjusting the picture quality (VFP)................ 33
Playing back the bonus group....................... 34
Using the status bar and the menu bar.......................................35
Playing back a specified part repeatedly
(A-B repeat playback)................................. 37
Designating the time (Time search) .............. 37
Changing the initial settings with the preference screen .................38
Basic operations ........................................... 38
LANGUAGE .................................................. 38
PICTURE ...................................................... 39
AUDIO........................................................... 40
OTHERS ....................................................... 40
Language codes ..........................41
Ripping sound directly from a CD to a USB device
Ripping sound directly from a
CD to a USB device .....................42
Recording all tracks from a CD to a USB device ......................................................... 42
Deleting a track/group from a USB device.... 44
Adding (Editing) a title to a track/group on a USB device.............................................. 45
Operating external devices using the remote control
Operating external devices using the remote control .......................47
Operating a TV using the remote control ...... 47
Operating a DBS using the remote control ... 48
Operating a VCR using the remote control ... 49
Basic operations of HDMI
CEC
Basic operations of HDMI CEC...51
Reference
Notes on operation ......................52
Suitable locations for the main unit ...............52
Condensation................................................52
Cleaning the main unit ..................................52
Notes on handling .........................................52
License and trademark .................................53
Notes on discs/files .....................54
Playable disc/file types..................................54
Data hierarchy...............................................57
Handling discs...............................................57
Troubleshooting...........................58
Specifications ..............................62
Main unit (CA-NXF7/CA-NXF3) ....................62
Speaker (SP-NXF7F/SP-NXF3F) .................62
Subwoofer (SP-NXF7W/SP-NXF3W) ...........62
Supplied accessories ....................................62
How to read this manual
• This manual explains the operations assuming that you will use the remote control.
Some buttons on the main unit are the same as those on the remote control. You can use either button in this case.
• Some diagrams in this manual are simplified or exaggerated for the purpose of explanation.
• You can operate some functions differently from the explanation given in this manual.
• Depending on the disc/file, you may not obtain the explained result even after following the operation in this manual.
• The following marks refer to the usable discs/files for the explained function.
2
NX-F3_NX-F7[A]EN-02.fm Page 3 Thursday, May 1, 2008 4:09 PM
Part description
The numbers refer to the pages in which the parts are explained.
Front view
Refer to “Display window” shown below.
Remote control sensor
* [K2] is printed on NX-F7.
[SURROUND] is printed on NX-F3 instead.
Rear view
3
Display window
Cooling fan
NX-F3_NX-F7[A]EN-02.fm Page 4 Wednesday, May 14, 2008 5:08 PM
Using the remote control
The numbers refer to the pages in which the parts are explained.
Inserting the batteries into the remote control
Insert the batteries into the remote control by matching the polarity (+ and − ) correctly.
R03 (UM-4)/AAA
(24F) type dry-cell batteries (supplied)
• If the range or effectiveness of the remote control decreases, replace both batteries.
Operating the system from the remote control
Point the remote control directly at the front of the main unit.
• Do not block the remote control sensor on the main unit.
NOTE
* [K2] is printed on the remote control for NX-F7 only.
4
NX-F3_NX-F7[A]EN.book Page 5 Tuesday, April 22, 2008 1:55 PM
Preparation
Do not connect the power cable until all other connections have been made.
Connecting the antennas FM antenna (supplied)
Main unit (rear view) FM antenna
AM loop antenna (supplied)
Setting up the AM loop antenna
If insulation covers the tips of the antenna cable, twist and pull off the insulation.
Stretch out the FM antenna to the best position for radio reception.
When radio reception with the supplied FM antenna is poor, or when using a communal antenna
Main unit (rear view)
Antenna cable
(not supplied)
Communal antenna terminal
NOTE
• Keep the AM loop antenna cable wrapped around the AM loop antenna frame, otherwise the effectiveness and sensitivity of the AM loop antenna may be reduced.
Connecting the AM loop antenna
Main unit (rear view) or Outdoor FM antenna
(not supplied)
Converter (not supplied: compatible with 300 C /75 C )
Coaxial cable
(not supplied)
Depending on the radio reception conditions, an FM feeder antenna (not supplied: compatible with 300 C ) can be used. In this case, a converter (not supplied) is required.
Turn the AM loop antenna to find the best position for radio reception.
NOTE
• Make sure that the antenna conductors do not touch any other terminals. This could cause poor reception.
• When using an antenna other than those supplied with this system, refer to the operation manuals for the antenna and converter for details of connection.
• When positioning the antennas, find the best position for reception while listening to an actual radio program (refer to “Listening to radio broadcasts” on page 16).
• You cannot receive an FM/AM radio broadcast without the antenna connection.
5
NX-F3_NX-F7[A]EN-03.fm Page 6 Wednesday, April 23, 2008 9:28 AM
Connecting the speakers and subwoofer
Connect the speakers to the main unit by connecting the colored connectors to the same color terminals on the rear of the main unit.
Right speaker
(rear view)
Red
Main unit (rear view)
White
Left speaker
(rear view)
Speaker cable
(3.5 m)
Speaker cable
(3.5 m)
Gray
Purple
Blue
Subwoofer
(rear view)
■ IMPORTANT
• Improper speaker cable connection reduces the stereo effect and sound quality.
• The supplied left/right speakers are magnetically shielded, but color irregularity may occur on the
TV depending on some conditions. To prevent color irregularity, set up the speakers following the instructions below.
(The subwoofer is not magnetically shielded.)
1. Turn off the main power of the TV before setting up the speakers.
2. Place the speakers enough distance from the
TV so that they do not cause color irregularity on the TV.
3. Wait for approximately 30 minutes before turning on the main power of the TV again.
Speaker cable (3 m)
CAUTION
• The supplied speakers are manufactured exclusively for use with the supplied main unit as parts of the NX-F7/NX-F3 system. Do not connect the supplied speakers to devices other than the supplied main unit. Doing so may damage the speakers.
• Do not connect external speakers together with the supplied speakers. The change in impedance may damage the main unit and the speakers.
You can detach the speaker cover.
(Only for NX-F7)
Speaker cover
6
NX-F3_NX-F7[A]EN.book Page 7 Tuesday, April 22, 2008 1:55 PM
Preparation (continued) Do not connect the power cable until all other connections have been made.
Using the speakers with commercially available speaker stands
The left and right speakers can be fitted onto commercially available speaker stands. Before fitting the speakers onto commercially available speaker stands, follow the instructions shown below.
Left and right speakers for NX-F7
Detach the original speaker stands.
Left and right speakers for NX-F3
Remove the speaker cables from the tabs and slots on the speakers.
Remove the cable from the shorter tab first.
Bottom view Longer tab
CAUTION
• The left and right speakers can be installed on a wall.
• When installing the speakers on a wall, be sure to have the speakers installed by qualified personnel.
• DO NOT install the speakers on the wall by yourself to avoid unexpected damage from them falling off the wall due to incorrect installation or weakness in wall structure.
• Care must be taken in selecting a location for speaker installation on a wall. Injury to personnel or damage to devices may result if the installed speakers interfere with daily activities.
Speaker layout
This system is designed to provide virtual surround sound by positioning the 3 speakers in front. (The set of the left and right speakers and the subwoofer refers to 2.1 channel.) The front surround function processes input signals to create a realistic sound field.
Main unit
Subwoofer
Left speaker Right speaker
7
NX-F3_NX-F7[A]EN.book Page 8 Tuesday, April 22, 2008 1:55 PM
Connecting a TV
After connecting a TV, follow the instructions on pages 10 and 11.
■ IMPORTANT
• Connect the main unit directly to a TV (or a monitor) without routing through a video cassette recorder (VCR). Otherwise picture distortion may occur during playback. (Routing the connection through a VCR, however, does not affect the audio quality.)
Main unit VCR TV (or monitor)
Connecting a TV with the
[COMPONENT] terminals
TV
Main unit
(rear view)
To component input terminals
Direct connection
• Connecting the main unit to a VCR-built-in-TV may also cause picture distortion during playback.
Connecting a TV with the [VIDEO] terminal
TV
Main unit
(rear view)
Component video cable (not supplied)
Connecting a TV with the [HDMI
MONITOR OUT] terminal
This system can output uncompressed digital video signals to a TV compatible with HDMI (High
Definition Multimedia Interface).
TV
Main unit
(rear view)
To an HDMI input terminal
To a video input terminal
Composite video cable (supplied)
HDMI cable (not supplied)
NOTE
• The HDMI video signal type can be checked with the “HDMI” indicator in the display window.
(Refer to “Selecting the video signal type” on pages 10 and 11.)
• If the picture is distorted while an HDMI TV is connected, turn off the main unit and turn it on again.
• A TV compatible with HDCP (High-Bandwidth
Digital Content Protection) can also be connected to the [HDMI MONITOR OUT] terminal, so that the uncompressed HD video signal type can be output as well.
• This system is compatible with some basic functions of HDMI CEC. (Refer to page 51.)
8
NX-F3_NX-F7[A]EN.book Page 9 Tuesday, April 22, 2008 1:55 PM
Preparation (continued) Do not connect the power cable until all other connections have been made.
Connecting external digital audio devices
Connecting external analog audio devices
Output MD player or satellite receiver
To an optical digital output terminal
Output Analog audio device
Optical digital cable
(not supplied)
Audio cable
(not supplied)
Main unit
(rear view)
Input
Optical digital cable
(not supplied)
Output
Input
Main unit
(rear view)
Connecting the power cable
AC outlet
Main unit
(rear view)
To an optical digital input terminal
Input AV amplifier with a built-in decoder
NOTE
• You can output the audio signal from the
[DIGITAL OUT] terminal when “DVD”, “USB” or
“DGTL IN” is selected as the source in the display window.
• When “DGTL IN” is selected as the source in the display window, digital audio from the [DIGITAL
OUT] terminal is decoded to a linear PCM signal.
• Connect the power cable after you complete the other connections.
• The [STANDBY F ] lamp on the main unit lights up.
9
NX-F3_NX-F7[A]EN.book Page 10 Tuesday, April 22, 2008 1:55 PM
Selecting the video signal type
To view an image on the TV screen, select the video signal type correctly according to the TV after connecting the main unit to the TV.
Remote control mode selector
2
/
3
(cursor)/
ENTER
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
1
Turn on the main unit.
• Refer to “Turning on/off the main unit” on page 12.
2
Press [DVD
3
] or [USB
3
].
• When a disc is loaded or a USB device is connected, press 7 to stop playback.
3
Press [SCAN MODE].
• The current video signal type appears.
Example: When “PAL. 576I” is selected as the video signal
4
Press
2
or
3
(cursor) to select the video signal type suitable for the
TV.
• When the TV is connected to the [VIDEO] terminal or the [COMPONENT] terminals, the video signal type can be selected as instructed below.
- Select “PAL. 576I” for a TV only compatible with a PAL interlaced video signal.
- Select “PAL. 576P” for a TV equipped with a component terminal and compatible with a PAL progressive video signal.
- Select “NT. 480I” for a TV only compatible with an NTSC interlaced video signal.
- Select “NT. 480P” for a TV equipped with a component terminal and compatible with an NTSC progressive video signal.
• When the TV is connected to the [HDMI MON-
ITOR OUT] terminal, the video signal type can be selected as instructed below.
- Select “AUTO” for normal usage. (the initial setting)
- Select “PAL. 576P”, “PAL. 720P”,
“PAL.1080I”, “PAL.1080P”, “NT. 480P”,
“NT. 720P”, “NT.1080I” or “NT.1080P” as needed. (The selectable settings differ according to the resolution of the connected TV.)
• You can also select the video signal type by repeatedly pressing [SCAN MODE].
(Continued on the next page)
10
NX-F3_NX-F7[A]EN.book Page 11 Tuesday, April 22, 2008 1:55 PM
Preparation (continued)
Do not connect the power cable until all other connections have been made.
NOTE
• “480”, “576”, “720” and “1080” refer to the number of the scanning lines. Generally, the larger the number, the better picture that can be obtained.
• “I” refers to the interlaced format. “P” refers to the progressive format. A better picture can be obtained in the progressive format than in the interlaced format.
• When an HDMI video signal is output, the
“HDMI” indicator lights up in the display window.
• When an HD video signal is output, the “HD” indicator lights up.
• When “PAL. 576P”, “PAL. 720P”, “PAL.1080P”,
“NT. 480P”, “NT. 720P” or “NT.1080P” is selected, the “PROGRESSIVE” indicator lights up in the display window.
5
Press [ENTER].
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after selecting the video signal type. Most of the other functions can be used when the remote control mode selector is at [AUDIO].
• To check the compatibility of your TV, contact your local JVC customer service center.
• Even if the main unit is turned off, the video signal type setting is stored.
For the locations of the remote control buttons, refer to page 10.
11
NX-F3_NX-F7[A]EN-04.fm Page 12 Thursday, May 1, 2008 3:29 PM
Basic operations
Number buttons *
(Only for NX-F7)
■ IMPORTANT
• Slide the remote control mode selector to [AUDIO].
Remote control mode selector
3
(playback)
Using the number buttons
Examples:
5: [5]
15: [ 10]
→
[1]
→
[5]
150: [ 10]
→
[ 10]
→
[1]
→
[5]
→
[0]
Turning on/off the main unit
Press [AUDIO
F
] (or [STANDBY
F
] on the main unit).
• The power of the main unit turns on and the
[STANDBY turns off.
F ] lamp (button) on the main unit
• Press [AUDIO F ] (or [STANDBY F ] on the main unit) again to turn off the power of the main unit. (The main unit enters the standby mode.)
• With the power off, pressing any of the following buttons also turns on the main unit.
- [DVD 3 ], [USB 3 ], [FM/AM], [AUDIO IN],
[DIGITAL IN],
3
(playback) or
0
on the remote control
s3 (playback) or 0 on the main unit
The function assigned to the pressed button starts working at the same time. (When
3
(playback) is pressed, “DVD” is selected as the source in the display window.)
• An internal cooling fan turns on when the main unit turns on. This is to prevent overheating of the main unit. The cooling fan produces noise during operation. This is not a malfunction.
Adjusting the volume
Press [VOL +] or [VOL –] repeatedly.
• You can also adjust the volume by turning the
[VOLUME] control on the main unit.
Turning off the sound temporarily
Press [MUTING].
• Press [MUTING] again or [VOL +] or [VOL –], or turn the [VOLUME] control on the main unit to restore the sound. The sound is also restored when the main unit is turned off once and turned on.
Adjusting the treble/bass
1
Press [TREBLE/BASS] repeatedly to select “TRE” or “BASS” in the display window.
2
Press [LEVEL +] or [LEVEL –] repeatedly to adjust the sound quality.
• Adjustable sound quality is from -10 to +10.
12
NX-F3_NX-F7[A]EN-04.fm Page 13 Wednesday, April 23, 2008 9:34 AM
Basic operations (continued)
Enhancing the playback sound (K2) (Only for NX-F7)
The K2 function is designed to provide natural sound by improving the playback sound from lowbit-rate digital sources.
The function compensates for sound waves dissipated during digital recording compression to approximate the original analog sound. Sound is reproduced with more bits (24 bit) and a wider range of frequency (64 kHz, 176.4 kHz or
192 kHz).
Press [K2] on the remote control or on the main unit.
• When the K2 function is activated, the [K2] lamp
(button) on the main unit lights up.
• Each time you press [K2], the display changes as follows.
- “K2 MODE1”:
Plays back a digital source with non-compressed sound signals (linear PCM).
- “K2 MODE2”:
Plays back a digital source with compressed sound signals (Dolby digital, DTS, MP3, WMA or WAV).
- “K2 OFF”:
Cancels the K2 function.
NOTE
• The original range of frequency is automatically detected and extended to a specific range.
Adjusting the volume level for surround/subwoofer sound
You can adjust the volume level for the left and right surround sound and the subwoofer sound respectively.
1
Press [SPK LEVEL] repeatedly to select “SURR” or “SUBWFR” in the display window.
• “SURR” refers to the left and right surround sound.
• “SUBWFR” refers to the subwoofer sound.
2
Press [LEVEL +] or [LEVEL –] repeatedly to adjust the volume level.
• The adjustable volume range is from -6 to +6.
Selecting the surround mode
Press [SURROUND].
• Each time you press [SURROUND], the display changes in the display window as follows.
- “AUTO SUR”
When a multi-channel signal is input, surround sound is automatically produced.
- “MOVIE”
Surround sound suitable for a movie or multichannel signal is produced.
- “WIDE/2CH”
When a 2ch signal is input, surround sound is produced. The sound is broader than the one with “MOVIE”.
- “SUPER W”
Surround sound broader than the one with the
“WIDE/2CH” is produced.
NOTE
• Depending on the signal type, surround sound may not be produced as the surround mode setting.
• During playback, when you change the surround mode setting, sound from the [DIGITAL OUT] terminal may be intermittent. Before recording sound to an external device, select the desired surround mode setting.
• This function does not work for a JPEG/ASF/
DivX/MPEG1/MPEG2 file.
13
NX-F3_NX-F7[A]EN.book Page 14 Tuesday, April 22, 2008 1:55 PM
Selecting the headphone surround mode
You can listen to surround sound via headphones connected to the [PHONES] terminal.
■ When headphones are connected to the
[PHONES] terminal
Press [SURROUND].
• Each time you press [SURROUND], the setting toggles between “H.P. SURR” and “H.PHONE” in the display window.
NOTE
• The [PHONES] terminal is for connecting a pair of headphones equipped with a stereo mini plug
(not supplied). When headphones are connected, no sound is output from the speakers.
• This function does not work for a JPEG/ASF/
DivX/MPEG1/MPEG2 file.
Sharpening the voice sound
This function allows you to easily understand dialog recorded on the disc/file even with the volume down low. This function is useful when you are watching a movie.
1
Press [SETTING] repeatedly to select “CLR VOIC” in the display window.
• “CLR VOIC” refers to a clear voice.
2
Press [LEVEL +] or [LEVEL –] repeatedly to select “CLR: ON” in the display window.
This indicator lights up when the clear voice function is activated.
For the locations of the remote control buttons, refer to page 12.
Selecting the surround volume level
You can increase the surround volume level.
This function is effective for the following conditions:
(1) When the surround mode is set to an item other than “AUTO SUR” (Refer to page 13.)
(2) When the surround mode is set to “AUTO
SUR” and a DVD VIDEO, DVD AUDIO or DVD
VR is played back (Refer to page 19.)
(3) When the surround mode is set to “AUTO
SUR” and the source is set to “DGTL IN”
(Refer to page 18.)
1
Press [SETTING] repeatedly to select “SURR VOL” in the display window.
2
Press [LEVEL +] or [LEVEL –] repeatedly to select the desired setting in the display window.
• Each time you press [LEVEL +] or [LEVEL –], the surround volume level display changes to one of three levels. The surround volume level increases in the order of “SURR:
NRML”, “SURR: MID” and “SURR: HIGH”.
• Select the surround volume level while listening to the actual sound to confirm the difference.
NOTE
• This function does not affect the sound with the headphone surround mode.
• Each time you press [LEVEL +] or [LEVEL –], the clear voice function turns on and off.
• When you want to deactivate the clear voice function, select “CLR: OFF”.
14
NX-F3_NX-F7[A]EN.book Page 15 Tuesday, April 22, 2008 1:55 PM
Basic operations (continued)
Using the sleep timer
When the time you specify elapses, the main unit automatically turns off.
Press [SLEEP].
• Each time you press [SLEEP], the time indicated in the display window changes. You can set the time to 10, 20, 30, 60, 90, 120, 150 or 180 minutes.
Example: Display when the sleep timer is set to 60 minutes
For the locations of the remote control buttons, refer to page 12.
Changing the brightness of the display window
■ When the main unit is turned on
Press [DIMMER] repeatedly.
• Each time you press [DIMMER], the brightness changes in 3 levels.
Locking disc ejection
You can lock the disc tray to prevent the disc from being ejected.
Setting the disc ejection lock
Changing the remaining time
Press [SLEEP] repeatedly to select the time again.
Confirming the remaining time
Press [SLEEP] once.
Canceling the sleep timer
Press [SLEEP] repeatedly until
“SLEEP --” appears.
Turning off the main unit cancels the sleep timer.
■ When the main unit is turned off
Hold down
0
on the main unit for one or more seconds while holding down
7
on the main unit.
If you attempt to open the disc tray by pressing 0 , the disc tray does not open and “LOCKED” appears in the display window.
To cancel the disc ejection lock, hold down 0 on the main unit for one or more seconds while holding down 7 on the main unit again. “UNLOCKED” is displayed in the display window.
15
NX-F3_NX-F7[A]EN.book Page 16 Tuesday, April 22, 2008 1:55 PM
Listening to radio broadcasts
Setting the AM tuner spacing
AM stations are spaced 9 kHz apart in some countries and 10 kHz in other countries.
Number buttons *
Remote control mode selector
* For the number button usage, refer to “Using the number buttons” on page 12.
■ IMPORTANT
• Slide the remote control mode selector to [AUDIO].
■ When the main unit is turned off
To select 10 kHz spacing, while holding down
¢
, press
F
on the main unit to turn on the power. “10K STEP” appears in the display window.
To select 9 kHz spacing, while holding down
4
, press
F
on the main unit to turn on the power. “9K STEP” appears in the display window.
NOTE
• When the spacing is switched, the preset radio station memory is erased.
Selecting a radio station
1
Press [FM/AM] to select “FM” or
“AM” in the display window.
• Pressing [FM/AM] selects a radio broadcast as the sound source.
• Repeatedly pressing [SOURCE] on the main unit can also select a radio broadcast as the source.
• Each time you press [FM/AM], the band toggles between “FM” and “AM”.
Example: When an FM radio broadcast is received
Stereo indicator
Preset number
(Refer to page 17.)
Frequency
(Continued on the next page)
16
NX-F3_NX-F7[A]EN.book Page 17 Tuesday, April 22, 2008 1:55 PM
Listening to radio broadcasts (continued)
2
Press [TUNING ] or [TUNING ] repeatedly to select a radio station
(frequency).
• When the main unit has received an FM stereo broadcast, the “ST” (stereo) indicator lights up in the display window.
■ Automatic tuning:
You can also select a radio station using automatic tuning.
Hold down [TUNING ] or [TUNING ] until the frequency starts changing, and then release the button.
• When the main unit has received a broadcast, the frequency automatically stops changing.
• You can select a specific radio station while searching for a broadcast. Press [TUN-
ING ] or [TUNING ] to stop automatic tuning when the desired frequency appears in the display window.
NOTE
• If an FM stereo broadcast is difficult to hear because of noise, you may be able to hear the broadcast more easily by pressing [FM MODE] to switch the sound to monaural reception. In this case, the “MONO” (monaural) indicator lights up in the display window. To return the sound to stereo reception, press [FM MODE] again. “AUTO” is displayed and the “ST” (stereo) indicator lights up in the display window.
For the locations of the remote control buttons, refer to page 16.
Tuning in to a preset radio station
Presetting radio stations in the main unit allows you to easily tune in to a radio station.
Presetting radio stations
You can store up to 30 FM radio stations and up to
15 AM radio stations.
1
Select a radio station you want to store.
• Refer to “Selecting a radio station” on page
16.
2
Press [ENTER].
• “--” flashes in the display window for approximately 5 seconds.
3
While “--” is flashing, press the number buttons to select the preset number you want to assign.
• You can also select the preset number by pressing [PRESET ] or [PRESET ].
4
Press [ENTER] while the selected number is flashing.
• “STORED” appears and the selected radio station is stored.
NOTE
• When you store a radio station to a preset number to which another radio station has previously been stored, the newly set radio station replaces the previously stored radio station.
Tuning in to a preset radio station
■ When an FM or AM radio broadcast is selected as the source
Press the number buttons to select the preset number of the radio station to which you want to tune in.
• You can also select the preset number by pressing [PRESET ] or [PRESET ].
17
NX-F3_NX-F7[A]EN.book Page 18 Tuesday, April 22, 2008 1:55 PM
Playing back sources from external devices
Remote control mode selector
■ IMPORTANT
• Slide the remote control mode selector to [AUDIO].
Playing back sources from external devices
1
Press [AUDIO IN] or [DIGITAL IN].
• Pressing [AUDIO IN] displays “AUDIO IN” and selects the device connected to the
[AUDIO IN] terminals.
• Pressing [DIGITAL IN] displays “DGTL IN” and selects the device connected to the
[DIGITAL IN] terminal.
• You can also select the connected device as the source by repeatedly pressing
[SOURCE] on the main unit.
2
Start playback on the connected device.
3
Adjust the volume or the sound quality for your preference.
• Refer to page 12.
NOTE
• Refer also to the operation manual for the connected device.
• You can also operate your digital broadcast satellite and video cassette recorder using the remote control of this system. Refer to pages 48-50.
Selecting the signal gain
You can select the gain of the signal from the
[AUDIO IN] terminals. Use the initial settings for normal operation. If the sound is too small or too loud, change the settings.
1
Press [AUDIO IN].
• “AUDIO IN” appears in the display window.
2
Hold down [ENTER].
• “LEVEL 1” or “LEVEL 2” appears in the display window.
3
Press [ENTER] repeatedly to select “LEVEL 1” or “LEVEL 2”.
• Each time you press [ENTER], the display toggles between “LEVEL 1” and “LEVEL 2”.
• The signal gain in “LEVEL 1” is lower than that in “LEVEL 2”.
• The display returns to “AUDIO IN” in approximately 5 seconds.
18
NX-F3_NX-F7[A]EN.book Page 19 Tuesday, April 22, 2008 1:55 PM
Basic operations of disc/file playback
Playing back a disc
Number buttons *
Remote control mode selector
This part explains how to play back the types of discs shown above.
1
Press
0
on the remote control or on the main unit.
• The disc tray ejects.
2
Place a disc on the disc tray.
Printed surface
5
/
/
/
2
/
3
(cursor)/
ENTER
3 (playback)
* For the number button usage, refer to “Using the number buttons” on page 12.
■ IMPORTANT
• Slide the remote control mode selector to [AUDIO].
Disc tray
• To play back an 8-cm disc, place it on the inner hollow of the disc tray.
3
Press [DVD
3
].
• If “DVD” is selected as the source, pressing
3 (playback) can start playback.
NOTE
• Instead of using the remote control in step 3, you can use the buttons on the main unit. Repeatedly pressing [SOURCE] can select “DVD” as the source, and pressing 3 (playback) starts playback.
• A menu screen may appear on the TV screen after DVD playback starts. In such a case, operate the menu screen, using 5 , / , 2 , 3 (cursor), the number buttons and [ENTER]. (Refer to
“Selecting a chapter/track from the menu screen” on page 28.)
19
NX-F3_NX-F7[A]EN.book Page 20 Tuesday, April 22, 2008 1:55 PM
Playing back a file
This part explains how to play back 1) files recorded on the loaded disc, and 2) files recorded on a USB mass storage class device (hereinafter referred to as “USB device”) connected to the main unit. The operations are explained with a display of
MP3 files as an example.
NOTE
• Also refer to “Notes on files recorded on a connected USB device” on page 66.
• When files of different types (audio/still picture/ video) are recorded on a loaded disc or connected USB device, select the file type before playback. (Refer to “FILE TYPE” on page 39.)
1
(To play back files on a disc)
Place a disc on the disc tray.
• Refer to steps 1 and 2 on page 19.
(To play back files on a USB device)
Connect the USB device.
For the locations of the remote control buttons, refer to page 19.
NOTE
• When a file on a USB device is played back, the
“USB” indicator lights up in the display window.
• You can also use the buttons on the main unit.
When you repeatedly press [SOURCE] to select
“DVD” or “USB” in the display window, playback automatically starts. If playback does not start, press
3
(playback) on the main unit.
3
Press
7
to stop playback.
• The menu screen appears on the TV screen.
When a file recorded on the connected USB device is selected as the source, “USB” is displayed.
Numbers of the current group and total groups recorded on the loaded disc or connected USB device
Numbers of the current track (file) and total tracks (files) included in the current group
Elapsed playback time of the current track (MP3/WMA/
WAV/ASF file only)
Playback status
Flash memory device, portable digital audio player or other
USB mass storage class device
NOTE
• You cannot connect a computer to the [USB
MEMORY REC/PLAY] terminal of the system.
• When connecting with a USB cable, use a USB
2.0 cable with a length of less than 1 m.
2
(To play back files on a disc)
Press [DVD
3
].
(To play back files on a USB device)
Press [USB
3
].
Number of the total tracks
(files) recorded on the loaded disc or connected USB device
Current track (file)
Tag information (MP3/WMA file only)
Current group
NOTE
• Depending on the file type, the menu screen appears without pressing 7 . At this time, you can skip step 3.
(Continued on the next page)
20
NX-F3_NX-F7[A]EN.book Page 21 Tuesday, April 22, 2008 1:55 PM
Basic operations of disc/file playback (continued)
4
Press
5
,
/
,
2
or
3
(cursor) to select a group and track.
NOTE
• You can also use the number buttons and
4 or ¢ to select a track.
• You can also select a group by another method.
(1) Slide the remote control mode selector to
[SHIFT], (2) press [GROUP/TITLE], and then (3) use the number buttons to enter the desired group number while “_ _” is displayed in the display window.
5
Press [DVD
3
], [USB
3
] or
3
(playback).
NOTE
• If you have skipped step 3, you do not have to proceed to step 5.
Slide-show playback
• JPEG files are continuously played back beginning with the selected file.
• Display time for a file in slide-show playback is approximately 3 seconds.
• Press [ENTER] to view only the selected file.
Display window on the main unit for disc/file types
DVD VIDEO
■ When a disc is played back
Chapter number Elapsed playback time
[DISPLAY] is pressed.
Title number Chapter number
■ When a disc is stopped
Total number of titles
[DISPLAY] is pressed.
Disc type
• When “RESUME” is displayed in the display window, refer to page 26.
21
NX-F3_NX-F7[A]EN-06.fm Page 22 Thursday, May 1, 2008 3:31 PM
DVD AUDIO
■ When a disc is played back
Track number Elapsed playback time
[DISPLAY] is pressed.
For the locations of the remote control buttons, refer to page 19.
DVD VR
■ When a disc is played back
Chapter number Elapsed playback time
[DISPLAY] is pressed.
Group number Track number
• If the “BONUS” or “B.S.P.” indicator lights up during DVD AUDIO playback, refer to pages 34 or
36.
■ When a disc is stopped
Original program number
Chapter number
• When a play list is played back, “PL” is displayed instead of “PG”.
■ When a disc is stopped
Group number Track number
[DISPLAY] is pressed.
Original program number
• When a play list is played back, “PL” is displayed instead of “PG”.
[DISPLAY] is pressed.
Disc type
• When “RESUME” is displayed in the display window, refer to page 26.
Disc type
• When “RESUME” is displayed in the display window, refer to page 26.
22
NX-F3_NX-F7[A]EN-06.fm Page 23 Thursday, May 1, 2008 3:31 PM
Basic operations of disc/file playback (continued)
VCD/SVCD
■ When a disc is played back
CD
■ When a disc is played back
Track number Playback control
• You can use the menu screen to control playback of a PBC compatible disc.
• To cancel the PBC function, follow the instructions below.
- Specify the track number using the number buttons when the disc is stopped.
- Specify the track number using 4 or ¢ when the disc is stopped, and then press
[DVD 3 ] or 3 (playback).
• When the PBC function is canceled, the “PBC” display disappears and the elapsed playback time appears.
• To restore the PBC function, press [TOP MENU/
PG] or [MENU/PL], or open the disc tray once.
• Press [RETURN] to return to the upper layer during PBC playback.
■ When a disc is stopped
Track number Elapsed playback time
■ When a disc is stopped
Total number of tracks Total playback time
[DISPLAY] is pressed.
Disc type
Total number of tracks
Total playback time
A few seconds later
(When the PBC function is activated)
Playback control
[DISPLAY] is pressed.
Disc type Playback control
• When “RESUME” is displayed in the display window, refer to page 26.
• When a VCD is stopped, “VCD” is displayed as shown above.
• When an SVCD is stopped, “SVCD” is displayed as the disc type.
23
NX-F3_NX-F7[A]EN-06.fm Page 24 Thursday, May 1, 2008 3:31 PM
MP3/WMA/WAV/ASF/DivX/MPEG1/
MPEG2 file
■ When a file is played back
For the locations of the remote control buttons, refer to page 19.
JPEG file
■ When a file is played back
Track number Elapsed playback time
[DISPLAY] is pressed.
File number File type
[DISPLAY] is pressed.
Group number Track number
■ When a file is stopped
Group number
■ When a file is stopped
File number
Group number Track number
[DISPLAY] is pressed.
File number File type
[DISPLAY] is pressed.
File type
File type
• When “RESUME” is displayed in the display window, refer to page 26.
• The display differs according to the file type.
When a file is stopped, “MP3”, “WMA”, “WAV”,
“ASF”, “DIVX” or “MPEG” appears. (The
“MPEG” display refers to an MPEG1 or MPEG2 file.)
24
NX-F3_NX-F7[A]EN.book Page 25 Tuesday, April 22, 2008 1:55 PM
Basic operations of disc/file playback (continued)
Messages on the TV screen
When a DVD VIDEO or a USB device is selected as the source, the messages shown below are displayed on the TV screen to indicate the status of the DVD VIDEO or USB device.
NOW READING:
Appears when the main unit is reading the disc/ file information. Wait for a short time.
REGION CODE ERROR!:
Appears when the region code of the disc does not match the code supported by the main unit.
(Refer to page 54.)
NO DISC:
Appears when no disc is loaded.
NO USB DEVICE:
Appears when a USB device is not connected.
OPEN:
Appears when the disc tray is opening.
CLOSE:
Appears when the disc tray is closing.
CANNOT PLAY THIS DISC:
Appears when attempting to play back an unplayable disc.
CANNOT PLAY THIS DEVICE:
Appears when there are no playable files on a
USB device.
Guide icons on the TV screen
(on-screen guide)
: Play
: Pause
: Fast reverse/fast forward search
: Slow motion playback (reverse/ forward directions)
: Containing multi-view angles (Refer to page 36.)
: Containing multi-audio languages
(Refer to page 32.)
: Containing multi-subtitle languages
(Refer to page 32.)
: The disc/file cannot accept the operation you have attempted.
Indicators in the display window
The indicators corresponding to the status below light up in the display window.
■ Digital signal format indicators
Lights up when Dolby Digital signal comes in.
Lights up when DTS Digital (Surround) signal comes in.
Lights up when DVD AUDIO packed PCM signal comes in.
Lights up when linear PCM signal comes in.
NOTE
• Any digital signal indicators do not light up when an analog signal comes in.
■ Dolby Surround mode indicator
Lights up when Dolby Pro Logic II mode is activated.
■ Source signal and other indicators
Lights up when the left channel signal comes in.
Lights up when the center channel signal comes in.
Lights up when the right channel signal comes in.
Lights up when the LFE channel signal comes in.
Lights up when the left surround channel signal comes in.
Lights up when the monaural surround channel signal or 2-channel Dolby Surround signal comes in.
Lights up when the right surround channel signal comes in.
Lights up when the left/right speakers and the subwoofer are in use. (Disappears when headphones are connected to the
[PHONES] terminal.)
25
NX-F3_NX-F7[A]EN.book Page 26 Tuesday, April 22, 2008 1:55 PM
Stopping playback
For the locations of the remote control buttons, refer to page 19.
Pausing playback
■ When a disc/file is played back
Press
7
.
Resuming playback
When playback is stopped in the middle, playback can be started from the stopped position.
Temporarily stopping playback
■ When a disc/file is played back
Follow any of the operations below.
Press 7 once to stop playback.
*1 *2
Select a source other than “DVD” or “USB” in the display window.
*2
Press [AUDIO F ] to turn off the main unit.
*3
*1 “RESUME” is displayed in the display window.
If 7 is pressed twice, the position where playback has been stopped is cleared.
*2 After this operation, the position where playback has been stopped is stored even when the main unit is turned off by pressing [AUDIO
F
].
*3 When you press [AUDIO F ] to turn on the main unit again, the position where playback has been stopped is cleared.
Starting playback from the stored position
■ When a disc/file is stopped in the middle
Press [DVD
3
] or [USB
3
].
NOTE
• This function does not work in program playback or random playback.
• The stored position is cleared if the disc tray is opened or the USB device is disconnected.
• You can deactivate the resume playback function. (Refer to “RESUME” on page 40.)
• When a file on the USB device is selected as the source, this function may not work as explained above.
■ When a disc/file is played back
Press
8
.
• To return to normal playback, press [DVD 3 ],
[USB
3
] or
3
(playback).
Advancing the picture frame by frame
(only for moving images)
■ When a disc/file is paused
Press
8
repeatedly.
• To return to normal playback, press [DVD
3
],
[USB 3 ] or 3 (playback).
Fast reverse/fast forward search
There are two methods.
■ When a disc/file is played back
• Press
1
or
¡
.
Each time you press
¡
, the speed increases.
To restore the normal speed, press [DVD 3 ],
[USB
3
] or
3
(playback).
• Hold down
4
or
¢
.
NOTE
• For some discs/files, sound is intermittent or no sound is produced during fast reverse/fast forward search.
• The selectable speeds and displays vary by the disc/file type.
26
NX-F3_NX-F7[A]EN.book Page 27 Tuesday, April 22, 2008 1:55 PM
Basic operations of disc/file playback (continued)
Playing back from a position
10 seconds before
Selecting a chapter/track using the number buttons
■ When a disc is played back
Press .
NOTE
• You cannot go back to the previous title and original program (play list).
Slow motion playback
(only for moving images)
■ When a disc is paused
Press [ SLOW] or [SLOW ].
• Each time you press [ SLOW] or [SLOW ], the speed increases.
• Press
8 to pause playback, and press [DVD
3
] or
3
(playback) to return to normal playback.
NOTE
• No sound is produced.
• The picture motion in the reverse direction may not be smooth.
• For a VCD, SVCD or DVD VR, slow motion playback can be used in the forward direction only.
Skipping to the beginning of a chapter/track/file
(PBC off)
■ When a disc/file is played back
Use the number buttons to select the chapter number or track number.
NOTE
• To cancel the PBC function for VCD/SVCD, refer to page 23.
Skipping at approximately 5 minute intervals
You can skip within a file at approximately 5 minute intervals. This is useful especially when you want to skip within a long file.
■ When a disc/file is played back
Press
2
or
3 (cursor)
.
• Each time you press 2 or 3 (cursor), the playback position skips to the beginning of the previous or next interval. Each interval is approximately 5 minutes.
NOTE
• Intervals are automatically assigned from the beginning of a file.
• You can use this function only within the same file.
■ When a disc/file is played back
Press
4
or
¢
repeatedly.
NOTE
• You cannot skip to the previous track even by pressing 4 during random playback. (Refer to page 31.)
• You can also select a title or group. (1) Slide the remote control mode selector to [SHIFT], (2) press [GROUP/TITLE], and then (3) use the number buttons to enter the desired title or group number while “_ _” is displayed in the display window. At this time, for a DVD VR, the
“PG” or “PL” indicator lights up in the display window.
27
NX-F3_NX-F7[A]EN.book Page 28 Tuesday, April 22, 2008 1:55 PM
For the locations of the remote control buttons, refer to page 19.
Selecting a chapter/track from the menu screen
■ When a disc is stopped or played back
1
Press [TOP MENU/PG] or [MENU/
PL].
• The menu screen is displayed.
• Pressing [TOP MENU/PG] may not work depending on the disc type. In this case, press [MENU/PL].
2
Press
5
,
/
,
2
or
3
(cursor) to select the selection menu for chapters or tracks.
3
Press [ENTER].
4
Press
5
,
/
,
2
or
3
(cursor) to select the desired chapter or track.
5
Press [ENTER].
NOTE
• You can use this function only when a menu screen is recorded on the disc.
• Depending on a disc, you may proceed to step 4 when you finish step 1.
• Playback may start for some discs without pressing [ENTER] in step 5.
■ When a disc is stopped or played back
1
Press [TOP MENU/PG] to display the original program or press
[MENU/PL] to display the play list.
Original program
Title name
Starting time for the title recording
Channel information
Recording date
Play list
■ When a disc is played back with the PBC function activated
1
Press [RETURN] once or more.
2
Press the number buttons to select the desired track.
NOTE
• For a VCD/SVCD whose menu screen has a couple of pages, you can change the page by pressing 4 or ¢ in step 2.
Total playback time for the title
Number of chapters included in the title
Recording date
• The play list does not appear when a play list has not been recorded to the disc.
2
Press
5
or
/
(cursor) to select the desired title.
3
Press [ENTER].
• When you have selected the original program by pressing [TOP MENU/PG] in step
1, playback starts from the selected title.
• When you have selected the play list by pressing [MENU/PL] in step 1, only the selected title is played back.
28
NX-F3_NX-F7[A]EN.book Page 29 Tuesday, April 22, 2008 1:55 PM
Convenient functions of disc/file playback
Playing back a disc/file in the desired order (Program playback)
Number buttons *
Remote control mode selector
5
/
/
/
2
/
3
(cursor)/
ENTER
3
(playback)
(only on a loaded disc)
You can program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.
■ When a disc/file is stopped
1
Press [PLAY MODE] to display
“PROGRAM” in the display window.
• If you accidentally pressed [PLAY MODE] twice or more, press [PLAY MODE] repeatedly until “PROGRAM” is displayed.
Display window
This indicator lights up when the program playback function is activated.
Example: TV screen for a DVD VIDEO
(Program screen) * For the number button usage, refer to “Using the number buttons” on page 12.
■ IMPORTANT
• Some buttons change their functions according to the remote control mode.
• Before using the functions described in “Convenient functions of disc/file playback” (other than [AUDIO], [SUBTITLE],
[ZOOM], [VFP] or [GROUP/
TITLE]), slide the remote control mode selector to [AUDIO].
29
NX-F3_NX-F7[A]EN.book Page 30 Tuesday, April 22, 2008 1:55 PM
2
Press the number buttons to program tracks/chapters.
• You can refer to the program number in the display window by pressing [DISPLAY].
Display for a DVD VIDEO
• Select a title number, and then a chapter number.
Example: TV screen for a DVD VIDEO
(Program screen)
Title number Chapter number
[DISPLAY] is pressed.
.
Program number Chapter number
Display for a DVD AUDIO/MP3/WMA/WAV file
• Select a group number and then a track number.
Group number Track number
[DISPLAY] is pressed.
.
Program number Track number
Display for a VCD/SVCD/CD
• Select a track number.
• As you finish the track selection, the total time for the program playback is displayed.
• Before selecting a bonus group of a DVD
AUDIO, cancel the “BONUS” indicator as explained in “Playing back the bonus group” on page 34.
NOTE
• Instead of using the number buttons, when you press [ENTER] in the “Track/Chapter” column on the TV screen, “ALL” appears and all the chapters/tracks in the selected title/group are programmed. (Only for a DVD VIDEO/DVD AUDIO/
MP3/WMA/WAV file)
• You can erase the programmed tracks one by one from the bottom of the list on the program screen by pressing [CANCEL] repeatedly.
• You can erase the whole program by holding down [CANCEL].
• Opening the disc tray also erases the program.
3
Press [DVD
3
] or
3
(playback).
Confirming the program
■ When a disc/file is played back
Press
7
.
• Playback stops and the program screen appears on the TV screen.
Canceling program playback
■ When a disc/file is stopped
Press [PLAY MODE] repeatedly to display an item other than “PROGRAM” in the display window.
• This operation does not erase the program.
Track number Total playback time
[DISPLAY] is pressed.
Program number Track number
30
NX-F3_NX-F7[A]EN.book Page 31 Tuesday, April 22, 2008 1:55 PM
Convenient functions of disc/file playback (continued)
Playing back a disc/file in a random order
(Random playback)
Playing back a disc/file repeatedly (Repeat playback)
(only on a loaded disc)
■ When a disc/file is stopped
1
Press [PLAY MODE] repeatedly to display “RANDOM” in the display window.
This indicator lights up when the random playback function is activated.
2
Press [DVD
3
] or
3
(playback).
NOTE
• Each chapter or track is played back only once.
Canceling random playback
■ When a disc/file is stopped
Press [PLAY MODE] repeatedly to display an item other than “RANDOM” in the display window.
• Opening the disc tray also cancels random playback.
(PBC off)
■ When a disc/file is played back
Press [REPEAT].
• Each time you press [REPEAT], the repeat mode changes.
Indicator in the display window
Display on the TV screen
*
1
Usage for the repeat mode
1
ALL
TITLE
PG
PL
GROUP
CHAP*
2
TRACK*
2
ALL
Repeats the current title.
Repeats the current original program.
Repeats the current play list.
Repeats the current group.
Repeats the current chapter.
Repeats the current track.
Repeats all chapters/ tracks.*
3
OFF*
4 Cancels repeat.
* 1 For some discs/files, “REPEAT” may appear instead of “ ”
* 2 “STEP” is displayed during program/random playback.
* 3 Repeats the whole program during program playback.
* 4 For some discs/files, no display may appear.
NOTE
• You can also use the menu bar to set repeat playback. (Refer to page 36.)
• You can also specify a part to be played back repeatedly by using A-B repeat playback. (Refer to page 37.)
• The repeat mode is automatically canceled if there is a file that cannot be played back.
• For some discs, stopping playback may automatically cancel repeat playback.
• To cancel the PBC function for VCD/SVCD, refer to page 23.
31
NX-F3_NX-F7[A]EN.book Page 32 Tuesday, April 22, 2008 1:55 PM
Selecting the audio language and subtitle language
■ When a disc/file is played back
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
1
Press the desired button shown below.
Available disc/file Function Button
Audio language
[AUDIO]
Subtitle language
[SUBTITLE]
(only for moving images)
Example: TV screen for the subtitle language
: Audio language
: Subtitle language
2
Press
5
or
/
(cursor) to select the desired language
.
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using these functions. Most of the other functions can be used when the remote control mode selector is at [AUDIO].
• Pressing [AUDIO] repeatedly also changes the audio languages.
• Pressing [SUBTITLE] repeatedly turns the subtitle display on and off.
• You can only select these function settings when the disc/file contains multiple audio languages or subtitle languages.
• When a language code such as “AA” and “AB” is displayed, refer to “Language codes” on page
41.
• You can also use the menu bar to set the functions. Refer to page 35.
• When a DVD VR, VCD or SVCD is played back,
“ST” (stereo), “L” (left) and “R” (right) are displayed on the TV screen.
For the locations of the remote control buttons, refer to page 29.
Magnifying the picture
(only for moving images)
■ When a disc/file is played back or paused
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
1
Press [ZOOM].
• Each time you press [ZOOM], the picture magnification changes on the TV screen.
2
Select the area of image you want to magnify by using
5
,
/
,
2
or
3
(cursor).
• To return to normal playback, select “ZOOM
OFF” in step 1.
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
• You cannot change the picture magnification during slide-show playback of JPEG files.
• During ASF file playback, 5 , / , 2 or 3 (cursor) may not work in step 2.
• When you magnify a picture, image quality may be deteriorated or the image may be distorted.
32
NX-F3_NX-F7[A]EN.book Page 33 Tuesday, April 22, 2008 1:55 PM
Convenient functions of disc/file playback (continued)
Adjusting the picture quality
(VFP)
■ When a disc/file is played back or paused
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
1
Press [VFP].
• The current settings are displayed.
Example: TV screen for the VFP mode
Selected VFP mode
2
Press
2
or
3
(cursor) to select the video fine processor (VFP) mode.
• Each time you press
2
or
3
(cursor), VFP mode changes on the TV screen as follows.
- “NORMAL”
For normal playback. (You cannot adjust the image quality.) Go to step 7.
- “CINEMA”
Suitable for viewing a movie in a dim room.
(You cannot adjust the image quality.)
Go to step 7.
- “USER1/USER2”
You can adjust the image quality.
Go to step 3.
3
Press
5
or
/
(cursor) to select the item you want to adjust.
• Each time you press 5 or / (cursor), the item changes on the TV screen as follows.
- “GAMMA”
Controls the brightness of neutral tints while maintaining the brightness of dark and light portions.
(Setting range: –3 to +3)
- “BRIGHTNESS”
Controls the brightness of the display.
(Setting range: –8 to +8)
- “CONTRAST”
Controls the contrast of the display.
(Setting range: –7 to +7)
- “SATURATION”
Controls the saturation of the display.
(Setting range: –7 to +7)
- “TINT”
Controls the tint of the display.
(Setting range: –7 to +7)
- “SHARPNESS”
Controls the sharpness of the display.
(Setting range: –8 to +8)
4
Press [ENTER].
Example: TV screen for “GAMMA”
5
Press
5
or
/
(cursor) to change
6
the value.
Press [ENTER].
• To adjust other items, go back to step 3.
7
Press [VFP].
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
• If no operation is made for several seconds during the procedure, the settings made so far are automatically stored.
• When the [HDMI MONITOR OUT] terminal is connected, this function does not affect the picture quality.
33
NX-F3_NX-F7[A]EN.book Page 34 Tuesday, April 22, 2008 1:55 PM
Playing back the bonus group
Some DVD AUDIOs may have a special group, called “bonus group”. You can use this function when the “BONUS” indicator lights up in the display window.
■ When a disc is played back
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
1
Press [GROUP/TITLE].
2
Press
¢
repeatedly to select a bonus group.
• “KEY_ _ _ _” appears on the TV screen, and in the display window.
3
Press the number buttons to enter the pin code (four digits).
• The method of obtaining a pin code differs depending on the disc.
4
Press [ENTER].
• When the correct pin code is entered, the
“BONUS” indicator disappears in the display window and the playback of the bonus group starts.
• If an incorrect pin code is entered, try entering the correct pin code again.
For the locations of the remote control buttons, refer to page 29.
34
NX-F3_NX-F7[A]EN.book Page 35 Tuesday, April 22, 2008 1:55 PM
Using the status bar and the menu bar
■ When a disc/file is played back
1
Press [ON SCREEN] twice.
Example: TV screen for a DVD VIDEO
Status bar
Menu bar
2
Press
2
or
3
(cursor) to select an item you want to operate.
3
Press [ENTER].
4
Press
5
or
/
(cursor) to select your desired setting.
NOTE
• To turn off the status bar and the menu bar, press [ON SCREEN].
Information displayed on the status bar
DVD VIDEO/DVD AUDIO/DVD VR
Example: Status bar for a DVD VIDEO
(DVD VIDEO/DVD AUDIO)
Current title/group number
(DVD VR)
Current original program number (PG)/ current play list number (PL)
Playback status *
(DVD VIDEO/DVD AUDIO/DVD VR)
Audio encoding mode
Time
Current chapter/track number
VCD/SVCD/CD/ASF/DivX/MPEG1/MPEG2 file
Example: Status bar for a CD
Playback status *
Playback mode status Time
(VCD/SVCD/CD)
Current track number
(ASF/DivX/MPEG1/MPEG2 file)
Repeat mode status
NOTE
* The playback status has the same meaning of the guide icons on the TV screen. (Refer to page
25.)
35
NX-F3_NX-F7[A]EN.book Page 36 Tuesday, April 22, 2008 1:55 PM
For the locations of the remote control buttons, refer to page 29.
Function list
TIME
Time display selection
Changes the time information in the display window and the status bar.
Instead of steps 3 and 4 on page 35, press [ENTER] repeatedly. Each time
[ENTER] is pressed, the display changes on the status bar.
■ When a disc is played back
TOTAL : Elapsed playback time of the current title/group.
T.REM : Remaining time of the current title/group.
TIME : Elapsed playback time of the current chapter/track.
REM : Remaining time of the current chapter/track.
■ When a disc is played back
TOTAL : Elapsed playback time of the current original program/play list.
T.REM : Remaining time of the current original program/play list.
■ When a disc is played back
TIME : Elapsed playback time of
REM the current track.
: Remaining time of the current track.
TOTAL : Elapsed playback time of the disc.
T.REM : Remaining time of the disc.
Repeat mode
Refer to page 31.
(For A-B repeat playback, refer to page 37.)
Refer to page 37.
Time search
(chapter search)
Chapter search/ track search
(track search)
Selects a chapter/track. Instead of steps 4 on page 35, press the number buttons to enter the chapter/track number and press [ENTER].
Examples:
5 : [5]
24 : [2] → [4]
Refer to page 32.
Audio language
Refer to page 32.
Subtitle language
View angle
(only for moving images)
■ When a disc is played back
Selects a view angle if the disc contains multiple view angles.
Page selection
■ When a disc is played back
Selects browsable still pictures
(B.S.P.) if the DVD AUDIO contains ones and the “B.S.P.” indicator lights up in the display window. The pictures can be viewed as if you are turning pages. For some pictures, you may have to press [ENTER] or wait for a short time after step 4 on page 35.
36
NX-F3_NX-F7[A]EN.book Page 37 Tuesday, April 22, 2008 1:55 PM
Using the status bar and the menu bar (continued)
Playing back a specified part repeatedly (A-B repeat playback)
(PBC off)
You can play back a desired part repeatedly by specifying a start point (A) and an end point (B).
■ When a disc is played back
1
Press [ON SCREEN] twice.
• The menu bar appears. (Refer to page 35.)
2
Press
2
or
3
(cursor) to select
.
3
Press [ENTER].
4
Press
5
or
/
(cursor) to select “A-
B”.
5
Press [ENTER] at the start point of the part to be repeated (specifying point A).
• The icon on the menu bar is .
6
Press [ENTER] at the end point of the part to be repeated (specifying point B).
• The icon on the menu bar is .
• The “ ” and “A-B” indicators light up in the display window and the part between points
A and B is played back repeatedly.
Canceling A-B repeat playback
There are two methods.
• Press
7
.
• Select . (Select
[ENTER] twice.)
and press
NOTE
• You can use A-B repeat playback only within the same title or track.
• You cannot use A-B repeat playback during program playback or random playback.
• To cancel the PBC function for VCD/SVCD, refer to page 23.
• For some discs, stopping playback may automatically cancel A-B repeat playback.
37
For the locations of the remote control buttons, refer to page 29.
Designating the time (Time search)
(PBC off)
■ When a disc is played back
1
Press [ON SCREEN] twice.
• The menu bar appears. (Refer to page 35.)
2
Press
2
or
3
(cursor) to select
.
3
Press [ENTER].
4
Enter the time using the number buttons.
Example:
When you want to play back a DVD VIDEO from the position of (0 hour) 23 minutes 45 seconds, press the number buttons in the order of [ 0 ], [ 2 ],
[ 3 ], [ 4 ] and [ 5 ].
• You can skip entering the minute and second settings.
• If an incorrect value is entered, press
2
(cursor) to delete the value and enter the correct value.
5
Press [ENTER].
• To turn off the menu bar, press [ON
SCREEN].
NOTE
• This function does not work during program playback or random playback.
• Time search for a DVD VIDEO is from the beginning of the title.
• Time search for a DVD AUDIO is from the beginning of the track being played back.
• Time search for a VCD, an SVCD and a CD is as follows:
- When the disc is stopped, time search is from the beginning of the disc.
- When the disc is played back, time search is within the track currently being played back.
• To cancel the PBC function for VCD/SVCD, refer to page 23.
NX-F3_NX-F7[A]EN.book Page 38 Tuesday, April 22, 2008 1:55 PM
Changing the initial settings with the preference screen
You can use the preference screen to change the initial settings of the main unit according to the environment where the main unit is used.
Basic operations
■ When a disc/file is stopped or no disc is loaded (“NO DISC” is displayed in the display window)
1
Press [SET UP].
• The preference screen appears on the TV screen.
Remote control mode selector
5
/
/
/
2
/
3
(cursor)/
ENTER
■ IMPORTANT
• Slide the remote control mode selector to [SHIFT].
NOTE
• The top and bottom of the preference screen may not be displayed on a widescreen TV.
Adjust the picture size on the TV.
2
Use
5
,
/
,
2
,
3
(cursor) and
[ENTER] to operate the preference screen.
• Follow the description on the TV screen to operate the preference screen.
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
LANGUAGE
Items
MENU
LANGUAGE
AUDIO
LANGUAGE
SUBTITLE
ON SCREEN
LANGUAGE
Contents
Select the language for the DVD
VIDEO menu screen.
Select the audio language for the DVD
VIDEO.
Select the subtitle language for the
DVD VIDEO.
Select the language displayed on the preference screen.
NOTE
• If the selected language is not recorded on the disc/file, the optimum language set for the disc/ file is displayed.
• For a language code such as “AA”, refer to the
“Language codes” on page 41.
38
NX-F3_NX-F7[A]EN-07.fm Page 39 Monday, May 12, 2008 6:26 PM
Changing the initial settings with the preference screen (continued)
Items
MONITOR
TYPE
Contents ( : initial setting)
Select the display method suitable for your TV.
NOTE
• When using an HDMI cable to connect the main unit to a widescreen TV with a
16 : 9 aspect ratio, select the display method “16 : 9 NORMAL”.
16 : 9 NORMAL :
For a widescreen TV whose aspect ratio is fixed at 16:9. When a conventional screen picture whose aspect ratio is 4:3 is input, black bars appear on the left and right sides of the screen.
16:9 AUTO :
For a widescreen TV which automatically detects the aspect ratio of the input screen picture.
When a conventional screen picture is input
When a widescreen picture is input
4 : 3 LB (Letterbox) :
For a TV with conventional 4:3 aspect ratio.
When a widescreen picture is input, black bars appear on the top and bottom of the screen.
4 : 3 PS (Pan Scan) :
For a TV with conventional 4:3 aspect ratio. When a widescreen picture is input, the left and right edges of the picture are not shown on the screen. (If the disc/file is not compatible with Pan Scan, the picture is displayed at the Letterbox ratio.)
Items
SOURCE
Contents ( : initial setting)
Select the item suitable to the video source.
AUTO :
The video source type (a video or film) is automatically selected.
FILM :
To view a film or video recorded with the progressive scan method
VIDEO :
Suitable for playing back a video
SCREEN
SAVER
You can turn ON or OFF the screen saver. The screen saver activates when there is no operation made for approximately 5 minutes since a still picture was last displayed.
FILE TYPE When files of different types are recorded on a loaded disc or connected USB device, select the file type before playback.
AUDIO :
For MP3/WMA/WAV files
STILL PICTURE :
For JPEG files
VIDEO :
For ASF/DivX/MPEG1/MPEG2 files
HDMI DVI
COLOR
You can select the settings for the picture appearance (image quality, color intensity and black fading) on the TV connected to the [HDMI MONITOR OUT] terminal.
STANDARD :
For normal usage
ENHANCE :
The main unit automatically adjusts the picture appearance.
HDMI OUT You can select the video signal type output from the [HDMI MONITOR OUT] terminal.
AUTO :
For normal usage. The main unit automatically selects the output video signal type according to the TV connected to the
[HDMI MONITOR OUT] terminal.
RGB :
Select this item if no picture appears on the
TV with the “AUTO” setting. The output video signal type is set to the RGB signal.
16 : 9 MULTI NORMAL :
16 : 9 MULTI AUTO :
4 : 3 MULTI LB (Letterbox) :
4 : 3 MULTI PS (Pan Scan) :
These “MULTI” options should be selected when you connect the system to a TV compatible with multiple video signal types. If you select one of these options, the system outputs a PAL or NTSC video signal according to the disc, regardless of the video signal type setting. (Refer to pages 10 and 11.)
39
NX-F3_NX-F7[A]EN.book Page 40 Tuesday, April 22, 2008 1:55 PM
AUDIO
Items
DIGITAL
AUDIO
OUTPUT
Contents ( : initial setting)
Select the output signal type suitable to the device connected to the [DIGITAL
OUT] terminal. Refer to “List of relationships of DIGITAL AUDIO OUTPUT preference items and output signals” on page
41.
PCM ONLY :
Device corresponding only to linear PCM
DOLBY DIGITAL/PCM :
Dolby Digital decoder or device having the same function
STREAM/PCM :
DTS/Dolby Digital decoder or device having the same function
NOTE
• When the [HDMI MONITOR OUT] terminal is connected and “HDMI AUDIO
OUT” is set to “ON”, this setting is deactivated.
DOWN MIX Select the signal suitable to the device connected to the [DIGITAL OUT] terminal. Set “DOWN MIX” only when “DIGI-
TAL AUDIO OUTPUT” is set to “PCM
ONLY”.
DOLBY SURROUND :
Dolby Pro Logic decoder-built-in device
D (Dynamic).
RANGE
COMPRESSION
HDMI
AUDIO OUT
STEREO :
Ordinary audio device
To correct the difference between high volume and low volume when playing back with low volume (only for a DVD recorded with Dolby Digital).
AUTO :
The D. RANGE COMPRESSION function automatically turns on.
ON :
The D. RANGE COMPRESSION function is always on.
You can select whether or not the audio signal from the [HDMI MONITOR OUT] terminal is output.
ON :
The audio signal from the [HDMI MONI-
TOR OUT] is output.
OFF :
The audio signal from the [HDMI MONI-
TOR OUT] is not output.
NOTE
• Depending on the connected TV, when
“HDMI AUDIO OUT” is set to “ON”, only PCM signals can be output via an
HDMI cable.
OTHERS
Items Contents ( : initial setting)
RESUME
ON
SCREEN
GUIDE
CEC
ON
ON
. (Refer to page 26.)
. (Refer to page 25.)
DivX
REGISTRATION
You can select the usage for the HDMI
CEC functions. (Refer to page 51.)
ON 1 :
For using the HDMI CEC functions normally
ON 2:
Select this item if you do not want to have the main unit automatically turned on/off by turning on/off the TV or external connected HDMI CEC compatible devices.
All other available HDMI CEC functions operate the same as when “ON 1” is selected.
OFF:
For deactivating the HDMI CEC functions
The main unit has its own registration code. You can confirm the registration code, when necessary. Once you have played back a disc/file on which the registration code is recorded, the registration code of the main unit is overwritten for copyright protection.
40
NX-F3_NX-F7[A]EN.book Page 41 Tuesday, April 22, 2008 1:55 PM
Changing the initial settings with the preference screen (continued)
Code Language
CO
CY
DA
DZ
EL
EO
ET
EU
FA
FI
FJ
FO
FY
GA
AA
AB
AF
AM
AR
AS
AY
AZ
BA
BE
BG
BH
BI
BN
BO
BR
CA
Corsican
Welsh
Danish
Bhutani
Greek
Esperanto
Estonian
Basque
Persian
Finnish
Fiji
Faroese
Frisian
Irish
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali, Bangla
Tibetan
Breton
Catalan
List of relationships of DIGITAL AUDIO OUTPUT preference items and output signals
Playback disc/file
STREAM/PCM
DIGITAL AUDIO OUTPUT preference
DOLBY DIGITAL/PCM PCM ONLY
48 kHz, 16/20/24-bit linear PCM
DVD VIDEO
96 kHz linear PCM DVD VIDEO
48/96/192 kHz, 16/20/24-bit linear PCM DVD AUDIO
44.1/88.2/176.4 kHz, 16/20/24-bit linear PCM DVD AUDIO
DTS DVD VIDEO/DVD AUDIO
DOLBY DIGITAL DVD VIDEO/
DVD AUDIO
CD/VCD/SVCD
48 kHz, 16-bit stereo linear PCM
48 kHz, 16-bit stereo linear PCM
44.1 kHz, 16-bit stereo linear PCM
DTS bit stream 48 kHz, 16-bit stereo linear PCM
DOLBY DIGITAL bit stream
48 kHz, 16-bit stereo linear
PCM
DTS bit stream
44.1 kHz, 16-bit stereo linear PCM
48 kHz, 16-bit linear PCM
44.1 kHz, 16-bit linear PCM DTS CD
MP3/WMA/WAV/DivX/MPEG1/
MPEG2 file
32/44.1/48 kHz, 16-bit linear PCM
NOTE
• Among DVD VIDEOs without copyright protection, there may be some DVD VIDEOs that output a 20- or
24-bit signal through the [DIGITAL OUT] terminal.
Language codes
Code Language
KK
KL
KM
KN
KO
KS
KU
KY
LA
LN
LO
LT
LV
MG
GD
GL
GN
GU
IA
IE
IK
IN
HA
HI
HR
HY
IS
IW
JI
JW
KA
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Hebrew
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean (KOR)
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Code Language
PS
PT
QU
RM
RN
RO
RW
SA
SD
SG
SH
SI
SL
SM
MI
MK
ML
MN
MO
MR
MS
MT
MY
NA
NE
NL
NO
OC
OM
OR
PA
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay (MAY)
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
Panjabi
Pashto, Pushto
Portuguese
Quechua
Rhaeto-Romance
Kirundi
Rumanian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovenian
Samoan
Code Language
SN
SO
SQ
SR
SS
ST
SU
SV
SW
TA
TE
TG
TH
TI
TK
TL
TN
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
TO
TR
TS
TT
TW
UK
UR
UZ
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
VI
VO
Vietnamese
Volapuk
WO Wolof
XH Xhosa
YO Yoruba
ZU Zulu
41
NX-F3_NX-F7[A]EN.book Page 42 Tuesday, April 22, 2008 1:55 PM
Ripping sound directly from a CD to a USB device
You can record sound from a CD to a USB device.
This function is generally called “ripping” or “digital audio extraction”.
CAUTION
• It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable program and in any literary, dramatic musical, or artistic work embodied therein.
• Only a CD formatted with Compact Disc Digital
Audio (CD-DA) standard is compatible with this function. You cannot record sound from CDs with other formats, other types of discs, or other sources.
• A track from a CD is digitally recorded and converted into an MP3 file.
• This system uses a constant recording speed of x1. Sound is recorded at bit rate of 128 kbps.
You cannot increase the recording speed.
Recording all tracks from a
CD to a USB device
1
Place a CD on the disc tray and connect the USB device.
• Refer to pages 19 and 20.
2
Press [DVD
3
].
3
Press
7
to stop playback.
4
Press [REC].
• The title and number of the group appear on the TV screen. (It may take some time until the title and number of the group appear.)
TV screen
Number buttons *
Remote control mode selector
5
/
/
/
2
/
3
(cursor)/
ENTER
5
Press
5
or
/
(cursor) repeatedly to select the desired group on the connected USB device.
• You can create a new group by selecting
“NEW GROUP” on the TV screen.
• After this step, you can add (edit) a title to the selected group. Follow step 4 to 8 in
“Adding (Editing) a title to a track/group on a
USB device” on page 45.
• To cancel the settings, press 7 .
* For the number button usage, refer to “Using the number buttons” on page 12.
■ IMPORTANT
• Slide the remote control mode selector to [AUDIO].
(Continued on the next page)
42
NX-F3_NX-F7[A]EN-08.fm Page 43 Wednesday, April 23, 2008 9:29 AM
Ripping sound directly from a CD to a USB device (continued)
6
Press [ENTER] to start recording.
• The “REC” indicator starts flashing in the display window.
Display window
CAUTION
• Do not bump or move the main unit while recording sound. Such movement may interfere with recording.
• Do not disconnect the USB device during recording, as this may cause malfunction.
• When recording finishes, the “REC” indicator turns off.
NOTE
• When you want to quit recording, press
7
.
When you press 7 after [ENTER] is pressed in step 6, sound having been recorded before
7
is pressed is stored. After pressing 7 , if you want to disconnect the USB device, wait until the
“REC” indicator stops flashing and disappears.
• Do not operate the main unit when “PLEASE
WAIT...” is displayed on the TV screen or “WAIT” is displayed in the display window. Wait until the display disappears.
• If “NO USB” appears in the display window, check the USB device or its connection.
• “CANT REC” appears in the display window if recording cannot continue for some reason.
- The USB device may be connected improperly. Check the connection.
- You may be trying to record write protected tracks.
- You may be trying to record sound from a CD-
R or CD-RW. The Serial Copy Management
System (SCMS) protects copyright and allows only first-generation digital copies from the digitally recordable source. In short, you cannot make “a copy of a copy”.
- You may be trying to record more than the limited number of recordable tracks. You can record up to 999 tracks to a group and 4 000 tracks to a USB device.
- The number of tracks that can be recorded to the root group may be limited on the USB device. The number of tracks may have exceeded the limitation. In this case, select another group or create a new group.
• Changes to the volume and quality of the sound during recording do not affect the recorded sound or the recorded sound level.
• The following functions do not affect the recorded sound: the treble/bass adjustment function (page 12), K2 function (page 13 [only for
NX-F7]), speaker volume level function (page
13), surround mode function (page 13), headphone surround function (page 14) and clear voice function (page 14).
• When “RANDOM” is selected, operating this function automatically cancels random playback.
Recording only one track
Instead of step 3 on page 42, start playback of the desired track.
• You can use the number buttons, 4 or ¢no to select a track.
• Finishing step 6 returns playback to the beginning of the current track and only that track is recorded.
NOTE
• You can also record only the desired track by pausing the track instead of step 3 on page 42.
• When “RANDOM” is selected, operating this function automatically cancels random playback.
Recording programmed tracks
Before proceeding to step 4 on page
42, program the desired tracks.
• Refer to steps 1 and 2 on pages 29 and 30 for programming tracks.
• The following procedure is the same as steps 4 to 6 on page 42 and this page.
43
NX-F3_NX-F7[A]EN.book Page 44 Tuesday, April 22, 2008 1:55 PM
Deleting a track/group from a
USB device
1
Connect the USB device.
• Refer to page 20.
2
Press [USB
3
].
3
Press
7
to stop playback.
TV screen
For the locations of the remote control buttons, refer to page 42.
NOTE
• When “WAIT” is displayed in the display window, you cannot start deletion. Wait until the main unit reads signals from the USB device.
• You can also refer to messages on the TV screen when you delete a title to a track/group from the connected USB device. The messages indicate the operational status and provide instructions.
• Do not press [AUDIO
F
] while the main unit is deleting a track or group. If [AUDIO F ] is pressed, the main unit automatically turns off after the track or group is deleted.
• It may take a long time to delete a group containing many tracks.
CAUTION
• Do not bump or move the main unit while deleting a track/group. Such movement may interfere with deleting.
• Do not disconnect the USB device during deleting, as this may cause malfunction.
4
Press
5
,
/
,
2
or
3
(cursor) repeatedly to select the desired track/group.
5
Press [TITLE/DELETE] repeatedly to select “T. DELETE” or
“G. DELETE” in the display window.
Display window
• Select “T. DELETE” to delete a track.
• Select “G. DELETE” to delete a group.
6
Press [ENTER].
TV screen
• To cancel deleting the track/group, press
[CANCEL].
7
Press [ENTER].
44
NX-F3_NX-F7[A]EN.book Page 45 Tuesday, April 22, 2008 1:55 PM
Ripping sound directly from a CD to a USB device (continued)
Adding (Editing) a title to a track/group on a USB device
1
Connect the USB device.
• Refer to page 20.
2
Press [USB
3
].
3
Press
7
to stop playback.
TV screen
4
Press
5
,
/
,
2
or
3
(cursor) repeatedly to select the desired track/group.
5
Press [TITLE/DELETE] repeatedly to select “T. TITLE” or “G. TITLE” in the display window.
Display window
7
Enter a title.
• Refer to “Entering a title” on page 46.
• To cancel editing a title, press
7
.
8
Press [ENTER].
NOTE
• When “WAIT” is displayed in the display window, you cannot start editing.
• If “NO USB” appears in the display window, check the USB device or its connection.
• You can also refer to messages on the TV screen when you add or edit a title to a track/ group on the connected USB device. The messages indicate the operational status and provide instructions.
• Do not press [AUDIO
F
] while the main unit is editing a title. If [AUDIO F ] is pressed, the main unit automatically turns off after the title is edited.
• If you press [ENTER] without first entering a title,
“EDIT ERR” appears in the display window and the following display appears on the TV screen.
At this time, press [ENTER] again to enter a title.
TV screen
• Select “T. TITLE” to add a title to a track.
• Select “G. TITLE” to add a title to a group.
6
Press [ENTER].
• The title of the selected track/group appears in the display window.
• If the track/group does not have a title, “NO
NAME” appears instead.
• Press [CANCEL] to erase a stored title.
TV screen
CAUTION
• Do not bump or move the main unit while editing a title. Such movement may interfere with editing.
• Do not disconnect the USB device during editing, as this may cause malfunction.
45
NX-F3_NX-F7[A]EN-08.fm Page 46 Thursday, May 1, 2008 4:00 PM
Entering a title
The operation is explained with the time when to enter “F” as an example.
1
Press
5
or
/
(cursor) repeatedly to select the character type setting.
• Each time you press 5 or / (cursor), the selected character type setting changes to
“ABCDE”, “abcde” or “01234” on the TV screen.
• “ABCDE” refers to uppercase characters or symbols.
• “abcde” refers to lowercase characters or symbols.
• “01234” refers to numerical characters.
2
Press the number button [3] repeatedly until “F” appears.
• Several characters are assigned to one button. Press the button repeatedly until the desired character is displayed. In this example, “D”, “E” and “F” are assigned to [3].
• For the available characters, refer to “Available characters” shown on the right.
NOTE
• When you want to move the character entry position, press
2
or
3
(cursor) repeatedly.
• When you want to enter “NO”, “TV”, or other two or more characters which are assigned to one button (in this case, [6] or [8]), enter the first character, press
3
(cursor) to move the character entry position to the right, and then enter the second character.
• You can enter up to 24 characters for the file title and up to 28 characters for the folder title.
• When you want to erase a character, move the character entry position to the desired character, and press [CANCEL].
• When you want to enter a space, select the space from the symbol (Refer to “Available characters” shown on the right). You can also enter a space at the end of a title by pressing 3 (cursor).
• When you want to cancel title entry, press 7 .
The entered characters are not stored.
• If you enter a title that already exists, “THIS
NAME ALREADY EXISTS. PLEASE USE A
DIFFERENT NAME.” appears on the TV screen.
Enter a different title.
For the locations of the remote control buttons, refer to page 42.
Available characters
You can use the characters shown below by repeatedly pressing the number buttons ([1] to [9] and [0]). Each number button is assigned with several characters.
* Available symbols
You can use the symbols show below by repeatedly pressing [1].
46
NX-F3_NX-F7[A]EN.book Page 47 Tuesday, April 22, 2008 1:55 PM
Operating external devices using the remote control
You can operate your TV, digital broadcast satellite
(DBS) and video cassette recorder (VCR) using the remote control of this system.
Operating a TV using the remote control
Setting the manufacturer code
Number buttons * /
TV RETURN/
100+
Remote control mode selector
3 (playback)
* For the number button usage, refer to “Using the number buttons” on page 12.
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [TV].
2
Hold down [TV
F
].
• Hold down [TV F ] until you finish step 5.
3
Press [ENTER] and release.
4
Press number buttons to enter the manufacturer code.
Examples:
For a Hitachi TV: Press [1], then [0].
For a Toshiba TV: Press [0], then [8].
When the manufacturer of your TV has 2 or more codes, select the manufacturer codes in turn and find the one that operates the TV and the remote control properly.
Manufacturer
JVC
Hitachi
Magnavox
Mitsubishi
Panasonic
Philips
Code
01
10
02
03
04, 11
15
RCA 05
Samsung 12, 18, 19, 20, 21
Sanyo 13, 14
Sharp
Sony
06, 16, 17
07
Toshiba
Zenith
08
09
The initial code setting is “01 (JVC)”.
5
Release [TV
F
].
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
• Manufacturer codes are subject to change without notice. You may not be able to operate the
TV produced by the manufacturer.
• After replacing the batteries of the remote control, set the manufacturer code again.
47
NX-F3_NX-F7[A]EN.book Page 48 Tuesday, April 22, 2008 1:55 PM
Using the remote control for the TV operation
Before the TV operation, select the remote control mode for the TV.
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [TV].
2
Operate the remote control by pointing it at the TV.
.
Remote control button
Usage
[TV F ] Turns on/off the TV.
[TV/VIDEO]
Changes between the TV and video input.
Changes channels.
[CH +/ – ]
[TV VOL +/ – ] Adjusts volume.
Number buttons (1-9, 0,
100+)
Selects the channels.
[TV RETURN]
Changes between the previously selected channel and the current channel.
NOTE
• When the remote control mode selector is slid to the lowest position and [TV] is pressed, some buttons may not work.
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
Operating a DBS using the remote control
Setting the manufacturer code
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [DBS].
2
Hold down [DBS/VCR
F
].
• Hold down [DBS/VCR
F
] until you finish step 5.
3
Press [ENTER] and release.
4
Press number buttons to enter the manufacturer code.
Examples:
For an Echostar DBS: Press [2], then [1].
For a Sony DBS: Press [2], then [0].
When the manufacturer of your DBS has 2 or more codes, select the manufacturer codes in turn and find the one that operates the DBS and the remote control properly.
Manufacturer
G. I.
Code
01, 02, 03, 04, 05, 06, 07, 08
Echostar
Hamlin
Jerrold
21
15, 16, 17, 18
01, 02, 03, 04, 05, 06, 07, 08
RCA 19
Scientific Atlanta 09, 10
Sony
Zenith
20
11, 12
The initial code setting is “01 (G.I.)”.
5
Release [DBS/VCR
F
].
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
• Manufacturer codes are subject to change without notice. You may not be able to operate the
DBS produced by the manufacturer.
• After replacing the batteries of the remote control, set the manufacturer code again.
48
NX-F3_NX-F7[A]EN.book Page 49 Tuesday, April 22, 2008 1:55 PM
Operating external devices using the remote control (continued)
Using the remote control for the
DBS operation
Before the DBS operation, select the remote control mode for the DBS.
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [DBS].
2
Operate the remote control by pointing it at the DBS.
Remote control button Usage
[DBS/VCR F ]
[CH +/ – ]
Number buttons (1-9, 0,
10)
Turns on/off the DBS.
Changes channels.
Selects the channels.
NOTE
• When the remote control mode selector is slid to the lowest position and [DBS] is pressed, some buttons may not work.
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
Operating a VCR using the remote control
Setting the manufacturer code
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [VCR].
2
Hold down [DBS/VCR
F
].
• Hold down [DBS/VCR F ] until you finish step 5.
3
Press [ENTER] and release.
4
Press number buttons to enter the manufacturer code.
Examples:
For a Hitachi VCR: Press [0], then [4].
For a Mitsubishi VCR: Press [1], then [3].
When the manufacturer of your VCR has 2 or more codes, select the manufacturer codes in turn and find the one that operates the VCR and the remote control properly.
Manufacturer
JVC
Emerson
Fisher
Funai
Gold Star
Hitachi
Mitsubishi
NEC
Panasonic
Philips
RCA
Samsung
Sanyo
Sharp
Shintom
Sony
Zenith
The initial code setting is “01 (JVC)”.
Code
01, 02, 03
11, 26
29
10, 14, 15, 16
12
04
13
25
07, 17
09
05, 06
24
21, 22, 23
27, 28
30
18, 19, 20
08
49
NX-F3_NX-F7[A]EN.book Page 50 Tuesday, April 22, 2008 1:55 PM
5
Release [DBS/VCR
F
].
NOTE
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
• Manufacturer codes are subject to change without notice. You may not be able to operate the
VCR produced by the manufacturer.
• After replacing the batteries of the remote control, set the manufacturer code again.
Using the remote control for the
VCR operation
Before the VCR operation, select the remote control mode for the VCR.
■ IMPORTANT
• Slide the remote control mode selector to the lowest position.
1
Press [VCR].
2
Operate the remote control by pointing it at the VCR.
Remote control button Usage
[DBS/VCR
F
] Turns on/off the VCR.
[CH +/ – ]
Number buttons
(1-10, 0, 10)
3
(playback)
Changes channels.
Selects the channels.
Starts playback.
7 Stops
8
Pauses
¡
1
Fast-forwards the tape.
Fast-rewinds the tape.
[REC] + 3 (playback) Starts recording.
[REC] +
8
Pauses
NOTE
• When the remote control mode selector is slid to the lowest position and [VCR] is pressed, some buttons may not work.
• It is recommended that you slide the remote control mode selector to [AUDIO] after using this function. Most of the other functions can be used when the remote control mode selector is at
[AUDIO].
For the locations of the remote control buttons, refer to page 47.
50
NX-F3_NX-F7[A]EN.book Page 51 Tuesday, April 22, 2008 1:55 PM
Basic operations of HDMI CEC
Consumer Electronics Control (CEC) is device controlling signals optionally employed for the High-Definition
Multimedia Interface (HDMI) standard. When devices equipped with CEC are connected, each device can control the others.
This system is compatible with some basic functions of HDMI CEC.
TV compatible with
HDMI CEC
External device compatible with HDMI CEC
HDMI cable (not supplied)
Main unit
• When you start playback on the main unit, the connected TV automatically turns on.
• When you select the main unit as the source of the TV, picture and sound from the main unit are automatically produced.
• When you turn off the TV, the main unit automatically turns off. (This function works when “ON 1” is selected for “CEC” in the preference screen. Refer to page 40.)
• When you select the menu screen language of the TV, and then the main unit is turned off and turned on again, the same language is automatically selected on the main unit. (The selectable languages are limited to those supported by this system.)
• As long as the connected TV is compatible, you can use the operations of the TV to start playback, adjust the volume and operate other functions on the main unit.
NOTE
• This function is available only when the source is set to “DVD” or “USB”.
• This function is available when “ON 1” or “ON 2” is selected for “CEC” in the preference screen (refer to page 40).
• For details about the CEC function, refer to the operations manuals of the connected CEC devices.
• If the power cable is not connected to an AC outlet, the CEC function does not work, even when the main unit is connected to CEC devices.
• Not all HDMI devices are compatible with CEC. If the main unit is connected to non-CEC compatible devices, these devices cannot be controlled using the CEC function.
• The CEC function may not work with some CEC devices. (When the main unit is connected to a non-JVC product, the CEC function may not work.)
• The CEC function may not work depending on the settings or status of the main unit or the connected CEC devices.
• When connecting the main unit to a TV with an HDMI cable for the first time after purchase, confirm that
“JVC” (the initial screen) appears.
• When you disconnect the HDMI cable and connect it again, confirm that “JVC” appears.
• If the CEC function does not work properly, select “OFF” for the “CEC” setting, and then select “ON 1” or
“ON 2” again. (Refer to page 40.)
51
NX-F3_NX-F7[A]EN.book Page 52 Tuesday, April 22, 2008 1:55 PM
Notes on operation
Suitable locations for the main unit
To minimize the need for servicing and maintain the high quality of this system, do not place the main unit in the following locations:
• In a position subject to high humidity or considerable dust
• On an uneven or unstable surface
• Near a heat source
• Near a computer, fluorescent light or other electric appliance
• In a small room with insufficient ventilation
• In a position exposed to direct sunlight
• In a position exposed to excessive cold
• In a position exposed to strong vibration
• Near a TV, other amplifier, or tuner
• Near a magnetic source
CAUTION
• The operating temperature of this system is 5 ° C to 35 ° C. Use in temperatures outside this range may cause a malfunction or damage the system.
Condensation
Under the following conditions, you may not be able to operate this system properly due to condensation formed on the lens of the main unit:
• When you have just started an air conditioner to warm your room
• When you have placed the main unit at an area with high humidity
• When you have moved the main unit from a cold place to a warm place
When condensation forms, leave the main unit turned on, wait for approximately 1 or 2 hours, and then operate the main unit.
Cleaning the main unit
When the operation panel becomes dirty, dust it with a soft dry cloth. When the operation panel is very dirty, wipe it with a cloth dampened with a small amount of a neutral detergent, and then wipe it with a soft dry cloth.
CAUTION
• Do not wipe the operation panel with thinners, benzenes or other chemical agents. Do not spray insecticides onto the operation panel.
These may discolor and damage the surface.
Notes on handling
Important cautions
Installation of the system
• Select a place that is level, dry and neither too hot nor too cold, and between 5 ° C and 35 ° C.
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.
Power cable
• Do not handle the power cable with wet hands!
• A small amount of power is always consumed while the power cable is connected to the wall outlet.
• When unplugging the power cable from the wall outlet, always pull on the plug, not the power cable.
To prevent malfunctions of the system
• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cable and consult your dealer.
• Do not insert any metallic object into the system.
Note about copyright laws
Check the copyright laws in your country before recording from CDs. Recording of copyrighted material may infringe copyright laws.
52
NX-F3_NX-F7[A]EN.book Page 53 Tuesday, April 22, 2008 1:55 PM
Notes on operation (continued)
Safety Precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight and do not place it near heating equipment.
When you are away
When away on travel or for other reasons for an extended period of time, disconnect the power cable plug from the wall outlet.
Do not block the vents
Blocking the vents may damage the system.
Care of the cabinet
When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants.
These may cause deformation or discoloring.
If water gets inside the system
Turn the system off and disconnect the power cable plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.
License and trademark
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
• CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE
FULLY COMPATIBLE WITH THIS PRODUCT
AND MAY CAUSE ARTIFACTS TO BE DIS-
PLAYED IN THE PICTURE. IN CASE OF 525
OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT
THE USER SWITCH THE CONNECTION TO
THE “STANDARD DEFINITION” OUTPUT.
IF THERE ARE QUESTIONS REGARDING
OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER,
PLEASE CONTACT OUR CUSTOMER SER-
VICE CENTER.
• USE OF THIS PRODUCT IN ANY MANNER
THAT COMPLIES WITH THE MPEG-4 VISUAL
STANDARD IS PROHIBITED, EXCEPT FOR
USE BY A CONSUMER ENGAGING IN PER-
SONAL AND NON-COMMERCIAL ACTIVITIES.
• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
• Official DivX ® Ultra Certified product
• Plays all versions of DivX ® video (including DivX ®
6) with enhanced playback of DivX ® media files and the DivX ® Media Format
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
• DVD Logo is a trademark of DVD Format/Logo
Licensing Corporation.
• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “MLP Lossless”, and the double-D symbol are trademarks of Dolby
Laboratories.
• “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• HDCP is the abbreviation of “High-bandwidth
Digital Content Protection,” and is the high-reliable copy control technology licensed by Digital
Content Protection, LLC.
53
NX-F3_NX-F7[A]EN-11.fm Page 54 Thursday, May 1, 2008 3:58 PM
Notes on discs/files
Playable disc/file types
Playable discs *
1
DVD VIDEO, DVD AUDIO, DVD VR *
3
, VCD, SVCD, CD,
CD-R *
4
, CD-RW *
4
, DVD-R *
5, * 6
, DVD-RW *
6
, +R, +RW
Playable files recorded on a disc * 1
Playable files recorded on a USB device *
2
• Even though listed above, some types may be unplayable.
* 1 Discs should be finalized before being played back.
* 2 This system may not recognize some USB devices. This system cannot play back a file whose data volume is more than 2 gigabytes and a file whose data transfer rate is more than
2 Mbps.
* 3 DVD VR means a DVD-R/DVD-RW recorded in
Video Recording (VR) format.
* 4 A CD-R/CD-RW recorded in multi-session format (up to 20 sessions) is playable.
* 5 A DVD-R recorded in multi-border format is also playable (including dual layer discs).
* 6 For files recorded on a DVD-R/DVD-RW, the disc should be formatted with UDF Bridge.
MP3, WMA, WAV, JPEG, ASF, DivX, MPEG1, MPEG2
Region code of DVD VIDEO
DVD VIDEO players and DVD VIDEO discs have their own region code numbers. This system can play back a DVD VIDEO whose region code number includes the system’s region code, which is indicated on the rear panel of the main unit.
Examples:
For Australia
For Hong Kong
It is possible to play back finalized +R/+RW (DVD
Video Format only) discs. “DVD” lights on the front display panel when a +R/+RW disc is loaded.
Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stains on them.
Only sounds can be played back from the following discs:
MIX-MODE CD CD-G
CD-EXTRA CD TEXT
This system accommodates the PAL and NTSC systems. When you play back an NTSC disc with the video signal type set to “PAL. 576I”,
“PAL. 576P”, “PAL. 720P”, “PAL.1080I” or
“PAL.1080P” (refer to pages 10 and 11), the NTSC video signal is converted to the PAL60 signal and output.
If a DVD VIDEO with an improper region code number is loaded, playback cannot start.
• On some DVD VIDEOs, DVD AUDIOs, VCDs,
SVCDs or DivX files, their actual operation may be different from what is explained in this manual. This is due to the disc/file programming and disc/file structure, not a malfunction of this system.
54
NX-F3_NX-F7[A]EN.book Page 55 Tuesday, April 22, 2008 1:55 PM
Notes on discs/files (continued)
Unplayable discs
• The following discs cannot be played back:
• DVD-ROM (except for MP3/WMA/JPEG/ASF/
DivX/MPEG1/MPEG2 format), DVD-RAM, CD-
ROM, CD-I (CD-I Ready), Photo CD, SACD, etc.
• Playing back these discs generates noise and may damage the speakers.
• Damaged discs and discs with an unusual shape
(other than a disc of 12 cm or 8 cm in diameter) cannot be played back.
• JVC does not guarantee the operation and sound quality of discs not authorized by CD-DA, which is a CD specification.
Before playback, confirm that the disc complies with this CD specification by checking the marks and reading notes printed on the package.
Playable MP3/WMA/WAV/JPEG/
ASF/DivX/MPEG1/MPEG2 discs/ files
• CDs recorded in the ISO 9660 format are playable (except CDs recorded in the “packet write” format (UDF format)).
• Files with an extension of “.mp3”, “.wma”, “.wav”,
“.jpg”, “.jpeg”, “.asf”, “.divx”, “.div”, “.avi”, “.mpg”,
“.mpeg” or “.mod” (extensions with mixed cases are also acceptable) are playable.
Notes on MP3/WMA/WAV/JPEG/
ASF discs/files
• A disc may not be played back, or reading it may take a long time depending on its recording conditions or properties.
• The time needed for reading varies with the number of groups or tracks (files) recorded on the disc.
• If characters other than single-byte alphanumeric characters are used in the file name of an
MP3/WMA/WAV/JPEG/ASF file, the track/file name is not displayed correctly.
• The order of tracks/groups displayed on the
MP3/WMA/WAV menu screen, and the order of files/groups displayed on the JPEG menu screen may be different from that of files/folders displayed on a computer monitor screen.
• Playing back an MP3/WMA file that contains a still image may take a long time. The elapsed time is not displayed until playback starts. This elapsed time may not be displayed correctly.
• For an MP3/WMA file, a disc with a sampling frequency of 44.1 kHz and transmission rate of 128 kbps is recommended.
• This system is not compatible with an MP3i or
MP3PRO file.
• This system can play back a baseline JPEG file, excluding monochromatic JPEG files.
• This system can play back JPEG data taken with a digital camera conforming to the DCF (Design
Rule for Camera File System) standard (when a function such as the automatic rotation function of a digital camera is applied, the data may no longer conform to the DCF standard, and the image may not be displayed).
• If data has been processed, edited or restored with computer image editing software, the data may not be displayed.
• This system cannot play back animations such as MOTION JPEG files, still pictures (TIFF etc.) other than JPEG files, or image data with sound.
• The resolution of 640 x 480 pixels is recommended for JPEG files. If a file has been recorded at a resolution of more than 640 x 480 pixels, it may take a long time to display the file.
An image with a resolution of more than 8 192 x
7 680 pixels cannot be displayed.
• The system supports ASF files recorded with the maximum bit rate of 384 kbps and an audio coder decoder of G.726.
• A WAV file with a sampling frequency of
44.1 kHz and a quantization bit rate of 16 bits is recommended.
55
NX-F3_NX-F7[A]EN.book Page 56 Tuesday, April 22, 2008 1:55 PM
Notes on DivX discs/files
• The system supports DivX 5.x, 4.x and 3.11.
• The system supports DivX files with a resolution of 720 x 480 pixels or less (30 fps) and 720 x
576 pixels or less (25 fps).
• Audio streams should conform to MPEG1 Audio
Layer-2, MPEG Audio Layer-3 (MP3) or Dolby
Digital.
• The system does not support GMC (Global
Motion Compression).
• Files encoded in the interlaced scanning mode may not be played back correctly.
• Playing back a DivX file may take a long time.
The elapsed time is not displayed until playback starts. The elapsed time may also not be displayed correctly.
Notes on MPEG1/MPEG2 discs/ files
• The stream structure of MPEG1/MPEG2 discs and files should conform to MPEG system/program stream.
• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.
• This system also supports the resolutions of 352 x 576/480 x 576/352 x 288 pixels (25 fps) and
352 x 480/480 x 480/352 x 240 pixels (30 fps).
• The profile and level should be MP@ML (Main
Profile at Main Level)/SP@ML (Simple Profile at
Main Level)/MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio
Layer-2, MPEG2 Audio Layer-2 or Dolby Digital
(MPEG2 files only).
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard.
Therefore, the use of Non-DVD side of a DualDisc on this product is not recommended.
Notes on files recorded on a connected USB device
• This system is compatible with USB 2.0 Full-
Speed.
• This system may not play back some USB devices and some files.
• This system does not support DRM (Digital
Rights Management).
• This system cannot recognize a USB device whose rating exceeds 5V/500mA.
• When connecting a USB device, refer also to its manual.
• Connect the USB device directly to the main unit without routing through a USB hub.
• Disconnect the USB device after stopping playback or turning off this system.
• The main unit can charge a USB device when the USB device is selected as the source.
• Always set the volume to the minimum on this system when connecting or disconnecting a
USB device.
• JVC bears no responsibility for any loss of data on the USB device while using this system.
56
NX-F3_NX-F7[A]EN.book Page 57 Tuesday, April 22, 2008 1:55 PM
Notes on discs/files (continued)
Data hierarchy
DVD VIDEO/DVD VR
A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.
A DVD VR consists of “original programs” or “play lists” and each original program/play list may be divided into “chapters”.
Title 1/Original program 1/
Play list 1
Title 2/Original program 2/Play list 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
DVD AUDIO
A DVD AUDIO consists of “groups” and each group may be divided into “tracks”.
Some discs include a “bonus group” that requires a password for playback. (Refer to page 34.)
Group 1 Group 2
Track 1 Track 2 Track 3 Track 1 Track 2
VCD/SVCD/CD
A VCD/SVCD/CD consists of “tracks”.
In general, each track has its own track number.
(On some discs, each track may also be further divided by indexes.)
Track 1 Track 2 Track 3 Track 4 Track 5
.
MP3/WMA/WAV/JPEG/ASF/DivX/MPEG1/
MPEG2 files
Audio, still pictures and video are recorded as tracks/files on a disc or a USB device. Tracks/files are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.
This system simplifies the hierarchical construction of files and manages folders by “groups”.
Up to 99 groups
Group 1 Group 2
Track 1
/File 1
Track 2
/File 2
Group 3 Group 4 Group 5
Up to 999 tracks/files
This system can recognize up to 4 000 tracks/files on a disc. Also, the system can recognize up to
999 tracks/files per group and up to 99 groups on a disc. Since the system ignores the tracks/files with numbers exceeding 999 and the groups with numbers exceeding 99, these cannot be played back.
If there are any type of files other than MP3/WMA/
WAV/JPEG/ASF/DivX/MPEG1/MPEG2 files on a disc, those files are also counted in the total number of files.
57
Handling discs
• Do not use a commercially-available non-standard shape disc (like a heart, flower or credit card, etc.), because it may damage the system.
• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.
• Do not bend the disc.
Label sticker
Sticker
Cleaning discs
Signal surface
Paste
Wipe the disc from the center outward with a soft cloth.
• Scratches concentrated on a certain part cause sound dropout.
• Be sure not to use thinners, benzenes, cleaners for analog records, or other chemical agents.
NX-F3_NX-F7[A]EN.book Page 58 Tuesday, April 22, 2008 1:55 PM
Troubleshooting
■ General
Problem Possible cause Possible solution
Reference page
Power does not come on.
The power cable is not connected to an AC outlet.
You cannot operate any button.
Some specific operations are restricted.
Connect the power cable correctly.
This is not a malfunction.
The remote control does not work.
The batteries are running low. Replace the batteries.
You cannot operate the main unit using the remote control.
A whirring noise can be heard.
Function assigned to some buttons change according to the remote control mode.
The main unit is located close to a TV, computer, or other electric appliance.
Slide the remote control mode selector to [AUDIO], [SHIFT] or the lowest position to select an appropriate mode to your desired function.
Place the main unit away from a
TV, computer, or other electric appliance.
No picture is produced. Improper connection.
The picture is distorted. A video cassette recorder is connected between the main unit and the TV.
Connect all cables properly.
Connect the main unit directly to the TV.
The video signal type setting is not appropriate.
Select the video signal type suitable for your TV.
The screen size is abnormal.
The screen size setting is not appropriate.
Select the display method suitable for your TV.
The TV screen darkens. The screen saver setting is activated.
Press any button.
No picture/sound is produced via the [HDMI
MONITOR OUT] terminal.
A disc/file recorded in a format incompatible with the main unit/
TV is played back.
The connected TV is not compatible with HDCP.
Confirm the playable disc/file types.
Connect a TV compatible with
HDCP.
The picture is distorted when the TV is connected to the [HDMI
MONITOR OUT] terminal.
The main unit fails to recognize the TV connected to the [HDMI
MONITOR OUT] terminal.
Disconnect the HDMI cable and connect it again.
An HDMI cable longer than 5 m
(15 feet) is used.
Use an HDMI cable of 5 m (15 feet) or shorter to assure stable operation and picture quality.
The proportion of the picture is not appropriate.
Connect the TV to the [VIDEO] terminal or the [COMPONENT] terminals, and select the video signal type setting.
9
–
4
–
52
8 and 9
8
10 and 11
39
39
54
9
9
–
8–11
(Continued on the next page)
58
NX-F3_NX-F7[A]EN.book Page 59 Tuesday, April 22, 2008 1:55 PM
Troubleshooting (continued)
■ General (continued)
Problem Possible cause Possible solution
No sound is produced.
The speakers are not connected correctly.
The sound is weak and can hardly be heard.
Headphones are connected. Disconnect the headphone plug.
The sound is turned off.
Restore the sound.
If “NO AUDIO” is displayed in the display window, the disc may have been produced through illegal copying.
The volume level is low.
Connect the speakers correctly.
Check the disc at the store where it was purchased.
Increase the volume level.
Turn down the volume.
Connect the antennas correctly.
The sound is distorted.
The volume is too high.
A radio broadcast has interference from noise.
The antennas are not connected correctly.
A radio broadcast cannot be received.
A noise is produced from the rear of the main unit.
The internal cooling fan produces the noise as the fan rotates.
The HDMI CEC function does not work.
The connected TV is not compatible with the HDMI CEC function.
The noise is not a malfunction.
The cooling fan is used to prevent overheating of the main unit.
Refer to the operation manual of the TV.
When you disconnect the HDMI cable and connect it again, the
HDMI CEC function does not work properly.
“OFF” is selected for the “CEC” setting.
Select “ON 1” or “ON 2” for the
“CEC” setting.
The previous connection setting is stored on the main unit.
Select “OFF” for the “CEC” setting, and then select “ON 1” or “ON 2” again.
Reference page
6
14
12
–
12
12
5
12
–
40
51
59
NX-F3_NX-F7[A]EN.book Page 60 Tuesday, April 22, 2008 1:55 PM
■ For a loaded disc
Problem Possible cause Possible solution
Reference page
A disc cannot be played back.
If “REGION CODE ERROR!” appears on the TV screen, the region code number of a disc is not compatible with this system.
(only for a DVD VIDEO)
Confirm the region code number compatible with this system.
If “CANNOT PLAY THIS DISC” appears on the TV screen, the disc cannot be played back with this system.
Confirm the disc type playable with this system.
The disc is upside down. Place the disc on the disc tray with the printed surface facing up.
You cannot change the audio language/subtitle language/view angle.
No subtitles are displayed.
Moisture has condensed on the lens.
Leave the main unit turned on, wait for approximately 1 or 2 hours, and then operate the main unit.
The disc/file does not contain multiple audio languages/subtitle languages/view angles.
The disc/file contains no subtitles.
If only one audio language/subtitle language/view angle is recorded on the disc, you cannot change the setting.
If no subtitles are recorded on the disc/file, you cannot display subtitles.
“LR ONLY” is displayed in the display window.
(only for a DVD AUDIO)
When you play back a track for which down-mixing is prohibited and with multi-channel sound, the left and right sounds are output directly as they are.
A certain point on the disc cannot be played back properly.
This is not a malfunction.
The disc is scratched or dirty. Clean or replace the disc.
MP3, WMA, WAV,
JPEG, ASF, DivX,
MPEG1 or MPEG2 file cannot be played back.
The disc cannot be ejected.
You have not selected the subtitle language.
Select the subtitle language.
The loaded disc may include files of different types (MP3,
WMA, WAV, JPEG, ASF, DivX,
MPEG1 or MPEG2).
Disc ejection is locked.
Select “FILE TYPE”. You can play back only the files of the types selected with “FILE TYPE”.
If the main unit has read the file before you make the “FILE TYPE” setting, reset “FILE TYPE” to the desired file type, and then reload the disc.
Unlock the disc ejection.
54
54
19
52
32 and 36
32
32
–
57
39
15
(Continued on the next page)
60
NX-F3_NX-F7[A]EN.book Page 61 Tuesday, April 22, 2008 1:55 PM
Troubleshooting (continued)
■ For a connected USB device
Problem Possible cause Possible solution
Files on a USB device cannot be played back.
MP3, WMA, WAV,
JPEG, ASF, DivX,
MPEG1 or MPEG2 file cannot be played back.
If “CANNOT PLAY THIS
DEVICE” appears on the TV screen, the files on a USB device are not playable.
The connected USB device may include files of different types (MP3, WMA, WAV, JPEG,
ASF, DivX, MPEG1 or MPEG2).
Check that the file types recorded on the USB device are compatible with this system.
Select “FILE TYPE”. You can play back only the files of the types selected with “FILE TYPE”.
If the main unit has read the file before you make the “FILE TYPE” setting, reset “FILE TYPE” to the desired file type, and then disconnect the USB device and connect it again.
Reference page
54
39
If this system does not work properly even after taking the action in the above “Possible solution”
Many functions of this system are controlled by microprocessors that can be reset by recycling the power supply. If pressing any button does not result in the normal action, disconnect the power cable from the outlet, wait for a while, and connect the power cable again.
61
NX-F3_NX-F7[A]EN.book Page 62 Tuesday, April 22, 2008 1:55 PM
Specifications
Main unit
(CA-NXF7/CA-NXF3)
Tuner
FM frequency:
AM frequency:
87.50 MHz – 108.00 MHz
531 kHz - 1 710 kHz
(9 kHz spacing)
530 kHz - 1 710 kHz
(10 kHz spacing)
Terminal (front of the main unit)
• USB digital input terminal x 1
• Audio output headphone terminal x 1
Impedance: 16 Ω – 1 k Ω
Terminal (rear of the main unit)
• Audio output speaker terminals x 1
Left/right speakers:
Output power: 200 W (50 W x 4) at 3 Ω
(1 kHz/10 % THD)
3 Ω – 16 Ω Impedance:
Subwoofer
Output power: 150 W at 6 Ω
(100 Hz/10 % THD)
Impedance: 6 Ω – 16 Ω
• Optical digital input terminal x 1
–23 dBm to –15 dBm
• Optical digital output terminal x 1
–23 dBm to –15 dBm
• Component video output terminals x 1
Y: 1.0 Vp-p, 75 Ω terminated
P
B
: 0.7 Vp-p, 75 Ω terminated
P
R
: 0.7 Vp-p, 75 Ω terminated
• Composite video output terminal x 1
1.0 Vp-p, 75 Ω terminated
• Audio input terminals x 1
500 mV/47 k Ω
• HDMI monitor output terminal x 1
• FM antenna terminal x 1
• AM antenna terminal x 1
General
Power source (Australia):AC 240 V , 50 Hz
Power source (Hong Kong):AC 220 V , 50 Hz
Power consumption (in operation): 90 W
Power consumption (on standby): 0.8 W
Dimensions (W x H x D) [including projecting parts]:
Mass:
300 mm x 95 mm x 295 mm
3.4 kg
USB
Compatible with USB 2.0 Full-Speed
Compatible device: USB mass storage class device
Compatible file system: FAT16, FAT32
Output power: DC 5 V 500 mA
HDMI
Output power: DC 5 V 55 mA
Speaker
(SP-NXF7F/SP-NXF3F)
Type: 1-way bass reflex type
Magnetically shielded type
Speaker driver:
Front ch: 5.5 cm cone
Surround ch: 5.5 cm cone
Power handling capacity:
Front ch:
Surround ch:
50W
50W
Impedance: 3 Ω
Frequency range: 80 Hz - 20 kHz
Sound pressure level: 77 dB/W
• m
Dimensions (W x H x D) [including projection parts]:
89 mm x 221 mm x 125 mm
(SP-NXF7F)
88 mm x 184 mm x 125 mm
(SP-NXF3F)
Mass (1 speaker): 1.7 kg (SP-NXF7F)
1.2 kg (SP-NXF3F)
Subwoofer
(SP-NXF7W/SP-NXF3W)
Type: Bass reflex type
Speaker driver: 16 cm cone
Power handling capacity: 150 W
Ω
Frequency range: 30 Hz - 200 Hz
Sound pressure level: 76 dB/W
• m
Dimensions (W x H x D): 300 mm x 301 mm x 305 mm
Mass: 8.2 kg
Supplied accessories
Remote control x 1
Batteries x 2
FM antenna x 1
AM loop antenna x 1
Composite video cable x 1
Designs and specifications are subject to change without notice.
62
NX-F3_NX-F7[A]EN-11.fm Page 63 Wednesday, April 23, 2008 9:42 AM
NX-F3_NX-F7[A]EN-11.fm Page 64 Wednesday, April 23, 2008 9:43 AM
NX-F3_NX-F7[A]EN.book Page 73 Tuesday, April 22, 2008 1:55 PM c
EN
2008 Victor Company of Japan, Limited
0608SKMMODJMM
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 32 playback
- 32 (Program playback)
- 34 (Random playback)
- 34 (Repeat playback)
- 35 language
- 35 Magnifying the picture
- 36 Adjusting the picture quality (VFP)
- 37 Playing back the bonus group
- 38 menu bar
- 40 (A-B repeat playback)
- 40 Designating the time (Time search)
- 41 the preference screen
- 41 Basic operations
- 41 LANGUAGE
- 42 PICTURE
- 43 AUDIO
- 43 OTHERS
- 44 Language codes
- 45 CD to a USB device
- 45 device
- 47 Deleting a track/group from a USB device
- 48 a USB device
- 50 the remote control
- 50 Operating a TV using the remote control
- 51 Operating a DBS using the remote control
- 52 Operating a VCR using the remote control
- 55 Notes on operation
- 55 Suitable locations for the main unit
- 55 Condensation
- 55 Cleaning the main unit
- 55 Notes on handling
- 56 License and trademark
- 57 Notes on discs/files
- 57 Playable disc/file types
- 60 Data hierarchy
- 60 Handling discs
- 61 Troubleshooting
- 65 Specifications
- 65 Main unit (CA-NXF7/CA-NXF3)
- 65 Speaker (SP-NXF7F/SP-NXF3F)
- 65 Subwoofer (SP-NXF7W/SP-NXF3W)
- 65 Supplied accessories
