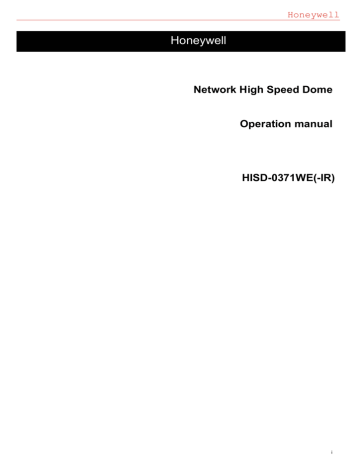

Honeywell

Honeywell

Network High Speed Dome

Operation manual

HISD-0371WE(-IR)

i

Contents

Honeywell

1 Introduction...........................................................................................................................................1

Performance Characteristics Features................................................................................1

2 Hardware Installation..........................................................................................................................2

System requirement................................................................................................................2

Installation environment.........................................................................................................2

Installation environment requirements..........................................................................2

Recommend operating environment.............................................................................2

Hardware installation steps.............................................................................................2

Network connection..........................................................................................................4

Connection instruction............................................................................................................4

3 Operating Guide for Network High Speed Dome..........................................................................5

Set the IE Browser..................................................................................................................5

Download and Install ActiveX................................................................................................5

Login .........................................................................................................................................7

Live view...................................................................................................................................8

System specification setting................................................................................................10

Device Info.........................................................................................................................10

PTZ setting........................................................................................................................10

Display settings.................................................................................................................11

Encoding............................................................................................................................12

Video Parameters.............................................................................................................12

Motion Detection...............................................................................................................13

Video Tampering..............................................................................................................14

Video Mask........................................................................................................................15

Network Settings..............................................................................................................16

DDNS Setting....................................................................................................................17

NTP Settings.....................................................................................................................18

Email Settings...................................................................................................................18

FTP Settings......................................................................................................................19

Alarm Input........................................................................................................................19

Alarm Output.....................................................................................................................20

Exception Settings...........................................................................................................21

User Info............................................................................................................................22

System Update.................................................................................................................23

Storage Management......................................................................................................23

Restore...............................................................................................................................24

Local Setting......................................................................................................................24

File management...................................................................................................................25

Log search..............................................................................................................................26

4 Appendix.............................................................................................................................................27

SPECIFICATIONS................................................................................................................27

Network Interface of Network High Speed Dome.......................................................... 28

Default Network Parameters...............................................................................................28

Network High Speed Dome DDNS...............................................................................29

Visit network high speed dome under different network environments......................29

LAN.....................................................................................................................................29

i

Rev. A

Static IP..............................................................................................................................29

Dynamic IP........................................................................................................................30

Internet...............................................................................................................................30

Frequently asked questions................................................................................................34

Honeywell

CAUTION

•

•

•

•

•

•

•

Non-technician should not try to operate this high speed dome before reading this manual carefully. (This manual are subject to change without prior notice.)

Cut the power supply off before operating the device to avoid damage caused by mal-operation.

Interior of the camera are precision optical and electrical instruments. Heavy pressure, shock and other incorrect operations should be prevented. Otherwise, may cause damage to product.

Please do not use the product under circumstances where the limits exceed the maximum specified temperature, humidity or power supply specifications.

Contents in this manual may be different from the edition that you are using. Should any unsolved problem occur given that the product is used according to this manual, please contact our technical support department or your product suppliers.

This manual content will be updated unscheduled, our company reserves the right to do manual contents update without further notice.

The default username for this device is “admin”, and the password is blank. Default IP address is 192.168.1.188, HTTP port is

80, device port is 5050. Default communication protocol is PELCO-D, baud rate is 2400 BIT/s, PTZ address is No.1

iii

PACKING LIST

Check if the packing contents match the packing list on receiving the products. The packing list is as below.

Part

HISD-0371WE(-IR)

Wall mounting bracket

Rubber blanket

Screws bag

Operation manual

Certificate of approval

CD

Contact your local retailer if anything is missing in your package.

Quantity

1

1

1

1

1

1

1

Honeywell

HISD-0371WE HISD-0371WE-IR

v

Honeywell

1 Introduction

Performance Characteristics Features

z Build in 37X optics zoom lens, 700TVL high resolution z True Day/Night switch, WDR, Honeywell HLC (BMB™) technology z Electronic image stabilization, 3D privacy zones z H.264 High Profile /MJPEG encoding, VBR/CBR, dual stream z motion detection, network problem detect and process z

Alarm linkage output, TF card video recording, snapshot, FTP upload, Email inform, Link preset, CMS inform z ONVIF Profile S protocol, compatible with Honeywell HUS and NVR z

360° horizonal continuous rotation; vertical 0°-90°,

256 presets,

No monitoring blind area

z Up to 100m IR distance (HISD-0371WE-IR) z

Efficient IR array, low power consumption – MTTF up to 30,000 hours

z 2CH alarm input, 1CH alarm output, build in TF card, 485, audio input/ output, analog video, 100M Ethernet z

IP66 protection level, IK10 vandal-proof (HISD-0371WE)

1

Honeywell

2 Hardware Installation

System requirement

•

•

•

•

LAN or WAN Internet to connect server, via PC Ethernet ( network card or network cable) TCP/IP protocol （Windows

/NT/2000/XP) connect , suggest Internet Explorer 5.0 version or later.

Monitor and PC configuration:

CPU: PⅢ or latter, RAM: 512M or latter( Above DirectX8.1)

Monitor: 17",1024×768 resolution

Operation system: Windows NT, Windows2000, Windows XP

Installation environment

Installation environment requirements

Far away from high-temperature resource and environment; improper place for ventilation; avoid install on shaky place.

Recommend operating environment

HISD-0371WE

Indoor:-10 ~ 50℃

Outdoor: -30°C～60°C

HISD-0371WE-IR

Indoor:-30 ~ 60℃

Hardware installation steps

Please make sure LAN and WAN are working order before installation of the IP camera . After checked all the network system in good condition, keep your hands clean and dry, following the steps bellow.

•

•

•

Unpack the box to check the goods

Take out all goods which needed for installation from the box

Take off the protection cover and insert the SD card. Please refer to the SD card installation steps below.

Take off the protection cover

Figure 2 1 HISD-0371WE

2


Honeywell

Press the buckles beside the camera, and put out the main part about zoom

Remove the screws


Figure 2 4 HICC-0370TVI


Insert Micro SD card following the direction shown in Figure 2-5

3

Honeywell

Remove the screws with “7” wrench

Figure 2 6 HISD-0371WE-IR

Remove the screws here


TF card slot


Insert Micro SD card following the direction shown in Figure 2-9


•

•

Connect related cables according to actual need (Power line, network line, audio line etc.)

Connect the power supply

Please read the Note carefully, any question you should contrast us without hesitation.

Note:

•

•

When open the box, please check all of parts carefully, confirm the parts in the box as same as packing list.

Please read the user manual carefully before the installation.

4

•

•

Make sure to turn off all the power when install the camera

Please confirm the power transformer, avoid the device damage with unmatched power source

Network connection

•

•

LAN connection

Use one network line to connect IP camera with concentrator or switchboard of the LAN.

WAN connection

Use one network line to connect IP camera with Router or XDSL Modem/Cable Modem. as shown bellow.

Honeywell

•

Connect the power supply

After connect the power source, the network camera will start operation automatically.

Connection instruction

Analog video output

Power supply input

RJ45

Alarm output, 485 A/B port

Audio input

Audio output

2 channels Alarm input

5

Honeywell

3 Operating Guide for IP Camera

Set the IE Browser

If you visit IP camera for first time, Please set the IE browser.

Setting method: Open the IE browser, click Internet Option into the "Security" page, click the "Custom Level", and then follow steps to set the

IE browser

Download and Install ActiveX

You need to install ActiveX Control when you visit IP camera for the first time through IE browser.

ActiveX installing method:

Download installation

Input the IP address of IP camera (default address http://192.168.1.188.

) in Internet Explorer to enter into login page, users can refer to the “ NETWORK SETTINGS” under “SETUP” menu to set the network.

Notice the below information hint, click “ Install”. As Figure 3-1

6

Honeywell

Figure 3 1

A file download dialog will pop out, click “Next” to installation. As figure 3-2.

Figure 3 2

Select the ActiveX installation and storage file, the default installation and storage file is c:\Program Files\webactivex , and click “Next” to enter next dialog. As figure 3-3

Click “ Install” to enter into the next dialog. As figure 3-4.

Figure 3-3

7

Honeywell

Click “Finish” to complete the ActiveX installation. As figure 3-5.

Figure 3-4

Figure 3-5

Login

Reopen Internet Explorer after ActiveX installation completes, input IP address ( http://192.168.1.188,) of the IP camera to turn to login page, enter username (default setting is admin) and password (default setting is blank), click login to enter into main interface(see Figure 3-6):

Figure 3 6

8

Honeywell

Live view

Live preview interface as figure 3-7.

Figure 3 7

In the Live view interface, users can do operations such as voice intercom, listen, full-screen preview, video record, alarm information check,

PTZ and lens control, brightness, contrast, preset setting, cruise, track setting and etc.

z Voice intercom：Connect sound pick-up device on the audio input port and active loudsperker on the audio outport port, then click the talkback icon. Turn on the voice intercom switch and the icon shows as be performed. Audio input setting as default mode.

, the talkback between PC and IP camera can z SNAP: click button, snap the current image and save it in .JPG format automatically to the storage directory of snapped images. The default path is C:\Program Files\PREVIEW, and the storage path is changeable.

z

Full Screen: Live preview in full screen, press keyboard ESC to exit from full screen display.

z Record: ON/ OFF selectable. When select ON, the icon turn blue as appointed files as I8 format

., and device do video recording and saved in the z Alarm Info: Warns light flashing when camera device inform alarm. Support kinds of alarms record, and setup or remove the alarm setting,clear the alarm information.

z Zoom-in: Use the mouse to do local zoom for the video display area by scrolling the mouse wheel.

z PTZ control: Up/ down/ left/ right/ auto/ adjust the PTZ rotate speed, etc. As figure 3-8.

z

Lens control: Do scaling, focus, iris operation, as figure 3-8.

z Brightness: Adjust the image brightness. As figure 3-9.

z

Contrast: Adjust the image contrast. As figure 3-9.

z

PTZ setting: Set the preset, cruise, tracking, etc. As figure 3-10.

Preset setting: Adjust the camera to the appointed angle and location through directional buttons, and then select a preset number on the preset drop down list, click to set it.

Clear preset:Select a preset number which needed to delete on the preset drop down list, then click

Call preset: Select a preset number which needed to call on the preset drop down list, then click to call it.

to clear it.

9

Honeywell

Cruise: 255 presets addable, cruise time 1-255s adjustable, cruise speed 1-10 levels selectable. All cruise tracking can be call and delete independently.

Tracking path setting: Select a tracking number on the tracking drop down list, then click operation, click to complete and storage the tracking.

, after a series PTZ

•

Clear tracking path: Select a tracking number on the tracking drop down list, click

Call tracking path: Select a tracking number on the tracking drop down list, click

Cyclotron arrow: Restore the default parameters. As figure 3-10.

to clear it.

to call it.

Figure 3 8

Figure 3-9

Figure 3 10

10

System specification setting

Device Info

IP Camera “Device Info” interface as figure 3-11.

Honeywell

Figure 3 11

z

Device Name: Edit the camera name z Device Sn: Display the device Sn z Device Type: Display the device type z Serial No. : Display the product serial No.

z Master Version: Display the software version date z Hardware Version: Display the hardware version number z Format: Switch to select the PAL and NTSC image scanning system z

Device Time: Set and display the device current time

After all parameters setting completed, click “Save” and then it comes into effect immediately.

PTZ setting

IP Camera “ePTZ Set” interface as figure 3-12.

11

Honeywell

Figure 3-12

z Protocol: Support Pelcod，Pellcop，PellcoF protocol z Address: 0-255 adjustable z Baud Rate: Serious baud rate selectable z Operation method: Connect analog high speed dome at the IP camera AB port, set the protocol and baud rate, and control the high speed dome through IPC preview interface

After all parameters setting completed, click “Save” and the it comes into effect immediately.

Display settings

IP Camera “Display settings” interface as figure 3-13.

z Name:Modify the appointed channel name

Figure 3-13

12

z

Time Format: Select different time display mode for the appointed channel z Date Format: Select different date display mode for the appointed channel z Bright: Adjust the brightness for the appointed channel z Contrast: Adjust the contrast for the appointed channel z Saturation: Adjust the saturation for the appointed channel z Hue: Adjust the hue for the appointed channel z Title Location: Set the channel title location for the appointed channel z Date Adjustment: Set the channel date location for the appointed channel z Cyclotron arrow: Restore the default parameters


Encoding

IP Camera “Encoding” setting interface as figure 3-14.

Honeywell

Figure 3-14

z Compress type: Main Stream(Normal)/ Sub Stream/ Main Stream(Event) selectable z Stream: Including complex stream/ video stream two types z Resolution: According to the front camera supported, how the camera resolution type supported, the corresponding resolution will selectable z Bitrate Type: Constant/ Variable selectable z Bitrate: Set different bitrate for different channels z Frame Rate: Select different frame rate in the drop-down list,, default is “Full Frame” z Quality: Select different image quality according to your need, default is “Highest” z Video Encode: H.264/ MJPEG two kinds of video encode format z I frame Interval: Set the I frame internal time

After all parameters setting completed, click “Save” and the it comes into effect immediately. ( “Setup” setting will change the front camera parameters directly)

Video Parameters

IP Camera “video Parameters” setting interface as figure 3-15.

13

Honeywell

Figure 3-15

z

Day&Night Mode: Outside Trigger/ Auto/ Color/ Black White four kinds of mode selectable. Non infrared IP cameras default mode is

Auto, and infrared IP cameras default mode is Outside Trigger. According to the IP camera type and actual scene to select the

Day&Night mode.

z Switch time: Day&Night switch delay time, 0-30s selectable, and default is 3s.

z Day-Ni-Threshold: 0-255 selectable, users adjust it according to the need, default is 44.

z Ni-Day-Threshold: 0-255 selectable, users adjust it according to the need, default is 119.

z Color: Normal/ Bright/ Nature three options, default is Normal.

z

Mirror: Close/ Horizonal Mirror/ Vertical Mirror/ 180° Rotation four options, default is Close.

z WDR: Close/ Low/ Medium/ High four options, default is Close.

z

3DNR: Close/ Low/ Medium/ Higher/ High five levels, default is Close.

z Sharpness: 0-255 selectable, default is 128.

z Gain: Low/ Lower/ Medium/ Higher/ High selectable, default is Medium. The higher of the Gain, the more of the sharpness.

z Sharpness: Auto, 1/30(25)-1/10000, the default is Auto z Exposure Control Mode: Auto/ Manual selectable, default is Auto.

z Gamma: CURVE_1_6，CURVE_1_8,CURVE_2_0,CURVE_2_2 totally four modes, default is CURVE_2_0 z Anti-Fliker: Auto, 50hz, 60hz, the default is Auto


Motion Detection

IP Camera “Motion Detection” setting interface as figure 3-16.

14

Honeywell

Figure 3-16

z Enable: Select whether open the motion detection function.

z Alarm Schedule: Set the alarm schedule from Monday to Sunday.

z Drawing: Click Drawing, then set the detective area.

z Clear: Click Clear to clear the current detective areas.

z Sensitivity: The higher of the sensitivity, the obvious of the motion detective.

z

Email: Send Email to appointed mailbox when alarm triggered.

z Snap: Snapshot and install the picture in the HDD when alarm triggered.

z

Alarm Output: There is a warner connect the alarm output port, alarm triggered the embedded relay switch to make alarm output.

z Enable PTZ: Alarm input to link the PTZ motion.

z Preset: Alarm input to link the preset.

z Snap Interval: Set the snapshot interval time z Snap Count: Set the snapshot count in every second


Video Tampering

IP Camera “Video Tampering” setting interface as figure 3-17.

15

Honeywell

Figure 3-17

z Enable: Set whether open the video tempering z

Alarm Schedule: Set the alarm schedule from Monday to Sunday.

z Drawing: Click Drawing, then set the video tampering area.

z

Clear: Click Clear to clear the current video tampering areas.

z Sensitivity: The higher of the sensitivity, the obvious of the video tampering effect.

z Email: Send Email to appointed mailbox when alarm triggered.

z Snap: Snapshot and install the picture in the HDD when alarm triggered.

z Record: Video record and installed in the HDD or send as FTP to keep when alarm triggered.

z Alarm Output: There is a warner connect the alarm output port, alarm triggered the embedded relay switch to make alarm output.

z Enable PTZ: Alarm input to link the PTZ motion.

z

Preset: Alarm input to link the preset.

z Snap Interval: Set the snapshot interval time z Snap Count: Set the snapshot count in every second


Video Mask

IP Camera “Video Mask” setting interface as figure 3-18.

16

Honeywell

Figure 3-18

z Enable: Click to determine whether to operate the video mask function z Drawing: Click Drawing to select the mask area.

z Clear: Click Clear to delete the current channel video mask setting


Network Settings

IP Camera “Network Settings” interface as figure 3-19.

Figure 3-19

z IPV4: IP protocol version No. is 4 z IPV6: IP protocol version No. is 6 z Static IP: The device IP address is permanent z DHCP: Click DHCP, when turn on the router’s DHCP, the camera will get the IP address from router automatically z IP address: Input the corresponding numbers to change the IP address

17

z

Subnet Mask: Input the corresponding IP subnet mask z Default Gateway: Input the corresponding gateway address z DNS 1: DNS server IP address z DNS2: DNS server standby IP address z SNMP: To detect whether it will cause any management attention as device connected on the network z SNMP Manager IP: Input the corresponding SNMP manager IP address z HTTP Port: Input the corresponding port ( Default is 80) z HTTPS Port: Input the corresponding port ( Default is 4433) z Enable PPPOE: When click Enable PPPOE, the device and HTTP port will mapping to the router automatically z Multicast Add： Input the corresponding multicast address z Multicast Port：Input the corresponding multicast port (Default is 28080) z Device Port: Input the corresponding device port (Default is 5050) z

Enable PPPOE: Click to enable PPPOE server

PPPOE server: Input the PPPOE server number

Username: Input the username

Password: Input the password

Confirm pwd: Input the password again to confirm it


Honeywell

DDNS Setting

DDNS is implemented through a dynamic domain resolution server. It requires a PC with fixed IP address on the Internet, on which the dynamic domain resolution server runs. IP Camera network setting interface as below:

Figure 3-20

z Enable DDNS: Click to determine whether to use Dynamic Domain Name Server z Server Type: Select DDNS server type (There are Dyndns/ PeanutHull/ NO-IP/ 3322/ DnsDynamic five types selectable) z Server Name: Input server name, for example, member.3322.org

z Port: Input port No.

z

Username: Input user name z Password: Input password z Confirm pwd: Input the password again to confirm it z Domain: Input the standby domain


18

NTP Settings

IP Camera “NTP Settings” interface as figure 3-21.

Honeywell

Figure 3-21

z Enable NTP: Click to determine whether to use NTP z

Server Address: Input NTP server IP address z NTP Port: Only TCP transmission supported, default is 123 z Adjust time interval: Input the interval time z Select Time Zone: Different area time format selectable z GMT: Adjust the time more exact


Email Settings

IP Camera “Email Settings” interface as figure 3-22.

19

Figure 3-22

z (sent)Email Address: Input the address of the outbox z Password: Input the the password of the outbox z

Confirm pwd:

Input the password again to confirm it z (sent)SMTP Server: Input the smtp server address of the outbox z

SMTP Port: Input the smtp server port of the outbox z Sending interval: Input the sending interval time z Receiver: Input the mail receiver name z Email Addr: Input the address of the inbox


FTP Settings

IP Camera “FTP Settings” interface as figure 3-23.

Honeywell

Figure 3-23

z

Enable: Click to determine whether to use FTP z Server Address: Input the upload server address z Port: Input the server port, default is 21 z Username: Input the upload username z Password: Input the upload password z Path: Input the upload file path


Alarm Input

IP Camera “Alarm Input” setting interface as figure 3-24.

20

Honeywell

Figure 3-24

z Alarm Input: Select the alarm input number z

Alarm In Name: Input alarm input name z Trigger: Select the alarm statue: Normal Open/ Normal Close z

Alarm Schedule: Alarm schedule can be set from Monday to Sunday z Email: Click Email, then it will send Email to appointed mailbox when alarm triggered z Snap: Click Snap, snapshot the current image picture when alarm triggered z Record: Click, it will do video record automatically when alarm triggered z Alarm Output: There is a warner connect the alarm output port, alarm triggered the embedded relay switch to make alarm output.

z Snap count: Set the snapshot count in every second z Snap Interval: Set the snapshot interval time z Enable PTZ: Click Enable PTZ, it will linkage PTZ operation when alarm input z Preset: set the linkage preset point


Alarm Output

IP Camera “Alarm Output” setting interface as figure 3-25.

21

Honeywell

Figure 3-25

z Output Relay Status: Normally Open/ Normally Close selectable z Output Delay: Select the alarm output time( Alarm delay output when alarm triggered)


Exception Settings

IP Camera “Exception Settings” interface as figure 3-26.

Figure 3-26

z Exception Type: Disk full/ disk fault/ network broken/ IP address conflict/ Illegal access/ video signal exception types selectable z Record: Click Record, it will do video record as any exception type triggered the alarm output z Alarm Click Alarm Output, it will Linkage other alarm devices as any exception type triggered

22

Honeywell


User Info

IP Camera “User Info” setting interface as below, admin is the administrator (default), default indicates general users, booth and login with permissions authorized to default users(default).

Figure 3-27

z

Modify: Modify the new user password, user type, IP combine, MAC combine z Del: Delete the new user z

Rights Permission: permission assignment for new user z Add User: Add a new user


23

System Update

IP Camera “System Update” setting interface as figure 3-28.

Honeywell

Figure 3-28

z

File: Click Browse to find and select the upgrade kit, then click Update.

Non-technician should not try to operate system upgrade, do not turn off the power during upgrade process.

Storage Management

IP Camera “Storage Management” setting interface as below, you can check current HDD capacity/ spare capacity/ status, and do HDD formatting.

Note: Turn off the power supply when insert or take out the TF card

24

Honeywell

Restore

Figure 3-29

IP Camera “Restore” setting interface as figure 3-30.

Figure 3-30

z

Restore: Restore to factory setting z Reboot: Reboot the devices

Local Setting

IP Camera “Local Setting” interface as figure 3-31.

25

Honeywell

Figure 3-31

z Window Mode: Set the preview window mode(Full/ 4:3/ 16:9 ) z Preview Capture: Select the preview capture file storage path z Preview Capture: Select the preview video record file storage path z Record File Type: AVI/ I8 format selectable z Color: Realtime/ Smooth way two types selectable


File management

IP Camera “File management” setting interface as figure 3-32.

Figure 3-32

26

Honeywell z Search: Select the search start time, click to check details) z Start: Click z Stop: Click z

Slow: Click z Fast: Click button, the video record and snap image file will display( Double click the file button to play the backup video image file button to stop the the play button to slow play the backup video image file button to fast play the backup video image file z Frame: Click z Capture: Click z Voice: Click button to play the backup video image file by frame button to snap the backup video image during display button to select turn on/off the voice during backup video image display

Log search

IP Camera “Log” setting interface as figure 3-33.

Figure 3-33

z Main Type: There are All/ Alarm/ Exception Settings/ Operation/ Additional Information four types selectable z Start Time: Set the start time z End Time: Set the end time z Page Num: Set the log numbers on each page z Search: Search the corresponding logs

27

Honeywell

4 Appendix

SPECIFICATIONS

Model

Image Sensor

Optical Zoom

Digital Zoom

Effective Pixels

Resolution

S / N Ratio

Min. Illumination

Focus length

Angle Field of view

Focus Mode

White Balance

Iris Control

Electronic Shutter

AGC Control

Backlight Compensation

Digital Slow Shutter

Motion Detection

Wide Dynamic Range

Day/Night

Image Inverse

Noise Reduction

Electronic Image Stabilizer

Operation

Pan travel

Tilt travel

Manual Speed

Presets

Preset Accuracy

Preset Speed

Swing

Continuous

Cruise

Pattern

Privacy zones

Proportional Pan&tilt

Home Function

Auto Flip

Resume after Power loss

IR irradiation distance

IR irradiation angle

Network

Resolution

Video Compression

Encoding Control

Audio Compression

Motion Detection

Access Protocol

Network Protocols

TF Card

Poe

Alarm Input

HISD-0371WE HISD-0371WE-IR

1/4" SONY 960H Ex-view HAD CCD II

37X

OFF/ON(X2 ~ X16)

570K

700TVL

52dB

Color:0.02Lux(Wide 50IRE/F1.6 AGC ON)；W/B: 0.001Lux(Wide 50IRE/F1.6 AGC ON) f=3.5~129.5mm

H: 56.26(Wide) / 1.62(Tele) V: 43.28(Wide) / 1.22(Tele) D: 67.56(Wide) / 2.02(Tele)

Auto/Manual

ATW/ INDOOR / OUTDOOR

Auto/ Manual

1/60(1/50) ~ 1/12,000s

LOW/ MIDDLE/ HIGH

OFF/ BLC/ HLC (BMB™)

SENS UP: AUTO/ OFF (2~512X selectable)

OFF/ ON ( programmable zones)

ON/ OFF

AUTO( ICR)

OFF/ V-rotation/ H-rotation/Flip

LOW/ MIDDLE/ HIGH/OFF

ON/OFF

360° endless

0-90°

0.1°-300°/s

256

0.1°

300°/s

8

Support

8

4

8

AUTO

Preset/ Swing/ Cruise/ Pattern

Mechanical

Support

-

-

0.1°-150°/s

180°/s

100m

Adjustable by zoom

704×576

H.264 High Profile / MJPEG dual stream

CBR/VBR/GOP

704×576

G.711 64Kbps

1 zones (Sensitivity value selectable)

ONVIF Profile S ， compatible with Honeywell HUS and NVR

IPv4,TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP,

ARP,UPnP, RTSP, RTP, RTCP, PPPoE, ICMP, SNMP

Max 32G ,support NFR

Support

2CH Input

Nonsupport

2CH Input

28

Honeywell

Alarm Output

Alarm Linkage

Video Output

RS485

Audio

1CH Output, support alarm linkage 1CH Output, support alarm linkage

TF card video recording/ FTP Upload/ Email inform/ Snapshot/ Preset

/ Alarm output/ CMS inform

1.0Vp-p complex video output, 75Ω

Half-duplex, support Pelco P and Pelco D

1CH input/1CH output，monitoring and talkback

General

Protection Level

Humidity

Dimension

Weight

Power Source

IP66, Vandal-proof IK10

Indoor: -10°C～50°C

IP66


Operation Temperature

Power Consumption


0%~90%RH ( No condensation)

371 (H) x 228 (D) mm

8.5Kg

AC24V2A (±10%)

Indoor: 25W;

Outdoor: 40W(Heater ON)

415 (H) x 243 (D) mm

10Kg

DC12V5A (±10%)

50W( IR LED and heater ON)

Regulatory

CE，FCC，type- examination report

*Note: Honeywell reserves the right, without notification to make changes in product design and/or specifications.

Network Interface of IP Camera

The default network ports of IP camera are:

TCP

UDP

Multi-cast port

Onvif port

Rtsp port

RTSP port

Search port

Telnet port

Onvif search port

Video stream port

Playback, upgrade, search port

Mobile visit port

Https protocol port

80

5050

Web port

Communication port, audio/video data transmission port, talkback data transmission port

Audio/video data transmission port 5050

28080 [Main stream] 28081 [Sub stream]

8000

554

8002

10000

23

3702

5051

5052

5053

4433

Default Network Parameters

Default network parameters

Cabled Network:

IP Address: 192.168.1.188

Data Port: 5050

Subnet mask: 255.255.255.0

Web port： 80

Gateway: 192.168.1.1

DHCP: OFF

29

Honeywell

IP Camera DDNS

DDNS description

DDNS( Dynamic Domain Name System) means that DDNS is implemented through a dynamic domain resolution server. It requires a PC with fixed IP address on the Internet, on which the dynamic domain resolution server runs. All internet users can view the IP camera via a fixed IP address.

IP Camera DDNS analytical process

Visit IP camera under different network environments

Users visit the IP camera through LAN/ WAN. The following directions will tell you how to operate the IP camera through LAN/ WAN.

LAN

There two ways to connect IP camera: Static IP/ Dynamic IP

Static IP

Static IP means the webmaster distribute a LAN inner IP address to the IP camera. Keep your PC IP address same as the camera

IP address and to implement access.

Network topological graph as follows:：

Network setting reference:

30

Honeywell

Setting procedure:

1. Log in IP camera via the IE browser (the default IP is 192.168.1.188)

2. Switch to the page “ Network Setting” interface, input the IP address. Default is 192.168.1.50

3. Fill in subnet mask, the default is 255.255.255.0

4. Fill in gateway address, the default is 192.168.1.1

After input all parameters, click “Save”, then the device restart, Input the device IP address at the IE browser to visit the camera.

Dynamic IP

Dynamic IP means that IP camera obtains IP address from DHCP server. See below picture for the network topology:

Please refer to below picture for the network settings:

Log in IP camera via IE browser. Then turn to “ Network Setting” interface, click DHCP”

After setting all the parameters, click save and restart to make the parameters valid.

Internet

There are three ways to connect IP camera to the Internet.

31

1. Fixed IP mode

2. ADSL broadband and router share online mode( Dynamic get the IP address mode)

3. PPPOE dial-up access

After IP camera is connected to Internet, remote Internet users can visit it directly via domain name or IP address.

Fixed IP mode

See below picture for the network topology:

Honeywell


Setting steps:

1.

Log in IP camera via crossover cable direct connection.(For details, please refer to “Hardware Installation”)

1. Switch to the page network settings, fill in the device IP address requested from network service provider in to Basic

Parameters, such as 218.84.31.168

2. enter correct subnet mask. Such as 255.255.255.0

3. enter correct gateway address. Such as 218.84.31.131

After setup completes, click Save and restart the device, then connect it to public network so that all Internet users can visit the IP camera remotely via entering http://218.84.31.168

to IE browser

Broadband and router sharing Internet access mode (dynamic obtainment of extranet IP address mode) like ADSL and so on.

If you select router dial-up to connect internet, see below picture for the network topology:

32

Honeywell

Users can set up DDNS domain name service at the same time. Fill the username and password which were applied in the DDNS server into the DDNS setting item, implement port mapping from the router. The router determines and points to the IP camera that need to be visited according to different ports, long-distance Internet user can visit the IP camera on the network via domain name directly.


DDNS setting procedure：

1. Login DDNS server ( Such as http://www.no-ip.com), register accounts and password.

2. Click DDNS ( It is selectable when server provider is blank)

3. Select DDNS server provider, such as no-ip

4. Input the DDNS login username

5. Input the DDNS registered password

6. Input the domain name applied on the DDNS server, such as video.no-ip.net

7. Input the DDNS address, such as dynupdate.no-ip.com

8. Input the DDNS port, default is 80.( Suggested users keep it)

After all parameters setting completed, click “Save”and devices comes into effect.

Port mapping setting procedure

TP-LINK TL-WR340G illustration:

1.

Ask network administrator for the IP address of the router (i.e. LAN gateway address), login user name and password, then log in the router. The main interface is as follow:

2.

Open “Forwarding”, select “Virtual Servers” as below picture shows:

33

Honeywell

3.

Select “Add New Items”, enter the IP address of the IP camera (e.g.192.168.1.100 ), port (e.g. 85), status (valid) and other information, click save, see below picture:

4.

After save successfully, below screen appears:

5.

If DDNS is successfully set in “Network Settings” of IP camera, direct visit to the IP camera can be realized via entering http://test.mvddns.net:85 into IE browser.

34

Honeywell

PPPOE dial-up access

For IP camera dial-up access, see below picture for the network topology:

Setup steps:

1.

Log in IP camera via crossover cable direct connection.(For details, please refer to Hardware Installation)

2.

Set PPPOE parameters.(for details, please refer to PPPOE settings)

3.

Connect IP camera to Internet.

4.

If DDNS service is successfully set for the device, the device can be visited via entering domain name into IE browser.

Frequently asked questions

1. Forget password

There is a RESET button on the back panel /connection wire of the IP camera, press it for 5 seconds at powered situation to restore all default parameters (Factory Settings), user name and password are both “admin”.

Please don’t press RESET if you are not a professional operator.

After reset, all parameters will restore factory settings (except for the physical network address).

2. IP camera audio/video function fails after abnormalities or abnormal power cut

V4.0.0.0 (Backup file).

occur during upgrade, core edition is

Connect the power cord and network cable of IP camera, press on RESET button and release it after 10 seconds, system will run the back-up programmer automatically. After enter into the back-up programmer, upgrade system. After upgrade completes, the IP camera will work normally. The back-up programmer offers only upgrade and parameter setup functions, audio and video functions are not available.

3.No video image displayed in IE browser.

Possible reason

: ActiveX not installed

Solution

: ActiveX must be installed when visiting IP camera for the first time via Internet Explore.

How to install

: Visit IP camera, click Download Address, file download dialog will pop up, select Run or Save to download. After download finishes, installation interface will pop up, click install, the installation of ActiveX will start automatically, “Register OCX success” dialog box will pop up to remind the completion of installation process.

4.Fail to visit IP camera via IE after upgrade.

Solution

: Delete the caching of Browser:

Open IEÆclick ToolÆselect “Internet Options”Æclick delete files button in “Internet temporary files”Æ select “delete all offline contents”Æclick OK and re-log in IP camera.

5.The images do not flow.

Possible reason 1

: The frame rate of IP camera is too low.

Solution

: Increase the video frame rate


: Too many users are viewing the images.

Solution

: Block some clients or reduce the video frame rate.


: The bandwidth is low.

Solution

: Reduce video frame rate or video compression bit rate.

35

Honeywell

5.Fail to visit IP camera via IE browser.

Possible Reason 1

: Network is disconnected.

Solution

: Connect your PC to network, checking whether it works properly or not. Check whether there is cable failure or network failure caused by PC virus, until PCs can be connected with the command of Ping.


: IP Address has been occupied by other devices

Solution

: Stop the connection between IP camera and Network, hook up IP camera to PC separately, reset IP address according to the proper operations recommended.


: IP addresses are in different subnets.

Solution

: Check IP address, subnet masking address of the DVS and the settings of Gateway.


: Physical address of network conflict with IP camera

Solution

: Modify the physical address of IP camera.


: Web port has been modified

Solution

: Contact Network Administrator to obtain related information.


: Unknown

Solution

: Press RESET to restore default settings then connect it again, the default IP address is 192.168.55.160, subnet mask is

255.255.255.0

6.The color of images is abnormal (green or other colors).

Sometimes IP camera images cannot display properly for the difference between Graphics Cards, the images appears to be green or other colors, then you should run the programme Config.exe (or run C:\windows/ system32\Config.exe)to set the following parameters of display buffer: auto-detection, used display card memory or system memory, then reopen IE and connect IP camera.

7.There is no sound while monitoring.

Possible Reason 1: No audio input connection

Solution: Check audio connection of the host

Possible Reason 2: The audio option of IP camera is off

Solution: Check audio parameter settings to see if you have opened the audio.

8.Search NVS software cannot find device.

Possible reason: Search NVS software adopts multicast protocol to perform searching. But the firewall forbids multicast data packet.

Solution: Disable the firewall.

9.Image processing doesn’t work properly.

Possible Reason 1: System issue, DirectX function is disabled, which will cause slow display of images and abnormal color.

Possible Reason 2: Hardware issue, graphics card doesn’t support image acceleration and hardware zooming functions.(For hardware issue, the only solution is to replace graphics card)

Solution: Install DirectX image drive, then StartÆRunÆinput “Dxdiag”order.

Enable DirectDraw speedup, Direct3D speedup, AGP veins speedup in DirectX function. If they cannot be enabled, that means DirectX installation fails or hardware not supportive.

36

Honeywell

Honeywell Security, Your Partner of Choice

Shanghai office (Headquarter)

33&35/F, Tower A, City Centre, 100 Zun yi Road,

Shanghai, PRC.

Tel: (86-21) 2219 6888

Fax: (86-21) 6237 0740

Honeywell Security China Customer Service

Hotline: 400-8800-330

Email: [email protected]

http://www.cn.security.honeywell.com

Hong Kong office

Flat A, 16/F, CDW Building,

388 Castle Peak Road, Tsuen Wan, Hong Kong

Tel: (852) 2405 2323

Fax: (852) 2415 3112


https://www.asia.security.honeywell.com

Taiwan office

10F, 168 Lien Cheng Road, Chung Ho City,

Taipei, Taiwan R.O.C. 235

Tel: (886-2) 2245 1000



Singapore Office

Honeywell Building, 17 Changi Business Park

Central 1, Singapore 486073

Tel: (65) 6333 9563



Malaysia Office

4th Floor, Menara Hap Seng No. 1 & 3, Jalan P.

Ramlee 50250 Kuala Lumpur

Tel: (603) 7958 4988



Vietnam office

Saigon Trade Centre, Unit 2011 37 Ton Duc

Thang St., Dist. 1 HoChiMinh City

Tel: +848 39106012/13



Thailand office

252/121, 25th Floor, Muang Thai-Phatra Office

Tower II, Ratchadapisek Road, Huay Khwang,

Bangkok, Thailand 10320

Tel: (66-2) 693 3099



Indonesia Office

Sastra Graha 5th Floor, Suite 509, Jalan Raya

Pejuangan No. 21 Jakarta, Indonesia 11530

Tel: (62-21) 5358833



India office

Honeywell Security Unitech Trade Center, 5th

Floor, Sector 43, Block C, Sushant Lok Phase -

1, Gurgaon - 122 002

Tel: (91) 124 4975000

Fax:(91) 124 4975140

Email : [email protected]


Korea office

18F, Kukje Center Building, 191, Hangangro-

2ga, Yongsangu, Seoul 140-702, Korea

Tel: (82-2) 799 6109, 6209

Fax: (82-2) 799 6119


http://www.honeywell.co.kr/honeywell

Australia office

Level 3, 2 Richardson Place, North Ryde NSW

2113, Australia

Tel: +61 2 9353 7000

Fax: +61 2 9353 8207

National Sales Number: 1300 765 532

Video and Access Control Technical Support:

1800 244 301

International Technical Support Number: +6

1894 794 217


Honeywell

http://www.security.honeywell.com

©2013 Honeywell International Inc. All rights reserved.

37

Honeywell HISD-2201WE-IR Operation Manual

Honeywell

Network High Speed Dome

Operation manual

HISD-0371WE(-IR)

Contents

Rev. A

CAUTION

PACKING LIST

HISD-0371WE HISD-0371WE-IR

1 Introduction

Performance Characteristics Features

360° horizonal continuous rotation; vertical 0°-90°,

No monitoring blind area

Efficient IR array, low power consumption – MTTF up to 30,000 hours

2 Hardware Installation

System requirement

Installation environment

Installation environment requirements

Recommend operating environment

Hardware installation steps

Network connection

Connection instruction

3 Operating Guide for IP Camera

Set the IE Browser

Download and Install ActiveX

Login

Live view

System specification setting

z

File: Click Browse to find and select the upgrade kit, then click Update.

File management

Log search

4 Appendix

SPECIFICATIONS

Network Interface of IP Camera

Default Network Parameters

IP Camera DDNS

Visit IP camera under different network environments

LAN

Internet

Frequently asked questions

Honeywell Security, Your Partner of Choice

Shanghai office (Headquarter)

Hong Kong office

Taiwan office

Singapore Office

Malaysia Office

Vietnam office

Thailand office

Indonesia Office

India office

Korea office

Australia office

Honeywell

Related manuals

Comelit

IPPTZ120IRB

Comelit

IPPTZ120IRC

GW Security

200IP PTZ

Comelit

IPPTZ110IRA

TeleEye

MQ

ProScan

NC691B

Comelit

100 Series

Table of contents
