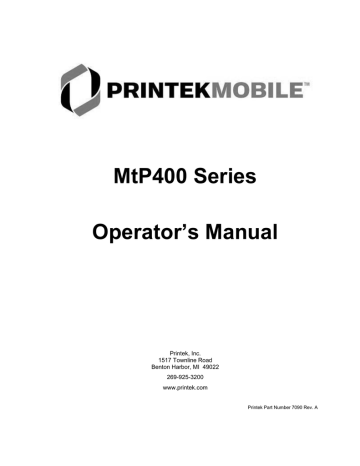

MtP400 Series
Operator’s Manual
Printek, Inc.
1517 Townline Road
Benton Harbor, MI 49022
269-925-3200 www.printek.com
Printek Part Number 7090 Rev. A
FCC Part 15 Class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try too correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with Canadian and FCC radiation exposure limits set forth for an uncontrolled environment. This equipment is in direct contact with the body of the user under normal operating conditions.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Part 15.21 Caution: Changes or modifications not expressly approved by Printek, Inc. could void the user’s authority to operate the equipment.
Bluetooth Equipped Models:
This equipment contains either an OEM Serial Port Adapter from connectBlue with FCC ID: PVH070101 or a
Printek, Inc. Bluetooth module with FCC ID: 0113900444.
Wi-Fi Equipped Models:
This equipment contains an OEM Wireless LAN Node Module from DPAC Technologies with FCC ID:
RTTABDB-SEDP. This device has shown compliance with the conducted emissions limits in 15.107, 15.207, or 18.307 adopted under FCC 02-157 (ET Docket 98-80).
Battery Disposal
Only dispose of used batteries according to your local regulations. If you do not know your local regulations, the Rechargeable Battery Recycling Corporation (RBRC) is a non-profit organization created to promote recycling of rechargeable batteries. For more information visit www.rbrc.org.
Acknowledgments:
Printek is a registered trademark of Printek, Inc.
Bluetooth is registered trademark of Bluetooth SIG, Inc.
EPL and IPL are trademarks of Zebra Technologies
IrDA is a registered trademark of the Infrared Data Association
O’Neil is a trademark of O’Neil Product Development, Inc.
Palm OS is a trademark of PalmSource, Inc.
PrintBoy is a registered trademark of Bachmann Software
PrinterCE is a registered trademark of Fieldsoftware Products
Wi-Fi is a registered trademark of the Wi-Fi Alliance
Windows is a registered trademark of Microsoft Corporation
Zebra, ZPL-II, and Comtec are registered trademarks of Zebra Technologies
All other trademarks are the property of their respective owners.
© 2004, 2005, 2011, 2012 Printek, Inc., 1517 Townline Road, Benton Harbor, MI 49022. All rights reserved.
This manual is based on printer firmware version 6.1.d. Specifications are subject to change without notice. ii
Read all setup and operating instructions before proceeding with operation.
Do not operate in an enclosure unless properly ventilated. Make sure no ventilation openings are blocked or obstructed, which may result in the printer overheating.
Do not operate near a heat source.
Lesen Sie vor der Inbetriebnahme die Aufbau- und Bedienungsanleitung.
Betreiben Sie den Drucker nicht in einem kleinen, geschlossenen Raum, es sei denn dieser wird ordnungsgemäß belüftet. Achten Sie darauf, dass die Lüftungen nicht blockiert oder versperrt sind, denn dies kann zum
Überhitzen des Druckers führen.
Nehmen Sie den Drucker nicht in der Nähe einer Wärmequelle in Betrieb.
No user-serviceable parts inside. Refer service or repairs to a qualified service professional.
Use of genuine Printek replacement parts is required to warrant proper, safe operation.
Any alteration or modification of this device voids the user warranty and may make the product unsafe to operate.
The print head and motors get hot during use. Wait until they cool before touching them.
Make certain the printer is disconnected from AC power before removing any covers or performing any required cleaning or maintenance.
Connecting this printer to an ungrounded receptacle can result in electrical shock.
Never place the printer near inflammable or explosive substances. Do not operate near liquid or spill liquid into the printer at any time.
Enthält keine Teile, die vom Bediener instandgesetzt werden können. Bitte wenden Sie sich bei
Instandsetzung oder Reparatur an qualifiziertes Kundendienstpersonal.
Die Verwendung von echten Printek Ersatzteilen ist notwendig, um ordnungsgemäßen, sicheren Betrieb zu gewährleisten.
Änderungen oder Modifikationen dieses Geräts machen die Garantie ungültig und können den sicheren Betrieb des Produkts gefährden.
Während des Druckens werden Druckerkopf und Motoren heiß. Warten Sie, bis sich die Teile abgekühlt haben, bevor Sie sie berühren.
Vergewissern Sie sich, dass der Drucker nicht mehr an die Stromquelle angeschlossen ist, bevor Sie
Abdeckungen abnehmen oder das Gerät reinigen bzw. warten.
Schließen Sie diesen Drucker nicht an eine ungeerdete Steckdose an; dies kann zum Elektroschock führen.
Setzen Sie den Drucker niemals in die Nähe von feuer- oder explosionsgefährlichen Stoffen. Betreiben Sie den
Drucker nicht in der Nähe von Flüssigkeiten und lassen Sie keine Flüssigkeiten in den Drucker gelangen. iii
TABLE OF CONTENTS
Appendix D – Using the Bluetooth
v
Table of Contents
vi
Printer Operation
Introduction
Thank you for purchasing a Printek MtP400 Series Mobile Thermal Printer. The MtP400 Series offers a variety of configurations to suit any printing environment.
All models support paper and labels up to 4.125 inches wide and include “black mark” sensing capabilities on the printed side. The MtP400LP also supports back black mark sensing and label gap sensing. All models are equipped with a serial port which may be used for either RS-232C or USB communications with an optional cable. The printer may also be equipped with an optional IrDA
®
, Bluetooth
®
, or Wi-Fi
®
interface, or a Magnetic
Card Reader for reading credit cards, drivers licenses, etc.
MtP400si and MtP400LPsi models are also available for permanently mounted industrial installations. These models include a ball-type mounting attachment and replace the battery with a Serial Data/Power connector.
This power connector accepts an 8-32 VDC input making it ideal for automotive and industrial equipment installations. If your printer is an “si” model, you may ignore all references to batteries and battery charging.
Each printer is shipped with Quick Setup Instructions and one roll of receipt paper. Non “si” models also include a battery and a belt loop system. “si” models include an unterminated data/power cable.
The remainder of this chapter focuses on preparing the printer for initial use and tasks that will be encountered
the printer for optimal performance and has information on how to diagnose any problems that may occur.
For systems integrators and administrators, appendices contain detailed instructions on how to configure printing characteristics and communications with host systems.
Power Connector For Non “si” Models
Paper Gauge
Serial Data/Power
Connector Replaces
Battery on “si” Models
Paper Door
Serial Data
Connector
Tear Bar
Magnetic
Card Reader
Control Panel
IrDA Window
Figure 1 - Printer Features
Battery
Paper Door Release
1
Battery Installation and Charging
the battery “snaps” into place.
Power Connector
Release Lever
Battery Indicator
Figure 2 - Battery Installation and Power Connector
The printer contains battery monitoring and charging circuitry so that the battery may be charged in the printer using an optional power adapter. Printek offers a variety of optional power adapters for use with 100-
240VAC/50-60Hz and 12/24VDC for vehicle applications.
Caution: Use only Printek power adapters designed specifically for your MtP400 printer. Using a different power adapter may cause damage to the printer and will not be covered by the printer’s warranty.
Connect a power adapter to the appropriate input source, and then connect the output of the power adapter to the printer’s Power Connector. The Battery Indicator will turn on and remain on until the battery is fully charged.
This may take up to 2½ hours. The Battery Indicator will turn off when the battery is fully charged and will flash whenever the battery needs recharging.
Note: New batteries are shipped in an “uncharged” state. The battery must be fully charged prior to first operating the printer on battery power alone. The printer may be used while charging, but this may cause the battery to take longer to reach a full charge. Maximum battery capacity is not reached until after completing a minimum of three complete charge and discharge cycles.
When the power adapter is connected, the printer’s charging circuitry will determine if the battery currently requires charging and if so, will turn on the Battery Indicator until the battery has reached sufficient charge.
Depending on the condition of the battery, charging may take up to 2½ hours to complete.
The printer’s battery status is displayed in the lower right corner of the front panel LCD Display. The status is displayed as a battery shape which indicates the relative capacity that remains as shown below.
Fully Charged Discharged
2
Leaving the adapter connected to the printer will cause the printer to continuously monitor the condition of the battery and keep the battery charged.
Optional external battery chargers are also available so that you can have fully charged batteries “standing by” when needed.
Installing Paper
Each printer is supplied with a roll of receipt paper. For your convenience, the printer features a paper supply
Note: For maximum performance and optimum print quality, use only genuine Printek receipt paper and labels in your MtP400 Series printer.
To install paper, you must release the paper door by moving the Paper Door Release in the direction shown in
Figure 3 and then lift the paper door to expose the paper compartment.
Paper Supply
Indicator
Paper Door Release
Figure 3 - Opening Paper Door
3
the arrow and then locate the paper between the two supports and release the movable support.
Note: Make sure the roll spins freely on the paper supports.
Movable Support
Fixed
Support
Figure 4 - Paper Support
door.
Figure 5 - Paper Laying Through Print Head
If the printer is turned on, you may now press the Paper Feed Button to advance the paper a few inches and then tear it off in preparation for printing.
4
Control Panel
The MtP400 Series printers are designed for simple operation with an easy to use control panel. As shown in
Figure 6, the control panel consists of an LCD Display, five indicators, and four pushbuttons.
LCD Display
Power Button
Power Indicator
Wireless Indicator
MCR Indicator
Error Indicator
Battery Indicator
Increment Button
IrDA Window
Figure 6 - Control Panel
Enter Button
Paper Feed Button
/Advance Button
In normal daily use, most users will only use the Power Button and Indicator, the Paper Feed Button, and observe any messages that may appear on the LCD Display. The purpose and functionality of all of the buttons and indicators are listed below.
Power Button – Used to turn the printer on or off.
Paper Feed
/Advance Button
– Feeds paper as defined by the Form Feed Control and Form Feed Distance settings in the Device Settings menu.
Also used to clear Check Paper error conditions.
Increment Button – Used in printer configuration menus to change the value of the currently selected item. (May also be used to access a stored command file – see the
MtP Series & FieldPro Programmer’s Manual for more information.)
Enter Button – Used in printer configuration menus to advance to the next setup item. May also be used to print the settings and connection information for the currently selected interface and/or switch between interfaces.
Power Indicator – ON indicates that power is on and operating in the normal power mode.
SHORT FLASH indicates the printer has entered the power saving standby mode and will wake upon receipt of data or when the Power Button or
Paper Feed Button is pressed.
SLOW FLASH indicates the printer is in Setup mode and not accepting data.
Wireless Indicator – Indicates an optional IrDA
®
, Bluetooth
®
or Wi-Fi
®
interface is installed, selected, and is currently connected or receiving data.
MCR Indicator – Indicates the optional Magnetic Card Reader has been enabled and is ready for the user to swipe a card.
Error Indicator – Indicates an error has occurred as described on the LCD Display.
Battery Indicator – ON indicates the battery is currently being charged.
FLASHING indicates the battery capacity is low and needs to be recharged.
OFF indicates the battery is fully charged or that no power adapter is attached.
5
Common Error Messages
Check Paper
This message is displayed and the Error Indicator flashes whenever the printer runs out of paper. This may also occur if there has been a paper jam that prevents paper from feeding into the print head. To clear the error, first clear the jam and/or install a new roll of paper. For information on how to replace the paper supply or to
check for a possible jam, please refer to “Installing Paper” on page 3.
Momentarily press the Paper Feed Button to resume printing.
Note: If the printer has firmware version 2.8 or later, pressing the Paper Feed Button will cause the printer to perform a Form Feed and then reprint the last partially printed print job. In version 6.0 and later this feature is disabled by default and may be enabled in the Advanced Menu.
If the entire job does not print as expected, the host program may need to be modified to make use of the printer’s buffer commands. Please refer to the MtP Series & FieldPro Programmer’s Manual for more information.
It is also possible that a false paper error may be detected when using “black mark” sensing on preprinted forms. This condition should not occur unless the size of the black mark on the form is larger than the size allowed for in the host application program. Please refer to the MtP Series & FieldPro Programmer’s Manual for more information.
Paper Door Open
This message is displayed and the Error Indicator flashes when the printer is attempting to print and the
Paper Door is not fully closed. To correct this error, make sure that the paper is loaded properly, close the
Paper Door, and momentarily press the Paper Feed Button.
Turning the Printer On and Off
To turn the printer on, simply press the Power Button. After the button is released, the printer will continue its power up initialization and then display the printer model and the communications options available, with an arrow pointing to the one presently selected. The bottom line will display a battery symbol at the right hand end of the line that indicates the current condition of the battery.
To turn the printer off, press and hold the Power Button. The printer will display “Printer Off” and then power down after the button is released.
6
Performing A Printer Self Test
To perform a self test, press and hold the Paper Feed button while turning the printer on with the Power
Button until the printer displays “Printing Current Menu Values”, and then release the Paper Feed button. A sample self test printout is shown below.
Firmware Revision & Release Date
Printer Serial Number
Serial Interface Installed, Not Selected
Bluetooth Interface Installed and Selected
Selected Interface Settings
MCR Installed
Current Printer Emulation Language
Image Management Menu Settings
Device Settings Menu Settings
Advanced Menu Settings
Current Battery Voltage
Current Flash Memory Contents
Print Head Test Pattern
7
Removing Printed Output
In most cases, the host application program will issue a Form Feed that will eject the paper so that all the printed information is fed out of the printer and the receipt or label is ready to be torn off. If all the printing is not yet out of the printer and the host has finished sending data to the printer, the paper may be positioned for tearing by simply pressing the Paper Feed Button.
To tear the paper, pull the paper against the tear bar at a slight angle as shown in Figure 7.
Figure 7 - Tearing Off Printed Output
Using the Magnetic Card Reader
The optional Magnetic Card Reader (MCR) is used by some applications to read information from credit cards, drivers licenses, etc.
The MCR may be used in either the Host Request mode or the Always On mode. When used in the Host
Request mode, the host system sends a request to the MtP400 to enable the Magnetic Card Reader. “Swipe
Card Now” will be displayed and the MCR Indicator will flash to indicate that the card may now be passed
through the MCR slot, or “swiped”. Refer to Figure 8 for the card orientation.
When used in the Always On mode, the card may be swiped at any time and the data will be immediately sent to the host system.
8
MCR Indicator
Figure 8 - Using The Magnetic Card Reader
If the card is read successfully, a short beep will sound, “Card Read Ok” will be displayed. If the card is not read successfully, a longer error tone will sound, “Card Not Read” will be displayed and the Error Indicator will begin to flash. If the read operation is not cancelled by the host application within a few seconds, or if the
Always On mode is being used, the Error Indicator will stop flashing and the printer will return to the
“Swipe Card Now” mode. At this time the card may be swiped again to attempt a successful read.
When using the Host Request mode, the length of time allowed before the timeout is specified by the host application program. Once a timeout occurs, the Error Indicator will turn on momentarily and “MCR
Timeout” will be displayed.
Belt Loop System
The belt loop system consists of two parts – a knob located on the bottom of the printer and a belt loop strap.
To use the belt loop system, slide your belt through the strap of the belt loop and then insert the knob located on the bottom of the printer into the slot of the belt loop connector. Pull down on the printer until you hear a click.
The printer is now secure and can safely hang down beside your hip.
To release the printer, press in on the two latches on the sides of the belt loop connector and pull the printer and knob up and clear of the slot.
Caution: Do not force or pull the printer from the connector without pressing in on the two latches.
Printer Configuration
Prior to using your printer, several features regarding printing characteristics, communication parameters, and printer operation may need to be configured.
If you are the person who will be using the printer on a daily basis, it is quite likely that the printer has already been configured for your use by your own IT staff or by the company from whom you purchased the printer.
so.
If you have questions regarding what has been, or needs to be, configured, please contact your system administrator.
9
Unique MtP400 Features
Printek MtP400 Series printers support many unique features not found in other manufacturer’s printers. This includes multiple printer language emulations, generous logo storage capacity, downloadable fonts, and the ability to automatically print headers, footers, and promotional information. A brief description of some of these features follows. For more detailed information, please refer to the MtP Series & FieldPro Programmer’s
Manual.
Printer Control Language Emulation
In addition to Printek’s own printer control language, MtP400 printers emulate languages supported by many other popular mobile printers. In many cases, this allows the MtP400 to be a drop-in replacement for those other printer models in a variety of applications.
The table below provides examples of various brands of printers and applications, and suggests the printer control language emulation setting that would most likely produce the desired output. To set the emulation chosen, please refer to the appendix that applies to the printer interface that you will be using in your application.
Printer Replaced
Zebra QL Series
Zebra RW Series
Zebra Cameo Series
Zebra Encore Series
Zebra PA/PT Series
Type of Application Suggested Emulation
Receipt Or Ticket Printing CPCL
Label Printing ZPL-II
Receipt Or Ticket Printing CPCL
Receipt Or Ticket Printing CPCL
All
Label Printing
CPCL
ZPL-II
Comtec Printers
Zebra Desktop (Selected Models)
O’Neil Microflash Series
Extech (All)
All
Label Printing
ALL
All
CPCL
ZPL-II
ONeil
Mt3
Intermec (Selected Desktop Models) Advanced Label Printing IPL
Other Label Printing
Intermec Mobile (Oem O’Neil Models)
All
ESim
ONeil
Toshiba Tec Desktop (Selected Models) Label Printing
Monarch Desktop (Selected Models) Label Printing
TEC
MPL
Figure 9 - Printer Emulation Application Chart
10
Abundant Logo Storage
1MB of flash memory is available to store multiple logos and other graphic images permanently in the printer.
This speeds up the printing procees by allowing these images to be printed as often as needed without having to retransmit the graphic image each time.
Automatic Header and Promo Printing
Graphic images stored in the printer as described above may be set to automatically print at either the beginning or end of each print job. Using the automatic header feature can allow the printer to print a logo at the beginning of each print job without requiring changes to application programs. Promos print at the end of each print job and can be used to print advertising “specials” or to print standard “boilerplate” information. For details on how to use these features, please refer to the MtP Series and FieldPro Programmer’s Manual.
11
Maintenance and Troubleshooting
Cleaning
In normal environments, the printer should be cleaned after printing a few rolls of paper or if there are voids in the printout. For optimum performance and life, you should clean the Print Head and Platen Roller whenever you load new paper.
To clean the printer areas as described below, use a Thermal Head Cleaning Pen available from Printek, or you
may use cotton swabs moistened with isopropyl alcohol. Please refer to Figure 10 for the following
instructions.
MCR Slot
Tear Bar
Print Head
Pick Roller
(SL Only)
Black Mark
/Gap Sensor
(LP Only)
Black Mark
Sensor
Platen Roller
Figure 10 - Printer Cleaning Areas
Turn the printer off.
Open the Paper Door and remove the paper.
Using a Thermal Head Cleaning Pen , clean the Print Element Area on the Print Head.
Caution: Do not use sharp objects to clean the print head. This may damage the printer and require service. Such damage is not covered under warranty.
Clean the Paper/Black Mark Sensor in the lower part of the print head.
Clean the Tear Bar
Clean the Platen Roller. Turn the platen roller with your finger to clean the entire surface.
Lubricate the movable paper support slot by rubbing on a small amount of paraffin wax (candle wax).
If a Magnetic Card Reader is installed, pass an MCR Cleaning Card through the slot to clean the head.
If your printer is an MtP400LP model, clean the Back Black Mark/Gap Sensor Near the Platen Roller.
You may also experience a build up of paper dust in the printer. This may be removed using a can of compressed air or by vacuuming.
To clean the exterior of the printer, turn the printer off and use a soft cloth moistened with a mild detergent.
13
Maintenance and Troubleshooting
Battery Care
Charging the Battery
The printer’s battery is charged in the printer using an optional power adapter. Adapters are available for 100-
240VAC/50-60Hz and for 12/24VDC vehicle applications. Follow the steps listed below to charge the battery.
An optional external four-bay charger is also available.
Plug the power adapter into a power source appropriate for the adapter being used.
Plug the power adapter into the power connector on the side of the printer. The printer’s Battery
Indicator will illuminate indicating that the battery charging circuitry is analyzing the condition of the battery.
If the battery is not fully charged, charging will begin and the Battery Indicator will remain on.
When the battery is fully charged, the Battery Indicator will turn off. Charging may take up to 2½ hours depending on the condition of the battery.
The printer may be used while the battery is charging, but this will extend the time required to fully charge the battery.
The power adapter may remain connected to the printer to keep the battery fully charged and will not cause damage to the printer or battery.
The printer’s battery status is displayed in the lower right corner of the front panel LCD Display. The status is displayed as a battery shape which indicates the relative capacity that remains as indicated below.
Fully Charged Discharged
Note: The status will display as fully charged whenever a power adapter is attached.
Additional Battery and Safety Information
All MtP400 Series printers us a 7.4 volt 2200mAH Lithium Ion battery.
The recommended ambient temperature for charging is 68-77° Fahrenheit (20-25° Centigrade).
Take the battery out of the printer when storing the printer for long periods of time. The battery storage temperature is 40-104° Fahrenheit (4-40° Centigrade). Do not store a fully charged battery at temperatures above this range for long periods of time or the battery may permanently lose charge capacity.
Do not disassemble, short circuit, heat above 80°C, or incinerate the battery. The battery may explode.
Only dispose of used batteries according to your local regulations. If you do not know your local regulations, the Rechargeable Battery Recycling Corporation (RBRC) is a non-profit organization created to promote recycling of rechargeable batteries. For more information visit www.rbrc.org.
14
Maintenance and Troubleshooting
Testing the Power Adapter and Battery
To verify that the printer’s internal battery charger is functioning properly, perform the following steps.
Test the power adapter with a voltmeter to verify that its output voltage is 9 VDC.
Connect the power adapter to a power source and then connect it to the printer.
Verify that the printer’s Battery Indicator is illuminated. If illuminated, the charging circuit is functioning properly.
Note: If the battery is already fully charged, the Battery Indicator will turn off after a short time.
After the battery has been charged for five minutes, disconnect the power adapter.
Perform a printer Self-Test. o Make sure the printer is turned off. The power indicator will be off and the LCD Display will be blank. o Press and hold the Paper Feed Button. o Continue holding the Paper Feed Button and turn the printer on using the Power Button until “Printing Current Menu Values” is displayed.
If the printer successfully prints the Self-Test, the battery is functional. The battery voltage will be shown on the printout. If the Self-Test does not complete and the printer turns itself off, repeat this test with a known good battery.
Once this test has completed successfully, allow the battery to fully charge. At the end of this time the
Battery Indicator will turn off.
Note: If the printer is turned on, the battery status shown in the bottom right corner of the LCD display will always show a fully charged battery whenever the printer is connected to the power adapter.
If the printer and battery do not appear to successfully pass these tests, refer to the Troubleshooting section for possible causes and solutions.
Note: This test only verifies that the power adapter, the internal charging circuit, and the battery are functioning properly. This test does not provide a valid indication of the relative capacity of the battery or how long it may hold a charge.
15
Maintenance and Troubleshooting
Troubleshooting
When encountering problems, the cause may be the printer or may sometimes be due to other problems with your system. Please review the following tables to solve common problems you may encounter with your printer. You may also visit www.printek.com for additional “FAQ’s” that may assist you.
If you are still unable to solve your problem, please contact the company where you purchased your printer since they are most familiar with your systems. If they are unable to help you, you may contact Printek
Technical Support at (800) 368-4636.
Error Messages
Whenever the printer detects an error condition. the Error Indicator will either flash or go to a steady on condition. The indicator flashes for errors that can be easily corrected such as Check Paper or Paper Door
Open.
The indicator will stay on without flashing for errors that cannot be recovered without loss of data. These are typically caused by interface configuration errors such as serial handshaking, or baud rate, and will require that the printer be turned off to clear the error.
Message
Check Paper
Paper Door Open
Parity Error
I/O Overflow
I/O Error
Possible Cause
Paper supply is empty.
Paper/Black Mark sensor is dirty.
Paper door not fully closed.
Serial I/O not configured correctly.
Serial I/O not configured correctly.
Optional interface – IrDA, Bluetooth, or
Wi-Fi not responding.
Solution
Install new roll.
Clean the Black Mark sensor.
Refer to “Cleaning” on page 13.
Make sure the door is fully closed by opening the door and closing it again until the door “clicks” closed. Check the platen roller for damage.
Verify that the parity selection made in the Interface Menu matches the setting on the host system.
Verify that the handshaking selections (ETX/ACK,
XON/XOFF, RTS/CTS) selections made in the Interface Menu match the settings on the host system.
Check cabling for proper, unbroken connections.
Try turning the printer off and on again. If the error repeats, the printer requires service.
16
Maintenance and Troubleshooting
Other Problems
Problem
Printer will not turn on.
Printer turns itself off.
Battery Indicator does not light or does not stay lit when power adapter is connected.
Battery not charging.
Poor print quality.
Paper not feeding.
Paper not feeding reliably or print is compressed vertically
Print Garbled.
Printer will not print.
Cannot print via optional interface,
Wireless Indicator does not light.
Possible Cause
Battery not installed properly.
Discharged battery.
Solution
Remove and reinstall battery making sure the battery release lever “clicks” when fully installed.
Recharge battery.
Auto Power Down is enabled.
Battery discharged.
Electrostatic discharge.
Change setting in the Advanced menu as described on page 24.
Replace or recharge battery.
May occur in extreme low humidity conditions. Turn printer back on with power button.
Battery already fully charged.
Faulty power adapter.
No action required.
Power adapter not receiving power. Check building/vehicle circuit breakers/fuses.
Check output of power adapter with voltmeter. 9 VDC.
Battery not installed properly.
Faulty power adapter or battery.
Remove and reinstall battery making sure the battery release lever “clicks” when fully installed.
Adapter and Battery” on page 15.
Low battery.
Print head dirty.
Poor quality or “old” paper.
Check and recharge battery.
Clean print head. Refer to page 13.
Verify paper from approved source. Try new roll of paper.
Obstruction in paper path or paper improperly installed.
Poor quality paper.
Poor quality paper.
Heavy or thick forms or labels.
Specialty paper with slick finish.
Low Battery.
Improper Serial interface configuration.
Low Battery.
Paper not loaded correctly.
Improper interface configuration.
Check paper path and reinstall paper.
Verify paper from approved source.
Verify paper from approved source.
Lower the Maximum Paper Speed
Check and recharge battery.
Verify printer and host settings match.
Check and recharge battery.
Check paper path and reinstall paper.
Verify printer and host settings match. Print a self test as
printer settings and to verify printer is functioning properly.
Interface not configured correctly. With printer on, press and hold the
Enter Button to print out current configuration. Make sure the interface is selected and that printer and host configurations match.
17
Maintenance and Troubleshooting
Obtaining Service
If service is required for your printer, please contact the company where you purchased your printer. If they are unable to assist you, contact Printek Customer Service at (800) 368-4636 to obtain the name of the nearest
Printek Authorized Service Center.
If you wish to return your printer to Printek for service, please contact Printek Customer Service at (800) 368-
4636 to obtain a Return Authorization Number. Units returned without a Return Authorization will not be accepted.
18
Appendix A
– Printer Configuration
This section describes printer operating features that may be configured to allow MtP400 series printers to communicate and operate properly with your computer and applications. These items are grouped into logical groupings, or menus, as described below.
Two methods are available to change the configuration of the printer. The preferred method is to use the
Printek Mobile Setup Utility, a Windows
®
Desktop, Windows CE, or Windows Mobile based program
Depending on what items need to be changed, you may need to use either one, or both, of these methods. A table at the beginning of the section for each menu describes which method or methods may be used.
Setup Menu Descriptions
Interface – Contains communication parameters and the printer language emulation. Menu items vary depending upon the interface(s) installed and currently selected as the active interface.
For configuration details for each interface, refer to the appropriate appendix as listed here.
Appendix B – Using the Serial/USB Interface
Appendix C – Using the IrDA® Interface
Appendix D – Using the Bluetooth® Interface
Appendix E – Using the Wi-Fi® Interface
Image Management – Contains items that affect character size and appearance.
For details, refer to the “Image Management” section in this
appendix.
Device Settings – Contains items that affect physical aspects of the printer and how
they relate to the paper being used and the positioning of the data to be printed.
For details, refer to the “Device Settings” section in this appendix.
appendix.
19
Image Management
The items in the Image Management menu affect character size and appearance.
The table below lists the items available, the values that may be selected, and the factory default value. Which setup method may be used to change values is indicated by a checkmark. Note that some of these settings may be overridden by the host application software. Following the tables are detailed descriptions of each setup item. In the detailed descriptions, an asterisk (*) indicates the factory default value. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
IMAGE MANAGEMENT
Menu Item
Print Contrast
Default Font
Scalable Font Set
Resident Font Set
Character Placement
Character Space (%)
Line Spacing
Long Lines
Values
-75 to +125
SansSerifA at 4.2, 5.5, 10.2, 10.7,
16.9, 18.5, 20.3, 34.0 cpi; Courier at 12.7, 13.5, 14.5, 15.6, 16.9, 18.5,
20.3, 22.6, 25.4, 34.0 cpi; FGothic
3.0, 4.6, 6.1, 7.8, 11.2, 18.4 cpi;
23x21OCR; ROT OCRA; or
Downloaded fonts if present.
Default Scalable or Downloaded font sets if available.
Default Resident or Downloaded font sets if available.
Fixed Width, Fixed Space
0 to 100
0 to 10 Lines
Wrap, Truncate
Setup Method
Default Value
0
16.9 Courier
Control
Panel
Setup
Utility
Default
Scalable
Default
Resident
Fixed Width
0
3
Wrap
Print Contrast
Possible Values: -75 … 0* … +125 in increments of 5 (+35* for LP Models)
The printer automatically adjusts the amount of energy used in order to maintain constant print quality as the battery discharges during use. The Print Contrast setting modifies the value that is determined to be needed by the printer and may be used to obtain improved print quality on different qualities of thermal paper.
Note: By affecting the relative amount of battery energy that is used when printing, the Print Contrast setting affects both print speed and battery life. Setting a lower value will result in faster printing and will extend normal battery life. Setting a higher value may allow the use of poorer quality paper and will result in slower printing and a shorter battery life.
20
Default Font
Possible Values: 4.2 cpi SnsSrfA
5.5 cpi SnsSrfA
10.2 cpi SnsSrfA
10.7 cpi SnsSrfA
16.9 cpi SnsSrfA
16.9 cpi Courier*
18.5 cpi SnsSrfA
18.5 cpi Courier
12.7 cpi Courier
13.5 cpi Courier
14.5 cpi Courier
20.3 cpi SnsSrfA
20.3 cpi Courier
22.6 cpi Courier
15.6 cpi Courier
34.0 cpi SnsSfrA
25.4 cpi Courier
Downloaded fonts are also displayed.
3.0 cpi FGothic
4.6 cpi FGothic
6.1 cpi FGothic
7.8 cpi FGothic
11.2 cpi FGothic
18.4 cpi FGothic
23x21OCR
ROT OCRA
This item selects the default font and character pitch to be used when the printer receives simple ASCII text or no other font is specified by the host application. The fonts listed above are contained in the printer firmware, but additional bit-mapped fonts may be downloaded. Please refer to the MtP Series & FieldPro Programmer’s
Manual for more information.
Scalable Font Set
Possible Values: Default Scalable*, Downloaded Font Sets
This item selects the font set to be used when a host application requests that a font be scaled to a larger size.
This provides fonts that have a “smoother” appearance when enlarged. For more information on using emulations and downloading fonts, please refer to the MtP Series & FieldPro Programmer’s Manual.
Resident Font Set
Possible Values: Default Resident*, Downloaded Font Sets
This item selects the font set to be used in conjunction with the particular printer control language emulation being used. This provides printer output that more closely represents the printer being emulated than might be accomplished with the fonts initially included in the printer firmware. For more information on using emulations and downloading fonts, please refer to the MtP Series & FieldPro Programmer’s Manual.
Character Placement
Possible Values: Fixed Width*, Fixed Space
This item selects the horizontal spacing method used between characters. Fixed Width is used when all characters are to take up the same amount of horizontal space regardless of the actual size of the character
(mono-space). Fixed Space is used when each character is to take up only enough horizontal space to print the actual character shape (proportional).
Character Space (%)
Possible Values: 0* … 100 in increments of 5
This item selects the amount of additional horizontal white space to be placed between each character. For
Fixed Width Character Placement, start with a value of 0% and make adjustments as needed for the desired output. For Fixed Space Character Placement, start with a value of 20%.
21
Line Spacing
Possible Values: 0 … 3* … 10 Lines
When printing text, this item sets the amount of spacing to be placed between lines. The height of a complete line, or line pitch, is determined by adding the Line Spacing value to the vertical size of the current font. With
Line Spacing set to the default value of “3” and using a font that is 23 rows high, the line pitch would be 3 + 23, or 26 dot rows. Since each dot row is 0.125mm, 26 x 0.125 yields a line pitch of 3.25mm. or 7.8 lines per inch
This line pitch value also determines the amount of paper motion performed when an ASCII Line Feed character is received by the printer.
When printing PC Line drawing characters, Line Spacing should be set to “0” to avoid space between rows of characters used to draw vertical lines.
When printing graphic data, Line Spacing has no affect so that multiple lines of graphics may print adjacent to each other.
Long Lines
Possible Values: Wrap*, Truncate
This item specifies what is to be done with data that will not fit within the printable area. The printable area is defined as the printable line length of the print head (approximately 4.1 inches) minus the area specified by the left and right margins.
When printing text, a value of “Wrap” will cause excess data to be “wrapped around” and printed at the beginning of the next line. A value of “Truncate” will cause the excess data to be discarded.
When printing graphics, excess data will always be discarded.
Device Settings
The items in the Device Settings menu affect physical aspects of the printer and how they relate to the paper being used and the positioning of the data to be printed.
The table below lists the items available, the values that may be selected, and the factory default value. Which setup method may be used to change values is indicated by a checkmark. Note that some of these settings may be overridden by the host application software. Following the tables are detailed descriptions of each setup item. In the detailed descriptions, an asterisk (*) indicates the factory default value. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
22
DEVICE SETTINGS
Menu Item
Left Margin
Right Margin
Maximum Paper Speed
Form Feed Control
Form Feed Distance
Top of Form Adjust
Tear Adjust
Mark Sensitivity
Values
0 to 1.0244”
0 to 1.0244”
0.07 to 3.30 ips
Front Mark, Back Mark*, Gap,
Distance*
0.0394 to 2.5216”
-
0.2955 to 0.2955”
-
0.2955 to 0.3152”
-10 to +10
Setup Method
Default Value
0
0
3.30 ips
Back Mark
Distance
1.2608”
0.0000”
0.0000”
0
Control
Panel
Setup
Utility
Left Margin
Possible Values: 0.0000”* … 1.0244” in increments of 0.0394”
This item sets the left margin in inches relative to the leftmost printing position. The left margin must be less than the right margin.
Right Margin
Possible Values: 0.0000”* … 1.2608” in increments of 0.0394”
This item sets the right margin in inches relative to the rightmost printing position.
Text characters that would have printed to the right of the margin will either be “wrapped around” and printed on the next line, or will be discarded based on the setting for “Truncate Lines” in the Image Management menu.
Graphic data that would have printed to the right of the margin will be truncated.
Maximum Paper Speed
Possible Values: 0.07 …3.30* ips (2.30* for LP Models)
This item may be used to reduce the maximum paper speed if necessary to allow the printer to use heavier paper or labels, narrow paper or labels, or some coated papers that have a more slippery finish.
Form Feed Control
Possible Values: Front Mark, Back Mark*, Gap, Distance*
*Note: In non “LP” models, only Front Mark and Distance are available. Distance is the default.
In “LP” models, Back mark is the default.
Mark Sensing is used to identify form or label position marking and must be set to match the paper being used.
The use of Black Mark or Gap sensing is associated with the design of the application program that is controlling the printer. For more information on Black Mark or Gap sensing, please refer to the MtP Series &
FieldPro Programmer’s Manual.
23
Form Feed Distance
Possible Values: 0.0394” … 1.2608”* … 2.5216”
Note: This item is only available when Form Feed Control is set to “Distance”.
This item sets the distance that paper is to be moved whenever the user presses the Paper Feed Button or a
Form Feed character is received from a host system.
Top of Form Adjust
Possible Values: -0.2955 … 0* … +0.2955”
Note: This item is not available when Form Feed Control is set to “Distance”.
This feature sets the distance from the black mark to where printing begins. A more positive number will move the print up. A more negative value will move the print down.
Tear Adjust
Possible Values: -0.2955 … 0* … +0.3152”
Note: This item is not available when Form Feed Control is set to “Distance”.
This feature is used to set the distance from the tear position on the paper/labels to the black mark. If the tear position is above the black mark, the value is negative. If the tear position is below the black mark, the value is positive.
Mark Sensitivity
Possible Values: -10 …0* …+10
Note: This item is not available when Form Feed Control is set to “Distance”.
This item allows the Black Mark/Paper sensor to be adjusted to allow for variations in paper materials and
Black Mark printing methods. The following list will help determine if, and how, the Mark Sensitivity should be adjusted.
If the printer is not detecting black marks reliably, set the Mark Sensitivity to a lower value.
If the printer is detecting black marks where none exist, set the Mark Sensitivity to a higher value.
If the printer is reporting false Check Paper errors, set the Mark Sensitivity to a higher value.
Advanced
The items in the Advanced menu contains items that affect the operating modes of special printer features.
The table below lists the items available, the values that may be selected, and the factory default value. Which setup method may be used to change values is indicated by a checkmark. Note that some of these settings require images to be loaded and/or may be overridden by the host application software. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.Following the tables are detailed descriptions of each setup item. In the detailed descriptions, an asterisk (*) indicates the factory default value.
24
ADVANCED
Menu Item
Auto Power Down
Print Header
Print Promotion
Reprint Mode
MCR Method
MCR Data
Values
Off, 1-15 Minute Delay
No, Yes, Not Loaded
No, Yes, Not Loaded
Disabled, Enabled
Always On, Host Request
1 Track, 2 Track, 3 Track
Setup Method
Default Value
Off
Not Loaded
Not Loaded
Disabled
Host Request
1 Track
Control
Panel
Auto Power Down
Possible Values: Off*, 1 Minute Delay … 15 Minute Delay
This item sets whether the printer will automatically power down and if so, after what period of time of inactivity. If set to a value other that “Off”, the printer will automatically turn itself off after the specified number of minutes have passed since the printer last received data or last printed, whichever is longer.
Print Header
Possible Values: No, Yes, Not Loaded*
When set to “Yes”, this item causes a previously stored graphic image with an ID value of “?” to be printed at the beginning of each print job.
Please refer to the MtP Series & FieldPro Programmer’s Manual for more information on storing graphics and logos.
Print Promotion
Possible Values: No, Yes, Not Loaded*
Note: This item is only available in firmware version 2.8 or later.
When set to “Yes”, this item causes a previously stored graphic image with an ID value of “$” to be printed at the end of each print job.
This item may be used to print a special logo or graphic image of a special sales promotion or other event, that also needs to be enabled/disabled by the user in the field.
Note: In firmware version 2.9 and later, multiple graphic images may be stored with the ID values of “!”,
“@”, “#”, “$”, “%”, “^”, “&”, “*”, “(“, and/or “)”. In this case, the printer will automatically cycle through each of these images printing one at the end of each print job.
Please refer to the MtP Series & FieldPro Programmer’s Manual for more information on storing graphics and logos.
Setup
Utility
25
Reprint Mode
Possible Values: Disabled*, Enabled
Note: This item is only available when using the Mobile Setup Utility.
This item sets whether the printer will attempt to reprint the current print job after a paper fault is corrected.
MCR Method
Possible Values: Always On, Host Request*
Note: This item is only available when using the Mobile Setup Utility.
This item sets whether the MCR is enabled only when a host request is received, or if it is enabled at all times.
When used in the Host Request mode, the host system sends a request to the MtP400 to enable the Magnetic
Card Reader. “Swipe Card Now” will be displayed and the MCR Indicator will flash to indicate that the card may now be passed through the MCR slot, or “swiped”.
When used in the Always On mode, the card may be swiped at any time and the data will be immediately sent to the host system.
For more information, please refer to the MtP Series and FieldPro Programmer’s Manual for more information.
MCR Data
Possible Values: 1 Track*, 2 Track, 3 Track
Note: This item is only available when using the Mobile Setup Utility.
This item sets the number of data tracks to read when a card is swiped.
26
Appendix B
– Using the Serial/USB Interface
Overview
Every MtP400 is equipped with a Serial Interface. Optional cables are available to provide RS-232C or USB connectivity. The serial interface is provided using an “RJ” type connector located on the left side of the printer. The connector pin assignments are shown below.
Pin # Signal Description
1 COM Logic Common
2 TXD Transmit Data (From Printer)
3
4
5
6
RXD
CTS
COM
RTS
Receive Data (From Host)
Clear To Send (From Printer)
Logic Common
Request To Send (From Host)
Figure 11 - Serial Interface, RJ Connector
In addition to the connector described above, MtP400si printers have a DB9F Serial Data/Power connector located on the right hand side of the printer. This connector provides connections for power input and contains duplicate signals from the RJ connector. An unterminated cable is provided with each printer and is described
Pin # Wire Color Signal Description
1
–
NC
2 White RXD Receive Data (From Host)
3
4
Green
Brown
TXD
NC
Transmit Data (From Printer)
5
6
7
8
9
Black
–
–
Red
Shield
COM
NC
NC
Power
Logic Common
+8-32 VDC
Connector Body
Figure 12
– MtP400si Serial Data/Power Cable
27
– Using the Serial/USB Interface
Selecting the Serial/USB Interface
& Printing the Configuration
In order to use the Serial interface, it must be the currently “selected” interface. If your printer does not have an optional IrDA
®
, Bluetooth
®
, or Wi-Fi
®
interface installed, the Serial interface will always be selected. If one of
perform the following procedure to determine if Serial is selected and then select it if necessary.
1. Make sure the printer is powered on.
2. Press the Enter Button. If the serial interface is currently selected, the following will be displayed and you may skip the next step.
Interface:
Serial
3. To select the Serial interface, press and hold the Enter Button until the following is displayed.
Interface Now
Serial
4. To obtain the current parameter settings for the serial interface, press and hold the Enter Button until the following is displayed. You may ignore any information on the bottom line.
Printing Setup:
----------------
Serial Interface Configuration
When using the Serial Interface for RS-232C communications, the baud rate, data bits, parity, stop bit(s), and handshaking method (XON/XOFF, ETX/ACK, RTS/CTS) must match the settings on the host computer. If these settings do not match, errors and/or lost data may occur.
When using the Serial Interface for USB communications, the printer’s default values of 57,600 Baud, 8 Data
Bits, 1 Stop Bit, No Parity, and RTS/CTS=Yes must be used.
The table below lists the menu items available, the values that may be selected, and the factory default value.
Following the table are detailed descriptions of each setup item. In the detailed descriptions an asterisk (*) indicates the factory default value.
The Serial Interface Menu items may be configured using either the Mobile Setup Utility as described in
method may be used is indicated in the table below. Before using the Mobile Setup Utility, please read the following note.
Note: In order to use the Mobile Setup Utility, communications must first be established between the host device running the utility and the printer. This may require that you first use the Control Panel Setup to establish communications and then use the Mobile Setup Utility for final configuration or to configure items in other menus, including another interface menu if an optional interface is installed.
28
– Using the Serial/USB Interface
INTERFACE MENU
– Serial Selected
Menu Item
Emulation
Baud Rate
Parity
Data Bits
Stop Bits
XON/XOFF
ETX/ACK
RTS/CTS
Values
Printek, Oneil, ZPL-II, Mt3, CPCL,
MPL, IPL, ESim, HexDump
9600, 19200, 38400, 57600
None, Even, Odd
7, 8
1, 2
On, Off
On, Off
On, Off
Default Value
Printek
Setup Method
Control
Panel
Setup
Utility
57600
None
8
1
Off
Off
On
Emulation
Possible Values: Printek*, O’Neil, ZPL-II, Mt3, CPCL, MPL, IPL, ESim, Hex Dump
This item sets the printer control language that may be used by a host application program to control the various capabilities of the printer. The printer will only respond to commands valid for the currently selected emulation. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
Baud Rate
Possible Values: 9600, 19200, 38400, 57600*
This item sets the baud rate for the Serial interface. The value must match the setting used on the host system.
Parity
Possible Values: None*, Even, Odd
This item sets the parity checking requirements for the data bits in the serial character frame. The value must match the setting used on the host system.
Data Bits
Possible Values: 7, 8*
This item sets the number of data bits in the serial character frame. The value must match the setting used on the host system.
Stop Bits
Possible Values: 1*, 2
This item sets the number of stop bits included in the serial character frame. The value must match the setting used on the host system.
29
– Using the Serial/USB Interface
XON/XOFF
Possible Values: Off*, On
This item enables or disables the XON/XOFF (DC1/DC3) character handshaking method used to control data flow from the host system to the printer. When enabled, an XOFF character will be sent by the printer whenever the printer’s input buffer is nearly full. An XON character will be sent whenever the printer’s input buffer becomes nearly empty or if the control panel Setup Mode has been exited.
ETX/ACK
Possible Values: Off*, On
This item enables or disables the ETX/ACK character handshaking method used to control data flow from the host system to the printer. When enabled, an ACK character will be sent by the printer after an ETX character has been received and processed out of the input buffer. ETX characters used for handshaking cannot be part of an escape sequence.
RTS/CTS
Possible Values: Off, On*
This item enables or disables the RTS/CTS hardware handshaking method used to control data flow from the host system to the printer. When enabled, the printer will activate the RTS signal whenever the printer’s input buffer becomes nearly empty or when the printer’s control panel Setup Menus are active. The RTS signal will be deasserted whenever the printer’s input buffer becomes nearly empty or Setup Mode has been exited.
Likewise, the printer will not send data to the host system if the host has asserted the CTS signal.
Note: This handshaking method may only be used when using the RJ serial connector on the left side of the printer. These signals are not available on the DB9F connector available on MtP400si models.
30
Appendix C
– Using the IrDA
®
Interface
Overview
In addition to the standard Serial interface, your MtP400 may be equipped with an optional IrDA
®
interface.
IrDA interfaces are commonly found on many PDA’s and notebook computers. To determine if this interface is installed in your printer, you may look at the model description on the serial number label on the back of the
printer. You may also refer to “Performing A Printer Self Test” on Page 7.
The IrDA interface uses infrared light to provide a cable free, short range interface. Since the communications medium is light, it is “line-of-sight” and requires that the interfaces on the printer and the host device be aligned with, or pointed at, each other. The printer’s transmitter and receiver are located behind an “IrDA Window” as
Whenever a host computer has established a connection with the printer, the Wireless Indicator will illuminate.
Note: The printer’s IrDA implementation makes use of IrCOMM rather than IrLPT. As a result, some host systems will require that the printer connection be established using a “COM” port rather than selecting “IrDA”. In most PDA’s this will be “COM3”.
LCD Display
Wireless Indicator
IrDA Window
Figure 13
– Wireless Indicator & IrDA Window
Selecting the IrDA
®
Interface
In order to use the IrDA interface, it must be the currently “selected” interface. To determine if the IrDA
you may perform the following procedure to determine if it is selected and then select it if necessary.
1. Make sure the printer is powered on.
2. Press the Enter Button. If the IrDA interface is currently selected, the following will be displayed and you may skip the next step.
Interface:
IrDA
31
3. To select the IrDA interface, press and hold the Enter Button until the following is displayed.
Interface Now
IrDA
4. To obtain the current parameter settings for the IrDA interface, press and hold the Enter Button until the following is displayed. You may ignore any information on the bottom line.
Printing Setup:
----------------
IrDA
®
Interface Configuration
When using IrDA
®
communications, the only interface setting that is required is the printer emulation language as indicated below.
The emulation may be configured using either the Mobile Setup Utility or the printer’s internal Control Panel
Note: In order to use the Mobile Setup Utility, communications must first be established between the host device running the utility and the printer. This may require that you first use the Control Panel Setup to establish communications and then use the Mobile Setup Utility for final configuration or to configure items in other menus.
INTERFACE MENU
– IrDA Selected
Menu Item
Emulation
Values
Printek, Oneil, ZPL-II, Mt3, CPCL,
MPL, IPL, ESim, HexDump
Default Value
Printek
Setup Method
Control
Panel
Setup
Utility
Emulation
Possible Values: Printek*, O’Neil, ZPL-II, Mt3, CPCL, MPL, IPL, ESim, Hex Dump
This item sets the printer control language that may be used by a host application program to control the various capabilities of the printer. The printer will only respond to commands valid for the currently selected emulation. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
32
Appendix D
– Using the Bluetooth
®
Interface
Overview
In addition to the standard Serial interface, your MtP400 may be equipped with an optional Bluetooth
® interface. To determine if this interface is installed in your printer, you may look at the model description on
The MtP400 Bluetooth interface acts as a “serial port adapter” operating as a “server”. Being a serial port adapter means that the printer may appear as a “Serial Device” when discovered, rather than as a “Printer”.
Operating as a server, other devices such as a PDA or other host computer may initiate the connection to the printer.
When discovered, the default name that will appear will be “MtP400-aaannnnn” where “aaannnnn” is the printer’s serial number. To obtain the printer’s Bluetooth name, you may use the printer’s setup menus or you may have the printer print it out. To print all the configuration values for the interface, make sure the printer is turned on and then press and hold the Enter Button until “Printing Setup” is displayed.
Whenever a host device has established a connection to the printer, the Wireless Indicator will be lit. When the host closes the connection, the indicator will turn off. To conserve battery power, application programs should disconnect from the printer whenever possible.
Selecting the Bluetooth
®
Interface
& Printing the Configuration
In order to use the Bluetooth interface, it must be the currently “selected” interface. To determine if the
Bluetooth interface or the Serial interface is selected, you may either perform a printer self test as described on
1. Make sure the printer is powered on.
2. Press the Enter Button. If the Bluetooth interface is currently selected, the following will be displayed and you may skip the next step.
Interface:
Bluetooth
3. To select the Bluetooth interface, press and hold the Enter Button until the following is displayed.
Interface Now
Bluetooth
4. To obtain the current parameter settings for the Bluetooth interface, press and hold the Enter Button until the following is displayed. You may ignore any information on the bottom line.
Printing Setup:
----------------
33
Bluetooth
®
Interface Configuration
When using Bluetooth
®
communications, the interface parameters set in the printer must match settings in the host computer.
The table below lists the menu items available, the values that may be selected, and the factory default value.
Following the table are detailed descriptions of each setup item. In the detailed descriptions an asterisk (*) indicates the factory default value.
The Bluetooth Interface Menu items may be configured using either the Mobile Setup Utility or the printer’s
in the table below. Before using the Mobile Setup Utility, please read the following note and then refer to
Note: In order to use the Mobile Setup Utility, communications must first be established between the host device running the utility and the printer. This may require that you first use the Control Panel Setup to establish communications and then use the Mobile Setup Utility for final configuration or to configure items in other menus.
INTERFACE MENU
– Bluetooth Selected
Menu Item
Emulation
Pairing Mode
Role Policy
Discoverability
Pin
Security
Local Name
Address
Values Default Value
Printek, Oneil, ZPL-II, Mt3, CPCL,
MPL, IPL, ESim, Hex Dump
Paired, Unpaired
Defer, Master
On, Off
Up to 16 Numeric Characters
Printek
Paired
Defer
On
0
On, Off Off
Up to 16 Alphanumeric Characters
MtP400-Serial
Twelve digit hexadecimal string Factory Set
Setup Method
Control
Panel
Setup
Utility
Emulation
Possible Values: Printek*, O’Neil, ZPL-II, Mt3, CPCL, MPL, IPL, ESim, Hex Dump
This item sets the printer control language that may be used by a host application program to control the various capabilities of the printer. The printer will only respond to commands valid for the currently selected emulation. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
34
Pairing Mode
Possible Values: Paired*, Unpaired
This item allows Bluetooth pairing to occur between the printer and the connecting device whenever Security is required by either device. Pairing requires that the PIN on the printer and the connecting exactly match each other.
Role Policy
Possible Values: Defer*, Master
Note that this item is only available in firmware version 2.8 or later.
This item selects the role of the printer’s interface in the Bluetooth network.
If the device attempting to communicate with the printer is having trouble discovering the printer, setting the value to Master may correct the problem.
Discoverability
Possible Values: Off, On*
This item is used to set whether the printer may be discovered by other Bluetooth devices.
PIN
Possible Values: 0*, Up to 16 Numeric Characters.
Note that this item is only available if Paring Mode is set to Paired.
To advance through the character positions, press the Advance Button. To change the character at the current position, press the Increment Button. The characters that may be selected are “0123456789” and SPACE.
Setting a character to SPACE will terminate the value being set.
Security
Possible Values: Off*, On
Setting Security to On forces the printer and the remote device to use pairing. Setting Security On requires that
Pairing is set to Paired and that a PIN has been entered that matches the PIN in the remote device.
Local Name
Possible Values: MtP400-aaannnnn*,
Up to 16 characters of “0” through “9”, “A” through “Z”, “a” through “z”, “-“, “_”, SPACE
This item sets the name that will be displayed by most host systems when “discovering” the printer. When shipped from the factory, the default value for the Bluetooth Local Name is “MtP400-aaannnnn” where
“aaannnnn” is the printer’s serial number. This name may be changed to any combination of letters, numbers, dashes, underscores, and SPACEs. The name may be up to 16 characters in length.
To advance through the character positions of the name, press the Advance Button. To change the character at the current position, press the Increment Button. The order of characters that may be selected is
“0123456789 ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz - _ SPACE”.
35
Address
Possible Values: Twelve digit hexadecimal string.
This item displays the unique hardware value associated with the particular Bluetooth interface installed in the printer. This value is set by the hardware manufacturer, is guaranteed to be unique for each interface, and may not be changed.
36
Appendix E
– Using the Wi-Fi
®
Interface
Overview
In addition to the standard Serial interface, your MtP300 may be equipped with an optional Wi-Fi
®
, IEEE
802.11a/b/g interface. To determine if this interface in installed in your printer, you may look at the model
The MtP300 Wi-Fi interface acts as a server and will accept connections from any host device such as a PDA, notebook computer, or a network server.
To print out the current Wi-Fi configuration details, follow the instructions below. This is especially useful for obtaining the current IP address when assigning addresses via DHCP. Be sure to wait several seconds after turning the printer on to allow it to establish a connection with the network and be assigned an address.
The Wireless Indicator will light whenever the printer is receiving a print job.
When operating in Infrastructure mode, the printer will attempt to conserve battery power whenever possible by placing the Wi-Fi interface into a low power mode when not communicating. However, according to the IEEE
802.11b standard, the printer must be granted “permission” from the network’s Access Point before operating in the low power mode. Since different Access Point manufacturers implement this item differently, the amount of power saving actually achieved varies. The actual power saving also varies with the amount of network traffic.
Selecting the Wi-Fi
®
Interface
& Printing the Configuration
In order to use the Wi-Fi interface, it must be the currently “selected” interface. To determine if the Wi-Fi
you may perform the following procedure to determine if the Wi-Fi interface is selected and then select it if necessary.
1. Make sure the printer is powered on.
2. Press the Enter Button. If the Wi-Fi interface is currently selected, the following will be displayed and you may skip the following step.
Interface:
Wi-Fi
3. To select the Wi-Fi interface, press and hold the Enter Button until the following is displayed.
Interface Now
Wi-Fi
4. To obtain the current parameter settings for the Wi-Fi interface, press and hold the Enter Button until the following is displayed. You may ignore any information on the bottom line.
Printing Setup:
----------------
37
38
Wi-Fi
®
Interface Configuration
When using Wi-Fi
®
communications, the interface parameters set in the printer must match settings in the host computer or network access point.
The table below lists the menu items available, the values that may be selected, and the factory default value.
Following the table are detailed descriptions of each setup item. In the detailed descriptions an asterisk (*) indicates the factory default value.
The Wi-Fi Interface menu items may be configured using either the Mobile Setup Utility or the printer’s
in the table below. Before using the Mobile Setup Utility, please read the following note and then refer to
Note: In order to use the Mobile Setup Utility, communications must first be established between the host device running the utility and the printer. This may require that you first use the Control Panel Setup to establish communications and then use the Mobile Setup Utility for final configuration or to configure items in other menus.
To access the WiFi Printer’s Web page, enter the IP address of the printer in the address bar of your browser on any computer on the same network.
If you are immediately presented with a login dialog, enter the username “DPAC” and the password “DPAC”.
If you are presented with a page like the one shown below, click on “Login” in the left column. Leave the username blank, and enter the password “ACCESS”.
INTERFACE MENU
– Wi-Fi Selected
Menu Item
Emulation
Printek, O’Neil, ZPL-II, Mt3, CPCL,
MPL, IPL, ESim, Hex Dump
Pass Through Mode On, Off
SSID
Type
Channel
Encryption
Authentication
Auth Protocol
Use WEP Key #
IP Method
Address
Subnet
Gateway
Printer Server Port
Advanced Features
Values
Access Point, Ad Hoc
WEP 64, WEP 128, WPA, Open
Open PSK, Shared PSK, PSK, Leap
PAP, MS-CHAP v2
Contact Printek Technical Support
Setup Method
Default Value
Printek
Control
Panel
Setup
Utility
Web
Page
Off
Any
Ad Hoc
1
Open
Open PSK
PAP
1
DHCP
192.0.0.192
255.255.255.0
192.0.0.1
8023
Emulation
Possible Values: Printek*, O’Neil, ZPL-II, Mt3, CPCL, MPL, IPL, ESim, Hex Dump
This item sets the family of printer commands that may be used by a host application program to control the various capabilities of the printer. The printer will only respond to commands valid for the currently selected emulation. For more information, please refer to the MtP Series & FieldPro Programmer’s Manual.
Note: After pressing the Enter Button to move from Emulation to WLAN Type, the printer will pause and display “Waiting for Wi-Fi” while reading the current configuration from the Bluetooth interface module.
Radio Pass Through
Possible Values: On, Off*
This item will allow direct access to the printer’s Wi-Fi module using a Telnet session. Contact Printek
Technical Support for a list of commands.
39
40
Appendix F
– Additional Setup Features
An additional security menu is available for system administrators who prefer to “lock out” operator changes to other setup menus. This method of security can be set independently for the each of the menus.
To access the Security menu, you must press and hold the Increment Button (not the Enter Button) while turning the printer on. Once Setup is entered, press the Enter Button to advance through the menus that may be controlled as listed in the table below.
When set to “Edit Allowed”, the user is allowed to make changes to any item in the menu specified. When set to “View”, the operator can review the settings, but cannot edit, or change, the values. When set to “Initialize”, the printer will reset all values in that menu to the factory default values and security will be reset to “Edit
Allowed”.
Note: When initializing the Interface menu, all items for all interfaces will be reset to factory default values, including the optional IrDA, Bluetooth, and Wi-Fi interfaces. Also, if installed, the optional interface will be set as the currently “selected” interface.
SECURITY
Menu Item
Interface
Image Management
Device Settings
Advanced
Values
Edit Allowed, View, Initialize
Edit Allowed, View, Initialize
Edit Allowed, View, Initialize
Edit Allowed, View, Initialize
Default Value
Edit Allowed
Edit Allowed
Edit Allowed
Edit Allowed
Setup Method
Control
Panel
Setup
Utility
41
Appendix G
– Printer Setup Menu Summary
INTERFACE MENU
– Serial Selected
Printek, Oneil, ZPL-II, Mt3, CPCL,
INTERFACE MENU
– IrDA Selected
Printek, Oneil, ZPL-II, Mt3, CPCL,
INTERFACE MENU
– Bluetooth Selected
Printek, Oneil, ZPL-II, Mt3, CPCL,
Up to 16 Alphanumeric Characters MtP400-Serial
Twelve digit hexadecimal string Factory Set
43
INTERFACE MENU
– Wi-Fi Selected
Printek, O’Neil, ZPL-II, Mt3, CPCL,
Open PSK, Shared PSK, PSK, Leap
Contact Printek Technical Support
IMAGE MANAGEMENT
SansSerifA at 4.2, 5.5, 10.2, 10.7,
16.9, 18.5, 20.3, 34.0 cpi; Courier at 12.7, 13.5, 14.5, 15.6, 16.9, 18.5,
20.3, 22.6, 25.4, 34.0 cpi; FGothic
3.0, 4.6, 6.1, 7.8, 11.2, 18.4 cpi;
Default Scalable or Downloaded font sets if available.
Default Resident or Downloaded font sets if available.
44
DEVICE SETTINGS
ADVANCED
45
Appendix H
– Mobile Setup Utility
This utility should be part of your Developer’s CD. It can also be obtained by contacting Printek Technical
Support.
How to use:
First, you must configure your communication parameters by clicking the 'Help and Options' button.
Navigate using the arrow keys (on a keyboard), or the directional-pad (on a Windows Mobile Device).
Most settings can be incremented or decremented using the Left and Right keys.
Some settings require a line of text, which can be entered in by pressing the Enter (keyboard) or Center (D-pad) key. When you are done typing, hit the Enter key again.
You can return to the main menu by pressing the Escape (keyboard) key.
NOTE:
If Printek printer driver is used for TCP/IP printing, it may block access to the TCP socket. Please set the printer driver as "Use Printer Offline" in the Windows printer list. This will open the socket and allow Mobile Setup to connect to the printer.
System Requirements:
Printer firmware version 6.00 or later.
The Utility can be installed on any machine meeting the following requirements.
Windows PC:
Microsoft .Net Framework version 2.0 or later.
Windows Mobile device:
Microsoft .Net Compact Framework version 2.0 or later. (Windows CE 5.0+ and Windows Mobile 5.0+ should are already compatible.)
Blackberry Smartphone – please call Printek Technical Support.
47
Appendix I
– Control Panel Setup
Control Panel Setup allows the user to configure most features of the MtP400. Some items may require using
the Printek Mobile Setup Utility described in Appendix H.
The list below describes where in this manual you may find detailed information for each of the setup menus.
Each section begins with a summary table which describes which setup method(s) may be used.
Menu
Interface – Serial/USB
Interface – IrDA
Interface – Bluetooth
Interface – Wi-Fi
Image Management
Device Settings
Advanced
Appendix
Page
Control Panel Setup Basics
LCD Display
Power Button
Power Indicator
Increment Button Enter Button
Figure 14 - MtP400 Control Panel
Advance Button
When in Setup, the top line of the LCD Display shows the name of the menu or the name of an “item” within the menu. The bottom line of the display shows the current value that is set to be used for the item displayed on the top line.
The Setup menus operate as a “What You See Is What You Get” system. This means that whenever you view or change any of the menu choices available, the value showing when you proceed to the next item or exit Setup is the value the printer will use after you exit Setup. Note that when exiting Setup, you may elect to discard any changes.
49
Entering Setup
To enter Setup, press and hold the Enter Button while turning on the printer with the Power Button.
Continue to hold the Enter Button until “Menus Active” appears on the LCD Display. After releasing the
Enter Button, “Entering Setup Menus” will be displayed momentarily before advancing to the
“INTERFACE” menu. While in Setup Mode, the power indicator will blink slowly.
Selecting Menus
Once Setup Mode has been successfully entered, the “INTERFACE” menu is the first menu displayed. Note that while in Setup Mode, the Paper Feed Button now operates as an Advance Button. To advance to the
“IMAGE MANAGEMENT”, “DEVICE SETTINGS”, or “ADVANCED” menus, or to “Exit Setup”, press the
Advance Button until the desired menu is displayed. With a few exceptions which are described where appropriate, pressing the Advance Button will always advance you to the next menu.
Exiting Setup
Setup may be exited by pressing the Advance Button until “Exit Setup” is displayed on the top line of the
LCD Display, and “Save Changes” is displayed on the bottom line. To save any changes you have made and exit Setup press the Enter Button. “Exiting Menus Saving Changes” will be displayed.
If you do not want to save the changes you have made, press the Increment Button to display “Discard
Changes” on the bottom line and then press the Enter Button. “Exiting Menus No Changes” will be displayed.
After Setup is exited and any changes saved, the printer will reset and reinitialize itself to adopt any changes that may have been made. Note that when this reset occurs, any data that may have been in the input buffer will be discarded.
50
Control Panel Setup Examples
The following examples provide step-by-step instructions for changing parameters from the factory default values.
Example: Changing Print Contrast and the Default Font
This example shows the steps required to change the print contrast from 0 to +10, and then continue on to change the font selection from 16.9 cpi Courier to 18.5 cpi Courier.
Note that either of these values may be overridden by your software application. When this occurs, selecting a different value in Setup will not change the output printed by your application. This may also apply to some other items within the Format Menu.
1. Make sure the printer is turned off.
2. Hold the Enter Button and turn the printer on with the Power
Button. Hold the Enter Button until “Menus Active” is displayed.
3. After releasing the Enter Button, the printer will display “Entering
Setup Menus” and will then proceed to “Interface” and will display the currently active interface on the bottom line.
Menus Active
Entering
Setup Menus
INTERFACE
Current I/O
IMAGE MANAGEMENT 4. Press the Advance Button to proceed to the “Image Management” menu.
5. Press the Enter Button to enter Image Management. The first item displayed is “Print Contrast” with the current value of “0”.
6. Press the Increment Button two times to advance the value to “10”.
Print Contrast:
0
Print Contrast:
+ 5
Print Contrast:
+ 10
7. Press the Enter Button to leave Print Contrast set to +10 and move to
“Default Font:”. The current value, “16.9 cpi Courier”, is be displayed.
8. Press the Increment Button two times to advance the value to “18.5 cpi Courier”.
9. Press the Advance Button until “Exit Setup Save Changes” is displayed.
Default Font:
16.9 cpi Courier
Default Font:
18.5 cpi SnsSrfA
Default Font:
18.5 cpi Courier
Exit Setup
Save Changes
10. Press the Enter Button to exit Setup. The printer will indicate that it is saving the changes, will perform an internal reset, and then be ready for use with the new values that were entered.
Exiting Menus
Saving Changes
51
Example: Changing the Serial Interface Baud Rate
This example shows the steps required to change the serial baud rate from 57600 to 38400.
1. Make sure the printer is turned off.
2. Hold the Enter Button and turn the printer on with the Power
Button. Hold the Enter Button until “Menus Active” is displayed.
Menus Active
3. After releasing the Enter Button, the printer will display “Entering
Setup Menus” and will then proceed to “Interface” and will display the currently active interface on the bottom line.
the currently selected interface.
Entering
Setup Menus
INTERFACE
Serial
4. Press the Enter Button to enter “Interface”, and continue to press the
Enter Button until “Baud Rate: 57600” is displayed.
5. Press the Increment Button three times to advance the value to
“38400”.
6. Press the Advance Button until “Exit Setup Save Changes” is displayed.
7. Press the Enter Button to exit Setup. The printer will indicate that it is saving the changes, will perform an internal reset, and then be ready for use with the new values that were entered.
Emulation
Printek
Baud Rate
57600*
Baud Rate
9600
Baud Rate
19200
Baud Rate
38400
Exit Setup
Save Changes
Exiting Menus
Saving Changes
52
Appendix J - Power Considerations
MtP400 printers are designed to provide superior output using as little power as necessary. This provides the longest possible battery life. The printers may also be operated from an external power adapter when used in a more permanent installation in a vehicle or office. The following discussions indicate how the printer accomplishes this power conservation using items such as Standby and Auto Power Down. For more
information on battery charging, please refer to “Charging the Battery” on page 14.
Note: MtP400si models do not use an internal battery. However, Standby Operation is still functional and the Auto Power Down feature is still available.
Standby Operation
When operating on battery power, the printer automatically enters a Standby mode one minute after last receiving data, printing, a front panel button is pressed, or a magnetic card reader swipe operation. When in
Standby, the printer will briefly flash the power indicator and the LCD display will be blank.
While in Standby the printer turns off as many power consuming components as possible. However, the printer remains fully capable of receiving data or responding to a control panel button. The printer will automatically
“wake up” when it begins to receive data from a host system, or when any front panel Button is pressed.
Auto Power Down
To conserve even more battery power, the printer may also be configured to turn itself off after a specified number of minutes of inactivity. When the printer powers down, this is equivalent to turning the printer off using the Power Button and the printer will no longer respond to incoming data.
To enable Auto Power Down, please refer to the Advanced menu settings on page 24.
Operation Without A Battery
MtP400si models do not have an internal battery and must be powered from an external 8-32 VDC supply. This makes these printers ideal for automotive applications and for use with industrial equipment such as forklifts.
MtP400 printers (non “si” models) may also be operated without their internal battery by using an optional power adapter. Power adapters are available for use with 100-240VAC/50-60Hz with the correct plug for several countries, and for 12/24VDC vehicle applications.
Caution: Use only Printek power adapters designed specifically for your MtP400 printer. Using a different power adapter may cause damage to the printer and will not be covered by the printer’s warranty.
53
Appendix K
– Print & Font Samples
Print Samples
55
Courier Font With International Extended Character Set
56
Courier Font PC Line Drawing Extended Character Set
Sans Serif Font
57
Appendix L
– Specifications
Printer Specifications
Printing Specifications
Printing Method: Direct Thermal, Up To 3.3 Inches Per Second (2.3 ips in LP models)
Printing Resolution: 203 dots per inch (8 dots per mm)
Printing Width: 832 Printing Elements for up to 4.1″ (10.41 cm)
Fonts/Characters/Bar codes
Fonts: A wide range of font types and sizes, from ~ 6 cpi to 34 cpi plus scaling depending on emulation chosen
International Characters: An expanding catalog available for download
Bar Codes: Code 39, Code 128, Interleaved 2 of 5, EAN08 & 13, PDF-417 and UPC depending on emulation chosen
Downloads: Downloadable fonts, graphics, logos, and additional bar codes
Connectivity
Serial: RS-232C, USB (Standard, Optional Cable Required)
Wireless Options: IrDA
Bluetooth: Complete Bluetooth
®
2.0 Stack Including:
Protocols: L2CAP, RFCOMM, SDP
Profiles: GAP, SDAP, SPP
Class 2 Operation
Bluetooth
®
SIG QD ID: B012394
RFC2217 & EN60601 Compliant
Wi-Fi: 802.11a/b/g Compatible
Software Available: Drivers for Windows 98/2000/XP/7/8
Compatible with WindowsCE/Pocket PC and Palm OS Print Utilities and SDK’s
Mobile Setup utility provides convenient configuration via a Windows, Windows
CE, or Windows Mobile device.
Emulations: Emulates many popular printer brands and languages including O’Neil, Zebra
CPCL and ZPL-II, Extech, IPL, MPL, E-Sim, TEC, EPOS, and Printek Mt3. Can be upgraded as new emulations become available.
Data Input
Magnetic Card Reader: 3 Track, Simultaneous Read (Option)
59
Power Management
Battery: 7.4 V, 2200mAH rechargeable 2 cell Lithium Ion (Not in MtP400si models)
Endurance: 500 pages or more than 3500 printed inches per charge (except Wi-Fi)
Internal Charging: 2 hours (requires optional power adapter). Printer may be used while charging.
Battery Free Operation: MtP400 models may be used with only optional external power adapter, 100-
240VAC 50/60Hz, or 12-24 VDC vehicle adapter.
MtP400si models require external 8-32 VDC supply and have over voltage protection to 80VDC for up to one hour and failsafe protection to 180VDC.
Physical Specifications
Size: 8.1 x 6.6 x 3.1 inches, 19.56 x 16.76 x 7.87 cm (L x W x H)
(Does not include ball mount on MtP400si models)
Weight: MtP400 = 2.2 lbs. (1.0 kg) including battery
MtP400si = 2.2 lbs. (1.0 kg)
Environmental Specifications
Operating Temp: -4° to 122°F (-12° to 50°C) (-40° to 185°F (-40° to 85°C) on MtP400si models)
Storage Temp: -4° to 140°F (-20° to 60°C)
Humidity: 10% to 90% RH (non-condensing)
Rating: IP54 per IEC 529
Chemical Resistance: Chemical resistant case per SAEJ1455
Operator Controls and Indicators
Display: 2 line x 16 character LCD
Indicators: Power, Wireless Connection, Magnetic Card Reader Ready, Battery Status, Fault
Controls: Power, Paper Feed, and two Configuration Buttons
Sensors: Paper, Paper Door Open, Black Mark Detection, and Label Gap Detection (LP
Models Only)
Memory Capacity
Flash: 2MB
RAM: 1MB
Durability and Reliability
Drop Test: Survives multiple 4 foot drops to concrete (each face), conforms to IEC 68-2
MTBF: 10,000 hours in normal use
Vibration Resistance: 9.8 Grms, 24 to 2000 Hz (MtP400si models only)
60
Regulatory Approvals
Approvals/Markings: FCC Class B
CE Mark
UL listed AC Adapters
E-mark on In-Vehicle Adapters
RoHS Compliant
Warranty
Printer: One year including print head and battery.
Paper Specifications
Receipt Paper
General Specifications: 0.0022 to 0.0065” (0.056 to 0.089mm) Thick
Black Mark Sensing On Printed Side
3 to 4.125” (76.2 to 104.78mm)Wide
0.75”/1.00” (19/25mm) Inside Diameter Core
2.625” (66.68mm) Maximum Outside Diameter
(Black Mark Sensing On Back Side and Gap Sensing On MtP400 LP Models)
Approved Vendors: Kansaki: P300, P310, P350, P354, P390*, P530UV, TO281CA,
OP200, TO381N, F180, F380, F550
Jujo: TF-50KS-E2C
Honshu: FH65BV-3
Appleton: Resiste 900-3.0*
*Standard Printek Offering
Labels
MtP400: 0.0022 to 0.0065” (0.056 to 0.089mm) Thick
0.75”/1.00” (19/25mm) Inside Diameter Core
Black Mark Sensing On Printed Side
2.625” Maximum Outside Diameter
4.125” Maximum Width (carrier)
MtP400 LP: 0.0022 to 0.0065” (0.056 to 0.089mm) Thick
0.75”/1.00” (19/25mm) Inside Diameter Core
Black Mark Sensing On Printed Side Or Back Side
Gap Sensing Between Labels
2.625” Maximum Outside Diameter
4.125” Maximum Width (carrier)
61
Black Mark Position
The vertical position of a Black Mark is dependent on the application program that will be used to search for and print relative to the mark. The following diagram shows the optimum position when seeking the Black
Mark at the beginning of a print job and will require little, if any, reverse paper motion.
The Black Mark must be printed on the front side of the paper for the MtP400. It may optionally be printed on the back side of the paper for use with the MtP400LP models
Tear edge.
Black Mark should span width of paper for best results.
0.7092”
”
0.15”
Front (thermal printed) side of form.
Figure 15 - Black Mark Position
Gap Sensing Specifications
Gap Sensing is only available for MtP400LP models. The minimum gap between labels is 0.125” (3.2mm).
62
Supplies and Accessories
Supplies
Battery: 7.4V, 2200 mAH Li-Ion
Available separately or in 5 or 20 packs.
Receipt Paper: 4.125” Width *
Available in cases of 36.
* Other sizes available on request.
Accessories
Power Supplies: 100-240VAC/50-60Hz Wall Adapter
Available for: North America, South Africa/India, Korea, Continental Europe
United Kingdom/Ireland, Australia/New Zealand
12/24VDC Vehicle Adapter
Battery Charger: Four Bay Fast Charger
Carrying Options: Shoulder Strap
Cables: Coiled 90° RJ11 to DB9
Coiled 90° RJ11 pigtail (unterminated)
Coiled Straight RJ11 to DB9
Uncoiled Straight RJ11 to DB9
USB Cable
DB9 pigtail (unterminated) power/data for MtP400si models only
63
Glossary of Terms
802.11 access point
Ad-Hoc
ASCII authentication bandwidth baud rate binary bit
Bluetooth client control code character pitch cpi current line current print position default
DHCP dpi escape sequence font hexadecimal
IEEE infrastructure interface
Wireless networking communication standards created by IEEE.
An interface between a wireless network and a wired network.
A Wi-Fi network consisting of only stations (no access point). Same as Peerto-Peer.
American Standard Code for Information Interchange.
The process a Wi-Fi station uses to identify itself to another station.
The amount of data that be transferred in a given period of time.
The rate at which characters are transmitted over a serial interface. This is also often referred to as bits per second.
Base two numbering system. Digits are represented by the characters 0 and 1.
A single binary digit.
A definition for short range radio frequency communications.
Any node on a network that requests services from another node (server).
A single, non-printing character which is used to control the configuration or operation of the printer.
The horizontal spacing of characters. Measured in cpi.
Characters per inch.
The line upon which the next character will be printed.
The column on the current line where the next character will be printed.
Value or configuration assumed when the printer is powered on or reset.
Dynamic Host Configuration Protocol. A method used to centrally control the assignment of IP addresses on a network.
Dots per inch. Generally used to refer to graphics density or resolution.
String of characters beginning with the escape (ESC) character which is used to control the configuration or operation of the printer. The characters which are part of this string are not printed.
A group of characters of a given shape or style.
Base sixteen numbering system. Digits are represented by the characters 0 through 9 and a through f.
Institute of Electrical and Electronic Engineers
A Wi-Fi network consisting of stations connecting to a wired network or other stations via an access point.
The connection between the printer and the host computer.
65
Glossary
IP
LAN
LCD
LED line pitch lpi margin
MSB node parity
Peer-to-Peer reset
RS-232C server
SSID
TCP top of form
WAN
WEP
Wi-Fi
WLAN
Internet Protocol. A specification for packets, or datagrams, of data and an addressing method to allow the exchange of data with another system. Must be combined with another protocol such as TCP to create a complete connection with the other system.
Local Area Network.
Liquid crystal display.
Light emitting diode.
The vertical spacing of rows of characters. Measured in lpi.
Lines per inch.
An area along any edge of a form where data may not be printed.
Most significant bit. In a character, this refers to bit seven (of 0 to 7).
Any device connected to a network.
A method used for detecting errors within a single character transmitted or received via an interface.
A network consisting of only stations (no access point or central server). Same as Ad-Hoc.
Initialization of various operating parameters of the printer to the value or state assumed when the printer is powered on.
An EIA standard for serial data transmission.
Any node on a network that provides services to another node (client).
Service Set IDentifier. An identifier attached to packets on a Wi-Fi network that identify the particular network the packets are intended for.
Transmission Control Protocol. A specification that controls the connection between systems on a network.
The vertical position where the first line is printed on the paper. Also the position the paper is advanced to when a form feed (FF) character is received from the host or the Form Feed button is pressed on the printer's control panel.
Wide Area Network. Refers to connections that allow one LAN to communicate with another LAN(s).
Wired Equivalent Privacy. A security protocol for wireless LANs designed to provide data security similar to a wired LAN.
Refers to any of the IEEE 802.11 standards.
Wireless Local Area Network. A LAN made up of wireless nodes.
66
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 7 Printer Operation
- 7 Introduction
- 8 Battery Installation and Charging
- 9 Installing Paper
- 11 Control Panel
- 12 Common Error Messages
- 12 Turning the Printer On and Off
- 13 Performing A Printer Self Test
- 14 Removing Printed Output
- 14 Using the Magnetic Card Reader
- 15 Belt Loop System
- 15 Printer Configuration
- 16 Unique MtP400 Features
- 19 Maintenance and Troubleshooting
- 19 Cleaning
- 20 Battery Care
- 20 Charging the Battery
- 20 Additional Battery and Safety Information
- 21 Testing the Power Adapter and Battery
- 22 Troubleshooting
- 22 Error Messages
- 23 Other Problems
- 24 Obtaining Service
- 25 Appendix A – Printer Configuration
- 25 Setup Menu Descriptions
- 26 Image Management
- 28 Device Settings
- 30 Advanced
- 33 Appendix B – Using the Serial/USB Interface
- 34 Selecting the Serial/USB Interface
- 34 Serial Interface Configuration
- 37 Interface
- 38 Interface Configuration
- 39 Interface
- 40 Interface Configuration
- 43 Interface
- 44 Interface Configuration
- 47 Appendix F – Additional Setup Features
- 49 Appendix G – Printer Setup Menu Summary
- 53 Appendix H – Mobile Setup Utility
- 55 Appendix I – Control Panel Setup
- 55 Control Panel Setup Basics
- 56 Entering Setup
- 56 Selecting Menus
- 56 Exiting Setup
- 57 Control Panel Setup Examples
- 57 Example: Changing Print Contrast and the Default Font
- 58 Example: Changing the Serial Interface Baud Rate
- 59 Appendix J - Power Considerations
- 59 Standby Operation
- 59 Auto Power Down
- 59 Operation Without A Battery
- 61 Appendix K – Print & Font Samples
- 65 Appendix L – Specifications
- 65 Printer Specifications
- 67 Paper Specifications
- 69 Supplies and Accessories
- 71 Glossary of Terms
