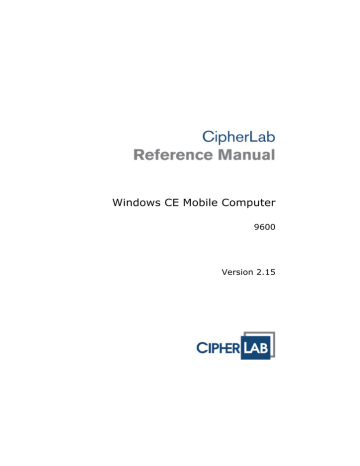

Cipher96xx Reference Manual v2.15 - руководство пользователя терминала (Анл.)

Windows CE Mobile Computer
9600
Version 2.15
Copyright © 2009~2011 CIPHERLAB CO., LTD.
All rights reserved
The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided
under a license agreement containing restrictions on use and disclosure and is also
protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The
information and intellectual property contained herein is confidential between CIPHERLAB
and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find
any problems in the documentation, please report them to us in writing. CIPHERLAB
does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales
representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.
All brand, product and service, and trademark names are the property of their registered
owners.
The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website: http://www.cipherlab.com
IMPORTANT NOTICES
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FOR CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled
"Digital Apparatus," ICES-003 of Industry Canada.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux
appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur:
"Appareils Numeriques," NMB-003 edictee par l'Industrie.
FOR HAND-HELD PRODUCT WITH RF FUNCTIONS
9600 serial handheld equipment uses wireless radios that have been designed and
manufactured to meet safety requirements for limiting exposure to radio waves. When
used in accordance with the instructions set forth in this manual, the equipment has been
independently verified to not exceed the emission limits for safe exposure to radio
frequency (RF) energy as specified by the FCC of the U.S. Government in 47 CFR
§2.1093 and EN50360 of EEC.
These limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on standards that were
developed by independent scientific organization through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety margin
designed to assure the safety of all persons, regardless of age and health.
The exposure standard for all wireless devices employs a unit of measurement known as
the Specific Absorption Rate, or SAR; the SAR limit set by the FCC1 is 1.6W/kg (or CE is
2.0W/Kg).
Tests for SAR on 9600 serial handhelds have been undertaken using the standard
operating positions adopted by the FCC that test the device for SAR while it is
transmitting at the highest certified power level in all tested frequency bands.
The FCC has granted an Equipment Authorization for this device on the basis that all
reported SAR levels have been evaluated to be compliant with the FCC RF exposure
guidelines.
SAR information on this device is on file with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: Q3N-9600.
For trunk, the SAR values of the 9600 serial handheld is
USA:
EEC:
MAX 0.153W/Kg
MAX 0.049W/Kg
FOR PRODUCT WITH LASER
CAUTION
This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not
stare into beam.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devices, which are not originally sold or
manufactured by CipherLab, will void your warranty and may cause damage to
human body or the product itself.
DO NOT disassemble, incinerate or short circuit the battery.
DO NOT expose the scanner or the battery to any flammable sources.
For green-environment issue, it's important that batteries should be recycled in a
proper way.
Under no circumstances, internal components are self-serviceable.
The charging and communication cradle uses an AC power adaptor. A socket outlet
shall be installed near the equipment and shall be easily accessible. Make sure there
is stable power supply for the mobile computer or its peripherals to operate properly.
CARE & MAINTENANCE
This mobile computer is intended for industrial use. The mobile computer is rated IP
64, however, it may do damage to the mobile computer when being exposed to
extreme temperatures or soaked wet.
When the body of the mobile computer gets dirty, use a clean and wet cloth to wipe
off the dust. DO NOT use/mix any bleach or cleaner. Always keep the LCD dry.
For a liquid crystal display (LCD) or touch screen, use a clean, non-abrasive, lint-free
cloth to wipe dust off the screen. DO NOT use any pointed or sharp object to move
against the surface.
If you want to put away the mobile computer for a period of time, download the
collected data to a host computer, and then take out the battery pack. Store the
mobile computer and battery pack separately.
When the mobile computer resumes its work, the main and backup batteries will take
a certain time to become fully charged.
If you shall find the mobile computer malfunctioning, write down the specific scenario
and consult your local sales representative.
RELEASE NOTES
Version
Date
Notes
2.15
Oct 04, 2011
New: Add backlight and VGA resolution switch note information.
2.14
Aug 04, 2011
2.13
July 28, 2011
Modified: Important Notices — Add RF statement
Modified: 3.3 System Settings — “Password” to apply protection to
DiskOnChip, permission to change “Date/Time” settings
Modified: 3.3 System Settings — Rename “External Port” to “Com
Port Mapping”
Modified: 5.9.3 BT-Connect — Add “Enable power save”
Modified: 8.2 Button Assignment Utility — Add “User-defined key
code”
New: 8.5.3 Ephemeris Update Settings
Modified: 4.2.5 Global Settings — Add properties
Modified: 8.3 Screen Control — Remove support of switching
screen resolution (VGA to QVGA)
Modified: Appendix I~III — Add more GS1 DataBar symbologies
2.12
May 04, 2011
2.11
Mar. 18, 2011
2.10
Feb. 01, 2011
2.03
Nov. 30, 2010
2.02
Sep. 10, 2010
2.01
July 19, 2010
Modified: Chapter 1 battery Spec.
Modified: New 29 Keypad Layout
Modified: 3.2.2 Understanding Device Configuration - Device ID
Modified: Inside the Package — Add item “LCD Protective Film”
Modified: 3.5 Upgrading OS Image — Procedures updated
Modified: Specifications — Backup Battery (3.7 V, 75 mAh)
Modified: Specifications — Power Adaptor for 4-Slot Battery
Charger (6 V, 3.5 A)
Modified: 3.3 System Settings — Add items “Auto Backup”,
“Version Viewer”
Modified: 6 Using GSM/GPRS — Add support of emergency call,
and enable GSM/GPRS at the same time
New: Add support of Qwerty keypad
Modified: Installing Pistol Grip — Procedures updated
Modified: 4.2.2 Profile Editing — Add types of Encryption and EAP
Type
Modified: 4.2.6 Summit System Tray Icon — SCU tray icon
behavior
Modified: Installing Battery — Turn off the mobile computer before
replacing the battery pack
Modified: 2.1.2 Taskbar — GSM icon behavior
Modified: 6.3.1 Checking GSM Connection — GSM icon behavior
2.00
1.02
July 09, 2010
Jan. 11, 2010
Modified: Using Cradle — Power receptacle on the cable connector
is non-functional when using cradle
Modified: 1.1.2 Power Management — UI updated
Modified: 1.3 Keypad — Remove 43-key Keypad
Modified: 1.5.1 Status LED — Red LED flashes while charging error
Modified: 1.7 Cradles — LED indicators description
Modified: 2.1.2 Taskbar — UI updated
Modified: 2.1.3 Start Menu — Remove “Suspend” from Start Menu
New: 2.5.1 Suspend Mode Modified: 3.1 Application Manager — UI
updated
Modified: 3.3 System Settings — Add “BT Manager”, “External
Port”, and “GSM/GPRS Manager”
Modified: 3.5.1 SD Download — Downgrading is not allowed
Modified: Chapter 5 Using Bluetooth — UI updated
New: 5.1.1 Bluetooth Profiles Supported
Modified: Chapter 6 Using GSM/GPRS — UI updated
Modified: 7.3 RFID Reader Settings — UI updated and rename Tag
Type “Mifare Ultralight” with “Mifare” and change the Start Page to
“4”
Modified: 8.4.3 Changing Camera Settings — Remove “240 x 180”
pixels
resolution
and
change
saving
format
to
HHMMSS_YYMMDD.jpg or HHMMSS_YYMMDD.bmp.
Modified: Appendix III — Move “Inter-Character Gap” under
Codabar and Code 39, and add “ISBT Concatenation” and “ISBT
Concatenation Redundancy” for 2D Imager
Modified: 1.3.4 Function Key — Add function key combinations
(Home/End/PgUp/PgDn)
Modified: 7.7 Symbology Settings — Renamed “Pharmacode” with
“I/F Pharma.” and updated the screenshot
Modified: Installing Battery — Procedures updated
1.01
Jan. 04, 2010
1.00
Dec. 21, 2009
Initial release
CONTENTS
IMPORTANT NOTICES ...................................................................................................................... - 3 For USA .......................................................................................................................................... - 3 For Canada .................................................................................................................................... - 3 For Hand-held Product with RF Functions ................................................................................... - 4 For Product with Laser .................................................................................................................. - 4 Safety Precautions ........................................................................................................................ - 5 Care & Maintenance ..................................................................................................................... - 5 RELEASE NOTES .............................................................................................................................. - 7 INTRODUCTION .................................................................................................................................... 1
Features............................................................................................................................................. 2
Inside the Package............................................................................................................................ 3
Accessories........................................................................................................................................ 3
QUICK START ....................................................................................................................................... 5
Overview............................................................................................................................................. 5
Removing Hand Strap.................................................................................................................. 6
Installing Pistol Grip ..................................................................................................................... 7
Inserting Memory Card ................................................................................................................ 8
Inserting SIM Card........................................................................................................................ 9
Connecting Headset..................................................................................................................... 9
Installing Battery ........................................................................................................................ 10
Charging & Communications.......................................................................................................... 12
Using Wireless Networks ...........................................................................................................12
Using Cable................................................................................................................................. 13
Using Cradle ............................................................................................................................... 14
USING 9600 MOBILE COMPUTER..................................................................................................... 15
1.1 Battery ....................................................................................................................................... 15
1.1.1 Understanding the Battery Icons.....................................................................................16
1.1.2 Power Management.........................................................................................................17
1.2 Memory ..................................................................................................................................... 19
1.2.1 Caution of Data Loss........................................................................................................19
1.2.2 Checking the Storage Space ...........................................................................................19
1.3 Keypad ...................................................................................................................................... 21
1.3.1 Keypad Settings ............................................................................................................... 23
1.3.2 Alpha Key..........................................................................................................................24
1.3.3 Shift Key............................................................................................................................ 25
1.3.4 Function Key..................................................................................................................... 26
1.3.5 Programmable Keys.........................................................................................................26
1.4 Touch Screen ............................................................................................................................ 27
1.4.1 Adjusting the Backlight ....................................................................................................27
1.4.2 Re-calibrating the Screen ................................................................................................ 28
9600 Mobile Computer Reference Manual
1.5 Notifications.............................................................................................................................. 29
1.5.1 Status LED ........................................................................................................................29
1.5.2 Audio ................................................................................................................................. 29
1.5.3 Vibrator ............................................................................................................................. 29
1.6 Data Capture.............................................................................................................................30
1.6.1 Barcode & RFID Reader...................................................................................................30
1.6.2 Digital Camera.................................................................................................................. 30
1.7 Cradles ...................................................................................................................................... 31
1.7.1 Charging & Communication Cradle.................................................................................31
1.7.2 Ethernet Cradle ................................................................................................................32
1.8 Battery Charger.........................................................................................................................33
LEARNING WINDOWS CE BASICS...................................................................................................... 35
2.1 Getting Started.......................................................................................................................... 35
2.1.1 Desktop............................................................................................................................. 36
2.1.2 Taskbar ............................................................................................................................. 37
2.1.3 Start Menu........................................................................................................................39
2.1.4 Input Methods .................................................................................................................. 40
2.2 Managing Programs ................................................................................................................. 41
2.2.1 Quick Launch a Program .................................................................................................41
2.2.2 Switch among Programs and Desktop............................................................................41
2.2.3 Exit a Program .................................................................................................................. 42
2.3 Using ActiveSync....................................................................................................................... 43
2.3.1 Synchronization with Your Computer..............................................................................43
2.3.2 Add/Remove Programs....................................................................................................44
2.3.3 Explore Device..................................................................................................................45
2.3.4 Backup/Restore ...............................................................................................................46
2.4 Using Windows Explorer ........................................................................................................... 47
2.4.1 Add a Program to Start Menu..........................................................................................47
2.4.2 Create a new Folder ......................................................................................................... 47
2.5 Suspend & Reset......................................................................................................................48
2.5.1 Suspend Mode .................................................................................................................48
2.5.2 Software Reset (Warm Boot) ...........................................................................................49
2.5.3 Hardware Reset (Cold Boot) ............................................................................................49
2.5.4 Date/Time & Time Zone After Reset...............................................................................49
2.6 Auto Run.................................................................................................................................... 50
CONFIGURING 9600 MOBILE COMPUTER........................................................................................ 51
3.1 Application Manager ................................................................................................................51
3.2 Device Name & Configuration .................................................................................................52
3.2.1 Changing Device Name ................................................................................................... 52
3.2.2 Understanding Device Configuration ..............................................................................53
3.3 System Settings ........................................................................................................................54
3.4 Connection Settings .................................................................................................................58
3.5 Upgrading OS Image.................................................................................................................60
3.5.1 SD Download ....................................................................................................................60
3.5.2 Run DLDR.exe ..................................................................................................................60
9600 Mobile Computer Reference Manual
USING 802.11 RADIO........................................................................................................................ 63
4.1 Turn On Wi-Fi Power ................................................................................................................. 63
4.2 Summit Client Utility .................................................................................................................64
4.2.1 Main Settings ...................................................................................................................64
4.2.2 Profile Editing ................................................................................................................... 68
4.2.3 Connection Status............................................................................................................ 74
4.2.4 Diagnostics .......................................................................................................................76
4.2.5 Global Settings .................................................................................................................79
4.2.6 Summit System Tray Icon ................................................................................................82
USING BLUETOOTH............................................................................................................................ 83
5.1 Turn on BT Power...................................................................................................................... 83
5.1.1 Bluetooth Profiles Supported ..........................................................................................85
5.1.2 Bluetooth Toolbar.............................................................................................................85
5.1.3 Set Discoverable ..............................................................................................................86
5.2 Search Devices ......................................................................................................................... 87
5.3 Pair Devices .............................................................................................................................. 88
5.3.1 Identify Remote Device....................................................................................................88
5.3.2 Pair .................................................................................................................................... 89
5.3.3 Unpair ............................................................................................................................... 93
5.4 File Transfer ..............................................................................................................................94
5.4.1 Upload a File..................................................................................................................... 94
5.4.2 Download a File................................................................................................................95
5.5 Object Push............................................................................................................................... 96
5.6 Serial Port Service ....................................................................................................................97
5.6.1 Serial Port Service............................................................................................................97
5.6.2 Bluetooth ActiveSync .......................................................................................................99
5.7 Re-connect to Remote Services ............................................................................................101
5.7.1 Preferred Device List......................................................................................................101
5.7.2 Preferred Services..........................................................................................................102
5.8 Manage Local Services ..........................................................................................................103
5.8.1 File Transfer....................................................................................................................103
5.8.2 Object Push ....................................................................................................................104
5.8.3 Serial Port Service..........................................................................................................105
5.9 BT Manager.............................................................................................................................107
5.9.1 General Settings.............................................................................................................107
5.9.2 Preference ......................................................................................................................108
5.9.3 BT-Connect .....................................................................................................................110
USING GSM/GPRS...........................................................................................................................111
6.1 Turn On GSM/GPRS Power ....................................................................................................111
6.2 GPRS Connection ...................................................................................................................113
6.2.1 Checking GPRS Connection...........................................................................................113
6.2.2 Using GSM-Connect during a GPRS Session................................................................114
6.3 Phone Application...................................................................................................................115
6.3.1 Checking GSM Connection ............................................................................................115
6.3.2 Buttons ...........................................................................................................................117
6.3.3 Making Phone Calls .......................................................................................................118
9600 Mobile Computer Reference Manual
6.3.4 Answering Phone Calls...................................................................................................118
6.3.5 Changing the Phone Volume and Notifications............................................................118
6.3.6 Editing Phone Book........................................................................................................119
6.3.7 Message Box ..................................................................................................................121
6.4 GSM/GPRS Manager..............................................................................................................122
6.4.1 Basic Settings.................................................................................................................122
6.4.2 Security ...........................................................................................................................124
USING READER CONFIGURATION UTILITY.......................................................................................127
7.1 Run ReaderConfig.exe............................................................................................................127
7.2 Barcode Reader Settings .......................................................................................................129
7.3 RFID Reader Settings .............................................................................................................130
7.3.1 Read Operation ..............................................................................................................131
7.3.2 Write Operation ..............................................................................................................132
7.4 RFID Security ..........................................................................................................................133
7.5 Data Output.............................................................................................................................134
7.6 Notifications (for Good Read) ................................................................................................136
7.7 Symbology Settings ................................................................................................................137
MORE APPLICATIONS ......................................................................................................................139
8.1 Backup Utility ..........................................................................................................................140
8.1.1 Managing the Registry ...................................................................................................140
8.1.2 Preparing for Backup .....................................................................................................141
8.1.3 Backing up Files .............................................................................................................142
8.1.4 Using Backups for Restore ............................................................................................144
8.2 Button Assignment Utility .......................................................................................................146
8.3 Screen Control ........................................................................................................................148
8.4 Image Capture Utility ..............................................................................................................149
8.4.1 Viewing a Picture............................................................................................................150
8.4.2 Taking a Snapshot .........................................................................................................151
8.4.3 Changing Camera Settings ............................................................................................152
8.5 GPS Viewer..............................................................................................................................153
8.5.1 Receiving GPS Information............................................................................................154
8.5.2 Data of NMEA Format ....................................................................................................155
8.5.3 Ephemeris Update Settings...........................................................................................156
SPECIFICATIONS ..............................................................................................................................157
Platform, Processor & Memory.....................................................................................................157
Communications & Data Capture ................................................................................................157
Electrical Characteristics ..............................................................................................................158
Physical Characteristics ................................................................................................................158
Environmental Characteristics .....................................................................................................159
Programming Support...................................................................................................................159
Accessories....................................................................................................................................160
SCAN ENGINE SETTINGS .................................................................................................................161
Symbologies Supported ................................................................................................................161
RFID Tags Supported ....................................................................................................................163
9600 Mobile Computer Reference Manual
LINEAR IMAGER (CCD), LASER (SE950)..........................................................................................165
Reader Settings Table...................................................................................................................165
Symbology Settings Table.............................................................................................................166
2D IMAGER ......................................................................................................................................171
Reader Settings Table...................................................................................................................171
Symbology Settings Table.............................................................................................................173
1D Symbologies .......................................................................................................................173
2D Symbologies .......................................................................................................................179
Image Capture & Miscellaneous .............................................................................................181
AIM Code ID – Code Characters..............................................................................................183
AIM Code ID – Modifier Characters.........................................................................................183
KEY REFERENCE TABLES ................................................................................................................187
29-key Keypad...............................................................................................................................187
Use of Alpha (α) / Function (fn)...............................................................................................188
Use of Shift (©) ........................................................................................................................189
Qwerty Keypad...............................................................................................................................190
Use of Alpha (α) & Shift ( ).....................................................................................................191
Use of Shift ( ).........................................................................................................................193
Use of Function (Fn).................................................................................................................194
INTRODUCTION
9600 Mobile Computer, running Windows CE 6.0 in palm size, is our new product line of
rugged PDA-style Mobile Computer. Light-weight, streamlined and ergonomic, it adds
even more powerful and handy tools to delivering the flexibility in customization.
Specifically designed to work as an industrial PDA, 9600 Mobile Computer provides rich
options of data collection, voice and data communications, long-lasting working hours,
and so on. Its large color transflective TFT display guarantees ease in reading in all
lighting conditions. Integrated with Bluetooth and 802.11b/g technologies, you may
choose to add the GSM/GPRS module to gain greater speeds and optimal mobility. In
particular, an integrated GPS receiver is made available for use with third-party
location-based applications.
This manual serves to guide you through how to install, configure, and operate the
mobile computer. The Care & Maintenance section is specifically prepared for those who
are in charge of taking care of the mobile computer.
We recommend you to keep one copy of the manual at hand for quick reference or
maintenance purposes. To avoid any improper disposal or operation, please read the
manual thoroughly before use.
Thank you for choosing CipherLab products!
1
9600 Mobile Computer Reference Manual
FEATURES
Ergonomic design - ruggedized yet streamlined, with hand strap for secure hold
Built tough to survive drop test and sealed against moisture/dust to industrial
standard IP 64
Microsoft Windows CE 6.0 operating system, 520 MHz Marvell PXA270 processor
1 GB NAND flash memory to store OS and software programs
(part of the free space is used as a storage card called DiskOnChip)
128 MB SDRAM to store and run programs, as well as store program data
One microSD expansion slot for up to 16 GB memory card, and SDHC is supported
Dual mode support — One scan engine (integrated barcode scanner/imager) plus one
RFID reader
Ambidextrous side triggers
Total wireless solution —
connectivity
includes
Bluetooth,
802.11b/g
and
GSM/EDGE/GPRS
A 3.5" color transflective TFT display delivers excellent visibility in all lighting
conditions
Programmable feedback includes buzzer, speaker and vibrator
Built-in power tools include Reader Configuration Utility, Backup Utility, etc.
Quick link to any backend database through MIRROR Emulator programs for
VT100/220 and IBM 5250 emulation
Easy customization of data collection applications through FORGE Application
Generator (AG) programs (AG*.exe for desktop PC)
Programming support includes System API (LIB and DLL) and Reader API (DLL)
Accessories and peripherals include pistol grip, international AC charging cradle, etc.
2
Introduction
INSIDE THE PACKAGE
The following items are included in the package. Save the box and packaging material for
future use in case you need to store or ship the mobile computer.
9600 Mobile Computer
Rechargeable Li-ion battery pack
Stylus
Hand Strap
USB charging & communication cable
Universal power adaptor
LCD Protective Film
Product CD
Quick Guide
ACCESSORIES
Rich choices of optional accessories are available for you to enhance the total
performance of the mobile computer.
Pistol Grip (detachable)
Belt Holster
Protective Cover
Spare rechargeable Li-ion battery
4-slot Battery Charger
RS-232 charging & communication cable
USB host cable (for connecting external USB device)
Charging & Communication Cradle
Ethernet Cradle (10/100 BASE-T)
Vehicle Cradle
Vehicle Charger
Note: For 9600 as a data terminal equipment (DTE), the RS-232 charging &
communication cable supports only CTS and RTS control signals. ActiveSync is not
allowed.
3
9600 Mobile Computer Reference Manual
4
QUICK START
OVERVIEW
Figure 1: Overview
5
9600 Mobile Computer Reference Manual
REMOVING HAND STRAP
The hand strap is ideal for one-handed operation, which requires safe and convenient
hold of the mobile computer.
Warning:
When in use, make sure the hand strap is well hooked and attached.
Adjust the length of the hand strap to suit your handbreadth.
When the hand strap is not desired, remove it from the mobile computer by following
these steps:
1) Place the mobile computer face down on a flat and clean surface.
2) Detach the free end of the strap and remove it from the slit.
3) Unhook the other end of the hand strap from the bottom.
Figure 2: Removing the Hand Strap
6
Quick Start
INSTALLING PISTOL GRIP
This contoured pistol grip enables intuitive trigger-and-scan operation, which is very
helpful in scan intensive applications.
When a pistol grip is necessary, install it to the mobile computer by following these
steps:
1) Press the [Power] key for the mobile computer to enter suspend mode.
2) Place the mobile computer face down on a flat and clean surface.
3) Remove the hand strap as well as the side plates as shown below.
4) Press the release latch down on each side of the pistol grip, and slide the release
latch aside at the same time.
5) Push the pistol grip to the back of the mobile computer, and then snap the release
latch into each side of the pistol grip until you hear a click.
6) Turn on the mobile computer to test the trigger while running ReaderConfig.exe.
Figure 3: Installing the Pistol Grip
7
9600 Mobile Computer Reference Manual
INSERTING MEMORY CARD
If you wish to expand memory, follow these steps to insert your memory card (microSD
or microSDHC) to the SD card slot:
1) Place the mobile computer face down on a flat and clean surface.
2) Remove the side plate by unscrewing the two screws (on the right side when you
place the mobile computer face down) as shown below.
3) Insert the memory card with contacts facing up. Use the stylus to push it into the slot
until you hear a click.
4) Replace the side plate and tighten the screws.
Figure 4: Inserting the microSD Card
REMOVING MEMORY CARD
If you wish to remove the memory card, simply use the stylus to push the card after
removing the side plate. It will be rejected automatically.
8
Quick Start
INSERTING SIM CARD
1) Press the [Power] key for the mobile computer to enter suspend mode.
2) Hold the mobile computer still and remove the hand strap as well as the battery.
3) Use your finger to slide the locking plate towards its hinge to unlock the SIM card
holder.
4) Flip up the SIM card holder.
5) Insert the SIM card to the SIM card holder, using the card orientation shown below.
6) Push the SIM card holder down.
7) Slide the locking plate away from its hinge to secure the SIM card holder.
Figure 5: Inserting SIM Card
CONNECTING HEADSET
Connect the headset to the headset jack (2.5 mm DIA) at the bottom of the mobile
computer. You can use the headset for audio playback or communication via the phone
application, Messenger, etc.
Bluetooth headset is supported, bringing you the freedom of cordless mobility.
9
9600 Mobile Computer Reference Manual
INSTALLING BATTERY
When you first receive the package, the rechargeable functionality of the backup battery
is turned off. It is controlled by a DIP switch inside the battery compartment as shown
below. For shipping and storage purposes, save the mobile computer and the main
battery in separate packages, and adjust the DIP switch to the OFF position (bottom).
This will keep both batteries in good condition for future use.
1) Remove the hand strap.
2) Hold the mobile computer still and press the release button to unlock the battery
cover.
3) Slide off the battery cover.
4) Use the stylus (or a sharp-pointed object, such as a pencil) to adjust the DIP switch
to the ON position. (top) Now the internal backup battery can be charged by the main
battery.
5) Insert the battery pack into the battery compartment at a proper angle (30°~45°) so
that the metal contacts on the battery are met with the charging contacts inside the
compartment. Make sure that the battery is snugly fit into the compartment.
6) Slide the battery cover back onto the mobile computer until it clicks into place.
7) If the battery is charged, the mobile computer turns on. If the mobile computer does
not turn on, charge the battery.
Note: (1) Any improper handling may reduce the battery life.
(2) When the main battery charge becomes low, you need to charge the battery
as soon as possible or replace it with a charged one. While replacing the battery
pack, make sure the mobile computer is turned off (= Suspend).
10
Quick Start
Figure 6: Installing the Main Battery
11
9600 Mobile Computer Reference Manual
CHARGING & COMMUNICATIONS
The main and backup batteries may not be charged to full for shipment. When you first
receive the package, you will need to charge the main battery to full before using the
mobile computer. Instead of direct charging, you may use a cradle or charger to charge
the Mobile Computer or spare batteries.
Because the internal backup battery is constantly charged from the main battery, the
initial charging requires inserting the battery pack to the mobile computer and then
connecting the mobile computer for direct charging or via cradle. This will have both the
main and backup batteries charged at the same time.
Note: To charge the backup battery, make sure that you slide the DIP switch inside the
battery compartment to the ON position.
Charging Time
Main battery: It takes approximately 4 hours to charge the main battery to full (from the
adaptor). The LED above the screen is red while charging and will turn green when charging is
done.
Backup battery: It takes at least 2 hours to charge the backup battery to full. The main
battery must be inserted and left inside, whether the mobile computer is in use or not.
However, it is not necessary to fully charge the backup battery for the mobile computer to
work.
Charging Temperature
It is recommended to charge the battery at room temperature (18°C to 25°C) for optimal
performance.
Battery charging stops when the temperature drops below 0°C or exceeds 40°C.
Operation on Battery Power
When 802.11b/g, GSM/GPRS, and BT are all enabled on battery power, the main battery
charge will drop down substantially.
In order to prevent a cold boot after the battery is drained out, we suggest that you keep a
fresh battery for replacement or connect the mobile computer to an external power.
USING WIRELESS NETWORKS
The mobile computer supports state-of-the-art wireless technologies, Bluetooth and
802.11b/g, so that it is able to send/receive data in real time in an efficient way. You
may choose to have the GSM/GPRS module embedded for a total wireless solution for
data and voice communications. Refer to the associated utilities.
12
Quick Start
USING CABLE
1) Connect the USB charging & communication cable.
Note: Tighten the two screw-in connectors to secure the cable.
2) Join the power supply cord to the power receptacle on the cable connector.
3) Connect the other end of the power cord to a suitable power outlet.
Figure 7: Using Cable
13
9600 Mobile Computer Reference Manual
USING CRADLE
1) Seat the mobile computer in the cradle.
2) Connect the power supply cord to the power receptacle on the cradle.
3) Connect the other end of the power cord to a suitable power outlet.
4) Connect the USB charging & communication cable if data transmission is required.
Refer to Using ActiveSync.
Note: (1) Make sure that you have Microsoft ActiveSync installed on your computer
before you connect the cable from the cradle to your computer.
(2) As the mobile computer will be charged via cradle, the power receptacle on the
cable connector is non-functional.
Figure 8: Using Cradle
14
Chapter 1
USING 9600 MOBILE COMPUTER
This chapter explains the features and usage of 9600 Mobile Computer.
IN THIS CHAPTER
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
Battery.....................................................................
Memory....................................................................
Keypad.....................................................................
Touch Screen ............................................................
Notifications..............................................................
Data Capture ............................................................
Cradles ....................................................................
Battery Charger.........................................................
15
19
21
27
29
30
31
33
1.1 BATTERY
Main Battery
9600 Mobile Computer is powered by a rechargeable 3.7 V/2700 mAh Li-ion battery
pack, and it takes approximately 4 hours to fully charge it. However, the charging
time may vary by working condition. During normal operation, the mobile computer
can work for up to 10 hours.
Backup Battery
The backup battery on the main board takes charge when the main battery is
removed or drained out. When fully charged, the 3.7 V/75 mAh rechargeable Lithium
battery helps retain data in SDRAM and maintain the system running in suspend
mode for at least 24 hours without the main battery. In the meantime, you have to
replace the main battery as soon as possible.
Warning:
The battery cover must be in position. If not, the mobile computer cannot
turn on and the LED indicator will flash to alert when you press [Power].
For a new battery, make sure it is fully charged before use. Always prepare
a spare battery pack, especially when you are on the road.
15
9600 Mobile Computer Reference Manual
1.1.1 UNDERSTANDING THE BATTERY ICONS
The battery pack is the only power source for the mobile computer to work. It also
charges the backup battery on the main board so that the data stored in SDRAM can be
retained properly. Therefore, when the main battery charge goes low, you need to
replace the battery pack with a charged one or charge it as soon as possible. Most of all,
you should backup important data on a regular basis.
By looking at the battery icon, you can tell battery charge remaining in the main battery
– the higher the green level, the more power in the main battery. Double-tap a battery
icon so that you can quickly access the [Power Properties] dialog box.
Battery Icons
Description
External power source is connected and main battery is charging
External power source is connected but main battery needs no charging
Main battery level 100% ~ 90%
Main battery level 89% ~ 70%
Main battery level 69% ~ 50%
Main battery level 49% ~ 30%
Main battery charge becomes low (29% ~ 15%) and needs charging
Main battery charge becomes very low (14% ~ 6%) and needs charging
immediately.
Backup battery charge becomes low and needs charging.
Backup battery charge becomes very low and needs charging immediately.
Warning:
16
(1) Once the battery charge drops below 5%, the mobile computer will
automatically enter suspend mode. When being connected to power, the
LED indicator becomes red while charging and it takes no more than 10
minutes to charge the battery to 6% in normal condition. However, it may
take about half an hour to charge a drained battery. For quick use, you
may try another battery instead.
(2) Before the battery charge reaches 6%, the mobile computer cannot be
turned on and the LED indicator will flash to alert when you press [Power].
(3) Data loss may occur with SDRAM during low battery condition. Always
save data before running out of power or keep a fresh battery for
replacement.
Chapter 1 Using 9600 Mobile Computer
1.1.2 POWER MANAGEMENT
For any portable device, power management is a critical issue especially when you are on
the road. Below are some tips to help you save battery power.
Warning:
Using backlight, wireless connectivity, and peripherals while on battery
power will substantially reduce battery power.
Bring a second battery pack on the road.
Stop wireless connectivity, Bluetooth, 802.11b/g or GSM/GPRS that is not in use.
Go to Start | Settings | Control Panel and double-tap the Display icon. Refer to
1.4.1 Adjusting the Backlight.
Go to Start | Settings | Control Panel and double-tap the Power icon.
1. In the Battery tab, you can always monitor the charging status.
If you want to be notified of when charging is required, cancel the check box so
that a warning message will be displayed when the main battery or backup battery
is low.
17
9600 Mobile Computer Reference Manual
2. Tap the Schemes tab.
3. Select the desired power scheme and options for suspending operation when not
in use. The system can be set to three different states to conserve power:
User Idle state
System Idle state
Suspend state
The time choices represent the amount of time that must pass before the system
will switch to the next power conservation state.
If you keep the default settings, 9600 will enter the User Idle state in 1 minute, go
to the System Idle state in another 3 minutes, and then the Suspend state in
another 5 minutes.
That is, 9600 will switch to Suspend mode after a total of 9 minutes.
18
Chapter 1 Using 9600 Mobile Computer
1.2 MEMORY
Flash Memory (ROM)
1 GB flash memory for storing OS (Windows CE 6.0) and custom application
programs. Yet a portion of the memory is referred to as DiskOnChip, which can store
data and programs that you wish to retain even after hardware reset.
Random-access Memory (RAM)
128 MB SDRAM for storing and running programs, as well as storing program data. Its
contents will be retained by the backup battery.
Expansion Slot
The mobile computer is equipped with one microSD card slot, which is user
accessible. Up to 16 GB high capacity memory card (microSDHC) is supported.
1.2.1 CAUTION OF DATA LOSS
When the main battery is removed or drained, the backup battery on the main board is
to retain the contents of SDRAM and maintain the OS in suspend mode for at least 24
hours, on condition that the backup battery has already been fully charged.
If you want to put away the mobile computer for a couple of days, you should be aware
that data loss occurs when both the main and backup batteries discharge completely.
Therefore, it is necessary to backup data and files before putting away the mobile
computer!
1.2.2 CHECKING THE STORAGE SPACE
Go to Start | Settings | Control Panel and double-tap the System icon.
1. In the Memory tab, it displays the current capacity and usage of the onboard
SDRAM.
19
9600 Mobile Computer Reference Manual
2. You may tap, hold, and drag the slider to re-allocate the memory.
SDRAM
128
onboard
MB
Storage Memory (left)
Program Memory (right)
It refers to the memory allocated
for file and data storage.
It refers to the memory allocated
for running programs.
Double-tap My Device on the desktop, and then tap and hold the DiskOnChip icon.
Select Properties from the pop-up menu. In the Properties tab, it displays the current
capacity and usage of DiskOnChip.
Note: The DiskOnChip is part of the onboard 1 GB flash memory. Because the flash
memory is non-volatile, data or programs stored in DiskOnChip will not be erased
after hardware reset.
Go to Start | Settings | Control Panel and double-tap the Storage Manager icon.
Here provides information on the DiskOnChip folder or storage card.
20
Chapter 1 Using 9600 Mobile Computer
1.3 KEYPAD
Silicon rubber has been chosen for their durability and prompt feedback.
Note: Functionality of keys is application-dependent.
The 29-key keypad includes alphanumeric, navigation, function keys, and so on. This
keypad is set to numeric mode by default.
SCAN
SEND
END
Enter
Reset
Backspace
Space
Figure 9: 29-key Layout
Shift
Tab
21
9600 Mobile Computer Reference Manual
The Qwerty keypad includes alphanumeric, symbol, alphabetic, function and other
modifier keys, as well as keys for navigation. This keypad is set to numeric mode by
default.
END
SCAN
SEND
Tab
Backspace
Enter
Shift
Figure 10: Qwerty Layout
22
Space
Reset
Chapter 1 Using 9600 Mobile Computer
1.3.1 KEYPAD SETTINGS
Go to Start | Settings | Control Panel and double-tap the Keyboard icon.
The Character Repeat functionality is enabled by default. You may cancel the check box
on the Repeat tab to disable it. When enabled, tap, hold, and drag the slider for a desired
Repeat Delay and Repeat Rate.
The LED backlight of keypad is turned off by default. It is suggested to turn on the
keypad backlight while working in a dark area; however, using backlight while on battery
power will substantially reduce battery power.
29-key Operation
Press
to toggle it from off to on, and vice versa.
Qwerty Operation
It is set to be automatically turned on for 5 seconds when any key is pressed. You may have the
keypad backlight always turned off/on on the Backlight tab.
Ignore the Backlight tab when using
a 29-key keypad.
23
9600 Mobile Computer Reference Manual
1.3.2 ALPHA KEY
This alphanumeric keypad is set to numeric mode by default. The Alpha key serves as a
toggle among numeric, alpha (lower-case alphabetic), and ALPHA (upper-case
alphabetic) input modes.
Note: It is not necessary to hold down the [Alpha] key.
The alpha icon will appear on the status bar in a sequence as shown below.
29-key Operation
Status Icon
Alpha Key
Input Mode
---
Numbers
Press [α] one time
Lower-case alphabetic
Press [α] two times
Upper-case alphabetic
Alpha Key
Input Mode
---
Numbers
Press [α] one time
Lower-case alphabetic
Qwerty Operation
Status Icon
Note: (1) If you are using the software keypad via SIP, tap CAP (Caps Lock) to toggle
between upper case and lower case alphabetic modes.
(2) On Qwerty keypad, use the [Shift] key to enter ALPHA (upper-case alphabetic)
or
).
mode (
24
Chapter 1 Using 9600 Mobile Computer
1.3.3 SHIFT KEY
29-key Operation
Status Icon
Shift Key
Input Mode
Press [©] one time
The Shift key modifies the next key pressed; it will result
in different symbols. Refer to Use of Shift (©).
Shift Key
Input Mode
Press [ ] one time
The Shift key modifies the next key pressed. Depending
on the input mode,
Qwerty Operation
Status Icon
(1) In numeric mode (
), it will result in different
symbols. Refer to Use of Shift ( ).
(2) In alpha (lower-case alphabetic) mode (
produce a single upper-case letter.
), it will
For example, input letters “ABC”, it will produce “Abc”.
Refer to Use of Alpha (α) & Shift ( ).
Press [ ] two times
(enter Shift Lock Mode)
If you are in Shift Lock Mode, all keys send their shifted
values when pressed alone. Depending on the input mode,
(1) In numeric mode (
), it will result in different
symbols. Refer to Use of Shift ( ).
(2) In alpha (lower-case alphabetic) mode (
produce all upper-case letters (= Caps Lock).
), it will
For example, input letters “ABC”, it will produce “ABC”.
Refer to Use of Alpha (α) & Shift ( ).
Note: It is not necessary to hold down the [Shift] key.
25
9600 Mobile Computer Reference Manual
1.3.4 FUNCTION KEY
The function key [Fn] serves as a modifier key, and the functionality of each key
combination is application-dependent.
1) To enable this modifier key, press [Fn] on the keypad. Its icon
status bar.
will appear on the
2) Now press another key on which orange-coded function is printed, to get the value of
key combination (say, press [1] to get the value of F1 on 29-key keypad). The icon
will go off now.
3) To get the value of another key combination modified by the function key, repeat the
above steps.
4) To abort the key modification, press [Fn] again, and the icon will go off.
Note: It is not necessary to hold down the [Fn] key.
Below is a list of the factory setting for a variety of key combinations.
Key Combination
Action
[Fn],
Move text up one screenful (Page Up)
[Fn],
Move text down one screenful (Page Down)
[Fn],
Move to the beginning of screen or document (Home)
[Fn],
Move to the end of screen or document (End)
Note: Press the function key first, and then press the second key for a specific function.
1.3.5 PROGRAMMABLE KEYS
The following keys are user-definable. They can be re-defined as another key or to serve
as a shortcut key for launching a specific program. Refer to 8.2 Button Assignment
Utility.
26
SCAN
SEND
END
Two side triggers on each side of the touch screen
Chapter 1 Using 9600 Mobile Computer
1.4 TOUCH SCREEN
The mobile computer comes with a 3.5" TFT graphic LCD, 320 by 240 pixels resolution
(QVGA) or 640 by 480 pixels resolution (VGA). The LED backlight of screen, which helps
ease reading under dim environments, can be controlled manually and automatically.
Warning:
Using backlight while on battery power will substantially reduce battery
power. It is suggested to dim the backlight while working in a well-lit area
or automatically turn off the mobile computer when not in use.
1.4.1 ADJUSTING THE BACKLIGHT
1) Go to Start | Settings | Control Panel and double-tap the Display icon.
2) Tap the Backlight tab. (left below)
3) Select one or both of the check boxes to automatically turn off the LCD backlight
when using batteries or external power. From the appropriate list, select the amount
of time the device should be idle before the backlight is turned off.
4) Tap the [Advanced] button.
5) In the Settings tab (right above), you can select the luminosity of backlight when it is
set to be automatically turned on by pressing any key or tapping the screen. Tap,
hold, and drag the slider for AC and battery powered respectively. For more
luminosity, move the slider to the right.
Note: The backlight will turn off after the device is idle for more than the default value
30 seconds upon both battery with fully charged and connecting an external
power.
27
9600 Mobile Computer Reference Manual
1.4.2 RE-CALIBRATING THE SCREEN
This LCD is also a touch screen that can be calibrated through screen alignment.
1) Go to Start | Settings | Control Panel and double-tap the Stylus icon.
2) Tap the Calibration tab, and then tap the [Recalibrate] button.
Warning:
28
DO NOT use any pointed or sharp objects to move against the surface of
the screen.
Chapter 1 Using 9600 Mobile Computer
1.5 NOTIFICATIONS
1.5.1 STATUS LED
The tri-color LED on top is used to provide information on the charging status or wireless
power status. The green LED is also used for "Good Read" while collecting data.
Tri-color LED
Status
Description
Red LED
Solid
Charging 9600
Flashing
Error occurs while charging or powering onNote
Solid
Charging done
Solid for 0.5 second
Good Read
Flashing
Bluetooth enabled
Green LED
Blue LED
Note: (1) Charging error may be caused by the condition when the temperature drops
below 0°C or exceeds 40°C. Refer to Charging & Communications.
(2) Power-on error occurs to indicate pressing [Power] cannot turn on 9600 when
the battery cover is not properly in position, or the main battery charge drops
below 5%. Refer to 1.1 Battery.
1.5.2 AUDIO
Buzzer
The buzzer on the front can be programmed for status feedback. Its frequency and
duration are software programmable.
Speaker
The mono speaker on the back is used to play sounds for events in Windows and
programs, or play audio files such as .WAV files. In addition, it can be programmed
for status feedback. In noisy environments, you may consider connecting a headset
instead.
Headset
A headset jack is provided, which is a 2.5 mm DIA stereo earphone jack with
microphone input. It is required for phone applications. Bluetooth headset is also
supported.
1.5.3 VIBRATOR
The mobile computer is integrated with a vibrator, which is software programmable for
feedback. This can be helpful when working in noisy environments.
29
9600 Mobile Computer Reference Manual
1.6 DATA CAPTURE
1.6.1 BARCODE & RFID READER
A wide variety of scan engines is available for delivering flexibility to meet different
requirements. Depending on the scan engine integrated, the mobile computer is capable
of scanning barcodes of a number of symbologies that are enabled by default while
running ReaderConfig.exe. If you need to scan barcodes that are encoded in a different
symbology, enable the symbology first. Refer to Appendixes for details on scan engine
settings.
Appendix I - Scan Engine Settings lists the symbologies and RFID tags supported.
Appendix II - Linear Imager (CCD), Laser (SE950) provides information on the reader
settings as well as symbology settings for the CCD or Laser scan engine.
Appendix III - 2D Imager provides information on the reader settings as well as
symbology settings for the 2D scan engine.
Note: The mobile computer allows the co-existence of one integrated scan engine and
the RFID reader.
1.6.2 DIGITAL CAMERA
An integrated 2 mega-pixel CMOS camera in the mobile computer is specifically designed
for collecting image data. We provide an image capture utility that is specifically designed
to turn on the camera and capture image.
30
Chapter 1 Using 9600 Mobile Computer
1.7 CRADLES
1.7.1 CHARGING & COMMUNICATION CRADLE
Item
Description
A
Charging slot for seating the mobile computer
B
Charging slot for spare battery
C
LED Indicator (POWER)
D
Cable Connector (for USB or RS-232)
E
Power Jack
Figure 11: Charging & Communication Cradle
The cradle provides one LED indicator on the front panel to indicate power status.
Indicator
Status
Description
POWER
Off
Power not ready
Green, solid
Power ready / Charging done
Red, solid
Charging spare battery
Red, flashing
Error occurs, e.g. battery not readyNote
Note: (1) When error occurs, please try re-position the spare battery in the slot. If it
persists, please check battery, adaptor or cradle.
(2) For charging status of the mobile computer, please check the LED on top of
the screen. Refer to 1.5.1 Status LED.
31
9600 Mobile Computer Reference Manual
1.7.2 ETHERNET CRADLE
Item
Description
A
Charging slot for seating the mobile computer
B
Charging slot for spare battery
C
LED Indicators (POWER, DATA, READY)
D
Cable Connector (for USB or RS-232)
E
Power Jack
F
Ethernet Port (RJ-45)
Figure 12: Ethernet Cradle
The cradle provides three LED indicators on the front panel to indicate connection status.
Indicator
Status
Description
POWER
Off
Power not ready
Green, solid
Power ready / Charging done
Red, solid
Charging spare battery
Red, flashing
Error occurs, e.g. battery not readyNote
Off
No activity
Green, flashing
Data transmission
Off
Network unavailable / 10 Mbps network available
Green, solid
100 Mbps network available
DATA
READY
Note: (1) When error occurs, please try re-position the spare battery in the slot. If it
persists, please check battery, adaptor or cradle.
(2) For charging status of the mobile computer, please check the LED on top of
the screen. Refer to 1.5.1 Status LED.
32
Chapter 1 Using 9600 Mobile Computer
1.8 BATTERY CHARGER
Below is the 4-Slot Battery Charger for 6V,3.5A.
1) The Battery Charger can be mounted on table or wall. Drill two holes (centers spaced
105 millimeters apart), secure the two supplied screws, and mount the Battery
Charger by sliding over screws.
2) Seat batteries with contacts facing to back.
3) Connect the power supply cord to the power receptacle on the charger. Connect the
other end of the power supply cord to a suitable power outlet.
4) Press the power switch on, and the Battery Charger’s LED will be blue.
5) While charging, the LED of the battery compartment will be red. When fully charged,
the LED will be green.
Figure 13: 4-Slot Battery Charger
Indicator
Status
Description
POWER / Battery Charging
Off
Power off
Blue, solid
Power on
Red, solid
Charging
Green, solid
Charging done
33
9600 Mobile Computer Reference Manual
34
Chapter 2
LEARNING WINDOWS CE BASICS
This chapter mainly describes the basic skills to work with 9600 Mobile Computer. The
add-on utilities for applications regarding data collection, processing, and transmission,
are introduced in the following chapters.
9600 Mobile Computer is specifically designed for real-time data collection in the
Windows CE 6.0 environment. It won't take long for any Windows user to get familiarized
with it. Keep these basic skills in mind and explore this Windows CE device at ease.
Double-tap an item to select it.
Tap and hold an item to see a menu that enables tasks, such as cut, copy, rename,
delete, etc.
Tap and drag to select multiple items.
Tap
on the toolbar to close an active window, a dialog box, or a running
application.
If the button is not displayed, press [ESC] on the physical keypad.
Tap
on the toolbar to save the current settings and exit the application (or
minimize the window in some applications).
If the button is not displayed, press [Enter] on the physical keypad.
IN THIS CHAPTER
2.1
2.2
2.3
2.4
2.5
2.6
Getting Started .........................................................
Managing Programs ...................................................
Using ActiveSync .......................................................
Using Windows Explorer..............................................
Suspend & Reset .......................................................
Auto Run ..................................................................
35
41
43
47
48
50
2.1 GETTING STARTED
When 9600 Mobile Computer is fully charged, press [Power] for more than 1 second to
turn on the mobile computer and wait for the Windows CE desktop to come up. If you are
using the mobile computer for the first time, there are a couple of things to do after the
desktop comes up.
To select your time zone and set the local time: Start | Settings | Control Panel
and select Date/Time.
35
9600 Mobile Computer Reference Manual
2.1.1 DESKTOP
The desktop appears when the mobile computer is turned on.
Tap and hold anywhere blank on the screen to manage or configure the desktop.
Alternatively, you may tap
to the right of the taskbar, and then select Desktop.
Note: To customize the desktop, tap anywhere blank on the desktop and select
Properties.
36
Chapter 2 Learning Windows CE Basics
2.1.2 TASKBAR
The taskbar is at the bottom of the screen for displaying the following:
Start button
SIP button
Switch Task button
Status icons for various connections, minimized program windows, and so on.
Switch Task
SIP
Status Icons & Minimized Programs
Note: To configure different connections, go to Start | Settings and select Network
and Dial-up Connections.
Icon
Description
See Also
Tap it to switch to desktop or any task, such as a running Switch Task
program or window.
Tap it to change the input method.
Software Input Panel
(SIP)
It indicates external power source is connected.
1.1.1 Understanding
the Battery Icons
It indicates the amount of battery charge remaining in
the main battery. The higher the green level, the more
power in the main battery.
It indicates the main battery status.
It indicates the backup battery status.
It indicates the current input mode of keypad.
1.3.2 Alpha Key
It indicates Shift is enabled (on 29-key keypad).
1.3.3 Shift Key
It indicates Shift is enabled (in numeric mode on Qwerty
keypad).
It indicates Shift is enabled (in alpha mode on Qwerty
keypad).
It indicates Fn is enabled. (= Function mode)
1.3.4 Function Key
37
9600 Mobile Computer Reference Manual
The USB connection for
successfully established.
ActiveSync
operation
is 3.4 Connection Settings
Double-tap it to view status. Tap [Disconnect] if
necessary.
It indicates a specific network connection fails (= Using Bluetooth
disconnected). Double-tap it to access the Wireless
Using 802.11 Radio
Information tab if there is any.
Bluetooth PAN connection
802.11b/g wireless connection
Ethernet connection
It indicates a specific network connection has been
established successfully. Double-tap it to view or renew
IP Information.
Bluetooth PAN connection
802.11b/g wireless connection
Ethernet connection
It provides control of the power to the 802.11b/g, Power Management
GSM/GPRS, and BT modules.
Tap the icon to configure the power setting.
It indicates the Wi-Fi module (802.11b/g) is enabled. The Summit Client Utility
more green bars, the stronger the signal.
See wireless status icons
above.
It indicates the GSM/GPRS module is enabled and 6.2 GPRS Connection
provides access to GPRS service.
Go to Start | Settings | Control Panel and select
GSM/GPRS Manager to configure GPRS settings.
The icon
means the GSM/GPRS module is
initializing or the GPRS connection is disconnected.
The icon
network.
The icon
means the GPRS connection has been
established successfully.
means the device is connecting to GPRS
It indicates the GSM/GPRS module is enabled and 6.3 Phone Application
provides access to GSM service.
38
Go to Start | Settings | Control Panel and select
GSM/GPRS Manager to configure associated
settings.
The icon
means the GSM/GPRS module is
initializing, or GSM signal is bad (one-bar or no signal
at all).
The icon
means GSM-Connect is ready for use.
Chapter 2 Learning Windows CE Basics
It indicates the BT module is enabled and provides access Using Bluetooth
to Bluetooth services.
Tap the icon to open BT-Connect.
Go to Start | Settings | Control Panel and select
BT Manager to configure associated settings.
It provides access to the Reader Configuration Utility.
Initially,
you
need
to
double-tap
the
ReaderConfig.exe shortcut on the desktop so that this
icon will appear on the taskbar.
2.1.3 START MENU
Tap the Start button
on the taskbar to open the Start Menu.
Start Menu
Options
Description
Programs
Provides access to available programs that are stored in the directory:
\Windows\Programs
Favorites
Provides access to your favorite links to webpages that are stored in the
directory: \Windows\Favorites
Documents
Provides access
\Windows\Recent
Settings
Provides access to
Run...
to
recent
opened
documents
in
the
directory:
Control Panel
Network and Dial-up Connections
Taskbar and Start Menu
Opens a program or folder or document.
Note: To configure the Start menu and taskbar, go to Start | Settings and select
Taskbar and Start Menu.
39
9600 Mobile Computer Reference Manual
2.1.4 INPUT METHODS
Data entry can be performed by the following methods:
Physical Keypad
Type with the physical keypad.
Data Capture
Scan barcode or RFID tag in applications, e.g. WordPad, CipherLab's FORGE Application
Generator, etc.
Software Keypad
Type or write using SIP (Soft Input Panel):
Tap the SIP button
on the taskbar to select a SIP mode or hide the input panel.
In each mode, the characters appear as typed text on the screen.
Options
Description
Keyboard
To type using the virtual keyboard.
Transcriber
To write freely on the screen in applications, such as WordPad.
40
Chapter 2 Learning Windows CE Basics
2.2 MANAGING PROGRAMS
2.2.1 QUICK LAUNCH A PROGRAM
Tap the Start button to view the Start Menu. To quick launch a program, tap it from the
Programs folder.
Note: Alternatively, you may tap Start and select Run to run a specific program or open
a document.
If you wish to quick launch a new program, add it to the Programs folder: My
Device\Windows\Programs. The program will become available in the Start Menu.
To add a new program or subfolder to the Programs folder, you can either use Windows
Explorer or ActiveSync.
Windows Explorer: to move the program by [Copy] and [Paste Shortcut].
ActiveSync on the desktop computer: to create a shortcut to the program, and place
the shortcut in the Programs folder.
Warning:
To avoid making any changes to the program configurations by accident,
we recommend you to use [Copy] and [Paste Shortcut] rather than [Cut]
and [Paste].
2.2.2 SWITCH AMONG PROGRAMS AND DESKTOP
Tap
to the right of the taskbar and select a running program.
41
9600 Mobile Computer Reference Manual
2.2.3 EXIT A PROGRAM
In general, the system manages memory automatically, and there is no need to exit a
program in order to open another or to conserve memory. However, random access
memory (SDRAM) may be used up when running too many programs. As a result, it will
slow down the operation or cause program errors. In that case, you should stop one or
more running programs to free memory. In order to use memory in a more efficient way,
you are recommended to exit a program when it is not desired any longer.
Warning:
Always remember to save data or settings before you exit a program.
Tap
to close an active window, a dialog box, or a running application. If the button is
not displayed on the toolbar, press [ESC] on the physical keypad.
to save the current settings and exit the application (or minimize the window in
Tap
some applications). If the button is not displayed on the toolbar, press [Enter] on the
physical keypad.
Note: Some programs, such as the Reader Configuration Utility (ReaderConfig.exe), may
create an associated icon on the taskbar. You may tap the icon and select [Exit]
from the pop-up menu.
42
Chapter 2 Learning Windows CE Basics
2.3 USING ACTIVESYNC
ActiveSync is used to synchronize information between 9600 Mobile Computer and your
desktop computer, to install programs on the mobile computer, and to backup and
restore the mobile computer.
The Microsoft ActiveSync program has to be installed on your desktop computer first.
To download the up-to-date version of the program, you may need to go to
Microsoft's official web site for Windows Mobile devices as shown below.
http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx
After downloading and installation, run the program. For detailed information on the
program, you may click the Help menu, and then select the Microsoft ActiveSync
Help.
2.3.1 SYNCHRONIZATION WITH YOUR COMPUTER
1) Follow these instructions for initial ActiveSync operation:
Connect the USB charging & communication cable from the mobile computer or
via a cradle to your computer.
Connect the power cable to a nearby power outlet.
Turn on the mobile computer or seat it in the cradle.
2) Your computer will automatically detect the USB device.
3) Select which partnership to set up. If you want to synchronize data between the
mobile computer and your personal computer, select Standard Partnership;
otherwise, select Guest Partnership.
4) Wait a few seconds for the mobile computer to get connected (and synchronized if a
Standard Partnership is selected).
Note: For ActiveSync via Bluetooth, refer to Using Bluetooth.
43
9600 Mobile Computer Reference Manual
2.3.2 ADD/REMOVE PROGRAMS
Click [Add/Remove Programs] from the Tools Menu so that you can proceed to install a
program that is designed to be used on a mobile device running Windows CE. If a user
program is no longer desired, you may remove it from the system.
Click [Add/Remove Programs] from the Tools Menu so that you can un-install a program
that is designed to be used on a mobile device running Windows CE.
Alternative to Install New Programs (Copy & Paste)
You may install a new program manually.
1. When connected, open the Microsoft ActiveSync window on your desktop computer.
2. Click the Explorer button from the toolbar.
3. Navigate to the target folder, e.g. the Programs folder (\Windows\Programs), depending on
where you wish to access the program.
4. Navigate through file folders on your computer to find the new program (.CAB, .EXE, etc.)
5. Right-click the program and select [copy] from the pop-up menu.
6. Back to the target folder in step 3. Right-click anywhere blank and select [Paste] from the
pop-up menu.
7. On the mobile computer, go to Start | Programs and the new program will appear.
Alternative to Remove Programs (Control Panel)
You may un-install a new program manually.
1. Go to Start | Settings | Control Panel and select Remove Programs.
2. Tap the name of the program that you want to delete.
3. Tap [Remove].
4. Tap [Yes] to un-install the program.
Note: If the program does not appear in the list of installed programs, you may use
Windows Explorer to locate it. Tap and hold the program to select [Delete] from
the pop-up menu.
44
Chapter 2 Learning Windows CE Basics
2.3.3 EXPLORE DEVICE
Add a Program to Start Menu
1. When connected, open the Microsoft ActiveSync window on your desktop computer.
2. Click the Explorer button from the toolbar.
3. Navigate through file folders to find the program you desire.
4. Right-click the program and select [Create Shortcut] from the pop-up menu.
5. Right-click the shortcut and select [Cut] from the pop-up menu.
6. Navigate to the Programs folder – My Device\Windows\Programs.
7. Right-click anywhere blank on the window and select [Paste] from the pop-up menu.
The new program will be added to the Programs folder.
8. On the mobile computer, go to Start | Programs and the new program will appear now.
Note: [Create Shortcut], [Cut], and [Paste]: The same result can be performed by
[Copy] and [Paste Shortcut].
Create a New Folder
1. When connected, open the Microsoft ActiveSync window on your desktop computer.
2. Click the Explorer button from the toolbar.
3. Navigate to the target folder where you wish to create a new folder.
4. Right-click anywhere blank on the window and select [New Folder] from the pop-up menu. A
subfolder will be created.
45
9600 Mobile Computer Reference Manual
2.3.4 BACKUP/RESTORE
To best protect your work, you should regularly back up information on your mobile
computer. You can perform a backup by during the ActiveSync operation. The backup file
is stored on your desktop computer.
Note: The CipherLab Backup Utility is provided for the same purposes, and will save the
backup file to the DiskOnChip folder.
46
Chapter 2 Learning Windows CE Basics
2.4 USING WINDOWS EXPLORER
2.4.1 ADD A PROGRAM TO START MENU
1) Go to Start | Programs and select Windows Explorer.
2) Navigate through file folders to find the program you desire.
3) Tap and hold the program to select [Copy] from the pop-up menu.
4) Navigate to the Programs folder – My Device\Windows\Programs.
5) Tap and hold anywhere blank on the screen to select [Paste Shortcut] from the
pop-up menu. The new program will be added to the Programs folder.
6) Go to Start | Programs and the new program will appear now.
2.4.2 CREATE A NEW FOLDER
1) Go to Start | Programs and select Windows Explorer.
2) Navigate through file folders to find where you wish to create a new folder.
3) Tap and hold anywhere blank on the window and select [New Folder] from the pop-up
menu. A subfolder will be created.
47
9600 Mobile Computer Reference Manual
2.5 SUSPEND & RESET
Like your PDA, Pocket PC and most handheld devices, 9600 Mobile Computer functions
when it is turned on. This is because the Windows CE operating system eliminates the
booting process and runs continuously.
You may turn off the mobile computer if necessary or reset the mobile computer when it
stops responding to input.
Operation
Wireless Power (Wi-Fi, GSM/GPRS, Bluetooth)
Resume from Suspend
Will maintain the power settings in Power Management
After Software Reset
Will go through a power cycle and follow the power settings in Power
Management
After Hardware Reset
Warning:
Never perform hardware reset unless software reset cannot solve your
problems.
2.5.1 SUSPEND MODE
When the mobile computer enters suspend mode, the system is ready for use but not in
use. This is referred to as Suspend mode or Standby mode. It means the system is in
power-saving status and waiting for user interference.
Turn On (= Resume from Suspend)
Press [Power] for more than 1 second to turn on the mobile computer. Alternatively, you may
press the SCAN key.
Turn Off (= Suspend)
Press [Power] for more than 1 second to turn off the mobile computer.
Warning:
48
To save battery power, it is suggested that the mobile computer is set to
be automatically turned off when not in use. Refer to 1.1.2 Power
Management for more information about saving power.
Chapter 2 Learning Windows CE Basics
2.5.2 SOFTWARE RESET (WARM BOOT)
Software reset, also known as a warm boot, will restart the mobile computer and keep all
the saved files.
Software Reset (= Warm Boot)
Use the stylus to press the [Reset] button.
During operation, the removal of main battery will start software reset too.
Warning:
Data loss may occur when files are not properly closed before software
reset.
2.5.3 HARDWARE RESET (COLD BOOT)
Hardware reset, also known as a cold boot, will restart the mobile computer and
initializes SDRAM. Data and program files stored in SDRAM will be erased after hardware
reset. But you can restore data that is previously synchronized with your computer by
performing an ActiveSync operation, or backed up by using CipherLab Backup Utility.
Cold Boot
Press [Power] and [Reset] button at the same time for about 2 seconds.
Warning:
Only the files stored in the Flash File System are retained during hardware
reset.
2.5.4 DATE/TIME & TIME ZONE AFTER RESET
System Reset
Registry File
Settings After Reset
Software Reset
Date/Time
Keep the current settings (= No restore occurs!)
Time Zone
Restored from Sysbak folder if backup file is available
Keep the current settings if backup file is unavailable
Hardware Reset
Date/Time
Restored to system default:
Time Zone
2010/1/1 00:00
Restored from Sysbak folder if backup file is available
Restored to
unavailable:
system
default
if
backup
file
is
(GMT-08:00) Pacific Time (US & Canada)
Note: You must manually adjust system date and time after hardware reset.
We suggest you to check the time zone as well.
49
9600 Mobile Computer Reference Manual
2.6 AUTO RUN
Upon hardware or software reset, the OS shall automatically execute AutoRun.exe
and/or AutoRun.ini if any of the two files can be found in the “\DiskOnChip” folder or on
microSD card.
If AutoRun.exe exists
Upon cold boot, the OS shall automatically execute AutoRun.exe
Upon warm boot, the OS shall automatically execute AutoRun.exe
If AutoRun.ini exists
Upon cold boot, the OS shall automatically check the contents of AutoRun.ini and execute
them (if there is any).
Any line prefixed with a semicolon “;” is supposed to be a comment line only; otherwise it is
an executable file or command and shall be executed (line by line). For example,
\DiskOnChip\cerdisp.exe
:\DiskOnChip\ReaderConfig.exe
;\DiskOnChip\RF9600_CE.exe
\DiskOnChip\cerdisp.cab
:\DiskOnChip\ReaderConfig.cab
Upon warm boot, the OS shall automatically check the contents of AutoRun.ini and execute
any line that is prefixed with a colon “:”.
Any line prefixed with a semicolon “;” is supposed to be a comment line only. For example,
:\DiskOnChip\ReaderConfig.exe
;\DiskOnChip\RF9600_CE.exe
:\DiskOnChip\ReaderConfig.cab
Note: Because the cabinet files are designed to install the application, tidy up, and then
“self destruct”, they will be automatically deleted from your mobile computer after
installation. However, AutoRun.ini will backup the original files (.cab) while
installing cabinet files, and restore them after installation. Consequently, these
cabinet files will be automatically re-installed to your mobile computer upon cold
boot or warm boot, if specified in AutoRun.ini.
50
Chapter 3
CONFIGURING 9600 MOBILE COMPUTER
In this chapter, a brief on the system settings is provided for your reference. The
Application Manager is specifically designed for the administrator to manage the
accessibility of applications and protect the integrity of the system on the mobile
computer. It serves as a portal that allows launching routine application programs
automatically upon a reboot, preventing users from running potentially distracting
applications, as well as to restricting access to changing device settings.
Note: User settings are stored in SDRAM and will be overwritten by the system defaults
after hardware reset. However, you can use the CipherLab Backup Utility to
backup the current registry for restore purpose.
IN THIS CHAPTER
3.1
3.2
3.3
3.4
3.5
Application Manager ...................................................
Device Name & Configuration ......................................
System Settings ........................................................
Connection Settings ...................................................
Upgrading OS Image ..................................................
51
52
54
58
60
3.1 APPLICATION MANAGER
Application Manager has powerful features and is easy to use —
Provides full control over executable files of the Programs folder, desktop and Control
(Panel)
Can limit access to essential device settings
Can prevent from potentially distracting applications
Can execute routine application automatically upon a reboot
Provides user name and/or password protection
Allows setting up an administrator account
Supports multiple languages
Supports show/hide taskbar and toolbar
Supports enable/disable taskbar, partially or fully
Distributes user settings at a few clicks
After restarting the mobile computer upon completion of installation, the Application
Manager automatically starts up with programs and settings made accessible based on
the system. If you have logged in as an administrator, you are allowed to manage
program accessibility.
Note: For details on the installation and usage, please refer to the separate user guide.
51
9600 Mobile Computer Reference Manual
3.2 DEVICE NAME & CONFIGURATION
3.2.1 CHANGING DEVICE NAME
1) Go to Start | Settings | Control Panel and select System to obtain essential
system information.
2) Select the Device Name tab to change the identification for the mobile computer.
52
Chapter 3 Configuring 9600 Mobile Computer
3.2.2 UNDERSTANDING DEVICE CONFIGURATION
The device configuration of 9600 Mobile Computer is displayed in 7 digits: xxxx-xxx
Take the screenshot of System Properties above for example. Its device configuration is
“2055-531”; therefore, the mobile computer has the following features –
29-key, VGA screen
A scan engine that employs Laser scan engine
Integrated communications: Bluetooth, Wi-Fi and GSM/GPRS
Integrated GPS receiver and camera
Device Code
st
1 digit
Modular Component
Types
Reader module
0= none
1= Linear Imager (CCD)
2= Laser (SE950)
3= 2D Imager
nd
2
digit
RFID module
0= none
1= RFID reader
rd
3
digit
Bluetooth, GSM/GPRS
0= none
1= Bluetooth
4= GSM/GPRS
5= Bluetooth + GSM/GPRS
th
4
digit
Wi-Fi, GPS
0= none
1= Wi-Fi (Summit)
2= Reserved
4= GPS
5= Wi-Fi (Summit) + GPS
6= Reserved
5th digit
LCD, camera
0= QVGA
1= VGA
4= QVGA + Camera
5= VGA + Camera
th
6
digit
Keypad
0= 29-key
1=43-key
2= Qwerty
3= New 29-key
th
7
digit
PCB main board
---
53
9600 Mobile Computer Reference Manual
3.3 SYSTEM SETTINGS
Go to Start | Settings | Control Panel.
Items
Description
In the [Auto Backup] dialog box, you may configure how often the mobile computer
automatically backups the system registry to "\DiskOnChip\Sysbak\Registry.dat".
By default, the backup interval is set to 10 seconds.
You may select to disable the automatic backup operation, and manually backup
the system registry by using CipherLab Backup Utility.
Refer to 5.9 BT Manager.
In the [Certificates] dialog box, you may view or modify digital certificates that some
application use to establish trust for secure connections.
In the [Com Port Mapping] dialog box, you may configure the physical port for serial
data communications.
By default, COM 7 is enabled for data communications via the RS-232 cable.
You may select to disable COM 7 when you need to have an additional virtual
COM port. For example, you may use it for BT SPP via programming. The new
setting will not take effect until a warm boot is performed.
In the [Date/Time] dialog box, you may change date, time, and time zone settings.
54
Chapter 3 Configuring 9600 Mobile Computer
In the [Dialing Properties] dialog box, you may configure settings for modem
communications, such as GPRS modem.
In the [Display Properties] dialog box,
Background tab: Select an image for the background.
Backlight tab: Specify for how long the mobile computer is idle and then the
backlight will be automatically turned off while on battery power and external
power respectively. Tap the [Advanced] button to move the slider and adjust the
brightness of the LCD backlight when it is set to be automatically turned on once
a key is pressed or you tap the touch screen.
Appearance tab: Select a desired color scheme for windows, dialog boxes, and
items.
Refer to 6.4 GSM/GPRS Manager.
In the [Input Panel Properties] dialog box, you may configure how the Soft Input
Panel (SIP) works.
In the [Internet Options] dialog box, you may configure how the mobile computer
connects to the Internet.
Connect an external keyboard to the mobile computer or cradle via USB host cable.
In the [Keyboard Properties] dialog box,
Repeat tab: You may configure settings for character repeat.
Backlight tab: You may change the backlight setting for Qwerty keypad.
In the [Network and Dial-up Connections] window, you may configure settings for
the mobile computer connects to a network directly or through a modem.
Alternatively, you may tap Start | Settings | Network and Dial-up Connections.
USB Connection (ActiveSync via USB cable)
GPRS (through a GPRS modem)
AX88772 (via Ethernet Cradle)
SDCCF10G1 (via 802.11b/g)
BTPAN (via Bluetooth)
In the [Owner Properties] dialog box,
Identification/Notes tab: Type your contact information or notes.
Network ID tab: Type the user name, password, and domain name used to log
on to the remote network.
55
9600 Mobile Computer Reference Manual
In the [Password Properties] dialog box,
Password Settings tab: You may apply password protection to the following
situations: (1) to limit access to the mobile computer at power-on, or (2) to limit
access to the DiskOnChip folder. When password protection is enabled, the
access to Control Panel and Password settings is also protected.
Date/Time Setting tab: By default, you are allowed to make changes to the
Data/Time settings. To prevent unauthorized users from accidentally changing
the settings, cancel the check box after applying password protection.
In the [PC Connection Properties] dialog box, you may disable the direct connection
between the mobile computer and a desktop computer.
By default, the mobile computer is allowed to directly connect to a desktop
computer via the USB charging & communication cable. Alternatively, you may
tap Start | Settings | Network and Dial-up Connections and select USB
Connection.
You may change to use Bluetooth if ActiveSync via Bluetooth has been enabled in
BT-Connect.
In the [Power Properties] dialog box,
Battery tab: You may view the current status of main and backup batteries.
Schemes tab: You may configure the power scheme and switching.
Device Status tab: You may view the devices that are consuming power.
In the [Regional and Language Settings] dialog box,
Region tab: You may customize the appearance and formatting to your
geographic region.
Language tab: By default, it is set to English (United States).
Input tab: By default, it is set to English (United States)-US.
In the [Remove Programs] dialog box, you may remove any program that is installed
earlier.
In the [Storage Properties] dialog box,
Storage Manager tab: Here provides information on the DiskOnChip folder or
storage card.
In the [Stylus Properties] dialog box,
Double-Tap tab: You may configure and test your double-tap settings.
Calibration tab: You may need to re-calibrate the touch screen if it is not
responding properly to your taps.
In the [System Properties] dialog box,
56
General tab: You may view the system information.
Copyrights tab: You may view the important statements on copyrights.
Memory tab: You may move the slider and adjust the SDRAM allocation.
Device Name tab: You may type a name and description for identifying the
mobile computer.
Chapter 3 Configuring 9600 Mobile Computer
Client access licenses (CALs) issued by the Terminal Server license server allow
clients to connect to the terminal server.
Use Remote Desktop Connection to log onto a Windows Terminal Server or a
computer remotely. You may access all of the programs, files, and network resources
on the remote host or terminal server.
In the [Version Viewer] dialog box, you may view the versions of all CihperLab
built-in drivers, services, and additional items in Control Panel, which are currently
installed on the mobile computer.
In the [Volume & Sounds Properties] dialog box,
Volume tab: You may move the slider and adjust the volume and select to play
sounds for Events, Applications or Notifications.
Sounds tab: You may configure sounds for different Windows events.
Refer to 4.2 Summit Client Utility.
57
9600 Mobile Computer Reference Manual
3.4 CONNECTION SETTINGS
There are two ways to access the connections settings:
Go to Start | Settings | Control Panel and select Network and Dial-up
Connections.
Go to Start | Settings | Network and Dial-up Connections.
Ignore [Properties] as any changes made
will affect ActiveSync connection.
Connections
Description
This is a shortcut to USB Connection, and the selected interface is USB for factory
setting. This connection is reflected in the control panel for direct PC connection:
Start | Settings | Control Panel |
The USB connection is specifically for performing the ActiveSync operation via the
USB charging & communication cable. Generally, it will automatically establish the
connection and start the ActiveSync operation when you seat the mobile computer
in the cradle. To stop the ActiveSync operation, simply remove the mobile
computer.
Alternatively, you may double-tap the status icon
[Disconnect].
58
from the taskbar and tap
When connected, the status icon will appear on the taskbar.
When disconnected, this icon will disappear.
Chapter 3 Configuring 9600 Mobile Computer
This is the control of networking over USB cable. It is enabled automatically when
the mobile computer is connected to PC via USB cable.
This is the control of Ethernet module AX88772. It is enabled automatically when
the mobile computer is seated in the Ethernet Cradle.
When available, the connection status icon
When connected, this icon will become
When disconnected, this icon will become
will appear on the taskbar.
.
again.
Refer to 6.2 GPRS Connection.
This is the control of 802.11b/g module for wireless local area networking (WLAN)
connection, which is not available until the power to 802.11b/g module is turned
.
on through Power Management
When available, the connection status icon
When connected, this icon will become
When disconnected, this icon will become
will appear on the taskbar.
.
again.
This is the control of BT module for wireless personal area networking (WPAN)
connection, which is not available until the power to BT module is turned on
through Power Management
.
When available, the connection status icon
When connected, this icon will become
When disconnected, this icon will become
will appear on the taskbar.
.
again.
Note: By default, DHCP is enabled for networking. Instead of using DHCP, select
[Properties] and specify a static IP address to the mobile computer. Only change
these settings according to your network administrator's instructions.
Toolbar Items
Description
Remarks
Tap this button to open the Connection menu. The Tap and hold the icon of a
available options depend on the connection you desired
connection
type.
select.
Then, select an option from
its associated menu.
Tap this button to toggle on/off the connection you
select. The toggle is used for Enable/Disable or
Connect/Disconnect.
Tap this button to delete the connection you select.
Tap this button to view the properties of the
connection you select.
59
9600 Mobile Computer Reference Manual
3.5 UPGRADING OS IMAGE
You can upgrade the OS image on your mobile computer either via microSD card or run
the program "DLDR.exe" on the desktop of your computer. Please contact your sales
representative for the OS upgrade utility "DLDR.exe".
Note: Before upgrading, it is suggested to delete the “\DiskOnChip\Sysbak” folder.
3.5.1 SD DOWNLOAD
The SD download method only allows upgrading image to a newer version from your
microSD storage card.
1) Copy the image file to the root directory of your microSD storage card (“\SD Card”),
and rename it to “NK.nb0”.
2) Press [Reset] + [Power] to perform hardware reset on 9600, and then immediately
press [Alpha] + [Backspace] to enter SD Download mode.
It will take approximately 5 minutes before a message is displayed on the mobile
computer to indicate the OS upgrade is completed successfully.
3) Press [Reset] + [Power] to perform hardware reset on 9600 again.
Warning:
Do not press any key on the mobile computer while upgrading OS image
and make sure the power cord is connected.
3.5.2 RUN DLDR.EXE
1) Install Microsoft ActiveSync on your computer. For initial ActiveSync operation, refer
to Using ActiveSync for details.
Now, you must disable the ActiveSync operation as shown below.
60
Chapter 3 Configuring 9600 Mobile Computer
2) Run the Image Tool “DLDR.exe” on your computer.
3) Connect 9600 to your computer.
4) Press [Reset] + [Power] to perform hardware reset on 9600, and then immediately
press [Alpha] + [ESC] on 9600 to start the download process. It will try to connect to
your computer.
Note: On 29-key keypad, you may alternatively press [Alpha] +
download process.
to enter the
5) In the Image Tool, it will show 9600 has been connected successfully.
Go to WINCE Image | Download, and select the desired image file (*.nb0).
It will take approximately 5 minutes before a message is displayed on the mobile
computer to indicate the OS upgrade is completed successfully. It will then perform
hardware reset on 9600 automatically.
Warning:
Do not press any key on the mobile computer while upgrading OS image
and make sure the power cord is connected.
61
9600 Mobile Computer Reference Manual
62
Chapter 4
USING 802.11 RADIO
Summit Client Utility, also referred to as SCU, lets you configure and connect to
network wirelessly.
IN THIS CHAPTER
4.1 Turn On Wi-Fi Power .................................................. 63
4.2 Summit Client Utility .................................................. 64
4.1 TURN ON WI-FI POWER
1) Tap the icon
on the taskbar to access Power Management.
2) Select [Turn on Wi-Fi] and tap
.
3) It takes several seconds to turn on the power to module.
The Summit system tray icon will appear as shown below:
The icon indicates that 802.11b/g power is turned on, and the green bars
indicate the wireless signal strength. The more the bars, the stronger the signal.
Double-tap any of these icons to access Summit Client Utility.
Note: (1) Wi-Fi power is maintained even in suspend mode.
(2) Because the settings in Power Management will be kept after warm or cold
boot, it will resume to last wireless power status after the power cycle.
63
9600 Mobile Computer Reference Manual
4.2 SUMMIT CLIENT UTILITY
Profile settings are radio and security settings that are stored in the registry as part of a
configuration profile. When a profile is selected as the active profile, the settings for the
profile become active. You may create, rename, edit, and delete profiles, as well as alter
global settings that apply to every profile or to SCU itself. For more detail on the profile
settings, please go to http://www.summitdatacom.com/documentation.htm for more
documents, such as
http://www.summitdatacom.com/Documents/Summit_Users_Guide_CE_V2.03.html
http://www.summitdatacom.com/Documents/QuickStart_v2_03.pdf
4.2.1 MAIN SETTINGS
Enable/Disable Radio
Tap [Disable Radio] to turn off wireless signal.
The signal bars
The connection status icon
64
of the Summit Client Utility icon will become
will become
.
to indicate no signal.
Chapter 4 Using 802.11 Radio
Active Profile
Profile settings are radio and security settings that are stored in the registry as part of a
configuration profile. When a profile is selected as the active profile, the settings for the profile
become active. Information on the Active Profile is displayed.
Item
Description
Active Profile
Options are “Default”, “ThirdPartyConfig”, and custom profiles.
Status
Potential values are
Down: not recognized
Disabled
Not Associated
Associated
(EAP type) Authenticated
Radio Type
“BG” means a Summit radio that supports 802.11b and 802.11g.
Regulatory Domain
It indicates the regulatory domain or domains for which the radio is
configured by factory. “Worldwide” means that the radio can be used in
any domain.
Note: If “ThirdPartyConfig” is selected, after the mobile computer goes through a power
cycle, Windows Zero Config (WZC) or another application is used for configuration
of all radio and security settings. The Summit Client Utility can only be used to
define the Client Name, Power Save, Tx Power, Bit Rate, Radio Mode settings, as
well as the global settings.
65
9600 Mobile Computer Reference Manual
Auto Profile & List
Activate or deactivate an automatic profile selection facility. It makes use of a list of profiles you
created. If such list does not exist, tap [List] to select the profiles in use.
When the facility is active and the radio is not associated to an access point, SCU runs through
the list and tries each profile one by one until the radio associates to an access point using the
values in a profile. The profile becomes the Active Profile and remains so until the radio
disassociates or disconnects from the network.
66
Chapter 4 Using 802.11 Radio
Import/Export
It is made easy to clone the profile(s) and global settings from a master mobile computer to
others. Tap [Import/Export] and select the task to perform: “Import from” or “Export to”.
By default, the file name is “SummitSettings.sdc”.
Import from: Import global settings, all standard SCU profiles, and the special profile
“ThirdPartyConfig” from a file (created using the Export facility above) to the SCU area of
registry. If you are importing a file and select [Add to existing], then the imported
information will be merged with the information that was in the registry previously. If you
select [Replace] instead, then the imported information will overwrite the information that
was in the registry previously.
Export to: Export global settings, all standard SCU profiles, and the special profile
“ThirdPartyConfig” from the SCU area of the registry to a file.
Default and custom profiles are included.
67
9600 Mobile Computer Reference Manual
4.2.2 PROFILE EDITING
Any changes made to a profile will not be saved until you tap [Commit].
New
Tap [New] and enter a unique name for this profile. Up to 32 characters are allowed. Configure
the Radio settings, Encryption, EAP Type, and so on.
Define up to 20 profiles, not including the special profile “ThirdPartyConfig”.
Rename
Select a profile from the drop-down menu and tap [Rename]. Enter a unique name for this
profile. Up to 32 characters are allowed.
Delete
Select a profile from the drop-down menu and tap [Delete].
68
You cannot delete the Active Profile.
Chapter 4 Using 802.11 Radio
Scan
Tap [Scan] to view a list of access points that are broadcasting their SSIDs. You may sort the list
by tapping the column headers. Select one and create a profile for it.
Item
Description
SSID
Service Set Identifier (SSID)
RSSI
Received Signal Strength Indication (RSSI)
Secure
It indicates whether data encryption is in use: true or false
Tap to update the list.
Select one SSID and tap to create a
new profile. Enter credentials or
keys if necessary.
69
9600 Mobile Computer Reference Manual
Edit Profile
By default, information of the profile “Default” is displayed. Select a profile from the drop-down
menu and configure the Radio settings, Encryption, EAP Type, and so on. For example, select
“SSID” from the Radio list and enter a preferred name for the network.
Radio
Configuration
SSID
Service Set Identifier (SSID) for WLAN to which the radio will connect
If no SSID is specified, the radio will only associate to an access point
that broadcasts its SSID.
Client Name
Value: A string of up to 16 characters
Default: None
Power save mode for radio
70
Default: None
Name assigned to the mobile computer with Summit radio installed
Power Save
Value: A string of up to 32 characters
Value:
CAM
Constantly Awake Mode (CAM) keeps the client
adapter powered up continuously so there is little
lag in message response time. It consumes the
most power but offers the highest throughput. It is
recommended when AC power is in use.
Maximum
Max Power Savings (Max PSP) causes the access
point to buffer incoming messages for the client
adapter, which wakes up periodically and polls the
access point to see if any buffered messages are
waiting for it. The client adapter can request each
message and then go back to sleep. It conserves
the most power but offers the lowest throughput.
Chapter 4 Using 802.11 Radio
It is recommended when battery power is in use.
Fast
Tx Power
Bit Rate
Radio Mode
Default: Fast
Transmit power that can be overridden by Cisco AP if CCX global setting
is ON and AP defines maximum transmit power for client as lower value
Value: Maximum (Maximum power defined for the current
regulatory domain) or the specified value in milliwatts (50, 30, 20,
10, 5, 1)
Default: Maximum
Bit rate used by the radio when interacting with AP; however, if a
specified bit rate is selected, the radio will not connect to an AP unless
the specified SSID is configured for only the selected bit rate.
Value: Auto (rate negotiated automatically with AP) or the specified
value in megabits per second (1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36,
48, 54)
Default: Auto
Use of 802.11b and/or 802.11g when interacting with AP
Auth Type
Power Save Mode (Fast PSP) switches between the
two modes described above, depending on network
traffic. This mode switches to CAM when retrieving
a large number of packets and switches back to
PSP (= PS-Poll Procedure) after the packets have
been retrieved. It is recommended when power
consumption is a concern but you need greater
throughput than that allowed by Max PSP.
Value: B rates only, BG rates full, G rates only, BG subset, Ad Hoc
Default: BG rates full
802.11 authentication type used when associating to AP
Value: Open, Shared (shared-key), LEAP (Network-EAP)
Default: Open
Encryption & WEP keys/PSKs
Type of encryption (and decryption) used to protect transmitted data
Value:
None
No encryption
WEP
WEP with up to four static keys, 40-bit or 128-bit in ASCII or hex
WEP EAP
WEP with key generated during EAP authentication
CKIP
WEP with up to four static keys, 40-bit or 128-bit in ASCII or hex, plus
Cisco TKIP and/or Cisco MIC if configured on AP
CKIP EAP
WEP with key generated during EAP authentication, plus Cisco TKIP
and/or Cisco MIC if configured on AP
WPA-PSK
TKIP with PSK, ASCII passphrase or hex PSK
WPA TKIP
TKIP with key generated during EAP authentication
WPA CCKM
TKIP with key generated during EAP authentication and with Cisco key
management protocol for fast re-authentication
71
9600 Mobile Computer Reference Manual
WPA2-PSK
AES with PSK, ASCII passphrase or hex PSK
WPA2 AES
AES with key generated during EAP authentication
WPA2 CCKM
AES with key generated during EAP authentication and with Cisco key
management protocol for fast re-authentication
Default: None
EAP Type & Credentials
Extensible Authentication Protocol type used for 802.1X authentication to AP
Value:
None
LEAP
Credentials values for LEAP
EAP-FAST
Password (up to 32 characters)
Credentials values for EAP-FAST
User: Username or Domain\Username (up to 64 characters)
Password (up to 32 characters)
PAC Filename (up to 32 characters)
PAC Password (up to 32 characters)
PEAP-MSCHAP
Credentials values for PEAP-MSCHAP, PEAP-GTC, EAP-TTLS, PEAP-TLS
PEAP-GTC
User: Username or Domain\Username (up to 64 characters)
“Validate server” checkbox: Select this if using a CA certificate to
validate an authenticate server. When selected, enter a certificate
filename in the CA Cert field or select the “Use MS store” checkbox.
“Use MS store” checkbox: Select this if the Microsoft certificate store
should be used for a CA certificate. This is applicable only when
“Validate server” is in use.
EAP-TTLS
PEAP-TLS
EAP-TLS
72
User: Username or Domain\Username (up to 64 characters)
Password (up to 32 characters)
CA Cert: Filename of root certificate authority (CA) digital certificate
(up to 32 characters); leave blank if the “Use MS store” checkbox is
selected.
Credentials values for EAP-TLS
User: Username or Domain\Username (up to 64 characters)
CA Cert: Filename of root certificate authority (CA) digital certificate
(up to 32 characters); leave blank if the “Use MS store” checkbox is
selected.
“Validate server” checkbox: Select this if using a CA certificate to
validate an authenticate server. When selected, enter a certificate
filename in the CA Cert field or select the “Use MS store” checkbox.
“Use MS store” checkbox: Select this if the Microsoft certificate store
should be used for a CA certificate. This is applicable only when
User Cert: Tap the […] button to select a user (or client) certificate
from the Microsoft certificate store. You may not enter a filename
because the user certificate must reside in the Microsoft certificate
store. When you browse for a certificate, the pop-up box shows two
fields, “Issued By” and “Issued to”.
Chapter 4 Using 802.11 Radio
“Validate server” is in use.
Default: None for both EAP type and credentials
73
9600 Mobile Computer Reference Manual
4.2.3 CONNECTION STATUS
View status of the current wireless network connection, information on the access point
and the connection established between the two.
Profile
Name of Active Profile
Status
Potential values are
Down: not recognized
Disabled
Not Associated
Associated
(EAP type) Authenticated
Device Name, IP, MAC
Information on the mobile computer
Device Name is displayed only when Client Name is specified by editing a profile
AP Name, IP, MAC, Beacon Period
Information on the access point to which the radio is associated
AP Name and IP may not be displayed if not supported by AP
DTIM: A multiple of the beacon period that specifies how often the beacon contains a delivery
traffic indication message (DTIM), which tells power-save client devices that a packet is
waiting for them (e.g. a DTIM interval of 3 means that every third beacon contains a DTIM).
74
Beacon Period: Amount of time between access point beacons in kilomicroseconds, where one
Kµsec equals 1024 microseconds.
Chapter 4 Using 802.11 Radio
Connection Channel, Bit Rate, Tx Power, Signal Strength, Signal Quality
Information on the wireless connection between the radio and access point, including graphic
indication of signal strength and quality.
75
9600 Mobile Computer Reference Manual
4.2.4 DIAGNOSTICS
Perform troubleshooting and diagnostic tests if necessary.
(Re)connect
Disable and enable the radio, apply or re-apply the current profile, attempt to associate and
authenticate to the wireless network, and log all activity in the output area at the bottom.
76
Chapter 4 Using 802.11 Radio
Release/Renew
Obtain a new IP address through DHCP release/renew, and log all activity in the output area at
the bottom.
Start Ping
Start a continuous ping to the address in the edit box next to the button. Once the button is
tapped, its name and function will change to [Stop Ping]. Pings will continue until you tap the
[Stop Ping] button, move to an SCU window other than Diags or Status, exit SCU, or remove the
radio. Also, it logs all activity in the output area at the bottom.
When a ping initiated on the Diags window is active, the Status window displays a ping indicator
consisting of two “lights” that take turns to show green (for a successful ping) or red (for an
77
9600 Mobile Computer Reference Manual
unsuccessful ping).
Ping Status
Diagnostics
Attempt to (re)connect to an access point, and provide a more thorough dump of data then is
obtained with (Re)connect. The dump will include radio state, profile settings, global settings, and
a BSSID list of APs in the area.
Save to
Save the diagnostics output to a file.
78
By default, the file name is “sdc_diags.txt”.
Chapter 4 Using 802.11 Radio
4.2.5 GLOBAL SETTINGS
Global settings include radio and security settings that apply to all profiles and settings
that apply to SCU itself.
Property
Value
Roam Trigger
When the moving average RSSI from the current AP is weaker than Roam
Trigger, radio does a roam scan where it probes for an AP with a signal
that is at least Roam Delta dBm stronger —
Roam Delta
Value: 5, 10, 15, 20, 25, 30, 35
Default: 10 dBm
After association or roam scan (with no roam), radio will collect RSSI scan
data from Roam Period seconds before considering roaming —
BG Channel Set
Default: -70 dBm
When Roam Trigger is met, a second AP’s signal strength (RSSI) must be
Roam Delta dBm stronger than the moving average RSSI for the current
AP before radio will attempt to roam to the second AP —
Roam Period
Value: -50, -55, -60, -65, -70, -75, -80, -85, -90
Value: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60
Default: 10 (seconds)
Defines the 2.4 GHz channels to be scanned when the radio is
contemplating a roam and needs to determine what APs are available.
Value:
Full
All channels
1, 6, 11
The most commonly used 2.4 GHz channels
1, 7, 13
For ETSI and TELEC radios only
79
9600 Mobile Computer Reference Manual
Default: Full
DFS Channels
N/A
Ad Hoc Channel
The channel to be used for an ad hoc connection if the active profile has a
Radio Mode value of “Ad Hoc” —
Aggressive Scan
UNII-1 channels
Default: 1
Value: On, Off
Default: On
Value: Optimized, Full, Off
Default: Optimized
Value: On, Off
Default: Off
Type of authentication server being used for EAP authentication —
TTLS Inner Method
36, 40, 44, 48
Whether to allow the use of Wi-Fi Multimedia Extensions (WME) or not —
Auth Server
One of the 2.4 GHz channels
Whether to allow the use of three CCX features (AP-assisted roaming,
AP-specified maximum transmit power, and radio management) —
WMM
1~14
Aggressive scanning complements and works in conjunction with the
standard scanning that is configured through the Roam Trigger, Roam
Delta, and Roam Period settings. It is recommended that aggressive
scanning is enabled unless there is significant co-channel interference
because of overlapping coverage from APs that are on the same channel.
CCX features
Value:
Value:
Type 1
Cisco Secure ACS or another server that
uses PEAPv1 for PEAP with EAP-MSCHAPV2
(PEAP-MSCHAP)
Type 2
A different authentication server, such as
Juniper Networks Steel Belted RADIUS, that
uses PEAPv0 for PEAP-MSCHAP
Default: Type 1
Authentication method used within secure tunnel created by EAP-TTLS —
Value:
Auto-EAP
Any available EAP method
MSCHAPV2
MSCHAP
PAP
CHAP
EAP-MSCHAPV2
PMK Caching
80
Default: Auto-EAP
When WPA2 is in use, type of Pairwise Master Key (PMK) caching to use
(alternative to WPA2 CCKM) —
Chapter 4 Using 802.11 Radio
TX Diversity
Main Only
Use main antenna only
Aux Only
Use auxiliary antenna only
On
Use diversity
Default: On
Value:
Main Only
Use main antenna only
Aux Only
Use auxiliary antenna only
On-start on Main
On startup, use main antenna
On-start on Aux
On startup, use auxiliary antenna
Default: On-start on Main
If packet size exceeds threshold, then it is fragmented —
RTS Thresh
Value:
How to handle antenna diversity when receiving data from AP —
Frag Thresh
Default: Standard
How to handle antenna diversity when transmitting data to AP —
RX Diversity
Value: Standard or OPMK (opportunistic PMK)
Value: 256 ~ 2346
Default: 2346 (bytes)
Packet size above which RTS/CTS is required on link —
Value: 0 ~ 2347
Default: 2347 (bytes)
LED
N/A
Tray Icon
Whether to enable the system tray icon or not —
Hide Passwords
Value: On, Off
Default: On
Whether to hide the passwords and other sensitive information, such as
WEP keys, in SCU as well as EAP authentication dialog boxes —
Value: On, Off
Default: Off
Admin Password
N/A
Auth Timeout (s)
Specifies how long it will wait for an EAP authentication request to succeed
or fail. If authentication credentials are specified in the active profile and
the authentication times out, then association will fail. If authentication
credentials are not specified in the active profile and the authentication
times out, then the user will be required to enter credentials again.
Certs path
Value: 3 ~ 60
Default: 8 (seconds)
File path where the certificate for EAP authentication is stored —
Value: A valid directory path of up to 64 characters
Default: Depends on device
81
9600 Mobile Computer Reference Manual
Ping Payload
The amount of data to be transmitted on a ping —
Ping Timeout (ms)
Default: 32 (bytes)
The amount of time that elapses without a response before ping request is
considered a failure —
Ping Delay (ms)
Value: 32, 64, 128, 256, 512, 1024
Value: 0 ~ 30000
Default: 5000 (milliseconds)
The amount of time that elapses between successive ping requests —
Value: 0 ~ 7200000
Default: 1000 (milliseconds)
Note: SCU stores values in the registry. The purpose of “Custom” is to prevent SCU from
overriding a change to the registry that was made manually. Selecting “Custom”
has no real effect!
(1) If SCU displays a value of “Custom” for a global setting, then the operating
system registry has been edited to include a value that is not available for
selection on the Global window.
(2) If SCU displays a value other than “Custom” and you select the value of
“Custom” and tap [Commit], then SCU reverts to the value that is displayed before
you selected “Custom”.
4.2.6 SUMMIT SYSTEM TRAY ICON
The Summit system tray icon provides a visual status for the radio and enables the user
to launch Summit Client Utility by double-tapping the icon. It is only available when all
of the following is true:
Icon
A Summit radio is present.
The power to the radio is turned on through Power Management.
Windows Zero Config (WZC) is NOT active.
The global setting of the SCU Tray Icon is turned ON (the default setting).
Indication
The radio is not associated or authenticated to an access point (AP).
The signal strength (RSSI) for the current AP (to which the radio is associated) is -90 dBm
or weaker.
The RSSI for the current AP is stronger than -90 dBm but not stronger than -70 dBm.
The RSSI for the current AP is stronger than -70 dBm but not stronger than -50 dBm.
The RSSI for the current AP is stronger than -50 dBm.
82
Chapter 5
USING BLUETOOTH
9600 Mobile Computer lets you configure Bluetooth settings and manage Bluetooth
services provided on the remote devices.
IN THIS CHAPTER
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
Turn on BT Power ...................................................... 83
Search Devices.......................................................... 87
Pair Devices .............................................................. 88
File Transfer.............................................................. 94
Object Push .............................................................. 96
Serial Port Service ..................................................... 97
Re-connect to Remote Services...................................101
Manage Local Services...............................................103
BT Manager .............................................................107
5.1 TURN ON BT POWER
1) Tap the icon
on the taskbar to access Power Management.
2) Select [Turn on BT] and tap
.
83
9600 Mobile Computer Reference Manual
3) It takes several seconds to launch BT-Connect and enable Bluetooth services. The
associated icon
will appear on the taskbar. Meanwhile, the LED on the mobile
computer will turn blue and flash slowly.
Note: (1) Bluetooth power is maintained even in suspend mode.
(2) Because the settings in Power Management will be kept after warm or cold
boot, it will resume to last wireless power status after the power cycle.
4) Tap the icon
to access the menu that allows you to maximize BT-Connect. Refer
to 5.9 BT Manager to change the initial settings.
5) To stop Bluetooth connection and exit BT-Connect, turn off BT power through
Power Management. The LED on the mobile computer will go off.
84
Chapter 5 Using Bluetooth
5.1.1 BLUETOOTH PROFILES SUPPORTED
Bluetooth Profiles Supported
Serial Port Profile
(SPP)
supports Server/Client
Object Push Profile
(OPP)
supports Server/Client
File Transfer Profile
(FTP)
supports Server/Client
Dial-Up Networking Profile
(DUN)
supports Client only
Personal Area Networking Profile
(PAN)
Human Interface Device Profile
(HID)
Headset Profile
(HSP)
Hands-Free Profile
(HFP)
supports keyboard and mouse without cursor
Note: For Serial Port Profile, Server/Client connection is allowed one at a time. Yet, you
may have COM 7 released for programming. Refer to 3.3 System Settings – Com
Port Mapping.
5.1.2 BLUETOOTH TOOLBAR
Buttons
Description
Tap this button to view Bluetooth devices discovered during this session.
If you tap the button for the first time, it will start the inquiry process to discover
nearby Bluetooth devices.
Tap this button to view Bluetooth services provided on 9600.
By default, File Transfer and Object Push services are made available, and
therefore, displayed along with a green indicator
.
To change properties of a service, tap and hold it to select [Change Local Path]
from the pop-up menu.
Local Path
Bluetooth Service on 9600
\Temp
File Transfer
\My Documents
Object Push
Tap this button to stop inquiring, disconnect connection(s) or unload service(s).
Tap this button to refresh the device list or Bluetooth services provided on the remove
device once a connection has bees established successfully.
Tap this button to restore the previous window.
85
9600 Mobile Computer Reference Manual
5.1.3 SET DISCOVERABLE
1) Tap the icon
discoverable.
and select [Setting] from the pop-up menu to set your device
2) Cancel the check box if you want to hide the mobile computer from other Bluetooth
devices.
86
Chapter 5 Using Bluetooth
5.2 SEARCH DEVICES
1) Tap
to discover nearby Bluetooth devices.
2) Wait for a few seconds, and it will list the discovered devices.
3) If you do not see the device that you want to connect to, make sure it is set
discoverable.
Tap
to search again.
87
9600 Mobile Computer Reference Manual
5.3 PAIR DEVICES
5.3.1 IDENTIFY REMOTE DEVICE
From the device list, tap and hold the desired device to select [MAC address] from the
pop-up menu.
88
Chapter 5 Using Bluetooth
5.3.2 PAIR
When authentication is enabled on the remote device, you will have to exchange a
passkey (= pair) with it before starting a connection.
1) From the device list, tap and hold the desired device to select [Pair] from the pop-up
menu.
2) Enter the PIN code that is specified on the remote device.
89
9600 Mobile Computer Reference Manual
3) Once paired successfully, the paired device will be displayed along with a lock icon
4) Double-tap the remote device to find out the available Bluetooth services.
90
.
Chapter 5 Using Bluetooth
5) Tap and hold a desired Bluetooth service. Refer to the following sections:
5.4 File Transfer: Select [Open] from the pop-up menu.
5.5 Object Push: Select [Push File] from the pop-up menu.
5.6 Serial Port Service: Select [Connect] from the pop-up menu.
91
9600 Mobile Computer Reference Manual
6) Once the connection has been established, the service will be displayed along with a
green indicator . If a disconnection occurs on the remote device, a red indicator
will be displayed.
Note: The Bluetooth services that you have ever connected or disconnected will all be
kept in BT Manager. Refer to 5.9.2 Preference for details.
7) To end the connection, tap and hold the connected service to select [Disconnect]
or
will be gone, meaning a disconnection
from the pop-up menu. The indicator
occurs on the mobile computer.
92
Chapter 5 Using Bluetooth
5.3.3 UNPAIR
From the device list, tap and hold the desired device to select [Unpair] from the pop-up
menu.
Note: The mobile computer must be unpaired on the remote device as well. For
example, remove it from the device list on PC. (Both devices must be unpaired!)
93
9600 Mobile Computer Reference Manual
5.4 FILE TRANSFER
1) Tap and hold the File Transfer service.
2) Select [Open].
5.4.1 UPLOAD A FILE
3) Tap and hold anywhere blank to select [Put File] from the pop-up menu.
4) Choose the file you wish to upload to the remote device.
5) The mobile computer will start uploading the file to the remote device.
94
Chapter 5 Using Bluetooth
5.4.2 DOWNLOAD A FILE
6) Tap and hold a desired file to select [Get File] from the pop-up menu. The mobile
computer will start downloading the file from the remote device.
95
9600 Mobile Computer Reference Manual
5.5 OBJECT PUSH
1) Tap and hold the Object Push service.
2) Select [Push file] to send a file.
3) Choose a file you wish to send.
4) The mobile computer will start sending the file.
96
Chapter 5 Using Bluetooth
5.6 SERIAL PORT SERVICE
5.6.1 SERIAL PORT SERVICE
1) Tap and hold the Serial Port Service.
Note: BT-Connect allows using the virtual COM port one at a time. Outgoing port is
unavailable when incoming port is in use for local SPP service. You must unload
the local SPP service first. Please refer to 5.8.3 Serial Port Service.
2) Select [Connect] (and COM 6 is in use).
97
9600 Mobile Computer Reference Manual
3) Once the connection has been established, the connected service will be displayed
along with a green indicator .
Note: The mobile computer can regularly perform an inquiry on an SPP device. For
details on the associated settings, please refer to 5.9 BT Manager.
98
Chapter 5 Using Bluetooth
5.6.2 BLUETOOTH ACTIVESYNC
For ActiveSync via Bluetooth, you must configure Bluetooth settings correctly on your
computer first.
1) Configure Bluetooth settings for your computer, such as “Turn discovery on”, adding
a COM port (Incoming), etc.
99
9600 Mobile Computer Reference Manual
2) Allow connections to the specified COM port in ActiveSync.
3) Connect the mobile computer to your computer.
4) On the mobile computer, tap and hold Serial Port Service to select [ActiveSync via
BT] from the pop-up menu.
100
Chapter 5 Using Bluetooth
5.7 RE-CONNECT TO REMOTE SERVICES
5.7.1 PREFERRED DEVICE LIST
By default, BT-Connect will automatically re-connect to the last service(s) at the next
power-on, and then list the preferred device(s) with service(s) kept in BT manager.
Example
Device Status
Connection Settings in BT-Manager
The device has been paired with ( ) and at
least one service has been re-connected
successfully, such as Headset/Handsfree, HID,
PAN, or SPP.
Last Connection = “Y” (on the
Preference tab)
The device has been paired with ( ) but with
the following conditions for the remote services,
such as Headset/Handsfree, HID, PAN, or SPP:
Last Connection = “N” or “Y” (on
the Preference tab)
(1) When Last Connection = “N”, none of the
services requires to be re-connected.
(2) When Last Connection = “Y”, it fails to
re-connect.
The device is not paired, yet it has service(s)
not required to exchange PIN code and not
allowed to be re-connected with, such as DUN,
FTP, or OPP.
Last Connection = “N” (on the
Preference tab)
Note: (1) The remote device(s) should be ready for BT-Connect to re-connect to.
(2) The re-connection settings are configurable via BT manager. If you want to
remove a specific device from the device list, you have to manually delete records
of all its Bluetooth services kept on the Preference tab. Refer to 5.9 BT Manager.
101
9600 Mobile Computer Reference Manual
5.7.2 PREFERRED SERVICES
Double-tap the preferred device to view the Bluetooth service(s) you have connected/
disconnected last time.
Example
Service Status
Connection Settings in BT-Manager
The service is successfully re-connected
( ).
Last Connection
Preference tab)
=
“Y”
(on
the
The service is unable to be re-connected
with ( ). That is, disconnection occurs on
the remote device.
Last Connection
Preference tab)
=
“Y”
(on
the
The service is
re-connected with.
Last Connection
Preference tab)
=
“N”
(on
the
not
allowed
to
be
Tap and hold a preferred service and select [Disconnect] or [Connect] from the pop-up
menu.
Or tap
to find out more services belong to this device.
Note: You can select to re-connect to a specific service or services. Refer to 5.9.2
Preference to configure connection settings for the service(s).
102
Chapter 5 Using Bluetooth
5.8 MANAGE LOCAL SERVICES
By default, File Transfer and Object Push services are made available, and therefore,
displayed along with a green indicator .
5.8.1 FILE TRANSFER
Change Local Path
You can change the FTP folder. Tap and hold it to select [Change Local Path] from the pop-up
menu.
103
9600 Mobile Computer Reference Manual
Unload/Load Service
You can unload or re-load the service. When unloaded, both the FTP and OPP services become
unavailable to a remote device. If you re-load the service, both the FTP and OPP services will
become available again.
5.8.2 OBJECT PUSH
Change Local Path
You can change the exchange folder for Object Push. Tap and hold it to select [Change Local
Path] from the pop-up menu.
104
Chapter 5 Using Bluetooth
Unload/Load Service
You can unload or re-load the service. When unloaded, both the FTP and OPP services become
unavailable to a remote device. If you re-load the service, both the FTP and OPP services will
become available again.
5.8.3 SERIAL PORT SERVICE
Unload/Load Service
You can unload or re-load the service. When unloaded, it becomes unavailable to a remote
device.
105
9600 Mobile Computer Reference Manual
Note: BT-Connect allows using the virtual COM port one at a time. Incoming port is
unavailable when outgoing port is in use for connecting with service. You must
disconnect with service first. Please refer to 5.6.1 Serial Port Service.
106
Chapter 5 Using Bluetooth
5.9 BT MANAGER
Go to Start | Settings | Control Panel and select BT Manager.
Note: Make sure the BT power is turned off while configuring the following settings. All
settings configured here will not take effect until the BT power is restarted through
Power Management.
5.9.1 GENERAL SETTINGS
Decide whether to automatically re-connect to all Bluetooth services after the mobile
computer resumes from warm or cold boot. Furthermore, when the mobile computer
resumes from suspend mode, you can determine whether to maintain all Bluetooth
connections and perform an inquiry on a remote device at a regular interval.
Refer to 5.9.2 Preference to configure “Last Connection” and “Auto Inquiry” settings
for a specific service.
Note: To save the battery power of your mobile computer, we suggest you disable “Auto
Inquiry”.
Tap [Apply] to save the current settings, or tap [Reset to Default] to restore defaults.
107
9600 Mobile Computer Reference Manual
5.9.2 PREFERENCE
BT Manager helps sort out usage preference for all remote services which are previously
connected/disconnected. Select a desired service type from the drop-down menu:
Headset/Handsfree
HID
PAN
SPP
Others – FTP, OPP, and DUN
MANAGING BLUETOOTH SERVICES
You can view Bluetooth services which belong to the selected service type in the content
field, including service/device icons, device names, and default connection settings (Last
Connection and Auto Inquiry).
A colored icon indicates the service is available for use.
A grayed icon indicates the service is currently unavailable.
Content
Field
To delete an unwanted service, select the check box of the service and tap [Delete]. You
may tap [Select All] or [Unselect All] to make the selection at a time.
Note: You cannot delete a service which is currently in use.
108
Chapter 5 Using Bluetooth
CONFIGURING CONNECTION SETTINGS
You can change the connection preference for a specific service at the next power-on.
Tap [Apply] to save the current settings.
For the connection settings to take effect, “Allow to resume last service” and “Auto
Inquiry” must be enabled on the General tab. On the other hand, the connection
settings will be ignored if the two settings are disabled on the General tab.
Options
Description
Last Connection
Decide whether to re-connect to the last service(s) when the mobile
computer reboots. Configurable Bluetooth services are:
Auto Inquiry
Headset/Handsfree
HID
PAN
SPP
Based on the “Last Connection” setting, you may decide whether to
detect existence of the device at a specific time interval.
For Headset/Handsfree, HID, and PAN services, the value of “Auto
Inquiry” will automatically follow the settings configured for “Last
Connection”.
For SPP service, when “Last Connection” is enabled (= “Y”), the value of
“Auto Inquiry” can be set to “Y” or “N”.
Set the interval for the mobile computer to perform an inquiry on
the General tab. Refer to 5.9.1 General Settings.
Note: To save the battery power of your mobile computer, we suggest you disable “Auto
Inquiry”. When connecting with a printer, we suggest keeping “Auto Inquiry”
disabled as well.
109
9600 Mobile Computer Reference Manual
5.9.3 BT-CONNECT
On the BT-Connect tab, you may configure the settings for BT-Connect.
Minimize BT-Connect: Decide whether to minimize the BT-Connect window when it is
launched to provide Bluetooth services.
Show icon on taskbar: Decide whether to show the BT-Connect icon
on the
taskbar.
Note: To be able to use the Bluetooth services at any time, we suggest keeping the icon
on the taskbar for access.
Enable power save: Decide whether to maintain the Bluetooth connection in a low
power consumption mode until a profile becomes active. (= enter Sniff Mode).
Tap [Apply] to save the current settings, or tap [Reset to Default] to restore defaults.
110
Chapter 6
USING GSM/GPRS
9600 Mobile Computer allows making phone calls and connecting to network over
General Packet Radio Service (GPRS). Insert SIM card before turning on the power to
GSM/GPRS module. Refer to Inserting SIM Card.
Note: If the SIM card is not in position, you can only make emergency calls.
IN THIS CHAPTER
6.1
6.2
6.3
6.4
Turn On GSM/GPRS Power .........................................111
GPRS Connection ......................................................113
Phone Application .....................................................114
GSM/GPRS Manager ..................................................122
6.1 TURN ON GSM/GPRS POWER
1) Tap the icon
on the taskbar to access Power Management.
2) Select [Turn on GSM/GPRS] and tap
.
111
9600 Mobile Computer Reference Manual
3) When PIN verification is required on your SIM card, a message will be displayed to
indicate GSM/GPRS power cannot be turned on before you entering the PIN code via
GSM/GPRS Manager.
Tap [OK] to close this message window first. Refer to 6.4.2 Security for details.
4) It takes several seconds to turn on the power to module.
The associated GSM/GPRS icon will appear on the taskbar as shown below to indicate
that GSM/GPRS power is turned on and whether GSM/GPRS service is launched
successfully:
Icon
Indication
By default, GSM/GPRS module provides access to GPRS service.
GSM/GPRS module provides access to GSM service.
112
Chapter 6 Using GSM/GPRS
6.2 GPRS CONNECTION
6.2.1 CHECKING GPRS CONNECTION
In GSM/GPRS Manager, it is set to start GPRS service first by default. Upon turning on
the GSM/GPRS power, it takes several seconds to launch GSM-Connect. GPRS
connection will be established automatically if PIN verification is not required.
If PIN verification or special configuration is required for your network, refer to 6.4
GSM/GPRS Manager for advanced settings.
An associated icon will appear on the taskbar to indicate the GPRS connection status.
Icon
Indication
Initializing the GSM/GPRS module or the GPRS connection is disconnected
Connecting to GPRS network
GPRS connection has been established successfully
When the signal strength becomes too weak to maintain the GPRS connection, a warning
message will be displayed.
Tap
to re-connect to the GPRS network.
Tap
to turn off the power to GSM/GPRS module. Alternatively, you may turn off
GSM/GPRS power through Power Management.
Note: (1) GSM/GPRS power is maintained even in suspend mode.
(2) Because the settings in Power Management will be kept after warm or cold
boot, it will resume to last wireless power status after the power cycle.
113
9600 Mobile Computer Reference Manual
6.2.2 USING GSM-CONNECT DURING A GPRS SESSION
While you are browsing the Internet or anywhere away from the GSM-Connect window,
you may press [SEND] or [END] from the keypad to restore the minimized window from
the taskbar for phone dialer application. Refer to 6.3 Phone Application.
If a phone call comes in during a GPRS session, the GSM-Connect window will be
automatically maximized. You may tap the buttons on the screen, or press [SEND] or
[END] from the keypad to answer or reject the call. Refer to 6.3.2 Buttons.
Tap the icon
to access the menu that allows you to choose to connect/disconnect
GPRS, minimize/maximize the GSM-Connect window or enter Message Box.
To exit the application, turn off GSM/GPRS power through Power Management.
Alternatively, you may press [ESC] on the physical keypad and then tap
GSM-Connect.
114
to exit
Chapter 6 Using GSM/GPRS
6.3 PHONE APPLICATION
GSM-Connect is a phone dialer application that allows you to –
Make or receive phone calls
Manage your phone book
Assign a Speed Dial number to a contact, 50 numbers are available (1~50)
Note: You are not allowed to make or receive calls via the dialer unless (1) a SIM card is
present, (2) a headset is connected to the headset jack or a Bluetooth headset is
ready (connected to use “Headset Service” via BT-Connect).
6.3.1 CHECKING GSM CONNECTION
If you want it to start GSM service first, change the basic settings in GSM/GPRS
Manager. Refer to 6.4 GSM/GPRS Manager. Upon turning on the GSM/GPRS power, it
takes several seconds to launch GSM-Connect.
If PIN verification is required on your SIM card, tap [OK] to close the message window
and then input PIN code via GSM/GPRS Manager. Refer to 6.4.2 Security.
An associated icon will appear on the taskbar to indicate the GSM connection status.
Icon
Indication
Initializing the GSM/GPRS module
GSM signal is too weak (one-bar) or no signal
GSM-Connect is ready for use
115
9600 Mobile Computer Reference Manual
Note: (1) GSM/GPRS power is maintained even in suspend mode.
(2) Because the settings in Power Management will be kept after warm or cold
boot, it will resume to last wireless power status after the power cycle.
The display panel on top of the screen is used to show your service provider’s name and
the contact name or phone number when making or receiving a call.
Tap
next to the display panel to browse call history, which keeps a record of
the phone number that called in or out or you missed.
The signal strength icon
indicates whether you are connected to
your service provider’s network. As the strength of the signal diminishes, so will the
number of bars in the icon, ranging from no signal to excellence (four-bars).
You may establish a GPRS connection at the same time. However, when it is engaged
with data transmission via GPRS, it is possible that incoming calls will be missed.
to access the menu that allows you to choose to connect/disconnect
Tap the icon
GPRS, minimize/maximize the GSM-Connect window or enter Message Box.
To exit the application, turn off GSM/GPRS power through Power Management.
Alternatively, you may press [ESC] on the physical keypad and then tap
GSM-Connect.
116
to exit
Chapter 6 Using GSM/GPRS
6.3.2 BUTTONS
Button
Description
[Backspace] button allows you to delete the last input.
Ringtone button (left) allows you to set key sound and change the
ringing sound for notifying an incoming call. Tap [Browse] to select a
.wav file.
It will become unavailable during a call. (right)
Speaker button allows you to quickly mute the ringtone or turn it on
for incoming calls.
The left one indicates the speaker is turned on.
The right one indicates the speaker is muted.
Vibrator button allows you to quickly turn on the vibrator or turn it
off for incoming calls.
The left one indicates the vibrator is turned off.
The right one indicates the vibrator is turned on.
[Call / Answer] button (left) allows you to make or receive a call.
It will become unavailable during a call. (right)
Alternatively, you may press [SEND] from the keypad.
[End / Reject] button allows you to hang up a call.
Alternatively, you may press [END] from the keypad.
Phone Book button allows you to access your contacts stored on the
SIM card.
It will become unavailable during a call.
Message Box allows you to access your messages received.
It will become unavailable during a call.
Note: For adjusting the volume of the ringtone and dial tone, go to Start | Settings |
Control Panel and select Volume & Sounds.
117
9600 Mobile Computer Reference Manual
6.3.3 MAKING PHONE CALLS
You can make phone calls via the GSM connection in several ways before you tap the
green [Call] button.
Dialling out
Using the dial pad on the screen or the physical keypad – simply enter the number you want to
call.
From Phone Book
Browse the phone book to find the contact or number you want to call.
Using Speed Dial
Enter the speed dial number of the desired contact.
From Call History
Browse call history via the display panel to pick the number you want to call.
6.3.4 ANSWERING PHONE CALLS
Tap [Call / Answer] to answer an incoming call, or tap [End / Reject] to reject the call
and send out the busy tone.
6.3.5 CHANGING THE PHONE VOLUME AND NOTIFICATIONS
Items
Description
Dial tone
Go to Start | Settings | Control Panel and select Volume & Sounds, and
adjust the volume of the headset, dial tone, and ringtone.
If you want to mute the dial tone, cancel the check box of “Applications” so that
sounds are disabled.
Ring tone
Go to Start | Settings | Control Panel and select Volume & Sounds, and
adjust the volume of the headset, dial tone, and ringtone.
Normally, you will be notified of an incoming call by playing the default
ringtone “ring.wav”. You can change the ringtone if you like. Simply tap
in the dialer.
If you want to mute the ring tone, tap the Speaker button
There will be no ring tone when it becomes
Vibrate
.
Whether there is ring tone or not, you can have the vibrator on for notifying an
incoming call. Simply tap
“vibrate” mode.
118
in the dialer.
in the dialer, it will become
indicating it is in
When you see
mode.
and
on the screen, the phone is in “ring & vibrate”
When you see
and
on the screen, the phone is in “vibrate” mode.
Chapter 6 Using GSM/GPRS
6.3.6 EDITING PHONE BOOK
The names and phone numbers stored on the SIM card can be viewed here. You can sort
the Phone Book entries by tapping the heading of any column, for example, “Name”. The
Phone Book entries will be re-arranged by “Name” in alphabetically ascending order.
Button
Description
Add a new contact
You may assign a Speed Dial number
for the numbers you call most.
Up to 50 Speed Dial numbers are
allowed.
119
9600 Mobile Computer Reference Manual
Delete a contact
By default, it allows you to delete the selected record; however, you may choose to
delete all records.
Edit a contact
Select an entry and edit it, for example, change its Speed Dial number.
Call a contact
Select an entry and make a phone call.
Send a message
120
Chapter 6 Using GSM/GPRS
Import data to Phone Book
Open an existing phone book, such as “Phonebook.txt”, the data will be automatically
imported to the Phone Book stored on your SIM card. To ensure you are importing
the correct data and avoid extra editing, we suggest you to preview the text file in
Wordpad on the mobile computer.
Save Phone Book as…
The current Phone Book in use is stored on your SIM card. You may save it as a text
file, “Phonebook.txt” by default, so that you can copy it to another mobile computer
and open it directly in this phone dialer application.
6.3.7 MESSAGE BOX
Button
Description
Create a message
Select a message entry and tap the [Delete] button to delete it.
By default, it allows you to delete the selected record; however, you may choose to
delete all records.
Select a message entry and tap the [Call] button to make a phone call.
Reply
Forward
Save to Phone Book
121
9600 Mobile Computer Reference Manual
6.4 GSM/GPRS MANAGER
Go to Start | Settings | Control Panel and double-tap GSM/GPRS Manager.
Note: Make sure the GSM/GPRS power is turned off while configuring the following
settings. All settings configured here will not take effect until the GSM/GPRS power
is restarted through Power Management.
6.4.1 BASIC SETTINGS
Select to use GSM or GPRS service after turning on the power to the GSM/GPRS module.
When GPRS is selected, available settings on this tab are:
Options
Description
Enable
GPRS
auto-connection
Decide whether to automatically maintain GPRS connection when the
mobile computer resumes from suspend mode.
Retry
connection
Set the number of retry attempts and interval for the mobile computer
to connect to a GPRS network till successful connection.
GPRS
Tap [Apply] to save the current settings, or tap [Reset to Default] to restore defaults.
122
Chapter 6 Using GSM/GPRS
CONFIGURING ADVANCED GPRS SETTINGS
If you need to change the dial-up settings, tap the [Advanced] button and configure the
following items in the GPRS Properties dialog box. Tap [OK] to save the current settings.
Items
Description
AP Name
Specify the GPRS AP name for the mobile computer to connect to.
User Name
Type user name to log onto a GPRS network.
Password
Type user password to log onto a GPRS network.
Phone Number
Change the dial-up phone number for GPRS connection if necessary.
Note: You must connect to the GPRS modem specified by the mobile phone operator.
123
9600 Mobile Computer Reference Manual
6.4.2 SECURITY
This tab is only available when the power to GSM/GPRS module has been turned on. You
can find out the security setting and change the PIN code on your SIM card if necessary.
You must restart the GSM/GPRS power
for the changes to take effect.
ENABLING SECURITY SETTING
You may select the check box of [Enable PIN] to enable PIN protection against
unauthorized use. A dialog box will be displayed asking you to input the PIN code.
124
Chapter 6 Using GSM/GPRS
CHANGING PIN CODE
To change the PIN code on your SIM card, tap [Change PIN] and input the old and new
PIN codes in the dialog box.
When PIN protection is enabled and a PIN code is required to access the GSM/GPRS
service, tap [Change PIN] and enter the old PIN three times to verify your PIN. If you
need to change the PIN code, tap [Change PIN] again, and input the old and new PIN
codes.
Note: The PIN verification on the mobile computer allows three attempts to input the
correct PIN code. If you fail three times, the PIN will be blocked, and you will need
to obtain the PUK code from your network operator and unblock the SIM card on
your cellular phone.
125
9600 Mobile Computer Reference Manual
126
Chapter 7
USING READER CONFIGURATION UTILITY
Reader Configuration Utility is the tool that lets you manage the barcode and RFID
readers integrated on the mobile computer.
Note: Before executing
ImageMaker.exe.
the
utility,
make
sure
you
have
closed
the
program
IN THIS CHAPTER
7.1
7.2
7.3
7.4
7.5
7.6
7.7
Run ReaderConfig.exe ...............................................127
Barcode Reader Settings............................................129
RFID Reader Settings ................................................130
RFID Security...........................................................133
Data Output .............................................................134
Notifications (for Good Read)......................................136
Symbology Settings ..................................................137
7.1 RUN READERCONFIG.EXE
1) Go to Start | Programs | ReaderConfig to open the Reader Configuration
Utility. The associated icon
will appear on the taskbar.
127
9600 Mobile Computer Reference Manual
2) Tap the icon
to access the menu that allows you to choose and enable one or
both of the readers. There will be a check mark in front of the reader if it is enabled.
If the RFID Reader is installed, the option will be available.
3) To meet your application requirements, proceed to configure associated reader
settings as well as barcode settings.
Note: (1) The ReaderConfig.exe utility will automatically detect the reader module(s)
that is currently installed in the mobile computer.
(2) If you wish to reload the default settings, delete the ReaderCfgINI.txt file in
DiskOnChip before launching the program, or tap [Restore Defaults] on the
General tab after launching the program.
128
Chapter 7 Using Reader Configuration Utility
7.2 BARCODE READER SETTINGS
The barcode reader configurations depend on the scan engine(s) installed. You can tell
which reader is currently in use and make necessary changes on the General tab.
Barcode Reader
Description
CCD/Laser Reader
If installed, tap the [Barcode Reader] button to configure the reader settings
for CCD or Laser scan engine.
2D Reader
Refer to the Reader Settings Table in Appendix II - Linear Imager (CCD),
Laser (SE950).
The 2D scan engine is capable of reading linear and 2D barcodes.
If installed, tap the [Barcode Reader] button to configure the reader settings
for 2D scan engine.
Refer to the Reader Settings Table in Appendix III - 2D Imager.
129
9600 Mobile Computer Reference Manual
7.3 RFID READER SETTINGS
If the RFID scan engine is present, configurable options will be displayed.
Note: Because it is possible to read barcode and RFID tag at the same time, it is
recommended that only one scan engine is enabled at a time to prevent from
misreading.
Some RFID tags support both read/write operations, on a page-by-page basis. You may
find it necessary to define your own read/write operation. For reference only, the table
below lists the start page for read/write operation on a number of RFID tags.
Start Page
Tag Type
Standard
-1
Start from byte 0 of the default page (see below) for all tags
4
Mifare
ISO 14443A
4
SR176
ISO 14443B
3
ICODE SLI
ISO 15693
0
LRI512
ISO 15693
3
SRF55VxxP
ISO 15693
0
EM4135
ISO 15693
0
Tag-it HF-I
ISO 15693
0
Others
ISO 15693
5
ICODE
ICODE® (Phillips)
0
Tag-it
Tag-it® (TI)
Note: Please refer to the specifications of your RFID tags for memory organization.
130
Chapter 7 Using Reader Configuration Utility
7.3.1 READ OPERATION
Login Key
RFID tags may support authentication for security concerns, such as Mifare Standard 1K/4K and
SLE66R35 tags. The security key, Key A or Key B, is used to access a specific RFID tag.
By default, it is set to use “FFFFFFFFFFFF” for a new Mifare tag, regardless of Key A or Key B.
Modify the key string if necessary. It must be a hex string with 12 bytes length.
Read Settings
By default, the RFID tag is read from byte 0 of the default page. However, the default page,
amount of bytes and number of pages of each tag may be different. Specify how many bytes of
data you want to read from the tag.
Generally, the read data is user data obtained from the user block. If you are sure that the data is
to be read from a non-user block, such as the lock block, you need to select the check box of
[Display hex values] first.
131
9600 Mobile Computer Reference Manual
7.3.2 WRITE OPERATION
Login Key
RFID tags may support authentication for security concerns, such as Mifare Standard 1K/4K and
SLE66R35 tags. The security key, Key A or Key B, is used to access a specific RFID tag.
By default, it is set to use “FFFFFFFFFFFF” for a new Mifare tag, regardless of Key A or Key B.
Modify the key string if necessary. It must be a hex string with 12 bytes length.
Write Settings
Type the string that you want to write to a tag. By default, the string is written to the tag from
byte 0 of the default page. However, the default page, amount of bytes and number of pages of
each tag may be different. Therefore, the input string will automatically be truncated to fit into
pages, and data may be discarded when it comes to the end of pages available.
Generally, it will write the input string to the user block, which is free for custom use. The string
will be displayed as “user data”. If you wish to write the string to a non-user block, such as the
lock block, you need to select the check box of [Use hex values] first.
Once you have selected to use hex values for the string, the string length must be even. For
example, if you want to write 0x0A, 0x0B and 0x00 to a tag, the string you input must be
“0A0B00” instead of “AB0”.
132
Chapter 7 Using Reader Configuration Utility
7.4 RFID SECURITY
You may change the security key, Key A and/or Key B, used to access a Mifare tag. In
order to change the key or keys, you must provide correct login key first.
By default, it is set to use “FFFFFFFFFFFF” for a new Mifare tag, regardless of Key A or
Key B.
Specify strings for Key A and Key B. It must be a hex string with 12 bytes length.
Type your Key A and Key B. If no change is
made, you still need to provide the key
string currently in use.
133
9600 Mobile Computer Reference Manual
7.5 DATA OUTPUT
Tap the [Data Output] button on the General tab to choose from the three options for
data output after decoding as well as configure associated settings.
Default
Data Output
Keyboard
Emulation
Data is emulated as typed text and sent to the active Window.
When “Local machine” is selected, simply run your
application or built-in program, such as WordPad, to start
with data collection.
When “RDP server” is selected, run the Remote Desktop
Connection program to connect to a remote computer.
Local machine
Note that this option is unable to emulate double bytes, such
as Big-5 or Unicode characters on the remote PC.
Windows
Message
When selected, a Windows message will be broadcasted after Disable
decoding.
Windows Event
Call Windows API (ReadMsgQueue) in your application to
retrieve the decoded data.
When selected, a Windows event will be broadcasted after Disable
decoding.
134
Intercept the decode message in your application.
Intercept the decode event in your application.
Call Windows API (ReadMsgQueue) in your application to
retrieve the decoded data.
Chapter 7 Using Reader Configuration Utility
Note: (1) Refer to 9600 .NET or C/C++ Programming Guide for details on Windows
Message and Windows Event. Sample programs are provided by request.
(2) For the use of a different program rather than ReaderConfig.exe, a
dynamic-link library (DLL) file is provided.
Auto ENTER
This function can spare you the trouble of pressing the [Enter] Scan + ENTER
key on the mobile computer to confirm each scan. It will
automatically add an ENTER character in front or to the end of
one scan.
Auto ENTER
Character
No
Scan + ENTER
ENTER + Scan
*Auto ENTER must be enabled.
None
Carriage
Return
Carriage Return
Tab
Space
Comma
Semicolon
Prefix String
0~10 characters
NULL
Suffix String
0~10 characters
NULL
Display Code
Type
Select the check box to prefix the code type to barcode data after Disabled
decoding a barcode.
Display Code
Length
Select the check box to suffix the code length to barcode data Disabled
after decoding a barcode.
Display RFID
UID
Select the check box to display UID after decoding an RFID tag.
Display RFID
User Data
Select the check box to display user data after decoding an RFID Disabled
tag.
Field Delimiter
Decide whether or not to use a delimiter to separate data fields ‘ , ’ (comma)
after decoding a barcode or an RFID tag —
Code type, barcode data, and code length if more than one
field is displayed
UID and user data if both are displayed
Enabled
135
9600 Mobile Computer Reference Manual
7.6 NOTIFICATIONS (FOR GOOD READ)
Tap the [Notifications] button on the General tab to configure how you want to be
notified of a successful decoding.
Default
Sound / Vibration
Good Read via
speaker
Mute, or Sound 1~9
Sound 1
Good Read via
buzzer
Specify frequency and duration
0 (= Disable)
Good Read via
vibrator
0~5.0 (sec.)
Duration 0~255 (0.1 sec.); 0 = Disable the buzzer
0 (= Disable)
0 = Disable the vibrator
Good Read LED Select the check box to enable Good Read LED. The LED will Disable
become green to indicate a successful decoding.
136
Chapter 7 Using Reader Configuration Utility
7.7 SYMBOLOGY SETTINGS
For barcode settings, tap the Symbologies tab.
Refer to Appendix I - Scan Engine Settings for the symbologies or RFID tags
supported by a scan engine.
Refer to the Symbology Settings Table in Appendix II - Linear Imager (CCD), Laser
(SE950).
Refer to the Symbology Settings Table in Appendix III - 2D Imager.
137
9600 Mobile Computer Reference Manual
138
Chapter 8
MORE APPLICATIONS
9600 Mobile Computer provides more utilities and applications which are made accessible
from START | Programs.
Backup Utility lets you manipulate the way to backup programs and data.
Button Assignment Utility lets you assign a specific button as a hot key for
launching a program or performing a certain action.
Screen Control Utility lets you change the screen orientation.
Image Capture Utility allows you to view image files and acquire images from the
built-in camera.
GPS Viewer allows you to use the integrated GPS receiver with third-party
location-based applications.
IN THIS CHAPTER
8.1
8.2
8.3
8.4
8.5
Backup Utility...........................................................140
Button Assignment Utility...........................................146
Screen Control .........................................................148
Image Capture Utility ................................................149
GPS Viewer ..............................................................153
139
9600 Mobile Computer Reference Manual
8.1 BACKUP UTILITY
The CipherLab Backup Utility is provided to help you easily make copies of data and
restore your mobile computer's specific registry settings, install applications, user data,
etc. You may use the backups (.bkp) for these purposes:
Full Restore Operation
Backup all necessary files here (you don't have to select "Registry") so that you can
restore your mobile computer to an operational state following a disaster.
Partial Restore Operation
Backup a few specific files here so that you can restore small numbers of files after
you have deleted them by accident or found them corrupted.
Easy Cloning
Backup everything (including "Registry") necessary for cloning settings to other 9600
Mobile Computers.
8.1.1 MANAGING THE REGISTRY
Go to Start | Programs | BackupUtility to open the CipherLab Backup Utility. If you
are using this backup utility for the first time, you must manually save the system
registry to the DiskOnChip folder first! Tap [Save] now to save the current system
registry to "\DiskOnChip\Sysbak\Registry.dat".
Warning:
140
As long as you make any changes to the system configurations and
settings, you must tap [Save] to update the system registry here.
Otherwise, it will reload the old registry values in use after a cold boot.
Chapter 8 More Applications
If you wish to reset the current system configurations and settings to defaults, tap
[Reset] to delete the current system registry "\DiskOnChip\Sysbak\Registry.dat". It will
then reload the default registry values after a cold boot.
8.1.2 PREPARING FOR BACKUP
Tap the Backup tab and it will automatically start scanning the file system. Within a few
minutes, it will generate a list for the backup operation.
If the items "Password" and "Registry" are not listed, it means no Password.dat and
Registry.dat are found in "\DiskOnChip\Sysbak\". Take necessary steps before you tap
[Refresh] to refresh the list of available items.
Password – Go to Start | Settings | Control Panel | Password, and then apply
password protection at power-on or to the DiskOnChip folder if necessary.
Registry - Go to the Registry tab and tap [Save].
Warning:
You may not be able to backup all data when programs are still running! It
is suggested that you exit all the applications before backup.
141
9600 Mobile Computer Reference Manual
8.1.3 BACKING UP FILES
1) Select the items you wish to backup, and tap [Backup].
2) Tap
if you need to save the backup to a different directory or file name (.bkp).
By default, it will save the selected items to the DiskOnChip folder by the current date
- the format of filename is "Backup_(4-digit year)(2-digit month)(2-digit date)".
3) Tap [Start] to pack all the selected items into one .bkp file.
4) Once the backup process is completed, tap [Report] to view the log file if necessary.
142
Chapter 8 More Applications
5) Tap [OK] to close the current window.
Note: If you wish to backup files to this new directory or file name in future runs, you
must tap
on the toolbar to save the current settings and exit the application.
143
9600 Mobile Computer Reference Manual
8.1.4 USING BACKUPS FOR RESTORE
After the backup operation, tap the Restore tab and it will automatically start scanning
for any .bkp files. Specify how to use these backups for automatic or manual restore
operation.
2
1
If a backup file has been selected for Auto Restore in your last operation, it will be
prefixed with an asterisk on the list.
File Manipulation
Tap [Refresh] to refresh the list of available backups. If a backup file is not desired
any more, select it and tap [Delete].
Auto Restore
Select a desired backup file from the list and tap [AutoRestore]. It will prefix an
asterisk to the selected file, indicating the specific file will be used in the restore
process that starts automatically right after a cold boot.
During Auto Restore, the slider position indicating the system storage space (Start |
Settings | Control Panel | System: Memory tab) will be automatically restored as
well.
Warning:
For the Auto Restore setting to take effect, you must tap
toolbar to save the current settings and exit the application.
on the
Manual Restore
Depending on specific requirements, you may perform a full or partial restore
manually.
144
Chapter 8 More Applications
Full Restore Operation
1.
Select a desired backup file from the list.
2.
Tap [Restore].
3.
Tap [Start] to run the restore process.
4.
Once the restore process is completed, you will be asked to perform a warm boot. Tap
[No] if you wish to warm boot later. You may tap [Report] to view the log file if
necessary.
Partial Restore Operation
1.
Double-tap a desired backup file from the list.
2.
Select the desired items.
3.
Tap [Restore].
4.
Tap [Start] to run the restore process.
5.
Once the restore process is completed, you will be asked to perform a warm boot. Tap
[No] if you wish to warm boot later. You may tap [Report] to view the log file if
necessary.
Warning:
(1) You must perform a warm boot after the restore operation!
(2) You may encounter insufficient memory for the restore operation and
be asked to check memory space on the system (SDRAM), DiskOnChip or
microSD card. If you insist on restoring it without deleting files, data loss
or incomplete restore may occur.
145
9600 Mobile Computer Reference Manual
8.2 BUTTON ASSIGNMENT UTILITY
The CipherLab Button Assignment Utility allows the following keys to be re-defined to
another key or serve as a shortcut key for launching a specific program.
SCAN key
Side triggers on each side of the touch screen
SEND key
END key
Note: By default, the two side triggers are programmed to serve as SCAN keys.
Go to Start | Programs | Buttons to open the CipherLab Button Assignment Utility.
4
3
1
2
1) Tap the label of one of these keys.
For example, tap [L. Key] to configure the side trigger on the left.
2) You may input a hex value or assign one of the following key values to the left side
trigger or have it serve as a shortcut key to launch a specific program.
Enter
Scan
Esc
Delete
Backspace
146
Chapter 8 More Applications
Space
Tab
F1 ~ F12
Start Menu
Alt
OEM_Key1 (0xE9)
OEM_Key2 (0xEA)
OEM_Key3 (0xEB)
OEM_Key4 (0xEC)
OEM_Key5 (0xED)
OEM_Key6 (0xEE)
OEM_Key7 (0xEF)
OEM_Key8 (0xF0)
OEM_Key9 (0xF1)
OEM_Key10 (0x2A)
3) Tap
for the change to take effect and save the current settings.
You may tap [Reset] to restore defaults.
4) Tap
on the toolbar to exit the application.
147
9600 Mobile Computer Reference Manual
8.3 SCREEN CONTROL
Screen Control lets you change the orientation of the screen. Go to Start | Programs |
ScreenControl to open the Screen Control utility.
You can change the screen orientation from portrait at zero degrees (default) to 90,
180, and 270 degrees.
Note: The mobile computer comes with VGA (640 by 480 pixels) will not support
Resolution Switch function.
148
Chapter 8 More Applications
8.4 IMAGE CAPTURE UTILITY
The ImageMaker utility allows acquiring images from the built-in camera and viewing
images stored on the mobile computer. Go to Start | Programs | ImageMaker to open
the image capture program. Upon execution of the program, it takes approximately 3
seconds to turn on the camera.
Note: Before executing
ReaderConfig.exe.
a
b
the
utility,
make
sure
you
have
closed
the
program
Exit and turn off
the camera.
Workspace
a) to display an image by opening the file
b) to capture an image in preview mode
The icons on the toolbar, from left to right, are for these functions —
Button
Description
Open an image. Any existing file in the following formats can be viewed —
JPEG
Bitmap
PNG
GIF
Save the opened image to a different file name or format.
Take a picture.
Configure camera settings if necessary.
Turn on/off the auxiliary LED light in preview mode.
Version information about the program.
149
9600 Mobile Computer Reference Manual
8.4.1 VIEWING A PICTURE
1) Tap
to open an image file and it will be displayed.
2) If you want to rename it or save it to a different format, tap
If this is not the image you need, tap
.
to open another image file.
3) Tap [Close] to return to the Camera Preview Mode for taking pictures.
150
Chapter 8 More Applications
8.4.2 TAKING A SNAPSHOT
1) In the Camera Preview Mode, a preview will be displayed.
2) Hold still and take aim at the object you want to take a picture.
3) Tap
to turn on the auxiliary LED light if necessary.
4) Tap
to take pictures.
Each will be automatically saved under the directory “\DiskOnChip\pics” in the format
of HHMMSS_YYMMDD.jpg or HHMMSS_YYMMDD.bmp, as shown below.
YY:
2-digit year
MM:
2-digit month
DD:
2-digit date
HH:
2-digit hour
MM:
2-digit minute
SS:
2-digit second
5) Tap
to turn off the camera and exit the program.
151
9600 Mobile Computer Reference Manual
8.4.3 CHANGING CAMERA SETTINGS
Tap
to configure camera settings if necessary.
Camera/Capture Settings
Options
Resolution
By default, “1600 x 1200” pixels resolution is in use.
Flash Light
By default, the flash light is “Force off”.
Feature
Monochrome, Sepia, Negative, Solarize (with unmodified UV), and
Solarize 2 (with UV) are supported.
By default, the captured image will be saved in JPEG format.
EV
Force on, Force off and Auto are supported. If you want to save
battery power or ambient light is enough, you may turn it off.
By default, no special effect is applied.
Image Format
“800 x 600” pixels resolution is supported.
Bitmap format is supported.
By default, the exposure value is 5.
The exposure value is for the camera to determine the exposure
factors. The greater the value is, the brighter the pictures
becomes. You may choose a value from 0~9.
Time stamp
By default, no time stamp is applied. When applied, information on
date and time will be added on top of the captured image in the
format of YYYY/MM/DD HH:MM:SS, such as 2010/01/04 11:13:13.
Default image store
By default, the captured image is stored under the directory
“\DiskOnChip\pics” in the format of HHMMSS_YYMMDD.jpg or
HHMMSS_YYMMDD.bmp.
152
If you want to change the directory, tap
.
Chapter 8 More Applications
8.5 GPS VIEWER
The Global Positioning System (GPS) provides location and time information to anyone
with a GPS receiver. Cipherlab GPS Viewer provides a straight-forward way to check if
the integrated GPS receiver is working. It tracks up to 12 satellites to compute and
update information with built-in antenna. In case you receive very poor signal in tough
circumstances, you may purchase an external MMCX antenna. Since the mobile computer
does not come with any preinstalled navigation software, you may need to purchase
third-party navigation software separately.
Go to Start | Programs | GPSViewer to open the CipherLab GPS Viewer. In order to
speed up start-up times, we suggest you to download the ephemeris information for
initial setup.
Note: Time To First Fix (TTFF) relies on environmental factors. Normally, it takes
approximately 40 seconds for the receiver to locate the first satellite. However, it
may take longer when satellite signals are blocked by tall vertical objects, such as
buildings or trees.
153
9600 Mobile Computer Reference Manual
8.5.1 RECEIVING GPS INFORMATION
The receiver will automatically start to scan available satellites, synchronize time, and get
the current location. Information on time, location, the quality of the signal, and so on,
will be displayed if available. On the satellite position graph (= the earth marked with N,
E, S, W indicators for North, East, South and West), satellites in view are displayed in red
and flash to get signal. Below the satellite position graph is the signal strength chart for
each satellite in view. It provides visual indication and a numeric reading for reference.
Red for no signal
(< 9 dB)
Green for fair signal strength (10 ~ 29 dB)
Blue for strong signal strength (30 ~ 50 dB)
Satellite Position
Graph
Satellite Signal
Strength
Item
Description
Date, Time
Information of the current date and time
Longitude,
Latitude,
Altitude
Your location on earth by latitude and longitude coordinates, plus altitude
PDOP
Position (3-D) Dilution of Precision, a separate measurement of DOP
Direction
Your direction when heading toward a target
Speed
Your speed when heading toward a target (relative speed)
Status
The progress of the receiver acquiring and tracking signals from above three
satellites to compute its three dimensional position (X, Y, Z). When the Status
message “Tracking” is changed to “2D Fixed” or “3D Fixed”, your latitude,
longitude and altitude can then be calculated by comparing receiver’s distance
from satellites.
154
Chapter 8 More Applications
8.5.2 DATA OF NMEA FORMAT
The serial interface protocol is based on the national Marine Electronics Association’s
NMEA 0183 ASCII interface specification. For details, please refer to NMEA 0183 Version
3.01, which may be obtained from NMEA, www.nmea.org. You may save the NMEA codes
as a text file and import it in a third-party application.
Leave it blank if log
file is not desired
155
9600 Mobile Computer Reference Manual
8.5.3 EPHEMERIS UPDATE SETTINGS
After initial setup, the ephemeris information stored on the mobile computer is valid for
seven days according to the system date and time. You may acquire the most updated
ephemeris data on a regular basis, which can improve start-up times.
Choose how you want to update ephemeris data when the program is executed. The date
of last update will be displayed at the bottom of the screen, which is used as a check
point for the program to send notifications or automatically update data once a week.
However, despite these options, you may tap [Update Now!] to update ephemeris at any
time.
Options
Description
No update
Will not notify the user to update or automatically update ephemeris
Notify user to update
Will show a message to notify the user to update ephemeris
Auto update
Will update ephemeris automatically
156
SPECIFICATIONS
PLATFORM, PROCESSOR & MEMORY
Operating System & CPU
Windows Version
Microsoft Windows CE 6.0
CPU
Marvell PXA270 at 520 MHz
Memory
ROM
1 GB non-volatile NAND flash memory
RAM
128 MB on-board SDRAM memory
Expansion Slot
One microSD card slot
Up to 16 GB, SDHC supported
COMMUNICATIONS & DATA CAPTURE
Communications
USB Host/Client
USB 1.1 Specification
WPAN
Built-in module for Bluetooth version 2.0 + EDR Class 2 connectivity
WLAN
Built-in module for 802.11b/g networking
WWAN
Wi-Fi certified Summit radio, also certified for Cisco Compatible
Extensions (CCX) version 4
Ordering Option - built-in module for GSM/GPRS/EDGE
Quad-Band - 900, 1800 MHz (Europe); 850, 1900 MHz (U.S.)
Data & Image Capture
Digital Camera
2 mega-pixel CMOS type
Barcode Reader
Ordering options include
RFID Reader
Linear imager (CCD)
Laser (SE950)
2D Imager
Frequency 13.56 MHz
157
9600 Mobile Computer Reference Manual
ELECTRICAL CHARACTERISTICS
Batteries
Main Battery Pack
Rechargeable Li-ion battery – 3.7 V, 2700 mAh
Backup Battery
Rechargeable Lithium battery – 3.7 V, 75 mAh
Data retention for at least 24 hours
Power Adaptor
Power Supply Cord with
Input
AC 100~240 V, 50/60 Hz
Universal Power Adaptor
Output
DC 6 V, 3.5 A for 4-Slot Battery Charger
DC 5 V, 3 A for Charging & Comm. Cradle
Vehicle Charging Cable for
Input
DC 12~24 V
Vehicle Charger/Cradle
Output
DC 5 V, 2 A
Working Time (Laser, one scan per 5 seconds)
Wi-Fi Mode with 50% backlight
10 hours (Wi-Fi in power-saving mode)
PHYSICAL CHARACTERISTICS
Color Touch Screen Display
Display
3.5” Transflective TFT-LCD, 65536 colors
Resolution
240 (W) x 320 (L) QVGA size
Ordering Option – 480 (W) x 640 (L) VGA size
Keypad
Layout
29 keys for alphanumeric layout
Backlight
Ordering Option – Qwerty layout
White LED backlight for display and keypad
Notifications
Status LED
Triple-color LED – Red / Green / Blue
Audio
Integrated with one mono speaker (front) and buzzer (back)
Headset jack –
microphone input
Vibrator
2.5
mm
DIA
stereo
Bluetooth headset supported
0.5G
Enclosures
Materials
Plastic & metal
Dimensions
170 mm (L) 90 mm (W) 38 mm (H)
Weight
Approx. 400 g (configuration-dependent)
158
earphone
jack
with
Specifications
ENVIRONMENTAL CHARACTERISTICS
Temperature
Operating
-10 °C to 50 °C
Storage
-20 °C to 60 °C
Humidity
Operating
10% to 90%, non-condensing
Storage
5% to 95%, non-condensing
Resistance
Impact Resistance
1.5 m, 5 drops per 6 sides
Tumble Test
1000 times at 100 cm
Splash/Dust Resistance
IP 64
Electrostatic Discharge
± 15 kV air discharge, ± 8 kV contact discharge
PROGRAMMING SUPPORT
Development Environment & Tools
Integrated Development
Environment
Visual Studio 2008
Software Development Kit
9600 SDK
Visual Studio 2005
System API (LIB and DLL) for system configuration
Reader API (DLL) for reader configuration
Software & Utilities
Cipherlab software package
Third-party software
Reader Configuration Utility
FORGE Application Generator
MIRROR Emulator (CipherNet) for VT100/220 or IBM 5250
emulation
STREAM Wireless Studio
MIRROR Browser for web application
SOTI MobiControl for remote device control
Naurtech CETerm – Terminal emulator (3270, 5250, VT) and
industrial web browser
159
9600 Mobile Computer Reference Manual
ACCESSORIES
Accessory Options
Pistol Grip
Belt Holster
Protective Cover
Spare rechargeable battery pack
4-Slot Battery Charger
RS-232 charging & communication cable
USB host cable (for connecting external USB device)
Charging & Communication Cradle
Ethernet Cradle (10/100 BASE-T)
Vehicle Cradle
Vehicle Charger
160
Appendix I
SCAN ENGINE SETTINGS
The Reader Configuration Utility (ReaderConfig.exe) allows configuring the following
reader types, depending on the module equipped on your mobile computer:
1D Linear Imager (CCD)
1D Laser (SE950)
2D Imager
RFID reader
Options of different reader combination are allowed, such as 1D+RFID and 2D+RFID. For
each combination, both readers can be initialized and ready for scanning at the same
time (dual mode operation). For example, if you press the [SCAN] button while running
the ReaderConfig.exe utility on the mobile computer, it will read a barcode in position or
an RFID tag in proximity depending on which one comes first.
Note: (1) You cannot have 1D+2D scan engines installed on the mobile computer
because they are both barcode readers!
(2) You can run only one utility or application at a time to control the reader(s).
For example, while running ReaderConfig.exe, you should not run FORGE
Application Generator, STREAM Wireless Studio, MIRROR Browser, or any other
application that uses ReaderDLL.
SYMBOLOGIES SUPPORTED
Varying by the scan engine installed, the supported symbologies or tag types are listed
below. For details on configuring associated settings, please refer to each Appendix
separately.
CCD, Laser
2D
Codabar
Code 11
Code 93
Composite Code
MSI
Plessey
Postal Codes
Telepen
Code 128
Code 128
GS1-128 (EAN-128)
ISBT 128
161
9600 Mobile Computer Reference Manual
Code 2 of 5
Industrial 25 (Discrete 25)
Interleaved 25
Matrix 25
Chinese 25
Code 3 of 9
Code 39
Trioptic Code 39
Italian Pharmacode (Code 32)
French Pharmacode
EAN/UPC
EAN-8
EAN-13
Bookland EAN (ISBN)
UPC-E0
UPC-E1
UPC-A
GS1 DataBar (RSS)
GS1 DataBar Omnidirectional (RSS-14)
GS1 DataBar Truncated
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
GS1 DataBar Limited (RSS Limited)
GS1 DataBar Expanded (RSS Expanded)
GS1 DataBar Expanded Stacked
2D Symbologies
PDF417
MicroPDF417
Data Matrix
Maxicode
QR Code
MicroQR
Aztec
162
Appendix I Scan Engine Settings
RFID TAGS SUPPORTED
The RFID reader supports read/write operations depending on the tags. The supported
labels include ISO 15693, Icode®, ISO 14443A, and ISO 14443B.
Currently, the performance of some tags has been confirmed, and the results are listed
below for your reference.
Note: You should study the specifications of RFID tags before use.
ID_MOD_MP_RFID
ISO 14443A
UID Only
Read Page
Write Page
---
---
Mifare Standard 1K
Mifare Standard 4K
Mifare Ultralight
Mifare DESFire
Mifare S50
SLE44R35
SLE66R35
ISO 14443B
SR176
ISO 15693
ICODE SLI
SRF55V02P
SRF55V02S
SRF55V10P
TI Tag-it HF-I
ST LRI512
163
9600 Mobile Computer Reference Manual
164
Appendix II
LINEAR IMAGER (CCD), LASER (SE950)
The tables below list reader settings as well as symbology settings for the Linear Imager
(CCD) or Laser (SE950) scan engine.
READER SETTINGS TABLE
CCD/Laser Engine
Description
Time-out
1~9 (second)
3 sec.
Set the maximum time for decoding to continue during a scan attempt. It
applies to the following scan modes only –
Laser mode
Auto Off mode
Scan Mode
Continuous Mode
Laser mode
Non-stop scanning
Test Mode
The scanning won't stop until (a) a barcode is read, (b) the preset
timeout expires, or (c) you release the trigger.
Press the scan trigger to start with scanning.
Redundancy Level
None
The scanning won't stop until you press the trigger again.
Hold down the scan trigger to start with scanning.
Auto Off Mode
Capable of decoding the same barcode repeatedly
Press the scan trigger to start with scanning.
Laser Mode
To decode the same barcode repeatedly, move away the scan beam
and target it at the barcode for each scanning.
Non-stop scanning
Alternate Mode
Default
The scanning won't stop until (a) a barcode is read or (b) the preset
timeout expires.
None
No redundancy means one successful decoding will make the reading valid
and induce the "READER Event".
One time, Two times, The higher the reading security is (that is, the more redundancy the user
or Three times
selects), the slower the reading speed gets.
If "Three Times" is selected, it will take a total of four consecutive
successful decodings of the same barcode to make the reading valid.
165
9600 Mobile Computer Reference Manual
SYMBOLOGY SETTINGS TABLE
CCD/Laser Engine
Description
Codabar
Default
Enable
Select Start/Stop
Characters
If "Transmit Start/Stop Characters" is desired, select one abcd / abcd
set:
Transmit Start/Stop
Characters
abcd / abcd
abcd / tn*e
ABCD / ABCD
ABCD / TN*E
Decide whether to include the start/stop characters in the No
data being transmitted.
Code 128
Enable
GS1-128 (EAN-128)
Enable
Transmit Code ID
Replace
Separator
Decide whether to include Code ID (“]C1”) will be included No
in the data being transmitted.
Field Decide whether to replace the field separator. If the No
barcode contains Field Separator “0x1D”, it will be
changed to the desired Field Separator. For example, type
the desired character “;” (semicolon) as the new field
separator. Then if the barcode contains Field Separator
“0x1D”, it will be changed to “;”.
ISBT 128
Enable
Industrial 25 (Discrete 25)
Enable
Start/Stop Selection
This decides the readability of all 2 of 5 symbology Industrial 25
variants. For example, flight tickets actually use an
Industrial 25 barcode but with Interleaved 25 start/stop
pattern. In order to read this barcode, the start/stop
pattern selection parameter of Industrial 25 should set to
"Interleaved 25".
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
Select Length
One or two fixed lengths
4~127
Range
Interleaved 25
Enable
Start/Stop Selection
Refer to Industrial 25.
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
166
Interleaved
25
Appendix II Linear Imager (CCD), Laser (SE950)
Select Length
One or two fixed lengths
4~127
Range
Matrix 25
Enable
Start/Stop Selection
Refer to Industrial 25.
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
Select Length
One or two fixed lengths
Disable
Decide whether to include the check digit in the data being Yes
transmitted.
Italian Pharmacode (Code 32)
Transmit Check Digit
4~127
Range
French Pharmacode
Transmit Check Digit
Matrix 25
Disable
Decide whether to include the check digit in the data being Yes
transmitted.
Note: For French/Italian Pharmacode, “Transmit Start/Stop Character” is not provided in
UI but it is controlled by the same setting of Code 39.
Code 39
Enable
Transmit Start/Stop
Character
Decide whether to include the start/stop characters "*" in No
the data being transmitted.
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
Code 39 Full ASCII
Code 39 Full ASCII includes all the alphanumeric and Disable
special characters.
Code 93
Enable
MSI
Disable
Verify Check Digit
Select one of the three calculation formulas to verify the Single Modulo
check digit. If the check digit is incorrect, the barcode will 10
not be accepted.
Transmit Check Digit
Single Modulo 10
Double Modulo 10
Modulo 11 & 10
Decide whether to include the check digit in the data being Both
digits
transmitted.
transmitted
Last digit not transmitted
Both digits transmitted
Both digits not transmitted
167
9600 Mobile Computer Reference Manual
Select Length
One or two fixed lengths
4~127
Range
Negative Barcode
Disable
Plessey
Disable
Convert to UK Plessey
When applied, each occurrence of the character "A" in the No
barcode data will be replaced by the character "X".
Transmit Check Digit
Decide whether to include the two check digits in the data Yes
being transmitted.
Telepen
Disable
Original Telepen
(Numeric)
The original Telepen includes numeric characters.
AIM Telepen (Full
ASCII)
AIM Telepen (Full ASCII) includes all the alphanumeric and No
special characters.
GS1 DataBar-14 (RSS-14)
Yes
Disable
GS1 DataBar-14 is short for GS1 DataBar Omnidirectional. This group consists of (1) GS1 DataBar
Omnidirectional, (2) GS1 DataBar Truncated, (3) GS1 DataBar Stacked, and (4) GS1 DataBar
Stacked Omnidirectional.
Transmit Code ID
Decide whether to include Code ID (“]e0”) will be included Yes
in the data being transmitted.
Transmit Application
ID
Decide whether to include the Application ID ("01") in the Yes
data being transmitted.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
GS1 DataBar Limited (RSS Limited)
Disable
Transmit Code ID
Refer to RSS-14.
Yes
Transmit Application
ID
Refer to RSS-14.
Yes
Transmit Check Digit
Refer to RSS-14.
Yes
GS1 DataBar Expanded (RSS Expanded)
Disable
This group consists of (1) GS1 DataBar Expanded, and (2) GS1 DataBar Expanded Stacked.
Transmit Code ID
Refer to RSS-14.
EAN-8
Yes
Enable
Convert to EAN-13
The EAN-8 barcode will be expanded into EAN-13, and the No
next processing will follow the settings configured for
EAN-13.
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
Addon 2 / Addon 5
Decide whether to decode EAN-8 with addons.
EAN-13 / UPC-A
No
Enable
ISBN Conversion
The EAN-13 barcode starting with 978 and 979 will be No
converted to ISBN.
ISSN Conversion
The EAN-13 barcode starting with 977 will be converted to No
ISSN.
168
Appendix II Linear Imager (CCD), Laser (SE950)
GTIN for EAN-13
The EAN-13 barcode will be expanded into 14-digit Global No
Trade Item Number (GTIN).
Transmit Check Digit
Decide whether to include the check digit in the data being Yes
transmitted.
Addon 2 / Addon 5
Decide whether to decode EAN-13/UPC-A with addons.
(UPC-A) Convert to
EAN-13
The UPC-A barcode will be expanded into EAN-13, and the Yes
next processing will follow the settings configured for
EAN-13.
(UPC-A) Transmit
Check Digit
Decide whether to include the UPC-A check digit in the Yes
data being transmitted.
(UPC-A) Transmit
System Number
Decide whether to include the UPC-A System Number in Yes
the data being transmitted.
UPC-E
No
Enable
UPC-E0 / UPC-E1
Decide whether to decode the UPC-E0 barcodes only or UPC-E0 only
both UPC-E0 and UPC-E1 barcodes.
Convert to UPC-A
The UPC-E barcode will be expanded into UPC-A, and the No
next processing will follow the settings configured for
UPC-A.
Transmit Check Digit
Decide whether to include the UPC-E check digit in the Yes
data being transmitted.
Transmit System
Number
Decide whether to include the UPC-E System Number in No
the data being transmitted.
Addon 2 / Addon 5
Decide whether to decode UPC-E with addons.
No
Note: UPC-E1 is supported with decoder version 1.02 or later.
169
9600 Mobile Computer Reference Manual
170
Appendix III
2D IMAGER
READER SETTINGS TABLE
The tables below list reader settings as well as symbology settings for the 2D scan
engine.
2D Engine
Description
Decode Time-out
Set the maximum time for decoding to continue during a 3 sec.
scan attempt.
Decode Illumination
1~9 (second)
Decide whether to flash illumination on every barcode On
capture to aid decoding.
Aiming Pattern
Default
Turn On (Internal LED)
Turn Off
Decide whether to project the aiming pattern during On
barcode capture.
Turn On
Turn Off
Redundancy Level
Level 1
Level 1
The following barcodes must be successfully read twice before being
decoded:
Barcode Types
Code Length
Codabar
8 characters or less
MSI
4 characters or less
Industrial 25 (Discrete 25)
8 characters or less
Interleaved 25
8 characters or less
Level 2
All barcodes must be successfully read twice before being decoded.
Level 3
All barcodes except for the following barcodes must be successfully read
twice before being decoded.
The following barcodes must be read three times:
Barcode Types “Excluded”
Code Length
Codabar
8 characters or less
MSI
4 characters or less
Industrial 25 (Discrete 25)
8 characters or less
Interleaved 25
8 characters or less
171
9600 Mobile Computer Reference Manual
Level 4
All barcodes must be successfully read three times before being decoded.
Security Level
Select a decode security level appropriate for the barcode Level 0
quality when reading delta barcodes such as Code 128,
Code 93, UPC/EAN.
172
Security Level 0 – This default setting allows the scan
engine to operate in its most aggressive state,
providing sufficient security in decoding most “in-spec”
barcodes.
Security Level 1 – Select this option if misdecodes
occur. This level should eliminate most misdecodes.
Security Level 2 – Select this option if Security Level 1
fails to eliminate misdecodes.
Security Level 3 – Select this option if Security Level 2
also fails to eliminate misdecodes. However, selecting
this option impairs the decoding ability of the scan
engine. If this level of security is necessary, try to
improve the barcode quality.
Appendix III 2D Imager
SYMBOLOGY SETTINGS TABLE
1D SYMBOLOGIES
2D Engine
Description
Codabar
Enable
When applied, the CLSI editing strips the start/stop No
characters and inserts a space after the first, fifth, and
tenth characters of a 14-character Codabar barcode.
CLSI Editing
The 14-character barcode length does not include
start/stop characters.
Decide whether to include the start/stop characters in the No
data being transmitted.
NOTIS Editing
Select Length
Intercharacter
Size
Default
NOTIS Editing is to strip the start/stop characters,
which equals to “Disable Transmit Start/Stop
Characters".
One or two fixed lengths
4~55
Range (1~55)
Gap The Code 39 and Codabar symbologies have an Normal
intercharacter gap that is typically quite small. Due to
various barcode printing technologies, this gap can grow
larger than the maximum size allowed, preventing the
scan engine from decoding a barcode. If this problem
occurs, set it to “Large Intercharacter Gaps” to tolerate
these out-of-specification barcodes.
Normal intercharacter gaps
Large intercharacter gaps
Code 128
---
Code 128
Read standard Code 128 barcodes (= without leading Enable
FNC1 character).
GS1-128
(UCC/EAN-128)
Read GS1-128 barcodes with leading FNC1 character.
Enable
ISBT 128
Read ISBT 128 barcodes.
Enable
ISBT Concatenation
Decide whether to decode and concatenate pairs of ISBT Disable
barcodes.
Disable
Auto-discriminate – When this option is selected, the
scanner decodes and concatenates pairs of ISBT
barcodes immediately. If only a single ISBT barcode is
present, the scanner must decode 10 times before
transmitting its data to confirm that there is no
additional ISBT barcode.
Enable – When this option is selected, there must be
two ISBT barcodes for the scanner to decode and
perform concatenation.
173
9600 Mobile Computer Reference Manual
ISBT
Concatenation When
“Auto-discriminate”
is
applied,
Redundancy
concatenation redundancy (2~20 times).
decide
the 10 times
Industrial 25 (Discrete 25)
Select Length
Enable
One or two fixed lengths
4~55
Range (1~55)
Interleaved 25
Convert to EAN-13
Verify Check Digit
Enable
Convert a 14-character barcode into EAN-13
following requirements are met:
if
the No
The barcode must have a leading 0 and a valid EAN-13
check digit.
“Verify Check Digit” must be disabled.
Decide whether to verify the check digit. If desired, select No
one of the algorithms below. If the check digit is incorrect,
the barcode will not be accepted.
No
USS algorithm
OPCC algorithm
Transmit Check Digit
Decide whether to include the check digit in the data being No
transmitted.
Select Length
One or two fixed lengths
4~55
Range (1~55)
Matrix 25
Enable
Redundancy
Decide whether to enable decode redundancy.
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being No
transmitted.
Select Length
One or two fixed lengths
Disable
4~55
Range (1~55)
Chinese 25
Enable
Code 39
Enable
Convert to Code 32
Convert to Italian Pharmacode.
No
Code 32 Prefix
Prefix character "A" to Code 32 barcodes.
No
Verify Check Digit
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Decide whether to include the check digit in the data being No
transmitted.
Code 39 Full ASCII
174
"Verify Check Digit" must be enabled.
Code 39 Full ASCII includes all the alphanumeric and Disable
special characters.
Appendix III 2D Imager
Trioptic Code 39
Decide whether to decode Trioptic Code 39.
Select Length
Intercharacter
Size
Trioptic Code 39 is a variant of Code 39 used in the
marking of computer tape cartridges. It always
contains six characters.
One or two fixed lengths
Disable
4~55
Range (1~55)
Gap The Code 39 and Codabar symbologies have an Normal
intercharacter gap that is typically quite small. Due to
various barcode printing technologies, this gap can grow
larger than the maximum size allowed, preventing the
scan engine from decoding a barcode. If this problem
occurs, set it to “Large Intercharacter Gaps” to tolerate
these out-of-specification barcodes.
Normal intercharacter gaps
Large intercharacter gaps
Code 93
Select Length
Enable
One or two fixed lengths
4~55
Range (1~55)
MSI
Verify Check Digit
Enable
If Two Check Digits option is selected, an additional Single Modulo
verification is required to ensure integrity. Select one of 10
the algorithms below. If the check digit is incorrect, the
barcode will not be accepted.
Check Digit
Algorithm
One Check Digit
Single Modulo 10
Two Check Digits
Mod 10/Mod 11
Mod 10/Mod 10
Transmit Check Digit
Decide whether to include the check digit in the data being No
transmitted.
Select Length
GS1 DataBar (RSS)
GS1 Databar-14
GS1 Databar Limited
One or two fixed lengths
4~55
Range (1~55)
---
GS1 DataBar-14 is short for GS1 DataBar Omnidirectional. Enable
This group consists of (1) GS1 DataBar Omnidirectional,
(2) GS1 DataBar Truncated, (3) GS1 DataBar Stacked, and
(4) GS1 DataBar Stacked Omnidirectional.
Enable
GS1 Databar Expanded This group consists of (1) GS1 DataBar Expanded, and (2) Enable
GS1 DataBar Expanded Stacked.
175
9600 Mobile Computer Reference Manual
Convert RSS to
UPC/EAN
"Convert to UPC/EAN" only applies to GS1 Databar-14 and No
GS1 Databar Limited barcodes not decoded as part of a
Composite barcode.
Convert to EAN-13
Strip the leading "010" from barcodes.
"01" is the Application ID and must be followed by a
single zero (the first digit encoded)
Convert to UPC-A
Strip the leading "0100" from barcodes.
"01" is the Application ID and must be followed by
two or more zeros (but not six zeros)
EAN-8
Enable
Convert to EAN-13
The EAN-8 barcode will be expanded into EAN-13, and the No
next processing will follow the settings configured for
EAN-13.
Addon 2 / Addon 5
Refer to UPC/EAN Addon setting.
EAN-13
Enable
Bookland EAN (ISBN)
The EAN-13 barcode starting with 978 will be converted to Yes
ISBN.
Addon 2 / Addon 5
Refer to UPC/EAN Addon setting.
UPC-A
Enable
Transmit Check Digit
Decide whether to include the UPC-A check digit in the Yes
data being transmitted.
Transmit Preamble
Decide whether to include the UPC-A preamble System System
Number (and Country Code) in the data being transmitted. Number
Addon 2 / Addon 5
Refer to UPC/EAN Addon setting.
UPC-E0
Enable
Transmit Check Digit
Decide whether to include the UPC-E0 check digit in the Yes
data being transmitted.
Transmit Preamble
Decide whether to include the UPC-E0 preamble System System
Number (and Country Code) in the data being transmitted. Number
Addon 2 / Addon 5
Refer to UPC/EAN Addon setting.
Convert to UPC-A
The UPC-E0 barcode will be expanded into UPC-A, and the No
next processing will follow the settings configured for
UPC-A.
UPC-E1
Disable
Transmit Check Digit
Decide whether to include the UPC-E1 check digit in the Yes
data being transmitted.
Transmit Preamble
Decide whether to include the UPC-E1 preamble System System
Number (and Country Code) in the data being transmitted. Number
Addon 2 / Addon 5
Refer to UPC/EAN Addon setting.
176
Appendix III 2D Imager
Convert to UPC-A
The UPC-E1 barcode will be expanded into UPC-A, and the No
next processing will follow the settings configured for
UPC-A.
UCC Coupon Extended Code
Disable
Read UPC-A barcodes starting with digit "5", EAN-13 barcodes starting with digits "99", and
UPC-A/GS1-128 Coupon Codes.
UPC-A, EAN-13, and GS1-128 must be enabled first!
Use “Addon Redundancy” to control auto-discrimination of the GS1-128 (right half) of a coupon
code.
UPC/EAN Addon
Addon 2 / Addon 5
--Decide whether to decode
UPC-E1, UPC-A with addons.
Addon Redundancy
EAN-8,
EAN-13,
Ignore Addons
Decode Only With Addons
Auto-discriminate
When "Auto-discriminate" is applied, decide the number of 10 times
times of supplementary decoding for the same barcode to
make a valid reading.
Code 11
Verify Check Digit
Enable
Decide whether to verify the check digit. If the check digit No
is incorrect, the barcode will not be accepted.
Transmit Check Digit
Select Length
UPC-E0, Ignore...
No verification
One Check Digit
Two Check Digits
Decide whether to include the check digit in the data being No
transmitted.
"Verify Check Digit" must be enabled.
One or two fixed lengths
4~55
Range (1~55)
Postal Codes
---
US Postnet
Enable
US Planet
Enable
Transmit US Postal
Check Digit
US Postnet or US Planet must be enabled first!
UK Postal
Transmit UK Postal
Check Digit
Enable
Enable
UK Postal must be enabled first!
Enable
Japan Postal
Enable
Australian Postal
Enable
Dutch Postal
Enable
177
9600 Mobile Computer Reference Manual
Composite Codes
---
Composite CC-C
Enable
Composite CC-A/B
Disable
Composite TLC-39
Disable
GS1-128 Emulation
Mode for UCC/EAN
Composite Codes
Transmit UCC/EAN Composite Code data as if it was Disable
encoded in GS1-128 barcodes.
UPC Composite Mode
UPC barcodes can be "linked" with a 2D barcode during UPC
Always
transmission as if they were one barcode.
Linked
UPC Never Linked
Transmit UPC barcodes regardless of whether a 2D
barcode is detected.
UPC Always Linked
Transmit UPC barcodes and the 2D portion. If the 2D
portion is not detected, the UPC barcode will not be
transmitted.
CC-A/B or CC-C must be enabled!
Auto-discriminate UPC Composites
Transmit UPC barcodes as well as the 2D portion if
present.
178
Appendix III 2D Imager
2D SYMBOLOGIES
2D Engine
Description
Default
2D Symbologies
---
PDF417
Enable
MicroPDF417
Disable
MicroPDF417 Code 128 Transmit data from certain MicroPDF417 barcodes as if it Disable
Emulation
was encoded in Code 128 barcodes.
Transmit AIM Code Identifier
Options must be enabled first!
in
Miscellaneous
When applied, the MicroPDF417 barcodes are transmitted
with one of these prefixes:
The first codeword of MicroPDF417 is 903-907, 912, 914,
915:
The original Code ID "]L3" will be changed to "]C1".
The first codeword of MicroPDF417 is 908 or 909:
The original Code ID "]L4" will be changed to "]C2".
The first codeword of MicroPDF417 is 910 or 911:
The original Code ID "]L5" will be changed to "]C0".
Data Matrix
Data Matrix Inverse
Enable
Decide whether to decode Data Matrix Inverse.
Regular Only
Regular Only
Decode regular Data Matrix barcodes only.
Inverse Only
Decode inverse Data Matrix barcodes only.
Autodetect
Decode both regular and inverse Data Matrix barcodes.
Maxicode
Enable
QR Code
Enable
QR Code Inverse
Decide whether to decode QR Code Inverse.
Regular Only
Regular Only
Decode regular QR Code only.
Inverse Only
Decode inverse QR Code only.
179
9600 Mobile Computer Reference Manual
Autodetect
Decode both regular and inverse QR Code.
MicroQR
Enable
Aztec
Enable
Aztec Inverse
Decide whether to decode Aztec Inverse.
Regular Only
Regular Only
Decode regular Aztec barcodes only.
Inverse Only
Decode inverse Aztec barcodes only.
Autodetect
Decode both regular and inverse Aztec barcodes.
2D Symbologies - Macro PDF
---
Macro PDF is a special feature for concatenating multiple PDF barcodes into one file, known as
Macro PDF417 or Macro MicroPDF417.
Transmit/Decode Mode Decide how to handle Macro PDF decoding.
Passthrough
All Symbols
Buffer All Symbols / Transmit Macro PDF When Complete
Transmit all decoded data from an entire Macro PDF
sequence only when the entire sequence is scanned and
decoded. If the decoded data exceeds the limit of 50
symbols, no transmission because the entire sequence
was not scanned!
Transmit Any Symbol in Set / No Particular Order
Transmit data from each Macro PDF symbol as decoded,
regardless of the sequence.
Passthrough All Symbols
Transmit and decode all Macro PDF symbols and
perform no processing. In this mode, the host is
responsible for detecting and parsing the Macro PDF
sequences.
ESC Characters
180
When enabled, it uses the backslash "\" as an Escape None
character for systems that can process transmissions
containing special data sequences. It will format special
data according to the Global Label Identifier (GLI)
protocol, which only affects the data portion of a Macro
PDF symbol transmission. The Control Header, if enabled,
is always sent with GLI formatting.
Appendix III 2D Imager
Note: When printing barcodes, keep each Macro PDF sequence separate, as each has a
unique identifier. Do not mix barcodes from several Macro PDF sequences, even if
they encode the same data. When you scan Macro PDF sequences, scan the entire
Macro PDF sequence without interruption!
IMAGE CAPTURE & MISCELLANEOUS
2D Engine
Description
Default
Image Capture
Disable
Image Capture
Illumination
Decide whether to flash illumination on every image On
capture to aid decoding.
Turn On (Internal LED )
Turn Off
Image Capture
Autoexposure
Decide whether to manually specify the gain and exposure On
time (only recommended for advanced users with difficult
image capture situations).
Exposure Time
Only applies
disabled.
when
Capture
Autoexposure
is 1 ms
Exposure Time controls the amount of time the CCD is
allowed to collect light, much like the shutter speed for
a camera. Generally, the brighter the environment, the
lower the exposure time. Increasing the exposure time
past 20 ms in a handheld application increases the risk
of blurring the image due to hand jitter.
Set the manual exposure time in the range of 1 ms, 10
ms, 20 ms, 30 ms, 40 ms, 50 ms, 60 ms, 70 ms, 80
ms, 90 ms, 100 ms.
Snapshot Aiming
Pattern
Decide whether to project the aiming pattern while On
capturing an image.
Image Resolution
Decide how to alter image resolution before compression. 752×480
Multiple pixels are combined to one pixel, resulting in a
smaller image containing the original content with reduced
resolution.
Image Format
for
376×240 (Half resolution)
188×120 (= 1/4 resolution)
Decide in which file format the image is saved.
Optimized
Quality
752×480 (Full resolution)
JPEG file format
BMP file format
JPEG Decide whether JPEG images are optimized for quality.
Select JPEG Quality
JPEG
Enable
Cancel the check box so that JPEG images are
optimized for size.
Set a value from 5 to 100, where “100” represents the 65
highest quality image.
181
9600 Mobile Computer Reference Manual
Select JPEG Size
Set a value from 5 to 150, which represents the file size in 40
multiples of 1024 bytes (1K). For example, setting this
value to 8 permits the file size to be as large as 8192
bytes.
Bits per Pixel
Select the number of significant bits per pixel (BPP) to use 8
when capturing an image.
Default image store
1 bit per pixel (for black and white images)
4 BPP (to assign 1 of 16 levels of grey to each pixel)
8 BPP (to assign 1 of 256 levels of grey to each pixel)
By default, the captured image is stored under the \DiskOnChip\
directory “\DiskOnChip\images” in the format of YYMMDD images
HHMMSS.jpg or YYMMDDHHMMSS.bmp.
If you want to change the directory, tap [Browse].
Note: (1) For JPEG files, these BPP settings are ignored for it always uses 8 bits per pixel!
(2) When the image capture feature is enabled, press the [SCAN] button and it will
capture an image instead of reading a barcode.
Miscellaneous Options
Transmit Code ID
Decide whether to include AIM Code ID in the beginning of Disable
data. Each AIM Code ID contains the three-character string
“]cm” –
182
---
] = Flag Character (ASCII 93)
c = Code Character (see below)
m = Modifier Character (see below)
Appendix III 2D Imager
AIM CODE ID – CODE CHARACTERS
Code Character
Code Type
A
Code 39, Code 39 Full ASCII, Code 32
C
Code 128, Coupon (Code 128 portion)
d
Data Matrix
E
UPC/EAN, Coupon (UPC portion)
e
GS1 DataBar (RSS)
F
Codabar
G
Code 93
H
Code 11
I
Interleaved 25
L
PDF417, Macro PDF417, Micro PDF417
M
MSI
Q
QR Code
S
Industrial 25 (Discrete 25), IATA 2 of 5
U
Maxicode
X
Code 39 Trioptic, Bookland EAN, US Postnet, US Planet, UK Postal, Japan
Postal, Australian Postal, Dutch Postal
AIM CODE ID – MODIFIER CHARACTERS
Code Type
Option Value
Option
Code 39
0
No check character or Full ASCII processing.
1
Check digit has been verified.
3
Check digit has been verified and stripped.
4
Full ASCII conversion has been performed.
5
Result of option values 1 and 4.
7
Result of option values 3 and 4.
0
Standard data packet. No Function Code 1“FNC1” in the first
character position.
1
Function Code 1“FNC1” in the first character position.
2
Function Code 1“FNC1” in the second character position.
0
No check digit processing.
1
Check digit has been verified.
3
Check digit has been verified and stripped.
Codabar
0
No check digit processing.
Code 93
0
Always transmit 0.
Code 128
Interleaved 25
183
9600 Mobile Computer Reference Manual
MSI
Industrial 25
0
Modulo 10 check digit verified and transmitted.
1
Modulo 10 check digit verified but not transmitted.
0
Always transmit 0.
0
Standard data packet in full EAN country code format, which
is 13 digits for UPC-A and UPC-E (not including addons).
3
Standard data packet with two-digit or five-digit addons.
4
EAN-8 data packet.
(Discrete 25)
UPC/EAN
A UPC-A with Addon 2 barcode, 012345678905-10, is transmitted to the host
as a 18-character string, ]E3001234567890510.
Bookland EAN
0
Always transmit 0.
Trioptic Code 39
0
Always transmit 0.
Code 11
0
Single check digit (has been verified.)
1
Two check digits (has been verified.)
3
Check digit has been verified but not transmitted.
0
Always transmit 0.
GS1 DataBar
(RSS)
RSS-14 and RSS Limited will be transmitted with an Application Identifier
“01”. For example, an RSS-14 barcode, 10012345678902, is transmitted as
]e00110012345678902.
Note: In GS1-128 emulation mode, RSS is transmitted using Code 128 rules (= “]C1”).
EAN.UCC
Composites (RSS,
GS1-128,
2D
portion
of
UPC
composite)
Native mode transmission
0
Standard data packet
1
Data packet containing the data following an encoded
symbol separator character.
2
Data packet containing the data following an escape
mechanism character. The data packet does not support the
ECI protocol.
3
Data packet containing the data following an escape
mechanism character. The data packet supports the ECI
protocol.
GS1-128 emulation
1
Data packet is a GS1-128 barcode (= data is preceded with
“]JC1”).
Note: UPC portion of composite is transmitted using UPC rules.
PDF417,
Micro PDF417
184
0
Scan engine is set to conform to protocol defined in 1994
PDF417 symbology specifications.
When this option is transmitted, the receiver cannot
reliably determine whether ECIs have been invoked or
whether data byte 92DEC has been doubled in
transmission.
Appendix III 2D Imager
1
Scan engine is set to follow the ECI protocol (Extended
Channel Interpretation). All data characters 92DEC are
doubled.
2
Scan engine is set for Basic Channel operation (no escape
character transmission protocol). Data characters 92DEC are
not doubled.
When decoders are set to this mode, unbuffered Macro
symbols and symbols requiring the decoder to convey
ECI escape sequences cannot be transmitted.
3
The barcode contains a GS1-128 symbol, and the first
codeword is 903-907, 912, 914, 915.
4
The barcode contains a GS1-128 symbol, and the first
codeword is in the range 908-909.
5
The barcode contains a GS1-128 symbol, and the first
codeword is in the range 910-911.
A PDF417 barcode, ABCD, with no transmission protocol enabled, is
transmitted as ]L2ABCD.
Data Matrix
Maxicode
QR Code
0
ECC 000-140, not supported.
1
ECC 200.
2
ECC 200, FNC1 in first or fifth position.
3
ECC 200, FNC1 in second or sixth position.
4
ECC 200, ECI protocol implemented.
5
ECC 200, FNC1 in first or fifth position, ECI protocol
implemented.
6
ECC 200, FNC1 in second or sixth position, ECI protocol
implemented.
0
Mode 4 or 5
1
Mode 2 or 3
2
Mode 4 or 5, ECI protocol implemented.
3
Mode 2 or 3, ECI protocol implemented in secondary
message.
0
Model 1
1
Model 2, ECI protocol not implemented.
2
Model 2, ECI protocol implemented.
3
Model 2, ECI protocol not implemented, FNC1 implied in first
position.
4
Model 2, ECI protocol implemented, FNC1 implied in first
position.
5
Model 2, ECI protocol not implemented, FNC1 implied in
second position.
6
Model 2, ECI protocol implemented, FNC1 implied in second
position
185
9600 Mobile Computer Reference Manual
186
Appendix IV
KEY REFERENCE TABLES
29-KEY KEYPAD
187
9600 Mobile Computer Reference Manual
USE OF ALPHA (α) / FUNCTION (fn)
Key
Alpha
key
pressed
once
Alpha
key
pressed
twice
Key
Function
key pressed
once
Function
key pressed
twice
1
null
null
1
F1
1
2
ABC
abc
2
F2
2
3
DEF
def
3
F3
3
4
GHI
ghi
4
F4
4
5
JKL
jkl
5
F5
5
6
MNO
mno
6
F6
6
7
PQRS
pqrs
7
F7
7
8
TUV
tuv
8
F8
8
9
WXYZ
wxyz
9
F9
9
0
/_
/_
0
F11
0
*
-+
-+
*
F10
*
#
.\
.\
#
F12
#
188
Appendix IV Key Reference Tables
USE OF SHIFT (©)
Key
Shift
key
pressed
once
1
!
2
@
3
#
4
$
5
%
6
^
7
&
8
?
9
(
0
)
*
<
#
>
189
9600 Mobile Computer Reference Manual
QWERTY KEYPAD
190
Appendix IV Key Reference Tables
USE OF ALPHA (α) & SHIFT ( )
Alpha Mode
Key
Alpha
key
pressed
once
Alpha
key
pressed
twice
Key
Shift
key
pressed
once
Shift
key
pressed
twice
#
q
#
#
Q
Q
1
w
1
1
W
W
2
e
2
2
E
E
3
r
3
3
R
R
(
t
(
(
T
T
)
y
)
)
Y
Y
/
u
/
/
U
U
*
i
*
*
I
I
-
o
-
-
O
O
+
p
+
+
P
P
!
a
!
!
A
A
4
s
4
4
S
S
5
d
5
5
D
D
6
f
6
6
F
F
<
g
<
<
G
G
191
9600 Mobile Computer Reference Manual
Key
Alpha
key
pressed
once
Alpha
key
pressed
twice
Key
Shift
key
pressed
once
Shift
key
pressed
twice
>
h
>
>
H
H
\
j
\
\
J
J
^
k
^
^
K
K
%
l
%
%
L
L
=
$
=
=
$
$
7
z
7
7
Z
Z
8
x
8
8
X
X
9
c
9
9
C
C
?
v
?
?
V
V
:
b
:
:
B
B
;
n
;
;
N
N
,
m
,
,
M
M
.
@
.
.
@
@
0
&
0
0
&
&
192
Appendix IV Key Reference Tables
USE OF SHIFT ( )
Numeric Mode
Key
Shift
key
pressed
once
1
!
2
@
3
#
4
$
5
%
6
^
7
&
8
*
9
(
0
)
193
9600 Mobile Computer Reference Manual
USE OF FUNCTION (Fn)
Key
Function
key pressed
once
Function
key pressed
twice
F1
F11
F1
F2
F12
F2
F3
F13
F3
F4
F14
F4
F5
F15
F5
F6
F16
F6
F7
F17
F7
F8
F18
F8
F9
F19
F9
F10
F20
F10
194
