Motorola V3620 Specifications

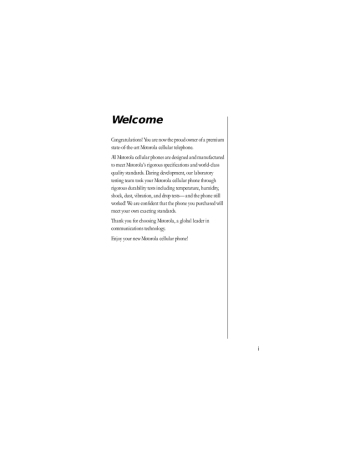

Welcome

Congratulations! You are now the proud owner of a premium state-of-the-art Motorola cellular telephone.

All Motorola cellular phones are designed and manufactured to meet Motorola’s rigorous specifications and world-class quality standards. During development, our laboratory testing team took your Motorola cellular phone through rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests—and the phone still worked! We are confident that the phone you purchased will meet your own exacting standards.

Thank you for choosing Motorola, a global leader in communications technology.

Enjoy your new Motorola cellular phone!

i

ii

Pan American Cellular Subscriber Group

600 North U.S. Highway 45

Libertyville, Illinois 60048

1-800-331-6456 (in the United States)

1-800-461-4575 (in Canada)

Turbo Dial, VibraCall, VoiceNote, are trademarks of Motorola, Inc.

©1998 Motorola, Inc.

Printed in U.S.A.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Package Content Options . . . . . . . . . . . . . . . . . . . . . . . . 16

Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

The Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Phone Book Basics . . . . . . . . . . . . . . . . . . . . . . . . 46

Storing Names and Numbers in the Phone Book . . . . . 47

Recalling Entries from the Phone Book . . . . . . . . . . . . 50

Using Recall Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Storing a Number During a Call . . . . . . . . . . . . . . . . . . 53

The Menu System . . . . . . . . . . . . . . . . . . . . . . . . . 54

Navigating the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Road Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Phone Book Menu Features . . . . . . . . . . . . . 58

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Recalling a Phone Number by Name . . . . . . . . . . . . . . 60

Recalling a Phone Number by Location . . . . . . . . . . . . 60

Storing Names and Phone Numbers . . . . . . . . . . . . . . . 61

Advanced Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 iii

iv

Editing Stored Information . . . . . . . . . . . . . . . . . . . . . . .67

Viewing Your Number . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Setting Display Preference . . . . . . . . . . . . . . . . . . . . . . . .69

Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Viewing the Individual Call Timer . . . . . . . . . . . . . . . . .72

Viewing the Resettable Call Timer . . . . . . . . . . . . . . . . .72

Viewing the Cumulative Timer . . . . . . . . . . . . . . . . . . . .73

Resetting the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Displaying the Individual Call Timer Automatically . . .75

Activating the One Minute Audible Timer . . . . . . . . . . .76

Tone Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Setting Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Selecting a Ringer Style . . . . . . . . . . . . . . . . . . . . . . . . . .79

Setting Keypad Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Setting Scratchpad Tones . . . . . . . . . . . . . . . . . . . . . . . .80

Security Features . . . . . . . . . . . . . . . . . . . . . . . . . .81

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Setting the Theft Alarm . . . . . . . . . . . . . . . . . . . . . . . . . .83

Setting the Automatic Electronic Lock . . . . . . . . . . . . . .84

Activating Emergency Call . . . . . . . . . . . . . . . . . . . . . . .85

Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Viewing Your Lock Code . . . . . . . . . . . . . . . . . . . . . . . . .87

Changing Your Lock Code . . . . . . . . . . . . . . . . . . . . . . . .88

Setting the Service Level . . . . . . . . . . . . . . . . . . . . . . . . . 89

Resetting All Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Clearing All Stored Information . . . . . . . . . . . . . . . . . . 92

Phone Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Using Two Cellular Phone Numbers . . . . . . . . . . . . . . . 95

Changing the Active Phone Number . . . . . . . . . . . . . . . 96

Selecting Cellular System Mode . . . . . . . . . . . . . . . . . . . 96

Selecting a Language . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Reviewing Your Phone Settings . . . . . . . . . . . . . . . . . . . 99

Setting a PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Disabling Call Reception . . . . . . . . . . . . . . . . . . . . . . . 102

Setting Automatic Hands-Free Operation . . . . . . . . . . 103

Setting Multiple Key Answer . . . . . . . . . . . . . . . . . . . . . 104

Setting Open to Answer . . . . . . . . . . . . . . . . . . . . . . . . . 105

Setting Automatic Answer . . . . . . . . . . . . . . . . . . . . . . 106

Setting Hands-Free Auto Mute . . . . . . . . . . . . . . . . . . . 107

Setting Voice Operated Transmission (VOX) . . . . . . . . 108

Setting Extended Talk Time . . . . . . . . . . . . . . . . . . . . . 109

Displaying System Identification (SID) . . . . . . . . . . . . 110

Digital Message Features . . . . . . . . . . . . . . . 111

Road Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

VoiceNote™ Recorder . . . . . . . . . . . . . . . . . . . . . . . . . 113

Recording an Announcement . . . . . . . . . . . . . . . . . . . 114

Activating the Answering Machine . . . . . . . . . . . . . . . . 115 v

vi

Setting Number of Rings . . . . . . . . . . . . . . . . . . . . . . . .116

Activating the Audible Answering Machine . . . . . . . . .117

Recording a Voice Memo Message . . . . . . . . . . . . . . . .118

Recording a Phone Call . . . . . . . . . . . . . . . . . . . . . . . .119

Playing New Messages . . . . . . . . . . . . . . . . . . . . . . . . . .120

Playing All Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Viewing Digital Messages . . . . . . . . . . . . . . . . . . . . . . . .122

Activating the Digital Message Reminder . . . . . . . . . . .125

Reference Information . . . . . . . . . . . . . . . . . . .126

Accessory Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Introduction

What would you say to a telephone that’s smaller than most wallets? Hard to believe… if you hadn’t already seen it with your own eyes. The company that brought you the world’s first commercially available portable cellular telephone has done it again!

Motorola is proud to present the next generation of wearable phones. Breakthrough technologies bring you a phone so innovative, it challenges the status quo. Introducing your new Motorola wearable cellular telephone.

7

8

Highlights

Your Motorola cellular phone offers exceptional features that make life easier, more organized and more fun! This small miracle of modern technology can help you:

• collect messages in the built-in answering machine, record memos, and record calls (VoiceNote™ recorder)*

• receive calls discreetly with a vibrating alert

(VibraCall™ alert)

• make calls instantly with one-touch dialing

(Turbo Dial™ key)

• send and receive faxes with optional data accessories

• simplify menu access and call placement with the

Smart Button

• read more information on the large two-line display

• increase the length of time between charges with dual battery capability

• know when to charge with the dedicated Battery

Level Indicator

• charge on the go with the internal Rapid Charger and an AC adapter or optional cigarette lighter adapter

* Use of this function is subject to varying state and federal laws regarding privacy of phone conversations.

• navigate phone features with a user-friendly icon-driven menu interface

• enjoy the convenience of hands-free operation with an optional headset

• remember phone numbers with the internal Phone

Book

• monitor call length with displayed and audible Call

Timers

• reduce roaming with two-system registration †

• display phone numbers of incoming calls with

Calling Line ID capability †

• receive notification when you get a new Voice Mail message †

As you explore your Motorola cellular phone, you will discover many more convenient and time-saving features that will help you stay in touch with style. A number of accessory options are also available to tailor your cellular system to your individual needs, including special accessories for your car, and battery chargers to keep you on the go.

† These are network and subscription-dependent features that are not available in all areas. Contact your cellular service provider for availability.

9

10

Safety Information

Important: Read this information before using your wireless handheld phone.

Exposure to Radio Frequency

Signals

Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is on, it receives and also sends out radio frequency (RF) signals.

In August 1996, The Federal Communications Commissions

(FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies:

• American National Standards Institute (ANSI) C95.1

1992

• National Council on Radiation Protection and

Measurement (NCRP) Report 86 1986

• International Commission on Non-Ionizing

Radiation Protection (ICNIRP) 1996

Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI

Standard (C95.1).

The design of your phone complies with the FCC guidelines

(and those standards).

Antenna Care

Use only the supplied or an approved replacement antenna.

Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations.

Phone Operation

Normal Operation: Hold the phone as you would any other telephone, with the antenna pointed up and over your shoulder.

Tips on Efficient Operation: Observe the following guidelines to operate your phone most efficiently.

• Extend your antenna fully.

• Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.

Batteries

Caution: All batteries can cause property damage, injury, or burns if a conductive material, such as jewelry, keys or beaded chains, touches exposed terminals. The material may complete an electrical circuit and become quite hot. To protect against such unwanted current drain, exercise care in handling any charged battery, particularly when placing it inside your pocket, purse, or other container with metal

11

12 objects. When the battery is detached from the phone, your batteries are packed with a protective battery cover; please use this cover for storing your batteries when not in use.

Driving

Check the laws and regulations on the use of wireless telephones in the areas where you drive. Always obey them.

Observe the following guidelines when using your phone while driving.

• Give full attention to driving—driving safely is your first responsibility.

• Use hands-free phone operation, if available.

• Pull off the road and park before making or answering a call if driving conditions so require.

Electronic Devices

Most modern electronic equipment is shielded from RF signals. However, certain equipment may not be shielded against the RF signals from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of six inches (6") be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent

research by and recommendations of Wireless Technology

Research.

Persons with pacemakers:

• should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned on

• should not carry the phone in a breast pocket

• should use the ear opposite the pacemaker to minimize the potential for interference

• should turn the phone off immediately if you have any reason to suspect that interference is taking place

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn your phone off in health care facilities when any regulations posted in these areas instruct you to do so.

13

14

Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle.

You should also consult the manufacturer of any equipment that has been added to your vehicle.

Posted Facilities

Turn your phone off in any facility where posted notices so require.

Aircraft

FCC regulations prohibit using your phone while in the air.

Switch off your phone before boarding an aircraft.

Blasting Areas

To avoid interfering with blasting operations, turn your phone off when in a “blasting area” or in areas posted:

“Turn off two-way radio.” Obey all signs and instructions.

Potentially Explosive Atmospheres

Turn your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions.

Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as gas stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas

(such as propane or butane); areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and any other area where you normally would be advised to turn off your vehicle engine.

For Vehicles Equipped with an Air

Bag

An air bag inflates with great force. Do NOT place objects, including both installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.

15

Package Content Options

Your Motorola cellular phone comes equipped with a standard battery and an AC adapter. A whole line of accessory options, now smaller and lighter than ever, can customize your cellular package for maximum performance and portability.

16

Slim Lithium Ion

Main Battery with Battery Cover and Slim Battery Door

Motorola Wearable Personal

Cellular Telephone

Extra Capacity Lithium Ion

Main Battery with Battery Cover and Standard Battery Door

Auxiliary Battery with Battery Cover

Standard Nickel Metal Hydride

Main Battery with Battery Cover and Standard Battery Door

Holster

Cigarette Lighter

Adapter

AC Adapter

Note: The plug assembly included with your package can only be used with this power supply. Do not plug it into any wall outlet without the power supply.

Headset

Desktop Charger

(AC Adapter Required)

Note: Your Motorola cellular phone and accessories may not look exactly as pictured above.

17

18

Signal Strength

Indicator

Battery Level

Indicator

Headset Jack

Power/Status

Indicator

Smart

Button

Volume

Keys

Phone Overview

Retractable

Antenna

Earpiece

Status Indicators

Alphanumeric

Display

Menu Icons

VoiceNote™

Record Button

Function Keys

Alphanumeric

Keypad

Function Keys

Microphone

Accessory

Connector

(See illustration reference on page 18.)

Retractable Antenna Extend the antenna for best performance.

Earpiece The earpiece contains an ultra-compact phone speaker.

Status Indicators

IU (In Use)—The In Use indicator flashes when a call is in progress.

NS (No Service)—If you travel beyond the range of a cellular service area, the No Service indicator flashes to indicate that calls cannot be placed or received from your location.

RM (Roam)—When you leave your cellular service area, your phone roams or seeks another cellular system until it finds one. If your phone finds another cellular service of the same system type as your local service, the Roam indicator flashes slowly. If it finds a different system type, it flashes quickly.

Signal Strength Indicator The Signal Strength indicator shows the strength of the signal your phone is receiving. The stronger the signal, the better your chances of placing and receiving calls successfully. You may see low signal strength if you are in a fringe area of the cellular system. Buildings, tunnels, and bad weather can block or interfere with reception. If the display goes blank to conserve energy, the Signal Strength indicator’s lights flash one at a time up to the signal level you are receiving.

Strong Signal

Weak Signal

19

High Charge

Low Charge

Battery Level Indicator The Battery Level indicator tells you the amount of charge left in your battery. The more bar segments you see, the greater the charge.

Alphanumeric Display The two-line alphanumeric display shows your input from the keypad, information recalled from memory, and other messages.

Menu Icons As you move through the menu system, the icons flash to indicate the selected feature:

Phone Book lets you store and retrieve numbers.

Call Timers can monitor the length of your calls.

Tone Controls adjust your phone’s tones.

Lock/Security features prevent unauthorized access.

Phone Options can be set to your specifications.

Digital Message provides access to digital messages and VoiceNote™ messages.

Headset Jack Located on the top of the phone, the headset jack provides a connection for an optional headset.

Power/Status Indicator Located on the top of the phone by the headset jack, the Power/Status indicator alerts you to incoming calls, and flashes to indicate service and roam conditions when the phone is closed.

VoiceNote™ Record Button

Located on the top of the phone by the antenna, this button toggles the record function on and off.

20

Volume Keys or

The upper and lower volume keys can adjust keypad, earpiece and ringer volume. They also scroll through memory entries and menu features.

Smart Button

The Smart Button can recall information from memory, place calls, end calls, select menu features and toggle features on and off. The symbol in your display represents the Smart Button.

Function Keys

P

F

R s

C

E

S

< turns the phone on and off acts as a “shift” key to access the secondary functions of other keys recalls phone numbers from memory stores phone numbers into memory clears characters from the screen ends phone calls places or answers calls and > can be used to scroll through memory entries and menu features

Accessory Connector The accessory connector provides the connection for an external power supply and optional vehicular and data accessories.

Microphone The microphone is positioned for convenient conversation.

21

The Basics

This chapter tells you how to set up and use your Motorola cellular telephone and perform basic phone functions.

In this chapter you will learn how to:

• attach and remove the protective covers from your phone’s batteries

• install and remove your phone’s batteries

• charge your phone’s batteries and check battery charge levels

• turn your phone on and off

• hold and wear your phone

• place and receive calls

• view your own phone number

• read your phone’s Power/Status indicator

• redial numbers

• adjust your phone’s ringer and earpiece volumes

• mute your phone’s microphone

• set your phone to vibrate discreetly when you receive a call

22

Battery Information

Battery Talk Times and Standby

Times

Battery talk time is the length of time you spend talking on your phone before the battery needs to be charged. Battery standby time is the length of time your phone is left on to receive calls before the battery needs to be charged.

Keep in mind that your battery’s talk time and standby time are a relative measurement of the battery’s capacity. The more you talk on the phone, the less standby time you will have and vice versa. Certain features can demand power from your battery and reduce battery life. The following chart is an approximate talk time and standby time guide for your phone and its available batteries.

Slim Main Battery

Lithium Ion E•P™

• uses slim battery door

• up to 65 minutes of talk time or up to 24 hours of standby time

Standard Main Battery

Nickel Metal Hydride

• uses standard battery door


23

24

Battery Talk Times and Standby

Times (continued)

Extra Capacity Main Battery


• uses standard battery door


Auxiliary Battery


• up to 110 additional minutes of talk time or up to 46 additional hours of standby time

Battery Covers

Your phone’s batteries are shipped in an uncharged state with protective covers on them. Save these covers; use them to carry batteries and to store batteries when they are not in use.

The cover prevents objects from touching the battery terminals, thereby reducing the risk of injury or damage from a short circuit. (See “Batteries” on page 11 for additional safety information.)

To begin using your phone, just slip a battery out of its protective cover, install, and charge the battery.

Removing the Main Cover

Press down on the cover release latch until the battery slips free from its cover.

Attaching the Main Cover

Lower the battery into the cover until you hear it click into place.

25

26

Removing the Auxiliary Cover

1. Hold the auxiliary battery securely with one hand.

With your other hand’s thumb, push up on the bottom of the cover.

2. Continue to push up until the cover slides free of the pins on the bottom of the battery, then swing the cover outwards.

1

2

Attaching the Auxiliary Battery Cover

1. Fit the pins at the bottom of the auxiliary battery into the holes in the base of the auxiliary cover.

2. Push the auxiliary battery and the cover together until the cover’s narrow end snaps into the latch on the top of the auxiliary battery.

Latch

2

Pins

1

The Main Battery

Thanks to Motorola’s breakthrough technology, your

Motorola cellular phone’s batteries are small and lightweight. Now it is easier than ever to carry a spare or two.

Installing the Main Battery

The main battery fits into a small compartment in the back of your phone. The battery is covered by a door.

1. Align the arrows on the battery with the arrows in the battery compartment. Place the front end of the battery into the top of the compartment as shown, so that the metal terminals on the battery make contact with the terminals in the phone.

1

2. Press the battery down.

3. Slide the battery toward the bottom of the phone until it is firmly in place.

3 2

27

28

4. Place the door tabs into the notches at the bottom of the compartment as shown.

4

5. Press the door down until you hear it click into place.

5

Removing the Main Battery

To remove the main battery:

1. Turn your phone off.

2. Slide the release latch up toward the top of the phone to release the battery door.

Release Latch

3. Remove the door.

4. Push the battery up toward the top of the phone until the back end of the battery pops free.

5. Swing the battery up and out of the compartment.

4 5

The Auxiliary Battery

Now you can use a variety of battery options to fit your individual needs. When the slim main battery is installed in your Motorola cellular phone, you can attach an optional auxiliary battery and get even more talk and/or standby time. You can extend your talk time by attaching the optional auxiliary battery at any time, without interrupting your call.

Tip: If you have a charged slim main battery installed in your phone, you can remove and change your auxiliary battery during a call.

Auxiliary

Battery

29

30

Installing the Auxiliary Battery

The auxiliary battery clips onto the back of your phone:

1. Fit the pins at the bottom of the auxiliary battery into the holes in the base of the phone.

2. Push the auxiliary battery and the phone together until the latch on top of the auxiliary battery snaps into the slot on the back of the phone.

2

1

Removing the Auxiliary Battery

To remove the auxiliary battery:

1. Lift the latch on top of the auxiliary battery and pull the battery away from the phone.

2. Pull down to separate the battery from the phone.

2

1

Checking Battery Levels

Reading the Battery Level Indicator

The three bar segments on your phone’s Battery Level indicator display the amount of charge remaining in your battery. The more bar segments visible, the greater the charge.

For a detailed battery level reading:

Press

F then press 4. You will see:

High Charge

Low Charge

If you are using an auxiliary battery with the main battery the display will indicate which one is in use. You will see:

or

When your battery has little remaining charge:

• No bar segments are highlighted.

• Low Bat appears in the first line of the display.

• A short tone plays periodically.

Check your display to confirm low battery signals:

Press

F, then press 4. You will see:

B_

Low Bat or

B

Low Bat

31

32

Charging The Battery

Using the Internal Charger

Your phone has a built-in battery charger. Using either the

AC adapter or optional cigarette lighter adapter, you can plug your phone directly into a power supply and charge attached batteries—whether the phone is on or off. When the internal charger is in use and the phone is on, you can still place and receive calls. Just remember, talking on the phone requires energy, so charging will take more time.

1. Plug the AC adapter or optional cigarette lighter adapter into the accessory connector on the bottom of your phone with the release tab facing up.

2. Plug the adapter into the appropriate power source.

In some cars, the ignition must be on to use the cigarette lighter.

While your phone is charging, the battery icon flashes, regardless of whether your phone is turned on or off.

When all attached batteries are fully charged, the battery icon quits flashing and becomes solid.

Release

Tab

PUSH

Using the Desktop Charger

An optional desktop charger is available for use with your phone. The desktop charger’s front pocket can charge batteries while they are attached to your phone, and the rear pocket can charge batteries separately.

First plug the AC adapter into the back of the desktop charger, with the release tab facing up. Plug the other end of the AC adapter into an AC wall socket, and you can begin charging your batteries. With battery(s) attached, place the phone into the charger’s front pocket. You can also charge an extra auxiliary or main battery in the rear pocket as shown:

Tip: When you charge the main and an auxiliary battery, the main battery is charged first.

Tip: Aux is displayed in place

of the on message when the auxiliary battery is in use or charging.

Rear

Pocket

Front

Pocket

Note: The plug assembly included with your package can only be used with this power supply. Do not plug it into any wall outlet without the power supply.

33

34

Desktop Charger Indicator Lights

• Red means that the battery is charging.

• Flashing yellow means that the battery is waiting its turn to charge.

• Green means that the battery is charged within approximately 90% of its capacity and can be used.

An additional hour of charging will bring your battery up to 100% capacity.

• Flashing red indicates that the battery is damaged and cannot be charged.

Battery Charging Times

The phone’s batteries charge in about one to three hours, individually, depending on the battery. Allow extra time if you are charging more than one battery.

Charging Two Batteries on the Phone

When you charge your phone with a main and auxiliary battery attached, the main battery is charged first.

To find out which battery is being charged:

Press F then press 4. You will see:

Chrging

Aux

or

Chrging

Main

Leaving Batteries in the Charger

Lithium Ion batteries are different from other batteries in that you can leave them in the charger. Nickel Metal Hydride batteries should not be left in the charger for more than 24 hours.

Expert Performance (E•P™) Charging System

Your Motorola cellular phone implements the Motorola

Expert Performance (E•P™) charging system. This system allows the charger that is built into the phone to communicate with the battery. Based on this communication, the charger can tailor the charging cycle to optimize performance. If your charging system is not communicating with the battery, your phone will beep and display an Invalid Battery message each time you power up the phone or replace the battery. Your phone is alerting you that you do not have charging capabilities with this battery.

There are several reasons why your battery might not be communicating. The most likely reason is that the battery you purchased is not a Motorola original battery and it does not have the appropriate communication technology built into it. All Motorola batteries are built with the appropriate communication technology. We recommend that you use

Motorola original batteries and accessories and that you store your batteries in the protective battery cover that comes with the phone.

35

36

Storing and Disposing of Batteries

To prolong the life of your batteries, avoid exposing them to temperatures below -10°C (14°F) or above 45°C (113°F). As a good rule of thumb, always take your phone with you when you leave your car.

To dispose of batteries, check with your recycling center for a battery recycler near you. Never dispose of batteries in fire.

Switching Power Sources During a

Call

The quick change feature lets you switch power sources without losing the call in progress. If you hear a low battery warning while you are in a call, just plug in the optional cigarette lighter adapter.

You can also remove your phone’s battery and replace it with a charged spare without losing the call in progress. If you hear a low battery warning while you are in a call, quickly switch batteries and resume your conversation.

Keep in Mind: A quick change must be completed within

3 seconds to avoid losing the call in progress. Just give your party on the line a warning before beginning this procedure.

If you do not switch power sources in time, you will lose any settings that you have changed since the phone was last turned on!

Caution: To prevent injuries or burns, do not allow metal objects to contact or short circuit the battery terminals. (See

“Batteries” on page 11 for additional safety information.)

Using the Phone

Turning the Phone On and Off

This section tells you everything you need to know to operate your Motorola cellular phone.

Follow these steps to turn your phone on:

1. Extend the antenna for best performance.

2. Open your phone to expose the keypad.

3. Press P to turn the phone on.

Press

P again to turn the phone off.

1

2

3

Each time you turn on your phone, it performs a self-test to let you know your phone is operational. When the self-test is finished, the display reads on or Aux and you are ready to make and receive calls.

To conserve energy, your phone may turn off its lights and most indicators when in standby mode. The display comes back on the next time you press a key or open the phone.

Tip: Aux is displayed in place

of the on message when the auxiliary battery is in use or charging.

37

Holding the Phone

Hold your cellular phone with the antenna fully extended and pointing up and over your shoulder. For best performance, make sure your hand is not covering the antenna.

Wearing the Phone

To slip your Motorola cellular phone into its holster, make sure the battery door is facing out (away from the holster).

Just clip the holster onto a belt, purse or briefcase and you will always have it with you!

Note: The holster is designed for your convenience and is not meant to secure your phone under all circumstances.

Tip: The symbol in your display represents the Smart Button.

Using the Smart Button

The Smart Button allows you to place calls, end calls, enter the menu system, toggle features on and off, and select items in the display. The Smart Button’s central location—the middle key on the left side—makes it easy to feel, easy to find, and easy to use.

indicates the Smart Button

38

Placing a Call

To place a call:

1. First check to make sure that your phone is on.

2. Extend the antenna completely for best performance.

3. Enter the number you want to call, for example:

555-1234.

Press C to erase one digit at a time if you make a mistake.

Press and hold C to clear the entire entry.

4. Press and hold until you hear a second tone, or ...

Press

S to place the call.

You will see: Dialing 5551234

You can dial phone numbers with up to 32 digits, but only the last 14 digits appear in the display.

To see the entire phone number, press

R. The phone shows the beginning of the phone number, then shows the rest of the phone number in 14-digit increments.

39

Ending a Call

To end a call:

Press

E, or ...

Close the phone, or ...

1. Press and hold until you hear a second tone.

You will see: To EndCall

2. Press .

Tip: To make answering calls even easier, try the Multiple Key

Answer feature on page 104.

Receiving Calls

Your phone must be on to receive calls.

To answer a call:

1. Extend the antenna completely for best performance.

2. When the phone rings, answer the call by pressing

S or by opening the phone.

40

Unanswered Call Indicator

Even with personal cellular technology, sometimes you are not available to answer every call. While your phone is on, it keeps count of unanswered calls and alerts you with the message Call XX , where XX is the number of calls not answered. For example, if your telephone is on and you choose not to answer a call, your display shows:

Call 01

Press C to erase the message and you can begin placing calls again.

Viewing Your Own Number

To find out your cellular phone’s number:

Press

R then press >.

41

42

Power/

Status

Reading the Power/Status Indicator

When you are wearing your phone in its holster or just carrying it, you can check the Power/Status indicator on the top of the phone for status information.

Alternating

Red/Green

Flashing Green

Flashing Red

Incoming Call

In Service

No Service

Yellow, slow flash Roam: home type system

Yellow, fast flash Roam: non-home type system

Note: The Power/Status indicator provides status information only when the phone is closed. The indicator is deactivated when you open the phone.

Redialing Numbers

Redialing Automatically

Sometimes when you attempt to place a call, the cellular system may be busy or your phone may be unable to communicate with the cellular network. With Automatic

Redial, your phone attempts to place the call continuously for the next four minutes. When the phone successfully makes a connection, it rings or vibrates. When the person you are calling answers, you can begin talking.

A fast busy signal indicates that the cellular system is busy and cannot process your call immediately. A siren signal (two alternating tones) indicates that your phone cannot

communicate with the network. When you hear either of these signals, and the message SND to Redial appears in your display:

Press or press

S.

You will see: Redial

If the call does not go through after four minutes:

Press or press S to continue the call attempt.

Note: These redial directions only work if you hear a fast busy signal or a siren signal.

If you hear an ordinary busy signal, try the following sequence.

1. Press

E to hang up.

2. Press or press S to place a call to the last number dialed.


43

44

Redialing One of the Last Ten Numbers Dialed

This feature makes it easy to call any one of the last ten numbers you have dialed.

1. Press

R, then press 0 and 0. The display shows the last number you dialed.

2. Press or

to scroll through the last ten numbers dialed, starting with the most recent call.

3. Press and hold or press

S to call the number in the display.


Controlling the Volume

The upper and lower volume keys can be used to adjust both the earpiece and the ringer volume. As you press these keys, the phone’s speaker demonstrates the current volume level.

Raising and Lowering Earpiece and Keypad

Volume

To adjust earpiece and keypad volume:

Press or

to raise or lower the volume.

Raising and Lowering Ringer Volume

To adjust ringer volume:

1. Press

F.

2. Press or

to raise or lower the volume.

Muting the Microphone

If you need privacy while a call is in progress, you can mute the microphone—you will be able to hear the party on the other end, but he or she will not hear you.

1. Press F, then press 6 to mute the microphone.

You will see: Mute

2. Press F, then press 6 again to resume normal conversation.

Setting Discreet Vibration Mode

In situations where ringing may not be appropriate, or in noisy places where you may not hear your phone, use the

VibraCall™ alert function for discreet notification:

1. Press

F.

2. Press 8 to toggle between ringer and vibration mode. You will see:

Vibrate

Only

or

Ring

Only

45

Phone Book Basics

Your Motorola cellular phone’s internal Phone Book can store up to 99 names and numbers for easy access on the go.


• store names and numbers into the Phone Book

• recall phone numbers from the Phone Book

• erase entries from the Phone Book

• dial phone numbers quickly with the Speed Dial and Turbo Dial™ functions

• store a phone number in the Scratchpad

46

Storing Names and

Numbers in the Phone

Book

To take advantage of your phone’s internal Phone Book, you must first store some names and numbers into memory.

Each phone number is stored in a memory location numbered 01-99. You can also store names with the numbers to help identify the numbers. Later you can easily recall numbers either by memory location or by name.

Note: Several phone functions make use of specific memory locations. The Emergency Call feature (see “Activating

Emergency Call” on page 85) lets you dial the phone number stored in memory location 01 even when the phone is locked. The PIN code feature (see “Setting a PIN Code” on page 100) automatically sends a PIN code number stored in memory location 07 with each outgoing call. If you intend to use the Emergency Call and/or PIN code features, you must store the appropriate numbers in memory locations 01 and

07 respectively.

47

Tip: The symbol in your display represents the Smart Button.

Storing Numbers

1. Enter the phone number you want to store.

2. Press s

to begin storing. The phone prompts you for a memory location.

You will see: Locatn __

3. Enter the two-digit memory location where you want the sequence stored, or ...

Press * to store the sequence in the first available memory location, or ...

Enter the first digit of the memory location and press

*

to store the sequence in the first available location beginning with that digit.

You will see: Alpha Or

4. Enter a name to identify the phone number, or skip this step and continue with step 5. (See “Storing

Names” on page 49 for instructions on how to enter names.)

5. Press or press s when you are finished entering the name. Your phone confirms your entry by displaying the information you stored.

48

Storing Names

When the display shows Alpha Or , you can use the keypad to produce any letter in the alphabet by pressing the numeric keys one or more times. Just use the letters printed on each key as a guide. For example, press

2

to enter the letters A, B, or C as shown:

Tip: Press the

1

key to insert the following symbols—

/ ’ , ? $ . & !

Press one time to insert an A

Press two times to insert a B

Press three times to insert a C

Press four times to insert a 2

To enter a name into the Phone Book:

1. Enter a letter by pressing a key as many times as necessary.

2. Press

#

to advance the cursor to the next space.

3. Press

* or press

C

to erase a letter if you make a mistake.

4. Continue storing additional letters in the same way.

5. Press or press s when you are finished entering the name. Your phone confirms your entry by displaying the information you stored.

49

50

Recalling Entries from the

Phone Book

Recalling an Entry by Name

Once you have stored names and numbers, you can recall them alphabetically and place calls immediately. With one press of the Smart Button you have instant access to the name directory.

1. Press once to enter your name directory.

2. Press or

to scroll to the name you are looking for, or ...

Enter the first letter of the name you want to recall from memory. The display will show the first name beginning with that letter.

Press R if you want to see the number stored with the name.

3. Press and hold or press S to call the number associated with the name you selected.


Erasing an Entry from the Phone

Book

To erase an entry from a memory location:

1. Recall the entry by name that you want to erase.

2. Press C to clear the entry. You will see: Clear ?

3. Press s to confirm that you want to erase the entry.

The display shows the number of the memory location as the entry is erased.

Recalling an Entry by Memory

Location

Each name and number you store is placed in a memory location numbered 01-99. Once you have stored names and numbers, you can recall them by memory location.

1. Press

R

. (This step is optional.)

2. Enter the two-digit memory location of the phone number you are looking for.

3. Press and hold or press S to call the number.


4. Press E or close the phone to end the call, or ...

Press and hold until you hear a second tone.

You will see: To EndCall

Press again to end the call.

51

52

Using Recall Shortcuts

Speed Dial

If you know the memory location of the number you want to call, use the Speed Dial function:

1. Enter the two-digit memory location (01-99).

2. Press and hold to place the call, or ...

Press



Turbo Dial™

The Turbo Dial™ function lets you dial numbers stored in memory locations 01-09 with the push of a button:

Press and hold a keypad number key

1

through

9 and your call is placed!


Your phone’s Emergency Call feature gives you fast access to any number you store in memory location 01. See

“Activating Emergency Call” on page 85 for instructions on how to activate this feature.

Storing a Number During a Call

In addition to your internal Phone Book, you also have a built-in Scratchpad for quick notes. The Scratchpad remembers the last phone number that was on your display.

If you are on the phone and your party gives you another number to call, enter the number into the Scratchpad to place the call later.

1. Enter the number into the keypad. (The person on the line will hear tones as you dial.)

2. Press

E to end the call you are currently in, if necessary.

3. Press

S to call the number in the Scratchpad.

You can also store numbers while you are in a call.

1. Enter the number into the keypad. (The person on the line will hear tones as you dial.)

2. Press s and continue storing with step 3 in

“Storing Numbers” on page 48.

53

The Menu System

Your Motorola cellular phone’s menu system helps you find what you need quickly and easily.

Navigating the Menu

Each of the icons on your phone’s display represents a menu feature, giving you access to many phone functions.

Menu Feature Icons

Press

F

then press the Smart Button to enter the menu system.

You navigate through the menu system using the three keys located on the left side of the phone. Use the upper and lower volume keys to scroll up and down through menu features and options. Use the middle Smart Button to choose menu features and options.

Press E to exit the menu system.

54

This manual uses these symbols to instruct you to use the

Smart Button and the upper and lower volume keys.

indicates the upper volume key indicates the Smart Button indicates the lower volume key

Shortcut: Experienced Motorola Users: Watch for the

“Shortcuts.” You will find many of the same key sequences you have used with other Motorola models!

55

56

Phone

Book

Timers

Tone

Control

Lock

Secure

Phone

Options

Message

Road Maps

This manual provides several types of easy to follow visual road maps to help you navigate through the phone’s menu system.

At the beginning of each chapter, a structural road map (like the one shown here in the margin) shows the complete menu system layout for the set of features discussed in the chapter. Simply press the key shown, and observe the message that appears in the display. For example, try this:

1. Press F then press to enter the menu system.

You will see: Phone Book

2. Press or

to scroll through the menu’s top level.

(Notice that the icons on the bottom of your display flash as you scroll to show the current selected menu option.)

3. Press E to exit the menu system.

The road map on this page shows the top level menu features. You can scroll up and down through the menu list by pressing the and keys respectively. Press to choose a menu feature when it is displayed.

This manual provides a navigation road map with each feature description to show you how to navigate to the feature. For example, the navigation road map in the margin on this page shows you how to get to the Select Language feature:

1. Press

F then press to enter the menu system.

You will see: Phone Book

2. Press four times to scroll to Phone Options.

F then

Press

4 times

Phone

Book

Phone

Options

3. Press to select Phone Options.

You will see: Change Number

4. Press two times to scroll to the Select Language feature.

5. Press E to exit the menu.

Now it’s time to learn how to use the menu system features.

Move at your own pace, experiment, and have some fun!

Change

Number

Press

2 times

Select

Languag

Tip: If you are already familiar with previous

Motorola cellular phones, you can use your phone’s

*

and

# keys to scroll through the menu system.

57

Phone Book Menu

Features

In “Phone Book Basics” you learned how to store and recall phone numbers with the internal Phone Book. You can access the same features using your Motorola cellular phone’s convenient menu system.


• store and recall phone numbers using the menu system

• simplify automated calling systems like Voice Mail

• store calling card sequences for easy access

• edit your memory information

• view your own phone number

• adjust the information on your display

Note: Follow these symbols as a guide for using the keys on the side of your phone.

Press to scroll up

Press to select

Press to scroll down

58

Road Map

Press


Start:

Phone

Book

Rcl By

Name

Rcl By

Locatn

Store

Number

Edit

My

Number

Number

Pref On

To Main

Menu

59

60

F then

Phone

Book

Recalling a Phone

Number by Name

Rcl By

Name

Once you have stored names and numbers, you can recall them alphabetically from the Phone Book menu.

1. Follow the road map in the margin.

2. Press to select Recall By Name.

3. Enter the first letter of the name you want to recall.

4. Press or

to scroll to the name you are looking for.

Press

R if you want to see the number stored with the name.


S to call the number.

F then

Phone

Book

Recalling a Phone

Number by Location

Rcl By

Name

Press

1 time

Rcl By

Locatn

Each name and number you store is placed in a memory location numbered 01-99. Once you have stored names and numbers, you can recall them by memory location with the

Phone Book menu.


2. Press to select Recall by Location.

3. Enter the two-digit memory location of the number you are looking for.


S to call the number.

Storing Names and Phone

Numbers

F then

Phone

Book

You can use the Phone Book menu to store names and numbers into the Phone Book. Whether you use the menu or follow the procedures described in “Phone Book Basics” on pages 48-49, you will get the same results.


2. Press to select Store Number.

3. Enter the phone number you want to store.

4. Press when you are finished.

5. Enter the two-digit memory location where you want the sequence stored, or ...

Press

* to store the sequence in the next available memory location, or ...

Enter the first digit of the memory location and press < to store the sequence in the first available location beginning with that digit.

6. Enter a name to identify the phone number, or skip this step and continue with step 7. (See “Storing

Names” on page 49 for instructions.)

7. Press or press s when you are finished.

Your phone confirms your entry by displaying the location, number, and name you stored. Exit the menu or continue with step 3 to store more numbers.

Rcl By

Name

Press

2 times

Store

Number

Tip: If your chosen location is full, press

E and restart the storing sequence.

61

62

Advanced Storing

Storing Access Numbers with Pause Dialing

If you often find yourself calling Voice Mail*, banking by phone or using other automated calling systems, you will appreciate the one-key convenience of Pause Dialing. Simply save the access numbers as a linked sequence, and you will never need to enter them again!

Here is how it works: when you call automated systems, a recorded message prompts you for PIN numbers, Voice Mail numbers, etc. You can store these numbers in your phone’s memory, separated by “pauses”— special characters that tell your phone to wait before sending additional numbers.

1. Enter the phone number you use to access the automated system.

2. Press

F then press S.

3. Press to insert a pause into the sequence.

4. Enter the next group of numbers (for example, an account number or PIN number). If the automated system requires a * or #, enter those symbols too.

* This is a network and subscription-dependent feature that is not available in all areas. Contact your cellular service provider for availability.

5. Insert another pause and enter the next group of numbers by repeating steps 2 through 4 as many times as necessary. You can store up to 32 digits, including pauses.

6. Press s to begin storing.

7. Enter the two-digit memory location where you want the sequence stored.

8. Enter a name for your sequence. (See “Storing


9. Press when you are finished entering the name.

Your phone will confirm your entry by displaying the location, number, and name you stored.

Placing a Call with Pause Dialing

1. Recall the phone and access number sequence you have stored. (See “Storing Access Numbers with

Pause Dialing” on page 62.)



3. When you are prompted for information, just press

or press

S to send the next set of stored numbers.

4. Press

S as many times as necessary to transmit all the numbers.

63

64

Storing Calling Card Information

Like Pause Dialing, you can store calling card access numbers, separated by pauses, for easy recall later. You can also store a number character in the sequence to save a place for the number you call using your calling card.

You can protect your calling card information with your phone’s security features. See “Security Features” on pages

81-92 for details.

1. Enter the phone number you use to access your calling card system (usually a 1-800 phone number). Skip this step if you only dial 0.

2. Press F then press S.

3. Press to insert a pause into the sequence.

4. Enter the next group of numbers. (For example, some long distance carriers require you to dial a 0 before the number you are calling.)

5. Press

F then press S.

6. Press to scroll to the number character.

You will see: Insert Num 'N

7. Press to insert the ‘N character into the sequence. This special character saves a place for the phone number you will be calling. The number is inserted into the sequence automatically when you place the call.

8. Press

F then press S.

9. Press to insert another pause.

10. Enter your calling card PIN number.

11. Press s to store your calling card sequence.

12. Enter the two-digit memory location where you want the sequence stored.

13. Enter a name for your sequence. (See “Storing


14. Press when you are finished entering the name.

Your phone will confirm your entry by displaying the location, number, and name you stored.

65

66

Placing a Calling Card Call

After you have stored your calling card information, just recall the information, enter the number of the person you are calling, and your phone does the rest.

1. Recall the calling card information you have stored.

(See “Storing Calling Card Information” on page 64.)

2. Press S before entering the phone number you want to call. You will see: Enter Number

3. Enter the phone number you want to call, including the area code. You may enter the number manually, by location, or recall.



Your phone dials the number to access your long distance provider.

5. Press or press S to send the next group of numbers when prompted. Your phone automatically inserts the number to call at the appropriate spot in the sequence.

6. Repeat step 5 to send the next group of numbers as many times as necessary.

Editing Stored

Information

F then

Phone

Book

You can edit names and numbers or erase entries stored in the Phone Book at any time.


2. Press to select Edit. To find the entry you want to edit, recall it by location or by name.

3. Press to recall the entry by location, and continue with step 4a, or ...

Press to scroll to Recall By Name, then press to select, and continue with step 4b.

4. Recall the entry.

a. Enter the two-digit memory location of the phone number you want to edit. Continue with step 5.

b. Enter the first letter of the name you want to edit. The display will show the first name beginning with that letter, or ...

Press or

to scroll to the name you are looking for, then continue with step 5.

5. Press to begin editing.

6. Press C to erase one digit at a time. Press and hold

C to erase the entire number. Enter your changes to the phone number.

Rcl By

Name

Press

3 times

Edit

67

68

7. Press when you finish editing the phone number. The display shows the location where the number is currently stored.

8. Press

C to erase the memory location and enter a new two-digit location, or ...

Press to keep the phone number in its current location. The display shows the name stored with the phone number you are editing.

9. Press C to erase one letter at a time, or skip this step to leave the name unchanged. Enter your changes to the name. (See “Storing Names” on page 49 for instructions.)

10. Press when you finish editing the name. The display shows the new information and asks if you want to save your changes.

11. Press to save your changes. Your phone confirms your entry by displaying the location, number, and name you stored, or ...

Press C to leave the information unchanged.

You will see: Locatn __

Enter a new two-digit memory location to avoid overwriting the information in the current location.

Viewing Your Number

Use this feature to view your cellular phone’s currently active phone number. If you have more than one phone number, you can change the active number with the Change Number feature in the Phone Options menu (see “Changing the

Active Phone Number” on page 96).


2. Press to view your own phone number.

After six seconds, the display reverts to: My Number

Shortcut: Press

R then press

#

for a quick look at your phone number.

F then

Phone

Book

Rcl By

Name

Press

4 times

My

Number

Setting Display

Preference

F then

Phone

Book

The Number Preference feature determines the order in which the Phone Book displays information. When you recall information by location and Number Preference is on, you see the stored phone number and must press R to see the associated name. When Number Preference is off, you see the stored name and must press R to see the associated phone number.


2. Press to toggle the feature on or off.

Rcl By

Name

Press

5 times

Number

Pref On

69

Call Timers

Your Motorola cellular phone’s Call Timer features give you a variety of options for managing your time. You can monitor the length of individual calls, set a timer to track monthly usage, or have the phone alert you at one-minute intervals during a call.


• monitor the length of your calls

• set and view the resettable timer for long-term monitoring

• display total accumulated air-time

• automatically display the length of individual calls

• activate the one-minute audible timer


Press to scroll up

Press to select


70

Road Map

Press


Start:

Phone

Book

Indiv

XX YY

Timers

Resetbl

XXXXX

Cumul

XXXXX

Reset

Timer

Indiv

TimrOff

One Min

TimrOff

To Main

Menu

71

72

F then

Press

1 time

Phone

Book

Timers

Indiv

XX YY

Viewing the Individual

Call Timer

You can view the air-time of the most recent call or the call in progress at any time. You can also have this timer display automatically while calls are in progress (see “Displaying the

Individual Call Timer Automatically” on page 75).

Follow the road map in the margin to view the

Individual Call Timer.

The display shows the air-time of your last call in minutes

( XX ) and seconds ( YY ).

Shortcut: Press

R

then press

#

two times for a quick look at this timer.

F then

Press

1 time

Phone

Book

Timers

Press

1 time

Indiv

XX YY

Resetbl

XXXXX

Viewing the Resettable

Call Timer

You can track how much air-time you have accumulated during any time period you choose. See “Resetting the

Timer” on page 74 for instructions on how to reset the timer.


Resettable Call Timer.

The display shows the air-time in minutes since you last reset the timer.

Shortcut: Press

R

then press

#

three times for a quick look at this timer.

Viewing the Cumulative

Timer

This is a non-resettable timer that keeps track of your phone’s total air-time.


Cumulative Timer.

The display shows the air-time in minutes since your phone was activated.

Shortcut: Press

R

then press

#

four times for a quick look at this timer.

F then

Press

1 time

Phone

Book

Timers

Press

2 times

Indiv

XX YY

Cumul

XXXXX

73

F then

Press

1 time

Phone

Book

Timers

Press

3 times*

Indiv

XX YY

Reset

Timer

Resetting the Timer

This feature resets the Resettable Call Timer (See “Viewing the Resettable Call Timer” on page 72). Use the Reset Timer feature at the beginning of each billing cycle and the timer will keep track of your total air-time (in minutes) until you reset it again.


2. Press to reset the timer.

Note: This feature does not appear in your display if the

Resettable Call Timer is already set at zero.

* This feature does not appear if the

Resettable Call

Timer is set at zero.

74

Displaying the Individual

Call Timer Automatically

F then

This feature causes the Individual Call Timer to automatically display your air-time in minutes and seconds during and after each call. (See “Viewing the Individual Call

Timer” on page 72 for information about the Individual Call

Timer.)



Note: Activating the Auto Display Timer may reduce your phone battery’s talk time and standby time.

Press

1 time

Phone

Book

Timers

Indiv

XX YY

Press

3 times* or

4 times

Indiv

TimrOff

* If Resettable Call


75

F then

Press

1 time

Phone

Book

Timers

Activating the One

Minute Audible Timer

Turn this feature on to hear an audible beep 10 seconds before the end of every minute during a call. The party on the other end will not hear the beeps.



Indiv

XX YY

Press

4 times* or

5 times

One Min

TimrOff

* If Resettable Call


76

Tone Controls

Tone Controls let you personalize the sounds your phone makes—or turn them off for some peace and quiet.


• choose from nine different ringer styles

• activate and deactivate the VibraCall™ alert function

• silence the keypad

• silence the Scratchpad


Press to scroll up

Press to select


77

Road Map

Press


Start:

Phone

Book

Ring Or

Vib Sel

Timers

Ringer

Style X

Tone

Control

Keypad

Tone On

Scrpad

Tone On

Remind

Msg Off

*

To Main

Menu

78

* This feature is only available if your cellular service provider offers Digital Messaging Services. See “Activating the Digital Message Reminder” on page 125 for information about this feature.

Setting Call Alert

You can choose to be alerted to incoming calls using the

VibraCall™ alert function, the ringer, both, or neither.


2. Press to select Ring or Vib Sel .

3. Press or

to scroll through your choices:

Vibrate

Only

Ring

Only

Ring On

Vib On

RingOff

Vib Off

When both the ringer and vibrator are on, the phone vibrates for three ring cycles and then rings.

4. Press to select the setting you want.

F then

Press

2 times

Phone

Book

Tone

Control

Ring Or

Vib Sel

Selecting a Ringer Style

Your Motorola cellular phone lets you choose from nine different ringer styles. When you choose a style, the phone plays a brief sample of your new alert sound, or vibrates if you have the VibraCall™ alert function selected.


2. Press to select Ringer Style. The phone shows the current selected ringer style number and plays a brief sample.

3. Press 1 through 9 to hear the different ringer styles, or press or

to scroll through the ringer styles.

4. Press to select the ringer style you want.

F then

Press

2 times

Phone

Book

Tone

Control

Ring Or

Vib Sel

Press

1 time

Ringer

Style X

79

F then

Press

2 times

Phone

Book

Tone

Control

Setting Keypad Tones

Keypad tones are the sounds you hear when you press any key on the phone. If you want to be discreet, use this feature to silence the audio feedback from the keypad.



Note: The other party will still hear tones.

Ring Or

Vib Sel

Press

2 times

Keypad

Tone On

80

F then

Press

2 times

Phone

Book

Tone

Control

Ring Or

Vib Sel

Press

3 times

Scrpad

Tone On

Setting Scratchpad Tones

Scratchpad tones are the tones that your phone sends to access automated calling systems like Voice Mail. If you do not want your party to hear these sounds when you use the

Scratchpad, turn the Scratchpad tones off.



Note: If you turned the Scratchpad tones off, but you want to access a tone-activated system like Voice Mail, place your call, enter the numbers you need to transmit, then:

Press

R then press S to send the tones.

Security Features

Your Motorola cellular phone has a number of built-in security features to help prevent unauthorized use. You can keep your personal information intact and restrict call placement while lending your phone to other people.


• set the Theft Alarm

• lock and unlock your phone

• view and change your lock code

• place emergency calls

• restrict call placement and memory access

• reset or clear your phone’s settings

Note: Follow these symbols as a guide for using the keys on the side of your phone.

Press to scroll up

Press to select


81

82

Road Map

Press

F

then press to enter the menu system.

Start:

Phone

Book

Code

Theft

AlrmOff

Timers View

LocCode

Auto

LockOff

Tone

Control

Change

LocCode

Emergcy

Call On

Lock

Secure

Service

Level X

Secure

Options

Master

Reset

To Main

Menu

Master

Clear

To Main

Menu

Setting the Theft Alarm

The Theft Alarm locks your phone to prevent unauthorized access. To unlock it, you must enter your three-digit lock code. (See “Unlocking the Phone” on page 84 and “Viewing

Your Lock Code” on page 87 for additional information about your phone’s lock code.) If an unauthorized person turns the phone on and does not enter the lock code within

30 seconds, your phone places two calls to a single pre-programmed telephone number that you specify. The person who answers the call will hear a high-pitched alarm tone indicating that your phone is in distress. You must unlock your phone to resume normal operation.


1. Press to toggle the feature on or off. When you turn the alarm on, the display prompts you for a telephone number.

2. Press to see the previously stored number (if you entered one earlier), or ...

Enter the number you want the phone to call in the event of unauthorized access.

3. Press to set the alarm.

When the Theft Alarm is on, you will see Armed in the display. The Theft Alarm is reset before each use.

Note: If your phone is lost or stolen, contact your cellular service provider to turn off service to the phone.

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

83

F then

Press

3 times

Phone

Book

Lock

Secure

Setting the Automatic

Electronic Lock

When you activate this feature, your phone automatically locks itself each time the phone is turned off.



Theft

AlrmOff

Press

1 time

Auto

LockOff

Locking the Phone Manually

You can lock your phone manually at any time to help prevent unwanted use. Once locked, you can leave your phone on or turn it off and the phone remains locked.

1. Press F .

2. Press

5

and hold for at least one full second.

You will see: Lock?

3. Press or press s to lock your phone.

You will see: Locked

Tip: If you have forgotten your lock code, try pressing

1

,

2

,

3

or the last three digits of your cellular phone number.

Unlocking the Phone

Once your phone is on, just enter your three-digit lock code to unlock your phone. (See “Viewing Your Lock Code” on page 87 for instructions on how to display your lock code.)

You can still receive calls when the phone is locked.

1. Enter your three-digit lock code.

2. Press S to receive the call.

84

Activating Emergency

Call

With Emergency Call on, you can use the Turbo Dial™ function to dial the important number that you stored in memory location 01 even when the phone is locked.



Keep in Mind:

• Your emergency call number must be stored in memory location 01. Be careful not to overwrite the number stored in this location.

• Some cellular systems have their own emergency numbers and do not allow access to emergency numbers like 911. Check with your cellular service provider.

• With Theft Alarm on, you need to unlock the phone before placing an emergency call.

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

2 times

Emergcy

Call On

85

86

Security Options

The Security Options sub-menu contains a number of security features. For your protection, you must enter a six-digit security code to access these features. The factory programmed lock code is 123 and the six-digit security code is 000000. These may have been changed at the time your phone was activated. Contact your cellular service provider if you are unable to determine the security code for your phone.

Viewing Your Lock Code

The View Lock Code feature displays the currently active three-digit lock code.

Note: You will have to enter your six-digit security code at the Code _ _ _ _ _ _ prompt to access the Security Options sub-menu.


2. Press to display your three-digit lock code. It appears for a few seconds.

You will see: LocCode XXX

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

3 times

Secure

Options

Code

------

View

LocCode

87

88

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

3 times

Secure

Options

Changing Your Lock Code

The Change Lock Code feature lets you change your three-digit lock code.



2. Press to select the Change Lock Code feature.

You will see: Enter Code ___

3. Enter the new three-digit code. It is displayed for a few seconds. You will see: Changed To XXX

Code

------

View

LocCode

Press

1 time

Change

LocCode

Setting the Service Level

You may want to restrict call placement or hide memory information when loaning your phone to others. Your phone offers eight service levels that provide different combinations of access privileges and restrictions.



2. Press to select Service Level. The phone displays your current service level. (See “Service Level

Settings” on page 90 for descriptions.)

3. Press or

to scroll through the Service Level settings.

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

3 times

Secure

Options

4. Press to select the service level you want.

If you select Level 7, the phone prompts you for the range of memory locations you want to remain active. You will see: Range 1-__

5. (Level 7 only) Enter the range of memory locations from which calls are allowed. The phone confirms the allowed range. You will see: 1-XX Allowed

Code

------

View

LocCode

Press

2 times

Service

Level X

89

90

Service Level Settings

Level 1: Calls can be placed from memory locations 1-10 only.

• No dialing from keypad

• No memory edit or storage

Level 2: Calls can be placed from all memory locations.

• No dialing from keypad


Level 3: Calls can be placed manually from the keypad only.

• No access to memory information


Level 4: This is the standard setting.

• No restrictions

1 Mem

1-10

2 Mem

Only

3 Keypd

Only

4 Std

Setting

Level 5: Seven-digit (local) dialing is allowed only.

• DTMF tones not transmitted (to prevent calling card calls)

Level 6: Calls can be placed from the keypad and from memory.

• No edit or memory storage to memory locations 1-10


Level 7: Calls can be placed from a selected memory range only.

• Memory edit and storage allowed within the selected range

• No access to alphabetic memory

Level 8: No edit, storage, or recall from memory locations 1-10 is allowed.

5 Local

Only

6 NoSto

1-10

7 Allow

Range

8 Hide

Turbo

Resetting All Options

The Master Reset feature resets all user-selectable options back to the original factory setting.

Keep in Mind: Once you select Master Reset, the process cannot be canceled or reversed.



2. Press E to exit the menu without resetting, or ...

Press if you want to reset your phone’s options back to their factory settings.

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

3 times

Secure

Options

Code

------

View

LocCode

Press

3 times

Master

Reset

91

92

F then

Press

3 times

Phone

Book

Lock

Secure

Theft

AlrmOff

Press

3 times

Secure

Options

Code

------

View

LocCode

Press

4 times

Master

Clear

Clearing All Stored

Information

The Master Clear feature resets all user-selectable options, clears the resettable timer, and erases all Phone Book information.

Keep in Mind: Once you select Master Clear, the process cannot be canceled or reversed.

Note: You will have to enter your six-digit security code at the Code _ _ _ _ _ _ prompt to access the Security Options sub-menu.


2. Press E to exit the menu without clearing phone memory and resetting options, or ...

Press to clear the memory and reset your phone’s options back to their factory settings. This will take a few seconds.

As the phone resets, you will see: Busy

Phone Options

The Phone Options menu is your command center for adjusting the way your phone sends and receives calls. You can tweak your system for optimal performance by choosing from a number of convenient features.


• switch cellular phone numbers

• select the system mode

• select the language for the menu prompts

• review your phone’s feature settings

• set a PIN code

• disable call reception

• select features for vehicular use

• conserve battery power, and much more


Press to scroll up

Press to select


93

94

Road Map

Press


Start:

Phone

Book

Change

Number

Timers

PIN

InActiv

System

Mode

Call

Rcv On

Tone

Control

Select

Languag

Auto

HF On

Lock

Secure

VOX

Off

*

Feature

Review

MultKey

AnsrOff

Phone

Options

Extend

Talk On

Call

Options

Open To

Ansr On

To Main

Menu

Battery

Options

Auto

AnsrOff

System

Options

To Main

Menu

Display

SID

To Main

Menu

HF Auto

MuteOff

To Main

Menu

* This feature is not available in many areas. It does not appear in your display unless it has been turned on by your cellular service provider. Contact your service provider for availability.

Using Two Cellular Phone

Numbers

Your phone can operate on two different home systems. If you travel often, you can have your phone programmed with two cellular numbers to reduce roaming. The Change

Number feature lets you change your active number to the one appropriate for the area you are in.

Both phone numbers are designated as your home system, but only one number can be active at any given time. Calls are placed and received by the currently active number only.

Each time you turn your phone on, the display indicates which phone number and home system are currently active:

Non-wireline type with phone number 1

A1

Non-wireline type with phone number 2

A2

Wireline with phone number 1

B1

Wireline with phone number 2

B2

In most areas, there are two competing cellular carriers, the

“wireline” carrier and the “non-wireline” carrier. The display identifies a non-wireline home system as a type A system, and identifies a wireline home system as a type B system.

95

F then

Press

4 times

Phone

Book

Phone

Options

Changing the Active

Phone Number

To change the active phone number:


2. Press to select Change Number.

3. Press to switch to your other phone number.

Change

Number

4. Press to confirm the new setting.

Shortcut: Press

R then press

#

, s to switch to your other phone number.

96

F then

Press

4 times

Phone

Book

Phone

Options

Selecting Cellular System

Mode

The System Mode feature lets you select the type of cellular system your phone accesses. This feature typically is configured by your cellular service provider.


2. Press to select System Mode.

Change

Number

Press

1 time

System

Mode

3. Press to scroll through the system mode settings.

(See “System Mode Settings” on pages 97-98 for descriptions.)

4. Press to select a system mode setting.

System Mode Settings

System Mode

Standard Mode:

Your phone first seeks a home type system, then a non-home type system.

If home system is non-wireline (type A)

Display

Std AB

If home system is wireline (type B)

Std BA

Reversed Preference Mode:

Your phone first seeks a non-home type system, then a home type system.

(This mode may be useful in fringe areas or certain roaming situations.)

If home system is non-wireline (type A)

Scan BA

If home system is wireline (type B)

Scan AB

Home Only Mode:

Phone will not operate outside its home system.

Scan A Mode:

Phone will operate only within non-wireline (A) systems.

Scan B Mode:

Phone will operate only within wireline (B) systems.

Home

Scan A

Scan B

97

98

System Mode Settings (continued)

Display System Mode

Enhanced Preferred Scanning Mode:

Phone scans for home or programmed preferred System ID numbers (SIDs) first. This mode requires entry of up to sixty SIDs for the systems in which you wish to operate. Contact your cellular service provider for SID information.

If you have selected two system operation, the phone seeks cellular service according to the system type mode selected for each phone number.

P Scan

Programming Preferred SIDs in Preferred Scanning Mode

To program the preferred SIDs to be used in P Scan mode:

1. Press 7, 9, 7, 4, 3 (spells SYSID).

2. Press

F, F and enter the appropriate 5-digit SID number (from your cellular service provider).

3. Press s to store the SID number.

4. Press < or > to scroll through the system type choices ( Home , Roam , or Inhibit ).

5. Press s to select the desired system type.

6. Press

> and repeat steps 1 through 5 to program another preferred SID, or ...

Press

E to exit preferred SIDs programming.

Selecting a Language

This feature lets you change the language used for all the prompts in your phone.


2. Press to select Select Language.

3. Press to scroll through the language options.

4. Press to select the language setting you want.

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

2 times

Select

Languag

Reviewing Your Phone

Settings

Feature Review displays any features that you have changed from the default settings.

Note: Settings cannot be changed while scrolling through

Feature Review.


2. Press to select Feature Review. If no features have been changed, you will see: Std Setting

3. Press to scroll through any features you have changed from their default settings.

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

3 times

Feature

Review

99

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

PIN

InActiv

Setting a PIN Code

Your cellular carrier may require a Personal Identification

Number (PIN) when placing calls. This code assures the cellular system that the caller is an authorized user.

If a PIN is required by your system, you will need to activate this feature before you can place calls. If you enter a service area which does not require a PIN code, make sure the feature is set to PIN Inactive.


2. Press to toggle the feature on and off.

See “Storing a PIN Code in Memory Location 07” on page 101 for instructions on how to store a PIN code. See

“Placing a Call With PIN Code Active” on page 101 for instructions on how to send your PIN code automatically with all outgoing calls.

100

Storing a PIN Code in Memory

Location 07

Use the following procedure to store a PIN code in memory location 07.

Note: Your PIN code number must be stored in memory location 07. The PIN code number you store in memory location 07 will overwrite any information already in that location!

1. Enter PIN code.

2. Press s. You will see:

Locatn __

3. Press 0, 7. You will see:

Alpha Or

4. Press s or . You will see:

Stored at 07

Placing a Call With PIN Code Active

1. Enter number to be called, or recall from memory.

2. Press

S, or ...

Press and hold .

Wait for the double tone (“beep, beep”).

3. Press S, or ...

Press .

The phone automatically sends the PIN code stored in memory location 07.

If you see the message Invalid Pin , check to see if you have stored a PIN number in memory location 07. The PIN code must be less than seven digits.

101

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

Disabling Call Reception

There are times when you cannot be bothered. Turn this feature off to disable call reception. Your phone informs you of incoming calls without receiving them. While this feature is on, your display indicates number of calls.



Shortcut: Press

F

then press , then

2

,

1 to access the Call Receive feature.

PIN

InActiv

Press

1 time

Call

Rcv On

102

Setting Automatic

Hands-Free Operation

Turn this feature on when you are using Hands-Free vehicular accessories. See “Accessory Options” on page 126 for more information about accessories for your car.



Shortcut: Press

F

then press , then

2

,

8

to access the Automatic Hands-Free feature.

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

PIN

InActiv

Press

2 times

Auto

HF On

103

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

Setting Multiple Key

Answer

Why fumble for the

S key to answer calls? With Multiple

Key Answer on, you can answer calls by pressing the Smart

Button, any key on the upper keypad

1 through #, or the upper and lower volume keys.



Shortcut: Press

F

then press , then

2

,

0

to access the Multiple Key Answer feature.

PIN

InActiv

Press

3 times

MultKey

AnsrOff

104

Setting Open to Answer

Your phone company may offer services like calling line identification (Caller ID) that let you see the display before answering the call. By setting Open to Answer off, you can open the phone to see the message in the display and then answer the call by pressing S or the Smart Button!



F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

PIN

InActiv

Press

4 times

Open To

Ansr On

105

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

PIN

InActiv

Press

5 times

Auto

AnsrOff

Setting Automatic

Answer

Turn Auto Answer on to have your phone automatically answer incoming calls after three rings.



Notes:

• If the ringer and VibraCall™ alert functions are off, your phone will answer without ringing or vibrating.

• This feature must be reset after each call.

Shortcut: Press

F

then press , then

2

,

6

to access the Automatic Answer feature.

106

Setting Hands-Free Auto

Mute

Turn this feature on when you are using Hands-Free vehicular accessories. If your phone is muted (see “Muting the Microphone” on page 45), the Hands-Free Auto Mute feature automatically deactivates muting when you place your phone in a vehicular accessory. See “Accessory Options” on page 126 for more information about accessories for your car.



F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

4 times

Call

Options

PIN

InActiv

Press

6 times

HF Auto

MuteOFF

107

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

5 times

Battery

Options

Setting Voice Operated

Transmission (VOX)*

Normally, your phone’s transmitter is active throughout the duration of a call. With this feature on, you conserve battery power because your phone’s transmitter is activated only when you are talking.



Shortcut: Press

F

then press , then

2

,

4

to access the Voice Operated Transmission feature.

VOX

Off

108

* This feature is not available in many areas. It does not appear in your display unless it has been turned on by your cellular service provider. Contact your service provider for availability.

Setting Extended Talk

Time

When you are in a strong signal area, turn the Extended Talk

Time feature on and receive extra talk time from your phone’s battery!



F then

Press

4 times

Phone

Book

Phone

Options

Shortcut: Press

F

then press , then

2

,

5

to access the Extended Talk Time feature.

Change

Number

Press

5 times

Battery

Options

Press

0 times* or

1 time

VOX

Off

Extend

Talk On

* If Voice Operated

Transmission (VOX) is not turned on.

109

F then

Press

4 times

Phone

Book

Phone

Options

Change

Number

Press

6 times

System

Options

Displaying System

Identification (SID)

This feature shows you the System ID number (SID) that identifies the cellular system your phone is currently accessing. An even number indicates a wireline system and an odd number indicates a non-wireline system.


2. Press to view the System ID number. After six seconds, the display reverts to: Display SID .

Shortcut: Press

F

then press , then

2

,

7

to access the Display System Identification feature.

Display

SID

110

Digital Message Features

Some cellular carriers let you subscribe to a Digital

Messaging Service that allows you to use your cellular phone like a pager. Ask your cellular service provider about the availability of messaging in your area.


• work with your VoiceNote™ answering machine, memo recorder, and call recorder

• view your digital messages

• set reminder tones or vibrations to remind you of unread messages


Press to scroll up

Press to select


Note: Follow this symbol as a guide for using the

VoiceNote™ record button on the top of your phone.

Press

111

112

Road Map

Press


Start:

Phone

Book

Play

New

Answer

Machine

Timers Play

All

Digital

Message

*

Tone

Control

Play

Announc

To Main

Menu

Lock

Secure

Record

Announc

Phone

Options

Message

Ans Mac

On

Ans On

X Rings

Audible

Ans Mac

To Main

Menu

XX New

XXTotal

* This feature is not available in many areas. Contact your cellular service provider for availability.

VoiceNote™ Recorder

Your Motorola cellular phone contains a four minute digital voice recording chip that allows the phone to perform three different functions with the VoiceNote™ feature:

• Digital Answering Machine

The built-in answering machine allows you to leave an announcement message for callers and to record messages from them.

• Voice Memo feature

Leave yourself a reminder message in your own voice! (For example, “Pick up milk on the way home.”)

• Call Record feature

Record the incoming portion of a telephone conversation. (For example, record those directions to the customer office or the phone number given by information instead of writing them down.)

Note: Use of this function is subject to varying state and federal laws regarding privacy of phone conversations.

113

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Play

New

Press

3 times

Record

Announc

Recording an

Announcement

Your built-in answering machine can record a message in your voice to greet people who call your phone.


2. Press to select Record Announcement.

3. Listen for the beep. After the beep, record your message, speaking into the phone as you would normally.

4. When you have finished your message, press #.

The phone plays back the message you recorded.

114

Activating the Answering

Machine

Use this feature to choose whether your answering machine picks up unanswered calls or not.



F then

Press

5 times

Phone

Book

Message

Answer

Machine

Press

4 times

Play

New

Ans Mac

On

115

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Play

New

Press

5 times

Ans On

X Rings

Setting Number of Rings

The Ring Number Setting feature lets you specify how many rings it takes before the answering machine picks up the call.


2. Press to select Ans On X Rings .

3. Press 1 through 9 to indicate how many rings you would like.

The display shows the number of rings you have specified ( X ). You will see: # Rings X

4. Press to confirm this setting.

You will see: X Rings Set

116

Activating the Audible

Answering Machine

Sometimes you may want to be able to listen in while someone leaves a message on your answering machine. By setting this feature on, you can listen on the earpiece. If you decide you want to answer the call, simply press S or .


2. Press to toggle between audible and silent modes.

You will see: Audible Ans Mac or Silent Ans Mac

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Press

6 times

Play

New

Audible

Ans Mac

117

Recording a Voice Memo

Message

Tip: The symbol indicates the VoiceNote™ record button, located on the top of your phone by the antenna.

Your phone can store up to four minutes of messages including voice messages that you leave for yourself!

1. Press to begin recording. A tone sounds in the earpiece.

2. After the tone, leave your message by speaking normally into the phone.

3. When you are finished, press to stop recording.

You will see: on

The Message icon on the phone blinks to indicate that you have left a voice memo message.

Notes:

• You can also press F, 7 instead of to toggle recording on and off. This may be useful when you cannot reach the VoiceNote™ record button if it is in a car kit.

• If you have not recorded an answering machine message, the phone automatically takes you to the

Record Announcement menu the first time you try to use the Voice Memo feature. See “Recording an

Announcement” on page 114 for instructions.

118

Recording a Phone Call

You can also record the other people in a phone call using the VoiceNote™ Call Record feature. This is really convenient for saving things like phone numbers and directions!

1. Press when you are in a call to begin recording.

The other people on the line will hear a beep every

15 seconds to let them know they are being recorded.

2. When you want to stop recording the call, press .

You will see: on

The Message icon on the phone blinks to indicate that you have recorded a phone call.

Notes:

• You can also press

F, 7 instead of to toggle recording on and off. This may be useful when you cannot reach the VoiceNote™ button if it is in a car kit.

• If you have not recorded an answering machine message, the phone automatically takes you to the

Record Announcement menu the first time you try to use the Call Record feature. See “Recording an

Announcement” on page 114 for instructions.

• Use of this function is subject to varying state and federal laws regarding privacy of phone conversations.

119

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Play

New

Playing New Messages

This feature lets you play back only newly recorded

VoiceNote™ messages that you have not heard yet.


2. Press to select Play New.

3. Press # or * to scroll through your messages, or wait for the phone to play all messages in order.

After the last message has played you can delete all messages. You will see: CLR To Erase

4. Press C to delete all messages, or ...

Press

E to exit without deleting your messages.

120

Playing All Messages

You can also choose to play back all recorded VoiceNote™ messages regardless of whether they are new or not!


2. Press to select Play All Messages.

3. Press # or * to scroll through your messages, or wait for the phone to play all messages in order.

After the last message has played you can delete all messages. You will see: CLR To Erase

4. Press C to delete all messages, or ...

Press

E to exit without deleting your messages.

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Press

1 time

Play

New

Play

All

121

F then

Press

5 times

Phone

Book

Message

Answer

Machine

Press

1 time

Digital

Message

Viewing Digital Messages

If your cellular service provider offers Digital Messaging

Services, you can use this feature to view your messages.

The service lets your cellular phone receive messages like a pager. Calling line identification numbers (Caller ID)*, Voice

Mail notification*, and pager-like alphanumeric messages* are all stored for your review. Your phone saves up to 20 messages, and replaces the oldest messages with new messages as they are received.

Your cellular phone displays the number of new messages and the total number of messages you have received. You can view messages, immediately place calls, or store the numbers into your Phone Book’s memory. (See “Phone Book Basics” on page 46 for instructions on how to use the Phone Book.)

XX New

XXTotal

Displaying Your Messages


2. Press or

to scroll through your messages.

Each message is numbered from 01 to 20 , with a label such as: 01 New (any new message) or 01 CID

(previously viewed Caller ID message).

* This is a network and subscription-dependent feature that is not available in all areas. Contact your cellular service provider for availability.

122

The label is displayed for several seconds, followed by the message. For example, a previously viewed Caller ID number stored in the first memory location is displayed as:

01

CID

followed by

1847

5551212

Note: Some calls do not include Caller ID information. If you receive a call that does not include this information, you will see: Private or No ID

Shortcut: Press

R

then press and hold

R

and continue with step 2 if you have messages.

Dialing the Displayed Number

Press and hold or press

S to call the displayed number.

Storing the Displayed Number

Press s to begin storing the displayed number into memory. Continue storing with step 3 as described in “Storing Numbers” on page 48.

Deleting a Message

To erase the message in the display, press and hold

C until you see

: Deleted

123

124

Deleting All Messages

1. Select the Digital Message feature.

You will see: XX New XXTotal

2. Press and hold C until you see:

Erase All?

3. Press or press

C to confirm that you want to delete all of your messages.

You will see: Msgs Erased

Shortcut: Press

R

then press and hold

R

to access the Digital Message feature.

Activating the Digital

Message Reminder

A tone notifies you when your Motorola cellular phone receives an incoming digital message. If your phone is set to vibrate using the VibraCall™ alert function (see “Setting

Call Alert” on page 79), your phone vibrates to notify you of an incoming digital message.

If you are unable to immediately view a new message, you can set reminder tones or vibrations, which repeat every two minutes. These reminders are helpful in jogging your memory if you are either busy at the time when your digital message arrives or are temporarily away from your phone.



Note: The Digital Message Reminder feature is only available if your cellular service provider offers Digital

Messaging Services. Contact your service provider for availability

F then

Press

2 times

Phone

Book

Tone

Control

Ring Or

Vib Sel

Press

4 times

Remind

Msg Off

125

Reference Information

Accessory Options

An exciting line of Motorola cellular phone accessories, now smaller and lighter than ever, can enhance and personalize your cellular experience.

Batteries

Lithium Ion batteries are different from other batteries in that you can leave them in the charger. Nickel Metal Hydride batteries should not be left in the charger for more than 24 hours.

If your cellular phone is quickly becoming your companion, an optional auxiliary battery will give your phone a boost.

Auxiliary batteries attach to the back of your phone and provide extra talk time in addition to your main battery.

126

Cigarette Lighter Adapter

With the cigarette lighter adapter, you can power your phone and charge your phone’s battery directly from your vehicle’s cigarette lighter! In some cars, the engine must be running in order for the cigarette lighter to operate.

Note: Check the laws and regulations on the use of wireless telephones and their accessories in the areas where you drive.

Always obey them. The use of these devices may be prohibited or restricted in certain areas.

Desktop Charger (AC Adapter required)

The desktop charger is designed for optimal performance and compatibility with Motorola’s new generation of cellular telephones. The desktop charger’s front pocket can charge batteries while they are attached to your phone, and the rear pocket can charge batteries separately. Now it is easy to rotate batteries and always have a charged spare.

127

128

Holster

Your Motorola cellular phone is so small and light, it is positively wearable. Slip it in and clip it on—for the ultimate in high-tech fashion.

Note: The holster is designed for your convenience and is not meant to secure your phone under all circumstances.

Headset

The convenient headset provides both an earphone and microphone in one small piece for simple hands-free and private telephone conversations. The headset plugs directly into the jack on the top of your phone, so that you can wear your phone and move freely.

When you use the headset, your phone automatically enables the Multiple Key Answer feature so you can answer calls with any key on the side of your phone. (See “Setting Multiple Key

Answer” on page 104.) You can even use the Smart Button to end calls. (See “Using the Smart Button” on page 38.) You never need to open your phone to take a call.

PCMCIA Modems

These compact modems are made for mobility, with cable attachments that plug directly into the bottom of your

Motorola cellular phone. They support fax, e-mail and data transmission. The PCMCIA modem works with data devices using a standard PCMCIA Type II slot.

Hands-Free Vehicle Kit

The optional Hands-Free Kit gives you the convenience of hands-free, speaker phone operation while in your car. Full duplex operation lets you simultaneously talk and listen, so both parties can interrupt each other for a normal sounding conversation. Other features include the ability to mute your stereo when making a call, and an auxiliary alert when you are away from the vehicle.

The Hands-Free Kit automatically powers your phone and charges its battery (even when your car’s engine is turned off). The Hands-Free Kit also includes an external antenna that can improve your signal reception and boost performance.



129

3-Watt Vehicular Kit

This 3-Watt Vehicular Kit delivers a full 3 watts of power to increase performance, especially in fringe areas.

Vehicular Kit components:

• Hands-Free remote box

• External microphone

• External speaker

• Phone cradle

• Optional smart handset

• Optional 3-watt booster

• External antenna (not included)

Booster

Glass Mount

Antenna

Microphone

Speaker

130

Hands-Free

Remote Box

Phone Cradle



We recommend you use Motorola original batteries and accessories. Under its limited cellular telephone warranty,

Motorola specifically disclaims any responsibility for damage caused by the use of portable cellular telephone accessories not manufactured by Motorola.

For details on the complete line of Motorola cellular accessories, see your dealer or visit our Web site at: http://www.mot.com/

131

132

Troubleshooting

Q.

I pressed the Power key, but nothing happened. What is wrong with my phone?

A.

Check that you have installed a battery and that the battery is charged. See “Battery Information” on pages

23-36 for more information on batteries for your

Motorola cellular phone.

Q.

My battery did not last as long as I expected. What can I do to extend battery life?

A.

Keep in mind that your battery’s talk time and standby time are a relative measurement of the battery’s capacity.

The more you talk on the phone, the less standby time you will have and vice versa.

To get the most from your battery, make sure it is fully charged. To charge the battery to 100% of its capacity, leave it in the charger for an extra hour after the charger’s light turns green.

Certain features can demand power from your battery and reduce battery life. If you have selected the Auto

Display Timer feature (see “Displaying the Individual

Call Timer Automatically” on page 75), the display uses battery power to remain active during each call. Turn this feature off to conserve battery energy.

Exposing your battery to extreme temperatures—below

-10°C (14°F) or above 45°C (113°F)—can shorten battery life. Batteries are especially sensitive to high

temperature extremes. As a good rule of thumb, always take your phone with you when you leave your car.

Q.

Every time I turn on my phone it beeps and the display reads Invalid Battery . What is going on?

A.

Your Motorola cellular phone implements the Motorola

Expert Performance (E•P™) charging system. This system allows the charger that is built into the phone to communicate with the battery. Based on this communication, the charger can tailor the charging cycle to optimize performance. If your charging system is not communicating with the battery, your phone will beep and display the Invalid Battery message each time you power up the phone or replace the battery.

Your phone is alerting you that you do not have charging capabilities with this battery.

There are several reasons why your battery might not be communicating. The most likely reason is that the battery you purchased is not a Motorola original battery and it does not have the appropriate communication technology built into it. All Motorola batteries are built with the appropriate communication technology. We recommend that you use Motorola original batteries and accessories and that you store your batteries in the protective battery cover that comes with the phone.

Q.

The display says Locked . How do I unlock my phone?

A.

Try entering the last three digits of your cellular number.

If that does not work, try using the factory preset lock

133

134 code: 123. If all else fails, call your cellular service provider (the company that sends you your monthly cellular bill) for assistance. (See “Security Features” on page 81 for more information on your phone’s security features.)

Q.

I tried to place a call and received a fast busy signal.

A.

This sound means that the cellular system did not process your call. For example, the cellular system may be overloaded with call attempts. To redial the number, press

S

before ending your call attempt, or press

E and try the call again later. (See “Redialing Numbers” on page 42 for more information on redialing.)

Q.

I tried to place a call and received an alternating high/ low tone.

A.

This sound means your call did not reach the cellular system. Most likely, you dialed the number too soon after turning the phone on. Wait until the red NS light stops blinking before placing a call.

An alternating tone may also indicate that your phone’s signal is blocked. Make sure the antenna is fully extended and move clear of any obstructions, like bridges, parking garages, tall buildings, etc.

Q.

My phone started beeping and the display says: Call

01 . What happened?

A.

This sound means that someone tried to call you while you were in an area where the cellular signal was weak.

Press C to clear your display, extend your phone’s

antenna and avoid obstructions like tunnels, parking garages and tall buildings whenever possible.

Q.

I am in my home service area but the Roam indicator is flashing.

A.

If your phone is programmed with more than one telephone number, you might not have switched to the number appropriate for your current location. Press

R

,

#

, s

to switch to your other number. (See

“Using Two Cellular Phone Numbers” on page 95 for more information on multiple phone numbers.)

Q.

I tried to read my Voice Mail (or use a paging service or a calling card) but nothing happened.

A.

You have probably turned off the Scratchpad tones. Place your call, enter the access numbers when prompted by the recording, then press R , S . To avoid this problem in the future, see “Setting Scratchpad Tones” on page 80 for instructions on how to turn the

Scratchpad tones on.

Q.

I tried to place a calling card call using the internal

Phone Book, but it did not work.

A.

You may have turned off your Scratchpad tones. See

“Setting Scratchpad Tones” on page 80 for instructions on how to turn the Scratchpad tones on.

Check that you stored your calling card information in the correct order, and make sure the groups of numbers are separated by pauses. The easiest way to correct the sequence may be to start over, enter your calling card

135

136 information again and store it in the same memory location as your previous attempt. See “Storing Calling

Card Information” on page 64 for instructions on how to enter calling card information.

Also keep in mind that when using your calling card, you must enter the number you are calling with the area code, but without the initial 1. Check with your long distance carrier for details on using your calling card.

Q.

My phone was stolen. What should I report and to whom?

A.

Report a stolen phone to the police and to your cellular service provider (the company that sends you your monthly cellular service bills).

Glossary

A

AC adapter An accessory device that allows you to power your phone and charge any attached batteries from a wall outlet.

AMPS (Advanced Mobile Phone System) A cellular technology that operates on 832 channels.

accessory connector A socket on the bottom of the phone where you can attach accessories such as an AC adapter, battery charger, cigarette lighter adapter or data accessories.

air-time The amount of time you spend using a cellular system, between the time you successfully place a call and the termination of that call.

antenna The device on your phone that sends and receives cellular signals.

C callback message A numeric message left by a caller, usually the caller’s current phone number.

cellular carrier One of the two competing organizations in a given geographic area that owns and operates a cellular system.

cellular service provider A company affiliated with a cellular carrier that provides cellular service to its customers.

137

138 cellular signal The radio waves that carry information between your cellular phone and the cellular system.

cellular system The cellular equipment in a given geographic area that relays signals to and from individual cellular telephones and the landline telephone system.

cigarette lighter adapter An accessory device that allows you to power your phone and charge any attached batteries from a car’s cigarette lighter.

D

DTMF tones See Dual Tone Multi-Frequency tones.

default A feature’s original setting as pre-programmed in the factory.

digital message See callback message.

Dual Tone Multi-Frequency tones The tones that your telephone transmits when you press a key on the keypad. These tones are used to access automated calling systems such as Voice Mail, paging services, and banking-by-phone systems. These tones will also be heard by the party on the other line if you use the

Scratchpad while a call is in progress. Synonymous with

Scratchpad tones.

F fringe area The outermost range of a cellular system where cellular signals are weak.

function keys The seven keys in the top and bottom rows of your phone’s keypad used to perform specific tasks.

H home system The local cellular system where you obtain your cellular service.

home type system A cellular system of the same type as your local cellular system. See also non-home type system, and system type.

I indicator A light on your phone that gives you information about your phone’s status.

icon A symbol at the bottom of the phone’s display that corresponds to a main feature menu. See also main menu.

L landline The telephone system used for conventional office and home phones.

Lithium Ion (LiIon) A battery technology used in personal cellular telephones. Lithium Ion batteries provide more energy capacity than Nickel Metal Hydride batteries of the same weight.

lock To prevent unauthorized access to the cellular telephone.

139

140 lock code A three-digit code used to unlock a locked phone.

M memory location A space in the internal Phone Book where you can store a telephone number and a name.

Each of the Phone Book’s 99 memory locations

(numbered 01-99) can hold up to 32 digits and 14 letters.

main menu The first level of the menu system hierarchy, which contains the six main feature menus: Phone

Book, Call Timers, Tone Controls, Lock/Security, Phone

Options, Digital Message.

menu feature Any feature that can be accessed through the menu system.

menu system The hierarchical arrangement of your phone’s features that allows for quick, intuitive feature access.

modem An electronic device that allows a computer to send and receive data through a telephone line.

N

NAMPS (Narrow-Band AMPS) A high-capacity cellular technology, available in some areas, that operates on

2,412 channels. See also AMPS.

name directory An alphabetical list of the names and telephone numbers you have stored into your phone’s internal Phone Book.

Nickel Metal Hydride (NiMH) A battery technology used in personal cellular telephone batteries.

non-home type system A system type different from your home system. See also home type system, and system type.

non-wireline See system type.

Number Character A special character used in a calling card sequence to save a place for the telephone number you will call when you use your calling card.

P

PIN See Personal Identification Number.

pause A special character that tells your phone to “pause” or wait for your input before sending a group of numbers stored in memory.

Personal Identification Number (PIN) A private numeric “password” that allows you to access some cellular systems or automated systems such as telephone banking, while preventing unauthorized use.

prompt A message requesting input.

R road map The visual representation of your phone’s menu system provided throughout this manual.

roam To use a cellular system outside of your home system, usually when you travel beyond the range of your home system.

141

142

S

Scratchpad A memory feature that automatically remembers the most recent number entered into the keypad.

Scratchpad tones The tones that your telephone transmits when you press a key on the keypad. These tones are used to access automated calling systems such as Voice Mail, paging services, banking-by-phone, etc.

These tones will also be heard by the party on the other line if you use the Scratchpad while a call is in progress.

Synonymous with Dual Tone Multi-Frequency tones.

scroll To move backward or forward through a list; for example: to move backward or forward through the menu system or the name directory using either the side volume keys or the

< and > keys.

security code A six-digit code used to access sensitive features in the Secure Options sub-menu of the

Lock/Security menu.

SID See System Identification.

signal See cellular signal.

Smart Button The middle key on the left side of your phone, used to access the Phone Book’s name directory, send calls, end calls, enter the menu system, select features, and toggle features on and off. This manual uses the symbol to indicate the Smart Button.

Speed Dial To use this feature, enter the two-digit location of your number, 01-99, then press and hold the

Smart Button or press S and the call is placed.

standby time The length of time that your phone’s battery typically retains power if your phone is left on but is not in use.

status indicator See indicator.

sub-menu A secondary level of your phone’s menu system hierarchy.

System Identification A five-digit number that identifies your home cellular system. An even number indicates a wireline system and an odd number indicates a non-wireline system. See also system type.

system mode A setting that determines the system type that your cellular phone will access.

system type A designation that indicates one of the two competing cellular carriers in a given geographic area.

The non-wireline carrier operates on the “A” block of cellular frequencies, and the wireline carrier operates on the “B” block of cellular frequencies.

T talk time The length of time that your phone’s battery typically retains power if your phone is in constant call use.

toggle To switch between two possible options; for example: on versus off.

Turbo Dial™ function To use this feature, press and hold a keypad number key

1 through 9 and your call is placed.

143

144

V

VoiceNote™ Recorder A feature which allows you to record incoming messages, voice memos or incoming portions of calls. This manual uses the symbol to indicate the VoiceNote™ record button, located on the top of your phone by the antenna.

VOX See Voice Operated Transmission.

VibraCall™ alert function A silent vibration mode that discreetly alerts you to incoming calls.

Voice Operated Transmission A battery-saving feature that lets your phone reduce its power usage when you are not talking during a call. Not all cellular systems support this feature.

volume keys Located on the left side of your phone, the upper and lower volume keys are used to adjust ringer and keypad volume. They also scroll within the menu system and the name directory. This manual uses the and symbols to indicate the upper and lower volume keys respectively.

W wireline See system type.

Index

A

AC adapter 16 Ð 17 , 32 Ð 33 , 137 accessories 16 Ð 17 , 126 Ð 131 batteries 16 , 126 , 133 cigarette lighter adapter 17 , 127 desktop charger 17 , 127 hands-free kit 129 headset 17 , 128 holster 17 , 128 modem 129

3-watt vehicular kit 130 accessory connector 21 , 137 aircraft phone use in 14 air-time 137

AMPS 137 answering machine 114 Ð 117 activating 115 audible answer 117 number of rings, setting 116 playing all messages 121 playing new messages 120 recording an announcement 114 antenna 11 , 19 , 137

Audible Call Timer 76 auto answer 106

Automatic Redial 42 auxiliary battery 16 , 29 Ð 30 installing 30 removing 30 standby time 24 talk time 24

B batteries 23 Ð 36 , 126 auxiliary battery 16 , 29 Ð 30 installing 30 removing 30 standby time 24 talk time 24 charging 32 Ð 35 , 132 , 133 charge times 34 checking battery level 31 conserving battery power 108 ,

132 Ð 133 covers 24 Ð 26 disposing of 36

Expert Performance charging system 35 , 133 extended talk time 109 extending battery life 132 Ð 133

Invalid Battery message 35 ,

133

145

batteries (continued) main battery 16 , 27 Ð 28 installing 27 removing 28 standby time 23 Ð 24 talk time 23 Ð 24 safety considerations 11 standby time 23 Ð 24 , 132 , 143 storing 36 talk time 23 Ð 24 , 132 , 143 and temperature extremes 36 ,

132 Ð 133

Battery Level indicator 20 , 31 busy signal fast 42 , 134 ordinary 43

C call alert 79 call reception disabling 102 call recording 119 playing all messages 121 playing new messages 120 call time displaying automatically 75

Call Timers 70 Ð 76 audible 76 automatic display 75 cumulative 73 individual 72

146

Call Timers (continued) menu features 70 Ð 76 menu road map 71 resettable 72 resetting 74 callback message 137

Caller ID 105 , 122 Ð 125 calling card placing a call 66 placing a calling card call

135 Ð 136 storing information 64 Ð 65 calling line identification. See Caller

ID calls ending 40 placing 39 receiving 40 chargers desktop charger 17 , 33 Ð 34 , 127 internal charger 32 cigarette lighter adapter 17 , 32 ,

127 , 138

Clear key 21

CLR. See Clear key

Cumulative Call Timer 73

D desktop charger 17 , 33 Ð 34 , 127

Digital Message 111 Ð 125 answering machine 114 Ð 117 call record 119 deleting digital messages 123 dialing the displayed number 123 displaying digital messages

122 Ð 123 menu features 111 Ð 125 menu road map 112 message reminder, activating 125 storing the displayed number 123 voice memo 118 discreet vibration mode setting 45 , 79 display 20

A1 message in 95

A2 message in 95

Armed message in 83

B1 message in 95

B2 message in 95

Call 01 message in 134

Invalid Battery message in

35 , 133

Locked message in 84 , 133 setting display preference 69

E earpiece 19 adjusting volume 44 editing names and numbers 67 Ð 68

Electronic Lock 84

Emergency Call 85

END key 21 ending calls 40 erasing an entry from the Phone Book

51

Expert Performance charging system

35 , 133 extended talk time 109

F

FCN. See Function key

Function key 21 function keys 21 , 139

H hands-free auto mute 107 hands-free kit 129 hands-free operation 103 , 129 headset 17 , 20 , 128 hearing aids 13 holster 17 , 38 , 128

I icons 20

In Use indicator 19

Individual Call Timer 72 internal charger 32

IU. See In Use indicator

147

K keypad tones adjusting volume 44 silencing 80

L language selecting 99 lock code 87 Ð 88 changing 88 preprogrammed 86 viewing 87

Lock/Security electronic lock 84 emergency call 85 master clear 92 master reset 91 menu features 81 Ð 92 menu road map 82 service level 89 theft alarm 83 locking the phone automatically 84 manually 84

See also unlocking the phone

M main battery 16 , 27 Ð 28 installing 27 removing 28

148 main battery (continued) standby time 23 Ð 24 talk time 23 Ð 24

Master Clear 92

Master Reset 91 menu clearing all user settings 92 navigating the menu system

54 Ð 57 resetting all options 91 road maps 56 Ð 57 menu icons 20 , 54 microphone 21 muting 45 modem 129 multiple key answer 104

N

NAMPS 140

No Service indicator 19 , 134 non-wireline defined 95 home system type identifier 95 and system mode settings 97

See also wireline

NS. See No Service indicator

Number Preference 69

O open to answer 105

P pacemakers 12 Ð 13

Pause Dialing 62 Ð 63 placing a call 63 storing access numbers 62 Ð 63

PCMCIA modem 129

Phone Book 46 Ð 53 , 58 Ð 69 editing names and numbers

67 Ð 68 erasing an entry 51 menu features 58 Ð 69 menu road map 59 recalling by memory location 51 ,

60 recalling by name 50 , 60 storing a number during a call 53 storing names 49 , 61 storing numbers 48 , 61 phone number changing 96 current active 95 home system 95 two phone numbers, using 95 Ð 96 viewing your own 41 , 69

Phone Options 93 Ð 110 auto answer 106 call reception, disabling 102 changing active phone number

96 extended talk time 109 feature review 99

Phone Options (continued) hands-free auto mute 107 hands-free operation 103 language selection 99 menu features 93 Ð 110 menu road map 94 multiple key answer 104 open to answer 105

PIN code, setting 100

System ID number, displaying 110 system mode, selecting 96 voice operated transmission 108

PIN code 100 Ð 101 , 141 defined 100 , 141 sending with call 101 setting 100 storing 101 placing a calling card call 66 ,

135 Ð 136 placing calls 39

PLAY key 21

Power key 21 , 132 power source switching 36

Power/Status indicator 20 , 42

PWR. See Power key

Q quick change replacement 36

149

R

RCL. See Recall key

Recall key 21 recalling from the Phone Book by memory location 51 by name 50 receiving calls 40 recorded calls playing back all 121 playing back new 120 redialing 42 Ð 44

Automatic Redial 42 last ten numbers 44

Reset Timer 74

Resettable Call Timer 72 resetting the Call Timer 74 ringer adjusting volume 44 selecting style 79 silencing 79

RM. See Roam indicator road maps described 56 Ð 57

Roam indicator 19 flashing 135

S safety 10 Ð 15

Scratchpad 53 , 80 , 135 , 138 , 142 silencing tones 80 security code 86 Ð 92 , 142 determining current 86 preprogrammed 86

Security features 81 Ð 92 electronic lock 84 emergency call 85 lock code 87 Ð 88 preprogrammed 86 master clear 92 master reset 91 security code 86 Ð 92 , 142 preprogrammed 86 service level 89 theft alarm 83

Send key 21 service level 89 Ð 90 options 90 setting 89

SID. See System ID number

Signal Strength indicator 19

Smart Button 21 , 38 , 142

SND. See Send key

Speed Dial 52 standby time 132 , 143 status indicators 19 Ð 20

STO. See Store key

Store key 21 storing access numbers 62 Ð 63 storing calling card information

64 Ð 65

150

storing in the Phone Book 48 Ð 49 ,

53 , 61 switching power sources 36

System ID number defined 98 display current 110 programming 98 system mode selecting 96 settings 97 Ð 98

T talk time 132 , 143 telephone accessories 16 Ð 17 adjusting volume 44 alternating tone 134 auto answer 106 busy signal 42 , 134 call reception, disabling 102 efficient operation 11 ending a call 40 features 8 Ð 9 reviewing 99 hands-free auto mute 107 hands-free operation 103 holding 38 multiple key answer 104 open to answer 105 placing a call 39

Power/Status indicator 42 telephone (continued) receiving calls 40 recording a call 119 redialing 42 Ð 44 reporting a stolen phone 136 safety 10 Ð 15 self-test on power up 37 standby mode 37 status indicators 19 Ð 20 turning off 37 turning on 37 viewing your number 41 , 69 wearing 38

Theft Alarm 83

Emergency Call and 85 unlocking 83

3-watt vehicular kit 130

Timers 70 Ð 76 timing a call 72

Tone Controls 77 Ð 80 call alert mode 79 keypad 80 menu features 77 Ð 80 menu road map 78 ringer style, setting 79 scratchpad 80 tracking phone usage 72 , 74 troubleshooting 132 Ð 136

Turbo Dial 52 , 85

151

U

Unanswered Call indicator 41 unlocking the phone 84 , 133

See also locking the phone

V vehicular kit 130

VibraCall function and digital message reminder 125 setting 45 , 79 vibration mode setting 45 , 79

Voice Mail 122 , 135 voice memo playing all messages 121 playing new messages 120 recording a message 118 voice operated transmission 108

VoiceNote recorder 20 , 113 Ð 121 record button 20 volume keys 21 , 44 volume, adjusting 44

VOX. See voice operated transmission

W wireline defined 95 home system type identifier 95 and system mode settings 97

See also non-wireline

152

Patent Information

4649543

D288683

4654655

D289156

4662691

4667333

4668917

4670747

4672502

4680787

4681476

4683585

4692726

4704588

D292578

4706036

4602218

D284759

D285439

4616314

4617520

D286778

4626309

4628529

4629829

4630304

4630305

4633141

4636593

4636741

D288432

4648125

D292920

4710724

4711361

4715063

4716319

4716391

4723305

D294257

4727306

4727583

Manufactured under one or more of the following U.S. patents:

D270835

D271491

Re.31470

4431977

4434461

4455534

4462098

D275951

4484153

4485486

4486624

D276809

4491972

D277667

4504834

D278708

4121218

4138681

4193036

4254382

4302845

4312074

4327319

4329666

4369516

4369522

4378603

4390963

D269873

4398265

4400584

4400585

4523155

4546329

4550426

4551696

4564821

D282169

4571595

4573017

4574243

4585957

D297734

D297735

4777564

Re.32768

D299136

4797929

4798975

4800348

4802236

4809356

4811377

4811404

4827226

4827507

4829274

4837534

4730195

4734635

4736277

4737976

4740794

4741018

4741034

4742562

D295627

4746242

D295973

D295975

4751737

D296187

4761621

4764737

D301476

4843621

4845772

D302015

4851966

4868576

4870686

D303656

4876552

4879533

4963812

4963843

4965537

4972355

4972432

4972455

4975808

4984290

D314173

D315330

D315346

D315543

D315559

D315565

5004992

D315907

D305427

4896124

4897873

D305717

4904549

4905288

4905301

D306293

D306441

D306594

4912602

4918732

4922178

4945570

4954796

4959851

5008925

D316417

D316859

5017856

5018188

5020091

5020092

5020093

5028083

5028859

D325028

D325583

5109536

D325915

5113436

5117450

5121047

5122480

5122722

D327061

5128834

D328302

5142551

5142696

5146620

5148471

5029044

5029233

5031028

5036532

5053924

5057762

D320780

5059885

5060294

D322783

D322955

5081674

5083304

D324024

D324388

5095503

5148473

5148961

5150359

5150384

5152006

5157693

5163159

5164652

5166596

5175759

153

5230007

5230093

5233633

5235492

5237257

5239127

5241545

5241548

5241650

5241693

5242767

D339582

5249302

5251331

5175874

D332261

5182749

D332785

5185566

5187809

5193223

5195106

5195108

5201069

5204977

5210793

5214675

5222104

5222251

D337332

Other patents pending.
