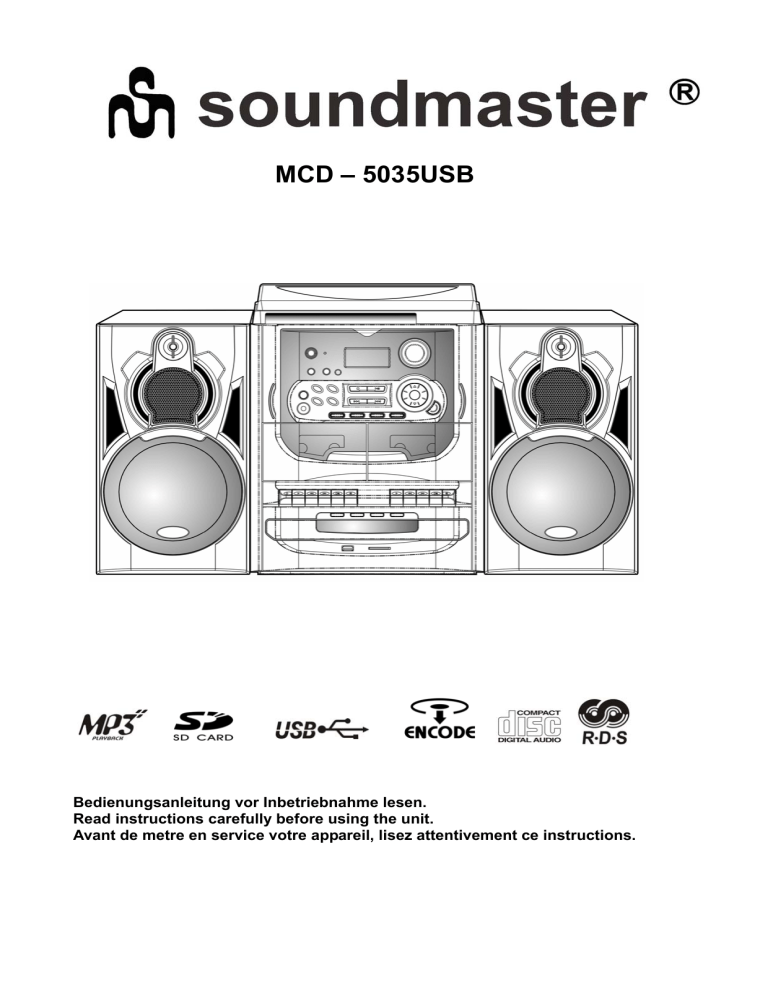

MCD – 5035USB

MCD – 5035USB

Bedienungsanleitung vor Inbetriebnahme lesen.

Read instructions carefully before using the unit.

Avant de metre en service votre appareil, lisez attentivement ce instructions.

LOCATION OF CONTROLS

ENGLISH

2) LCD DISPLAY 18) CD DOOR

5) POWER ON/STANDBY BUTTON

ADJUST

8)

MEMORY BUTTON

10) DISC CHANGE BUTTON

12) 3.5 MM HEADPHONE JACK

21) CD PLAY / PAUSE BUTTON

22) VOLUME UP-DOWN BUTTON

24)

SKIP / SEARCH / TUNING DOWN BUTTON

28) CD DOOR OPEN/CLOSE BUTTON

CONNECTION

1. CONNECT THE POWER CORD (37) TO AC OUTLET AND SWITCH ON THE MAIN POWER SWITCH AT THE

BACK OF UNIT.

2. WHEN YOU FIRST PLUG THE UNIT INTO THE MAINS, THE UNIT WILL GO INTO STANDBY MODE.

3. CONNECT THE SPEAKER WIRE TO THE SPEAKER TERMINAL LOCATED ON THE REAR SIDE OF THE UNIT.

4. TURN ON THE POWER (5) AND SELECT “CD“ FUNCTION. IF THE LCD DISPLAY (2) IS ON WITH

BACKLIGHTING, IT MEANS THE POWER SUPPLY IS NORMAL. NOW THE SYSTEM IS READY TO PLAY THE

MUSIC.

ENGLISH

SETTING THE CLOCK

1. SET UNIT IN STANDBY MODE.

2. PRESS THE “TIMER/CLK-ADJ” BUTTON (6), THE DISPLAY Will SHOW “ 12H “ OR “ 24H “, THEN PRESS THE

PRE-UP (13) OR PRE DN (11) BUTTON TO SELECT THE APPROPIATED HOUR FORMAT (12 HOUR OR 24

HOUR). PRESS THE “TIMER/CLK-ADJ” BUTTON (6) TO CONFIRM.

3. PRESS PRE-UP (13) OR PRE DN (11) BUTTON TO SET THE CORRECT HOUR.

(24)

OR SKIP

(23)

BUTTON TO SET THE CORRECT MINUTES.

5. PRESS ”TIMER/CLK-ADJ” BUTTON (6)TO STORE THE CORRECT HOUR.

¾

THE PRE-SET TIME WILL BE RE-SET COMPLETELY IF DIS-CONNECTING THE MAIN POWER

SUPPLY. YOU ARE RECOMMENDED TO SWITCH THE SYSTEM INTO STANDBY MODE FOR

CONVENIENCE USAGE.

LISTENING TO RADIO

MANUAL TUNING

1. PRESS “TUNER/BAND” BUTTON (14) AND SELECT THE DESIRED BAND (AM OR FM).

2. TUNE TO THE REQUIRED STATION BY PRESSING THE TUNING “+” OR “-” BUTTON (23,24).

3. ADJUST VOLUME CONTROLS (22) TO THE DESIRED VOLUME LEVEL.

AUTO TUNING

1. PRESS ”TUNER/BAND” BUTTON (14) AND SELECT THE DESIRED BAND (AM OR FM).

2. PRESS AND HOLD THE TUNING “+” OR “-” BUTTON (23,24) FOR 1-2 SECONDS AND THEN RELEASE

3. THE UNIT WILL START SEEKING AUTOMATICALLY AND STOP UNTIL A RADIO STATION IS REACHED.

4. REPEAT STEP 3 & 4 UNTIL THE DESIRED RADIO STATION IS BEING REACHED.

5. ADJUST VOLUME CONTROLS (22) TO THE DESIRED VOLUME LEVEL.

PRESET STATIONS

YOU CAN STORE UP TO TOTAL OF 40 RADIO STATIONS (30 FM,10AM) IN THE MEMORY.

1. SET TO RADIO MODE

2. TURN TO THE DESIRED RADIO STATION BY “ MANUAL” OR “AUTO” TUNING METHOD.

3. PRESS “TIMER/CLK-ADJ” BUTTON (6) TO ENABLE PROGRAM STATE.

4. PRESS “ PRE-UP “ OR “ PRE-DN” BUTTON (11,13) TO SELECT THE DESIRED STATION MEMORY FOR

STORAGE.

5. PRESS “TIMER/CLK-ADJ” BUTTON (6) AGAIN TO CONFIRM THE SETTING.

6. REPEAT STEP 2 TO 5 TO STORE OTHER STATIONS.

7. PRESS “PRE-UP” OR “ PRE-DN” BUTTON (11,13) TO SELECT THE PRESET STATIONS IN ORDER.

8. TO RETURN NORMAL TUNER MODE, LEAVE KEYS FREE.

¾

THE PRE-SET MEMORIES WILL BE CANCELLED COMPLETELY IF SWITCHING OFF THE MAIN POWER

BUTTON ON SYSTEM. YOU ARE RECOMMENDED TO SWITCH THE SYSTEM INTO STANDBY MODE FOR

CONVENIENCE USAGE.

¾

THERE ARE 5 SECONDS FOR PROGRAM STATE, AFTER 5 SEC. THIS STATE WOULD RELEASE TO

NORMAL TUNER MODE AUTOMATICALLY.

¾

YOU CAN OVERWRITE A PRESENT STATION BY STORING ANOTHER FREQUENCY IN ITS PLACE.

RADIO DATA SYSTEM (RDS)

THIS IS THE FEATURES TO DISPLAY THE INFROMATION WHICH RELEASED FROM THE RADIO BROADCASE:-

RDS MODE : PRESS TO ACTIVE THE RDS FUNCTION AND THE PROGRAM SERVICE STATION NAME (PS) IS

BEING DISPLAYED.

RDS SEARCH : PRESS TO SELECT THE PROGRAM TYPE YOU WANT TO LISTEN, THEN PRESS THE TUNING +/-

BUTTON TO START RDS SEARCHING AND THE UNIT CAN AUTOMATICALLY DETECT A SUITABLE STATION,

WHICH IS CURRENTLY BROADCASTING WITH PROGRAM TYPE IDENTIFICATION (PTY) SIGNAL.

REMARK : NO “ PS “ NOR “ PTY “ APPEARS IF NO SIGNAL IS SENT.

PROGRAMMES ARE CLASSIFIED AS FOLLOWS:

NEWS, AFFAIRS (current affairs), INFO (information), SPORT EDUCATE (education), DRAMA, CULTURE, SCIENCE,

VARIED, POP M (pop music), ROCK M (rock music), MOR M (middle of the road music), LIGHT M (light classical),

CLASSICS (serious classical), OTHER M (other music).

ENGLISH

NOTES

PROGRAMME SERVICE STATION NAME (PS)

THIS IS A NAME CONSISTING OF LESS THAN 8 ALPHANUMERIC CHARACTERS, WHICH IS DISPLAYED IN

ORDER TO INFORM LISTENERS ABOUT THE PROGRAMME SERVICE BEING BROADCASTBY THE RADIO

STATION. EXAMPLE: BBC 1

PROGRAMME TYPE IDENTIFICATION (PTY)

PTY ALLOWS SELECTION BY ONE OF 15 PROGRAMME TYPES RATHER THAN BY A STATION.

RADIO TEXT (TEXT)

INFORMATION SUCH AS THE CAST LIST OF A PLAY OR THE TITLE OF A SONG IS SHOWN ON THE DISPLAY.

CLOCK-TIMER (CT)

CT FUNCTION PROVIDES AN ACCURATE CLOCK SIGNAL.

IF THE CLOCK OF THE SYSTEM IS NOT ADJUSTED AFTER PLUG IN, WHEN A RDS CLOCK IS RECEIVED, THE

SYSTEM WILL AUTOMATICALLY UPDATE THE SYSTEM CLOCK TO THE RECEIVED RDS CLOCK TIME. THE

SYSTEM CLOCK IS NOW ADJUSTED.

FM & FM-STEREO RECEPTION (BY REMOTE HANDSET)

z PRESS THE “ FM-ST/MONO ” BUTTON AT REMOTE HANDSET REPEATEDLY, THE FM PROGRAMS ARE

RECEIVING IN MONO AND STEREO MODE REPEATEDLY. IN PARTICULAR WHEN STEREO SIGNALS ARE

WEAK. IT IS PREFERABLE TO RECEIVE THE PROGRAM IN MONO. z IF STEREO SIGNAL IS BEING RECEIVED, THE “ST” INDICATOR “

SHOW FM STEREO PROGRAM IS NOW RECEIVING.

” WILL APPEAR ON LCD (2) TO

HINTS FOR BEST RECEPTION:-

- AM : THE RECEIVER HAS A BUILD-IN AM BAR ANTENNA. IF AM RECEPTION IS WEAK, SLIGHT ROTATE OR

RE-POSITIONING OF THE UNIT WILL USUALLY IMPROVE THE AM RECEPTION.

- FM : THE RECEIVER HAS A BUILD-IN FM WIRE ANTENNA (36) HANGING AT THE REAR CABINET. THIS WIRE

SHOULD BE TOTALLY UNRAVELED AND EXTENDED FOR THE BEST RECEPTION.

PHONO

NOTED:

-

REMOVE THE STYLUS PROTECTOR.

- BE SURE THAT THE TONE ARM IS BEING DETACHED FROM THE TONE ARM

REST BEFORE OPERATING AND RE-SECURED AGAIN AFTERWARDS.

1. SELECT TO “ PHONO ” FUNCTION FROM FUNCTION SELECTOR (14)

2. SET THE SPEED SELECTOR TO THE PROPER POSITION DEPENDING ON THE RECORD TO BE PLAYED.

3. PLACE THE RECORD ON THE PLATTER (USE THE SPINDLE ADAPTOR IF REQUIRED).

4. LIFT THE TONE ARM FROM THE REST AND SLOWLY MOVE IT TO THE RECORD SIDE.

THE PLATTER WILL START TO ROTATE.

5. PLACE THE TONE ARM TO THE DESIRED POSITION OF THE RECORD.

6. ADJUST THE VOLUME TO THE DESIRED LEVEL.

7. AT THE END OF RECORD, THE PLATTER WILL AUTOMATICALLY STOP ROTATING. LIFT

THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST.

8. TO STOP MANUALLY, LIFT THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST.

REMARK : AS SOME KIND OF RECORD THE AUTO-STOP AREA WAS OUT OF THE UNIT SETTING, SO IT WILL

STOP BEFORE THE LAST TRACK FINISH. IN THIS CASE, SELECT THE AUTO-STOP SWITCH (35) TO “ OFF

“ POSITION, THEN IT WILL RUN TO THE END OF THE RECORD BUT WILL NOT STOP AUTOMATICALLY (TURN

OFF THE UNIT BY POWER BUTTON OR SWITCH BACK THE AUTO-STOP SWITCH TO “ ON “ POSITION TO STOP

THE PLATTER ROTATE). THEN PUT BACK THE TONE ARM TO THE REST POSITION.

PLAYING COMPACT DISC

z GETTING START

1. PRESS “CD” BUTTON (14).

2. PRESS “OPEN/CLOSE” BUTTON (28) TO OPEN THE CD DOOR.

3. PLACE A CD WITH THE PRINTED SIDE FACING UP INSIDE THE TRAY.

“ BUTTON (10) OR “ DISC-SKIP ” BUTTON ON REMOTE TO TURNING THE CD TRAY, AND

LOADING OUT THE OTHER DISC COMPARMENT.

5. PRESS THE “OPEN/CLOSE” BUTTON (28) TO CLOSE THE CD DOOR.

6. CD SEARCH IS PERFORMING, THE LCD DISPLAY (2) WILL SHOW THE TOTAL NUMBER OF DISC, NUMBER

OF TRACKS & PLAYING TIME OF DISC.

ENGLISH

z PLAY / PAUSE MODE

1. PRESS THE “PLAY/PAUSE” BUTTON (21) TO START PLAYBACK, THE FIRST TRACK OF THE FIRST DISC WILL

BE PLAYED AND THE PLAY INDICATOR WILL APPEAR ON THE LCD DISPLAY.

2. OR PRESS EITHER THE “ DISC 1 ” , “ DISC 2 ” , “ DISC 3 ” BUTTON (17), UNIT WILL PLAY THE DISC INSIDE

THE DESIRE TRAY DIRECTLY.

3. TO INTERRUPT, PRESS THE “PLAY/PAUSE” BUTTON ONCE (21), AND THE INFORMATION ON LCD DISPLAY

(2) WILL START FLASHING. PRESS AGAIN TO RELEASE & RESUME NORMAL PLAYBACK.

z STOP MODE

1. IF “STOP” BUTTON (20) IS PRESSED DURING PLAY OR PAUSE MODE, SYSTEM WILL GO TO STOP MODE.

z SKIP MODE (SKIP UP

/SKIP DOWN )

1. DURING PLAY OR PAUSE MODE, IF “ SKIP + ” BUTTON (23) IS PRESSED IT WILL GO TO NEXT TRACK AND

DISPLAY THE TRACK NO. AND THEN REMAIN THE PLAY OR PAUSE MODE.

2. DURING PLAY OR PAUSE MODE, IF “ SKIP - ” BUTTON (24) IS PRESSED. IT WILL GO BACK TO THE

BEGINNING OF THE TRACK, ORIGIANL TRACK NO. IS DISPLAY AND REMAIN THE PLAY OR PAUSE MODE.

3. AFTER STEP 2, PRESS “ SKIP - ” BUTTON (24) AGAIN WILL GO TO THE PREVIOUS TRACK AND REMAIN THE

PLAY OR PAUSE MODE.

z SEARCH MODE (SEARCH UP

/SEARCH DOWN )

1. DURING PLAY MODE, IF “ SEARCH + ” BUTTON (23) IS PRESSED & HOLD FOR FEW SECONDS, IT WILL

START SEARCHING FORWARD.

2. DURING PLAY MODE, IF “ SEARCH - ” BUTTON (24) IS PRESSED & HOLD FOR FEW SECONDS. IT WILL STAR

SEARCHING BACKWARDS.

z FOR MP3 DISC

1. AFTER FOCUS SEARCH IS PERFORMING, THE TOTAL NUMBER OF TRACK AND FOLDER WILL BE SHOWN

ON THE LCD DISPLAY (2).

2. PRESS “ PRE-UP “ (13) OR “ PRE-DN “(11) BUTTON TO SELECT THE FOLDER NUMBER.

3. PRESS “ SKIP UP “ (23) OR SKIP DOWN (24) BUTTON TO SELECT THE TRACK NUMBER.

4. WHEN THE DESIRED TRACK AND FOLDER IS BEING SELECTED, PRESS THE CD “PLAY/PAUSE” BUTTON

(21) TO START PLAYBACK.

ID3 (TRACK/ALBUM TITLE) FUNCTION (BY REMOTE HANDSET)

PRESS THE “ INFO “ BUTTON DURING PLAYBACK OF MP3/WMA DISC, THE SONG TITLE IS BEING DISPLAYED.

PRESS THE “ INFO ” BUTTON AGAIN TO DISABLE THE FUNCTION.

REMARK:-

- IN THAT CASE OF NO NAME HAD BEEN ASSIGNED FOR THE TRACK, “ NO TITLE “ OR “ NO ARTIST “ IS BEING

DISPLAYED” ON DISPLAY (1).

- NO TITLE/ALBUM NAME CAN BE RECOGNIZED IF THE INPUT FORMAT ON THE DISC/MEMORY CARD IS NOT

SUPPORTING BY THE SYSTEM

MP3 TRACK FORMAT REQUIREMENT:-

-

BIT RATE : 32 KBPS~320KBPS, SAMPLING RATE : 32KHZ, 44.1KHZ AND 48 KHZ DECODABLE

- THE PERFORMANCE OF PLAYING MP3 DISC IS VARIOUS FROM THE QUALITY OF RECORDING DISC AND

THE METHOD OF RECORDING. FURTHERMORE, THE SEARCHING LEAD-TIME FOR MP3-CD IS LONGER

THAN NORMAL CD DUE TO DIFFERENCE FORMAT.

z REPEAT/RANDOM MODE

PRESS THE REPEAT/RANDOM BUTTON BEFORE OR DURING PLAYBACK, A SINGLE TRACK, SINGLE DISC OR

ALL THE TRACKS CAN BE PLAYED IN DIFFERENCE MODE AS FOLLOW:-

FOR CD/MP3 DISC

(1) RANDOM PLAY (1 DISC)

(5) OFF MODE

(2) RANDOM + REPEAT (1 DISC)

(4) REPEAT (1 TRACK)

INDICATOR

(3) REPEAT (1 DISC)

MODE ON DISPLAY

RANDOM (1 DISC)

RANDOM + REPEAT (1 DISC)

REPEAT (1 DISC)

RAN

RAN +

ALL

ENGLISH

REPEAT (1 TRACK)

z REPEAT PLAY

YOU CAN LISTEN THE DESIRED TRACKS OR FOLDER REPEATEDLY BY THIS FUNCTION.

z RANDOM PLAY

YOU CAN LISTEN ALL THE TRACKS OR FOLDER IN A RANDOM ORDER BY THIS FUNCTION

CD/MP3 DISC PROGRAMMING

UP TO 40 TACKS CAN BE PROGRAMMED FOR DISC PLAY IN ANY ORDER. BEFORE USE, BE SURE TO PRESS

THE “ CD STOP ” BUTTON (20)

1. SET IN CD MODE & STOP THE CD PLAYBACK.

2. PRESS THE “MEMNORY” BUTTON (8) , “ MEM “ WILL APPEAR ON LCD DISPLAY (2). MOREOVER, IT WILL

INDICATE PROGRAM NO. AND DIGITS FOR TRACK NO. TO BE PROGRAMMED.

3. SELECT A DESIRED TRACK BY PRESSING SKIP UP OR DOWN BUTTONS (23,24).

(FOR MP3 DISC, PRESS PRE-UP OR PRE-DN BUTTON (11,13) RO SELECT THE DESIRE FOLDER)

4. PRESS THE“MEMORY” BUTTON (8) TO STORE THE TRACE INTO MEMORY.

5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY.

6. WHEN ALL THE DESIRED TRACKS HAVE BEEN PROGRAMMED, PRESS CD “ PLAY/PAUSE ” BUTTON (21) TO

PLAY THE DISC IN ASSIGNED ORDER.

7. PRESS “ CD STOP” BUTTON (20) TO TERMINATE PROGRAM PLAY.

¾ AFTER PROGRAM COMPLETE, PRESS “SKIP UP

OR DOWN ” BUTTON (23,24) TO REVIEW THE

TRACKS BEING PROGRAMMED. PRESS “ CD STOP “ BUTTON (20) TO EXIT REVIEW MODE.

¾ PRESS “ CD STOP “ BUTTON (20) AT CD STOP MODE TO CANCEL ALL TRACKS BEING PROGRAMMED.

PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA OR MEMORY CARD

CONNECTING

THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 FILE WHICH STORED IN THE MEMORY MEDIA

WITH USB CONNECTING PORT, MULTI- MEDIA CARD (MMC) OR SECURE DIGITAL (SD) MEMORY CARD.

1. PRESS FUNCTION BUTTON (14) CD/USB/SD REPEATEDLY TO

SELECT “ USB ” OR “ SD “ MODE.

2. PLUG-IN THE USB PLUG WITH THE FACE UP & MAKE SURE IT

GOING INTO COMPLETELY OR INSERT THE MEMORY CARD IN

THE DIRECTION OF THE ARROW AS SHOWN IN THE LABEL ON

THE UNDERSIDE OF THE MEMORY CARD SLOT COVER. INSERT

STRAIGHT WITHOUT BENDING. z

CONNECTING THE USB / MEMORY CARD UPSIDE DOWN OR BACKWARDS COULD DAMAGE THE AUDIO

SYSTEM OR THE STORAGE MEDIA (USB / MEMORY CARD). CHECK TO BE SURE THE DIRECTION IS

CORRECT BEFORE CONNECTION.

3. THE SYSTEM WILL START READING THE STORAGE MEDIA AUTOMATICALLY AFTER CONNECTING, AND

LCD DISPLAY (2) WILL SHOW THE TOTAL NUMBER OF MP3/WMA FILES AND TOTAL NUMBER OF ALBUM

BEING DETECTED.

4. REPEAT THE SAME PLAYBACK PROCEDURE AS PLAYING CD/MP3 DISC AS ABOVE

REMARK

- THE SYSTEM CAN DETECT AND READ THE FILE UNDER MP3 AND WMA FORMAT ONLY THOUGH THE USB

PORT/MEMORY CARD SLOT.

-

IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN MP3

ENCODING FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB SOCKET. THIS IS

NOT THE MALFUNCTION OF THE SYSTEM. .

ENCODING OF CD FILE INTO MP3 FILE

THE SYSTEM IS ABLE TO ENCODE NORMAL CD TO MP3 FORMAT AND RECORDING AT MEMORY MEDIA WITH

USB CONNECTING PORT, MULTI- MEDIA CARD (MMC) OR SECURE DIGITAL (SD) MEMORY CARD.

A) CD ENCODING

I) ECNODING 1 TRACK

1. PERFORM NORMAL PLAYBACK OF THE CD TRACK YOU WANT TO ENCODE & RECORD,

2. PRESS “ REC “ BUTTON (25) DURING THE PLAYBACK OF THE DESIRE TRACK, UNIT WILL DISPLAY “ USB

“ & “ CARD “. (IF BOTH SORUCE ARE READY DURING RECRODING). THEN PRESS SKIP UP OR DOWN

BUTTONS (23,24) TO SELECT AND THEN PRESS “ REC “ BUTTON (25) TO CONFIRM.

3. THE SYSTEM WILL SHOW “USB” OR “CARD” & “ “ AND FLASHING. ENCODING IS PERFORMING NOW.

4. PRESS CD STOP BUTTON (20) TO TERMINATE THE RECROIDNG.

ENGLISH

II) ENCODING 1 ENTIRE DISC

1) REPEAT THE SAME PROCEDURES (1) TO (3) AS SIPULATED ABOVE UNTIL THE SYSTEM STARTING

ENCODING OF 1 TRACK.

2) THEN PRESS AGAIN THE “ REC “ BUTTON (25) ONE MORE TIME AND “ RIPPING ALL “ WILL SCROLL ONCE.

3) AFTER COMPLETING OF ENCODING OF TH ENRIRE DISC, UNIT WILL STOP PLAYBACK AUTOMATICALLY.

REMARK:-

- THE RECORDING SPEED IS 1:1 AND ACCORDING TO THE ACTUAL PLYING TIME OF THE CD TRACK

- THE SYSTEM WILL CREAT A “ AUDIO “ FOLDER AND THEN STORE THE ENCODING TRACK IN IT.

- THE RECORDING FORMAT IS PRESET AT – MP3

BIT RATE : 128 KBPS, SAMPLING RATE : 44.1KHZ

- NO SONG TITLE WILL BE RECORDED DURING ENCODING MODE

- TO INTERRUPT THE RECRODING, PRESS THE “ CD STOP “ BUTTON (20) DURING RECORD MODE.

- ALWAYS INSERT EITHER ONE TYPE OF MEMORY MEDIA “ USB DRIVE “ OR “SD/MMC CARD “ FOR

ENCODING.

-

RECORDING WILL BE COMPLETED ONLY ENTIRE SONG BEING ENCODED, IF TERMINATE THE

ENCODING PROCESS INTERMEDIATELY, THERE IS NO TRACK BEING RECORDED NOR STORED TO THE

USB OR SD/MMC CARD

III) COPYING OF MP3/WMA FILE

IF PUTTING A MP3/WMA DISC INSTEAD OF A CD-DISC, THE SYSTEM WILL COPY THE FILES TO THE USB OR

SD/MMC CARD IF PRESS THE “ REC “ BUTTON (25). THE OPERATION PROCEDURES IS SAME AS CD

ENCODING AS STIPULATE ON ABOVE, AND THE SYSTEM WILL SWITCH TO COPYING MODE ONLY IF MP3/WMA

FILE BEING READ.

REMARK:

- THE SYSTEM WILL CREAT A “ FCOPY “ FOLDER AND THEN STORE ALL COPIED TRACK IN IT.

- IF PRESS THE “ REC “ BUTTON (25) DURING PLAYBACK OF USB OR SD SOURCE, THE FILE WILL COPY

FROM USB TO SD OR SD TO USB.

-

COPYING WILL BE COMPLETED ONLY ENTIRE SONG BEING COPY, IF TERMINATE THE COPY PROCESS

INTERMEDIATELY, THERE IS NO TRACK BEING RECORDED NOR STORED TO THE USB OR SD/MMC

CARD

B) CASSETE ENCODING

1) SET THE FUNCTION BUTTON (14) TO “ TAPE “ MODE AND THEN PRESS THE “ REC “ BUTTON (25)

DIRECTLY.

2) THE LCD DISPLAY (2) WITH SHOW THE WORD “ USB “ OR “ CARD “ AND “ “ & FLASHING, NOW THE

SYSTEM IS STARTING THE ENCODING MODE.

3) START PLAYBACK OF CASSETTE TAPE WHICH THE TRACK YOU PREPARE TO RECORD.

4) AFTER FINISH OF RECODING, PRESS THE CD STOP BUTTON (20) UNTIL THE LCD STOP FLASHING AND

RETURN TO “ TAPE “ MODE.

C) PHONO ENCODING

1) PRESS THE FUNCTION BUTTON (14) TO “ PHONO “ MODE AND THEN PRESS THE “ REC “ BUTTON (25)

DIRECTLY.

2) THE LCD DISPLAY WITH SHOW THE WORD “

USB

“ OR “ SD “ AND THEN FLASHING, AND THEN DISPLAY

“ “ & “ “ AND FLASHING AFTER FEW SECONDS. NOW THE SYSTEM IS STARTING THE

ENCODING MODE.

3) START PLAYBACK AT PHONO FOR THE TRACK WHICH YOU WANT TO RECORDING..

4) AFTER FINISH OF RECODING, PRESS THE : CD STOP “ BUTTON (20) UNTIL THE LCD STOP FLASHING AND

RETURN TO “ PHONO “ MODE.

D) TRACK SEPARATION (BY REMOTE HANDSET)

YOU CAN DIVIDE THE RECORDING MUSIC FROM PHONO TO USB/SD TRACK BY TRACE DURING ENCODING.

EVERY TIME WHEN PRESS THE “TS” BUTTON ONCE AT REMOTE HANDSET DURING ENCODING FROM PHONO

TO USB/SD, THE SYSTEM WILL GENERATE A NEW TRACK AND CONTINUOUS THE RECRODING. THE TEXT

“PHONO” AT LCD DISPLAY WILL FLASHING ONE TIME, IT MEAN THE UNIT IS CREATING A NEW TRACK

SUCCESSFULLY

FILE DELETE AT USB / SD CARD (BY REMOTE CONTROL)

THE SYSTEM IS ABLE TO ERASE THE FILE STORED INSIDE THE USB PEN DRIVE OR SD CARD BY

FOLLOWING:-

A) SINGLE FILE DELETE (BY REMOTE CONTROL)

1. PRESS “ DELETE “ BUTTON ON REMOTE AND THE LCD DISPLAY (2) WILL SHOW (DEL ---001)

2. PRESS SKIP FORWARD OR SKIP BACKWARD

DELETE

BUTTON (23,24) TO SELECT THE FILE GOING TO

3. PRESS THE “ ENTER “ BUTTON TO ENTER “ YES / NO “ MODE AND THEN PRESS SKIP FORWARD OR

SKIP BACKWARD (23,24)TO SELECT “ YES “ OR “ NO “.

4. PRESS THE “ ENTER “ BUTTON AGAIN TO CONFIRM THE SETTING.

REMARK : PRESS “ STOP ” BUTTON TO EXIT DELETE MODE ANYTIME

ENGLISH

B) ALL FILES DELETE

1. PRESS “ DELETE “ BUTTON 2 TIMES AND THE LCD DISPLAY (2) WILL SHOW (FORMAT)

2. PRESS SKIP FORWARD OR SKIP BACKWARD (23,24) TO SELECT “ Y “ (YES) OR “ N “ (NO).

3. PRESS THE “ ENTER “ BUTTON AGAIN TO CONFIRM THE SETTING.

REMARK :

ALL THE FILES INSIDE THE USB STORAGE MEDIA OR SD CARD WILL BE DELETED COMPLETELY

AFTER CONFIRMING TO “ YES “ MODE.

REMOVING OF USB / MEMORY CARD

TO REMOVE THE USB / MEMORY CARD, TURN OFF THE POWER OR SWITCH THE FUNCTION MODE TO EITHER

CD, AUX OR TUNER FIRST. FOR USB PORT – UN-PLUG IT BY PULLING OUT THE USB SOCKET DIRECTLY, FOR

MEMORY CARD – PRESS THE MEMORY CARD INWARD & THEN RELEASE, NOW THE CARD BEING PARTIALLY

EJECT AND YOU CAN REMOVE IT BY HAND.

LISTING TO TAPE

GENERAL OPERATION

STOP / EJECT KEY PRESS TO STOP ALL DECK OPERATION. PRESS AGAIN TO OPEN THE CASSETTE

DOOR.

FAST FORWARD KEY &

FAST REWIND KEY

PRESS TO START RAPID TAPE WINDING IN EITHER FORWARD OR REVERS

DIRECTION. PRESS STOP / FAST REWIND KEY EJECT KEYS WHEN THE CASSETTE

SPOOLS STOP TURNING.

PAUSE KEY PRESS TO STOP TAPE OPERATION TEMPORARILY. PRESS AGAIN TO RESUME

PLAY.

RECORD KEY

(DECK 1 ONLY)

PRESS TOGETHER WITH PLAY KEY TO START TAPE RECORDING.

PLAYBACK

z PRESS “TAPE” BUTTON (14) TO ACTIVE TAPE FUNCTION z PUT IN THE CASSETTE TAPE. z PRESS PLAY KEY TO ACTIVE PLAYBACK z ADJUST THE VOLUME CONTROL (22) TO THE DESIRED LEVEL. z USE PAUSE KEY WHEN YOU WANT TO STOP PLAYBACK TEMPORARILY. z PRESS STOP / EJECT KEY WHEN FINISHED.

RECORDING

A. RECORDING FROM TAPE (DECK 2 TO DECK 1)

THIS UNIT ENABLES YOU TO DUPLICATE A PRE-RECORDED TAPE TO ANOTHER TAPE. IT IS PERFORMED

ONLY ONE WAY FROM DECK 2 (PLAYBAK) TO DECK 1 (RECORDING).

DUBBING AT NORMAL SPEED

z PRESS THE “ TAPE ” FUNCTION BUTTON(14) . z INSET A PRE-RECORDED CASSETTE INTO DECK 2 AND A BLANK CASSETTE TAPE INTO DECK 1. z PRESS THE “ PAUSE ” KEY AND THEN PRESS THE “ RECORD ” AND “ PLAY ” KEY AT DECK 1. z PRESS THE “ PLAY ” KEY TO START PLAYBACK AT DECK 2 & THEN PRESS “ PAUSE ” KEY AT DECK 1 TO

START DUBBING. z PRESS “ PAUSE ” KEY AT DECK 1 & “ STOP ” KEY AT DECK 2 WHEN FINISH.

DUBBING AT HIGH SPEED

THIS UNIT IS QUIPPED WITH A HIGH SPEED DUBBING SYSTEM WHICH CAN SAVE THE TIME FOR DUBBING BY

2/3 WHEN COMPARE TO NORMAL SPEED. z PRESS THE DUBBING BUTTON (7) TO “ HI “ POSITION AND THEN FOLLOW THE SAME PROCEDURES AS

STIPULATED IN “DUBBING AT NORMAL SPEED”. z WHEN DUBBING A PRE-RECORDED CASSETTE TAPE AT HIGH SPEED, A CHATTERING SOUND IS BEING

HEARD. TO AVOID THIS, SET THE VOLUME CONTROL TO A MINIMUM LEVEL. z DO NO PRESS O SELECT THE “ DUBBING ” BUTTON (7) TO HI OR NOR. POSITION DURING DUBBING, THIS

WILL VARY THE SPEED OF RECORDING AND MAY BE DAMAGE THE CASSETTE TAPE.

ENGLISH

B. RECORDING FROM RADIO

z PRESS “ TUNER ” BUTTON (14) TO ACTIVE RADIO MODE z TUNE TO THE DESIRED STATION AND INSERT A BLANK CASSETTE TAPE IN DECK 1. z PRESS “RECORD” & “PLAY“ KEY TO START RECORDING. z PRESS “PAUSE” KEYS AND THEN “STOP/EJECT” KEY WHEN FINISH.

¾ DURING RECORDING OF AM, BEATING WHISTLE AT SOME RECEPTION STATIONS MAY HAPPEN, THIS IS

NORMAL PHENOMEMON.

C. RECORDING FROM CD/USB/SD

z PRESS THE “CD/USB/SD” FUNCTION BUTTON (14). z INSERT A BLACK CASSETTE TAPE IN DECK 1 WHICH SUITABLE FOR RECORDING. z PRESS “PAUSE” KEY FIRST AND THEN “RECORD” & “PLAY“ KEY AT CASSETTE. RECORDING FUNCTION IS

NOW ON STAND BY. z START PLAYBACK OF EITHER CD/USB/SD MODE, AND THEN PRESS “PAUSE KEY” AT CASSETTE TO START

RECORDING. z TO STOP RECORDING, PRESS “STOP” BUTTON (20) ON CD/USB/SD MODE FIRST, THEN PRESS THE

“PAUSE” KEY AND THEN “STOP/EJECT” KEY ON CASSETTE TAPE DECK.

D. RECORDING FROM TURNTABLE

z

PRESS “PHONO” BUTTON (14) TO ACTIVE TURNTABLE MODE z

INSERT A BLANK CASSETTE TAPE IN DECK 1. z

PRESS “RECORD” & “PLAY“ KEY TO START RECORDING. z

SELECT THE DESIRE RECORD AND START PLAYBACK z

PRESS “PAUSE” KEYS AND THEN “STOP/EJECT” KEY WHEN FINISH.

MORE FEATURES

A. SLEEP SETTING (BY REMOTE CONTROL)

THE SLEEP FUNCTION ENABLES THE SYSTEM SWITCH TO STANDBY MODE AUTOMATICALLY AT A

PRESENT TIME.

1. PRESS “SLEEP/TIMER” BUTTON AND SLEEP INDICATOR “

Z

Z

Z

” SHOWN ON THE LCD DISPLAY (2).

2. KEEP PRESSING THE BUTTON TO ADJUST THE SLEEP TIMER IN THE ORDER OF 90 > 80 >70….10

MINUTES.

3. SYSTEM WILL STOP AND GOTO STANDBY MODE AUTOMATICALLY AFTER THE SELECTED TIMING.

4. TO CANCEL THE SLEEP MODE, PRESS “TIMER/SLEEP” BUTTON UNTIL “00” IS DISPLAY .

B. ALARM CLOCK SETTING (BY REMOTE CONTROL)

THIS FUNCTION ALLOWS THE SYSTEM TO TURN ON AUTOMATICALLY AND WAKE YOU UP BY MODE OF CD,

TUNER, OR USB/SD.

SET THE SYSTEM AT STANDBY MODE, THEN PRESS AND HOLD THE “ TIMER/ CLK-ADJ ” BUTTON TO ENTER

THE PROGREM MODE:-

1) WAKE UP MODE : PRESS THE SKIP

(24)

OR SKIP

(23)

BUTTON , BUT MAKE SURE THE MUSIC

SOURCE HAS BEEN PREPARED (CD – LOAD WITH DISC / TUNER – TURN TO THE

DESIRED RADIO STATION / USB/SD – CONNECT A USB MASS STORAGE DEVICE OR

SD/MMC CARD WITH MUSIC FILE INSIDE). PRESS BUTTON (6) “TIMER/CLK-ADJ” TO

ENTER THE FUNCTION

2.) WAKE UP TIME : PRESS PRE-UP (13) OR PRE DN (11) BUTTON TO SET THE CORRECT HOUR. AND

PRESS THE SKIP

(24)

OR SKIP

(23)

BUTTON TO SET THE CORRECT MINUTES

3) PRESS (6) “TIMER/CLK-ADJ“ BUTTON TO STORE THE SETTING AND THE SYSTEM WILL START PLAYING

WHEN REACH THE PRESET TIME.

REMARK

- IF THERE IS NO DISC INSIDE THE SELECTED CD TRAY, THE SYSTEM WILL SELECT THE NEXT AVAILABLE

DISC.

- IF THERE IS NO MUSIC SOURCE BEING DETECTED WHEN THE PRESET TIME IS REACHED, SYSTEM WILL

SELECT TUNER MODE AUTOMATICALLY.

z ACTIVE/DE-ACTIVE TIMER FUNCTION

1. TO ACTIVE TIMER FUNCTION, PRESS THE “SLEEP/TIMER” BUTTON ON REMOTE HANDSET UNTIL THE

TIMER INDICATOR “ ” IS APPEAR ON LCD DISPLAY (2).

2. TO CANCEL TIMER FUNCTION, PRESS AGAIN “SLEEP/TIMER” BUTTON UNTIL THE TIMER INDICATOR

“ ” DISAPPEAR.

ENGLISH

C. PRE-SET EQ FUNCTION

THIS UNIT PROVIDES 5 DIFFERENCES SOUND MODE TO ENHANCE YOUR LISTENING EXPERIENCE. YOU CAN

SELECT THE DESIRED EFFECT BY PRESSING THE “ PRESET EQ” BUTTON (19) REPEATEDLY AT FOLLOWING

SEQUENCE:-

FLAT CLASSIC ROCK POP JAZZ

D. DISPLAY FUNCTION (BY REMOTE HANDSET)

PRESS TO INDICATE VARIOUS INFORMATION OF SYSTEM, EACH STEP SWITCH AS BELOW:-

TRACK PLAYING TIME / RADIO INFO. CLOCK ALARM SETTING INFORMTION

REMOTE CONTROL TRANSMITTER

CONTROL FUNCTIONS

BATTERY INSTALLATION (BATTERY NOT PROVIDED)

THE INFRA-RED TRANSMITTER REQUIRE 2 PCS “ AAA “ BATTERY FOR OPERATION

BUTTON DESCRIPTION

CD/SD/USB

ON/STANDBY

PRESS TO SELECT FUNCTION OF CD/SD/USB RESPRECTIVELY

PRESS TO SWITCH SYSTEM ON OR GOES TO STANDBY MODE

TUNER/BAND PRESS TO SELECT RADIO FUNCTION AND AM/FM BAND SELECTION

TS

NUMBER KEY (1 - +10)

PRE-DN

PRE-UP

VOLUME -/+

PLAY/PAUSE

OPEN/CLOSE

ENTER / REC

FM-ST/MONO / DELETE

TIMER / CLK-ADJ

ENGLISH

PRESS TO SELECT THE NUMBER OF CD/USB/SD TRACK DIRECTLY

IN MP3/USB/SD MODE : PRESS TO SKIP DOWN THE FOLDER

IN TUNER MODE : PRESS TO CALL OUT THE PRESET MEMORY IN ORDER

CLOCK/TIMER MODE : PRESS TO SELECT HOUR GOES DOWN

IN MP3/USB/SD MODE : PRESS TO SKIP UP THE FOLDER

IN TUNER MODE : PRESS TO CALL OUT THE PRESET MEMORY IN ORDER

CLOCK/TIMER MODE : PRESS TO SELECT HOUSE GOES UP

CONTROL VOLUME UP OR DOWN

IN CD MODE, PRESS ONCE TO START PLAYBACK. PRESS ONCE AGAIN TO

STOP THE DISC PLAY TEMPORARILY

STOP TERMINATE

SKIP UP/DOWN IN CD MODE : TO SELECT PREVIOUS / NEXT CD TRACK

IN TUNER MODE : PRESS TO STEP UP/DOWN OF FREQUENCY

IN CLOCK/TIMER MODE : PRESS TO SELECT MINUTES GOES UP OR DOWN

IN CD MODE : PRESS TO OPEN OR CLOSE THE CD DOOR TRAY

PRESS TO ACTIVE CD ENCODING/MP3 FILE COPY FUNCTION OR CONFIRM

FILE DELETE SELECTION

IN TUNER MODE : PRESS TO SELECT FM STEREO OR FM MONO MODE

IN USB/SD MODE : PRESS TO ACTIVE FILE DELETE FUNCTION

IN STANDBY MODE : PRESS TO ADJUST CLOCK

DISC SKIP/RDS MODE

REP/RAN / RDS SRC

EQ

DISPLAY

SLEEP / TIMER

PRESS TO SET THE ALARM ON/OFF TIME AND ACTIVE/DE-ACTIVE ALARM

FUNCTION

IN CD MODE : PRESS TO SELECT DISC 1,2,3 RESPECTIVELY

IN TUNER MODE : PRESS TO SELECT RDS MODE & INFOMRATION ON LCD

IN CD MODE : PRESS TO ACTIVE REPEAT / RANDOM FUNCTION

IN TUNER MODE : PRESS TO SELECT THE RDS PROGRAM TYPE FOR

SEARCHING

PRESS TO SELECT DIFFERENCE EQ MODE FOR ENJOYMENT

PRESS TO DISPLAY DIFFERENCE INFORMATION OF THE SYSTEM

PLAY MODE : PRESS TO ACTIVE SLEEP FUNCTION DURING MUSIC PLAY

STANBY MODE : PRESS TO ACTIVE OR DEACTIVE THE ALARM WAKE UP

FUNCTION

IN ENCODING MODE: PRESS “TS” FOR TRACK SEPARATION

Technical

Radio frequencies UKW-FM 87,5 – 108MHz

Power consumption 32 W (working mode)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
