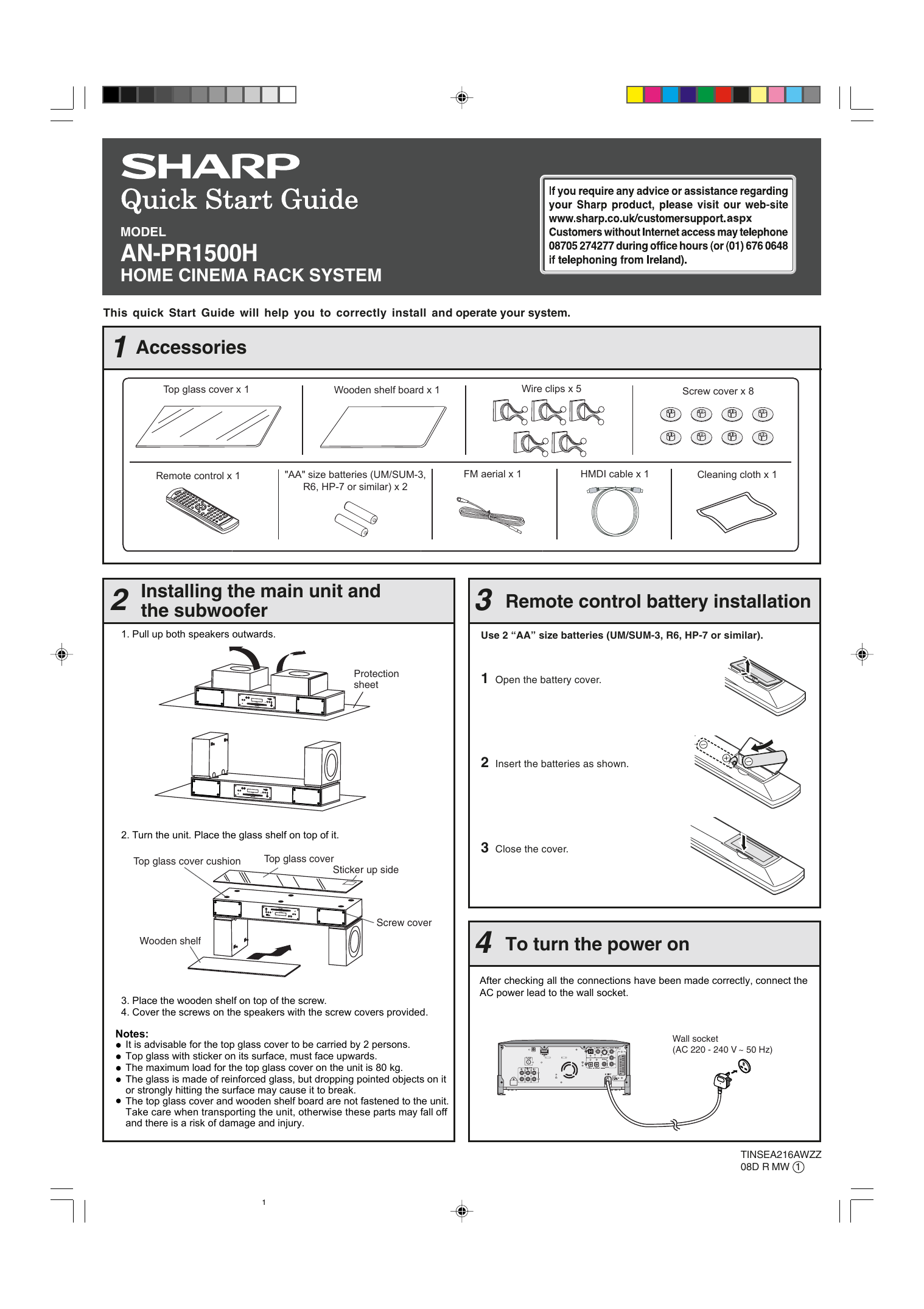

Sharp ANPR1500H Audio Operation Manual

MODEL

AN-PR1500H

HOME CINEMA RACK SYSTEM

This quick Start Guide will help you to correctly install and operate your system.

1

Accessories

Top glass cover x 1 Wooden shelf board x 1 Wire clips x 5 Screw cover x 8

Remote control x 1 "AA" size batteries (UM/SUM-3,

R6, HP-7 or similar) x 2

FM aerial x 1 HMDI cable x 1 Cleaning cloth x 1

2

Installing the main unit and the subwoofer

1. Pull up both speakers outwards.

Protection sheet

3

Remote control battery installation

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar).

1

Open the battery cover.

2

Insert the batteries as shown.

2. Turn the unit. Place the glass shelf on top of it.

Top glass cover cushion

Top glass cover

Sticker up side

3

Close the cover.

Wooden shelf

Screw cover

3. Place the wooden shelf on top of the screw.

4. Cover the screws on the speakers with the screw covers provided.

Notes:

It is advisable for the top glass cover to be carried by 2 persons.

Top glass with sticker on its surface, must face upwards.

The maximum load for the top glass cover on the unit is 80 kg.

The glass is made of reinforced glass, but dropping pointed objects on it or strongly hitting the surface may cause it to break.

The top glass cover and wooden shelf board are not fastened to the unit.

Take care when transporting the unit, otherwise these parts may fall off and there is a risk of damage and injury.

4

To turn the power on

After checking all the connections have been made correctly, connect the

AC power lead to the wall socket.

Wall socket

(AC 220 - 240 V ~ 50 Hz)

TINSEA216AWZZ

08D R MW 1

1

5

Turn on your system

Press the ON/STAND-BY button.

If the power does not turn on, check whether the power lead is plugged in properly.

Playing a disc

1

4

7

0

2

5

8

+10

3

6

9

7

0

1

4

8

+10

2

5

3

6

9

To set the unit to stand-by mode:

Press the ON/STAND-BY button again.

Note:

After the unit enters the power stand-by mode, wait a few seconds to turn on again.

Playback on USB memory device

1

Press the DVD/CD button on the remote control or FUNCTION button repeatedly on the main unit to select DVD/CD function.

2

Insert the disc into the disc slot, label side up.

The disc must be fully inserted into the disc slot before playing.

If “NO DISC” appears due to improper disc insertion, switch off the

AC power supply and then switch it on again.

12 cm (5") or

8 cm (3")

8 cm disc can be inserted without an adaptor.

3

Some discs play automatically. If playback does not start, press the (DVD/CD ) button.

1

4

7

0

2

5

8

+10

3

6

9

1

Remove the USB terminal cover. Connect the USB device. Press the (USB ) button.

To select USB function, press the FUNCTION button (main unit) or AUX button (remote control) repeatedly.

2

Press the or button to select data types recorded in USB memory device.

3

Press ENTER button to choose folder types.

4

Select desired track to be played back by pressing , , or . Then press ENTER or (USB ) button.

This function is only visible when connected to TV.
