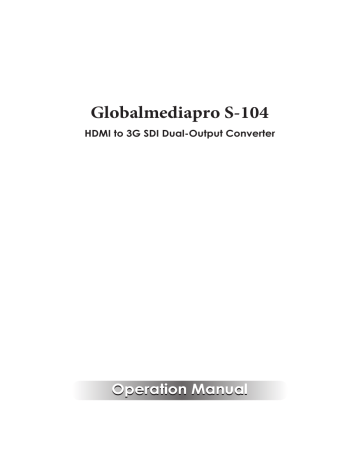

Globalmediapro S-104

HDMI to 3G SDI Dual-Output Converter

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel .......................................3

6.2 Rear Panel .........................................4

6.3 EDID Update Procedure ..................5

6.4 LED Signal Chart ...............................7

7. Connection Diagram .......................... 10

8. Specifications ...................................... 11

9. Acronyms ............................................. 12

1. INTRODUCTION

The HDMI to SDI Converter allows HDMI signals to be shown on two SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI displays.

Also, a 2 CH L/R audio input allows DVI signal with 2CH audio to be converted to SDI in order to be shown on SDI displays. Furthermore, the device has a built-in default EDID and a recordable EDID that guarantee image display compatibility with source equipment.

2. APPLICATIONS

• HDMI signal display on SDI display(s)

• Extending a HDMI signal over 100m to two SDI displays

• DVI signal with audio display on SDI display(s) (DVI to HDMI adaptor cable required)

• Cascade HDMI signal over SDI cables

3. PACKAGE CONTENTS

• HDMI to 3G SDI Dual-Output converter

• 5 V/2.6 A Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• Input HDMI/DVI (with audio signal) source equipment with connection cable(s).

• Output SDI display(s) or SDI to HDMI converter(s) with connection cable(s).

1

5. FEATURES

• Shows HDMI source on two SDI displays simultaneously

• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,

1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s

• Converts HDMI signal to SDI:

1. 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

2. 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or

1.485/1.001 Gbit/s)

3. 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of

2.970 Gbit/s and 2.970/1.001 Gbit/s)

• Supports HDMI input timings: [email protected], 576i, 720p@50/59.94/60,

1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60

• Choose between a selectable EDID and recordable EDID

• Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2

CH (external L/R) for DVI audio

• Supports SDI output distance up to 100 meters (3G-SDI), 200 meters

(HD-SDI), or 300 meters (SD-SDI)

Note:

1. Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.

2. This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.

2

6.3 EDID Update Procedure

Please follow this procedure if there is no image displayed or it is displayed incorrectly.

A. Please ensure that the display output settings of the source input device (such as a Blu-ray player or HD Camcorder) is set to

“Automatic”. If the source image is displayed correctly no further action is necessary but if not to step B.

HDMI SDI

DVD Player Converter

SDI Monitor

B. Connect the HDMI source directly (without connecting to the

Converter) to a HDMI monitor or TV to see if the image is displayed correctly. Ensure that the source's output timing supports SDI or the

Converter's timing. If it is supported, go to step C. If not, please try a different monitor or TV and adjust the timing until the image is displayed correctly.

Adjust to correct SDI Timing

DVD Player

(HDMI Cable)

HDMI

TV/Monitor

C. Connect the HDMI monitor or TV to the input port of the Converter and then set the EDID switch to the 'EDID update' position. Press and hold the EDID update button consistantly until the Video Lock

LED illuminates. This will allow the Converter to replace the default

EDID settings with the monitor/TV’s EDID settings.

Converter

1. Move the EDID switch to EDID update position

2. Press and hold the EDID update button

(HDMI Cable)

HDMI

TV/Monitor

5

D. Finally, connect the HDMI source to the HDMI input of the

Converter and connect the output to a SDI monitor which should now be correctly displaying the image.

HDMI SDI

DVD Player Converter

SDI Monitor

6

6.4 LED Signal Chart

System Operation LED Signal Status

EDID Signal LED EDID Video HDMI

HD

HD

HD

HD

HD

HD

HD

3G

3G

3G

3G

Switch

3G

3G

3G

3G

HD Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

Update Not Pressed

3G

HD

Not Pressed

Not Pressed

Update Not Pressed

key

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

Not Pressed

24

25

26

27

28

20

21

22

23

16

17

18

19

12

13

14

15

9

10

11

7

8

5

6

No.

1

2

3

4

●



●

●

●

●

●

●

●

●

●

●



●

●

●



●

●

●

●

●





●

●

●



7





















●







































●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●





●

●

●





●

●

●



●

●

●

●

●

●

●

●



●

●

●

●

●

●

●

●



●

●

●



●

●

●



●



●

●

●



●

●

●



●

●

●

●

●



●

●

●

●





●



●

●

●







●

●

●

●

●

●

●

●





●

●

●

●









Description

Input timing is 3G HDMI mode

Input timing is HD HDMI mode

Input timing is SD HDMI mode

Input timing no support HDMI mode

Input timing is 3G DVI mode

Input timing is HD DVI mode

Input timing is SD DVI mode

Input timing no support DVI mode

Input timing is 3G HDMI mode

Input timing is HD HDMI mode

Input timing is SD HDMI mode

Input timing no support HDMI mode

Input timing is 3G DVI mode

Input timing is HD DVI mode

Input timing is SD DVI mode

Input timing no support DVI mode

Input timing is 3G HDMI mode

Input timing is HD HDMI mode

Input timing is SD HDMI mode

Input timing no support HDMI mode

Input timing is 3G DVI mode

Input timing is HD DVI mode

Input timing is SD DVI mode

Input timing no support DVI mode

No input signal or No connect

Input with HDCP Encryption

Input with HDCP Encryption

Input with HDCP Encryption

Note

1. Key:

"" LED On

"●" LED Off

"" LED Flashing

2. Not all of HDMI timings can be converted to SDI, therefore selecting the default EDID settings provides the HDMI source with output timing reference.

3. EDID switch mode/Default EDID setting:

3G  1080p@60

HD  1080i@60

Update  720p@60

4. Due to the fact that the HDMI default timing is mainly set to 480p, there is a possibility that the image will not be displayed correctly as that timing is not supported by SDI . To avoid this, set the HDMI source input output setting to “Automatic” so that the source equipment will receive the native EDID settings of the display.

5. The EDID update procedure only needs to be done for Nos. 4,8,12,16,20 & 24. (please refer to “EDID Update button”in section 6.3).

6. When the HDMI input source signal has content that is HDCP encrypted the EDID

Update and Video Lock LEDs will both flash, the other LEDs will not illuminate and no image will be displayed.

8

EDID EDID

EDID Update LED Confirmation Status

Single LED EDID Video HDMI

4

5

6

7

8

9

2

3

No.

1

Switch key

Update Pressed On

Update Pressed On

Update Pressed On

Update

Update

Update

Update

Update

Update

Pressed On

Pressed On

Pressed On

Pressed On

Pressed On

Pressed On



●

●

●



●

●

●

●

●

●

●



●

●

●

●





















●

●



●

●

●



●

●









●

















●

●

●

●

●

Description

3G Native HDMI mode Read OK

HD Native HDMI mode Read OK

SD Native HDMI mode Read OK

No support timing HDMI mode Read OK

3G Native DVI mode Read OK (Note4)

HD Native DVI mode Read OK (Note4)

SD Native DVI mode Read OK (Note4)

EDID format error (Note5)

No connection or connection error

Note

1. Key:

"" LED On

"●" LED Off

"" LED Flashing

2. Only when the EDID button is being pressed and hold consistantly will the EDID update progress. When the update is complete the Video Lock LED will illuminate. If the button is not pressed the LED will illuminate according to “System Operation LED Signal Status”.

3. The output HDMI source's output resolution is based on output display monitor/TV’s EDID settings but results may vary with different sources. The EDID update function is designed to resolve compatibility issue such as these.

4. When DVI EDID settings are detected, the system will check if the EDID’s native mode supports SDI timing. If it does, the image will be displayed in the formats in No. 5,6 & 7.

If not, the system will automatically copy the default DVI EDID (Native 3G) mode and displayed in the format in No. 5.

5. EDID format errors include: Header error, Checksum error and EDID error. Under this condition the default EDID or the updated EDID will not be updated.

9

8. SPECIFICATIONS

SDI Transmission Rates

Video Bandwidth

Input

Output

HDMI Timing Support

SDI Timing Support

SDI Cable Distance

Power Supply

ESD Protection

2.970 Gbps, 2.970/1.001Gbps, 1.485 Gbps,

1.485/1.001Gbps & 270 Mbps

225 MHz/6.75Gbps

1×HDMI, 1×Stereo Audio (R/L)

2×BNC (SD/HD/3G-SDI)

[email protected], 576i, 720p@50/59.94/60

1080i@50/59.94/60

[email protected]/24/25/29.97/30/50/59.94/60

SD-SDI:

SMPTE 259M-C, 270 Mbit/s

HD-SDI:

SMPTE 292M, 1.485 & 1.485/1.001 Gbit/s

3G-SDI:

SMPTE 424M/425M-AB, 2.970 &

2.970/1.001 Gbit/s

3G/HD/3G-SDI up to 100 /200/300 meters with BELDEN 1694A Cable

5 V DC/2.6 A (US/EU standards, CE/FCC/UL certified)

Human-body Model:

±8 kV (air-gap discharge)

±4 kV (contact discharge)

125 mm (W)×115 mm (D)×30 mm (H)

Dimensions

Weight

Chassis Material

275 g

Metal

Silkscreen Color

Black

Operating Temperature 0 °C~40 °C/32 °F~104 °F

Storage Temperature

Relative Humidity

Power Consumption

−20 °C~60 °C/−4 °F~140 °F

20~90 % RH (non-condensing)

5.5 W

Note: SDI supports SD resolutions of [email protected] and 576i@50 only. If the input source is sending an incompatible resolution, this may cause problems with the image or no image to be displayed. Please ensure that the source device is set to output in a compatible resolution.

11

9. ACRONYMS

ACRONYM

3G

DVI

HDCP

HDMI

SDI

COMPLETE TERM

Bandwidth 2.97Gbps ≈ 3G

Digital Visual Interface

High-bandwidth Digital Content Protection

High Definition Multimedia Interface

Serial Digital Interface
