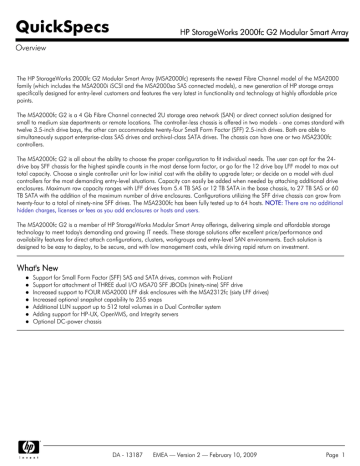

QuickSpecs
Overview
The HP StorageWorks 2000fc G2 Modular Smart Array (MSA2000fc) represents the newest Fibre Channel model of the MSA2000 family (which includes the MSA2000i iSCSI and the MSA2000sa SAS connected models), a new generation of HP storage arrays specifically designed for entry-level customers and features the very latest in functionality and technology at highly affordable price points.
The MSA2000fc G2 is a 4 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect solution designed for small to medium size departments or remote locations. The controller-less chassis is offered in two models - one comes standard with twelve 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives. Both are able to simultaneously support enterprise-class SAS drives and archival-class SATA drives. The chassis can have one or two MSA2300fc controllers.
The MSA2000fc G2 is all about the ability to choose the proper configuration to fit individual needs. The user can opt for the 24drive bay SFF chassis for the highest spindle counts in the most dense form factor, or go for the 12 drive bay LFF model to max out total capacity. Choose a single controller unit for low initial cost with the ability to upgrade later; or decide on a model with dual controllers for the most demanding entry-level situations. Capacity can easily be added when needed by attaching additional drive enclosures. Maximum raw capacity ranges with LFF drives from 5.4 TB SAS or 12 TB SATA in the base chassis, to 27 TB SAS or 60
TB SATA with the addition of the maximum number of drive enclosures. Configurations utilizing the SFF drive chassis can grow from twenty-four to a total of ninety-nine SFF drives. The MSA2300fc has been fully tested up to 64 hosts. NOTE: There are no additional hidden charges, licenses or fees as you add enclosures or hosts and users.
The MSA2000fc G2 is a member of HP StorageWorks Modular Smart Array offerings, delivering simple and affordable storage technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and availability features for direct attach configurations, clusters, workgroups and entry-level SAN environments. Each solution is designed to be easy to deploy, to be secure, and with low management costs, while driving rapid return on investment.
Support for Small Form Factor (SFF) SAS and SATA drives, common with ProLiant
Support for attachment of THREE dual I/O MSA70 SFF JBODs (ninety-nine) SFF drive
Increased support to FOUR MSA2000 LFF disk enclosures with the MSA2312fc (sixty LFF drives)
Increased optional snapshot capability to 255 snaps
Additional LUN support up to 512 total volumes in a Dual Controller system
Adding support for HP-UX, OpenVMS, and Integrity servers
Optional DC-power chassis
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 1
QuickSpecs
Overview
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
(Will accept one or two controllers or Disk Enclosure I/O modules)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
(Will accept one or two controllers)
HP StorageWorks 2300fc G2 Modular Smart Array Controller
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
(Pre-configured with two array controllers)
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF)
(Pre-configured with two array controllers)
HP StorageWorks 2312fc G2 Single Controller Modular Smart Array SAN Starter Kit
(includes single controller, 12-drive bay LFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
HP StorageWorks 2324fc G2 Single Controller Modular Smart Array SAN Starter Kit
(includes single controller, 24-drive bay SFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
HP StorageWorks 2300fc G2 Modular Smart Array SAN Starter HA Upgrade Kit
(includes additional single controller, 8-port 8Gb switch, two more 8Gb HBAs, SFPs and cables) For upgrading AJ954A or AJ955A to dual controller, high availability configurations
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay DC-power Chassis
(LFF) (can add one or two MSA2300fc G2 controllers or MSA2000 JBOD I/O modules)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay DC-power Chassis
(SFF) (can add one or two MSA2300fc G2 controllers. No MSA2000 JBOD I/O module support)
DA - 13187 EMEA — Version 2 — February 10, 2009
AJ950A
AJ951A
Page 2
AJ948A
AJ949A
AJ798A
AJ795A
AJ797A
AJ954A
AJ955A
AJ956A
QuickSpecs
Overview
HP StorageWorks MSA2000 Single I/O 3.5-inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with single controller array head
HP StorageWorks MSA2000 Dual I/O 3.5-inch inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with dual controller array head
HP StorageWorks MSA2000 Drive Enclosure I/O Module
(no cable included)
HP StorageWorks MSA70 2.5-inch 25 SFF Drive Enclosure 2.5 in Drive Enclosure
(single I/O, single domain) (w/one .5m miniSAS to miniSAS cable)
HP StorageWorks Dual Domain I/O Module for MSA70 enclosure
(upgrades MSA70 to dual domain) (w/ one .5m miniSAS to miniSAS cable)
HP StorageWorks 2000fc Modular Smart Array Controller (restricted use)
(for use only with an AJ948A LFF chassis to configure an older MSA2012fc. Only supports older features, functionalities. No SFF support, max 48 LFF drives, max 64 snaps; no HP-UX, OpenVMS, or Integrity server support)
AJ749A
AJ750A
AJ751A
418800-B21
AG779A
AJ744A
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 3
QuickSpecs
Features and Benefits
Highly efficient consolidation and sharing of storage geared to departmental and small to medium business requirements
Cost efficient plus high-availability choices
Flexibility in drives: LFF MSA2 3.5-inch or HP ProLiant SFF 2.5-inch drives
Enterprise-class SAS or archival-class SATA drives as the need and budget dictates
Dual-ported SAS drives for enterprise needs
Large capacity SATA drives for inexpensive archival storage
Able to mix SAS and SATA drives within the same drive enclosure
Choose either single or dual controller array models to fit the budget
Choice of low cost single I/O or high-availability dual I/O drive enclosure models
The HP StorageWorks 2000 Modular Smart Array family manages growing storage requirements across multiple HP ProLiant,
Integrity, and a selection of PA-RISC servers for customers who need a centralized dedicated storage solution for applications.
SANs allow for controlled, cost-effective growth and increased protection of data.
Its ease of management allows a department or small company to effectively handle growing storage requirements with a minimum of complexity.
The MSA2000fc extends the benefits of shared storage resources (e.g. SAN) to first time implementers on a limited budget
This new Fibre Channel G2 model introduces support for Integrity servers and the HP-UX and OpenVMS operating systems
The modular design allows the user to start relatively small but supports future growth to hundreds of users and up to 27TB of
LFF SAS or 60TB of LFF SATA storage, or 14.4TB of SFF SAS or 24TB SFF SATA storage.
The optional controller-based snapshot and clone capability of the MSA2000 family allows the smaller departmental user or company to implement functionality once only available to much larger firms with expensive arrays. The MSA2300fc G2 controller supports up to 255 snaps.
High performance Modular Smart Array controller(s), each with two 4Gb Fibre Channel ports
Single or dual controller capability
1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash
512 LUNs with 16TB LUNs supported
2U rack mount chassis combining both the controller and disk shelf
Twelve 3.5-inch or twenty-four 2.5-inch dual-ported SAS or SATA drive bays (supports mixing of drive types in a single shelf)
Supports expansion to 4 additional LFF enclosures for a total of 60 LFF disks
Supports expansion to 3 additional SFF enclosures (MSA70) for a maximum total of 99 SFF disks
Redundant power supplies and fans are standard
RAID levels 0, 1, 3, 5, 6, 10, 50
Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
Heterogeneous support for 32-bit and 64-bit Windows, Red Hat and SuSE Linux, HP-UX and OpenVMS
Windows Server 2008 x64 Hyper-V, VMware, RedHat Enterprise Linux Virtualization, and Citrix XenServer
Qualified and certified for Windows, Linux, HP-UX and OpenVMS clustering
Optional controller-based snapshot and clone functionality
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 4
QuickSpecs
Family Information
Minimum / with maximum additional drive enclosures or 12 TB SATA w/ 4 drive enclosures:
27 TB SAS or 60 TB SATA
MSA2000 have 1 or 2 controllers, EVA has 2 controllers standard or 2.8 SATA w/ 3 MSA70 JBODs:
14.4 TB SAS or 11.8 TB SATA
1 GB per controller
512
Two 4 Gb
Fibre Channel ports per controller
60 LFF/99 SFF w/ expansion
64
Snapshot (max 255) clone
Primary Storage with SAS.
Secondary with SATA
5.4 TB SAS or 12 TB SATA w/ 3 drive enclosures:
21.6 TB SAS or 48 TB SATA
(LFF only)
1 GB per controller
256
Two 1 GbE iSCSI ports per controller
48
16
Snapshot (max 64) clone
Primary Storage with SAS.
Secondary with SATA
LUNs and LUN size.
5.4 TB SAS or 12 TB SATA w/ 3 drive enclosures
21.6 TB SAS or 48 TB SATA
(LFF only)
1 GB per controller
256
Two 3 Gb
SAS ports per controller
48
5.4 TB FC or 12 TB FATA w/ 8 drive enclosures
43 TB FC or 96 TB FATA
(LFF only)
2 GB per controller
1024
Two 4 Gb
Fibre Channel ports per controller
(Ten w/switch)
96
4
Snapshot (max 64) clone
Primary Storage with SAS.
Secondary with SATA
512
Snapshot, clone, remote data replication
Primary Storage with FC
Secondary with FATA
Two host ports per controller, shipped with SFPs. the MSA2000fc G2 controller can run in either point-to-point or FCAL (loop). The default is FCAL which is used in Direct Connect, particularly with two controllers. The PtP (fabric) mode is used with almost all switches.
2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays, accommodating SAS and SATA. Comes with space for one or two controllers, or MSA2000 3.5-inch disk Enclosure I/O modules (LFF chassis only)
The new MSA2000fc G2 controller supports either the MSA2 3.5-inch Large
Form Factor (LFF) drives, or the HP ProLiant 2.5-inch Small Form Factor (SFF) drive
Serial Attached SCSI (SAS) enterprise-class drives designed for high volume,
24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as they are both relatively inexpensive and are available in very large capacities.
The MSA2000 family of arrays can accommodate both SAS and SATA drives within the same enclosure making it ideal to have both business-critical, high activity files on SAS drives while using Snapshot or clone capability to keep back-up or archival data on the less expensive drives.
For investment protection, the MSA2300fc G2 controller will support single
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 5
QuickSpecs
Family Information port SAS & SATA drives in a single-domain MSA70. This support allows current owners of MSA70s to migrate their single port drives (in their MSA70 only) to be attached to an MSA2300fc. They can only cascade to another single I/O
MSA70. This is not a data-in-place transition.
SAS drive performance can be approximately 30% greater than SATA performance on sequential host I/O. SAS performance excels in sequential lower latency response time and random I/O per second transaction performance due to higher rpm disk speeds yielding lower seek times. SAS drive random performance is generally twice that of SATA drives.
MSA2000 family. The 2.5-inch Small Form Factor (SFF) drives are supported only with the MSA2300fc G2 controller and are common with and are the same part numbers as the ProLiant optional 2.5-inch drives.
bays), so also do they have a choice of expansion disk enclosures accommodating either drive size.
drive bays and accepts for MSA2 dual-ported SAS and SATA drives. One model (AJ749A) has a single I/O module that matches with a single controller array head, giving a single path to the drives. The second model (AJ750A) comes standard with two I/O modules installed, required when paired with a dual controller array head, giving two paths to the drives for higher availability.
This 3.5-inch drive enclosure can be attached to either the MSA2312fc or MSA2324fc array head. In addition it continues to support the
MSA2000i and MSA2000sa.
Each model ships standard with two .6m SAS to SAS cables for cascading to other MSA2000 drive enclosures
For connection to either form-factor MSA2300fc array head, miniSAS to
SAS cable(s) must be purchased.
The single I/O model can be upgraded to a dual model with the purchase of an additional MSA2000 Drive Enclosure I/O module
(AJ751A). No cable is included with this upgrade.
Up to four MSA2000 3.5-inch enclosures can be attached to an
MSA2300fc G2 controller in the array head.
designed to support twenty five ProLiant 2.5-inch Universal form factor (SFF)
SAS or SATA hard drives. It ships standard with a single I/O module installed.
This 2.5-inch drive enclosure can only be attached to an MSA2324fc
G2 controller (SFF)array head. It cannot be attached to the MSA2312fc
(LFF) or the MSA2000i or MSA2000sa models.
The MSA70 enclosure ships with a single .5m miniSAS to miniSAS cable.
To support a dual controller MSA2124fc array head, the user needs to purchase and install an MSA70 Dual Domain I/O Module (AG779A).
This option ships standard with an additional .5m miniSAS to miniSAS cable.
Up to three MSA70s may be attached to the array head, given total support for 99 SFF drives.
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 6
QuickSpecs
Family Information
The MSA2300fc G2 controller is designed to allow an installation to begin with smaller capacity and be able to grow gradually as needed. The flexibility of SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB allows a system to easily fit in almost any budget.
Large Form Factor configurations can scale up to 5.4 TB SAS or 12 TB
SATA, expandable to 27 TB SAS or 60 TB SATA with the addition of a maximum of four MSA2000 3.5-inch Drive Enclosures.
Small Form Factor configurations can scale from 3.5 TB SAS or 6 TB
SATA. With the addition of three MSA70 JBODs, the MSA2324fc G2 can support 14.4 TB SAS or 24.7 TB SATA.
Users may configure a 24-drive MSA2324fc G2 SFF array head with up to three 12-drive LFF MSA2000 3.5-inch disk enclosures. This is an excellent method for a configuration that support fast SFF enterpriseclass SAS drives in the array head, combined with economical LFF drives staged for archival purposes, all in the same array.
Qualification of larger capacity drives is ongoing.
The MSA2000 family of arrays supports 512 LUNs (total volumes in a dual controller system) and LUN sizes up to 16 TB. The array supports expansion and deletion of any LUN.
In addition to the usual RAID levels, the MSA2000 family features several important additional levels. RAID 6 is the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50 combines the block striping and parity of RAID 5 with the straight block striping of RAID
0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.
Performance numbers are a guideline as established by tests in a lab environment. 96 72 GB 15K SAS drives were used in dual controller configurations of eight 12 Disk vdisks, eight 806 GB volumes, and two volumes per host.
Number and type of applications along with the number of hosts will affect overall performance.
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 7
QuickSpecs
Family Information
Workload
Host Connect
MSA2300fc
4 Gb Fibre
Channel
MSA2000sa
3 Gb SAS
MSA2000i
1GbE Ethernet
Random Reads IOPs
Random Writes IOPs
Random Mix IOPs 60/40 read/write
Sequential Reads MB
Sequential Writes MBs
Random Reads IOPs
Random Writes IOPs
Sequential Reads MBs
Sequential Writes MBs
Random Mix IOPs
60/40 read/write
21,400
8,800
13,500
1,300
560
20,500
2,400
1,300
780
5,900
10,600
4,900
6,800
700
350
10,200
2,000
700
380
3,300
Random Reads IOPs
Random Writes IOPs
Sequential Reads MBs
Sequential Writes MBs
Random Mix IOPs 60/40 read/write
20,500
1,600
1,300
820
4,500
10,100
1,400
700
380
2,750
7,800
1,200
300
270
2,560
HP is making the two models of controller-less chassis available with direct current (DC) power supplies. They each have the two empty bays where users can insert one or two MSA2300fc G2 controller(s). In addition, the MSA2012
LFF drive bay can have MSA2000 3.5-inch I/O modules inserted to create a
LFF DC-power JBOD.
The 500 watt power supply is designed to operate over the input range of -
40VDC to -75VDC. This is specifically intended to conform to Telco requirements. Certification is in process but no claims are made at this time.
HP StorageWorks 2012 Modular Smart Array 3.5-in
Drive Bay DC-power Chassis (LFF)
AJ950A
HP StorageWorks 2024 Modular Smart Array 2.5-in
Drive Bay DC-power Chassis (SFF)
AJ951A
HP StorageWorks MSA Storage Management Utility (SMU). Management access, out-of-band: WEB GUI, CLI. Interface Types: Mini DB9 RS232,
10/100 Ethernet Protocols Supported SNMP, SSL, SSH, SMTP, HTTP, Telnet
All MSA2000 models support hot plug expansion and replacement of redundant controllers, enclosures, fans, power supplies, and I/O modules for simple, fast installation and maintenance.
Optional controller based functionality. Offers higher levels of data protection, enabling an almost instant recovery from data failure or corruption. Offers alternative development testing of 'offline' production data and the ability to backup snapped/cloned data.
8,200
4,500
6,100
300
260
7,800
1,600
300
270
3,200
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 8
QuickSpecs
Family Information
The MSA2000fc G2 comes integrated with web browser based software for storage and RAID management, setup, configuration and troubleshooting. This reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HP storage solution.
Supports most HP ProLiant and Integrity servers including
HP ProLiant DL, ML
HP ProLiant c-Class Blade Servers
Integrity servers, IA64 & PA Risc
Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.
Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/
HP StorageWorks Division recommends that the Third-Party Server Vendor is an active member of
TSANet. Refer to the TSANet website for details: www.tsanet.com
Microsoft Windows Server 2008 IA32 (Standard, Enterprise, Datacenter)
Microsoft Windows Server 2008 x64 (Standard, Enterprise, Datacenter)
Microsoft Windows 2003 and 2003 R2
Microsoft Windows 2003 X64
Red Hat Linux 4 & 5 (32/64)
SuSE SLES 9 & 10 (32/64)
Microsoft Windows Server 2008 x64 Hyper-V
VMware ESX 3.0.1, 3.0.2, 3.5
Integrated Citrix XenServer HP Enterprise. Citrix Xen Enterprise 4.1.0-7846 (AMD64, EMT64)
HP-UX V3 Integrity, HP9000
HP-UX V2 Integrity, HP9000
OpenVMS 8.3. OpenVMS 8.3-1H1
MSA2000 support target based management, and includes a Web interface and a telnet interface, and requires a web browser for management. Only Microsoft Internet Explorer V6.X and above, and Mozilla Firefox 1.0.7 or later are supported
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 9
QuickSpecs
Optional Software
Snapshots create up to 255 point-in-time pictures of data
Volume Copies create up to 128 point-in-time copies of data
Recovery is instant - revert data from any previous Snapshot or Volume Copy
Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window
Snap or clone data to test the performance of a software application on 'offline' production data
Snap or clone data to test how a software patch or enhancement will function on 'offline; production data
HP StorageWorks 2000 Modular Smart Array Snapshot 255 Software LTU 1 T5539A
HP StorageWorks 2000 Modular Smart Array Snapshot 64 Software LTU T5512A
T5513A
T5540A
HP StorageWorks 2000 Modular Smart Array Snapshot 8 Software LTU
HP StorageWorks 2000 Modular Smart Array Snapshot 8/255 Upgrade Software
LTU 1
HP StorageWorks 2000 Modular Smart Array Snapshot 64/255 Upgrade Software
LTU 1
HP StorageWorks 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software
LTU
HP StorageWorks 2000 Modular Smart Array Volume Copy Software LTU
1 The snapshot software is supported on the MSA2324 and MSA2312 (G2) models only
T5541A
T5515A
T5514A
MPIO Basic Failover for Windows provides a single multi-path solution for HP StorageWorks
MSA2000fc Modular Smart Array on HP ProLiant servers by providing basic path failover. Supports
Windows 2003, Windows 2003 R2, and Windows 2003 X64 operating systems.
HP MPIO Full Featured DSM for MSA2000fc v2.2.0.22
Microsoft Windows 2008: Microsoft MPIO is bundled with Windows Server 2008 and must be installed as an operating system feature.
Failover support for Linux is with Device Mapper 4.0.
HP-UX PV-Links
Xen: Inbox Device Mapper
HP StorageWorks Storage Mirroring Software provides host-based, continuous replication for customers seeking a low-cost alternative to fabric or array-based replication. Patented replication and failover technology continuously captures byte-level data changes as they happen and replicates those changes to one or more target servers at any location without geographic limitations. By replicating only the bytes that change, Storage Mirroring Software uses the absolute minimum bandwidth on your existing LAN or
WAN to replicate your data. Storage Mirroring also provides server failover where a production server can automatically be 'replaced' by the storage mirroring server in the event of failure. Couple Storage
Mirroring with MSA2000 Snapshots and/or Volume Copy to achieve an Enterprise class data protection strategy creating different data recovery points using continuous data protection with Storage Mirroring and point-in-time data protection with Snapshots and/or Volume Copy.
Storage Mirroring Software supports:
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 10
QuickSpecs
Optional Software
Any DAS, NAS, and SAN storage device.
Any Windows or Linux ProLiant server including all ML, DL, and BL platforms
Many Windows platforms including Windows Server 2000, Windows Server 2003, Windows
Server 2003 R2, Windows Storage Server 2003, Windows Storage Server 2003 R2, 64bit
Windows, and Windows on Itanium
Some Linux platforms including Red Hat Linux Enterprise 4.4-4.6, 5.x
For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP StorageWorks Storage Mirroring Software Windows Server Edition 1 LTU T5438A
T5440A HP StorageWorks Storage Mirroring Software Windows Enterprise Server Edition 1
LTU
HP StorageWorks Storage Mirroring Software Windows NAS Edition 1 LTU T5442A
HP StorageWorks Storage Mirroring Software for AiO Edition 1 LTU
HP StorageWorks Storage Mirroring Software for 5 Virtual Machines 1 LTU
HP StorageWorks Storage Mirroring SW Linux 1 LTU
HP StorageWorks Storage Mirroring Virtual Infrastructure 1 LTU
T5446A
T5444A
T5448A
T5450A http://h18006.www1.hp.com/products/storage/software/sm/index.html
Stretch your MSA2000 array investment by adding file & print services, iSCSI connectivity, and management hosting with a ProLiant Storage Server gateway platform. HP ProLiant Storage Servers are optimized file and print server solutions that are built on industry-standard HP ProLiant servers and come with either Microsoft Windows Storage Server 2003 R2 or Windows Unified Data Storage Server 2003 operating system pre-installed. Since they're Windows-based, network integration is easy, your tools and data protection applications run right on the box, and management has a familiar look and feel. Like many Network Attached Storage (NAS) devices, they support heterogeneous file serving environments and are pre-configured to install in minutes.
A DL380 G5 x64 SAN Storage Server is a file/iSCSI gateway that adds IP-based services to your Fibre
Channel array or SAN. So it not only enhances your MSA investment with file and print services, but it helps you save even more by enabling tiered (Fibre Channel and iSCSI) block access for application servers. All of your important client and server data can be managed, scaled, and protected on a single
MSA2000 array.
NOTE: http://www.hp.com/go/storageservers
HP ProLiant DL380 G5 Base Storage Server file/print services on a 2U rack form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
HP ProLiant DL380 G5 SAN Gateway Storage Server
O/S with file/print, iSCSI, and cluster services on a 2U rack form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
HP ProLiant SB460c SAN Gateway Storage Server
O/S with file/print, iSCSI, and cluster services on a blade form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/13114_div/13114_div.html
AG815B
AG771B
AN583A
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 11
QuickSpecs
Optional Software
HP StorageWorks FC2142SR 4Gb PCIe HBA
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks FC1142SR 4Gb PCIe HBA
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
HP StorageWorks 81Q PCI-e FC HBA
HP 82Q 8Gb Dual Port PCI-e FC HBA
HP StorageWorks 81E 8Gb SP PCI-e FC HBA
HP 82E 8Gb Dual-port PCI-e FC HBA
Emulex LPe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter
QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
A8002A
A8003A
AE311A
AE312A
AK344A
AJ764A
AJ762A
AJ763A
403621-B21
403619-B21
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 12
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
Three-year limited warranty
Three years parts exchange
Next Business day delivery
Enclosures, Hard drives, and Options for the MSA2000fc carry their own warranty. Refer to HP's Limited
Warranty Statement for more information.
The MSA2000fc has been designed with customer self repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to HP's limited warranty
Statement and parts replacement instructions for further details.
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
SAS hard drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA hard drives options have a one year warranty.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-to-buy, easy-to-use portfolio of packaged services covering your lifecycle needs. You can rely on our highly skilled, HP certified professionals to offer a breadth of expertise across leading storage technologies, and work side by side with you for optimal results. Push services beyond expectations and choose support that meets the changing needs of your business with the same reliability, scalability and flexibility you demand of your storage.
Standard warranty protects against product defects and some causes of downtime. HP Care Pack Services helps you proactively guard against unplanned downtime which can reduce your productivity and profitability. By using a standard approach to warranty uplifts, such as HP Care Pack Services, customers can be more sure of consistency of operations for both mission-critical and standard business computing.
Extending warranties with HP Care Pack Services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack Services. This portfolio of predefined packages, extending across the entire IT lifecycle, offering consulting, education, technical support, optimization, risk assessment, and more. It's entirely flexible allowing customers to extend the cover to the precise level of support required. Customer's standard hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage, or even to a committed six-hour call-to-repair service available 24 hours every day of the week.
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has expired. Choose the support levels that meet your business requirements, from basic to mission-critical. http://www.hp.com/hps/storage
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 13
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
HP SAN Solution Service Get your SAN implementation right - right from the start.
Storage has become essential to the growth and agility of your business.
That's why choosing an HP SAN as your data management solution is a smart business decision. But your SAN can deliver the results you need only if it is implemented correctly and integrated with your business.
SAN installation, startup, and integration call for specialized expertise in planning and design, hardware configuration, network software installation, and operability verification. Your SAN needs to be configured for high performance and availability. And it needs to be integrated with your applications, management environment, and business processes.
HP Data Migration Service Minimize the risks involved in transferring data to your HP StorageWorks
SAN.
HP Backup & Recovery
Solution Service - ISV
You need to move your critical enterprise data to your new HP StorageWorks
SAN platform. And you need to accomplish that without losing data. And without interrupting your ongoing business operations.
HP Data Migration Service helps you lessen the risk of data loss, minimize threats to data integrity, and avoid productivity-sapping performance slowdowns during data transport. A highly experienced HP Services storage specialist works with you to rapidly and securely migrate mission-critical business information across your data center or around the globe regardless of the complexity of your environment.
This service consists of installation of the ISV backup software for the supported SAN environment per HP's and the ISV's quality standards by a trained service specialist. HP Backup and Recovery Solution Service for ISV
Backup Software provides for the implementation of the supported ISV backup software in a SAN environment. The two levels of service described here are based on the size and complexity of the backup environment.
This service is available for VERITAS NetBackup, VERITAS Backup Exec,
CommVault Galaxy, and Legato NetWorker. Implementation of CommVault
Galaxy is only available as a Level 3 service.
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 14
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.
The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the automatic submission of hardware event notifications securely to HP support, including acknowledgment and status returns. It adds remote configuration collections to allow the delivery of assessment and proactive services for your SAN storage and HP-UX environments.
Consider education as an integral part of your strategy to get the best return on investment for your HP storage solution. HP offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online. www.hp.com/learn/storage
HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit http://h20129.ww2.hp.com/services/cache/77318-
0-0-225-121.html
.
For more information about HP Care Pack Services for Storage, please visit: http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 15
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
Response - Upgrade on-site response from next business day to same day 4-hour response or 6
Hour Call To Repair
Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7 days
Duration Select duration of coverage for a period of 1, 3, 4 or 5 years resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your product service to meet the needs of your organization. Basic warranty on products can be uplifted from day one to ensure you receive the service you need when you need it.
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 16
QuickSpecs
Configuration Information
1. Power Switch
2. Fibre Channel Ports
3. CLI Port
4. Ethernet Port
5. Service Port
6. Expansion Port
1. Power Supply 1
2. System fan 1
3. Dual 7 segment display board (for future use)
4. SAS in connector
5. SAS out connector
6. I/O module bay
7. I/O module bay
8. System fan 2
9. Power supply 2
1. Service Port
2. Unit Locator
3. Power Switch
4. DC Voltage / Fan Fault
5. AC Power Good
6. SAS In Port
7. SAS Out Port
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 17
QuickSpecs
Configuration Information
HP introduces the new Configure to Order program for the MSA2000 family The MSA2000 models and options may or may not be factory installed in a rack with add-on controllers, switches, hubs, MSA2000 disk enclosures and hard drives. The MSA2000 arrays may be integrated with ProLiant servers or as standalone storage.
Orders to be shipped through the CTO process must have a minimum of two drives ordered per controller. SAN Starter Kits are not eligible for CTO.
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
HP StorageWorks 2300fc G2 Modular Smart Array Controller
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
AJ948A#0D1
AJ949A#0D1
AJ798A#0D1
AJ795A#0D1
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF) AJ797A#0D1
HP 2000fc Modular Smart Array Controller (ONLY for use by those wishing to build an older model MSA2012fc)) AJ744A#0D1
HP MSA2000 3.5in Single I/O 12 Drive Encl
HP MSA2000 3.5in Dual I/O 12 Drive Encl
AJ749A#0D1
AJ750A#0D1
HP MSA2000 Drive Enclosure I/O Module
HP MSA2 146GB 3G 15K 3.5-inch SAS HDD
HP MSA2 300GB 3G 15K 3.5 inch SAS HDD
HP MSA2 450GB 3G 15K 3.5 inch SAS HDD
HP MSA2 500GB 7.2K 3.5 inch SATA HDD
HP MSA2 750GB 7.2K 3.5 inch SATA HDD
HP MSA2 1TB 7.2K 3.5 inch SATA HDD
AJ751A#0D1
AJ735A#0D1
AJ736A#0D1
AJ737A#0D1
AJ738A#0D1
AJ739A#0D1
AJ740A#0D1
35.25 x 23.5 x 15.75 in (89.5 x 59.7 x 40.0 cm) 418800-B21
HP StorageWorks Dual Domain I/O Module
MSA70 will allow dual domain capability providing higher level of redundancy and reliability
HP 146GB 3G 10K SAS 2.5-inch SFF DP HDD
HP 36GB 3G 15K SAS 2.5-inch SFF DP HDD
HP 72GB 3G 15K SAS 2.5-inch SFF DP HDD
Domain environment requires the HP StorageWorks Dual Domain I/O Module
Option (# AG779A).
HP 60 GB 1.5 G SATA 5.4K 2.5-inch SFF HDD
HP 120 GB 1.5G SATA 5.4K 2.5-inch SFF HDD
HP 250 GB 3G 5.4K 2.5-inch SATA SFF ETY HDD
DA - 13187 EMEA — Version 2 — February 10, 2009
AG779A
384842-B21
418367-B21
418369-B21
418371-B21
379306-B21
458924-B21
460355-B21
Page 18
QuickSpecs
Configuration Information information ( http://www.hp.com/products/harddiskdrives ). Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive and/or loss of data
HP StorageWorks 2012
Modular Smart Array 3.5inch Drive Bay Chassis
Controller-less chassis with twelve Large Form Factor (LFF) MSA2 drive bays. Space for two controllers.
AJ948A
HP StorageWorks 2024
Modular Smart Array 2.5inch Drive Bay Chassis
Controller-less chassis with twenty-four Small Form Factor (SFF) ProLiant drives bays.
Space for two controllers. (SFF)
AJ949A
There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small form factor drive bays. For additional twelve additional drive bays purchase an MSA2000 3.5-inch Disk Enclosure. You may attach a total of four MSA2000 Drive Enclosures for a total of sixty LFF drive bays. For 25 additional SFF drive bays purchase an MSA70
JBOD with the 2nd I/O module. You may attach a total of three MSA70 JBODs for a total of ninety-nine LFF drive bays. Single controller arrays support Single I/O Disk Enclosures; dual controller arrays support Dual I/O Disk Enclosures.
Select each option with quantities specified.
HP StorageWorks 2300fc G2 Modular Smart Array Controller
(for either the LFF MSA2012, SFF MSA2024, or the two DC-powered chassis)
1 or 2 AJ798A
Those situations require the use of enterprise-class SAS drives. MSA2 3.5-inch drives are for use only with MSA2000 products.
HP StorageWorks MSA2 146GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
HP StorageWorks MSA2 300GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
HP StorageWorks MSA2 450GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
AJ735A
AJ736A
AJ737A
HP StorageWorks MSA2 500GB 7.2K 3.5-inch SATA LFF HDD
HP StorageWorks MSA2 750GB 7.2K 3.5-inch SATA LFF HDD
HP StorageWorks MSA2 1TB 7.2K 3.5-inch SATA LFF HDD
HP 72GB 3G 10K 2.5-inch SAS SFF SP HDD (MSA70 only)
HP 146GB 3G 10K 2.5-inch SAS SFF SP HDD (MSA70 only)
AJ738A
AJ739A
AJ740A
375861-B21
431958-B21
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 19
QuickSpecs
Configuration Information
HP 36GB 3G 15K 2.5-inch SAS SFF SP HDD (MSA70 only)
HP 72GB 3G 15K 2.5-inch SAS SFF SP HDD (MSA70 only)
HP 72GB 3G 10K 2.5-inch SAS SFF DP HDD
HP 146GB 3G 10K 2.5-inch SAS SFF DP HDD
HP 36GB 3G 15K 2.5-inch SAS SFF DP HDD
HP 72GB 3G 15K 2.5-inch SAS SFF DP HDD
HP 60 GB 1.5 G 5.4K 2.5-inch SATA SFF HDD
HP 120 GB 1.5G 5.4K 2.5-inch SATA SFF HDD
431933-B21
431935-B21
384842-B21
418367-B21
418369-B21
418371-B21
379306-B21
458924-B21
Should you want a drive enclosure, the model you choose depends on which array model it attaches to. If it is a single controller array, then choose the JBOD designated as "Single I/O". If it is attaching to a dual controller array then choose the "Dual I/O" JBOD
AJ749A HP StorageWorks MSA2000 Single I/O 3.5-inch 12 Drive Enclosure
(use with single controller array heads. Ships with two .6m SAS to SAS cables)
HP StorageWorks MSA2000 Drive Enclosure I/O Module
(Use to upgrade the Single I/O model to dual I/O. No cable included)
AJ751A
AJ750A HP StorageWorks MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
(use with dual controller array heads. Ships with two .6m SAS to SAS cables)
HP StorageWorks 70 Modular Smart Array (MSA70) SFF 2.5-inch drive Single I/O JBOD
Single I/O, single domain. 25 Small Form Factor (SFF) drive bays
(use only with MSA2324fc array head. Includes one miniSAS to miniSAS cable)
HP StorageWorks Dual Domain I/O Module for MSA70
Makes the standard MSA70 (above) into a dual I/O, dual domain JBOD
(Includes one miniSAS to miniSAS cable)
418800-B21
AG779A
StorageWorks Dual Domain I/O Module Option (# AG779A).
For more information on the MSA70, go to the MSA70 Home Page: http://h18006.www1.hp.com/storage/disk_storage/msa_diskarrays/drive_enclosures/msa70/index.html
Connecting MSA2300fc controller to MSA70 JBOD if a longer cable is desired.
HP Ext miniSAS to miniSAS 1m Cable
HP Ext miniSAS to miniSAS 2m Cable
Connecting MSA2300fc controller to MSA2000 3.5-inch Disk Enclosure
HP SAS to miniSAS .5m Cable
HP SAS to miniSAS 1m Cable
HP SAS to miniSAS 2m Cable
Older MSA2000fc controller to MSA2000 3.5-inch Disk Enclosure or cascading two
MSA2000 3.5-inch Disk Enclosures if included .6m cables is not of sufficient length
HP Ext SAS to SAS 1m Cable
407337-B21
407339-B21
419569-B21
419570-B21
419571-B21
389665-B21
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 20
QuickSpecs
Configuration Information
HP Ext SAS to SAS 2m Cable 389668-B21
1 st generation HP StorageWorks 2000fc Modular Smart Array Controller (older version) 1 or 2 AJ744A
(ONLY for those desiring to configure an older MSA2012fc by using the MSA2012 chassis and installing either one or two of this model controller. The resulting array head will have the attributes of the first generation MSA2012fc with no support for SFF drives, no HP-UX, limited total drive count, limited snaps, etc.)
2 ea. Power Cord, 110/220 VAC, US/Canada/Mexico 227099-001
Power Cord, 220/240 VAC, (US/Canada/Mexico)
Power Cord, (Australia/China/New Zealand)
Power Cord, (Central Europe)
Power Cord, (United Kingdom/Hong Kong)
Power Cord, (Switzerland)
Power Cord, (Italy)
Power Cord, (Denmark)
Power Cord, (Japan)
Power Cord, (South East Asia/India)
2
2
2
2
2
2
2
2
2
227099-001
227098-001
157215-001
157216-001
157219-001
157217-001
157218-001
139867-001
157220-001
FC2242SR
FC2142SR
FC2243
FC2143
FC1242SR
FC1142SR
FC1243
FC1143
Bladeserver HBA
Bladeserver HBA
81E
82E
81Q
4Gb PCI-E Dual Channel HBA for Windows and Linux
4Gb PCI-E for Windows and Linux
4Gb PCI-X Dual Channel for Windows and Linux
4Gb PCI-X 2.0 for Windows and Linux
4Gb PCI-E Dual Channel HBA for Windows and Linux
4Gb PCI Express HBA for Windows and Linux
4Gb PCI-X 2.0 Dual Channel for Windows and Linux
4Gb PCI-X 2.0 for Windows and Linux
Lpe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
QMH2462 4Gb FC HBA for HP c-Class BladeSystem
Windows and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
A8003A
A8002A
AD168A
AD167A
AE312A
AE311A
AE369A
AB429A
403621-B21
403619-B21
AJ762A
AJ763A
AK344A
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 21
QuickSpecs
Configuration Information
82Q StorageWorks 8Gb, Dual Channel PCIe to Fibre Channel
Host Bus Adapter for Windows, Windows Server, and
Linux
Integrity and HP9000
HP-UX v3, and v2
Integrity
HP-UX v3 and v2
Integrity
HP-UX v3 and v2
Integrity server blades
BL860c and BL870c
HP-UX v3 and v2
Integrity
HP-UX v3 and v2
Integrity
HP-UX v3 and v2
Integrity server blades
BL860c and BL870c
HP-UX v3
HP PCI-X 2.0 1Port 4Gb
HP PCI-X 2.0 2Port 4Gb Fibre Channel HBA
HP PCIe 2Port 4Gb Fibre Channel HBA
HP BLc QLogic QMH2462 FC HBA Opt Kit
HP PCIe 1Port 4Gb Fibre Channel HBA
HP PCIe 2-Port 4Gb Fibre Channel HBA
HP BLc Emulex LPe1105 FC HBA Opt Kit
Integrity
HP-UX v3
Integrity
HP-UX v3
Integrity
HP-UX v3
Integrity and HP9000
HP-UX v3 and v2
HP PCIe 1p 4Gb FC and 1p 1000BT Adapter
HP PCIe 2p 4Gb FC and 2p 1000BT Adapter
HP PCIe 2p 4Gb FC and 2p 1000BSX Adapter
PCI-X 2Gb Fibre Channel/1000Base-SX HBA
Integrity and HP9000
HP-UX v3 and v2
Integrity and HP9000
HP-UX v3 and v2
HP PCI-x 1p 4Gb FC and 1p 1000BT Adapter
HP PCI-x 2p 4Gb FC and 2p 1000BT Adapter
Fibre Channel Switches Brocade 4/12 SAN Switch for HP c-Class Blade System, Base
Brocade 4/24 SAN Switch for HP c-Class Blade System, Full Fabric
Brocade 4/24 SAN Switch for HP c-Class Blade System, Power Pack
HP StorageWorks 4/8 Base SAN Switch
HP StorageWorks 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch Power Pack
HP StorageWorks 4/8 SAN Switch
HP StorageWorks 4/32B Base SAN Switch
HP StorageWorks 4/32B Full SAN Switch
HP StorageWorks 4/32B Power Pack SAN Switch
HP StorageWorks 8/8 Base SAN Switch
HP StorageWorks 8/8 SAN Switch
AJ764A
AB378B
AB379B
AD300A
403619-B21
AD299A
AD335A
403621-B21
AD221A
AD222A
AD393A
A9782A
AD193A
AD194A
AE370A
AE372A
AE371A
A7984A
A7985A
A7987A
A8000A
AG756A
AG757A
AG758A
AM866A
AM867A
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 22
QuickSpecs
Configuration Information
HP StorageWorks 8/24 Base SAN Switch
HP StorageWorks 8/40 Base SAN Switch
HP StorageWorks 8/40 Power Pack+ SAN Switch
HP StorageWorks 8/80 Power Pack+ SAN Switch
HP StorageWorks 8/80 Base SAN Switch
HP StorageWorks 4/256 SAN Director
HP StorageWorks 4/256 Power Pack SAN Director
HP StorageWorks DC SAN Backbone Director
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+
8 Gb Simple SAN Connection
HP StorageWorks 8/20q Fibre Channel Switch (8 switch ports active)
HP StorageWorks 8Gb Simple SAN Connection Kit (8 switch ports active)
HP StorageWorks 8/20q Fibre Channel Switch (16 switch ports active)
Cisco MDS 9124 8-ports Active Fabric Switch
Cisco MDS 9124 16-ports Active Fabric Switch
Cisco MDS 9124 24-ports Active Fabric Switch
Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9134 24-ports Active Fabric Switch
Cisco MDS 9134 32-ports Active Fabric Switch
Cisco MDS 9134 26-ports Active w/kit for 48 port solution
Cisco MDS 9134 34-ports Active w/kit for 64 port solution
MDS 9222i Multiservice Modular Switch w/0 SFPs
Cisco MDS 9216i w/o Ethernet SFP switch
Cisco MDS 9216i
MDS 9506 Director with Supervisor 2
MDS 9509 Director with Supervisor 2
MDS 9513 Director with Supervisor 2
MDS 9513 Director with Fabric 2 Module
2 m LC-LC Multi-Mode Fibre Channel Cable
5 m LC-LC Multi-Mode Fibre Channel Cable
15 m LC-LC Multi-Mode Fibre Channel Cable
30 m LC-LC Multi-Mode Fibre Channel Cable
50 m LC-LC Multi-Mode Fibre Channel Cable
2 m LC-SC Multi-Mode Fibre Channel Cable
5 m LC-SC Multi-Mode Fibre Channel Cable
15 m LC-SC Multi-Mode Fibre Channel Cable
30 m LC-SC Multi-Mode Fibre Channel Cable
50 m LC-SC Multi-Mode Fibre Channel Cable
DA - 13187 EMEA — Version 2 — February 10, 2009
AE388A
AE389A
AE376A
AJ905A
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
AQ233A
AK241A
AK242A
AG646A
AG647A
AG648A
AG641A
AG642A
AG874A
AG875A
AJ732A
AJ733A
AG851A
AE390A
AE390A
AM868A
AM869A
AM870A
AM872A
AM871A
A7988A
A7989A
AK857A
AJ820A
AJ821A
AJ822A
Page 23
QuickSpecs
Configuration Information
Select each required option with quantities specified.
5642 - 5000 Series rack
HP S10614 Rack with Shock Pallet
10622 G2 Universal Rack w/Shock Pallet
10622 G2 Universal Rack w/Standard Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
Modular Cooling System G2 (MCS G2)
MCS G2 10642 G2 Expansion Rack
10842 G2 Universal Rack w/Shock Pallet
10842 G2 Universal Rack w/Standard Pallet
10647 Rack G2 Pallet
358254-B21
292302-B22
AF022A
AF021A
AF011A
AF012A
AF013A
AF014A
AF001A
AF002A
AF003A
AF004A
AF025A
AF026A
AF042A
AF041A
AF031A
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 24
QuickSpecs
Technical Specifications
Input Power Requirements
(typ)
Max Input Power
Heat Dissipation
110 VAC 3.6A/394W; 220VAC 1.9/385W
100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A
1622 BTU/hr
Operating Temperature 41°F to 104°F (5oC to 40°C)
Shipping Temperature
Operating Humidity
-40°F to 158°F (-40°C to 70°C)
10% to 90% RH @ 104°F (40°C) non-condensing
Non-Operating Humidity Up to 93% RH @ 104°F (40°C)
Sound Power
Sound Pressure
< 6.5 Bels
< 57 dBA
Shock, Operational
Vibration, Non-
Operational
5G's for 11 milliseconds, half sine
Shock, Non-Operational 15G 11ms half sine
Vibration, Operational 5-500Hz, 0.21Grms flat spectrum0.000089g2/HZ Random Vibration
5-500-5Hz, 0.5 G peak to peak, sinusoidal
Height
Depth (excluding cables)
(back of ear to back of controller handle)
Width (body only)
Chassis Weight
(no controllers)
3.436 in/ 8.727 cm
MSA2024: 20.28 in / 51.510 cm
MSA2012: 21.8 in. / 55.372 cm
17.55 in / 44.58 cm (w/ ears 19 in / 48.26 cm)
MSA2012 chassis: 44 lbs. MSA2024 chassis: 43 lbs
- Status and activity provided via management interfaces Status Indicators on front of Controller
0, 1, 3, 5, 6, 10, 50
1GB Read/Write. ECC protection with backup to Flash memory (indefinite backup)
ECC protection with back up to flash memory (indefinite backup)
Upgradeable Firmware yes
3 Gb SAS - Serial Attached SCSI / 3 Gb SATA II
MSA2000fc SAS (SFF8470) 4x lane 3 Gb SAS
MSA2300fc SAS (SFF8088) 4x lane 3 Gb SAS
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 25
QuickSpecs
Technical Specifications
UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
IEC 60950-1 ( International )
VCCI:2008-04 Class A
ICES-003 Issue 4 Class A (Canada)
EN55022 : (European Union Class A); CISPR 22 (International)
EN61000-3-2 : (Harmonics)
EN61000-3-3 : (Flicker)
EN 55024 (European Union, Immunity);CISPR 24 (International Immunity)
CNS 13438 Taiwan
KN22 Class A (Emissions); KN24 (Immunity)
RoHS-5 Compliance, China RoHS, WEEE
Australia/New Zealand, Canada, China (PRC), European Union, Germany
(GS Mark), Japan, South Korea, Taiwan, United States
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 13187 EMEA — Version 2 — February 10, 2009 Page 26
advertisement
Related manuals
advertisement
