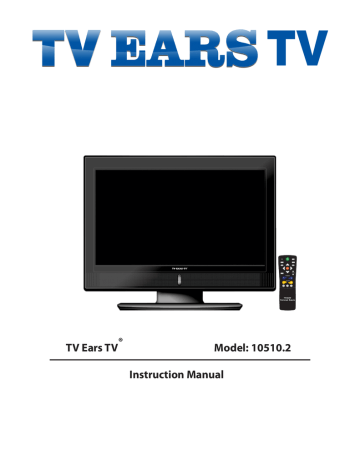

TV Ears TV

®

Model: 10510.2

Instruction Manual

Preface

Dear Customer,

Congratulations on your new TV Ears TV purchase. To get the most out of your new HD TV Ears TV, read this manual thoroughly and retain for future reference.

For assistance, call 866-611-9934 or email us at [email protected].

Register your TV Ears TV online at www.TVEars.com.

Fill out the customer reference guide below to keep track of vital information that will be necessary when obtaining warranty support or customer service:

Customer Reference Guide

Date of Purchase:

Serial Number:

TV Code for Universal Remote:

STB (Set Top Box) Code:

Contents

Warning / Caution

Safety Precautions

Contents

Controls & Connections

Basic Installation

Remote Control

Menu Operations

Picture Menu

Pairing to the TV

Audio Menu

Setup Menu

Lock Menu

Channel Menu

USB Menu

Troubleshooting

Specifications

Warranty Information

Table of Contents

Page

15

16

13

14

17

18

11

12

9

10

4

5 - 6

7

8

1

2

3

1

Warning / Caution

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

CAUTION RISK OF ELECTRIC SHOCK: DO NOT OPEN

!

CAUTION - To reduce the risk of electic shock, do not perform any servicing other than that contained in the operating instructions. Refer all servicing to qualified personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

!

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT

The meaning of the symbol on the product, its accessory, or packaging indicates that this product shall not be treated as household waste. Please dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. By ensuring the correct disposal of this product, you will help prevent potentially hazardous waste to the environment and to human health, which could be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office or your household waste disposal service.

FCC Caution

Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this TV receiver not expressly approved by the manufacturer could cause harmful interference and would void the user’s authority to operate this device.

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire, or the like.

Safety Precautions

1. Read these instructions completely and keep for future reference.

2. Heed all warnings and follow all instructions.

3. Do not use this apparatus near water. Apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation which may result in fire, electric shock, or other hazards.

4. Do not block any ventilation openings on the back of the TV.

5. Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

6. Do not defeat the safety purpose of the polarized or grounding-type plug. The wide blade prong and/or third prong are provided for your safety. If the provided plug does not fit into your outlet, purchase the correct adapter or consult an electrician for replacement of the obsolete outlet.

7. Protect the power cord from being walked on or pitched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

8. Only use attachments / accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.

9. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

10. Unplug the apparatus during lightning storms or when unused for a long period of time.

11. Refer all servicing to qualified service personnel. Taking this apparatus to a non-authorized service professional will void your warranty.

12. If replacement parts are needed, contact the manufacturer. Any parts used that are not authorized by the manufacturer will void your warranty.

13. Do not overload wall outlets, extension cords, convenience receptacles or other equipment.

14. Never insert objects into the product through the vents or openings. This can cause electric shock or damage to apparatus.

15. Unplug the power cord if any of the following happens: power cord is damamged, liquid or objects have fallen in apparatus, or the product has been dropped in any way.

16. When mounting the product on a wall, be sure to install the product according to the mount manufacturers instructions. Only use the stand or bracket specified by the manufacturer or sold with the apparatus. Only use wall mounts approved for holding specific size TV.

17. Only use the power cord provided by manufacturer. Turn apparatus off when plugging other products into ports on TV.

18. The LCD panel is made of glass and therefore can break if the product is dropped or impacted by other objects.

19. Clean only with dry cloth.

2

3

Contents

TV Ears TV

GUIDE

INFO

ON

OFF

PAIR

MENU

FAV

SELECT

EXIT PAGE

CHANNEL

VOLUME

LAST SLEEP MUTE

Remote Control

Power Cord 2 x AAA batteries

User Manual

User Manual

User Manual

Remote Lanyard

Top Controls

1 2 3 4 5

Controls & Connections

Front Panel

1. SOURCE: Switches between input sources.

2. CH+ / CH-: Changes the TV channel up or down.

3. POWER: Turns the TV ON or OFF.

4. VOL+ / VOL-: Adjusts the TV volume up or down.

5. MENU: Displays up the On-Screen Menu.

6. Power Indicator Light: Turns green when the TV is ON and red when the TV is OFF.

7. Remote Sensor Light: Receives the remote control signal. Do not block.

6 7

Back Connections

AC IN USB

1 2

HDMI1

3

HDMI2 VGA (PC)

4

PC

Audio

5

1. AC IN: Power port

2. USB

3. HDMI 1 & 2

4. VGA (PC): Computer display port

5. PC Audio: Computer audio port

6. Component: Y, Pb, & Pr

7. Composite: Video, L, & R

8. AIR / CABLE: Coax connection for antenna or direct cable

9. : Headphone jack

10. Digital Audio Out: RCA digital audio out (SP/DIF)

11. Variable L & R OUT: Variable audio out ports

12. Fixed L & R OUT: Fixed audio out ports

10 11 12

Digital

Audio Out

Variable

L OUT R OUT

Fixed

L OUT R OUT

Y Pb

6

Pr VIDEO L

7

R

AIR CABLE

8 9

4

Basic Installation

Power Cord Connection

Back of TV

1. Plug the power cord into a standard electrical outlet or surge protector.

2. Plug the opposite end of the power cord into the AC IN port on the back of the TV.

3. Power the TV ON by pressing the POWER button on the TV or remote.

Wall Outlet

Antenna / Cable Connection

1. Connect the antenna (install antenna according to manufacturer’s instructions) directly to the AIR port on the back of the TV.

OR

Connect the digital cable directly to the CABLE port on the back of the TV.

2. In the source list, select TV.

Antenna

Back of TV

AIR CABLE

Direct cable from wall

Computer Connection

Back of TV

1. Connect the VGA cable to the VGA port on the back of the computer, then to the VGA (PC) port on the back of the TV.

2. Connect the audio cable to the audio out or headphone jack on the computer, then to the PC AUDIO port on the back of the TV.

3. In the source list, select VGA.

VGA ( PC )

PC

AUDIO

VGA

Cable

Audio

Cable

Computer

USB Connection

A USB flash drive can be plugged into the USB port on the back of the TV.

The USB port can charge devices or access stored files on a USB drive to be played on the

TV.

In the source list, select USB.

USB PORT

USB

Back of TV

5

HDMI1 HDMI2

Back of TV

Basic Installation

HDMI Connection - Best

1. Connect the HDMI cable to the HDMI port on the source device (cable box, satellite box, DVD player, etc.).

2. Connect the HDMI cable to the HDMI 1 or 2 port on the back of the TV.

3. In the source list, select HDMI 1 or 2.

HDMI Cable

HDMI OUT Back of source device

Y

Y

Component Connection - Better

Pb Pr

Back of TV

Component

Cable

L R

Audio

Cable

Back of source device

1. Connect the component cables (green, blue, & red) to the video ports (Y, Pb, & Pr) on the source device. Then connect them to the

Y, Pb, & Pr ports on the back of the TV.

2. Connect the audio cable (red and white) to the L & R ports on the source device. Then connect them to the L & R ports on the back of the TV.

3. In the source list, select Component.

Composite Connection - Good

Back of TV

VIDEO L R

Composite (RCA)

Cable

Back of source device

1. Connect the video cable (yellow) to the video ports (V) on the source device. Then connect them to the VIDEO port on the back of the TV.

2. Connect the audio cable (red and white) to the L & R ports on the source device. Then connect them to the L & R ports on the back of the

TV.

3. In the source list, select Composite.

6

7

Remote Control

GUIDE

INFO

EXIT

TV

ON

OFF

SELECT

CHANNEL

VOLUME

STB

PAIR

LEARN

MENU

PAGE

MUTE

1 2

4 5

3

7 8

DASH

0

INPUT

LAST SLEEP SET FAV

6

9

ON/OFF: Turns the TV ON and OFF.

PAIR: Re-pairs the last device that was paired to the TV.

GUIDE: Displays the channel guide for cable or satellite when paired to control the cable or satellite box.

LEARN: See Remote Manual for details.

MENU: Displays the on-screen menu.

INFO: Shows program infomation if available.

SELECT & Nav Keys ( / / / ): Navigates the on-screen menu.

PAGE & : Navigates channel guide a page at a time.

EXIT: Exits the on-screen menu and/or channel guide.

CHANNEL & : Scans through the channels.

VOLUME + & - : Increases and decreases the TV volume.

TV / STB: See Remote Manual for details.

MUTE: Turns OFF the TV speakers. Press again to turn the speakers ON.

Number Buttons: Press to select a channel or enter a password.

LAST: Returns to the previous channel viewed.

SLEEP: Activates the sleep timer when a time is chosen.

SET: See Remote Manual for details.

FAV: Enters the favorites menu (see Remote Manual for details).

Bottom cover slides to cover the navigation and set up keys.

t

For set-up, programming, and use instructions see the Remote

Manual.

Menu Operation

ON/OFF: Press the POWER button on the TV or ON / OFF button on the remote to turn the TV ON or OFF.

On-Screen Menu: To access the on screen menu, press the MENU button on the TV or remote.

To Navigate the on-screen menu, use the Nav Keys ( / / / ).

To Exit press the MENU button on the TV or remote.

Picture Menu

Make adjustments to the picture settings.

Audio Menu

Customize the sound settings.

12

12

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Advanced Option

6

Time

Select

Setup

Standard

Normal

Move

Lock

MENU

Channel

Exit

50

50

50

0

50

Picture Audio

Sound Mode

Bass

Treble

Balance

Surround

Audio Language

Select

6

Time Setup

Standrad

Lock

Off

English

Move

Channel

MENU

Exit

50

50

50

Time Menu

Make adjustments to the time settings.

12

Picture Audio

Sleep Timer

Time Zone

Daylight Saving Time

6

Time Setup Lock

Off

Pacific

Off

Channel

Select

Setup Menu

Adjusts the general settings.

Picture Audio

Menu Language

Transparency

Zoom Mode

Noise Reduction

Advanced

Closed Caption

DLC

Restore Default

12

6

Time Setup

English

Off

Normal

Off k

Lock

On

Select Move

Channel

MENU

Exit Move

MENU

Exit

Lock Menu

Adjusts the parental lock settings.

12

Picture Audio

Change Password

System Lock

US

Canada

RRT Setting

Reset RRT

6

Time Setup

On

Lock Channel

Channel Menu

Set up AIR or direct cable channels.

Picture Audio

Air/Cable

Auto Scan

Favorite

Show/Hide

Channel No.

Channel Label

DTV Signal

12

6

Time Setup

Air

Lock

50-3

KOCE-Lb

Good

Channel

Select Move

MENU

Exit Select Move

MENU

Exit

NOTE: Only menus relevant to the source will be available when that source is selected.

8

9

Picture Menu

Navigate to the PICTURE menu then press SELECT or / on the remote to enter the menu.

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

The Picture menu includes the following options:

12

Picture Mode: Display modes include Standard, Dynamic, Mild, & User.

Contrast: Controls difference between light and dark regions of the picture.

Brightness: Controls overall brightness of the picture.

Color: Controls the color range of the picture.

Picture Audio

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Color Temp.

Advanced Option

6

Time Setup

Standard

Lock

Normal

Tint: Controls the tint of the picture.

Sharpness: Increase to make edges in picture crisp, decrease to soften edges.

Select Move

Color Temp: Modes include Normal, Cool, & Warm.

NOTE: Only menus relevant to the source will be available when that source is selected.

Pairing to the TV

To pair a Bluetooth device to the TV, first go to Advanced Option in the

Picture menu. Make sure the TV Ears Mode is turned ON.

MENU

Exit

Channel

50

50

50

0

50

1. Turn on the device you wish to pair.

2. Press the PAIR button on the TV remote.

3. Enter the 4-digit pairing code specific to your device using the number buttons. Pairing will automatically begin. The screen will read TV Ears Connecting...

4. If connection is made, TV will read Connect OK. If connection is not made, TV will read Connect Fail.

If the connection fails, check that TV Ears Mode is ON. Also check that you have the correct Pairing Code for the device you are trying to pair.

Picture Audio

TV Ears Mode

12

6

Time

Move

Setup

On

Lock Channel

Select

MENU

Exit

Pairing Code

----

TV Ears Connecting...

Connect OK

Audio Menu

Navigate to the AUDIO menu then press SELECT or / on the remote to enter the menu.

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

12

The Audio menu includes the following options:

6

Time

Sound Mode: Modes include Standard, Music, Movie, & User.

Bass: Controls the relative intensity of lower pitched sounds.

Treble: Controls the relative intensity of higher pitched sounds.

Balance: Adjusts sounds to the left or right sound track.

Picture Audio

Sound Mode

Bass

Treble

Balance

Surround

Audio Language

Surround: Adjusts surround sound ON or OFF.

Select

Audio Language: Adjusts audio languages among English, French, & Spanish if available.

Move

Setup

Standard

Lock

Off

English

Channel

MENU

Exit

50

50

50

Time Menu

Navigate to the TIME menu then press SELECT or / on the remote to enter the menu.

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

The Time menu includes the following options:

Sleep Timer: Turns on the sleep timer with the following time options -

5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min,

180min, 240min, & OFF

Time Zone: Adjusts the time zone between Pacific, Alaska, Hawaii,

Eastern, Central, Mountain

Daylight Savings Time: Adjusts daylight savings ON or OFF.

12

Picture Audio

6

Time

Sleep Timer

Time Zone

Daylight Saving Time

Select Move

Setup Lock

Off

Pacific

Off

Channel

MENU

Exit

NOTE: Only menus relevant to the source will be available when that source is selected.

10

11

Setup Menu

Navigate to the SETUP menu then press SELECT or / on the remote to enter the menu.

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

12

The Setup menu includes the following options:

Picture Audio

6

Time

Menu Language: Adjusts the menu lanuage to English, French or

Spanish.

Transparency: Adjusts the transparency of the on-screen menu.

Zoom Mode: Modes include Normal, Cinema, Wide, & Zoom.

Menu Language

Transparency

Zoom Mode

Close Caption

DLC

12

6

Time

Noise Reduction: Modes include Strong, Off, Weak, & Middle.

Advance: Adjustments for PC source selection.

Phase

Auto Select

Setup k

Lock Channel

English

Off

Normal

Setup Off

Lock

Move

On

MENU

Channel

0

Exit

50

50

50

12

Advance adjustments include:

H-POS: Adjusts the horizontal position.

V-POS: Adjusts the vertical position.

Clock: Prolongs the view of the picture.

Phase: Adjusts the definition of the picture.

Auto: If selected, automatically adjusts all items.

Picture Move Audio

H-POS

V-POS

Clock

Phase

Auto

6

Time

50

50

50

0

Move Select

MENU

Exit

Closed Caption: Adjusts the closed captions views.

Closed Caption adjustments include:

CC Mode: Adjusts mode ON, OFF or CC on mute.

Basic Selection: Adjusts between text selections.

Advanced Selection: Adjusts between service selections.

Option: Adjusts the specific text options.

12

Picture Audio

CC Mode

Basic Selection

Advanced Selection

Option

6

Time Setu p Lock

On

CC1

Service 1

Channel

DLC: Adjusts the Dynamic Luminance Control ON or OFF.

Restore Default: Restores all settings to factory settings.

12

Picture Move Audio

6

Time

CC Mode

Basic Selection

Advanced Selection

Audio

12

6

T i m e

On

CC1

Service 1

Setup L o c k Channel

Are you sure

No Yes

Select

MENU

Return Move

12


Picture Audio

Mode

Font Style

Font Size

Font Edge Style

Font Edge Color

FG Color

BG Color

FG Opacity

BG Opacity

6

Time Setup Lock

Custom

Default

Default

Default

Default

Default

Default

Default

Default

Channel

12


Move

Audio

Mode

Font Style

Font Size

Font Edge Style

Font Edge Color

FG Color

BG Color

FG Opacity

BG Opacity

12

6

Time

Select

Setup

MENU

Lock

Custom

Default

Default

Default

Default

Default

Default

Default

Default

Return

Channel

Move

Audio

6

Time

Select

Setup

MENU

Lock

Return

Channel

Enter Password

input

4-digit password

Move Select

MENU

Return

12

Picture Audio

Change Password

System Lock

US

Canada

RRT Setting

Reset RRT

6

Time Setup Lock Channel

On

MENU Return Move 0~9 Select MENU Return

12

Audio

Enter New Password

Confirm Password

6

Time Setup Lock Channel

0~9 MENU

Return

Lock Menu

Navigate to the LOCK menu then press SELECT or / on the remote to enter the menu.

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

To enter the Lock menu use the number buttons and enter the password “0000’’.

12

The Lock menu includes the following options:

Picture Audio

6

T i m e

Change Password: Changes the factory set password to a new 4-digit password.

Setup L o c k Channel

US: Adjusts locked broadcast channels based on US ratings.

TV: Locks specific broadcast channels.

No Yes

Select

MENU

Return

Canada: Adjusts locked broadcast channels based on Canadian ratings.

Canada Eng: Locks specific broadcast channels based on Canadian English ratings.

Canada Fre: Locks specific broadcast channels based on Canadaian French ratings.

RRT: Rating Region Table settings.

Reset RRT: Restores RRT settings to factory settings.

Picture Audio

Enter Password

12

6

Time

Setup

Lock Channel

0~9 MENU Return

input

4-digit password

12

Picture Audio

Change Password

System Lock

US

Canada

RRT Setting

Reset RRT

6

Time

Setup

Lock Channel

On

Move Select MENU Return

Audio

12

6

Time Setup Lock Channel

Confirm Password

12

0~9 MENU

Return

12

6

Time Picture Audio

Canada Eng

Canada Fre

Picture Audio

Canada Eng

Canada Fre

12

6

Time

Setup

G

G

Lock Channel

Setup

G

G

Lock Channel

Select Move

MENU

Return

MENU

Return Move Select

Channel Menu

NOTE: Channel Menu is only available when the Source is set to TV for antenna or direct cable.

Navigate to the CHANNEL menu then press SELECT or / on the remote to enter the menu.

12

12

6

Once in the menu, use / to navigate to settings and / to select or change settings.

To Exit press MENU on the remote.

Air / Cable

Auto Scan

Time

12

Favorite

Audio

RF C

6

H:

Found :

The Channel menu includes the following options: Air / Cable

Auto Scan

Setup

Setup

Air

Air

KOCE-Lb

Lock

Lock

Lock

Good

Air/Cable: Select Air for Antenna and Cable for direct cable.

Auto Scan: Scans Air or Cable for available channels. Received channels will be saved automatically.

Show / Hide

Select

Channel Label

DTV Signal

Channel

Channel

Channel

Move

Move

50-3

KOCE-Lb

MENU

MENU

Exit

Return

Good

Cable System: Set to Auto.

Select Move

MENU

Exit

12 Start to Scan: Begins the channel scan.

6

Picture Audio Time Setup Lock Channel

Favorite: Add, removes, and adjusts channels in the favorites menu.

12

Show / Hide: Adjust channels to be shown or hidden.

RF C H:

Channel No: Displays number of current channels.

Channel Label: Displays label of current channels.

DTV Signal: Displays quality of current TV signal.

Select

:

Move

7

4

MENU

Return

6

12

Picture Audio

Time

Setup

Lock

Lock

Channel

Channel

Program Name

12

Favorite

2 0

6

Audio

Cable System

Start to Scan

50 3

66 0

ATSC 2

ATSC 3

Auto

KOC E HD

KOC E SD

KOC E LB

Lock Channel

Select

Select Press

Move

“

SELECT

” change

MENU

MENU

Return

Return

Picture Audio

12

6

Time Setup Lock Channel

Select

RF C H:

Found :

7

4


No.

2 0

14 1

14 2

14 3

50 1

50 2

50 3

66 0

12

Audio

6

Time

Setup

Program Name

ATSC 1

ATSC 2

ATSC 3

KOC E HD

KOC E SD

KOC E LB

Lock Channel

Favorite

Select Press

“

SELECT

” change

MENU

Return


No.

2 0

14 1

14 2

14 3

50 1

50 2

50 3

66 0

Select Move

12

Audio

6

Time Setup

Program Name

ATSC 1

ATSC 2

ATSC 3

KOC E HD

KOC E SD

KOC E LB

MENU

Return

Lock Channel

Show

Select Press

“

SELECT

” change

MENU

Return

Move

MENU

Return

13


No.

2 0

14 1

14 2

14 3

50 1

50 2

50 3

66 0

12

Audio

6

Time Setup

Program Name

ATSC 1

ATSC 2

ATSC 3

KOC E HD

KOC E SD

KOC E LB

Lock Channel

Favorite

Select Press

“

SELECT

” change

MENU

Return


No.

2 0

14 1

14 2

14 3

50 1

50 2

50 3

66 0

12

Audio

6

Time

Setup

Program Name

ATSC 1

ATSC 2

ATSC 3

KOC E HD

KOC E SD

KOC E LB

Lock Channel

Show

Select Press

“

SELECT

” change

MENU

Return


No.

2 0

14 1

14 2

14 3

50 1

50 2

50 3

66 0

12

Audio

6

Time Setup

Program Name

ATSC 1

ATSC 2

ATSC 3

KOC E HD

KOC E SD

KOC E LB

Lock Channel

Show

Select Press

“

SELECT

” change

MENU

Return

USB Menu

NOTE: USB Menu will appear when the Source is set to USB and a USB drive is plugged into the USB port.

Once in the menu, use / to navigate to settings and / to select.

Press Menu on the remote exit or re-enter the menu.

Photo Menu

Press Select on the remote to enter the slideshow view of the pictures.

Press Exit to return to the menu.

Photo Music

USB

C

:\

C

:\









Total size: 3.7 GB

Unused size: 2.8 GB

Play File :8 011/018 360 640 63.3kb

Select Move Repeat

Music Menu

Press Select on the remote to Play the selected music, press Select again to Pause.

Press Exit to return to the menu.

C

:\

Photo Music

Avril-Glrlfriend.mp3

Avril-Hot.mp3

Avril-Keep Holding On.mp3

Avril-One Of These Girls.mp3

USB

C

:\

Avril-Hot.mp3

Title: Hot

Artist: Avril Lavigne

Album: The Best Thing

Year: 2007

Bit Rate: 320kbps

Stop

00:00 03:23

Total size: 3.7 GB

Unused size: 2.8 GB

Play File :6 007/011

Select Move Repeat

Charging your device

The USB port on the back of the TV can charge many devices. To charge, plug the device into the USB port.

14

15

Troubleshooting

If you encounter problems with your TV, please check the troubleshooting guide below.

Problem Troubleshooting

No signal Check that all cables are plugged in, the is power on, the correct source is selected, and that the source is on.

No color

Interference on the screen

Check that the cables are completely plugged in and the source device is on. Adjust the contrast, color, and brightness of the picture.

May be the result of an interference from a car, motor, neon light, or other electrical device.

May be the result of interference from another TV, a computer, or radio.

Multiple image displays

Noise on the screen Ensure that the antenna cables are completely and accurately plugged in.

Remote control is not working Check the batteries are installed correctly and are not old. Ensure the signal from the remote to the TV is not blocked.

No sound Check that the MUTE function is not turned on, adjust the volume setting, check that the cables are completely plugged in to the TV and source.

Specifications

Category

Screen Size

Display Type

Resolution

Aspect Ratio

Refresh Rate

Power Supply

Power Consumption

Inputs

Outputs

Dimensions (L x W x H)

Specifications

32 inches

TFT LCD

1920 x 1080 pixels

16:9

120 Hz

AC100-240V 50/60Hz

140W

2 - HDMI

1 - Air Antenna

1 - Cable Coax

1 - Component (Y, Pb, & Pr)

1 - Composite (VIDEO)

1 - Set of Audio In (L & R)

1 - VGA (PC) with Audio

1 - USB

1 - Fixed Audio Out

1 - Variable Audio Out

1 - Headphone Jack

1 - Digital Audio Out (SP/DIF)

31.25” x 9.75” x 23.4” with stand 31.25” x 5.25” x 21.4” without stand

Inactivity Shut-off

Your new TV Ears TV has an activity monitor. To conserve energy, the TV will automatically shut off after 4 hours if it does not detect activity. A warning will appear on the screen prior to shut down. If you do not want the TV to shut off, press any button on the remote, for example the volume button. The 4 hour timer will reset and begin monitoring activity for another four hour period.

16

Warranty Info

If your TV Ears TV proves to be defective in material or workmanship under normal use, TV Ears, Inc. (“TV

Ears”) will repair or replace it during the warranty period described below and on the terms and conditions set forth herein (“Limited Warranty”). The Limited Warranty is effective from the date of original consumer purchase of the product (“Date of Purchase”). The Limited Warranty is valid only for the original purchaser of the product and is effective only in the continental United States, which excludes the U.S. Territories, Alaska, and Hawaii. The decision whether to repair or to replace the TV Ears TV will be at the sole discretion of TV

Ears.

Warranty Term

TV Ears TV: For a period of two (2) years from the Date of Purchase, TV Ears will repair or replace, with new or refurbished products or parts, any TV Ears TV or parts determined to be defective by TV Ears. Replacement and repair products and parts are warranted for the remaining portion of the original unit’s warranty period.

TV Accessories: For a period of ninety (90) days from the Date of Purchase, TV Ears will repair or replace, with new or refurbished products or parts, any accessories or parts determined to be defective by TV Ears.

Replacement and repair products and parts are warranted for the remaining portion of the original unit’s warranty period. TV accessories include cords, remote controls, and power supplys that come with the television.

How to Obtain Warranty Service

To obtain warranty service, contact TV Ears Technical Support:

Email: [email protected]

Phone: 888-883-3277 toll free

You must provide the model number, serial number, and date of purchase.

TV Ears reserves the right to assess all warranty claims and to determine if defects or damages are covered by this Limited Warranty. In case of a claim that is not covered by this Limited Warranty, you will be contacted to determine whether TV Ears should repair the damage for a fee or whether the products should be returned to you as received by the service technician. Parts and service labor that are TV Ears’ responsibility under this Limited Warranty will be provided without charge. All other parts and services are at the customer’s expense.

TV Ears TV’s returned to TV Ears without prior authorization will be refused.

Not Covered:

This Limited Warranty does not cover the following: cosmetic defects, malfunctions or failures resulting from shipping or transit, damage (including cosmetic damage), failure, loss or personal injury due to improper or faulty installation, abuse, operation contrary to provided instructions, operation on incorrect power supplies or products not supplied by TV Ears, modification or alteration of the television or the TV accessories, improper servicing or tampering with the television or the TV accessories; damage from fire, water, lightning, power surges, abnormal environmental conditions or other acts of nature; normal wear and tear; unsatisfactory visual or audio performance not caused by a manufacturing defect; displays with a missing or unreadable serial number; damage caused by other system components; and replacement of batteries on the remote control. “Image Sticking”, caused by static images on the screen for extended periods and / or excessive brightness and contrast levels, is not covered by this Limited Warranty. Installation, removal, transport and reinstallation of a display, and routine maintenance and cleaning, are not covered by this

Limited Warranty.

17

Warranty Info (cont.)

Mail-In Warranty Repair Procedure

If TV Ears Technical Support determines that a problem with a TV Ears TV or TV accessories may be within the terms and conditions of the TV Ears Limited Warranty and that a mail-in repair may be performed, the customer will be prodivded with a return authorization number and mail-in repair instructions. Proof of purchase is required to confirm the product is within the Limited Warranty period and meets the terms and conditions of the TV Ears Limited Warranty.

The customer will be provided with instructions for packing and shipping the unit to the TV Ears service center. The original carton box and packing material, or equivalent as designated by TV Ears, must be utilized. The cost of shipping to TV Ears service center is at the customer’s expense. After the product is repaired and tested, the TV Ears service center will ship the unit back to the customer at TV Ears’ expense. TV

Ears is not responsible for the de-installation or re-installation of the product.

TV Ears Return Policy for Non-defective Products

TV Ears’ return policy for non-defective products is that such products purchased directly from TV Ears may be returned by the original purchaser during the initial thirty (30) day period following the date of purchase.

A TV Ears return authorization number (RMA Number) must be obtained. The refund will be the purchase price actually paid by the purchaser less a ten percent (10%) restocking fee for each item returned. The costs for shipping and White Glove Delivery are not refundable.

The return authorization number must first be obtained from TV Ears Customer Service or Technical Support via:

Email: [email protected]

Phone: 888-883-3277 toll free

Products must be returned to the address specified by the TV Ears Customer Service or Technical Support and must be shipped in the original packaging, with freight prepaid, to TV Ears, and must be received in new and unused condition. The RMA Number must be included in the packaging. TV Ears reserves the right to assess fees for any damage or missing parts in addition to the ten percent (10%) restocking fee.

RMA Numbers are valid for fifteen (15) days from the date of issuance. The customer is responsible for and must prepay all shipping charges and shall assume all risk of loss or damage to the product while in transit to TV Ears. If the product is returned to TV Ears (1) without a TV Ears RMA Number, and/or (2) after the fifteen

(15) day period, and/or (3) without proper packaging, TV Ears shall have the right to refuse delivery of such returned product and to return the product to the customer at the customer’s expense with no refund issued.

18

Toll Free Help Line:

888-883-3277

To Learn More: www.tvears.com

©2011 TV Ears, Inc.
