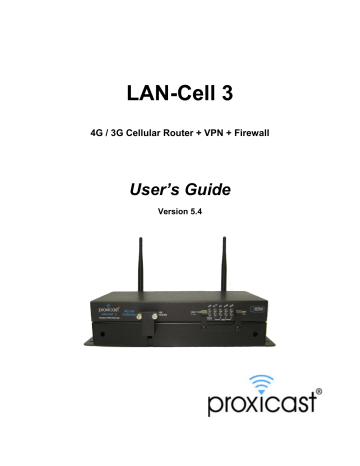

LAN-Cell 3
4G / 3G Cellular Router + VPN + Firewall
User’s Guide
Version 5.4
CONTENTS
Document Revision History
April 29, 2014
February 1, 2013
April 2, 2012
Version 5.4: Added Guest Hotspot, Wi-Fi Client Static IP, IPSec Split Tunneling
Version 5.2: Revised for latest firmware features and Modem-SAFE base
Version 5.1: Initial release
Related Documents & Resources
LAN-Cell 3 Quick Start Guide
http://www.proxicast.com/support/files/LAN-Cell-3-QuickStartGuide.pdf
LAN-Cell 3 Firmware Release Notes
http://www.proxicast.com/support/files/Release-Notes.pdf
LAN-Cell 3 Application Tech Notes
http://www.proxicast.com/support/TechNotes.htm
Proxicast Knowledgebase
http://www.proxicast.com/AbsoluteFM/afmmain.aspx
Tips for Verizon Wireless Modems
http://www.proxicast.com/support/files/LC3-Tips-Verzion-Wireless.pdf
LAN-Cell 3 Accessories
http://www.proxicast.com/shopping/index.php
About This User's Guide
Intended Audience
This manual is intended for user who need to configure the LAN-Cell 3 using the device’s embedded web interface. You should have at least a basic knowledge of TCP/IP networking concepts and topology.
Related Documentation
•
Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access.
• Firmware Release Notes
Every new LAN-Cell firmware release includes a description of the new features and improvements.
• Proxicast Support Web Site
Please refer to http://support.proxicast.com
for additional support documentation and access to our
Knowledgebase.
Syntax Conventions
•
The LAN-Cell 3 may be referred to as the “LAN-Cell”, the “device” or the “system”.
•
The LAN-Cell 3’s wired Ethernet WAN interface may be referred to as “WAN”, “Wired WAN” “Ethernet
WAN”, “WAN (Ethernet)” or “WAN 1”.
•
The LAN-Cell’s USB modem interface may be referred to was “Cellular”, “CELL”, “USB”, WAN (USB
Modem)” or “WAN 2”
•
Product labels, screen names, field labels and field choices are all in bold font.
•
A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the “enter” or “return” key on your keyboard.
•
“Enter” means for you to type one or more characters and then press the [ENTER] key. “Select” or “choose” means for you to use one of the predefined choices.
•
A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Management > Log means you first click Management menu, then the Log sub menu to get to that screen.
•
The example screens shown in the User’s Guide may differ slightly from the actual screens on the
LAN-Cell, depending on the firmware version the LAN-Cell is running.
Safety Warnings
•
Do NOT use this product near water.
•
Do NOT expose your device to dampness, dust or corrosive liquids.
•
Do NOT store things on the device.
•
Do NOT install, use, or service this device during a thunderstorm.
•
Connect ONLY suitable accessories to the device.
•
Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
•
Make sure to connect the cables to the correct ports.
•
Place connecting cables carefully so that no one will step on them or stumble over them.
•
Use ONLY an appropriate power adaptor or cord for your device.
•
Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or
230V AC in Europe).
•
Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.
•
Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
•
Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
•
Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
•
Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s).
•
If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.
This product is recyclable. Dispose of it properly.
CHAPTER 1: INTRODUCTION
The LAN-Cell 3 is Proxicast’s third generation of enterprise-grade secure cellular gateways. This model features customer accessible and removable “4G/3G” USB cellular modems -- the same ones commonly used to provide high-speed 4G/3G cellular connectivity to laptops. The USB modem seamlessly becomes a WAN interface for the
LAN-Cell’s router and is fully integrated with all of the LAN-Cell’s security, performance, and management capabilities.
As with its predecessors, the LAN-Cell 3 is loaded with security features including VPN, firewall and access control.
The LAN-Cell 3 adds improved throughput, support for 4G cellular modems, bandwidth management, NAT, port forwarding, policy routing, DHCP server and many other powerful features required for complex and demanding applications.
The LAN-Cell 3 also has a built-in IEEE 802.11 b/g/n Wi-Fi radio that functions as both an access point and a WAN bridge. This allows Wi-Fi devices to securely communicate with the LAN-Cell and access the wired network or
Internet. It also enables the LAN-Cell to use available Wi-Fi networks for even higher speed Internet access.
The LAN-Cell 3’s all metal construction coupled with its unique Multi-Function Mounting System and patent-pending Modem-SAFE
TM
system make it the perfect choice for applications where a high-performance, secure, reliable and rugged cellular router is required.
1.1
Key Features
• Multiple Broadband WAN Connections (4G/3G + 802.11 b/g/n + xDSL/cable modem)
The LAN-Cell 3 supports multiple broadband technologies, including 4G/3G, 802.11 b/g/n and xDSL/cable modems. You can create a mobile broadband connection using a 4G/3G modem or switch to fixed line connection using a xDSL/cable modem. It also supports the latest 802.11n technology for Wi-Fi on the WAN.
• 4G/3G USB Modem Support
With support for over 100 different 4G/3G USB modems on dozens of mobile networks worldwide, the
LAN-Cell 3 allows you to use your existing 4G/3G modem and service provider to create a mobile broadband sharing connection. (Find the list of currently compatible modems on our web site.)
• Dual WAN Load Balance and Failover
Proxicast’s LAN-Cell 3 supports load balancing and failover functions between fixed-line (xDSL/cable modem), Wi-Fi, and 4G/3G service, offering non-stop network connectivity.
1
• IPsec Server & Client
The LAN-Cell 3’s embedded IPSec VPN features allow remote users to make secure connections to devices which normally cannot run VPN software. The LAN-Cell can also establish site-to-site IPSec tunnels to existing corporate VPN servers for enterprise-level data security.
• Quality of Service (Bandwidth Management)
Proxicast’s LAN-Cell 3 is able to automatically monitor your bandwidth usage, prioritize traffic, and allocate bandwidth to all applications and users. At the same time, it also is able to provide users with the freedom to customize their bandwidth allocation to meet special requirements. Policy-based bandwidth allocation and routing give the user complete control over how WAN resources are utilized.
• Industrial Design
Designed specifically for industrial and mobile applications, the LAN-Cell 3’s rugged steel chassis and unique
Multi-Function Mounting Base provide physical security along with conveniences such as power-locking, cable management and our patent-pending Modem-LOCK USB modem retention system.
• Energy Efficient
The LAN-Cell 3’s low power consumption SOC chip makes it ideal for solar or battery-powered installations.
1.2
Package Contents
• LAN-Cell 3
• Multi-Function Mounting Base with Modem-SAFE
• 120/240 VAC to 12 VDC Power Adapter
• 2x 3 dBi Wi-Fi Antennas
• 1x CAT5e Cable
• 1x USB Cable
• 3x Velcro Strips
• 4x Rubber Feet
• Mounting Hardware Kit
• Quick Start Guide
2
CHAPTER 2: HARDWARE
2.1
Front LEDs
Figure 1: LAN-Cell 3 Front Panel
LABEL
MODEM
USB
Wi-Fi
OS
PWR
STAT
WAN
Solid
Solid
Solid
Solid
Flashing
Solid
Solid
Flashing
LAN 1-4
EJECT USB
Solid
Flashing
RESET
LED STATE DESCRIPTION
USB 2.0 port for 4G/3G USB modems only
Flashing
USB modem is initializing
– or –
USB modem is not registered on the carrier network
– or –
There is no compatible cellular service available at the current location
USB modem has made a connection & has been assigned an IP address
The LAN-Cell’s internal Wi-Fi radio is enabled
An internal OS error has occurred
Power is on
Power-on Self Test is in progress (approx. 60 sec)
LAN-Cell is at normal operational status
Link Status on the wired WAN Ethernet port
Data activity on the wired WAN Ethernet port
Link Status on the corresponding LAN Ethernet port
Data activity on the corresponding LAN Ethernet port
Press & hold for 5 seconds. Wait for LED to stop flashing. Remove USB modem.
Press & hold for 5 seconds until the STAT LED begins to flash. Wait for STAT LED to stay on solid. This returns the LAN-Cell to its factory default settings:
LAN IP = 192.168.1.1:8080
Username/Password = admin/1234
3
2.2
Rear Panel
Figure 2: LAN-Cell 3 Rear Panel
LABEL
Wi-Fi (B)
*
LAN 1-4
(yellow)
WAN
(blue)
PWR
DESCRIPTION
Attach one of the supplied cylindrical Wi-Fi antennas to this RP-SMA (reverse polarity) connector if using the LAN-Cell’s integrated 802.11 b/g/n radio.
Connect equipment to these ports with Ethernet cables. These ports are auto-negotiating (supporting
10, 100, 1000 Mbps) and auto-sensing (adjusts to the Ethernet cable type: straight-through vs. cross-over).
Connect a cable/DSL modem or other 10/100/1000 Ethernet-based WAN equipment to this auto-sensing/auto-negotiating port.
Connect the included 12V DC power adapter to this jack. This is a 2.1mm center pin positive connector.
ON/OFF
Power Switch. To prevent accidental disengagement of the switch, install the Power Switch cover included with the Multi-Function Mounting Base.
Wi-Fi (A)
*
Attach one of the supplied cylindrical Wi-Fi antennas to this RP-SMA (reverse polarity) connector if using the LAN-Cell’s integrated 802.11 b/g/n radio. If using only 1 antenna, use jack A.
* Attaching other types of antennas (such antennas with standard SMA, TNC or FME connectors) to this jack may damage the antennas and/or Wi-Fi antenna jack!
4
2.3
Multi-Function Mounting Base
The LAN-Cell 3’s Multi-Function Mounting provides:
A. Wall and deck mounting options
B. Multiple external antenna mounting points
C. Cable management tie-down posts
D. Power switch & reset button protection features
E. Modem-SAFE™ USB modem mounting system
A B
E D B
Figure 3: Mounting Base Front
B D B
Figure 4
: Mounting Base Rear
2.4
Modem-SAFE
TM
The LAN-Cell 3’s patent-pending Modem-SAFE system is a mechanism for securing a USB modem to prevent it from being removed or coming loose in mobile applications. The slotted mounting plate and Velcro strip design allows for infinite flexibility in mounting a wide variety of USB modems.
Note: At this time, the Novatel USB551L, MC679 and MC545 modems are known to be incompatible with the
Modem-SAFE base due to the design of their USB connector and its limited operating angle.
Assembling the Mounting Base:
•
Insert a Velcro strip through the slotted mounting plate with the wide “cat-ear” end pointing up and with the loop (soft)
5
Figure 6: Locking Velcro Strip
Figure 5: Inserting Velcro Strip
• Loop the tapered end of the Velcro strip up through an adjacent slot and secure through the hole in the top
the wide-end of the Velcro strip against the mounting plate for leverage when cinching this loop.
• Attach the right-angled male-to-female USB adapter to the USB modem. Also attach the external antenna pigtail to the USB modem. External modem antennas are highly recommended when using the
Modem-SAFE base.
• Place the USB modem onto the plate and loop the strip over the modem and back under the plate. The hook (rough) side of the Velcro should be against the body of the USB modem. Pull tightly to secure
Note: Different modem models require different placement on the slotted mounting plate. Modems with external antenna connectors on the top or bottom should be oriented so that the antenna connector is pointing away from the slotted plate.
Figure 7: Cinching the Modem Figure 8: Modem Locked to Plate
of the Velcro straps tightly up through the slots and secure onto the top of the first loop of Velcro.
6
• Align the top of the Multi-Function base so that the vertical slot is facing the LAN-Cell 3’s LEDs and the three cable tie posts are facing the Ethernet ports. Attach the top of base to the bottom of the LAN-Cell 3 using the 4 corner screw holes and the provided #6-32 screws.
• Place the slotted mounting plate assembly into the base and secure to the LAN-Cell 3 (Figure 9).
Figure 9: Assembled Modem-LOCK
• Attach the USB cable to the front USB jack and the external modem antenna to one of the four “D” holes in
• Place the bottom cover over the base assembly and secure with screws on each side of the base.
• Optionally install the button covers over the front Reset and rear Power switches to prevent accidental activation of these buttons.
7
2.5
Hardware Setup
2.5.1
Power On
Plug one end of the provided power adapter into LAN-Cell 3’s DC power port and the other end into a power outlet.
Depress the Power push-button on the rear of the unit. After about 60 seconds, the LAN-Cell 3 will be operational when its PWR LED and STAT LED are both constantly on.
2.5.2
Install LAN Connection
Plug one end of an Ethernet cable into your computer’s network port and the other end into one of LAN-Cell 3’s four LAN ports on the rear panel. The corresponding LAN LED will be green and will flash indicating LAN traffic.
2.5.3
Install WAN Connection
Choose one or more ways to connect LAN-Cell 3 to the Internet.
A. Connect via 3G/4G USB Modem
Plug a supported 3G/4G USB modem into LAN-Cell 3’s USB port on the front panel.
B. Connect via xDSL, cable modem or other wired Ethernet service
Plug an Ethernet cable from your Ethernet WAN device (e.g. DSL modem) into LAN-Cell 3’s WAN port on the rear panel.
The LAN-Cell 3 supports 2 simultaneous WAN connections for both fail-over and load-balancing operations.
2.5.4
Install Wi-Fi Connection
Attach the 2 RP-SMA antennas to the A & B Wi-Fi antenna jacks on the rear panel. These antennas provide both
Wi-Fi service to LAN devices and can be configured as an optional WAN connection in place of a wired Ethernet
WAN connection.
8
CHAPTER 3: ACCESSING THE LAN-CELL 3
Initial setup of the LAN-Cell 3 must be done using an Ethernet cable – the internal Wi-Fi Access Point is disabled by default as a security precaution.
Configure your PC to receive an automatic its IP address information automatically (DHCP) or set your PC’s IP address to 192.168.1.2, netmask= 255.255.255.0 and default gateway=192.168.1.1. If you are unfamiliar with how to configure your PC’s TCP/IP settings, please refer to the Appendix.
3.1
Start-up and Login
Open any Web browser. In the address box, enter [HTTP://192.168.1.1:8080]
recommended. See the Admin > Management screen.
Figure 10: LAN-Cell 3 Login Screen
9
Figure 11: Router Status Screen
3.2
Navigating the User Interface
The LAN-Cell’s web management interface is divided into 3 sections (Figure 12):
1. Drop-down Navigation Menus
2. The Status Summary Column
3.
Configuration Parameters
10
Figure 12: LAN-Cell 3 Screen Layout
To expand a drop-down menu, click on the menu title. Then select the desired sub-menu. Chapters 5 through 11 provide details on each of the LAN-Cell 3’s menu options.
The Status Summary column is shown on the right side of every screen to provide a quick overview of the
LAN-Cell’s key operating parameters. The Enable/Disable buttons allow you to easily change an interface’s status.
Configuration parameters are entered on the main panel of each screen. Screens are divided into logical parameters groupings labeled with black bands.
3.3
Menu Structure
Status
Setup
Provides real-time and historical information about the LAN-Cell’s operation.
Changes the LAN-Cell’s LAN, WAN, DHCP, DDNS, Time and other settings. WAN configures the USB modem and wired Ethernet connections. WAN Advanced configures fail-over modes and related settings.
Wireless (Wi-Fi) Configures the LAN-Cell’s embedded 802.11 b/g/n Wi-Fi radio.
Security
Includes screens for configuring the LAN-Cell’s firewall, filtering, and VPN features.
Applications
Port-Forwarding, DMZ and other application-specific settings.
QoS
Admin
Enables Quality-of-Service (bandwidth management) and performance enhancing features.
Includes system management, firmware updates, utilities and system event logging.
11
CHAPTER 4: QUICK SETUP
4.1
USB Modem Configuration
The LAN-Cell 3 auto-recognizes and configures itself for over 100 different USB modem models on dozens of cellular service provider networks. Please refer to the LAN-Cell 3 Firmware Release Notes for the list of currently supported modems.
The USB modem may need to be activated with a cellular service provider before it can used in the LAN-Cell 3
Follow the service provider or modem manufacturer’s instructions for activating, testing, and updating the firmware on the USB modem before attempting to use it in the LAN-Cell 3.
Some modems require cellular service provider specific settings to be entered on the LAN-Cell 3’s Setup > WAN screen. If the USB modem and carrier settings are not auto-detected, obtain the following information from the service provider:
Parameter
Modem Manufacturer*
Modem Model #*
APN
†
Authentication Type
Your Cellular Carrier’s Settings
The original equipment manufacturer, not the ISP’s brand
The original equipment manufacturers’ model
Username / Password
ISP Access #
Φ
#777 for CDMA, *99# for GSM
PIN Code
‡
* This information is often on the modem’s label; sometimes under a removable cover.
† APN applies only to GSM carriers. Many GSM carriers operate different APNs for different types of data service plans.
Φ The LAN-Cell does not use the phone number assigned to the USB modem. That number is used only by the provider.
‡ The 4 digit PIN code field is required only if the SIM/RUIM is has been locked.
location, service provider name and specific APN setting (if required). If you are using a “custom” APN, select the
Manual option and enter the custom APN value in the Access Point Name field.
12
Figure 13: USB Modem Setup
Proxicast recommends implementing the WAN Fail-Over Connectivity Check found on the Setup > WAN
Advanced screen for maximum 4G/3G connection reliability. By default, this feature is enabled and configured to ping a high-availability server.
4.2
WAN Configuration
WAN interface. For most Ethernet connections, the default DHCP client mode is sufficient. If your WAN interface has been assigned a static IP address, select “Static IP” from the Connection Type drop-down and enter the appropriate TCP/IP setting values. If your Ethernet connection uses the PPPoE protocol, select that Connection
Type and enter your login information.
The LAN-Cell 3’s Wi-Fi radio can also be used in place of the wired Ethernet WAN connection. For more
information on this option, see Section 6.1.6.
13
Figure 14: Ethernet WAN Setup
4.3
LAN Configuration
If you need to change the LAN-Cell 3’s default LAN subnet (192.168.1.1 / 255.255.255.0), go to the Setup > LAN
drop-down list. The LAN-Cell’s DHCP server will automatically adjust to serve addresses from the new subnet.
Figure 15: Ethernet LAN Setup
4.4
Wi-Fi Configuration
The LAN-Cell 3’s internal 802.11 b/g/n Wi-Fi radio is disabled by default as a security precaution. To provide laptops, tablets and other Wi-Fi devices with Internet connectivity through the LAN-Cell, go to the Wireless (Wi-Fi)
> Basic screen (Figure 16) and enable the wireless connection.
14
Figure 16: Wi-Fi Basic Setup
Only SSID1 will be enabled by default. You may change the SSID Name to suit your preference. We strongly recommend that you change the Security Mode to prevent authorized access to your Internet connection. The
LAN-Cell 3 also supports a second SSID. This is most often used when you wish to provide “guest” access to your
Internet service, but maintain guest devices on a different LAN subnet than your other devices.
4.5
Password
password (case sensitive) and re-enter the value to confirm.
Figure 17: Changing the Admin Password
15
CHAPTER 5: STATUS MENU
5.1
Router
Figure 18: Router Status
16
5.1.1
Router Information
Model Name Product model name is shown.
Firmware Version
Current Time
The firmware version this device is running.
Current system time
Running Time The period of time LAN-Cell 3 has been running.
5.1.2
WAN (USB Modem)
MAC Address MAC Address of the USB Modem (Direct IP modems only)
Connection Type
IP Address
Subnet Mask
The current connection type (wwan or DirectIP)
WAN IP address
Subnet mask
Gateway IP address of the remote gateway
5.1.3
WAN (Ethernet)
MAC Address MAC Address of the WAN port
Connection Type
IP Address
Subnet Mask
Gateway
The current connection type (PPPoE, Static IP, and DHCP)
WAN IP address
Subnet mask
IP address of the remote gateway
17
5.1.4
LAN
MAC Address MAC Address of the LAN switch
Internal IP Address of the LAN-Cell 3 IP Address
Subnet Mask Subnet mask in the internal network
DHCP service enabled or disabled DHCP Service
DHCP Start IP Address DHCP Start IP address
DHCP End IP Address
Max DHCP Clients
5.1.5
Wi-Fi
Wireless Channel
DHCP End IP address
The maximum IP addressed which can be assigned to PCs connecting to the network
Wireless SSID 1
MAC Address 1
Wireless SSID 2
MAC Address 2
Wireless Channel in use (default is 6)
SSID1 of the LAN-Cell
MAC Address for SSID1
SSID2 of the LAN-Cell
MAC Address for SSID2
18
5.2
Traffic
Click on Status > Traffic and then choose the graph scale from two hours, one day, one week, and one
month. You will see the graph in Figure 19. You can monitor your download and upload throughput.
Figure 19: Traffic Status Graph
19
5.3
Session
Click on Status > Session and choose the graph scale from two hours, one day, one week, and one month.
You will now see the graph in Figure 20. TCP, UDP, ICMP, and total session information is displayed.
Figure 20: Session Status
20
5.4
User/DHCP
Displays a table of the system LAN users and their IP addresses, MAC addresses and remaining DHCP lease times.
Name
IP Address
MAC Address
Expiration Time
Figure 21: User/DHCP Status
DHCP client name
IP address which is assigned to this client
MAC address of this client
The remaining time of the IP assignment
21
5.5
Current Users
Displays a table of the system LAN and WAN users and their IP addresses.
IP Address
MAC Address
ARP Type
Figure 22: Current Users
IP address assigned by Static ARP matching
MAC address in the Static ARP matching
Static or dynamic
22
CHAPTER 6: SETUP MENU
6.1
WAN
6.1.1
WAN (USB Modem)
Figure 23: Setup WAN USB Modem
23
WAN
Connection Type
Modem Brand
Modem Model
APN Type
Location
Service Provider
Access Point Name (APN)
Personal Identification
Number (PIN)
Authentication Type
User Name
Password
ISP Access Number
Connection Mode
PPP Echo Interval
PPP Retry Threshold
MTU
TurboLink
PPTP VPN Client
Select Enable/Disable to enable/disable USB WAN
PPP or DirectIP modems
Choose your modem’s brand. Select Auto for automatic detection.
Choose your modem’s model number. Select Auto for automatic detection.
Choose Auto to use an APN preo-programmed into your USB modem. Select by
Service Provider for to the ISP you use, or otherwise choose Manual to assign desired APN.
Choose your country.
Choose your cellular service provider and the Access Point Name (APN) will be automatically assigned.
Enter APN string offered by the ISP if you select Manual for APN Type. Leave this field blank if your ISP does not use APN’s (e.g. CDMA networks).
Enter PIN code required by your modem. Leave it blank if a PIN code has not been assigned.
Typically “Auto” or select CHAP/PAP/None as required.
The user name required by the ISP (blank if your ISP doesn’t require a username).
The password required by the ISP (blank if your ISP doesn’t require a username).
Enter ISP Access Number required by the ISP to connect to their data network (GSM default *99***1# CDMA default #777).
DO NOT enter the phone number assigned to the USB modem.
Typically “Auto” or can be used to force the modem to operate in a specific mode (if supported by the modem).
PPP echo will ensure whether the link is still up or not (default interval 20 seconds)
When PPP echo retry exceeds PPP Retry Threshold (default 5 times), the connection is recognized as down.
PPP maximum transmission unit: up to 1492 bytes (PPP’s header is 8 bytes).
Although typically not required, enable “TurboLink” to improve the connection stability.
(Please note that TurboLink function will increase your 3G/4G data usage)
Enable to allow the USB WAN to make a client connection to a remote PPTP server.
If enabled, enter the PPTP username, password, VPN host IP address and MPPE128 parameters required for the PPTP VPN connection.
24
6.1.2
WAN (Ethernet)
LAN-Cell 3 supports four WAN connection types in addition to the USB Modem: DHCP, Static, PPPoE, Wi-Fi-Client.
Select the appropriate connection type from the pull-down menu. The screen will expose the related fields for each type of WAN connection.
Figure 24: WAN (Ethernet) Connection Types
6.1.3
DHCP (automatic IP address assignment)
The IP address is automatically assigned to you by your ISP (most common Ethernet WAN option).
Figure 25: Setup WAN Ethernet DHCP
25
WAN
Connection Type
Host Name
MTU
Select Enable/Disable to enable/disable WAN
DHCP
Some ISP and DHCP servers ask for the Host Name of the DHCP client before assigning an
IP address. In this case, enter your Host Name.
Maximum Transmission Unit (1500 is the default for Ethernet)
Bigpond Login If you are using the “Bigpond” system, please enable this item
Bigpond Login
Server
Bigpond Login
User Name
Bigpond Login
Password
Please choose the Bigpond server.
Please enter your User Name provided by Bigpond
Please enter your Password provided by Bigpond
PPTP VPN Client
Enable to allow the WAN to make a client connection to a remote PPTP server. If enabled, enter the PPTP username, password, VPN host IP address and MPPE128 parameters required for the PPTP VPN connection.
6.1.4
Static (Fixed IP address assignment)
The IP address, subnet mask, gateway, and DNS server are provided by your ISP.
Figure 26: Setup WAN Ethernet Static IP
26
WAN
Connection Type
External IP Address
Netmask
Gateway
Static DNS 1
Static DNS 2
MTU
PPTP VPN Client
Select Enable / Disable to enable/disable WAN.
Static IP
The external IP addresses assigned by the ISP.
The netmask assigned by the ISP.
The gateway assigned by the ISP.
The static DNS 1 assigned by the ISP.
The static DNS 2 assigned by the ISP.
Maximum Transmission Unit (1500 is the default for Ethernet)
Enable to allow the WAN to make a client connection to a remote PPTP server. If enabled, enter the PPTP username, password, VPN host IP address and MPPE128 parameters required for the PPTP VPN connection.
6.1.5
PPPoE (connected by username/password)
If your ISP provides the username and password, please enter the information accordingly.
Provided by your ISP
WAN
Connection Type
Authentication Type
User Name
Password
Figure 27: Setup WAN Ethernet PPPoE
Select Enable/Disable to enable/disable WAN
PPPoE
Typically “Auto” or select CHAP/PAP/None as required.
The user name assigned by the ISP.
The password assigned by the ISP.
27
PPP Echo Interval
PPP Retry Threshold
PPP MTU
PPTP VPN Client
PPP echo will ensure whether the link is still up or not (default interval 20 seconds)
When PPP echo retry exceeds PPP Retry Threshold (default 5 times), the connection would be recognized as down.
PPP maximum transmission unit: up to 1492 bytes (PPP’s header is 8 bytes)(This value should be less than MTU value at least 8 bytes ).
Enable to allow the WAN to make a client connection to a remote PPTP server. If enabled, enter the PPTP username, password, VPN host IP address and
MPPE128 parameters required for the PPTP VPN connection.
6.1.6
Wi-Fi Client
The LAN-Cell 3’s built-in Wi-Fi radio can be used as a WAN interface to establish a connection to an external Wi-Fi network. Whenever the LAN-Cell 3 detects the target Wi-Fi network, it will automatically make a connection to this network. This option disables the Ethernet WAN interface, but the LAN-Cell 3 can still function as a local Wi-Fi access point while connected to the remote Wi-Fi network.
Note: the LAN-Cell 3’s Wi-Fi radio must first be enabled on the Wireless (Wi-Fi) > Basic screen.
Figure 28: Setup WAN Wi-Fi Client
28
WAN
Connection Type
Target SSID
Target BSSID (MAC)
Wireless Channel
Extension Channel
Site Survey
Security Mode
IP Type
External IP Address
Subnet Mask
Gateway
Static DNS1 & DNS2
MTU
PPTP VPN Client
Select Enable/Disable to enable/disable WAN
Wi-Fi Client
Enter the SSID of the external target Wi-Fi network to connect to.
Enter the BSSID to connect to. The BSSID is optional if you set the target SSID.
Select the Wi-Fi channel number used by the target Wi-Fi network.
When operating in 40 MHz mode the access point will use an extended channel either below or above the current channel. Optimal selection will depend on the channels of other networks in the area.
Click this button to display a table of visible Wi-Fi networks. Select the desired network from the Site Survey table and the associated SSID and channel information will be automatically entered.
Select the Security Mode which matches the target Wi-Fi network. Enter the associated security information (such as pre-shared keys) required by the target
Wi-Fi network.
Select DHCP if the external access point will assign IP address information to the
LAN-Cell. Select Static IP to manually assign the IP information.
Static IP address to use with the external access point.
Subnet mask of the external access point’s network.
IP address of the Internet gateway router on the external Wi-Fi network.
Domain name servers for the external Wi-Fi network.
Maximum Transmission Unit (1500 is the default for Ethernet)
Enable to allow the WAN to make a client connection to a remote PPTP server. If enabled, enter the PPTP username, password, VPN host IP address and
MPPE128 parameters required for the PPTP VPN connection.
29
6.2
WAN Advanced
The WAN Advanced screen configures several advanced WAN settings including:
• Fail-Over
• Load Balancing
• Keep-Alive
The settings are the same for both the USB and Ethernet WAN interfaces.
Connection Mode
Fail-Over to WAN
Load Balance Weight
Figure 29: Setup WAN Advanced
Always On: WAN connection is always established and routes traffic as required.
Backup Standby: WAN connection is always established but only routes traffic when primary WAN is down (route on demand)
Backup: WAN connection is only established and only routes traffic when primary
WAN is down (connect on demand + route on demand).
If one of the WAN’s is marked as “Backup” or “Backup Standby”, the other WAN will allow you select that WAN as the backup for the current WAN (e.g. if you want the Ethernet WAN to be primary and have it fail-over to use the USB WAN when necessary, mark the USB WAN as “Backup Standby”, and select USB WAN as the “Fail-Over to WAN” for the Ethernet WAN interface.
The weight for session-based multi-path routes. Sessions will be established in weighted round-robin fashion on the WANs as new requests are received from
LAN devices. Increase the Load Balance Weight of one WAN versus the other to have a higher percentage of traffic flow out that WAN when both WANs are active.
Note: finer-grained control over WAN traffic can be achieved using the Static
Routing feature.
30
Fail-Over Connectivity
Check (ping)
Consecutive Failure
Tolerance
Max Reply Wait Time
Ping Target Type
Target IP
Enable/disable the use of ICMP (ping) packets to determine if a WAN interface is currently up.
The number of consecutive pings that must fail to be acknowledged before the interface is marked as down.
The maximum number of seconds to wait for each ping to be acknowledged
(maximum latency) before assuming the ping to have failed.
Default Gateway: sends ICMP packets to the ISP’s default gateway address.
Note: many ISP’s do not support ICMP replies from their default gateways.
Custom: sends ICMP packets to an IP address of your choosing.
Enter the IP address of the custom host target to be used.
31
6.3
LAN
Internal IP Address
Figure 30: Setup LAN
Sets the internal LAN IP address of the LAN-Cell 3.
Note: The LAN-Cell’s built-in DHCP Server will automatically adjust to the IP address and subnet entered.
Select the appropriate subnet mask from the list. Subnet Mask
Spanning Tree Protocol (STP)
Click Enable to avoid cyclic topology caused by incorrect connection of your internal network.
MTU Maximum transmission unit: up to 1500 bytes.
32
6.4
Static Routing
6.4.1
Static Routing Settings
Static Routing
Figure 31: Setup Static Routing
Choose Enable/Disable to enable/disable the static routing feature.
6.4.2
Add Routing Rule
Click on the [Add] button. The screen shown in Figure 32 will open.
Figure 32: Add Static Routing Rule
33
Sequence Number
Rule Name
Rule Enable
Internal IP Range
External IP Range
Protocol
Service Port Range
External Interface
Routing Gateway
Gateway IP Address
This defines the sequence of the Routing rules. If a packet fits the conditions set by the Routing rules, the packet will then be sorted according to the first
Routing rule from the top of the list.
Descriptive name of the Routing rule. Rule names may not contain spaces.
Enable/Disable this Routing rule
Set up the internal IP range for this rule.
Set up the external IP range for this rule.
Set up the protocol (TCP or UDP) for the to be enabled.
Set up the Service Port Range (e.g., HTTP is TCP/80) for the to be enabled.
Select which External Interface (USB WAN, Ethernet WAN or LAN) for the packets to go through, IF the packet fits the condition of this rule. If your LAN includes another Internet gateway device, you can create a “traffic redirect” rule using the LAN interface to send selected traffic to the other gateway.
Default Gateway: Use the default gateway of the selected external interface.
Static Gateway: Use the specific gateway IP address entered.
IP address of the static gateway.
6.4.3
Static Routing Examples
This example forces all E-Mail sent through the LAN-Cell to go through the USB WAN interface exclusively. All other types of traffic is unaffected by this rule.
Rule Name
Enable
Internal IP Range
External IP Range
Protocol
Service Port Range
External Interface
Routing Gateway
SMTP-to-USB
Enable
Blank (applied to all)
Blank (applied to all)
TCP
25:25 (SMTP Port:25)
WAN USB
Default Gateway
This type of rule can be used to create policies that direct specific types of traffic to specific interfaces. It can also be used to segment the LAN traffic for load balancing and other purposes.
34
This example forces traffic associated with a specific test PC (192.168.1.27) on the LAN to communicate only with the Headquarters network (24.3.85.1/24) using a specific gateway address (12.85.33.147).
Rule Name
Enable
Internal IP Range
External IP Range
Protocol
External Interface
Test-PC-to-HQ
Enable
192.168.1.27 - 192.168.1.27
24.3.85.1 – 24.3.85.254
*
WAN Ethernet
Routing Gateway
Gateway IP
Static Gateway
12.85.33.147
You can combine the Static Routing Rules with the LAN-Cell 3’s WAN Load-Balancing Weights and the Quality of
Service (QoS) Bandwidth Management features to gain precise control over which devices and protocols use specific interface resources.
35
6.5
DHCP Server
DHCP Server
DHCP Starting IP
Address
Max DHCP Clients
DHCP Lease Time
Domain
DHCP DNS Server
Type
Figure 33: Setup DHCP Services
Select Enable/Disable to enable/disable DHCP Server.
The DHCP starting IP address offered by the DHCP Server. The DHCP Server is limited to a Class-C (/24) subnet and automatically adopts the subnet that the
LAN-Cell’s LAN interface is assigned to.
The maximum number of the IP addresses supported by the DHCP server.
Please choose lease time from the selection list. You can choose 1 Hour, 3 Hours,
6 Hours, 1 Day, 3 Days, or 7 Days.
Enter a domain name if LAN devices require a domain assignment as part of the
DHCP information.
DNS Relay: DHCP devices will be assigned the LAN-Cell’s LAN IP address as their
DNS Server. The LAN-Cell will relay all DNS requests to the appropriate external
DNS server. This is the default and most common mode of operation.
ISP DNS Server: The DNS Servers from WAN ISP will be relayed to DHCP clients.
OpenDNS Server: DNS Servers operated by the OpenDNS project will be relayed to DHCP clients.
Google DNS Server: DNS Servers operated by Google will be assigned to DHCP devices. Currently 8.8.8.8 and 8.8.4.4 are used.
Custom: Enter the appropriate DNS addresses in the fields below. These will be relayed to DHCP devices.
36
6.6
DDNS
DDNS (Dynamic Domain Name Service) allows an “internet domain name” to be assigned to a computer/router which has a dynamic IP address. This makes it possible for other internet devices to connect to the computer/router without needing to trace the changing IP addresses themselves. To enable DDNS, you will first need to sign up for DDNS services from one of the supported DDNS service providers such as DynDNS.org,
TZO.com or ZoneEdit.com.
DDNS is useful when combined with the virtual host and/or port-forwarding features. It allows internet users to connect to your virtual host by using a domain name, rather than an IP address. The DDNS service helps users to locate the right IP address by the domain name.
For example, assume that you wish to remotely access a web server embedded in one of your LAN devices, but you obtain a different IP address from your ISP every time you connect to the internet. In this case, you will need to enable DDNS, so users can connect to your web server through a fixed domain name without regard for the changing IP address of your WAN connection.
Note: As a service to its customers, Proxicast operates a Dynamic DNS service which is automatically updated each time a LAN-Cell WAN IP changes. The DDNS host name is the serial number of the LAN-Cell 3 in the”proxidns.com” domain. For example: 00501863C748.proxidns.com
This “permanent” DDNS name is always available but cannot be changed. To create your own hostname, register with one of the supported DDNS service providers before configuring the LAN-Cell’s DDNS settings.
Figure 34: Setup DDNS Service
37
DDNS Service
Select Enable to enable DDNS service.
Select Disable to disable DDNS service.
DDNS Service
Provider
Select the desired DDNS service provider from the list.
User Name
Password
Host Name
Custom Server
Enter your username for your DDNS service provider account. We recommend avoiding special characters (#, $, &, @, etc) in your password.
Enter your password for your DDNS service provider account. We recommend avoiding special characters (#, $, &, @, etc) in your password.
Enter the full-qualified domain name (FQDN) assigned by your DDNS service provider for this specific LAN-Cell. Enter the entire domain name, e.g.: myrouter.mydomain.com
You must define this hostname within your DDNS service provider account before it can be updated by the LAN-Cell. The hostname must match exactly on both the
DDNS account and this screen.
If your DDNS service provider assigns you a custom update server, enter that value here.
Synchronize Now
Once your DDNS values have been saved, this button is enabled to force the
LAN-Cell to attempt to update the DDNS service provider with the latest WAN IP address. Check the Log for full results.
The DDNS settings are the same for both the USB and Ethernet WAN interfaces. If both WAN interfaces will be operating simultaneously, enter a different hostname for each WAN interface. If the WANs are being used in fail-over (backup) mode, enter the same hostname for both interfaces.
38
6.7
MAC Address Clone
Some ISPs only allow a registered MAC address to access to the internet. To bypass the requirement, you need to set up a cloned MAC address for LAN-Cell 3 using the pre-registered MAC address.
Figure 35: Setup MAC Address Clone
Clone WAN MAC
MAC Address
If your ISP grants access only to a fixed MAC address, select Enable.
If your ISP does not enforce access control, please select Disable.
If the PC you use to configure LAN-Cell 3 is the device which has the MAC address authorized to access the internet, press Get My MAC button. Or you can type in the
MAC Address which has been granted access by your ISP.
39
6.8
VLAN
A virtual local area network, or VLAN, is a group of hosts which communicate as if they were attached to the same broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical local area network (LAN), but it allows for end stations to be grouped together even if they are not located on the same network switch. Port-based VLAN function is provided in LAN-Cell 3 for users to assist with managing the LAN and
WLAN groups, for example to reduce broadcast traffic that might be sent from the Ethernet LAN to Wi-Fi clients.
1. Click on [Add] to add a VLAN group.
2. Configure the VLAN group by simply checking the box to associate the group members
*
Figure 36: Setup VLANs
A total of 16 VLAN groups can be set in the LAN-Cell 3.
** Tagged VLAN only applied to the physical ports.
*** Changing VLAN settings will cause the LAN-Cell 3 to reboot in order for the changes to take effect.
40
6.9
Time
Time Synchronization
Time Server Type
Time Server Area
NTP Server Address
Time Zone
Figure 37: Setup Time Servers & Automatic Reboot
Select Enable/Disable to enable/disable Time Synchronization
Select to use a pre-defined pool of time servers on the Internet or your own time server.
If Server Pool is selected, choose the Time Server by location.
If Manual is selected, enter the IP address of your Time Server (NTP).
Select Time Zone according to your location.
Periodic Synchronization
Daylight Savings Support
Synchronization interval
Action
Select Enable/Disable to enable/disable Periodic Synchronization
Enable/Disable automatic time adjustment for Daylight Savings Time.
Select from Every Hour, Every 6 Hours, Every 12 Hours, Every Day, and
Every Week.
Click the Synchronize Now button to contact the time server for an immediate update.
41
CHAPTER 7: WIRELESS (Wi-Fi) MENU
7.1
Basic Setup
The LAN-Cell 3’s multiple simultaneous SSIDs provide the ability to create separate security mode and key settings for both convenience and increased protection. For example, internal users can configure their network devices to access the first SSID with the WPA2 PSK (Pre-Shared Key), while visitors can be assigned to the second SSID with a WEP key that changes periodically. In addition, the SSIDs can be isolated to prevent malicious attacks and local area network access for visitors using the second SSID. This provides an extremely convenient approach for providing access internet access for visitors while enforcing strong security protection at all times.
7.1.1
Wi-Fi Settings
Figure 38: Setup Wi-Fi Basic
Wireless
Connection
Wireless Mode
Transmission
Power
Select Enable if you would like to turn on the wireless radio.
Select Disable if you would like to turn off the wireless radio.
Select the wireless mode for 802.11b/g/n or mixed use.
Select the transmission power class from 10%, 25%, 50%, 75%, and 100%.
Wireless Channel
Wireless Isolation
Between SSIDs
Select which Wi-Fi channel to be used. For non-US, Canada, Taiwan locations, see
Wireless > Advanced to select the appropriate region and channel range.
Select Enable if you would like to prevent communication between the SSID’s.
Select Enable if you would like to allow communication between the SSID’s
42
7.1.2
SSID Settings
Each SSID can be configured with its own attributes. Further, various security modes are available based on your needs and preference: Disable, WEP, WPA Pre-Shared Key, WPA, WPA2 Pre-Shared Key, and WPA2. However, it is important to note that all devices under the SSID must use the same security mode.
Different methods will grant different levels of security. Using encryption – where data packets are encrypted before transmission - can prevent data packets from being analyzed by un-trusted parties. However, higher the security level is, the lower the data throughput becomes.
Wireless SSID
Figure 39: Wi-Fi SSID1
Select Enable if you would like to turn on this SSID.
Select Disable if you would like to turn off this SSID.
Wireless SSID
Name
Enter name you would like to assign to this SSID.
Wireless SSID
Broadcasting
Security Mode
LAN-Cell 3 broadcasts SSID periodically. Select Enable to turn it on or Disable to turn it off.
Enabling SSID Broadcasting makes it convenient for users to find and connect to the
LAN-Cell 3. Disabling SSID broadcasting enhances the security by hiding SSID information.
Wi-Fi Multimedia
(WMM)
Select Enable to prioritize different traffic types based on their characteristics.
For example, VoIP or video traffic will have higher priorities over ordinary traffic.
Wireless Isolation
Select Enable if you would like to prevent access to other network devices connecting to this
SSID.
Select Disable if you would like to allow access to other network devices connecting to this
SSID.
Select the desired Security Mode for this SSID and one of the following sets of additional fields will be displayed.
43
7.1.3
WEP
WEP Key Index
Figure 40: WEP Settings
WEP Key Index indicates which WEP key is used for data encryption.
WEP Key (1~4)
64-bit WEP: type 10 hexadecimal digits or 5 ASCII characters
128-bit WEP: type 26 hexadecimal digits or 13 ASCII characters.
7.1.4
WPA/WPA2 Pre-shared Key
Key
Encryption Mode
Figure 41: WPA/WPA2 PSK Settings
Pre-shared Key serves as the credential for the packet encryption. This same value must be entered in all Wi-Fi devices connecting to this SSID.
TKIP & AES are supported.
44
7.1.5
WPA/WPA2 Radius
Figure 42: WPA/WPA2 Radius Settings
Radius Server IP Address
Radius Server Port
Radius Key
Encryption Method
Rekey Method
Rekey Time Interval
Rekey Packet Interval
Pre-authentication
7.1.6
SSID2 Guest LAN
Enter the RADIUS server’s IP address.
Enter the RADIUS server’s port number. The default port is 1812.
Enter the RADIUS server’s Key.
Select TKIP or AES for the packet encryption.
Select method for determining when new key is required.
Enter the frequency of key renewals in seconds.
Enter the frequency of key renewals in number of packets.
Enable pre-authentication if required by your Radius server
Users connecting to SSID2 can be segregated into their own local area network to provide Internet service while preventing access to other devices on the primary LAN. Enter the Guest LAN starting IP address which will be assigned to the LAN-Cell, and the corresponding subnet mark. Guest Wi-Fi devices will be assigned a DHCP
Figure 43: Wi-Fi Guest LAN
45
7.2
Advanced Setup
Figure 44: Wi-Fi Advanced Settings
46
Region
Fragmentation
RTS
DTim
Beacon Interval
Header Preamble
TxMode
MPDU
MSDU Aggregate
Tx Burst
Packet Aggregate
HT Control Field
Reverse Direction Grant
Link Adapt
Short Guard Interval (SGI)
Operation Mode
HT Band Width
Block Ack Setup
Automatically
Block Ack Window Size
Reject Block Ack
MCS
Choose the region in which the LAN-Cell is currently operating (sets channels).
Enter the fragmentation bytes. The default value is 2346 bytes.
Enter the RTS seconds. The default value is 2347 seconds.
Enter the DTim seconds. The default value is 1.
Enter the interval to send a beacon. The default value is 100 milliseconds.
Choose Long or Short header preamble.
Choose different transmission mode.
MPDU data length. The transmission rate is increased when you choose a larger number, but usually the max value will be 4 in the wireless card
A kind of packet aggregation method, it can improve the transmission efficiency.
Please make sure you Wireless card has this function supported.
Some 802.11g wireless cards support this mode. The transmission rate can be increased when this function is enabled.
An aggregation method like A-MSDU, it can improve the transmission efficiency.
Please make sure you Wireless card has this function supported.
Choose Enable/Disable. It is useful when you need to debug the wireless network.
Choose Enable/Disable. The response time can be shorter enable this function is enabled.
Choose Enable/Disable. The function is used to dynamically change the modulation and encoding mechanism between wireless devices.
Choose Enable/Disable. Short GI can improve the transmission rate, but with less immunity when interference exists.
Choose Mixed mode or Greenfield. You may choose Greenfield mode to increase the transmission rate when you using 802.11n wireless network only.
Using HT20MHz or HT20/40MHz
Choose Enable/Disable. If your Wi-Fi Card supports the Block Ack mechanism, it can improve the data transmission efficiency when this function is enabled.
Specify a Block Ack window size.
Choose Enable to reject the request of BA from another other Wireless device.
Select transmission (connection) speed.
47
7.3
WDS Setup
A wireless distribution system (WDS) is a system enabling the wireless interconnection of access points in an
802.11 network. It allows a wireless network’s coverage area to be expanded using multiple access points without a wired backbone to link the APs.
The LAN-Cell 3 supports 2 modes of WDS operation:
• Bridging: APs communicate only with each other and don't allow wireless clients to access them.
• Repeating: APs communicate with each other and with wireless clients.
All base stations in a wireless distribution system must be configured to use the same radio channel, method of encryption (none, WEP, or WPA) and the same encryption keys. They may be configured to different service set identifiers (SSIDs). WDS also requires every base station to be configured to forward to others in the system.
Figure 45: Wi-Fi Wireless Distribution System
48
WDS
MAC Address [1~4]
Select Enable to enable WDS function.
Select Disable to disable WDS function.
Enter the MAC addresses of the other bridged wireless devices. Maximum of 4 devices are allowed to be bridged together.
Make sure of the following in order for WDS to work correctly:
(1) All WDS devices must use the same radio channel.
(2) All WDS devices must use the same encryption mode and encryption keys.
7.4
Universal Repeater Setup
The Universal Repeater function is similar to WDS in that it is used to essentially enlarge the area of wireless network coverage. However, unlike WDS, Universal Repeater offers simplicity in configuration requirements, as users only need to configure the current AP as a client, and to connect it to the second AP’s SSID (or BSSID).
However, you need to ensure that the two APs are using the same wireless channel and security mode (and key) for Universal Repeater to work correctly.
Universal Repeater
Target SSID
Target BSSID (MAC)
Figure 46: Wi-Fi Universal Repeater Setup
Select Enable to enable Universal Repeater.
Select Disable to disable Universal Repeater.
Enter the target SSID to connect to.
Enter the target BSSID to connect to. The BSSID is optional if you setup the target SSID.
49
Security Mode Choose the security mode the target AP uses, and enter the key if needed.
Wireless Channel
Extension Channel
Select which Wi-Fi channel to be used. For non-US, Canada, Taiwan locations, see Wireless > Advanced to select the appropriate region and channel range.
When operating in 40 MHz mode the access point will use an extended channel either below or above the current channel. Optimal selection will depend on the channels of other networks in the area.
Site Survey
Click this button to display a table of visible Wi-Fi networks. Select the desired network from the Site Survey table and the associated SSID and channel information will be automatically entered.
Security Mode
Select the Security Mode which matches the target Wi-Fi network. Enter the associated security information (such as pre-shared keys) required by the target Wi-Fi network.
7.5
WPS Setup
Wi-Fi Protected Setup (WPS) is a computing standard that allows easy establishment of a secure wireless network.
Although easy to setup, WPS connections are inherently less secure than manually configured WPA/WPA2 connections. The LAN-Cell 3 supports two different types of WPS:
• PIN Method: A Personal Identification Number (PIN) is generated by the LAN-Cell. This PIN must then be entered at the "representant" of the network (other AP or client device).
• Push-Button-Method: The user simply has to push the button on the LAN-Cell 3 screen and either an actual or virtual one on the new wireless client device.
Figure 47: Wi-Fi WPS Setup
50
7.6
Guest Hotspot
The Guest Hotspot feature allows the LAN-Cell 3 to provide Wi-Fi access to guest wireless devices. This feature segregates the guest devices into their own subnet (like the Guest LAN feature), but also automatically redirects
Wi-Fi users to a “splash” page and prevents them from accessing the Internet until they “login” to the hotspot and optionally agree to a Terms of Use.
The Guest Hotspot feature offers several additional capabilities compared to the Guest LAN feature:
• A customizable “splash” screen shown to guest users before they are allowed to access the Internet
• Optional “Terms of Use” policy agreement
• Optional username/password security for guest connections
• Optional “white list” URLs that can be accessed without authentication
Note: The Guest Hotspot feature is available in LAN-Cell 3 firmware versions 5.4.0 and later. Units upgraded to
5.4.0 or alter cannot be downgraded to firmware versions earlier than 5.4.0. Configuration files from
LAN-Cell 3’s running earlier firmware versions cannot be copied to units running 5.4.0 or later (and vice-versa).
Note: To use the Guest Hotspot feature, SSID2 must be enabled and not hidden; Security Mode and Guest LAN should be disabled.
51
7.6.1
Guest Hotspot Setup
Figure 48: Guest Hotspot Setup
Hotspot
Wireless SSID
IP Address
Subnet Mask
Authentication Mode
Select Enable to enable the Guest Hotspot function
Select Disable to disable the Guest Hotspot function.
This is SSID #2 from the Wi-Fi Basic screen. Change SSID #2 to reflect the name to be displayed when users scan for this access point.
Enter the IP Address to assign to the Hotspot. Guest Wi-Fi clients will be assigned a dynamic IP address starting with the next address in this subnet.
Enter the subnet mask which corresponds to the desired DHCP pool size.
Splash Page – redirects users to a LAN-Cell 3 generated web page which requires them to click a “login” button and optionally agree to Terms of Use.
Local User Database – adds username/password fields to the splash page.
Define allowed usernames and passwords in the table on this screen.
52
Terms of Use
Term of Use Text
Select Enable to add a Terms of Use link to the splash page and change the
Login button text to “Login and Accept Terms”.
Text to be displayed on the Terms of Use web page. This field may contain
HTML tags.
NOTE: If pasting text from a word processor, be sure to eliminate any extended
ASCII characters such as “smart quotes” or copyright/trademark symbols and replace them with their HTML equivalent.
White List URLs
List URLs (1 per line) which may be accessed without the user clicking the
“login” button. Include in this list any sources of remote content (such as graphic files) which are used on the Terms of Use or Splash screens.
NOTE:
proxicast.com will give users access to any server in the proxicast.com domain, whereas www.proxicast.com/graphics would provide access only to a specific directory on the www site.
7.6.2
Hotspot Pages Setting
The default Guest Hotspot splash page layout is shown below. To change the Splash screen, select Customized and enter content into each of the fields. All fields are optional and may contain HTML tags.
Header
Welcome Msg
Terms of Use Msg
Figure 49: Default Splash Screen
Advertisement Area
Footer
53
Figure 50: Hotspot Pages Setting
54
Web Page Title
Hotspot Page HEAD
Elements
Header Content
Title text of browser’s window/tab
Text that will be inserted between the <HEAD> elements of the HTML splash screen. These can include CSS style definitions, javascript functions, or links to external CSS/JS files, etc. See the list of Splash screen DIV names below.
Text shown at the top of the Splash, Terms and Success screens.
Welcome Message Main text of the Splash screen.
Terms of Use Message Text used to direct user's attention to the Terms of Use link.
Advertisement Content
Text below the Welcome message that can be used to display ads or any other content.
Footer Content Text shown at the bottom of the Splash, Terms and Success screens.
The following DIV ID’s are available for formatting via CSS styles on the Splash Screen. Define the desired styles in the Hotspot Page HEAD Elements field or in an external CSS file.
<div id="header">
<div id="body">
<div id="welcome">
<div id="tos_message">
<div id="login-form">
<div id="login-button">
<div id="advertisement">
<div id="footer">
The “header”, “body” and “footer” DIV ID’s are repeated on the Terms of Use and Success pages.
WARNING: A bug in Internet Explorer v9 and earlier causes IE to render any HTML entered into these fields in the router's GUI instead of displaying the raw HTML tags. Use IE10+ or a different browser to edit the Guest Hotspot page.
55
7.6.3
Hotspot Operation
Prior to logging in, the Wi-Fi Guest will have no access to the Internet (other than White Listed URLs). Before users can make connections with VPN clients, Android/iOS apps or other non-browser applications, they must use a web browser to access the Splash screen and login.
After logging in, the Wi-Fi Guest’s browser will momentarily display a “Success” page that confirms the login and redirects the browser to the original destination web page URL.
A user can be removed from the Hotspot’s authorized list by entering http://logout into their browser.
If no WAN interfaces are currently available, the Splash screen will not display - the browser will timeout.
By default. Hotspot traffic will be forwarded to any available WAN interface. To force Hotspot traffic to use only a specific WAN interface, add the Hotspot subnet to the Security>IP Access Control list as "allow" for the desired
WAN and "deny" for the other WAN interface.
56
CHAPTER 8: SECURITY MENU
8.1
Firewall
The LAN-Cell 3 has several firewall-related security features designed to protect LAN devices from unwanted access and attack from WAN (and even other LAN) connections. By default, these WAN protections are enabled and all “inbound” connections from WAN devices are blocked, except for TCP Port 8080 which is used by the
LAN-Cell 3’s web management interface. The LAN-Cell 3 will automatically open other ports for inbound access as you define VPN, Port-Forwarding, and Virtual Host rules (see the Applications menu). You do not need to explicitly define firewall rules for remote access purposes.
Firewall Protection
TCP SYN DoS Protection
Figure 51: Firewall Setup
Select Enable to enable Firewall Protection.
Select Disable to disable Firewall Protection.
Check to enable TCP SYN DoS Protection.
Uncheck to disable TCP SYN DoS Protection.
TCP SYN DoS attack sends a flood of TCP/SYN (connection requests), causing the LAN-Cell to consume computing resources (e.g. memory, CPU) to reply and continuously wait for the incoming packets.
The LAN-Cell 3 is able to detect TCP SYN DoS attacks and limit the resource consumption by lowering the incoming request rate by fast recycling of the resource. Therefore, the LAN-Cell 3 is still able to serve normal traffic while it is under such an attack.
57
ICMP Broadcasting
Protection
ICMP Redirect Protection
Broadcast Storming
Check to enable ICMP Broadcasting Protection.
Uncheck to disable ICMP Broadcasting Protection.
ICMP broadcasting attack is a type of DoS attacks. A flood of ICMP broadcasting packets is generated and sent to LAN-Cell 3. Consequently, this LAN-Cell will experience a high number of interruptions and consumption of computing resources.
The LAN-Cell 3 is able to stop responding to ICMP broadcasting echo packets in order to avoid a potential ICMP broadcasting DoS attack.
Check to enable ICMP Redirect Protection.
Uncheck to disable ICMP Redirect Protection.
An ICMP redirect message is a way to change the existing routing path.
Generally, ICMP redirect packets should not be sent, and so when there is the occurrence that ICMP redirect packets are sent, it is important to note that it is very likely to be used as a means for a network attack.
Check to enable Broadcast Storm Protection.
Check to disable Broadcast Storm Protection.
A broadcast storm is a situation in which messages are broadcast on a network, and each message prompts a receiving node to respond by broadcasting its own messages on the network that in turn prompt further responses, and so on. This snowball effect can have a serious negative impact on network performance.
See also Spanning Tree Protocol to reduce broadcast loops on the LAN.
58
8.2
IP Access Control
IP Access Control is used to either allow or deny specific types of “outbound” connections from specific LAN IP addresses. Each rule defines a custom Access Control List (ACL) that the LAN-Cell 3 uses to determine if a packet is to be routed or not. By default, the LAN-Cell 3 allows all LAN devices to connect to all external ports on any WAN interface.
Outbound IP Access Control rules are typically used to limit end-user access to one or more Internet services that have been deemed an inappropriate use of the WAN connection. The rules can also be used to create routing policies that force specific types of traffic to flow through specific WAN interfaces (e.g. all E-Mail must go through the Ethernet WAN only).
8.2.1
IP ACL Settings
IP Access Control
Default IP Access
Control Action
Figure 52: IP Access Control Setup
Select Enable to enable ACL.
Select Disable to disable ACL.
Check Allow to allow LAN devices to communicate with the WAN interfaces except for the ACL rules (deny rules) defined in the table below.
Check Deny to prevent LAN devices from communicating with the WAN interfaces except for the ACL rules (permit rules) defined in the table below.
59
8.2.2
ACL Rules
Click on the [Add] button to display the following screen:
Sequence Number
Rule Name
Rule Enable
External Interface
Internal IP Range
External IP Range
Protocol
Service Port Range
Action
Figure 53: IP ACL Rule Setup
This defines the sequence of the ACL rules. Packets are matched against the rules in the order displayed until a match is found.
Name of the ACL rule. No spaces are permitted.
Enable/Disable this ACL rule
Please select which External Interface (USB WAN or Ethernet WAN) you want a packet to go through, IF the packet fits the condition of this ACL rule. Select “*” to allow the LAN-Cell to determine the best available WAN interface to use.
Set up the internal IP range for this ACL rule. Only packets from devices in this range will be filtered by this rule. Leave blank to apply to all LAN devices.
Set up the external IP range for this ACL rule. Only packets destined for IP addresses in this range will be filtered by this rule. Leave blank to have this rule apply to all non-LAN addresses.
Set up the protocol (TCP or UDP or both) for the ACL to be enabled. Select “*” to apply this rule to all packet types.
Set up the Service Port Range (e.g., HTTP is TCP/80) for the ACL to be enabled.
Leave blank to apply this rule to all ports.
Select whether the LAN-Cell should ALLOW / DENY packets which match this rule.
60
8.2.3
IP ACL Rule Example
Assume for example that a company does not wish to allow employees to use the MSN Windows Live Messenger system over the USB WAN interface. The LAN-Cell 3 administrator can set up an ACL Deny action rejecting the traffic going out to the external IP address range used by MSN.
Rule Name
Rule Enable
External Interface
Internal IP Range
External IP Range
Protocol
Service Port Range
Action
Figure 54: MSN ACL Example
Block-MSN-Messenger
Enable
WAN (USB Modem)
{blank} (applies to all LAN devices)
64.4.50.96 to 64.4.50.127 (IP address range for MSN server)
TCP/UDP
1863 (MSN port)
DENY
61
8.3
Outbound MAC ACL
Similar to IP Access Control, Outbound MAC ACL Control is used to either allow or deny specific devices identified by their unique Media Access Control (MAC) addresses from making “outbound” connections. The MAC rules also enable you to “statically” assign an IP address from the LAN-Cell 3’s DHCP pool to a specific MAC address.
8.3.1
MAC ACL Settings
Figure 55: Outbound MAC Address Control Setup
Outbound MAC Access
Control
Default Outbound MAC
Access Control Action
Choose Enable/Disable to enable/disable MAC Access Control
The default ACL action of the ACL rules. When you add the individual rules, they can be viewed as exceptions and take effect relative to the default action.
62
8.3.2
MAC ACL Rules
Click on the [Add] button to display the following screen:
Sequence Number
Rule Name
MAC
Action
ACL Enabled
Static ARP Enabled
Static DHCP Enabled
IP
Figure 56: MAC ACL Rule Setup
This defines the sequence (priority) of all the MAC ACL actions.
Name of the MAC access rule. Spaces are not allowed.
Set up the MAC Address to which you would like to enable the MAC ACL action.
Format the MAC address as: 00:00:00:00:00:00
Select whether the LAN-Cell should ALLOW / DENY packets matching this rule.
Enable/Disable this MAC access rule.
Enable/Disable this Static ARP rule.
Enable/Disable this Static DHCP rule.
The IP address to assign via static ARP or static DHCP. The address must be within the DHCP pool configured for the LAN-Cell and the DHCP Server feature must be enabled.
63
8.3.3
MAC ACL Rule Example
Assume that you have an IP camera that only accepts DHCP addresses and you need to assign it a static IP address (192.168.1.40) so that it can be remotely accessed.
Figure 57: MAC ACL Rule Example
Sequence Number 1
Rule Name
MAC
Static-IP-For-Camera
00:1B:39:01:2F;1C
Action
ACL Enable
Allow
Enable
Static ARP Enabled Disabled
Static DHCP
Enabled
Enable
IP 192.168.1.40
64
8.4
OpenDNS
OpenDNS is a leading provider of security and infrastructure services including integrated Web content filtering, anti-phishing and DNS. OpenDNS services can secure networks from online threats and enforce Internet-use policies. Please refer to http://www.opendns.com for more information and to establish an account.
Figure 58: OpenDNS Settings
OpenDNS Service
OpenDNS Username
OpenDNS Password
DNS Query Redirection to
OpenDNS DNS Servers
OpenDNS Label
Choose Enable/Disable to enable/disable OpenDNS
Enter your OpenDNS user name.
Enter your OpenDNS password.
Choose Enable/Disable to enable/disable the data flow redirect to the
OpenDNS Server. Users can get advanced content filtering function through this setting.
Enter the OpenDNS Label.
65
8.5
Web Filtering
Web filtering allows the LAN-Cell 3 administrator to restrict access to various web resources based on keywords as well as to restrict certain types of potentially dangerous web page content such as ActiveX and Java.
8.5.1
Web Filtering Setup
Web Filtering
ActiveX Filtering
Java/JavaScript Filtering
Proxy Filtering
Figure 59: Web Filtering Settings
Choose Enable/Disable to enable/disable Web Filtering
Choose Enable/Disable to enable/disable ActiveX Filtering
Choose Enable/Disable to enable/disable Java/JavaScript Filtering
Choose Enable/Disable to enable/disable Proxy Filtering
66
8.5.2
Added Web Filtering Rules
Click on the [Add] button to display the following screen:
Sequence Number
Rule Enable
Filter Keyword
Filter Type
Action
Figure 60: Add Web Filtering Rule
This defines the sequence (priority) of all the Web Filtering rules
Choose Enable/Disable to enable/disable this Web Filtering rule
Enter the Keyword
Choose URL or Sever
Select ALLOW / DENY
8.5.3
Web Filtering Rule Example
To block access to Facebook web pages, enter the following settings:
Figure 61: Web Filtering Rule Example
67
8.6
VPN / PPTP
The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks. PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP packets. The PPTP settings in this section define the parameters and user access rules when the LAN-Cell 3 is acting as a PPTP “server” allowing connections from remote PPTP clients such as Windows PC’s. The LAN-Cell 3 can also act as a PPTP “client” – see the PPTP section under each WAN interface.
8.6.1
VPN / PPTP Settings
Figure 62: PPTP VPN Settings
68
PPTP
MTU
VPN Start IP Address
Max VPN Clients
Auto DNS
DNS
CHAP Enable
MSCHAP Enable
MSCHAP v2 Enable
MPP128 Enable
Proxy ARP Enable
NAT Enable
Choose Enable/Disable to enable/disable the PPTP Server.
Enter MTU value. The default value is 1482 bytes.
Enter the VPN start IP address. The default value is 192.168.39.1.
Enter the max number of VPN clients allowed.
Choose Enable/Disable to enable/disable Auto DNS.
Enter the DNS server if you chose Disable for Auto DNS.
Choose Enable/Disable to enable/disable CHAP for VPN authentication.
Choose Enable/Disable to enable/disable MSCHAP for VPN authentication.
Choose Enable/Disable to enable/disable MSCHAP v2 for VPN authentication.
Choose Enable/Disable to enable/disable MPP128 encryption.
Choose Enable/Disable to enable/disable Proxy ARP.
Choose Enable/Disable to enable/disable NAT.
8.6.2
Add VPN / PPTP User Rule
Click on the [Add] button to display the following screen:
Sequence Number
Rule Enable
User Name
Password
Figure 63: Add PPTP VPN User
This defines the sequence of the PPTP rules.
Enable/Disable this PPTP rule
Enter PPTP user name.
Enter PPTP password.
69
8.7
VPN / IPsec
Internet Protocol Security (IPsec) is a standards-based protocol suite for securing Internet Protocol (IP) communications by authenticating and encrypting each IP packet of a communication session. IPsec also includes protocols for establishing mutual authentication between agents at the beginning of the session and negotiation of cryptographic keys to be used during the session.
IPsec is an extremely popular and robust end-to-end security scheme operating in the Internet Layer of the Internet
Protocol Suite. It can be used to protect data flows between a pair of security gateways (Net-to-Net Mode), or between a security gateway and a remote device (Remote User Mode). The LAN-Cell 3 supports both modes and is interoperable with a wide variety of IPSec-compliant software and hardware products from numerous vendors.
When configuring an IPSec VPN connection, keep the following in mind:
• All VPN parameters much match EXACTLY between the 2 devices.
• It is helpful can have simultaneous access to the parameter and log screens of both devices during setup and testing.
• The network on the LAN side of the LAN-Cell and on the “private” side of your other VPN equipment must be on different subnets.
• Most users find it easiest to configure net-to-net VPNs if both end-points have static public IP addresses.
Contact your ISP or cellular network operator to determine if static IP addresses are available. Otherwise, you will need to define a Dynamic DNS hostname for your LAN-Cell that has a dynamic IP address.
• The LAN-Cell can be either the VPN initiator or responder for net-to-net VPNs. It is the responder for
Remote User VPNs.
• All intervening network hardware between the VPN end-points must support IPSec VPN pass-through and allow ESP (encrypted, Type 50) packets in addition to IKE and NAT-T requests on UDP ports 500 & 4500.
• Proxicast IPSec VPN Client for Windows is the easiest way to configure a remote user VPN tunnel on a
Windows PC. A fully-functional 30 day evaluation copy can be downloaded from the Proxicast web site.
• Additional LAN-Cell VPN configuration examples are available on the Proxicast Support web site in the
TechNotes and Knowledgebase areas.
70
8.7.1
VPN / IPsec Settings
IPsec
Figure 64: IPSec VPN Settings
Select Enable/Disable to enable/disable IPsec.
8.7.2
Add VPN / IPsec Net-to-Net Rule
In this example, a Net-to-Net VPN connection will be established between an existing VPN concentrator on the
Headquarters network and a LAN-Cell 3 at a remote office location.
Figure 65: Net-to-Net IPSec Example
71
Click on the [Add] button to display the following screen:
Figure 66: IPSec Net-to-Net VPN Settings
Sequence Number
Connection Name
Rule Enable
VPN Mode
Local External Interface
This defines the sequence of the IPsec rules.
Name of the IPsec rule. Spaces are not permitted.
Enable/Disable this IPsec rule
Net-to-Net or Remote-User
Choose the external WAN for this IPSec rule to use.
Local Subnet IP
Local Subnet Netmask
Enter the subnet IP address on the LAN-side of the local LAN-Cell which will be visible to the remote VPN subnet.
Enter the netmask for the local VPN gateway.
Split Tunnelling
Remote Gateway
Enabled = Traffic can flow to Internet addresses outside of IPSec tunnel (default).
Initiator = The LAN-Cell 3 directs all traffic into the IPSec tunnel. The VPN device on the other side is responsible for routing the traffic to its final destination.
Responder = The LAN-Cell 3 receives traffic from another VPN device which is forwarding all traffic through the VPN tunnel.
Enter the IP address or domain name of the remote VPN gateway. This option is required in Net-to-Net mode.
Remote Subnet IP Enter the subnet IP address of the remote VPN gateway. This option is required in
Net-to-Net mode.
Remote Subnet Netmask Enter the subnet netmask of the remote VPN gateway. This option is required in
Net-to-Net mode.
Connection Initiation Check to force the LAN-Cell to always attempt to initiate a VPN connection to the
72
IKE Key Mode
Preshared Key
DPD Enable
DPD Interval
DPD Timeout
Phase 1 Mode
Phase 1 Local ID
Phase 1 Remote ID
Phase 1 Lifetime
Phase 2 Lifetime
Phase 1 Authentication
Phase I Encryption
Phase 1 Group Key
Management
Phase 2 Authentication
Phase 2 Encryption
Phase 2 Group Key
Management (PFS) remote gateway. If uncheck, the VPN will not be established unless the remote gateway initiates a connection or traffic on the local LAN subnet is destined for the remote subnet.
At this time, only Pre-Shared Key (PSK) is supported.
Enter the preshared key. The key should be at least an 8-digit ASCII string.
Enable/disable Dead Peer Detection (DPD).
Enter the number of seconds between checks for a dead peer.
Enter the number of seconds to wait for a response before declaring the peer dead.
Select Main or Aggressive Mode. Must match the setting on the remote gateway.
Enter the phase 1 Local ID.
Enter the phase 1 Remote ID.
Enter the phase 1 lifetime. This value is between 3600 and 86400 seconds.
Enter the phase 2 lifetime. This value is between 3600 and 86400 seconds.
Choose the phase 1 authentication as MD5 or SHA1.
Choose the phase 1 encryption as DES, 3DES or AES.
Choose the phase 1 group key management as DH1, DH2 or DH5.
Choose the phase 2 authentication as MD5 or SHA1.
Choose the phase 2 encryption as DES, 3DES or AES.
Choose the phase 2 group key management as DH1, DH2 or DH5. This setting is also known as Perfect Forward Secrecy.
8.7.3
Add VPN / IPsec Remote User Rule
In this example, a Remote User VPN connection will be established between with the LAN-Cell 3 functioning as the
VPN Server and remote PC as the client using the Proxicast IPSec VPN Client for Windows software. The
LAN-Cell has a dynamic IP address but can be accessed via its dynamic DNS name 001B39123456.proxidns.com.
73
Figure 67: Remote User IPSec Example
Click on the [Add] button to display the following screen and select VPN Mode = Remote User:
Figure 68: IPSec Remote User VPN Settings
The settings for a Remote User VPN are essentially the same as for a Net-to-Net VPN except that the Remote
Gateway and Network information is not required since the remote will be a single unknown IP address.
This same configuration is used if the VPN PC is directly connected to the Internet, for example via Wi-Fi hotspot or its own cellular modem card.
Note: You cannot make a Remote User VPN connection to a LAN-Cell that has a private IP address; you must request a public IP address from your ISP. If you cannot obtain a public IP address for the LAN-Cell, then you must have the LAN-Cell initiate a Net-to-Net VPN connection to another VPN server in order to remotely access devices attached to the LAN-Cell.
74
CHAPTER 9: APPLICATIONS MENU
9.1
Port Forwarding
The LAN-Cell 3 provides Network Address Translation (NAT) services to protect private LAN IP addresses from access by users on the external WAN. Port-Forwarding is a technique to selectively allow remote users to access selected devices and services on the private LAN.
The LAN-Cell 3 supports both Port Forwarding and Port Translation features. These features are integrated with the LAN-Cell’s firewall feature. Creating new port forwarding/translation rules automatically opens the corresponding ports in the firewall – no other configuration is necessary.
The port forwarding function gives remote users access to devices on the local network via the public WAN IP address. Users can assign a specific external port range to a local server (IP address). Furthermore, users can specify a different internal port range to be associated with external ports in a port forwarding rule. When the
LAN-Cell 3 receives an external request to access any one of the configured external ports, it will redirect the request to the corresponding internal server and change its destination port to one of the internal ports specified.
This allows multiple LAN devices with the same port (e.g. port 80) to be accessed remotely without having to change their settings.
By enabling the DMZ Host Function, you can set up a Demilitarized Zone (DMZ) host, that is, a particular computer which is fully exposed to the Internet. This may be necessary for certain applications that use random ports or when you do not know the specific ports required for remote access.
75
9.1.1
Port Forward Settings
Port Forwarding
Figure 69: Port Forwarding Settings
Select Enable / Disable to enable/disable Port Forwarding
9.1.2
Add Port Range Forwarding Rule
Click on the [Add] button to display the following screen:
Figure 70: Add Port Forward Rule
76
Sequence Number
Rule Name
Rule Enabled
External Interface
Protocol
External Port Range
Internal IP
Internal Port Range
9.1.3
DMZ Settings
This defines the sequences (priorities) of the port forwarding rules. If a packet fits the conditions set up by the port forwarding rules, the packet will then be forwarded according to the first matching rule in the sequence.
Enter the name of the port forwarding rule. Must not contain spaces.
Check/Uncheck to enable/disable this port forwarding rule.
Choose USB or Ethernet WAN as the External port forwarding interface.
Each WAN interface must have its own port forwarding rules, so duplicate rules if using the LAN-Cell in a WAN fail-over configuration.
Choose TCP, UDP or TCP/UDP for the rule to be applied.
Set up the External Port Range for the rule to capture.
Set up the Internal IP (single address) where incoming packets will be directed when the rule is matched.
Set up the Internal Port Range where the rule will send matched packets. The internal and external port ranges must contain the same number of ports, but can be different to enable port translation.
DMZ
DMZ IP Address
Figure 71: DMZ Settings
Select Enable to enable DMZ function.
Select Disable to disable DMZ function.
Enter the IP address of a particular host on the LAN which will receive all the packets originally going to the corresponding WAN port / Public IP.
Note: Be sure to add a Port Forward rule for the LAN-Cell 3’s remote management interface port (default=8080) before forwarding all WAN packets to a DMZ host.
77
9.2
Virtual Hosts
Virtual Hosts function similarly to DMZ hosts, except that Virtual Hosts enable different WAN IP addresses to be mapped to different LAN IP addresses. This is most useful when your WAN has been assigned multiple static public IP addresses (not common for cellular connections). If you have only 1 WAN IP address, use DMZ.
9.2.1
Virtual Host Settings
Virtual Hosets
Figure 72: Virtual Host Settings
Select Enable / Disable to enable/disable Virtual Hosts
9.2.2
Add a Virtual Host Rule
Click on the [Add] button to display the following screen:
Figure 73: Virtual Host Rule
78
Sequence Number
Rule Name
Rule Enabled
External Interface
External IP Address
Mapped LAN IP Address
This defines the sequences (priorities) of the Virtual Host rules.
Enter the name of the Virtual Host rule. Must not contain spaces.
Check/Uncheck to enable/disable this rule.
Choose USB or Ethernet WAN as the External interface
Enter one of the IP addresses assigned to the WAN by your ISP.
Enter the Internal LAN IP (single address) where incoming packets will be directed when the rule is matched.
79
9.3
Streaming / Pass-Through
You can enhance your media streaming quality by enabling RTSP, MSS, and H.323 protocols. Also, the
LAN-Cell 3’s VPN Pass-through functionality can also be enabled on this screen. All of these features are enabled by default. Disable unused settings to reduce system overhead.
RTSP
MMS
H.323
IPSec Pass-through
PPTP Pass-through
Figure 74: Application / Streaming Setup
Select Enable/Disable to enable/disable RTSP
Select Enable/Disable to enable/disable MMS
Select Enable/Disable to enable/disable H.323
Select Enable/Disable to enable/disable IPSec Pass-through
Select Enable/Disable to enable/disable PPTP Pass-through
80
9.4
UPnP
Universal Plug and Play (UPnP) is a set of networking protocols that permits networked devices, such as personal computers, printers, Internet gateways, Wi-Fi access points and mobile devices to seamlessly discover each other's presence on the network and establish functional network services for communications.
UPnP
UPnP Port
Figure 75: UPnP Setup
Select Enable/Disable to enable/disable UPnP
Enter the number for UPnP port.
81
CHAPTER 10: QUALITY OF SERVICE (QoS) MENU
10.1 Bandwidth Management
The LAN-Cell 3’s Bandwidth Management feature provides two powerful and unique mechanisms to manage bandwidth: Static Bandwidth Management (SBM) and Dynamic Bandwidth Management (DBM). SBM provides users with the option to allocate a fixed amount of bandwidth for a specific computer or a particular application, while DBM intellectually manages the rest of the bandwidth while all the time satisfying the complicated bandwidth requirements/settings of SBM.
10.1.1 Bandwidth Management Settings
To effectively utilize the Bandwidth Management system, you must accurately specify the bandwidth available on a
WAN interface. Bandwidth Management then allocates bandwidth according to this information. You can obtain the maximum bandwidth information from your ISP, or use a “speed-test” web-site application to determine your typical actual bandwidth available. Bandwidth Management will be more effective if you are conservative when specifying the maximum bandwidth per interface.
Figure 76: Bandwidth Management Setup
82
Bandwidth Management Select Enable/Disable to enable/disable Bandwidth Management.
Bandwidth Type
(Download/Upload)
Select the correct bandwidth type according to your Internet service subscription. If the bandwidth type is not available on the list, select Custom.
Download Bandwidth
Upload Bandwidth
Router Reserved
Bandwidth
Enter the value to customize download bandwidth. Note that the value is specified in kilobits per second (Kbps). Multiply kilobytes/sec (KB/s) by 8 to get Kbps. Divide megabytes/sec (MB/s) by 1000 to get Kbps.
Enter the value to customize upload bandwidth.
Enter the value to provide bandwidth buffer for the LAN-Cell 3’s use. Do not set this value to 0 or the LAN-Cell may become inaccessible during periods of heavy traffic.
Figure 77: Bandwidth Management Rules
83
10.1.2 Add SBM Rules
Click on the [Add] button to display the following screen:
Figure 78: Add Static Bandwidth Rule
In this example, 50% of the bandwidth on the USB WAN interface is being dedicated to the VNC application (TCP
Port 5900). If the interface is less than 50% loaded, VNC will be allocated additional bandwidth up to the maximum available but will never be restricted to less than half of the available bandwidth, assuring reasonable performance for this application regardless of any WAN traffic.
Sequence Number
This defines the sequence of the SBM rules. If a packet fits the conditions set by the SBM rules, the packet will then be sorted according to the first SBM rule from the top of the list.
Rule Name Name of the SBM rule. Spaces are not allowed.
Rule Enable
Internal IP
Protocol
External Interface
Service Port Range
Bandwidth Allocation
Ratio
Download
Upload
Enable/Disable this SBM rule.
The internal LAN IP address for this SBM rule.
Set up the protocol (TCP or UDP) for the rule.
Select which External Interface (USB WAN or Ethernet WAN) you want a packet to go through, IF the packet fits the condition of this SBM rule.
Set up the Service Port Range for the SBM rule.
Select allocation by Ratio or By Bandwidth.
The portion of the external interface’s bandwidth to be allocated to this rule.
Enter the reserved download bandwidth.
Enter the reserved upload bandwidth.
84
Use Additional Bandwidth when Available
Use Maximal Ratio
10.1.3 Add DBM Rules
Check this box if you wish to allow the traffic matching this SBM rule to be able to utilize the whole bandwidth when the bandwidth is idle.
Percentage of the WAN interface’s total bandwidth to apply to this rule.
Dynamic Bandwidth Rules define which LAN IP addresses are to be included in the dynamic bandwidth allocation scheme. The default is all LAN IP addresses; however in for some applications you may wish to limit the IPs included in DBM. You may create a maximum of 16 DBM rules.
Click on the [Add] button to display the following screen:
Sequence Number
Rule Name
Rule Enable
Internal IP Range
Figure 79: Add Dynamic Bandwidth Rule
This defines the sequence of the DBM rules.
Name of the DBM rule. Spaces are not allowed.
Enable/Disable this DBM rule
Set up the internal IP range for this DBM rule.
85
10.2 Throughput Optimizer
The LAN-Cell 3’s Throughput Optimizer feature transmits the defined high-priority packets types to optimize network utilization and minimize delays. All of the pre-defined packet types are enabled for optimization by default.
Disable them only if performance of other applications is adversely affected.
Figure 80: Throughput Optimizer Settings
Throughput Optimzer
TCP ACK
ICMP
DNS
SSH
Telnet (BBS)
TCP Max Segment Size
Select Enable/Disable to enable/disable the Throughput Optimizer.
Select Enable/Disable to enable/disable TCP ACK priority
Select Enable/Disable to enable/disable ICMP priority
Select Enable/Disable to enable/disable DNS priority
Select Enable/Disable to enable/disable SSH priority
Select Enable/Disable to enable/disable Telnet (BBS) priority
Select Enable/Disable to enable/disable TCP Max Segment Size
86
10.3 Ultra-NAT
Network Address Translation (NAT) is often a performance bottleneck in routers and firewalls. Generic routers are generally insufficient when dealing with a high-speed broadband network. Ultra-NAT is designed to solve this problem by accelerating NAT performance allowing the LAN-Cell 3 to maximize the higher speed networks and to reserve system performance for other features such as ACL and VPN servers.
The LAN-Cell 3 also has a hardware acceleration feature that can improve NAT performance; however, Hardware
NAT acceleration cannot be enabled if any of the following features are also enabled:
• Bandwidth Management
• Web Filtering
• Wi-Fi Universal Repeater
• VPN/PPTP
Hardware NAT
Ultra-NAT
Figure 81: Ultra-NAT Settings
Select Enable/Disable to enable/disable Hardware NAT acceleration.
Select Enable/Disable to enable/disable Ultra-NAT.
87
10.4 Session Manager
Session manager will automatically recycle old/dead sessions to get better connection efficiency. Users can choose the recycle rate to optimize the connection efficiency especially for applications which rapidly open and close many ports (e.g. P2P downloads, games, etc.)
Recycle Mode
Figure 82: Session Manager Settings
Select Fast/Regular/Slow recycle rate
88
CHAPTER 11: ADMIN MENU
11.1 System Management
The Management screen is used to perform various administrative tasks on the LAN-Cell 2 such as changing the login password, saving and restoring system settings, scheduling a reboot, and performing firmware upgrades.
Figure 83: System Management Settings
89
Administrator Password
Re-type Password
Remote Management
Management Port
Reboot Router
Reboot Interval
Daily Reboot
Export Configuration
Restore Default Configuration
Import Configuration
Maximum input is 36 alphanumeric characters (case sensitive)
Enter the password again to confirm.
Select Enable to enable Remote Management.
Select Disable to disable Remote Management
If remote management is enabled, users may access the LAN-Cell’s web configuration screens via a WAN (Internet) connection.
HTTP port which to which remote LAN-Cell administrators connect.
(Default port is 8080)
Press the Reboot Router button to initiate an immediate reboot of the
LAN-Cell. See the Setup > Time screen to configured regularly scheduled reboots.
Enter the number of minutes of run-time before the LAN-Cell 3 automatically reboots. The Interval count-down timer will restart once the LAN-Cell 3 has finished rebooting. Leave this field blank to disable the automatic reboot Interval timer.
Enter the time of day (based on the LAN-Cell’s current time) at which the LAN-Cell 2 will automatically restart. Set this value to NONE to disable the daily reboot timer.
Click Export to save the current configuration settings to a file.
Click Restore to restore the LAN-Cell 3 to its factory default system settings:
LAN IP = 192.168.1.1:8080
Username/Password = admin/1234
Click Browse and Import to load a previously saved configuration file.
Upgrade Firmware Click Browse and Upgrade to load a firmware upgrade image.
Note: You can combine the Interval and Daily reboot timers to have the LAN-Cell 3 restart under conditions. For example you may desire the LAN-Cell to restart every 8 hours and always at 1 AM UTC so that you have at least one known reboot time. If the Daily Timer is used, do not set the Interval timer greater than 1440 minutes (24 hours).
90
11.2 SNMP
Simple Network Management Protocol (SNMP) is an Internet-standard protocol for monitoring and managing devices on IP networks. It is used by network management systems to monitor network-attached devices for conditions that warrant administrative attention. The SNMP Management Information Base (MIB) for the
LAN-Cell 3 is available on the Proxicast Support web site.
SNMP
SNMP Read Community
SNMP UDP Port
System Name
System Location
System Contact
Figure 84: SNMP Settings
Choose Enable/Disable to enable/disable the SNMP agent.
The Community String required for read access to SNMP values. Default value is “public”. At this time, only read access is permitted.
UDP port on which the SNMP agent is listening.
String (25 characters) which identifies this specific LAN-Cell 3 device.
Value is displayed on the upper right of the LAN-Cell’s management pages and returned as OID: 1.3.6.1.2.1.1.5.0
String (25 characters) which can be used to identify the location of this
LAN-Cell. Returned as OID: 1.3.6.1.2.1.1.6.0
String (25 characters) which can be used to identify the contact information for this LAN-Cell. Returned as OID: 1.3.6.1.2.1.1.4.0
91
11.3 System Utilities
The System Utilities screen provides several useful tools for network and device diagnostics.
Figure 85: System Utilities
11.3.1 Ping (ICMP)
The Ping utility sends a series of ICMP packets to a designated IP address to test communications with that IP.
Interface
Target Host
Number of Packets
Ping
Select the interface through which to send the ping, ie. LAN, WAN.
Selecting “*” will send the ping to the best available interface based on the LAN-Cell 3’s current routing table.
Enter the IP address to send the ping to.
Specify the number of ICMP packets to send out.
Press the button to send ping ing packets.
92
11.3.2 ARPing
Similar to “ping” the ARPing utility is used to discover hosts on a network. The utility tests whether a given IP address is in use on the local network, and can get additional information about the device using that address.
ARPing operates at layer 2 (or the link layer of the OSI model) - using the Address Resolution Protocol (ARP) for probing hosts.
Interface
Target Host
Select the interface through which to send the ARPing.
Enter the IP address to send the ARPing to.
Number of Packets
Specify the number of packets to send out.
ARPing
11.3.3 Trace Route
Press the button to send ARPing packets.
Trace Route is a network diagnostic tool for displaying the route (path) and measuring transit delays of packets across an IP network. Trace Route sends a sequence of ICMP echo request packets addressed to a destination host. Trace Route uses the returned ICMP messages to produce a list of that the packets have traversed. The timestamp values returned for each router along the path are the delay (aka latency) values measured in milliseconds for each packet. The Trace Route results are displayed in the Results Window.
Interface
Select the interface that Trace Route should use. Selecting “*” will send the ICMP requests to the best available interface based on the
LAN-Cell 3’s current routing table.
Target Host Enter the destination IP address / domain name to trace.
Hop Count
Trace route
Specify the maximum number of hops for before Trrace Route deems the target host ot be unreachable.
Press the tab to start the “Trace Route” actions
11.3.4 USB Modem Command
The System Utilities page also contains a tool for sending “AT” commands directly to the attached USB modem and viewing the results. This tool is designed primarily for Proxicast Technical Support’s use when diagnosing modem issues. Commands can only be sent to the modem when the USB WAN interface does not have an active connection (IP address) on a cellular network, therefore this tool cannot be used remotely.
93
11.4 Log
11.4.1 System Log
The System Log records various events that have occurred during the LAN-Cell 3’s operation. Events are divided into classes to make it easier to review specific event chains. Events are displayed in reverse chronological order
(newest events are at the top of the log). The LAN-Cell 3 has a limited amount of space available for log events – the oldest events are overwritten when the log is full. See the Syslog feature below for storing system log events over longer periods of time. The Refresh button updates the log display with the latest events. The Clear button erases the entire system log.
Figure 86: System Logging
94
11.4.2 Syslog
Syslog is a standard mechanism for transmitting and storing system log information from a device to a remote server. The LAN-Cell 3 can send its system event logs to another system which is running a Syslog server. The
Syslog server can alert administrators of events and store event logs over long periods of time.
Syslog Sever
Syslog Server Address
Protocol
Remote Port
Figure 87: Syslog Settings
Choose Enable/Disable to enable/disable the Syslog function.
The IP address or fully qualified domain name of the Syslog server which will receive event messages.
The IP protocol that the Syslog server expects messages to use.
The port number that the remote Syslog server is listening on (default is
UDP:514)
95
APPENDIX
Common Tasks
HOW TO
Change the LAN-Cell’s IP address/subnet
Configure the USB modem
Configure Dynamic DNS settings
WHERE
Setup > LAN
Setup > WAN
Setup > DDNS
ACTION
Enter the IP address to assign to the LAN-Cell and select the subnet mask for the LAN. The DHCP Server will automatically adjust.
Select the modem model and service provider from the drop-down lists or override the settings using Manual mode.
Enable Wi-Fi
Forward ports to LAN devices
Wireless > Basic Enable the Wi-Fi radio and configure the Access Point’s SSID and security settings.
Applications >
Port Forwarding
Click the Add button to create a new port-forward/translation rule.
Set up a VPN
Connect to a remote Wi-Fi network
Security > VPN
Setup > WAN
Select either the PPTP or IPSec menus to create the corresponding VPN.
Change the Connection Type of the Ethernet WAN to Wi-Fi Client and enter the connection details for the remote Wi-Fi network. Wi-Fi must first be enabled via Wireless > Basic
Select the preferred DDNS service provider and enter the required login information and host name.
Each LAN-Cell 3 also has a unique permanent DNS name:
serial#.proxidns.com
Set primary WAN, fail-over target and tolerance parameters to periodically send pings to detect WAN failures.
Select the frequency for the LAN-Cell 3 to automatically reboot.
Configure WAN keep-alive & fail-over
Setup > WAN
Advanced
Restart Periodically Admin >
Management
Change the default unit name Admin > SNMP
Change the default password Admin >
Management
Update Firmware Admin >
Management
Enter the System Identification parameters.
Passwords are case sensitive. The username cannot be changed from
“admin” however, multiple users may log in concurrently.
Download firmware updates from http://support.proxicast.com
96
Troubleshooting
PROBLEM
None of the LEDs turn on
Cannot access the LAN-Cell from a PC on the LAN
Cannot ping any computer on the LAN
CORRECTIVE ACTION
Ensure that the correct power adapter is connected to the LAN-Cell and plugged in to an appropriate power source. If the LEDs still do not turn on, there may be a hardware failure.
Check the cable between the computer (or hub/switch) and the LAN-Cell. Check that the corresponding LAN port LED is ON.
Configure the PC to receive its IP settings via DHCP (automatic assignment).
Confirm that any other network interfaces on the PC (such as Wi-Fi) are disabled.
Wi-Fi cannot be used for the initial configuration of the LAN-Cell – the internal
Wi-Fi Access Point is disabled by default.
If the LAN LEDs are off, check the cable connections.
Verify that the IP address and subnet of the LAN-Cell is in the same range as the computers on the LAN and that the LAN-Cell is the gateway for all LAN devices.
USB modem does not initialize Confirm that the USB modem has been activated by the cellular carrier. Follow
(USB LED continues to flash) their instructions for activating the modem using a Windows PC.
Ensure that the SIM/RUIM card (if required) is properly inserted.
Network registration may take several minutes.
Confirm that the USB modem is supported by the LAN-Cell’s current firmware version.
Cannot make (or maintain) a cellular data connection when cellular signal is present
(i.e. no USB WAN IP address)
Confirm that the USB modem’s APN, Username, Password, Authentication Type,
PIN and ISP Access Phone Number settings are correct for the cellular provider.
Confirm that the USB modem has been provisioned with the correct type of
Internet access data service.
Confirm that the USB modem has been activated by the carrier and/or by using a
Windows PC. Consult the manufacturer’s documentation for the USB modem regarding its LED status indicators.
97
PROBLEM
Wrong type of 4G/3G WAN IP address is assigned
(i.e. dynamic instead of static or private instead of public)
After pressing RESET, cannot make a cellular connection
CORRECTIVE ACTION
The IP address assigned to the LAN-Cell’s WAN interface is controlled by the cellular service provider. Confirm that the account has been provisioned for the proper type of IP address and that the connection parameters match those required by the service provider.
“Static” cellular IP addresses are assigned by the carrier via a DHCP process – the static cellular IP address is not configured in the LAN-Cell in advance.
Cellular Signal Strength is low Cellular data connections may be unreliable if the signal strength is poor (< 20%).
Check that the proper external antenna is securely attached to the USB modem.
Use a USB extension cable to locate the USB modem to a more favorable location.
Move the LAN-Cell to a location where the carrier’s signal is stronger or use a higher-gain antenna or amplifier.
Cannot get a WAN IP address from the Ethernet WAN ISP
The WAN IP address is provided after the ISP verifies the MAC address, host name or User ID. Confirm the verification method used by the ISP and configure the corresponding fields.
Check the LAN-Cell’s connection to the wired WAN (cable/DSL modem). Check whether the Ethernet WAN connection requires a crossover or straight cable.
Check the settings in the WAN screens, especially the fail-over/load balancing parameters.
Wi-Fi clients periodically disconnect, esp. when
LAN-Cell configuration parameters are updated
Some updates to the LAN-Cell’s configuration require that the Wi-Fi Access Point be reinitialized, causing client connections to drop. Configure Wi-Fi clients to automatically reconnect to the LAN-Cell.
Upgrade the firmware and driver software on Wi-Fi client devices to the latest version.
The RESET button returns the LAN-Cell to its factory default settings including clearing any cellular modem parameters. The USB modem settings may have to be manually reconfigured if the modem is not auto-detected.
98
Common Carrier Specific Issues
CARRIER COMMENT
Verizon Wireless
4G/LTE
By default Verizon Wireless’ 4G/LTE network provides NAT’d private IP addresses (10.x.x.x).
This prevents all Internet initiated inbound connections from reaching the LAN-Cell. Use the
LAN-Cell’s VPN features to make an outbound connection to a VPN server on another network.
Static public IP addresses which allow inbound initiated connections are available for an additional fee.
To avoid address conflicts, do not use 10.x.x.x addressing on the LAN Cell’s LAN subnet if you have a dynamic IP from Verizon.
Verizon Wireless Verizon Wireless’ default gateways do not respond to ICMP (ping) packets. Do not select the
3G/CDMA
4G/LTE
“Default Gateway” option under Setup > WAN Advanced > Fail-Over; select another public IP address.
AT&T Wireless The “broadband” and “isp.cingular” APN’s block all packets originating from the Internet. To access the LAN-Cell or other equipment remotely, request that AT&T provide access to the
“internet” APN, or another APN which offers mobile terminated data service. Or use the
LAN-Cell’s VPN features to make an outbound connection to a VPN server on another network.
Do not select the “Default Gateway” option under Setup > WAN Advanced > Fail-Over; select another public IP address.
Public static IP addresses which allow inbound initiated connections are available on the AT&T
Wireless network for an additional fee.
Sprint Sprint blocks access to ports 80 & 5000 (and perhaps others) from Internet addresses. Move
LAN devices to different port numbers or use the LAN-Cell’s Port Forwarding feature to redirect open public ports to the blocked ports on the LAN.
99
Specifications
Physical
Dimensions with Modem-SAFE
Mounting Base
9.1 x 4.4 x 1.0 in 23.1x 11.2 x 2.5 cm (excluding modem)
10.3 x 5.25 x 2.4 in 26.2 x 13.4 x 6.1 cm
Mounting template is available for download from: http://www.proxicast.com/support/files/LAN-Cell-3-Mounting-Template.pdf
Weight with Mounting Base
1.5 lbs (0.7 kg) (excluding modem)
3.2 lbs (1.4 kg) (excluding modem)
Power Specification
12V DC @ 1.5 A (max) 2.1 mm jack (center pin positive)
Power Consumption
4W Typical; 8W Max
Operating Temp.
-22 to 140 F (-30~60 C)
Operating Humidity
Chassis
Certifications
10%~90%
18 ga. Steel. Desktop & Removable Multi-Function Mounting Base (included).
Patent-pending USB Modem-SAFE USB modem storage system.
Cable management and external antenna mounting features.
EMC: FCC ID: PBLCDE570AM FCC Part 15 Class B, CE-EMC Class B, C-Tick Class
B, VCCI Class B
Safety: CSA International, CE EN60950-1 (UL60950-1, CSA60950-1, EN60950-1,
IEC60950-1) -- RoHS
Connectors
LAN/DMZ
WAN
USB 2.0
Power Switch
Reset Button
4 LAN/DMZ auto-negotiating, auto MDI/MDI-X 10/100/1000 Mbps RJ45 Ethernet ports.
One auto-negotiating, auto MDI/MDI-X 10/100/1000 Mbps RJ-45 Ethernet port
For installing 4G/3G USB modems
On/Off
Restores factory default settings
Safely ejects USB modem
USB Eject
Wi-Fi
Technology
Operating Modes
SSIDs
Security
Antennas
802.11 b/g/n 300 Mbps max
Access Point, Repeater, Client, WPS, WDS, WMM
2 (isolated) with Guest LAN option
WPA, WPA2, WPA-PSK, WPA2-PSK, WEP 64 /128-bit, 802.1x
MIMO 2x2
Two 3 dBi rubber duck style swivel 802.11 b/g/n antenna (SMA-RP Female).
The Wi-Fi antenna jacks on the LAN-Cell are SMA-RP Male
100
Software Functions
4G / 3G Features
Networking
VPN Features
Plug & Play for Most CDMA/GSM/LTE Modems
Over 130 USB Modems Supported
Pre-defined Service Provider Profiles
WAN to 3G/4G Fail-Over and Fall-Back
3G/4G Keep-Alive Packets
Multiple External Antennas Supported
LAN DHCP Server, Cache, Proxy Server, Relay
WAN DHCP Static IP, PPPoE, Wi-Fi Client
WAN Fail-over Detection Limits & Controls
WAN Load Balancing (Ethernet + USB)
Static Routing
L3 / L4 IP/Port Policy-based Routing
Port-Forwarding
VLAN Support
Spanning Tree Protocol Support
Dynamic DNS (DynDNS, NoIP, TZO, etc)
Permanent DNS Address (serial#.proxidns.com)
Bandwidth Mgmt. & Throughput Optimization
Content Filtering (OpenDNS)
NTP Time Service Support
IPSec Server and Client Modes
Site-to-Site & Remote User Access Tunnels
32 Simultaneous IPSec Tunnels
AES/1DES/DES Encryption
SHA1/MD5 Authentication
Dead Peer Detection (DPD)
PPTP Server Mode (32 simultaneous clients)
MS-CHAPv2 & MPPE 128 bit security
Security Features
Network Address Translation & Firewall
Anti-DoS and Anti-spoofing Protection
L2 / L3 / L4 ACL Filtering
Static DHCP and static ARP IP-MAC binding
DMZ and Port Forwarding (virtual server
System Management
Web-based Management (Local & Remote) Tablet Friendly GUI
Configuration Backup and Restore
101
Firmware Upgrade and Downgrade
SNMP Support
Syslog Support
Real-Time Logging
Scheduled System Restarts
Ping, ARPing, Traceroute Utilities
LAN-Cell 3 Default Settings
LAN IP Address
192.168.1.1
HTTP Management Access admin / 1234 on port 8080
LAN DHCP Server
USB 4G/3G WAN
Ethernet WAN
192.168.1.33 to .65
Subnet mask 255.255.255.0
Auto Detect & Configure
DHCP Client Enabled
Wi-Fi Access Point
DNS Host Name
Disabled
serial#.proxidns.com
Press the RESET button for 5 seconds to return the LAN-Cell to these settings.
102
Legal Information
Copyright
Copyright © 2007-2013 by Proxicast, LLC.
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of Proxicast, LLC.
Published by Proxicast, LLC. All rights reserved.
Disclaimer
Proxicast does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others.
Proxicast further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.
Trademarks
Proxicast is a registered trademark and ProxiOS (Proxicast Network Operating System), LAN-Cell,
Card-Guard, Cell-Lock, Modem-LOCK, PocketPORT and Cell-Sentry are trademarks of Proxicast, LLC. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.
Certifications
Federal Communications Commission (FCC) Interference Statement
Contains FCC ID: PBLCDE570AM
The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
•
•
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operations.
103
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
•
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
•
IEEE 802.11b, g and n operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
•
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
Notices
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device has been designed for the WLAN 2.4 GHz networks throughout the EC region and Switzerland, with restrictions in France. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
104
Proxicast Limited Warranty
Proxicast warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to one year from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials,
Proxicast will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be solely at the discretion of Proxicast. This warranty shall not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. Proxicast shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact Proxicast's Service Center for your Return Material
Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of Proxicast) and the customer will be billed for parts and labor.
All repaired or replaced products will be shipped by Proxicast to the corresponding return address, Postage
Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country.
105
Customer Support
Online Web Support
Please refer to support.proxicast.com for additional support documentation and access to our
Knowledgebase which contains many resources such as.TechNotes, Frequently Asked Questions, sample configurations and firmware updates.
E-Mail Support
Support E-mail: [email protected]
Please provide the following information when you contact customer support:
• Product model and serial number.
• Current firmware version running on the device
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.
Corporate Headquarters (Worldwide Customer Support)
• Sales E-mail: [email protected]
• Telephone: 877-777-7694 (412-213-0018)
• Fax: 412-492-9386
• Web Site: www.proxicast.com
• Regular Mail & RMA Shipments:
Proxicast, LLC 312 Sunnyfield Drive, Suite 200 Glenshaw, PA 15116-1936 USA
Return Merchandise Authorizations (RMA)
If you need to return a product for service, you must contact Customer Support and request an RMA Number.
Returns will not be accepted without an RMA Number on the outside of the shipment.
Please return only the main product unit (no accessories) unless otherwise directed by Customer Support.
Securely pack and insure the product. Return shipping costs are the responsibility of the customer.
106
INDEX
3
3G ............................................................................. 8, 106
4
4G ............................................................................. 8, 106
A
Access Control List (ACL) ............................................... 65
Access Point Name .............................................. See APN
Always On ...................................................................... 33
Antennas ....................................................................... 4, 5
APN ............................................................. 12, 13, 25, 106
AT&T Wireless ............................................................... 106
Automatic reboot ............................................................. 97
B
Backup ........................................................................... 33
Backup Standby ............................................................ 33
Bandwidth Management .................................................. 88
Bigpond ........................................................................... 28
C
Captive Portal .................................................................. 57
CDMA ...................................................................... 12, 106
Common Tasks ............................................................ 103
Connectors ........................................................................ 4
D
DDNS ............................................................ 11, 40, 41, 42
Dead Peer Detection ....................................................... 79
Default Settings ........................................................... 109
Demilitarized Zone (DMZ) ............................................... 81
DHCP ....... 9, 11, 13, 14, 18, 19, 22, 27, 35, 39, 51, 69, 109
DHCP Server .................................................................. 39
DirectIP ..................................................................... 18, 25
DSL ................................................................................... 8
Dynamic Domain Name Service ....................... See DDNS
E
Ethernet ........................................................ 4, 8, 9, 14, 44
F
Factory Defaults .......................................................... 109
Fail-Over ......................................................................... 33
Firewall ......................................................................... i, 63
Firmware upgrade ........................................................... 96
G
GRE ................................................................................ 74
GSM ........................................................................ 12, 106
Guest Hotspot ................................................................. 57
Guest LAN .................................................. 51, 52, 57, 107
H
Hotspot ............................................................................ 57
I
IKE ............................................................................ 76, 79
IPsec ............................................................................... 76
K
Keep-Alive ....................................................................... 33
L
LEDs ................................................................................. 3
107
Load Balancing ............................................................... 33
LTE ................................................................................ 106
M
MAC Address ........................ 18, 19, 22, 23, 43, 55, 68, 69
Management Information Base (MIB).............................. 98
Menus ............................................................................. 11
Modem-SAFE .................................................................... 5
MTU ............................................ 25, 28, 29, 30, 32, 35, 75
Multi-Function Mounting Base ........................................... 5
N
Network Address Translation (NAT) .......................... 81, 94
NTP ................................................................................. 46
O
OpenDNS ........................................................................ 71
P
Password ........ 9, 15, 25, 28, 29, 30, 32, 41, 71, 75, 96, 97
PIN Code ........................................................................ 12
Port Forwarding ............................................................... 81
Port Translation ............................................................... 81
Portal ............................................................................... 57
PPP ..................................................................... 25, 30, 74
PPPoE ........................................................... 13, 18, 27, 29
PPTP ........................................... 25, 28, 32, 74, 75, 86, 94
Pre-Shared Key ................................................... 47, 48, 79
Q
QoS ................................................................................. 88
Quick Setup
LAN Configuration ...................................................... 14
USB Modem Configuration ......................................... 12
WAN Configuration ..................................................... 13
Wi-Fi Configuration ..................................................... 15
R
Radius ............................................................................. 51
Rear Panel ........................................................................ 4
Reboot ............................................................................ 97
Reset ..................................................................... 105, 109
RMA .............................................................................. 113
S
Signal Strength.............................................................. 105
Simple Network Management Protocol (SNMP) ............. 98
Spanning Tree Protocol ................................................... 35
Specifications .............................................................. 107
Sprint ............................................................................. 106
SSID ...................................... 15, 19, 31, 47, 48, 55, 56, 58 static IP ......................................................................... 106
Static IP ............................................................... 13, 18, 29
Static Routing .................................................................. 36
Status .............................................................................. 17
Support ........................................................................ 113
Syslog ........................................................................... 102
T
Time ................................................................................ 46
Troubleshooting .......................................................... 104
TurboLink ........................................................................ 25
U
Ultra-NAT ........................................................................ 94
Universal Plug and Play (UPnP) ..................................... 87
Universal Repeater ................................................... 55, 94
USB ........................................................ 3, 12, 24, 33, 100
V
Velcro ................................................................................ 5
Verizon Wireless ........................................................... 106
Virtual Hosts .................................................................... 84
108
VLAN ............................................................................... 44
VPN ........................................................................... 74, 76
Net-to-Net ................................................................... 77
Remote User .............................................................. 79
VPN Pass-through........................................................... 86
W
Warranty ....................................................................... 112
WDS .................................................................. 54, 55, 107
Web Filtering ................................................................... 72
WEP ...................................................... 47, 48, 49, 54, 107
Wi-Fi ...................................................................... 9, 15, 47
Wi-Fi Client ............................................................... 30, 31
WMM ............................................................................... 48
WPA .......................................................................... 48, 51
WPA2 ........................................................................ 48, 51
WPS .................................................................. 56, 57, 107
109
advertisement
Related manuals
advertisement
Table of contents
- 6 About This User's Guide
- 7 Safety Warnings
- 8 INTRODUCTION
- 8 Key Features
- 9 Package Contents
- 10 HARDWARE
- 10 Front LEDs
- 11 Rear Panel
- 12 Multi-Function Mounting Base
- 12 Modem-SAFETM
- 15 Hardware Setup
- 16 ACCESSING THE LAN-CELL 3
- 16 Start-up and Login
- 17 Navigating the User Interface
- 18 Menu Structure
- 19 QUICK SETUP
- 19 USB Modem Configuration
- 20 WAN Configuration
- 21 LAN Configuration
- 21 Wi-Fi Configuration
- 22 Password
- 23 STATUS MENU
- 23 Router
- 26 Traffic
- 27 Session
- 28 User/DHCP
- 29 Current Users
- 30 SETUP MENU
- 30 WAN
- 30 WAN (USB Modem)
- 32 WAN (Ethernet)
- 32 DHCP (automatic IP address assignment)
- 33 Static (Fixed IP address assignment)
- 34 PPPoE (connected by username/password)
- 35 Wi-Fi Client
- 37 WAN Advanced
- 39 LAN
- 40 Static Routing
- 43 DHCP Server
- 44 DDNS
- 46 MAC Address Clone
- 47 VLAN
- 48 Time
- 49 WIRELESS (Wi-Fi) MENU
- 49 Basic Setup
- 53 Advanced Setup
- 55 WDS Setup
- 56 Universal Repeater Setup
- 57 WPS Setup
- 58 Guest Hotspot
- 64 SECURITY MENU
- 64 Firewall
- 66 IP Access Control
- 69 Outbound MAC ACL
- 72 OpenDNS
- 73 Web Filtering
- 75 VPN / PPTP
- 77 VPN / IPsec
- 82 APPLICATIONS MENU
- 82 Port Forwarding
- 85 Virtual Hosts
- 87 Streaming / Pass-Through
- 88 UPnP
- 89 QUALITY OF SERVICE (QoS) MENU
- 89 Bandwidth Management
- 93 Throughput Optimizer
- 94 Ultra-NAT
- 95 Session Manager
- 96 ADMIN MENU
- 96 System Management
- 98 SNMP
- 99 System Utilities
- 100 Trace Route
- 101 Log
- 103 APPENDIX
- 103 Common Tasks
- 104 Troubleshooting
- 106 Common Carrier Specific Issues
- 107 Specifications
- 109 LAN-Cell 3 Default Settings
- 110 Legal Information
- 110 Certifications
- 112 Proxicast Limited Warranty
- 113 Customer Support
- 114 INDEX
