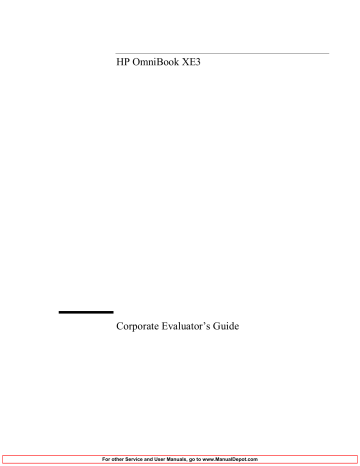

HP OmniBook XE3
Corporate Evaluator’s Guide
For other Service and User Manuals, go to www.ManualDepot.com
Notice
This manual and any examples contained herein are provided “as is” and are subject to change without notice. Hewlett-Packard Company makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard Co. shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or the examples herein.
Consumer transactions in Australia and the United Kingdom: The above disclaimers and limitations shall not apply to Consumer transactions in Australia and the United Kingdom and shall not affect the statutory rights of Consumers.
© Copyright Hewlett-Packard Company 2000. All rights reserved. Reproduction, adaptation, or translation of this manual is prohibited without prior written permission of
Hewlett-Packard Company, except as allowed under the copyright laws.
The programs that control this product are copyrighted and all rights are reserved.
Reproduction, adaptation, or translation of those programs without prior written permission of Hewlett-Packard Co. is also prohibited.
Portions of the programs that control this product may also be copyrighted by Microsoft
Corporation, Phoenix Technologies, Ltd., ESS, S3 Incorporated, Accton, and Adobe
Systems Incorporated. See the individual programs for additional copyright notices.
Microsoft, MS, MS-DOS, and Windows are registered trademarks of Microsoft
Corporation. Pentium and the Intel Inside logo are U.S. registered trademarks and MMX is a U.S. trademark of Intel Corporation. Adobe and Acrobat are trademarks of Adobe
Systems Incorporated.
Hewlett-Packard Company
Mobile Computing Division
19310 Pruneridge Ave.
Cupertino, CA 95014, U.S.A.
2 Corporate Evaluator’s Guide
HP Software Product License Agreement
Your notebook PC contains factory-installed software programs. Please read the Software
License Agreement before proceeding.
Carefully read this License Agreement before proceeding to operate this equipment.
Rights in the software are offered only on the condition that the customer agrees to all terms and conditions of the License Agreement. Proceeding to operate the equipment indicates your acceptance of these terms and conditions. If you do not agree with the terms of the License Agreement, you must now either remove the software from your hard disk drive and destroy the Recovery CD, or return the complete computer and software for a full refund.
Proceeding with configuration signifies your acceptance of the License Terms.
Unless otherwise stated below, this HP Software Product License Agreement shall govern the use of all software that is provided to you, the customer, as part of the HP computer product. It shall supersede any non-HP software license terms that may be found online, or in any documentation or other materials contained in the computer product packaging.
Note: Operating System Software by Microsoft is licensed to you under the Microsoft
End User License Agreement (EULA).
The following License Terms govern the use of the software:
Use. Customer may use the software on any one computer. Customer may not network the software or otherwise use it on more than one computer. Customer may not reverse assemble or decompile the software unless authorized by law.
Copies and Adaptations. Customer may make copies or adaptations of the software (a) for archival purposes or (b) when copying or adaptation is an essential step in the use of the software with a computer so long as the copies and adaptations are used in no other manner.
Ownership. Customer agrees that he/she does not have any title or ownership of the software, other than ownership of the physical media. Customer acknowledges and agrees that the software is copyrighted and protected under the copyright laws. Customer acknowledges and agrees that the software may have been developed by a third party software supplier named in the copyright notices included with the software, who shall be authorized to hold the Customer responsible for any copyright infringement or violation of this Agreement.
Product Recovery CD-ROM. If your computer was shipped with a product recovery CD-
ROM: (i) The product recovery CD-ROM and/or support utility software may be used only for restoring the hard disk of the HP computer with which the product recovery CD-
ROM was originally provided. (ii) The use of any operating system software by Microsoft
Corporate Evaluator’s Guide 3
contained in any such product recovery CD-ROM shall be governed by the Microsoft
End User License Agreement (EULA).
Transfer of Rights in Software. Customer may transfer rights in the software to a third party only as part of the transfer of all rights and only if Customer obtains the prior agreement of the third party to be bound by the terms of this License Agreement. Upon such a transfer, Customer agrees that his/her rights in the software are terminated and that he/she will either destroy his/her copies and adaptations or deliver them to the third party.
Sublicensing and Distribution. Customer may not lease, sublicense the software, or distribute copies or adaptations of the software to the public in physical media or by telecommunication without the prior written consent of Hewlett-Packard.
Termination. Hewlett-Packard may terminate this software license for failure to comply with any of these terms provided Hewlett-Packard has requested Customer to cure the failure and Customer has failed to do so within thirty (30) days of such notice.
Updates And Upgrades. Customer agrees that the software does not include updates and upgrades which may be available from Hewlett-Packard under a separate support agreement.
Export Clause. Customer agrees not to export or re-export the software or any copy or adaptation in violation of the U.S. Export Administration regulations or other applicable regulation.
U.S. Government Restricted Rights. Use, duplication, or disclosure by the U.S.
Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause in DFARS 252.227-7013. Hewlett-Packard
Company, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A. Rights for non-DOD U.S.
Government Departments and Agencies are as set forth in FAR 52.227-19(c)(1,2).
Edition History
Edition 1............................................... July 2000
This manual is printed on recycled paper.
4 Corporate Evaluator’s Guide
Contents
Introducing the Notebook Computer..........................................................................................11
Taking Inventory ......................................................................................................................12
Software bundled on your computer...............................................................................12
To buy accessories ............................................................................................................12
To find more information...................................................................................................13
Identifying Parts of the Notebook .........................................................................................14
Top and right side view.....................................................................................................14
Front view............................................................................................................................15
Rear and left side view.......................................................................................................15
Bottom view........................................................................................................................16
Status lights ........................................................................................................................17
Multimedia buttons............................................................................................................17
Status panel.........................................................................................................................18
Power switch and standby button...................................................................................19
Setting Up Your Computer......................................................................................................21
To install the battery..........................................................................................................21
To connect AC power .......................................................................................................21
To connect a phone line....................................................................................................22
To turn on the computer ...................................................................................................23
To set up Windows ...........................................................................................................23
To register your computer ................................................................................................24
To connect to an Internet Service Provider ...................................................................25
To reset your computer.....................................................................................................26
Using Your Computer...................................................................................................................27
Operating Your Computer.......................................................................................................28
To use the Fn hot keys......................................................................................................28
To use the Windows and Applications keys ................................................................28
To use the embedded keypad ..........................................................................................29
To use the ALT GR key.....................................................................................................29
To adjust the display brightness .....................................................................................30
To adjust the volume .........................................................................................................30
To use the touch pad.........................................................................................................31
To use the One-Touch buttons .......................................................................................32
Securing Your Computer.........................................................................................................35
To set up password protection ........................................................................................35
To attach a security cable .................................................................................................36
To use virus-protection software ....................................................................................37
Working in Comfort with a Notebook PC .............................................................................38
Caring for Your Computer.......................................................................................................40
To protect your hard disk drive .......................................................................................40
Corporate Evaluator’s Guide 5
To take care of your computer .........................................................................................40
To safeguard your data .....................................................................................................41
To extend the life of the display.......................................................................................41
To get the most from your batteries ................................................................................41
To clean your computer ....................................................................................................42
Traveling with Your Computer ...................................................................................................43
Managing Power Consumption..............................................................................................44
To use automated power management ...........................................................................44
To use manual power management .................................................................................45
Using Battery Power................................................................................................................47
To check the battery status ..............................................................................................47
To respond to a low-battery warning..............................................................................48
To optimize battery operating time ..................................................................................48
To control the processor speed .......................................................................................49
Making Connections.....................................................................................................................51
Using the Modem.....................................................................................................................52
To connect the modem......................................................................................................52
To connect to the Internet ................................................................................................54
To disconnect from the Internet ......................................................................................54
To dial in to a network.......................................................................................................55
To change your modem settings .....................................................................................55
To send and receive e-mail ...............................................................................................56
To send and receive faxes (Windows 98).......................................................................57
To send and receive fa xes (Windows 2000)...................................................................58
Connecting to a LAN...............................................................................................................60
Connecting PC Cards...............................................................................................................61
Connecting External Components..........................................................................................63
To identify the ports ..........................................................................................................63
To connect a printer (or another parallel device)..........................................................65
To connect an external keyboard or PS/2 mouse..........................................................65
To connect a USB device..................................................................................................66
To connect audio devices .................................................................................................66
To use infrared devices .....................................................................................................67
To use an external monitor................................................................................................68
To use a TV set as monitor...............................................................................................70
To use the port replicator..................................................................................................70
Configuring and Expanding Your Computer............................................................................73
Using the BIOS Setup Utility..................................................................................................74
Installing RAM modules .........................................................................................................75
Removing RAM modules ........................................................................................................77
6 Corporate Evaluator’s Guide
Expanding the hibernate partition..........................................................................................78
Updating Windows Drivers ....................................................................................................79
To download the latest Windows drivers ......................................................................79
To locate Windows drivers on your system..................................................................79
To use digitally signed drivers in Windows 98.............................................................79
Using Windows 2000....................................................................................................................81
Installing Retail Windows 2000..............................................................................................82
Requirements ......................................................................................................................82
To prepare for software installation ................................................................................82
To install a retail version of Windows 2000...................................................................83
To install video support for retail Windows 2000.........................................................84
To install audio and modem support for retail Windows 2000....................................85
To install integrated LAN support for retail Windows 2000 .......................................86
To install touchpad support for retail Windows 2000..................................................86
To install infrared support for retail Windows 2000 .....................................................86
To install Hewlett-Packard Configuration Interface (HPCI) for retail
Windows 2000 ....................................................................................................................87
To install the Intel(R) SpeedStep(TM) Technology Applet for retail
Windows 2000 ....................................................................................................................87
To install the OneTouch utility for retail Windows 2000.............................................88
Windows 2000 power management.................................................................................88
Using Windows 98.........................................................................................................................91
Installing Retail Windows 98 Second Edition......................................................................92
Requirements ......................................................................................................................92
To prepare for software installation ................................................................................92
To install a retail version of Windows 98 Second Edition...........................................94
To install video support for retail Windows 98 Second Edition.................................95
To install DirectX7 for retail Windows 98 Second Edition ..........................................96
To install audio and modem support for retail Windows 98 Second Edition............96
To install integrated LAN support for retail Windows 98 Second Edition ...............96
To install infrared support for retail Windows 98 Second Edition .............................97
To install touchpad support for retail Windows 98 Second Edition..........................97
To install the SpeedStep utility for retail Windows 98 Second Edition.....................98
To install the OneTouch utility for retail Windows 98 Second Edition.....................98
To install software patches for retail Windows 98 Second Edition............................98
Troubleshooting Your Computer..............................................................................................101
Troubleshooting Techniques ...............................................................................................102
Audio problems ................................................................................................................102
CD-ROM drive problems .................................................................................................103
Display problems ..............................................................................................................103
Corporate Evaluator’s Guide 7
DVD problems ...................................................................................................................104
Hard disk drive problems ................................................................................................106
Heat problems ...................................................................................................................106
Keyboard, touch pad, and mouse problems ................................................................106
Memory problems ............................................................................................................107
Modem problems ..............................................................................................................108
One-Touch button problems ..........................................................................................109
PC card problems ..............................................................................................................110
Performance problems .....................................................................................................111
Port replicator problems ..................................................................................................112
Power and battery problems ...........................................................................................112
Printing problems .............................................................................................................113
Serial, parallel, and USB problems .................................................................................114
Startup problems ..............................................................................................................115
Standby and resume problems .......................................................................................116
Testing Hardware Operation.................................................................................................117
Recovering and Reinstalling Software ................................................................................119
To recover the factory installation of your hard disk.................................................119
To replace a damaged Recovery CD .............................................................................120
To update t he HP notebook BIOS.................................................................................120
To recover an application ...............................................................................................120
Removing and Reinstalling the Hard Disk Drive ...............................................................122
If you decide to remove the hard disk drive.................................................................122
To install the hard disk drive again ...............................................................................124
Service and Support....................................................................................................................125
Getting Support for Your HP Notebook PC........................................................................126
To get help from the HP notebook website..................................................................126
To call the HP Customer Care Center............................................................................126
Obtaining Repair Service.......................................................................................................129
To receive warranty repair service.................................................................................129
To prepare your computer for shipment.......................................................................129
Hewlett-Packard Limited Warranty Statement ...................................................................130
Specifications and Regulatory Information............................................................................133
Hardware and Software Specifications................................................................................134
BIOS Setup utility options..............................................................................................134
Hardware specifications..................................................................................................138
Software specifications ...................................................................................................142
Software system resources .............................................................................................142
Modem Reference Information.............................................................................................145
AT Commands (Ambit)...................................................................................................145
S-Registers (Ambit)..........................................................................................................151
Selected Result Codes (Ambit)......................................................................................152
8 Corporate Evaluator’s Guide
Safety Information..................................................................................................................153
Power Cords......................................................................................................................153
Battery Safety ...................................................................................................................154
Laser Safety.......................................................................................................................154
LED Safety.........................................................................................................................155
Regulatory Information..........................................................................................................156
U.S.A..................................................................................................................................156
Canada ...............................................................................................................................157
European Union................................................................................................................157
Japan ..................................................................................................................................158
Russia.................................................................................................................................158
International......................................................................................................................158
Index...............................................................................................................................................161
Corporate Evaluator’s Guide 9
Introducing the Notebook Computer
Corporate Evaluator’s Guide 11
Introducing the Notebook Computer
Taking Inventory
Taking Inventory
Your HP notebook PC is shipped with these items:
• battery
•
AC adapter and power cord
•
Quick Start sheet
•
HP notebook PC Startup Guide
•
Recovery CD (or CDs), used to restore Windows and all software included with your computer
•
Microsoft Windows manual (Windows 98 or Windows 2000)
• telephone cord (if your computer has a built-in modem)
Software bundled on your computer
Your HP notebook PC comes with preinstalled software, and various models are configured with different combinations of software. To see the list of software included with your computer, check HP Notes in the HP Library: click Start, Programs, HP Library,
HP Notes—or double-click the HP Notes icon on the desktop.
To buy accessories
You can buy accessories for your computer online. For the latest accessories and options, visit us at www.hp.com/notebooks. As new accessories become available, you’ll find them listed here.
At this time, HP offers the following accessories and replacement modules:
• port replicator
• auto/airline adapter
•
AC adapter
• ultraslim AC adapter
• primary lithium ion battery
12 Corporate Evaluator’s Guide
Introducing the Notebook Computer
Taking Inventory
•
PS/2 Y adapter for mouse and keyboard
• additional RAM—HP SDRAM:
•
64 MB
•
128 MB
To find more information
Source
Quick Start sheet
Startup Guide
Reference Guide
HP Notes
The following table lists other sources of information about your HP notebook PC and related products.
Introductory Microsoft manual for Windows
HP Notebook PC Web Site
HP Customer Care Web
Site
Corporate Evaluator’s
Guide
Description
This pictorial inttroduction shows you how to get the computer up and running quickly.
The Startup Guide is the printed HP manual that came with your computer. It shows how to set up and operate your computer and where to go for help if you run into trouble.
The Reference Guide is a help file located on your hard drive. It provides you with detailed information about your notebook PC (Start,
Programs, HP Library, Reference Guide).
This document contains late -breaking information available after the
Reference Guide was completed (Start, Programs, HP Library,
HP Notes —or double-click the HP Notes icon on the desktop).
This manual contains informati on about using the standard features of
Microsoft Windows (Windows 98 or Windows 2000, depending on which operating system your computer is shipped with). www.hp.com/notebooks www.hp.com/go/support.
This provides information about installing alternate operating systems, as well as how to configure your notebook computer in a corporate, networked environment. Located at the HP Notebook Web site.
Corporate Evaluator’s Guide 13
Introducing the Notebook Computer
Identifying Parts of the Notebook
Identifying Parts of the Notebook
Top and right side view
4
5
6
7
1
2
3
One-Touch buttons 8
Power switch 9
Status lights (see “Status lights “ on page 17 ) 10
Pad Lock touch pad on/off button
Touch pad (pointing device)
Scroll up/down toggle
Click buttons
11
12
13
CD-ROM drive or DVD
Microphone
CD-ROM or DVD eject button
Blue standby button
Modem port (on certain models)
LAN port (networking—on certain models)
14 Corporate Evaluator’s Guide
Front view
Introducing the Notebook Computer
Identifying Parts of the Notebook
14 Headphone audio jack
15 Status panel mode select button
16 Status panel
17 Multimedia buttons (see “Multimedia Buttons” on page 17)
18 Latch (to open computer)
Rear and left side view
Corporate Evaluator’s Guide 15
Introducing the Notebook Computer
Identifying Parts of the Notebook
19
20
21
22
23
24
25
AC adapter (power) jack
PS/2 port (external mouse or keyboard)
Serial port
Parallel port
VGA port (external monitor)
Infrared port
TV output port
Bottom view
26
27
28
29
30
31
32
USB ports
Microphone jack
Kensington lock slot (security connector)
PC card slots
System-off button (for resetting computer)
PC card eject buttons
Floppy disk drive
33 Battery
34 Battery latch
35 RAM expansion cover
36 Port replicator (docking) connector
16 Corporate Evaluator’s Guide
Status lights
Introducing the Notebook Computer
Identifying Parts of the Notebook
1 Power
2 Battery
3 Caps lock (capital letters)
4 Num lock (numeric keypad)
5 Scroll lock
6 Floppy disk drive access
7 Hard disk drive access
8 CD-ROM drive or DVD access
Multimedia buttons
The multimedia buttons are on the front of the computer, to the right of the status display.
They control the computer’s CD (or DVD) player in the same way the controls of a standalone multimedia player control its functions.
Corporate Evaluator’s Guide 17
Introducing the Notebook Computer
Identifying Parts of the Notebook
The buttons also work if the system is turned on, though in that case you don’t need to use the multimedia power switch to turn on the player. When the computer is on, the volume control buttons also govern the volume for most other audio applications.
If the system is turned off (or in standby or hibernate mode), you can still use the player for audio CD playback. Slide the multimedia power switch to the left to activate the player without turning on the computer.
1 Multimedia power (use only when system is turned off or in standby or hibernate mode)
2 Previous track
3 Play/pause
4 Stop (when computer is on)*
Stop/eject (when computer is off)
5 Next track
6 Volume control down
7 Volume control up
*You can eject a CD or DVD by pressing the eject button on the CD/DVD drive.
Status panel
The status panel on the front of the comp uter provides information about CD playback status, system power management, system date and time, and battery status. Messages are displayed on the 8-character LCD display, and you can switch from one kind of message to another by pressing the mode button to the left of the display.
18 Corporate Evaluator’s Guide
Introducing the Notebook Computer
Identifying Parts of the Notebook
When the computer is on (or when the computer is off and the AC adapter is plugged in), these modes are displayed sequentially as you press the mode button:
• power management status: on, off, standby (STBY), or hibernate (ZZZZ)
• battery charging status: percentage charged
• date
• time
When the CD player is on and the computer is off, the CD playback mode is displayed. It shows the CD track number, the time elapsed, and an arrow when the CD is playing or two parallel lines when it is paused—and when you press the mode button, you can also display sequentially the four modes listed above.
When the computer is off, the CD player is off, and the AC adapter is not connected, you can view the status panel by sliding the multimedia power switch to the left to turn it on.
Remember to turn it off when you are through checking the status panel.
If you change the Windows time or date (from Control Panel or the taskbar), the change displays on the status panel only after you shut down and restart the computer. Click
Start, Shut Down, Shut down; and after the power is off, slide the power switch to restart.
If you want to change the format displayed for date or time in the status panel, change it in the BIOS; see “Using the BIOS Setup Utility“ on page 74.
Power switch and standby button
There are two controls above the keyboard that affect power in the HP notebook PC. The switch at the top left turns computer power on and off, and the large blue button in the top center puts the system in standby mode—or, if it is already in standby mode, returns it to normal operation.
To use the power switch
To turn on the computer when it is off, slide the power switch to the left and release it. If the computer is plugged into AC power or contains a charged battery, the system turns on and Windows starts automatically.
When the computer is on, you can also use the power switch to turn the system off. In most situations, however, it is preferable to shut down Windows instead. Click Start, Shut
Down, then select Shut down and click OK. Windows will shut down, and the computer will automatically turn off.
Corporate Evaluator’s Guide 19
Hint
Introducing the Notebook Computer
Identifying Parts of the Notebook
To use the standby button
You can use the standby button to save the current state of your computer and then to return quickly to the same state when you are ready to resume work.
To put the computer in standby mode when it is on, press the large blue standby button, which is found in the middle of the four smaller One-Touch buttons above the center of the keyboard. Pressing the standby button turns off the display and the hard disk drive, and it saves your current session to RAM. (Standby can also occur automatically when the timeout setting in the Power Management Properties is reached.)
To return the computer to normal operation when it is in standby mode, press the standby button again. The display and the hard disk drive will turn on, and the session you were working on earlier will be recovered from RAM.
If your notebook does not turn on when operating on battery power, the battery may not be sufficiently charged. Plug in the AC adapter and slide the power switch to the left and release it. Keep the adapter plugged in until your battery is charged again.
20 Corporate Evaluator’s Guide
Introducing the Notebook Computer
Setting Up Your Computer
Setting Up Your Computer
To install the battery
Your computer is shipped with the battery installed. If the battery has been removed, you can install it by inserting it into the battery bay on the bottom of your computer. Insert the back edge first, as shown, then press down the front edge until the battery latch clicks shut.
WARNING
Once you have installed the battery, connect the AC adapter to the computer and recharge the battery while you work. You can also replace a low battery with another that is more fully charged.
Do not mutilate, puncture, or dispose of batteries in fire. A battery can burst or explode, releasing hazardous chemicals. A rechargeable battery must be recycled or disposed of properly.
To connect AC power
Plug in the AC adapter, then connect the AC adapter to the rear of the computer. The battery starts charging.
Corporate Evaluator’s Guide 21
Introducing the Notebook Computer
Setting Up Your Computer
CAUTION
Use only an HP AC adapter intended for this product, either the adapter that came with the computer or another authorized HP adapter. Using an unauthorized AC adapter can damage the computer and may void your warranty. Refer to the warranty statement for your product.
To connect a phone line
Selected models of the HP notebook PC include a built-in modem. If you prefer, you can instead use a PC card modem or an external modem to connect a phone line.
1. Plug one end of the phone line into the modem phone jack on the computer. Be sure it clicks into place.
22 Corporate Evaluator’s Guide
CAUTION
Hint
Introducing the Notebook Computer
Setting Up Your Computer
2. Plug the other end of the phone line into a telephone jack. (If the phone line does not fit your telephone jack, you may need to use an adapter.)
Your built-in modem may not work with multiple phone lines or a private branch exchange (PBX), cannot be connected to a coin-operated telephone, and does not work with party lines. Some of these connections may result in excess electrical voltage and
could cause a malfunction in the internal modem. Check your telephone line type prior
to connecting your phone line.
To turn on the computer
Slide the power switch to the left—it’s the control above the left side of the keyboard.
Windows starts automatically. If you are turning on the computer for the first time, go to
“To set up Windows “ on page 23.
The power status light next to the power switch (see “Status lights “ on page 17) reports the following:
• steady green light: computer is on
• steady amber light: computer is in system standby (or suspend) mode
• no light: computer is off or in hibernate mode
See “Managing Power Consumption“ on page 44 for additional information about turning off your computer.
If your computer does not turn on when operating on battery power, t he battery may be out of power. Plug in the AC adapter and slide the power switch to the left again.
To set up Windows
Your HP notebook has Microsoft Windows —either Windows 98 or Windows 2000— preinstalled on the hard disk drive. The first time you turn on your computer, a Windows
Setup program will automatically run so that you can customize your setup.
Before you begin, connect the AC adapter to your notebook, since your battery may not be sufficiently charged to complete the Windows setup. Also, be sure to connect the notebook to a phone line; see “To connect a phone line“ on page 22 .
1. Slide the power switch to the left.
2. The Windows Setup program starts automatically.
Corporate Evaluator’s Guide 23
Note
Introducing the Notebook Computer
Setting Up Your Computer
3. Follow the instructions as they appear on the screen.
During setup, you are prompted to:
• enter a user name
• accept the License Agreement
You can also register your computer at this time. Follow the instructions on the screen during setup, or—if registration does not occur during setup—double-click the HP
Notebook Registration icon on the desktop.
You may be required to enter your Windows ID number. To locate it, look on the
Certificate of Authenticity packaged with the Microsoft Windows manual or look for a sticker in the battery compartment.
If you have any connection problems with your modem, try redialing. If that doesn’t work, you can skip registration for now.
To register your computer
Be sure to register your computer. Registering is free and fast, and it ensures you will receive quicker, more personalized support. The information you provide during registration will be used to provide you with better products and services.
There are three ways to register:
• by modem
• by phone
• by fax
By modem
If you have Windows 98, you are prompted automatically to register. To register by modem, see that the phone is connected, then follow the onscreen instructions.
If you have Windows 2000, you are not prompted to register, but you can register by modem if you double-click the HP Notebook Registration icon on the desktop or click the
Register link in the Windows 2000 welcome screen. See that the phone line is connected and follow the onscreen instructions.
With either operating system, if you choose not to register right away, you can register by modem later by double-clicking the Registration icon on the desktop. This icon disappears after you register.
24 Corporate Evaluator’s Guide
Introducing the Notebook Computer
Setting Up Your Computer
If your computer does not have a built -in modem, you can register after you set up a PC card modem or an external modem—or you can register by phone or fax.
By phone
You can call your HP Customer Care Center and register by phone. Check “To call the HP
Customer Care Center“ on page 126 for the phone number.
By fax
If a printer is connected to your computer, you can print a copy of your registration and fax it to HP. You will find the fax number on the registration form.
By completing registration, you will:
•
Record your ownership of the computer with Hewlett-Packard and gain access to service, support, and information.
•
Record your ownership of the Windows 98 operating system with Microsoft. If you have Windows 2000, please contact Microsoft separately for registration of the operating system.
To connect to an Internet Service Provider
Before you can connect to the Internet, you need to set up an account with an Internet
Service Provider (ISP). In some countries, Hewlett-Packard provides easy Internet signup so that you can connect quickly to an ISP.
1. Connect the included telephone cord to your built -in modem. (If your computer does not have a built -in modem, you can instead use a PC card modem or an external modem.)
2. Double-click the desktop icon labeled “Connect to the Internet.” This will launch the
Internet Connection wizard, which will help you locate an ISP in your area.
OR
Click Start, Programs, Online Services and select one of the listed ISPs. This begins the registration process for the ISP you have chosen.
You can also make arrangements with an ISP of your choice for Internet connection.
Corporate Evaluator’s Guide 25
Introducing the Notebook Computer
Setting Up Your Computer
To reset your computer
If Windows or your computer stops responding, you can reset the computer and restart
Windows.
1. If possible, shut down Windows (Start, Shut Down, Shut down, OK).
2. If the computer does not shut down, slide and hold the power switch for five seconds, then release it.
3. If the computer still does not shut down, insert a p in or straightened paper clip into the recess on the left side of the computer, underneath the PC card eject buttons.
4. After the computer shuts down, slide the power switch and release it to turn the computer on again.
26 Corporate Evaluator’s Guide
Using Your Computer
Corporate Evaluator’s Guide 27
Using Your Computer
Operating Your Computer
Operating Your Computer
To use the Fn hot keys
The combination of the Fn key plus another key creates a hot key—a shortcut key sequence—for various system controls. Press and hold Fn while pressing the appropriate key. (When using an external keyboard, press and hold Ctrl+Alt with the appropriate key—use the Ctrl and Alt keys on the left side of the keyboard.)
Hot key
Fn+F1
Fn+F2
Fn+F5
Does this
Decreases the display’s brightness
Increases the display’s brightness
Switches among the built-in display, an external display, and simultaneous displays
Toggles the sound on and off (mutes sound)
Toggles the numeric keypad on and off
Fn+F7
Fn+F8
Fn+F12
Fn+Lock key*
Fn+Up arrow
Enters hibernate mode (in Windows 2000 only)
Toggles Scroll Lock on and off (except on external keyboard)
Increases sound volume (except on external keyboard)
Fn+Down arrow Decreases sound volume (except on external keyboard)
*The Lock key is in the top row of the keyboard:
To use the Windows and Applications keys
The Windows key brings up the Windows Start menu. This is the same as clicking the
Start button on the taskbar.
28 Corporate Evaluator’s Guide
Using Your Computer
Operating Your Computer
The Applications key brings up the shortcut menu for the current application. This is the same menu that appears when you click the right mouse button while pointing at the application.
Windows key combinations
Key combination
Windows key+E
Windows key+F1
Windows key+F
Windows key+M
Shift+Windows key+M
Windows key+R
Does this
Runs Windows Explorer
Runs Windows Help
Runs Windows Find: Files or Folders
Minimizes all displayed windows
Returns all minimized windows to original size
Starts the Windows Run dialog box
To use the embedded keypad
After pressing Fn+F8 to activate the numeric keypad, press the Lock key
(in the top row of the keyboard) to turn number lock on or off:
When number lock is on:
•
Keys change to the numeric or arithmetic designations printed on the right side of the keys in the numeric keypad area.
•
The Num Lock status indicator is lit.
To use the ALT GR key
Non–U.S. keyboards have an ALT GR key to the right of the spacebar. This is a shift key providing access to certain keyboard characters.
•
For a character in the lower-right corner of a key, press and hold ALT GR to type the character.
Corporate Evaluator’s Guide 29
Using Your Computer
Operating Your Computer
1. Shifted.
2. Unshifted.
3. ALT GR.
To adjust the display brightness
You can adjust the brightness of your notebook’s display.
•
To decrease the brightness, press Fn+F1.
•
To increase the brightness, press Fn+F2.
When you are using battery power, the display dims automatically to conserve power.
You can use the brightness controls to override this adjustment.
To adjust the volume
From the keyboard
•
To increase the volume, press Fn+Up arrow.
•
To decrease the volume, press Fn+Down arrow.
•
To temporarily silence the speaker without changing the volume setting, press Fn+F7.
Press Fn+F7 again to restore the speaker output.
In Windows
1. Click the speaker symbol in the taskbar.
2. Drag the volume control bar up or down to adjust the volume.
3. To temporarily silence the speaker without changing the volume setting, click Mute.
With the multimedia buttons
When the computer is on, the volume control buttons on the front of the computer govern volume for most audio applications, including the CD player. When the computer is off, you can use these buttons to adjust the volume for music CDs.
•
To increase the volume, press the volume control up button.
•
To decrease the volume, press the volume control down button.
From within an application
30 Corporate Evaluator’s Guide
Using Your Computer
Operating Your Computer
Many audio applications contain volume controls within the software; consult help in an application to use such controls. In some cases, the application responds only to those controls.
To use the touch pad
The touch pad, a touch-sensitive pointing device that controls the motion and speed of the pointer on the screen, is built into your computer.
1 Pad Lock touch pad on/off button
2 Touch pad (pointing device)
3 Scroll up/down toggle
4 Click buttons
•
Move a thumb or finger across the touch pad in the direction you want the pointer to move.
•
Use the click buttons, which function like the left and right buttons on a mouse, to make your selection. You can also tap on the touch pad instead of clicking a button.
•
To open an application, move the pointer over the icon, then press the left click button twice rapidly (double-click). You can instead tap twice on the touch pad.
•
To make a menu selection, move the pointer to the item and click the left click button once.
•
To open the shortcut menu for an item, move the pointer over the item and click the right click button.
Corporate Evaluator’s Guide 31
Note
Using Your Computer
Operating Your Computer
•
To drag an item, move the pointer over the item. Press and hold the left click button while you move the pointer to the new location. Release the button.
•
To scroll up and down, press the top or bottom of the center toggle below the touch pad.
•
To disable the touch pad, press the Pad Lock button. (The amber touch pad indicator lights.) To reenable it, press the Pad Lock button again. You may wish to disable the touch pad, for example, when you are entering text and do not want to move the cursor accidentally. Avoid contact with the touch pad itself at the same time you are pressing the Pad Lock button (to disable or to reenable); simultaneous contact will not allow the Pad Lock button to work properly.
To customize the operation of the touch pad (and an external PS/2 or serial mouse, if installed), double-click the Synaptics Touch Pad icon to access Mouse Properties; you will find the icon in the taskbar, toward the lower right corner of your screen. Select the tab corresponding to the characteristics you want to configure, including:
• button configuration for right-handed or left-handed operation (Button tab for mouse,
Button Actions tab for touch pad)
• double-click speed, pointer speed, and pointer trail
• click sensitivity
The touch pad is inactive when an external mouse is installed.
To use the One-Touch buttons
The One-Touch buttons on your HP notebook allow you to start your e-mail or a Web browser—or any other application—by pressing a single button. The buttons are configured initially for specific applications, but you can change the configuration to start any applications you want.
When you press a One-Touch button, the name of the application that’s starting appears onscreen. You can modify the appearance of the name by selecting the color, size, and style you prefer.
To configure a One -Touch button
1. Click Start, Settings, Control Panel.
2. Double-click Keyboard.
3. Select the One-Touch buttons tab.
32 Corporate Evaluator’s Guide
Using Your Computer
Operating Your Computer
4. Click on the button of the key you want to reconfigure.
5. In the Button Label field, type the name of the application you want to start with this button. This name will appear onscreen when you press the button.
6. From the list of preinstalled applications, select the application to be associated with the button.
OR
If the desired application is not on the list, select “Select a file on your computer” and click the Browse button to choose any file on your notebook.
OR
If you want to attach a Web page to the button, select “Type in a Web site address” and then select a Favorites page or type the URL of the page you want.
7. If you want the computer to start automatically (and then start this application—or find this website), select “Enable system wake-up for this button.”
8. Click Done, then OK.
To format display of application names
When you press a One-Touch button on your HP notebook, the name of the application that is starting appears onscreen. You can change the size, color, and font of the display, as well as the length of time it appears. (These settings also affect the display of multimedia messages when you play an audio CD or a movie DVD.)
To format the display
1. Click Start, Settings, Control Panel.
2. Double-click Keyboard.
3. Select the One-Touch buttons tab.
4. Click Change Onscreen Display.
5. Follow the instructions below for specific formatting actions.
To change the font of the display
1. Select Change Font.
2. Choose the desired typeface and style.
3. Click OK, then Done, then OK.
To change the color of the display
Corporate Evaluator’s Guide 33
Using Your Computer
Operating Your Computer
1. Select Change Color.
2. Click on the desired color swatch.
3. Click OK, then Done, then OK.
To enable or disable Onscreen Display
1. Check Enable to enable onscreen display. (Or uncheck Enable to disable.)
2. Click Done, then OK.
To change the size of the display
1. Click the Size arrow.
2. Select the desired size.
3. Click Preview to see a sample message displayed in that size.
4. Click Done, then OK.
To change the length of time the display appears
1. Click a Timeout arrow repeatedly to choose a number from 1 to 10 seconds.
2. Click Preview to see a sample message displayed for that time.
3. Click Done, then OK.
34 Corporate Evaluator’s Guide
Using Your Computer
Securing Your Computer
Securing Your Computer
It is important to maintain security of the computer and of your data. You can improve security by—among other methods—using a password, locking the computer with a cable, or setting up virus protection.
To set up password protection
You can protect your computer from access by another user when you set up password protection, which is available either through Windows (software) or through the BIOS
Setup utility (hardware). Both methods provide protection when the computer is rebooted: a user must then enter the password. However, the BIOS password protection does not ask for a password when your computer resumes after standby (suspend) or hibernate, while Windows does provide that security.
If you want to set up hardware password protection, see “Using the BIOS Setup Utility“ on page 74.
To set up password protection in Windows 98
1. Click Start, Settings, Control Panel.
2. Double-click Passwords.
3. Select Change Passwords tab.
4. Click Change Windows Password.
5. Enter your old Windows password, if you had one; if not, leave Old Password blank.
6. Enter your new password twice.
7. Click OK and Close.
To activate password protection when resuming in Windows 98
1. Check that you have set up a Windows password, as described above.
2. Click Start, Settings, Control Panel
3. Double-click Power Management.
4. Select Advanced tab.
5. Check “Prompt for password when computer goes off standby.”
Corporate Evaluator’s Guide 35
Using Your Computer
Securing Your Computer
6. Click OK.
To set up password protection in Windows 2000
1. Press Ctrl+Alt+Del.
2. Click Change Password.
3. Enter your old Windows password, if you had one; if not, leave Old Password blank.
4. Enter your new password twice.
5. Click OK.
6. Click Cancel
If you want to set up hardware password protection for a non-Administrator account, see
Windows Help (click Start, Help).
To attach a security cable
Your computer has a built-in connector that allows you to secure the computer with a cable. The Kensington MicroSaver lock system works with this connector and is available at many computer stores.
1. Wrap the cable around a stationary object, s uch as a table leg.
36 Corporate Evaluator’s Guide
Using Your Computer
Securing Your Computer
2. Loop the cable to create a slipknot around the stationary object—make sure it can’t slip off.
3. Insert the lock into the computer’s security connector and release the key. Store the key in a safe place away from the computer.
To use virus-protection software
Virus-protection software can help protect the integrity of your data. This is especially important when you are connected to the Internet.
To access virus-protection software, click Start, Programs, VirusScan (or if you use a different application, click Start, Programs and the name of your software). Refer to help within the application for tips on usage.
Corporate Evaluator’s Guide 37
Using Your Computer
Working in Comfort with a Notebook PC
Working in Comfort with a Notebook PC
WARNING
You can use your HP notebook computer virtually anywhere, anytime. The following recommendations should help you work more comfortably.
Note that if you are using your portable computer as your primary computer, or using it for extended periods, you should use it with a full-size keyboard, monitor, and mouse.
This will give your portable computer the adjustability and comfort features of a desktop unit. HP docking accessories offer quick, easy connections to these devices. More information on how to prepare your workspace environment and set up your HP equipment is available in Working in Comfort, which is preloaded on the hard disk in the
HP Library and available on the Recovery CD in \hp\library—as well as at www.hp.com/ergo.
Improper use of keyboards and other input devices has been associated with ergonomic injury. For more information about reducing your risk, visit our ergonomics website or see Working in Comfort in the online HP Library.
Your mobile work environment
•
Use a chair that provides good support for your lower back. If an adjustable chair is not available, you can use a pillow or rolled-up towel to provide lower back support.
•
Try to keep your thighs parallel to the floor and your feet flat on the floor. In a mobile environment, you can do this by using a phone book or briefcase to support your feet.
•
Adjust the height of either your work surface or chair to keep your arms in a neutral position. Your arms should be relaxed and loose, elbows at your sides, with the forearms and hands parallel with the floor.
•
Position your notebook computer display to minimize glare and reflection. For example, on an airplane, lower the window shade; or in a hotel room, draw the curtains. You also should maintain a comfortable viewing distance—approximately 40 to 60 cm (16 to
24 inches). Adjust the angle of your display to help keep your head angled slightly downward in a comfortable position.
Using your mobile computer
•
Position the computer so your wrists and hands are in a neutral position. Your wrists should be as straight as possible and should not have to bend sideways or more than
10 degrees up or down. Your HP notebook computer has a built-in palm rest, which is ideal for this purpose.
38 Corporate Evaluator’s Guide
Using Your Computer
Working in Comfort with a Notebook PC
•
Try to type as lightly as possib le. The notebook keyboard requires little force to activate.
•
Take frequent, short rest breaks—this is especially important in a mobile computing environment.
•
Portable computers weigh between approximately 1.5 and 4 kilograms (approximately 3 to 8 pounds). When traveling, be sure to carry your computer properly to minimize strain on your body. Shift the bag containing your notebook equipment frequently between your left and right hands and shoulders.
Corporate Evaluator’s Guide 39
Using Your Computer
Caring for Your Computer
Caring for Your Computer
Here are some recommendations for maintaining your computer during everyday use, as well as preventing potential physical damage or data loss.
To protect your hard disk drive
Hard disk drives, like other internal components, are not indestructible and can be damaged by inappropriate handling and operation.
•
Avoid bumps or jolts.
•
Do not operate the computer while traveling over bumpy terrain.
•
Standby or shut down the computer before transporting it. This turns off the hard drive. A drop of a few inches onto a rigid surface while the hard drive is operating could cause loss of data or damage to the drive.
•
Carry the computer in a padded case to protect against bumps and jolts.
•
Set the computer down gently.
•
When the computer has been in a very cold or very hot environment, do not start it again until it has returned to a more moderate temperature.
To take care of your computer
•
Provide adequate ventilation around the computer. Ensure that the laptop is sitting on a flat surface, so that air is able to flow underneath the unit. See that there is adequate clearance to the rear and sides of the computer, so that fan vents are not blocked.
•
Be sure to standby or shut down the computer before putting it in a carrying case or other enclosed space.
•
Do not pick up or carry the computer by the display.
•
Do not use the computer outside in the rain or snow (or other inclement weather) or in any extremes of temperature or humidity.
40 Corporate Evaluator’s Guide
Using Your Computer
Caring for Your Computer
To safeguard your data
•
Do not touch the touch pad or activate any other device that interrupts operation while the system is starting or stopping.
•
Back up your work regularly. Copy files to floppy disk, tape, or network drives.
•
Use a virus-scanning program, such as the in cluded application (VirusScan, for example), to check the integrity of your files and operating system. Since new viruses appear frequently, you will also want to update the program’s virus definitions from time to time. Updates for VirusScan are on the Web at www.networkassociates.com; if you are using another application, see help for updating information.
•
For Windows 98, check your disk using the scandisk utility (click Start, Programs,
Accessories, System Tools, ScanDisk).
•
For Windows 2000, check your disk using error-checking (open My Computer, select the disk you want to scan, click File, click Properties, select the Tools tab, and click
Check Now).
To extend the life of the display
Observe the following guidelines to extend the life of the backlight in the computer display.
•
When working at your desk, connect an external monitor and turn off the internal display (Fn+F5).
•
If you are not using an external monitor, set the Turn off monitor timeouts (for both
AC and battery operation) to the shortest comfortable interval.
•
Set the brightness control to the minimum level for your comfort (Fn+F1 or Fn+F2).
To get the most from your batteries
•
Do not leave batteries unused for long periods of time. If you have more than one, rotate them.
•
If you normally use AC power, make a practice, at least once a week, of using the battery as your power source.
•
Unplug the AC adapter when the computer is not in use.
Corporate Evaluator’s Guide 41
Using Your Computer
Caring for Your Computer
•
To lengthen the life of a battery, be sure to charge the battery regularly.
•
For long-term storage, the battery must be charged at 20–50% to minimize capacity loss by self-discharge and to avoid deterioration of battery performance.
•
For a model with a dual-speed processor, use the lower speed on battery power (see
“To control the processor speed“ on page 49). The default settings conserve battery power.
To clean your computer
You can clean the computer with a soft cloth dampened either with clean water or with water containing a mild detergent.
•
Do not use an excessively wet cloth or allow water inside the case.
•
Do not use any abrasive cleaners, especially on the display. Do not apply any cleaner directly to the display. Instead, apply the cleaner to a soft cloth and then gently wipe the display.
•
You can clean the keyboard with a vacuum cleaner to remove accumulated dust.
42 Corporate Evaluator’s Guide
Traveling with Your Computer
Corporate Evaluator’s Guide 43
Traveling with Your Computer
Managing Power Consumption
Managing Power Consumption
When you are not using your computer, you will want to maximize battery operating time without compromising performance. It is not necessary to turn the computer off in order to reduce power consumption and extend battery life.
With Windows 98 and Windows 2000, Advanced Configuration and Power Interface
(ACPI) provides both manual and automated tools for reducing power consumption.
•
You can set power management options to occur automatically, based on timeout values that you have entered. See “To use automated power management” below.
•
You can also invoke power management options manually at any time by pressing the appropriate key. See “To use manual power management” below.
To use automated power management
System standby, monitor, and hard disk timeouts automatically occur based on the values set in the Power Management Properties window. The following tables describe the power management timeouts you can set in Windows.
Turn off monitor
Action
When
Resume
Turns off the display. This conserves battery power and extends the life of the display.
No activity of the keyboard or mouse for the specified interval.
Press any key or move the pointer to return to your current session.
Turn off hard disk
Action
When
Resume
Turns off only the hard disk drive. This is usually set to occur shortly after the monitor is turned off.
No hard disk access for the specified interval.
Press any key or move the pointer to return to your current session.
44 Corporate Evaluator’s Guide
CAUTION
Traveling with Your Computer
Managing Power Consumption
System standby
Action
When
Resume
Turns off the display and hard disk drive to conserve battery power.
No activity of the keyboard or mouse, no disk drive access, and no port (serial, parallel, or IR) activity for the specified interval.
Press the blue standby button to return to your current session.
A message box appears 15 seconds before system standby takes effect. This allows you to stop the process and save your work if you have not recently done so. (In Windows 98 and Windows 2000, standby and suspend are equivalent terms.)
Make a habit of saving your work before allowing your computer to go to system standby. If there is an interruption in power while the computer is in standby, information that has not been saved will be lost.
You can also create power schemes that will automatically shut down the computer components after a specified period of nonuse. Define these schemes so that they best support the ways you use your computer.
To set power management properties
1. Click Start, Settings, Control Panel.
2. Double-click Power Management in Windows 98; double-click Power Options in
Windows 2000. (For details see Windows help.)
3. Set the timeout periods you prefer. (You can choose Never, but that setting is not recommended for hibernate mode.)
4. Click OK.
To use manual power management
You can shut down your computer manually whenever you need to with any of the following three levels of shutdown.
System standby
Action
Turns off the display and hard disk drive.
Corporate Evaluator’s Guide 45
Note
Traveling with Your Computer
Managing Power Consumption
When
Resume
Press the blue standby button.
Press the blue standby button to return to your current session.
System standby can also occur automatically when the timeout setting in the Power
Management Properties window is reached. (In Windows 98 and Windows 2000, standby and suspend are equivalent terms.)
Hibernate
Action
When
Resume
Saves the current session to disk, then shuts down. Provides maximum power savings while still allowing you to recover the current session.
Press Fn+F12 (in Windows 2000 o nly).
Slide the power switch to the left to recover your current session. This takes several seconds.
In Windows 2000, hibernate mode also occurs automatically when battery power reaches a critically low level; see “To respond to a low-battery warning“ on page 48.
In Windows 98, hibernate mode occurs automatically with low battery power, but manual initiation of hibernate is not available (except that, if you wish, you can modify the default setting for the power switch or the standby button to initiate hibernate mode instead).
Off
Action
When
Resume
Turning off your computer provides maximum power savings. The current session is not saved and unsaved data will be lost.
Start, Shut Down, Shut down.
Slide the power switch to the left to start a new session. This will take several seconds.
If the system stops responding and you are not able to turn off the computer as described above, you can still recover; see “To reset your computer“ on page 26.
When the system hibernates as a result of a critically low battery, you will find when resuming that all your data has been saved but that some functions may be disabled. To resume normal operation, restore power (by connecting AC power or installing a charged battery), perform a full shutdown, and then restart the computer.
46 Corporate Evaluator’s Guide
Traveling with Your Computer
Using Battery Power
Using Battery Power
You can operate the HP notebook PC on battery power for extended periods, but you should be prepared to save your work and shut down if the battery is low. Follow the tips in this section to maximize the length of time you can operate on battery power.
To check the battery status
From the battery status light
Green
Amber
Red
The battery status light reports the following information:
AC attached—battery full
AC attached—battery charging
AC attached—battery will not accept charge (abnormal)
From the Windows taskbar
Corporate Evaluator’s Guide 47
Note
Traveling with Your Computer
Using Battery Power
The System Tray on the Windows taskbar includes a power icon that allows access to more detailed battery status information. The icon looks like a battery when AC is not connected.
•
Place pointer over the power icon to display a percentage of remaining time.
•
Right-click the power icon to view the options for displaying power information.
•
Left-click the power icon to display a menu of the available power schemes.
From the status panel
Press the status panel mode button repeatedly until you see the battery icon and the percentage of charge remaining.
To respond to a low-battery warning
The computer automatically alerts you when the battery power drops to a critically low level. First you will hear a high-pitched beep. Then, if you have not taken restorative action within a short time, the system hibernates.
You won’t be able to turn the computer on again until you restore power by one of the following actions:
•
Plug in the AC adapter (see “To connect AC power“ on page 21).
OR
•
Replace the battery with one that is charged (see “To install the battery“ on page 21).
If you plug in the AC adapter, you can continue to work while your battery recharges.
To optimize battery operating time
•
Plug in the AC adapter, especially while using the CD-ROM drive or DVD, the floppy disk drive, or any external connections such as a PC card or a modem.
•
If you have an I/O PC card—that is, a PC card having an external connection, such as a network card—remove it when you’re not using it. Some I/O cards use significant power, even while they’re inactive.
•
If you work with an application that uses the serial port or an I/O PC card, exit the application when you have finished using it.
48 Corporate Evaluator’s Guide
Traveling with Your Computer
Using Battery Power
•
Turn off the CD player when you are not using it.
•
For a model with a dual-speed processor, use the lower speed on b attery power (see
“To control the processor speed“ on page 49). The default settings conserve battery power.
•
See “Managing Power Consumption“ on page 44 for other ideas about reducing power consumption while the computer is not in use.
To control the processor speed
If your computer contains a high-speed Pentium III processor with Intel SpeedStep
Technology, you can change settings that contro l the processor speed. Your computer has this feature if the taskbar contains an Intel SpeedStep Technology icon (a checkered flag).
With the default settings, the processor speed changes automatically according to the power source (AC adapter or battery). The lower speed uses power more efficiently and is typically in effect when the computer is running on battery power.
To use automatic speed changes
•
If you reboot the computer with the AC adapter plugged in, the processor starts at high speed. If the computer is on battery power, the processor starts at low speed.
•
If you unplug the AC adapter while the computer is running or on standby, the processor changes to low speed.
•
If you plug in the AC adapter while the computer is running or on standby, the processor changes to high speed.
To change speed settings
•
To set the speed used by the processor at boot, or to disable the dual-speed feature, change the Intel SpeedStep Technology setting in BIOS Setup in the Power menu. For information on how to run BIOS Setup, see “Using the BIOS Setup Utility“ on page 74.
•
To set the speed used by the processor while Windows is running, double -click the
Intel SpeedStep Technology icon in the taskbar or use the Control Panel Power icon.
Corporate Evaluator’s Guide 49
Making Connections
Corporate Evaluator’s Guide 51
Making Connections
Using the Modem
Using the Modem
By connecting your modem to a telephone line, your PC can communicate with other networked computers. You can explore the Internet, send and receive e-mail messages, and send and receive faxes. Your HP notebook PC contains several software programs that work with your modem:
•
Internet Explorer, for browsing the World Wide Web
•
Outlook Express, for sending and receiving e-mail messages
•
QuickLink III, for sending and receiving faxes (for Windows 98)
•
Fax, for sending and receiving faxes (for Windows 2000)
Selected models of the HP notebook PC include a built-in high-speed V.90 modem. This modem allows you to connect to any Internet Service Provider (ISP) that has V.90 interoperable modems. Check with your ISP for a list of telephone numbers that support
V.90.
Note that the maximum speed for faxing is 14.4Kbps. Even though the built-in modem is capable of downloading at 56Kbps, your ISP may not operate at this speed; please check with your service provider for information. Transmission rates also depend on the condition of the telephone line.
If your computer does not have a built -in modem (or if you prefer to use a different modem), you can install a PC card modem or attach an external modem to the serial port.
To connect the modem
1. Check that the telephone line is an analog line, sometimes called a data line. It should have 2, 3, or 4 wires. (You must not use a PBX or digital line.)
52 Corporate Evaluator’s Guide
Making Connections
Using the Modem
2. Connect a telephone cord with an RJ-11 plug to the built-in modem (or connect to a PC card or external modem). If the plug on the phone cord doesn’t fit the modem jack, you may need to buy an adapter.
Special notes about using a modem in certain countries
•
In France, if you want to access the MiniTel system, you need MiniTel emulator software. If your computer was purchased in France, it includes the TimTel Light software. If your computer does not include TimTel Light, you must purchase emulator software separately.
•
The pulse dialing feature may be disabled in certain countries, possibly because Loop
Disconnect is not certified there. If pulse dialing is disabled, you should use tone dialing connections only.
•
Many countries impose a blackout period after a modem repeatedly fails to connect to a service provider. The number of failed attempts and the period of time you must wait before trying again differ from country to country. Check with your telephone company. For example, if you are dialing from Italy and you fail to connect to your server or cancel the connection, you must wait one minute before dialing that same number again. If you dial before then, you will get an error message that says “delay.”
After the fourth failed connection, you will need to wait one hour before trying the number again. If you dial before the hour is up, you will get a message that says
“black list.”
•
When using a modem in the Republic of South Africa, an external surge protector may be necessary in order to prevent computer damage by lightning or other electrical surges. Connect any approved surge protector to the modem cable whenever you are using the modem.
Corporate Evaluator’s Guide 53
Making Connections
Using the Modem
To connect to the Internet
If you have not yet signed up with an Internet Service Provider (ISP), see “To connect to an Internet Service Provider“ on page 25 for instructions.
When you have signed up with an ISP, you can connect to the Internet. Choose one of the following:
•
If you signed up with AOL, double-click the AOL icon on the desktop.
•
If you signed up with another ISP, double-click the Internet Explorer icon on the desktop, and then click the Connect button in the Dial-up Connection window.
When you are successfully connected to the Internet, you’ll see a connect icon (two connected computers) next to the clock on the taskbar. You are now ready to explore the
Internet. To go to a specific website, enter the address (for example, www.hp.com) in the browser’s Address field. To search for information on the Web, you can use the browser’s Search tool and enter the word or phrase you are looking for.
To use AOL as your ISP
When you use AOL as your Internet Service Provider, you can access the Internet only with AOL’s own software; you can’t use a standard browser like Internet Explorer. As a result:
•
You cannot view websites by clicking on links (such as those in the electronic
Reference Guide that link to the HP notebook website).
•
You cannot go to a website by entering the address in Windows Explorer.
If you try to access the Internet without using the AOL software, the Internet Connection wizard automatically launches, asking you to sign up for an ISP. In that case, cancel the wizard and launch AOL.
To disconnect from the Internet
You remain connected to the Internet until you shut down the computer, disconnect the phone line from the computer, or give a command to hang up the connection.
•
To disconnect from AOL, use the Sign Off menu.
•
To disconnect from other ISPs, double-click the connect icon (two connected computers next to the clock) on the taskbar, and click Disconnect.
54 Corporate Evaluator’s Guide
Making Connections
Using the Modem
To dial in to a network
You can use the modem to dial in to a LAN (local area network) that supports dial-in connections. This gives you access to network resources from a remote location.
•
See Windows Help for information about setting up and using dial-in network connections—click Start, Help.
To change your modem settings
The modem is already set up to be compatible with telephone systems and modems in most areas. However, in some situations, you may have to change modem settings to match local conditions. If you have questions about local requirements, contact your telephone company.
•
Control Panel. Open Modems (Windows 98) or Phone And Modem Options
(Windows 2000) in Control Panel to change many modem settings.
For Windows 98, on the General tab click Properties to set connection speeds or special dialing options.
For Windows 2000, on the Modems tab click Properties to set connection speeds, or on the Dialing Rules tab click Edit to set dialing options.
•
Communications software. Many communications applications provide options for controlling modem settings. See the help for your software.
•
AT commands. You can control many aspects of modem operation using modem AT commands. AT commands are special strings of characters sent to the modem to set up specific conditions. Those command strings normally start with “AT” and contain additional characters. For a list of AT commands for the built-in modem, see “Modem
Reference Information” “ on page 145.
For Windows 98, open Modems in Control Panel. On the General tab, click Properties, then on the Connections tab click Advanced. You can type AT commands in the space for extra settings.
For Windows 2000, open Phone And Modem Options in Control Panel. On the
Modems tab, click Properties. You can type AT commands on the Advanced tab in the space for extra settings.
Corporate Evaluator’s Guide 55
Making Connections
Using the Modem
For example, to force the built-in modem to connect with V.34 modulation, you can use the
+MS command, as shown in the table of AT commands—type AT+MS=11 in the space for extra settings.
To send and receive e-mail
The steps for sending and receiving e-mail depend on your Internet provider. If you are using AOL, e-mail is part of your AOL service. For other ISPs, you can use Outlook
Express (included with your computer) or an e-mail system of your choice. This section includes instructions for using Outlook Express.
To start Outlook Express
1. Double-click the Outlook Express icon on the desktop.
2. If you are not currently connected to the Internet, the Dial-up Connection window appears. Choose Connect to connect to the Internet.
To send an e-mail message
1. Start Outlook Express.
2. Click the New Mail tool on the toolbar.
3. Fill in the information in the New Message window.
4. When you’re finished, click the Send button.
To receive e -mail messages
1. Start Outlook Express.
2. Click the Send/Recv tool on the toolbar to have Outlook deliver new messages.
3. Click the Inbox folder to view the list of messages. Unread messages appear bold on the screen.
4. To view a message, click it once. (Or double-click to view the message in its own window.)
56 Corporate Evaluator’s Guide
Making Connections
Using the Modem
To send and receive faxes (Windows 98)
Sending and receiving faxes requires just a telephone connection—you don’t need an
Internet connection. You can use the modem and fax software to send and receive faxes on your computer. QuickLink III fax software is included with Windows 98 on the hard dis k.
To start QuickLink
With Windows 98:
•
Click Start, Programs, QuickLink III, QuickLink III.
The first time you start QuickLink, the Setup wizard steps you through the process of setting options and customizing the program for your personal use. Follow the onscreen instructions. If you’re unsure which setting to choose, accept the default choice.
To send a fax
With Windows 98:
1. In QuickLink, click the QuickFax tool on the main toolbar.
2. Enter the fax number and the recipient’s name and company.
3. Type the message body in the QuickFax Note area.
4. Click Send Fax.
If instead you want to send a document as a fax, open the document in its application window, then open the Print dialog box. Change the selected printer to QuickLink III, then print the document.
To receive faxes
With Windows 98, faxes are automatically received when QuickLink is running in an open or minimized window. New faxes are indicated in the status box in the QuickLink window.
To receive a fax manually, follow these steps.
1. When a fax call is coming in, click Start on the menu bar.
2. Click Manual Fax Receive.
To view and print a fax
With Windows 98:
Corporate Evaluator’s Guide 57
Making Connections
Using the Modem
1. In QuickLink, click the Fax Viewer tool on the toolbar.
2. Click Yes to view the fax now.
3. Click the printer icon to print the fax.
To send and receive faxes (Windows 2000)
Sending and receiving faxes requires just a telephone connection—you don’t need an
Internet connection. You can use the modem and fax software to send and receive faxes on your computer. Fax software is built into Windows 2000.
To set up for faxing
With Windows 2000:
1. Click Start, Settings, Control Panel, Fax. Enter your fax information.
2. On the Advanced Options tab, add a fax printer.
If you do not want to receive faxes, stop here.
3. On the Advanced Options tab, open the Fax Service Management window.
4. In the list under Fax, click Devices, then right-click the modem and click Properties.
5. On the General tab, enable the modem to receive faxes.
6. On the Received Faxes tab, select the option to save faxes in a folder.
To send a fax
With Windows 2000:
•
Click Start, Programs, Accessories, Communications, Fax, Send Cover Page Fax.
Follow the instructions to create and send the fax.
If instead you want to send a document as a fax, open the document in its application window, then open the Print dialog box. Change the selected printer to the fax printer, then print the document.
To receive, view, and print faxes
With Windows 2000, if you enabled the modem to receive faxes, they are received automatically.
1. Click Start, Programs, Accessories, Communications, Fax, My Faxes.
58 Corporate Evaluator’s Guide
2. In the Received Faxes folder, double-click the fax.
3. To print, click File, Print.
Making Connections
Using the Modem
Corporate Evaluator’s Guide 59
Making Connections
Connecting to a LAN
Connecting to a LAN
If your computer has a LAN port, you can use it to connect to a local area network (LAN).
This gives you access to network resources —such as printers and file servers on your corporate network—and in some cases also to the Internet.
To connect to a LAN
1. Check that the existing LAN supports Ethernet 10Base-T (10 Mbps) or 100Base-TX
(100 Mbps) connections.
2. Plug the LAN cable (not supplied) into the built-in LAN port. The cable must have an
RJ-45 connector.
3. Windows 2000 automatically detects and sets up a LAN connection.
For Windows 98, open Network in Control Panel to set up support for a LAN connection on your network. For example, you can add the Microsoft TCP/IP protocol.
See Windows Help for information about setting up and using LAN connections—click
Start, Help. Contact your network administrator for network information.
Two lights under the LAN port indicate the status of the connection (see the figure above):
1. The yellow light indicates network activity.
2. The green light indicates that a link is established to the network.
60 Corporate Evaluator’s Guide
Making Connections
Connecting PC Cards
Connecting PC Cards
CAUTION
The two PC card slots are available for storing data and expanding communication capabilities. Your computer supports standard Type I, II, and III PC cards (PCMCIA and
CardBus). You can use one slot or both.
Do not remove a PC card while the computer is reading or writing data. If you do, you could lose data, or the computer could stop responding.
To insert a PC card
1. Hold the card with its face up and its connector holes toward the card slot.
2. Slide the PC card into the upper or lower slot until it is flush with the computer.
To remove a PC card
1. Stop the PC card:
•
Double-click on the PC card icon in the lower right of your screen.
•
In PC Card Properties, select the PC card you want to stop.
•
Click Stop.
2. Flip the eject button out, so that it sticks out from the side of the computer.
3. Press the eject button and pull out the PC card.
To reestablish network connection after resume
When you are using a network PC card, it is possible that you will lose network connection after a resume operation. If this occurs:
1. Stop the network PC card:
•
Double-click on the PC card icon in the lower right of your screen.
Corporate Evaluator’s Guide 61
Making Connections
Connecting PC Cards
•
In PC Card Properties, select the network card.
•
Click Stop.
2. Flip the eject button out, so that it sticks out from the side of the computer.
3. Press the eject button and pull out the network card.
4. Insert the card again to reestablish network connection.
62 Corporate Evaluator’s Guide
Making Connections
Connecting External Components
Connecting External Components
You can connect external components—such as a printer, mouse, monitor, or keyboard— directly to your computer or to the optional port replicator.
To identify the ports
Using the ports on the rear of the computer or on the port replicator, you can connect the following external components. Table numbers refer to numbers in the figures.
Component
Audio device (input)
Infrared device
Microphone
Modem (serial)
Monitor
Printer (parallel)
Printer (serial)
Notebook
—
8
5
2
3
7
2
Port location on
Port replicator
10
—
12
5
7
6
5
PS/2 keyboard
PS/2 mouse
Speakers
6*
6*
—
3
2
11
TV set
USB device
4
9
8
9
*You can use a Y adapter (HP F1469A) to connect both a keyboard and mouse to your computer.
Corporate Evaluator’s Guide 63
Making Connections
Connecting External Components
Notebook ports
4
5
6
1
2
3
7
8
9
AC adapter jack
Serial port
VGA port (external monitor)
TV out
Microphone port
PS/2 port
Parallel port
Infrared port
USB ports
Port replicator ports
64 Corporate Evaluator’s Guide
Note
Making Connections
Connecting External Components
5
6
7
1
2
3
4
8
9
10
11
12
AC adapter jack
PS/2 mouse port
PS/2 keyboard port
LAN port (networking)
Serial port
Parallel port
VGA port (external monitor)
TV out
USB ports (2)
Audio in
Audio out (external speaker)
Microphone port
To connect a printer (or another parallel device)
The parallel port uses a standard 25-pin connector, most commonly used for connecting dot-matrix, ink-jet, and laser printers. You can also use it to connect a parallel Zip drive.
•
Connect the parallel printer cable or other parallel cable to the parallel port of the computer or the port replicator.
If you connect a Zip drive to the parallel port, you can enhance its performance by installing the accelerator software supplied with your Zip drive.
To connect an external keyboard or PS/2 mouse
The 6-pin PS/2 port allows you to attach an external keyboard or a PS/2-compatible mouse to the computer. While an external PS/2 mouse is connected, the touch pad is normally disabled. The computer provides one PS/2 port; the optional port replicator provides two
PS/2 ports.
•
Plug the mouse or keyboard PS/2 cable into the PS/2 port on the computer, or plug either or both PS/2 cables into the PS/2 ports on the port replicator.
•
To connect both a mouse and keyboard to the computer, use the PS/2 Y adapter, which is available separately.
Corporate Evaluator’s Guide 65
Note
Note
Note
Making Connections
Connecting External Components
•
To connect a device that has a PC-type jack, first connect its cable to an adapter cable with a PS/2 jack.
To use hot keys from an external keyboard, substitute Ctrl+Alt for the computer Fn key.
Use the Ctrl and Alt keys on the left side of the keyboard. For example, to access Fn+F2
(increase display brightness), press Left Ctrl+Left Alt+F2.
To connect a USB device
Universal serial bus (USB) provides a bidirectional serial interface for adding peripheral devices—such as game controllers, serial and parallel ports, and scanners —on a single bus. The computer provides two USB ports; the optional port replicator also provides two
USB ports.
•
Attach the USB cable to the USB port on the computer or to either USB port on the port replicator. Windows automatically recognizes the USB device.
Some USB devices can be connected to the computer in series —this is called a daisychain connection.
If you have problems making this connection, contact the vendor of the peripheral device, as well as the HP website, for the latest versions of the USB drivers.
To connect audio devices
There is a built-in microphone located just below the blue standby button. You can use it to record voice, sound, and music. You can also plug in an audio input source (such as a
CD player or an external microphone) or an audio output device (such as external speakers or headphones).
•
Attach the audio cable to the appropriate port—audio in, audio out, or microphone port on either the computer or the port replicator; see “To identify the ports “.
When you plug a device into the microphone port, the built -in microphone automatically turns off. When you plug a device into the audio out port, the built -in speakers automatically turn off.
66 Corporate Evaluator’s Guide
Making Connections
Connecting External Components
To use infrared devices
You can communicate between your HP notebook PC and infrared devices without using cables.
To enable the infrared port
Before you use your infrared port to transfer files or to print to an infrared printer, you must enable the infrared port in the BIOS:
1. Reboot your computer.
2. When you see the HP logo, press F2.
3. Select the System Devices menu.
4. Set Infrared Port to Enabled.
5. Set Mode to FIR.
6. If DMA channel conflicts with Parallel port DMA channel, change Parallel port Mode to EPP.
7. Save and Exit to continue reboot.
To set up the infrared connection
Your notebook provides one infrared (IR) port located on the rear panel. The infrared port provides wireless, serial communication between your computer and other IR-equipped devices such as printers and other computers.
•
Line up the notebook’s IR port and the other IR port in as straight a line as possible.
The two ports should be no more than one meter apart, with no obstructions in between. Noise from nearby equipment can cause transmission errors.
•
To check the status of communications in Windows 98, go to Infrared Monitor. To check the status of communications in Windows 2000, go to Wireless Link. You can find both under Start, Settings, Control Panel. If infrared communication is not enabled, you can enable it here; consult help in the application.
To print to an infrared printer
With Windows 2000, when you align the IR ports of the computer and the printer, the appropriate drivers are loaded autormatically. Follow the onscreen directions, and you can proceed to print.
Corporate Evaluator’s Guide 67
Making Connections
Connecting External Components
With Windows 98, you must install the printer driver and assign it to the notebook’s
Infrared Printing (LPT) port, which is usually assigned to LPT3. Click Start, Settings,
Printers, Add Printer, and follow the onscreen directions.
If you have already assigned a printer to the parallel port, you can assign the same printer to the infrared port by adding another printer. Windows will keep the same printer driver, and you can then also assign it to the infrared port.
You can print from your applications to an infrared printer in the same way as you would to a printer connected to the parallel port. Set the infrared printer as your default printer— or select it when you print from within the application. Be sure the computer and printer IR ports are properly aligned.
To transfer files with an infrared connection
To transfer files through the IR port, right-click on the name or icon of the file you want to transfer and click Send To, Infrared Recipient. In Windows 2000, “Infrared Recipient” appears only when the computer is aligned with another IR device and detects it.
For higher-performance file transfer, you can also use the Direct Cable Connection software built into Windows 98, or the Wireless Link software built into Windows 2000.
In Windows 98, you need to install the Direct Cable Connection software first:
1. From Control Panel, click Add/Remove Programs.
2. Click Windows Setup, Communications, and select Direct Cable Connection.
See the Windows online help for instructions about how to use Direct Cable Connection or Wireless Link.
To use an external monitor
You can connect your computer to an external monitor and then use either display—or both displays at once.
To connect an external monitor
1. Click Start, Shut Down, Shut down, OK.
2. Connect the monitor cable from the monitor to the VGA port on the rear of the computer or on the port replicator.
3. Connect the monitor to a power source and turn it on.
4. Slide the power switch to turn on the computer.
68 Corporate Evaluator’s Guide
Making Connections
Connecting External Components
To switch the display to the external monitor
•
Close the computer lid.
OR
•
Press Fn+F5 (or Left Ctrl+Left Alt+F5 on an external keyboard) to cycle through the display options: notebook display, external monitor, both.
To adjust monitor resolution
1. Click Start, Settings, Control Panel, Display.
2. On the Settings tab, adjust the Screen area.
To use dual display mode
You can extend the desktop by connecting an external monitor to your notebook.
Dual display mode requires that your computer display be set as shown in the table below. Click Start, Settings, Control Panel, Display, Settings tab to adjust these settings.
Notebook screen
12-inch
13-inch, 14-inch, or
15-inch
Screen area
800×600 pixels
1024×768 pixels
Colors
256 colors or
High Color (16 bit)
256 colors or
High Color (16 bit) or
True Color (24 bit)
1. Set your notebook display settings according to the table above.
2. Click the Start Button and select Shut down.
3. Connect the monitor cable from the monitor to the VGA port on the rear of the computer or the port replicator.
4. Connect the monitor to a power source and turn it on.
5. Slide the power switch to turn on the computer. Windows will detect the second monitor and attempt to load the proper display driver. Follow the onscreen instructions.
6. Click Start, Settings, Control Panel, Display, Settings tab. Position the second monitor to the right or left of your notebook display to match your monitor location.
7. Make sure that the Settings box “Extend my Windows desktop onto this monitor” is checked.
Corporate Evaluator’s Guide 69
Making Connections
Connecting External Components
You can change the Screen area and Colors settings for the second monitor by selecting
Display #2. These settings can be different from your notebook display settings.
To use a TV set as monitor
You can connect your computer to a television set and then use it as a display. The computer’s LCD display continues to be active when you use a TV set.
To connect a TV set
1. Connect a TV cable from the TV set to the TV out port on the rear of the computer or the port replicator. (You don’t need to turn the computer off.)
2. Connect the TV set to a power source and turn it on.
To activate and adjust TV display
If a TV icon appears in the taskbar, click it and follow onscreen instructions. Check the application’s help for more information.
You can also adjust the TV display by following these steps:
1. Click Start, Settings, Control Panel, Display.
2. Select Settings tab and click Advanced.
3. Select S3DuoVue tab and click TV.
4. To center the display in the TV set or to adjust other settings, click Settings under the
TV graphic.
5. The TV Type for your country is automatically detected. (If it is incorrect, select the correct type: NTSC is used in North and South America, except for Argentina and
Brazil; NTSC/Japan in Japan, South Korea, and Taiwan; and PAL in most other countries.)
To use the port replicator
With the optional port replicator, you can connect external components —and then avoid disconnecting and reconnecting them each time you take the computer on the road. You can find additional information about the port replicator in the manual that comes with it.
70 Corporate Evaluator’s Guide
Making Connections
Connecting External Components
To connect to the port replicator
1. Plug in the AC adapter, then connect it to the rear of the port replicator. Make sure that the AC status light is on.
2. Align the computer with the locator pins on the port replicator.
3. Press the computer down until it clicks into place. Make sure that the dock status light is on.
4. Open the computer and slide the power switch to the left to turn it on.
After the computer is turned on, you can close the lid while it is running.
To disconnect from the port replicator
1. Press down on the release tab on the right side of the port replicator.
Corporate Evaluator’s Guide 71
Making Connections
Connecting External Components
2. Lift the computer from the port replicator.
72 Corporate Evaluator’s Guide
Configuring and Expanding Your Computer
Corporate Evaluator’s Guide 73
Configuring and Expanding Your Computer
Using the BIOS Setup Utility
Using the BIOS Setup Utility
The BIOS (Basic Input and Output System) Setup utility is a menu-driven utility that enables you to make changes t o the system configuration and tailor the operation of your computer to your individual work needs.
The settings made in the BIOS Setup utility control the hardware and therefore have a fundamental effect on how the computer operates.
To run the BIOS Setup utility
1. Shut down Windows and restart the computer (Click Start, Shut Down, Restart).
2. When you see the HP logo, press F2 to enter the BIOS Setup utility.
3. Select the options you want. You can find a complete list of available options in BIOS
Setup utility options on page 134.
4. After you have finished making changes, press F10 (or select Exit, Saving Changes and Exit).
5. Press Enter, then Enter again, to confirm and reboot the computer.
If the settings cause a conflict between devices during reboot, the system prompts you to run BIOS Setup, and the conflicting settings are marked.
The pointing devices are not active in the BIOS Setup utility. Press the Right and Left arrow keys to move from one menu to another. Press the Down and Up arrow keys to move among parameters in a menu. Press F5 or F6 to move through values for the current parameter or press Enter to change a setting.
74 Corporate Evaluator’s Guide
Configuring and Expanding Your Computer
Installing RAM modules
Installing RAM modules
C A U T I O N
The notebook provides an optional memory expansion slot for installing up to two RAM expansion modules. Use HP SDRAM modules only; EDO RAM is not supported.
Your computer’s computer chips are extremely static-sensitive. Static electricity can permanently damage computer chips. Carefully read the following caution information.
Handle the RAM module only by its three nonconnector edges. Otherwise, you may damage the module due to electrostatic discharge. Static electricity can permanently damage computer chips. It is therefore important to discharge the static electricity from your body before touching or installing the memory module. Discharge your body’s electricity by touching the metal shielding around the connectors on the rear of the computer.
You’ll need a small Phillips screwdriver to complete this procedure.
1. Click the Start Button and select Shut down.
2. Unplug the AC adapter and remove the battery.
3. Remove the RAM expansion cover located on the bottom of the computer, using a
Phillips screwdriver.
4. Insert the RAM expansion module into the connector at about a 30
°
angle until it’s fully inserted. Then press down at both sides of the module until it latches.
Corporate Evaluator’s Guide 75
Configuring and Expanding Your Computer
Installing RAM modules
5. Replace the RAM expansion module door.
6. Insert the battery.
76 Corporate Evaluator’s Guide
Removing RAM modules
After you remove the RAM expansion cover:
Configuring and Expanding Your Computer
Removing RAM modules
1. Release the two latches at the sides of the RAM expansion module by pushing them gently outward (away from the sides of the module). When you release the latches, the free edge of the module pops up.
2. Pull the module out of the connector.
3. Replace the RAM expansion module door.
Corporate Evaluator’s Guide 77
Configuring and Expanding Your Computer
Expanding the hibernate partition
Expanding the hibernate partition
C A U T I O N
You can create the hibernate partition by booting from the Recovery CD. The partitioning and recovery process takes approximately 10 or 15 minutes. Do not interrupt the process or unplug the AC adapter until the process is completed.
This procedure will format the hard disk drive and erase all data on the disk. Be sure to back up all data from your hard disk before you begin this procedure. After the hard disk drive is formatted, you’ll need to reinstall any applications.
1. Back up all data from your hard disk.
2. If you wish to install additional RAM, do so now.
3. Connect the AC adapter to the computer.
4. Insert the Recovery CD in the CD-ROM (or DVD) drive. (If your system came with two
Recovery CDs, insert Disc 1.)
5. Restart the computer, and when you see the HP logo, press Esc.
6. Select CD-ROM/DVD Drive as the first boot device, and press Return to continue.
7. If you want to choose a nondefault partition size. select the Advanced menu and select a size from the Hibernate Partition Size drop-down list.
8. If you want to create a hibernate partition without recovering the operating system, select the “Do not load operating system” checkbox and select one of the partition options.
9. Choose Continue.
10. Click OK to begin.
If your system came with two Recovery CDs, you may be prompted to insert Disc 2 during the partitioning process.
11. When you are prompted to reboot your computer, remove the Recovery CD and press
Ctrl+Alt+Delete.
12. Follow the onscreen instructions for setting up Windows.
13. When Windows setup is complete, reinstall any applications and restore backed-up data.
78 Corporate Evaluator’s Guide
Configuring and Expanding Your Computer
Updating Windows Drivers
Updating Windows Drivers
To download the latest Windows drivers
Hewlett-Packard supports two operating systems (OSs) on your notebook—Windows 98 and Windows 2000—and your computer was shipped with one of these OSs. If you decide to install the other OS instead, be sure to download the latest drivers for it from the
Web at www.hp.com/notebooks. You can also check this website to find updated drivers for your original OS.
To locate Windows drivers on your system
When you install hardware or otherwise change the configuration of your computer, you are sometimes asked to provide a location from which to copy driver files. Do not click the
Browse button to find the folder for a driver, since this may cause the system to malfunction. Instead, type the path and filename of the location directly; for example, c:\hp\drivers\audio.
To use digitally signed drivers in Windows 98
If you have chosen to enable driver signing in Windows 98, you may need to obtain updated drivers for your notebook PC. During installation, Windows 98 expects each driver file to include a digital signature file (with a .cat extension) when driver signing is enabled. Since some files may not have been available at the time your computer was manufactured, it is possible that you will see a message prompting you for a digital signature file. If so, you need to obtain updated drivers, and when available they will be posted on the Web at www.hp.com/notebooks.
Most users, however, choose to use the default Windows 98 configuration, which disables driver signing. In that case, you can ignore any messages prompting you for a digital signature file (with a .cat extension) during installation. The drivers will function correctly without these files, so you can skip their installation.
Corporate Evaluator’s Guide 79
Using Windows 2000
Corporate Evaluator’s Guide 81
Using Windows 2000
Installing Retail Windows 2000
Installing Retail Windows 2000
Windows 2000 comes factory-installed on your OmniBook XE3. The following procedure installs a retail version of Windows 2000. If you install a retail version of Windows 2000, you need to manually install the OmniBook specific drivers.
This section describes how to:
•
Prepare for software installation.
•
Install a retail version of Windows 2000.
•
Install video support for retail Windows 2000.
•
Install audio and modem support for retail Windows 2000.
•
Install integrated LAN support for retail windows 2000.
•
Install TouchPad support for retail Windows 2000.
•
Install Infrared support for retail Windows 2000.
•
Install HP utilities.
Requirements
•
OmniBook XE3
•
Windows 2000 CD-ROM
•
OmniBook drivers for Windows 2000
Location: OmniBook hard drive and on the Recovery CD in \HP\DRIVERS\W2K
To prepare for software installation
HP recommends that you repartition and format your hard disk before installing retail
Windows 2000. Follow the instructions below to partition your hard disk and create the hibernation partition.
1. Insert the bootable Recovery CD-ROM in the CD-ROM drive.
2. Boot the OmniBook, press ESC twice and select the CD-ROM/DVD as the boot device.
3. Click “Continue” on the Recovery screen to enter the menu.
82 Corporate Evaluator’s Guide
Using Windows 2000
Installing Retail Windows 2000
4. Click “Advanced” on the Recovery CD-ROM menu.
5. Choose the option “Do not load operating system” then choose “create FAT 16 partition” Or “create FAT 32 partition” and click Continue.
6. Click OK to proceed with repartitioning.
7. When message “Operation successful” appears on screen, press any key to shutdown the OmniBook.
A diagnostic partition has now been created, and Hewlett-Packard's hardware diagnostics software has been placed on this partition. To use this hardware diagnostics software in the future, press F10 during boot of the system.
To install a retail version of Windows 2000
1. Insert the Windows 2000 CD in the CD-ROM drive.
2. Turn on the OmniBook, press ESC twice when you see the HP OmniBook logo and select the CD-ROM/DVD as the boot device.
3. At the “Press any key to boot from CD” message, press any key.
4. At the “Welcome to Setup” screen, pre ss Enter to begin.
5. Read the Windows 2000 Licensing Agreement. Press Page Down until you reach the end of the document. Press F8 to agree.
6. In the list of existing partitions select the C: partition and press ENTER.
7. Highlight your choice of file system, then press ENTER. After formatting and copying files the OmniBook will reboot and continue installation.
8. Click Customize to change your Regional settings if needed, then click Next to move forward.
9. Enter your name and organization, then click Next.
10. Enter the Product Key, then click Next.
The Product Key is located on the Certificate of Authenticity that you received with your retail version of Windows 2000.
11. Enter a computer name and an Administration password. Confirm the Administrator password then click Next .
Corporate Evaluator’s Guide 83
Using Windows 2000
Installing Retail Windows 2000
The password is used to administer User IDs and Windows NT security. The computer name is used by other computers on the network to access your computer.
12. Enter the correct Time Zone and Date and Time, then click Next.
13. At the “Completing the Windows 2000 Setup Wizard” window, remove the Windows
2000 CD-ROM and click Finish. The system will reboot.
14. At the “Welcome to the Network Identification Wizard” screen, click Next.
15. Give the appropriate choice on user logon, then click Next.
16. Click Finish to complete the Network Identification Wizard.
To install video support for retail Windows 2000
The driver is located on the Recovery CD-ROM in \HP\DRIVERS\W2K\VIDEO.
1. From the Control Panel, double-click System, choose the Hardware tab, and then click
Device Manager button.
2. Double-click “Video Controller (VGA Compatible)” under “Other Devices”.
3. Click on the “Reinstall Driver...” button.
4. Click Next on the “Welcome to the Upgrade Device Driver Wizard”.
5. Select “Display a list of the known drivers for this device so that I can choose a specific driver” and click Next.
6. Double-click Display adapters.
7. Click Have Disk and browse to the driver subdirectory on the Recovery CD-ROM
(\HP\DRIVERS\W2K\VIDEO) and double-click on S3SAVMX.INF.
8. Click OK to accept the driver location.
9. In the “Select a device driver window”, click Next. Then click Next again to install the
S3 Inc. Savage/IX Display driver.
10. Click Finish, close the Display Driver Properties dialog box. Click Yes to restart your computer.
11. From Control Panel, double-click Display select the Settings tab then Click Advanced button.
12. Select Monitor tab, then click Properties button.
84 Corporate Evaluator’s Guide
Note
Using Windows 2000
Installing Retail Windows 2000
13. Choose the Driver tab, then click the “Update Driver” button.
14. Click Next on the “Welcome to the Upgrade Device Driver Wizard”.
15. Select “Display a list of the known drivers for this device” and click Next.
16. Select “Show all hardware of this device class”.
17. Choose the appropriate Digital Flat Panel, then click Next.
OmniBook XE3 with 15.1" Display: Digital Flat Panel (1024 x 768)
OmniBook XE3 with 14.1" Display: Digital Flat Panel (1024 x 768)
OmniBook XE3 with 12.1" Display: Digital Flat Panel (800 x 600)
18. Click Next to install the driver, then Finish to complete the installation.
19. Click Close then click OK.
20. Set the “Screen Area” in accordance with the display resolution chosen in step 17. and the “Colors” to “High Color (16 bits)”, then click on the Apply button.
21. Click OK to apply the changes, then Yes to keep the settings.
To install audio and modem support for retail Windows 2000
The audio drivers are contained in the \HP\DRIVERS\W2K\AUDIO subdirectory. If your
Notebook contains a built -in ESS soft modem, installing the audio drivers will also install the modem drivers.
1. Double-click \HP\DRIVERS\W2K\AUDIO\setup.exe
2. Click Next on the Allegro-1 Welcome screen.
3. Click OK to acknowledge that audio driver has been installed.
4. Click OK to acknowledge that modem driver has been installed.
5. Click Finish to complete the installation, the system will reboot.
If you are installing the driver on a notebook which does not contain an ESS soft modem, you may see the message “Modem Install False.” If you see the message, press the OK button and the installation will continue without error.
The drivers will be installed after the system reboots.
Corporate Evaluator’s Guide 85
Using Windows 2000
Installing Retail Windows 2000
To install integrated LAN support for retail Windows 2000
1. From Control Panel, double-click System, select the Hardware tab then click on the
Device Manager button.
2. Double-click on the “Ethernet Controller” item under Other Devices.
3. Click on the “Reinstall Driver...” button.
4. When the h ardware wizard appears, click Next.
5. Select “Search for a suitable driver for my device” and click Next.
6. Choose “ Specify a location” then click Next.
7. Enter the directory of the LAN drivers on the Recovery CD-ROM
(D:\HP\DRIVERS\W2K\LAN) and click OK.
8. Click Next to accept the installation of the Accton EN2242 Series MiniPCI Fast
Ethernet adapter.
9. Click Next to accept the driver location
10. Click Finish, then close.
To install touchpad support for retail Windows 2000
If a retail version of Windows 2000 is installed, the touchpad support must be added. This driver is located on the Recovery CD-ROM in \HP\DRIVERS\W2K\TOUCHPAD.
1. Double-click \HP\DRIVERS\W2K\TOUCHPAD\SETUP.EXE on the Recovery CD-
ROM.
2. Click Next at the Welcome screen then Next again.
3. Click Next to accept Current Settings.
4. Click Finish to reboot your computer.
To install infrared support for retail Windows 2000
1. Press F2 during boot to enter the Bios setup.
2. Use the arrow keys to go to “System Devices” then highlight the “Infrared Port”.
86 Corporate Evaluator’s Guide
Using Windows 2000
Installing Retail Windows 2000
3. Set the infrared port to “Enabled”, and the Mode to “FIR”.
4. Save changes and exit.
5. When system reboots Windows 2000 will detect new hardware and install the necessary drivers.
To install Hewlett-Packard Configuration Interface (HPCI) for retail Windows 2000
If you've installed a retail version of Windows 2000, you'll need to install the Hewlett-
Packard Configuration Interface (HPCI) driver. This driver is located on the Recovery CD-
ROM in \HP\DRIVERS\W2K\HPCI.
The HP Configuration Interface device implements the following features:
•
Undock security using the physical undock button located on the front of the docking station.
•
Auto standby on undock based on the bios settings.
•
Fn+F12 hibernate hot key.
•
Volume and mute control implemented through the operating system which will actively be reflected in the user interface.
•
The Rewind, Play/Pause, Stop and FForward button controls for a music CD-ROM or
DVD movie
Installing the Windows 2000 Hewlett-Packard Configuration Interface:
1. Double-click SETUP.EXE from the HPCI directory on the Recovery CD-ROM.
2. Choose Install the HP Configuration Interface Software and click OK.
3. Click OK to confirm the software has been successfully installed.
4. Restart the computer.
To install the Intel(R) SpeedStep(TM) Technology Applet for retail Windows 2000
If you've installed a retail version of Windows 2000, you'll need to install the Intel(R)
SpeedStep(TM) technology Applet if you have a dual-speed Pentium III processor.
Corporate Evaluator’s Guide 87
Using Windows 2000
Installing Retail Windows 2000
The Intel SpeedStep files are located on the Recovery CD-ROM in
\HP\DRIVERS\W2K\SPEEDSTP.
1. Double-click SETUP.EXE in the SpeedStep directory.
2. When prompted, click on Next.
3. Click on Finish to reboot the OmniBook.
To install the OneTouch utility for retail Windows 2000
This utility enables the support for the four OneTouch buttons above the keyboard as well as the multimedia buttons on the front of your OmniBook XE3.
1. Run the \HP\DRIVERS\W2K\ONETOUCH\setup.exe from the Recovery CD-ROM.
2. Click on OK to confirm the installation of the utility.
3. Click Yes to reboot the system at the “End of Installation” window.
Windows 2000 power management
You may want to change the default power management settings in Windows 2000. The
BIOS Power Management settings are ignored if ACPI is activated. To configure the power management do the following:
1. From Control Panel, double-click the Power Options icon.
2. Select the Hibernate tab.
3. Check Enable hibernate support.
4. Click Apply.
5. Select the Power Schemes tab.
6. Change the “Plugged in” options for Standby to “3 hours” and Hibernate to “4 hours”.
7. Click the Advanced tab.
8. Check Always show icon on the taskbar.
9. Change the Power buttons options to your desired settings.
10. Select the Alarms tab.
88 Corporate Evaluator’s Guide
Using Windows 2000
Installing Retail Windows 2000
11. In the “Critical battery alarm” box click the “Alarm Action” button.
12. In the “Power level” box, choose Hibernate as the action for the computer to do when the alarm goes off, click OK then click Apply.
Corporate Evaluator’s Guide 89
Using Windows 98
Corporate Evaluator’s Guide 91
Using Windows 98
Installing Retail Windows 98 Second Edition
Installing Retail Windows 98 Second Edition
Windows 98 Second Edition comes factory-installed on your OmniBook XE3. The following procedure installs a retail version of Windows 98 Second Edition. If you install a retail version of Windows 98 Second Edition, you need to manually install OmniBook specific drivers.
This section describes how to:
•
Prepare for software installation.
•
Install a retail version of Windows 98 Second Edition.
•
Install video support for retail Windows 98 Second Edition.
•
Install audio and modem support for retail Windows 98 Second Edition.
•
Install integrated LAN support for Windows 98 Second Edition.
•
Install infrared support for retail Windows 98 Second Edition.
•
Install TouchPad support for retail Windows 98 Second Edition.
•
Install software patches for retail Windows 98 Second Edition.
•
Install utilities.
Requirements
•
OmniBook XE3.
•
Windows 98 Second Edition CD-ROM.
•
Blank, formatted floppy disk.
•
OmniBook drivers for Windows 98 Second Edition.
Location: OmniBook Recovery CD in \HP\DRIVERS\W98.
To prepare for software installation
Create a support Utility disk for use during installation. You will need a computer with a working Windows operating system to make a support utility disk.
1. Insert the Recovery CD in the CD-ROM drive.
92 Corporate Evaluator’s Guide
Using Windows 98
Installing Retail Windows 98 Second Edition
2. Open the MS-DOS Prompt.
3. Go to the \HP\BOOTDISK directory on the Recovery CD. If D: is the drive letter of your CD-ROM drive, type: D: CD \HP\BOOTDISK
4. Type MAKESUPP.
5. When asked to select a Floppy drive, type A.
6. Type Y to acknowledge warning and continue.
7. Insert a blank floppy disk in the A: drive and press any key to continue.
8. When copy is complete, type N.
9. Close the MS-DOS Prompt.
HP recommends that you repartition and format your hard disk before installing retail
Windows 98 Second Edition. Follow the instructions below to partition your hard disk and create the hibernation partition.
1. Insert the bootable Recovery CD-ROM in the CD-ROM drive.
2. Boot the OmniBook, press ESC twice and select the CD-ROM/DVD as the boot device.
3. Click “Continue” on the Recovery screen to enter the menu.
4. Click “Advanced” on the Recovery CD-ROM menu.
5. Click the option “Do not load operating system”.
6. Choose the size of your hibernation partition, default (recommended) is 256MB.
7. In the “File System Partition” section, select “Create FAT16 partition” or “Create
FAT32 partition” depending which partition type you need. (If you are installing
Windows NT 4.0, you will mandatory need a FAT 16 partition).
8. Click “Continue” to start repartitioning.
9. Click OK to acknowledge the chosen hibernation partition size.
10. When message “Remove CD and press any key to shutdown computer.” appears on screen, remove the recovery CD-ROM.
A hibernation partition and a C: partition (FAT16 or FAT32) has been created and formatted for you. Hewlett-Packard's HW diagnostics software has been placed on the hibernation partition. To use this HW diagnostics software in the future, press F10 during boot of the system.
11. Boot from the Support Utility Disk you previously created,
Corporate Evaluator’s Guide 93
Using Windows 98
Installing Retail Windows 98 Second Edition
12. From the A: prompt type SYS C:
The system is now ready for copying of the operating system files.
13. Insert the Windows 98 Second Edition retail CD-ROM in the CD drive
14. Copy the Windows 98 Second Edition installation files to your hard drive by typing the following commands:
C:
MD \WINDOWS
MD \WINDOWS\OPTIONS
MD \WINDOWS\OPTIONS\CABS
COPY X:\WIN98\*.* C:\WINDOWS\OPTIONS\CABS
15. Remove the Windows 98 Second Edition CD-ROM and the support utility disk.
To install a retail version of Windows 98 Second Edition
1. At the C: prompt, type \WINDOWS\OPTIONS\CABS\SETUP /IS
2. Select “I accept the Agreement” and click Next.
3. Enter the Product Key, then click Next.
The Product Key is located on the Certificate of Authenticity that you received with your retail version of Windows 98 Second Edition.
4. When prompted, select “Other Directory” and click Next.
5. Enter C:\WINDOWS for the path, click Next.
6. Click Yes to continue with the specified directory.
7. Choose “Portable” on the Setup Options screen, then click Next.
8. Enter the appropriate User Information, then click Next.
9. Select “Install The Most Common Components (recommended)”, then click Next.
10. Select your country or region and click Next.
11. Click Next on the “Startup Disk” window.
12. When asked to insert a disk, Click cancel to skip creating the startup disk.
13. Click Next to start “Copying Windows 98 Second Edition files to Your Computer”.
14. When finished copying Windows 98 Second Edition will automatically reboot.
94 Corporate Evaluator’s Guide
Using Windows 98
Installing Retail Windows 98 Second Edition
15. When prompted with the PC Card Wizard click Next, Next, then Finish.
16. Click OK on the Network window, then enter your computer and workgroup names and click Close.
17. Apply any changes when the system displays the Date/Time Properties screen, then click Close.
The Windows 98 Second Edition Setup Wizard will now configure the Control Panel, programs on the Start Menu, Windows help, and MS-DOS program settings. Afterwards,
Windows 98 Second Edition will automatically reboot.
18. Enter a Windows Password and confirm.
Retail Windows 98 Second Edition is now installed on the system. The OmniBook specific drivers will be installed next.
To install video support for retail Windows 98 Second Edition
The driver is located on the Recovery CD-ROM in \HP\DRIVERS\W98\VIDEO.
1. From Control Panel, double-click on the Display icon, then select the “Settings” tab.
2. Click on the Advanced button, then select the Adapter tab.
3. Click on the Change button.
4. Click Next at the Update Device Driver Wizard.
5. Select “Display a list of all the drivers in a specific location” and click Next.
6. Click Have Disk.
7. Enter the directory of the video drivers on the Recovery CD-ROM
(D:\HP\DRIVERS\W98\VIDEO), then click OK.
8. Click OK to select the “S3 Inc. Savage/IX w/MV” video driver.
9. Click Next to accept the driver location.
10. Click Finish.
11. Select Monitor, then click Change.
12. Select the appropriate Laptop Display Panel, then click OK.
OmniBook XE3 with 15.1" Display: Laptop Display Panel (1024 x 768)
OmniBook XE3 with 14.1" Display: Laptop Display Panel (1024 x 768)
OmniBook XE3 with 12.1" Display: Laptop Display Panel (800 x 600)
Corporate Evaluator’s Guide 95
Using Windows 98
Installing Retail Windows 98 Second Edition
13. Click Apply, and then Close. Click Yes to restart the computer.
To install DirectX7 for retail Windows 98 Second Edition
1. Double-click \HP\DRIVERS\W98\DirectX7\dx70aopk.exe on the Recovery
CD-ROM.
The Installation of Direct X 7.0 will run silently. You will have to wait about 30 seconds for the installation to complete. To verify if installation went correctly go to C:\Program
Files\DirectX\Setup and double -click DxDiag.
To install audio and modem support for retail Windows 98
Second Edition
If your Notebook contains a built-in ESS soft modem, installing the audio drivers will also install the modem drivers. Both of these drivers are located on the Recovery CD in
\HP\DRIVERS\W98\AUDIO.
1. Double-click ESSETUP.EXE from the \HP\DRIVERS\W98\AUDIO directory on the
Recovery CD.
2. On the Welcome screen, click Next.
3. Choose Upgrade Drivers and click Next.
4. Click Finish and reboot to finish installing the drivers.
To install integrated LAN support for retail Windows 98 Second
Edition
1. From Control Panel, double-click System, then click Device Manager tab.
2. Remove the “PCI Ethernet Controller” under Other Devices.
3. Shutdown then restart the system.
4. When the hardware wizard appears, click Next.
5. Select “Search for the best driver for your device” and click Next.
96 Corporate Evaluator’s Guide
Using Windows 98
Installing Retail Windows 98 Second Edition
6. Enter the directory of the LAN drivers on the Recovery CD-ROM
(D:\HP\DRIVERS\W98\LAN) under “Specify a location” and click Next.
7. Click Next to accept the Accton EN2242 Series MiniPCI Fast Ethernet adapter.
8. Click Next to accept the driver location.
9. Click Finish, then click Yes to reboot the system.
To install infrared support for retail Windows 98 Second
Edition
Before you use your infrared port to transfer files or to print to an infrared printer, you must enable the infrared port in the BIOS. Follow these steps to use either the standard infrared driver or the enhanced driver.
1. Reboot your computer.
2. When you see the HP logo, press F2.
3. Select System Devices.
4. Set IrDA port setting to Enabled.
5. Set Mode to FIR.
6. Press F10 to save the changed values and continue reboot.
7. Windows will detect the IR port and install drivers, click Yes to reboot.
8. Click on the infrared icon on the task bar and select the Options tab.
9. Click “Enable infrared communication”, click Apply and then click OK to close window.
To install touchpad support for retail Windows 98 Second
Edition
If a retail version of Windows 98 Second Edition is installed, the touchpad support must be added. This driver is located on the Recovery CD in \HP\DRIVERS\W98\TOUCHPAD.
1. Double-click \HP\DRIVERS\W98\TOUCHPAD\SETUP.EXE on the Recovery CD.
2. Click Next at the Welcome screen.
Corporate Evaluator’s Guide 97
Using Windows 98
Installing Retail Windows 98 Second Edition
3. Click Next to accept the Default Directory.
4. Click Next to accept Current Settings.
5. Click Finish to reboot your computer.
To install the SpeedStep utility for retail Windows 98 Second
Edition
The SpeedStep (TM) utility enables additional power saving for an OmniBook with Intel
PentiumIII SpeedStep CPU's, by lowering the processor speed when OmniBook is running on battery.
1. Double-click D:\HP\DRIVERS\W98\SPEEDSTP\setup.exe
2. Click Next on the Welcome screen.
3. Click Finish to reboot the system.
To install the OneTouch utility for retail Windows 98 Second
Edition
This utility enables the support for the four OneTouch buttons above the keyboard as well as the multimedia buttons on the front of your XE3.
1. Double-click D:\HP\DRIVERS\W98\ONETOUCH\setup.exe
2. Click Finish to reboot the system.
To install software patches for retail Windows 98 Second
Edition
These patches fix miscellaneous shutdown/suspend/resume issues. The patch can be found in \HP\DRIVERS\w98\QFE\SHUTDOWN
1. Double-click D:\HP\DRIVERS\QFE\SHUTDOWN\4756ms8.exe
2. Click Yes to install the Windows 98 SE Q239887 Update.
3. Click Yes to accept agreement. Patch will install.
98 Corporate Evaluator’s Guide
4. Click Yes to finish installation and reboot.
Using Windows 98
Installing Retail Windows 98 Second Edition
Corporate Evaluator’s Guide 99
Troubleshooting Your Computer
Corporate Evaluator’s Guide 101
Troubleshooting Your Computer
Troubleshooting Techniques
Troubleshooting Techniques
This section contains solutions to a few common problems and troubleshooting techniques for your HP notebook PC. Try the solutions one at a time, in the order in which they are presented.
Here are some other sources of information for troubleshooting:
•
Click Start, Help, Contents, Troubleshooting, and use the Windows Troubleshooters.
•
See the Microsoft Windows manual shipped with the computer.
•
See the HP Notes in the online HP Library for updated information.
•
Find technical tips and software updates for the computer at the HP Customer Care
Web site (www.hp.com/go/support).
•
Test your computer by running the DiagTools test program. See “Testing Hardware
Operation” on page 117.
•
Contact your dealer or Hewlett-Packard—see “To call the HP Customer Care Center” on page 126. Please have your computer with you when you call.
Audio problems
If sound is not audible
•
Press Fn+Up arrow several times.
•
Click the speaker icon on the taskbar to ensure that Mute is not checked.
•
When you are operating your computer in MS-DOS mode (for example, when running
MS-DOS games), you may find that the sound does not operate properly. Use
Windows applications for full use of sound capabilities.
If sound does not record
•
Check software controls for recording sound: Click Start, Programs, Accessories,
Multimedia (or Entertainment), Sound Recorder.
If the PC card detection beep(s) at startup are very loud and volume cannot be adjusted
•
Download the latest audio driver from the technical support area of the HP notebook website (http://www.hp.com/notebooks).
102 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
You may also want to test the audio with diagnostics. See “Testing Hardware Operation.”
CD-ROM drive problems
If you can’t boot from a CD in the CD-ROM drive
•
Make sure the CD is a bootable CD, such as the Recovery CD.
•
If you always want to boot from a CD when one is present, check the boot order in
BIOS Setup and change it.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press Esc to open the Boot menu. The default boot order is (1) Floppy Drive, (2) Hard Drive, and (3) CD-ROM/DVD Drive.
3. Select CD-ROM/DVD Drive for first boot device.
4. Exit the BIOS Setup utility.
•
Reboot the computer.
You may also want to test the CD-ROM drive with diagnostics. See “Testing Hardware
Operation.”
Display problems
If the computer is on, but the screen is blank
•
Try pressing Fn+F2 to increase the brightness.
•
Press Fn+F5 in case the internal display was disabled. (Do this three times to return to the state you started from.)
•
If the computer is cold, allow it to warm up.
If the screen is difficult to read
•
Check whether the display resolution is set to its default setting—800×600 for 12” displays or 1024×768 for larger displays.
1. Click Start, Settings, Control Panel.
2. Double-click Display.
3. Click the Settings tab.
Corporate Evaluator’s Guide 103
Troubleshooting Your Computer
Troubleshooting Techniques
If part of the Windows desktop is not visible and you have to scroll down to see the taskbar
•
Your display resolution may be set to 1024×768 on a 12” display, instead of 800×600.
You need to set the monitor type to Laptop Display Panel (800×600).
1. Click Start, Settings, Control Panel.
2. Double-click Display.
3. Click the Settings tab.
4. Move the Screen area arrow to (800×600 pixels).
5. Click OK.
If an external display does not work
•
Check the connections.
•
Press Fn+F5 in case the external monitor was disabled. (Do this three times to return to the state you started from.)
•
The external monitor may not be detected. In the BIOS Setup utility, try setting Video
Display Device to LCD/CRT in the Main menu.
You may also want to test the display with diagnostics. See “Testing Hardware
Operation.”
DVD problems
If you can’t boot from a CD or DVD in the DVD drive
•
Make sure the CD or DVD is bootable, such as the Recovery CD.
•
If you always want to boot from a CD or DVD when one is present, check the boot order in BIOS Setup and change it.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press Esc to open the Boot menu. The default boot order is (1) Floppy Drive, (2) Hard Drive, and (3) CD-ROM/DVD Drive.
3. Select CD-ROM/DVD Drive for first boot device.
4. Exit the BIOS Setup utility.
•
Reboot the computer.
104 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
If the DVD is playing erratically
•
Dirt or smudges can cause a disc to skip. Clean the disc with a soft cloth. If the disc is badly scratched, it will have to be replaced.
If a DVD movi e stops playing in the middle
•
The DVD may be double-sided. Open the DVD tray and read the text near the center hole of the disc. If it says Side A, flip the disc over, close the tray, and then press the
Play button to continue playing the movie.
•
You may have accidentally paused the DVD movie. Press the Play button to resume playing the movie.
If you get a Region Code error when playing a DVD movie
•
DVDs may include regional codes that are embedded into the disc data. These codes prevent DVD movies from being played in regions of the world that are different from where they are sold. If you get a Region Code error, you are trying to play a DVD that is for a different region. Make sure you play a DVD designed for your region.
If you get a “System Error: Unable to read drive” message when running a CD program
or a movie on the DVD drive
•
For a single-sided CD or DVD, make sure the disc is placed into the drive with the label facing up.
•
Make sure the DVD or CD is clean.
•
Wait 5 to 10 seconds after closing the DVD tray to give the computer sufficient time to recognize the CD or DVD.
•
Restart the system:
1. Remove the CD or DVD.
2. Click Start, Shut Down, Restart.
3. Click OK.
If the DVD movie doesn’t fill the screen
•
On a double-sided DVD, each side may have a different format (standard or widescreen). In the widescreen format, black bands appear at the top and bottom of the screen. To view the standard format, flip the disc over and play the other side.
You may also want to test the DVD drive with diagnostics. See “Testing Hardware
Operation.”
Corporate Evaluator’s Guide 105
Troubleshooting Your Computer
Troubleshooting Techniques
Hard disk drive problems
If the computer’s hard drive doesn’t spin
•
Make sure the computer has power. If necessary, connect the AC adapter, making sure it is plugged into a power source and into the rear of the computer.
If the hard disk makes a buzzing or whining noise
•
Back up the drive immediately.
•
Check for alternate noise sources, such as the fan or a PC card drive.
If files are corrupted
•
Run the virus-scanning program.
•
In Windows 98, run the ScanDisk surface scan to check the platter (click Start,
Programs, Accessories, System Tools, ScanDisk).
•
In Windows 2000, check your disk using error-checking (open My Computer, select the disk you want to scan, click File, click Properties, select the Tools tab, and click
Check Now).
You may also want to test the hard disk drive with diagnostics. See “Testing Hardware
Operation.”
Heat problems
If the computer gets hot
•
Make sure the air vents are clear.
•
See that the fan is working properly.
•
The computer warms up with normal use. When you charge the battery, it gets even hotter; and certain applications (like DOS games) use more CPU power than others and so contribute to a greater temperature increase.
You may also want to test the fan with diagnostics. See “Testing Hardware Operation.”
Keyboard, touch pad, and mouse problems
If the touch pad is difficult to control
106 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
•
Customize the touch pad by modifying Mouse properties.
1. Click Start, Settings, Control Panel.
2. Double-click Mouse.
If the pointing devices don’t work
•
Don’t touch the touch pad while booting or resuming.
•
Reset the computer.
If an external mouse doesn’t work
•
Standby or shut down the computer before you attach the mouse, to ensure that it will be detected properly.
If you want to go back to using the touch pad, you must standby or shut down the computer before you detach the mouse.
If the embedded numeric keypad doesn’t work
•
Make sure Num Lock is on—that you have pressed Fn+F8 to activate the numeric keypad and that you have pressed the Lock key to turn on number lock.
•
Don’t touch the touch pad while booting or resuming.
If a special feature on a PS/2 mouse doesn’t work
•
Make sure you installed any drivers included with the mouse.
•
Shut down and resume the computer, so that the system will detect the PS/2 mouse.
You may also want to test the keyboard and pointing devices with diagnostics. See
“Testing Hardware Operation.”
Memory problems
If a message says you are out of memory
•
In Windows Help, search for Memory Troubleshooter.
•
If you are having memory problems running MS-DOS programs, in Windows Help search for MS-DOS Troubleshooter.
You may also want to test memory with the diagnostics. See “Testing Hardware
Operation.”
Corporate Evaluator’s Guide 107
Troubleshooting Your Computer
Troubleshooting Techniques
Modem problems
If the modem will not connect at 56K speed
•
The host modem may not support a 56K (V.90) connection speed.
•
The speed at which you connect depends on several factors, such as the current condition of the telephone line. If you try connecting at another time, it’s possible you may be able to connect at 56K.
If the modem will not connect at any speed
•
Make sure the telephone line goes from the RJ-11 modem phone jack on the right side of the computer to the telephone jack on the wall.
•
If you have a single telephone line for voice and modem use, make sure no one else is using the line and that the phone is not off the hook.
•
Contact your Internet Service Provider (ISP). It’s possible that service may be unavailable temporarily or that your settings are incorrect.
•
Try restarting your computer and attempt another connection.
•
Try an alternative dial-in number.
•
Download the latest modem driver from the technical support area of the HP notebook website (http://www.hp.com/notebooks).
•
In Windows 98, run the modem diagnostics:
1. Click Start, Settings, Control Panel.
2. Double-click Modems.
3. Click the Diagnostics tab.
4. Click the port to which your modem is attached.
5. Click More Info.
•
In Windows 2000, run the modem diagnostics:
1. Click Start, Settings, Control Panel.
2. Double-click Phone and Modem Options.
3. Click the Modems tab.
4. Select the modem you want to test.
108 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
5. Click Properties, Diagnostics, Query Modem.
•
In Windows Help, use the Modem Troubleshooter.
If the modem connection is dropped when transferring large files
•
There may be static or interference on the phone line. Try connecting later.
•
In Windows 98, if a serial or PC card modem is not working, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click System.
3. Click the Device Manager tab.
4. Double-click Modem to list the current modem devices.
5. Double-click the internal modem.
6. Select the checkbox “Disable in this hardware profile.”
•
In Windows 2000, if a serial or PC card modem is not working, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click Phone and Modem Options.
3. Select the Modems tab.
4. Select the internal modem.
5. Click Remove.
6. Click OK.
One-Touch button problems
If One-Touch buttons are not working properly
•
Check that the applications associated with the buttons are the ones you want.
1. Click Start, Settings, Control Panel.
2. Double-click Keyboard.
3. Select the One-Touch buttons tab.
Corporate Evaluator’s Guide 109
Troubleshooting Your Computer
Troubleshooting Techniques
4. Click on the button of the key you want to reconfigure.
5. Select the application or website you want associated with the button. (See “To configure a One-Touch button“ for more detail.)
6. Click Done, then OK.
If the onscreen display does not appear when pressing a One-Touch button
•
Check that the Onscreen Display is enabled.
1. Click Start, Settings, Control Panel.
2. Double-click Keyboard.
3. Select the One-Touch buttons tab.
4. Click Change Onscreen Display.
5. Check Enable if it is not checked.
6. Click Done, then OK.
PC card problems
If the notebook doesn’t recognize a PC card
•
Remove and reinsert the PC card.
•
If the card requires an IRQ, check that there is one available. Look in Device Manager,
Properties, Interrupt Request (IRQ).
•
Check the HP notebook website for information about supported PC cards.
•
Try the card in another computer.
•
Reboot the computer.
If an I/O card stops communicating properly
•
The card may have been reset if the computer in on standby or turned off. Exit any applications, then remove and reinsert the card.
If a PC card modem is not working
•
In Windows 98, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click System.
110 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
3. Click the Device Manager tab.
4. Double-click Modem to list the current modem devices.
5. Double-click the internal modem.
6. Select the checkbox “Disable in this hardware profile.”
•
In Windows 2000, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click Phone and Modem Options.
3. Select the Modems tab.
4. Select the internal modem.
5. Click Remove.
6. Click OK.
You may also want to test the PC card with diagnostics. See “Testing Hardware
Operation.”
Performance problems
If the computer pauses or runs sluggishly
•
Press Ctrl+Alt+Del to see if an application is not responding.
•
Reboot the computer.
•
Delete temporary and unneeded files.
•
Certain background operations (such as virus-scanning software) can affect performance while they’re running.
•
Some file browsers may be unresponsive while they’re processing a graphic image or waiting for broken network connections to time out.
•
Install additional memory if Windows is spending a lot of time swapping to disk.
•
Check the amount of available free disk space.
Corporate Evaluator’s Guide 111
Troubleshooting Your Computer
Troubleshooting Techniques
Port replicator problems
If a port on a port replicator isn’t working
•
Check that AC power is connected.
•
While undocked, try using the corresponding notebook port.
•
See the manual for the port replicator.
Power and battery problems
If the computer turns off immediately after it turns on
•
Battery power is probably extremely low. Plug in the AC adapter or insert a newly charged battery.
If the computer keeps beeping
•
The computer beeps for 15 seconds when the battery is low. Save your work, shut down Windows immediately, and insert a charged battery or plug in the AC adapter.
If the computer has a short operating time
•
Try conserving power by setting power timeouts to shorter periods. In Windows, you can adjust these settings in the Power Management applet in Control Panel.
•
If you are running any applications with an automatic save feature, such as MS Word for Windows, you can extend the save time or disable this feature to reduce hard disk access.
•
If the operating time has become shorter and the battery is more than a year or two old, you may need to replace the battery.
•
Set the display brightness to the lowest comfortable level.
•
Heavy modem use can affect battery operating time.
•
PC card use can affect battery operating time.
If the battery doesn’t charge
•
Make sure the AC adapter is plugged into the power source and that the light on the adapter is on.
•
If you’re using a power strip, remove the AC adapter from the power strip and plug it directly into a wall outlet.
112 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
•
Check that the battery is fully installed and locked in place.
•
Turn off the computer, then check that the battery contacts are clean and that the AC adapter cables are fully plugged in.
•
Move the computer away from any nearby heat source. Unplug the AC adapter and allow the battery to cool down. An elevated battery temperature prevents charging.
•
If another battery is available, try it.
•
If another AC adapter is available, try it.
If the Time Remaining percentage for the battery is not correct
•
The Time Remaining value on the power (battery) icon is an estimate based on your current usage, not a precise value.
If the computer stops responding
•
Press Ctrl+Alt+Del to end the application that is not responding.
•
Slide the power switch to the left, hold it for at least five seconds, and release it to turn off the computer. Then slide the power switch again to turn the computer back on.
•
If nothing happens, insert a paper clip into the system-off button on the left side of the computer. Then slide the power switch to turn the computer on.
If the computer doesn’t standby as expected
•
If you have a connection to another computer, the computer d oesn’t standby if the connection is actively in use.
•
If the computer is performing an operation, it normally waits for the operation to finish.
You may also want to test the power management system with diagnostics. See “Testing
Hardware Operation” on page 117.
Printing problems
For most printing problems, use the Print Troubleshooter in Windows Help.
If a serial or parallel printer doesn’t print
•
Check that you are using a proper cable or cable adapter, and that the printer is on.
•
Check for paper in the printer or other printer errors.
•
Make sure the printer cable is securely attached at both ends.
Corporate Evaluator’s Guide 113
Troubleshooting Your Computer
Troubleshooting Techniques
If the left edge of printed output is missing
•
If the printer you are using is a 600-dpi (dots per inch) printer, try selecting a compatible printer driver for a 300-dpi printer. For example, for a 600-dpi HP LaserJet printer, try using the HP LaserJet IIIsi driver (300-dpi). Certain applications may not work properly with 600-dpi printers.
Serial, parallel, and USB problems
If a serial mouse doesn’t work
•
First, make certain you completely followed the manufacturer’s installation instructions to install the mouse properly.
•
Check the port connection to see if it’s loose.
•
Check settings in BIOS Setup.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press F2 to enter the BIOS Setup utility.
3. From the System Devices menu, check that Serial Port is enabled.
•
If you standby and resume, reboot the computer to reenable the mouse.
If a serial modem doesn’t work properly
•
In Windows Help use the Modem Troubleshooter.
•
Check the port connection to see if it’s loose.
•
Check settings in BIOS Setup.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press F2 to enter the BIOS Setup utility.
3. From the System Devices menu, check that Serial Port is enabled.
•
In Windows 98, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click System.
3. Click the Device Manager tab.
4. Double-click Modem to list the current modem devices.
114 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Troubleshooting Techniques
5. Double-click the internal modem.
6. Select the checkbox “Disable in this hardware profile.”
•
In Windows 2000, disable the internal modem.
1. Click Start, Settings, Control Panel.
2. Double-click Phone and Modem Options.
3. Select the Modems tab.
4. Select the internal modem.
5. Click Remove.
6. Click OK.
If the serial or parallel port is not working
•
Check the port connection to see if it’s loose.
•
Check settings in BIOS Setup.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press F2 to enter the BIOS Setup utility.
3. From the System Devices menu, check that Parallel Port or Serial Port is enabled.
If the USB port is not working
•
Contact the vendor of the peripheral device, or check the HP notebook website, for the latest versions of the USB drivers.
You may also want to test the ports with diagnostics. See “Testing Hardware Operation.”
Startup problems
If the computer doesn’t respond at turn-on
•
Connect the AC adapter.
•
Slide the power switch to try turning on the unit.
•
Use the system-off button to reset the computer.
•
If you get no response, remove the battery and AC adapter, remove any PC cards, and undock the computer—then plug in the AC adapter and try resetting.
Corporate Evaluator’s Guide 115
Troubleshooting Your Computer
Troubleshooting Techniques
•
If you still get no response, call HP for assistance.
If the computer doesn’t boot from battery power
•
Make sure the battery is properly inserted and fully charged.
•
Check battery contacts.
•
If another battery is available, try it.
If the computer doesn’t boot from the floppy disk drive
•
Check the boot order in the BIOS Setup utility.
1. Click Start, Shut Down, Restart.
2. When you see the HP logo, press F2 to start the BIOS Setup utility.
3. Tab to the Boot menu. The default boot order is (1) Floppy Drive, (2) Hard Drive, and (3) CD-ROM/DVD Drive.
4. Select Floppy Drive for first boot device.
5. Exit the BIOS Setup utility.
Standby and resume problems
If the computer takes a long time to resume after being on standby
•
In Windows, the computer can take a minute or longer to resume when a network card is installed. While the operating system is loading drivers and checking hardware and network connections, you will see a blinking cursor on your display. As soon as the hardware has been reinitialized, the Windows desktop will appear.
If the operating system hangs after you have gone on standby or resumed
•
Your system may hang if you dock or undock your notebook while you are in the process of going on standby or resuming the computer. Make sure your computer has completely finished going on standby or completely resumed before you dock or undock it.
116 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Testing Hardware Operation
Testing Hardware Operation
The DiagTools program provides two levels of testing:
•
Automated testing using the basic hardware test.
•
Advanced testing using individual hardware tests.
The tests are designed to run after the system reboots. This ensures that the computer will be in a predictable state, so the diagnostic program can properly test the hardware components. The tests are nondestructive and are intended to preserve the state of the computer. The computer reboots when you exit the program, so that drivers can be loaded.
To run the diagnostic test
1. Reboot the computer and, when you see the HP logo , press F10.
2. When you see the initial diagnostics screen, press F2 twice to continue.
3. When the hardware detection finishes, check the list of detected hardware.
If a device is not detected or fails its test, it may be configured incorrectly in the BIOS.
You can confirm the problem by running BIOS Setup utility and checking the settings.
4. Press F2 twice to run the basic hardware test.
5. If you want to run additional hardware tests, press F2 twice. From the advanced test screen, select and run the appropriate tests. Tests are not listed if no such hardware is detected. Press the following keys to run tests:
Enter Runs the highlighted test.
Marks or unmarks the highlighted test. F5 or
Space
F6
F7
Marks or unmarks all tests in the current menu.
Marks or unmarks all tests in all menus.
6. When you have finished running advanced tests, press Esc to exit.
7. If you want to view or save system and test information, press F4 repeatedly (twice if you are at the advanced test screen, three times from the basic test screen) to create a
Support Ticket log file. (You will need a blank floppy disk to save the Support
Ticket—or you can save it on the hard disk by following onscreen instructions.)
8. If you want to view the Support Ticket, press F7.
Corporate Evaluator’s Guide 117
Troubleshooting Your Computer
Testing Hardware Operation
9. Press F3 twice to exit and reboot.
118 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Recovering and Reinstalling Software
Recovering and Reinstalling Software
CAUTION
Note
You can use the Recovery CD to recover an original build, or you can use it to install the
HP custom software over a user-installed alternate operating system. If you need to recover a specific application, you can reinstall the software directly from your hard drive; for instructions, see “To recover an application” on page 120.
The Recovery CD provides the HP notebook–specific Windows drivers to configure your custom system. You can find drivers:
•
On the hard drive under c:\hp\drivers.
•
On the Recovery CD, under \hp\drivers.
•
On the HP notebook website at www.hp.com/notebooks. This website contains the latest updates of software drivers for your computer.
To recover the factory installation of your hard disk
The following procedure describes how to recover the original Windows software and operating system that came with your computer.
This procedure will format the hard disk drive. After the hard disk drive is formatted, you’ll need to reinstall any applications. Reformatting the hard disk drive will erase all data on the disk.
1. Back up all data from your hard disk.
2. Connect the AC adapter to the computer.
3. Insert the bootable Recovery CD in the CD-ROM drive.
4. Reboot and, when you see the HP logo, press F2.
5. Select the CD-ROM drive as the first boot device and reboot.
You can find more details about recovering the factory installation of Windows on the
Recovery CD: the file readme.txt is in the CD’s root directory.
The recovery process can take about 10 or 15 minutes. Do not interrupt the process or
unplug the AC adapter until the process is completed.
Windows 98 supports the FAT16 and FAT32 file systems. Windows 2000 supports the
FAT16, FAT32, and NTFS file systems.
Corporate Evaluator’s Guide 119
CAUTION
Troubleshooting Your Computer
Recovering and Reinstalling Software
To replace a damaged Recovery CD
If you lose or damage the Recovery CD, call the HP Customer Care Center for information about replacing it. See “To call the HP Customer Care Center” on page 126 for the phone number.
To update the HP notebook BIOS
Hewlett-Packard may provide updates to the BIOS to enhance the capabilities of the computer. Updates will be available from HP Customer Care. Visit the technical support area of the HP notebook website at www.hp.com/notebooks. Download the BIOS update and follow the instructions in the readme.txt file on how to create the BIOS update floppy disk.
A BIOS update replaces the previous version, so it is important that you follow these instructions exactly. Otherwise, the computer may be damaged. The BIOS update process resets the configuration settings in the BIOS Setup utility, and it erases any
BIOS passwords.
1. Remove any PC cards.
2. If the notebook is docked, undock it.
3. Connect the AC adapter to the notebook.
4. Insert the BIOS update disk in the floppy disk drive.
5. Restart the computer.
6. Follow the onscreen instructions. Once the update process begins, do not interrupt it.
7. When the process is completed, remove the BIOS update disk from the floppy disk drive and reboot the computer by pressing the system-off button on the left side of the notebook.
To recover an application
If you remove an application from your hard disk and later decide you want it back, or if you accidentally delete application files, you can reinstall the original software. The setup programs for most of the applications that were factory-installed on your system are included on your hard drive in c:\hp\programs. Each application has its own folder that includes a file of instructions (readme.txt).
120 Corporate Evaluator’s Guide
Note
Troubleshooting Your Computer
Recovering and Reinstalling Software
A few factory-installed applications do not have installation programs on the hard drive. If your computer came with one of these applications (for example, Microsoft Works,
Microsoft Encarta, or Microsoft Money), you can reinstall it by using the appropriate
CD-ROM.
The Recovery CD restores all the software that was originally on your HP notebook PC, but the recovery program erases the hard drive in the process. Therefore, to reinstall specific applications, do not use t he Recovery CD.
Corporate Evaluator’s Guide 121
Troubleshooting Your Computer
Removing and Reinstalling the Hard Disk Drive
Removing and Reinstalling the Hard Disk Drive
Removing the hard disk drive is not a simple task since, to improve stability, the drive is located in the middle of the computer. If you do need to remove it, HP recommends that you back up your data and allow a qualified service person to do it. If you decide to remove the drive yourself, follow these instructions carefully.
If you decide to remove the hard disk drive
1. Shut down the computer, unplug the AC adapter, and remove the battery.
2. Close the display, and from the rear of the computer remove the two Phillips screws from the back of the plastic hinge covers.
CAUTION
3. Lean the display backward as far as possible, so that it is out of the way.
Do not touch metal surfaces inside the computer until they have cooled off, especially if the computer has just been running.
4. Carefully pry up the plastic cover above the keyboard at the hinges, using a flathead screwdriver, and remove it.
122 Corporate Evaluator’s Guide
Troubleshooting Your Computer
Removing and Reinstalling the Hard Disk Drive
5. Unscrew the four Phillips screws at the top of the keyboard. (They remain attached to the keyboard.)
WARNING
Handle the hard drive by its edges only, since static electricity can permanently damage computer parts. Before touching the interior of the computer, discharge static electricity by touching the metal shielding around the connectors on the rear of the computer.
6. Slide the keyboard backward to detach it, then tilt it forward and turn it upside down.
(Keep the keyboard cable attached.)
7. Unscrew the four Phillips screws from the sides of the hard disk drive case. (They remain attached to the case.)
8. Tilt up the rear of the hard disk drive case and, pulling gently by the strap, detach it from the connector and lift it out of the computer.
Corporate Evaluator’s Guide 123
Troubleshooting Your Computer
Removing and Reinstalling the Hard Disk Drive
To install the hard disk drive again
If you have removed the hard disk drive when you shipped the computer for service or for some other reason, here’s how to install it again:
1. Unplug the AC adapter and remove the battery.
2. Close the display, and from the rear of the computer remove the two Phillips screws from the back of the plastic hinge covers.
3. Lean the display backward as far as possible, so that it is out of the way.
4. Carefully pry up the plastic cover above the keyboard at the hinges, using a flathead screwdriver, and remove it.
5. Unscrew the four Phillips screws at the top of the keyboard. (They remain attached to the keyboard.)
6. Slide the keyboard backward to detach it, then tilt it forward and turn it upside down.
(Keep the keyboard cable attached.)
7. Important. Move the wires to the left of the drive location out of the way.
8. Tilt up the rear of the hard disk drive you want to install and—rocking it carefully side to side—push the drive forward into the connector.
9. Fasten the hard disk drive with the four attached Phillips screws in the sides of the case.
10. Tilt the keyboard back, slide the flanges on the front edge forward into the slots, and fasten the keyboard with the four attached Phillips screws at the top.
11. Replace the plastic cover that is above the keyboard, front edge first.
12. Hold both hinge covers and snap the plastic cover in place. If necessary, push downward at each end of the cover to secure it.
13. Close the display and replace the two screws at the rear of the hinge covers.
14. Insert the battery, connect the AC adapter, and press the reset button.
15. If necessary, restore the original Windows software and operating system with the
Recovery CD.
124 Corporate Evaluator’s Guide
Service and Support
Corporate Evaluator’s Guide 125
Service and Support
Getting Support for Your HP Notebook PC
Getting Support for Your HP Notebook PC
HP offers a number of ways that you can get technical support for your computer. If you have ques tions or problems, here are the resources available to you:
•
Look up information in the electronic Reference Guide.
•
Visit the HP notebook website.
•
Call HP support.
To get help from the HP notebook website
HP has a website on the Internet dedicated to HP notebook owners: www.hp.com/notebooks. This website contains information about the various HP notebook models, warranties, support, and special promotions.
To get help with your computer, click the Technical Support button. In the technical support area, you will have access to:
• answers to frequently asked questions
• software, driver, and BIOS updates
• electronic manuals
• troubleshooting solutions
• self-help tools, such as bulletin boards, CD-ROM subscriptions, and service parts information
• the basic services included with your warranty, as well as descriptions of enhanced and custom services
• latest support telephone numbers for HP p roducts
To call the HP Customer Care Center
If you are unable to solve a problem with your computer, you can call the HP Customer
Care Center. The Customer Care Center will assist you at no charge during the term of the warranty; you are responsible only for cost of the telephone call. During the free assistance period, HP will assist with questions about:
126 Corporate Evaluator’s Guide
Service and Support
Getting Support for Your HP Notebook PC
• applications and operating systems included with your computer
•
HP-described operation environments and conditions
•
HP accessories, HP upgrades, and basic operation and troubleshooting
HP will not be able to help with questions about:
• non-HP hardware, software, operating systems, or usage not intended for—or not included by HP with—the product
• how to repair the product yourself
• product development or custom installations
• consulting
To locate the Customer Care Center in your area, check the following table. HP Customer
Care Centers will assist you for free during the term of the warranty; you are responsible only for the cost of the telephone call. Check the HP notebook website
(www.hp.com/notebooks) for the most complete and current list of phone numbers
North America
United States
Canada
Mexico City
Mexico (outside Mexico City)
Asia Pacific
Australia
Hong Kong
Japan
Malaysia
New Zealand
People’s Republic of China
Singapore
Europe
Austria
Belgium (Dutch)
Belgium (French)
Czech Republic
Denmark
English (from outside UK)
Finland
France
Germany
Greece
+1 (970) 635-1000
+1 (905) 206-4663
+52 58 9922
+52 01 800 472 6684
+61 (0)3 8877 8000
+852 800 96 7729
+81 (0)3 3335 8333
+60 (0)3 295 2566
+64 (0)9 356 6640
+86 800 810 5959
+65 272 5300
+43 (0)7114 20 1080
+32 (0)2 626 8806
+32 (0)2 626 8807
+42 (0)2 6130 7310
+45 39 29 4099
+44 (0)207 512 52 02
+358 (0)203 47 288
+33 (0)1 43 62 34 34
+49 (0)180 52 58 143
+30 (0)1 619 64 11
Corporate Evaluator’s Guide 127
Service and Support
Getting Support for Your HP Notebook PC
Hungary
Ireland
Italy
Netherlands
Norway
Poland
Portugal
Russia (Moscow)
Russia (St. Petersburg)
Spain
Sweden
Switzerland
Turkey
United Kingdom
Africa/Middle East
Israel
South Africa
To check the build version
+36 (0)1 382 1111
+353 (0)1 662 5525
+39 02 264 10350
+31 (0)20 606 8751
+47 22 11 6299
+48 22 519 06 00
+351 21 317 6333
+7 095 797 3520
+7 812 346 7997
+34 902 321 123
+46 (0)8 619 2170
+41 (0)848 80 11 11
+90 (0)212 221 69 69
+44 (0)207 512 52 02
+972 (0)9 952 4848
+27 (0)86-000-1030
When you communicate with an HP support person, you may need to find out what version of the software is installed on your computer. You can find information about the build in the file version.inf in the root directory of your hard disk. (This is a hidden file, so if you cannot see it, follow the instructions below.) Double-click on the filename to see the information.
To see hidden files in Windows 98
1. In My Computer, select View, Folder Options.
2. Click the View tab.
3. Under Hidden Files, choose “Show all files.”
4. Click OK.
To see hidden files in Windows 2000
1. In My Computer, select Tools, Folder Options.
2. Click the View tab.
3. Choose “Show hidden files and folders.”
4. Click OK.
128 Corporate Evaluator’s Guide
Service and Support
Obtaining Repair Service
Obtaining Repair Service
To receive warranty repair service
To receive warranty repair service, contact your HP Customer Care Center. See “To call the HP Customer Care Center” on page 126 for the phone number.
The support technician will help qualify your unit for warranty repair, based on the warranty applicable to your unit and original purchase date, and will provide you with repair processes. Warranty service may include the cost of shipping, handling, duties, taxes, freight, or fees to or from the service location.
To repair your computer outside the warranty period
If your PC is no longer in the warranty period, contact the appropriate Customer Care
Center. The HP support person will let you know about repair charges and processes.
To prepare your computer for shipment
1. Important. Back up the contents of your hard disk drive to floppy disks, tape, or a network drive.
While your computer is being repaired, the hard disk may be replaced or reformatted.
2. Hewlett-Packard cannot guarantee the return of removable components. Please remove the following before you send your computer for service:
•
PC cards
•
AC adapter and power cord
•
CDs in the CD player
• floppy disks in the floppy disk drive
3. When shipping your computer to Hewlett-Packard, please use the original product packaging or other substantial packaging in order to avoid damage in transit.
HP recommends that you leave the hard disk drive in the computer when you send it for repair. When the computer is returned, you can restore your data from the backup you made. If you nevertheless want to remove the hard disk drive for this (or some other) reason, see “Removing and Reinstalling the Hard Disk Drive“ on page 122.
Corporate Evaluator’s Guide 129
Service and Support
Hewlett-Packard Limited Warranty Statement
Hewlett-Packard Limited Warranty Statement
1. HP warrants to you, the end-user customer, that HP hardware, accessories, and supplies will be free from defects in materials and workmanship after the date of purchase, for the period specified in the Warranty Duration sheet included with your
HP computer. If HP receives notice of such defects during the warranty period, HP will, at its option, either repair or replace products which prove to be defective.
Replacement products may be either new or equivalent in performance to new.
2. HP warrants to you that HP software will not fail to execute its programming instructions after the date of purchase, for the period specified in the Warranty
Duration sheet included with your HP computer, due to defects in material and workmanship when properly installed and used. If HP receives notice of such defects during the warranty period, HP will replace software which does not execute its programming instructions due to such defects.
3. HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, you will be entitled to a refund of the purchase price upon prompt return of the product.
4. HP products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.
5. Warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts, or supplies not supplied by
HP, (c) unauthorized modification or misuse, (d) operation outside of the published environmental specifications for the product, or (e) improper site preparation or maintenance.
6. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE
EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN
OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY,
SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.
Some countries, states or provinces do not allow limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This warranty gives you specific legal rights and you might also have other rights that vary from country to country, state to state, or province to province.
7. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS
WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT
130 Corporate Evaluator’s Guide
Service and Support
Hewlett-Packard Limited Warranty Statement
AS INDICATED ABOVE, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR
LOSS OF DATA OR FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL
(INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED
IN CONTRACT, TORT, OR OTHERWISE.
Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE
EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY
AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS
APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.
Corporate Evaluator’s Guide 131
Specifications and Regulatory Information
Corporate Evaluator’s Guide 133
Specifications and Regulatory Information
Hardware and Software Specifications
Hardware and Software Specifications
You will find detailed information about your computer’s hardware and software specifications in the Reference Guide. For the most up-to-date information on HP notebook PC specifications, go to the HP notebook website at www.hp.com/notebooks.
BIOS Setup utility options
Main Menu
BIOS Revision
System Time
System Date
Floppy Drive
Quiet Boot
The pointing devices are not active in the BIOS Setup utility. Press the Right and Left arrow keys to move from one menu to another. Press the Down and Up arrow keys to move among parameters in a menu. Press F5 or F6 to move through values for the current parameter or press Enter to change a setting. See the tables below for more information.
Default
Shows the current BIOS version.
Detected automatically.
Sets the time using 24-hour format.
Values set take effect immediately.
Sets the date using mm/dd/yyyy format.
Sets the floppy drive type.
Internal Hard Disk Sets the hard disk drive size.
Detected and set automatically.
Detected and set automatically.
Enabled
Video Display Device
When enabled, hides summary of power-on self-test and messages during boot.
Switches between sending video signals to both the built-in LCD display and an external CRT display (Both) and automatically switching to the external
CRT if one is attached (Auto).
Auto
134 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Hardware and Software Specifications
Video Expansion
Television Type
Base Memory
Extended Memory
CPU Serial Number
System Devices Menu
PS/2 Pointing Device
External Fn key
IDE Controller
FDD Controller
Serial Port
Base I/O address
Infrared Port
When enabled, expands video image to cover entire LCD at lower resolutions.
NTSC or PAL standard.
Shows the system memory size.
Shows the extended memory size.
When enabled, reports Intel CPU serial number to application software.
Disabled
NTSC
640KB
Detected automatically.
Enabled
Default
Both When an external PS/2 mouse is connected, enables internal pointing device also (Both) or disables it
(External Only).
Enables or disables Left Ctrl+Left Alt on external keyboard to simulate notebook keyboard Fn key.
Configures local bus IDE controller to enable primary channel (Primary), primary and secondary channel (Both), or neither (Disabled).
Enables or disables floppy disk drive controller.
Sets how the serial port is configured— by the user (Enabled), automatically
(Auto), or inactive (Disabled).
Sets the I/O address and interrupt.
Sets how the infrared port is configured—by the user (Enabled), automatically (Auto), or inactive
(Disabled).
Enabled
Both
Enabled
Enabled
3F8 IRQ4
Disabled
Corporate Evaluator’s Guide 135
Specifications and Regulatory Information
Hardware and Software Specifications
Mode
Mode
Base I/O address
DMA channel
Parallel Port
Base I/O address
Interrupt
DMA channel
LCD Status Panel
Display
LCD Status Panel
Date Format
LCD Status Panel
Time Format
Security Menu
User Password Is
Supervisor Password
Is
When IR port is enabled, sets the hardware to support SIR (Standard IR) or FIR (Fast IR) infrared communications.
When IR port is enabled, sets the I/O address and interrupt.
When FIR mode is enabled, sets the
DMA channel.
Sets how the parallel port is configured—by the user (Enabled), automatically (Auto), or inactive
(Disabled).
When parallel port is enabled, sets the port to Normal, Bi-directional, ECP, or
EPP mode.
When EPP mode is not enabled, sets the I/O address.
Sets the interrupt.
When ECP mode is enabled, sets the
DMA channel.
Enables or disables display of the status panel.
Set date format on the status panel.
FIR
378
2F8 IRQ3
DMA 0
Enabled
ECP
IRQ 7
DMA 3
Enabled
Set time format on the status panel.
mm/dd/yy
(month/date/year) hh:mm
(24-hour format)
Default
Shows if a user password is set.
Clear
Shows if an supervisor password is set.
Clear
136 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Hardware and Software Specifications
Set User Password
Set Supervisor
Password
Password Required to
Boot
Floppy Boot
Sets, changes, or clears user password, after supervisor password is set. Password length can be no longer than 8 characters, 0-9, A-Z.
Sets, changes, or clears supervisor password. This password protects
BIOS Setup settings.
Sets whether a user password is required when the computer boots.
Controls permission to boot system from floppy disk drive.
Power Menu
Intel SpeedStep
Technology
Sets CPU high-speed/low-speed mode for AC and battery operation: boot at high speed with AC, otherwise low
(Auto); no runtime support, boot at low speed (Disabled); boot at low speed
(Battery Optimized); boot at high speed
(Max. Performance); or boot at low speed with AC, otherwise high
(Reverse).
Auto Turn-On on Dock Enables or disables automatic system turn-on when computer is docked.
Boot Menu
Indicates boot order of drives (change order with F5 and F6 keys).
Exit Menu
Saving Changes and
Exit
Discarding Changes and Exit
Enabled
Enabled
Default
Auto
Enabled
Saves Setup changes to CMOS, exits, and reboots.
Discards Setup changes since last save, exits, and reboots. Does not affect security, date, or time changes.
Default
Floppy Drive
Hard Drive
CD-ROM/DVD Drive
Corporate Evaluator’s Guide 137
Specifications and Regulatory Information
Hardware and Software Specifications
Get Default Values
Load Previous Values
Save Changes
Restores default settings, stays in
Setup. Does not affect security, date, or time changes.
Discards Setup changes since last save, stays in Setup. Does not affect security, date, or time changes.
Saves Setup changes to CMOS and stays in Setup. Security settings are saved when changed.
Hardware specifications
Dimensions
Weight
CPU
Chip Set
Main Memory
Hard Disk Drive
Because we are constantly improving our products, the specifications shown below are subject to change. For the latest specifications, see the HP Notebook Web site
(www.hp.com/notebooks).
13.03”x10.72”x1.59” (331x272.3x40.5mm) for 12.1”–14.1”
13.03”x10.72”x1.65” (331x272.3x42.0mm) for 15”
6.5lbs (3.0kg) with 12.1” TFT LCD/LiIon battery/FDD/CD-ROM/64MB/HDD
Intel PIII/Celeron uPGA2 with SpeedStep (PIII only)
100MHz FSB
Intel 440ZXM-100
100MHz SDRAM (PC100)
Maximum memory upgrade to 256MB by two 128MB SODIMM (144-pin/3.3V) modules in two 1.25” slots
9.5mm, 2.5” HDD
PCI Bus Master Enhanced IDE
Supports Ultra DMA/33
12.7mm, 1.44MB (3-mode) Floppy Disk
Drive
CD-ROM/DVD
Display
12.7mm, 24X CD-ROM or 8X DVD
800x600 SVGA TFT 12.1” LCD
1024x768 XGA TFT 13” LCD
1024x768 XGA TFT 14.1” LCD
1024 x768 XGA TFT 15” LCD
138 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Hardware and Software Specifications
Video chip
PCMCIA
Keyboard
Pointing Device
Audio
CD Player
Battery
AC Adapter
S3 Savage/IX
– Integrated 4MB SGRAM
– Supports AGP 2X mode
– 128-bit, single-cycle 3D architecture
– Simultaneous LCD/CRT, LCD/CRT/TV capability
– Optimized hardware motion compensation
– New high-performance 128-bit 2D engine
– Integrated single-channel 110MHz LVDS interface
– Integrated NTSC/PAL TV encoder
TI 1420 (two slots)
HPC card 95 supporting one type III or two type II sockets
PCI power management compliant
ACPI 2.0 compliant
PCI local bus specification Rev. 2.2 compliant
3.3V core logic with universal PCI interface compatible with 3.3V and 5V PCI signaling environments
No ZV support
NS 87570 K/B controller
– 87/88/90 keys with 101/102 key emulation
– Supports Windows keys and Application key
– Standard pitch, 3.0mm travel length
– Spill-proof
2-button design with on/off and scroll up/down buttons
CCR enabled for Chinese localization only
ESS Allegro (1988)
– Integrated AC’97 CODEC
– HSP modem interface via MC’97 link
– Supports wake up on ring.
Modem CODEC ESS 2828 on mini-PCI slot
OZ-163 controller
Supports CD-play while system is off
LiIon: 9 cells, 5400mAh/11.1V, 18650 size
NiMH: 9 cells, 4000mAh/10.8V, 17670 size
2.2 hrs charging time
Smart pack, SM bus
60-65W universal AC adapter
90-264V AC, 47-63Hz
Corporate Evaluator’s Guide 139
Specifications and Regulatory Information
Hardware and Software Specifications
I/O Ports
Controls
Options
Status LEDs
Serial port: 9 pins (RS232), 16550 compatible
High-speed bidirectional parallel port: 25 pins, EPP/ECP capability
VGA port: 15 pins with hot plug/unplug CRT detect
PS/2: 6 pins, for keyboard, keypad or PS/2 mouse (Y adapter compatible)
Microphone-in, headphone-out jacks
Internal microphone
Docking port: supports optional simple port replicator
One FIR port
Two USB ports
DC-in jack
Two Polk Audio stereo speakers
Composite TV-out
Power switch
Lid switch
Reset off button
Sleep button
4 user-programmable One-Touch buttons
CD-Player on/off switch
CD-Player buttons: Previous, Play/Pause, Stop/Eject, Next, Volume-Up,
Volume-Down
Pad Lock touch pad on/off button
Scroll up/down toggle
Status panel mode button
Caps/Num/Scroll lock LEDs (green)
Pad Lock touch pad on/off LED (amber)
Power status LED (dual color): power on green; standby amber
Battery charging LED: charging amber; fully charged green; abnormal red
HDD, FDD, CD-ROM activity LEDs (green)
LCD dot matrix display (with 2 backlight LEDs)
– When the unit is on, the display shows: power status, battery charging status, date, or time
– When the unit is off and in CD-Player mode, the display shows, in addition: sleep status, track number, and time elapsed
Backlight LEDs (green) for CD-Player buttons
CD-Player on/off LED (green)
2 LEDs on RJ-45 connector
32/64/128MB PC-100 SODIMM: 3.3V, 144-pin, SDRAM
SPR
Mini-PCI modem, supporting Wake up on Ring# from D3 (cold) with AC -in
Mini-PCI modem/LAN combo, supporting Wake up on Ring# & PME# from
D3 (cold) with AC-in
140 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Hardware and Software Specifications
Mechanical
Simple Port
Replicator
Environment
Standards
Kensington lock
Continuously variable fan speed
Serial
Parallel
VGA
USB x2
TV-out
PS/2 x2
RJ-45
Audio line-in
Audio microphone-in
Audio headphone-out
DC-in (with AC adapter)
LEDs:
– SysON LED: green when system is on.
– BATT Charge LED: amber when Batt in charging, green when fully charged, red for abnormal
Power on/off slide switch
Kensingto n lock
Operating temperature: 5 to 35°C (41 to 95°F)
Storage temperature: -20 to 50°C (-4 to 122°F)
Operating humidity: 20 to 90% RH (5 to 35°C)
Operating shock: 60inch/sec, 2ms, half-sine
Non-operating shock: 80inch/sec, 2ms, half-sine
Operating vibration: 1G (5 to 500Hz)
Non-operating vibration: 2.16G (5 to 500Hz)
Hinge cycle life: 20K cycles
Operating altitude: up to 3,000m (10,000 ft)
PC99
ACPI
Corporate Evaluator’s Guide 141
Specifications and Regulatory Information
Hardware and Software Specifications
0
1
2
3
4
Software specifications
Software
Software
Applications
512KB flash BIOS ROM
Standby to RAM/Disk
Minimal APM 1.2 support
Various hot keys for system control
Password protection
Autoconfiguration with Replicator
PC99 ready with PnP
Keyboard BIOS flashable
ACPI 1.0b compatible
Smart battery support
DMI EEPROM (2KB) extension
Bootable devices; FDD, HDD, DVD, CD-ROM
WIN 98SE (ACPI mode), Win 2000 (ACPI mode)
Adobe Acrobat Reader
MusicMatch MP3 software
MediaMatics DVD player (for computers with DVD)
One-Touch Button software
Fax software (included in Windows 2000)
For additional information about software included with your computer, check HP
Notes. Click Start, Program, HP Library; or double-click the HP Library icon on the desktop.
Software system resources
The tables in this section show typical resource usage as set up by the HP notebook
BIOS. Plug-and-play operating systems, drivers, and BIOS setup settings may change some of the entries. To see other, nondefault possibilities, refer to the BIOS Setup utility, which lists port configurations in the System Devices menu.
System Interrupts
System timer
Keyboard
Cascade from secondary interrupt controller
Free
COM1 (serial port)
142 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Hardware and Software Specifications
170-177
1F0-1F7
220-22F
376
378-37F
388-38B
3B0-3BB
3C0-3DF
3E0-3E1
3F0-3F5
10
11
12
13
14
15
7
8
9
5
6
Audio
Floppy disk drive
LPT1 (ECP parallel port)
Real-time clock
SCI
PCI IRQ (shared by all PCI devices)
Free (or MIDI, if enabled).
Touch pad, PS/2 mouse
Numeric coprocessor
Internal hard disk drive (primary IDE controller)
Internal CD-ROM drive (secondary IDE controller)
00000 - 9FFFF
System Memory
System memory
A0000 – BFFFF
C0000 - CFFFF
D0000 - DBFFF
DC000 - FFFFF
Video
Video BIOS
Free (valid uses: upper memory blocks (UMBs) or PC card memory windows)
System BIOS
System Input/Output Addresses (100-3FF)
Internal CD-ROM drive (secondary IDE controller)
Internal hard disk drive (primary IDE controller)
DOS games (FM decoding)
Internal CD-ROM drive (secondary IDE controller)
LPT1 (printer port)
DOS games (FM decoding)
VGA adapter
VGA adapter
PCMCIA controller
Floppy disk drive controller
Corporate Evaluator’s Guide 143
Specifications and Regulatory Information
Hardware and Software Specifications
2
3
4
0
1
5
6
7
3F6
3F7
3F8-3FF
Internal hard disk drive (primary IDE controller)
Floppy disk drive controller
COM1 (serial port)
DMA Channels
Free
LPT1 (ECP parallel port)
Floppy disk drive
Free
Cascade from secondary DMA controller
Free
Free
Free
144 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Modem Reference Information
I3
I4
I5
I6
I7
Command
C1
Dn
E0
E1
H0
A/
A
B0
B1
H1
I0
I1
I2
Modem Reference Information
Note
If your computer has a built-in modem, you can customize the operation of the modem using AT commands and S-registers. You can do this from Modem (Windows 98) or
Phone and Modem Options (Windows 2000) in Control Panel, from most communications software, or by using terminal mode in your software. See “To change your modem settings“ on page 55.
You should have a good understanding of modems and how they operate before you change default settings.
This section contains summary information about AT commands, S-registers, and selected result codes for the built -in modem (with an Ambit chip), which is included with selected models of the HP notebook PC.
AT Commands (Ambit)
In the following AT command table, default settings are shown in bold. All listed AT commands except A/ must be preceded by “AT.”
Function (Ambit)
Re-execute command (not preceded by AT)
Go off-hook and attempt to answer a call
Select V.22 connect @1200 bps
Select Bell 212A connect @1200 bps
Return OK message
Dial modifier
Turn off command echo
Turn on command echo
Initiate a hang-up sequence
If on-hook, go off-hook and enter command mode
Report product code
Report pre-computed checksum
Report “OK” if the calculated checksum equals the prestored checksum or if the prestored checksum value is FFh
Report firmware revision, model, and interface type
Report response programmed by OEM
Report the country code parameter
Report modem data pump model and code revision
Report the DAA code
Corporate Evaluator’s Guide 145
Specifications and Regulatory Information
Modem Reference Information
X1
X2
X3
X4
Y0
Y1
Z0
Z1
&C0
&C1
Command
M3
N0
N1
O0
O1
P
Q0
Q1
L0
L1
L2
L3
M0
M1
M2
Sn
Sn?
Sn=v
T
V0
V1
W0
W1
W2
X0
Function (Ambit)
Set low speaker volume
Set low speaker volume
Set medium speaker volume
Set high speaker volume
Turn speaker off
Turn speaker on during handshaking and turn speaker off while receiving carrier
Turn speaker on during handshaking and while receiving carrier
Turn speaker off during dialing and receiving carrier and turn speaker on during answering
Turn off automode detection
Turn on automode detection
Go on-line
Go on-line and initiate a retrain sequence
Force pulse dialing
Allow result codes to DTE
Inhibit result codes to DTE
Select S-Register n as default
Return the value of S-Register n
Set default S-Register n to value v
Force DTMF dialing
Report short form result codes
Report long form result codes
Report DTE speed only
Report line speed, EC protocol and DTE speed
Report DCE speed only
Report basic call progress result codes, i.e., Ok, Connect, Ring, No Carrier (also, for busy, if enabled, and dial tone not detected), No Answer and Error
Report basic call progress result codes and connections speeds (Ok, Connect, Ring, No Carrier (also, for busy, if enabled, and dial tone not detected), No Answer, Connect XXXX, and Error
Report basic call progress result codes and connections speeds, i.e., Ok, Connect, Ring, No Carrier
(also, for busy, if enabled, and dial tone not detected), No Answer, Connect XXXX, and Error
Report basic call progress result codes and connections rate, i.e., Ok, Connect, Ring, No Carrier, No
Answer, Connect XXXX, Busy, and Error
Report all call progress result codes and connections rate, i.e., Ok, Connect, Ring, No Carrier, No
Answer, Connect XXXX, Busy, No Dial Tone and Error
Disable long space disconnect before on-hook
Enable long space disconnect before on-hook
Restore stored profile 0 after warm reset
Soft reset and restore stored profile 1 after warm reset
Soft reset and force RLSD active regardless of the carrier state
Allow RLSD to follow the carrier state
146 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Modem Reference Information
&D1
&D2
&D3
&M2
&M3
&P0
&P1
&P2
&P3
&Q0
&Q1
&Q2
&Q3
&Q4
&Q5
&Q6
&R0
&K0
&K3
&K4
&K5
&K6
&L0
&M0
&M1
&F0
&F1
&G0
&G1
&G2
&J0
&J1
Command
&D0
Function (Ambit)
Interpret DTR On-to-OFF transition per &Qn
&Q0, &Q5, &Q6: The modem ignores DTR
&Q1, &Q4: The modem hangs up
&Q2, &Q3: The modem hangs up
Interpret DTR On-to-OFF transition per &Qn
&Q0, &Q1, &Q4, &Q5, &Q6: Asynchronous escape
&Q2, &Q3: The modem hangs up
Interpret DTR On-to-OFF transition per &Qn
&Q0 through &Q6: The modem hangs up
Interpret DTR On-to-OFF transition per &Qn
&Q0, &Q1, &Q4, &Q5, &Q6: Soft reset
&Q2, &Q3: The modem hangs up
Restore factory configuration 0
Restore factory configuration 1
Disable guard tone
Disable guard tone
Enable 1800 Hz guard tone
Set S-Register response only for compatibility
Set S-Register response only for compatibility
Disable DTE/DCE flow control
Enable RTS/CTS DTE/DCE flow control
Enable XON/XOFF DTE/DCE flow control
Enable transparent XON/ XOFF low control
Enable both RTS/CTS and XON/XOFF flow control
Select dial up line operation
Select direct asynchronous mode
Select sync connect with async off-line command mode
Select sync connect with async off-line command mode and enable DTR dialing of directory zero
Select sync connect with async off-line command mode and enable DTR to act as Talk/Data switch
Set 10 pps pulse dial with 39%/61% make/break
Set 10 pps pulse dial with 33%/67% make/break
Set 20 pps pulse dial with 39%/61% make/break
Set 20 pps pulse dial with 33%/67% make/break
Select direct asynchronous mode
Select sync connect with async off-line command mode
Select sync connect with async off-line command mode and enable DTR dialing of directory zero
Select sync connect with async off-line command mode and enable DTR to act as Talk/Data switch
Select Hayes AutoSync mode
Modem negotiates an error corrected link
Select asynchronous operation in normal mode
CTS tracks RTS (sync) or CTS is normally ON and will turn OFF only if required by flow control (async)
Corporate Evaluator’s Guide 147
Specifications and Regulatory Information
Modem Reference Information
Command
&R1
&W1
&X0
&X1
&X2
&Y0
&Y1
&Zn=x
%E0
%E1
%E2
%L
%Q
%TTn
&T6
&T7
&T6
&T7
&T8
&V
&V1
&W0
&S0
&S1
&T0
&T1
&T2
&T3
&T4
&T5
Function (Ambit)
CTS is always active (sync) or CTS is normally ON and will turn OFF only if required by flow control
(async)
DSR is always active
DSR will become active after answer tone has been detected and inactive after the carrier has been lost
Terminate any test in progress
Initiate local analog loopback
Returns ERROR result code
Initiate local digital loopback
Allow remote digital loopback (RDL)
Disallow remote digital loopback request
Request an RDL without self-test
Request an RDL with self-test
Request an RDL without self-test
Request an RDL with self-test
Initiate local analog loop with self-test
Display current configuration and stored profiles
Display last connection statistics
Store the current configuration as profile 0
Store the current configuration as profile 1
Select internal timing for the transmit clock
Select external timing for the transmit clock
Select slave receive timing for the transmit clock
Recall stored profile 0 upon power up
Recall stored profile 1 upon power up
Store dial string x (up to 34 digits) to location n (0 to 3)
Disable line quality monitor and auto retrain
Enable line quality monitor and auto retrain
Enable line quality monitor and fallback/fall forward
Return received line signal level
Report the line signal quality
PTT testing of signal level: 00-09=DTMF dial 0-9, 0A=DTMF *, 0B=DTMF #, 0C=DTMF A, 0D=DTMF B,
0E=DTMF C, 0F=DTMF D, 10=V.21 Channel 1mark symbol, 11=V.21 Channel 2mark symbol, 15=V.22 originate signaling at 1200bps, 16=V.22bis originate signaling at 2400bps, 17=V.22 answering signaling ,
18=V.22bis answer signaling, 19=V.21 Channel 1space symbol, 1A=V.21 Channel 2 space symbol,
20=V.32 9600bps, 21=V.32bis 14400bps, 30=Silence, 31=V.25 answer tone, 32=1800Hz guard tone,
33=V.25 calling tone (1300Hz), 34=Fax calling tone (1100Hz), 40=V.21 channel 2, 41=V.27ter 2400bps,
42=V.27ter 4800bps, 43=V.29 7200bps, 44=V.29 9600bps, 45=V.17 7200bps long, 46=V.17 7200bps short, 47=V.17 9600bps long, 48=V.17 9600bps short, 49=V.17 12000bps long, 4A=V.17 12000bps short, 4B=V.17 14400bps long, 4C=V.17 14400bps short, 60=2400bps (V.34 only), 61=4800bps (V.34 only), 62=7200bps (V.34 only), 63=9600bps (V.34 only), 64=12000bps (V.34 only), 65=14400bps,
66=16800bps, 67=19200bps, 68=21600bps, 69=24000bps, 6A=26400bps, 6B=28800bps, 6C=31200bps,
6D=33600bps
148 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Modem Reference Information
+H0
+H1
+H2
+H3
+H11
+H16
**0
**1
**2
-SDR=0
-SDR=1
-SDR=2
-SDR=3
Command
\K0,1
\K2,3
\K4,5
\N0
\N1
\N2
\N3
\N4
\K0,2,4
\K1
\K3
\K5
\K0,1
\K2,3
\K4,5
\N5
\V0
\V1
+MS=a,b,c,d
Function (Ambit)
When modem receives a break from the DTE:
Enter on-line command mode, no break sent to the remote modem
Clear buffers and send break to remote modem
Send break to remote modem immediately
Send break to remote modem in sequence with transmitted data
When modem receives \B in on-line command state:
Clear buffers and send break to remote modem
Send break to remote modem immediately
Send break to remote modem in sequence with transmitted data
When modem receives break from the remote modem:
Clear data buffers and send break to DTE
Send a break immediately to DTE
Send a break with received data to the DTE
Select normal speed buffered mode
Select direct mode
Select reliable link mode
Select auto reliable mode
Force LAPM mode
Force MNP mode
Connect messages are controlled by the command settings X, W, and S95
Connect messages are displayed in the single line format
Select modulation (b, c, and d are optional) a is the mode (bps): 0=V.21 (300), 1=V.22 (1200), 2=V.22bis (2400, 1200), 3=V.23 (1200, 300), 9=V.32
(9600, 4800), 10=V.32bis (14400, 12000, 9600, 7200, 4800), 11=V.34 (33600, 31200, 28800, 26400,
24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200, 4800, 2400), 17=X2, V.90 (57333-33333),
64=Bell 103 (300) b is automode: 0=disabled, 1=enabled c is minimum rate (bps): 300-33600 d is maximum rate (bps): 300-33600
Disable Rockwell Protocol Interface (RPI)/Video ready mode
Enable RPI and set DTE speed to 19200 bps
Enable RPI and set DTE speed to 38400 bps
Enable RPI and set DTE speed to 57600 bps
Enable RPI+ mode
Enable Video Ready mode
Download to flash memory at last sensed speed
Download to flash memory at 38.4 kbps
Download to flash memory at 57.6 kbps
Disable distinctive ring
Enable distinctive ring type 1
Enable distinctive ring type 2
Enable distinctive ring type 1 and 2
Corporate Evaluator’s Guide 149
Specifications and Regulatory Information
Modem Reference Information
%C0
%C1
%C2
%C3
\A0
\A1
\A2
\A3
\Bn
Command
-SDR=4
-SDR=5
-SDR=6
-SDR=7
ECC Commands
Function (Ambit)
Enable distinctive ring type 3
Enable distinctive ring type 1 and 3
Enable distinctive ring type 2 and 3
Enable distinctive ring type 1, 2 and 3
Disable data compression
Enable MNP 5 data compression
Enable V.42 bis data compression
Enable both V.42 bis and MNP 5 compression
Set maximum block size in MNP to 64
Set maximum block size in MNP to 128
Set maximum block size in MNP to 192
Set maximum block size in MNP to 256
Send break of n × 100 ms
MNP 10 Commands
-K0
-K1
-K2
-SEC=0
-SEC=1, [<tx level>]
Disable MNP 10 extended services
Enable MNP 10 extended services
Disable MNP 10 extended services detection only
Disable MNP 10-EC
Enable MNP 10-EC and set transmit level <tx level> 0 to 30 (0 dBm to -30 dBm)
FAX Class 1
+Fclass=1
+FAE=0
+FAE=1
+FRH=n
+FRM=n
+FRS=n
+FTH=n
+FTM=n
+FTS=n
Service class
Disable data/fax auto answer
Enable data/fax auto answer
Receive data with HDLC framing
Receive data
Receive silence, n×10 ms
Transmit data with HDLC framing
Transmit data
Stop transmission and wait, n×10 ms
AT* Commands
*B
*Cn
*NCn
Display black-listed number
Data calling tone selection
Select country parameters: 0=US, 1=Japan, 2=Germany, 3=UK, 4=France, 5=Netherlands, 6=Italy,
7=Australia, 8=Sweden, 9=Denmark, 10=New Zealand, 11=Korea, 12=China, 13=Singapore,
14=Malaysia, 15=South Africa, 16=Poland, 17=Czech Republic, 18=Hungary, 19=Hong Kong, 20=Turkey,
21=Spain.
150 Corporate Evaluator’s Guide
S-Registers (Ambit)
Register
S29
S30
S31
S32
S33
S36
S37
S38
S21
S22
S23
S24
S25
S26
S27
S28
S39
S40
S41
S46
S48
S10
S11
S12
S14
S16
S18
S19
S20
S6
S7
S8
S9
S0
S1
S2
S3
S4
S5
Function (Ambit)
Rings to auto-answer
Ring counter
Escape character
Carriage return character
Line feed character
Backspace character
Wait time for dial tone
Wait time for carrier
Pause time for dial delay modifier
Carrier detect response time
Carrier loss disconnect time
DTMF tone duration
Escape prompt delay
General bit mapped options status
Test mode bit mapped options status (&T)
Test timer
AutoSync options
AutoSync HDLC address or BSC Sync character
V.24/general bit mapped options status
Speaker/results bit mapped options status
General bit mapped options status
Sleep inactivity timer
Delay to DTR off
RTS-to-CTS delay
General bit mapped options status
General bit mapped options status
Flash dial modifier time
Disconnect inactivity timer
General bit mapped options status
XON character
XOFF character
LAPM failure control
Line connection speed
Delay before forced hangup
Flow control bit mapped options status
General bit mapped options status
General bit mapped options status
Data compression control
V.42 negotiation control
Specifications and Regulatory Information
Modem Reference Information
Range/units
0-255/s
0-255/s or .01s
0-255/.01 s
0-255/10 ms
0-255/10 s
0-255/ASCII
0-255/ASCII
0-255/s
0-255/rings
0-255/rings
0-255/ASCII
0-127/ASCII
0-127/ASCII
0-255/ASCII
2-255/s
1-255/s
0-255/s
1-255/.1 s
1-255/.1 s
50-255/.001 s
0-255/.02 s
0-255/s
0-255
Corporate Evaluator’s Guide 151
Default
52 (34h)
117 (75h)
62 (3Dh)
0
5
1
73 (49h)
0
70
0
194 (C2h)
17 (11h)
19 (13h)
7
0
20
3
104 (68h)
195(C3h)
138
7
2
50
2
6
0
0
43
13
10
8
0
0
0
0
14
95
50
138 (8Ah)
Specifications and Regulatory Information
Modem Reference Information
Register
S82
S86
S91
S92
S95
Function (Ambit)
LAPM break control
Call failure reason code
PSTN transmit attenuation level
Fax transmit attenuation level
Result code messages control
Selected Result Codes (Ambit)
Code
4
5
6
7
8
0
1
2
3
Meaning
OK
CONNECT
RING
NO CARRIER
ERROR
CONNECT 1200
NO DIAL TONE
BUSY
NO ANSWER
Range/units
0-15/dBm
0-15/dBm
Default
128 (40h)
0-255
10 (country dependent)
10 (country dependent)
0
152 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Safety Information
Safety Information
Power Cords
Country
The power cord supplied with the notebook AC adapter should match the plug and voltage requirements for your local area. Regulatory approval for the AC adapter has been obtained using the power cord for the local area. However, if you travel to a different area and need to connect to a different outlet or voltage, you should use one of the power cords lis ted below. To purchase a power cord (including one for a country not listed below) or a replacement AC adapter, contact your local Hewlett-Packard dealer or sales office.
HP Part Number Rated Voltage and
Current
125 Vac (3 A) 8120-6313 Canada
Mexico
Philippines
Taiwan
United States
Europe
Egypt
Israel
Saudi Arabia
Hong Kong
Singapore
United Kingdom
Australia
New Zealand
Japan
India
South Africa
People’s Republic of China
250 Vac (2.5 A)
250 Vac (2.5 A)
250 Vac (2.5 A)
125 Vac (3 A)
250 Vac (2.5 A)
250 Vac (2.5 A)
8120-6314
8120-8699
8120-6312
8120-6316
8120-6317
8120-8373
Corporate Evaluator’s Guide 153
Specifications and Regulatory Information
Safety Information
Battery Safety
•
To avoid risk of fire, burns, or damage to your battery pack, do not allow a metal object to touch the battery contacts.
•
The battery pack is suitable for use only with compatible HP notebook models. See
“To call the HP Customer Care Center” on page 126 for your local HP contact.
•
Do not disassemble. There are no serviceable parts inside. Do not dispose of the battery pack in fire or water.
•
Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention.
•
Do not expose the battery pack to high storage temperatures, above 60° C (140° F).
•
When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries.
•
To obtain a replacement battery, contact your local dealer or HP sales office.
•
Do not charge the battery pack if the ambient temperature exceeds 45° C (113° F).
•
When discarding a battery pack, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries.
Laser Safety
The CD-ROM and DVD drives used with the HP notebook PC are certified as Class 1 laser devices according to the U.S. Department of Health and Human Services (DHHS)
Radiation Performance Standard and International Standards IEC 825 / IEC 825-1
(EN60825 / EN60825-1). These devices are not considered harmful, but the following precautions are recommended:
•
Ensure proper use by reading and following the instructions carefully.
•
If the unit requires service, contact an authorized HP representative—see the “Service and Support ” section on page 125.
•
Do not attempt to make any adjustment of the unit.
154 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Safety Information
•
Avoid direct exposure to the laser beam—do not disassemble the drive.
CLASS 1 LASER
PRODUCT
LASER KLASSE
1
LED Safety
The infrared port located on the back panel of the notebook is classified as a Class 1 LED
(light-emitting diode) device according to International Standard IEC 825-1 (EN60825-1).
This device is not considered harmful, but the following precautions are recommended:
•
If the unit requires service, contact an authorized HP service center—see the “Service and Support ” section on page 125.
•
Do not attempt to make any adjustment of the unit.
•
Avoid direct eye exposure to the infrared LED beam. Be aware that the beam is invisible light and cannot be seen.
•
Do not attempt to view the infrared LED beam with any type of optical device.
CLASS 1 LED
PRODUCT
LEDSCHÜTZKL
ASSE 1
PRODUKT
Corporate Evaluator’s Guide 155
Specifications and Regulatory Information
Regulatory Information
Regulatory Information
This section presents information that shows how the HP notebook PC complies with regulations in certain regions. Any modifications to the computer not expressly approved by Hewlett-Packard could void the authority to operate the HP notebook PC in these regions.
U.S.A.
The HP notebook PC generates and uses radio frequency energy and may interfere with radio and television reception. The HP notebook PC complies with the limits for a Class B computing device as specified in Part 15 of FCC Rules, which provide reasonable protection against such interference in a residential installation. In the unlikely event that there is interference to radio or television reception (which can be determined by removing the unit’s batteries and AC adapter), try the following:
• reorienting or relocating the receiving antenna
• relocating the computer with respect to the receiver
• connecting the computer’s AC adapter to another power outlet
Connections to Peripheral Devices
To maintain compliance with FCC Rules and Regulations, use properly shielded cables with this device.
For more information, consult your dealer, an experienced radio/television technician, or the following booklet, prepared by the Federal Communications Commission: How to
Identify and Resolve Radio-TV Interference Problems. This booklet is available from the
U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4.
At the first printing of this manual, the telephone number was (202) 512-1800.
156 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Regulatory Information
Declaration of Conformity (U.S.A.)
Responsible Party:
Hewlett-Packard Company
Manager of Corporate Product Regulations
3000 Hanover Street
Palo Alto, CA 94304, U.S.A.
+1 (650) 857-1501 declares that the product
Trade name:
Hewlett-Packard Company
Product name:
Model Number(s):
Notebook PC
OmniBook XE3, Pavilion N5D series Notebook PC
(D is any digit 0 –9) complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interfe rence, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Canada
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in t he radio interference regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Communications du Canada.
European Union
The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network
(PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.
In event of problems, you should contact your equipment supplier in the first instance.
Corporate Evaluator’s Guide 157
Specifications and Regulatory Information
Regulatory Information
This equipment has been designed to work in all of the countries of the European
Economic Area (Public Switched Telephone Networks). Network compatibility is dependent on internal software settings. Contact your equipment supplier if it is necessary to use the equipment on a different telephone network. For further product support, contact Hewlett-Packard at the phone numbers provided in the “To call the HP
Customer Care Center” section on page 126.
Japan
Japan Telecommunications Approval
JATE approval number: A00-0143JP, A00-0434JP
Name of Equipment: T18M038.00, T18N040.00
Russia
??????? ?????????????? ? ??????? ???? ?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?
International
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
158 Corporate Evaluator’s Guide
Specifications and Regulatory Information
Regulatory Information
Products sold internationally by Hewlett-Packard and its authorized dealers meet the specifications listed below.
Corporate Evaluator’s Guide 159
Specifications and Regulatory Information
Regulatory Information
Declaration of Conformity (according to ISO/IEC Guide 22 and EN 45014)
Manufacturer’s Name:
Hewlett-Packard Company
Manufacturer’s Address:
Hewlett-Packard Company
Mobile Computing Division
19310 Pruneridge Ave.
Cupertino, CA 95014, U.S.A. declares that the following product
Product Name:
Safety:
EMC:
Telecom:
Supplementary
Information:
Notebook PC
Model Number(s):
OmniBook XE3, Pavilion N5D series Notebook PC (D is any digit 0–9)
Product Options:
All conforms to the following product specifications
IEC 950: 1991 +A1,A2,A3,A4 / EN 60950: 1992 +A1,A2,A3,A4,A11
IEC 60825-1: 1993 +A1/EN60825-1: 1994 +A11 Class 1 (LED)
GB4943-1995
CISPR 22: 1993 +A1,A2 / EN 55022: 1994 +A1,1995 +A2: 1997 Class B [1]
EN 61000-3-2:1995 +A1: 1998 +A2: 1998 / EN 61000-3-3:1995
GB9254-1988 FCC Title 47 CFR, Part 15 Class B/ANSI C63.4: 1992
AS/NZS 3548: 1995 Rules and Regulations of Class B
EN50082-1: 1997
EN 61000-4EN50082-1: 1997-2: 1995: 4kV CD, 8kV AD
EN 61000-4-3: 1995: 3V/m
EN 61000-4-4: 1995: 0.5kV Signal Lines
1kV Power Lines
TBR 21: 1998, EG 201 121: 1998
EN 61000-4-5: 1995
EN 61000-4-6: 1996
EN 61000-4-11: 1994
ENV 50204: 1995
The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, amended by 92/31/EEC & 93/68/EEC, and the R&TTE
Directive 1999/5/EC (Annex II) and carries the CE marking accordingly.
[1] The product was tested in a typical configuration with Hewlett Packard Personal Computer peripherals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The HP F1454A and F1781A AC/DC adapter used with this product is designed to operate on all power systems, other than IT power systems.
Corvallis, OR, May 4, 2000
European Contact for regulatory topics only: Hewlett Packard GmbH, HQ-TRE, Herrenberger
Straße 130, 71034 Boeblingen, Germany. Fax: +49 7031 143143).
160 Corporate Evaluator’s Guide
Index
Regulatory Information
USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover
Street, Palo Alto, CA 94304, U.S.A. Phone: +1 (650) 857-1501.
Index
AC adapter connecting, 22 location, 16 accessories, 12
ACPI, 46 address, HP website, 13
ALT GR key, 31
AOL, 56, 58 as your ISP, 56 connecting to, 56
Applications key, 31 applications, recovering, 132
AT commands, 57, 157 audio connecting devices, 69 troubleshooting, 112 auto/airline adapter, 12 battery best use of, 43 installing, 22 latch location, 17 location, 17 low power warning, 50 operating time, optimizing, 50 recharging, 22 safety, 165 status, 49 status light, 18 troubleshooting, 122
BIOS setup utility, 78 updating, 131, 137 bottom view, 17 cable security lock, 38
Caps lock status light, 18
CD-ROM access light, 18 buttons, 19 drive location, 14 troubleshooting, 113 cleaning the notebook, 44 click buttons location, 15 computer support, 137 configuring
BIOS, 78 modem, 57 connecting audio devices, 69 external monitor, 71 infrared device, 70
LAN, 62 modem, 54 parallel device, 67
TV set, 72
USB device, 68 copyrights, 2 data protection, 43 devices (external) infrared, 70 parallel, 67
USB, 68 diagnostic testing, 128 dial-in network connection, 57 digitally signed drivers, 83 display activating external, 71
Corporate Evaluator’s Guide 161
Regulatory Information
adjusting, 32 dual display, 72 extending life, 43 external, 71 troubleshooting, 113
TV set, 72 docking connector location, 17 drivers digital signing, 83 downloading, 83 updating, 137
Windows 2000, 83
Windows 98, 83
DVD access light, 18 buttons, 19 drive location, 14 troubleshooting, 114 eject button, PC cards, 16 e-mail, 58 embedded keypad, 31 ergonomics, 40 error-checking, 43 external components connecting, 65 keyboard, 68 monitor, 71 mouse, 68 factory installation, 130 faxes receiving (Windows 2000), 61 receiving (Windows 98), 59 sending (Windows 2000), 60 sending (Windows 98), 59 files, infrared transfer of, 70 floppy disk drive access light, 18 location, 16
Fn key, 30 front view, 15 hard disk drive
162 Corporate Evaluator’s Guide access light, 18 installation, 135 location, 17 protecting, 42 removal, 133 troubleshooting, 116 hardware specifications, 150 testing, 128 headphone jack location, 15 heat, troubleshooting, 116
Hewlett-Packard support, 112 hibernate, 48 hibernate partition, creating, 82 hot keys, 30
HP Customer Care telephone numbers, 138
HP notebook website, 137
HP Notes, 13
HP warranty, 143 infrared enabling, 69 port connection, 70 port location, 16 printers, 70 setting up, 70 transferring files, 70 inserting PC card, 63 installing hard disk drive, 135
Internet connecting to, 56 disconnecting from, 56
Internet Explorer, 54, 56
Internet Service Provider, 26, 54 inventory, 12
ISP, 26
Kensington lock, 38
Kensington lock slot location, 16 keyboard non-U.S., 31 troubleshooting, 117 keypad, 31
LAN connecting to, 62 port indicator lights, 62 port location, 14 laser safety, 165 latch location, 15
LED safety, 166 license agreement, 3 lights, LAN port, 62 lock, cable security, 38 memory, troubleshooting, 118 microphone jack location, 16 location, 14
MiniTel, 55 modem
AT commands, 57, 157 built-in, 23 connecting, 54 connecting to Internet with, 56 dial-in connection, 57 faxing with (Windows 2000), 60 faxing with (Windows 98), 59 port location, 14 sending e-mail with, 58 settings, 57 software, 54 speed, 54 troubleshooting, 118 monitor external, 71 resolution, 71, 72 mouse settings, 34 troubleshooting, 117 multimedia buttons, 19 location, 15 network connecting to, 62 dialing in to, 57 resuming connection, 63
Regulatory Information
notebook bottom view, 17 caring for, 42 cleaning, 44 front view, 15 ports, 66 rear and left view, 16 support, 137 top and right view, 14
Num lock status light, 18 using, 31 on/off switch location, 14 using, 24
One-Touch buttons location, 14 troubleshooting, 120
Outlook Express, 54, 58
Pad Lock button location, 14 parallel device, connecting, 68 parallel port location, 16 troubleshooting, 124 password, 37
PC card inserting, 63 removing, 63 saving power, 50 slot location, 16 troubleshooting, 120 using, 63 performance troubleshooting, 121 phone line, connecting, 23 plug requirements, 164 pointing device customizing, 34 location, 14 using, 33 port replicator connecting to, 73
Corporate Evaluator’s Guide 163
Regulatory Information
disconnecting from, 74 ports, 67 troubleshooting, 122 ports notebook, 66 port replicator, 67 power connecting AC, 22 processor speed, 51 resetting, 27 saving, 50 standby, 47 status light, 18 switch location, 14 troubleshooting, 122 using power switch, 20 power cords, 164 power management, 46 automated, 46 manual, 47 setting properties, 47 printing compatible printers, 68 infrared, 70 parallel connection, 67 troubleshooting, 124 processor speed, 51
PS/2 connecting device, 68 port location, 16
Y-adapter, 13
Quick Start sheet, 13
QuickLink, 54, 59
RAM, installing, 79 rear and left view, 16 receiving faxes (Windows 2000), 61 receiving faxes (Windows 98, 59 recovering applications, 132 hard disk, 130 software, 130
164 Corporate Evaluator’s Guide
Recovery CD replacing, 131 using, 130 registering computer, 25 regulatory information, 167 removing hard disk drive, 133 removing PC card, 63 repair service, 141 shipment, 141 repair service, 112 resetting computer, 27 resume, 21 resume, troubleshooting, 127 safety battery, 165 laser, 165
LED, 166 power, 164 voltage, 164
ScanDisk, 43 scroll lock status light, 18 scroll toggle location, 14 security cable, 38 security connector location, 16 sending faxes (Windows 2000), 60 sending faxes (Windows 98), 59 serial port conserving power, 51 location, 16 troubleshooting, 124 service (repair), 112 setting up, 22 shutting down, 47 software, 12 license, 3 recovering, 132 specifications, 154 system specifications, 154 updates, 137 specifications
hardware, 150 software, 154 software system, 154
SpeedStep, 51 standby, 21, 47 button location, 14 troubleshooting, 127 using button, 21
Startup Guide, 13 startup, troubleshooting, 126 status lights battery, 49 location, 14, 18 power, 24 status panel, 19 location, 15 support, 137 telephone, 138 system-off button location, 16 resetting, 27 telephone numbers, 138 support, 138 testing hardware, 128
TimTel, 55 top and right view, 14 touch pad, 43 configuring, 34 location, 14 settings, 34 troubleshooting, 117 using, 33 troubleshooting audio, 112 battery, 122
CD-ROM drive, 113 display, 113
DVD drive, 114 hard disk drive, 116 heat, 116
Regulatory Information
keyboard, 117 memory, 118 modem, 118 mouse, 117
One-Touch buttons, 120 parallel port, 124
PC card, 120 performance, 121 port replicator, 122 power, 122 printing, 124 resume, 127 serial port, 124 standby, 127 startup, 126 touch pad, 117
USB port, 124 turning off, 47 turning on, 20, 24, 47
TV port location, 16
TV set, 72 typing special characters, 31
USB connecting device, 68 port location, 16 troubleshooting, 124
User's Guide (electronic), 13 ventilation, 42
VGA port location, 16 views of computer bottom, 17 front, 15 rear and left, 16 top and right, 14 virus protection, 39 voltage requirements, 164 volume, adjusting, 32 warranty, 143 repair, 141 website, 13
Corporate Evaluator’s Guide 165
Regulatory Information
Windows downloading drivers, 83 key, 30 manual, 13 password, 37 setting up, 24 wireless communication, 70 work environment, 40 working in comfort, 40
166 Corporate Evaluator’s Guide
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 11 Introducing the Notebook Computer
- 12 Taking Inventory
- 12 Software bundled on your computer
- 12 To buy accessories
- 13 To find more information
- 14 Identifying Parts of the Notebook
- 14 Top and right side view
- 15 Front view
- 15 Rear and left side view
- 16 Bottom view
- 17 Status lights
- 17 Multimedia buttons
- 18 Status panel
- 19 Power switch and standby button
- 21 Setting Up Your Computer
- 21 To install the battery
- 21 To connect AC power
- 22 To connect a phone line
- 23 To turn on the computer
- 23 To set up Windows
- 24 To register your computer
- 25 To connect to an Internet Service Provider
- 26 To reset your computer
- 27 Using Your Computer
- 28 Operating Your Computer
- 28 To use the Fn hot keys
- 28 To use the Windows and Applications keys
- 29 To use the embedded keypad
- 29 To use the ALT GR key
- 30 To adjust the display brightness
- 30 To adjust the volume
- 31 To use the touch pad
- 32 To use the One-Touch buttons
- 35 Securing Your Computer
- 35 To set up password protection
- 36 To attach a security cable
- 37 To use virus-protection software
- 38 Working in Comfort with a Notebook PC
- 40 Caring for Your Computer
- 40 To protect your hard disk drive
- 40 To take care of your computer
- 41 To safeguard your data
- 41 To extend the life of the display
- 41 To get the most from your batteries
- 42 To clean your computer
- 43 Traveling with Your Computer
- 44 Managing Power Consumption
- 44 To use automated power management
- 45 To use manual power management
- 47 Using Battery Power
- 47 To check the battery status
- 48 To respond to a low-battery warning
- 48 To optimize battery operating time
- 49 To control the processor speed
- 51 Making Connections
- 52 Using the Modem
- 52 To connect the modem
- 54 To connect to the Internet
- 54 To disconnect from the Internet
- 55 To dial in to a network
- 55 To change your modem settings
- 56 To send and receive e-mail
- 57 To send and receive faxes (Windows 98)
- 58 To send and receive fa xes (Windows 2000)
- 60 Connecting to a LAN
- 61 Connecting PC Cards
- 63 Connecting External Components
- 63 To identify the ports
- 65 To connect a printer (or another parallel device)
- 65 To connect an external keyboard or PS/2 mouse
- 66 To connect a USB device
- 66 To connect audio devices
- 67 To use infrared devices
- 68 To use an external monitor
- 70 To use a TV set as monitor
- 70 To use the port replicator
- 73 Configuring and Expanding Your Computer
- 74 Using the BIOS Setup Utility
- 75 Installing RAM modules
- 77 Removing RAM modules
- 78 Expanding the hibernate partition
- 79 Updating Windows Drivers
- 79 To download the latest Windows drivers
- 79 To locate Windows drivers on your system
- 79 To use digitally signed drivers in Windows
- 81 Using Windows
- 82 Installing Retail Windows
- 82 Requirements
- 82 To prepare for software installation
- 83 To install a retail version of Windows
- 84 To install video support for retail Windows
- 85 To install audio and modem support for retail Windows
- 86 To install integrated LAN support for retail Windows
- 86 To install touchpad support for retail Windows
- 86 To install infrared support for retail Windows
- 87 Windows
- 88 To install the OneTouch utility for retail Windows
- 88 Windows 2000 power management
- 91 Using Windows
- 92 Installing Retail Windows 98 Second Edition
- 92 Requirements
- 92 To prepare for software installation
- 94 To install a retail version of Windows 98 Second Edition
- 95 To install video support for retail Windows 98 Second Edition
- 96 To install DirectX7 for retail Windows 98 Second Edition
- 96 To install audio and modem support for retail Windows 98 Second Edition
