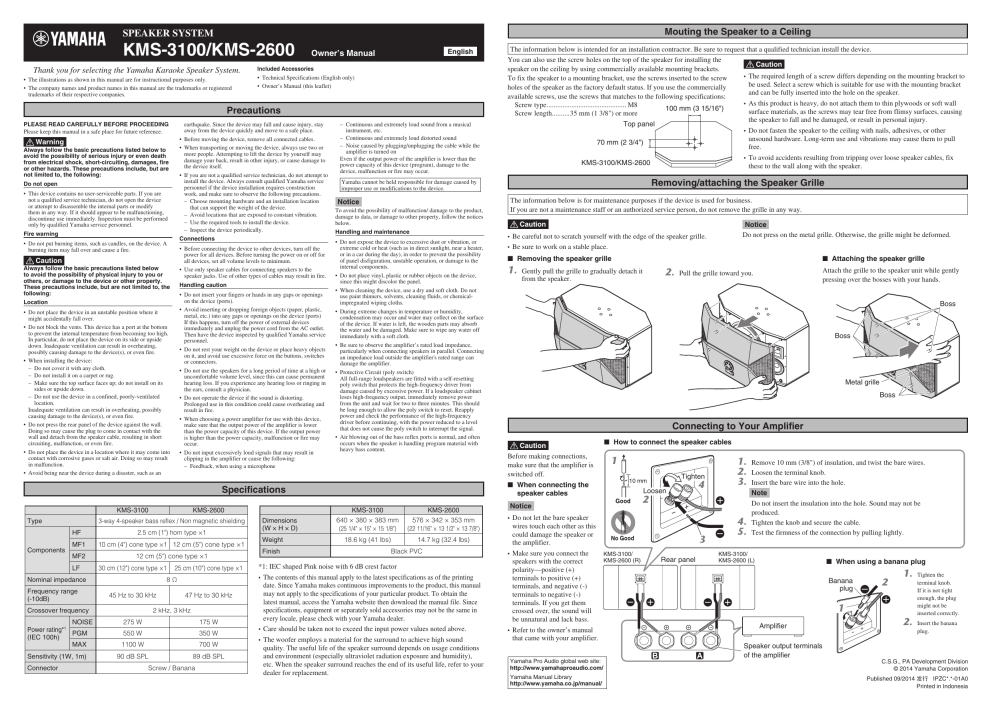

Yamaha KMS-3100 Owner's manual

Mouting the Speaker to a Ceiling
SPEAKER SYSTEM
KMS-3100/KMS-2600
Thank you for selecting the Yamaha Karaoke Speaker System.
•• The illustrations as shown in this manual are for instructional purposes only.
•• The company names and product names in this manual are the trademarks or registered
trademarks of their respective companies.
English
Owner’s Manual
Included Accessories
•• Technical Specifications (English only)
•• Owner’s Manual (this leaflet)
Precautions
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
earthquake. Since the device may fall and cause injury, stay
away from the device quickly and move to a safe place.
•• Before moving the device, remove all connected cables.
•• When transporting or moving the device, always use two or
more people. Attempting to lift the device by yourself may
damage your back, result in other injury, or cause damage to
the device itself.
•• If you are not a qualified service technician, do not attempt to
install the device. Always consult qualified Yamaha service
personnel if the device installation requires construction
work, and make sure to observe the following precautions.
–– Choose mounting hardware and an installation location
that can support the weight of the device.
–– Avoid locations that are exposed to constant vibration.
–– Use the required tools to install the device.
–– Inspect the device periodically.
Warning
Always follow the basic precautions listed below to
avoid the possibility of serious injury or even death
from electrical shock, short-circuiting, damages, fire
or other hazards. These precautions include, but are
not limited to, the following:
Do not open
•• This device contains no user-serviceable parts. If you are
not a qualified service technician, do not open the device
or attempt to disassemble the internal parts or modify
them in any way. If it should appear to be malfunctioning,
discontinue use immediately. Inspection must be performed
only by qualified Yamaha service personnel.
Fire warning
Connections
•• Do not put burning items, such as candles, on the device. A
burning item may fall over and cause a fire.
•• Before connecting the device to other devices, turn off the
power for all devices. Before turning the power on or off for
all devices, set all volume levels to minimum.
•• Use only speaker cables for connecting speakers to the
speaker jacks. Use of other types of cables may result in fire.
Caution
Always follow the basic precautions listed below
to avoid the possibility of physical injury to you or
others, or damage to the device or other property.
These precautions include, but are not limited to, the
following:
Handling caution
•• Do not insert your fingers or hands in any gaps or openings
on the device (ports).
•• Avoid inserting or dropping foreign objects (paper, plastic,
metal, etc.) into any gaps or openings on the device (ports)
If this happens, turn off the power of external devices
immediately and unplug the power cord from the AC outlet.
Then have the device inspected by qualified Yamaha service
personnel.
•• Do not rest your weight on the device or place heavy objects
on it, and avoid use excessive force on the buttons, switches
or connectors.
•• Do not use the speakers for a long period of time at a high or
uncomfortable volume level, since this can cause permanent
hearing loss. If you experience any hearing loss or ringing in
the ears, consult a physician.
•• Do not operate the device if the sound is distorting.
Prolonged use in this condition could cause overheating and
result in fire.
•• When choosing a power amplifier for use with this device,
make sure that the output power of the amplifier is lower
than the power capacity of this device. If the output power
is higher than the power capacity, malfunction or fire may
occur.
•• Do not input excessively loud signals that may result in
clipping in the amplifier or cause the following:
–– Feedback, when using a microphone
Location
•• Do not place the device in an unstable position where it
might accidentally fall over.
•• Do not block the vents. This device has a port at the bottom
to prevent the internal temperature from becoming too high.
In particular, do not place the device on its side or upside
down. Inadequate ventilation can result in overheating,
possibly causing damage to the device(s), or even fire.
•• When installing the device:
–– Do not cover it with any cloth.
–– Do not install it on a carpet or rug.
–– Make sure the top surface faces up; do not install on its
sides or upside down.
–– Do not use the device in a confined, poorly-ventilated
location.
Inadequate ventilation can result in overheating, possibly
causing damage to the device(s), or even fire.
•• Do not press the rear panel of the device against the wall.
Doing so may cause the plug to come in contact with the
wall and detach from the speaker cable, resulting in short
circuiting, malfunction, or even fire.
•• Do not place the device in a location where it may come into
contact with corrosive gases or salt air. Doing so may result
in malfunction.
•• Avoid being near the device during a disaster, such as an
–– Continuous and extremely loud sound from a musical
instrument, etc.
–– Continuous and extremely loud distorted sound
–– Noise caused by plugging/unplugging the cable while the
amplifier is turned on
Even if the output power of the amplifier is lower than the
power capacity of this device (program), damage to the
device, malfunction or fire may occur.
Notice
To avoid the possibility of malfunction/ damage to the product,
damage to data, or damage to other property, follow the notices
below.
Handling and maintenance
•• Do not expose the device to excessive dust or vibration, or
extreme cold or heat (such as in direct sunlight, near a heater,
or in a car during the day), in order to prevent the possibility
of panel disfiguration, unstable operation, or damage to the
internal components.
•• Do not place vinyl, plastic or rubber objects on the device,
since this might discolor the panel.
•• When cleaning the device, use a dry and soft cloth. Do not
use paint thinners, solvents, cleaning fluids, or chemicalimpregnated wiping cloths.
•• During extreme changes in temperature or humidity,
condensation may occur and water may collect on the surface
of the device. If water is left, the wooden parts may absorb
the water and be damaged. Make sure to wipe any water off
immediately with a soft cloth.
•• Be sure to observe the amplifier’s rated load impedance,
particularly when connecting speakers in parallel. Connecting
an impedance load outside the amplifier's rated range can
damage the amplifier.
•• Protective Circuit (poly switch)
All full-range loudspeakers are fitted with a self-resetting
poly switch that protects the high-frequency driver from
damage caused by excessive power. If a loudspeaker cabinet
loses high-frequency output, immediately remove power
from the unit and wait for two to three minutes. This should
be long enough to allow the poly switch to reset. Reapply
power and check the performance of the high-frequency
driver before continuing, with the power reduced to a level
that does not cause the poly switch to interrupt the signal.
•• Air blowing out of the bass reflex ports is normal, and often
occurs when the speaker is handling program material with
heavy bass content.
3-way 4-speaker bass reflex / Non magnetic shielding
Type
HF
Components
KMS-2600
MF1
MF2
LF
2.5 cm (1") horn type ×1
10 cm (4") cone type ×1 12 cm (5") cone type ×1
12 cm (5") cone type ×1
30 cm (12") cone type ×1
45 Hz to 30 kHz
NOISE
Power rating*1
PGM
(IEC 100h)
MAX
Sensitivity (1W, 1m)
Connector
47 Hz to 30 kHz
2 kHz, 3 kHz
Crossover frequency
Weight
Finish
18.6 kg (41 lbs)
14.7 kg (32.4 lbs)
Black PVC
*1: IEC shaped Pink noise with 6 dB crest factor
•• The contents of this manual apply to the latest specifications as of the printing
8Ω
Nominal impedance
Frequency range
(-10dB)
25 cm (10") cone type ×1
Dimensions
(W × H × D)
KMS-2600
576 × 342 × 353 mm
(22 11/16" × 13 1/2" × 13 7/8")
275 W
175 W
550 W
350 W
1100 W
700 W
90 dB SPL
89 dB SPL
Screw / Banana
date. Since Yamaha makes continuous improvements to the product, this manual
may not apply to the specifications of your particular product. To obtain the
latest manual, access the Yamaha website then download the manual file. Since
specifications, equipment or separately sold accessories may not be the same in
every locale, please check with your Yamaha dealer.
•• Care should be taken not to exceed the input power values noted above.
•• The woofer employs a material for the surround to achieve high sound
quality. The useful life of the speaker surround depends on usage conditions
and environment (especially ultraviolet radiation exposure and humidity),
etc. When the speaker surround reaches the end of its useful life, refer to your
dealer for replacement.
these to the wall along with the speaker.
Removing/attaching the Speaker Grille
The information below is for maintenance purposes if the device is used for business.
If you are not a maintenance staff or an authorized service person, do not remove the grille in any way.
Caution
Notice
Do not press on the metal grille. Otherwise, the grille might be deformed.
•• Be careful not to scratch yourself with the edge of the speaker grille.
•• Be sure to work on a stable place.
■ Attaching the speaker grille
■ Removing the speaker grille
1. Gently pull the grille to gradually detach it
2. Pull the grille toward you.
from the speaker.
Attach the grille to the speaker unit while gently
pressing over the bosses with your hands.
Boss
Boss
Metal grille
Boss
Connecting to Your Amplifier
Caution‌
Before making connections,
make sure that the amplifier is
switched off.
■ When connecting the
speaker cables
KMS-3100
640 × 380 × 383 mm
(25 1/4" × 15" × 15 1/8")
•• To avoid accidents resulting from tripping over loose speaker cables, fix
KMS-3100/KMS-2600
Yamaha cannot be held responsible for damage caused by
improper use or modifications to the device.
Specifications
KMS-3100
The information below is intended for an installation contractor. Be sure to request that a qualified technician install the device.
You can also use the screw holes on the top of the speaker for installing the
Caution
speaker on the ceiling by using commercially available mounting brackets.
•
•
The
required length of a screw differs depending on the mounting bracket to
To fix the speaker to a mounting bracket, use the screws inserted to the screw
be used. Select a screw which is suitable for use with the mounting bracket
holes of the speaker as the factory default status. If you use the commercially
and can be fully inserted into the hole on the speaker.
available screws, use the screws that matches to the following specifications:
•
•
As this product is heavy, do not attach them to thin plywoods or soft wall
Screw type.............................................. M8
100 mm (3 15/16")
surface materials, as the screws may tear free from flimsy surfaces, causing
Screw length...........35 mm (1 3/8") or more
the speaker to fall and be damaged, or result in personal injury.
Top panel
•• Do not fasten the speaker to the ceiling with nails, adhesives, or other
unsound hardware. Long-term use and vibrations may cause them to pull
70 mm (2 3/4")
free.
■ How to connect the speaker cables
1
Tighten
10 mm
Loosen
4
2
Notice
•• Do not let the bare speaker
wires touch each other as this
could damage the speaker or
the amplifier.
•• Make sure you connect the
speakers with the correct
polarity—positive (+)
terminals to positive (+)
terminals, and negative (-)
terminals to negative (-)
terminals. If you get them
crossed over, the sound will
be unnatural and lack bass.
•• Refer to the owner’s manual
that came with your amplifier.
Yamaha Pro Audio global web site:
http://www.yamahaproaudio.com/
Yamaha Manual Library
http://www.yamaha.co.jp/manual/
3
KMS-3100/
KMS-2600 (R)
Rear panel
1. Remove 10 mm (3/8") of insulation, and twist the bare wires.
2. Loosen the terminal knob.
3. Insert the bare wire into the hole.
Note
Do not insert the insulation into the hole. Sound may not be
produced.
4. Tighten the knob and secure the cable.
5. Test the firmness of the connection by pulling lightly.
KMS-3100/
KMS-2600 (L)
■ When using a banana plug
Banana
plug
1
Amplifier
Speaker output terminals
of the amplifier
2
1. Tighten the
terminal knob.
If it is not tight
enough, the plug
might not be
inserted correctly.
2. Insert the banana
plug.
C.S.G., PA Development Division
© 2014 Yamaha Corporation
Published 09/2014 发行 IPZC*.*-01A0
Printed in Indonesia

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
