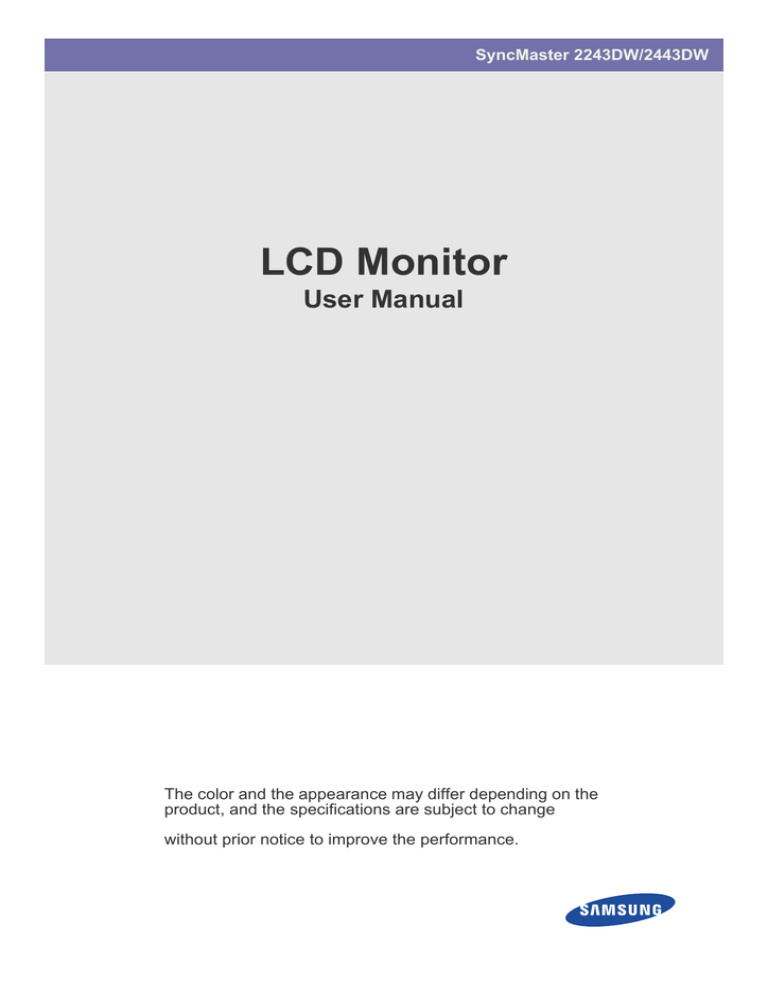

SyncMaster 2243DW/2443DW
LCD Monitor
User Manual
The color and the appearance may differ depending on the
product, and the specifications are subject to change
without prior notice to improve the performance.
Table Of Contents
MAJOR SAFETY PRECAUTIONS
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Custody and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
INSTALLING THE PRODUCT
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Installing the Stand for the Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Connecting with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Connecting the DP Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Connecting USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
USING THE PRODUCT
Setting the Optimal Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Standard Signal Mode Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Installing the Device Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Product Operating Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5
INSTALLING THE SOFTWARE
Natural Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
MagicTune . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
MagicRotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
MultiScreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
TROUBLESHOOTING
Monitor Self-Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
MORE INFORMATION
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Power Saving Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only . . . . . . . 6-4
1
Major Safety Precautions
1-1
Before You Start
Icons used in this manual
ICON
NAME
MEANING
Caution
Indicates cases where the function may not work or the setting may be canceled.
Note
Indicates a hint or tip to operate a function.
Using this Manual
•
Make yourself fully aware of the safety precautions before using this product.
•
If a problem occurs, refer to the 'Troubleshooting' section.
Copyright Notice
The contents of this manual are subject to change without prior notice for performance improvement.
Copyright © 2010 Samsung Electronics Co., Ltd. All Rights Reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written
permission of Samsung Electronics, Co., Ltd.
The SAMSUNG logo and SyncMaster are the registered trademarks of Samsung Electronics, Co., Ltd.
Microsoft, Windows and Windows NT are the registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are the registered trademarks of the Video Electronics Standard Association.
The ENERGY STAR® logo is the registered trademark of the U.S. Environmental Protection Agency.
All other trademarks mentioned herein belong to their respective companies.
Major Safety Precautions
1-1
1-2
Custody and Maintenance
External Surface and Screen Maintenance
Clean the product with a soft dry cloth.
•
Do not clean the product with a flammable substance such as benzene
or thinner, or clean with a wet cloth. This can cause a problem with the
product.
• Do not scratch the screen with your fingernails or a sharp object.
This can cause permanent scratches and damage to the product.
• Do not clean the product by spraying water directly onto the product.
If water enters the product, it can cause fire, electric shock, or a problem
with the product.
•
Do not use a supersonic humidifer near the monitor. A supersonic
humidifier can cause a white stain to appear on the high-gloss portions
of the product due to the inherent characteristics of the high golss
material.
The appearance and the color may differ depending on the model.
Securing the Installation Space
•
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature.
Install the product so the required distances shown in the figure are kept.
The appearance may differ depending on the product.
When installing the product with a stand
When installing the product with a wall-mount
About persistent images
•
Displaying a still image for a long time can create a persistent image or stain on the screen. If you intend to leave the display
on, but will not use it for a long time, set the power-saving mode or a screen saver on to protect the screen.
•
Due to technological constraints of the LCD Panel manufacturer, the images generated by this product may appear either
brighter or darker than normal by appr.1ppm (parts per million) pixel.
The number of sub-pixels of an LCD panel by size: The number of Sub-Pixels = Max. Horizontal Resolution x Max. Vertical
Resolution x 3
Example ) If the maximum resolution is 1680 x 1050, the number of sub-pixels is 1680 x 1050 x 3 = 5,292,000.
1-2
Major Safety Precautions
1-3
Safety Precautions
Icons used for safety precautions
ICON
NAME
MEANING
Warning
Failing to follow the precautions marked with this sign, may result in a serious injury or
even a fatality.
Caution
Failing to follow the precautions marked with this sign, may result in a personal injury or
property damage.
Meaning of Signs
Do not perform.
Must be followed.
Do not disassemble.
The power plug must be unplugged from the
wall outlet.
Do not touch.
Must be grounded to prevent electric shock.
Power Related
The product image used in the following pictures for your reference may look different from the actual product.
Warning
Avoid using a damaged power cord or plug or a
loose power outlet.
Avoid connecting multiple electric appliances to
a single wall outlet.
•
•
Otherwise, it may result in electric shock
or fire.
Avoid plugging in or unplugging the power
supply with wet hands.
•
Otherwise, it may result in fire due to
overheating of the wall outlet.
Plug the power plug in firmly.
•
Otherwise, it may result in fire.
Otherwise, it may result in electric
shock.
Make sure to connect the power cord to a
grounded wall outlet (for insulation class 1
equipment only).
Avoid bending or twisting the power cord
excessively and avoid placing heavy objects on
the cord.
•
•
Otherwise, it may result in electric shock
or injury.
Otherwise, it may result in electric shock
or fire due to a damaged power cord.
Keep the power cord and the product away
from a heater.
If the pins of the power plug or the wall outlet
are covered in dust, clean it using a dry cloth.
•
•
Otherwise, it may result in electric shock
or fire.
Major Safety Precautions
Otherwise, it may result in fire.
1-3
Caution
Avoid unplugging the power plug while the
product is operating.
•
Otherwise, it may damage the product
due to electric shock.
When unplugging the power plug from the wall
outlet, make sure to hold it by the plug and not
by the cord.
•
Make sure to use only the power cord supplied
by our company. In addition, do not use the
power cord of another electric appliance.
•
Otherwise, it may result in electric shock
or fire.
Connect the power plug to a wall outlet that can
be easily reached.
•
Otherwise, it may result in electric shock
or fire.
When a problem occurs with the
product, you must unplug the power
plug to cut the power off completely. You
cannot cut the power off completely
using only the power button on the
product.
Installation Related
Warning
Avoid placing burning candles, mosquitorepellent or cigarettes on the product and
installing the product near a heater.
Ask an installation engineer or relevant
company to install the product onto the wall.
•
Otherwise, it may result in injury.
•
•
Make sure to use the specified wall
mount.
Otherwise, it may result in fire.
Avoid installing the product in a badly-ventilated
location such as inside a bookshelf or closet.
Keep a distance of at least 10 cm from the wall
when installing the product for ventilation.
•
•
Otherwise, it may result in fire due to
internal over-heating.
Keep the plastic bags used to pack the product
away from children.
•
If children place the plastic bags over
their heads, they may suffocate.
Otherwise, it may result in fire due to
internal over-heating.
Avoid installing the product in a location that is
unstable or exposed to excessive vibrations
such as on an unstable or slanted shelf.
•
The product may fall and this may result
in damage to the product or injury.
•
If you use the product in a location
exposed to excessive vibrations, it may
result in a problem with the product or
fire.
Avoid installing the product in a location
exposed to dust, moisture (sauna), oil, smoke
or water (rain drops) and installing it within a
vehicle.
Avoid installing the product in a location
exposed to direct sunlight and installing the
product near a heat source such as a fire or
heater.
•
•
This may result in electric shock or fire.
This may shorten the product life cycle
or cause fire.
Avoid installing the product at an easily
reachable height where children may reach it.
1-3
•
If a child touches the product, the
product may fall and this may result in
injury.
•
Since the front part is heavier, install the
product on a flat and stable surface.
Major Safety Precautions
Caution
Do not let the product drop while moving it.
•
This may result in a problem with the
product or injury.
When installing the product on a console or
shelf, make sure that the front of the product
does not protrude out of the console or shelf.
•
Otherwise, this may cause the product
to fall off and result in a malfunction or
injury.
•
Make sure to use a cabinet or shelf
suitable to the size of the product.
Do not place the product face down on the
floor.
•
This may damage the panel of the
product.
When putting the product down, handle it
gently.
•
Otherwise, it may result in a problem
with the product or injury.
If the product is installed in a location where the
operating conditions vary considerably, a
serious quality problem may occur due to the
surrounding environment. In this case, install
the product only after consulting one of our
service engineers about the matter.
•
Places exposed to microscopic dust,
chemicals, too high or low temperature,
high humidity, such as airports or
stations where the product is
continuously used for a long time and so
on.
Cleaning Related
Since using a surfactant, which contains a large amount of alcohol, solvent or other strong chemicals, may result
in the discoloration or cracking of the product exterior or the panel surface coming off, be sure to use the recommended cleansing agent only.
You can purchase the recommended cleansing agent from a service center.
Before cleaning the product, unplug the power
cord.
When cleaning the product, do not spray water
directly over the product parts.
•
•
Make sure that water does not enter the
product.
•
Otherwise, it may result in fire, electric
shock or a problem with the product.
Otherwise, it may result in electric shock
or fire.
Major Safety Precautions
1-3
Caution
Avoid spraying cleansing agent directly onto
the product.
•
This may result in discoloration or
cracking of the exterior of the product or
the panel coming off.
Use a soft, cloth dampened with a
"monitorexclusive cleansing agent" and wipe
the product with it.
•
If no monitor-exclusive cleansing agent
is available, dilute a cleansing agent
with water at a ratio of 1:10 before
cleaning the product.
When cleaning the product, disconnect the
power cord and clean the product with a soft
dry cloth.
•
Avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or
cleansing agent when cleaning the
product.
This may result in the exterior being
deformed or the print being removed.
Because the exterior of the product is easily
scratched, be sure to use a proper cleansing
cloth. However, if the cloth is contaminated by
alien substances, it may result in scratches to
the exterior; therefore shake off any alien
substances from the cloth before using it.
Usage Related
Warning
Since a high voltage runs through the product,
never disassemble, repair or modify the product
yourself.
•
Otherwise, it may result in fire or electric
shock.
•
If the product needs to be fixed, contact
a service center.
If the product generates a strange noise, a
burning smell, or smoke, unplug the power
plug immediately and contact a service center.
•
1-3
Make sure that water does not enter the
product.
•
Otherwise, it may result in fire, electric
shock or a problem with the product.
Avoid letting children to hang or climb onto the
product.
•
Otherwise, it may result in electric shock
or fire.
Otherwise, it may result in the product
falling and this may result in injury or
death.
Avoid placing objects such as toys and cookies
on top of the product.
•
Otherwise, it may result in fire or electric
shock.
When thunder or lighting occurs, unplug the
power cord and under no circumstance touch
the antenna cable as this is dangerous.
•
•
Otherwise, it may result in electric shock
or fire.
If you drop the product or the case is damaged, turn the power off and unplug the
power cord. Contact a service center.
•
When cleaning the product, do not spray water
directly over the product parts.
If a child hangs over the product to grab
an object, the object or the product may
fall and this may result in injury or even
death.
Avoid dropping an object over the product or
cause impact to the product.
•
Otherwise, it may result in electric shock
or fire.
Major Safety Precautions
Avoid moving the product by pulling the power
cord or antenna cable.
•
Otherwise, it may result in electric
shock, fire or a problem with the product
due to damage to the cable.
When a gas leak occurs, do not touch the
product or the power plug and ventilate
immediately.
•
A spark may result in an explosion or
fire.
•
During a thunder or lighting storm, do
not touch the power cord or antenna
cable.
Avoid lifting up or move the product by holding
only the power cord or signal cable.
Avoid using or placing inflammable spray or
objects near the product.
•
•
Otherwise, it may result in electric
shock, fire or a problem with the product
due to damage to the cable.
Take care not to block the vent by a table cloth
or curtain.
•
Otherwise, it may result in fire due to
internal overheating.
This may result in an explosion or fire.
Avoid inserting metal objects such as a
chopsticks, coins or hairpins, or inflammable
objects into the product (the vents, ports, etc).
•
If water or an alien substance enters the
product, turn the power off, unplug the
power cord and contact a service center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Avoid placing a liquid container such as a vase,
flowerpot, beverage, cosmetics or drugs, or a
metal object over the product.
•
If water or an alien substance enters the
product, turn the power off, unplug the
power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Caution
Displaying a still image for a long time may
create a persistent image or stain on the
screen.
When not using the product for a long time
such as leaving your home, unplug the power
cord from the wall outlet.
•
•
If you do not use the product for a long
time, use the power-saving mode or set
the screensaver to the moving picture
mode.
Otherwise, it may cause dust
accumulation and result in fire caused
by overheating or short circuit or result in
an electric shock.
Set the appropriate resolution and frequency
for the product.
Avoid turning the product upside down or
moving the product holding only the stand.
•
•
Otherwise, it may result in eye strain.
Watching the product from too close a distance
continuously may damage your eyesight.
Avoid using a humidifier or cooker near the
product.
•
It is important to give your eyes some rest (5
minutes every hour) when viewing the product
screen for long periods of time.
•
This may cause the product to fall
resulting in damage to the product or
injury.
Otherwise, it may result in electric shock
or fire.
Since the display panel is hot after being on for
a long time, do not touch the product.
This will alleviate any eye strain.
Major Safety Precautions
1-3
Keep small accessories away from the children.
Take care when adjusting the angle of the
product or the height of the stand.
•
If your hand or finger is caught, you may
be injured.
•
If the product is tilted excessively, the
product may fall and this may result in
injury.
Avoid placing a heavy object over the product.
•
Otherwise, it may result in a problem
with the product or injury.
Maintaining the Correct Posture when Using this Product
Maintain the correct posture when using this product.
1-3
•
Straighten your back.
•
Keep a distance of 45~50 cm from your eyes to the screen. Look down at the screen and
face the screen forwards.
•
Adjust the angle of the product so that light is not reflected onto the screen.
•
Keep your elbow at a right angle and keep your arm level with the back of your hand.
•
Keep your elbow at a right angle.
•
Place your heels flat on the ground while keeping your knees at an angle of 90 degrees or
higher and maintain the position of your arm so that your arm is below your heart.
Major Safety Precautions
2
Installing the Product
2-1
Package Contents
•
Unpack the product and check if all of the following contents have been included.
•
Store the packaging box in case you need to move the Product later.
•
If any items are missing, contact your dealer.
•
Contact a local dealer to purchase optional items.
Type 1
Monitor and HAS stand
Type 2
Monitor and HAS-USB stand
CONTENTS
Installation Manual
Product Warranty
User Manual
D-Sub Cable
(Not available in all locations)
Power Cord
Installing the Product
Cleaning Cloth
Cable holding ring
2-1
OPTIONAL PARTS
DVI Cable
2-1
USB Cable
DP Cable
•
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
•
The cleaning cloth is supplied with black high-glossy models only.
Installing the Product
2-2
Installing the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
Place a soft cloth over the table to protect the product and place the product onto the
cloth face down.
Insert the stand body into the stand base as shown in the figure.
Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.
- Caution
Do not lift the product holding only the stand.
Disassembly is in the reverse order of the assembly.
Installing the Product
2-2
When pivot the monitor from horizontal to vertical,tilt the monitor backward to maximum
first.
Stand Stopper
2-2
Installing the Product
2-3
Installing the Stand for the Wall Mount
This product provides a stand mount of 100 mm x 100 mm ( 3.9 inches x 3.9 inches ) that complies with the VESA specifications.
Installing the Product
2-3
HAS Stand
Monitor
Mounting interface pad (Sold separately)
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product down on the cloth so that the front of
the product faces downwards.
3. Separate the stand.
4. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand,
wall mount stand or another stand) and firmly fix the stand by fastening the screw.
2-3
•
If you use a screw that is longer than the standard specifications, the inside of the product may be damaged.
•
For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ
depending on the corresponding specifications.
•
Do not use screws that are incompatible with the standard VESA specifications and do not assemble them using
excessive force.
•
This may result in damage to the product or injury due to the product falling.
•
The company shall not be held liable for any damage or injury.
•
The company shall not be held liable for any damage to the product or injury caused by using a stand that is not
compatible with the specified specifications or due to an installation not performed by an authorized installation
engineer.
•
When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm of space from the
wall.
•
The company shall not be held liable for any problems caused by using a stand that is not compatible with the specified
specifications.
•
Use the wall mount according to the international specifications.
Installing the Product
2-4
Connecting with a PC
The connecting part may differ depending on the product model.
1. Connect the product to a PC depending on the video output supported by the PC.
•
When the graphics card provides D-Sub (<Analog>) output
•
•
Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable.
When the graphics card provides DVI (<Digital>) output
•
Connect the [DVI IN] port of the product to the [DVI] port of the PC with the DVI cable.
2. Connect one end of the power cord to the [POWER] port of the product and connect the other end of the power cord to the
110V or 220V wall outlet.
(The input voltage is switched automatically.)
Installing the Product
2-4
When the product is connected to a PC, you can turn the product on and use it.
POWER ON [ │ ] / OFF
Switches the Power On/Off.
2-4
Installing the Product
2-5
Connecting the DP Cables
Connect the [DP IN] ports of the PC and all the installed monitors using DP cables.
Installing the Product
2-5
2-6
Connecting USB
Applicable to the stand models that have USB ports only.
You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by connecting them to
the
DOWN port of the monitor without connecting them to the PC.
USB port of the monitor supports High-Speed Certified USB 2.0.
The
High speed
Full speed
Low speed
Data Rate
480 Mbps
12 Mbps
1.5 Mbps
Power Consumption
2.5 W
2.5 W
2.5 W
(Max., each port)
(Max., each port)
(Max., each port)
1. Connect the
UP port of the monitor and the USB port of the computer with the USB cable.
•
To use
•
Make sure to use the USB cable supplied with this monitor to connect the monitor's
USB port.
2. Connect the
DOWN port, you have to connect the UP (Upstream Cable) to the PC.
UP port and your computer's
DOWN port of the USB monitor and a USB device with the USB cable.
3. The use procedures are as the same as those for using an external device connecting to the PC.
•
2-6
You can connect and use a keyboard and mouse.
Installing the Product
•
You can play a file from a media device.
(Examples of media devices: MP3, digital camera, etc.)
•
You can run, move, copy or delete the files on the storage device.
(Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.)
•
You can use other USB devices that can be connected to a computer.
•
When connecting a device to the
device.
•
(For the purchase of the cable and external devices, ask the service center of the corresponding product.)
•
The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the
connection.
•
Some products do not follow the USB standard, and it may cause a malfunction of the device.
•
If the device malfunctions even if it is connected to the computer, contact the service center of the device/computer.
Installing the Product
DOWN port of the monitor, connect the device using a cable appropriate to the
2-6
2-7
Kensington Lock
A Kensington Lock is an anti-theft device that enables users to lock the product so that they can safely use it in public locations.
Since the shape and usage of the locking device may differ depending on the model and the manufacturer, for more information,
refer to the User Manual supplied with the locking device for more information.
You must purchase the Kensington Lock separately.
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as a desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.
3. Insert the locking device into the Kensington slot on the Monitor(
4. Lock the lock(
2-7
).
).
•
These are general instructions. For exact instructions, see the User Manual supplied with the locking device.
•
You can purchase the locking device from an electronics store, an online shop, or our service center.
Installing the Product
3
Using the product
3-1
Setting the Optimal Resolution
If you turn the power on after purchasing the product, a message regarding the optimal resolution setting appears on the screen.
Select a language and the optimal resolution.
▲/▼ : You can select a language with these buttons.
MENU : If you press this button, the message disappears.
•
It can be displayed up to one (1) times. Make sure to adjust the resolution of your PC before reaching the maximum
count.
•
To set the resolution to the optimal resolution
•
When the PC is turned off, connect the product and the PC and turn the power on.
•
Right-click over the Desktop and select 'Properties' from the pop-up menu.
•
In the 'Settings' tab, set the resolution to the optimal resolution.
Using the product
3-1
3-2
Standard Signal Mode Table
The LCD monitor has one optimal resolution for the best visual quality depending on the screen size due to the inherent
characteristics of the panel, unlike for a CDT monitor.
Therefore, the visual quality will be degraded if the optimal resolution is not set for the panel size. It is recommended setting
the resolution to the optimal resolution of the product.
If the signal from the PC is one of the following standard signal modes, the screen is set automatically. However, if the signal from
the PC is not one of the following signal modes, a blank screen may be displayed or only the Power LED may be turned on.
Therefore, configure it as follows referring to the User Manual of the graphics card.
2243DW
DISPLAY MODE
HORIZONTAL
FREQUENCY (KHZ)
VERTICAL
FREQUENCY (HZ)
PIXEL CLOCK (MHZ)
SYNC POLARITY (H/
V)
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
31.469
59.940
25.175
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 800
49.702
59.810
83.500
-/+
VESA, 1280 x 800
62.795
74.934
106.500
-/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA, 1440 x 900
55.935
59.887
106.500
-/+
VESA, 1440 x 900
70.635
74.984
136.750
-/+
VESA, 1680 x 1050
64.674
59.883
119.000
+/-
2443DW
3-2
Using the product
DISPLAY MODE
HORIZONTAL
FREQUENCY (KHZ)
VERTICAL
FREQUENCY (HZ)
PIXEL CLOCK (MHZ)
SYNC POLARITY (H/
V)
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
31.469
59.940
25.175
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 800
49.702
59.810
83.500
-/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA, 1440 x 900
55.935
59.887
106.500
-/+
VESA, 1440 x 900
70.635
74.984
136.750
-/+
VESA, 1600 x 1200
75.000
60.000
162.000
+/+
VESA, 1680 x 1050
65.290
59.954
146.250
+/-
VESA, 1920 x 1200
74.038
59.950
154.000
+/-
Horizontal Frequency
The time taken to scan one line from the left-most position to the right-most position on the screen is called the horizontal cycle
and the reciprocal of the horizontal cycle is called the horizontal frequency. The horizontal frequency is represented in kHz.
Vertical Frequency
A panel must display the same picture on the screen tens of times every second so that humans can see the picture. This
frequency is called the vertical frequency. The vertical frequency is represented in Hz.
Using the product
3-2
3-3
Installing the Device Driver
If you install the device driver, you can set up the appropriate resolution and frequency for the product. The device driver is
included on the CD-ROM supplied with the product. If the supplied drive file is corrupted, please visit a service center or
Samsung Electronics website(http://www.samsung.com/), and download the driver.
1. Insert the driver installation CD-ROM into the CD-ROM drive.
2. Click on "Windows Driver".
3. Complete the remaining installation steps according to the instructions displayed on the screen.
4. Select the model of your product from the model list.
5. Check if the appropriate resolution and screen refresh rate are displayed in the Control Panel settings. For more information,
refer to the document about the Windows operating system.
3-3
Using the product
3-4
Product Operating Buttons
Product Operating Buttons
Touch them lightly with your fingers to use them.
ICON
DESCRIPTION
Press this button to view the On Screen Display (OSD).
This button is also used to exit the OSD or to return to a higher-level OSD menu
* OSD Adjustment Lock
This function locks the OSD in order to maintain the current settings or to prevent the settings
from being changed by another person
MENU
On: If you press and hold the MENU button down for 5 seconds, the OSD Adjustment Lock
function is activated.
Off: If you press and hold the MENU button down for 5 seconds again, the OSD Adjustment
Lock function is disabled.
Even if the OSD Adjustment Lock function is activated, users can adjust the brightness
and contrast and can set up the adjustment function assigned to the [ ].
▲/▼
Use these buttons to navigate the menu or to adjust a value in the OSD.
Use this button to control the brightness of the screen.
Users can set the <Customized Key> to one of the following functions. If the user presses the
Customized Key[ ] after setting it, the configured function will be performed.
•
<MagicBright> - <MagicAngle> - <MagicEco> - <Image Size>
You can set the function of the <Customized Key> by selecting <SETUP&RESET> ->
<Customized Key> in the OSD.
Use this button to select a function.
If you press the [
] button when there is no OSD, the input signal (Analog/Digital/
DP) is switched. When the input signal is switched by pressing [
] button or the
product is turned on, a message displaying the selected input signal appears at the top
left of the screen.
Using the product
•
To select Digital mode, you have to connect the product and the PC with the DVI
cable.
•
To select DP mode, you have to connect the product and the PC with the DP cable.
3-4
ICON
DESCRIPTION
Press [AUTO] button to adjust the screen settings automatically.
AUTO
This function is only available in Analog mode.
If the resolution settings are changed in the Display Properties, the AUTO adjustment function is performed.
Press this button to turn the product on or off
This light is lit when operating normally, and blinks once when your adjustments are saved.
Power Indicator
3-4
For more information on the power-saving function, refer to the power saving function
in More Information. When not using the product for a long time, unplugging the power
cord is recommended to minimize power consumption.
Using the product
3-5
Using the Screen Adjustment Menu (OSD: On Screen Display)
The Screen Adjustment Menu (OSD: On Screen Display) Structure
Top Menus
COLOR
SIZE & POSITION
SETUP&RESE
T
Sub Menus
Brightness
Contrast
Sharpness
MagicBright
MagicAngle
Coarse
Fine
MagicColor
Red
Green
Blue
Color Tone
Color Effect
Gamma
H-Position
V-Position
Image Size
Menu H-Position
Menu V-Position
Reset
Language
MagicEco
Off Timer On/Off
Off Timer Setting
Customized Key
Auto Source
Display Time
PC/AV Mode
Menu Transparency
INFORMATION
Monitor functions may vary according to models. Please refer to actual product.
Menu
Description
Controls the screen brightness.
Brightness
•
This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> mode.
•
This menu is unavailable when <MagicEco> is set.
Controls the contrast of the pictures displayed on the screen
•
This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema>
mode.
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <Color Effect> is set.
Contrast
Controls the clarity of details of pictures displayed on the screen
•
This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema>
mode.
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <Color Effect> is set.
Sharpness
Using the product
3-5
Menu
Description
Provides preset picture settings optimized for various user environments such as editing a document,
surfing the Internet, playing games,or movies and so on.
•
<Custom>
If the preset picture modes are not sufficient, users can configure the <brightness> and
<Contrast> directly using this mode.
• <Standard>
This mode provides the picture setting appropriate for editing a document and surfing the Internet
(text + picture).
MagicBright
• <Game>
This mode provides the picture setting appropriate for playing games that include lots of graphics and
that require a fast screen refresh rate.
• <Cinema>
This mode provides brightness and sharpness settings similar to those of a TV for the best
entertainment environment (movie, DVD, etc.).
• <Dynamic Contrast>
Controls the picture contrast automatically so that bright and dark pictures are balanced overall.
This menu is unavailable when <MagicAngle> or <MagicEco> is set.
This feature allows you to see optimal screen quality according to your viewing position.
When viewing the screen at an angle from below, above or the side of the monitor, by setting the
appropriate mode for each position you can obtain a similar picture quality as viewing the screen
directly from the front.
Set to <Off> when viewing directly in front of the screen.
MagicAngle
3-5
•
<Off>
- Select when viewing from the front position.
•
<Lean Back Mode1>
- Select when viewing from a slightly lower position.
•
<Lean Back Mode2>
- Select when viewing from the lower position.
•
<Standing Mode>
•
<Side Mode>
•
<Group View> - Select when two or more person view among
time.
•
<Custom> -When <Custom> is selected, settings for <Lean Back Mode 1> is applied by default.
Users can set suitable picture quality as needed.
-Select when viewing from the upper position.
- Select when viewing from the left or right position.
,
,
position at the same
•
This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> or <Cinema>
mode.
•
This menu is unavailable when <MagicColor> or <Color Effect> is set.
Using the product
Menu
Description
Removes vertical noise lines (line pattern) from the screen.
Coarse
The location of the screen may be changed after the adjustment. In this case, move the screen so
that the screen is displayed at the center of the display panel using the <H-Position> menu.
This function is only available in Analog mode.
Removes horizontal noise lines (line pattern) from the screen.
Fine
If you cannot remove the noise completely with the <Fine> function, adjust the <Coarse> and then
use the <Fine> function again.
This function is only available in Analog mode.
COLOR
Using the product
3-5
Menu
Description
Expresses natural colors more clearly without changing the picture quality using proprietary digital
picture quality improvement technology developed by Samsung Electronics.
MagicColor
•
<Off> - Turns the MagicColor function off.
•
<Demo> - You can compare the pictures processed by MagicColor with the original pictures.
•
<Full> - Provides a clearer picture including areas corresponding to skin color.
•
<Intelligent> - Improves the chroma of pictures except for areas corresponding to skin color.
•
This menu is unavailable when <MagicAngle> is set.
•
This menu is unavailable when <Color Effect> is set.
You can adjust the red color value of pictures according to your preference.
Red
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <Color Effect> is set.
You can adjust the green color value of pictures according to your preference.
Green
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <Color Effect> is set.
You can adjust the blue color value of pictures according to your preference.
Blue
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <Color Effect> is set.
You can set the color temperature according to your preference.
Color Tone
•
<Cool> - Sets the color temperature of the screen to a cooler color.
•
<Normal> - Sets the color temperature of the screen to the standard color temperature.
•
<Warm> - Sets the color temperature of the screen to a warmer color.
• <Custom> - Select this menu to set the color temperature manually.
If you do not like the preset color temperatures, you can manually adjust the value of RGB.
•
This menu is unavailable when <MagicColor> is set to <Full> mode or <Intelligent> mode.
•
This menu is unavailable when <MagicAngle> is set.
•
This menu is unavailable when <Color Effect> is set.
You can change the overall atmosphere by changing the color of pictures.
Color Effect
•
<Off> - Turns the <color effect> function off.
•
<Grayscale> -Displays pictures in black and white.
•
<Green> - Displays pictures in green mono color.
•
<Aqua> - Displays pictures in aqua mono color.
•
<Sepia> - Displays pictures in sepia mono color.
•
This menu is unavailable when <MagicAngle> is set.
•
This menu is unavailable when <MagicColor> is set.
Using this menu, you can change the intensity of the colors of medium brightness.
Gamma
•
<Mode1> - <Mode2> - <Mode3>
This menu is unavailable when <MagicAngle> is set.
3-5
Using the product
(This is unavailable when <MagicBright> is set to <Dynamic Contrast> and <Cinema> mode.)
SIZE & POSITION
Menu
Description
Moves the position of the display area on the screen horizontally.
H-Position
•
This function is only available in Analog mode.
•
When TV signal is input in AV mode ,select <Screen Fit> to adjust horizontal position in 0-6
levels.
Moves the position of the display area on the screen vertically.
V-Position
•
This function is only available in Analog mode.
•
When TV signal is input in AV mode ,select <Screen Fit>to adjust vertical position in 0-6
levels.
Supplied for the wide models only such as 16:9 or 16:10.
PC signals
•
<Auto> - The picture is displayed at the aspect ratio of the input signal.
•
<Wide> - The picture is displayed in full screen regardless of the aspect ratio of the input signal.
•
A signal not in the standard mode table is not supported.
•
If the resolution is set to the optimal resolution, the aspect ratio does not change whether the
<Image Size> is set to <Auto> or <Wide>.
AV signals
Image Size
•
<4 : 3> - Displays pictures at the 4:3 aspect ratio.
•
<16 : 9> - Displays pictures at the 16:9 aspect ratio.
•
<Screen Fit> - If a 720P, 1080i or 1080P signal is input in DVI input mode, the picture is displayed
as is without truncation.
This can only be set when the external input is connected through DVI and <PC/AV Mode> is
set to <AV>.
Using the product
•
<4 : 3> - Displays pictures at the 4:3 aspect ratio.
•
<wide> - Displays pictures at the 16:10 aspect ratio.
•
<Screen Fit> - If a 720P, 1080i or 1080P signal is input in DVI input mode, the picture is displayed
as is without truncation.
•
It can only be selected if an external input is connected to the DVI terminal and the <PC/AV
Mode> is set to <AV>.
•
When the panel is of 16:10,the screen size options include <4:3>,<wide>,<Screen fit>.
3-5
Menu
Description
Menu H-Position
You can adjust the horizontal position of the OSD.
Menu V-Position
You can adjust the vertical position of the OSD.
SETUP&RESET
Menu
Reset
Description
Use this function to restore the visual quality and color settings to the factory defaults.
•
<No> - <Yes>
Select a language for the OSD.
Language
The selected language is only applied to the product OSD. This setting does not affect the other
functions of the PC.
This function provides user a low power mode which is realized by lowering the current of the display
panel.
MagicEco
•
<100%>
When <100%> is selected, the power consumption is 100% of default setting.
•
<75%>
When <75%> is selected, the power consumption is about 75% of default setting.
•
<50%>
When <50%> is selected, the power consumption is about 50% of default setting.
•
<Power Saving Off>
When <Power Saving Off> is selected, the function is turned Off .
This menu is unavailable when <MagicBright> is set to <Dynamic Contrast> mode.
Off Timer On/Off
You can turn the Off Timer on or off.
•
<Off> - <On>
Turns the power off automatically when the configured time is reached.
Off Timer Setting
Customized Key
Auto Source
3-5
When <On> of <Off Timer On/Off> is selected,This function is available only.
You can set the function of the Customized Key to one of the following.
<MagicBright> - <MagicAngle> - <MagicEco> - <Image Size>
•
<Auto> - The monitor automatically selects an input signal.
•
<Manual> - Users have to manually select an input signal.
Using the product
Menu
Description
The OSD automatically disappears if no action is taken by the user.
Display Time
You can determine the time to wait before the OSD is hidden.
•
<5 sec> - <10 sec> - <20 sec> - <200 sec>
Set to PC when connected to a PC.
Set to AV when connected to an AV device.
PC/AV Mode
Menu Transparency
•
This function does not support Analog mode.
•
Supplied for the wide models only such as 16:9 or 16:10.
You can select the transparency of the OSD.
•
<Off> - <On>
INFORMATION
Menu
INFORMATION
Using the product
Description
Shows the frequency and resolution set on the PC.
3-5
4
Installing the Software
4-1
Natural Color
What is Natural Color ?
This software works only for Samsung products and enables adjusting the displayed colors on the product and matches the
colors on the product with the colors of the printed pictures. For more information, refer to the online help of the software (F1).
The Natural Color is provided online. You can download it from the website below and install;
http://www.samsung.com/us/consumer/learningresources/monitor/naturalcolorexpert/pop_download.html
4-1
Installing the Software
4-2
MagicTune
What is MagicTune?
MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor
functions and easy-to-understand guidelines.
Users can adjust the product with the mouse and the keyboard without using the operating buttons of the product.
Available in Digital mode only.
Installing the Software
1. Insert the installation CD into the CD-ROM drive.
2. Select the MagicTune setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and double-click the
MagicTune setup file on the CD-ROM.
3. Select the installation language and click [Next].
4. Complete the remaining software installation steps according to the instructions displayed on the screen.
•
The software may not work properly if you do not restart the computer after the installation.
•
The MagicTune icon may not appear depending on the computer system and the product specifications.
•
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MagicTune™)
The installation of MagicTune™may be affected by the graphics card, motherboard and the networking environment.
System Requirements
OS
•Windows 2000
•Windows XP Home Edition
•Windows XP Professional
•Windows Vista 32Bit
•Windows 7 32Bit
For MagicTune™, Windows 2000 or later is recommended.
Hardware
•At least 32MB of memory
•At least 60MB of free space on the hard disk drive
For more information, refer to the website.
Removing the Software
You can only remove MagicTune™through [Add or Remove Programs ] in Windows.
To remove MagicTune™, complete the following steps.
Installing the Software
4-2
1. Click [Start] select [Settings], and select [Control Panel] from the menu.
For Windows XP, click [Start], and select [Control Panel] from the menu.
2. Double-click the [Add or Remove Programs] icon in the Control Panel.
3. In the [Add/Remove] window, find and select MagicTune™so that it is highlighted.
4. Click [Change or Remove Programs] to remove the software.
5. Select [Yes] to start removing MagicTune™.
6. Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTune™,
please visit our website.
4-2
Installing the Software
4-3
MagicRotation
What is MagicRotation?
The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation)
that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity.
Installing the Software
1. Insert the installation CD into the CD-ROM drive.
2. Select the MagicRotation setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and double-click the
MagicRotation setup file on the CD-ROM.
3. Select the installation language and click [Next].
4. Complete the remaining software installation steps according to the instructions displayed on the screen.
•
The software may not work properly if you do not restart the computer after the installation.
•
The MagicRotation icon may not appear depending on the computer system and the product specifications.
•
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MagicRotation)
The installation of MagicRotation may be affected by the graphics card, motherboard and the networking environment.
Limitation
1. The "Display Driver" should be properly loaded for the MagicRotation to work properly.
The installed "Display Driver" should be the latest driver supplied by the vendor.
2. If some applications like Windows Media Player, Real Player, etc. are not displaying movie files properly in 90, 180 and
270 orientations then do the following :
•
Close the application.
•
Select the Orientation (90, 180, 270) you want to view the application.
• Relaunch the application.
In most cases this should fix the problem.
3. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90,
180, 270).
e.g. 3D games
4. DOS based applications in Full Screen Mode will not function as per the orientation mode selected (90, 180, 270).
5. Dual is not supported in Windows™ 98, ME, NT 4.0.
6. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality).
7. If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation Software before doing so.
System Requirements
OS
•
Windows™ 98 SE
•
Windows™ Me
•
Windows™ NT 4.0
•
Windows™ 2000
•
Windows XP Home Edition
Installing the Software
4-3
•
Windows XP Professional
•
Windows Vista 32Bit
•
Windows 7 32Bit
For MagicRotation, Windows 2000 or later is recommended.
Hardware
•
At least 128MB of memory(recommended)
•
At least 25MB of free space on the hard disk drive
Service Packs
•
It is recommended that your System has the latest Service Pack installed.
•
For Windows™ NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active Desktop component.
•
For more information, refer to the website.
•
Windows™ is registered trademark of Microsoft Corporation,Inc.
Removing the Software
You can only remove MagicRotation through [Add or Remove Programs ] in Windows.
To remove MagicRotation, complete the following steps.
1. Click [Start] select [Settings], and select [Control Panel] from the menu.
For Windows XP, click [Start], and select [Control Panel] from the menu.
2. Double-click the [Add or Remove Programs] icon in the Control Panel.
3. In the [Add/Remove] window, find and select MagicRotation so that it is highlighted.
4. Click [Change or Remove Programs] to remove the software.
5. Select [Yes] to start removing MagicRotation.
6. Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicRotation,
please visit our website.
4-3
Installing the Software
4-4
MultiScreen
What is MultiScreen ?
MultiScreen enables users to use the monitor by partitioning multiple sections.
Installing the Software
1. Insert the installation CD into the CD-ROM drive.
2. Select the MultiScreen setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and double-click the
MultiScreen setup file on the CD-ROM.
3. When the Installation Wizard appears, click [Next].
4. Complete the remaining software installation steps according to the instructions displayed on the screen.
•
The software may not work properly if you do not restart the computer after the installation.
•
The MultiScreen icon may not appear depending on the computer system and the product specifications.
•
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MultiScreen)
The MultiScreen installation may be affected by the graphics card, motherboard and the networking environment.
Operating System
OS
•Windows 2000
•Windows XP Home Edition
•Windows XP Professional
•Windows Vista 32Bit
•Windows 7 32Bit
For MultiScreen, the operating systems Windows 2000 or later is recommended.
Hardware
•At least 32MB of memory
•At least 60MB of free space on the hard disk drive
Removing the Software
Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].
Select MultiScreen from the program list and click the [Add/Delete] button.
Installing the Software
4-4
5
Troubleshooting
5-1
Monitor Self-Diagnosis
•
You can check if the product is working properly using the Self-Diagnosis function.
•
If a blank screen is displayed and the Power LED blinks even if the product and the PC are properly connected, perform
the self-diagnosis function according to the procedures below.
1. Turn the product and the PC off.
2. Separate the signal cable from the product .
3. Turn the product on.
4. If the product is working properly, the <Check Signal Cable> message appears.
In this case, if a blank screen is displayed again, make sure that there is no problem with the PC and the connection. The
product is working properly.
5-1
Troubleshooting
5-2
Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest
Samsung Electronics Service Center.
A BLANK SCREEN APPEARS / I CANNOT TURN THE PRODUCT ON
Is the power cord connected properly?
Check the connection status of the power cord.
Is the <Check Signal Cable> message displayed on the
screen?
Check the cable connecting the PC and the product.
Is the <Not Optimum Mode> message displayed on the
screen?
This occurs when the signal from the graphics card exceeds
the maximum resolution or the maximum frequency of the
product.
If the message appears on the screen even if the cable is
properly connected, recheck the input signal by pressing the
button of the product.
In this case, set up the appropriate resolution and the frequency for the product.
Is a blank screen displayed and does the power LED blink at
a 1 second interval?
This occurs when the power saving function is running.
Did you connect with a DVI cable?
If you connect the DVI cable when the PC has booted up or if
you reconnect the DVI cable after disconnecting the cable
while using a PC, the screen may not be displayed because
some graphics cards do not output the video signal.
If you click the mouse or press any key, the screen will be
turned on.
In this case, reboot the PC while the DVI cable is connected.
THE IMAGE IS TOO LIGHT OR TOO DARK.
Adjust the <Brightness> and <Contrast>.
(Refer to the <Brightness>, <Contrast>)
The display brightness can differ according to the mode set for <MagicAngle>.
If <MagicBright> is set to <Dynamic Contrast>, the display brightness can differ according to the input signal.
THE ON SCREEN ADJUSTMENT MENU (OSD) DOES NOT APPEAR.
Did you cancel the screen adjustment?
Check if the OSD Adjustment Lock function is set to Off.
THE COLOR IS WEIRD / THE PICTURE IS DISPLAYED IN BLACK AND WHITE
Is the entire screen displayed in the same color as if viewing
the screen through a cellophane paper?
Check the cable connection to the computer.
Reinsert the graphics card into the computer completely.
Check if the <Color Effect> is set to <Off>.
Is the graphics card configured correctly?
Set up the graphics card referring to the user manual.
THE DISPLAY AREA SUDDENLY MOVES TO AN EDGE OR TO THE CENTER.
Did you change the graphics card or the driver?
Please press the [AUTO] button to run the auto adjustment
function.
Did you change the resolution and frequency appropriate to
the product?
Set the resolution and the frequency to the appropriate values
in the graphics card
refer to the (Standard Signal Mode Table)
Is the graphics card configured correctly?
Troubleshooting
Set up the graphics card referring to the user manual.
5-2
THE PICTURES ARE OUT-OF-FOCUS.
Did you change the resolution and the frequency appropriate
to the product?
Set the resolution and the frequency to the appropriate values
in the graphics card
refer to the (Standard Signal Mode Table)
THE COLOR IS DISPLAYED IN 16 BIT (16 COLORS). THE COLOR HAS BEEN CHANGED AFTER CHANGING THE
GRAPHICS CARD.
Did you install the device driver for the product?
Windows XP : Set the color again by selecting Control Panel
→ Appearance and Themes → Display → Settings.
Windows ME/2000 : Set the color again by selecting Control
Panel → Display → Settings.
Windows Vista : Change the color settings by selecting Control Panel → Appearance and Personalization → Personalization → Display settings.
Windows 7 : Change the color settings by selecting Control
Panel → Appearance and Personalization → Display →
Adjust resolution → Advanced settings → Monitor.
(For more information, refer to the Windows user manual for
the computer.)
Is the graphics card configured correctly?
Configure the color again in accordance with the new graphics card driver.
WHEN I CONNECT THE MONITOR, THE 'UNKNOWN MONITOR, PLUG&PLAY (VESA DDC) MONITOR FOUND'
MESSAGE IS DISPLAYED.
Did you install the device driver for the product?
Install the device driver referring to the descriptions about the
driver installation.
Check if all the Plug&Play (VESA DDC) functions are supported referring to the User Manual of the graphics card.
Install the device driver referring to the descriptions about the
driver installation.
WHEN I LOOK AT THE EXTERIOR EDGES OF THE PRODUCT, SMALL ALIEN SUBSTANCES APPEAR ON IT.
Since this product is designed so that the color has a soft appearance by coating it with a transparent material over the black
edges, such things may be seen. This is not a defect of the product.
A “BEEP, BEEP” SOUND IS HEARD WHEN BOOTING THE COMPUTER.
If the beep sound is generated 3 or more times when booting up the computer, please request service for the computer.
5-2
Troubleshooting
5-3
FAQ
FAQ!
How can I change the frequency (refresh rate) of the video
signal?
PLEASE TRY THE FOLLOWING!
You have to change the frequency of the graphics card.
Windows XP : Change the frequency by selecting Control
Panel → Appearance and Themes → Display → Settings
→ Advanced → Monitor, and then change the refresh rate
under Monitor Settings.
Windows ME/2000 : Change the frequency by selecting Control Panel → Display → Settings → Advanced → Monitor,
and then change the refresh rate under Monitor Settings.
Windows Vista : Change the frequency by selecting Control
Panel → Appearance and Personalization → Personalization
→ Display settings → Advanced settings → Monitor, and
then change the refresh rate under Monitor Settings.
Windows 7 : Change the frequency by selecting Control Panel
→ Appearance and Personalization → Display → Adjust resolution → Advanced settings → Monitor, and then change the
refresh rate under Monitor Settings.
(For more information, refer to the User Manual of the computer or the graphics card.)
How can I change the resolution?
Windows XP : Change the resolution by selecting Control
Panel → Appearance and Themes → Display → Settings.
Windows ME/2000 : Change the resolution by selecting Control Panel → Display → Settings.
Windows Vista : Change the resolution by selecting Control
Panel → Appearance and Personalization → Personalization
→ Display settings.
Windows 7 : Change the resolution by selecting Control Panel
→ Appearance and Personalization → Display → Adjust resolution.
(For more information, refer to the User Manual of the computer or the graphics card.)
How can I use the power saving function?
Windows XP : Configure it by selecting Control Panel →
Appearance and Themes → Display → Screen Saver Setting
or configure it in the BIOS Setup of the computer.
Windows ME/2000 : Configure it by selecting Control Panel →
Display → Screen Saver Setting or Configure it in the BIOS
Setup of the computer.
Windows Vista : Change settings by selecting Control Panel
→ Appearance and Personalization → Personalization →
Screen Saver. You can also use the BIOS SETUP menu on
the PC.
Windows 7 : Change settings by selecting Control Panel →
Appearance and Personalization → Personalization →
Screen Saver. You can also use the BIOS SETUP menu on
the PC.
(For more information, refer to the Windows user manual for
the computer.)
Troubleshooting
5-3
6
More Information
6-1
Specifications
MODEL NAME
LCD Panel
Synchronization
2443DW
Size
22 inches (55 cm)
24 inches (61 cm)
Display area
473.76 mm (H) x 296.1 mm (V)
518.4 mm (H) x 324.0 mm (V)
Pixel Pitch
0.282 mm (H) x 0.282 mm (V)
0.270 mm (H) x 0.270 mm (V)
Horizontal
30 ~81 kHz
Vertical
56 ~ 75 Hz
Display Color
Resolution
2243DW
16.7 M
Optimum resolution
1680 x 1050 @ 60 Hz
1920 x 1200 @ 60 Hz
Maximum resolution
1680 x 1050 @ 60 Hz
1920 x 1200 @ 60 Hz
RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB, DP(Display
Port)
Input Signal, Terminated
0.7 Vp-p ± 5%
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock
150 MHz (Analog, DVI, Display Port)
170 MHz (Analog, DVI, Display Port)
Power Supply
This product supports 100-240 V.Since the standard voltage may differ from
country to country, please check the label on the back of the product.
15pin-to-15pin D-sub cable, Detachable
Signal Cable
DVI-D to DVI-D connector, Detachable
DP Cable ,Detachable
Dimensions (WxHxD) / Weight (Simple
stand)
VESA Mounting Interface
Environmental considerations
Operating
Storage
505.5 x 331.5 x 67.6 mm (19.9 x 13.1 x
2.7 inches) (Without Stand)
556.2 x 360.8 x 67.0 mm (21.9 x 14.2 x
2.6 inches) (Without Stand)
505.5 x 375.4 x 200.0 mm (19.9 x 14.8
x 7.9 inches) (With Stand) / 5.7 kg
(12.6 lbs)
556.2 x 432.2 x 250.0 mm (21.9 x 17.0
x 9.8 inches) (With Stand) / 7.7 kg
(17.0 lbs)
100 mm x 100 mm / 3.9 inches x 3.9 inches
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity :10 % ~ 80 %, non-condensing
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Design and specifications are subject to change without prior notice.
Class B (Information Communication equipment for residential use)
This device is registered for EMC requirements for home use (Class B). It can be used in all areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
6-1
More Information
6-2
Power Saving Function
This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor
to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation
when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it
unattended for long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in your
computer. Use the software utility installed on your computer to set up this feature.
STATE
NORMAL OPERATION
POWER SAVING MODE
POWER OFF
Power Indicator
On
Blinking
Off
Less than 1 watts
Less than 1 watts
Power Consumption
2243DW:28 W
2443DW:47 W
If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.
More Information
6-2
6-3
Contact SAMSUNG WORLDWIDE
•
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
center.
NORTH AMERICA
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com
MEXICO
01-800-SAMSUNG(726-7864)
http://www.samsung.com
LATIN AMERICA
ARGENTINA
0800-333-3733
http://www.samsung.com
BRAZIL
0800-124-421
http://www.samsung.com
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com
COLOMBIA
01-8000112112
http://www.samsung.com
COSTA RICA
0-800-507-7267
http://www.samsung.com
ECUADOR
1-800-10-7267
http://www.samsung.com
EL SALVADOR
800-6225
http://www.samsung.com
GUATEMALA
1-800-299-0013
http://www.samsung.com
HONDURAS
800-7919267
http://www.samsung.com
JAMAICA
1-800-234-7267
http://www.samsung.com
NICARAGUA
00-1800-5077267
http://www.samsung.com
PANAMA
800-7267
http://www.samsung.com
PUERTO RICO
1-800-682-3180
http://www.samsung.com
REP. DOMINICA
1-800-751-2676
http://www.samsung.com
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com
VENEZUELA
0-800-100-5303
http://www.samsung.com
EUROPE
AUSTRIA
0810 - SAMSUNG(7267864,€ 0.07/min)
http://www.samsung.com
BELGIUM
02-201-24-18
http://www.samsung.com/be (Dutch)
http://www.samsung.com/be_fr
(French)
CZECH
800 - SAMSUNG (800-726786)
http://www.samsung.com
DENMARK
70 70 19 70
http://www.samsung.com
EIRE
0818 717100
http://www.samsung.com
ESTONIA
800-7267
http://www.samsung.com
FINLAND
030 - 6227 515
http://www.samsung.com
FRANCE
01 48 63 00 00
http://www.samsung.com
6-3
More Information
EUROPE
GERMANY
01805 - SAMSUNG (726-7864,€ 0,14/
Min)
http://www.samsung.com
HUNGARY
06-80-SAMSUNG(726-7864)
http://www.samsung.com
ITALIA
800-SAMSUNG(726-7864)
http://www.samsung.com
LATVIA
8000-7267
http://www.samsung.com
LITHUANIA
8-800-77777
http://www.samsung.com
LUXEMBURG
261 03 710
http://www.samsung.com
NETHERLANDS
0900 - SAMSUNG (0900-7267864) (€
0,10/Min)
http://www.samsung.com
NORWAY
815-56 480
http://www.samsung.com
POLAND
0 801 1SAMSUNG (172678)
http://www.samsung.com
022 - 607 - 93 - 33
PORTUGAL
80820 - SAMSUNG (726-7864)
http://www.samsung.com
SLOVAKIA
0800-SAMSUNG(726-7864)
http://www.samsung.com
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com
SWEDEN
0771 726 7864 (SAMSUNG)
http://www.samsung.com
SWITZERLAND
0848-SAMSUNG(7267864, CHF 0.08/
min)
http://www.samsung.com/ch
0845 SAMSUNG (7267864)
http://www.samsung.com
U.K
http://www.samsung.com/ch_fr (French)
CIS
ARMENIA
0-800-05-555
AZERBAIJAN
088-55-55-555
BELARUS
810-800-500-55-500
GEORGIA
8-800-555-555
KAZAKHSTAN
8-10-800-500-55-500
KYRGYZSTAN
00-800-500-55-500
MOLDOVA
00-800-500-55-500
RUSSIA
8-800-555-55-55
http://www.samsung.com
TADJIKISTAN
8-10-800-500-55-500
http://www.samsung.com
UKRAINE
0-800-502-000
http://www.samsung.com/ua
http://www.samsung.com
http://www.samsung.com/ua_ru
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com
ASIA PACIFIC
AUSTRALIA
1300 362 603
http://www.samsung.com
CHINA
400-810-5858
http://www.samsung.com
010-6475 1880
HONG KONG
(852) 3698 - 4698
http://www.samsung.com/hk
http://www.samsung.com/hk_en/
More Information
6-3
ASIA PACIFIC
INDIA
3030 8282
http://www.samsung.com
1800 110011
1800 3000 8282
1800 266 8282
INDONESIA
0800-112-8888
http://www.samsung.com
021-5699-7777
JAPAN
0120-327-527
http://www.samsung.com
MALAYSIA
1800-88-9999
http://www.samsung.com
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com
PHILIPPINES
1-800-10-SAMSUNG(726-7864)
http://www.samsung.com
1-800-3-SAMSUNG(726-7864)
1-800-8-SAMSUNG(726-7864)
02-5805777
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com
TAIWAN
0800-329-999
http://www.samsung.com
THAILAND
1800-29-3232
http://www.samsung.com
02-689-3232
VIETNAM
1 800 588 889
http://www.samsung.com
MIDDLE EAST & AFRICA
BAHRAIN
8000-4726
JORDAN
800-22273
SOUTH AFRICA
0860-SAMSUNG(726-7864)
http://www.samsung.com
TURKEY
444 77 11
http://www.samsung.com
U.A.E
800-SAMSUNG(726-7864)
http://www.samsung.com
6-3
More Information
6-4
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working
life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
More Information
6-4
6-4
More Information
