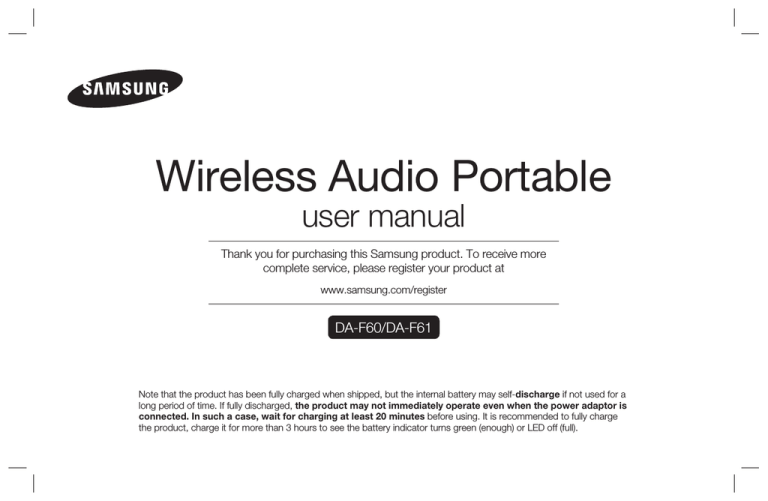

Wireless Audio Portable
user manual
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at
www.samsung.com/register
DA-F60/DA-F61
Note that the product has been fully charged when shipped, but the internal battery may self-discharge if not used for a long period of time. If fully discharged, the product may not immediately operate even when the power adaptor is
connected. In such a case, wait for charging at least 20 minutes before using. It is recommended to fully charge the product, charge it for more than 3 hours to see the battery indicator turns green (enough) or LED off (full).
CONTENTS
2
What’s included
3
Your Wireless Audio Portable
4
Checking and Charging the battery
5
Using the NFC function
6
Using Bluetooth function
7
Using AUX IN function
7
Using the SoundShare function
8
Specifications
8
Software upgrade
9
Troubleshooting
10
Safety Warnings
10
Safety Precautions
2 English
WHAT’S INCLUDED
Check for the supplied accessories shown below. The appearance of the accessories may differ slightly from the illustrations.
Power Adapter
Using the Cover Fabric
Audio Cable
2
USB
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
Cover Fabric User Manual
3
1
Wrap the cover around the product. The cover will be held in place by magnets.
YOUR WIRELESS AUDIO PORTABLE
Power cable connector
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
VOL
SERVICE(USB) Port
Smart phone charging or firmware update
AUX IN connector (Analog Input)
Reset hole
Volume control
VOL
VOL
NFC Tag
MUTE
FUNC.
MUTE button
Function LED
Bluetooth , AUX , SoundShare
BASS
Function button
Power Bass button
Battery indicator
Power button (On/Off)
✎ When you charge smart phone via USB, the battery may discharge more quickly.
- Charging a smart phone through the Service (USB) port takes longer than charging the unit using the adapter.
It is only chargeable when this product is turned on.
English 3
CHECKING AND CHARGING THE BATTERY
You can play this product for 12 hours continuously on one charge. For a full charge, we recommend you charge the battery for about 3 hours.
Checking the battery
The battery status indicator is normally off to conserve battery power. To check the charge level, press and hold the Power button for 5 seconds.
[ ]
Green ....................
60% or more of full charge
Yellow ...................
30% to 60% of full charge
Red .......................
30% or less
Red blink ..............
Charge needed
Charge the battery
MUTE
FUNC.
BASS
VOL
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
[ ]
OFF .......................
Full charge
Green ....................
60% to 99% of full charge
Yellow ...................
30% to 60% of full charge
Red .......................
30% or less
4 English
Power Adapter
✎ Charge and store the battery at 5° C ~ 35° C.
✎ Do not charge the battery for more than 12 hours or leave the battery fully discharged for a long time. Doing so may shorten the battery life.
✎ Depending on how you use your player, actual battery life may vary and may be shorter than specified.
✎ If the battery has insufficient charges, pressing the power button does not turn on the product. Instead, the battery indicator blinks red a few times and turns off.
✎ While the battery indicator is blinking, all other buttons will not work.
✎ If the battery is fully discharged, all function, volume and bass settings are initialized.
Support
VOL
BASS
FUNC.
MUTE
5V 500
AUX IN
DC 14V 2.5A
OPEN
Don't pull the support too hard. You can damage it.
Reset your Product
AUX IN
DC 14V 2.5A
OPEN
If an error occurs while you are operating this product and it doesn't work properly, press the Reset hole with a pen tip or similar item for 2 seconds.
USING THE NFC FUNCTION
Connect your NFC compatible device via Bluetooth to the Wireless Audio Portable using this simple set-up procedure. You can play music from the smart phone through the Wireless Audio Portable.
1. Turn on the NFC function on the smart phone and make sure the screen lock function on the smart phone is off. The smart phone's NFC function will not work if screen lock is on.
2. Gently touch the NFC logo [ ] on the left of the Wireless Audio Portable with the NFC supported device.
• If the Wireless Audio Portable is off, it will turn on automatically.
3. A pop-up asking whether to proceed with the Bluetooth connection appears on the smart phone. Select <Yes>.
• When the connection is complete, the 'connected' message appears.
4. To disconnect the NFC device, touch the device to the Wireless Audio
Portable's left panel again.
• To connect another NFC device while the first smart phone is still connected, touch that device to the Wireless Audio Portable's left panel. The Wireless
Audio Portable will disconnect the first smart phone and connect to the second smart phone.
✎ The NFC function is built into Android devices running Android OS 4.1
Jellybean or later.
- If your device is running an Android OS earlier than Android OS 4.1
Jellybean, you must download the 'Samsung NFC Connection' application from Android market to use the NFC function.
✎ The position of the NFC antenna differs on smart phones.
Check where the NFC antenna is located before connecting.
✎ If your smart phone is covered with a thick case, the connection may not succeed.
✎ The N-mark is a trademark or registered trademark of NFC Forum, Inc. in the
United States and in other countries.
✎ NFC tagging for Bluetooth connection cannot be established while powering on and off.
✎ NFC tagging for Bluetooth connection will not work while the battery indicator is blinking.
English 5
USING BLUETOOTH FUNCTION
You can connect the Wireless Audio Portable to Bluetooth devices and enjoy music with high quality stereo sound, all without wires!
MUTE
FUNC.
BASS
VOL
Connect
External device
1. Press the
FUNC.
button on the Wireless Audio Portable to select the Bluetooth function.
2. Press the FUNC.
button for 3 seconds in Bluetooth mode.
3. The Bluetooth indicator blinks quickly and the product changes to the pairing mode.
4. Scan or Search for the Wireless Audio Portable on your Bluetooth device.
5. Select "[Samsung] W_Audio" on the list of items found by the Bluetooth device.
• If the Bluetooth device fails to pair with the Wireless Audio Portable, repeat
Steps 2, 3, and 4.
6. Play music on the connected device.
✎ A Bluetooth device may cause noise or malfunction, depending on usage, when:
- A part of your body is in contact with the receiving/transmitting system of the
Bluetooth device or the Wireless Audio Portable.
6 English
- It is subject to electrical variation from obstructions caused by a wall, corner or by office partitioning.
- It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
✎ The further the distance between the Wireless Audio Portable and Bluetooth device, the worse the quality.
✎ The Bluetooth connection only works when the Bluetooth device is close to the set. The connection is automatically cut off if the Bluetooth device moves out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
- In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Wireless Audio Portable and the Bluetooth device exceeds 5m.
✎ This wireless device may cause electric interference during its operation.
✎ You may be required to enter a PIN code (password) when connecting the
Bluetooth device to the Wireless Audio Portable. If the PIN code input window appears, enter <0000>.
✎ Supported sampling frequencies for aptX and SBC decoding are 44.1kHz and
48kHz.
✎ The AVRCP feature is not supported. You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.
✎ Connect only to a Bluetooth device that supports the A2DP (AV) function.
✎ Only one Bluetooth device can be paired at a time.
✎ When switching to Bluetooth mode or powered up in Bluetooth mode, the last
Bluetooth connection will be restored automatically if available. Automatic
Bluetooth connection attempt will abort after 1 minute.
✎ Within the automatic connection trial, connection to another Bluetooth device can be limited. To connect to a different Bluetooth device, switch the product’s
Bluetooth mode to pairing mode.
USING AUX IN FUNCTION
To enjoy music from an external audio device that does not support Bluetooth communication, use AUX IN of the product.
VOL
SERVICE
5V 500mA
MUTE
FUNC.
BASS
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
AUX IN
DC 14V 2.5A
Earphones jack Audio Cable
External device
1. Connect the audio cable to the AUX IN terminal.
2. Press the
FUNC.
button to select the AUX function.
✎ Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
USING THE SOUNDSHARE FUNCTION
Connect the Wireless Audio Portable to a Samsung TV that is compatible with
Bluetooth to enjoy TV sound wirelessly.
VOL
Connect
MUTE
FUNC.
BASS
1. Turn on the Samsung TV and Wireless Audio Portable.
• Set 'Add New Device' to 'On' in the TV's 'SoundShare Settings' menu.
(Refer to the TV's user manual for details.)
2. Press the
FUNC.
button to change the mode of the Wireless Audio Portable to .
A message asking whether to proceed with Bluetooth pairing appears.
• The
blinks in the standby mode.
3. Select <Yes> on the TV screen. The Wireless Audio Portable pairs with the TV.
• The
indicator blinks, and then stops blinking.
• The Wireless Audio Portable Bluetooth pairing is complete.
• If you want to cancel an existing pairing and pair the Wireless Audio Portable
FUNC.
to another TV, press the button for 3 seconds with the unit in mode.
✎ SoundShare is supported by some Samsung TVs released after 2012.
Check whether your TV supports SoundShare before you begin.
(For more information, refer to the user's guide of your TV.)
✎ The optimal pairing distance is 1m or less.
English 7
SPECIFICATIONS
Model name
Weight
Dimensions (W x D x H)
Operating temperature range
Operating humidity range
DA-F60/DA-F61
1.1 kg
225 x 46.5 x 131 mm
+5°C~+35°C
10 % to 75 %
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- For the Power Supply and Power Consumption, refer to the label attached to the product. Open the rear cover to check the label.
✎ aptX
® : aptX enables high quality Bluetooth stereo audio that delivers wired audio quality wirelessly.
SOFTWARE UPGRADE
Samsung may offer upgrades for the Wireless
Audio Portable's system firmware in the future.
To upgrade the firmware, visit samsung.com and find your model by name to locate the available download.
Download the firmware file onto a USB drive and follow the below instructions to upgrade the product.
1. Turn on the product.
SERVICE
SERVICE
5V 500mA
AUX IN
DC 14V 4A
5V 500mA
AUX IN
2. Insert a USB drive containing the firmware upgrade into the Service (USB) port on the back of the product.
3. Press the
FUNC.
and buttons for 5 seconds at the same time. The update process starts.
• All LEDs indicators will blink during the update process.
4. The LEDs will turn off automatically after the update process is complete.
• Do not disconnect the power or remove the USB drive while upgrades are being applied.
• The product will turn off automatically after completing the firmware upgrade.
• When firmware is upgraded, settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.
• When the battery indicator LED is red, do not update the product. Doing so could cause the product to malfunction.
✎ If the firmware fails to upgrade, we recommend formatting the USB drive in
FAT16 and trying again.
✎ For upgrading purposes, do not format the USB drive in NTFS format because it is not a supported file system.
✎ Depending on the manufacturer, the USB may not be supported.
8 English
TROUBLESHOOTING
Before requesting service, please try the following solutions:
The unit will not turn on.
battery and turn the player on again.
A function does not work when the button is pressed.
Sound is not produced in AUX mode.
not.
The SoundShare (TV pairing) failed.
Sound is not produced.
the Samsung call centre.
The power of the unit is off.
- If there is no KEY input for 8 hours when the cable is connected in AUX mode.
- If the AUX cable in AUX mode is disconnected for 25 minutes.
- If the Bluetooth or SoundShare mode has been disconnected from this unit for 25 minutes.
- It does not turn off when the smart phone is charging.
The Wireless Audio Portable may not search or connect properly in the following cases.
Portable.
English 9
SAFETY WARNINGS
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE
COVER(OR BACK). NO USER SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.
This symbol indicates important instructions accompanying the product.
SAFETY PRECAUTIONS
Power Supply Precautions
- This may result in abnormal heat or fire.
the blades with a dry cloth only.
by pulling on its power-cord.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put an object filled with liquid, such as a vase, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.
10 English attached to the outlet.
- If the connection is unstable, there is a risk of fire.
Installation Precautions produce fire (candles, mosquito coils, heaters, radiators, etc.). Do not install in direct sunlight.
the power cord) from the unit.
- A damaged cord may cause a fire and poses a risk of electric shock.
extreme cold, can lead to quality problems or cause the product to malfunction.
Before you install the product in an environment that is outside the norm, please contact the Samsung service centre for additional information.
place the product on an unstable surface (e.g. a shaky shelf, a tilted desk, etc.).
- Dropping the product can cause it to malfunction and poses a risk of injury.
Severe vibration or impact can also cause the product to malfunction and lead to a fire hazard.
- Leave at least 10cm at the rear of the product and more than 5cm on each side of the product.
- Children playing with the plastic packing materials run the risk of suffocation.
Usage Precautions hearing.
- If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may become. Note that an ordinary conversation is between 50 to 60 db and road noise is approximately 80 db.
repair, or modify it yourself.
- Contact a Samsung service centre when your product is in need of repair.
beverages, cosmetics, chemicals, etc.). Do not allow any metal objects (e.g. coins, hair clips, etc.) or flammable material (e.g. paper, matches, etc.) to enter the product (through the air vents, I/O ports, etc.).
- If any harmful material or liquid enters the product, turn off the product immediately, unplug the power cord, and then contact a Samsung service centre.
power cord and contact a Samsung service centre.
- There is a risk of fire or electric shock.
- A damaged cable can cause the product to malfunction, cause a fire, and poses a risk of electric shock.
power-cord immediately and contact a Samsung service centre.
of the product. Do not turn the product off or on.
product with a sharp object.
Cleaning Precautions lubricants to clean the product or spray insecticide on the product.
- Using any of these materials can discolor the exterior coating or cause it to split or peel off, or remove the labelling on the product.
clean, dry, soft cloth (Microfiber, cotton).
- Avoid leaving dust on the product. Dust can scratch its the surface.
Battery Usage Precautions product into hot, poorly ventilated areas such as saunas or closed vehicles during the summer time.
- There is a risk of fire or the battery could explode.
- Humidity and liquids can damage the components and electrical circuits of the product, cause the product to malfunction, and may cause a risk of fire. We recommended that you use the product in environments with temperatures between 5° ~ 35 °C and relative humidities between 10% ~ 75%.
been fully charged.
- Disconnect the AC adapter after the battery is fully charged to prevent damage to the battery. Overcharging can decrease the battery's useful life.
product for long periods of time, recharge the battery periodically to maintain battery capacity and functionality.
- Leaving the battery discharged for a long time can reduce its useful life, cause the battery to malfunction, or cause a risk of fire.
English 11
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Country
` Asia Pacific
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
` MENA
U.A.E
OMAN
KUWAIT
BAHRAIN
QATAR
EGYPT
ALGERIA
Contact Centre Web Site
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858
(852) 3698 4698
www.samsung.com/au
www.samsung.com/nz
www.samsung.com
www.samsung.com/hk (Chinese)
www.samsung.com/hk_en (English)
1800 3000 8282
1800 266 8282
0800-112-8888 (Toll Free)
(021) 56997777
0120-327-527
www.samsung.com/in
www.samsung.com/id
www.samsung.com
1800-88-9999 www.samsung.com/my
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline and
Mobile]
02-4222111 [Other landline]
www.samsung.com/ph
www.samsung.com/sg 1800-SAMSUNG(726-7864)
0-2689-3232,
1800-29-3232
0800-32-9999
www.samsung.com/th
www.samsung.com/tw
1800 588 889 www.samsung.com
800-SAMSUNG (726-7864)
800-SAMSUNG(726-7864)
183-2255 (183-CALL)
8000-4726
800-2255 (800-CALL)
08000-726786
0800 100 100
www.samsung.com
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
www.samsung.com
www.samsung.com/n_africa
Country
PAKISTAN
TUNISIA
JORDAN
SYRIA
IRAN
MOROCCO
SAUDI ARABIA
TURKEY
` Africa
NIGERIA
GHANA
COTE D’ IVOIRE
SENEGAL
CAMEROON
KENYA
UGANDA
TANZANIA
RWANDA
BURUNDI
DRC
SUDAN
SOUTH AFRICA
BOTSWANA
NAMIBIA
ZAMBIA
MOZAMBIQUE
Contact Centre
0800-Samsung (72678)
80-1000-12
0800-22273
06 5777444
18252273
021-8255
080 100 2255
920021230
444 77 11
0800-726-7864
0800-10077
0302-200077
8000 0077
800-00-0077
7095- 0077
0800 545 545
0800 300 300
0685 88 99 00
9999
200
499999
1969
0860 SAMSUNG (726 7864)
8007260000
08 197 267 864
0211 350370
847267864 / 827267864
Web Site
www.samsung.com/pk/
www.samsung.com/n_africa
www.samsung.com/Levant(English)
www.samsung.com/Levant(English)
www.samsung.com
www.samsung.com
www.samsung.com/sa
www.samsung.com
www.samsung.com/africa_en/
www.samsung.com/africa_fr/
www.samsung.com
www.samsung.com
www.samsung.com
© 2013 Samsung Electronics Co., Ltd. All rights reserved.
Wireless Audio Portable
manual do usuário
Obrigado por adquirir este produto Samsung. Para receber atendimento mais completo, registre seu produto no site
www.samsung.com/register
DA-F60/DA-F61
Note que o produto foi totalmente carregado quando enviado, mas a bateria interna pode se descarregar se não for utilizado durante um longo período de tempo. Se estiver totalmente descarregado, o produto pode não funcionar imediatamente mesmo com o adaptador de
energia conectado. Neste caso, aguarde pelo menos 20 minutos de carregamento antes de usar. Recomenda-se carregar totalmente o produto; carregue-o por mais de 3 horas para ver se o indicador da bateria fica verde (suficiente) ou se o LED apagou (carga total).
ÍNDICE
2
O que está incluído
3
Seu Wireless Audio Portable
4
Verificando e Carregando a bateria
5
Uso da função NFC
6
Usando a função Bluetooth
7
Usando a função AUX IN
7
Uso da função SoundShare
8
Especificações
8
Atualização de software
9
Solucionando problemas
10
Avisos de Segurança
10
Precauções de Segurança
2 Português
O QUE ESTÁ INCLUÍDO
Verifique os acessórios fornecidos mostrados a seguir. A aparência dos acessórios pode apresentar pequenas diferenças em relação às ilustrações.
Adaptador de alimentação
Cabo de áudio
Uso da Tecido da tampa
Tecido da tampa Manual do usuário
2
USB
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
3
1
Envolva o produto com a tampa. A capa será mantida no lugar por imãs.
SEU WIRELESS AUDIO PORTABLE
Conector do cabo de alimentação
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
VOL
Porta de SERVIÇO (USB)
Carregamento do Smartphone ou atualização do firmware
Conector AUX IN (Entrada analógica)
Orifício de redefinição
Controle de volume
VOL
VOL
Identificação
NFC
MUTE
FUNC.
Botão MUDO
LED de função
Bluetooth , AUX , SoundShare
BASS
Botão de função
Botão Grave potente
Indicador de bateria
Botão ligar/desligar
✎ Ao carregar o smartphone por meio da USB, a bateria pode descarregar mais rapidamente.
- Carregar o smart phone por meio da porta de Serviço (USB) leva mais tempo que carregá-lo usando o adaptador de energia.
Somente é tarifado enquanto o produto estiver ligado.
Português 3
VERIFICANDO E CARREGANDO A BATERIA
Você pode executar este produto por 12 horas contínuas com uma carga.
Para carga completa, recomendamos que carregue a bateria por aproximadamente 3 horas.
Verificando a bateria
O indicador de status da bateria normalmente fica desligado para poupar energia da bateria. Para verificar o nível de carga, pressione e mantenha pressionado o botão de energia por 5 segundos.
[ ]
Verde ..............................
60% ou mais da carga total
Amarelo .........................
30% a 60% de carga total
Vermelho .......................
30% ou menos
Vermelho piscando ......
Carregamento necessário
Carregar a bateria
VOL
SERVICE
5V 500mA
AUX IN
MUTE
FUNC.
BASS
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
DC 14V 2.5A
✎ Carregue e armazene a bateria a 5° C ~ 35° C.
✎ Não carregue a bateria por mais de 12 horas nem deixe a bateria totalmente descarregada por um longo período. Isso pode encurtar a vida útil da bateria.
✎ Dependendo de como você usa o player, a vida útil real da bateria pode variar e pode ser mais curta do que o especificado.
✎ Se a bateria tiver carga insuficiente, pressionar o botão liga/desliga não ligará o produto. Em vez disso, o indicador da bateria piscará em vermelho algumas vezes e se desligará.
✎ Enquanto o indicador da bateria estiver piscando, nenhum outro botão funcionará.
✎ Se a bateria estiver totalmente descarregada, todas as funções e configurações de volume e de graves serão redefinidas.
Suporte
VOL
BASS
FUNC.
MUTE
5V 500
AUX IN
DC 14V 2.5A
OPEN
Não puxe o suporte com muita força. Você pode danificá-lo.
Redefinir seu produto
AUX IN
DC 14V 2.5A
Adaptador de alimentação
[ ]
DESL ..............................
Carga completa
Verde ..............................
60% a 99% de carga total
Amarelo .........................
30% a 60% de carga total
Vermelho .......................
30% ou menos
4 Português
OPEN
Caso ocorra um erro durante a operação deste produto e ele não funcione corretamente, pressione o orifício de redefinição com a ponta de uma caneta ou algo similar por 2 segundos.
USO DA FUNÇÃO NFC
Conecte seu dispositivo compatível com NFC via Bluetooth ao Wireless Audio
Portable usando este procedimento de configuração simples. Você pode reproduzir música no Smartphone por meio do Wireless Audio Portable.
1. Ligue a função NFC do Smartphone e certifique-se de que a função bloqueio de tela do Smartphone esteja desligada. A função de NFC do Smartphone não irá funcionar se o bloqueio de tela estiver ligado.
2. Toque suavemente o logotipo do NFC [ ], à esquerda do Wireless Audio
Portable, com o dispositivo compatível com NFC.
• Se a função Wireless Audio Portable estiver desligada, ela será ligada automaticamente.
3. Será exibido no Smartphone um pop-up perguntando se deseja prosseguir com a conexão Bluetooth. Selecione <Yes (Sim)>.
• Quando a conexão estiver concluída, será exibida a mensagem 'connected
(conectado)'.
4. Para desconectar o dispositivo NFC, toque o dispositivo no painel esquerdo do
Wireless Audio Portable novamente.
• Para conectar outro dispositivo NFC enquanto o primeiro Smartphone ainda estiver conectado, toque naquele dispositivo à esquerda do painel esquerdo do Wireless Audio Portable. O Wireless Audio Portable irá desconectar o primeiro Smartphone e conectar o segundo Smartphone.
✎ A função NFC é integrada aos dispositivos Android que executam o Android
OS 4.1 Jellybean ou posterior.
- Se o seu dispositivo estiver executando um SO anterior ao Android OS 4.1
Jellybean, você terá que fazer o download do aplicativo 'Samsung NFC
Connection' no Android Market para utilizar a função NFC.
✎ A posição da antena NFC difere de acordo com o Smartphone.
Verifique onde a antena NFC está localizada antes de conectar.
✎ Se o seu Smartphone estiver coberto com uma capa espessa, a conexão pode falhar.
✎ A marca N é uma marca comercial ou marca comercial registrada da NFC
Forum, Inc. nos Estados Unidos da América e em outros países.
✎ As identificações NFC para conexão Bluetooth não poderão ser estabelecidas durante a inicialização ou desligamento.
✎ As identificações NFC para conexão Bluetooth não funcionarão enquanto o indicador da bateria estiver piscando.
Português 5
USANDO A FUNÇÃO BLUETOOTH
Você pode conectar o Wireless Audio Portable a dispositivos Bluetooth e escutar músicas com som estéreo de alta qualidade, tudo sem fio!
✎ O dispositivo Bluetooth pode causar ruído ou mau funcionamento, dependendo do uso, quando:
- Uma parte do seu corpo está em contato com o sistema que está recebendo/enviando do dispositivo Bluetooth ou do Wireless Audio Portable.
6 Português
MUTE
FUNC.
BASS
VOL
Conectar
Dispositivo externo
1. Pressione os botões
FUNC.
no Wireless Audio Portable para selecionar a função
Bluetooth.
2. Pressione os botões FUNC.
por 3 segundos no modo Bluetooth.
3. O indicador do Bluetooth pisca rapidamente e o produto muda para o modo de emparelhamento.
4. Busque pelo Wireless Audio Portable em seu dispositivo Bluetooth.
5. Selecione o "[Samsung] W_Audio" na lista de itens encontrados pelo dispositivo Bluetooth.
• Se o dispositivo Bluetooth deixar de emparelhar com o Wireless Audio
Portable, repita as etapas 2, 3 e 4.
6. Reproduzir música no dispositivo conectado.
- Está sujeito a variação elétrica de obstruções de paredes, cantos ou divisórias de escritório.
- Está exposto a interferência elétrica de dispositivos na mesma banda de frequência, incluindo equipamento médico, forno de micro-ondas e LAN sem fio.
✎ Quanto maior for a distância entre o Wireless Audio Portable e o dispositivo
Bluetooth, menor será a qualidade.
✎ A conexão Bluetooth só funciona próxima ao aparelho. A conexão será automaticamente cortada se a distância for maior que o alcance. Mesmo dentro do alcance, a qualidade do som pode ser degradada por obstáculos, como paredes e portas.
- No modo de Conexão do Bluetooth, a conexão Bluetooth será perdida se a distância entre o Wireless Audio Portable e o dispositivo Bluetooth exceder
5m.
✎ Esse dispositivo sem fio pode causar interferência elétrica durante a operação.
✎ Pode ser necessário inserir um código PIN (senha) ao conectar o dispositivo
Bluetooth ao Wireless Audio Portable. Se a janela do código PIN se abrir, digite
<0000>.
✎ As frequências de amostragem suportadas para decodificação aptX e SBC são
44,1 kHz e 48 kHz.
✎ O recurso AVRCP não tem suporte. Não é possível conectar dispositivos
Bluetooth compatíveis apenas com a função HF (viva-voz).
✎ Conecte apenas dispositivos Bluetooth compatíveis com a função A2DP (AV).
✎ Apenas um dispositivo Bluetooth pode ser emparelhado de cada vez.
✎ Ao alternar para o modo de Bluetooth ou na inicialização no modo Bluetooth, a
última conexão Bluetooth será restabelecida automaticamente, se disponível.
A tentativa automática de conexão Bluetooth será cancelada após 1 minuto.
✎ Durante a tentativa de conexão automática, pode haver limitação na conexão com outro dispositivo Bluetooth. Para se conectar a um dispositivo Bluetooth diferente, alterne o modo Bluetooth do produto para o modo de paridade.
USANDO A FUNÇÃO AUX IN
Para ouvir música em um dispositivo de áudio externo que não oferece suporta a comunicação Bluetooth, use a entrada AUX IN do produto.
USO DA FUNÇÃO SOUNDSHARE
Conecte o Wireless Audio Portable a uma TV Samsung que seja compatível com
Bluetooth para ouvir o som da TV por meio de tecnologia sem fio.
VOL
SERVICE
5V 500mA
VOL
Conectar
MUTE
FUNC.
BASS
SERVICE
5V 500mA
AUX IN
DC 14V 2.5A
OPEN
AUX IN
MUTE
FUNC.
BASS
Dispositivo externo
DC 14V 2.5A
Cabo de áudio
1. Conecte o cabo de áudio ao terminal de entrada AUX IN.
2. Pressione os botões
FUNC.
para selecionar a função AUX.
✎ Antes de mover ou instalar o produto, não deixe de desligar a energia e desconectar o cabo de alimentação.
1. Ligue a TV Samsung e o Wireless Audio Portable.
• Configure 'Add New Device' (Adicionar novo dispositivo) para 'On' (Ativada) no menu 'SoundShare Settings' (Configuração do SoundShare) da TV.
(Consulte o manual do usuário da TV para obter detalhes.)
2. Pressione os botões
FUNC.
para alterar o modo do Wireless Audio Portable para
. Será exibida uma mensagem perguntando se deseja prosseguir com o emparelhamento do Bluetooth.
• O pisca no modo standby.
3. Selecione <Yes (Sim)> na tela da TV. O Wireless Audio Portable emparelha com a TV.
• O indicador pisca, depois para de piscar.
• O emparelhamento do Bluetooth Wireless Audio Portable está concluído.
• Caso deseje cancelar um emparelhamento existente e emparelhar o Wireless
FUNC.
Audio Portable a outra TV, pressione o botão por 3 segundos com a unidade no modo .
✎ O recurso SoundShare é suportado por algumas TVs Samsung lançadas após
2012. Verifique se a sua TV suporta o recurso SoundShare antes de começar.
(Para obter mais informações, consulte o guia do usuário da sua TV).
✎ A distância ideal de emparelhamento é de no máximo 1 m.
Português 7
ESPECIFICAÇÕES
Nome do modelo
Peso
DA-F60/DA-F61
1,1 kg
Dimensões (L x P x A) 225 x 46,5 x 131 mm
Faixa de temperatura de operação +5°C~+35°C
Faixa de umidade de operação de 10 a 75 %
- A Samsung Electronics Co., Ltd reserva-se o direito, sem aviso prévio, de fazer alterações nas especificações.
- O peso e as dimensões são aproximados.
- Para a fonte de alimentação e consumo de energia, consulte o rótulo anexado ao produto. Abra a tampa traseira para verificar a etiqueta.
✎ aptX
® : O aptX possibilita áudio estéreo Bluetooth de alta qualidade que proporciona qualidade de áudio com fio na tecnologia sem fio.
8 Português
ATUALIZAÇÃO DE SOFTWARE
A Samsung pode oferecer atualizações para o firmware do sistema Wireless Audio Portable no futuro.
Para atualizar o firmware, visite samsung.com e encontre seu modelo por nome para localizar o download disponível.
Faça o download do arquivo do firmware em uma unidade USB e siga as instruções abaixo para atualizar o produto.
SERVICE
SERVICE
5V 500mA
AUX IN
DC 14V 4A
5V 500mA
AUX IN
1. Ligue o produto.
2. Insira uma unidade USB contendo a atualização do firmware na porta de
Serviço (USB) na parte de trás do produto.
3. Pressione os botões
FUNC.
e ao mesmo tempo por 5 segundos.
O processo de atualização é iniciado.
• Todos os indicadores LED irão piscar durante o processo de atualização.
4. Os indicadores LED serão desligados automaticamente após o processo de atualização ser concluído.
• Não desconecte a alimentação ou remova a unidade USB enquanto as atualizações estiverem sendo aplicadas.
• O produto desligará automaticamente após a conclusão da atualização do firmware.
• Quando o firmware for atualizado, as configurações realizadas retornarão às definições padrão (de fábrica). Recomendamos que você anote as suas configurações para que possa redefini-las facilmente após a atualização.
• Quando o LED indicador da bateria estiver vermelho, não atualize o produto.
Isso pode causar mal funcionamento do produto.
✎ Se a atualização do firmware falhar, recomendamos que você formate a unidade USB em FAT16 e tente novamente.
✎ Para fins de atualização, não formate a entrada da unidade USB em formato
NTFS porque este não é um sistema de arquivos suportado.
✎ Dependendo do fabricante, o USB pode não ser compatível.
SOLUCIONANDO PROBLEMAS
Antes de solicitar manutenção, tente as seguinte soluções:
A unidade não liga.
Recarregue a bateria e ligue novamente o player.
O som não é produzido no modo AUX.
não.
Uma função não é aplicada quando o botão é pressionado.
O SoundShare (emparelhamento da TV) falhou.
O som não é reproduzido.
em contato com a central de atendimento da Samsung.
A alimentação da unidade está desligada.
- Se não houver entrada de TECLADO em 8 horas, quando o cabo estiver conectado no modo AUX.
- Se o cabo AUX no modo AUX permanecer desconectado por 25 minutos.
- Se os modos Bluetooth ou SoundShare forem desconectados da unidade por 25 minutos.
- Não desliga quando o smart phone estiver carregando.
O Wireless Audio Portable pode não procurar ou se conectar corretamente nos seguintes casos.
com o Wireless Audio Portable.
defeito.
Português 9
AVISOS DE SEGURANÇA
CUIDADO
RISCO DE CHOQUE ELÉTRICO NÃO ABRA
PARA REDUZIR O RISCO DE CHOQUE ELÉTRICO, NÃO RETIRE A TAMPA
(NEM A PARTE TRASEIRA). NÃO HÁ PEÇAS QUE POSSAM SER REPARADAS
PELO USUÁRIO NO INTERIOR DO APARELHO. CONSULTE A ASSISTÊNCIA
TÉCNICA QUALIFICADA PARA OBTER MANUTENÇÃO.
Este símbolo indica que há “tensão perigosa” dentro do produto, podendo causar riscos de choque elétrico ou ferimentos pessoais.
Este símbolo indica que instruções importantes acompanham o produto.
AVISO : Para reduzir o risco de incêndio ou choque elétrico, não exponha este aparelho à chuva nem à umidade.
CUIDADO : PARA EVITAR CHOQUE ELÉTRICO, ENCAIXE TOTALMENTE OS
CONECTORES MACHO-E-FÊMEA.
• Este aparelho deve estar sempre conectado a uma tomada CA com uma conexão terra de proteção.
• Para desconectar o aparelho da fonte de alimentação principal, o plugue deve ser retirado da tomada e, assim, deve ficar prontamente acessível.
CUIDADO
• Não exponha o aparelho a gotas ou respingos. Não coloque objetos com líquidos, como vasos, sobre o aparelho.
• Para desligar o aparelho completamente, retire o plugue da tomada.
Por isso você deve sempre ter acesso fácil e pronto ao plugue.
10 Português
PRECAUÇÕES DE SEGURANÇA
Precauções relacionadas ao fornecimento de energia
- Isto pode causar aquecimento anormal ou incêndios.
limpe os pinos somente com um pano seco.
adaptador de CA puxando-o pelo cabo de alimentação.
esteja bem fixado.
- Se a conexão não ficar bem firme, há risco de incêndio.
Precauções na instalação calor ou produzem fogo (velas, tomadas mata-mosquitos, aquecedores, radiadores, etc.). Não instale exposto à luz direta do sol.
(inclusive o cabo de alimentação) da unidade.
- Um cabo danificado pode causar incêndios e oferece risco de choque elétrico.
excessiva ou frio extremo pode resultar em problemas de qualidade ou fazer com que o produto deixe de funcionar corretamente. Antes de instalar o produto em um ambiente que está fora dos padrões considerados normais, entre em contato com a central de atendimento da Samsung para obter mais informações.
gabinete ou uma mesa. Não coloque o produto sobre uma superfície instável
(por exemplo, em uma prateleira que balança, em uma mesa inclinada, etc.).
- Derrubar o produto pode fazer com que deixe de funcionar corretamente, oferecendo risco de ferimentos. Vibrações ou impactos severos também podem fazer com que o produto deixe de funcionar corretamente, levando ao risco de incêndio.
- Deixe pelo menos 10 cm na parte de trás do produto e mais de 5 cm de cada um de seus lados.
- Crianças brincando com os materiais plásticos da embalagem correm o risco de asfixia.
Precauções de uso
- Se você for exposto a um som mais alto que 85 db por um longo período de tempo, sua audição poderá ser negativamente afetada. Quanto mais alto for o som, mais graves poderão ser os danos à sua audição. Observe que um diálogo comum apresenta entre 50 e 60 db, e os ruídos de uma rodovia apresentam aproximadamente 80 db.
ou modificá-lo por conta própria.
- Entre em contato com uma central de atendimento da Samsung sempre que o seu produto precisar de reparo.
vasos, refrigerantes, cosméticos, produtos químicos, etc.). Não permita que objetos metálicos (por exemplo, moedas, grampos de cabelo, etc.) ou materiais inflamáveis (por exemplo, papel, palitos de fósforos, etc.) entrem no produto
(através das aberturas de ventilação, portas de entrada / saída, etc.).
- Se qualquer material prejudicial ou líquido adentrar o produto, desligue-o imediatamente, desconecte-o da tomada e entre em contato com a central de atendimento da Samsung.
alimentação e entre em contato com a central de atendimento da Samsung.
- Isso pode causar incêndios ou choque elétrico.
- Um cabo danificado pode fazer com que o produto deixe de funcionar corretamente, pode causar um incêndio e pode oferecer risco de choque elétrico.
fumaça, desconecte o cabo de alimentação imediatamente e entre em contato com a central de atendimento da Samsung.
de alimentação do produto. Não desligue ou ligue o produto.
produto com um objeto pontiagudo.
Precauções de limpeza lubrificantes para limpar o produto, e nem borrife inseticidas sobre o mesmo.
- O uso de qualquer um destes materiais pode causar a descoloração do revestimento exterior, ou resultar em rachaduras, descascamento ou na remoção da rotulagem do produto.
com um pano limpo, seco e macio (microfibra, algodão, etc.).
- Evite o acúmulo de poeira sobre o produto. A poeira pode riscar a superfície do produto.
Precauções relacionadas ao uso da bateria produto em locais quentes, mal ventilados, tais como saunas ou veículos fechados durante o verão.
- Isso pode causar incêndios ou fazer com que a bateria exploda.
- A umidade e substâncias líquidas podem danificar os componentes e circuitos elétricos do produto, fazer com que deixe de funcionar corretamente ou causar risco de incêndio. Recomendamos que o produto seja utilizado em ambientes com temperaturas entre 5°C e 35°C e umidade relativa do ar entre 10% e 75%.
sido completamente carregada.
- Desconecte o adaptador de CA após a bateria ter sido totalmente carregada para evitar danos à bateria. O sobrecarregamento pode reduzir a vida útil da bateria.
produto por longos períodos de tempo, recarregue a bateria periodicamente para manter sua capacidade e o seu funcionamento adequado.
- Deixar a bateria descarregada por um longo período de tempo pode reduzir sua vida útil, fazer com que ela deixe de funcionar corretamente ou causar risco de incêndio.
Português 11
Contacte a Samsung Internacional
Se tiver dúvidas ou comentários sobre os nossos produtos, por favor contacte a linha de apoio a Clientes Samsung.
Área
` Asia Pacific
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
` MENA
U.A.E
OMAN
KUWAIT
BAHRAIN
QATAR
EGYPT
ALGERIA
Central de contato Site da Web
1300 362 603
0800 SAMSUNG (0800 726 786)
400-810-5858
(852) 3698 4698
www.samsung.com/au
www.samsung.com/nz
www.samsung.com
www.samsung.com/hk (Chinese)
www.samsung.com/hk_en (English)
1800 3000 8282
1800 266 8282
0800-112-8888 (Toll Free)
(021) 56997777
0120-327-527
www.samsung.com/in
www.samsung.com/id
www.samsung.com
1800-88-9999 www.samsung.com/my
1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline and
Mobile]
02-4222111 [Other landline]
www.samsung.com/ph
www.samsung.com/sg 1800-SAMSUNG(726-7864)
0-2689-3232,
1800-29-3232
0800-32-9999
www.samsung.com/th
www.samsung.com/tw
1800 588 889 www.samsung.com
800-SAMSUNG (726-7864)
800-SAMSUNG(726-7864)
183-2255 (183-CALL)
8000-4726
800-2255 (800-CALL)
08000-726786
0800 100 100
www.samsung.com
www.samsung.com/ae (English)
www.samsung.com/ae_ar (Arabic)
www.samsung.com
www.samsung.com/n_africa
Área
PAKISTAN
TUNISIA
JORDAN
SYRIA
IRAN
MOROCCO
SAUDI ARABIA
TURKEY
` Africa
NIGERIA
GHANA
COTE D’ IVOIRE
SENEGAL
CAMEROON
KENYA
UGANDA
TANZANIA
RWANDA
BURUNDI
DRC
SUDAN
SOUTH AFRICA
BOTSWANA
NAMIBIA
ZAMBIA
MOZAMBIQUE
Central de contato
0800-Samsung (72678)
80-1000-12
0800-22273
06 5777444
18252273
021-8255
080 100 2255
920021230
444 77 11
0800-726-7864
0800-10077
0302-200077
8000 0077
800-00-0077
7095- 0077
0800 545 545
0800 300 300
0685 88 99 00
9999
200
499999
1969
0860 SAMSUNG (726 7864)
8007260000
08 197 267 864
0211 350370
847267864 / 827267864
Site da Web
www.samsung.com/pk/
www.samsung.com/n_africa
www.samsung.com/Levant(English)
www.samsung.com/Levant(English)
www.samsung.com
www.samsung.com
www.samsung.com/sa
www.samsung.com
www.samsung.com/africa_en/
www.samsung.com/africa_fr/
www.samsung.com
www.samsung.com
www.samsung.com
©2013 Samsung Electronics Co.,Ltd. Todos os direitos reservados.
AH68-02668L-00
advertisement
Key Features
- Stereo portable speaker 20 W Silver
- Wireless Bluetooth
- Built-in 2200 mAh 12 h
