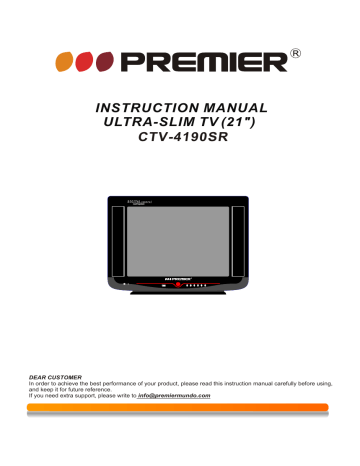

INSTRUCTION MANUAL

ULTRA-SLIM TV (21")

CTV-4190SR

DEAR CUSTOMER

In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference.

If you need extra support, please write to [email protected]

Thank you very much for your purchase of this product-the most natural

Colour Television Receiver.

To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready reference.

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the manufacturer of the television.

Only using furniture that can safely support the television.

Ensuring the television is not overhanging the edge of the supporting furniture.

Not placing the television on tall furniture (for example,cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

Educating children about the dangers of climbing on furniture to reach the television or its controls.

NOTE

Please confirm the model you have purchased before reading the manual and refer to the appendix to make sure features your TV has.

Precaution

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water, the apparatus shall not be exposed to

dripping or splashing and that no objects filled with liquids, such as vases, shall

be placed on the apparatus.

6. Clean only with dry cloth.

7. Do not install this apparatus in windtight places such as the wall-unit. Do not block

any ventilation openings.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods

of time.

14. Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Used batteries should not be thrown into the garbage can, please leave them at an appropriate depot.

CAUTION

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Page 1

Specifications

1. Television system

RF input: NTSC / PAL M / PAL N

Video input: NTSC / PAL M / PAL N

2. Receive frequency range

US CH

181 Channels (Air+CATV)

3 Picture resolution

Horizontal 220

Vertical 320

4. Intermediate frequency

Picture IF 45.75MHz

Volume IF 41.25MHz

5. Luminance grades 8 grade

6. Sound power output 3W 2

7. Power supply AC 90-260V 50/60Hz

8. Power consumption

9. Screen size: 54cm

75W (standard status)

10. Dimension

585(W)x335(D)x455(H)mm

11. Net Weight 18.5kg

Page 2

Note

All specifications are subject to change without notice.

All quality and size are approximate value.

Note: We will not notify customers particularly when there is any change happened in the design and specification of the product. The pictures in the handbook may bear slight differences from the real one. Please take actual products as the standard.

Control Location

For control knobs (all panels subject to the real object), please refer to your own TV set.

Front and Back Control Panel

1

10 9 16

11

3 4 5 6 7 8 12

13

14 15

1. Speaker

2. Side AV In

3. AV/TV

4. Menu Button

5. Volume Down Button

6. Volume Up Button

7.Program Down Button

8. Program Up Button

9. Power Indicator

10. Remote Sensor

11. Main Switch

12. Speaker

13. AC power Cord

14. Audio/Video-in/out

15. Terminal Antenna(75 Ohm)

16. USB

2

AV/TV

Press or toggle between channels and AV input. The input source is selected between the RF input of antenna and the Audio Video input for display.

Menu

Press MENU button to display the On Screen Menu.

Volume +/-

Press these buttons to decrease or increase the volume and they are also used for menu selection.

Program +/-

Press these buttons to select channel.

Power Indicator

Indicates On/ Off state of a television. It will be ON when the set is powered on or whenever any key on remote is pressed.

Remote Sensor

Point your remote towards the sensor to operate the functions on the Remote control.

Main switch

Press the main switch on the control panel to turn ON or OFF.

Video

Video input socket for camcorder, VCR, DVD sets

Page 3

Operation of Function Board

TV/AV MENU

VV+ PP+

OPERATION INSTRUCTIONS OF PANEL

First insert power plug and then insert antenna or cable antenna into the socket of antenna.

SWITCH ON AND OFF TV

When press Power button, power is connected. When press Power button

again, power is off. When TV is at stage of sleep, it can not be switched on or off by pressing the power button.

NOTE:

when TV is at stage of sleep, it can be switched on or off by pressing the

sleep button on the remote controller.

CAUTIONS:

In case that electricity is cut when watching TV, switch off the power. If

TV is not watched, please switch off the power. When TV is at stage of

sleep, there is a part of circuit working and consuming electricity.

Automatic Search Channel

Press "MENU" button and enter "Installation" with P+/P- button selected "Auto search" function and then press V+ or V- button starting to search the channels automatically.

Page 4

Connection to Other Equipment

This TV set can be connected to videotape player, videodisc player,video camera, game player or audio player.

Side AV terminal

VCD PLAYER

NOTE:

Video/ Audio equipment can be connected to sockets of AUDIO IN or VIDEO IN

in rear, If use the AV IN function , please make sure the image and sound play normally, and then connect the AV out terminal.

Back AV terminal

Y, Cr, Cb, input (OPTION)

Cb

L

L

Cr Y

IN

R

OUT

V

R V

IN

TV

Cb

Cr

Y

DVD PLAYER

Cb

Cr

Y

VIDEO OUT

R AUDIO

OUT

L

Page 5

1

19

22

23

24

25

5

6

7

10

11

13

16

Remote Controller

POWER

SOURCE

2 3

4 5 6

7 8 9

REPEAT

CCD

0

SCAN SLEEP

A-B

CALE.

P.P

CH VOL

+

^

MUTE

X

^

MENU DISP

OK

USB V-CHIP

SETUP

ZOOM

INFO

SUBTITLE

RS25-11115D

CTV-4190SR

2

3

4

9

8

12

14

15

1. [POWER]: Standby turn on and off.

2. [SOURCE]: Select the signal source.

3. [0~9]: Continue to press the keys to

select a channel.

4. [ REPEAT]: TV mode: Return to previous channel.

MEDIA mode: Repeat playing the current chaper

5. [CCD]: TV mode: CCD button.

MEDIA mode: Program serial number increment ,

for example 10+,20+,30+

6. [SCAN]: TV mode: SCAN button

MEDIA mode: Setup repeat play segment or Select

the picture showing mode

7. [SLEEP]: Sleep button.

8. [CALE.]: Calendar button.

9. [P.P]: Picture Effect

10. [MUTE]: Mute sound.

11. [VOL+/-]: Sound volume up/down.

12. [CH

] [CH

]: Channel up/down.

13. [MENU]: Display the main menu.

14. [DISPLAY]: Display channel status.

17. [V-CHIP]: TV mode: V-CHIP button.

MEDIA mode: enter or exit LANGUAGE SETUP menu.

18. [ZOOM]: Zoom in or out the current picture(Optional).

19. [USB]: Switch USB mode.

17

18

20

21

26

27

NOTE: Only for MEDIA

15.[ ] [ ] [ ] [ ]: Move the cursor in the menu.

16. [OK]: Confirm or enter mode.

20. [INFO]: Display information for current channel in

USB mode.

21. [SUBTITLE]: In USB mode, enable or disable subtitle;

select subtitle language.

22. [ ]: Stop playing or go back.

23. [ ]: Press to Play or Pause the file.

24. [ ]: Fast backward.

25. [ ]: Fast forward

26. [ ]: Skip backward.

27. [ ]: Skip forward.

Don't mix different battery types. Take out of the batteries from the remote if not

in use for a long time.

Page 6

Control your TV

1) Power/Stand-By ON/OFF

With Mains status On, you can also turn off using Remote Control Hand

Unit. This status is called Stand-By mode. In this mode, You can also turn

on the TV by pressing the Program Up/Down keys on the front controls.

The TV has an Automatic Power OFF function. With no signal condition, the

TV will automatically turn off after 10 minutes.

2) Program Up/Down

Press [

^

CH

CH

] key, to change Program Up.

] key, to change Program Down.

^

1

3) Direct Access Tuning

2 3

Using the numeric keys on Remote Control

4 5 6

Hand Unit, Programs can be selected directly.

7 8 9

0

4) Volume Control

VOL

2

Volume

Press [VOL - ] key, for Volume Down.

16

5) SCAN

A-B

will be previewed for 2 seconds, and stop at original program. Skipped

programs will not be previewed.

MEDIA

AV2

6) SOURCE

AV1

SOURCE

You can select your video source by the

[ SOURCE] key.

3

Page 7

7) MUTE

MUTE

Press MUTE key again, or Volume Up, and sound

Volume will return.

8) Quick View

REPEAT

2

Program will quick back to the previous program

being watched.

9) DISPLAY

This key will call the On Screen Display.

Press again, to remove the On Screen Display.

Menu MODE

Pressing the DISPLAY key, current menu will exit directly.

10

10) PICTURE EFFECT

Standard Dynamic User Mild

11) V-CHIP

V-CHIP

By pressing this key, the parental

menu appears.

Standard

Parental

Lock Code - - - -

Lock Off

PG Rating

MPAA Rating: Off

Can. english: Off

Can. french: Off

Change code

12) CALENDAR

CALE.

By pressing this key, CALENDAR will

be appear.

Using [

CH

]/[

CH

] keys, to change the year.

Using [VOL+]/[VOL-] keys, to change the month.

SU

6

13

20

27

2008 1

MO TU WE TH FR ST

7

1

8

14 15

21 22

28 29

2

9

3 4

10 11

16 17

23

30

24

31

18

25

5

12

19

26

Page 8

13.MAIN MENU BUTTON

When you press the main menu button, TV displays as follow in turn:

PICTURE SOUND TIMER FEATURES INSTALLATION

14) SLEEP

Repeatedly pressing this key, sleep timer

will change as follows:

120

"

0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 0

"

15)USB

USB

Press [ USB ] key , Switch USB mode.

The max. memory size of USB device which can be supported is 32GB

16)ZOOM (Optional)

ZOOM

Press [ZOOM] key ,to change as follows:

NORMAL WIDE

Page 9

Tuning Procedure

1) Auto Search Function:

Automatic Search and Memory (ASM)

Using the [MENU] key on the front or

INSTALLATION

Tuning mode Air

Channel 6

the [MENU] key on the Remote for ASM.

Color system Auto

Skip On

AFT On

A. Press [MENU] key repeatedly to select

INSTALLATION

B. Press [

CH

]/[

CH

]keys to select

Auto search

Fine ture

Tuning mode .

Repeatedly pressing [VOL+] key, signal input model will change as follows:

Air CATV

/Cable

Air CATV

/Cable

(STD) CATV

/Cable

(HRC) CATV

/Cable

(IRC)

and select input model.

This item is option.

C. Press [

CH

]/[

CH

] keys to select Auto search

D. Press [VOL+] key, to start ASM .

2) FINE TUNING Function: Fine Tuning for current setting.

A. Using [

CH

]/[

CH

]keys, to select Channel .

Using [VOL+]/[VOL-] keys, to change Program Number.

B. Using [

CH

]/[

CH

] keys, to select Fine ture .

C. Using [VOL+]/[VOL-] keys, to adjust for best tuning.

3) SKIP Function: Use to SKIP Programs. After setting to ON , the

program will not be selected by program Up/Down keys.

A. Using[

CH

]/[

CH

]keys, to select Channel .

Using [VOL+]/[VOL-] keys, to change Program Number.

B. Using [

CH

]/[

CH

] keys, to select Skip .

Using [VOL+]/[VOL-] keys, to select ON or OFF .

Page 10

VCHIP and CCD

1) SELECT VCHIP MODE

Parental

A. Press [MENU] key repeatedly to select

"FEATURES".

B. Press [

CH

]/[

CH

to select "parental".

]keys,

C. Press [VOL+]/[VOL-] keys,

to parental menu appears.

Lock Code - - - -

Lock Off

PG Rating

MPAA Rating: Off

Can. english: Off

Can. french: Off

Change code

2) VCHIP Password

A. Factory mode PIN is "0000", the common PIN is "4100".

B. Input the correct PIN, then can set the next items, include "PG Rating",

"MPAA Rating", "Can.english", "Can. french".

C. "Lock" is general lock, only when this item is on, parental mode can be

effective. When parental mode is effective, the screen is blue background

and sound is mute.

D. Using [

CH

]/[

CH

] keys, to move the cursor.

Using [VOL+]/[VOL-] keys, to select each item.

3) PG RATING

When you select " U.S. TV" ,using[

CH

]/

[

CH

]keys, to move the cursor for up and

down.

Using [VOL+]/[VOL-] keys, to preset view

or block.

Using the [MENU] key, to return.

PG Rating

TV-Y View FV V S L D

TV-Y7 View V

TV-G View

TV-PG View V V V V

TV-14 View V V V V

TV-MA View V V V

4) MPAA RATING

When you select " MPAA RATING",Using [VOL+]/[VOL-] keys, to change setup.

5) CANADA ENGLISH AND CANADA FRENCH

When you select "Can.english" or "Can french" Using [VOL+]/[VOL-] keys, to

change setup.

6) CHANGE PASSWORD

S elect and enter "Change Code"menu,

A. Input a new PIN.

B. Input the PIN again to confirm.

Change code

New code - - - -

Confirm - - - -

7) CCD

Select the program which is broadcasting the CCD

you want to watch. Press [CCD] key on the remote

control, "CCD On" appear on the screen and after

it disappears, the information of CCD will display

on the screen. By repeatedly pressing [CCD] key,

CCD will change between ON and OFF.

CCD On

Page 11

Menu Operation

1) [MENU] key

Press [MENU] key continuously, to scroll through the MENU selection, as follows:

PICTURE SOUND TIMER FEATURES INSTALLATION

2) PICTURE MENU

A. Select each function using

[

CH

]/[

CH

] keys.

B. Each value can be controlled by

[VOL+]/[VOL-] keys.

C. Repeat any functions if required.


Bright 75

Contrast 75

Color 50

Sharpness 50

Tint 00

The TINT will only appear when receiving the signals of NTSC system.

3) SOUND MENU

A.Select each function using

[

CH

]/[

CH

]keys.

B.Each value can be controlled

by [VOL+]/[VOL-] keys.

C.Repeat any functions if required.

Balance , AVL is option.

SOUND

Volume 16

Balance 00

AVL Off

4) TIMER MENU

Function: Time and Timer setting.

A. Using[

CH

]/[

CH

]keys, to select

"Timer", "Clock","On time", "Off time"

TIMER

or "On channel"

B. Using [

CH

]/[

CH

] keys, select "Timer".

Using [VOL+]/[VOL-] keys, channge Timer

On or Off.

C. For "Clock", "On time", "Off time"

setting.

Using [VOL+]/[VOL-] keys, select minutes

or hours.

Timer Off

Clock 11:09PM

Off time -- : --

On time -- : --

On channel 1

Using [

CH

]/[

CH

] keys, set minutes or hours.

D. For "On Channel" setting.

Using [

CH

]/[

CH

]keys, select "On Channel" .

Using [VOL+]/[VOL-] keys, change On Channel number.

Page 12

5) FEATURES MENU Function: other functions setting.

A. Using [

CH

]/[

CH

] keys,

to select each item.

Using [VOL+]/[VOL-] keys,

to change the value

of each item.

B.Using [

CH

]/[

CH

] keys, to select

Language .

Using [VOL+]/[VOL-] keys, Language will

change as follows:

English Francais Espanol

Portugues

C.Using [

CH

]/[

CH

] keys, select the"Blue screen".

Using [VOL+]/[VOL-] keys, select "On"or "Off".

D.Using [

CH

]/[

CH

] keys, select the" Picture enhance".

Using [VOL+]/[VOL-] keys, select "On"or "Off".

FEATURES

Language English

Blue screen On

Picture enhance Off

CCD On

CC mode CC1

Parental

Game

E.Using [

CH

]/[

CH

Using [VOL+]/[VOL-] keys, to preset "ON"or "OFF".

F.Using [

CH

]/[

CH

Using [VOL+]/[VOL-] keys, caption mode will change as follows.

CC1 CC2 CC3 CC4 T1 T2 T3 T4

G.Using [

CH

]/[

CH

Using [VOL+]/[VOL-] keys, to enter the game.

Page 13

MULTIMEDIA

1.1 MEDIA Function

Support multimedia file:

Multimedia data

JPEG

AUDIO

Video

E-BOOK

Format

JPG,JPEG

MP3, WMA

Digital movies

.txt

Note: 1. Don't connect a portable hard disk or PC to the USB interface.

2. Compatible USB devices: The format is FAT or FAT32.

3. We cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.

4. The USB playing may be broken by abnormal operation or U disk worse connection. You can try to play again plug the U disk out and into the socket again to get better playing.

5.The max. memory size of USB device which can be supported is 32GB .

1.2 USB Function

Adjustment of the USB

Enjoy your Audio in this mode.

ex: mp3, wma

OK

1 Press the SOURCE or USB button to enter "MEDIA" mode,

2 Press or button to select "AUDIO", "JPEG", "VIDEO" or "E-BOOK"

3.Press OK button to go into the function,

4.Press the button to return or exit.

1.2.1 LANGUAGE SETUP

LANGUAGE SETUP

Osd language

SV:

English

Chinese

German

Spanish

French

Portuguese

A. Press SETUP button to enter or exit LANGUAGE SETUP.

B. Press or button to select Osd language.

C. Press or button to select the setting item.

D. Press OK button to confirm.

Page 14

1.2.2 AUDIO

NULL

NULL

NULL

A.Press or button to select the music that you want ,Then press button

to play.

B.Select the button to get the function.

C.Press or quick flip. Press CCD button and number button quickly to select

play track.

D.Press button to select the . Press OK button to return to the previous menu.

E. Press button to stop current playing and return to main menu.

1.2.3 JPEG

[ PHOTO ] JPG_IBK_15360X8640 (B

0001.JPG_1BK

0002.JPG_1BK

0003.JPG_1BK

0004.JPG_1BK

15360X8640 none

2011:04:16 f/0

0

0 mm

PGUP/DN BACK A - B MODE

A. Press or button to select the photos that you want ,Then press button

to play.

C.Press or quick flip. Press CCD button and number button quickly select play

track.

D.Press button to select the . Press OK button to return to the previous menu.

E. Press button to stop current playing and return to main menu.

Page 15

1.2.4 VIDEO

[ FRENCH ] FRENCH.AV1

0001.FRENCH

PGUP/DN BACK

1. We suggest to set the PICTURE in soft mode when you play video.

2. Please make the TV in WIDE mode when you play the video of 16:9 aspect ratio.

You can press ZOOM button and set the TV in "WIDE" mode then press P.P button to set the TV in "MILD" mode.

A. Press or button to select the movies that you want ,Then press button

to play.

B.Select the button to get the function.

C.Press or quick flip. Press CCD button and number button quickly select play

track.

D.Press button to select the . Press OK button to return to the previous menu.

E. Press button to stop current playing and return to main menu.

1.2.5 E-BOOK

[ ENGLISH _ ] TEXET Doc.TXT

0001.TXT

PGUP/DN

BACK

A. Press or button to select the books that you want ,Then press button

to play.

B.Press or to browse the E-book page up and down.

C.Press or quick flip.PressCCD button and number button quickly select play

track.

D.Press button to select the . Press OK button to return to the previous menu.

E. Press button to stop current playing and return to main menu.

Page 16

Battery Installation(Remote Control Unit)

1.Remove the battery cover.

2.insert the 2 UM-4 AAA 1.5V batteries making sure the polarity(+or -)of the batteries

matches the polarity marks inside the unit.

3.Replace the battery cover.

Replace with new batteries when the TV set begins to show the following symptoms:

operation is unsteady or erratic. Sometimes the TV set does not function with Remote

control unit.

Remark:

1) Alkaline batteries recommended.

2) Remove batteries when they are exhausted or if the remote control is not to be

used for a long time.

WARNING:

The battery(battery or batteries or battery pack)shall not be exposed to excessive heat such as sunshine,fire or the like.

The Causes of Interference

Incorporated in your TV receiver are the most up-to-date devices to eliminate interference.

Local radiation however, can create disturbances which Visibly affect your picture.

Proper installation, a good aerial are your best safeguards against these disturbances.

INTERFERENCE

Moving ripples across the screen are caused

by nearby transmitting or receiving shortwave radio equipment.

DIATHERMY

Herringbone pattern and partial picture loss can result from the operation of diathermy equipment from a nearby doctors surgery or hospital.

SNOW

Weak TV signals from long distant stations result In an unsteady picture and give the effect of falling snow. An antenna adjustment or antenna amplifier may be needed.

GHOST

Multiple images caused by TV signals reflected back from surrounding buildings, hills, aircraft, etc. are minimized by correct aerial positioning.

CAR IGNITION

Nearby cars and electrical motors can cause small streaks across the picture or make the picture roll.

Page 17

Service Tips

BEFORE CALLING FOR SERVICE,HAVE YOU

CHECKED( )THE FOLLOWING CHART

ON SYMPTOMS AND SOLUTIONS?

Symptoms

No picture,no sound

Poor sound,picture OK

Poor picture,sound OK

Weak picture

Blurred picture

Double image

Lines in picture

Distorted picture

Weak reception on some channels

Horizontal bars

Picture rolls vertically

Poor colour

No colour

Misoperation of Remote control

No Remote control

On screen Display Control outside the screen

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Key Features

  • 21-inch screen size
  • Multi-system TV receiver
  • Ultra-slim design
  • 8-grade luminance
  • 3W sound power output
  • Variety of input and output options

Related manuals

Frequently Answers and Questions

How do I turn on the TV?
Press the power button on the front of the TV or on the remote control.
How do I change channels?
Use the channel up/down buttons on the front of the TV or on the remote control.
How do I adjust the volume?
Use the volume up/down buttons on the front of the TV or on the remote control.
How do I connect an external device to the TV?
Use the input and output options on the back of the TV.
How do I use the remote control?
Point the remote control at the TV and press the desired button.
Download PDF

advertisement
