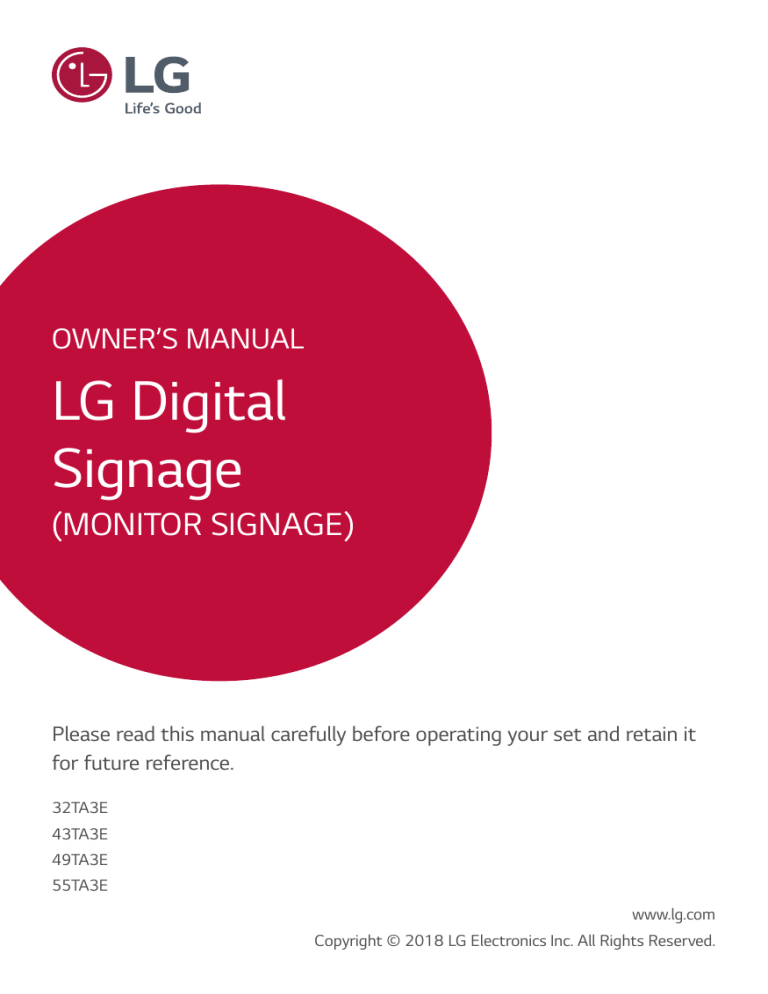

OWNER’S MANUAL

LG Digital

Signage

(MONITOR SIGNAGE)

Please read this manual carefully before operating your set and retain it for future reference.

32TA3E

43TA3E

49TA3E

55TA3E www.lg.com

Copyright © 2018 LG Electronics Inc. All Rights Reserved.

2

TABLE OF CONTENTS

SAFETY PRECAUTIONS ................3

-Precautions In Installing the Product .....................3

-Precautions to the AC Adapter and Electrical

Power ......................................................................................5

-Precautions In Moving the Product ........................7

-Precautions In Using the Product ............................8

-Mounting on a Wall .........................................................9

LICENSES .................................... 10

ASSEMBLY AND PREPARATION 11

-Optional Accessories ....................................................12

-Parts and Buttons .........................................................14

-Assembling the Memory Cover..............................15

-Connecting the IR Sensor .........................................16

-Portrait Layout ................................................................17

-Installing on a Wall ........................................................18

REMOTE CONTROL .................... 20

MAKING CONNECTIONS ........... 22

-Connecting to a PC.......................................................22

-External Device Connection .....................................22

-Using the Input List ......................................................24

CONNECT TOUCH ...................... 25

-Connect to a PC .............................................................25

-Connect to a Monitor ..................................................25

TROUBLESHOOTING .................. 26

PRODUCT SPECIFICATIONS ...... 30

WARNING

- This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

3

SAFETY PRECAUTIONS

Please read these safety precautions carefully before using the product.

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

WARNING

• Indoor Use Only.

Precautions In Installing the Product

WARNING

• Keep away from heat sources like electrical heaters.

- Electrical shock, fire, malfunction, or deformation may occur.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

• Do not put heavy objects on the product or sit upon it.

- If the product collapses or is dropped, you may be injured. Children must pay particular attention.

• Do not leave the power or signal cable unattended on the pathway.

- The passerby can trip or fall, which can cause electrical shock, fire, product breakdown, or injury.

• Install the product in a neat and dry place.

- Dust or moisture can cause electrical shock, fire or product damage.

• If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center.

- If you continue to use without taking proper measures, electrical shock or fire can occur.

• If you dropped the product or the case is broken, turn off the product and unplug the power cord.

- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.

4

• Do not drop an object on or apply impact to the product. Do not throw any toys or objects on the product screen.

- It can cause injury to human, problem to product and damage the display.

• Do not let the product fall or drop when connecting it with an external device.

- This may cause injury and/or damage to the product.

• When connecting it to a game device, keep a distance of four times the diagonal measurement of the screen from the device.

- If the product falls because of the short cable, this may cause injury and/or damage to the product.

• Leaving a fixed image on the screen for a long time may cause damage to the screen and cause image retention.

To use the product for a long period of time, use a screen saver on the PC or utilize the residual image prevention function on the product, and when the product is not used, turn off the power. Retention and related problems are not covered by the warranty on this product.

• Do NOT install this product on a wall where there is high risk of exposure to oil fumes or mist.

- This may damage product and cause it to fall.

CAUTION

• Make sure the product ventilation holes are not blocked. Install the product in a suitably wide place (more than

100 mm from the wall).

- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.

• Do not block the ventilation hole of the product by a tablecloth or curtain.

- The product can be deformed or fire can break out due to overheating inside the product.

• Install the product on a flat and stable place that has no risk of dropping the product.

- If the product is dropped, you may be injured or the product may be broken.

• Install the product where no EMI occurs.

• Keep the product away from direct sunlight.

- The product can be damaged.

• If you install the product in a place that does not meet the recommended conditions, this may cause serious damage to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station), failure to do so will invalidate the warranty.

• Do not install the product in an area with poor ventilation (e.g.on a bookshelf, in a closet) or outside and avoid placing on cushions or carpets.

• In addition, do not install it where there are heating objects such as lighting equipment.

Precautions to the AC Adapter and Electrical Power

WARNING

• If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.

- Otherwise, this may cause a fire or electric shock due to damage to the product.

• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry them before use.

- Otherwise, this may cause a fire or electric shock.

• Make sure to completely insert the power cord into the AC adapter.

- If loosely connected, the poor connection may cause a fire or electric shock.

• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.

- The use of non-approved products may cause a fire or electric shock.

• When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.

- The power line can be damaged, which may cause electric shock or fire.

• Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter.

Be careful not to damage the power cord or AC adapter with sharp objects.

- Damaged power cords may cause a fire or electric shock.

• Never disassemble, repair or modify the power cord or AC adapter.

- This may cause a fire or electric shock.

• Make sure to connect the power cable to the grounded current.

- You may be electrocuted or injured.

• Use the rated voltage only.

- The product can be damaged, or you may be electrocuted.

• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous.

- It can cause electric shock.

• Do not connect several extension cords, electrical appliances, or electrical heaters to a single outlet. Use a power strip with a grounding terminal designed for exclusive use with the computer.

- A fire can break out due to overheating.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

- You may be electrocuted due to excess moisture.

5

6

• If you don’t intend to use the product for a long time, unplug the power cable from the product.

- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

• Fix the power cable completely.

- If the power cable is not fixed completely, a fire can break out.

• Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.

- You may be electrocuted.

• The appliance coupler is used as the disconnect device.

• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily accessible.

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

CAUTION

• Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.

- This may cause a fire.

• Do not unplug the power cord while the product is in use.

- Electrical shock can damage the product.

• Use only the power cord supplied with the unit. If you use another power cord, make sure that it is certified by the applicable national standards when not provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement.

Precautions In Moving the Product

WARNING

• Make sure to turn off the product.

- You may be electrocuted or the product can be damaged.

• Make sure to remove all cables before moving the product.

- You may be electrocuted or the product can be damaged.

• Make sure the panel faces forward and hold it with both hands to move. If you drop the product, the damaged product can cause electric shock or fire. Contact an authorized the service center for repair.

• Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger apparatus. Do not press against or put stress on the front panel of the apparatus.

CAUTION

• Do not shock the product when moving it.

- You may be electrocuted or the product can be damaged.

• Do not dispose the product-packing box. Use it when you move.

7

8

Precautions In Using the Product

WARNING

• Do not disassemble, repair or modify the product at your own discretion.

- Fire or electric shock accident can occur.

- Contact the service center for check, calibration or repair.

• When the display is to be left unattended for an extended period of time, unplug it from the wall outlet.

• Keep the product away from water.

- Fire or electric shock accident can occur.

• Do not shock or scratch the front and sides of the screen with metallic objects.

- Otherwise, it may cause damage to the screen.

• Avoid high temperatures and humidity.

CAUTION

• Do not put or store inflammable substances near the product.

- There is a danger of explosion or fire due to careless handling of the inflammable substances.

• When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners, or alcohol.)

• Take a rest from time to time to protect your vision.

• Keep the product clean at all times.

• Take a comfortable and natural position when working with a product to relax the muscles.

• Take a regular break when working with a product for a long time.

• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil, or pen, or make a scratch on it.

• Keep the proper distance from the product.

- Your vision may be impaired if you look at the product too closely.

• Set the appropriate resolution and clock by referring to the User’s Guide.

- Your vision can be impaired.

• Use authorized detergent only when cleaning the product. (Do not use benzene, thinner, or alcohol.)

- Product can be deformed.

• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace, and electric heaters.

• Do NOT place non-rechargeable batteries in charging device.

• Using headsets (earphones) for a long time or listening loudly can cause damage to your hearing.

• Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

9

CHEMICALS

WATER

• Do not use products using high voltage around the Monitor. (e.g., a bug zapper)

- Monitor may have malfunction as its electrical shock.

Mounting on a Wall

• Do NOT install this product by yourself as you may injure yourself or cause damage to product. Please contact service personnel authorised by manufacturer.

10

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com

.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com

. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,

& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

ASSEMBLY AND PREPARATION

CAUTION

• Always use genuine components to ensure safety and product performance.

• The product warranty will not cover damage or injury caused by the use of counterfeit components.

NOTE

• The accessories provided with your product may vary depending on the model or region.

• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

• SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website ( http://partner.lge.com

) and download the latest software for your model.

• The warranty will not cover any damage caused by using the product in an excessively dusty environment.

11

12

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

Media Player kit

(It may not be supported depending on the model.)

Media Player

MP500/ MP700

Screws

Diameter 3.0 mm

x Length 6 mm

OPS kit

CD (Owner's Manual)/ Cards

KT-OPSA

Card (Easy Setup Guide)

Screws

Diameter 3.0 mm

x Length 8 mm

Power Cord

Pixel sensor kit

KT-SP0

Connecting Cable

NOTE

• Cable holder/cable tie may not be available in some areas or for some models.

• Optional accessories are available for some models. If necessary, please purchase them separately.

• Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

• Before you attach the OPS kit or Media Player, connect the cable to the port.

CAUTION

• Before attaching/removing a KT-OPSA to/from a monitor, make sure that you unplug the power cords connected to the monitor and the KT-OPSA from their power outlets.

13

14

Parts and Buttons

The image may be different according to the model.

Buttons

INPUT

: Changes the input source.

1

• : Moves left and right.

AUTO/SET

: Displays the current signal and mode.

• /I: Turns the power on or off.

1 Connecting the Touch USB cable to the monitor may change the

- Touch : Access or exit subsequent Touch menus.

- Touch and Hold : Turn the Touch mode of the screen ON/OFF.

button operation.

Assembling the Memory Cover

Assemble the cover with a screw as illustrated to prevent the USB memory from theft.

1

15

2

NOTE

- When disassembling the set, remove the memory cover before unplugging the cable.

- When using the memory cover, check the size of the USB memory.

(A: 60 mm, B: 18 mm, C: 10 mm or smaller)

16

Connecting the IR Sensor

When you connect the cable to the product, the feature for receiving remote control signals is activated. Rotate the IR sensor according to the screen orientation (Landscape/Portrait).

- The image may be different according to the model.

Basic installation

Landscape scene

[Front] [Rear]

[Rear]

Portrait scene

[Front]

[Front] [Rear]

Portrait Layout

When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).

17

Using Kensington Lock

(This is not available for all models.)

The Kensington security system connector is located at the back of the monitor. For more information on installation and use of this system, refer to the manual provided with the Kensington security system or visit http://www.kensington.com

.

Connect the Kensington security system cable between the monitor and a table.

NOTE

• The Kensington security system is optional. You can obtain additional accessories from most electronics retail stores.

• The illustration shows a general example of installation and may look different from the actual product.

18

Installing on a Wall

For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

100 mm

100 mm

100 mm

100 mm

100 mm

To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.

Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

1

Use only screws and wall mounting brackets that conform to VESA standards.

2

Screws which are longer than standard length may damage the inside of the monitor.

3

A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents related to the use of non-standard screws.

4

Please use VESA standard as below.

• 785 mm and above

* Fixing screws: Diameter 6.0 mm x Pitch 1.0 mm x Length 12 mm

785 mm

19

CAUTION

• Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.

• If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.

• Do not over tighten the screws as this may damage the monitor and void your warranty.

• Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse or use of improper accessories are not covered by the warranty.

• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

(This pertains only to Australia and New Zealand.)

NOTE

• The wall mount kit includes the installation guide and all necessary parts.

• The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.

• The length of screws required may differ depending on the wall mount. Be sure to use the correct length.

• For more information, please refer to the guide provided with the wall mount.

20

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and

terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual accessories.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

• Be sure to point the remote control toward the remote control sensor on the monitor.

• Some features of the remote control may not be supported in certain models.

(POWER)

Turns the monitor on or off.

Turns the monitor on.

Turns the monitor off.

Adjusts the brightness of the picture to reduce energy consumption.

(INPUT)

Selects the input mode.

Used for viewing 3D videos.

Toggles between numerical and alphabetical.

Number and Alphabet buttons

Enters numerical or alphabetical characters depending upon the setting.

Deletes the entered numerical or alphabetical character.

Volume Up/Down Button

Adjusts the volume.

Selects the Aspect Ratio mode.

Automatically adjusts picture position and minimizes image instability

(available for RGB input only).

(MUTE)

Mutes all sounds.

Adjusts the brightness of the display. PAGE function is not supported in this model.

",#

21

Selects the Picture Mode.

(HOME)

Activates the Launcher.

Enters the White Balance menu.

(SETTINGS)

Accesses the main menus or saves your input and exit menus.

SuperSign menu key.

Navigation Buttons

Scrolls through menus or options.

Selects menus or options and confirms your input.

(BACK)

Allows you to move back one step in the user interaction function.

Quit all OSD tasks and applications.

Allows you to control various multimedia devices to enjoy multimedia simply by using the remote control through the SimpLink menu.

Selects the TILE Mode.

When the Picture ID number matches the Set ID number, you can control whichever monitor you want in multi-display format.

USB Menu Control Buttons

Controls media playback.

Trick key

May not be supported on some models.

22

MAKING CONNECTIONS

You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device.

Connecting to a PC

Some of the cables are not provided.

This monitor supports the Plug and Play* feature.

* Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or user intervention when powering up.

External Device Connection

Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.

Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.

23

NOTE

• For the best image quality, using the monitor with HDMI connection is recommended.

• To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a D-sub

15-pin cable and DVI-D/HDMI cable.

• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.

• Sometimes red, green, or blue spots may appear on the screen. This is normal.

• Use a High Speed HDMI®/

TM

cable.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

• Recommended HDMI Cable Types

- High-Speed HDMI®/

TM

Cable

- High-Speed HDMI®/

TM

Cable with Ethernet

• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change the default audio output to HDMI.

• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.

• You may experience compatibility issues if you use HDMI-PC mode.

• Make sure the power cable is disconnected.

• If you connect a gaming device to the monitor, use the cable provided with the gaming device.

• High Speed HDMI®/

TM

cables transmit a HD signal up to 1080p and higher.

CAUTION

• Connect the signal input cable and tighten it by turning the screws clockwise.

• Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the screen.

• Avoid displaying static images on the screen for a long period of time to prevent image retention. Use a screensaver if possible.

• A wireless communication device near your monitor can affect the image.

24

Using the Input List

• RGB HDMI1 HDMI2 OPS / DVI-D DISPLAYPORT

25

CONNECT TOUCH

Connect your PC or monitor with the Touch USB cable on a side of the monitor.

Connect to a PC

Connect the Touch USB cable on a side of the monitor with the USB port on your PC.

Connect to a Monitor

Connect the Touch USB cable on a side of the monitor with the USB port on the back of the other monitor. You can use the touch function. For more information, refer to the User Guide.

86%,1

CAUTION

• The product may not work when using a USB extension cable.

• Images may differ according to the model.

• Remove the Touch USB cable and reconnect when the surroundings (e.g., lights) of the installation change.

• The screen can recognize a finger or an object as a touch even when the glass surface is not touched. This is a characteristic of the Touch IR.

26

TROUBLESHOOTING

No image is displayed.

Problem

Is the product power cord connected?

Does the “Invalid Format” message appear?

Does the “No Signal” message appear?

Action

• Check if the power cord is correctly plugged into the power outlet.

• The signal from the PC (Graphics card) is out of the vertical or horizontal frequency range of the product. Adjust the frequency range by referring to the Specifications in this manual.

• The signal cable between PC and product is not connected. Check the signal cable.

• Access the input menu to check the input signal.

The Unknown Product message appears when the product is connected.

Problem

Did you install the driver?

Action

• Check if the Plug and Play function is supported by referring to the graphics card user manual.

The screen image looks abnormal.

Problem

Is the screen position wrong?

The screen is displayed abnormally.

Action

• Check if the graphics card resolution and frequency are supported by the product. If the frequency is out of range, set to the recommended resolution in the [Control Panel] [Display] [Setting] menu. (The settings may differ depending on your operating system.)

• The proper input signal is not connected to the signal port. Connect the signal cable that matches with the source input signal.

27

After-image appears on the product.

Problem

After-image appears when the product is turned off.

Action

• If you use a fixed image for a long time, the pixels may be damaged.

Use the screen-saver function.

• When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may cause image sticking. This is normal for LCD screen products.

The audio function does not work.

No sound?

Sound is too dull.

Sound is too low.

Problem Action

• See if the audio cable is connected properly.

• Adjust the volume.

• See if the sound is set properly.

• Select the appropriate equalizer sound.

• Adjust the volume.

Screen color is abnormal.

Problem Action

Screen has poor color resolution (16 colors).

• Set the number of colors to more than 24 bits (true color). Select

[Control Panel] [Display] [Settings] [Color Table] in

Windows. (The settings may differ depending on your operating system.)

Screen color is unstable or mono-colored.

• Check the connection status of the signal cable. Or, re-insert the PC graphics card.

Do black spots appear on the screen?

• Several pixels (red, green, blue, white, or black color) may appear on the screen, which can be attributable to the unique characteristics of the

LCD panel. This is not a malfunction of the LCD.

The operation does not work normally.

Problem

The power suddenly turned off.

Action

• Is the Timer set?

• Check the power control settings. Power interrupted.

28

There is a problem with the touch response.

Problem

Touch does not respond.

The location of a touch does not correspond to the touch coordinates.

A touch is applied to a monitor other than the one I intended.

Multi-touch does not respond.

Action

• Remove the USB cable and connect it again in 10 seconds.

• Check the USB cable connection.

- This may occur when the USB cable between PC and monitor is not connected. *Check the USB cable and make it firmly connected.

Windows 7, 8, 8.1, 10 , Mac OS X (over 10.9) Control Panel > System and Security > System

- Check the number of touch-points supported under Pen and Touch.

Check the PC power.

- This may occur when the PC is powered off. Make sure that your PC’s power cord is firmly plugged into a power outlet.

• Restart your PC.

- Touch may not respond when the system is down due to the unstable network. Reconnect the LAN cable or restart your PC.

• Check the signal cable connection.

- If your PC and monitor are not connected using a signal cable, touch does not respond. Check the signal cable connection.

• Check the monitor power.

- Touch may not respond when the monitor is powered off.

• Always connect the power cord to a grounded outlet.

- If you do not use a grounded outlet, it may cause a break or touch error.

• Check if the screen is currently on.

• Change your tablet PC settings (Windows 7, 8, 8.1, 10 , Mac OS X

(over 10.9)).

- This may occur when the touch screen is not calibrated properly.

Control Panel> Hardware and Sound > Tablet PC Settings > Display >

Display options >Calibrate or Reset * For information about gestures and settings on Windows 7, 8, 8.1, 10 , Mac OS X (over 10.9), refer to the

Windows or Mac Help.

• Set the monitor as the default monitor.

- This may occur if the monitor is not set as the default monitor when you are using multiple monitors. Go to Control Panel > Display > Settings tab > Select the monitor > Use this device as the primary monitor (U) >

Apply (A)

• Change your tablet PC settings (Windows 7, 8, 8.1, 10 , Mac OS X

(over 10.9)).

- This may occur when the touch screen is not calibrated properly. Go to

Control Panel > Hardware and Sound > Tablet PC Settings > Display >

Display options> Calibrate or Reset

• Make sure that you use a content that supports Multi-touch points in

Windows 7, 8, 8.1, 10 , Mac OS X (over 10.9)

- The content played (e.g. Flash Player, Paint, etc.) may not support Multitouch points.

• Remove the USB cable and connect it again in 10 seconds.

• Run the content (e.g. Flash Player, Paint, etc.) again.

Restart your PC.

• A break or touch error may occur as below case.

- If using the touch pen only with nail or fingertip

- If using the touch pen without proper distance between fingers

• On the edge of the touch screen, multi-touch may work unstably.

29

CAUTION

• Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image. It is recommended that you change the screen at least once every 12 hours at the very minimum; if done more frequently, the prevention of image sticking is more effective.

Recommended operating conditions

1

Change the background and the character colors using the same time interval.

ID: UPM 123

PW: ****

ID: UPM 123

PW: ****

When changing colors, using complementary colors helps to prevent image sticking.

CF

BM

CF

Glass

BM

OC

PI

LC

PI

TFT Layers

Glass

CF

BM

CF

ITO or MoTi Pixel Layer

2

Change the image using the same time interval.

Make sure that the characters or images before changing the image remain in the same location after changing the image.

What is image sticking?

When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed image remains visible. This phenomenon is referred to as image sticking.

30

PRODUCT SPECIFICATIONS

The product specifications below may be changed without prior notice due to upgrade of product functions.

“ ” refers to alternating current (AC), and “ ” refers to direct current (DC).

LCD screen

Video signal

Screen type

Maximum resolution

Thin Film Transistor (TFT)

Liquid Crystal Display (LCD) Screen

HDMI1, HDMI2, DP : 3840 x 2160 @ 30 Hz

OPS, DVI-D, RGB : 1920 x 1080 @ 60 Hz

- This may not be supported on some OS or graphics card types.

Recommended resolution 1920 x 1080 @ 60 Hz

- This may not be supported on some OS or graphics card types.

Horizontal frequency 30 kHz to 83 kHz

Vertical frequency : 56 Hz to 75 Hz

: 56 to 60 Hz

: 30 Hz, 56 Hz to 60 Hz

Synchronization Separate Sync, Digital

Input/output ports

Embedded battery

Environmental

Conditions

Audio

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

RMS Audio Output

Input Sensitivity

Speaker Impedance

Applied

0 °C to 40 °C

10 % to 80 %

-20 °C to 60 °C

5 % to 85 %

10 W + 10 W (R + L)

0.7 Vrms

6 Ω

* DP Cable: Use a DP cable that is certified to a DP 1.1a (SST) standard or higher.

* Touch Screen

OS (Operating

System)

Windows 7, 8, 8.1, 10 , Mac OS X (over 10.9)

Space between touches : at least 20 mm or more

10 Points

32TA3E

LCD screen Pixel pitch

0.36375 mm (H) x 0.36375 mm (V)

Power Rated power

AC 100-240 V ~ 50/60 Hz 0.8 A

Power consumption

On Mode: 60 W (Typ.)

Sleep Mode: ≤ 0.5 W

Off Mode: ≤ 0.5 W

Dimensions (Width x Height x Depth) / Weight

768.4 mm x 462.9 mm x 74.5 mm / 10.3 kg

43TA3E

LCD screen

Power

Pixel pitch

Rated power

0.4902 mm (H) X 0.4902 mm (V)

AC 100-240 V ~ 50/60 Hz 0.9 A

Power consumption On Mode: 75 W (Typ.)

Sleep Mode: ≤ 0.5 W

Off Mode: ≤ 0.5 W

Dimensions (Width x Height x Depth) /Weight 1009.6 mm x 597.8 mm x 71.4 mm / 17.1 kg

49TA3E

LCD screen

Power

Pixel pitch

Rated power

0.55926 mm (H) X 0.55926 mm (V)

AC 100-240 V ~ 50/60 Hz 1.0 A

Power consumption On Mode: 85 W (Typ.)

Sleep Mode: ≤ 0.5 W

Off Mode: ≤ 0.5 W

Dimensions (Width x Height x Depth) /Weight 1142.2 mm x 672.4 mm x 71.4 mm / 22.3 kg

55TA3E

LCD screen

Power

Pixel pitch

Rated power

0.630 mm (H) x 0.630 mm (V)

AC 100-240 V ~ 50/60 Hz 1.1 A

Power consumption On Mode: 100 W (Typ.)

Sleep Mode: ≤ 0.5 W

Off Mode: ≤ 0.5 W

Dimensions (Width x Height x Depth) /Weight 1278 mm x 748.8 mm x 71.4 mm / 28 kg

31

32

Wireless module(LGSBW41)Specifications

Wireless LAN (IEEE 802.11a/b/g/n)

Frequency range (MHz)

2400 to 2483.5

Output power (Max.)

16 dBm

5150 to 5250

5725 to 5850 (Not for EU)

16 dBm

11.5 dBm

Bluetooth

Frequency range (MHz)

2400 to 2483.5

Output power (Max.)

10 dBm

• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

(Only Nigeria)

Connection and use of this communications equipment is permitted by the Nigerian

Communications Commission

(Only HongKong)

Wireless module(LGSBW41)Specifications

Wireless LAN

IEEE 802.11a/b/g/n Standard

Bluetooth

Standard Bluetooth

Frequency range (MHz)

Output power (Max.)

2400 to 2483.5

5150 to 5250

5725 to 5850

802.11a: 13 dBm

802.11b: 15 dBm

802.11g: 14 dBm

802.11n - 2.4GHz: 16 dBm

Frequency range (MHz)

Output power (Max.)

2400 to 2483.5

10 dBm or Lower

802.11n - 5GHz: 16 dBm

• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

• For consideration of the user, this device should be installed and operated with a minimum distance of

20 cm between the device and the body.

RGB (PC) Support Mode

Resolution

720 x 400

640 x 480

800 x 600

1024 x 768

1280 x 720

1600 x 900

1280 x 1024

1680 x 1050

1920 x 1080

Horizontal frequency (kHz)

31.468

31.469

37.879

48.363

44.772

60

63.981

65.29

67.5

HDMI/ DVI-D/ DisplayPort/ OPS (PC) Support mode

Resolution

800 x 600

1024 x 768

1280 x 720

1366 x 768

1280 x 1024

1680 x 1050

1920 x 1080

3840 x 2160

Horizontal frequency (kHz)

37.879

48.363

44.772

47.7

63.981

65.290

67.5

67.5

Vertical frequency (Hz)

60.317

60

59.855

60

60.02

59.954

60

30

Vertical frequency (Hz)

70.8

59.94

60.317

60.0

59.855

60

60.02

59.954

60

Remarks

HDMI1/HDMI2/DP

33

34

HDMI/ DisplayPort/ OPS (DTV) Support Mode

Resolution

480/60p

576/50p

720/50p

720/60p

1080/50i

1080/60i

1080/50p

1080/60p

1080/60p

2160/30p

Horizontal frequency (kHz)

31.5

31.25

37.5

45

28.1

33.75

56.25

67.432

67.5

67.5

Vertical frequency (Hz)

60

50

50

60

50

60

50

59.94

60

30

Multi-screen Support mode

HDMI/ DVI-D/ DisplayPort/ OPS (PC)

Resolution

1280 x 720

1920 x 1080

3840 x 2160

Horizontal frequency (kHz)

44.772

67.5

67.5

Vertical frequency (Hz)

59.855

60

30

Remarks

HDMI1/HDMI2/DP

Remark

HDMI, DisplayPort,

PIP (Main)

HDMI/ DisplayPort/ OPS (DTV)

Resolution

720/50P

720/60P

1080/50P

1080/60P

2160/30P

Horizontal frequency (kHz) Vertical frequency (Hz)

37.5

50

45

56.25

60

50

67.5

67.5

60

30

Remark

HDMI, DisplayPort,

PIP (Main)

NOTE

• Resolutions available for the Input Label option in HDMI / DisplayPort / OPS input modes (depend on the model):

- PC resolutions : 640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920 x 1080 / 60 Hz

- DTV resolutions: 480p, 720p, 1080p.

• Vertical frequency: The product display functions by the screen image changing dozens of times every second like a fluorescent lamp.

The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.

• Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz.

35

Make sure to read the Safety Precautions before using the product.

The model and serial numbers of the SET are located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

Temporary noise is normal when powering ON or OFF this device.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
