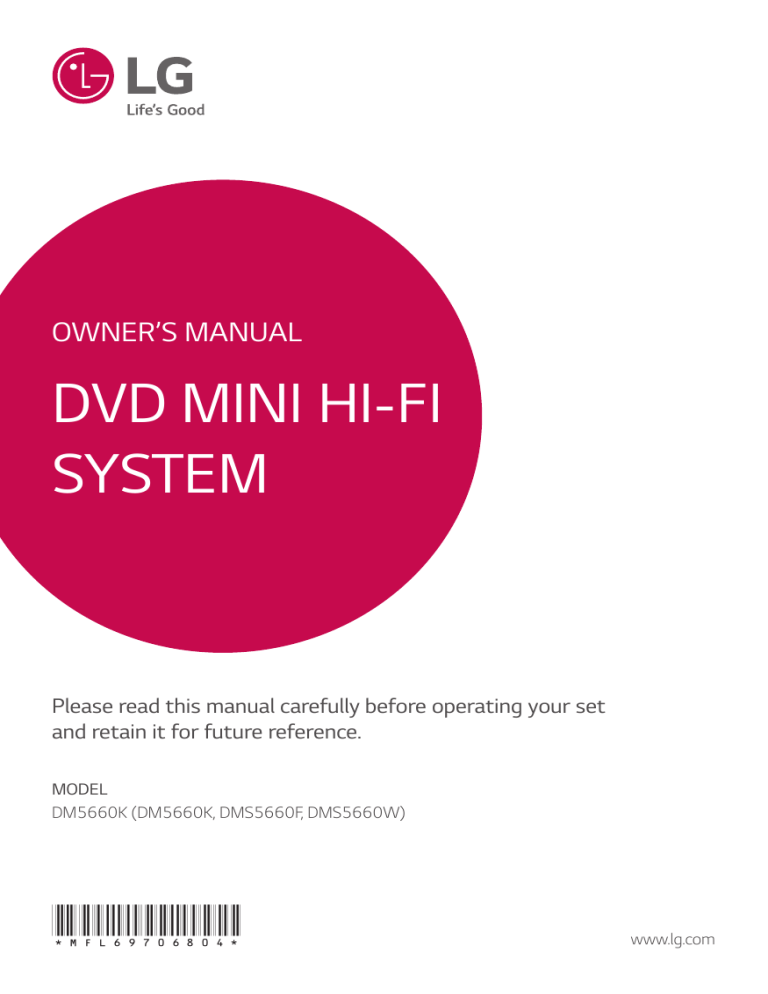

OWNER’S MANUAL DVD MINI HI-FI SYSTEM Please read this manual carefully before operating your set and retain it for future reference. MODEL DM5660K (DM5660K, DMS5660F, DMS5660W) *MFL69706804* www.lg.com 2 Getting Started Safety Information 1 CAUTION Getting Started RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible. Getting Started 3 This device is equipped with a portable battery or accumulator. NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product. CAUTION: No naked flame sources, such as lighted candles, should be placed on the apparatus. Symbols ~ 0 Refers to alternating current(AC). Refers to direct current(DC). Refers to class II equipment. 1 Refers to stand-by. ! Refers to “ON” (power). Refers to dangerous voltage. 1 Getting Started Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. 4 Table of Contents Table of Contents 1 Getting Started 2 Safety Information 6 Unique Features 6 – Full HD up-scaling 6 – BLUETOOTH® 6 – USB Direct Recording 7Introduction 7 – Playable Discs 7 – About the “7” Symbol Display 7 – Symbols Used in this Manual 7 – Regional Codes 8 Playable file Requirement 8 – Music file requirement 8 – Photo file requirement 8 – Video file requirement 9 Remote control 9 – Replacement of battery 10 Front panel 11 Rear panel 2Connecting 12 13 13 14 15 15 16 16 16 Attaching the speakers to the unit Connections to your TV – HDMI Connection – Video Connection – Resolution Setting Video Output Resolution Optional Equipment Connection – AUX (L/R) INPUT Connection – USB Connection 3 System Setting 18 18 18 19 19 20 21 Adjust the setup settings – OSD Initial language settings - Optional – To display and exit the Setup menu – Language – Display – Audio – Lock (Parental Control) 4Operating 22 22 24 24 26 26 26 26 26 26 27 27 27 27 27 27 27 27 28 28 29 30 30 31 32 32 32 32 32 32 32 33 33 34 34 35 35 35 Using the Home Menu Basic Operations Using a BLUETOOTH® wireless technology – Listening to music of a BLUETOOTH device Radio Operations – Listening to the radio – Improving poor FM reception – Presetting the Radio Stations – Deleting all the saved stations – Deleting a saved station Advanced Operations – Displaying Disc Information on-screen – To display the DVD Menu – To display the DVD title – 1.5 times speed playback – Screen Saver – Starting play from selected time – Resume playback – Changing subtitle code page – Marked Playback – Viewing a PHOTO file Sound adjustment – Setting the surround mode – Recording to USB Other Operations – Sleep Timer Setting – Dimmer – Turn off the sound temporarily – Last Scene Memory – Power Resume - Optional – System Select - Optional – VOCAL FADER – Using Microphone Setting the Clock – Using your player as an alarm clock Auto power down – AUTO POWER On – Auto function change Table of Contents 5 5Troubleshooting 36Troubleshooting 6Appendix 38Maintenance 38 – Handling the Unit 38 – Notes on Discs 39 Area Code List 40 Language code List 41 Trademarks and Licenses 42Specifications 1 2 3 4 5 6 6 Getting Started Unique Features 1 Full HD up-scaling Getting Started Views Full HD picture quality with simple setup. BLUETOOTH® Listens to music stored on your Bluetooth device. USB Direct Recording Records music from CD to your USB device. Getting Started Introduction Playable Discs DVD-VIDEO (8 cm/12 cm disc) Discs such as movies that can be purchased or rented. DVD±R (8 cm/12 cm disc) Video mode and finalized only. DVD-RW (8 cm/12 cm disc) Video mode and finalized only. DVD+R: Video mode only Supports the double layer disc also. DVD+RW (8 cm/12 cm disc) Video mode and finalized only. Audio CD: Music CDs or CD-R/CDRW in music CD format that can be purchased. About the “7” Symbol Display “7” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific media. Symbols Used in this Manual r DVD-Video, DVD±R/RW in Video mode or VR mode and finalized t Audio CDs y Video files contained in the USB/ Disc u Audio files contained in the USB/ Disc i Photo files contained in the USB/ Disc ,,Note Indicates special notes and operating features. ,,Tip Indicates tip and hints for making the task easier. >>Caution Indicates cautions for preventing possible damages from abuse. Regional Codes This unit has a regional code printed on the unit. This unit can play only DVD discs labeled same as the unit or “ALL”. yy Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play. yy If you try to play a DVD with a different regional code from your unit, the message “Check Regional Code” appears on the TV screen. 1 Getting Started This unit plays DVD±R/RW and CD-R/RW that contains audio titles, MP3, WMA and/or JPEG files. Some DVD±RW/DVD±R or CD-RW/CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. 7 8 Getting Started Playable file Requirement 1 Getting Started Music file requirement MP3/ WMA file compatibility with this unit is limited as follows : yy Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA) yy Support Version : v2, v7, v8, v9 yy Maximum files : Under 999 yy File extensions : “.mp3”/ “.wma” yy CD-ROM file format : ISO9660/ JOLIET yy We recommend that you use Easy-CD Creator, which creates an ISO9660 file system. yy You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.(Mastered/ Live File System : Disc format system for Windows Vista) Video file requirement Video file compatibility with this unit is limited as follows : yy Available resolution: within 720 x 576 (W x H) pixels. yy The file name of the Video subtitle should be entered within 45 characters. yy If there is impossible code to express in the Video file, it may be displayed as “ _ “ mark on the display. yy Frame rate : less than 30 fps. yy If the video and audio structure of recorded files is not interleaved, either video or audio is outputted. yy Playable Video file : “.avi”, “.mpg”, “.mpeg” yy Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt), MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt), Vobsub (*.sub) yy Playable Codec format : “Xvid”, “MPEG-1”, “MPEG-2” yy Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA” yy Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA) The DTS is not supported. In case of DTS audio format, audio is not output. yy For Discs formatted in Live file system, you can not it on this unit. Photo file requirement yy If the name of movie file is different from that of the subtitle file, during playback of a Video file, subtitle may not be display. Photo file compatibility with this unit is limited as follows : yy Max pixel in width : 2760 x 2048 pixel yy Maximum files : Under 999 yy Some discs may not operate due to a different recording format or the condition of disc. yy File extensions: “.jpg” yy CD-ROM file format : ISO9660/ JOLIET yy If you play a Xvid file differ from Xvid spec, it may not operate normally. yy If you play GMC video file which is more than 1-warp point, video playback screen will not smooth. Getting Started 9 Remote control (Dimmer : The display window will be darken by half.) REGION EQ : Chooses sound impressions. n HOME : Displays the [Home Menu]. 9 SOUND EFFECT : Selects a sound effect mode. • • • • • • • • • b• • • • • • • • VOL -/+ (Volume) : Adjusts speaker volume. DISC MENU : Accesses the menu on a DVD disc. W/S/A/D (Up/Down/Left/ Right) : Used to navigate on-screen displays. TUNING +/- : Tunes in the desired radio station. • • • • • • • • • e• • • • • • • • x RETURN : Moves backwards in the menu or exits the setup menu. TITLE : If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear. Z (Stop) : Stops playback. 1 (Standby/On) : Switches the unit ON or OFF. B (Open/Close) : Opens and closes the disc tray. P FUNCTION : Selects the function and input source. SLEEP : Sets the System to turn off automatically at a specified time. h REPEAT : Selects a play mode. (Repeat/Random) CLEAR : Removes a number when setting the password. • • • • • • • • • c• • • • • • • • • • • • • • • • • a• • • • • • • • 0-9 numerical buttons : Selects numbered options in a menu. PRESET (W/S) : Selects programme of Radio. b ENTER : Acknowledges menu selection. Presetting the radio stations. Remove the battery cover on the rear of the remote control, and insert the battery with 4 and 5 matched correctly. (Mute) : Mutes the sound. X REC : USB Direct Recording. d (Play) MONO/STEREO : -- Starts playback. -- Selects Mono/Stereo. TV Control buttons : Controls the TV. (LG TV only) -- You can control the sound level, input source, and power switching of LG TVs as well. Hold 1 (TV) and press PR/CH (w/s) button repeatedly until the TV turns on or off. CLOCK : Sets a clock and checks a time. ALARM : With the ALARM function you can turn CD, USB play and Tuner reception on at a desired time. M (Pause) : Pauses playback. VOCAL FADER : You can enjoy the function as karaoke, by reducing singer vocal of music in the various source. C/V (Skip) : Goes to the next or previous chapter/track/file. MIC VOL -/+ (Microphone Volume) : Adjusts microphone volume. c/v (Scan) : Searches backward or forward. ECHO VOL -/+ (Volume) : Adjusts echo volume. SET : Confirms the setting. ? : This button is not available. 1 Getting Started MARKER : Marks play list. m INFO/DISPLAY : Accesses OnScreen Display. Replacement of battery • • • • • • • • • d• • • • • • • • 10 Getting Started Front panel 1 Getting Started aDisplay window b1/!(Standby/On) Turn the power on or off. cU (Skip/Search) -- Skips to the next track/file/chapter. -- Tune in the desired radio station. dB. BLAST (Bass Blast) Press to select BASS effect directly. eY (Skip/Search) -- Skips to the previous track/file/chapter. -- Tune in the desired radio station. fMIC VOLUME (Microphone Volume) Adjust Mic volume. gDisc tray hUSB Port You can play sound files by connecting the USB device. iFUNCTION Select the function and input source. jz (Play/Pause) -- Start or pause playback. -- Select Stereo/Mono. kREGION EQ Choose region equalizer. lR (Open/Close) Open and close the disc tray. mMIC (Microphone) jack Connect a microphone. nMASTER VOLUME Adjust speaker volume. Getting Started 11 Rear panel 1 Getting Started aPOWER IN bVIDEO OUT Connects to a TV with video inputs. cFM ANTENNA Connects the FM wired antenna dAUX IN (L/R) Connects to an external source with 2 channel audio outputs. eHDMI Connects to TV with HDMI inputs. (Interface for digital audio and video) fSPEAKERS terminal 12 Connecting Attaching the speakers to the unit To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad. 2 Connect the black of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus). >>Caution yy Be careful to make sure children do not put their hands or any objects into the *speaker duct. *Speaker duct : A hole for plentiful bass sound on speaker cabinet(enclosure). yy The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor. Connecting yy Use the speaker supplied with this unit only. Using any other speaker may cause malfunction. yy Do not press the diaphragm or the dust cap of the speaker. yy Do not connect any other speaker except subwoofer speaker to the subwoofer connection terminal on the rear of the unit. Color Speaker Position Orange Sub woofer Any front position Red Front Front right White Front Front left yy Use the speaker supplied with this unit only. Using any other speaker may cause malfunction. Connecting 13 Connections to your TV Make one of the following connections, depending on the capabilities of your existing equipment. ,,Note yy Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual. HDMI Connection If you have a HDMI TV or monitor, you can connect it to this unit using a HDMI cable (Type A, High Speed HDMI™ Cable). Connect the HDMI jack on the unit to the HDMI IN jack on a HDMI compatible TV or monitor. Set the TV’s source to HDMI (refer to TV’s Owner’s manual). 2 Connecting yy Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections. >>Caution yy Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel. yy Do not connect your player via your VCR. The image could be distorted by the copy protection system. Unit TV ,,Tip yy You can fully enjoy digital audio and video signals together with this HDMI connection. yy When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to 15.) 14 Connecting >>Caution yy Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the unit and then turn it on again. 2 yy When the HDMI connection with HDCP is not verified, TV screen is changed to black or green screen or the snow noise may occur on the screen. In this case, check the HDMI connection, or disconnect the HDMI cable. Video Connection Connect the VIDEO OUT jack on the unit to the video in jack on the TV using a video cable. You can hear the sound through the system’s speakers. Connecting yy Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel. ,,Note yy If a connected HDMI device does not accept the audio output of the unit, the HDMI device’s audio sound may be distorted or may not output. yy When you connect a HDMI or DVI compatible device make sure of the following: - Try switching off the HDMI/DVI device and this unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit. - The connected device’s video input is set correctly for this unit. - The connected device is compatible with 720 x 480i (or 576i), 720 x 480p (or 576p), 1280 x 720p, 1920 x 1080i or 1920 x 1080p video input. yy Not all HDCP-compatible HDMI or DVI devices will work with this unit. - The picture will not be displayed properly with non-HDCP device. - This unit does not playback and TV screen is changed to black or green screen or the snow noise may occur on the screen. yy If there is noise or lines on the screen, please check the HDMI cable and use a higher version cable than High Speed HDMI™ Cable. yy If you use Bluetooth Function of the unit, the audio is not output to HDMI. Unit TV Yellow Connecting 15 Resolution Setting The unit provides several output resolutions for HDMI. You can change the resolution using [Setup] menu. 1.Press n HOME. 2.Use W/S/A/D to select the [Setup] and press b ENTER. The [Setup] menu appears. Video Output Resolution Displayed resolution in display window and outputted resolution may different according to connection type. [HDMI] : 1080p, 1080i, 720p and 480p (or 576p) and 480i (or 576i) [VIDEO OUT] : 480i (or 576i) 2 Connecting 3.Use W/S to select [Display] option then press D to move to the second level. 4.Use W/S to select the [Resolution] option then press D to move to the third level. 5.Use W/S to select the desired resolution then press b ENTER to confirm your selection. ,,Note If your TV does not accept the resolution you have set on the player, you can set resolution to 480p (or 576p) as follows : Press Z for more than 5 seconds. 16 Connecting Optional Equipment Connection USB Connection Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit. AUX (L/R) INPUT Connection Connect an output of auxiliary device (Camcorder, TV, Player, etc) to the AUX IN (L/R) connector. 2 Connecting If your device has only one output for audio (mono), connect it to the left audio jack on the unit. White Unit Red ,,Note Removing the USB Device from the unit. 1. Choose a different function mode or press Z twice in a row. 2. Remove the USB device from the unit. Connecting 17 Compatible USB Devices yy MP3 Player : Flash type MP3 player. evices that support USB2.0 or yy USB Flash Drive : D USB1.1. yy The USB function of this unit does not support some USB devices. USB device requirement yy Do not extract the USB device while in operation. yy For a large capacity USB, it may take longer than a few minute to be searched. yy To prevent data loss, back up all data. yy If you use a USB extension cable or USB hub, the USB device is not recognized. yy Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.) yy This unit is not supported when the total number of files is 1,000 or more. yy External HDD, Card readers, Locked devices, or hard type usb devices are not supported. yy USB port of the unit cannot be connected to PC. The unit cannot be used as a storage device. yy Some USB may not work with this unit. 2 Connecting yy Devices which require additional program installation when you have connected it to a computer, are not supported. 18 System Setting Adjust the setup settings By using the Setup menu, you can make various adjustments to items such as picture and sound. To display and exit the Setup menu 1.Press n HOME. Displays the [Home Menu]. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 18 to 21. OSD Initial language settings Optional 3 System Setting During the first use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language. 1. Press 1/! on the unit or 1 on the remote control to turn the unit on. The language setup menu will appear on the screen. 2. Select an [Setup] by using A/D. 3.Press b ENTER. Displays the [Setup]. 4.Press n HOME or x RETURN to exit in the [Setup] Menu. About help menu for Setup Menu Buttons Operation w/s Move W/S Moving to another menu. 2.Use W/S/A/D to select a language then press b ENTER. The confirm menu will appear. a Move A Moving to previous level. d Move D Moving to next level or selecting menu. Close b Select x RETURN 3.Use A/D to select the [Enter] then press b ENTER to finish the language setup. To exit the [Setup] menu. b ENTER To confirm menu. x System Setting 19 Language Display Mode Menu Language The Display Mode setting works only when the TV Aspect mode is set to 4:3. Select a language for the Setup menu and on screen display. Disc Audio / Disc Subtitle / Disc Menu Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu. [Original] Refers to the original language in which the disc was recorded. [Other] [Off (for Disc Subtitle)] Turns off Subtitle. Display TV Aspect Select the screen aspect to use based on the shape of your TV screen. Displays a wide picture with bands on the upper and lower portions of the screen. [Panscan] Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. (If the disc/file is not compatible with Pan Scan, the picture is displayed at Letterbox ratio.) Resolution Sets the output resolution of HDMI video signal. Refer to “Resolution Setting” for details about the resolution (page 15). [Auto] If the HDMI jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. If VIDEO OUT is only connected, this changes the resolution to 480i (or 576i) as default resolution. [1080p] Outputs 1080 lines of progressive video. [1080i] Outputs 1080 lines of interlaced video. [4:3] [720p] Select when a standard 4:3 TV is connected. Outputs 720 lines of progressive video. [16:9] [480p (or 576p)] Select when a 16:9 wide TV is connected. Outputs 480 (or 576) lines of progressive video. [480i (or 576i)] Outputs 480 (or 576) lines of interlaced video. 3 System Setting To select another language, press numeric buttons and then b ENTER to enter the corresponding 4-digit number according to the language code list on the page 40. If you enter the wrong language code, press CLEAR. [Letterbox] 20 System Setting Audio DRC (Dynamic Range Control) 2.1 Speaker Setup Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect. Make the following settings for the built-in 2.1 channel surround decoder. Vocal 1. Select [2.1 Speaker Setup] on the [Audio] menu. Select [On] to mix karaoke channels into normal stereo. 2.Press b ENTER. The [2.1 SPEAKER] appears. This function is effective for multi-channel karaoke DVDs only. HD AV Sync 3 System Setting 3.Use A/D to select the desired speaker. 4. Adjust options using W/S/A/D buttons. 5. Returns to the previous menu by pressing x RETURN. [Speaker] Select a speaker that you want to adjust. ,,Note Certain speaker settings are prohibited by the Dolby Digital licensing agreement. [Size] Since the speaker settings are fixed, you cannot change the settings. [Volume] Adjust the output level of each speaker. [Distance] Adjust the distance between each speaker and the listening position. [Speaker Test Start] Select [Speaker Test Start] by using the W/S and press b ENTER. Press b ENTER again to stop. Adjust the volume to match the volume of test signals memorized in the system. Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use W/S (on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 and 300ms. System Setting 21 Lock (Parental Control) Password You can enter or change password. Initial Setting the Area Code When you use this unit for the first time, you have to set the Area Code. 1. Select [Password] on the [Lock] menu and then press D. 2.Press b ENTER. 1. Select the [Lock] menu and then press D. 3. Input a password and press b ENTER. 2.Press D. To access the [Lock] options, you must input the password you have created. Input a password and press b ENTER. Enter it again and press b ENTER to verify. If you make a mistake before pressing b ENTER, press CLEAR. 3. Select the first character using W/S buttons. 5.Press b ENTER to confirm your Area code selection. Rating Blocks playback of rated DVDs based on their contents. Not all discs are rated. 1. Select [Rating] on the [Lock] menu then press D. 2. Input a password and press b ENTER. 3. Select a rating from 1 to 8 using the W/S buttons. [Rating 1-8] Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. 4.Press n HOME to exit the menu. ,,Note If you forget your password, you can clear it using the following steps: 1. Select the [Setup] menu on the [Home Menu]. 2. Input the 6-digit number “210499” and press b ENTER. The password is cleared. Area Code Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 39. 1. Select [Area Code] on the [Lock] menu then press D. 2. Input a password and press b ENTER. 3. Select the first character using W/S buttons. [Unlock] 4.Press b ENTER and select the second character using W/S buttons. If you select unlock, parental control is not active and the disc plays in full. 5.Press b ENTER to confirm your Area code selection. 4.Press b ENTER to confirm your rating selection. 3 System Setting 4.Press b ENTER and select the second character using W/S buttons. To change the password, press b ENTER when the [Change] option is highlighted. Input a password and press b ENTER. Enter it again and press b ENTER to verify. 22 Operating Using the Home Menu Basic Operations 1.Press n HOME. Displays the [Home Menu]. 1. Insert the disc by using the B or connect the USB device to the USB port. 2.Press n HOME. Displays the [Home Menu]. 2. Select an option by using A/D. 3.Press b ENTER then selected option menu. 3. Select an option by using A/D. If you select the [Movie], [Photo] or [Music] option when you connect up to two devices, it appears as below. Select a media then press b ENTER. [Music] – Displays [MUSIC] menu. [Movie] – S tart video media’s playback or displays the [MOVIE] menu. [Photo] – Displays [PHOTO] menu. [Setup] – Displays the [SETUP] menu. 4 ,,Note Operating You can not select the [Music], [Movie] or [Photo] option when the USB device is not connected or a disc is not inserted. 4.Press b ENTER then selected option menu. ,,Note yy For the most Audio CD and DVD-ROM discs, playback starts automatically. yy The unit plays only music file contained in the USB storage device or disc automatically. Operating 23 To Stop Playback Pause Frame-byFrame playback Locating a point quickly by playing a file in fast forward or fast reverse Playing repeatedly or randomly To Press Z. Press d MONO/STEREO on the remote control or z on the unit. Slowing down the playing speed Press M. Press M repeatedly to play title Frame-by-Frame. (DVD Movie title, Movie file only) During playback, press Y / U on the unit or C/V on the remote control to go to the next chapter/ track/ file or to return to the beginning of the current chapter/ track/ file. Press Y on the unit or C on the remote control twice briefly to step back to the previous chapter/ track/ file. During playback, press c/v on the remote control repeatedly to select the required scan speed. To return to normal speed, press d MONO/STEREO on the remote control or z on the unit. Press h REPEAT repeatedly, and the current title, chapter or track will be played back repeatedly or randomly. - DVD : Chapter/ Title/ Off - Video(MOVIE) : Title/ All/ Off - Audio CD/ MP3/ WMA : Track/ All/ Random/ Off Selecting a track/file directly Do this In the pause mode, press c/v to select the required speed. (DVD Movie title only) In the pause mode, press v to select the required speed. (Movie file only) Press 0 to 9 numerical buttons on the remote control to go to the desired file or track directly. 4 Operating Skipping to the next/ previous chapter/ track/ file Do this 24 Operating Using a BLUETOOTH® wireless technology About BLUETOOTH Bluetooth is wireless communication technology for short range connection. The sound may be interrupted when the connection interfered by the other electronic wave or you connect the Bluetooth in the other rooms. Connecting individual devices under Bluetooth wireless technology does not incur any charges. A mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection was made via Bluetooth wireless technology. Available Devices : Mobile phone, MP3, Laptop, PDA (This units be supported the Stereo Headset.) 4 Operating BLUETOOTH Profiles In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profile. A2DP (Advanced Audio Distribution Profile) Codec : SBC Listening to music of a BLUETOOTH device Pairing your unit and Bluetooth device. Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again. 1. Select the Bluetooth function by using the FUNCTION on the unit or PFUNCTION on the remote control. Appears “BT READY” in display window. 2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as “LG MINI(XX:XX)”. ,,Note XX:XX means the last four digits of BT address. For example, if your unit has a BT address such as 9C:02:98:4A:F7:08, you will see “LG MINI(F7:08)” on your Bluetooth device. Operating 25 3. When this unit is successfully connected with your Bluetooth device, “PAIRED” will be appear on the display window. ,,Note Depending on the Bluetooth device type, some device have a different pairing way., 4. Listening to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device’s user guide. ,,Note yy If you change the function of the unit, the Bluetooth function is disconnected, operate pairing again. (Bluetooth Function other than the Bluetooth) yy Depending on the Bluetooth device type, some device have a different pairing way. (Enter the PIN code (0000) as needed.) ,,Note yy The sound may be interrupted when the connection interfered by the other electronic wave. yy You cannot control the Bluetooth device with this unit. yy Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported. yy Depending on the type of the device, you may not be able to use the Bluetooth function. yy You can enjoy wireless system using phone, MP3, Notebook, headset, etc.. yy When not connected the Bluetooth, “BT READY” appears on the display window. yy The electrical malfunction due to devices using same frequency such as Medical equipment, Microwaves or wireless LAN devices, the connection will be disconnected. yy If the gotten away of the distance between Bluetooth and the unit, the sound quality is lower and lower the connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth. yy If the function is changed to Bluetooth again from other function, Bluetooth device is paired automatically. 4 Operating yy When someone stands and interrupts communication between Bluetooth device and the player, the connection will be disconnected. 26 Operating Radio Operations Listening to the radio 1.Press FUNCTION on the unit or PFUNCTION on the remote control until FM appears in the display window. The last received station is tuned in. 2. Auto tuning : Press and hold TUNING (-/+) on the remote control or Y/U on the unit for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a staion. or 4 Manual tuning : Press TUNING (-/+) repeatedly. Operating 3. Adjust the volume by rotating volume knob on the unit or by pressing VOL +/- on the remote control repeatedly. Improving poor FM reception Adjust the antenna to improve the reception when the radio has poor reception. Press d MONO/STEREO on the remote control. This will change the tuner from stereo to mono and usually improve the reception. Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume. 1. Press FUNCTION on the unit or PFUNCTION on the remote control until FM appears in the display window. 2. Select the desired frequency by using TUNING (-/+). 3.Press b ENTER, a preset number will flash in the display window. 4.Press PRESET W/S to select the preset number you want. 5.Press b ENTER. The station is stored. 6. Repeat the steps 2 to 5 to store other stations. 7. To listen a preset station, press PRESET W/S or 0 to 9 numerical buttons on the remote control. Deleting all the saved stations 1. Press and hold CLEAR for two seconds. “ERASEALL” will flash up on the unit display. 2.Press CLEAR to erase all saved of the radio stations. Deleting a saved station 1.Press PRESET W/S to select a preset number you want to delete. 2.Press CLEAR, the preset number will blink in the display window. 3.Press CLEAR again to delete the selected preset number. Operating 27 Advanced Operations Displaying Disc Information onscreen You can display various information about the disc loaded on-screen. 1.Press m INFO/DISPLAY to show various playback information. The displayed items differ depending on the disc type or playing status. 2. You can select an item by pressing W/S and change or select the setting by pressing A/D. Title – C urrent title number/ total number of titles. Chapter – C urrent chapter number/ total number of chapters. Time – Elapsed playing time. Audio – Selected audio language or channel. Angle – Selected angle/ total number of angles. ,,Note r The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed. 1. During playback, press d MONO/STEREO to play at 1.5 times speed. “dX1.5” appears on the screen. 2.Press d MONO/STEREO again to exit. Screen Saver The screen saver appears when you leave the unit in Stop mode for about five minutes. Starting play from selected time ry To start playing at any chosen time on the file or title. 1.Press m INFO/DISPLAY during playback. 2.Press W/S to select the time clock icon and “--:--:--” appears. r 3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers. For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter “11020” by using numerical buttons. When you play a DVD which contains several menu, you can select the menu you want using the Menu. 4.Press b ENTER to confirm. Playback starts from the selected time. 1.Press DISC MENU. The disc’s menu appears. Resume playback 2. Select the menu by using W/S/A/D. ryut If any button is not pressed for a few seconds, the on-screen display disappears. To display the DVD Menu 3.Press d MONO/STEREO to confirm. To display the DVD title r When you play a DVD which contains several title, you can select the title you want using the Menu. 1.Press TITLE. The disc’s title appears. 2. Select the menu by pressing W/S/A/D. 3.Press d MONO/STEREO to confirm. The unit records the point where you pressed the Z depending on the disc. If “MZ (Resume Stop)” appears on the screen briefly, press d MONO/STEREO to resume playback (from the scene point). If you press Z twice or unload the disc, “Z”(Complete Stop) appears on the screen. The unit will clear the stopped point. 4 Operating Subtitle – Selected subtitle. 1.5 times speed playback 28 Operating ,,Note yy The resume point may be cleared when a button is pressed (for example; 1, B, etc). yy This function may not work on some disc or title/track. Changing subtitle code page y 2. Select a desired music on the [List] by using the W/S then press MARKER to appears the mark on the list. 3.Press b ENTER. Displays the play mode. 4. Select the play mode by using the W/S and press b ENTER. [Mark Play] Marked playback. If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle file properly. 1. During playback, press m INFO/DISPLAY to display the On-Screen display. 2.Use W/S to select the [Code Page] option. 3.Use A/D to select desired code option. [Current Play] Normal playback. ,,Note If you want to select all files on the list, select [Select All] and press b ENTER. 4.Press x RETURN to exit the On-Screen display. 4 Marked Playback Operating ut To delete a Marker 1.Use W/S to select the track that you wish to erase from the marked file. The mark function enables you to store your favourite files from any disc or USB device in the unit memory. 2.Press MARKER. 1. Select [Music] on the [Home Menu]. Use W/S/A/D to select [Deselect All] then press b ENTER in program edit mode. Returning to the upper folder. (MP3/ WMA only) File information will be displayed according to the ID3 TAG information on the appropriate music file. (MP3 only) Selecting all tracks/files. Deselecting all tracks/files. Moving to the previous or next file list. To delete all Markers ,,Note The markers are also cleared when the disc or USB device is removed, the unit is switched to power off or the function is switched to others. Operating 29 Viewing a PHOTO file About help menu in the full screen i This unit can play discs with photo files. 1. Select [Photo] on the [Home Menu] and press b ENTER. Moving to the previous or next file list. Menu Buttons Menu m INFO/ DISPLAY a/d A/D Prev./ Next x List x RETURN Operation Displaying the Option menu. Moving to another file. Returning to the [Photo] menu. Options while viewing a photo You can use various options during viewing a photo in full screen. 1. While viewing a photo in full screen, press m INFO/DISPLAY to display the option menu. 2. Select an option using W/S/A/D. Returning to the upper folder. 4 Operating 2.Press W/S to select a folder, and then press b ENTER. 3. If you want to view a slide show, press W/S to highlight a file and press d MONO/STEREO. a About help menu in the [Photo] menu Menu Buttons Operation d Slide Show d MONO/ STEREO Viewing a slide show. w/s/ a/d Move W/S/A/D b Select b ENTER x Close x RETURN Moving to another file or content. Viewing a particular file. Returning to the [Home Menu]. b c de a Current photo/ Total number of photos – Use A/D to view previous/next photo. b Slide Show d/M – Press b ENTER to start or pause slide show. c Speed x3/ x2/ x1 – Use b ENTER to select a delaying speed between photos in a slide show. d Rotate – Press b ENTER to rotate the photo. e Go to list – Press b ENTER to return [Photo] menu. 30 Operating Sound adjustment Setting the surround mode This system has a number of pre-set surround sound fields. You can select a desired sound mode by using 9 SOUND EFFECT. On Display Description POP CLASSIC ROCK JAZZ This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock, pop, jazz or classic concert. You can select a desired sound mode by using REGION EQ on the remote control. On Display Region Description FUNK, REGUETON, SAMBA, BANDA, MERENGUE, AXE, Latin SALSA, SERTANEJ, America CUMBIA, TECNO BR, FORRO ARABIC AFRO DANGDUT INDIA Optimized sound effect for the Middle East music genre prefered in Africa each region. Indonesia India BASS (BASS BLAST) Reinforces the treble, bass and surround sound effect. FOOT BALL You can enjoy the sound effect FOOTBALL STADIUM. yy In some of surround modes, some speakers, there’s no sound or low sound. It depends on the mode of surround and the source of audio, it is not defective. STANDARD You can enjoy optimized sound. yy This function is not operated when the microphone is connected to the unit. 4 ,,Note Operating yy By pressing B.BLAST on the unit, you can directly select BASS (BASS BLAST) effect. Operating 31 Recording to USB You can record music or sound souce to USB device by connecting in to the port on the unit. 1. Connect the USB device to the unit. 2. Select a mode in which you want to record. Playback a sound source first. 3. Start the recording by pressing X REC. 4. To stop recording, press Z. [All tracks/ files recording] Record to USB in stop or play mode. [Program list recording] After marking desired file(s) and you can record it to USB (Refer to the page 28). It’ll be stored as follows. Audio CD The other sources (Tuner, AUX) The making of unauthorized copies of copyprotected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes. Be responsible Respect copyrights. yy You can check the recording percentage rate for the USB record on the screen during the recording. (Audio CD or MP3/ WMA CD only) yy During recording MP3/WMA, there is no sound. yy When you stop recording during playback, the file that has been recorded at that time will be stored. (Except MP3/WMA files) yy Do not remove the USB device or turn off the unit during USB recording. If does not, an incomplete file may be made and not deleted on PC. yy Recording through microphones is not available yy If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL” or “NO REC” is displayed on the display window. yy Multi card reader device or external HDD can not be used for USB recording. yy A file is recorded by 128 Mbyte (about 1 hours) when you record for a long term. There are recorded less than 4 files. yy In the state CD-G, DTS disc USB record is not operated. yy The files in the sub-folders are not recorded during all track recording. yy You may not record more than 999 files. yy The numbering of the recording file is entered from the lowest number. So if you delete some of the recording files, the next recording file could be the lowest number among them. yy VOCAL FADER will be reset, if you use recording function during operating VOCAL FADER. yy VOCAL FADER can not be operated during recording. 4 Operating MP3/ WMA ,,Note 32 Operating Other Operations Sleep Timer Setting Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the unit will turn off. To check the remaining time, press SLEEP. To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed. ,,Note You can check the remaining time before the Unit turns off. Press SLEEP The remaining time appears in the display window. 4 Operating Press SLEEP once. The display window will be darken by half. To cancel it, press SLEEP repeatedly until dim off. Turn off the sound temporarily to mute your unit. You can mute your unit in order, for example, to answer the telephone, appears the MUTE in the display window. To cancel it, press level. r This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled. Power Resume - Optional r Even if the power suddenly goes out, turn on the unit and then it plays a position where the contents is being played. System will periodically save current playback status. System Select - Optional You must select the appropriate system mode for your TV system. Press and hold M for more than five seconds to be able to select a system in the [Home Menu]. (NTSC PAL) Dimmer Press Last Scene Memory again or change the volume ,,Note If the USB device is connected or a disc is inserted, this function is not operated. Operating 33 VOCAL FADER Using Microphone You can enjoy the function as karaoke, by reducing singer vocal of music in the various source. (MP3/ WMA/ CD/ etc.) Press VOCAL FADER, and “ON” will appear in display window. 1. Connect your microphone to the MIC jack. To cancel it, press VOCAL FADER again. The quality of the VOCAL FADER may be different depending on the recording conditions of music files. ,,Note yy This function is available to use only when a microphone is connected. yy It is not available on the MONO source. 2. Play the music you want. 3. Sing along with the accompaniment. Adjust the microphone volume by rotating MIC VOLUME clockwise or counterclockwise on the unit or by pressing MIC VOL -/+ on the remote control repeatedly. ,,Note yy When not using the microphone, set the MIC VOLUME to minimum or turn off the MIC and remove the microphone from the MIC jack. yy If the microphone is set too near the speaker, a howling sound may be produced. In this case, move the microphone away from the speaker or decrease the sound level by using the MIC VOLUME on the unit or press MIC VOL - on the remote control. yy You can give an echo effect to the sound from the microphones by using the ECHO VOL. 4 Operating yy If sound through the microphone is extremely loud, it may be distorted. In this case, rotate MIC VOL on the unit or press MIC VOL - on the remote control to minimum. 34 Operating Setting the Clock Using your player as an alarm clock 1. Turn the unit on. 1. Turn the unit on. 2. Press and hold CLOCK. 2. Press and hold ALARM. 3. Select time mode by pressing C/V on the remote control. 3.Press C/V button to change the hours and minutes and press SET to save. - AM 12:00 (for an AM and PM display) or 0:00 (for a 24 hour display) 4.Press SET to confirm your selection. 5. Select the hours by pressing C/V button. 6.Press SET. 7. Select the minutes by pressing C/V button. 8.Press SET. 4 4. Press C/V button to select function and press SET to save. -- Press C/V to select a memory No. when you select Tuner and then, press SET. If there is no memory No., this step is skipped. 5.Press C/V on the remote control to change the volume and press SET to save. The clock icon “(“ shows that the alarm is set. ,,Note yy If you set the clock, you can check the time by pressing CLOCK even when the player is turned off. Operating yy You can set alarm after you set the clock. yy If you set the clock and alarm, you can check the alarm icon “(“ by pressing CLOCK even when the player is turned off. yy If you set the clock and alarm, you can check the alarm icon “(“ and setting information by pressing ALARM even when the unit is turned off. yy You can select ALARM on/off mode by pressing ALARM. yy In case of DVD/CD or USB, this function is available when you have music file. If you do not have music file, the function is changed to Tuner. Operating 35 Auto power down Auto function change This unit will turn itself off to save electricity in the case were the main unit is not connected to an external device and is not used for 20 minutes. The unit will also turn itself off after six hours if the Main unit has been connected to another device using the analog inputs. When you try to connect Bluetooth device AUTO POWER On This unit automatically turns on by an input source : Bluetooth If you try to connect your Bluetooth device, this unit turns on and connects your Bluetooth device. You can play your music. ,,Note yy Depending on the connected device, this function may not operate. yy If you disconnect Bluetooth connection by this unit, some Bluetooth devices try to connect to the unit continually. Therefore it is recommended to disconnect the connection before turning off the unit. yy If you have already paired with this unit, automatically this unit can turn on by an input source when this unit is turned off. yy If you turn off the unit by pressing the power button for more than 5 seconds, Auto Power On function is disabled. To activate it, turn on the unit. When you try to connect your Bluetooth device to this unit, Bluetooth function is selected. Play your music on the Bluetooth device. ,,Note yy The Bluetooth unit which is not paired with this unit, cannot use the auto function change. yy If you change the this unit’s function to other function, some Bluetooth unit may try to connecting in succession. Disconnect the Bluetooth connection before changing of the this unit’s function. 4 Operating yy Depending on the connected device, the unit turns on but Bluetooth function may not be connected. This unit recognizes input signals such as Bluetooth and then changes suitable function automatically. 36 Troubleshooting Troubleshooting PROBLEM CORRECTION yy Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn it on again. The unit does not work properly yy Disconnect the power cord of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again. yy Previous setting may not be saved when device power is shut off. No power No picture yy Plug the power cord into the wall outlet securely. yy Check whether electricity failed. Check the condition by operating other electronic devices. yy Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. yy Connect the video cables securely to both the TV and unit. yy Select the correct input mode of the unit so you can hear the sound from the unit. There is little or no sound The DVD picture quality is poor 5 Troubleshooting A DVD/CD will not play yy Connect the audio cables into the connection terminals correctly. yy Replace with a new audio cable. yy Clean the disc using a soft cloth with outward strokes. yy Insert a disc. yy Insert a playable disc (Check the disc type, colour system and regional code). yy Place the disc with the label or printed side facing upwards. yy Enter your password or change the rating level. Humming noise heard while a DVD or yy Clean the disc using a soft cloth with outward strokes. yy Move unit and audio components further away from your TV. CD is playing Radio stations can’t be tuned in properly yy Check the antenna and adjust its position. yy Tune to the station manually. yy Preset some radio stations, see page 26 for details. yy An unplayable disc is inserted. Check the playable disc. yy No disc is inserted. Insert a disc. The unit does not start playback yy The disc is dirty. Clean the disc. (Refer to page 38) yy The disc is inserted upside down. Place the disc with the label or printed side facing upwards. Troubleshooting 37 PROBLEM CORRECTION yy The remote is not pointed directly at the unit. Point the remote directly at the unit. yy The remote is too far from the unit. Use the remote within 23 feet (7 m) of the unit. The remote control doesn’t work well yy There is an obstacle in the path between the remote control and / at all the unit. Remove the obstacle. yy The battery in the remote control are flat. Replace the battery with new ones. The AUTO POWER function does not work yy Check connection of the external device such as TV, DVD/Blu-Ray player or Bluetooth device. yy Depending on the connected device, this function may not operate. 5 Troubleshooting 38 Appendix Maintenance Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean yy Do not use volatile liquids such as insecticide spray near the unit. yy Wiping with strong pressure may damage the surface. yy Do not leave rubber or plastic products in contact with the unit for a long period of time. Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Maintaining the Unit 6 Appendix The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center. Notes on Discs Handling Discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. Storing Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight. Cleaning Discs Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records. Appendix 39 Area Code List Choose an area code from this list. AreaCode AreaCode AreaCode AreaCode Afghanistan AF Fiji FJ Monaco MC Singapore SG Argentina AR Finland FI Mongolia MN Slovak Republic SK Australia AU France FR Morocco MA Slovenia Austria AT Germany DE Nepal NP South Africa ZA Belgium BE Great Britain GB Netherlands NL South Korea KR Bhutan BT Greece GR Antilles AN Spain ES Bolivia BO Greenland GL New Zealand NZ Sri Lanka LK Brazil BR Hong Kong HK Nigeria NG Sweden SE Cambodia KH Hungary HU Norway Canada CA India IN Oman Chile CL Indonesia ID Pakistan PK Thailand China CN Israel IL Panama PA Turkey TR Colombia CO Italy IT Paraguay PY Uganda UG Congo CG Jamaica JM Philippines PH Ukraine UA Costa Rica CR Japan JP Poland PL United States US Croatia HR Kenya KE Portugal PT Uruguay UY Czech Republic CZ Kuwait KW Romania Denmark DK Libya Ecuador EC Luxembourg LY Russian LU Federation EG Malaysia El Salvador SV Maldives Ethiopia ET Mexico MX NO Switzerland CH OM Taiwan TW RO Uzbekistan Vietnam RU Zimbabwe SA SN TH UZ VN ZW 6 Appendix Egypt MY Saudi Arabia MV Senegal SI 40 Appendix Language code List Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu]. 6 Appendix LanguageCode LanguageCode LanguageCode LanguageCode Afar 6565 French 7082 Lithuanian 7684 Sindhi 8368 Afrikaans 6570 Frisian 7089 Macedonian 7775 Singhalese 8373 Albanian 8381 Galician 7176 Malagasy 7771 Slovak 8375 Ameharic 6577 Georgian 7565 Malay 7783 Slovenian 8376 Arabic 6582 German 6869 Malayalam 7776 Spanish 6983 Armenian 7289 Greek 6976 Maori 7773 Sudanese 8385 Assamese 6583 Greenlandic 7576 Marathi 7782 Swahili 8387 Aymara 6588 Guarani 7178 Moldavian 7779 Swedish 8386 Azerbaijani 6590 Gujarati 7185 Mongolian 7778 Tagalog 8476 Bashkir 6665 Hausa 7265 Nauru7865 Tajik 8471 Basque 6985 Hebrew 7387 Nepali 7869 Tamil 8465 Bengali; Bangla 6678 Hindi 7273 Norwegian 7879 Telugu 8469 Bhutani 6890 Hungarian 7285 Oriya 7982 Thai 8472 Bihari 6672 Icelandic 7383 Panjabi 8065 Tonga 8479 Breton 6682 Indonesian 7378 Pashto, Pushto 8083 Turkish 8482 Bulgarian 6671 Interlingua 7365 Persian 7065 Turkmen 8475 Burmese 7789 Irish 7165 Polish 8076 Twi 8487 Byelorussian 6669 Italian 7384 Portuguese 8084 Ukrainian 8575 Chinese 9072 Japanese 7465 Quechua 8185 Urdu 8582 Croatian 7282 Kannada 7578 Rhaeto-Romance 8277 Uzbek 8590 Czech 6783 Kashmiri 7583 Rumanian 8279 Vietnamese 8673 Danish 6865 Kazakh 7575 Russian 8285 Volapük 8679 Dutch 7876 Kirghiz 7589 Samoan 8377 Welsh 6789 English 6978 Korean 7579 Sanskrit 8365 Wolof 8779 Esperanto 6979 Kurdish 7585 Scots Gaelic 7168 Xhosa 8872 Estonian 6984 Laothian 7679 Serbian 8382 Yiddish 7473 Faroese 7079 Latin 7665 Serbo-Croatian 8372 Yoruba 8979 Fiji 7074 Latvian, Lettish 7686 Shona 8378 Zulu 9085 Finnish 7073 Lingala 7678 Appendix 41 Trademarks and Licenses All other trademarks are trademarks of their respective owners. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Notes on Copyrights yy This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi. Reverse engineering or disassembly is prohibited. yy Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. 6 Appendix The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. 42 Appendix Specifications General Power requirements Refer to main label. Power consumption Refer to main label. Dimensions (W x H x D) Approx. 204.5 mm x 278 mm x 285.5 mm Operating temperature 5 °C to 35 °C Operating humidity 5 % to 90 % Inputs/ Outputs AUX IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1 HDMI 19 pin (Type A, HDMI™ Connector ) x 1 Microphone (MIC) Sensitivity 20 mV (1 kHz), 6.3 mm jack x 2 Amplifier (RMS Output power) Total 330 W RMS Front 100 W RMS x 2 (4 Ω at 1 kHz, THD 20 %) Subwoofer 130 W RMS (3 Ω at 60 Hz, THD 20 %) Tuner FM Tuning Range 6 87.5 to 108.0 MHz or 87.50 to 108.00 MHz System Appendix Frequency response 100 to 20,000 Hz Signal-to-noise ratio 75 dB Dynamic range 75 dB Bus Power Supply (USB) 5 V 0 500 mA USB Version 2.0 Appendix 43 Front Type 2 Way 2 Speaker Impedance 4Ω Rated Input Power 100 W Max. Input Power 200 W Dimensions (W x H x D) Approx. 203 mm x 284.5 mm x 200 mm Subwoofer Jenis 1 Way 1 Speaker Impedansi 3Ω Daya Input Terukur 130 W Daya Input maksimum 260 W Dimensi Bersih (P x L x T) Kira-kira 266 mm x 306 mm x 325 mm yy Design and specifications are subject to change without notice. 6 Appendix
