HP ZBook 15 G2 Mobile Workstation User Guide

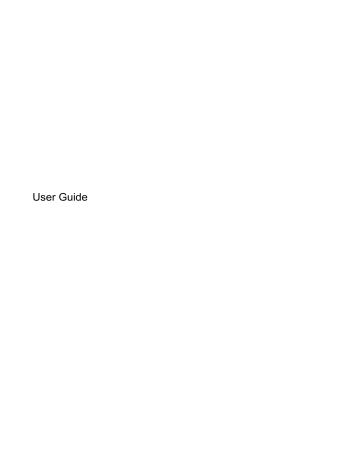

User Guide
© Copyright 2014 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Centrino
are trademarks of Intel Corporation in the
U.S. and other countries. AMD is a
trademark of Advanced Micro Devices, Inc.
SD Logo is a trademark of its proprietor.
Java is a U.S. trademark of Sun
Microsystems, Inc. Microsoft and Windows
are U.S. registered trademarks of the
Microsoft group of companies.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: June 2014
Document Part Number: 768563-001
Product notice
Software terms
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a full refund subject to the refund
policy of your seller.
This computer may require upgraded and/
or separately purchased hardware and/or a
DVD drive to install the Windows 7 software
and take full advantage of Windows 7
functionality. Go to
http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
To access the latest user guide, go to
http://www.hp.com/support, and select your
country. Select Drivers & Downloads, and
then follow the on-screen instructions.
For any further information or to request a
full refund of the price of the computer,
please contact your seller.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv
Safety warning notice
Table of contents
1 Welcome ........................................................................................................................................................... 1
Finding information ............................................................................................................................... 2
2 Getting to know your computer ......................................................................................................................... 4
Right ..................................................................................................................................................... 4
Left ....................................................................................................................................................... 5
Display .................................................................................................................................................. 7
Top ....................................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers, and fingerprint reader (select models only) ......................................... 10
Keys ................................................................................................................................... 12
Bottom ................................................................................................................................................ 13
Front ................................................................................................................................................... 15
Rear .................................................................................................................................................... 16
3 Connecting to a network ................................................................................................................................. 17
Connecting to a wireless network ....................................................................................................... 17
Using the wireless controls ................................................................................................ 17
Turning wireless devices on or off ..................................................................... 17
Using HP Connection Manager (select models only) ........................................ 18
Using the wireless button .................................................................................. 18
Using operating system controls ....................................................................... 18
Using a WLAN ................................................................................................................... 18
Using an Internet service provider .................................................................... 19
Setting up a WLAN ............................................................................................ 19
Configuring a wireless router ............................................................................ 19
Protecting your WLAN ....................................................................................... 20
Connecting to a WLAN ...................................................................................... 20
Using HP Mobile Broadband (select models only) ............................................................ 20
Inserting and removing a SIM ........................................................................... 21
Using GPS (select models only) ........................................................................................ 22
Using Bluetooth wireless devices ...................................................................................... 22
Connecting to a wired network ........................................................................................................... 23
Connecting to a local area network (LAN) ......................................................................... 23
v
4 Navigating using the keyboard, touch gestures and pointing devices ............................................................ 24
Using pointing devices ....................................................................................................................... 24
Setting pointing device preferences ................................................................................... 24
Using the pointing stick ...................................................................................................... 24
Using the TouchPad and gestures .................................................................................... 24
Turning the TouchPad off and on ...................................................................... 25
Tapping ............................................................................................................. 25
Scrolling ............................................................................................................ 26
2-finger pinch zoom ........................................................................................... 26
2-finger click ...................................................................................................... 27
Rotating (select models only) ............................................................................ 27
Flicking (select models only) ............................................................................. 28
Using the keyboard ............................................................................................................................ 28
Identifying the hot keys ...................................................................................................... 28
Using keypads ................................................................................................................... 29
Using the integrated numeric keypad ................................................................ 29
Using an optional external numeric keypad ...................................................... 29
5 Multimedia ....................................................................................................................................................... 31
Using the media activity controls ........................................................................................................ 31
Audio .................................................................................................................................................. 31
Connecting speakers ......................................................................................................... 31
Adjusting the volume ......................................................................................................... 31
Connecting headphones .................................................................................................... 32
Connecting a microphone .................................................................................................. 32
Connecting headphones and microphones ....................................................................... 32
Checking audio functions on the computer ........................................................................ 32
Webcam (select models only) ............................................................................................................ 33
Video .................................................................................................................................................. 33
VGA ................................................................................................................................... 34
DisplayPort (select models only) ....................................................................................... 34
Connecting a Thunderbolt DisplayPort device ................................................................... 35
Connecting wired displays using MultiStream Transport ................................................... 36
Connecting wired displays with an optional hub ............................................... 36
Intel Wireless Display (select models only) ....................................................................... 37
6 Power management ........................................................................................................................................ 38
Shutting down the computer ............................................................................................................... 38
Setting power options ......................................................................................................................... 38
Using power-saving states ................................................................................................. 38
vi
Initiating and exiting Sleep ................................................................................ 39
Initiating and exiting Hibernation ....................................................................... 39
Using the power meter and power settings ....................................................... 39
Setting password protection on wakeup ........................................................... 40
Using battery power ........................................................................................................... 40
Finding additional battery information ............................................................... 40
Using Battery Check ......................................................................................... 40
Displaying the remaining battery charge ........................................................... 41
Maximizing battery discharge time .................................................................... 41
Managing low battery levels .............................................................................. 41
Identifying low battery levels ............................................................. 41
Resolving a low battery level ............................................................ 41
Inserting or removing the battery ...................................................................... 42
Inserting a battery ............................................................................. 42
Removing a battery .......................................................................... 42
Conserving battery power ................................................................................. 43
Storing a user-replaceable battery (select models only) ................................... 43
Disposing of a user-replaceable battery (select models only) ........................... 43
Replacing a user-replaceable battery (select models only) .............................. 44
Using external AC power ................................................................................................... 44
Testing an AC adapter ...................................................................................... 44
Switchable graphics/dual graphics (select models only) ................................................... 45
Using switchable graphics (select models only) ................................................ 45
Using dual graphics (select models only) .......................................................... 46
7 External cards and devices ............................................................................................................................. 47
Using memory card readers (select models only) .............................................................................. 47
Inserting a memory card .................................................................................................... 47
Removing a memory card .................................................................................................. 47
Using ExpressCards (select models only) .......................................................................................... 48
Configuring an ExpressCard .............................................................................................. 48
Inserting an ExpressCard .................................................................................................. 49
Removing an ExpressCard ................................................................................................ 50
Using smart cards (select models only) ............................................................................................. 50
Inserting a smart card ........................................................................................................ 51
Removing a smart card ...................................................................................................... 51
Using a USB device ........................................................................................................................... 51
Connecting a USB device .................................................................................................. 52
Removing a USB device .................................................................................................... 52
Using optional external devices .......................................................................................................... 52
Using optional external drives ............................................................................................ 53
vii
Using the docking connector (select models only) ............................................................ 53
8 Drives .............................................................................................................................................................. 54
Handling drives ................................................................................................................................... 54
Using hard drives ............................................................................................................................... 54
Removing or replacing the service door ............................................................................ 54
Removing the service door ............................................................................... 54
Replacing the service door ................................................................................ 55
Replacing or upgrading the hard drive ............................................................................... 56
Removing the hard drive ................................................................................... 56
Installing a hard drive ........................................................................................ 57
Improving hard drive performance ..................................................................................... 58
Using Disk Defragmenter .................................................................................. 58
Using Disk Cleanup ........................................................................................... 59
Using HP 3D DriveGuard (select models only) .................................................................. 59
Identifying HP 3D DriveGuard status ................................................................ 59
Using RAID (select models only) ........................................................................................................ 59
9 Security ........................................................................................................................................................... 61
Protecting the computer ..................................................................................................................... 61
Using passwords ................................................................................................................................ 61
Setting passwords in Windows .......................................................................................... 62
Setting passwords in Computer Setup .............................................................................. 63
Managing a BIOS administrator password ........................................................................ 63
Entering a BIOS administrator password .......................................................... 64
Managing a Computer Setup DriveLock password ........................................................... 64
Setting a DriveLock password ........................................................................... 65
Entering a DriveLock password ........................................................................ 66
Changing a DriveLock password ...................................................................... 66
Removing DriveLock protection ........................................................................ 66
Using Computer Setup Automatic DriveLock .................................................................... 67
Entering an Automatic DriveLock password ..................................................... 67
Removing Automatic DriveLock protection ....................................................... 67
TPM Embedded Security device (select models only) ....................................................................... 68
Using antivirus software ..................................................................................................................... 68
Using firewall software ....................................................................................................................... 69
Installing critical security updates ....................................................................................................... 69
Using HP Client Security (select models only) ................................................................................... 69
Installing an optional security cable .................................................................................................... 69
Using the fingerprint reader (select models only) ............................................................................... 70
Locating the fingerprint reader ........................................................................................... 70
viii
10 Maintenance ................................................................................................................................................. 71
Adding or replacing memory modules ................................................................................................ 71
Cleaning your computer ..................................................................................................................... 73
Cleaning procedures .......................................................................................................... 74
Cleaning the display (All-in-Ones or Notebooks) .............................................. 74
Cleaning the sides or cover ............................................................................... 74
Cleaning the TouchPad, keyboard, or mouse ................................................... 74
Updating programs and drivers .......................................................................................................... 74
Using SoftPaq Download Manager .................................................................................................... 75
11 Backup and recovery .................................................................................................................................... 76
Creating recovery media and backups ............................................................................................... 76
Guidelines .......................................................................................................................... 76
Creating recovery media with HP Recovery Disc Creator ................................................. 76
Creating recovery media ................................................................................... 77
Backing up your information .............................................................................................. 77
Performing a system recovery ............................................................................................................ 78
Using the Windows recovery tools ..................................................................................... 78
Using f11 recovery tools (select models only) ................................................................... 79
Using Windows 7 operating system media ........................................................................ 79
12 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) ........................................... 81
Using Computer Setup ....................................................................................................................... 81
Starting Computer Setup ................................................................................................... 81
Navigating and selecting in Computer Setup ..................................................................... 81
Restoring factory settings in Computer Setup ................................................................... 82
Updating the BIOS ............................................................................................................. 83
Determining the BIOS version ........................................................................... 83
Downloading a BIOS update ............................................................................. 83
Using MultiBoot .................................................................................................................................. 84
About the boot device order ............................................................................................... 84
Choosing MultiBoot preferences ........................................................................................ 84
Setting a new boot order in Computer Setup .................................................... 84
Dynamically choosing a boot device using the f9 prompt ................................. 85
Setting a MultiBoot Express prompt .................................................................. 85
Entering MultiBoot Express preferences ........................................................... 85
Using HP PC Hardware Diagnostics (UEFI) (select models only) ..................................................... 86
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 86
Using HP Sure Start ........................................................................................................................... 87
ix
13 Support ......................................................................................................................................................... 88
Contacting support ............................................................................................................................. 88
Labels ................................................................................................................................................. 89
14 Specifications ................................................................................................................................................ 90
Input power ......................................................................................................................................... 90
Operating environment ....................................................................................................................... 90
Appendix A Traveling with or shipping your computer ....................................................................................... 91
Appendix B Troubleshooting .............................................................................................................................. 92
Troubleshooting resources ................................................................................................................. 92
Resolving issues ................................................................................................................................ 92
The computer is unable to start up .................................................................................... 92
The computer screen is blank ............................................................................................ 92
Software is functioning abnormally .................................................................................... 93
The computer is on but not responding ............................................................................. 93
The computer is unusually warm ....................................................................................... 93
An external device is not working ...................................................................................... 93
The wireless network connection is not working ................................................................ 94
A disc does not play ........................................................................................................... 94
A movie is not visible on an external display ..................................................................... 94
The process of burning a disc does not begin, or it stops before completion .................... 95
Appendix C Electrostatic discharge ................................................................................................................... 96
Index ................................................................................................................................................................... 97
x
1
Welcome
After you set up and register the computer, we recommend the following steps to get the most out of
your smart investment:
●
Connect to the Internet—Set up your wired or wireless network so that you can connect to the
Internet. For more information, see Connecting to a network on page 17.
●
Update your antivirus software—Protect your computer from damage caused by viruses. The
software is preinstalled on the computer. For more information, see Using antivirus software
on page 68.
●
Get to know your computer—Learn about your computer features. See Getting to know your
computer on page 4 and Navigating using the keyboard, touch gestures and pointing devices
on page 24 for additional information.
●
Find installed software—Access a list of the software preinstalled on the computer:
Select Start > All Programs. For details about using the software included with the computer, see
the software manufacturer's instructions, which may be provided with the software or on the
manufacturer's website.
●
Back up your hard drive by creating recovery discs or a recovery flash drive. See Backup and
recovery on page 76.
1
Finding information
You have already used Setup Instructions to turn on the computer and locate this guide. To locate
resources that provide product details, how-to information, and more, use this table.
Resources
For information about
Setup Instructions poster
●
How to set up the computer
●
Help to identify computer components
Help and Support
●
Operating system information
To access Help and Support, select Start > Help and
Support.
●
Software, driver, and BIOS updates
●
Troubleshooting tools
●
How to access support
Worldwide support
●
Online chat with an HP technician
To get support in your language, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.
●
Support telephone numbers
●
HP service center locations
HP website
●
Support information
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
●
Ordering parts and finding additional help
●
Accessories available for the device
Safety & Comfort Guide
●
Proper workstation setup, posture, health, and work habits
To access the user guides, select Start > Help and
Support > User guides.
●
Electrical and mechanical safety information
Regulatory, Safety, and Environmental Notices
●
Regulatory and safety information
To access the user guides, select Start > Help and
Support > User guides.
●
Battery disposal information
Limited Warranty*
Warranty information
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
– or –
Go to http://www.hp.com/ergo.
To access this guide, select Start > Help and Support
> User guides > View Warranty Information.
– or –
Go to http://www.hp.com/go/orderdocuments.
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For some countries/regions where the warranty is not provided in printed format, you may request a
printed copy from http://www.hp.com/go/orderdocuments or write to:
●
North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA
●
Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●
Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.
2
Chapter 1 Welcome
Resources
For information about
IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to http://www.hp.com/go/
contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Finding information
3
2
Getting to know your computer
Right
Component
Description
(1)
Memory card reader
Reads optional memory cards that store, manage, share,
or access information.
(2)
Audio-out (headphone)/Audio-in
(microphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety, and Environmental Notices. To access
the user guides, select Start > Help and Support > User
Guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
(3)
USB 3.0 port
Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner, or USB hub.
NOTE: For details about different types of USB ports, see
Using a USB device on page 51.
4
(4)
Upgrade bay (optical drive shown) (select
models only)
Depending on your computer model, reads an optical disc
or reads and writes to an optical disc.
(5)
Optical drive eject button (select models
only)
Releases the optical drive disc tray.
(6)
External monitor port
Connects an external VGA monitor or projector.
Chapter 2 Getting to know your computer
Left
Component
(1)
Description
Security cable slot
Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
(2)
USB 2.0 port
Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
NOTE: For details about different types of USB ports, see
Using a USB device on page 51.
(3)
Vent
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(4)
Thunderbolt DisplayPort
Connects an optional high-resolution display device or a
high-performance data device.
NOTE: Thunderbolt is new technology. Install all the latest
drivers for your Thunderbolt device before connecting the
device to the Thunderbolt DisplayPort. Thunderbolt cable
and Thunderbolt device (sold separately) must be
compatible with Windows. To determine whether your
device is Thunderbolt Certified for Windows, go to
https://thunderbolttechnology.net/products.
(5)
Dual-Mode DisplayPort
Connects an optional digital display device, such as a highperformance monitor or projector.
(6)
USB 3.0 charging (powered) port
Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
Standard USB ports will not charge all USB devices or will
charge using a low current. Some USB devices require
power and require you to use a powered port.
NOTE: USB charging ports can also charge select
models of cell phones and MP3 players, even when the
computer is off.
NOTE: For details about different types of USB ports, see
Using a USB device on page 51.
Left
5
Component
6
Description
(7)
Smart card reader
Supports optional smart cards.
(8)
ExpressCard slot or smart card reader
(depending on the configuration)
Supports optional ExpressCards or smart cards.
Chapter 2 Getting to know your computer
Display
Component
Description
(1)
WLAN antennas *
Send and receive wireless signals to communicate with wireless
local area networks (WLAN).
(2)
WWAN antennas * (select models only)
Send and receive wireless signals to communicate with wireless
wide area networks (WWAN).
(3)
Internal microphones
Record sound.
(4)
Webcam light (select models only)
On: The webcam is in use.
(5)
Webcam (select models only)
Records video and captures photographs. Some models allow
you to video conference and chat online using streaming video.
For information on using the webcam, select Start > All
Programs > Communication and Chat > HP WebCam.
(6)
Internal display switch
Turns off the display or initiates Sleep if the display is closed
while the power is on.
NOTE: The display switch is not visible from the outside of the
computer.
*The antennas are not visible on the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, see the section of the Regulatory, Safety, and
Environmental Notices that applies to your country or region. To access the user guides, select Start > Help and Support >
User Guides.
Display
7
Top
TouchPad
Component
Description
(1)
Pointing stick
Moves the pointer and selects or activates items on the
screen.
(2)
Left pointing stick button
Functions like the left button on an external mouse.
(3)
TouchPad on/off button
Turns the TouchPad on and off.
(4)
TouchPad zone
Reads your finger gestures to move the pointer and select
or activate items on the screen.
NOTE: The TouchPad also supports edge-swipe
gestures. For more information, see Edge swipes (select
models only) on page 34.
8
(5)
Left TouchPad button
Functions like the left button on an external mouse.
(6)
Right pointing stick button
Functions like the right button on an external mouse.
(7)
Center pointing stick button
Functions like the center button on an external mouse.
(8)
Center TouchPad button
Functions like the center button on an external mouse.
(9)
Right TouchPad button
Functions like the right button on an external mouse.
Chapter 2 Getting to know your computer
Lights
Component
(1)
Description
Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a powersaving state. The computer shuts off power to the
display and other unneeded components.
●
Off: The computer is off or in Hibernation. Hibernation
is a power-saving state that uses the least amount of
power.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see Using power-saving
states on page 38.
(2)
Caps lock light
On: Caps lock is on, which switches the keys to all capital
letters.
(3)
Microphone mute light
●
Amber: microphone sound is off.
●
Off: microphone sound is on.
(4)
Num lock light
On: Num lock is on.
(5)
Wireless light
On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
NOTE: On some models, the wireless light is amber when
all wireless devices are off.
(6)
Mute light
●
Amber: Computer sound is off.
●
Off: Computer sound is on.
Top
9
Buttons, speakers, and fingerprint reader (select models only)
Component
(1)
Description
Power button
●
When the computer is off, press the button to turn on
the computer.
●
When the computer is on, press the button briefly to
initiate Sleep.
●
When the computer is in the Sleep state, press the
button briefly to exit Sleep.
●
When the computer is in Hibernation, press the button
briefly to exit Hibernation.
CAUTION: Pressing and holding down the power button
will result in the loss of unsaved information.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see Using power-saving
states on page 38.
To learn more about your power settings: Select Start >
Control Panel > System and Security > Power Options.
10
(2)
Speakers
Produce sound.
(3)
Wireless button
Turns the wireless feature on or off but does not establish a
wireless connection.
Chapter 2 Getting to know your computer
Component
Description
(4)
Volume mute button
Mutes and restores speaker sound.
(5)
Fingerprint reader (select models only)
Allows a fingerprint logon to Windows, instead of a password
logon.
Top
11
Keys
Component
12
Description
(1)
esc key
Displays system information when pressed in combination
with the fn key.
(2)
fn key
Executes frequently used system functions when pressed in
combination with a function key, the num lk key, the esc
key, or the b key.
(3)
Windows button
Displays the Windows Start menu.
(4)
Function keys
Execute frequently used system functions when pressed in
combination with the fn key.
(5)
num lk key
Alternates between the navigational and numeric functions
on the integrated numeric keypad.
(6)
Integrated numeric keypad
When num lk has been enabled, it can be used like an
external numeric keypad.
Chapter 2 Getting to know your computer
Bottom
Component
Description
(1)
Battery release latch
Releases the battery from the battery bay.
(2)
Battery bay
Holds the battery.
(3)
SIM slot
Supports a wireless subscriber identity module (SIM).
The SIM slot is located inside the battery bay.
(4)
Docking connector
Connects an optional docking device.
(5)
Accessory battery connector
Connects an optional accessory battery.
(6)
Service door release lock
Locks the service door.
(7)
Service door release latch
Releases the service door on the computer.
(8)
Vents (3)
Enable airflow to cool internal components.
Bottom
13
Component
Description
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.
(9)
Service door
Provides access to the hard drive bay, the wireless
LAN (WLAN) module slot, the WWAN module slot,
and the memory module slots.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless
module authorized for use in the computer by the
governmental agency that regulates wireless devices
in your country or region. If you replace the module
and then receive a warning message, remove the
module to restore computer functionality, and then
contact support. To access Help and Support, select
Start > Help and Support.
14
Chapter 2 Getting to know your computer
Front
Component
(1)
Description
Wireless light
On: An integrated wireless device, such as a wireless
local area network (WLAN) device and/or a
Bluetooth® device, is on.
NOTE: On some models, the wireless light is amber
when all wireless devices are off.
(2)
Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a
power-saving state. The computer shuts off
power to the display and other unneeded
components.
●
Off: The computer is off or in Hibernation.
Hibernation is a power-saving state that uses the
least amount of power.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid
Start Technology allows your computer to resume
quickly from inactivity. For more information, see
Using power-saving states on page 38.
(3)
(4)
AC adapter/Battery light
Hard drive/optical drive light
●
White: The computer is connected to external
power and the battery is charged from 90 to 99
percent.
●
Amber: The computer is connected to external
power and the battery is charged from 0 to 90
percent.
●
Blinking amber: A battery that is the only
available power source has reached a low
battery level. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.
●
Off: The battery is fully charged.
●
Blinking white: The hard drive or optical drive is
being accessed.
●
Amber: HP 3D DriveGuard has temporarily
parked the hard drive.
NOTE: For more information about HP 3D
DriveGuard, see Using HP 3D DriveGuard (select
models only) on page 59.
Front
15
Rear
Component
(1)
Description
USB 3.0 port
Connects an optional USB device, such as a
keyboard, mouse, external drive, printer, scanner
or USB hub.
NOTE: For details about different types of USB
ports, see Using a USB device on page 51.
(2)
Power connector
Connects an AC adapter.
(3)
AC adapter/battery light
●
White: The computer is connected to
external power and the battery is charged
from 90 to 99 percent.
●
Amber: The computer is connected to
external power and the battery is charged
from 0 to 90 percent.
●
Blinking amber: A battery that is the only
available power source has reached a low
battery level. When the battery reaches a
critical battery level, the battery light begins
blinking rapidly.
●
Off: The battery is fully charged.
(4)
16
RJ-45 (network) jack/lights
Chapter 2 Getting to know your computer
Connects a network cable.
●
Green (left): The network is connected.
●
Amber (right): The network is showing
activity.
3
Connecting to a network
Your computer can travel with you wherever you go. But even at home, you can explore the globe
and access information from millions of websites using your computer and a wired or wireless
network connection. This chapter will help you get connected to that world.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
●
Wireless local area network (WLAN) device—Connects the computer to wireless local area
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate
offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and
universities. In a WLAN, the mobile wireless device in your computer communicates with a
wireless router or a wireless access point.
●
HP Mobile Broadband Module (select models only)—A wireless wide area network (WWAN)
device that gives you wireless connectivity over a much larger area. Mobile network operators
install base stations (similar to cell phone towers) throughout large geographic areas, effectively
providing coverage across entire states, regions, or even countries.
●
Bluetooth device—Creates a personal area network (PAN) to connect to other Bluetoothenabled devices such as computers, phones, printers, headsets, speakers, and cameras. In a
PAN, each device communicates directly with other devices, and devices must be relatively
close together—typically within 10 meters (approximately 33 feet) of each other.
For more information about wireless technology, see the information and website links provided in
Help and Support. To access Help and Support, select Start > Help and Support.
Using the wireless controls
You can control the wireless devices in your computer using these features:
●
Wireless button, wireless switch, or wireless key (referred to in this chapter as the wireless
button)
●
Operating system controls
Turning wireless devices on or off
You can use the wireless button or HP Connection Manager (select models only) to turn on and turn
off wireless devices.
NOTE: A computer may have a wireless button, a wireless switch, or a wireless key on the
keyboard. The term wireless button is used throughout this guide to refer to all types of wireless
controls.
To turn off wireless devices using HP Connection Manager:
▲
Right-click the HP Connection Manager icon in the notification area, at the far right of the
taskbar, and then click the power button next to the desired device.
-or-
Connecting to a wireless network
17
Select Start > All Programs > Productivity and Tools > HP Connection Manager, and then click
the power button next to the desired device.
Using HP Connection Manager (select models only)
HP Connection Manager provides a central location for managing your wireless devices, an interface
for connecting to the Internet using HP Mobile Broadband, and an interface for sending and receiving
SMS (text) messages. HP Connection Manager allows you to manage the following devices:
●
Wireless local area network (WLAN)/Wi-Fi
●
Wireless wide area network (WWAN)/HP Mobile Broadband
●
Bluetooth
HP Connection Manager provides information and notifications on connection status, power status,
SIM details, and SMS messages. Status information and notifications are provided in the notification
area, at the far right of the taskbar.
To open HP Connection Manager:
▲
Click the HP Connection Manager icon in the taskbar.
-orSelect Start > All Programs > Productivity and Tools > HP Connection Manager.
For more information, see the HP Connection Manager software Help.
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so
the wireless light is on (white) when you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of
individual devices. If the wireless light is white, at least one wireless device is on. If the wireless light
is off, all wireless devices are off.
NOTE:
On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.
Using operating system controls
The Network and Sharing Center allows you to set up a connection or network, connect to a network,
manage wireless networks, and diagnose and repair network problems.
To use operating system controls:
▲
Select Start > Control Panel > Network and Internet > Network and Sharing Center.
For more information, access Help and Support by selecting Start > Help and Support.
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other computers and accessories that are linked by a wireless router or a wireless access point.
NOTE:
18
The terms wireless router and wireless access point are often used interchangeably.
Chapter 3 Connecting to a network
●
A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
that can accommodate a large number of computers and accessories and can separate critical
network functions.
●
A home or small office WLAN typically uses a wireless router, which allows several wireless and
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).
Using an Internet service provider
When you are setting up Internet access in your home, you must establish an account with an
Internet service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The
ISP will help set up the modem, install a network cable to connect your wireless computer to the
modem, and test the Internet service.
NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this
information and store it in a safe place.
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
●
A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from
an Internet service provider
●
A wireless router (2) (purchased separately)
●
A wireless computer (3)
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type
of modem you have.
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.
Configuring a wireless router
For help in configuring a wireless router, see the information provided by your router manufacturer or
your ISP.
NOTE: It is recommended that you initially connect your new wireless computer to the router by
using the network cable provided with the router. When the computer successfully connects to the
Internet, disconnect the cable, and access the Internet through your wireless network.
Connecting to a wireless network
19
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your computer in a
hotspot, limit your network activities to email that is not confidential and basic Internet surfing.
Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. Take the following precautions to protect your WLAN:
●
Use a firewall.
A firewall checks both data and requests for data that are sent to your network, and discards any
suspicious items. Firewalls are available in both software and hardware. Some networks use a
combination of both types.
●
Use wireless encryption.
Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over
the network. For more information, access Help and Support by selecting Start > Help and
Support.
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1.
Be sure that the WLAN device is on. If the device is on, the wireless light is on. If the wireless
light is off, press the wireless button.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
2.
Click the network status icon in the notification area, at the far right of the taskbar.
3.
Select a WLAN to connect to.
4.
Click Connect.
If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.
NOTE: If you do not see the WLAN you want to connect to, click Open Network and Sharing
Center. and then click Set up a new connection or network. A list of options is displayed,
allowing you to manually search for and connect to a network or to create a new network
connection.
5.
Follow the on-screen instructions to complete the connection.
After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN
implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.
Using HP Mobile Broadband (select models only)
HP Mobile Broadband enables your computer to use WWANs to access the Internet from more
places and over larger areas than it can by using WLANs. Using HP Mobile Broadband requires a
20
Chapter 3 Connecting to a network
network service provider (called a mobile network operator), which in most cases is a cellular phone
network operator. Coverage for HP Mobile Broadband is similar to cellular phone voice coverage.
When used with mobile network operator service, HP Mobile Broadband gives you the freedom to
stay connected to the Internet, send email, or connect to your corporate network whether you are on
the road or outside the range of Wi-Fi hotspots.
HP supports the following technologies:
●
HSPA (High Speed Packet Access), which provides access to networks based on the Global
System for Mobile Communications (GSM) telecommunications standard.
●
EV-DO (Evolution Data Optimized), which provides access to networks based on the code
division multiple access (CDMA) telecommunications standard.
You may need the HP Mobile Broadband Module serial number to activate mobile broadband service.
The serial number is printed on a label inside the battery bay of your computer.
Some mobile network operators require the use of a SIM. A SIM contains basic information about
you, such as a personal identification number (PIN), as well as network information. Some computers
include a SIM that is preinstalled in the battery bay. If the SIM is not preinstalled, it may be provided
in the HP Mobile Broadband information provided with your computer or the mobile network operator
may provide it separately from the computer.
For information about inserting and removing the SIM, see the Inserting and removing a SIM
on page 21 section in this chapter.
For information about HP Mobile Broadband and how to activate this service with a preferred mobile
network operator, see the HP Mobile Broadband information included with your computer. For
additional information, go to http://www.hp.com/go/mobilebroadband (select regions/countries only).
Inserting and removing a SIM
CAUTION:
To prevent damage to the connectors, use minimal force when inserting a SIM.
To insert a SIM, follow these steps:
1.
Shut down the computer.
2.
Close the display.
3.
Disconnect all external devices connected to the computer.
4.
Unplug the power cord from the AC outlet.
5.
Turn the computer upside down on a flat surface, with the battery bay toward you.
6.
Remove the battery.
Connecting to a wireless network
21
7.
Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.
NOTE: The SIM in your computer may look slightly different from the illustration in this section.
NOTE: See the image on the battery bay to determine which way the SIM should be inserted
into your computer.
8.
Replace the battery.
NOTE: HP Mobile Broadband will be disabled if the battery is not replaced.
9.
Reconnect external power.
10. Reconnect external devices.
11. Turn on the computer.
To remove a SIM, press in on the SIM, and then remove it from the slot.
Using GPS (select models only)
Your computer may be equipped with a Global Positioning System (GPS) device. GPS satellites
deliver location, speed, and direction information to GPS-equipped systems.
For more information, see the HP GPS and Location software Help.
Using Bluetooth wireless devices
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
22
●
Computers (desktop, notebook, PDA)
●
Phones (cellular, cordless, smart phone)
●
Imaging devices (printer, camera)
●
Audio devices (headset, speakers)
●
Mouse
Chapter 3 Connecting to a network
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information about configuring and using Bluetooth devices, see the
Bluetooth software Help.
Connecting to a wired network
There are 2 kinds of wired connections: local area network (LAN) and modem connection. A LAN
connection uses a network cable and is much faster than a modem, which uses a telephone cable.
Both cables are sold separately.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a
modem cable or telephone cable into an RJ-45 (network) jack.
Connecting to a local area network (LAN)
Use a LAN connection if you want to connect the computer directly to a router in your home (instead
of working wirelessly), or if you want to connect to an existing network at your office.
Connecting to a LAN requires an 8-pin, RJ-45 network cable.
To connect the network cable, follow these steps:
1.
Plug the network cable into the network jack (1) on the computer.
2.
Plug the other end of the network cable into a network wall jack (2) or router.
NOTE: If the network cable contains noise suppression circuitry (3), which prevents
interference from TV and radio reception, orient the circuitry end of the cable toward the
computer.
Connecting to a wired network
23
4
Navigating using the keyboard, touch
gestures and pointing devices
Your computer allows navigation using touch gestures (select models only) in addition to the
keyboard and mouse. Touch gestures can be used on your computer TouchPad or on a touch screen
(select models only).
Select computer models have special action key or hot key functions on the keyboard to perform
routine tasks.
Using pointing devices
NOTE: In addition to the pointing devices included with your computer, you can use an external
USB mouse (purchased separately) by connecting it to one of the USB ports on the computer.
Setting pointing device preferences
Use Mouse Properties in Windows to customize settings for pointing devices, such as button
configuration, click speed, and pointer options. You can also view demonstrations of TouchPad
gestures.
To access Mouse Properties:
●
Select Start > Devices and Printers. Then right-click the device representing your computer, and
select Mouse settings.
Using the pointing stick
Press the pointing stick in the direction you want to move the pointer on the screen. Use the left and
right pointing stick buttons as you would the left and right buttons on an external mouse.
Using the TouchPad and gestures
The TouchPad allows you to navigate the computer screen and control the pointer by using simple
finger movements.
TIP: Use the left and right buttons on the TouchPad as you would use the corresponding buttons on
an external mouse.
NOTE:
24
TouchPad gestures are not supported in all apps.
Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Turning the TouchPad off and on
To turn the TouchPad off and on, quickly double-tap the TouchPad on/off button.
Tapping
To make an on-screen selection, use the Tap function on the TouchPad.
●
Tap one finger on the TouchPad zone to make a selection. Double-tap an item to open it.
Using pointing devices
25
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image.
●
Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or
right.
2-finger pinch zoom
2-finger pinch zoom allows you to zoom out or in on images or text.
26
●
Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers
apart.
●
Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers
together.
Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
2-finger click
2-finger click allows you to make menu selections for an object on the screen.
NOTE:
●
Using 2-finger click is the same action as using right-click with the mouse.
Place two fingers on the TouchPad zone and press to open the options menu for the selected
object.
Rotating (select models only)
Rotating allows you to turn items such as photos.
●
Anchor the forefinger of your left hand in the TouchPad zone. Using your right hand, slide your
forefinger in a sweeping motion from 12 o’clock to 3 o’clock. To reverse the rotation, move your
forefinger from 3 o’clock to 12 o’clock.
Using pointing devices
27
Flicking (select models only)
Flicking allows you to navigate through screens or quickly scroll through documents.
●
Place three fingers on the TouchPad zone and flick your fingers in a light, quick motion up,
down, left or right.
Using the keyboard
The keyboard and mouse allow you to type select items, scroll and to perform the same functions as
using touch gestures. The keyboard also allows you to use action keys and hot keys to perform
specific functions.
NOTE: Depending on the country or region, your keyboard may have different keys and keyboard
functions than those discussed in this section.
Identifying the hot keys
A hot key is a combination of the fn key (1) and either the esc key (2), or one of the function keys (3),
(4).
NOTE:
For more information on hot key locations, see Getting to know your computer on page 4.
To use a hot key:
▲
Briefly press the fn key, and then briefly press the second key of the hot key combination.
Hot key combination
Description
fn+esc
Displays system information.
fn+f3
Initiates Sleep, which saves your information in system memory. The display and other system
components turn off and power is conserved.
To exit Sleep, briefly press the power button.
CAUTION:
28
To reduce the risk of information loss, save your work before initiating Sleep.
Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Hot key combination
fn+f4
Description
Switches the screen image among display devices connected to the system. For example, if a
monitor is connected to the computer, fn+f4 alternates the screen image from computer display to
monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information on the computer using the external VGA video
standard. The fn+f4 hot key can also alternate images among other devices that are receiving video
information on the computer.
fn+ f6
Decreases speaker volume.
fn+f7
Increases speaker volume.
fn+f8
Mutes the microphone.
fn+f9
Decreases the screen brightness level.
fn+f10
Increases the screen brightness level.
fn+f11
Turns the keyboard backlight on and off. (select models only)
NOTE: The keyboard backlight is turned on at the factory. To extend battery life, turn off the
keyboard backlight.
Using keypads
The computer includes an integrated numeric keypad, and it also supports an optional external
numeric keypad, or an optional external keyboard that includes a numeric keypad.
Using the integrated numeric keypad
NOTE: For more information on the location of the integrated numeric keypad, see Keys
on page 12.
(1)
Component
Description
num lk key
Alternates between the navigational and numeric functions on the
integrated numeric keypad.
NOTE: The keypad function that is active when the computer is
turned off is reinstated when the computer is turned back on.
(2)
Integrated numeric keypad
When num lk has been enabled, it can be used like an external
numeric keypad.
Using an optional external numeric keypad
Keys on most external numeric keypads function differently according to whether num lock is on or
off. (Num lock is turned off at the factory.)For example:
Using the keyboard
29
●
When num lock is on, most keypad keys type numbers.
●
When num lock is off, most keypad keys function like the arrow, page up, or page down keys.
When num lock on an external keypad is turned on, the num lock light on the computer is turned on.
When num lock on an external keypad is turned off, the num lock light on the computer is turned off.
To turn num lock on or off on an external keypad as you work:
▲
30
Press the num lk key on the external keypad, not on the computer.
Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
5
Multimedia
Your computer may include the following:
●
Integrated speaker(s)
●
Integrated microphone(s)
●
Integrated webcam
●
Preinstalled multimedia software
●
Multimedia buttons or keys
Using the media activity controls
Depending on your computer model, you may have the following media activity controls that allow
you to play, pause, fast forward, or rewind a media file:
●
Media buttons
●
Media hot keys (specific keys pressed in combination with the fn key)
●
Media keys
Audio
On your HP computer, you can play music CDs, download and listen to music, stream audio content
from the web (including radio), record audio, or mix audio and video to create multimedia. To
enhance your listening enjoyment, attach external audio devices such as speakers or headphones.
Connecting speakers
You can attach wired speakers to your computer by connecting them to a USB port (or the audio-out
jack) on your computer or on a docking station.
To connect wireless speakers to your computer, follow the device manufacturer's instructions. Before
connecting audio devices, be sure to adjust the volume.
Adjusting the volume
Depending on your computer model, you can adjust the volume using the following:
●
Volume buttons
●
Volume hot keys (specific keys pressed in combination with the fn key)
●
Volume keys
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, see the Regulatory, Safety and
Environmental Notices. To access the user guides, select Start > Help and Support > User guides.
NOTE:
Volume can also be controlled through the operating system and some programs.
Using the media activity controls
31
NOTE: See Getting to know your computer on page 4 for information on what type of volume
controls your computer has.
Connecting headphones
You can connect wired headphones to the headphone jack on your computer.
To connect wireless headphones to your computer, follow the device manufacturer's instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the Regulatory, Safety and
Environmental Notices.
Connecting a microphone
To record audio, connect a microphone to the microphone jack on the computer. For best results
when recording, speak directly into the microphone and record sound in a setting free of background
noise.
Connecting headphones and microphones
You can connect wired headphones or headsets to the audio-out (headphone)/audio-in (microphone)
jack on your computer. Many headsets with integrated microphones are commercially available.
To connect wireless headphones or headsets to your computer, follow the device manufacturer's
instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the Regulatory, Safety and
Environmental Notices. To access this guide, select Start > Help and Support > User guides.
Checking audio functions on the computer
NOTE: For best results when recording, speak directly into the microphone and record sound in a
setting free of background noise.
To check the audio functions on your computer, follow these steps:
1.
Select Start > Control Panel > Hardware and Sound > Sound.
2.
When the Sound window opens, click the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and click the Test button.
You should hear sound through the speakers or through connected headphones.
To check the recording functions on your computer, follow these steps:
1.
Select Start > All Programs > Accessories > Sound Recorder.
2.
Click Start Recording and speak into the microphone.
3.
Save the file to your desktop.
4.
Open a multimedia program and play back the sound.
To confirm or change the audio settings on your computer:
▲
32
Select Start > Control Panel > Audio.
Chapter 5 Multimedia
Webcam (select models only)
Some computers include an integrated webcam. With the preinstalled software, you can use the
webcam to take a photo or record a video. You can preview and save the photo or video recording.
The webcam software enables you to experiment with the following features:
●
Capturing and sharing video
●
Streaming video with instant message software
●
Taking still photos
Video
Your HP computer is a powerful video device that enables you to watch streaming video from your
favorite websites and download video and movies to watch on your computer without needing to
connect to a network.
To enhance your viewing enjoyment, use one of the video ports on the computer to connect an
external monitor, or projector.
Your computer has one or more of the following external video ports:
●
VGA
●
DisplayPort
●
Thunderbolt
IMPORTANT: Be sure that the external device is connected to the correct port on the computer,
using the correct cable. Check the device manufacturer's instructions if you have questions.
NOTE:
ports.
See Getting to know your computer on page 4 for information about your computer's video
Webcam (select models only)
33
VGA
The external monitor port, or VGA port, is an analog display interface that connects an external VGA
display device such as an external VGA monitor or a VGA projector to the computer.
1.
To connect a VGA display device, connect the device cable to the external monitor port.
2.
Press fn+f4 to alternate the screen image between 4 display states:
●
PC Screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on both the computer and the external
device.
●
Extend: View the screen image extended across both the computer and the external
device.
●
Second screen only: View the screen image on the external device only.
Each time you press fn+f4, the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen
resolution of the external device, as follows. Select Start > Control Panel > Appearance and
Personalization. Under Display, select Adjust screen resolution.
DisplayPort (select models only)
The DisplayPort connects the computer to an optional video or audio device, such as a high-definition
television, or to any compatible digital or audio component. The DisplayPort delivers higher
performance than the VGA external monitor port and improves digital connectivity.
NOTE: To transmit video and/or audio signals through the DisplayPort, you need a DisplayPort
cable (purchased separately).
NOTE: One DisplayPort device can be connected to the DisplayPort port on the computer. The
information displayed on the computer screen can be simultaneously displayed on the DisplayPort
device.
To connect a video or audio device to the DisplayPort:
1.
34
Connect one end of the DisplayPort cable to the DisplayPort port on the computer.
Chapter 5 Multimedia
2.
Connect the other end of the cable to the digital display device.
3.
Press fn+f4 to alternate the computer screen image between 4 display states:
●
PC screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on both the computer and the external
device.
●
Extend: View the screen image extended across both the computer and the external
device.
●
Second screen only: View the screen image on the external device only.
Each time you press fn+f4, the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen
resolution of the external device, as follows. Select Start > Control Panel > Appearance and
Personalization. Under Display, select Adjust screen resolution.
NOTE: To remove the device cable, press down on the connector release button to disconnect it on
the computer.
Connecting a Thunderbolt DisplayPort device
The Thunderbolt DisplayPort connects an optional high-resolution display device or a highperformance data device. This port delivers higher performance than the VGA external monitor port
and improves digital connectivity.
NOTE: Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device
before connecting the device to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold
separately) must be compatible with Windows. To determine whether your device is Thunderbolt
Certified for Windows, go to https://thunderbolttechnology.net/products.
1.
Connect one end of the Thunderbolt DisplayPort cable to the Thunderbolt DisplayPort on the
computer.
Video
35
2.
Connect the other end of the cable to the digital display device.
3.
Press fn+f4 to alternate the computer screen image between 4 display states.
●
PC screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on both the computer and external
device.
●
Extend: View the screen image extended across both the computer and external device.
●
Second screen only: View the screen image on the external device only.
Each time you press fn+f4 the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen resolution of
the external device, as follows. Select Start > Control Panel > Appearance and Personalization.
Under Display, select Adjust screen resolution.
Connecting wired displays using MultiStream Transport
Connecting wired displays with an optional hub
MultiStream Transport (MST) provides multiple display support from a single connector, the
DisplayPort, on your computer.
NOTE: If your computer has an Nvidia graphics controller, you can connect up to 4 external display
devices using the DisplayPort.
NOTE: If your computer has an AMD graphics controller, you can connect up to 6 external display
devices using the DisplayPort.
36
Chapter 5 Multimedia
To set up multiple displays, follow these steps:
1.
Connect an external hub (purchased separately) into the DisplayPort (DP) on your computer
using a DP-to-DP cable (purchased separately). Be sure that the hub power adapter is
connected to AC power.
2.
Connect the external display devices to the VGA ports or DisplayPorts on the hub.
3.
For details on how to set up multiple displays, go to the Nvidia Control Panel or from the Start
screen type screen resolution in the search box, or press fn+f4. If you don’t see one of
your connected displays, be sure that each device is connected to the correct port on the hub.
NOTE: Multiple display choices include “Duplicate,” which mirrors your computer screen on all
enabled displays, or “Extend,” which spans your computer screen across all enabled displays.
Intel Wireless Display (select models only)
Intel® Wireless Display allows you to share your computer content wirelessly on your TV. To
experience wireless display, a wireless TV adapter (purchased separately) is required. DVDs that
have output protection may not play on Intel Wireless Display. (However, DVDs that do not have
output protect will play.) Blu-ray discs, which have output protection, will not play on Intel Wireless
Display. For details about using the wireless TV adapter, see the manufacturer's instructions.
NOTE:
Be sure that wireless is enabled on your computer before using the wireless display.
Video
37
6
Power management
NOTE: A computer may have a power button or a power switch. The term power button is used
throughout this guide to mean both types of power controls.
Shutting down the computer
CAUTION:
Unsaved information is lost when the computer shuts down.
The shutdown command closes all open programs, including the operating system, and then turns off
the display and computer.
Shut down the computer under any of the following conditions:
●
When you need to replace the battery or access components inside the computer
●
When you are connecting an external hardware device that does not connect to a Universal
Serial Bus (USB) port
●
When the computer will be unused and disconnected from external power for an extended
period
Although you can turn off the computer with the power button, the recommended procedure is to use
the Windows shutdown command:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or
Hibernation before shutdown is possible by briefly pressing the power button.
1.
Save your work and close all open programs.
2.
Select Start > Shut Down.
If the computer is unresponsive and you are unable to use the preceding shutdown procedure, try the
following emergency procedures in the sequence provided:
●
Press ctrl+alt+delete. Click the Power icon, and then click Shut Down.
●
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power.
●
On models with a user-replaceable battery, remove the battery.
Setting power options
Using power-saving states
Sleep is enabled at the factory.
When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory.
CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video
playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external memory card.
38
Chapter 6 Power management
NOTE: You cannot initiate any type of networking connection or perform any computer functions
while the computer is in the Sleep state.
Initiating and exiting Sleep
With the computer on, you can initiate Sleep in any of the following ways:
●
Briefly press the power button.
●
Close the display.
●
Select Start, click the arrow next to the Shut down button, and then click Sleep.
To exit Sleep:
●
Briefly press the power button.
●
If the display is closed, open the display.
●
Press a key on the keyboard.
●
Tap or swipe the TouchPad.
When the computer exits Sleep, the power lights turn on and the computer returns to the screen
where you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before the computer will return to the screen.
Initiating and exiting Hibernation
The system is set at the factory to initiate Hibernation after a period of inactivity when running on
battery power or on external power, or when the battery reaches a critical battery level.
Power settings and timeouts can be changed in Windows Control Panel.
To initiate Hibernation:
▲
Select Start, click the arrow next to the Shut down button, and then click Hibernate.
To exit Hibernation:
▲
Briefly press the power button.
The power lights turn on and your work returns to the screen where you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before your work will return to the screen.
Using the power meter and power settings
The power meter is located in the notification area, at the far right of the taskbar. The power meter
allows you to quickly access power settings and view the remaining battery charge.
●
To reveal the percentage of remaining battery charge and the current power plan, point over the
power meter icon.
●
To use Power Options, or to change the power plan, click the power meter icon and select an
item from the list.
Different power meter icons indicate whether the computer is running on battery or external power.
The icon also reveals a message if the battery has reached a low or critical battery level.
Setting power options
39
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1.
Select Start > Control Panel > System and Security > Power Options.
2.
In the left pane, click Require a password on wakeup.
3.
Click Change Settings that are currently unavailable.
4.
Click Require a password (recommended).
NOTE: If you need to create a user account password or change your current user account
password, click Create or change your user account password, and then follow the on-screen
instructions. If you do not need to create or change a user account password, go to step 5.
5.
Click Save changes.
Using battery power
WARNING! To reduce potential safety issues, use only the battery provided with the computer, a
replacement battery provided by HP, or a compatible battery purchased from HP.
The computer runs on battery power whenever it is not plugged into external AC power. Computer
battery life varies, depending on power management settings, running programs, display brightness,
external devices connected to the computer, and other factors. Keeping the battery in the computer
whenever the computer is plugged into AC power charges the battery and also protects your work in
case of a power outage. If the computer contains a charged battery and is running on external AC
power, the computer automatically switches to battery power if the AC adapter is disconnected on the
computer or an AC power loss occurs.
NOTE: When you disconnect AC power, the display brightness is automatically decreased to save
battery life. Select computer models can switch between graphic modes to increase battery life. For
more information, see Switchable graphics/dual graphics (select models only) on page 45.
Finding additional battery information
Help and Support provides the following tools and information about the battery:
●
Battery Check tool to test battery performance
●
Information on calibration, power management, and proper care and storage to maximize battery
life
●
Information on battery types, specifications, life cycles, and capacity
To access battery information:
▲
Select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.
Using Battery Check
Help and Support provides information on the status of the battery installed in the computer.
To run Battery Check:
40
Chapter 6 Power management
1.
Connect the AC adapter to the computer.
NOTE: The computer must be connected to external power for Battery Check to work properly.
2.
Select Start > Help and Support > Troubleshoot > Power, Thermal, and Mechanical.
3.
Click the Power tab, and then click Battery Check.
Battery Check examines the battery and its cells to see if they are functioning properly, and then
reports the results of the examination.
Displaying the remaining battery charge
▲
Move the pointer over the power meter icon on the Windows desktop in the notification area, at
the far right of the taskbar.
Maximizing battery discharge time
Battery discharge time varies depending on features you use while on battery power. Maximum
discharge time gradually decreases as the battery storage capacity naturally degrades.
Tips for maximizing battery discharge time:
●
Lower the brightness on the display.
●
Remove the battery from the computer when it is not being used or charged, if the computer
contains a user-replaceable battery
●
Store the user-replaceable battery in a cool, dry location.
●
Select the Power saver setting in Power Options.
Managing low battery levels
The information in this section describes the alerts and system responses set at the factory. Some
low-battery alerts and system responses can be changed using Power Options. Preferences set
using Power Options do not affect lights.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:
●
The battery light (select models only) indicates a low or critical battery level.
– or –
●
The power meter icon in the notification area shows a low or critical battery notification.
NOTE: For additional information about the power meter, see Using the power meter and
power settings on page 39.
If the computer is on or in the Sleep state, the computer remains briefly in the Sleep state, and then
shuts down and loses any unsaved information.
Resolving a low battery level
Resolving a low battery level when external power is available
▲
Connect one of the following devices:
Setting power options
41
●
AC adapter
●
Optional docking or expansion device
●
Optional power adapter purchased as an accessory from HP
Resolving a low battery level when no power source is available
To resolve a low battery level when no power source is available, save your work and shut down the
computer.
Inserting or removing the battery
Inserting a battery
To insert the battery:
1.
Turn the computer upside down on a flat surface, with the battery bay toward you.
2.
Insert the battery into the battery bay, aligning the tabs on the battery (1) with the notches on the
computer, and then press the battery down until it is seated (2).
The battery release latch automatically locks the battery into place.
Removing a battery
To remove the battery:
CAUTION: Removing a battery that is the sole power source for the computer can cause loss of
information. To prevent loss of information, save your work and shut down the computer through
Windows before removing the battery.
42
1.
Turn the computer upside down on a flat surface, with the battery bay toward you.
2.
Slide the battery release latch (1) to release the battery.
Chapter 6 Power management
3.
Pivot the battery up (2), and then remove the battery from the computer (3).
Conserving battery power
●
Select low power-use settings through Power Options in Windows Control Panel.
●
Turn off wireless and LAN connections and exit modem applications when you are not using
them.
●
Disconnect unused external devices that are not plugged into an external power source.
●
Stop, disable, or remove any external memory cards that you are not using.
●
Decrease screen brightness.
●
Before you leave your work, initiate Sleep, or shut down the computer.
Storing a user-replaceable battery (select models only)
CAUTION: To reduce the risk of damage to a battery, do not expose it to high temperatures for
extended periods of time.
If a computer will be unused and unplugged from external power for more than 2 weeks, remove the
user-replaceable battery and store it separately.
To prolong the charge of a stored battery, place it in a cool, dry place.
NOTE: A stored battery should be checked every 6 months. If the capacity is less than 50 percent,
recharge the battery before returning it to storage.
Calibrate a battery before using it if it has been stored for one month or more.
Disposing of a user-replaceable battery (select models only)
WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short
external contacts; do not dispose of in fire or water.
See the Regulatory, Safety and Environmental Notices for proper battery disposal. To access the
user guides, select the Start > Help and Support > User Guides. To access battery information, select
Start> Help and Support > Learn > Power Plans: Frequently Asked Questions.
Setting power options
43
Replacing a user-replaceable battery (select models only)
Battery Check notifies you to replace the battery when an internal cell is not charging properly or
when the battery storage capacity has reached a weak condition. If the battery is possibly covered by
an HP warranty, instructions include a warranty ID. A message refers you to the HP website for more
information about ordering a replacement battery.
Using external AC power
WARNING! Do not charge the computer battery while you are onboard aircraft.
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
NOTE: For information on connecting to AC power, see the Setup Instructions poster provided in
the computer box.
External AC power is supplied through an approved AC adapter or an optional docking or expansion
device.
Connect the computer to external AC power under any of the following conditions:
●
When charging or calibrating a battery
●
When installing or modifying system software
●
When writing information to a CD, a DVD, or a BD (select models only)
●
When running Disk Defragmenter
●
When performing a backup or recovery
When you connect the computer to external AC power, the following events occur:
●
The battery begins to charge.
●
If the computer is turned on, the power meter icon in the notification area changes appearance.
When you disconnect external AC power, the following events occur:
●
The computer switches to battery power.
●
The display brightness is automatically decreased to save battery life.
Testing an AC adapter
Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to
AC power:
●
The computer does not turn on.
●
The display does not turn on.
●
The power lights are off.
To test the AC adapter:
NOTE:
44
The following instructions apply to computers with user-replaceable batteries.
1.
Shut down the computer.
2.
Remove the battery from the computer.
Chapter 6 Power management
3.
Connect the AC adapter to the computer, and then plug it into an AC outlet.
4.
Turn on the computer.
●
If the power lights turn on, the AC adapter is working properly.
●
If the power lights remain off, the AC adapter is not functioning and should be replaced.
Contact support for information on obtaining a replacement AC power adapter.
Switchable graphics/dual graphics (select models only)
Select computers are equipped with either switchable graphics or dual graphics.
●
Switchable graphics—Supported by both AMD™ and Intel. If your computer has AMD dynamic
switchable graphics, it supports only switchable graphics.
●
Dual graphics—Supported only by AMD. If your computer has AMD Radeon dual graphics, it
supports only dual graphics.
NOTE: Dual graphics can be enabled only by full-screen applications that use DirectX version
10 or 11.
NOTE: To determine whether your computer supports switchable graphics or dual graphics, see
your notebook graphics processor configuration. Intel HR Central Processing Units (CPUs) and AMD
Trinity series Accelerated Processing Units (APUs) support switchable graphics. AMD Trinity series
A6, A8, and A10 APUs support dual graphics. AMD Trinity series A4 APUs do not support dual
graphics.
Both switchable graphics and dual graphics offer two modes for processing graphics:
●
Performance mode—Runs application with optimal performance.
●
Power Saving mode—Conserves battery life.
To manage your AMD graphics settings:
1.
Open the Catalyst Control Center by right-clicking on the Windows desktop, and then select
Configure Switchable Graphics.
2.
Click the Power tab, and then select Switchable Graphics.
Using switchable graphics (select models only)
Switchable graphics allow you to switch between Performance mode and Power Saving mode.
To manage your switchable graphics settings:
1.
Right-click on the Windows desktop, and then select Configure Switchable Graphics.
2.
Click the Power tab, and then select Switchable Graphics.
Switchable graphics assigns individual applications to either Performance mode or Power Saving
mode, based on power requirements. You can also manually modify the settings for an individual
application by locating the application under Recent Applications drop-down menu, or by clicking
Browse, located below Other Applications. You can switch between Performance mode and Power
Saving mode.
NOTE:
For more information, see the switchable graphics software Help.
Setting power options
45
Using dual graphics (select models only)
If your system is equipped with dual graphics (two or more added Graphics Processing Units
(GPUs)), you can enable AMD Radeon Dual Graphics to increase application power and performance
for full-screen applications that use DirectX version 10 or 11. For more information about DirectX, go
to http://www.microsoft.com and search for DirectX.
NOTE: Dual graphics systems only support automatic selection based on power requirements
(Dynamic scheme), and automatically assign Performance mode or Power Saving mode for individual
applications. However, you can manually modify the settings for a particular application.
To enable or disable AMD Radeon Dual Graphics, select or deselect the check box in the AMD
Radeon Dual Graphics section, which is located in the Performance tab in the Catalyst Control
Center.
NOTE:
46
For more information, see the AMD software Help.
Chapter 6 Power management
7
External cards and devices
Using memory card readers (select models only)
Optional memory cards provide secure data storage and convenient data sharing. These cards are
often used with digital media–equipped cameras and PDAs as well as with other computers.
To determine the memory card formats that are supported on your computer, see Getting to know
your computer on page 4.
Inserting a memory card
CAUTION: To reduce the risk of damage to the memory card connectors, use minimal force to
insert a memory card.
1.
Hold the card label-side up, with the connectors facing the computer.
2.
Insert the card into the memory card reader, and then press in on the card until it is firmly
seated.
You will hear a sound when the device has been detected, and a menu of options may be
displayed.
Removing a memory card
CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following
procedure to safely remove the memory card.
1.
Save your information and close all programs associated with the memory card.
2.
Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar. Then follow the on-screen instructions.
Using memory card readers (select models only)
47
3.
Press in on the card (1), and then remove it from the slot (2).
NOTE: If the card does not eject, pull the card out of the slot.
Using ExpressCards (select models only)
An ExpressCard is a high-performance PC Card that is inserted into the ExpressCard slot.
ExpressCards are designed to conform to the standard specifications of the Personal Computer
Memory Card International Association (PCMCIA).
Configuring an ExpressCard
Install only the software required for the card. If you are instructed by the ExpressCard manufacturer
to install device drivers:
48
●
Install only the device drivers for your operating system.
●
Do not install additional software, such as card services, socket services, or enablers, that are
supplied by the ExpressCard manufacturer.
Chapter 7 External cards and devices
Inserting an ExpressCard
CAUTION: To prevent damage to the computer and external memory cards, do not insert a PC
Card into an ExpressCard slot.
CAUTION:
To reduce the risk of damage to the connectors:
Use minimal force when inserting an ExpressCard.
Do not move or transport the computer when an ExpressCard is in use.
NOTE:
The following illustration may look slightly different than your device.
The ExpressCard slot may contain a protective insert. To remove the insert:
1.
Press in on the insert (1) to unlock it.
2.
Pull the insert out of the slot (2).
To insert an ExpressCard:
1.
Hold the card label-side up, with the connectors facing the computer.
2.
Insert the card into the ExpressCard slot, and then press in on the card until it is firmly seated.
You will hear a sound when the card has been detected, and a menu of options may be
displayed.
NOTE: The first time you connect an ExpressCard, a message in the notification area lets you
know that the card is recognized by the computer.
NOTE:
To conserve power, stop or remove an ExpressCard when it is not in use.
Using ExpressCards (select models only)
49
Removing an ExpressCard
CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following
procedure to safely remove the ExpressCard.
1.
Save your information and close all programs associated with the ExpressCard.
2.
Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar, and then follow the on-screen instructions.
3.
Release and remove the ExpressCard:
a.
Gently press in on the ExpressCard (1) to unlock it.
b.
Pull the ExpressCard out of the slot (2).
Using smart cards (select models only)
NOTE:
Cards.
The term smart card is used throughout this chapter to mean both smart cards and Java™
A smart card is a credit card-sized accessory that carries a microchip containing memory and a
microprocessor. Like personal computers, smart cards have an operating system to manage input
and output, and they include security features to protect against tampering. Industry-standard smart
cards are used with the smart card reader (select models only).
A PIN is needed to gain access to the contents of the microchip. For more information about smart
card security features, access Help and Support by selecting Start > Help and Support.
50
Chapter 7 External cards and devices
Inserting a smart card
1.
Hold the card label-side up, and gently slide the card into the smart card reader until the card is
seated.
2.
Follow the on-screen instructions for logging on to the computer using the smart card PIN.
Removing a smart card
▲
Grasp the edge of the smart card, and then pull it out of the smart card reader.
Using a USB device
Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub.
Some USB devices may require additional support software, which is usually included with the
device. For more information about device-specific software, see the manufacturer's instructions.
These instructions may be provided with the software, on disc, or on the manufacturer’s website.
The computer has at least 1 USB port that supports USB 1.0, 1.1, 2.0, or 3.0 devices. Your computer
may also have a USB charging port that provides power to an external device. An optional docking
device or USB hub provides additional USB ports that can be used with the computer.
Using a USB device
51
Connecting a USB device
CAUTION:
device.
▲
To reduce the risk of damage to a USB connector, use minimal force to connect the
Connect the USB cable for the device to the USB port.
NOTE: The following illustration may look slightly different than your computer.
You will hear a sound when the device has been detected.
NOTE: The first time you connect a USB device, a message in the notification area lets you know
that the device is recognized by the computer.
Removing a USB device
CAUTION: To reduce the risk of damage to a USB connector, do not pull on the cable to remove
the USB device.
CAUTION: To reduce the risk of loss of information or an unresponsive system, use the following
procedure to safely remove the USB device.
1.
To remove a USB device, save your information and close all programs associated with the
device.
2.
Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar, and then follow the on-screen instructions.
3.
Remove the device.
Using optional external devices
NOTE: For more information about required software and drivers, or to learn which computer port to
use, see the manufacturer's instructions.
To connect an external device to the computer:
CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be
sure that the device is turned off and the AC power cord is unplugged.
52
Chapter 7 External cards and devices
1.
Connect the device to the computer.
2.
If you are connecting a powered device, plug the device power cord into a grounded AC outlet.
3.
Turn on the device.
To disconnect an unpowered external device, turn off the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the
computer, and then unplug the AC power cord.
Using optional external drives
Removable external drives expand your options for storing and accessing information. A USB drive
can be added by connecting the drive to a USB port to the computer.
NOTE: HP external USB optical drives should be connected to the powered USB port to the
computer.
USB drives include the following types:
●
1.44-megabyte diskette drive
●
Hard drive module
●
External optical drive (CD, DVD, and Blu-ray)
●
MultiBay device
Using the docking connector (select models only)
The docking connector connects the computer to an optional docking device. An optional docking
device provides additional ports and connectors that can be used with the computer.
NOTE:
The following image may look slightly different than your computer or docking device.
Using optional external devices
53
8
Drives
Handling drives
CAUTION: Drives are fragile computer components that must be handled with care. Refer to the
following cautions before handling drives. Do not drop a drive, place items on it, or expose it to
liquids, or temperature or humidity extremes.
Observe these precautions when handling drives:
●
Before removing or installing a drive, shut down the computer. If you are unsure whether the
computer is off, in the Sleep state, or in Hibernation, turn the computer on, and then shut it
down.
●
Before handling a drive, discharge static electricity by touching a grounded surface.
●
Do not touch the connector pins on a removable drive or on the computer.
●
Do not use excessive force when inserting a drive into a drive bay.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “FRAGILE.”
●
Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport
walk-through devices and security wands. Airport conveyer belts and similar security devices
that check carry-on baggage use X-rays instead of magnetism and do not damage drives.
●
Remove media from a drive before removing the drive from the drive bay, or traveling with,
shipping, or storing a drive.
●
Do not type on the keyboard or move the computer while an optical drive is writing to a disc. The
write process is sensitive to vibration.
●
Before you move a computer that is connected to an external hard drive, initiate Sleep and allow
the screen to clear, or properly disconnect the external hard drive.
Using hard drives
CAUTION:
To prevent information loss or an unresponsive system:
Save your work and shut down the computer before adding or replacing a memory module or hard
drive.
If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.
Removing or replacing the service door
Removing the service door
Remove the service door to access the memory module slot, hard drive, and other components.
54
Chapter 8 Drives
1.
Remove the battery (see Removing a battery on page 42).
2.
With the battery bay toward you, slide the service door release latch (1) to the left, remove the
screw (if the optional screw is being used) (2), and then slide the release latch again (3) to
release the service door.
NOTE: If you do not want to use the optional screw, you can store it inside the service door.
3.
Slide the service door toward the front of the computer (4) and lift (5) to remove the service door.
Replacing the service door
Replace the service door after accessing the memory module slot, hard drive, regulatory label, and
other components.
1.
Tilt down the service door to align the front edge of the service door near the front edge of the
computer (1).
2.
Insert the alignment tabs (2) on the rear edge of the service door with the notches on the
computer.
3.
Slide the service door toward the battery bay until the service door snaps into place.
Using hard drives
55
4.
With the battery bay toward you, slide the service door release latch to the left (3), and if you
choose to, insert and tighten the optional screw (4) to hold the service door in place. Slide the
release latch to the right to lock the service door (5).
NOTE: If you do not want to use the optional screw, you can store it inside the service door.
5.
Insert the battery (see Inserting a battery on page 42).
Replacing or upgrading the hard drive
CAUTION:
To prevent information loss or an unresponsive system:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.
Removing the hard drive
To remove a hard drive:
56
1.
Save your work and shut down the computer.
2.
Disconnect AC power and external devices connected to the computer.
3.
Turn the computer upside down on a flat surface.
4.
Remove the battery (see Removing a battery on page 42).
5.
Remove the service door (see Removing the service door on page 54).
6.
Loosen the 3 hard drive screws (1). Pull the hard drive tab (2) to the left to disconnect the hard
drive.
Chapter 8 Drives
7.
Lift the hard drive (3), and then pull the hard drive out of the hard drive bay.
Installing a hard drive
NOTE:
Your computer may look slightly different from the illustration in this section.
To install the hard drive:
1.
Insert the hard drive into the hard drive bay at an angle, and then lay the hard drive flat in the
hard drive bay (1).
2.
Pull the plastic tab (2) toward the center of the computer to engage the hard drive with the
connector.
Using hard drives
57
3.
Tighten the hard drive screws (3).
4.
Replace the service door (see Replacing the service door on page 55).
5.
Insert the battery (see Inserting a battery on page 42).
6.
Connect AC power and external devices to the computer.
7.
Turn on the computer.
Improving hard drive performance
Using Disk Defragmenter
As you use your computer over time, the files on the hard drive become fragmented. A fragmented
drive means data on your drive is not contiguous (sequential) and, because of this, the hard drive
works harder to locate files, thus slowing down the computer. Disk Defragmenter consolidates (or
physically reorganizes) the fragmented files and folders on the hard drive so that the system can run
more efficiently.
NOTE:
It is not necessary to run Disk Defragmenter on solid-state drives.
After you start Disk Defragmenter, it works without supervision. However, depending on the size of
your hard drive and the number of fragmented files, Disk Defragmenter may take more than an hour
to complete.
HP recommends defragmenting your hard drive at least once a month. You may set Disk
Defragmenter to run on a monthly schedule, but you can defragment your computer manually at any
time.
58
Chapter 8 Drives
To run Disk Defragmenter:
1.
Connect the computer to AC power.
2.
Select Start > All Programs > Accessories > System Tools > Disk Defragmenter.
3.
Click Defragment disk.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access
Help and Support, select Start > Help and Support.
For additional information, access the Disk Defragmenter software Help.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer to run more efficiently.
To run Disk Cleanup:
1.
Click Start > All Programs > Accessories > System Tools > Disk Cleanup.
2.
Follow the on-screen instructions.
Using HP 3D DriveGuard (select models only)
HP 3D DriveGuard protects a hard drive by parking the drive and halting data requests under either of
the following conditions:
●
You drop the computer.
●
You move the computer with the display closed while the computer is running on battery power.
A short time after the end of one of these events, HP 3D DriveGuard returns the hard drive to normal
operation.
NOTE: Because solid state drives (SSDs) lack moving parts, they do not require HP 3D DriveGuard
protection.
NOTE: A hard drive in a primary hard drive bay or a secondary hard drive bay is protected by HP
3D DriveGuard. A hard drive installed in an optional docking device or connected to a USB port is not
protected by HP 3D DriveGuard.
For more information, see the HP 3D DriveGuard software Help.
Identifying HP 3D DriveGuard status
The hard drive light on the computer changes color to show that the drive in a primary hard drive bay
and/or the drive in a secondary hard drive bay (select models only) is parked. To determine whether a
drive is currently protected or whether it is parked, view the icon on the Windows desktop in the
notification area, at the far right of the taskbar, or in the Mobility Center.
Using RAID (select models only)
Redundant Arrays of Independent Disks (RAID) technology allows a computer to use two or more
hard disks at the same time. RAID treats multiple drives as one contiguous drive, either through
hardware or software settings. If multiple disks are set up to work together in this fashion, they are
referred to as a RAID array. For more information, see the HP website. To access the latest user
Using RAID (select models only)
59
guides, contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide
support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
60
Chapter 8 Drives
9
Security
Protecting the computer
Standard security features provided by the Windows operating system and the non-Windows
Computer Setup utility (BIOS) can protect your personal settings and data from a variety of risks.
NOTE: Security solutions are designed to act as deterrents. These deterrents may not prevent a
product from being mishandled or stolen.
NOTE: Before you send your computer for service, back up and delete confidential files, and
remove all password settings.
NOTE:
Some features listed in this chapter may not be available on your computer.
NOTE: Your computer supports Computrace, which is an online security-based tracking and
recovery service available in select regions. If the computer is stolen, Computrace can track the
computer if the unauthorized user accesses the Internet. You must purchase the software and
subscribe to the service in order to use Computrace. For information about ordering the Computrace
software, go to http://hp-pt.absolute.com.
Computer risk
Security feature
Unauthorized use of the computer
HP Client Security, in combination with a password, smart
card, contactless card, registered face scenes, registered
fingerprints, or other authentication credential
Unauthorized access to Computer Setup (f10)
BIOS administrator password in Computer Setup*
Unauthorized access to the contents of a hard drive
DriveLock password or Automatic DriveLock password in
Computer Setup*
Unauthorized startup from an optional external optical drive
(select models only), optional external hard drive (select
models only), or internal network adapter
Boot options feature in Computer Setup*
Unauthorized access to a Windows user account
Windows user password
Unauthorized access to data
●
HP Drive Encryption software
●
Windows Defender
Unauthorized access to Computer Setup settings and other
system identification information
BIOS administrator password in Computer Setup*
Unauthorized removal of the computer
Security cable slot (used with an optional security cable)
*Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will
not load. You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and
make selections in Computer Setup.
Using passwords
A password is a group of characters that you choose to secure your computer information. Several
types of passwords can be set, depending on how you want to control access to your information.
Protecting the computer
61
Passwords can be set in Windows or in the non-Windows Computer Setup utility that is preinstalled
on the computer.
●
BIOS administrator and DriveLock passwords are set in Computer Setup and are managed by
the system BIOS.
●
Automatic DriveLock passwords are enabled in Computer Setup.
●
Windows passwords are set only in the Windows operating system.
●
If HP SpareKey has been set up previously, and if you forget the BIOS administrator password
set in Computer Setup, you can use HP SpareKey to access the utility.
●
If you forget both the DriveLock user password and the DriveLock master password set in
Computer Setup, the hard drive that is protected by the passwords is permanently locked and
can no longer be used.
You can use the same password for a Computer Setup feature and for a Windows security feature.
You can also use the same password for more than one Computer Setup feature.
Use the following tips for creating and saving passwords:
●
When creating passwords, follow requirements set by the program.
●
Do not use the same password for multiple applications or websites, and do not reuse your
Windows password for any other application or website.
●
Use HP Client Security's Password Manager to store your user names and passwords for all of
your websites and applications. You can securely read them in the future if they cannot be
remembered.
●
Do not store passwords in a file on the computer.
The following tables list commonly used Windows and BIOS administrator passwords and describe
their functions.
Setting passwords in Windows
Password
Function
Administrator password*
Protects access to a Windows administrator-level account.
NOTE: Setting the Windows Administrator password does
not set the BIOS Administrator password.
User password*
Protects access to a Windows user account.
*For information about setting a Windows administrator password or a Windows user password, access Help and Support by
selecting Start > Help and Support.
62
Chapter 9 Security
Setting passwords in Computer Setup
Password
Function
BIOS administrator password*
Protects access to Computer Setup.
NOTE: If features have been enabled to prevent removing
the BIOS administrator password, you may not be able to
remove it until those features have been disabled.
DriveLock master password*
Protects access to the internal hard drive that is protected by
DriveLock. It is also used to remove DriveLock protection.
This password is set under DriveLock Passwords during the
enable process.
NOTE: A BIOS Administrator password must be set before
you can set a DriveLock password.
DriveLock user password*
Protects access to the internal hard drive that is protected by
DriveLock, and is set under DriveLock Passwords during the
enable process.
NOTE: A BIOS Administrator password must be set before
you can set a DriveLock password.
*For details about each of these passwords, see the following topics.
Managing a BIOS administrator password
To set, change, or delete this password, follow these steps:
Setting a new BIOS administrator password
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Setup BIOS Administrator
Password, and then press enter.
4.
When prompted, type a password.
5.
When prompted, type the new password again to confirm.
6.
To save your changes and exit Computer Setup, click the Save icon and then follow the onscreen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Changing a BIOS administrator password
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Change Password, and then press
enter.
Using passwords
63
4.
When prompted, type your current password.
5.
When prompted, type your new password again to confirm.
6.
To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Deleting a BIOS administrator password
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Change Password, and then press
enter.
4.
When prompted, type your current password.
5.
When prompted for the new password, leave the field empty, and then press enter.
6.
Read the warning. To continue, select YES.
7.
When prompted to type your new password again, leave the field empty, and then press enter.
8.
To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Entering a BIOS administrator password
At the BIOS administrator password prompt, type your password (using the same kind of keys you
used to set the password), and then press enter. After 3 unsuccessful attempts to enter the BIOS
administrator password, you must restart the computer and try again.
Managing a Computer Setup DriveLock password
CAUTION: To prevent the DriveLock-protected hard drive from becoming permanently unusable,
record the DriveLock user password and the DriveLock master password in a safe place away from
your computer. If you forget both DriveLock passwords, the hard drive will be permanently locked and
can no longer be used.
DriveLock protection prevents unauthorized access to the contents of a hard drive. DriveLock can be
applied only to the internal hard drive(s) of the computer. After DriveLock protection is applied to a
drive, a password must be entered to access the drive. The drive must be inserted into the computer
or an advanced port replicator in order for it to be accessed by the DriveLock passwords.
NOTE:
A BIOS Administrator password must be set before you can access the DriveLock features.
To apply DriveLock protection to an internal hard drive, a user password and a master password
must be set in Computer Setup. Note the following considerations about using DriveLock protection:
64
Chapter 9 Security
●
After DriveLock protection is applied to a hard drive, the hard drive can be accessed only by
entering either the user password or the master password.
●
The owner of the user password should be the day-to-day user of the protected hard drive. The
owner of the master password may be either a system administrator or the day-to-day user.
●
The user password and the master password can be identical.
●
You can delete a user password or master password only by removing DriveLock protection
from the drive. DriveLock protection can be removed from the drive only with the master
password.
Setting a DriveLock password
To set a DriveLock password in Computer Setup, follow these steps:
1.
Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Hard Drive Tools > DriveLock, and
then press enter.
4.
Click Set DriveLock Password (global).
5.
Enter the BIOS Administrator password, and then press enter.
6.
Use a pointing device or the arrow keys to select the hard drive you want to protect, and then
press enter.
7.
Read the warning. To continue, select YES.
8.
When prompted, type a master password, and then press enter.
9.
When prompted, type the master password again to confirm, and then press enter.
10. When prompted, type a user password, and then press enter.
11. When prompted, type the user password again to confirm, and then press enter.
12. To confirm DriveLock protection on the drive you have selected, type DriveLock in the
confirmation field, and then press enter.
NOTE: The DriveLock confirmation is case sensitive.
13. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Using passwords
65
Entering a DriveLock password
Be sure that the hard drive is inserted into the computer (not into an optional docking device or
external MultiBay).
At the DriveLock Password prompt, type your user or master password (using the same kind of keys
you used to set the password), and then press enter.
After 2 incorrect attempts to enter the password, you must shut down the computer and try again.
Changing a DriveLock password
To change a DriveLock password in Computer Setup, follow these steps:
1.
Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Hard Drive Tools > DriveLock, and
then press enter.
4.
Enter the BIOS Administrator password, and then press enter.
5.
Use a pointing device or the arrow keys select Set DriveLock Password, and then press enter.
6.
Use the arrow keys to select an internal hard drive, and then press enter.
7.
Use a pointing device or the arrow keys to select Change Password.
8.
When prompted, type your current password, and then press enter.
9.
When prompted, type a new password, and then press enter.
10. When prompted, type the new password again to confirm, and then press enter.
11. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Removing DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
66
1.
Turn on the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Hard Drive Tools > DriveLock, and
then press enter.
4.
Enter the BIOS Administrator password, and then press enter.
5.
Use a pointing device or the arrow keys to select Set DriveLock Password, and then press enter.
6.
Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
7.
Use a pointing device or the arrow keys to select Disable protection.
Chapter 9 Security
8.
Type your master password, and then press enter.
9.
To save your changes and exit Computer Setup, click the Save icon and then follow the onscreen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Using Computer Setup Automatic DriveLock
In a multiple-user environment, you can set an Automatic DriveLock password. When the Automatic
DriveLock password is enabled, a random user password and a DriveLock master password will be
created for you. When any user passes the password credential, the same random user and
DriveLock master password will be used to unlock the drive.
NOTE: A BIOS Administrator password must be set before you can access the Automatic DriveLock
features.
Entering an Automatic DriveLock password
To enable an Automatic DriveLock password in Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Hard Drive Tools > Automatic
DriveLock, and then press enter.
4.
Enter the BIOS Administrator password, and then press enter.
5.
Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
6.
Read the warning. To continue, select YES.
7.
To save your changes and exit Computer Setup, click the Save icon and then follow the onscreen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Removing Automatic DriveLock protection
To remove DriveLock protection in Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Security > Hard Drive Tools > Automatic
DriveLock, and then press enter.
4.
Enter the BIOS Administrator password, and then press enter.
5.
Use a pointing device or the arrow keys to select an internal hard drive, and then press enter.
Using passwords
67
6.
Use a pointing device or the arrow keys to select Disable protection.
7.
To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
TPM Embedded Security device (select models only)
TPM (Trusted Platform Module) provides additional security for your computer. You can modify the
TPM settings in Computer Setup. For information on changing Computer Setup settings, see Using
Computer Setup on page 81.
The following table describes the TPM settings in Setup Utility.
Settings
Function
TPM Embedded Security Device
Available/Hidden
TPM Status
Embedded Security State
TPM Set to Factory Defaults
●
If the administrator password is set, you can select Available.
●
If you select Hidden, the TPM device is not visible in the operating
system.
Enabled/Disabled
●
If the administrator password is not set, or if TPM Security Device is set
to Hidden, this entry is hidden.
●
This value reflects the current physical state for the TPM. The state is
enabled or disabled by the Embedded Security State setting.
No Operation/Disabled/Enabled
●
If the administrator password is not set, or if TPM Security Device is set
to Hidden, this entry is hidden.
●
You can enable or disable the TPM function.
●
The next time the computer is restarted after the TPM function is set, this
value is set to No Operation.
No/Yes
●
If the administrator password is not set, or if the TPM Security Device is
set to Hidden, this entry is hidden.
●
If the Embedded Security State is set to Enabled, select Yes to reset the
TPM to factory settings, and then press f10 to save and exit. A
confirmation message is displayed to Clear the TPM. Press f1 to reset
the TPM, or press f2 to cancel the action.
Using antivirus software
When you use the computer to access e-mail, a network, or the Internet, you potentially expose it to
computer viruses. Computer viruses can disable the operating system, programs, or utilities, or cause
them to function abnormally.
Antivirus software can detect most viruses, destroy them, and, in most cases, repair any damage they
have caused. To provide ongoing protection against newly discovered viruses, antivirus software
must be kept up to date.
68
Chapter 9 Security
For more information about computer viruses, type viruses in the Search box in Help and Support.
Using firewall software
Firewalls are designed to prevent unauthorized access to a system or network. A firewall can be a
software program you install on your computer and/or network, or it can be a solution made up of
both hardware and software.
There are two types of firewalls to consider:
●
Host-based firewalls—Software that protects only the computer it is installed on.
●
Network-based firewalls—Installed between your DSL or cable modem and your home network
to protect all the computers on the network.
When a firewall is installed on a system, all data sent to and from the system is monitored and
compared with a set of user-defined security criteria. Any data that does not meet those criteria is
blocked.
Your computer or networking equipment may already have a firewall installed. If not, firewall software
solutions are available.
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with
printer or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the
problem, disable the firewall, perform the task that you want to perform, and then reenable the
firewall. To permanently resolve the problem, reconfigure the firewall.
Installing critical security updates
CAUTION: Microsoft® sends out alerts regarding critical updates. To protect the computer from
security breaches and computer viruses, install all critical updates from Microsoft as soon as you
receive an alert.
Updates to the operating system and other software may have become available after the computer
left the factory. To be sure that all available updates are installed on the computer, observe these
guidelines:
1.
Run Windows Update as soon as possible after you set up your computer.
2.
Run Windows Update monthly thereafter.
3.
Obtain updates to Windows and other Microsoft programs, as they are released, from the
Microsoft website and through the updates link in Help and Support.
Using HP Client Security (select models only)
HP Client Security software is preinstalled on select computer models. This software can be
accessed through Windows Control Panel. It provides security features that help protect against
unauthorized access to the computer, networks, and critical data. For more information, see the HP
Client Security software Help.
Installing an optional security cable
NOTE: A security cable is designed to act as a deterrent, but it may not prevent the computer from
being mishandled or stolen.
Using firewall software
69
NOTE: The security cable slot on your computer may look slightly different from the illustration in
this section. See Getting to know your computer on page 4 for the location of the security cable slot
on your computer.
1.
Loop the security cable around a secured object.
2.
Insert the key (1) into the cable lock (2).
3.
Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock
with the key.
Using the fingerprint reader (select models only)
Integrated fingerprint readers are available on select computer models. In order to use the fingerprint
reader, you must enroll your fingerprints in the HP Client Security's Credential Manager. Refer to the
HP Client Security software Help.
After you enroll your fingerprints in Credential Manager, you can use HP Client Security's Password
Manager to store and fill in your user names and passwords in supported websites and applications.
Locating the fingerprint reader
The fingerprint reader is a small metallic sensor that is located in one of the following areas of your
computer:
●
Near the bottom of the TouchPad
●
On the right side of the keyboard
●
On the upper-right side of the display
●
On the left side of the display
Depending on your computer model, the reader may be oriented horizontally or vertically. Both
orientations require that you swipe your finger perpendicular to the metallic sensor. See Getting to
know your computer on page 4 for the location of the fingerprint reader on your computer.
70
Chapter 9 Security
10 Maintenance
Adding or replacing memory modules
The computer has one memory module compartment. The capacity of the computer can be upgraded
by adding a memory module to the vacant expansion memory module slot or by upgrading the
existing memory module in the primary memory module slot.
NOTE: Before adding or replacing a memory module, make sure the computer has the most recent
BIOS version, and update the BIOS if needed. See Updating the BIOS on page 83.
CAUTION: Failure to update the computer to the latest BIOS prior to installing or replacing a
memory module may result in various system problems.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power
cord and remove all batteries before installing a memory module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning any
procedure, ensure that you are discharged of static electricity by touching a grounded metal object.
CAUTION:
To prevent information loss or an unresponsive system:
Shut down the computer before adding or replacing memory modules. Do not remove a memory
module while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing the
power button. Then shut down the computer through the operating system.
NOTE: To use a dual-channel configuration when adding a second memory module, be sure that
both memory modules are identical.
NOTE: The primary memory is located in the bottom memory slot and the expansion memory is
located in the top memory slot.
To add or replace a memory module:
1.
Save your work and shut down the computer.
2.
Disconnect AC power and external devices connected to the computer.
3.
Remove the battery (see Removing a battery on page 42).
4.
Remove the service door (see Removing the service door on page 54).
5.
If you are replacing a memory module, remove the existing memory module:
a.
Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
Adding or replacing memory modules
71
b.
Grasp the edge of the memory module (2), and then gently pull the memory module out of
the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module.
To protect a memory module after removal, place it in an electrostatic-safe container.
6.
Insert a new memory module:
CAUTION: To prevent damage to the memory module, hold the memory module by the edges
only. Do not touch the components on the memory module.
72
a.
Align the notched edge (1) of the memory module with the tab in the memory module slot.
b.
With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
Chapter 10 Maintenance
c.
Gently press the memory module (3) down, applying pressure to both the left and right
edges of the memory module, until the retention clips snap into place.
CAUTION: To prevent damage to the memory module, be sure that you do not bend the
memory module.
7.
Replace the service door (see Replacing the service door on page 55).
8.
Insert the battery (see Inserting a battery on page 42).
9.
Connect AC power and external devices to the computer.
10. Turn on the computer.
Cleaning your computer
Use the following products to safely clean your computer:
●
Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (for example,
disposable wipes, which come in a variety of brands).
●
Alcohol-free glass-cleaning fluid
●
Water with mild soap solution
●
Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)
●
Static-free cloth wipes
Cleaning your computer
73
CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are
not sure that a cleaning product is safe for your computer, check the product contents to make sure
that ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons
are not included in the product.
Fibrous materials, such as paper towels, can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.
Cleaning procedures
Follow the procedures in this section to safely clean your computer.
WARNING! To prevent electric shock or damage to components, do not attempt to clean your
computer while it is turned on.
●
Turn off the computer.
●
Disconnect AC power.
●
Disconnect all powered external devices.
CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids
directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.
Cleaning the display (All-in-Ones or Notebooks)
Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be
sure that the display is dry before closing the display.
Cleaning the sides or cover
To clean the sides or cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.
NOTE:
debris.
When cleaning the cover of the computer, use a circular motion to aid in removing dirt and
Cleaning the TouchPad, keyboard, or mouse
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.
CAUTION:
keys.
To prevent damage to internal components, do not allow liquids to drip between the
●
To clean the TouchPad, keyboard, or mouse, use a soft microfiber cloth or a chamois moistened
with one of the cleaning solutions listed previously or use an acceptable disposable wipe.
●
To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a
can of compressed air with a straw extension.
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis to the latest versions.
Updates can resolve issues and bring new features and options to your computer. Technology is
always changing, and updating programs and drivers allows your computer to run the latest
74
Chapter 10 Maintenance
technology available. For example, older graphics components might not work well with the most
recent gaming software. Without the latest driver, you would not be getting the most out of your
equipment.
Go to http://www.hp.com/support to download the latest versions of HP programs and drivers. In
addition, register to receive automatic update notifications when they become available.
Using SoftPaq Download Manager
HP SoftPaq Download Manager (SDM) is a tool that provides quick access to SoftPaq information for
HP business computers without requiring the SoftPaq number. Using this tool, you can easily search
for SoftPaqs, and then download and unpack them.
SoftPaq Download Manager works by reading and downloading, from the HP FTP site, a published
database file containing computer model and SoftPaq information. SoftPaq Download Manager
allows you to specify one or more computer models to determine which SoftPaqs are available for
download.
SoftPaq Download Manager checks the HP FTP site for updates to the database and software. If
updates are found, they are downloaded and applied automatically.
SoftPaq Download Manager is available on the HP website. To use SoftPaq Download Manager to
download SoftPaqs, you must first download and install the program. Go to http://www.hp.com/go/
sdm, and follow the instructions to download and install SoftPaq Download Manager.
To download SoftPaqs:
▲
Select Start > All Programs > HP > HP SoftPaq Download Manager.
NOTE:
If prompted by User Account Control, click Yes.
Using SoftPaq Download Manager
75
11 Backup and recovery
Your computer includes HP and Windows tools to help you safeguard your information and retrieve it
if you ever need to. These tools will help you return your computer to a proper working state, all with
simple steps. This section provides information about the following processes:
●
Creating recovery media and backups
●
Restoring and recovering your system
Creating recovery media and backups
Recovery after a system failure is only as good as your most recent backup.
1.
After you successfully set up the computer, create HP Recovery media. This step creates a
Windows 7 operating system DVD and a Driver Recovery DVD. The Windows DVD can be used
to reinstall the original operating system in cases where the hard drive is corrupted or has been
replaced. The Driver Recovery DVD installs specific drivers and applications. See Creating
recovery media with HP Recovery Disc Creator on page 76.
2.
Use Windows Backup and Recovery tools to perform the following:
●
Back up individual files and folders
●
Back up your entire hard drive (select models only)
●
Create system repair discs (select models only) with the installed optical drive (select
models only) or an optional external optical drive
●
Create system restore points
NOTE: This guide describes an overview of backing up, restoring, and recovering options. For more
details about the tools provided, see Help and Support. To access Help and Support, select Start >
Help and Support.
NOTE: HP recommends that you print the recovery procedures and save them for later use, in case
of system instability.
In case of system failure, you can use the backup files to restore the contents of your computer. See
Backing up your information on page 77.
Guidelines
●
When creating recovery media or backing up to discs, use any of the following types of discs
(purchased separately): DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you
use will depend on the type of optical drive you are using.
●
Be sure that the computer is connected to AC power before you start the recovery media
creation process or the backup process.
Creating recovery media with HP Recovery Disc Creator
HP Recovery Disc Creator is a software program that offers an alternative way to create recovery
media. After you successfully set up the computer, you can create recovery media using HP
Recovery Disc Creator. This recovery media allows you to reinstall your original operating system as
76
Chapter 11 Backup and recovery
well as select drivers and applications if the hard drive becomes corrupted. HP Recovery Disc
Creator can create two kinds of recovery DVDs:
●
Windows 7 operating system DVD—Installs the operating system without additional drivers or
applications.
●
Driver Recovery DVD—Installs specific drivers and applications only, in the same way that the
HP Software Setup utility installs drivers and applications.
Creating recovery media
NOTE: The Windows 7 operating system DVD can be created only once. Thereafter, the option to
create that media will not be available after you create a Windows DVD.
To create the Windows DVD:
1.
Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2.
Select Windows disk.
3.
From the drop-down menu, select the drive for burning the recovery media.
4.
Click the Create button to start the burning process.
After the Windows 7 operating system DVD has been created, create the Driver Recovery DVD:
1.
Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2.
Select Driver disk.
3.
From the drop-down menu, select the drive for burning the recovery media.
4.
Click the Create button to start the burning process.
Backing up your information
You should create system repair media and your initial backup immediately after initial system setup.
As you add new software and data files, you should continue to back up your system on a regular
basis to maintain a reasonably current backup. You should also create Windows system repair media
(select models only) which can be used to start up (boot) the computer and repair the operating
system in case of system instability or failure. Your initial and subsequent backups allow you to
restore your data and settings if a failure occurs.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
●
Store personal files in the Documents library, and back it up regularly.
●
Back up templates that are stored in their associated directories.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
●
When backing up to discs, number each disc after removing it from the drive.
NOTE: For detailed instructions on various backup and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
Creating recovery media and backups
77
To create a backup using Windows Backup and Restore:
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore.
2.
Follow the on-screen instructions to set up your backup, create a system image (select models
only), or create system repair media (select models only).
Performing a system recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
●
Windows recovery tools: You can use Windows Backup and Restore to recover information you
have previously backed up. You can also use Windows Startup Repair to fix problems that might
prevent Windows from starting correctly.
●
f11 recovery tools (select models only): You can use the f11 recovery tools to recover your
original hard drive image. The image includes the Windows operating system and software
programs installed at the factory.
NOTE: If you are unable to boot (start up) your computer and you cannot use the system repair
media you previously created (select models only), you must purchase Windows 7 operating system
media to reboot the computer and repair the operating system. For additional information, see Using
Windows 7 operating system media on page 79.
Using the Windows recovery tools
Using the Windows recovery tools, you can:
●
Recover individual files
●
Restore the computer to a previous system restore point
●
Recover information using recovery tools
NOTE: For detailed instructions on various recovery and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
To recover information you previously backed up:
1.
Select Start > All Programs > Maintenance > Backup and Restore.
2.
Follow the on-screen instructions to recover your system settings, your computer (select models
only), or your files.
To recover your information using Startup Repair, follow these steps:
CAUTION: Some Startup Repair options will completely erase and reformat the hard drive. All files
you have created and any software installed on the computer are permanently removed. When
reformatting is complete, the recovery process restores the operating system, as well as the drivers,
software, and utilities from the backup used for recovery.
78
Chapter 11 Backup and recovery
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the Windows partition.
To check for the Windows partition, select Start > Computer.
NOTE: If the Windows partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system DVD and the Driver Recovery media. For
additional information, see Using Windows 7 operating system media on page 79.
3.
If the Windows partition is listed, restart the computer, and then press f8 before the Windows
operating system loads.
4.
Select Startup Repair.
5.
Follow the on-screen instructions.
NOTE: For additional information on recovering information using the Windows tools, select Start >
Help and Support.
Using f11 recovery tools (select models only)
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files
that you have created and any software that you have installed on the computer are permanently
removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that
were installed at the factory. Software not installed at the factory must be reinstalled.
To recover the original hard drive image using f11:
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the HP Recovery partition: click Start, right-click Computer,
click Manage, and then click Disk Management.
NOTE: If the HP Recovery partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system media and the Driver Recovery media. For
additional information, see Using Windows 7 operating system media on page 79.
3.
If the HP Recovery partition is listed, restart the computer, and then press esc while the “Press
the ESC key for Startup Menu” message is displayed at the bottom of the screen.
4.
Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5.
Follow the on-screen instructions.
Using Windows 7 operating system media
If you cannot use the recovery media you previously created using the HP Recovery Disc Creator
(select models only), you must purchase a Windows 7 operating system DVD to reboot the computer
and repair the operating system.
To order a Windows 7 operating system DVD, go to the HP website. For U.S. support, go to
http://www.hp.com/support. For worldwide support, go to http://welcome.hp.com/country/us/en/
wwcontact_us.html. You can also order the DVD by calling support. For contact information, see the
Worldwide Telephone Numbers booklet included with the computer.
CAUTION: Using a Windows 7 operating system DVD completely erases hard drive contents and
reformats the hard drive. All files that you have created and any software that you have installed on
the computer are permanently removed. When reformatting is complete, the recovery process helps
you restore the operating system, as well as drivers, software, and utilities.
Performing a system recovery
79
To initiate recovery using a Windows 7 operating system DVD:
NOTE:
This process takes several minutes.
1.
If possible, back up all personal files.
2.
Restart the computer, and then insert the Windows 7 operating system DVD into the optical
drive before the Windows operating system loads.
3.
When prompted, press any keyboard key.
4.
Follow the on-screen instructions.
5.
Click Next.
6.
Select Repair your computer.
7.
Follow the on-screen instructions.
After the repair is completed:
80
1.
Eject the Windows 7 operating system DVD and then insert the Driver Recovery DVD.
2.
Install the Hardware Enabling Drivers first, and then install Recommended Applications.
Chapter 11 Backup and recovery
12 Computer Setup (BIOS), MultiBoot, and
HP PC Hardware Diagnostics (UEFI)
Using Computer Setup
Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input
and output devices on the system (such as disk drives, display, keyboard, mouse, and printer).
Computer Setup includes settings for the types of devices installed, the startup sequence of the
computer, and the amount of system and extended memory.
NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the
computer from operating properly.
Starting Computer Setup
NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup
only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
Navigating and selecting in Computer Setup
To navigate and select in Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the
keyboard to navigate and make selections in Computer Setup.
2.
Press f10 to enter Computer Setup.
●
To select a menu or a menu item, use the tab key and the keyboard arrow keys and then
press enter, or use a pointing device to click the item.
●
To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen, or use the up arrow key or the down arrow key on the keyboard.
●
To close open dialog boxes and return to the main Computer Setup screen, press esc, and
then follow the on-screen instructions.
To exit Computer Setup menus, choose one of the following methods:
●
To exit Computer Setup menus without saving your changes:
Click the Exit icon in the lower-right corner of the screen, and then follow the on-screen
instructions.
– or –
Using Computer Setup
81
Use the arrow keys to select Main > Ignore Changes and Exit, and then press enter.
●
To save your changes and exit Computer Setup menus:
Click the Save icon in the lower-right corner of the screen, and then follow the on-screen
instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Restoring factory settings in Computer Setup
NOTE:
Restoring defaults will not change the hard drive mode.
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select Main > Restore Defaults.
4.
Follow the on-screen instructions.
5.
To save your changes and exit, click the Save icon in the lower-right corner of the screen, and
then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
82
Chapter 12 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
Updating the BIOS
Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed files called SoftPaqs.
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as ROM date and System BIOS) can be revealed by pressing
fn+esc (if you are already in Windows) or by using Computer Setup.
1.
Start Computer Setup.
2.
Use a pointing device or the arrow keys to select Main > System Information.
3.
To exit Computer Setup without saving your changes, click the Exit icon in the lower-right corner
of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Ignore Changes and Exit, and then press enter.
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:
Do not disconnect power on the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1.
Access Help and Support by selecting Start > Help and Support.
2.
Select Updates and tune-ups, and then select Check for HP updates now.
3.
At the download area, follow these steps:
a.
Identify the most recent BIOS update and compare it to the BIOS version currently installed
on your computer. Make a note of the date, name, or other identifier. You may need this
information to locate the update later, after it has been downloaded to your hard drive.
b.
Follow the on-screen instructions to download your selection to the hard drive.
If the update is more recent than your BIOS, make a note of the path to the location on your
hard drive where the BIOS update is downloaded. You will need to access this path when
you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the
download is complete. If no instructions are revealed, follow these steps:
Using Computer Setup
83
1.
Select Start > Computer.
2.
Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3.
Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4.
Double-click the file that has an .exe extension (for example, filename.exe).
The BIOS installation begins.
5.
Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Using MultiBoot
About the boot device order
As the computer starts, the system attempts to boot from enabled devices. The MultiBoot utility,
which is enabled at the factory, controls the order in which the system selects a boot device. Boot
devices can include optical drives, diskette drives, a network interface card (NIC), hard drives, and
USB devices. Boot devices contain bootable media or files that the computer needs to start and
operate properly.
NOTE: Some boot devices must be enabled in Computer Setup before they can be included in the
boot order.
You can change the order in which the computer searches for a boot device by changing the boot
order in Computer Setup. You can also press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen, and then press f9. Pressing f9 displays a menu
that shows the current boot devices and allows you to select a boot device. Or, you can use MultiBoot
Express to set the computer to prompt you for a boot location each time the computer turns on or
restarts.
Choosing MultiBoot preferences
You can use MultiBoot in the following ways:
●
To set a new boot order that the computer uses each time it is turned on, by changing the boot
order in Computer Setup.
●
To dynamically choose the boot device, by pressing esc while the “Press the ESC key for
Startup Menu” message is displayed at the bottom of the screen, and then pressing f9 to enter
the Boot Device Options menu.
●
To use MultiBoot Express to set variable boot orders. This feature prompts you for a boot device
each time the computer is turned on or restarted.
Setting a new boot order in Computer Setup
To start Computer Setup and set a boot device order that the computer uses each time it is turned on
or restarted, follow these steps:
84
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
Chapter 12 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
3.
Use a pointing device or the arrow keys to select the Legacy Boot Order list, and then press
enter.
4.
To move the device up in the boot order, use a pointing device to click the up arrow, or press the
+ key.
– or –
To move the device down in the boot order, use a pointing device to click the down arrow, or
press the - key.
5.
To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Dynamically choosing a boot device using the f9 prompt
To dynamically choose a boot device for the current startup sequence, follow these steps:
1.
Open the Select Boot Device menu by turning on or restarting the computer, and then pressing
esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the
screen.
2.
Press f9.
3.
Use a pointing device or the arrow keys to select a boot device, then press enter.
Setting a MultiBoot Express prompt
To start Computer Setup and set the computer to display the MultiBoot startup location menu each
time the computer is started or restarted, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2.
Press f10 to enter Computer Setup.
3.
Use a pointing device or the arrow keys to select System Configuration > Boot Options, and then
press enter.
4.
In the MultiBoot Express Popup Delay (Sec) field, enter the length of time in seconds that you
want the computer to display the startup location menu before it defaults to the current MultiBoot
setting. (When 0 is selected, the Express Boot startup location menu is not displayed.)
5.
To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Main > Save Changes and Exit, and then press enter.
Your changes go into effect when the computer restarts.
Entering MultiBoot Express preferences
When the Express Boot menu is displayed during startup, you have the following choices:
Using MultiBoot
85
●
To specify a boot device from the Express Boot menu, select your preference within the allotted
time, and then press enter.
●
To prevent the computer from defaulting to the current MultiBoot setting, press any key before
the allotted time expires. The computer will not start until you select a boot device and press
enter.
●
To allow the computer to start according to the current MultiBoot settings, wait for the allotted
time to expire.
Using HP PC Hardware Diagnostics (UEFI) (select models
only)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run
diagnostic tests to determine if the computer hardware is functioning properly. The tool runs outside
of the operating system to isolate hardware failures from issues that may be caused by the operating
system or other software components.
To start HP PC Hardware Diagnostics UEFI:
1.
Turn on or restart the computer, quickly press esc, and then press f2.
After pressing f2, the BIOS searches three places for the HP PC Hardware Diagnostics (UEFI)
tools in the following order:
a.
Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device on page 86.
2.
b.
Hard drive
c.
BIOS
Use the keyboard arrow keys to select the type of diagnostic test you want to run, and then
follow the on-screen instructions.
NOTE: If you need to stop a diagnostic test while it is running, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE:
only.
The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English
There are two options to download HP PC Hardware Diagnostics to a USB device:
Option 1: HP PC Diagnostics homepage— Provides access to the latest UEFI version
1.
Go to http://hp.com/go/techcenter/pcdiags.
2.
Click the UEFI Download link, and then select Run.
Option 2: Support and Drivers page—Provides downloads for a specific product for earlier and later
versions
86
1.
Go to http://www.hp.com.
2.
Point to Support, located at the top of the page, and then click Download Drivers.
Chapter 12 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI)
3.
In the text box, enter the product name, and then click Go.
– or –
Click Find Now to let HP automatically detect your product.
4.
Select your computer model, and then select your operating system.
5.
In the Diagnostic section, click HP UEFI Support Environment.
– or –
Click Download, and then select Run.
Using HP Sure Start
Select computer models are configured with HP Sure Start, a technology that continuously monitors
your computer’s BIOS for attacks or corruption. If the BIOS becomes corrupted or is attacked, HP
Sure Start restores the BIOS to its previously safe state automatically, without user intervention. Your
computer ships with HP Sure Start configured and enabled. Most users can use HP Sure Start with
the default configuration.
For more information, go to http://www.hp.com/support, and then select your country. Select Drivers
& Downloads, and then follow the on-screen instructions.
Using HP Sure Start
87
13 Support
Contacting support
If the information provided in this user guide or Help and Support does not address your questions,
you can contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide
support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Here you can:
●
Chat online with an HP technician.
NOTE: When support chat is not available in a particular language, it is available in English.
88
●
E-mail support.
●
Find support telephone numbers.
●
Locate an HP service center.
Chapter 13 Support
Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
IMPORTANT: All labels described in this section will be located in one of 3 places depending on
your computer model: affixed to the bottom of the computer, located in the battery bay, or under the
service door.
●
Service label—Provides important information to identify your computer. When contacting
support, you will probably be asked for the serial number, and possibly for the product number or
the model number. Locate these numbers before you contact support.
Component
(1)
Product name
(2)
Serial number
(3)
Product number
(4)
Warranty period
(5)
Model description (select models only)
●
Microsoft® Certificate of Authenticity label (select models only prior to Windows 8)—Contains
the Windows Product Key. You may need the Product Key to update or troubleshoot the
operating system. HP platforms preinstalled with Windows 8 or Windows 8.1 do not have the
physical label, but have a Digital Product Key electronically installed.
NOTE: This Digital Product Key is automatically recognized and activated by Microsoft
Operating Systems on a reinstall of the Windows 8 or Windows 8.1 operating system with HPapproved recovery methods.
●
Regulatory label(s)—Provide(s) regulatory information about the computer.
●
Wireless certification label(s)—Provide(s) information about optional wireless devices and the
approval markings of some of the countries or regions in which the devices have been approved
for use.
Labels
89
14 Specifications
●
Input power
●
Operating environment
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The
AC power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered
from a standalone DC power source, it should be powered only with an AC adapter or a DC power
source supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications.
Input Power
Rating
Operating voltage and current
19.5 V dc @ 7.69 A — 150 W, Slim Smart AC Adapter (select
models only)
19.5 V dc @ 10.3 A — 200 W, Slim Smart AC Adapter (select
models only)
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE:
The computer operating voltage and current can be found on the system regulatory label.
Operating environment
Factor
Metric
U.S.
Operating (writing to optical disc)
5°C to 35°C
41°F to 95°F
Nonoperating
-20°C to 60°C
-4°F to 140°F
Operating
10% to 90%
10% to 90%
Nonoperating
5% to 95%
5% to 95%
Operating
-15 m to 3,048 m
-50 ft to 10,000 ft
Nonoperating
-15 m to 12,192 m
-50 ft to 40,000 ft
Temperature
Relative humidity (noncondensing)
Maximum altitude (unpressurized)
90
Chapter 14 Specifications
A
Traveling with or shipping your computer
If you have to travel with or ship your computer, here are some tips to keep in mind to keep your
equipment safe.
●
Prepare the computer for traveling or shipping:
◦
Back up your information to an external drive.
◦
Remove all discs and all external media cards, such as memory cards, from the computer.
◦
Turn off and then disconnect all external devices.
◦
Shut down the computer.
●
Take along a backup of your information. Keep the backup separate on the computer.
●
When traveling by air, carry the computer as hand luggage; do not check it in with the rest of
your bags.
CAUTION: Avoid exposing a drive to magnetic fields. Security devices with magnetic fields
include airport walk-through devices and security wands. Airport conveyer belts and similar
security devices that check carry-on baggage use X-rays instead of magnetism and do not
damage drives.
●
If you plan to use the computer during a flight, listen for the in-flight announcement that tells you
when you are allowed to use your computer. In-flight computer use is at the discretion of the
airline.
●
If you are shipping the computer or a drive, use suitable protective packaging and label the
package “FRAGILE.”
If the computer has a wireless device installed, the use of these devices may be restricted in
some environments. Such restrictions may apply aboard aircraft, in hospitals, near explosives,
and in hazardous locations. If you are uncertain of the policy that applies to the use of a
particular device, ask for authorization to use your computer before you turn it on.
●
If you are traveling internationally, follow these suggestions:
◦
Check the computer-related customs regulations for each country or region on your
itinerary.
◦
Check the power cord and adapter requirements for each location in which you plan to use
the computer. Voltage, frequency, and plug configurations vary.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not
attempt to power the computer with a voltage converter kit sold for appliances.
91
B
Troubleshooting
Troubleshooting resources
●
Access website links and additional information about the computer through Help and Support.
To access Help and Support, select Start > Help and Support.
NOTE: Some checkup and repair tools require an Internet connection. HP also provides
additional tools that do not require an Internet connection.
●
Contact HP support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide
support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
Choose from the following types of support:
◦
Chat online with an HP technician.
NOTE: When chat is not available in a particular language, it is available in English.
◦
E-mail HP support.
◦
Find HP support worldwide telephone numbers.
◦
Locate an HP service center.
Resolving issues
The following sections describe several common issues and solutions.
The computer is unable to start up
If the computer does not turn on when you press the power button, the following suggestions may
help you determine why the computer does not start up:
●
If the computer is plugged into an AC outlet, plug another electrical device into the outlet to be
sure that the outlet is providing adequate power.
NOTE: Use only the AC adapter provided with the computer or one approved by HP for this
computer.
●
If the computer is plugged into an external power source other than an AC outlet, plug the
computer into an AC outlet using the AC adapter. Be sure that the power cord and AC adapter
connections are secure.
The computer screen is blank
If the screen is blank but you have not turned off the computer, one or more of these settings may be
the cause:
●
92
The computer may be in the Sleep state. To exit Sleep, briefly press the power button. Sleep is
an energy-saving feature that turns off the display. Sleep can be initiated by the system while the
computer is on but is not in use, or when the computer has reached a low battery level. To
Appendix B Troubleshooting
change these and other power settings, right-click the Battery icon on the Windows desktop in
the notification area, at the far right of the taskbar, and then click Preferences.
●
The computer may not be set to display the image on the computer screen. To transfer the
image to the computer screen, press fn+f4. On most models, when an optional external display,
such as a monitor, is connected to the computer, the image can be displayed on the computer
screen or the external display, or on both devices simultaneously. When you press fn+f4
repeatedly, the image alternates among the computer display, one or more external displays,
and simultaneous display on all devices.
Software is functioning abnormally
If the software is unresponsive or responds abnormally, restart the computer. Click Start, click the
arrow next to Shut down, and then select Restart. If you cannot restart the computer using this
procedure, see the next section, The computer is on but not responding on page 93.
The computer is on but not responding
If the computer is turned on but is not responding to software or keyboard commands, try the
following emergency shutdown procedures, in the sequence provided, until shutdown occurs:
CAUTION:
Emergency shutdown procedures result in the loss of unsaved information.
●
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power and remove the battery.
The computer is unusually warm
It is normal for the computer to feel warm to the touch while it is in use. But if the computer feels
unusually warm, it may be overheating because a vent is blocked.
If you suspect that the computer is overheating, allow the computer to cool to room temperature. Be
sure to keep all vents free from obstructions while you are using the computer.
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
NOTE: The fan in the computer starts up automatically to cool internal components and prevent
overheating. It is normal for the internal fan to cycle on and off during operation.
An external device is not working
Follow these suggestions if an external device does not function as expected:
●
Turn on the device according to the manufacturer's instructions.
●
Be sure that all device connections are secure.
●
Be sure that the device is receiving electrical power.
●
Be sure that the device, especially if it is older, is compatible with the operating system.
●
Be sure that the correct drivers are installed and updated.
Resolving issues
93
The wireless network connection is not working
If a wireless network connection is not working as expected, follow these suggestions:
●
To enable or disable a wireless or wired network device, right-click the Network Connection icon
on the Windows desktop in the notification area, at the far right of the taskbar. To enable
devices, select the check box from the menu option. To disable the device, clear the check box.
●
Be sure that the wireless device is turned on.
●
Be sure that the computer wireless antennas are free from obstructions.
●
Be sure that the cable or DSL modem and its power cord are properly connected and that the
lights are on.
●
Be sure that the wireless router or access point is properly connected to its power adapter and to
the cable or DSL modem, and that the lights are on.
●
Disconnect and then reconnect all cables, and turn the power off and then back on.
A disc does not play
●
Save your work and close all open programs before playing a CD or a DVD.
●
Log off the Internet before playing a CD or a DVD.
●
Be sure that you insert the disc properly.
●
Be sure that the disc is clean. If necessary, clean the disc with filtered water and a lint-free cloth.
Wipe from the center of the disc to the outer edge.
●
Check the disc for scratches. If you find scratches, treat the disc with an optical disc repair kit
available at many electronics stores.
●
Disable Sleep mode before playing the disc.
Do not initiate Sleep while playing a disc. Otherwise, you may see a warning message asking if
you want to continue. If this message is displayed, click No. After you click No, the computer
may behave in either of the following ways:
◦
Playback may resume.
– or –
◦
The playback window in the multimedia program may close. To return to playing the disc,
click the Play button in your multimedia program to restart the disc. In rare cases, you may
need to exit the program and then restart it.
A movie is not visible on an external display
94
1.
If both the computer display and an external display are turned on, press fn+f4 one or more
times to switch between the 2 displays.
2.
Configure the monitor settings to make the external display primary:
a.
From the Windows desktop, right-click on a blank area of the computer desktop, and select
Screen resolution.
b.
Specify a primary display and a secondary display.
Appendix B Troubleshooting
NOTE: When using both displays, the DVD image will not appear on any display designated as
the secondary display.
When an external display is connected to the Thunderbolt port, the DVD image will appear on
any connected displays.
The process of burning a disc does not begin, or it stops before completion
●
Be sure that all other programs are closed.
●
Turn off Sleep mode.
●
Be sure that you are using the right kind of disc for your drive.
●
Be sure that the disc is inserted properly.
●
Select a slower write speed and try again.
●
If you are copying a disc, save the information on the source disc to your hard drive before trying
to burn the contents to a new disc, and then burn from your hard drive.
Resolving issues
95
C
Electrostatic discharge
Electrostatic discharge is the release of static electricity when two objects come into contact—for
example, the shock you receive when you walk across the carpet and touch a metal door knob.
A discharge of static electricity from fingers or other electrostatic conductors may damage electronic
components. To prevent damage to the computer, damage to a drive, or loss of information, observe
these precautions:
●
If removal or installation instructions direct you to unplug the computer, unplug it after being
properly grounded and before removing a cover.
●
Keep components in their electrostatic-safe containers until you are ready to install them.
●
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
●
Use nonmagnetic tools.
●
Before handling components, discharge static electricity by touching an unpainted metal surface
of the component.
●
If you remove a component, place it in an electrostatic-safe container.
If you need more information about static electricity or assistance with component removal or
installation, contact HP support.
96
Appendix C Electrostatic discharge
Index
Symbols/Numerics
2-finger click TouchPad gestures
27
2-finger pinch zoom TouchPad
gesture 26
A
AC adapter, testing 44
AC adapter/battery light 15, 16
accessory battery connector,
identifying 13
administrator password 62
AMD graphics controller, using
36
antivirus software 68
audio functions, checking 32
audio-in (microphone) jack,
identifying 4
audio-out (headphone) jack,
identifying 4
Automatic DriveLock password
entering 67
removing 67
B
Backup and Restore 78
backup tools 76
backups
creating 77
recovering 78
battery
conserving power 43
discharging 41
displaying remaining charge
41
disposing 43
low battery levels 41
replacing 44
storing 43
Battery Check 40
battery cover, identifying 13
battery information, finding 40
battery power 40
battery release latch 13
battery temperature 43
BIOS
determining version 83
downloading an update 83
updating 83
Bluetooth device 17, 22
Bluetooth label 89
buttons
center TouchPad 8
left pointing stick 8
left TouchPad 8
media 31
optical drive eject 4
power 10, 38
right pointing stick 8
right TouchPad 8
TouchPad on/off 8
volume 31
volume mute 11
Windows button 12
wireless 10
C
cables
USB 52
caps lock light, identifying 9
caring for your computer 73
checking audio functions 32
cleaning your computer 73
components
bottom 13
display 7
front 15
left side 5
rear 16
right side 4
top 8
Computer Setup
BIOS administrator password
63
DriveLock password 64
navigating and selecting 81
restoring factory settings 82
computer, traveling 43, 91
configuring
ExpressCards 48
connecting to a WLAN 20
connector, docking 53
connector, power 16
conservation, power 43
corporate WLAN connection 20
critical battery level 38
critical updates, software 69
D
Disk Cleanup software 59
Disk Defragmenter software 58
display image, switching 29
DisplayPort
connecting 34
connecting wired displays 36
Dual-Mode 5
Thunderbolt 5
docking connector 53
docking connector, identifying 13
drive media 38
DriveLock password
changing 66
description 64
entering 66
removing 66
setting 65
Driver Recovery DVD,
creating 76
using for restore 79
drives
external 53
handling 54
hard 53
optical 53
using 54
dual graphics 46
Dual-Mode DisplayPort,
identifying 5
E
electrostatic discharge 96
esc key, identifying 12
ExpressCard
configuring 48
defined 48
Index
97
inserting 49
removing 50
removing insert 49
ExpressCard slot 6
external AC power, using 44
external devices 52
external drive 53
external monitor port 4, 34
F
f11 recovery 79
fingerprint reader 70
fingerprint reader, identifying 11
firewall software 69
fn key, identifying 12, 28
function keys, identifying 12
G
GPS 22
graphics modes, switching
45
H
hard drive
external 53
HP 3D DriveGuard 59
installing 57
removing 56
hard drive light 15, 59
hard drive recovery 79
hard drive, identifying 14
headphone (audio-out) jack 4
headphones and microphones,
connecting 32
Hibernation
exiting 39
initiating 39
high-definition devices,
connecting 37
hot keys
adjusting volume 29
decrease screen brightness
29
decreasing speaker sound 29
description 28
increase screen brightness 29
increasing speaker sound 29
keyboard backlight 29
microphone mute 29
Sleep 28
switching screen image 29
using 28
98
Index
hot keys, media 31
HP 3D DriveGuard 59
HP Client Security 69
HP Mobile Broadband, disabled
21
HP Recovery Disc Creator,
using 76
HP Recovery partition
checking for presence 79
using for recovery 79
HP Sure Start, using 87
hubs 51
L
labels
Bluetooth 89
Microsoft Certificate of
Authenticity 89
regulatory 89
serial number 89
wireless certification 89
WLAN 89
latch, battery release 13
latches, service door release 13
legacy support, USB 81
lights
AC adapter/battery 15, 16
caps lock 9
hard drive 15
microphone mute 9
mute 9
num lock 9
optical drive 15
power 9, 15
RJ-45 (network) status 16
wireless 9, 15
lights, hard drive 59
lock, service door release 13
low battery level 41
I
input power 90
integrated numeric keypad,
identifying 12, 29
Intel Wireless Display 37
internal display switch 7
Internet connection setup 19
issues, resolving 92
J
jacks
audio-in (microphone) 4
audio-out (headphone) 4
network 16
RJ-45 (network) 16
Java Card
defined 50
inserting 51
removing 51
K
keyboard backlight 29
keyboard hot keys, identifying
keypad
identifying 29
integrated numeric 12
keypad, external
num lock 30
using 29
keys
esc 12
fn 12
function 12
media 31
num lk 12
volume 31
28
M
maintenance
Disk Cleanup 59
Disk Defragmenter 58
media activity controls 31
media hot keys 31
memory card
inserting 47
removing 47
supported formats 47
memory card reader, identifying
4
memory module
inserting 72
removing 71
replacing 71
memory module slot
identifying 14
microphone (audio-in) jack,
identifying 4
microphone mute key,
identifying 29
microphone mute light,
identifying 9
Microsoft Certificate of Authenticity
label 89
mouse, external
setting preferences 24
MultiStream Transport technology,
using 36
mute light 9
N
network jack, identifying 16
num lk key 12
num lk key, identifying 29
num lock light 9
num lock, external keypad 30
Nvidia graphics controller, using
36
O
operating environment 90
optical drive 53
identifying 4
optical drive eject button,
identifying 4
optional external devices, using
52
P
passwords
administrator 62
BIOS administrator 63
DriveLock 64
user 62
pointing devices, setting
preferences 24
pointing stick 8
ports
DisplayPort 34
external monitor 4, 34
Intel Wireless Display 37
Thunderbolt DisplayPort 35
USB 5
USB 3.0 charging (powered)
5
VGA 34
power
battery 40
conserving 43
options 38
power button 38
power button, identifying 10
power connector, identifying 16
power lights 9, 15
power switch 38
power-saving states 38
product name and number,
computer 89
public WLAN connection 20
R
RAID 59
readable media 38
recovery media, creating 76
recovery media, using for
restore 79
recovery partition 79
recovery tools 76
recovery tools, Windows 78
recovery, system 78
regulatory information
regulatory label 89
wireless certification labels 89
restoring the hard drive 79
RJ-45 (network) jack, identifying
16
RJ-45 (network) lights,
identifying 16
rotating TouchPad gesture 27
S
screen brightness keys 29
screen image, switching 29
scrolling TouchPad gesture 26
security cable slot, identifying 5
security, wireless 20
serial number 89
serial number, computer 89
service door release latch 13
service door release lock 13
service door, identifying 14
setting password protection on
wakeup 40
setting power options 38
setup of WLAN 19
setup utility
navigating and selecting 81
restoring factory settings 82
shutdown 38
SIM
inserting 21
SIM slot, identifying 13
