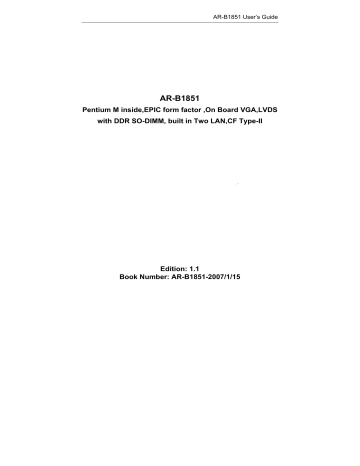

AR-B1851 User’s Guide
AR-B1851
Pentium M inside,EPIC form factor ,On Board VGA,LVDS with DDR SO-DIMM, built in Two LAN,CF Type-II
Edition: 1.1
Book Number: AR-B1851-2007/1/15
AR-B1851 User’s Guide
@Copyright 2005
All Rights Reserved.
Manual first edition Nov 22, 2005
The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
Trademarks
AR-B1851 is registered trademarks X-Fire Acrosser, IBM PC is a registered trademark of International Business Machines Corporation.
Pentium is a registered trademark of Intel Technologies, Inc. Award is registered trademarks of Award Software International, Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
AR-B1851
2
AR-B1851 User’s Guide
Contents
Contents
................................................................ 3
Introduction ............................................................. 5
1.1 Specifications: ....................................................................... 5
You Have ..................................................................... 7
Installation .............................................................. 8
2.1 AR-B1851’s Layout ............................................................... 8
Button Setting .......................................................... 10
Reset ....................................................................... 11 description.............................................................. 11
Connection............................................................ 13
3.1
Ultra ATA33/66/100 IDE Disk Drive Connector(IDE1)....... 13
3.2
Serial Ports(COM1~4)........................................................ 14
3.3 Keyboard / Mouse Connector(MS_KB1) ............................ 15
3.4 USB Port Connector(USB1~4) ........................................... 15
Connector (FAN1)........................................................ 16
3.6 LAN RJ45 Connector (LAN1/2)........................................... 16
3.7 Compact Flash Storage Card Socket(CF1) ........................ 17
3.8 VGA Connector(VGA1) ....................................................... 18
AR-B1851
3
AR-B1851 User’s Guide
3.9 AUDIO Connector(AUDIO1) ............................................... 18
3.10 DDR SODIMM Socket (J1) ................................................. 19
3.11 8-BIT GPIO Connector(GPIO1) .......................................... 19
3.12 Parallel port(PRN1) ............................................................. 20
3.13 LVDS Connector(LVDS1) ................................................... 20
3.14 Speak Connector(SPK1).................................................... 19
Award BIOS Setup................................................ 21
4.1 Introduction ......................................................................... 21
Setup ..................................................................... 21
Setup......................................................................... 21
Menu .......................................................................... 23
BIOS Features ................................................... 26
Configuration Setup ............................................. 28
4.7 Peripheral ............................................................................ 29
Health ............................................................................ 31
4.9 Boot….. ............................................................................... 32
Selecting ...................................................................... 33
Appendix A. Watchdog Timer ............................... 35
Appendix B: Digital I/O.......................................... 36
Appendix C: I/O Address Map .............................. 38
AR-B1851
4
AR-B1851 User’s Guide
1
Introduction
1.1 Specifications:
CPU
: Supports Intel Pentium M, Celeron M CPU.
Chipset
: GMCH 852GM and ICH4 82801DB
RAM memory
: DDR SDRAM SO-DIMM Socket support to 1GB/266MHz.
Display Controller
: Intel 852GM Supports non-interlaced CRT monitors
Supports LVDS Encoders.
Ultra DMA 133 IDE Interface
: One PCI Enhance IDE channel.
CompactFlash
TM
interface
: Supports CompactFlash
TM
Type II socket for
Compact Flash Disk or IBM Micro Drive.
Series ports
: Two high-speed 16C550 compatible UARTs ports.COM1 can also support RS-422/485.
USB port :
Support Four USB 2.0
compatible ports.
Audio Connector:
supports Line-in, Line-out, MIC-in.
Digital IO:
Supports eight digital-in, and eight digital-out TTL-level I/O ports.
IrDA:
Supports Serial Infrared(SIR) or Amplitude Shift Keyed
IR(ASKIR)interface.
PS/2 Mouse/Keyboard Connector
Watchdog timer
: Time setting form 1 to 255 second / minute System Reset generate when CPU did not periodically trigger the timer.
Intel LAN Controller
:
Two ports IEEE 802.3u Auto-Negotiation support for
Intel BCM4401(Optional) 10/100BASE-TX or BMC5788 1000BASE-TX
.
Connected to your LAN through RJ45 connector.
AR-B1851
5
AR-B1851 User’s Guide
Power Consumption
: 12V / 5V
Operating Temperature
: -10
°
~ 60
°
C ( CPU needs Cooler)
Dimension:
146mm(W) X 101.6mm(L)
AR-B1851
6
AR-B1851 User’s Guide
1.2 What You Have
In addition to this
User's Manual
, the AR-B1851 package includes the following items:
AR-B1851 board
User Manual
Drive CD
AR-B1851
7
AR-B1851 User’s Guide
2
Installation
This chapter describes how to install the AR-B1851. At first, the layout of AR-B1851 is shown, and the unpacking information that you should be careful is described. The jumpers and switches setting for the AR-B1851’s configuration
2.1 AR-B1851’s Layout
Top Placement
AR-B1851
8
AR-B1851 User’s Guide
Bottom Placement
AR-B1851
9
AR-B1851 User’s Guide
2.2 Power Button Setting
•
ATX1 : Power Connector
Pin DESCRIPTION
1 +12V
2 GND
3 +5V
4 GND
•
CN5 : Power Button
Connector
Pin DESCRIPTION
1 +5VSB
•
JP7 : Power LED
Pin DESCRIPTION
1 +5V
2 GND
•
JP8 : HDD LED
Pin DESCRIPTION
1 +5V
2 GND
•
CN6 : Reset Button Connector
Pin DESCRIPTION
Open Normal
Short Reset System
AR-B1851
10
AR-B1851 User’s Guide
•
CN8 : Power ON Pin Header
Pin DESCRIPTION
1 GND
2 PS_ON
3 5VSB
2.3 CMOS Reset
•
JP1 : CMOS pin header
JP1 DESCRIPTION
1-2 Normal Operation
2.4 Jumper description
•
JP2 : Select CF Master or Slave mode
JP2 Description
Short Master
Open Slave
•
JP3 : COM1/2 Select RI is 12V or signal
PIN DESCRIPTION PIN DESCRIPTION
1 NRIA
3 +12V
5 NRIB
7 +12V
2 NRIA_12V
4 NRIA_12V
6 NRIB_12V
8 NRIB_12V
AR-B1851
11
AR-B1851 User’s Guide
•
JP4 : Select COM4 is RS232 or RS422/485
JP4 Description
1-2 RS232
2-3 RS422/485
•
JP6 : Select LCD Voltage
JP6 Description
1-2
2-3
+3.3V
+5V
AR-B1851
12
AR-B1851 User’s Guide
3
Connection
This chapter describes how to connect peripherals, switches and indicators to the AR-B1851 board.
3.1 Ultra ATA33/66/100 IDE Disk Drive Connector(IDE1)
You can attach two IDE( Integrated Device Electronics) hard disk drives to the AR-B1851 IDE controller.
IDE 1 : Secondary IDE Connector (44 Pins)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
1 RESET# 2 GROUND
2
11
13
15
17
3
5
7
9
DATA 7
DATA 6
DATA 5
DATA 4
DATA 3
DATA 2
DATA 1
DATA 0
19 GROUND
21 N/C
23 IOW#
25 IOR#
27
29
N/C
N/C
31 INTERRUPT
33 SA1
4
6
8
10
12
14
16
18
DATA 8
DATA 9
DATA 10
DATA 11
DATA 12
DATA 13
DATA 14
DATA 15
20 N/C
22 GROUND
24 GROUND
26 GROUND
28
30
BALE - DEFAULT
GROUND - DEFAULT
32 IOCS16#-DEFAULT
34 N/C
35 SA0
37 HDC CS0#
36 SA2
38 HDC CS1#
39 HDD 40 GROUND
41 +5V LOGIC
43 GROUND
42 +5V MOTOR
44 TYPE
43 44
AR-B1851
13
AR-B1851 User’s Guide
3.2 Serial Ports(COM1~4)
The AR-B1851 offers two high speeds NS16C550 compatible UARTs with Read/Receive 16 byte FIFO serial ports.
•
COM2 : RS-232 Serial port (Pin Header)
PIN DESCRIPTION PIN DESCRIPTION
1 -DCD 2 -DSR
3 RXD 4 -RTS
5 TXD 6 -CTS
7 -DTR 8 -RI
9 GND 10 NC
•
COM1 : RS-232 with RS-422/485 Serial port(Pin Header)
PIN DESCRIPTION PIN DESCRIPTION
1 -DCD 2 -DSR
3 RXD 4 -RTS
5 TXD 6 -CTS
7 -DTR 8 -RI
9 GND 10
11 TX+ 12
13 RX+ 14
GND
TX-
RX-
AR-B1851
14
AR-B1851 User’s Guide
3.3 Keyboard / Mouse Connector(MS_KB1)
A PS/2 type connector(MS_KB1)is for easy connection to a keyboard and PS/2 mouse. The board comes with a Y split PS/2 cable for keyboard and mouse connection.
•
KB/MS1 : Keyboard Mouse PS2 Port
PIN DESCRIPTION PIN
1 KB_DAT 2 MS_DAT
3 GND 4 X
5 +5V 6 KB_CLK
3.4 USB Port Connector(USB1~4)
The AR-B1851 provides four USB port, four pin header, two connectors .
•
USB4 : USB Connector
PIN DESCRIPTION PIN
1
3
5
7
9
VCC
2
USB-
4
USB+
6
GND
8
USB_GND
10
VCC
USB-
USB+
GND
USB_GND
•
USB3 : USB Connector(Pin header)
PIN DESCRIPTION PIN
1
3
5
7
9
VCC
2
USB0-
4
USB0+
6
GND
8
USB_GND
10
VCC
USB1-
USB1+
GND
USB_GND
AR-B1851
15
AR-B1851 User’s Guide
3.5 Fan Connector (FAN1)
The AR-B1851 provides one connectors for CPU cooling fan they can be controlled by Super I/O Chip.
•
FAN1: Fan Connector for CPU
PIN NO. DESCRIPTION
1 GND
2 +12V
3.6 LAN RJ45 Connector (LAN1/2)
AR-B1851 is equipped with built-in 10/100Mbps(Option) or
1000MbpsEthernet Controller. You can connect it to your LAN through
RJ45 LAN connector. The pin assignments are as following:
•
LAN1/2 : LAN RJ45 Connector
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 TX+ 5. N/C
2 TX- 6. RX-
3.
4.
RX+
N/C
7.
8.
N/C
N/C
8 1
AR-B1851
16
AR-B1851 User’s Guide
3.7 Compact Flash Storage Card Socket(CF1)
The AR-B1851 configures Compact Flash Storage Card in IDE Mode.
This type II Socket is compatible with IBM Micro Drive.
•
CF1 : Compact Flash Storage Card Socket pin assignment
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 CS1# 32 CS3#
8 N/C 33 N/C
9 GROUND IOR#
10 N/C 35 IOW#
12 N/C 37 IRQ15
13 VCC 38 VCC
15 N/C 40 N/C
17 N/C 42 IORDY
18 A2 43 N/C
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
50 GROUND
Note: If IDE2 & CFD1 both in used, CFD1 must be as “Master” & IDE2 is as “Slave”.
AR-B1851
17
AR-B1851 User’s Guide
3.8 VGA Connector(VGA1)
The AR-B1851 has a built-in 15-pin VGA connector accepting the CRT monitor
•
VGA1 : 15-pin D-Sub Connector
PIN DESCRIPTION PIN
1 L_RED 2 L_GREEN
3 L_BLUE 4 MON2PU
5 GND 6 GND
7 GND 8 GND
9 +5V 10
11 MONOPU 12
13 HSYNC 14
GND
5VDDCDA
VSYNC
15 5VDDCCL
NOTE
:
When system boots up without the MONITOR attached during the POST, the
VBIOS will disable the MONITOR output. Under this condition, the MONITOR display will not work and the system will need to be rebooted with the
MONITOR attached to enable the display. The problem originates from the
VBIOS of the IntelR Extreme Graphics Driver, which disables the MONITOR output if a MONITOR is not detected during POST.
3.9 AUDIO Connector(AUDIO1)
•
AUDIO1 : Audio Pin Header
PIN DESCRIPTION PIN
1 LINE_OUT_R 2 LINE_OUT_L
3 GND 4 GND
5 LINE_IN_R 6 LINE_IN_L
7 MIC_IN 8 GND
9 GND 10 GND
AR-B1851
18
AR-B1851 User’s Guide
3.10 DDR SODIMM Socket (J1)
There are two 200-pin DDR SDRAM DIMM slots to accept 2.5V non_buffered
DDR SDRAM. The max Memory size is 2GB.
•
J1 : DDR SODIMM Socket
3.11 8-BIT
GPIO Connector(GPIO1)
•
GPIO1: 8 BIT GPIO Connector
PIN DESCRIPTION PIN
1 GP10 2 GP11
3 GP12 4 GP13
5 GP14 6 GP15
7 GP16 8 GP17
9 GND 10 VCC
3.14 Speak Connector(SPK1)
•
SPK1 : Speak out Connector(through Amplifier)
PIN NO. DESCRIPTION
1 SPKR
2 GND
3 SPKL
4 GND
AR-B1851
19
AR-B1851 User’s Guide
3.12 Parallel port(PRN1)
This port is usually connected to a printer. The AR-B1851 includes an on-board parallel port.
•
PRN1: Parallel Port Connector
PIN DESCRIPTION PIN
1 STB- 14
2 PD0 15
3 PD1 16
4 PD2 17
5 PD3 18
6 PD4 19
7 PD5 20
8 PD6 21
9 PD7 22
10 ACK- 23
11
12
13
BUSY 24
PE 25
SLCT 26
AFD-
ERR-
INIT-
SLIN-
GND
GND
GND
GND
GND
GND
GND
GND
X
3.13 LVDS Connector(LVDS1)
•
LVDS1 : LVDS Interface Connector
PIN DESCRIPTION PIN DESCRIPTION
2 GND 1 LVDS_PWR
4 LVDS_CLKBP 3 LVDS_CLKBM
6 LVDS_YBM2 5 GND
10 LVDS_YBP1 9 LVDS_YBM1
12 LVDS_YBM3 11 LVDS_YBP3
14 LVDS_YBM0 13
16 LVDS_CLKAP 15
18 GND 17
20 LVDS_YAM2 19
LVDS_YBP0
GND
LVDS_CLKAM
LVDS_YAP2
22 LVDS_YAP1 21
24 DDCPDATA_X 23
26 LVDS_YAM0 25
28 LVDS_YAM3 27
30 LVDS_PWR 29
DDCPCLK_X
LVDS_YAM1
LVDS_YAP0
LVDS_YAP3
LVDS_PWR
AR-B1851
20
4
Award BIOS Setup
AR-B1851 User’s Guide
4.1 Introduction
This chapter discusses the Setup program built into the BIOS. The
Setup program allows users to configure the system. This configuration is then stored in battery-backed CMOS RAM so that it retains the Setup information while the power is off.
4.2 Starting Setup
The BIOS is immediately active when you turn on the computer. While the BIOS is in control, the Setup program can be activated in one of two ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self-
Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
4.3 Using Setup
AR-B1851
21
AR-B1851 User’s Guide
In general, you can use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press
<F1> for help and press <Esc> to quit. The following table provides more details about how to navigate in the Setup program using the keyboard.
Key
Up Arrow
Down
Arrow
Left Arrow
Function
Move to the previous item
Move to the next item
Move to the item on the left (menu bar)
Right Arrow
Esc
Move Enter
PgUp key
PgDn key
+ key
- key
Esc key
Move to the item on the right (menu bar)
Main Menu: Quit without saving changes
Submenus: Exit Current page to the next higher level menu
Move to the item you desired
Increase the numeric value or make changes
Decrease the numeric value or make changes
Increase the numeric value or make changes
F1 key
F5 key
F6 key
F7 key
F10 key
Decrease the numeric value or make changes
Exit Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup
Menu -- Exit current page and return to Main Menu
General help on Setup navigation keys
Load previous values from CMOS
Load the fail-safe defaults from BIOS default table
Load the optimized defaults
Save all the CMOS changes and exit
AR-B1851
22
AR-B1851 User’s Guide
4.4 Main Menu
The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
Figure 1: The Main Menu
Main Menu Selections
Item
Date
Time
IDE
Primary Master
IDE
Primary Slave
Options
MM DD YYYY
HH : MM : SS
Options are in its sub menu
(described in Table 3)
Options are in its sub menu
(described in Table 3)
Set the system date.
Set the system time
Press <Enter> to enter the sub menu of detailed options
Press <Enter> to enter the sub menu of detailed options
Description
IDE
Secondary Master
Options are in its sub menu
(described in Table 3)
Press <Enter> to enter the sub menu of detailed options
IDE Options are in its sub Press <Enter> to enter
AR-B1851
23
AR-B1851 User’s Guide
Secondary Slave menu
(described in Table 3)
Drive A & Drive B None
360K, 5.25 in
Video
1.2M, 5.25 in
1.720K, 3.5 in
1.44K, 3.5 in
2.88K, 3.5 in
EGA / VGA the sub menu of detailed options
Select what kind of floppy type you install
Halt On
CGA 40
CGA 80
Mono
All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key
N/A
Select what type of
Display you use
Select the situation in which you want the BIOS to stop the POST process and notify you
Base Memory
Extended Memory N/A
Total Memory
Displays the amount of conventional memory detected during boot up
Displays the amount of extended memory detected during boot up
N/A Displays the total memory available in the system
Table 1 Main Menu Selections
IDE Adapters
The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk drive.
Figure 2 shows the IDE primary master sub menu.
IDE HDD Auto-Detection [Press Enter]
IDE Primary Master [Auto]
Access Mode [Auto]
Capacity 0MB
AR-B1851
24
AR-B1851 User’s Guide
Cylinder 0
Head 0
Precomp 0
Landing Zone 0
Sector 0
Figure 2 IDE Primary Master sub menu
Use the legend keys to navigate through this menu and exit to the main menu. Use Table 2 to configure the hard disk.
Item Options
IDE HDD Auto-detection Press Enter
IDE Primary Master None
Auto
Manual
Description
Press Enter to auto-detect the HDD on this channel. If detection is successful, it fills the remaining fields on this menu.
Selecting ‘manual’ lets you set the remaining fields on this screen. Selects the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc.
Note: PRECOMP=65535 means NONE !
Access Mode your disk drive size
(Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a
CHS
LBA
Large disk checking program.
Choose the access mode for this hard disk
Auto
Table 2 Hard disk selections
AR-B1851
25
AR-B1851 User’s Guide
4.5 Advanced BIOS Features
This section allows you to configure your system for basic operation.
Figure 3 Advanced menu
APIC Mode
This item allows use Advanced Programmable Interrupt Controller feature.The
Choice: Enabled, Disabled.
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST.
Enabled Enable quick POST
Full Screen LOGO Show
This item allows you to enable or disable show full screen LOGO
.
The Choice: Enabled, Disabled.
USB Keyboard Support
This item allows you to enable or disable USB keyboard support
.
The Choice: Enabled, Disabled.
AR-B1851
26
AR-B1851 User’s Guide
PS/2 Mouse Function
Disabled-prevents any installed PS/2 mouse from functioning but frees up IRQ12.Enabled-allows the operating system to determine whether to enable or disable the mouse. Choice: Enabled, Disabled.
Init Display First
This item allows you to choose which Display to be first detected.
The Choice: PCI Slot, On Board / AGP.
Intel VGA Share Memory
This item allows you to Choose the Frame Buffer size for Display.
The Choice: 1MB, 4MB, 8MB, 16MB, 32MB.
Boot Display
This item allows you to choose display interface
.
The Choice: Vbios default, CRT, EFP, TV, CRT + EFP, CRT + TV.
Panel Type
This item allows you to choose display panel type and resolution
.
The Choice: 640x480,800x600,1024x768.
ACPI Function
This item allows you to enable or disable Advanced Configuration and
Power Management (
ACPI) function
.
The Choice: Enabled, Disabled.
ACPI Suspend Type
This item allows you to Choose Suspend Type for ACPI function
.
The Choice: S1(Pos), S3(STR), S1 & S3.
Power Supply Type
This item allows you to choose the Type of Power Supply in use .
The Choice: AT, ATX.
PWRON After Power-Fail
This item allows you to choose the Option of Power Status after Power
Fail by ATX Power Supply .
The Choice: Former-STS, On, Off.
AR-B1851
27
4.6 PnP/PCI Configuration Setup
AR-B1851 User’s Guide
Figure 4 PnP/PCI menu
Resource controlled by
The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows
®
95. If you set this field to
“manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “ ”).
The choice: Auto(ESCD), Manual.
IRQ Resources
When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.
IRQ3/4/5/7/9/10/11/12/14/15 assigned to
This item allows you to determine the IRQ assigned to the ISA bus and is not available to any PCI slot. Legacy ISA for devices compliant with the original PC AT bus specification, PCI/ISA PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.
The Choice: PCI Device, Reserved.
AR-B1851
28
4.7 Peripheral
AR-B1851 User’s Guide
Figure 5 Peripheral menu
Onboard Serial Port 1/Port 2
Select an address and corresponding interrupt for the first and second serial ports.
The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled,
Auto
UART Mode Select
Select the Function Mode for UART.
The choice: IrDA, ASKIR, Normal
Onboard Serial Port 3/Port 4
Select an address and corresponding interrupt for the first and second serial ports.
The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled,
Auto
AR-B1851
29
AR-B1851 User’s Guide
Onboard Parallel Port
Select 3BC/IRQ7 to enable On Board Parallel Port as first Parallel
Interface.
The choice: Disable, 378/IRQ7, 278/IRQ5, 3BC/IRQ7.
USB Controller
Select
Enabled
if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals.
The Choice: Enabled, Disabled.
USB 2.0 Controller
This Entry is for disable / enable EHCI controller only. The Bios itself may
/ may not have high speed USB support. If the Bios has high speed USB support built in, the support will be automatically turn on when high speed device were attached.
The Choice: Enabled, Disabled.
AC97 AUDIO
The Choice: Auto, Disabled.
AR-B1851
30
4.8 PC Health
AR-B1851 User’s Guide
Figure 5 H/W Monitor menu
Shutdown Temperature
This item allows the system to reset when temperature reach the trigger level .
The Choice: Disabled, 60
°
C/140
°
F, 65
°
C/149
°
F, 70
°
C/158
°
F, 75
°
C/167
°
F
AR-B1851
31
AR-B1851 User’s Guide
4.9 Boot
Figure 6 Boot menu
First/Second/Third/Other Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
The Choice:
Floppy ………. [ ]
LS120 ………. [ ]
Hard Disk …. [ ]
CDROM … …….[ ]
ZIP100 ………. [ ]
USB-FDD .. …...[ ]
USB-ZIP .. …...[ ]
USB-CDROM .. [
▪
]
On Board LAN …[ ]
Disabled ….. ……[ ]
AR-B1851
32
4.10 Exit Selecting
AR-B1851 User’s Guide
Save & Exit Setup
Load Optimized Defaults
Exit Without Saving
Load Fail-Save Default
Figure
8 Exit menu
Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)?
Y
Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.
Load Optimized Defaults
AR-B1851
33
AR-B1851 User’s Guide
Use this menu to load the BIOS default values that are factory settings for optimal performance system operations. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet their needs.
When you press <Enter> on this item you get a confirmation dialog box with a message similar to:
Load Optimized Defaults (Y/N) ? N
Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.
Exit Without Saving
Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)?
Y
This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values that are factory settings for safety system operations.
When you press <Enter> on this item you get a confirmation dialog box with a message similar to:
Load Fail-Safe Defaults (Y/N) ? N
Pressing ‘Y’ loads the default values that are factory settings for
Fail-Safe system operations.
AR-B1851
34
AR-B1851 User’s Guide
Appendix A. Watchdog Timer
The WDT(Watch Dog Timer)is used to generate a variety of output signals after a user programmable cont. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sort of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.
WATCHDOG TIMER SETTING
The watchdog timer is a circuit that maybe be used from your program software to detect crash or hang up. The watchdog timer is automatically disabled after reset. Once you enabled the watchdog timer, your program should trigger the watchdog timer every time before it times out. After you trigger the watchdogtimer, the timer will be set to zero and start to count again. If your program fails to trigger the watchdog timer before times out, it will generate a reset pulse to reset the system or trigger the IRQ9 signal in order to tell your system that the watchdog time is out.
User could test watch dog function under ’Debug.exe’ program as follows:
WDT Example Description o 2e 87 o 2e 87 o 2e 07
;Extended Functions Enable Register
;Extended Functions Enable Register
;EFIR=EFER(Extended Function Index
o 2f 08 o 2e 30 o 2f 01 o 2e f6 o 2f 08 g
Register)point to Logical Device Number Reg.
;EFDR=EFIR+1, select logical device 8
;select CR30
;update CR30 with value 01H
;select CRF6
;update CRF6 with value 08H,(8sec reset)
;go
AR-B1851
35
AR-B1851 User’s Guide
Appendix B: Digital I/O
One characteristic of digital circuit is its fast response to high or low signal. This kind of response is highly needed for harsh and critical industrial operating environment. Digital Input and
Output, generally, are control signals. You can use these signals to control external devices that needs On/Off circuit or
TTL devices. You can read or write data to the selected address to enable the function of digital IO.
Users could test GPIO function under ‘Debug.exe’ program as follow:
GPO Example Description
O 2E 87
;Eetended Functions Enable Register
O 2E 87
O 2E 2A
O 2F FC
;Eetended Functions Enable Register
;Select CR2A
O 2E 07
;(Define the PINs as GPIO or Game Port 1)
“FC” Pin 121~128 set as GPIO
;EFIR=EFER(Extended Functions Index
Register)point to Logical Device Number Reg.
O 2F 07
O 2E 30
O 2F 01
O 2E F0
;EFDR=EFIR+1(select logical device 7,GPIO in logical device 7)
;select CR30(Active or inactive)
;set 01(Active), 00(inactive)
;select CRF0(Set the PINs be GPO or GPI
Function)
O 2F 00
O 2E F2
O 2F 00
O 2E F1
O 2F FF
O 2E AA
Q
;set the PINs be GPO
;select CRF2(Output High/Low)
;set the PINs be all Low Level(FF=all High
Level)
;select CRF1
;set the Output to be FF(all High)
;exit EFER
;quit debug
AR-B1851
36
AR-B1851 User’s Guide
GPI Example Description
O 2E 87
;Extended Functions Enable Register
O 2E 87
O 2E 2A
O 2F FC
O 2E 07
O 2F 07
O 2E 30
O 2F 01
O 2E F0
;Extended Functions Enable Register
;select CR2A
;(Define the PINs as GPIO or Game
Port1)”FC”Pin121~128 set as GPIO
;EFIR=EFER(Extended Functions Index
Register)point to Logical Device Number Reg.
;EFDR=EFIR+1(select logical device 7,GPIO in logical device7)
;select CR30(Active or inactive)
;set 01(Active) , 00(Inactive)
;select CRF0(Set the PINs be GPO or GPI
Funciton)
O 2F FF
O 2E F1
I 2F
Q
;set the PINs be GPI
;select CRF1(Set the PINs be Read only)
;Show the PINs Value
;Quit debug
AR-B1851
37
AR-B1851 User’s Guide
Appendix C: I/O Address Map
I/O ADDRESS MAP
I/O ADDRESS MAP DESCRIPTION
00000000-0000000F DMA Controller
Bus
00000020-00000021 Programable Interrupt Controller
00000060-00000060 Standard 101/102 keyboard Controller
00000064-00000064 Standard 101/102 keyboard Controller
Resource
00000094-0000009F DMA Controller
000000A0-000000A1 Programable interrupt controller
000000C0-000000DF DMA Controller
000000E0-000000EF Mainboard
Coprocessor
00000170-00000177 Secondary IDE Channel
000001F0-000001F7 Primary IDE Channel
00000274-00000277 ISAPNP Read Data Port
00000279-00000279 ISAPNP Read Data Port
000002E8-000002EF COM4
000002F8-000002FF COM2
00000376-00000376 Secondray IDE Channel
00000378-0000037F LPT
AR-B1851
38
AR-B1851 User’s Guide
000003B0-000003BB Graphics Controller
000003C0-000003DF Graphics Controller
000003E8-000003EF COM3
000003F6-000003F6 Primary IDE Channel
000003F8-000003FF COM1
000004D0-000004D1 Mainboard Resource
00000500-0000051F SMBus
00000778-0000077B LPT
00000A78-00000A7B Mainboard Resource
00000B78-00000B7B Mainboard Resource
00000BBC-00000BBF Mainboard Resource
00000E78-00000E7B Mainboard Resource
0000D000-0000D03F 100M Network Connection
0000D100-0000D13F 100M Network Connection #2
Universal Host Controller
Controller
0000EB00-0000EB1F USB Universal Host Controller
0000EC00-0000EC3F AC’97 Audio
0000ED00-0000ED1F USB Universal Host Controller
0000F000-0000F00F Ultra ATA Storage Controller
1ST MB MEMORY ADDRESS MAP
MEMORY ADDRESS DESCRIPTION
00000000-0009FFFF System Mainboard
000C0000-000DFFFF PCI Bus
000CCA00-000CFFFF System Mainboard
Mainboard
AR-B1851
39
AR-B1851 User’s Guide
E8000000-E801FFFF 100M Network connection
E8020000-E803FFFF 100M Network connection #2
E8050000-E8050FFF 100M Network connection
E8051000-E8051FFF 100M Network connection #2
Controller
E8200000-E82003FF USB2 Enhanced Host Controller
FEBFFC00-FEBFFFFF Ultra ATA Storage Controller
FFB00000-FFBFFFFF Firmware Hub Device
Mainboard
AR-B1851
40
AR-B1851 User’s Guide
IRQ Mapping Chart
IRQ0(ISA) System IRQ15(ISA) Secondary IDE
IRQ1(ISA) Keyboard
IRQ3(ISA) COM2
IRQ4(ISA) COM1
IRQ9(PCI) SMBus
IRQ16(PCI) USB Universal
IRQ16(PCI) Graphics
IRQ9I(ISA) ACPI-Compliant IRQ18(PCI) USB Universal
IRQ10(ISA) COM4 IRQ19(PCI) USB Universal
IRQ11(ISA) COM3
IRQ12(ISA) Mouse
IRQ20(PCI) Network #2
IRQ21(PCI) Network
IRQ13(ISA) Math Coprocessor IRQ23(PCI) USB2 Enhanced
IRQ14(ISA) Primary IDE
DMA Channel Assignments
CHANNEL FUNCTION
0 Available
1 Available
2 Available
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available
AR-B1851
41
advertisement
Related manuals
advertisement
Table of contents
- 5 Introduction
- 5 Specifications
- 7 You Have
- 8 Installation
- 8 2.1 AR-B1851’s Layout
- 10 Button Setting
- 11 Reset
- 11 description
- 13 Connection
- 13 Ultra ATA33/66/100 IDE Disk Drive Connector(IDE1)
- 14 Serial Ports(COM1~4)
- 15 Keyboard / Mouse Connector(MS_KB1)
- 15 USB Port Connector(USB1~4)
- 16 Connector (FAN1)
- 16 LAN RJ45 Connector (LAN1/2)
- 17 Compact Flash Storage Card Socket(CF1)
- 18 VGA Connector(VGA1)
