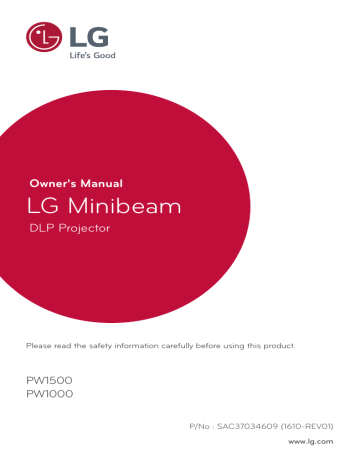

Owner's Manual
LG Minibeam
DLP Projector
Please read the safety information carefully before using this product.
PW1500
PW1000
P/No : SAC37034609 (1610-REV01) www.lg.com
2 LICENSE
LICENSE
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
This DivX Certified ® device has passed rigorous testing to ensure it plays DivX ® video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.
DivX Certified ® to play DivX ® video up to HD 1080p, including premium content.
DivX ® , DivX Certified ® and associated logos are trademarks of DivX, LLC and are used under license.
Covered by DivX Patents 7,295,673; 7,515,710;
RE45,052; and others available at [www.divx.com/patents]
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
This device meets the EMC requirements for home appliances (Class
B) and is intended for home usage. This device can be used in all regions.
NOTE
• Image shown may differ from your projector.
• Your projector’s OSD (On Screen Display) may differ slightly from that shown in this manual.
SAFETY INSTRUCTIONS 3
SAFETY INSTRUCTIONS
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
• Safety precautions are given in two forms, i.e. WARNING and CAUTION as detailed below.
WARNING Failure to follow the instructions may cause serious injury and even death.
CAUTION Failure to follow the instructions may cause injury to persons or damage to the product.
• Read the owner’s manual carefully and keep it on hand.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the device.
WARNING/CAUTION
TO REDUCE THE RISK
OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR
MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Indoor Installation
WARNING
• Do not use the projector outside and do not expose the product to any humidity or water.
Since the product is not waterproof, this may result in a fire or electric shock.
• Do not place the projector in direct sunlight or near heat sources such as radiators, fires, stoves, etc.
This may result in fire.
• Do not place flammable materials such as aerosols near the projector.
This may result in fire.
4 SAFETY INSTRUCTIONS
• Do not allow children to cling to or climb up to the projector.
This may cause the projector to fall, causing injury or death.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a closet) or on a carpet or cushion.
This may result in fire due to the increase in internal temperature.
• Do not place the product close to sources of steam, oil or oil mist, such as humidifiers and kitchen counters.
Failure to do so may result in fire, electric shock, or corrosion.
• Do not install the product onto a wall or ceiling that is close to sources of oil or oil mist.
The product may be damaged and fall, resulting in serious injury.
• Do not place the projector where it might be exposed to dust.
This may result in fire.
• Do not use the projector in a damp place such as a bathroom where it is likely to get wet.
This may result in fire or electric shock.
• Do not allow a tablecloth or curtain to block the air vent.
This may result in fire due to the increase in the internal temperature.
• Ensure good ventilation around the projector. The distance between the projector and the wall should be at least 30 cm.
This will prevent fire due to the increase in the internal temperature.
CAUTION
• When placing the projector on a table or shelf, be careful not to put it near the edge.
The projector could fall due to balance problems, which may cause personal injury or damage to the product. Make sure to use the projector cabinet or stand that fits the projector.
• When moving the projector, make sure to switch it off and remove the power plug and cords.
The power cord may be damaged, resulting in fire or electric shock.
• Do not place the projector on an unstable or vibrating surface such as a wobbly shelf or a slope.
It may fall and cause injury.
• Be careful not to tip the projector over when connecting external devices to the projector.
This may cause personal injury or damage to the projector.
Power
WARNING
• DISCONNECTING THE
DEVICE FROM THE MAIN
POWER
The Power plug is the disconnecting device.
In case of an emergency, the Power Plug must remain readily accessible.
• The grounding wire should be connected. (Except for devices which are not grounded.)
Ensure that you connect the grounding cable to avoid electric shock.
If it is not possible to ground the unit, have a qualified electrician install a separate circuit breaker.
Do not try to ground the projector by connecting it to telephone wires, lightning rods, or gas pipes.
• The power plug should be inserted fully into the power outlet.
An unstable connection may cause a fire.
• Do not place heavy objects on the power cord.
This may result in fire or electric shock.
• Never touch the power plug with wet hands.
This may result in electric shock.
SAFETY INSTRUCTIONS 5
• Do not plug too many devices into one multi-power outlet.
This may result in fire due to the power outlet overheating.
• Keep the AC adapter, power plug, and the used power outlet clean from dust or foreign materials building up.
This may result in fire.
• If there is any smoke or a burning smell from the projector or AC adapter, stop using the product immediately. Disconnect the power cord from the power outlet, and then contact the customer service center.
This may result in fire.
• To turn off the main power, remove the power plug, which should be positioned so it is easy to access for operation.
6 SAFETY INSTRUCTIONS
CAUTION
• Always grab the plug to remove the AC adapter or power cord.
Otherwise, this may result in a fire or may damage the product.
• Refrain from constantly bending the power cord of the AC adapter.
If the power cord is bent excessively for a long period of time, the cord may break inside. This may result in a fire or electric shock.
• Ensure the power cord and plug are not damaged, modified, severely bent, twisted, pulled, sandwiched or hot. Do not use the product if the power outlet is loose.
This may result in fire or electric shock.
• Keep the power cord away from heating devices.
The wire’s sheath may melt, which may result in fire or electric shock.
• Place the projector where people will not trip over or step on the power cord to protect the power cord and plug from any damage.
This may result in fire or electric shock.
• Do not turn the projector on or off by plugging in the power plug or unplugging it from the power outlet.
(Do not use the power plug as a switch.)
This may result in electric shock or damage to the product.
• Do not insert a conductor into the other side of the wall outlet while the power plug is inserted into the wall outlet.
In addition, do not touch the power plug immediately after it is disconnected from the wall outlet.
This may result in electric shock.
• Only use the official power cord provided by LG Electronics. Do not use other power cords.
This may result in fire or electric shock.
• If any water or foreign materials have gone into the AC adapter, power cord, or the interior of the projector, turn off the projector by pressing the power button.
Remove all the cables, and then contact the customer service center.
This may result in fire or electric shock.
• The surface of the AC adapter is hot. Keep the AC adapter out of the reach of children and avoid touching it during use.
• Never disassemble the power supply devices (AC adapter/ power cord, etc.).
This may damage the power cord and result in a fire or electric shock.
• Connect the AC adapter and the power cord firmly.
Not doing so may result in a product failure or fire.
• Do not place heavy objects or put pressure on the power cord and AC adapter and avoid damage.
This may result in a fire or may damage the product.
• Always use the AC adapter provided or any AC adapters approved and certified by LG
Electronics.
Any other AC adapter connected may result in the screen flickering.
SAFETY INSTRUCTIONS 7
When in Use
WARNING
• Do not place anything containing liquid on top of the projector such as a vase, flower pot, cup, cosmetics, medicine, or ornaments, candles, etc.
This may result in fire or electric shock, or cause injury due to falling.
• In the event that there is a heavy impact or the cabinet is damaged, switch it off, unplug it from the power outlet and contact an authorized service center.
This may result in electric shock.
• Do not insert pieces of metal such as coins, hairpins, or metal debris, nor flammable materials such as paper or matches into the projector.
This is to prevent electric shock or fire.
• Make sure that a child does not swallow the batteries when you replace the old remote control batteries with new ones.
Keep batteries out of reach of children.
If a child swallows a battery, consult a doctor immediately.
• Never open any cover on the projector.
There is a high risk of electric shock.
8 SAFETY INSTRUCTIONS
• Do not look directly into the lens when the projector is in use.
The bright light may damage your eyes.
• When the lamp is on or has just been turned off, avoid touching the air vent or lamp, because these will be very hot.
• If there is a gas leak in the room with the projector, do not touch the projector or power outlet. Open the windows for ventilation.
Sparks may cause fire or burns.
• Unplug the power cord from the outlet during a lightning storm.
This will prevent shock or damage to the projector.
• Do not use the projector near electronic devices that generate a strong magnetic field.
• Keep the plastic film used for packaging the projector out of the reach of children.
If not handled safely, it can cause suffocation.
• Do not keep your hand on the projector for a long time when it is running.
• When you play a game by connecting a game console to a projector, it is recommended that you maintain a distance of more than four times the diagonal length of the screen.
Make sure that the connecting cable is long enough. Otherwise, the product may fall causing personal injury or damage to the product.
• Do not place the projector or its remote control with battery in an extremely high temperature environment.
This may result in fire.
• Do not use 3D glasses if you do not watch 3D.
CAUTION
• Do not place heavy objects on the projector.
It may fall down and cause personal injury.
• Be careful not to allow any impact to the lens during transport.
• Do not touch the lens of the projector.
The lens may be damaged.
• Do not use any sharp tools on the projector such as a knife or hammer, because this may damage the casing.
• In the event that no image appears on the screen or no sound is heard, stop using the projector. Switch off the projector, unplug it from the power outlet, and contact our service center.
This may result in fire or electric shock.
• Do not drop anything onto the projector or allow anything to bang into the projector.
This may cause damage to the projector or personal injury.
• It is recommended that you maintain a distance of more than 5 to 7 times the diagonal length of the screen.
If you watch the screen at a close distance for a long time, your eye sight may become worse.
• Do not block the light beam emitted from the projector using a book or other object.
Lengthy exposure to the projector beam may result in fire. In addition, the lens may be overheated and damaged by the reflected heat.
• Do not start the projector with the volume turned up high.
High volume may damage hearing.
• Do not use high voltage electrical equipment near the projector, (e.g., a bug zapper).
This may result in product malfunction.
• Do not insert your finger into the air vent (inflow/outflow vents).
This may cause injury or a product malfunction.
SAFETY INSTRUCTIONS 9
Cleaning
WARNING
• Do not spray the projector with water when cleaning. Make sure water does not flow into the projector.
This may result in fire or electric shock.
• When there is smoke or a strange smell coming out from the projector or a foreign object falls into the pro jector, switch it off and unplug it from the power outlet and contact our service center.
Otherwise, this may result in fire or electric shock.
• Use air spray, a soft cloth, or a cotton swab moistened with a lens cleaning chemical or alcohol to remove dust or stains on the front projection lens.
10 SAFETY INSTRUCTIONS
CAUTION
• Contact your seller or our service center once a year to clean the internal parts of the projector.
If you do not clean the projector for a long period of time, dust will accumulate, which may result in fire or damage to the projector.
• When cleaning plastic parts such as the projector case, unplug the power first and wipe with a soft cloth. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, automobile or industrial polish, abrasives, wax, benzene, or alcohol as these can damage the projector.
This can result in fire, electric shock, or cause damage to the product (deformation and corrosion).
• Remove the plug from the outlet before cleaning the product.
Otherwise, this may result in electric shock.
Others
WARNING
• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular patterns from a video game.
• When you go out, place the projector out of reach of animals, and remove the power plug from the wall outlet.
Using a damaged power cord may result in short circuit or fire.
• Do not use the projector near high-precision electronic devices or those that transmit weak radio signal.
This may affect the operation of the product, causing an accident.
• Only a qualified technician can disassemble or modify the projector. For diagnosis, adjustment, or repair, contact your seller or our service center.
This may result in fire or electric shock.
• Proper ventilation required, do not block airflow around unit.
Doing so can cause injury and internal overheating.
• To prevent damage to lamp, unit must remain plugged in for approximately 3 minutes after power down to allow for proper cool down (not applicable on
LED models).
• Do not touch the lens; doing so can result in burns or damage to lens. Lens and unit may be
HOT during and immediately after use. Use caution when handling unit, allowing for proper cool down.
• Only use a grounded electrical outlet. (Except for devices which are not grounded.)
• Do not insert anything into or cover up the exhaust vents.
This may result in fire or electric shock.
• Follow all maintenance guidelines for optimal use; service only at an authorized service center.
• Lamp contains mercury and as such must be disposed of according to local, state, and federal laws (not applicable on
LED models).
• Keep the batteries and remote out of reach of children.
This will prevent personal injury or damage to the product.
SAFETY INSTRUCTIONS 11
CAUTION
• Do not use or store the projector outdoors for long periods of time.
• Do not mix new batteries with old ones.
Burst or leaking batteries may result in damage or injury.
• Be sure to unplug if the projector is not to be used for a long period.
Accumulated dust may result in fire or electric shock due to overheating, ignition, or poor insulation.
• Only use the specified type of battery.
Burst or leaking batteries may result in damage or injury.
• Make sure you use the same type of battery when replacing.
In the case of a battery contact failure, the battery may drain quickly or the remote control may not work properly.
• Dispose of used batteries properly.
This may result in explosion or fire. The correct method of disposal may vary depending on your country or region.
12 SAFETY INSTRUCTIONS
• Do not throw or disassemble the battery.
This may result in fire or explosion due to damage to the battery.
• Store batteries away from metallic objects, such as keys and paper clips.
Excess current may cause a rapid increase in temperature, resulting in fire or burns.
• Do not store the batteries near any heat source, such as a heater.
This may result in fire or damage to the product.
• Do not store batteries at temperatures higher than 60 °C or in high humidity.
This may result in explosion or fire.
• Make sure that the battery is installed correctly.
This prevent explosion or fire.
• Incorrect battery replacement may cause fire.
ANTENNA
Outdoor Antenna Grounding
• If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and builtup static charges. Section 810 of the National Electrical Code
(NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.
Risk Group 2
CAUTION Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp.
May be harmful to the eye.
Antenna grounding according to the National Electrical Code,
ANSI/NFPA 70
Ground Clamp
Electric Service
Equipment
Ground Clamp
NEC: National Electrical Code
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Power Service
GroundingElectrode
System (NEC Art 250,
Part H)
SAFETY INSTRUCTIONS 13
For USA
NOTE TO CABLE/TV
INSTALLER
This reminder is provided to call the CATV system installer’s attention to Article 820 - 40 of the
National Electric Code (U.S.A.).
The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
14 SAFETY INSTRUCTIONS
CONTENTS
LICENSE 2
SAFETY INSTRUCTIONS 3
PREPARATION 16
-
-
Projector Status Indicators 22
-
-
-
-
REMOTE CONTROL 28
USING THE PROJECTOR 31
-
-
-
-
-
-
-
-
ENTERTAINMENT 45
-
-
Connecting, Disconnecting, or Deleting Bluetooth
Devices in the List of registered devices 49
-
MY MEDIA 51
-
-
-
-
-
-
SAFETY INSTRUCTIONS 15
3D FUNCTION 75
-
-
CUSTOMIZING SETTINGS 82
CONNECTING DEVICES 106
-
-
-
-
-
-
-
-
Using the Mirroring Function of a Mobile Phone 113
-
MAINTENANCE 114
-
-
SPECIFICATIONS 115
KEY CODES 119
EXTERNAL CONTROL
DEVICE SETUP 121
16 PREPARATION
PREPARATION
Accessories
Accessories included with the projector are show below.
The pictures may differ slightly from the actual product.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
Remote Control
Two AAA Batteries
Owner's Manual Pouch
AC-DC Adaptor Composite Gender Power Cord
PREPARATION 17
• When connecting an HDMI or USB cable, or connecting a USB flash drive to the HDMI or USB port, use a product that has a width of 18 mm or less and a height of 10 mm or less. If the USB cable or USB flash drive does not fit the USB ports of the projector, use an extension cable that supports USB 2.0.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI cable types)
- High-Speed HDMI ®
- High-Speed HDMI ®
/™ Cable
/™ Cable with Ethernet
18 PREPARATION
Optional Extras
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.
Optional accessories are subject to change without prior notice.
Projection Screen
Video Cable
Tripod HDMI Cable
Audio Cable
3D glasses
(DLP-LINK or DLP-Ready
Type)
RGB to Component cable
Component Cable MHL or Slimport cable
Computer Cable RF Cable
PREPARATION 19
Parts and Components
The projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.
Joystick button
Speaker
Vent 1)
Lens 2)
Speaker
Vent 1)
Focus ring
1) Due to the high temperature of the vent area, do not get close to the vent area.
2) Do not touch the lens when using the projector. The lens may be damaged.
20 PREPARATION
1 2 3 4 5 6 7 8
RS-232C IN
1 RS-232C IN Port
2 (USB Port)
3 Port
4
5 RGB IN Port
Port
6 (Headphone Port)
7 AV IN Port
8 DC IN Port
PREPARATION 21
Using the Joystick Button
You can operate the projector by pressing the button or moving the joystick left, right, up, or down.
Basic Functions
Power On
Power Off
Volume
Control
Channels
Control
When the projector is turned off, place your finger on the joystick button, press it once, and release it.
When the projector is turned on, place your finger on the joystick button, press it once for a few seconds, and release it.
(However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
If you place your finger over the joystick button and move it left or right, you can adjust the volume level.
If you place your finger over the joystick button and move it up or down, you can scroll through the saved channels.
NOTE
• When your finger is on the joystick button and you move it up, down, left, or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and/or scroll through saved channels.
22 PREPARATION
Adjusting the Menu
When the projector is turned on, press the joystick button one time.
You can adjust the menu items ( , , , ) moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it.
Close
Projector off
Turns the power off.
Input List Changes the input source.
Close
Clears on-screen displays and returns to projector viewing.
Settings Displays the Settings menu.
Projector Status Indicators
LED Power Indicator
Red
Off
LED Power Indicator
Power standby state
The projector is operating with the power on.
Installation
Installation Precautions
• Place the projector in a wellventilated environment.
To prevent internal heat build-up, install the projector
in a well-ventilated place. Do not place anything near the projector as this may block its air vents. If the air vents are blocked, the internal temperature will increase.
Do not place the projector on a carpet or rug. If the vent is on the bottom, use the projector on a solid level surface and ensure the vent is not blocked.
Be sure to prevent foreign objects such as paper debris from entering the projector.
PREPARATION 23
Leave enough distance
(30 cm or more) around the projector.
• Do not place the projector in a hot or humid environment.
Do not place the projector in a hot, cold, or humid environment.
• Do not place the projector in a place where it will easily attract dust.
This may result in fire.
• Never open any cover on the projector. There is a high risk of electric shock.
• The projector is manufactured using high-precision technology.
You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction.
• The remote control may not work in an environment where a lamp equipped with electronic ballasts or a three-wavelength fluorescent lamp is installed.
Replace the lamp with an international standard lamp for the remote control to work normally.
• To install to the ceiling, attach the ceiling-type bracket to the projector with M4 x 8 mm screws.
24 PREPARATION
Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the PC or audio/video source.
2 Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is at a right angle to the screen.
If the projector is not at a right angle, the projected image will look distorted. To correct the distortion, use the keystone function.
4
Connect the power cord of the projector and the connected device to the wall outlet.
Ratio of upward projection: 100 %
Screen
Screen
Projection Distance (D) Projection Distance (D)
PREPARATION 25
Screen Size
(mm)
1778
1905
2032
2159
2286
2413
2540
635
762
889
1016
1143
1270
1397
1524
1651
16:10 Ratio
Screen Width
(Y) (mm)
1508
1615
1723
1831
1938
2046
2154
539
646
754
862
969
1077
1185
1292
1400
Screen Height
(X) (mm)
943
1010
1077
1145
1212
1279
1347
606
673
741
808
875
337
404
471
538
Projection
Distance (D)
(mm)
748
902
1056
1210
1366
1520
1674
1828
1983
2137
2291
2445
2601
2755
2909
3063
26 PREPARATION
How to Install the Projector On a Tripod
• You can install this projector using a camera tripod.
As shown below, you can mount the projector instead of a camera on the tripod.
• When stabilizing the tripod, we recommend using a locking bolt of standard size 4.5 mm or less. The maximum size allowed for the locking bolt is 5.5 mm.
(If it is longer than the maximum allowed size, it may damage the projector.)
Bottom side of the projector
+
Bolt used to attach the projector
⇒
The projector is connected to this part.
Tripod
CAUTION
• If you are using a tripod, be careful not to apply external force to the tripod. Doing so may damage the projector.
• Do not place the tripod on an unstable surface.
• Be sure to use a tripod with a maximum load capacity of 3 kg or more.
• To use the projector safely, position the tripod legs so that they are as wide and stable as possible and be sure to securely attach the projector to the tripod.
PREPARATION 27
Kensington Security System
• This projector has a Kensington Security Standard connector. Connect a
Kensington Security System cable as shown below.
• For more information on installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington Security
System.
• The Kensington Security System is an optional accessory.
• What is Kensington? Kensington is a company that provides security systems for laptops and other electronic devices.
Website: http://www.kensington.com
28 REMOTE CONTROL
REMOTE CONTROL
Open the lid at the back of the remote control and insert the batteries as described in the instructions.
Use new batteries and do not mix regular or rechargeable batteries. (1.5 V AAA)
CAUTION
• Do not mix new batteries with old ones.
(POWER)
Turns the projector on or off.
USB/MY MEDIA
Accesses USB mode.
BLANK
Blanks the screen.
RATIO
Changes the aspect ratio of the screen per pressing of the button.
ENERGY SAVING
Reduces power consumption by adjusting peak screen brightness.
INPUT
Changes the input source.
Number buttons
Enters a number.
- (dash)
Enters a channel number, such as 2-1 or 2-2.
LIST
Displays the channel list.
FLASHBK
Displays the channel you were watching previously.
VOL +, -
Adjusts the volume level.
FAV
Shows favorite channels.
3D
Shows 3D images.
MUTE
Mutes the sound of the projector.
CH
,
Changes the TV channel.
REMOTE CONTROL 29
L/R
Switches left and right in 3D mode.
INFO
Displays the information of a program or screen.
STILL
Freezes the moving image.
(Available in any mode other than USB mode.)
SETTINGS
Displays or closes the Settings menu.
Q.MENU
Allows you to change the settings easily.
Up/Down/Left/Right buttons
Sets the function or moves the cursor.
OK
Shows the current mode and saves changes to the settings.
Returns to the previous screen.
EXIT
Exits the menu.
CAPTION
Activates or deactivates the subtitles.
SAP
Digital signal: Changes the audio language.
Analog signal: Changes the MTS sound.
Playback control buttons
Controls playback of MY MEDIA .
Color buttons
Sets detailed settings or gesture for each menu.
30 REMOTE CONTROL
NOTE
• When using the remote control, the optimal operation range is 6 meters or less (left/right) and within a 30 degree arc of the remote control IR receiver.
• If a cable is connected to the back port, the optimal operating range is 3 meters or less
(left/right) and within a 30 degree arc of the remote control IR receiver.
RS-232C IN
30° 30°
• For seamless operation, do not block the IR receiver.
• When you carry the remote control in the portable bag, make sure that the buttons on the remote control are not pressed by the projector, cables, documents or any other accessories in the bag.
Otherwise, it may significantly reduce the battery life.
USING THE PROJECTOR 31
USING THE PROJECTOR
Connecting to an Antenna or Cable
To watch TV using an indoor/ outdoor antenna, connect a wall terminal and the port of the Projector using an RF cable (75 Ω).
You can watch terrestrial or cable
(analog or digital) TV.
(The RF cable is sold separately.)
NOTE
• Make sure not to bend the copper wire of the RF cable (75 Ω). Turn the input jack to the right to fasten it.
Copper wire
• Ensure you use a standard coaxial cable (75 Ω, sold separately) when connecting to the projector input.
• For better image quality in locations where signal strength is low, purchase and install a signal amplifier (booster).
• A signal splitter is required if you want to use two or more projectors through one antenna.
• If you have any problems when installing the antenna, please consult a suitable retailer or the store where you purchased the antenna.
32 USING THE PROJECTOR
Watching Projector
Turning on the Projector
The menu screen display in this owner's manual is an example to help users understand how to operate the product and may look different from the actual screen.
1 Connect the power cord correctly.
2 After waiting for a moment, press the POWER button on the remote control or the joystick button.
3 In the Language Selection screen, select a language.
WELCOME!
Thank you for choosing LG
Step 1. Language
English
Español
Français
한국어
Next
4 In the Mode Setting screen, select the setting mode you want.
Step 2. Mode Setting
Selecting the environment.
Choose the setting mode you want.
Select [Standard] when setting Projector up in-home. You can adjust picture quality accordingly through Picture Mode menu option.
Standard Store Demo
Demo Mode
Previous
Off
Confirm
* Store Demo is used when displaying the product in-store. The picture mode is automatically reset after a certain period of time. You can select
Standard to use the product at home.
USING THE PROJECTOR 33
5 In the Time Zone screen, select Time Zone region and Daylight
Saving option.
Step 3. Time Zone
Time Zone
Daylight Saving
Previous
Eastern
Auto
Confirm
6 Select an input signal by using the INPUT button on the remote control.
Input List
ꔂ Move ꔉ OK
TV
HDMI
AV Component SCREEN SHARE USB RGB-PC
Input Label Exit
34 USING THE PROJECTOR
Focus of the Screen Image
When an image appears on the screen, check if it is in focus and fits the screen properly.
Adjust the focus of the image by rotating the Focus Ring to the left or right.
Make sure the product does not move when adjusting the focus.
Focus Ring
Watching Projector
1 In standby mode, press the POWER button to turn the projector on.
2
Press the INPUT button and select the input signal you want.
3 Control the projector using the following buttons while watching projector.
CH
LIST
Button
,
Number buttons
VOL +, -
MUTE
Q.MENU
FLASHBK
Description
Changes the TV channel.
Displays the channel list.
Enters a number.
Adjusts the volume level.
Mutes all sounds.
Accesses the quick menu. (See page 44.)
Displays the channel you were watching previously.
4
To turn the projector off, press the POWER button.
USING THE PROJECTOR 35
To Set Channel
Image shown may differ from your projector.
Memorizing the Available Channels
Using the Auto Tuning function
Saves a channel which is currently broadcasting. Be sure to activate Auto
Tuning when you move to a new home or change the position of your projector. When you activate this function, make sure that the antenna is connected and there are channels broadcasting signals.
1 Press the SETTINGS button.
2
Press the , , , or button to select CHANNEL and press the
OK button.
3 Press the , button to select Auto Tuning and press the OK button.
4 Select Start to start automatic tuning. The projector scans and saves available channels automatically.
5 When you are finished, press the EXIT button.
36 USING THE PROJECTOR
Memorizing or Deleting Channels Manually
1
Press the SETTINGS button.
2 Press the , , , or button to select CHANNEL and press the
OK button.
3 Press the or button to select Manual Tuning and press the OK button.
4
Scroll through the channel types, and then add or delete channels.
5
When you are finished, press the EXIT button.
NOTE
• If Lock System is turned on, a pop-up window will appear asking for password.
• You can store up to 1000 Channels. The number of channels that you can store differs depending on the broadcasting signal environment.
• Auto Tuning memorizes the Channels that are currently being broadcast.
• The channels are stored in the order of DTV, TV, Cable DTV, and
Cable TV.
USING THE PROJECTOR 37
Editing Your Channel List
1
Press the SETTINGS button.
2 Press the , , , or button to select CHANNEL and press the
OK button.
3 Press the or button to select Channel Edit and press the OK button.
4
Edit channels using the following buttons.
Channel Edit Antenna
DTV TV Cable DTV Cable TV
ꔂ Move ꔉ OK
Page 1/1
3-1 5-1 7-1
Add/Delete Block/Unblock ꘂ Favorite Ch.
Button
Red
Green
FAV
Description
Adds or deletes a channel.
Block or unblock a channel.
Adds a favorite channel.
5 When you are finished, press the EXIT button.
38 USING THE PROJECTOR
Favorite Channel Setup
1
Press the SETTINGS button.
2 Press the , , , or button to select CHANNEL and press the
OK button.
3 Press the or button to select Channel Edit and press the OK button.
4
Move to your desired channel.
5
Press the FAV button to access the Set as Favorite .
6 Press the or buttons to scrolls through channel group.
7 Press the OK button.
Set as Favorite
Select a favorite channel group.
Multiple selection is available.
Group A
Group B
Group C
Group D
OK Cancel
USING THE PROJECTOR 39
Additional Options
Adjusting Aspect Ratio
• Resize an image to view at its optimal size by pressing RATIO while you are using the projector.
NOTE
• Available picture size may differ depending on the input signal.
• You can also use the Q.MENU
or SETTINGS button.
Menu
16:9
Full
Description
Resizes images to the 16:9 ratio.
Changes to the full screen regardless of the aspect ratio.
Just Scan Displays video images in the original size without removing parts of the edge of the image.
• If you select Just Scan , you may see image noises at the edge or edges of the screen.
Set By
Program
4:3
Zoom
Displays images in the same aspect ratio as the original image.
Resizes images to the previous standard 4:3.
Resizes the image to fit the screen width. The top and bottom parts of the image may be cut off.
Press the , or button to zoom in or out of the image.
Press the , or button to move the image.
Cinema
Zoom 1
Formats an image to the cinemascope ratio, 2.35:1. It ranges from 1 to 16.
Press the , or button to zoom in or out of the image.
Press the , or button to move the image.
• If you enlarge or reduce an image, the image may be distorted.
40 USING THE PROJECTOR
Using the Keystone Function
To prevent the screen image from becoming trapezoidal, Keystone adjusts the top and bottom width of the image if the projector is not set up at a right angle to the screen.
Because the Keystone function may cause inferior screen image quality, use this function only when it is not possible to set up the projector at an optimal angle.
• Keystone 0 ◀ -
Close
+ ▶
1 Select SETTINGS → OPTION2 → Keystone to adjust the picture.
• Keystone can be adjusted from -40 to 40 .
2
Press the OK button when done.
USING THE PROJECTOR 41
Changing Input Device
To select an external input
Selects external input.
• Press the INPUT button on the remote control to display the input selection screen.
Connected inputs are displayed first. However,
/ SCREEN SHARE input is always activated.
TV / AV / Component
• Select an input signal using the remote control's INPUT button to connect the projector to the desired input. You can use the , , , or button to switch between all the input modes.
Input List
ꔂ Move ꔉ OK
TV
HDMI
AV Component SCREEN SHARE USB RGB-PC
Input Label Exit
42 USING THE PROJECTOR
Selecting an Input Label
Displays which devices are connected to which input ports.
Input Label
AV
Component
RGB-PC
HDMI
◀
◀
◀
◀
▶
▶
▶
▶
Close
1 Press the INPUT button on the remote control to display the input selection screen.
2 Press the red button.
3
Use the , or button to scroll to one of the input sources.
4 Use the , or button to select one of the input labels.
USING THE PROJECTOR 43
Blank Function
Using the Blank Function
This function may be effective when you need to draw attention during a meeting or training.
1 Press the BLANK button, and the screen is covered by the background color. You can change the background color by referring to Selecting a Blank Image .
2 Press any button to clear the blank function. To cover the screen temporarily, press the BLANK button on the remote control. Do not block the lens with any object while the projector is running. It may become overheated and deformed or even cause a fire.
Selecting a Blank Image
1 Press the SETTINGS button.
2 Press the , , , or button to select OPTION 2 and press the
OK button.
3 Press the , button to select Blank Image and press the OK button.
4
Use the , or button to move to the setting or option you want and press the OK button.
44 USING THE PROJECTOR
Using the Quick Menu
You can customize frequently used menus.
1 Press the Q.MENU
button.
2 Press the , or button to select a menu and press OK .
Menu
Aspect Ratio Resizes the picture.
Caption
Description
View subtitles when the TV station provides subtitled programing. Program subtitles work only on digital/ analog broadcasts.
Picture Mode Changes the picture mode.
Multi Audio Sets MONO or STEREO , or a language for a bilingual broadcast (Digital signal).
SAP Changes the MTS sound (Analog signal).
Sleep Timer Sets the projector to be turned off at the specified time.
Clear Voice II Makes the voice from the projector crisp and clear.
Del/Add
USB Device
Can delete or add channels.
Allows you to remove a connected USB device in a safe manner.
(The menu is displayed only when the USB device is connected.)
3 Press the or button to scroll through the following menus.
ENTERTAINMENT 45
ENTERTAINMENT
Using SCREEN SHARE
1
Set the external input of the projector to SCREEN SHARE .
2 Enable related SCREEN SHARE function on the device you wish to connect.
3 Connect the Projector from the search list on the device you wish to connect. (When you connect the projector to your laptop, input the PIN code shown on your display. The request for a PIN will be shown only at the initial connection.)
4
If the desired device accepts the request, SCREEN SHARE will be started.
CAUTION
• Windows 7 / 8 / 8.1 are compatible with SCREEN SHARE. However, other versions of Windows, and some other operating systems, may not be compatible with SCREEN SHARE.
• Ice Cream Sandwich, Jellybean, Kitkat, and Lollypop versions of
LG’s Android devices are guaranteed to be compatible.
• When connecting via SCREEN SHARE, place the device close to the projector.
• The response rate and image quality may vary depending upon the user’s environment.
• For more information on the device you want to connect to, refer to its owner’s manual.
• Certain Windows 8.1 laptops may have difficulty in reconnecting when initializing the device information during a wireless connection. In this case, it is recommended that you remove the registered device and reconnect.
46 ENTERTAINMENT
Setting Up Bluetooth on the Projector
This option is used to output sound from the projector through Bluetooth audio devices.
• Press the SETTINGS button on the remote control, and then set
Bluetooth to On in the WIRELESS menu.
NOTE
• The devices that can be connected are as follows: LG BTS1,
LG HBS-700, LG HBS-730, LG HBS-800 (Models available for purchase may vary by region.)
• Products from other manufacturers may not be compatible.
• You can use the remote control to adjust the volume of the connected device.
• When connecting devices wirelessly, if the device connection fails, check that the device is connected to a power supply and also check that the Bluetooth audio device is operating properly.
• If Bluetooth is turned on, the projector will automatically connect to the last connected Bluetooth device when the projector powers on. (Be sure to check that the last connected Bluetooth device is powered on as well.)
• This projector does not support the LG TV Sound Sync feature. To use products that support the LG TV Sound Sync feature, use the general Bluetooth mode instead of the LG TV mode.
• The Bluetooth function is to connect the product to Bluetooth speakers or Bluetooth headset. You cannot connect the product to a mobile phone through the Bluetooth function.
ENTERTAINMENT 47
Searching for Bluetooth Devices and Connecting
Go to SETTINGS → WIRELESS → Search Device to search for nearby
Bluetooth audio devices and then connect any detected devices to the projector.
(If the device name is longer than 20 characters, no more than 20 will be displayed.)
1
Set the Bluetooth device to pairing mode and then select Search
Device .
• Select Stop Searching to view the devices detected so far.
• If the device has not been detected, check that the device is powered on and in pairing mode.
• The time it takes to search for devices may vary according to the signal strength and the number of devices.
WIRELESS
•
• SCREEN SHARE
Bluetooth
ꔂ Move ꔉ OK
: [PJTR][LG]PW1500[0000]
• Group
• Channel
: On
• Search Device
• List of registered devices
• AV Sync. Adjust
* The illustration of the menu may differ from the actual screen on the product. (Depending on model)
48 ENTERTAINMENT
2 When the search is complete, you can select a Bluetooth device and connect to it.
• You can stop the connection process immediately by selecting Stop searching.
• The time it takes to connect to a device may vary according to the signal strength and the number of devices.
Search Device
List
Please wait.
Searching...
Search Device
List
HBS-700
Search complete
Stop searching Close
Press OK(ꔉ) to connect the device.
Re-search Close
3
When a Bluetooth device is connected, you will hear sound from the projector through the connected device.
• The connected Bluetooth device will be added automatically to the
List of registered devices . Once registered, Bluetooth devices can be connected simply by selecting them from the List of registered devices without having to search for them.
• Connected devices can only be disconnected from SETTINGS →
WIRELESS → List of registered devices .
ENTERTAINMENT 49
Connecting, Disconnecting, or Deleting Bluetooth
Devices in the List of registered devices
In SETTINGS → WIRELESS → List of registered devices , Bluetooth devices are shown in the order that they were connected, and the same devices can be reconnected simply by selecting them without having to search for them again.
List of registered devices
List
HBS-700
Delete
Press OK(ꔉ) to connect the device.
Delete All Close
Connecting
Select a Bluetooth device from the List of registered devices to connect to it.
• The registered Bluetooth device will attempt to connect automatically depending on the characteristics of the device. (Refer to the manual for the Bluetooth device.)
• You can stop the connection process immediately by selecting Stop .
• The time it takes to connect to a device may vary according to the signal strength and the number of devices.
Disconnecting
Select Disconnect to disconnect the device.
• You can only disconnect a device from the List of registered devices .
50 ENTERTAINMENT
Deleting
Select Delete Marked or Delete All to delete any registered devices.
• Delete Marked : Press the red button in List of registered devices to delete the selected device.
• Delete All : Select Delete All in List of registered devices to delete all of the registered devices.
Adjusting AV Sync. Adjust
When a Bluetooth device is connected, go to SETTINGS → WIRELESS
→ AV Sync. Adjust to adjust the synchronization between the video and the Bluetooth headset sound.
• AV Sync. Adjust 10 ◀ ▶
OK
• This feature is only available when a Bluetooth device is connected.
• Audio sync may vary by manufacturer.
• When playing video from a connected USB drive, AV Sync. Adjust can also be adjusted using the Set Audio.
menu.
MY MEDIA 51
MY MEDIA
Before Using
Connecting a USB Device
Connect a USB device (external HDD, USB memory) to the USB port of projector to enjoy the content files stored in the USB device with your projector. You cannot write or delete data in the USB device. Connect a
USB flash drive as shown below.
USB Flash Drive
Removing a USB Device
1 Click the Q.MENU
button.
2 Use the or button to move to USB Device and press the OK button.
3
Select a USB to remove. Wait for confirmation that the USB device has stopped before removing the USB.
NOTE
• If detached early, an error may occur on the projector or the USB storage device.
• Once a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it.
52 MY MEDIA
Tips for Using a USB Device
• If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• If you use a USB extension cable, the USB device may not be recognized or may not work properly.
• Use only USB storage devices formatted with the Windows FAT32 or
NTFS file system.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500 mA.
• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supplied is not enough, the USB storage device may not be detected properly.)
• It is recommended that you use USB flash drives of 32 GB or less and
USB HDDs of 1 TB or less.
• If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of the USB HDD.
• Data in USB storage device can be damaged so be sure to back up important files to other devices. Data maintenance is the user's responsibility and the manufacturer is not responsible for data loss.
MY MEDIA 53
To Use My Media
1 Press the SETTINGS button on the remote control.
2 Select MY MEDIA .
Select desired file from the list. Watch the chosen file.
Sets play related settings by checking option during disk playback.
My Media supporting file
• Maximum data transfer rate: 20 Mbps (Mega bit per second)
• External supported subtitle formats: *.smi, *.srt, *.sub (MicroDVD,
SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX)
• Internal supported subtitle formats: SRT/ASS/SSA (Supports internal subtitles generated from DivX6)
54 MY MEDIA
Video Supported Codec
Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
Extension
.asf,
.wmv
.divx,
.avi
.mp4,
.m4v,
.mov
Codec
Video
VC-1 Advanced Profile, VC-1 Simple and Main
Profiles
Audio WMA Standard, WMA 9 Professional
Video
DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/
AVC
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital
Video H.264/AVC, MPEG-4 Part 2
.mkv
Audio AAC
Video H.264/AVC
Audio HE-AAC, Dolby Digital
Video H.264/AVC, MPEG-2, VC-1 .ts,
.trp,
.tp,
.mts,
.m2ts
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, AAC
.vob
.mpg,
.mpeg
Video MPEG-1, MPEG-2
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
Video MPEG-1
Audio MPEG-1 Layer I, II
MY MEDIA 55
Audio File
File type
MP3
AC3
MPEG
AAC,
HEAAC
CDDA
LPCM
Item Info
Bit rate 32 kbps to 320 kbps
Sampling rate 32 kHz to 48 kHz
Bit rate 32 kbps to 640 kbps
Sampling rate 32 kHz, 44.1 kHz, 48 kHz
Bit rate 32 kbps to 448 kbps
Sampling rate 32 kHz to 48 kHz
Bit rate 24 kbps to 3844 kbps
Sampling rate 8 kHz to 96 kHz
Bit rate 1.44 kbps
Sampling rate 44.1 kHz
Bit rate 1.41 Mbps to 9.6 Mbps
Sampling rate
Multi-channel : 44.1 kHz, 88.2 kHz /
48 kHz, 96 kHz
Stereo : 176.4 kHz, 192 kHz
56 MY MEDIA
Available photo file
File type Item
Support
File type
2D (jpeg, jpg, jpe),
3D (jps)
Size
3D (mpo)
BMP
PNG
Support
File type
Size
Size
Support
File type
Size
Info
SOF0: Baseline, SOF1: Extend Sequential,
SOF2: Progressive
Minimum: 64 x 64
Maximum:
Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
MPO
4:3 size : 3648 x 2736, 2592 x 1944,
2048 x 1536
3:2 size : 3648 x 2432
Minimum: 64 x 64
Maximum: 9600 (W) x 6400 (H)
Interlace, Non-Interlace
Minimum: 64 x 64
Maximum: Interlace: 1200 (W) x 800 (H)
Non-Interlace: 9600 (W) x 6400 (H)
* BMP and PNG format files may be slower to display than JPEG.
MY MEDIA 57
Watching the Videos
In the Movie List , you can watch movies stored on the connected USB device.
Controls playback and sets options while viewing videos.
Tips for Playing Video Files
• Some subtitles created by users may not work properly.
• The video and subtitle files should be placed in the same folder. For subtitles to display correctly, the video and subtitle files must have the same name.
• We do not support any stream that contains GMC (Global Motion
Compensation) or Qpel (Quarterpel Motion Estimation).
• Only H.264/AVC profile level 4.1 and lower is supported.
• Video files that exceed 50 GB (gigabyte) are not supported for playback.
The file size limit is dependent on the encoding environment.
• DTS audio codec is not supported.
58 MY MEDIA
Browsing Movie List
Play a video file stored in the connected device.
1
Connect a USB storage device.
2
Press the USB button.
3 Use the , or button to select Movie List and press the OK button.
4 Use the , , , or button to select the file you want and press the OK button.
1 2 3 4
Movie List
USB STORAGE DEVICE
Butterfly_...
01:34:33
Drive1 Drive2 Drive3 Drive4 Drive5
Page 1/1
CH Page Change
Page 1/1
5
Go to root folder
6
Go to upper folder
7
Description
1 Thumbnails
Abnormal file
Exit
8
File not supported
2 File List
3 Moves to the upper level folder.
4 Current page/Total no. of folder pages
5 Current page/Total no. of file pages
6 Moves to the top level folder.
7 Moves to the upper level folder.
8 Exit Movie List.
5 Control playback by using the following buttons.
MY MEDIA 59
Q.MENU
Option Hide
나가기
Exit
Setting Description
Shows the current playing position. Use , or buttons to move forward or backward.
Stops playing and returns to Movie List.
Returns to normal playback.
Pauses the media player.
If no button is pressed on the remote control for 10 minutes after pausing, the playback is restarted.
Displays in slow motion.
Whenever this button is pressed, the playback speed is changed. x2, x4, x8, x16, x32
Reduces power consumption by adjusting peak screen brightness.
Switches to the 3D screen.
Option A pop-up window will appear.
Hide Hides the playback bar. Press the OK button to make it appear.
Exit Returns to the Movie List screen.
60 MY MEDIA
Options for Movie List
1 Press the Q.MENU
button.
2
Use the or button to move to a desired option and press the OK button.
3
Use the , , , or button to set up each item.
Set Video Play.
Setting
Size
Audio
Language
Subtitle
Language
Repeat
Description
Selects the size of a playback screen.
• Full : Files are played in full screen mode according to the aspect ratio of video.
• Original : Displays the video in the original size.
Allows you to select the language you want for the file with multiple audio tracks. This option is not available if the file has only one audio track.
The subtitle can be turned on or off.
• Language : One of any of the available languages can be selected.
• Code Page : A character set used for a subtitle can be selected.
By default, the subtitle is displayed in a language configured in OPTION 1 → Language .
Sync : If a subtitle is not synchronized with its video, you can adjust its speed at 0.5 seconds unit.
Position : Moves the location of a subtitle.
Size : Changes the subtitle font size.
Turns the repeat function On or Off .
When it is set to off, the next file can be played sequentially if the file name is similar.
Set Video.
You can change video settings.
(PICTURE Settings on page 83.)
Set Audio.
You can change audio settings.
Set 3D Video
You can set 3D video or 2D video.
3D setting
You can set 3D settings. (OPTION 1 Settings on page 101.)
MY MEDIA 61
Registering the DivX code
Checks DivX Reg. Code for replaying DivX protected videos. Register at http://vod.divx.com.
Use Reg. Code to rent or purchase movies at www.divx.com/vod.
1
In the
Settings
menu, move to OPTION 1 and press DivX(R) VOD.
Registration
Deregistration
Close
2 Press the or button to move to Registration and press the OK button.
You must register your device to play DivX(R) protected videos.
Registration code: XXXXXXXXXX
Register at http://vod.divx.com
OK
3 Check the DivX Registration code .
NOTE
• Rented/purchased DivX files cannot be played if the DivX
Registration Code of a different device is used. Use only the DivX
Registration Code granted to this specific device.
• Converted files not conforming to the DivX Codec Standard may not play or may produce abnormal sound.
62 MY MEDIA
To deregister the DivX code
Use the DivX deregistration code to deactivate the DivX DRM function.
1 In the
Settings
menu, move to OPTION 1 and press DivX(R) VOD .
2 Use the or button to go to Deregistration and press the OK button.
Registration
Deregistration
Close
Your device is already registered.
Are you sure you wish to deregister?
Yes No
Deregistration code : ********
Deregister at http://vod.divx.com
Continue with registration?
Yes No
3
Select Yes .
NOTE
• What is DRM [Digital Rights Management]?
This is a technology and service that prevents the illegal use of digital contents to protect the benefits and rights of the copyright owner. Files can be played after the license is verified through an online method, etc.
MY MEDIA 63
Viewing the Photos
You can view photos stored on a connected device.
Supported Photo Files
PHOTO (*.JPEG)
Baseline: 64-pixel (width) x 64-pixel (height) - 15360-pixel (width) x
8640-pixel (height)
Progressive: 64-pixel (width) x 64-pixel (height) - 1920-pixel (width) x
1440-pixel (height)
• Non-supported files are displayed in the form of an icon.
• An error message is displayed for corrupted files or file formats that cannot be played.
• Corrupted files may not be displayed properly.
• It may take some time to view high-resolution images in full screen.
64 MY MEDIA
Browsing Photo List
1
Connect a USB storage device.
2 Press the USB button.
3 Use the , or button to select Photo List and press the OK button.
4
Use the , , , or button to select the file you want and press the OK button.
1 2 3 4
Photo List
USB STORAGE DEVICE
Butterfly_...
06/09/2014
Drive1 Drive2 Drive3 Drive4 Drive5
Page 1/1 CH
Page Change
Page 1/1
5
Go to root folder
6
Go to upper folder
7
Description
Exit
8
1 Thumbnails
Abnormal file
File not supported
2 File List
3 Moves to the upper level folder.
4 Current page/Total no. of folder pages
5 Current page/Total no. of file pages
6 Moves to the top level folder.
7 Moves to the upper level folder.
8 Exit
5 Control playback by using the following buttons.
2008/12/10
1920 x 1080
479 KB
[1/4]
MY MEDIA 65
Slideshow BGM Q.MENU
Option Hide Exit
Setting Description
Selects the previous or next photo.
Slideshow All photos are displayed during slide show.
BGM
• Set Slide Speed in the Option → Set Photo View.
menu.
You can listen to music while viewing photos in full size.
• Set BGM in the Option → Set Photo View.
menu.
Rotates photos.
• Rotates a photo 90°, 180°, 270°, or 360° clockwise.
• Photos cannot be rotated if their width is greater than the height of the max. supported resolution.
Views the photo in full mode or original mode.
Press the blue button to enlarge the image.
Reduces power consumption by adjusting peak screen brightness.
Switches to the 3D screen.
Option A pop-up window will appear.
Hide Hides the menu on the full size screen.
Exit
• To see the menu, press the OK button on the remote control.
Exit from full screen photo view.
66 MY MEDIA
Options for Photo List
1
Press the Q.MENU
button.
2 Use the , or button to move to a desired option and press the
OK button.
3 Use , , , or button to set up each item.
Set Photo View.
Setting
Slide
Speed
BGM
Description
Selects a slideshow speed.
Selects a music folder for the background music.
• You cannot change the music folder while the background music is playing.
• For background music, only the folder from the same device can be selected.
Repeat : Selects repeat play.
Random : Selects random play.
Set Video.
You can change video settings.
(PICTURE Settings on page 83.)
Set Audio.
You can change audio settings.
Set 3D Video
You can set 3D image or 2D image.
3D setting
You can set 3D settings. (OPTION 1 Settings on page 101.)
Listening to Music
You can play audio files stored on the connected device.
Supported Music Files
*.MP3
Bit rate range 32 Kbps to 320 Kbps
• Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz
• Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz
MY MEDIA 67
68 MY MEDIA
Browsing Music List
1
Connect a USB storage device.
2 Press the USB button.
3 Use the , or button to select Music List and press the OK button.
4
Use the , , , or button to select the file you want and press the OK button.
1 2 3 4
Music List
USB STORAGE DEVICE
Butterfly_...
03 : 25
Drive1 Drive2 Drive3 Drive4 Drive5
Page 1/1 CH
Page Change
Page 1/1
5
Go to root folder
6
Go to upper folder
7
Description
Exit
8
1 Thumbnails
Abnormal file
File not supported
2 File List
MY MEDIA 69
Description
3 Moves to the upper level folder.
4 Current page/Total no. of folder pages
5 Current page/Total no. of file pages
6 Moves to the top level folder.
7 Moves to the upper level folder.
8 Exit
5
Control playback by using the following buttons.
Page 1/1 Music List
USB STORAGE DEVICE
Drive1
Butterfly_...
03 : 25
CH
Page Change
Page 1/1
002. - B02.mp3
Q.MENU
Option Hide Exit
Setting Description
Changes the playing position.
Stops playing.
Returns to normal playback.
Pauses the media player.
Plays the previous/next file.
Reduces power consumption by adjusting peak screen brightness.
Option Sets up the options of Music List.
Hide Hides the playback bar.
• Press the OK button to make the playback bar appear.
Exit Returns to the Music List screen.
70 MY MEDIA
Options for Music List
1
Press the Q.MENU
button.
2 Use the , or button to move to a desired option and press the
OK button.
3 Use , , , or button to set up each item.
Set Audio Play.
Description Setting
Repeat Selects repeat play.
Random Selects random play.
Set Audio.
You can change audio settings.
MY MEDIA 71
Viewing Files
You can see document files stored on a connected device.
Supported File Formats
XLS, XLSX, DOC, DOCX, PPT, PPTX, TXT, PDF, HWP
Microsoft Office 97/2000/2002/2003/2007 version
Adobe PDF 1.0/1.1/1.2/1.3/1.4 version
Hangul 97/2000/2002/2005/2007 Version
• File Viewer realigns a document, so it may look different from what is displayed on a PC.
• For documents that include images, the resolution may look lower during the realigning process.
• If the document is large or has many pages, it may take longer to load.
• Unsupported fonts may be replaced by other fonts.
• The file viewer may not open for Office documents that contain many high resolution images. In that case, reduce the image file size, save it on a USB storage device and run the file viewer again or connect your
PC to the projector and open the file on your PC.
72 MY MEDIA
Browsing File List
1
Connect a USB storage device.
2 Press the USB button.
3 Use the , or button to select File List and press the OK button.
4
Use the , , , or button to select the file you want and press the OK button.
1 2 3
File List
USB STORAGE DEVICE
DOC
Butterfly_...
06/09/2014
Drive1 Drive2 Drive3 Drive4 Drive5
Page 1/1 CH
Page Change
Page 1/1
4
Go to root folder
5
Go to upper folder
6
Description
1 File List
2 Moves to the upper level folder.
3 Current page/Total no. of folder pages
4 Current page/Total no. of file pages
5 Moves to the top level folder.
6 Moves to the upper level folder.
7 Exit
Exit
7
MY MEDIA
5 Control playback by using the following buttons.
• Click Go Page then the pop-up window for selecting the number of page appears. Input the page to move to the page you want.
• Press the VOL + , button to zoom in or zoom out.
Press the OK button and then use the Up/Down/Left/Right buttons to move to Go Page or Zoom .
73
Go Page
ꔦ
Zoom Q.MENU
Option Hide Exit
Setting
Go
Page
Description
Moves to the page you want.
Use the Up/Down/Left/Right buttons to select a page and press the OK button.
Zoom Enlarges or reduces the document.
Option Sets up the options of File Viewer.
Hide Hides the menu.
Exit
• Press the OK button to make it appear.
Returns to the File Viewer screen.
74 MY MEDIA
Options for File List
1
Press the Q.MENU
button.
2 Use , , , or button to set up each item.
Set FileViewer Option
Setting
Single
Page
Loading
Quality
Document
Align
On
Description
Loads and displays pages one by one. The initial loading time is short but a content heavy page may be displayed slowly.
Off Loads all pages of a file to memory before it starts to display them. The initial loading time is long but you can navigate pages quickly after loading is complete.
If a file is too large, it may fail to load all the pages.
You can set the quality of the image included in the document. The following three options are available for the image quality: High, Medium, Low. Higher the image quality, lower the display time.
Selects initial document align method.
File View settings are default, so close the currently opened document to apply changes to the new document, if any.
3D FUNCTION 75
3D FUNCTION
3D technology uses different video frames for each eye to add depth to the video.
While Watching 3D
WARNING
• If you view 3D video or images too closely for a long period of time, your eyesight may become worse.
• If you watch the projector or game screen for a long time with 3D glasses on, you may experience dizziness or eye fatigue.
• People with chronic diseases (epilepsy, cardiovascular disease, blood pressure-related diseases, etc.), pregnant women, and people with serious motion sickness should avoid watching 3D video.
• People with stereo blindness, or with stereopsis problems, should also avoid watching 3D video content. It may cause double vision or visual discomfort.
• People with strabismus, amblyopia, or astigmatism may have difficulty perceiving video depth and may be fatigued easily due to double vision or other ailments. It is recommended to rest more frequently than other viewers.
• Because 3D can be recognized as real, some viewers may get surprised or overexcited.
• Do not watch 3D images near fragile objects or any objects that can be knocked over easily.
• Take care not to injure yourself as you may subconsciously try to move away from the life-like 3D images.
76 3D FUNCTION
• Warning about photosensitivity seizures
Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular patterns from a video game. If anyone in your family has a history of epilepsy or has ever experienced any kind of seizure, please consult your doctor before viewing 3D images.
If you experience one of the following symptoms while watching a 3D video, stop watching the 3D video immediately and take a rest.
Dizziness, switched eyesight, twitching of the eye or facial muscles, involuntary movements, cramp, loss of consciousness, confusion, loss of sense of direction, or nausea. If the symptom does not disappear, please consult your doctor.
• You can reduce the risk of photosensitive seizures by taking the following preventive measures.
Take a rest of 5 to 15 mins. for every 1 hour of viewing.
If vision varies between each eye, correct the variation before beginning to watch a 3D video.
Ensure that the 3D video is directly in front of you, at eye level.
You should stop watching if you experience a headache, fatigue or dizziness.
Do not view 3D images for a long period of time when you are tired or ill.
3D FUNCTION 77
CAUTION
• Extra special care is required for children watching a 3D video.
When Watching 3D Video
• Prevent children of 5 years or younger from watching a 3D video. It may impair the development of their eyes.
• Children 10 years old or younger are still developing their eyesight and may have an excessive tendency to touch or jump at the screen. Adult guidance and supervision is recommended.
• Since the distance between the eyes is narrower for children than in adults, children tend to notice a greater difference in the images seen by each eye. Therefore, even while watching the same 3D video, children may have a greater depth perception than adults.
• Young people of 19 years old or younger may respond with sensitivity to the light stimuli of 3D content. Excessive viewing when fatigued is not recommended.
• Elderly viewers may have a reduced depth perception than younger viewers. Avoid watching video nearer than the recommended distance.
• Watch 3D images within the optimum viewing angle and distance.
• If you are outside the viewing angle or distance, you may not be able to see 3D images. You cannot view 3D images when you are lying down.
• You may see left and right images overlapped during projector initialization after it is powered on. It may take some time for optimization.
• It may take some time for the 3D image to look normal after you turn your eyes away from the screen and look back at the 3D image.
• It may flicker slightly while watching 3D images under a 3 wavelength lamp fluorescent light (50 Hz to 60 Hz) or near windows. If so, it is recommended to block the sun light with a curtain and to dim the lights.
• The 3D glasses must be DLP-LINK (DLP Ready) type.
• You may not be able to watch 3D properly if there is an obstacle between the projector and 3D glasses.
• Install the 3D projector as far as possible from other devices.
• If a future 3D broadcasting format that is not supported by this projector becomes the standard, an additional device such as a set-top box may be required.
78 3D FUNCTION
Please check the following when using 3D glasses.
• Do not use 3D glasses as ordinary glasses, sunglasses or protective goggles.
If you do so, this may cause injury.
• Do not store 3D glasses in very hot or very cold conditions. If you do, this may cause them to become distorted. Do not use distorted glasses.
• Do not drop 3D glasses or allow them to come into contact with other objects.
This may cause product malfunction.
• The lenses of 3D glasses are easily scratched. Use a soft clean cloth when cleaning them.
• Foreign particles on the cloth may cause scratches.
• Do not scratch the surface of the 3D glasses' lenses with sharp objects or wipe them with chemicals. If the lenses get scratched, images may not look normal when viewing 3D.
3D FUNCTION 79
Requirements for Watching 3D Images
* Optimum viewing angle: Top/Bottom/Left/Right 9°
Recommended viewing distance: 3 m
Recommended screen size: 101 cm
* Watching 3D videos should be done in dark room environments only.
NOTE
• The pairing with the DLP-LINK glasses is affected by the intensity of light reflected from the screen.
Therefore, the pairing with DLP-LINK glasses may not work properly if the light reflected from the screen is not bright enough, such as when the surrounding area is bright, the screen is big, or the maximum energy saving mode is enabled.
• Some menus may not work while playing a 3D video.
• You can only watch a 3D video properly when the 3D video format option has been selected on the projector.
80 3D FUNCTION
Using the DLP-LINK (DLP-Ready) Type Glasses
1 While watching 3D images from the projector, press buttons on the glasses.
2 When you press the button, the glasses flicker while synchronizing with the 3D images. (The flickering is a unique operation method of DLP-
LINK type glasses. It may be different depending on the glasses type.)
3 If the glasses flicker or problems occur while watching 3D, first turn the lights off to make the room darker. Contact your projector seller for queries about the glasses.
To view 3D images
3D imaging is a technology that utilizes the slight difference in left/ right eyes to make the images on the projector appear just like real-life
3-dimensional space.
1
Play a 3D-image title or tune to a 3D channel.
2 Press the 3D button to activate 3D.
3 Turn on the 3D glasses and put them on.
4 While viewing 3D images, press the 3D button on the remote control to end 3D image viewing.
5
Press the L/R button to switch the playing direction of an image. Select a screen with better 3D display quality.
If you press the 3D button during viewing, it returns to 2D.
* Depending on the input signal, the available 3D type may differ.
3D FUNCTION 81
Supported 3D Mode
720p
1280 x
720
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
89.9 / 90 59.94 / 60
45 60
HDMI
USB 1080p 1920 x
RGB 1080p 1920 x
1280 x
720
DTV
720p
33.7
53.95 / 54 23.98 / 24
67.5
27
33.7
33.75
67.5
45
33.7
60
60
24
30
30
60
60
60
Supported 3D
Formats
Frame Packing
Side by side (half),
Top and Bottom
Side by side (half),
Top and Bottom
Frame Packing
Side by side (half),
Top and Bottom,
Single Frame
Sequential
Side by side (half),
Top and Bottom
Side by side (half),
Top and Bottom
Side by side, Top and Bottom, MPO,
JPS (Photo)
Side by side (half),
Top and Bottom
Side by side (half),
Top and Bottom
Side by side (half),
Top and Bottom
82 CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
SETTINGS
1
Press the SETTINGS button.
2 Use the , , , or button to select the desired item and press the OK button.
3 Use the , , , or button to set up the desired item and press the OK button.
4
Press the EXIT button when completed.
Description
Adjusts the image quality for optimal viewing.
Adjusts the sound quality and volume level.
Menu
AUDIO
CHANNEL
TIME
WIRELESS
LOCK
OPTION 1
OPTION 2
INPUT
MY MEDIA
Sets up and edits a channel.
Sets the time and time-related features.
Wireless-related features.
Locks or unlocks a channels or a programs.
Customizes the general settings.
Customizes the settings related the projector.
Selects the desired input source.
Accesses photo, music, movie, and document files.
CUSTOMIZING SETTINGS
PICTURE Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select PICTURE and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
ꔂ Move ꔉ OK
• ꕊ Energy Saving : Medium
• Picture Mode : Standard
• Contrast 100
• Brightness 50
• Sharpness 10
• Color
• Tint
55
0
R G
The available picture settings are described as follows.
Item
Energy
Saving
Description
Reduces power consumption by adjusting peak screen brightness.
Minimum
Medium /
Maximum
/
Mode
Applies the pre-set Energy Saving mode.
83
84 CUSTOMIZING SETTINGS
Item Description
Picture Mode Selects the picture mode optimized for the viewing environment or the program.
You can also customize advanced options for each mode.
Vivid
Mode
Maximizes the visual effect of video.
Heightens contrast, brightness and sharpness to display vivid images.
Standard Displays images in standard levels of contrast, brightness and sharpness.
Cinema
Sport
Optimizes the image for a movie.
Optimizes the image for sports by emphasizing primary colors and dynamic actions.
Contrast
Game Optimizes the image for playing games on fast-moving screens.
Expert1/2 Menu for adjusting picture quality that allows experts and amateurs to enjoy the best Projector viewing.
Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be dramatic.
Adjusts the difference between bright and dark regions of the screen.
Brightness Adjusts the overall screen brightness.
Sharpness Adjusts the sharpness of the borders between bright and dark.
Horizontal and Vertical Sharpness are available only in
Expert1/2 .
Adjusts the intensity of all colors.
Color
Tint
Advanced
Control
Adjusts the balance between red and green levels.
Customizes the advanced settings.
CUSTOMIZING SETTINGS 85
Item Description
Option
Sets optional settings.
Picture Reset Resets values customized by the user.
Each picture mode is reset. Select the picture mode you wish to reset.
Aspect Ratio Resizes the picture.
Screen
(RGB-PC)
Adjusts the picture quality of RGB-PC input.
Option
Resolution Available resolutions are 768 resolution
(1024 x 768/ 1280 x 768/ 1360 x 768,
60 Hz) and 1050 resolution (1400 x 1050/
1680 x 1050, 60 Hz).
Auto
Config.
Provides optimized picture quality by automatically calibrating the mismatch of horizontal width and picture shake caused by clashes between the internal settings of the projector and various PC graphic signals.
Position
Size
Phase
Reset
Moves the image up/down/left/right.
Changes the screen size.
Makes the picture look clear by removing horizontal noise.
Restores all the settings to the factory default.
86 CUSTOMIZING SETTINGS
Advanced Control
Item
Sky color is set separately.
Natural color spectrum (meadows, hills, etc.) can be separately set.
Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the screen’s brightness.
Dynamic Color Adjusts colors for more natural-looking colors.
Color Gamut Selects the range of colors that can be expressed.
• Standard : Displays the original colors of an input signal regardless of the display features.
• Wide : Makes use of the display's rich colors.
Skin Color Skin color spectrum can be separately set to implement the skin color as defined by the user.
Sky Color
Grass Color
Gamma Sets the gradation curve according to the output of the picture signal in relation to the input signal.
* Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.
CUSTOMIZING SETTINGS 87
Expert Control
Item Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the screen’s brightness.
Color Gamut Selects the range of colors that can be expressed.
• Standard : Displays the original colors of an input signal regardless of the display features.
• Wide : Makes use of the display's rich colors.
Edge
Enhancer
Shows clearer and distinctive yet natural edges of the video.
Expert Pattern Patterns used for expert adjustment.
Color Filter Filters a specific color spectrum in RGB colors to finetune color saturation and hue accurately.
Color
Temperature
In Expert mode, you can customize the options of each mode.
Gamma : Select 1.9
, 2.2
, or 2.4
.
a. Method : 2 Points
Pattern : Inner , Outer
Points : Low , High
Red / Green / Blue : Adjustable range -50 to +50 .
Apply to all inputs : The values of the Color
Temperature is applied to all the input modes.
b. Method : 20 Point IRE
Pattern : Inner , Outer
IRE (Institute of Radio Engineers) is the unit indicating the size of a video signal and can be set to 0 , 5 , 10 , 15 , ...
100 . You can fine-tune for each setting as shown below.
Luminance : The adjustment range is 50 to 500 .
Red / Green / Blue : The adjustment range is -50 to +50 .
Apply to all inputs : The values of the Color
Temperature is applied to all the input modes.
88 CUSTOMIZING SETTINGS
Item
Color
Management
System
Description
Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors.
Allows an expert to adjust the tint using a test pattern.
Six colors (Red/Green/Blue/Cyan/Magenta/Yellow) can be selectively adjusted without affecting other colors.
You may not see colors change on a normal picture even after adjustment.
Saturation
Magenta ,
Red / Green / Blue / Yellow / Cyan /
Tint Red / Green / Blue / Yellow / Cyan / Magenta ,
Luminance Red / Green / Blue / Yellow / Cyan /
Magenta : The adjustment range is -30 to +30 each.
* Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.
CUSTOMIZING SETTINGS 89
Picture Option
Item Description
Noise Reduction Reduces screen noise in the video.
MPEG Noise
Reduction
Eliminates noise generated while creating digital picture signals.
Black Level Adjusts the brightness or darkness of the screen to suit the black level of the picture input using the degree of darkness (black level) of the screen.
Optimizes the screen for movie viewing.
Real Cinema
Color
Temperature
Adjusts the overall color of the screen to suit your preference.
Select Warm , Cool , Medium , or Natural .
90 CUSTOMIZING SETTINGS
AUDIO Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select AUDIO and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
AUDIO
• Sound Mode
• Sound Effect
• Auto Volume
ꔂ Move ꔉ OK
: Standard
: Off
The available sound settings are described as follows.
Item
Sound
Mode
Sets the sound mode.
Standard
News / Music /
Cinema /
Sport / Game
Description
Mode
Suitable for all types of video.
Sets audio optimized for a specific genre.
Item
Sound
Effect
Auto
Volume
CUSTOMIZING SETTINGS 91
Description
The user can select various sound effects.
Mode
Clear Voice II Makes the voice from the projector crisp and clear.
Virtual
Surround
Equalizer
LG’s proprietary audio processing technology allows 5 channel-like surround sound from two speakers.
• When Clear Voice II is set to on, Virtual
Surround cannot be selected.
Adjusts the volume to a level of your choice using the Equalizer .
• Audio-band ( 100 Hz / 300 Hz / 1 kHz /
3 kHz / 10 kHz ) can be adjusted from
-10 to 10 .
• Reset : Resets voice options that the user has changed.
Balance Adjusts the balance of the left and right speakers.
Reset Initialize the applied effect under the
Sound Effect menu.
Automatically adjusts the volume level.
92 CUSTOMIZING SETTINGS
CHANNEL Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select CHANNEL and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
CHANNEL
• Auto Tuning
• Manual Tuning
• Channel Edit
ꔂ Move ꔉ OK
The available channel settings are described as follows.
Item Description
Auto Tuning Remembers a channel which is currently broadcasting.
You should use this function when you move to another house or move the Projector to other place. It must be used while the antenna is connected and there are channel broadcasting signals.
• Channels are not registered properly unless the antenna/cable is connected correctly.
• Auto Tuning only finds programs that are currently broadcasting.
• If Lock System is turned On , a pop-up window will appear asking for password.
Manual
Tuning
Adjusts channels manually and saves the results.
For digital broadcasting, signal strength, etc. can be checked.
Channel Edit Edits the saved channels.
Set as favorite channel, block/unblock channel, delete channel etc. of the selected channel.
CUSTOMIZING SETTINGS 93
TIME Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select TIME and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
TIME
• Clock
• Off Time : Off
•
• On Time
• Sleep Timer
Auto Off
: Off
: Off
: 60 min.
• Automatic Standby : Off
ꔂ Move ꔉ OK
The available time settings are described as follows.
Clock
Item Description
Checks or changes the time while watching projector.
Mode
Auto Synchronizes the projector clock to the digital time information sent by the TV station.
Manual Sets the time and date manually if the auto setup does not correspond to the current time.
94 CUSTOMIZING SETTINGS
Item
Off Time / On
Time
Description
Sets the time to turn on or off the projector automatically. To use this feature, you should set the current time and date in advance.
To use this feature, set the time correctly.
If you do not want to set Off Time / On Time , select Off in Repeat .
NOTE
• If you set both Off time and On time features to the same time, the Off time feature overrides the On time feature.
• If you do not press any button within two hours after the projector is turned on by the On Time feature, the projector enters standby mode automatically.
Sleep Timer Turns off the Projector after a preset number of minutes.
To cancel the Sleep Timer , select Off .
Auto Off If there is no input signal or button press, the projector automatically turns off after the preset time has elapsed.
Automatic
Standby
Turns off the projector automatically after a set period of time if there is no button input on the projector.
CUSTOMIZING SETTINGS 95
WIRELESS Settings
* The illustration of the menu may differ from the actual screen on the product. (Depending on model)
1 Press the SETTINGS button.
2 Use the , , , or button to select WIRELESS and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
WIRELESS
ꔂ Move ꔉ OK
• SCREEN SHARE
• Group
: [PJTR][LG]PW1500[0000]
• Channel
• Bluetooth : Off
• Search Device
• List of registered devices
• AV Sync. Adjust
The available wireless settings are described as follows.
Item
SCREEN
SHARE
Description
The SCREEN SHARE displays the screen of the connected device.
• You can check the SCREEN SHARE's ID.
Mode
Group This is the Group setting for each device supporting the SCREEN SHARE feature.
When the wireless connection is weak or unstable, adjust the Group setting to correct the problem.
Channel You can change the channel used for wireless connections.
• Search Channels : Select channel searching methods.
Auto : The projector searches for available channels and automatically selects the least used channel.
Manual : You can select a channel manually.
• Channel : This is shown when Search
Channels is set to Manual . It allows you to specify a channel number to use.
96 CUSTOMIZING SETTINGS
Item Description
Bluetooth Sound is output through the Bluetooth headset.
First, set Bluetooth to On .
Item
Search for the device to connect to.
Search
Device
List of registered devices
AV Sync.
Adjust
Connected devices are saved in the of registered devices
When the video and the sound are not synchronized correctly, you can manually adjust the synchronization.
List
. The saved list of registered devices can be displayed.
CUSTOMIZING SETTINGS
LOCK Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select LOCK and press the OK button.
To enter the LOCK menu, enter the preset 4-digit password. The initial password is set as 0000 .
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
LOCK
ꔂ Move ꔉ OK
• Set Password
• Lock System : Off
• Block Channel
• Movie Rating
• TV Rating-Children
• TV Rating-General
• Downloadable Rating
The available lock settings are described as follows.
Item
Set Password
Description
Sets or changes projector password.
• The initial password is set as 0000 .
97
98 CUSTOMIZING SETTINGS
Item
Lock
System
Description
Locks the selected channel or external input.
First set Lock System to On .
Item
Block
Channel
Movie
Rating
Blocks the programs that contain inappropriate contents for children. The programs can be selected but the screen is blank and the audio is muted. To watch a locked program, enter the password.
Blocks the movies that are only broadcasted on the TV and contain inappropriate contents, based on the Motion Picture Association of
America (MPAA) rating.
• G : General audiences
All ages admitted
• PG : Parental guidance suggested
Some material may not be suitable for children
• PG-13 : Parents strongly cautioned
Some material may be inappropriate for children under 13
• R : Restricted
Under 17 requires accompanying parent or adult guardian
• NC-17 : No one 17 and under admitted
• X : Adult only
CUSTOMIZING SETTINGS 99
Item
Lock
System
TV
Rating-
Children
TV
Rating-
General
Downloadable
Rating
Input
Block
Description
Item
Blocks the children’s TV programs that parents do not want their children to watch. To block other TV programs, you should set the TV
Rating-General feature.
• Age TV-Y (All children, including children from ages 2-6), TV-Y7 (Directed to older children, suitable for children age 6 and above)
• Fantasy Violence TY-Y7 (Directed to older children - Fantasy violence, suitable for children age 6 and above, containing more intense or combative fantasy violence)
Blocks the TV programs that you want based on the ratings by using the Parental Control
Function (V-Chip).
The V-Chip electronically reads TV program ratings and allows parents to block program that are unsuitable for children.
• Age TV-G (General audience, suitable for all ages) TV-PG (Parental guidance suggested, containing material that are unsuitable for younger children) TV-14 (Parents strongly cautioned, containing material that are unsuitable for children age 14 and under)
TV-MA (Mature audience only, unsuitable for children age)
• Dialogue (suggestive dialogue) TV-PG or
TV-14
• Language (coarse language)TV-PG, TV-14, or TV-MA
• Sex (sexual situation) TV-PG, TV-14, or TV-
MA
• Violence TV-PG, TV-14, or TV-MA
This function operates only when TV has received Region5 Rating data. The name of the rating option may differ.
Block the input sources.
100 CUSTOMIZING SETTINGS
Item Description
Key Lock Locks control buttons on projector.
• Key Lock function remains intact even in case of power outage or when the power cord is removed from the wall socket.
• Key Lock function can only be set by remote control, and not by the button on the projector.
• If you select On : You can turn the projector on only with the Power button if you have turned the projector off using the remote control. If you press a button on the joystick button while watching video, the message Key Lock is displayed.
CUSTOMIZING SETTINGS 101
OPTION 1 Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select OPTION 1 and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
OPTION 1
•
• Language
Caption
• Audio Guidance
: Off
•
• 3D Mode
Auto Input Search : Off
• DivX(R) VOD
• Initial Setting
ꔂ Move ꔉ OK
The available option 1 settings are described as follows.
Item Description
Language Selects a desired Menu Language.
Caption View subtitles when the TV station provides subtitled programing. Program subtitles work only on digital/analog broadcasts.
Change Caption to On and select caption setting.
Mode CC 1-4 (Closed Captioning) / Text 1-4
Displays the audio portion of a TV program as text on the TV screen. CC 1 is the most common mode in use.
Field 1 data channels: two Captions ( CC 1 ,
CC 2 ), two Text ( Text 1 , Text 2 ).
Field 2 data channels: two Captions ( CC 3 ,
CC 4 ), two Text ( Text 3 , Text 4 ).
Service1-6
This is only available for the digital broadcasting system.
102 CUSTOMIZING SETTINGS
Item
Caption
Audio
Guidance
Digital
Option
Description
Set up the size and color of the subtitles on Digital Option . Please select Set by
Program or Custom .
Select Custom to adjust minute options such as the subtitles’ size and color.
Size
Font
Item
Selects the wordsize.
Selects a typeface for the text.
Text Color Selects a color for the text.
Text
Opacity
Adjusts the opacity for the text color.
Bg Color
Bg
Opacity
Selects a color for the background color.
Adjusts the opacity for the background color.
Edge Type Selects an edge type.
Edge
Color
Selects a color for the edges.
When this feature is turned on, the projector will read out loud the OSD contents to help you set up the projector menu.
• This is available only when the language is set to
English.
Speed
Volume
Pitch
Item
Set the reading speed.
Set the reading volume.
Set the pitch of the reading voice.
CUSTOMIZING SETTINGS 103
Item Description
3D Mode Adjusts various aspects of 3D imaging.
Mode
Auto Input
Search
3D Picture
Correction
Switches left/right images of 3D video.
Automatically searches for and displays the input signal type when it is received. It is available only with external inputs (RGB-PC, HDMI, AV, and Component).
DivX(R)
VOD
Initial
Setting
Sets DivX related settings.
Set ID
Mode
Setting
Deletes all optional settings and returns to initial default mode. Once initialization is complete, the projector will turn off and on by itself.
• When Lock System is in place, a pop-up window appears and asks for password.
• Do not turn off the power during initialization.
The range of the set ID is 1 - 99.
Only the saved set ID takes effect.
Selects Standard or Store Demo .
When in use in home, please select Standard .
Store Demo mode is for store display.
104 CUSTOMIZING SETTINGS
OPTION 2 Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select OPTION 2 and press the OK button.
3
Use the , , , or button to set up the desired item and press the OK button.
To return to the previous menu, press the button.
4 Press the EXIT button when completed.
OPTION 2
• Keystone
• Auto Keystone
• PJT Mode
• High Altitude
• Blank Image
• Auto Power
• Self Diagnosis
ꔂ Move ꔉ OK
0 -
: On
: Front
: Off
: Blue
: Off
+
The available option 2 settings are described as follows.
Item
Keystone
Auto
Keystone
Description
To prevent the screen image from becoming trapezoidal,
Keystone adjusts the top and bottom width of the image if the projector is not set at a right angle to the screen.
Auto Keystone provides a rectangular screen image by automatically adjusting the Keystone number when there is a trapezoidal screen image caused by tilting of the projector.
On
Item
Automatically adjusts the Keystone number.
Manually adjusts the Keystone number.
Off
PJT Mode This function turns the projected image upside down or flips horizontal.
• Select Rear when projecting from the back of the transparent screen purchased separately.
• Select Front Ceiling when installing the product on the ceiling.
• When PJT Mode is Rear / Front Ceiling , the left/right of the speaker changes automatically.
CUSTOMIZING SETTINGS 105
Item
High
Altitude
Description
If the projector is used at an altitude higher than 1200 meters, turn this on.
Otherwise, the projector may overheat or its protection function may be activated. If this happens, turn the projector off and then on again after waiting for several minutes.
Blank Image Selects a background for blank Image.
Auto Power Makes the projector turn on automatically when the adaptor plug is inserted.
Self
Diagnosis
On
Off
Item
When the AC/DC plug is connected to the projector, it turns on automatically.
When the AC/DC plug is connected to the projector, it goes into standby mode.
Troubleshoots functional problems that can arise while using the product.
106 CONNECTING DEVICES
CONNECTING DEVICES
You can connect various external devices to the projector.
Computer/Notebook DVD Video
Digital Device
USB
Headphones
Mobile Phone
Mobile Phone (MHL/Slimport) - 113 page
Game Console
Connecting to HD
Receiver, DVD, VCR
Player, or External
Devices
Connect an HD receiver, DVD,
VCR player, or External Devices to the projector and select an appropriate input mode.
HDMI Connection
With an HDMI cable, you can enjoy high quality picture and sound.
Using a HDMI cable, connect the
port of the projector to the HDMI output port of the device to connect. Both video and audio are output at the same time.
Press the INPUT button on the remote control to select HDMI .
CONNECTING DEVICES 107
HDMI to DVI Connection
Using an HDMI to DVI cable, connect the projector's
port to the DVI OUT port.
To output audio, use an audio cable for connection.
Press the INPUT button on the remote control to select HDMI .
RS-232C IN
* Not provided
* Optional
Extras
RS-232C IN
DVI OUT AUDIO OUT
RS-232C IN
* Optional
Extras
+'0,
RS-232C IN
108 CONNECTING DEVICES
Composite (AV)
Connection
Connect the output ports of an external device and the AV IN ports of the projector using an AV cable. Press the INPUT button on the remote control to select AV .
Check whether cables of the same color are connected properly.
Component Connection
You can enjoy a video by connecting the Component port of an external device to the RGB
IN port of the projector. Press the INPUT button on the remote control to select Component .
Check whether cables of the same color are connected properly.
RS-232C IN
RS-232C IN
* Accessories * Optional
Extras
(Video)
* Accessories
(Audio)
* Not provided
* Optional
Extras
(Video)
* Not provided
(Audio)
$9287
/HIW 5LJKW
$8',2287
< 3
%
$9287
3
5
/HIW 5LJKW
$8',2287
5LJKW
$8',2287
Connecting a PC
The projector supports Plug &
Play. Your PC will automatically detect the projector and requires no driver installation.
HDMI Connection
Using an HDMI cable, connect the port of the projector to the HDMI output port of your
PC. Both video and audio are output at the same time.
Press the INPUT button on the remote control to select HDMI .
RS-232C IN
RS-232C IN
CONNECTING DEVICES 109
HDMI to DVI Connection
Using an HDMI to DVI cable, connect the projector's port to the DVI OUT port.
To output audio, use an audio cable for connection.
Press the INPUT button on the remote control to select HDMI .
RS-232C IN
* Not provided
* Optional
Extras
RS-232C IN
RS-232C IN
* Optional
Extras
DVI OUT AUDIO OUT
+'0,
RS-232C IN
RS-232C IN
110 CONNECTING DEVICES
RGB Connection
Connect the PC output and the
PC video input port of the projector with the RGB cable.
For audio signal, connect the PC and the projector with an optional audio cable.
RS-232C IN
Press the INPUT button on the remote control to select RGB-PC .
RS-232C IN
* Optional
Extras
RS-232C IN
* Optional
Extras
* Accessories
* Optional
Extras
5*%2873& $8',2287
* Not provided
5*%2873& $8',2287
You can connect the audio cable without using a gender as shown in the illustration above.
Connecting a Laptop
You can connect the projector to a laptop to use various functions.
HDMI Connection
Using an HDMI cable, connect the port of the projector to the HDMI output port of your laptop. Both video and audio are output at the same time.
Press the INPUT button on the remote control to select HDMI .
RS-232C IN
RS-232C IN
* Optional
Extras
CONNECTING DEVICES 111
The table below shows examples of switching the output. For more information, refer to the
External Output , Connecting to an External Monitor , or similar sections of the owner's manual of your computer.
Brand
NEC
Panasonic
Toshiba
IBM
Sony
Fujitsu
LG
Samsung
Macintosh
Switching
Output
Fn + F3
Fn + F3
Fn + F5
Fn + F7
Fn + F7
Fn + F10
Fn + F7
Fn + F4
Adjust the control panel to enable mirroring after start-up.
+'0,
RS-232C IN
112 CONNECTING DEVICES
Connecting to
Headphones
You can listen to the audio through a headphone.
RS-232C IN
* Not provided
CONNECTING DEVICES 113
Using the Mirroring Function of a Mobile
Phone
MHL/Slimport Connection
You must use a HDMI adapter to connect your cell phone to the projector and to output images and sound from your cell phone to the projector.
The compatible HDMI adapters are different, depending upon your cell phone type.
Therefore, purchase an appropriate MHL or Slimport adapter.
(To find out whether your device is MHL/Slimport-certified, please contact your device manufacturer.)
* Optional Extras
NOTE
• When you connect a mobile phone to the see the mobile phone screen through a projector.
port, you can
This only applies to mobile phones that support MHL/Slimport.
You can use the remote control for some applications.
• Disconnect the MHL/Slimport cable from the projector when:
The MHL/Slimport function is disabled.
Your mobile device is fully charged in standby mode.
114 MAINTENANCE
MAINTENANCE
Clean your projector to keep it in optimal condition.
Cleaning
Cleaning the Lens
If there is any dust or staining on the lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to clean the lens.
To remove dust or stains, use an air spray or apply a small amount of cleaning agent onto a swab or soft cloth to lightly rub the lens.
Please be aware that liquid may flow into the lens if the product is sprayed directly onto the lens.
Cleaning the Projector Case
To clean the projector case, first unplug the power cord.
To remove dust or stains, use only a dry, lint-free, nonabrasive cloth to polish the lens.
Do not use alcohol, benzene, thinners, or other chemicals, which may damage the case.
SPECIFICATIONS 115
SPECIFICATIONS
MODELS
PW1500 (PW1500-NA)/
PW1000 (PW1000-NA)
Resolution
(Pixel)
Aspect ratio
Panel size
Projection distance (Video size)
Ratio of upward projection
Working range of the remote control
Video input
1280 (Horizontal) × 800 (Vertical)
16:10 (Horizontal:Vertical)
11.623 mm
0.75 m to 3.06 m (63.5 cm to 254.0 cm)
100 %
6 m
NTSC M
AC-DC Adaptor
PW1500
PW1000
19.0 V 5.79 A
(Adaptor Input 100-240 V @ 50/60 Hz)
19.0 V 3.42 A
(Adaptor Input 100-240 V @ 50/60 Hz)
Audio Output 3 W + 3 W
Reception type DTV-ATSC / TV-NTSC
Reception channels
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69,
CADTV 1-135
External
Antenna
Impedance
Height
Width
Depth
Weight
USB Device
75 Ω (VHF/ UHF)
53 mm (without foot), 56.5 mm (with foot)
230.6 mm
162 mm
1160 g
5 V, 0.5 A (Max.)
116 SPECIFICATIONS
MODELS
Operation environment
PW1500 (PW1500-NA)/
PW1000 (PW1000-NA)
Temperature
Operation 0 °C to 40 °C
Storage -20 °C to 60 °C
Relative Humidity
Operation 0 % to 80 %
Storage 0 % to 85 %
* Use only power supplies listed in the user instructions.
* Contents in this manual may be changed without prior notice due to upgrade of product functions.
SPECIFICATIONS 117
Supported RGB-PC/HDMI(PC) Mode
Resolution
640 x 350
720 x 400
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 800
1280 x 1024
1440 x 900
1400 x 1050
1600 x 900
1680 x 1050
1920 x 1080
Horizontal Frequency
(kHz)
31.468
31.469
31.469
37.879
48.363
54.348
49.68
63.981
55.935
65.317
60.000
65.290
67.5
Vertical Frequency
(Hz)
70.09
70.08
59.94
60.31
60
60.053
60
60.020
59.888
59.979
60
59.954
60
• If an invalid signal is input into the projector, it will not be displayed properly on the screen or a message such as No Signal or Invalid
Format will be displayed.
• The projector supports the DDC1/2B type as the Plug & Play function
(Auto-recognition of PC monitor).
• PC synchronization signal types supported: Separate type synchronization.
• In PC mode, 1280 x 800 is recommended for the best picture quality.
118 SPECIFICATIONS
Supported HDMI/DVI-DTV Mode
Resolution
480p
720p
1080i
1080p
Horizontal Frequency
(kHz)
31.47
31.47
31.5
45
44.96
33.75
33.72
67.5
67.432
27
26.97
33.75
33.71
Vertical Frequency (Hz)
60
59.94
60
60
59.94
60
59.94
60
59.939
24
23.976
30
29.97
• To provide the best picture quality, a 1280 x 720 (720p) resolution is recommended.
Component port connecting information
Signal
480i
480p
720p / 1080i
1080p
Component o o o o
(60 Hz only)
KEY CODES
This feature is not available for all models.
Code
(Hexa)
00
01
02
03
06
07
Function
CH
CH
,
VOL+
,
VOL-
► (Arrow Key / Right Key)
◄ (Arrow Key / Left Key)
5B
61
63
71
44
45
4C
AD
1E
28
(POWER)
09 MUTE
EF INPUT
10 - 19 * Number buttons 0 - 9
1A FLASHBK
FAV
40
41
43
( Return (BACK))
(Arrow Key / Cursor Up)
(Arrow Key / Cursor Down)
SETTINGS
72
79
7C
OK
Q.MENU
LIST, -(dash)
EXIT
Blue
Yellow
Green
Red
RATIO
USB/MY MEDIA
8E
8F
AA INFO
KEY CODES 119
Note
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
120 KEY CODES
Code
(Hexa)
B0 ►
B1 ꕗ
BA ꕘ
DC 3D
84 BLANK
39 CAPTION
Function
0A SAP
BC STILL
DD L/R (3D Mode)
95
ENERGY SAVING
Note
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
EXTERNAL CONTROL DEVICE SETUP 121
EXTERNAL CONTROL DEVICE
SETUP
Connect the RS-232C (serial connector) of the PC to the RS-232C connector at the back of the Projector.
You need to purchase a cable to connect the RS-232C connectors as it is not provided as an accessory.
Use a RS-232C cable to remotely control the Projector (see Figure 1).
(PC)
RS-232C IN
(Projector)
Figure 1 : RS-232 Connection Diagram
RXD
TXD
DTR
GND
DSR
RTS
CTS
2
3
4
5
6
7
8
PC
2
3
4
5
6
7
8
RXD
TXD
DTR
GND
DSR
RTS
CTS
Projector
5
9 6
1
* There is no connection to Pin 1 and Pin 9.
Set ID
For Set ID number, see " Real data mapping (Hexadecimal → Decimal)
".
1 Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to OPTION 1 and press OK .
3 Press the Navigation buttons to scroll to Set ID and press OK .
4 Scroll left or right to select a set ID number and select Close . The adjustment range is 1-99.
5
When you are finished, press EXIT .
122 EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
Baud rate : 9600 bps (UART)
Data length : 8 bits
Parity : None
Stop bit : 1 bit
Communication code : ASCII code
Use a crossed (reverse) cable.
Command reference list
01. Power*
02. Aspect Ratio
03. Screen Mute
04. Volume Mute
05. Volume Control
06. Contrast
07. Brightness
08. Color
09. Tint
10. Sharpness
11. OSD Select
12. Remote Control
Lock Mode
13. Balance
14. Color Temperature
15. Equalizer
16. Tune Command
17. Channel Add/Del
18. Key
19. Energy Saving
20. Input select (Main)
21. 3D
22. Extended 3D
23. Auto Configure
Command1 k k k k k k k k k k k k m n x x j x j m m k k
Command2 a u a b p b v u i j l t t c d e g h f k m v c
Data
(Hexadecimal)
00 to 01
00 to 01
00 to 64
00 to 64
00 to 64
00 to 64
00 to 64
00 to 32
00 to 01
00 to 01
00 to 64
00 to 04
00 to 01
00 to 02
* Note: During playing media, all commands except Power (ka) and Key
(mc) are not executed and treated as NG.
EXTERNAL CONTROL DEVICE SETUP 123
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the Projector. (j, k, m or x)
[Command 2] : Second command to control the Projector.
[Set ID] : You can adjust the [Set ID] to choose desired projector ID number in option menu. Adjustment range in Projector is 1 to 99.
If [Set ID] value is selected to ‘0’, every connected set can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as
Hexadecimal (0x00 to 0x63) on transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal).
Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.
Data 00 : Illegal Code
124 EXTERNAL CONTROL DEVICE SETUP
Real data mapping (Hexadecimal → Decimal)
• When you enter the [data] in hexadecimal, refer to following conversion table.
• Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0
01 : Step 1 (Set ID 1)
...
32 : Step 50 (Set ID 50) FE : Step 254
33 : Step 51 (Set ID 51) FF : Step 255
...
...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
...
...
...
0F : Step 15 (Set ID 15) C7 : Step 199
10 : Step 16 (Set ID 16) C8 : Step 200
...
...
27 0E : Step 9998
27 0F : Step 9999
...
EXTERNAL CONTROL DEVICE SETUP 125
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show Projector is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data based on this format,
Acknowledgement feedback presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the Aspect Ratio in the
Q.MENU or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data
01 : Normal screen (4:3)
04 : Zoom
08 : Full
02 : Wide screen (16:9)
06 : Set by Program
09 : *Just Scan
10 to 1F : Cinema Zoom 1 to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you can select 16:9, 4:3 or Full screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition), Just Scan is available.
126 EXTERNAL CONTROL DEVICE SETUP
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data
00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, Projector will display On Screen
Display(OSD). But, in case of Screen mute on, Projector will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data
00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
EXTERNAL CONTROL DEVICE SETUP 127
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color (Command: k i)
► To adjust the screen color.
You can also adjust color in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
128 EXTERNAL CONTROL DEVICE SETUP
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote Control Lock Mode (Command: k m)
► To lock the joystick buttons on the projector and remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this mode.
When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.
* In the standby mode (DC off by off timer or ‘ka’, ‘mc’ command), and if key lock is on, Projector will not turn on by power on key of IR & Local
Key.
EXTERNAL CONTROL DEVICE SETUP 129
13. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
14. Color Temperature (Command: k u)
► Adjusts the value of color temperature.
Transmission [k][u][ ][Set ID][ ][Data][Cr]
Data
00 : Medium
02: Warm
* Data 03 is not used.
01 : Cool
04: Natural
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
130 EXTERNAL CONTROL DEVICE SETUP
15. Equalizer (Command : j v)
► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
MSB LSB
0 0 0 0 0 0 0 0
Frequency Data
7
0
0
0
0
1
6
1
1
0
0
0
5 Frequency 4
0
1
0
1
0
1st Band 0
2nd Band 0
3 2 1 0 Step
3rd Band ...
...
...
...
...
4th Band 1 0 0 1 1
...
19(decimal)
5th Band 1
0
0
0
0
0
1
0
0
0
0 0(decimal)
1 1(decimal)
0 21(decimal)
Ack [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends upon model, and can adjust when sound mode is EQ adjustable value.
EXTERNAL CONTROL DEVICE SETUP 131
16. Tune Command (Command: m a)
* This command may work differently depending on model and signal.
► To tune channel to following physical/major/minor number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01][ ][Data02][ ][Data03][ ]
[Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor channel number. The
Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the subchannel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.
* Analog Antenna/Cable
Data 00: Physical Channel Number
Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
00 : Antenna TV (ATV)
01 : Cable TV (CATV)
* Digital Antenna/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02] : Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04] : Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
132 EXTERNAL CONTROL DEVICE SETUP
Data 05 : Input Source (Digital)
02 : Antenna TV (DTV) – Use Physical Channel Number
06 : Cable TV (CADTV) – Use Physical Channel Number
22 : Antenna TV (DTV) – Don’t Use Physical Channel Number
26 : Cable TV (CADTV) - Don’t Use Physical Channel Number
46 : Cable TV (CADTV) – Use Major Channel Number Only
(One Part Channel)
Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).
* Tune Command Examples:
1. Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][Data 03][Data 04]
[Data 05][x]
[a][ ][Set ID][ ][NG][Data 00][x]
EXTERNAL CONTROL DEVICE SETUP 133
17. Channel Add/Del (Command: m b)
► To skip current channel for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data
00 : Del 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del or add.
18. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
19. Energy Saving (Command: n p)
► Sets the energy saving mode.
Transmission [n][p][ ][Set ID][ ][Data][Cr]
Data
00 : Minimum
02 : Maximum
01 : Medium
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
134 EXTERNAL CONTROL DEVICE SETUP
20. Input select (Command: x b) (Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
11 : CATV
20 : AV
01 : CADTV
10 : ATV
40 : Component
60 : RGB 90 : HDMI
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
21. 3D (Command: x t)
► To change 3D mode for Projector.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01][ ][Data 02]
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
[Data 01]
02 : 3D to 2D
00 : Top and Bottom
01 : Side by Side
03 : Frame Sequential
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 02] functions depend on model and signal.
EXTERNAL CONTROL DEVICE SETUP 135
* All 3D pattern options ([Data 01]) may not be available according to broadcasting/video signal.
[Data 00]
00
01
02
X : don’t care
[Data 01]
O
X
X
[Data 02]
O
X
X
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02][x]
[t][ ][Set ID][ ][NG][Data00][x]
22. Extended 3D (Command: x v)
► To change 3D option for Projector.
Transmission [x][v][ ][Set ID][ ][Data 00][ ][Cr]
Data 00 : Right to Left 01 : Left to Right
Ack [v][ ][Set ID][ ][OK/NG][Data 00][x]
23. Auto Configure (Command: j u)
► To adjust picture position and minimize image shaking automatically.
It works only in RGB (PC) mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : Run Auto Configure
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
136 EXTERNAL CONTROL DEVICE SETUP
Open Source Software Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Portable Standard throw projector White
- DLP 1500 ANSI lumens
- LED 30000 h
- WXGA (1280x800) 16:9 100000:1
- Screen size compatibility: 635 - 2540 mm (25 - 100")
- Focus: Manual
- Wi-Fi Bluetooth
- Built-in speaker(s) 6 W
- 3D
- AC 100 W
Related manuals
advertisement
Table of contents
- 2 LICENSE
- 3 SAFETY INSTRUCTIONS
- 16 PREPARATION
- 16 Accessories
- 18 Optional Extras
- 19 Parts and Components
- 21 Using the Joystick Button
- 21 Basic Functions
- 22 Adjusting the Menu
- 22 Projector Status Indicators
- 23 Installation
- 23 Installation Precautions
- 24 Projection Distance per Screen Size
- 26 How to Install the Projector On a Tripod
- 27 Kensington Security System
- 28 REMOTE CONTROL
- 31 USING THE PROJECTOR
- 31 Connecting to an Antenna or Cable
- 32 Watching Projector
- 32 Turning on the Projector
- 34 Focus of the Screen Image
- 34 Watching Projector
- 35 To Set Channel
- 35 Memorizing the Available Channels
- 39 Additional Options
- 39 Adjusting Aspect Ratio
- 40 Using the Keystone Function
- 41 Changing Input Device
- 43 Blank Function
- 44 Using the Quick Menu
- 45 ENTERTAINMENT
- 45 Using SCREEN SHARE
- 46 Setting Up Bluetooth on the Projector
- 47 Searching for Bluetooth Devices and Connecting
- 49 Connecting, Disconnecting, or Deleting Bluetooth Devices in the List of registered devices
- 50 Adjusting AV Sync. Adjust
- 51 MY MEDIA
- 51 Before Using
- 51 Connecting a USB Device
- 51 Removing a USB Device
- 53 To Use My Media
- 57 Watching the Videos
- 63 Viewing the Photos
- 67 Listening to Music
- 71 Viewing Files
- 75 3D FUNCTION
- 75 While Watching 3D
- 79 Requirements for Watching 3D Images
- 80 Using the DLP-LINK (DLP-Ready) Type Glasses
- 80 To view 3D images
- 81 Supported 3D Mode
- 82 CUSTOMIZING SETTINGS
- 82 SETTINGS
- 83 PICTURE Settings
- 90 AUDIO Settings
- 92 CHANNEL Settings
- 93 TIME Settings
- 95 WIRELESS Settings
- 97 LOCK Settings
- 101 OPTION 1 Settings
- 104 OPTION 2 Settings
- 106 CONNECTING DEVICES
- 107 Connecting to HD Receiver, DVD, VCR Player, or External Devices
- 107 HDMI Connection
- 107 HDMI to DVI Connection
- 108 Composite (AV) Connection
- 108 Component Connection
- 109 Connecting a PC
- 109 HDMI Connection
- 109 HDMI to DVI Connection
- 110 RGB Connection
- 111 Connecting a Laptop
- 111 HDMI Connection
- 112 Connecting to Headphones
- 113 Using the Mirroring Function of a Mobile Phone
- 113 MHL/Slimport Connection
- 114 MAINTENANCE
- 114 Cleaning
- 114 Cleaning the Lens
- 114 Cleaning the Projector Case
- 115 SPECIFICATIONS
- 119 key CODES
- 121 EXTERNAL CONTROL DEVICE SETUP
- 122 Communication Parameters
- 122 Command reference list
- 123 Transmission / Receiving Protocol
