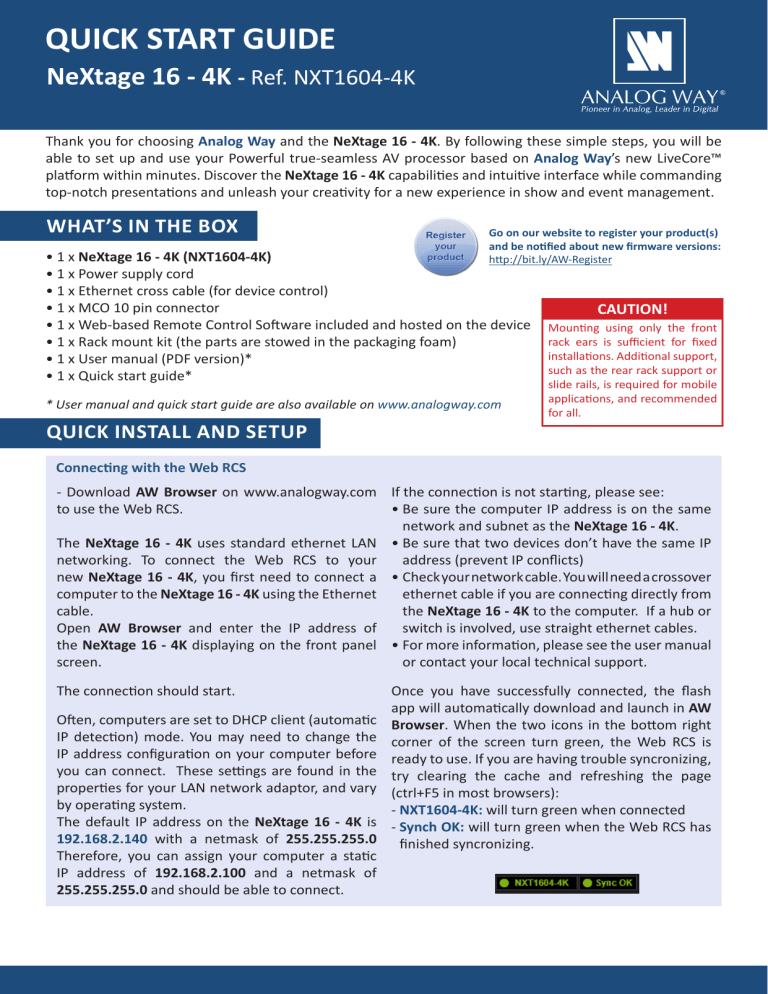

QUICK START GUIDE NeXtage 16 - 4K - Ref. NXT1604-4K Thank you for choosing Analog Way and the NeXtage 16 - 4K. By following these simple steps, you will be able to set up and use your Powerful true-seamless AV processor based on Analog Way’s new LiveCore™ platform within minutes. Discover the NeXtage 16 - 4K capabilities and intuitive interface while commanding top-notch presentations and unleash your creativity for a new experience in show and event management. WHAT’S IN THE BOX Go on our website to register your product(s) and be notified about new firmware versions: http://bit.ly/AW-Register • 1 x NeXtage 16 - 4K (NXT1604-4K) • 1 x Power supply cord • 1 x Ethernet cross cable (for device control) • 1 x MCO 10 pin connector • 1 x Web-based Remote Control Software included and hosted on the device • 1 x Rack mount kit (the parts are stowed in the packaging foam) • 1 x User manual (PDF version)* • 1 x Quick start guide* * User manual and quick start guide are also available on www.analogway.com QUICK INSTALL AND SETUP CAUTION! Mounting using only the front rack ears is sufficient for fixed installations. Additional support, such as the rear rack support or slide rails, is required for mobile applications, and recommended for all. Connecting with the Web RCS - Download AW Browser on www.analogway.com If the connection is not starting, please see: to use the Web RCS. • Be sure the computer IP address is on the same network and subnet as the NeXtage 16 - 4K. The NeXtage 16 - 4K uses standard ethernet LAN • Be sure that two devices don’t have the same IP networking. To connect the Web RCS to your address (prevent IP conflicts) new NeXtage 16 - 4K, you first need to connect a • Check your network cable. You will need a crossover computer to the NeXtage 16 - 4K using the Ethernet ethernet cable if you are connecting directly from cable. the NeXtage 16 - 4K to the computer. If a hub or Open AW Browser and enter the IP address of switch is involved, use straight ethernet cables. the NeXtage 16 - 4K displaying on the front panel • For more information, please see the user manual screen. or contact your local technical support. The connection should start. Often, computers are set to DHCP client (automatic IP detection) mode. You may need to change the IP address configuration on your computer before you can connect. These settings are found in the properties for your LAN network adaptor, and vary by operating system. The default IP address on the NeXtage 16 - 4K is 192.168.2.140 with a netmask of 255.255.255.0 Therefore, you can assign your computer a static IP address of 192.168.2.100 and a netmask of 255.255.255.0 and should be able to connect. Once you have successfully connected, the flash app will automatically download and launch in AW Browser. When the two icons in the bottom right corner of the screen turn green, the Web RCS is ready to use. If you are having trouble syncronizing, try clearing the cache and refreshing the page (ctrl+F5 in most browsers): - NXT1604-4K: will turn green when connected - Synch OK: will turn green when the Web RCS has finished syncronizing. Power supply: Swappable power unit; 100-240 VAC; 4,8A; 50/60Hz; 225W - 8 x 3G/HD/SD-SDI - 8 x Universal Analog (4 x HD15 & 4 x DVI-A) (Dual link/4K available on Inputs 4 and 8) - 2 x DisplayPort (Dual link available on Inputs 2 and 6) - 6 x DVI-I on Inputs #2 and #6) Inputs #1 to #8: - 4 x HDMI (including 2 x HDMI 4K available On/Off Stand-by: Push the button then use the contextual button to enter in stand-by mode 4.3’’ TFT color display Menu scroll knob See User’s Manual for details Devices sync.: Used for effect sync in multi-machine mode. Ethernet Plug Frame Lock: Analog Frame Lock plug and specific loop output Tally CAUTION: The user should avoid disconnecting the power source (AC input) until the unit is in stand-by mode. Failure to do this could result in hard drive data corruption. Monitoring Preview output: - 1 x Universal Analog (HD15 & DVI-A) - 1 x DVI-I - 2 x SD/HD/3G SDI - 1 x RGBs/RGsB/RGB/YPrBr/YC/comp Analog output Program output #1 - Preview output #2: - 2 x Universal Analog (HD15 & DVI-A) - 2 x DVI-I (DVI Dual-Link on output #1, DVI/HDMI 4K on output #2) - 2 x Video Optical SFP module cage - 3G/HD/SD-SDI Source control: Frame logo: press before selecting the Logo/Frame number Freeze: freeze the input linked to the current layer on the Program TAKE: Transition the preselected sources onto the Program output with the selected effects Step Back: Recall the last preset into your Preview monitor Screen: #1 to #2: select a screen Edit: Program: edit Program Preview: edit Preview Layer control: Clear: clear a layer Aspect Image Layer: adjust Layer properties Source selection: #1 to #8: access Frame #1 to #4 or Logo #5 to #8 Color: fill in a layer with a color Preset: Load: load a preset Save: save a preset Layer selection: Native Background: not scaled layer. A/B/C/D: scaled layers Control: Exit/Menu: Home menu or back one level Enter: validate the menu or command RS232 port: Used for Secure Power Unit (Ref. SPU001) status management only 4 x USB Plugs USB Plug Contextual buttons NEXTAGE 16 - 4K - REF. NXT1604-4K / FRONT & REAR PANELS DESCRIPTION Solid orange: TIP: Always try to use native resolution of your screens/ projectors to avoid additional scaling. Output settings: Under this menu you have access to the HDCP ON/OFF feature, Optical SFP restart and test pattern possibilities. Other settings are available for layers, please refer to the user manual. • Drag sources into layers to change the source • Load and place all your layer with your mouse and use the take button to send it to your program • Resize or reposition your layer by clicking and dragging the layer. Preconfig.: Setup assistant for adjusting all basic setups. Outputs: Manage your outputs and have access to every settings and parameters. Inputs: Configure your inputs connected to your NeXtage 16 - 4K. Logos: Configure Logos and Frames selections. Library: Load your Logos and Frames into the system. Presets: Configure your preset by loading layouts. Confidence: Configure the Confidence monitor. Monitoring: Configure the operator’s monitor including the resolution and choice of layout, to show input or output preview combinations. Blending: Configure the blending. Control: Access all control settings. Versions: Check the version number, board checksum... Maintenance: Access to all Analog Way maintenance services (update, ...). Contextual button Blinking green: Once your setup is complete, click on the EDIT tab to start building your presets. Layer/source selected or is not currently active on the Program output HOME MENU Layer/source selected or is currently active on the Program output Blinking red: Output format/rate: Under SETUP > OUTPUT, click on the selected output on the left to have access to the setup. Then choose the format and rate. (Rate choice is only available for Monitoring/Preview output, the main outputs will use the rate defined under SETUP > Preconfig > Internal rate, Framelock, etc.) Click on SETUP > INPUT > GENERAL to have an overview of your inputs. Operation mode: Choose your operation mode using the setup menu (SETUP > Preconfig > screens) to drag and drop your unused output to the selected mode. • To reset a preset, please click on the preset number holding SHIFT on your keyboard. Then into the windows below click on the reset button • You can load your preset at any time on Program or Preview by clicking on the preset number (with the Save mode button disabled), or simply drag and drop the preset into the Program or Preview windows. • Click on SAVE MODE then choose your preset number. Once you build a preset, you can save it as one of the 144 preset slots the NeXtage 16 - 4K offers. PRESET MANAGEMENT Click on your ACTIVE PLUG in order to choose the displayed input. Click on the SETUP PLUG to start settings a specific plug without choosing it as the active displayed plug. (Not necessarily displayed). As each input has multiple input plugs, you must choose one plug to display as this input. The remaining non-displayed plugs remain active and can still be configured. Individual input setting: Click on the left on the individual input setup in order to define your input Click on AUTOSET ALL to launch the automatic detection of all inputs. INPUT SETUP OUTPUT SETUP EDIT #1 = Source is on Preview #2 = Function available for modification #1 = Source is on the Program output #2 = Freeze enable #3 = Stand-by button #4 = Preset Selection Solid green: Solid red: BUTTON COLOR USAGE OPERATION OVERVIEW WEB RCS STRUCTURE SETUP Click on SETUP, then go to the preconfig button. The Setup assistant is here to help you to set up step by step your unit by following an interactive tutorial. EDIT The EDIT mode is the place where you will manage all your configurations. You will manage your inputs, your layers in terms of size position effect etc… your Frames and Logos. You can save all your screen configurations into presets LIVE The LIVE mode is the section where you will start operating your show. You can play preset one after the other on a real timeline adding some parameters like duration or wait for user interaction. WARRANTY AND SERVICE This Analog Way product has a 3 year warranty on parts and labor, back to factory. This warranty does not include faults resulting from user negligence, special modifications, electrical surges, abuse (drop/crush), and/or other unusual damage. In the unlikely event of a malfunction, please contact your local Analog Way office for service. GOING FURTHER WITH THE NEXTAGE 16 - 4K For complete details and operations procedures, please refer to the NeXtage 16 - 4K User’s Manual and our website for further information: www.analogway.com 15-SEP-2020 NXT1604-4K-QSG Code: 140175
