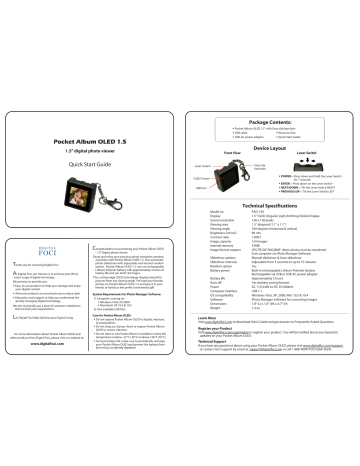

Pocket Album OLED 1.5
1.5” digital photo viewer
Quick Start Guide
D I G I
O
T A L
I
T hank you for choosing Digital Foci.
A t Digital Foci, our mission is to enhance your life by
smart usage of digital technology.
We promise to provide you:
Easy-to-use products to help you manage and enjoy
your digital content
Attractive products to accentuate your unique style
Education and support to help you understand the
quickly changing digital technology
We aim to provide you a level of customer satisfaction
that exceeds your expectations.
L et Digital Foci help Optimize your Digital Living.
For more information about Pocket Album OLED and other products from Digital Foci, please visit our website at: www.digitalfoci.com
C ongratulations on purchasing your Pocket Album OLED
- 1.5” digital photo viewer.
Share and relive your precious photo memories anytime, anywhere with Pocket Album OLED 1.5. Run automatic photo slideshow with adjustable interval and random option. Pocket Album OLED 1.5 runs on rechargeable
Lithium-Polymer battery with approximately 5 hours of battery life and can hold 124 mages.
The cutting edge OLED technology displays beautiful pictures from any viewing angle. Pre-load your favorite photos on Pocket Album OLED 1.5 and give it to your friends or family as the perfect sentimental gift.
System Requirements for Photo Manager Software:
1) Computer running on:
Windows Vista, XP, 2000
Macintosh OS 10.4 & 10.5
2) One available USB Port
Care for Pocket Album OLED:
Do not expose Pocket Album OLED to liquids, moisture, or precipitation.
Do not drop, jar, bump, shock or expose Pocket Album
OLED to severe vibration.
Do not store or use Pocket Album in conditions where the temperature is below -22 o F (-30 o C) or above 158 o F (70 o C).
For best battery life, make sure to periodically recharge your Pocket Album OLED and prevent the battery from becoming completely depleted.
Lever Switch
OLED Screen
USB Port
Package Contents:
Pocket Album OLED 1.5” with Easy-clip keychain
USB cable Resource Disc
USB-AC power adapter Quick Start Guide
Device Layout
Front View Lever Switch
Easy-clip keychain
POWER = Press down and hold the Lever Switch for 7 seconds
ENTER = Press down on the Lever Switch
NEXT/DOWN = Tilt the Lever Switch RIGHT
PREVIOUS/UP = Tilt the Lever Switch LEFT
Technical Specifications
Model no.
Display
Screen resolution
Viewing area
Viewing angle
Brightness (cd/m2)
Contrast ratio
Image capacity
Internal memory
Image format support
Slideshow options
Slideshow intervals
Random option
Battery power
Battery life
Auto off
Power
Computer interface
OS compatibility
Software
Dimensions
Weight
PAO-150
1.5” OLED (Organic Light-Emitting Diode) Display
128 x 128 pixels
1.5” diagonal (1.1” x 1.1”)
160 degrees horizontal & vertical
90 nits
1,000:1
124 images
32MB
JPG,TIF,GIF,PNG,BMP (Note: photos must be transferred from computer via Photo Manager Software)
Manual slideshow & Auto slideshow
Adjustable from 5 seconds to up to 15 minutes
Yes
Built-in rechargeable Lithium-Polymer battery
Rechargeable via USB or USB-AC power adapter
Approximately 5 hours
Yes (battery saving feature)
AC 110-240V to DC 5V/400mA
USB 1.1
Windows Vista, XP, 2000; Mac 10.5 & 10.4
Photo Manager Software for converting images
1.8" (L) x 1.8" (W) x 0.7" (H)
1.4 oz.
Learn More
Visit www.digitalfoci.com
to download User’s Guide and get answers to Frequently Asked Questions.
Register your Product
Visit www.digitalfoci.com/registration to register your product. You will be notified about any important updates on your Pocket Album OLED.
Technical Support
If you have any questions about using your Pocket Album OLED, please visit www.digitalfoci.com
/support or contact tech support by email at: [email protected]
or call 1-888-NOW-FOCI (669-3624).
Powering On/Off Pocket Album OLED
To turn on Pocket Album OLED, press down on the Lever
Switch and hold for 7 seconds until the screen turns on.
To turn off the device, press down on the Lever Switch to access the Menu screen. Tilt the Lever Switch to scroll down to OFF and select it by pressing down on the Lever Switch.
Charging Pocket Album OLED Battery
Pocket Album OLED has a battery life of about 5 hours on a full charge. You can charge the battery either by the included
USB-AC power adapter or by USB power from your computer.
It may take up to 5 hours to fully charge Pocket Album OLED when the battery is completely empty. Turn off the device to shorten the charging time. The battery will charge more quickly when the device is turned off .
Charging Pocket Album OLED by USB-AC Adapter
1. Plug the USB-AC power adapter into a wall outlet. The Red
LED will light up, indicating it is plugged in.
2. Connect Pocket Album OLED to the USB-AC adapter with the USB cable. The Green LED on the USB-AC adapter will light up, indicating Pocket Album OLED is charging.
3. Pocket Album OLED will automatically turn on. Turn Pocket
Album OLED off to make the battery charge faster.
Charging Pocket Album OLED by USB
To charge the Pocket Album OLED battery by USB power, connect the device to your computer with the USB cable.
Pocket Album OLED will automatically turn on and the battery icon will flash to indicate it is charging. Turn Pocket
Album OLED off to make the battery charge faster.
Viewing Photos on Pocket Album OLED
Operating Lever Switch
ENTER = Press down on the Lever Switch
DOWN/UP = Tilt the Lever Switch RIGHT/LEFT
Accessing Device Menu
Press ENTER to access the Main Menu. Next, press
RIGHT/LEFT to move the cursor down/up. Press
ENTER again to make your selection.
Select MENU to access MENU OPTIONS screen.
Select CXL to cancel and return to photo display.
Select OFF to turn off Pocket Album OLED.
The MENU OPTIONS screen is shown here on the right.
Press RIGHT/LEFT to move the cursor (in red text) down/up.
Press ENTER to select.
MENU OPTIONS
Slideshow
Random
Display
Timer Off
Delete
Exit
MENU OPTIONS - Slideshow
Select Slideshow to set the slideshow interval.
Automatic Slideshow:
You can adjust the time interval between each photo from 5 seconds to up to 15 minutes. Photos will advance automatically based on the time interval setting.
You can also change the slideshow interval on-the-fly during a slideshow. While the slideshow is playing, press RIGHT/LEFT to increase/decrease the interval.
Manual Slideshow:
Select Off under Slideshow to turn auto slideshow off.
As the photo is displayed on the screen, press RIGHT/
LEFT to manually scroll to the next/previous photo.
MENU OPTIONS - Random
Select Random to turn Random On or Off.
Random On: Select to play photos in random order.
Random Off: Select to play photos in sequential order as organized on Photo Manager Software .
MENU OPTIONS - Display
Select Display to show or hide File Counter (# of photos on display / total # of photos).
MENU OPTIONS - Timer Off
Select Timer Off to set the auto off timer. This is a battery saving feature. If no button has been pressed for 5 minutes
(default setting), Pocket Album OLED will automatically turn off. You can adjust the auto off timer to up to 30 minutes.
This feature will be temporarily disabled when you are transferring files between your computer and the device.
Select Disabled under Timer Off to disable this feature.
MENU OPTIONS - Delete
To delete a specific photo, access MENU OPTIONS and select Delete while viewing the photo to be deleted.
The photo to be deleted will be displayed for confirmation.
Select No to cancel the deletion and select Yes to confirm the deletion.
Resetting Pocket Album OLED
In the case that Pocket Album OLED encounters an error and freezes, you can reset it by connecting it to the computer or USB-AC adapter via USB. You will not lose any photos saved on Pocket Album OLED.
Adding Photos to your Pocket Album OLED
Photo Manager Software is the image conversion tool required for transferring photos from the computer to your Pocket Album OLED. The software lets you crop and edit the images before automatically resizing them for optimal storage and display on Pocket Album OLED.
NOTE: Pocket Album OLED cannot be accessed on the computer directly as a removable drive.
Installing Photo Manager Software
Insert and run the Resource Disc on your computer CD-ROM.
For Windows : Locate and run “ PhotoManager.exe
” inside the “Windows” folder. Follow the on-screen instructions to complete the installation.
For Mac : Locate and run “ PhotoManager.dmg” inside the
“Mac” folder. Next, double-click the " PhotoViewer 4.7.3
MAC OS " icon on the desktop and select Install . Follow the on-screen instructions to complete the installation.
Running Photo Manager Software
IMPORTANT: Before starting Photo Manager Software, you must first connect Pocket Album OLED to your computer with the USB cable. Pocket Album OLED will turn on automatically.
1. Running the Photo Manager Software: a) For Windows: Double-click the “ PAO-150 Photo
Manager ” icon on the desktop or browse Programs from the Start Menu. b) For Mac: Double-click the “ PhotoViewer ” icon on the desktop or browse Applications from Finder .
2. The Photo Manager Software screen will open up as shown on the right. There are 2 main sections: a) One section is the Browser Window , where you can browse through the photos on your computer, and select and edit the photos to be added to your device.
b) The section to the right is the Staging Area (or named
Collection Panel in Mac), where you can organize the photos be transferred to your Pocket Album OLED.
3. Loading photos from Pocket Album OLED: a) For Windows: The photos that are currently on your
Pocket Album OLED will automatically load and be displayed in the Staging Area ( ).
b) For Mac: Click on View Photo ( ) to load the photos.
Selecting Images to Convert/Transfer
1. Under Browse for Images ( ) , browse through your computer to select the images you want to transfer.
Mac users: Navigate to iPhoto folder to select your photos.
2. As you select different folders, thumbnails of photos in
( ) to display either the Whole Image (in letter box if it is not a square) or select Fit for Display (which will crop a square section out of the middle of your photo).
3. Click on the thumbnail of the image you want to transfer, and a preview of the selected photo will be displayed in the Preview Window ( ).
4. If you would like to add the photo as it is shown in the
Preview Window , click Add to Staging Area / Collection
Panel ( ) to add it to the Staging Area for transfer.
2
3
4
5
6
1
4
5
2
3
Photo Manager Software Screen Overview
Screen Shot - Windows Screen Shot - Mac
2
8
7
11
12
13
(Mac) Select to load photos
from Pocket Album OLED
Current directory path
Folder directory on computer
Select default thumbnail display
Thumbnails of images in selected folder
16
14
15
Editing/Cropping Images before Converting
To edit an image, first select it so that it is displayed in the Preview
Window . Next, click Edit Photo (Windows) or Crop Photo (Mac)
( ) to open up the Crop Photo Window as shown on the right.
Click and drag one of the corners of the crop box ( ) to adjusts the size of the crop box.
Click and drag the box to move the positioning of the box.
Click the rotate buttons ( ) to rotate the image.
Adjust the brightness and contrast of the image by moving
Click Done ( ) to add the edited image to the Staging Area .
Editing Images in the Staging Area
You can remove selected images in the Staging Area before transferring them to your Pocket Album OLED.
Click Remove selected photo (Windows) or Remove From
Collection (Mac) ( )to remove the highlighted photo(s).
Click Remove all photos (Windows) or Remove All From Collection
(Mac) ( ) to remove all photos from the Staging Area .
(Windows Only): To arrange the order of the images, highlight an image, and click << / >> under Arrange
Sequence ( ) to move that image up / down 1 position.
Saving & Loading Images in the Staging Area
You can also save or load the images as a collection.
Click Save Collection ( ) to save the converted photos as a collection to your computer. This saves all the photos in the Staging Area as a single file that you can store for reloading later or loading on another Pocket Album OLED.
Click Load Collection ( ) to load a previously saved collection.
You can load more than one collection into the Staging Area for transferring to your Pocket Album OLED.
9
10
4
3
5
1
6
6
7
8
9
10
Preview of selected image
Click to add image to Staging Area
as shown in Preview Window
Click to crop and edit image
(Opens Crop Photo Window )
Staging Area / Collection Panel:
images to be transferred
Remaining memory space available
17
14
15
11 (Windows) Arrange photo sequence
12 13 Remove selected/all images
14 15 Save/load a collection
16
Transfer files from
Staging Area to Pocket Album OLED
17
18
Crop Box
Rotate image 90 o
18
8
19
7
12
13
16
Crop Photo Window
20
9
10
19
20
Adjust brightness & contrast
Add edited image to Staging Area
Updating Images on Pocket Album OLED:
When you are ready to transfer the images shown in the Staging Area to your Pocket Album OLED, click
Transfer Photos In Staging Area to Device (Windows) or Transfer Collection to Device (Mac) ( ).
Do not disconnected Pocket Album OLED from your computer during the transfer. Please be patient while the images are transferring as it might take several minutes.
Once the transfer is complete, you will see a confirmation message, “ Download complete. Unplug USB .” on the
Pocket Album OLED screen. To safely disconnect Pocket
Album OLED from your computer:
1. Close Photo Manager Software.
2. Turn off Pocket Album OLED by pressing MENU and selecting OFF.
3. Disconnect the USB cable.
The new images have been transferred to your Pocket
Album OLED.
Version 1.1
advertisement
Related manuals
advertisement
