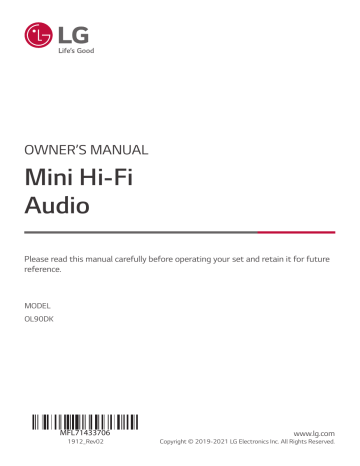

OWNER’S MANUAL
Mini Hi-Fi
Audio
Please read this manual carefully before operating your set and retain it for future reference.
MODEL
OL90DK
MFL71433706
1912_Rev02
www.lg.com
Copyright © 2019-2021 LG Electronics Inc. All Rights Reserved.
1 Getting Started
1
2 Getting Started
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
WARNING: Do not install this equipment in a confined space such as a book case or similar unit.
CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock.
CAUTION: No naked flame sources, such as lighted candles, should be placed on the apparatus.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.
The openings shall never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.
NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product.
Getting Started 3
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible.
Check the specification page of this owner’s manual to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your device, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.
CAUTION: Be careful to make sure children do not put their hands or any objects into the *speaker duct
* speaker duct: A hole for plentiful bass sound on speaker cabinet. (enclosure)
Symbols
~
Refers to alternating current (AC).
0 Refers to direct current (DC).
Refers to class II equipment.
1 Refers to stand-by.
!
Refers to “ON” (power).
Refers to dangerous voltage.
1
4 Table of Contents
Table of Contents
1 Getting Started
7 – About the “ 7 ” Symbol Display
7 – Symbols Used in this Manual
2 Connecting
18 Optional Equipment Connection
3 System Setting
23 – OSD Initial language settings - Optional
23 – To display and exit the Setup menu
4 Operating
29 Advanced Operations on Disc
29 – Displaying Disc Information on-screen
30 – Starting play from selected time
30 – Changing subtitle code page
34 – Selecting a folder and an MP3/WMA file
35 – Deleting a file/folder or format
40 Using BLUETOOTH® wireless technology
40 – Listening to music stored on the Bluetooth devices
Table of Contents 5
43 – Install “LG XBOOM” App onto Your
44 – Activate Bluetooth with “LG XBOOM” App
45 – Improving poor FM reception
45 – Presetting the Radio Stations
45 – Deleting all the saved stations
47 – Turn off the sound temporarily
47 – Using your TV remote control
53 – Setting the Clock through “LG XBOOM” App
54 – Using your player as an alarm clock
55 WIRELESS PARTY LINK Connection
5 Troubleshooting
58 – NOTES to release Demo mode
6 Appendix
59 Controlling a TV with the Supplied Remote
59 – Setting up the remote to control your TV
1
2
3
4
5
6
1
6 Getting Started
Unique Features
BLUETOOTH®
Listens to music stored on your Bluetooth device.
Playback effects
Listens to music with various sound and playback effects.
LG XBOOM
LG XBOOM is an app designed to let you take control of some of LG’s latest audio devices. (Page 43
LG Sound Sync
Controls volume level of this unit by the remote control of your LG TV that is compatible with LG
Sound Sync.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Getting Started 7
Introduction
Playable Discs
This unit plays DVD ± R/RW and CD-R/RW that contains audio titles, MP3, WMA and/or JPEG files.
Some DVD ± RW/DVD ± R or CD-RW/CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software.
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be purchased or rented.
DVD ± R (8 cm/12 cm disc)
Video mode and finalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and finalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm/12 cm disc)
Video mode and finalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be purchased.
About the “
7
” Symbol Display
“ 7 ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific media.
Symbols Used in this Manual
r DVD-Video, DVD ± R/RW in Video mode or VR mode and finalized t Audio CDs y Video files contained in the Disc u Audio files contained in the Disc i Photo files contained in the Disc
,
Note
Indicates special notes and operating features.
>
Caution
Indicates cautions for preventing possible damages from abuse.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or “ALL”.
y Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play. y If you try to play a DVD with a different regional code from your unit, the message “Check Regional
Code” appears on the TV screen.
1
1
8 Getting Started
Playable file
Requirement
Music file requirement
MP3/WMA file compatibility with this unit is limited as follows.
y Sampling frequency: within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) y Bit rate: within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA) y Support Version: v2, v7, v8, v9 y Maximum files: Disc: 999 / USB: 2,000 y Maximum folders: Disc: 99 / USB: 200 y File extensions: “.mp3”/ “.wma” y Certain MP3/WMA files may not be played depending on the type or format of the file.
y CD-ROM file format: ISO 9660/ JOLIET y We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
y The DTS disc is not supported.
You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.
(Mastered/Live File System: Disc format system for
Windows Vista)
Photo file requirement
Photo file compatibility with this unit is limited as follows: y Max pixel in width: 2760 x 2048 pixel y Maximum files: Under 999 y Some discs may not operate due to a different recording format or the condition of disc.
y File extensions: “.jpg” y CD-ROM file format: ISO9660/ JOLIET
Getting Started 9
Video file requirement
Video file compatibility with this unit is limited as follows: y Available resolution: within 720 x 576 (W x H) pixels.
y The file name of the Video subtitle should be entered within 45 characters. y If there is impossible code to express in the Video file, it may be displayed as “ _ “ mark on the display. y Frame rate: less than 30 fps. y If the video and audio structure of recorded files is not interleaved, either video or audio is outputted. y Playable Video file: “.avi”, “.mpg”, “.mpeg” y Playable Subtitle format: SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub) y Playable Codec format:
“Xvid”, “MPEG-1”, “MPEG-2” y Playable Audio format: “AC3”, “PCM”, “MP3”,
“WMA”, y Sampling frequency: within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) y Bit rate: within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA) y For Discs formatted in Live file system, you can not it on this unit.
y If the name of movie file is different from that of the subtitle file, during playback of a Video file, subtitle may not be display.
y If you play a Xvid file differ from Xvid spec, it may not operate normally.
If you play GMC video file which is more than 1-warp point, video playback screen will not smooth
Compatible USB Devices
y MP3 Player: Flash type MP3 player.
y USB Flash Drive:
Devices that support USB2.0 or USB1.1. y The USB function of this unit does not support all
USB devices.
USB device requirement
y Devices which require additional program installation when you have connected it to a computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take longer than a few minute to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS file system is not supported. (Only
FAT(16/ 32) file system is supported.) y This unit recognizes up to 2,000 files.
y External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
y USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y Some USB may not work with this unit.
1
1
10 Getting Started
Remote control
Replacement of battery
(R03
(R03)
Remove the battery cover on the rear of the remote control, and insert the battery with 4 and 5 matched correctly.
• • • • • • • • • • • • • • a • • • • • • • • • • • • •
1 (Standby) : Turns the power on or off.
F (Function) : Selects the function and input source.
Input source / Function Display
Disc DVD/CD
USB
Optical
USB 1/ 2
OPTICAL
LG Sound Sync (Optical) LG OPT
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BT
LG Sound Sync (Wireless) LG TV
Radio FM
B (Open/Close) : Opens and closes the disc tray.
0-9 numerical buttons : Selects numbered options in a menu.
AUTO DJ: Selects the AUTO DJ mode. (
h REPEAT: Listens to your files/tracks/chapters repeatedly or randomly.
• • • • • • • • • • • • • • b • • • • • • • • • • • • •
C / V (Skip) : Skips backward or forward . c / v (Scan) : Scans for a section within a track/ file/chapter.
Z (Stop) :
Stops playback.
Cancels DELETE function.
X (Play) :
Starts playback.
Selects stereo/mono.
M (Pause) : Pauses playback.
SPECIAL EQ: Chooses special equalizer.
VOL (Volume) +/-: Adjusts speaker volume.
MARKER/JUKEBOX:
Marks play list. (P
Selects JUKE BOX mode. (P
- Makes JUKE BOX list.
EQUALIZER: Chooses sound impressions.
[ (Mute) : Mutes the sound.
Getting Started 11
• • • • • • • • • • • • • • c • • • • • • • • • • • • •
!
(Home) : Displays the [Home Menu] on a DVD/
CD function.
DISC MENU: Accesses the menu on a DVD disc.
TITLE: If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may not appear.
W/S/A/D (up/ down/ left/ right) : Used to navigate on-screen displays.
PRESET/FOLDER +/-:
Chooses a preset number for a radio station.
Searches for a folder of MP3/WMA files. When a
USB containing MP3/WMA files in several folders is being played, press PRESET/FOLDER +/ to select the folder you want to play.
TUNING +/-: Tunes in the desired radio station.
m (Select) :
-
Acknowledges menu selection.
Presetting the radio stations.
] (Close) : Moves backwards in the menu or exits the setup menu.
m INFO/DISPLAY
Accesses On-Screen Display.
Sees information about your music (USB). An
MP3 file often come with ID3 tag. The tag gives the Title, Artist, Album or Time information.
Sees optical source information in OPTICAL mode.
- Sees Bluetooth device name of the unit in
BT READY.
Sees the name of connected all Bluetooth device in Bluetooth mode.
When these units are successfully connected each other in WIRELESS PARTY LINK mode, each of connected device names appears in the each unit.
CLEAR/DELETE:
Removes a number when setting the password.
Deletes MP3/WMA files. (USB only).
Deletes a song on the JUKE BOX list.
Deletes all the saved stations.
.
• • • • • • • • • • • • • • d • • • • • • • • • • • • •
CLOCK: Sets a clock and checks a time.
ALARM: With the ALARM function you can turn on
Discs, USB play and tuner reception at a desired time.
SET: Confirms the setting.
?
: This button is not available.
VOCAL EFFECTS: Selects various vocal effects mode.
SLEEP: Sets the system to turn off automatically at a specified time.
(Dimmer: The display window will be darkened by half.)
?
: This button is not available.
MIC ECHO: Selects ECHO mode.
VOICE CANCELLER: You can reduce the vocal tones during music playback from various input sources.
?
: This button is not available.
MIC VOL -/+ (Microphone Volume) : Adjusts microphone volume.
KEY CHANGER ( L / l ): Changes the key to suit your vocal range.
TV Control buttons:
You can control the TV on or off and input source.
1
1
12 Getting Started
Top panel
a b c d e f g h r q p o i j k n m l a 1 (Standby)
Turns the power on or off.
b DEMO
In power off status, if you press DEMO , show demo mode.
c USB Port
You can play sound files by connecting the USB device.
d Display window e PARTY ACCELERATOR lever
Slide the lever to create a party atmosphere. f USB 2 Port
You can play sound files by connecting the USB device.
g F (Function)
Selects the function and input source.
Input source / Function Display
Disc DVD/CD
USB
Optical
USB 1 / 2
OPTICAL
LG Sound Sync (Optical) LG OPT
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BT
LG Sound Sync (Wireless) LG TV
Radio FM
Getting Started 13 h 3 TWIN
Connects two speakers for TWIN mode in
WIRELESS PARTY LINK.
i MASTER VOL. (Volume) -/+
Adjusts speaker volume.
j C / V (Skip/Scan)
- Skips backward or forward .
- Scans for a section within a track/file/chapter.
- Selects the radio stations.
N (Play/Pause)
- Starts or pauses playback.
- Selects stereo/mono.
Z (Stop)
Stops playback or cancels DELETE function.
B (Open/Close)
Opens and closes the disc tray.
k DJ SCRATCHER / SEARCH & MULTI
- Turns clockwise or counterclockwise to make scratch sound.
- Searches a folder or a file (USB only).
l SPECIAL EQ / BASS BLAST (or BASS BLAST+ )
- Chooses special equalizer.
- Press and hold to select BASS (or BASS+) effect directly.
SEARCH
Moves to folder or file in selection mode
(USB only).
OK
Selects a folder when searching a file.
m PARTY STARTER
In power off state, this function turns on the unit with Party Kick Starter sound.
In power on state, this function mixes the music with Party Kick Starter sound.
CLUB, DRUM, USER (DJ PAD)
Selects CLUB, DRUM or USER sound effect to mix.
(If you want to use USER, you have to register a source with “LG XBOOM” app.)
1, 2, 3 (DJ PAD)
Press a desired sound pad.
n DJ EFFECT
Selects a desired DJ effect.
USER EQ
Selects the equalizer created by your own.
LIGHTING
Selects the lighting mode.
o DJ SCRATCHER / LEVEL CONTROL
- Turns clockwise or counterclockwise to make scratch sound.
- Turns clockwise or counterclockwise to control the USER EQ level.
- Adjust DJ EFFECT level.
- Selects the vocal effects.
- Selects the lighting effects.
p PARTY ACCELERATOR MODE
Selects PARTY ACCELERATOR MODE.
DJ LOOP
Selects DJ LOOP mode.
(DJ LOOP mode can use during USB playback.) q KEY CHANGER ( l / L )
Changes the key to suit your vocal range.
VOICE CANCELLER
You can reduce the vocal tones during music playback from various input sources.
VOCAL EFFECTS
Selects various vocal effects mode.
MIC ECHO
Selects ECHO mode.
r MIC VOL. (Microphone Volume) -/+
Adjust microphone volume.
1
1
14 Getting Started
Front panel / Rear panel
d a b c e f g h i j d k d a (Remote sensor) b MIC (Microphone) 1/2 jack c Disc tray d Lighting
>
Caution
Place the speaker at a safe distance from the child’s reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.
e AUX IN 2 (L/R) : Connect an auxiliary device.
f AUX IN 1: Connect a portable device.
g ANTENNA FM h SERVICE ONLY: S/W download connector i HDMI OUT TO TV: Connect to TV j OPTICAL IN: Connect an optical device.
k AC IN socket
>
Caution
y Connect the power cord to wall outlet directly if possible. Or when you use an extension cable, it is highly recommended to use an extension cable of 110 V / 15 A or 230 V / 15 A, otherwise the unit may not operate properly because of the lack of power supply.
y Do not overload the extension cord with excessive electrical load.
Carrying the unit
The unit has wheels and handles so you can easily move the unit.
Getting Started 15
>
Caution
y Do not roll the unit on an unpaved road or the stairs.
y When carrying the unit, be careful not to drop it.
y Disconnect all connected cables before carrying the unit.
y Do not place the unit on anything unstable.
Place the unit at a safe distance from a child’s reach.
y Be careful so that the unit does not fall down. Otherwise it may result in malfunction or cause personal injury and/or property damage.
1
Handles
Useful functions for using the unit
Function
TV Remote On/
Off
Description
It allows you to control the volume of this unit by your TV remote control even by other company’s product.
Initial setting of this function was set to on.
BT Lock On/Off
It allows you to connect a
Bluetooth device only on
BT ( Bluetooth ) and LG TV functions.
Initial setting of this function was set to off.
ON
OFF
ON
OFF
To do
Auto Power On
It allows the unit to turn on automatically by input signals :
Optical, LG TV or BT ( Bluetooth )
ON
OFF
Do this
Press and hold [ on the remote control for
3 seconds in Optical function.
Press and hold [ on the remote control for
3 seconds in Optical function.
Press and hold X on the remote control or N on the unit for 5 seconds in BT
( Bluetooth ) function.
Press and hold X on the remote control or N on the unit for 5 seconds in BT
( Bluetooth ) function.
Turn off the unit by pressing 1 on the unit for 5 seconds.
Turn off the unit by pressing 1 on the unit for 5 seconds.
2 Connecting
2
16 Connecting
Connections to Your TV
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect it to this unit using a HDMI cable (Type A, High Speed
HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the HDMI
IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s manual).
>
Caution
y Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the unit and then turn it on again.
y When the HDMI connection with HDCP is not verified, TV screen is changed to black or green screen or the snow noise may occur on the screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
y Make sure the unit is connected directly to the TV. Tune the TV to the correct video input channel.
Unit
TV
,
Note
y You can fully enjoy digital audio and video signals together with this HDMI connection.
y When you use HDMI connection, you can change the resolution for the HDMI output.
,
Note
y If a connected HDMI device does not accept the audio output of the unit, the HDMI device’s audio sound may be distorted or may not output.
y When you connect a HDMI or DVI compatible device make sure of the following:
- Try switching off the HDMI/DVI device and this unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit.
- The connected device’s video input is set correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or
576p), 1280 x 720p, 1920 x 1080i or
1920 x 1080p video input.
y Not all HDCP-compatible HDMI or DVI devices will work with this unit.
- The picture will not be displayed properly with non-HDCP device.
- This unit does not playback and TV screen is changed to black or green screen or the snow noise may occur on the screen.
y If there is noise or lines on the screen, please check the HDMI cable and use a higher version cable than High Speed HDMI™ Cable. y The HDMI sounds output only DVD/CD function (Except playback effect).
Connecting 17
Resolution Setting
The unit provides several output resolutions for
HDMI.
You can change the resolution using [Setup] menu.
1. Press on the remote control.
2. Use on the remote control to select the [Setup] and press m on the remote control.
The [Setup] menu appears.
2
3. Use on the remote control to select
[Display] option then press D on the remote control to move to the second level.
4. Use on the remote control to select the
[Resolution] option then press D on the remote control to move to the third level.
5. Use on the remote control to select the desired resolution then press m on the remote control to confirm your selection.
,
Note
y If your TV does not accept the resolution you have set on the player, you can set resolution to 480p (or 576p) as follows: Press Z for more than 5 seconds.
y [Home Menu] appears only on DVD/CD function.
2
18 Connecting
AC Power Cord
Connection
1. Connect one end of the AC power cord (included) to the AC IN socket.
Optional Equipment
Connection
AUX IN 1 Connection
Connect an output (earphone or line out) of portable device (MP3 or PMP etc) to the AUX IN 1 (3.5 mm) connector.
3.5 mm stereo cable
2. Plug the other end into the wall outlet.
,
Note
Unplug the AC power cord from the wall outlet if you do not to use for an extended period of time.
MP3 player etc.
Connecting 19
AUX IN 2 Connection
Connect an output of auxiliary device (Camcorder, TV,
Player, etc) to the AUX IN 2 (L/R) connector.
If your device has only one output for audio (mono), connect it to the left(white) audio jack on the unit.
White
Red
Audio cable
Listening to music from your portable player or external device
The unit can be used to play the music from many types of portable player or external device.
1. Connect the portable player to the AUX IN 1 connector of the unit.
Or
Connect the external device to the AUX IN 2 connector of the unit.
2. Turn the power on by pressing 1 .
3. Press to select AUX 1 or AUX 2 function .
4. Turn on the portable player or external device and start it playing.
,
Note
Automatically switches to the AUX 1 function when you connect the portable device to the
AUX IN 1 connector.
2
DVD, Blu-ray player etc.
20 Connecting
OPTICAL IN Connection
1. Connect an optical output jack of external devices to the OPTICAL IN jack.
LG Sound Sync
2
Optical cable
TV or digital device etc.
2. Press F until OPTICAL function is selected.
,
Note
y Before connecting the optical cable, be sure to remove the protection plug cover if your cable has the cover.
y You can enjoy the TV audio through the speakers of this unit. In the case of some TV models, you must select the external speaker option from the TV menu. (For details, reference your TV user manual.) y Set up the sound output of TV to listen to the sound through this unit : TV setting menu [
[Sound] [ [TV Sound output] [ [External speaker (Optical)] y Details of TV setting menu vary depending on models of your TV.
y Playback effects and MIC function do not operate on OPTICAL or LG OPT function.
You can control some functions of this unit by your TV’s remote control with LG Sound Sync. It is compatible with LG TV that supports LG Sound Sync.
Make sure your TV has the LG Sound Sync logo.
Controllable function by LG TV’s remote control :
Volume up/down, mute
Refer to the TV’s instruction manual for the details of
LG Sound Sync.
LG Sound Sync with wired connection
1. Connect your LG TV to the unit by using an optical cable.
2. Set up the sound output of TV to listen to the sound through this unit :
TV setting menu [ [Sound] [ [TV Sound output] [ [LG Sound Sync (Optical)]
3. Turn on the unit by pressing 1
4. Press until OPTICAL function is selected.
You can see “LG OPT” on the display window if connecting normally between this unit and your
TV.
LG Sound Sync with wireless connection
1. Turn on the unit by pressing 1 .
2. Press until LG TV function is selected.
3. Set up the sound output of TV to listen to the sound through this unit :
TV setting menu [Sound] [TV Sound output]
[LG Sound Sync (Wireless)]
“PAIRED” appears on the display window for about 3 seconds and then you can see “LG TV” on the display window if the TV and this unit are connected normally.
System Setting 21
,
Note
y You can also use the remote control of this unit while using LG Sound Sync. If you use TV’s remote control again, the unit synchronizes with the TV. (According to TV
Specifications, the volume and mute of this unit synchronize with TV.) y If the connection fails, check the conditions of this unit and your TV : power, function.
y Make sure of the condition of this unit and the connection in the cases below when using LG Sound Sync.
The unit is turned off.
Changing to a different function.
Disconnecting the wireless connection caused by interference or a distance.
Disconnecting the optical cable.
y The amount of time to turn off this unit is different depending on your TV.
y If you try to change the function on using the LG TV function, volume will be change according to the LG TV volume level.
y Details of TV setting menu vary depending on models of your TV.
y If you turned off the unit directly by pressing
1 , LG Sound Sync will be disconnected.
To use this function again, you should reconnect the TV and the unit.
y The volume may be increased when the TV and this unit is connected by LG Sound Sync.
Decrease the TV volume and then connect with this unit.
y When you turn on your LG TV connected by LG Sound Sync or enter LG TV function, this unit changes the function to LG TV automatically.
y You should set the TV Sound output manually depending on the TV version.
y If you control TV volume when this unit and
TV are connected by LG Sound Sync, this unit may louder the volume due to synchronizing volume with TV’s.
3
2
22 Connecting
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
USB device
Antenna Connection
Connect the supplied FM antenna for listening to the radio.
FM antenna
,
Note
Removing the USB device from the unit:
1. Choose a different function/mode or press Z twice in a row.
2. Remove the USB device from the unit.
,
Note
Be sure to fully extend the FM wire antenna.
3 System Setting
System Setting 23
Adjust the setup settings
By using the Setup menu, you can make various adjustments to items such as picture and sound.
You can also set a language for the subtitles and the
Setup menu, among other things. For details on each
Setup menu item, see pages 23 to 26.
OSD Initial language settings -
Optional
During the first use of this unit, the initial language setup menu appears on your TV screen. You must complete initial language selection before using the unit. English will be selected as the initial language.
1. Press to turn the unit on. The language setup menu will appear on the screen.
2. Use on the remote control to select a language then press m on the remote control .
The confirm menu will appear.
3. Use on the remote control to select the
[Enter] then m on the remote control to finish the language setup.
To display and exit the Setup menu
1. Press on the remote control.
Displays the [Home Menu].
2. Select an [Setup] by using A/D on the remote control.
3. Press on the remote control.
Displays the [Setup].
4. Press on the remote control or ] on the remote control to exit in the [Setup] Menu.
About help menu for Setup
Buttons Menu
W/S
Move
W/S
Operation
Moving to another menu.
A
Move
D
Move
]
Close m
Select
A
D
] m
Moving to previous level.
Moving to next level or selecting menu.
To exit the [Setup] menu.
To confirm menu.
,
Note
[Home Menu] appears only on DVD/CD function.
3
3
24 System Setting
Language
Menu Language
Select a language for the Setup menu and on screen display.
Disc Audio / Disc Subtitle / Disc Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the disc was recorded.
[Other]
To select another language, press numeric buttons and then m on the remote control to enter the corresponding 4-digit number according to the language code list on the page
If you enter the wrong language code, press
CLEAR/DELETE on the remote control.
[Off (for Disc Subtitle)]
Turns off Subtitle.
Display
TV Aspect
Select the screen aspect to use based on the shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. (If the disc/file is not compatible with Pan
Scan, the picture is displayed at Letterbox ratio.)
Resolution
Sets the output resolution of HDMI video signal.
Refer to “Resolution Setting” for details about the
[Auto]
If the HDMI jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or 576) lines of interlaced video.
Audio
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned down and prevent a sudden sound increase (Dolby
Digital only). Set to [On] for this effect.
HD AV Sync
Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use W/S on the remote control to scroll up and down through the delay amount, which you can set at anything between 0 and 300ms.
System Setting 25
Semi Karaoke
When a chapter/ title/ track is fully finished, this function shows the score in the screen with a fanfare sound.
[On]
When you finished singing a score will appear on the screen.
[Off]
Fanfare and score do not appear on the screen.
,
Note
y DVD, DVD Karaoke discs with more than 2 tracks are available discs for the this function.
y When you watch movies, “off ” the Semi
Karaoke at the SETUP menu or enjoy it without connecting the MIC if the fanfare or score appears during changing a chapter.
y This function operate on the DVD/CD mode.
y The Semi Karaoke function is available only when a microphone is connected. y If you do not use the microphone, turn down the volume and disconnect the microphone.
3
3
26 System Setting
Lock (Parental Control)
Initial Setting the Area Code
When you use this unit for the first time, you have to set the Area Code.
1. Select the [Lock] menu and then press D on the remote control .
2. Press on the remote control .
To access the [Lock] options, you must input the password you have created.
Input a password and press m on the remote control. Enter it again and press m on the remote control to verify.
If you make a mistake before pressing m on the remote control, press CLEAR/DELETE on the remote control .
3. Select the first character using W/S on the remote control .
4. Press on the remote control and select the second character using W/S on the remote control .
5. Press on the remote control to confirm your
Area code selection.
Rating
Blocks playback of rated DVDs based on their contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press D on the remote control .
2. Input a password and press m on the remote control .
3. Select a rating from 1 to 8 using the W/S on the remote control .
[Rating 1-8]
Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not active and the disc plays in full.
4. Press on the remote control to confirm your rating selection.
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then press D on the remote control .
2. Press on the remote control .
3. Input a password and press m on the remote control .
To change the password, press m on the remote control when the [Change] option is highlighted.
Input a password and press m on the remote control .
Enter it again and press m on the remote control to verify.
4. Press on the remote control to exit the menu.
,
Note
If you forget your password, you can clear it using the following steps:
1. Select the [Setup] menu on the
[Home Menu].
2. Input the 6-digit number “210499” and press m on the remote control .
The password is cleared.
Area Code
Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on
1. Select [Area Code] on the [Lock] menu then press D on the remote control .
2. Input a password and press m on the remote control .
3. Select the first character using W/S on the remote control .
4. Press on the remote control and select the second character using W/S on the remote control .
5. Press on the remote control to confirm your
Area code selection.
4 Operating
Using the Home Menu
1. Press on the remote control .
Displays the [Home Menu].
2. Select an option by using A/D on the remote control .
3. Press on the remote control then selected option menu.
[Music] – Displays [MUSIC] menu.
[Movie] – Start video media’s playback or displays the
[MOVIE] menu.
[Photo] – Displays [PHOTO] menu.
[Setup] – Displays the [SETUP] menu.
,
Note
y [Home Menu] appears only on DVD/CD function.
y USB function is only avaliable on music playback.
Operating 27
4
4
28 Operating
Basic Operations on
Disc
1. Insert the disc by using the B .
2. Press on the remote control.
Displays the [Home Menu].
3. Select an option by using A/D on the remote control.
4. Press on the remote control then selected option menu.
To
Stop
Playback
Pause
Frame-by-
Frame playback
Skipping to the next/ previous chapter/ track/ file
Press Z .
Do this
Press X on the remote control or N on the unit.
Press M on the remote control or N on the unit.
Press M on the remote control repeatedly to play title Frameby-Frame. (DVD Movie title,
Movie file only)
During playback, press C / V to go to the next chapter/ track/ file or to return to the beginning of the current chapter/ track/ file.
Press C twice briefly to step back to the previous chapter/ track/ file.
Locating a point quickly by playing a file in fast forward or fast reverse
During playback, press c / v on the remote control or press and hold C / V on the unit repeatedly to select the required scan speed.
To return to normal speed, press X on the remote control or N on the unit.
To
Playing repeatedly or randomly
Do this
Press h REPEAT on the remote control repeatedly, and the current title, chapter or track will be played back repeatedly or randomly.
- DVD: Chapter/ Title/ Off
- Video(MOVIE): Title/ All/ Off
- Audio CD/ MP3/ WMA: Track/
All/ Random/ Off
In the pause mode , Press c / v on the remote control or press and hold C / V on the unit repeatedly to select the required speed. (DVD Movie title only)
Slowing down the playing speed
In the pause mode, press v on the remote control or press and hold V on the unit repeatedly to select the required speed. (Movie file only)
Selecting a track/file directly
Press 0 to 9 numerical buttons on the remote control to go to the desired file or track directly.
Operating 29
Advanced Operations on
Disc
Displaying Disc Information on-screen
You can display various information about the disc loaded on-screen.
1. Press INFO/DISPLAY on the remote control to show various playback information.
The displayed items differ depending on the disc type or playing status.
2. You can select an item by pressing W/S on the remote control and change or select the setting by pressing A/D on the remote control.
Title – Current title number/ total number of titles.
Chapter – Current chapter number/ total number of chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of angles.
,
Note
If any button is not pressed for a few seconds, the on-screen display disappears.
To display the DVD title
r
When you play a DVD which contains several title, you can select the title you want using the Menu.
1. Press on the remote control.
The disc’s title appears.
2. Select the menu by pressing W/S/A/D on the remote control.
3. Press on the remote control to confirm.
1.5 times speed playback
r
The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed.
1. During playback, press X on the remote control to play at 1.5 times speed.
“ d X1.5” appears on the screen.
2. Press on the remote control again to exit.
Screen Saver
The screen saver appears when you leave the unit in
Stop mode for about five minutes.
To display the DVD Menu
r
When you play a DVD which contains several menu, you can select the menu you want using the Menu.
1. Press on the remote control.
The disc’s menu appears.
2. Select the menu by using W/S/A/D on the remote control.
3. Press on the remote control to confirm.
4
4
30 Operating
Starting play from selected time
ry
To start playing at any chosen time on the file or title.
1. Press INFO/DISPLAY on the remote control during playback.
2. Press on the remote control to select the time clock icon and “--:--:--” appears.
3. Input the required start time in hours, minutes, and seconds from left to right.
If you enter the wrong numbers, press CLEAR/
DELETE on the remote control to remove the numbers you entered.
Then input the correct numbers.
For example, to find a scene at 1 hour,
10 minutes, and 20 seconds, enter “11020” by using numerical buttons on the remote control.
4. Press on the remote control to confirm.
Playback starts from the selected time.
Resume playback
ryut
The unit records the point where you pressed the Z depending on the disc.
If “ MZ (Resume Stop)” appears on the screen briefly, press X on the remote control or N on the unit to resume playback
(from the scene point).
If you press Z twice or unload the disc,
“ Z ”(Complete Stop) appears on the screen.
The unit will clear the stopped point.
,
Note
y The resume point may be cleared when a button is pressed (for example; 1 , B , etc).
y This function may not work on some disc or title/track.
Changing subtitle code page
y
If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle file properly.
1. During playback, press m INFO/DISPLAY on the remote control to display the On-Screen display.
2. Use on the remote control to select the
[Code Page] option.
3. Use on the remote control to select desired code option.
4. Press on the remote control to exit the On-
Screen display.
Marked Playback
ut
The mark function enables you to store your favourite files from any disc in the unit memory.
1. Select [Music] on the [Home Menu].
Returning to the upper folder.
(MP3/ WMA only)
File information will be displayed according to the ID3 TAG information on the appropriate music file. (MP3 only)
Operating 31
To delete a Marker
W/S on the remote control to select the track that you wish to erase from the marked file.
on the remote control .
To delete all Markers
Use W/S/A/D on the remote control to select
[Deselect All] then press m on the remote control in program edit mode.
,
Note
The markers are also cleared when the disc is removed, the unit is switched to power off or the function is switched to others.
4
Selecting all tracks/files.
Deselecting all tracks/files.
Moving to the previous or next file list.
2. Select a desired music on the [List] by using the
W/S on the remote control then press
MARKER/JUKEBOX on the remote control appears the mark on the list.
to m on the remote control .
Displays the play mode.
4. Select the play mode by using the W/S on the remote control and press m on the remote control .
[Mark Play]
Marked playback.
[Current Play]
Normal playback.
,
Note
If you want to select all files on the list, select
[Select All] and press m on the remote control .
4
32 Operating
Viewing a PHOTO file
i
This unit can play discs with photo files.
1. Select [Photo] on the [Home Menu] and press m on the remote control
Moving to the previous or next file list.
Returning to the upper folder.
2. Press on the remote control to select a folder, and then press m on the remote control.
3. If you want to view a slide show, press W/S on the remote control to highlight a file and press
X on the remote control.
About help menu in the [Photo] menu
Menu Buttons Operation d Slide
Show
W/S/
A/D
Move m
Select
]
Close
X
W/S/A/D m
]
Viewing a slide show.
Moving to another file or content.
Viewing a particular file.
Returning to the
[Home Menu].
About help menu in the full screen
Menu Buttons Operation m
Menu m INFO/
DISPLAY
Displaying the Option menu.
a/d
Prev./ Next
]
List
A/D Moving to another file.
]
Returning to the
[Photo] menu.
Options while viewing a photo
You can use various options during viewing a photo in full screen.
1. While viewing a photo in full screen, press m INFO/DISPLAY on the remote control to display the option menu.
2. Select an option using W/S/A/D on the remote control.
a b c d e a Current photo/ Total number of photos –
Use A/D on the remote control to view previous/next photo.
b Slide Show d / M – Press m on the remote control to start or pause slide show.
c Speed x3/ x2/ x1 – Use m on the remote control to select a delaying speed between photos in a slide show.
d Rotate – Press m on the remote control to rotate the photo.
e Go to list – Press m on the remote control to return [Photo] menu.
Basic Operations on
USB
1. Connect the USB device to the USB port.
2. Select USB function by pressing F .
To
Stop
Playback
Pause
Do this
Press Z .
Press X on the remote control or
N on the unit
Press M on the remote control or N on the unit.
Scanning for a section within a file
Press and hold C / V or c / v on the remote control during playback and release it at the point you want to listen to.
Selecting a file directly
Press 0 to 9 numerical buttons on the remote control to go to the desired file directly.
Skipping to the next/ previous file
In stop status,
Press C / V to go to the next/ previous file.
During playback,
(1) By using C / V buttons:
Press V to go to the next file.
Playing in less than 3 seconds, press
C to go to the previous file.
Playing after 3 seconds, press C to go to the beginning of the file.
(2) By using SEARCH :
Rotate DJ SCRATCHER / SEARCH
& MULTI or C / V and press X on the remote control or N on the unit to play the file.
Playing repeatedly or randomly
Press h REPEAT on the remote control repeatedly. Refer to the note for details about the display change.
Operating 33
,
Note
y Repeat/Shuffle playback operates as follows.
On Diplay
OFF
ONE
FOLDER
ALL
SHUFFLE
Description
Plays songs in order, and stops the playback.
Plays a same song repeatedly.
Plays songs in a folder repeatedly.
Plays all the songs repeatedly.
Plays all the songs once randomly, and stops the playback.
y When you play JUKE BOX list, only ONE and
ALL are available.
y Even after restarting the unit or switching one function to another, you can listen to music from the point where it’s last been played.
y USB function is only avaliable on music playback.
4
4
34 Operating
Selecting a folder and an MP3/WMA file
On the unit
1. Press and rotate DJ SCRATCHER /
SEARCH & MULTI or C / V until a desired file appears. You can also search a folder if you press
SEARCH again.
2. Press or N to play the selected file. When you search a folder, press OK to select a file in the folder, then press OK or N again. The selected file is played.
On the remote control
1. Press on the remote control repeatedly until a desired folder appears.
2. Select the file you want by using C / V .
3. Press X on the remote control.
,
Note
y USB Folders/Files are recognized as below.
* y If there is no file in a folder, the folder will not appear.
y Folders will be presented as the following order;
ROOT FOLDER 1 FOLDER 3
FOLDER 7 FOLDER 8 FOLDER 5
FOLDER 6 y File will be played from $ file No.1 to $ file
No.14 one by one.
y Files and folders will be presented in order recorded and may be presented differently according to the record circumstances.
*ROOT: The first screen you can see when a computer recognize the USB is “ROOT”.
Deleting a file/folder or format
You can delete file, folder on your USB or format the
USB.
1. Select USB function by pressing F .
2. Press on the remote control repeatedly, the display changes as followings.
DEL FILE DEL DIR FORMAT
On Display Description
DEL FILE Select the file you want to delete
DEL DIR
Select the folder you want to delete
FORMAT Select to format the USB device.
If you want to exit the current mode, press Z .
3. To delete file/folder or format, press and hold
CLEAR/DELETE on the remote control .
>
Caution
y Do not extract the USB device during operation. (play, delete, etc.) y Regular back up is recommended to prevent data loss.
y The delete function may not be supported according to the USB status. (lock, etc.)
Operating 35
4
4
36 Operating
Advanced Operations on
USB
JUKE BOX Playback
JUKE BOX function enables you to make a playlist of your favorite files from a USB. A playlist of up to 100 files can be entered.
Making JUKE BOX list
1. Press and hold MARKER/JUKEBOX on the remote control to enter the edit mode.
(Playing will be stopped when you press
MARKER/JUKEBOX on the remote control.)
2. Select a file by pressing C / V on the remote control.
3. Press on the remote control to save the file.
4. Repeat steps 2 - 3 to store other files.
(You can modify the list by pressing PRESET/
FOLDER +/ on the remote control to select the
JUKE BOX program number.)
5. Press on the remote control once again.
To play the JUKE BOX list, press X on the remote control after you make the list.
,
Note
When making or modifying the JUKE BOX list,
REPEAT mode is off.
Enjoying JUKE BOX
Press MARKER/JUKEBOX on the remote control once. “ON - JUKE BOX” appears on the display window.
To play JUKE BOX list, press X on the remote control.
To cancel it, press MARKER/JUKEBOX on the remote control once.
“OFF - JUKE BOX” appears on the display window.
Editing JUKE BOX
1. Press and hold MARKER/JUKEBOX on the remote control to enter the edit mode.
(Playing will be stopped when you press
MARKER/JUKEBOX on the remote control.)
2. Press on the remote control to select a file to edit.
3. Press / V on the remote control.
4. Press on the remote control.
5. Repeat 2 to 4 to store the other files.
6. Press on the remote control once again.
To play the JUKE BOX list, press X on the remote control after you edit the list.
Deleting JUKE BOX list
Deleting function only works in the edit mode.
1. Press and hold MARKER/JUKEBOX on the remote control to enter the edit mode.
Press
Or
CLEAR/DELETE on the remote control while JUKE BOX is played to enter the edit mode.
2. Select a song by pressing PRESET/FOLDER +/on the remote control repeatedly.
3. Press on the remote control while a song is selected.
,
Note
y If there is no JUKE BOX list, “NO PROG” appears on the display window when you press MARKER/JUKEBOX on the remote control .
y JUKE BOX is switched off in the case below.
Changing to a different function.
Turning off and on the unit.
Operating the numerical buttons on the remote control.
Playing a file by using SEARCH and
DJ SCRATCHER / SEARCH & MULTI on the unit.
y JUKE BOX list is cleared in the case below.
-
Removing the USB device.
Deleting music files in the USB device.
Operating 37
Playback Effect
The unit supports various sound and playback effects: DJ EFFECT, DJ SCRATCHER, DJ PAD, AUTO
DJ, DJ LOOP, PARTY ACCELERATOR, PARTY KICK
STARTER.
DJ EFFECT
It allows you to enjoy DJ EFFECT such as FLANGER/
PHASER/ WAH/ DELAY sound effect.
1. Press DJ EFFECT on the unit to select a desired
DJ EFFECT (FLANGER, PHASER, WAH, DELAY,
OFF).
2. Turn DJ SCRATCHER / LEVEL CONTROL on the unit clockwise or counterclockwise to adjust the
DJ EFFECT level between 0 to 15.
,
Note
y The DJ EFFECT mode is displayed for 3 seconds when a DJ EFFECT key on the unit is inputted. y The current gage level is displayed when adjusting gage. y If the function changed or the unit is turned off and on, DJ EFFECT mode with DJ EFFECT is turned off.
DJ SCRATCHER
You can output and mix the sound effects of the
DJ SCRATCHER.
Rotating DJ SCRATCHER / SEARCH & MULTI or
DJ SCRATCHER / LEVEL CONTROL on the unit to mix the scratch sound.
You can hear effect of scratch sound depending on the direction in which you rotate
DJ SCRATCHER / SEARCH & MULTI or
DJ SCRATCHER / LEVEL CONTROL on the unit .
AUTO DJ
Auto DJ blends the end of one song into the beginning of another for seamless playback.
It equalizes volume across tracks/files for uninterrupted playback.
Press AUTO DJ on the remote control repeatedly, the display changes as followings.
RANDOM (SHUFFLE) SEQUENTIAL OFF
On Display
OFF
RANDOM
(SHUFFLE)
Description
-
The music is played randomly on this mode.
SEQUENTIAL
The music is played repeatedly on this mode.
,
Note
y AUTO DJ mode does not support searching for a section within a track/file or to play repeatedly or randomly.
y If you move to other functions or stop the music using Z on AUTO DJ mode, AUTO DJ will be disabled.
y AUTO DJ is not supported in the music file whose length is less than 60 seconds.
y Only SEQUENTIAL is selected when played
JUKE BOX list.
y In USB function, SHUFFLE displays instead of
RANDOM.
4
4
38 Operating
DJ PAD
It allows you to mix CLUB, DRUM or USER sound effect. Each mode has up to 3 sounds effect.
1. Press and hold DJ PAD (CLUB, DRUM or USER) on the unit to select a desired DJ PAD sound effect.
2. Press a DJ PAD (1, 2, 3) of desired sound on the unit .
,
Note
y If you want to use USER, you have to register a source with “LG XBOOM” app. If the source is not register to USER, “EMPTY” or “NO
SOUND” appears on the display window.
y Initial DJ PAD mode is CLUB sound effect. y DJ PAD mode is displayed for 3 seconds when you press DJ PAD (CLUB, DRUM or
USER) on the unit.
y The DJ PAD sound is mixed when you press a
DJ PAD (1, 2, 3) on the unit .
y The currently playing DJ PAD sound is stopped and the selected DJ PAD sound outputs if you press a different DJ PAD (1, 2,
3) on the unit while DJ PAD sound is playing.
DJ LOOP
The certain section (about 1 sec) of sound is repeatedly played. (USB Only)
During playback, press and hold DJ LOOP on the unit at the point you want.
And you can cancel DJ LOOP function by releasing it.
,
Note
This function is released after operating 10 times or releasing DJ LOOP on the unit .
PARTY ACCELERATOR
It allows you to create a party atmosphere.
1. Select the mode by pressing PARTY
ACCELERATOR MODE on the unit.
The sound effect will react differently according to the mode.
MODE 1 MODE 2 USER
2. After selecting the mode, slide up the lever of
PARTY ACCELERATOR on the unit to create a party atmosphere.
The lighting on the speakers, the LED lighting and the sound effect will react according to moving the lever of PARTY ACCELERATOR on the unit.
OFF ACCEL 1 ACCEL 2 CLIMAX
,
Note
If you want to use USER, you have to register a source with “LG XBOOM” app. If the source is not register to USER, “EMPTY” or “NO SOUND” appears on the display window.
PARTY KICK STARTER
In power off state, this function turns on the unit with Party Kick Starter sound.
In power on state, this function mixes the music with
Party Kick Starter sound.
In the power off state
1. Press on the unit
2. “COME ON” appears on the display window with
Party Kick Starter sound. Then volume level and function will appear before the power off.
In the power on state
1. Press on the unit
2. “COME ON” appears on the display window with
Party Kick Starter sound .
,
Note
y If you want to change sound effect, you have to record a sound effect with “LG XBOOM” app.
y In case of CHILDSAFE mode, Party Kick
Starter sound is not output.
Operating 39
4
4
40 Operating
Using BLUETOOTH® wireless technology
About Bluetooth
Bluetooth is wireless communication technology for short range connection.
The sound may be interrupted when the connection interfered by the other electronic wave or you connect the Bluetooth in the other rooms.
Connecting individual devices under Bluetooth wireless technology does not incur any charges.
A mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection was made via Bluetooth wireless technology. y Available Devices: Smart phone, MP3, Notebook, etc.
y Version: 4.0
y Codec: SBC, AAC
Bluetooth Profiles
In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles.
This unit is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
Listening to music stored on the
Bluetooth devices
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure the Bluetooth feature is activated on your
Bluetooth device. Refer to your Bluetooth device’s user guide. Once a pairing operation is performed, it does not need to be performed again.
1. Turn on the unit.
,
Note
When Bluetooth connection lock is activated, you can search Bluetooth device in BT function.
2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as “LG OL90DK (XX)”.
,
Note
y XX means the last two digits of
Bluetooth address. For example, if your unit has a Bluetooth address such as
9C:02:98:4A:F7:08, you will see
“ LG OL90DK ( 08 ) ” on your Bluetooth device.
y Depending on the Bluetooth device type, some devices have a different pairing way. For details about Bluetooth pairing, refer to your
Bluetooth device manual.
y You can connect this unit with up to 3
Bluetooth devices simultaneously using the same method as described above, only in the
Bluetooth function. y The multi phone pairing connection is only supported on Android devices. (Multi phone pairing connection may not be supported depending on the connected device specifications.) y Removable/detachable Bluetooth devices
(Ex: Dongle etc.) will not support multi phone pairing.
3. When this unit is successfully connected with your Bluetooth device, “PAIRED” appears on the display window and change to Bluetooth device name soon. Then “BT” will appear on the display window.
,
Note
y “PAIRED” will momentarily appear on the display when you connect other devices for multi phone pairing.
y If the device name is unavailable, “_” will be displayed.
4. Listen to music.
To play a music stored on your Bluetooth device, refer to your Bluetooth device’s user guide.
,
Note
y When using Bluetooth technology, you have to make a connection between the unit and the Bluetooth device as close as possible and keep the distance.
However, it may not work well in certain situations as described below:
There is a obstacle between the unit and the Bluetooth device.
There is a device using same frequency with Bluetooth technology such as a medical equipment, a microwave or a wireless LAN device.
y If Bluetooth connection does not work well, try pairing it again.
y Even if this unit is connected to up to 3
Bluetooth devices in the Bluetooth mode, you can play and control music by using only one of the connected devices.
Operating 41
,
Note
y The sound may be interrupted when the connection has interference from other electronic devices.
y Depending on the type of the device, you may not be able to use the Bluetooth function.
y You can enjoy wireless system using phone,
MP3, Notebook, etc.
y The more distance between the unit and the Bluetooth device, the lower the sound quality becomes.
y Bluetooth connection will be disconnected when the unit is turned off or the Bluetooth device gets too far from the unit.
y When Bluetooth connection is disconnected, connect the Bluetooth device to the unit again.
y When a Bluetooth device is not connected,
“BT READY” appears on the display window.
y When you use the Bluetooth function, adjust the volume to a proper level on the
Bluetooth device.
y When you connect Bluetooth device (iOS device etc.) to this unit or operate the device, the volume level can be synchronized with each other. y Bluetooth connection will be disconnected when you change the Bluetooth function to some other function. In “LG XBOOM” app connection, only one device which you are playing keeps Bluetooth connection. You can control the Bluetooth device with this unit but you cannot use sound output.
y When entering the Bluetooth function, this unit automatically connects to the last connected Bluetooth device or the device which played back last.
(Auto connection may not be supported depending on the connected device specifications.)
4
42 Operating
Controls connected Bluetooth device
You can control connected Bluetooth device by the unit; play, pause, stop, skip.
,
Note
y Only Android OS and iOS is available to use this function.
y This function may not be supported depending on the Bluetooth device, or operated differently.
4
Bluetooth connection lock (BT LOCK)
You can limit Bluetooth connection to only
BT ( Bluetooth ) and LG TV function to prevent unintended Bluetooth connections.
To turn this function on, press and hold X on the remote control or N on the unit for 5 seconds in
BT ( Bluetooth ) function.
“ON-BT LOCK” appears then you can limit Bluetooth connection.
To turn this function on, press and hold X on the remote control or N on the unit for 5 seconds in
BT ( Bluetooth ) function.
“OFF-BT LOCK” appears.
,
Note
Even if you set up Bluetooth connection lock to
On, this unit turns on by Auto Power function.
Turn off Auto Power function to prevent it.
Using the LG XBOOM
App
,
Note
y Only Android OS is available to use
“LG XBOOM” app with this unit.
y It is recommended to use the latest version of app.
Operating 43
Install “LG XBOOM” App onto
Your Bluetooth Device
There are two ways to install “LG XBOOM” App onto
Your Bluetooth Device.
Install “LG XBOOM” App through QR code
1. Install “LG XBOOM” app through QR code. Use the scanning software to scan the QR code.
About “LG XBOOM” App
“LG XBOOM” app brings a suite of new features to this unit.
To enjoy more features, you are recommended to download and install free “LG XBOOM” app.
Below introduces you to a feature of “LG XBOOM” app.
Multi Juke box: Your entertainment increases three fold when you connect up to 3 Bluetooth phones at the same time. Play music from both phones and create a customized playlist from all phones.
Sampler Creator: Record effects on your smartphone and very simply sync them via
Bluetooth to the system. Be as creative as you can be.
2. Tap an icon for installation.
,
Note
y Make sure that your Bluetooth device is connected to the Internet.
y Make sure that your Bluetooth device has a scanning software application. If you don’t have one, download one from “Google
Android Market (Google Play Store)”.
y Depending on the area, QR code may not work.
4
4
44 Operating
Install “LG XBOOM” App through
“Google Android Market (Google Play
Store)”
1. Tap the “Google Android Market (Google Play
Store)” icon.
2. In the search bar, type in the “LG XBOOM” and search it.
3. In the search result list, find and tap “LG XBOOM” to start downloading Bluetooth app.
4. Tap an icon for installation.
,
Note
y Make sure that your Bluetooth device is connected to the Internet.
y Make sure that your Bluetooth device is equipped with “Google Android Market
(Google Play Store)”.
Activate Bluetooth with “LG
XBOOM” App
“LG XBOOM” app helps to connect your Bluetooth device to this unit.
Tap “LG XBOOM” app icon on the home screen to open “LG XBOOM” app, and go to the main menu.
,
Note
y “LG XBOOM” app will be available in the software version as follow;
Android O/S: Ver 5.0 (or later) y If you use “LG XBOOM” app for operation, there would be some differences between
“LG XBOOM” app and the supplied remote control. Use the supplied remote control as necessary.
y Depending on the Bluetooth device,
“LG XBOOM” app may not work.
y After connection of “LG XBOOM” app, music may be output from your Bluetooth device.
In this case, try connecting procedure again.
y If you operate the other applications or change the settings on your Bluetooth device while using “LG XBOOM” app,
“LG XBOOM” app may operate abnormally.
y When “LG XBOOM” app operates abnormally, check your Bluetooth device and the connection of “LG XBOOM” app and then try to connect again.
y Depending on the smart phone's operating system, you have some differences for
“LG XBOOM” operation.
y Check Bluetooth setting on your Bluetooth device if “LG XBOOM” app connection does not work well.
Operating 45
Radio Operations
Be sure that FM antenna is connected. (
Listening to the radio
1. Press until FM appears in the display window.
The last received station is tuned in.
2. Auto tuning:
Press and hold TUNING-/+ on the remote control or C / V on the unit until the frequency indication starts to change, then release.
Scanning stops when the unit tunes in a station.
Or
Manual tuning:
Press TUNING-/+ on the remote control or
C / V on the unit repeatedly.
3. Adjust the volume by pressing VOL +/ on the remote control or by rotating MASTER VOL. +/knob on the unit repeatedly.
Improving poor FM reception
Press X on the remote control or N on the unit.
This will change the tuner from stereo to mono and usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press until FM appears in the display window.
2. Select the desired frequency by pressing
TUNING -/+ on the remote control or C / V on the unit.
3. Press on the remote control. A preset number will blink in the display window.
4. Press on the remote control to select the preset number you want.
5. Press on the remote control.
The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
PRESET/FOLDER +/ or 0 to 9 numerical buttons on the remote control.
Deleting all the saved stations
1. Press on the remote control.
“DEL ALL” will flash up on the display window
2. Press on the remote control to erase all the saved radio stations.
“DELETED ALL” will scroll on the display window.
4
4
46 Operating
Sound adjustment
Setting the sound mode
This system has a number of pre-set equalizers. The displayed items for the equalizer may be different depending on sound sources and effects.
You can select a desired sound mode by using
EQUALIZER on the remote control.
On Display
BASS (BASS BLAST) or
BASS+ (BASS BLAST+)
Description
Reinforces the bass and powerful sound.
POP
CLASSIC
ROCK
JAZZ
FOOTBALL
STANDARD
This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock, pop, jazz or classic concert.
You can enjoy the equalizer FOOTBALL
STADIUM.
You can enjoy optimized sound.
You can select a desired sound mode by using
SPECIAL EQ on the remote control or SPECIAL EQ /
BASS BLAST (or BASS BLAST+ ) on the unit.
On Display Region Description
FUNK, REGUETON,
SAMBA,
MERENGUE, AXE,
SALSA, SERTANEJ,
FORRO
Latin
America
ARABIC
DANGDUT
Middle East
Indonesia
Optimized equalizer for the music genre prefered in each region.
AFRO Africa
INDIA India
,
Note
By pressing and holding SPECIAL EQ / BASS
BLAST (or BASS BLAST+ ) on the unit for 3 seconds, you can directly select BASS (BASS
BLAST) or BASS+ (BASS BLAST+) effect.
Setting the USER EQ
You can adjust the sound level of Bass, Middle and
Treble as your preference.
1. Press on the unit. “USER EQ” is displayed.
2. Press on the unit repeatedly until desired setting appears in the display window.
3. Rotate DJ SCRATCHER / LEVEL CONTROL on the unit to adjust the value.
Other Operations
Turn off the sound temporarily
Press [ on the remote control to mute your sound.
You can mute your unit, for example, to answer the telephone, the “MUTE” will appear in the display window.
To cancel it, press [ on the remote control again or change the volume level.
DEMO
In the power off state, press DEMO on the unit once. The unit will power on and display the each of functions with demo sound in the display window.
To cancel the DEMO function, press DEMO on the unit once more.
Resume stop
The unit records the point where you pressed Z depending on the disc or USB.
If you press Z twice, the unit will clear the stopped point.
Operating 47
Using your TV remote control
You can control some functions of this unit by your
TV remote control even by other company’s product.
Controllable functions are volume up/down and mute.
Press and hold [ on the remote control for about
3 seconds in OPTICAL function to turn on or off this function.
On Display
ON-TV REMOTE
Description
TV REMOTE function is turned on.
OFF-TV REMOTE
TV REMOTE function is turned off.
,
Note
y Supported TV brands
LG
Sharp
Panasonic Philips Samsung
Sony Toshiba Vizio y Make sure that the sound output of your TV is set to [External speaker].
y Depending on the remote control, this function may not work well.
y This function does not operate on LG TV's magic remote control.
y This function only operates on the OPTICAL function.
4
4
48 Operating
CHILDSAFE Mode
This function helps to prevent you from being surprised when you turn on the unit in case that the volume of the unit is set at a high level.
To turn on CHILDSAFE mode, press and hold OK on the unit when the volume of the unit is “MIN”.
In CHILDSAFE mode, the volume increase gradually.
To turn off CHILDSAFE mode, press and hold OK on the unit when the volume of the unit is “MIN” and this mode is turned on.
,
Note
In case of USB or BT ( Bluetooth ) function,
CHILDSAFE mode does not work after about
2 minutes from power on the unit even if this mode is enabled.
Last Scene Memory
r
This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
Power Resume - Optional
r
Even if the power suddenly goes out, turn on the unit and then it plays a position where the contents is being played. System will periodically save current playback status.
System Select - Optional
You must select the appropriate system mode for your TV system. Press and hold M on the remote control for more than five seconds to be able to select a system in the
[Home Menu]. (NTSC PAL)
,
Note
If the USB device is connected or a disc is inserted, this function is not operated.
Using Microphone
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment. Adjust the microphone volume by pressing MIC VOL -/+ on the remote control or rotating MIC VOL. -/+ clockwise or counterclockwise on the unit .
,
Note
y When not using the microphone, set the MIC volume to minimum or turn off the MIC and remove the microphone from the MIC jack.
y If the microphone is set too near the speaker, a howling sound may be produced. In this case, move the microphone away from the speaker or decrease the sound level by using the MIC VOL - on the remote control or
MIC VOL. -/+ on the unit.
y If sound through the microphone is extremely loud, it may be distorted. In this case, set the microphone volume by pressing MIC VOL - on the remote control or rotating
MIC VOL. -/+ on the unit.
y You can give an echo effect to the sound from the microphones by pressing
MIC ECHO .
VOICE CANCELLER
You can reduce the vocal tones during music playback from various input sources.
Press the VOICE CANCELLER and
“ON - VOICE CANCELLER” will appear in display window.
To cancel it, press VOICE CANCELLER again.
The quality of the VOICE CANCELLER may be different depending on the recording conditions of music files.
,
Note
y This function is available in the DVD/CD, USB or BT ( Bluetooth ) Function.
y If the function is not available, “NOT SUPPORT” appears in the display window.
y This function is available to use only when a microphone is connected. y If a microphone is not connected, “INSERT
MIC” appears in the display window.
y It is not available on the mono source.
y To initialize it, change the function or disconnect the microphone.
y This function may not be initialized depending on the status of connected devices.
Operating 49
KEY CHANGER
You can adjust the key to 9 steps (4 steps higher, 4 steps lower and the original key).
y To make key more sharp, one by one, press the
KEY CHANGER ( L ) repeatedly during playback.
y To make the key more flatten, one by one, press the KEY CHANGER ( l ) repeatedly during playback.
,
Note
y This function is available in the DVD/CD, USB or BT ( Bluetooth ) Function.
y To initialize it, change the function, disconnect the microphone or change the music.
y This function may not be initialized depending on the status of connected devices.
y If the function is not available, “NOT SUPPORT” appears in the display window.
y If a microphone is not connected, “INSERT MIC” appears in the display window.
4
4
50 Operating
VOCAL EFFECTS
When you connect your microphone to the MIC jack, you can enjoy karaoke function by changing voice in the various source.
To select various vocal effects mode, pressing
VOCAL EFFECTS repeatedly or pressing VOCAL
EFFECTS and then t urning DJ SCRATCHER / LEVEL
CONTROL on the unit when vocal effects mode appears in the display window.
BASS SOPRANO HELIUM ROBOT
DUET MAN DUET WOMAN BASS ECHO1
SOPRANO ECHO1 HELIUM ECHO1
ROBOT ECHO1 DUET MAN1 DUET
WOMAN1 BASS ECHO2 SOPRANO
ECHO2 HELIUM ECHO2 ROBOT ECHO2
DUET MAN2 DUET WOMAN2
OFF
,
Note
y If a microphone is not connected, “INSERT
MIC” appears in the display window.
y If you press KEY CHANGER , DJ EFFECT or
MIC ECHO on VOCAL EFFECTS mode, after backing up current VOCAL EFFECTS, turn off VOCAL EFFECTS mode and operate KEY
CHANGER, DJ EFFECT or ECHO mode.
y To turn off VOCAL EFFECTS mode, press and hold VOCAL EFFECTS .
ECHO
When you connect your microphone to the MIC jack, you can give an echo effect to the sound from the microphones by pressing MIC ECHO .
ECHO 1 ECHO 2 OFF
,
Note
y If a microphone is not connected, “INSERT MIC” appears in the display window.
y If you press VOCAL EFFECTS button on
ECHO mode, after backing up current ECHO, turn off ECHO mode and operate VOCAL
EFFECTS mode.
To operate ECHO mode, press MIC ECHO again, after backing up current VOCAL
EFFECTS.
Operating 51
LIGHTING
This function offers a party atmosphere by operating the lighting on the unit.
Press LIGHTING on the unit repeatedly or press
LIGHTING on the unit and then turn DJ SCRATCHER
/ LEVEL CONTROL on the unit.
PARTY WATER FOREST (MY STYLE) OFF
,
Note
y Lighting function is available in all functions.
y Lighting mode retains in its previous mode when you first press LIGHTING on the unit, press again to change modes.
y If you want to use MYSTYLE, you have to register a source with “LG XBOOM” app.
y Do not look directly at the light emitting part when the LIGHTING is turned on.
y If the illumination brightness is glaring, switch on the room lights or turn off the LIGHTING of the unit.
y Operation may be different depending on the played music, connected device or setting status.
y To turn on or off upper and lower lighting
LED, press and hold LIGHTING on the unit for 3 seconds.
On Display
ON-FLASH
OFF-FLASH
Description
Upper and lower lighting
LED is turned on.
Upper and lower lighting
LED is turned off.
Sleep Timer Setting
Press SLEEP on the remote control repeatedly to select delay time between 10 and 180 minutes.
After the delay time, the unit will be turned off.
To cancel the sleep function, press SLEEP on the remote control repeatedly until “OFF” appears.
,
Note
y You can check the remaining time before the unit is turned off. Press SLEEP on the remote control to check or change the remaining time.
y You can edit the remain time when the remaining time or “DIMMER” is displayed.
Dimmer
Press SLEEP on the remote control once.
The display window will be darkened by half.
To cancel it, press SLEEP on the remote control repeatedly until “OFF” appears.
,
Note
All the lighting turns off when Dimmer is being operated.
4
4
52 Operating
Auto power down
This unit will turn itself off to save electricity in the case were the main unit is not connected to an external device and is not used for 15 minutes.
The unit will also turns itself off after six hours if the main unit has been connected to another device using the analog inputs.
Auto power down function is applied to only MAIN unit in case of WIRELESS PARTY LINK connection.
In case of OTHER unit, Auto power down is available after disconnection OTHER unit and MAIN unit.
How to disconnect the wireless network
Connection or the wireless device Turn off the unit by pressing the power button for more than 5 seconds
AUTO POWER On
This unit automatically turns on by an input source:
LG TV, BT( Bluetooth) or Optical.
When you turn on your TV connected to this unit, this unit recognizes the input signal and selects the suitable function. You can hear the sound from the unit.
If you try to connect your Bluetooth device, this unit turns on and connects your Bluetooth device.
You can play your music.
When you turn off this unit by pressing 1 on the unit for 5 seconds each time, you can turn on or off the AUTO POWER function.
On Display
ON-AUTO POWER
OFF-AUTO POWER
Description
AUTO POWER function is turned on.
AUTO POWER function is turned off.
,
Note
y Depending on the connected device, this function may not operate.
y Depending on the connected device, the unit turns on but Bluetooth function may not be connected.
y If you disconnect Bluetooth connection by this unit, some Bluetooth devices try to connect to the unit continually. Therefore it is recommended to disconnect the connection before turning off the unit.
y If you try to connect to the “LG XBOOM” app,
Bluetooth function of this unit is turned on.
y If you turn on the unit using LG TV or
Bluetooth function, proper function of this unit is turned on.
y If you have already paired with this unit, this unit can automatically turn on by an input source when this unit is turned off.
y If you turned off the unit directly, it cannot be turned on automatically by AUTO POWER function. However the unit can be turned on by AUTO POWER function when optical signal comes in after 5 seconds of no signal.
Operating 53
Auto function change
This unit recognizes input signals such as Optical,
BT( Bluetooth ), LG TV and AUX 1 and then automatically changes to the suitable function.
When you try to connect Bluetooth device
When you try to connect your Bluetooth device to this unit, Bluetooth function is selected. Play your music on the Bluetooth device.
When AUX IN 1 (3.5 mm stereo cable) is connected
When you connect the portable device to the
AUX IN 1 connector, AUX 1 function is selected.
Play your music on the portable device.
When optical signal comes in
When you turn on the external device connected to this unit by an optical cable, this unit changes the function to optical. You can hear the sound from your device.
When LG TV is connected
When you turn on your LG TV connected by LG
Sound Sync, this unit changes the function to LG TV.
You can hear the sound from your TV.
,
Note
y This function is not available during deleting.
y This function only works with devices that were previously connected. y If the Bluetooth connection lock function is set, Bluetooth and LG TV connection will be only available on Bluetooth and LG TV
y LG Sound Sync (Optical) changes as same as
OPTICAL function.
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK on the remote control.
3. Select time mode by pressing C / V on the remote control.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4. Press on the remote control to confirm your selection.
5. Select the hours by pressing C / V on the remote control.
6. Press on the remote control.
7. Select the minutes by pressing C / V on the remote control.
8. Press on the remote control.
Setting the Clock through “LG
XBOOM” App
Install “LG XBOOM” app on your Android device.
Your unit’s clock will be automatically synchronized with your device by activating Bluetooth connection through “LG XBOOM” app.
4
4
54 Operating
Using your player as an alarm clock
1. Turn the unit on.
2. Press and hold ALARM on the remote control.
3. Press / V on the remote control to change the hours and minutes and press SET on the remote control to save.
4. Press / V on the remote control to select function and press SET on the remote control to save.
- Press C / V on the remote control to select a preset number when you select tuner and then, press SET on the remote control.
If there is no preset number, this step is skipped.
5. Press / V on the remote control to change the volume and press SET on the remote control to save.
,
Note
y If you set the clock time, you can check the time by pressing CLOCK on the remote control even when the player is turned off.
y You can set alarm after you set the clock time.
y If you set the clock time and alarm, you can check the alarm setting information by pressing ALARM on the remote control even when the unit is turned off.
y You can select ALARM ON/OFF mode by pressing ALARM on the remote control .
y In case of DVD/CD or USB, this function is available when you have music file. If you do not have music file, the function is changed to Tuner.
WIRELESS PARTY LINK
Connection
You can enjoy the sound by using two speakers.
For enjoying WIRELESS PARTY LINK, you need to purchase another speaker.
It is compatible with unit that supports WIRELESS
PARTY LINK.
Operating 55
1. Press TWIN on the unit.
ROLE SELECT appears in the display window.
2. Press TWIN on the unit to select MAIN or
OTHER.
- unit: Selects MAIN.
- unit: Selects OTHER.
Two units try to connect with each other.
3. When these units are successfully connected to each other, each of connected device names appears in the each unit.
4
4
56 Operating
,
Note
y If you are using the LG Sound Sync or
OPTICAL connection, this function is not available.
If you try to connect WIRELESS PARTY
LINK when using LG Sound Sync function or OPTICAL function, “NOT SUPPORT” appears in the display window.
If you change the function from any other to OPTICAL or connected LG Sound Sync
/OPTICAL when using WIRELESS PARTY
LINK, the WIRELESS PARTY LINK will be released.
y You can use microphone in the OTHER unit only. In case of OTHER unit, some functions are supported only.
y When WIRELESS PARTY LINK is disconnected, OTHER unit is changed to
BT ( Bluetooth ) function. y If the connection is failed, “FAILED” appears in the display window.
y Mute function is synchronized with each other.
y WIRELESS PARTY LINK connection will be disconnected when you turn off the unit or press 3 TWIN on the unit.
y Sound of MAIN unit and OTHER unit may be different depending on playback status or source.
,
Note
y Check the following information when connecting to Bluetooth.
You can connect only one Bluetooth device in the MAIN unit. You cannot connect Bluetooth device to the OTHER unit.
WIRELESS PARTY LINK connection is only supported on Android devices.
(WIRELESS PARTY LINK connection may not be supported depending on the connected device specifications or OS.)
Removable/detachable Bluetooth devices (ex. Dongle etc.) will not support
WIRELESS PARTY LINK connection.
When WIRELESS PARTY LINK is connected, Bluetooth connection is not available in status of deleting.
If you connect WIRELESS PARTY
LINK while you are playing connected
Bluetooth device, it may be reconnected again, depending on phone specification.
5 Troubleshooting
Troubleshooting 57
Troubleshooting
General
The unit does not work properly.
No Power.
Problem
No picture
Cause & Solution
y Turn off the power of this unit and the connected external device (TV, Woofer,
DVD-player, Amplifier, etc.) and turn them on again.
y Disconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
y Previous setting may not be saved when device power is shut off.
y The power cord is not plugged in. Plug in the power cord.
y Check whether electricity failed.
Check the condition by operating electronic devices using the same AC outlet.
y Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.
y Connect the video cables securely to both the TV and unit.
No sound.
y Check whether you select right function.
Press function button and check the selected function.
The DVD picture quality is poor y Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play y Insert a disc.
y Insert a playable disc (check the disc type, colour system and regional code).
y Place the disc with the label or printed side facing upwards.
y Enter your password or change the rating level.
Humming noise heard while a DVD or CD is playing y Clean the disc using a soft cloth with outward strokes.
y Move unit and audio components further away from your TV.
Radio stations cannot be tuned in properly.
The unit does not start playback.
y The antenna is positioned or connected poorly.
Connect the antenna securely.
y The signal strength of the radio station is too weak.
Tune to the station manually.
y No stations have been preset or preset stations have been cleared
(when tuning by scanning preset channels).
Preset some radio stations, see page 45 for details.
y An unplayable disc is inserted. Check the playable disc.
y No disc is inserted. Insert a disc.
y The disc is dirty. Clean the disc. (P
y The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
5
58 Troubleshooting
Problem
The remote control does not work properly.
Cause & Solution
y The remote control is too far from the unit.
Operate the remote control within about 7 m (23 feet).
y There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y The batteries in the remote control are exhausted.
Replace the batteries with new ones.
No speaker light.
y Check the light effects by pressing LIGHTING
LG Sound Sync does not work.
y Check whether your LG TV supports LG Sound Sync.
y Check connection of LG Sound Sync.
y Check sound setting of your TV and this unit.
The AUTO POWER function does not work y Check connection of the external device such as TV or Bluetooth device.
y Depending on the connected device, this function may not operate.
5
NOTES to release Demo mode
Problem
Can not change input source with ‘ F ’ key such as
BT ( Bluetooth ), USB etc. and only DEMO mode is showing in the display.
Remote Control does not work properly.
Cause & Solution
y Press ‘ DEMO ’ Key on the unit for 15 seconds.
6 Appendix
Controlling a TV with the Supplied Remote
Control
You can control your TV using the buttons below.
By pressing You can
1 (TV POWER) Turn the TV on or off.
AV / INPUT
Switch the TV’s input source between the TV and other input sources.
,
Note
Depending on the unit being connected, you may not be able to control your TV using some of the buttons.
Appendix 59
Setting up the remote to control your TV
You can operate your TV with the supplied remote control.
If your TV is listed in the table below, set the appropriate manufacturer code.
1. While holding down 1 (TV POWER) on the remote control, and press the manufacturer code for your TV with the numerical buttons on the remote control (see the table below).
Manufacturer
LG
Zenith
GoldStar
Samsung
Sony
Hitachi
Code Number
1(Default), 2
3, 4
1, 2
6, 7
8, 9
4
2. Release the 1 (TV POWER) on the remote control to complete setting.
Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.
6
6
60 Appendix
Area Code List
Choose an area code from this list.
Area
Afghanistan
Austria
Belgium
Bhutan
Code Area
AF Fiji
Argentina AR
Australia AU
AT
BE
BT
Finland
France
Germany
Great Britain
Greece
Bolivia
Brazil
Cambodia
BO
BR
KH
Greenland
Hong Kong
Hungary
Canada
Chile
China
Colombia
Congo
Costa Rica
CA
CL
CN
CO
CG
CR
India
Indonesia
Israel
Italy
Jamaica
Japan
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
Ethiopia
EC
EG
SV
ET
HR
CZ
DK
Kenya
Kuwait
Libya
Luxembourg
Malaysia
Maldives
Mexico
IT
JM
JP
KE
KW
LY
LU
MY
MV
MX
IN
ID
IL
GL
HK
HU
Code Area
FJ Monaco
FI
FR
Mongolia
Morocco
DE
GB
GR
Nepal
Netherlands
Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Paraguay
Philippines
Poland
Portugal
Romania
Russian
Federation
Saudi Arabia
Senegal
PY
PH
PL
PT
RO
NZ
NG
NO
OM
PK
PA
Code Area
MC Singapore
MN Slovak Republic
MA
NP
NL
AN
Slovenia
South Africa
South Korea
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
Turkey
RU
SA
SN
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
LK
SE
CH
TW
TH
TR
Code
SG
SK
SI
ZA
KR
ES
UG
UA
US
UY
UZ
VN
ZW
Appendix 61
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Afar 6565 French 7082 Lithuanian 7684 Sindhi 8368
Afrikaans
Albanian
Ameharic
6570
8381
6577
Frisian
Galician
Georgian
7089
7176
7565
Macedonian
Malagasy
Malay
7775
7771
7783
Singhalese
Slovak
Slovenian
8373
8375
8376
Arabic
Armenian
Assamese
Aymara
6582
7289
6583
6588
German
Greek
Greenlandic
6869
6976
7576
Azerbaijani
Bashkir
Basque
6590
6665
6985
Guarani
Gujarati
Hausa
7178
7185
7265
Malayalam
Maori
Marathi
Moldavian
Mongolian
Nauru
7776
7773
7782
7779
7778
7865
Spanish
Sudanese
Swahili
Swedish
Tagalog
Tajik
6983
8385
8387
8386
8476
8471
Bengali; Bangla
Bhutani
Bihari
Breton
Bulgarian
6678
6890
6672
6682
6671
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
7387
7273
7285
7383
7378
7365
Nepali
Norwegian
Oriya
Panjabi
Pashto, Pushto
Persian
7869
7879
7982
8065
8083
7065
Tamil
Telugu
Thai
Tonga
Turkish
8465
8469
8472
8479
8482
Burmese
Byelorussian
Chinese
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
7789
6669
9072
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
Irish
Italian
Japanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Lingala
7165
7384
7465
7578
7583
7575
7589
7579
7585
7679
7665
7686
7678
Polish
Portuguese
Quechua
8076
8084
8185
Rhaeto-Romance 8277
Rumanian
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Shona
8279
8285
8377
8365
7168
8382
8372
8378
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
6
6
62 Appendix
Trademarks and
Licenses
All other trademarks are trademarks of their respective owners.
Manufactured under license from Dolby Laborato ries. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
Notes on Copyrights
y This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi. Reverse engineering or disassembly is prohibited.
y Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by LG
Electronics is under license.
Other trademarks and trade names are those of their respective owners.
Appendix 63
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for old vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.
6
64 Appendix
General specifications
6
General
Power requirements
Power consumption
Dimensions (W x H x D)
Operating temperature
Operating humidity
Inputs
Digital audio in (OPTICAL IN)
Analog audio in (AUX IN 2)
Portable in (AUX IN 1)
Microphone (MIC 1/2)
Tuner
FM Tuning Range
Refer to the main label on the unit.
Refer to the main label on the unit.
Networked standby : 0,5 W
(If all network ports are activated.)
Approx. 330.0 mm x 925.0 mm x 360.0 mm
5 °C to 35 °C
5 % to 60 % RH
3.0 V (p-p), Optical jack x 1
2.0 Vrms (1 kHz, 0 dB), 600 Ω , RCA jack (L, R) x 1
1.0 Vrms (3.5 mm stereo jack) x 1
Sensitivity 20 mV (1 kHz), 6.3 mm jack x 2
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
System
Frequency Response
Signal-to-noise ratio
220 to 20,000 Hz
More than 75 dB
Dynamic range
Bus Power Supply (USB)
More than 80 dB
5 V 0 500 mA
Available Digital Input Audio
Sampling Frequency
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Available Digital Input Audio format Dolby Audio, PCM
Amplifier (RMS Output power)
Total output
Front
Sub Woofer
1,100 W RMS
320 W RMS × 2 (4 Ω at 1kHz, 25 % THD)
460 W RMS (3 Ω at 200Hz, 25 % THD) y Design and specifications are subject to change without notice.
advertisement
Related manuals
advertisement
Table of contents
- 2 Safety Information
- 6 Unique Features
- 7 Introduction
- 7 Playable Discs
- 7 About the “7” Symbol Display
- 7 Symbols Used in this Manual
- 7 Regional Codes
- 8 Playable file Requirement
- 8 Music file requirement
- 8 Photo file requirement
- 9 Video file requirement
- 9 Compatible USB Devices
- 9 USB device requirement
- 10 Remote control
- 12 Top panel
- 14 Front panel / Rear panel
- 15 Carrying the unit
- 16 Connections to Your TV
- 16 HDMI Out Connection
- 17 Resolution Setting
- 18 AC Power Cord Connection
- 18 Optional Equipment Connection
- 18 AUX IN 1 Connection
- 19 AUX IN 2 Connection
- 20 OPTICAL IN Connection
- 20 LG Sound Sync
- 22 USB Connection
- 22 Antenna Connection
- 23 Adjust the setup settings
- 23 OSD Initial language settings - Optional
- 23 To display and exit the Setup menu
- 24 Language
- 24 Display
- 25 Audio
- 26 Lock (Parental Control)
- 27 Using the Home Menu
- 28 Basic Operations on Disc
- 29 Advanced Operations on Disc
- 29 Displaying Disc Information on-screen
- 29 To display the DVD Menu
- 29 To display the DVD title
- 29 1.5 times speed playback
- 29 Screen Saver
- 30 Starting play from selected time
- 30 Resume playback
- 30 Changing subtitle code page
- 31 Marked Playback
- 32 Viewing a PHOTO file
- 33 Basic Operations on USB
- 34 Selecting a folder and an MP3/WMA file
- 35 Deleting a file/folder or format
- 36 Advanced Operations on USB
- 36 JUKE BOX Playback
- 37 Playback Effect
- 37 DJ EFFECT
- 37 DJ SCRATCHER
- 37 AUTO DJ
- 38 DJ PAD
- 38 DJ LOOP
- 38 PARTY ACCELERATOR
- 39 PARTY KICK STARTER
- 40 Using BLUETOOTH® wireless technology
- 40 Listening to music stored on the Bluetooth devices
- 43 Using the LG XBOOM App
- 43 About “LG XBOOM” App
- 43 Install “LG XBOOM” App onto Your Bluetooth Device
- 44 Activate Bluetooth with “LG XBOOM” App
- 45 Radio Operations
- 45 Listening to the radio
- 45 Improving poor FM reception
- 45 Presetting the Radio Stations
- 45 Deleting all the saved stations
- 46 Sound adjustment
- 46 Setting the sound mode
- 46 Setting the USER EQ
- 47 Other Operations
- 47 Turn off the sound temporarily
- 47 DEMO
- 47 Resume stop
- 47 Using your TV remote control
- 48 CHILDSAFE Mode
- 48 Last Scene Memory
- 48 Power Resume - Optional
- 48 System Select - Optional
- 48 Using Microphone
- 51 LIGHTING
- 51 Sleep Timer Setting
- 51 Dimmer
- 52 Auto power down
- 52 AUTO POWER On
- 53 Auto function change
- 53 Setting the Clock
- 53 Setting the Clock through “LG XBOOM” App
- 54 Using your player as an alarm clock
- 55 WIRELESS PARTY LINK Connection
- 57 Troubleshooting
- 57 General
- 58 NOTES to release Demo mode
- 59 Controlling a TV with the Supplied Remote Control
- 59 Setting up the remote to control your TV
- 60 Area Code List
- 61 Language code List
- 62 Trademarks and Licenses
- 63 Maintenance
- 63 Notes on Discs
- 63 Handling the Unit
- 64 General specifications
