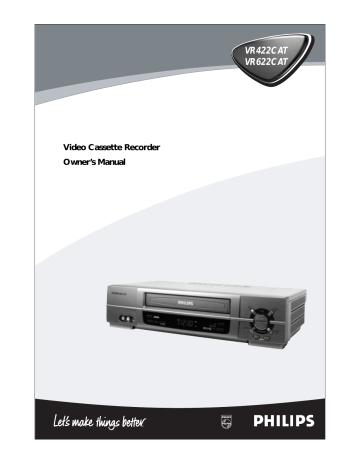

Video Cassette Recorder
Owner’s Manual
VR422CAT
VR622CAT
Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to.
Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a
PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.
Warranty
Verification
Owner
Confirmation
Model
Registration
Registering your product within
10 days confirms your right to maximum protection under the terms and conditions of your
PHILIPS warranty.
Your completed Warranty
Registration Card serves as verification of ownership in the event of product theft or loss.
S
R
S
I
T
R
A
T I
O N N
E
E
D
E
D
W
Y
DA
Hurry!
10
H
IN
Returning your Warranty
Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.
Know these
safety
symbols
Congratulations on your purchase, and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome-and thanks for investing in a PHILIPS product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.
s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.
WARNING: TO PREVENT
FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR
MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
P.S. Remember, to get the most from your PHILIPS product, you must return your Warranty
Registration Card within 10 days. So please mail it to us right now!
For Customer Use
Enter below the Serial No.
which is located on the rear of the cabinet. Retain this information for future reference.
Model No.________________
Serial No. ________________
Visit our World Wide Web Site at http://www.philips.com
Introduction 3
Welcome to your VCR owner’s manual.
This manual describes the VR422CAT and the VR622CAT. The VR422CAT is a monaural (single sound source) system, while the VR622CAT is a stereo system. Otherwise, the two models are exactly the same. In this manual, the VR622CAT is illustrated. (The VR422CAT has single AUDIO IN/OUT jacks. Otherwise, the
VR422CAT looks exactly like the VR622CAT.)
This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording;
Playing; Additional Features; and Information You May Need. The instructions explain all of the VCR’s features, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.
Features
• Automatic Channel Setup
• Automatic Clock Setting with Time Zone
• Automatic Head Cleaner
• Automatic Operation Features
• Automatic Tracking Adjustment
• Blue Background
• Daylight-Savings Time
• Display Panel
• Front Panel Menu Access
• Hi-Fi Stereo Sound System (VR622CAT only)
• High Quality (HQ) System
• MTS (Multi-Channel Television Sound) System
(VR622CAT only)
• 19 micron head
• On-Screen Displays in English or Spanish
• One-Touch Recording
• Real-Time Counter
• Remote Control with glow-in-the-dark buttons and the capability to operate a TV, Cable Box, and
Direct Broadcast System
• Repeat Play
• S-VHS Quasi Play Back (SQPB)
• Special Effects Playback: Forward and Reverse
Searching; Still; Slow Motion
• Time Search
• Timer Recording
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.
Federal Communications Commission Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.
This VCR has a High Quality (HQ) system and is compatible with existing Video Home System (VHS) equipment.
Philips Consumer Electronics recommends you use only video cassette tapes that have the mark. The use of other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs.
The 19 micron head provides a better picture when you view tapes recorded in slow speed (SLP).
Note to the Cable TV System Installer: This reminder calls the Cable TV system installer’s attention to Article 820-40 of the
National Electrical Code, which provides guidelines for proper grounding – in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.
Declaration of Conformity
Model Number:
Trade Name:
VR422CAT/VR622CAT
Philips
Responsible Party: Philips Consumer Electronics
P.O. Box 14810
Knoxville, TN 37914-1810
(865) 521-4316
As an E
NERGY
S
TAR
® Partner, Philips Consumer Electronics has determined that this product meets the E NERGY S TAR
® guidelines for energy efficiency. E NERGY S TAR mark.
® is a U.S. registered
Using products with the E
NERGY
S
TAR
® label can save energy. Saving energy reduces air pollution and lowers utility bills.
Copyright 2001 Philips Consumer Electronics. All rights reserved.
Helpful Hint
• This manual, your new product, and the packaging contain materials that can be recycled and reused.
Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be properly disposed.
Your product uses batteries that should not be thrown away when depleted but should be disposed of as small chemical waste.
Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging whenever you replace existing equipment.
4 Table of Contents
Setting Up Your VCR
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Hookups without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . .6-7
Hookups with a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Hookups with a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-18
Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Setting the Remote to Operate a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Setting the Remote to Operate a Cable Box/Direct Broadcast System . . . . . . . . . . . . .22
Description of Controls
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23-24
On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Basic Operations
Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Recording
Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-36
Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Playing
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Additional Features
Multi-Channel Television Sound System (VR622CAT only) . . . . . . . . . . . . . . . . . . .43-44
Hi-Fi Stereo Sound System (VR622CAT only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Information You May Need
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-49
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50-51
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Removing the Plastic Cover from the Front Panel
● A thin plastic cover may protect the front panel of your VCR.
Before using the VCR, lift a corner of the plastic, then peel it off.
Putting Batteries in the Remote Control
1
Remove the battery compartment lid on the bottom of the remote control by pressing the tab, then lifting the lid.
2
Place two AA batteries inside the battery compartment with their + and – ends aligned as indicated.
3
Replace the battery compartment lid.
Before Using Your VCR 5
1
2
3
Battery Safety
● Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury or damage to the unit:
Install ALL batteries correctly, with the + and - markings on the battery aligned as indicated on the unit;
Do not mix batteries, for example, old with new or carbon with alkaline; and
Remove batteries when the unit will not be used for a long time.
Using the Remote Control
● Point the remote control at the VCR, then press the VCR button before using the remote control to operate the VCR.
●
●
Point the remote control at the TV, then press the TV button before using the remote control to operate the TV.
Point the remote control at the Cable Box or Direct Broadcast
System (DBS), then press the CBL/DBS button before using the remote control to operate the Cable Box or DBS.
Recording Prevention
Video cassette tapes have record tabs to ensure that recordings are not accidentally erased.
1
To prevent recording, break off the tab with a screwdriver.
2
To allow recording, cover the hole with cellophane tape.
VCR maintenance
●
●
●
Use only tapes with the mark.
Remove any light adhesive stick-on notes from the video cassette tape before putting the tape in the VCR. Removable labels can jam the VCR.
The VCR requires periodic maintenance to maintain its excellent performance. This VCR has an Automatic Head Cleaner.
However, the video heads will require replacement eventually.
Only an authorized service center should perform this service.
1
2
6 Hookups without a Cable Box/Direct Broadcast System
The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a
Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo
TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.
(The VR622CAT is illustrated here. The VR422CAT has single AUDIO IN/OUT jacks.)
1
Disconnect the antenna or cable from your TV.
Antenna
Indoor/Outdoor
(300 ohm)
OR
ANTENNA IN
Jack
(on back of
TV) Cable
(75 ohm)
2
Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.
Back of VCR
Antenna
Indoor/Outdoor
(300 ohm)
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
OUT
OR
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
Cable
(75 ohm)
Hookups without a Cable Box/Direct Broadcast System (cont’d) 7
3
Connect the supplied black RF coaxial cable to the OUT Jack on the back of
the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on type (supplied) or screw-on type of coaxial cable, whichever you prefer.)
AUDIO
L
OUT
R
IN
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
75
ANT /
CABLE
75
ANT /
CABLE supplied black
RF coaxial cable
ANTENNA IN Jack
(on back of TV) example only
4
Plug in the power cords of the TV and the VCR.
5
Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever channel is not used or least used in your area. Set the TV to the same channel. For example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on channel 03.
CH 4 or
CH 3
CH3 / CH4
Switch
CH3 CH4
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
6
You are ready to turn on the VCR. Please go to page 11 before turning on the VCR.
8 Hookups with a Cable Box/Direct Broadcast System
There are two ways to connect your Cable Box/DBS to the VCR. With this connection:
● You may view any channel.
●
●
You must select channels at the Cable Box/DBS. You can not change channels at the VCR.
You may not view a channel other than the one you are recording.
● You may not program channels at the VCR.
● You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04). Set the CH3/CH4 switch on the back of the VCR to the same channel. Set your
Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 34.) Leave the Cable
Box/DBS on for a timer recording.
1
Cable Box/DBS
IN
Cable
Signal
OUT
RF coaxial cable
2
VCR
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
Connections
1
Connect a Cable signal to the IN Jack on the Cable Box/DBS.
2
Use the supplied black RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANT(enna) IN Jack on the VCR.
3
Use a second RF coaxial cable (not supplied) to connect the OUT Jack on the VCR to the TV’s ANTENNA IN Jack.
Recording/Viewing Any Channel
1
With the VCR on and in VCR position (the VCR light will appear on the display panel), set the VCR to the Cable Box/DBS output channel (03 or 04).
2
Set the TV to the same channel to which you set the VCR. Set the CH3/CH4 switch on the back of the VCR to the same channel.
3
Select the channel you want to view/record at the Cable Box/DBS.
75
ANT /
CABLE
RF coaxial cable
3
TV’s
ANTENNA IN
Jack
Hookups with a Cable Box/Direct Broadcast System (cont’d) 9
With this connection:
● You may watch one channel while recording another.
● You may not record scrambled channels.
1
VCR
2
Cable Box/DBS
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
IN
OUT
Cable
Signal
RF coaxial cable
RF coaxial cable
3
75
ANT /
CABLE
TV’s ANTENNA
IN Jack
Connections
1
Connect a Cable signal to the VCR’s ANT(enna) IN Jack.
2
Use the supplied black RF coaxial cable to connect the OUT Jack on the
VCR to the IN Jack on the Cable Box/DBS.
3
Use a second RF coaxial cable (not supplied) to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV.
Recording One Channel/Watching Another
1
Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. Set the TV to the Cable Box/DBS output channel (03 or 04).
Then, with the VCR in VCR position (the VCR light will appear on the display panel), use the CH(annel) o / p buttons to select the channel you want to record at the VCR. Start the recording.
2
Press the VCR/TV button once to put the VCR in TV position.
(The VCR light will disappear.)
3
Select the channel you want to watch at the Cable Box/DBS.
4
To return to the channel you are recording, set the Cable Box/DBS to the same channel as the VCR’s CH3/CH4 switch. Press the VCR/TV button so that the VCR is in VCR position again. The VCR light will appear on the display panel. The channel you are recording will appear on the TV screen. Press the STOP/ p button to stop recording.
Helpful Hint
• When you play a tape, make sure the Cable Box/DBS is set to the same channel as the CH3/CH4 switch on the VCR. Set the TV to the Cable Box/DBS output channel
(03 or 04).
10 Hookups with a Stereo TV
VR622CAT
1 antenna or cable to
ANT(enna) IN Jack
VIDEO (yellow) and
AUDIO (red and white) OUT Jacks
VR422CAT
VIDEO (yellow) and
AUDIO (white) OUT Jacks
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
2
Video Cable
Audio and Video IN
Jacks on TV
OR
3
Stereo Audio Cable
1 antenna or cable to
ANT(enna) IN Jack
ANT
IN
AUDIO
OUT IN
VIDEO
CH3 CH4
OUT
2
Video Cable Audio and Video
IN Jacks on TV
3
“Y” splitter
Audio Cable
● Audio and Video cables are not supplied.
1
Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.
2
Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV.
3
If you have the VR622CAT, connect a stereo audio cable to the red and white AUDIO OUT
Jacks on the back of the VCR. Then, connect the other end of the audio cable to the AUDIO
IN Jacks on your TV.
If you have the VR422CAT, connect an audio cable to the white AUDIO OUT Jack on the back
of the VCR. Then, connect the other end of the audio cable to the AUDIO IN Jack on your TV. If your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver audio to the TV’s right and left channels. This hookup will not give you stereo sound. To get stereo sound, use the connections on pages six - seven and select the channel to be viewed at the TV (with the VCR turned off).
4
Turn on your TV, making sure it is in Line Input mode. This might be referred to as the TV’s Audio/Video In channel or the Auxiliary In channel. Please refer to your TV owner’s manual for details.
Turning on Your VCR 11
Before turning on your VCR, make sure batteries are in the remote control and you have connected the VCR and TV correctly.
● You can not program channels if you are using a Cable Box or a
●
Direct Broadcast System.
If you are not using a Cable Box/DBS, the clock may set itself automatically after you connect the antenna/Cable signal to the
VCR and plug in the power cord. The time will appear on the display panel.
1
Press the VCR button, then press the POWER button.
The VCR light and the PWR. (power) light will appear on the VCR display panel.
2
Turn on the TV. Set it to the same channel as the
CH3/CH4 switch on the back of the VCR. The display shown below will appear on the TV screen. (If the display does not appear, check your hookups, then follow the steps on page 12 to set up channels and page 20 to select a language.)
2
Turn on the TV.
4
3
5
EJECT
MENU
1
4
7
MEMORY
REC
/OTR
CH.
REW
VCR
POWER
STATUS/EXIT CLEAR
2
5
8
0
PLAY
STOP
MUTE
TV
PAUSE
/STILL
F.FWD
3
6
VOL.
CBL/DBS
9
ALT.CH
SELECT op
→
ENGLISH ON
ESPAÑOL
VCR/TV SPEED TIME SEARCH
ENTER SLOW
1
MAKE SELECTION OR
PUSH MENU TO CONTINUE
3
Within 60 seconds, press the PLAY/ o button or the
STOP/ p button to select English or Spanish on-screen displays and menus.
4
Press the MENU button. The display shown below will appear.
CONNECT ANTENNA OR CABLE
TO VCR
THEN . . .
PUSH CH UP KEY
OR . . .
FOR PLAY ONLY – PUSH STOP
5
Within 60 seconds, press the CH(annel) o button to
begin automatic channel programming. AUTO CH PRO-
GRAMMING IN PROCESS PLEASE WAIT will appear on the screen. The VCR will memorize all available channels. The channel numbers will appear on the display panel as the VCR scans channels. When all channels are memorized, CHANNELS ARE SET will appear on the screen briefly, then TV programming will appear.
Now, when you press the CH(annel) o / p buttons, you’ll only scan through channels that you receive. You can still select other channels using the Number buttons.
Helpful Hints
• To skip this feature and play a tape immediately, insert a tape with its record tab removed. Or, to skip step
3, press the MENU button. All onscreen displays will be in English. To skip step 5, press the STOP/ p button. Channels will not be programmed, and CHANNELS NOT
SET will appear on the screen.
• When you turn on the VCR again later, you may see a message regarding AUTO CLOCK. Details are on pages 15-18.
• If you try to program channels when there is no antenna or cable connected to the VCR, programming will appear to take place, but eventually a NO TV SIGNALS message will appear. Connect an antenna or cable to the VCR’s ANT(enna) IN
Jack and press the CH(annel) o button again. You may need to follow the steps on page 12.
• You may need to repeat the steps on this page if a power failure occurs.
12 Automatic Channel Setup
Although your VCR may automatically memorize the channels you receive when you turn it on for the first time, this function lets you set up the channels again.
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
TUNER SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→ AUTO PROGRAMMING
ADD/DELETE CH
CH MEMORY REVIEW
TV STEREO
2ND AUDIO
ON
VR622CAT only
2
1
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
AUTO PROGRAMMING, then press the F.FWD/ B but-
ton. The VCR distinguishes between TV channels and cable channels, and the VCR will memorize all the channels you receive. The channel numbers will appear on the VCR display panel during channel setup.
AUTO CH PROGRAMMING
IN PROCESS
PLEASE WAIT
START FINISH
5
Wait for a few minutes while the VCR sets up the chan-
nels. When this is complete, CHANNELS ARE SET will appear on the screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on the screen. Now when you press the CH(annel) o / p buttons, you will scan only through channels you receive. You may still select non-memorized channels by pressing the Number buttons.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
REC
/OTR
REW
2
5
8
0
PLAY
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3-4
Helpful Hints
• You can not enter the TUNER SET
UP menu when you are in Line
Input mode (channel 001 or 002).
When you select channel 001 or
002, AV REAR or AV FRONT will appear on the TV screen briefly.
• You can not program channels if you are using a Cable Box or DBS.
• If you have an antenna, channels 2-
69 will be available. If you have a cable connection, channels 1-125 will be available.
• You may need to repeat the steps on this page if a power failure occurs.
Automatic Channel Setup (cont’d) 13
Adding/Deleting Channels
If your channel lineup changes, you may want to add newly available channels or remove channels that are no longer available in your area. Channels that you add to the VCR’s memory can be selected by pressing the CH(annel) o / p buttons.
To add or delete channels from the VCR’s memory, follow these steps.
7 3-6
EJECT
MENU
POWER
STATUS/EXIT CLEAR 1
Press the VCR button.
2
Press the MENU button.
3
Press the PLAY/ o button or the STOP/ p button to select
TUNER SET UP, then press the F.FWD/ B button.
4
Press the PLAY/ o button or the STOP/ p button to select
ADD/DELETE CH, then press the F.FWD/ B button.
SELECT op ADD/DELETE B
124
125
1
2
3
DELETED
DELETED
→
DELETED
ADDED
ADDED
TO END PUSH EXIT
NOTE: If you have an antenna, channel numbers 2-69 will appear on the ADD/DELETE CH menu. If you have a cable connection, channels
1-125 will be available.
5
Press the PLAY/ o button or the STOP/ p button until the channel number you want to add or delete appears beside the arrow.
SELECT op ADD/DELETE B
16
17
18
19
20
DELETED
ADDED
→
ADDED
ADDED
ADDED
TO END PUSH EXIT
6
Press the F.FWD/ B button to select ADDED or DELET-
ED. Repeat steps 5 and 6 until you have added or deleted all the channels you wanted to add or delete.
7
Press the STATUS/EXIT button.
2
1
1
4
7
MEMORY
REC
/OTR
CH.
REW
VCR
2
5
8
0
PLAY
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
14 Automatic Channel Setup (cont’d)
Reviewing Memorized Channels
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
TUNER SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
AUTO PROGRAMMING
ADD/DELETE CH
CH MEMORY REVIEW
TV STEREO
2ND AUDIO
ON VR622CAT only
2
TO END PUSH EXIT
●
●
4
Press the PLAY/ o button or the STOP/ p button to select
CH MEMORY REVIEW, then press the F.FWD/ B button.
A list of programmed channels will appear on the screen.
If all the programmed channels don’t fit on the screen, press the F.FWD/ B button to see the remaining channels. Then press the REW(ind)/ s button to return to the first screen of channels.
If you do not press any buttons within 10 seconds, you will either go to the next screen of channels or you will return to the previous menu.
5
Press the STATUS/EXIT button once or twice to exit.
1
5
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3-4
Setting the Clock 15
There are two ways to set the clock. With manual clock setting, you tell the VCR the current time. With automatic clock setting, the VCR gets the current time from your local PBS station. It keeps track of the time by constantly referring to the time broadcasted by your PBS station.
If you are using a Cable Box or Direct Broadcast System, you must set the clock manually.
Follow the instructions under either manual clock setting (below) or automatic clock setting (page 17) to set the VCR’s clock.
Before you begin, make sure:
● The VCR is hooked up and turned on, and channels are programmed into the VCR’s memory (see pages six-12).
● The VCR is in VCR position. The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.
Do each step within 60 seconds of the previous step.
Manual Clock Setting
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
SET CLOCK, then press the F.FWD/ B button.
→
SET CLOCK
AUTO CLOCK [ON]
SET MANUAL CLOCK
DAYLIGHT SVG TIME [ON]
SET TIME ZONE
(AUTO)
TO CONTINUE PUSH MENU
SELECT op CHOOSE B
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
SET MANUAL CLOCK, then press the F.FWD/ B button.
TIME – – : – –
DATE – – / – – / – –
2
1
TO END PUSH EXIT
3-4
Helpful Hints
• To display the time on the TV screen, press the STATUS/EXIT button. Details are on page 25.
• Power failures may erase the clock setting. If this happens, reset the clock.
• Until the clock is set, - : - - may appear on the VCR display panel.
Instructions continue on page 16.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
16 Setting the Clock (cont’d)
5
Press two Number buttons for the hour(s) and two
Number buttons for the minute(s). Then press 1 for AM
or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.
● Enter a 0 before a single-digit number.
● Entries that do not match the VCR’s calendar or clock will
● cause a question mark (?) to appear on the screen.
To make corrections, press the CLEAR button until the space for the number you want to correct is flashing. Then enter the correct number.
TIME 02 :15 PM
MONTH – – / – – /– –
5-6
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
6
Press two Number buttons for the month, two Number buttons for the day, and two Number buttons for the
year. For example, for July 1, 2001, press 07, 01, 01. The day of the week will appear automatically.
TIME 02 :15 PM
DATE 07/ 01 / 01
SUN.
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
7
Press the STATUS/EXIT button to start the clock. The screen will return to the program you were watching. The time will appear on the VCR display panel.
7
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
Automatic Clock Setting
1
Press the VCR button, then press the MENU button.
SELECT op CHOOSE B
→ PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
Setting the Clock (cont’d) 17
4 2-4
3
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
3
6
9
ALT.CH
TO END PUSH EXIT
2
Press the PLAY/ o button or the STOP/ p button to select
SET CLOCK, then press the F.FWD/ B button.
3
If OFF appears to the right of AUTO CLOCK, press the
F.FWD/ B button to select ON. Then, press the MENU button. Or, if ON appears to the right of AUTO CLOCK,
press the MENU button. Go to step 4.
AUTO CLOCK
AUTO CLOCK USES
PBS CHANNEL DATA
→
SET PBS CH. AUTO
SET PBS CH. MANUAL
1
REC
/OTR
REW
PLAY
STOP
PAUSE
/STILL
F.FWD
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
SELECT op CHOOSE B
TO END PUSH EXIT
●
4
If you want the VCR to locate a local PBS station from which to take the time, press the PLAY/ o button or the
STOP/ p button to select SET PBS CH. AUTO. Then press the F.FWD/ B button. When the current time appears on the screen, you’re finished. Press the STATUS/EXIT button.
Or, you may be prompted to turn off the VCR. Turn off the
VCR power, and leave it off for several minutes. When the current time appears on the VCR display panel, the clock is set. You may turn on the VCR again.
● If you want to tell the VCR the PBS station from which to take the time, press the PLAY/ o button or the
STOP/ p button to select SET PBS CH. MANUAL. Press the F.FWD/ B button, then use the Number buttons to enter the channel number of the desired PBS station.
When the current time appears on the screen, you’re finished.
Press the STATUS/EXIT button.
NOTE: CANNOT FIND PBS CLOCK DATA may flash on the screen.
Press the PLAY/ o button or the STOP/ p button to choose SELECT
NEW PBS CH., then press the F.FWD/ B button. Use the Number buttons to enter the channel number of another PBS station.
Or, press the PLAY/ o button or the STOP/ p button to select SET
PBS CH. AUTO. Press the F.FWD/ B button. You will be prompted to turn off the VCR. Turn off the VCR power, and leave it off for several minutes. When the current time appears on the VCR display panel, the clock is set. You may turn on the VCR again.
Helpful Hints
• If you enter an incorrect PBS channel number at step 4, press the CLEAR button to erase the incorrect channel, then enter the correct channel number.
• If you have an antenna, you may select channels 2-69 at step 4. If you have a cable connection, you may select channels 1-125.
• The VCR can not set its clock automatically if it doesn’t receive a channel that carries a time signal. Set the clock manually.
• If only a few channels in your area carry time signals, setting the clock automatically may take several minutes. If nothing happens after you wait several minutes, set the clock manually.
• You cannot select AUTO CLOCK at step 3 during tape playback.
18 Setting the Clock (cont’d)
Time Zone
When using the AUTO CLOCK function, you can specify your time zone. That way, the VCR will update the clock according to your time zone.
1
Press the VCR button, then press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
2
Press the PLAY/ o button or the STOP/ p button to select
SET CLOCK, then press the F.FWD/ B button.
→
SET CLOCK
AUTO CLOCK [ON]
SET MANUAL CLOCK
DAYLIGHT SVG TIME [ON]
SET TIME ZONE
(AUTO)
TO CONTINUE PUSH MENU
SELECT op CHOOSE B
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
SET TIME ZONE, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
AUTO
ATLANTIC
EASTERN
CENTRAL
MOUNTAIN
PACIFIC
ALASKA
HAWAII
TO END PUSH EXIT
ON
4
Press the PLAY/ o button or the STOP/ p button to select
your time zone. ON will appear beside your choice.
SELECT op CHOOSE B
AUTO
ATLANTIC
→
EASTERN
CENTRAL
MOUNTAIN
PACIFIC
ALASKA
HAWAII
TO END PUSH EXIT
ON
5
Press the STATUS/EXIT button.
1
5
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
2-4
Helpful Hints
• SET TIME ZONE will not appear in the menu if AUTO CLOCK is set to
OFF.
• You may need to turn off the VCR for several minutes to enable the VCR to set its clock for your time zone.
Daylight-Savings Time 19
You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October.
Daylight-Savings Time is ON when you receive your VCR. Turn
Daylight-Savings Time ON or OFF by following the steps below.
Before you begin:
● Make sure you have set the clock. Details are on pages 15-18.
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
2
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
SET CLOCK, then press the F.FWD/ B button.
1
→
SET CLOCK
AUTO CLOCK [ON]
SET MANUAL CLOCK
DAYLIGHT SVG TIME [ON]
SET TIME ZONE
(AUTO)
TO CONTINUE PUSH MENU
SELECT op CHOOSE B
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
DAYLIGHT SVG TIME. Then, press the F.FWD/ B button so that OFF (or ON) appears beside DAYLIGHT SVG
TIME.
SET CLOCK
AUTO CLOCK [ON]
→
SET MANUAL CLOCK
DAYLIGHT SVG TIME [ON]
SET TIME ZONE
(AUTO)
TO CONTINUE PUSH MENU
SELECT op CHOOSE B
TO END PUSH EXIT
1
4
7
MEMORY
REC
/OTR
REW
2
5
8
0
PLAY
5
EJECT
MENU
POWER
STATUS/EXIT CLEAR
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3-4
5
Press the STATUS/EXIT button.
20 Language Selection
Follow the steps below to change the language of the on-screen displays and menus.
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
VCR SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
REPEAT PLAY
ON SCREEN MODE
AUDIO OUT
LANGUAGE
OFF
BLUE BACKGROUND ON
VR622CAT only
2
1
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
LANGUAGE, then press the F.FWD/ B button.
SELECT op
→
ENGLISH ON
ESPAÑOL
MAKE SELECTION OR
TO END PUSH EXIT
5
Press the PLAY/ o button or the STOP/ p button to select
English or Spanish on-screen displays and menus.
6
Press the STATUS/EXIT button.
6
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3-5
Helpful Hint
• If you accidentally select Spanish and need English:
1. Press the VCR button.
2. Press the MENU button.
3. Press the PLAY/ o button or the
STOP/ p button to select PREPARE
EL VCR, then press the F.FWD/ B button.
4. Press the PLAY/ o button or the
STOP/ p button to select LENGUA-
JE, then press the F.FWD/ B button.
5. Press the PLAY/ o button or the
STOP/ p button to select ENGLISH.
6. Press the STATUS/EXIT button.
Setting the Remote to Operate a TV 21
Your VCR remote control may operate your TV. If the remote control doesn’t operate your TV now, follow the steps below.
1
Point the remote control at your TV and press the TV
button. Then, press the POWER button. If your TV turns on or off, try the other TV buttons (see pages 23-24). If your TV doesn’t turn on or off, or if the other buttons don’t work, go to step 2.
2
Find the brand of your TV on the list below, and remember the two-digit number beside it.
TV CODES
EMERSON . . . . . . . . . . . . . .14
FISHER . . . . . . . . . . . . . . . . .11
GE . . . . . . . . . . . . . . . . . . . .10
GOLDSTAR . . . . . . . . . . . . .04
HITACHI . . . . . . . . . . . . . . . .12
JVC . . . . . . . . . . . . . . . . . . . .05
MAGNAVOX . . . . . . .01, 02, 03
MARANTZ . . . . . . . . . . . . . .13
MITSUBISHI . . . . . . . . . . . . .13
MONTGOMERY WARD . . . .14
PANASONIC . . . . . . . . . . . . .07
PANASONIC-GAOO . . . . . . .07
PHILCO . . . . . . . . . . . . . . . .14
PHILIPS . . . . . . . . . . . . . . . .01
PHILIPS MAGNAVOX. .01, 02, 03
QUASAR . . . . . . . . . . . . . . . .07
RCA . . . . . . . . . . . . . . . . . . .10
SAMSUNG . . . . . . . . . . . . . .17
SANYO . . . . . . . . . . . . . . . . .11
SEARS . . . . . . . . . . . . . .08, 11
SHARP . . . . . . . . . . . . . . . . .16
SONY . . . . . . . . . . . . . . . . . .09
TOSHIBA . . . . . . . . . . . . . . .08
ZENITH . . . . . . . . . . . . . .06, 15
3
Press the MUTE button.
2
5
3
4
Find your
TV code.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
REC
/OTR
REW
2
5
8
0
PLAY
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
CH.
VCR
VOL.
MUTE
TV CBL/DBS
ENTER SLOW
1&6
VCR/TV SPEED TIME SEARCH
4
Within 30 seconds, press the TV button.
5
Within 30 seconds, press the Number buttons to enter
the two-digit code for your TV brand. For example, if you have a Zenith TV, press Number buttons 0, 6.
6
Repeat step 1. If the remote control works your TV, you’re finished. If the remote control still doesn’t work your TV, repeat steps 3-5, using a different code for your brand (if available).
There is no guarantee that the remote will work your TV.
Helpful Hints
• The remote control may only operate some features of your TV. For example, the remote control may turn on the TV power, but it may not change channels at the TV.
• If you can not change the channels at the TV using the Number buttons, press the ENTER button after you press the Number buttons. It may change channels at the TV.
• When you replace the batteries in the remote control, you may need to program the remote control again.
• Remember to point the remote control toward the TV during steps 1-6.
22 Setting the Remote to Operate a Cable Box/Direct Broadcast System
Your VCR remote control may operate your Cable Box or Direct
Broadcast System (DBS). If the remote control doesn’t operate your Cable Box or DBS now, follow the steps below.
1
Turn on the Cable Box/DBS. Then, point the remote control at your Cable Box/DBS and press the CBL/DBS button.
Then, press the POWER button. If your Cable Box/DBS turns off, try the other Cable Box/DBS buttons (see pages 23-24). If your
Cable Box/DBS doesn’t turn off, or if the other buttons don’t work, go to step 2.
2
Find the brand of your Cable Box or DBS on the lists below and remember the two-digit number beside it.
ARCHER..01, 05, 06, 44
CABLETENNA.....01, 44
CABLEVIEW........04, 30,
42, 44, 52
CENTURY..................44
CITIZEN...............04, 30,
42, 44, 52
CURTIS................08, 09
DIAMOND............01, 44
EAGLE...........26, 40, 62
EASTERN/REGENCY
...................................28
GC BRAND..........04, 30,
42, 44, 52
GEMINI/JASCO..........04
GENERAL ELECTRIC
.............................01, 57
GENERAL INSTRUMENT
.....01, 02, 03, 04, 34, 83
HAMLIN....14, 15, 28, 41
JERROLD.......01, 02, 03,
04, 34, 83
CABLE BOX CODES
MAGNAVOX..............26
MATSUSHITA
.......................16, 17, 97
MOVIETIME.........42, 44
NOVAVISION........08, 09
NSC/NEC...................40
OAK......................11, 46
OAK SIGMA.........11, 46
PANASONIC..16, 17, 97
PHILIPS.........07, 23, 50
PIONEER.............05, 06
PULSAR.........04, 30, 42,
44, 52
QUEST.................05, 06
RCA................16, 17, 97
REALISTIC.................44
RECOTON.................44
REGAL.....14, 15, 28, 41
REMBRANDT
.........................01, 42, 44
SAMSUNG.............05, 06,
40, 42
SCIENTIFIC ATLANTA
...............................08, 09
SIGNAL........................26
SL MARX.........06, 40, 42,
44, 52
SPRUCER........16, 17, 97
STANDARD COMPONENTS
...............................42, 44
STARGATE......04, 06, 30,
40, 42, 44, 52
TELEVIEW.......06, 40, 42
TOCOM......01, 33, 34, 42
UNIKA....................01, 44
UNIVERSAL.....42, 44, 52
VIDEOWAY......07, 23, 50
VIEWSTAR......26, 40, 62
ZENITH............07, 23, 50
DIRECT BROADCAST SYSTEM CODES
MAGNAVOX...........94,95 RCA.........................97
SONY.......................98
3
Press the MUTE button.
4
Within 30 seconds, press the CBL/DBS button.
5
Within 30 seconds, press the Number buttons to enter the
two-digit code for your Cable Box or DBS. For example, if you have a Zenith Cable Box, press Number buttons 0,7.
6
Repeat step 1. If the remote control works your Cable Box or
DBS, you’re finished. If the remote control still doesn’t work your
Cable Box or DBS, repeat steps 3-5, using a different code for your brand, if available.
2
5
3
Find your code.
EJECT
MENU
CH.
1
4
7
MEMORY
REC
/OTR
REW
VCR
VCR/TV
POWER
STATUS/EXIT CLEAR
2
5
8
0
PLAY
STOP
MUTE
TV
9
ALT.CH
SPEED TIME SEARCH
ENTER
3
6
1&6
PAUSE
/STILL
F.FWD
VOL.
CBL/DBS
SLOW
There is no guarantee that the remote will work your
Cable Box or DBS.
Helpful Hints
4
• The remote control may only operate some features of your Cable Box/DBS.
For example, the remote control may turn off the Cable Box/DBS power, but it may not change channels at the
Cable Box/DBS.
• If you can not change the channels at the Cable Box by using the
Number buttons, press the ENTER button after you press the Number buttons. It may change channels at the Cable Box.
• When you replace the batteries in the remote control, you may have to program the remote control again.
• Remember to point the remote control toward the Cable Box/DBS during steps 1-6.
• Some Cable Boxes can only be turned on at the Cable Box.
Remote Control Buttons 23
POWER Button
Press to turn on or off the VCR, TV, Cable Box, or Direct Broadcast
System. (You must first press the VCR, TV, or CBL/DBS button.)
EJECT Button
Press to eject the tape.
MENU Button
Press to access the VCR menu or some TV menus.
EJECT
Number Buttons
Press to select channels at the VCR, TV, Cable Box, or Direct Broadcast
System; use to set up VCR features (such as the clock).
Cable Users ●
At the VCR, enter channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press 0,6. If you only press the
Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10, 11, and 12.) If you want to select channels 100 and above, enter channel numbers as a threedigit number. For example, to select channel 117, press 1, 1, 7.
Antenna Users ●
Enter channel numbers as a two-digit number for the quickest results. You may only select channels 2-69. For example, to select channel 5, press 0,5.
If you only press the Number 5 button, channel 5 will be selected after a brief delay.
MEMORY Button
Press to memorize the tape position at which you set the real-time counter to 0:00:00. Details are on page 39.
REC(ord)/OTR Button
Press once to start a recording. Details are on page 30. Or, press repeatedly to start a One-Touch Recording. Details are on page 32.
PLAY/ o Button
Press to play a tape; press to release Slow, Search, or Still mode and return to normal playback. Details are on page 41. Press to select an item in the
VCR’s menu or some TV menus.
MUTE Button
Press to eliminate the sound at your TV. Press again to restore the volume.
If you mute the volume, pressing the VOL(ume) o button also will restore the volume.
VCR Button
Press to operate the VCR with the remote control.
SPEED Button
Press to select the recording speed (SP or SLP). Details are on pages 35 and 47.
SLOW Button
During tape playback, press to view the picture in slow motion.
Press again to resume normal playback. Details are on page 41.
VOL(ume) o / p Buttons
Press to adjust the volume of your TV.
PAUSE/STILL Button
While recording, press to temporarily stop the recording (pause). Press a second time to resume normal recording. Details are on page 30. You can not pause a One-Touch Recording. During playback, press to freeze the picture (still). Press again to resume playback. Details are on page 41.
MENU
1
4
7
MEMORY
REC
/OTR
CH.
REW
VCR
POWER
STATUS/EXIT CLEAR
2
5
8
0
PLAY
STOP
MUTE
TV
VCR/TV SPEED TIME SEARCH
ENTER
9
ALT.CH
PAUSE
/STILL
F.FWD
3
6
CBL/DBS
SLOW
VOL.
Helpful Hints
• Press the VCR button before pressing VCR feature buttons; press the TV button before pressing TV feature buttons; press the CBL/DBS button before pressing Cable Box/Direct Broadcast System feature buttons.
• Buttons that are shaded in the picture will glow for some time after exposure to direct light.
• Buttons with a shaded description may also operate features of your TV, Cable Box, or Direct Broadcast System.
24 Remote Control Buttons (cont’d)
CLEAR Button
Press to erase incorrect data when programming VCR functions.
Also, press to reset the real-time counter. Details are on page 39.
STATUS/EXIT Button
Press to access or remove the VCR’s on-screen status display. Details
are on page 25. Press to exit on-screen menus. Or, press the TV button, then press the STATUS/EXIT button to access or remove some
TV displays or menus.
REW(ind)/ { Button
When tape playback is stopped, press to rewind the tape at high speed.
During playback, press to rewind the tape while the picture stays on the screen. Details are on page 41. Press to return to a previous VCR menu.
Or, press to adjust the controls in some TV menus.
EJECT
MENU
1
4
POWER
STATUS/EXIT CLEAR
2
5
3
6
STOP/ p Button
Press to stop the tape. Press to select an item in the VCR menu. Or, press when in TV mode to select an item in some TV menus.
CH(annel) o / p Buttons
Press to change channels at the VCR, TV, Cable Box, or Direct
Broadcast System.
7
MEMORY
REC
/OTR
REW
8
0
PLAY
9
ALT.CH
PAUSE
/STILL
F.FWD
STOP
VCR/TV Button
Press to select VCR or TV position.
VCR Position ●
Use to watch a tape, to watch a program while recording it, or to watch a TV broadcast using the CH(annel) o / p or Number buttons to change channels at the VCR. If the VCR light appears on the display panel of the VCR, it is in VCR position.
TV Position ●
Use to watch TV (changing channels at the TV) or to watch one program while recording another. Details are on page 31. If the VCR light doesn’t appear on the display panel of the VCR, it is in TV position.
ENTER Button
Press after pressing the Number buttons to select a channel at the TV or the Cable Box. Details are on pages 21-22.
TV Button
Press to operate the TV. Details are on page 21.
TIME SEARCH Button
Press to fast forward or rewind the tape a specific length of time.
Details are on page 40.
CBL/DBS Button
Press to operate the Cable Box or Direct Broadcast System.
Details are on page 22.
F.FWD(Fast Forward)/ B Button
When playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stays on the screen. Details are on page 41. Or, use to adjust the controls in some TV menus.
ALT. CH (Alternate Channel) Button
Press while in TV position to return to the TV channel you were viewing immediately before switching to your current channel. (If you press the ALT. CH button while in VCR position, the TV will change to the channel you last selected before choosing channel 3 or 4 to use the VCR. However, the TV channel will not be clear, because you are in VCR position.)
CH.
VCR
MUTE
TV
VCR/TV SPEED TIME SEARCH
ENTER
CBL/DBS
SLOW
VOL.
Helpful Hints
• Press the VCR button before pressing VCR feature buttons; press the TV button before pressing TV feature buttons; press the CBL/DBS button before pressing Cable Box/Direct Broadcast System feature buttons.
• Buttons that are shaded in the picture will glow for some time after exposure to direct light.
• Buttons with a shaded description may also operate features of your TV, Cable Box, or Direct Broadcast System.
On-Screen Status Displays 25
A status display will appear when you press the STATUS/EXIT button or certain function buttons. The contents of the status display will vary. To choose the status display mode, follow the steps below.
If you select STATUS ON, then select COUNTER ONLY
ON:
● Whenever you press the STOP/ p button or the PLAY/ o button, the status display will appear for five seconds. After five seconds, only the counter will remain on the screen. You must press the
STATUS/EXIT button to remove it. Portions of the status display also may appear when you press other function buttons.
If you select STATUS ON, then select COUNTER ONLY
OFF:
● Whenever you press the STOP/ p button or the PLAY/ o button, the status display will appear for five seconds. Portions of the status display also may appear when you press other function buttons.
If you select STATUS OFF:
● The status display will not appear when you press function buttons. You must press the STATUS/EXIT button to see the status display.
1
Press the VCR button, then press the MENU button.
2
Press the PLAY/ o button or the STOP/ p button to select
VCR SET UP, then press the F.FWD/ B button.
3
Press the PLAY/ o button or the STOP/ p button to select
ON SCREEN MODE, then press the F.FWD/ B button.
4
Press the PLAY/ o button or the STOP/ p button to select
STATUS, then press the F.FWD/ B button so that OFF
(or ON) appears beside STATUS.
SELECT op CHOOSE B
→
STATUS
COUNTER ONLY
[ON]
[OFF]
SLP
Tape
Speed
Status Display
(example only)
Receiving and
Recording Mode
(VR622CAT only)
Current status of tape
STOP
TV STEREO
M 1:23:45
Counter,
Counter
Memory
Channel
Time
12:00 AM
CH10
STEREO
2ND AUD
HIFI
Audio Out Mode
(VR622CAT only)
MTS Broadcast
Available
(VR622CAT only)
TO END PUSH EXIT
5
If you set STATUS to OFF, go to step 6. If you set STA-
TUS to ON, press the PLAY/ o button or the STOP/ p button to select COUNTER ONLY, then press the
F.FWD/ B button so that OFF (or ON) appears beside it.
6
Press the STATUS/EXIT button.
Helpful Hint
• You may not access a status display when viewing a still picture, during slow motion playback, or during a search.
• A status display may not be available when you are watching TV if
BLUE BACKGROUND is OFF.
Details are on page 46.
26 VCR Display Panel
Cassette Compartment
Insert a tape here.
VR622CAT
VIDEO L AUDIO R
POWER
VCR/TV
CHANNEL
REW
PLAY
F.FWD
RECORD
STOP/EJECT
PAUSE
MENU STATUS/EXIT
PWR.(power) Light
This light appears when the power is on.
Cassette-Inside Light
This light appears when a tape is in the VCR.
VCR Light
This light appears when the
VCR is in VCR position. This light does not appear when the
VCR is in TV position.
Details are on pages 24 and 27.
Clock Display
The current time appears here when the clock is set. If the clock is not set, -:-- will appear here. PM will appear on the display, but AM will not.
REC(ord) Light
This light appears during a recording. It flashes when a recording is paused.
Timer Light
This light glows when the VCR is off for a timer recording, during a timer recording, or during a One-Touch Recording. It flashes if the power is off for a timer recording, but no tape is in the VCR. It flashes when all timer recordings are finished.
Remote Sensor
Receives a signal from your remote control so you can operate your VCR from a distance.
POWER Button
Press to turn the VCR power on and off.
AUDIO In Jacks
Connect audio cables coming from the audio out jacks of a camcorder, another VCR, or an audio source here. Details are on page 37.
The VR622CAT is shown here.
The VR422CAT has only one
AUDIO In jack.
VR622CAT
Front Panel 27
PAUSE Button
While recording, press to pause the recording. Press again to resume recording. Details are on page 30.
You can not pause a One-Touch Recording. During tape playback, press to freeze the picture. Press again to resume playback. Details are on page 41.
F.FWD (Fast Forward) Button
When playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen.
Details are on page 41. Press to select an item in the
VCR menu or to change the setting of a menu item.
REW(ind) Button
When playback is stopped, press to rewind the tape at high speed. During playback, press to rewind the tape while the picture stays on the screen. Details are on
page 41. Press to return to a previous VCR menu.
PLAY Button
Press to play a tape. Press to release Slow,
Search, or Still mode and return to playback.
Details are on page 41. Press to select an item in the VCR menu.
REW
PLAY
F.FWD
VIDEO L AUDIO R
POWER
VCR/TV
CHANNEL
RECORD
STOP/EJECT
PAUSE
MENU STATUS/EXIT
VIDEO In Jack
Connect a video cable coming from the video out jack of a camcorder, another VCR, or an audio-visual source (laser disc player, digital video disc player, etc.) here. Details are on page 37.
CHANNEL ( p / o ) Buttons
Press to change channels at the VCR. Or, press to adjust the tracking of a tape during normal playback or slow motion playback. Also, press to remove vertical jitter in a Still picture.
RECORD Button
Press once to start a recording. Press repeatedly to start a One-Touch Recording. Details are on page 32.
VCR/TV Button
Press to select VCR or TV position.
● VCR Position
Use to watch a tape, to watch a program while recording it, or to watch a TV program (changing channels at the VCR).
When the VCR light appears on the dis-
● play panel, the VCR is in VCR position.
TV Position
Use to watch TV (changing channels at the TV) or to watch one program while recording another. When the VCR light does not appear on the display panel, the
VCR is in TV position.
MENU Button
Press to access the VCR menu.
STOP/EJECT Button
Press once to stop the tape. When playback is stopped, press to eject the tape. Press to select an item in the VCR menu.
STATUS/EXIT Button
Press to access or remove the on-screen status display. Details are on
page 25. Press to exit on-screen menus.
28 Rear Panel
ANT(enna) IN Jack
Connect your antenna or cable here. Details are on pages six-10.
AUDIO IN Jack(s)
Connect audio cables coming from the AUDIO OUT Jacks of a camcorder, another VCR, or an audio source here. Details are on page 37. If you connect other equipment to the AUDIO and VIDEO IN jacks on the back of the VCR, select channel 001
(AV REAR) at the VCR. This allows you to view or hear the materials playing on the other equipment.
The VR622CAT is shown here. The VR422CAT has only one AUDIO IN jack.
AUDIO OUT Jack(s)
Connect audio cables going to the AUDIO IN Jacks of a camcorder, another
VCR, or an audio system here. Details are on pages 37 and 43.
The VR622CAT is shown here. The VR422CAT has only one AUDIO OUT jack.
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
AC Power Cord
Connect to a standard AC outlet to supply power to the
VCR.
VIDEO OUT Jack
Connect a video cable going to the VIDEO
IN Jack of a camcorder, another VCR, or an audio-visual system (monitor, laser disc player, video disc player, etc.) here. Details are on pages 37 and 43.
VIDEO IN Jack
Connect a video cable coming from the
VIDEO OUT Jack of a camcorder, another
VCR, or an audio-visual source (laser disc player, digital video disc player, etc.) here.
Details are on page 37.
If you connect other equipment to the
AUDIO and VIDEO IN jacks on the back of the VCR, select channel 001 (AV REAR) at the VCR. This allows you to view or hear the materials playing on the other equipment.
CH3/CH4 Switch
Set to channel 3 or 4 to use your TV with your VCR. Details are on pages six-nine.
OUT Jack
Use the supplied black RF coaxial cable to connect this jack to the ANTEN-
NA IN Jack on your TV,
Cable Box, or Direct
Broadcast System. Details are on pages six-nine.
Read and follow the steps below to play a tape.
1
Turn on the TV and set it to channel 3 or 4, whichever channel the CH3/CH4 switch on the back of the VCR is set to.
2
Insert a tape in the VCR. The PWR., VCR, and Cassette-Inside lights will appear on the display panel. If the tape’s record tab is missing, playback will start automatically.
3
If playback does not start automatically, press the VCR button, then press the PLAY/ o button.
4
Press the STOP/ p button to stop playback.
5
Press the REW(ind)/ { button to rewind the tape.
6
Press the EJECT button to remove the tape.
6
Playing 29
1
Turn on the TV.
2
Insert a tape in the VCR.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
5
4
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
3
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
S-VHS Quasi Play Back (SQPB)
This unit has a SQPB function that allows you to view a tape you recorded in S-VHS format. An S-VHS format tape will play the same as a normal format tape. This unit automatically detects whether the tape is in S-VHS format or in normal format.
When you play an S-VHS tape on this unit, you can not get the high resolution that would be available on an S-VHS VCR. Noise lines (black and white streaks) may appear on the picture.
Helpful Hints
• If the tape you want to play is already in the VCR, make sure the
VCR power is on and the VCR is in
VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.) Press the VCR button, then press the PLAY/ o button.
• Other playback options and features are on pages 38-45.
• If REPEAT PLAY is ON, playback will begin automatically when you insert a tape, even when the record tab is intact. (However, playback will not begin if the VCR power is off and a timer recording is set.)
30 Recording
Read and follow the steps below to record a television program.
1
Turn on the TV and set it to channel 3 or 4, whichever channel the CH3/CH4 switch on the back of the VCR is set to.
2
Insert a tape with its record tab intact in the VCR.
3
Press the VCR button.
4
If the VCR light appears on the display panel, go to step 5. If the
VCR light does not appear, press the VCR/TV button once.
5
Press the SPEED button until the desired tape speed
appears briefly on the screen. (Details about tape speed are on page 35.)
6
Use the CH(annel) o / p buttons or the Number buttons to select the channel to be recorded.
7
Press the REC(ord)/OTR button once to start recording.
The REC(ord) light will appear on the VCR display panel.
8
To pause the recording, press the PAUSE/STILL button
once. The REC(ord) light will flash. To resume recording, press the REC(ord)/OTR button or press the
PAUSE/STILL button again. The REC(ord) light will come on again.
9
To stop recording, press the STOP/ p button.
6
3
4
1
2
Turn on the TV.
Insert a tape in the VCR.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
8
7
9
5
Helpful Hints
• If you press the REC(ord)/OTR button when a tape is not in the VCR, NO
CASSETTE will flash on the screen.
• If you press the REC(ord)/OTR button while a tape without a record tab is in the VCR, the VCR will eject the tape and PROTECTED CASSETTE
CANNOT RECORD will flash on the screen.
• Other recording options are on pages
31-37.
• You can change the tape speed during a recording, but some distortion will appear on the tape.
• The VCR will record in a preset volume.
Recording One Channel/Watching Another 31
1
Press the VCR button.
2
Press the REC(ord)/OTR button to start a recording of
the current channel. (See page 30.) The REC(ord) light will appear on the VCR display panel.
3
Press the VCR/TV button to put the VCR in TV position.
The VCR light will disappear from the VCR’s display panel.
4
Press the TV button, then press the CH(annel) o / p or
Number buttons to select the channel you want to watch
at the TV. (If the VCR remote control doesn’t operate your TV, use the TV remote control to select the channel.)
5
To return to the channel being recorded, press the TV button, then use the Number buttons to select channel 03
or 04 at the TV (whichever channel the CH3/CH4 switch on the back of the VCR is set to).
(If the VCR remote control doesn’t operate your TV, use the TV remote control to select channel 03 or 04.)
6
Press the VCR button.
2
8
7
Press the VCR/TV button to put the VCR in VCR posi-
tion. The VCR light will appear on the display panel. The channel being recorded will appear on the TV screen.
1&6
EJECT
MENU
CH.
1
4
7
MEMORY
REC
/OTR
REW
VCR
POWER
STATUS/EXIT CLEAR
2
5
8
0
PLAY
STOP
MUTE
TV
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
ENTER SLOW
VOL.
CBL/DBS
VCR/TV SPEED TIME SEARCH
4-5
3&7
8
Press the STOP/ p button to stop the recording.
Helpful Hints
• If your VCR remote control does not operate your TV, see page 21 for details.
• If you use a Cable Box or Direct
Broadcast System, you may not be able to watch one channel while recording another. See pages eightnine for details.
32 One-Touch Recording
The One-Touch Recording (OTR) feature allows you to set an immediate timed recording 30 minutes to eight hours long. Before you begin:
● Set up the channels at the VCR. Details are on page 12.
● Select a recording speed (SP, SLP) with the SPEED button.
●
Details are on page 35.
Put a tape in the VCR. Make sure the tape’s record tab is intact
● and the tape is long enough to record the program(s).
Place the VCR in VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.)
1
Press the VCR button, then press the CH(annel) o / p buttons or the Number buttons to select the channel you want to record.
2
Press the REC(ord)/OTR button repeatedly until the desired recording length (30 minutes to eight hours)
appears on the screen. Recording will begin immediately. The
REC(ord) light and the Timer light will appear on the display panel.
OTR (0:30)
CH12
1
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3
2
3
To stop an OTR before recording is finished, press the
STOP/ p button or the POWER button.
To cancel the OTR but continue recording, press the
REC(ord)/OTR button repeatedly until REC appears in the upper left corner of the TV screen. (STATUS must be ON. See page 25 for details.) The REC(ord) light will remain on the display panel of the VCR, but the Timer light will disappear.
Helpful Hints
• To check the time remaining for an
OTR that is in progress, press the
STATUS/EXIT button.
• To change the recording length while an OTR is in progress, press the
REC(ord)/OTR button until the desired length appears on the screen.
• If you begin an OTR when another recording is paused, the OTR will begin.
• You can not pause an OTR.
• If the preset time for a timer recording comes up during an OTR, the
OTR has priority. A message will remind you when the timer recording was scheduled to begin. You may let the OTR continue; the timer recording will not take place. Or, stop the OTR and turn off the VCR immediately.
The timer recording will take place if you turn off the VCR before the timer recording’s scheduled start time.
Timer Recording 33
Follow the steps below to program your VCR to record TV programs while you’re away from home. The VCR will turn itself on, record, and turn itself off automatically. Before you begin:
● Set up the channels at the VCR. Details are on page 12.
● Set the clock. Details are on pages 15-17.
● Put a tape in the VCR. Make sure the tape’s record tab is intact and the tape is long enough to record the program(s).
● Put the VCR in VCR position. The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.
Do each step within 60 seconds of the previous step.
1
Press the VCR button, then press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
2
Press the PLAY/ o button or the STOP/ p button to select
PROGRAM, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
ONCE
DAILY
WEEKLY
PROGRAM REVIEW
1
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select a ONCE, DAILY, or WEEKLY recording. Then, press the
F.FWD/ B button.
● ONCE: The VCR will record a TV program on any day you choose, up to 12 months away.
● DAILY: The VCR will record the same channel every day from
Monday to Friday – starting at the same time and recording for the same length of time.
● WEEKLY: The VCR will record the same channel on the same day, at the same time, and for the same length of time every week.
DAILY PROGRAM (MON-FRI)
PROGRAM -1 2 3 4 5 6 7 8-
Daily
Recording
(example)
SELECT PROGRAM NUMBER
TO END PUSH EXIT
2-3
Helpful Hint
• If you need to make a correction while programming a timer recording, press the CLEAR button until the cursor is flashing on the item you want to change. Then enter the correct information.
Instructions continue on page 34.
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
34 Timer Recording (cont’d)
4
Use the Number buttons (1 - 8) to select a slot in which
to store the timer recording. There are eight slots. Numbers for open slots will flash on the screen.
NOTE: If you enter a number for a slot that has already been used to store a timer recording, PREVIOUSLY SET PROGRAM will appear on the screen briefly. Information about the program in that slot will appear on the screen. If this happens, press the STATUS/EXIT button, then select another number.
●
5
Use the Number buttons to enter the channel you want to record.
● Cable Users, enter channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press
0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. There also may be a brief delay when you select channels 10, 11, and 12. If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7.
Antenna Users, enter channel numbers as a two-digit number for the quickest results. For example, to select channel 5, press
0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay.
If you are recording from line input, press 0,0 to select AV
REAR.
● If you are using a Cable Box/DBS, select the Cable Box/DBS output channel (03 or 04). Set the Cable Box/DBS to the channel you want to record. Leave the Cable Box/DBS on for the timer recording. See page eight for details.
6
Press two Number buttons for the hour you want the recording to begin. Press two Number buttons for the minute you want the recording to begin. Press 1 for AM
or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.
ONE TIME PROGRAM
PROGRAM 1
CHANNEL
TIME ON
10
– – : – –
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
7
Follow the instructions in step 6 to enter the recording’s
stop time. (AM or PM will be set automatically.)
ONE TIME PROGRAM
PROGRAM 1
CHANNEL
TIME ON
TIME OFF
10
09:30 PM
– – : – –
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
4-7
Helpful Hints
• Entries that do not match the VCR’s clock or calendar will cause a question mark to appear on the screen.
• If you are recording from line input, connect the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the VCR.
(Please see illustration on page 37.)
8
Press the Number 1 button to record in SP speed or the
Number 2 button to record in SLP speed. (See the chart below.) You cannot use the SPEED button at this time.
Timer Recording (cont’d) 35
10 11
EJECT
MENU
POWER
STATUS/EXIT CLEAR
ONE TIME PROGRAM
PROGRAM 1
CHANNEL
TIME ON
10
09:30 PM
TIME OFF
REC SPEED
SP=1 SLP=2
11:00 PM
SLP
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
9
Press two Number buttons for the month and two
Number buttons for the day you want to record the pro-
gram. For example, for July 10, 2001, press 07, 10. The day of the week and the year will appear automatically. (You cannot program the VCR to record more than one year in advance.)
ONE TIME PROGRAM
PROGRAM 1
CHANNEL
TIME ON
10
09:30 PM
TIME OFF
REC SPEED
START DATE
11:00 PM
SLP
07/10/01
TUE.
TO CORRECT PUSH CLEAR
TO END PUSH EXIT
8
9
1
4
7
MEMORY
REC
/OTR
CH.
REW
VCR
2
5
8
0
PLAY
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
10
Press the STATUS/EXIT button. PROGRAM WAS COM-
PLETED / PLEASE TURN OFF VCR FOR TIMER RECORDING will appear on the screen briefly. (If PROGRAM NOT COMPLET-
ED appears, try again from step 1.)
11
Press the POWER button to turn off the VCR power. The
Timer light will appear on the display panel. The Timer light will flash if there is no tape in the VCR.
If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Turn off the
VCR a few minutes before the recording starts. If you forget to turn off the VCR, PLEASE TURN OFF VCR FOR TIMER RECORDING flashes on your TV screen two minutes before a timer recording starts. Press the CLEAR button to remove the message.
Turn off the VCR for the recording.
Insert a tape in the VCR.
Leave the Cable
Box/DBS on
(if applicable).
Tape Speeds
This chart shows the recording/playback time for three types of video cassettes (T160, T120, and
T60). There are three playback speeds: SP, LP, and
SLP. When recording, you can change the tape speed (SP or SLP) using the SPEED button. You cannot record in LP speed. You can play a tape only in the speed in which you recorded it.
Tape Speed
SP (standard play)
LP (long play)
(playback only)
SLP (super long play)
Cassette type / Playback Time
T160 T120 T60
2 hrs.
40 mins.
2 hrs.
1 hr.
5 hrs.
20 mins.
4 hrs.
2 hrs.
8 hrs.
6 hrs.
3 hrs.
36 Timer Recording (cont’d)
Checking or Cancelling Timer Recordings
1
With the VCR on and in VCR position (the VCR light will appear on the display panel), press the VCR button, then press the
MENU button.
2
Press the PLAY/ o button or the STOP/ p button to select
PROGRAM, then press the F.FWD/ B button.
3
Press the PLAY/ o button or the STOP/ p button to select
PROGRAM REVIEW, then press the F.FWD/ B button.
The timer recording information for the program in the lowest numbered slot will appear on the screen. If no timer recordings are set, nothing will happen when you press the F.FWD/ B button.
4
Press the F.FWD/ B button repeatedly to review all pro-
grammed timer recordings. If you don’t press the F.FWD/ B button within 10 seconds, the VCR will automatically display information about the next programmed timer recording. This will continue until all timer recordings have been displayed. Then the menu will disappear.
5
To cancel the timer recording displayed, press the
CLEAR button. Either the display will disappear or information about other timer recordings will appear. If you do not press any other buttons, the display will disappear after all timer recordings have been displayed.
6
Repeat steps 1 - 4 to make sure you have cleared the correct timer recording.
1
5
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
2-4
Helpful Hints
• CLASH may flash on the screen when you finish setting a timer recording. This means that the timer recording you just programmed and another timer recording overlap. The current timer recording will not take place. You may choose to cancel the overlapping timer recording.
• To stop a started timer recording, press the STOP/EJECT button on the VCR.
• If the power fails for more than one minute, programmed timer recordings will be lost. If this occurs, repeat the steps on pages 11 and 15 before resetting the timer recordings.
• If the preset time for a timer recording comes up during an OTR, the OTR has priority. A message will remind you when the timer recording was scheduled to begin. You may let the OTR continue; the timer recording will not take place.
Or, stop the OTR and turn off the VCR immediately. The timer recording will take place if you turn off the VCR before the timer recording’s scheduled start time.
See page 48 for more hints.
Rerecording (Tape Duplication) 37
The instructions on this page show you how to copy tapes. The illustration uses two VR622CAT VCRs. Different
VCRs may operate differently. To duplicate a tape, make the connections shown, then follow steps 1-7.
1. Audio cables from AUDIO OUT Jacks of VCR 1 to AUDIO IN Jacks of VCR 2
VCR 1
Playing VCR VCR 2 - Recording VCR
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
2. Video cable from VIDEO OUT Jack of VCR 1 to VIDEO IN Jack of VCR 2
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
3. RF coaxial cable from the OUT jack of
VCR 2 to the TV’s
ANTENNA IN Jack
● Audio and Video cables are not supplied.
1
Make the connections shown above.
2
VCR 1 will play your tape. Put a prerecorded tape in VCR 1.
3
VCR 2 will record your tape. Insert a blank tape in VCR 2.
The VCR must be in VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.)
4
Turn on the TV and set it to channel 03 or 04, whichever channel the CH3/CH4 switch on VCR 2 is set to.
5
Point the remote control at VCR 2. Press the VCR but-
ton, then press Number buttons 0, 0, 1 or 0, 0, 2. (See
Helpful Hints at right.)
6
Press the SPEED button to select SP or SLP at VCR 2.
7
Press the PLAY button on VCR 1 and the RECORD button on VCR 2 at the same time.
To stop recording, press the STOP/EJECT button on VCR 1, then press the STOP/EJECT button on VCR 2.
Helpful Hints
• If you use the AUDIO and VIDEO IN
Jacks on the back of VCR 2, press
Number buttons 0, 0, 1. AV REAR will appear on the TV screen. (BLUE
BACKGROUND should be ON.
Details are on page 46.)
• If you use the AUDIO and VIDEO In
Jacks on the front of VCR 2, press
Number buttons 0, 0, 2. AV FRONT will appear on the TV screen. (BLUE
BACKGROUND should be ON.
Details are on page 46.)
• Unauthorized recording of copyrighted television programs, video tapes, or other materials may infringe on the rights of copyright owners and violate copyright laws.
• If a program has copyright protection, it may not record clearly.
• The VCR in the figure above is the
VR622CAT. If you have the
VR422CAT, use a single-plug audio cable to connect the AUDIO OUT jack on VCR 1 to the AUDIO IN jack on VCR 2.
38 Repeat Play
Follow the steps below to make the VCR play a tape over and over.
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
VCR SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
REPEAT PLAY
ON SCREEN MODE
OFF
AUDIO OUT
LANGUAGE
BLUE BACKGROUND ON
TO END PUSH EXIT
VR622CAT only
4
Press the PLAY/ o button or the STOP/ p button to select
REPEAT PLAY.
5
Press the F.FWD/ B button so that ON appears beside
REPEAT PLAY.
SELECT op CHOOSE B
→
REPEAT PLAY
ON SCREEN MODE
ON
AUDIO OUT
LANGUAGE
BLUE BACKGROUND ON
VR622CAT only
TO END PUSH EXIT
6
Press the STATUS/EXIT button. Now, when a tape has finished playing, the VCR will rewind it and start playback again.
2
1
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
REC
/OTR
REW
6
2
5
8
0
PLAY
STOP
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
3-5
Helpful Hints
• To cancel Repeat Play, follow steps
1-4 above. At step 5, press the
F.FWD/ B button so that OFF appears beside REPEAT PLAY. Press the STATUS/EXIT button.
• The real-time counter memory does not function during Repeat Play.
Real-Time Counter Memory 39
Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later.
1
Press the VCR button.
2
Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP/ p button to stop the tape.
3
Press the STATUS/EXIT button to see the status display.
STOP
TV STEREO
1:08PM
CH10
STEREO
VR622CAT only
SLP 1 : 23 : 45 HIFI
4
While the status display is on the screen, press the
CLEAR button to reset the real-time counter to zero.
STOP
TV STEREO
1:08 PM
CH10
STEREO
VR622CAT only
5
2
1
1
4
7
MEMORY
REC
/OTR
CH.
REW
VCR
2
5
8
0
3 4
EJECT
MENU
POWER
STATUS/EXIT CLEAR
PLAY
STOP
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
6
SLP 0 : 00 : 00 HIFI
5
While the real-time counter is on the screen, press the
MEMORY button so that M appears beside the counter.
STOP
TV STEREO
1:08 PM
CH10
STEREO
VR622CAT only
SLP M 0 : 00 : 00 HIFI
6
To go to a tape location where you set the real-time counter to zero, press the REW(ind)/ { button or the
F.FWD/ B button when playback is stopped.
When the tape reaches the point at which you set the counter to zero, the tape will stop.
Press the PLAY/ o button to watch the tape.
Helpful Hints
• The MEMORY button does not function if REPEAT PLAY is ON.
Details are on page 38.
• To erase a real-time counter memory, press the MEMORY button until the M disappears from the screen.
• You may only set the real-time counter to zero at one location at a time. If you set the real-time counter to zero at a second location, the previous real-time counter to zero setting will be erased.
40 Time Search
Follow the steps below to program the VCR to search forward or backward on a tape a specific length of time. There must be a tape in the VCR.
1
Press the VCR button.
2
Press the TIME SEARCH button.
TIME SEARCH
0:00
3
ENTER SEARCH TIME
3
Within 10 seconds, use the Number buttons to enter the desired length of time you want to skip forward or back-
ward. For example, for 1 hour, 25 minutes, press Number buttons 1, 2, 5. Or, for five minutes, press Number buttons 0, 0, 5.
4
Within 10 seconds, press the F.FWD/ B button or the
REW(ind)/ { button. The VCR will skip over the specified length of time, then begin playback.
1
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
4
2
Helpful Hints
• If you want to search for more than
59 minutes, you must enter the length of time in hours and minutes.
For example, to search forward 70 minutes, press 1,1,0 at step 3.
• You can not do a Time Search while recording.
• To remove the Time Search display, press the TIME SEARCH button again.
• To cancel a Time Search that is in progress, press the STOP/ p button.
Forward and Reverse Searching (SP/LP/SLP)
1
During tape playback, press and release the F.FWD/ B button or the REW(ind)/ { button. A fast forward or reverse picture search will begin.
2
To return to playback, press the PLAY/ o button.
Special Effects Playback 41
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
3
6
9
ALT.CH
Super High Speed Searching (LP/SLP)
1
During tape playback, press the F.FWD/ B button or the
REW(ind)/ { button, then press again. The VCR will now search in super high speed. Press the F.FWD/ B button or the
REW(ind)/ { button repeatedly to switch between regular searching and super high speed searching.
2
To return to normal playback, press the PLAY/ o button.
REC
/OTR
REW
PLAY
STOP
PAUSE
/STILL
F.FWD
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
Viewing a Still Picture
1
During tape playback, press the PAUSE/STILL button. A still picture will appear on the screen.
2
To release the still picture and return to playback, press the
PLAY/ o button or press the PAUSE/STILL button again.
Viewing a Slow Motion Picture
1
During tape playback, press the SLOW button. The tape will play in slow motion.
2
To release Slow mode and return to normal playback, press the PLAY/ o button or press the SLOW button again.
Helpful Hints
• Slow and Still modes will automatically switch to Stop mode after five minutes to protect the VCR and the tape from damage.
• SP/LP/SLP means this feature will work with tapes recorded in Standard
Play, Long Play, or Super Long Play.
• LP/SLP means this feature will work with tapes recorded in Long Play or
Super Long Play. For details about tape speed, see pages 35 and 47.
42 Automatic Operation Features
The following playback features will always operate.
Automatic Playback
When you put a tape in the VCR, the power will come on automatically. If the tape’s record tab is missing, playback will begin.
If a timer recording is set, the power will not come on automatically when you insert a tape with the record tab intact.
If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing.
Automatic Rewind, Eject, Off
When you play, fast forward, or record a tape to its end, the VCR will rewind the tape, stop, eject the tape, then turn itself off.
If the real-time counter memory is set, the VCR will only rewind the tape to the point at which the counter is set to zero, then stop. The VCR will not eject the tape automatically or shut itself off.
Tape Eject
You can eject a tape with the VCR power on or off (but the VCR power cord must be plugged in). If a timer recording is set, you can eject a tape only with the power on. Make sure you insert a tape and turn off the VCR power for the timer recording.
Automatic Tracking Adjustment
The VCR adjusts tracking automatically to give you the best possible picture quality. With some recordings, however, you may get a better picture using the manual tracking controls (see below).
Manual Tracking
To manually adjust the tracking during playback and slow motion playback, press the CHANNEL o / p buttons on the VCR. (The
CH(annel) o / p buttons on the remote control will not adjust tracking.)
Tracking will return to Automatic Tracking Adjustment when you press the STOP/ p button or insert a tape.
You cannot manually adjust the tracking of a Still picture.
However, you may press the CHANNEL o / p buttons on the
VCR to remove vertical jitter in a Still picture.
Before
Tracking
Adjustment
After
Tracking
Adjustment
Multi-Channel Television Sound System (VR622CAT only) 43
Your VCR can play recordings broadcast in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from two sources. Your VCR also can play tapes recorded in a second audio (usually, that means your program is recorded in a second language). Of course, your VCR will play tapes recorded in monaural
(single-source) sound as well.
Your VCR also will record in Hi-Fi stereo or in second audio, so when you play back that tape on the
VCR, it will be in stereo or second audio. If you play back the tape on a VCR that can’t play back tapes in stereo or second audio, the VCR will automatically play the tape in monaural sound.
Read the directions on this page to familiarize yourself with your VCR’s stereo and second audio setups.
Then follow the directions on page 44 to record in stereo or second audio and the directions on page 45 to play back tapes recorded in Hi-Fi stereo.
Understanding On-Screen Displays
When you receive a signal from a channel you’re watching, portions of the on-screen display shown below will appear when you press the STATUS/EXIT button on the remote control.
The indication 2ND AUD or TV
STEREO that appears on this side of the status display tells you if your VCR is receiving a second audio or stereo broadcast.
Although a program may be broadcast in both stereo and second audio, you cannot record in both stereo and second audio at the same time.
STOP
TV STEREO
SLP 1:23:45
12:00 AM
CH 02
STEREO
2ND AUD
HIFI
The indication 2ND AUD or
STEREO that appears on this side of the status display tells you if the program you’re watching is available in second audio or stereo. This indication is not available during tape playback.
Even though a program is available in stereo or second audio, you still must program the VCR to receive or record the program. Follow the directions on page 44.
To record and play back programs broadcast in stereo, even if you have a
Single Speaker TV, just use one of the connections shown, then follow the steps on pages 44-45.
Stereo Amplifier or Receiver
Single
Speaker TV
Stereo
Speaker TV
Monitor
TV
OR OR
R L
AUDIO
L
OUT IN
R
VIDEO
OUT IN
CH3 CH4
ANT
IN
OUT
Monaural Sound
RF coaxial cable (supplied) from VCR’s
OUT Jack to TV’s ANTENNA IN Jack
Audio cables from
AUDIO OUT Jacks of
VCR to AUDIO IN Jacks of Stereo Amplifier or
Receiver
Video cable from VIDEO OUT Jack of VCR to VIDEO IN Jack of monitor TV
44 Multi-Channel Television Sound System (VR622CAT only) (cont’d)
1
Press the VCR button, then press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
2
Press the PLAY/ o button or the STOP/ p button to select
TUNER SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
AUTO PROGRAMMING
ADD/DELETE CH
CH MEMORY REVIEW
TV STEREO
2ND AUDIO
ON
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
TV STEREO or 2ND AUDIO. Then, press the F.FWD/ B
button. ON will appear to the right of your selection.
4
Press the STATUS/EXIT button.
5
To record, select the channel to be recorded using the
CH(annel) o / p buttons.
1
1
4
7
MEMORY
REC
/OTR
6
4
EJECT
MENU
POWER
STATUS/EXIT CLEAR
REW
2
5
8
0
PLAY
STOP
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3
6
9
ALT.CH
PAUSE
/STILL
F.FWD
2-3
5
6
Press the REC(ord)/OTR button to start recording.
Helpful Hints
• You can only receive and record in stereo or second audio programs that are broadcast in stereo or second audio. You can only play in stereo or second audio tapes that were recorded in stereo or second audio. Please see page 43 to determine if the program you want to watch/record is being broadcast in stereo or second audio.
• If you select second audio when second audio is not available, the
VCR will record normal audio.
Hi-Fi Stereo Sound System (VR622CAT only) 45
Multi-Channel Television Sound system broadcasts are automatically recorded in Hi-Fi stereo sound. To play in Hi-Fi stereo the tapes recorded in Hi-Fi stereo, however, you’ll need to follow steps 1-5.
5 2-4
1
Press the VCR button, then press the MENU button.
1
EJECT
MENU
POWER
STATUS/EXIT CLEAR
2
Press the PLAY/ o button or the STOP/ p button to select
VCR SET UP, then press the F.FWD/ B button.
1
4
7
MEMORY
2
5
8
0
3
6
9
ALT.CH
REC
/OTR
PAUSE
/STILL
PLAY
SELECT op CHOOSE B
→
REPEAT PLAY
ON SCREEN MODE
AUDIO OUT
LANGUAGE
OFF
BLUE BACKGROUND ON
REW
STOP
F.FWD
TO END PUSH EXIT
CH.
VCR
VOL.
MUTE
TV CBL/DBS
3
Press the PLAY/ o button or the STOP/ p button to select
AUDIO OUT, then press the F.FWD/ B button.
SELECT op
→
HIFI
MONO
ON
VCR/TV SPEED TIME SEARCH
ENTER SLOW
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
HIFI. ON will appear to the right of HIFI on the screen.
SELECT op
→
HIFI
MONO
ON
5
TO END PUSH EXIT
Press the STATUS/EXIT button.
Helpful Hints
• All programs are automatically recorded in both Hi-Fi stereo sound and in monaural sound.
• The audio level of a tape recorded in Hi-Fi stereo will differ from the audio level of a tape not recorded in Hi-Fi stereo.
• Normally, HIFI should be selected from the AUDIO OUT menu for playback with Hi-Fi sound. But, you can change the selection to MONO if you want monaural audio playback. To do this, follow steps 1-3.
At step 4, press the PLAY/ o button or the STOP/ p button to select
MONO. Press the STATUS/EXIT button. HIFI will disappear from the status display during TV viewing.
• If you play non-Hi-Fi tapes while the
VCR is set to HIFI, the tape will play in monaural sound.
Please see additional notes on page 49.
46 Blue Background
If you want the TV screen to be solid blue when a weak signal is received, set BLUE BACKGROUND to ON. The screen will be blue and the sound will be muted.
Or, if you want to receive the weak signal, set BLUE BACK-
GROUND to OFF. When you select a channel that is receiving a weak signal, you will see the static in the TV programming. The channel number will not appear on the screen when you select a weak channel. You may not be able to access the status display or adjust the TV volume at this time.
To set BLUE BACKGROUND to ON or OFF, follow these steps.
2
1
Press the VCR button.
2
Press the MENU button.
SELECT op CHOOSE B
→
PROGRAM
VCR SET UP
TUNER SET UP
SET CLOCK
TO END PUSH EXIT
3
Press the PLAY/ o button or the STOP/ p button to select
VCR SET UP, then press the F.FWD/ B button.
SELECT op CHOOSE B
→
REPEAT PLAY
ON SCREEN MODE
AUDIO OUT
LANGUAGE
OFF
BLUE BACKGROUND ON
VR622CAT only
1
TO END PUSH EXIT
4
Press the PLAY/ o button or the STOP/ p button to select
BLUE BACKGROUND. Then, press the F.FWD/ B button repeatedly so that OFF (or ON) appears beside BLUE
BACKGROUND.
SELECT op CHOOSE B
REPEAT PLAY
ON SCREEN MODE
AUDIO OUT
LANGUAGE
OFF
→
BLUE BACKGROUND ON
TO END PUSH EXIT
VR622CAT only
5
Press the STATUS/EXIT button.
5
EJECT
MENU
POWER
STATUS/EXIT CLEAR
1
4
7
MEMORY
2
5
8
0
REC
/OTR
REW
PLAY
PAUSE
/STILL
F.FWD
STOP
3
6
9
ALT.CH
CH.
VCR
VOL.
MUTE
TV CBL/DBS
VCR/TV SPEED TIME SEARCH
ENTER SLOW
3-4
AUDIO IN/OUT Jacks: jacks located on the front and back of the VCR which are used to record audio from another source (IN) or to send audio to another system (OUT).
The VR422CAT has a single AUDIO IN jack on the front and back of the VCR. It has a single AUDIO OUT jack on the back of the
VCR. The VR622CAT has Right and Left AUDIO IN jacks on the front and back of the VCR. It has Right and Left AUDIO OUT jacks on the back of the VCR.
Automatic Channel Setup: process in which the VCR memorizes all available channels. Then, when you press the CH(annel) o / p buttons, you only scan through channels you receive.
Bands: settings that allow you to tune channels.
• Antenna – VHF (very high frequency; channels 2-13) and UHF
(ultra high frequency; channels 14-69).
• Cable – all standard channels can be received without a Cable
Box.
Cable Box/DBS Output Channel: 03 or 04.
Dubbing: copying a tape using a second VCR.
Frame: a still picture.
HQ: high quality; a feature in the VCR circuitry which provides enhanced picture detail.
Line Input: The channel to which you set your VCR during dubbing. If you use the AUDIO and VIDEO In jacks on the front of the
VCR, select channel 002 (AV FRONT). If you use the AUDIO and
VIDEO IN jacks on the back of the VCR, select 001 (AV REAR).
If you accidentally enter Line Input mode, press the CH(annel) o / p buttons or use the Number buttons to select another channel.
OTR: One-Touch Recording; a timed recording that starts immediately and records for 30 minutes to eight hours.
Remote Control: the small electronic unit that came with your
VCR; allows you to operate your VCR from a distance. You may be able to operate your TV, Cable Box, or Direct Broadcast
System with the remote control.
RF coaxial cable: The black cable supplied with your VCR. Use it to connect your VCR to your TV (or Cable Box or DBS). The supplied cable is a snap-on type. However, you may use a screw-on type if you prefer.
Special Effects: forward and reverse searching; a still picture; slow motion playback.
Tape Speeds: how fast the tape travels during a recording or playback.
• SP (standard play) – fastest tape speed (recording time for a
T120 tape is approximately two hours); best picture quality.
• LP (long play) – average tape speed; playback only.
• SLP (super long play) – slowest tape speed (recording time for a
T120 tape is approximately six hours).
VCR: video cassette recorder.
VIDEO IN/OUT Jacks: jacks located on the front and back of the
VCR which are used to record video from another source (IN) or to send video to another system (OUT).
Glossary 47
48 Helpful Hints
If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself.
If you need to call a customer service representative, please know the model number and serial number of your product before you call. This information is on the back of the product. Also, please take a moment to identify the problem you are having, and be prepared to explain this to the representative. If you believe the representative will need to help you with operations, please stay near the product. Our representatives will be happy to assist you.
No power
• Connect the power plug to an AC (alternating current) outlet completely.
• Make sure the power is on.
Power Failure
• The VCR may lose timer recordings and the clock and channel settings if the power fails for more than one minute. Follow the steps on page 11 to set up your language and channels again. See pages 15-18 to reset your clock. See pages 33-36 to reprogram your timer recordings.
The VCR will not record a TV program.
• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.
• Make sure the tape has a record tab. Details are on page five.
• Check the TV/VCR position. Details are on page 27.
• Check the CH3/CH4 switch. Details are on pages six-nine.
The VCR will not perform a timer recording.
• Set the recording start and stop times correctly. Details are on pages 33-36.
• Make sure a tape is in the VCR and the tape has a record tab. Details are on page five. If, after programming a timer recording, you turn off the VCR power without putting a tape in the VCR, the Timer light will blink.
• If the record tab on a tape is missing, the VCR will eject the tape. The Timer light will blink.
• Make sure the VCR power is off.
• Set the clock. Details are on pages 15-18.
• The VCR may not perform or continue a timer recording if a power interruption of more than one minute occurs.
• If you have a Cable Box/Direct Broadcast System, you will program timer recordings differently. Details are on page eight.
• Finish programming a timer recording at least five minutes before the recording is set to begin.
• 12 p.m. is noon; 12 a.m. is midnight.
There is no playback picture or the playback picture is noisy or contains streaks.
• Make sure the TV is on the same channel as the CH3/CH4 switch on the back of the VCR.
• Make sure the VCR is in VCR position. (The VCR light will appear on the display panel. If it does not, press the VCR/TV button once.)
• Adjust channel 03 or 04 at the TV.
• Adjust the tracking. Details are on page 42.
• TVs that are too close to the VCR can cause interference during tape playback. Move the VCR away from the TV.
The remote control will not work the VCR.
• Press the VCR button, then try the other VCR feature buttons.
• Make sure the VCR light appears on the display panel. If it does not, press the VCR/TV button once.
• Aim the remote control directly at the VCR’s remote sensor. Details are on page 27.
• Remove all obstacles between the remote control and the VCR.
• Inspect and/or replace the batteries in the remote control. Details are on page five.
The Number buttons won’t work for channels above 69.
• Enter channel numbers as a two-digit number. If you want to select channels 100 and above, enter channel numbers as a three-digit number. If you are using an antenna (not a cable signal), you may only select channels 2-69. Details are on page 23.
You can not watch TV programs normally.
• Put the VCR in TV position, then change channels at the TV. (Press the VCR/TV button so that the VCR light disappears from the display panel.) Details are on page 27.
• Check the connections between the VCR, TV, antenna/cable, and Cable Box/Direct Broadcast System (if applicable). Details are on pages six-10.
Helpful Hints (cont’d) 49
You can not insert a tape in the VCR.
• Insert the tape, window side up, with the record tab facing you.
• Make sure a tape isn’t already in the VCR by pressing the STOP/EJECT button on the VCR.
• Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.
• If a timer recording is programmed and the VCR power is off, you can not insert a tape without a record tab.
You can not remove the tape from the VCR.
• Connect the power plug to a power outlet completely.
• You have set a timer recording. Turn on the VCR power, then eject the tape. Be sure to insert a tape and turn off the power for your timer recording.
• Unplug the VCR power cord for five minutes. Then, plug in the power cord again, then press the POWER button on the VCR. If the tape does not eject, press the STOP/EJECT button on the VCR three to five times. If the tape still does not eject, you may need to have an authorized servicer remove the tape.
VCR ejects the tape when you press the REC(ord)/OTR button or when you turn off the VCR power for a timer recording.
• Make sure the tape has a record tab. Details are on page five.
Poor reception
• You may need to tune your TV again.
The motor (cylinder) rotates even when the VCR is in Stop mode.
• To enable the quick play mechanism, the cylinder will rotate for about five minutes. This is normal. The quick play mechanism allows the tape mechanism to switch from Stop mode to Play mode in one second.
Direct Broadcast System Hookups
• Watching one TV channel while recording another may not be possible if you have a DBS hookup. You may have to set your TV to channel 03 or 04, then make your channel selections at the DBS. Details are
on page nine.
• If you use audio and video cables to connect your DBS, VCR, and TV, you may have to put your VCR in
Line Input mode (channel 001 or 002).
Line Input mode
• If you accidentally enter Line Input mode (AV FRONT or AV REAR will appear on your TV screen briefly), press the CH(annel) o / p buttons or use the Number buttons to select another channel.
Hi-Fi Stereo Sound (VR622CAT only)
• During playback, Hi-Fi audio may temporarily revert to normal audio when you adjust tracking. This is normal.
• When connecting the VCR to a stereo TV, you will only get stereo sound if you use audio cables to connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, and if the TV is in Line
(Auxiliary) Input mode.
• When you connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on your TV, the stereo light on the TV might not glow. But, as long as the VCR’s on-screen status display indicates you are receiving a stereo signal, you are receiving a stereo signal. This is normal. Details are on page 43.
• Only tapes recorded in Hi-Fi audio will play in Hi-Fi audio. Tapes recorded in normal audio will play in monaural (single-source or single-channel) audio.
Cleaning the Video Heads
• Your VCR automatically cleans the video heads each time you insert a tape. However, the heads may become dirty. If so, use a commercially-available head cleaner or have an authorized servicer clean the video heads. Eventually, the heads may need to be replaced.
The playback picture is too dim, too bright, or fluctuates in brightness.
• Some programs may be broadcast with copyright protection technology in order to protect the rights of copyright owners. This technology is used on programs that are recorded on video tapes or Digital
Video Discs (DVDs), as well as some programs broadcast by antenna/cable/satellite television channels.
Programs broadcast with copyright protection technology may not record clearly. Likewise, if you play a tape that is a recording of a copyright protected program, the picture may not be clear. Tapes of copyright protected programs may have a picture that is dark or dim, or the brightness of the picture may fluctuate. Therefore, you should avoid recording or playing copies of copyright protected programs.
This VCR incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only, unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
50 Limited Warranty
VIDEO CASSETTE RECORDER or PLAYER
90 days Free Exchange / 91 days–One Year Reduced-Cost Exchange
WHO IS COVERED?
You must have proof of the date of purchase to exchange your product. A sales receipt or other document showing the date that you purchased the product is considered such proof.
organization will attempt to exchange the product, although there may be a delay if the appropriate product is not readily available.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For
90 days thereafter, you may exchange the defective product for a new product at the store from which it was purchased or through Philips. This exchange is made at no cost to you.
From 91 days to one year from the date of purchase, you must follow the exchange procedures set out on the next page.
For an exchange during this warranty period you must pay
$29.95 (plus your local sales tax) for a new or renewed product. This reduced-cost exchange ends one year after the date of purchase.
The replacement product is covered only for the warranty period of the original product. When the warranty on the original product expires, the warranty on all replaced products also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics.
• reception problems caused by signal conditions or cable or antenna systems outside the product.
• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• damage caused by the use of non-VHS tapes or tapes that have not been tested and labeled for use in two, four, six, and eight hour VHS recorders.
• a product that is used for commercial or institutional purposes (including but not limited to rental purposes).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing proof of date of purchase. Attach it to the owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.
BEFORE EXCHANGING THE PRODUCT...
Please check your owner’s manual before exchanging the product. Adjustments of the controls discussed there may save you time and money.
TO EXCHANGE YOUR PRODUCT IN THE U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS...
Follow the instructions stated previously in the “What is
Covered” section, or refer to the exchange instructions on the next page.
In the U.S.A., Puerto Rico, and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. Because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.
TO EXCHANGE A PRODUCT IN CANADA...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.
TO GET OUT-OF-WARRANTY EXCHANGE...
In the U.S.A., Puerto Rico, or U.S. Virgin Islands, contact
Philips Service Solutions Group at 1-800-531-0039 to obtain the cost of out-of-warranty exchange.
REMEMBER...
Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.
MODEL #__________________________________
SERIAL #__________________________________ WHERE IS EXCHANGE AVAILABLE?
Warranty exchange is available in all countries where the product is officially distributed by Philips Consumer
Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800
EL6466E003 /10-00
Limited Warranty (cont’d) 51
EXCHANGE INSTRUCTIONS
If your product is defective, you may be able to exchange it at the store from which it was purchased.
Most stores display a Return Policy. If not, ask the manager or sales associate how many days you have to exchange a product with them. After the store’s return period has expired, you may exchange the product with Philips if you have your original sales receipt.
To exchange your product with Philips (per the warranty conditions stated previously), remember:
• If you exchange the product within 90 days of the original purchase, there is no cost to you.
• If you exchange the product more than 90 days after but less than one year after the day of original purchase, your cost will be $29.95 plus your local sales tax. If sales tax is missing or incorrect, your order will be delayed, and you will be contacted.
• After 12 months from the day of original purchase, contact Philips Service Solutions Group at 1-800-531-0039 for information regarding out-of-warranty exchange.
• If you do not have your original sales receipt, or if you have any questions, call Philips Service Solutions Group at
1-800-531-0039.
To obtain a replacement product from Philips:
1. Complete the Exchange Form below.
2. Pack the product and its accessories (remote control, rf coaxial cable, owner’s manual, and car battery cord, if applicable) in the original box or a suitable alternative. You will receive replacement accessories with your replacement product. For packing details, call 1-800-531-0039.
3. Put the completed Exchange Form, a copy of the original sales receipt, and the proper payment in an envelope.
Do not staple or clip these items together. Label the envelope “Return Documents Enclosed.” Place this envelope in the box with the product.
4. Seal the box with packing tape and return the product via United Parcel Service (UPS), insured and freight prepaid, to:
Philips Recovery Center
Rojas 6
12420 Mercantile Avenue
El Paso, TX 79928
ATTENTION: VCR EXCHANGE
A replacement will be sent to you via UPS within 48 business hours of Philips’ receipt of the product.
EXCHANGE FORM
Your Address (street address to which replacement should be delivered, no P.O. boxes allowed):
Name:
Street Address:
City:
Phone (day):
State:
Phone (night):
Apt. #:
Zip Code:
Payment Amount: $29.95 + Sales Tax = Total
Method of Payment: (Check one. Please, no cash or CODs.)
_____ Check or money order Check/Money order number
_____
_____
_____
_____
American Express
Visa
Novus/Discover
Mastercard
Account number
___________________________
___________________________
___________________________
___________________________
Expiration date
__________
__________
__________
__________
Signature: _____________________________________________________________
Detailed reason for return, use additional paper if necessary: _____________________________________________
_______________________________________________________________________________________________
Model Number Serial Number
Remember, the return box should include the following:
• The product,
• Completed Exchange Form and sales receipt,
•
•
Accessories supplied with the product, and
Payment, if applicable.
52 Specifications
Video Heads
Four heads – Hi-Fi (VR622CAT)
Four heads (VR422CAT)
Video Signal
EIA standards; NTSC color
Antenna
VHF/UHF – 75 ohm external antenna terminal
VHF Output Signal
Channel 03 or 04 (switchable)
75 ohms unbalanced
Power Requirement
120V AC; 60Hz
Power Consumption
14W (VR622CAT)
12W (VR422CAT)
Operating Temperature
41°F (5°C) to 104°F (40°C)
Relative Humidity
10% to 80%
Weight
5.3 Ibs. (2.4 kg.)
Dimensions
15-3/4” (W) x 3-5/8” (H) x 8-1/2” (D)
(400mm x 92mm x 216mm)
Tuner Broadcast Channels
VHF 2-13, UHF 14-69
Cable TV Channels
1-125
NOTE: Designs and specifications are subject to change without notice.
ac power cord.................................28
accessories .......................................56
alt.ch button.....................................24
ant(enna) in jack ...................6-10, 28 audio in/out jacks....................10, 27,
.............................28, 37, 43, 47 automatic playback .......................................42
rewind, eject, off........................42
batteries ..............................................5
blue background..............................46
cassette compartment ...................26
cassette-inside light ........................26
cbl/dbs button ......................5, 22, 24 ch(annel) o / p buttons ..............24
ch3/ch4 switch ........................6-9, 28 channel adding ...........................................13
deleting ........................................13
reviewing .....................................14
selection ......................................23
setup.......................................11-14 o / p buttons ......................27, 42 clear button...............................24, 39 clock display.....................................26
clock setting ...............................15-18 connections ..................................6-10 contents, table of ..............................4
controls remote ...................................23-24 vcr ...........................................26-28 copyright protection ...............37, 49 counter only mode.........................25
daylight-savings time.......................19
display panel.....................................26
duplication ........................................37
eject button......................................23
ejecting a tape..................................49
enter button........................21-22, 24 f.fwd/ B button ..................24, 27, 41 front panel ........................................27
glossary..............................................47
head cleaner ...........................3, 5, 49 helpful hints................................48-49 hi-fi stereo sound system .............45
hookups with cable box/dbs ..................8-9 with stereo tv.............................10
without cable box/dbs ............6-7 language selection ....................11, 20 line input mode .................12, 37, 47 long play .....................................35, 47 lp ................................................35, 47 memory button ........................23, 39 menu button .............................23, 27 mute button .....................................23
number buttons ..............................23
on-screen status displays ..............25
one-touch recording ......................32
out jack .....................................6-9, 28 pause button ....................................27
pause/still button...............23, 30, 41 play/ K button..............23, 27, 29, 41 playing................................................29
power button....................................23, 27 cord ..............................................28
pwr.(power) light............................26
real-time counter............................39
rear panel .........................................28
rec/otr button ...................23, 30, 32 rec(ord) light....................................26
record button ....................27, 30, 32 recording basic..............................................30
one channel/ watching another.......................31
prevention .....................................5
timer.......................................33-36 remote control buttons...................................23-24 sensor...........................................27
using................................................5
repeat play........................................38
rerecording ......................................37
rew(ind)/ s button ...........24, 27, 41 rf coaxial cable ...6-9, 37, 43, 47, 56 safety precautions .............................3
searching ...........................................41
second audio broadcast receiving ...........................43-44 recording..........................43-44 sensor (remote) ..............................27
slow button ..........................................23
motion..........................................41
slp ................................................35, 47 smart clock.......................................17
sp ................................................35, 47
Index 53
speed button....................................23
sqpb .................................................29
standard play.............................35, 47 status display....................................25
status/exit button..............24, 25, 27 stereo broadcast receiving ................................43-44 recording ...............................43-44 stereo hookups................................43
stereo TV hookups ........................10
still picture........................................41
stop/ L button..................................24
stop/eject button ............................27
super high speed searching ..........41
super long play .........................35, 47 table of contents ...............................4
tape duplication...................................37
eject .........................23, 27, 42, 49 speed .....................................35, 47 time search button ..................24, 40 time setting ................................15-18 timer light ...............................................26
recording cancelling................................36
checking..................................36
setting ...............................33-35 tracking..............................................42
tv button...............................5, 21, 24 controls......................5, 21, 23-24 hookups ...................................6-10 position .................................24, 27 vcr button......................................5, 23 light ...............................................26
position .................................24, 27 vcr/tv button .............................24, 27 video in/out jacks.............10, 27, 28,
.................................. 37, 43, 47 vol(ume) o / p buttons.................23
warranty......................................50-51
S
UPPLIED
A
CCESSORIES
The following items are supplied with your VCR; they are provided to help you use or set up your VCR.
Remote Control 4835 218 37309
Two AA Batteries 4835 138 17012
RF Coaxial Cable, 75 ohm
4835 323 27011
O
PTIONAL
A
CCESSORIES
The following additional items are not provided with your
VCR, but they are designed for use with your new VCR.
To order these optional accessories, contact us at:
Philips Parts & Accessories Marketing Department
401 East Old Andrew Johnson Highway
P.O. Box 555
Jefferson City, TN 37760
1-800-851-8885.
VHS Cassette Rewinder
#M61117
Stereo Audio and Video Cables (6 feet)
#M61106 (gold connectors)
#M61105 (color-coded connectors)
Monaural Audio and Video Cables (6 feet)
Color-coded for easy connection
#M61103
Three Cassette Storage Cases (plastic)
Fits VHS and Beta cassettes
#M61104
This owner’s manual is made of recyclable materials.
Remember to recycle!
As an E
NERGY
S
TAR
® Partner, Philips Consumer Electronics has determined that this product meets the
E
NERGY
S
TAR
E
NERGY
S
TAR
®
® guidelines for energy efficiency. is a U.S. registered mark.
Six High-grade, VHS, T-120 Cassettes
#MHG1206
IB8281E001
Printed In China
0VMN02651 / H79K0UD * * * * *
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Automatic channel setup and clock setting
- Automatic head cleaner for hassle-free maintenance
- Front panel menu access for easy control
- Remote control with glow-in-the-dark buttons for convenient operation
- Hi-Fi stereo sound system for high-quality audio
- 19 micron head for improved picture quality in slow-speed recordings
- On-screen displays in English or Spanish for clear instructions
- Timer recording for convenient scheduling of recordings
Related manuals
Frequently Answers and Questions
What are the benefits of the automatic channel setup feature?
How does the automatic head cleaner help?
Can I use this VCR to record in stereo?
What is the purpose of the 19 micron head?
Can I control my TV or other devices with the remote control?
advertisement
Table of contents
- 3 Introduction
- 4 Table of Contents
- 5 Before Using Your VCR
- 6 Hookups without a Cable Box/Direct Broadcast System
- 8 Hookups with a Cable Box/Direct Broadcast System
- 10 Hookups with a Stereo TV
- 11 Turning on Your VCR
- 12 Automatic Channel Setup
- 15 Setting the Clock
- 19 Daylight-Savings Time
- 20 Language Selection
- 21 Setting the Remote to Operate a TV
- 22 Setting the Remote to Operate a Cable Box/Direct Broadcast System
- 23 Remote Control Buttons
- 25 On-Screen Status Displays
- 26 VCR Display Panel
- 27 Front Panel
- 28 Rear Panel
- 29 Playing
- 30 Recording
- 31 Recording One Channel/Watching Another
- 32 One-Touch Recording
- 33 Timer Recording
- 37 Rerecording (Tape Duplication)
- 38 Repeat Play
- 39 Real-Time Counter Memory
- 40 Time Search
- 41 Special Effects Playback
- 42 Automatic Operation Features
- 43 Multi-Channel Television Sound System (VR622CAT only)
- 45 Hi-Fi Stereo Sound System (VR622CAT only)
- 46 Blue Background
- 47 Glossary
- 48 Helpful Hints
- 50 Limited Warranty
- 52 Specifications
- 53 Index
- 53 Accessories
