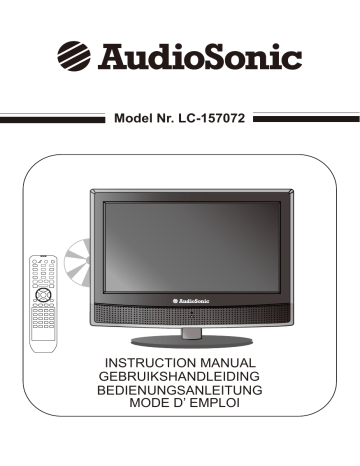

Model Nr. LC-157072
INSTRUCTION MANUAL
GEBRUIKSHANDLEIDING
BEDIENUNGSANLEITUNG
MODE D’ EMPLOI
Part 1 : LCD TV OPERATION
1- Important Safety Precaution
Incorrect usage will cause fire or electric shock. To prevent this, please do as required when you are installing, using and cleaning this machine. To insure your safety and extend the life span of LCD-TV, please read the following items carefully before using:
The On/Off key on this product does not fully disconnect the TV from the main power supply. Unplug the power cord from the AC outlet before connecting any Audio / Video cables to the LCD TV.
Do not place the LCD TV on any unstable surface or furniture. Which may cause the product to fall, resulting in serious personal injuries and damage the product. Only place on stable furniture, recommended for LCD TV by its manufacturer.
The LCD panel used in this product is made of glass. Do not drop or impact the product with other objects, it may cause the panel broken. Be careful with the broken glasses in case the panel broken.
The vents and openings at the back of the products are designed for ventilation. Do not cover or block these vents and openings. Insufficient ventilation may cause overheating and / or shorten the life of the product. Do not insert any foreign objects
(metals or flammable objects) into the TV, which may cause electric shock or fire.
Do not place the LCD TV closed to other furniture, furnishing or electronic products.
This product is not designed for built-in installation; do not place in an enclosed place without proper ventilation.
Keep this product away from direct sunlight or any heat sources such as radiator, heaters,stoves, and other heat generating products (including adaptors and amplifiers).
Do not use this product in wet and moisture area or near water, such as kitchen sink, bathtub, washbasin, laundry tub, swimming pool or a wet basement.
Do not place any water container on top of this product. The water may spill onto the product causing electric shock or fire.
Do not place any type of candle or naked flames on the top or near the LCD TV, which may cause fire.
To clean the cabinet and LCD panel, unplug the Power cord, use only a clean soft moistened cloth and gently wipe the display panel. Hard cloth may scratch the panel surface. Never use dirty cloth, liquid cleaners or chemical cloth to clean it; such materials may damage the LCD panel.
Do not remove cover; there are no serviceable parts inside. Refer servicing to
qualified services personnel only.
E 1
2- Main functions
1- Can be connected with analog RGB input
2- Can be connected with CVBS input
3- Can be connected with HDMI input.
4- Can receive SCART signal
5- Can receive TV signal
6- Support DVD / Card / USB Playback
7- Built-in 2 x 5W speakers, 2 sets audio input
8- Full function Infra-red remote control
9- Coaxial Audio ouput
10- Support USB for PVR and Media play
11- Support CI slot
3- Fitting the Remote Control Batteries
The remote unit is operated with 2 x AAA size batteries.
1. Push and hold the hook, the battery cover is opened.
2. Insert batteries according to the polarity marks.
3. Replace the cover.
Remarks:
Battery replacement is necessary when the remote control fail to operate the TV set.
Battery Cautions
Incorrect use of batteries can cause chemical leakage, which will corrode the Remote Control
Unit or cause the batteries to burst.
1. Batteries shall always replace as a pair. Always use new batteries when replacing
the old set.
E 2
2. Do not combine a used battery with a new one or mix battery type (Zinc Carbon with
Alkaline).
3. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
4. Dispose the used batteries according to your local authorities guidelines. Do not put it into your household waste.
4- Product Overview
5- Control Panel Overview
1. Control Panel Functions:
1- EJECT - DVD eject button
2- PLAY/PAUSE - DVD play/pause button
3- INPUT – Select the input signals:
TV /SCART / CVBS / S-VIDEO / VGA / HDMI1/HDMI2 /DVD
4- MENU – Enter into MENU
5- VOL – Volume down / Left orientation
6- VOL – Volume up / Right orientation
7- CH. – TV channel down
8- CH. – TV channel up
9- STANDBY – Switches the TV to standby and on again
.
.
E 3
(2) Card, USB Panel Illustration:
A. SD/MMC/MS Card Slot
B. USB
A
B
Indicator Light Status
When the unit is on, the indicator light turns green. The indicator light is red when the TV is in standby mode.
E 4
(3) Illustration of Connectors
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
Connector’s descriptions
1. DC 12V power input for the LCD TV, connects power supply adaptor here.
2. Connects to portable USB device.
3. High Quality Audio/Video input socket for connecting an external
device fitted with an HDMI output.
4. DB15 VGA interface.
5. Audio input for VGA mode, connects to your PC audio output.
6. PCMCIA input, the card reader input CI (Common interface ) this requires
CAM (conditional access module) used for play DTV.
7. Coaxial Output, connecting to Coaxial input of your Amplifier.
8. CVBS video input, connects your AV system.
9. Right Audio Channel input for Composite video mode.
10. Left Audio Channel input for Composite video mode.
1 1. 75 Ω aerial input, connects antenna connector or aerial interface here to receive
cable / aerial signal.
12. Headphone output
13. Scart input interface; connects your AV system with Scart output.
E 5
39
Remote control Illustration Keys description on the remote control
31
37
41
LCD
-/--
ANGLE ZOOM
D.MENU
TITLE
AUDIO
ENTER
D.DISP
DVD
SETUP
GOTO
PROG INTRO REPEAT A-B
42
40
1.STANDBY Switch the tv set in and out of standby mode
2.AUTO/ Press this key to AUTO config the picture setting while in
VGA mode, or EJECT the disk in DVD mode.
3.MUTE Press this button to mute or restore sound.
4.<0>-<9> Numeric keys
5 C/L One/two digit TV channel selection
6. Press this key to return to the previous channel
in no-menu mode.
7.ASPECT The zoom mode settings can be selected in the screen setting.
8.AUDIO Select audio channel
9.VOL+/VOL- Volume increase or decrease choice.
10. CH+/CH- Press these buttons to select channels in descending or
ascending order.
11.Display Show the current mode of information.
12.ENTER Press this key enters choose item or into channel list.
Both ENTER and ENTER function.
The four directions allow you to navigate the menu
13.LCD Press this button to enter the menu screens for
MENU various optional adjustable settings.
14.DVD SETUP To show the DVD SETUP menu while in DVD mode,
EXIT or EXIT current setting in any mode.
15.INPUT Switching current signal source selection.
16.SLEEP Automatic dormancy time setting.
17.PMODE Press this button to select the desired picture mode.
18.SMODE Press this button to select the desired sound mode.
19.FAV Favorite television programs.
20.EPG Electronic program Guide.
21.FAV- View last pages of the favorite program.
22.FAV+ View the next page of the favorite program.
23.TEXT/ Starts and exits Teletext.
ANGLE Use to access various camera angles on a DVD.
24.SUBTITLE Subtitle key in digital TV
25.HOLD/ Press this button to hold the teletext page on display
ZOOM to prevent the page from changing.
Zoom in or out while in DVD mode.
26.TV/RADIO Press to switch between DTV and Radio.
27.INDEX/ Back to teletext home page
D.MENU DVD-DISC MENU
28.SUBPAGE Function subpage in teletext mode
/GOTO Allow to search forward/backward through a disc.
29.SIZE/ Switch the teletext size
TITLE When DVD is playing,brings up the Title Menu.
30.REVEAL Reveal the hidden information for some teletext pages,
and presses again to hide the information.
D.DISP Displays the disc info.
31. Start the playback or resume playback form pause in MEDIA mode.
32. Fast reverse in MEDIA mode
33. Show/Step while in DVD mode.
34. Skip to the next track/title/chapter in MEDIA mode.
35. Press to start to record and twice to stop in DTV mode.
36. Skip to the next track/title/chapter in MEDIA mode.
37. Stops in MEDIA mode.
38. Skip to the previous track/title/chapter in MEDIA mode.
39.RED / Correspond to the differently colorwd subjects
PROG DVD-Program Playback button.
40.CYAN/ Correspond to the differently colorwd subjects
A-B /AB/DVD-AB Selection Playback.
41.GREEN/ Correspond to the differently colorwd subjects
INTRO /INTRO/CD/VCD-Intro/Scan/9 picture display.
42.YELLOW/ Correspond to the differently colorwd subjects
REPEAT /REPEAT/DVD Repeat playback.
E 6
7- Connection between different input signals
A) Connect with PC signal
You can use your LCD-TV as a monitor for your personal computer using a VGA cable(not supplied).
2. PC Audio Input
3. DC12V power input
2
1
3
Connection steps :
* Read the user guide supplied with your computer and ensure that it has a VGA connector;
* Make sure that the power of the LCD-TV and the PC are off;
* Connect a D type 15-pin VGA interface cable (not supplied) to the VGA video
interface connector on the PC. Then connect the other end to the VGA video
interface connector on the back of the LCD-T V. Tighten the screws on the VGA
firmly connected;
* Connect the DC 12V power input with the adaptor come with your LCD TV.
* Turn on the power of the LCD-TV first, and then turn on the power of the PC;
* Press the INPUT button to set the video input mode of the LCD-TV to “PC”;
* Use the VOL- / VOL+ on the control panel or remote control to adjust the volume.
E 7
B) Connect to external AV devices using Composite
1. Left & Right Audio input.
2. CVBS / composite video input.
3. DC12V power input
1
2
3
Connection steps :
* Read the user guide supplied with your AV devices and ensure that it has Composite
* Make sure that the power of the LCD-TV and the AV device are off;
* Connect a Composite video cable (not supplied) to the yellow composite video connector input on the back of the LCD-TV. Now insert the other end of the composite
cable into the yellow composite connector output on the AV device;
* Connect the RCA audio cables (not supplied, white and red connectors) from the AV devices’ RCA audio output connectors to the RCA audio input connectors on the back of the LCD-TV;
* Turn on the power of the LCD-TV first, and then turn on the power of the AV device;
* Press the INPUT button to set the video input mode of the LCD-TV to “AV” mode;
(C) Connect with TV signal
1. Antenna / 75Ω aerial input.
2. DC 12V power input.
1
2
E 8
Connection steps :
* Make sure that the power of the LCD-TV is off;
* Connect an antenna cable (CATV) to the corresponding interface connector
(75 Ω ANT) on the back of the LCD-TV. Connect the other end of the antenna cable to
the antenna connector on the wall or on your digital cable / satellite receiver.
Now you are able to view regular cable TV;
* Turn on the power of the LCD-TV;
* Press the INPUT button to set the video input mode of the LCD-TV to “ATV” or “DTV”
mode. The channel number appears in the top right side of the screen;
* When channels are not programmed a blue screen will appear with go around
white screen with the text “NO SIGNAL’’.
On the LCD MENU you can read how the channels can be programmed
(auto search or manual search).
It is recommended first to let the channels automatically to be searched.
* You can use key CH + / CH button or the number keys on the remote control to
select the channel you want to watch;
(D) Connect with SCART signal
1. Scart input.
2. DC 12V power input.
1
2
Connection steps:
* Read the user guide supplied with your AV devices and ensure that it has a scart
connector;
* Make sure that the power of the LCD-TV is off;
* Connect a SCART cable to the corresponding interface connector on the back of the
LCD-TV;
* Turn on the power of the LCD-TV;
* Press the INPUT button to set the video input mode of the LCD-TV to “SCART” mode;
E 9
E) Connect with external device( USB )
1. External device input.
2. DC 12V power input.
external device the external device
F) Connect with HDMI signal
1. HDMI x2 input
2. DC 12V power input. external
Media the
1
2
Connection steps:
* Read the user guide supplied with your AV devices and
ensure that it has a HDMI connector;
* Make sure that the power of the LCD-TV is off;
* Connect a HDMI cable to the corresponding interface connector on the back of the
LCD-TV;
* Turn on the power of the LCD-TV;
* Press the INPUT button to set the video input mode of the LCD-TV to “HDMI1” or
“HDMI2” mode;
E 10
8- Basic operating instructions
Turn on the LCD-TV
When the STANDBY button is pressed and the LCD-TV is turned on, the indicator light on the front of the LCD-TV changes from red to green.
When the LCD-TV is turned on, the input mode is displayed on the screen.
When the LCD-TV is turned off using the STANDBY button, the LCD-TV will go into standby mode and the indicator light turns red.
Switch Among Different Inputs :
ATV/DTV/Media/AV/PC/DVD/SCART/HDMI1/HDMI2
Press the Input button to display the inputs mode menu, then press / key to select a input source and press Enter key to confirm.
Audio control
1. Press the VOL+ button to increase the volume.
A number will appear on screen indicating the volume level.
2. Press the VOL button to decrease the volume.
A number will appear on screen indicating the volume level.
E 11
Mute
1. Press the MUTE button to mute the sound temporarily.
A Mute icon appears on the screen.
MUTE
2. Press the MUTE button again to restore the sound.
The Mute icon disappears.
Note
When you turn the LCD-TV off, the mute function is cancelled automatically.
Select the TV channel you want
You can use the number keys on the remote control to directly select TV channels.
The LCD-TV can store up to 99 channels (1 to 99), and you can press the keys on the remote control or on the panel to make a selection.
1- Press the relevant key on the remote control if you want to choose any channel from 1 to 9. (For example: if you want to choose channel 8, just press the key number 8).
2- If you want to choose a channel bigger than 9, please press the “ -/-” button until “ - ” is indicated on the screen. Enter the two digits of the channel number you want to watch.
(For example: select channel 16).
Select the DTV channel you want
There are four ways of channel selection as follows:
1. Stepping through the channel list:
Press the CH+ button to browse up and the CH button to browse down the available channels.
2. Selection by number:
Enter the complete channel number directly using the numerical buttons to select desired channel.
3. Selection by mini channel list:
It is also possible to change the channel using a mini channel list that is accessible by pressing the ENTER button with no other on screen display shown.Use the UP/DOWN ARROW keys to navigate and press the ENTER button to display the selected channel.To exit this mini channel list press the
EXIT button.
E 12
4. Selection by EPG(Electronic Programme Guide)
This function allows a channel schedule to be displayed for a time interval of one week.
1.Press the EPG button to display the Electronic Programme Guide on the screen.
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
2.Use
UP/DOWN ARROW buttons to select the channel and press the ENTER button to view the channel.
ASPECT
Press to display proportion.(Auto; 4:3 ;16:9 ; ZOOM1 ; ZOOM2)
NICAM
Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not available then switches to Mono. NICAM DUAL 1 and NICAM DUAL 11 can also be selected if a mono signal is being transmitted.
SUBTITLES(DTV)
Press the SUBTITLE button to display Subtitle Language, and use UP/DOWN arrows to select subtitle language or Off, then press ENTER button to confirm it.
9- PVR operating instructions
1- PVR Function list
Record directly
Item
1. Press button to record the current program.
Press to stop recording.
2. File maximum size 3.9G byte , if the capacity is surpassed it will divide the file to deposit.
Timer record
1. Use EPG to carry on the appointment record.
2. Support periodicity record /everyday record/once-only record.
3. When the time appointment is in conflict ,it will produce a warning message.
1. Can delete a single file
Disk manager
2. Provide Disk formatting functions.
Playback 1.You can play back the recorded program in Media/USB/channel.
E 13
2- PVR Basic instructions
1. The storage location of your file
Press ▼ / ▲ button to select Option in the main menu.
Press ▼ / ▲ button to select PVR File System, then press ENTER button to enter .
Press ▼ / ▲ button to select Select Disk , then press ENTER button to enter .
Use the external device(USB) to do appointment record.
Y ou can switch partition in this interface
Select Disk C:
Check PVR File System Start
USB Disk
Format
T ime Shift Size
Speed
Free Record Limit 6 H r.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
2 . Check the USB speed
Press ▼ / ▲ button to select Check PVR File System , then press ENTER button to enter .Then it will check the USB speed.
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
T ime Shift Size All
Speed Checking
Free Record Limit 1 H r.
OK Menu
3- Recording methods
Mode1: Shortcut key
1. Press button to record the current program.
Press to stop recording.
It will stop PVR.
[00:00:42] play
1 YLE TV1
FB FF Prev.
Next pause Stop
(0000:39:48)
08:38
Y es No
2. Press S T O P button to stop recording ,the n it will return to normal broadcast television.
E 14
3. When the storage space of Disk is insufficient, it will produce a warning message, then
it stops recording automatically and return to normal broadcast television.
4. Press index button to see the information of the recorded list .
Press INFO button to see the detail of the program.
Recorded list Programme
Delete
OK
INFO index
NOTE: You can see detail about the DATE/TIME/DURATION
/PROGRAM NAME/CHANNEL NAME/DESCRIPTION
Mode2:Time shift
1. Press button to start Timeshift.
play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
This operation can make the frame still ,and record program in the background.
Mode3:Timer
1. You can also press EPG button to set record.
Press the red button to start recording.
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
The Force
Double Indemnity
17:00-18:00 Surprisel: Brilliant Creatu.
Record Display Schedule Remind
Move View Next Day Prev Day OK
2.You can choose the time of the appointment to record you want .
E 15
-
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
OK Back
3.When the time appointment is in conflict ,it will produce a warning message.
Timer Overlay
21 TMF
13 Jul 2007 03:00
4 . The time of the record is coming/appearing . it will change to current channel automatically.
3 Sec.to Switch channel
Yes No
4-Disk manager
1. Press INPUT button to enter input source.
2. Press ▼ / ▲ to choose Media ,press ENTER to enter.
F lower00.jpg
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
Delete
3 . Press red button can delete the recorded program.
Ar e y ou s ur e?
Yes No
E 16
10- Media operating instructions
Note:Before operating Media menu,Plug in USB device,then press INPUT button to set the Input Source to Media .
Press ◄ / ► button to select Media in the Source menu, then press ENTER button to enter.
Press ◄ / ► button to select the option you want to adjust in the main Media menu, then press ENTER button to enter.
Photo Menu
Press ◄ / ► button to select PHOTO in the main menu, then press ENTER button to enter.
Press menu button to return back to the previous menu and exit menu to quit.
Press ◄ / ► button to select drive disk you want to watch, then press ENTER button to enter.
Press ◄ / ► button to select return option to go back to the previous menu.
Return C D E
E 17
Win Recorder Flower.jpg
Delete
Press ◄ / ► button to select in the file selecting menu, then press media button to display picture.
When highlighting the option you select,the file information will appear on the right and picture will be previewed in the center.
F
Resol ut ion: 1200X900
Y R Size: 1381KB yt es
D at e: 2010 / 05 / 09
Ti m e: 16:13:25
Delete
Press ◄ / ► button to select the file folder you want to search in the file selecting menu, then press red or ENTER button on your remote control to enter sub-menu.
Press ◄ / ► button to select the file you want to delete in the file selecting menu, then press red button on your remote control and press ENTER button to delete files.
Music Menu
Press ◄ / ► button to select MUSIC in the main menu, then press
ENTER
button to enter.
Press menu button to return back to the previous menu and exit menu to quit.
Press ◄ / ► button to select drive disk you want to watch, then press
ENTER
button to enter.
E 18
Press ◄ / ► button to select return option to go back to the previous menu. When highlighting the option you select,the file information will appear on the right and music will be previewed in the center.
C:\ 1 1 try.mp3
happy.mp3
Delete
Win
Maybet.mp3
Record thank.mp3
angel.mp3
A lbum : (2005 / 01 ...
T itl e: 1 kh z-10 db
B it Rat e: 320K
Ar ti s t : BCD103
S ampling : 44K
Ye a r: 2005
S i ze: 2426KB yt es
Press ◄ / ► button to select the file you want to watch in the file selecting menu, then press
ENTER button to add the file to playlist,press media button to display and operate file details.
Press ◄ / ► button to select menu in the bottom you want to run, then press
ENTER
button to operate.
Press menu button to back to the previous menu and exit button to quit the entire menu.Press ▼ button to hide the menu in the bottom.
Movie Menu
Press ◄ / ► button to select MOVIE in the main menu, then press ENTER button to enter.
Press menu button to return back to the previous menu and exit menu to quit.
Press ◄ / ► button to select drive disk you want to watch, then press ENTER button to enter.
Press ◄ / ► button to select return option to back to the previous menu.
When highlighting the option you select,the file information will appear on the right and movie will be previewed in the center.
Press media button to play the selected movie.
E 19
Press display button to select menu in the bottom you want to run, then press ENTER button to operate.
Press menu button to back to the previous menu and exit button to quit the entire menu.
Text Menu
Press ◄ / ► button to select TEXT in the main menu, then press ENTER button to enter.
Press menu button to return to the previous menu and exit menu to quit.
Press ◄ / ► button to select drive disk you want to watch, then press ENTER button to enter.
Press ◄ / ► button to select return option to go back to the previous menu.
When highlighting the option you select,the file information will appear on the right and text will be previewed in the center.
Press media button to view the selected text.
Press display button to select menu in the bottom you want to run, then press OK button to operate.
Press menu button to back to the previous menu and exit button to quit the entire menu.
E 20
11
Digital Teletext
Some digital channels have a digital version of the traditional teletext service.Usually if the channel that you are viewing has this digital teletext there will be an on-screen display showing how this service can be accessed.For most channels that have this digital teletext service is accessed by pressing the RED or TEXT button. Once started follow the on-screen instruction to navigate through the available information.The standard navigation method is using the UP/DOWN/LEFT/RIGHT
ARROW buttons and the ENTER button.Some services will offer shortcuts via the coloured buttons on the remote.
E 21
12
the SETUP
SCREEN MENU
SCREEN the TIME , the LOCK or
Auto Adjust
Auto Adjust
SCREEN
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0 t
4. Size
Press Up /Down button to select
Size,then press OK button to enter sub-menu.Press Left / Right button to adjust display size.
E 22
PICTURE MODE
Standard;Mild;Personal)
(Dynamic;
This can only be adjusted in the PERSONAL mode.
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
This can only be adjusted in the PERSONAL mode.
Select Exit
TINT
E 23
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
COLOR TEMPERATURE
Select Exit
(Standard;Music;Movie;Sports;Personal).
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Auto Volume
Press UP / Down button to select Auto
Volume, then press ENTER button to select On of Off.
6. SPDIF MODE
Press UP / Down button to select SPDIF
MODE, then press ENTER button to
select Auto\ PCM\Off .
7. AD Switch
Press UP / Down button to select AD
Switch.then press ENTER button to select On of Off.
E 24
LOCK
1.
Move Return
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
2. Auto Standby
Press Up / Down button to select Auto
Standby, then press ENTER button to enter sub-menu. Press Up / Down / Left
/Right button to select.
3.
Move
LOCK
Return
Block
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
1.
Lock System
Press Up / Down button to select Lock
System, then press ENTER button to make the following 3 options valid.
(Default password is ‘0000’.)
2. Set Password
Press Up / Down button to select Set
Password, then press ENTER button to enter sub-menu to set new password.
3. Block Program
Press Up / Down button to select Block
Program, then press ENTER button to enter sub-menu.
Press Up / Down button to select the program you want to lock, then press yellow button on your remote control.
(To unlock program,enter the password you set.)
Press ENTER button to save setting and menu button to back to the previous
4. Parental Guidance
Press Up / Down button to select
Parental Guidance, then press ENTER button to enter sub-menu to select.
(Available options are:Off, 4-18)
5. Key Lock
Press Up / Down button to select Key
Lock, then press Left / Right button to select “On” or “Off”, The key board will invivild if you set Key Lock “On”.
E 25
SETUP
SETUP
OSD
OSD
SETUP
Move
Deutsch
--
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Please select an OSD Language
English Espanol Francais
Portugues
OK
Select Exit
Nederlands
DUTCH,
PORTUGUESE,
, POLISH.
2. TT Language
Press Up / Down button to select TT then press ENTER button to enter sub-menu.Press Up / Down / Left / Right button to select.
3. Hearing Impaired
Press Up / Down button to select Hearing
Impaired, then press ENTER button to select On or Off.
4. PVR File System
Press Up / Down button to select PVR File
System, then press ENTER button to enter sub-menu.
5. Aspect Ratio
Press Up / Down button to select Aspect
Ratio, then press ENTER button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2,Just Scan . )
6. Blue Screen
Press Up / Down button to select Blue
Screen, then press ENTER button to select
On or Off.
7. First Time Installation
Press Up / Down button to select First Time
Installation, then press ENTER button to set relevant options including OSD language, country and tuning.
8. Reset
Press Up / Down button to select Reset , then press ENTER button to open a dialogue.Press Left button selecting
Yes to restore factory default by choosing
OSD language,country and conducting
Channel Tuning .
9. Software Update(USB)
Press Up / Down button to select Software
Update(USB), then press ENTER button to update software by using USB.
E 26
AV/SCART/HDMI/DVD/Component/Media
LOCK, the SETUP menu
PICTURE MODE
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
This can only be adjusted in the PERSONAL mode.
TINT
E 27
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
COLOR TEMPERATURE
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Auto Volume
Press UP / Down button to select Auto
Volume, then press ENTER button to select On of Off.
6. SPDIF MODE
Press UP / Down button to select SPDIF
MODE, then press ENTER button to
select Auto\ PCM\Off .
7. AD Switch
Press UP / Down buttonto select AD
Switch.then press ENTER button to select On of Off.
E 28
1.
Move Return
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
2. Auto Standby
Press Up / Down button to select Auto
Standby, then press ENTER button to enter sub-menu. Press Up / Down / Left
/Right button to select.
3.
LOCK
Move
LOCK
Return
Block
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
1.
Lock System
Press Up / Down button to select Lock
System, then press ENTER button to make the following 3 options valid.
(Default password is ‘0000’.)
2. Set Password
Press Up / Down button to select Set
Password, then press ENTER button to enter sub-menu to set new password.
3. Block Program
Press Up / Down button to select Block
Program, then press ENTER button to enter sub-menu.
Press Up / Down button to select the program you want to lock, then press yellow button on your remote control.
(To unlock program,input the password you set.)
Press ENTER button to save setting and menu button to go back to the previous
4. Parental Guidance
Press Up / Down button to select
Parental Guidance, then press ENTER button to enter sub-menu to select.
(Available options are:Off, 4-18)
5. Key Lock
Press Up / Down button to select Key
Lock, then press Left / Right button to select “On” or “Off”, The key board will invalid if you set Key Lock “On”.
E 29
SETUP
SETUP
OSD
OSD
SETUP
Move
Deutsch
--
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Portugues
OK
Nederlands
DUTCH,
PORTUGUESE,
, POLISH.
2. TT Language
Press Up / Down button to select TT then press ENTER button to enter sub-menu.Press Up / Down / Left / Right button to select.
3. Hearing Impaired
Press Up / Down button to select Hearing
Impaired, then press ENTER button to select On or Off.
4. PVR File System
Press Up / Down button to select PVR File
System, then press ENTER button to enter sub-menu.
5. Aspect Ratio
Press Up / Down button to select Aspect
Ratio, then press ENTER button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2,Just Scan . )
6. Blue Screen
Press Up / Down button to select Blue
Screen, then press ENTER button to select
On or Off.
7. First Time Installation
Press Up / Down button to select First Time
Installation, then press ENTER button to set relevant options including OSD language, country and tuning.
8. Reset
Press Up / Down button to select Reset , then press ENTER button to open a dialogue.Press Left button selecting
Yes to restore factory default by choosing
OSD language,country and conducting
Channel Tuning .
9. Software Update(USB)
Press Up / Down button to select Software
Update(USB), then press ENTER button to update software by using USB.
E 30
LOCK
ATV
SETUP.
CHANNEL the CHANNEL TIME
CHANNEL
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
Exit
1. Auto Tuning
Press Up / Down button to select
Auto Tuning, then press ENTER button to start auto search.
2. DTV Manual Tuning
Press Up / Down button to select
DTV Manual Tuning, then press
ENTER button to enter password to enter sub-menu.
(Default password is ‘0000’)
3. ATV Manual Tuning
Press Up / Down button to select
ATV Manual Tuning, then press
ENTER button to enter password to enter sub-menu.
(Default password is ‘0000’)
4. Program Edit
Press Up / Down button to select
Program Edit, then press ENTER button to enter sub-menu.00’)
This option has five functions.
Use Red button to Delete the current channels.
Use Green button to Rename the current channels.
Use Yellow button to Move the current channels.
Use Blue button to Skip the current channels.
·Use FAV button set the current channel to your favorite channel. if the current channel already is one of your favorite channels, press FAV button again to set it to a normal channel.
E 31
PICTURE MODE
Standard;Mild;Personal)
(Dynamic;
This can only be adjusted in the PERSONAL mode.
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
This can only be adjusted in the PERSONAL mode.
Select Exit
TINT
E 32
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
COLOR TEMPERATURE
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Auto Volume
Press UP / Down button to select Auto
Volume, then press ENTER button to select On of Off.
6. SPDIF MODE
Press UP / Down button to select SPDIF
MODE, then press ENTER button to
select Auto\ PCM\Off .
7. AD Switch
Press UP / Down button to select AD
Switch.then press ENTER button to select On of Off.
E 33
1.
Move Return
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
2. Auto Standby
Press Up / Down button to select Auto
Standby, then press ENTER button to enter sub-menu. Press Up / Down / Left
/Right button to select.
3.
LOCK
Move
LOCK
Return
Block
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
1.
Lock System
Press Up / Down button to select Lock
System, then press ENTER button to make the following 3 options valid.
(Default password is ‘0000’.)
2. Set Password
Press Up / Down button to select Set
Password, then press ENTER button to enter sub-menu to set new password.
3. Block Program
Press Up / Down button to select Block
Program, then press ENTER button to enter sub-menu.
Press Up / Down button to select the program you want to lock, then press yellow button on your remote control.
(To unlock program,enter the password you set.)
Press ENTER button to save setting and menu button to back to the previous
4. Parental Guidance
Press Up / Down button to select
Parental Guidance, then press ENTER button to enter sub-menu to select.
(Available options are:Off, 4-18)
5. Key Lock
Press Up / Down button to select Key
Lock, then press Left / Right button to select “On” or “Off”, The key board will invalid if you set Key Lock “On”.
E 34
SETUP
SETUP
OSD
OSD
SETUP
Move
Deutsch
--
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Please select an OSD Language
English Espanol Francais
Portugues
OK
Select Exit
Nederlands
DUTCH,
PORTUGUESE,
, POLISH.
2. TT Language
Press Up / Down button to select TT then press ENTER button to enter sub-menu.Press Up / Down / Left / Right button to select.
3. Hearing Impaired
Press Up / Down button to select Hearing
Impaired, then press ENTER button to select On or Off.
4. PVR File System
Press Up / Down button to select PVR File
System, then press ENTER button to enter sub-menu.
5. Aspect Ratio
Press Up / Down button to select Aspect
Ratio, then press ENTER button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2,Just Scan . )
6. Blue Screen
Press Up / Down button to select Blue
Screen, then press ENTER button to select
On or Off.
7. First Time Installation
Press Up / Down button to select First Time
Installation, then press ENTER button to set relevant options including OSD language, country and tuning.
8. Reset
Press Up / Down button to select Reset , then press ENTER button to open a dialogue.Press Left button selecting
Yes to restore factory default by choosing
OSD language,country and conducting
Channel Tuning .
9. Software Update(USB)
Press Up / Down button to select Software
Update(USB), then press ENTER button to update software by using USB.
E 35
DTV
CHANNEL
LOCK, LOCK
CHANNEL
CHANNEL
Move
Bad
Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select
DTV Manual Tuning
- UHF CH 12 +
No Signal
Freq: 226.25Mhz
Menu
Good xi
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search t
Exit
1. Auto Tuning
Press Up / Down button to select
Auto Tuning, then press ENTER button to start auto search.
2. DTV Manual Tuning
Press Up / Down button to select
DTV Manual Tuning, then press
ENTER button to enter password to enter sub-menu.
(Default password is ‘0000’)
Press Left / Right button to select channel, then press ENTER button to search program.
3. ATV Manual Tuning
Press Up / Down button to select
ATV Manual Tuning, then press
ENTER button to enter password to enter sub-menu.
(Default password is ‘0000’)
Press Left / Right button to select channel number you want to store.
Press Up / Down button to select the second option. Press
Left / Right button to select audio system.
Press Up / Down button to select search, then press ENTER button to start tuning.
Press red button on your remote control to save the settings and menu button to hack to the previous menu.
4. Program Edit
Press Up / Down button to select
Program Edit, then press ENTER button to enter sub-menu.00’)
E 36
CHANNEL
--
--
--
--
--
--
--
CHANNEL
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
This option has three functions.
·Use Blue button to skip the current channel.
·Use FAV button set the current channel to your favorite channel. if the current channel already be is of your favorite channel, press FAV button again will to it to a normal channel.
5. Signal Information
Press Up /Down button to select Signal
Information, then press ENTER button to display signal details, including Channel Number, Frequency,
Quality and Strength.
6. CI Information
Press Up /Down button to select CI
Information, then press ENTER button to display details if you has inserted the
CI card.
CI Information
E 37
PICTURE MODE
Standard;Mild;Personal)
(Dynamic;
This can only be adjusted in the PERSONAL mode.
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
This can only be adjusted in the PERSONAL mode.
Select Exit
TINT
E 38
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
COLOR TEMPERATURE
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Auto Volume
Press UP / Down button to select Auto
Volume, then press ENTER button to select On of Off.
6. SPDIF MODE
Press UP / Down button to select SPDIF
MODE, then press ENTER button to
select Auto\ PCM\Off .
E 39
LOCK
Move Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
1. Clock
Display the current system time.It’s not available.
2. Time Zone
Press Up / Down button to select Time
Zone, then press ENTER button to enter sub-menu.Press Up / Down / Left /Right button to select time zone.
3.
Select Exit
4. Auto Standby
Press Up / Down button to select Auto
Standby, then press ENTER button to enter sub-menu. Press Up / Down / Left
/Right button to select.
5.
Move
LOCK
Return
Block
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
1.
Lock System
Press Up / Down button to select Lock
System, then press ENTER button to make the following 3 options valid.
(Default password is ‘0000’.)
2. Set Password
Press Up / Down button to select Set
Password, then press ENTER button to enter sub-menu to set new password.
3. Block Program
Press Up / Down button to select Block
Program, then press ENTER button to enter sub-menu.
Press Up / Down button to select the program you want to lock, then press yellow button on your remote control.
(To unlock program,enter the password you set.)
Press ENTER button to save setting and menu button to back to the previous
4. Parental Guidance
Press Up / Down button to select
Parental Guidance, then press ENTER button to enter sub-menu to select.
(Available options are:Off, 4-18)
5. Key Lock
Press Up / Down button to select Key
Lock, then press Left / Right button to select “On” or “Off”, The key board will invalid if you set Key Lock “On”.
E 40
SETUP
SETUP
OSD
OSD
SETUP
Move
Deutsch
--
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Portugues
OK
Select
Please select an OSD Language
English Espanol Francais
Nederlands
Exit
DUTCH,
PORTUGUESE,
, POLISH.
2. TT Language
Press Up / Down button to select TT then press ENTER button to enter sub-menu.Press Up / Down / Left / Right button to select.
3. Hearing Impaired
Press Up / Down button to select Hearing
Impaired, then press ENTER button to select On or Off.
4. PVR File System
Press Up / Down button to select PVR File
System, then press ENTER button to enter sub-menu.
5. Aspect Ratio
Press Up / Down button to select Aspect
Ratio, then press ENTER button to enter sub-menu.Press Up / Down button to select aspect ratio.(Available options are:Auto,4:3,16:9,Zoom1,Zoom2,Just Scan . )
6. Blue Screen
Press Up / Down button to select Blue
Screen, then press ENTER button to select
On or Off.
7. First Time Installation
Press Up / Down button to select First Time
Installation, then press ENTER button to set relevant options including OSD language, country and tuning.
8. Reset
Press Up / Down button to select Reset , then press ENTER button to open a dialogue.Press Left button selecting
Yes to restore factory default by choosing
OSD language,country and conducting
Channel Tuning .
9. Software Update(USB)
Press Up / Down button to select Software
Update(USB), then press ENTER button to update software by using USB.
E 41
11- Product specifications
Items Relevant illustrations
40
Resolution 1366* 768(best resolution 1366 * 768)
Features
Input interface
Headphone Output
X2
Audio(1)
Audio(2)
Left,right audio input interface
Left,right audio input interface
High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output
3
Portuguese , Polish
40
Accessories
E 42
E 43
E 44
E 45
E 46
E 47
D.DISP
D.DISP
E 48
D.DISP
E 49
E 50
E 51
E 52
Switch the unit in ON position.
Push the INPUT button until the DVD function appears.
Remove the DVD disc when available in the drawer. Plug in the USB player or Memory card.
Plug in the USB player or Memory card.
The unit will now automatically detect the USB player or Memory card.
E 53
E 54
E 55
E 56
POLISH
PORTUGUESE
POLISH
PORTUGUESE
E 57
PORTUGUESE
POLISH
POLISH
PORTUGUESE
POLISH
OFF
E 58
PORTUGUESE
POLISH
E 59
E 60
Wall Mount
Screw taps x 4 for wall mounting
Remove the stand by taking out the 3 screws
E 61
Instructions on environment protection
Do not dispose of this product in the usual household garbage at the
end of its life cycle; hand it over at a collection point for the recycling
of electrical and electronic appliances. The symbol on the product,
the instructions for use or the packing will inform about methods for
disposal.
The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.
Please inquire at the community administration for the authorized disposal location.
E 62
Deel 1: BEDIENING VAN DE LCD TV
1. Belangrijke veiligheidsvoorschriften
Onjuist gebruik kan brand of elektrische schokken veroorzaken. Om dit te voorkomen, dient u de richtlijnen te volgen voor het installeren, gebruiken en reinigen van dit apparaat. Om de veiligheid en levensduur van de LCD-tv te garanderen, dient u de onderstaande punten zorgvuldig door te lezen voordat u het apparaat gaat gebruiken:
Via de Aan/Uit-toets van dit product wordt de tv niet volledig van de stroomtoevoer afgesloten. Haal de stekker van het netsnoer uit het stopcontact voordat u audio- of videokabels op de LCD-tv aansluit.
Plaats de LCD-tv niet op een wankele ondergrond of meubilair. Het apparaat zou hierdoor kunnen vallen, wat kan leiden tot ernstig persoonlijk letsel en beschadiging van het product. Plaats het apparaat uitsluitend op een stabiele ondergrond die door de fabrikant voor de LCD-tv wordt aanbevolen.
Het LCD-scherm van dit product is gemaakt van glas. Laat het product niet vallen en stoot niet met andere voorwerpen tegen het product, omdat het scherm hierdoor kan breken. Wees voorzichtig met de scherven als het scherm is gebroken.
De sleuven en openingen aan de achterzijde van het apparaat zijn bedoeld voor ventilatie. Zorg dat deze sleuven en openingen niet worden afgedekt of geblokkeerd.
Onvoldoende ventilatie kan tot oververhitting van het apparaat leiden, wat ten koste van de levensduur van het apparaat kan gaan. Steek geen voorwerpen (metalen of brandbare voorwerpen) in de tv; deze kunnen elektrische schokken of brand veroorzaken.
Plaats de LCD-tv niet in de nabijheid van meubels, bekleding of elektronische producten. Het product is niet ontworpen voor inbouw en mag daarom niet in een omsloten ruimte worden geplaatst zonder deugdelijke ventilatie.
Plaats het apparaat niet in de nabijheid van direct zonlicht of warmtebronnen, zoals cv-radiatoren, kachels of andere apparaten (inclusief adapters en versterkers), die warmte genereren.
Het apparaat mag niet worden gebruikt in een natte of vochtige ruimte of in de nabijheid van water, bijvoorbeeld naast een gootsteen, bad, wastafel, wasmachine of zwembad of in een vochtige kelder.
Plaats geen voorwerp dat water of andere vloeistoffen bevat op dit apparaat. Het water kan op het apparaat terechtkomen en elektrische schokken of brand veroorzaken.
Plaats geen kaarsen of open vuur op of in de nabijheid van het apparaat, waardoor brand kan ontstaan.
Bij schoonmaken van de behuizing en het LCD-scherm dient u eerst de stekker van het netsnoer uit het stopcontact te halen. Gebruik voor het schoonmaken uitsluitend een zachte, ietwat vochtige doek en wrijf hiermee voorzichtig over het scherm. Een harde doek kan krassen op het scherm veroorzaken. Gebruik nooit een vuile doek, vloeibare schoonmaakmiddelen of geïmpregneerde doekjes om het scherm schoon te maken; dergelijke middelen en materialen kunnen het LCD-scherm beschadigen.
U dient de behuizing niet te verwijderen. Dit apparaat bevat namelijk geen onderdelen die onderhoud vereisen. Laat al het onderhoud over aan een bevoegde onderhoudsmonteur.
D 1
2. Belangrijkste functies
1- Geschikt voor analoog RGB signaal;
2- Geschikt voor CVBS signaal (analoog videosignaal);
3- Geschikt voor HDMI signaal;
4- Geschikt voor ontvangst SCART-signaal;
5- Geschikt voor ontvangst tv-signaal;
6- Ondersteuning van DVD/Card/USB Playback
7- Twee ingebouwde 5W luidsprekers, twee sets audioaansluitingen;
8- Infraroodafstandsbediening voor alle functies.
9- Coax audio uitgang
10- Ondersteuning USB voor PVR (harddisk videorecorder) en Mediaspeler
11- Ondersteuning CI slot (common interface)
3. Batterijen in de afstandsbediening plaatsen
De afstandbediening wordt gevoed door twee AAA-batterijen.
1. Trek de vergrendeling naar u toe en trek de
klep omhoog.
2. Plaats de batterijen zoals door middel van de
poolmarkeringen is aangegeven.
3. Sluit de batterijenhouder.
Opmerking:
Vervangen van de batterijen is nodig als de afstandsbediening niet meer werkt.
Waarschuwing met betrekking tot batterijen
Onjuist gebruik van batterijen kan leiden tot lekkage van de chemicaliën uit de batterijen, waardoor corrosie van de afstandsbediening kan optreden of de batterijen kunnen openbarsten.
1. Batterijen dienen altijd per twee te worden vervangen. Gebruik altijd nieuwe batterijen
wanneer u de oude batterijen vervangt.
D 2
2. Combineer geen gebruikte batterijen met nieuwe batterijen en gebruik geen combinatie
van verschillende soorten (bijvoorbeeld zink-koolstof- en alkalinebatterijen).
3. Probeer batterijen niet opnieuw op te laden, kort te sluiten, te demonteren, te verhitten of
te verbranden.
4. Als u gebruikte batterijen afdankt, dient u daarbij de plaatselijk geldende voorschriften in
acht te nemen. Gooi batterijen niet weg bij het huishoudafval.
4- Productoverzicht
5- Overzicht bedieningspaneel
1. Functies controlepaneel:
1- EJECT– Toets om de DVD eruit te halen
2- PLAY/PAUSE – Toets om de DVD af te spelen / te pauzeren
3- INPUT Selecteer het binnenkomend signaal:
TV /SCART / CVBS / S-VIDEO / VGA / HDMI1/HDMI2 /DVD
4- MENU – Toegang tot het MENU
5- ◄VOL – Geluidsniveau omlaag / naar links
6- VOL► – Geluidsniveau omhoog / naar rechts
7- ◄CH. – TV-kanaal terug
8- CH.► – TV-kanaal vooruit
9- STANDBY – Schakelt de tv naar stand-by en weer in
.
.
D 3
(2) Card, USB paneel afbeelding:
A. SD/MMC/MS Kaartgleuf
B. USB
A
B
Status indicatorlampje
Wanneer het apparaat is ingeschakeld, brandt het indicatorlampje groen.
Het indicatorlampje brandt rood als de TV op Standby-modus staat.
D 4
(3) Afbeelding van aansluitingspunten
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
Beschrijving van aansluitpunten
1. Ingang voor de LCD-tv gelijkstroom 12V. Sluit hier de voedingsadapter op aan.
2. Aansluiting voor draagbaar USB-apparaat
3. Audio/Video-ingang van hoge kwaliteit voor aansluiting van een extern
apparaat met een HDMI-uitgang.
4. DB15 VGA-aansluiting.
5. Audio-ingang voor VGA-modus. Aansluiting voor de audiokabel van uw pc.
6. PCMCIA ingang, voor de kaartlezer CI (Common Interface). Dit vereist een
CAM om digitale TV af te spelen.
7. Coax uitgang, verbinding met coax ingang van uw versterker.
8. CVBS/Composiet video-ingang. Sluit hier uw AV-systeem op aan.
9. Ingang rechter-audiokanaal voor Composiet video-modus.
10. Ingang linker-audiokanaal voor Composiet video-modus.
11. 75 Ω antenne-ingang, verbinding met antenne (connector of interface) voor
ontvangst kabel-/antennesignaal.
12. Uitgang hoofdtelefoon.
13. Scart-aansluiting. Sluit uw AV-systeem met Scart-aansluiting aan.
D 5
6- Overzicht afstandsbediening
Afbeelding afstandsbediening Beschrijving toetsen afstandsbediening
Afbeelding afstandsbediening Beschrijving toetsen afstandsbediening
39
31
37
41
LCD
-/--
ANGLE
D.MENU
ZOOM
TITLE
AUDIO
ENTER
D.DISP
DVD
SETUP
GOTO
PROG INTRO REPEAT A-B
42
40
1. STANDBY Schakelt de tv naar en uit stand-by modus
2. AUTO / Druk deze toets in voor AUTO configuratie van de
beeldinstelling in de VGA-modus of EJECT om de DVD
uit te werpen in DVD-modus
3. MUTE Dempen van het geluid in- en uitschakelen
4. <0>-<9> Numerieke toetsen
5. C/L
6.
Een- of tweecijferig TV-kanaal kiezen
Het vorige tv-kanaal bekijken in geen-menu modus
7. ASPECT Displaygrootte wijzigen
8. AUDIO Selecteer audiokanaal
9. VOL+ / VOL– Volume harder/zachter
10. CH+ / CH– TV-kanaal vooruit/terug
11. DISPLAY Informatie over het huidige kanaal weergeven
12. ▲▼◄► Navigatietoetsen , zowel OK als Enter-toets.
/ OK
13. LCD MENU OSD-menu (keuzemenu op scherm)
14. DVD SETUP EXIT In DVD-modus keuzetoets SETUP menu, of in elke
modus EXIT huidige instelling
15. INPUT Invoermodus selecteren
16. SLEEP De tijd kiezen waarop u de tv automatisch op slaapstand wilt
laten gaan
17. PMODE Beeldmodus selecteren
18. SMODE Geluidsmodus selecteren
19. FAV Favoriete tv-programma’s
20. EPG Electronische programmagids
21. FAV- Bekijk vorige pagina’s favoriet tv-programma
22. FAV+ Bekijk volgende pagina favoriet tv-programma
23. TEXT Start en eindigt Teletekst. Toegang tot diverse
/ANGLE camera invalshoeken op een DVD
24. SUBTITLE Ondertitelingstoets in digitale TV
25. HOLD Toets indrukken om de Teletekstpag. in beeld te houden zodat de
/ZOOM pagina niet verandert. Zoom in of uit in DVD-modus
26. TV/RADIO Schakelen tussen DTV en Radio
27. INDEX Terug naar Teletekst homepage / DVD DISC Menu
/D.MENU
28. SUBPAGE Functiesubpagina in Teletekstmodus / Kiezen tussen
/GOTO vooruit/achteruit door een DVD gaan
29. SIZE/TITLE Keuze formaat Teletekst. Bij afspelen DVD: toont Titelmenu
30. REVEAL Toont verborgen informatie voor sommige teletekstblz.,
opnieuw indrukken om info te verbergen.
D.DISP
31.
Toont de DVD info
Start of hervat de playback in MEDIA modus
Snel terugspelen in MEDIA modus
Afspelen/stoppen in DVD modus
32.
33.
34. Snel vooruitspelen
35. Indrukken om te beginnen met opnemen, twee keer indrukken
om te stoppen in DTV modus
36.
37.
Spring naar volgende track/titel/hoofdstuk in MEDIA-modus
Stoppen in MEDIA-modus
38. Spring naar voorgaande track/titel/hoofdstuk in MEDIA modus
39. PROG/RED ROOD is een door gebruiker gedefinieerde sneltoets in
DTV-modus of in Teletekst-modus
40. A-B/BLUE BLAUW is een door gebruiker gedefiniteerde sneltoets in
DTV-modus of in Teletekst modus
41. INTRO GROEN is een door gebruiker gedefinieerde sneltoets
/GREEN in DTV-modus of in Teletekst-modus
42. REPEAT GEEL is een door gebruiker gedefinieerde sneltoets
/ YELLOW in DTV-modus of in Teletekst-modus
D 6
7- Verbinding tussen verschillende ingangssignalen
A) Verbinden met een pc-signaal
U kunt uw LCD-tv gebruiken als monitor voor uw pc met behulp van
een VGA-kabel (niet bijgeleverd).
1. VGA-ingang (vergeet niet de schroeven aan te draaien)
2. PC Audio-ingang
3. DC 12V voedings-ingang
2
1
3
Stappen voor het aansluiten:
• Lees de bij uw pc geleverde gebruikershandleiding door en vergewis u ervan dat
uw pc een VGA-aansluiting heeft;
• Zorg dat de stroomtoevoer van zowel de LCD-tv als de pc is uitgeschakeld;
• Sluit een D-type (15-pins) VGA-interfacekabel (niet bijgeleverd) aan op de VGA
video-interface van de pc. Sluit vervolgens het andere uiteinde van de kabel aan
op de VGA video-interfaceconnector aan de achterzijde van de LCD-tv. Draai de
schroeven van de VGA-connectoren vast zodra de connectoren stevig zijn
bevestigd.
• Sluit de adapter die bij uw LCD-tv is geleverd aan op de voedingsingang
(gelijkstroom 12 V);
• Schakel eerst de stroomtoevoer van de LCD-TV in en vervolgens die van de pc;
• Druk op de INPUT-toets om de video input-modus van de LCD-tv op “PC” te
zetten;
• Stel het gewenste volumeniveau in met behulp van de toetsen VOL- / VOL+ op
het bedieningspaneel of de afstandsbediening.
D 7
B) De externe AV-apparaten aansluiten met behulp van de
Composiet- ingangen
1. Linker- en rechteraudio-ingang
2. CVBS-/composiet video-ingang
3. Voedingsingang (gelijkstroom 12 V)
1
2
3
Stappen voor het aansluiten:
• Lees de bij uw AV-apparatuur geleverde gebruikershandleiding door en vergewis u
ervan dat deze apparatuur een composiet- aansluiting heeft;
• Zorg dat de stroomtoevoer van zowel de LCD-tv als het AV-apparaat is
uitgeschakeld;
• Sluit de composietvideokabel (niet bijgeleverd) aan op de gele ingang voor de
composietvideoconnector aan de achterzijde van de LCD-tv. Sluit het andere
uiteinde van de composietkabel nu aan op de gele composietuitgang op het
AV-apparaat;
• Sluit de RCA-audio-uitgang van het AV-apparaat met behulp van de
RCA-audiokabels (niet bijgeleverd; witte en rode connectoren) aan op de
RCA-audio-ingang aan de achterzijde van de LCD-tv;
• Schakel de stroomtoevoer in, eerst van de LCD-tv en vervolgens van het
AV-apparaat;
• Druk op de INPUT -toets om de video input-modus van de LCD-tv op ‘AV’ te zetten.
2
(C) Aansluiting voor tv-signaal
1. Ingang kabel/antenne (75 Ω)
2. Voedingsingang (gelijkstroom 12 V)
1
D 8
Stappen voor het aansluiten:
• Zorg dat de stroomtoevoer van de LCD-tv is uitgeschakeld;
• Sluit de antennekabel (CATV) aan op de corresponderende antenne-ingang (75 Ω ANT)
aan de achterzijde van de LCD-tv. Sluit het andere uiteinde van de antennekabel aan op
de antenneaansluiting in de muur of uw digitale kabel-/satellietontvanger;
U kunt nu de reguliere kabeltelevisieprogramma’s bekijken.
• Schakel de stroomtoevoervoor de LCD-tv in;
• Druk op de INPUT -toets om de video input-modus van de LCD-tv op ‘ATV’ of “DTV” te
zetten. Het kanaalnummer verschijnt rechtsboven op het scherm;
• Wanneer er geen zenders zijn geprogrammeerd, verschijnt een blauw scherm met een
rondgaand wit scherm met de tekst ‘NO SIGNAL’ (tv geen signaal);
In het LCD -menu kunt u lezen hoe de zenders kunnen worden geprogrammeerd (via
automatisch of handmatig zoeken);
Het is aan te bevelen om de zenders eerst automatisch te laten zoeken;
• Met behulp van de CH+/CH toetsen of de numerieke toetsen op de afstandsbediening
kunt u het gewenste kanaal selecteren.
(D) Aansluiting voor SCART-signaal
1. Scart input.
2. Voedingsingang (gelijkstroom 12 V).
2
1
Stappen voor het aansluiten:
• Lees de bij uw AV-apparatuur geleverde gebruikershandleiding door en vergewis u ervan
dat deze apparatuur een scartaansluiting heeft;
• Zorg dat de stroomtoevoer van de LCD-tv is uitgeschakeld;
• Sluit de scartkabel aan op de desbetreffende interfaceconnector aan de achterzijde van
de LCD-tv;
• Schakel de stroomtoevoer van de LCD-tv in;
• Druk op de INPUT-toets om de video input-modus van de LCD-tv op ‘SCART’ te zetten.
D 9
E) Aansluiting voor extern apparaat (USB)
1. Ingang extern apparaat
2. Voedingsingang (gelijkstroom 12 V)
Stappen voor het aansluiten:
• Lees de bij uw externe apparaat geleverde gebruikershandleiding door en vergewis u
ervan dat deze apparatuur een aansluiting voor externe apparaten heeft;
• Verbind het externe apparaat met de corresponderende interfaceconnector aan de
achterkant van de LCD-tv;
• Druk op de INPUT-toets om de video-ingangsmodus van de LCD-TV in te stellen op
“Media” modus.
F) Aansluiting met HDMI-signaal
1. HDMI x2 ingang
2. Gelijkstroom 12V ingang
1
2
Stappen voor het aansluiten:
• Lees de bij uw externe apparaat geleverde gebruikershandleiding door en vergewis u
ervan dat deze apparatuur een HDMI-aansluiting heeft;
• Vergewis U ervan dat de stroomtoevoer van de LCD-TV is uitgeschakeld;
• Verbind een HDMI-kabel met de corresponderende interfaceconnector aan de
achterkant van de LCD-TV;
• Schakel de stroomtoevoer van de LCD-TV in;
• Druk op de INPUT-toets om de video-ingangsmodus van de LCD-TV op “HDMI” of
“HDMI 2” te zetten.
D 10
8- Belangrijkste bedieningsinstructies
De LCD-tv inschakelen
Wanneer de STANDBY -toets wordt ingedrukt en de LCD-tv wordt ingeschakeld, verandert het indicatorlampje aan de voorzijde van de
LCD-tv van rood naar groen. Wanneer de LCD-tv wordt ingeschakeld, verschijnt de inputmodus op het scherm.
Wanneer de LCD-tv met behulp van de STANDBY -toets wordt uitgeschakeld, gaat de LCD-tv in de stand-by modus en gaat het indicatorlampje rood branden.
Schakelen tussen verschillende bronnen:
ATV/DTV/ Media/ AV/ PC/ DVD/ SCART/HDMI1/HDMI2
Als u op de INPUT-toets drukt, wordt het menu voor de inputmodus weergegeven. In het menu kunt u vervolgens op ▼/▲ drukken om een inputbron te kiezen. Druk op de Enter-toets om uw selectie te bevestigen.
Audiobediening
1. Druk op de toets VOL+ om het volume toe te laten nemen.
Er verschijnt een getal op het scherm dat het geluidsniveau aangeeft.
2. Druk op de toets VOL– om het volume af te laten nemen.
Er verschijnt een getal op het scherm dat het geluidsniveau aangeeft.
D 11
Dempen (MUTE)
1. Druk op de MUTE -toets om het geluid tijdelijk uit te schakelen.
Het Mute-pictogram verschijnt op het scherm.
2. Druk nogmaals op de MUTE -toets om het geluid weer in te
schakelen.
Het Mute-pictogram verdwijnt.
MUTE
Opmerking
Wanneer de LCD-tv wordt uitgeschakeld, wordt de dempfunctie automatisch uitgeschakeld.
Het gewenste tv-kanaal selecteren
U kunt de numerieke toetsen op de afstandsbediening gebruiken om rechtstreeks tv-kanalen te selecteren. De LCD-tv biedt de mogelijkheid om maximaal 99 kanalen (1 tot en met 99) op te slaan en u kunt via de toetsen op de afstandsbediening of het bedieningspaneel een selectie maken.
1. Druk op de desbetreffende toets op de afstandsbediening wanneer u een van de kanalen van 1 tot en met 9 wilt kiezen (als u bijvoorbeeld kanaal 8 wenst, drukt u op toets 8).
2. Als u een kanaal hoger dan 9 wilt kiezen, drukt u op toets ‘-/--’ tot
‘- -’ op het scherm wordt weergegeven. Voer vervolgens de twee cijfers in van het nummer van het kanaal dat u wilt bekijken
(bijvoorbeeld ‘1’ en vervolgens ‘6’ om kanaal 16 te selecteren).
Kies het DTV-kanaal dat u wenst
Er zijn meerdere manieren om het kanaal van uw keuze te selecteren:
1. Door de kanaallijst heen lopen:
Druk op de CH+ toets om naar boven en op de CH toets om naar beneden door de beschikbare kanalen heen te gaan.
2. Kiezen met het nummer:
Voer het volledige kanaalnummer direct in met de numerieke toetsen om het gewenste kanaal te kiezen.
3. Kiezen via een minikanalenlijst:
Het is ook mogelijk om het kanaal te veranderen door een minikanalenlijst te gebruiken die te bereiken is via de ENTER -toets, terwijl er geen andere op het scherm wordt getoond.
Gebruik de OMHOOG/OMLAAG PIJL toetsen om te navigeren en druk op ENTER om het gekozen kanaal te tonen. Om deze minikanalenlijst te verlaten drukt u op de EXIT -toets.
D 12
4. Keuze via EPG (Elektronische Programmagids)
Door deze functie komt een kanalenoverzicht voor een periode van een week in beeld.
1. Druk op de EPG -toets om de elektronische programmagids op het scherm te krijgen.
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
2. Gebruik de OMHOOG/OMLAAG PIJL toetsen om het kanaal te kiezen en druk op
ENTER om het kanaal te bekijken.
ASPECT (Beeldverhouding)
Druk in om de beeldverhouding weer te geven (Auto; 4:3; 16:9; ZOOM1; ZOOM 2)
NICAM
Meestal ingesteld op stereo om de beste weergave te verkrijgen, maar als de ontvangst slechter wordt of als de dienst niet beschikbaar is, kan deze op MONO worden gezet.
NICAM DUAL 1 en NICAM DUAL 11 kunnen ook worden gekozen als een monosignaal wordt uitgezonden.
ONDERTITELS (DTV)
Druk op de SUBTITLE -toets om de ondertitelingstaal te tonen en gebruik de
OMHOOG/OMLAAG pijlen om de ondertitelingstaal te kiezen of uit te schakelen. Druk daarna op ENTER om de keuze te bevestigen.
9- PVR bedieningsinstructies
1- PVR Function list
Meteen opnemen
Opnemen met timer
Onderwerp
1. Druk op toets om het huidige programma op te nemen
Druk op om de opname te stoppen.
2. Maximum bestandsgrootte 3,9GB, als de max. capaciteit wordt overschreden,
wordt het bestand in delen opgeslagen.
1. Gebruik de EPG om de tijd van opname in te stellen.
2. Timer ondersteunt instellen van periodieke opnames/dagelijkse opnames/eenmalige
opname
3. Als de ingestelde tijd van opname strijdig is met een eerdere instelling, verschijnt
een waarschuwing.
1. Kan een enkel bestand wissen
Diskmanager
2. Geeft disk-formatteerfuncties
Playback 1. U kunt het opgenomen programma terugspelen in Media/USB/kanaal
D 13
2- PVR Basisinstructies
1. De opslaglocatie van een bestand.
Druk op de ▲/▼toets om Optie te kiezen in het hoofdmenu
Druk op de ▲/▼toets om PVR File System te kiezen, druk daarna op ENTER.
Druk op de ▲/▼toets om Select Disk te kiezen, druk daarna op ENTER.
Gebruik het externe apparaat (USB) om de tevoren ingestelde opname uit te voeren.
In deze interface kunt u van indeling wisselen.
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 H r .
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
2. Controleer de USB snelheid
Druk op de ▲/▼toets om Check PVR File System te kiezen,druk daarna op ENTER. Dan wordt de USB snelheid gecontroleerd.
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 H r .
OK Menu
3- Opnamemethodes
Manier 1: Sneltoets
1. Druk op toets om het huidige programma op te nemen
Druk op om de opname te stoppen.
It will stop PVR.
play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
Y es No
2. Druk op de STOP-toets om de opname te stoppen, daarna wordt de normale
televisieuitzending hervat.
D 14
3. Als de opslagruimte van de schijf te klein is, verschijnt een waarschuwingssignaal.
Dan stopt de opname automatisch en de normale televisieuitzending wordt hervat.
4. Druk op de indextoets om de informatie over de lijst van opgenomen programma’s te zien.
Druk op de INFO-toets om de details van het programma te zien.
Recorded list Programme
Delete
OK
INFO index
LET OP: u kunt de details zien over DATUM / TIJD / DUUR / PROGRAMMA NAAM /
KANAALNAAM / BESCHRIJVING
Manier 2: Timeshift
1. Druk op de toets om Timeshift te starte play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
Deze handeling kan het beeld stilzetten en het programma op de achtergrond opnemen
Manier 3: Timer
1. U kunt ook de EPG-toets indrukken om de opname in te stellen.
Druk op de rode toets om de opname te starten,
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
The Force
Double Indemnity
17:00-18:00 Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
2. U kunt de tijd van de gewenste opname van te voren instellen.
D 15
-
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back OK
3. Als de ingestelde tijd strijdig is met een eerdere instelling, verschijnt een waarschuwing.
Timer Overlay
21 TMF
13 Jul 2007 03:00
4 . De tijd van de opname verschijnt. Daarna komt automatisch het huidige kanaal weer in beeld.
3 Sec.to Switch channel
Yes No
4-Diskmanager
1. Druk op de INPUT-toets om de invoerbron te kiezen.
2. Druk op de ▲/▼toets om Media te kiezen, druk daarna op ENTER .
F lower00.jpg
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010 / 05 / 09
Time: 16:13:25
Delete
3 . Door de rode toets in te drukken kan het opgenomen programma worden gewist.
Ar e y ou s ur e?
Yes No
D 16
10- Bedieningsinstructies Media
LET OP: Sluit het USB-apparaat aan voor u het Mediamenu kiest, druk daarna de
INPUT -toets in om de Input-bron op Media te zetten.
Druk op de◄ / ► toets om Media te kiezen in het bronmenu, druk daarna op ENTER.
Druk op de ◄ / ► toets om de optie die u wilt aanpassen in het hoofdmenu Media te kiezen, druk daarna op ENTER .
Fotomenu
Druk op de ◄ / ► toets om FOTO te kiezen in het hoofdmenu, druk daarna op ENTER .
Druk op de menutoets om terug te gaan naar het vorige menu en verlaat het menu om te stoppen.
Druk op de ◄ / ► toets om de drive disk te kiezen die wilt bekijken, druk daarna op ENTER .
Druk op de ◄ / ► toets om de return-optie te kiezen om terug te gaan naar het vorige menu.
Return C D E
D 17
Win Recorder Flower.jpg
Delete
Druk op de ◄ / ► toets om het bestand te kiezen in het bestandskeuzemenu, druk daarna op de Media-toets om de afbeelding weer te geven.
Bij het aanklikken van de door u gekozen optie verschijnt de bestandsinformatie rechts in beeld, terwijl middenin een preview van de afbeelding wordt getoond.
F
Re s olu t ion: 1200X900
Y R Si z e: 1381KBy t e s
D at e: 2010 / 05 / 09
Ti m e: 16:13:25
Delete
Druk op de
◄ / ►
toets om in het bestandskeuzemenu de bestandsmap te kiezen waarin u wilt zoeken, druk daarna op de rode toets of op ENTER op uw afstandsbediening om naar het submenu te gaan.
Druk op de
◄ / ►
toets om in het bestandskeuzemenu het bestand te kiezen dat u wilt wissen, druk daarna op de rode toets of op ENTER op uw afstandsbediening om bestanden te wissen.
Muziekmenu
Druk op de
◄ / ►
toets om MUZIEK te kiezen in het hoofdmenu, druk daarna op
ENTER.
Druk op de menutoets om terug te keren naar het vorige menu en verlaat het menu om te stoppen.
Druk op de ◄ / ► toets om de drivedisk te kiezen waarnaar u wilt kijken, druk daarna op ENTER
.
D 18
Druk op de ◄ / ► toets om de return-optie te kiezen om terug te keren naar het vorige menu.
Bij het aanklikken van de door u gekozen optie verschijnt de bestandsinformatie rechts in beeld, terwijl er muziek middenin het beeld verschijnt.
C:\ 1 1 try.mp3
happy.mp3
Delete
Win
Maybet.mp3
Record thank.mp3
angel.mp3
A lb u m : (2005 / 01 ...
T itl e: 1k hz10d b
B it Rat e: 320K
Ar tist : BCD103
S am p ling : 44K
Ye a r: 2005
S iz e: 2426KBy t e s
Druk op de ◄ / ► toets om in het bestandskeuzemenu het bestand te kiezen dat u wilt zien, druk daarna op ENTER om het bestand aan de afspeellijst toe te voegen, druk op de MEDIA toets om de bestandsgegevens te zien en te bewerken.
Druk op de ◄ / ► toets om het menu onderaan te kiezen, druk daarna op ENTER .
Druk op de menutoets om terug te keren naar het vorige menu en op EXIT om het gehele menu te verlaten. Druk op de ▼toets om het menu onderaan te verbergen.
Filmmenu
Druk op de◄ / ► toets om MOVIE in het hoofdmenu te kiezen, druk daarna op ENTER .
Druk op de menutoets om terug te keren naar het vorige menu en verlaat het menu om te stoppen.
Druk op de ◄ / ►toets om de drivedisk te kiezen die u wilt zien, druk daarna op ENTER .
Druk op de ◄ / ►toets om de return-optie te kiezen en terug te keren naar het vorige menu.
Bij het aanklikken van de door u gekozen optie verschijnt de bestandsinformatie rechts in beeld, terwijl de filmpreview middenin het beeld verschijnt.
Druk op de mediatoets om de gekozen film af te spelen.
Druk op de display-toets om het menu onderaan te kiezen dat u wilt zien, druk daarna op
ENTER om het te bedienen.
Druk op de menutoets om terug te keren naar het vorige menu en druk op de exit-toets om het gehele menu te verlaten.
D 19
Tekstmenu
Druk op de ◄ / ► toets om TEXT te kiezen in het hoofdmenu, druk daarna op ENTER .
Druk op de menutoets om terug te keren naar het vorige menu en op exit om het menu te verlaten.
Druk op de ◄ / ► toets om de drivedisk die u wilt bekijken te selecteren, druk daarna op ENTER .
Druk op de ◄ / ► toets om de return-optie te kiezen en terug te keren naar het vorige menu.
Bij het aanklikken van de door u gekozen optie verschijnt de bestandsinformatie rechts in beeld, terwijl de tekst middenin het beeld verschijnt.
Druk op de mediatoets om de gekozen tekst te bekijken.
Druk op de displaytoets om het menu onderaan te kiezen, druk daarna op OK om het te bedienen.
Druk op de menutoets om terug te keren naar het vorige menu en druk op de exit-toets om het gehele menu te verlaten.
D 20
11-Teletekst
Het uiterlijk van de teletekstpagina’s kan, afhankelijk van de omroepmaatschappijen variëren. Teletekst is alleen beschikbaar als het gekozen kanaal teletekst uitzendt.
Het indrukken van de TEXT -toets in de Teletekst-modus schakelt het apparaat naar TV.
In de Teletekst-modus kan nog wel het volume worden aangepast naar het gewenste luisterniveau.
Paginakeuze
De pagina’s kunnen worden gekozen door invoeren van het paginanummer, met behulp van de cijfertoetsen op de afstandsbediening.
Formaat-toets (SIZE)
Druk op de SIZE -toets om het formaat van het beeld te veranderen: van normaal groot boven groot onder normaal.
Reveal-toets
Druk op de Reveal-toets om verborgen woorden te tonen, bijv. antwoorden op quizvragen. Druk opnieuw om ze te verbergen.
Red/Green/Yellow/Cyan-toetsen (Rood/Groen/Geel/Blauw-toetsen)
Deze vier toetsen corresponderen met de onderwerpen met die kleuren.
Hold-toets
Druk op de Hold-toets om de Teletekstpagina in beeld te houden bij het bekijken van informatie met meerdere pagina’s. Druk de toets opnieuw in om terug te keren naar automatisch verversen van de pagina.
Index-toets
Druk op de Index-toets om naar de hoofdindexpagina te gaan.
Afhankelijk van de manier waarop informatie wordt uitgezonden, moet u wellicht meerdere malen op deze toets drukken om naar de hoofdindexpagina terug te gaan.
Subpage-toets (Subpagina)
Wanneer de teletekstinformatie op meerdere pagina’s wordt weergegeven, kan het enige tijd duren voordat de door u gewenste subpagina automatisch wordt weergegeven.
U kunt het nummer van de gewenste subpagina invoeren en naar het tv-programma blijven kijken tot de desbetreffende subpagina wordt gevonden.
Selecteer het paginanummer met behulp van de cijfertoetsen 0-9.
Indien bovenin het scherm wordt aangegeven dat er subpagina’s worden uitgezonden terwijl de pagina niet wordt gewijzigd, duidt dit erop dat de omroepmaatschappij de inhoud van de pagina's heeft bijgewerkt en dat er geen subpagina's zijn.
Als u op de Subpage-toets drukt, wordt rechtsonder op het scherm ‘ / ‘ weergegeven.
Voer het gewenste subpaginanummer in voordat het paginanummer ‘ / ‘ van het scherm verdwijnt.
Om pagina 6 te selecteren, voert u '0’, ‘0’, ‘0’ en ‘6’ in.
Text-toets (Teletekst)
Druk op de TEXT -toets om de teletekstmodus in- of uit te schakelen.
Digitale Teletekst
Sommige digitale kanalen hebben een digitale versie van de traditionele teletekstservice. Als het kanaal waar u naar kijkt deze digitale teletekst heeft, verschijnt er meestal informatie in het scherm hoe u deze service kunt inschakelen. Voor de meeste kanalen die hierover beschikken gebruikt u hiervoor de RODE of TEXT -toets.
Daarna kunt u de informatie op het scherm volgen om door de beschikbare informatie te navigeren. De standaardnavigatiemethode is het gebruiken van de pijltjestoetsen en de
ENTER -toets. Sommige diensten bieden sneltoetsen via de kleurentoetsen op de afstandsbediening.
D 21
12- Bediening van het menu
U kunt bepaalde parameters van de LCD-tv in het menu aanpassen. Lees de onderstaande beschrijvingen zorgvuldig door om meer inzicht te krijgen in de parameters die kunnen worden aangepast.
Invoer-modus: PC
1.Druk op de LCD Menu -toets om het hoofdmenu te openen.
2.Gebruik de pijltjestoets RECHTS om het SCHERMMENU , het beeld ( PICTURE ), het geluid ( SOUND ), de tijd ( TIME ),
het slot ( LOCK ) of de instelling ( SETUP ) te selecteren.
3.Druk op de Exit-toets om het menu te sluiten.
TITEL MENU
SCHERM
SUBMENU SCHERM
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0 ff ff ff
Exit
INSTRUCTIES
1. Auto Adjust
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de
Auto Adjust geel gemarkeerd wordt. Met de pijltjestoets Rechts kunt u de instelling automatisch aanpassen.
2. H Positie
Gebruik de Omhoog/Omlaag pijltjestoetsen om de aanduiding voor H Positie geel te markeren. Met deze functie kan de beeldbreedte worden aangepast d.m.v. de pijltjestoetsen Links/Rechts .
3. V Positie
Gebruik de Omhoog/Omlaag pijltjestoetsen om de aanduiding voor V Positie geel te markeren. Met deze functie kan de beeldhoogte worden aangepast d.m.v. de pijltjestoetsen Links/Rechts .
4. Formaat
Gebruik de Omhoog/Omlaag toets om
Formaat (Size) te kiezen, druk daarna op OK om het submenu te openen. Druk op de
Links/Rechts pijltjestoetsen om het beeldformaat aan te passen.
5. Aspect (Phase)
Gebruik de Omhoog/Omlaag pijltjestoetsen om de PHASE indicator geel te markeren.
Met deze functie kan mogelijke horizontale interferentie worden gecorrigeerd en kunnen de omtrekken van personen worden verscherpt door middel van de Links/Rechts pijltjestoetsen.
6. Resetten van Positie
Gebruik de Omhoog/Omlaag pijltjestoetsen om de RESET indicator geel te markeren.
Gebruik de Rechts -pijltjestoets om terug te keren naar de standaardinstellingen.
D 22
TITEL MENU
BEELD
SUBMENU BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
INSTRUCTIES
1. Beeldmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de Beeldmodus ( Picture Mode ) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een beeldmodus selecteren (STANDARD, MOVIE, VIVID,
PERSONAL).
2. Contrast
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
CONTRAS T geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u het contrast aanpassen. Dit kan alleen worden aangepast in de PERSONAL-modus.
3. Helderheid
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Helderheid (Brightness) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de helderheid aanpassen. Dit kan alleen worden aangepast in de
PERSONAL-modus.
4. Kleur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
KLEURINSTELLING (COLOUR SETTING) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de kleur aanpassen. De kleur neemt toe wanneer het cijfer hoger wordt.
5. Kleurschakering
Gebruik de Omhoog/omlaag pijltjestoetsen om de TINT indicator geel te markeren. Met de pijltjestoetsen Links/Rechts past u de kleurschakering aan als uw systeem de
NTSC-norm heeft.
6. Scherpte
Gebruik de Omhoog/omlaag pijltjestoetsen om de SCHERPTE (SHARPNESS) indicator geel te markeren. Met de pijltjestoetsen
Links/Rechts past u de scherpte aan.
D 23
BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
7. Kleurtemperatuur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Kleurtemperatuur (Color Temperature) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u de voor uw ogen optimale kleurtemperatuur selecteren. U kunt kiezen tussen Normaal (Normal), Warm, en
Koud (Cold).
8. Ruisonderdrukking
U kunt met behulp van de pijltjestoetsen
Links/Rechts om het niveau van het geluid van de video te onderdrukken (Noise
Reduction) als de signaalontvangst zwak is.
INSTRUCTIES NAAM VAN MENU SUBMENU GELUID
GELUID
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
1. Geluidsmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de
Geluidsmodus (Sound Mode) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een geluidsmodus selecteren. U kunt kiezen uit Standaard
(STANDARD), Film (MOVIE), Muziek
(MUSIC), Sport (SPORTS), Persoonlijk
(PERSONAL).
2. Hoge tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Hoge tonen (TREBLE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de hoge tonen aanpassen. Deze kunnen alleen worden aangepast in de
Persoonlijke modus ( PERSONAL ).
3. Lage tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Lage tonen (Bass) geel gemarkeerd wordt.
Met de pijltjestoetsen Links/Rechts kunt u de lage tonen aanpassen. Deze kunnen alleen worden aangepast in de Persoonlijke modus (Personal).
4. Balans
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
BALANS (BALANCE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de balans aanpassen.
5. Automatische volumeregeling
Druk op de Omhoog/Omlaag pijltjestoetsen om de indicator voor Automatische volumeregeling (Auto Volume Control,
AVL) geel te markeren. Druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
6. SPDIF modus
Druk op de Omhoog/omlaag toets om de
SPDIF modus te selecteren, druk daarna op
ENTER om Auto/PCM/Off te kiezen.
7. AD Keuze
Druk op de Omhoog/omlaag toets om AD keuze te selecteren, daarna drukt u op
ENTER om Aan (On) of Uit (Off) te kiezen.
D 24
NAAM VAN MENU
TIJD
NAAM VAN MENU
SLOT
Move
SUBMENU TIME
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
SUBMENU SLOT
Move
Return
Return
Block
Select
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select
Exit
Exit
INSTRUCTIES
1. Slaaptimer
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Slaaptimer (Sleep Timer) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de slaaptimer selecteren.
2. Auto Standby
Druk op de Omhoog/omlaag toets om Auto
Standby te selecteren, druk daarna op
ENTER om in het submenu te komen. Druk op de Omhoog/Omlaag/Links/Rechts toetsen om te selecteren.
3. OSD Timer (Toon op scherm)
Gebruik de Omhoog/omlaag pijltjestoetsen om de OSD-timer indicator geel te markeren. Gebruik de Links/rechts pijltjestoetsen om het OSD Timer scherm te selecteren.
INSTRUCTIES
1. Systeemblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om Lock System te selecteren, druk daarna op ENTER om de volgende drie opties te laten gelden. (Het standaard wachtwoord is
‘0000’).
2. Instellen wachtwoord
Druk op de Omhoog/omlaag toets om
Instellen wachtwoord (Set password) te selecteren, druk daarna op ENTER om het submenu te openen om een nieuw wachtwoord in te stellen.
3. Programma blokkeren
Druk op de Omhoog/omlaag toets om Block
Program te selecteren, druk daarna op
ENTER om het submenu te openen.
Druk op de Omhoog/omlaag toets om het programma te kiezen dat u wilt blokkeren, druk daarna op de gele toets op de afstandsbediening. (Om de blokkering van het programma op te heffen, voert u het door u ingestelde wachtwoord in.)
Druk op ENTER om de instelling te bewaren en druk op de menutoets om terug te keren naar het vorige menu.
4. Kinderslot (Parental Guidance)
Druk op de Omhoog/omlaag toets om
Kinderslot (Parental Guidance) te selecteren, druk daarna op ENTER om het submenu te openen.
(Beschikbare opties zijn: Uit (Off), 4-18)
5. Toetsenblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om de aanduiding voor Toetsenblokkering
(Key Lock) geel te markeren. Met de pijltjestoetsen Links/Rechts kunt u de optie
Aan (On) of Uit (Off) selecteren. Als
Toetsenblokkering is ingeschakeld (On), functioneren de toetsen niet.
D 25
NAAM VAN MENU
INSTELLINGEN
SETUP
Move
--
SUBMENU
INSTELLINGEN
Deutsch
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Portugues
OK
Select
Please select an OSD Language
English Espanol Francais
Nederlands
Exit
INSTRUCTIES
1. OSD Taal
Zorg met de pijltjestoetsen Omhoog/Omlaag dat de aanduiding voor Taal (OSD Language) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u het menu in de volgende talen instellen: NEDERLANDS,
DUITS, SPAANS, PORTUGEES, FRANS,
ENGELS, POOLS.
2. TT Taal
Druk op de Omhoog/omlaag toets om TT te kiezen, druk daarna op ENTER om het submenu te openen. Druk op
Omhoog/Omlaag/Links/Rechts om te selecteren.
3. Slechthorenden
Druk op de Omhoog/omlaag toets om
Slechthorenden (Hearing impaired) te selecteren, druk daarna op ENTER om Aan
(On) of Uit (Off) te selecteren.
4. PVR Bestandssysteem
Druk op de Omhoog/omlaag toets om PVR
File System te kiezen, druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
5. Beeldverhouding (Aspect Ratio)
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Aspect Ratio geel gemarkeerd wordt, Druk daarna op ENTER om het submenu te openen. Druk op de Omhoog/Omlaag toets om Aspect Ratio te kiezen.(Beschikbare opties: Auto; 4:3; 16:9; ZOOM1; ZOOM 2;
Just Scan.)
6. Blauw scherm
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Blauw scherm (Blue Screen) geel gemarkeerd wordt. Druk daarna op ENTER om Aan (On) of Uit (Off) te kiezen.
7. Eerste installatie
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Eerste installatie (First Time Installation) geel gemarkeerd wordt. Druk daarna op
ENTER om de relevante opties in te stellen, waaronder OSD-taal, land en afstemming.
8. Reset
Druk op de pijltjestoetsen Omhoog/Omlaag om Reset te selecteren, druk daarna op
ENTER om een dialoogmenu te openen. Met de pijltjestoets Links kunt u door YES (Ja) te selecteren de fabrieksinstellingen herstellen voor naar keuze OSD-taal, land en het bedienen van kanaalafstemming.
9. Software Update (USB)
Druk op Omhoog/omlaag om Software
Update (USB) te kiezen, druk daarna op
ENTER om de update van de software uit te voeren met behulp van USB.
D 26
Invoer-modus: AV/SCART/HDMI/DVD/Component/MEDIA
1.Druk op de LCD MENU toets om het hoofdmenu weer te geven.
2.Gebruik de RECHTS pijltjestoets om het menu voor beeld ( Picture ), het geluid ( Sound ), de tijd ( Time ), het slot ( Lock ) of de instellingen ( SETUP ) te kiezen.
3.Druk op EXIT om het menu te verlaten.
TITEL MENU
BEELD
SUBMENU BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
INSTRUCTIES
1. Beeldmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de Beeldmodus ( Picture Mode ) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een beeldmodus selecteren (STANDARD, MOVIE, VIVID,
PERSONAL).
2. Contrast
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
CONTRAS T geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u het contrast aanpassen. Dit kan alleen worden aangepast in de PERSONAL-modus.
3. Helderheid
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Helderheid (Brightness) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de helderheid aanpassen. Dit kan alleen worden aangepast in de
PERSONAL-modus.
4. Kleur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
KLEURINSTELLING (COLOUR SETTING) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de kleur aanpassen. De kleur neemt toe wanneer het cijfer hoger wordt.
5. Kleurschakering
Gebruik de Omhoog/omlaag pijltjestoetsen om de TINT indicator geel te markeren. Met de pijltjestoetsen Links/Rechts past u de kleurschakering aan als uw systeem de
NTSC-norm heeft.
6. Scherpte
Gebruik de Omhoog/omlaag pijltjestoetsen om de SCHERPTE (SHARPNESS) indicator geel te markeren. Met de pijltjestoetsen
Links/Rechts past u de scherpte aan.
D 27
BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
7. Kleurtemperatuur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Kleurtemperatuur (Color Temperature) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u de voor uw ogen optimale kleurtemperatuur selecteren. U kunt kiezen tussen Normaal (Normal), Warm, en
Koud (Cold).
8. Ruisonderdrukking
U kunt met behulp van de pijltjestoetsen
Links/Rechts om het niveau van het geluid van de video te onderdrukken (Noise
Reduction) als de signaalontvangst zwak is.
INSTRUCTIES NAAM VAN MENU SUBMENU GELUID
GELUID
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
1. Geluidsmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de
Geluidsmodus (Sound Mode) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een geluidsmodus selecteren. U kunt kiezen uit Standaard
(STANDARD), Film (MOVIE), Muziek
(MUSIC), Sport (SPORTS), Persoonlijk
(PERSONAL).
2. Hoge tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Hoge tonen (TREBLE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de hoge tonen aanpassen. Deze kunnen alleen worden aangepast in de
Persoonlijke modus ( PERSONAL ).
3. Lage tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Lage tonen (Bass) geel gemarkeerd wordt.
Met de pijltjestoetsen Links/Rechts kunt u de lage tonen aanpassen. Deze kunnen alleen worden aangepast in de Persoonlijke modus (Personal).
4. Balans
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
BALANS (BALANCE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de balans aanpassen.
5. Automatische volumeregeling
Druk op de Omhoog/Omlaag pijltjestoetsen om de indicator voor Automatische volumeregeling (Auto Volume Control,
AVL) geel te markeren. Druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
6. SPDIF modus
Druk op de Omhoog/omlaag toets om de
SPDIF modus te selecteren, druk daarna op
ENTER om Auto/PCM/Off te kiezen.
7. AD Keuze
Druk op de Omhoog/omlaag toets om AD keuze te selecteren, daarna drukt u op
ENTER om Aan (On) of Uit (Off) te kiezen.
D 28
NAAM VAN MENU
TIJD
NAAM VAN MENU
SLOT
Move
SUBMENU TIME
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
SUBMENU SLOT
Move
Return
Return
Block
Select
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select
Exit
Exit
INSTRUCTIES
1. Slaaptimer
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Slaaptimer (Sleep Timer) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de slaaptimer selecteren.
2. Auto Standby
Druk op de Omhoog/omlaag toets om Auto
Standby te selecteren, druk daarna op
ENTER om in het submenu te komen. Druk op de Omhoog/Omlaag/Links/Rechts toetsen om te selecteren.
3. OSD Timer (Toon op scherm)
Gebruik de Omhoog/omlaag pijltjestoetsen om de OSD-timer indicator geel te markeren. Gebruik de Links/rechts pijltjestoetsen om het OSD Timer scherm te selecteren.
INSTRUCTIES
1. Systeemblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om Lock System te selecteren, druk daarna op ENTER om de volgende drie opties te laten gelden. (Het standaard wachtwoord is
‘0000’).
2. Instellen wachtwoord
Druk op de Omhoog/omlaag toets om
Instellen wachtwoord (Set password) te selecteren, druk daarna op ENTER om het submenu te openen om een nieuw wachtwoord in te stellen.
3. Programma blokkeren
Druk op de Omhoog/omlaag toets om Block
Program te selecteren, druk daarna op
ENTER om het submenu te openen.
Druk op de Omhoog/omlaag toets om het programma te kiezen dat u wilt blokkeren, druk daarna op de gele toets op de afstandsbediening. (Om de blokkering van het programma op te heffen, voert u het door u ingestelde wachtwoord in.)
Druk op ENTER om de instelling te bewaren en druk op de menutoets om terug te keren naar het vorige menu.
4. Kinderslot (Parental Guidance)
Druk op de Omhoog/omlaag toets om
Kinderslot (Parental Guidance) te selecteren, druk daarna op ENTER om het submenu te openen.
(Beschikbare opties zijn: Uit (Off), 4-18)
5. Toetsenblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om de aanduiding voor Toetsenblokkering
(Key Lock) geel te markeren. Met de pijltjestoetsen Links/Rechts kunt u de optie
Aan (On) of Uit (Off) selecteren. Als
Toetsenblokkering is ingeschakeld (On), functioneren de toetsen niet.
D 29
NAAM VAN MENU
INSTELLINGEN
SETUP
Move
Please select an OSD Language
English Espanol Francais
--
SUBMENU
INSTELLINGEN
Deutsch
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Portugues
OK
Nederlands
INSTRUCTIES
1. OSD Taal
Zorg met de pijltjestoetsen Omhoog/Omlaag dat de aanduiding voor Taal (OSD Language) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u het menu in de volgende talen instellen: NEDERLANDS,
DUITS, SPAANS, PORTUGEES, FRANS,
ENGELS, POOLS.
2. TT Taal
Druk op de Omhoog/omlaag toets om TT te kiezen, druk daarna op ENTER om het submenu te openen. Druk op
Omhoog/Omlaag/Links/Rechts om te selecteren.
3. Slechthorenden
Druk op de Omhoog/omlaag toets om
Slechthorenden (Hearing impaired) te selecteren, druk daarna op ENTER om Aan
(On) of Uit (Off) te selecteren.
4. PVR Bestandssysteem
Druk op de Omhoog/omlaag toets om PVR
File System te kiezen, druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
5. Beeldverhouding (Aspect Ratio)
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Aspect Ratio geel gemarkeerd wordt, Druk daarna op ENTER om het submenu te openen. Druk op de Omhoog/Omlaag toets om Aspect Ratio te kiezen.(Beschikbare opties: Auto; 4:3; 16:9; ZOOM1; ZOOM 2;
Just Scan.)
6. Blauw scherm
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Blauw scherm (Blue Screen) geel gemarkeerd wordt. Druk daarna op ENTER om Aan (On) of Uit (Off) te kiezen.
7. Eerste installatie
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Eerste installatie (First Time Installation) geel gemarkeerd wordt. Druk daarna op
ENTER om de relevante opties in te stellen, waaronder OSD-taal, land en afstemming.
8. Reset
Druk op de pijltjestoetsen Omhoog/Omlaag om Reset te selecteren, druk daarna op
ENTER om een dialoogmenu te openen. Met de pijltjestoets Links kunt u door YES (Ja) te selecteren de fabrieksinstellingen herstellen voor naar keuze OSD-taal, land en het bedienen van kanaalafstemming.
9. Software Update (USB)
Druk op Omhoog/omlaag om Software
Update (USB) te kiezen, druk daarna op
ENTER om de update van de software uit te voeren met behulp van USB.
D 30
Invoermodus: ATV
1.Druk op de LCD Menu -toets om het hoofdmenu te openen.
2.Gebruik de pijltjestoets Rechts om het kanaal ( CHANNEL ) het beeld ( PICTURE ), het geluid ( SOUND ), de tijd
( TIME ), het slot ( LOCK ) of de instellingen ( SETUP ) te selecteren.
3.Druk op de EXIT -toets om het menu te sluiten.
NAAM VAN MENU
SUBMENU
KANAAL
INSTRUCTIES
1. Automatisch zoeken/afstemmen
Druk op de pijltjestoetsen Omhoog/Omlaag om Automatisch zoeken (Auto Tuning) te selecteren, druk daarna op ENTER om het automatisch zoeken te starten.
KANAAL CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
Exit
2. DTV Handmatig afstemmen
Druk op de pijltjestoetsen Omhoog/Omlaag om DTV Handmatig afstemmen te selecteren, druk daarna op ENTER om het wachtwoord in te voeren en het submenu te openen.
(Standaardwachtwoord is ‘0000’).
3. ATV Handmatig afstemmen
Druk op de pijltjestoetsen Omhoog/Omlaag om
ATV Handmatig afstemmen te selecteren, druk daarna op ENTER om het wachtwoord in te voeren en het submenu te openen.
(Standaardwachtwoord is ‘0000’).
4. Programma bewerken
Druk op de Omhoog/omlaag toets om
Programma bewerken (Program Edit) te selecteren, druk daarna op ENTER om het submenu te openen.00)
Deze optie heeft vijf functies.
Gebruik de rode toets om het huidige kanaal te wissen.
Gebruik de groene toets om het huidige kanaal te hernoemen.
Gebruik de gele toets om het huidige kanaal te verplaatsen.
Gebruik de blauwe toets om het huidige kanaal over te slaan.
Gebruik de FAV toets om het huidige kanaal als favoriet in te stellen. Als het huidige kanaal al een van uw favorieten is, drukt u nogmaals op de FAV toets om het kanaal als normaal kanaal te kiezen.
D elete
OK
Rename
Fav
Move Skip
Menu
D 31
TITEL MENU
BEELD
SUBMENU BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
INSTRUCTIES
1. Beeldmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de Beeldmodus ( Picture Mode ) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een beeldmodus selecteren (STANDARD, MOVIE, VIVID,
PERSONAL).
2. Contrast
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
CONTRAS T geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u het contrast aanpassen. Dit kan alleen worden aangepast in de PERSONAL-modus.
3. Helderheid
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Helderheid (Brightness) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de helderheid aanpassen. Dit kan alleen worden aangepast in de
PERSONAL-modus.
4. Kleur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
KLEURINSTELLING (COLOUR SETTING) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de kleur aanpassen. De kleur neemt toe wanneer het cijfer hoger wordt.
5. Kleurschakering
Gebruik de Omhoog/omlaag pijltjestoetsen om de TINT indicator geel te markeren. Met de pijltjestoetsen Links/Rechts past u de kleurschakering aan als uw systeem de
NTSC-norm heeft.
6. Scherpte
Gebruik de Omhoog/omlaag pijltjestoetsen om de SCHERPTE (SHARPNESS) indicator geel te markeren. Met de pijltjestoetsen
Links/Rechts past u de scherpte aan.
D 32
BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
7. Kleurtemperatuur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Kleurtemperatuur (Color Temperature) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u de voor uw ogen optimale kleurtemperatuur selecteren. U kunt kiezen tussen Normaal (Normal), Warm, en
Koud (Cold).
8. Ruisonderdrukking
U kunt met behulp van de pijltjestoetsen
Links/Rechts om het niveau van het geluid van de video te onderdrukken (Noise
Reduction) als de signaalontvangst zwak is.
INSTRUCTIES NAAM VAN MENU SUBMENU GELUID
GELUID
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
1. Geluidsmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de
Geluidsmodus (Sound Mode) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een geluidsmodus selecteren. U kunt kiezen uit Standaard
(STANDARD), Film (MOVIE), Muziek
(MUSIC), Sport (SPORTS), Persoonlijk
(PERSONAL).
2. Hoge tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Hoge tonen (TREBLE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de hoge tonen aanpassen. Deze kunnen alleen worden aangepast in de
Persoonlijke modus ( PERSONAL ).
3. Lage tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Lage tonen (Bass) geel gemarkeerd wordt.
Met de pijltjestoetsen Links/Rechts kunt u de lage tonen aanpassen. Deze kunnen alleen worden aangepast in de Persoonlijke modus (Personal).
4. Balans
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
BALANS (BALANCE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de balans aanpassen.
5. Automatische volumeregeling
Druk op de Omhoog/Omlaag pijltjestoetsen om de indicator voor Automatische volumeregeling (Auto Volume Control,
AVL) geel te markeren. Druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
6. SPDIF modus
Druk op de Omhoog/omlaag toets om de
SPDIF modus te selecteren, druk daarna op
ENTER om Auto/PCM/Off te kiezen.
7. AD Keuze
Druk op de Omhoog/omlaag toets om AD keuze te selecteren, daarna drukt u op
ENTER om Aan (On) of Uit (Off) te kiezen.
D 33
NAAM VAN MENU
TIJD
NAAM VAN MENU
SLOT
Move
SUBMENU TIME
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
SUBMENU SLOT
Move
Return
Return
Block
Select
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select
Exit
Exit
INSTRUCTIES
1. Slaaptimer
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Slaaptimer (Sleep Timer) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de slaaptimer selecteren.
2. Auto Standby
Druk op de Omhoog/omlaag toets om Auto
Standby te selecteren, druk daarna op
ENTER om in het submenu te komen. Druk op de Omhoog/Omlaag/Links/Rechts toetsen om te selecteren.
3. OSD Timer (Toon op scherm)
Gebruik de Omhoog/omlaag pijltjestoetsen om de OSD-timer indicator geel te markeren. Gebruik de Links/rechts pijltjestoetsen om het OSD Timer scherm te selecteren.
INSTRUCTIES
1. Systeemblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om Lock System te selecteren, druk daarna op ENTER om de volgende drie opties te laten gelden. (Het standaard wachtwoord is
‘0000’).
2. Instellen wachtwoord
Druk op de Omhoog/omlaag toets om
Instellen wachtwoord (Set password) te selecteren, druk daarna op ENTER om het submenu te openen om een nieuw wachtwoord in te stellen.
3. Programma blokkeren
Druk op de Omhoog/omlaag toets om Block
Program te selecteren, druk daarna op
ENTER om het submenu te openen.
Druk op de Omhoog/omlaag toets om het programma te kiezen dat u wilt blokkeren, druk daarna op de gele toets op de afstandsbediening. (Om de blokkering van het programma op te heffen, voert u het door u ingestelde wachtwoord in.)
Druk op ENTER om de instelling te bewaren en druk op de menutoets om terug te keren naar het vorige menu.
4. Kinderslot (Parental Guidance)
Druk op de Omhoog/omlaag toets om
Kinderslot (Parental Guidance) te selecteren, druk daarna op ENTER om het submenu te openen.
(Beschikbare opties zijn: Uit (Off), 4-18)
5. Toetsenblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om de aanduiding voor Toetsenblokkering
(Key Lock) geel te markeren. Met de pijltjestoetsen Links/Rechts kunt u de optie
Aan (On) of Uit (Off) selecteren. Als
Toetsenblokkering is ingeschakeld (On), functioneren de toetsen niet.
D 34
NAAM VAN MENU
INSTELLINGEN
SETUP
Move
--
SUBMENU
INSTELLINGEN
Deutsch
Return
OSD Language
TT
English
Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Portugues
OK
Select
Please select an OSD Language
English Espanol Francais
Nederlands
Exit
INSTRUCTIES
1. OSD Taal
Zorg met de pijltjestoetsen Omhoog/Omlaag dat de aanduiding voor Taal (OSD Language) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u het menu in de volgende talen instellen: NEDERLANDS,
DUITS, SPAANS, PORTUGEES, FRANS,
ENGELS, POOLS.
2. TT Taal
Druk op de Omhoog/omlaag toets om TT te kiezen, druk daarna op ENTER om het submenu te openen. Druk op
Omhoog/Omlaag/Links/Rechts om te selecteren.
3. Slechthorenden
Druk op de Omhoog/omlaag toets om
Slechthorenden (Hearing impaired) te selecteren, druk daarna op ENTER om Aan
(On) of Uit (Off) te selecteren.
4. PVR Bestandssysteem
Druk op de Omhoog/omlaag toets om PVR
File System te kiezen, druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
5. Beeldverhouding (Aspect Ratio)
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Aspect Ratio geel gemarkeerd wordt, Druk daarna op ENTER om het submenu te openen. Druk op de Omhoog/Omlaag toets om Aspect Ratio te kiezen.(Beschikbare opties: Auto; 4:3; 16:9; ZOOM1; ZOOM 2;
Just Scan.)
6. Blauw scherm
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Blauw scherm (Blue Screen) geel gemarkeerd wordt. Druk daarna op ENTER om Aan (On) of Uit (Off) te kiezen.
7. Eerste installatie
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Eerste installatie (First Time Installation) geel gemarkeerd wordt. Druk daarna op
ENTER om de relevante opties in te stellen, waaronder OSD-taal, land en afstemming.
8. Reset
Druk op de pijltjestoetsen Omhoog/Omlaag om Reset te selecteren, druk daarna op
ENTER om een dialoogmenu te openen. Met de pijltjestoets Links kunt u door YES (Ja) te selecteren de fabrieksinstellingen herstellen voor naar keuze OSD-taal, land en het bedienen van kanaalafstemming.
9. Software Update (USB)
Druk op Omhoog/omlaag om Software
Update (USB) te kiezen, druk daarna op
ENTER om de update van de software uit te voeren met behulp van USB.
D 35
Invoermodus: DTV
1.Druk op de LCD Menu -toets om het hoofdmenu te openen.
2.Gebruik de pijltjestoets RECHTS om het slot ( LOCK ) het beeld ( PICTURE ), het geluid ( SOUND ), de tijd
( TIME ) of de instellingen ( SETUP ) te selecteren.
3.Druk op de Exit -toets om het menu te sluiten
NAAM VAN MENU MENU KANAAL INSTRUCTIES
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select
DTV Manual Tuning
- UHF CH 12 +
Exit
1. Automatische afstemming (Auto Tuning)
Selecteer met de Omhoog/Omlaag toets automatische afstemming (Auto Tuning), druk daarna op ENTER om het automatisch zoeken te starten.
2. DTV Handmatig afstemmen (Manual
Tuning)
Druk op de pijltjestoetsen Omhoog/Omlaag om DTV Handmatig afstemmen te selecteren, druk daarna op ENTER om het wachtwoord in te voeren en het submenu te openen.
(Standaardwachtwoord is ‘0000’)
Druk op de Links/Rechts toets om het kanaal te selecteren, druk daarna op ENTER om een programma te zoeken.
CHANNEL
Bad
No Signal
Freq: 226.25Mhz
Good xi
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu t
3. ATV Handmatig afstemmen (Manual
Tuning)
Druk op de pijltjestoetsen Omhoog/Omlaag om ATV Handmatig afstemmen te selecteren, druk daarna op ENTER om het wachtwoord in te voeren en het submenu te openen.
(Standaardwachtwoord is ‘0000’)
• Druk op de Links/Rechts toets om het kanaalnummer dat u wilt opslaan te selecteren.
• Druk op de Omhoog/Omlaag toets om de tweede optie te selecteren. Druk op de
Links/Rechts toets om het audiosysteem te selecteren.
• Druk op de Omhoog/Omlaag toets om het zoeken te selecteren, druk daarna op
ENTER om het afstemmen te starten.
• Druk op de rode toets op de afstandsbediening om de instellingen op te slaan en op de menutoets om terug te keren naar het vorige menu.
4. Programma bewerken
Druk op de Omhoog/omlaag toets om
Programma bewerken (Program Edit) te selecteren, druk daarna op ENTER om het submenu te openen.00’)
D 36
NAAM VAN MENU MENU KANAAL
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
INSTRUCTIES
Deze optie heeft meerdere functies.
Gebruik de blauwe toets om het huidige kanaal over te slaan.
Gebruik de FAV toets om het huidige kanaal als favoriet in te stellen. Als het huidige kanaal al een van uw favorieten is, drukt u nogmaals op de FAV toets om het kanaal als normaal kanaal te kiezen.
5. Signaalinformatie
Druk op de Omhoog/Omlaag toets om
Signaalinformatie (Signal information) te selecteren, druk daarna op ENTER om signaalgegevens weer te geven, waaronder kanaalnummer, frequentie, kwaliteit en sterkte.
6. CI informatie
Druk op de Omhoog/Omlaag toets om CI informatie te selecteren, druk daarna op
ENTER om details weer te geven als u de
CI-kaart heeft ingevoerd.
KANAAL
--
--
--
--
--
--
--
CI Information
D 37
TITEL MENU
BEELD
SUBMENU BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
INSTRUCTIES
1. Beeldmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de Beeldmodus ( Picture Mode ) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een beeldmodus selecteren (STANDARD, MOVIE, VIVID,
PERSONAL).
2. Contrast
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
CONTRAS T geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u het contrast aanpassen. Dit kan alleen worden aangepast in de PERSONAL-modus.
3. Helderheid
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Helderheid (Brightness) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de helderheid aanpassen. Dit kan alleen worden aangepast in de
PERSONAL-modus.
4. Kleur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
KLEURINSTELLING (COLOUR SETTING) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de kleur aanpassen. De kleur neemt toe wanneer het cijfer hoger wordt.
5. Kleurschakering
Gebruik de Omhoog/omlaag pijltjestoetsen om de TINT indicator geel te markeren. Met de pijltjestoetsen Links/Rechts past u de kleurschakering aan als uw systeem de
NTSC-norm heeft.
6. Scherpte
Gebruik de Omhoog/omlaag pijltjestoetsen om de SCHERPTE (SHARPNESS) indicator geel te markeren. Met de pijltjestoetsen
Links/Rechts past u de scherpte aan.
D 38
BEELD
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
7. Kleurtemperatuur
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Kleurtemperatuur (Color Temperature) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u de voor uw ogen optimale kleurtemperatuur selecteren. U kunt kiezen tussen Normaal (Normal), Warm, en
Koud (Cold).
8. Ruisonderdrukking
U kunt met behulp van de pijltjestoetsen
Links/Rechts om het niveau van het geluid van de video te onderdrukken (Noise
Reduction) als de signaalontvangst zwak is.
INSTRUCTIES NAAM VAN MENU SUBMENU GELUID
GELUID
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
1. Geluidsmodus
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor de
Geluidsmodus (Sound Mode) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u een geluidsmodus selecteren. U kunt kiezen uit Standaard
(STANDARD), Film (MOVIE), Muziek
(MUSIC), Sport (SPORTS), Persoonlijk
(PERSONAL).
2. Hoge tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Hoge tonen (TREBLE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de hoge tonen aanpassen. Deze kunnen alleen worden aangepast in de
Persoonlijke modus ( PERSONAL ).
3. Lage tonen
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Lage tonen (Bass) geel gemarkeerd wordt.
Met de pijltjestoetsen Links/Rechts kunt u de lage tonen aanpassen. Deze kunnen alleen worden aangepast in de Persoonlijke modus (Personal).
4. Balans
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
BALANS (BALANCE) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de balans aanpassen.
5. Automatische volumeregeling
Druk op de Omhoog/Omlaag pijltjestoetsen om de indicator voor Automatische volumeregeling (Auto Volume Control,
AVL) geel te markeren. Druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
6. SPDIF modus
Druk op de Omhoog/omlaag toets om de
SPDIF modus te selecteren, druk daarna op
ENTER om Auto/PCM/Off te kiezen.
7. AD Keuze
Druk op de Omhoog/omlaag toets om AD keuze te selecteren, daarna drukt u op
ENTER om Aan (On) of Uit (Off) te kiezen.
D 39
NAAM VAN MENU
TIJD
NAAM VAN MENU
SLOT
Move
Move
MENU TIJD
Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select
MENU SLOT
Return
Block
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select
Exit
Exit
INSTRUCTIES
1. Klok
Toont de huidige systeemtijd. Niet beschikbaar.
2. Tijdzone
Druk op de Omhoog/omlaag toets om
Tijdzone (TIME ZONE) te selecteren, druk daarna op ENTER om het submenu te openen. Druk op
Omhoog/Omlaag/Links/Rechts om de tijdzone te selecteren.
3. Slaaptimer
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Slaaptimer (Sleep Timer) geel gemarkeerd wordt. Met de pijltjestoetsen Links/Rechts kunt u de slaaptimer selecteren.
4. Auto Standby
Selecteer met de pijltjestoetsen
Omhoog/Omlaag Auto Standby, druk daarna op ENTER om het submenu te openen. Druk op Omhoog/Omlaag/Links/Rechts om te selecteren.
5. Timer op het scherm (OSD Timer)
Gebruik de Omhoog/omlaag pijltjestoetsen om de OSD Timer geel te markeren. Gebruik de
Links/Rechts pijltjestoetsen om de OSD
Timer op het scherm te selecteren.
INSTRUCTIES
1. Systeemblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om Systeemblokkering (Lock System) te selecteren, druk daarna op ENTER om de volgende 3 opties in te schakelen. (Standaard wachtwoord is ‘0000’.)
2. Wachtwoord instellen
Druk op de Omhoog/Omlaag toets om
Wachtwoord instellen (Set Password) te selecteren, druk daarna op ENTER om het submenu te openen om een nieuw wachtwoord in te stellen.
3. Programma blokkeren
Druk op de Omhoog/omlaag toets in om
Programma blokkeren (Block Program) te selecteren, druk daarna op ENTER om het submenu te openen
Druk op de Omhoog/Omlaag toets om het programma te selecteren dat u wilt afsluiten, druk daarna op de gele toets op de afstandsbediening. (Om de blokkering van het programma weer op te heffen, voert u het door u ingestelde wachtwoord in).
Druk op ENTER om de instelling op te slaan en op de menutoets om naar het voorgaande menu te gaan.
4. Kinderslot (Parental Guidance)
Druk op de Omhoog/omlaag toets om
Kinderslot (Parental Guidance) te selecteren, druk daarna op ENTER om het submenu te openen.
(Beschikbare opties zijn: Uit (Off), 4-18).
5. Toetsenblokkering
Druk op de pijltjestoetsen Omhoog/Omlaag om de aanduiding voor Toetsenblokkering
(Key Lock) te kiezen, druk daarna op
Links/Rechts toets om Aan (On) of Uit (Off). te selecteren. Als Toetsenblokkering is ingeschakeld (On), functioneren de toetsen niet
D 40
NAAM VAN MENU
INSTELLINGEN
SETUP
Move
Please select an OSD Language
English Espanol Francais
--
SUBMENU
INSTELLINGEN
Deutsch
Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Portugues
OK
Nederlands
INSTRUCTIES
1. OSD Taal
Zorg met de pijltjestoetsen Omhoog/Omlaag dat de aanduiding voor Taal (OSD Language) geel gemarkeerd wordt. Met de pijltjestoetsen
Links/Rechts kunt u het menu in de volgende talen instellen: NEDERLANDS,
DUITS, SPAANS, PORTUGEES, FRANS,
ENGELS, POOLS.
2. TT Taal
Druk op de Omhoog/omlaag toets om TT te kiezen, druk daarna op ENTER om het submenu te openen. Druk op
Omhoog/Omlaag/Links/Rechts om te selecteren.
3. Slechthorenden
Druk op de Omhoog/omlaag toets om
Slechthorenden (Hearing impaired) te selecteren, druk daarna op ENTER om Aan
(On) of Uit (Off) te selecteren.
4. PVR Bestandssysteem
Druk op de Omhoog/omlaag toets om PVR
File System te kiezen, druk daarna op
ENTER om Aan (On) of Uit (Off) te selecteren.
5. Beeldverhouding (Aspect Ratio)
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Aspect Ratio geel gemarkeerd wordt, Druk daarna op ENTER om het submenu te openen. Druk op de Omhoog/Omlaag toets om Aspect Ratio te kiezen.(Beschikbare opties: Auto; 4:3; 16:9; ZOOM1; ZOOM 2;
Just Scan.)
6. Blauw scherm
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Blauw scherm (Blue Screen) geel gemarkeerd wordt. Druk daarna op ENTER om Aan (On) of Uit (Off) te kiezen.
7. Eerste installatie
Zorg met behulp van de pijltjestoetsen
Omhoog/Omlaag dat de aanduiding voor
Eerste installatie (First Time Installation) geel gemarkeerd wordt. Druk daarna op
ENTER om de relevante opties in te stellen, waaronder OSD-taal, land en afstemming.
8. Reset
Druk op de pijltjestoetsen Omhoog/Omlaag om Reset te selecteren, druk daarna op
ENTER om een dialoogmenu te openen. Met de pijltjestoets Links kunt u door YES (Ja) te selecteren de fabrieksinstellingen herstellen voor naar keuze OSD-taal, land en het bedienen van kanaalafstemming.
9. Software Update (USB)
Druk op Omhoog/omlaag om Software
Update (USB) te kiezen, druk daarna op
ENTER om de update van de software uit te voeren met behulp van USB.
D 41
D 42
D 43
D 44
D 45
D 46
D 47
D 48
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D 49
D 50
D 51
D 52
D 53
D 54
D 55
D 56
D 57
PORTUGUESE
POLISH
D 58
PORTUGUESE
POLISH
PORTUGUESE
POLISH
OFF
D 59
PORTUGUESE
POLISH
D 60
D 61
D 62
3
D 63
TV /SCART / CVBS / S-VIDEO / VGA / HDMI1/HDMI2 /DVD
A
B
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
-/--
AUDIO
LCD
ENTER
DVD
SETUP
ANGLE ZOOM
D.MENU
TITLE D.DISP
GOTO
39
31
37
41
PROG INTRO REPEAT A-B
42
40
2
1
3
1
2
1
2
3
1
2
1
2
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 Hr.
OK Menu play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
It will stop PVR.
Yes No
play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
-
OK
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back
Timer Overlay
21 TMF
13 Jul 2007 03:00
3 Sec.to Switch channel
Yes No
Delete
Ar e y ou s ur e?
Yes No
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
Return C D E
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exi
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Ex
Block
SETUP
Move Return
OSD Language
TT
English
Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select Exit
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standar
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select Exi
DTV Manual Tuning
- UHF CH 12 +
Bad
No Signal
Freq: 226.25Mhz
Good xi t
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
--
--
--
--
--
--
--
CI Information
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Move Return
C C 001 1
Time Zone GMT
001 1 9 9
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
1360*768 1360*768
F 43
F 44
F 45
F 46
D.DISP
D.DISP
D.DISP
F 47
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
D.DISP
F 48
F 49
F 50
F 51
F 52
F 53
F 54
F 55
PORTUGUESE
POLISH
PORTUGUESE
POLISH
F 56
PORTUGUESE
POLISH
OFF
PORTUGUESE
POLISH
F 57
F 58
F 59
F 60
F 61
G 1
G 2
G 3
A
B
G 4
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
G 5
-/--
AUDIO
LCD
ENTER
DVD
SETUP
ANGLE ZOOM
D.MENU
TITLE D.DISP
GOTO
39
31
37
41
PROG INTRO REPEAT A-B
42
40
G 6
G 7
2
1
3
G 8
1
2
1
2
3
G 9
1
2
G 10
1
2
G 11
G 12
MUTE
G 13
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 Hr.
OK Menu play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
It will stop PVR.
Yes No
G 14
play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
G 15
-
OK
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back
Timer Overlay
21 TMF
13 Jul 2007 03:00
3 Sec.to Switch channel
Yes No
Delete
Ar e y ou s ur e?
Yes No
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
G 16
Return C D E
G 17
Win Recorder Flower.jpg
Delete
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
G 18
C:\ 1 1 try.mp3
Win happy.mp3
Delete
Maybet.mp3
Record thank.mp3
angel.mp3
Album: (2005/01...
Title: 1khz-10db
Bit Rate: 320K
Artist: BCD103
Sampling: 44K
Year: 2005
Size: 2426KBytes
G 19
G 20
G 21
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0
G 22
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
G 23
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
G 24
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Ex
Block
G 25
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
G 26
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
G 27
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
G 28
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
G 29
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exi
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
G 30
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select Exit
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
G 31
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
Tint 50
Sharpness 30
0
Colour Temp Normal
Noise Reduction Middle
Select Exit
G 32
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
G 33
Move Return
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exi
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
G 34
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch
--
Portugues
OK
Nederlands
G 35
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select Exit
DTV Manual Tuning
- UHF CH 12 +
Bad
No Signal
Freq: 226.25Mhz
Good xi t
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu
G 36
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
--
--
--
--
--
--
--
CI Information
G 37
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
G 38
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
G 39
Move Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
G 40
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select E
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
G 41
40
1360*768 1360*768
40
G 42
G 43
G 44
G 45
G 46
G 47
G 48
G 49
G 50
G 51
G 52
G 53
G 54
3.
PORTUGUESE
POLISH
G 55
PORTUGUESE
POLISH
PORTUGUESE
POLISH
G 56
G 57
Wandbefestigung
G 58
G 59
Model Nr. LC-157072
MANUAL DE INSTRUCCIONES
MANUAL DE INSTRUÇÕES
INSTRUKCJA OBSŁUGI
A
B
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI2
HDMI1 USB DC 12V
6 5 4 3 2 1
-/--
AUDIO
LCD
ENTER
DVD
SETUP
ANGLE
D.MENU
ZOOM
TITLE D.DISP
GOTO
39
31
37
41
PROG INTRO REPEAT A-B
42
40
2
1
3
1
2
1
2
3
1.Entrada Scart.
2.Entrada de alimentação de 12 V DC.
1
2
1
2
MUTE
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 Hr.
OK Menu play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
It will stop PVR.
Yes No
Recorded list Programme
Delete
OK
INFO index play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
-
OK
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back
Timer Overlay
21 TMF
13 Jul 2007 03:00
3 Sec.to Switch channel
Yes No
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
Ar e y ou s ur e?
Yes No
Return C D E
Win Recorder Flower.jpg
Delete
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
C:\ 1 1 try.mp3
happy.mp3
Delete
Win
Maybet.mp3
Record thank.mp3
angel.mp3
Album: (2005/01...
Title: 1khz-10db
Bit Rate: 320K
Artist: BCD103
Sampling: 44K
Year: 2005
Size: 2426KBytes
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exi
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select Exit
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select E
Block xit
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select Exi
DTV Manual Tuning
- UHF CH 12 +
Bad
No Signal
Freq: 226.25Mhz
Good xi t
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
--
--
--
--
--
--
--
CI Information
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Move Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exi
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
1360X768
40
1360X768
PORTUGUESE
POLISH
PORTUGUESE
POLISH
PORTUGUESE
POLISH
OFF
PORTUGUESE
POLISH
A
B
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
-/--
AUDIO
LCD
ENTER
DVD
SETUP
ANGLE
D.MENU
ZOOM
TITLE D.DISP
GOTO
39
31
37
41
PROG INTRO REPEAT A-B
42
40
2
1
3
1
2
1
2
3
1
2
1
2
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 Hr.
OK Menu play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
It will stop PVR.
Yes No
Recorded list Programme
Delete
OK
INFO index play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
-
OK
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back
Timer Overlay
21 TMF
13 Jul 2007 03:00
3 Sec.to Switch channel
Yes No
Delete
Ar e y ou s ur e?
Yes No
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
Return C D E
Win Recorder Flower.jpg
Delete
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
C:\ 1 1 try.mp3
happy.mp3
Delete
Win
Maybet.mp3
Record thank.mp3
angel.mp3
Album: (2005/01...
Title: 1khz-10db
Bit Rate: 320K
Artist: BCD103
Sampling: 44K
Year: 2005
Size: 2426KBytes
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select Exit
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select
DTV Manual Tuning
- UHF CH 12 +
Bad
No Signal
Freq: 226.25Mhz
Good x
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
--
--
--
--
--
--
--
CI Information
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Move Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
1360*768
40
1360*768
40
PORTUGUESE
POLISH
PORTUGUESE
POLISH
OFF
PORTUGUESE
POLISH
A
B
13
RF IN L R
(CVBS) (CVBS)
CVBS COAX
12 11 10 9 8 7
SCART
CI PC-AUDIO
IN
VGA
HDMI1
HDMI2 USB DC 12V
6 5 4 3 2 1
-/--
AUDIO
LCD
ENTER
DVD
SETUP
ANGLE ZOOM
D.MENU
TITLE D.DISP
GOTO
39
31
37
41
PROG INTRO REPEAT A-B
42
40
2
1
3
1
2
1
2
3
1
2
1
2
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
OK Menu
OK
Select Disk
USB 0
Disk C
Menu
Select Disk C:
Check PVR File System Checking
USB Disk Pass
Format Pass
Time Shift Size All
Speed Checking
Free Record Limit 1 Hr.
OK Menu play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
It will stop PVR.
Yes No
play
1 YLE TV1
FB FF Prev.
Next pause Stop
[00:00:42]
(0000:39:48)
08:38
PROGRAMME GUIDE
10 Apr 2007 14:00- 15:00 10 Apr 2007 14:23
Barnaby (John Nettles) questions the guilt of a woman who is on trial for the murder of her best friend.
10 Apr
14.E4
28.ITV4
32.Fitm4+1
75.CITV
14:00-15:00 Midsomer nurders
15:00-16:00
16:00-17:00
17:00-18:00
The Force
Double Indemnity
Surprisel: Brilliant Creatu.
Record
Move View
Display
Next Day
Schedule
Prev Day
Remind
OK
-
OK
RECORDER
1 YLE TV1
Start Time
15 Minute
08Hour
Dec Month
07 Date
End Time
03 Minute
09 Hour
Dec Month
07 Date
Mode once +
Back
Timer Overlay
21 TMF
13 Jul 2007 03:00
3 Sec.to Switch channel
Yes No
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
Ar e y ou s ur e?
Yes No
Return C D E
Win Recorder Flower.jpg
Delete
Delete
F
Resolution: 1200X900
Y R Size: 1381KBytes
Date: 2010/05/09
Time: 16:13:25
C:\ 1 1 try.mp3
Win Record thank.mp3
happy.mp3
Delete
Maybet.mp3
angel.mp3
Album: (2005/01...
Title: 1khz-10db
Bit Rate: 320K
Artist: BCD103
Sampling: 44K
Year: 2005
Size: 2426KBytes
SCREEN
Auto Adjust
H-Offset 50
V-Offset 50
Size 50
Phase 50
Position Reset ard
0
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Ex
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
Move Return
Picture mode Standard
Contrast 50
Brightnes 0
Colour 50
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer
Auto Standby
OSD Timer ve Return Select
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select E
Block
SETUP
Move Return
OSD Language
TT
English
Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Ex
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Program Edit
Select Exit
1 C-03
2 C-04
3 C-045
Program Edit
ATV
ATV
ATV
D elete
OK
Rename
Fav
Move Skip
Menu
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Move Return Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exit
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
CHANNEL
Move Return
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CI Information
Select Exit
DTV Manual Tuning
- UHF CH 12 +
Bad
No Signal
Freq: 226.25Mhz
Good xi t
ATV Manual Tuning
- Current CH 45
Color System Auto
Sound System BG
Fine-Tune 55.25
AFC On
Search
Menu
Program Edit
1 7 Digital
2 7 HD Digital
3 7 Digital 1
4 7 Digital 2
5 7 Digital 3
6 AFD0, 16:9
7 AFD0, 4:3
8 AFD1, 16:9
9 AFD1, 4:3
10 AFD2, 16:9
Delete
OK Fav
Skip
Menu
L
--
--
--
--
--
--
--
CI Information
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Picture mode Standard
Contrast 50
Brightnes
Colour 50
0
Tint 50
Sharpness 30
Colour Temp Normal
Noise Reduction Middle
Select Exit
Move Return
Sound Mode Standard
Treble 5
Bass 50
Balance 0
Auto Volume Off
SPIDF Mode Off
AD Switch Off
Select Exit
Move Return
CClloocckk 0011//JJaann 0011::3399
Time Zone GMT
Sleep Timer Off
Auto Standby Off
OSD Timer 5 S
Select Exit
Move Return
Lock System Off
Set Password
Block Program
Parental Guidance Off
Key Lock Off
Select Exi
Block
SETUP
Move Return
OSD Language English
TT Language West
Hearing Impaired Off
PVR File System
Aspect Ratio 16:9
Blue Screen Off
First Time Installation
Reset
Software Update(USB)
Select Exit
Please select an OSD Language
English Espanol Francais
Deutsch Nederlands
--
Portugues
OK
1360 x 768
40
1360 x 768
40
PORTUGUESE
POLISH
PORTUGUESE
POLISH
PORTUGUESE
POLISH
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 54.9 cm (21.6") LCD
- Full HD 1920 x 1080 pixels 16:9
- 500 cd/m² 5 ms 1000:1
- DVB-T NTSC, PAL BG, PAL D, PAL DK, PAL I, SECAM L
Related manuals
advertisement
