XIEGUTECH
Portable SDR HF Transceiver
G90
Operation manual
Built-in automatic antenna tuner ATU
V1.00.01
Basic Feature
Panel button
Front panel Interface
Tail interface
Interface definition
M IC b u tto n
External power connection method
M e n u o p e r a t i o n
Display interface
P o w e r o n / o f f
Operating frequency bands selection
Operating MODE selection
Volume adjustment
Multifunction adjustment knob
Adjusting transmit power Po
Setting operation frequency
A T U
Function buttons
Setting SPL and VFO
CW transmission
CW Auto pager
Standing wave scanner SWR
Digital filter
Line Input / Output selection
Channel Memory MW
17
18
19
2 0
21
23
24
9
10
1 2
12
1 3
14
15
16
2
3
6
7
8
25
26
27
28
29
Catalog
Pre-channel naming TAG
Boot interface call sign setting CALL
30
31
Connect to a computer for data communication 32
System parameter setting 33
Computer control instruction 33
Bands voltage parameter
Performance parameter
Packing items
G90 and XPA125B connection diagram
CE-19 expansion card interface
33
34
35
36
37
1
Basic feature

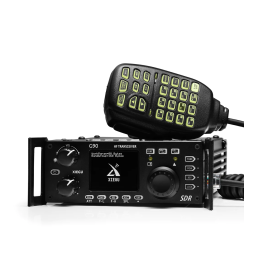

G90 is a portable 20W HF amateur radio transceiver with an SDR architecture with built-in auto antenna tuner. The display unit and the radio can be separated. It is a new member of the Xiegu product family and the first model of the G series.
24-bit data size @48kHz sampling rate, it has excellent transmit performance and a highly configurable function experience; 。
High performance front end narrowband ESC preselector;
Covers the frequency range of 0.5~30MHz, SSB/CW/AM/ FM
*1 three working modes;
1.8 inch high brightness color TFT LCD screen;
±24k bandwidth spectrum display, waterfall display;
Software defined narrowband filter(CW mode: 50Hz);
detachable display unit;
Up to 20W of RF power;
Built-in wide range automatic antenna tuner;
Diversified interfaces, In particular, the baseband I/Q output allows it to interface with any external device that can handle baseband I/Q, including sound card-based or PC-based applications such as XDT1.
In order to better experience this device, please read this manual carefully before use to fully understand the operation method of G90.
*1: The FM mode can only be turned on when the GSOC controller is used together.
2
1
2
3
4
5 6
Ci90
7 8
H F TRANSCEIVER rn
9
10
, {I f m>
·
SDR @
11
3
1
Volume knob
Turning ， + / – the volume.
Short press ， Switch to headphone output mode.
2 Power/ Receive or transmitting status pilot lamp.
Standby/receive status, showing yellow-green;
transmitting status ， showing red;
3 Power switch
In the off state ， press it to boot.
In the on state ， hold press it to shut down 。
4 Multifunction adjustment Knob
By default, turning this knob will stepping at 100 kHz.
Press and hold this knob to switch to the Select
Custom function.
5 ～ 6 Mode switching
Mode switching
7 ～ 8 BAND Switching
Band switching
9 FUNC pilot
This pilot will light when the second function of the button is operated.
4
10 △ F Pilot
11 Main Knob
Operating this knob will change the current frequency.
Panel button
12 Function button
Button definitions and functions are detailed in the operation section.
5
6
20 MIC Interface
On the right side of the machine-head
Connecting the multi-function MIC to this connector.
21 headphone interface
On the left side of the machine- head
This 3.5mm stereo jack (3-pin) for connecting headphones.
22 Self-defining(communication) interface
On the left side of the machine-head
Firmware update for the machine-head (Controller), or other features.
Tail plate interface
13 Antenna interface
SL16-K type ， impedance 5
0Ω 。
14 KEY interface
The interface is a 3.5mm stereo jack for connection to manual/automatic telegraph keys.
Telegraph key connection diagram, as shown ：
Manual telegraph keys ， It is
Necessary to connect "di( 滴 )"
And "da （嗒） " together.
15 COMM interface
Using for the case firmware updates.
。
16 I/Q Signal output
The interface is a 3.5mm stereo jack for
“I/Q” signal output.
17 ACC
The interface is an 8-pin mini DIN interface, as defined in the interface definition.
18 DC power interface
External DC power input interface.
The round hole is "-", the square hole is "+".
19 Ground terminal
7
1
、
MIC interface
MICE
MIC
GND
MDATA
MIC
2
、
COMM Connector
RXD
TXD
3
、
Headphone interface
信号
信号
Note: 信号（signal）
8
GND
GND
PTT
MSVSW
NC
+8V
4、
ACC interface
GND
+8V
ALC
BAND i
5、
Telegraph key wiring diagram
Note:滴（di）嗒（da）公共（ common
）
DATA
AF_OUT
AF_IN
PTT
Hand MIC
1 、 LOCK
2 、 PTT
3 、 UP / DOWN
4 、 Receive/transmit indicator
5 、 Numeric keypad
Lock button
Transmit control button
Frequency "+" or "-" buttons
Hand Mic operation indicator
6 、 FIL
Numeric keypad area
7 、 MODE
8 、 Function indicator
9 、 Function button
10 、 MW
Filter selection
Case operation mode
No
F1/F2 self-defining setting button
11 、 V/M
12 、 XFC
13 、 TUNER
Storage operation
Frequency/channel switching
No
Hold press to turn on the built-in automatic antenna tuner for tuning.
9
The G90 can use a 13.8V external DC power supply. The DC power supply has a current load capacity of at least 10A. The supplied power cord can be used to connect radio and DC power.
When connecting the DC power supply, please carefully connect according to the following figure to avoid reverse polarity of the power supply.
The red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply .
Note:
黑线（ black wire
）红线（ red wire
）
;
10
Operating
When the G90 uses an external power supply, in order to prevent external interference from entering the radio through the power line or the radio frequency interference in the radio is radiated outside through the power line, we can put the EMC magnetic ring on the power line. Install the magnetic ring as close as possible to the side of the power plug.
The power cord wraps around the magnetic ring 2 turns.
As close as possible to the plug.
When using an external power supply, carefully check the polarity of the power cord and do not reverse the polarity.
The limited warranty of this radio does not include damage caused by an external power connection error or damage caused by improper power supply voltage.
11
External power connection
The G90 uses the Quick Mode button operation to use or turn off various functions. All functions are distributed on each function button (or in the second function). All functions are turned on or off or adjusted and displayed or reminded in the corresponding area on the screen.
。
Interface display as follows ：
Main frequency
Status Display
Mode
VOF status
S-table and power mete
Input voltage
Volume
Functions display
Standing wave
Signal level
Waterfall image display
Waterfall image display
11
Operating
Hi Dear friends.
In order to let you master the functions and proficiency of the G90 portable transceiver ASAP, please read the operation guide of this manual to understand the powerful functions of the G90. Go ahead now!
Turn on/off Transceiver
1 、 Turn on ： press button.
2 、 Turn off ： Power on state ， Hold press
Turn off screen operation:
In the power on state, tapping the switching
Button to turn off the screen display.
The other units are still working.
Pressing any button or turning the
Knob will wake up the screen display. button1 second 。
Power button
13
Operating
Operating frequency band selection
The G90's frequency range covers 0.5 to 30
MHz. Amateur frequencies within this range are divided into multiple bands, and band switching can be performed in a number of
+ - different ways.
Operation method:
Press the BA ND’s < or > button ， Switch to the next or previous operating band separately.
1.8MHz 3.5MHz 5.2MHz 7.1
MHz 10MHz 14MHz
28MHz 24MHz 21MHz 18MHz
Each amateur band has a user-defined frequency band that can be used temporarily, when the band is switched, you will see this custom band.
Whether the 60-meter band is open, it depends on the different laws of different countries (or regions).
Different versions of the machine have different frequency divisions, depending on the laws of different countries
(or regions).
VFO-A and VFO-B are two independent VFO modes that can be set to different operating states. Check [VFO
Settings] please.
14
Operating
Operating mode select
Press [ MODE ] button ， In all modes ， according to the following fixed order switching
Mode left loop
The FM mode can only be turned on when used with the GSOC controller.
Mode right loop
15
Operating
VOLUME CONTROL
Speaker mode ：
Rotate the volume knob left or right to adjust the size of the output volume.
Headphone mode ：
Press the volume knob short to enter headphone mode.
Rotate the volume knob left or right to adjust the size of the headset volume.
VOX mode on / off ：
Press and hold the volume knob for 3-second to turn the VOX feature on or off.
This feature has not been activated yet.
When using the AF in/out Port of the ACC interface, set the relevant volume size in the system menu.
16
Operating
Multifunction adjustment knob
The multifunction knob provides several operation options and can customize features.
Operation method ：
Default: Stepping of 100 kHz frequency bits.
Multi-function adjustment
Short press: Enter SQL item to adjust SQL noise depth.
Hold press ： Go to the User Custom feature menu, rotate
The main knob to select the appropriate function, and short press the “SAVE” key to determine that the feature is selected.
At this point, the feature is projected onto the [multifunction adjustment knob].
The customizable features are as follows:
1) Frequency 100k, stepping 100k
2) SQL Level, squelch setting
3) Po Level, transmit power setting
4) Key Speed, automatic key rate setting
5) FFT Scale, spectrum reference level setting
17
Adjustment transmitting Po
Operation method ：
1 、 Short press the [Po] button to enter the
Operating
PO power setting state, the right side of the screen function display area will
Multi-function
Adjustment knob display the power settings number.
2 、 Rotate [multifunction adjustment knob] for power setting with stepping
1W 。
When using the G90 transceiver for the first time without understanding the current antenna state, minimize the set transmit power value.
18
Set the operating frequency
There are two ways to set the G90 operating
Operating frequency, which is to use the main knob and multi- function handle to set the frequency.
。
Operating method ：
1 、 Set the frequency using the main knob
Short press the main knob, select 100Hz,
Main Knob
1kHz, 10kHz Stepper.
Rotate the main knob to set the frequency of the current step.
2
、
Set the frequency using the multifunction handle
Press the [F-INP ENT] button on the handle, G90 enter the frequency setting state, the cursor will blink in the first position on the left side of the frequency display bit;
Enter the frequency values you want to set, and then press the [F-INP ENT] button again to complete the frequency setting.
For example, set the current frequency to 14.09000MHz, and the key order is as follows:
1. First press the [F-INP ENT] button;
2. Press the 1 4 . 0 9 0 0 0 number key in sequence;
3. Press the [F-INP ENT] button again, complete the setup.
19
Operating
Automatic Antenna Tuner
This G90 is integrated with an efficient automatic antenna tuner that can help you quickly set up and debug your antenna.
Short press the [TUNE] button, will be connected to the built-in antenna tuner, the "TUNE" logo will be displayed at the top of the screen.
When connected to the automatic antenna regulator, press the [TUNE] button for 1 seconds and the ATU auto-tuning function will be activated.
The receive status is automatically returned when tuning is complete.
Tuner
Note
1. Press the [TUNE] button and the antenna icon appears at the top of the screen to indicate that the automatic antenna tuner function is turned on. Just open, the automatic Antenna tuner tuning has not been started.
2. To use the built-in automatic antenna tuner, you must tune once after you turn on the Automatic Antenna tuner feature.
3. If you start the transmission after tuning, the
“SWR” icon will appear on the top of the screen and flash, which means
That the standing wave of the current antenna is still large and needs to be retuned.
4. When the antenna naturally resonates into the current band, be sure to turn off the Automatic Antenna tuner feature.
5. When using a whip antenna and turning on the built-in antenna tuner for tuning, it is possible to cause strong RF interference to the native or electronic device.
21
Operating
Function button
Its common functions are distributed on the various function keys. Some function keys have a second function.
When the function is selected, turn the main knob to adjust the value.
Operation of the second function:
Press the [FUNC] button at first, the “F” indicator will light, then press the corresponding function button.
Press the [FUNC] button again to exit the second function. At this time, the “F” indicator is off.
In any function (including the second function of FUNC), press the main knob to exit the function settings and return to the main interface.
20
Button function table
Button Func1 (press cycle
PRE/ATT
CMP/F-L
NB/F-H
AGC/SPL
VM.
MW/MC
A/B.A>B
TUNE
POW
KEY
LOCK
PRE--ATT-- direct connection
Turn on transmit voice compression
Turn on pulse interference canceller
AGC-、 AGC-S 、 AGC-F 、 AGC-A cycle
Switch frequency mode or channel mode
Turn on channel storage
Switch between VFO-A and VFO-B
Turn on/off the antenna tuning function
Operating
POWER Transmit power setting
SWR THR Standing wave protection threshold
SPEED Automatic key rate setting
M/L/R Manual/automatic left and right mode switching
MODE
QSK iambic A/B Mode switching
Insert/not insert selection
QSK Time Insert time setting
5-level screen backlight brightness setting
Func2 FUNC+)
Digital filter F-L low-end frequency selection
Digital filter F-H high-end frequency selection
Turn on split frequency transceiver operation mode
To be determined
Turn on channel clear mode
Copy the current VFO to the background VFO
/
MIC GAIN
INPUT
MIC gain setting
Voice input selection
Side-tone volume setting CW Volume
CW TONE Side-tone frequency setting
/
/
/
SCALE Spectrum reference level setting
Hold press
/
/
/
/
/
/
/
Start antenna tuner tuning
/
/
/
/
/
/
/
Lock button, knob
22
Operating
Split frequency transceiving operation SPL and VFOA/B settings
There are two independent VFOs inside the G90 transceiver. We can set different frequencies and modes separately. With the SPL function, it is convenient to realize the split transceiving operation.
VFO setting ：
1
、
Press the [A/B / A>B] button to switch between VFO-A and VFO-B.
2 、 When switching to a certain VFO state, you can set the current VFO's operating
VFO operation frequency, mode and other settings.
Split frequency transceiver SPL operation method:
1 、 Set the receiving frequency and mode (VFO-A) first;
SPL operation
2 、 Then setting the transmit frequency and mode (VFO-B);
3 、 Operate the second function of the [AGC/SPL] button,
4 、 Turning on the SPL function to turns on the split transceiver mode.
。
You can make full use of VFOA/B to set different frequencies or modes, and switch between two frequency points in real time.
23
Operating
CW communication
Operate with a hand key or an external key controller device.
Operation method:
1 、 Insert the key body (three-wire) plug into the KEY interface;
2 、 Press the [MODE] button to switch the mode to CW (or CWR);
3 、 Open the QSK function in the [KEY] button function and set the appropriate QSK time; ；
4 、 Press the CW button to perform CW communication.
Key button
The [KEY] button function contains adjustment
Practice mode ：
You can use the G90 as a CW code trainer.
The operation method is as follows: In the [KEY] button function, the QSK function is turned off. In this state, when the button is pressed, the transceiver has a CW side tone, but Does not emit signals externally.
items that are commonly used when doing CW communication: ：
SPEED
K-R/L
Iambic A/B
QSK
QSK
24
Operating
CW automatic caller MSG1~MSG3 (Not yet opened, need to be used with GSOC controller)
The G90 host provides 4 sets of CW preset telegraph text storage for automatic call in CW mode.
Operation method:
To be determined
25
Operating
Standing wave scanner SWR (Not yet opened)
G90 host has an antenna standing wave scanning function, which can scan the standing wave parameters of the current antenna, and is convenient for the user to adjust the antenna.
。
Operation method ：
1、
Operate the second function of the [Po] button to start the standing wave scan;
2、
After the scan is completed, the scanning process is automatically exited.
The scanning result of the standing wave scanner may have a certain error, for temporary use only. For accurate measurement of antenna standing wave data, use a professional antenna analysis device for measurement.
26
Operating
Digital filter
The G90 has a built-in variable digital filter that implements a narrowband filter function to improve signal identification.
Operation method ：
Operate the [CMP/F-L] button and the second function of the [NB/F-H] button;
Rotate the main knob to adjust the lower limit of the digital filter frequency and the upper limit of the frequency respectively until the user experience is appropriate;
You can adjust the filter parameters according to your own listening preferences to get the best experience.
27
Operating
Line input/output
The G90 has an external line input interface. When communicating with a computer or an external modem for data communication, the corresponding input/output items should be correctly selected.
Operating method ：
In the system menu, using ACC port line input, select: AUX LINE IN. Set the appropriate input volume.
In the system menu, select: AUX AFOUT VOLUM to set the appropriate output volume 。
When digital communication is in progress and audio input is made using the ACC port, make sure that the volume of the line input is sufficient.
28
Operating
Channel storage MW, clear MC
Channel storage ：
1. In the VFO mode, adjust the required frequency, mode, advanced function status and other parameters;
2. Press the [ MW/MC ] button to start the channel storage operation;
3. Rotate the main knob to select the channel number to be stored, and short press the main knob to complete the channel storage;
4. If the current channel has stored information, using this channel number for storage again will clear the previous channel information and save the current channel information.
Bring up the storage channel:
1 、 If you press the [VM] button on the panel in VFO mode, you will enter channel mode;
2 、 Rotate the main knob to switch the current channel.
Clearing channel storage:
1. In the channel mode, operate the second function of the [MW/MC] button to start the channel clear function;
2. At this point, the channel number starts to flash. Rotate the main knob to the corresponding channel number and press the main knob to complete the channel clear.
29
Operating
Channel naming TAG (need to be used with GSOC large screen controller)
Stored channels can be named with "tags" consisting of letters and numbers.
Operating method ：
To be determined.
31
Operating
Boot interface call sign setting CSN
The G90 can set the call sign information displayed on the boot interface.
Operating method ：
1. Press and hold the [FUNC] button to go to the system setup menu and select the [CALL SIGN] function to go to the call sign editor;
2. Under the editor, after editing the call sign, save the set text content and return to the normal operation state;
4. When you turn it on again, the boot interface will display the call sign you edited.
30
Operating
Connect to a computer for amateur radio data communication
The G90 transceiver can be connected to a computer to perform various data communication with the corresponding computer software.
Operation connection method:
Connect the computer audio output/input to the G90 from the ACC port (MINI-DIN8).
Insert the data cable into the COMM port, connect the G90 to the computer, and ensure that the computer driver of the data cable is installed correctly. The PC software can control the G90 transceiver;
Adjust the volume of G90 and the input/output volume of ACC port to the appropriate one. Observe the software interface to avoid the Audio frequency amplitude being too large and unable to communicate.
Select the corresponding working mode to perform data communication.
In order to prevent interference, the radio and computer must be well grounded. Please install the EMC magnetic ring for the data cable and audio cable, and install it as close as possible to the radio.
32
Computer control instruction
The G90 uses the standard CIV instruction set. You can use the standard instructions of this instruction set to remotely control the transceiver. It can also be used to configure the control instructions of other software to control the G90.
Band voltage data
The G90's ACC port provides band data for each band. The band data can control the peripheral to automatically switch the band or share the band information with other devices.
Band Voltage Band Voltage Band Voltage Band Voltage
1.8MHz 230mV 7MHz 920mV 18MHz 1610mV 28MHz 2300mV
3.5MHz 460mV 10MHz 1150mV 21MHz 1840mV
5.0MHz 690mV 14MHz 1380mV 24MHz 2070mV
/
/
/
/
33
Performance parameter
General parameters
Frequency Range ： receive ： 0.5MHz
～ 30MHz transmitting ： 160M ～ 10M Amateur radio band only
） transmitting mode ：
A1A(CW) ， ， F3E(FM)
Mini step ： 10Hz
Antenna impedance: 5
0Ω
Range of operating temperature ： 0
℃ ～ +50
℃
Frequency stability ：
±10 ppm for 10 to 60 min after power on
@25
℃ ： 1ppm/h
Voltage ： 10.5
～ 16.5V DC ， Negative ground
Electric current ： receive ： 500mA@ Max transmitting ： 8A@ Max
Case size ： 120*45*210mm （ W * H * L ）
(No protrusions)
Weight ： about 1.63kg
（ only case ）
Receiver parameters
Circuit type ： ZIF
Adjacent channel suppression ：
Sideband suppression ：
Sensitivity
：
1.0
～ 1.79999MHz
1.8
～ 27.9999MHz
28 ～ 30MHz
SSB/CW/FM
/
0.25uV
0.25uV
Transmitter parameters
RF output power ： 20W (SSB/CW/FM)
5W (AM Carrier) @13.8VDC
Modulation type ： Digital modulation
Stray radiation suppression
Carrier suppression ：
Mic impedance ：
： ≥50dB
≥40dB
200 ～ 10k conventional 600
Ω ）
≥60dB
≥60dB
AM
10uV
2uV
2uV
(PRE=on ， ATT=off ， NB=off ， NR=off ， SSB/CW/AM = 10dB S/N ， FM = 12dB SINAD)
Image rejection ： 70dB
IF suppression ： 60dB
Audio output ： 0.5W （ 8 Ω ， ≤10% THD ）
Audio output impedance ： 4 ～ 16
Ω
For the above parameters, we may make adjustments without notice.
The operating frequency range of the transceiver will vary with the machine version, please consult your dealer.
34
Packing List
Item name
G90
Multi-function handle
Data cable power cable
Operation Manual
Warranty Card
Quantity
1pcs
1pcs
1pcs
1pcs
1pcs
1pcs
Certificate 1pcs
* Optional accessories
Item name
CE-19
XPA125B
Description
ACC expansion adapter
100W power amplifier (with built-in antenna adjuster)
GSOC *1 G90 dedicated large screen controller
*1 The GSOC controller is expected to be available in 2019.
35
Copyright Notice
Connection diagram between G90 and XPA125B
G90
ACC
口
8
芯 线
CE-19
TO XPA125
6
芯线
6 Pin
*note ： The 8-core ACC control line is delivered in the CE19 kit.
XPA125B
36
CE-19 expansion adapter interface diagram
PTT CON
TO XPA125B
AF CON
DATA CON
PTT signal / BAND signal output port. The PTT signal of this port is completely isolated from the host, providing a "low level" trigger associated with the host.
XPA12B dedicated interface.
Audio input/output port. The audio output from this port is directly output after demodulation, no filter.
Data output port in NFM mode. The two terminals of this port are in parallel relationship and both output the same signal.
37
38
Copyright Notice
