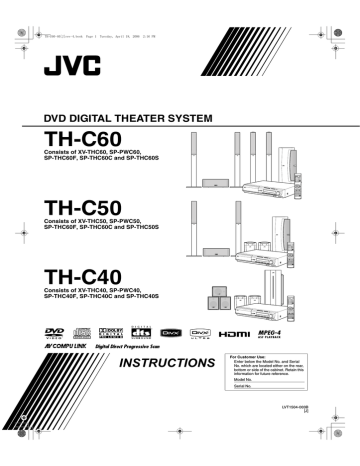

JVC TH-C60 Stereo System User manual

TH-C60-40[J]rev-4.book Page 1 Tuesday, April 18, 2006 2:16 PM

DVD DIGITAL THEATER SYSTEM

TH-C60

Consists of XV-THC60, SP-PWC60,

SP-THC60F, SP-THC60C and SP-THC60S

TH-C50



TH-C40



INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial

No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1504-003B

[J]


Warnings, Cautions and Others/Mises en garde, précautions et indications diverses

G-1

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

ATTENTION

Des changements ou modifications non approuvés par JVC pourront invalider l’autorité de l’utilisateur

à opérer cet appareil.

For Canada

THIS DIGITAL APPARATUS DOES NOT

EXCEED THE CLASS B LIMITS FOR RADIO

NOISE EMISSIONS FROM DIGITAL

APPARATUS AS SET OUT IN THE

INTERFERENCE-CAUSING EQUIPMENT

STANDARD ENTITLED “DIGITAL

APPARATUS,” ICES-003 OF THE

DEPARTMENT OF COMMUNICATIONS.

Pour le Canada

CET APPAREIL NUMERIQUE RESPECTE LES

LIMITES DE BRUITS RADIOELECTRIQUES

APPLICABLES AUX APPAREILS NUMIRIQUES

DE CLASSE B PRESCRITES DANS LA NORME

SUR LE MATERIEL BROUILLEUR:

“APPAREILS NUMERIQUES”, NMB-003

EDICTEE PAR LE MINISTRE DES

COMMUNICATIONS.

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

ATTENTION!

Pour éviter toute blessure personnelle ou toute chute accidentelle de l’appareil, celui-ci doit être déballé, transporté et installé par deux personnes.

TH-C60: 39 k g/86 lbs

TH-C50: 33 k g/73 lbs

TH-C40: 24 k g/53 lbs

TH-C60: 39 k g/86 lbs

TH-C50: 33 k g/73 lbs

TH-C40: 24 k g/53 lbs


Warnings, Cautions and Others/Mises en garde, précautions et indications diverses

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2.

CAUTION

: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3.

CAUTION

: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

IMPORTANT POUR PRODUITS LASER

1. PRODUIT LASER CLASSE 1

2.

ATTENTION

: N’ouvrez pas le couvercle supérieur. Il n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.

3.

ATTENTION

: Rayonnement laser visible et/ou invisible de classe 1M une fois ouvert. Ne pas regarder directement avec des instruments optiques.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

CAUTION — button!

(XV-THC60/XV-THC50/

XV-THC40)

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible.

The button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.

• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

ATTENTION — Touche

(XV-THC60/XV-THC50/

XV-THC40)

Déconnectez la fiche d’alimentation secteur pour couper l’alimentation complètement (le témoin

STANDBY s’éteint). Lors de l’installation de l’appareil, assurez-vous que la fiche soit facilement accessible.

La touche , dans n’importe quelle position, ne déconnecte pas le système du secteur.

• Quand le système est en attente, le témoin

STANDBY est allumé en rouge.

• Quand le système est sous tension, le témoin

STANDBY s’éteint.

L’alimentation ne peut pas être télécommandée.

CAUTION

(SP-PWC60/SP-PWC50/

SP-PWC40)

The power supply to the subwoofer is linked to the center unit. The POWER ON lamp on the subwoofer lights green when the power is turned on.

ATTENTION

(SP-PWC60/SP-PWC50/

SP-PWC40)

L’alimentation au caisson d’extrêmes graves passe par l’unité centrale. Le témoin POWER ON vert sur le caisson d’extrêmes graves s’allume quand le système est allumé.

[European Union only]

[Union européenne seulement]

G-2


Table of contents

Introduction ....................................................2

Notes on handling ..................................................................... 2

Supplied accessories .................................................................. 2

About discs ......................................................3

Playable disc types ..................................................................... 3

Playable file types ....................................................................... 4

Description of parts and controls ..................5

Connections .....................................................8

Connecting the FM and AM antennas ................................... 8

Connecting the satellite (front, center, surround) speakers ......9

Speaker layout .......................................................................... 12

Connecting a TV ...................................................................... 12

Connecting the powered subwoofer ..................................... 13

Connecting to an analog component ................................... 13

Connecting to a digital component ...................................... 13

Connecting a USB mass storage class device ....................... 13

Connecting the power cord .................................................... 13

Operating external components with the remote control ..............................................14

Operating the TV ..................................................................... 14

Operating the DBS tuner or CATV converter .................... 15

Operating the VCR .................................................................. 15

Basic operations ............................................16

Turning the system on/off ...................................................... 16

Selecting the source to play .................................................... 17

Adjusting the volume [VOLUME] ....................................... 17

Listening with headphones (not supplied) .......................... 17

Turning off the sound temporarily [MUTING] ................. 17

Adjusting the brightness of the indications [DIMMER] ... 17

Sleep Timer [SLEEP] ............................................................... 18

Adjusting the output level of the subwoofer and speakers ......18

Adjusting the sound ................................................................ 18

Changing the scan mode ........................................................ 18

Playback ........................................................ 19

Basic playback ...........................................................................19

One Touch Replay ...................................................................21

Fast-forward/fast-reverse search ............................................21

Skip to the beginning of a desired selection .........................22

Skipping at about 5-minute intervals ....................................22

Locating a desired title/group using number buttons ........22

Advanced operations ................................... 23

Using the surround mode .......................................................23

Using the on-screen bar ..........................................................25

Playing from a specified position on a disc ..........................26

Using the file control display ..................................................27

Resume Playback ......................................................................28

Selecting a view angle ..............................................................28

Selecting the subtitle ................................................................28

Selecting the audio ...................................................................29

Special picture playback ..........................................................29

Program Playback ....................................................................30

Random Playback ....................................................................31

Repeat Playback ........................................................................31

Tray lock ....................................................................................32

Sound and other settings .........................................................32

Setting DVD preferences ............................. 33

Using the setup menus ............................................................33

Menu description .....................................................................33

Tuner operations .......................................... 36

Manual tuning ..........................................................................36

Preset tuning .............................................................................37

Selecting the FM reception mode ..........................................37

Reducing the noise of AM broadcast ....................................37

AV COMPU LINK remote control system .... 38

References .................................................... 39

Maintenance .............................................................................39

Troubleshooting .......................................................................39

Specifications ............................................................................40

1


Introduction

Notes on handling

7 Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C (23°F and 95°F).

• Leave sufficient distance between the system and the TV.

• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands.

• A small amount of power is always consumed while the power cord is connected to the wall outlet (center unit only).

• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic object into the system.

• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Label sticker

Sticker

Paste

Note about copyright laws

Check the copyright laws in your country before recording from the discs. Recording of copyrighted material may infringe copyright laws.

Note about copyguard system

The discs are protected by copyguard system. When you connect the system to your VCR directly, the copyguard system activates and the picture may not be played back correctly.

7 Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plugs from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants.

These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause a fire or electrical shock.

Supplied accessories

Check to be sure you have all of the supplied accessories.

The number in parentheses is the quantity of the pieces supplied.

If anything is missing, contact your dealer immediately.

• Remote control (1)

• Batteries (2)

• FM antenna (1)

• AM loop antenna (1)

• Power cord (1)

• System cord (1)

• Composite video cord (1)

• Speaker cords (for TH-C60/TH-C50)

4 m (13.2 ft): For satellite (front left/right) and center speakers (3)

10 m (32.8 ft): For satellite speakers (surround left/right) (2)

• Screws

TH-C60:

M5 x 40 mm (M5 x 1-5/8 inches) (4)

M4 x 20 mm (M4 x 13/16 inches) (8)

TH-C50:

M5 x 40 mm (M5 x 1-5/8 inches) (2)

M4 x 20 mm (M4 x 13/16 inches) (4)

• Speaker cord clamps

TH-C60 (4)

TH-C50 (2)

2


About discs

Playable disc types

This system has been designed to play back the following discs:

DVD VIDEO Audio CD

VCD SVCD

The

√

in the list below shows available disc types and recording formats.

Disc type

Recording format

DVD Video

VCD/SVCD

Audio CD

MP3

WMA

JPEG

ASF

MPEG-2

MPEG-1

DivX

CD-R/-RW*

1

—

√

√

√

√

√* 3

√

√* 3

√*

3

√

DVD-R*

1

√

—

—

√*

2

√*

2

√* 2

√* 2

√* 2

√*

2

√* 2

DVD-RW*

1

√

—

—

√*

2

√*

2

√* 2

√* 2

√* 2

√*

2

√* 2

*

1

*

2

*

3

This system can play finalized discs only.

Recorded with UDF Bridge format.

This system may not be able to play back a file if the file size is too large.

• It is possible to play back finalized +R/+RW (DVD Video Format only) discs. “DVD” lights on the display panel when a +R/+RW disc is loaded.

• This system accommodates the NTSC system, and also can play discs recorded with PAL system. Note that an PAL video signal on a disc is converted to the NTSC signal and output.

• The Non-DVD side of a “DualDisc” does not comply with the

“Compact Disc Digital Audio” standard. Therefore, the use of

Non-DVD side of a DualDisc on this product may not be recommended.

• On some DVD VIDEOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

DVD Logo is a trademark of DVD Format/Logo Licensing

Corporation.

Notes on DVD-R and DVD-RW

• This system does not support “multi-border” disc.

• This system does not support a disc recorded with DVD VR format.

Notes on CD-R and CD-RW

• This system can play CD-Rs or CD-RWs recorded with ISO 9660 format.

• This system supports “multi-session” discs (up to 12 sessions).

• This system cannot play “packet write” discs.

Region code of DVD VIDEO

DVD VIDEO players and DVD VIDEO discs have their own

Region Code numbers. This system can play back DVD VIDEO discs whose Region Code numbers include the system's Region

Code, which is indicated on the rear panel.

Example of playable DVD:

If a DVD with an improper Region Code number is loaded,

“REGION CODE ERROR!” appears on the TV screen and playback cannot start.

Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Unplayable discs

DVD-ROM, DVD-RAM, CD-I (CD-I Ready), Photo CD, SACD, etc.

Playing back these discs will generate noise and damage the speakers.

3


About discs

Playable file types

For all playable files

• The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;

MP3:

“.MP3”, “.mp3”

WMA:

“.WMA”, “.wma”

JPEG:

“.JPG”, “.JPEG”, “.jpg”, “.jpeg”

ASF:

“.ASF”, “.asf ”

MPEG-2/MPEG-1:

“.MPG”, “.MPEG”, “.mpg”, “.mpeg”

DivX:

“.DIVX”, “.DIV”, “.divx”, “.div”, and “.AVI”, “.avi”

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc/device, and the total number of the tracks (files) that the system can play is 4000.

• Some files may not be played back normally because of their disc characteristics or recording conditions.

• MP3/WMA/JPEG/ASF/MPEG-2/MPEG-1/DivX files require a longer readout time. (It differs due to the complexity of the directory/file configuration.)

• If different kinds of files are mixed, set the FILE TYPE setting in the PICTURE menu to the appropriate setting for the data to be read (“AUDIO”, “STILL PICTURE” or “VIDEO”). (See page 34.)

For MP3/WMA files

• The system supports MP3/WMA files recorded with a bit rate of

32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz,

24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.

• If the track information (track title, artist, and album name, etc.) is recorded, it appears in the file control display on the TV screen.

(See page 27.)

• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of

128 (96*) kbps.

* For WMA only

For JPEG files

• We recommend to record a file at 640 x 480 resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a longer time to be displayed.)

• This system can only play baseline JPEG files.

For ASF files

• The system supports the types of the advanced simple profile as

MPEG-4 files (MPEG-4 ASF).

• The system supports MPEG-4 files with the following conditions:

File format: ASF

Visual profile: MPEG-4 SP (Simple Profile)

Audio CODEC: G.726

Max. picture size: 352 x 288 (CIF)

Max. bit rate: 384 kbps

For MPEG-2/MPEG-1 files

• The stream format should conform to MPEG system/program stream.

• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.

• This system also supports the resolutions of 352 x 576/480 x 576/

352 x 288 pixels (25 fps) and 352 x 480/480 x 480/352 x 240 pixels

(30 fps).

• The file format should be MP@ML (Main Profile at Main Level)/

SP@ML (Simple Profile at Main Level)/MP@LL (Main Profile at

Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or

MPEG2 Audio Layer-2.

For DivX files

• The system supports DivX 6.x, 5.x, 4.x and 3.11.

• The system supports DivX files whose resolution is 720 x 480 pixels or less (30 fps), and 720 x 576 pixels or less (25 fps).

• Audio stream should conform to Dolby Digital (including multi channel) or MPEG1 Audio Layer-3 (MP3).

• The system does not support GMC (Global Motion

Compression).

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The system has its own Registration Code for DivX playback.

• If necessary, you can confirm the Registration Code of your system using the OTHERS menu. (See page 35.)

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

• USE OF THIS PRODUCT IN ANY MANNER THAT

COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS

PROHIBITED, EXCEPT FOR USE BY A CONSUMER

ENGAGING IN PERSONAL AND NON-COMMERCIAL

ACTIVITIES.

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

• Official DivX

®

Ultra Certified product

• Plays all versions of DivX

®

video (including DivX

®

6) with enhanced playback of DivX

®

media files and the DivX

®

Media

Format

4


Description of parts and controls

Front panel (center unit)

The numbers in the figures indicate the pages where the details of the parts are described.

Display window

21 24 36 37

20 24

12

18

18

20

20

20

37 36

30

31

19 19 19

28

21, 36

31, 32

17

Disc tray (inside):

19

Remote sensor:

7

17

16 16 19 13

Rear panel (center unit)

13

13

8

17

13

12

12

13

38

13

12

5



Powered subwoofer

SP-PWC60/SP-PWC50

Front

POWER ON lamp:

16

13

11

Rear

Power cord:

13

SP-PWC40

POWER ON lamp:

16

Front

NOTE

• For safety reasons, always ensure that there is sufficient space behind the powered subwoofer.

* Do not block the ventilation openings to allow proper air circulation by the cooling fan.

13

11

Rear

Power cord:

13

6

19

Number buttons:

22

26

18 - 37

25 - 32

15, 21

19, 37

22, 36

28, 29

29

31

30, 31

20

33

32

19, 29

18, 30

17



Remote control

17

Putting batteries in the remote control

16

15

14

14

14, 15

14 - 36

26

R03 (UM-4)/AAA (24F) type dry-cell batteries (supplied)

14, 17

17

19, 37

19

22

26

18

21, 29

28

24

30

18

18

18

If the range or effectiveness of the remote control decreases, replace both batteries.

CAUTION

• Do not expose batteries to heat or flame.

Operating the system from the remote control

Aim the remote control directly to the front panel of the center unit.

• Do not block the remote sensor.

7


Connections

Connecting the FM and AM antennas

7 AM loop antenna

Setting up supplied AM loop antenna

Do not connect the power cord until all other connections have been made.

If reception is poor

AM loop antenna

Center unit

Outdoor single vinyl-covered wire antenna

(not supplied)

If the antenna cord is covered with the insulation coat, twist and pull the insulation coat off and remove.

Connecting AM loop antenna

1

Center unit

2

3

Antenna cord

7 FM antenna

Center unit

FM antenna (supplied)

Extend the supplied FM antenna horizontally.

If reception is poor

Center unit

Outdoor FM antenna (not supplied)

Standard type (75

Ω coaxial) connector

Outdoor FM antenna cord (not supplied)

NOTE

• We recommend that you use coaxial cable for the FM antenna as it is well-shielded against interference.

• Turn the loop antenna until you have the best reception during

AM broadcast program reception.

NOTE

• Make sure the antenna conductors do not touch any other terminals, connecting cords or power cords. This could cause poor reception.

8


Connections

Connecting the satellite (front, center, surround) speakers

7 Assembling the speakers —

TH-C60/TH-C50

7 For TH-C60: Assemble front speakers and surround speakers.

7 For TH-C50: Assemble front speakers.

For the surround speakers of TH-C50, see “Connecting the surround speakers — TH-C50”. (See page 10.)

For TH-C60


Before assembling —

• Prepare a Phillips screwdriver (not supplied).

• Take care not to drop any component part while assembling; otherwise, it may cause damage to the floor or injury.

1

Speaker

Stand

Screw M5 x 40 mm/M5 x 1-5/8 inches (supplied)

2

Front speaker

(SP-THC60F) (2)

Surround speaker

(SP-THC60S) (2)

Stand (4)

Base plate (4)

• Check the model name of each speaker from the label on the rear to locate each speaker correctly.

For TH-C50

When assembling a speaker without stand:

Speaker

A: Use these screws (M4 x

45 mm/M4 x 1-13/16 inches) when assembling the speaker with the base plate.

Base plate

Front speaker

(SP-THC60F)(2)

Assembled speakers

Stand (2) Base plate (2)

Stand (or speaker directly)*

Screw M4 x 20 mm/M4 x 13/16 inches

(supplied)*

3

*

When assembling the speaker with the base plate, use the screws A .

Red

White or

With stand: Refer to steps 1 to

3.

Without stand: Refer to steps

2 and 3.

Black

Black

You can route the speaker cord by using speaker cord clamp

(supplied).

9


Connections

7 Connecting the surround speakers —

TH-C50


7 Connecting the center speaker —

TH-C60/TH-C50

Center speaker (SP-THC60C) (1)

Surround speaker (SP-THC50S) (2)

1

2

Red

White

Speaker

(bottom)

Red White

Black

Black

Black

Black

For TH-C40, the front, surround and center speakers are equipped with their speaker cords attached directly to their speaker unit instead of having speaker terminals on their cabinet.

Front speaker

(SP-THC40F)

Surround speaker

(SP-THC40S)

Center speaker

(SP-THC40C)

10


Connections


7 Connecting the satellite speakers to the subwoofer

Note that the illustration below is for SP-PWC60.

Before connecting the speaker cords;

Twist and pull the insulation coat off and remove.

Powered subwoofer

TH-C60: SP-PWC60

TH-C50: SP-PWC50

TH-C40: SP-PWC40

Front speakers

TH-C60: SP-THC60F

TH-C50: SP-THC60F

TH-C40: SP-THC40F

Speaker cord

• Connect the black cords to the black (r) terminals.

• Connect the white cords to the (q) terminals referring to the table below:

FRONT SPEAKERS (LEFT)

FRONT SPEAKERS (RIGHT)

CENTER SPEAKER

SURROUND SPEAKERS (LEFT)

White

Red

Green

Blue

SURROUND SPEAKERS (RIGHT) Gray

Center speaker

TH-C60: SP-THC60C

TH-C50: SP-THC60C

TH-C40: SP-THC40C

CAUTION

• If you connect speakers other than the supplied ones, use speakers of the same speaker impedance (SPEAKER IMPEDANCE) indicated near the speaker terminals on the rear of the powered subwoofer.

• DO NOT connect more than one speaker to one speaker terminal.

• When installing the satellite speakers on the wall;

– Be sure to have them installed on the wall by qualified personnel.

DO NOT install the satellite speakers on the wall by yourself to avoid unexpected damage from falling off the wall due to incorrect installation or weakness in wall structure.

– Care must be taken in selecting a location for speaker installation on a wall. Injury to personnel or damage to equipment may result if the speakers installed interfere with daily activities.

Surround speakers

TH-C60: SP-THC60S

TH-C50: SP-THC50S

TH-C40: SP-THC40S

Precautions for daily use

• When moving the speakers, do not pull the speaker cords; otherwise, the speakers may fall over, causing damage or injury.

• Do not reproduce sounds at so high a volume that the sound is distorted; otherwise, the speakers may be damaged by internal heat buildup.

For TH-C60/TH-C50:

• When holding a speaker, always grasp the lower portion.

• Do not lean against the speakers, as the speakers could fall down or break, possibly causing an injury. Especially be careful that children do not lean against them.

11

TH-C60-40[J]-03Body.fm Page 12 Wednesday, April 19, 2006 7:02 PM

Connections

Speaker layout

To obtain the best possible sound from this system, you need to place all the speakers except the subwoofer at the same distance from the listening position.

Center speaker

Front left speaker

Front right speaker

Powered subwoofer

Surround left speaker

Surround right speaker

If your speakers cannot be placed at the same distance from the listening position

You can adjust the delay time of the speakers. See “Delay menu

(DELAY)” on page 35.

NOTE

• Place the satellite speakers on a flat and level surface.

• The front and center speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, they may cause color distortions. So, pay attention to the following when installing the speakers.

– When placing the speakers near a TV set, turn off the TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power switch again.

Some TVs may still be affected even though you have followed the above. If this happens, move the speakers away from the TV.

• The surround speakers are not magnetically shielded.

If they are located nearby the TV or monitor, it will probably cause color distortion on the screen. To avoid this, do not place the speakers nearby the TV or monitor.

• Be sure to place the powered subwoofer to the TV’s right. If you place the powered subwoofer to the TV’s left, keep sufficient distance between them to prevent the TV screen from appearing mottled.

Connecting a TV

• Distortion of picture may occur when connecting to the TV via a

VCR, or to a TV with a built-in VCR.

• You need to set “MONITOR TYPE” in the PICTURE menu correctly according to the aspect ratio of your TV. (See page 34.)

7 To connect a TV equipped with the HDMI terminal

HDMI connection allows you to enjoy high quality picture on your

HDMI equipped TV with high-definition digital video signals.

• You can select the type of video signal from 480p, 1080i, or 720p.

(See page 18.)

Center unit

TV

To HDMI input

HDMI cable (not supplied)


NOTE

• This system outputs the signal to HDMI MONITOR OUT terminal only when the source is DVD or USB MEMORY.

• This system outputs the audio signal of 48 kHz, 44.1 kHz, or 32 kHz

Linear PCM from HDMI MONITOR OUT terminal. To activate or deactivate the audio signal output from HDMI MONITOR OUT terminal, see page 34.

• HDMI indicator lights on the display window when the system and the TV recognize each other and are ready to send and receive signals.

• When you enjoy HDCP contents, sound and picture may not be transmitted to the speakers and TV for a few seconds in the beginning for confirmation.

What is HDMI?

The HDMI (High Definition Multimedia Interface) is the standard interface for the next-generation TV. By connecting this system and a TV with the HDMI cable, digital video signals and audio signals are transmitted through the cable. You can enjoy digital video and sound without AD/DA conversion with easy connection.

In addition, this system is compatible with HDCP (High-

Bandwidth Digital Content Protection), and HDCP contents can be viewed if you connect a HDCP compatible TV to this system.

7 To connect a TV equipped with the component video input

jacks

• With analog video connection, you can get better picture quality in the order — Component video > S-video > Composite video.

• If your TV supports progressive video input, you can enjoy a high quality picture by setting the progressive scan mode to active.

(See page 18.)

TV

To component video input

Center unit

Component video cord (not supplied)

NOTE

• While playing back DivX/ASF files, this system outputs only progressive signals from the component video jacks. When your TV does not support progressive video input, connect the TV through Svideo or composite video jack.

• If the component video input jacks of your TV are of the BNC type, use a plug adapter (not supplied) to convert the pin plugs to BNC plugs.

• The component video signals can be output only when you select

DVD or USB MEMORY as the source to play. (See page 17.)

7 To connect a TV equipped with the composite or S-video jacks

Center unit

Composite video cord (supplied) or

S-video cord

(not supplied)

Align the 5 marks.

To S-video input To composite video input

TV

12


Connections


Connecting the powered subwoofer

Center unit

System cord

(supplied)

Powered subwoofer

Align the 5 marks.

Align the 5 marks.

Connecting a USB mass storage class device

You can connect a USB mass storage class device such as a USB flash memory device, hard disc drive, multimedia card reader, digital camera, etc. to this system.

• After connecting a USB mass storage class device to this system and selecting USB MEMORY as the source, the file control display appears on the TV screen. (See page 27.)

USB cable (not supplied)

Center unit (on the front panel

Connecting to an analog component

You can enjoy the sound of an analog component.

Center unit

S-video cord

(not supplied) or

Composite video cord

(not supplied)

1 2 3

RCA pin plug cord

(not supplied)

VCR (1

3 or 2 3)

TV (3)

Cassette recorder (3)

1

2

3

To composite video output

To S-video output

To audio output

NOTE

• The signals input to the VIDEO jack of the VCR IN jacks will be output only from the VIDEO jack of the VIDEO OUT jacks, not from the S-VIDEO jack of the VIDEO OUT jacks.

Connecting to a digital component

You can enjoy the sound of a digital component.

Center unit

NOTE

• When connecting a USB mass storage class device, refer also to its manual.

• Connect one USB mass storage class device to the system at a time. Do not use a USB hub.

• You cannot charge the USB mass storage class device while connecting it to the USB MEMORY jack.

• While playing back a file in a USB mass storage class device, do not disconnect the device. It may cause a malfunction of both the system and the device.

• JVC bears no responsibility for any loss of data in the USB mass storage class device while using this system.

• When connecting with a USB cable, use a cable less than 1 m (3.3 ft) in length.

• This system is compatible with the USB 2.0 Full-Speed (not compatible with the USB 1.1).

• You can play back the following types of files in a USB mass storage class device (maximum data transfer rate: 2 Mbps):

– Music: MP3, WMA

– Picture: JPEG

– Movie: MPEG-4 (ASF), DivX (maximum frame rate of 30 fps for progressive)

• You cannot play back a file larger than 2 GB.

• When playing a file which has a large transfer rate, frames or sounds may be dropped during playback.

• This system cannot recognize a USB mass storage class device whose rating exceeds 5 V/500 mA.

• Some USB mass storage class devices may not be recognized or may not work properly.

.

• This system may not play back some files even though their formats are listed above.

Connecting the power cord

Make sure that all other connections have been completed.

Center unit Powered subwoofer

To digital optical output

DBS* tuner

MD player

Digital optical cord (not supplied)

* DBS = Direct Broadcasting Satellite

NOTE

• Only digital audio signals can be input when selecting “DBS” as the source to play. (See page 17.) When connecting a video component such as a DBS tuner, operate this system to listen to the sound.

13

Power cord

(Supplied)

Power cord

Plug into AC outlets.

CAUTION

• Disconnect the power cord before cleaning or moving the system.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp and pull the plug so as not to damage the cord.


Operating external components with the remote control

The buttons described below are used on pages 14 and 15.

Number buttons

Remote control mode selector

(play button)

NOTE

• Manufacturers’ codes are subject to change without notice.

• Set the codes again after replacing the batteries of the remote control.

Operating the TV

7 To set the manufacturer’s code

1

Slide the remote control mode selector to TV.

2

Press and hold F TV.

Keep the button pressed until step 4 is finished.

3

Press ENTER.

4

Press number buttons (1-9, 0) to enter the manufacturer’s code (2 digits).

Examples:

For a Hitachi TV: Press 1, then 0.

For a Toshiba TV: Press 0, then 8.

Manufacturer

JVC

Hitachi

Magnavox

Mitsubishi

Panasonic

Philips

RCA

Code Manufacturer

01*

10

02

03

Samsung

Sanyo

Sharp

Sony

04, 11 Toshiba

15 Zenith

05

Code

12

13, 14

06

07

08

09

* “01” is the initial setting.

5

Release F TV.

If there is more than one code listed for corresponding brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the TV.

IMPORTANT

Before using the remote control to operate a TV;

• Set the remote control mode selector to TV.

The following buttons are available:

F TV: Turns TV on and off.

TV VOL +/– :

TV/VIDEO :

Adjusts the volume.

Selects the input mode (either TV or

VIDEO).

CH +/– : Changes the channels.

1-10, 0, h10 (100+): Selects the channel.

TV RETURN : Alternates between the previously selected channel and the current channel.

NOTE

• The operating buttons may differ depending on manufacturers.

14


Operating external components with the remote control

Operating the DBS tuner or

CATV converter


1

Slide the remote control mode selector to VCR/DBS.

2

Press DBS.

3

Press and hold F VCR/DBS.


4

Press ENTER.


Examples:

For a GI Jerrold product: Press 0, then 1.

For a Sony product: Press 2, then 0.

Manufacturer

Echostar

GI Jerrold

Hamlin

Pioneer

RCA

Scientific Atlanta

Sony

Zenith

Code

21

01*, 02, 03, 04, 05, 06, 07, 08

15, 16, 17, 18

13, 14

19

09, 10

20

11, 12


6

Release F VCR/DBS.

If there is more than one code listed for your brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the DBS tuner or CATV converter.

IMPORTANT

Before using the remote control to operate a DBS tuner or CATV converter;

1 Set the remote control mode selector to VCR/DBS.

2 Press DBS.

The following buttons are available:

F VCR/DBS: Turns DBS tuner or CATV converter on and off.

CH +/–

: Changes the channels.

1-10, 0, h10 (100+): Selects the channel.

See page 14 for button locations.

Operating the VCR


1

Slide the remote control mode selector to VCR/DBS.

2

Press VCR.

3

Press and hold F VCR/DBS.


4

Press ENTER.


Examples:

For a Philips VCR: Press 0, then 9.

For an NEC VCR: Press 2, then 5.

Manufacturer

JVC

Emerson

Fisher

Funai

Gold Star

Hitachi

Mitsubishi

NEC

Panasonic

Code Manufacturer

01*, 02, 03

11, 26

Philips

RCA

29 Samsung

10, 14, 15, 16 Sanyo

12

04

13

25

07, 17

Sharp

Shintom

Sony

Zenith

Code

09

05, 06

24

21, 22, 23

27, 28

30

18, 19, 20

08


6

Release F VCR/DBS.

If there is more than one code listed for your brand, try each one until you enter the correct one.

7 Operation

Aim the remote control at the VCR.

IMPORTANT

Before using the remote control to operate a VCR;

1 Set the remote control mode selector to VCR/DBS.

2 Press VCR.

The following buttons are available:

F VCR/DBS: Turns VCR on and off.

3 (play button):

7:

Starts playback.

Stops operation.

8: y:

1:

REC :

Pauses playback.

Fast forwards video tape.

Rewinds video tape.

Press this button together with 3 (play

CH +/– : button) to start recording or together with 8 to pause recording.

Changes the TV channels on the VCR.

NOTE

• When operating a VCR or DBS tuner/CATV converter;

– The source setting of VCR or DBS remains after you have changed the remote control mode selector to AUDIO or TV. When operating

VCR or DBS tuner/CATV converter again, it is not necessary to press VCR or DBS after setting the remote control mode selector.

15


Basic operations

The buttons on the remote control are used to explain most of the operations in this manual. You can use the buttons on the center unit same as on the remote control for operations unless otherwise noted.

IMPORTANT

Before using the remote control for the following operation;

• Set the remote control mode selector to AUDIO.

The buttons described below are used on pages 16 to 18.

Turning the system on/off

On the remote control:

Press F AUDIO.

On the center unit:

Press F.

When DVD or USB MEMORY is selected as the source (see page

17), the following messages will appear on the TV screen.

Source selecting buttons

Cursor

(3/2)/

ENTER


• “OPEN”/“CLOSE”:

Appears when opening or closing the disc tray.

• “NOW READING”

Appears when the system is reading the disc/file information.

• “REGION CODE ERROR!”:

Appears when the Region Code of the DVD VIDEO does not match the code the system supports. The disc cannot be played back.

• “NO DISC”:

Appears when no disc is loaded.

• “NO USB DEVICE”:

Appears when no USB mass storage class device is connected.

• “CANNOT PLAY THIS DISC”:

Appears when unplayable disc is loaded.

• “CANNOT PLAY THIS DEVICE”:

Appears when unplayable USB mass storage class device is connected.

(play button)

NOTE

• The STANDBY lamp on the center unit lights red when the power is turned off. The lamp goes off when the power is turned on.

• The power supply to the subwoofer is linked to the center unit. The

POWER ON lamp on the subwoofer lights green when the power is turned on.

• A small amount of power is consumed even when the power is turned off (center unit only). This is called standby mode and the STANDBY lamp lights in this mode. Unplug the power cord from the AC outlet to turn the power off completely.

• You can also turn on the system by pressing the following buttons;

– One of the DISC (1-5) buttons (with SHIFT pressed) on the remote control

– One of the DISC (1-5) 0 buttons on the center unit

– One of the source selecting buttons or 3 (play button) on the remote control

– One of the DISC (1-5) 3 buttons or 3 on the center unit.

• When connecting your TV through HDMI MONITOR OUT terminal, turn on the TV before turning on the system; otherwise, the following phenomena may happen depending on the TV.

– The scan mode setting (see page 18) is changed.

– The sound comes out from the speakers on TV even though

“HDMI AUDIO OUT” in the AUDIO menu (see page 34) is set to

“OFF”.

If the above phenomena happen, turn off the system and turn it back on, then set the scan mode again.

STANDBY lamp

16




Selecting the source to play


Press one of the source selecting buttons

(DVD, USB MEMORY, FM/AM, VCR or DBS).

DVD :

To play back a disc (DVD VIDEO, VCD etc.). (See page 19.)

USB MEMORY :

To select a file in a USB mass storage class device. (See “To play a file in a USB mass storage class device” on page 19.)

FM/AM :

To tune in an FM or AM station. (See page 36.) Each time you press the button, the band alternates between FM and AM.

VCR

:

To select the source from a component connected to the VCR IN jacks and AUX IN (VCR) jacks. (See page 13.)

DBS :

To select the source from a component connected to the DIGITAL

IN (DBS) jack. (See page 13.)


Press SOURCE repeatedly until the source name you want appears on the display window.

NOTE

• When AM, FM or DBS is selected, this system does not output video signals.

• It may take time to change the source.

Adjusting the volume

[VOLUME]

CAUTION

• Always set the volume to minimum level before starting any source.

If the volume is set at a high level, the sudden blast of sound could permanently damage your hearing and/or blow out the speakers.


Press VOL +/–.


Turn VOLUME.

• To increase the volume, turn VOLUME clockwise.

• To decrease the volume, turn VOLUME counterclockwise.

Listening with headphones

(not supplied)

CAUTION

Be sure to turn down the volume;

• Before connecting or putting on headphones as high volume may damage both the headphones and your hearing.

• Before disconnecting headphones as high volume may be suddenly output from the speakers.

While connecting a pair of headphones to the PHONES jack on the center unit, the system automatically cancels the surround mode

(see page 23) currently selected, deactivates the speakers, turns the subwoofer’s power off, and activates the headphone mode.

“H. PHONE” appears on the display window.

Headphone mode

When using the headphones, the following signals are output regardless of your speaker setting;

• For 2 channel sources, the front left and right channel signals are output from the headphones.

• Multi-channel signals are down-mixed and output from the headphones.

Turning off the sound temporarily [MUTING]

Press MUTING.

To restore the sound

Perform one of the following:

• Press MUTING again.

• Press VOL +/– (or turn VOLUME on the center unit).

Adjusting the brightness of the indications [DIMMER]

Press DIMMER.

Each time you press the button, you can change the brightness level in 3 steps.

17



Sleep Timer [SLEEP]

The system turns off automatically when the specified period of time has passed.

Press SLEEP.

Each time you press the button, the shut-off time changes as follows:

– –

(off) Z 10 Z 20 Z 30 Z 60 Z 90 Z 120 Z 150 Z

(back to the beginning) (Unit: min.)

Example: minutes

To check the remaining time

Press SLEEP once.

To change the remaining time

Press SLEEP repeatedly.

To cancel

Press SLEEP repeatedly until “SLEEP – –” appears.

• Turning off the power also cancels the Sleep Timer.

Adjusting the output level of the subwoofer and speakers

1

Press SPK LEVEL to show the target speaker indication on the display window.

Each time you press the button, the indication of the speakers changes as follows:

FRNT L

(Front Left speaker) Z FRNT R (Front Right speaker) Z CENTER (Center speaker) Z SURR L

(Surround Left speaker) Z SURR R (Surround Right speaker) Z SUBWFR (Subwoofer) Z (back to the beginning)

2

Press LEVEL +/– to adjust the output level from –6 to +6.

NOTE

• You can also make adjustments by using the setup menu shown on the TV screen. (See page 35.)

• The adjustments take effect for all sources other than FM/AM. For

FM/AM, adjust the level separately by repeating the procedure above.

Adjusting the sound

1

Press TREBLE/BASS to show “TRE” or

“BASS” on the display window.

Each time you press the button, the indication alternates between “TRE” and “BASS”.

• TRE: Select this to adjust treble sound.

• BASS: Select this to adjust bass sound.

2

Press LEVEL +/– to adjust the level from

– 10 to +10 (in 2 steps).

NOTE

• The adjustments take effect for all sources.


Changing the scan mode

The system can be accommodated to your TV’s scan mode.

NOTE

• To use the system in the progressive mode, it is required that the center unit is connected to the TV by using an HDMI cable or a component video cord (not supplied). (See page 12.)

7 While DVD or USB MEMORY is selected as the source and stopped

1

Press and hold SCAN MODE for

2 seconds.

Currently selected scan mode appears on the display window.

2

Press Cursor 3/2 to select the desired

mode.

Each time you press the button, the scan mode changes as follows:

7When connecting the TV with the component video cord:

480i* mZ480p*

7When connecting the TV with the HDMI cable:

AUTO

Z 480p* Z 1080i* Z 720p* Z (back to the beginning)

• When selecting “AUTO”, the system outputs the video signal to get the best picture quality on your TV according to the High-Definition video signal compatibility of the

TV.

• When selecting “AUTO”, “1080i”, or “720p”, the system up-convert the 480i or 480p signal to 1080i or 720p.

• When “1080i” or “720p” is selected, the HD indicator lights on the display window.

• When selecting “1080i” or “720p”, this system does not output video signals from component video, S-video, and composite video jacks.

* 480i, 480p, 1080i, and 720p indicate the number of scanning lines and scanning format of a video signal.

– 480i/1080i indicates 480/1080 scanning lines with interlaced format.

– 480p/720p indicates 480/720 scanning lines with progressive format.

• Generally, you can get better picture quality by selecting the larger the number of scanning lines.

• You can get better picture quality in the progressive mode than in the interlace mode.

3

Press ENTER while the selected mode is displayed.

When the progressive mode is selected, the PROGRESSIVE indicator lights on the display window.

NOTE

• When selecting “1080i”, the picture shrinks vertically.

• Changing the scan mode does not take effect when connecting the TV with the S-video or the composite video cord.

• Although the picture may be distorted when you press ENTER, this is not a malfunction of the system.

• There are some progressive TVs and High-Definition TVs that are not fully compatible with this system, resulting in an unnatural picture when playing back a DVD VIDEO in the progressive scan mode. In such a case, change the scan mode to the interlace mode.

• All JVC progressive TVs and High-Definition TVs are fully compatible with this system.

18


Playback

• The icon such as shows the disc formats or file types the operation is available for.

IMPORTANT


1 Set the remote control mode selector to AUDIO.

2 Press DVD or USB MEMORY.


Basic playback

7 To play a disc

1

Press the desired DISC (1-5)

0 on the center unit.

• The system turns on and the disc tray comes out.

2

Place a disc.

Label side up When placing an 8 cm disc

Number buttons

Cursor

(3/2)/

ENTER


(play button)

3

Press DISC (1-5), with SHIFT pressed.

NOTE

• Up to 5 discs can be loaded.

• You can also start playback by pressing the following buttons;

– DVD or 3 (play button) on the remote control

– DISC(1-5) 3 or 3 on the center unit.

• The system plays back available discs sequentially until you stop playback or until the disc loaded on the DISC 5 tray reaches to the end. However, when DVD VIDEO is loaded in the system, playback of the disc next to the DVD VIDEO will not start.

7 To play a file in a USB mass storage class device

Press USB MEMORY, then 3 (play button).

The operations of the files in a USB mass storage class device depend on the file types stored in the device.

• For details on connecting a USB mass storage class device, see

“Connecting a USB mass storage class device”. (See page 13.)

7 When playing the following files...

• For MP3/WMA files

The file control display (see page 27) appears on the TV screen.

• For JPEG files

Each file (still pictures) is shown on the TV screen for about 3 seconds (slide-show). When stopping playback, the file control display (see page 27) appears on the TV screen.

• For ASF/MPEG-2/MPEG-1 files

When stopping playback, the file control display (see page 27) appears on the TV screen.

• For DivX files

During the readout time, “Reading Index...” may appear on the

TV screen. When stopping playback, the file control display (see page 27) appears on the TV screen.

NOTE

• When several types of files are recorded on a disc/device, select appropriate file type on the setup menu. (See page 34.)

• (For JPEG) The system cannot accept operations even though you press any buttons before the entire picture appears on the TV screen.

7 To pause playback

Press 8.

To continue playback, press 3 (play button).

7 To stop

Press 7.

19


Playback

•

•

•

•

7 On-screen guide icons

During DVD VIDEO playback, the following guide icons may appear for a while on the TV screen;

• : appears at the beginning of a scene containing multi-subtitle languages.

: appears at the beginning of a scene containing multi-audio languages.

: appears at the beginning of a scene containing multi-angle views.

(Play), (Pause), / (Fast forward/ fast-reverse), / (Slow-motion forward/ reverse): appears when you perform each operation.

: the disc cannot accept an operation you have tried to do.

NOTE

• If you do not want the on-screen guide icons to appear, see page 35.

7 Playback information on the display window

DVD VIDEO

Example: When a DVD VIDEO encoded with Dolby Digital 5.1 ch is played.

Chapter number

Elapsed playing time

(hour:minute:second)


MP3/WMA file

Example: When an MP3 file is played back.

Track number

Signal and speaker indicators

MP3 indicator* Elapsed playing time (hour:minute:second)

(during playback only)

Pressing FL DISPLAY

Group number

Track number

* WMA indicator lights for WMA file.

JPEG file

Example: When slide-show is played back.

File number

Signal and speaker indicators (See page 24.)

Surround mode and digital signal format (See page 24.)

Pressing FL DISPLAY

Title number Chapter number

Pressing FL DISPLAY

Group number File number

VCD/SVCD/CD

Example: When a CD is played back.

Track number


ASF/MPEG-2/MPEG-1/DivX file

Example: When an ASF file is played.

Track number


Elapsed playing time (hour:minute:second)

NOTE

• When a VCD or SVCD with PBC function is played, the elapsed playing time does not appear, but “PBC” appears.

Elapsed playing time (hour:minute:second)

(during playback only)

Pressing FL DISPLAY

Group number

Track number

NOTE

• You can change the time information mode (except for MP3/WMA/

ASF/MPEG-2/MPEG-1/DivX). (See page 25.)

• You can also check the playback information on the TV screen. (See page 25.)

20


Playback

7 Disc information on the display window

The disc indicators on the display window show the current status of the corresponding disc tray.

Example: When the discs are loaded to disc trays 1, 2 and 5, and the disc in the disc tray 5 is selected.

Currently selected disc number

Currently loaded disc number

7 Screen saver

An image may burn in on a TV screen if a static picture is displayed for a long time. To prevent this, the system automatically dims the screen if a static picture is displayed for over 5 minutes while playing back a DVD, SVCD, or VCD (the screen saver function).

• Pressing any button will cancel the screen saver function.

• This function does not work when this system outputs the video signal from HDMI MONITOR OUT terminal.

• If you do not want to use the screen saver function, see page 34.

One Touch Replay

You can move back the playback position by 10 seconds from the current position.

7 During playback

Press .

NOTE

• This function works in the same title.

• This feature may not work for some discs.


Fast-forward/fast-reverse search

7 During playback


Press y or 1.

Each time you press the button, the search speed changes.

To return to normal speed playback

Press 3 (play button).


Press and hold x or 4.

Continuously pressing x or 4 increases the fast-forward/ reverse search speed.

NOTE

• When a DVD VIDEO, VCD, SVCD, or ASF/MPEG-2/MPEG-1/

DivX is played back, no sound comes out during fast-forward/reverse search.

• When a CD or MP3/WMA is played back, sound is intermittent during fast-forward/reverse search.

• This feature may not work for some discs/files.

• For MP3/WMA:

– The fast-forward/reverse search speed is not shown.

– The fast-forward/reverse search works within a same track.

21


Playback

Skip to the beginning of a desired selection

7 Using x/4 buttons

7 For DVD VIDEO (chapter): During playback

7 For VCD/SVCD (track): During playback without PBC function

7 For CD/MP3/WMA/JPEG/ASF/MPEG-2/

MPEG-1/DivX (track/file): During playback or while stopped

Press x or 4 repeatedly.

NOTE

• When playing back an

MP3/WMA/JPEG/ASF/MPEG-2/MPEG-1/

DivX

file, you can make operations using the file control display. (See page 27.)


7 Using number buttons on the remote control

7 For DVD VIDEO (title, chapter):

While stopped, the title number is selected.

During playback, the chapter number is selected.

7 For VCD/SVCD (track):

During playback or while stopped without PBC function

7 For CD/MP3/WMA/JPEG/ASF/MPEG-2/MPEG-1/DivX

(track/file):

During playback or while stopped

Press number buttons (0-10,

h10) to

select the desired number.

• For details on using the number buttons, see “How to use the number buttons” below.

How to use the number buttons

To select 3: Press 3.


To select 14: Press h10, 1, then 4.



To select 114: Press h10, h10, 1, 1, then 4.


Skipping at about 5-minute intervals

You can skip within the file at about 5-minute intervals.

This is useful especially when you want to skip within a long file.

7 During playback

Press Cursor 3/2.

Each time you press the button, the playback position skips to the beginning of the previous or next interval. Each interval is about

5 minutes.

NOTE

• Intervals are automatically assigned from the beginning of a file.

• This feature is available only within the same file.


Locating a desired title/group using number buttons

7 During playback or while stopped

1

Press TITLE/GROUP.

“– –” is shown in the title/group display area in the display window.

Example: During DVD VIDEO playback

2

While the display window shows “– –”, use number buttons (0-10,

h10) to

enter the desired title or group number.

The system starts playback from the first chapter/track/file of the selected title/group.

• For details on using the number buttons, see “How to use the number buttons” on the left column.

NOTE


22


Advanced operations

• The icon such as shows the disc formats or file types the operation is available for.

IMPORTANT



• There are exceptions in the operation mentioned above. In such a case, follow each instruction.


Number buttons

Cursor

(3/2/Y/5)/

ENTER


(play button)

Using the surround mode

You can enjoy more realistic sound field than a stereo sound by using the surround mode.

7 Auto Surround (AUTO SUR)

Used to reproduce the sound as it is recorded without any conversion (downmixing or simulation, etc.). For example, a multichannel source is automatically reproduced in multichannel audio.

7 Dolby Surround

Dolby Pro Logic II

*1

Dolby Pro Logic II has a newly developed multichannel playback format to decode all 2 channel sources — stereo source and Dolby

Surround encoded source — into a 5.1 channel.

Dolby Pro Logic II has two modes — Movie mode and Music mode:

• Pro Logic II Movie (MOVIE)

Suitable for reproduction of Dolby Surround encoded sources bearing the mark

• Pro Logic II Music (MUSIC)

.

Suitable for reproduction of any 2 channel stereo music sources.

Dolby Digital*

1

Used to reproduce multichannel soundtracks of the software encoded with Dolby Digital ( ).

• There are other encoding formats of digital surround introduced by Dolby Laboratories, such as Dolby Digital EX.

7 DTS Digital Surround*

2

Used to reproduce multichannel soundtracks of the software encoded with DTS Digital Surround ( ).

DTS Digital Surround (DTS) is another discrete multichannel digital audio format available on CD and DVD software.

• There are other encoding formats of multi-channel digital surround introduced by Digital Theater Systems, Inc., such as

DTS-ES, DTS 96/24.

Available Surround modes for each input signal

The √ marks show available surround modes.

Mode Surround off

Signal OFF

Auto

Surround

Dolby Surround

AUTO SUR MOVIE*

3

MUSIC*

3

DOLBY D

Dolby D

(Multichannel)

Dolby D

(2 channel)

DTS Digital Surround

(Multichannel)

DTS Digital Surround

(2 channel)

Analog (VCR) or Linear PCM

√

√

√

√

√

√

√

√

√

√

—

√

—

√

√

—

√

—

√

√

√

—

—

—

—

DTS Digital

Surround

DTS

—

—

√

—

STADIUM*

3

—

√

—

√

DSP

—

√

*

1

*

2

*

3

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby

Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

You can select these modes by pressing SURROUND. (See page 24.)

ALL ST*

3

—

√

—

√

√

23



7 DSP

STADIUM

STADIUM mode adds clarity and spreads the sound, like in an outdoor stadium.

All Channel Stereo

All Channel Stereo (ALL ST) mode can reproduce a larger stereo sound field using all the connected (and activated) speakers.

All Channel Stereo can be used while reproducing 2 channel stereo source.

Normal stereo sound All Channel Stereo

7 Indicators on the display window

Digital signal format indicators

LPCM:

GD:

C:

Lights when Linear PCM signal comes in.

Lights when Dolby Digital signals come in.

Lights when DTS Digital (Surround) signals come in.

No indication: No digital signal indicator lights when analog signals come in.

Dolby Surround mode indicator

GPLII: Lights when Dolby Pro Logic II mode is activated.

Surround indicator

SURR: Lights when the surround mode is activated.

Source signal indicators, etc.

Light to indicate the incoming signals.

a: Lights when the left channel signal comes in.

b: Lights when the center channel signal comes in.

c: Lights when the right channel signal comes in.

d: Lights when the LFE channel signal comes in.

g: Lights when the surround left channel signal comes in.

i: Lights when the surround right channel signal comes in.

h: Lights when the monaural surround channel signal or 2 channel Dolby Surround signal comes in.

SW

(Subwoofer): Always lights.

The channel with “ ” shows that the corresponding speakers are reproducing the channels’ sound.

If the channels’ sound decoded into 5.1 channel is reproduced, only

“ ” lights.


Selecting the surround mode

The system is set up to automatically select the optimal surround mode for input signal from digital multichannel software.

When playing back a 2 channel source, you can select the desired surround mode manually.

IMPORTANT



7 When playing back digital multichannel

software (except while OFF is selected)

The appropriate multichannel surround mode (Dolby Digital or

DTS Digital Surround) is automatically selected.

7 When playing back a 2 channel source

You can select either Dolby Pro Logic II (MOVIE/MUSIC) or the

DSP mode.

Press SURROUND repeatedly to select the desired mode.

The surround mode is turned on and the current surround mode appears on the display window.

Each time you press the button, the surround mode changes.

For details on each mode, see “Available Surround modes for each input signal”. (See page 23.)

To turn off the surround mode

Press SURROUND repeatedly until “OFF” appears on the display window.

Storing adjustments — auto memory

When you turn the power off, the system memorizes the current surround mode. The memorized mode is automatically recalled when you turn the power on.

NOTE

• For ASF, MPEG-2, MPEG-1 and DivX (except DivX version 6), the surround mode takes no effects.

24



Using the on-screen bar

You can check disc information and you can use some functions using the on-screen bar.

Showing the on-screen bar

7 Whenever a disc is loaded

Press ON SCREEN.

Each time you press the button, the onscreen bar changes as follows on the TV screen.

Example: During DVD VIDEO playback

OFF

(The on-screen bar disappears)

(back to the beginning)

• The currently selected item shows as green with an arrow.

7 Contents of the on-screen bar during playback

DVD VIDEO

VCD

SVCD

CD

ASF/MPEG-2/MPEG-1/DivX


1 Shows disc type.

2 Shows audio information.

3 Shows disc number.

4 Shows current title number.

5 For DVD VIDEO: Shows current chapter number.

For other type of discs: Shows current track number.

6 Shows time information. See “Changing the time information” below.

7 Shows playback status.

: appears during playback.

/ : appears during fast forward/reverse.

/ : appears during playback in forward slow-motion/ reverse slow-motion.

: appears when paused.

: appears when stopped.

8 Select this to change time information (F). See “Changing the time information” below.

9 Select this for Repeat Playback. (See page 31.)

0 Select this for time search function. (See page 27.)

K Select this for chapter search function. (See page 26.)

L Select this to change audio language or channel. (See page 29.)

M Select this to change subtitle language and subpicture. (See page

28.)

N Select this to change view angle. (See page 28.)

O Shows Playback mode status.

PROGRAM: appears during Program Playback. (See page 30.)

RANDOM: appears during Random Playback. (See page 31.)

P Shows Repeat mode status. (See page 31.)

Changing the time information

You can change the time information in the on-screen bar on the TV screen and the display window of the center unit.

7 During playback

1

Press ON SCREEN twice.

The on-screen bar appears on the TV screen.

2

Press Cursor 3/2 to highlight

.

3

Press ENTER repeatedly to select the desired information.

Example: When elapsed playing time of disc is selected.

7DVD VIDEO

• Time: Elapsed playing time of current chapter

• REM: Remaining time of current chapter

• TOTAL: Elapsed time of title

• T. REM: Remaining time of title

7VCD/SVCD/CD

• Time: Elapsed playing time of current track

• REM: Remaining time of current track

• TOTAL: Elapsed time of disc

• T. REM: Remaining time of disc

4


The on-screen bar disappears.

25



Playing from a specified position on a disc

You can start playing a title, chapter or track you specify. You can also play a disc from specified time.

Locating a desired scene from the DVD menu

DVD VIDEOs generally have their own menus which show disc contents and you can display them on the TV screen.

You can locate a desired scene by using these menus.

7 Whenever a DVD VIDEO is loaded

1

Press TOP MENU or MENU.

The menu appears on the TV screen.

Normally, a DVD VIDEO which contains more than one title will have a “top” menu which lists the titles. Press TOP MENU to show the title menu.

Some discs may also have a different menu which is shown by pressing MENU.

See the instructions for each discs regarding its particular menu.

2

Use Cursor 3/2/Y/5 to select a

desired item.

3

Press ENTER.

• With some discs, you can also select items by entering the corresponding number using number buttons.

NOTE

• This feature may not work for some discs.

Locating a desired scene using a VCD/SVCD menu with PBC

A VCD or SVCD recorded with PBC has its own menus such as a list of contained songs. You can locate a specific scene by using these menus.

7 During playback with PBC function

1

Press RETURN repeatedly until the menu appears on the TV screen.

2


h10) to

select the number of the desired item.

• For details on using the number buttons, see “How to use the number buttons”. (See page 22.)

To return to the menu

Press RETURN repeatedly until the menu screen appears.

When “NEXT” or “PREVIOUS” is shown on the TV screen:

• To go to the next page, press x.

• To return to the previous page, press 4.

NOTE

• If you want to play a PBC-compatible VCD/SVCD without using the

PBC function, perform any of the following:

– Start playback by pressing number buttons while stopped.

– Press x repeatedly until the desired track number is displayed, then start playback by pressing 3 (play button). The track number appears on the display window instead of “PBC”.

• To activate the PBC function when playing a PBC-compatible VCD/

SVCD without using the PBC function, perform any of the following:

– Press TOP MENU or MENU.

– Press 7 twice to stop playback, then press 3 (play button).


Locating a desired chapter using the on-screen bar

7 During playback

1



2


.

3

Press ENTER.

4


h10) to

enter the desired chapter number.

Example:





To correct a misentry

Repeat step 4.

5

Press ENTER.

6



NOTE

• You can select up to the 99th chapter.

26



Locating a desired position by specifying the time

7 For DVD VIDEO: During playback

7 For VCD/SVCD: While stopped or during playback without PBC function

7 For CD: During playback or while stopped

7 When specifying the elapsed playing time from the

beginning of the disc

Perform the following procedure while stopped.

7 When specifying the elapsed playing time from the

beginning of the current title/track

Perform the following procedure during playback.

1


3



Press ENTER.

.


Using the file control display

You can search and play desired groups and tracks/ files using the file control display on the TV screen.

Example: When the source is DVD.

Current group/total group number

Repeat mode

Track information (for MP3/

WMA only)

*

Elapsed playing time of current track (except for JPEG)

4

Use number buttons (0-9) to enter the time.

Example: To play back from a point 2 (hours): 34 (minutes): 08

(seconds) elapsed

Press 2 Press 3

Press 0 Press 4

Press 8

To correct a misentry

Press Cursor 2 repeatedly.

5

Press ENTER.

6



Current group

Current track (file) / total track (file) number on current group

Current track (file)

Total track (file) number on disc

Playback status

* When the source is USB MEMORY, “USB” appears.

The file control display appears automatically during playback

(MP3/WMA) or while stopped.

7 For MP3/WMA: During playback or while stopped

7 For JPEG/ASF/MPEG-2/MPEG-1/DivX: While stopped

1

Press Cursor 3/2/Y/5 to select the

desired group/track/file.

• For MP3/WMA, playback starts from the selected track.

2

Press 3 (play button) or ENTER.

• Track playback/slide-show starts from the selected track/file.

• When you press ENTER for JPEG, only the selected file is played back.

NOTE

• (For MP3/WMA) During playback, you can locate the desired track/ file by pressing x/4 or Cursor 5/Y.

• You can also check playback information on the display window. (See page 20.)

• Some group, track and file names may not be displayed correctly depending on recording conditions.

• The order of groups, tracks, and files may be displayed differently from the order displayed on your personal computer.

• The extension of the file may not be displayed if the file name is too long.

27




Resume Playback

When Resume Playback is set to “ON” (see page

35) and you stop playback by the following operations, the position where playback has been stopped is stored. (RESUME indicator lights on the display window.)

• Turning off the power* (See page 16.)

• Pressing 7 once

* Only when playing back a DVD.

To start playback from the stored position

Press 3 (play button) or DVD.

• There may be a case when 3 (play button) does not work after changing the source. In this case, select DVD as a source.

• Pressing DISC (1-5) (with SHIFT pressed) on the remote control or

DISC (1-5) 3 on the center unit also resumes disc playback.

To clear the stored position

Press 7 again.

• Opening the disc tray with the playback disc also clears the stored position.

NOTE

• When USB MEMORY is selected as the source, the beginning of a file where playback has been stopped is stored.

• (For DivX) The beginning of a scene where playback has been stopped may be stored.

Selecting a view angle

7 During playback of a disc containing multi-view angles

When using the ANGLE button:

1

Press ANGLE.

Example: The first view angle is selected out of 3 view angles recorded.

2

Press ANGLE repeatedly, or press

Cursor Y/5 to select the desired view

angle.

When using the on-screen bar:

1


3



Press ENTER.

.

Selecting the subtitle

7 During playback of a disc/file containing subtitles in several languages

When using the SUBTITLE button:

1

Press SUBTITLE.

Example (DVD VIDEO): “ENGLISH” is selected out of 3 subtitle languages recorded.

2

Press SUBTITLE repeatedly, or press

Cursor Y/5 to select the desired

subtitle.

For SVCD

• An SVCD can contain up to four subtitles. Pressing SUBTITLE changes the subtitles regardless of whether the subtitles are recorded or not. (Subtitles will not change if no subtitle is recorded.)

To clear the subtitle

Select “OFF” in step 2.


1


3



Press ENTER.

.

4

Press Cursor Y/5 repeatedly to select

the desired subtitle.

5

Press ENTER.



To clear the subtitle


NOTE

• Some subtitle or audio languages are abbreviated in the pop-up window. See “The language codes list”. (See page 33.)

• For DivX, you cannot operate this procedure using the on-screen bar.

4

Press Cursor Y/5 to select the desired

view angle.

5

Press ENTER.



28




Selecting the audio

7 During playback of a disc/file containing audio in several languages

When using the AUDIO button:

1

Press AUDIO.

Example (DVD VIDEO): “ENGLISH” is selected out of 3 audio languages recorded.

2

Press AUDIO repeatedly or press Cursor

Y/5 to select the desired audio.


1


3



Press ENTER.

.

Special picture playback

Frame-by-frame playback

7 During playback

Press 8 repeatedly.

Each time you press the button, the still picture advances by one frame.

To return to normal playback


Playing back in slow-motion

7 During playback

1

Press 8 at the point where

you want to start playback in slowmotion from.

The system pauses playback.

2

Press

SLOW 9.

Playback in forward slow-motion starts.

For DVD VIDEO only:

• To play back in reverse slow-motion, press

SLOW (

.

Each time you press the button, the playback speed becomes faster.

Example: On the TV

4

Press Cursor Y/5 to select the desired

audio.

5

Press ENTER.



NOTE

• Some subtitle or audio languages are abbreviated in the pop-up window. See “The language codes list”. (See page 33.)

• “ST”, “L”, or “R” is displayed when playing a VCD respectively representing “stereo”, “left sound” and “right sound”.

When playing a SVCD, “ST1”, “ST2”, “L1”, “R1”, “L2”, or “R2” is displayed.

• For DivX, you cannot operate this procedure using the on-screen bar.



NOTE

• Sound cannot be heard during slow-motion playback.

Zooming in

7 During playback or while paused

1

Press ZOOM with SHIFT pressed.

Each time you press ZOOM with SHIFT pressed, scene magnification changes.

2

While zoomed in, press Cursor 3/2/

Y/5 to move zoom-in area.


Press ZOOM repeatedly with SHIFT pressed, to select ZOOM M 1.

NOTE

• The number of the magnification steps varies depending on the disc type.

• During playback, there may be a case where Cursor (3/2/Y/5) does not work in step 2 above.

29



Changing the VFP setting

The VFP (Video Fine Processor) function enables you to adjust the picture character according to the type of programming, picture tone or personal preference (except when connecting the TV through

HDMI MONITOR OUT terminal).

7 During playback

1

Press VFP.

The current VFP settings appear on the TV screen.

Example:


Program Playback

7 While stopped

1

Press PLAY MODE repeatedly until program window appears on the TV screen.

PRG indicator lights on the display window.

2

Press Cursor 3/2 repeatedly to select

the VFP mode.

• NORMAL: Normally select this.

• CINEMA: Suitable for movies.

When you select “NORMAL” or “CINEMA”, press VFP to complete the setting.

• USER 1 and USER 2: You can adjust parameters that affect picture appearance.

Only when selecting “USER 1” or “USER 2” in step 2, proceed to perform the following operation;

3


a parameter you want to adjust.

Adjust gradually and confirm picture appearance results are as preferred.

• GAMMA: Controls brightness of neutral tints while maintaining brightness of dark and bright portions.

• BRIGHTNESS: Controls screen brightness.

• CONTRAST: Controls screen contrast.

• SATURATION: Controls screen color depth.

• TINT: Controls screen tint.

• SHARPNESS: Controls screen sharpness.

4

Press ENTER.

Example:

5

Press Cursor Y/5 to change the

setting.

6

Press ENTER.

8

The current VFP settings appear again.

7

Repeat steps 3 to 6 to adjust other parameters.

Press VFP.

NOTE

• Although the setting display disappears in the middle of the procedure, the setting at that time will be stored.

• The VFP function is not available when connecting the TV through

HDMI MONITOR OUT terminal.

2

Follow the instructions that appear on the TV screen to program the desired tracks.


• You can specify the tracks whose number is up to 99.

• Normally the system automatically skips to the Track/

Chapter column after entering the disc number. However, there may be a case that the number can be entered in the

Title/Group column. In such a case, press 1 (number button) to proceed to the Track/Chapter column.

• When you press ENTER instead of the number buttons in the

Track/Chapter column, “ALL” appears and all the tracks on the selected disc are programmed as a step.

To clear the programs one by one from the last entered number

Press CANCEL repeatedly.

To clear all programs

Press 7.

You can also clear the program by turning off the system.

3

Press 3 (play button).

If all of the programmed tracks have been played back, playback stops and the program window appears again. Note that program setting remains.

To check the program contents

During playback, press 7. Playback stops and the program window appears.

To quit the Program mode

While stopped, press PLAY MODE repeatedly until both program window and disappear from the TV screen.

NOTE

• The Resume function cannot be used with Program Playback.

• DISC (1-5) on the remote control and DISC (1-5) 3 on the center unit do not work during Program Playback.

• Program Playback may not work for some discs.

30



Random Playback

You can play tracks on a disc in random order.

7 While stopped

1

Press PLAY MODE repeatedly until

appears on the TV screen.

RND indicator lights on the display window.

2

Press 3 (play button).

• When more than one discs are loaded, the system starts

Random Playback of the next disc after completing current disc playback.

To quit Random mode

While stopped, press PLAY MODE repeatedly until both program window and disappear from the TV screen.

You can also clear the Random mode by turning off the system.

Repeat Playback

Repeating the current selection or all discs

7 For DVD VIDEO: During playback

7 For VCD/SVCD: During playback without PBC function or while stopped

7 For CD/MP3/JPEG/ASF/MPEG-2/MPEG-1/

DivX: During playback or while stopped

When using the REPEAT button:

Press REPEAT.

Repeat mode indicator

Each time you press REPEAT, the Repeat mode changes.


Display window

TV screen Meanings

REPEAT GROUP

DISC

REPEAT DISC

ALL

1

No indication

REPEAT ALL

,

REPEAT TRACK,

REPEAT STEP

,

Repeats the current group for

MP3/WMA/JPEG/ASF/

MPEG-2/MPEG-1/DivX.

Repeats the current title for

DVD VIDEO.

Repeats all titles and tracks on the current disc for VCD/

SVCD/CD/MP3/WMA/JPEG/

ASF/MPEG-2/MPEG-1/DivX.

Repeats all the available discs/ files.

Repeats the current track for

VCD/SVCD/CD/MP3/WMA/

ASF/MPEG-2/MPEG-1/DivX.

Repeats the current chapter for

DVD VIDEO.

Repeat mode is off.

The system plays back the disc/ file normally.

NOTE

• When DVD VIDEO is loaded in the system, playback of the disc next to the DVD VIDEO will not start, although /REPEAT ALL on the TV screen or ALL in the display window is shown.

• For DVD VIDEO, REPEAT ALL and REPEAT DISC may not be available depending on the disc.

When using the on-screen bar (except for MP3/WMA/JPEG/

ASF/MPEG-2/MPEG-1/DivX):

1


3



Press ENTER.

.

4


the Repeat mode.

5

Press ENTER.



To cancel Repeat Playback


31



Repeating a desired part [A-B Repeat]

You can repeat playback of a desired part by specifying the beginning (point A) and ending (point B).

7 During playback

1


3



Press ENTER.

.


Sound and other settings

IMPORTANT



NOTE

• Before you start operation; There is a time limit when doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1

Press SETTING.

Example:

4


“A-B”.

5

Press ENTER at the beginning of the part you want to repeat (point A).

The repeat mode indicator “ ” appears on the display window.

6

Press ENTER at the end of the part you want to repeat (point B).

The repeat mode indicator on the display window changes to

“ ” and A-B Repeat Playback starts.

7



To cancel

Select “OFF” in step 4, then press ENTER.

NOTE

• When playing back a DVD VIDEO, A-B Repeat Playback is possible only within the same title.

• When playing back a VCD, SVCD, or CD, A-B Repeat Playback is possible only within the same track.

• “A-B” cannot be selected during Program and Random Playback.

• “A-B” cannot be selected during playback with PBC function.

Tray lock

You can lock the tray and prohibit unwanted disc ejection.

On the center unit ONLY:

While the system is turned off

2

Press Cursor Y/5 to select the item

you want to set.

• BAL. (Balance):

You can adjust the balance of the sound between “R (right) –

21” and “L (left) –21”. To set the balance to normal, select

“CNTR (center)”.

• MON. (Monitor Out):

Select the video output jack type by which you watch DVD playback after connecting your TV. (See page 12.) Set the video output to use AV COMPU LINK remote control system. (See page 38.)

VIDEO:

To watch DVD playback via the VIDEO jack.

S:

To watch DVD playback via the S-VIDEO jack.

COMP

(Component):

To watch DVD playback via the COMPONENT

VIDEO OUT jacks.

HDMI:

To watch DVD playback via the HDMI

MONITOR OUT terminal.

When selecting this setting, AV COMPU LINK remote control system for the built-in DVD player does not work.

3

Press Cursor 3/2 to make an

adjustment or selection.

Example:

The adjustment is set and the display automatically disappears a few seconds later.

Press and hold

• “LOCKED” appears on the display window.

• If you try to eject the disc, “LOCKED” appears to indicate that the tray is locked.

To cancel

Carry out the same operation again.

• “UNLOCKED” appears on the display window.

32


Setting DVD preferences

Using the setup menus

• You can change the language used in the setup menus. See “Menu description” below.

Basic operation on the setup menus

IMPORTANT


1 Set the remote control mode selector to AUDIO.

2 Press DVD or USB MEMORY.

Cursor

(3/2/Y/5)/

ENTER

7 While stopped

1

Press SET UP.

2

Follow the instructions that appear on

33

the TV screen.

Menu description

: Language menu (LANGUAGE)

7 MENU LANGUAGE

Some DVDs have their own menus in multiple languages.

• Select the initial language*.

7 AUDIO LANGUAGE

Some DVDs have multiple audio languages.

• Select the initial audio language*.

7 SUBTITLE

Some DVDs have multiple subtitle languages.

• Select the initial subtitle language*.

7 ON SCREEN LANGUAGE

• Select the language shown on the TV screen when operating this system.

* When the language you have selected is not recorded to a disc, the original language is automatically used as the initial language.

NOTE

• See the following “The language codes list” for the code of each language, such as “AA”, etc.

The language codes list

CA Catalan

CO Corsican

CS Czech

CY Welsh

DA Danish

DZ Bhutani

EL Greek

EO Esperanto

ET Estonian

EU Basque

FA Persian

FI Finnish

FJ Fiji

FO Faroese

FY Frisian

GA Irish

AA Afar

AB Abkhazian

AF Afrikaans

AM Ameharic

AR Arabic

AS Assamese

AY Aymara

AZ Azerbaijani

IK Inupiak

IN Indonesian

IS Icelandic

IW Hebrew

JI Yiddish

JW Javanese

KA Georgian

KK Kazakh

BA Bashkir

BE Byelorussian

BG Bulgarian

BH Bihari

KL Greenlandic

KM Cambodian

KN Kannada

KO Korean (KOR)

BI Bislama KS Kashmiri

BN Bengali, Bangla KU Kurdish

BO Tibetan

BR Breton

KY

LA

Kirghiz

Latin

LN

LO

LT

LV

MI

MS

NE

Lingala

Laothian

Lithuanian

Latvian, Lettish

MG Malagasy

Maori

MK Macedonian

ML Malayalam

MN Mongolian

MO Moldavian

MR Marathi

Malay (MAY)

MT Maltese

MY Burmese

NA Nauru

Nepali

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA

TE

TG

TH Thai

TI

TK

TL

TN

TO

TR

TS

TT

Tamil

Telugu

Tajik

Tigrinya

Turkmen

Tagalog

Setswana

Tonga

Turkish

Tsonga

Tatar

RN Kirundi

RO Rumanian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-Croatian

SI Singhalese

SK Slovak

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

GD Scots Gaelic

GL Galician

GN Guarani

GU Gujarati

HA Hausa

HI Hindi

HR Croatian

HU Hungarian

HY Armenian

IA Interlingua

IE Interlingue

NL Dutch

NO Norwegian

OC Occitan

OM (Afan) Oromo

OR Oriya

PA Panjabi

PL Polish

PS Pashto, Pushto

PT Portuguese

QU Quechua

RM Rhaeto-Romance

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu



: Picture menu (PICTURE)

7 MONITOR TYPE

You can select the monitor type to match your TV when you play

DVDs recorded in the picture’s height/width ratio of 16:9.

• 4:3 PS (Pan Scan conversion)

Select this when the aspect ratio of your TV is 4:3 (conventional

TV). While viewing a wide screen picture, the black bars do not appear, however, the left and right edges of the pictures will not be shown on the screen.

• 4:3 LB (Letter Box conversion)

Select this when the aspect ratio of your TV is 4:3 (conventional

TV). While viewing a wide screen picture, the black bars appear on the top and the bottom of the screen.

• 16:9 (Wide television conversion)

Select this when the aspect ratio of your TV is fixed on 16:9 (wide

TV).

When you play DVDs recorded in the picture’s height/width ratio of 4:3, the system adjust the ratio of output signal automatically.

Ex.: 4:3 PS Ex.: 4:3 LB Ex.: 16:9

NOTE

• Even if “4:3 PS” is selected, the screen size may become “4:3 LB” with some DVDs. This depends on how DVDs are recorded.

• When the scan mode is set to “1080i” or “720p”

(see page 18)

, “16:9” is automatically selected.

7 PICTURE SOURCE

When you set the scan mode to “480p” or “720p” (see page 18), you can obtain optimal picture quality by selecting whether the content on the disc/file is processed by frame (film source) or by field (video source).

Normally set to “AUTO”.

• AUTO

Used to play a disc/file containing both video and film source materials.

This system recognizes the source type (video or film) of the current disc/file according to the disc/file information.

If the playback picture is unclear or noisy, or the oblique lines of the picture are rough, try to change to other modes.

• FILM

Suitable for playing back a film source disc/file.

• VIDEO (NORMAL)

Suitable for playing back a video source disc/file with relatively a few movements.

• VIDEO (ACTIVE)

Suitable for playing back a video source disc/file with relatively a lot of movements.

7 SCREEN SAVER (See page 21.)

You can activate or deactivate screen saver function.

7 FILE TYPE

When several types of files are recorded on a disc/device, you can select which files to play.

• AUDIO

Select this to play MP3/WMA files.

• STILL PICTURE

Select this to play JPEG files.

• VIDEO

Select this to play ASF/MPEG-2/MPEG-1/DivX files.

7 HDMI DVI COLOR

When connecting the TV by using HDMI cable, you can adjust the picture appearance, such as image quality, color intensity, and black fading.

• STANDARD

Select this when you need no picture adjustment.

• ENHANCE

This system automatically makes picture adjustment suitable for the picture.

7 HDMI OUT

When connecting the TV by using HDMI cable, you can select the type of video signal output from HDMI MONITOR OUT terminal.

Normally set to “AUTO”.

• AUTO

This system automatically select the video signal type and outputs according to the type of TV connected with HDMI cable.

• RGB

Select this when no picture appears on the TV with “AUTO” setting. The video signal output is fixed to RGB.

: Audio menu (AUDIO)

7 D. RANGE CONTROL

(Dynamic range control)

You can enjoy low level recorded sound clearly at night even at a low volume when listening to the sound with Dolby Digital.

• WIDE RANGE

Select this when you want to enjoy surround sound with its full dynamic range (no effect applied).

• NORMAL

Normally select this to activate this function.

• TV MODE

Select this when you want to fully apply the compression effect

(useful at midnight).

NOTE

• When you play a multichannel Dolby Digital source with the surround mode is off, the setting of D. RANGE CONTROL is set to

NORMAL automatically.

7 HDMI AUDIO OUT

You can select whether the system outputs the audio signal with the video signal from HDMI MONITOR OUT terminal or not.

34



: Speaker setting menu (SPK. SETTING)

7 Level menu (LEVEL)

FRONT LEFT SPEAKER/FRONT RIGHT SPEAKER/CENTER

SPEAKER/SURROUND RIGHT SPEAKER/SURROUND LEFT

SPEAKER

While monitoring the test tone, adjust the center and surround speakers volume as much as that of the front speakers.

You can adjust the output level in the -6 dB to +6 dB range.

TEST TONE*

Outputs the test tone.

* The test tone comes out of all of the activated speakers in the following sequence: s Front left speaker s Center speaker s Front right

speaker

s Surround right speaker s Surround left speaker s (back to the beginning)

NOTE

• Adjustment of subwoofer output level is not available.

7 Delay menu (DELAY)

Example:

Front left

0 ms

Surround left

2 ms

Center speaker

1 ms

Subwoofer

Front right

0 ms

2.1 m

(7 ft)

2.4 m

(8 ft)

3.0 m

(10 ft)

2.7 m

(9 ft)

Surround right

2 ms

1 ms increase (or decrease) in delay time corresponds to about

30 cm (1 ft) decrease (or increase) in distance.

Set to “0 ms” for the furthest speaker from your position as the basis for the delay time setting.

In this case, set the delay time of each speaker as follows;

• Delay time of front speakers: 0 ms

• Delay time of center speaker: 1 ms

• Delay time of surround speakers: 2 ms

FRONT LEFT SPEAKER/FRONT RIGHT SPEAKER/CENTER

SPEAKER/SURROUND RIGHT SPEAKER/SURROUND LEFT

SPEAKER

Adjust the distance from the listening position to the speakers.

Within the range from 0 ms to 15 ms (by 1 ms).

7 Subwoofer menu (SUBWOOFER)

LEVEL

You can set the output level of the subwoofer in the -6 dB to +6 dB range.

CROSS OVER

The signals below the preset frequency level will be sent to and be reproduced by the subwoofer.

Select one of the crossover frequency levels according to the size of the small speaker connected.

• 120Hz: Select when the cone speaker unit built in the speaker is about 8 cm (3-3/16 inches).

• 150Hz: Select when the cone speaker unit built in the speaker is about 6 cm (2-3/8 inches).

• 200Hz: Select when the cone speaker unit built in the speaker is about 5 cm (2 inches).

: Other setting menu (OTHERS)

7 RESUME

You can activate or deactivate Resume Playback function. (See page

28.)

7 ON SCREEN GUIDE

You can activate or deactivate the on-screen guide icons. (See page

20.)

7 DivX registration menu (DivX REGISTRATION)

The system has its own Registration Code for DivX playback.

You can confirm the code of your system.

• Once you play back a disc created by using the Registration Code, the system’s code is overwritten by a totally different new one for copyright protection purpose.

35


Tuner operations

IMPORTANT


1 Set the remote control mode selector to

AUDIO .

2 Press FM/AM.

The buttons described below are used on pages 36 and 37.

Manual tuning


1

Press FM/AM repeatedly to select the band.

Example:

When the system is tuned in to 810 kHz.

Number buttons

Cursor

(3/2)


2

Press TUNING 9/( repeatedly until

you find the frequency you want.

When you hold down the button until the system starts searching for stations and then release it, the system stops searching automatically when a station of sufficient signal strength is tuned in to.


1

Press SOURCE repeatedly to select the band (FM or AM).

2

Press TUNING +/– repeatedly until you find the frequency you want.

NOTE

• When an FM stereo program is received, the ST indicator lights on the display window.

36


Tuner operations

Preset tuning

Once a station is assigned to a channel number, the station can be quickly tuned in. You can preset 30 FM and 15 AM stations.

7 To preset the stations

1

Tune in the station you want to preset.

• If you want to store the FM reception mode for an FM station, select the reception mode you want. See “Selecting the FM reception mode” on the right column.

Example: When the system is tuned in to 103.5 MHz.

2

Press MEMORY.

While “CH” and “_ _” are flashing:

3

Press number button(s) (1-10,

h10) to

select a preset number you want.


Example: When the preset channel 1 is selected.

If the setting is canceled before you finish, start from step 2 again.

While the selected number is flashing:

4

Press MEMORY.

“STORED” appears on the display window.

The station is assigned to the selected preset number.

If the setting is canceled before you finish, start from step 2 again.

5

Repeat steps 1 to 4.

• Storing a new station to a used number erases the previously stored one.

7 To tune in to a preset station

1

Press FM/AM repeatedly to select FM or

AM.

2

Press number button(s) (1-10,

h10) to

select a preset number.


NOTE

• You can also select a preset number by pressing Cursor 3/2.


Selecting the FM reception mode

When the stereo FM program currently tuned in is noisy, you can change the FM reception mode to improve the reception.

7 While listening to an FM station

Press FM MODE.

The FM reception mode appears on the display window.

Each time you press the button, the FM reception mode changes.

• AUTO:

When a program is broadcast in stereo, you will hear stereo sound. (The ST indicator lights on the display window.) When in monaural, you will hear monaural sound. This mode is also useful to suppress static noise between stations.

• MONO:

Reception will be improved although you will lose the stereo effect. (The MONO indicator lights on the display window.) In this mode, you will hear noise until you are tuned in to a station.

Reducing the noise of AM broadcast

When listening to an AM broadcast with a lot of noise interference, you can change the Beat Cut mode to reduce the noise.

7 While listening to an AM station

Press FM MODE.

The current Beat Cut mode appears on the display window.

Each time you press the button, the Beat Cut mode changes.

• Choose “BEATCUT1” or “BEATCUT2” according to which gives clearer sound.

37


AV COMPU LINK remote control system

The AV COMPU LINK remote control system allows you to operate

JVC TVs and VCRs through the center unit. This system is equipped with the AV COMPU LINK-III, which adds a function to operate JVC’s video components via the video components terminals. To use this remote control system, you need to connect the video components you want to operate as follows.

• Refer also to the manuals supplied with your TV and video components.

Connecting a TV and VCR

CAUTION

Before connecting;

• If you have already plugged your VCR, TV and the center unit into the AC outlets, unplug their AC power cords first.

1

Connect the center unit to a TV and

VCR.

• For details, see pages 12 and 13.

2

Connect the center unit to a TV and

VCR using the optional AV COMPU

LINK cords.

Center unit

AV COMPU LINK cord

(not supplied)

TV

VCR

3

Plug the AC power cords of the VCR, TV and the center unit into the AC outlets.

4

Turn on the connected components first, then turn on the center unit.

• When turning on the TV for the first time after the AV

COMPU LINK connection, turn the TV volume to minimum using the TV volume control on the TV.

• When turning on the VCR, use the remote control supplied with this system. (Press F VCR/DBS.)

NOTE

• To correctly use the automatic selection of TV input mode, select the correct “MON.” (Monitor Out) setting. (See page 32.)

Available functions

The AV COMPU LINK remote control system allows you to use the functions listed following.

One-touch video play

Simply by inserting a video cassette without its safety tab into the

VCR, you can enjoy video playback without manually setting other switches. This system automatically turns on and changes the source to VCR.

The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

When you insert a video cassette with its safety tab in place, press the play (3) button on the VCR or on the remote control to get the same result.

One-touch DVD play

Simply by starting playback on the built-in DVD player, you can enjoy playback without manually setting other switches. The TV automatically turns on and changes the input mode to the appropriate position so that you can view the playback picture.

Automatic selection of TV input mode

When you select DVD or VCR as the source to play on the system, the TV automatically changes the input mode to the appropriate position so that you can view the playback picture.

Automatic Power On/Off

The TV and VCR turn on and off along with the system.

When you turn on the system;

• If the previously selected source is “DVD”, only the TV will turn on automatically.

• If the previously selected source is “VCR”, the TV and VCR will turn on automatically.

When you turn off the system, the TV and VCR will turn off.

NOTE

• If you turn off the system while recording on the VCR, the VCR will not turn off and will continue recording.

• When starting playback on the VCR with “HDMI” selected for

“MON.” (Monitor Out) setting (see page 32), the system automatically turns on and changes the source to VCR, while the TV does not automatically turn on nor change the input mode. In this case, turn the TV on and change the input mode of the TV manually.

38

TH-C60-40[J]-03Body.fm Page 39 Wednesday, April 19, 2006 7:04 PM

References

Maintenance

7 Handling Discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, extreme temperature and moisture.

To clean the disc

Wipe the disc with a soft cloth in a straight line from center to edge.

• DO NOT use any solvent — such as conventional record cleaner, spray, thinner or benzine — to clean the disc.

7 Cleaning the system

• Stains on the system should be wiped off with a soft cloth. If the system is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the system may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following.

– DO NOT wipe it with a hard cloth.

– DO NOT wipe it forcefully.

– DO NOT wipe it with thinner or benzine.

– DO NOT apply any volatile substance such as insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact with it for a long time.

Troubleshooting

PROBLEM POSSIBLE CAUSE SOLUTION

Power does not come on. The power cord and/or system cord is not connected.

Connect the power cord and system cord correctly. (See page 13.)

The remote control does not work.

The batteries are exhausted.

Sunlight is shining directly on the remote sensor.

Replace the batteries. (See page 7.)

Hide the remote sensor from direct sunlight.

The disc reading time is too long.

No sound.

The disc is dirty.

Clean the disc by referring to “Maintenance” above.

No picture is displayed on the TV screen.

The system cord and/or speaker cord is not connected.

Check the connection.

The audio cord is not connected to AUX IN (VCR) and/ or DIGITAL IN (DBS) correctly.

Connect the cord correctly. (See page 13.)

An incorrect source has been selected.

The video cord is not connected correctly.

Select the correct source. (See page 17.)

Connect the cord correctly. (See page 12.)

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

Video and audio are distorted.

The disc or file is not playable.

The scan mode is set to “480p” though the center unit is connected to the TV which does not support the progressive video input such as a conventional TV.

The disc is scratched or dirty.

A VCR is connected between the center unit and the

TV.

The monitor type is not set correctly.

Use a playable disc or file. (See pages 3 and 4.)

Change the scan mode to “480i”. (See page 18.)

Replace or clean the disc.

Connect the center unit and TV directly. (See page 12.)

Set “MONITOR TYPE” properly. (See page 34.) The picture does not fit the TV screen.

No picture is displayed on the TV or no sound come out through

HDMI connection.

A video or audio format not compatible with this system and/or TV is played.

A HDCP-compatible TV is not connected.

Check the video or audio format of the signal to see if it is compatible with this system and/or TV.

Connect a HDCP-compatible TV. (See page 12.)

Disconnect the HDMI cable and connect it again.

The system failed to recognize the TV connected with the HDMI cable.

A HDMI cable longer than 5 m (15 ft) is used.

The picture is distorted when the TV is connected through

HDMI terminal.

The broadcast is hard to hear because of noise.

Proportion of the picture may not be shown correctly depending on a disc/file when the TV is connected through HDMI terminal.

Antennas are disconnected.

Use a HDMI cable shorter than 5 m (15 ft) to assure stable operation and picture quality.

Connect the TV through component video, S-video, or composite video jacks (see page 12), then set the scan mode to “480p” (see page 18).

Reconnect the antennas correctly and securely. (See page 8.)

If there are any other cases than the noted above or if this system does not seem to work properly, turn off the system and turn it back on.

39


References

Specifications

7 Center unit (XV-THC60/XV-THC50/XV-THC40)

Audio section

Digital input*

1

:

*

1

DIGITAL IN (DBS): –21 dBm to –15 dBm

(OPTICAL) (660 nm

E30 nm)

Corresponding to Linear PCM, Dolby Digital, and DTS Digital

Surround (with sampling frequency — 32 kHz, 44.1 kHz,

48 kHz)

Video section

Video System:

Horizontal Resolution:

Signal-to-Noise Ratio:

Video output level

Composite:

S-video-Y:

S-video-C:

NTSC

500 lines

64 dB

1.0 V(p-p)/75 Ω

1.0 V(p-p)/75 Ω

0.286 V(p-p)/75 Ω

Component-Y:

Component-P

B

/P

R

:

1.0 V(p-p)/75 Ω

0.7 V(p-p)/75 Ω

Video input sensitivity/Impedance (VCR IN)

Composite: 1.0 V(p-p)/75 Ω

S-video-Y:

S-video-C:

1.0 V(p-p)/75 Ω

0.286 V(p-p)/75 Ω

HDMI

HDMI Output (Ver. 1.0): MONITOR OUT

USB storage

USB specification:

Compatible device:

Compatible file system:

Bus power supply:

Tuner section

Tuning Range

FM:

AM:

Compatible with the USB 2.0 Full-

Speed

Mass Storage Class

FAT16, FAT32

Max. 500 mA

87.5 MHz to 108.0 MHz

530 kHz to 1 710 kHz

General

Power Requirements:

Power Consumption:

AC 120 V , 60 Hz

25 W (at operation)

Dimensions (W M H M D):

0.6 W (in standby mode)

400 mm M 85 mm M 316 mm

(15-3/4 inches M 3-3/8 inches M

Mass:

12-1/2 inches)

3.8 kg (8.4 lbs)

7 Subwoofer (SP-PWC60/SP-PWC50)

Amplifier section

Front/Center/Surround: 200 W per channel, RMS at 3 Ω at

1 kHz, with 10 % total harmonic distortion.

Subwoofer: 200 W, RMS at 3 Ω at 100 Hz, with

10 % total harmonic distortion.

Speaker section

Speaker unit: 16 cm (6-5/16 inches) Bass-reflex

Power Handling Capacity: 200 W

Impedance: 3 Ω

Frequency Range:

Sound Pressure Level:

30 Hz to 200 Hz

74 dB/ W·m

General

Power Requirements:

Power Consumption:

AC 120 V , 60 Hz

180 W (at operation)


0 W (in standby mode)

171 mm M 411 mm M 458 mm

(6-3/4 inches M 16-3/16 inches M 18-

Mass:

1/16 inches)

12.3 kg (27.2 lbs)

40


References

7 Subwoofer (SP-PWC40)

Amplifier section

Front/Center/Surround: 167 W per channel, RMS at 3 Ω at

1 kHz, with 10 % total harmonic distortion.

Subwoofer: 167 W, RMS at 3 Ω at 100 Hz, with

10 % total harmonic distortion.

Speaker section

Speaker unit: 16 cm (6-5/16 inches) Bass-reflex


Impedance: 3 Ω

Frequency Range:


30 Hz to 200 Hz

73 dB/ W·m

General

Power Requirements:

Power Consumption:

AC 120 V , 60 Hz

160 W (at operation)


0 W (in standby mode)

170 mm M 411 mm M 458 mm

(6-3/4 inches M 16-3/16 inches M 18-

Mass:

1/16 inches)

11.5 kg (25.4 lbs)

7 Satellite Speakers — SP-XTHC60

Front speakers (SP-THC60F)

Type: 1-way 2-speaker Bass reflex type

Speaker:

(Magnetically shielded Type)

5.5 cm (2-3/16 inches) cone M 2


Impedance:

Frequency Range:


3 Ω

100 Hz to 20 000 Hz

78 dB/

W·m


280 mm M 1 106 mm M 280 mm

Mass:


11-1/16 inches)

3.3 kg (7.3 lbs) each

Center speaker (SP-THC60C)



Speaker: 6.5 cm (2-9/16 inches) cone M 2


Impedance:

Frequency Range:

3 Ω

90 Hz to 20 000 Hz



81 dB/ W·m

Mass:

250 mm M 85 mm M 91 mm

(9-7/8 inches M 3-3/8 inches M 3-5/

8 inches)

0.8 kg (1.8 lbs)

Surround speakers (SP-THC60S)

Type:

Speaker:

2-way 3-speaker Bass reflex type


3.0 cm (1-3/16 inches) dome M 1


Impedance:

Frequency Range:

3 Ω

100 Hz to 20 000 Hz



78 dB/ W·m

Mass:

280 mm M 1 114 mm M 280 mm


11-1/16 inches)


41


References




Speaker:




Impedance:

Frequency Range:


3 Ω

100 Hz to 20 000 Hz

78 dB/

W·m


280 mm M 1 106 mm M 280 mm

Mass:


11-1/16 inches)





Speaker: 6.5 cm (2-9/16 inches) cone M 2


Impedance:

Frequency Range:

3 Ω

90 Hz to 20 000 Hz



81 dB/ W·m

Mass:

250 mm M 85 mm M 91 mm

(9-7/8 inches M 3-3/8 inches M 3-5/

8 inches)

0.8 kg (1.8 lbs)


Type:

Speaker:

1-way Bass reflex type



Impedance: 3 Ω

Frequency Range:


80 Hz to 20 000 Hz

70 dB/ W·m


111.5 mm M 148 mm M 106.5 mm

Mass:

(4-7/16 inches M 5-7/8 inches M 4-1/

4 inches)

0.44 kg (0.98 lbs) each





8.0 cm (3-3/16 inches) cone M 1 Speaker:

1.5 cm (5/8 inches) dome M 1


Impedance:

Frequency Range:

3 Ω

80 Hz to 20 000 Hz



77 dB/

W·m

104.5 mm M 139 mm M 101 mm


Mass:

4 inches)





8.0 cm (3-3/16 inches) cone M 1 Speaker:

1.5 cm (5/8 inches) dome M 1


Impedance:

Frequency Range:

3 Ω

80 Hz to 20 000 Hz



77 dB/

W·m

137 mm M 105 mm M 104.5 mm

(5-7/16 inches M 4-3/16 inches M 4-

Mass:

1/8 inches)

0.57 kg (1.3 lbs)


Type:

Speaker:

1-way Bass reflex type



Impedance: 3 Ω

Frequency Range:


80 Hz to 20 000 Hz

70 dB/

W·m


111.5 mm M 148 mm M 106.5 mm

Mass:

(4-7/16 inches M 5-7/8 inches M 4-1/

4 inches)


Designs & specifications are subject to change without notice.

• HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

• HDCP is the abbreviation of “High-Bandwidth Digital Content

Protection,” and is the high-reliable copy control technology licensed by Digital Content Protection, LLC.

42


43


44


EN

© 2006 Victor Company of Japan, Limited 0206RYMMDWJSC

JVC TH-C60 Stereo System User manual

DVD DIGITAL THEATER SYSTEM

INSTRUCTIONS

Warnings, Cautions and Others/Mises en garde, précautions et indications diverses

Table of contents

Introduction

Notes on handling

Supplied accessories

About discs

Playable disc types

Unplayable discs

About discs

Playable file types

Description of parts and controls

Front panel (center unit)

Rear panel (center unit)

Description of parts and controls

Powered subwoofer

Description of parts and controls

Remote control

Putting batteries in the remote control

Operating the system from the remote control

Connections

Connecting the FM and AM antennas

Connections

Connecting the satellite (front, center, surround) speakers

TH-C60/TH-C50

Connections

TH-C50

TH-C60/TH-C50

Connections

Connections

Speaker layout

Connecting a TV

Connections

Connecting the powered subwoofer

Connecting a USB mass storage class device

Connecting to an analog component

Connecting to a digital component

Connecting the power cord

Operating external components with the remote control

Operating the TV

Slide the remote control mode selector to TV.

Press and hold F TV.

Press ENTER.

Press number buttons (1-9, 0) to enter the manufacturer’s code (2 digits).

Release F TV.

Operating external components with the remote control

Operating the DBS tuner or

CATV converter

Slide the remote control mode selector to VCR/DBS.

Press DBS.

Press and hold F VCR/DBS.

Press ENTER.

Press number buttons (1-9, 0) to enter the manufacturer’s code (2 digits).

Release F VCR/DBS.

Operating the VCR

Slide the remote control mode selector to VCR/DBS.

Press VCR.

Press and hold F VCR/DBS.

Press ENTER.

Press number buttons (1-9, 0) to enter the manufacturer’s code (2 digits).

Release F VCR/DBS.

Basic operations

Turning the system on/off

Press F AUDIO.

Press F.

Basic operations

Selecting the source to play

Press one of the source selecting buttons

(DVD, USB MEMORY, FM/AM, VCR or DBS).

Press SOURCE repeatedly until the source name you want appears on the display window.

Adjusting the volume

[VOLUME]

Press VOL +/–.

Turn VOLUME.

Listening with headphones

(not supplied)

Turning off the sound temporarily [MUTING]

Press MUTING.
