Marantz LC4202e Owner Manual

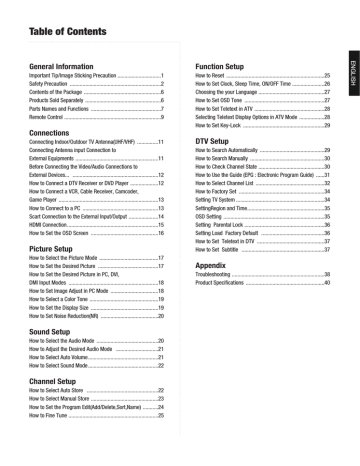

Table of Contents

General Information

Important Tip/Image Sticking Precaution ...............................1

Safety Precaution .................................................................2

Contents of the Package .......................................................6

Products Sold Separately ......................................................6

Parts Names and Functions ..................................................7

Remote Control .....................................................................9

Connections

Connecting Indoor/Outdoor TV Antenna(UHF/VHF) ...............11

Connecting Antenna input Connection to

External Equipments ...........................................................11

Before Connecting the Video/Audio Connections to

External Devices... .............................................................12

How to Connect a DTV Receiver or DVD Player ....................12

How to Connect a VCR, Cable Receiver, Camcoder,

Game Player .......................................................................13

How to Connect to a PC ......................................................13

Scart Connection to the External Input/Output .....................14

HDMI Connection.................................................................15

How to Set the OSD Screen ................................................16

Picture Setup

How to Select the Picture Mode ..........................................17

How to Set the Desired Picture ...........................................17

How to Set the Desired Picture in PC, DVI,

DMI Input Modes ................................................................18

How to Set Image Adjust in PC Mode ..................................18

How to Select a Color Tone .................................................19

How to Set the Display Size ................................................19

How to Set Noise Reduction(NR) .........................................20

Sound Setup

How to Select the Audio Mode ............................................20

How to Adjust the Desired Audio Mode ..............................21

How to Select Auto Volume..................................................21

How to Select Sound Mode ..................................................22

Channel Setup

How to Select Auto Store ...................................................22

How to Select Manual Store ................................................23

How to Set the Program Edit(Add/Delete,Sort,Name) ...........24

How to Fine Tune ................................................................25

Function Setup

How to Reset ......................................................................25

How to Set Clock, Sleep Time, ON/OFF Time .......................26

Choosing the your Language ...............................................27

How to Set OSD Tone .........................................................27

How to Set Teletext in ATV ..................................................28

Selecting Teletext Display Options in ATV Mode ..................28

How to Set Key-Lock ..........................................................29

DTV Setup

How to Search Automatically ..............................................29

How to Search Manually .....................................................30

How to Check Channel State ...............................................30

How to Use the Guide (EPG : Electronic Program Guide) ......31

How to Select Channel List .................................................32

How to Factory Set .............................................................34

Setting TV System ...............................................................34

SettingRegion and Time.......................................................35

OSD Setting ........................................................................35

Setting Parental Lock .........................................................36

Setting Load Factory Default .............................................36

How to Set Teletext in DTV ................................................37

How to Set Subtitle ...........................................................37

Appendix

Troubleshooting ..................................................................38

Product Specifications ........................................................40

1

General Information

Image Sticking Precaution

When watching a still Image within motion pictures and

Wide/Panorama/Zoom/ /4:3 screen/14:9

Wide,Panorama,Zoom,4:3,14:9, screen

Box still image

1. Note :

- When the central area of the screen and the screen edges are fixed, the different brightness level of the edges may cause image retentions on the edges when watching for a long time

- This phenomenon happens also to products from other manufacturers. Please avoid watching a still image for a long time.

- If you watch a still image for a long time, this may damage your TV.

* This matter does not come under the warranty.


Safety Precaution

The contents of this section are provided for the safety of users and their property.

Please read the instructions carefully before using.

Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA

No.70-1984, provides information about proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Example of Grounding According to National Electrical Code

Instruction

Do not connect multiple electrical appliances to a single outlet.

- It may cause a fire due to overheating from the outlet.

Make sure to remove the speakers before moving the TV with speakers mounted on it.

- When the speakers are detached from the unit while carrying it, this may cause damage to the unit or personal injury.

Do not use or store a flammable spray or inflammable things near the

TV.

- They may cause explosion or fire.

Do not install the TV in a bookshelf, closet, or a place with poor air circulation.

- Fire may be caused due to the rise of internal temperature.

Any necessary action such as making the antenna cable loop at the entrance of the building should be taken to prevent rainwater on the outdoor antenna cable from possibly running indoor.

- If raindrop gets into the TV, it may cause a fire or an electric shock.

2

3



......................................................................................Continued from previous page



If there is a persistent accumulation of dusts or water on the plug, please make sure to wipe it off using a dry cloth.

- It may cause a fire or an electric shock.

Do not use a damaged power cord or plug, or loose outlet.

- It may cause electric shock or fire.

Do not put a water bowl, vase, candle, bug repellant smoke, cigarette, plants, or heavy thing on the TV.

- It may cause electric shock or fire and also heavy things may cause injury when they fall.

Firmly plug in the power cord so that it does not pull out.

- An unstable connection may cause fire.

Do not install in a place where there is oil, smoke, excessive humidity, or where water may be sprinkled on it.

- This may cause electric shock or fire.

Do not install on an unstable place or small support.

- This may cause the TV to fall, resulting in serious injury especially to children.

Never attempt to open, fix, or modify your TV.

- When there is a need for fixing, call a service center. Fire or electric shock may be caused.

When the TV produces abnormal noise, burning smell, or smoke, unplug the TV immediately and call a service center.

- Electric shock or fire may be caused.

Do not put a metallic object like chopstick, wire, or puncher or inflammables like paper or a match in a vent, headphone jack, or AV jacks of the TV.

- Electric shock or fire may be caused.


Please avoid touching the panel at the rear of

TV as it is producing high temperature.

- Direct contact with the hot surface may cause physical burns.

Do not place any heat sources such as radiators and heat registers, etc. near the TV.

- It may cause a fire.

Do not place toys and cookies, etc. on the TV, which may attract children’s attention.

- This may cause the TV to fall, resulting in serious injury.

Do not block ventilating slits with a table cloth.

- Blocking the ventilation slits may produce internal heat increase, resulting in a fire.

Do not allow children to climb or play on the

TV.

- This may cause the TV to fall resulting in serious injury.

Unplug when you do not use your TV for a long time.

- If dust is stacked on the TV, electric shock or fire may be caused from heat, fire, or deterioration of insulation.

When cleaning the TV, make sure to disconnect the power plug and use a dry, soft cloth for a cleanup.

- Please avoid using chemicals such as wax, benzene, alcohol, thinner, mosquito spray, air freshener, lubricant or synthetic detergent.

Never touch the power plug or outlet with wet hands.

- This may cause electric shock.

When moving the TV, two or more people are advised to carry it.

- This may cause damage to the unit or personal injury.

4



......................................................................................Continued from previous page



Unplug the product during lightning or thunderstorms and never touch the antenna cable.

- It may cause a fire or an electric shock.

5

Do not install the product on the floor.

- This may cause the TV to fall resulting in serious injury.

When replacing batteries, make sure to match the batteries to the (+) and (-) marks in the battery compartment.

- Mismatching of polarities may result in internal damage to batteries, fire due to leakage or contamination.

Keep the remote control batteries out of sight and out reach of children.

- If your child swallows a battery, see your doctor immediately.

Always use the standard batteries and avoid using old batteries together with new ones.

- Otherwise it may result in internal damage to batteries, fire due to leakage or contamination.

In the event of damaging or dropping the product, switch off the power and remove the plug.

- Using a damaged product may cause an electric shock or a fire.

- Contact your local service center.

Consult a service center or customer service for inside cleaning about once a year.

- When dust is piled inside the TV for a long time, fire or malfunction may be caused.

Before moving the product, ensure to switch off the power and unplug all the electrical cords and the external connection cords such as an antenna cable and other source connections, etc.

- Electrical cords may be damaged, resulting in a fire or an electrical shock.

Ensure the power cord doesn’t trail across any hot objects like a heater.

- This may cause a fire or an electric shock.


Contents of the Package

When opening the package, please ensure to check the following accessories.

Antenna Cable

(coaxial cable)

Power Cord Remote Control &

2 batteries (1.5V AAA)

User's Guide

Products Sold Separately

If you want to purchase the following accessories, consult a service center, electronics shops, or parts seller.

Component(Y, Pb, Pr) cable Composite(Video & Audio) cable DVI PC video(digital) cable

S-video cable PC signal cable Scart cable

HDMI cable Audio Cable (DVI/DVD) Audio Cable (PC)

Wall mounting frame Wall mounting frame

6


Parts Names and Functions

Front View

7

* This product image may be a bit different from the actual product.

Volume buttons

Use these buttons to adjust sound levels.

These buttons also serve as the cursors of

Select/Adjust in Menu mode.

Channel buttons

Use these buttons to change channels. These buttons also serve as the cursors of Down and

Up buttons in Menu mode.

Select button

Use this button to select each item from the menu mode.

Menu button

Use this button to display or exit from the menu mode.

Source button

Use this button to switch among inputs connected to the TV.

Power button

Use this button to turn on or off the TV.

Remote sensor and power LED.

- Point the remote control toward LED.

- It displays standby or operation status.

- Power Indicator Status -

Indicator Status

Red

Green

Standby

Power on

Power switch

Use this switch to turn on/off power.


Rear View

* This product image may be a bit different from the actual product.

HDMI1 input terminal


D-SUB input terminal

* ATV Upgrade terminal

D-SUB Audio input terminal

Component Video input terminal

Video(CVBS) output terminal

Component Audio input terminal

Audio output terminal

S-Video input terminal

Video(CVBS) input terminal

✓

Audio(CVBS/S-Video) input terminal

Antenna input terminal

Full Scart input terminal

* Extend an RS-232 input for ATV communication

Half Scart input terminal

SPDIF Optical audio output terminal

* DTV Upgrade terminal


- it's for technical service do not use at home.

8

9


Remote Control

1. POWER/STANDBY

2. MUTE

This button is also used when setting up to use other

external devices.

3. PREVIOUS PROGRAM

4. A/D TV

Use this button to switch the input source from analog to digital

5. Other external device selection

6. MENU SELECTION

Use this button to select menu items.

7. LEFT/RIGHT MOVE/ADJUST

- Use these buttons to move between menu items or adjust each item.

- Use UP/DOWN buttons to select Analog TV channels.

8. MENU

Use this button to call the OSD on the screen.

9. EXIT

Use this button to end the OSD.

10. DTV CHANNEL SELECTION

You can also use these buttons when changing pages in

TTX mode.

11. STILL

12. Use this buttons to use other manufacturer’s DVD or

VCR.

13. INFOMATION

Use this button to display resolution or various program.

14. SOURCE

Use this button to select External Input.

15. VOLUME

16. SOUND MODE

17. SLEEP

18. ASPECT RATIO

Use this button to change the picture size.

19. NUMERIC KEYS


Teletext & Fastext Function

1. TTX/MIX

To see Teletext Service Data for Analog TV and Digital TV.

2. GUIDE (EPG-Electronic Program Guide)

To watch the program information. Press once more to return to normal mode.

3. CH. LIST

To watch the channel list for Digital TV. Press key to confirm or press EXIT to return to previous channels.

4. RED rubber

- DTV : To setup favorite channel lists in the Channel List menu.

- ATV : To delete a channel in the Program Edit menu.

5. GREEN rubber

- DTV : To lock favorite channel lists in the channel list menu.

- ATV : To sort channels in the Program Edit menu.

6. YELLOW rubber

- DTV : To move favorite channel lists in the channel list menu.

- ATV : To edit channel names in the Program Edit menu.

7. BLUE rubber

DTV : To delete a channel from the channel List menu. To show extended program information in the EPG menu.

8. S.MODE

To adjust the subtitle and audio condition/status of the current channel for Digital TV

9. TV-RADIO

To switch between the TV channel and radio channel for

Digital TV.

10. WHITE rubber

DTV : To add a new channel to the Channel List menu.

11. ORANGE rubber

DTV : To see variant channel lists for user’s convenience in the

Channel List menu.

How to Insert Batteries in the Remote Controller

* Battery type :1.5V/AAA

1 2 3

Press and hold Δ part and push to open cover.

Insert batteries with proper polarities of

+ and -.

Use the remote control with cover closed.

10

Connections

Connecting Indoor/Outdoor TV Antenna(UHF/VHF)

- Antenna or Cable service without cable box connections

- For on optimum picture quality, adjust the direction of antenna if needed.

VHF Antenna

UHF Antenna

Antenna cable

✓

When inserting a 75 ohm coaxial cable into the input connection, ensure the wire tip not to bend.

✓

If you experience poor signal reception, we recommend you purchase a signal amplifier for better picture quality.

Connecting Antenna Input Connection to External Equipments

1. Connect an antenna cable to VCR/Cable/Satellite Receiver with the antenna input.

2. Use a coaxial cable to connect VCR/Cable/Satellite Receiver's antenna output to the antenna input on your TV.

VCR/Cable Receiver

Antenna cable

11

Connections

Before Connecting the Video/Audio Connections to External Devices...

Please make sure to read the following instruction to enjoy the best picture quality.

Best picture quality is displayed in the following order.

HDMI

HDMI, D-Sub COMPONENT FULL SCART S-VIDEO COMPOSITE HALF SCAT

The superior picture quality starts from the far left side.

How to Connect a DTV Receiver or DVD Player

1. Connect the Video cable (Y, Pb, Pr) between output terminals (Y, Pb, Pr) of DTV receiver or DVD player and the input terminals (Y, Pb, Pr) of DTV/DVD (576i/576p/720p/1080i/1080p) on the rear of TV.

(Connect the jacks to terminals in the same color.)

2. Connect the Audio cable between Audio output terminals of DTV receiver or DVD player and Audio input terminal for DTV/DVD Audio on the rear of TV. (Connect the jacks to terminals in the same color.)

DTV receiver

/ DVD Player

Video (Y, Pb, Pr) cable

Audio cable

✓

Output terminal mark (Y, Pb, and Pr) of DVD player may be indicated as Y, B-Y, R-Y/Y-Cb-Cr /Y-Pb-Pr according to the type of DVD player models.

✓

If your DVD player or Set Top Box supports HDMI/DVI, see Connecting to a PC (page 15) for connection. You can enjoy more clearer picture quality.

12

Connections

How to Connect a VCR, Cable Receiver, Camcoder, Game Player

1. Connect the Video cable or S-Video cable between Video/S-Video output terminals of VCR or Cable receiver and

Video/S-Video input terminal of TV. (Connect the jacks to terminals in the same color.)

2. Connect the Audio cable (Left: white, Right: red) between Audio output terminals of VCR or cable receiver and

Audio input terminal of TV. (Connect the jacks to terminals in the same color.)

Game Player

Camcorder

Video

/Cable receiver

Audio cable

Video cable

S-Video Cable

✓ To enjoy a better picture quality, use the S-Video cable rather than the composite cable.

How to Connect to a PC

1. Connect the PC signal cable (15-pin D-sub) between the output terminal of PC and the D-sub input terminal of TV.

2. Connect the Audio cable between Audio output terminal of PC and Audio input terminal for PC on the rear of TV.

(Connect the jacks to terminals in the same color.)

Audio Cable

D-SUB cable

13

✓ If you use HDMI connection, you can enjoy better picture quality.

✓ This product supports Plug-and-Play function.

✓ We recommend the above method if the DVD player or set top box supports DTV signal with HDMI cable for better picture quality.

✓ If you input an unsupported resolution in PC or HDMI mode, the screen won’t be displayed properly.

✓ DTV Timing is not guaranteed on the PC D-Sub mode

Connections

Resolutions Supported in PC

Resolution

640 x 350

640 x 480

720 x 400

800 x 600

832 x 624

1024 x 768

1280 x 1024

1366 x 768

1280 x 768

1600 x 1200

Horizontal frequency

31.47

-

37.86

31.50

-

-

31.47

37.88

46.88

48.08

49.73

48.36

56.48

60.02

63.98

47.7

47.34

75.00

Vertical frequency

70.00

-

72.80

75.00

-

-

70.08

60.32

75.00

72.19

74.55

60.00

70.07

75.03

60.02

60.00

60.00

60.00

Scart Connection to the External Input/Output

If you have a second VCR and wish to copy cassettes tape. Connect the source VCR to “F Scart” and the target VCR to “H Scart” so that you can redirect the signal from “F Scart” to “H Scart”.

* “F Scart” sends the TV broadcast signal received through an antenna to a set-top box and receives the descrambled signal back, which allows you to view TV broadcasts in AV Mode.

* “H Scart” you are capable to record live TV broadcasts on the TV screen. (Please make sure that your TV is “ON”.)

VCR

SET TOP BOX

DVD

Video Game Device

F SCART

VIDEO(CVBS)

+ Audio(L/R)

TV OUT

TV IN

Video Disc Player

Satellite Receiver

- F Scart Input : RGB, CVBS - F Scart Output : CVBS

- H Scart Input : CVBS - H Scart Output : CVBS

✓ When switching voltage comes into the Scart-Pin 8 during viewing a TV program, the current mode will be switched to Scart mode.

14

Connections

HDMI Connection

HDMI*

1

(High Definition Multi media Interface) is the first all digital consumer electronics A/V interface that supports uncompressed standard. The HDMI terminal supports both video and audio information.

To the HDMI™ input terminal, you can connect an EIA/CEA-861/861*

2

compliant consumer electronic device, such as a Set Top Box or DVD player with HDMI or DVI output terminal.

HDMI

DVD Player

Set Top Box

If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the

HDMI terminal.

HDMI Cable

Compatible VIDEO Signal

Model

1080 p

1080 i

576 p

720 p

Resolution

1920 x 1080 p

1,920 x 1,080 i

720 x 576 p

640 x 576 p

1280 x 720 p

Vertical frequency

50

50

50

50

50

- This input terminal is not intended for use with computers.

15

Compatible sampling freguency of AUDIO signal through HDMI (L.PCM) : 48kHz / 44.1kHz / 32 kHz

➥

Notes :

• This HDMI connector is Type A.

• If you connect an equipment without a digital output terminal, connect to the COMPONENT VIDEO, S VIDEO or

VIDEO input terminal on the TV so you can enjoy an analog signal.

• The DIGITAL IN terminal can only be used with 1080i, 720p or 576p/1080p picture signals. Set the Digital Set -Top

-Box DIGITAL OUT terminal Output setting to 1080p/1080i, 720p or 576p. For detailed information, refer to the

Digital Set -Top - Box instruction manual. If you cannot display the picture because your Digital Set -Top -Box does not have a DIGITAL OUT terminal Output setting, use the component Video Input (or the S Video Input or

Video Input). In this case the picture will be displayed as an analog signal.

*1. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.

*2. EIA/CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital video including high bandwidth digital content protection.

How to Set the OSD Screen

ANALOG TV - Terrestrial broadcasting for supporting analog PAL/SECAM system.

H-SCART - Basically the same as Full SCART in function but not supporting RGB Video signals.

Connections

F-SCART - For supporting composite video and RGB video signals. SCART connectors is used with many

European video equipments.

AV : For supporting the color shade(chrominance) and brightness(luminance) information into one video signal.

S-VIDEO : For supporting better resolution than composite video, which carries the signals together.

Component : For supporting greater color accuracy than composite video or S-VIDEO by splitting chrominance into one video signal.

HDMI : High Definition Multi media Interface that supports both video and audio information.

PC : For supporting Personal Computer connection.

iDTV : Digital Terrestrial broadcasting for supporting DVB-T

System.

Different OSD Menu

You can confirm OSD menu of three different types.

✓

In case of the source in ATV

✓

In case of the source in iDTV

16

Picture Setup

How to Select the Picture Mode

Users can automatically adjust the picture mode according to the input mode.

1

2

3

4

5

Press MENU button.

Menu items appear on the screen.

Press button to select “Picture” Icon.

“PICTURE MODE” is highlighted.

Press / or buttons to select “Picture mode”.

The menu changes in the following order.

CUSTOM

➛ DYNAMIC ➛ STANDARD ➛ MOVIE ➛ MILD

Press EXIT button to TV viewing or press MENU button to return to the previous menu.

♦ CUSTOM : When the user wants to set the values directly.

♦ DYNAMIC : Clear display

♦ STANDARD : Most video contents are appropriate to this mode.

♦ MOVIE : When watching a movie

♦ MILD : Soft display.

✓ In the custom’s mode, the users can adjust their desired brightness, contrast,

colour, Tint, sharpness and backlight.

17

How to Set the Desired Picture

Users can manually adjust their desired picture

4

5

2

3

1

Press MENU button.




Press / buttons to move to “Custom” and press / or buttons to select CUSTOM .

Select required option by pressing the / or button, then Press / button to adjust.


♦ BRIGHTNESS : Adjust the brightness of the entire picture.

♦ CONTRAST : Adjust the brightness and darkness of the object and backgrounds.

♦ COLOUR : Adjust colors into deeper or lighter colors.(not operational in pc mode)

♦ TINT : Adjust colors naturally.(not operational in pc iDTV and component mode)

♦ SHARPNESS : Adjust the clarity of object outlines.(not operational in pc iDTV and component mode)

♦ PHASE : To remove the picture shaking.

To eliminate the Shake of picture(operational in component and iDTV

Mode)

♦ BACKLIGHT : Adjust the brighten or darken of the screen.

Picture Setup

How to Set the Desired Picture in PC, HDMI Input Modes

Users can adjust Color as users want.

1

2

3

4

5

6

7

Press MENU button.



picture mode is highlighted.

Press / or buttons to select to ”picture mode”.

The menu changes in the following order.

➛ CUSTOM ➛ HIGH ➛ MIDDLE ➛ LOW

After selecting Color Tone, then the menu changes in the following order.

➛ CUSTOM ➛ COOL2 ➛ COOL1 ➛ NORMAL ➛ WARM1 ➛ WARM2

If you choose “ CUSTOM” in “COLOR TONE” you can adjust R.G.B.


♦ CUSTOM : When the user wants to set the degree of RGB directly.

♦ COOL : For cool colors with bluish tone.

♦ NORMAL : For a general Color Tone.

♦ WARM : For warm colors with reddish tone.

How to Set Image Adjust in PC Mode

1

2

3

4

5

6

7

Press MENU button.




Press / buttons to move to “PC” and Press / or select to “pc”

“AUTO ADJUST” is high lighted.

Press button to execute the “AUTO ADJUST”

Select required option by pressing the / or buttons, then press

/ button to adjust

Press EXIT button to TV viewing or press NEW button to return to the previous menu

♦ Auto ADJUST : Horizontal/vertical positions are automatically adjusted.

♦ PHASE : To eliminate the shake of the picture.

♦ H-POSITION : To adjust the horizontal position of the picture.

♦ V-POSITION : To adjust the vertical position of the picture.

♦ FREQUENCY : To eliminate the shake of picture.

18

Picture Setup

How to Select a Color Tone

Users can adjust Color as users want.

1

2

3

4

5

6

Press MENU button.




Press / buttons to move to “COLOR TONE”.

Press / or buttons to select “COLOR TONE”.

Press / buttons, then the menu changes in the following order.

➛ COOL2 ➛ COOL1 ➛NORMAL ➛ WARM1 ➛ WARM2


♦ COOL : For cool colors with bluish tone.

♦ NORMAL : For a general Color Tone.

♦ WARM : For warm colors with reddish tone.

19

How to Set the Display Size

Users can adjust the display scale as they want

1

2

3

4

5

Press MENU button.




Press / buttons to move to “SIZE”.

Press / or buttons and press / then the mode change in the following order.

COMPONENT Input :

➛ WIDE ➛ PANORAMA ➛ ZOOM ➛ 4:3 ➛ 14:9

PC/HDMI inputs :

➛ WIDE ➛ 4:3 ➛

Under other inputs :

➛ AUTOSIZE ➛ WIDE ➛ PANORAMA ➛ ZOOM

➛ 4:3 ➛ 14:9 ➛


♦ AUTO SIZE - Screen size adjust automatically by screen signal.

♦ WIDE - General broadcast picture is adjusted to 16:9.

♦ PANORAMA - Picture enlarged to 16:9 format, letter box format.

♦ ZOOM - Zoom in 16:9 in vertical direction

♦ 4:3 - 4:3 general picture size

♦ 14:9 - 14:9 picture size

Picture Setup / Sound Setup

How to Set Noise Reduction(NR)

User can eliminate noises on the screen in Video mode

1

2

5

6

3

4

Press MENU button.




Press / buttons to move to “NR”.

Press / buttons to select to “NR”.

Press

/

or buttons to set ON/OFF .


How to Select the Audio Mode

Users can adjust sound mode automatically as they want.

1

Press MENU button.


2

3

Press / buttons to move to “SOUND” icon.

Press button to select “SOUND” Icon.

“MODE” is highlighted.

4

Press / or buttons, to select to “SOUND MODE” then the menu changes in the following order.

CUSTOM

➛ STANDARD ➛ MUSIC ➛ MOVIE ➛ SPEECH ➛

5


♦ CUSTOM : When the user wants to set the values directly.

♦ STANDARD : For the general sound. Most audio contents are appropriate to this mode.

♦ MUSIC : For enjoying original sound.

♦ MOVIE : Grandiose sound.

♦ SPEECH : Clear sound.

➥ How To Directly Select Sound : Press Sound button.

Users can select custom CUSTOM

➛ STANDARD ➛ MUSIC ➛ MOVIE ➛ NEWS in order.

20

Sound Setup

How to Adjust the Desired Audio Mode

Users can adjust sound mode automatically as they want.

1

2

3

4

5

6

7

Press MENU button.



Press button to select “SOUND” icon.


Press / buttons to move to “Balance or Equalizer”.

Press buttons to select Balance or Equalizer .

Balance or Equalizer menu appears.

Select required option by pressing the / buttons, then Press / buttons to adjust.

Press EXIT button to TV viewing or press MENU button to return to the previous menu

♦ BALANCE : Adjusts the balance of left and right speakers.

♦ EQUALIZER : Adjusts the audio output signal in the desired band.

How to Select Auto Volume

This function will automatically give a similar volume size to each channel.

1

2

3

6

7

4

5

Press MENU button.



Press button to select “SOUND” icon.


Press / buttons to move to “AUTO VOLUME ” .

Press / or buttons to select ON/OFF .

Press / or buttons to set to ON/OFF .

Press EXIT button to TV viewing or press MENU button to return to the previous menu

21

Sound Setup / Channel Setup

How to Select Sound Mode

Depending on the particular program being broadcast, you can select stereo or mono.

1

2

3

4

5

6

Press MENU button.


Press button to select “SOUND” Icon.


Press / buttons to move to “SOUND MODE”.

Press

/

or buttons to select to SOUND MODE .

Press / buttons to select to MONO

STEREO .

Press exit button to TV viewing or press MENU button to return to the previous menu

➥ How To Directly Select S. MODE : Press S. MODE button.

To select “MONO” or “STEREO”.

♦ Choose “STEREO” for channels that are broadcasting in STEREO.

♦ Choose “MONO” for channels that are broadcasting in MONO, or if you are having difficultly receiving a STEREO signal.

✓

If the signal reception conditions deteriorate, setting to Mono will make sound conditions better.

✓ If you select Mono L or R you could listen one sound signal by both speakers.

How to Select Auto Store

Auto store enables to search/store channels of countries where the user is located automatically.

1

2

3

6

7

4

5

8

9

Press MENU button.


Press / buttons to move to “CHANNEL” icon.

Press button to select “CHANNEL” Icon.

“COUNTRY” is highlighted.

Press / or buttons to select “COUNTRY”

Press / or buttons to set YOUR COUNTRY .

Press / buttons to move to “AUTO STORE”.

Press / or buttons to select AUTO STORE .

Auto store menu appears, and “START” is highlighted.

Press / buttons to select “START” or “STOP”, then Press to store.


22

Channel Setup

How to Select Manual Store

Manual store enables to searching channels which the user want manually.

1

4

5

6

7

2

3

8

Press MENU button.


Press / Buttons to move to “CHANNEL” icon.

Press button to select “CHANNEL” Icon.


Press / Buttons to move to “MANUAL STORE”.

Press / or button to select “MANUAL STORE”.

Manual program menu appears, then “PROG.” is highlighted.

Press / buttons to select program No.

Select required option by pressing the / button, then Press / or

/ buttons to set or adjust.

To store the setting, press / buttons, move to “Store” and press button to store and finish.

23

Channel Setup

How to Set the Program Edit(Add/Delete, Sort, Name)

Program edit enables users to edit the searched programs.

1

4

5

2

3

6

Press MENU button.


Press / Buttons to move to “CHANNEL” icon.

Press buttons to select “CHANNEL” Icon.


Press / Buttons to move to “add/delete, sort,name”.

Press button to select “add/delete”.

The program table appears on the screen. One program table contains five programs.

Press / Buttons to move the program list, and press / buttons to move the menu list select “added” or “Erased”

☞

Sorting the Stored Channels

a. Place to buttons to select and / buttons to choose the swapping PR number.

b. To store the setting, press / or buttons.

☞

Assigning Names to Channel press

button to select and / Buttons to set to “NAME” a. Place the cursor on NAME and Select a letter (A~Z), a number (0~9) or blank space. b. To store the setting, press the button once again.

7


24

Channel Setup / Function Setup

How to fine tune

if the reception is clear, you do not have to fine tune, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to fine tune the channel manually.

1

2

3

4

5

6

Press Menu button.


Press button to select "channel"icon

"country"is highlighted.

Press / buttons to move to "fine tune".

Press / or buttons to select to "fine tune".

Press / or / buttons to adjust "to fine tune".


How to Reset

1

2

3

4

5

Press MENU button.


Press button to select “Set up” Icon.

“Reset” is highlighted.

Press / or buttons to select to “RESET”.

Press buttons to choose to RESET .


✓ When you select “Reset” user setting value will initialize except channel value.

25

How to Set Clock, Sleep Time, ON/OFF Time

1

2

3

4

5

Press Menu button.


Press button to select “SET-UP” Icon.

“RESET” is highlighted.

Press / buttons to move to “TIME”.

Press / or buttons to select “TIME”.

Time menu appears, then “CLOCK” is highlighted.

Press / buttons to move between Hour, Minute and Press / buttons to set Hour, Minute.

✓ When the power supply(AC main power) is cut off, the clock is reset to the value

before the Time set.

Go to step 6 if you need to set the “ON or OFF TIME”.

8

6

7

Press / buttons to move to “ON or OFF TIME”.

Press

/

or

buttons to select “ON or OFF TIME”.

Press / buttons to move between Hour, Minute and on/off and Press

/ buttons to set Hour, Minute and on/off go to step 9 if you need to set the “ON TIME CHAMEL” or “ON TIME VOLUM”

9

10

Press / buttons to move to on time channel or Volume.

Press / buttons to adjust on time channel or Volume.

go to step 11 if you need to set the “SOURCE”

11

12

13

Press / buttons to move to “SOURCE”

Press /

or

buttons to select to “SOURCE”

Press /

or

buttons to set to “SOURCE”

26

Function Setup

Choosing the Your Languages

Using the TV for the first time, users must select their preferred language preference in order to display main menus and sub menus, etc.

2

3

1

4

Press MENU button.


Press button to select “SET UP” Icon.


Press / button to move to Language and press / or button to select to Language .

➛ ENGLISH ➛ FRANÇAIS➛ DEUTSCHLAND ➛ ITALIANO ➛ ESPAÑOL

➛ NEDERLAND ➛ sverige➛ greece


How to set osd tone

1

2

3

4

5

Press MENU button.


Press button to select "set up"icon


Press / buttons to move to "osd tone"

Press / or buttons to select to "osd tone".

Press / or buttons to set to "on/off".

27

Function Setup

How to Set Teletext in ATV

You can use Teletext service in analog TV mode.

If it is included in you receiving channels.

1

2

Press “TTX/MIX” button and wait.

If the “*” sign pops up left upside of the screen as the following picture, wait until the teletext service menu is displayed “*” means it provides teletext service. So wait a moment.

Select your interesting item with numeric keys.

Selecting Teletext Display Options in ATV Mode

When users have displayed a teletext page, they can have various options to suit their requirements.

DISPLAY(ACTION)

• Hidden Text (Answers to Quiz Games, for Example)

• The Normal Screen

• A Second Page

• Normal screen

• Double-Size Letters in the :

- Upper half of the screen

- Lower half of the screen

• Normal Screen :

Stops the automatic page change which will occur if teletext page consists of 2 or more sub pages.

The stop symbol is displayed at the top left-hand corner of the screen.

• FLOF

• TOP

INDEX (Full Level One Facility)

INFO. (Table of Page)

• To Store Page

• Return to List or FLOF mode

BUTTON

REVEAL

REVEAL AGAIN

SUB PAGE

SUB PAGE AGAIN

SIZE

- ONCE

- TWICE

- THREE TIMES

HOLD

HOLD AGAIN

INDEX

STORE

LIST/FLOF

28

Function Setup / DTV Channel Setup

How to Set Key-Lock

User can lock the control buttons on the front bottom of the TV.

1

2

3

6

7

4

5

Press MENU button.


Press / button to move to “SET UP” Icon.

Press button to select “SET UP” Icon.

“RESET” is highlighted

Press / buttons to move to “KEY LOCK”.

Press / or buttons to select to “KEY LOCK”.

Press

/ or

buttons to set to ON/OFF .


How to Search Automatically

This function can be used to get the latest program data while the receiver is still in use.

Through this function, the receiver searches for all the available program and saves them in the memory.

1

4

5

2

3

6

Press MENU button.


Press / Buttons to move to “DTV CHANNEL” icon.

Press button to select “DTV CHANNEL” Icon.

“AUTO SCAN” is highlighted.

Firstly please select the country in System Setup

Menu / Region and Time / Region

In “Scan Mode” item, press / key to select scans all channels or just scans free channels

Moving the highlight to “Search” item and press key to start scanning.

29

DTV Channel Setup

How to Search Manually

You can edit parameters of certain channels and scan them.

1

4

5

6

7

2

3

8

Press MENU button.





Press / Buttons to move to “MANUAL SCAN”.

Press buttons to select MANUAL SCAN”

MANUAL Scan menu appears.

There are two modes. You can scan channel by channel or by frequency.”

When scan band is UHF, the range of Ch No. is from 21 to 61.

When scan band is VHF, the range of Ch No. is from 1 to 20.

When you complete your modification, move highlight to

“Search” item and press [OK] key, then it will begin to scan.

9

In the “Manual Scan” item, press [Exit] key to exit the scanning and save the current parameters.

How to Check Channel State

Users can check parameters of certain channels and scan them.

1

2

3

4

5

6

7

Press MENU button.





Press / Buttons to move to “CHANNEL STATE” icon.

Press buttons to select CHANNEL STATE”

Tuner State menu appears.

When you enter to “Channel State” menu, you will see a screen like left.

The screen displays some parameters of information of current channel.

Press [Exit] key to draw back from “Channel State” menu

30

DTV Channel Setup

How to Use the Guide (EPG : Electronic Program Guide)

Users can check the channel information on the channels of the transponder they are watching.

4

5

6

1

2

3

7

8

Press MENU button.





Press / Buttons to move to “GUIDE”.

Press buttons to select GUIDE”

Program Guide menu appears.

The EPG supplies information such as channel listings and starting and ending times for all available channels.

Press number key [1] can display all programs schedule information of the selected channel.

Press number key [2] can display the current channel detail information.

31

DTV Channel Setup

How to Select Channel List

Users can change the current channel to any other channel they want.

1

2

3

4

5

6

Press MENU button.


Press / buttons to move to “DTV CHANNEL” icon.



Press / buttons to move to “CHANNEL LIST”.

Press buttons to select CHANNEL LIST”

You can move highlight by press [Up/Down] key to preview the current highlighted program in the right side preview window.

You can press [Page Up/Page Down] key to

7

8

9

10

implement the Page Up/Page down function.

You can use [Left/Right] key to switch “Group.”

You can press [Menu] or [Exit] keys to enter full screen playing mode.

Press the number key [1] ~ [4] can implement the corresponding function in “Channel List”.

* How to Move Channel

1. Press number key [1] , there will show a “moving mark” in the right side of the selected channel.

2. You can move the selected channel to the position that you want to place by press [Up/Down] key.

And press [OK] key to confirm your decision.

* How to Find Channel

1. Press number key [2] can open the “Find” window like above.

You can press [Channel Up/Channel Down/Volume Up/Volume Down] key to move highlight and press [OK] key to input the selected symbol or letter into the dialogue.

2. After input each character, the program list on the left will searchthe channel according your input, and list the matched channel.

3. Press [Exit] key can close “Find” window and you can select channelfrom the channels list directly

* How to Sort Channel

1. Press number key [3] can open the “Sort” window likes above.

There are five kinds of sorting ways. You can press [Up/Down] key to move highlight and press [OK] key to confirm you selection

2. The five kinds of sorting way are:

Default: Sorting by scanning result.

Name (A-Z): Sorting in Alphabetical Order, ignore “$” symbol.

Name (Z-A): Sorting in Alphabetical Order, ignore “$” symbol.

FTA: Sieved out all free fare channels.

Lock: Accumulated all locked channels and list in the last of TV Channel List

32

DTV Channel Setup

* How to Edit Channel

1. Press number key [4] will open a message box for you to enter password, and the default password is “0000”.

2. There are five items of “TV Channel List Edits”: Delete, Skip, Lock, Edit, and elete all.

3 . Press [Exit] key to exit “TV Channel List Edit” menu.

The system will show up a message box to inquire you whether saving or not.

1) Delete

In “TV Channel List Edit” menu, press number key [1] can make a delete mark in the right side of the highlighted channel. After save and exit “TV

Channel List Edit” menu, the marked channel will be deleted.

2) Skip

In “TV Channel List Edit” menu, press number key [2] can make a “skip mark”in the right side of the highlighted channel. After save and exit “TV

Channel List Edit” menu, the channel will be skip while user change channel in the full screen.

3) Lock

In “TV Channel List Edit” menu, press number key [3] can make a “lock mark” in the right side of highlighted channel. After save and exit “TV

Channel List Edit” menu, STB will request you to inpu the password while you want to watch the locked channel.

4) Edit

In “TV Channel List Edit” menu, press number key [4] can enter edit box like below:

-. On the “Name” item, press [OK] key can display keypad to edit the name of selected channel.

-. “Video PID”, “Audio PID” and “PCR PID” items are grey and can not be edited.

-. After modification, move highlight to “Save” item and press [OK] key can save the modified value and exit “Edit” mode. Otherwise, move highlight to [Exit] item and press [OK] key can exit “Edit” mode and won’t save any modification.

5) Delete all

-. In “TV Channel List Edit” menu, press number key [5] can mark all the channel with delete mark

-. Press number key [5] again can cancel all the delete mark.

33

How to Factory Set

The status of the Digital-TV will return to factory default parameters by using this function.

1

2

3

4

5

6

7

Press MENU button.





Press / Buttons to move to “FACTORY SET”.

Press buttons to select FACTORY SET”

“Factory Set” is highlighted.

Press [Up/Down] key to select menu items among each item.

Press [OK] key to enter the selected item.

DTV Channel Setup

Setting TV System

1

2

You can press [Left/Right] key to select on or off.

LCN Mode can control the channel whether sort by the sequence information in the streams. The options are: On / Off.

You can press [Left/Right] key to select each mode circularly.

3

Press [Exit] key to draw back from “TV System” menu

34

DTV Channel Setup

Setting Region and Time

When you enter to “Region & Time” menu, you will see “Region” and “Time Setting” items like below:

1

Region:

Region is used for selecting the country which you are in.

You can press [Left/Right] key to select each mode circularly.

Press [Menu] key to exit menu.

2

Time Setting:

-.When you select “Time Setting” and press [OK] key to enter the menu, you will see the screen like below:

-. GMT Usage: This item is use for open the usage of GMT.

You can press [Left/Right] keys to switch “Off / User Define / By Region”

The “GMT Offset” item is valid only when the setting of “GMT Usage” is “User

Define”.

You can press [Left/Right] keys to switch “GMT

- Offset” value and the range is “-12:00 ~ +12:00”, increase each half hour progressively.

- “Date” and “Time” items are valid only when the setting of “GMT Usage” is “Off”.

You can press [Left/Right] keys to moving highlight and use number keys to input directly.

- “Summer Time” items are valid only when the setting of “GMT Usage” is “By

Region.”

You can press [Left/Right] keys to switch.

- Time display function can control whether the time will be displayed on screen or not.

- Press [Exit] key to draw back from “Time” menu.

OSD Setting

When you input to “OSD Setting” menu, you will see a screen like below:

1

2

Menu Style: offers five kinds different color style; you can press [Left/Right] key to select your favorite.

Subtitle Display: You can press [Left/Right] key to select “On” or “Off”. If the current channel has subtitle information, it will be showed up while this function is “On”. If this function is “Off”, there won’t show up subtitle information even if the current channel has subtitle information.

3

4

5

6

OSD Timeout: When you switch channels in full screen, there will show up some information about current channel on the lower of the screen.

And regarding to the duration of these information show up on the screen, you can press [Left/Right] key to set the time. The range of the duration is “5 second ~ 30 seconds.”

OSD Transparency: Besides the setting of “OSD Menu Style”, you also can set the transparency of OSD. You can press

[Left/Right] key to select the values.

There are 5 levels of transparency, 10%, 20%, 30%, and 40% and “NO” (means no transparency function).

Load OSD Setting Default: If you are not satisfy with your setting, you can move highlight to this item and press [OK] key to reset parameters as default value.

Press [Exit] key to draw back from the “OSD Setting” menu.

35

Setting Parental Lock

In “Parental Lock” function, press [OK] key, there will pop a dialogue for you to input the password.

The default password is “0000”. When you input the correct password, you will see a screen like below:

DTV Channel Setup

1

2

Menu Lock determining that when user wish to enter “Installation” menu, whether have to input Password or not. If the setting of “Menu Lock” is “Yes” which means user have to key in password, set “No” means unlock.

Channel Lock determining that when user wishes to play the lock channels, whether have to input the password or not. If the setting is “Yes”, play the channels with lock mark will show up a dialogue on the screen and ask for the password.

- If the setting of “Channel Lock” is “No,” the Lock function will invalid.

- New Password is used for revising password; you can input the new password in this item by using number keys directly. After you filled in 4 digital numbers, the highlight will auto skip to Confirm Password and ask you to input the new password again.

If the password is correct, the screen will show up a message of “Change password successfully.”

After finish saving and draw back to “System Setup” menu, the revising is complete.

- Press [Exit] key to draw back from the “Parental Lock” menu.

Setting Load Factory Default

When you press [OK] key in the “Load Factory Default” item:

1

There will pop a dialogue for you to enter the password, and the default password is “0000”.

2

After you input the correct password, there will show a warning message to inquiry you “The operation will load default and erase all the channels that user added, continue?”.

3

If you select “Yes” option, the all revised parameters of the receiver will reset to default value.

Please carefully to using this function.

4

In step 1 and step 2, press [Exit] key can draw back from this item and without saving

36

DTV Channel Setup

How to Set Teletext in DTV

1

2

3

Press [TTX/MIX] to show teletext information.

Select “on” OSD , and select language on the OSD.

Press [TTX/MIX] key to control about the background of the teletext like below the picture

How to Set Subtitle

1

2

3

Press [S.MODE] to show the subtitle information.

Change the Subtitle Display, and select SUBT LANG.

Subtitle will be displayed on the screen like below the picture.

37

Troubleshooting

Symptom

How can I install an antenna?

Possible solution

Refer to page 11.

TV screen is not clear after installing an indoors antenna.

How can I view cable broadcasting?

Indoors antenna may experience poor reception due to surrounding buildings. Please install an outdoors antenna or wireless antenna.

Please install a cable broadcasting receiver (Converter).

Symptom

Neither picture nor sound comes up.

Picture turns on slowly after power is on.


Check whether power is on.

Check whether the power is cut or whether the power cord is properly connected.

Try to plug another product’s power cord to the same outlet to check the outlet itself.

This symptom is not a malfunction. This delay is designed to prevent the distorted and noisy picture when the power is on. However, if the picture does not appear more than

5 minutes after the power is on, call a service center.

Picture is distorted or frozen while watching digital broadcasting.

This symptom may be caused by weak reception. Contact your local station or cable company.

Input Source information only appears on black screen.

Poor reception on some channels.

Black and white on some channels.

TV won’t turn on.

Check whether your TV is properly connected to external devices.

Check whether you selected proper channels. Try re-orienting your antenna. Ensure

LNA is activated.

Check other channels for black and white screen. Adjust colour.

Ensure the power cord is plugged.

Adjust brightness.

Screen is too bright or too dark.

Auto On does not work.

Ensure to use the remote control or power button on the product to turn off your TV. If you unplug the power cord, the stand-by consumption power becomes 0 (zero), which causes the programmed time to be erased.

Appendix

38

Appendix

After setting the time,

I turned TV off and turn it on.

The programmed information has been erased.

Ensure to use the remote control or power button on the product to turn off your TV. If you unplug the power cord, the stand-by consumption power becomes 0 (zero), which causes the programmed time to be erased.

Symptom Possible solution

Too much noise occurs.

No sound while viewing a cable channel

Check whether the audio setting is in the Stereo mode. In the Stereo mode, the sound may be distorted in areas with poor reception or located far away from a TV broadcasting station.

Make sure audio or audio/video components are securely inserted into the appropriate jacks. Check other channels for sound. Check the volume settings on the cable broadcasting receiver.

Picture is OK but sound does not come out.

Try to press volume up/volume down buttons of your remote control.

One of the speakers does not produce sound.

Select sound balance and make proper adjustment. (Page 20)

Check the speaker connection cables.

Symptom

Remote control won't work.


Check whether there is a blocking object between the remote control and PDP.

Make sure your PDP is Power On. (Normally, the LED on the front panel is red.)

Check whether batteries are inserted with proper polarities(+, -).

When the batteries are worn out, replace them.

Connect the two Audio jacks from the S-Video cable to the left and right ports on the

Composite.

Where does the S-Video cable plug in for audio output?

Strange noises are heard.

Ticking noises during or after watching are caused by the change of ambient environment such as humidity and temperature, which is characterized by plastic products. Strange ticking noises occur because a signal is suddenly transmitted to the

PDP panel. So, It is not a malfunction.

I tried to use the TV screen as a PC monitor but it doesn’t work.

Adjust the resolution referring to the standard signal mode table. Check the specification of your video card installed in your PC. If your video card does not work in the supported hardware, try upgrading the video card’s driver.

39

Product Specifications

Model

Input Full-Scart

Half-Scart

S-Video

Video (RCA)

Component(Y/Cb/Cr)

Antenna

PC Connection jack

Max. resolution

Audio

DVI-HDCP / HDMI

Video Output

Audio Output

TV/Video

Digital SPDIF Optical

Color system

Sound system

Video system

Power Supply

Consumption power

Stand-by power

Dimension (W x D x H mm - Stand included)

Weigh (Stand included)

Control type

LC4202e

1 (A/V)

1 (A/V)

1 (A/V audio common)

1 (Audio included)

1 (Audio included)

1

D-SUB

1600 X 1200 @ 60 Hz

L/R

3

1 (Audio included)

1

PAL/SECAM L

FM, NICAM

Component, S-Video,

Composite, PC, DVI/HDMI

AC 100 - 240 V, 50/60 Hz

Typical 220W

Typical 3W

1057 x 350 x 796

32.6Kg

Remote control, Key control

- The above specifications may be subject to change without prior notice.

LC4602e

1 (A/V)

1 (A/V)

1 (A/V audio common)

1 (Audio included)

1 (Audio included)

1

D-SUB

1600 X 1200 @ 60 Hz

L/R

3

1 (Audio included)

1

PAL/SECAM L

FM, NICAM

Component, S-Video,

Composite, PC, DVI/HDMI

AC 100 - 240 V, 50/60 Hz

Typical 250W

Typical 3W

1143 x 350 x 845

31.0Kg

Remote control, Key control

Appendix

40

No results
