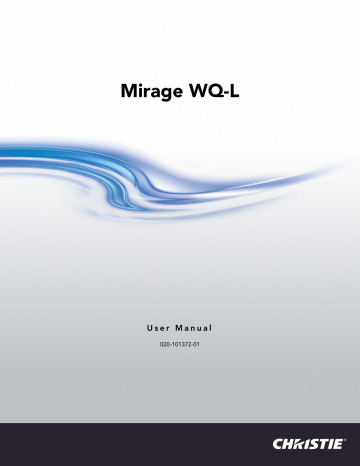

Mirage WQ-L
U s e r M a n u a l
020-101372-01
NOTICES
COPYRIGHT AND TRADEMARKS
Copyright © 2014 Christie Digital Systems USA Inc. All rights reserved.
All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
GENERAL
Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this document. Christie reserves the right to make changes to specifications at any time without notice. Performance specifications are typical, but may vary depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.
Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of this material. Canadian manufacturing facility is ISO 9001 and 14001 certified.
WARRANTY
Products are warranted under Christie’s standard limited warranty, the complete details of which are available by contacting your
Christie dealer or Christie. In addition to the other limitations that may be specified in Christie’s standard limited warranty and, to the extent relevant or applicable to your product, the warranty does not cover: a. Problems or damage occurring during shipment, in either direction.
b. Projector lamps (See Christie’s separate lamp program policy).
c. Problems or damage caused by use of a projector lamp beyond the recommended lamp life, or use of a lamp other than a Christie lamp supplied by Christie or an authorized distributor of Christie lamps.
d. Problems or damage caused by combination of a product with non-Christie equipment, such as distribution systems, cameras,
DVD players, etc., or use of a product with any non-Christie interface device.
e. Problems or damage caused by the use of any lamp, replacement part or component purchased or obtained from an unauthorized distributor of Christie lamps, replacement parts or components including, without limitation, any distributor offering
Christie lamps, replacement parts or components through the internet (confirmation of authorized distributors may be obtained from Christie).
f. Problems or damage caused by misuse, improper power source, accident, fire, flood, lightening, earthquake or other natural disaster.
g. Problems or damage caused by improper installation/alignment, or by equipment modification, if by other than Christie service personnel or a Christie authorized repair service provider.
h. Problems or damage caused by use of a product on a motion platform or other movable device where such product has not been designed, modified or approved by Christie for such use.
i. Problems or damage caused by use of a projector in the presence of an oil-based fog machine or laser-based lighting that is unrelated to the projector.
j. For LCD projectors, the warranty period specified in the warranty applies only where the LCD projector is in “normal use” which means the LCD projector is not used more than 8 hours a day, 5 days a week.
k. Except where the product is designed for outdoor use, problems or damage caused by use of the product outdoors unless such product is protected from precipitation or other adverse weather or environmental conditions and the ambient temperature is within the recommended ambient temperature set forth in the specifications for such product.
l. Image retention on LCD flat panels.
m.Defects caused by normal wear and tear or otherwise due to normal aging of a product.
The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.
The warranty does not obligate Christie to provide any on site warranty service at the product site location.
PREVENTATIVE MAINTENANCE
Preventative maintenance is an important part of the continued and proper operation of your product. Please see the Maintenance section for specific maintenance items as they relate to your product. Failure to perform maintenance as required, and in accordance with the maintenance schedule specified by Christie, will void the warranty.
REGULATORY
The product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the product is operated in a commercial environment. The product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the product in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the user’s own expense.
CAN ICES-3 (A) / NMB-3 (A)
이 기기는 업무용 (A 급 ) 으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는 이점을 주의하시기 바라며 , 가정 외의 지역에서
사용하는 것을 목적으로 합니다 .
Environmental
The product is designed and manufactured with high ‐ quality materials and components that can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end ‐ of ‐ life, should be disposed of separately from regular waste.
Please dispose of the product appropriately and according to local regulations.
In the European Union, there are separate collection systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
Addendum
Translated copies of this document are provided on the CD in the back of this document. The CD may also contain additional product documentation. Read all instructions before using or servicing this product.
本 文 档 的 翻 译 副 本 在 本 文 档 背 面 的
C D
上 提 供 。 该
CD
中 还 可 能 包 含 其 他 产 品 文
档 。 使 用 或 维 修 本 产 品 之 前 请 务 必 阅 读 所 有 说 明 。
文 件 背 面 的 光 碟 提 供 了 本 文 件 的 翻 譯 副 本 。 這 張 光 碟 可 能 另 外 包 含 其 他 產 品 文
件 。 請 先 閱 讀 所 有 指 示 再 使 用 或 送 修 本 產 品 。
Le
CD
au
dos
de
ce
document
contient
des
traductions
de
celui
‐
ci
dans
différentes
langues.
Ce
CD
peut
également
contenir
de
la
documentation
supplémentaire
sur
le
produit.
Lisez
toutes
les
instructions
avant
d'utiliser
ou
d'entretenir
ce
produit.
Übersetzte Versionen dieses Dokuments werden auf der CD auf dem Vorsatzblatt dieses Dokuments bereitgestellt. Die CD kann auch zusätzliche Produktdokumentation enthalten. Bitte lesen Sie diese
Anweisungen vor der Verwendung dieses Produkts oder vor der Ausführung von Wartungsarbeiten am
Produkt.
Le copie tradotte di questo documento sono fornite sul CD, sul retro di questo documento. Il CD potrebbe anche contenere altra documentazione sul prodotto. Si prega di leggere tutte le istruzioni prima di utilizzare questo prodotto o sottoporlo a manutenzione.
このドキュメントの翻訳版がこのドキュメントの裏面の
CD
で提供されています。
CD
に
は追加の製品マニュアルも収められています。この製品を使用したり、機能させたりす
る前に、すべての指示をお読みください。
이
문서의
번역된
사본이
이
문서
후면의
CD
에서
제공됩니다
.
이
CD
에는
추가
제품
설명
서가
포함되어
있을
수
있습니다
.
이 제품을 사용하거나 수리하기 전에 모든 지침을 확인
하십시오
.
Copias traduzidas deste documento são fornecida no CD contido na parte de trás deste documento. O
CD pode conter documentação adicional do produto. Leia todas as instruções antes de usar ou prestar serviço com este produto.
Перевод данного документа представлен на компакт
-
диске на оборотной стороне документа
.
Компакт
-
диск может также содержать дополнительную документацию по продукту
.
Перед использованием или обслуживанием продукта ознакомьтесь со всеми инструкциями
.
Las copias traducidas de este documento se proporcionan en el CD que se encuentra en la parte trasera. En el CD también puede encontrar documentación adicional del producto. Lea todas las instrucciones antes de utilizar o realizar el mantenimiento de este producto.
Перекладені екземпляри цього документа містяться на компакт
-
диску
,
який додано до цього документа
.
На компакт
-
диску може також бути додаткова документація до виробу
.
Перш ніж користуватися виробом або його обслуговувати
,
прочитайте всі інструкції
.
Table of Contents
Calculate Throw Distance and Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Network Setup for External Communications . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjust Image Geometry and Optical Alignment . . . . . . . . . . . . . . . . . . . . . . . . . 27
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
5
Advanced Tab—Real Time Events (RTE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Adjust Projected White and Primary Colors for the Array . . . . . . . . . . . . . . . . . . 43
Fine-tune Whites, White Brightness, or Primary Colors . . . . . . . . . . . . . . . . . . . 45
Fine-tune Projector Colors with a Color Meter . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Adjust Geometry Correction Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3D Dual-Input 120Hz native output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Set Up the Mirage WQ-L to Display 3D Content . . . . . . . . . . . . . . . . . . . . . . . . 57
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
6
Remove Fingerprints, Smudges, or Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Specific Projector in a Network with one Controller . . . . . . . . . . . . . . . . . . . . . . 68
Specific Projector in a Network with Multiple Controllers . . . . . . . . . . . . . . . . . . 68
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
7
Array Bright Color LOC (ABL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
8
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
9
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
10
Introduction
Safety Warnings and Cautions
Always power down and disconnect or disengage power before servicing or cleaning. Failure to comply could result in death or serious injury.
013-102318-01 R EV 02
C AU TIO N / è
R isk G roup 2/ q³I§
Possible hazardous optical radiation em itted from this product.
,§ÁïýÑúqi„I
D o not stare at operating lam p.
M ay be harm ful to the eyes.
Risk Group 2: Possible hazardous optical radiation emitted from this product.
Do not stare at operating lamp. May be harmful to the eyes. Failure to comply could result in minor or moderate injury.
Laser radiation is emitted from the laser diode in the remote. Do not look directly into the laser beam. Failure to comply could result in minor or moderate injury.
Failure to comply with the following may result in equipment damage:
• All installation procedures must be performed by accredited service technicians.
• The projector must be operated in an environment that meets operating specifications, as
listed in Specifications on page 112.
Projector Overview
Mirage WQ-L projectors are professional quality WQXGA data projectors featuring the latest in DLP
® display technology to achieve high brightness, high resolution video projection images. The modular design of the Mirage WQ-L projectors makes them an ideal choice for the demanding needs of visualization applications.
IR remote sensor
Lens mount
Input panel
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
11
Introduction
Key Features
• Native WQXGA, 2560 x 1600 resolution single-chip DLP ® light engine
• Solid-state (LED) illuminator
• ArrayLOC™ feature to maintain uniform color and brightness across multiple projectors
• Display of stereoscopic 3D video
• Two dual-link DVI inputs (digital only)
• Adjustable visible illumination levels
• Warp and blend of projected images
• Operates in any orientation
• Ruggedized for operation on motion platforms
• Compatible with Matrix StIM projection lens suite
• Air-cooled
List of Components
i
A User Kit is supplied with each projection system. Additional User Kits can be purchased separately (P/N: 130-103105-xx).
Make sure these components were received with the projector:
• Warranty Card
• Web Registration Form
• Line Cord (appropriate for region)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
12
Installation
This section explains how to install, connect and optimize the projector. Illustrations are graphical representations only and are provided to enhance the understanding of the written material. When designing a projection room for either a permanent or temporary installation, consider positioning the projector and screen for maximum audience coverage and space efficiency. For example, placing the screen along the larger wall in a rectangular room reduces audience coverage.
Other considerations:
• Operating single or multiple units.
• Room size.
• Lighting and audience seating.
• Distance between the audience and the display.
• Angle from which the display is viewed.
Installation Procedures
Unpack the Projector
The projector should be lifted by two people. Use the designated handles to help lift and support the projector. Use a stable cart to transport the projector. Failure to comply could result in minor or moderate injury.
Do not place the projector onto a surface with the line cord retainer side down. Failure to comply may result in damage to the line cord retainer. i
Christie recommends that the packaging material for at least one projector is saved in case one needs to be shipped for service.
The projector is shipped assembled with the projection lens shipped separately. Install the lens
once the projector is fully assembled and in its final position. See Install the Lens on page 16 .
1. Remove the line cord from the packaging.
2. Remove the top foam from the box.
3. Open the bag and lift the projector up using the two handles. It is recommended that two people remove the projector, each holding onto a handle.
4. Rotate the projector 90° and place on a flat surface.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
13
Installation
Line cord
Top foam
Handles
Place on a flat surface in the orientation shown.
Do not place the projector onto a surface with the line cord retainer side down.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
14
Installation
Mount the Projector
Do not stack units. Failure to comply could result in minor or moderate injury.
Failure to comply with the following may result in equipment damage:
• Air flows in through the front of the projector and out the rear of the projector.
Insufficient airflow can cause the projector to overheat during operation and / or place stress on the source connections. When mounting the projector allow for up to 1100
CFM of airflow through the projector. Ambient temperature must stay below 40° C
(95° F).
• Inlet air temperature must be below 40° C (95° F).
• Keep the projector away from all devices radiating electromagnetic energy. For example, motors and transformers, speakers, power amplifiers, and elevators.
The mounting support system and the mounting surface must be evaluated and accepted by local authorities and must adhere to local standards and safety regulations.
i
Mounting points are available on all four sides of the projector, including the front face. Each side has six mounting points, two of which are on the front plate. The front plate has an additional seven front facing mounting points. Christie recommends that a minimum of four mounting points are used in any installation, with at least one of the mounting points being on the front plate. A 10mm thread engagement and a minimum torque of 30 in.-lbs
(3.5 Nm) /maximum torque of 35 in.-lbs (4 Nm) is recommended. For some installations it may be necessary to remove the front handles once the projector is in its final location. To remove the handles use a 5 mm hex driver to loosen the two socket head cap screws.
front plate mounting point front plate mounting point
Mount a Ruggedized Kit
(optional)
If you are mounting a ruggedized kit use the seven designated mounting points on the front of the projector. The handles will need to be removed to access four of these points. Christie does not provide the ruggedized kit or the hardware to secure a ruggedized kit. Christie recommends using M6 hardware with a 10 mm thread engagement, and a maximum torque of 4 Nm.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
15
Installation
Install the Lens
C AU TIO N / è
R isk G roup 2/ q³I§
Possible hazardous optical radiation em itted from this product.
,§ÁïýÑúqi„I
D o not stare at operating lam p.
M ay be harm ful to the eyes.
Risk Group 2: Possible hazardous optical radiation emitted from this product.
Do not stare at operating lamp. May be harmful to the eyes. Failure to comply could result in minor or moderate injury.
Failure to comply with the following may result in equipment damage:
• Do not insert the lens at an angle.
• Always replace the lens plug when transporting to protect the optical components.
• Always place the lens cap onto the lens when transporting to avoid scratching the lens.
• Never operate the projector without a lens.
• A small amount of dust or dirt on the lens has minimal effect on image quality. To avoid the
risk of scratching the lens, clean only if absolutely necessary. See Cleaning the Lens on page 62.
For some installations security screws are required on the lens.
1. Remove the lens plug from the lens opening.
2. Remove the rear lens cap from the lens.
3. Rotate the lens clamp to the open position.
4. Remove and retain the two security screws from the lens mount.
5. Align the lens interface plate with the lens mount. Fully insert the assembly straight into the lens mount opening without turning.
6. Rotate the lens clamp to the closed position before fastening the security screws.
Security screw
Lens clamp
(closed position)
Security screw
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
16
Installation
Setup Procedures
Adjust Lens Focus
i
Failure to properly adjust lens focus results in an image that is not uniformly focused and contains geometric distortion.
This section describes best practices for lens focus adjustment of the 0.68:1 WQXGA lens
(P/N: 125-103105-xx), the 0.80:1 WQXGA lens (PN: 125-105107-xx), and the 1.28 - 1.71:1
WQXGA lens (P/N: 125-101103-xx).
1. Loosen the locking screw and the focusing screw.
2. Adjust the focusing screw for best focus in the image center.
3. 0.68:1 Lens Only: Loosen the field curvature locking screw and adjust the field curvature focusing ring to sharpen the image corners.
4. Adjust the focus screw for best overall screen focus.
5. Although it is not necessary, you may want to retighten the main locking screw. Use a maximum of 4 in.-lbs (0.45 Nm) to tighten.
Locking screw
Field curvature focusing ring
Focusing screw
Field curvature locking screw
Calculate Throw Distance and Position
Throw distance is the distance measured from your projector to the screen. This calculation determines if there is enough room to install your projector with a desired screen size and if the image size will be the accurate size for your screen. To estimate the throw distance take the horizontal width of the screen and multiply it by the lens throw ratio. The result determines approximately the distance the projector should be positioned from the screen to project a focused
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
17
Installation image large enough to fill the screen. For example, using a 1.28 - 1.71 zoom lens set at its widest
(1.2:1) throw ratio, throw distance would roughly be 1.2 x screen width. i
Use the lens and screen size to calculate the precise throw distance. Due to lens manufacturing tolerances for lens focal length, actual throw distance can vary ±2% between lenses with the same nominal throw ratio.
Lens Throw
Distance
Offset Percentage
(Offset Pixels)
Horizontal left 1 right 1
0.68:1 ±10%
1.28 – 1.71:1 60%
0.80:1 60%
100%
100%
Vertical up down
±25%
150% 100%
100% 100%
Specified Throw Distance Range
Inches
Min.
28
59
28
Max.
83
213
102
Meters
Min.
0.7
1.5
0.7
Max.
2.1
5.4
2.6
1. The left and right horizontal offset examples are based on the projector being in the normal landscape orientation and looking towards the front of the projector from the back (input panel side).
• Offsets are subject to ±7% centering tolerance.
• Image size outside the specified width range may result in reduced image quality.
• Throw distance is measured from the marked exit pupil position on the lens to the screen. Throw ratio is defined as:
Throw ratio = throw distance ± 2%
screen width
• 100% offset is defined as having all pixels shifted beyond the projector optical axis.
• Offsets are measured from the optical lens centre, which may not coincide with the mechanical centre.% offset is defined as:
% Offset = # of pixels of offset x 100
half vertical panel resolution
Determine Vertical and Horizontal Position
The projection lens and the screen type determine the vertical and horizontal position of your projector in relation to the screen. Ideally, you should position the projector perpendicular to the screen to make the image appear rectangular instead of keystoned (trapezoidal). You can offset vertical position of the image (move it above or below the optical axis) by adjusting the lens mount.
The type of projection lens you install determines the amount of available vertical offset. Vertical offset can be expressed as the percent of half the image height or the number of pixels of shift from lens center.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
18
Installation
• Offsets are subject to ±7% centering tolerance.
• % offset is defined as:
% Offset = # of pixels of offset x 100
half vertical panel resolution
The horizontal position of the image can also be offset (moved to the left or right of the optical center) by adjusting the lens mount. The amount of horizontal offset available depends on the lens installed and if the image has already been vertically offset. Horizontal offset can be expressed as the percent of half the image width or the number of pixels of shift to one side of lens center.
1280 pixels display to left of lens center
1280 pixels display to right of lens center
640 pixels to left of lens center
1920 pixels displayed to right of lens center or 480 pixels of shift to the right of lens center
0% Offset 50% Offset
In this example, no offset is applied.
Therefore, half of the image appears to the left of lens center and half appears to the right.
Shaded area = projected area
In this example, 50% offset is applied.
Therefore, 3/4 or 75% of the image appears to one side of the lens center.
Connect a Source
All source connections are made to the input panel, located at the back of the projector. Each input
is labeled for easy identification. Using the correct cable(s), connect your source. See Network
Setup for External Communications on page 22.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
19
Installation
Status
Control
Network
P
A
Input 1
S F
B C
Remote
Input 2
S F
RS232 IN
RS232 OUT
RS422
GPIO
ArrayLOC
Network
Serial Port Connections i
Use the RS422 port only if the device being used has this capability. Always consult with equipment literature before connecting.
RS232 and RS422 serial ports are both available on the projector. You can connect a device with a serial interface, such as a computer to either of these connectors (not both) and control the
Serial Communication on page 63.
Two nine-pin D-sub connectors, labeled RS232 IN and RS232 OUT on the input panel, are dedicated to serial communication. Using the appropriate serial communication cables, connect the controlling source, such as a personal computer to the RS232 IN connector. Set the projector baud rate to
match that of the computer. See Serial Options on page 50.
To control the projector with a computer or other controlling device with RS422 capability, connect a RS422 serial communication cable between the controlling device and the RS422 port on the projector. RS422 is better suited than RS232, for serial communication over distances greater than
50 feet (15 m). See RS422 Port on page 63.
Control Network
Serial Communication on page 63.
Inputs 1 and 2 i
Native WQ is required in order to receive a valid DVI-D signal.
Use Inputs 1 and 2 to connect the main and secondary input sources. See Select Inputs on page 41.
The LEDs assigned to each input indicate the following:
S F
S indicator (signal)
Green: Indicates valid DVI-D source signal.
Red: Indicates an invalid source signal. Check the connection and make sure the source is correct.
Off: Indicates no signal detected on DVI port.
F indicator (function)
Green: Indicates the input is selected.
Yellow: Indicates which of the two inputs is being used as the secondary input.
Off: Indicates no input is selected.
GPIO
The GPIO connector provides a method of interfacing a wide range of external I/O devices. For
complete details on pin configuration and how to program the GPIO see GPIO Port on page 108.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
20
Installation
ArrayLOC Network
The ArrayLOC Network connector provides a method of interfacing multiple projectors in an array to
manage preliminary color setup. For details, see ArrayLOC Network Configuration on page 25 and
Connect to Power
Always power down and disconnect/disengage power before servicing or cleaning
Failure to comply could result in death or serious injury.
013-102318-01 R EV 02
Do not operate if the AC supply and cord are not within the specified voltage and power range. The North American rated line cord is supplied with this projector. For all other regions, use only a regionally approved line cord, power plug and socket. Do not use a damaged line cord. Failure to comply could result in death or serious injury.
In Norway, for IT power distribution systems, a dedicated protected earth wire must be installed on the projector before it can be connected to power. The dedicated earth wire must be installed by a Christie accredited service technician. To connect the projector to an
IT power distribution system connect the building ground to the internal ground lug behind the AC input inside the projector. It is recommended that you run the connection through the louvers on the projector. Failure to comply may result in equipment damage.
The appropriate regional line cords are shipped separately.
i
1. Connect an approved line cord to the projector AC receptacle. Make sure the security clip is latched onto the cord.
2. Connect the three-pronged end of the line cord to a grounded AC outlet. The outlet must be near the equipment and easily accessible.
3. Flip the power switch on the back of the projector. The projector takes approximately two minutes to initialize. The status light on the input panel turns yellow.
4. Power on the device.
• Press Power, and then the up arrow from the IR remote.
• From the WebUI select Power > On from the Main tab.
5. Press an input key on the IR remote to select and display the image for the connected source.
Disconnect Power
Do not flip the main Power switch to the Off position, or disconnect the projector until the cooling fans have stopped. Failure to comply may result in equipment damage.
1. Power off the device.
• Press Power, and then the down arrow from the IR remote.
• From the WebUI select Power > Off from the Main tab.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
21
Installation
2. After the internal cooling fans stop, flip the main power switch to the Off position.
3. Disconnect the line cord from the wall outlet.
Network Setup for External Communications
i
To complete the projector network setup you will also need to connect the projectors
together for ArrayLOC communication and functions. See ArrayLOC Network Configuration on page 25.
Ethernet (recommended)
In the Ethernet network the controller communicates with each projector separately.
Recommended for network administrators only.
i
1. Connect a standard CAT5 Ethernet cable between the controller (or Ethernet hub) and the
Control Network port on the projectors input panel.
CAT5
CAT5
CAT5
Ethernet Hub
CAT5 to other
Ethernet devices
2. From the WebUI, set the IP address in Configuration > Communications > Ethernet
Settings. See Communications on page 50.
3. From the WebUI, in Configuration > Communications set network routing to Separate. See
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
22
Installation
Mixed Network
Using the wrong type of serial cable can damage the projector. RS232 communication cables must be of good quality and no more than 25 ft (7.62 m) in length. Failure to comply may result in equipment damage.
In a mixed network the controller can communicate with the first projector and the command can be relayed to each serially connected projector. This configuration is useful if you are using a non-RS232 controller with the RS232 linking available between these projectors. The image below shows both an RS422 compatible controller and an Ethernet-connected PC working with a network of projectors linked using their RS232 in/out ports.
1. Connect the controller to a projector with a standard CAT5 Ethernet cable between the controller (or Ethernet hub) and the Control Network port on the projectors input panel.
2. Connect an RS422 serial cable between the PC and the RS422 port on the projectors input panel.
3. Connect a serial cable between the RS232 OUT connector of the first projector and the RS232
IN connector of the next projector.
4. Connect the remaining projectors.
5. If the controller is connected via an Ethernet cable, set the IP address from the WebUI in
Configuration > Communications > Ethernet Settings. See Ethernet Settings on page 51.
6. Set the serial options in Configuration > Communications. See Communications on page
7. From the WebUI, select Configuration > Communications > Network Routing.
• To relay commands to all projectors set Network Routing to All Joined.
• To isolate RS422 communications, select RS232 and Ethernet Joined. Only projector
#3 will respond to the RS422 controller.
• To isolate Ethernet communications, select RS232 and RS422 Joined. Only projector
#1 will respond using Ethernet .
Projector #1 Projector #2 Projector #3
RS232 RS232
RS422
CAT5
CAT5
Ethernet Hub
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
23
Installation
RS232 Network
Using the wrong type of serial cable can damage the projector. RS232 communication cables must be of good quality and no more than 25 ft (7.62 m) in length. Failure to comply may result in equipment damage.
In an RS232 network the controller can communicate with the first projector and the command can be relayed to each serially connected projector.
1. Connect the controller to one projector by connecting a serial cable between the PC and the
RS232 IN port on the input panel.
2. Connect a serial cable between the RS232 OUT connector of the first projector and the RS232
IN connector of the next projector.
3. Connect the remaining projectors.
4. Set the RS232 serial options in Configuration > Communications > Serial (RS232 IN)
Options. See Communications on page 50.
5. Set network routing in Configuration > Communications > Network Routing to RS232
and RS422 Joined. See Network Routing on page 50
.
RS232 IN
RS232 IN
RS232 OUT
RS232 IN
RS232 OUT
RS232 IN
Mixed Serial Network (RS232 and RS422)
Do not connect incompatible equipment, including the wrong type of serial cable to the
RS422 port. Failure to comply could cause equipment damage.
RS422 serial communication is better over long distances than RS232 communication. Use the
RS422 port only if your device has RS422 capability. Always read the equipment literature before connecting. In the RS422 network the controller can communicate with the first projector and the command can be relayed to each serially connected projector.
1. Connect the controller to one projector by connecting an RS422 serial cable between the PC and the RS422 port on the input panel.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
24
Installation
2. Connect an RS232 serial cable between the RS232 OUT connector of the first projector and the
RS232 IN connector of the next projector. Connect the remaining projectors using RS232 cables.
3. Set the serial options in Configuration > Communications. See Communications on page
4. Set network routing in Configuration > Communications > Network Routing to RS232
and RS422 Joined. See Network Routing on page 50.
RS232 IN
RS422
RS232 OUT
RS232 IN
RS232 OUT
RS232 IN
ArrayLOC Network Configuration
Preliminary color setup is managed by ArrayLOC. ArrayLOC is enabled by default and configured to display a reasonably saturated gamut at the maximum brightness that all the projectors in the array can support. See
Configure the Display on page 48 for detailed information.
A projector that is not connected via ArrayLOC functions as a single unit array. i
ArrayLOC over Control Network
Use the Control Network for ArrayLOC when you want to communicate with the projectors in the array over the same network.
1. Connect the controller by connecting a CAT5 Ethernet cable between the PC and the ArrayLOC network switch.
2. Connect a standard CAT5 Ethernet cable between the ArrayLOC network switch and the Control
Network port of each projector.
3. From the Main menu, select ArrayLOC > ArrayLOC Configuration.
4. From the ArrayLOC Network drop-down list select Control Network.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
25
Installation i
The length of the connections depends on ArrayLOC network switch placement within the array. It may be possible to reuse the Ethernet cable supplied with the projector for one of these connections, but at least one connection requires that you supply an additional
Ethernet cable per projector.
ArrayLOC
Network Switch
ArrayLOC over ArrayLOC Network (preferred)
The ArrayLOC Network should be used if you want to isolate the ArrayLoc network traffic from the
Control Network.
1. Connect a standard CAT5 Ethernet cable between the ArrayLOC network switch and the
ArayLOC Network port on the projectors input panel.
2. From the Main menu, select ArrayLOC > ArrayLOC Configuration.
3. From the ArrayLOC Network drop-down list select ArrayLOC Network.
i
The length of the connections depends on ArrayLOC network switch placement within the array. It may be possible to reuse the Ethernet cable supplied with the projector for one of these connections, but at least one connection requires that you supply an additional
Ethernet cable per projector.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
ArrayLOC
Network Switch
26
Installation
Adjust Image Geometry and Optical Alignment
i
This initial optical alignment is the foundation for optimizing images on the screen, and must be completed before final boresight adjustments. Only perform image alignment once the projector is fully assembled and powered up in its final location.
Basic Optical Alignment
1. Press Test on the IR remote to display a test pattern.
It is recommended to use the Edge Blend or Grid test pattern.
2. Perform a quick preliminary focus and (if available) zoom adjustment with the primary lens. Do not worry about consistency across the image at this point, just center focus. It is good practice to have the zoom adjustment collar and the focus adjustment collar in the center of its range.
3. Hold a piece of paper at the lens surface, adjust offsets as necessary until the image is centered within the lens perimeter. A full white field works best for this.
4. If necessary, center the image on the screen. If the projector is mounted off-center to the screen axis, then offset the lens as much as required. Aim the projector over slightly towards the center of the screen, but use caution, as too much tilt will cause excessive keystone distortion. Lens offset will not.
5. With the test pattern on screen, double-check projector leveling so the top edge of the image is parallel to the top edge of the screen. Make sure the projector is positioned in the throw distance range for the lens in use.
Folded Optics
In rear screen applications where space behind the projector is limited, a mirror may be used to fold the optical path. The position of the projector and mirror must be accurately set — if considering this type of installation contact Christie Customer Support for assistance.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
27
Installation
Boresight Alignment
i
• Boresight alignment is an advanced feature and should only be performed by experienced users.
• You can also use the Grid or Edge blend test pattern to perform boresight alignment.
1. Display the Boresight test pattern by pressing Test on the IR remote and use the
Left arrow key to cycle to Boresight.
2. Adjust the lens focusing ring until each square displayed in the Boresight test pattern is focused. If all three squares are in focus, no further action is required.
3. If boresight is required, see the image on the right to understand how the adjustment screws on the lens mount affect the corresponding squares on the test pattern.
4. Use a 5 mm hex key to loosen the three locking set screws on the lens mount. The set screws must be backed out several turns, so that they do not contact the inner lens mount plate.
Setscrew
1
3
2
Capscrew
5. Fine tune the focus of square one, by adjusting the appropriate cap screw. Adjust until the image is in focus with minimal flare.
6. Adjust square 2, by adjusting the appropriate cap screw. Adjust until the image is in focus with minimal flare.
7. Adjust square 3, by adjusting the appropriate cap screw. Adjust until the image is in focus with minimal flare.
8. Repeat steps 5 to 7, as required until all squares on the test pattern are equally focused. If the boresight is acceptable, continue to step 11. If the boresight does not appear to be converging to an acceptable level of image quality or if the lens will not focus over the correct range of throw distances, then the boresight requires coarse adjustment. See step 9.
9. The original factory boresight can be recovered approximately by positioning the three set screws. Position the set screws flush with the front face of the lens mount plate and in contact with the inner lens mount plate. This may require adjusting both set screws and cap screws.
10. If further action is required, repeat step 2.
11. Lock the set screws, and re-check the boresight quality. Tighten the set screws to prevent them from shifting.
12. When the image is focused, lock adjustments in place by tightening the adjustment screws until just tight.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
28
Installation
Adjust Software to Optimize Image
i
Unless otherwise indicated, instructions apply to all projector models in stand-alone or multi-projector configurations.
1. Display an external signal.
2. Select Screen Image Orientation in Configuration > Output Options and change the orientation of the displayed image to suit the installation.
3. Assign projector ID number(s).
See Projector Address on page 50.
4. Make sure that ArrayLOC is enabled. From the Main menu select ArrayLOC and select Enabled from the Bright/ColorLOC Mode drop-down list. ArrayLOC automatically adjusts projector colors and brightness.
5. Adjust ArrayLOC color target.
See Adjust Projected White and Primary Colors for the Array on page 43
6. Fine-tune ArrayLOC to compensate for system optics.
See Fine-tune Projector Colors with a Color Meter on page 46.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
29
Web UI Overview
Login to WebUI
1. Open your web browser and enter the IP address (in the address bar) assigned to your projector. i
The factory default IP address is 192.168.1.89. To change the default use the NET serial
command through RS232. See Network Setup (NET) on page 90.
2. Select the appropriate language from the Language drop-down list, located in the upper lefthand corner.
3. Enter your user name and password. Both entries are case-sensitive.
4. Click the Login button. The Main window appears.
1
2 8
9
3
10
4
5
11
6
7
5
6
7
3
4
1
2
Status bar
Primary tabs
Main Input drop-down list
Main Signal State (read-only)
Secondary Input drop-down lists
Secondary Signal State (read-only)
Secondary tabs (specific to a primary tab) located along the bottom of the Main page.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
30
Web UI Overview
8
9
10
11
Status indicator display
Power On/Off
Shutter Open/Close (powers LEDs On and Off to simulate shutter operation).
Projector information (read-only)
Navigate the WebUI
This section describes the controls and switches used for projector operation once it is properly installed and configured. The projectors can be controlled remotely, typically at a controller such as a PC, via a WebUI on an Ethernet Network. If there are concerns about network security, run the
WebUI on a local area network only and install a firewall. Users are prompted to log in upon startup. Use admin for both the user name and password. For an overview of the menus, see WebUI
Menu Tree on page 112. i
• After 15 minutes of inactivity, the projector closes the menu and returns to the presentation.
• To avoid losing your web connection, it is recommended that you navigate using the application interface and related functionality detailed in this section rather than use the web browser’s navigation tools.
From the WebUI:
• Select and setup an active input source.
• Manipulate the appearance of video content (Gamma, ArrayLOC).
• Display a test pattern.
• Configure the display (image orientation, calibration).
• View system information and alerts.
The Global Icon
Menu options that include this icon, apply globally. Menu options without this icon apply to the selected projector only.
Slidebars in Menus
The current value for a given parameter appears to the left of the slidebar icon. This number often expresses a percentage, or it may have units associated with it (such as pixels), depending on the specific option.
• Press the left / right arrow keys to gradually adjust the setting up or down. Hold for continuous adjustment.
• When you are finished making your adjustment, press Enter to save and return to your presentation. Press Esc to cancel any adjustments.
• Some settings automatically impose a test pattern or color change as part of making the adjustment. Press Enter to save the adjustment. Press Esc to cancel any adjustments.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
31
Web UI Overview
Check Boxes
A condition is present if an adjacent check box contains a check mark.
To select or clear the check box, highlight and press Enter, or highlight and use the right arrow key to select or left arrow key to clear.
Drop-down Lists
To see a list of options available for a given parameter:
• Highlight the menu option, and press Enter.
Or:
• Enter the applicable menu option number to open the drop-down list or use your mouse pointer to make a selection.
• Use the up /down arrow keys to navigate within the drop-down list or use your mouse pointer to make a selection. Press Enter to choose a highlighted option from the list.
• To quickly scroll through a list without first pulling it down, highlight the menu option, and use the left / right arrow keys. Press Enter to select an item.
• While in a drop-down list, press Esc to cancel any change.
Help Text
i
Help text is not available for disabled buttons.
You can move your mouse pointer over most buttons or fields to display related help information.
When working with the projector menu system on the Tools tab, highlight the menu option and press h. To disable this feature, select the Admin tab and click on the Hide button underneath
Tooltip.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
32
Web UI Overview
Basic WebUI Operation
Five primary tabs are located along the top of the WebUI. Each primary tab also has related secondary tabs, which are located along the bottom of each tab.
Main Tab—General
Under the Main tab, select the General tab at the bottom of the window to view general information on inputs and projector status, and to activate a test pattern and color enable control.
Main Tab—Status
Under the Main tab, select the Status tab at the bottom of the window to view the ten category status lights which indicate the projector’s highest critical state. For
details, click on an individual button. See
System Warnings and Errors on page 58.
The color of the status light indicates that it is in one of the following states:
• Green = Good
• Yellow = Warning
• Red = Error
Tools Tab—Virtual OSD
i
When a menu option is modified through the Virtual OSD menu, the projector setting takes effect immediately.
The Tools tab defaults to the secondary Virtual OSD tab. Selecting an option from a menu displays its associated window, showing related information and input fields. To return to the previous menu, click the menu’s title bar or press ESC. Select Maximize to view the full screen.
Various types of menu elements allow you to define projector settings including field entries, dropdown lists, check boxes, and sliders.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
33
Web UI Overview
4
1
2
3
3
4
1
2
Maximize/Minimize toggle buttons.
The Help button presents a pop-up window, which provides information to help you navigate within the current menu.
The Virtual OSD tab presents the Main menu.
Auto Setup uses the manufacturer’s default settings and displays the first available
DVI input.
Admin Tab
Under the Admin tab, select the System tab at the bottom of the window to upgrade, upload, backup and restore specific files, change gamma properties, and interrogate the projector (creating a zip file of information).
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
34
1
2
3
Web UI Overview
4
5
6
7
8
5
6
7
8
1
2
3
4
The Upload feature allows you to select the file and file type you want to open.
The Backup feature allows you to select the file and file type you want to save.
The Restore feature allows you to select the file and file type that want to recover.
Gamma Properties becomes available when a Gamma file type is selected from the
Upload section.
These buttons perform their respective functions, after the setting for the function is selected from the drop-down lists, and other fields on the left.
The Upgrade button is disabled when the projector is running. For details, see
The Hide button disables the help text.
The Sync button is used to set the projector date and time to match your computer.
Upload a Gamma File
The projector must be powered On to enable the Upload drop-down list.
i
1. Select Gamma from the Upload drop-down list. i
Gamma files must have a .csv file extension with 1024 values (all colors same) or 1024 x 3 for individual colors.
2. To locate and select the file you wish to upload, click Choose File.
3. Enter a descriptive name in the Display Name field.
4. From the Index drop-down select which memory location the file should be stored to.
See Base Gamma Curve (BGC) on page 78.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
35
Web UI Overview
5. Click Upload.
Create a Backup File
1. From the Backup drop-down list, select from the following file types: All, Preferences,
Configuration, Users, or Real Time Events.
2. To initiate the download, click Backup. Once finished, a File Download window appears.
3. Click Save.
4. Locate and select a folder where you wish to save the file.
5. Click Save.
Restore a File
1. Select a file type (All, Preferences, Configuration, Users or Real Time Events) from the
Restore drop-down list.
Do not select All unless transferring all files from one projector to another or cloning.
i
2. To locate and select the file to restore, click Choose File.
3. Click Restore. Once finished, a confirmation message appears.
Perform Diagnostic Test
1. To initiate the diagnostic test and download the diagnostic test results to your computer, click
Interrogate. Once the download is complete, a File Download window appears.
2. To save the diagnostic test results file click Save.
Once the Interrogate function begins, you must allow it to run until completion.
i
Admin Tab—Users
Under the Admin tab, select the Users tab at the bottom of the window to add to, and delete users from accessing the projector, and change passwords. Creating user accounts does not allow you to assign specific privileges. i
If capitalization is used for the username or password, it will automatically convert it to lower case. Usernames can be a minimum of four and a maximum of 32 characters.
Passwords can be a minimum of four and a maximum of 128 characters.
Advanced Tab—Real Time Events (RTE)
The RTE tab is where you can manage real-time events (i.e. add, delete, edit, copy and setup the
GPIO).
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
36
Web UI Overview
Add a Scheduled Event
Scheduled events include a command or sequence of commands, for example, (PWR1) or (PWR1)
(LSH1).
1. From the Advanced tab, click Add to open the RTE Wizard.
2. Select the Scheduled Event tab.
3. Select the frequency option for the event by selecting either Once, Daily, Weekly, or
Monthly. End Date is enabled when Daily, Weekly or Monthly repeat options are selected.
Depending on the selected frequency option, a related Repeat Every is highlighted on the tab.
Use this area to enter the frequency of each event.
4. Click within the Start Time field to open a calendar pop-up window.
5. Navigate to and choose the desired date. The selected date will populate the Start Time field.
6. In the field below the Start Time field, enter a start time in the format “hr:min:sec”. The setting defaults to the current time.
7. Click Sync to set the computer and projector time to be the same; otherwise, the event will run based on the projector time.
8. Enter a description of the scheduled event in the Description field.
9. Enter a serial command or a sequence of serial commands, with which you wish the projector to perform in the Command String field.
10. If a GPIO command string is needed, click the GPIO Output Helper button for instructions on how to create the command structure. The Output field contains seven blocks which refer to the seven I/O pins on the GPIO connector.
Pin 1 = +12V and Pin 5 = Ground. These are not included. Clicking a block toggles between H,
L, and X. See Serial Communication on page 63
for details. i
Click Help for a description of special RTE commands available for adding loops and delays to the command sequence.
11. Click Test to run the entered command string. A green or red icon appears to the right side of the Test button to indicate whether the test passed or failed.
12. Click Finish to create the added event. The added event appears in the RTE Listing window. To activate or deactivate one or more RTEs listed in the window, select or clear each check box in the Active column.
Add a System Event
1. From the Advanced tab, click Add to open the RTE Wizard.
2. Select the System Event tab.
3. Select a type of event from the System Event drop-down list.
Depending on the selection made, additional selections are available in the second drop-down list located underneath (i.e. Input Change # > Slot 1, Input 1).
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
37
Web UI Overview
Add a GPIO Event
1. From the Advanced tab, click Add to open the RTE Wizard.
2. Select the GPIO Event tab.
3. For the GPIO Event option define the Input Condition field as required.
The Input Condition field contains seven blocks, which refer to the seven I/O pins on the
GPIO connector. Pin 1 = +12V and Pin 5 = Ground are not included or changed. Clicking a block toggles between H, L and X.
See Serial Communication on page 63
for details.
Add a Function Key Event
1. From the Advanced tab, click Add to open the RTE Wizard.
2. Select the Function Key Event tab.
3. Select a function from the drop-down list.
Advanced Tab—Serial
1. From the Advanced tab, select the secondary Serial tab.
2. Enter a serial command in the Serial Command field. See Serial Communication on page 63.
3. Click Send to add the serial command.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
38
Operation
This section explains how to correctly setup and operate the projector.
Using the IR Remote
Laser radiation is emitted from the laser diode in the remote. Do not look directly into the laser beam. Failure to comply could result in minor or moderate injury.
i The IR remote is included with the User Kit (P/N: 130-103105-xx), which is shipped separately.
The standard IR remote can be used as a wired or wireless control. Under optimal conditions, the wireless keypad can communicate with a projector over a 30 foot (10 m) distance. In wireless mode, the standard IR remote communicates with a battery-powered infrared (IR) transmitter.
A laser pointer is built into the standard IR remote.
• Press keys one-at-a-time; there are no simultaneous key combinations required.
• Arrow keys are held down for continuous adjustment/movement in the related key direction.
• In serial networks, pause briefly between adjustments to make sure that distant displays can keep pace with the commands. If you press a key while the display is still responding to the previous action, such as during a power-up, the second key press may not take effect.
• For a description of the keys, see IR Remote Commands on page 39.
Wired Remote
The wired remote is recommended when the lighting conditions are unsuitable for proper IR transmission. You can convert the standard IR remote into a wired remote using an optional cable.
Connect one end into the standard IR remote, and the other into the designated port on the input panel. Batteries are only needed for the wired remote if the laser pointer is required.
To use the wired remote, make sure it is enabled on the display that it is connected to. To check wired remote status select Configuration > Communications > Wired Keypad Enabled.
To use the wired remote to control multiple projectors in an ArrayLOC network, make sure that wired remote support is enabled on the controlling display, and that key synchronization is enabled on the controlling display and on all the receiving projectors. To synchronize go to ArrayLOC >
ArrayLOC Configuration > Synchronize Keys, Test Pattern, Color Enable.
IR Remote Commands
Power
Press and hold the Power button for two seconds or press twice quickly to power the projector On or Off. Or, press and release the Power button followed immediately by the up arrow key (On) or the down arrow key (Off) to guarantee the correct action. This is useful if you are not sure of the current state of the projector.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
39
Operation
Shutter
The Shutter button powers the LEDS On and
Off to simulate shutter operation. Press and hold the Shutter button to move between simulated shutter states in the following order: Open–Closed–Open. Or, press and release the Shutter button followed immediately by the up arrow (closed) or down arrow (open) to guarantee the correct state. The shutter is open upon power-up.
Close the shutter to block the displayed image while maintaining access to projector functions. Opening the shutter restores the image. The LED status display on the projector displays
SH
when the shutter is in black mode.
Test
Display a test pattern.
Power
Input Slots
Switch the active input source.
Input
Select an active or inactive input.
Swap
Swap inputs.
Pow er
Test Shutter
A uto
Input Slots
Slot 1 Slot 2
Slot 3 Slot 4
Input O SD
PIP Sw ap
M enu
Focus
Zoom
Lens H
Lens V
Exit
Input
Press Input to select the main input. Press the button again to select the secondary
input. See Select Inputs on page 41.
Laser
Activate laser pointer.
C hannel
Laser
G am m a
C ontrast
B right
Proj
1 3
2
4 6
5
7
?
H elp
8
9
0
10+
Func
Input Slots
Press Slot 1 to assign Input 1 to the Main
Input or press Slot 2 to assign Input 2 to the
Main Input. Press Slot 3 to display interleaved video (120 Hz). Press Slot 4 to display InfraScene.
Laser Pointer
Activated when the
Laser button is pressed.
Shutter
Powers LEDs On and Off to simulate shutter operation.
Proj
Select a projector in multi-projector installations.
Swap
Test
Steps forward through all internal test patterns. After stepping past the last test pattern, the menu returns to the current input. Press Test and then cycle through the test patterns by pressing the left / right arrow keys. Press Exit to return to the current input.
Proj
Press Proj to display the current IP and projector number on screen.
Enter
Press Enter to select a highlighted item, to toggle a check box, or to accept a parameter adjustment and return to the previous menu or image.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
40
Operation
Exit
Press Exit to return to the previous menu.
Laser
Press the Laser button to activate the laser pointer on the remote.
Select Inputs
i
You can use the IR remote to setup your inputs; however, Christie recommends that inputs are setup through the WebUI.
An input is an input source physically connected to the projector. Input describes the source signal
to which it is connected. For a full explanation of how to connect sources to the projector, see
1. From the Main menu, select Input & Switching.
2. From the Main Input drop-down menu specify the source of the image. Select from Input 1 and Input 2.
3. If the projector(s) will be operating with InfraScene, the source of the image for the secondary input must be specified through the Secondary Input drop-down menu. i
• To quickly and easily swap your inputs select Swap Main and Secondary Inputs.
• To adjust the gamma settings for the secondary input select Secondary Image Settings.
See Adjust Gamma Settings on page 47.
4. Frame Locking is enabled by default. This feature is used to select how the projector controls the output frame timing based on the input signal. When set to Frame Lock, output image frames are locked to the input if possible. When locked, the output is always locked to the main input. When working with two inputs you can select input 2 as the lock source for the output by
selecting Frame Lock Secondary. See Control Frame Locking on page 48.
ArrayLOC
Mirage WQ-L projectors use ArrayLOC to display a common gamut and brightness across an array of projectors. ArrayLOC monitors the projector array and adjusts settings automatically. The following section outlines how to manage color using ArrayLOC.
ArrayLOC is enabled by default.
i
Take Control of the Array
Use this menu to set up array color and brightness. By default ArrayLOC is configured to display the
EBU gamut at the maximum brightness the array can support.
1. On the projector you want to work with, access the ArrayLOC menu: Main Menu > ArrayLOC.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
41
Operation
2. Check Synchronize to This Projector to make the current projector the master.
Changes you make in the Array Color Target, Bright/ColorLOC Configuration, and RGB and IR Brightness Targets on the master projector are broadcast to the other projectors in the array.
The master projector has access to most settings under the Bright/ColorLOC Configuration and
Array Color Target submenus. These settings are greyed out on the other projectors in the array to prevent conflicting information from being sent.
i
While working in the ArrayLOC menu and submenus, ArrayLOC displays a warning if adjusted settings fall outside the range the system can adjust for.
Warnings include:
• Minimum brightness not met (BCLOC disabled)
• Minimum brightness not met (Warning)
• Min Gamut not met (BCLOC disabled)
• Min Gamut not met (Warning)
3. Enable Bright/ColorLOC Mode to automatically achieve and maintain a target gamut and
brightness. See Configure Bright/ColorLOC on page 42.
i
A projector with Bright/ColorLOC mode disabled ignores BCLOC changes from the master projector. If at any point you are working with a slave projector you may not be able to change some settings as they will be locked (grayed out). To change which projector is the master check the Synchronize to This Projector option on another projector.
4. RGB and IR Brightness Target fields are typically only enabled on the master unless the system is not synchronized.
See Configure ArrayLOC on page 45.
5. Select Auto Color Enable and Test Pattern Enable. The system (background) color changes to the target color being adjusted.
For example:
• Red/green/blue part of red changes the system color to red.
• Red/green/blue part of green changes the system color to green.
• Red/green/blue part of blue changes the system color to blue.
All other menu options change the system color to white as long as Test Pattern Enable is checked. The color resets automatically when you exit the menu.
Configure Bright/ColorLOC
This menu is used to configure the warning and minimum brightness and gamut thresholds.
1. From the Main menu, select ArrayLOC > Bright/ColorLOC Configuration to access and work with the capabilities of the projectors in the array.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
42
Operation
2. Set the Minimum Brightness value (as a percentage of the target brightness). This setting indicates the minimum brightness that the array will target, and the threshold for alerts from projectors that cannot achieve the minimum. i
Projectors that fall below the minimum are excluded from the calculations of the common gamut and common brightness. If the projector falls below the minimum, the projector operates at its current brightness and gamut. LED drive level changes and electronic color correction is not done.
3. Set the Minimum Gamut value (as a percentage of the target gamut). This setting indicates the minimum gamut that the array will display, and the threshold for alerts from projectors that cannot achieve the specified minimum.
Projector Capability identifies t he projector capability with respect to the array common color gamut as defined by Color Target and Brightness Target. 100 % indicates the projector meets the target. A greater number indicates that the projector can exceed the target. A smaller number indicates how much the projector falls short of meeting the target.
The failure point for maintaining minimum gamut is calculated as: a b
< minimum gamut
For example: Where b is the length of the line from the target white point to the target color primary, and a is the length of the line from the target white point to the intersection of the projector capability gamut line and the line from the target white point to the target color primary.
4. Set the Warning Brightness Threshold as a percentage of the brightness target. Making changes to this option, recalculates the internal brightness warning level, and if warnings are enabled checks the current common brightness capability against the brightness warning level.
When the common brightness reaches the warning level, all projectors in the BCLOC group issue the warning message,
Projector fails to meet warning brightness threshold of xx%; capability xx%
.
Target white a b
Target green primary
5. Set the Warning Gamut Threshold as a percentage of the target gamut. Making changes to this option, recalculates the internal gamut warning level, and if warnings are enabled, checks the current common gamut against the gamut warning level. When the common gamut falls below this level, all projectors in the BCLOC group issue the warning message,
Projector fails to meet warning gamut threshold of xx%; capability Rxx% Gxx%
Bxx%
.
Adjust Projected White and Primary Colors for the Array
User-defined target color spaces allow color primaries and white points to be adjusted independently. For example, you can select the target color space User 1, copy the values from the target color space Factory, leave the color primaries, and adjust only the white point. All the settings for a user-defined color space are editable.
Use this menu on the master projector to configure the target color space settings. This is the recommended way to control the color space for the projector and array . The settings apply to the projectors in the same ArrayLOC group. These settings are enabled on master projectors only.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
43
Operation
1. From the Main menu, select ArrayLOC > Array Color Target.
2. From the Target Color Space drop-down list, select a user-defined color space. Once selected the last saved red/green/blue/xy values associated with the selection are displayed.
3. Target Red x/y, Target Green x/y, Target Blue x/y displays the color values associated with the selected target color space. Only values for user defined color spaces (User 1 through
4) can be changed. Changes to these values update the associated color space chromaticity.
To use another color space as a starting point, select a source color space from the Copy Color
Space From list. When Target Color Space is set to Maximum, the values reflect a color space larger than capable for the best array color saturation. The values may not reflect realworld colors i
• ColorLOC Status displays ColorLOC warnings and errors.
• Array Capability indicates the current projector capability with respect to the selected color target and the target white point. The information format is:
• R/G/B: Indicates the percentage achieved of the red, green, and blue target gamut.
• W: Indicates the percentage achieved of the product of the RGB brightness, and the target brightness.
4. To set the white point for the array using one of the following methods:
• Select a user-defined white point from the Select White Point drop-down list. Changing this option un checks the Set White to Color Temperature check box and updates the
Target White x/y values and the White Color Temperature.
Target White x/y displays the white x/y values associated with the Select White
Point option. Only values for user defined white points (User White 1 through 4) can be changed. When Set White Color to Color Temperature is checked, the values are calculated based on the specified White Color Temperature.
i
• Check the Set White to Color Temperature check box to recalculate Target White x/
y values based on the specified standard White Color Temperature. This option is available only when Select White Point is set to one of the user-defined options, User
White 1 through 4. This option is unchecked automatically when you change the Select
White Point option.
Copy White Point From updates the Target White x/y values based on the white point selected from the list. This option is available only when the Select White Point option is set to one of the user-defined options, User White 1 through 4.
5. From the Copy Color Space From drop-down list select a user-defined color space. The
Target Red x/y, Green x/y, Blue x/y values are updated based on the color space selected from the list. This option is available only when Target Color Space is set to one of the userdefined options, User 1 though 4.
6. To adjust the target brightness for the array, adjust RGB Brightness Target on the master projector. For maximum brightness, set the value to a large number, such as 40,000.
7. If the array appears matched across all projectors for color and brightness, color setup is complete.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
44
Operation
Fine-tune Whites, White Brightness, or Primary Colors
The Projector Color Adjustment menu lets you fine-tune color or brightness for individual projectors to accommodate any projector-specific optical elements (e.g. projection lens, fold mirrors, screen properties or ambient lighting). The following steps outline color adjustments using projector color settings until the colors appear to match the rest of the projectors in the array. Color adjustments are evaluated by eye; however, a color meter can help determine the change required. For
information about using a color meter with this procedure, see Fine-tune Projector Colors with a
1. From the Main menu, select ArrayLOC > Projector Color Adjustment.
2. Use the Target Color Space option to change the color space. Changing this option applies the red/green/blue x/y values associated with the selected option. It also updates the red/green/ blue components of each color on this menu. Selecting one of the user-defined color spaces displays the last saved adjustment values. i
• The Target Color Space option is enabled only on the master projector. All other projectorspecific color adjustments on this menu are available on all projectors at all times.
• ColorLOC Status displays ColorLOC warnings and errors.
3. Use the Red Part/Green Part/Blue Part of “x” options to make projector specific color adjustments to the selected Target Color Space.
4. Use the Copy Adjustments From drop-down menu to copy the adjustment values from the selected color space to the current color space.
Adjustments are specific to the target color space. If the color space is changed for the array, projector adjustments can be copied from the old target color space and fine-tuned again.
5. Use the White Brightness Adjustment option to adjust the RGB brightness for the projector.
i
• If at any time you want to reset the color values to the color adjustment default values (0 or 100) select Clear Adjustments.
• To reset the red part / green part / blue part of each color to the default values set at factory select the Reset Current Adjustments to Default option.
Configure ArrayLOC
Select the projector-to-projector communication network configuration for all Ethernet messages related to ArrayLOC functions, including ArrayLOC messages, and BCLOC messages. Make sure all projectors in an array are operating on the same network, either the Control Network or the
ArrayLOC Network. See ArrayLOC Network Configuration on page 25.
1. From the Main menu, select ArrayLOC > ArrayLOC Configuration.
2. From the ArrayLOC Network drop-down list select from ArrayLOC Network or Control
Network.
3. Assign an ArrayLOC Group to the array. Only projectors in the same ArrayLOC group will automatically achieve a common gamut and brightness.
4. Use the Synchronized keys, Test Pattern, Color Enable option to set the projector to listen for remote keystrokes through the ArrayLOC network and the master projector. All synchronized projectors respond to the same keystrokes. Double key strokes may not register correctly, use alternate key commands instead.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
45
Operation
A synchronized projector automatically starts listening to its IR receiver if the master projector becomes unavailable, for example if it goes into Standby mode. Independent indicates that the projector listens to its own IR remote receiver. It is the default option. Change this setting for each projector individually.
ArrayLOC network communication overrides RS232 serial communication for keys.
i
5. When you want to sync the particular feature for all the projectors in the ArrayLOC group, set fields 4 to 7 to Synchronized.
Use the Independent setting to make changes to each projector individually independent of the master projector. The default setting for each selection is Synchronized.
Fine-tune Projector Colors with a Color Meter
To use a color meter for projector color adjustments, follow the instructions in Fine-tune Whites,
White Brightness, or Primary Colors on page 45.
Use the information below and a color meter for the XXX Part of YYY adjustments.
1. To note the xy color values reported for the common gamut, navigate to Main Menu >
ArrayLOC > Array Color Target.
2. Measure the projected primary color with the meter and compare the metered values to the common gamut values.
Use the adjustment guide to determine how to adjust the Projector Color Adjustment values to correct the differences. The adjustment guides are color coded. The suggested corrections are also color coded, and reflect the direction of the change, + or -. For example, if the measured red is 660,
325 and the Common Gamut value is 640, 330 then the measured x is high (High X) while the measured y is low (Low Y). The corresponding quadrant of the RED guide indicates +G (increase green) to correct the mismatch with other projectors.
Once you have made an adjustment, re-measure and refer to the guide for the next adjustment.
Repeat until the desired color accuracy is achieved.
1
some corrections require both red and green adjustments.
2
alternative: decrease blue (-B) instead of increasing red and green.
3
alternative: increase blue (+B) and increase green (+G) instead of decreasing red and increasing green.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
46
Operation
Image Settings
Adjust Gamma Settings
i
To access the gamma settings for your secondary input select Input and Switching >
Secondary Image Settings > Secondary Gamma Settings.
To access the Gamma Settings, select Image Settings > Gamma Settings. The system offers two types of gamma correction. Gamma correction can be applied to a specific source to correct for luma encoding. This is the Gamma control. The system also provides a global Gamma Correction control. The global control offers an offset applied to all displays. This offset is used to compensate for changes in ambient conditions, such as ambient light in the room and projected material.
Gamma Correction
Gamma correction should only be adjusted to compensate for ambient conditions.
i
Gamma Correction applies a global offset to all gamma settings for each input. This offset is used to compensate for changes in ambient conditions, such as ambient light in the room and projected material. It affects the shape of the curve by performing a linear transform toward a gamma curve of 1.0 while the control is increasing and likewise a linear transform toward a gamma of 3.0 as the control is decreasing. To correct a particular source only, use the Gamma control.
Select Gamma
Select the base gamma table for a given source. Select from one of the standard tables, a custom gamma function, or select an arbitrary gamma table that has been downloaded to the projector. A separate PC utility is needed to do this.
2.22
Standard has standard linear rise near black
The 2.22 curve is a power curve typically used to encode graphics and video
Signal Input Level Signal Input Level sources. The Standard curve
(auto setup default) is a modified 2.22 curve with a small linear section in the black that enhances the detail in darker areas of the projected content. Typically Standard or 2.22 is used for all sources. Alternatively, if neither default is ideal, apply a simple gamma curve by defining a custom power function and slope. Select Gamma Function to enable the function and slope controls. i
For complex non-standard gamma curves, a user-defined curve created externally and downloaded to the projector can be used (requires separate PC-based Arbitrary Gamma software application to create the table, and the WebUI to download it). If any of these special user curves have been installed, their names will appear in the Gamma drop-down list.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
47
Operation
Gamma Function
Defines the base gamma power curve used when Gamma is set to Gamma Function. This value, combined with the Gamma Slope setting determines the base Gamma table to be used as the custom base table. The curve is generally a power curve with a small linear segment at the bottom defined by the slope.
Gamma Slope
This control defines a slope to be used for the base custom Gamma table for a small section at the bottom of the curve. This slope can be used to bring in or out the low level blacks in the image. This slope, combined with the gamma function, defines the custom Gamma table.
Configure the Display
The Configuration menu provides access to diagnostics, calibration tools and the Service submenu
(password-protected). Use this menu to define general operating parameters and communications with other projectors and equipment, and to access other advanced processing and image adjustments affecting overall performance. To access this menu select Configuration from the
Main menu.
Output Options
Change Screen Image Orientation
1. From the Main menu, select Configuration > Output Options.
2. From the Screen Image Orientation drop-down select from front, rear, front inverted, and rear inverted.
Control Frame Locking
Use frame locking to select how the projector controls the output frame timing based on the input signal. i
Frame locking on projectors in a ArrayLOC network can be controlled from one projector.
See Configure the Display on page 48.
1. From the Main menu, select Configuration > Output Options.
2. From the Frame Locking drop-down menu select Frame Lock to lock output image frames to the primary input or select Frame Lock Secondary to lock output images to the secondary input.
Set Frame Delay
This control delays the output signal timing relative to the input signal timing by a fraction of a frame. In a multi-projector system this control may be used to adjust the output timing relative to the input so that all the projectors display the image at the same time. This allows for a seamless display across projectors.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
48
Operation
Actual Frame Delay
This control indicates the dynamically calculated, effective minimum frame delay for the projector.
Power Management
To access the Power Management menu select Configuration > Power Management from the main menu.
Auto Power Up
If there is an AC power interruption while Auto Power Up is enabled, the projector will resume operation in the same state as it left off. If the light engine is On and an image showing when AC power is lost, the projector will automatically power back up, and an image will show when AC is restored.
Auto Shutdown Enable
When Auto Shutdown Enable has been selected, and no projector activity has been seen for the activation time-out period, the projector will enter a power-saving mode in which the light engine will dim and the shutter will close. If this condition persists for an additional time-out period, the projector will automatically go into Standby mode. The presence of any activity within this combined interval will cancel auto shutdown and return the projector to normal operation.
Turn Off Image After (min)
This sets the activation interval (in minutes) for auto shutdown. If all activity (input signals, Web or
Serial port activity key presses) is lost for this length of time, and auto shutdown is enabled, an auto shutdown cycle will begin.
Enter Standby After (min)
This sets the interval (in minutes) between starting Auto Shutdown and entering Standby mode.
Once Auto Shutdown has been entered, and all activity continues to be absent for this interval, the projector will automatically enter power Standby mode.
Stealth Mode
Check this option to operate the projector with the status LED display on the input panel powered
Off. The status LED is powered Off during operation only. In Standby mode, the status LED displays codes normally. Operating in Stealth mode is recommended when images are displayed using only non-visible (IR) light. In this mode any visible light from the projector can noticeably reduce image contrast as seen through NVG devices.
Fan Assist
If necessary, use the slide bar to increase projector fan control. An increase to this setting will make the fans quicker to react and run at a higher intensity. The default setting is 0. Increase the setting when operating in high ambient conditions. This may help ease thermal problems in such environments. Fan assist increases noise levels.
Change Date and Time
To change the current year-month-day, hour-minute-second go to Configuration > Date and
Time. Changes made reset the projector real-time clock.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
49
Operation
Communications
The Communications menu allows you to define and control how single or multiple projectors are
linked with each other and with a controlling device. See Serial Communication on page 63. To
access this menu select Configuration > Communications from the Main menu.
Serial Options
Baud Rate: Determines the speed of communication to and from the projector on the RS232 or
RS422 links. The maximum rate for RS232 is 115200; for RS422 it is 19200. Set the baud rate to match that of your controlling device, such as your PC. See the documentation for the controlling device to determine the baud rate. In an existing network of projectors, if you discover that a projector has a different baud rate, use the pull-down list and select the correct baud rate.
Serial communication is always eight data bits, no parity.
Serial Flow Control: Determines whether software flow control or no flow control is used when transmitting and receiving data on the serial port.
Serial Mode: Select the serial data mode. The mode includes the number of bits, the parity and the number of stop bits.
Serial Protocol: Select the protocol used on the serial communications port.
Projector Address
Enter a number up to three-digits in length (such as “001”) to assign or change a number to the projector currently in use. If the current projector already has a number assigned, that number will appear here. Numerical identity for projectors enables you to communicate with a single projector
within a multiple-projector application. See Proj on page 40. If you make a mistake in assigning or
changing the projector number, press Exit.
Network Routing
Network routing is not available when there is no serial network being used. i
Separate: Select (factory default) to keep RS232, RS422, and Ethernet messages on their respective paths instead of being broadcast to the other types of ports.
RS232 and RS422 Joined: Messages originating from an RS232 or RS422 controller will be relayed to all RS232 or RS422 ports. Any Ethernet communication, however, will not.
RS232 and Ethernet Joined: Messages to and from the RS232 ports will also be relayed to the
Ethernet port, and vice versa. Any RS422 communications will be isolated. In the case of multiple
Ethernet sessions over the single Ethernet connector, input on the RS232 port will be relayed to all
Ethernet sessions; however, input from any Ethernet session will only be relayed to the RS232 ports.
All Joined: All messages reach all ports, regardless of type. In the case of multiple Ethernet sessions, input on one Ethernet session will be relayed to all other Ethernet sessions, as well as to the RS232 and RS422 ports.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
50
Operation
Ethernet Settings
Recommended for Network Administrators only.
i
To access the Ethernet Settings window select Configuration > Communication > Ethernet
Settings from the Main menu.
IP Address: Enter a valid and unique IP address for use on the network to which the projector is currently connected. This address will overwrite any previous IP address such as the projector factory-defined default. It takes approximately ten seconds for the projector to respond to its new address.
TCP Port: On some Ethernet networks, firewall restrictions may require that the port number of the projector be changed from its default of 3002. If so, enter a new valid port number here. It is highly recommended not to use a port number below 1000, as these ports are typically reserved for and used by common IP applications.
Subnet Mask: Subnet Mask determines the subnet mask for the IP address and must be set manually.
Gateway: This is the IP address of the gateway used to reach any non-local IP addresses; it must be set manually.
Host Name: Set the hostname for the device.
Domain Name: Set the domain for the device.
MAC Address: Displays the MAC address of the projector (read-only).
Broadcast Keys
Use Broadcast Keys to relay all key presses received by the projector to all other projectors on the network.
Front IR Enabled
Check this option to enable the front IR sensor.
Wired Keypad Enabled
Check this option to use the wired keypad.
Display Error Messages
Choose how you want to be notified of errors detected in either the incoming signal or projector.
Select Serial Ports to receive messages using RS232 or RS422 serial communication only. To hide error message displays, such as during shows and presentations, select Off.
Language
Choose the available language to use in the projector menus. The change will take effect immediately.
Diagnostics and Calibration
To access this menu select Configuration > Diagnostics and Calibration.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
51
Operation
Select a Test Pattern
1. From the Test Pattern drop-down select the desired internal test pattern or select Off to disable.
Set Grey Level
Use the slide bar to set the level of grey for displaying in the full grey field test pattern.
Freeze Light Engine Image
Check this option to freeze an incoming image on a single frame in order to examine details.
For example, in moving images it is sometimes difficult to observe artifacts such as external de-interlacing/resizing and signal noise. Uncheck to return to normal.
Select a Color
From the Color Enable drop-down select a color while working with color temperature, input levels or other setup parameters.
Select a Light Engine Test Pattern
From this drop-down select 1 of four light module test patterns. Choose from White, Grey Scale
16, Horizontal Ramp, No Test Pattern.
Upgrade Software
The upgrade package is a single file, which comprises all the firmware and software needed to operate the projector. The upgrade process updates the firmware files as necessary. Hardware that is up-to-date is not upgraded.
Requirements
• Version: 1.0.0 or higher
• Internet Explorer 6.0/7.0 (IE7 is recommended)
• Ethernet connection to projector
• Workstation that can connect to the projector via Ethernet
It is recommended to be in Standby Mode before starting the upgrade procedure.
i
1. Apply power to projector.
2. Open Internet Explorer and browse to http://<ipaddress>
where <ipaddress> is the IP address of the projector. The login screen appears.
3. Log in using the admin account. If you are unable to login under admin it may be that the password has been changed. Check with the projector maintainer for the correct password.
4. Select the Admin tab.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
52
Operation
5. Click Upgrade.
i
If the Upgrade button is greyed out the projector may not be in Standby mode. Select the
Main tab and look under the Power field to verify the current mode. If the projector is not in
Standby mode, power the project Off and try again.
6. To reboot the projector in Fail Safe mode, click Yes from the pop-up window.
7. The Fail Safe mode displays the current versions of the projector firmware.
8. To locate the upgrade file, click Browse. Double-click the file to select it.
9. To upload the file to the projector, click Upgrade. A progress bar indicates the status of the upload. After a successful upload, the upgrade starts automatically.
• The top two lines of the window display the current action.
• The Upgrading progress bar indicates the status of the current action.
• The upgrading process takes between 15 and 30 minutes.
10. Click Reboot to re-starts the projector in Normal mode. i
If you are unable to see the WebUI after the upgrade delete the cache and cookies, and press
CTRL+F5.
If the message, Main update failed xxx, see log for details is displayed copy the upgrade log and send it to Christie technical support.
Warp and Blend Images
The digital image warp and blend functionality combines multiple projector images into a single image. Use the Christie’s Twist
TM
and AutoCal applications to adjust the image so it fits different screen shapes. Adjustments can be made to correct keystone on flat screens or fit an image to spherical, cylindrical, curved, or arbitrary screen shapes.
Digital blend definitions allow images from multiple projectors to be overlapped to create a single image.
For information about creating and managing warps and blends, please refer to the Twist
TM
User
Manual (P/N: 020-100143-xx) or the AutoCal 3.0 User Manual (P/N: 020-100985-xx).
Adjust Geometry Correction Settings
1. Select Configuration > Geometry Correction.
2. In the Geometry Correction list select the warp file previously uploaded to the projector from
Twist
TM
or AutoCal.
It can take several seconds to load a warp file.
3. In the Edge Blending list, select the edge blending file.
4. In the Black Blend Enable list, select the black blend file (supported with Twist
TM
2.0).
5. To visualize the effect of the selected warp or blend file, select a projector test pattern from the
Test Pattern list.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
53
Operation
3D Operation of Mirage Projectors
Images generated from a stereo 3D video source consist of a series of images or frames that alternate quickly between two slightly different viewpoints, corresponding to our left and right eyes.
When these frames are displayed fast enough and viewed with special glasses synchronized to the left or right changes, the resulting image appears to have the same depth and perspective as reality.
To display stereoscopic 3D video, you must connect the Mirage WQ-L projector to additional hardware such as stereo emitters and glasses. The type of 3D glasses can be active or passive depending on the type of stereo controller and screen used.
3D System Timing
When configuring the projector for 3D operation, consult the documentation for your glasses or polarization filter and keep their specifications in mind. The projected video must be optimized for the glasses’ shutter speed or polarization filter performance to prevent “ghosting” of the video content (known as cross-talk in stereo 3D applications) or other more subtle color artifacts. Visual performance can be optimized by adjusting the Dark Interval and the 3D Sync Delay settings.
3D Input Video Configurations
The stereo 3D input video stream is sent from the content server to the projector using 3D direct or dual-input.
3D Frame Doubled Input
3D Frame Doubled Input will be available with Mirage WQ-L software release 1.2.1.
i
The Mirage projector supports a WQXGA 60Hz (30 Hz per eye) video input over a single DVI-D cable. In this configuration a single video stream is provided by the video server, with the left eye and right eye frames supplied as alternate frames. The display is frame doubled by the projector resulting in 120 Hz projection. A 3D Input Sync must be used to identify the left eye frames.
3D Dual-Input 120Hz native output
The Mirage projector supports two WQXGA 60Hz video inputs, with the left eye frames supplied by one video input and the right eye frames supplied by the other. The video streams must be frame locked and supplied concurrently. The 3D dual-input video streams are supplied by two DVI Dual
Link connections.
3D Requirements
To control the projector’s processing, synchronization, and display of the stereoscopic 3D source material, stereo 3D applications require a stereo 3D-capable source, special hardware and software, and the settings of the projector.
Hardware Requirements for Stereo 3D Applications
• Christie Digital Systems Mirage WQ-L Series projector .
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
54
Operation
• 3D stereo sync cable (for 3D frame doubled mode) .
• A source, usually a computer with a 3D graphics card or specialized video server.
• Emitter for controlling active shutter glasses, or a qualified device that mounts in front of the lens of the projector to process the light from the lens into a passive polarized light for passive glasses. Contact your Christie dealer for more information.
Software and Content Requirements for Stereo 3D Applications
• Any 3D computer software that supports 3D stereo on a supported computer(s) with associated graphic cards. Suggested cards include ATI or NVIDIA.
• A video stream from a video source prepared to be sequential content (for 3D frame doubled) or two video streams from a video source that has been prepared to be supplied left eye and right eye concurrently and frame locked (3D dual-input).
Active Stereo 3D Configuration
This diagram shows the typical hardware configuration for active stereo 3D systems:
B
A
G
H
E
C
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
F
C
D
A
B
Infrared emitter
Active Glasses
DVI
Server with Stereo 3D-capable graphics card
D
55
Operation
E
F
G
H
Secondary input (only required with Dual Input mode)
Left/Right synchronization signal (only required for
Frame Doubled input)
3D Stereo Sync Cable
Output
In response to the 3D Sync Out signal from the projector (BNC A), the infrared emitter emits a signal to the receiver in the active 3D shutter glasses. This synchronizes the active glasses to open and close for the active stereo 3D content. The left/right synchronization signal is connected to BNC
B on the projector, which is necessary for 3D frame doubled input configurations.
Passive Stereo 3D Configuration
This diagram shows the typical hardware configuration for passive stereo 3D systems:
A
B
H
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
C
E
G
F
C
D
A
B
G
H
E
F
Passive Polarizing Glasses
Polarization Maintaining Screen
Active Filter Cell
Server with Stereo 3D-capable graphics card
DVI
3D Stereo Sync Cable
Left/Right Synchronization Signal
Output
D
56
Operation
For operation with passive glasses, a 3D polarization filter is placed in front of the lens and is synchronized to the projected frames with the 3D Sync Out signal (BNC A). The left/right synchronization signal is connected to BNC B on the projector, which is necessary for 3D frame doubled input configurations.
Set Up the Mirage WQ-L to Display 3D Content
The projector must be installed to correctly display 2D content (optically aligned, focused, etc.) before configuring the 3D content:
1. Connect the 3D equipment to the projector using the instructions provided with the 3D equipment.
2. Click Main Menu > Image Settings > 3D Settings.
3. Select 3D Mode as Dual Input or Frame Doubled, according to how the source is connected to the projector.
4. Configure your 3D source.
5. For Dual Input mode, use the Main Input field and select Input 1 or Input 2 for the left eye and set the Secondary Input to the other input for the right eye.
6. For 3D Frame Doubled mode, set the 3D Sync Input to the External if a sync signal is connected, or Internal if no 3D sync signal is connected to the projector.
7. To enable the 3D Sync output, set the 3D Sync Output to the To Emitter selection, or To
Next Input for a projector array.
8. Set the last projector in the array to To Emitter.
9. Display the 3D Test Pattern.
If you can see both a grid and a checkerboard test pattern superimposed with each eye, increase the Dark Interval until a different test pattern is visible on the left eye and the right eye.
10. To minimize the ghosting of the two patterns with respect to one another, adjust the 3D Sync
Output delay as necessary.
The delay adjusts when the sync pulse is sent to the emitter with respect to the dark time transition on the DMDs.
11. To reverse the left and right eye images, select Invert 3D Input.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
57
Troubleshooting
i
• Read, understand, and observe all warnings and precautions when diagnosing and servicing.
• If a solution cannot be found in this guide, contact your dealer for assistance.
• A Christie accredited service technician is required when opening an enclosure to diagnose any probable cause.
• Make sure the projector is plugged in.
• Make sure all cables are connected and not damaged.
• Power down the projector, wait 90 seconds to allow for cooling, and then power the projector back up. Check for a normal power up sequence.
• Check the projector status for error conditions and correct any issues if possible.
See System Warnings and Errors on page 58.
• Check source reliability. Switch sources if possible.
• Use RS232 serial communications to communicate with the projector during diagnosis.
System Warnings and Errors
When the projector finds a system malfunction, it displays a System Warning or a System Error message. System warnings show that a system malfunction exists. The projector will remain operational, but the message shows a possibly serious problem that must be reported to the manufacturer. Reset the projector by powering it Off and On again, cooling when necessary.
System errors indicate that a serious malfunction exists and must be reported to the manufacturer as soon as possible. The projector will no longer operate. Reset the projector by powering it Off and
On again, cooling when necessary.
Status and error information is available through:
• The status display on the input panel of the projector. See Status Display on page 59.
• The read-only Status window from the Main menu. Check this window for a list of the standard and optional components detected in the projector. Check the Status window for versions of installed hardware and software, the hours logged, and projector model name and serial number.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
58
Troubleshooting
Status Display
Projector status is indicated by a single three-color LED adjacent to a two-digit status display. Refer to the table below for a description of the variations that indicate operation status. A solid red LED indicates a system error and the corresponding error code indicates what the error is.
Status
Solid Yellow
Solid Green
Flashing Green
Solid Red blank
Two-Character Display
Rotating
PR (Programming Time)
FS (Failsafe mode)
Description
Warming up.
— —
, static
— —
, moving up and down
• BO (Booting) when power first applied.
• B1 (Boot phase 1) starting main script
• B2 (Boot phase 2) starting projector code
• B3 (Boot phase 3) about to initialize connections
SH (Shutter Mode)
The projector is in Failsafe mode. See
Standby mode.
Brief cool down period.
LEDs are disabled to shutter the projector.
Keypad command sent — command received.
System error.
Rotating Initializing hardware and performing Power
On Self Test.
Error Codes
If the status display window shows any of the codes in the table below you may need a Christie accredited service technician to repair the component identified by the error code.
Error codes are displayed in a three-phase format:
• First two digits represent the component or error category
• Second two digits represent the specific problem
• Display off
This cycle repeats. The LED will be red while the error code is displayed.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
59
Troubleshooting
Acknowledge and clear the error by pressing Exit twice. If the error recurs then try resetting the projector by powering Off and On again. Contact the dealer if the problem persists or if you see a code not listed in the table below.
Description Error Code
(7-segment display)
Light Engine
LE
Link
LI
52
53
54
55
56
57
58
59
60
61
Fan Error
FP
46
47
48
49
50
51
43
44
45
Temperature Sensor
SP
41
42
Light engine error
Engine error (typically during power-up)
Link down
Communication link status (internal communication error)
Temperature sensor error (index number following tracks SST response IDs)
Air inlet error
Power supply 0
Power supply 1
FCB board
QD board
DMD
QD FPGA
QPC board
QPC CPLD
QPC FPGA
Red SAM
Green SAM
Blue SAM
IR SAM
Red driver
Green driver
Blue driver
IR driver
Red SAM Junction Temp
Green SAM Junction Temp
Blue SAM Junction Temp
Fan stall error (index number following tracks SST response IDs)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
60
Error Code
(7-segment display)
23
24
25
26
20
21
22
27
Miscellaneous
ES
Troubleshooting
Description
Power supply fan
SAM drive fan
Intake fan
QD fan
Red IR fan
Green fan
Blue Green fan 1
Blue Green fan 2
Emergency stop due to a thermal overtemp (will hold for about 30 seconds and then revert back to standby --y)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
61
Maintenance
Cleaning the Lens
Check periodically. A small amount of dust or dirt on the lens has minimal effect on image quality.
To avoid the risk of scratching the lens, clean only if absolutely necessary.
Remove Dust
1. Brush most of the dust from the lens with a camel-hair brush or blow dust away with a dustfree blower.
2. Fold a microfibre cloth smooth and gently wipe remaining dust particles from the lens. Wipe evenly with the smooth portion of the cloth that has no folds or creases. Do not apply pressure with your fingers – use the tension in the folded cloth itself to collect dust.
3. If significant dust is still bound to the surface, dampen a clean microfibre cloth with coated optics cleaning solution (damp, not dripping). Wipe gently until clean.
Remove Fingerprints, Smudges, or Oil
1. Brush away most of the dust with a camel-hair brush and/or blow away using a dust-free blower.
2. Roll a lens tissue around a swab and soak it in coated optics cleaning solution. The tissue should be damp, but not dripping.
3. Gently wipe the surface using a figure-eight motion. Repeat this motion until the blemish is removed.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
62
Serial Communication
This document describes the serial communication protocol, consisting of ASCII text messages, used to control a Matrix StIM / SIM WQ projector remotely.
Connection and Use
i
For all cable requirements and other connection details, see Specifications on page 115.
Some commands are operational only when projector is powered On.
Once you have connected your computer to either the RS232 IN or RS422 IN port (depending on which standard is supported by your computer) or to the Ethernet port on a projector, you can remotely access projector controls and image setups, issue commands or queries, and receive replies. Use these bi-directional messages to:
• Control multiple projectors
• Obtain a projector’s status report
• Diagnose performance problems
RS422 Port
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
RS422 Pins
Pin # Signal Direction
DNC
RXD-
TXD-
RXD+
TXD+
DNC
GND
NC
OUT
N/A
N/A
N/A
+12V (500mA) OUT
N/A
IN
OUT
IN
Message Formats
• Set: A command to set a projector parameter at a specific level, such as changing to a certain input.
• Request: A request for information, such as what input is currently in use.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
63
Serial Communication
• Reply: The projector returns the data in response to a request or as confirmation of a command.
All “Remote Control” information passes IN and OUT of the projector as a simple text message, consisting of a three letter command code, an optional four-letter subcode, and any related data.
When a parameter for a specific source is being accessed, the four-letter subcode will be added on to the Command code. A number of optional features (message acknowledges, checksums, and network addressing) can be included.
Generally, most commands include 0 or 1 data fields or parameters. Where applicable, a message may expand to include additional parameters of related details.
The smallest step size for any parameter is always 1. For some controls (i.e. Size) the value displayed on the screen has a decimal point. (e.g. 0.200 to 4.000) In this case, the values used for the serial communications is an integer value (e.g. 200 to 4000), not the decimal value seen on the screen.
Regardless of message type or origin, all messages use the same basic format and code. Opening and closing round brackets (parentheses) surround each message.
Message Formats
Source Message format Function
From controller (Code Data) SET (set gamma function of main image to 222)
(Code+Subcode Data) SET (set gamma function of image to 222)
From controller (Code ?)
(Code+Subcode ?)
REQUEST (what is current gamma function?)
REQUEST (what is current gamma function?)
From projector (Code Data) REPLY (gamma function is 222)
(Code+Subcode Data) REPLY (gamma function is 222)
Examples
(BGF500) or (BGF 500)
(BGF+SECD222) or
(BGF+SECD222)
(BGF?) or (BGF ?)
(BGF+SECD?) or (BGF+SECD ?)
(BGF!222)
(BGF+SECD!222)
Basic Message Structure
The following component fields comprise a standard ASCII message. Optional fields, such as extra characters for special modes, restrictions or added functionality, are shown in italics, with the exception of Notes.
Start and End of Message
i
If the start character (left bracket) is received before an end character of the previous message, the partial (previous) message is discarded.
Every message begins with the “(” (left bracket) character and ends with the “)” (right bracket) character.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
64
Serial Communication
Prefix Characters (optional)
For acknowledgement that the projector has responded, and/or to maximize message integrity, insert one or two special characters before the three-character Function code:
Special Character
$
#
&
Description
Simple Acknowledgment, which will cause a ‘$’ character to be sent back from
the projector when it has finished processing the message. See Maximize
Message Integrity on page 69 .
Full Acknowledgment, which will cause an echo of the message as a reply to be
sent back from the projector when it has finished processing the message. See
Maximize Message Integrity on page 69
.
Checksum, which will allow a checksum to be put as the last parameter in the
message for verification at the projector. See Maximize Message Integrity on page 69
.
Projector Numbers (optional)
To control a selected projector or controller within a group, include its assigned number or address
just before the three-character ASCII Function code. See Network Operation on page 71.
Function Code
The projector function you wish to work with, such as input selection or gamma, is represented by a three-character ASCII code (A-Z, upper or lowercase). This Function code appears immediately after the leading “(“ (left bracket) that starts the message. In messages sent to the projector that do not have a Subcode, a space between the Function code, and the first parameter (or special character) is optional.
+Subcode
The projector function you wish to work with may have one or more subcodes that will allow you to select a specific source, image, input or subfunction. The Subcode is represented by a fourcharacter ASCII code (A-Z, upper or lowercase, and 0-9). This Subcode appears immediately after the Function code, with a “+” character to separate the code, and subcode. If there is no Subcode, the “+” (plus sign) is also omitted. In messages sent to the projector that do have a subcode, a space between the subcode and the first parameter (or special character) is optional.
Request/Reply Symbols
If the controller is requesting information from the projector, a “?” (question mark) appears directly after the Function code. If the projector is replying, an “!” (exclamation mark) appears directly after the Function code. For Set type messages sent to the projector, neither of these characters appear.
Data directly follows the code and subcode.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
65
Serial Communication
M
N
H
L
T
E
G
C
D
Other Special Functions (optional)
To add functionality to the current message, include one or more of the following special characters between the Function code/Subcode, and the first parameter. If more than one, add them in any
order. See Flow Control on page 70.
Control Class Inquiry
Default value/Text
Enable Control Inquiry
Access Group Inquiry
Return the Help text for a control
Return a list of options for ‘list’ controls
Find min/max adjustments (i.e., range)
Return the name of the control
Return the type of control (i.e. Slidebar etc.)
Data
The value for a given projector state, such as “ON” or “OFF”, appears in ASCII-decimal format directly after the request/reply symbol. You can add an optional space after the symbol (i.e., before the data) in a set message, but data in replies follow the “!” (exclamation) symbol without a space.
Other details to remember about data:
• All values returned by the projector (reply messages) have a fixed length, regardless of the actual value. For a specific parameter, the length will always be the same (e.g. contrast is always returned as three characters, projector number is always returned as five characters).
The minimum parameter size is three characters. Values that are less than the pre-defined size will be padded with leading zeros as needed. Parameters which have negative signs (-) are zero padded after the negative sign, and will have one less digit to make space for the sign.
• If entering a negative number, there must be a space between the code/subcode, and the value. For example, (CRM3) and (CRM 3) can both be used when the number is positive. (CRM
-2) is acceptable, but (CRM-2) is not.
• Data in set messages to the projector do not require padding with zeros.
• Within each message, multiple parameters of data must be separated by one “space” character.
• Text parameters are enclosed in double quotes following the data, as in “Name”.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
66
Serial Communication
Text Parameters
Most data is simply a numerical value, however some messages also require text. Enclose this text in double quotation marks, as in “Tilt the Wagon”. Use all characters as desired except for the following special characters shown in the left column below. These special characters require a two-
character combination. See Sample Messages and their Meaning on page 67.
Special Text Characters to get this....
\
”
(
)
0x0A enter this....
\\
\ ”
\(
\)
\n
\h##
Description
Backslash
Quote
Left Bracket
Right Bracket
New line - if the text can be displayed on more than one line, this will set the line break.
Sends one arbitrary code defined by the two hexadecimal digits ##
Sample Messages and their Meaning
Single Projector
Message Format
(Code Data)
(Code+Subcode Data)
(Code?)
(Code+Subcode?)
(Code!Data)
(Code+Subcode!Data)
($Code Data)
(&Code+Subcode Data Checksum)
Function Example
SET (set gamma function of main image to
222)
(BGF222)
SET (set gamma function of secondary input to 222)
(BGF+SECD222)
REQUEST (what is current gamma function?) (BGF?)
(BGF+SECD?) REQUEST (what is current gamma function of secondary input?)
REPLY (gamma function is 222) (BGF!222)
(BGF+SECD!222) REPLY (gamma function of secondary image is 222)
SET AND ACKNOWLEDGE MESSAGE
(message processed?)
($BGF222)
SET WITH CHECKSUM (&BGF222 171)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
67
Serial Communication
Specific Projector in a Network with one Controller
Message Format
(Dest Addr Code Data)
($Dest Addr Code Data)
Function
SET (turn projector #5 on)
SET AND ACKNOWLEDGE MESSAGE (message processed?ffr55)
Example
(5pwr1)
($5pwr1)
Specific Projector in a Network with Multiple Controllers
Message Format
(Dest Addr Src Code?)
($Dest Addr Src Code Data)
(Dest Addr Src Code!Data)
Function
REQUEST (get gamma function from projector #5 to controller #2)
SET AND ACKNOWLEDGE MESSAGE (is message from controller #2 processed by projector #5)
REPLY (from projector #5 to controller #2: gamma function is 222)
Example
(5 2BGF?)
($5 2BGF?)
(002 005BFG!222)
What is Actually Sent in a Message?
Although you will send and read messages as strings of ASCII characters, the actual message travels as a sequence of bytes. Each character in this sequence requires one byte. The example below illustrates a “gamma function 222” reply from the projector.
ASCII = ( B G F !
2 2 2 )
HEX = 0x28 0x42 0x47 0x46 0x21 0x32 0x32 0x32 0x29
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
68
Serial Communication
Maximize Message Integrity
For additional reassurance and/or maximum message integrity, you can insert one or two special characters:
• Acknowledgements: If you want assurance from the projector (or group of projectors) that a set message has been processed, request an acknowledgement. An acknowledgement is returned after a message has been received and fully executed by the projector (i.e. in the case of a source switch it is not sent until the switch is complete). If a message is not able to execute for some reason (i.e. invalid parameters, timeout, etc) a NAK is returned instead (Not-
Acknowledge). Note that requesting an acknowledgement serves no purpose when included in a request message, since the acknowledgement will be redundant to the actual reply from the projector. However, if requested, the “$” acknowledgement from the projector will follow the reply.
There are two types of acknowledgements:
• Simple Acknowledgements: Insert a “$” character just after the start code “(“. This will only return a ‘$’. This will only return a '$' on success, or a '^' on failure (NAK).
• Full Acknowledgements: Insert a “#” character just after the start code “(“. This will return the message sent, as a reply.
This is a quick way to confirm success with set messages, and is particularly useful with longdistance communication links or where the projectors and/or images are not visible from the controller. Acknowledgements can also be a type of flow control.
Checksums: For maximum message integrity, add a checksum character “&” just after the start code “(”. You must then also include the correct checksum total (0-255) just before the “)” end code. Make sure to add a space before the calculated checksum to separate it from the last data parameter:
The checksum is the low order byte of the sum of the ASCII values of all characters between the
“(“and the beginning of the checksum, but not including either. It does include the space in front of the checksum. Calculate the checksum for the above “set contrast to 64” command as follows:
CHECKSUM EXAMPLE = & + B + G + F + 2 + 2 + 2 + ‘space’
= 26h+42h +47h +46h +32h +32h +32h+20h
= 01ABh
= ABh when only the low byte is used
= 171
The projector collects all of the message bytes as defined in the first byte of the message, then creates its own checksum value for comparison with the checksum included in the controller’s message. If the values match, the message is considered to have been correctly received— otherwise the message is discarded.
i
‘h’ indicates a hex number. If a “request” message has a checksum so will the reply.
If using both “acknowledge” and “checksum”, either character can occur first.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
69
Serial Communication
Access Specific Inputs
For several commands (for example, BGC, Base Gamma Curve) you can direct the message to particular input or image. To do this, include a subcode after the function code.
Example:
(BGC 1) Select 2.22 gamma curve for main input.
(BGC+MAIN 1) Select 2.22 gamma curve for main input.
It is only possible to set parameters from a specific input if that parameter is stored separately for each input. This function cannot be used for parameters that are specified for the projector as a whole such as projector address. The serial commands listed in the document specify which subcodes are applicable to each function.
Flow Control
i
Xon and Xoff controls apply to both directions of communication. The projector will not send more than three characters after it has received a 13h (Xoff) code.
Normally messages can be sent to the projector before processing of earlier messages is complete—the projector will just store messages in a buffer until ready to process. However, if a series of messages is sent it is possible that the projector may not be able to process them as fast as they arrive and the buffer will become full. If this happens, the projector will send the 13h (Xoff) code to instruct the controller (or any devices preparing to transmit) to cease transmission. At this point, the controller must respond immediately and send no more than ten extra characters or they may be lost (i.e., the projector is able to accommodate the receipt of up to ten more bytes after it sends 13h (Xoff). When the buffer is once again available, the projector will send a 11h (Xon) command to resume transmission.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
70
Serial Communication
Network Operation
Up to 1000 projectors can be linked together in a chain with the ‘OUT’ port on one connected to the
‘IN’ port on the next. A controller connected to the ‘IN’ port on the first projector can control them all, either by broadcasting messages which have no address and are thus seen by all projectors, or by directing messages to specific projector addresses.
To work with a specific projector in a group, the projectors must first be assigned a unique I.D.— either a projector number or an Ethernet IP address. Insert the number of the target projector between the starting ‘(’ and the three-character ASCII code.
Message for Specific Projector
( Addr Code Data )
Each projector compares the message address with its own address and, if matching, responds and processes the message. If the address does not match, the message is passed on until it reaches the intended projector.
Although messages without an address are always broadcast, you can also broadcast by including the reply destination address 65535. This ensures that replies go to a specific controller address rather than being broadcast. The projector will also include its address.
Message for Projector from a Specific Controller
( Dest Src Code Data )
If you have more than one controller on a network, ensure to include both a source address and a destination address. With a single controller on the network, its address is never required. Place the source address between the destination address and three-character code, including a space before and after as shown. NOTE: Replies from a projector do not contain an address unless the request message includes both a destination address and a source address—i.e., a reply to a request having only a destination address will not have any source address.
( Dest
Examples
Src Code Data )
Command
Turn Projector #5 on.
What is the gamma function in
Projector #30?
Return gamma function from
Projector #30 to Controller #2.
Message from Controller
(5pwr1)
(30BFG?)
(30 2BFG?)
Reply from Projector
{none}
(BFG!222)
(00002 00030con!127)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
71
Serial Communication
Description Of Control Types
Subclasses
• Power Down Controls: These controls are accessible when the projector is in Standby power mode (i.e. power off) as well as when powered on.
• Power Up Controls: These controls are only accessible when the system electronics are fully powered (not necessarily lamp on).
Control Groups
• Unsaved Controls: These controls are not saved to flash. The settings are not maintained between power sessions.
• Saved Controls: These controls are saved to flash. The settings are persistent between power sessions.
• Preference Controls: These controls are transferable from one projector to another. Example:
NET+SUB0 (projector subnet).
• Configuration Controls: These controls are projector specific settings. They are nontransferable between projectors. Example: NET+ETH0 (projector IP address).
Access Levels
• Operator: Command is available at the operator level log in.
• Advanced: Command is available at the advanced operator level log in.
• Admin: Command is available at the administrator level log in.
• Service: Command is available at the service level log in.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
72
Serial Command Reference
Array Bright Color LOC (ABL)
ABL
CONTROL GROUP:
Preference
SUBCLASS:
Power Up
ACCESS LEVEL:
Operator
Description
This command is used to set parameters that control how the Array Bright/ColorLOC feature operates. From this control you enable the mode in which you want to operate the feature: target brightness, target gamut, update intervals, and other miscellaneous parameters. This command is persistent, and will save the “synchronize to this projector” operation between power-ups.
See Projector Color Adjustment (PCA) on page 92 .
See Target Color Space (TCS) on page 100
.
See Target White Point (TWP) on page 105 .
Subcode
ABI+DEVC
ABL+DEVC 0
Description of Use
Use to set the ArrayLOC networking device.
Set the networking device to the ArrayLoc network. The second
Ethernet port on the projector will be used to broadcast
ArrayLoc packets.
ABL+DEVC 1
MODE
BRGP
BRTG
Set the networking device to the Control network. The first
Ethernet port on the projector will be used to broadcast
ArrayLoc packets. This port is also use to control the projector over the network.
Enable Array Bright/ColorLOC:
0 = Disabled
1 = Enabled
Brightness Group. Identifies a subset of all projectors in the array to be used in the Array BCLOC algorithm. May be used to provide multiple groups of projectors with different color targets. (0-9999)
Brightness Target. Sets the target brightness that the projectors in the array brightness group should meet.
(Range is 0-40,000)
MINB
MING
ALBV
Minimum Brightness. Sets the minimum brightness, as a percentage of target brightness, that the projector will display if it is capable. (Range is 0-100%)
Minimum Gamut. Sets the minimum gamut, as a percentage of the target gamut, that the projector will display if it is capable.
(Rang is 0-100%)
When set, all projectors in brightness group will use this projectors settings:
0 = OFF (normal)
1 = synchronize to group
Note: A group can synchronize to only one projector. Setting
ABL+ABLV on any projector in a group to make that projector the master projector releases the setting from any previous master projector in the group.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
73
Serial Command Reference
ABL
DEVC
WENA
WBTH
WGTH
IRTG
SKEY
SFRD
AFRD
AFRS
Specifies the ethernet port used for transfer of ColorLOC data.
When selected will use the Control Network port rather than default ArrayLOC Network port.
0 = ArrayLOC network
1 = Control network
(FUTURE USE).
Enable warnings associated with Bright/ColorLOC.
0 = disable
1 = enable
(FUTURE USE). Sets the brightness threshold at which a warning is issued when warnings are enabled. (0-100 percent).
(FUTURE USE). Sets the gamut threshold at which a warning is issued when warnings are enabled (0-100 percent).
(FUTURE USE). IR Brightness Target. Sets the target brightness that the projectors in the array brightness group should meet.
(Rang is 0-1000).
Synchronize remote control keystrokes, test pattern and color enable amongst array projectors
0 = Independent
1 = Synchronized
Synchronize frame delay amongst array projectors
0 = Independent
1 = Synchronized
Sets the array frame delay parameter. Applies to all projectors in array if SFRD is set to Synchronized
Read-only control reports smallest frame delay value in array that will not generate tearing artifacts
SRGB
SCLE
SITP
Synchronize RGB Brightness setting amongst array projectors.
0 = Independent
1 = Synchronized
Synchronize Color Enable setting amongst array projectors.
0 = Independent
1 = Synchronized
Synchronize Test Pattern setting amongst array projectors.
0 = Independent
1 = Synchronized
Examples:
(ABL+MODE1) Enable Array Bright/ColorLOC.
(ABL+MODE2) Disable Array Bright/ColorLOC.
(ABL+BRGP 2) Set the brightness group to 2.
(ABL+BRTG 400) Set the brightness target to 400 Lumens.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
74
Serial Command Reference
Auto Color Enable (ACE)
ACE
CONTROL GROUP: Preference SUBCLASS: Power Up
ACCESS LEVEL : Operator
Description
Automatically select Color Enable based on the control being adjusted. If enabled, this control allows the projector to automatically change the color enable control. This is an unsaved control, which can only be set when powered
On.
Subcode
<No Subcode >
Description of Use
Enable/Disable auto color controls.
Examples:
(ACE 0) Disable Auto Color.
(ACE 1) Enable Auto Color.
Address (ADR)
ADR
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Set/Query Device Address on ASCII Protocol network. Required only for RS232 connections that are daisy chained to allow directed messages.
Subcode
<No Subcode >
Description of Use
Valid Address range is 0 to 999. Reserved broadcast address is
65535.
Examples:
(65535 ADR 0) Set all devices to address 0.
(0 ADR 5) Set first device at address 0 to address to 5.
(65535 1001ADR?) Query address for all devices and return results to address 1001.
Expected response to previous query (01001 00005ADR!005).
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
75
Serial Command Reference
Active Projector (APJ)
APJ
CONTROL GROUP: Input SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Temporarily enable or disable the IR and wired keypad Inputs to a specific projector in a network of projectors.
When a projector is disabled, the only key that works is PROJ. The next time the projector is powered up again, it will revert to fully enabled. The built-in keypad will always be fully functional. This control does not overwrite the
Front IR, Back IR and Wired Keypad settings.
Subcode
<No Subcode >
Description of Use
Set 0 to temporarily disable keypad access to this projector.
Examples:
(APJ 1) Projector is active (keypads are enabled).
(APJ 0) Projector is not active (keypads are temporarily disabled).
(APJ?) Is the projector keypad active or not.
Auto Power Up (APW)
APW
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
When the A/C switch is turned ON, the projector will automatically change from Stand-by Mode to Power ON
Mode. The projector will switch the lamp(s) on without waiting for further user actions.
Subcode
<No Subcode >
Description of Use
Set to 1 to enable.
Examples:
(APW 0) Projector will remain in Standby Mode until the user presses the power key.
(APW 1) Projector will auto power up when A/C power is switched On.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
76
Serial Command Reference
Auto Shutdown (ASH)
ASH
CONTROL GROUP: Saved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
When Auto Shutdown Mode has been selected, and no projector activity has been seen for the activation time-out period, the projector will enter a Power Saving mode in which the lamps will dim and the shutter close. If this condition persists for an additional time-out period the projector will automatically go to standby. The presence of any activity within this is combined interval will cancel Auto Shutdown and return the projector to normal operation.
Subcode
<No Subcode >
Description of Use
Enable or disable Auto Shutdown Operation.
SBTO
ALTO
Set the uninterrupted time-out period that must elapse before projector will enter Standby Mode (The second time-out period or Standby time-out).
Set the uninterrupted time-out period that must elapse time of activity loss until Auto Shutdown is activated (The first timeout period or Activation time-out).
Examples:
(ASH 1) Turns ON Auto Shutdown Mode.
(ASH 0) Turns OFF Auto Shutdown Mode.
(ASH+SBTO 10) Sets standby time-out to 10 minutes.
(ASH+ALTO 10) Sets source activity loss time-out to 10 minutes.
Baud Rate (BDR)
BDR
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Advanced
Description
Set the baud rate for a serial communications port. For RS232 IN and RS232 OUT, the default is 115200. For
RS422, the default is 19200. The default communications settings for all ports is eight data bits, no parity. Valid baud rates, with the values to select them, are:
0 = 1200
1 = 2400
2 = 9600
3 = 19200
Subcode
PRTA
PRTB
4 = 38400
5 = 57600
6 = 115200
Description of Use
Set the baud rate on port A (RS232 IN) .
Set the baud rate on port B (RS232 OUT) .
PRTC Set the baud rate on port C (RS422) .
Examples:
(BDR+PRTA 6) Set baud rate on port A to 115200 bits per second.
(BDR+PRTA?) Get baud rate (BDR+PRTA!"115200").
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
77
Serial Command Reference
Base Gamma Curve (BGC)
BGC
CONTROL GROUP: Input SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
This control lets you select the Gamma table. You can select from one of the standard tables, or select an arbitrary Gamma table that has been downloaded into the projector. A separate PC utility is needed to do this. The
2.22 table is a simple power curve. The standard table is a modified 2.22 curve with an optimized linear portion in the low end of the curve. This is the same as selecting a custom table and setting the function to be 2.22 and the slope to be 1.0. Selecting Gamma Function from the drop-down list enables the Gamma Function and Gamma
Slope controls.
Valid values are:
0 = Standard
1 = 2.22
2 = Gamma Function
Subcode
MAIN
Description of Use
Set the base gamma curve for main video .
SECD Set the base gamma curve for video .
Examples:
(BGC 0) Set main video to the standard base gamma table.
(BGC+MAIN 0) Set main video to the standard base Gamma table.
Base Gamma Function (BGF)
BGF
CONTROL GROUP: Input SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Defines the gamma power curve to be used when the Gamma table value is set to ‘Gamma Function’. This value, combined with Gamma Slope setting, determines the Gamma table to be used. The curve is generally a power curve with a small linear segment at the bottom defined by the slope.
The valid range is 100-300, where 100 is 1.0 linear and 300 is a 3.00 power curve.
Subcode
MAIN
Description of Use
Set the base gamma curve for main video .
SECD Set the base gamma curve for video .
Examples:
(BGF 100) Set the base Gamma Function to 1.0 for main video.
(BGF+MAIN 300) Set the base Gamma Function to 3.0 for main video.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
78
Serial Command Reference
Base Gamma Slope (BGS)
BGS
CONTROL GROUP: Input SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Defines the slope to be used for the base custom Gamma table in the small linear section at the bottom of the curve. This slope can be used to bring the low level blacks in the image in or out. This slope, combined with the
Gamma function, defines the custom Gamma table.
The valid range is 50-200, where 50 is a slope of 0.5 and 200 is a slope of 2.00.
Subcode
MAIN
Description of Use
Set the base gamma curve for main video .
SECD Set the base gamma curve for video .
Examples:
(BGS 100) Set the base gamma slope to 1.0 for main video.
(BGS+MAIN 200) Set the base gamma slope to 2.0 for main video.
Broadcast Key Mode (BKY)
BKY
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Toggle Broadcast Key Mode to select whether all key presses received by the projector will be relayed to all other projectors on the network.
Subcode
<No Subcode >
DESCRIPTION OF USE
Set to 1 to enable.
Examples:
(BKY 1) Enable Broadcast Key.
(BKY 0) Disable Broadcast Key.
(BKY?) Get current Broadcast key state.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
79
Serial Command Reference
Color Enable (CLE)
CLE
CONTROL GROUP: Unsaved SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
This control allows the three primary colors (red, green, and blue) to be turned ON or OFF separately. It is used to look at the colors one at a time or in pairs when doing convergence, light measurements, etc. The list of values for this command are:
0 = White
1 = Red
2 = Green
3 = Blue
4 = Yellow
5 = Cyan
6 = Magenta
Subcode
<No Subcode >
Description of Use
Examples:
(CLE 1) Display red portion of image only.
(CLE 5) Display green and blue portion of image only.
(CLE 0) Display image normally (all primaries).
Data Logging (DLG)
DLG
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Set data logging level.
0 = Minimal logging of activities. Logging system errors, warnings and 'events' (i.e. power ON/OFF, lamp ON/
OFF, user login/logout).
1 = Normal logging. Most activities logged - errors, warnings, events, and other info.
2 = Debug logging. All activities are logged.
Subcode
<No Subcode >
Description of Use
There are three levels for data logging.
Examples:
(DLG1) Set current logging level to 1.
(DLG?) Get current logging level. Response is (DLG!001).
3D Dark Interval (DRK)
Controls the time between frames when no image is being projected to the screen. Used for 3D applications to determine the time that the shutter mechanism has to open or close between fields.
Keep at default value of zero for all other applications. Increasing this control will reduce the peak brightness of the image.
Parameters
• Control Group: Preference
• Subclass: Power Up
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
80
Serial Command Reference
• Access Level: Operator
Examples
Set 3D dark interval to 0 on main video
DRK 0
Set 3D dark interval to 3.00 milliseconds
DRK 300
Edge Blending (EBL)
EBL
CONTROL GROUP: Configuration/Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
This serial command controls edge blending settings.
Subcode
SLCT
Description of Use
Select edge blending mode:
0 = disabled
2 to 17 = select TWIST edge blending maps
Examples:
(EBL+SLCT0) - Edge blending disabled.
(EBL+SLCT2) - Use TWIST edge blending map #1.
Error Message Enable (EME)
EME
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
This control enables the displaying of error messages, and determines to which interface the messages are sent.
Error messages can be turned Of or can be sent out the serial port. This setting does not affect messages for invalid user entries, for which error messages are always displayed.
Valid values are:
• 0 = Off
• 2 = Serial ports
Subcode
<No Subcode >
Description of Use
EXAMPLE:
(EME ?) Get current Error Message Enable state.
(ESM ?) Set Error Message Enable to send errors out serial ports.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
81
Serial Command Reference
Enable Stealth Mode (ESM)
ESM
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Stealth mode extinguishes status LEDs on the projector. Typically this is used in simulation environments where extraneous light would detract from the scenario (when the scene involves IR).
Subcode
<No Subcode >
Description of Use
EXAMPLE:
(ESM 1) Enable stealth mode.
(ESM ?) Report the stealth mode value.
Fan Assist (FAS)
FAS
CONTROL GROUP: Saved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
This control is used to increase fan speed in environments with high ambient temperatures. Default of 0 will use normal fan speed control which should be sufficient under normal circumstances. To increase fan speed select larger values.
Subcode
<No Subcode >
Description of Use
Examples:
(FAS 25) Use fan assist.
(FAS 0) Use default fan speed control.
Frame Lock Enable (FLE)
FLE
CONTROL GROUP: Saved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
This controls which input is used to control the output frame timing. When set to Lock, output image frames are locked to the main input. When set to Lock Secondary, the output is locked to the secondary input (provided one is present).
Description of Use
Sets input used to lock output.
Subcode
<No Subcode >
Examples:
(FLE 1) Enables frame lock.
(FLE 2) Enables frame lock.
(FLE ?) Get frame lock enabled status.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
82
Serial Command Reference
Serial Flow Control (FLW)
FLW
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Advanced
Description
Set the flow control for a serial communications port.
Subcode
PRTA
Description of Use
Set the mode on port A (RS232 IN) .
PRTB Set the mode on port B (RS232 OUT) .
PRTC Set the mode on port C (RS422) .
Examples:
(FLW+PRTA 0) Set no flow control on port A.
(FLW+PRTA 1) Set flow control on port A to software.
(FLW+PRTA?) Get flow control (FLW+PRTA!001 "Software")
Frame Delay (FRD)
FRD
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Delays the output signal timing relative to the Input signal timing by a fraction of a frame, and up to one frame.
The value used is a 1/1000th of a frame. For example, 1000 equals one frame.
See Frame Lock Enable (FLE) on page 82
.
Subcode
STAT?
Description of Use
Retrieve the actual minimum frame delay.
Examples:
(FRD 500) Delay 0.5 frames.
(FRD+STAT?) Retrieve actual minimum frame delay.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
83
Serial Command Reference
Gamma Correction (GAM)
GAM
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
The Gamma Correction control is used to correct ambient conditions affecting the display. The Gamma control affects the shape of the curve determining what grey shades are displayed for a given amount of signal Input between minimum (black) and maximum (white). This is done by performing a linear transform from the user selected gamma setting. The normal point is 0, meaning the selected gamma table is used unaltered. If there is a lot of ambient light, the image can become washed out, making it difficult or impossible to see details in dark areas. Increasing the gamma correction setting can compensate for this by transforming the curve towards a gamma of 1.0. Decreasing the control shall transform the gamma towards a gamma of 3.0.
See Base Gamma Curve (BGC) on page 78.
See Base Gamma Function (BGF) on page 78.
See Base Gamma Slope (BGS) on page 79.
Subcode
<No Subcode >
Description of Use
Set the interpolated gamma level .
Examples:
(GAM 100) Set gamma to 1.0 curve.
(GAM?) Returns current gamma curve.
General Purpose Input/Output (GIO)
GIO
CONTROL GROUP: Config SUBCLASS: Power Down ACCESS LEVEL: Advanced
Description
Control or monitor the state of the General Purpose Inputs and Outputs.
The strings have one character for each hardware connector pin, and from left to right, correspond to the pin numbers 2,3,4,6,7,8,9. (Pin 1 is 12V and Pin 5 is Ground - they cannot be read, set or configured).
A low state (or value of 0) will be read on an Input pin if the circuit attached to the pin is open. A high state (or value of 1) will be read on an Input pin if the circuit attached to the pin is shorted to ground. This corresponds to a switch closing event.
Subcode
CNFG
STAT
Description of Use
Set the Direction for the individual pins to Inputs or outputs.
Get the state of all Inputs, or set the state of all outputs.
Examples:
(GIO+STAT?) Get status of all the Inputs. Returns (GIO+STAT!"0000000") - All Inputs are low.
(GIO+STAT "1x01000") Set status of the GPOs - 2 high, 3 no change, 4 Low, 6 High, 7 Low, 8 Low, 9 Low.
(GIO+STAT "hxxlxxx" 500) Set status of the GPOs - 2 Pulse high, 6 Pulse Low. Use interval of 500 ms for each.
(GIO+CNFG "IIOOOIO") Set pins 2, 3 and 8 to Input, 4, 6, 7 and 9 to Output.
Serial Help (HLP)
HLP
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Query a list of all available serial commands, with brief descriptions and current enabled states.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
84
Serial Command Reference
HLP
Subcode
<No Subcode >
Description of Use
Request entire command Help listing, or list for a single command.
Examples:
(HLP?) Retrieve entire command Help listing.
(HLP? "BRT") Retrieve all subcodes/descriptions/enables for BRT control.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
85
Serial Command Reference
Projector Health (HLT)
HLT
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Any system health errors are placed on the troubleshooting queue. The queue, which contains the problems and a suggested solution for each one, is read-only. All problems in the queue are read using their index number, which starts from 0.
Problems are assigned priorities:
1 = Critical - Will result in failure to operate or shutdown
2 = High - Will result in significant loss of functionality but the projector may continue to run
3 = Low - Will result in minor loss of functionality which will not seriously affect projector
Subcode
LSOL
Description of Use
List solutions.
LALL List one or all problems and solutions.
Examples:
(HLT?) Returns all queued problems.
(HLT? 3) Returns problem index 3 in the queue.
(HLT+LSOL? 4) Returns the solution hint for problem index 4 in the queue.
(HLT+LALL?) Returns all queued problems and their solutions.
(HLT+LALL? 3) Returns problem index 3 and its’ solution.
Test Pattern Grey (ITG)
ITG
CONTROL GROUP: Unsaved SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Specify the grey level to use for the 'Grey' flat field internal test pattern. Range 0-1023. The level defaults to 512 on power up. This command is on available while the grey test pattern is being displayed.
Description of Use Subcode
<No Subcode >
Example:
(ITG 512) Set test pattern grey to mid point.
Internal Test Pattern (ITP)
ITP
CONTROL GROUP: Unsaved SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Puts a test pattern on the screen or queries the test pattern currently displayed. Select which test pattern to display from the list:
0 = Off
1 = Grid
2 = Grey Scale 16
3 = White
4 = Flat Grey
5 = Black
6 = Checker
7 = 13 Point
8 = Color Bars
12 = Edge Blend
14 = Boresight
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
86
Serial Command Reference
ITP
Subcode
<No Subcode >
Description of Use
Enable, disable or change standard test patterns.
Example:
(ITP 0) Disable test patterns - revert to previous Input signal.
(ITP 1) Set test pattern to the grid pattern.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
87
Serial Command Reference
Keypad IR Sensor Disable (KEN)
KEN
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Enable or disable the IR or wired keypad sensors. You cannot disable the keypad that is currently being used.
Subcode
FRNT
Description of Use
Set to 1 to enable the front IR keypad sensor, 0 to disable .
WIRE Set to 1 to enable the wired keypad jack, 0 to disable .
Examples:
(KEN+FRNT 0) Disable front IR sensor.
(KEN+WIRE?) Get current wired jack enabled state.
Local Setting (LOC)
LOC
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Advanced
Description
Set the localization options such as language and display options for temperature units.
Subcode
LANG
Description of Use
Set the system language:
0 - English 4 - Italian
1 - French 5 - Chinese
2 - German 6 - Japanese
3 - Spanish 7 - Korean
TEMP Set the temperature units:
0 - Celsius
1 - Fahrenheit
Examples:
(LOC+LANG 1) Set language to French.
(LOC+LANG ?) Get language.
(LOC+TEMP 1) Set temperature to Fahrenheit.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
88
Serial Command Reference
Logical Shutter (LSH)
LSH
CONTROL GROUP: Unsaved SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Turns OFF the LEDs in the projector to simulate a shutter operation.
Subcode
<No Subcode >
Description of Use
0 Normal projection mode
1 Black (turns OFF light)
Examples:
(LSH 1) Turn Off the LEDs.
(LSH ?) Report current logical shutter setting.
Serial Mode (MDE)
MDE
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Advanced
Description
Set the mode for a serial communications port. Settings such as bits, parity and stop bits are grouped together into one selection.
Subcode
PRTA
PRTB
Description of Use
Set the mode on port A (RS232 In).
Set the mode on port B (RS232 Out).
PRTC Set the mode on port C (RS422).
Examples:
(MDE+PRTA "8N1") Set mode on port A to 8-bit, no parity, 1 stop bit.
(MDE+PRTA "7E1") Set mode on port A to 7-bit, even parity, 1 stop bit.
(MDE+PRTA "7O1") Set mode on port A to 7-bit, odd parity, 1 stop bit.
(MDE+PRTA?) Get mode (MDE+PRTA!"8N1").
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
89
Serial Command Reference
Network Setup (NET)
NET
CONTROL GROUP: Config/Preference SUBCLASS: Power Down ACCESS LEVEL: Admin
Description
Set or request the network setup for this device.
Subcode
DOMA
Description of Use
Set the domain name
ETH0
GATE
HOST
MAC0
Set the IP address for the first ethernet controller.
Set the network gateway.
Set the host name.
Gets the MAC address of the first ethernet controller.
PORT
SUB0
Set the PORT number.
Set the network subnet mask for the first ethernet controller.
Examples:
(NET+ETH0 "192.168.1.35") Set new IP address on the first ethernet controller.
(NET+GATE "192.168.0.1") Set the gateway.
(NET+SUB0 "255.255.255.0") Set the subnet mask on the first ethernet controller.
(NET+HOST "MyHostName") Set the host name.
(NET+DOMA "MyDomainName") Set the domain name.
(NET+ETH0 ?) Get IP address from first controller. (NET+ETH0! "192.168.1.35").
(NET+ETH1 ?) Get IP address from second controller. (NET+ETH1! "192.168.1.36").
(NET+MAC0 ?) Get MAC address from first controller. (NET+MAC0! "00:12:3F:7B:76:B4").
(NET+GATE ?) Get default gateway. (NET+GATE! "192.168.0.1").
(NET+PORT 3002) Set the Port number.
(NET+PORT ?) Get the Port number. (NET+PORT! 3002).
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
90
Serial Command Reference
Network Routing (NTR)
NTR
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Set routing for ASCII messages.
Subcode
<No Subcode >
Description of Use
Used to enable or disable daisy chaining.
0 = RS232, RS422 & Ethernet communications are all separate from one another
1 = RS422 port(s) is/are connected to the RS232 network
2 = The Ethernet port is connected to the RS232 network
3 = RS232, RS422 & Ethernet are all connected to each other
Examples:
(NTR?L) List routing options.
(NTR 0) Set routing so that each connection is routed separately.
(NTR 3) Set routing to full daisy-chaining.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
91
Serial Command Reference
Projector Color Adjustment (PCA)
PJH
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Allows ArrayLOC projector-specific color adjustments ("tweaks") to be set. Subcodes ROxR - BOxW have a small
'x' listed. The small 'x' represents the color table being edited.
Different color tables, denoted by 'x' - replace 'x' with the following:
S = SD table (Read Only)
H = HD table (Read Only)
M = Max drives (Read Only)
E = Rec 709/EBU (Read Only)
F = Factory drives (Read Only)
1 = user table 1
2 = user table 2
3 = user table 3
4 = user table 4
C = current user table
Subcode
ROxR
Description of Use
Adjusts the red part of red. Range 1 - 2000. Expressed with one decimal point (Range is 0.1 - 200.0).
GOxR
BOxR
ROxG
GOxG
BOxG
ROxB
GOxB
BOxB
ROxW
GOxW
BOxW
Adjusts the green part of red. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the blue part of red. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the red part of green. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the green part of green. Range 1 - 2000. Expressed with one decimal point (Range is 0.1 - 200.0).
Adjusts the blue part of green. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the red part of blue. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the green part of blue. Range -1000 - 1000. Expressed with one decimal point (Range is -100.0 - 100.0).
Adjusts the blue part of blue. Range 1 - 2000. Expressed with one decimal point (Range is 0.1 - 200.0).
Adjusts the red part of white. Range 1 - 2000. Expressed with one decimal (Range is 0.1 - 200.0).
Adjusts the green part of white. Range 1 - 2000. Expressed with one decimal (Range is 0.1 - 200.0).
Adjusts the blue part of white. Range 1 - 2000. Expressed with one decimal (Range is 0.1 - 200.0).
RSTL
RSTA
SAVE
WBAJ
COPY
Reset the current adjustment to factory defaults.
Reset all adjustments to factory defaults.
Saves current set of adjustments as factory defaults.
White Brightness Adjustment
Copy data setting from a referenced table to the selected one.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
92
Example: n/a
Serial Command Reference
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
93
Serial Command Reference
Projector Hours (PJH)
PJH
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Reports the number of hours elapsed on the projector. This control is read-only.
Subcode
<No Subcode >
Description of Use
Example:
(PJH ?) Returns hours elapsed on projector.
PING (PNG)
PNG
CONTROL GROUP: Configuration SUBCLASS: Power Down ACCESS LEVEL: Status
Description
This command returns basic projector information to the user which includes the type of device & main software version. Note that some devices have multiple CPUs each with its own software version. Only the software version of what is considered to be the master CPU, is returned here. The return parameters are: Type, Major,
Minor, Beta. The beta value is optional meaning it is an engineering build and has not been validated.
NOTE:
List of devices: 40 = ACT, 41 = Cinema, 42 = CinemaMini, 43 = Media Block, 44 = Mobius,
45 = Entero/StIM, 52 = StIM™ WQ.
Subcode
<No Subcode >
Description of Use
Example:
(PNG?) (PNG!41 001 000 234) Indicates 'Cinema' type, software: 1 major, 0 minor, 234 beta.
Swap (PPS)
PPS
CONTROL GROUP:
Preference
SUBCLASS:
Power Up
ACCESS LEVEL:
Operator
Description
This control swaps the current main and Inputs. It will swap the Inputs regardless if there are valid signals on either of the Inputs.
Subcode
<No Subcode >
Description of Use
Example:
(PPS) Swap Inputs.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
94
Serial Command Reference
Serial Port (PRT)
PRT
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Status
Description
Gets the current serial port being used, or gets a list of all serial ports available on the device.
Subcode
<No Subcode >
Description of Use
Examples:
(PRT ?) Gets current serial port.
(PRT ?L) Gets list of ports.
Power (PWR)
(PWR) Power
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Change the power state of the projector.
Possible values:
0 - Power-OFF
1 - Power-ON
10 - Projector is cooling down. (Read-only)
11 - Projector is warming up. (Read-only)
Subcode
<No Subcode >
Examples:
(PWR?) Get projector power status.
(PWR1) Turn the LEDs and all electrical power On.
(PWR0) Set the projector to Standby mode.
Description of Use
Get or Set the power state of the projector.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
95
Serial Command Reference
Advanced Color Setting (RGB)
RGB
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Adjusts native projector color space by adjusting the LED power levels. This can be used when ColorLOC is disabled or if ColorLOC is running in Native or Fixed mode. Care should be exercised when adjusting these settings as it is possible to overdrive the LEDs and may cause the projector to perform a safety shutdown.
Subcode
CLRM
Description of Use
Color Mode. Selects:
1 = Native 4 = User preset 2
2 = EBU 5 = User preset 3
3 = User preset 1 6 = User preset 4
ROFR
GOFG
BOFB
RGBB
Red part of red (0-4095)
Green part of green (0-4095)
Blue part of blue (0-4095)
Controls overall brightness of LEDs (0-1000) percentage with one decimal place
COPY Copies color mode settings from an existing preset to the current preset. Values:
1 = Copy from Native 4 = Copy from User 2
2 = Copy from EBU 5 = Copy from User 3
3 = Copy from User 1 6 = Copy from User 4
Examples:
(RGB+ROFR 128) Set Red of Red value.
(RGB+BOFB ?) Get Blue of Blue value.
(RGB+RGBB 500) Set overall brightness to 50%.
(RGB+CLRM 4) Select user preset 2.
(RGB+COPY 2) Copy EBU preset values to current preset.
Real Time Events (RTE)
RTE
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Real time events allow custom user actions to occur based on a system trigger. There are various triggers in the system such as power up, input change, errors, or based on time. Time can be absolute, (e.g. 12:00:00 on
December 25, 2008) or relative (e.g. 5 hours and 30 minutes from now).
Special Function keys can also be used as a trigger. An example would be pressing F UNC +1 on the remote.
Events can also be connected to external hardware triggers via the General Purpose IO port (GPIO).
Events:
Single Occurrence Events:
(RTE T YYYY/MM/DD HH:MM:SS S "description" "command")
Daily Occurring Event:
(RTE T YYYY/MM/DD HH:MM:SS YYYY/MM/DD D R "description" "command")
Where the first date and time is the start date and occurrence time. The second date is the end date.
R is the "Repeat Every" interval i.e. repeat every R days
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
96
Serial Command Reference
RTE
Weekly Occurring Event:
(RTE T YYYY/MM/DD HH:MM:SS YYYY/MM/DD W R "D" "description" "command")
Where the first date and time is the start date and occurrence time. The second date is the end date.
R is the "Repeat Every" interval i.e. repeat every R weeks
D is the weekday or weekdays that the command should run on:
M = Monday W = Wednesday F = Friday Su = Sunday
Tu = Tuesday Th = Thursday S = Saturday
I.E. "MT" will run on Monday and Tuesday "TTh" will run on Tuesday and Thursday "MTWFSSu" will run on
Monday, Tuesday, Wednesday, Friday, Saturday, and Sunday
Monthly Occurring Event:
(RTE T YYYY/MM/DD HH:MM:SS YYYY/MM/DD M R "description" "command")
Where the first date and time is the start date and occurrence time. The second date is the end date.
R is the "Repeat Every" interval i.e. repeat on the same date every R months
NOTE:
If there are not 31 days in the next run cycle month, the event will not run in that month.
Function Key Events:
(RTE F K "description" "command"), where K = the specific function key (1-5,7-9). Key 6 is reserved and cannot be used.
System Events:
(RTE S E T "description" "command"), where E is the event to respond to:
0 = Boot Up
1 = Power ON/OFF
T = 0 (Either a Power ON or OFF event)
T = 1 (Power ON only)
T = 2 (Power OFF only)
2 = Any System Error
3 = Good Signal
4 = No Signal
5 = Input Change
GPIO Events:
(RTE G "AAAAAAA" "description" "command") where A is GPIO Input for each pin:
= X (don't care)
= H (when pin is high) - See GIO on page 84 .
= L (when pin is low) - See GIO on page 84 .
Delete All Events:
(RTE X *)
Delete a single event:
(RTE X A), where A is the event to be deleted (0-??)
Subcode
<No Subcode>
Description of Use
Example:
Single Occurrence Events:
(RTE T 2008/12/25 11:48:00 S "description" "(LSH 1)") - close the shutter at 11:48:00 on December 25, 2008
Daily Occurring Event:
(RTE T 2009/01/01 23:00:00 2009/02/01 D 1 "description" "(PWR 1)") - power on the projector every day at
23:00:00, starting from January 1, 2009 until February 1, 2009
(RTE T 2009/01/01 23:00:00 2009/02/01 D 2 "description" "(PWR 1)") - power on the projector every other day at 23:00:00, starting from January 1, 2009 until February 1, 2009
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
97
Serial Command Reference
RTE
(RTE T 2009/01/01 23:00:00 2009/02/01 D 5 "description" "(PWR 1)") - power on the projector every fifth day at 23:00:00, starting from January 1, 2009 until February 1, 2009
Weekly Occurring Event:
(RTE T 2009/01/01 23:00:00 2009/03/01 W 1 "SSu" "description" "(PWR 0)") - power off the projector every week, on Saturday and Sunday at 23:00:00, starting from January 1, 2009 until March 1, 2009 (inclusive)
(RTE T 2009/01/01 23:00:00 2009/03/01 W 2 "MTWThF" "description" "(PWR 1)") - power on the projector every other week, on every weekday at 23:00:00, starting from January 1, 2009 until March 1, 2009 (inclusive)
(RTE T 2009/01/01 23:00:00 2009/03/01 W 5 "MTWThF" "description" "(PWR 1)") - power on the projector every fifth week, on every weekday at 23:00:00, starting from January 1, 2009 until March 1, 2009 (inclusive)
Monthly Occurring Event:
(RTE T 2009/01/1 23:00:00 2010/01/01 M 1 "description" "(PWR 0)") - power off the projector on the 1st day of every month at 23:00:00, starting January 1, 2009 until January 1, 2010 (inclusive)
(RTE T 2009/01/10 23:00:00 2010/01/01 M 12 "description" "(PWR 0)") - power off the projector on the 12th day of every 12 months at 23:00:00, starting January 12, 2009 until January 1, 2010 (inclusive)
(RTE T 2009/01/31 23:00:00 2010/01/01 M 2 "description" "(PWR 0)") - power off the projector every other month on day 31 starting January 31, 2009 until January 1, 2010 (inclusive)
Function Key Events:
(RTE F 1 "description" "(LSH 0)") - open the shutter if Func+1 is pressed on the remote.
(RTE F 2 "description" "(LSH 1)") - close the shutter if Func+2 is pressed on the remote.
System Events:
(RTE S 1 1 "description" "(CLE 5)") - change color to cyan when system powers up.
GPIO Events:
(RTE G "XXXXXXX" "description" "(PWR 1)") Turn ON the projector if we receive any GPIO Input.
(RTE G "" "description" "(PWR 1)") Turn ON the projector if we receive any GPIO Input.
(RTE G "XX" "description" "(PWR 1)") Turn ON the projector if we receive any GPIO Input.
(RTE G "XXXXXLH" "description" "(PWR 0)") Turn OFF the projector if pin 6 is set to low and pin 7 is high.
(RTE G "HH" "description" "(FRZ 0)") Freeze the image if pins 1 and 2 are set to high.
(RTE G "XXHHXXH" "description" "(FRZ 0)") Freeze the image if pins 3,4,7 are set to high.
(RTE G "LLHXX" "description" "(FRZ 0)") Freeze the image if pins 1,2 are set to Low and pin 3 is set to high.
(RTE G "LLH" "description" "(FRZ 0)") Freeze the image if pins 1,2 are set to Low and pin 3 is set to high.
Select Input (SIN)
SIN
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Operator
Description
Selects the active input. The projector has two input DVI connectors and two video paths. This control assigns which video path uses which DVI input. The parameter value designates interface followed by a 1. To select DVI 1 use 11. To select DVI 2 use 21.
Subcode
MAIN
Description of Use
Set the active Input for the main video.
SECD Set the active Input for the secondary video.
Examples:
(SIN 11) Set main video to DVI connector 1.
(SIN 21) Set main video to DVI connector 2.
(SIN+SECD 11) Set secondary video to DVI connector 1.
(SIN+SECD ?) Report which DVI connector routes secondary input.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
98
Serial Command Reference
Screen Orientation (SOR)
SOR
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Selects the orientation of the displayed image. It can be displayed normally, inverted horizontally, inverted vertically, or inverted in both directions, as required by the projector installation. Valid values are:
0 = Front Projection
1 = Rear Projection
2 = Front Projection Inverted
3 = Rear Projection Inverted
Subcode
<No Subcode >
Description of Use
Example:
(SOR 0) Set image orientation to Front projection.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
99
Serial Command Reference
System Status (SST)
SST
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Status
Description
Retrieve the various system status groups.
Subcode
<No Subcode >
Description of Use
Returns information on all status groups, with one message per item.
ALRM
CONF
COOL
HLTH
LAMP
SIGN
SYST
TEMP
Returns a summary of any active alarms.
Returns configuration data - model, sn, build date, etc.
Returns cooling data - cooling fans, air flow, etc.
Returns system health.
Returns LAMP operational data.
Returns signal data - freq, etc.
Returns system data - power, hours of use, shutter open, etc.
Returns temperature data.
VERS Returns version numbers.
Examples:
(SST+ALRM?) returns (SST+ALRM!000 002 "101" "Prism temperature") where parameters are P1=index number, P2=error level, P3=value, P4=description.
Error level is 0=no errors or warnings, 1=warning, 2=error, 3=error and warning.
Target Color Space (TCS)
E
S
H
F
1
2
3
TCS
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
This command is used to set the ArrayLOC target gamut. Several preset color spaces are provided in addition to four user setting gamuts. The control subcodes provide access to all the presets. Due to the large number of sub-codes they are not all listed. Instead a simple substitution for the small 'x' is made, according to the following table:
M Max drives, read only
EBU, read only
SD Video, read only
HD Video, read only
Factory, read only
User 1
User 2
User 3
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
100
Serial Command Reference
TCS
4
C
Subcode
SLCT
User 4
Alias to selected table
Description of Use
Selects the color space preset:
0 = Max drives (M) 5 = User 1 (1)
1 = EBU (E) 6 = User 2 (2)
2 = SD Video (S) 7 = User 3 (3)
3 = HD Video (H) 8 = User 4 (4)
4 = Factory (F)
RDxX
RDxY
GNxX
GNxY
Adjusts the x coordinate of the red color point (0 - 800 with three decimal places)
Adjusts the y coordinate of the red color point (0 - 800 with three decimal places)
Adjusts the x coordinate of the green color point (0 - 800 with three decimal places)
Adjusts the y coordinate of the green color point (0 - 800 with three decimal places)
BLxX
BLxY
Adjusts the x coordinate of the blue color point (0 - 800 with three decimal places)
Adjusts the y coordinate of the blue color point (0 - 800 with three decimal places)
Copy gamut settings from preset to current. Value 0-8 for source preset COPY
CCAP Read-only field which returns string that gives relationship between projector capability and the color target.
Examples:
(TCS+SLCT 1) Select EBU color gamut as target.
(TCS+RDCX 290) Set current Target gamut red x point to 0.290.
(TCS+BLEY ?) Return value of EBU preset blue y point.
(TCS+COPY 3) Copy settings from HD Video to current.
3D Emitter Delay (TDD)
Adjust the output 3D emitter delay to match the active glasses to the L/R frames of the projector.
Proper adjustment of this delay will eliminate cross talk and odd colors caused by timing differences between the glasses and the projected image. The user specified delay is added after sync locking.
Parameters
• Control Group: Preference
• Subclass: Power Up
• Access Level: Operator
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
101
Serial Command Reference
Examples
Set 3D Emitter Delay to 20.00 milliseconds on main video.
TDD 2000
Returns the 3D Emitter Delay value on main video.
TDD?
3D SYNC INPUT (TDI)
The 3D sync signal is generated by the 3D source to ensure left/right eye content is synchronized to the projector and to the user. The 3D Stereo cable has 2 inputs for right eye - left eye signals. This control specifies which of the 2 right-left eye input signals on the cable is active.
It is important to ensure that the correct 3D sync input is selected (either Input A or Input B) with each 3D signal source. If there is no external sync, then choose None and the sync will be generated internally. This allows the content to be displayed, however, there is a 50% chance that the content will be displayed with the left/right eyes swapped or inverted. This function is not used in Interleaved 3D mode as each eye gets a dedicated input and no 3D sync input is required.
Parameters
• Control Group: Preference
• Subclass: Power Up
• Access Level: Operator
Examples
Set 3D Sync Input to ‘A’ on main video.
TDI 0
Returns the 3D Sync Input value on main video.
TDI?
3D Mode (TDM)
Select the 3D mode:
• Off—3D operation is disabled.
• Dual Input 3D—Content from two independent 48-60Hz “passive” frame locked sources are interleaved into a native 96-120Hz native frame rate. This requires an optional input module and both signals must be from the same signal type.
Parameters
• Control Group: Preference
• Subclass: Power Up
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
102
Serial Command Reference
• Access Level: Operator
Examples
Returns the 3D Mode value on main video.
TDM?
Set 3D Mode to ‘Off’ on main video.
TDM 0
Set 3D Mode to ‘Dual Input 3D’.
TDM 3
Invert 3D Input (TDN)
Adjust the output 3D emitter delay to match the active glasses to the L/R frames of the projector. Proper adjustment of this delay will eliminate cross talk and odd colors caused by timing differences between the glasses and the projected image. The user specified delay is added after sync locking.
Parameters
• Control Group: Preference
• Subclass: Power Up
• Access Level: Operator
Examples
Returns the 3D input inversion value on main video.
TDN?
Set 3D input inversion to ‘inverted’ on main video.
TDN 0
3D Sync Out (TDO)
This defines if the 3D Sync is output and controls how it is processed. Typically only the last projector in the 3D Stereo cable chain is connected to the emitter and should specify "To Emitter".
All Other projectors should select "To Next Input" if other projectors are used in the chain.
Parameters
• Control Group: Preference
• Subclass: Power Up
• Access Level: Operator
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
103
Serial Command Reference
Examples
Returns the 3D Sync Out value on main video.
TDO?
Set 3D Sync Out to ‘Off’ on main video.
TDO 0
Set 3D Sync Out to ‘To Emitter’.
TDO 1
3D Test Pattern (TDT)
Enables a test pattern suitable for confirming 3D. Different patterns are displayed for L and R eyes.
If ghosting is occurring the emitter delay and dark time controls may be used to help correct the situation.
Parameters
• Control Group: Unsaved
• Subclass: Power Up
• Access Level: Operator
Examples
Disable 3D test pattern.
TDT 0
Enable 3D test pattern.
TDO 1
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
104
Serial Command Reference
Time/Date (TMD)
TMD
CONTROL GROUP: Preference SUBCLASS: Power Down ACCESS LEVEL: Admin
Description
Set the date, time or time zone.
Subcode
DATE
Description of Use
Set the date in the form yyyy/mm/dd.
TIME Set the local time in the form hh:mm:ss
NOTE: Time must be set using a 24-hour clock (regardless of
LOC+TIME setting).
Examples:
(TMD+TIME "17:50:45") Set new local time.
(TMD+DATE "2007/02/30") Set the local date.
(TMD+TIME?) Get local time (TMD+TIME! 17:50:45).
Test Pattern Enable (TPE)
TPE
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
Automatically select White test pattern based on the control being adjusted. Certain controls that deal with color settings will enable a white test pattern when entering WebUI menus and disable when exiting the menu. This control defines whether this happens. There are some situations where the user may not want to automatically go to a white test pattern when the WebUI menu is selected, for example if they have specific content that they wish to evaluate.
0 = Disable automatic test patterne
1 = Enable automatic test pattern
Description of Use Subcode
<No Subcode>
Examples:
(TPE 0) Disable test pattern.
(TPE ?) Report state of test pattern enable.
Target White Point (TWP)
TWP
CONTROL GROUP: Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
0
1
Description
This command is used to set the ArrayLOC target white-point. Several preset white points are provided in addition to four user setting white points. The control subcodes provide access to all the presets. Due to the large number of sub-codes they are not all listed. Instead a simple substitution for the small 'x' is made, according to the following table:
3200K
5000K (D50)
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
105
Serial Command Reference
5
6
3
4
TWP
2 6500K (D65)
7500K (D75)
9300K (D93)
User 1
User 2
User 3
User 4
7
8
C
Subcode
SLCT
WHxX
WHxY
Current
Description of Use
Selects the white point
0 = 3200K 5 = 9300K (D93)
1 = 5000K (D50) 6 = User 1
3 = 6500K (D65) 7 = User 2
4 = 7500K (D75) 8 = User 3
9 = User 4
Adjusts the x coordinate of the white color point (0 - 800 with three decimal places).
Adjusts the y coordinate of the white color point (0 - 800 with three decimal places).
WHxT
SWxT
Sets user set color temperature and adjusts the white point x and y coordinates.
Available for user settings if SWxT is set to 1.
Selects whether user presets are generated from white point values (0) or from a color temperature value (1).
Copy white point settings from preset to current. Value 0-8 for source preset.
COPY
Examples:
(TWP+SLCT 5) Select User setting 1.
(TWP+WH6X 290) Set User 2 target white x point to 0.290.
(TWP+WH2Y ?) Return value of 6500K setting white y point.
(TWP+SWCT 1) Derive x and y from color temperature setting.
(TWP+WHCT 8000) Set color temperature to 8000K.
(TWP+COPY 4) Copy settings from 9300K to current.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
106
Serial Command Reference
User ID (UID)
UID
CONTROL GROUP: Unsaved SUBCLASS: Power Down ACCESS LEVEL: None
Description
Allows users to login to the serial interface.
Subcode
<No Subcode >
Description of Use
Examples:
(UID "username" "password") Login a user.
(UID) Logout the current user, also happens automatically when a new user logs in.
(UID?) Display the current logged in user and their access level (UID!"username" 01).
WARP (WRP)
WRP
CONTROL GROUP: Configuration/Preference SUBCLASS: Power Up ACCESS LEVEL: Operator
Description
This serial command controls warping settings.
Subcode
SLCT
Description of Use
Select warping mode:
0 = disabled
2 to 17 = select TWIST warp maps
Examples:
(WRP+SLCT0) - Warping disabled.
(WRP+SLCT2) - Use TWIST warp map #1.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
107
GPIO Port
This section explains how to use a GPIO link from the projector to external equipment, such as devices for 3D synchronizing. The GPIO port located on the input panel provides a flexible method of interfacing a wide range of external I/O devices to the projector. There are seven GPIO pins available on the nine pin D-Sub GPIO connector, which are configurable via RS232 commands. The other two pins are reserved for ground and power — see table below for pin identification. The serial cable required for connecting the external device to the projector’s GPIO connector, must be compatible with the external device.
GPIO Pins
Pin #
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Signal
+12V (200 mA)
GPIO 2
GPIO 4
GPIO 6
Ground
GPIO 1
GPIO 3
GPIO 5
GPIO 7
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
108
GPIO Port
Configure GPIO
The GPIO connector can be configured to automate any number of events using the serial command code
GIO
. See General Purpose Input/Output (GIO) on page 84. Each pin is defined as either an
input or output depending on the desired outcome. Configure the pin as an input if you want the projector to respond to something the device does and as an output if you want the external device to respond to an action taken by the projector. For example, configure the pin as an output if you want the lighting in a room to automatically dim when the projector is powered On. By using the
GIO
command, you can also set the state of each output pin as high or low. By default, the state of each pin is high. The voltage applied to pins in the high state is +3.3 V. A low state (or value of 0) will be read on an input pin if the circuit attached to the pin is open. A high state (or value of 1) will be read on an input pin if the circuit attached to the pin is shorted to ground. This corresponds to a switch closing event.
Pin
Pin
Open (0 or L)
Closed (1 or H)
Example
Turn room lighting on when the projector is powered Off (assumes a control/automation unit is configured to power the lights On when pin 2 of its input goes high).
The strings in the commands refer to pins 2, 3, 4, 6, 7, 8, 9 in order from left to right.
i
(GIO+CNFG “OOOIIII”)
(GIO+STAT “HLXXXXX”)
Query Command
(GIO+STAT)
(GIO+STAT “HLLHLLH”)
(GIO+CNFG)
(GIO+CNFG “IIIOOOO”)
Set pin #2, 3 and 4 configuration to output and pin 6, 7, 8 and 9 to input.
Set pin #2 to high, pin 3 to low and the state of all other pins unchanged.
Request the state of all pins.
Reply of pin states - H means pin is high, L means pin is low.
Request the configuration of all pins.
Reply of pin configurations - pins #2, 3 and 4 are inputs, pins 6, 7, 8 and 9 are outputs.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
109
WebUI Menu Tree
Image Settings
Main Menu
1. Reserved
2.
Image Settings
3. Input & Switching
4. Configuration
5. ArrayLOC
6. Status*
7. Reserved
8. Test Pattern
Image Settings
1.
Gamma Settings
2. Reserved
3.
3D Settings
*Read-only
Gamma Settings
GAM
BGC
BGF
BGS
3D Settings
1. Reserved
2. 3D Mode
3. Dark Interval
4. 3D Sync Input
5. Invert 3D Input
6. 3D Sync Output
7. 3D Stereo Sync Delay
8. 3D Test Pattern
9. Frame Locking
10. Set Frame Delay
11. Actual Frame Delay
12. Main Input
13. Secondary Input
TDM
DRK
TDI
TDN
TDO
TDD
TDT
FLE
FRD
FRD+STAT
SIN+MAIN
SIN+SECD
Configuration
Main Menu
1. Reserved
2. Image Settings
3. Input & Switching
4.
Configuration
5. ArrayLOC
6. Status*
7. Reserved
8. Test Pattern
Configuration
1.
Output Options
2.
Power Management
3.
Date & Time
4.
Communications
5.
Geometry Correction
6.
Diagnostics & Calibration
7. Service*
*Password required
*Read-only
Geometry Correction
1. Geometry Correction
2. Edge Blending
3. Black Blend Enable
4. Test Pattern
Diagnostics & Calibration
1. Test Pattern
2. Grey Level
3. Freeze Light Engine Image
4. Color Enable
5. Light Engine Test Pattern
WRP+SLCT
EBL+SLCT
EBB+SLCT
ITP
ITP
ITG
EFZ
CLE
ETP
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
Output Options
1. Screen Image Orientation
2. Frame Locking
3. Set Frame Delay
4. Actual Frame Delay
5. Reserved
SOR
FLE
FRD
FRD+STAT
Power Management
1. Auto Power Up
2. Auto Shutdown Enable
3. Turn Off Image After (min)
4. Enter Standby After (min)
5. Stealth Mode
6. Fan Assist
Date & Time
1. Date
2. Time
APW
ASH
ASH+ALTO
ASH+SBTO
ESM
FAS
TMD+DATE
TMD+TIME
Communications
1.
Serial (RS-232 IN) Options
2.
Serial (RS-232 OUT) Options
3.
Serial (RS-422) Options
4. Projector Address
5. Network Routing
6.
Ethernet Settings
7. Broadcast Keys
8. Front IR Enabled
9. Wired Keypad Enabled
10. Display Error Messages
11. Language
ADR
NTR
BKY
KEN+FRNT
KEN+WIRE
EME
LOC+LANG
Serial (RS-232 IN) Options
1. Baud Rate (RS-232 IN)
2. Serial Flow Control (RS-232 IN)
3. Serial Mode (RS-232 IN)
Serial (RS-422) Options
1. Baud Rate (RS-422)
2. Serial Flow Control (RS-422)
3. Serial Mode (RS-422)
BDR+PRTA
FLW+PRTA
MED+PRTA
Serial (RS-232 OUT) Options
1. Baud Rate (RS-232 OUT)
2. Serial Flow Control (RS-232 OUT)
3. Serial Mode (RS-232 OUT)
BDR+PRTB
FLW+PRTB
MED+PRTB
BDR+PRTC
FLW+PRTC
MED+PRTC
Ethernet Settings
1. Reserved
2. IP Address
3. Subnet Mask
4. Gateway
5. TCP Port
6. Host Name
7. Domain Name
Mac Address
NET+ETH0
NET+SUB0
NET+GATE
NET+PORT
NET+HOST
NET+DOMA
NET+MACO
110
WebUI Menu Tree
Input & Switching
Main Menu
1. Reserved
2. Image Settings
3.
Input & Switching
4. Configuration
5. ArrayLOC
6. Status*
7. Reserved
8. Test Pattern
Input & Switching
1. Main Input
2. Secondary Input
3. Swap Main & Secondary Inputs
4. Reserved
5.
Secondary Image Settings
6. Frame Locking
*Read-only
SIN+MAIN
SIN+SECD
PPS
FLE
Secondary Image Settings
1.
Secondary Gamma Settings
2. Secondary Test Pattern
Secondary Gamma Settings
1. Gamma Correction
2. Gamma
3. Gamma Function
4. Gamma Slope
GAM
BGC+SECD
BGF+SECD
BGS+SECD
ArrayLOC
Main Menu
1. Reserved
2. Image Settings
3. Input & Switching
4. Configuration
5.
ArrayLOC
6. Status*
7. Reserved
8. Test Pattern
*Read-only
ArrayLOC
1. Bright/ColorLOC Mode
2. Synchronize to this Projector
3.
Bright/ColorLOC Configuration
4.
Array Color Target
5.
Projector Color Adjustment
6.
ArrayLOC Configuration
7. RGB Brightness Target
8. RGB Brightness Target
9. Reserved
10. Reserved
11. Auto Color Enable
12. Test Pattern Enable
ABL+MODE
ABL+ALBV
ABL+BRTG
RGB+RGBB
ACE
TPE
ArrayLOC Configuration
1. ArrayLOC Network
2. ArrayLOC Group
3. Synchronize Keys, Test Pattern, Color
Enable
4. Synchronize RGB Brightness
5. Reserved
6. Reserved
7. Reserved
ARL+DEVC
ARL+BGRP
ARL+SKEY
ARL+SRGB
Bright/ColorLOC Configuration
1. Minimum Brightness (%)
2. Minimum Gamut (%)
3. Warning Brightness Threshold (%)
4. Warning Gamut Threshold (%)
5. Reserved
ABL+MINB
ABL+MING
ABL+WBTH
ABL+WGTH
Array Color Target
1. Target Color Space
2. Target Red x
3. Target Red y
4. Target Green x
5. Target Green y
6. Target Blue x
7. Target Blue y
8. Target White x
9. Target White y
10. Copy Color Space From
11. Select White Point
12. Set White to Color Temperature
13. White Color Temperature
14. Copy White Point From
15. RGB Brightness Target
16. Reserved
Projector Color Adjustment
1. Target Color Space
2. Red Part of Red
3. Green Part of Red
4. Blue Part of Red
5. Green Part of Green
6. Red Part of Green
7. Blue Part of Green
8. Blue Part of Blue
9. Red Part of Blue
10. Green Part of Blue
11. Red Part of White
12. Green Part of White
13. Blue Part of White
14. Clear Adjustments
15. Reset Current Adjustments to Defaults
16. Copy Adjustments From
17. White Brightness Adjustment
TCS+SLCT
TCS+RDxX
TCS+RDxY
TCS+GNxX
TCS+GNxY
TCS+BLxX
TCS+BLxY
TWP_WHwX
TWP_WHwY
TCS+COPY
TWP+SLCT
TWP+SWwT
TWP+WHwT
TWP+COPY
ABL+BRTG
TCS+SLCT
PCA+ROxR
PCA+GOxR
PCA+BOxR
PCA+GOxG
PCA+ROxG
PCA+BOxG
PCA+BOxB
PCA+ROxB
PCA+GOxB
PCA+ROxW
PCA+GOxW
PCA_BOxW
PCA+CLRA
PCA+RSTL
PCA+COPY
PCA+WBAJ
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
111
Specifications
Display technology
Inputs / outputs, control and networking
Optical system
Lenses
Input luminous flux contrast uniformity type native resolution 2560 x 1600 WQXGA output frame rate
• 60Hz (2D) or 120 Hz (3D Frame Doubled and Dual Input modes) latency inputs
• 1 frame + 15 lines (no warp applied)
• 1 frame + 20 lines + number of lines of upwards translation due to vertical warp
• On-board Ethernet control capabilities
• Additional Ethernet connections for Christie ArrayLOC™ network
• IR/wired remote control as part of optical user kit
• 2 x RS232 ports and 1 x RS422 port
• 2 x Dual-link DVI-D input phase offset lens mount illumination
ArrayLOC™
95% brightness and color uniformity after electronic adjustment
Revolutionary solid state projector using a single TI Darkchip 3™ DMD with a sold state illumination engine (no color wheel) and sealed optics
•
± 60 60 lines for 2 x DVI-D frame locked operation
• Mechanical, horizontal and vertical lens shift
• No shutter required
• No iris required – user programmable illumination parameters (eliminates the need for a mechanical shutter)
• Solid state illumination
• Illumination lifetime greater than 50,000 hours (to 50 % output)
Manages the brightness and color levels of all projectors within an array to a common level, in real-time with no additional latency fixed
Mirage WQ-L
(P/N: 130-001102-xx)
800 ANSI lumens
10,000:1 dynamic contrast (under LED control)
No mechanical iris required zoom offsets asymmetric signal format input frame rate
• 0.68:1 fixed, optimized for IR and visible light
• 0.80:1 fixed, optimized for IR and visible light
1.28-1.71:1 zoom, optimized for IR and visible light
• 0.68:1 lens features ±10% (horizontal) and ±25% (vertical) offset when mounted in landscape orientation
1
• 0.80:1 lens features 60% (right) / -85% (left) and 140% (up) / -110% (down) offset when mounted in landscape orientation 1
• 1.28-1.71:1 lens features 60% (right) / -85% (left) and 140% (up) /-110%
(down) offset when mounted in landscape orientation 1
2560 x 1600 WQXGA (VESA RB)
• 60 Hz with single input or 2 x 60 Hz with dual input
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
112
Specifications
Mirage WQ-L
(P/N: 130-001102-xx)
40 - 95° F (5-40° C) Operating environment
Operating orientation
Accessories temperature humidity 20 - 80 % non-condensing portrait and landscape standard optional
Enhanced feature sets
Power requirements
Line cord
• User kit (includes manual, IR remote)
• Rugged Motion Platform kit 2 to withstand 5g shock load (purpose-built)
• Ruggedized transit case
• Remote IR sensor
• Christie AutoCal ™3
• Christie MotoBlend™ optical blending
3
• Minimum Processing Latency (MPL™)
• Auto power up
• Menus in five languages
• Christie ArrayLOC — automatic, continuous management of brightness and color space levels of all projectors in the array to a common level, in real-time.
• Warp and blend with Christie’s Twist™ and AutoCal ™ .
• 3D stereoscopic projection
100 - 240 VAC 50/60 Hz operating voltage operating current 12A max (lower in normal operational modes) dissipation 2316 BTU/hr max (lower in normal operational modes)
Dimensions size weight
400 x 400 x 406 mm (without lens)
36 kg (without lens) shipping weight 45 kg (without lens)
Regulatory approvals / markings • Directives (EC) 2002/95/EC (RoHS) • 2002/96/EC (WEEE)
• Regulation (EC) No. 1907/2006 (REACH) • CAN/CSA C22.2 No. 60950-1
• UL 60950-1• IEC 60950-1 • FCC, Part 15, Subpart B, Class A
• EN55022/CISPR22 Class A • EN55024 / CISPR24 ; ICEES003 / NMB003 (A)
• Certifications marks and product approvals (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC
(Korea), PSE (Japan), C-Tick (Australia & New Zealand); South Africa; Mexico
Limited warranty • Standard warranty: 2 years parts and labor
• Extended warranty options available
• Contact an authorized Christie representative for full details of our limited warranty
1
Each offset is specified with the other at zero. Simultaneous horizontal and vertical offsets may limit the adjustment range of each.
2 Mirage WQ-L is available with a Ruggedized Motion Platform kit. These are purpose built to interface with customers' motion platform structures and available on a build-to-order basis. For details, please contact your Christie sales representative.
3 For details, please contact your Christie sales representative.
Mirage WQ-L User Manual
020-101372-01 Rev. 1 (04-2014)
113
*000-104313-01*
ASSY TECH DOCS Mirage WQ-L
Corporate offi ces
USA – Cypress ph: 714-236-8610
Canada – Kitchener ph: 519-744-8005
Consultant offi ces
Italy ph: +39 (0) 2 9902 1161
Worldwide offi ces
Australia ph: +61 (0) 7 3624 4888
Brazil ph: +55 (11) 2548 4753
China (Beijing) ph: +86 10 6561 0240
China (Shanghai) ph: +86 21 6278 7708
Eastern Europe and
Russian Federation ph: +36 (0) 1 47 48 100
France ph: +33 (0) 1 41 21 44 04
Germany ph: +49 2161 664540
India ph: +91 (080) 6708 9999
Japan (Tokyo) ph: 81 3 3599 7481
Korea (Seoul) ph: +82 2 702 1601
Republic of South Africa ph: +27 (0)11 510 0094
Singapore ph: +65 6877-8737
Spain ph: + 34 91 633 9990
United Arab Emirates ph: +971 4 3206688
United Kingdom ph: +44 (0) 118 977 8000
For the most current technical documentation, please visit www.christiedigital.com
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 11 Introduction
- 11 Safety Warnings and Cautions
- 11 Projector Overview
- 12 Key Features
- 12 List of Components
- 13 Installation
- 13 Installation Procedures
- 13 Unpack the Projector
- 15 Mount the Projector
- 15 Mount a Ruggedized Kit (optional)
- 16 Install the Lens
- 17 Setup Procedures
- 17 Adjust Lens Focus
- 17 Calculate Throw Distance and Position
- 18 Determine Vertical and Horizontal Position
- 19 Connect a Source
- 21 Connect to Power
- 21 Disconnect Power
- 22 Network Setup for External Communications
- 25 ArrayLOC Network Configuration
- 27 Adjust Image Geometry and Optical Alignment
- 28 Boresight Alignment
- 29 Adjust Software to Optimize Image
- 30 Web UI Overview
- 30 Login to WebUI
- 31 Navigate the WebUI
- 31 The Global Icon
- 31 Slidebars in Menus
- 32 Check Boxes
- 32 Drop-down Lists
- 32 Help Text
- 33 Basic WebUI Operation
- 33 Main Tab—General
- 33 Main Tab—Status
- 33 Tools Tab—Virtual OSD
- 34 Admin Tab
- 36 Admin Tab—Users
- 36 Advanced Tab—Real Time Events (RTE)
- 38 Advanced Tab—Serial
- 39 Operation
- 39 Using the IR Remote
- 39 Wired Remote
- 39 IR Remote Commands
- 41 Select Inputs
- 41 ArrayLOC
- 41 Take Control of the Array
- 42 Configure Bright/ColorLOC
- 43 Adjust Projected White and Primary Colors for the Array
- 45 Fine-tune Whites, White Brightness, or Primary Colors
- 45 Configure ArrayLOC
- 46 Fine-tune Projector Colors with a Color Meter
- 47 Image Settings
- 47 Adjust Gamma Settings
- 48 Configure the Display
- 48 Output Options
- 49 Power Management
- 49 Change Date and Time
- 50 Communications
- 51 Diagnostics and Calibration
- 52 Upgrade Software
- 52 Requirements
- 53 Warp and Blend Images
- 53 Adjust Geometry Correction Settings
- 54 3D Operation of Mirage Projectors
- 54 3D System Timing
- 54 3D Input Video Configurations
- 54 3D Frame Doubled Input
- 54 3D Dual-Input 120Hz native output
- 54 3D Requirements
- 55 Active Stereo 3D Configuration
- 56 Passive Stereo 3D Configuration
- 57 Set Up the Mirage WQ-L to Display 3D Content
- 58 Troubleshooting
- 58 System Warnings and Errors
- 59 Status Display
- 59 Error Codes
- 62 Maintenance
- 62 Cleaning the Lens
- 62 Remove Dust
- 62 Remove Fingerprints, Smudges, or Oil
- 63 Serial Communication
- 63 Connection and Use
- 63 RS422 Port
- 63 Message Formats
- 64 Basic Message Structure
- 64 Start and End of Message
- 65 Prefix Characters (optional)
- 65 Projector Numbers (optional)
- 65 Function Code
- 65 +Subcode
- 65 Request/Reply Symbols
- 66 Other Special Functions (optional)
- 66 Data
- 67 Text Parameters
- 67 Sample Messages and their Meaning
- 67 Single Projector
- 68 Specific Projector in a Network with one Controller
- 68 Specific Projector in a Network with Multiple Controllers
- 68 What is Actually Sent in a Message?
- 69 Maximize Message Integrity
- 70 Access Specific Inputs
- 70 Flow Control
- 71 Network Operation
- 72 Description Of Control Types
- 72 Subclasses
- 72 Control Groups
- 72 Access Levels
- 73 Serial Command Reference
- 73 Array Bright Color LOC (ABL)
- 75 Auto Color Enable (ACE)
- 75 Address (ADR)
- 76 Active Projector (APJ)
- 76 Auto Power Up (APW)
- 77 Auto Shutdown (ASH)
- 77 Baud Rate (BDR)
- 78 Base Gamma Curve (BGC)
- 78 Base Gamma Function (BGF)
- 79 Base Gamma Slope (BGS)
- 79 Broadcast Key Mode (BKY)
- 80 Color Enable (CLE)
- 80 Data Logging (DLG)
- 80 3D Dark Interval (DRK)
- 80 Parameters
- 81 Examples
- 81 Edge Blending (EBL)
- 81 Error Message Enable (EME)
- 82 Enable Stealth Mode (ESM)
- 82 Fan Assist (FAS)
- 82 Frame Lock Enable (FLE)
- 83 Serial Flow Control (FLW)
- 83 Frame Delay (FRD)
- 84 Gamma Correction (GAM)
- 84 General Purpose Input/Output (GIO)
- 84 Serial Help (HLP)
- 86 Projector Health (HLT)
- 86 Test Pattern Grey (ITG)
- 86 Internal Test Pattern (ITP)
- 88 Keypad IR Sensor Disable (KEN)
- 88 Local Setting (LOC)
- 89 Logical Shutter (LSH)
- 89 Serial Mode (MDE)
- 90 Network Setup (NET)
- 91 Network Routing (NTR)
- 92 Projector Color Adjustment (PCA)
- 94 Projector Hours (PJH)
- 94 PING (PNG)
- 94 Swap (PPS)
- 95 Serial Port (PRT)
- 95 Power (PWR)
- 96 Advanced Color Setting (RGB)
- 96 Real Time Events (RTE)
- 98 Select Input (SIN)
- 99 Screen Orientation (SOR)
- 100 System Status (SST)
- 100 Target Color Space (TCS)
- 101 3D Emitter Delay (TDD)
- 101 Parameters
- 102 Examples
- 102 3D SYNC INPUT (TDI)
- 102 Parameters
- 102 Examples
- 102 3D Mode (TDM)
- 102 Parameters
- 103 Examples
- 103 Invert 3D Input (TDN)
- 103 Parameters
- 103 Examples
- 103 3D Sync Out (TDO)
- 103 Parameters
- 104 Examples
- 104 3D Test Pattern (TDT)
- 104 Parameters
- 104 Examples
- 105 Time/Date (TMD)
- 105 Test Pattern Enable (TPE)
- 105 Target White Point (TWP)
- 107 User ID (UID)
- 107 WARP (WRP)
- 108 GPIO Port
- 109 Configure GPIO
- 110 WebUI Menu Tree
- 110 Image Settings
- 110 Configuration
- 111 Input & Switching
- 111 ArrayLOC
- 112 Specifications
