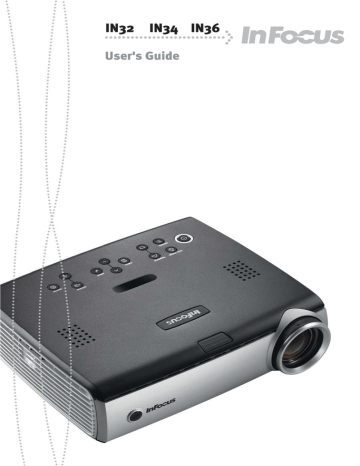

IN 32 IN 34 IN36
User's Guide
1
Please read the safety instructions booklet before setting up the projector.
Unpack the box
Here's what's included:
Projector Remote
Registration / Reference guide / Online resources
Register to activate your warranty to ensure eligibilty for service and support, and get special offers and notifications about free product updates.
Reference languages:
Svenska
Inscription / Guide de r
Activez votre garantie pour avoir droit aux réparations et à l’assistance et obtenir les notifications d’offres spéciales et les avis sur les mises à niveau gratuites des produits.
Registro / Manual de referencia
/ Recursos en línea
Active la garantía para asegurarse los beneficios del servicio y soporte y notificaciones sobre las actualizaciones gratuitas de nuestros productos.
Registrierung /Referenzanleitung
Aktivieren Sie Ihre Garantie, sodass Sie für Service und
Unterstützung berechtigt sind. Sie erhalten
Sonderangebote und
Benachrichtigungen
über kostenlose
Aktualisierungen.
CD-ROM
Product Registration and Reference Guide
Carry Case
2
1
Lens Cap
and Tether
Computer Cable Power Cable
Save the box and packing materials.
Put batteries in the remote
The remote uses 2 AA batteries.
2
+
-
+
3
Please dispose of batteries in an environmentally proper manner.
Buy a Full-Featured Remote and Other Custom Accessories www.infocus.com/store
Power/Standby Service Required
Status Indicator Panel
The top of your projector includes a convenient indicator panel with symbols that light up to show important status.
For details, see Troubleshooting.
High Temperature Replace Lamp
3
Connect source
Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to:
Computer
Computer Cable (included)
Computer
Got an Apple computer?
You may need an adapter. For more information, see How-To Guides at www.infocus.com/support/howto
USB is optional
USB connection only needed for:
Presentation control using
projector remote
Upgrading projector firmware
OR
Connect to:
DVD or VCR* (using optional cables)
1
Connect video using either an S-Video or a Composite Video cable
www.infocus.com/store part no. SP-SVIDEO-10M or SP-CPSTVID-5M
2
Connect audio using a Mini-Plug to RCA Audio Y-Cable
Available from A/V dealer or retailer
Good Composite Video Cable
OR
SVideo Cable Better
Mini-Plug Audio Y-Cable
L R
Audio Out
DVD or VCR
Video Out
*Also for game console or cable box.
Want better sound?
Connect the source's audio output to a receiver/amplifier or home theater system with separate speakers.
RCA Audio Cable
L R
Audio In
Home Theater or Receiver
To Projector or
L R
Audio Out
DVD or VCR
Video Out
OR
Connect to:
Other kinds of sources
How-To Guides are available at www.infocus.com/support/howto
4
Turn on projector and source
1
Connect the power cord to the projector
and to an electrical outlet
The power light on the projector will light amber.
2
Turn on the projector
Press power (on the projector or remote).
The power light will start blinking green.
5-10 sec.
source
3
Wait for the lamp to warm up
After a few seconds, the power light will stop blinking and turn green. It can take a minute for the lamp to reach full brightness.
Warning: Do not look directly into the lens when the projector is turned on.
4
Turn on computer or other source
You may need to press a specific key combination to activate your laptop's external video port. On most laptops, hold down the FN key while pressing a key labeled CRT/LCD, LCD/VGA, a monitor icon , or similar. Key combos for popular models:
Apple F7
Dell Fn+F8
Fujitsu Fn+F10
Gateway Fn+F3 or Fn+F4
HP/Compaq Fn+F4 or Fn+F6
Sony Fn+F7
IBM ThinkPad Fn+F7
Toshiba Fn+F5
Complete laptop activation chart at www.infocus.com/support
i i
Important: If there is still no video, restart your computer (first make sure it's connected to the projector and the projector is turned on).
5
Change source if needed
If needed, press source (on the projector or remote) to view the source. You may have to press it more than once.
5
1
Height
Adjust the picture
1
Projector Location
As distance increases, the image gets larger and moves upwards.
2
1 Hold down the release button on top of the projector.
2 Lift the front of the projector to the desired height.
3 Release the button.
Lens center line
2
Keystone
Diagonal
Screen Size
60" / 1.5m
80" / 2m
92" / 2.3m
150" / 3.8m
Distance to Screen
Minimum Maximum
7'4" / 2.2m
9'9" / 3m
9'1" / 2.8m
12'1" / 3.7m
11'3" / 3.4m
18'4" / 5.6m
13'11" / 4.2m
22'8" / 6.9m
Press the keystone buttons to make the picture square.
3
Zoom and focus
Focus
Interactive Screen Size and
Distance Calculator www.infocus.com/calculator
Buy a Screen and Other Custom
Accessories www.infocus.com/store
Ceiling mount?
To flip the image, enable Ceiling in the
System menu (press menu, then select
Settings > System > Ceiling).
Zoom
Adjust zoom first, then focus the center of the image.
Using the menus
1 Press menu to show menus
2 Press or to choose items (or adjust setting)
3 Press select to confirm menu choice
4 Press menu to hide menus
Controlling your presentations
Connect the computer cable (including USB) to your computer, then use and to move through your presentation slides.
6
Turn off the projector
Press the power button twice
The first press shows a confirmation message; the second press confirms that you want to power off.
The power light on the projector will blink while the fan cools the lamp. If you need to unplug the projector, wait until the fan stops and the power light stops blinking and stays on.
Note: While the power light is blinking, button presses on the projector and remote are ignored.
7
Register your product
Activate your warranty to ensure eligibility for service and support. Get special offers and notifications about free product updates.
1
Write down your projector's serial number
It's printed on the label on the back of the projector. You'll need it to register (and if you ever need to contact support).
Serial number:
2
Go to www.infocus.com/register
8
Read the Reference Guide
Insert the CD-ROM, or go to www.infocus.com/support
The Reference Guide is on the CD-ROM in multiple languages. It covers advanced setup and operation, including lamp replacement instructions. The Reference Guide is also available at www.infocus.com/support
Troubleshooting
If there is no picture or the picture is blank
If the power light is off, make sure the power cord is connected and plugged into a live electrical outlet. If the power light is amber and not blinking, press the power button.
Check video source and cables. Make sure the video source (computer, DVD player, VCR, etc.) is turned on and cables are securely connected between the source and the projector. source
Make sure your computer's video port is enabled. Press the key combination that activates your laptop's external video port (see step ). If there is still no image, restart your laptop.
Press the Source button. You may need to press it several times to view the correct source.
Press the Auto Image button.
If "Signal out of range" is shown, or the picture looks bad
Press the Auto Image button. If that doesn't help (and the source is a computer), reduce your computer's display resolution or vertical refresh rate.
If the replace lamp light is on
Turn the projector off and wait at least one minute, then turn it on again. If the replace lamp light turns on again, the lamp needs to be replaced. For lamp replacement instructions, see the Reference Guide, which is on the included
CD-ROM or can be downloaded at www.infocus.com/support
If the high temperature light is on
Turn the projector off and remove anything that may be blocking the air vents on its side. Leave the projector off for at least one minute to let it cool before turning it on again. Important: Continuous operation at high temperature may reduce the lifetime of the lamp and/or projector.
If the service required light is on
Turn the projector off and wait at least one minute, then turn it on again. If the service required light turns on again, the projector needs to be serviced. See below for service contact information.
More troubleshooting options are in the Reference Guide
The Reference Guide is on the included CD-ROM, or download it at www.infocus.com/support
Warning: In the unlikely event of a lamp rupture, particles may be ejected from the projector.
Keep out of the area under and around the projector when it is turned on. See the safety instructions booklet for more details.
Questions? We’re here to help!
Visit us at: www.infocus.com/support
We’re here to support you with your new purchase. We can help you with…
• Determining screen sizes
• Documentation in other languages
• Connecting your sources (TV, DVD, Cable/Satellite, Game, etc.)
• Selecting optional accessories
• Product warranty protection plans
USA, Canada, Latin America
Customer Support Telephone
+1 (503) 685-8888
TOLL FREE: 800-799-9911
Mon-Fri, 7 am - 5 pm Pacific [email protected]
Asia Pacific
Customer Support Telephone
Singapore: +65 63539449
China: 800.828.2268
Australia: 1300-725-295
Australia Direct Sales: 1800-885-841
Mon-Fri, 9 am - 5 pm SGT [email protected]
Europe, Middle East, Africa
Customer Support Telephone
+31 (0)36 539 2820
Mon-Fri, 08:30 - 18:00 CET [email protected]
Warning: Hg - Lamp contains mercury. Manage in accordance with local disposal laws.
See www.lamprecycle.org
Declaration of Conformity
Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Oregon 97070-8238 USA
European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands
We declare under our sole responsibility that this projector conforms to the following directives and norms: EMC Directive 89/336/EEC,
Amended by 93/68/EEC, EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, Low Voltage Directive 73/23/EEC, Amended by
93/68/EEC, Safety: IEC 60950-1:1st Edition
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc. IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of
Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. InFocus, In Focus, and INFOCUS (stylized), LP, LiteShow, ScreenPlay, LitePort, ASK and Proxima are either registered trademarks or trademarks of InFocus
Corporation in the United States and other countries.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications to this equipment that are not expressly approved by InFocus Corp. may void the user’s authority to operate the equipment.
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals Product Models: W320, W340, W360
UL, CUL, NOM, IRAM, GOST, C-tick
Other specific Country Approvals may apply. Please see product certification label.
InFocus reserves the right to alter product offerings and specifications at any time without notice.
IN 32 IN 34 IN 36
Reference Guide
Declaration of Conformity
Manufacturer: InFocus Corporation, 27500 SW Parkway Avenue, Wilsonville,
Oregon 97070 USA
European Office: Louis Armstrongweg 110, 1311 RL Almere, The Netherlands
We declare under our sole responsibility that this projector conforms to the following directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: IEC 60950-1: 1 st
Edition
May, 2004
Trademarks
Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated. Digital Light Processing is a trademark or registered trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the
United States and other countries.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by InFocus Corporation may void authority to operate the equipment.
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL, TUV
Other specific Country Approvals may apply, please see product certification label.
This user’s guide applies to models IN32, C175, W320, IN34, C185, W340, IN36, C310, and W360.
InFocus reserves the right to alter product offerings and specifications at any time.
1
Table of Contents
Introduction 3
Connecting a computer 5
Required computer connections 5
Displaying a computer image 7
Adjusting the image
Connecting a video device
Displaying a video image
8
9
10
Shutting down the projector
Troubleshooting your setup
12
12
Using the keypad buttons
Using the remote control
Using the audio
Optimizing computer images
Presentation features
Optimizing video images
Customizing the projector
Using the menus
Picture menu
Settings menu
Maintenance 32
Cleaning the lens 32
Using the security lock
Replacing the projection lamp
32
33
24
25
28
Cleaning the lamp filter screens 35
Appendix 36
Projected image size 36
23
23
23
23
20
21
22
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 15 degrees off axis.
• Locate the projector in a well-ventilated area without any obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling vents.
• Use only InFocus-approved ceiling mounts.
• Use only the power cord provided. A surge-protected power strip is recommended.
• Refer to this guide for proper startup and shutdown procedures.
• Warning: Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.
• In the unlikely event of a lamp rupture, particles may exit through the projector side vents. When the projector is turned on, keep people, food, and drinks out of the "keep out" area under and around the projector, as indicated by the "X" areas below.
2
3’ / 1 m
8’ / 2.4 m
5’
/ 1
.5 m 2’ / 0.6 m
Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty booklet.
Introduction
Your new digital projector provides computer and video inputs and has
XGA 1024x768 resolution. The projector is easy to connect, easy to use, and easy to maintain.
Product specifications
To read the latest specifications on your multimedia projector, be sure to visit our website at www.infocus.com, as specifications are subject to change.
Accessories
The standard accessories that came with your projector are listed in the included user’s guide. Optional accessories can be found on our website at www.infocus.com
or at your retailer or dealer.
Online Registration
Register your projector on our website at www.infocus.com/register to activate your warranty and receive product updates, announcements, and registration incentives.
Projector components and features remote control receiver (IR) elevator foot release focus status indicators keypad speaker zoom
3 connectors leveling foot
IR receiver
IR receiver heat vent
Connector Panel
The projector provides computer and video connectors:
• one M1-D/A (HD, DVI, and computer)
• one VESA (HD, HD component, and computer)
• one VESA (monitor out)
• one S-video
• one composite RCA video
• one audio in/one audio out
It also has an RJ-45 connector for serial control. The Command Line Interface (CLI) specifications and commands are on our website.
Connector panel
M1-D/A computer
VESA in composite video
RJ-45 serial control s-video monitor out power connector audio in lock external speaker
(audio out)
4
Connecting a computer
Required computer connections
Connect the black end of the computer cable to the Computer 1 connector on the projector. Connect the blue end to the video port on your computer. If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port.
Some Macintosh® computers do not have a standard VESA-out video port.
If the supplied computer cable will not connect to your computer, purchase the appropriate adapter from your Apple® reseller.
Connect the black power cable to the connector on the back of the projector and to your electrical outlet.
The Power light on the Status Indicator Panel (page 12) turns amber.
NOTE : Always use the power cable that shipped with the projector. connect computer cable connect power cable
Optional computer connections
To advance slides in a PowerPoint™ presentation using the up and down arrow buttons on the remote, plug the USB connector on the computer cable into the USB mouse connector on your computer.
To have sound with your presentation, connect an audio cable (sold separately) to your computer and to the Audio In connector on the projector. connect computer cable connect audio cable
5
If you are using a desktop computer and want to see the image on your computer screen as well as on the projection screen, plug the monitor cable to the Monitor Out connector on the projector. connect monitor cable
If you prefer connecting your projector to your computer with an optional
VESA cable, connect one end of the cable to the VESA port on your computer, and connect the other end of the cable to the blue Computer 2 connector on the projector. connect VESA cable
You can control the projector from an LCD control panel or computer by connecting an RS-232 cable to the projector’s Serial Control connector. Specific RS-232 commands can be found in the Service and Support section of our website.
connect RS-232 cable
6
Displaying a computer image
Remove the lens cap.
Press the Power button on the top of the projector or the remote.
The Power light on the Status Indicator Panel (page 12) blinks green and the
fans start to run. When the lamp comes on, the start up screen displays and the Power light is steady green. It can take a minute for the image to achieve full brightness.
? No startup screen?
remove lens cap press Power button turn on computer
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t, press the Source button on the projector’s keypad.
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a projector is connected. Usually a key combination like FN + F8 or CRT/LCD key turns the external display on and off. Locate a function key labeled
CRT/LCD or a function key with a monitor symbol. Press FN and the labeled function key simultaneously. Refer to your laptop’s documenta-
tion to learn your laptop’s key combination.
? No computer image? Try pressing the Auto Image
button on the keypad. Get help on page 13.
activate laptop’s external port
7
Adjusting the image
Adjust the height of the projector, if necessary, by pressing the release button to extend the elevator foot.
Rotate the leveling foot (located at the bottom back right corner), if necessary.
Position the projector the desired distance from the screen, so that the lens is perpendicular to the screen.
See page 36 for a table listing screen sizes and distances.
Adjust the zoom or focus rings by rotating them until the desired image size and focus are produced.
If the image is not square, adjust the vertical digital keystone by using the buttons on the keypad. Press the upper Keystone button to reduce the upper part of the image, and press the lower Keystone button to reduce the lower part.
You can also adjust the keystone via the menus. See page 25.
Adjust the Contrast or Brightness in the Picture menu.
See page 24 for help with the menus.
adjust height elevator foot adjust distance adjust zoom and focus adjust keystone adjust Contrast or Brightness release button rotate leveling foot focus
8 zoom
Connecting a video device
No video or audio cables are included with your projector.
connect S-video and audio cables
If the video device uses a round, four-prong S-video connector, plug an
S-video cable into that connector on the video device and into the Video 2 connector on the projector. If the device uses a composite video connector, plug a composite video cable into that connector on the video device and into the Video 1 connector on the projector.
For audio, plug a mini-plug audio Y-cable into the Audio in connector on the projector and into the video device’s left and right audio out connectors.
connect video and audio cables
Connect the black power cable to the connector on the back of the projector and to your electrical outlet.
NOTE : Always use the power cable that shipped with the projector. connect power cable
To connect a progressive scan EDTV or HD source, use the Component to
M1 adapter (sold separately).
9
Displaying a video image
Remove the lens cap. remove lens cap
Press the Power button on the top of the projector or the remote.
The Power light on the Status Indicator Panel (page 12) blinks green and the
fans start to run. When the lamp comes on, the start up screen displays and the Power light is steady green. It can take a minute for the image to achieve full brightness.
.
? No startup screen?
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it doesn’t, press the Source button on the keypad. press Power button turn on video device
Adjust the height of the projector by pressing the release button to extend the elevator foot. Rotate the leveling foot, if necessary. adjust height elevator foot adjust distance
Position the projector the desired distance from the screen, so that the lens is
perpendicular to the screen. See page 36 for a table listing screen sizes and
distances to the screen.
10 release button rotate leveling foot
Adjust the zoom or focus rings by rotating them until the desired image size and focus are produced. adjust zoom and focus
If the image is not square, adjust the vertical keystone using the buttons on the keypad.
Press the upper Keystone button to reduce the upper part of the image, and press the lower Keystone button to reduce the lower part.
You can also adjust the keystone via the menus. See page 25.
Adjust the volume on the keypad.
Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.
See page 24 for help with the menus.
adjust keystone adjust volume adjust Picture menu focus zoom
11
Shutting down the projector
The projector automatically blanks the screen after no active source is detected for 30 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or keypad button is pressed.
Screen Save
You can make the blank screen appear after five minutes by turning on
Screen Save in the Settings>System menu. See page 29. There are six time
options for the Screen Save feature. They range from five minutes to 30 minutes with five minute intervals.
Power Save
The projector also has a Power Save feature that automatically turns the lamp off after no signal is detected for 20 minutes. After 10 additional minutes with no signal, the projector powers down. If an active signal is received before the projector powers down, the image is displayed. You must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 29.
Turning off the projector
To turn off the projector, press the Power button and verify that you want to turn the projector off by pressing the Power button again within 3 seconds.
You can cancel the shutdown by not pressing the Power button a second time. The lamp turns off and the LED blinks amber for 1 minute while the fans continue to run to cool the lamp. When the lamp has cooled, the LED lights amber and the fans stop. Unplug the power cable to completely power off the projector.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section
(page 21). If it does not, troubleshoot the setup.
The Status Indicator Panel on top of the projector indicates the state of the projector and can help you troubleshoot.
.
Table 1: Status indicator light behavior and meaning
Status Indicator Panel Symbols Meaning
Power, solid amber The projector is plugged in.
Power, blinking green
Power, solid green
Power, blinking amber
Thermometer
Lamp
Wrench/Service
The power button has been pressed and the software is initializing.
The projector is on and initialized.
The power button has been pressed twice to turn the projector off and the fans are running to cool the projector.
The projector is too hot. Make sure the
vents aren’t blocked (see page 19). Turn
off the projector and wait one minute, then turn the projector on again. Contact
Technical Support if the problem persists .
Turn off the projector and wait one minute, then turn the projector on again.
If the lamp light turns on again, replace the lamp and reset the lamp timer.
Turn off the projector and wait one minute, then turn the projector on again.
If the service lamp turns on again, service is required. Visit www.infocus.com/service to contact Service.
12
Source Troubleshooting
Problem
No startup screen
Solution
Plug power cable in, press Power button.
Remove lens cap.
Result
Correct image
Only startup screen appears
A
Press the Source button
Activate laptop’s external port
Computer image projected
A
A or restart laptop
13
No computer image, just the words “Signal out of range”
Adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>
Adapter (location varies by operating system)
A
Computer image projected
A
A
For PC: Image fuzzy or cropped
A
A
You may also need to set a different resolution on your computer, as shown in the following problem, “Image fuzzy or cropped”
Set your computer’s display resolution to the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab, select
1024x768)
For a laptop, disable laptop monitor or turn-on dualdisplay mode
Image clear and not cropped
A
14
For Macintosh: Image fuzzy or cropped
A
A
Set your computer’s display resolution to the native resolution of the projector
(Apple menu>System
Preferences>Displays, choose 1024x768)
Image clear and not cropped
A
Only my laptop’s background appears, not the
Desktop icons
A
A
Disable “Extend my Windows Desktop” in
Control Panel>Display>Settings>Display 2
(location varies by operating system)
Background and Desktop projected
A
A
Uncheck this option, then click Apply
15
The video embedded in my PowerPoint presentation does not play on the screen
A
B
A
Turn off the internal LCD display on your laptop
Embedded video plays correctly
A
B
Projector troubleshooting
Problem
Image not square
Solution Result
Adjust keystone on keypad or Picture menu Square image
Image not sharp Adjust the focus lens or Sharpness in the
Picture>Advanced menu
Correct image
A B
16
Image does not fit 16:9 screen
Image upside down
A B
Image reversed left to right
A
Change aspect ratio to 16:9 in
Picture>Aspect ratio menu
Correct image
Turn off Ceiling in Settings>System menu
Correct image
Turn off Rear in Settings>System menu
A B
Correct image
A B
17
Projected colors don’t match source
COLOR
Image not centered on screen
Adjust color, tint, color temperature, brightness, contrast in the menus
Correct image
COLOR
Move projector, adjust zoom, adjust height Correct image zoom
Adjust horizontal or vertical position in
Picture>Advanced menu
18
Lamp won’t turn on, Temperature light is on
Temperature light
Make sure vents aren’t blocked; allow projector to cool for one minute
Unplug projector; wait one minute; plug in projector and turn it on: lamp lights
“Change lamp” message appears at startup, lamp won’t turn on, Lamp light is turned on
Lamp light
Lamp must be replaced (page 33)
Lamp turns on
Still having problems?
If you need assistance, visit the Service and Support section of our website or call us.
This product is backed by a limited warranty. An extended warranty plan may be purchased from your dealer. When sending the projector in for repair, we recommend shipping the unit in its original packing material, or having a professional packaging company pack the unit. Please insure your shipment for its full value.
19
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of their functions: power
–turns the projector on (page 7) and off (page 12).
menu
–opens the on-screen menus (page 24).
select
–confirms choices made in the menus (page 24).
up/down arrows
–navigates to and adjusts settings in the menus (page 24).
auto image –resets the projector to the source.
presets
–cycles through the available preset settings (page 26).
keystone
–vertical keystone adjusts the squareness of the image (page 8).
You can also adjust the keystone via the menus. See page 25.
volume
source –changes the active source. menu navigation buttons
20
Using the remote control
The remote uses two (2) provided AA batteries. They are easily installed by sliding the cover off the remote’s back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.
Caution : When replacing the batteries, be aware that using batteries other than the type provided with the projector may risk severe damage to the remote. When disposing of the batteries, be sure to do so in an environmentally proper manner.
To operate, point the remote at the front of the projector (not at the computer). The range of optimum operation is about 15 feet (4.5m).
Press the remote’s Power button to turn the projector on and off (see
Press the remote’s Menu button to open the projector’s menu system. Use the arrow buttons to navigate, and the Select button to select features and
adjust values in the menus. See page 24 for more info on the menus.
The remote also has a Source button to switch between sources.
If you connect the USB portion of the M1-DA computer cable (page 5) you
can use the up and down arrow navigation buttons to advance slides in a
PowerPoint presentation.
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are not dead.
• Make sure you’re pointing the remote at the projector or the screen, not the computer, and are within the remote range of 15 feet (4.5m). For best results, point the remote at the projector.
navigation buttons
21
Using the audio
To play sound from the projector, connect your source to the Audio In connector on the projector.
To adjust the volume, use the buttons on the keypad.
To adjust the balance or turn off the projector’s chime, use the Audio menu
Troubleshooting audio
If there is no sound, check the following:
• Make sure the audio cable is connected.
• Make sure mute isn’t active.
• Make sure the volume is turned up enough. Press the Volume button on the keypad.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
connect audio cable adjust volume
Connecting external speakers
The projector can be attached to external speakers that have their own power source by plugging a speaker cable into the projector’s Audio Out connector. external speakers speaker cable
22
Optimizing computer images
After your computer is connected properly and the computer’s image is on the screen, you can optimize the image using the onscreen menus. For gen-
eral information on using the menus, see page 24.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu.
•
Change the Aspect Ratio. See page 25 for details.
• Adjust the Color Space, Temperature or Control in the Advanced menu.
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the
Advanced menu.
• Once you have optimized the image for a particular source, you can save the settings using Presets. This allows you to quickly recall these
Presentation features
Several features are provided to make giving presentations easier. The fol-
lowing is an overview, details are found in the menu section on page 24.
• The Custom key, available on several optional remotes only, allows you
to assign various features to the button. See page 30 for details.
• The Startup Logo menu option lets you change the default startup
screen to a black, white, or blue screen. See page 29.
• Two menu options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or
display a blank screen. This helps preserve lamp life. See page 29.
Optimizing video images
After the video device is connected properly and the image is on the screen, you can optimize the image using the onscreen menus. For general informa-
tion on using the menus, see page 24.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
• Change the Aspect ratio. Aspect ratio is the ratio of the image width to image height. TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
• Select a Sharpness, Color Temperature, or Video Standard setting. See
•
Adjust the Color Control or White Peaking settings. See page 27.
Customizing the projector
You can customize the projector for your specific setup and needs. See
page 28 to page 32 for details on these features.
• For rear projection, turn Rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn Ceiling mode on in the Set- tings>System menu.
• Specify which source the projector checks first for active video during power-up.
• Specify the function of the Custom Key on the optional remote.
• Turn the projector’s display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and startup logos.
• Specify the menu language.
•
Control your projector using RS-232 commands. See page 6.
23
Using the menus
To open the menus, press the Menu button on the keypad or remote. (The menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm your changes. Use the arrows to navigate to another setting. When your adjustments are complete, navigate to Exit, then press Select to go to the previous menu; press the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate the menu’s level, ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not changed often.
• The Source Info menu provides a read-only display of information about the projector and source.
Certain menu items may be grayed out until a particular source is connected. For example, Sharpness is only available for video sources and will be hidden when a computer source is active. Other menu items may be grayed out when they are not available. For example, Brightness is grayed out until an image is active.
Main menu
Menu button
Picture menu
Dots
Settings menu
Keypad navigation buttons
Source Info menu
24
Picture menu
To adjust the following six settings, highlight the setting, press Select, use the up and down arrows to adjust the values, then press select to confirm the changes.
Keystone : adjusts the image vertically and makes a squarer image. You can also adjust keystone from the keypad.
Contrast : controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.
Brightness : changes the intensity of the image.
Color : (video and component sources only) adjusts a video image from black and white to fully saturated color.
Tint : (NTSC video sources only) adjusts the red-green color balance in the image.
Aspect Ratio : Aspect ratio is the ratio of the image width to image height.
TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are
1.78:1, or 16:9. The default is 4:3, which displays the input resized up or down to fill the display area.
The aspect ratio selection is saved for each source.
25 increasing keystone decreasing keystone
Aspect Ratio
Presets : Presets are provided that optimize the projector for displaying computer presentations, film images, and video images. Film input is material originally captured on a film camera, like a movie; video input is material originally captured on a video camera, like a TV show or sporting event.
There are also user-definable presets. To set a preset for the current source, adjust the image, select Save Settings in the Presets menu, then select Save
User 1 (or 2 or 3). You can recall these settings in the future by selecting the
User 1 preset.
If you make any adjusts the image, Presets Off will automatically be selected in the Preset menu to indicate changes have been made.
To restore the factory default settings, choose Factory Reset in the Set- tings>Service menu.
Presets
26
Advanced settings
The following 4 options are for computer and component sources only.
Phase : adjusts the horizontal phase of a computer source.
Tracking : adjusts the vertical scan of a computer source.
Horizontal/Vertical Position : adjusts the position of a computer source.
Sync Threshold Adjust : (enhanced and high definition sources only) If a hardware device, such as a DVD player, is not syncing properly with the projector, select this option to help it sync.
White Peaking : (video sources only) adjusts the white level processed in the image. It increases the brightness of whites that are near 100%.
Overscan : (video sources only) removes noise around the video image.
Sharpness : (video sources only) changes the clarity of the edges of a video image. Select a sharpness setting.
Color Space : This option applies to computer sources. It allows you to select a color space that has been specifically tuned for the video input.
When Auto is selected, the projector automatically determines the standard.
To choose a different setting, turn off Auto, then choose RGB for computer sources, choose either REC709 or REC601 for component sources.
Color Temperature : changes the intensity of the colors. Select a listed value.
Color Control : allows you to individually modify each color. Highlight the color, press Select, then use the arrows to adjust the value.
Video Standard : (video sources only) When it is set to Auto, the projector attempts to pick the video standard automatically based on the input signal it receives. (The video standard options may vary depending on your region of the world.) If the projector is unable to detect the correct standard, the colors may not look right or the image may appear “torn.” If this happens, manually select a video standard by selecting NTSC, PAL, or SECAM from the Video Standard menu.
27
Color Space
Video Standard
Advanced
Sharpness
Color Temperature
Color Control
Settings menu
Audio : allows adjustments to the volume and balance, and turns the projector’s startup Chime on and off.
Sources : allows you to assign a particular input to a specific source key when using an optional remote. Also allows selection of a default Power-up
Source and enables or disables Autosource.
Sources>Power-up Source: this determines which source the projector checks first for active video during power-up.
Sources>Autosource: When Autosource is not checked, the projector defaults to the source selected in Power-up Source. If no source is found, a blank screen displays. When Autosource is checked, Power-up Source determines which source the projector defaults to at startup. If no signal is present, the projector checks the sources in order until a source is found or until power down.
System>Rear: reverses the image so you can project from behind a translucent screen.
Ceiling : turns the image upside down for ceiling-mounted projection.
Auto Power : When Auto Power is checked, the projector automatically goes into the startup state after the projector is powered on. This allows control of ceiling mounted projectors with a wall power switch.
Low Power : Turn this on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.
Display Messages : displays status messages (such as “Searching” or
“Mute”) in the lower-left corner of the screen.
28
Settings
Sources
System
Power-up
Source
Audio
PC Screen Saver Off : prevents your computer from going into Screen Save mode. This feature is only available if the USB portion of the computer cable
is connected to your computer (page 5).
Power Save : automatically turns the lamp off after no signals are detected for 20 minutes. After 10 additional minutes with no signal, the projector powers down. If an active signal is received before the projector powers down, the image will be displayed.
Screen Save : automatically blanks the screen with a black color after no signals are detected for a preset number of minutes. The image returns when an active source is detected or a remote or keypad button is pressed. Screen
Save is disabled when Power Save is enabled.
Startup Logo: allows you to display a blank Black, White, or Blue screen instead of the default screen at startup and when no source is detected.
System
Startup Logo
Screen Save
Blank Screen : determines what color is displayed when no source is detected3.
Blank Screen
29
Custom Key (for use with optional remote only): allows you to assign a different function to the Custom button on the remote to quickly and easily use the effect. Only one effect can be enabled at a time. Highlight an effect and press Select to choose a different one. The default effect is About.
• Blank : displays an empty screen.
• Mute : turns off all sound.
• Aspect Ratio
: toggles among 4:3, 16:9, and Native (see page 25).
• Source : cycles through available sources.
• Auto Image
: resets the projector to the source (page 20).
• Freeze : pauses the projected image.
• Source Info: the default effect. It opens a window with projector and source information.
• Service Info: opens a window with projector and source information.
Language : allows you to select a language for the onscreen display of menus and messages.
Service : to use these features, highlight them and press Select.
Factory Reset : restores all settings (except Lamp Hours) to their default after displaying a confirmation dialog box.
Reset Lamp Hours : resets the lamp hours counter in the Service Info menu to zero. Do this only after changing the lamp. It displays a confirmation dialog box.
PIN : see the next section.
Test Pattern: allows you to display certain patterns to adjust the image.
This feature only works with an optional remote. To display test patterns, click the Test Pattern check box, exit the menus, then press the Blank button on the remote. To select the patterns, use the up/down arrows on the remote or keypad. To exit the test patterns, press the Blank button again.
Service Info : provides information about the projector and lamp.
Service Code : only used by authorized service personnel.
30
Language
Custom Key
Service menu appears only when PIN is disabled appears only when PIN is enabled
PIN feature
The PIN (personal identification number) feature allows you to password protect your projector. Once you enable the PIN feature, you must enter the
PIN before you can project an image.
To use this feature, you must register your projector at www.infocus.com/ register and follow the instructions there to get a default PIN. The PIN consists of a sequence of 5 navigation button presses. The navigation buttons are menu, select, up arrow and down arrow. Once you have this PIN, select
Enable PIN in the Service menu. The Enter PIN dialog box appears.
Use the navigation buttons on the remote or keypad to enter the correct button press sequence. After pressing the first button, a dot appears in the current PIN slot and the highlighted cursor moves to the right one slot. When all 5 numbers are entered correctly, press the Select button on the remote or keypad to select OK. If the message “Incorrect PIN” appears, verify the code and re-enter it. If you mis-enter a number, you must enter 5 numbers and press the Select button in order to access the “Incorrect PIN” message and re-enter the code.
To enter the PIN at projector startup:
Power up the projector. The “Enter PIN” dialog box appears after the startup screen. Enter the PIN. Use the navigation buttons on the remote or keypad to enter the correct button press sequence. See the description above for instructions. If you lose or forget your PIN, go to www.infocus.com/pin.
To change the PIN:
Select “Change PIN” in the Service menu. Enter the existing PIN. Enter the new PIN. You can navigate between OK and Cancel by pressing the up and down buttons on the keypad. Select OK or Cancel by pressing the Select button. Verify the new PIN.
To reset the PIN back to the default:
Power up the projector. After the “Enter PIN” dialog box appears, press and hold the Select button down for 10 seconds. Enter the default PIN to use the projector. If you lose or forget your default PIN, go to www.infocus.com/pin .
31
Maintenance
Cleaning the lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you don’t intend to use the projector immediately, replace the lens cap.
Using the security lock
The projector has a security lock for use with a cable lock system. Refer to the information that came with the lock for instructions on how to use it.
clean the lens with a soft dry cloth and non-abrasive cleaner security lock
32
Replacing the projection lamp
The lamp hour timer in the Service Info menu counts the number of hours the lamp has been in use. Twenty hours before the specified end of the lamp’s life, the message “Replace lamp” briefly appears on the screen at each startup. When the expected lamp life has been reached, the Lamp indi-
cator icon lights red (page 12).
NOTE : You can order new lamp housings from www.infocus.com (in select areas), your retailer or your dealer. Use only a replacement lamp with the same type and rating as the original lamp.
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Turn the projector upside down and remove the lamp door by placing a flat-blade screwdriver into the space between the lamp door and the projector and gently prying the door off.
pry the lamp door off
Service Info menu turn off and unplug the projector wait 60 minutes
4 Loosen the captive screw on the lamp module.
WARNINGS :
• To avoid burns, allow the projector to cool for at least 60 minutes before you replace the lamp.
• Unplug the power cord before replacing the lamp.
• Do not drop the lamp module. The glass may shatter and cause injury.
• Do not touch the glass lamp screen. Fingerprints can obscure projection sharpness.
33 loosen the screw on lamp module
• Be extremely careful when removing the lamp housing. In the unlikely event that the lamp ruptures, small glass fragments may be generated.
The lamp module is designed to contain most of these fragments, but use caution when removing it. Before replacing a ruptured lamp, clean the lamp compartment and dispose of cleaning materials. Wash hands after lamp replacement.
Hg – Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.
5 Detach the lamp connector from the projector by gently pulling the connector until it is disconnected from the projector.
6 Carefully remove the lamp module by grasping and lifting the metal bail wire. Dispose of the lamp in an environmentally proper manner.
7 Install the new lamp module, making sure that it is properly seated. Be careful not to touch the interior components of the projector.
8 Snap the bail wire back into its flat position against the lamp module.
9 Re-attach the lamp connector to the projector. Make sure the connector is fully inserted.
10 Tighten the screw on the lamp module.
11 Replace the lamp door.
12 Plug in the power cable then press the Power button to turn the projector back on, then reset the lamp hour timer.
Resetting the lamp timer
To reset the lamp timer, navigate to the Settings>Service menu and select
Reset Lamp Hours. disconnect lamp connector remove module using bail wire
34 reset lamp time in Service menu
Cleaning the lamp filter screens
In dirty or dusty environments, the dust filter screens on the lamp module and lamp door and in the lamp compartment can become clogged, causing high temperatures inside the lamp module. These high temperatures can impact lamp performance and operating life. Routine maintenance to remove dust and dirt from the screens lowers the lamp operating temperature and prolongs lamp life. To maximize lamp life you will need to clean the screens every 250 hours. Lamp screen maintenance may need to occur more often than 250 hours depending on your installation/use environment.
1 Wait 60 minutes to allow the projector to cool thoroughly. Remove the
lamp module. Refer to page 33 for instructions.
2 Examine the dust filter screens on each side of the lamp module. If necessary, use compressed or canned air to clean the screens. Then use a cotton swab dipped in isopropyl alcohol to lightly wipe each screen.
After you've wiped each screen, blow away any remaining contaminants.
3 Before you replace the lamp, repeat the cleaning process on the screen in the lamp compartment in the projector.
4 Examine the dust filter screen on the lamp door. If necessary, use compressed or canned air to clean the screen.
5 Replace the lamp module and lamp door.
screen
35 screen screen screen
Appendix
Projected image size
Table 2:
Image sizes
Distance
to screen
(feet/m)
5/1.5
10/3
15/4.6
20/6.1
30/9.1
32.8/10
Minimum
Diagonal
(feet/m)
2.75/0.83
5.5/1.65
8.25/2.53
11/3.36
16.5/5.01
18.0/5.5
Maximum
Diagonal
(feet/m)
3.4/1.02
6.8/2.04
10.2/3.13
13.6/4.15
20.4/6.19
22.3/6.8
Minimum
Horizontal
(feet/m)
Maximum
Horizontal
(feet/m)
2.2/0.66
4.41/1.32
6.61/2.03
8.81/2.69
13.22/4.01
14.45/4.41
2.73/0.82
5.46/1.64
8.2/2.51
10.93/3.33
16.39/4.97
17.92/5.46
NOTE : Visit our website for an interactive image size calculator.
36
INDEX
A
Advanced setting 27
Aspect Ratio 25, 30 audio 22
Audio In connector 5, 9 audio volume 11 audio, troubleshooting 22
Auto Power 28
Autosource 28
B
Blank screen 29
Brightness 8
C
Ceiling 28 cleaning the lamp filter screens 35 cleaning the lens 32
Color 11, 25
Color Control 27
Color Space 27
Color Temperature 27 colors are incorrect 18 computer connections optional 5 required 5 computer image optimize 23 troubleshooting 13 connecting computer 5 external speakers 22 video device 9 connector panel 4 contacting InFocus 19
Contrast 8, 11, 25
Custom key 23
37
D
Display Messages 28 displaying computer image 7 video image 10
E elevator foot 8
F
Factory Reset 30 focus 8, 11 fuzzy image 14
I image display computer 7 display video 10 image does not fit screen 17 image not centered 18 image not sharp 16 image not square 16 image reversed 17 image size matrix 36 image upside down 17
K keypad buttons 20 keystone 8, 25
L lamp, cleaning filter screens 35 lamp replacement 33
Lamp Reset 30 lamp screens, cleaning 35 lamp won’t turn on 19
Language 30 laptop connecting 5 external video port 7 lens, cleaning 32 leveling foot 8
lock, security 32
Low Power 28
M
Macintosh troubleshooting 15
Main menu 24 menu system 24
Monitor connector 6
N no computer image 14 no startup screen 13
O only startup screen appears 13 onscreen menus 24
Overscan 27
P password-protecting the projector 31
PC Screen Saver 29 personal identification number 31
Picture menu 25
PIN 31
Position 27 power cable 5, 9
Power Save 12, 29
Power-up Source 28 presentation features 23 projected image sizes 36 projector adjusting the height 8, 10 connector panel 4 customizing 23 password-protecting 31
PIN 31 positioning 8 registering 3 safety considerations 2 shutdown 12 troubleshooting problems 12
38
R
Rear 28 remote control 21 replacing the lamp 33
Reset 30 resetting the lamp timer 34 resolution 3
RS-232 4, 6
S
Screen Save 12, 29 screens, cleaning 35 security lock 32 serial connection 6
Service 30
Settings menu 28
Sharpness 27 shutting down the projector 12
Source troubleshooting 13
Sources 28 speakers, connecting 22
Startup Logo 29
Sync Threshold Adjust 27
T
Tint 11, 25
Tracking 27
Troubleshooting 12, 13
Turning off the projector 12
U using the keypad buttons 20
V
VESA connector 6 video connections 9 video images, optimizing 23
Video Standard 27
W
White Peaking 27
Z zoom 8, 11
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
