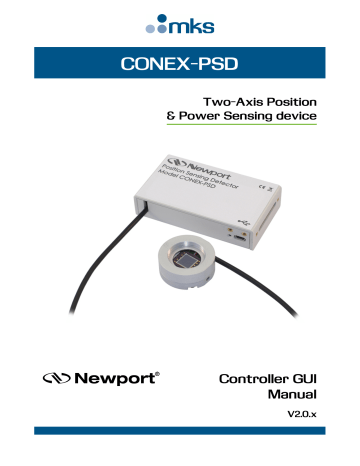

CONEX-PSD

Two-Axis Position

& Power Sensing device

Controller GUI

Manual

V2.0.x

CONEX-PSD Controller GUI Manual

©2017

by Newport Corporation, Irvine, CA. All rights reserved.

Original instructions.

No part of this document may be reproduced or copied without the prior written approval of Newport Corporation. This document is provided for information only, and product specifications are subject to change without notice. Any change will be reflected in future publishings.

EDH0288En1041 – 12/17

ii

CONEX-PSD

Table of Contents

Controller GUI Manual

1.0

Introduction .................................................................................................. 1

1.1

Purpose ............................................................................................................................. 1

1.2

Overview .......................................................................................................................... 1

1.3

Controller State Diagram .................................................................................................. 1

2.0

Installation ..................................................................................................... 2

2.1

Install CONEX-PSD Graphical User Interface ................................................................. 2

2.2

Launch GUI ...................................................................................................................... 2

3.0

User Interface ................................................................................................ 3

3.1

Configuration .................................................................................................................... 3

3.2

Main .................................................................................................................................. 5

3.3

Diagnostics ....................................................................................................................... 7

3.4

About ................................................................................................................................ 8

Service Form .......................................................................................................... 9 iii

EDH0288En1041 – 12/17

CONEX-PSD Controller GUI Manual

EDH0288En1041 – 12/17

iv

CONEX-PSD Controller GUI Manual

Two-Axis Position

& Power Sensing Device

CONEX-PSD

1.0

Introduction

1.1

Purpose

The purpose of this document is to provide instructions on how to use the

CONEX-PSD Controller graphical user interface (GUI).

1.2

Overview

The CONEX-PSD Controller GUI is a graphical user interface, that allows the user to interact with the CONEX-PSD controller.

1.3

Controller State Diagram

The CONEX-PSD controller is defined by the following state diagram.

Controller’s LED display:

CONFIGURATION:

SLOW BLINK RED

.

READY:

SOLID GREEN

.

1

EDH0288En1041 – 12/17

CONEX-PSD Controller GUI Manual

2.0

Installation

2.1

Install CONEX-PSD Graphical User Interface

Following are steps to install CONEX-PSD GUI:

•

For 32 bit, Select and launch “CONEX-PSD Utility Installer Win32.exe”. For

64 bit, Select and launch “CONEX-PSD Utility Installer Win64.exe”.

•

A window opens up showing Install welcome page.

•

Click on “Next”.

•

A window opens up allowing destination folder selection. By default it is showing

C:\.

•

Click on “Next”.

•

Ready to install window opens up. Click “Install”.

•

Then installation starts, wait for completion. Click on “Finish” to finalize the installation.

32 bit installer will be installed “Newport.CONEXPSD.CommandInterface.dll” in

GAC_32 folder and 64 bit installer will be installed the dll in GAC_64 folder.

NOTE

LabVIEW user can add reference of command interface dll from GAC during VI creation.

2.2

Launch GUI

From Windows “START” menu, select “All Programs\Newport\Motion

Control\CONEX-PSD\ CONEX-PSD Utility”.

EDH0288En1041 – 12/17

2

CONEX-PSD Controller GUI Manual

3.0

User Interface

3.1

Configuration

The Configuration tab allows the user to view and / or change information related to the logging configuration and the instrument settings. Read only values are displayed for the log file name and the log file path. The logging level may be changed to any of the settings in the drop-down list on the right hand side. Trace is the most detailed of the settings and when this setting is selected the controller GUI logs everything.

Critical Error is the least detailed of the settings and when this setting is selected the controller GUI will only log errors that are defined to be critical.

The polling interval defines the number of milliseconds between each time the controller GUI polls the CONEX-PSD for the latest information. The user may change the polling interval by entering a value.

The

Save

button allows to save the current settings to the configuration file.

3

EDH0288En1041 – 12/17

CONEX-PSD Controller GUI Manual

Configurable settings

The following table describes all the settings that can be change by the user.

Default Parameter

Level

Description

LoggingConfiguration

Logging level.

Trace is the most detailed of the settings and when this setting is selected the controller

GUI logs everything. Critical Error is the least detailed of the settings and when this setting is selected the controller GUI will only log errors that are defined to be critical.

Values

Trace

Detail

Equipment Message

Info

Warning

Error

Critical Errror

PollingInterval

Delay

InstrumentInformation

The polling interval defines the number of milliseconds (delay) between each time the controller GUI polls the instrument for the latest information.

Diagnostics

The delay defines the number of milliseconds between each sent command from a text file.

Models\InstrumentInfo

CommunicationChannel The communication channel

BufferDepth

YMax

YMin

Charts

BufferDepth defines the maximum number of points displayed in the chart.

YMax defined the maximum Y limits of the position charts. This parameter can be used to perform a zoom.

YMin defined the minimum Y limits of the position charts. This parameter can be used to perform a zoom.

An Integer

An Integer

USB

Trace

200

1000

USB

200

5

-5

EDH0288En1041 – 12/17

4

CONEX-PSD Controller GUI Manual

3.2

Main

The Main tab displays the main controls in the controller GUI like a virtual front panel. It is updated each time the polling interval timer expires.

“Controller status led”

A single led shows the current controller state. When you move the mouse over the led, the controller state is displayed in an information balloon.

“Save button”

This button allows save the current buffer of points (X, Y and Laser power).

The result file is saved in the “\data” folder from the current controller GUI directory.

The saved datas are: Date, Time, X position, Y position and Laser power.

“Clear button”

This button allows clear all charts.

“Stop button”

This button allows stopping the chart refreshing.

5

EDH0288En1041 – 12/17

CONEX-PSD Controller GUI Manual

“Positions”

Two text boxes display the current positions X and Y.

A chart shows the X and Y positions in relation to the time.

A XY chart display the position (X, Y) of the optical beam.

NOTE

The chart limits can be modified from the “Configuration Tab”

The buffer depth can be modified from the “Configuration Tab”.

“Laser Power”

A text box displays the current laser power in percentage.

A chart shows the laser power in relation to the time.

NOTE

The buffer depth can be modified from the “Configuration Tab”.

EDH0288En1041 – 12/17

6

CONEX-PSD Controller GUI Manual

3.3

Diagnostics

The Diagnostics tab allows the user to enter instrument commands and to view the history of commands sent and responses received. This list of commands and the syntax of each command can be found in the user’s manual for the instrument.

A file of commands can be sent line by line to the instrument with the

“Send Command file” button.

7

EDH0288En1041 – 12/17

CONEX-PSD Controller GUI Manual

3.4

About

The About tab allows to display information about the controller GUI and the connected instrument. It displays the controller GUI name, version, and copyright information.

EDH0288En1041 – 12/17

8

CONEX-PSD Controller GUI Manual
