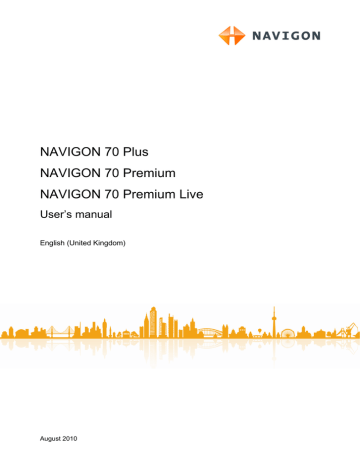

User’s manual NAVIGON 70 Plus | 70 Premium | 70 Premium Live
6.2.5 Points of interest
Points of Interest, called POIs for short, are useful addresses that are catalogued according to particular criteria.
POIs include ports, airports, restaurants, hotels, petrol stations, public buildings, doctor's surgeries, hospitals, shopping centres, etc.
Points of interest can be displayed on the map by means of a symbol.
In the N
AVIGATION
window tap on Options > Settings > Map Display >
Categories Shown in order to select the categories you want to appear on the map.
Note: If you have created your own POIs, they will be available under the MyPOIs category. For more details about creating your own POIs
refer to chapter "MyPOIs" on page 76.
POI nearby
POIs nearby are POIs located within a certain radius of your current location. This means you can always find the nearest petrol station for example, no matter where you are.
Note: GPS reception must be good enough for determining your position. Check the (GPS Ready) symbol to see whether GPS reception is good enough.
If GPS reception is not good enough, the system will look for POIs near the last known position. If there is no last known position, the POI
Nearby function will not be available.
For more details refer to the chapter "Initialising the GPS receiver" on page 30.
Note: The Direct Access section offers 3 categories of POI from the current vicinity which can be searched for quickly and without additional entry.
For more details refer to the chapter "Direct access to POI" on page 39.
the
AVIGATION
window tap on New Destination > Search for
POI > Nearby.
The POI
N
EARBY
window opens.
2. Select a category from which you would like to find a POI.
Categories in which no destinations are available nearby cannot be selected.
If sub-categories exist for the category you have selected, the Sub
Category list opens.
3. Select the sub-category from which you would like to select a POI.
- 36 - Navigation
User’s manual NAVIGON 70 Plus | 70 Premium | 70 Premium Live
The Destination list opens. It contains the nearest POIs in the specified category, sorted by distance.
4. If the list is very long:
►
Tap on (Close List).
The keyboard appears.
►
Enter a number of letters from the destination.
►
Tap on (Open List).
The list now contains only those destinations which begin with the letters entered.
5. Tap on the name of the destination.
The D
ETAILED INFORMATION ABOUT THE DESTINATION
window opens.
Indicated on the Activate MyRoutes button is whether several route suggestions are to be calculated (Yes) or not (No).
►
Tap on Activate MyRoutes in order to change the setting.
6. Tap on Start Navigation.
-or-
Tap on Parking in order to search for and navigate to a car park near your destination.
The map opens in Preview mode. The destination is indicated on the map.
For detailed information on how to start navigation, please refer to
chapter "Route preview" on page 44. Please read on there.
POI of nationwide significance
POIs of nationwide significance are airports, sights, national monuments, large ports etc. This way you can find well-known places of interest even if you don't know the name of their location. the
AVIGATION
window tap on New Destination > Search for
POI > Nationwide.
The POI
N
ATIONWIDE
window opens.
2. Select a category from which you would like to find a POI.
The Destination list opens. It contains the POI from the selected category, sorted alphabetically.
3. If the list is very long:
►
Tap on (Close List).
The keyboard appears.
Navigation - 37 -
User’s manual NAVIGON 70 Plus | 70 Premium | 70 Premium Live
►
Enter a number of letters from the destination.
►
Tap on (Open List).
The list now contains only those destinations which begin with or contain the letters entered.
4. Tap on the name of the destination.
The D
ETAILED INFORMATION ABOUT THE DESTINATION
window opens.
Indicated on the Activate MyRoutes button is whether several route suggestions are to be calculated (Yes) or not (No).
►
Tap on Activate MyRoutes in order to change the setting.
5. Tap on Start Navigation.
-or-
Tap on Parking in order to search for and navigate to a car park near your destination.
The map opens in Preview mode. The destination is indicated on the map.
For detailed information on how to start navigation, please refer to
chapter "Route preview" on page 44. Please read on there.
POI in a particular location
POIs in a particular location can be useful when navigating in an unfamiliar town. the
AVIGATION
window tap on New Destination > Search for
POI > in a City.
The POI
IN A
C
ITY
window opens.
2. Enter the name or the postal code of the destination town.
3. Select a category from which you would like to find a POI.
Categories in which no destinations are available in the selected town cannot be entered.
If sub-categories exist for the category you have selected, the Sub
Category list opens.
4. Select the sub-category from which you would like to select a POI.
The Destination list opens. It contains POI from the specified category, sorted alphabetically.
5. If the list is very long:
►
Tap on (Close List).
The keyboard appears.
►
Enter a number of letters from the destination.
- 38 - Navigation
User’s manual NAVIGON 70 Plus | 70 Premium | 70 Premium Live
►
Tap on (Open List).
The list now contains only those destinations which begin with or contain the letters entered.
6. Tap on the name of the destination.
The D
ETAILED INFORMATION ABOUT THE DESTINATION
window opens.
Indicated on the Activate MyRoutes button is whether several route suggestions are to be calculated (Yes) or not (No).
►
Tap on Activate MyRoutes in order to change the setting.
Sometimes the destination cannot be found exactly because, for example, several restaurants with the same name exist in the town in question.
In this case a window opens with all the destinations matching your entry plus additional information.
►
Tap on the destination to which you want to navigate.
7. Tap on Start Navigation.
-or-
Tap on Parking in order to search for and navigate to a car park near your destination.
The map opens in Preview mode. The destination is indicated on the map.
For detailed information on how to start navigation, please refer to
chapter "Route preview" on page 44. Please read on there.
Direct access to POI
The direct access area contains 3 categories of POI. Destinations in your vicinity that correspond to one of these categories can be viewed here quickly and without further entry.
►
In the N
AVIGATION
window tap on Options > Settings > General in order to select which categories or sub-categories are to be available for direct access.
Note: GPS reception must be good enough for determining your position. Check the (GPS Ready) symbol to see whether GPS reception is good enough.
If GPS reception is not good enough, the system will look for POIs near the last known position. If there is no last known position, the Direct
Access function will not be available.
For more details refer to the chapter "Initialising the GPS receiver" on page 30.
Navigation - 39 -
