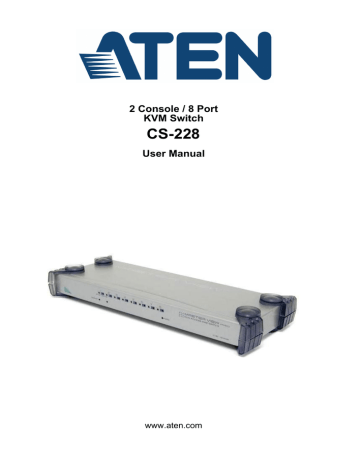

2 Console / 8 Port
KVM Switch
CS-228
User Manual www.aten.com
ii
CS-228 User Manual
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
CE Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
KCC Statement
유선 제품용 / A 급 기기 ( 업무용 방송 통신 기기 )
이 기기는 업무용 (A 급 ) 전자파적합기기로서 판매자 또는 사용자는 이
점을 주의하시기 바라며 , 가정 외의 지역에서 사용하는 것을 목적으로
합니다 .
RoHS
This product is RoHS compliant.
SJ/T 11364-2006
The following contains information that relates to China.
CS-228 User Manual iii
CS-228 User Manual
User Information
Online Registration
Be sure to register your product at our online support center:
International – http://support.aten.com
North America – http://www.aten-usa.com/product_registration
Telephone Support
International – 886-2-8692-6959
North America – 1-888-999-ATEN
User Notice
All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed `as is'.
Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS
CORRECT BEFORE USE.
iv
Package Contents
The basic CS-228 package consists of:
1 CS-228 KVM Switch with Stacking Pads
1 Power Adapter
1 Rack Mount Kit
1 User Manual*
CS-228 User Manual
Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it.
* Features may have been added to the CS-228 since this manual was printed.
Please visit our website to download the most up to date version of the manual.
© Copyright 2015 ATEN® International Co., Ltd.
Manual Part No. PAPE-0176-1PBG
Manual Date: 2015-04-01
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved.
All other brand names and trademarks are the registered property of their respective owners.
v
CS-228 User Manual
Contents
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Powering Off and Restarting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OSD Main Menu Headings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
vi
CS-228 User Manual
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Master View - Computer Connection Tables . . . . . . . . . . . . . . . . . . . . . . 30
OSD Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
vii
CS-228 User Manual
About this Manual
This User Manual is provided to help you get the most from your c/c system.
It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CS-228 system. Its purpose,
features and benefits are presented, and its front and back panel components are described.
Chapter 2, Hardware Setup, describes how to set up your installation. The
necessary steps – from a basic single stage hookup to a complete 32 switch cascaded operation are provided.
Chapter 3, Basic Operation, explains the fundamental concepts involved
in operating the CS-228.
Chapter 4, OSD Operation, provides a complete description of the
CS-228's OSD (On Screen Display), and how to work with it.
An Appendix, provides specifications and other technical information regarding the CS-228.
viii
CS-228 User Manual
Conventions
This manual uses the following conventions:
Monospaced
[ ]
1.
♦
→
Indicates text that you should key in.
Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them:
[Ctrl+Alt].
Numbered lists represent procedures with sequential steps.
Bullet lists provide information, but do not involve sequential steps.
Indicates selecting the option (on a menu or dialog box, for example), that comes next. For example, Start
→
Run means to open the Start menu, and then select Run.
Indicates critical information.
Product Information
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized
Reseller.Visit ATEN on the Web for a list of locations and telephone numbers
International – http://www.aten.com
North America – http://www.aten-usa.com ix
CS-228 User Manual
This Page Intentionally Left Blank x
Chapter 1
Introduction
Overview
The CS-228 KVM Switch is a control unit that allows two independent keyboard, mouse, and monitor Consoles to access eight computers, either independently or on a multiuser shared basis, in a convenient, cost effective manner. A Master View CS-228 unit can control up to 8 PCs. Since it can be cascaded one level down to a CS-138A, CS-9138, CS-128A, or CS-124A, up to 9 Master View units (the CS-228 plus eight cascaded ones), can control up to 64 computers from either Console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is entailed. There is no software to configure, so there is no need to get involved in complex software installation routines or be concerned with incompatibility problems. Because the CS-228 intercepts keyboard input directly, it works on any hardware platform and with all operating systems.
The CS-228 provides a convenient OSD (On Screen Display), function that allows either of the Consoles to access any computer connected to the system by means of an on screen, menu driven interface. In addition, a powerful Quick
View Scan feature allows you to auto scan and monitor the activities of all operating computers on the installation one by one.
For security, two level password protection (administrator and user), is provided in order to prevent unauthorized access to the computers. Responding to the growing use of audio input/output in the workstation space, the CS-228 has been designed with built in microphone and speaker support, as well.
There is no better way to save time and money than with a Master View
CS-228 installation. By allowing all the attached computers to be managed from two separate Consoles, a Master View CS-228 installation: (1) eliminates the expense of having to purchase a separate keyboard, monitor, and mouse for each computer; (2) saves all the space those extra components would take up;
(3) saves on energy costs; and (4) eliminates the inconvenience and wasted effort involved in constantly moving around from one computer to another, while allowing a single user to access the computers from several different convenient locations, or for two users to share them.
1
CS-228 User Manual
Features
2 Consoles Control 8 Computers
One or Two Users Can Operate Up To 64 Computers (via cascade to
CS-138A, CS-9138, CS-128A, or CS-124A) At The Same Time
Each Console Has Its Own Access Control
Port Selection via OSD (On Screen Display)
Auto Expansion of The OSD Port List For Cascaded Installations
OSD Automatically Adjusts to Resolution Changes
Hot Pluggable – Add or Remove any Computer without Powering Off the Switch
Auto Scan Function Provides Easy Monitoring of All Computers
Supports 1920 x 1440 Resolution; DDC2 (Display Data Channel 2)
PS/2 Compatible Mouse Support: Microsoft Intellimouse Pro, Logitech
FirstMouse, FirstMouse+, Support*
Audio (Microphone and Speaker) Support
Special Design For Easy Stacking
* PS/2 compatible mouse support is for three button (wheel) mice. The
Logitech Mouse Ware program's Change Device procedure does not work on Microsoft NT systems.
2
1. Introduction
Requirements
Console
A VGA, SVGA, or multisync monitor capable of the highest resolution that you will be using on any computer in the installation.
If a monitor switches to a computer using a resolution that is higher than the resolution that the monitor can support, serious damage to the monitor may result.
A PS/2 style mouse
A PS/2 style keyboard
Microphone and Speakers (Optional)
Computers
The following equipment must be installed on each computer:
A VGA, SVGA or multisync card.
Either a 6-pin mini-DIN (PS/2 style), or DB-9 (standard serial), mouse port.
Either a 6-pin mini-DIN (PS/2 style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT style) keyboard port with +5V
DC on pin 5 and ground on pin 4
3
CS-228 User Manual
Cables
Use of substandard cables may damage the connected devices or degrade overall performance. For optimum signal integrity and to simplify the layout, we strongly recommend that you use the following high quality Custom Cable sets:
Cable Type
PS/2 KVM
PS/2 KVM
PS/2 KVM
PS/2 KVM
Length
1.8m
3m
5m
10m
Part Number
2L-1701P
2L-1703P
2L-1705P
2L-1710P
Note: 1. If your computer uses a standard AT style keyboard socket you will need to purchase a PS/2-to-AT keyboard adapter in order to plug the cable into the computer’s keyboard port.
2. If your computer uses a standard 9 pin serial port for the mouse, you will need to purchase a PS/2-to-Serial mouse adapter in order to plug the cable into the computer’s serial port.
4
1. Introduction
Components
Front Panel
1
2 3
No.
1
2
3
Component
Port LEDs
K/M Reset
Switch
Power LED
Description
An On Line LED lights ORANGE to indicate that the computer attached to its corresponding port is up and running. If the LED is flashing, it indicates that the Port is being used for Cascading to another switch.
A Selected LED lights GREEN to indicate that the computer attached to its corresponding port is the one that has the KVM focus.
If the keyboard and mouse get stuck and need to be reset, press this semi-recessed switch in with a thin object, such as a paper clip or a ballpoint pen.
Lights BLUE to indicate that the CS-228 has been turned On and is receiving power.
5
CS-228 User Manual
Rear Panel
1
2 3 4 5
No.
1
2
3
4
5
Component
Power Switch
Power Jack
Console 2 KVM
Section
Console 1 KVM
Section
KVM Port
Section
Description
This is a standard rocker switch that powers the unit On and Off.
The power adapater cable plugs in here.
The microphone, speakers, monitor, keyboard and mouse that belong to Console 2 plug in here.
The microphone, speakers, monitor, keyboard and mouse that belong to Console 1 plug in here.
Use KVM Cable sets (see Either a 6-pin mini-DIN (PS/2 style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT style) keyboard port with +5V DC
on pin 5 and ground on pin 4, page 3), to connect
computers or cascade additional KVM switches (see Two
Stage Installation, page 11) to any available port.
6
Chapter 2
Hardware Setup
1. Important safety information regarding the placement of this
device is provided on page 25. Please review it before proceeding.
2. Make sure that power to all the devices you will be connecting up have been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.
Stacking and Mounting
The CS-228 can be placed on the desktop or it can be rack mounted, as described in the sections that follow.
Stacking
The unit comes with the stacking brackets already attached. Note that there is a top and bottom half to each bracket. The top half has a convex surface; the bottom half has a concave surface. Line up the four bottom brackets of the top unit with the four top brackets of the bottom unit; then fit the top unit down onto the bottom unit.
7
CS-228 User Manual
Rack Mounting
The CS-228 can be mounted in a 1U system rack. To rack mount the unit, do the following:
1. Remove the stacking brackets by unscrewing them from the unit, as shown in the diagram below:
2. Use the screws that came with the rack mount kit to screw the mounting brackets into the sides of the unit, as shown in the diagram below:
3. Slide the unit into the rack and secure it to the rack.
8
2. Hardware Setup
Single Station Installation
The most basic installation is a Single Stage installation, in which no additional
Master Views are cascaded down from the first unit. To set up a single stage installation, refer to the installation diagram on the following page as you perform these steps:
1. Plug the monitor, keyboard, and mouse cables for Consoles 1 and 2 into the port connectors located on the rear panel of the CS-228 unit. Each port is labeled with an icon to indicate itself.
2. Plug the microphone and speaker cables (if you are using them), for
Consoles 1 and 2 into the port connectors located on the rear panel of the
CS-228 unit. Each port is labeled with an icon to indicate itself.
3. Use PS/2 KVM cables (as described in the Cables section on page 4), to
connect the monitor, keyboard and mouse ports of the computers to any available CS-228 KVM Port.
4. Plug the power adapter into an AC source; plug the power adapter cable into the CS-228's Power Jack.
5. Turn on the power to the CS-228.
When you turn the unit On, it undergoes a Power On Self Test. If there is a problem, the On Line Port LEDs flash repeatedly according to a pattern that indicates what the problem is:
Pattern
On Line LEDs 1 - 8 Flash Simultaneously
On Line LEDs 1 - 8 Flash One After the Other
Indication
Internal RAM Memory Error
External RAM Memory Error
On Line LED pairs 1+2, 3+4, 5+6, and 7+8 Flash
One After the Other
ROM Test Error
If any of these problems occur, turn the Switch Off, then turn it on again.
(Continues on next page.)
9
CS-228 User Manual
(Continued from previous page.)
6. Plug in the power cords and power On all the computers.
Note: You must turn on the power to the CS-228 before turning on the power to the computers.
Single Stage Installation Diagram
10
2. Hardware Setup
Two Stage Installation
To control even more computers, up to eight additional switches can be cascaded from the KVM ports of the CS-228. The cascaded switches that connect back to the First Stage unit (the CS-228), are considered Second Stage units. As many as 64 computers can be controlled in a complete two stage installation. A table showing the relation between the number of computers and the number of switches needed to control them is provided in the Appendix.
Note: 1. Only Master View CS-138A, CS-9138, CS-128A, or CS-124A switches can be used with the CS-228;
2. The CS-228 does not support cascading beyond the second stage.
To set up a two stage installation, refer to the diagram on the next page and do the following:
1. Make sure that power to all the devices you will be connecting up has been turned off (unplug the power cords of any computers that have the
Keyboard Power On function).
2. Follow steps 1 and 2 under Single Stage Installation (see page 9).
3. Use a PS/2 KVM cable (described in the Cables section, page 4) to
connect any available KVM port on the CS-228 to the console port on the
Second Stage unit.
Repeat steps 1 - 3 for any other Second Stage units you wish to connect.
4. Use PS/2 KVM cables (described in the Cables section, page 4) to connect
any available KVM port(s) on the Second Stage unit(s) to the monitor, keyboard and mouse ports of the computer(s) you are installing.
5. Plug in the power adapter cables for all switches on the installation.
6. Power on the First Stage CS-228.
7. Power on all Second Stage units
8. Plug in the power cords and power On all the computers.
Note: You must follow the sequence in steps 5 - 8 when powering up.
11
CS-228 User Manual
Two Stage Installation Diagram
8 7 6 5 4 3 2 1
12
Chapter 3
Basic Operation
Hot Plugging
The CS-228 supports hot plugging – components can be removed and added back into the installation by unplugging their cables from the KVM ports without the need to shut the unit down. In order for hot plugging to work properly, however, these procedures must be followed:
1. When hot plugging cables from the KVM ports the cable must be plugged back into the same port it was removed from.
2. You may unplug the mouse and plug it back in again (to reset the mouse, for example), as long as you use the same mouse.
3. If there is no response to mouse and/or keyboard after you plug the mouse back in, perform a K/M Reset by inserting a thin pointed object into the
Reset receptacle on the unit's front panel and gently pushing.
Powering Off and Restarting
If it becomes necessary to Power Off the CS-228, before starting it back up you must do the following:
1. Shut down all the computers that are attached to the CS-228, as well as all the Second Stage switches that are cascaded down from it and all the computers that are connected to the stations that you shut down.
Note: You must unplug the power cords of any computers that have the
Keyboard Power On function that are connected to the shut down switches. Otherwise, the switches will still receive power from the computers.
2. Wait 10 seconds, then restart the CS-228.
Note: When the CS-228 comes up it issues a long beep, and the Consoles are automatically logged out. Each Console logout produces a short beep – so you will hear one long and two short beeps.
3. Restart the Second Stage switches.
4. After all the switches are up, power On the computers.
13
CS-228 User Manual
Port Selection
Instant access to any computer on the installation is provided by the menu driven On Screen Display (OSD) function. OSD operation is discussed in the next chapter.
14
Chapter 4
OSD Operation
OSD Overview
The On Screen Display (OSD), provides a menu driven interface to handle the computer switching procedure. All operations start from the OSD Main Menu.
To activate the Main Menu, tap either [Ctrl] key twice.
Note: 1. You must tap the same key twice (both left, or both right).
2. If using the [Ctrl] key conflicts with applications running on the computers, you can optionally change the hotkey to the Scroll Lock key (see OSD Activating Hotkey under the F6 Set function on
page 22), in which case you would press [Scroll Lock] twice.
When you invoke the OSD, a screen similar to the one below appears:
1-5
1-6
1-7
1-8
2-1
2-2
2-3
2-4
Note: 1. The diagram depicts the Administrator's Main Screen. The User Main
Screen does not show the F2 and F5 function, since they are reserved for the Administrator and can't be accessed by ordinary Users.
2. The OSD always starts in List view, with the highlight bar at the same position it was in the last time it was closed.
15
CS-228 User Manual
OSD Main Menu Headings
PN
+
Heading
QV
PC
NAME
Explanation
This column lists the Port Numbers for all the KVM Ports. The simplest method to access a particular computer (assuming you know which port it is attached to), is to Double Click it with the Mouse; or to use the
Navigation Keys to move the Highlight Bar to it, then press [Enter] .
Indicates ports that this Console can access.
An arrowhead symbol in this column indicates the Port has been
selected for Quick View Scan Mode (see F7: QV, page 24).
A sun symbol in this column indicates that the computer connected to this Port is powered On, and is On Line.
If a port has been given a name (see F2: EDIT, page 18), its name
appears in this column.
Port Numbering
Each computer on the installation is assigned a unique Port Number (PN). The
PN is a one or two segment number that is determined by the Stage Level and
KVM port of the KVM switch that the computer is connected to. The first segment represents the KVM Port number of the First Stage unit (the CS-228); the second segment represents the KVM Port number of the Second Stage unit.
Note: The KVM port numbers are clearly indicated on the back panels of the switches.
For example, a computer connected to KVM port 7 of a First Stage CS-228, would have a PN of 7.
A computer connected to a Second Stage cascaded Master View has a two digit
PN:
The first digit represents the KVM Port of the First Stage Master View (the
CS-228) that the Second Stage Master View is cascaded down from.
The second digit represents the KVM Port of the Second Stage unit that the computer is connected to.
For example, a computer with a PN of 2-3 would be connected to KVM Port 3 of a Second Stage unit cascaded down from KVM Port 2 of the CS-228.
16
4. OSD Operation
OSD Navigation
To dismiss the menu, and deactivate the OSD, Click the X at the upper right corner of the OSD Window; or press [Esc].
To move up or down through the list one line at a time, Click the Up and
Down Triangle symbols (ST) or use the Up and Down Arrow Keys. If there are more list entries than there is room for on the Main Screen, the screen will scroll.
To move up or down through the list one screen at a time, Click the Up and
Down Arrow symbols (ÏÐ), or use the [Pg Up] and [Pg Dn] keys. If there are more list entries than there is room for on the Main Screen, the screen will scroll.
To bring the KVM focus to a port, double-click it, or move the Highlight
Bar to it then press [Enter].
Note: 1. If you try to access a computer that has been designated as private
(see PRIVATE MODE, page 23), a message appears to inform
you that the Port is in Private Mode. In this case, the screen is blank, and the port can neither be viewed, nor accessed.
2. If you try to access a computer that is already being accessed by another Console, a message displays to inform you that the Port
is In Use. The target computer's screen can be viewed, but you cannot give it any input until the Console that already has control stops accessing it.
3. In a cascaded installation, if a computer attached to a Second
Stage swtich is already being accessed by the other Console, that computer and all the other computers attached to the same Second
Stage unit are considered to be in use. None of them can be viewed or accessed from your Console. This is so, because accessing any one computer attached to a Second Stage unit ties up the entire CS-228 Port that the unit is cascaded down from.
Only after the original Console no longer has access can these computers be controlled from the other Console.
After executing any action, you automatically go back to the menu one level above.
17
CS-228 User Manual
OSD Functions
OSD functions are used to configure and control the OSD. For example, you can: rapidly switch to any port; scan selected ports only; limit the list you wish to view; designate a port for Quick View scanning; create or edit a port name; or make OSD setting adjustments.
To access an OSD function:
1. Either Click a Function Key field on the screen, or press a Function Key on the keyboard.
2. In the Submenus that appear make your choice either by Double Clicking it, or moving the Highlight Bar to it.
3. Press [Esc] to activate your choice and return to the previous menu level.
F1: HELP
Help provides a quick guide to OSD operation. To return to the OSD Main
Menu, Click the X at the upper right corner of the OSD Window; or press [Esc].
F2: EDIT
This is an Administrator function. To help remember which computer is attached to a particular port, every port can be given a name. The Edit function allows the Administrator to create, modify, or delete port names. To Edit a port name:
1. Click the port you want, or use the Navigation Keys to move the highlight bar to it.
2. Click the F2 field, or Press [F2].
3. Key in the new Port Name, or modify/delete the old one.
The maximum number of characters allowed for the Port Name is 15.
Legal characters include:
All alpha characters: a - z; A - Z
All numeric characters: 0 - 9
+, –, /, ., and [Space]
Case does not matter; OSD displays the Port Name in all capitals no matter how they were keyed in.
4. When you have finished editing, press [Enter] to have the change take effect. To abort the change, press [Esc].
18
4. OSD Operation
F3: LIST
This function lets you broaden or narrow the scope of which ports the OSD lists. This will be different for each Console, depending on the choices made for that Console. The choices and their meanings are given in the table, below:
Choice
ALL
QVIEW
POWERED ON
POWERED ON +
QVIEW
QVIEW + NAME
NAME
Meaning
Lists the Port Numbers and Names (if names have been
specified - see F2: EDIT, page 18), of all the ports on the
installation.
Lists only the ports that have been selected for Quick View
scanning (see F7: QV, page 24).
Lists only the ports that have their attached computers
Powered On.
Lists only the ports that have been selected for Quick View
scanning (see F4: SCAN, page 20), and that have their
attached computers Powered On.
Lists only the ports that have been selected for Quick View
scanning (see F7: QV, page 24), and have been assigned
names (see F2: EDIT, page 18).
Lists only the ports that have been assigned names (see F2:
Double-click the choice you want, or move the Highlight Bar to it then press
[Enter]. An icon appears before the choice to indicate that it is the currently selected one.
Note: 1. You can access any port on any list by double-clicking it, or using the navigation keys then pressing [Enter].
2. If you select a port that does not have a computer attached to it, or if the attached computer is powered Off, the OSD will still switch to it, and will not show an error. To recover, press the OSD Activation
Hotkey (see OSD Overview, page 15).
19
CS-228 User Manual
F4: SCAN
Clicking the F4 field, or pressing [F4] initiates Scan Mode, in which the OSD cycles through all the ports that have been selected for scanning with the Scan
Mode setting (see SCAN MODE, page 23). When you want to stop at a particular location, press the [Spacebar] to stop scanning.
If the scanning stops on an empty port, or one where the computer is attached but is powered Off, the monitor screen will be blank and the mouse and keyboard will have no effect. To recover, To recover, press the
OSD Activation Hotkey.
As the OSD cycles through the selected ports, an S appears in front of each accessed computer's Port ID display to indicate that the computer is being accessed under Quick View Scanning.
If a particular port is being accessed by another Console, an R appears in front of the Port ID display to indicate that the Port is "View Only." It can be viewed, but cannot be accessed at this time.
If a particular port has been designated as private (see F6, below), a P appears in front of the Port ID display to indicate that the Port is in
"Private Mode." The screen is blank, and the port can neither be viewed, nor accessed.
If a particular port was accessed by one of the Consoles, but is no longer being accessed, the OSD begins a Timeout countdown (see Set Access
Timeout and Set Logout Timeout in the table, below), a Z appears in front of the Port ID display to indicate that the Port is Pending (i.e., the original
Console that accessed it has first priority to reclaim it, but when the
Timeout period ends, it is up for grabs to the first comer).
20
4. OSD Operation
F5: ADM
F5 allows an Administrator to configure the OSD operation of the Console. To change a setting double-click it; or use the up and down arrow keys to move the highlight bar to it then press [Enter].
After you select an item, a submenu with further choices for you to select from appears. Double-click the choice you want, or move the highlight bar to then press [Enter]. An icon appears before the selected choice so that you know which one it is. The settings are explained in the following table:
Setting
SET ACCESS
TIMEOUT
Function
This function is used to set the timeout value to control the release of access rights to a computer. If the original Console doesn?t access the computer before the timeout value is reached, the computer becomes available to the other
Console. To set the timeout value, key in a number from 1 -
255 seconds, and then press [Enter]. If the number is 0, this function is disabled. The default is 2 seconds.
This function clears the port name list.
CLEAR THE NAME
LIST
RESTORE DEFAULT
VALUES
RELEASE ALL
PRIVATE
This function is used to undo all Administrator changes and return the setup to the original factory default settings except for the Names that were assigned to Ports, which are saved.
Releases all Ports that have been set to Private Mode (see
PRIVATE MODE, page 23), so that they become accessible
to all Consoles.
21
CS-228 User Manual
F6: Set
[F6] allows you to configure the OSD settings for the Console you are working at. To change a setting:
1. Double-click it; or move the highlight bar to it, then press [Enter]
2. Press [Esc] to activate it.
After you select an item, a submenu with further choices appears. To make a selection, either double-click it; or move the highlight bar to it, then press
[Enter]. An icon appears before the selected choice to indicate which one it is.
The settings are explained in the table below:
Setting
OSD ACTIVATING
HOTKEY
CHANNEL DISPLAY
MODE
CHANNEL DISPLAY
DURATION
CHANNEL DISPLAY
POSITION
Function
Selects which Hotkey activates the OSD function: [Ctrl] [Ctrl]
(the default) or [Scroll Lock] [Scroll Lock]. The Scroll Lock option is provided in case the Ctrl key combination conflicts with programs running on the computers.
Selects how the Port ID is displayed: the Port Number plus the Name (PN + NAME); the Port Number alone (PN); or the
Name alone (NAME).
Determines how long a Port ID displays for after a port change has taken place. The choices are: User Defined - which lets you select the amount of time that the Port ID displays for after a port change has taken place (from 1–255 sec.); and Display Always On - which displays the Port ID at all times. If you select User Defined, key in the number of seconds, then press [Enter]. The default is 3 Seconds.
Allows you to position where the Port ID appears on the screen.
Highlight this item, then press [Enter]; use the Mouse or the
Arrow Keys to position the Port ID display, then Double Click or press [Enter] to lock the position and return to the Set submenu.
(Continues on next page.)
22
4. OSD Operation
(Continued from previous page.)
Setting
SCAN MODE
SCAN DURATION
PRIVATE MODE
RESTORE DEFAULT
VALUES
MOUSE BUTTON
SETUP
Function
Selects which Ports are available for scanning. There are six choices:
ALL - All the Ports which have been set Accessible (F5)
QVIEW - Only those Ports which have been set Accessible
(F5) and have been selected for Quick View Scanning (F7)
POWERED ON - Only those Ports which have been set
Accessible (F5) and are Powered On
POWERED ON + QVIEW - Only those Ports which have been set Accessible (F5) and have been selected for Quick
View Scanning (F7) and are Powered On
QVIEW + NAME - Only those Ports which have been set
Accessible (F5) and have been selected for Quick View
Scanning (F7) and have been named (F2)
NAME - Only those Ports which have been set Accessible
(F5) and have been named (F2).
Determines how long the display dwells on each port when it cycles through the selected ports in Quick View Scan Mode.
Key in a value from 1–255 seconds, then press [Enter].
Default is 3 seconds.
The [Enter] key is a toggle that enables/disables Private
Mode for the currently selected port. When Private Mode is enabled, the other Console cannot access the port, and its monitor shows a blank screen with a P symbol displayed in front of the Port ID to indicate Private Mode. When you have finished making your selections, press [Esc] to return to the
OSD Main Menu.
This function is used to undo all User changes and return the setup to the original factory default settings except for the
Names that were assigned to Ports, which are retained.
This function allows you to set the mouse for right or left handed operation. Use [Enter] to toggle between the two.
23
CS-228 User Manual
F7: QV
You can broaden or narrow the number of ports that get automatically scanned by selecting only the ones you want with the QV (Quick View Scan) function.
[F7] is a toggle that selects or deselects the currently highlighted port for the
Quick View Scanning function (see F4, above). To select/deselect a port for
Quick View Scanning:
1. Double-click the port you want, or use the navigation keys to move the highlight bar to it.
2. Press [F7].
When a port has been selected for Quick View Scanning, an arrowhead displays in the QV column to indicate so. When a port is deselected, the arrowhead disappears.
24
Appendix
Safety Instructions
General
Read all of these instructions. Save them for future reference.
Follow all warnings and instructions marked on the device.
Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
Do not use the device near water.
Do not place the device near, or over, radiators or heat registers.
The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered.
The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings. Likewise, the device should not be placed in a built in enclosure unless adequate ventilation has been provided.
Never spill liquid of any kind on the device.
Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
The device should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
The device is equipped with a 3-wire grounding type plug. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not attempt to defeat the purpose of the grounding-type plug. Always follow your local/national wiring codes.
Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over.
If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
25
CS-228 User Manual
To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS).
Position system cables and power cables carefully; Be sure that nothing rests on any cables.
When connecting or disconnecting power to hot-pluggable power supplies, observe the following guidelines:
Install the power supply before connecting the power cable to the power supply.
Unplug the power cable before removing the power supply.
If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power supplies.
Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock.
Do not attempt to service the device yourself. Refer all servicing to qualified service personnel.
If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair.
The power cord or plug has become damaged or frayed.
Liquid has been spilled into the device.
The device has been exposed to rain or water.
The device has been dropped, or the cabinet has been damaged.
The device exhibits a distinct change in performance, indicating a need for service.
The device does not operate normally when the operating instructions are followed.
Only adjust those controls that are covered in the operating instructions.
Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.
26
Appendix
Rack Mounting
Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
Always load the rack from the bottom up, and load the heaviest item in the rack first.
Make sure that the rack is level and stable before extending a device from the rack.
Use caution when pressing the device rail release latches and sliding a device into or out of a rack; the slide rails can pinch your fingers.
After a device is inserted into the rack, carefully extend the rail into a locking position, and then slide the device into the rack.
Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not exceed 80 percent of the branch circuit rating.
Ensure that proper airflow is provided to devices in the rack.
Do not step on or stand on any device when servicing other devices in a rack.
27
CS-228 User Manual
Technical Support
International
Email Support
Online Support
Technical Support
Troubleshooting
Documentation
Software Updates
Telephone Support
Email your questions and concerns to: [email protected]
1. Online technical support is available to ALTUSEN customers through our e-Support Center: http://support.aten.com
2. Online troubleshooting that describes the most commonly encountered problems and offers possible solutions to them; online documentation (including electronically available manuals); and the latest drivers and firmware for your product are available at our website: http://www.aten.com
886-2-8692-6959
North America
Email Support
Online Support
Technical Support
Troubleshooting
Documentation
Software Updates
Email your questions and concerns to: [email protected]
1. Online technical support is available to ALTUSEN customers through our e-Support Center: http://www.aten-usa.com/support
2. Online troubleshooting that describes the most commonly encountered problems and offers possible solutions to them; online documentation (including electronically available manuals); and the latest drivers and firmware for your product are available at our website: http://www.aten-usa.com
1-888-999-ATEN Telephone Support
When you contact us, please have the following information ready beforehand:
Product model number, serial number, and date of purchase.
Your computer configuration, including operating system, revision level, expansion cards, and software.
Any error messages displayed at the time the error occurred.
The sequence of operations that led up to the error.
Any other information you feel may be of help.
28
Appendix
Specifications
Computer
Connections
Function
Direct
Max
Port Selection
Connectors External
Console Ports
Switches
LEDs
Emulation
KVM Ports
Power
Reset
On Line
Selected
Power
Keyboard
Mouse
Video
Power Consumption
Environment Operating Temp.
Keyboard
Video
Mouse
Speaker
Microphone
Storage Temp.
Physical
Properties
Humidity
Housing
Weight
Dimensions (L x W x H)
Specification
8
64 (via Cascade)
OSD (On Screen Display)
2 x 6-pin Mini DIN Female (Purple)
2 x HDB-15 Female
2 x 6-pin Mini DIN Female (Green)
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink)
8 x 25-pin D Type Female
1 x DC Jack
1 x Semi-recessed Pushbutton
8 (Orange)
8 (Green)
1 (Blue)
PS/2 and PC/AT
PS/2 and Serial
1920 x 1440; DDC2
DC 9V; 7.2W (max.)
5 - 40 o
C
-20 - 60 o C
0 - 80% RH, Noncondensing
Metal
2.7 kg
45.00 x 17.00 x 6.70 cm (19" / 1U)
29
CS-228 User Manual
Master View - Computer Connection Tables
Switches
1
2
5
6
3
4
7
8
9
Type
CS-228
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
CS-128A / CS-138A / CS-9138
Computers
1 - 8
8 - 15
15 - 22
22 - 29
29 - 36
36 - 43
43 - 50
50 - 57
57 - 64
Switches
1
2
3
6
7
4
5
8
9
Type
CS-228
CS-124A
CS-124A
CS-124A
CS-124A
CS-124A
CS-124A
CS-124A
CS-124A
Computers
1 - 8
8 - 11
11- 14
14 - 17
17 - 20
20 - 23
23 - 26
26 - 29
29 - 32
30
OSD Factory Default Settings
Setting
MULTIUSER MODE
ACCESS TIMEOUT
OSD HOTKEY
DISPLAY MODE
Enabled
2 Seconds
[Ctrl] [Ctrl]
Default
The Port Number plus the Port Name
DISPLAY DURATION 3 Seconds
SCAN DURATION 3 Seconds
Appendix
31
CS-228 User Manual
Troubleshooting
Symptom
Keyboard and/or
Mouse not responding.
Possible Cause Action
The connection from the selected port to the target computer has been broken, or the computer is turned OFF.
Check the Online LED for the selected port. If it is not lit:
1. Check to see that the computer is powered On.
2. Check the cables to make sure they are all properly connected.
Keyboard/Mouse need to be reset.
1. Unplug the keyboard and/or Mouse connector from the Console Keyboard and/or Mouse
Ports, then plug it/them back in.
2. Use a thin object (such as the end of a paper clip, or a ballpoint pen), to press the K/M Reset
Switch (located on the front panel), in.
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID
FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK,
OR ITS DOCUMENTATION.
The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or update. For further inquiries, please contact your direct vendor.
32
C
Components
F
H
I
Installation
L
M
O
Online
OSD
Index
P
Powering Off and Restarting, 13
R
Requirements
S
Safety Instructions
System Requirements
T
U
33
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 2 PS/2 console control 8 computers.
- Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time.
- Each console has its own access control
- Two-level (Administrator/User) password authorization for enhanced security protection.
- Administrator can access any computer completely independently of the other users.
- Each user has his own access control list
- Computer selection via On Screen Display (OSD)
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- OSD automatically adjusts to resolution changes.
- Auto Scan function to monitor computer operation.
Related manuals
advertisement
