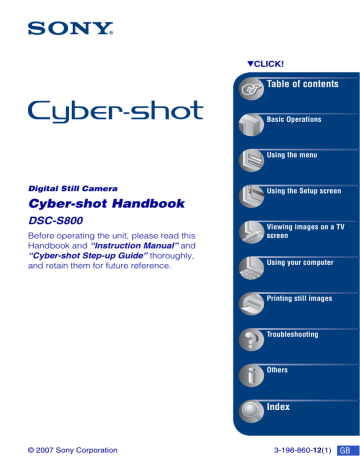

Digital Still Camera
Cyber-shot Handbook
DSC-S800
Before operating the unit, please read this
Handbook and “Instruction Manual” and
“Cyber-shot Step-up Guide” thoroughly, and retain them for future reference.
© 2007 Sony Corporation
VCLICK!
Table of contents
Basic Operations
Using the menu
Using the Setup screen
Viewing images on a TV screen
Using your computer
Printing still images
Troubleshooting
Others
Index
3-198-860-12(1)
GB
Notes on using your camera
Types of “Memory Stick” that can be used (not supplied)
The IC recording medium used by this camera is a “Memory Stick Duo”. There are two types of “Memory Stick”.
“Memory Stick Duo”: you can use a
“Memory Stick Duo” with your camera.
Notes on the LCD screen and lens
• The LCD screen is manufactured using extremely high-precision technology so over
99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue or green in color) that constantly appear on the LCD screen. These points are normal in the manufacturing process and do not affect the recording in any way.
“Memory Stick”: you cannot use a
“Memory Stick” with your camera.
Other memory cards cannot be used.
• For details on “Memory Stick Duo”, see
When using a “Memory Stick Duo” with
“Memory Stick” compatible equipment
You can use the “Memory Stick Duo” by inserting it into the Memory Stick Duo
Adaptor (not supplied).
2
Memory Stick Duo Adaptor
Notes on the Nickel-Metal Hydride battery
• Charge both of the Ni-MH batteries (supplied) before using the camera for the first time.
• The batteries can be charged even if they are not completely discharged. Also, even if batteries are not fully charged, you can use the partially charged capacity of the batteries as is.
• If you do not intend to use the batteries for a long time, use up the existing charge and remove them from your camera, then store them in a cool, dry place. This is to maintain the
batteries’ functions (page 100).
• For details on the usable batteries, see page 100.
Black, white, red, blue or green points
• Exposing the LCD screen or the lens to direct sunlight for long periods may cause malfunctions. Be careful when placing the camera near a window or outdoors.
• Do not press against the LCD screen. The screen may be discolored and that may cause a malfunction.
• Images may trail across on the LCD screen in a cold location. This is not a malfunction.
• This camera is equipped with a power zoom lens. Be careful not to bump the lens, and be careful not to apply force to it.
The pictures used in this Handbook
The photographs used as examples of pictures in this Handbook are reproduced images, and are not actual images shot using this camera.
Table of contents
Notes on using your camera .....................................................................2
Basic techniques for better images ...........................................................6
Focus – Focusing on a subject successfully..................................................... 6
Quality – On “image quality” and “image size” ................................................. 9
Changing the screen display ...................................................................16
Using the internal memory ......................................................................17
Basic Operations
Shooting images easily (Auto adjustment mode) ....................................19
Shooting still images (Scene selection)...................................................25
Viewing/deleting images..........................................................................28
Using the menu
Using menu items
..............................................................................30
Menu items
..........................................................................................31
COLOR (Color Mode): Changing the vividness of the image or adding special effects
(Metering Mode): Selecting the metering mode
WB (White Bal): Adjusting the color tones
ISO: Selecting a luminous sensitivity
(P.Quality): Selecting the still image quality
Mode (REC Mode): Selecting the continuous shooting method
(Flash Level): Adjusting the amount of flash light
(Sharpness): Adjusting the sharpness of the image
3
4
Table of contents
(Folder): Selecting the folder for viewing images
(Protect): Preventing accidental erasure
DPOF: Adding a Print order mark
(Print): Printing images using a printer
(Slide): Playing back a series of images
(Resize): Changing the image size of a recorded image
(Rotate): Rotating a still image
Trimming: Recording an enlarged image
Using the Setup screen
Using Setup items
.............................................................................. 46
Internal Memory Tool......................................................................... 50
Memory Stick Tool............................................................................. 51
1
2
Viewing images on a TV screen
Viewing images on a TV screen ............................................................. 57
Table of contents
Using your computer
Enjoying your Windows computer ...........................................................59
Installing the software (supplied).............................................................61
Copying images to your computer...........................................................62
Viewing image files stored on a computer with your camera (using a
Using the “Picture Motion Browser” (supplied) ........................................70
Using your Macintosh computer ..............................................................76
Printing still images
Printing images directly using a PictBridge compliant printer .................79
Troubleshooting
Warning messages..................................................................................95
Others
To use your camera abroad — Power sources........................................97
On the “Memory Stick” ............................................................................98
On the battery charger ..........................................................................102
Index
5
6
Basic techniques for better images
Focus Exposure Color Quality
This section describes the basics so you can enjoy your camera. It tells you how to use various camera functions such as the mode
dial (page 18), the menus (page 30), and so
on.
Focus Focusing on a subject successfully
When you press the shutter button halfway down, the camera adjusts the focus automatically
(Auto Focus). Remember to press the shutter button only halfway down.
Press the shutter button fully down suddenly.
Press the shutter button halfway down.
AE/AF lock indicator flashing , lit/beeps
Then press the shutter button fully down.
If the image looks blurred even after focusing, it may be because of camera shake. t
See
“Hints for preventing blur” (as follows).
Hints for preventing blur
Hold the camera steady, keeping your arms at your side. It is recommended to lean against a tree or a building nearby to steady yourself. Shooting with a 2-second delay self-timer or using a tripod is also effective. Use the flash when you shoot under a low light condition.
Basic techniques for better images
Exposure
Adjusting the light intensity
You can create various images by adjusting the exposure and the ISO sensitivity. Exposure is the amount of light that the camera will receive when you release the shutter.
Exposure:
Shutter speed = Length of time the camera receives light
Aperture = Size of the opening allowing light to pass through
ISO sensitivity (Recommended Exposure
Index) = Recording sensitivity
Overexposure
= too much light
Whitish image
Correct exposure
Underexposure
= too little light
Darker image
The exposure is automatically set to the proper value in the auto adjustment mode.
However, you can adjust it manually using the functions below.
Adjusting EV:
Allows you to adjust the exposure
determined by the camera (page 23).
Metering Mode:
Allows you to change the part of the subject to be measured to determine the
Adjusting the ISO sensitivity (Recommended Exposure Index)
ISO sensitivity is measurement, estimating how much light an image pickup device receives.
Even when the exposure is the same, images differ depending on the ISO sensitivity.
To adjust the ISO sensitivity, see page 35.
High ISO sensitivity
Records a bright image even when shooting in a dark location.
However, the image tends to become noisy.
Low ISO sensitivity
Records a smoother image.
However, when the exposure is insufficient, the image may become darker.
7
8
Basic techniques for better images
Color
On the effects of lighting
The apparent color of the subject is affected by the lighting conditions.
Example: The color of an image affected by light sources
Weather/lighting
Characteristics of light
Daylight
White (standard)
Cloudy
Bluish
Fluorescent
Greenish
Incandescent
Reddish
The color tones are adjusted automatically in the auto adjustment mode.
However, you can adjust color tones manually with [White Bal] (page 34).
Basic techniques for better images
Quality
On “image quality” and “image size”
A digital image is made up of a collection of small dots called pixels.
If it contains a large number of pixels, the picture becomes large, it takes up more memory, and the image is displayed in fine detail. “Image size” is shown by the number of pixels.
Although you cannot see the differences on the screen of the camera, the fine detail and data processing time differ when the image is printed or displayed on a computer screen.
Description of the pixels and the image size
3264
1 Image size: 8M
3264 pixels × 2448 pixels = 7,990,272 pixels
640
2
Image size: VGA(E-Mail)
640 pixels × 480 pixels = 307,200 pixels
Pixels
Selecting the image size for use (page 24)
Pixel
Many pixels (Fine image quality and large file size)
Example: Printing in up to A3 size
Few pixels (Rough image quality but small file size)
Example: An attached image to be sent by email
Selecting the image quality (compression ratio) in combination (page 36)
You can select the compression ratio when digital images are saved. When you select a high compression ratio, the image lacks the fineness of detail, but has a smaller file size.
9
10
Identifying parts
See the pages in parentheses for details of operation.
1
2
3
5
6
7
8
4
C Microphone
D Lens
E POWER button
F POWER lamp
H Self-timer lamp (22)/AF illuminator
1
2
3
4
5 qa qs qf qd
A
• Press MENU longer to display the
(Setup) screen.
• Press DISP longer to select the brightness of the LCD backlight.
E Access lamp
F For shooting: Zoom (W/T) button
For viewing: / (Playback zoom) button/
G
(USB) · A/V OUT terminal (side)
H Hook for wrist strap
I Control button
Menu off: / / /
J
(Image Size/Delete) button
K Speaker
6
7
8
9
0
Identifying parts
L Tripod receptacle (bottom)
• Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to firmly secure the camera to tripods having screws longer than 5.5 mm (7/32 inch), and may damage the camera.
M Battery/“Memory Stick Duo” cover
N AC adaptor cord cover
When using an AC-LS5K AC Adaptor
(not supplied)
1
2
3
5
4
• Do not pinch the cord when you close the cover.
• You cannot charge the Nickel-Metal
Hydride batteries by the AC-LS5K AC
Adaptor. Use the battery charger to charge the Nickel-Metal Hydride batteries.
11
12
Indicators on the screen
See the pages in parentheses for details of operation.
When shooting still images
When shooting movies
A
Display z
WB
Indication
Battery remaining
STBY
REC
Standby/Recording a movie
SL
Mode dial (Scene
Mode dial (Program Auto)
Camera mode
Flash charging
1.3
ON
RICH
NATURAL
SEPIA B&W
B
Display
Image Brightness(EV) EV
V Darker v Brighter
Indication
Exposure value scale bar
• The display is changed, depending on the position of the mode dial (shown left).
Indicators on the screen
C
Display
8M
3M
3:2
2M
16:9
FINE STD
5M
VGA
101
00:00:00
[00:28:25]
400
Indication
• This does not appear when using internal memory.
Remaining internal memory capacity
Remaining “Memory
Stick” capacity
Recording time [maximum recordable time]
Remaining number of recordable images
D
Display
E
+
Indication
Vibration warning
• Indicates vibration may prevent you from shooting clear images due to insufficient lighting. Even if the vibration warning appears, you can still shoot images. However, we recommend that you use the flash for better lighting or using a tripod or other means to stabilize the
Spot metering cross hair
AF range finder frame
E
Display
125
F2.8
+2.0EV
(not displayed on the screen on the previous page)
Indication
Shutter speed
Aperture value
13
14
Indicators on the screen
When playing back still images
When playing back movies
A
Display
8M
3M
16:9
3:2
2M
5M
VGA
Indication
Battery remaining
-
N
1.3
Playback mode
Print order (DPOF) mark
• This does not appear when using internal memory.
B
Display
101-0012
Indication
Playback bar
Indicators on the screen
C
Display
101
101
8/8 12/12
00:00:12
D
Display
Indication
• This does not appear when using internal memory.
• This does not appear when using internal memory.
Remaining internal memory capacity
Remaining “Memory
Stick” capacity
Image number/Number of images recorded in selected folder
Counter
+2.0EV
WB
500
F2.8
Indication
• Do not disconnect the dedicated USB cable while the icon is displayed.
Flash
Shutter speed
Aperture value
E
Display
2007 1 1
9:30 AM
Indication
Recorded date/time of the playback image
DPOF
BACK/
NEXT
Select images
VOLUME Adjust volume
15
16
Changing the screen display
• By pressing DISP button longer, you can increase the LCD backlight.
DISP (Screen display switch) button
Each time you press the DISP button, the display changes as follows.
Indicators off
Indicators on
Using the internal memory
The camera has approximately 54 MB of internal memory. This memory is not removable.
Even when there is no “Memory Stick Duo” inserted in the camera, you can record images using this internal memory.
When a “Memory Stick Duo” is inserted
B
[Recording]: Images are recorded on the “Memory Stick
Duo”.
[Playback]: Images on the “Memory Stick Duo” are played back.
[Menu, Setup, etc.]: Various functions can be performed on images on the “Memory Stick Duo”.
B
Internal memory
When there is no “Memory Stick Duo” inserted
[Recording]: Images are recorded using the internal memory.
[Playback]: Images stored in the internal memory are played back.
[Menu, Setup, etc.]: Various functions can be performed on images in the internal memory.
On image data stored in the internal memory
We recommend that you copy (back up) data without error using one of the following methods.
To copy (back up) data on a “Memory Stick Duo”
Prepare a “Memory Stick Duo” with a capacity of 64 MB or more, then perform the procedure
explained in [Copy] (page 53).
To copy (back up) data on a hard disk of your computer
Perform the procedure on pages 62 to 65 without a “Memory Stick Duo” inserted in the
camera.
• You cannot copy image data on a “Memory Stick Duo” to the internal memory.
• By connecting the camera and a computer with a dedicated USB cable, you can copy data stored in the internal memory to a computer. However you cannot copy data on a computer to the internal memory.
17
18
Basic Operations
Using the mode dial
Set the mode dial to the desired function.
Mode dial
Guide Mark
Set to the desired mode.
Control button
: Shooting movies t page 19
Still image shooting modes
:
: Auto Adjustment mode
Allows easy shooting with the settings adjusted automatically. t
Program Auto mode
Allows you to shoot with the exposure adjusted automatically (both the shutter speed and the aperture value). Also you can select various settings using the menu.
(For details on the functions available t
Allows you to shoot with preset settings according to the scene. t
On Function Guide
When you press the control button, the descriptions of functions are temporarily displayed
Shooting images easily (Auto adjustment mode)
v/V/b/B button
Shutter button
Mode dial z button
Control button
(Image
Size) button
Zoom button
1
Select a mode with the mode dial.
Still image (auto adjustment mode): Select .
Movie: Select .
2
Hold the camera steady, keeping your arms at your side.
Position the subject in the center of the focus frame.
3
Shoot with the shutter button.
Still image:
1 Press and hold the shutter button halfway down to focus.
The z (AE/AF lock) indicator (green) flashes, a beep sounds, the indicator stops flashing and remains lit.
2
Press the shutter button fully down.
The shutter sounds.
AE/AF lock indicator
19
20
Shooting images easily (Auto adjustment mode)
Movie:
Press the shutter button fully down.
To stop recording, press the shutter button fully down again.
If you shoot a still image of a subject that is difficult to focus on
• The shortest shooting distance is approx. 50 cm (19 3/4 inches). Shoot in the close-up (Macro) mode
(page 21) when you shoot a subject closer than the shooting distance.
• When the camera cannot focus on the subject automatically, the AE/AF lock indicator changes to flashing slowly and the beep does not sound. Recompose the shot and focus again.
Subjects difficult to focus on are:
– Distant from the camera and dark
– The contrast between the subject and its background is poor.
– Seen through glass
– Moving fast
– Reflective light or with a lustrous finish
– Flashing
– Backlit
Using the zoom
Press the zoom button.
• When the zoom scale exceeds 6×, the camera uses the Digital Zoom function.
For details on the [Digital Zoom] settings and the image quality, see page 47.
• You cannot change the zoom scale while shooting a movie.
Shooting images easily (Auto adjustment mode)
Flash (Selecting a flash mode for still images)
Press v ( ) on the control button repeatedly until the desired mode is selected.
(No indicator): Flash Auto
Strobes when there is insufficient light (default setting)
:
Flash forced on
SL
: Slow synchro (Flash forced on)
The shutter speed is slow in a dark place to clearly shoot the background that is out of flash light.
: Flash forced off
• The flash strobes twice. The first time is to adjust the light quantity.
• While charging the flash, is displayed.
Macro (Shooting close-up)
Press
B
( ) on the control button.
To cancel, press
B
again.
(No indicator): Macro Off
: Macro On (W side: Approx. 2 cm or farther (13/16 inches or farther), T side: Approx. 70 cm or farther
(27 5/8 inches or farther))
Macro
• Setting the zoom all the way to the W side is recommended.
• The in-focus range becomes narrow, and the complete subject may not entirely be in focus.
• The Auto Focus speed drops.
21
22
Shooting images easily (Auto adjustment mode)
Using the self-timer
Press V ( ) on the control button repeatedly until the desired mode is selected.
(No indicator): Not using the self-timer
: Setting the 10-second delay self-timer
: Setting the 2-second delay self-timer
Press the shutter button, the self-timer lamp flashes, and a beep sounds until the shutter operates.
Self-timer lamp
To cancel, press
V
again.
• Use the 2-second delay self-timer to prevent blur of an image made by the shaking of the camera when pressing the shutter button.
Shooting images easily (Auto adjustment mode)
EV (Adjusting the exposure manually)
Press b ( ) on the control button, then press v (Brighter)/V (Darker) to adjust.
To turn off the bar displayed, press the b button again.
Toward – Toward +
• For details on the exposure, see page 7.
• The compensation value can be set in 1/3EV increments.
• If a subject is being shot in extremely bright or dark conditions, or the flash is used, the exposure adjustment may not be effective.
23
24
Shooting images easily (Auto adjustment mode)
To change the still image size
Press (Image Size), and then press v/V to select the size.
For details on the image size, see page 9.
The default settings are marked with .
No. of images
Less
Image size
8M (3264×2448)
3:2
1)
(3264×2176)
Guidelines
Up to A3/11×17" print
Match 3:2 Aspect Ratio
5M (2592×1944)
3M (2048×1536)
Up to A4/8×10" print
Up to 13×18cm /5×7" print
2M (1632×1224) Up to 10×15cm /4×6" print
VGA (640×480) For E-mail
16:9
2)
(1920×1080) Display On 16:9 HDTV
3)
More
Printing
Fine
1) Images are recorded in 3:2 aspect ratio, same as photograph printing paper or postcards, etc.
2) Both edges of the image may be cut off when printing (page 92).
3) By using a Memory Stick slot or USB connection, you can enjoy images in higher quality.
Rough
Shooting still images (Scene selection)
Shutter button
Mode dial
1
Select the desired mode of Scene Selection ( , , , , , , ).
• For details on modes, see the next page.
2
Shoot with the shutter button.
To cancel the Scene Selection
Set the mode dial to other than the mode of Scene Selection (page 18).
25
26
Shooting still images (Scene selection)
Scene Selection modes
The following modes are predetermined to match the scene conditions.
High Sensitivity
Allows you to shoot images without a flash under low light conditions, reducing blur.
Twilight*
Allows you to shoot night scenes at far distance without losing the dark atmosphere of the surroundings.
Landscape
Focuses only on a distant subject to shoot landscapes, etc.
Soft Snap
Allows you to shoot skin colors in brighter and warmer tones for more beautiful pictures. In addition, the soft focus effect creates a gentle atmosphere for portraits of people, flowers, etc.
Beach
When shooting seaside or lakeside scenes, the blue of the water is clearly recorded.
Twilight Portrait*
Suitable for shooting portraits in dark places. Allows you to shoot sharp images of people in dark places without losing the dark atmosphere of the surroundings.
* The shutter speed becomes slower, so using a tripod is recommended.
Snow
When shooting snowy scenes or other places where the whole screen appears white, use this mode to prevent sunken colors and record clear images.
Shooting still images (Scene selection)
Functions that cannot be combined with Scene Selection
For shooting an image appropriately according to the scene condition, a combination of functions is determined by the camera. Some functions are not available, depending on the
Scene Selection mode. When you press the button to select functions that cannot be combined with Scene Selection, a beep sounds.
Macro Flash
( : you can select the desired setting)
White Balance Burst Flash level
—
—
— /
/
/
SL
— —
27
28
Viewing/deleting images
v/V/b/B button z button
Control button
(Delete) button
(Index)/ (Playback zoom) button
(Playback zoom) button
(Playback) button
MENU button
1
Press (Playback) button.
If you press (Playback) button when the camera is powered off, the camera is turned on in the playback mode. If you press again, switches to recording mode.
2
Select an image with b/B on the control button.
Movie:
Press z
to play back a movie. (Press z
again to stop playback.)
Press
B
to fast forward, press b
to rewind. (Press z
to return to normal playback.)
Press v
/
V
to adjust the volume.
To delete images
1
Display the image you want to delete and press
2
Select [Delete] with v , then press z .
To cancel the deletion
Select [Exit], then press z
.
To view an enlarged image (playback zoom)
Press while displaying a still image.
To undo the zoom, press .
Adjust the portion: v/V/b/B
Cancel playback zoom: z
•
To store enlarged images: [Trimming] (page 45)
(Delete).
Viewing/deleting images
Viewing an index screen
Press (Index) and select an image with v/V/b/B. To display the next (previous) index screen, press b/B.
To return to the single-image screen, press z.
To delete images in index mode
1
While an index screen is displayed, press control button, then press z.
(Delete) and select [Select] with v/V on the
2
Select the image you want to delete with v/V/b/B, then press z to display the (Delete) indicator on the selected image.
Green selection frame
To cancel a selection
Select an image you have previously selected for deletion, then press z to delete the indicator from the image.
3 Press
4 Select [OK] with B, then press z.
• To delete all the images in the folder, select [All In This Folder] with v/V in step 1 instead of [Select], then press z.
29
30
Using the menu
Using menu items
v/V/b/B button
(Playback) button
Mode dial
MENU button z button
Control button
1
Recording: Turn on the camera, then set the mode dial.
Playback: Press (Playback) button.
Different items are available depending on the position of the mode dial and Recording/Playback mode.
2
Press MENU to display the menu.
3
Select the desired menu item with b/B
on the control button.
• If the desired item is invisible, keep pressing b/B until the item appears on the screen.
• Press z after selecting an item in the Playback mode.
4
Select a setting with v/V.
The setting you select is zoomed and set.
5
Press MENU to turn off the menu.
You can also turn off the menu by pressing the shutter button halfway down.
• If there is an item that is not displayed, an v/V mark appears on the edges of the location where menu items usually appear. To display an item that is not displayed, select the mark with the control button.
• You cannot set items that are not available to select.
Menu items
For details on the operation 1 page 30
Menu for shooting
The menu items available vary depending on the mode dial position and settings. Only the available items are displayed on the screen.
Mode dial position:
( : available)
Scene
COLOR (Color Mode)
(Metering Mode)
WB (White Bal)
ISO
(P.Quality)
Mode (REC Mode)
(Flash Level)
(Sharpness)
(Setup)
—
—
—
—
—
—
—
—
—
*
—
—
—
—
—
Menu for viewing
(Folder)
DPOF
(Slide)
(Rotate)
Trimming**
(Protect)
(Print)
(Resize)
(Setup)
* The operation is limited according to the Scene mode (page 27).
**Available only for playback zoom.
In this “Cyber-shot Handbook”, the available mode dial setting is shown as follows.
Unavailable Available
31
Shooting menu
For details on the operation 1 page 30
The default settings are marked with .
COLOR (Color Mode): Changing the vividness of the image or adding special effects
You can change the brightness of the image, accompanied by effects.
B&W (B & W)
Sets the image to monochromatic color.
Sepia (SEPIA) Sets the image to sepia color.
Natural (NATURAL)
Sets the image to quiet color.
Rich (RICH)
Sets the image to bright color.
Normal
32
• You can select only [Normal], [B&W] or [Sepia] when shooting movies.
Shooting menu
For details on the operation 1 page 30
(Metering Mode): Selecting the metering mode
Selects the metering mode that sets which part of the subject to measure to determine the exposure.
Spot (Spot metering)
( )
Measures only a part of the subject.
• This function is useful when the subject is backlit or when there is strong contrast between the subject and the background.
Spot metering cross hairs
Positions on the subject
Multi (Multi-pattern metering)
• For details on the exposure, see page 7.
Divides into multiple regions and measures each region. The camera determines a well-balanced exposure.
33
34
Shooting menu
For details on the operation 1 page 30
WB (White Bal): Adjusting the color tones
Adjusts the color tones according to the lighting condition in a situation, for example, when the colors of an image look strange.
Flash (
WB
)
Adjusts for the flash conditions.
• You cannot select this item when shooting movies.
Incandescent (n) Adjusts for lightning conditions such as under an incandescent lamp, or bright lighting such as in a photography studio.
Fluorescent ( )
Adjusts for fluorescent lighting.
Cloudy ( )
Adjusts for a cloudy sky or shaded area.
Shooting menu
Daylight ( )
For details on the operation 1 page 30
Adjusts for a sunny outdoors, shooting evening scenes, night scenes, fireworks, or sunrise, or conditions before and after sundown.
Auto
Adjusts the White Balance automatically.
• For details on the white balance, see page 8.
• Under fluorescent lights that flicker, the white balance function may not work correctly even though you select [Fluorescent] ( ).
• Except in [Flash] (
WB
) modes, [WB] is set to [Auto] when the flash strobes.
• Some options are not available depending on the Scene mode (page 27).
ISO: Selecting a luminous sensitivity
Small number Large number
Selects a luminous sensitivity with units of ISO. The larger the number, the higher the sensitivity.
1250
800
400
200
80
Auto
Select a large number when shooting in dark locations or shooting a subject moving at high speed, or select a small number to obtain high image quality.
• For details on the ISO sensitivity, see page 7.
• Note that the image tends to become noisier as the ISO sensitivity number increases.
• [ISO] is set to [Auto] in the Scene mode.
35
36
Shooting menu
For details on the operation 1 page 30
(P.Quality): Selecting the still image quality
Selects the still image quality.
Fine (FINE) Records with high quality (low compression).
Standard (STD)
• When the mode dial is
[Fine].
(Auto), the quality of a still image is
Records with standard quality (high compression).
Shooting menu
For details on the operation 1 page 30
Mode (REC Mode): Selecting the continuous shooting method
Selects whether the camera performs continuous shooting or not when you press the shutter button.
Burst ( ) Records three images in succession when you press the shutter button.
• When “Recording” disappears, you can shoot the next image.
Normal
• The flash is set to (Flash forced off).
Does not shoot continuously.
On the [Burst]
• The recording interval is approximately 2 seconds.
• When the battery level is low, or when the internal memory or “Memory Stick Duo” does not sufficient space, you cannot shoot continuously.
• You may not be able to shoot images in the Burst mode depending on the Scene mode (page 27).
37
38
Shooting menu
For details on the operation 1 page 30
(Flash Level): Adjusting the amount of flash light
Adjusts the amount of flash light.
+ ( +)
Normal
– ( –)
Toward +: Makes the flash level higher.
Toward –: Makes the flash level lower.
• To change flash mode, see page 21.
(Sharpness): Adjusting the sharpness of the image
Toward – Toward +
Adjusts the sharpness of the image.
+ ( )
Normal
– ( )
Toward +: Sharpens the image.
Toward –: Softens the image.
(Setup): Changing Setup items
Viewing menu
For details on the operation 1 page 30
The default settings are marked with .
(Folder): Selecting the folder for viewing images
Selects the folder containing the image you want to play back when using the camera with
“Memory Stick Duo”.
OK
Cancel
See the following procedure.
Cancels the selection.
1
Select the desired folder with b/B on the control button.
2 Select [OK] with v, then press z.
z On the folder
The camera stores images in a specified folder of a “Memory Stick Duo”. You can change the folder or create a new one.
• To create a new folder
t [Create REC. Folder] (page 51)
• To change the folder for recording images
t [Change REC. Folder] (page 52)
• When multiple folders are created in the “Memory Stick Duo” and the first or last image in the folder is displayed, the following indicators appear.
: Moves to the previous folder.
: Moves to the next folder.
: Moves to either the previous or next folders.
39
Viewing menu
For details on the operation 1 page 30
-
(Protect): Preventing accidental erasure
Protects images against accidental erasure.
Protect (-)
Exit
See the following procedure.
Exits the Protection function.
To protect images in single-image mode
1
Display the image you want to protect.
2
Press MENU to display the menu.
3
Select [-] (Protect) with b/B on the control button, then press z.
The image is protected and the - (protect) indicator appears on the image.
-
4
To protect other images, select the desired image with b/B, then press z.
To protect images in index mode
1 Press (Index) to display the index screen.
2 Press MENU to display the menu.
3 Select [-] (Protect) with b/B on the control button, then press z.
4 Select [Select] with v/V, then press z.
5 Select the image you want to protect with v/V/b/B, then press z.
A green - indicator appears on the selected image.
-
(green)
40
6
Repeat step 5 to protect other images.
7
Press MENU.
8
Select [OK] with B, then press z.
The - indicator turns white. The selected images are protected.
• To protect all images in the folder, select [All In This Folder] in step 4, and press z. Select [On] with B, then press z.
Viewing menu
For details on the operation 1 page 30
To cancel the protection
In single-image mode
Press z in step 3 or 4 of “To protect images in single-image mode.”
In index mode
1
2 Press z to turn the - indicator gray.
3 Repeat the operation above for all images to be unprotected.
4 Press MENU, select [OK] with B, and then press z.
To cancel protection of all images in the folder
Select [All In This Folder] in step 4 of “To protect images in index mode,” and press z.
Select [Off] with B, then press z.
• Note that formatting the internal memory or “Memory Stick Duo” erases all the data stored on the recording media, even if the images are protected, and these images cannot be restored.
• It may take some time to protect an image.
DPOF: Adding a Print order mark
Adds a
(Print order) mark to images you want to print (page 83).
(Print): Printing images using a printer
41
42
Viewing menu
For details on the operation 1 page 30
(Slide): Playing back a series of images
Plays back recorded images in order (Slide show).
Interval
3 sec
5 sec
10 sec
30 sec
1 min
Sets the slide show interval.
Repeat
On
Off
Plays back images in a continuous loop.
After all the images have been played back, the slide show ends.
Folder
All
Plays back all the images in the selected folder.
Plays back all the images in a “Memory Stick Duo” in order.
Start
Cancel
See the following procedure.
Cancels the slide show.
1
Select [Interval], [Repeat] and [Image] with v/V/b/B on the control button.
2
Select [Start] with V/B, then press z.
The slide show starts.
To end the slide show, press z pause the slide show. Select [Exit] with V, then press z.
• When pausing during the slide show, you can display the previous/next image with b/B.
• The interval time is just a guideline, so it may vary depending on the image size, etc.
Viewing menu
For details on the operation 1 page 30
(Resize): Changing the image size of a recorded image
Large size Small size
You can change the image size of a recorded image (Resize), and save it as a new file. The original image is retained even after resizing.
8M
5M
3M
2M
VGA
Cancel
For details on guidelines for selecting the image size, see
Cancels resizing.
1 Display the image you want to resize.
2 Press MENU to display the menu.
3 Select [ ] (Resize) with b/B on the control button, then press z.
4 Select the desired size with v/V, then press z.
The resized image is recorded in the recording folder as the newest file.
• For details on Image Size, see page 9.
• You cannot change the size of movies.
• When you change from a small size to a large size, the image quality deteriorates.
• You cannot resize to an image size of 3:2 or 16:9.
• When you resize a 3:2 or 16:9 image, the upper and lower black portions will be displayed on the image.
43
44
Viewing menu
For details on the operation 1 page 30
(Rotate): Rotating a still image
Rotates a still image.
OK
Cancel
Rotates an image. See the following procedure.
Determines the rotation. See the following procedure.
Cancels rotation.
1
Display the image to be rotated.
2
Press MENU to display the menu.
3
Select [ ] (Rotate) with b/B on the control button, then press z.
4
Select [
] with v, then rotate the image with b/B.
5
Select [OK] with v/V, then press z.
• You cannot rotate protected images or movies.
• You may not be able to rotate images shot with other cameras.
• When viewing images on a computer, the image rotation information may not be reflected depending on the software.
(Setup): Changing Setup items
Viewing menu
Trimming: Recording an enlarged image
For details on the operation 1 page 30
Records an enlarged image (page 28) as a new file.
Trimming
Return
See the following procedure.
Cancels trimming.
1
Press MENU during playback zoom to display the menu.
2
Select [Trimming] with B on the control button, then press z.
3
Select the image size with v/V , then press z.
The image is recorded, and the original image is displayed again.
• The trimmed image is recorded as the newest file in the selected recording folder, and the original image is retained.
• The quality of trimmed images may deteriorate.
• You cannot trim to an image size of 3:2 or 16:9 aspect ratio.
45
Using the Setup screen
Using Setup items
You can change the default settings using the Setup screen.
v/V/b/B button
Mode dial
MENU button z button
Control button
1
Press MENU to display the menu.
2
After pressing B on the control button, go to the
(Setup) setting, then
press B again.
3
Press v/V/b/B on the control button to select the item you want to set.
The frame of the selected item turns yellow.
4
Press z to enter the setting.
46
To turn off the (Setup) screen, press MENU.
To return to the menu from the (Setup) screen, press b on the control button repeatedly.
• Press the shutter button halfway down to close the (Setup) screen and return to the shooting mode.
When the menu is not displayed
Press MENU longer to display the (Setup) screen.
To cancel the (Setup) setting
Select [Cancel] if it appears, then press z on the control button. If it does not appear, select the previous setting again.
• This setting is maintained even when the power is turned off.
Camera
For details on the operation 1 page 46
The default settings are marked with .
Digital Zoom
Selects the digital zoom mode. The camera enlarges the image using optical zoom (up to 6×).
When the zoom scale exceeds 6×, the camera uses either smart or precision digital zoom.
Smart
(Smart zoom)
( )
Precision
(Precision digital zoom)
(
Off
)
Enlarges the image digitally with almost no distortion. This is not available when the image size is set to [8M] or [3:2].
• The maximum zoom scale of Smart zoom is shown in the following table.
Enlarges all image sizes up to a maximum of 12×, but the image quality deteriorates.
Does not use the digital zoom.
Image size and maximum zoom scale using Smart zoom
Size
5M
3M
2M
VGA
16:9
Maximum zoom scale
Approx. 7.6×
Approx. 9.6×
Approx. 12×
Approx. 30×
Approx. 10×
• When you press the zoom button, the zoom scaling indicator appears as follows.
The W side of this line is the optical zoom area, and the T side is the digital zoom area
Zoom scaling indicator
• The maximum zoom scale of smart zoom/precision zoom includes the scale of the optical zoom.
• The AF range finder frame does not appear when using the digital zoom.
• When using the smart zoom, the image on the screen may look rough. However, this phenomenon has no effect on the recorded image.
47
48
Camera
For details on the operation 1 page 46
Function Guide
When you operate the camera, the description of functions is displayed.
On
Off
Displays the function guide.
Does not display the function guide.
Red Eye Reduction
Reduces the red-eye phenomenon when using the flash. Select this before shooting.
On ( )
Reduces the red-eye phenomenon.
• The flash pre-strobes twice or more before shooting.
Does not use Red Eye Reduction.
Off
• Because it takes about a second until the shutter clicks, hold the camera firmly to prevent the effects of vibration. Also, do not let the subject move.
• Red-eye reduction may not produce the desired effects depending on individual differences, the distance to the subject, if the subject does not see the pre-strobe, or other conditions.
AF Illuminator
The AF illuminator supplies fill light to focus more easily on a subject in dark surroundings.
The AF illuminator emits red light allowing the camera to focus easily when the shutter button is pressed halfway, until the focus is locked. The
ON
indicator appears at this time.
Auto
Off
Uses the AF illuminator.
Does not use AF illuminator.
• If the AF illuminator light does not reach the subject sufficiently or the subject has no contrast, focus will not be achieved. (A distance of up to approximately 2.5 m (98 5/8 inches) (zoom: W) / 1.5 m
(59 1/4 inches) (zoom: T) is recommended.)
• Focus is achieved as long as the AF illuminator light reaches the subject, even if the light is slightly off the center of the subject.
• The AF range finder frame does not appear, when using the AF illuminator.
• The AF illuminator does not operate when (Twilight mode) or (Landscape mode) is selected in the Scene mode.
• The AF illuminator emits very bright light. Although there are no problems with safety, do not look directly into the AF illuminator emitter at close range.
Camera
For details on the operation 1 page 46
Auto Review
Displays the recorded image on the screen for approximately two seconds immediately after shooting a still image.
On
Off
Use the Auto Review.
Does not use Auto Review.
• If you press the shutter button halfway down during this period, the recorded image display disappears and you can immediately shoot the next image.
49
50
Internal Memory Tool
For details on the operation 1 page 46
This item does not appear when a “Memory Stick Duo” is inserted in the camera.
Format
Formats the internal memory.
• Note that formatting irrevocably erases all data in the internal memory, including even protected images.
1
Select [OK] with v on the control button, then press z.
The message “All data in internal memory will be erased Ready?” appears.
2
Select [OK] with v, then press z.
The format is complete.
To cancel the formatting
Select [Cancel] in step 1 or 2, then press z.
Memory Stick Tool
For details on the operation 1 page 46
This item appears only when a “Memory Stick Duo” is inserted in the camera.
Format
Formats the “Memory Stick Duo”. A commercially available “Memory Stick Duo” is already formatted, and can be used immediately.
• Note that formatting irrevocably erases all data on a “Memory Stick Duo”, including even protected images.
1
Select [OK] with v on the control button, then press z.
The message “All data in Memory Stick will be erased Ready?” appears.
2
Select [OK] with v, then press z.
The format is complete.
To cancel the formatting
Select [Cancel] in step 1 or 2, then press z.
Create REC. Folder
Creates a folder in a “Memory Stick Duo” for recording images.
1 Select [OK] with v on the control button, then press z.
The folder creation screen appears.
2
Select [OK] with v, then press z.
A new folder is created with a number incremented one higher than the largest number, and the folder becomes the current recording folder.
To cancel the folder creation
Select [Cancel] in step 1 or 2, then press z.
• When not creating a new folder, the “101MSDCF” folder is selected as the recording folder.
• You can create folders designated up to “999MSDCF.”
• Images are recorded in the newly created folder until a different folder is created or selected.
• You cannot delete a folder with the camera. To delete a folder, use your computer, etc.
• Up to 4,000 images can be stored in one folder. When the folder capacity is exceeded, a new folder is automatically created.
• For details, see “Image file storage destinations and file names” (page 67).
51
52
Memory Stick Tool
For details on the operation 1 page 46
Change REC. Folder
Changes the folder currently used for recording images.
1
Select [OK] with v on the control button, then press z.
The folder selection screen appears.
2
Select the desired folder with b/B, and [OK] with v, then press z.
To cancel changing the recording folder
Select [Cancel] in step 1 or 2, then press z.
• You cannot select the “100MSDCF” folder as a recording folder.
• You cannot move recorded images to a different folder.
Memory Stick Tool
For details on the operation 1 page 46
Copy
Copies all images in the internal memory to a “Memory Stick Duo”.
1
Insert a “Memory Stick Duo” having 64 MB or larger capacity.
2
Select [OK] with v on the control button, then press z.
The message “All data in internal memory will be copied Ready?” appears.
3
Select [OK] with v, then press z.
Copying starts.
To cancel the copying
Select [Cancel] in step 2 or 3, then press z.
• Use fully charged Nickel-Metal Hydride batteries or the AC Adaptor (not supplied). If you attempt to copy image files using batteries with little remaining charge, the batteries may run out, causing copying to fail or possibly corrupting the data.
• You cannot copy individual images.
• The original images in the internal memory are retained even after copying. To delete the contents of the internal memory, remove the “Memory Stick Duo” after copying, then execute the [Format] command in
(Internal Memory Tool) (page 50).
• When you copy the data in the internal Memory to the “Memory Stick Duo”, all the data will be copied.
You cannot choose a specific folder on the “Memory Stick Duo” as the destination for the data to be copied.
• Even if you copy data, a (Print order) mark is not copied.
53
54
1
Setup 1
For details on the operation 1 page 46
The default settings are marked with .
LCD Backlight
Selects the brightness of the LCD backlight when using the camera with batteries.
Bright
Normal
Brightens
• You can change the setting by pressing DISP button longer.
• Selecting [Bright] uses up the battery charge faster.
Beep
Selects the sound produced when you operate the camera.
Shutter
On
Turns on the shutter sound when you press the shutter button.
Off
Turns on the beep/shutter sound when you press the control button/ press the shutter button.
Turns off the beep/shutter sound.
Language
Selects the language to be used to display the menu items, warnings, and messages.
Initialize
Initializes the setting to the default setting.
Images stored in the internal memory are retained.
1
Select [OK] with v on the control button, then press z.
The message “Initialize all settings Ready?” appears.
2
Select [OK] with v, then press z.
The settings are reset to the default setting.
To cancel the resetting
Select [Cancel] in step 1 or 2, then press z.
• Make sure that the power is not disconnected during resetting.
2
Setup 2
For details on the operation 1 page 46
The default settings are marked with .
File Number
Selects the method used to assign file numbers to images.
Series
Assigns numbers to files in sequence even if the recording folder or the “Memory Stick Duo” is changed. (When the replaced “Memory Stick Duo” contains a file with a number higher than the last assigned number, a number one higher than the largest number is assigned.)
Reset Starts from 0001 each time the folder is changed. (When the recording folder contains a file, a number one higher than the largest number is assigned.)
USB Connect
Selects the USB mode to be used when connecting the camera to a computer or a PictBridge compliant printer using the dedicated USB cable.
PictBridge
Connects the camera to a PictBridge compliant printer
PTP
Mass Storage
When [PTP] (Picture Transfer Protocol) is set and the camera is connected to a computer, the images in the recording folder on the camera are copied to the computer. (Compatible with
Windows XP and Mac OS X.)
Establishes a Mass Storage connection between the camera
and a computer or other USB device (page 63).
55
56
Setup 2
For details on the operation 1 page 46
Video Out
Sets the video signal output according to the TV color system of the connected video equipment. Different countries and regions use different TV color systems. If you want to
view images on a TV screen, check page 58 for the TV color system of the country or region
where the camera is used.
NTSC
Sets the video output signal to NTSC mode (e.g., for the
USA, Japan).
PAL
Sets the video output signal to PAL mode (e.g., for Europe).
Clock Set
Sets the date and time.
1
Select [OK] with v on the control button, then press z.
2
Select the date display format with v/V, then press z.
3
Select each item with b/B and set the numeric value with v/V, then press z.
4
Select [OK] with B, then press z.
To cancel the clock setting
Select [Cancel], then press z.
Viewing images on a TV screen
Viewing images on a TV screen
You can view images on a TV screen by connecting the camera to a TV.
Turn off both your camera and the TV before connecting the camera and the TV.
1
Connect the camera to the TV.
1
To audio/video input jacks
2
Turn on the TV and set the TV/ video input switch to “video.”
• For details, see the operating instructions supplied with the TV.
3
Press (Playback) button to turn on the camera.
(Playback) button
Dedicated A/V cable
2
To the (USB) ·
A/V OUT terminal
• If your TV has stereo input jacks, connect the audio plug (black) of the dedicated A/V cable to the left audio jack.
Control button
Images shot with the camera appear on the TV screen.
Press b/B on the control button to select the desired image.
• When using your camera abroad, it may be necessary to switch the video signal output
to match that of your TV system (page 56).
57
58
Viewing images on a TV screen
On TV color systems
If you want to view images on a TV screen, you need a TV with a video input jack and the dedicated A/V cable. The color system of the TV must match that of your digital still camera. Check the following lists for the TV color system of the country or region where the camera is used.
NTSC system
Bahama Islands, Bolivia, Canada, Central
America, Chile, Colombia, Ecuador,
Jamaica, Japan, Korea, Mexico, Peru,
Surinam, Taiwan, the Philippines, the
U.S.A., Venezuela, etc.
PAL system
Australia, Austria, Belgium, China, Czech
Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Italy,
Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Singapore, Slovak
Republic, Spain, Sweden, Switzerland,
Thailand, United Kingdom, etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq,
Monaco, Russia, Ukraine, etc.
Using your computer
Enjoying your Windows computer
For details on using a Macintosh computer, refer to “Using your Macintosh computer” (page 76).
This section describes the English version of screen contents.
•
Under Windows Vista, some names and operations may differ from those described below.
Install the software (supplied) first (page 61)
Copying images to your computer (page 62)
•
Viewing images on your computer
Enjoying images using the “Picture Motion Browser” (page 70)
•
•
•
Viewing images saved on your computer
Viewing photos organized by date
Editing images
•
•
•
Displaying the shooting locations of still images on maps online. (To do this, your computer needs to be connected to the Internet.)
Create a new data disc. (CD burner drive or DVD burner drive required.)
Printing or saving still images with the date inserted.
59
60
Enjoying your Windows computer
Recommended computer environment
The following environment is recommended for a computer connected to the camera.
Recommended environment for copying images
OS (pre-installed): Microsoft Windows
2000 Professional, Windows XP* or
Windows Vista*
• Operation is not assured in an environment based on an upgrade of the operating systems described above or in a multi-boot environment.
USB jack: Provided as standard
Recommended environment for using
“Picture Motion Browser”
OS (pre-installed): Microsoft Windows
2000 Professional, Windows XP* or
Windows Vista*
Sound card: 16-bit stereo sound card with speakers
CPU/Memory: Pentium III 500 MHz or faster, 128 MB of RAM or more
(Recommended: Pentium III 800 MHz or faster and 256 MB of RAM or more)
Software: DirectX 9.0c or later
Hard Disk: Disk space required for installation—200 MB or more
Display: Screen resolution: 1024 × 768 dots or more Colors: High Color (16-bit color) or more
* 64-bit editions and Starter (Edition) are not supported.
• The software is compatible with DirectX technology. Installation of “DirectX” may be required.
Notes on connecting your camera to a computer
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including your camera, may not operate, depending on the types of USB devices you are using.
• Operations are not guaranteed when using a
USB hub.
• There are two modes for a USB connection when connecting a computer, [Mass Storage]
(default setting) and [PTP] modes. This section describes [Mass Storage] as an example. For
details on [PTP], see page 55.
• When your computer resumes from a suspend or sleep mode, communication between your camera and your computer may not recover at the same time.
Technical Support
Additional information on this product and answers to frequently asked questions can be found at the Sony
Customer Support Website.
http://www.sony.net/
Installing the software (supplied)
You can install the software (supplied) using the following procedure.
• When using Windows 2000, do not connect the camera to the computer before installation.
• In Windows 2000/XP, log on as Administrator.
1
Turn on your computer, and insert the CD-ROM (supplied) into the
CD-ROM drive.
The installation menu screen appears.
• If it does not appear, double-click (My
Computer) t
• Under Windows Vista, the AutoPlay screen may appear. Select “Run Install.exe.” and follow the instructions that appear on the screen to proceed with the installation.
2
Click [Install].
The “Choose Setup Language” screen appears.
3
Select the desired language, then click [Next].
The [Location Settings] screen appears.
4
Select the [Region] and [Country/
Area], then click [Next].
When the [Welcome to the InstallShield
Wizard for Sony Picture Utility] appears, click [Next].
The “License Agreement” screen appears.
Read the agreement carefully. If you accept the terms of the agreement, click the radio button next to [I accept the terms of the license agreement] and then click [Next].
5
Follow the instructions on the screen to complete the installation.
• When the restarting confirmation message appears, restart the computer following the instructions on the screen.
• DirectX may be installed depending on system environment of your computer.
6
Remove the CD-ROM after the installation is complete.
After you install the software, a shortcut icon for the customers registration website is created on the desktop.
Once you register on the website, you can get secure and useful customer support.
http://www.sony.net/registration/di
61
62
Copying images to your computer
This section describes the process using a
Windows computer as an example.
You can copy images from the camera to your computer as follows.
For a computer with a Memory Stick slot
Remove the “Memory Stick Duo” from the camera and insert it in the Memory Stick
Duo Adaptor. Insert the Memory Stick Duo
Adaptor in the computer and copy the images.
• Even when you are using Windows 95/98/98
SecondEdition/NT/Me, you can copy images by inserting the “Memory Stick Duo” into the
Memory Stick slot on your computer.
• If the “Memory Stick PRO Duo” is not
For a computer without a Memory Stick slot
Follow Stages 1 through 4 on pages 62 to
• When you are using Windows 2000, install the software (supplied) before proceeding. With
Windows XP, installation is unnecessary.
• The screen displays shown in this section are the examples for copying images from “Memory
Stick Duo”.
With Windows 95/98/98 Second Edition/
NT/Me:
This camera is not compatible with these version of the Windows operating system.
When you use a computer without a
Memory Stick slot, use a commercially available Memory Stick Reader/Writer to copy images from a “Memory Stick Duo” to your computer.
To copy images in the internal memory to your computer, copy the images to a
“Memory Stick Duo” first, then copy them to your computer.
Stage 1: Preparing the camera and the computer
1
Insert a “Memory Stick Duo” with recorded images into the camera.
• When copying images in the internal memory, this step is unnecessary.
2
Insert the sufficiently charged
Nickel-Metal Hydride batteries in the camera, or connect the camera to a wall outlet (wall socket) with the AC Adaptor (not supplied).
• When you copy images to your computer using the batteries with little remaining charge, copying may fail or image data may become corrupted if the batteries shuts down too soon.
3
Press (Playback) button to turn on the camera and the computer.
(Playback) button
Copying images to your computer
Stage 2: Connecting the camera and your computer
• With Windows XP/Vista, the AutoPlay wizard appears on the desktop.
“USB Mode Mass Storage” appears on the screen of the camera.
1
To the (USB) ·
A/V OUT terminal
Dedicated USB cable
2
To a USB jack
Access indicators*
When a USB connection is established for the first time, your computer automatically runs a program to recognize the camera.
Wait for a while.
* During communication, the access indicators turn red. Do not operate the computer until the indicators turn white.
• If “USB Mode Mass Storage” does not appear,
set [USB Connect] to [Mass Storage] (page 55).
• When the software (supplied) has been installed,
the [Import Images] screen (page 71) may be
displayed. In this case, you can import images using “Picture Motion Browser” directly.
Stage 3-A: Copying images to a computer
• For Windows 2000, follow the procedure
explained in “Stage 3-B: Copying images to a
• For Windows XP/Vista, when the wizard screen does not appear automatically, follow the
procedure explained in “Stage 3-B: Copying images to a Computer” on page 65.
This section describes an example of copying images to a “My Documents” folder.
63
64
Copying images to your computer
1
After making a USB connection in
Stage 2, click [Copy pictures to a folder on my computer using
Microsoft Scanner and Camera
Wizard]
t [OK] as the wizard
screen appears automatically on the desktop.
3
Click the check box of unwanted images to remove the checkmark so they are not copied, then click
[Next].
1
1
2
The “Scanner and Camera Wizard” screen appears.
2
Click [Next].
The images saved on the “Memory
Stick Duo” of the camera appear.
• If no “Memory Stick Duo” is inserted, images in the internal memory appear.
2
The “Picture Name and Destination” screen appears.
4
Select a name and destination for the images, then click [Next].
1
2
Image copying starts. When the copying is completed, the “Other Options” screen appears.
• This section describes an example of copying images to the “My Documents” folder.
Copying images to your computer
5
Click the radio button next to
[Nothing. I’m finished working with these pictures] to select it, then click [Next].
1
Double-click [My Computer]
t
[Removable Disk]
t [DCIM].
1
2
The “Completing the Scanner and
Camera Wizard” screen appears.
6
Click [Finish].
The wizard screen closes.
• To continue copying other images, disconnect the dedicated USB cable
(page 67). Then follow the procedure
explained in “Stage 2: Connecting the camera and your computer” on page 63.
Stage 3-B: Copying images to a
Computer
• For Windows XP/Vista, follow the procedure
explained in “Stage 3-A: Copying images to a computer” on page 63.
This section describes an example of copying images to the “My Documents” folder.
2
Double-click the folder where the image files you want to copy are stored.
Then, right-click an image file to display the menu and click
[Copy].
1
2
• On the storage destination of the image
65
66
Copying images to your computer
3
Double-click the [My Documents] folder. Then, right-click on the
“My Documents” window to display the menu and click
[Paste].
1
Stage 4: Viewing images on your computer
This section describes the procedure for viewing copied images in the “My
Documents” folder.
1
Click [Start]
t [My Documents].
2
2
The image files are copied to the “My
Documents” folder.
• When an image with the same file name exists in the copy destination folder, the overwrite confirmation message appears.
When you overwrite an existing image with a new one, the original file data is deleted.
To copy an image file to the computer without overwriting, change the file name to a different name and then copy the image file. However, note that if you change the
file name (page 69), you may not be able to
play back that image with your camera.
1
The contents of the “My Documents” folder are displayed.
• If you are not using Windows XP, double-click [My Documents] on the desktop.
2
Double-click the desired image file.
The image is displayed.
Copying images to your computer
To delete the USB connection
Perform the procedures listed below beforehand when:
• Disconnecting the dedicated USB cable
• Removing a “Memory Stick Duo”
• Inserting a “Memory Stick Duo” into the camera after copying images from the internal memory
• Turning off the camera
1
Double-click on the tasktray.
Image file storage destinations and file names
The image files recorded with your camera are grouped as folders on the “Memory
Stick Duo”.
Example: viewing folders on Windows XP
Double-click here
2
Click (USB Mass Storage Device) t
[Stop].
3 Confirm the device on the confirmation window, then click [OK].
4
Click [OK].
The device is disconnected.
• Step 4 is unnecessary for Windows XP.
A Folder containing image data recorded using a camera not equipped with the folder creating function
B Folder containing image data recorded using this camera
When no new folders are created, there are folders as follows:
– “Memory Stick Duo”; “101MSDCF” only
– Internal memory; “101_SONY” only
• You cannot record any images to the
“100MSDCF” folder. The images in these folders are available only for viewing.
• You cannot record/playback any images to the
“MISC” folder.
67
68
Copying images to your computer
• Image files are named as follows. ssss stands for any number within the range from
0001 to 9999. The numerical portions of the name of a movie file recorded in movie mode and its corresponding index image file are the same.
– Still image files: DSC0ssss.JPG
– Movie files: MOV0ssss.AVI
– Index image files that are recorded when you record movies: MOV0ssss.THM
• For more information about folders, see pages
Viewing image files stored on a computer with your camera (using a “Memory Stick Duo”)
This section describes the process using a
Windows computer as an example.
When an image file copied to a computer no longer remains on a “Memory Stick
Duo”, you can view that image again on the camera by copying the image file on the computer to a “Memory Stick Duo”.
• Step 1 is not necessary if the file name set with your camera has not been changed.
• You may be unable to play back some images depending on the image size.
• When an image file has been processed by a computer or when the image file was recorded using a model other than that of your camera, playback on your camera is not guaranteed.
• When there is no folder, create a folder with
your camera (page 51) first, and then copy the
image file.
2
Copy the image file to the
“Memory Stick Duo” folder in the following order.
1
Right-click the image file, then click
[Copy].
2
Double-click [Removable Disk] or
[Sony MemoryStick] in [My
Computer].
3 Right-click the [sssMSDCF] folder in the [DCIM] folder, then click [Paste].
• sss stands for any number within the range from 100 to 999.
1
Right-click the image file, then click [Rename]. Change the file
name to “DSC0ssss.”
Enter a number from 0001 to 9999 for ssss.
1
2
• If the overwrite confirmation message appears, enter a different number.
• An extension may be displayed depending on the computer settings. The extension for still images is JPG, and the extension for movies is AVI. Do not change the extension.
69
70
Using the “Picture Motion Browser” (supplied)
You can use still images and movies from the camera more than ever by taking advantage of the software.
This section summarizes the “Picture
Motion Browser” and gives the basic instructions.
“Picture Motion Browser” overview
With the “Picture Motion Browser” you can:
• Import images shot with the camera and display them on the computer.
• Organize images on the computer on a calendar by shooting date to view them.
• Retouch, print, and send still images as e-mail attachments, change the shooting date, and more.
• Still images can be printed or saved with the date.
• You can create a data disc using a CD burner drive or DVD burner drive.
• For details on the “Picture Motion Browser”, refer to the Help.
To access the Help, click [Start] t [All
Programs] (in Windows 2000, [Programs]) t [Sony Picture Utility] t [Help] t
[Picture Motion Browser].
Starting and exiting the “Picture
Motion Browser”
Starting the “Picture Motion Browser”
Double-click the (Picture Motion
Browser) icon on the desktop.
Or, from the Start menu: Click [Start] t
[All Programs] (in Windows 2000,
[Programs]) t [Sony Picture Utility] t
[Picture Motion Browser].
• The confirmation message of the Information tool appears on the screen when starting the
“Picture Motion Browser” for the first time.
Select [Start]. This function informs you of news, such as software updates. You can change the setting later.
Exiting the “Picture Motion Browser”
Click button in the top right corner of the screen.
Basic instructions
Follow these steps to import and view images from the camera.
Importing images
1
Make sure “Media Check Tool”* is running.
Look for a
( Media Check Tool)
icon in the taskbar.
* “Media Check Tool” is a program that automatically detects and imports images when a “Memory Stick” is inserted or when the camera is connected.
• If there is no icon: Click [Start] t [All
Programs] (in Windows
2000
, [Programs]) t [Sony Picture Utility] t [Tools] t
[Media Check Tool].
Using the “Picture Motion Browser” (supplied)
2
Connect the camera to your computer with the dedicated USB cable.
After the camera is automatically detected, the [Import Images] screen is displayed.
Viewing images
1
Checking imported images
When importing is complete, the
“Picture Motion Browser” starts.
Thumbnails of the imported images are displayed.
• If you use the Memory Stick slot, refer to
• In Windows XP/Vista, if the Auto Play
Wizard appears, close it.
3
Import the images.
To start importing images, click the
[Import] button.
By default, images are imported into a folder created in “My Pictures” that is named with the date of importing.
• For instructions on changing the “Folder to
be imported”, refer to page 74.
• The “My Pictures” folder is set as the default folder in “Viewed folders”.
• You can double-click a thumbnail to display the image by itself.
2
Viewing images in “Viewed folders” arranged by shooting date on a calendar
1
Click the [Calendar] tab.
Years when images were shot are listed.
2
Click the year.
Images shot that year are displayed, arranged on the calendar by shooting date.
3 To display images by month, click the desired month.
Thumbnails of images shot that month are displayed.
4
To display images by time, click the desired date.
Thumbnails of images shot that day are displayed, arranged by hour.
71
72
Using the “Picture Motion Browser” (supplied)
Year display screen
1
2
3
Month display screen
4
3
Displaying individual images
On the hour display screen, double-click a thumbnail to display the image by itself in a separate window.
Hour display screen
• You can edit displayed images by clicking
Displaying images in full-screen mode
To display a slide show of current images in full-screen mode, click the button.
• To list images from a particular year or month, click that period on the left of the screen.
• To play or pause the slide show, click the
button on the lower left of the screen.
• To stop the slide show, click the button on the lower left of the screen.
Using the “Picture Motion Browser” (supplied)
Creating a data disc
Images can be saved in CD or DVD as a data disc.
•
CD burner drive or DVD burner drive
• required.
The following disc can be used for creating a data disc.
–CD–R/RW (12 cm)
–DVD±R/RW (12 cm)
–DVD±R DL (12 cm)
1
Select images to save on the disc.
• To select consecutive images, click the first image, then press and hold down “Shift” key while you click the last image.
• To select two or more non-consecutive images, press and hold down “Ctrl” key while clicking images.
2
Click the button on the tool bar.
The [Create Data Disc] display appears.
3
Click [Start].
4
Follow the display instructions to proceed with creating the data disc.
• To add desired images, drag and drop on the
[Create Data Disc] display.
Using Map View to display still images on a map
If your still images have position information, you can see the images on maps online with Map View.
•
To use the Map View function, your computer needs to be connected to the
Internet.
1
Select a thumbnail marked with
.
2
Click .
The Map View main window appears.
• Maps and satellite images powered by
Google Maps mapping service.
•
You can later add position information on the still images, using the Map View. For details, see the Help of Map View.
Selecting all images in a folder
Click the [folders] tab, then right-click on the desired folder icon and select [Create
Data Disc]. All images in a folder can be selected.
73
74
Using the “Picture Motion Browser” (supplied)
Other functions
Preparing images stored on the computer for viewing
To view them, register the folder that contains the images as one of the “Viewed folders”.
1
Click on the main screen, or choose [Register Folders to View] from the [File] menu.
The settings screen for “Viewed folders” registration is displayed.
1
Choose [Import Settings]
t
[Location for Imported Images] from the [File] menu.
The “Location for Imported Images” screen is displayed.
2
Choose the “Folder to be imported”.
• You can specify the “Folder to be imported” from folders registered as “Viewed folders.”
2
Specify the folder with images for importing to register the folder as one of the “Viewed folders”.
3
Click [OK].
The image information is registered in the database.
•
Images in any subfolders of “Viewed folders” are also registered.
Changing the “Folder to be imported”
To change the “Folder to be imported”, access the “Import Settings” screen.
Updating image registration information
•
•
To update image information, choose
[Update Database] from the [Tools] menu.
Updating the database may take a while.
If you rename image files or folders in
“Viewed folders”, they cannot be displayed with this software. In this case, update the database.
Saving images with the date
1
Double-click an image to display it.
2
Click and select [Insert Date] from the drop-down list.
3 Select your desired color and position, and then click [OK].
4
Click to save.
Printing images with the date
1
Select the still image you want to print.
2
Click on the toolbar.
3
Click the check box of [Print date taken] in
Print Options.
4 Click [Print].
Using the “Picture Motion Browser” (supplied)
To uninstall the “Picture Motion
Browser”
1
Click [Start] t [Control Panel] (in
Windows 2000, [Start] t [Settings] t
[Control Panel]), then double-click [Add/
Remove Programs].
2
Select [Sony Picture Utility], then click
[Remove] (in Windows 2000, [Change/
Remove]) to execute the uninstallation.
75
76
Using your Macintosh computer
You can copy images to your Macintosh computer.
• “Picture Motion Browser” is not compatible with Macintosh computers.
Recommended computer environment
The following environment is recommended for a computer connected to the camera.
Recommended environment for copying images
OS (pre-installed): Mac OS 9.1/9.2/ Mac
OS X(v10.1 to v10.4)
USB jack: Provided as standard
Notes on connecting your camera to a computer
• Operations are not guaranteed for all the recommended computer environments mentioned above.
• If you connect two or more USB devices to a single computer at the same time, some devices, including your camera, may not operate depending on the types of USB devices you are using.
• Operations are not guaranteed when using a
USB hub.
• There are two modes for a USB connection when connecting a computer, [Mass Storage]
(default setting) and [PTP] modes. This section describes [Mass Storage] as an example. For
details on [PTP], see page 55.
• When your computer resumes from the suspend or sleep mode, communication between your camera and your computer may not recover at the same time.
Copying and viewing images on a computer
1
Prepare the camera and a
Macintosh computer.
Perform the same procedure as
described in “Stage 1: Preparing the camera and the computer” on page 62.
2
Connect the dedicated USB cable.
Perform the same procedure as
described in “Stage 2: Connecting the camera and your computer” on page 63.
3
Copy image files to the Macintosh computer.
1
Double-click the newly recognized icon t [DCIM] t the folder where the images you want to copy are stored.
2 Drag and drop the image files to the hard disk icon.
The image files are copied to the hard disk.
• For details on the storage location of the
images and file names, see page 67.
4
View images on the computer.
Double-click the hard disk icon t the desired image file in the folder containing the copied files to open that image file.
Using your Macintosh computer
To delete the USB connection
Perform the procedures listed below beforehand when:
• Disconnecting the dedicated USB cable
• Removing a “Memory Stick Duo”
• Inserting a “Memory Stick Duo” into the camera after copying images from the internal memory
• Turning off the camera
Drag and drop the drive icon or the icon of the “Memory Stick Duo” to the
“Trash” icon.
The camera is disconnected from the computer.
Technical Support
Additional information on this product and answers to frequently asked questions can be found at the Sony
Customer Support Website.
http://www.sony.net/
77
78
Printing still images
How to print still images
When you print images shot in [16:9] mode, both edges may be cut off, so be sure to check before
Printing directly using a PictBridge compliant printer (page 79)
You can print images by connecting the camera directly to a
PictBridge compliant printer.
Printing directly using a “Memory Stick” compliant printer
You can print images with a “Memory Stick” compliant printer.
For details, see the operating instructions supplied with the printer.
Printing using a computer
You can copy images to a computer using the supplied “Picture
Motion Browser” software and print the images.
You can print images date inserted (page 74).
You can take a “Memory Stick Duo” containing images shot with your camera to a photo printing service shop. You can make a
(Print order) mark on images which you want to print out in advance.
Printing images directly using a PictBridge compliant printer
Even if you do not have a computer, you can print images shot using your camera by connecting the camera directly to a
PictBridge compliant printer.
Stage 1: Preparing the camera
Prepare the camera to connect it to the printer with the dedicated USB cable.
Index button
• “PictBridge” is based on the CIPA standard.
(CIPA: Camera & Imaging Products
Association)
In single-image mode
You can print a single image on a printing sheet.
MENU button
Control Button
• It is recommended to use fully charged Nickel-
Metal Hydride batteries or an AC Adaptor (not supplied) to prevent the power from turning off partway through printing.
1
Press MENU to display the menu.
In index mode
You can print several images at a reduced size on a printing sheet. You can print a set of either the same images (1) or different images (2).
1 2
2
Press B on the control button to
3
Select [
] (Setup2) with V, then
2
select [USB Connect] with v/V/B.
4
Select [PictBridge] with B/v, then
press z.
• An index print function may not be provided depending on the printer.
• The quantity of images that can be printed as an index image differ depending on the printer.
• You cannot print movies.
• If the indicator flashes on the screen of the camera for about five seconds (error notification), check the connected printer.
The USB mode is set.
79
80
Printing images directly using a PictBridge compliant printer
Stage 2: Connecting the camera to the printer
1
Connect the camera to the printer.
Dedicated
USB cable
2
To the
(USB) ·
A/V OUT terminal
1
To the
USB jack
2
Turn on your camera and the printer.
After the connection is made,
Stage 3: Printing
Regardless of what the mode dial is set to, the print menu appears when you complete
Stage 2.
1
Select the desired printing
method with v/V on the control
button, then press z.
[All In This Folder]
Prints all the images in the folder.
[DPOF image]
Prints all the images with a (Print
order) mark (page 83) regardless of the
displayed image.
[Select]
Selects images and prints all the selected images.
1
Select the image you want to print with b/B, then press z.
The mark appears on the selected image.
• To select other images, repeat this procedure.
2
Select [Print] with V, then press z.
[This image]
Prints a displayed image.
• If you select [This image] and set [Index] to
[On] in step 2, you can print a set of the same images as an index image.
The camera is set to playback mode, then an image and the print menu appear on the screen.
Printing images directly using a PictBridge compliant printer
2
Select print settings with v/V/b/B.
3
Select [OK] with V/B, then press z.
The image is printed.
• Do not disconnect the dedicated USB cable while the (PictBridge Connecting) indicator appears on the screen.
[Index]
Select [On] to print as an index image.
[Size]
Select the size of the printing sheet.
[Date]
Select [Day&Time] or [Date] to insert the date and time on images.
• When you choose [Date], the date will be
inserted in the order you select (page 56).
This function may not be provided depending on the printer.
[Quantity]
When [Index] is set to [Off]:
Select the number of sheets of an image that you want to print. The image will be printed as a single image.
When [Index] is set to [On]:
Select the number of sets of images that you want to print as an index image. If you selected [This image] in step 1, select the number of the same image you want to print side by side on a sheet as an index image.
• The designated number of images may not all fit onto a single sheet depending on the quantity of images.
indicator
To print other images
After step 3, select [Select] and the desired image with v/V, then perform from step 1.
To print images on the index screen
Perform “Stage 1: Preparing the camera”
(page 79) and “Stage 2: Connecting the camera to the printer” (page 80), then
proceed with the following.
When you connect the camera to a printer, the print menu appears. Select [Cancel] to turn off the print menu, then proceed as follows.
1
Press
The index screen appears.
2
Press MENU to display the menu.
3
Select [ ] (Print) with B, then press z.
4
Select the desired printing method with v/
V, then press z.
81
82
Printing images directly using a PictBridge compliant printer
[Select]
Selects images and prints all the selected images.
Select the image you want to print with v/
V/b/B, then press z to display the mark. (Repeat this procedure to select other images.) Then, press MENU.
[DPOF image]
Prints all the images with a (Print order) mark regardless of the displayed image.
[All In This Folder]
Prints all the images in the folder.
5
Perform steps 2 and 3 of “Stage 3:
Printing at a shop
You can take a “Memory Stick Duo” containing images shot with your camera to a photo printing service shop. As long as the shop supports photo printing services conforming to the DPOF, you can make a
(Print order) mark on images in advance so that you do not need to reselect them when you print them out at the shop.
• You cannot print images stored in the internal memory at a print shop directly from the camera. Copy the images to a “Memory Stick
Duo”, then take the “Memory Stick Duo” to the print shop.
What is DPOF?
DPOF (Digital Print Order Format) is a function allowing you to make a (Print order) mark on images of “Memory Stick
Duo” that you want to print out later.
• You can also print the images with the
(Print order) mark using a printer that conforms to the DPOF (Digital Print Order Format) standard or using a PictBridge compliant printer.
• You cannot mark movies.
When taking a “Memory Stick Duo” to a shop
• Consult your photo printing service shop as to what types of “Memory Stick Duo” they handle.
• If a “Memory Stick Duo” is not handled by your photo printing service shop, copy the images you want to print out to other medium such as a
CD-R and take it to the shop.
• Be sure to take the Memory Stick Duo Adaptor with it.
• Before you take image data to a shop, always copy (back up) your data to a disk.
• You cannot set the number of prints.
• When you want to superimpose dates on images, consult your photo printing service shop.
1
Display the image you want to print.
2
Press MENU to display the menu.
3
Select DPOF with b/B, then press z.
A (Print order) mark is marked on the image.
4
Marking in single-image mode
To mark other images, display the
desired image with b/B, then
press z.
MENU button
Control button
To remove the mark in single-image mode
Press z in step 3 or 4.
83
Printing at a shop
Marking in index mode
1
Display the index screen
2
Press MENU to display the menu.
3
Select DPOF with b/B, then press z.
4
Select [Select] with v/V, then
press z.
• You cannot add a
Folder].
mark in [All In This
5
Select the image you want to
mark with v/V/b/B, then press z.
A green mark appears on the selected image.
(green)
To cancel, select [Cancel] in step 4 or select
[Exit] in step 8, then press z.
To remove the mark in index mode
Select the images from which you want to remove the mark in step 5, then press z.
To remove all the marks in the folder
Select [All In This Folder] in step 4, then press z. Select [Off], then press z.
84
6
Repeat step 5 to mark other images.
7
Press MENU.
8
Select [OK] with B, then press z.
The mark turns white.
Troubleshooting
Troubleshooting
If you experience trouble with your camera, try the following solutions.
1
Check the items on pages 86 to 94.
2
Remove the batteries, and insert the batteries again after about one minute, and turn on the power.
3
Initialize the settings (page 54).
4
Consult your Sony dealer or local authorized Sony service facility.
Please understand that you give your consent that the contents of the internal memory may be checked when you send your camera to be repaired.
Click one of the following items to jump to the page explaining the symptom and cause or the appropriate corrective action.
Batteries and power 86
“Memory Stick Duo” 92
Shooting still images/movies 87
Internal memory
89
Printing
Viewing images
Deleting/Editing images 89
PictBridge compliant printer 93
92
92
Computers
Picture Motion Browser
90
Others
91
94
85
86
Troubleshooting
Batteries and power
The battery remaining indicator is incorrect, or sufficient battery remaining indicator is displayed but the power runs out too quickly.
• This phenomenon occurs when you use the camera in an extremely hot or cold location.
• The batteries are discharged. Install the charged Nickel-Metal Hydride batteries.
•
When using the Nickel-Metal Hydride batteries, the poles of batteries or the terminals of the battery cover are dirty so the batteries are not charged sufficiently. Clean them with a cotton
• When using the Nickel-Metal Hydride batteries, the displayed time remaining differs from the
current one due to the memory effect (page 100), etc. Fully discharge and then charge the
batteries to correct the display.
The batteries run down too quickly.
• When using the Nickel-Metal Hydride batteries, charge them sufficiently.
•
You are using the camera in an extremely cold location.
Camera power is turned off automatically when you open the battery/“Memory
Stick Duo” cover.
• This is not a malfunction. Turn off the camera before you open the battery/“Memory Stick
Duo” cover.
Cannot turn on the camera.
• Install the batteries correctly.
• Properly connect the AC Adaptor (not supplied).
•
The batteries are discharged. Install the charged Nickel-Metal Hydride batteries.
The power turns off suddenly.
•
If you do not operate the camera for about three minutes while the power is on, the camera turns off automatically to prevent wearing down the batteries. Turn on the camera again.
•
The batteries are discharged. Install the charged Nickel-Metal Hydride batteries.
Troubleshooting
Shooting still images/movies
Your camera cannot record images.
•
Check the free capacity of the internal memory or “Memory Stick Duo”. If it is full, do one of the following:
–
Delete unnecessary images (page 28).
–
Change the “Memory Stick Duo”.
• You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 98).
• You cannot record images while charging the flash.
•
Set the mode dial to , , , , , , ,
•
Set the mode dial to when shooting movies.
, when shooting still images.
The subject is not visible on the screen.
• Your camera is set to the Playback mode. Press (Playback) to change to the recording
The image is out of focus.
•
The subject is too close. Shoot in (Macro) recording mode. Make sure to position the lens farther away from the subject than the shortest shooting distance, approximately 2 cm (13/16
inches) (W)/70 cm (27 5/8 inches) (T), when shooting (page 21).
•
(Twilight mode) or (Landscape mode) is selected in the Scene mode when shooting still images.
Zoom does not work.
•
The smart zoom cannot be used when image size is set to [8M] or [3:2].
• The digital zoom cannot be used while shooting movies.
• The zoom scale cannot be changed while shooting movies.
The flash does not work.
•
The flash is set to
•
You cannot use the flash when:
–
[Mode] (REC Mode) is set to [Burst] (page 37).
– (High sensitivity mode) or
(Twilight mode) is selected in the Scene mode (page 26).
– Shooting movies.
•
Set the flash to (Flash forced on) when (Landscape mode), (Beach mode), or
(Snow mode) is selected in the Scene mode (page 21).
Fuzzy specks appear in images shot using the flash.
•
Dust in the air reflected the flash light and appeared in the image. This is not a malfunction.
87
Troubleshooting
88
The close-up shoot function (Macro) does not work.
•
(Twilight mode) or
(Landscape mode) is selected in the Scene mode (page 27).
The date and time are not displayed.
•
While shooting, the date and time are not displayed. They are displayed only during playback.
Cannot insert dates on images.
•
This camera does not have a feature for superimposing dates on images (page 93). You can
print or save images with the date inserted using “Picture Motion Browser” (page 74).
The F value and shutter speed flash when you press and hold the shutter button halfway down.
•
The exposure is incorrect. Correct the exposure (page 23).
The screen is too dark or too bright.
•
Adjust the brightness of the LCD backlight (pages 16, 54).
The image is too dark.
• You are shooting a subject with a light source behind the subject. Select the metering mode
(page 33) or adjust the exposure (page 23).
The image is too bright.
•
Adjust the exposure (page 23).
The image colors are not correct.
•
Set [COLOR] (Color Mode) to [Normal] (page 32).
Vertical streaks appear when you are shooting a very bright subject.
•
The smear phenomenon is occurring. This phenomenon is not a malfunction.
Noise appears in the image when you view the screen in a dark place.
• The camera is attempting to increase the visibility of the screen by temporarily brightening the image under conditions of low illumination. There is no effect on the recorded image.
The eyes of the subject come out red.
•
Set [Red Eye Reduction] in the
(Setup) menu to [On] (page 48).
• Shoot the subject at a distance closer than the flash range using the flash.
•
Light the room and shoot the subject.
Troubleshooting
Dots appear and remain on the screen.
•
This is not a malfunction. These dots are not recorded (page 2).
Cannot shoot images in succession.
•
The internal memory or “Memory Stick Duo” is full. Delete unnecessary images (page 28).
• The battery level is low. Install the charged Nickel-Metal Hydride batteries.
Viewing images
Your camera cannot play back images.
• Press
•
The folder/file name has been changed on your computer (page 69).
• When an image file has been processed by a computer or when the image file was recorded using a model other than that of your camera, playback on your camera is not guaranteed.
•
The camera is in USB mode. Delete the USB connection (page 67).
The date and time are not displayed.
•
DISP button is turned off (page 16).
The image appears rough right after playback starts.
• The image may appear rough right after playback starts due to image processing. This is not a malfunction.
The image does not appear on the TV screen.
•
Check [Video Out] to see if the video output signal of your camera is set to the color system of
•
Check whether the connection is correct (page 57).
Deleting/Editing images
Your camera cannot delete an image.
•
Cancel the protection (page 41).
•
You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 98).
You have deleted an image by mistake.
• Once you have deleted an image, you cannot restore it. We recommend that you protect
images (page 40), or use the “Memory Stick Duo” with the write-protect switch and set the
switch to the LOCK position (page 98) to prevent accidental erasure.
89
Troubleshooting
90
The resizing function does not work.
•
You cannot resize movies.
Computers
You do not know if the OS of your computer is compatible with the camera.
•
Check “Recommended computer environment” on page 60 for Windows, and page 76 for
Macintosh.
“Memory Stick PRO Duo” is not recognized by a computer with a “Memory
Stick” slot.
• Check that the computer and the Memory Stick Reader/Writer support “Memory Stick PRO
Duo”. Users of computers and Memory Stick Readers/Writers made by manufacturers other than Sony should contact those manufacturers.
•
If “Memory Stick PRO Duo” is not supported, connect the camera to the computer (pages 63
and 76). The computer recognizes the “Memory Stick PRO Duo”.
Your computer does not recognize your camera.
• Turn on the camera.
•
When the battery level is low, install the charged Nickel-Metal Hydride batteries, or use the
AC Adaptor (not supplied).
•
Set [USB Connect] to [Mass Storage] in the
•
Use the dedicated USB cable (supplied) (page 63).
•
Disconnect the dedicated USB cable from both the computer and the camera, and connect it again firmly.
•
Disconnect all equipment other than the camera, the keyboard and the mouse from the USB connectors of your computer.
•
Connect the camera directly to your computer without passing through a USB hub or other
You cannot copy images.
•
Connect the camera and your computer correctly making a USB connection (page 63).
•
Follow the designated copy procedure for your OS (pages 63 and 76).
•
When you shoot images with a “Memory Stick Duo” formatted by a computer, you may not be able to copy the images to a computer. Shoot using a “Memory Stick Duo” formatted by
After making a USB connection, “Picture Motion Browser” does not start automatically.
•
Start “Media Check Tool” (page 70).
•
Make the USB connection after the computer is turned on (page 63).
Troubleshooting
The image cannot be played back on a computer.
•
If you are using “Picture Motion Browser,” refer to the Help.
• Consult the computer or software manufacturer.
The image and sound are interrupted by noise when you view a movie on a computer.
•
You are playing back the movie directly from the internal memory or the “Memory Stick
Duo”. Copy the movie to the hard disk of your computer, then play back the movie from the
You cannot print an image.
•
Refer to the operation manual of the printer.
Images once copied to a computer cannot be viewed on the camera.
•
Copy them to a folder recognized by the camera, such as “101MSDCF” (page 67).
•
Picture Motion Browser
Images are not displayed correctly with “Picture Motion Browser”.
• Make sure the folder of the images is registered in “Viewed folders”. If the images are not
displayed even if the folder is registered in “Viewed folders”, update the database (page 74).
You cannot find images imported with “Picture Motion Browser”.
• Look in the “My Pictures” folder.
•
You want to change the “Folder to be imported”.
• Access the “Import Settings” screen to change “Folder to be imported”. You can specify a different folder after using “Picture Motion Browser” to register it in “Viewed folders”
All imported images are displayed on the calendar with the date January 1.
•
The date has not been set on the camera. Set the date on the camera (page 56).
• If you have renamed or deleted image files/folders in other software, the image registration information is not updated. Select [Update Database] from the [Tools] menu to update image registration information.
91
92
Troubleshooting
“Memory Stick Duo”
Cannot insert a “Memory Stick Duo”.
•
Insert it in the correct direction.
Cannot format a “Memory Stick Duo”.
• You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to
the LOCK position. Set the switch to the recording position (page 98).
You have formatted a “Memory Stick Duo” by mistake.
•
All the data on the “Memory Stick Duo” is deleted by formatting. You cannot restore it. We recommend that you set the write-protect switch on the “Memory Stick Duo” to the LOCK
position to prevent accidental erasure (page 98).
Internal memory
Cannot play back or record images using the internal memory.
•
There is a “Memory Stick Duo” inserted in the camera. Remove it.
Cannot copy the data stored in the internal memory to a “Memory Stick Duo”.
•
The “Memory Stick Duo” is full. Check the capacity (64 MB or more recommended).
Cannot copy the data on the “Memory Stick Duo” or the computer to the internal memory.
•
Data on a “Memory Stick Duo” or a computer cannot be copied to the internal memory.
Printing
Also see “PictBridge compliant printer” (as follows) in conjunction with the following items.
Images are printed with both edges cut off.
•
Depending on your printer, the left, right, top, and bottom edges of the image may be cut off.
Especially when you print an image shot with the image size set to [16:9], the edge of the image may be cut off.
• When printing images using your own printer, try canceling the trimming or borderless settings. Consult the printer manufacturer as to whether the printer provides these functions or not.
• When having images printed at a digital print shop, ask the shop whether they can print the images without cutting off both edges.
Troubleshooting
Cannot print images with the date inserted.
•
You can print images with the date inserted using “Picture Motion Browser” (page 74).
• This camera does not have a feature for superimposing dates on images. However, because the images shot with the camera include information on the recording date, you can print images with the date superimposed if the printer or the software can recognize Exif information. For compatibility with Exif information, consult the manufacturer of the printer or the software.
• When you print images at a shop, images can be printed with the date inserted if you ask them to do so.
PictBridge compliant printer
A connection cannot be established.
• The camera cannot be connected directly to a printer that is not compliant with the PictBridge standard. Consult the printer manufacturer as to whether the printer is compliant with
PictBridge or not.
• Check that the printer is turned on and can be connected to the camera.
• Set [USB Connect] to [PictBridge] in the
•
Disconnect and connect the dedicated USB cable again. If an error message is indicated on the printer, refer to the operating instructions supplied with the printer.
Cannot print images.
•
Check that the camera and the printer are properly connected using the dedicated USB cable.
•
Turn on the printer. For further information, refer to the operating instructions supplied with the printer.
•
If you select [Exit] during printing, images may not be printed. Disconnect and connect the dedicated USB cable again. If you still cannot print your images, disconnect the dedicated
USB cable, turn the printer off and then on, then connect the dedicated USB cable again.
•
Movies cannot be printed.
•
Images shot using cameras other than this camera or images modified with a computer may not be printed.
Printing is canceled.
• You disconnected the dedicated USB cable before the disappears.
(PictBridge Connecting) mark
Cannot insert the date or print images in the index mode.
•
The printer does not provide these functions. Consult the printer manufacturer as to whether the printer provides these functions or not.
•
The date may not be inserted in the index mode depending on the printer. Consult the printer manufacturer.
“---- -- --” is printed on the date-inserted part of the image.
• Images that do not have the recording data cannot be printed with the date inserted. Set [Date]
to [Off] and print the image again (page 81).
93
94
Troubleshooting
Cannot select the print size.
•
Consult the printer manufacturer as to whether the printer can provide the desired size.
Cannot print the image at the size selected.
•
Disconnect the dedicated USB cable and reconnect it whenever you change the paper size after the printer has been connected to the camera.
•
The print setting of the camera differs from that of the printer. Change the setting of either the
camera (page 81) or the printer.
Cannot operate the camera after canceling printing.
• Wait for a while as the printer is carrying out the cancellation. It may take some time depending on the printer.
Others
The camera does not function with the lens portion extended.
• Do not attempt to force the lens that has stopped moving.
• Insert the charged Nickel-Metal Hydride batteries, then turn on the camera again.
The lens gets fogged.
•
Moisture condensation has occurred. Turn off the camera and leave it for about an hour before using it.
The camera becomes warm when you use it for a long time.
• This is not a malfunction.
The lens does not move when you turn off the camera.
•
The batteries are discharged. Install the charged Nickel-Metal Hydride batteries or use the AC
Adaptor (not supplied).
The Clock Set screen appears when you turn on the camera.
•
Set the date and time again (page 56).
You want to change the date or time.
•
Set the date and time again (page 56).
Warning messages
Messages
If the following messages appear, follow the instructions.
E
•
The battery level is low. Charge the
Nickel-Metal Hydride batteries immediately. Depending on the conditions of use or the type of battery, the indicator may flash even though there are still 5 to 10 minutes of remaining battery time left.
System error
•
Turn the power off and then on again.
Internal memory error
• Turn the power off and then on again.
Reinsert the Memory Stick
• Insert the “Memory Stick Duo” correctly.
• The inserted “Memory Stick Duo” cannot be used in your camera
•
The “Memory Stick Duo” is damaged.
• The terminal section of the “Memory
Stick Duo” is dirty.
Memory Stick type error
• The inserted “Memory Stick Duo” cannot be used in your camera
Format error
•
Format the media again (pages 50 and
Memory Stick locked
•
You are using the “Memory Stick Duo” with the write-protect switch, and the switch is set to the LOCK position. Set the switch to the recording position
No memory space in internal memory
No memory space in Memory Stick
•
Delete unnecessary images or files
Read only memory
•
Your camera cannot record or delete images on this “Memory Stick Duo”.
No file
• No images that can be played have been recorded in the internal memory.
No file in this folder
•
No images that can be played have been recorded in this folder.
•
You did not operate correctly when copying images from your computer
Folder error
•
A folder with the same first three digit number already exists on the “Memory
Stick Duo” (for example: 123MSDCF and 123ABCDE). Select another folders, or create a new folder (pages
Cannot create more folders
•
The folder with a name beginning with
“999” exists on the “Memory Stick
Duo”. You cannot create any folders if this is the case.
95
96
Warning messages
Cannot record
•
The camera cannot record images in the selected folder. Select a different folder
File error
•
An error occurred while the image was playing back.
File protect
•
Release the protection (page 41).
Image size over
•
You are playing back an image of a size that cannot be played back on your camera.
Invalid operation
•
You are trying to play back a file that is not compatible with the camera.
(Vibration warning indicator)
• Camera shake may occur due to insufficient light. Use the flash or mount the camera on a tripod to secure the camera.
Enable printer to connect
•
[USB Connect] is set to [PictBridge], however the camera is connected to a non-PictBridge compliant device.
Check the device.
•
The connection is not established.
Disconnect and connect the dedicated
USB cable again. If an error message is indicated on the printer, refer to the operating instructions supplied with the printer.
Connect to PictBridge device
•
You tried to print images before the printer connection was established.
Connect to a PictBridge compliant printer.
No printable image
• You tried to execute [DPOF image] without placing a DPOF (Print order) mark on the image(s).
•
You tried to execute [All In This Folder] while a folder that holds only movies was selected. You cannot print movies.
Printer busy
Paper error
No Paper
Ink error
Low Ink
No Ink
• Check the printer.
Printer error
•
Check the printer.
•
Check if the image you want to print is corrupted.
•
The data transmission to the printer may not be completed yet. Do not disconnect the dedicated USB cable.
Processing
•
The printer is canceling the current print job. You cannot print until it is finished.
This may take time, depending on the printer.
Others
To use your camera abroad — Power sources
You can use your camera, the AC-LS5K AC Adaptor (not supplied) in any country or region where the power supply is within 100 V to 240 V AC, 50/60 Hz.
•
Do not use an electronic transformer (travel converter), as this may cause a malfunction.
97
On the “Memory Stick”
98
A “Memory Stick” is a compact, portable
IC recording medium. The types of
“Memory Stick” that can be used with this camera are listed in the table below.
However, proper operation cannot be guaranteed for all “Memory Stick” functions.
“Memory Stick” type Recording/
Playback
Memory Stick
(without MagicGate)
Memory Stick
(with MagicGate)
Memory Stick Duo
(without MagicGate)
Memory Stick Duo
(with MagicGate)
MagicGate Memory Stick
MagicGate Memory Stick
Duo
Memory Stick PRO
Memory Stick PRO Duo
—
— a a
*1*2
— a
*1
— a
*1*2
*1
“Memory Stick Duo”, “MagicGate Memory
Stick Duo” and “Memory Stick PRO Duo” are equipped with MagicGate functions.
MagicGate is copyright protection technology that uses encryption technology. Data recording/playback that requires MagicGate functions cannot be performed with this camera.
*2
Supports high-speed data transfer using a parallel interface.
• This product is compatible with “Memory Stick
Micro” (“M2”). “M2” is the abbreviation for the
“Memory Stick Micro.”
• A “Memory Stick Duo” formatted with a computer is not guaranteed to operate with this camera.
• Data read/write speeds differ depending on the combination of the “Memory Stick Duo” and the equipment used.
Notes on using a “Memory Stick Duo”
(not supplied)
• You cannot record, edit or delete images if you slide the write-protect switch to LOCK with a fine-tipped object.
Terminal
Write-protect switch
Memo area
Some “Memory Stick Duo” cards do not have a write-protect switch. The position and/or the shape of the write-protect switch may differ depending on the “Memory
Stick Duo” you use.
• Do not remove the “Memory Stick Duo” while reading or writing data.
• Data may be corrupted in the following cases:
– When the “Memory Stick Duo” is removed or the camera is turned off during a read or write operation
– When the “Memory Stick Duo” is used in locations subject to static electricity or electrical noise
• We recommend backing up important data.
• Do not press down hard when you write down on the memo area.
• Do not attach a label on the “Memory Stick
Duo” itself nor on a Memory Stick Duo
Adaptor.
• When you carry or store the “Memory Stick
Duo”, put it in the case supplied with it.
• Do not touch the terminal section of the
“Memory Stick Duo” with your hand or a metal object.
• Do not strike, bend or drop the “Memory Stick
Duo”.
• Do not disassemble or modify the “Memory
Stick Duo”.
• Do not expose the “Memory Stick Duo” to water.
• Do not leave the “Memory Stick Duo” within the reach of small children. They might accidentally swallow it.
On the “Memory Stick”
• Do not use or store the “Memory Stick Duo” under the following conditions:
– High temperature locations such as the hot interior of a car parked in direct sunlight
– Locations exposed to direct sunlight
– Humid locations or locations with corrosive substances present
Notes on using the Memory Stick Duo
Adaptor (not supplied)
• To use a “Memory Stick Duo” with a “Memory
Stick” compliant device, be sure to insert the
“Memory Stick Duo” into a Memory Stick Duo
Adaptor. If you insert a “Memory Stick Duo” into a “Memory Stick” compliant device without a Memory Stick Duo Adaptor, you might not be able to remove it from the device.
• When inserting a “Memory Stick Duo” into a
Memory Stick Duo Adaptor, make sure the
“Memory Stick Duo” is inserted facing in the correct direction, then insert it all the way in.
Incorrect insertion may result in a malfunction.
• When using a “Memory Stick Duo” inserted into a Memory Stick Duo Adaptor with a
“Memory Stick” compliant device, make sure that the Memory Stick Duo Adaptor is inserted facing the correct direction. Note that improper use may damage the equipment.
• Do not insert a Memory Stick Duo Adaptor into a “Memory Stick” compliant device without a
“Memory Stick Duo” attached. Doing so may result in malfunction of the unit.
Notes on using “Memory Stick PRO
Duo” (not supplied)
“Memory Stick PRO Duo” with a capacity up to
8 GB have been confirmed to operate properly with this camera.
Notes on using “Memory Stick Micro”
(not supplied)
• To use a “Memory Stick Micro” with this camera, you need a Duo-sized M2 Adaptor.
Insert the “Memory Stick Micro” into the Duosized M2 Adaptor, and then insert the adaptor into the Memory Stick Duo slot. If you insert a
“Memory Stick Micro” into this camera without using a Duo-sized M2 Adaptor, you might not be able to remove it from the camera.
• Do not leave the “Memory Stick Micro” within the reach of small children. They might accidentally swallow it.
99
On the batteries
100
Batteries you can and cannot use with your camera
A B C Battery type
HR 15/51:HR6 (size
AA) Nickel-Metal
Hydride batteries
*1*2
LR6 (size AA) alkaline batteries
ZR6 (size AA) Oxy
Nickel Primary
Battery
Lithium batteries
Manganese batteries
Ni-Cd batteries a
—
—
—
—
— a
—
—
—
—
— a
—
—
—
—
—
A: supplied
B: supported
C: rechargeable
*1
NH-AA-2DB twin pack, etc.
*2
Before using batteries, read the following precaution for each type of battery.
As for unsupported batteries, operating performance cannot be ensured if voltage drops or other problems are caused by the nature of the battery.
On Nickel-Metal Hydride batteries
• Do not peel off the external seals or damage the batteries. Never use batteries from which the seals have been partially or completely removed, or batteries that have been split in any way. These may cause leakage, explosion, or heat-up of the battery, and personal scald or injury may be caused. These may cause a malfunction of the battery charger.
• Do not carry or store the Nickel-Metal Hydride batteries with metallic objects. Since metallic objects may short the + and – ends, resulting in the risk of heating or fire.
• If the poles of the Nickel-Metal Hydride batteries are dirty, the batteries may not charge properly. Wipe them with a dry cloth, etc.
• At the time of purchase, or when the Nickel-
Metal Hydride batteries have not been used for a long time, they may not full charge. This is typical of this type of battery, and is not a malfunction. If this happens, repeatedly using up the batteries fully, and then recharging them should correct the problem.
• If you recharge the Nickel-Metal Hydride batteries before fully using up the existing charge, the low battery warning may be displayed sooner than expected. This is called the “memory effect.”* If this problem occurs, charging the batteries only after using up the existing charge will correct it.
* The “memory effect” - the situation in which the capacity of the battery is temporarily lowered.
• To use up the batteries completely, put the
camera in the slide show mode (page 42) and
leave it that way until the batteries are used up.
• Do not mix new and used batteries.
• Do not expose the battery to water. The battery is not water-resistant.
Effective use of Nickel-Metal Hydride batteries
• Batteries are discharged even when they are not used. We recommend you charge the batteries just before using them.
• Battery performance decreases in low temperature surroundings, and the battery life is shortened under such circumstances. To use the battery longer, we recommend you keep the battery in its case in a pocket close to your body to warm it, and insert it in your camera just before you start shooting.
• If the poles of the batteries and the terminals on the battery cover of the camera are dirty, the battery life may be extremely shortened.
Occasionally wipe them with a dry cloth, etc. to keep them clean.
• If you shoot a lot using the flash and the zoom, the battery power will be used up faster.
• We recommend having spare batteries handy for two or three times the expected shooting time and try test shooting before actually using the camera.
On the batteries
Battery life of Nickel-Metal Hydride batteries
• The battery life is limited. The battery capacity decreases little by little as you use it more and more, and as time passes. When the battery operating time seems to have been considerably shortened, a probable cause is that the batteries have reached the end of their life.
• The battery life varies depending on storage,operating conditions, and environment, and is different for each battery.
101
102
On the battery charger
On the battery charger
• Do not charge any other batteries except Sony
Nickel-Metal Hydride batteries in the battery charger supplied with your camera. If you try to charge any other type of battery (e.g.,manganese batteries, alkaline batteries, primary lithium batteries, or Ni-Cd batteries) than the batteries specified, those batteries may leak, overheat, or explode, causing the danger of burns or other injuries.
• Remove the charged batteries from the battery charger. If you keep charging them, there is a danger of leaks, excessive heat, explosions, or electric shock.
• When charging a high capacity battery other than the supplied battery using the supplied battery charger, the full capacity of the battery may not be available.
• When the CHARGE lamp flashes, this may indicate a battery error or that batteries other than the specified type have been inserted.
Check that the batteries are the specified type. If the batteries are the specified type, remove all the batteries, replace them with new ones or another ones and check if the battery charger operates correctly. If the battery charger operates correctly, a battery error may have occurred.
• If the battery charger is dirty, charging may not be performed successfully. Clean the battery charger with dry cloth, etc.
Index
Index
A
AC Adaptor...........................11
Adjusting EV ........................23
AE/AF lock indicator............19
AF Illuminator ......................48
AF lock .................................19
AF range finder frame ..........19
Aperture ..................................7
Auto adjustment mode..........19
Auto Focus..............................6
Auto Review .........................49
AVI........................................68
B
B&W.....................................32
Battery ................................100
Battery charger....................102
Beach mode ..........................26
Beep ......................................54
Blur .........................................6
Burst......................................37
C
Camera..................................47
CD-ROM ..............................61
Change REC. Folder .............52
Clock Set...............................56
Cloudy ..................................34
Color .......................................8
Color Mode...........................32
Compression ratio...................9
Computer.............................. 59
Macintosh...................... 76
environment ............ 60, 76
Software ........................ 61
Viewing image files stored on a computer with your camera........................... 69
Windows ....................... 59
Connecting
Computer ...................... 63
Printer............................ 80
TV ................................. 57
Copy ..................................... 53
Copying images to your computer ....................... 62
Create REC. Folder .............. 51
D
Date ...................................... 56
Daylight................................ 35
Dedicated A/V cable ............ 57
Dedicated USB cable ..... 63, 80
Delete ................................... 28
Format ..................... 50, 51
Digital Zoom ........................ 47
DirectX ................................. 60
DPOF ................................... 83
E
EV ........................................ 23
Exposure................................. 7
Extension.............................. 69
F
File name.............................. 67
File Number ......................... 55
File storage destination ........ 67
Fine....................................... 36
Flash ..................................... 34
Flash forced off.....................21
Flash forced on .....................21
Flash Level............................38
Flash mode............................21
Fluorescent ...........................34
Focus.......................................6
Folder....................................39
Changing .......................52
Creating .........................51
Format.............................50, 51
Function Guide .....................48
H
High Sensitivity mode ..........26
Holding the camera...........6, 19
I
Identifying parts....................10
Image file storage destinations and file names................67
Image quality ....................9, 36
Image size .........................9, 24
Incandescent .........................34
Index mode printing..............79
Index screen ..........................29
Indicator................................12
Initialize ................................54
Install ....................................61
Internal memory ...................17
Internal Memory Tool...........50
ISO....................................7, 35
J
JPG .......................................68
L
Landscape mode ...................26
Language ..............................54
LCD Backlight......................54
LCD Screen ..........................16
103
Index
M
Macintosh computer .............76
Recommended environment................... 76
Macro.................................... 21
Map View .............................73
Mass Storage ........................55
“Memory Stick Duo”............ 98
Memory Stick Tool...............51
Menu..................................... 30
Items .............................. 31
Shooting ........................32
Viewing ......................... 39
Metering Mode ..................... 33
Mode..................................... 37
Multi-pattern metering ......... 33
N
Natural .................................. 32
NTSC.................................... 56
O
Optical zoom ..................20, 47
OS ...................................60, 76
Overexposure..........................7
104
P
P.Quality ...............................36
PAL....................................... 56
PC ......................................... 59
PictBridge.......................55, 79
Picture Motion Browser ....... 70
Pixel........................................9
Playback ...............................28
Playback zoom ..................... 28
Precision digital zoom .......... 47
Pressing halfway down........... 6
Print ......................................78
Index mode.................... 79
Print order mark ................... 83
Printing at a shop ................. 83
Printing directly ................... 79
Program Auto mode............. 18
Protect .................................. 40
PTP....................................... 55
R
REC Mode ........................... 37
Red Eye Reduction .............. 48
Resize................................... 43
Rewind/Fast forward............ 28
Rich...................................... 32
Rotate ................................... 44
S
Scene Selection .................... 25
Screen
Indicator........................ 12
LCD backlight .............. 16
Self-timer ............................. 22
Sepia..................................... 32
Setup ........................ 38, 44, 46
Camera.......................... 47
Setup 1 .......................... 54
Setup 2 .......................... 55
Setup 1 ................................. 54
Setup 2 ................................. 55
Sharpness ............................. 38
Shooting
Movie............................ 19
Still image..................... 19
Shooting menu ..................... 32
Shooting movies................... 18
Shutter speed.......................... 7
...................................... 79
Slide Show............................ 42
Slow synchro ........................ 21
Smart zoom .......................... 47
Snow mode ........................... 26
Soft Snap mode .................... 26
Software ......................... 61, 70
Spot metering ....................... 33
Spot metering cross hairs ..... 33
Standard................................ 36
T
Trimming.............................. 45
Troubleshooting.................... 85
TV......................................... 57
Twilight mode....................... 26
Twilight Portrait mode.......... 26
U
Underexposure........................ 7
USB Connect........................ 55
USB·A/V OUT terminal....... 10
V
VGA ..................................... 24
Video Out ............................. 56
Viewing menu....................... 39
Volume.................................. 28
W
Warning messages ................ 95
WB ....................................... 34
White balance ....................... 34
Windows computer............... 59
Recommended environment................... 60
Write-protect switch ............. 98
Z
Zoom .................................... 20
Additional information on this product and answers to frequently asked questions can be found at our
Customer Support Website.
advertisement
Key Features
- Compact camera 8.1 MP CCD Silver
- Image sensor size: 1/1.8"
- Image stabilizer
- Optical zoom: 6x Digital zoom: 12x
- ± 2EV (1/3EV step)
- Video recording 640 x 480 pixels
- Built-in microphone PictBridge
- Nickel-Metal Hydride (NiMH)
Related manuals
advertisement
Table of contents
- 2 Notes on using your camera
- 3 Table of contents
- 6 Basic techniques for better images
- 6 Focus
- 7 Exposure
- 8 Color
- 9 Quality
- 10 Identifying parts
- 12 Indicators on the screen
- 16 Changing the screen display
- 17 Using the internal memory
- 18 Basic Operations
- 18 Using the mode dial
- 19 Shooting images easily (Auto adjustment mode)
- 25 Shooting still images (Scene selection)
- 28 Viewing/deleting images
- 30 Using the menu
- 30 Using menu items
- 31 Menu items
- 32 Shooting menu
- 32 COLOR (Color Mode): Changing the vividness of the image or adding special effects
- 33 (Metering Mode): Selecting the metering mode
- 34 WB (White Bal): Adjusting the color tones
- 35 ISO: Selecting a luminous sensitivity
- 36 (P.Quality): Selecting the still image quality
- 37 Mode (REC Mode): Selecting the continuous shooting method
- 38 (Flash Level): Adjusting the amount of flash light
- 38 (Sharpness): Adjusting the sharpness of the image
- 38 (Setup): Changing Setup items
- 39 Viewing menu
- 39 (Folder): Selecting the folder for viewing images
- 40 - (Protect): Preventing accidental erasure
- 41 DPOF: Adding a Print order mark
- 41 (Print): Printing images using a printer
- 42 (Slide): Playing back a series of images
- 43 (Resize): Changing the image size of a recorded image
- 44 (Rotate): Rotating a still image
- 44 (Setup): Changing Setup items
- 45 Trimming: Recording an enlarged image
- 46 Using the Setup screen
- 46 Using Setup items
- 47 Camera
- 47 Digital Zoom
- 48 Function Guide
- 48 Red Eye Reduction
- 48 AF Illuminator
- 49 Auto Review
- 50 Internal Memory Tool
- 50 Format
- 51 Memory Stick Tool
- 51 Format
- 51 Create REC. Folder
- 52 Change REC. Folder
- 53 Copy
- 54 Setup 1
- 54 LCD Backlight
- 54 Beep
- 54 Language
- 54 Initialize
- 55 Setup 2
- 55 File Number
- 55 USB Connect
- 56 Video Out
- 56 Clock Set
- 57 Viewing images on a TV screen
- 57 Viewing images on a TV screen
- 59 Using your computer
- 59 Enjoying your Windows computer
- 61 Installing the software (supplied)
- 62 Copying images to your computer
- 69 Viewing image files stored on a computer with your camera (using a “Memory Stick Duo”)
- 70 Using the “Picture Motion Browser” (supplied)
- 76 Using your Macintosh computer
- 78 Printing still images
- 78 How to print still images
- 79 Printing images directly using a PictBridge compliant printer
- 83 Printing at a shop
- 85 Troubleshooting
- 85 Troubleshooting
- 95 Warning messages
- 97 Others
- 97 To use your camera abroad - Power sources
- 98 On the “Memory Stick”
- 100 On the batteries
- 102 On the battery charger
- 103 Index
- 103 Index
