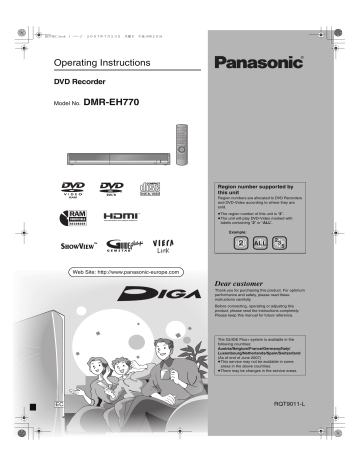

EH770EC.book 1 ページ 2007年7月23日 月曜日 午後4時20分 Operating Instructions DVD Recorder Model No. DMR-EH770 Region number supported by this unit Region numbers are allocated to DVD Recorders and DVD-Video according to where they are sold. ≥The region number of this unit is “2”. ≥The unit will play DVD-Video marked with labels containing “2” or “ALL”. Example: 2 ALL 2 3 5 Web Site: http://www.panasonic-europe.com Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference. The GUIDE Plus+ system is available in the following countries: Austria/Belgium/France/Germany/Italy/ Luxembourg/Netherlands/Spain/Switzerland (As of end of June 2007) ≥This service may not be available in some areas in the above countries. ≥There may be changes in the service areas. EC RQT9011-L EH770EC.book 2 ページ 2007年7月23日 月曜日 午後4時20分 SUOMI CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, ≥DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. ≥USE ONLY THE RECOMMENDED ACCESSORIES. ≥DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION! ≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. ≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS. ≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT. ≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES. This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone. The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle. CLASS 1 LASER PRODUCT VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. VAROITUS: VÄHENNÄ TULIPALON, SÄHKÖISKUN TAI LAITTEISTON VAHINGOITTUMISEN VAARAA ≥TÄTÄ LAITETTA EI SAA ALTISTAA SATEELLE, KOSTEUDELLE, ROISKEILLE TAI TIPPUVILLE NESTEILLE. LAITTEEN PÄÄLLE EI SAA MYÖSKÄÄN ASETTAA MITÄÄN NESTEELLÄ TÄYTETTYÄ ESINETTÄ, KUTEN MALJAKKOA. ≥KÄYTÄ VAIN SUOSITELTUJA LISÄVARUSTEITA. ≥ÄLÄ IRROTA KANTTA (TAI TAUSTAA). SISÄLLÄ EI OLE KÄYTTÄJÄN HUOLLETTAVISSA OLEVIA OSIA. HUOLLON SAA SUORITTAA VAIN AMMATTITAITOINEN HENKILÖKUNTA. VAROITUS! ≥ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA. ≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ. ≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE. ≥HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVALLA. TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA. Pistorasia tulee asentaa laitteen lähelle helppopääsyiseen paikkaan. Verkkojohdon pistokkeen on oltava aina helposti käytettävissä. Tämä laite voidaan kytkeä kokonaan irti verkkovirrasta irrottamalla verkkojohdon pistoke pistorasiasta. NORSK ADVARSEL! DETTE PRODUKTET ANVENDER EN LASER. BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING. DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT PERSONELL. ADVARSEL: FØLG NEDENSTÅENDE INSTRUKSER FOR Å REDUSERE RISIKOEN FOR BRANN, ELEKTRISK STØT OG SKADE PÅ PRODUKTET: ≥DETTE APPARATET MÅ IKKE UTSETTES FOR REGN, FUKTIGHET, DRYPP ELLER SPRUT, OG INGEN VÆSKEFYLTE GJENSTANDER, SOM F.EKS. VASER, MÅ PLASSERES PÅ APPARATET. ≥BRUK KUN ANBEFALT TILBEHØR. ≥IKKE FJERN DEKSELET (ELLER BAKSIDEN); APPARATET INNEHOLDER INGEN DELER SOM KAN SKIFTES ELLER REPARERES AV BRUKEREN. OVERLAT TIL KVALIFISERTE SERVICETEKNIKERE Å UTFØRE SERVICE. ADVARSEL! ≥APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS. ≥APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED AVISER, BORDDUKER , GARDINER OG LIGNENDE. ≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARATET. ≥BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET. DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD. RQT9011 2 (Inside of product) (Tuotteen sisällä) (Produktets innside) Strømuttaket må befinne seg i nærheten av utstyret og være lett tilgjengelig. Støpslet på strømkabelen må være klart til bruk. Når dette apparatet skal kobles helt fra strømnettet (AC), må støpslet på strømkabelen trekkes ut av stikkontakten. EH770EC.book 3 ページ 2007年7月23日 月曜日 午後4時20分 Table of contents Editing Editing titles/chapters and playing chapters . . . . . . . . . . . . . . . . 46 Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Creating playlists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Editing and playing playlists/chapters . . . . . . . . . . . . . . . . . . . . . Playlist operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 49 49 49 Editing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 GUIDE Plus+ data download . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Editing programme lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Changing the settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Copying titles or playlists . . . . . . . . . . . . . . . . . . . . . . . 53 Using the DELETE Navigator to delete. . . . . . . . . . . . . . . . . . . . 52 Deleting titles or pictures during play . . . . . . . . . . . . . . . . . . . . . 52 Copying Set up to match your television and remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Copying using the copying list–Advanced Copy . . . . . . . . . . . . . 55 Copying a finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R and +R DL . . . . . . . . . . . . . 57 To enjoy progressive video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Copying still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Copying using the copying list. . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Copying all the still pictures on the USB memory —Copy All Pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Copying from a video cassette recorder . . . . . . . . . . . 60 Manual recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 DV automatic recording (DV Auto Rec) . . . . . . . . . . . . . . . . . . . 60 Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Recording music from CD and play on HDD . . . . . . . . 61 Using the GUIDE Plus+ system to make timer recordings. . . . . Operations in the GUIDE Plus+ system . . . . . . . . . . . . . . . . . . . Using SHOWVIEW number to make timer recordings . . . . . . . . . . Manually programming timer recordings . . . . . . . . . . . . . . . . . . To cancel recording when recording has already begun . . . . . . To release the unit from recording standby . . . . . . . . . . . . . . . . Notes on timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Check, change or delete a programme . . . . . . . . . . . . . . . . . . . Relief Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Renewal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VPS/PDC function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 31 32 32 33 33 33 33 34 34 34 Recording broadcasts from external equipment. . . . . 35 Making timer recordings on the television . . . . . . . . . . . . . . . . . 35 Recording from digital/satellite receiver or decoder . . . . . . . . . . 35 Linked timer recordings with external equipment (digital/satellite receiver) — EXT LINK . . . . . . . . . . . . . . . . . . 35 Playing back Playing recorded video contents/ Playing play-only discs . . . . . . . . . . . . . . . . . . . . . . . . 36 Operations during play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Changing audio during play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Playing DivX files, MP3 files and still pictures (JPEG) . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Regarding DivX files, MP3 files and still pictures (JPEG) . . . . . Selecting file type to play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Playing DivX discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Playing MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Playing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Useful functions during still picture play . . . . . . . . . . . . . . . . . . . 39 40 40 41 42 43 Using on-screen menus/Status message. . . . . . . . . . . 44 Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Editing 27 28 28 29 29 Music Server Convenient functions HDD and disc management . . . . . . . . . . . . . . . . . . . . . . 62 Common procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Providing a name for a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Deleting all titles and playlists—Delete all titles . . . . . . . . . . . . . Deleting all the contents of a disc—Format . . . . . . . . . . . . . . . . Selecting the background style—Top Menu . . . . . . . . . . . . . . . . Selecting whether to show the Top Menu first —Auto-Play Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Enabling discs to be played on other equipment—Finalise . . . . Creating Top Menu—Create Top Menu . . . . . . . . . . . . . . . . . . . Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FUNCTION MENU window . . . . . . . . . . . . . . . . . . . . . . . Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Changing the unit’s settings . . . . . . . . . . . . . . . . . . . . . Common procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Summary of settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TV System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 62 62 63 63 64 64 64 64 65 66 66 67 67 67 71 73 73 Copying Disc Insertion/Ejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . To specify a time to stop recording—One Touch Recording . . . Recording settings for High Speed Copy . . . . . . . . . . . . . . . . . . Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . . . Music Server Recording television programmes . . . . . . . . . . . . . . . . 26 Playing back Delete Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Recording Album and picture operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Linked operations with the TV (VIERA Link “HDAVI ControlTM”/Q Link). . . . . . . . . . . 18 STEP 2 Channel reception settings and TV aspect settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 GUIDE Plus+ system settings . . . . . . . . . . . . . . . . . . . . 21 Recording Getting started Creating, editing and playing playlists . . . . . . . . . . . . . 48 Convenient functions Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 The unit’s display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Reference Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Frequently asked questions . . . . . . . . . . . . . . . . . . . . . 76 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover Reference Getting started HDD, disc and USB memory information . . . . . . . . . . . . 4 Important notes for recording . . . . . . . . . . . . . . . . . . . . . 8 HDD (Hard disk drive) handling care . . . . . . . . . . . . . . . 9 Disc handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Included accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 The remote control information . . . . . . . . . . . . . . . . . . 11 Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . 12 About descriptions in these operating instructions ≥Pages to be referred to are indicated as “➡ {{”. RQT9011 3 EH770EC.book 4 ページ 2007年7月23日 月曜日 午後4時20分 HDD, disc and USB memory information HDD and discs you can use for recording and play Disc type DVD-RAM ≥4.7 GB/9.4 GB, 12 cm ≥2.8 GB, 8 cm Hard disk drive (HDD) ≥400 GB Logo – Indicated in these instructions by [HDD] [RAM] DVD Video Recording format Recording format Data that can be recorded and played This is a recording format which allows you to record and edit television broadcasts and so on. ≥You can delete unwanted parts of a title, create playlists, etc. ≥The broadcasts that allow “One time only recording” can be recorded to a CPRM compatible disc. Video Still pictures (JPEG) Music Video Still pictures (JPEG) Re-writable ≤ ≤ Play on other players§2 – Only on DVD-RAM compatible players. Compatible with high speed recording§3 – Up to 5X recording speed discs. What you can do on this unit (≤: Can do, –: Cannot do) Recording broadcasts that allow one copy ≤ ≤ [CPRM (➡ 84) compatible discs only.] Recording both M 1 and M 2 for bilingual broadcasts§4 ≤ ≤ Recording 16:9 aspect picture§4 ≤ ≤ Creating and editing playlists ≤ ≤ Disc type DVD-R§1 ≥4.7 GB, 12 cm ≥1.4 GB, 8 cm DVD-R DL§1 (dual layer on single side) ≥You cannot directly record to a DVD-R DL disc on this unit (➡ 8) DVD-RW ≥4.7 GB, 12 cm ≥1.4 GB, 8 cm Logo Indicated in these instructions by [-R] before finalisation [-R]DL] before finalisation [-RW‹V›] before finalisation [DVD-V] after finalisation [DVD-V] after finalisation [DVD-V] after finalisation DVD-Video format Recording format Data that can be recorded and played This recording format is the same as commercially available DVD-Video. ≥The broadcasts that allow “One time only recording” cannot be recorded. Video Video Video – – ≤ Only after finalising the disc (➡ 64, 84). Only on DVD-R DL compatible players after finalising the disc (➡ 64, 84). Only after finalising the disc (➡ 64, 84). Up to 16X recording speed discs. Up to 8X recording speed discs. Up to 6X recording speed discs. – – – – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] Recording 16:9 aspect picture§4 ≤ ≤ ≤ Creating and editing playlists – – – Re-writable Play on other players§2 Compatible with high speed recording§3 What you can do on this unit (≤: Can do, –: Cannot do) Recording broadcasts that allow one copy Recording both M 1 and M 2 for bilingual broadcasts§4 RQT9011 4 (continued on the next page) EH770EC.book 5 ページ 2007年7月23日 月曜日 午後4時20分 HDD and discs you can use for recording and play Disc type Logo Indicated in these instructions by +R DL§1 (double layer on single side) ≥You cannot directly record to a +R DL disc on this unit (➡ 8) +R§1 §5 ≥4.7 GB, 12 cm – – [+R] before finalisation [+R]DL] before finalisation [DVD-V] after finalisation [DVD-V] after finalisation +RW – [+RW] +VR (+R/+RW Video Recording) format Recording format Data that can be recorded and played This is a format for recording moving pictures to +R/+RW discs. You can playback such discs recorded in this format in a similar way as contents recorded in the DVD-Video format. ≥The broadcasts that allow “One time only recording” cannot be recorded. ≥After finalising the disc or creating the top menu, you can play the disc on DVD players and other equipment. Video Video Video – – ≤ Only after finalising the disc (➡ 64, 84). Only on +R DL compatible players after finalising the disc (➡ 64, 84). Only on +RW compatible players. Up to 16X recording speed discs. Up to 8X recording speed discs. Up to 4X recording speed discs.§6 – – – – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] – [Only one is recorded.(➡ 68, Bilingual Audio Selection)] – (The picture is recorded in 4:3 aspect.) – (The picture is recorded in 4:3 aspect.) – (The picture is recorded in 4:3 aspect.) – – – Re-writable Play on other players§2 Compatible with high speed recording§3 HDD, disc and USB memory information (continued) What you can do on this unit (≤: Can do, –: Cannot do) Recording broadcasts that allow one copy Recording both M 1 and M 2 for bilingual broadcasts§4 Recording 16:9 aspect picture§4 Creating and editing playlists §1 The amount of the recordable disc space doesn’t increase even if the programme is deleted when you use discs that can only be used for recording once. §2 [RAM] Can be played on Panasonic DVD Recorders and DVD-RAM compatible DVD players. If you play a DVD-R DL, +R DL or +RW, use compatible equipment. §3 The high speed recording discs listed here are compatible with this unit. However, this is not the copy speed. §4 For further information (➡ 8, Important notes for recording) [Note] §5 §6 When “Rec for High Speed Copy” is set to “On”, the restrictions on secondary audio recording are also applied to DVD-RAM. Turn this setting “Off” if high speed copy to DVD-R, etc. is not necessary when recording a programme (The default setting is “On”. ➡ 68). +R discs recorded with this unit and +R discs recorded with another Panasonic DVD Recorder may be incompatible. However, discs that are finalised are compatible and can be played. You can play 8X recording speed discs recorded on another equipment. ≥We recommend using Panasonic discs. We also recommend using DVD-RAM discs with cartridges to protect them from scratches and dirt. ≥You may not be able to record depending on the condition of the discs and you may not be able to play due to the condition of the recording. ≥You cannot record programmes that allow “One time only recording” to CPRM compatible DVD-R and DVD-RW on this unit. ≥This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.) Finalise A process that makes play of a recorded disc possible on equipment that can play such media. After finalising, the disc becomes play-only and you can no longer record or edit. (➡ 64) Formatting Formatting is the process of making media such as DVD-RAM recordable on recording equipment. (➡ 63) Formatting permanently deletes all contents. You cannot directly record to a DVD-R DL and +R DL disc on this unit. Record to the HDD and then copy to the disc. When playing DVD-R DL (Dual Layer, single-sided) and +R DL (Double Layer, single-sided) DVD-R DL (Dual Layer, single-sided) and +R DL (Double Layer, single-sided) discs have two writable layers on one side. If there is not enough space on the first layer to record a programme, the remainder is recorded on the second layer. When playing a title recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal programme. However, video and audio may momentarily cut out when the unit is switching layers. When switching layers: Video and audio may momentarily cut Second recordable layer The available space (Inner section of the disc) First recordable layer DVD-R DL +R DL Title 1 Title 2 Playback direction ∫ Recording modes and approximate recording times (➡ 27) (Outer section of the disc) RQT9011 5 EH770EC.book 6 ページ 2007年7月23日 月曜日 午後4時20分 HDD, disc and USB memory information Play-only discs (12 cm/8 cm) Disc type DVD-Video DVD-RW (DVD Video Recording format) Logo Indicated in these [DVD-V] instructions by Instructions High quality movie and music discs [-RW‹VR›] DVD-RW recorded on another DVD Recorder ≥You can play programmes that allow “One time only recording” if they have been recorded to a CPRM compatible disc. ≥By formatting (➡ 63) the disc, you can record to it in DVD-Video format and play it on this unit. ≥It may be necessary to finalise the disc on the equipment used for recording. . Disc type DVD-R DVD-R DL CD Logo Indicated in these DivX, MP3, JPEG DivX, MP3, JPEG instructions by Instructions ≥DVD-R§ with video ≥DVD-R DL§ with recorded in DivX video recorded in DivX ≥DVD-R§ with music recorded in MP3 ≥DVD-R DL§ with § with still music recorded in ≥DVD-R MP3 pictures recorded in JPEG ≥DVD-R DL§ with still pictures recorded in JPEG Video CD SVCD – [CD] DivX, MP3, JPEG Recorded audio and music (including CD-R/ RW§) ≥You can record tracks to this unit’s HDD. ≥CD-R and CD-RW§ with video recorded in DivX ≥CD-R and CD-RW§ with music recorded in MP3 ≥CD-R and CD-RW§ with still pictures recorded in JPEG [VCD] Recorded music and video (including CD-R/RW§) § Close the session after recording. Play may be impossible on some discs due to the condition of the recording. ≥The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully. ≥Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed. Discs that cannot be played ≥2.6 and 5.2 GB DVD-RAM, 12 cm ≥3.95 and 4.7 GB DVD-R for Authoring ≥DVD-R, DVD-R DL, DVD-RW, +R, +R DL recorded on another unit and not finalised (➡ 84). ≥Discs recorded with AVCHD format. ≥DVD-Video with a region number other than “2” or “ALL” ≥DVD-Audio ≥Blu-ray, HD DVD ≥DVD-ROM, +R (8 cm), CD-ROM, CDV, CD-G, Photo CD, CVD, SACD, MV-Disc, PD Types of disc or title recorded on HDD for the type of connected TV When you use the discs recorded either PAL or NTSC, or playback a title recorded on HDD using PAL or NTSC, refer to this table. (≤: Possible to view, –: Impossible to view) TV type Disc/Titles recorded on HDD Yes/No PAL ≤ NTSC ≤ PAL ≤ NTSC ≤§1 (PAL60) PAL – NTSC ≤§2 Multi-system TV PAL TV NTSC TV §1 If your television is not equipped to handle PAL 525/60 signals the picture will not be shown correctly. §2 Select “NTSC” in “TV System” (➡ 73). ≥When playing back a title recorded on the HDD, ensure that you match the “TV System” setting to the title (PAL or NTSC) (➡ 73). RQT9011 6 EH770EC.book 7 ページ 2007年7月23日 月曜日 午後4時20分 Compatible USB memories USB memories which are defined as USB mass storage class: –USB memories that support USB 1.0/1.1 and USB 2.0 Full Speed.§ § USB memories for USB 2.0 High Speed work as USB 2.0 Full Speed. ≥USB memories of up to 32 GB can be used. Format FAT 16 and FAT 32 file systems are supported. Indicated in these instructions by [USB] Data that can be played or copied (≤: Can do, –: Cannot do) File format MP3 (➡ 39) Still pictures (JPEG) (➡ 39) Playing ≤ ≤ Copying to HDD – ≤ You can play MP3 files recorded with a computer onto the USB memory device. (➡ 41) You can play and copy to HDD still pictures recorded with a computer onto the USB memory device. (➡ 42, 59) Instructions ≥Despite meeting the conditions mentioned above, there may be USB memories that cannot be used for this unit. HDD, disc and USB memory information USB memories you can use on this unit [Note] ≥This unit does not support to charge the USB device. RQT9011 7 EH770EC.book 8 ページ 2007年7月23日 月曜日 午後4時20分 Important notes for recording When recording a bilingual programme [HDD] [RAM] Both main and secondary audio can be recorded. You can change the audio during playback. (➡ 38, Changing audio during play) [-R] [-RW‹V›] [+R] [+RW] Select the main or secondary audio before recording (➡ 68, Bilingual Audio Selection) M1 However in the following cases, select whether to record the main or secondary audio: –Recording sound in LPCM (➡ 69, Audio Mode for XP Recording) –“Rec for High Speed Copy” is set to “On” (The default setting is “On”. ➡ 68) M1 M2 Hello Hallo Hello The selected audio only is recorded. If you record from external equipment –Select “M 1” or “M 2” on the external equipment. If you record from external equipment –Select both “M 1” and “M 2” on the external equipment. About the aspect when recording a programme [HDD] [RAM] [-R] [-RW‹V›] ≥If “Aspect for Recording” in the Setup menu is set to “Automatic” (The default setting is “Automatic” ➡ 68), the programme will be recorded in the original aspect used when recording started (including when recording started at a commercial, etc.). If recorded with a different aspect, select the correct aspect (“16:9” or “4:3”). [+R] [+RW] Recorded in 4:3 aspect However, in the following case, programme will be recorded in 4:3. [-R] [-RW‹V›] Programme recorded using “EP” or “FR (recordings 5 hours or longer)” recording modes will be recorded in 4:3 aspect. When you want to copy titles in high speed mode from the HDD to DVD-R, etc. Set “Rec for High Speed Copy” to “On” before recording to the HDD. (The default setting is “On”. ➡ 68) You can copy titles in high speed mode (max. speed is 75X§); however, the audio and aspect settings (➡ above) are necessary before recording to the HDD. § Depending on the disc, max. speed may vary. Record to the HDD High speed copy to DVD-R, etc. HDD When recording the “One time only recording” broadcasts It is not possible to record the broadcasts that allow “One time only recording” onto DVD-R, DVD-RW, +R, +RW or 8 cm DVD-RAM discs. Use the HDD or CPRM (➡ 84) compatible DVD-RAM. [RAM] CPRM compatible discs only. [-R] [-RW‹V›] [+R] [+RW] ` [HDD] (≤: Can do, –: Cannot do) ≥“One time only recording” titles can only be transferred from the HDD to CPRM compatible DVD-RAM (They are deleted from the HDD). They cannot be copied. ≥Even when copying to videotape the title may not be copied correctly because of the copy guard. ≥You cannot copy a playlist created from “One time only recording” titles. Playing the disc on other DVD players [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] The disc must be finalised after recording or copying (➡ 64). It is necessary to finalise DVD-R, etc. on this unit after recording or copying titles to them. You can then play them as a commercially sold DVD-Video. However, the discs become play-only and you can no longer record or copy.§ §You can record and copy again if you format DVD-RW. Record to DVD-R, etc. Play on other DVD equipment CHG Í /I Í DOUBLE RE-MASTER CD SEQUENTIAL SEARCH ENTER VOL DISPLAY TOP Finalise MENU RETURN MENU ON OFF DC IN 9V OPEN UND A.SURRO REPEAT MODE MONITOR MODE PICTURE Recording to DVD-R DL and +R DL You cannot directly record to a DVD-R DL and +R DL disc on this unit. Record to the HDD and then copy to the disc. RQT9011 8 ≥It is not possible to record to both HDD (Hard Disk Drive) and DVD drive simultaneously. DISC 1 2 3 4 5 ∫ ; 1 :/6 5/9 DISC EXCHANGE DISC SKIP <OPEN/CLOSE EH770EC.book 9 ページ 2007年7月23日 月曜日 午後4時20分 HDD (Hard disk drive) handling care The HDD is a high precision recording instrument and because of its long recording capability and high speed operation it is a very special device that is easily susceptible to damage. As a basic rule, save important content to a disc as backup. Depending on the setup environment and handling of the HDD some content may become damaged and play and recording may no longer be possible. Especially during operation, do not subject the unit to any vibration, shock, or remove the AC mains lead from the household mains socket. In the event of a power failure during recording or play, the content may be damaged. ∫ The HDD is a temporary storage device The HDD is not an everlasting storage device for recorded content. Use the HDD as a temporary storage place for one-off viewing, editing, or copying. It is recommended to save the recorded content on a disc or to keep the original data or CDs that they were copied from. ∫ Immediately save (backup) all content as soon as you feel there may be a problem with the HDD If there is an irregularity within the HDD, repetitive strange sounds or problems with picture (block noise, etc.) may result. Using the HDD in this condition may worsen the problem and in the worst case the HDD may no longer be usable. As soon as you notice this type of problem, copy all content to disc and request service. Recorded content (data) on a HDD that has become unusable is unrecoverable. ≥When the HDD has been automatically entered energy save mode (➡ below), or the unit is turned on or off, there may be an unexpected sound. This does not indicate a problem with this unit. ∫ Setup precautions ≥Do not place in an enclosed area where the rear cooling fan and the cooling vents on the side are covered up. ≥Place the unit on a surface that is flat and not subject to vibration or impact. ≥Do not place on anything that generates heat like a video cassette DO NOT recorder, etc. ≥Do not place in an area often subject to temperature changes. This unit ≥Place in an area where condensation VCR does not occur. Condensation is a phenomenon where moisture forms on a cold surface when there is an extreme change in temperature. Condensation may cause internal damage to the unit. ≥Conditions where condensation may occur –When there is an extreme change in temperature (moving from a very hot location to a very cold location, or vice versa, or when subjected to an air conditioner or when cooled air directly impacts the unit). When the HDD (warms during operation) is subjected to cold air, condensation may form on the inside of the HDD and may cause damage to the HDD heads, etc. –When there is high humidity or a lot of steam in the room. –During the rainy season. ∫ Cigarette smoke etc. causes malfunction or breakdown The unit may breakdown if cigarette smoke or bug spray/vapor, etc. gets inside the unit. ∫ While operating ≥Do not move the unit or subject to vibration or impact. (The HDD may become damaged.) ≥Do not remove the AC mains lead from the household mains socket, or flip the power breaker switch. While the unit is on, the HDD is rotating at high speed. Sound or movement due to rotation is normal. ∫ When moving the unit 1 Turn the unit off. (Wait until “BYE” disappears from the display.) 2 Remove the AC mains lead from the household mains socket. 3 Move only after the unit has come to a complete stop (approx. 2 minutes) in order to avoid subjecting to vibration and shock. (Even after turning the unit off, the HDD continues operating for a short time.) Important notes for recording/HDD (Hard disk drive) handling care ∫ The HDD is a device that is not built to withstand vibration/shock or dust In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone. ∫ HDD recording time remaining This unit records using a VBR (Variable bit rate) data compression system to vary recorded data segments to match video data segments which may cause differences in the displayed amount of time and space remaining for recording. If the remaining amount of time is insufficient, delete any unwanted titles to create enough space before you start recording. (Deleting a playlist will not increase the amount of time.) ∫ The HDD automatically enters energy save mode The HDD has been automatically entered energy save mode. (The HDD continues to rotate at high speed while the unit is on. In order to extend the life of the HDD, the HDD will be entered energy save mode if no operation has been performed for 30 minutes while there is no disc on the disc tray.) ≥While in energy save mode play or recording may not start right away because the HDD takes time to be re-activated. ≥When not using the unit, we recommend removing the disc in the tray in order to set the HDD to the energy save mode. ∫ Indemnity concerning recorded content Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component). RQT9011 9 EH770EC.book 10 ページ 2007年7月23日 月曜日 午後4時20分 Disc handling ∫ How to hold a disc ∫ Handling precautions Do not touch the recorded surface. ≥Do not attach labels or stickers to discs. (This may cause disc warping and un-balanced rotation, rendering it unusable.) ≥Write on the label side of the disc only with a soft, oil-based felt pen. Do not use ballpoint pens or other hard writing implements. ≥Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent. ≥Do not use scratch-proof protectors or covers. ≥Do not drop stack, or impact discs. Do not place objects on them. ≥Do not use the following discs: –Discs with exposed adhesive from removed stickers or labels (rental discs, etc.). –Discs that are badly warped or cracked. –Irregularly shaped discs, such as heart DO NOT shapes. DO DO NOT ∫ Concerning non-cartridge discs Be careful about scratches and dirt. ∫ If there is dirt or condensation on the disc Wipe with a damp cloth and then wipe dry. DO DO NOT ≥Do not place in the following areas: –In direct sunlight. –In very dusty or humid areas. –Near a heater. –Locations susceptible to significant difference in temperature (condensation can occur). –Where static electricity or electromagnetic waves occur. ≥To protect discs from scratches and dirt, return them to their cases or cartridges when you are not using them. The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by such loss. Examples of causes of such losses are ≥A disc recorded and edited with this unit is played in a DVD Recorder or computer disc drive manufactured by another company. ≥A disc used as described above and then played again in this unit. ≥A disc recorded and edited with a DVD Recorder or computer disc drive manufactured by another company is played in this unit. Unit care The precision parts in this unit are readily affected by the environment, especially temperature, humidity, and dust. Cigarette smoke also can cause malfunction or breakdown. To clean this unit, wipe with a soft, dry cloth. ≥Never use alcohol, paint thinner or benzine to clean this unit. ≥Before using chemically treated cloth, carefully read the instructions that came with the cloth. Observe the following points to ensure continued listening and viewing pleasure. Dust and dirt may adhere to the unit’s lens over time, making it impossible to record or play discs. Use the DVD lens cleaner (not included) about once every year, depending on frequency of use and the operating environment. Carefully read the lens cleaner’s instructions before use. DVD lens cleaner: RP-CL720E ≥This lens cleaner may not be for sale depending on the region. RQT9011 10 DO NOT Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit. [Note] Do not obstruct the rear panel’s internal cooling fan. Before moving the unit, ensure the disc tray is empty. Failure to do so will risk severely damaging the disc and the unit. EH770EC.book 11 ページ 2007年7月23日 月曜日 午後4時20分 Included accessories ∏ ∏ ∏ ∏ ∏ 1 AC mains lead ≥For use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit. 2 RF coaxial cables 2 Batteries for remote control 1 Audio/video cable (N2QAYB000124) 1 Remote control The remote control information ∫ Batteries ∫ Use ≥Insert so the poles (i and j) match those in the remote control. ≥When closing the lid, insert it from the j (minus) side. Remote control signal sensor 20 30 R6/LR6, AA ≥Do not use rechargeable type batteries. ≥Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. ≥Do not mix old and new batteries. ≥Do not use different types at the same time. ≥Do not take apart or short circuit. ≥Do not attempt to recharge alkaline or manganese batteries. ≥Do not use batteries if the covering has been peeled off. 20 30 7 m directly in front of the unit Disc handling/Unit care/Included accessories/The remote control information Please check and identify the supplied accessories. (Product numbers correct as of July 2007. These may be subject to change.) Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire. Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place. Remote control operations (➡ 12) RQT9011 11 EH770EC.book 12 ページ 2007年7月23日 月曜日 午後4時20分 Control reference guide Remote control Instructions for operations are generally described using the remote control. > DVD 1 2 TV Í Í VOL CH DRIVE SELECT ? AV PAGE 3 4 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP CH ShowView PROG/CHECK @ A B C SLOW/SEARCH 5 STOP DIRECT NAVIGATO R GUIDE OPTION < = RQT9011 12 RETURN CREATE CHAPTER : ; OK M CTION ENU FUN 9 PLAY/x1.3 EXIT 6 7 8 PAUSE MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP D E F G H I J K 1 Turn the unit on (➡ 20) 2 Select drive (HDD or DVD) (➡ 26, 36, 42) Drive changes each time you press [DRIVE SELECT]. 3 Select channels and title numbers, etc./Enter numbers 4 To delete unnecessary recorded titles or still pictures (➡ 52) 5 Basic operations for recording and play 6 Show programme information in the GUIDE Plus+ system 7 Selection/OK, Frame-by-frame (➡ 38) 8 Show Top Menu/DIRECT NAVIGATOR (➡ 36, 37, 46) 9 Show OPTION menu (➡ 46) This menu is used when playing or editing titles and still pictures, etc. : Colour buttons for switching between Video/Picture and Video/ Playlists, selecting character type when entering text, manual tuning settings and GUIDE Plus+ operations (➡ 31, 36, 55, 65, 71) ; Recording functions ≥[¥ REC] Start recording (➡ 26) ≥[REC MODE] Change recording mode (➡ 26) ≥[EXT LINK] Linked timer recordings with external equipment (➡ 35) ≥[¥ DIRECT TV REC] Direct TV recording (➡ 18) < Select audio (➡ 38) = Show Status messages (➡ 45) > Transmit the remote control signal ? Television operations (➡ 24) @ Channel select/Change pages in the GUIDE Plus+ system (➡ 26, 31) A Show SHOWVIEW screen (➡ 32) B Input select (AV1, AV2, AV3 or DV) (➡ 35, 60) C Show Timer Recording screen (➡ 32) D Exit the menu screen E Show the GUIDE Plus+ screen (➡ 21, 30) F Show FUNCTION MENU window (➡ 66) By using the FUNCTION MENU window you may access the main functions (Playback, Recording, etc.) quickly and easily. G Return to previous screen H Create chapter (➡ 38) I Skip approx. 30 seconds forward (➡ 38) J Skip the specified time (➡ 38) K Show on-screen menu (➡ 44) EH770EC.book 13 ページ 2007年7月23日 月曜日 午後4時20分 Main unit 4 3 2 5 6 REC 7 Opening the front panel 8 9 : OPEN/CLOSE ; < REC Place your finger on the protruding section below the 4 and press down to flip open the front panel. 1 Standby/on switch (Í/I) (➡ 20) Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 2 Disc tray (➡ 26, 36) 3 Connection for digital video (DV) camcorder (➡ 60) 4 USB port (➡ below) 5 Connection for VCR, camcorder etc. (➡ 16, 60) 6 Display (➡ below) 7 Channel select (➡ 26) 8 9 : ; < Control reference guide 1 Stop (➡ 26, 37) Start play (➡ 36) Start recording (➡ 26)/Specify a time to stop recording (➡ 28) Open/close disc tray (➡ 26, 36) Remote control signal sensor Rear panel terminals (➡ 14–17) Inserting, removing the USB memory device You can insert the USB memory device directly into the USB port. Preparation Before inserting any USB memory device to this unit, ensure that the data stored therein has been backed up. Inserting the USB memory device Check the orientation of the USB connector and insert it straight in. “USB” appears on the unit’s display and the menu (➡ below) is automatically displayed, when a compatible USB memory device is inserted while stopped. USB device Press [3, 4] to select the item and press [OK]. Play MP3 Play Pictures (JPEG) Copy Pictures (JPEG) SELECT RETURN OK You can proceed to each operation screen. ≥“Play MP3”: “To play MP3 files on the USB memory” (➡ 41) ≥“Play Pictures (JPEG)”: “To play still pictures on the USB memory” (➡ 42) ≥“Copy Pictures (JPEG)”: “Copying all the still pictures on the USB memory—Copy All Pictures” (➡ 59) Compatible USB memory device Removing the USB memory device Complete all USB memory-related operations and pull the USB memory straight out. ≥If a USB memory being accessed is pulled out, then the data may be damaged. The unit’s display 2 1 3 4 REC PLAY 8 7 6 5 1 Copying indicator Lights during copy. 2 Linked timer recordings with external equipment indicator 3 Recording indicator REC Playback indicator PLAY Recording/ Playback indicator REC PLAY 4 Timer recording indicator 5 Disc indicator Lights when a disc that is supported by this unit is inserted in the tray. ≥Indicators for functions that this unit does not support will not light. 6 Drive (HDD or DVD) indicator Lights when the HDD or DVD drive is selected. 7 Main display section indicator 8 Recording mode indicator RQT9011 13 EH770EC.book 14 ページ 2007年7月23日 月曜日 午後4時20分 STEP 1 Connection Make sure to use the pair of supplied RF coaxial cables Use the pair of supplied RF coaxial cables only when you make connections to the unit through its RF IN and RF OUT terminals. Striping may appear and disrupt images on the TV if you use different cables for connection. Using a 21-pin Scart cable ≥You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (➡ 18). ≥You can enjoy high-quality viewing by connecting the unit to an RGB compatible television (➡ 85). [Required]setting] “AV1 Output” in the Setup menu (➡ 70) ≥Before connection, turn off all equipment and read the appropriate operating instructions. ≥Select the connection pattern that matches your environment from pattern A–D. Confirm connections not listed below with your dealer. When the unit is not to be used for a long time To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off [approx. 2 W (Power Save mode)] When “Power Save” is set to “On”, the “Quick Start” function does not work. A Connecting a television Television’s rear panel To the aerial Aerial cable VHF/UHF RF IN RF coaxial cable (included) 1 2 To household mains socket (AC 220 to 240 V, 50 Hz) Connecting a terminal other than the 21-pin Scart terminal (➡ 16, 17) AV AC mains lead (included) Connect only after all other connections are complete. 3 Fully wired 21-pin Scart cable 4 Cooling fan RF IN Y PB RF OUT OUT AV1 (TV) RF coaxial cable (included) PR OPTICAL DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT AC IN R-AUDIO-L AV2 (DECODER/EXT) VIDEO S VIDEO AV OU OUT T This unit’s rear panel B Connecting a television and VCR Television’s rear panel To the aerial VHF/UHF RF IN AV 4 2 Connecting a terminal other than the 21-pin Scart terminal (➡ 16, 17) AC mains lead (included) Connect only after all other connections are complete. 5 RF coaxial cable (included) Fully wired 21-pin Scart cable RF IN To household mains socket (AC 220 to 240 V, 50 Hz) 6 Cooling fan Y PB RF OUT OUT AV1 (TV) PR OPTICAL DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT AC IN R-AUDIO-L AV2 (DECODER/EXT) VIDEO S VIDEO AV OU OUT T This unit’s rear panel RF coaxial cable (included) 2 3 1 21-pin Scart cable Aerial cable Connect the unit directly to the television If you connect the unit through an AV selector or video cassette recorder to the television, video signal will be affected by copyright protection systems and the picture may not be shown correctly. DO NOT Television VCR AV VHF/UHF RF IN RQT9011 14 RF OUT VCR’s rear panel [Required]setting] “AV2 Input” and “AV2 Connection” settings in the Setup menu (➡ 70) This unit ≥When connecting to a television with a built-in VCR Connect to the input terminals on the television side if there are both television and VCR input terminals. EH770EC.book 15 ページ C 2007年7月23日 月曜日 午後4時20分 To the aerial Television’s rear panel Aerial cable 1 2 VHF/UHF RF IN To household mains socket (AC 220 to 240 V, 50 Hz) AV Connecting a terminal other than the 21-pin Scart terminal (➡ 16, 17) RF coaxial cable (included) AC mains lead (included) Connect only after all other connections are complete. 3 Fully wired 21-pin Scart cable 5 STEP 1 Connection Connecting a television and digital/satellite receiver or decoder Cooling fan RF IN Y PB RF OUT OUT AV1 (TV) RF coaxial cable (included) PR OPTICAL DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT AC IN R-AUDIO-L AV2 (DECODER/EXT) VIDEO S VIDEO AV OU OUT T This unit’s rear panel 4 [Required]setting] “AV2 Input” and “AV2 Connection” settings in the Setup menu (➡ 70) 21-pin Scart cable AV Digital/satellite receiver or decoder’s rear panel D Connecting a television and VCR, digital/satellite receiver or decoder Television’s rear panel To the aerial VHF/UHF RF IN AV 5 AC mains lead (included) Connect only after all other connections are complete. 6 Fully wired 21-pin Scart cable RF coaxial cable (included) RF IN To household mains socket (AC 220 to 240 V, 50 Hz) Connecting a terminal other than the 21-pin Scart terminal (➡ 16, 17) 7 Cooling fan Y PB OUT AV1 (TV) RF OUT PR OPTICAL DIGI AL AUDIO DIGITAL UDIO OU OUT COMPONENT (PCM/BITSTREAM) VIDEO OUT AV2 (DECODER/EXT) AC IN R-AUDIO-L VIDEO S VIDEO AV OU OUT T This unit’s rear panel RF coaxial cable (included) 21-pin Scart cable 2 4 3 1 Aerial cable AV VCR’s rear panel VHF/UHF RF IN AV RF OUT [Required]setting] “AV2 Input” and “AV2 Connection” settings in the Setup menu (➡ 70) Connect the unit directly to the television (➡ 14, [B] ) AV Digital/satellite receiver or decoder’s rear panel RQT9011 15 EH770EC.book 16 ページ 2007年7月23日 月曜日 午後4時20分 STEP 1 Connection Other connections § Leave “Yellow” unconnected. Connecting a television with AUDIO/VIDEO or S VIDEO terminals Connecting a VCR with AUDIO/VIDEO or S VIDEO terminals The S VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal. (Actual results depend on the television.) Television’s rear panel The S VIDEO terminal achieves a more vivid picture than the VIDEO terminal. (Actual results depend on the television.) Television’s rear panel AUDIO IN VIDEO S VIDEO IN R L IN This unit’s front panel AUDIO IN VIDEO S VIDEO IN R L IN Red White Yellow Red White § Yellow White Red S Video cable Audio/Video cable (included) S Video cable Audio/Video cable (included) § Red White OUT R-AUDIO-L AV O S VIDEO This unit’s rear panel Red White Red White Yellow OUT Red White Yellow VIDEO White Red § § R-AUDIO-L This unit’s front panel VIDEO AV O S VIDEO This unit’s rear panel R L VIDEO AUDIO OUT OUT R L VIDEO S VIDEO AUDIO OUT OUT OUT S VIDEO OUT VCR’s rear panel VCR’s rear panel Connecting a television with COMPONENT VIDEO terminals Television’s rear panel Y AUDIO IN R L COMPONENT VIDEO IN PB Red White PR Component Video cable § § RF IN Audio/Video cable (included) COMPONENT VIDEO terminals can be used for either interlace or progressive output (➡ 85) and provide a purer picture than the S VIDEO OUT terminal. ≥Connect to terminals of the same colour. If you have a regular television (CRT: cathode ray tube) Use component output with progressive “Off” (The default setting ➡ 70), even if it is progressive compatible, because progressive output can cause some flickering. This is the same for multi system televisions using PAL mode. CRT Y Red White PB DO NOT AV1 (TV) OPTICAL OUT RF OUT PR DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT COMPONENT VIDEO OUT R-AUDIO-L AV2 (DECODER/EXT) VIDEO Progressive output S VIDEO This unit This unit’s rear panel For progressive output (➡ 24) Connecting an amplifier or system component ∫ Connecting an amplifier with a digital input terminal ≥To enjoy multi-channel surround sound DVD-Video, connect an amplifier with Dolby Digital, DTS and MPEG decoders. [Required]setting] “Digital Audio Output” in the Setup menu (➡ 69) ≥When this unit is connected to an amplifier with an Optical digital audio cable and connected to a television with an HDMI cable, you can enjoy the highest quality of audio from the disc by setting “Digital Audio Output” to “Optical Only” in the Setup menu (➡ 70). In this case audio is only output from the amplifier not the television. ≥Before purchasing an optical digital audio cable (not included), check the terminal shape of the connected equipment. ≥You cannot use DTS Digital Surround decoders not suited to DVD. Amplifier’s rear panel ∫ Connecting a stereo amplifier Amplifier’s rear panel AUDIO IN R L OPTICAL IN Red White Optical digital audio cable Do not bend sharply when connecting. Y Insert fully, with this side facing up. Audio cable PB RQT9011 16 PR DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT AV2 (DECODER/EXT) Red White OUT This unit’s rear panel OUT AV1 (TV) OPTICAL R-AUDIO-L VIDEO S VIDEO This unit’s rear panel COMPONENT VIDEO IN EH770EC.book 17 ページ 2007年7月23日 月曜日 午後4時20分 Regarding VIERA Link “HDAVI ControlTM” function When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be possible. [➡ 18, Linked operations with the TV (VIERA Link “HDAVI ControlTM”/Q Link)] ≥Non-HDMI-compliant cables cannot be utilised. ≥It is recommended that you use Panasonic’s HDMI cable. Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc. Connecting with an HDMI compatible television AV Connecting with a Panasonic TV (VIERA) If the 21-pin Scart cable is connected, the following functions are available. ≥Direct TV Recording (➡ 18) ≥Watching pictures from digital/satellite receiver or decoder (In this case, make sure to switch the television input to “AV”.) Television’s rear panel HDMI IN Fully wired 21-pin Scart cable RF IN HDMI cable Y HDMI AV OUT PB AV1 (TV) RF OUT OPTICAL OUT [Required]setting] ≥Set “Digital Audio Output” to “HDMI and Optical” (➡ 70). (The default setting is “HDMI and Optical”.) STEP 1 Connection Connecting with an HDMI (High Definition Multimedia Interface) terminal When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), this unit’s output can be switched to 1080p, 1080i or 720p HD video. ≥Please use the HDMI cables 5.0 meters or less. PR DIGI AL AUDIO DIGITAL UDIO OUT OU COMPONENT (PCM/BITSTREAM) VIDEO OUT R-AUDIO-L AV2 (DECODER/EXT) VIDEO S VIDEO AV OUT OUT This unit’s rear panel 21-pin Scart cable AV Digital/satellite receiver or decoder’s rear panel [Note] ≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (➡ 84) and output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.) ≥You cannot connect this unit to DVI devices that are incompatible with HDCP. For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input terminal (PC monitors, etc.): Depending on the unit, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.) Connecting with an HDMI compatible television and receiver Television’s rear panel AV HDMI IN HDMI cable Connecting with a Panasonic TV (VIERA) ➡ above Fully wired 21-pin Scart cable HDMI IN HDMI OUT Receiver’s rear panel HDMI cable [Required]setting] ➡ above RF IN Y HDMI AV OUT PB RF OUT OPTICAL OUT AV1 (TV) PR DIGI AL AUDIO DIGITAL UDIO OU OUT COMPONENT (PCM/BITSTREAM) VIDEO OUT AV2 (DECODER/EXT) R-AUDIO-L VIDEO S VIDEO AV OUT OUT This unit’s rear panel RQT9011 17 EH770EC.book 18 ページ 2007年7月23日 月曜日 午後4時20分 Linked operations with the TV (VIERA Link “HDAVI ControlTM”/Q Link) You can enjoy linked operations with the TV and receiver by using “HDAVI Control” or Q Link. What is VIERA Link “HDAVI Control” ? What is Q Link? VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic TV (VIERA) or receiver under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details. ≥VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. ≥This unit supports “HDAVI Control 2” function. “HDAVI Control 2” is the newest standard (current as of February, 2007) for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment. Q Link is a convenient function that offers linked operations of this unit and a Panasonic TV. You can use this function by connecting the equipment with a fully wired 21-pin Scart cable. Preparation 1. Connect this unit to your TV or receiver with an HDMI cable (➡ 17). 2. Set “VIERA Link” to “On” (➡ 70). (The default setting is “On”.) 3. Set the “HDAVI Control” operations on the connected equipment (e.g., TV). ≥When using HDMI2 terminal of VIERA as “HDAVI Control”, set the input channel to HDMI2 on VIERA. 4. Turn on all “HDAVI Control” compatible equipment and select this unit’s input channel on the connected TV so that the “HDAVI Control” function works properly. Also when the connection or settings are changed, repeat this procedure. Preparation ≥Connect this unit to your TV with a fully wired 21-pin Scart cable (➡ 14). For your reference The following systems from other manufacturers have similar function to Q Link from Panasonic. For details, refer to your television’s operating instructions or consult your dealer. ≥Q Link (registered trademark of Panasonic) ≥DATA LOGIC (registered trademark of Metz) ≥Easy Link (registered trademark of Philips) ≥Megalogic (registered trademark of Grundig) ≥SMARTLINK (registered trademark of Sony) What you can do with “HDAVI Control” and Q Link Download from the TV [Q]Link] (When the TV is on) Easy playback When you connect the unit to a TV for the first time, the station list data is automatically copied from the TV to the unit and the TV stations are assigned to the programme positions on the unit in the same order as on the TV (➡ 20). When the TV is on and the following operations are performed, the TV’s input will automatically switch to HDMI input mode ([VIERA]Link]) or AV input mode ([Q]Link]) and the TV displays the corresponding action. (Picture or sound may not be available for the first few seconds.) [VIERA]Link] [Q]Link] Press [FUNCTION MENU]§1, [1] (PLAY)§2, [DIRECT NAVIGATOR], [GUIDE], [ShowView], [PROG/CHECK] etc. (When the TV is off) When the TV is off and the following operations are performed, the TV will automatically turn on and displays the corresponding action. (Picture or sound may not be available for the first few seconds.) Power on link [VIERA]Link] [Q]Link] Press [FUNCTION MENU]§1, [1] (PLAY)§2, [DIRECT NAVIGATOR], [GUIDE], [ShowView], [PROG/CHECK] etc. ≥[DVD-V] [CD] [VCD] SVCD and MP3 The TV is automatically turned on when you insert the discs or USB memory. Power off link [VIERA]Link] [Q]Link] When you set the TV to standby mode, the unit is also automatically set to standby mode. The unit is automatically set to standby mode even if the FUNCTION MENU screen etc. is displayed during playback or when the unit set to a timer recording. Even if the TV is set to standby mode, the unit will not be set to standby mode at the same time when recording, copying, finalising etc. ≥When this unit is connected to an “HDAVI Control” compatible Panasonic receiver with an HDMI cable, the receiver will also turn off. Direct TV Recording [Q]Link] This function allows you to immediately start recording the programme that you are viewing on the TV. ≥However this function does not work if you select the TV channels on this unit. Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. The selected drive lights up on the unit’s display. ≥If you selected the DVD drive Insert a disc. (➡ 26) Press and hold [¥ DIRECT TV REC] for 1 second. Recording starts. To stop recording Press [∫]. §1 §2 This button is available only when this unit is on. When this button is pressed, the playback image is not immediately displayed on the screen and it may not be possible to watch the contents from where playback started. In this case, press [:] or [6] to go back to where playback started. [Note] RQT9011 18 ≥These functions may not work normally depending on the equipment condition. ≥About “HDAVI Control” function, read the manual of the connected equipment (e.g., TV) too. EH770EC.book 19 ページ 2007年7月23日 月曜日 午後4時20分 Using the FUNCTION MENU window to operate this unit [VIERA]Link] Refer to the TV operating instructions for operating the TV. 1 Display this unit’s “FUNCTION MENU” window using the TV remote control. ≥If this unit is set to standby mode, it will automatically turn on. 2 Select the item you want to operate with the TV remote control, and press [OK]. FUNCTION MENU Remain 30:00 SP HDD Playback Recording Delete Copy To Others OK RETURN About the FUNCTION MENU window (➡ 66). Using the OPTION menu window to operate this unit [VIERA]Link] By using the TV remote control, you can play discs using the “Control Panel” (➡ below) and display the Top Menu for DVD-Video. 1 Press [OPTION]. Control Panel Control Panel is displayed (➡ below). FUNCTION MENU FUNCTION MENU window is displayed (➡ above). Top Menu [DVD-V] Top menu is displayed (➡ 37). Menu [DVD-V] Menu is displayed (➡ 37). Drive Select Select the HDD or DVD drive Rotate RIGHT (JPEG) Rotate the still picture (➡ 43). e,g., Control Panel FUNCTION MENU Top Menu Menu Drive Select OK RETURN [Note] You cannot use the OPTION menu while the Top Menu for DVD-Video is displayed and while DVD-Video is copying. 2 Select an item then press [OK]. Linked operations with the TV (VIERA Link “HDAVI Control TM”/Q Link) Easy control only with VIERA remote control If you connect this unit to the TV that has “HDAVI Control 2” function with an HDMI cable, you can enjoy using more convenient functions. You can operate this unit using the following buttons on the TV remote control. [3, 4, 2, 1], [OK], [RETURN], [EXIT], [OPTION] and the coloured buttons. Use the remote control for this unit to operate any other buttons (numbered buttons, etc.) that are not listed above. Rotate LEFT (JPEG) Zoom in (JPEG) Zoom out (JPEG) Using the Control Panel Enlarge or shrink the still picture (➡ 43). Using the “Control Panel”, you can operate search backward, search forward, stop, etc, with the TV remote control. Perform steps 1 and 2 of “Using the OPTION menu window to operate this unit” (➡ above). The Control Panel is displayed (➡ right). ≥When playing a title or DVD-Video, etc. –[3]: Pause, [4]: Stop, [2]: Search backward, [1]: Search forward, [OK]: Play, [EXIT]: Exit the screen. ≥While playing still pictures –[4]: Stop, [2]: View previous picture, [1]: View next picture, [EXIT]: Exit the screen. Control Panel Pause Search Play Exit Search Stop ∫ When you want to leave the TV on and set only this unit to standby mode Press [Í DVD] on this unit’s remote control and set to standby mode. ∫ When not using “HDAVI Control” Set “VIERA Link” in the Setup menu to “Off” (➡ 70). RQT9011 19 EH770EC.book 20 ページ 2007年7月23日 月曜日 午後4時20分 STEP 2 Channel reception settings and TV aspect settings After set up is complete, TV aspect setting screen appears. TV Aspect DVD Í DVD TV Í 16:9 WIDE TV Í 16:9 VOL CH DRIVE SELECT 4:3 TV AV Pan & Scan Letterbox PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons SKIP W X CH SELECT OK RETURN ShowView ≥16:9: When connected to a 16:9 widescreen television. ≥Pan & Scan: When connected to a 4:3 aspect television, side picture is trimmed for 16:9 picture (➡ 85). PROG/CHECK SLOW/SEARCH PAUSE STOP CH PLAY/x1.3 EXIT GUIDE OK OPTION CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK ≥Letterbox: GUIDE When connected to a 4:3 aspect television. 16:9 picture is shown in the letterbox style (➡ 85). RETURN CREATE CHAPTER OPTION RETURN MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP 3 Press [3, 4] to select the TV aspect and press [OK]. When television type and aspect is set, the GUIDE Plus+ setting screen appears. Auto-Setup Do you want to setup the GUIDE Plus+ system ? Yes 1 2 Turn on the television and select the appropriate AV input to suit the connections to this unit. Press [Í DVD] to turn the unit on. When connecting to a television that has the Q Link functions (➡ 18), downloading from the television starts. Download from TV Pos 4 Download in progress. Please wait. RETURN: to cancel No SELECT OK RETURN (The above message also appears in countries where GUIDE Plus+ system is not available. However set up is not possible.) ≥If you want to set up the GUIDE Plus+ system Press [2, 1] to select “Yes” and press [OK]. Proceed to step 2 (➡ 21, GUIDE Plus+ system settings) ≥If you do not want to set up the GUIDE Plus+ system or if you live in a country where GUIDE Plus+ system is not available (➡ 21, GUIDE Plus+ system) Press [2, 1] to select “No” and press [OK]. Television picture appears. Set up is complete. RETURN You can download the tuning positions from the television. This unit’s Auto Clock Setting function synchronizes the time when the TV channel that is broadcasting time and date information is tuned. ≥If the country setting screen appears on the television. Country België Belgique Belgien Danmark España France Italia Nederland SELECT Norge Portugal Suomi Sverige Schweiz Suisse Svizzera Others OK RETURN RETURN: leave OK: access Press [3, 4, 2, 1] to select the country and press [OK]. If you select “Schweiz”, “Suisse” or “Svizzera” in the Country setting, or when the television tuning setting has been set to Switzerland, the “Power Save” setting menu appears. Select “On” or “Off” (➡ 71). Auto-Setup starts. This takes about 8 minutes. RQT9011 20 To stop partway Press [RETURN]. ∫ If the clock setting menu appears Set the clock manually (➡ 73). ∫ To confirm that stations have been tuned correctly (➡ 71) ∫ To restart set up (➡ 72) EH770EC.book 21 ページ 2007年7月23日 月曜日 午後4時20分 GUIDE Plus+ system settings 3 One of the following screens will appear 12.1. Wed 15:05 Landscape 12.1 Wed Prog. Type All Types 7th Heaven 15:05~16:05 The GUIDE Plus+ system is available in the following countries: Austria/Belgium/France/Germany/Italy/Luxembourg/ Netherlands/Spain/Switzerland 16:00 16:30 15:00 ARD ZDF RTL SAT1 ***06 PRO7 MDR Ta... Abenteuer... Fliege-Die Talkshow ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... ... 7th Heaven Gilmore... No Data Abenteuerurlaub -24 Hr Aktuell TIMER REC RETURN ... Prog. Type +24 Hr info OPTION GUIDE Display Mode PAGE- 1 (As of end of June 2007) ≥This service may not be available in some areas in the above countries. ≥There may be changes in the service areas. 15:30 Time: PAGE+ If “No Data” appears (➡ 22, Editing programme lists, Reference) GUIDE Plus+ download is completed. [Note] You will need to complete Channel reception settings (➡ 20) to setup the GUIDE Plus+ system. ≥The GUIDE Plus+ system setup will not work if the clock is not set correctly. ≥The receipt of the GUIDE Plus+ system data is only possible via the antenna input of this unit. The receipt of the GUIDE Plus+ data via externally connected satellite receivers or digital set-top boxes is not possible. 12.1. Wed 15:05 No Host Channel was detected. Please refer to Operating Instructions. Press OK to continue. Visit following homepage for more information. http://www.europe.guideplus.com 1 Setup OK RETURN GUIDE Plus+ system is not available. Check the host channel of your country. (➡ 23, Host Channel) Press [GUIDE]. 12.1. Wed 15:05 Postal Code 12.1. Wed 15:05 Setup Current Country: Switzerland This unit downloads GUIDE Plus+ data several times a day. Clicking noise may be heard at that time. Data download was unsuccessful. Next download time slot will be at XX:XX. Press OK to continue. OK 0 ~ 9 OK RETURN RETURN 2 To download GUIDE Plus+ data, turn off your unit at the time displayed on the screen or download the data manually from “Data Download” in the Setup menu at that time. (➡ 23, Changing the settings) Press [3, 4] or the numbered buttons to enter the Postal Code of your location and press [OK]. 12.1. Wed 15:05 Setup Yes STEP 2 Channel reception settings and TV aspect settings/GUIDE Plus+ system settings Confirm the message on the screen. The GUIDE Plus+ system provides programme information from the host station displayed on the television like a TV programme magazine. Setting up to record a broadcast is easy too. Simply select the desired programme from the displayed list. You can also search for desired programmes by displaying only the programmes in a certain category. 1 GUIDE Plus+ system To stop partway Press [RETURN]. No Do you want to setup the GUIDE Plus+ system? It may take time up to 2 hours. ≥For further information about operating the GUIDE Plus+ programme list, refer to “Operations in the GUIDE Plus+ system”. (➡ 31) OK RETURN It may take up to 2 hours to set up the GUIDE Plus+ system. ≥If you want to set up the GUIDE Plus+ system Press [2, 1] to select “Yes” and press [OK]. [Note] If your Postal Code changes, you can update this information later in the Setup of the GUIDE Plus+ system (➡ 23, Changing the settings). ≥If you do not want to set up the GUIDE Plus+ system Press [2, 1] to select “No” and press [OK]. To download the GUIDE Plus+ data later (➡ 22, GUIDE Plus+ data download) RQT9011 21 EH770EC.book 22 ページ 2007年7月23日 月曜日 午後4時20分 GUIDE Plus+ system settings Refer to the control reference on page 20. Editing programme lists GUIDE Plus+ data download 1 2 Press [GUIDE]. Press [OPTION]. 12.1. Wed 15:05 There are 2 ways to download GUIDE Plus+ data. –Download automatically when the unit is turned off. –Download manually from “Data Download” in the Setup menu. HDD REC PLAY CH DC BS DUB EXT Link MPEG4 DVD REC PLAY SD PC D.MIX NET Prog. Type All Types Gilmore girls 16:05~17:05 Time: 15:00 ARD ZDF RTL SAT1 RTL2 VOX PRO7 Download data automatically ≥The GUIDE Plus+ data is downloaded automatically when the unit is turned off. During download, “GUIDE” appears in the display of your unit. Landscape 12.1 Wed 15:30 16:00 ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... Detektiv Duel M... Beyblade Yu-... Gilmore... Die Abschl... Freunde... Setup S.O.S Style & ... ... 7th Heaven Editor OK RETURN 3 DVD - AVCD Press [3, 4] to select “Editor” and press [OK]. SP - + RWRAM LP VR EP SDPC 12.1. Wed 15:05 If you turn on the unit while “GUIDE” appears, the data update is interrupted. Editor Name WDR ***04 ***05 ≥If the GUIDE Plus+ data download at 2:50 AM and a timer recording overlap, you can select which will be given priority. To ensure the GUIDE Plus+ data is downloaded, you can disable the timer recordings during data transmission. (➡ 23, left column, Night Download) Euros ARD ZDF BBC1 ***06 On/Off Reference On On On On On On On On TF1 TF6 FR6 ESPRT ARD ---BBC1 ARTE Source Tuner Tuner Tuner Tuner Tuner Tuner Tuner Tuner 1 OK PAGE+ RETURN 4 Press [3, 4] to select the desired “Name” and press [1]. You can also press [W X CH] to browse through the station list. Download data manually At the data transmission time, you can download the data manually from “Data Download” in the Setup menu (➡ 23). 16:30 Ta... Abenteuer... Fliege-Die Talkshow 1 The GUIDE Plus+ data is transmitted from the Host Channel (the television station transmitting the television programme list) several times a day. Data will be transmitted at 2:50 AM every day. It takes approximately 2 hours to complete data download. On/Off To select the stations to be displayed on the programme list. Only stations set to “On” are displayed in the GUIDE Plus+ list. Press [3, 4] to change the “On/Off” settings and press [OK]. ≥Depending on when you set up this unit, it may take approximately one day before you can display the television programme list. ≥The stations displayed in the television programme list are determined according to geographical areas. ≥A station that is not registered in your area is not displayed in the television programme list even if a signal can be received. ≥Once you have downloaded the programme list, reception of data is required regularly to update and maintain the programme list. ≥Do not disconnect the AC mains lead during data download. ≥During data download, the HDD rotates and will make operating sounds. 12.1. Wed 15:05 Landscape 12.1 Wed Prog. Type All Types 7th Heaven 15:05~16:05 15:30 16:00 16:30 Time: 15:00 ARD ZDF RTL SAT1 ***06 PRO7 MDR Ta... Abenteuer... Fliege-Die Talkshow ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... ... 7th Heaven Gilmore... No Data Abenteuerurlaub -24 Hr RETURN Aktuell ... Prog. Type +24 Hr OPTION GUIDE Display Mode PAGE- 1 TIMER REC PAGE+ 1 [Note] Reference To set the appropriate Reference manually If “No Data” appears in the GUIDE Plus+ list for a station, this station is either not supported by the GUIDE Plus+ data or a GUIDE Plus+ Reference could not be clearly assigned (“----” appears in the Reference field of this station). In this case, set the appropriate Reference manually. You can also manually assign the appropriate Reference even if a station name was not recognized (e.g. ***06). Press [3, 4] to change the “Reference” setting of the appropriate station and press [OK]. [Note] The station names in the Reference list can deviate from the station list. [Note] RQT9011 22 Changes in the station list in the Setup menu (➡ 71) of your unit will cause all Editor settings to return to the initial condition. 2007年7月23日 月曜日 午後4時20分 Host Channel Changing the settings You can change the basic settings for your GUIDE Plus+ list. 1 2 Press [GUIDE]. Press [OPTION]. 12.1. Wed 15:05 List of Host Channel (As of end of June, 2007) Landscape 12.1 Wed Time: 15:00 ARD ZDF RTL SAT1 RTL2 VOX PRO7 Prog. Type All Types Gilmore girls 16:05~17:05 15:30 It is not possible to receive GUIDE Plus+ data in all countries (➡ below). Check whether the right Host Channel has been input. 16:00 Country Host Channel Display of the Host Channel Switzerland§1 Eurosport EUROS France Canal+§2 CANAL Spain Tele5 TELE5 Italy MTV MTV Netherlands Eurosport EUROS Belgium RTL-TVI RTLTV Luxembourg§3 RTL-TVI RTLTV 16:30 Ta... Abenteuer... Fliege-Die Talkshow ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... Detektiv Duel M... Beyblade Yu-... Gilmore... Die Abschl... Freunde... Setup S.O.S Style & ... ... 7th Heaven Editor OK RETURN 3 Press [3, 4] to select “Setup” and press [OK]. 12.1. Wed 15:05 GUIDE Plus+ system settings EH770EC.book 23 ページ Setup §1 Postal Code XXXX Host Channel EUROS Data Download Night Download On German-speaking regions only Analogue terrestrial broadcast only §3 The Luxembourg line-up is available by setting up GUIDE Plus+ as country=Belgium with the postal code 9999 (➡ 21, step 2). §2 ≥To change the Host Channel manually ➡ left OK RETURN 4 Press [3, 4] to select an item and press [OK]. Postal Code To enter the Postal Code The entry of the Postal Code is required to receive regional data. 1 Press [2, 1] to select “Yes” and press [OK]. 2 Press [3, 4, 2, 1] or the numbered buttons to enter your Postal Code and press [OK]. Host Channel To change the Host Channel manually The GUIDE Plus+ System information is transferred via the Host Channel. The “Auto” setting is recommended. A Host Channel is then set by the system automatically. [Note] ≥Which channels appear in the GUIDE Plus+ list depends on local reception conditions. Sub-optimum reception quality can result in missing or incomplete GUIDE Plus+ data. 1 Press [3, 4] to select the desired station and press [OK]. 2 Press [2, 1] to select “Yes” and press [OK]. ≥The setting of the Host Channel can take some time. ≥To check the host channels of your country ➡ right column, Host Channel Data To download GUIDE Plus+ data manually Download Press [2, 1] to select “Yes” and press [OK]. The update can take approximately 2 hours. ≥For further informations ➡ 22, GUIDE Plus+ data download Night To select the priority during midnight Download The GUIDE Plus+ data is downloaded at 2:50 AM every day. It takes approximately 2 hours to complete data download. If the GUIDE Plus+ data download at 2:50 AM and a timer recording overlap, you can select which will be given priority. On: Data Download Timer recording does not start or is interrupted for data download. Off: Timer programming GUIDE Plus+ data will not be downloaded. After recording finishes, we recommend you to change this setting to “On”. Press [2, 1] to select “On” or “Off” and press [OK]. [Note] ≥Existing information can be lost by changing the Postal Code or Host Channel. ≥Entry of the wrong Postal Code or Host channel can lead to the receipt of wrong or no data. ≥To change the settings, release the unit from recording standby (➡ 33). RQT9011 23 EH770EC.book 24 ページ 2007年7月23日 月曜日 午後4時20分 Set up to match your television and remote control 4 Press [3, 4] to select “Connection” and press [1]. DVD TV Í Í VOL CH DRIVE SELECT Setup SKIP PAGE Tuning CH Disc Picture Sound Display ShowView PROG/CHECK 5 PAUSE EXIT Setup R DIRECT NAVIGATO Disc Picture Sound RETURN Connection Others Display MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP Off Tuning FUNCTION MENU RETURN CREATE CHAPTER Progressive On CTION MENU OPTION RETURN OK EXIT FU N OK Video Press [3, 4] to select “Progressive” and press [OK]. PLAY/x1.3 GUIDE 16:9 Off PAL TAB SELECT Connection Others SLOW/SEARCH STOP 3,4,2,1 OK TV Aspect Progressive TV System HDMI Settings AV1 Output AV2 Settnigs AV 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons TV operation buttons 6 SELECT OK RETURN Press [3, 4] to select “On” and press [OK]. Output becomes progressive. [Note] To enjoy progressive video You can enjoy progressive video by connecting this unit’s COMPONENT VIDEO OUT terminals to an LCD/plasma television or LCD projector compatible with progressive scan (➡ 85). 1 While stopped Press [FUNCTION MENU]. FUNCTION MENU Remain 70:00 SP HDD ≥When connected to a regular television (CRT: Cathode ray tube) or a multi system television using PAL mode, even if it is progressive compatible, progressive output can cause some flickering. Turn off “Progressive” if this occurs (➡ 45). ≥Picture will not be displayed correctly if connected to an incompatible television. ≥There is no output from the COMPONENT VIDEO OUT terminals if “AV1 Output” in the Setup menu is set to “RGB 1 (without component)” or “RGB 2 (without component)” (➡ 70). To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. Playback Recording Delete Copy Television operation To Others OK RETURN 2 3 Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. You can configure the remote control TV operation buttons to turn the television on/off, change the television input mode, select the television channel and change the television volume. DVD Í Turn TV on/off Input select Setup Manual Tuning Auto-Setup Restart Tuning Download from TV Í CH Volume VOL AV Channel Select PAGE 1 2 3 4 5 6 CH ShowView Disc Picture Sound Display TAB Connection Others DRIVE SELECT TV SELECT RETURN 1 Point the remote control at the television While pressing [Í TV], enter the code with the numbered buttons. e.g., 01: [0] ➡ [1] 10: [1] ➡ [0] (continued on the next page) RQT9011 24 2007年7月23日 月曜日 午後4時20分 (continued) Manufacturer and Code No. Brand Panasonic AIWA AKAI BEJING BEKO Brand METZ MITSUBISHI MIVAR NEC NOBLEX Code 05/28 05/19/20/47 24 36 33 BENQ Code 01/02/03/04 35 27/30 33 05/71/72/73/ 74 58/59 NOKIA BP BRANDT BUSH CENTREX CHANGHONG CURTIS DAEWOO DESMET DUAL ELEMIS FERGUSON FINLUX FISHER FUJITSU FUNAI 09 10/15 05 66 69 05 64/65 05 05 05 10/34 61 21 53 63/67 NORDMENDE OLEVIA ONWA ORION PEONY PHILCO PHILIPS PHONOLA PIONEER PROVIEW PYE RADIOLA SABA SALORA SAMSUNG GOLDSTAR GOODMANS GRADIENTE GRUNDIG 05/50/51 05 36 09 SANSUI SANYO SCHNEIDER SEG HIKONA HITACHI SELECO SHARP INNO HIT IRRADIO ITT JINGXING 52 05/22/23/40/ 41 05 30 25 49 25/26/27/ 60/61 10 45 30/39/70 05 49/69 41/48/64 05/06/46 05 37/38 52 05 05 10 26 32/42/43/ 65/68 05 21/54/55/56 05/29/30 05/69/75/ 76/77/78 05/25 18 SIEMENS SINUDYNE SONY TCL JVC 17/30/39/70 TELEFUNKEN KDS KOLIN KONKA LG LOEWE 52 45 62 05/50/51 07/46 MAG 52 TEVION TEX ONDA THOMSON TOSHIBA WHITE WESTINGHOUSE YAMAHA 18/41 2 09 05 08 31/33/66/ 67/69 10/11/12/ 13/14 52 52 10/15/44 16/57 05 Test by turning on the television and changing channels. ≥Repeat the procedure until you find the code that allows correct operation. ≥If your television brand is not listed or if the code listed for your television does not allow control of your television, this remote control is not compatible with your television. [Note] ≥If your television brand has more than one code listed, select the one that allows correct operation. When other Panasonic products respond to this remote control Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close together. Use “DVD 1”, the factory set code, under normal circumstances. 1 2 3 4 5 6 While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. Press [3, 4] to select “Others” and press [1]. Press [3, 4] to select “Remote Control” and press [OK]. Press [3, 4] to select the code (“DVD 1”, “DVD 2” or “DVD 3”) and press [OK]. Setup Tuning Disc Picture Set up to match your television and remote control EH770EC.book 25 ページ Remote Control Press “n” and “OK” together for more than 5 seconds on the remote control. To change the code on the remote control 7 8 While pressing [OK], press and hold the numbered button ([1], [2] or [3]) for more than 5 seconds. Press [OK]. ∫ When the following indicator appears on the unit’s display The unit’s remote control code Change the code on the remote control to match the main unit’s (➡ step 7). [Note] Executing “Shipping Condition” in the Setup menu returns the main unit code to “DVD 1”. Change the remote control code to 1 (➡ step 7). To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. RQT9011 25 EH770EC.book 26 ページ 2007年7月23日 月曜日 午後4時20分 Recording television programmes 3 2 Press [W X CH] to select the channel. REC REC DVD Í 1 Numbered buttons 3 TV Í PAGE SKIP ∫ 4 AV 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT CH 3 SLOW/SEARCH PAUSE 5 R DIRECT NAVIGATO REC CTION MENU OPTION MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP 4 See also “Important notes for recording” (➡ 8). Depending on the type of disc used for recording or the type of broadcast, there may be restrictions on the title you are trying to record. ≥[RAM] It is not possible to record continuously from one side of a double sided disc to the other. You will need to eject the disc and turn it over. ≥[+RW] You can create Top Menu using “Create Top Menu” (➡ 64). Recording or editing on the disc may delete the menu. In that case, create the menu again. [USB] ≥It is not possible to record on a USB memory. [RAM] [-RW‹V›] [+R] [+R]DL] [+RW] ≥To use a new disc, formatting is necessary. Preparation ≥Turn on the television and select the appropriate video input to suit the connections to this unit. ≥Turn on this unit. 1 Recording will take place on open space on the HDD or on disc. Data will not be overwritten. ≥You cannot change the channel or recording mode during recording. ≥You can record while the unit is in standby for timer recording. However, once the time for the timer recording to begin is reached, any recording taking place will stop and the timer recording will begin. ≥[HDD] [RAM] When “Rec for High Speed Copy” is set to “Off” (➡ 68), you can change the audio being received by pressing [AUDIO] during recording. (Does not affect the recording of audio.) RETURN CREATE CHAPTER 5 Press [¥ REC] to start recording. FU N OK Remaining time on the disc ≥To record sound using LPCM (XP mode only): Set “Audio Mode for XP Recording” to “LPCM” in the Setup menu (➡ 69). PLAY/x1.3 EXIT AUDIO REC PROG/CHECK ; STOP Press [REC MODE] to select the recording mode (XP, SP, LP or EP). ShowView GUIDE 3,4,2,1 OK To select with the numbered buttons: e.g., 5: [0] ➡ [5] 15: [1] ➡ [5] 5 VOL CH DRIVE SELECT ∫ OPEN/CLOSE Press [DRIVE SELECT] to select the HDD or DVD drive. ∫ To pause recording Press [;]. Press again to restart recording. You can also press [¥ REC] to restart. (Title is not split into separate titles.) ∫ To stop recording Press [∫]. ≥From the start to the end of the recording is called one title. ≥[-R] [-RW‹V›] [+R] [+RW] It takes about 30 seconds for the unit to complete recording management information after recording finishes. In order to play DVD-R, DVD-RW (DVD-Video format) and +R (recorded with this unit) on other DVD players, it is necessary to finalise them (➡ 64). The HDD or DVD indicator lights up on the unit’s display. 2 If you selected the DVD drive Press [< OPEN/CLOSE] on the main unit to open the tray and insert a disc. ≥Press the button again to close the tray. ≥When using 8 cm DVD-RAM, or 8 cm DVD-R, remove the disc from the cartridge. ∫ Cartridge disc Insert label-up with the Insert label-up. arrow facing in. Insert fully. Automatic drive select function [RAM] [Only for discs with the write-protect tab on the cartridge set to “PROTECT” (➡ 62, Cartridge-protection)] [DVD-V] [VCD] [CD] ≥If the unit is recording to the HDD or stopped, it automatically switches to the DVD drive when a disc is inserted. ≥If you eject a disc and close the disc tray, the HDD drive is automatically selected. RQT9011 26 If a station broadcasts Teletext information The unit automatically records the programme’s and station’s name if the station’s Title Page is correctly set (➡ 72). [Note] The unit may take some time in retrieving titles (up to 30 minutes) and may fail in some cases. Quick Start (➡ 71) 1 Sec. Quick Start for Recording & EPG Display (When connecting to TV using 21-pin Scart, COMPONENT VIDEO, VIDEO or S VIDEO terminals) From the power on, recording on DVD-RAM and HDD starts in about 1 second after the REC button is pressed. If the GUIDE button is pressed while the unit is off, the Electronic Program Guide (EPG) displays in less than 1 second. (Quick Start Mode) ≥“Quick Start” is set to “On” at the time of purchase. ≥Depending on the type of TV or the connected terminal, it may take time to display the screen. [Note] Startup takes up to a minute when: –You play a disc or start recording to discs other than DVDRAM. –You want to make other operations. –The clock has not been set. EH770EC.book 27 ページ 2007年7月23日 月曜日 午後4時20分 Recording modes and approximate recording times DVD-RAM Doublesided§1 (9.4 GB) DVD-R DVD-RW +R +RW (4.7 GB) DVD-R DL§3 (8.5 GB) +R DL§3 (8.5 GB) 1 hour 2 hours 1 hour 1 hour 45 min. 1 hour 45 min. 175 hours 2 hours 4 hours 2 hours 3 hours 35 min. 3 hours 35 min. 345 hours 4 hours 8 hours 4 hours 7 hours 10 min. 7 hours 10 min. 710 hours (530 hours§2) 8 hours (6 hours§2) 16 hours (12 hours§2) 8 hours (6 hours§2) 14 hours 20 min. (10 hours 45 min.§2) 710 hours maximum 8 hours maximum 8 hours maximum for one side 8 hours maximum 14 hours 20 min. HDD (400 GB) Singlesided (4.7 GB) XP (High picture quality recording mode) 90 hours SP (Standard recording mode) LP (Long recording mode) Recording Mode EP (Extra long recording mode)§4 FR (Flexible Recording Mode)§4 Approximately 9 hours with video quality equivalent to LP mode. Recording television programmes Depending on the content being recorded, the recording times may become shorter than indicated. (The times provided on this chart are an estimate.) §1 It is not possible to record or play continuously from one side of a double sided disc to the other. When “Recording time in EP mode” is set to “EP (6 Hours)” in the Setup menu (➡ 68). The sound quality is better when using “EP (6 Hours)” than when using “EP (8 Hours)”. §3 You cannot record directly to DVD-R DL and +R DL discs with this unit. The table shows the recording time when copying. [+R]DL] You cannot copy in “EP” or “FR (recordings 5 hours or longer)” mode. §4 When recording to the HDD in “EP” or “FR (recordings 5 hours or longer)” mode , you cannot perform high-speed copy to +R, +R DL or +RW discs. §2 ≥[RAM] When recording to DVD-RAM using “EP (8 Hours)” mode, play may not be possible on DVD players that are compatible with DVD-RAM. Use “EP (6 Hours)” mode if playback may be on other equipment. ≥[HDD] You can record up to 500 titles on HDD. (When continuously recording for long durations, titles are automatically divided every 8 hours.) ≥[RAM] [-R] [-RW‹V›] You can record up to 99 titles on one disc. ≥[+R] [+RW] You can record up to 49 titles on one disc. FR (Flexible Recording Mode) You can set FR (Flexible Recording) mode when copying or programming timer recordings. The unit automatically selects a recording rate between XP and EP (8 Hours) that will enable the recordings to fit in the remaining disc space with the best possible recording quality. For example with a 90 minute recording to an unused DVD-RAM, the picture quality is adjusted to between “XP” and “SP”. ≥When recording to the HDD, picture quality is automatically adjusted to precisely fit a copied title on a 4.7 GB disc. ≥All the recording modes from XP to EP appear in the display. REC Disc Insertion/Ejection When the format confirmation screen is displayed [RAM] [-RW‹V›] [+R] [+R]DL] [+RW] When you insert a new disc or a disc recorded on a computer or other equipment, a format confirmation screen is displayed. Format the disc to use it. However, all the recorded contents are deleted. [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] The following screen appears when you have not processed the disc for play on other equipment. Finalise Finalise the disc so that it can be played on other DVD players. Note: Recording or Editing is not possible after finalising. This may take up to min. Format This disc is not formatted properly. Do you want to format the disc now ? Yes When removing a recorded disc No Press the REC button to start finalise. Press the OPEN/CLOSE button to exit. The disc cannot be played on other DVD players without finalising. SELECT OK RETURN Press [2, 1] to select “Yes” and press [OK]. To format a disc “Deleting all the contents of a disc—Format” (➡ 63) ∫ To finalise the disc Press [¥ REC] on the main unit. ≥You cannot stop this process once you have started it. ≥If you want to set the background, play menu select or provide a disc name, select “Top Menu” (➡ 64), “Auto-Play Select” (➡ 64) or “Disc Name” (➡ 62) in “DVD Management” before finalising. ∫ To open the tray without disc finalisation Press [< OPEN/CLOSE] on the main unit. RQT9011 27 EH770EC.book 28 ページ 2007年7月23日 月曜日 午後4時20分 Recording television programmes Recording settings for High Speed Copy REC OPEN/CLOSE ∫ 1 ¥ REC DVD TV Í DRIVE SELECT Numbered buttons Í AV [Note] PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP ∫ VOL CH DRIVE SELECT ShowView PROG/CHECK SLOW/SEARCH PAUSE STOP If you do not intend to copy titles in high speed mode to DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW, set “Rec for High Speed Copy” to “Off”. CH PLAY/x1.3 1 EXIT GUIDE DIRECT NAVIGATO R OK OPTION TION MENU 3,4,2,1 OK C FUN DIRECT NAVIGATOR FUNCTION MENU RETURN CREATE CHAPTER RETURN MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP STATUS To specify a time to stop recording— One Touch Recording [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] During recording Press [¥ REC] on the main unit to select the recording time. ≥You can specify up to 4 hours later. ≥The unit display changes as shown below. OFF 0:30 ""# OFF 1:00 ""# OFF 1:30 ""# OFF 2:00 ^" Counter (cancel) ,"" OFF 4:00 ,"" OFF 3:00 ,} ≥This does not work during timer recordings (➡ 30) or while using Flexible Recording (➡ 29). ≥The unit turns off automatically after the time to stop recording is reached. To cancel Press [¥ REC] on the main unit several times until the counter appears. ≥The time to stop recording is cancelled; however, recording continues. To stop recording Press [∫]. RQT9011 28 When copying in high speed mode to DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW, set “Rec for High Speed Copy” to “On” before recording to the HDD. (The default setting is “On”. ➡ 68) However, some restrictions apply: Refer to the “When recording a bilingual programme” and “About the aspect when recording a programme” for more information (➡ 8). 2007年7月23日 月曜日 午後4時20分 5 Flexible Recording When you want to start recording Press [3, 4, 2, 1] to select “Start” and press [OK]. (Recording that fits the remaining disc space) [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] The unit sets the best possible picture quality that fits the recording within the remaining disc space. The recording mode becomes FR mode. ∫ Using “Flexible Rec” is convenient in these kinds of situations. [RAM] [-R] [-RW‹V›] [+R] [+RW] ≥When the amount of free space on the disc makes selecting an appropriate recording mode difficult ≥When you want to record a long programme with the best picture quality possible [HDD] ≥When you want to record a title to HDD so that it can then be copied to fit one 4.7 GB disc perfectly ≥You do not need to edit the recorded title, or change the recording mode when copying, to fit the disc space e.g., Recording a 90 minute programme to disc ≥Recording starts. ≥All the recording modes from XP to EP appear in the display. To exit the screen without recording Press [RETURN]. To stop recording partway Press [∫]. To show the remaining time Press [STATUS]. 4.7GB DVD-RAM 4.7GB DVD-RAM If you select SP mode, the programme will fit one disc. However there will be 30 minutes remaining disc space. 4.7GB DVD-RAM If you select “Flexible Rec” the programme will fit one disc perfectly. e.g., HDD Remaining time of recording HDD REC 0:59 ARD M1/M2 LR Playing while you are recording [HDD] [RAM] Playing from the beginning of the title you are recording—Chasing playback If you select XP mode, the programme will not fit one disc. If you try to record a 90 minute programme in XP mode, only the first 60 minutes will fit on the disc and the 30 minute balance will not get recorded. ≥Another disc is necessary. XP SP LP EP Recording television programmes EH770EC.book 29 ページ Press [1] (PLAY) during recording. There is no sound output while searching forward or backward. To stop play Press [∫]. To stop recording 2 seconds after play stops, press [∫]. To stop timer recording 2 seconds after play stops 1 Press [∫]. 2 Press [2, 1] to select “Stop Recording” and press [OK]. Playing a title previously recorded while recording— Simultaneous rec and play 4.7GB DVD-RAM Necessary space for recording Preparation ≥Select the channel or the external input to record. ≥Press [DRIVE SELECT] to select the HDD or DVD drive. 1 2 3 1 2 While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Flexible Rec” and press [OK]. Flexible Rec Record in FR mode. Maximum rec. time Set rec. time Start 4 ≥You can also change the drive and play while recording. Press [DRIVE SELECT]. 8 Hour 00 Min. 8 Hour 00 Min. Cancel Maximum recording time This is the maximum recording time in EP (8 Hours) mode. Press [2, 1] to select “Hour” and “Min.” and press [3, 4] to set the recording time. ≥You can also set the recording time with the numbered buttons. ≥You cannot record more than 8 hours. Press [DIRECT NAVIGATOR] during recording. Press [3, 4, 2, 1] to select a title and press [OK]. ≥There is no sound output while searching forward or backward. To stop play Press [∫]. To exit the Direct Navigator screen Press [DIRECT NAVIGATOR]. To stop recording After play stops 1 Press [DIRECT NAVIGATOR] to exit the screen. 2 If the recording is on the other drive Press [DRIVE SELECT] to select the recording drive. 3 Press [∫]. To stop timer recording After play stops 1 Press [DIRECT NAVIGATOR] to exit the screen. 2 If the recording is on the other drive Press [DRIVE SELECT] to select the recording drive. 3 Press [∫]. 4 Press [2, 1] to select “Stop Recording” and press [OK]. [Note] “Chasing playback” and “Simultaneous rec and play” can only be used with programmes of the same encoding system (PAL/NTSC). RQT9011 29 EH770EC.book 30 ページ 2007年7月23日 月曜日 午後4時20分 Timer recording Using the GUIDE Plus+ system to make timer recordings REC X CH W ∫ OPEN/CLOSE ¥ REC Before using the GUIDE Plus+ system ≥The television programme list is not displayed immediately after purchasing this unit. ≥You must complete initial setup for the GUIDE Plus+ system. DVD TV Í Í DRIVE SELECT Numbered buttons DELETE ¢ ∫ VOL CH DRIVE SELECT Refer to “GUIDE Plus+ system settings” (➡ 21) for more information. AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP STOP CH W X CH 1 ShowView Press [GUIDE]. ShowView PROG/CHECK PROG/CHECK 15.7. Tue 15:05 PAUSE PLAY/x1.3 ARD ZDF RTL SAT1 RTL2 VOX PRO7 OPTION “Red” “Green” ¥ REC 16:00 16:30 Ta... Abenteuer... Fliege-Die Talkshow ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... Detektiv Duel M... Beyblade ... Yu-... Gilmore... 7th Heaven Die Abschl... Freunde... -24 Hr S.O.S Style & ... Prog. Type +24 Hr TIMER REC RETURN OPTION 15:30 15:00 Info OPTION GUIDE Display Mode PAGE- 1 OK CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK EXIT Prog. Type All Types Gilmore girls 16:05~17:05 Time: INPUT SELECT ; EXIT GUIDE GUIDE Landscape 15.7. Tue SLOW/SEARCH PAGE+ 1 Í DVD You can perform timer recordings by simply selecting the desired programme from the television programme list. RETURN CREATE CHAPTER RETURN MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP “Blue” 2 Press [3, 4, 2, 1] to select the programme. 3 Press [OK]. EXT LINK REC MODE Timer Recording Name Remain Date Start 16:00 Stop 17:00 Fliege-Die Talkshow See also “Important notes for recording” (➡ 8). Depending on the type of disc used for recording or the type of broadcast, there may be restrictions on the title you are trying to record. DVD 1:58 SP 12:54:00 15. 7. TUE 1 ARD 15. 7. TUE [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] ≥You can enter up to 32 programmes up to a month in advance. (Each daily or weekly programme is counted as one programme.) HDD 30:24 SP HDD VPS DVD Mode PDC HDD SP OFF Programme Name The default setting for Switzerland is “ON”. [Note] ≥The programme information in the GUIDE Plus+ system may not be correct. It is recommended to modify the start and end times to allow a margin of a few minutes. (➡ 32, right column, step 3) 4 Press [OK]. [RAM] [-RW‹V›] [+R] [+R]DL] [+RW] ≥To use a new disc, formatting is necessary. The timer programme is stored and the timer icon is displayed. Preparation ≥Turn on the television and select the appropriate video input to suit the connections to this unit. ≥If recording to DVD, insert a disc that you can use for recording (➡ 26). ≥Make sure that the clock settings are correct (➡ 73). 0 Gilmore girls 15:30 16:00 16:30 . Abenteuer... &Fliege-Die Talkshow Timer icon errick Heute in ... Bianca-Wege... “F” lights on the unit’s display to indicate timer recording standby has been activated. 12:56:00 15. 7. TUE VPS Drive HDD Stop DVD Mode PDC space 20:00 HDD SP OFF OK Programme Check to make sure “OK” is displayed (➡ 33, Check, change or delete a programme). Repeat steps 2–4 to programme other recordings. Press [Í DVD] to turn the unit off. [Note] ≥If “NTSC” has been selected for “TV System” (➡ 73), the GUIDE Plus+ system cannot be used. RQT9011 30 ∫ To cancel recording when recording has already begun (➡ 33) ∫ To release the unit from recording standby (➡ 33) ∫ Notes on timer recording (➡ 33) EH770EC.book 31 ページ 2007年7月23日 月曜日 午後4時20分 Operations in the GUIDE Plus+ system Selecting the programme from the desired category Press [GUIDE] to switch between Landscape view and Portrait view. Landscape 15.7. Tue Time: ARD ZDF RTL SAT1 RTL2 VOX PRO7 16:30 1 Press the “Blue” button to display the list of main categories. 2 Press [3, 4] to select the desired main category. ... Derrick Heute in ... Bianca-Wege... Das Familiengericht Das Jugendgericht Richterin Barbara Sa... Richter Alexander... Detektiv Duel M... Beyblade ... Yu-... Gilmore... 7th Heaven Die Abschl... Freunde... S.O.S Style & ... Prog. Type +24 Hr Info OPTION GUIDE Display Mode PAGEPAGE+ 1 RETURN 15.7. Tue 15:05 Portrait Prog. Type All Types 15.7 Tue ARD ZDF RTL SAT1 RTL2 VOX PRO7 15:00~15:15 15:15~16:00 16:00~17:00 17:00~17:15 17:15~17:47 17:47~17:49 17:49~18:20 18:20~18:50 -24 Hr RETURN OK RETURN The sub menu for the selected main category appears. Example: Press [3, 4] to select the main category Movies. The sub category with several movie categories appears (e.g. All Types, Action, Animation, Comedy, Drama, Romance, Sci Fi, Thriller, Adventure). Tagesschau um fünf Brisant Tagesschau Verbotene Liebe Marienhof Prog. Type +24 Hr OPTION GUIDE Display Mode Portrait Prog. Type All Types 15.7 Tue All Types ARD ZDF RTL SAT1 RTL2 VOX PRO7 All Movies 15:00~15:15 Tagesschau Action Sport Wildnis Children 15:15~16:00 Abenteuer Animation Comedy Talkshow Other 16:00~17:00 Fliege-Die Drama 17:00~17:15 Tagesschau um fünf Romance 17:15~17:47 Brisant Sci Fi 17:47~17:49 Tagesschau Thriller Adventure 17:49~18:20 Verbotene Liebe 18:20~18:50 Marienhof Prog. Type Tagesschau Abenteuer Wildnis Fliege-Die Talkshow PAGEPAGE+ 1 TIMER REC To change stations 16:00 Ta... Abenteuer... Fliege-Die Talkshow TIMER REC 15.7. Tue 15:05 15:30 15:00 -24 Hr Portrait view Prog. Type All Types Gilmore girls 16:05~17:05 1 15.7. Tue 15:05 1 Landscape view The Programme Type function lets you display a GUIDE Plus+ list sorted by main category (e.g. Movies, Sport). Each main category will contain individual sub categories. The GUIDE Plus+ list for the selected main category only appears in the Portrait view. Timer recording Basic operations Landscape view 1 Press [2] until the station list is highlighted. 2 Press [3, 4] to select a station. 3 ≥ To view the current programme in the preview screen: Press the “Red” button. ≥ To see the full-screen view of the current programme: Press [OK]. 3 Press [2] to go to the sub category menu. 4 5 Press [3, 4] to make your selection. Press [OK]. 12.1. Wed 15:05 Portrait Prog. Type Movies Action ARD ZDF RTL SAT1 RTL2 VOX PRO7 (e.g., Action) 12. 1. Wed: 20:00~21:30 The fast and the fury 21:30~23:00 Ronin 23:00~01:15 Noch 60 Sekunden Press [GUIDE] to return to the Landscape view. 13. 1. Thu: 19:15~21:00 Der Sturm 21:00~22:30 Speed 2 14. 1. Fri: 22:30~23:00 Mission Impossible Press [GUIDE] to return to the Portrait view. To view a programme for another day ≥Jump ahead 24 hours Press the “Green” button to jump ahead by one day. ≥Jump back 24 hours Press the “Red” button. You can only jump back to the current date. 23:00~01:30 Volcano Info RETURN OPTION PAGEPAGE+ 1 Prog. Type TIMER REC 1 Portrait view 1 Press [3] until the station list is highlighted. 2 Press [2, 1] to select a station. 3 ≥ To view the current programme in the preview screen: Press the “Red” button. ≥ To see the full-screen view of the current programme: Press [OK]. A list appears with all programmes of the selected main category and the selected sub category. 6 Press [3, 4] to go through the GUIDE Plus+ list. If you want to change the station, press [3] until the station list is highlighted and then press [2, 1]. The GUIDE Plus+ list appears for the selected categories for this station. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. To navigate within Press [3, 4, 2, 1] the GUIDE Plus+ list. Only current and future programmes are shown. To browse through Press [W X CH]. the GUIDE Plus+ list. To see programme information (Programmes with the symbol) Additional information (programme name, programme duration, broadcast time, short description) is available for these programmes. Press [ ] to show and hide the information. RQT9011 31 EH770EC.book 32 ページ 2007年7月23日 月曜日 午後4時20分 Timer recording Refer to the control reference on page 30. Manually programming timer recordings Using SHOWVIEW number to make timer recordings Entering SHOWVIEW numbers is an easy way of timer recording. You can find these numbers in TV listings in newspapers or magazines. 1 1 Timer Recording Press [ShowView]. ShowView Record Remain No. Name & 01 DVD 1:58 SP HDD 30:24 SP 2 Press the numbered buttons to enter the SHOWVIEW number. 3 HDD 30:24 SP Start DVD 1:58 SP 12:56:00 15. 7. TUE VPS Drive HDD Stop DVD Mode PDC space OK Press [3, 4] to select “New Timer Programme” and press [OK]. Press [1] to move through the items and change the items with [3, 4]. Press [OK]. Timer Recording Name Remain Name HDD 30:24 SP Remain Date Start 16:00 Stop 17:00 Date Start 22:00 Stop 22:30 ≥Press and hold [3, 4] to alter the Start (Start time) and Stop (Finish time) in 30-minute increments. ≥You can also set Name (Programme position/TV Station Name), Date, Start (Start time), and Stop (Finish time) with the numbered buttons. ≥Date [. Date: Current date up to one month later minus l ;: one day l Daily timer: SUN-SAT>MON-SAT>MON-FRI l ;: a. Weekly timer: SUN>--->SAT ≥You can also press [DRIVE SELECT] to select the recording drive. When the recording drive is “DVD” and there is not enough remaining space, recording automatically switches to the “HDD” (➡ 34, Relief Recording). ≥You can also press [REC MODE] to change the recording mode. ≥VPS/PDC (➡ 34) ON!)OFF (– – –) If the broadcasting station is not transmitting VPS/PDC signals, “jjj” appears in the menu for timer programming under “VPS/PDC”. ≥[HDD] RENEW (Auto Renewal Recording) (➡ 34) ON!)OFF ≥Programme Name Press [2, 1] to select “Programme Name” and press [OK]. (➡ 65, Entering text) Programme Name ≥Confirm the programme (start and end time) by using a TV magazine, etc. and make corrections if necessary using [3, 4, 2, 1] (➡ right column, step 3). ≥When “-- ---” appears in the “Name” column, you cannot set timer recording. Press [3, 4] to select desired programme position. After you have entered the information of a TV station, it is kept in the unit’s memory. Press [OK]. The timer programme is stored and the timer icon is displayed. No. Name & 01 ARD “F” lights on the unit’s display to indicate timer recording standby has been activated. 12:56:00 15. 7. TUE VPS Drive HDD Stop DVD Mode PDC space 20:00 HDD SP OFF OK Programme HDD VPS DVD Mode PDC HDD SP OFF Programme Name HDD VPS DVD Mode PDC HDD SP OFF Timer icon DVD 1:58 SP 12:54:00 15. 7. TUE 1 ARD 15. 7. TUE DVD 1:58 SP HDD 30:24 SP 12:54:00 15. 7. TUE 1 ARD 15. 7. TUE 4 Date ARD 15. 7. TUE 19:00 20:00 HDD SP OFF New Timer Programme Timer Recording Press [2] to move back to correct a digit. 3 Remain 12:53:00 15. 7. TUE Input ShowView Number 0-9, and press OK. 2 Press [PROG/CHECK]. Check to make sure “OK” is displayed (➡ 33). Repeat steps 1–4 to programme other recordings. Press [Í DVD] to turn the unit off. 4 Press [OK]. The timer programme is stored and the timer icon is displayed. No. Name ∫ To set timer programme when VPS/PDC is “ON” Press [3, 4, 2, 1] to select “VPS/PDC” and press [3, 4] to select “ON” in step 3 (➡ above). If a programme listed in a newspaper or magazine has two SHOWVIEW numbers, use the SHOWVIEW number for VPS/PDC. ARD ZDF 12.10 Lizzie McGuire 1-104-525 12.30 Dunya & Desie (15) 1-902 (VPS 12.35 = 858-728) 13.00 World News 34-273 VPS/PDC numbers [Note] VPS/PDC will activate when this unit is set to standby mode. While this unit is on, recording starts and finishes at times you set initially. Timer icon 32 ∫ To release the unit from recording standby (➡ 33) ∫ Notes on timer recording (➡ 33) ARD “F” lights on the unit’s display to indicate timer recording standby has been activated. 12:56:00 15. 7. TUE VPS Drive HDD Stop DVD Mode PDC space 20:00 HDD SP OFF OK Programme Check to make sure “OK” is displayed (➡ 33). Repeat steps 2–4 to programme other recordings. Press [Í DVD] to turn the unit off. ∫ To cancel recording when recording has already begun (➡ 33) RQT9011 & 01 2007年7月23日 月曜日 午後4時20分 To cancel recording when recording has already begun 1 Stop Recording Timer recording in progress. Stop this timer recording? It will be cancelled if you stop. Stop Recording Cancel OK Press [PROG/CHECK]. Icons F [ W Timer recording standby is activated. This programme is currently recording. The times overlap those in another programme. Recording of the programme with the later start time starts when the earlier programme finishes recording. You stopped a weekly or daily timer recording. The icon disappears the next time the timer programme starts recording. F The disc was full so the programme failed to record. The programme was copy-protected so it was not recorded. X The programme did not complete recording because the disc is dirty or some other reason. Timer programmes set to Auto Renewal Recording (➡ 34). Titles that have been rerouted to the HDD (Displayed while recording.) HDD Recording drive is set to HDD DVD Recording drive is set to DVD l SELECT RETURN Press [2, 1] to select “Stop Recording” and press [OK]. If you stop a timer recording, it will be cancelled. However, if you have set a weekly or daily timer recording, the recording will start from the next time the timer recording is set. To release the unit from recording standby ≥Even when the unit is turned off, you can display the timer recording list by pressing [PROG/CHECK]. 1 2 ≥Even when the unit is turned off, you can display the timer recording list by pressing [PROG/CHECK]. While the unit is on Press [DRIVE SELECT] to select the recording drive and press [∫]. 2 Check, change or delete a programme Press [PROG/CHECK]. Press [3, 4] to select the programme and press the “Red” button. Timer Recording Notes on timer recording ≥When a timer recording is set, DVDs that were recorded using a different TV system cannot be played unless the TV system is changed in the Setup menu (➡ 73) or the timer recording has completed or has been cancelled. ≥Timer recordings are activated regardless of whether the unit is turned on/off. ≥Timer recordings begin when the set time is reached even when playing. ≥Timer recordings do not begin while editing or copying in normal speed mode (➡ 53). ≥If the unit is turned on when timer recording begins, it remains turned on after recording finishes. It does not turn off automatically. You can turn the unit off during timer recording. ≥If the unit is not put in the timer recording standby mode at the last 10 minutes before the programmed timer recording starting time, the “F” flashes on the unit’s display. ≥When you programme successive timer recordings to start immediately one after the other, the unit cannot record the part at the beginning of the later programmes. Programme Remain No. Name Date HDD 30:24 SP Start DVD 1:58 SP 12:56:00 15. 7. TUE VPS Drive HDD Stop DVD Mode PDC space New Timer Programme ≥The timer icon “F” (➡ right) disappears from the timer recording list. ≥You cannot cancel timer recording standby mode as long as even one timer icon “F” (➡ right) remains in the timer recording list. ≥Press the “Red” button again to activate timer recording standby. Programme Timer recording EH770EC.book 33 ページ Press OK to store new programme. OK RETURN Message displayed in the “Drive space” line OK: Displayed if the recording can fit in the remaining space. > (Date): For recordings made daily or weekly, the display will show until when recordings can be made (up to a maximum of one month from the present time) based on the time remaining on the disc. !: It may not be possible to record because: ≥there is not enough space left ≥the number of possible titles has reached its maximum. Relief: Timer programmes that will be relief recorded to the HDD. ∫ To change a programme Press [3, 4] to select the programme and press [OK]. (➡ 32, right column, step 3) Not recorded ∫ To delete a programme Recorded Recorded ≥(If the GUIDE Plus+ system is set) The GUIDE Plus+ data is downloaded at 2:50 AM every day. It takes approximately 2 hours to complete data download. If you want to make timer recordings during this time, set “Night Download” in the GUIDE Plus+ system setup menu to “Off” (➡ 23). ≥If the actual broadcasting times of timer recordings overlap [regardless of whether they are VPS/PDC (➡ 34) controlled], the recording that starts first always has priority, and the recording of the later programme will start only after the first timer recording has finished. Press [3, 4] to select the programme and press [DELETE ¢]. You can also delete a programme with the following steps 1 Press [3, 4] to select the programme and press [OPTION]. 2 Press [3, 4] to select “Delete” and press [OK]. ∫ To exit the timer recording list Press [PROG/CHECK]. Programmes that failed to record are deleted from the timer recording list at 4 a.m. two days later. RQT9011 33 EH770EC.book 34 ページ 2007年7月23日 月曜日 午後4時20分 Timer recording Refer to the control reference on page 30. Relief Recording When the recording drive is “DVD” and there is not enough remaining space, recording automatically switches to the “HDD”. If there is no disc in the tray or the disc cannot be recorded on or when timer recording starts while copying, the recording drive will be altered to the HDD. ≥The Direct Navigator shows which programmes were reliefrecorded (“ ” is displayed.) (➡ 37). ≥If the time remaining on the HDD is insufficient, as much of the programme as possible will be recorded onto the HDD. ≥Relief recording is not activated when recording the programme with VPS/PDC and it is extended so that it no longer fits on the disc. Auto Renewal Recording [HDD] If you record a programme onto HDD repeatedly everyday or every week using timer recording, the unit will record the new programme over the old one. This function can be used only when weekly recording or daily recording is selected. 1 2 3 4 Press [PROG/CHECK]. Press [3, 4] to select the programme and press [OK]. Press [2, 1] to select “RENEW” column. Press [3, 4] to select “ON” and press [OK]. Timer Recording Remain HDD 30:24 SP DVD 1:58 SP 12:54:00 15. 7. TUE Name Date Start Stop 1 ARD SUN 22:00 22:30 HDD VPS DVD Mode PDC RENEW ON HDD SP OFF Programme Name [Note] ≥If a programme set for Auto Renewal Recording is protected or while play back is taking place from the HDD, or while copying, the programme will not be overwritten. Instead the programme set for recording will be saved as a separate programme, and this programme will be the one to be overwritten when the next Auto Renewal Recording takes place. ≥Playlists made from programmes that were set for Auto Renewal Recording are deleted along with auto renewal. ≥When there is not enough space on the HDD, the programme may not be recorded completely. VPS/PDC function VPS (Video Programme System) or PDC (Programme Delivery Control) is a very convenient system which records exactly from beginning to end of the TV programmes set in timer recording, even if the actual broadcasting time differs from the scheduled time due to delayed start or extension of the programme duration. Also, if a programme is interrupted, for example, some special news is inserted, the recording will be paused automatically and resumed when the programme continues. When VPS/PDC recording ≥Use VPS/PDC time for recording the TV programmes. ≥If a programme listed in a newspaper or magazine has two SHOWVIEW numbers, use the SHOWVIEW number for VPS/PDC. ≥VPS/PDC will activate when in this unit is set to standby mode. While this unit is on, recording starts and finishes at times you set initially. ≥Set “VPS/PDC” to “OFF” when recording time is not VPS/PDC time. ≥VPS/PDC recording is not performed when VPS/PDC time is incorrect, even if only by one minute. To find out VPS/PDC time, consult Teletext, a newspaper or magazine, or other source. ≥If you made a timer recording using the GUIDE Plus+ system, the default setting for Switzerland is “ON”. To change “VPS/PDC” setting (➡ 32, right column, step 3) When the VPS/PDC signal drops out because the broadcast signal is weak. When a TV station does not transmit a regular VPS/PDC signal. Depending on the signals sent from the TV stations, the VPS/PDC system may not work properly even when “VPS/PDC” has been set to “ON”. Timer recording will be performed in the normal mode (without VPS/PDC) even if it was programmed for VPS/PDC. In this case, even if the timer recording is performed, the programmed timer recording will not be cancelled at that particular time but at 4 a.m. two days later. If the start times of scheduled programmes listed in the newspaper or magazine change at a later date. Set “VPS/PDC” to “OFF” when programming a programme whose start time has been subsequently changed. [Note] ≥The beginnings of recordings may not be recorded correctly in some cases. RQT9011 34 EH770EC.book 35 ページ 2007年7月23日 月曜日 午後4時20分 Recording broadcasts from external equipment [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] See also “Important notes for recording” (➡ 8). Making timer recordings on the television To record programmes from digital/satellite receiver using timer programming (e.g., of digital broadcasts) Preparation ≥Make sure you connect the AV2 input terminal of this unit to the Scart terminal of a VCR or a digital/satellite receiver with a 21-pin Scart cable (➡ 15). ≥Set “AV2 Input” to match the connected equipment in the Setup menu (➡ 70). ≥Set “Ext Link” to match the connected equipment in the Setup menu (➡ 70). To make a timer recording with your television, connect to a television with a Q Link function (➡ 18) that you can use for setting timer recordings using a fully wired 21-pin Scart cable (➡ 14). 1 2 Make timer programming on the TV. Press [DRIVE SELECT] to select the HDD or DVD drive. If you selected the DVD drive, insert a disc (➡ 26). 3 1 Turn off this unit. The start and end of recording is controlled by the TV. To stop recording Press [∫]. [Note] ≥When this unit is in timer recording standby or EXT LINK standby (“F” or “EXT-L” is shown on the unit’s display), recording from television does not start. ≥Programmes are recorded as one title on this unit when the end time of the earlier timer recording and the start time of the later timer recording are close to each other. [HDD] [RAM] To divide the titles, go to “Divide Title” (➡ 47). 2 Make timer programming on the external equipment. Press [DRIVE SELECT] to select the HDD or DVD drive. If you selected the DVD drive, insert a disc (➡ 26). 3 Press [EXT LINK]. The unit turns off and “EXT-L” lights on the unit’s display to indicate timer recording standby has been activated. To cancel the external control Press [EXT LINK] to stop recording or to cancel linked timer recording standby. ≥In order to prevent accidental operation, press [EXT LINK] to cancel the setting after recording is finished. [Note] Recording from digital/satellite receiver or decoder Preparation ≥Connect a digital/satellite receiver or decoder to this unit’s input terminals (➡ 15). ≥When the output signal from the external equipment is NTSC, change the “TV System” to “NTSC” in the Setup menu (➡ 73). This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.) ≥Press [DRIVE SELECT] to select the HDD or DVD drive. 1 While stopped Press [INPUT SELECT] to select the input channel for the equipment you have connected. Timer recording/Recording broadcasts from external equipment Linked timer recordings with external equipment (digital/satellite receiver) — EXT LINK ≥This function does not work with some equipment. Refer to the equipment’s operating instructions. ≥The beginnings of recordings may not be recorded correctly in some cases. ≥When “Ext Link” is set to “Ext Link 2”, this function does not work if the input signal is NTSC system. ≥When “AV2 Connection” is set to “Decoder”, EXT LINK is not available (➡ 70). ≥Programmes are recorded as one title on this unit when the end time of the earlier timer recording and the start time of the later timer recording are close to each other. [HDD] [RAM] To divide the titles, go to “Divide Title” (➡ 47). ≥When this unit is in EXT LINK standby (“EXT-L” is shown on the unit’s display), The GUIDE Plus+ data cannot downloaded. ≥While the unit is in EXT LINK standby mode or recording, video picture is from the AV2 input terminal irrespective of “AV1 Output” setting (➡ 70). ≥During EXT LINK standby mode or recording, playback is only available from the drive performing the recording. e.g.,If you have connected to AV2 input terminals, select “A2”. 2 3 4 Press [REC MODE] to select the recording mode. Select the channel on the other equipment. Press [¥ REC]. Recording starts. To skip unwanted parts Press [;] to pause recording. (Press again to restart recording.) To stop recording Press [∫]. RQT9011 35 EH770EC.book 36 ページ 2007年7月23日 月曜日 午後4時20分 Playing recorded video contents/Playing play-only discs 3 2 REC DVD Í VOL CH DRIVE SELECT 1 ∫ TV Í [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] Play starts from the most recently recorded title. [DVD-V] [CD] [VCD] and MP3 Play starts from the beginning of the disc. DivX DivX Menu screen appears (➡ 40). ≥When using cartridge discs with the write-protect tab in the protect position (➡ 62), play automatically starts when inserted in the unit. OPEN/CLOSE 3 AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons SKIP Selecting recorded programmes (titles) to play— Direct Navigator CH ShowView [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] (This function does not work with finalised discs.) PROG/CHECK SLOW/SEARCH :, 9 6, 5 ∫ STOP PAUSE PLAY/x1.3 EXIT DIRECT NAVIGATOR, “Top Menu” 1 Press [DIRECT NAVIGATOR]. ≥Thumbnail Display 3 DIRECT NAVIGATOR CTION MENU DIRECT NAVIGATO R FU N OK 007 OPTION REC REC MODE EXT LINK DIRECT TV REC STATUS DISPLAY TIME SLIP Press [DRIVE SELECT] to select the HDD or DVD drive. The HDD or DVD indicator lights up on the unit’s display. ≥It is possible to watch playback from one drive while recording on another (editing is not possible). If you selected the DVD drive Press [< OPEN/CLOSE] on the main unit to open the tray and insert a disc. ≥Press the button again to close the tray. ≥When using 8 cm DVD-RAM, or 8 cm DVD-R, remove the disc from the cartridge. ∫ Cartridge disc Insert label-up with the Insert label-up. arrow facing in. Insert fully. Automatic drive select function (➡ 26) When a music CD is inserted, the menu (➡ below) is automatically displayed. Press [3, 4] to select CD “Play Music” and press Play Music [OK]. Copy Music Play starts. OK RETURN Rec time 0:52(SP) --- Page 02/02 Select No. 001 002 003 004 005 006 007 008 --- Next Previous Title View HDD Name ARD ZDF AV2 ARD AV2 ZDF ARD ARD VIDEO PICTURE Date Day Time Name of title 26. 9. FRI 13:30 27. 9. SAT 12:15 3. 10. FRI 20:00 3. 10. FRI 22:05 4. 10. SAT 16:10 10.10. FRI 9:25 10.10. FRI 13:30 11.10. SAT 21:00 Page 01/01 OK Next RETURN OPTION Select Switching the Direct Navigator appearance 1 Press [OPTION] while Thumbnail Display is displayed. 2 Press [3, 4] to select “Table Display” and press [OK]. ≥The display appearance last used is saved even after the unit is turned off. MANUAL SKIP CREATE CHAPTER TIME SLIP Preparation ≥Turn on the television and select the appropriate video input to suit the connections to this unit. ≥Turn on this unit. 36 ARD 11.10. SAT --- Previous RETURN MANUAL SKIP AUDIO SELECT DIRECT NAVIGATOR 2;, ;1 [HDD] To sort Title View for easy searching (Table Display only) This function is convenient when searching for one title to playback from many titles. 1 Press [OPTION]. 2 Press [3, 4] to select “Sort” and press [OK]. 3 Press [3, 4] to select the item and press [OK]. If you select an item other than “No.” ≥The Direct Navigator screen will reappear after playback of the selected title has finished. (You cannot play titles continuously.) ≥Skip and Time Slip will only function with the title currently being played back. ≥If you exit the Direct Navigator screen, or switch to “PICTURE” Direct Navigator screen, the sorted Title View will be cancelled. 16:9 aspect programmes are recorded in 4:3 aspect in the following cases. ≥[-R] [-RW‹V›] If you recorded using “EP” or “FR (recordings 5 hours or longer)” recording mode. ≥If you recorded to a +R or +RW. ≥If you recorded with the “Aspect for Recording” set to “4:3” in the Setup menu (➡ 68). However, if you recorded to the HDD or a DVD-RAM and “Rec for High Speed Copy” was set to “Off” in the Setup menu (➡ 68), the aspect will remain 16:9. It may be possible to adjust the display mode on the TV. Refer to your television’s operating instructions. RQT9011 ≥Table Display PICTURE RETURN CREATE CHAPTER AUDIO 2 ARD 10.10. FRI RETURN OPTION VIDEO --- 008 --- OK OPTION “Red” Title View HDD ; GUIDE 3,4,2,1 OK 1 Press [1] (PLAY). 2 [HDD] [RAM] Press the “Red” button to select “VIDEO”. DIRECT NAVIGATOR Title View VIDEO HDD 007 008 PICTURE --- 3 Press [3, 4, 2, 1] to select the title and press [OK]. You can also select titles with the numbered buttons. e.g., [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] 5: [0] ➡ [0] ➡ [5] 5: [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] 15: [1] ➡ [5] 115: [1] ➡ [1] ➡ [5] To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. (Thumbnail Display only) ≥You can also press [:, 9] to show other pages. To exit the screen Press [DIRECT NAVIGATOR]. 2007年7月23日 月曜日 午後4時20分 ∫ When a menu screen appears on the television Direct Navigator screen icons [ Currently recording. Title protected. Title that was not recorded due to recording protection (Digital broadcasts etc.) t Title cannot be played [When copying a title to the HDD, or when data is damaged etc.] Titles that have been rerouted to the HDD (➡ 34, Relief Recording) Title with “One time only recording” restriction (➡ 84, CPRM) (NTSC) (PAL) Title recorded using a different encoding system from that of the TV system currently selected on the unit. ≥Alter the “TV System” setting on this unit to suit (➡ 73). [DVD-V] Press [3, 4, 2, 1] to select the item and press [OK]. Some items can also be selected using the numbered buttons. If “ENTER” appears on the screen, press [OK]. [VCD] Press the numbered buttons to select the item. e.g., 5: [0] ➡ [5] 15: [1] ➡ [5] ≥To return to the menu screen [DVD-V] Press [DIRECT NAVIGATOR]. You can also return to the menu screen with the following steps. 1 Press [OPTION]. 2 Press [3, 4] to select “Top Menu” or “Menu” and press [OK]. [VCD] Press [RETURN]. [Note] ≥When recording while the “TV System” is set to “PAL”, discs recorded in NTSC format cannot be played. To play, change the “TV System” to “NTSC” in the Setup menu (➡ 73). ≥It is not possible to play continuously from one side of a double sided disc to the other. You will need to eject the disc and turn it over. ≥Depending on the disc, it may take time for the menu screen, pictures, sound, etc. to start. ≥Discs continue to rotate while menus are displayed. Press [∫] when you have finished playback to protect the unit’s motor, your television screen and so on. ≥The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully. ≥When playing back a title recorded on the HDD, ensure that you match the “TV System” setting to the recorded title (➡ 73). Operations during play Stop Press [∫]. Playing recorded video contents/Playing play-only discs EH770EC.book 37 ページ The stopped position is memorized. Resume play function Press [1] (PLAY) to restart from this position. Stopped position ≥If [∫] is pressed several times, the position is cleared in some cases. ≥The position is cleared if the tray is opened. ≥[CD] [VCD] and MP3/DivX :The position is cleared if the unit is turned off. Pause Press [;]. Search Press [6] or [5]. Skip During play or while paused, press [:] or [9]. Press [;] again or [1] (PLAY) to restart play. ≥The speed increases up to 5 steps. ([+R] [+R]DL] [+RW] up to 3 steps) ≥Press [1] (PLAY) to restart play. ≥Audio is heard during first level search forward. [CD] and MP3 : Audio is heard during all levels of search. DivX : Audio is not heard during all levels of search. Skip to the title, chapter or track you want to play. ≥Each press increases the number of skips. ≥DivX : Press [:] to return to the beginning of the title currently playing. Starting from a selected title Press the numbered buttons. Play starts from the selected title, chapter or track. ≥[HDD] e.g., 5: [0] ➡ [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] ≥MP3 and JPEG e.g., 5: [0] ➡ [0] ➡ [0] ➡ [5] 15: [0] ➡ [0] ➡ [1] ➡ [5] ≥Other discs Input a 2-digit number e.g., 5: [0] ➡ [5] 15: [1] ➡ [5] ≥This works only when stopped (➡ right, Screen saver is displayed on the television) with some discs. ≥[VCD] (with playback control) If you press the numbered buttons while stopped (the above screen saver is displayed on the television) you can cancel PBC. (Elapsed play time appears on the unit’s display.) Quick View Press and hold [1] (PLAY/a1.3). [HDD] [RAM] Play speed is quicker than normal. ≥Press again to return to normal speed. ≥Depending on the disc, some operations may not be possible. (Continued on the next page) RQT9011 37 EH770EC.book 38 ページ 2007年7月23日 月曜日 午後4時20分 Playing recorded video contents/Playing play-only discs Refer to the control reference on page 36. Operations during play (continued) Slow-motion While paused, press [6] or [5]. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] [VCD] The speed increases up to 5 steps. ≥Press [1] (PLAY) to restart play. ≥[VCD] Forward direction [5] only. ≥The unit will pause if slow-motion play is continued for approximately 5 minutes (excluding [DVD-V] [VCD]). Frame-by-frame While paused, press [2] (2;) or [1] (;1). [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] [VCD] Each press shows the next frame. ≥Press and hold to change in succession forward or backward. ≥Press [1] (PLAY) to restart play. ≥[VCD] Forward direction [1] (;1) only. Skipping the specified time (Time Slip) 1 Press [TIME SLIP]. 2 Press [3, 4] to select the time and press [OK]. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] (This function does not work with finalised discs.) -5 min Play skips the specified time. ≥Each time you press [3, 4], the time increases [3] or decreases [4] by 1 minute intervals. (Press and hold for 10-minute intervals.) Manual Skip Press [MANUAL SKIP]. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] (This function does not work with finalised discs.) Each time you press, skip approx. 30 seconds forward. Create Chapter Press [CREATE CHAPTER]. (➡ 46, Title/Chapter) [HDD] [RAM] Chapters are divided at the point pressed. ≥Press [:, 9] to skip to the start of a chapter. ≥Chapters cannot be created during EXT LINK standby. This automatically disappears after approximately 5 seconds. To show the screen again press [TIME SLIP] again. ≥Depending on the disc, some operations may not be possible. Changing audio during play Press [AUDIO]. [HDD] [RAM] [-RW‹VR›] [VCD] and DivX LR>L>R ^---------------} HDD PLAY LR [DVD-V] You can change the audio channel number each time you press the button. This allows you to change things like the soundtrack language (➡ 44, Soundtrack). Soundtrack e.g., “L R” is selected 1 ENG §Digital 3/2.1ch e.g., English is selected. [Note] You cannot change the audio type in the following cases. ≥When a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL or +RW disc is in the disc tray while DVD drive is selected. ≥When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM” (➡ 69). ≥When “Rec for High Speed Copy” is set to “On” (The default setting is “On” ➡ 68). RQT9011 38 EH770EC.book 39 ページ 2007年7月23日 月曜日 午後4時20分 Playing DivX files, MP3 files and still pictures (JPEG) DivX Playable discs [-R] [-R]DL] [CD] File format DivX ≥Files must have the extension “.DIVX”, “.divx”, “.AVI” or “.avi”. Number of folders Maximum number of folders recognizable: 300 folders (including the root folder) Number of files Maximum number of files recognizable§1: 200 files Support version Plays all versions of DivX video (including DivX 6) with standard playback of DivX media files. Certified to the DivX Home Theater Profile. Video –Number of stream: Up to 1 –Codec: DIV3, DIV4, DIVX, DV50 –Picture size: 32 x 32 to 720 x 576 –FPS (Frame Per Second): Up to 30 fps Audio –Number of stream: Up to 8 –Format: MP3, MPEG, AC3 –Multi channel: AC3 is possible. MPEG multi is 2 ch conversion. GMC (Global Motion Compensation) is not supported. MP3 Playable discs and USB memory [-R] [-R]DL] [CD] [USB] File format MP3 ≥Files must have the extension “.mp3” or “.MP3”. Number of folders (groups) Maximum number of folders (groups) recognizable: 300 folders (groups) (including the root folder) Number of files (tracks) Maximum number of files (tracks) recognizable§1: 3000 files (tracks) Bit rates 32 kbps to 320 kbps Sampling frequency 16 kHz/22.05 kHz/24 kHz/32 kHz/44.1kHz/48 kHz ID3 tags not compatible [-R] [-R]DL] [CD] ≥Compatible formats: ISO9660 level 1 or 2 (except for extended formats) and Joliet ≥This unit is compatible with multi-session but reading or play of the disc may take time if there are a lot of sessions. ≥Operation may take time to complete when there are many files (tracks) and/or folders (groups) and some files (tracks) may not display or be playable. ≥English alphabet and Arabic numerals are displayed correctly. Other characters may not be displayed correctly. ≥The display order on this unit may differ from how the order is displayed on a computer. ≥Depending on how you create the disc (writing software), files (tracks) and folders (groups) may not play in the order you numbered them. ≥This unit is not compatible with packet-write format. ≥Depending on the recording conditions, the disc may not play. [HDD] [RAM] ≥Compatible formats: DCF§4 compliant (Content recorded on a digital camera, etc.) §4 Design rule for Camera File system: unified standard established by Japan Electronics and Information Technology Industries Association (JEITA). ∫ Structure of folders displayed by this unit You can play MP3 and still pictures (JPEG) on this unit by making folders as shown below. However depending on the method of writing data (writing software), play may not be in the order you numbered the folders. Structure of MP3 folders [-R] [-R]DL] [CD] [USB] Prefix with 3-digit numbers in the order you want to play them. Root 001 001 (folder=group) 001track.mp3 (file=track) 002track.mp3 003track.mp3 002 group 001track.mp3 002track.mp3 003track.mp3 004track.mp3 003 group 001track.mp3 002track.mp3 003track.mp3 Order of play Structure of still picture folders [-R] [-R]DL] [CD] [USB] Files inside a folder are displayed in the order they were updated or taken. Root P0000001.jpg P0000002.jpg 001 P0000003.jpg P0000004.jpg P0000005.jpg ≥If there is a large amount of still picture data etc. within a MP3 file, play may not be possible. 003 Folder Still pictures (JPEG§2) Playable discs and USB memory [HDD] [RAM] [-R] [-R]DL] [CD] [USB] File format JPEG ≥Files must have the extension “.jpg” or “.JPG”. Number of pixels Between 34k34 and 6144k4096 (Sub sampling is 4:2:2 or 4:2:0) Number of folders§3 [-R] [-R]DL] [CD] [USB] Maximum number of folders recognizable: 300 folders (including the root folder) [HDD] [RAM] This unit can handle a maximum of 300 folders (including higher folders) Number of files§3 MOTION JPEG not supported [-R] [-R]DL] [CD] Total number of recognizable file including MP3, JPEG, DivX and other types of files is 4000. [USB] Total number of recognizable file including MP3, JPEG and other types of files is 3000. §2 It may take a few moments for still pictures to display. §3 When there are many files and/or folders, some files may not display or be playable. §1 004 Folder P0000006.jpg P0000007.jpg P0000008.jpg P0000009.jpg P0000010.jpg P0000011.jpg P0000012.jpg Order of play [-R] [-R]DL] [CD] [USB] Maximum number of files recognizable§1: 3000 files [HDD] [RAM] This unit can handle a maximum of 3000 files 002 Folder [RAM] The following ¢¢¢: Numbers Playing recorded video contents/Playing play-only discs/Playing DivX files, MP3 files and still pictures (JPEG) Regarding DivX files, MP3 files and still pictures (JPEG) can be displayed on this unit. XXX: Letters §1 The folder cannot be displayed if the numbers are all “0” (e.g., DCIM000, etc.). §2 Folders can be created on other equipment. However, these folders cannot be selected as a copying destination. ≥If a folder name or file name has been input using other equipment, the name may not be displayed properly or you may not be able to play or edit the data. Root JPEG DCIM¢¢¢ §1 (Higher folder) ¢¢¢XXXXX (Picture folder) XXXX¢¢¢¢.JPG §2 DCIM ¢¢¢XXXXX XXXX¢¢¢¢.JPG RQT9011 39 EH770EC.book 40 ページ 2007年7月23日 月曜日 午後4時20分 Playing DivX files, MP3 files and still pictures (JPEG) Playing DivX discs [-R] [-R]DL] [CD] You can play DVD-R, DVD-R DL and CD-R/CD-RW discs which contain DivX video contents that have been recorded on a computer. DVD TV Í DRIVE SELECT Í VOL CH DRIVE SELECT AV PAGE Numbered buttons 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP Preparation Press [DRIVE SELECT] to select the DVD drive. CH 1 ShowView PROG/CHECK Press [DIRECT NAVIGATOR]. SLOW/SEARCH ∫ Folder1 : 00025 DivX Menu CD (DivX) :, 9 001 STOP PAUSE PLAY/x1.3 Tree Name of Title No. ABC.avi 1 EXIT EXIT OPTION REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP Total Title : 001 RETURN ≥Files are treated as titles. ≥When the MP3 or JPEG Menu is displayed, perform steps 1–4 in “To select file type” on the left column selecting “DivX” in step 4 to change the playback mode. RETURN MANUAL SKIP 001/001 OK FUNCTION MENU RETURN CREATE CHAPTER OPTION STATUS OK CTION MENU 3,4,2,1 OK Page FU N DIRECT NAVIGATOR DIRECT NAVIGATO R GUIDE “Green” 2 Press [3, 4] to select the title and press [OK]. Play starts on the selected title. ≥You can also select the title with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] Selecting file type to play [-R] [-R]DL] [CD] The screen shown below is displayed when you insert a disc containing DivX video contents, MP3 files and still pictures (JPEG). To stop playing Press [∫]. e.g., Play mode is set to DivX. To play another type of file, select the file type from ''Playback'' in FUNCTION MENU. ≥When playing the file displayed on the screen Press [OK]. ≥When you want to play files other than the one displayed on the screen Follow the steps below. To select file type 1 Press [RETURN]. 2 Press [FUNCTION MENU]. To show other pages Press [:, 9]. To exit the screen Press [DIRECT NAVIGATOR]. [Note] ≥You cannot play DivX while recording or copying. ≥Picture sizes set at the recording time may prevent the unit from showing pictures in the adequate aspect. You may be able to adjust the aspect through the TV. ≥Successive play is not possible. Using the tree screen to find a folder FUNCTION MENU Play Mode : DivX CD(DivX/MP3/JPEG) Playback Recording Copy To Others OK RETURN 3 Press [3, 4] to select “Playback” and press [OK]. 1 While the file list is displayed Press [1] while a title is highlighted to display the tree screen. F: Selected folder no./Total folder no. including DivX title. DivX Menu CD (DivX) F 1/21 12.02.2004 Image001 Image002 Image003 Image004 Image005 Image006 Image007 Image008 Image009 Image010 DATA1 DATA2 Playback Select file type. DivX MP3 Folder OK RETURN JPEG 4 Press [3, 4] to select playback mode and press [OK]. If “DivX” is selected: Go to “Playing DivX discs” step 2 in the right column. If “MP3” is selected: Go to “To play MP3 files on the disc” step 2 on page 41. If “JPEG” is selected: Go to “To play still pictures on the disc” step 4 on page 42 RQT9011 40 You cannot select folders that contain no compatible files. 2 Press [3, 4] to select a folder and press [OK]. The file list for the folder appears. To return to the previous screen Press [RETURN]. 2007年7月23日 月曜日 午後4時20分 2 Regarding DivX VOD content Press [3, 4] to select the track and press [OK]. DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit. Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod Display the unit’s registration code. (➡ 71, “DivX Registration” in “Others” tab) Setup To stop playing Press [∫]. To show other pages Press [:, 9]. To exit the screen Press [DIRECT NAVIGATOR]. DivX Registration DivX (R) Video On Demand Tuning Disc Picture Sound Display Connection Others Your registration code is : XXXXXXXX Play starts on the selected track. ≥“0” indicates the track currently playing. ≥You can also select the track with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [0] ➡ [5] 15: [0] ➡ [0] ➡ [1] ➡ [5] 8 alphanumeric characters To learn more visit www.divx.com/vod To play MP3 files on the USB memory [USB] 1 While stopped Insert the USB memory (➡ 13). OK RETURN ≥After playing DivX VOD content for the first time, another registration code is then displayed in “DivX Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no longer be able to play any content that you purchased using the previous code. ≥If you purchase DivX VOD content using a registration code different from this unit’s code, you will not be able to play this content. (“Authorisation Error.” is displayed.) Regarding DivX content that can only be played a set number of times Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero. (“Rental Expired” is displayed.) When playing this content ≥The number of remaining plays is reduced by one if –you press [Í DVD]. –you press [∫]. –you press [DIRECT NAVIGATOR]. –you press [:] or [6, 5] etc. and arrive at another content or the start of the content being played. –timer recording starts on the HDD. –you press [DRIVE SELECT] to change the drive. ≥Resume functions do not work. The menu is automatically displayed. USB device Play MP3 Play Pictures (JPEG) Copy Pictures (JPEG) SELECT RETURN OK 2 Press [3, 4] to select “Play MP3” and press [OK]. Press [3, 4] to select the track and press [OK]. 3 Playing DivX files, MP3 files and still pictures (JPEG) EH770EC.book 41 ページ Play starts on the selected track. ≥“0” indicates the track currently playing. ≥You can also select the track with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [0] ➡ [5] 15: [0] ➡ [0] ➡ [1] ➡ [5] You can also operate with the following steps 1 While stopped Press [FUNCTION MENU]. 2 Press [3, 4] to select “To Others” and press [OK]. 3 Press [3, 4] to select “USB device” and press [OK]. ➡ Go to step 2 (➡ above) Operations during play (➡ 37) “Stop”, “Pause”, “Search” are possible. To show other pages Press [:, 9]. Playing MP3 files You can play MP3 files recorded with a computer onto DVD-R, DVDR DL, CD-R/CD-RW discs and USB memory. To exit the screen Press [EXIT]. Play stops. [Note] To play MP3 files on the disc You cannot play MP3 files on the USB memory while recording or copying. [-R] [-R]DL] [CD] Using the tree screen to find a group Preparation Press [DRIVE SELECT] to select the DVD drive. 1 1 Press [DIRECT NAVIGATOR]. Selected group G: Group No. T: Track No. in the group TOTAL: Track No./Total tracks in all groups MP3 Menu CD G 1 T 1 TOTAL 1/111 Number 0 – 9 Prev. Next SELECT OK RETURN No. Group 1 : My favorite Tree Total Track 001 Both Ends Freezing 1 002 Lady Starfish 2 003 Life on Jupiter 3 004 Metal Glue 4 005 Paint It Yellow 5 006 Pyjamamama 6 007 Shrimps from Mars 7 008 Starperson 8 009 Velvet Cuppermine 9 010 Ziggy Starfish 10 Page 001/024 ≥Files are treated as tracks and folders are treated as groups. ≥When the DivX or JPEG Menu is displayed, perform steps 1–4 in “To select file type” on page 40 selecting “MP3” in step 4 to change the playback mode. While the file list is displayed Press [1] while a track is highlighted to display the tree screen. MP3 Menu CD G 8 T 14 TOTAL 40/111 Number 0 – 9 SELECT OK RETURN Tree MP3 music G 7/25 001 My favorite 001 Brazilian pops 002 Chinese pops 003 Czech pops 004 Hungarian pops 005 Liner notes 006 Japanese pops 007 Mexican pops 008 Philippine pops 009 Swedish pops 001 Momoko 002 Standard number 001 Piano solo 002 Vocal Selected group No. /Total groups contain MP3 files If the group has no track, “– –” is displayed as group number. You cannot select groups that contain no compatible files. 2 Press [3, 4, 2, 1] to select a group and press [OK]. The file list for the group appears. RQT9011 To return to the previous screen Press [RETURN]. 41 EH770EC.book 42 ページ 2007年7月23日 月曜日 午後4時20分 Playing DivX files, MP3 files and still pictures (JPEG) Refer to the control reference on page 40. 4 Press [3, 4, 2, 1] to select the still picture and press [OK]. Playing still pictures You can also select still pictures with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [0] ➡ [5] 115: [0] ➡ [1] ➡ [1] ➡ [5] 15: [0] ➡ [0] ➡ [1] ➡ [5] 1115: [1] ➡ [1] ➡ [1] ➡ [5] ≥You can playback still pictures recorded with a computer onto DVDR, DVD-R DL, CD-R/CD-RW and USB memory. ≥You cannot playback still pictures while recording or copying. ≥Press [2, 1] to display the previous or next still picture. ≥Useful functions during still picture play (➡ 43) To play still pictures on the disc [HDD] [RAM] [-R] [-R]DL] [CD] 1 2 Press [DRIVE SELECT] to select the HDD or DVD drive. To return to the Album View screen or Picture (JPEG) View screen Press [RETURN]. The indicator lights up on the unit’s display. To exit the screen Press [DIRECT NAVIGATOR]. Press [DIRECT NAVIGATOR]. ≥[HDD] [RAM] DIRECT NAVIGATOR Album View HDD 001 VIDEO --- --- --- Page 01/01 Previous OK Recording date of the first picture in the album/ number of pictures/ album name. 1. 2. 06 Total 3 Date: 1. 2.2006 Slide Show OPTION RETURN To play still pictures on the USB memory Album View screen --- 002 1. 1. 06 Total 5 Date: 1. 1.2006 PICTURE [USB] 1 Insert the USB memory (➡ 13). The menu is automatically displayed. Next Press OK to show pictures. USB device Depending on the digital camera, the editing software on the PC etc., the information about the recording date may not be displayed. In this case, the date will appear as [--.--.--]. [HDD] [RAM] If “VIDEO” is selected, press the “Green” button to select “PICTURE”. ≥[-R] [-R]DL] [CD] JPEG Menu CD(JPEG) Picture (JPEG) View screen Picture (JPEG) View Folder 103__DVD 0001 0002 0003 0004 0005 0006 0007 0008 0009 ---- ---- ---- Page 001/001 Previous Next RETURN (➡ Go to step 4) When the DivX or MP3 Menu is displayed, perform steps 1–4 in “To select file type” on page 40 selecting “JPEG” in step 4 to change the playback mode. Direct Navigator screen icons Picture and folder protected. To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. ≥You can also press [:, 9] to show other pages. To select the still pictures in another folder (➡ 43) Press [3, 4, 2, 1] to select the album and press [OK]. DIRECT NAVIGATOR Picture (JPEG) View HDD Album Name PICTURE 0002 0003 0004 0005 0006 0007 0008 0009 ---- ---- ---- Previous OK RETURN e.g., HDD 103__DVD 0001 Page 001/001 OPTION Next Select You can also select album with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] 115: [1] ➡ [1] ➡ [5] RQT9011 42 Play MP3 Play Pictures (JPEG) Copy Pictures (JPEG) SELECT OK 2 3 RETURN Press [3, 4] to select “Play Pictures (JPEG)” and press [OK]. Press [3, 4, 2, 1] to select the still picture and press [OK]. You can also select still pictures with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [0] ➡ [5] 115: [0] ➡ [1] ➡ [1] ➡ [5] 15: [0] ➡ [0] ➡ [1] ➡ [5] 1115: [1] ➡ [1] ➡ [1] ➡ [5] OK 3 While stopped ≥Press [2, 1] to select the previous or next album. ≥Press [2, 1] to display the previous or next still picture. ≥Useful functions during still picture play (➡ 43) You can also operate with the following steps 1 While stopped Press [FUNCTION MENU]. 2 Press [3, 4] to select “To Others” and press [OK]. 3 Press [3, 4] to select “USB device” and press [OK]. ➡ Go to step 2 (➡ above) To return to the Picture (JPEG) View screen Press [RETURN]. To exit the screen Press [EXIT]. EH770EC.book 43 ページ 2007年7月23日 月曜日 午後4時20分 Start Slide Show You can display still pictures one by one at a constant interval. Slide Show Setting Press [3, 4, 2, 1] to select the album. 2 Press [1] (PLAY). [HDD] [RAM] 1 While the Album View screen is displayed You can also start Slide Show with the following steps. 1 While the Album View screen is displayed Press [3, 4, 2, 1] to select the desired album and press [OPTION]. 2 Press [3, 4] to select “Start Slide Show” and press [OK]. Start Slide Show Slide Show Setting [-R] [-R]DL] [CD] [USB] While the Picture (JPEG) View screen is displayed 1 Press [3, 4, 2, 1] to select “Folder” and press [OPTION]. 2 Press [3, 4] to select “Start Slide Show” and press [OK]. ≥To change the display interval 1 Press [3, 4] to select “Slide Show Setting” in step 2 and press [OK]. 2 Press [3, 4] to select “Display interval”. 3 Press [2, 1] to select the desired interval (0–30 seconds) and press [OK]. ≥Repeat Play 1 Press [3, 4] to select “Slide Show Setting” in step 2 and press [OK]. 2 Press [3, 4] to select “Repeat Play”. 3 Press [2, 1] to select “On” or “Off” and press [OK]. Rotate 1 While playing Rotate RIGHT Press [OPTION]. 2 Press [3, 4] to select “Rotate RIGHT” or “Rotate LEFT” and press [OK]. Rotate LEFT OK RETURN ≥Rotation information will not be stored. –[-R] [-R]DL] [CD] [USB] Still pictures –When disc or album is protected –When played on other equipment –When copying pictures Zoom in Zoom out 1 While playing Rotate RIGHT Press [OPTION]. 2 Press [3, 4] to select “Zoom in” and press [OK]. Rotate LEFT Zoom in OK ≥To return the picture to its original size, press [3, 4] to select “Zoom out” in step 2 and press [OK]. ≥When zooming in, the picture may be cut off. ≥The enlargement information will not be stored. ≥The “Zoom in/Zoom out” function is only available for still pictures smaller than 640 a 480 pixels. Properties Playing DivX files, MP3 files and still pictures (JPEG) Useful functions during still picture play While playing e.g., HDD Press [STATUS] twice. RETURN 18:53:50 11.10. Folder - Picture No. 103 - 0006 Date 1. 1. 2005 No. To exit the picture properties screen Press [STATUS]. 3/9 Shooting date ∫ To select the still pictures in another folder [RAM] (➡ 39, Structure of folders displayed by this unit) To switch to another higher folder (Only if there is a multiple number of higher folders recognizable) 1 While the Album View screen is displayed Press [OPTION]. 2 Press [3, 4] to select “Select Folder” and press [OK]. [-R] [-R]DL] [CD] [USB] 1 While the Picture (JPEG) View screen is displayed Press [3, 4, 2, 1] to select “Folder” and press [OK]. 2 Press [3, 4] to select the folder and press [OK]. JPEG Menu CD(JPEG) JPEG Menu CD(JPEG) Picture (JPEG) View Folder F 1/3 0002 0003 0004 ---- ---- ---- ---- ---- ---- ---- ---- 021216_0026 103_DVD Select Folder Select folder to access. Folder 103__DVD 0001 104_DVD 105_DVD \DCIM Press OK to set. SELECT OK Previous RETURN Page 001/001 Next OK OK RETURN OPTION RETURN 3 Press [2, 1] to select the higher folder and press [OK]. RQT9011 43 EH770EC.book 44 ページ 2007年7月23日 月曜日 午後4時20分 Using on-screen menus/Status message Disc menu—Setting the disc content DVD Soundtrack§ [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] The disc’s audio attributes appear. [DVD-V] Select the audio and language (➡ below, Audio attribute, Language). [VCD] (SVCD) and DivX Select the soundtrack number. ≥Soundtrack numbers are displayed even when there is only one audio type. TV Í Í VOL CH DRIVE SELECT AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP ShowView PROG/CHECK SLOW/SEARCH PAUSE STOP CH Subtitle§ [DVD-V] Turn the subtitle on/off and select the language (➡ below, Language). [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] (Only discs that contain subtitle on/off information) Turn the subtitle on/off. ≥Subtitle on/off information cannot be recorded using this unit. [VCD] (SVCD) and DivX Turn the subtitle on/off and select the subtitle number. ≥Subtitle numbers are displayed even if there are not multiple subtitles. PLAY/x1.3 EXIT GUIDE OK OPTION RETURN CREATE CHAPTER STATUS CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP Angle§ [DVD-V] DISPLAY Change the number to select an angle. Audio channel [HDD] [RAM] [-RW‹VR›] [VCD] and DivX (➡ 38, Changing audio during play) Source Select (DivX) ≥Automatic: The constructing method of the DivX contents is automatically distinguished and output. ≥Interlace: Select when the disc contents were recorded using interlace. ≥Progressive: Select when the disc contents were recorded using progressive. Using on-screen menus Common procedures 1 Press [DISPLAY]. Disc Play Picture Sound Other Menu Soundtrack PBC (Playback control) (➡ 85) [VCD] 1 Subtitle Off Audio channel LR Item Setting ≥Depending on the condition of the unit (playing, stopped, etc.) and disc contents, there are some items that you cannot select or change. 2 3 4 Press [3, 4] to select the menu and press [1]. Press [3, 4] to select the item and press [1]. Press [3, 4] to select the setting. ≥Some items can be changed by pressing [OK]. To clear the on-screen menus Press [DISPLAY]. RQT9011 44 Indicates whether menu play (playback control) is on or off. §Digital 2/0 ch § With some discs, you may only be able to make changes using the menus (➡ 37) on the disc. ≥The display changes according to the disc content. You cannot change when there is no recording. Audio attribute LPCM/ÎDigital/DTS/MPEG: k (kHz): b (bit): ch (channel): Language ENG: English FRA: French DEU: German ITA: Italian ESP: Spanish NLD: Dutch SVE: Swedish NOR: Norwegian DAN: POR: RUS: JPN: CHI: KOR: MAL: VIE: Signal type Sampling frequency Number of bits Number of channels Danish Portuguese Russian Japanese Chinese Korean Malay Vietnamese THA: POL: CES: SLK: HUN: FIN: ¢: Thai Polish Czech Slovak Hungarian Finnish Others 2007年7月23日 月曜日 午後4時20分 Play menu—Change the play sequence This function works only when the elapsed play time is displayed. Select the item for repeat play. Depending on the disc, the items that can be selected will differ. Repeat Play ≥All ≥Chapter [CD] [VCD] [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] MP3 (excluding [USB]) [HDD] [RAM] [-RW‹VR›] [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] [CD] [VCD] and MP3 (excluding [USB]) ≥Group ≥PL (Playlist) ≥Title ≥Track Select “Off” to cancel. Picture menu—Change the picture quality Playback NR Sound menu—Change the sound effect V.S.S. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] (Dolby Digital, MPEG, 2-channel or over only) Enjoy a surround-like effect if you are using two front speakers only. ≥Turn V.S.S. off if it causes distortion. (Check the surround function on the connected equipment.) ≥V.S.S. does not work for bilingual recordings. Dialog Enhancer [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [DVD-V] [-RW‹VR›] and DivX (Dolby Digital, 3-channel or over only, including a centre channel) The volume of the centre channel is raised to make dialogue easier to hear. Other menu—Change the display position Position Reduces noise and picture degradation. Progressive§ (➡ 85) 1–5: The higher the setting the lower the on-screen menu moves. Using on-screen menus/Status message EH770EC.book 45 ページ Select “On” to enable progressive output. Select “Off” if the picture is stretched horizontally. Transfer§ [When “Progressive” (➡ above) is set to “On”.] Select the method of conversion for progressive output to suit the type of title being played (➡ 84, Film and video). When the output signal is PAL (When the tray is opened, the setting will return to “Auto”.) ≥Auto: ≥Video: ≥Film: Automatically detects the film and video content, and appropriately converts it. Select when using “Auto”, and the content is distorted. Select this if the edges of the film content appear jagged or rough when “Auto” is selected. However, if the video content is distorted as shown in the illustration to the right, then select “Auto”. When the output signal is NTSC ≥Auto1 (normal): ≥Auto2: ≥Video: Automatically detects the film and video content, and appropriately converts it. In addition to “Auto1”, automatically detects film contents with different frame rates and appropriately converts it. Select when using “Auto1” and “Auto2”, and the content is distorted. AV-in NR (Only when AV1, AV2, AV3 or DV is selected) Reduces video tape noise while copying. ≥Automatic: Noise reduction only works on picture input from a video tape. ≥On: Noise reduction works for input video. ≥Off: Noise reduction is off. You can record the input signal as it is. § Status messages Press [STATUS]. The display changes each time you press the button. Selected drive status/type of disc or USB memory The remaining time appears here while stopped. Recording or play status/input channel TV audio type being received (➡ below) Selected audio type HDD REC PLAY STEREO LR Recording drive/Copy progress indicator DVD REC Title number and elapsed time during play/ Recording mode Available recording time and recording mode Date and time vRemain 18:53:50 11.10. v T1 0:05.14 XP v T2 13:50 XP 0:00.10 XP Title number and elapsed time during recording/Recording mode No display ≥TV audio type STEREO: STEREO stereo broadcast M 1/M 2: Bilingual dual-sound broadcast M 1: Monaural broadcast Only when you have set “Progressive” to “On” in the Setup menu (➡ 24). RQT9011 45 EH770EC.book 46 ページ 2007年7月23日 月曜日 午後4時20分 Editing titles/chapters TV Í Í 1 VOL CH DRIVE SELECT AV DRIVE SELECT 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP CH STOP [HDD] [RAM] 3 Press the “Red” button to select “VIDEO”. Press [3, 4, 2, 1] to select the title. PROG/CHECK SLOW/SEARCH PAUSE 2 ShowView :, 9 PLAY/x1.3 During play or while stopped Press [DIRECT NAVIGATOR]. PAGE ; 1 DIRECT NAVIGATOR HDD Title View 007 VIDEO PICTURE Title View screen --- 008 EXIT GUIDE DIRECT NAVIGATO R OK ARD 10.10. FRI ARD 11.10. SAT --- --- CTION MENU 3,4,2,1 OK FU N DIRECT NAVIGATOR Previous OK OPTION RETURN OPTION “Red” CREATE CHAPTER REC RETURN RETURN REC MODE EXT LINK DIRECT TV REC [HDD] [RAM] [-R] [-R]DL] [-RW‹V›]AUDIO [+R]STATUS [+R]DL] [+RW] [-RW‹VR›] DISPLAY TIME SLIP (You cannot edit finalised discs.) Title/Chapter 4 5 Chapter Start Page 02/02 OPTION Select Next Previous End Press [OPTION]. Press [3, 4] to select the operation and press [OK]. ≥If you select “Edit”, press [3, 4] to select the operation and press [OK]. (➡ 47) [HDD] [RAM] You can divide a title into multiple chapters. Each section between the division points becomes a chapter. (➡ 38, 47, Create Chapter) Title Chapter Chapter Enter Name Set up Protection Chapter Chapter Cancel Protection [HDD] [RAM] You can change the order of chapters and create a playlist (➡ 48). ≥The maximum number of items on a disc: [HDD] –Titles: 500 –Chapters: Approx. 1000 per title (Depends on the state of recording.) [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] –Titles: 99 ([+R] [+R]DL] [+RW] 49 titles) –Chapters: Approx. 1000 ([+R] [+R]DL] [+RW] Approx. 254) (Depends on the state of recording.) ≥Once deleted, divided or partially deleted, recorded content cannot be restored to its original state. Make certain before proceeding. ≥You cannot edit during recording or copying, etc. ≥Restricted recording information remains even after editing (e.g. dividing a title etc). ≥[+R] [+R]DL] Each time you edit a title the information is saved to the free space on the disc. If you do this numerous times, the amount of free space decreases. We recommend that you edit on the HDD and then copy to disc. Editing titles/chapters and playing chapters You can modify (remove unnecessary parts, divide, etc.) recorded programmes. Preparation ≥Turn on the television and select the appropriate video input to suit the connection to this unit. ≥Turn the unit on. ≥Press [DRIVE SELECT] to select the drive containing the recorded title to be edited. ≥[RAM] Release protection (➡ 62). 46 Delete Partial Delete Properties Change Thumbnail Edit Divide Title Refer to “Title operations” (➡ 47). Chapter View Table Display Album View Switching the Direct Navigator appearance (➡ 36) Playing still pictures (➡ 42, To play still pictures on the disc, step 3) ∫ If you select “Chapter View” 6 Press [3, 4, 2, 1] to select the chapter. To start play ➡ Press [OK]. To edit ➡ Step 7. [Note] RQT9011 Next To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. ≥You can also press [:, 9] to show other pages. Multiple editing Select with [3, 4, 2, 1] and press [;]. (Repeat.) A check mark appears. Press [;] again to cancel. MANUAL SKIP Programmes are recorded as a single title consisting of one chapter. Title --- DIRECT NAVIGATOR Chapter View HDD VIDEO Chapter View screen 008 ARD 11.10. SAT 001 --- --- --- --- --- --- --- --- --- --- --- 0:31.24 ≥To show other pages/Multiple editing (➡ above) 7 Press [OPTION], then [3, 4] to select the operation and press [OK]. Delete Chapter Create Chapter Combine Chapters Refer to “Chapter operations” (➡ 47). Title View ≥You can go back to Title View. To return to the previous screen Press [RETURN]. To exit the screen Press [DIRECT NAVIGATOR]. EH770EC.book 47 ページ 2007年7月23日 月曜日 午後4時20分 Title operations After performing steps 1–5 (➡ 46) Press [2, 1] to select “Delete” and press [OK]. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] ≥Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥The available recording space on DVD-R, DVD-R DL, +R or +R DL does not increase when you delete titles. ≥Available recording space on DVD-RW (DVD-Video format) and +RW increases only when the last recorded title is deleted. It does not increase if other titles are deleted. Properties Information (e.g., time and date) is shown. ≥Press [OK] to exit the screen. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] Enter Name [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Set up Protection§ Cancel Protection§ [HDD] [RAM] [+R] [+R]DL] [+RW] Partial Delete [HDD] [RAM] (➡ below, For your reference) Properties Dinosaur No. 026 Time 12:19 Date 11.10.2006 MON Rec time 0:30 (SP) Name ARD You can give names to recorded titles. (➡ 65, Entering text) If set, this will protect the title from accidental deletion. DIRECT NAVIGATOR HDD Press [2, 1] to select “Yes” and press [OK]. Editing titles/chapters Delete§ Title V 007 008 ARD 10.10. FRI ARD 11.10. The lock symbol appears when the title is protected. You can remove unnecessary part of the recording. 1 Press [OK] at the start point and end point of the section you want to delete. 2 Press [3, 4] to select “Finish” and press [OK]. DIRECT NAVIGATOR Partial Delete HDD 008 VIDEO PLAY Start End Next Finish ≥Select “Next” and press [OK] to delete other sections. 0:43.21 3 Press [2, 1] to select “Delete” and press [OK]. Start End - -:- -.- - - -:- -.- - OK RETURN Change Thumbnail [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] (➡ below, For your reference) You can change an image to be shown as the thumbnail picture in the Title View. DIRECT NAVIGATOR Change Thumbnail HDD 1 Press [1] (PLAY) to start play. 2 Press [OK] when the image you want to use as a thumbnail is shown. To change the thumbnail Restart play and press [3, 4] to select “Change”, then press [OK] at the point you want to change. VIDEO 008 Change Finish 0:00.00 Change - -:- -.- - Start play and select the image of a thumbnail. ENTER 3 Press [3, 4] to select “Finish” and press [OK]. Divide Title [HDD] [RAM] (➡ below, For your reference) You can divide a title into two. 1 Press [OK] at the point you want to divide the title. 2 Press [3, 4] to select “Finish” and press [OK]. 3 Press [2, 1] to select “Divide” and press [OK]. DIRECT NAVIGATOR HDD Divide Title 008 VIDEO PLAY Preview Divide Finish 0:43.21 To confirm the division point Press [3, 4] to select “Preview” and press [OK]. (The unit plays 10 seconds before and after the division point.) To change the division point Restart play and press [3, 4] to select “Divide”, then press [OK] at the point where you want to divide the title. Divide - -:- -.- - [Note] ≥The divided titles retain the title name and CPRM property (➡ 84) of the original title. ≥Video and audio just before and after the dividing point may momentarily cut out. § Multiple editing is possible. Chapter operations After performing steps 1–7 (➡ 46) Delete Chapter§ Press [2, 1] to select “Delete” and press [OK]. [HDD] [RAM] ≥Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥Select “Combine Chapters” (➡ below) when you only want to delete the division point between chapters. (The recorded contents will not be deleted.) Create Chapter Select the point where you want to start a new chapter while viewing the title. [HDD] [RAM] (➡ below, For your reference) 1 Press [OK] at the point you want to divide. ≥Repeat this step to divide at other points. 2 Press [3, 4] to select “Finish” and press [OK]. § Combine Chapters Press [2, 1] to select “Combine” and press [OK]. [HDD] [RAM] ≥The selected chapter and following chapter are combined. DIRECT NAVIGATOR HDD 008 Create Chapter VIDEO PLAY Create Finish 0:43.21 Multiple editing is possible. For your reference ≥Use search (➡ 37), Time Slip (➡ 38) to find the desired point. ≥To find the desired point correctly, use Slow-motion (➡ 38) and Frame-by-frame (➡ 38). ≥To skip to the start or end of a title, press [:] (start) or [9] (end). RQT9011 47 EH770EC.book 48 ページ 2007年7月23日 月曜日 午後4時20分 Creating, editing and playing playlists TV Í Í VOL CH DRIVE SELECT AV DRIVE SELECT 3 Press [3, 4] to select “Playlists” and press [OK]. 4 Press [3, 4, 2, 1] to select “Create” and press [OK]. PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP CH ShowView PROG/CHECK SLOW/SEARCH Playlists HDD Playlist View -- STOP PAUSE -- -- -- -- PLAY/x1.3 Create -- EXIT EXIT OK OPTION OPTION FUNCTION MENU 5 RETURN MANUAL SKIP Chapter Chapter Chapter Create Playlists HDD REC MODE EXT LINK DIRECT TV REC You can arrange the chapters (➡ 46) to create a playlist. AUDIO STATUS DISPLAY TIME SLIP Title Title Chapter Press [2, 1] to select the source title and press [4]. ≥Press [OK] to select all the chapters in the title, then skip to step 7. RETURN CREATE CHAPTER REC CTION MENU 3,4,2,1 OK FU N DIRECT NAVIGATO R GUIDE Chapter 001 ARD 11.10. SAT Source Title 001 002 --- --- Source Chapter 001 003 --- --- --- Page 001/001 002 Chapters in Playlist ----- OK RETURN Playlist Chapter Chapter 6 --- --- Source Chapter 001 003 --- --- --- OK RETURN Page 001/001 Page 001/001 002 OPTION Page 001/001 Press RETURN to finish. ≥You can also create a new chapter from the source title. Press [OPTION] to select “Create Chapter” and press [OK] (➡ 47, Create Chapter). 7 Press [2, 1] to select the position to insert the chapter and press [OK]. Playlists HDD Create 001 ARD 11.10. SAT Source Title 001 002 --- --- Source Chapter 001 003 --- --- --- Page 001/001 Page 001/001 002 Chapters in Playlist ----- OK RETURN Page 001/001 Press RETURN to finish. ≥Press [3] to select other source titles. ≥Repeat steps 6–7 to add other chapters. 8 Press [RETURN]. All the selected scenes become the playlist. 1 While stopped 2 Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. FUNCTION MENU Remain 30:00 SP HDD Playback Recording Delete Copy To Others ShowView Record Advanced Copy Playlists Flexible Rec DV Auto Rec Setup HDD Management OK RETURN 48 Create 001 ARD 11.10. SAT Source Title 001 002 Chapters in Playlist ----- Creating playlists RQT9011 Press RETURN to finish. Press [2, 1] to select the chapter you want to add to a playlist and press [OK]. Playlists HDD ≥Playlists are not recorded separately so this doesn’t use much capacity. ≥Editing chapters in a playlist does not modify the source titles and source chapters. ≥You cannot create or edit playlists while recording or copying. [HDD] [RAM] Preparation ≥Turn on the television and select the appropriate Video input to suit the connection to this unit. ≥Turn the unit on. ≥Press [DRIVE SELECT] to select the drive containing the recorded title to be edited. ≥[RAM] Release protection (➡ 62). ≥You cannot create or edit a playlist while recording or while copying. ≥Playlists must be made in accordance with the encoding system currently selected in “TV System” (➡ 73). OPTION Page 001/001 Press [3] to cancel. Copying (➡ 53) a playlist will create a title. [HDD] [RAM] ≥The maximum number of items on a disc: –Playlists: 99 –Chapters in playlists: Approx. 1000 (Depends on the state of recording.) ≥If you exceed the maximum numbers of items for a disc, all the items entered will not be recorded. Page 001/001 Music Server To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. EH770EC.book 49 ページ 2007年7月23日 月曜日 午後4時20分 Playlist operations Editing and playing playlists/chapters 1 2 3 4 Delete§ [HDD] [RAM] While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Playlists” and press [OK]. Press [3, 4, 2, 1] to select the playlist. Properties [HDD] [RAM] [-RW‹VR›] Properties No. 10 Chapters 002 01 -- 12.10. SUN 0:30 Create -- -- Create RETURN (➡ 48, Creating playlists, Step 5–8) [HDD] [RAM] -- [HDD] [RAM] Press [2, 1] to select “Copy” and press [OK]. ≥The copied playlist becomes the newest one in the playlist view screen. Press [OPTION], then [3, 4] to select the operation and press [OK]. Enter Name You can give names to playlists. (➡ 65, Entering text) ≥If you select “Edit”, press [3, 4] to select the operation and press [OK]. [HDD] [RAM] Copy§ -- ≥To show other pages/Multiple editing (➡ 46) 5 Date 12.10.2006 TUE Total 0:30.53 OK Playlist View screen Playlist View Playlist information (e.g., total time and date) is shown. ≥Press [OK] to exit the screen. Dinosaur To start play ➡ Press [OK]. To edit ➡ Step 5. Playlists HDD Press [2, 1] to select “Delete” and press [OK]. Once deleted, the playlists are lost and cannot be restored. Make certain before proceeding. Change Thumbnail Create Copy Delete Enter Name Properties Change Thumbnail Refer to “Playlist operations”. Creating, editing and playing playlists After performing steps 1–5 (➡ left) [HDD] [RAM] [-RW‹VR›] (Play only) (➡ 47, Change Thumbnail) [HDD] [RAM] § Multiple editing is possible. Edit Chapter operations Chapter View ∫ If you select “Chapter View” 6 Press [3, 4, 2, 1] to select the chapter. [HDD] [RAM] After performing steps 1–7 (➡ left) ≥Editing chapters in a playlist does not modify the source titles and source chapters. To start play ➡ Press [OK]. To edit ➡ Step 7. Playlists HDD Chapter View screen Chapter View 01 ARD 12.10. SUN 0:30 001 002 --- Add Chapter (➡ 48, Creating playlists, Step 5–7) Move Chapter Press [3, 4, 2, 1] to select the position to insert the chapter and press [OK]. Playlists HDD --- Move Chapter 01 12.10. SUN 0:11 0:19.36 0:10.24 --- --- --- --- --- --- --- --- 001 002 ≥To show other pages/Multiple editing (➡ 46) 7 Press [OPTION], then [3, 4] to select the operation and press [OK]. Create Chapter Combine Chapters --- --- --- --- --- --- --- Page 01/01 Next OK RETURN Refer to “Chapter operations”. Delete Chapter Playlist View ≥You can go back to Playlist View. To return to the previous screen Press [RETURN]. --- --- Previous Add Chapter Move Chapter --0:19.36 0:10.24 § Create Chapter (➡ 47, Create Chapter) Combine Chapters (➡ 47, Combine Chapters) Delete Chapter§ (➡ 47, Delete Chapter) The playlist itself is deleted if you delete all the chapters in it. Multiple editing is possible. To exit the screen Press [EXIT]. RQT9011 49 EH770EC.book 50 ページ 2007年7月23日 月曜日 午後4時20分 Editing still pictures 1 2 DVD 3 TV Í Í VOL CH DRIVE SELECT PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP ≥When you want to create an album using “Create Album”, press [OPTION] without selecting album. CH ShowView Editing a still picture: PROG/CHECK 1 Select the album which contains the still picture to edit and press [OK]. 2 Select the still pictures to edit and press [OPTION]. SLOW/SEARCH :, 9 STOP PAUSE Editing an album: Select the album to be edited and press [OPTION]. AV DRIVE SELECT Press [DIRECT NAVIGATOR]. Press the “Green” button to select “PICTURE”. PLAY/x1.3 ; EXIT To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. ≥You can also press [:, 9] to show other pages. Multiple editing Select with [3, 4, 2, 1] and press [;]. (Repeat.) A check mark appears. Press [;] again to cancel. FU N OK OPTION CTION MENU 3,4,2,1 OK OPTION “Green” DIRECT NAVIGATO R GUIDE DIRECT NAVIGATOR RETURN CREATE CHAPTER RETURN MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP ≥To switch to another higher folder (➡ 43) 4 Press [3, 4] to select the operation and press [OK]. ∫To edit the album (e.g., [RAM]) Slide Show Setting Useful functions during still picture play (➡ 43) Add Pictures Enter Album Name Create Album Edit Album Delete Album Copy to HDD Cancel Protection Start Slide Show [HDD] [RAM] ≥You can edit pictures and albums. ≥You cannot edit still pictures recorded on DVD-R, DVD-R DL, CDR/CD-RW and USB memory. Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥[RAM] Release protection (➡ 62, Setting the protection). Set up Protection Select Folder Title View Album and picture operation (➡ 51) Playing title [➡ 36, Selecting recorded programmes (titles) to play—Direct Navigator, step 3] [RAM] This is only displayed when there are other higher folders that can be viewed. To switch to another higher folder (➡ 43) ∫To edit still picture (e.g., [RAM]) Delete Picture Set up Protection Cancel Protection Album View Album and picture operation (➡ 51) You can go back to Album View. To return to the previous screen Press [RETURN]. To exit the screen Press [DIRECT NAVIGATOR]. RQT9011 50 EH770EC.book 51 ページ 2007年7月23日 月曜日 午後4時20分 Album and picture operation Delete Picture§ Delete Album§ Press [2, 1] to select “Delete” and press [OK]. Enter Album Name You can give names to albums. (➡ 65, Entering text) ≥Album names input using this unit may not be displayed on other equipment. Set up Protection§ Cancel Protection§ If set, this will protect the still picture or album from accidental deletion. ≥Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥When deleting an album, files other than the still picture files inside the album will also be deleted. (This does not apply to folders under the album concerned.) Press [2, 1] to select “Yes” and press [OK]. The lock symbol appears when the still picture or album is protected. ≥Even if the protection setting is used by this unit to protect an album, the album may be deleted by another unit. Add Pictures Create Album DIRECT NAVIGATOR Pic Editing still pictures After performing steps 1–4, page 50 HDD Album Name 103__ 0001 0002 0005 0006 1 Press [2, 1] to select “Start” or “Yes” and press [OK]. e.g., 4 3 2 Step 1 Please select album to copy. Create Album HDD 007 --- 008 12. 5.06 Total 24 100_DVD --- 12. 6.06 Total 3 101_DVD --- Previous --- Page 02/02 OK Next Previous RETURN Next 2 Press [3, 4, 2, 1] to select the album that contains the still picture you want to add and press [OK]. e.g., Create Album Which pictures to copy from the selected album? Select pictures to copy Copy all pictures SELECT OK RETURN [RAM] To switch to another higher folder 1 Press [OPTION]. 2 Select “Select Folder” and press [OK]. 3 Press [2, 1] to select the higher folder and press [OK]. 3 Press [3, 4] to select the item and press [OK]. ≥If “Select pictures to copy” is selected Select the still picture you want to add and press [OK]. ≥If “Copy all pictures” is selected All the still pictures in the album will be copied. 4 Press [2, 1] to select “Yes” or “No” and press [OK]. ≥If you want to continue copying, select “Yes” and go to step ➁. Only for “Create Album” 5 Press [2, 1] to select “Yes” or “No” and press [OK]. ≥If “Yes” is selected: You can give names to albums. (➡ 65, Entering text) ≥If “No” is selected: The recording date of the first picture in the album becomes the album name. (If there is no recording date information, the date will appear as [--.--.----].) Copy to DVD-RAM Press [2] to select “Start” and press [OK]. [HDD] You cannot copy if multiple albums are selected. Copy to HDD [RAM] § Multiple editing is possible. [Note] ≥Timer recordings do not start when performing “Add Pictures”, “Create Album”, “Copy to DVD-RAM” or “Copy to HDD”. ≥You cannot perform “Add Pictures” or “Create Album” to a higher folder. RQT9011 51 EH770EC.book 52 ページ 2007年7月23日 月曜日 午後4時20分 Delete Navigator Using the DELETE Navigator to delete DVD TV Í Í DRIVE SELECT While stopped 2 Press [FUNCTION MENU]. Press [3, 4] to select “Delete” and press [OK]. AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT DELETE ¢ 1 VOL CH DRIVE SELECT SKIP CH ShowView DELETE Navigator 007 SLOW/SEARCH :, 9 STOP PAUSE PLAY/x1.3 ; R DIRECT NAVIGATO CTION MENU OPTION “Green” FUNCTION MENU RETURN CREATE CHAPTER RETURN REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP --- Page 02/02 OPTION PICTURE Select Next Previous Next [HDD] [RAM] To switch to the other view Press the “Green” button to select “PICTURE”. Press the “Red” button to select “VIDEO”. 3 MANUAL SKIP REC ARD 11.10. SAT --- Previous FU N OK ARD 10.10. FRI RETURN EXIT GUIDE “Red” VIDEO --- 008 --- OK EXIT 3,4,2,1 OK Title View HDD PROG/CHECK If you want to delete a title: Press [3, 4, 2, 1] to select the title and press [OK]. If you want to delete an album: [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] (You cannot delete items on finalised discs.) Press [3, 4, 2, 1] to select the album and press [DELETE ¢]. ≥A title or a picture cannot be restored once it is deleted. Make certain before proceeding. ≥You cannot delete while recording or copying. If you want to delete a still picture: 1 Press [3, 4, 2, 1] to select the album that contains the still picture you want to delete and press [OK]. 2 Press [3, 4, 2, 1] to select the still picture and press [OK]. Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥[RAM] Release protection (➡ 62, Setting the protection). ∫ Available disc space after deleting You can confirm the titles or pictures etc. that you have selected using the option menu. ≥Refer to option menu operations for the “Title View” (➡ 46, step 5). ≥Refer to option menu operations for the “Album View” (➡ 50, step 4). ≥Refer to option menu operations for the “Picture (JPEG) View” (➡ 50, step 4). ≥[HDD] [RAM] If you delete a recorded title (or a still picture), the space deleted becomes available for recording. Available disc space increases after deleting any of these titles or still pictures Title Title ...... Last title recorded Available disc space ≥[-RW‹V›] [+RW] Available recording space increases only when the last recorded title is deleted. Available disc space does not increase even after deleting Available disc space increases after deleting To show other pages Press [:, 9] to show other pages. Multiple deleting Select with [3, 4, 2, 1] and press [;]. (Repeat.) A check mark appears. Press [;] again to cancel. 4 Press [2] to select “Delete” and press [OK]. The title, album or the picture is deleted. Title Title ...... Last title recorded Available disc space To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. ≥[-R] [-R]DL] [+R] [+R]DL] Available space does not increase even after the contents are deleted. Deleting titles or pictures during play 1 While playing Press [DELETE ¢]. You cannot delete a picture during a Slide Show. 2 Press [2, 1] to select “Delete” and press [OK]. The title or the picture is deleted. RQT9011 52 EH770EC.book 53 ページ 2007年7月23日 月曜日 午後4時20分 Copy Easy copying from HDD to DVD with no difficult settings. Features Copy direction HDD ➝ DVD ≤ DVD ➝ HDD – ≤ High speed mode copy§1 Changing recording mode Finalise §3 Copying playlists§4 Are chapters maintained? Are thumbnails maintained? Recording and Playing while Copying §1 – [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] Automatically finalised High speed mode Normal speed mode – – ≤ –§5 ≤ –§6 – – Advanced Copy Make a copy list and then copy. You can set the unit to copy titles or playlists in the way you want. ≤ ≤ [RAM] [-RW‹VR›] [+RW] [DVD-V] (Only from a finalised disc) ≤ [DVD-V] You cannot perform high-speed copy with finalised discs. [+RW] You cannot perform high-speed copy from +RW to HDD. ≤§2 [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] Can be selected High speed mode Normal speed mode ≤ ≤ ≤ –§5 ≤§7 –§6 – ≤§8 To high speed copy titles (or playlists created from those titles), set “Rec for High Speed Copy” to “On” before recording to the HDD (The default setting is “On”. ➡ 68). However in the following cases, copying to DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW using the high speed mode does not work. ≥When arranging multiple titles for copying, if any titles are recorded with “Rec for High Speed Copy” to “Off”, then you cannot perform with high-speed copy. ≥Playlists created from titles using a variety of recording modes or multiple titles using FR recording mode. ≥Playlists mixed with a variety of audio types (Dolby Digital and LPCM, etc.). ≥Titles that contain many deleted segments. Delete Navigator/Copying titles or playlists Copying titles or playlists ≥[+R] [+R]DL] [+RW] Titles recorded in “EP” mode and “FR (recordings 5 hours or longer)” mode. (Displayed ) If you select a recording mode with better picture quality than the original, the picture quality does not improve. (However it does prevent against degradation of picture quality.) [+R]DL] You cannot copy in “EP” or “FR (recordings 5 hours or longer)” mode. §3 You cannot select “Top Menu” or “Auto-Play Select”. If you want to set auto-play select or the background colour, select “Top Menu” or “Auto-Play Select” in “DVD Management” before copying (➡ 64). §4 You cannot copy playlists with a play time more than 8 hours. When you copy a playlist, it will become a title in the destination drive. §5 [RAM] [-R]DL] [+R]DL] [+RW] : One title becomes one chapter. [-R] [-RW‹V›] [+R] : Chapters are created automatically ([-R] [-RW‹V›] about 5-minutes [+R] about 8-minutes) when finalising after copying the disc. §6 Thumbnails return to the default position. §7 When copying playlists, the thumbnails may not reflect changes made to them. §8 Possible only with titles on the HDD (However it is not possible when copying with automatic finalisation.) –You cannot perform chasing play or edit, etc. while copying. –You cannot play a playlist while copying titles with “One time only recording” restriction (➡ 8). –Still pictures cannot be played. §2 ∫ Approximate copying times (Max. speed) (excludes time required to write data management information) 12X Speed 5X Speed 4X Speed HDD DVD-R DL§2 DVD-RAM DVD-R§1 Required Required Required Recording Recorded Speed Speed Speed Mode time time time XP 12 min. 5x 5 min. 46 s. 10x 15 min. 4x 1 SP 6 min. 10x 2 min. 30 s. 24x 7 min. 30 s. 8x 1 hour LP 3 min. 20x 1 min. 21 s. 44x 3 min. 45 s. 16x EP (6H) 2 min. 30x 58 sec. 62x 2 min. 30 s. 24x EP (8H) 1 min. 30 s. 40x 48 sec. 75x 1 min. 53 s. 32x 4X Speed DVD-RW§3 Required Speed time 15 min. 4x 7 min. 30 s. 8x 3 min. 45 s. 16x 2 min. 30 s. 24x 1 min. 57 s. 31x 8X Speed 4X Speed 4X Speed +R DL§2 +RW +R§4 Required Required Required Speed Speed Speed time time time 8 min. 20 s. 7x 15 min. 4x 15 min. 4x 3 min. 45 s. 16x 7 min. 30 s. 8x 7 min. 30 s. 8x 1 min. 53 s. 32x 3 min. 45 s. 16x 3 min. 45 s. 16x ≥The above values indicate the quickest possible times and speeds to high speed copy a one hour title recorded on the HDD to a high speed recording compatible disc. Depending on what part of the disc is being written to, the features of the disc, etc., the times and speeds will vary. §1 In this unit, copying with a 16X Speed DVD-R disc will be performed at the same speed as with a 12X Speed DVD-R disc. §2 In this unit, copying with 8X Speed discs, DVD-R DL and +R DL, will be performed at the same speed as with 4X Speed discs, DVD-R DL and +R DL. §3 In this unit, copying with a 6X Speed DVD-RW disc will be performed at the same speed as with a 4X Speed DVD-RW disc. §4 In this unit, copying with a 16X Speed +R disc will be performed at the same speed as with a 8X Speed +R disc. [Note] ≥When recording or playing while copying, the unit may not use the maximum recording speed. ≥Depending on the condition of the disc, the unit may not copy using the maximum speed. Regarding copying to DVD-R DL (Dual Layer, single-sided) and +R DL (Double Layer, single-sided) When not copying in high speed mode, titles are temporarily copied at normal speed to the HDD and then copied at high speed to DVD-R DL and +R DL. The titles that were temporarily copied to the HDD are then deleted. You cannot copy to DVD-R DL and +R DL in the following cases. –When there is not enough free space on the HDD. (When copying to a new blank disc, if you intend to fill a new disc when copying to it, the equivalent of up to 4 hours of free space in SP mode is needed on the HDD.) –When the number of titles recorded to the HDD and the number of titles to be copied to the DVD-R DL and +R DL is greater than 500 in total. When playing a title recorded on both layers, video and audio may momentarily cut out when the unit is switching layers. (➡ 5) Regarding copying of the broadcasts that allow “One time only recording” You can copy a recorded title to a CPRM (➡ 84) compatible DVDRAM, however, the title is deleted from the HDD. ≥Titles or playlists cannot be copied from DVD-RAM to the HDD. ≥Titles will not be copied if they are protected (➡ 47). ≥You cannot copy playlists created from “One time only recording” titles. ≥Titles with recording limitations and playlists cannot be registered on the same copying list. RQT9011 53 EH770EC.book 54 ページ 2007年7月23日 月曜日 午後4時20分 Copying titles orTVplaylists CH DRIVE SELECT AV PAGE Numbered buttons 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP ShowView PROG/CHECK While stopped 2 Press [FUNCTION MENU]. Press [3, 4] to select “Copy” and press [OK]. SLOW/SEARCH :, 9 ∫ 1 CH ; STOP PAUSE PLAY/x1.3 COPY Navigator HDD Total : 0 1 No. 001 002 003 004 005 006 007 008 --- EXIT Rec time 0:52(SP) FU N OK OPTION OPTION “Red” CTION MENU 3,4,2,1 OK DIRECT NAVIGATO R GUIDE FUNCTION MENU RETURN CREATE CHAPTER RETURN 3 AUDIO STATUS DISPLAY TIME SLIP Press [3, 4] to select the title you want to copy and press [OK]. To show other pages Press [:, 9] to show other pages. STATUS Multiple editing Select with [3, 4] and press [;]. (Repeat.) Press [OK] to register. ≥A check mark appears. Press [;] again to cancel. Before copying When copying a title with main and secondary audio ≥Select the audio type for recording bilingual broadcast from “Bilingual Audio Selection” (➡ 68) when: –Copying to a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW. –When “Audio Mode for XP Recording” is set to “LPCM” (➡ 69) and you are copying in XP mode. 4 After you start copying DVD-R, DVD-R DL, DVD-RW (DVDVideo format), +R and +R DL discs, they become playonly and you can no longer record or edit. Press [2, 1] to select “Start” and press [OK]. ∫ Speed and recording mode when copying [HDD] ,-. [RAM] : High speed [HDD] > [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] : Refer to the following table. Copy speed To return to the previous screen Press [RETURN]. Only titles recorded with “Rec for High Speed Copy” set to “On”. § High speed ∫ To stop copying (➡ 56) When making a copy of multiple titles that were recorded with “Rec for High Speed Copy” set to “On” and “Off”. § ∫ COPY Navigator/Copying list icons and functions (➡ 56) Normal speed In the following cases, even if “Rec for High Speed Copy” is set to “On”, copy will perform at normal speed. ≥[+R] [+R]DL] [+RW] When the copying source was recorded in “EP” or “FR (recordings 5 hours or longer)” mode. ≥When the copy destination (disc) does not have enough space. ≥When the title aspect for the copying source and “Aspect for Recording” do not match. ≥When the title aspect for the copying source is 16:9: –[+R] [+R]DL] [+RW] –[-R] [-R]DL] [-RW‹V›] copying source was recorded in “EP” or “FR (recordings 5 hours or longer)” mode. [Note] Titles and playlists recorded using a different encoding system (PAL or NTSC) from the TV system currently selected on the unit cannot be copied. Preparation ≥Insert a disc that you can use for copying (➡ 4, 5). ≥Confirm that there is enough remaining disc space. Copy DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R and +R DL are automatically finalised (➡ 84). After finalising, the discs become play-only and you can also play them on other DVD equipment. However, you can no longer record or edit. [HDD] > [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] (You cannot copy to finalised discs.) When copying in normal speed, recording mode will be set to FR. (However, if there is still not enough space after setting to FR mode, copy will not be performed.) 54 Copy starts. Rec for High Speed Copy (➡ 68) Only titles recorded with “Rec for High Speed Copy” set to “Off”. RQT9011 Select OPTION RETURN “Green” REC MODE EXT LINK DIRECT TV REC Destination Capacity: 4310MB Size: 0MB( 0%) Date Day Time Name of title 26. 9. FRI 13:30 27. 9. SAT 12:15 3. 10. FRI 20:00 3. 10. FRI 22:05 4. 10. SAT 16:10 10.10. FRI 9:25 10.10. FRI 13:30 11.10. SAT 21:00 Page 01/01 OK MANUAL SKIP REC Name ARD ZDF AV2 ARD AV2 ZDF ARD ARD ∫ To check the properties of a title and sort COPY Navigator 1 Press [3, 4] to select the title and press [OPTION]. COPY Navigator HDD Total : 0 No. 001 002 003 004 005 006 007 008 --- Rec time 0:52(SP) Properties OK Name ARD ZDF AV2 ARD AV2 ZDF ARD ARD Destination Capacity: 4310MB Size: 0MB( 0%) Date Day Time Name of title 26. 9. FRI 13:30 27. 9. SAT 12:15 3. 10. FRI 20:00 3. 10. FRI 22:05 4. 10. SAT 16:10 10.10. FRI 9:25 10.10. FRI 13:30 11.10. SAT 21:00 Page 01/01 Sort RETURN 2 Press [3, 4] to select “Properties” or “Sort” and press [OK]. Properties: The name, recording date, channel etc. of the selected title are shown. Sort: Press [3, 4] to select the item and press [OK]. This changes the way that titles are displayed. You can select to display titles by No., recording date, day, channel, recording start time and title name. (You cannot select a title if it has a check mark.) If you close the COPY Navigator screen, the display order is cancelled. [Note] ≥When copying titles in high speed mode to high speed recording compatible DVD-RAM 5X, DVD-R 8X, +R 8X or +RW 4X, the sound of the disc rotating becomes louder than normal. If you want copy to perform more quietly, select “Normal (Silent)” in “DVD Speed for High Speed Copy” in the Setup menu (➡ 68). ≥If you register multiple titles, they are copied in order from the title at the top of the screen and not in the order you registered them. To change the order that titles are copied, create a copying list and then copy the contents of the list (➡ 55). 2007年7月23日 月曜日 午後4時20分 Copying using the copying list– Advanced Copy 6 Register titles and playlists for copy. ≥If you are going to copy a registered list without making any changes to it (➡ step 7). 1 Press [3, 4] to select “Create List” and press [1]. [HDD] ,-. [RAM] [+RW] [-RW‹VR›] > [HDD] [HDD] > [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] You can order titles and playlists as desired for copy to disc. Copy Cancel All Destination Capacity: 4343MB Size: 0MB ( 0%) 1 Copy Direction No. HDD DVD Name of item Size New item (Total=0) 2 Copy Mode See also “Before copying” (➡ 54). VIDEO High Speed 3 Create List 1 2 3 Page 01/01 While stopped Create copy list. Start Copying OK Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Advanced Copy” and press [OK]. OPTION RETURN 2 Press [3, 4] to select “New item” and press [OK]. 3 Press the “Red” button to select “VIDEO” or press the “Green” button to select “Playlists”. Create List HDD VIDEO 008 007 0:30(XP) ARD 10.10. FRI ARD 11.10. SAT --- --- Playlists Copying titles or playlists EH770EC.book 55 ページ --- --- Copy Cancel All Source 1 Copy Direction Previous HDD OK HDD DVD RETURN Destination 2 Copy Mode VIDEO DVD Start Copying 0 Select the copy direction. RETURN “ ≥If you are not going to change the registered list press [4] several times (➡ step 7). ” or ” can be registered. You can register a multiple number of titles and playlists on the copying list by repeating steps 2–4. You cannot start copying when the value of the “Size” (➡ 56) exceeds 100% (“Destination Capacity” is not sufficient). Set the recording mode. ≥If you are not going to change the recording mode, press [4] (➡ step 6). 1 Press [3, 4] to select “Copy Mode” and press [1]. 2 Press [3, 4] to select “Format” and press [OK]. 3 Press [3, 4] to select “VIDEO” and press [OK]. 4 Press [3, 4] to select “Recording Mode” and press [OK]. 5 Press [3, 4] to select the mode and press [OK]. 6 Press [2] to confirm. Next [+R] [+R]DL] [+RW] : only items indicated with “ ” can be registered. ≥To select a multiple number of items together, press [;] to add the check mark and press [OK] (➡ below, Multiple editing). ≥To show other pages (➡ below) ≥To edit the copying list (➡ 56) Set the copy direction. ≥If you are not going to change the copying direction, press [4] (➡ step 5). 1 Press [3, 4] to select “Copy Direction” and press [1]. 2 Press [3, 4] to select “Source” and press [OK]. 3 Press [3, 4] to select the drive and press [OK]. 4 Press [3, 4] to select “Destination” and press [OK]. 5 Press [3, 4] to select the drive and press [OK]. The same drive as the copy source cannot be selected. 6 Press [2] to confirm. 5 Next Select Previous [-R] [-R]DL] [-RW‹V›] : only items indicated with “ OK 4 Page 02/02 4 Press [3, 4, 2, 1] to select the titles or playlists and press [OK]. ≥When copying to a disc using high speed mode, High Speed 3 Create List OPTION 5 Press [2] to confirm. 7 Press [3, 4] to select “Start Copying” and press [OK]. When copying titles in high speed mode to high speed recording compatible DVD-RAM 5X, DVD-R 8X, +R 8X or +RW 4X, the sound of the disc rotating becomes louder than normal. If you want copy to perform more quietly, select “Normal (Silent)” in “DVD Speed for High Speed Copy” in the Setup menu (➡ 68). 8 Press [2, 1] to select “Yes” and press [OK] to start copying. [HDD] > [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] Press [2, 1] to select “Copy & Finalise” or “Copy Only” and press [OK]. ≥If “Copy & Finalise” is selected After finalising, the discs become play-only and you can also play them on other DVD equipment. However, you can no longer record or edit. To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. ≥You can also press [:, 9] to show other pages. Multiple editing Select with [3, 4, 2, 1] and press [;]. (Repeat.) Press [OK] to register to the list. ≥A check mark appears. Press [;] again to cancel. ≥When you switch between the “VIDEO” and “Playlists” tab, the check mark is cancelled. (Continued on the next page) RQT9011 55 EH770EC.book 56 ページ 2007年7月23日 月曜日 午後4時20分 Copying titles or playlists (Continued) Refer to the control reference on page 54. ∫ To stop copying Press and hold [RETURN] for 3 seconds. (You cannot stop while finalising) When High-speed copying All titles that have completely copied at the point cancelled are copied. When Normal Speed copying Copies until the point cancelled. However titles with “One time only recording” restriction, only titles that have completely copied at the point cancelled are copied to the disc. Titles that are cancelled before the copy is complete are not copied and remain on the HDD. ≥[-R]DL] [+R]DL] If copy is cancelled during the step while temporarily copying to the HDD, then nothing will be copied. However, if copy is cancelled during the step while copying to disc from the HDD, then only titles completely copied at the point cancelled are copied. Even if the title was not copied to the DVD-R, DVD-R DL, DVDRW (DVD-Video format), +R, +R DL or +RW, the amount of remaining writable disc space becomes less. ∫ To return to the previous screen Press [RETURN]. ∫ Recording and playing while copying You can record and play using the HDD while high speed copying. (Only when high speed copying without finalising) ≥Still pictures cannot be played. Press [OK] to cancel the screen display. ≥To confirm the current progress Press [STATUS]. [Note] ≥Timer recordings executed while copying are recorded to the HDD regardless of the recording drive settings. (Only when high speed copying without finalising) COPY Navigator/Copying list icons and functions COPY Navigator/Copying list indicators Titles and playlists that can be copied in high speed mode to DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL, +RW Titles and playlists that can be copied in high speed mode to DVD-R, DVD-R DL, DVD-RW (DVD-Video format) (However, titles and playlists cannot be copied in high speed mode to +R, +R DL, +RW) [+R]DL] is displayed, but copy cannot be performed. Title with “One time only recording” restriction (➡ 8, When recording the “One time only recording” broadcasts) Titles deleted from the HDD by “One time only recording” restriction after copying. (➡ 8, When recording the “One time only recording” broadcasts) Title or playlist contains still picture(s) ≥Still picture(s) cannot be copied. (NTSC) (PAL) Title or playlist recorded using a different encoding system from that of the TV system currently selected on the unit. ≥Titles and playlists displaying these marks cannot be selected. Data size of each registered item Destination Capacity: 4343MB Size: 0MB (0%) No. Name of item Size New item (Total=0) Page 01/01 Create copy list. RQT9011 56 Size: Data size recorded to the copy destination ≥When copying at normal speed, the total data size will change according to the recording mode. ≥The total data size shown may be larger than the sum of the data sizes for each registered item, because of data management information being written to the copy destination, etc. To play DVD-R, DVD-R DL,DVD-RW (DVD-Video format), +R and +R DL on other players, it is necessary to finalise them after copy. ∫ To edit the copying list Select the item in step 6–4 (➡ 55, right column) 1 Press [OPTION]. 2 Press [3, 4] to select the operation and press [OK]. Delete All Add Delete Move Delete All: Delete all items registered on the copying list. Press [2, 1] to select “Yes” and press [OK]. Add: Add new items to the copying list. Press [3, 4, 2, 1] to select the playlists and titles to be added and press [OK]. Delete: Delete the selected items. Press [2, 1] to select “Yes” and press [OK]. You can also delete multiple items (➡ 55, Multiple editing). Move: Move selected items or change the order of items on the copying list. Press [3, 4] to select the destination and press [OK]. To cancel all registered copying setting and lists After performing steps 1–3 (➡ 55, left column) 1 Press [3, 4] to select “Cancel All” and press [OK]. 2 Press [2, 1] to select “Yes” and press [OK]. ≥The settings and lists may be cancelled in the following situations. –When a title, still picture, etc. has been recorded or deleted at the copy source –When steps have been taken, for instance, to turn off the unit, open the tray, change the copy direction, etc. 2007年7月23日 月曜日 午後4時20分 Copying a finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R and +R DL 8 Press [3, 4, 2, 1] to select the title you want to start copying, and press [OK]. [DVD-V] > [HDD] You can copy the content of finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, and +R DL to the HDD and re-edit. While playing a disc, the content being played is copied to the HDD according to the set time. ≥If you perform search, frame-by-frame or pause while copying, that portion of title is not recorded. ≥When “Rec for High Speed Copy” (➡ 68) is set to “On” and you make a copy, the copy will be made using the picture size selected in “Aspect for Recording” (➡ 68) of the Setup menu. ≥Operations and on screen displays during copy are also recorded. ≥Almost all DVD-Video on sale have been treated to prevent illegal copying, and cannot be copied. ≥The following cannot be copied: Video CD, Audio CD and so on. Preparation ≥Insert the finalised disc (➡ 36). After performing steps 1–5 (“Format” is automatically set to “DVDVideo”) (➡ 55, Copying using the copying list–Advanced Copy) 6 Set “Copy Time”. ≥If you are not going to change the setting (➡ step 7). ∫Setting the unit to copy according to the set time 1 Press [3, 4] to select “Copy Time” and press [1]. 2 Press [3, 4] to select “Time Setting” and press [OK]. ≥Setting the unit to copy all the content on the disc 3 Press [3, 4] to select “Off” and press [OK]. 4 Press [2] to confirm. Copy will continue until there is not enough available recording space on the HDD. When the top menu is displayed My favorite 01/02 01 Chapter 1 02 Chapter 2 03 Chapter 3 04 Chapter 4 05 06 While playing in order, all the titles after the selected title are recorded until the set time. (After the last title on the disc has finished playing the top menu is recorded until the set time is reached.) To return to the previous screen Press [RETURN]. Copying titles or playlists EH770EC.book 57 ページ To stop copying Press [∫]. You can also press and hold [RETURN] for 3 seconds to stop copying. ≥If stopped partway, copying will be up to that point. [Note] ≥The screen saver on the right is recorded at the beginning. ≥The content is recorded as 1 title from the start of copy to the end. ≥If play does not begin automatically or if the top menu does not display automatically, press [1] (PLAY) to start. ≥Even if you copy a high quality video/audio DVD, the original picture and audio quality cannot be exactly replicated. ≥If you want to copy a title from a finalised DVD-RW (DVD Video Recording format), create a copy list and then copy (➡ 55, Copying using the copying list–Advanced Copy). ≥Setting the copying time 3 Press [3, 4] to select “On” and press [OK]. 4 Press [3, 4] to select “Copy Time” and press [OK]. Copy Cancel All 1 Copy Direction DVD HDD 2 2 Copy Mode DVD-Video Hour 00 Min. XP 3 Copy Time Start Copying Set the time a few minutes longer. Press OK to change the setting. OK RETURN 5 Press [2, 1] to select “Hour” and “Min.” and press [3, 4] to set the recording time. 6 Press [OK]. 7 Press [2] to confirm. Copying to the HDD continues for the set time even after the content being played finishes. ≥Set a few minutes longer than the source title, in order to include the operation time before play begins. ≥You can also set the recording time with the numbered buttons. 7 Press [3, 4] to select “Start Copying” and press [OK]. Press [2, 1] to select “Yes” and press [OK] to start copying. The disc top menu is displayed. ≥Disc play automatically begins from title 1 when “Title 1” is selected from the “Auto-Play Select” menu when finalising the disc (➡ 64). RQT9011 57 EH770EC.book 58 ページ 2007年7月23日 月曜日 午後4時20分 Copying still pictures 6 TV Í Í DRIVE SELECT VOL CH You can register still pictures or still picture folders. ≥Still pictures and folders cannot be registered on the same list. AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons Register still pictures for copy. ≥If you are going to copy a registered list without making any changes to it (➡ step 7). DVD SKIP CH Copy Cancel All ShowView 1 Copy Direction HDD DVD PROG/CHECK Destination Capacity: 4343MB Picture Picture/Folder No. PICTURE High Speed SLOW/SEARCH 3 Create List :, 9 Page 01/01 Create copy list. Start Copying STOP PAUSE PLAY/x1.3 ; OK RETURN 1 Press [3, 4] to select “Create List” and press [1]. 2 Press [3, 4] to select “New item” and press [OK]. 3 Press [3, 4, 2, 1] to select the still picture and press [OK]. FU N OK OPTION CTION MENU DIRECT NAVIGATO R GUIDE 3,4,2,1 OK OPTION FUNCTION MENU ≥To select a multiple number of items together, press [;] to add the check mark and press [OK] (➡ 59, Multiple editing). ≥To show other pages (➡ 59) ≥To select the still pictures in another folder (➡ 59) ≥To edit the copying list (➡ 59) RETURN CREATE CHAPTER RETURN MANUAL SKIP [HDD] [RAM] REC REC MODE EXT LINK DIRECT TV REC ≥You cannot copy pictures recorded on DVD-R, DVD-R DL, CD-R/ AUDIO STATUS DISPLAY TIME SLIP CD-RW. To copy pictures recorded on the USB memory (➡ 59, Copying all the still pictures on the USB memory—Copy All Pictures) You can register a multiple number of still pictures on the copying list by repeating steps 2–3. 4 Press [2] to confirm. ∫ To register on a folder by folder basis Copying using the copying list 2 3 1 Press [3, 4] to select “Create List” and press [1]. 2 Press [3, 4] to select “Picture/Folder” and press [OK]. While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Advanced Copy” and press [OK]. Copy Cancel All 1 Copy Direction HDD DVD HDD Destination DVD PICTURE High Speed 3 Create List 0 You can register a multiple number of folders on the copying list by repeating steps 4–5. ≥If you are not going to change the registered list press [4] several times (➡ step 7). 4 5 6 Press [2] to confirm. Set the copy direction. ≥If you are not going to change the copying direction, press [4] (➡ step 5). 1 Press [3, 4] to select “Copy Direction” and press [1]. 2 Press [3, 4] to select “Source” and press [OK]. 3 Press [3, 4] to select the drive and press [OK]. 4 Press [3, 4] to select “Destination” and press [OK]. 5 Press [3, 4] to select the drive and press [OK]. The same drive as the copy source can be selected. 6 Press [2] to confirm. 7 Press [3, 4] to select “Start Copying” and press [OK]. ≥For individual still pictures only When specifying another folder as the copying destination, select “Folder”. Folder Set the recording mode. ≥If you are not going to change the recording mode, press [4] (➡ step 6). 1 Press [3, 4] to select “Copy Mode” and press [1]. 2 Press [3, 4] to select “Format” and press [OK]. 3 Press [3, 4] to select “PICTURE” and press [OK]. “Recording Mode” is automatically set to “High Speed”. 4 Press [2] to confirm. Name of item Size New item (Total=0) ≥To select a multiple number of items together, press [;] to add the check mark and press [OK] (➡ 59, Multiple editing). ≥To show other pages (➡ 59) ≥To switch to another higher folder (➡ 59) ≥To edit the copying list (➡ 59) HDD DVD 2 Copy Mode No. 3 Press [3, 4] to select “Folder” and press [OK]. 4 Press [3, 4] to select “New item” and press [OK]. 5 Press [3, 4] to select the folder and press [OK]. Cancel All Source Destination Capacity: 4343MB Picture Picture/Folder 2 Copy Mode Copy 1 Copy Direction OPTION ∫ To register individual still pictures EXIT 1 Name of item Size New item (Total=0) 2 Copy Mode New folder Make a new folder and dub ? 8 001 002 003 ----- 100__DVD 101__DVD 102__DVD New folder Press [2, 1] to select “Yes” and press [OK] to start copying. To stop copying Press and hold [RETURN] for 3 seconds. To return to the previous screen Press [RETURN]. [Note] RQT9011 58 ≥When a name has not been input for the copy source folder, the folder’s name may be changed from the source folder. It is recommended that you input a folder name before copying (➡ 51, Enter Album Name). ≥The sequence in which the still pictures are registered on the copy list may not be the same at the copy destination. ≥If still pictures are already contained inside the copy destination folder, the new still pictures are recorded following the existing still pictures. 2007年7月23日 月曜日 午後4時20分 To show other pages Press [3, 4, 2, 1] to select “Previous” or “Next” and press [OK]. ≥You can also press [:, 9] to show other pages. Copying all the still pictures on the USB memory—Copy All Pictures [USB] > [HDD] or [RAM] 1 Multiple editing Select with [3, 4, 2, 1] and press [;]. (Repeat.) Press [OK] to register to the list. ≥A check mark appears. Press [;] again to cancel. While stopped Insert the USB memory (➡ 13). The menu is automatically displayed. USB device ∫ To edit the copying list Play MP3 Select the item in step 6–3 (for a still picture) or 6–5 (for a folder) (➡ 58, right column) 1 Press [OPTION]. 2 Press [3, 4] to select the operation and press [OK]. SELECT Delete To cancel all registered copying settings and lists After performing steps 1–3 (➡ 58) 1 Press [3, 4] to select “Cancel All” and press [OK]. 2 Press [2, 1] to select “Yes” and press [OK]. ≥The settings and lists may be cancelled in the following situations. –When a title or still picture has been recorded or deleted at the copy source –When steps have been taken, for instance, to turn off the unit, open the tray, change the copy direction, etc. (➡ 39, Structure of folders displayed by this unit) 1 Press [3, 4, 2, 1] to select “Folder” and press [OK]. If you want to switch to another higher folder (➡ below). 2 Press [3, 4] to select the folder and press [OK]. Folder Create List DVD-RAM 100__DVD 0001 0002 0003 0004 ---- ---- ---- ---- ---- ---- ---- ---- OK 2 RETURN Press [3, 4] to select “Copy Pictures (JPEG)” and press [OK]. Copy All Pictures 3 4 Copy from USB Copy to HDD Press [3, 4] to select “Copy to” and press [2, 1] to select the drive. Press [3, 4, 2, 1] to select “Copy” and press [OK]. You can also operate with the following steps 1 While stopped Press [FUNCTION MENU]. 2 Press [3, 4] to select “To Others” and press [OK]. 3 Press [3, 4] to select “USB device” and press [OK]. ➡ Go to step 2 (➡ above) To stop copying Press and hold [RETURN] for 3 seconds. ∫ To select another folder Picture (JPEG) Copy Pictures (JPEG) Add Delete All: Delete all items registered on the copying list. Press [2, 1] to select “Yes” and press [OK]. Add: Add new items to the copying list. Press [3, 4, 2, 1] to select the still picture or folder to be added and press [OK]. Delete: Delete the selected items. Press [2, 1] to select “Yes” and press [OK]. You can also delete multiple items (➡ above, Multiple editing). Create List DVD-RAM Play Pictures (JPEG) Delete All Copying still pictures EH770EC.book 59 ページ 001 002 003 004 --------- To return to the previous screen Press [RETURN]. [Note] ≥The folder name will be changed from the copy source folder. Enter a folder name on the copy destination after copying (➡ 51, Enter Album Name). ≥The structure of folders on the USB memory may not be the same at the copy destination. Folder \DCIM\100__DVD 100__DVD 101__DVD 102__DVD 103__DVD Page 01/01 Previous Page 001/001 Picture 0012 Next OK RETURN OK RETURN File 0012 OPTION You can also select folders with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] 115: [1] ➡ [1] ➡ [5] ≥The still pictures of different folders cannot be registered on the same list. To switch to another higher folder ≥Only when selecting the source folder If there is a multiple number of higher folders recognizable, while the screen on the right appears. 1 Press [OPTION] and press [OK]. 2 Press [2, 1] to select the higher folder and press [OK]. You cannot register a folder with a different higher folder to the same list. 3 Press [3, 4] to select the desired folder and press [OK]. 001 002 003 004 \DCIM\100__DVD 100__DVD 101__DVD 102__DVD 103__DVD Select Folder Select folder to access. \DCIM Press OK to set. SELECT OK RETURN [Note] ≥If the space on the destination drive runs out or the number of files/folders to be copied exceeds the maximum (➡ 39), copying will stop partway through. ≥You cannot copy the information about the picture rotation. RQT9011 59 EH770EC.book 60 ページ 2007年7月23日 月曜日 午後4時20分 Copying from a video cassette recorder TV DRIVE SELECT DRIVE SELECT 2 3 VOL CH AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP PAUSE Press [¥ REC]. Recording starts. PROG/CHECK INPUT SELECT PLAY/x1.3 ; GUIDE OPTION CTION MENU DIRECT NAVIGATO R FU N OK FUNCTION MENU RETURN CREATE CHAPTER ≥Using Flexible Recording (➡ 29), you can record the content of a video cassette (approx. 1–8 hours) to a 4.7 GB disc with the best possible quality of recording without wasting disc space. DV automatic recording (DV Auto Rec) MANUAL SKIP REC MODE REC REC MODE EXT LINK DIRECT TV REC ¥ REC AUDIO STATUS DISPLAY TIME SLIP e.g., Connecting to the AV3 or DV input terminals on the front ≥Turn off the unit and other video equipment before connecting. REC OPEN/CLOSE This unit DV IN S VIDEO To skip unwanted parts Press [;] to pause recording. (Press again to restart recording.) To stop recording Press [∫]. Almost all videos and DVD-Video on sale have been treated to prevent illegal copying. Any software that has been so treated cannot be recorded using this unit. EXIT 3,4,2,1 OK When you want to start recording ShowView SLOW/SEARCH STOP ∫ CH Start play on the other equipment. VIDEO L/MONO - AUDIO- R [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] [HDD] [RAM] When the “DV Auto Rec” function is used, programmes are recorded as a title while at the same time chapters are created at each break in the images and the playlist is created automatically. Preparation 1 Turn off the main unit and DV equipment, then connect the equipment with the unit’s DV input terminal (➡ left column). 2 Turn on the main unit. ≥When the output signal from the external equipment is NTSC, change the “TV System” to “NTSC” in the Setup menu (➡ 73). AV3 IN Yellow White Red DV cable (IEEE 1394, 4-pin) S Video cable§ 1 Turn on the DV equipment, and pause play at the point you want recording to start. The following screen appears. DV Auto Rec Audio/Video cable DV unit is connected. Record from the DV unit? Other video equipment Rec to HDD Connect to Audio/Video output terminals. Rec to DVD OK If the audio output of the other equipment is monaural Connect to L/MONO on the AV3 input terminals at the front. § The S VIDEO terminal achieves a more vivid picture than the VIDEO terminal. When recording from the unit’s DV terminal ≥Select the type of audio recording from “Audio Mode for DV Input” in the Setup menu (➡ 69). ≥When recording from DV equipment (e.g., digital video camcorder), you can record audio/video recordings from DV tape only. ≥When “Rec for High Speed Copy” (➡ 68) is set to “On” and you make a copy, the copy will be made using the picture size selected in “Aspect for Recording” (➡ 68) of the Setup menu. About the aspect when recording a programme (➡ 8) [Note] ≥If it becomes time for a timer recording to start while copying, the recording will start and the copying will stop. ≥If video is copied from another piece of equipment to this unit, then the video quality will be degraded. Manual recording [HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥Press [REC MODE] to select the recording mode. ≥When recording bilingual programmes (➡ 8, Important notes for recording) ≥When the output signal from the external equipment is NTSC, change the “TV System” to “NTSC” in the Setup menu (➡ 73). This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.) ≥To reduce noise in input from a video cassette recorder, set “AV-in NR” to “On” in the on-screen menu (➡ 45). ≥Check the time on the unit is correct. 1 RQT9011 60 While stopped Press [INPUT SELECT] to select the input channel for the equipment you have connected. e.g., If you have connected to AV3 input terminals, select “A3”. Cancel SELECT 2 3 4 RETURN ≥When the screen is not displayed After performing step 1 1 Press [DRIVE SELECT] to select the HDD or DVD drive. 2 Press [FUNCTION MENU]. 3 Press [3, 4] to select “To Others” and press [OK]. 4 Press [3, 4] to select “DV Auto Rec” and press [OK]. ➡ Go to step 3 (➡ below) Press [2, 1] to select “Rec to HDD” or “Rec to DVD” and press [OK]. Press [REC MODE] to select the recording mode. Press [2, 1] to select “Rec” and press [OK]. Recording starts. When recording finishes The confirmation screen appears. Press [OK] to finish DV automatic recording. To stop recording Press [∫]. [Note] ≥Only one piece of DV equipment (e.g., digital video camcorder) can be connected to the unit via the DV input terminal. ≥It is not possible to operate the unit from the connected DV equipment. ≥The DV input on this unit is for use with DV equipment only. (It cannot be connected to a computer, etc.) ≥The DV equipment name may not be shown correctly. ≥Depending on the DV equipment, the images or audio may not be input properly. ≥The date and time information on the tape of the DV equipment will not be recorded. ≥You cannot record and play simultaneously. If the DV automatic recording function does not work properly, check the connections and DV equipment settings, and turn the unit off and back on. If that does not work, follow the instructions for manual recording (➡ left column). EH770EC.book 61 ページ 2007年7月23日 月曜日 午後4時20分 Recording music from CD and play on HDD TV VOL Playing recorded music on HDD AV PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons DELETE ¢ SKIP STOP 1 PROG/CHECK SLOW/SEARCH PAUSE Preparation Press [DRIVE SELECT] to select the HDD drive. ShowView :, 9 ∫ ; [HDD] CH PLAY/x1.3 6, 5 1 EXIT EXIT OK OPTION CTION MENU 3,4,2,1 OK FU N DIRECT NAVIGATO R GUIDE 2 3 FUNCTION MENU Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Music Server” and press [OK]. Music Server HDD Current playing album No. and track No./ Playback status/ Elapsed playtime RETURN RETURN OPTION CREATE CHAPTER MANUAL SKIP This unit records tracks from a music CD (including a CD-R/CD-RW) REC REC MODE EXT LINK DIRECT TV REC to the HDD. AUDIO While stopped STATUS DISPLAY TIME SLIP OK 4 Insert a music CD. The menu is automatically displayed. CD Play Music Copy Music SELECT OK 2 3 RETURN Press [3, 4] to select “Copy Music” and press [OK]. Press [2, 1] to select “Copy” and press [OK]. Recording starts. You can also operate with the following steps. Preparation Press [DRIVE SELECT] to select the DVD drive. 1 While stopped, press [FUNCTION MENU]. 2 Press [3, 4] to select “To Others” and press [OK]. 3 Press [3, 4] to select “Copy Music CD” and press [OK]. (Go to step 3 ➡ above) To stop recording Press and hold [RETURN] for 3 seconds. ≥If the recording is cancelled, then no tracks on the CD will be recorded. To return to the previous screen Press [RETURN]. [Note] ≥While recording, no other operations can be performed. Timer recordings will not proceed. ≥Tracks recorded on the HDD cannot be transferred to a disc or USB memory. ≥CDs which have SCMS (Serial Copy Management System) restrictions cannot be recorded to the HDD. ≥Recording from CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed. 04 Play Album Name 2.54 Tracks 10 03 07 07 03 02 01/01 OPTION Press [3, 4] to select the album and press [OK]. Play starts from the beginning of the album. When the last track of an album finishes playing, the first track of the next album will automatically begin to play and so on. ≥“0” indicates the album currently playing. ≥You can also select the album with the numbered buttons. e.g., 5: [0] ➡ [0] ➡ [5] 15: [0] ➡ [1] ➡ [5] 115: [1] ➡ [1] ➡ [5] Preparation Press [DRIVE SELECT] to select the DVD drive. While stopped Track RETURN ≥One CD is recorded on the HDD as one album. ≥Audio quality: LPCM ≥The maximum number of albums on HDD: 300 (Depends on the remaining capacity.) If titles or pictures are recorded, then the number of albums that can be recorded will be reduced. 1 003 No. 001 002 003 004 005 006 ––– ––– Page Recording music from a CD to HDD [CD] > [HDD] All tracks on the music CD (CD-DA) are recorded on the HDD. (Cannot record track-by-track.) Album To exit the screen Press [EXIT]. Play stops. Operations during play Press [∫]. Stop The stopped position is memorized. Press [1] (PLAY) to restart from this position. ≥If [∫] is pressed several times, the position is cleared. ≥The position is cleared if the unit is turned off. Pause Press [;]. Press [;] again or [1] (PLAY) to restart play. Search Press [6] or [5]. The speed increases up to 5 steps. Press [1] (PLAY) to restart play. Skip During play or while paused, press [:] or [9]. Skip to the track you want to play. ≥Each press increases the number of skips. Copying from a video cassette recorder/Recording music from CD and play on HDD CH DRIVE SELECT DRIVE SELECT ∫ To delete an album/To enter the album name 1 While the “Music Server” screen is displayed Press [3, 4] to select the album and press [OPTION]. 2 Press [3, 4] to select the operation and press [OK]. Delete Album: Press [2, 1] to select “Delete” and press [OK]. ≥Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥You can also delete an album with the following steps. 1 While the “Music Server” screen is displayed Press [3, 4] to select the album and press [DELETE ¢]. 2 Press [2, 1] to select “Delete” and press [OK]. Enter Album Name: (➡ 65, Entering text) [Note] ≥You cannot play music tracks on HDD while recording or copying. ≥When this unit is not operated for approximately 10 minutes while the Music Server screen is being displayed, the burn protection screen is displayed. To return to the previous screen, press [OK]. RQT9011 61 EH770EC.book 62 ページ 2007年7月23日 月曜日 午後4時20分 HDD and disc management Setting the protection [RAM] DVD TV Í Í Preparation ≥Press [DRIVE SELECT] to select the DVD drive. VOL CH DRIVE SELECT AV DRIVE SELECT PAGE 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP 4 ShowView PROG/CHECK SLOW/SEARCH PAUSE STOP After performing steps 1–3 (➡ left) CH 5 PLAY/x1.3 Press [3, 4] to select “Disc Protection” and press [OK]. Press [2, 1] to select “Yes” and press [OK]. EXIT DVD Management EXIT GUIDE DVD-RAM 11 0 : 22 Remain 5:38 (EP) OK OPTION CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK Titles Used Disc Name FUNCTION MENU Disc Protection RETURN CREATE CHAPTER SELECT RETURN OK MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP On Delete all titles RETURN Format Disc The lock symbol appears closed when the disc is writeprotected. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›] Cartridge-protection Common procedures 1 While stopped 2 Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. FUNCTION MENU Playback Recording Delete Copy To Others ShowView Record Advanced Copy Playlists Flexible Rec DV Auto Rec Setup HDD Management OK RETURN 3 Music Server Press [3, 4] to select “HDD Management” or “DVD Management” and press [OK]. e.g., [RAM] DVD Management DVD-RAM 11 0 : 22 Remain 5:38 (EP) Disc Protection Off Delete all titles SELECT RETURN Providing a name for a disc You can provide a name for each disc. Preparation ≥Press [DRIVE SELECT] to select the DVD drive. ≥[RAM] Release protection (➡ above). After performing steps 1–3 (➡ left) 4 Press [3, 4] to select “Disc Name” and press [OK]. (➡ 65, Entering text) Titles Used Disc Name OK Format Disc ≥The disc name is displayed in the DVD Management window. ≥[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] With a finalised disc, the name is displayed on the Top Menu. ≥[+RW] The disc name is displayed only if you play the disc on other equipment. DVD Management DVD-RAM My favorite Documentary Titles Used 11 0 : 22 Remain 5:38 ( ≥When HDD has been selected, “Delete all titles” and “Format HDD” are displayed. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. RQT9011 62 PROTECT [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Remain 30:00 SP HDD For a DVD-RAM with a cartridge ≥With the write-protect tab in the protect position, play automatically starts when inserted in the unit. 01/02 01 Chapter 1 02 Chapter 2 03 04 2007年7月23日 月曜日 午後4時20分 Deleting all titles and playlists—Delete all titles [HDD] [RAM] Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥Release protection (➡ 62). Deleting all the contents of a disc— Format [HDD] [RAM] [-RW‹V›] [+RW] [-RW‹VR›] [+R] [+R]DL] (New disc only) Preparation ≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥Release protection (➡ 62). After performing steps 1–3 (➡ 62) 4 5 6 Press [3, 4] to select “Delete all titles” and press [OK]. Press [2, 1] to select “Yes” and press [OK]. Press [2, 1] to select “Start” and press [OK]. A message appears when finished. 7 [Note] Formatting deletes all contents (including computer data), and they cannot be restored. Check carefully before proceeding. The contents are deleted when you format a disc even if you have set protection. After performing steps 1–3 (➡ 62) 4 Press [3, 4] to select “Format HDD” or “Format Disc” and press [OK]. 5 Press [2, 1] to select “Yes” and press [OK]. Press [2, 1] to select “Start” and press [OK]. Press [OK]. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. HDD and disc management EH770EC.book 63 ページ 6 [Note] A message appears when formatting is finished. ≥Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. ≥Deleting all video titles will result in all playlists also being deleted. ≥Still picture (JPEG), music or computer data cannot be deleted. ≥Delete does not work if one or more titles are protected. [Note] ≥Formatting normally takes a few minutes; however, it may take up to a maximum of 70 minutes ([RAM]). ≥Do not disconnect the AC mains lead while formatting. This can render the disc unusable. 7 Press [OK]. [Note] ≥When a disc has been formatted using this unit, it may not be possible to use it on any other equipment. ≥[-R] [-R]DL] [CD] [USB] Formatting cannot be performed. ≥You can format DVD-RW only as DVD-Video format on this unit. To stop formatting [RAM] Press [RETURN]. ≥You can cancel formatting if it takes more than 2 minutes. The disc must be reformatted if you do this. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. RQT9011 63 EH770EC.book 64 ページ 2007年7月23日 月曜日 午後4時20分 HDD and disc management Refer to the control reference on page 62. [Note] Selecting the background style—Top Menu When finalising a high-speed recording compatible disc, it may take longer than displayed on the confirmation screen (approximately four times). [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] You can select the background that will be displayed as the DVDVideo top menu after finalising or Create Top Menu ([+RW]). After finalising ≥[-R] [-R]DL] [+R] [+R]DL] The disc becomes play-only and you can no longer record or edit. ≥[-RW‹V›] You can record and edit the disc after formatting (➡ 63) although it becomes play-only after finalising. ≥When copying in high speed, chapters will be replicated. ≥[-R] [-RW‹V›] Titles are divided into about 5-minute ([+R] 8minute)§ chapters, if –the titles were directly recorded to the disc. –the titles were copied using any mode other than the high speed mode (excluding [-R]DL] [+R]DL]). § This time varies greatly depending on the condition and mode of recording. ≥There is a pause of several seconds between titles and chapters during play. Preparation Press [DRIVE SELECT] to select the DVD drive. After performing steps 1–3 (➡ 62) 4 5 Press [3, 4] to select “Top Menu” and press [OK]. Press [3, 4, 2, 1] to select the background and press [OK]. Top Menu List 1 2 Display after finalising Thumbnail (Still picture) Title Name 4 5 3 6 Before finalising After finalising Recording/Editing/Entering name ≤ – Play on other players – ≤ 01 7 8 9 ≥You can change thumbnails displayed in the top menu. (➡ 47, Change Thumbnail) Selecting whether to show the Top Menu first—Auto-Play Select [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] You can select whether to show the top menu after finalising. Preparation Press [DRIVE SELECT] to select the DVD drive. After performing steps 1–3 (➡ 62) 4 5 Press [3, 4] to select “Auto-Play Select” and press [OK]. Press [3, 4] to select “Top Menu” or “Title 1” and press [OK]. Top Menu: The top menu appears first. Title 1: The disc content is played without displaying the top menu. Enabling discs to be played on other equipment—Finalise [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] Make selections from “Top Menu” and “Auto-Play Select” (➡ above) before finalising the disc. Preparation Press [DRIVE SELECT] to select the DVD drive. After performing steps 1–3 (➡ 62) 4 5 6 Press [3, 4] to select “Finalise” and press [OK]. Press [2, 1] to select “Yes” and press [OK]. Press [2, 1] to select “Start” and press [OK]. RQT9011 64 Visit Panasonic’s homepage for more information about DVDs. http://www.panasonic-europe.com Creating Top Menu—Create Top Menu [+RW] +RW discs contain no Top Menu data. Top Menu is a convenient function. We recommend you create the menu before playing a +RW disc on other equipment. You cannot use the Top Menu for playing on this unit. Make selections from “Top Menu” and “Auto-Play Select” (➡ left column) before creating top menu. Preparation Press [DRIVE SELECT] to select the DVD drive. After performing steps 1–3 (➡ 62) 4 5 6 Press [3, 4] to select “Create Top Menu” and press [OK]. Press [2, 1] to select “Yes” and press [OK]. Press [2, 1] to select “Start” and press [OK]. Creating Top Menu starts. You cannot cancel creating. Creating Top Menu can take a few minutes. 7 Press [OK]. A message appears when finalising is finished. [Note] [Note] ≥You can record or edit discs after creating the Top Menu. But the created menu is deleted when you record or edit disc. In such cases, create the Top Menu again by using “Create Top Menu”. ≥You cannot cancel finalising. ≥Finalising takes up to 15 minutes. ([-R]DL] [+R]DL] Finalising takes up to 60 minutes.) ≥Do not disconnect the AC mains lead while finalising. This will render the disc unusable. 7 ≥You cannot finalise discs recorded on other manufacturer’s equipment. ≥If you finalise discs recorded on Panasonic equipment other than this unit, the background selected as “Top Menu” may not be displayed. ≥Discs finalised on this unit may not be playable on other players due to the condition of the recording. Press [OK]. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. 2007年7月23日 月曜日 午後4時20分 Entering text TV CH DRIVE SELECT AV 2 PAGE Numbered buttons DELETE ¢ ∫ 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP STOP CH Repeat this step to enter other characters. ShowView ≥To delete a character Press [3, 4, 2, 1] to select the character in the name field and press [;]. (The selected characters are deleted.) PROG/CHECK SLOW/SEARCH PAUSE PLAY/x1.3 ≥Using the numbered buttons to enter characters ; e.g., entering the letter “R” 1 Press [7] to move to the 7th row. 2 Press [7] twice to highlight “R”. 3 Press [OK]. EXIT GUIDE CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK OK OPTION RETURN CREATE CHAPTER “Red” REC MANUAL SKIP REC MODE EXT LINK DIRECT TV REC 3 STATUS DISPLAY TIME SLIP You can give names to recorded titles, etc. The maximum number of characters: [HDD] [RAM] Characters Playlist 64 Album of still pictures 36 Album of music ([HDD]) 40 6 M N 7 7 P 8 T L 7 O Q R U V Press [∫] (Set). “Writing...” appears then the screen returns to the Title View screen and so on. Disc ([RAM]) 64 To end partway Press [RETURN]. Text is not added. Title name for timer recording [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] Characters Title 44 Disc 40 [Note] If a name is long, parts of it may not be shown in some screens. 1 K 7 64 (44§) Title § 5 J ≥To enter a space Press [DELETE ¢] and press [OK]. RETURN “Green” [HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] AUDIO Press [3, 4, 2, 1] to select a character and press [OK]. HDD and disc management/Entering text EH770EC.book 65 ページ Show Enter Name screen. For your reference If you enter a long name, only part of it is shown in the Top Menu after finalisation (➡ 64). When entering a title name, the name that will appear in the Top Menu can be previewed in “Top Menu Preview” window. Enter Name _ Chapter 1_ Standard Characters Other Characters Top Menu Preview 1 1 2 3 5 6 7 8 9 0 Chapter 1 2 A B C a b c K L 3 D E F d e f / * N % 4 G H I g h i $ 4 & Title (timer recording) Select “Programme Name” in step 3 on page 32, right column. Title Select “Enter Name” in step 5 on page 46. Playlist Select “Enter Name” in step 5 on page 49. Disc Select “Disc Name” in step 4 of “Providing a name for a disc” on page 62. Album of still pictures Select “Enter Album Name” in step 4 on page 50, “To edit the album”. Album of music Select “Enter Album Name” in step 2 on page 61, “To delete an album/To enter the album name”. Name field: shows the text you have entered Press the “Red” button or Standard Characters Other Characters Enter Name “Green” button to select _ character type and press 1 1 2 3 4 5 6 7 8 9 0 Top Menu Preview 2 A B C a b c K L [OK]. * 3 D E F d e f / N % “Standard Characters”: 4 G H I g h i $ & 5 J K L j k l 1 0 @ Delete (➡ left, Alphabet characters, m n o [ ] _ M N O 6 v Set etc.) 7 P Q R S p q r s ( ) t u v { } 8 T U V “Other Characters”: 9 W X Y Z w x y z \ | (➡ below, Umlaut characters, 0 LL 9 0 . , ? ! " ' : ; ` ^ Space accented characters, etc.) SELECT OK RETURN ¡ ¢ £ ¤ ¥ ¦ § ¨ © ª 2 « ¬ - ® ¯ ° ± ² ³ ´ 3 µ ¶ · ¸ ¹ º » ¼ ½ ¾ 4 ¿ À Á Â Ã Ä Å Æ Ç È 5 É Ê Ë Ï Ð Ñ Ò Õ Ì Í Ö × Î 6 Ó Ô Ø Ù Ú Û Ü ä å æ 1 7 Ý 8 ç Þ à á è é ê ë ì í î ï ð 9 ñ 0 û ò ó ß ô õ ö â ÷ ø ù ú ü ý þ ÿ Space ã RQT9011 65 EH770EC.book 66 ページ 2007年7月23日 月曜日 午後4時20分 FUNCTION MENU window By using the FUNCTION MENU window you may access the main functions quickly and easily. 1 DVD TV Í Í CH DRIVE SELECT VOL Press [FUNCTION MENU]. PAGE Functions displayed depend on the selected drive or type of disc. AV 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT SKIP While stopped FUNCTION MENU CH Remain 30:00 SP HDD Playback ShowView Recording Delete PROG/CHECK Copy To Others SLOW/SEARCH OK RETURN PAUSE STOP PLAY/x1.3 2 EXIT GUIDE CTION MENU DIRECT NAVIGATO R FU N 3,4,2,1 OK OK OPTION ≥If you select “To Others” and press [OK], the following screen appears. Press [3, 4] to select an item and press [OK]. FUNCTION MENU FUNCTION MENU RETURN CREATE CHAPTER Press [3, 4] to select an item and press [OK]. Remain 30:00 SP HDD RETURN Playback MANUAL SKIP Recording REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP Delete Copy To Others OK RETURN Timer Recording ShowView Record Advanced Copy Playlists Flexible Rec DV Auto Rec Setup HDD Management USB device Music Server TV “USB device” appears when a compatible USB memory device is connected. ≥If you press [RETURN], you can return to the previous screen. CH DRIVE SELECT “Timer Recording” appears in countries where the GUIDE Plus+ system is available. AV PAGE To exit the FUNCTION MENU window Press [FUNCTION MENU]. CH ShowView Child Lock SKIP STOP SLOW/SEARCH PAUSE The Child Lock deactivates all buttons on the unit and remote control. Use it to prevent other people from operating the unit. PLAY/x1.3 EXIT Press and hold [OK] and [RETURN] simultaneously until “X HOLD” appears on the unit’s display. FU N OK OPTION CTION MENU OK DIRECT NAVIGATO R GUIDE RETURN CREATE CHAPTER RETURN If you press a button while the Child Lock is on, “X HOLD” appears on the unit’s display and operation is impossible. MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP To cancel the Child Lock Press and hold [OK] and [RETURN] simultaneously until “X HOLD” disappears. Language code list Enter the code with the numbered buttons. Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 RQT9011 66 Catalan: Chinese: Corsican: Croatian: Czech: Danish: Dutch: English: Esperanto: Estonian: Faroese: Fiji: Finnish: French: Frisian: Galician: Georgian: German: Greek: Greenlandic: Guarani: 6765 9072 6779 7282 6783 6865 7876 6978 6979 6984 7079 7074 7073 7082 7089 7176 7565 6869 6976 7576 7178 Gujarati: Hausa: Hebrew: Hindi: Hungarian: Icelandic: Indonesian: Interlingua: Irish: Italian: Japanese: Javanese: Kannada: Kashmiri: Kazakh: Kirghiz: Korean: Kurdish: Laotian: Latin: Latvian, Lettish: 7185 7265 7387 7273 7285 7383 7378 7365 7165 7384 7465 7487 7578 7583 7575 7589 7579 7585 7679 7665 7686 Lingala: Lithuanian: Macedonian: Malagasy: Malay: Malayalam: Maltese: Maori: Marathi: Moldavian: Mongolian: Nauru: Nepali: Norwegian: Oriya: Pashto, Pushto: Persian: Polish: Portuguese: Punjabi: Quechua: 7678 7684 7775 7771 7783 7776 7784 7773 7782 7779 7778 7865 7869 7879 7982 8083 7065 8076 8084 8065 8185 Rhaeto-Romance: 8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: Tatar: Telugu: Thai: Tibetan: Tigrinya: Tonga: Turkish: Turkmen: Twi: Ukrainian: Urdu: Uzbek: Vietnamese: Volapük: Welsh: Wolof: Xhosa: Yiddish: Yoruba: Zulu: 8465 8484 8469 8472 6679 8473 8479 8482 8475 8487 8575 8582 8590 8673 8679 6789 8779 8872 7473 8979 9085 EH770EC.book 67 ページ 2007年7月23日 月曜日 午後4時20分 Changing the unit’s settings Common procedures 1 REC OPEN/CLOSE ∫ < OPEN/CLOSE DVD Í VOL CH DRIVE SELECT AV 1 2 3 4 5 6 7 8 9 DELETE INPUT 0 SELECT Numbered buttons SKIP STOP Tabs CH Setup ShowView Tuning Disc Picture Sound Display Connection Others PROG/CHECK SLOW/SEARCH PAUSE PLAY/x1.3 EXIT EXIT OPTION “Green” FUNCTION MENU 5 6 RETURN CREATE CHAPTER “Red” CTION MENU DIRECT NAVIGATO R FU N OK Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. Press [3, 4] to select the tab and press [1]. PAGE GUIDE 3,4,2,1 OK 3 4 TV Í 2 While stopped Menus Options Remote Control Clock Power Save Quick Start DVD 1 Off On DivX Registration Initialize SELECT OK TAB RETURN Press [3, 4] to select the menu and press [OK]. Press [3, 4] to select the option and press [OK]. RETURN MANUAL SKIP REC REC MODE EXT LINK DIRECT TV REC AUDIO STATUS DISPLAY TIME SLIP “Yellow” To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. FUNCTION MENU window/Child Lock/Changing the unit’s settings X CH W Summary of settings The settings remain intact even if you switch the unit to standby. Tabs Tuning Menus Options (Underlined items are the factory presets.) Manual Tuning (➡ 71) Auto-Setup Restart (➡ 72) Download from TV (➡ 72) Disc Settings for Playback ≥Press [OK] to show the following settings. Ratings Set a ratings level to limit DVD-Video play. Follow the on-screen instructions. Enter a 4-digit password with the numbered buttons when the password screen is shown. ≥Do not forget your password. Soundtrack Subtitle Menus Choose the language for audio, subtitle and disc menus. [DVD-V] ≥Some discs start in a certain language despite any changes you make here. ≥In case of English/French/German/Italian/ Spanish/Dutch/Swedish languages, when you make download from TV, and Country setting of Auto-Setup in plug-in, the language (“Soundtrack”/“Menus”) will be same and “Subtitle” will set to “Automatic”. ≥Enter a code (➡ 66) with the numbered buttons when you select “Other ¢¢¢¢”. When the selected language is not available on the disc, the default language is played. There are discs where you can only switch the language from the menu screen (➡ 37). ≥8 No Limit: All DVD-Video can be played. ≥1 to 7: Prohibits play of DVD-Video with corresponding ratings recorded on them. ≥0 Lock All: Prohibits play of all DVD-Video. ≥Unlock Recorder ≥Change Level ≥Change Password ≥Temporary Unlock ≥German ≥French ≥Italian ≥English ≥Spanish ≥Dutch ≥Swedish ≥Original: The original language of each disc will be selected. ≥Other ¢¢¢¢ ≥Automatic: If the language selected for “Soundtrack” is not available, subtitles of that language will automatically appear if available on that disc. ≥English ≥German ≥French ≥Italian ≥Spanish ≥Dutch ≥Swedish ≥Other ¢¢¢¢ ≥German ≥English ≥Spanish ≥Dutch ≥Other ¢¢¢¢ ≥French ≥Swedish ≥Italian (continued on the next page) RQT9011 67 EH770EC.book 68 ページ 2007年7月23日 月曜日 午後4時20分 Changing the unit’s settings (continued) Refer to the control reference on page 67. Tabs Menus Settings for Recording Disc (continued) ≥Press [OK] to show the following settings. Recording time in EP mode Select the maximum number of hours for recording in EP mode (➡ 27, Recording modes and approximate recording times). Aspect for Recording Sets the aspect ratio when recording or copying. ≥When recording or copying to the HDD or DVD-RAM with “Rec for High Speed Copy” set to “Off”, programme will be recorded in the original aspect ratio. Options (Underlined items are the factory presets.) ≥EP (6 Hours):You can record for 6 hours on an unused 4.7 GB disc. ≥EP (8 Hours):You can record for 8 hours on an unused 4.7 GB disc. The sound quality is better when using “EP (6 Hours)” than when using “EP (8 Hours)”. ≥Automatic: The programme will be recorded in the original aspect used when recording started (including when recording started at a commercial, etc.). ≥16:9 ≥4:3 ≥In the following cases, even when set to “Automatic” or “16:9”, recordings will be made or copied in 4:3. –[-R] [-R]DL] [-RW‹V›] When the recording mode is set to “EP” or “FR (recordings 5 hours or longer)” mode. –When recording or copying to a +R, +R DL and +RW. Rec for High Speed Copy ≥On: You can high-speed copy to DVD-R, etc. Press [2, 1] to select “Yes” and press [OK]. You can copy recorded titles from the HDD to DVD-R, ≥The following restrictions are applied to recorded titles. DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and –Recordings are made using the aspect ratio set in +RW using high speed mode. However, screen size, etc. is “Aspect for Recording” (➡ above). restricted (➡ right). –Select the type of audio in advance from “Bilingual We recommend turning the setting “Off” if high speed copy to Audio Selection” (➡ below). DVD-R, etc. is not necessary when recording a programme. ≥You are no longer able to switch the audio when watching This setting is effective when recording from a television a programme on an input channel on the TV connected to programme or external equipment (including DV equipment), this unit (e.g., AV1, etc). or when copying from a finalised DVD-Video disc. ≥Off DVD Speed for High Speed Copy ≥Maximum Select the speed of high-speed copying (When using high≥Normal (Silent): speed copy compatible DVD-RAM 5X, DVD-R, +R 8X or +RW Selecting “Normal (Silent)” means the noise generated by this 4X discs). unit is less than “Maximum”, however the time required for copying will double (approximately). Picture Sound RQT9011 68 Comb Filter Select the picture sharpness when recording. The setting is fixed with “On” if you set “TV System” to “NTSC” (➡ 73). ≥On: Pictures become clear and vivid. Normally, use this setting. ≥Off: Select it when recording noisy pictures. Still Mode Select the type of picture shown when you pause play (➡ 84, Frames and fields). ≥Automatic ≥Field: Select if jittering occurs when “Automatic” is selected. (The picture is coarser.) ≥Frame: Select if small text or fine patterns cannot be seen clearly when “Automatic” is selected. (The picture is clearer and finer.) Seamless Play Select the play mode between playlist chapter segments and partially deleted titles. ≥On: The chapters in playlists are played seamlessly. This does not work when there are several audio types included on the playlist and when using Quick View (Play x1.3). Additionally, the positioning of chapter segments may change slightly. ≥Off: The points where chapters in playlists change are played accurately, but the picture may freeze for a moment. Dynamic Range Compression [DVD-V] (Dolby Digital only) Change the dynamic range for late night viewing. ≥On ≥Off Bilingual Audio Selection Select whether to record the main or secondary audio type when: –Recording or copying to a DVD-R, DVD-R DL, DVD-RW (DVDVideo format), +R, +R DL and +RW. –“Rec for High Speed Copy” is set to “On”. –Recording or copying sound in LPCM (➡ 69, “Audio Mode for XP Recording”). ≥M 1 ≥M 2 You cannot select the audio on this unit when recording from an external source, such as when copying from a video cassette recorder (except from DV equipment connected to this unit’s DV input terminal). Select the audio on the other equipment. When recording from the unit’s DV terminal, select the type of audio recording from “Audio Mode for DV Input” (➡ 69). EH770EC.book 69 ページ 2007年7月23日 月曜日 午後4時20分 Tabs Menus Options (Underlined items are the factory presets.) PCM Down Conversion Select how to output audio with a sampling frequency of 96 kHz or 88.2 kHz. ≥Signals are converted to 48 kHz or 44.1 kHz despite the settings across if the signals have a sampling frequency of over 96 kHz or 88.2 kHz, or the disc has copy protection. ≥On: Signals are converted to 48 kHz or 44.1 kHz. (Choose when the connected equipment cannot process signals with a sampling frequency of 96 kHz or 88.2 kHz.) ≥Off: Signals are output as 96 kHz or 88.2 kHz. (Choose when the connected equipment can process signals with a sampling frequency of 96 kHz or 88.2 kHz.) Dolby Digital ≥Bitstream:When connecting to equipment displaying the Dolby Digital logo. ≥PCM: When connecting to equipment not displaying the Dolby Digital logo. DTS Select how to output the signal. Select “Bitstream” if the connected equipment decodes the signal. Select “PCM” if this unit decodes the signal and outputs it as 2 channels. [Note] Not making the proper settings may result in noise or some trouble for digital recording. MPEG Display ≥Bitstream: When connecting to equipment displaying the DTS logo. ≥PCM: When connecting to equipment not displaying the DTS logo. Changing the unit’s settings Digital Audio Output Sound (continued) Change the settings when you have connected equipment through this unit’s DIGITAL AUDIO OUT terminal (➡ 16). ≥Press [OK] to show the following settings. ≥Bitstream: When connected to equipment with a built-in MPEG decoder. ≥PCM: When connected to equipment without a built-in MPEG decoder. Audio Mode for XP Recording Choose the audio type when recording or copying with XP mode. ≥Dolby Digital (➡ 84) ≥LPCM (➡ 85) –The picture quality of LPCM recordings may be lower than that of normal XP mode recordings. –The audio recording becomes Dolby Digital even if you selected LPCM when using a recording mode other than XP. –When recording a bilingual broadcast, select the type of audio in advance from “Bilingual Audio Selection” (➡ 68). Audio Mode for DV Input You can select the kind of audio when recording from the unit’s DV input terminal (➡ 60). ≥Stereo 1: Records audio (L1, R1). ≥Stereo 2: Records added audio such as narration (L2, R2) subsequent to original recording. ≥Mix: Records both Stereo 1 and Stereo 2. When recording bilingual broadcast, select the type of audio in advance from “Bilingual Audio Selection” (➡ 68). Language ≥English ≥Deutsch ≥Français ≥Italiano ≥Nederlands Choose the language for these menus and on-screen messages. ≥Español ≥Svenska: only appears when “Sverige”, “Danmark”, “Norge” or “Suomi” is selected in the Country setting menu (➡ 20). On-Screen Messages Choose whether to show status messages automatically. ≥Automatic ≥Off Grey Background Select “Off” if you do not want to have the unit show the grey background when tuner reception is weak. ≥On ≥Off FL Display Changes the brightness of the unit’s display. This setting is fixed with “Automatic” if you set “Power Save” (➡ 71) to “On”. ≥Bright ≥Dim ≥Automatic: The display turns dark during play and disappears when the unit is turned off. It reappears momentarily if a button is pressed. While using this mode, the standby power consumption can be reduced. (continued on the next page) RQT9011 69 EH770EC.book 70 ページ 2007年7月23日 月曜日 午後4時20分 Changing the unit’s settings (continued) Refer to the control reference on page 67. Tabs Menus Connection TV Aspect (➡ 20) Options (Underlined items are the factory presets.) Set to match the type of ≥16:9: When connected to a 16:9 widescreen television. television connected. ≥Pan & Scan: When connected to a 4:3 aspect television, side picture is trimmed for 16:9 picture (➡ 85). ≥Letterbox: When connected to a 4:3 aspect television. 16:9 picture is shown in the letterbox style (➡ 85). Progressive (➡ 24) This setting is fixed with “Off” if you set “AV1 Output” to “RGB 1 (without component)” or “RGB 2 (without component)”. TV System (➡ 73) HDMI Settings§ ≥Press [OK] to show the following settings. HDMI Video Format You can only select items compatible with the connected equipment. This setting normally does not need to be changed. However if you are concerned about output picture quality, it may be improved by changing the setting. ≥On ≥Off ≥PAL ≥NTSC ≥576i/480i ≥576p/480p ≥720p ≥1080i ≥1080p: When setting video output to “1080p”, we recommend using a Panasonic HDMI cable 5 meters or less in length to prevent video distortion. ≥To enjoy High Quality Video up-converted to 1080p, you ≥Automatic: Automatically selects the output resolution best need to connect the unit directly to 1080p compatible HDTV. suited to the connected television (1080p, 1080i, If this unit is connected to an HDTV through other 720p, 576p/480p or 576i/480i). equipment, it must also be 1080p compatible. Aspect for 4:3 Video ≥4:3: Picture output expands left and right. To play a 4:3 title when connected with an HDMI cable, set how to show pictures on a 16:9 widescreen television. ≥16:9: Picture is output as original aspect with side panels. ≥HDMI and Optical ≥Optical Only: Select when this unit is connected to an amplifier with an optical digital audio cable and connected to a TV with an HDMI cable and you want to enjoy the highest quality of audio from discs (➡ 16). VIERA Link ≥On Set to use “HDAVI Control” function when connected with an ≥Off: Select when you do not want to use “HDAVI Control”. HDMI cable to a device that supports “HDAVI Control”. AV1 Output ≥Video (with component): Select when a TV is connected that can receive a composite Selects the output from the AV1 terminal. signal. Select “Video (with component)” or “S Video (with component)” ≥S Video (with component): for component output (progressive output). Select when a TV is connected that can receive an S Video Set according to the terminal of the connected TV. signal. When a decoder is connected, do not set to “RGB 1 (without ≥RGB 1 (without component): component)”. Select when a TV is connected that can receive an RGB signal. ≥If this unit is connected with an HDMI cable, you cannot select If you always would like to view the picture from the unit in RGB “RGB 1 (without component)” or “RGB 2 (without component)”. signal, select this mode. The TV screen will automatically switch to display the picture from the unit when the unit is turned on. ≥RGB 2 (without component): Select when a TV is connected that can receive an RGB signal. If you would like to switch to display the picture from the unit only when playback or viewing menus, select this mode. AV2 Settings (Set to match the connected equipment.) ≥Press [OK] to show the following settings. ≥RGB AV2 Input ≥RGB/Video ≥Video ≥S Video Set to “RGB/Video” or “RGB” when receiving or recording RGB output from external equipment. AV2 Connection ≥Decoder:When a decoder is connected to descramble the This setting is fixed with “Ext” if you set “TV System” to scrambled signals (e.g., C+decoder). When the VCR or a digital/satellite receiver is “NTSC” (➡ 73). ≥Ext: connected. Ext Link ≥Ext Link 1: When a digital/satellite receiver which transmits a This setting cannot be made when the “TV System” is set to special control signal recordings via the 21-pin Scart “NTSC” (➡ 73). cable is connected. Start and stop timings of recording are controlled by the control signal. ≥Ext Link 2: When external equipment with a timer function is connected. When it turns on, recording starts. When it turns off, recording stops. Digital Audio Output § RQT9011 70 Depending on the connected equipment, some items may be shaded in grey on the display and cannot be selected, or you may not be able to change the settings. 2007年7月23日 月曜日 午後4時20分 Tabs Menus Options (Underlined items are the factory presets.) Remote Control (➡ 25) ≥DVD 1 ≥DVD 2 ≥DVD 3 Clock (➡ 73) Power Save ≥On: Power consumption is minimized when the unit is turned to ≥Refer to the following when “Power Save” is set to “On”. standby (➡ 86). –“FL Display” is automatically set to “Automatic” (➡ 69). ≥Off: –The “Quick Start” function does not work. (It is automatically (If “Quick Start” is set to “On”, “Power Save” is automatically turned to “Off”.) –When the unit is off, Pay TV programmes cannot be watched turned to “Off”.) on the TV because the signal from the connected decoder is not looped through. To watch them, turn on the unit. Quick Start ≥On ≥Off: Standby power consumption is less than when this is set The Quick Start feature enables this unit to be ready to start to “On”. recording as quick as approx. 1 second§ after turning it on. You can start recording soon after deciding you want to record (If this is set to “On”, “Power Save” is automatically turned to something. §Only when recording to the HDD or DVD-RAM. “Off”.) ≥Startup takes up to a minute when: –You play a disc or start recording to discs other than DVDRAM. –You want to make other operations. –The clock has not been set. DivX Registration ≥You need this registration code to purchase and play DivX Video-on-Demand (VOD) content (➡ 41). Initialize ≥Press [OK] to show the following settings. Shipping Condition ≥Yes ≥No All the settings except for the ratings level, ratings password and clock settings return to the factory preset. The timer recording programmes are also cancelled. Default Settings ≥Yes ≥No All the settings other than the tuning settings, clock settings, country settings, language settings, disc language settings, ratings level, ratings password, remote control code, return to the factory presets. Others Changing the unit’s settings EH770EC.book 71 ページ Tuning 1 2 3 4 If you select “Yes” and press [OK], the following screen appears. While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. Press [3, 4] to select “Tuning” and press [1]. Setup Manual Tuning Auto-Setup Restart Download from TV Tuning Disc Picture Sound Display Connection Others TAB SELECT OK RETURN Manual Tuning You can add or delete channels, or change programme positions. 5 Press [3, 4] to select “Manual Tuning” and press [OK]. Manual Tuning If you delete programme position of Host channel, GUIDE Plus+ data is also deleted. Continue? Yes Manual Tuning Pos Name SELECT OK RETURN Delete Move 1 2 3 4 5 6 7 8 9 10 ARD ZDF N3 HR3 BR3 Ch 4 2 5 8 10 Pos Name Ch 11 12 13 14 15 16 17 18 19 20 Add To delete a programme position Press [3, 4, 2, 1] to select a programme position and press the “Red” button. To add a blank programme position Press [3, 4, 2, 1] to select a programme position and press the “Green” button. To move a TV station to another programme position 1 Press [3, 4, 2, 1] to select a programme position and press the “Yellow” button. 2 Press [3, 4, 2, 1] to select the new programme position to which you want to assign the TV station and press [OK]. [Note] ≥When the unit connected to a Q Link compatible TV with a fully wired 21-pin Scart cable sets itself automatically (➡ 20), only deletion of the programme position can be performed. ≥If you delete programme position of Host Channel, the GUIDE Plus+ data is also deleted. (continued on the next page) No RQT9011 71 EH770EC.book 72 ページ 2007年7月23日 月曜日 午後4時20分 Changing the unit’s settings (continued) Auto-Setup Restart Refer to the control reference on page 67. You can restart auto channel setting if set up (➡ 20) fails for some reason. ∫ To change the tuning settings for individual programme position After performing steps 1–4 (➡ 71) 6 Press [3, 4, 2, 1] to select a programme position and press [OK]. Manual Tuning SELECT Pos Name Channel Fine Tuning Video System Audio Mode Mono Title Page 5 1 ARD 4 Auto Auto BG Off 301 The confirmation screen appears. Select “Download from TV” when you connect the unit to a Q Link compatible TV with a fully wired 21-pin Scart cable. (Programme positions are downloaded from the TV and copied through this convenient function.) RETURN RETURN : leave Press [3, 4] to select an item and press [1]. Pos To change the programme position in which the TV stations are assigned Press [3, 4] or numbered buttons to select the number of the desired programme position and press [OK]. Name To enter or change the name of a TV station Press [3, 4, 2, 1] to enter station name and press [OK]. If the station name needs a blank space, select the blank between “Z” and “¢”. Channel To enter newly available TV stations or change the channel number of an already tuned TV station Press [3, 4] or the numbered buttons to enter the channel number of the desired TV station. Wait a few moments until the desired TV station has been tuned. After the desired TV station is tuned, press [OK]. Fine Tuning Video System Audio Mode Mono Title Page To obtain the best tuning condition Press [3, 4] to adjust the best tuning condition and press [OK]. ≥Press [1] to return to “Auto”. To select the video system type Press [3, 4] to select “PAL” or “SECAM” if the picture lacks colour, and press [OK]. Auto: This unit automatically distinguishes PAL and SECAM signals. PAL: For receiving PAL signals. SECAM: For receiving SECAM signals. RQT9011 72 6 Press [2, 1] to select “Yes” and press [OK]. ≥If the country setting menu appears on the television Press [3, 4, 2, 1] to select the country and press [OK]. You can also use the following method to restart Auto-Setup. When the unit is on and stopped, Press and hold [X CH] and [CH W] on the main unit until the country setting screen appears. All the settings except for the ratings level, ratings password and clock settings return to the factory preset. The timer recording programmes are also cancelled. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. When the GUIDE Plus+ system setting message appears. ≥If you want to setup the GUIDE Plus+ system Press [2, 1] to select “Yes” and press [OK]. Go to step 2 on page 21. ≥If you do not want to setup the GUIDE Plus+ system Press [2, 1] to select “No” and press [OK]. Television picture appears. Setup is complete. List of TV Reception Channels Channel indication To select the audio reception type If sound quality is poor, press [3, 4] to select “BG” or “L” and press [OK]. BG: PAL B.G.H/SECAM B.G L: SECAM L, L’ To select the type of sound to be recorded Press [3, 4] to select “On” if the stereo sound is distorted due to inferior reception conditions, or if you want to record the normal (mono) sound during a stereo, bilingual or NICAM broadcast, and press [OK]. To enter the Teletext title page for a channel Entering title page number allows the unit to automatically record programme and station names. Press [3, 4] or numbered buttons to enter the number and press [OK]. ≥To find the correct title page for the station, refer to its Teletext TV guide. You can make the following two settings by selecting the external input channel (AV1, AV2, AV3) in step 6. ≥Video System (Auto/PAL/SECAM) In order to record properly, make the appropriate settings to match the connected equipment. ≥Title Page (Auto/Off) Press [3, 4] to select “Auto-Setup Restart” or “Download from TV” and press [OK]. Italy France 2–4 2–4 5 – 10 5 – 10, G – J (172.00 to 220.00 MHz) (INTER BANDE) E2 – E10 Other Countries E2 – E12 11 – 12 H1 – H2 — 13 – 20 A–H — — 21 – 69 E21 – E69 E21 – E69 E21 – E69 74 – 78 S01 – S05 — S1 – S5 80 S1 — M1 81 – 89 S2 – S10 B–F (100.00 to 172.00 MHz) (INTER BANDE) M2 – M10 90 – 99 S11 – S20 K – Q (220.00 to 300.00 MHz) (INTER BANDE) U1 – U10 S21 – S41§ (Hyperband) S21 – S41 (299.25 to 467.25 MHz) (INTER BANDE) S21 – S41 (Hyperband) 121 – 141 § TV Channel Only for 8 MHz channel raster 2007年7月23日 月曜日 午後4時20分 TV System Manual Clock Setting Change the setting to match the equipment you are connecting with, or to match the title when there are both PAL and NTSC titles on the HDD. 1 2 3 4 5 While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. Press [3, 4] to select “Connection” and press [1]. Press [3, 4] to select “TV System” and press [OK]. PAL NTSC Tuning Disc Picture Sound Display SELECT Connection Others OK 1 2 3 4 5 6 RETURN While stopped Press [FUNCTION MENU]. Press [3, 4] to select “To Others” and press [OK]. Press [3, 4] to select “Setup” and press [OK]. Press [3, 4] to select “Others” and press [1]. Press [3, 4] to select “Clock” and press [OK]. Press [3, 4] to select “Off” of “Automatic” and press [OK]. Press [3, 4] to select the TV system and press [OK]. ≥PAL (factory preset) –Select when connecting to a PAL or Multi-system television. Titles recorded using NTSC are played as PAL 60. –Select to record television programmes and PAL input from other equipment. –[HDD] Select when playing a PAL input title recorded on the HDD. ≥NTSC –Select when connecting to a NTSC television. Television programmes cannot be recorded properly. –Select to record NTSC input from other equipment. –[HDD] Select when playing a NTSC input title recorded on the HDD. 7 ≥In the case of a power failure, the clock setting remains in memory for approximately 60 minutes. TV System Setup 6 Usually, the unit’s setup function (➡ 20) automatically adjusts the clock to correct time. Under some reception conditions, however, the unit cannot set the clock automatically. In this case, follow the operation steps below to manually set the clock. Press [2, 1] to select “Yes” and press [OK]. Clock Automatic Off Time 15 : 45 : 39 ∫ To change the setting all at once (PAL!#NTSC) While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the main unit simultaneously for 5 or more seconds. [Note] ≥This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.) ≥If “NTSC” has been selected, the GUIDE Plus+ system cannot be used. Date 1 . 8 . 2007 Number 0 9 CHANGE SELECT Please set clock manually. OK: store RETURN: leave OK RETURN 7 Press [2, 1] to select the item you want to change. The items change as follows: Hour!#Minute!#Second!#Day!#Month!#Year ^-----------------------------------------------------------------------------------------J 8 Press [3, 4] to change the setting. You can also use the numbered buttons for setting. 9 Press [OK] when you have finished the settings. The clock starts. To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. Changing the unit’s settings EH770EC.book 73 ページ To return to the previous screen Press [RETURN]. To exit the screen Press [EXIT]. [Note] If a TV station transmits a time setting signal, and when “Automatic” in the Clock setting menu is set to “On”, the automatic time correction function checks the time and if necessary it is adjusted several times every day. RQT9011 73 EH770EC.book 74 ページ 2007年7月23日 月曜日 午後4時20分 Messages On the television Page Authorisation Error. ≥You are trying to play the DivX VOD content that was purchased with a different registration code. You cannot play the content on this unit. (DivX) Cannot finish recording completely. ≥The programme was copy-protected. ≥The HDD or disc may be full. ≥The maximum number of programme has been exceeded. — — 27 Cannot playback. TV system is different from the setting. To playback, please change the TV System in Setup. ≥You tried to play a title recorded using a different encoding system from that of the TV system currently selected on the unit. Alter the “TV System” setting on this unit to suit. 73 Cannot record to the disc. ≥The disc may be dirty or scratched. 10 Cannot play on this unit. ≥You tried to play a non-compatible image. 39 Cannot record. Disc is full. ≥[HDD] [RAM] [-RW‹V›] [+RW] Create space by deleting any unnecessary titles. [Even if you delete recorded content from the DVD-R, DVD-R DL, +R or +R DL there is no increase in disc space. Available space on DVD-RW (DVD-Video format) and +RW increases only when the last recorded title is deleted.] ≥Use a new disc. 40, 41 Unable to format. Cannot record. Maximum number of titles exceeded. 47, 52, 63 — No Disc ≥The disc may be upside down. — No folders. ≥There is no compatible folder in this unit. 39 Not enough space in the copy destination. ≥Create space by deleting any unnecessary items. 47, 51, 52, 63 ≥Delete one or more items registered on the copy list to ensure that the “Destination Capacity” is not exceeded. 56, 59 ≥The unit cannot record on the disc you inserted. Insert a DVD-RAM or unfinalised DVDR, DVD-RW (DVD-Video format), +R or +RW. ≥You inserted an unformatted DVD-RAM, DVD-RW, +R, +R DL or +RW. ≥You cannot directly record to a DVD-R DL and +R DL disc on this unit. Record to the HDD and then copy to the disc. 4–5 ≥[-R]DL] [+R]DL] It is not possible to copy when there is not enough free space on the HDD or when the total number of the recorded titles on the HDD and the titles to be copied are greater than 500. Delete unwanted titles from the HDD. 52 Rental Expired. ≥The DivX VOD content has zero remaining plays. You cannot play it. (DivX) 41 $ ≥The operation is prohibited by the unit or disc. — This is a non-recordable disc. This disc is not formatted properly. Format it using DVD Management in FUNCTION MENU. Not enough space on HDD. Space of 4 hours (in SP mode) is necessary. 63 — Maximum number of titles is recorded on HDD. Please delete unnecessary titles. RQT9011 74 EH770EC.book 75 ページ 2007年7月23日 月曜日 午後4時20分 On the unit’s display The following messages or service numbers appear on the unit’s display when something unusual is detected during startup and use. DVD (“∑” stands for a number.) ≥The remote control and main unit are using different codes. Change the code on the remote control. 25 Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. GUIDE ≥GUIDE Plus+ data is being downloaded. 22 HARD ERR§ ≥If there is no change after turning the unit on and off, consult the dealer where the unit was purchased. — NoERAS ≥You cannot delete items on this disc. The disc may be damaged. Use a new disc. — NoREAD ≥The disc is dirty or badly scratched. The unit cannot record, play, or edit. ≥This message may appear when the DVD lens cleaner has finished cleaning. Press [< OPEN/CLOSE] on the main unit to eject the disc. 10 10 NoWRIT ≥You cannot write to this disc. The disc may be damaged. Use a new disc. — PLEASE WAIT§ ≥There was a power failure or the AC plug was disconnected while the unit was on. The unit is carrying out its recovery process. This process restores the unit to normal operation. The unit is not broken. Wait until the message disappears. — PROG FULL§ ≥There are already 32 timer programmes. Delete unnecessary timer programmes. 33 SP 35:50 LP 151h “SP”, “LP” and the numbers are examples. ≥Available space on the HDD or disc. The example “SP 35:50” is displayed when less than 100 hours are available and the example “LP 151h” is displayed when over 100 hours are available. “SP” and “LP” are recording modes, “35:50” means “35 hours 50 minutes” and “151h” means “151 hours”. — UNFORMAT§ ≥You inserted an unformatted DVD-RAM, DVD-RW, +RW, an unused +R, +R DL or DVD-RW (DVD-Video format) that has been recorded on other equipment. Format the disc to use it. However all the recorded contents on the disc are deleted. 63 UNSUPPORT§ ≥You have inserted a disc the unit cannot play or record on. ≥You tried to operate with a non-compatible USB memory. 4–6 7 F74 ≥The HDMI connection could not be authenticated due to a transfer malfunction. Consult the dealer where the unit was purchased. — F75 ≥The HDMI connection could not be authenticated due to an internal data malfunction. Consult the dealer where the unit was purchased. — U59 ≥The unit is hot. The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Select a position with good ventilation when installing the unit. Do not block the cooling fan on the rear of the unit. — U61 ≥(When a disc is not inserted) Displays when a malfunction has occurred during recording, playback or copy. This is displayed when the unit is in the recovery process to return to normal operation; it is not broken. Once the display disappears you can use the unit again. — U72 U73 ≥The HDMI connection acts unusually. –The connected equipment is not HDMI compatible. –The HDMI cable is too long. Please use a cable 5.0 meters or less. –The HDMI cable is damaged. — U76 ≥HDMI cannot be output because you are connected to a model that does not support copyright protection. — U80 U81 U99 ≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby mode. Now press [Í/I] on the main unit again to turn the unit on. — U88 ≥(When a disc is inserted) Displays when there was something unusual detected with the disc while recording, playback or copy. This is displayed when the unit is in the recovery process to return to normal operation; it is not broken. Once the display disappears you can use the unit again. 78 Hor F ≥There is something unusual. (The service number displayed after H and F depends on the unit’s condition.) ≥Check the unit using the troubleshooting guide. If the service number does not disappear, do the following. 1. Disconnect the plug from the household mains socket, wait a few seconds, then reconnect it. 2. Press [Í/I] to turn the power on. (The unit may be fixed.) If the service number does not disappear despite after doing the above, request service from the dealer. Inform the dealer of the service number when requesting service. — X HOLD ≥The Child Lock function is activated. Press and hold [OK] and [RETURN] simultaneously until “X HOLD” disappears. Messages Page 78–83 66 § The message are alternately displayed. RQT9011 75 EH770EC.book 76 ページ 2007年7月23日 月曜日 午後4時20分 Frequently asked questions Refer to the following items if you have any doubts about unit operations. Set up What equipment is necessary to play multi channel surround sound? ≥You cannot directly connect them to the unit. Connect through the amplifier etc. The television has a Scart terminal and component video input terminal. Which should I connect with? ≥If you have a regular television (CRT: cathode ray tube) we recommend using the Scart terminal. You can enjoy high-quality RGB video from this unit by connecting to an RGB compatible television. If you have an LCD/plasma television or LCD projector compatible with progressive scan, connect through the component video terminals for high-quality progressive video. If you have a CRT television or a multi system television using PAL mode that is compatible with progressive scan, we cannot recommend progressive output as some flickering can occur. 14–16 Is my television progressive output compatible? ≥All Panasonic televisions that have 576 (625)/50i · 50p, 480 (525)/60i · 60p input terminals are compatible. Consult the manufacturer if you have another brand of television. — ≥You cannot play DVD-Video if its region number does not include “2” or “ALL”. Refer to the disc’s jacket for more information. 16 Cover Can a DVD-Video that does not have a region number be played? ≥The DVD-Video region number indicates the disc conforms to a standard. You cannot play discs that do not have a region number. You also cannot play discs that do not conform to a standard. Please tell me about disc compatibility with this unit. ≥This unit records and plays DVD-R, DVD-RW (DVD-Video format), +R, and +RW, and plays DVD-RW (DVD Video Recording format). However you cannot directly record to a DVD-R DL or +R DL disc on this unit (playback and copy are possible). ≥This unit also records and plays high speed recording compatible DVD-R, DVD-R DL, DVD-RW, +R, +R DL, +RW discs. 4–6 ≥This unit plays CD-R/CD-RW discs which have been recorded in one of the following standards: CD-DA, Video CD, SVCD (conforming to IEC62107), DivX, MP3 and still pictures (JPEG). ≥You cannot write to a CD-R or CD-RW with this unit. 6, 39 Please tell me about CD-R and CD-RW compatibility with this unit. Recording Can I record from a commercially purchased video cassette or DVD? — — — ≥Most commercially sold video cassettes and DVD are copy protected; therefore, recording is usually not possible. — Can DVD-R, DVD-R DL, DVD-RW (DVD- ≥You can play on compatible equipment such as DVD players after finalising the disc on Video format), +R, +R DL and +RW this unit. However, depending on the condition of the recording, the quality of the disc and recorded on this unit be played on other capabilities of the DVD player, play may not be possible. equipment? ≥If you play a DVD-R DL, +R DL or +RW, use compatible equipment. — — Can a digital audio signal from this unit be recorded to other equipment? ≥You can record if using the PCM signal. When recording DVD, change the “Digital Audio Output” settings to the following in the Setup menu. –PCM Down Conversion: On –Dolby Digital/DTS/MPEG: PCM However, only as long as digital recording from the disc is permitted and the recording equipment is compatible with a sampling frequency of 48 kHz. ≥You cannot record MP3 signals. 69 Can I switch to bilingual broadcast during recording? ≥With HDD and DVD-RAM, you can. Just press [AUDIO]. (When “Rec for High Speed Copy” is set to “Off”) ≥With DVD-R, DVD-RW (DVD-Video format), +R, +RW you cannot. Change before recording with “Bilingual Audio Selection” in the Setup menu. 38 ≥Yes, you can. (When “Rec for High Speed Copy” was set to “On” before recording the programme.) Depending on the disc type, the maximum speed varies. 53 Can I high speed copy to a disc? 76 Page 16, 17 Are the headphones and speakers directly connected to the unit? Disc Can I play DVD-Video and Video CDs bought in another country? RQT9011 ≥You cannot playback multi-channel sound on this unit without other equipment. You must connect this unit with an HDMI cable or an optical digital cable to an amplifier with a built-in (Dolby Digital, DTS or MPEG) decoder. — 68 2007年7月23日 月曜日 午後4時20分 GUIDE Plus+ Why is the GUIDE Plus+ system only available after approx. 2 hours? ≥The data rate, at which GUIDE Plus+ is sent, is limited. Depending on the country, signal quality and number of channels received, the time until the GUIDE Plus+ system is ready can vary. Page — The Host Channel in France is Canal Plus. Do I have to sign a contract with Canal Plus in order to be able to use the GUIDE Plus+ system? ≥No, you can use the GUIDE Plus+ system without a contract. — How often is the GUIDE Plus+ data updated and when? ≥The GUIDE Plus+ data is transmitted from the Host Channel (the television station transmitting the television programme list) several times a day. Data will be transmitted at 2:50 AM every day. It takes approximately 2 hours to complete data download. The GUIDE Plus+ data is downloaded automatically when the unit is turned off. 22 Is it possible to programme a recording, with a start and end time that are different from the GUIDE Plus+ system? ≥You can manually change the start and end time of programmes in the Timer Recording menu. 32 Does the GUIDE Plus+ system support VPS/PDC? ≥The GUIDE Plus+ system works independently of VPS/PDC. However, you can programme TIMER recordings with VPS/PDC in the Timer Recording menu. 34 How can I cancel a TIMER programming? ≥The “F” symbol appears in the GUIDE Plus+ when a Timer Recording is programmed with the GUIDE Plus+ system. To cancel a Timer Recording programming, press [PROG/ CHECK]. Select the desired entry and press [DELETE ¢]. 33 Can I receive GUIDE Plus+ system data via a connected satellite receiver or a Set Top Box? ≥No, only via the built-in tuner. To perform timer recordings with satellite receivers or Set Top Boxes, please use the External Link feature or your unit’s manual timer programming. 32, 35 What happens when I unplug my unit from the power outlet? ≥The GUIDE Plus+ system data will not be updated. If the unit is disconnected from the power supply for a longer period of time, then the GUIDE Plus+ data is lost. Make sure that the time is set again appropriately. — What happens if my postal code changes, e.g. if I move? ≥Change the postal code in the GUIDE Plus+ Setup menu. If necessary, perform a full Auto-Setup. Saved GUIDE Plus+ data may be lost. 23 USB What can or cannot be done using the USB port on this unit? Music Server What will happen if I try to record the same CD multiple times? ≥You can play MP3 or still picture files on a USB memory, and copy still pictures to the HDD or DVD-RAM. ≥Data on the HDD or a disc cannot be transferred to a USB memory. ≥Data on a USB memory cannot be edited or a USB memory cannot be formatted on this unit. ≥Connections of digital cameras or camcorders through USB are not guaranteed. ≥Some USB memories cannot be used with this unit. ≥New album will be made following the existing album. Can I transfer the music tracks from HDD ≥No, you cannot. to the disc or USB memory.? Frequently asked questions EH770EC.book 77 ページ 41, 42, 59 — — — 7 — — RQT9011 77 EH770EC.book 78 ページ 2007年7月23日 月曜日 午後4時20分 Troubleshooting guide Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions. The following do not indicate a problem with this unit: ≥Regular disc rotating sounds. ≥Poor reception due to atmospheric conditions. ≥Image disturbance during search. ≥Interruptions in reception due to periodic satellite broadcasting breaks. ≥A sound is heard when the HDD goes into energy save mode, or operations are slow to respond in energy save mode. ≥Operations do not work due to a poor-quality disc. (Try again using a Panasonic disc.) ≥The unit freezes due to one of its safety devices being activated. (Press and hold [Í/I] on the main unit for 10 seconds.) ≥When the HDD has been automatically placed in the energy save mode (➡ 9), or the unit is turned on or off, there may be an unexpected sound. This does not indicate a problem with this unit. Power No power. The unit does not turn on pressing [Í DVD]. Page ≥Insert the AC mains lead securely into a known active household mains socket. ≥Linked timer recordings with external equipment is in recording standby (“EXT-L” on the unit’s display blinks when [Í DVD] is pressed). Press [EXT LINK] to cancel the recording standby. 14, 15 35 The unit switches to standby mode. ≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn the unit on. — The power is turned off automatically. ≥If you connected this unit to a “HDAVI Control” compatible TV with an HDMI cable, or connected this unit to a Q Link-compatible TV with a fully wired 21-pin Scart cable, this unit will be automatically set to standby mode when the TV is set to standby mode. 18 The display is dim. ≥Change “FL Display” in the Setup menu. 69 “0:00” is flashing on the unit’s display. ≥Set the clock. 73 The time recorded on the disc and the available time shown do not add up. The displayed time of this unit is different from the actual recording time or MP3 recording time. ≥Times shown may disagree with actual times. ≥Available recording space on DVD-RW (DVD-Video format) or +RW increases only when the last recorded title is deleted. It does not increase if other titles are deleted. ≥Even if you delete recorded content from the DVD-R, DVD-R DL, +R or +R DL, there is no increase in disc space. ≥More disc space than the actual recording time is used after recording or editing the DVD-R, DVD-R DL, +R or +R DL 200 times or more. ≥While searching, the elapsed time may not display correctly. — — The clock is not correct. ≥Under adverse reception conditions, etc., the automatic time correction function may not work. In this case, “Automatic” is automatically turned to “Off”. If re-setting the Auto Clock Setting does not work, set the time manually. 73 Compared to the actual recorded time, the elapsed time displayed is less. (Only when recording in NTSC) ≥The displayed recording/play time is converted from the number of frames at 29.97 frames (equal to 0.999 seconds) to one second. There will be a slight difference between the time displayed and the actual elapsed time (e.g., actual one-hour elapsed time may display as approximately 59 minutes 56 seconds). This does not affect the recording. — “U88” is displayed and the disc cannot be ejected. ≥The unit is carrying out the recovery process. Do the following to eject the disc. 1 Press [Í/I] on the main unit to switch the unit to standby. If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 10 seconds. The unit is forcibly switched to standby. 2 While the unit is off, press and hold [∫] and [CH W] on the main unit at the same time for about 5 seconds. Remove the disc. — Television reception worsens after connecting the unit. ≥This can occur because the signals are being divided between the unit and other equipment. It can be solved by using a signal booster, available from audio-visual suppliers. If it is not solved by using a signal booster, consult the dealer. — Status messages do not appear. ≥Select “Automatic” in “On-Screen Messages” in the Setup menu. 69 The grey background does not appear. ≥Select “On” in “Grey Background” in the Setup menu. 69 Picture does not appear during timer recording. ≥Timer recordings work regardless whether the unit is on or off. To confirm the timer recording is going to work properly, turn the unit on. — The 4:3 aspect ratio picture expands left and right. ≥Use the television to change the aspect. If your television does not have that function, set “Progressive” in the Picture menu to “Off”. ≥Check the settings for “TV Aspect” in the Setup menu. ≥If you connect an HDMI cable, set “Aspect for 4:3 Video” to “16:9” in the Setup menu. ≥By setting “Aspect for Recording” to “Automatic”, there is a chance that the recording will be made using the wrong aspect. Match the aspect settings to the broadcast when recording. ≥Set “Rec for High Speed Copy” to “On”, and set the “Aspect for Recording” to “4:3”. 45 Displays — — — TV screen and video Screen size is wrong. It may be possible to adjust the display mode on the TV. Refer to your television’s operating instructions. RQT9011 78 70 70 68 68 2007年7月23日 月曜日 午後4時20分 TV screen and video (continued) The recorded title is stretched vertically. Page ≥16:9 aspect programmes are recorded in 4:3 aspect in the following cases. –[-R] [-R]DL] [-RW‹V›] If you recorded or copied using “EP” or “FR (recordings 5 hours or longer)” recording mode. –If you recorded or copied to a +R, +R DL or +RW. –If you recorded with the “Aspect for Recording” set to “4:3” in the Setup menu. When you want to record 16:9 programme in the same aspect, set “Rec for High Speed Copy” to “On”, and set the “Aspect for Recording” to “16:9”. –By setting “Aspect for Recording” to “Automatic”, there is a chance that the recording will be made using the wrong aspect. Match the aspect settings to the broadcast when recording. It may be possible to adjust the display mode on the TV. Refer to your television’s operating instructions. There is a lot of after-image when ≥Set “Playback NR” in the Picture menu to “Off”. playing video. When playing DVD-Video using ≥Set “Progressive” in the Picture menu to “Off”. This problem is caused by the editing method or progressive output, one part of material used on DVD-Video, but should be corrected if you use interlace output. the picture momentarily appears to be doubled up. There is no apparent change in ≥The effect is less perceivable with some types of video. picture quality when adjusted with the Picture menu in the onscreen menus. The images from this unit do not ≥Make sure that the television is connected to the AV1 terminal, VIDEO OUT terminal, appear on the television. S VIDEO OUT terminal, COMPONENT VIDEO OUT terminals or HDMI terminal on this unit. ≥Make sure that the television’s input setting (e.g., AV 1) is correct. ≥Progressive output is set to on but the connected television is not progressive compatible. Picture is distorted. Press and hold [∫] and [1] (PLAY) on the main unit at the same time for more than 5 seconds to cancel this setting. The setting will change to interlace. ≥The unit’s “TV System” setting differs from the TV system used by the disc now playing. While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the main unit for 5 or more seconds. The system switches from PAL to NTSC or vice versa. ≥When this unit is connected with an HDMI cable, use a disc that matches with this unit’s TV system. ≥Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices. The picture is distorted during ≥You may be playing a TV programme recorded with poor reception or unfavourable weather conditions. play, or video will not play ≥The picture may be distorted or a black screen may appear briefly between recorded titles in correctly. the following situations: –between titles recorded with different recording modes. –between scenes recorded with different aspect ratios. –between scenes recorded with different resolutions. –between playlist chapters. — — 68 68 45 45 Troubleshooting guide EH770EC.book 79 ページ — 14–17 — — 73 — — — — Sound No sound. Low volume. Distorted sound. Cannot hear the desired audio type. Cannot switch audio. ≥Check the connections and the “Digital Audio Output” settings. Check the input mode on the amplifier if you have connected one. ≥Press [AUDIO] to select the audio. ≥Turn off V.S.S. in the following cases. –When using discs that do not have surround sound effects such as Karaoke discs. –When playing bilingual broadcast programmes. ≥Audio may not be output due to how files were created. (DivX) ≥Audio may not be heard when more than 4 devices are connected with HDMI cables. Reduce the number of connected devices. ≥The sound effects will not work when the bitstream signal is output from the HDMI AV OUT terminal or the OPTICAL DIGITAL AUDIO OUT terminal. ≥To output audio from a device connected with an HDMI cable, set “Digital Audio Output” to “HDMI and Optical” in the Setup menu. ≥Depending on the connected equipment, the sound may be distorted if this unit is connected with an HDMI cable. ≥If recording to the HDD or a DVD-RAM when “Rec for High Speed Copy” is set to “On”, you can only record either the main or secondary audio of a bilingual broadcast. If you do not intend to copy the title to a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL or +RW set “Rec for High Speed Copy” in the Setup menu to “Off”. ≥You cannot switch the audio in the following cases. –When a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL or +RW disc is in the disc tray while DVD drive is selected. –When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM”. –When “Rec for High Speed Copy” is set to “On”. (The default setting is “On”). ≥The amplifier is connected using an optical digital cable or an HDMI cable. You cannot switch the audio if “Dolby Digital” is set to “Bitstream”. Set “Dolby Digital” to “PCM” or connect using audio cables. ≥There are discs for which audio cannot be changed because of how the disc was created. 14–17, 69 38 45 — — — 70 — 68 — 69 68 16, 17, 69 — RQT9011 79 EH770EC.book 80 ページ 2007年7月23日 月曜日 午後4時20分 Troubleshooting guide Operation Cannot operate the television. The remote control doesn’t work. Page ≥Change the manufacturer code. Some televisions cannot be operated even if you change the code. ≥The remote control and main unit are using different codes. Change the code on the remote control. 24 25 Press and hold [OK] and the indicated number button at the same time for more than 5 seconds. ≥The batteries are depleted. Replace them with new ones. ≥You are not pointing the remote control at the main unit’s remote control signal sensor during operation. ≥Coloured glass may obstruct the signal reception/transmission. ≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to sunlight exposure. ≥It may be necessary to set the code on the remote control again after changing the batteries. ≥It may be necessary to set the manufacturer code again after changing the batteries. ≥The child lock function is activated. 24–25 24 66 ≥Recording drive or playback drive has not been selected properly. ≥Some operations may be prohibited by the disc. ≥The unit is hot (“U59” appears on the display). Wait for “U59” to disappear. ≥One of the unit’s safety devices may have been activated. Reset the unit as follows: 1 Press [Í/I] on the main unit to switch the unit to standby. If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 10 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it. 2 Press [Í/I] on the main unit to switch it on. If the unit still cannot be operated, consult the dealer. HDD activation is slow. ≥The HDD is in energy save mode. 9 Cannot eject disc. ≥The unit is recording. ≥Linked timer recordings with external equipment is in recording standby (“EXT-L” on the unit’s display blinks when [Í DVD] is pressed). Press [EXT LINK] to cancel the recording standby. ≥The unit may have a problem. While the unit is off, press and hold [∫] and [CH W] on the main unit at the same time for about 5 seconds. Remove the disc and consult the dealer. If the Child Lock function is activated, above operation does not work. Cancel the Child Lock function. — 35 Cannot download channel presets from the television. Startup is slow. 80 — — The unit is on but cannot be operated. Cannot tune channels. RQT9011 11 11 ≥Check the connections. ≥You must connect to a television equipped with the Q Link function with a fully wired 21-pin Scart cable to download channel presets. ≥Make sure that “Quick Start” is set to “On”. ≥Startup takes time in the following situations: –A disc other than a DVD-RAM is inserted. –The clock is not set. –Immediately after a power failure or the AC mains lead is connected. –For a few minutes after 5:15 am due to system maintenance of this unit. –When the unit is connected with an HDMI cable. 26, 36 — — — 66 14–15 — 71 — 2007年7月23日 月曜日 午後4時20分 Recording, timer recording and copying Cannot record. Cannot copy. ≥You haven’t inserted a disc or the disc you inserted cannot be recorded on. Insert a disc the unit can record onto. ≥The disc is unformatted. Format the disc. [RAM] [-RW‹V›] [+R] [+R]DL] [+RW] ≥The write-protect tab on the cartridge is set to PROTECT, or the disc is protected with DVD Management. ≥Some programmes have limitations on the number of times they can be recorded (CPRM). ≥You cannot record when there is not enough space or when the number of titles has reached its limit. Delete unwanted titles or use a new disc. ≥You cannot directly record to a DVD-R DL or +R DL disc on this unit. Record to the HDD and then copy to the disc. ≥[-R]DL] [+R]DL] In the following situations, you cannot copy. Delete unnecessary titles from the HDD and then copy. –If there is not enough space available on the HDD (If you will copy titles from the HDD to a blank disc and fill the entire disc, HDD disc space equivalent to 4 hours of SP mode recording is necessary). –If the number of recorded titles and the number of titles to be copied has exceeded 500. ≥You cannot record and copy on finalised discs. However, you can record and copy again if you format DVD-RW. ≥Due to peculiarities of DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW you may be unable to record onto them if you either insert and remove the disc or switch the unit on and off while a disc is loaded, a total of fifty times. ≥DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW recorded on this unit may not be recordable on other Panasonic DVD Recorders. ≥This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.) Play of discs recorded with both PAL and NTSC on another unit is not guaranteed. Page 4, 5 63 62 84 47, 52, 63 — 47, 52, 63 — — — — Cannot record from external equipment. ≥Check that the connection is correct. Timer recording does not work properly. ≥The timer programme is incorrect or different timer programme times overlap. Correct the programme. ≥The programme is not in timer recording standby. (The timer icon “F” in the timer recording list is not on.) ≥Set the clock. ≥The programme information in the GUIDE Plus+ system may not be correct. It is recommended to modify the start and end times to allow a margin of a few minutes. 33 ≥Make sure that the recording drive is selected. Press [DRIVE SELECT] to select the recording drive. ≥When using the linked timer recording with external equipment, press [EXT LINK]. (“EXT-L” disappears.) ≥If you start recording immediately after turning on the unit while “Quick Start” is set to “On”, you cannot then stop recording for a few seconds. 33 VPS/PDC does not work. ≥VPS/PDC will activate when this unit is set to standby mode. While this unit is on, recording starts and finishes at times you set initially. 34 VPS/PDC does not work when making a timer recording using a SHOWVIEW number. ≥If a programme listed in a newspaper or magazine has two SHOWVIEW numbers, use the SHOWVIEW number for VPS/PDC. 32 A part or whole of a recorded title has been lost. ≥If there is a power failure or the plug is disconnected from the household mains socket while recording or editing, the title may be lost or the HDD/disc may become unusable. You will have to format the disc ([HDD] [RAM] [-RW‹V›] [+RW]) or use a new disc. We cannot offer any guarantee regarding lost programmes or discs. — Timer recording does not stop even when [∫] is pressed. ≥Select the input channel (“AV2”, “AV3” or “DV”) for the equipment you have connected. 14–15, 60 — 33 73 30 35 — 63 The programme name and the recorded title do not match. ≥There was a programme change after timer recording was set but the recorded title still has the old programme name. — Cannot copy to a DVD-R, etc. disc using the high speed mode. ≥When recording to the HDD, set “Rec for High Speed Copy” to “On” in the Setup menu. (The default setting is “On”). ≥[+R] [+R]DL] [+RW] If recorded in “EP” or “FR (recordings 5 hours or longer)” mode, you cannot perform high-speed copy. ≥[+R] [+R]DL] [+RW] Titles recorded on other Panasonic DVD Recorders with “Rec for High Speed Copy” set to “On”, and then copied to the HDD on this unit may not copy to +R, +R DL or +RW discs with high-speed copy. 68 ≥Use a disc that is compatible with high speed recording. Even if the disc is high speed recording compatible, the maximum speed may not be possible due to the condition of the disc. ≥It takes longer than normal to copy many titles. ≥You cannot high speed copy to DVD-R titles longer than 6 hours when using other Panasonic DVD Recorders that are not compatible with EP (8 Hours) mode recording. — An unusually loud sound is coming from the rotating DVD-R, etc. ≥When recording or high speed copying to a DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW the sound of the disc rotating may be louder than normal, however, this is not a problem. — The DV automatic recording function does not work. ≥If images cannot be recorded or if the recording is aborted, check the connections and DV equipment settings. ≥You cannot start recording until the images from the DV equipment appear on the television. ≥Recording may not be performed as desired if the time codes on the tape in the DV equipment are not successive. ≥Depending on the equipment, the DV automatic recording may not operate properly. ≥The audio/video recordings are recorded on other than a DV tape. 60 When copying, it takes a long time even when high speed mode is selected. Troubleshooting guide EH770EC.book 81 ページ — — — — — — — 60 RQT9011 81 EH770EC.book 82 ページ 2007年7月23日 月曜日 午後4時20分 Troubleshooting guide Play Play fails to start even when [1] (PLAY) is pressed. Play starts but then stops immediately. Audio and video momentarily pause. DVD-Video is not played. Alternative soundtrack and subtitles cannot be selected. No subtitles. Angle cannot be changed. You have forgotten your ratings password. You want to cancel the ratings level. Quick View does not work. The resume play function does not work. The Video CD picture does not display properly. Time Slip, Manual Skip, etc. does not work. It takes time before play starts. Picture stops. Cannot see the beginning of the title played. ≥Insert the disc correctly with the label facing up. ≥The disc is dirty. ≥You tried to play a blank disc or disc unplayable on this unit. ≥You tried to play a +RW that needs to be finalised on the equipment used for recording. ≥You may be able to copy a “One time only recording” title that was recorded to DVD-RAM using a different Panasonic DVD Recorder to this unit’s HDD, but play is not possible due to copyright protection. ≥When recording to DVD-RAM using “EP (8 Hours)” mode, play may not be possible on DVD players that are compatible with DVD-RAM. In this case use “EP (6 Hours)” mode. ≥You cannot play discs during DV automatic recording. ≥If playing DivX VOD content, refer to the homepage where you purchased it. (DivX) ≥This occurs between playlist chapters. ≥This occurs between chapters and with partially deleted titles on finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL and +RW that have been copied using the high speed mode. ≥This occurs as scenes change during Quick View. ≥[-R]DL] [+R]DL] When playing a title recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal programme. However, video and audio may momentarily cut out when the unit is switching layers. ≥You have set a ratings level to limit DVD-Video play. Change this setting. ≥Ensure disc is for the correct DVD-Video region number, and is not defective. ≥The languages are not recorded on the disc. ≥You may not be able to use the on-screen menus to change the soundtrack and subtitles on some discs. Use the disc’s menus to make changes. ≥Subtitles are not recorded on the disc. ≥Turn the subtitles on. Set “Subtitle” on the on-screen menu to “On”. Page 36 10 4–6 — — 68 — 41 — — — 5 67 Cover — 37 — 44 ≥Angles can only be changed during scenes where different angles are recorded. ≥The ratings level returns to the factory preset.While the disc tray is open, press [DRIVE SELECT] to select the DVD drive, then press and hold [¥ REC] and [1] (PLAY) on the main unit at the same time for 5 or more seconds (“INIT” will appear on the unit’s display). — — ≥This does not work when audio is other than Dolby Digital. ≥This does not work when recording is in XP or FR mode. ≥Memorized positions are cancelled when –press [∫] several times. –open the disc tray. –[CD] [VCD] [USB] turn off the power. –if a recording or timer recording was executed. ≥When connecting to Multi-system TV, select “NTSC” in “TV System” in the Setup menu. ≥When connecting to PAL TV, the lower part of the picture cannot be displayed correctly during search. ≥These functions do not work with finalised discs. ≥Time Slip does not work when the unit’s “TV System” settings are different from the title recorded on the disc. ≥This is normal on DivX video. (DivX) ≥Picture may stop if the DivX files are greater than 2 GB. (DivX) ≥(If connecting to a TV that supports VIERA Link with an HDMI cable) When [1] (PLAY) is pressed on this unit’s remote control, you may not be able to see the beginning of the title played until the picture is displayed on the TV. Using [:], return to the beginning of the title. — — — 73 — — 73 — — — Edit Available disc space does not increase even after deleting a title. ≥Available disc space does not increase after deleting on DVD-R, DVD-R DL, +R or +R DL. ≥Disc space increases only when the last recorded title is deleted on DVD-RW (DVD-Video format) and +RW. The disc space does not increase when any other titles are deleted. 52 — Cannot edit. ≥You may not be able to edit on the HDD if there is no available space. Delete any unwanted titles to create empty space. 52 Cannot format. ≥The disc is dirty. Wipe with a damp cloth and then wipe dry. ≥You tried formatting a disc that you may not be able to use in this unit. 10 4–6 Cannot create chapters. — Cannot mark the start point or the end point during “Partial Delete” operation. ≥The unit writes the chapter division information to the disc when you turn it off or remove the disc. The information is not written if there is an interruption to the power before this. ≥These operations are not possible with still pictures. ≥You cannot set points if they are too close to each other. You cannot set an end point before a start point. Cannot delete chapters. ≥When the chapter is too short to delete, use “Combine Chapters” to make the chapter longer. 47 Cannot create a playlist. ≥You cannot select all the chapters at once in a title if the title also includes still pictures. Select them individually. — ≥If there are copyright protected tracks such as SCMS restrictions, they will not be copied. — — — Music Tracks could not be copied to the HDD. RQT9011 82 2007年7月23日 月曜日 午後4時20分 Still pictures Page Cannot display Direct Navigator screen. ≥This screen cannot be displayed during recording or copy or while the unit is standing by for linked timer recording with external equipment. — Copying, deleting and setting protection takes a long time. ≥When there are a lot of folders and files, it may sometimes take a few hours. ≥When repeating copying or deleting, it may sometimes take a long time. Format the disc. — 63 USB The contents of the USB memory cannot be read. ≥Check that the USB memory device is inserted correctly. ≥The format of the USB memory or of its contents is not compatible with the unit. (The contents on the USB memory may be damaged.) ≥The USB memory contains a folder structure and/or file extensions that are not compatible with this unit. ≥Turn off and then turn on the unit again. ≥USB memories connected using a USB extension cable may not be recognized by this unit. ≥The USB host function of this unit may not work with some USB memory devices. ≥USB memories with storage capacity of more than 32 GB may not work in some instances. ≥Some USB memories cannot be used with this unit. 13 7, 39 ≥Check whether GUIDE Plus+ system setup was performed in full. The GUIDE Plus+ system data is updated several times each day. When the unit is first connected, the GUIDE Plus+ system is not yet ready to receive data. It takes approximately 2 hours to complete data download. Depending on when you set up this unit, it may take approximately one day before you can display the television programme list. ≥Check whether the clock is properly set. ≥If signal quality is bad (ghost images or limited reception), the GUIDE Plus+ system may not be able to receive any data. 21–23 39 — — — — 7 Troubleshooting guide EH770EC.book 83 ページ GUIDE Plus+ The GUIDE Plus+ System does not receive any data. 73 — “No Data” is displayed for some or all stations. ≥These stations may not have been able to be identified automatically. For these stations, select the “On” in the sub menu under “Editor” and assign the correct reference station manually. ≥Some stations are not supported by the GUIDE Plus+ system. 22 The GUIDE Plus+ information is not displayed properly. ≥The reference station is not assigned correctly in “Editor”. Select the correct reference station. ≥There was a programme change. Check the current programme, e.g. on the Web site for the GUIDE Plus+ system provider or station provider. 22 The GUIDE Plus+ data transfer was interrupted. ≥The GUIDE Plus+ system shows the data that was received up to the interruption. ≥The programme information may be incomplete. — — The GUIDE Plus+ data is not updated. ≥The unit must be in standby mode in order to update the data. If the unit is in EXT LINK mode (EXT-L lights up in the display), then the data update may also not work. ≥Make sure that the time is set correctly. ≥Check whether “Off” is set under “Night Download” and change the setting in GUIDE Plus+. — — 23 ≥Programme the Timer recording manually or via SHOWVIEW. 32 ≥Check the HDMI cable connection. Check that “HDMI” is displayed on the front display when the power for the main unit is set to On. ≥Make sure that “VIERA Link” is set to “On”. ≥Check the “HDAVI Control” settings on the connected device. ≥If the connection for the equipment connected with HDMI was changed, or if there was a power failure or the plug was removed from the household mains socket, “HDAVI Control” may not work. In this case, perform the following operations. 1 When the HDMI cable is connected to all equipment with the power on, turn the TV (VIERA) on again. 2 Change the TV (VIERA) settings for the “HDAVI Control” function to off, and then set to on again. (For more information, see the VIERA operating instructions.) 3 Switch the VIERA input to HDMI connection with this unit, and after this unit’s screen is displayed check that “HDAVI Control” is working. — “No Data” is displayed in the GUIDE Plus+ system. — — VIERA Link VIERA Link doesn’t work. 70 — — To reset this unit ≥Select “Yes” in “Shipping Condition” in the Setup menu. All the settings except for the ratings level, ratings password and clock settings return to the factory preset. The timer recording programmes are also cancelled. ≥Select “Yes” in “Default Settings” in the Setup menu. All the settings other than the tuning settings, clock settings, country settings, language settings, disc language settings, ratings level, ratings password, remote control code, return to the factory presets. ≥Press and hold [X CH] and [CH W] on the main unit until the country setting screen appears. All the settings except for the ratings level, ratings password and clock settings return to the factory preset. The timer recording programmes are also cancelled. 71 To reset the ratings level settings ≥While the disc tray is open, press [DRIVE SELECT] to select the DVD drive, then press and hold [¥ REC] and [1] (PLAY) on the main unit at the same time for 5 or more seconds. — To restore the unit if it freezes due to one of the safety devices being activated ≥Press and hold [Í/I] on the main unit for 10 seconds. (The settings remain.) — To return all the settings other than the main ones to the factory preset 71 — RQT9011 83 EH770EC.book 84 ページ 2007年7月23日 月曜日 午後4時20分 Glossary Bitstream This is the digital form of multi-channel audio data (e.g., 5.1 channel) before it is decoded into its various channels. CPRM (Content Protection for Recordable Media) CPRM is technology used to protect broadcasts that are allowed to be recorded only once. Such broadcasts can be recorded only with CPRM compatible recorders and discs. Decoder A decoder restores the coded audio signals on DVDs to normal. This is called decoding. DivX DivX is a popular media technology created by DivX, Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively small file size. Dolby Digital This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be multi-channel audio. A large amount of audio information can be recorded on one disc using this method. When recording on this unit Dolby Digital (2 channel) is the default audio. Down-mixing This is the process of remixing the multi-channel audio found on some discs into two channels. It is useful when you want to listen to the 5.1-channel audio recorded on DVDs through your television’s speakers. Some discs prohibit down-mixing and this unit can then only output the front two channels. Drive In the instance of this unit, this refers to the hard disk (HDD) and disc (DVD). These perform the reading and writing of data. DTS (Digital Theater Systems) This surround system is used in many movie theaters. There is good separation between the channels, so realistic sound effects are possible. Dynamic range Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs. Dynamic range compression means reducing the gap between the loudest and softest sounds. This means you can listen at low volumes but still hear dialogue clearly. Film and video DVD-Videos are recorded using either film or video. This unit can determine which type has been used, then uses the most suitable method of progressive output. Film: Recorded at 25 frames per second (PAL discs) or 24 frames per second (NTSC discs). (NTSC discs recorded at 30 frames per second as well.) Generally appropriate for motion picture films. Video: Recorded at 25 frames/50 fields per second. (PAL discs) or 30 frames/60 fields per second (NTSC discs). Generally appropriate for TV drama programmes or animation. Finalise A process that makes play of a recorded CD-R, CD-RW, DVD-R, etc. possible on equipment that can play such media. You can finalise DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, +R DL on this unit. After finalising, the disc becomes play-only and you can no longer record or edit. However, finalised DVD-RW can be formatted for recording again. Folder This is a place on the hard disk or disc where groups of data are stored together. In the case of this unit, it refers to the place where still pictures (JPEG) are stored. Formatting Formatting is the process of making media such as DVD-RAM recordable on recording equipment. You can format DVD-RAM, DVD-RW (only as DVD-Video format), +RW and the HDD or unused +R and +R DL on this unit. Formatting permanently deletes all contents. Frames and fields Frames refer to the single images that constitute the video you see on your television. Each frame consists of two fields. u Frame r Field Field ≥A frame still shows two fields, so there may be some blurring, but picture quality is generally better. ≥A field still shows less picture information so it may be rougher, but there is no blurring. HDD (Hard disk drive) This is a mass data storage device used in computers, etc. A disk with a surface that has been treated with magnetic fluid is spun and a magnetic head is brought in close proximity to facilitate the reading and writing of large amounts of data at high speed. HDMI (High-Definition Multimedia Interface) Unlike conventional connections, it transmits uncompressed digital video and audio signals on a single cable. This unit supports highdefinition video output [720p (750p), 1080i (1125i), 1080p (1125p)] from HDMI AV OUT terminals. To enjoy high-definition video a high definition compatible television is required. RQT9011 84 2007年7月23日 月曜日 午後4時20分 JPEG (Joint Photographic Experts Group) This is a system used for compressing/decoding colour still pictures. If you select JPEG as the storage system on digital cameras, etc., the data will be compressed to 1/10–1/100 of its original size. The benefit of JPEG is less deterioration in picture quality considering the degree of compression. LPCM (Linear PCM) These are uncompressed digital signals, similar to those found on CDs. MPEG2 (Moving Picture Experts Group) A standard for efficiently compressing and expanding colour video. MPEG2 is a compression standard used for DVD and satellite based digital broadcasting. This unit records programmes using MPEG2. MP3 (MPEG Audio Layer 3) An audio compression method that compresses audio to approximately one tenth of its size without any considerable loss of audio quality. Pan&Scan/Letterbox In general, DVD-Video are produced with the intention that they be viewed on a widescreen television (16:9 aspect ratio), so images often don’t fit regular (4:3 aspect ratio) televisions. Two styles of picture, “Pan & Scan” and “Letterbox”, deal with this problem. Pan & Scan:The sides are cut off so the picture fills the screen. Letterbox:Black bands appear at the top and bottom of the picture so the picture itself appears in an aspect ratio of 16:9. RGB This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images. Sampling frequency Sampling is the process of converting the heights of sound wave (analogue signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound. Glossary EH770EC.book 85 ページ Thumbnail This refers to a miniature representation of a picture used to display multiple pictures in the form of a list. 1080i In one high definition image, 1080 (1125) alternating scan lines pass every 1/50th of a second to create an interlace image. Because 1080i (1125i) more than doubles current television broadcasts of 480i (525i), the detail is much clearer and creates a more realistic and rich image. 1080p In one high definition image, 1080 (1125) scan lines pass at the same time every 1/50th of a second to create a progressive image. Since progressive video does not alternate scan lines like interlace, there is a minimal amount of screen flicker. 720p In one high definition image, 720 (750) scan lines pass at the same time every 1/50th of a second to create a progressive image. Since progressive video does not alternate scan lines like interlace, there is a minimal amount of screen flicker. Playback control (PBC) If a Video CD has playback control, you can select scenes and information with menus. (This unit is compatible with version 2.0 and 1.1.) Progressive/Interlace The PAL video signal standard has 576 (or 625) interlaced (i) scan lines, whereas progressive scanning, called 576p (or 625p), uses twice the number of scan lines. For the NTSC standard, these are called 480i (or 525i) and 480p (or 525p) respectively. Using progressive output, you can enjoy the high-resolution video recorded on media such as DVD-Video. Your television must be compatible to enjoy progressive video. Panasonic televisions with 576 (625)/50i · 50p, 480 (525)/60i · 60p input terminals are progressive compatible. Protection You can prevent accidental deletion by setting writing protection or deletion protection. RQT9011 85 EH770EC.book 86 ページ 2007年7月23日 月曜日 午後4時20分 Specifications Recording system DVD-RAM : DVD Video Recording format DVD-R : DVD-Video format§1 DVD-R DL (Dual Layer) : DVD-Video format§1 DVD-RW : DVD-Video format§1 +R +R DL (Double Layer) +RW Recordable discs DVD-RAM: 2X SPEED (Ver. 2.0), 2-3X SPEED (Ver. 2.1), 2-5X SPEED (Ver. 2.2) DVD-R: 1X SPEED (Ver. 2.0), 1-4X SPEED (Ver. 2.0), 1-8X SPEED (Ver. 2.0), 1-16X SPEED (Ver. 2.1) DVD-R DL: 2-4X SPEED (Ver. 3.0), 2-8X SPEED (Ver. 3.0) DVD-RW: 1X SPEED (Ver. 1.1), 1-2X SPEED (Ver. 1.1), 2-4X SPEED (Ver. 1.2), 2-6X SPEED (Ver. 1.2) +R: 2.4X SPEED (Ver. 1.0), 2.4-4X SPEED (Ver. 1.1), 2.4-8X SPEED (Ver. 1.2), 2.4-16X SPEED (Ver. 1.3) +R DL: 2.4X SPEED (Ver. 1.0), 2.4-8X SPEED (Ver. 1.1) +RW: 2.4X SPEED (Ver. 1.1), 2.4-4X SPEED (Ver. 1.2) Recording time Maximum 8 hours (using 4.7 GB disc) XP: Approx. 1 hour, SP: Approx. 2 hours LP: Approx. 4 hours, EP: Approx. 6 hours/8 hours Maximum Approx. 710 hours with 400 GB HDD (EP 8 hours mode) XP: Approx. 90 hours, SP: Approx. 175 hours LP: Approx. 345 hours, EP: Approx. 530 hours/710 hours Playable discs DVD-RAM : DVD Video Recording format DVD-R : DVD-Video format, MP3, JPEG, DivX DVD-R DL (Dual Layer) : DVD-Video format, MP3, JPEG, DivX DVD-RW : DVD-Video format, DVD Video Recording format +R, +R DL (Double Layer), +RW DVD-Video, CD-Audio (CD-DA), Video CD, CD-R/CD-RW (CD-DA, Video CD, SVCD§2, MP3, JPEG, DivX) SVCD§2 Internal HDD capacity 400 GB Optical pick-up System with 1 lens, 2 integration units (662 nm wavelength for DVDs, 780 nm wavelength for CDs) LASER specification Class 1 LASER Product (Pickup) Wave length: CD 780 nm wave length DVD 662 nm wave length Laser power: No hazardous radiation is emitted with the safety protection NORSK Bølgelengde: CD 780 nm DVD 662 nm Laserstyrke: Ingen farlig stråling sendes ut Audio Recording system: Dolby Digital 2ch, Linear PCM (XP mode) Audio in: AV1/AV2 (21 pin), AV3 (pin jack) Input level: Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz Input impedance: More than 10 k≠ Audio out: AV1/AV2 (21 pin), Audio Out (pin jack) Output level: Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz Output impedance: Less than 1 k≠ Digital audio out: Optical terminal (PCM, Dolby Digital, DTS, MPEG) RQT9011 86 HDMI Output 19 pin type A: 1 pc ≥This unit supports “HDAVI Control 2” function. Video Video system: SECAM (only input)/PAL colour signal, 625 lines, 50 fields NTSC colour signal, 525 lines, 60 fields Recording system: MPEG2 (Hybrid VBR) Video in (SECAM/PAL/NTSC): AV1/AV2 (21 pin), AV3 (pin jack) 1 Vp-p 75 ≠, termination S-Video in (SECAM/PAL/NTSC): AV2 (21 pin), AV3 (S terminal) 1 Vp-p 75 ≠, termination RGB in (PAL): AV2 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination Video out (PAL/NTSC): AV1/AV2 (21 pin), Video Out (pin jack) 1 Vp-p 75 ≠, termination S-Video out (PAL/NTSC): AV1 (21 pin), S-Video Out (S terminal) 1 Vp-p 75 ≠, termination RGB out (PAL/NTSC): AV1 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination Component video output (NTSC 480p/480i, PAL 576p/576i) Y: 1.0 Vp-p 75 ≠, termination PB: 0.7 Vp-p 75 ≠, termination PR: 0.7 Vp-p 75 ≠, termination Television system Tuner system Channel coverage PAL-BGH SECAM-BG (CCIR) VHF: E2–E12, A–H2 (Italy) UHF: 21–69 CATV: S01–S05 (S1–S3), S1–S20 (M1–U10), S21–S41 SECAM-L, L’ (France) VHF: 2–10 UHF: 21–69 CATV: B–Q (100.5 to 299.5 MHz), S21–S41 (299.25 to 467.25 MHz) RF converter output: USB USB port: USB standard: Format: DV input Others Region code: Operating temperature: Operating humidity range: Power supply: Power consumption: Dimensions (WkDkH): Mass: Not provided Type A: 1pc USB 2.0 Full Speed FAT 16, FAT 32 IEEE 1394 Standard, 4 pin : 1 pc ‚2 5 oC to 40 oC 10 % to 80 % RH (no condensation) AC 220 to 240 V, 50 Hz Approx. 34 W 430 mmk330 mmk59 mm Approx. 4.2 kg Power consumption in standby mode: Approx. 2 W (Power Save mode) Approx. 11 W (Quick Start mode) [Note] Specifications are subject to change without notice. §1 §2 It is compatible to a DVD-Video format after finalised. Conforming to IEC62107 This unit is not compatible with “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107. EH770EC.book 87 ページ 2007年7月23日 月曜日 午後4時20分 Safety precautions Voltage Do not use high voltage power sources. This can overload the unit and cause a fire. Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used. AC mains lead protection Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead. Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock. Do not handle the plug with wet hands. This can cause electric shock. Foreign matter Do not let metal objects fall inside the unit. This can cause electric shock or malfunction. Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer. Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit. Service Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service centre. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons. Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time. Specifications/Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. “DTS” is a registered trademark of DTS, Inc. and “DTS 2.0iDigital Out” is a trademark of DTS, Inc. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Official DivX® Certified product. Plays all versions of DivX® video (including DivX®6) with standard playback of DivX® media files. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. HDAVI Control™ is a trademark of Matsushita Electric Industrial Co., Ltd. GUIDE Plus+, SHOWVIEW are (1) registered trademarks or trademarks of, (2) manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates. GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUSi SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUSi SYSTEM. RQT9011 87 EH770EC.book 88 ページ 2007年7月23日 月曜日 午後4時20分 Index Adjust the audio quality (Sound menu) . . . . . . . . . . . . . . . . . . . 45 Adjust the picture quality (Picture menu) . . . . . . . . . . . . . . . . . . 45 Album (Still picture) Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Audio Playback . . . . . . . . . . . . . . . . . . . . . . . . 38 Auto Renewal Recording . . . . . . . . . . . 34 AV2 Settings . . . . . . . . . . . . . . . . . . . . . 70 Change Thumbnail . . . . . . . . . . . . . . . . 47 Channel Settings . . . . . . . . . . . . . . . . . . . . . . . . 71 Chapter . . . . . . . . . . . . . . . . . . . . . . 38, 46 Chasing playback . . . . . . . . . . . . . . . . . 29 Child Lock . . . . . . . . . . . . . . . . . . . . . . . 66 Cleaning Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Main unit . . . . . . . . . . . . . . . . . . . . . . . . 10 Clock settings . . . . . . . . . . . . . . . . . . . . 73 Connection Aerial . . . . . . . . . . . . . . . . . . . . . . . 14, 15 Amplifier, system component . . . . . . . . 16 Digital receiver, satellite receiver, decoder . . . . . . . . . . . . . . . . . . . . . . . 15 DV input terminal . . . . . . . . . . . . . . . . . 60 HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Television . . . . . . . . . . . . . . . . . . . . 14–17 Video cassette recorder . . . . . . . . . 14–16 Copy Still picture . . . . . . . . . . . . . . . . . . . . . . 58 Title/Playlist . . . . . . . . . . . . . . . . . . . . . 53 USB (Still pictures) . . . . . . . . . . . . . . . . 59 Country setting . . . . . . . . . . . . . . . . . . . 20 CPRM . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 Create Chapter . . . . . . . . . . . . . . . . 38, 47 Create playlists . . . . . . . . . . . . . . . . . . . 48 Delete Album Music . . . . . . . . . . . . . . . . . . . . . . . . . 61 Still picture . . . . . . . . . . . . . . . . . . . . . 51 All titles . . . . . . . . . . . . . . . . . . . . . . . . . 63 Chapter . . . . . . . . . . . . . . . . . . . . . 47, 49 Playlist . . . . . . . . . . . . . . . . . . . . . . . . . 49 Still picture . . . . . . . . . . . . . . . . . . . . . . 51 Title . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Digital Audio Output settings . . . . 69, 70 Direct Navigator . . . . . . . . . 36, 42, 46, 50 Direct TV Recording . . . . . . . . . . . . . . . 18 Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6 Divide Title . . . . . . . . . . . . . . . . . . . . . . . 47 DivX . . . . . . . . . . . . . . . . . . . . . . 39–41, 84 DV automatic recording . . . . . . . . . . . . 60 Edit Chapter . . . . . . . . . . . . . . . . . . . . . . . . Playlists . . . . . . . . . . . . . . . . . . . . . . . . Still picture . . . . . . . . . . . . . . . . . . . . . . Title . . . . . . . . . . . . . . . . . . . . . . . . . . . Enabling discs to be played on other equipment—Finalise . . . . . . . . . . . . . 46 49 50 46 64 Finalise . . . . . . . . . . . . . . . . . . . . 5, 64, 84 Flexible Recording . . . . . . . . . . . . . . . . 29 Format . . . . . . . . . . . . . . . . . . . . . 5, 63, 84 FR (Flexible Recording Mode) . . . . . . 27 FUNCTION MENU window . . . . . . . . . 66 GUIDE Plus+ . . . . . . . . . . . . 21–23, 30–31 HDAVI Control . . . . . . . . . . . . . 17–19, 70 HDMI . . . . . . . . . . . . . . . . . . . . . 17, 70, 84 High Speed Copy . . . . . . . . . . . . . . 28, 68 Initialize . . . . . . . . . . . . . . . . . . . . . . . . . 71 JPEG . . . . . . . . . . . . . . . . . . 39, 42–43, 85 Language Code list . . . . . . . . . . . . . . . . . . . . . . . 66 Disc menu . . . . . . . . . . . . . . . . . . . . . . 67 On-screen . . . . . . . . . . . . . . . . . . . . . . 69 Soundtrack . . . . . . . . . . . . . . . . . . 44, 67 Subtitle . . . . . . . . . . . . . . . . . . . . . 44, 67 Linked timer recordings with external equipment (digital/satellite receiver) — EXT LINK . . . . . . . . . . . . . . . . . 35, 70 LPCM . . . . . . . . . . . . . . . . . . . . . . . . 69, 85 Manual Skip . . . . . . . . . . . . . . . . . . . . . 38 Menu DivX . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Mode Recording . . . . . . . . . . . . . . . . . . . . . . 27 Still Mode . . . . . . . . . . . . . . . . . . . . . . 68 MP3 . . . . . . . . . . . . . . . . . . . . . . 39, 41, 85 Music Server . . . . . . . . . . . . . . . . . . . . . 61 Name Album Music . . . . . . . . . . . . . . . . . . . . . . . . . 61 Still picture . . . . . . . . . . . . . . . . . . . . . 51 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Entering text . . . . . . . . . . . . . . . . . . . . 65 Playlist . . . . . . . . . . . . . . . . . . . . . . . . . 49 Title . . . . . . . . . . . . . . . . . . . . . . . . 32, 47 Q Link . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Quick Start . . . . . . . . . . . . . . . . . . . . . . 26 Quick View . . . . . . . . . . . . . . . . . . . . . . 37 Ratings level settings . . . . . . . . . . . . . . 67 Recording . . . . . . . . . . . . . . . . . . . . . . . 26 Aspect . . . . . . . . . . . . . . . . . . . . . . . 8, 68 Auto Renewal . . . . . . . . . . . . . . . . . . . . 34 Direct TV Recording . . . . . . . . . . . . . . . 18 DV automatic recording . . . . . . . . . . . . 60 External Link . . . . . . . . . . . . . . . . . . . . 35 Flexible Recording . . . . . . . . . . . . . . . . 29 Important notes . . . . . . . . . . . . . . . . . . . 8 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Relief . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Timer . . . . . . . . . . . . . . . . . . . . . . . 30–34 Relief Recording . . . . . . . . . . . . . . . . . . 34 Remote control code . . . . . . . . . . . . . . 25 Repeat Play . . . . . . . . . . . . . . . . . . . . . . 45 Resume play function . . . . . . . . . . . . . 37 Setup menu . . . . . . . . . . . . . . . . . . . . . . 67 SHOWVIEW . . . . . . . . . . . . . . . . . . . . . . . . 32 Simultaneous rec and play . . . . . . . . . 29 Soundtrack . . . . . . . . . . . . . . . . . . . . . . 44 Still picture Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Play . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Subtitle Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Switch the audio/subtitles on the disc (Disc menu) . . . . . . . . . . . . . . . . . . . . . 44 Teletext . . . . . . . . . . . . . . . . . . . . . . . . . 26 Time Slip . . . . . . . . . . . . . . . . . . . . . . . . 38 Timer recording . . . . . . . . . . . . . . . 30–34 Tuning Manual . . . . . . . . . . . . . . . . . . . . . . . . . 71 Settings . . . . . . . . . . . . . . . . . . . . . . . . 72 TV System (PAL/NTSC) . . . . . . . . . . . . 73 USB Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Insert . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Play MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Still picture . . . . . . . . . . . . . . . . . . . . . 42 Supported formats . . . . . . . . . . . . . . . . . 7 VIERA Link . . . . . . . . . . . . . . . . 17–19, 70 VPS/PDC . . . . . . . . . . . . . . . . . . . . . . . . 34 Partial Delete . . . . . . . . . . . . . . . . . . . . 47 Playlist . . . . . . . . . . . . . . . . . . . . . . . . . 48 Power Save . . . . . . . . . . . . . . . . . . . . . . 71 Progressive . . . . . . . . . . . . . . . 24, 45, 85 Properties Playlist . . . . . . . . . . . . . . . . . . . . . . . . . 49 Still picture . . . . . . . . . . . . . . . . . . . . . . 43 Title . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Protection Album (Still picture) . . . . . . . . . . . . . . . 51 Cartridge . . . . . . . . . . . . . . . . . . . . . . . 62 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Still picture . . . . . . . . . . . . . . . . . . . . . . 51 Title . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Environment friendly printed on chlorine free bleached paper. Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Marketing Europe GmbH. Winsbergring 15, 22525 Hamburg, F.R. Germany p RQT9011-L F0707KJ0
