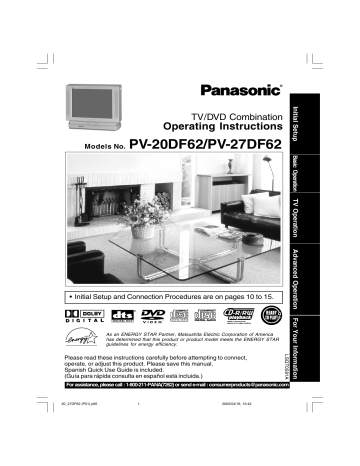

Initial Setup TV/DVD Combination Operating Instructions Models No. PV-20DF62/PV-27DF62 Basic Operation TV Operation Advanced Operation • Initial Setup and Connection Procedures are on pages 10 to 15. LSQT0581A Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual. Spanish Quick Use Guide is included. (Guía para rápida consulta en español está incluida.) For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P01).p65 1 2002/04/16, 13:42 For Your Information As an ENERGY STAR Partner, Matsushita Electric Corporation of America has determined that this product or product model meets the ENERGY STAR guidelines for energy efficiency. Important Safeguards and Precautions READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON UNIT INSTALLATION 1 POWER SOURCE CAUTION Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility Service Company or Video Products Dealer verify your home power source. 2 POWER CORD PLUG For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug. Always hold the plug firmly and make sure your hands are dry when plugging in or unplugging the AC power cord. Regularly remove dust, dirt, etc. on the plug. POLARIZED PLUG CAUTION: The plug fits into outlet only one way. If it cannot be fully inserted, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not tamper with the plug. GROUNDING PLUG CAUTION: The plug requires a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not tamper with the plug. 3 POWER CORD To avoid unit malfunction, and to protect against electrical shock, fire or personal injury: - Keep power cord away from heating appliances and walking traffic. Do not rest heavy objects on, or roll such objects over the power cord. - Do not tamper with the cord in any way. - An extension cord should have the same type plug (polarized or grounding) and must be securely connected. - Overloaded wall outlets or extension cords are fire hazards. - Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified electrician. 4 DO NOT BLOCK VENTILATION HOLES Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fire hazard or heat damage to discs. For your protection: a. Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface. b. Avoid built-in installation, such as a book case or rack, unless properly ventilated. 5 AVOID EXTREMELY HOT LOCATIONS OR SUDDEN TEMPERATURE CHANGES Do not place unit over or near a heater or radiator, in direct sunlight, inside closed vehicles, in high temperature [over 95 °F (35 °C)], or in over 75% humidity. If unit is suddenly moved from a cold place to a warm one, moisture may condense in unit and on the tape causing damage. Never subject unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously damaged. 6 TO AVOID PERSONAL INJURY • Never place unit on support or stand that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit. • Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn. • Carefully follow all operating instructions. 2 OUTDOOR ANTENNA INSTALLATION 1 SAFE ANTENNA AND CABLE CONNECTION An outside antenna or cable system must be properly grounded to provide some protection against built up static charges and voltage. Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian Electrical Code) provides information regarding proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ELECTRIC SERVICE EQUIPMENT GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) 2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR CIRCUITS Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal. USING THE UNIT Before unit is brought out of storage or moved to a new location, refer again to the INSTALLATION section of these safeguards. 1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE, such as vases, sinks, tubs, etc. 2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT, unplug unit and have it inspected by a qualified service technician before use. 3 ELECTRICAL STORMS During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system. 4 WHEN UNIT IS PLUGGED IN • DO NOT OPERATE IF: - liquid has spilled into unit. - unit was dropped or otherwise damaged. - unit emits smoke, odours, or noises. Immediately unplug unit, and have it inspected by a service technician to avoid potential fire and shock hazards. • Never drop or push any object through openings in unit. Touching internal parts may cause electric shock or fire hazard. Do not put any foreign object on the tray. • Keep magnetic objects, such as speakers, away from unit to avoid electrical interference. 5 USING ACCESSORIES Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards. 6 CLEANING UNIT Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts. SERVICE 1 DO NOT SERVICE PRODUCT YOURSELF If, after carefully following detailed operating instructions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug unit and contact a qualified service technician. 2 REPLACEMENT OF PARTS Make sure the service technician uses only parts specified by the manufacturer, or have equal safety characteristics as original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards. 3 SAFETY CHECK AFTER SERVICING After unit is serviced or repaired, request that a thorough safety check be done as described in the manufacturer’s service literature to ensure video unit is in safe operating condition. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P02-3).p65 2 2002/04/16, 13:42 Safety Precautions/Mesures de sécurité Warning : To prevent fire or shock hazard, do not expose this equipment to rain or moisture. Caution : To prevent electric shock, match wide blade of plug to wide slot, fully insert. Avertissement : Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer cet appareil à la pluie ou à une humidité excessive. Attention :Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. FCC WARNING : Any unauthorized changes or modifications to this equipment would void the user’s authority to operate. This television receiver provides display of television closed captioning. CAUTION: CAUTION: UNIT IS A CLASS I LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM. ATTENTION: RAYONNEMENT LASER EN CAS D’OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU. (Inside of product) FCC NOTICE: This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this eqiupment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver. If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, 'Something About Interference' available from FCC local regional offices helpful. This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.> This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this unit, this unit cannot play this disc. The Region number for this unit is 1. 1 3 20_27DF62 (P02-3).p65 3 2002/04/16, 13:42 Before Using Congratulations Loading the Batteries on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your unit. Battery replacement caution Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. Serial No. • Do not mix old and new batteries. • Do not mix alkaline with manganese batteries. Features for a Quality Picture Pure Flat Picture Tube This unit is equipped with pure flat Picture Tube. Accessories OPEN/CLOSE FM/TV 10 TE MU Remote Control LSSQ0346 LIGHT DSS CABLE DVD TIM ER CH R-T ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU Batteries 2 “AA” CLEAR CH UNE + ENTER SU R RO UND VOL VOL SET ACTION RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SLOW/SEARCH To order accessories, call toll free 1-800-332-5368. 4 Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P04 Before).p65 4 2002/04/16, 13:42 Table of Contents Initial Setup Important Safeguards and Precautions / Safety Precautions ....... 2 ~ 3 Before Using ........................................................................................ 4 Information (Unit, Disc) .................................................................... 6, 7 Location of Controls ........................................................................ 8, 9 Connections / Initial Setup .......................................................... 10, 11 Reset Language, Channels, Clock, Time Zone Adjust ............... 12, 13 Audio Connections ...................................................................... 14, 15 Initial Setup TV DVD Operation DVD Operation DVD Basic DVD Operation .................................................................. 16, 17 TV TV Operation TV Operation TV Operation ..................................................................................... 18 MTS Broadcast / TV Stereo System .................................................. 19 Closed Caption System ............................................................... 20, 21 TV Timer Features ............................................................................. 22 On-Screen Display (OSD) ................................................................. 23 FM Radio ..................................................................................... 24, 25 Advanced Operation Cable Box Universal Remote Control Feature ........................... 26, 27 Special Features ......................................................................... 28, 29 V-Chip Control Feature ............................................................. 30 ~ 33 Video / Audio Menu ........................................................................... 34 Video / Audio Adjustment .................................................................. 35 DVD Disc Operation ........................................................................... 36 ~ 40 DVD Operation using On-Screen Displays .............................. 41 ~ 43 MP3 Playback Operation .................................................................. 44 DVD Lock Feature ............................................................................. 45 Settings for DVD Operation ....................................................... 46 ~ 48 Language Code List .......................................................................... 49 Advanced Operation TV For Your Information For Your Information TV Before Requesting Service ......................................................... 50, 51 Warning and Instruction Displays ..................................................... 51 Limited Warranty ......................................................................... 52, 53 Customer Services Directory ............................................................. 53 Spanish Quick Use Guide / Guía para rápida consulta ........... 54 ~ 61 Index ............................................................................................ 62, 63 5 20_27DF62 (P05 contents).p65 5 2002/04/16, 13:42 Information (Unit, Disc) Specifications Display Picture Tube: Tuner Broadcast Channels: CABLE Channels: FM Radio Band range: General Power Source: Power Consumption: 20 inch diagonal pure flat Picture Tube (PV-20DF62) 27 inch diagonal pure flat Picture Tube (PV-27DF62) VHF 2 ~ 13, UHF 14 ~ 69 Midband A through I (14 ~ 22) Superband J through W (23 ~ 36) Hyperband AA ~ EEE (37 ~ 64) Lowband A-5 ~ A-1 (95 ~ 99) Special CABLE channel 5A (01) Ultraband 65 ~ 94, 100 ~ 125 87.5 ~ 108.1 MHz 120V AC, 60 Hz Power On Approx. 113 watts (PV-20DF62) Approx. 146 watts (PV-27DF62) Power Off Approx. 3.5 watts Television System: EIA Standard NTSC color Speaker: 2 pieces (5.0W x 2) Operating Temperature: 5 °C ~ 35 °C (41 °F ~ 95 °F) Operating Humidity: 10% ~ 75% Weight: 28 kg (61.6 lbs.) (PV-20DF62) 47 kg (103.4 lbs.) (PV-27DF62) Dimensions: 604 (W) x 523 (H) x 503 (D) mm 23-13/16” (W) x 20-9/16” (H) x 19-13/16” (D) (PV-20DF62) 760 (W) x 651 (H) x 503 (D) mm 29-15/16” (W) x 25-5/8” (H) x 19-13/16” (D) (PV-27DF62) Discs played (1) DVD-VIDEO disc 5” (12 cm) single-sided, single-layer 5” (12 cm) single-sided, double-layer 5” (12 cm) double-sided, double-layer (one layer per side) 3” (8 cm) single-sided, single-layer 3” (8 cm) single-sided, double-layer 3” (8 cm) double-sided, double-layer (one layer per side) (2) Compact disc 5” (12 cm) disc (CD-DA, VIDEO CD) 3” (8 cm) disc Digital audio output: Optical digital output: Optical connector Pickup: Wavelength: 655 nm (DVD), 790 nm (Video CD/CD) Laser power: CLASS II Note :Designs and specifications are subject to change without notice. If the disc cannot be removed... First, unplug unit. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Then, pull the tray all the way out and remove the disc. 6 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P06-7 Information).p65 6 2002/04/16, 13:42 Disc formats supported by this unit The unit can play back discs bearing any of the following marks: DVD 3” (8 cm) disc / 5” (12 cm) disc Video CD 3” (8 cm) disc / 5” (12 cm) disc CD 3” (8 cm) disc / 5” (12 cm) disc Discs which cannot be played with this unit • DVD with Region No. other than “1” or “ALL” • DVD of PAL system • DVD-ROM • DVD-R/DVD-RAM • DVD-R/DVD-RAM • CD-ROM • CDV • CD-G • Do not try to play a Photo CD. is a registered trademark. Disc Handling Handling precautions • Only hold disc by edges as shown. Fingerprints, dirt, and scratches can cause skipping and distortion. • Do not write on label side of disc. • Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent. • Be careful not to drop or bend disc. • Do not place more than 1 disc on disc tray. • Do not try to close disc tray when disc is not properly placed. • Always store discs in their proper cases Disc tray when not in use. Disc Definition of Terms Angle Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights up on the unit when a scene recorded at different angles is detected.) Chapter Number To clean disc surface With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.) Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers. DVD A high-density optical disc on which high-quality pictures and sound have been digitally recorded. DVD incorporates new video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality. Playback Control With Video CD (version 2.0), scenes or information may be selected for viewing or listening from an interactive menu that appears on the TV screen. Subtitles Written dialogue which appears at the bottom of the screen. Time Number The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.) Title Number If disc is brought from a cold to a warm environment, moisture may form on the disc Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.) Improper disc storage Discs could be damaged if stored or left in areas: • exposed to direct sunlight. • that are humid or dusty. • near heat (i.e. heater, radiator, etc.). For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc. Track Number Numbers assigned to tracks on Video CDs and CDs to allow specific tracks to be quickly located. Video CD CD containing picture and sound with same quality level as video tape. This unit also supports Video CDs with playback control (version 2.0). 20_27DF62 (P06-7 Information).p65 7 7 2002/04/16, 13:42 Location of Controls Remote Control Buttons (Light Tower™ Illuminated Remote Control) OPEN/CLOSE DVD Opens or closes the disc tray. Sets to DVD mode. POWER LIGHT Turns the unit on or off. See below. FM/TV DSS/CABLE Sets to TV mode. Receives FM radio signal. OPEN/CLOSE Sets the remote to control some basic DDS or Cable box functions. LIGHT MUTE TIMER Mutes the sound instantly. FM/TV 10 TE MU CHANNEL UP/DOWN Selects a channel. Sets ON TIMER or SLEEP TIMER. DSS CABLE DVD TIM ER VOLUME UP/DOWN Adjusts volume. CH CH UNE + R-T Creates a deeper, 3-D sound effect. SU R RO UND SURROUND VOL VOL NUMBER Keys RAPID TUNE Displays the last channel you were watching. ADD/DELETE/CLEAR Selects a channel directly. Adds or deletes a channel. Cancels an item on the screen. AUDIO AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU ENTER Selects the desired angle in DVD mode. ADD/DLT CLEAR ANGLE SUB TITLE Selects a different subtitle language. DISPLAY/ENTER Selects the desired audio mode. TITLE SET Selects the desired title by number on some DVDs. SELECT ACTION SKIP Controls navigation around on-screen menu. PAUSE RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH ACTION Displays the TV status and clock. In DVD mode, displays disc and unit information. In DSS or CABLE mode, it may be necessary after channel selection. MENU Displays DVD menu. RETURN Displays Main Menu. Returns to Menu screen. SET SKIP Sets a selected menu. | Skips one chapter or track. Goes to next menu screen. SKIP | Skips back one chapter or track. Goes to previous menu screen. ZOOM PAUSE STOP Enlarges specific portions of picture. Pauses picture in Play mode and frame advance picture in Still mode. Stops playback. SLOW/SEARCH PLAY Slow motion picture in Still mode. Forward/Reverse rapid scene search in Play mode. Begins playback. Note • When LIGHT is pressed, (FM/TV, DVD, DSS/CABLE, CH UP/DOWN, VOL+/-) buttons will light for 5 seconds for easy location. If no button is pressed in 5 seconds the light goes out to conserve the batteries. 8 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P08-9 Location).p65 8 2002/04/16, 13:42 Front View of the Unit and Indicators PHONES SLEEPTIMER Indicator Lights when the Sleep-Timer is set. Connect an earphone or headphones. AUDIO/VIDEO IN Connector 2 (LINE 2) ON TIMER Indicator Lights when the On-Timer is set. Connect from other component. ANGLE Indicator S-VIDEO IN Connector Connect from other component with S-Video. Remote Sensor POWER (See previous page.) VOLUME UP/DOWN (See previous page.) CHANNEL UP/DOWN (See previous page.) PAUSE (See previous page.) Aim the remote to this point. OPEN/CLOSE (See previous page.) SKIP | (See previous page.) PLAY (See previous page.) STOP (See previous page.) SKIP | Lights when a scene recorded at a different angle is detected. Disc Tray (See previous page.) Insert a disc to this tray. Rear View of the unit * PV-27DF62 Rear shown. AC Power Plug When plugged into an AC outlet, the unit consumes 3.5 W of electric power in OFF condition. Optical Digital Audio Output Connector Connect to a Dolby Digital decoder or dts decoder. For details, see page 15. AUDIO/VIDEO OUT Connector VHF/UHF Antenna Input Terminal In from your Antenna or Cable. S-VIDEO IN Connector Connect from other component with S-Video. AUDIO/VIDEO IN Connector 1 (LINE 1) Connect from other component. Connect to other component. 20_27DF62 (P08-9 Location).p65 9 9 2002/04/16, 13:42 Initial Setup (Ready to Play) Please make all cable or antenna connections before powering on. Connecting For ANT./Cable Connect the cable from Antenna/Cable to the VHF/ UHF terminal on the unit. For DSS/Cable Box Connect the OUT jack on your cable box to the VHF/ UHF terminal on the unit with a RF cable. PV-27DF62 Rear shown. VHF/UHF UNIT VHF/UHF IN from ANT./CABLE Cable TV Converter Box WARNING: Overtightening "Nut type" RF coaxial cables may damage jacks. Finger tighten only. VHF/UHF IN from ANT./CABLE VHF/UHF Initial Setup (Ready to Play) 1 2 Plug the unit power cord into an AC wall outlet. Press POWER* on the remote or unit. The unit comes on and auto channel and clock set starts. 3 Settings are made automatically. When setup is done, this screen appears. 2 / 6 / 2002 WEDDST 12 :: ON 00PM SETT I NG : CH 1 0 AUTO CLOCK SET COMPLETED CH AUTO SET PROCEEDING • If you use a cable box, turn it on and set it to the Public Broadcasting Service (PBS) channel in your time zone. If you use a DSS receiver, it must be turned off. If AUTO CLOCK SET IS INCOMPLETE screen appears, set the clock using MANUAL CLOCK SET procedure on next page. AUTO CLOCK SET I S I NCOMPLETE AUTO CLOCK SET PROCEEDING PLEASE SET CLOCK BY PRESS I NG ACT I ON KEY CANCEL : PRESS STOP KEY 10 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P10-11 Initial Setup).p65 10 2002/04/16, 13:42 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. Manual Clock Set Initial Setup If AUTO CLOCK SET was incomplete, manually set the clock as follows. OPEN/CLOSE LIGHT 1 POWER FM/TV DSS CABLE DVD 10 TE MU TIM ER Press ACTION on the Remote to display SET CLOCK Menu screen. CH AUDIO ANGLE R-T SUB TITLE DISPLAY TITLE MENU 2 Press to select the month and press SET to set. In the same manner, select and set the date, year, time, and DST. 3 Press ACTION twice to start CLOCK and exit. SET ACTION ACTION SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM DST : ON SELE CT MONTH SELECT : SET : SET END : ACT I ON CLEAR ADD/DLT SELECT SET UNE + CH ENTER SU R RO UND VOL VOL SET CLOCK SLOW/SEARCH DST (Daylight Saving Time) Reset all unit Memory Functions Unit auto adjusts clock for DST (Daylight Saving Time.) ■ Spring (First Sunday in April) DST : ON ->Sets clock ahead one hour. ■ Autumn (Last Sunday in October) DST : ON ->Turns clock back one hour. • If your area does not observe Daylight Saving Time, select DST:OFF. When moving unit to a new location, or if a mistake was made in the Initial Setup section. Note to CABLE System Installer This reminder is provided to call the CABLE (Cable TV) System Installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. 1 Turn the unit Power on. Press and hold both PLAY and | 2 the unit for more than 5 seconds. on • The power will shut off. 3 Perform “Initial Setup” on page 10. 11 20_27DF62 (P10-11 Initial Setup).p65 11 2002/04/16, 13:42 Reset Language, Channels, Clock, 1 LOCK LANGUAGE 53 TV to display MAIN MENU. 1 CH CLOCK SELECT : END : ACT I ON 2 Press ACTION* M A I N MENU DVD Time SET : SET Clock Language Channels 1) Press to select language icon. 1) Press to select “CH.” 1) Press to select “CLOCK.” M A I N MENU M A I N MENU M A I N MENU DVD DVD 53 TV SELECT : END : ACT I ON TV 1 SET UP CHANNEL ANTENNA : CABLE AUTO SET CHANNEL CAPT I ON WEAK S I GNAL D I SPLAY : OFF HOLA SELECT : SET : SET END : ACT I ON BLOQUEO IDIOMA 5 3 1 CANAL RELOJ 3) Press to select “ANTENNA,” then press SET to set your antenna system (“TV” or “CABLE”). ELEGIR : FIJAR : SET TERMINAR : ACT I ON For Spanish MENU BONJOUR DVD BLOCAGE LANGUE TELE HORLOGE CANAL 53 SEL. : FIN 1 4) Press to select “AUTO SET,” then press SET. REGLER : SET : ACT I ON For French M A I N MENU DVD • After Channel Auto Set is finished, Clock Auto Set will be performed. (If clock is set manually, Clock Auto Set will not be performed.) HELLO LOCK LANGUAGE 53 TV 1 CH CLOCK SELECT : END : ACT I ON SET : SET 2) Press SET. MENU PRINCIPAL TV LOCK LANGUAGE 53 TV 1 CH CLOCK SELECT : END : ACT I ON SET : SET SET : SET 2) Press SET repeatedly. DVD DVD 1 CH CLOCK SELECT : END : ACT I ON CH CLOCK LOCK LANGUAGE 53 LOCK LANGUAGE SET : SET For English 2) Press SET. SET CLOCK AUTO CLOCK SET MANUAL T I ME ZONE ADJUST : 0 SELECT : SET : SET : ACT I ON END (“TIME ZONE ADJUST” appears only when auto clock is set.) 3) Press to select “MANUAL,” then press SET. (For Auto Clock Set, select “AUTO CLOCK SET,” and press SET.) SET CLOCK 2 / 6/2002 WED 12: 00PM DST : ON SELE CT HOUR SELECT : SET : SET END : ACT I ON BACK : <Example > 4) Press and press SET to select and set the month, date, year, time, and DST (Daylight Saving Time). To Make Corrections, repeatedly press to move to error, then correct. 3) Press ACTION to exit. 5) Press ACTION twice to start the clock and exit this mode. 12 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P12-13 lang ch clk).p65 12 2002/04/16, 13:42 Time Zone Adjust OPEN/CLOSE FM/TV 10 LIGHT DSS CABLE DVD TE MU Initial Setup *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. TIM ER CH VOL VOL UNE + CH R-T SU R RO UND Time Zone Adjust (Only when Auto Clock is set.) 1) Press to select “CLOCK.” AUDIO SUB TITLE DISPLAY ANGLE TITLE DVD ADD/DLT LOCK LANGUAGE 53 TV MENU ENTER M A I N MENU CLEAR NUMBER keys ADD/DLT SELECT : END : ACT I ON 1 SET ACTION CH CLOCK SET : SET 2) Press SET. ACTION SELECT RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SET SLOW/SEARCH SET CLOCK AUTO CLOCK SET MANUAL T I ME ZONE ADJUST : 0 SELECT : SET : END : ACT I ON 3) Press to select “TIME ZONE ADJUST” and press or to subtract or add hour(s) as necessary. Add or Delete a Channel SET CLOCK To add channel: Select channel with number keys and press ADD/DLT. AUTO CLOCK SET MANUAL T I ME ZONE ADJUST : +1 SELECT : SET : END : ACT I ON CHANNEL 08 ADDED To delete channel: Select channel with or number keys CH and press ADD/DLT. CHANNEL 08 DELE TED 4) Press ACTION twice to exit. • “TIME ZONE ADJUST” returns to “0” if clock is set manually. 13 20_27DF62 (P12-13 lang ch clk).p65 13 2002/04/16, 13:42 Audio Connections ■ Unit ➛ Amplifier ➛ Speaker Ready Checklist Turn down the volume, then turn this unit, as well as other equipment to be connected, off before proceeding with connection. Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely. Read through the instructions before connecting other equipment. Ensure that you observe the color coding when connecting audio and video cables. Unit AUDIO OUT R L Enjoying digital audio output from the digital audio output connector Amplifier R L AUDIO IN Speaker Speaker Notes on audio output from the optical digital audio output connector Optical digital audio Disc Sound output from connector recording format Dolby Digital bitstream Dolby Digital (1-5.1 ch) or OFF (no output)*1 DVD Linear PCM Linear PCM (2ch) (48 kHz sampling/16 bit (48/96 kHz 16/20/24 bit) only)*2 or no output*1 Bitstream or no output*1 dts PCM Video MPEG 1 (44.1 kHz sampling) CD Linear PCM CD Linear PCM (44.1 kHz sampling) Linear PCM MP3 MP3 (It depends on the MP3 file) *1 The type of audio output from the connector can be selected by the Settings for DVD Operation. (See page 47.) *2 Sound having 96 kHz sampling is converted into 48 kHz sampling when it is output from the unit’s optical digital audio output connector. For your reference: • Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc. • Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit, DVDs are recorded in 48 kHz/16 bit up to 96 kHz/24 bit. Manufactured under license from Dolby • If you have a Dolby Pro Logic Surround decoder, you Laboratories. “Dolby”, “Pro Logic” and the will obtain the full benefit of Pro Logic from the same double-D symbol are trademarks of Dolby DVD movies that provide full 5.1 channel Dolby Digital Laboratories. Confidential Unpublished soundtracks, as well as from titles with the Dolby Surround mark. For information on Panasonic or Works. © 1992-1997 Dolby Laboratories, Technics Dolby Pro Logic Surround Sound Decoders Inc. All rights reserved. please contact your local dealer. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 14 20_27DF62 (P14-15 Audio connect).p65 14 2002/04/16, 13:42 ■ Unit ➛ Dolby Digital Decoder ➛ Amplifier ➛ Speaker When DVDs recorded in Dolby Digital or dts are played, Dolby Digital bitstream or dts bitstream is output from the unit Optical digital audio output connector. When the unit is connected to a Dolby Digital decoder or dts decoder, you can enjoy theater-quality audio in your home. [An optical digital audio cable (optional) is required when an optional Dolby Digital decoder or dts decoder is used.] Notes on connecting an Optical digital audio cable (optional) Initial Setup or Unit ➛ dts (digital theater systems) Decoder ➛ Amplifier ➛ Speaker Unit • Firmly connect the cable to the connector. Optical digital audio cable (optional) Dolby Digital Decoder dts processing (optional) IMPORTANT NOTE: Caution for optical digital audio output connector: • When connecting an amplifier (with an Optical digital input connector) which does not contain the Dolby Digital or dts decoder, be sure to select “OFF” at “Dolby Digital” and “OFF” at “dts” of the Settings for DVD Operation “AUDIO OUTPUT” (see page 47). Otherwise, any attempt to play DVDs may cause such a high level of noise that it may be harmful to your ears and damage your speakers. • When a dts decoder is connected, please select “Bitstream” at “dts” of the Settings for DVD Operation “AUDIO OUTPUT”. If “OFF” is selected, there will be no sound. (See page 47). • Video CDs and CDs can be played as normal. Note: • Some dts decoders which do not support DVD-dts Interface may not work properly with the unit. Amplifier Centre speaker Front Speaker Front Speaker Subwoofer Surround speaker Surround speaker 15 20_27DF62 (P14-15 Audio connect).p65 15 2002/04/16, 13:42 Basic DVD Operation 1 2 Ready Checklist All connections are made. Your unit is plugged in. If unit is connected to an audio amplifier, turn the stereo system’s power on. OPEN/CLOSE FM/TV 10 TIM ER 10 CH CH UNE + R-T SU R RO UND VOL VOL SELECT ANGLE SUB TITLE DISPLAY TITLE TITLE MENU SET CLEAR ADD/DLT 3 Press PLAY to start play. Disc tray closes automatically. • You may also close the tray by pressing OPEN/CLOSE. • Data reading time differs with each disc. CLOSE ENTER NUMBER keys AUDIO • Hold disc by its edges only (page 7) with printed side up and use guides to place into 1 tray. Use 1 3”(8 cm) or 2 2 5” (12 cm) disc. DVD DSS CABLE DVD TE MU Insert a disc. • If a disc is already inserted, go to step 3. (Depending on the disc, playback may start automatically.) 1) Press OPEN/CLOSE. 2) Place disc into disc tray. OPEN/ CLOSE LIGHT POWER Press POWER* on the remote or unit. MENU READING SET PLAY ACTION SKIP | PAUSE RETURN RETURN PLAY SKIP STOP PAUSE SKIP+ SKIP ZOOM SLOW/SEARCH STOP SLOW SLOW <Example> | T I TLE MENU If an interactive DVD*1 or a Video CD with playback control*2 is used and a TITLE MENU appears, go to step 5. 4 Operation using unit buttons 4 Press PLAY. 3 Insert disc. Love r s B i r ds Dogs of the world Using number key(s) starts play automatically. Dogs Cas t l es Love r s Press OPEN/CLOSE. Cas t l es Press or number key(s) (see below) to select title and press SET to play. T I TLE MENU 3 •7 Dogs B i r ds <Example> 1 digit number 1 ••• 1 2 digit number 12 ••• 10➛1➛2 3 digit number 123 •••100➛1➛2➛3 Press SKIP | or | to go to next or previous menu screen. • SKIP function not available with all discs. Please refer to disc jacket for operation information. To return to MENU (play stops) Press TITLE, MENU, or RETURN. (DVD) Press RETURN. (Video CD) <Example> 1 Press POWER 6 Press STOP. *1 Interactive DVD... May include multiple camera angles, stories, etc. *2 Video CD with playback control... Particular scenes or information can be interactively selected from a menu that appears on the screen. 16 5 6 Press STOP to stop play. Press OPEN/CLOSE to eject the disc. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P16-17 Basic DVD).p65 16 2002/04/16, 13:42 *Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again. ■ Forward/Reverse rapid scene search ➛ Press SLOW or SLOW during play. ➛ Press PLAY to release. • Starting forward/reverse search during play started from menu on Video CDs may recall menu. • Search speed, slow at first, increases with each additional press of the button up to 5 levels. Skip | or | during play. ➛ Press SKIP Each press skips a chapter (DVD) or track (Video CD/CD). Pressing | SKIP once midway through a chapter/track returns to start of that chapter/track. Each additional press skips back one chapter/ track. • Pressing SKIP | or | during play started from menu on Video CDs may recall menu. Current playback position Chapter/Track Chapter/Track Chapter/Track Chapter/Track Reverse Skip Forward Skip RESUME function The unit memorizes the point where STOP is pressed ( flashes on screen). Press PLAY to resume play from this point. Pressing STOP again or opening the tray cancels RESUME, however, RESUME is not canceled when power is turned off and on. • RESUME works only with discs for which elapsed play time is displayed during play. Auto-Power Off function DVD Operation ■ Forward/Reverse Chapter/Track • When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by the unit or the disc. Power turns off after unit has been in Stop mode (DVD) for about 5 minutes. Enjoy Video CDs featuring playback control without using menus (Video CDs only) ■ Still (Pause) Picture 1. Do steps 1-4 (previous page). When menu appears, press STOP. 2. Press number key(s) to select desired track (play begins). • DVD/Video CD : The unit will enter Still picture mode. • CD : The unit will enter Pause mode. • Check disc for track numbers. • Press “1” to start at beginning of disc. Frame by Frame picture ➛ Press PAUSE during play. ➛ Press PLAY to release. ■ (DVD/Video CD) ➛ Press PAUSE in Still mode. ➛ Press PLAY to release. • Each press advances picture one frame. • Hold down for consecutive frame advance. • Whether pictures are advanced by “FRAME” or “FIELD” is selected automatically (see page 48). ■ Slow Motion picture (DVD/Video CD) ➛ Press SLOW or SLOW in Still mode. ➛ Press PLAY to release. • Slow motion speed, slow at first, is increased with each additional press of the button up to 5 levels. • Reverse slow motion is not available for video CDs. To Resume Menu use, Press STOP, and press PLAY, then the menu appears. Now, go to step 5 (previous page). Notes • Please read the disc jacket for operation information. • If a single sided disc is placed in upside down, “PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC” is displayed. • Remove disc and press unit POWER off when not in use. • Disc continues to rotate with menu displayed even after play is done. Press STOP to clear menu display when finished with menu. 17 20_27DF62 (P16-17 Basic DVD).p65 17 2002/04/16, 13:42 TV Operation 1 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. Press POWER* on the remote or unit. 2 08 Ready Checklist All connections are made. Your unit is plugged in. Use CH or number keys to select a channel. VOL + / VOL POWER 3 Press VOL + or VOL to adjust volume. PHONES Jack 24 CH OPEN/CLOSE POWER FM/TV DSS CABLE DVD 10 TE MU LIGHT TIM ER VOL + /- CH ■ Using the 100 key CH ADD/DLT 100 key AUDIO ANGLE SUB TITLE DISPLAY TITLE Press R-TUNE to display the last channel you were watching. ■ Audio Mute MENU SET ACTION Press MUTE to instantly mute the sound. Press again to restore the previous sound level. UNE NUMBER keys RAPID TUNE CLEAR ■ Rapid Tune + ENTER When selecting CABLE channels 100 to 125 with the number keys, first press the 100 key, and then enter the remaining two digits. VOL VOL R-T SU R RO UND CH SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH ■ Phones Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack. 18 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P18 TV).p65 18 2002/04/16, 13:42 MTS Broadcast / TV Stereo System ® Receivable Broadcast Types Equipped with -TV Noise Reduction for true MTS ® reproduction. -TV Noise Reduction is required for good stereo separation and audio fidelity. ® is a registered trademark, and ® is licensed by Technology Licensing. The following are possible audio broadcast types and on-screen displays. The signal being received is indicated with an “ ” mark while the selected audio mode is indicated with an arrow. To change the audio mode for these broadcasts, see the “Select Audio Mode for TV Viewing” section (below.) Press DISPLAY to display the broadcast signal being received. 1 2 : 0 0AM CH08 STEREO SAP MONO OPEN/CLOSE FM/TV DSS CABLE DVD 10 TE MU LIGHT TIM ER 1 2 : 0 0AM CH UNE R-T SU R RO UND + CH CH08 STEREO SAP MONO VOL VOL ANGLE SUB TITLE DISPLAY TITLE MENU 1 2 : 0 0AM CLEAR ENTER ADD/DLT AUDIO CH08 STEREO SAP MONO DISPLAY SET ACTION MTS Stereo broadcast Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode. • If stereo broadcast is weak and the display flickers, select MONO audio mode for possible improvement. SAP broadcast Secondary Audio Program (sub language). Select SAP audio mode for the sub language. TV Operation AUDIO MTS Stereo and SAP broadcast Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select the STEREO or SAP audio mode. RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM 1 2 : 0 0AM STEREO SAP MONO SLOW/SEARCH CH08 MONO broadcast Normal monaural sound broadcast. Audio Mode for TV Viewing Press AUDIO to select the desired audio mode as described above. (Arrow shows selection.) • Each press of AUDIO will change the audio mode as shown below. • “SAP” is selected with first press of AUDIO. < Example > 1 2 : 0 0AM Press AUDIO CH08 STEREO SAP MONO 1 2 : 0 0AM CH08 STEREO SAP MONO 1 2 : 0 0AM CH08 STEREO SAP MONO Press AUDIO Press AUDIO 19 20_27DF62 (P19 MTS).p65 19 2002/04/16, 13:42 Closed Caption System Closed Caption is ... This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to everyone. Closed Caption Mode Feature 1 2 Press ACTION* to display MAIN MENU. M A I N MENU LOCK LANGUAGE DVD 53 TV CH CLOCK SELECT : END : ACT I ON 3 SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SET : SET SELECT : : ACT I ON END 4 1 CAPT I ON CAPT I ON MODE CC ON MUTE : CAP C1 : CAP C1 SELECT : SET : SET END : ACT I ON OFF 1)Press to select “TV.” 2)Press SET to display SET UP TV screen. 1) Press to select “CAPTION”. 2) Press SET to display CAPTION screen. Closed Caption Mode Selections Caption Mode: CAP C1 or C2 A narration of selected TV programs is displayed. Check TV program listings for CC (Closed Caption) broadcasts. Caption Mode: TEXT C1 or C2 Most of the screen will be blocked out. When the TV station broadcasts information, such as program listings, it will appear in this space. Caption Mode: OFF Closed Caption /Text narration will not be displayed. NOTE : The closed caption or text signal may be broadcast over C1, C2, or both. Also, text contents can vary so you may wish to try different settings. 1) Press to select CAPTION MODE. 2) Press SET repeatedly to select mode. (See right.) CAP C1 TEXT C2 TEXT C1 CAP C2 5 20 Press ACTION three times to return to the normal screen. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P20-21 TV CC).p65 20 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. Caption On Mute Feature Closed Caption narration, if available, is displayed when MUTE button is pressed for silence. OPEN/CLOSE FM/TV 10 TIM ER M A I N MENU LOCK LANGUAGE DVD TITLE R-T MENU 3 SET ACTION PLAY SKIP+ PAUSE STOP ZOOM SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SET : SET SELECT : END : ACT I ON RETURN SKIP SET : SET 4 SLOW/SEARCH CAPT I ON CAPT I ON MODE CC ON MUTE : OFF : CAP C1 SELECT : SET : SET END : ACT I ON 5 CAP C1 CAP C2 • When a disc supporting closed caption is used, the subtitle and the closed caption may overlap. In this case, turn the subtitle or caption on mute mode off. (See page 36.) 1) Press to select “CAPTION”. 2) Press SET to display CAPTION screen. 1)Press to select CAPTION MODE. 2)Press SET repeatedly to select “OFF.” 1) Press to select CC ON MUTE. 2) Press SET repeatedly to select desired mode. NO Note 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. TV Operation ADD/DLT SUB TITLE DISPLAY ANGLE 1 CH CLOCK SELECT : END : ACT I ON CLEAR CH TV UNE + ENTER SU R RO UND 53 VOL VOL AUDIO ACTION Press ACTION to display MAIN MENU. CH SELECT SET LIGHT DSS CABLE DVD TE MU MUTE 1 2 • Each press of SET will change the display as shown left. • The caption may be broadcast over CAP C1 or C2. 6 Press ACTION three times to return to the normal screen. 7 Press MUTE to mute the sound and display closed captioning. • To cancel, press MUTE again. 21 20_27DF62 (P20-21 TV CC).p65 21 2002/04/16, 13:43 TV Timer Features Ready Checklist ON-TIMER with Alarm This unit can be set to automatically power on in one of 3 modes (TV, FM radio, or DVD/Video CD/CD.) You can also combine the On-Timer with a one minute alarm that gradually increases in volume. 1 2 1) Press to select “ON TIMER.” 2) Press SET to display ON TIMER screen. SET T I MER ON T I MER SLEEP T I MER : 00 1) Press to select desired settings. 2) Press SET to set the ON-TIMER TIME or ON-TIMER mode. ON T I MER ALARM : ON SELE CT HOUR SELECT : SET : SET END : T I MER • ON-TIMER mode selection order CH02 CH03 CH125 CH01 FM1 DVD 4 FM9 FM8 • Make sure a disc is inserted if DVD (DVD/Video CD/CD) mode is selected. • See “FM Radio” on pages 24 and 25 for instructions on how to preset FM stations. Press to select ALARM “ON” or “OFF.” ON T I MER ALARM : ON SELECT ALARM CANCEL : ADD / DLT SELECT : SET : SET END : T I MER Press TIMER to set ON TIMER. • “ON TIMER SET” is displayed. • ON TIMER Indicator lights up on the unit. To Cancel ON-TIMER, Repeat steps 1 and 2. Then, press ADD/DLT to clear the time in step 3. Now, press TIMER to end. “ON TIMER END” briefly appears on-screen. 22 SLEEP TIMER Indicator Sleep Timer This unit can be set for auto power off. 1 2 Press TIMER to display SET TIMER screen. 1) Press to select SLEEP TIMER. SELECT : SET : SET 2) Press SET END : T I MER repeatedly to select the desired SLEEP TIMER 30 60 90 00 time. SET T I MER ON T I MER SLEEP T I MER : 00 BACK : When “ON” is selected, an alarm will gradually increase in volume for one minute or until canceled by pressing any button (including VOL + -). To Make Corrections, and to move back and correct. use 5 ON TIMER Indicator Press TIMER* to display SET TIMER screen. SELECT : SET : SET END : T I MER 3 The clock is set to correct time. To cancel, press SET repeatedly until 00 appears. 3 Press TIMER to return to the normal screen. • Pressing DISPLAY with sleep timer set displays remaining time. • SLEEP TIMER Indicator lights up on the unit. Note • If no button on the remote or unit (including a button used to turn off the alarm) is pressed within 60 minutes after unit turns itself on, it will turn itself back off. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P22 TV Timer).p65 22 2002/04/16, 13:43 On-Screen Display (OSD) *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. TV Status & Clock Display Press DISPLAY to display or remove the overlay. Channel Current Time 1 2 : 0 0AM Receivable Broadcast Types (See page 19.) OPEN/CLOSE FM/TV 10 LIGHT DSS CABLE DVD TE MU TIM ER TIMER CH R-T UNE + CH SUB TITLE DISPLAY TITLE MENU ENTER ADD/DLT ANGLE CLEAR ADD/ DELETE SELECT SET ACTION SKIP PAUSE DISPLAY Blue Screen Display Whenever the selected channel has no broadcast signal with the Weak Signal Display Feature set to “OFF” (see page 28), the screen will turn solid blue. TV Operation SU R RO UND VOL VOL AUDIO CH08 STEREO SAP MONO RETURN PLAY SKIP+ STOP ZOOM SET Channel Display SLOW/SEARCH When you change channels, the channel number will be displayed. 08 23 20_27DF62•@(P23 VCR status ).p65 23 2002/04/16, 13:43 FM Radio FM Radio is ... This unit has an FM radio with built-in antenna, 9 station preset, and a band range of 87.5 ~ 108.1 MHz. You can even set the On-Timer (page 22) to wake up to your favorite radio station. FM Radio Setup 1 2 3 Press FM/TV on the remote to display FM radio mode. 1 2 : 0 0PM FM 1 87. 5MHz 1 2 : 0 0PM FM 1 8 7. 7MHz MEMORY : PRESS ADD / DLT KEY 8 7. 7MHz MEMOR I ZED To Make Corrections, select station with a number key, then do step 3 again. To exit FM mode, press FM/TV or DVD on the remote. 24 1) Press CH to select the desired radio station. (Each press changes frequency by 200 KHz.) 1 2 : 0 0PM FM 1 Press a number key* (1~9) to select the FM preset number. 2) Press ADD/DLT to set the radio station. CH Hold down CH or for a few seconds, then release to quickly scan for FM stations in your area. • To cancel, press CH or while in search mode. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P24-25 FM).p65 24 2002/04/16, 13:43 FM Antenna Setup FM/TV OPEN/CLOSE LIGHT DVD FM/TV DSS CABLE DVD 10 TE MU TIM ER CH CH UNE + R-T SU R RO UND VOL VOL CH NUMBER keys Make sure FM tuning is done correctly (see FM Radio Setup). 1 2 Press ACTION to display MAIN MENU. M A I N MENU DVD 53 ANGLE SUB TITLE DISPLAY MENU ENTER AUDIO TITLE CLEAR TV ADD/DLT AUDIO SET SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH SELECT : END : ACT I ON 3 1 CH CLOCK SET : SET 1) Press to select FM ANTENNA. 2) Press SET to select “INT (INTERNAL)” or SET : SET SELECT : END : ACT I ON “EXT (EXTERNAL)” to determine which ■ For cable TV users one sounds best. SELECT SET ACTION SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 ➛ “INT” ■ For antenna users ➛ “EXT” 4 TV Operation ACTION ADD/ DELETE DISPLAY LOCK LANGUAGE 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. Press ACTION twice to end setup. Audio Mode for FM Radio 1 2 : 0 0PM STEREO MONO FM 1 8 7. 7MHz Press AUDIO repeatedly to select “STEREO” or “MONO” in FM Radio mode. Notes • You may get better reception by repositioning the unit. • You cannot select FM Radio mode while a blue back screen (ACTION, MENU) is displayed. • Once stations are set, the selected station and current time are displayed when FM Radio mode is entered. To remove time, press DISPLAY. Using FM Radio 1 2 Press FM/TV on the remote to display FM radio mode. 1 2 : 0 0PM FM 1 87. 5MHz Press a number key (1~9) to select a preset FM number (see FM Radio Setup on page 24). To exit FM mode, press FM/TV or DVD on the remote. 25 20_27DF62 (P24-25 FM).p65 25 2002/04/16, 13:43 Cable Box Universal Remote Control Feature Universal Remote Control is... The Remote Control may be set up to control some basic DSS or Cable box functions. The Universal Remote Control Setup Confirm code entry. Press POWER to turn selected unit ON or OFF. • See below for controllable functions in each mode. FM/TV FM/TV 10 LIGHT DSS CABLE DVD TE MU TIM ER CH VOL VOL + CH UNE DVD SU R RO UND Hold down DSS CABLE and press number keys to enter code. • If code number is 100 or greater, e.g., press 1 - 0 - 2 for 102. 3 OPEN/CLOSE POWER R-T 2 Setup remote. DSS CABLE ADD/DLT NUMBER keys AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU CLEAR Find your DSS box or Cable box Brand Code Number from one of the charts on the next page. ENTER 1 SET ENTER ACTION Notes • Please repeat the Universal Remote Control Setup after replacing remote control batteries. • The remote control will not operate all DSS receivers or Cable Boxes made by the manufacturers listed. If you get no results, your particular brand cannot be controlled. SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH Using the Universal Remote Control (Available Buttons / Functions) Once the remote control has been properly set up, you can select FM/TV, DVD, DSS or CABLE mode depending on which functions you wish to control. Press FM/TV, DVD or DSS CABLE on the remote control to select the desired mode. (See below for buttons available in each mode.) Set to FM/TV, DVD: All TV, FM, and DVD functions. Set to DSS CABLE: • CABLE/DSS function, e.g. POWER, ENTER, NUMBER keys (except 100 key), CH UP/DOWN. 26 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P26-27 Univ rem).p65 26 2002/04/16, 13:43 DSS Brand Code Numbers Toshiba ........................................................... 90 Hitachi/ Hughes ........................................ 91, 99 Primestar ........................................................ 92 Drake .............................................................. 93 Magnavox ................................................. 94, 95 Uniden ....................................................... 94, 95 Optimus .................................................... 94, 95 Panasonic ....................................................... 96 ProScan .......................................................... 97 RCA ................................................................ 97 SONY ...................................................... 98, 105 Cable Box Brand Code Numbers Oak Sigma ................................. 46, 11, 129, 101 Panasonic .............................. 17, 16, 08, 87, 109 Philips ................. 23, 24, 20, 13, 07, 50, 128, 129 Pioneer ................................................ 06, 05, 12 Pulsar ................. 04, 42, 63, 44, 30, 52, 124, 126 Quest .................................................. 06, 05, 12 Radio Shack ........................... 44, 51, 75, 59, 126 RCA ....................................... 17, 16, 08, 87, 109 Realistic .................................. 44, 51, 75, 59, 126 Recoton .................................. 44, 51, 75, 59, 126 Regal .............. 41, 14, 15, 28, 102, 104, 103, 130 Regency ............................................ 28, 29, 130 Rembrandt ... 44, 42, 63, 29, 01, 32, 39, 120, 126 Samsung .................................. 42, 06, 32, 05, 40 Scientific Atlanta ................. 08, 09, 25, 61, 53, 87 Sheritech ......................................................... 27 Signal ...................................................... 26, 112 SL Marx .......... 42, 06, 32, 40, 43, 44, 52, 63, 126 Sprucer ................................... 17, 16, 08, 87, 109 Standard Components ........... 32, 39, 42, 44, 126 Stargate ........... 04, 42, 32, 40, 63, 44, 30, 52, 06, 124, 126 Sylvania ..................................................... 19, 18 Teknika ...................................................... 74, 35 Telecaption .............................................. 77, 127 Teleview ............................. 40, 19, 38, 32, 42, 06 Texscan ..................................................... 19, 18 Tocom .............................. 34, 33, 01, 42, 66, 120 Toshiba ........................................................... 36 Unika ........................ 44, 42, 63, 29, 01, 126, 120 Universal .......................... 52, 43, 44, 63, 42, 126 Viewstar ............... 62, 40, 22, 13, 58, 20, 26, 107 Videoway ...................................... 07, 23, 50, 129 Vidtek .............................................................. 64 Zenith ........................................... 07, 23, 50, 129 Advanced Operation Archer ....................... 44, 06, 01, 120, 05, 63, 126 Cableview ...... 29, 09, 01, 63, 120, 44, 42, 30, 52, 04, 124, 126 Citizen ................ 44, 52, 30, 63, 42, 04, 124, 126 Curtis ................................. 08, 09, 25, 61, 53, 87 Century .................................. 44, 51, 75, 59, 126 Cabletenna ............... 29, 09, 01, 63, 120, 44, 126 Cable Cinema ........... 29, 09, 01, 63, 120, 44, 126 Diamond ................... 29, 09, 01, 63, 120, 44, 126 Eagle .................... 62, 40, 22, 13, 58, 20, 26, 107 Eastern .............................................. 28, 29, 130 Explorer ............................. 08, 09, 25, 61, 53, 87 Gemini ............................................... 30, 04, 124 General Electric ................................. 01, 57, 120 General Instruments .... 01, 84, 83, 34, 03, 02, 04, 55, 65, 66, 67, 68, 120, 106, 121, 122, 115, 117, 118, 124 Gerrard .......................................... 44, 51, 75, 59 GC Electronics ............. 44, 42, 63, 29, 30, 52, 04, 124, 126 Hamlin ............ 41, 14, 15, 28, 102, 104, 103, 130 Hitachi ............................................................. 31 Jerrold ........ 01, 84, 83, 34, 03, 02, 04, 55, 65, 66, 67, 68, 120, 106, 121, 122, 115, 117, 118, 124 Jasco ................................................. 30, 04, 124 Macom ............................................................ 31 Magnavox ................................................ 26, 112 Matsushita ............................. 17, 16, 08, 87, 109 Movietime ................... 32, 39, 42, 44, 126, 38, 40 Maestro ..................................................... 74, 35 NEC .............................................. 40, 19, 38, 32 NSC .............................................. 40, 19, 38, 32 Novavision ......................... 08, 09, 25, 61, 53, 87 Next Level ............. 01, 84, 83, 34, 03, 02, 04, 55, 65, 66, 67, 68, 120, 106, 121, 122 Oak ........................................... 46, 11, 129, 101 Notes • In DSS or CABLE mode, it may be necessary to press ENTER after pressing number keys for channel selection. • In DSS or CABLE mode, POWER, CH Up/Down, Number Keys, ACTION, TIMER, DISPLAY/ENTER, SEARCH, SKIP+/-, R-TUNE, SELECT, SET, ZOOM, ANGLE, AUDIO, TITLE, SUB TITLE, MENU, or ADD/DLT/CLEAR are not available. Press FM/TV, DVD to use these functions. • Depending on your DSS receiver or Cable box brand, some of the functions listed may not be remote controllable. • Some DSS receiver or Cable box brands require you to turn on the power manually. • Due to changes in infra-red commands used by manufacturers, some brands have several codes. If your unit does not respond to the first code, please try the next one. 27 20_27DF62 (P26-27 Univ rem).p65 27 2002/04/16, 13:43 Special Features Remote Warning Feature Weak Signal Display Feature When Universal Remote Control (page 26) is used, and this feature is set to “ON,” a warning appears whenever an invalid key is pressed in DSS or Cable mode. When “ON” is selected, the picture is displayed even when a broadcast signal is weak or nonexistent. 1 2 1 2 53 TV CH CLOCK SELECT : END : ACT I ON 3 1 SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SELECT : END : ACT I ON SET : SET 1) Press to select REMOTE WARNING. 2) Press SET to set “ON” or “OFF.” • “REMOTE WARNING : OFF” ➛ Remote warning will not appear even if invalid key is pressed. 4 Press ACTION twice to return to normal screen. Selecting Input Mode Method 1: Press CH . The display will change as follows. LINE2 LINE1 1 3 2 (CABLE) (TV) 125 or 69 Auto Operation Functions ■ Auto Shut Off No broadcast signal in TV mode (Only when Weak Signal Display is set to OFF.), DVD stops for 5 minutes ➛ Power turns off • This feature is canceled if any button is pressed during above conditions. 28 LOCK LANGUAGE 53 TV SELECT : END : ACT I ON 3 1 CH CLOCK SET : SET 1) Press to select WEAK SIGNAL DISPLAY. 2) Press SET to set “ON” or “OFF.” SET UP CHANNEL ANTENNA : CABLE AUTO SET CHANNEL CAPT I ON WEAK S I GNAL D I SPLAY : OFF SELECT : SET : SET END : ACT I ON Notes • “ON” = Picture is displayed regardless of signal condition, and may not always be clearly visible. “OFF” = Screen turns solid blue when signal is absent or weak. • If unit is connected to equipment which has blue back feature, selecting “ON” will have no effect on the other equipment. 4 Press ACTION twice to return to the normal screen. OPEN/CLOSE CH FM/TV DVD 10 TE MU LIGHT DSS CABLE TIM ER CH SORROUND SU R RO UND Method 2: a Press ACTION for MAIN MENU. b Press to select “TV”, then press SET for SET UP TV screen. c Press to select “INPUT SELECT,” and then press SET to select “TUNER,” “LINE1,” or “LINE2.” d Press ACTION twice to exit this mode. DVD VOL VOL + CH UNE LOCK LANGUAGE 1) Press to select “CH.” 2) Press SET to display SET UP CHANNEL screen. M A I N MENU R-T DVD 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. ADD/DELETE ADD/DLT AUDIO SELECT ANGLE SUB TITLE DISPLAY TITLE MENU SET SET ACTION ACTION CLEAR M A I N MENU Press ACTION to display MAIN MENU. ENTER Press ACTION* to display MAIN MENU. RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P28-29 Special).p65 28 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. Channel Caption DVD Volume Adjust Channel Caption is ... Station names, e.g. ABC, CNN, etc. are set so they will appear when a channel is selected. Choose 24 preset names. You need a list of stations and the channel numbers you receive them on. 1 2 Press ACTION to display MAIN MENU. M A I N MENU LOCK LANGUAGE DVD 53 TV 3 CH CLOCK SELECT : END : ACT I ON 1 SET : SET SET UP CHANNEL ANTENNA : CABLE AUTO SET CHANNEL CAPT I ON WEAK S I GNAL D I SPLAY : OFF SELECT : SET : SET END : ACT I ON ABC CBS FOX NBC ----- PBS CNN ESPN HBO ----- SELECT : SET : SET END : ACT I ON CHANNEL CAPT I ON PBS ABC CNN CBS ESPN FOX HBO NBC CLEAR : ADD / DLT SELECT : SET : SET : ACT I ON END 1) Press to select CHANNEL CAPTION. 2) Press SET to display screen. 1 2 Press ACTION to display MAIN MENU. M A I N MENU 53 TV SELECT : END : ACT I ON 3 1 CH CLOCK SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SELECT : END : ACT I ON SET : SET 1) Press to select DVD VOL ADJUST. 2) Press SET to set the level (0, +1, or +2). 4 Press ACTION twice to return to normal screen. 1) Press to select a station. 2) Press SET (or ) to move cursor to the right. 3) Press to Surround Sound System select channel You can hear a deeper, 3-D sound effect number. using just the unit’s two front speakers. 4) Press SET (or ) to set preset Set Surround sound. captions. Press SURROUND. • Repeat step 4 until the Caption List is complete. To Make Corrections SURROUND ON • “SURROUND ON” is displayed. SURROUND OFF To Cancel, press SURROUND. Press , then SET (or ) to select channel number. to change, or ADD/DLT to delete. Press 5 LOCK LANGUAGE DVD 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. Advanced Operation 4 CHANNEL CAPT I ON 1) Press to select “CH.” 2) Press SET to display SET UP CHANNEL screen. Audio recorded on a DVD or Video CD often incorporates a dynamic range of sound. This means that, when compared to a music CD, etc., the average volume is generally lower and the peaks may be higher. This unit can be set so that the volume is increased automatically. Press ACTION three times to end setup. Notes • Surround sound effect is not available for normal (mono) broadcasts. • The surround effect (TV mode only) is not output to Audio Output L/R Connector. 29 20_27DF62 (P28-29 Special).p65 29 2002/04/16, 13:43 V-Chip Control Feature V-Chip Control Feature is... This unit has a built-in V-Chip Control which allows you to block unwanted TV usage based on US MOVIES and US TV PROGRAMS Ratings. Process of V-Chip Control Feature Enter Code Setup Blocking Enter Secret Code A 4-digit code must be entered to view a blocked program or change rating settings. Press ACTION* to display MAIN MENU. OPEN/CLOSE FM/TV 53 CH CLOCK TIM ER CH VOL VOL + CH NUMBER keys SET : SET ADD/DLT 3 LOCK ENTER 4-D I G I T CODE -BACK SPACE: ENTER : 0 - 9 : ACT I ON END To Make Corrections Press repeatedly to move the cursor. Press number keys to make the correction. 4 LOCK CONF I RM 4-D I G I T CODE **** **** RECOGN I ZED CHANGE CODE : ADD / DLT CONT I NUE : SET END : ACT I ON 1) Press number keys to enter your secret code. 2) Enter same code again for confirmation. • Step 2) not necessary when changing rating or secret code. • Take care that you are not observed entering the secret code. ANGLE SUB TITLE DISPLAY TITLE MENU SELECT SET ACTION SKIP PAUSE CLEAR RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH SET ACTION Press SET to display US Ratings menu (see pages 31, 32). Or Press ACTION twice to exit. Changing your secret code • You will need your current code. Do steps 1 ~ 3. In step 4, press CLEAR to clear current code. Repeat steps 3 and 4 to enter new code. 30 AUDIO CLEAR TV SELECT : END : ACT I ON 1 10 UNE LOCK LANGUAGE DSS CABLE DVD TE MU ENTER DVD 1) Press to select “LOCK.” 2) Press SET to display LOCK screen. LIGHT R-T M A I N MENU SU R RO UND 1 2 Notes • DO NOT forget your secret code. • Once ratings are set, restricted programs cannot be accessed unless the secret code is entered. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P30-33 V-chip).p65 30 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. If LOCK menu is not displayed, perform “Enter Secret Code” steps on page 30. Process of V-Chip Control Feature Enter Code Setup Blocking US MOVIES RATINGS US MOVIES Ratings 1 LOCK US MOV I ES : OFF CHANGE SETT I NGS : OFF US TV PROGRAMS CHANGE SETT I NGS : OFF DVD LOCK CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON 1) Press to select US MOVIES. 2) Press SET to set “ON” or “OFF.” ■ “ON” ➛ V-Chip Control is activated. ■ “OFF” ➛ V-Chip Control is deactivated. Note • “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing Canadian discs or broadcasts. 2 LOCK US MOV I ES : OFF CHANGE SETT I NGS : OFF US TV PROGRAMS CHANGE SETT I NGS DVD LOCK : OFF CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON GENERAL AUDIENCE: All ages admitted. PG PARENTAL GUIDANCE: Some material may not be suitable for children. PG-13 PARENTS CAUTIONED: Some material may be inappropriate for children under 13. R RESTRICTED: Children under 17 must be accompanied by a parent or adult. NC-17 OVER AGE 17 ONLY: No one 17 and under admitted. X ADULTS ONLY: Advanced Operation 3 1) Press to select CHANGE SETTINGS. 2) Press SET to display screen. G 1) Press to select VIEW NR PROGRAMS?. 2) Press SET to set “YES” or “NO.” NR (Not Rated) PROGRAMS Some movies, such as old movies or foreign movies usually have no ratings. 4 5 1) Press to select and SET to set ratings to be blocked. (See ratings chart on this page.) Press ACTION to redisplay LOCK menu and continue with US TV PROGRAMS Ratings Setup (page 32). Or, press ACTION four times to exit. 31 20_27DF62 (P30-33 V-chip).p65 31 2002/04/16, 13:43 V-Chip Control Feature (continued) If LOCK menu is not displayed, do “Enter Secret Code” steps on page 30. US TV PROGRAMS Ratings 1 LOCK US MOV I ES : OFF CHANGE SETT I NGS : OFF US TV PROGRAMS CHANGE SETT I NGS : OFF DVD LOCK CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON 1) Press * to select US TV PROGRAMS. 2) Press SET to set “ON” or “OFF.” ■ “ON” ➛ V-Chip Control is activated. ■ “OFF” ➛ V-Chip Control is deactivated. Note • “NEXT PAGE” displays CANADIAN V-Chip setting menu. Not necessary except when viewing Canadian discs or broadcasts. 2 3 LOCK US MOV I ES : OFF CHANGE SETT I NGS : OFF US TV PROGRAMS CHANGE SETT I NGS : OFF DVD LOCK CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON V I EW NR PROGRAMS? : YES UNLOCKED TV-Y FV TV-Y7 TV-G V S L D TV-PG V S L D TV-1 4 V S L TV-MA CONTA I NS NO RAT I NG SELECT : SET : SET END : ACT I ON 1) Press to select CHANGE SETTINGS. 2) Press SET to display screen. 1) Press to select VIEW NR PROGRAMS?. 2) Press SET to set “YES” or “NO.” NR (Not Rated) PROGRAMS Some TV shows, such as news, sports, weather, bulletins, emergency information usually have no ratings. 4 V I EW NR PROGRAMS? : YES UNLOCKED TV-Y FV TV-Y7 TV-G V S L D TV-PG V S L D TV-1 4 V S L TV-MA FOR ALL CH I LDREN SELECT : SET : SET END : ACT I ON Note • You may select from standard TV ratings (chart 1), or customize to a specific content rating (chart 2). 5 32 1) Press to select and SET to set ratings to be blocked. (See ratings charts on this page.) Process of V-Chip Control Feature Enter Code Setup Blocking US TV PROGRAMS RATINGS: Chart 1 TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA FOR ALL CHILDREN: Content specifically geared to young viewers ages 2-6. FOR AGE 7 AND OLDER: May contain mild physical or comedic violence which may frighten children under 7. GENERAL AUDIENCE: Contains little or no violence, strong language, or sexual dialogue or situations. PARENTAL GUIDANCE: May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations. PARENTS CAUTIONED: May contain sophisticated themes, sexual situations, strong language, and more intense violence. MATURE AUDIENCE: May contain mature themes, profane language, graphic violence, and sexual situations. US TV PROGRAMS RATINGS: Chart 2 FV V S L D Fantasy Violence Violence Sexual Situations Adult Language Sexually Suggestive Dialogue • Ratings highlighted in Green will be blocked. Ratings in white letters will not be blocked. Press ACTION four times to exit this mode. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P30-33 V-chip).p65 32 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. Process of V-Chip Control Feature Enter Code Setup Blocking Blocking Message OPEN/CLOSE FM/TV 10 <When V-Chip Control is activated> • If a program or movie ABC exceeds the ratings you have set, a message PROGRAM RAT I NG EXCEEDED will appear on a black RAT I NG : PG-1 3 background and sound ACCESS CODE ---is muted. ENTER : 0-9 DSS CABLE DVD TE MU LIGHT TIM ER CH R-T UNE + ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU SELECT SET ACTION To View a Blocked Program/Movie CLEAR CH ENTER SU R RO UND VOL VOL RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SLOW/SEARCH SET ACTION [Temporarily Deactivate V-Chip Control] Enter your secret code (ACCESS CODE) in the Blocking Message screen. • V-Chip Control is reactivated when power is turned off or power failure occurs. [Deactivate V-Chip Control] Enter your secret code (steps 1-4 page 30). Then, set US MOVIES and/or US TV and SET. PROGRAMS to “OFF” using (Ratings set on pages 31, 32 is retained and will be in effect when V-Chip Control is activated again.) Advanced Operation 33 20_27DF62 (P30-33 V-chip).p65 33 2002/04/16, 13:43 Video / Audio Menu *Important:If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. This feature allows easy setting of picture and sound suitable for each program source. Video Menu Press ACTION* to display MAIN MENU. LOCK LANGUAGE DVD 53 TV SELECT : END : ACT I ON 3 SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SELECT : END : ACT I ON 4 1 CH CLOCK SET : SET SET UP V I DEO / AUD I O V I DEO V I DEO AUD I O AUD I O MENU : NORMAL ADJUST MENU : MUS I C ADJUST SELECT : SET : SET END : ACT I ON 5 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. 1) Press to select “SET UP VIDEO/AUDIO.” 2) Press SET to display. Do steps 1 - 3 left. 1) Press to select “AUDIO MENU.” 2) Press SET to select desired mode. (See below.) SET UP V I DEO / AUD I O V I DEO V I DEO AUD I O AUD I O MENU : NORMAL ADJUST MENU : MUS I C ADJUST SELECT : SET : SET END : ACT I ON c Press ACTION three times to end setup. [Audio Menu] to 1) Press select “VIDEO MENU.” 2) Press SET repeatedly to select desired mode. (See below.) Press ACTION three times to end setup. ■ NORMAL ■ AUTO [Audio AGC (Auto Gain Control)] The sound level is automatically adjusted to suit the program source (see below left). ■ MOVIE Sound suited to movies. ■ MUSIC Sound suited to music. (Factory setting) ■ SPEECH Sound suited to dialogue. ADD/DLT AUDIO [Video Menu] Standard TV Volume level High CD TV Low Standard TV TV AUDIO MENU : AUTO <Audio AGC Example> MENU SELECT SET SET ACTION SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM ACTION SLOW/SEARCH Notes CD Low AUDIO MENU : NORMAL 34 SUB TITLE DISPLAY TITLE ■ NORMAL Factory setting. ■ MOVIE Picture is adjusted for a movie-like feel. ■ NIGHT Color and picture intensity are adjusted to be easier on the eyes for night viewing. Volume level High ANGLE CLEAR M A I N MENU a b ENTER 1 2 Audio Menu • The effects of this feature on the signal is not output to the Audio/Video Output Connector. • When AUDIO MENU mode is “AUTO,” the AUDIO ADJUST setting will be “STANDARD.” • AUDIO MENU settings remain in memory. • VIDEO MENU settings do not remain in memory. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P34-35 A-V Menu).p65 34 2002/04/16, 13:43 Video / Audio Adjustment Video Adjustment 1 2 Press ACTION to display MAIN MENU. M A I N MENU DVD LOCK LANGUAGE 53 TV SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SELECT : : ACT I ON END 4 1 CH CLOCK SELECT : END : ACT I ON 3 SET : SET SET UP V I DEO / AUD I O V I DEO V I DEO AUD I O AUD I O MENU : NORMAL ADJUST MENU : MUS I C ADJUST SELECT : SET : SET END : ACT I ON 5 Audio Adjustment 1) Press to select “SET UP VIDEO/AUDIO.” 2) Press SET to display. 1) Press to select “VIDEO ADJUST.” 2) Press SET to display. 1) Press to select an item. (See below.) to 2) Press adjust. To Reset VIDEO Controls. and SET to select and set Press “STANDARD.” All controls return to their factory settings. 6 Press ACTION four times to end setup. [VIDEO Adjustment] Press ACTION to display MAIN MENU. M A I N MENU DVD LOCK LANGUAGE 53 TV SELECT : END : ACT I ON c SET : SET SET UP TV CAPT I ON I NPUT SELECT : TUNER SET UP V I DEO / AUD I O FM ANTENNA : I NT REMOTE WARN I NG : ON DVD VOL ADJUST : + 2 SELECT : END : ACT I ON d 1 CH CLOCK SET : SET SET UP V I DEO / AUD I O V I DEO V I DEO AUD I O AUD I O MENU : NORMAL ADJUST MENU : MUS I C ADJUST SELECT : SET : SET END : ACT I ON e AUDIO ADJUST BASS TREBLE BALANCE STANDARD SELECT : ADJUST : END : ACT I ON 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. 1) Press to select “SET UP VIDEO/AUDIO.” 2) Press SET to display. 1) Press to select “AUDIO ADJUST.” 2) Press SET to display. to 1) Press select an item. (See below.) to 2) Press adjust. To Reset AUDIO Controls. and SET to select and set Press “STANDARD.” All controls return to their factory settings. f Press ACTION four times to end setup. [AUDIO Adjustment] ■ COLOR Control Adjust color intensity. ■ TINT Control Adjust for natural flesh tones. ■ BRIGHTNESS Control Adjust picture brightness. ■ PICTURE Control Adjust picture intensity by adjusting both contrast and color level in the proper balance. ■ SHARPNESS Control Adjust picture sharpness. Advanced Operation V I DEO ADJUST COLOR T I NT BR I GHTNESS P I CTURE SHARPNESS STANDARD SELECT : ADJUST : END : ACT I ON 1) Press to select “TV.” 2) Press SET to display SET UP TV screen. a b ■ BASS Control To adjust the intensity of low frequency sound. ■ TREBLE Control To adjust the intensity of high frequency sound. ■ BALANCE Control To adjust the (L/R) unit speaker output level. • The levels set here do not affect other audio equipment when connected to the Audio Output L/R Connector. 35 20_27DF62 (P34-35 A-V Menu).p65 35 2002/04/16, 13:43 Disc Operation Subtitle Language (DVD only) You can select a different subtitle language (if offered) than the one set at the Settings for DVD Operation. (See page 46.) 1 Press SUB TITLE* in Play mode to display the subtitle selection on-screen. Ready Checklist Please read “Basic DVD Operation” on page 16. [Subtitle language (No.)] [Audio soundtrack language (No.)] • Display disappears after 5 seconds. • When no subtitles are offered, “-” will be displayed instead of the language number. 2 1) Press to select desired language. 2) Press (or ) to set. 3) Press (or ) to select “ON” or “OFF.” Te amo Number of subtitle language being played back. ENG English FRA French DEU German ITA Italian ESP Spanish NLD Dutch SVE Swedish NOR Norwegian DAN Danish POR Portuguese RUS Russian Notes JPN Japanese • When closed captioning is used along with subtitles, they may overlap. If so, turn one function off. (See pages 20 and 21.) • If after several presses of the button the language does not change, language selection is not offered on the disc. • Subtitles may not change to the selected language immediately. • When power is turned on again or disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc’s priority language will appear. CHI Chinese KOR Korean MAL Malay VIE Vietnamese THA Thai Audio Soundtrack Language (DVD only) You can change the audio soundtrack language, selected at the Settings for DVD Operation, to a different language if available. (See page 46.) (This operation works only with discs on which multiple audio soundtrack languages are recorded.) a AUDIO: 1 ENG Dolby Digital 3/2.1ch Hello SELECT : b 36 SET : SET Press AUDIO in Play mode to display the audio selection on-screen. • Display disappears after 5 seconds. Audio attribute 1 type, sampling frequency, bit No. of the disc. ∗ Other • Change the No. by pressing and press SET. , [Audio attribute 1 type, sampling frequency, bit No. of the disc (see page 47)] 16bit 20bit 24bit 1ch - 5.1ch 1ch - 5.1ch 96KHz or 48KHz LPCM Dolby Digital dts Linear PCM disc Dolby Digital disc dts disc Notes • If, after several presses of the AUDIO button the language does not change, AUDIO: 3 ESP 1) Press to select Dolby Digital 3/2.1ch language selection is not offered on the desired language. disc. Hola • When power is turned on again or disc Number of the audio is removed, language reverts to initial soundtrack language being setting. If this language is not recorded played back. SELECT : SET : SET on the disc, the language recorded will be heard. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P36-43)Disc OP.p65 36 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again. When appears on the screen while a button is being pushed, it means that the corresponding operation is prohibited by the unit or the disc. Multiple Angle Viewing (DVD only) DVDs may contain scenes shot from multiple camera angles allowing the same scene to be viewed at different angles. You can view these angles, if available, using the ANGLE button. 1 Press ANGLE in Play mode to display the angle selection on-screen. • Display disappears after 5 seconds. ANGLE Indicator Notes AUDIO ANGLE SUB TITLE DISPLAY MENU Number of angle being played back. Vocal selection for Karaoke discs (DVD/Video CD) a b Press AUDIO in Play mode to display the audio screen. 1) Press (or ) to select as shown below. 2) Press (or ) to set. (DVD only) ANGLE SET ACTION RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SELECT • DVD Karaoke (1 vocal) VOCAL ON VOCAL OFF • DVD Karaoke (2 vocals) VOCAL V1 + V2 VOCAL V1 VOCAL V2 VOCAL OFF • Video CD LR L R SET SLOW/SEARCH ZOOM Picture Zoom (DVD only) You can enlarge specific portions of a picture and select the zoom ratio using the ZOOM button on the remote during DVD playback. Notes Set Zoom size. Advanced Operation TITLE AUDIO SUBTITLE ENTER ADD/DLT CLEAR • ANGLE Indicator lights up on the unit when a scene recorded at different angles is detected. • The angle number can be set beforehand so that the angle is switched whenever ANGLE Indicator lights up. 2 1) Press to select the desired angle. • Closed captioning will not be Press ZOOM repeatedly to change display as follows. displayed while Picture Zoom is • You can enlarge the center portion of the image to one of 2 used. To see subtitles, set the magnifications. subtitle feature to ON (see page 36). X 1.0 (ORIGINAL) X 1.5 (ZOOM 1) X 2.0 (ZOOM 2) • The subtitle cannot be enlarged nor can it’s position be changed. 1st press 2nd press • The picture zoom feature does not work with a Video CD. Hello! Hello! ZOOM 1 Hello! ZOOM 2 • During picture zoom, “ZOOM1” or 3rd press “ZOOM2” is displayed on-screen. • Zooming, on some discs, may result ■ Use the , , and buttons to move the position up, in poor picture quality, or may not down, left and right. operate at all. 37 20_27DF62 (P36-43)Disc OP.p65 37 2002/04/16, 13:43 Disc Operation (continued) Title menu (DVD only) Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.) Dogs Cas t l es Love r s B i r ds B i rds of the world 1) Press or number Key(s) to select a title. 2) Press SET or PLAY to start play. • Step 2) not necessary when using number key(s). FM/TV CH DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic steps for using the menu. 3 . ANGLE <Example> b DVD MENU 1 . SUBT I TLE 2 . AUD I O 3 . ANGLE <Example> Repeat step “b” if there is more than one menu. 38 + CH NUMBER keys TITLE CLEAR ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU ACTION SKIP 1 . SUBT I TLE 2 . AUD I O VOL DISPLAY MENU SELECT SET DVD menu (DVD only) DVD MENU TIM ER VOL <Example> a 10 LIGHT DSS CABLE DVD TE MU SU R RO UND 2 T I TLE MENU OPEN/CLOSE UNE <Example> • Pressing TITLE again resumes play from the scene when TITLE was first pressed. R-T B i r ds Love r s CLEAR Dogs ENTER 1 Press TITLE* in Play mode to Cas t l es display title screen. T I TLE MENU PAUSE RETURN PLAY SKIP+ STOP ZOOM SET ACTION PLAY SLOW/SEARCH STOP Press MENU in Play mode to display DVD menu. • Pressing MENU again resumes play from the scene when MENU was first pressed. 1) Press or number key(s) to select an item. 2) Press SET or PLAY to access. • Step 2) not necessary when using number key(s). For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P36-43)Disc OP.p65 38 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV, DVD button on the remote and try the button again. Ready Checklist Program Play (Video CD/CD) You can program specific tracks and order of play. 1 2 Press ACTION in Stop mode to display MAIN MENU. M A I N MENU 1) Press to select “DVD.” LOCK LANGUAGE DVD 2) Press SET to 53 display screen. CH TV CLOCK 1 SELECT : END : ACT I ON 3 1) Press to select “PLAY MODE.” 2) Press SET to display screen. DVD MAIN MENU SELECT SET END 4 1 2 3 4 5 Program Repeat Play (Video CD/CD) a b : : SET : ACTION 1) Press to select “PROGRAM PLAY.” 2) Press SET to display screen. : : SET : ACTION PROGRAM PLAY DISC PROGRAM 6 11 16 5 8 7 12 17 15 6 8 13 18 1 13 9 14 19 3 2 10 15 20 2 Press DISPLAY to display Disc Information screen. (Disc Information Screen) START 1) Press to select a track number. (Track numbers on disc are displayed.) 2) Press SET to set. SET c d : 1 : OFF : SET VIDEO CD 1 : 35 : 12 NEXT : DISPLAY Press DISPLAY again to display Unit Information screen. Press SET to enter Select mode. (“REPEAT OFF” will flash.) (Unit Information Screen) Advanced Operation CLEAR LAST CLEAR ALL SELECT : SET : SET END : ACTION Do steps 1 through 6 on this page. TRACK PBC PLAY MODE SELECT SET END 5 SET : SET Unit is in TV mode, press FM/TV. Video CD or CD is inserted. • Repeat step 5 to select another track. • The selected track is added on the right side. 6 1 6 2 7 3 8 4 9 5 10 PROGRAM PLAY DISC PROGRAM 11 16 5 8 12 17 15 6 13 18 1 13 14 19 3 2 15 20 2 CLEAR LAST CLEAR ALL SELECT : SET : SET END : ACTION START 1) Press to select “START.” 2) Press SET to start play of programs in the sequence selected. SET e : SET END : DISPLAY Press to select “DISC REPEAT.” (Unit Information Screen) • To cancel, press STOP during play, then press CLEAR. PLAY DISC REPEAT PROGRAM PLAY Notes • Up to 15 tracks can be programmed. • “ ” or “ ” (depending on disc) indicates additional PROGRAM PLAY screen. Press for next or previous screen. • To clear the last program one by one, Press to move to “CLEAR LAST” and press SET. (Pressing CLEAR also clears last program.) • To clear all programs, Press to move to “CLEAR ALL” and press SET. (Programs are also cleared when the power is turned off or the disc is removed.) 20_27DF62 (P36-43)Disc OP.p65 39 SELECT : SET : SET f END : DISPLAY Press SET to set mode. (“DISC REPEAT” stops flashing.) To cancel, select “REPEAT OFF” in step e, then press SET. 39 2002/04/16, 13:43 Disc Operation (continued) Random Play (Video CD/CD) Tracks are played in a random order. LOCK LANGUAGE 53 TV 3 10 : : SET : ACTION LIGHT DSS CABLE DVD TE MU SET : SET DVD MAIN MENU SELECT SET END FM/TV TIM ER CH SU R RO UND SELECT : END : ACT I ON 1 CH CLOCK OPEN/CLOSE 1) Press to select “PLAY MODE.” 2) Press SET to display screen. VOL VOL + CH UNE DVD 1) Press to select “DVD.” 2) Press SET to display screen. R-T M A I N MENU ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU CLEAR 2 Press ACTION* in Stop mode to display MAIN MENU. ENTER 1 *Important: If a remote control button does not work when pressed, press the FM/TV button on the remote and try the button again. CLEAR SELECT SET SET ACTION 4 PLAY MODE SELECT SET END 40 : : SET : ACTION 1) Press to select “RANDOM PLAY.” 2) Press SET to begin random play. RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SLOW/SEARCH ACTION STOP • To cancel, press STOP during play, then press CLEAR. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P36-43)Disc OP.p65 40 2002/04/16, 13:43 DVD Operation using On-Screen Displays When DISPLAY is pressed, On-Screen Displays show disc information (title/chapter/track number, elapsed playing time) and unit information (repeat play, Play mode). 1 Ready Checklist Unit is in DVD mode, press DVD. Press DISPLAY in Play or Stop mode to display “On-Screen Display.” • Each press of DISPLAY changes the on-screen display as follows. (Please refer to page 42 or 43.) Selected disc information OPEN/CLOSE LIGHT ➛ Selected unit information FM/TV ➛ 10 TIM ER CH VOL VOL UNE + CH R-T SU R RO UND Normal Screen DSS CABLE DVD TE MU NUMBER keys Note CLEAR • DISPLAY button does not function while DVD 2 1) Press (or ) to select an item. 2) Press SET to set. ANGLE SUB TITLE DISPLAY TITLE MENU ENTER ADD/DLT AUDIO CLEAR TITLE MENU is displayed. SET 1) Press to select the setting. 2) Press SET to set. ACTION DISPLAY SELECT SET RETURN SKIP PLAY SKIP+ PAUSE STOP ZOOM SLOW/SEARCH <Example of DVD> T I TLE : 12 CHAPTER : 11 DVD 0 : 12 : 34 SELECT : SET : SET SELECT : SET : SET DVD 0 : 12 : 34 NEXT : DISPLAY NEXT : DISPLAY To make corrections, press and SET repeatedly to move to error, then correct. • Pressing is effective for elapsing time instead of the above <Example of Video CD> buttons. Press TRACK : 12 VIDEO CD repeatedly to delete PBC : OFF 0 : 12 : 34 the error, then TRACK : 17 VIDEO CD correct. PBC : OFF 0 : 12 : 34 SET : SET SET : SET NEXT : DISPLAY To return to the normal screen, press CLEAR or DISPLAY repeatedly. NEXT : DISPLAY Notes • When DISPLAY is pressed during playback of a Video CD with Playback control, the NUMBER keys are not available on the displayed screen. In this case, press DISPLAY again to remove the displayed screen. appears on the screen • When while a button is being operated, it means that the corresponding operation is prohibited by the unit or the disc. Advanced Operation T I TLE : 12 CHAPTER : 24 • For some functions the setting will be registered immediately without pressing SET. • When numbers are displayed (e.g. title number), the NUMBER keys are also available. 41 20_27DF62 (P36-43)Disc OP.p65 41 2002/04/16, 13:43 DVD Operation using On-Screen Displays (continued) Detailed Descriptions of Each On-Screen Display Disc information screen (for DVD) 1. TITLE No. • Change the No. by pressing keys, and press SET. * or the NUMBER 1 2 T I TLE : 1 CHAPTER : 12 DVD 1 : 12 : 55 3 4 2. Chapter No. • Change the No. by pressing keys, and press SET. or the NUMBER 3. Disc currently being played 4. Elapsed playing time SELECT : SET : SET NEXT : DISPLAY The screen may be changed by selecting the elapsed time. • Change the elapsed time by pressing NUMBER keys, and press SET. (e.g.) 01 : 23 : 45 0➛1➛2➛3➛4➛5 • This function does not work with some discs. Disc information screen (for Video CD/ CD) A. Track No. • Change the No. by pressing keys, and press SET. or the NUMBER B. Playback control ON/OFF A B TRACK PBC : 1 : OFF VIDEO CD 1 : 35 : 12 C D [Video CD with playback control only] ON OFF Video CD menu play is displayed. Video CD menu play is cleared. SET : SET NEXT : DISPLAY C. Disc currently being played Video CD CD D. Elapsed playing time OPEN/CLOSE FM/TV DVD 10 TE MU LIGHT DSS CABLE TIM ER CH VOL VOL R-T UNE + CH ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU CLEAR NUMBER keys ENTER • Track No. and elapsed playing time are not displayed during play started from menu of Video CDs with playback control. • When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by the unit or the disc. SU R RO UND Notes SELECT SET ACTION 42 RETURN SET For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P36-43)Disc OP.p65 42 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again. Detailed Descriptions of Each On-Screen Display Unit information screen • Change the desired mode during play by pressing , and press SET. a. Repeat Play DVD CHAPTER REPEAT TITLE REPEAT Video CD/CD TRACK REPEAT DISC REPEAT REPEAT OFF REPEAT OFF PLAY CHAPTER REPEAT a SELECT : SET : SET END : DISPLAY b. Play mode [Video CD/ CD only] (See page 39 or 40.) PROGRAM PLAY RANDOM PLAY ----- program play random play normal play b PLAY DISC REPEAT RANDOM PLAY : SET END : DISPLAY For your reference • CHAPTER/TITLE REPEAT PLAY (DVD) CURRENT PLAYBACK POSITION • TRACK/DISC REPEAT PLAY (Video CD/CD) CURRENT PLAYBACK POSITION TITLE chapter track chapter chapter CHAPTER REPEAT TITLE REPEAT NORMAL PLAY track Advanced Operation SET track TRACK REPEAT DISK REPEAT NORMAL PLAY 43 20_27DF62 (P36-43)Disc OP.p65 43 2002/04/16, 13:43 MP3 Playback Operation MP3 Playback You can use this unit to play MP3 format audio recorded for personal use with a computer etc. onto a CD-R or CD-RW. Play may not be possible in some cases due to the condition of the recording. ■ MP3 playback (During STOP mode) 1) Press to select an MP3 file ( ). 2) Press SET or PLAY to start playback. 1 2 3 ■ Select folder (During STOP mode) 1) Press to select a folder ( ). 2) Press SET to display files/folders contained in the folder. Press POWER* on the remote or unit. Press OPEN/CLOSE, and then place a MP3 disc into the disc tray. Press OPEN/CLOSE to close. MP3 MENU is displayed and playback is started automatically. (The MP3 CD directory is displayed.) Function Status Counter <Example> PLAY ROOT VA TECHNO POPS JAZZ Folder area (The currently displayed folder turns green) 00 : 00 : 00 MP3 MENU .. END_WALTZ DD_CUB I C NOCTURNE NORN Parent folder File area (The selected MP3 file/folder is displayed with a cursor.) PLAY MODE : NORMAL <Example> PLAY MODE ROOT : MP3 file : Folder : Parent folder VA END_WALTZ DD_CUB I C NOCTURNE NORN TECHNO POPS JAZZ (The MP3 CD directory structure displayed in the above example OSD is shown in the diagram at left.) ■ Forward/Reverse Search Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release. • Search speed, slow at first, increases with each additional press of the button up to 4 levels. ■ Forward/Reverse Track Skip Press SKIP | or | SKIP during play. Each press skips a track. • If pressed within first 3 seconds of playback, skips to the previous track. If over 3 seconds, returns to first track. (| SKIP only.) • Only the SKIP | or | SKIP button can be used for track skip selection during playback. Put unit in Stop mode before performing folder/file selection (see above right.) 4 5 44 ■ Select parent folder (During STOP mode) 1) Press to select a folder ( ). 2) Press SET to make changes to the previous directory display. Note • Folder area operation cannot be done. Only file area operation is possible. ■ Select PLAY MODE (During STOP mode) 1) Press to move cursor to PLAY MODE. 2) Press to select the desired PLAY MODE (see below). [PLAY MODE] NORMAL: All MP3 files are selected and played back one time only. SINGLE REPEAT: The selected MP3 file is played back repeatedly. FOLDER REPEAT: The MP3 files contained in the selected folder are played back repeatedly. However, folders below the selected folder are not played back. DISC REPEAT: All MP3 files are played back repeatedly. Press STOP to stop playing. Press OPEN/CLOSE to eject the disc. The MP3 MENU is closed automatically. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P44-45 DVD).p65 44 2002/04/16, 13:43 DVD Lock Feature *Important: If a remote control button does not work when pressed, press the FM/TV, DVD button on the remote and try the button again. You can prevent playback of DVDs with a specific rating level which may be unsuitable for children. • Some DVDs are encoded with a rating level. If the disc rating is higher (stricter) than the one you preset, playback will be prohibited. Caution Discs not encoded with a rating level will play even if the jacket states it is for mature audiences. For these discs, the DVD Lock Ratings will not work. ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU ENTER Perform DVD Lock setting in TV mode. Enter your secret code to display LOCK menu. (Perform “Enter Secret Code” steps on page 30.) CLEAR DVD Lock Ratings (DVD only) SELECT SET 1 LOCK US MOV I ES : OFF CHANGE SETT I NGS US TV PROGRAMS : OFF CHANGE SETT I NGS DVD LOCK : OFF CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON 1) Press to select “DVD LOCK.” 2) Press SET to set “ON” or “OFF.” ACTION SKIP PAUSE SET RETURN PLAY SKIP+ STOP ZOOM ACTION SLOW/SEARCH ■ “ON” ➛ DVD Lock is activated. ■ “OFF” ➛ DVD Lock is deactivated. 2 LOCK 1) Press to select “CHANGE SETTINGS.” 2) Press SET to display screen. <When DVD Lock is activated> YOUR SELECTION EXCEEDS THE , PLAYER S RATING LIMIT. DO YOU WANT TO CHANGE THE LIMIT? Advanced Operation US MOV I ES : OFF CHANGE SETT I NGS US TV PROGRAMS : OFF CHANGE SETT I NGS DVD LOCK : OFF CHANGE SETT I NGS NEXT PAGE SELECT : SET : SET END : ACT I ON YES 3 1 2 3 4 UNLOCKED 5 6 7 8 LOCK ALL SELECT : END : ACT I ON SET : SET 1) Press to select rating level. 2) Press SET to select “LOCKED” or “UNLOCKED.” LEVEL 1 : LOCK ALL: Playback of all DVDs, CDs and Video CDs is prohibited. (Use to prohibit play of mature theme DVDs not encoded with a rating level.) LEVEL 2 : DVDs expressly for children can be played back. LEVEL 3 to 7 : DVDs for general audiences/children can be played back. (DVDs with mature content are prohibited.) LEVEL 8 : NO LIMIT: (Factory preset) All DVDs can be played back. • Ratings which are highlighted in Green will be blocked; those not highlighted (white letters) will not be blocked. 4 Press ACTION three times to end setup. NO SELECT : SET : SET END : DISPLAY After DVD Lock is set and a blocked DVD is played, this message will appear. The message may differ depending on the disc. To continue viewing a blocked program for now, to select “YES” and Press SET. Then, enter your 4-digit secret code. When “NO” is selected, blocked programs cannot be viewed. To change DVD LOCK settings After entering your secret code in step 3 on page 30, select “OFF” to deactivate DVD Lock or change the rating level. 45 20_27DF62 (P44-45 DVD).p65 45 2002/04/16, 13:43 Settings for DVD Operation 1 2 Press ACTION* in Stop mode to display MAIN MENU. M A I N MENU DVD LOCK LANGUAGE 53 TV SELECT : END : ACT I ON 3 1 CH CLOCK SET : SET DVD MAIN MENU DISC LANGUAGES AUDIO OUTPUT ST I L L MODE : AUTO TV MODE : Letterbox SELECT SET END 1) Press to select “DVD.” 2) Press SET to display screen. Once initial settings are done, they remain in memory (even after the power is off) until changed. This means the unit will always operate under the same conditions (especially DVDs) each time. Ready Checklist Unit is in TV mode, press FM/TV. 1) Press to select an item. 2) Press SET to set. : : SET : ACTION DISC LANGUAGES (See below.) Any languages offered on the disc can be set. If a language not offered is set, the original disc language will be selected. AUDIO OUTPUT (See page 47.) You can set the audio output that comes from the digital audio output terminal. “AUDIO” selections To select “FIELD” or “FRAME” to prevent jitter or to make small text or fine patterns clearly visible in a still picture. When “AUTO” is set, “FIELD” or “FRAME” is selected automatically. To select the audio soundtrack language. (factory preset: English) English/Spanish/French/Japanese Original: Original disc language OTHER ✱✱✱✱: Other language selection*1 TV MODE (See page 48.) “SUBTITLE” selections STILL MODE (See page 48.) To select whether the video material for a wide-screen will be played back in Pan & Scan style or in Letterbox style. DISC LANGUAGES (DVD only) To select and set the language of the audio soundtrack, subtitles, or title/DVD menus for all discs to be played. 4 DVD MAIN MENU DISC LANGUAGES AUDIO OUTPUT ST I L L MODE : AUTO TV MODE : Letterbox SELECT SET END 5 6 46 : : SET : ACTION DISC LANGUAGES AUDIO SUBT I TLE MENUS SELECT SET END 1) Press to select “DISC LANGUAGES.” 2) Press SET to display screen. : English : AUTO : English : : SET : ACTION 1) Press to select an item. 2) Press SET repeatedly for desired language. (Please refer right.) Press ACTION to redisplay DVD menu and go to step 3 to setup another item. Or, press ACTION three times to exit. To select the subtitle language. (Factory preset: AUTO) AUTO: Same language selected for “AUDIO” • If language set for “AUDIO” is used in playback, subtitles will not appear. • If another language is used during playback, the subtitles will appear in the language selected at “AUDIO” setup. English/Spanish/French/Japanese OTHER ✱✱✱✱: Other language selection*1 “MENUS” selections (factory preset: English) To select the language used in title menus or DVD menus. English/Spanish/French/Japanese OTHER ✱✱✱✱: Other language selection*1 To enter OTHER ✱✱✱✱ code number, Press number keys (Please refer to language codes on page 49). To make corrections, press repeatedly to delete language code number, and correct. *1 If the selected language is not offered, the original disc language is selected. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P46-49 Setting DVD).p65 46 2002/04/16, 13:43 *Important: If a remote control button does not work when pressed, press the FM/TV, DVD button on the remote and try the button again. AUDIO OUTPUT Select the digital output to be output from the optical digital audio output connector of the unit. 1 2 Do steps 1 and 2 on page 46. DVD MAIN MENU DISC LANGUAGES AUDIO OUTPUT ST I L L MODE : F I ELD TV MODE : Letterbox SELECT SET END 3 : : SET : ACTION AUDIO OUTPUT LPCM(DVD) Dolby Digital dts DRC SURROUND SELECT SET END 1) Press to select “AUDIO OUTPUT.” 2) Press SET to display screen. : OFF : Bitstream : OFF : OFF : OFF : : SET : ACTION 1) Press to select an item. 2) Press SET repeatedly for output. (See below.) ■ “LPCM (DVD)” selections ■ “Dolby Digital” selections Bitstream: OFF: Dolby Digital bitstream (1ch-5.1ch) is output. (Factory preset) No output. ■ “dts” selections Bitstream: OFF: dts bitstream is output. (Factory preset) No output. ■ “DRC (Dynamic Range Compression)” selections OFF: Normal audio range is selected. (Factory preset) ON: For dynamic sound even at low volume, this is useful for late-night listening. [Dolby Digital DVDs only]. Recommended setting LPCM (DVD) No amplifier is connected OFF Dolby Digital OFF OFF AV amplifier (with digital audio input connector) without Dolby Digital/dts decoder PCM*1 OFF*2 OFF*2 AV amplifier including Dolby Digital decoder PCM*1 Bitstream dts OFF AV amplifier including 1 *3 Dolby Digital/dts decoder PCM* Bitstream Bitstream • Make settings according to amplifier connected to optical audio output as shown in above table. • When a dts decoder is not connected, to enjoy dts DVD, please select audio output other than dts on the dts DVD menu screen. Otherwise, there will be no sound from the unit speakers. *1 Audio output from unit is converted to 48 kHz/16 bit in addition to audio from digital audio output. To enjoy high quality sound at 48 kHz/ 20 bit /24 bit or 96 kHz, connect the amplifier or decoder directly to the audio output connectors, not to the digital audio output connector. [Select “OFF” at the “LPCM (DVD)”.] *2 When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or dts decoder, be sure to select “OFF”. If “Bitstream” is selected, starting DVD play may cause such a high level of noise as to be harmful to your ears and damage the speakers. *3 When a dts decoder is connected, please select “Bitstream” in “dts”. If “OFF” is selected, there will be no sound. ■ “SURROUND” selections Surround Sound creates the effect of sound coming from non-existent rear speakers even when only connected to Notes a 2-channel stereo system. OFF: No Surround Sound effect. (Factory preset) • Turn off other surround effects when ON: Surround Sound effect. using this surround effect. • For optimum effect, the distance between the unit and the listener should be about Press ACTION to redisplay DVD menu 3 or 4 times the distance between the and go to step 2 to setup another item. right and left front speakers. 4 Or, press ACTION three times to exit. 47 20_27DF62 (P46-49 Setting DVD).p65 47 2002/04/16, 13:43 Advanced Operation OFF: Linear PCM of less than 48 kHz/16 bit is output. When playing DVDs recorded in linear PCM of over 48 kHz/20 bit or 96 kHz, no digital audio is output. (Factory preset) PCM: When playing DVDs recorded in linear PCM of 48 kHz/20 bit/24 bit or 96 kHz, digital audio converted to 48 kHz/16 bit is output. (Digital output of PCM audio is restricted to 48 kHz/16 bit or below for copyright protection.) Type of amplifier to be connected Settings for DVD Operation (continued) STILL MODE Set to reduce jitter in a displayed still picture or a motion picture. Do steps 1 and 2 on page 46. OPEN/CLOSE SELECT SET END : : SET : ACTION DSS CABLE DVD 10 TE MU TIM ER CH VOL VOL + CH ADD/DLT AUDIO ANGLE SUB TITLE DISPLAY TITLE MENU CLEAR AUTO: ENTER “FIELD” (Field still) or “FRAME” (Frame still) is automatically selected during the still mode. (Factory preset) FIELD: “FIELD” (Field still) is always selected. This setting will reduce jitter when compared with “AUTO” on some discs. FRAME: “FRAME” (Frame still) is always selected. Some texts and fine patterns will be seen clearly when compared with “AUTO” on some discs. FM/TV UNE 1) Press * to select “STILL MODE.” 2) Press SET repeatedly for mode. (See below) LIGHT R-T DVD MAIN MENU DISC LANGUAGES AUDIO OUTPUT ST I L L MODE : F I ELD TV MODE : Letterbox SU R RO UND 1 2 *Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again. SELECT SET ACTION SKIP PAUSE RETURN PLAY SKIP+ STOP ZOOM SLOW/SEARCH 3 SET ACTION Press ACTION twice to exit this mode. Selecting TV MODE Set the screen display style for widescreen video material playback. a b Do steps 1 and 2 on page 46. DVD MAIN MENU DISC LANGUAGES AUDIO OUTPUT ST I L L MODE : F I LED TV MODE : Letterbox SELECT SET END : : SET : ACTION 48 • Pan & Scan (Factory preset) 1) Press to select “TV MODE.” 2) Press SET repeatedly for mode. (See below.) Pan & Scan : Widescreen video data is played in Pan (Factory preset) & Scan style (left and right of screen is trimmed.) • Video data not formatted in Pan & Scan will play in letterbox style. Letterbox : Widescreen video data is played in Letterbox style (top and bottom of screen has black margin). c Example • Letterbox Press ACTION twice to exit this mode. For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P46-49 Setting DVD).p65 48 2002/04/16, 13:43 Language Code List Enter the appropriate code number for the initial settings “AUDIO”, “SUBTITLE” and/ or “MENUS” (see page 46). Code Language Code Language Code Language Code Language 7079 Faroese 7678 Lingala 8375 Slovak 6566 Abkhazian 7082 French 7679 Laothian 8376 Slovenian 6570 Afrikaans 7089 Frisian 7684 Lithuanian 8377 Samoan 6577 Ameharic 7165 Irish 7686 Latvian, Lettish 8378 Shona 6582 Arabic 7168 Scots Gaelic 7771 Malagasy 8379 Somali 6583 Assamese 7176 Galician 7773 Maori 8381 Albanian 6588 Aymara 7178 Guarani 7775 Macedonian 8382 Serbian 6590 Azerbaijani 7185 Gujarati 7776 Malayalam 8385 Sundanese 6665 Bashkir 7265 Hausa 7778 Mongolian 8386 Swedish 6669 Byelorussian 7273 Hindi 7779 Moldavian 8387 Swahili 6671 Bulgarian 7282 Croatian 7782 Marathi 8465 Tamil 6672 Bihari 7285 Hungarian 7783 Malay 8469 Telugu 6678 Bengali;Bangla 7289 Armenian 7784 Maltese 8471 Tajik 6679 Tibetan 7365 Interlingua 7789 Burmese 8472 Thai 6682 Breton 7378 Indonesian 7865 Nauru 8473 Tigrinya 6765 Catalan 7383 Icelandic 7869 Nepali 8475 Turkmen 6779 Corsican 7384 Italian 7876 Dutch 8476 Tagalog 6783 Czech 7387 Hebrew 7879 Norwegian 8479 Tonga 6789 Welsh 7465 Japanese 7982 Oriya 8482 Turkish 6865 Danish 7473 Yiddish 8065 Panjabi 8484 Tatar 6869 German 7487 Javanese 8076 Polish 8487 Twi 6890 Bhutani 7565 Georgian 8083 Pashto, Pushto 8575 Ukrainian 6976 Greek 7575 Kazakh 8084 Portuguese 8582 Urdu 6978 English 7576 Greenlandic 8185 Quechua 8590 Uzbek 6979 Esperanto 7577 Cambodian 8277 Rhaeto-Romance 8673 Vietnamese 6983 Spanish 7578 Kannada 8279 Romanian 8679 Volapük 6984 Estonian 7579 Korean 8285 Russian 8779 Wolof 6985 Basque 7583 Kashmiri 8365 Sanskrit 8872 Xhosa 7065 Persian 7585 Kurdish 8368 Sindhi 8979 Yoruba 7073 Finnish 7589 Kirghiz 8372 Serbo-Croatian 9072 Chinese 7074 Fiji 7665 Latin 8373 Singhalese 9085 Zulu 49 20_27DF62 (P46-49 Setting DVD).p65 49 2002/04/16, 13:43 Advanced Operation 6565 Afar Before Requesting Service Check the following points once again if you are having trouble with your unit. Power Correction No power… • Completely insert Power Plug into an AC outlet. • Set POWER button to ON. Power turns itself off... • Auto power-off (shutoff) occurs after about 5 min. in DVD mode with no operation, or if there is no broadcast signal in TV mode. Turn the power back on. (P. 17, 28) Monitor Correction No picture or sound... • Make sure your antenna system (TV or CABLE), is correctly set. (P. 10) • Completely insert Power Plug into an AC outlet. • Set POWER button to ON. Poor picture with normal sound... • Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP Video Adjustment. (P. 35) Poor sound with normal picture... • Adjust VOLUME control. (P. 18) Poor TV reception... • Adjust SHARPNESS and PICTURE controls in the SET UP Video Adjustment. (P. 35) No color or poor color... • Adjust TINT and COLOR controls in the SET UP Video Adjustment. (P. 35) Ghost (multiple) images... • Install a directional antenna. TV programs cannot be watched... • Make sure the selected channel is in unit’s memory. (P. 12) Remote Control Correction Unit cannot be controlled... • • • • Aim Remote directly at the remote sensor on the unit. (P. 9) Avoid any object blocking signal path. Inspect the remote batteries. (P. 4) Exposing unit remote sensor to direct fluorescent or outdoor light may cause signal interference. ACTION, SELECT, SET, POWER, etc. buttons cannot be selected... • • • • Press FM/TV for TV mode. (P. 26) Press DVD for DVD mode. (P. 26) Press FM/TV for FM mode. (P. 26) Check remote batteries. If you cannot resolve the problem, please call the Customer Call Center for product assistance at 1-800-211-PANA (7262.) To locate an authorized servicenter, please call toll free 1-800-211-PANA (7262.) or send e-mail to : [email protected] 50 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P50-51 Before Req.).p65 50 2002/04/16, 13:43 DVD/Video CD/CD Correction Play fails to start even when PLAY is pressed... • This unit cannot play discs other than DVDs, Video CDs and CDs. • The disc may be dirty and require cleaning. Play starts but then stops immediately... • Be sure disc is installed with label side up. Picture is distorted during rapid advance or rapid reverse... • The picture will be somewhat distorted at times: this is normal. No Forward/Reverse search play... • Some discs may have sections which prohibit Forward/Reverse search. (P. 17) Play does not start even when title is selected... • Confirm the “DVD LOCK” setting. (P. 45) Audio soundtrack and/or subtitle language is not the one selected at the initial settings... • If the audio soundtrack and/or subtitle language selected at DVD initial settings does not exist on the disc, it will not be accessible. No subtitles... • Subtitles appear only when available on disc. • Select “ON” at the “Changing subtitle language” section (P. 36) to display subtitles. Alternative audio soundtrack (or subtitle) language cannot be selected... • Alternative language cannot be selected with discs which do not contain more than one language. • For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button. Try selecting it from the DVD menu if available. Angle cannot be changed... • This function is dependent on software availability. Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE Indicator on unit lights up). (P. 37) Miscellaneous Correction The disc cannot be removed... • First, unplug unit. Then, prepare a rigid wire (e.g. an extended paper clip, etc.) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc. (P. 6) Warning and Instruction Displays These displays will alert you of a missed operation or provide further instructions. Caution OSD Page • If you attempt to set the On-Timer and the Clock is not set... 12 PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC • If you press PLAY, or the unit reads data from a stained or scratched disc in DVD mode. Also, if the type of disc is other than DVD, Video CD or CD... 7 For Your Information PLEASE SET CLOCK BEFORE TIMER SETTING 51 20_27DF62 (P50-51 Before Req.).p65 51 2002/04/16, 13:43 Limited Warranty PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA One Panasonic Way Secaucus, New Jersey 07094 PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC., AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Panasonic/Quasar Video Products Limited Warranty Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor. Parts Product Labor Ninety (90) Days Camcorder One (1) Year (except CCD Image Sensor) CCD Image Sensor - 6 (Six) Months DVD/VCR Deck, A/V Mixer One (1) Year TV/VCR, TV/DVD, TV/DVD/VCR Combination One (1) Year (except CRT) CRT - Two (2) Years TV/HDR Combination One (1) Year (except CRT) CRT - Two (2) Years Ninety (90) Days Ten (10) Days Rechargeable Batteries (in exchange for defective item) Tape (in exchange for defective item) Memory Cards (in exchange for defective item) Service Contact Number Carry-In or Mail-In 1-800-211-PANA(7262) Ninety (90) Days Carry-In or Mail-In 1-800-211-PANA(7262) Ninety (90) Days Carry-In: 21” CRT and Smaller In-Home or Carry-In: 22” CRT and Larger 1-800-211-PANA(7262) In-Home or Carry-In 1-888-843-9788 Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262) Five (5) Days Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262) Ninety (90) Days Not Applicable Carry-In or Mail-In 1-800-211-PANA(7262) Ninety (90) Days Ninety (90) Days Ninety (90) Days During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service. Carry-In, Mail-in or In-Home Service For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit Panasonic Web Site: http://www.panasonic.com For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then returned. 52 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P52-53 Warranty).p65 52 2002/04/16, 13:43 Limited Warranty Limits And Exclusions This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fixed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor. PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY. Customer Services Directory For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact: 1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 9 am-7 pm, EST. or send e-mail : [email protected] Web Site: http://www.panasonic.com You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site. Service in Puerto Rico Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter: Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787)750-4300 Fax (787)768-2910 As of February 2002 20_27DF62 (P52-53 Warranty).p65 53 53 2002/04/16, 13:43 For Your Information Accessory Purchases: 1-800-332-5368 (Customer Orders Only) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST) (Visa, MasterCard, Discover Card, American Express, Check) Spanish Quick Use Guide/Guía para rápida consulta Conecte por favor todas las conexiones del cable o de la antena antes de turing potencia. Conectando Para Ant./Cable Conecte Ant./Cable a la entrada de antena de la TV (VHF/UHF). VHF/UHF Ant./Cable Unidad Para Sistema Digital de Satelite (DSS)/Convertidor de cable Conecte la salida del convertidor de cable la “VFH/UHF” con el RF cable. VHF/UHF Convertidoe de cable VHF/UHF VHF/UHF Realizando Configuración Inicial 1 Tape el cable electrico de la unidad en el enchufe de pared de la CA. 2 POWER de la prensa en el telecontrol o la unidad. La unidad se adelanta y comienzo auto del canal y del reloj. 3 Selecciones se realizaran automaticamente cuando la configuracion termine, la pantalla siguiente aparecera. 2 / 6 / 2002 WEDDST 12 :: ON 00PM SETT I NG : CH 1 0 AUTO CLOCK SET COMPLETED CH AUTO SET PROCEEDING AUTO CLOCK SET Si usa convertidor de cable, enciendala y seleccione el Servicio Publico de Canales de Television (PBS) en su horario de uso o tiempo de su zona. Si utiliza receptor DSS este debe de estar apagado. Si “AUTO CLOCK SET IS INCOMPLETE” aparece en pantalla, coloque el tiempo usando el procedimiento manual (MANUAL CLOCK SET). Vea el “Ajuste Manual del Reloj” en la proxima pagina. AUTO CLOCK SET I S I NCOMPLETE PROCEEDING PLEASE SET CLOCK BY PRESS I NG ACT I ON KEY CANCEL : PRESS STOP KEY 54 Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail : [email protected] 20_27DF62 (P54-61 Spanish).p65 54 2002/04/16, 13:43 Ajuste Manual del Reloj Si el ajuste automático del reloj no se ha completado, ajuste el reloj manualmente de la siguiente manera. 1 Presione la tecla ACTION en el control remoto para visualizar la pantalla del menú RELOJ. SET CLOCK DST : ON SELE CT MONTH 2 Presione ▲▼ para seleccionar el mes y SET para ajustar. De la misma forma, seleccione y ajuste la fecha, año, hora y DST (Hora de Verano). 3 Presione dos veces la tecla ACTION para poner el RELOJ en marcha y salir. SELECT : SET : SET END : ACT I ON Ajustar de nuevo el reloj 1 2 Presione ACTION para exhiba el menú. M A I N MENU DVD LOCK LANGUAGE 53 TV CH CLOCK SELECT : END : ACT I ON 3 1 Presione ▲▼ para seleccionar “RELOJ”. Presione SET. SET : SET SET CLOCK AUTO CLOCK SET MANUAL T I ME ZONE ADJUST : 0 Presione ▲▼ para seleccionar “MANUAL” y luego presione SET. SELECT : SET : SET END : ACT I ON SET CLOCK 2 / 6/2002 WED 12: 00PM DST : ON SELE CT HOUR SELECT : SET : SET END : ACT I ON 5 Presione ▲▼ y SET para seleccionar y ajustar la hora y la fecha. For Your Information 4 BACK : Presione ACTION dos veces para que el reloj comience a funcionar y salir desde este modo. 55 20_27DF62 (P54-61 Spanish).p65 55 2002/04/16, 13:43 Spanish Quick Use Guide/Guía para rápida consulta Operaciones básicas del DVD 1 2 Presione POWER en el control remoto o el aparato. Introducir un disco. 1) Presione OPEN/CLOSE. 2) Ponga un disco en la bandeja de disco. • Sujete el disco sin tocar ninguna de sus superficies, póngalo con el lado donde esté impreso el título hacia arriba, alinéelo con las guías y póngalo en su posición apropiada. 1 Disco de 3”(8 cm) 2 Disco de 5” (12 cm) 3 1 2 Iniciar la reproducción Presione PLAY. La bandeja del disco se cierra automáticamente. • Si está usando un DVD interactivo (Interactive DVD) o un Vídeo CD con contol de reproducción (playback control) y aparece un menú de títulos (TITLE MENU) en la pantalla, siga al paso 5. 4 Elija el artículo deseado. 1) Presione o las teclas numéricas. 2) Presione SET para la reproducción. Si usa las teclas numéricas, la reproducción comienza automáticamente. 5 Parar la reproducción. Presione STOP. 6 Expulsar el disco. Presione OPEN/CLOSE. ■ Para buscar una escena particular Búsqueda hacia adelante Presione SLOW en el modo de reproducción. Búsqueda hacia atrás en el modo de reproducción. Presione SLOW (Para liberar, presione PLAY) ■ Para saltar un capítulo o una pista Salto hacia adelante Presione SKIP l en el modo de reproducción. Un capítulo (DVD) o una pista (Vídeo CD/CD) se salta cada ves que se oprime la tecla. Salto hacia atrás Presione l SKIP en el modo de reproducción. ■ Para ver imágenes cuadro a cuadro (DVD/Vídeo CD) Presione PAUSE en el modo de imagen fija. La imagen avanza un cuadro cada vez que presiona la tecla. (Para volver a la reproducción normal, presione PLAY.) ■ Para ver en cámara lenta (DVD/Vídeo CD) Presione SLOW o SLOW de imagen fija. (Para liberar, presione PLAY) en el modo ■ Para ver una imagen fija Presione PAUSE durante la reproducción. (Para liberar, presione PLAY) 56 Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail : [email protected] 20_27DF62 (P54-61 Spanish).p65 56 2002/04/16, 13:43 Cambio del idioma de subtítulos [DVD solamente] EI idioma de los subtítulos seleccionado al hacer las fijaciones iniciales se puede cambiar por otro idioma diferente, si éste se encuentra disponible. 1 SUBTITULO : 1 ENG ACTI VO I love you ELEGI R : 2 FI JAR : SET SUBTITULO : 3 ESP ACTI VO Te amo ELEGI R : FI JAR : SET Presione SUBTITLE durante la reproducción. • Cuando no haya subtítulos grabados, “-” se visualizará en lugar del número de idioma. Seleccionar el idioma deseado. 1) Presione para seleccionar idioma. 2) Presione (o ) para ajustar. 3) Presione (o ) para seleccionar “ACTIVO” o “INACTIVO.” Utilización de un menu de DVD [DVD solamente] Algunos discos DVD tienen estructuras únicas de menús llamadas menús DVD. Por ejemplo, los DVDs programados con un contenido complejo proporcionan menús guía, y los grabados con varios idiomas proporcionan menús para audio e idiomas de subtítulos. Aunque los contenidos de los menús DVD y la operación cambian de disco a disco, a continuación se explica la operación básica cuando se utiliza esta característica. 1 2 Selección de vocal para los discos de Karaoke [DVD/Video CD] 1 2 DVD MENU 1 . SUBT I TLE 2 . AUD I O 3 . ANGLE Presione AUDIO durante la reproducción. SONIDO: 2 ENG VOZ ACTI VO FI JAR : SET 1) Presione (o ) para seleccionar. 2) Presione (o ) para ajustar. (DVD solamente) Cambio del idioma de la pista de sonido [DVD solamente] EI idioma de la pista de sonido seleccionado al hacer las fijaciones iniciales se puede cambiar por otro idioma diferente, si éste se encuentra disponible. Hello ELEGI R : Visualizar la pantalla AUDIO. Utilización de un menú de títulos [DVD solamente] Algunos discos con películas, por ejemplo, vienen con dos o más títulos. Si el disco tiene un menú de títulos grabados, el botón TITLE podrá utilizarse para seleccionar el título de la película. 1 2 Presione TITLE durante la reproducción. Ahora se visualiza una lista de los títulos del disco. T I TLE MENU Dogs Cas t l es Love r s B i r ds Presione AUDIO durante la reproducción. Dogs of the world FI JAR : SET SONIDO: 3 ESP Dolby Digital 3/2.1ch Hola Seleccionar el idioma deseado. Presione idioma. ELEGI R : 1) Presione o las teclas numéricas para seleccionar. 2) Presione SET o PLAY. para seleccionar Seleccionar el título deseado. 1) Presione o las teclas numéricas seleccionar. 2) Presione SET o PLAY. 57 FI JAR : SET 20_27DF62 (P54-61 Spanish).p65 57 2002/04/16, 13:43 For Your Information SONIDO: 1 ENG Dolby Digital 3/2.1ch Seleccionar el ítem deseado. Seleccionar el ajuste deseado. • DVD Karaoke (1 vocal) VOCAL ON➛ ➛ VOCAL OFF • DVD Karaoke (2 vocales) ➛ VOCAL➛ ➛ V1VOCAL V2➛ ➛ VOCAL OFF VOCAL V1+V2➛ ➛ L➛ ➛R • Video CD LR➛ 2 El menú de DVD introducido en el disco se visualiza ahora. Visualizar la pantalla AUDIO. ELEGI R : 1 Presione MENU durante la reproducción. Spanish Quick Use Guide/Guía para rápida consulta Visión desde otro ángulo [DVD solamente] Algunos discos DVD tienen escenas que han sido filmadas simultáneamente desde un número de ángulos diferentes. Con estos discos, la misma escena podrá verse desde cada uno de estos ángulos diferentes utilizando el botón ANGLE. 1 Presione ANGLE durante la reproducción. ELEGIR : 2 Visualizar la pantalla de ángulo. ANGULO : 1 Funcionnamiento del DVD utilizando visualizaciones en pantalla Cuando se presiona DISPLAY, la visualización en pantalla muestra la información del disco (título / capítulo / número de lista, tiempo transcurrido de reproducción, audio / idioma del subtítulo, y ángulo) e información (repetir la reproducción, modo reproducción, Karaoke vocal encendido / apagado, etc.). 1 FIJAR : SET Seleccionar el ángulo deseado. ANGULO ANGULO : 2 Presione DISPLAY en el modo reproducción o parada. • Cada vez que se presione DISPLAY, la visualización en pantalla cambia como se muestra a continuación. Información seleccionada del disco ➛ Presione para seleccionar. Selected unit information Información seleccionada de la unidad FIJAR : SET ➛ ELEGIR : Visualizar Visualizaciones en pantalla. Normal Pantalla normal Screen 2 Ampliación de la imagen [DVD solamente] Durante la reproducción de un DVD, puede ampliar partes específicas de una imagen y seleccionar la relación de zoom usando el botón ZOOM del control remoto. 3 Selección del ítem deseado 1) Presione (o ) para seleccionar. 2) Presione SET para ajustar <Ejemplo de DVD> T I TULO : 12 CAPITULO: 11 DVD 0 : 12 : 34 T I TULO : 12 CAPITULO: 24 Seleccione el tamaño de la imagen. Presione ZOOM repetidamente para cambiar el tamaño de la imagen como se indica a continuación: DVD 0 : 12 : 34 ELEGIR : FIJAR : SET SIGUIENTE: DISPLAY Selección del ajuste deseado 1) Presione para seleccionar. 2) Presione SET para ajustar. ELEGIR : FIJAR : SET SIGUIENTE: DISPLAY <Ejemplo de Vídeo CD> PISTA PBC : 12 : INACTIVO PISTA PBC ■ Use los botones y para desplazar la posición hacia arriba o hacia abajo. ■ Use los botones y para desplazar la posición hacia la izquierda o hacia la derecha. 58 FIJAR VIDEO CD 0 : 12 : 34 : 17 : INACTIVO VIDEO CD 0 : 12 : 34 Para volver a la pantalla normal, Presione repetidamente CLEAR o DISPLAY. : SET SIGUIENTE: DISPLAY FIJAR : SET SIGUIENTE: DISPLAY Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail : [email protected] 20_27DF62 (P54-61 Spanish).p65 58 2002/04/16, 13:43 Reproducción programada [Vídeo CD/CD] Puede usted programar pistas específicas y el orden de reproducción. • Vídeo CD o CD es insertado en el modeo DVD. 1 2 Visualizar MAIN MENU. Presione ACTION en el modo parada. Vísualizar la pantalla DVD. MENU PRINCIPAL DVD BLOQUEO IDIOMA 5 TV RELOJ 3 1 1) Presione para seleccionar “DVD.” 2) Presione SET para visualizar. CANAL ELEGIR : FIJAR : SET TERMINAR : ACT I ON 3 DVD MENU PRINCIPAL IDIOMAS DEL DISCO SALIDA DE AUDIO DETENER RASTREO : CAMPO 4 : 3 PREFERENCIA : L e t t e r b o x MODO DE REPRODUCCI ON ELEGIR FIJAR TERMINAR 4 MODO DE REPRODUCCION REPRODUCCI ON DE PROGRAMAS REPRODUCCION ALEATORIA ELEGIR FIJAR TERMINAR 5 : : SET : ACTION 6 REPRODUCCION DE PROGRAMAS DISCO PROGRAMA 1 6 11 16 5 8 2 7 12 17 15 6 3 8 13 18 1 13 4 9 14 19 3 2 5 10 15 20 2 INICIAR REPRODUCCION DE PROGRAMAS DISCO PROGRAMA 1 6 11 16 5 8 2 7 12 17 15 6 3 8 13 18 1 13 4 9 14 19 3 2 5 10 15 20 2 BORRAR EL ULTIMO BORRAR TODO ELEGIR : FIJAR : SET TERMINAR : ACTION 1) Presione para seleccionar. 2) Presione SET para visualizar. Seleccionar “REPRODUCCION DE PROGRAMAS.” 1) Presione para seleccionar. 2) Presione SET para visualizar. : : SET : ACTION BORRAR EL ULTIMO BORRAR TODO ELEGIR : FIJAR : SET TERMINAR : ACTION Seleccionar “MODO DE REPRODUCCION.” INICI AR Seleccionar el número de la pista deseada. (Se visualizan los números de la pista del disco). 1) Presione para seleccionar. 2) Presione SET para seleccionar. • Repita el paso 5 para seleccionar otra pista. • La pista seleccionada se añade a la parte derecha. Comenzar “REPRODUCCION DE PROGRAMAS.” 1) Presione para seleccionar “INICIAR.” 2) Presione SET. • La reproducción comienza en la secuencia programada. • Para cancelar, pulsar STOP durante la reproducción y luego presione CLEAR. For Your Information Reproducción arbitraria [Vídeo CD/CD] Las pistas se reproducen de forma arbitraria. 1 2 Repita los pasos 1-3 de la página anterior. MODO DE REPRODUCCION REPRODUCCION DE PROGRAMAS REPRODUCCI ON ALEATORI A ELEGIR FIJAR TERMINAR : : SET : ACTION 20_27DF62 (P54-61 Spanish).p65 Seleccionar “REPRODUCCION ALEATORIA.” 1) Presione para seleccionar. 2) Presione SET. • Comienza la reproducción arbitraria. • Para cancelar, presione STOP durante la reproducción y luego presione CLEAR. 59 59 2002/04/16, 13:43 Spanish Quick Use Guide/Guía para rápida consulta Fijaciones iniciales 1 2 3 Visualizar MAIN MENU. 4 Seleccionar el artículo deseado. 5 Volver a visualizar el menú de DVD para continuar el ajuste. Presione ACTION en el modo de parada. Visualizar la pantalla DVD. 1) Presione 2) Presione SET. para seleccionar. Seleccionar el artículo deseado. 1) Presione para seleccionar. 2) Presione SET. IDIOMAS DEL DISCO Todos los idiomas ofrecidos en el disco pueden ser ajustados, Si el idioma ajustado no es ofrecido en el disco, se seleccionará el idioma original del disco. SALIDA DE AUDIO Puede usted ajustar la salida audio procedente del terminal de salida audio digital. DETENER RASTREO Para seleccionar “CAMPO” o “CUADRO” para prevenir inestabilidad o para permitir ver textos pequeños o patrones finos claramente en el modo de imagen fija. 4 : 3 PREFERENCIA Para seleccionar si el material del vídeo para pantalla ancha será vuelto a reproducir en el estilo Pan&Scan o en el estilo Letterbox en la pantalla. 1) Presione para seleccionar. 2) Presione SET. Presione ACTION y pase al paso 3 para ajustar otro ajuste o, para salir, presione ACTION tres veces. Selección de IDIOMAS DEL DISCO [DVD solamente] Seleccione “AUDIO” Inglés / Español / Francés / Japón: (Fijación de fábrica : inglés) Original : Se seleccionará el idioma original de cada disco. OTRO **** : Se puede seleccionar el otro idioma. Seleccione “SUBTITULO” AUTO : Se seleccionará el mismo que fue seleccionado en la preparación de “AUDIO”. (Fijación de fábrica) • Si el idioma seleccionado en la preparación de “AUDIO” se utiliza durante la reproducción, los subtítulos no aparecerán. • Si se utiliza otro idioma durante la reproducción, los subtítulos aparecerán en el idioma seleccionado en la preparación de “AUDIO” Inglés / Español / Francés / Japón OTRO **** : Se puede seleccionar el otro idioma. Seleccione “MENU” Inglés / Español / Francés : (Fijación de fábrica : inglés) OTRO **** : Se puede seleccionar el otro idioma. 60 Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail : [email protected] 20_27DF62 (P54-61 Spanish).p65 60 2002/04/16, 13:43 Selección de SALIDA DE AUDIO Seleccione “LPCM(DVD)” Selección de DETENER RASTREO AUTO : INACTIVO : Por el conector de salida de audio digital solamente sale PCM lineal de 48 kHz/16 bits. Durante la reproducción del DVD grabado en el PCM lineal de 48 kHz/20 bits o 96 kHz, no sale audio digital. (Fijación de fábrica) PCM : Durante la reproducción del DVD grabado en el PCM lineal de 48 kHz/ 20 bits/24 bits o 96 kHz, sale audio digital convertido a 48 kHz/16 bits. (La salida digital de audio PCM está restringida a 48 kHz/16bits o menos para proteger los derechos de autor.) Durante el modo de imagen fija se seleccionarán automáticamente “Campo fijo” o “Cuadro fijo” (Fijacion de fabrica) CAMPO : Seleccione este ajuste cuando ocurra “distorsión” en las imagenes, incluso cuando se haya seleccionado “AUTO”. CUADRO : “Cuadro fijo” es siempre seleccionado. Seleccionar este ajuste cuando no se puedan ver claramente texto pequeño o patrones finos incluso cuando esté seleccionado “AUTO”. Seleccione “Dolby Digital” Bitstream: Sale un flujo de bits Dolby digital (2ch-5.1ch). (Fijación de fábrica) INACTIVO : No hay salida de audio. Seleccione “dts” Bitstream : Sale un flujo de bits dts. (Fijación de fábrica) INACTIVO : No hay salida de audio. Seleccione “DRC (Dynamic Range Compression)” INACTIVO : Se selecciona el margen de audio normal. (Fijación de fábrica) ACTIVO : Seleccione este ajuste para disfrutar de un sonido dinámico incluso a bajo volumen. Esto es muy útil para escuchar durante la noche. [Esta función sólo se activa con DVDs Dolby Digital.] Selección de 4 : 3 PREFERENCIA Pan&Scan : Datos de la pantalla ancha de vídeo son reproducidos en el estilo Pan & Scan (la parte derecha e izquierda de la pantalla son recortadas). (Fijación de fábrica) • Datos de vídeo no formateados en Pan & Scan serán reproducidos en el estilo letterbox. Letterbox : Datos de la pantalla ancha de vídeo son reproducidos en el estilo Letterbox (la parte de arriba y abajo de la pantalla tienen un margen negro). Seleccione “SURROUND” El sonido envolvente crea el efecto de sonido que procede de altavoces que parecen ester en la parte de atrás aún cuando solo se ha conectado a un sistema estéreo de 2 canales. INACTIVO : No efecto de sonido envolvente. (Fijación de fábrica) ACTIVO : Efecto de sonido envolvente. For Your Information 61 20_27DF62 (P54-61 Spanish).p65 61 2002/04/16, 13:43 Index TV A Accessories .................................................... 4 B C D F I AC Power Plug ................................................ 9 ACTION button ......................................... 8, 12 ADD / DLT button ...................................... 8, 13 Audio Adjustment .......................................... 35 Audio Auto Gain Control (AGC) .................... 34 AUDIO button ...................................... 8, 19, 25 Audio Connections .................................. 14, 15 Audio Features ....................................... 34, 35 Audio Menu .................................................... 34 Audio Mode for TV Viewing ........................... 19 Audio Mute ..................................................... 18 Audio / Video Input connector (LINE) ............. 9 Audio Output Connector (L/R) ........................ 9 Auto Operation Functions ............................. 28 Batteries .......................................................... 4 Before Requesting Service ..................... 50, 51 Before Using .................................................... 4 Blocking Message ......................................... 33 Blue Screen Display ...................................... 23 Broadcast Types .......................................... 19 Cable Box Brand Code Number ................... 27 Cable Box Universal Remote Control Feature . 26 Caption On Mute ........................................... 21 Channel ....................................... 10, 12, 13, 23 Channel Caption ........................................... 29 CHANNEL UP / DOWN button ................. 8, 18 Clock ............................................................. 12 Closed Caption ........................................ 20, 21 Code Numbers, DSS / Cable Box Brand ..... 27 Connections .................................................. 10 Connections, Audio ................................. 14, 15 Connections, DSS / Cable Box ..................... 10 Connections, Ant./Cable ............................... 10 Customer Services Directory ...................... 53 DISPLAY / ENTER button ................... 8, 23, 26 DSS Brand Code Number ............................ 27 DSS CABLE button ................................... 8, 26 DSS / Cable Box Connections ...................... 10 DST (Daylight Saving Time) ......................... 11 FM Radio ................................................ 24, 25 FM/TV button .................................... 8, 24 ~ 26 Front Panel Indicators ..................................... 9 Function Display ........................................... 23 Important Safeguards and Precautions ......... 2 Information (Unit, Disc) ............................... 6, 7 Initial Setup .................................................... 10 Indicators on the Front Panel ......................... 9 Input Mode ..................................................... 28 62 L Language ................................................. 10, 12 M N O P Q R S T U V W LIGHT button ................................................... 8 Location of Controls .................................... 8, 9 MTS Broadcast / TV Stereo System ............ 19 MUTE button ............................................. 8, 18 NUMBER keys .......................................... 8, 18 100 Key ......................................................... 18 On-Screen Displays (OSD) ......................... 23 ON-TIMER Indicator ................................. 9, 22 ON-TIMER with Alarm .................................. 22 Outdoor Antenna Connections ..................... 10 Phones .......................................................... 18 POWER button .......................................... 8, 10 Quality Picture ................................................. 4 Rapid Tune .................................................... 18 R-TUNE button ......................................... 8, 18 Remote Control Buttons ................................. 8 Remote Sensor ............................................... 9 Remote Warning Feature ............................. 28 Reset Language, Channels, Clock .............. 12 Reset unit ..................................................... 11 Safety Precautions .......................................... 3 Secret Code .................................................. 30 SELECT / SET button ............................... 8, 12 Sleep Timer ................................................... 22 SLEEP TIMER Indicator .......................... 9, 22 Spanish Quick Use Guide .................... 54 ~ 61 Specifications .................................................. 6 SURROUND button .................................. 8, 29 Surround Sound ............................................ 29 S-Video Input connector ................................ 9 Table of Contents ............................................ 5 Time Zone Adjust .......................................... 13 TV Operation ................................................. 18 TV Status & Clock Display ........................... 23 TV Timer Features ........................................ 22 Unit, Front/Rear view ...................................... 9 Universal Remote Control ............................ 26 US MOVIES Ratings ..................................... 31 US TV PROGRAMS Ratings ........................ 32 Video Adjustment .......................................... 35 Video / Audio Menu ...................................... 34 Video / Audio Adjust ..................................... 35 Video Menu .................................................... 34 V-Chip Control Feature ......................... 30 ~ 33 VHF / UHF Antenna Input Terminal ............... 9 VOLUME UP / DOWN button ................... 8, 18 Warning and Instruction Displays ................ 51 Warranty ................................................. 52, 53 Weak Signal Display Feature ....................... 28 For assistance, please call : 1-800-211-PANA(7262) or send e-mail : [email protected] 20_27DF62 (P62-63. Index).p65 62 2002/04/16, 13:43 DVD A ANGLE button ........................................... 8, 37 B C D F K L M O P S Settings for DVD Operation .................. 46 ~ 48 I / I button .......................... 8, 16, 17 SKIP Slow Motion (DVD/Video CD) ....................... 17 SLOW / button ............................... 8, 17 STILL MODE ................................................. 48 Still (Pause) Picture ....................................... 17 Subtitle language (DVD) ............................... 36 T TV MODE ...................................................... 48 Title menu (DVD) .......................................... 38 U Unit information screen (Unit) ....................... 43 Z ZOOM button ............................................ 8, 37 For Your Information R ANGLE Indicator ....................................... 9, 37 Auto-Power Off function ............................... 17 AUDIO button ............................................ 8, 36 AUDIO OUTPUT .......................................... 47 Audio soundtrack language (DVD) .............. 36 Basic DVD Operation .................................... 16 CLEAR button ................................... 8, 39 ~ 41 Definition of terms ........................................... 7 Disc Audio Attribute 1 Type, Sampling Frequency, Bit No. ................................... 36 Disc format ...................................................... 7 Disc handling ................................................... 7 Disc Information Screen ............................... 42 DISC LANGUAGES (DVD) .......................... 46 Disc Operation ...................................... 36 ~ 40 Disc Tray ............................................... 7, 9, 16 DISPLAY ............................................... 41 ~ 43 DISPLAY button ........................................ 8, 41 DVD button ................................................ 8, 16 DVD Lock Feature (DVD) ............................ 45 DVD Lock Ratings (DVD) ............................. 45 DVD menu (DVD) ......................................... 38 DVD Operation using On-Screen ........ 41 ~ 43 DVD Volume Adjust ...................................... 29 FF button ................................................... 8, 16 Foward / Reverse Chapter / Track skip ...... 17 Foward / Reverse rapid scene search ........ 17 Frame by Frame picture (DVD/Video CD) .. 17 Karaoke (DVD/Video CD) ............................. 37 Language Code List ...................................... 49 MENU button ............................................. 8, 38 MP3 Playback Operation ............................. 44 Multiple angle viewing (DVD) ........................ 37 OPEN / CLOSE button .............................. 8, 16 Optical digital audio output connector ...... 9, 15 PAUSE button ........................................... 8, 17 Picture Zoom (DVD) ..................................... 37 Play ................................................................ 16 Playback control (Video CDs) ...................... 17 PLAY button ............................................... 8, 16 Program Play (Video CD/CD) ....................... 39 Program Repeat Play (Video CD/CD) .......... 39 Random Play (Video CD/CD) ....................... 40 Region number ................................................ 3 Repeat Play ................................................... 43 RESUME function ......................................... 17 RETURN button ........................................ 8, 16 REW button ............................................... 8, 16 63 20_27DF62 (P62-63. Index).p65 63 2002/04/16, 13:43 LSQT0581A Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094 Panasonic Sales Company (“PSC”), Division of Matsushita Electric of Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 20_27DF62 (P64 BC).p65 64 P Printed in U.S.A LSQT0581A M0302-0 2002/04/16, 13:43
