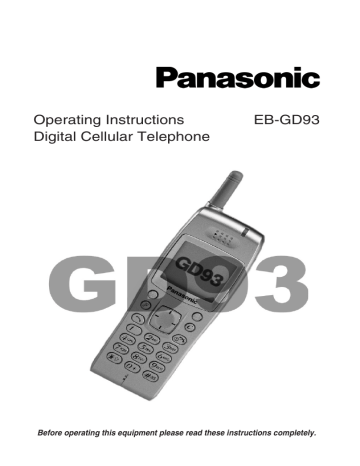

Operating Instructions Digital Cellular Telephone EB-GD93 Before operating this equipment please read these instructions completely. Quick Reference This Quick Reference guide is intended to enable the user to utilize the most basic features of the phone instantly without having to search through the extra details which are incorporated into this manual. Power On/Off Press and hold E Enter Pin Code Use the keypad to enter the PIN supplied by your Service Provider, then press B Make a Call Use the keypad to enter the area code and telephone number, then press D Correcting an Error Press C once to erase the previous character Press and hold C to remove all characters entered Redial Last Number Press DD End a Call Press E to end a call Answer a Call Press any key except E or g Adjust Ear Volume Press e during a call Access WAP Browser Press and hold P Make Emergency Call Press 112 D International Dialling Press and hold 0, use e to select the appropriate country code, then press B Add Phonebook Entry to SIM Enter phone number and press A. Press B, enter name and press B twice Dial SIM Phonebook Entry Press A, then use e to select the desired number, then press D What is My Number ? Press B26 and the number of your phone will be displayed (SIM dependent) Set Key Guard Press B three times and the keys will be locked to avoid accidental presses Disable Key Guard Press B twice (when Free is displayed) to remove the Key Guard Contents Getting Started . . . . . . . . . . Fitting the SIM . . . . . . . . Fitting the Battery . . . . . . . Charging the Battery . . . . . Getting to Know Your Phone . . . . . . 1 1 1 2 3 Basic Operation. . . . . . . . . . Switching the Phone On/Off . Making a Call . . . . . . . . . Automatic Redial . . . . . . . Ending a Call . . . . . . . . . Answering a Call . . . . . . . Earpiece Volume Control . . . Locking the Phone . . . . . . Using the PIN . . . . . . . . . Setting Vibration Alert. . . . . Setting Ring and Key Volume . . . . . . . . . . . 6 6 6 7 7 7 7 8 8 9 9 Phonebook. . . . . . . . . . . . Store a Number . . . . . . . Browsing Phonebook . . . . Retrieve a Number . . . . . Editing Phonebook Entries . Grouping Phonebook Entries Using Alert Profiles . . . . . Personal Dial . . . . . . . . Hot Key Phone Numbers . . Service Dial Numbers . . . . Review the Phonebook . . . My Numbers . . . . . . . . . . . . . . . . . . . . . 10 10 11 11 11 12 13 13 14 14 14 15 Personalising Your Phone . . . . Add a Start-up Greeting . . . . Displaying Animations . . . . . Changing the Ring Tone . . . Disabling all Tones . . . . . . Setting the Backlight Colour . . Disabling Key Backlight . . . . Disabling Back Case Light . . Using Voice Commands. . . . Selecting Vibration Alert Type . 16 16 16 16 18 18 18 18 18 19 Changing the Language . . . . 19 Restoring the Default Phone Settings . . . . . . . . . . . . 20 Phone Security . . . . . . . . . . Using Key Guard . . . . . . . Changing the Security Codes . Restricting Calls . . . . . . . . 21 21 21 22 Applications . . . . . . Clock . . . . . . . Calculator . . . . . Currency Convertor 23 23 25 25 . . . . . . . . . . . . . . . . . . . . . . . . Short Text Messages . . . . . . Setting the Phone for Text Messages . . . . . . . . . . Sending a Text Message . . Receiving Text Messages . . Message Options . . . . . . Using Pre-defined Messages Manage Messages Lists. . . Message Parameters . . . . Cell Broadcasts . . . . . . . . 27 . . . . . . . . 27 27 28 28 28 29 30 30 Call Information . . . Recent Numbers Call Duration. . . Call Charges. . . Call Identification . . . . . 32 32 32 33 33 Advanced Operation . . . . . . . Diverting Calls . . . . . . . . . Holding Calls and Call Waiting Call Transfer. . . . . . . . . . Multi-party Calls . . . . . . . . Changing to a New Network. . 34 34 34 35 35 37 WAP Browser . . . . . . . Server Settings . . . . Activating the Browser. Navigating Content . . The Browser Menu . . Using Bookmarks . . . 38 38 38 39 39 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Deactivating the Browser . . . 40 Setting the Linger Time . . . . 40 Last Error . . . . . . . . . . . 40 Internet E-mail . . . . . . . . E-mail Setup. . . . . . . Create a New Message . Send/Receive Messages Read Messages . . . . . Store an Address . . . . Add a Signature . . . . . Manage Message Stores . . . . . . . . . . . . . . . . . . . . . . . . 41 41 41 42 42 43 43 43 Additional Features . . . . . . . Desktop Handsfree . . . . . Voice Memo . . . . . . . . . Dicta Phone . . . . . . . . . DTMF Tones . . . . . . . . Note Pad . . . . . . . . . . Second Clock . . . . . . . . Accessory Related Features . . . . . . . . 44 44 44 45 46 46 47 47 Text Entry . . . . . . . . . . . . . 48 Menu Structure . . . . . . . . . . 50 Trouble Shooting . . . . . . . . . 51 Important Error Messages. . . 52 Important Information. . . . . . . 54 Safety Considerations . . . . . 54 Care and Maintenance . . . . . . 56 Glossary of Terms. . . . . . . . . 57 Specifications . . . . . . . . . . . 58 EU Warranty . . . . . . . . . . . . 59 Getting Started Getting Started Thank you for purchasing this Panasonic digital cellular phone. This phone is designed to operate on the Global System for Mobile Communications (GSM), GSM900 or GSM1800. Ensure the battery is fully charged before use. Before operating this phone please read the “Important Information” section see page 54. These operating instructions detail use of the equipment contained in the Main Kit. Some services detailed herein are network dependent or may only be available on a subscription basis. Some functions are SIM dependent. For more information contact your Service Provider. Fitting the SIM The SIM is inserted into the back of the phone underneath the battery. Place the SIM in the recess at the rear of the phone (1) ensuring the bevelled corner is positioned in the top right corner. Slide the SIM to the left (2) using light pressure until it is located under the lugs and the SIM retaining clip has clicked into position (3). Removing the SIM Ensure the SIM retaining clip is pressed down (1) and while holding this down slide the SIM to the right (2). Once clear of the lugs the SIM can be lifted out of the recess. Fitting the Battery Fit a fully charged battery pack. If the battery pack is not fully charged then it must be charged as described in the “Charging the Battery” section. Locate the top of the battery into the rear of the phone (1). Push the bottom of the battery into place until it locks into position (2). 1 Getting Started Removing the Battery Push the battery release latch down (1). The base of the battery will raise out of the recess (2). The battery can now be removed from the phone (3). Charging the Battery Connecting the AC Adaptor The battery pack must be attached to the phone before the AC Adaptor is connected. Insert the AC Adaptor plug into the base of the phone (1). Note: DO NOT force the connector as this may damage the phone and/or the AC Adaptor. Connect the AC Adaptor to the mains power supply (2). Indicator will light and charging starts. Operation of Battery Level Indicator While charging Charging complete Telephone on K H Telephone off K Indicator off When charging is complete remove the AC Adaptor. Disconnecting the AC Adaptor Disconnect the AC Adaptor from the mains power supply (1). Squeeze together the two buttons on the plug of the AC Adaptor (2) and while maintaining pressure extract the plug from the base of the phone (3). 2 Getting Started Low Battery Warning When the battery power is low a warning tone will sound and a blinking LOW BATTERY message will be displayed. If this occurs during conversation finish your call immediately. The power will be automatically shut off shortly after the warning tone. Fully charge the battery pack or replace it with a fully charged one. Getting to Know Your Phone Location of Controls Antenna Incoming/Charging Indicator Earpiece A P B D C 1 E 4 23 7 56 * 89 0 # Earphone/Microphone Socket External Connector Memo Key Display Microphone g B A P D C E : Navigation key – pressing up/down/left/right scrolls through options in the main area of the display. Pressing left/right scrolls through options in the option area of the display Select key – selects an option in the option area of the display accesses Phonebook or switches character types provides instant access to one phone number (Personal Dial). Also provides shortcut to WAP Browser. makes a call or recalls recently dialled phone numbers clears the last digit entered, clears all digits when pressed and held or returns to the previous display ends a call or switches the phone on/off when pressed and held Records and plays back recorded memos Digit keys 0 to 9, * and # – the # key will switch on and off vibration alert 3 Getting Started The Menu System The menu system provides the means for accessing all the functions which do not have their own dedicated buttons on the keypad. The menu functions can be selected using a combination of the Navigation key g and the menu Select key B. During a call a restricted menu will be available. Shortcuts In addition, once you are familiar with the layout of the menu you can use the keypad to enter the Menu Number to quickly obtain the required function. For example, pressing B to enter the menu and then 52 will take you directly to the menu for changing the ring tone. Examples in these instructions use the shortcuts to gain access to the relevant functions or to the sub-menu under which other functions are located. Display Icons Status Icons Main Display Area Option Area Information Area Navigation Prompt Following some operations the display will automatically clear after three seconds or after pressing any key. Status Icons The status icons are displayed according to the currently activated functions. The Antenna, Signal and Battery icons are always displayed when the handset is switched on and connected to a network. Y lights when you are registered to a non-home network - roaming t lights when call divert is enabled ] lights when vibration alert is enabled [ lights when all tones or ring volume is off N blinks when an unread message is stored or lights when message area is full O lights when phone lock is enabled 4 Getting Started S T H indicates that it is possible to make emergency calls indicates the received signal strength: \ - weak signal, T - strong signal indicates the battery level: H - full, G (blinking) - low battery Information Area This area is used to indicate the current top level menu, the sub-menu number, text entry mode, Phonebook source, Phonebook location number, or the alarm set icon depending on the current mode of operation. ? indicates alarm is set > indicates current Phonebook entry is sourced from Mobile Phonebook < indicates current Phonebook entry is sourced from SIM Phonebook Navigation Prompt p This area indicates the available directions in which the Navigation Key can be pressed according to the current mode of operation. Option Area The Option Area displays the options which can be selected by pressing the Select key (B). 5 Basic Operation Basic Operation Switching the Phone On/Off To switch the phone on or off. Press and hold E to switch power on A greeting animation will be displayed and then the phone will go into Idle mode. Press and hold E to switch power off Making a Call Ensure that the phone is switched on, the network operator logo is displayed and the signal strength meter shows network coverage is available in the current area. 1 Enter area code and phone number 2 Press D International Dialling Using the automatic international access code (+) you will be able to dial international numbers without having to know the code for the international exchange. If the international number is known then it can be entered in the normal fashion followed by the area code and phone number. 1 Press and hold 0 until + is displayed 2 Press e to cycle through the abbreviated international names and press B to select the required code 3 Enter area code and phone number 4 Press D Note: Many countries include an initial “0” in the area code. This should, in most cases, be left out when dialling international numbers. If you have difficulties making international calls, contact your Service Provider. Emergency Calls To make an emergency call the antenna symbol (S) must be present. Enter 112 D or press B when SOS is displayed in the option area 6 Basic Operation Automatic Redial When a call is unsuccessful the phone may ask if you want to redial the phone number again automatically. Press B when Ok is displayed in the option area and the display will countdown in seconds to the next redial. To stop redialling, press B when Cancel is displayed in the option area or press C. When a call is connected a beep will be emitted. If a call is repeatedly unsuccessful you will not be able to automatically redial the phone number. In this case you must redial the phone number manually. Ending a Call Press E Answering a Call To receive a call the phone must be switched on and the signal strength meter must be displayed. Press any key except E or g Press E to reject the call If a call is not answered, or is rejected, the number of unanswered calls will be displayed. Press any key to clear the display Caller Identification This feature allows you to identify incoming calls and accept or reject them. The caller’s phone number, and name if stored in Phonebook, will be displayed. Note: Caller Identification may not always be available. Earpiece Volume Control The volume level may be adjusted during a call: Press a to decrease the volume Press b to increase the volume Volume control for Personal Handsfree accessory is adjusted in the same manner. 7 Basic Operation Locking the Phone With the Phone Lock enabled you will be restricted to answer incoming calls and make emergency calls only. The Phone Lock Code is factory set to “0000”. 1 From Idle mode press B 81 to enter the Phone Lock menu 2 Press B 3 Enter the 4-digit code and press B The phone will be locked and the lock icon (O) will be displayed. Unlocking the Phone To restore normal operation, enter your Lock Code and press B. The lock icon will be removed from the display. However, once you turn the phone off and on again you will need to re-enter the Lock Code, and when the correct code has been entered Ok will be displayed. Press B. Disabling Phone Lock 1 From Idle mode press B 8 to enter the Security menu. 2 Press f until Disable is displayed in the option area 3 Press B 4 Enter the Lock Code and press B Using the PIN The PIN (Personal Identification Number) protects your SIM against unauthorized use. If you enable the PIN, every time the phone is turned on you will be prompted to enter the PIN. The PIN2 controls security for the Fixed Dial Store and Call Charge metering. Enabling/Disabling the PIN 1 From Idle mode press B 83 to enter the PIN menu 2 Press B to enable/disable the PIN 3 Enter PIN number B 8 Basic Operation Setting Vibration Alert When vibration alert is switched on the phone will vibrate when a call is received. Switching on vibration alert will silence the ring volume. However, when the ring volume is adjusted after the vibration alert is switched on, the phone will ring and vibrate when a call is received. From Idle mode: Press and hold # to switch on or off. When switched on, the phone will vibrate briefly. Setting Ring and Key Volume Changing either the ring volume and key volume is done in the same manner. If you increase the ring volume above maximum it will set an escalating ring tone. If you turn the ring volume off, the silent indicator icon ([) will be displayed. 1 From Idle mode press B 52 to enter the Tones menu 2 Use e to select Ring Volume or Key Volume and press B 3 Use e to set the volume level and press B 9 Phonebook Phonebook Phone numbers can be stored in two locations. You can store numbers in the SIM Phonebook (therefore the number of locations, length of name and number of phone numbers are SIM dependent). Alternatively you can store phone numbers in the Mobile Phonebook, this means that if you change the SIM the numbers in the phone are not lost. The Mobile Phonebook has the advantage that you can group your phonebook entries together. Store a Number To Store a Number in the SIM Phonebook 1 From Idle mode enter the phone number and press A 2 Press B to select the SIM Phonebook 3 Enter the name – see “Text Entry” page 48, and press a 4 Confirm phone number and press B 5 Enter location number and press B You can choose not to enter a location number and the entry will be placed in the next available location. Simply press B when Any is displayed in the option area. To Store a Number in the Mobile Phonebook 1 From Idle mode enter the phone number and press A 2 Use a to select the Mobile Phonebook and press B 3 Enter the name - see “Text Entry” page 48, and press a 4 Confirm phone number and press B If you wish to store an e-mail address with the current number then after confirming the number press a, enter the mail address and press B. 5 Use e to select a group - see “Grouping Phonebook Entries” page 12 - into which to place the entry and press B 6 Enter location number and press B You can choose not to enter a location number and the entry will be placed in the next available location. Simply press B when Any is displayed in the option area. 10 Phonebook Overwrite Protection If a location is occupied you will be prompted to confirm that you wish to overwrite the current information. Press B to overwrite the selected location Press C to choose another location number Browsing Phonebook You can search the Phonebook by either Name or Location. The default setting for browsing is by name. When browsing by name pressing a lettered key will take you to the first entry starting with that letter. 1 From Idle mode press B 2 to enter the Phonebook menu 2 Use f to toggle between Names or Loc’ns display mode and press B 3 Use e to select the Phonebook you wish to browse and press B Retrieve a Number From Idle mode: 1 Press A 2 Use e to browse through the Phonebook Once you have selected a phone number or name, there are a number of actions that you can perform. To dial the selected number press D. Note: The Phonebook you last viewed will be the default when you next press A. To change the default, use the Phonebook menu to select a particular phonebook. Speed Dial a Number Stored in SIM Phonebook 1 Enter location number – leading zeros may be left out 2 Press # 3 Press D Editing Phonebook Entries You can Detail, View, Recall, Edit, Delete or Create in the Phonebook. To access any of these functions you follow the same procedure. With a phone number or name displayed: 1 Use f to cycle through Detail, View, Recall, Edit, Delete or Create 2 Press B to select an option 11 Phonebook Detail Displays each element of the selected Phonebook entry. Use e to display the next/previous element of the entry. Each element may be edited - use f until Edit is displayed in the option area and press B. View Displays an individual name and phone number in the names list. If an e-mail address is present in the Mobile Phonebook this will be displayed along with the name and number. Recall Displays the phone number, enabling you to either change it or call the number. Edit Displays the entry allowing you to make changes as required. Press B to save any changes. Delete Deletes the entry from the Phonebook. Create Creates a new entry in the Phonebook Grouping Phonebook Entries The ability to group phonebook entries together is an extra function of the Mobile Phonebook. Retrieving a Number from a Group Groups are used to collect together types of Phonebook entries, for example business and personal. Each group can be suitably titled for quick access to the entries contained within. An alert profile can be attributed to groups, or a phone number, thus allowing incoming calls to be tailored to indicate the type of caller. 1 From Idle mode press B 24 to enter the Group Settings menu 2 Use e to select the group and press B 3 Use e to select the entry required and press B to recall the number. 12 Phonebook Retitling Group Names 1 From Idle mode press B 24 to enter the Group Settings menu 2 Use e to select the group 3 Use f until Edit is displayed in the option area and press B 4 Clear the current title and re-enter - see “Text Entry” page 48 5 Press B Using Alert Profiles Alert Profile enables you to identify callers with a particular ring tone, display picture and backlight colour, making it easier to distinguish between callers or groups of callers. Creating an Alert Profile 1 From Idle mode press B 23 to enter the Alert Profile menu 2 Press B to insert a new profile 3 Use e to select Personal or Group and press B 4 Recall the phone number / select group from the Phonebook – see “Retrieve a Number” page 11 and press B 5 Press B 6 Use e to select the ring tone that you wish to use for this profile and press B 7 Use e to select the picture and press B 8 Use e to select the backlight colour and press B Personal Dial The P key can be defined to recall your favourite phone number in preparation for initiating a call. Setting the Personal Dial Number 1 From Idle mode press B 28 to enter the Personal Dial menu 2 Enter the name - see “Text Entry” page 48, and press a 3 Enter the phone number and press B Using Personal Dial From Idle mode: Press P to recall the number, then press D to initiate a call 13 Phonebook Hot Key Phone Numbers It is possible to dial phone numbers from the Phonebook or Service Dial part of Phonebook very quickly. Some Hot Key Phone numbers may be reserved by the Service Provider, for example the first three Hot Key Phone numbers may be linked to Service Dial (network dependent). 1 Press and hold a Digit key 1 to 9 2 Press D Setting the Hot Key Dial Source 1 From Idle mode press B 27 to enter the Hot Key Dial menu 2 Use e to select SIM Phonebook or Mobile Phonebook and press B Service Dial Numbers Your Service Provider may program some special phone numbers into your SIM (network dependent). It is not possible to modify the Service Dial numbers. 1 Press and hold A 2 Press e to browse through the Service Dial list of phone numbers The phone number pointed to can only be recalled or dialled. Review the Phonebook The Review function in the Phonebook menu shows how many locations are available in the Phonebook. 1 From Idle mode press B 25 to enter the Review menu 2 Use e to select SIM Phonebook or Mobile Phonebook and press B A summary of the selected Phonebook will be displayed. 3 Use e to gain a detailed view of the Phonebook locations. Occupied locations are shown with “w”. 14 Phonebook My Numbers My Numbers is a convenient part of Phonebook where your voice, fax and data phone number(s) can be stored and viewed. This function is SIM dependent. Adding Numbers 1 From Idle mode press B 26 to enter the My Numbers menu 2 Use f until Create is displayed in the option area and press B 3 Enter the name - see “Text Entry” page 48, and press a 4 Enter the phone number and press B 5 Enter location number and press B Viewing Stored Numbers 1 From Idle mode press B 26 to enter the My Numbers menu 2 If more than one number is available then use e to cycle through the listed numbers 15 Personalising Your Phone Personalising Your Phone Add a Start-up Greeting A personalised greeting can be programmed for when the phone is switched on. 1 From Idle mode press B 541 to enter the Greeting menu 2 Use the text entry facility to add your greeting and press B - see “Text Entry” page 48 Displaying Animations Animations can be displayed when the phone is switched on. 1 From Idle mode press B 544 to enter the Animation menu 2 Use e to cycle through the animated themes available 3 Press B to select either the desired theme, or disable the animation Changing the Ring Tone The ring tones of the phone can be changed to one of many pre-defined sounds or to a voice ringer (a voice recording used as a ring tone). Each of voice, fax, data and message can have a different ring tone. Alternatively you can use the Melody Composer to generate your own ring tone. Setting up a Pre-defined Ring Tone You can choose from a selection of tones and melodies. 1 From Idle mode press B 523 to enter the Ring Type menu 2 Use e to select the appropriate call type to be changed and press B 3 Press e to select the desired ring tone and press B Recording a Voice Ringer 1 From Idle mode press B 525 to enter the Voice Ringer menu 2 Press 1 and start speaking into the microphone to record your voice. The recording will stop automatically after 5 seconds, or before if B is pressed. 3 To playback the recording press 2 16 Personalising Your Phone Composing a Melody Up to 3 user-defined melodies can be created. 1 From Idle mode press B 524 to enter the Melody Composer menu 2 Use e to cycle through the melodies 3 Press B to edit the chosen melody Using the following table as reference, enter the notes (from the choice of low, middle and high), rests, and the durations of each, to generate your composition. At any time during composing press A to play back the current melody. Once the composition is complete press B to save it. Key 1st press 2nd press 3rd press 4th press 5th press 6th press 1 C C# low C low C# high C high C# 2 D D# low D low D# high D high D# 3 E low E high E 4 F F# low F low F# high F high F# 5 G G# low G low G# high G high G# 6 A A# low A low A# high A high A# 7 B low B 8 9 0 rest * (duration) 1/8 1/16 1/1 1/2 1/4 # (duration) 1/2 1/1 1/16 1/8 1/4 Editing your Melody Once the melody has been saved the following operations can be used for re-editing purposes: Press C to delete the character to the left of the cursor Use g to navigate the cursor around the screen Use the relevant keys to insert new notes/rests 17 Personalising Your Phone Disabling all Tones 1 From Idle mode press B 521 to enter the All Tones menu 2 Press B to disable all tones and the silent indicator icon ([) will be displayed. Repeat the process to enable all tones. Setting the Backlight Colour 1 From Idle mode press B 542 to enter the Backlight Colour menu 2 Use e to cycle through the colours available 3 Press B to select the desired colour Disabling Key Backlight The keypad has a green backlight which can be enabled/disabled as follows: 1 From Idle mode press B 545 to enter the Key Backlight menu 2 Press B to disable the backlight Repeat the process to enable the key backlight. Disabling Back Case Light The back case of the phone has an LED which is lit continuously during a call. This may be enabled/disabled as follows: 1 From Idle mode press B 546 to enter the Back Case Light menu 2 Press B to disable the back case light Repeat the process to enable the back case light. Using Voice Commands Before you can use any of the phone’s voice activated functions you will need to configure the phone so that it will recognize your own voice and intonation. Voice Dial Setup This function allows you to recall numbers from your Phonebook using voice commands. 1 From Idle mode press B 531 to enter the Voice Dial menu 2 Press B to create a new command 3 Browse through the Phonebook to select an entry which you wish to attribute a voice command to, and press B Note: Each recording is short in length, so be prepared to speak once you have initiated the recording. 18 Personalising Your Phone 4 When ready, hold the phone approximately 7” (178mm) from your mouth, press B and speak clearly into the microphone to record the name of the selected Phonebook entry When the recording has stopped, you will be prompted to repeat the name 5 Press B and repeat the name Once recording is complete for a second time, the display will indicate if the recording was successful or not. If unsuccessful, repeat from step 4. Dialling Using Voice Command From Idle mode press and hold the navigation key (g) in any one of the four directions a, b, c or d. Speak clearly the name you wish to dial (exactly as recorded) and wait The above procedure will recall the phone number and the requested Voice Dial is repeated; to initiate the call press D. Editing the Voice Commands You can add, play or delete any of the Voice Dial commands. With a Voice Dial entry displayed: Use f to cycle through Add, Play or Delete and press B to select an option Add To record the voice command again Play To listen to your recording Delete To delete an entry Selecting Vibration Alert Type The vibration alert facility may be set to vibrate continuously or intermittently. 1 From Idle mode press B 55 to enter the Vibration Alert menu 2 Use e to select the type of vibration desired and press B Changing the Language It is possible to change the language that the phone uses for either the display messages and/or for text entry. 1 From Idle mode press B 51 to enter the Language menu 2 Use e to select DisplayLanguage or Tegic Language (text entry) that you wish to change and press B 3 Use e to select the desired language and press B 19 Personalising Your Phone Restoring the Default Phone Settings Any personal settings can be returned to their factory default, with the exceptions of the Phone Lock code and the Language. 1 From Idle mode press B 58 to enter the Defaults menu 2 Press B to restore the default settings 20 Phone Security Phone Security The phone features a number of security functions that protect against unauthorized use, and enable you to restrict access to certain features - see “Using the PIN” page 8. It is recommended that you memorize your security codes. If you need to make a note of your security codes, never write them in a way that they can be recognized by another person. If you forget them contact your dealer for the Phone Lock Code or your Service Provider for PIN and PIN2. Using Key Guard The Key Guard function is used to prevent any keys from being accidentally pressed e.g. when the phone is being carried. From Idle mode press B three times to enable Key Guard When a call is received Key Guard will be disabled temporarily, allowing you to press any key to answer the call. Emergency calls can still be made. Disabling Key Guard When Free is displayed in the option area press B twice Changing the Security Codes 1 From Idle mode press B 8 to enter the Security menu 2 Use e to select Phone Lock, PIN or PIN2 3 Use f until Change is displayed in the option area and press B 4 Enter the current code and press B 5 Enter the new code and press B 6 Verify the new code and press B 21 Phone Security Restricting Calls Call Barring The Call Bar function is used to restrict certain outgoing and/or incoming calls. Call Bar is controlled by a security password that is supplied by your Service Provider. When updating or checking the status of Call Bar the phone must be registered with a network. Different Call Bar restrictions can be used for voice, fax and data calls. Any combination of call restrictions can be set. 1 From Idle mode press B 82 to enter the Call Bar menu 2 Use e to select Bar Voice, Bar Fax or Bar Data and press B 3 Use e to the select level of call barring that you wish to apply and press B 4 Enter Call Bar password and press B Barred Dialling The Barred Dial function enables you to bar all phone numbers pre-programmed in the SIM from being dialled on the phone. To use this function PIN2 is required. From Idle mode press B 86 and press B to enable Barred Dial , enter PIN2 and press B Fixed Dial The Fixed Dial Store is part of Phonebook, but with additional security. When the security feature Fixed Dial is enabled it is only possible to make calls with phone numbers that are in the Fixed Dial Store. When Fixed Dial is enabled any manually dialled phone numbers must match a phone number in the Fixed Dial Store. To store, edit or delete a phone number in the Fixed Dial Store the Fixed Dial function must be enabled. With Fixed Dial enabled, all phone numbers can be added, edited or deleted as normal, but you will be prompted for PIN2. “Wild” Numbers Wild numbers are spaces that can be stored in a phone number. The “wild” numbers must be filled before the phone number is dialled. Used in conjunction with Fixed Dial calls can be restricted, for example, to a specific area by storing the area code of a phone and when recalled the remainder can be added. The “wild” numbers can be anywhere within a stored phone number. 1 Press and hold 0 until _ is displayed to enter a wild number 2 When the phone number is recalled pressing a numeric key will fill in a “wild” number. 22 Applications Applications Clock This phone incorporates a clock with date/time, an alarm and a power on/off feature. A second clock for dual time is also included - see “Second Clock” page 47. Initially Setting the Home Time 1 From Idle mode press B 43111 to enter the Time Set menu and press B 2 Use e to select whether you require Summer Time setting on or off and press B 3 Enter the digits for the date in the format day/month/year and press B 4 Enter the digits for the time using 24 hour clock and press B Setting the Clock Format 1 From Idle mode press B 4322 to enter the Display Format menu 2 Press e to cycle through the different clock and/or date formats 3 Press B to select the desired clock display type Altering the Time/Date 1 From Idle mode press B 43111 to enter the Time Set menu and press B 2 Press and hold C to remove the current date 3 Enter the digits in the format day/month/year 4 Press B to accept the date 5 Press and hold C to remove the current time 6 Enter the digits using 24 hour clock and press B Setting the Clock for Summer Time 1 From Idle mode press B 43112 to enter the Summer Time menu 2 Press B to set Summer Time on. If Summer Time setting is on then press B to turn it off 23 Applications Setting the Alarm If you have not already set the clock, you will be prompted to do so prior to setting the alarm. There are four separate alarms, each of which may be set independently. 1 From Idle mode press B 433 to enter the Alarm Set menu and press B 2 Use e to select the alarm to be set and press B 3 Enter the digits for the time and press B 4 Use e to select the frequency of the alarm and press B 5 Use e to select the ring type and press B Once the alarm has been set, ? will be displayed in the information area when the phone is in Idle mode. The alarm is activated in accordance with the current clock (Home or Visitor) Muting the Alarm When the set time is reached the alarm will sound and the display will flash with an alarm message. The alarm will sound for 30 seconds. If the alarm is due during a call, it will activate vibration alert. To end the alarm: Press any key Disabling the Alarm 1 From Idle mode press B 433 to enter the Alarm Set menu and press B 2 Use e to select the alarm to be disabled and press B twice 3 Use e until Disabled is displayed and press B Once disabled, following the same procedure will re-enable the alarm. Adjusting the Alarm Time 1 From Idle mode press B 433 to enter the Alarm Set menu and press B 2 Use e to select the alarm to be adjusted and press B 3 Press and hold C to remove the current alarm time 4 Enter the digits for the time and press B 5 Press e to select the frequency of the alarm and press B 6 Use e to select the ring type and press B 24 Applications Setting a Power On/Off Time You can set your phone to turn itself on or off automatically at a specified time using the Power On/Off feature. The procedure for setting/adjusting the Power On/Off automatically is similar to that for setting the time on the clock. For either setting or adjusting the time you need to select Power On Time or Power Off Time in the Clock Function menu. Caution: Ensure that the setting of the Power On function will not contravene any regulations whereby it may automatically power on when in an aircraft or medical facility etc. - see “Important Information” page 54. Calculator The four function calculator will enable you to perform simple arithmetic calculations (addition/subtraction/multiplication and division). 1 From Idle mode press B 44 to enter the Calculator menu 2 Enter a number (maximum 10 digits) and it will be displayed on the lower line 3 Use g to select the arithmetic operation you wish to perform (b to multiply, c to add, a to divide, d to subtract) 4 Enter a number (maximum 10 digits) and it will be displayed next to the operation symbol 5 If you use g to select another arithmetic operation to perform, an intermediate calculation will be performed and the result displayed on the upper line 6 Press B to complete the calculation when = is displayed in the option area Note: Press and hold 1 to add a decimal point. Currency Convertor The currency convertor enables you to convert from/to a home currency using a conversion rate that you enter. From Idle mode press B 45 to enter the Currency menu Entering an Initial Conversion Rate 1 Press B 2 Enter a country code for the home currency (up to 3 characters) and press B 3 Enter a country code for the foreign currency (up to 3 characters) and press B 4 Enter the currency conversion rate and press B 25 Applications Note: Press and hold 1 to add a decimal point. Converting a Value 1 Check the conversion rate is the one you require and press B 2 Enter the value to be converted and press B The country code and currency rate will be retained in the phone once entered. The next time you use the convertor you can edit the conversion rate/country codes while in the Currency/Rate display. Use f until Edit is displayed in the option area and press B. Swapping the Currency Conversion When you have accepted the conversion rate and are ready to enter the value to be converted, you can swap the currencies to convert from the foreign currency into the home currency. 1 Use f until Swap is displayed in the option area and press B 2 Enter the value for conversion and press B 26 Short Text Messages Short Text Messages You can receive, display, edit and/or send short text messages, of up to 160 characters to mobile phones on the same network or any network that has a roaming agreement. Setting the Phone for Text Messages Before you can send a message you must enter the Message Centre number into Parameters (your Service Provider will supply the Message Centre number). The Message Centre number may have been preprogrammed, on your SIM card. Setting the Message Centre Number 1 From Idle mode press B 3163 to enter the Message Centre menu. 2 Enter message centre number in international dial format – see “International Dialling” page 6 Sending a Text Message 1 From Idle mode press B 313 to enter the Create menu and press B 2 Enter the message (up to 160 characters) – see “Text Entry” page 48 and press B You will be prompted if you wish to send the message, if you do not wish to send the message press C, the message will be stored. 3 Press B and enter the destination phone number (or recall a number from the Phonebook) - see “Retrieve a Number” page 11 and press B 4 Press B 5 You may be asked if you wish to have delivery confirmation, if you do not want confirmation press B. If you do, use f until Yes is displayed in the option area, then press B The default setting for delivery confirmation can be enabled/disabled using the Report parameter in the Short Message menu. 6 Use e to select a melody type, if required, and press B 27 Short Text Messages Receiving Text Messages When a Short Text Message is sent to your phone the message indicator (N) will blink in the display, with an audible tone or vibration. This indicates that a new message has been received. When Read is displayed in the option area press B to read the message. Use g to navigate through the message and to identify the sender of the message. Note: If the message indicator is displayed constantly (does not blink) this indicates that the message area is full and you will need to delete old messages in order to be able to receive new messages in the future. Message Options Reply to a Message When you have received and read a message you may wish to reply to the sender. This is the default setting in the option area and pressing B will allow you to create a reply message. Delete a Message While reading a message use f until Delete is displayed in the option area. Press B twice to delete the message. To enable the auto-deletion of messages - see “Message Parameters” page 30. Edit a message While reading a message use f until Edit is displayed in the option area. Press B and make any amendments. Pressing B will give you the option to send the edited message - see “Sending a Short Text Message” page 27. Press C if you do not wish to send the message and it will be stored in the Send List. Using Pre-defined Messages Pre-defined messages can be sent immediately or they can be used as a basis for a longer message and edited accordingly. 1 From Idle mode press B 313 to enter the Create menu 2 Use e to point to the pre-defined message you wish to use and press B 3 Use g to navigate through the message and add any extra text – see “Text Entry” page 48 When complete the message can be sent - see “Sending a Text Message” page 27 28 Short Text Messages User Defined Message Creating a User Defined Message It is possible to create a user defined message which, once generated, can be used as any other pre-defined message. From Idle mode press B 314. Edit the message as required and press B. Selecting the User Defined Message From Idle mode press B 313 The user defined message will be displayed at the top of the list of pre-defined messages. Use a until the s prompt is adjacent to the message and press B. Changing the Pre-defined Message Language With the pre-defined message highlighted: 1 Use f to select Lang in the option area and press B 2 Use e to select a language and press B 3 Use f until Select is displayed in the option area and press B twice to send the message Manage Messages Lists All messages, whether sent or received, will be stored on the SIM until they are deleted. Selecting a stored message allows it to be replied to, edited or deleted. Receive List Messages received will be stored in the Receive List. A blinking “•” indicates an unread message. When reading a message the sender’s information is displayed below the text indicating the time the message was sent and the message centre number. Pressing B allows you to reply to the message. Send List When a message has been sent or edited it will be stored in the Send List. Review Review allows you to check usage of the message area. 29 Short Text Messages Message Parameters From Idle mode press B 316 to enter the Parameters menu. The following parameters can be set: Auto Delete When set will erase messages automatically: Received Read - will overwrite the oldest read message Received Any - will overwrite the oldest message even though it may not have been read. Lifetime This is the duration that your message is stored at the Message Centre. Delivery attempts will be repeated until the message has been delivered or the Lifetime expires. Message Centre Allows the Message Centre phone number to be edited - see “Setting the Phone for Short Text Messages” page 27. Report When your message has been delivered a confirmation will be received if Report is set to Yes. Protocol The Message Centre may be able to convert the message to the format specified by the selected protocol. Cell Broadcasts Cell broadcasts are general information that is sent to your phone by a network operator. The information can include topics like local traffic reports, weather etc. Setting Broadcast Topics You need to specify the topic(s) of information that you wish to receive as broadcasts before you can receive them. 1 From Idle mode press B 3173 to enter the Topics menu 2 When Insert is displayed in the option area press B 3 Use e to cycle through the available topics and press B to insert the currently displayed topic into your broadcast list 30 Short Text Messages Enabling/Disabling Broadcasts 1 From Idle mode press B 3171 to enter the Receive menu 2 Press B Once enabled, following the same procedure will disable broadcasts. Message List This is a store for the last received broadcast messages. Messages can be deleted from here. Language The Language in which broadcast messages are displayed can be changed (network dependent). 31 Call Information Call Information Recent Numbers Recently dialled phone numbers will be stored in Last Dialled. If Caller Identification is available the caller’s phone number for an answered call will be stored in Answered and an unanswered call will be stored in Unanswered. If Caller Identification is not available then calls will still be stored but will have the date and time attributed to them. When the store is full the next phone number will overwrite the oldest. 1 Press D 2 Use e to select Last Dialled, Answered or Unanswered and press B 3 Use e to select the phone number (or name) you wish to redial and press D You can edit or delete the phone number before dialling – see “Editing Phonebook Entries” page 11. If you wish to store the selected number in Phonebook, press A while the number is displayed – see “Store a Number” page 10. Calling the Last Dialled Number To redial your last called phone number press D D Returning an Unanswered Call When the display shows that you have received calls but not answered them. 1 Press B 2 The last caller’s phone number will be displayed if it is available 3 Press e to select the phone number you wish to dial 4 Press D Call Duration 1 From Idle mode press B 6 to enter the Call Service menu 2 Use e to select one of the functions described below, and press B The Last Call function will display the duration and call charge, if available, of the last call during Idle mode or the current call during a call. Times are indicated as: hours (0-99), minutes (0-59), seconds (0-59) - HH:MM:SS. The All Calls function displays the accumulated duration and call charge, if available, of incoming and outgoing calls. The lock code or PIN2 is required to reset the timer and call charge. 32 Call Information Call Charges To maintain control over the cost of calls that are made, the phone can be set to restrict use to a finite number of units overall. Setting the Unit Price Firstly, a price per unit must be entered. This is the cost that the Service Provider charges for one unit of call time. 1 From Idle mode press B 662 to enter the Price/Unit menu 2 Press B to edit the values At this point you will be asked to enter your PIN2. 3 Enter a currency unit (up to three characters) and press B 4 Enter a price and press B Setting the Maximum Unit Level 1 From Idle mode press B 663 to enter the Max Cost menu 2 Press B to edit the values At this point you will be asked to enter your PIN2. 3 Enter a value (number of units) which is to be the maximum permitted, and the corresponding cost will be displayed 4 Press B to accept Note: The duration of one unit may vary during the day, peak and off-peak times. Therefore, the call charge can be calculated accordingly. However, call charge information may not give an accurate reflection of the tariffs charged by your Service Provider. Setting a Warning Level A warning can be set as an indication that the maximum cost is about to be reached. 1 From Idle mode press B 664 to enter the Warning at menu 2 Press B to edit the value 3 Enter a value (in units) at which time you would like the warning to sound and press B Call Identification In the Call Service menu, the Caller’s ID and Withhold ID functions allow you to check the status of whether a Caller’s Identification is sent or can be received. Note: When checking the status the phone must be registered with a network. 33 Advanced Operation Advanced Operation Diverting Calls Voice, fax and data calls can be diverted using different circumstances and to different numbers. For example you may wish voice calls to be diverted to Voicemail in the event that the phone is switched off. 1 From Idle mode press B 7 to enter the Call Divert menu 2 Use e to select the type of calls to divert and press B 3 Use e to select the circumstances to initiate the divert and press B 4 Enter phone number to divert to and press B When a divert situation is enabled the divert icon (t) is displayed. When updating or checking the status of Call Divert the phone must be registered with a network. Holding Calls and Call Waiting Holding/Resuming a Call 1 Press B when Hold is displayed in the option area 2 Press B when Resume is displayed in the option area Making a Second Call 1 Enter phone number (or recall from Phonebook – see “Retrieve a Number” page 11) 2 Press D The first call will be placed on hold. Receiving a Second Call A second call can be received, if Call waiting is switched on. This is enabled from the Call Service menu. It is not possible to have more than one fax or data call. All voice calls must be ended before you can make or receive a fax or data call. Accept a Second Call Press B when Accept is displayed in the option area The current call will be placed on hold. Reject a Second Call 1 Press f to display Reject in the option area 2 Press B 34 Advanced Operation End Current Call and Receive Second Call 1 Press E with a waiting call 2 Press any key except E or g Operation During Two Calls Swapping Between Calls The ! prompt indicates the current call Press B when Swap is displayed in the option area End Current Call 1 Press f to display End in the option area 2 Press B The held call will remain held. End Both Calls Press E Call Transfer With two calls connected, Call Transfer enables you to connect them together ending your connection, leaving the other parties to talk together without you. When you have two calls: 1 Press f to display Trans. in the option area 2 Press B The two calls will be connected to each other and your call will be ended. Note: Two call transfer cannot be utilized while in Multi-party mode. Multi-party Calls A Multi-party call enables three to five people to be in conversation at the same time. It is possible to swap between a Multi-party call and another call in the same way as with two separate calls. Enabling Multi-party With two calls connected (one active, one on hold): 1 Press f to display Merge in the option area 2 Press B A Multi-party call has been enabled, all three people will be able to talk to each other. 35 Advanced Operation Adding to Multi-party You can add to the Multi-party call (up to a maximum of five). Either by making a call or accepting an incoming call. The call can then be merged into the Multi-party. Note: When making a call or accepting an incoming call the Multi-party call will be placed on hold. The callers in the Multi-party call can continue to communicate with each other while on hold. Splitting a Multi-party You can select an individual from the Multi-party and remove their connection. This enables you to talk privately without the participation of the rest of the Multi-party. During a Multi-party call: 1 Use f until Option is displayed in the option area and press B 2 Press e to select a caller in the Multi-party 3 Press f to display Split in the option area 4 Press B The selected caller will be split from the Multi-party call and the Multi-party call will be placed on hold (the remaining Multi-party call callers can still communicate). Ending Multi-party Calls You can either select an individual in the Multi-party and end the call or end the entire Multi-party call. If a call is held, or an other call is incoming then an individual call cannot be ended. Ending a Single Connection During a Multi-party call 1 Press f to display Option in the option area and press B 2 Press e to select a caller in the Multi-party 3 Press f to display End in the option area 4 Press B Ending a Multi-party Call During a Multi-party call: Press E to end all the calls at once 36 Advanced Operation Changing to a New Network When not in your home country you may use a network that you do not directly subscribe to, this is called ROAMING. National Law may not permit roaming in your home country. The New Network function is used to manually select a network that is available in your current location. 1 From Idle mode press B 91 to enter the New Network menu 2 Use e to select one from the list of available networks and press B An X will be displayed in the information area if you cannot register with the selected network. When the Search Mode is set to Automatic the phone will automatically reselect a new network in order to maintain optimum network availability. With the Search Mode set to Manual the phone will only use a selected network. If coverage is lost another network should be selected. The Network List is used when the Search Mode has been set to Automatic. The location numbers in the Preferred Network List show the search priority. Selecting Insert stores a new network in the currently displayed location and then moves other networks down, Edit overwrites the old network with a new one, and Add stores a new network at the end of the list. 37 WAP Browser WAP Browser The phone’s WAP (Wireless Application Protocol) Browser enables you to access internet services supported by the network, such as news, weather reports, sport etc. Server Settings Before you can access internet services, your SIM must be data enabled and the relevant configuration information, entered into the phone. These settings may have been pre-programmed for you by the network operator. Note: Modifying previously entered settings can cause failure of the Browser. 1 From Idle mode press B 423 to enter the Server Setting menu 2 Two servers may be setup on the phone. Use e to select one or other of the server settings 3 Use f until Edit is displayed in the option area and press B A list of configuration parameters will be displayed. The parameter Name will be highlighted and Edit will be displayed in the option area 4 Press B 5 Enter the name of the WAP server and press B 6 Use e to select each of the other parameters in turn and press B in order to enter the information 7 Press B and select the next parameter in the list 8 After all parameters have been entered, press C to return to the previous menu level 9 Use f until Set is displayed in the option area and press B to store the settings Record your WAP settings in the table at the rear of this booklet for easy reference. Activating the Browser The Browser can be activated either by: From Idle mode pressing and holding the P key or From Idle mode press B 41 38 WAP Browser The first time that the browser is activated there will be no content stored so the Home URL content will be displayed (as defined by the network operator). From the second time onwards, the last displayed page will be recalled from cache (Cache is the phone’s memory that stores content downloaded in the past). When recalling content from cache the phone remains off-line (not connected to a WAP server). Navigating Content Use the Navigation key (g) to scroll through the content on the screen as follows: Press e to scroll up/down on the current page Press d to return to the previous page Press c to return to the next page (only applicable if returned to previous page) When linked text (underlined text) is highlighted press B to load the page represented by the link. ( indicates a table - when highlighted press Bto view contents of table ) Indicates an image which cannot be displayed ~ Indicates on-line browsing p Indicates off-line browsing The Browser Menu The Browser also contains its own menu which is applicable when content is currently being displayed (either on-line or off-line). The Browser menu is accessed by pressing the Phonebook key (A) when Menu is displayed at the bottom left of the display. This menu is used as follows: Home Deck Displays the Home URL content as defined by the network operator Bookmark Use, add, delete and rename bookmarks Enter URL Type in a URL directly to go to a known site Reload Will reload and update the current page Reset Deletes the content in cache and displays the Home URL content 39 WAP Browser Using Bookmarks Frequently accessed pages may be bookmarked to save time. This prevents the need to re-enter the URL each time. Adding a Bookmark While viewing content press A a BB to register a bookmark Recalling Pages Using Bookmarks 1 With content displayed press A a B 2 Use e to select the relevant bookmark from the list, and press B Renaming a Bookmark 1 With content displayed press A a B 2 Use e to select the relevant bookmark from the list, and press A B 3 Press and hold C to remove the bookmark name, then re-type the name required and press B Deleting Bookmarks 1 With content displayed press A a B 2 Use e to select the relevant bookmark from the list, and press A a BB Deactivating the Browser The Browser can be deactivated as follows: When browsing on-line press E once to resume browsing off-line When browsing off-line press E once to exit Browser When browsing on-line or off-line press and hold C to exit Browser Setting the Linger Time The phone will be automatically disconnected from the WAP server after a set period of non-interaction. This period is defined in seconds by the Linger Time setting. 1 From Idle mode press B 421 to enter the Linger Time menu 2 Press and hold C to remove the current linger time, then re-enter the value required and press B Last Error If an error should occur when using the Browser, use this function to inform the network operator of the last error which occurred with the phone to assist with a diagnosis of the problem. From Idle mode press B 422 to display the error 40 Internet E-mail Internet E-mail The E-mail function will send and receive internet e-mail messages to the mail server of an Internet Service Provider that supports POP3/SMTP protcols. E-mail Setup Before you can send and receive e-mail messages, your SIM must be data enabled and a contract must be set up with an Internet Service Provider and the relevant configuration information, supplied by the provider, entered into the phone. 1 From Idle mode press B 32 to enter the E-mail menu 2 Use e to select Parameters and press B 3 Use e to select Server Settings and press B Up to three Internet Service Providers may be setup 4 Use f until Create is displayed in the option area and press B A list of configuration parameters will be displayed. The parameter Profile Name will be highlighted and Edit will be displayed in the option area 5 Press B 6 Enter the name of the Internet Service Provider and press B 7 Use e to select each of the other parameters in turn and press B in order to enter the information 8 Press B and select the next parameter in the list 9 After all parameters which have been supplied by the Internet Service Provider have been entered, use f until Save is displayed in the option area and press B to store the settings Record your e-mail settings in the table at the rear of this booklet for easy reference. For additional information about setting up the Internet E-mail see http://www.user.mci.co.uk Create a New Message 1 From Idle mode press B 32 to enter the E-mail menu 2 Use e to select Create and press B 3 Enter the relevant details in the To, CC, Subject and Message fields, using g to navigate between them. Note: The To and CC fields must be entered using previously saved mail addresses in the Phonebook, retrieved in the normal fashion. 4 After entering the necessary information press B 5 Use f until Save is displayed in the option area and press B 41 Internet E-mail Send/Receive Messages The Send/Receive function is used to both send messages created on the phone to the server of the Internet Service Provider, and to check your mailbox on the server for incoming messages and download them to the phone at the same time. 1 From Idle mode press B 32 to enter the E-mail menu 2 Use e until the Send/Receive function is highlighted and press B If there are unsent messages in the Outbox you will be prompted to send them. 3 Press B to send any unsent messages. If there are new messages to download to the phone then you will be prompted to receive them. 4 Press B to receive new messages. If no action is taken the connection will time out after one minute and return to the E-mail menu. If any messages are downloaded then, when finished, the phone will display the new messages allowing them to be viewed, replied to etc. If no messages are downloaded the phone will display the Inbox menu, unless there are no messages in this list, then it will return to the E-mail menu. Read Messages From Idle mode press B 32 and press B to enter the Inbox menu The header fields of the most recent messages will be displayed. Use e to scroll through previous message headers and press B to read the current message. Message Status A message can be in one of four states. The current state of each message is indicated by an appropriate icon: ^ Indicates a message which has been read or sent. $ Indicates an unread or unsent message % Indicates that the message has been locked & Indicates a broken message (either a message too long for the phone or a message which contains an attachment) While reading a message any of the following operations may be performed by using the f key until the relevant operation is displayed in the option area and pressing B: Reply Compose a reply to the sender of the current message 42 Internet E-mail Forward Send the current message to a different person other than the sender Delete Remove the current message from the list Lock Apply a lock to the message so that it cannot be overwritten when receiving further messages. A locked message can still be deleted manually. Store an Address An e-mail address can be stored in the Mobile Phonebook - see “Store a Number” page 10 Add a Signature This Signature function enables a pre-defined signature to be added to your outgoing e-mails. Once the signature has been setup, each time a new e-mail is created it will have the signature automatically inserted. Setup Signature 1 From Idle mode press B 32 to enter the E-mail menu 2 Use e until the Parameters function is highlighted and press B 3 Use e until the Signature function is highlighted and press B 4 Enter the text for your required signature – see “Text Entry” page 48 and press B Manage Message Stores Once the Inbox and/or Outbox store are full any new messages received or created will overwrite existing messages from the oldest first. To prevent messages being overwritten each list should be maintained deleting any messages which are no longer required. Important messages can have a lock applied to them so that they cannot be overwritten when the Send/Receive process is activated. 43 Additional Features Additional Features Desktop Handsfree Desktop Handsfree enables you to hold a conversation without having to hold the phone to your ear. Note: Do NOT hold the phone to your ear in Handsfree mode. Swapping Between Handsfree and Handheld Calls During a Handheld call: 1 Use f to until H’free is displayed in the option area 2 Press B During a Handsfree call: Press B to revert to Handheld operation Answering a Call Handsfree Pressing and holding D will allow the call to be answered Handsfree. Voice Memo You can record a two-way conversation for up to 18 seconds during a call. There are two separate areas for voice memo messages (Voice Memo 1, Voice Memo 2) allowing you to record two separate voice calls. If a different SIM is installed any voice memos will be lost. Caution: Security of a recorded message is your responsibility. You MUST ask for the other party’s consent before recording. Record a Voice Memo Press : during a call A tone will sound when recording starts. When the recording stops a tone will sound to you. If you press : while recording a voice memo, recording to the current voice memo area will stop. Pressing : again will start recording in the other voice memo area. If : is pressed when the two voice memo areas are occupied, the older recording will be overwritten by the new memo. 44 O M E M Additional Features Play Back a Voice Memo Press : from Idle mode: If there are two voice memos recorded they will both be played back continuously. To swap playback between the two voice memos areas press : during playback. If there is no recording two tones will sound. To stop playing, press E The Note Pad function is available during playback - see “Note Pad” page 46. Volume Control During Playback While playing back: Press e to adjust the volume of the voice memo Delete Memo Press B twice during playback Dicta Phone The dicta phone facility allows two voice messages (of up to 10 seconds each) to be recorded, for later playback. If a different SIM is installed any voice messages will be lost. Recording a Message 1 Press and hold : key when in Idle mode 2 When ready, press B and speak clearly into the microphone to record your message. Play Back a Message 1 Press and hold : key when in Idle mode 2 Use a to select Playback and press B 3 To play the most recent message press B 4 To play the other message use a to select the second message in the list and press B Delete a Message While the message is playing or message list is displayed press B twice 45 Additional Features DTMF Tones DTMF tones can be sent during conversation. These are often used to access voice mail, paging and computerized home banking. For example, you may need to input a number to remotely access voice mail messages. A phone number may be stored in the Phonebook with DTMF tones, allowing the number to be dialled upon recall and the DTMF number to be sent automatically. Send DTMF Tones During a Call Enter digits (0 to 9, # and *) Pause Dial Using pauses allows you to send DTMF tones automatically. 1 Enter phone number 2 Press and hold 0 until a P is displayed 3 Enter DTMF digits after the pause, e.g. enter the number to access voice mail messages. 4 Press D When the call is successful DTMF tones will be sent after 3 seconds or when D is pressed. If the DTMF tones are unsuccessful then the destination of your call may require that the length of the tones be increased. 5 From Idle mode press B 57 to enter the DTMF Length menu 6 Use e to set to Long and press B Note Pad During a call you can enter numbers which you may wish to dial when the call has ended. During a call: 1 Enter phone number 2 When the call has ended press D to call that number To store in Phonebook, press A while the number is displayed – see “Store a Number” page 10. 46 Additional Features Second Clock The Second Clock can either be set to auto-adjusting, whereby the second time will be automatically set from the country code of the current network, or a specified time difference can be set manually. Setting Clock Display From Idle mode press B 4321 to enter the Display Pattern menu. Use e to select either Second Time or Home Time and press B Setting Auto Adjustment If you travel to a country which has a roaming agreement with your home network, your Second Clock will be automatically adjusted. However, for countries which have several time zones in the same country manual adjustment is required. 1 From Idle mode press B 431232 to enter the Auto Adjustment menu. 2 Use e to select home country and press B Enabling Auto Adjustment From Idle mode press B 431231 to enter the Auto Adjustment menu and press B Repeat to disable Auto Adjustment. Setting Manual Adjustment 1 From Idle mode press B 43121 to enter the Time Difference menu. 2 Use e to select the time difference required and press B to set the value Setting Summer Time 1 From Idle mode press B 43122 to enter the Summer Time menu. 2 Press B to set Summer Time on Once enabled, following the same procedure will disable Summer Time. Accessory Related Features When Auto Answer is switched on, and Personal Handsfree is connected, a call will be answered without pressing any keys. This is also applicable to the Handsfree Car Kit accessory. See the documentation provided with the relevant Accessory for operational details. 47 Text Entry Text Entry The phone provides a means for entering alphanumeric characters to enter details into the Phonebook, to create text and e-mail messages etc. This section details the characters that can be entered and the relevant keys to press. Text Mode Normal (U) Greek (V) Extended (W) Numeric (0-9) Key T9® 0 Alternatives 1 Punctuation space.@/:;+-”,!¡?¿()[]{}’&%\^~|<>=€£$¥¤§ 2 abc ABCabc ABG AÄÅÆBCÇaäåæàbc 2 3 def DEFdef DEZ DEÉFdeéèf 3 4 ghi GHIghi HQI GHIghiì 4 5 jkl JKLjkl KLM JKLjkl 5 6 mno MNOmno NXO MNÑOÖØmnñoöøò 6 0+P_ 1 7 pqrs PQRSpqrs PRS PQRSpqrsß 7 8 tuv TUVtuv TUF TUÜVtuüùv 8 9 wxyz WXYZwxyz CYW WXYZwxyz 9 * Shift/Lock* * * * * # Space # # # # * Press * once to enter a single capital letter (subsequent characters will be lower case). Pressing * twice acts as a keyboard CAPS LOCK function and subsequent characters will be uppercase, until * is pressed for a third time returning to lowercase character entry. T9®Text Input Using this mode of text entry dramatically reduces the number of key presses required: Press a key once for any letter you require on that key. The desired letter may not be displayed. Continue pressing other keys until the end of a word is reached; then check that the word has been typed correctly before continuing on to the next word. 48 Text Entry If the combination of letters typed has produced a word which is not the one you require, press 0 repeatedly until the correct word is displayed. Continue to the next word. If the word you require is not in the internal dictionary (i.e. It is a proper noun or a rarely used word) then it should be entered using the Normal (U) mode. Other Text Modes To access any of the other text entry modes use A to cycle through until the desired mode is displayed in the Information Area. When using Normal (U), Greek (V) or Extended (W) text entry modes, each time a key is pressed in quick succession it will display the next character available on that key (or if the key is pressed and held down it will cycle through the available characters). Releasing the key, or pressing another key will enter the currently displayed character and the cursor will move to the next position. Editing Text Pressing e will move you up or down one text line (or field in Phonebook). Pressing f will move you left or right one character (or to the first character of the previous or ® next word when using T9 text entry mode). When the cursor is moved over a character and another key pressed this will insert the new character immediately before the selected character. Pressing C will delete the character to the left of the cursor or delete the current line when pressed and held. T9® is a trademark of Tegic Communications Inc. 49 Menu Structure Menu Structure From Idle mode pressing B will display a menu of phone features. To select a feature press e so that the pointer is showing next to the feature that you require then press B. To exit the current menu and return to the previous level press C. To exit completely out of the menu structure, press and hold C, or E (except during a call). 1 Key Guard Browse 2 Phonebook 3 Messages 4 Applications Create Alert Profile Group Setting Review My Numbers Service Dial * Hot Key Dial Personal Dial Start Browser Browser Setting Clock Function Calculator Currency Receive List Send List Create User Defined Msg Review Parameters Broadcasts Short Message E-mail Clock Set Clock Format Alarm Set Power On Time Power Off Time Inbox Outbox Create Send/Receive Review Parameters Home Second 5 Personalise 6 Call Service 7 Call Divert 8 Security Language Tones Voice Command Display Setting Vibration Alert Auto Answer DTMF Length Defaults Phone Lock Call Bar PIN PIN2 Fixed Dial Barred Dial 9 Network * Function is SIM/network dependent 50 Display Language Tegic language Voice Dial Greeting Backlight Colour Contrast Animation Key Backlight Back Case Light Voice Calls Fax Calls Data Calls Cancel All Status Bar Voice Bar Fax Bar Data Cancel All Status Password Display Pattern Display Format All Tones Ring Volume Ring Type Melody Composer Voice Ringer Key Volume Warning Tone Last Call All Calls Call Waiting Caller’s ID Withhold ID Call Charge Cost Left * Price/Unit * Max Cost * Warning at * New Network Search Mode Network List Trouble Shooting Trouble Shooting Should any problem persist contact your dealer. Problem Cause Remedy Check that the Battery Pack is fully charged and correctly connected to the phone Telephone will not switch on Extremely short battery life for a new battery pack The network you are using and the condition of the battery pack can affect battery life Short battery life for an old battery pack The battery pack has Replace with a new one worn out The charging indicator does not light and the phone cannot be switched on when charging When the Battery Pack has been deeply discharged the phone will take a short time until the indicator lights Calls cannot be made Calls cannot be made from Fixed Dial Store Leave the phone charging the Battery Pack for a few minutes before the indicator is lit and attempting to switch it on The phone is locked Unlock the phone Outgoing calls are barred Disable the outgoing call barring, or barred dial The phone is not registered to a network Move to a coverage area and operate your phone after it has registered with a network. Check your SIM supports Fixed Dial Check if the Fixed Dial is switched on Check the phone number is stored in the Fixed Dial 51 Trouble Shooting Calls cannot be received Emergency calls cannot be made The phone is not switched on Switch the phone on Incoming calls are barred Disable the incoming call barring The phone is not registered to a network Move to a coverage area and operate your phone after it has registered with a network. You are not in a GSM coverage area Check that the antenna symbol S is displayed - move to a coverage area and operate your phone when the antenna symbol is displayed The phone is locked Telephone numbers cannot be Phone number has recalled from been restricted Phonebook Unlock the phone Switch off restriction Important Error Messages These are some of the most important error messages which may be displayed: Area Not Allowed Roaming in the selected area is not allowed Network Not Allowed Roaming with the selected network is not allowed Security Failure The network has detected an authentication failure because your SIM is not registered with that network contact your Service Provider SIM Blocked / Contact Service provider The SIM is blocked because one of the PIN/PIN2 unblocking keys (PUK/PUK2) has been entered incorrectly ten times - contact your Service Provider SIM Error The phone has detected a problem with the SIM - switch the phone off and then back on; if the message is still displayed contact your Service Provider SIM Invalid The SIM has failed one or more of the SIM personalisation checks - contact your Service Provider Function Unavailable The selected feature is either not supported by the SIM or is not available with the current subscription - contact your Service Provider PIN2 Invalidated The PIN2 is blocked permanently because the wrong PUK2 has been entered ten times, services controlled by PIN2 cannot be used - contact your Service Provider 52 Trouble Shooting Message Rejected Store Full A message has been received but the message store is full - to receive messages, delete some of the currently stored messages or set messages to Auto Delete Number Too Long (Max:20) The edited or newly created Phonebook number is too long for the SIM Warning Store Full Continue? The message area is full. Your messages cannot be stored until some of the currently stored messages are deleted Verification Failure On changing the phone lock code, verification of the new code is incorrect - retry changing the lock code with correct verification Incorrect Lock Code Disabling or enabling the lock code has failed due to incorrect entry of the lock code - re-enter lock code Incorrect PIN / The entered code is incorrect - re-enter code correctly PIN2 / PUK / PUK2 Auto Redial List Full Redial list of unsuccessfully dialled numbers is full - switch the phone off and then on again 53 Important Information Important Information Safety Considerations The following information should be read and understood as it provides details which will enable you to operate your phone in a manner which is both safe to you and your environment, and conforms to any legal requirements regarding the use of cellular phones. This equipment should only be charged with approved charging equipment. Other usage will invalidate any approval given to this apparatus and may be dangerous. The use of approved charging equipment is recommended to ensure optimum performance and avoid damage to your phone. Ensure the voltage rating of the AC Adaptor is compatible with the country of use when travelling abroad. An AC Adaptor (EB-CAD92xx*) is supplied with the Main Kit. Other recommended equipment for charging - DC Adaptor (EB-CDD92), Handsfree Car Kit (EB-HFD93Z). * Where xx identifies the specific AC Adaptor region, e.g. CN, EU, HK, TW, UK. Switch off your cellular phone when in an aircraft. The use of cellular phones in an aircraft may be dangerous to the operation of the aircraft, disrupt the cellular network and may be illegal. Failure to observe this instruction may lead to the suspension or denial of cellular phone services to the offender, or legal action or both. You are advised not to use the equipment at a refuelling point. You are reminded to observe restrictions on the use of radio equipment in fuel depots, chemical plants or where blasting operations are in progress. Never expose the battery pack to extreme temperatures (in excess of 60°C) or charge the battery pack for much longer than recommended. You MUST exercise proper control of your vehicle at all times. Do not hold a phone while you are driving; find a safe place to stop first. Do not speak into a handsfree microphone if it will take your mind off the road. Always acquaint yourself thoroughly with restrictions concerning the use of cellular phones within the country you are driving and observe them at all times. Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids. 54 Important Information For most efficient use hold the phone as you would any normal telephone. Keep the antenna pointed over your shoulder while in use. Use only the supplied or approved replacement antenna. Unauthorized antennas, modifications or attachments may damage the phone and violate applicable regulations. The use of an unapproved antenna, modification or attachment may result in the invalidation of your guarantee – this does not affect your statutory rights. This Panasonic mobile phone is designed, manufactured and tested to ensure that it complies with the following specifications covering RF exposure guidelines; 1999/519 EC, ICNIRP 1998, in accordance with ES59005 1998 ANSI C95.1-1992 (USA, Asia-Pacific), in accordance with FCC Guidelines (FCC 1997) AS/NZS 2772.1 (Int)-1998 (Australia), in accordance with ACA RS1999 55 Care and Maintenance Care and Maintenance Pressing any of the keys may produce a loud tone. Avoid holding the phone close to the ear while pressing the keys. Extreme temperatures may have a temporary effect on the operation of your phone. This is normal and does not indicate a fault. Do not modify or disassemble the equipment. There are no user serviceable parts. Do not subject the equipment to excessive vibration or shock. Avoid contact with liquids. If the equipment becomes wet immediately remove the power and contact your dealer. Do not leave the equipment in direct sunlight or a humid, dusty or hot area. Keep metallic items that may accidentally touch the terminals away from the equipment. Always charge the Battery Pack in a well ventilated area, not in direct sunlight, between +5°C and +35°C. It is not possible to recharge the battery pack if it is outside this temperature range. Avoid recharging battery packs for longer than recommended. Do not incinerate or dispose of the battery packs as ordinary rubbish. The battery packs must be disposed of in accordance with local legislation and may be recycled. When disposing of any packing materials or old equipment check with your local authorities for information on recycling. 56 Glossary of Terms Glossary of Terms DTMF Tones Dual Tone Multi-Frequency tones allow you to communicate with computerized phone systems, voice mailboxes etc. GSM Global System for Mobile Communications. The name given to the advanced digital technology that your phone uses. Home Country The country where your home network operates. Home Network The GSM network on which your subscription details are held. Network Operator The organization responsible for operating a GSM network. Password Used for the control of the Call Bar. Supplied by your Service Provider. PIN Personal Identification Number used for SIM security. Supplied by your Service Provider. If the PIN is entered incorrectly 3 times, the PIN will be blocked. PIN2 Personal Identification Number used for the control of Fixed Dial Store and Call Charge metering. Supplied by your Service Provider. If the PIN2 is entered incorrectly 3 times, the PIN2 will be blocked. PUK/PUK2 PIN/PIN2 Unblocking Key. Used to unblock the PIN/PIN2. Supplied by your Service Provider. If the PUK/PUK2 is entered incorrectly 10 times, the PUK/PUK2 will be blocked. Registration The act of locking on to a GSM network. This is usually performed automatically by your phone. Roaming The ability to use your phone on networks other than your Home network. Service Provider The organization responsible for providing access to the GSM network. SIM Subscriber Identity Module. A small smart-card which stores unique subscriber and user-entered information such as Phonebook and Short Messages. Supplied by your Service Provider. 57 Specifications Specifications Telephone Type Temperature range Charging Storage GSM900 Class 4 GSM1800 Class 1 +5°C to +35°C -20°C to +60°C Battery – Attached to phone Weight Dimensions Height x Width x Depth Supply Voltage Standby Time - Idle Mode (h) Talk Time (h) Charge Time (min) Battery Pack (S) 80 g 120 x 45 x 16.4mm 3.7V DC, 650mAh Li-Ion Up to 170 3.5 100 Note: Charge time will be longer when the phone is turned on. Battery life is affected by the network you are using and the condition of the battery pack. 58 EU Warranty EU Warranty EU/EEA-Wide guarantee is applicable in the EU/EEA and Switzerland. Panasonic GSM European Service Guarantee Conditions Dear Customer, Thank you for buying this Panasonic digital cellular telephone. The Panasonic GSM European Service Guarantee only applies while traveling in countries other than where the product was purchased. Your local guarantee is applicable in all other cases. If your Panasonic GSM telephone requires service while abroad, please contact the local service company shown on this document. The Guarantee The applicable period of the European wide guarantee for GSM is generally 12 months for the main body and 3 months for the rechargeable battery. With respect to a product used in a country other than a country of purchase, notwithstanding what is stated in the conditions below, the customer will benefit, in that country of use, from these guarantee periods of, respectively, 12 and 3 months, if these conditions are more favorable to him than the local guarantee conditions applicable in such country of use. Conditions of Guarantee When requesting guarantee service the purchaser should present the warranty card together with proof of purchase, to an authorized service centre. The guarantee covers breakdowns due to manufacturing or design faults; it does not apply to other events such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorized by us. Your sole and exclusive remedy under this guarantee against us is the repair, or at our option the replacement, of the product, or any defective part or parts. No other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser. This is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. This guarantee applies in countries shown on this document at the authorized service centres detailed for that country. UK Service Centres in the UK Tel. +44 870 5159159 D Panasonic Service Center Dresden SERKO GmbH Großenhainer Straße 163 01129 Dresden Tel. +49 (0)351/ 85 88 477 Panasonic Service Center Cottbus Petsch Kundendienst GmbH Am Seegraben 21 03058 Gross-Gaglow Tel. +49 (0)355/ 58 36 36 Panasonic Service Center Leipzig KES Keilitz-Electronic-Service GmbH Föpplstraße 19 04347 Leipzig Tel. +49 (0)341/ 244 33 33 Panasonic Service Center Chemnitz WPS Rundfunk- u. Fernsehservice GmbH Zietenstraße 16 09130 Chemnitz Tel. +49 (0)371/ 40 10 359 Panasonic Service Center Berlin SERKO GmbH Schwedter Straße 34a 10435 Berlin Tel. +49 (0)30/ 44 30 3221 Panasonic Service Center Berlin RUESS SYSTEMS Thrasoltstraße 11 10585 Berlin Tel. +49 (0)30/ 342 2013 Panasonic Service Center Rostock warnow electronic service gmbh An der Jägerbäk 2 18069 Rostock Tel. +49 (0)381/ 82 016 Panasonic Service Center Hamburg ELVICE Service GmbH Spaldingstraße 74 20097 Hamburg Tel. +49 (0)40/ 23 08 07 Panasonic Service Center Rendsburg FERNSEH-DIENST B&W Service GmbH Kieler Straße 41 24768 Rendsburg Tel. +49 (0)4331/ 14 11-0 Panasonic Service Center Bremen COM Elektronik Service GmbH Rübekamp 50 28219 Bremen Tel. +49 (0)421/ 691 80 69 Panasonic Service Center Hannover COM Elektronik Service GmbH Vahrenwalder Straße 311 30179 Hannover Tel. +49 (0)511/ 37 27 91 59 EU Warranty Panasonic Service Center Magdeburg SERKO GmbH Ebendorfer Chaussee 47 39128 Magdeburg Tel. +49 (0)391/ 289 90 69 Panasonic Service Center Düsseldorf VTH GmbH Kölner Straße 147 40227 Düsseldorf Tel. +49 (0)211/ 77 90 25 Panasonic Service Center Essen Bernd van Bevern GmbH Heinrich-Held-Straße 16 45133 Essen Tel. +49 (0)201/ 84 20 220 Panasonic Service Center Osnabrück Petsch Kundendienst GmbH Pagenstecherstraße 75 49090 Osnabrück Tel. +49 (0) 541/ 68 038 Panasonic Service Center Wiesbaden J. Hemmerling - VAD GmbH Ostring 7 65205 Wiesbaden Tel. +49 (0)6122/ 90 91 10 Panasonic Service Center Mannheim N. Schaaf Reichenbachstraße 21-23 68309 Mannheim Tel. +49 (0)621/ 72 787-0 Panasonic Service Center Stuttgart Hans Beck Friedrich-List-Straße 38 70771 Leinfelden-Echterdingen Tel. +49 (0) 711/ 94 701-0 Panasonic Service Center Reutlingen Herbert Geissler Lichtensteinstraße 75 72770 Reutlingen Tel. +49 (0)7072 / 92 96-0 Panasonic Service Center München G.Berghofer & W.Kaller GmbH Helene-Wessel-Bogen 7 80939 München Tel. +49 (0)89/ 318 907-0 Panasonic Service Center Augsburg Klaus Bienek Affinger Straße 4 86167 Augsburg Tel. +49 (0)821/ 70 70 75 Panasonic Service Center Nürnberg Herbert Geissler GmbH Friedrich-Ebert-Straße 21 90537 Feucht Tel. +49 (0)9128/ 70 76-0 Panasonic Service Center Eisenach Blitz Elektro-Elektronik-GmbH Bahnhofstraße 17 99817 Eisenach Tel. +49 (0)3691/ 29 29 42 8 60 A Service-Zentren in Österreich Funk Fuchs GmbH & CoKg Unterhart 90 4642 Sattledt Tel. +43 7244 733 Funktechnik Seissl Dorf 79 6330 Schwoich Tel. +43 5372 8217 Elektro Oberndorfer Linzer Straße 2-4 4840 Vöcklabruck Tel. +43 7672 72889 Panasonic Austria Handelsges.mbH Laxenburger Straße 252 1232 Wien Tel. +43 222/61080 FR Centres de service après-vente en France ASTELCOM 75 quai de Seine 75019 - Paris Tél.: +33 01 42 09 95 16 ELECTRONIQUE SERVICE av. Figuières ZAC Font de la Banquière 34970 - Lattes Tél.: +33 04 67 15 96 30 DMF ELECTRONIQUE 24 rue de l’Economie 69500 - Lyon-Bron Tél.: +33 04 72 37 16 27 S.T.E. 3 chemin de l’Industrie 06110 - Le Cannet Rocheville Tél.: +33 04 93 46 05 00 LAPUCE 31 rue des Teinturiers 14300 - Caen Tél.: +33 02 31 86 64 51 S.T.R.A. 15 bis rue du Pré La Reine 63100 Clermont-Ferrand Tél.: +33 04 73 92 01 40 CLINIC VIDEO 1 bis rue de Beauvais 56100 - Lorient Tél.: +33 02 97 21 06 07 BEAUGENDRE 8 bis rue du Pré du Bois/ZI de Chantpie 35500 - Rennes Tél.: +33 02 99 50 24 14 CETELEC 6 impasse du pétrole 13015 Marseille Tél.: +33 04 91 02 17 17 SETELEC 23 rue du Châtelet 76420 - Bihorel Les Rouens Tél.: +33 02 35 60 64 39 EU Warranty ELECTROTECH 2 bd Alexandre 1er de Yougoslavie 21000 - Dijon Tél.: +33 03 80 56 18 09 TELEMAN 4 rue du 19 mars 1962 38320 - Eybens Tél.: +33 04 76 25 50 20 TECHNIC COLOR ZI Thibaut 15 rue Boudeville 31084 - Toulouse cedex Tél.: +33 05 61 40 32 32 ELECTRONIQUE SERVICE+ 5, bd Louis XI, ZI Menneton, 37000 - Tours Tél.: +33 02 47 36 43 43 SAVLOR 33, av. du Général De Gaulle, 54280 - Seichamps Tél: +33 02 20 82 82 TEVISO ZA de Terrefort B.P. 71 33520 - Bruges Tél.: +33 05 56 28 96 36 M.R.T. 74 rue Albert Einstein ZI Nord 72021 - Le Mans cedex Tél.: +33 02 43 28 52 20 EUROTECHNIC 3 rue Niepce ZA Les Garennes 78130 - Les Mureaux Tél.: +33 02 34 92 02 40 A.A.V.I Centre de gros 1 rue du Mont deTerre 59818 - Lesquin Tél.: +33 03 20 62 18 98 SID ELECTRONIQUE 95 - 97 avenue Roger Salengro 13003 - Marseille Tél.: +33 04 91 50 52 54 I.T.V.S. Village du petit chatelier 359 Route de Ste-Luce 44301 NANTES Tél.: +33 02 51 89 18 10 N.T.M. 40 Bd Bessières 75017 PARIS Tél.: +33 01 40 29 60 04 S.T.A.V. 14 Rue dessaix 67450 MUNDOLSHEIM Tél.: +33 03 88 20 43 30 NL Service-centra in Nederlands Panasonic-Centre Nederland (Servicom bv) P.O Box 16280 2500 BG Den-Haag Nederland Tel. +31 703314314 Zonweg 60 2516 BM Den-Haag Nederland Tel. +31 703314314 I Per i Centri Assisitenza in Italia Servizio Clienti Tel. +39 02/ 67072556 E Centros de Servicio en España PANASONIC SALES SPAIN, S.A. (S.T.R.) Clara del REY, 8 Lateral 28002 Madrid Tel. +34 91 519 91 40 ZENER ELECTRONICA Orillamar, 65 Bajo 15002 La Coruña Tel. +34 981 22 07 00 ELECTRONICA MILLAN, S.L. Natalia, 6 29009 Málaga Tel. +34 95 227 39 87 TECNOLEC, S.A Pinar del Río, 48 - 50 08027 Barcelona Tel. +34 93 340 87 53 S.T.R. BROADCAST Av. Zuberoa, 12 48012 Bilbao Tel. +34 94 410 00 23 LAVISON, C.B. Montseny, 35 17005 Girona Tel. +34 972 23 01 22 IRTESA ELECTRONICA Jaume Ferran, 72 07004 Palma de Mallorca Tel. +34 971 20 47 02 PANASONIC SALES SPAIN, S.A. (S.T.R.) Asunción, 27 41011 Sevilla Tel. +34 95 427 54 04 PANASONIC SALES SPAIN, S.A. (S.T.R.) Alberíque, 33 46008 Valencia Tel. +34 96 385 76 31 61 EU Warranty DK For nærmeste servicecenter ring Panasonic Danmark Tel. +45 43 20 08 50 S Firmor i Sverige Komrep Rosenlundsgatan 4 411 20 Göteborg Tel. +46 031-173354 Signalstyrkan Kungsholmstorg 4 104 22 Stockholm Tel. +46 08-6542500 CR service Industribyn 3 232 37 Malmö Tel. +46 040-430030 SF Huoltokeskukset Suomessa: KAUKOMARKKINAT OY PANASONIC-HUOLLOT Kutojantie 4 02630 Espoo Puh. +358 09 521 5151 Huolto Puh. +358 09 521 5155 Varaosat Ja Tarvikkeet SETELE OY Vanha Viertotie 7 00300 Helsinki Puh. +358 09 549100 PLAY-SHOP SERVICE Keskuskatu 3 00100 Helsinki Puh. +358 09 27053626 MEGAFIX KY Louhenkatu 9 74100 Iisalmi Puh. +358 017 14631 T: MI.M.HAAPOJA Miilukatu 7 40320 Jyväskylä Puh. +358 014 677121 OUTOKUMMUN PUHELIN Pohjoisahonkatu 9 83500 Outokumpu Puh. +358 013 562211 SETELE OY Rengastie 31 60100 Seinäjoki Puh. +358 06 4148344 TURUN J-MARKKINAT OY Tuureporinkatu 6 20100 Turku Puh. + 358 02 2332685 62 N Servicesenter i Norge Norsk Elektronikksenter Fetveien 1 2007 Kjeller Tlf: +47 63 80 45 00 Panasonic Norge AS Østre Aker vei 22 0508 Oslo Tlf: +47 22 91 68 00 GR ÊÝíôñá ôå÷íéêÞò õðïóôÞñéîçò INTERTECH S.A. International Technologies Áöñïäßôçò 26, 167 77 Åëëçíéêü Tá÷. Èõñ.: 738 21, 167 10 ÅËËÇÍÉÊÏ Ôçë. ÊÝíôñï: (01) 9692.300 ÕðïêáôÜóôçìá Âüñåéáò ÅëëÜäáò: Ê. ÊáñáìáíëÞ 11, 54638 ÈÅÓÓÁËÏÍÉÊÇ Ôçë. ÊÝíôñï: (031) 245.840-3 P Centros de Assistência em Portugal PAPELACO, S.A. Vale Paraiso - Ferreiras 8200 ALBUFEIRA ALGARVE Tel. +351 89 589960 PAPELACO, S.A. Largo de Santos, 9 1200 LISBOA Tel. +351 1 3970539 PAPELACO, S.A. Largo do Tribunal, Lote 11 2400 LEIRIA Tel. +351 44 28071 PAPELACO, S.A. Rua Cidade de Santos, 31R/C 9000 FUNCHAL MADEIRA Tel. +351 91 231523 PAPELACO, S.A. Rua do Outeiro, Lote 25 - Gemunde 4470 MAIA PORTO Tel. +351 2 944 0354/9 PAPELACO, S.A. Rua Major Leopoldo da Silva, Lote 3 3500 VISEU Tel. +351 32 424771 EU Warranty B Centres de service après-vente en Belgique BROOTHAERS Hoevelei 167 2630 AARTSELAAR Tel. +32 03/887 06 24 HENROTTE Rue du Campinaire 154 6240 FARCIENNES Tel. +32 071/39 62 90 PIXEL VIDEOTECH Rue St Remy 7 4000 LIEGE Tel. +32 041/23 46 26 DELTA ELECTRONICS Rue P.d’Alouette 39 5100 NANINNE Tel. +32 081/40 21 67 ELEKSERVICE FEYS Houthulstseweg 56 8920 POELKAPELLE Tel. + 32 057/48 96 37 AVS WAASLAND Lavendelstraat 113 9100 ST NIKLAAS Tel. +32 03/777 99 64 A.V.T.C SA Kleine Winkellaan 54 1853 STROMBEEK-BEVER Tel. + 32 02/267 40 19 RADIO RESEARCH Rue des Carmélites 123 1180 BRUXELLES Tel. +32 02/345 68 56 VIDEO TECHNICAL SERVICE Av. du Roi Albert 207 1080 BRUXELLES Tel. +32 02/465 33 10 SERVICE CENTER Kapellestraat 95 9800 DEINZE Tel. +32 09/386 76 67 TOP SERVICE Westerloseweg 10 2440 GEEL Tel. +32 014/54 76 24 TELECTRO SC Quai des Ardennes 50 4020 Liège Tel. +32 041/43 29 04 CH Jonh Lay Electronics AG Littauerboden 6014 Littau Phone: +41 41 259 9090 Fax: +41 41 252 0202 TR TEKOFAKS ISTANBUL CENTRE OFFICE KAÐITHANE CADDESI SEVÝLEN SOKAK NO. 58 80340 ÇAÐLAYAN-ISTANBUL Tel: 90-212-220 60 70 / 14 Lines Fax: 90-212-220-60 94 ANKARA BRANCH OFFICE GÜVEN MAH.FARABI SOKAK NO: 38/6 06690 KAVAKLIDERE- ANKARA Tel: 90-312-467 30 94/2 Lines pbx Fax: 90-312 467 85 38 ÝSMÝR BRANCH OFFICE CUMHURÝYET BULVARI NO:330 K.:6 D.:608 SEVÝL ÝÞ MERKEZÝ 35520 ALSANCAK-ÝZMÝR Tel: 90-232-464 29 01 pbx Fax: 90-232-422 67 44 BURSA BRANCH OFFICE ÞEHREKÜSTÜ MAHLLESÝ DURAK CADDESÝ NO.:7 BURSA Tel: 90-224-225 10 46 pbx Fax: 90-224-223 81 03 ADANA BRANCH OFFICE REÞATBEY MAH.FUZULÝ CAD.GÜLEK SÝTESÝ A BLOK NO: 75b 01120 ADANA Tel: 90-322-458 39 52 pbx Fax: 90-322-453 21 32 TRABZON BRANCH OFFICE MARAÞ CAD.MARAÞ APT.NO:51 D.:2 61200 TRABZON Tel: 90-462-321 33 08 Fax: 90-462-326 37 78 ANTALYA BRANCH OFFICE ALTINDAÐ MAH. 146 SOKAK ÖZKOÇ APT.NO:9/1-2A ANTALYA Tel: 90-242-243 23 70 / 3 Lines Fax: 90-242-243 23 72 DÝYARBAKIR BRANCH OFFICE LÝSE CADDESÝ GÖKALP APT.NO: 18/A DÝYARBAKIR Tel: 90-412-228 73 00 Fax: 90-412-223 59 00 L Centres de service après-vente au Luxembourg NOUVELLE CENTRAL RADIO Rue des Jones 15 L - 1818 Howald Luxembourg - Grand Duché Tel. +32 40 40 78 63 EU Warranty EU/EEA-Wide Guarantee: Conditions applicable in any country other than the country of original purchase. A When the purchaser finds the appliance to be defective, he should promptly contact the proper sales company or national distributor in the EU/EEA country where this guarantee is claimed, as indicated in the “Product Service Guide” or the nearest authorized dealer together with this guarantee and proof of date of purchase. The purchaser will then be informed whether: (i) the sales company or national distributor will handle the repair service: or (ii) the sales company or national distributor will arrange for trans-shipment of the appliance to the EU/EEA country where the appliance was originally marketed; or (iii) the purchaser may himself send the appliance to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed. B If the appliance is a product model which is normally supplied by the sales company or national distributor in the country where it is used by the purchaser, then the appliance, together with this guarantee card and proof of date of purchase, should be returned at the purchaser’s risk and expense to such sales company or distributor, which will handle the repair service. In some countries, the affiliated sales company or national distributor will designate dealers or certain service centres to execute the repairs involved. C If the appliance is a product model which is not normally supplied in the country where used, or if the appliance’s internal or external product characteristics are different from those of the equivalent model in the country where used, the sales company or national distributor may be able to have the guarantee repair service executed by obtaining spare parts from the country where the appliance was originally marketed, or it may be necessary to have the guarantee repair service executed the sales company or national distributor in the country where the appliance was originally marketed. In either case, the purchaser must furnish this guarantee card and proof of date of purchase. Any necessary transportation, both of the appliance and of any spare parts, will be at the purchaser’s risk and expense, and there may be a consequent delay in the repair service. D Where the consumer sends the appliance for repair to the sales company or national distributor in the country of use of the appliance, the service will be provided on the same local terms and conditions (including the period of guarantee coverage) as prevail for the same model appliance in the country of use, and not the country of initial sale in the EU/EEA. Where the consumer sends the appliance for repair to the sales company or national distributor in the EU/EEA country where the appliance was originally marketed, the repair service will be provided on the local terms and conditions prevailing in the country of initial sale in the EU/EEA. E Some product models require adjustment or adaptation for proper performance and safe use in different EU/EEA countries, in accordance with local voltage requirements and safety or other technical standards imposed or recommended by applicable regulations. For certain product models, the cost of such adjustment or adaptation may be substantial and it may be difficult to satisfy local voltage requirements and safety or other technical standards. It is strongly recommended that the purchaser investigates these local technical and safety factors before using the appliance in another EU/EEA country. F This guarantee shall not cover the cost of any adjustments or adaptations to meet local voltage requirements and safety or other technical standards. The sales company or national distributor may be in a position to make the necessary adjustments or adaptations to certain product models at the cost of the purchaser. However, for technical reasons it is not possible to adjust or adapt all product models to comply with local voltage requirements and safety or other technical standards. Moreover, where adaptations or adjustments are carried out the performance of the appliance may be affected. G If in the opinion of the sales company or national distributor in the country where the appliance is used the purchaser has the necessary adjustments or adaptations to local voltage requirements and technical or safety standards properly made, any subsequent guarantee repair service will be provided as above indicated, provided the purchaser discloses the nature of the adjustment or adaptation if relevant to the repair. (It is recommended that the purchaser should not send adapted or adjusted equipment for repair to the sales company or national distributor in the country where the appliance was originally marketed if the repair relates in any way to the adaptation or adjustment). H This guarantee shall only be valid in territories subject to the laws of the European Union and the EEA. Please keep this guarantee with your receipt. 64 E-mail Settings Use the table below to record your E-mail settings. The list may vary depending on the Internet Service Provider. Item Hint Profile Name Service Provider Name Mail Account Your E-mail Address SMTP Server Domain Name or IP Address POP3 Server Domain Name or IP Address Current Setting POP3 Account Password Reminder of Password Mail Delivery Leave/Delete Message* Access Point Phone Number Circuit Type Analog or Digital User ID Your name (or alias) User Password Reminder of Password Primary DNS IP Address Secondary DNS IP Address * This function allows e-mail messages to either be removed from the server when they have been downloaded to the phone, or they can be left on the server. WAP Settings Use the table below to record your WAP settings. Item Hint Name WAP Server Name Home URL URL of Server Security On or Off Circuit Type Analog or Digital Digital Dial # Phone Number Analog Dial # Phone Number PPP ID Name PPP Password Password Gateway IP IP Address Current Setting The Serial Number can be found on the outside of the phone under the battery. For your convenience we recommend that you note the following details as a record of your purchase. Part Number Serial Number Dealer Name Purchase Date BULL CP8 PATENT © Matsushita Communication Industrial UK Limited 2000 Information in this document is subject to change without notice. No part of these instructions may be reproduced or transmitted in any form or by any means without obtaining express permission from Matsushita Communication Industrial UK Limited Printed in UK www.mcuk.panasonic.co.uk 7LC043A 00.285
